OWNER'S MANUAL IfSANSUl

26" TFT LCD DIGITAL TV WITH DVD PLAYER

HDLCDVD260A

VIDEO DIGITALAUBIOD| G |T A L Digital0ut H tTll| TM

HIGH-DEFINITION MULTIMEDIA INTERFACE

3000

oooo

o_o

ATTENTION

If you purchase a universal remote control from your local retailer, please contact the remote

manufacturer for the required programming code.

TV/CABLE MODE SELECTION

When shipped from the factory, the Tuning Band option is set to the "Cable" (CableTelevision) mode.

If not using CABLE, set this option to the "Air" position.

IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED

PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL

CUSTOMER SERVICE - 1-800-289-0980

ORION WEBSITE

FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT

www.orionsalesinc.com

Before operating the unit, please read this manual thoroughly.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER

(OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead

symbol, within an equilateral triangle

is intended to alert the user to the

presence of uninsulated dangerous

voltage within the product's enclosure

that may be of sufficient magnitude to

constitute a risk of electric shock.

The exclamation point within an

equilateral triangle is intended to

alert the user to the presence of

important operating and maintenance

(servicing) instructions in the literature

accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USETHIS POLARIZED PLUG WITH AN EX-

TENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE

FULLY INSERTED TO PREVENT BLADE EXPOSURE.

WARNING:

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is encouraged to try to correct the interfer-

ence by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance with

the FCC Rules could void the user's authority to operate this equipment.

CAUTION:

THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM.

TO ENSURE PROPER USE OFTHIS PRODUCT, PLEASE

READ THIS OWNER'S MANUAL CAREFULLY AND RETAIN

FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE

MAINTENANCE, CONTACT AN AUTHORIZED SERVICE

LOCATION-SEE SERVICE PROCEDURE.

USE OF CONTROLS, ADJUSTMENTS ORTHE

PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.

TO PREVENT DIRECT EXPOSURE TO THE LASER BEAM,

DO NOTTRY TO OPEN THE ENCLOSURE. RADIATION

MANY BE PRESENT WHEN THE ENCLOSURE IS OPENED.

DO NOT STARE INTO THE BEAM.

Location of the required Marking

The rating sheet and the safety caution are

on the rear of the unit.

CERTIFICATION: COMPLIES WITH FDA

RADIATION PERFORMANCE STANDARDS,

21 CFR SUBCHAPTER J.

The lamp(s) within this product contain mercury. I

Disposal should be in compliance with local, state or federal laws. I

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with a clean dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and a third grounding prong. The

wide blade and the third prong are provided for your safety. If the provided plug does not fit into your outlet,

consult an electrician to replace the obsolete receptacle.

10) Protect the power cord from being walked on or pinched particularly at plug, and the point where it exits

from the apparatus.

11 ) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods

of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug

damage, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

PORTABLE CART WARNING

(symbol provided by RETAC)

15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such a vases,

should not be placed on the apparatus.

16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric

light or power circuits, or where it can fall into such power lines or circuits. When installing an outside

antenna system, extreme care should be taken to keep from touching such power lines or circuits, as

contact with them might be fatal.

17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.

18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short

out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.

19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is

grounded to provide some protection against voltage surges and built-up static charges, Section 810 of

the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the

mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding

conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for

the grounding electrode.

IMPORTANTSAFETY INSTRUCTIONS

EXAMPLE OF ANTENNA GROUNDING AS PER THE

NATIONAL ELECTRICAL CODE

(continued)

ANTENNA LEAD

IN WIRE

GROUND

CLAMP

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

ELECTRIC SERVICE

EQUIPMENT

NEC-NATIONAL ELECTRICAL CODE

S2898A

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

20)

21)

22)

23)

24)

25)

26)

27)

28)

29)

When replacement parts are required, be sure the service technician uses replacement parts specified by

the manufacturer or those that have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock or other hazards.

Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to

determine that the unit is in proper operating condition.

Keep your fingers clear of the disc slot as it is closing. It may cause injury.

When you connect the product to other equipment, turn off the power and unplug all of the equipment from

the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's

manual of the other equipment carefully and follow the instructions when making any connections.

Reduce the volume to the minimum level before you turn on the product. Otherwise, sudden high volume

sound may cause hearing or speaker damage.

Do not allow the product to output distorted sound for an extended period of time. It may cause speaker

overheating and fire.

When you use the headphones, keep the volume at a moderate level. If you use the headphones

continuously with high volume sound, it may cause hearing damage.

Do not look into the opening of the disc slot or ventilation opening of the product to see the source of the

laser beam. It may cause eye damage.

Do not use a cracked, deformed, or repaired disc.These discs are easily broken and may cause serious

personal injury and product malfunction.

This reminder is provided to call the cable TV system installer's attention to Article 820-40 of the NEC

that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be

connected to the grounding system of the building, as close to the point of cable entry as practical.

CONDENSATION

Moisture will form in the operating section of the player if the player is brought from cool surroundings into a warm

room or if the temperature of the room rises suddenly. When this happens, player's performance will be impaired.

To prevent this, let the player stand in its new surroundings for about an hour before switching it on, or make sure

that the room temperature rises gradually.

Condensation may also form during the summer if the player is exposed to the breeze from an air conditioner. In

such cases, change the location of the player.

HOWTO HANDLE THE LCD PANEL

•Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur.

• If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause

skin inflammation.

If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your

eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.

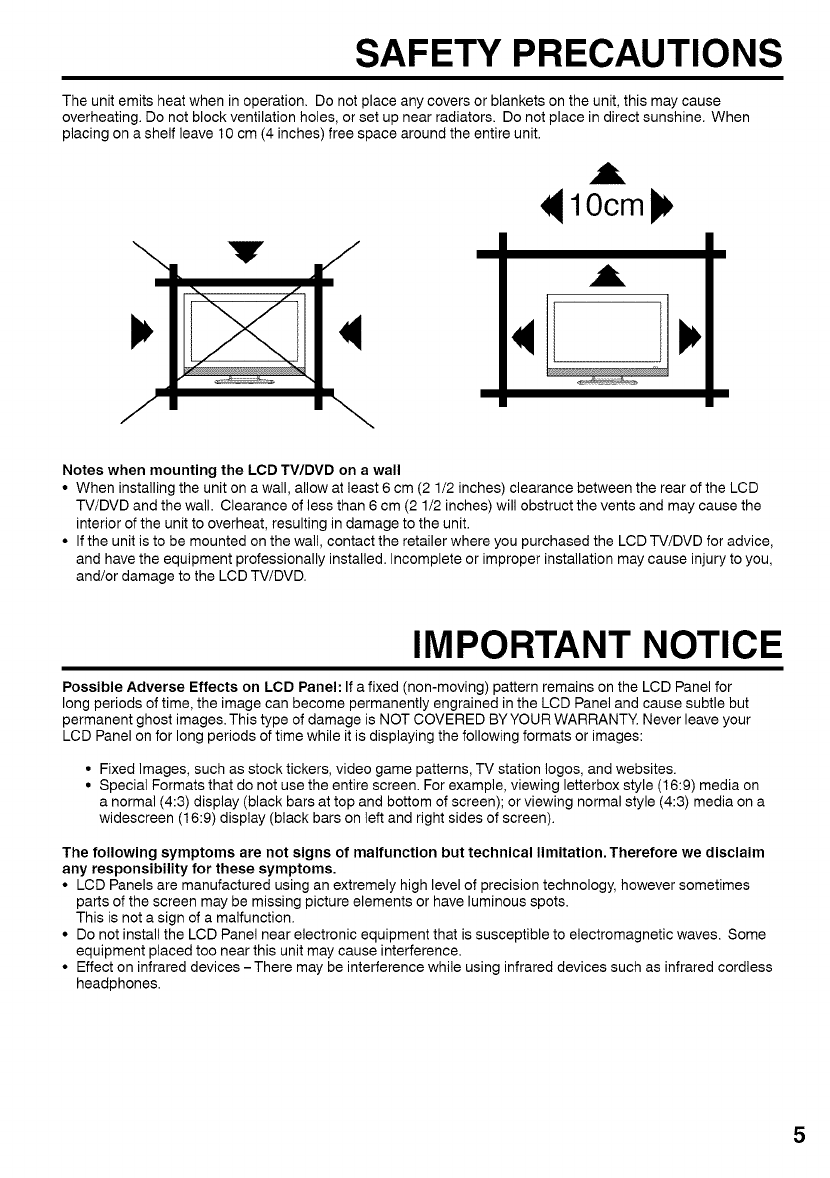

SAFETY PRECAUTIONS

The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause

overheating. Do not block ventilation holes, or set up near radiators. Do not place in direct sunshine. When

placing on a shelf leave 10 cm (4 inches) free space around the entire unit.

\ "v j

10cm

J \

Notes when mounting the LCD TV/DVD on a wall

•When installing the unit on a wall, allow at least 6 cm (2 1/2 inches) clearance between the rear of the LCD

TV/DVD and the wall. Clearance of less than 6 cm (2 1/2 inches) will obstruct the vents and may cause the

interior of the unit to overheat, resulting in damage to the unit.

• If the unit is to be mounted on the wall, contact the retailer where you purchased the LCD TV/DVD for advice,

and have the equipment professionally installed. Incomplete or improper installation may cause injury to you,

and/or damage to the LCD TV/DVD.

IMPORTANT NOTICE

Possible Adverse Effects on LCD Panel: If a fixed (non-moving) pattern remains on the LCD Panel for

long periods of time, the image can become permanently engrained in the LCD Panel and cause subtle but

permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your

LCD Panel on for long periods of time while it is displaying the following formats or images:

• Fixed Images, such as stock tickers, video game patterns, TV station Iogos, and websites.

• Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on

a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a

widescreen (16:9) display (black bars on left and right sides of screen).

The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim

any responsibility for these symptoms.

• LCD Panels are manufactured using an extremely high level of precision technology, however sometimes

parts of the screen may be missing picture elements or have luminous spots.

This is not a sign of a malfunction.

• Do not install the LCD Panel near electronic equipment that is susceptible to electromagnetic waves. Some

equipment placed too near this unit may cause interference.

• Effect on infrared devices -There may be interference while using infrared devices such as infrared cordless

headphones.

Featu res

LCD color TV With DVD/CD player

Unique space saving design combines a 26" LCD color TV and a DVD/CD player.

A DVD disc has much more capacity, but is the same size as an audio CD disc.The Picture/Audio quality of a

DVD exceeds other software. The picture quality is higher than Super VHS video cassettes. The audio quality

is higher than an audio CD. The DVD also has special options; audio language selection, subtitle language

selection, or multi-angle, etc.

The DVD PLAYER can play back both audio CDs and MP3/WMA/JPEG CDs.

Compatible with a wide range of DVD audio outputs

Digital Audio Jack (Coaxial)

•When a component with a built-in Dolby Digital decoder is connected, Dolby Digital sound can produce the

effect of being in a movie theater or a concert hall.

• Surround standard is different from Dolby Digital. This format is already in use in many theaters. By connecting

this unit to a DTS decoder or an AV amplifier with a built-in DTS decoder, the DTS audio of DVD discs

recorded in this format can be enjoyed. However, audio will not be output from the analog audio output jacks.

• By connecting this unit to an AV amplifier with a built-in MPEG decoder, the MPEG audio of DVD discs

recorded in this format can be enjoyed.

• The Linear PCM sound of a 48 kHz/24 bit through 96 kHz/24 bit exceeds audio CD sound.

Convenience Features

Direct selection of your desired scenes using Title/Chapter/Time/Track - You can play back from the

desired scene.

Recalling Up to 3 Scenes (DVD only) -You can program up to 3 scenes in memory and recall the marked

scenes.

Frame Advance - The PAUSE/STILL moves one frame at a time.

Slow Motion - The SLOW moves you back and forth through the program by 4 steps of 1/7-1/2 times.

Repeat Playback -You can repeat chapter, track, title, sides or material between two selected points.

Program Playback (Audio CD/MP3/WMA CD) - You can play back tracks in programmed sequences.

Zoom (DVD only) -You can zoom in the selected subject on the screen during playback.

Note: Make sure that discs are suitable for the following functions.

Multi-Language - Maximum 32 language subtitles and maximum 8 language soundtracks can be played back

for movies or programs.

Multi-Angle - Pictures of Sports or a Live Concert are recorded with many cameras. When you play such a disc,

you can change the angles during playback.

Parental Control - You can limit the play back of scenes or sounds of DVD discs that have a rating level

encoded on the disc.

Video Aspect Ratio - You can change the aspect ratio of the screen for your monitor.

TV Features

Integrated Digital Tuner -You can view digital broadcasts without using a Digital TV Set-Top Box.

Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for

hearing impaired viewers.

Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control

adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.

Programmable TV Sleep Timer - Operable from the remote control, the TV can be programmed for up to 120

minutes to turn off automatically.

On-Screen 3 Language Display - You can select one of 3 languages, English, Spanish or French for on-

screen programming.

V-Chip - The V-Chip function can read the rating of a TV program or movie content if the program is encoded

with this information. V-chip will allow you to set a restriction level.

*This product incorporates copyright protection technology that is protected by U.S. patents and other

intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision,

and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.

Reverse engineering or disassembly is prohibited.

*,_ is a trademark of DVD Format/Logo Licensing Corporation.

*Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of

Dolby Laboratories.

*"DTS" and "DTS Digital Out" are registered trademarks of DTS, Inc.

Contents

IMPORTANT SAFETY INSTRUCTIONS ........... 3

SAFETY PRECAUTIONS ................................. 5

IMPORTANT NOTICE ....................................... 5

Features ............................................................ 6

Contents ........................................................... 7

Disc ................................................................... 8

Location of controls ........................................... 9

Remote control ............................................... 11

Power source .................................................. 12

Antenna connections ...................................... 13

Cable TV connections ..................................... 14

Setting the language ....................................... 15

Memorizing channels ...................................... 16

TV operation ................................................... 19

Labeling channels ........................................... 22

Setting the V-Chip ........................................... 23

Closed Caption ............................................... 27

CC advanced .................................................. 28

Setting the picture size .................................... 29

Adjusting the picture preference ..................... 31

Picture control adjustment .............................. 31

DNR ................................................................ 32

Selecting the color temperature ...................... 32

Setting the 3D Y/C ........................................... 33

Selecting Stereo/Second Audio Program

(SAP) .............................................................. 34

Sound control adjustment ............................... 34

Selecting the audio language .......................... 35

Selecting the digital output .............................. 35

Checking the Digital-signal strength ............... 36

Resetting your settings ................................... 36

Picture control adjustment in the Component

and PC mode .................................................. 37

Preparation ..................................................... 38

Status display of disc ...................................... 38

Playback procedure ........................................ 39

Special playback ............................................. 40

MP3/WMA/JPEG and Audio CD playback ...... 41

Setting the JPEG interval ................................ 43

Program playback (CD) .................................. 44

Repeat playback (CD) ..................................... 45

Random playback (CD) .................................. 45

Zooming .......................................................... 46

Locating desired scene ................................... 46

Repeat playback ............................................. 47

Marking desired scenes .................................. 48

Changing soundtrack language ...................... 49

Subtitles .......................................................... 49

Changing angles ............................................. 50

Title selection .................................................. 50

DVD menu ...................................................... 50

Setting the language ....................................... 51

Setting the aspect ratio of TV screen .............. 52

Setting on screen display ................................ 52

Setting the picture mode ................................. 53

Night Mode ..................................................... 54

Digital Out ....................................................... 54

Parental control setting ................................... 55

Setting the new password ............................... 56

Temporary disabling of rating level by

DVD disc ......................................................... 57

Language code list .......................................... 58

Connections to other equipment ..................... 59

Reception disturbances .................................. 62

Problems and troubleshooting ........................ 63

Specifications ................................................. 65

limited WARRANTY ........................................ 66

Disc

Playable discs

Disc type and logo mark content

Audio

DVD Video v =oE o Video

(moving

pictures)

CD-DA Audio

DIGITAL AUDIO

The following discs are also available.

• DVD-R/RW discs of DVD video format.

• CD-R/RW discs of MP3/WMA/JPEG.

CAUTION:

• Only the left types of discs can be played on this

unit. DVD-ROM, CD-ROM, SVCD, CVD, VCD, etc.

cannot be played.

• 8cm discs can be played directly. If an 8cm disc

adapter is used it will cause errors.

• If you insert an irregular shaped disc, it may get

stuck and cause a malfunction.

• The use of a ring protector or other disc

accessories will cause errors.

• This unit is to be used exclusively with the NTSC

color system. PAL and SECAM system discs cannot

be used with this unit.

• Some CD-R/RWs and DVD-R/RW can not be

played back depending on the recording conditions.

Region Number

Region number (Regional restriction code)is built-in to the unit and DVD video discs. _

Region number "1" or "ALl/' of DVD video discs can be used on this unit.

Title

When two or more movies are recorded on a disc, the disc

is divided into two or more sections. Each section is called

a "TITLE".

Chapter

The titles can be subdivided into many sections.

Each section is called a "CHAPTER".

Track

An Audio CD can contain several items.

These are assigned to the tracks.

<CHAPTERq TITLEI CHAPTER1 _2 _cDVDHAPTERDISC_CHAPTERTITLE2 2 CHAPTER D,_3

Audio - CD

_RACK 1 TRACK 2 TRACK 3 TRACK 4 TRACK 5 _

Removing Disc from Case

Be sure to hold the edge of disc. Do not touch the surface of the disc.

Pick up the disc gently from the case.

• Do not scratch the disc.

• Do not get dirt on the surface of the disc.

• Do not stick a label or adhesive tape on the disc.

• Do not drop or bend the disc.

Storing Disc

• Store the disc in the case to avoid risk of scratches, dirt or damage.

• Do not leave disc exposed to direct sunlight or in hot or humid places,

Cleaning Disc

Wipe the disc with a clean, dry cloth from center to edge.

• Do not wipe the disc in a circular motion.

• Do not use liquid or aerosol cleaners.

Top

Front

Location of controls

VOLUME +/- buttons

EJECT button

SKIP button

STOP button

PLAY button __

CHANNEL A/v buttons

MENU button

I I INPUTbutton

iOWERbltton

Remote sensor --

POWER indicator

To display the menu screen.

Press MENU button to display the menu screen,

CHANNEL A/v buttons and VOLUME +/- buttons can be used to select the desired setting during the menu

screen operations.

Location of controls

Right side

(continued)

DISC slot

Left side

RF (ANT) IN jack

COAXIAL DIGITAL

AUDIO OUT jack

AV1 IN jacks

-- HDMI IN jack

PC IN jack

PC/HDMI AUDIO IN jack

-- COMPONENT IN jacks

-- AV2 IN jacks

Remote control

DISPLAY TV/DVD®OO

VOL

©@@0*

®®®o L

MUTE

®®®O

SLEEP

SETUP/®ODvD

_MENU MENU

CHA O

EXIT_

CANC P MENU

O o.v %

PLAY

SKIP SUBTITLE STOP SKIP

SLOW PAUSE/STILL PLAYMODE SLOW

AUDIO RETURN REPEATA-B ANGLE

0000 QUICKVIEW/

SCREENSIZE MARKER JUMP ZOOM

0000 INPUT

SELECT

Page

POWER Power On/Off 15, 19, 38, 39

DISPLAY/- Call TV information 20, 22, 34

Call DVD information 38

Input "-" for digital channels 19

TV/DVD Switch between TV/AV and DVD 15, 19, 38, 39

(EJECT) Eject a disc 39

0-9 Direct channel selection of TV 19

Input setting 46

Enter a password 23-26, 55~57

VOL +/- Adjust volume of TV 19, 20

MUTE Switch off the sound 20

SLEEP Sleep timer 21

SETUP TV mode - Display menu of TV

TV MENU 15~18, 21-29, 31-37

DVD mode - Call up initial setup mode 43, 51~56

DVD MENU Display DVD menu 50

CH A/V Select channel of TV 20

• • • D. Cursor buttons

15-18, 21~29, 31-37, 39, 41-46, 48, 50~56

ENTER Enter information in the menu

15~19, 21-29, 31~37, 39, 41-48, 50~57

EXIT Exit from On-Screen menu

CANCEL Reset information in the menu 46, 48, 55, 56

TOP MENU Select title 50

SEARCH Fast Forward/Review playback 40

PLAY Playback 39~42, 44, 45, 47, 50

SKIP Skip chapter to forward or reverse direction 40, 45

SUBTITLE Set subtitle 49

STOP Stop 39, 41,42

SLOW Forward/Reverse- slow motion 40

PAUSE/STILL Pause CD sound

Still picture of DVD 40

PLAY MODE Select playback mode 47

AUDIO Change sound track language 49

RETURN Remove DVD setup menu 43, 51 ~55, 57

REPEAT A-B Repeat playback between A and B 47

ANGLE Change playback angle 50

SCREEN SIZE Display PICTURE SIZE menu 29

MARKER Index 48

JUMP Locating desired scene 46

QUICK VIEW Switch between present/last channel 20

ZOOM Zoom 46

INPUT SELECT Display source selection menu 20, 37, 61

Remote control (continued)

Inserting Batteries

1Open the battery compartment ,I Install two "AAA" batteries,

cover in the direction of the arrow, paying attention to the

polarity diagram in the battery

compartment.

---___/_.......

Operation

• Aim the remote control at the remote sensor and press control

buttons to operate.

• Operate the remote control within a 30 ° angle on either side of

the remote sensor, up to a distance of approximately 15 feet.

Replace the compartment cover.

......

___ _ Approxtmately 15 feet

/30_i 30\\

NOTE:

• Do not leave the remote control unit exposed to direct sunlight or in hot or humid places.

• The remote control unit uses infrared beams to transmit signals, so sunlight or fluorescent light on the remote

sensor may shorten operating distance.

• Incorrect use of batteries may cause them to leak or burst. Read the battery warnings and use the batteries

properly.

• Do not mix old and new batteries.

• Remove batteries if the remote control will not be operated for an extended period of time.

Power source

TO USE AC POWER

1. Connect the AC cord plug into this unit's AC IN jack.

2. Connect the AC cord into an AC outlet.

i,!lAC120v,80Hz

AC cord (supplied)

NOTE:

• Please make sure to insert the cord securely at both the LCD TV/DVD and the wall outlet.

• The AC Cord has a grounding-type AC line plug. If the supplied AC cord does not match your AC outlet,

contact a qualified electrician, do not defeat the purpose of a grounding plug.

WARNING:

• DO NOT CONNECTTHIS UNITTO THE POWER USING ANY DEVICE OTHERTHAN THE SUPPLIED AC

CORD.THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.

• DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE DISPLAYED. THIS COULD CAUSE

FIRE, ELECTRICAL SHOCK, OR DAMAGE.

CAUTION:

• WHEN THIS UNIT IS NOT USED FOR A LONG TIME, (E.G., AWAY ON A TRIP) IN THE INTEREST OF

SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET.

• DO NOT PLUG/UNPLUG THE PLUG WHEN YOUR HANDS ARE WET. THIS MAY CAUSE ELECTRICAL

SHOCK.

• IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE IS

RECOMMENDED. CONTACT CUSTOMER SERVICE AT 1-800-289-0980.

Antenna connections

If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your

antenna system. If you are using a Cable TV service, see page 15 for Cable TV connections.

Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)

Antenna Antenna

jack

75 ohms

coaxial

cable

300-75 ohms

matching

transformer

Connect the 75 ohm cable from the combination

VHF/UHF antenna to the antenna jack.

If your combination VHF/UHF antenna has a 300

ohm twin-lead wire, the use of the 300-75 ohm

matching transformer may be necessary.

Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin-lead wires)

Antenna 300-75 ohms

ja;k matching

transformer

VHF 300 ohms

Connect the UHF 300 ohm twin-lead wire to

the Combiner (not supplied). Connect the VHF

300 ohm twin-lead wire to the 300-75 ohm

Matching Transformer. Attach the Transformer to

the Combiner, then attach the Combiner to the

Antenna Jack.

Separate VHF/UHF Antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)

Antenna

jack

C___ ohms

Connect the VHF 75 ohm cable and UHF

300 ohm twin-lead wire to the Combiner (not

supplied). Attach the Combiner to the Antenna

Jack.

Cable TV connections

This TV/DVD has an extended tuning range and can tune most cable channels without using a

Cable TV Converter box, Some cable companies offer "premium pay channels" where the signal is

scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device

which is generally provided by the Cable TV company.

FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE

Antenna

75 ohms

coaxial cable

For basic Cable TV service not requiring a Converter/

Descrambler box, connect the 75 ohm Coaxial Cable directly

to the Antenna Jack on the back of the TV/DVD.

FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE

If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect the

incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable,

connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV/DVD. Follow the

connections shown below. Set the TV/DVD to the output channel of the Converter/Descrambler box (usually

channel 3 or 4) and use the Converter!Descrambler box to select channels.

Incoming

75 ohm

Cable TV

Cable DI Converter/

Descrambler I75 ohm Cable

to TV/DVD

Antenna

Jack

FOR SUBSCRIBERS TO UNSCRAMBLED BASIC CABLE TV SERVICE WITH

SCRAMBLED PREMIUM CHANNELS

If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require

the use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available

from the Cable TV company or an electronics supply store). Follow the connections shown below. With the

switch in the "B" position, you can directly tune any nonscrambled channels on your TV/DVD. With the switch in

the "A" position, tune your TV/DVD to the output of the Converter/Descrambler box (usually channel 3 or 4) and

use the Converter/Descrambler box to tune scrambled channels.

,ncoming ConverterJ

75 ohm Descrambler

Cable TV 75 ohm Cable Antenna

Jack

Cable to TV/DVD

:- litter A/B Switch _U p,

i i

Setting the language

You can choose from three different

languages (English, French and

Spanish) for the on-screen displays.

Select the language you prefer first,

then proceed with the other menu

options. 2

To turn on the TV, press POWER.

(POWER indicator on the front of the unit blinks while starting.

It may take approx. 15 seconds for a picture to appear on

screen.)

Press TV/DVD to select TV mode.

Press SETUP/TV MENU. The menu screen will appear.

Press • or •to select

"Setup" menu, then press

i_.

Press • or • to select

"Menu Language".

Press _,- or ENTER to select the desired language: English

(ENGLISH), French (FRAN(_AIS) or Spanish (ESPANOL).

Press SETUP/TV MENU to return to the normal screen.

NOTE:

• If no buttons are pressed for more

than about 30 seconds, the MENU

screen will return to normal operation

automatically.

• On this TV, there are setting menus for

each external input.You can change

the settings to fit your needs.

(Some settings are commoditized.

I.e., Audio settings, Parental control,

NTSC CC, ATSC CC and Digital

Closed Caption settings are applied

to all external inputs.)

Memorizing channels

This TV is equipped with a channel memory feature which allows channels to skip up or down to the

next channel set into memory, skipping over unwanted channels. Before selecting channels, they

must be programmed into the TV's memory. To use this TV with an antenna, set the Tuning Band menu

option to the Air mode. When shipped from the factory, this menu option is in the Cable mode.

Air/Cable selection

Press SETUP/TV MENU in the TV mode.The menu screen will

appear.

Press • or • to select

"Setup" menu, then press

I_.

Press • or • to select

"Tuning Band".

Press • or ENTER to

select "Air" or "Cable".

NOTE:

• It may take a few seconds for a digital

channel picture to appear on screen

after being selected.

Press SETUP/TV MENU to return to the normal screen.

CABLE CHART

The chart below is typical of many cable system channel

allocations.

Number on this TV

Co,responding CABLE ...... , 1A4 IB5 _ 1_ 18 1F9 _ _ 22

23 2K4 2_ _V_ _ _ 2p9 _ 3_ _ 3T3 _ _ # 37 38 39 40

DOCCAA BB

41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58

EE FF GG HH // JJ KK LL MM NN OO PP QQ RR SS TT UU VV

59 61 62 68 7t 72 73 74 75 76

WW A6AOA BBB CCC D63D E64E 65F GGG.... HHH III j6jgj 70 K LLL MMM NNN 000 PPP QQQ

77 78 79 80 61 82 6384 86 66 67 66 89 90 91 92 63 94

RRR SSS TTT UUU VVVWWWXXX YYY ZZZ 86 87 86 89 90 91 92 63 94

66___% 86___.......................................

A-6 A-2 188 181 182 103 184 105 186 107 108 109 110 111 112

113 114 115 116 117 118 119 120 121 122 183 124 125 126 127 128 129 130

113 114 115 116 117 116 119 120 121 122 128 124 125 126 127 126 129 130

131 132 133 134 135 01

131 132 133 134 136 5A

Memorizing channels

Automatic channel search

Press SETUP/'rv MENU in the TV mode.The menu screen will

appear.

Press • or •to select

"Setup" menu, then press

•.

Press • or • to select

"Auto Ch Search".

Press • orENTER.The

TV will begin memorizing

all the channels available

in your area.

• It may take from 15 minutes to 30 minutes to complete

memorizing digital cable channels.

• Depending on the reception condition, a BAR display may

not advance for several minutes, please be patient.

Add on channel search

This feature searches only blank, unregistered channels.

Press SETUP/'rv MENU in the TV mode.The menu screen will

appear.

Press • or • to select

"Setup" menu, then press

•.

Press • or • to select

"Add On Ch Search".

NOTE:

• Memorizing channels is best

accomplished during evening

"PRIMETIME" hours, as more stations

are broadcasting digital signals.

Memorizing channels can only be

accomplished while a station is

broadcasting a digital signal to set

that channel into memory.

• If you are unsure of the digital

channels available in your area, you

may visit www.antennaweb.orq to

receive a list based on your address

or zip code. Should you require further

assistance you may call our toll-free

customer service line at 1-800-289-

0980.

• New digital channels may be

added to your area periodically, it is

recommended to perform the "Add On

Ch Search" procedure regularly.

Press • orENTER.The

TV will begin searching

only blank, unregistered

channels.

• It may take from 15 minutes to 30 minutes to complete

memorizing digital cable channels.

• Depending on the reception condition, a BAR display may

not advance for several minutes, please be patient.

Memorizing channels

Manual Ch Set

You can select the channel that you want to skip.

Press SETUP/TV MENU in the TV mode.The menu screen will

appear.

Press • or • to select

"Setup" menu, then press

i_.

Press • or • to select

"Manual Ch Set", then

press _,-or ENTER.

Manual Ch Set menu will

appear.

Press • or • to select

the channel that you

want to skip, then press

ENTER.

Press SETUP/TV MENU to return to the normal screen.

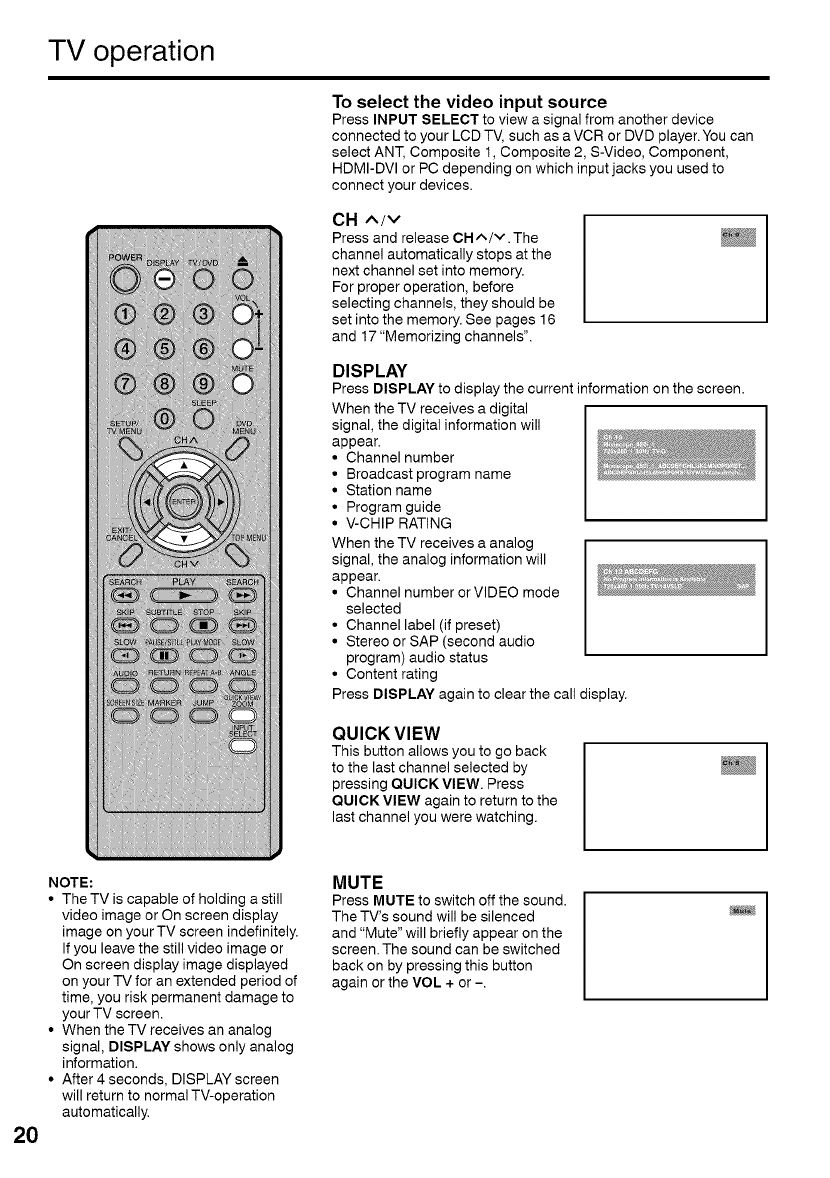

TV operation

NOTE:

• If a channel with no broadcast is

selected, the sound will automatically

be muted.

• It may take a few seconds for a digital

channel picture to appear on screen

after being selected.

To turn on the TV, press POWER.

(POWER indicator on the front of the unit blinks while starting. It

may take approx. 15 seconds for a picture to appear on screen.)

Press TV/DVD to select TV mode.

Adjust the volume level

by pressing VOL + or -.

The volume level will be

indicated on the screen

by white bars. As the

volume level increases,

so do the number of bars.

If the volume decreases,

the number of white

bars also decreases.

Set the Tuning Band

option to the appropriate

position (see page 16).

Press the Direct

Channel Selection

(0-9, -) buttons to select

the channel, then press

ENTER. (If you press

only channel number,

channel selection will

be delayed for a few

seconds.)

TO SELECT ANALOG CHANNELS

1-9: Press 1-9 as needed. Example, to select channel 2,

press 2.

10-99: Press the 2 digits in order. Example, to select

channel 12, press 1,2.

100-135: Press the 3 digits in order. Example, to select

channel 120, press 1, 2, 0.

TO SELECT DIGITAL CHANNELS

Press the first 3 digits, then press the - button, followed by the

remaining number.

Example, to select channel 015-001, press 0, 1, 5, -, 1.

• If a channel is selected with only audio content, "Audio only"

will be displayed on the screen.

• If a channel is selected with a weak digital signal, "Digital

channel signal strength is low" will be displayed on the screen.

If the digital channel has the same analog channel, you way

be able to watch the same channel with analog.

• If a channel is selected to which you have not subscribed,

"Digital channel is encrypted" will be displayed on the screen.

VHF/UHF/CABLE CHANNELS

Air

VHF

2-13

UHF

14-69

Cable

VHF

2-13

STD/H RC/IRC

14-36 (A) (W)

37-59 (AA) (WW)

60-85 (AAA) (ZZZ)

86-94 (86) (94)

95-99 (A-5) (A-1)

100-135 (100) (135)

01 (5A)

TV operation

To select the video input source

Press INPUT SELECT to view a signal from another device

connected to your LCD TV, such as a VCR or DVD player. You can

select ANT, Composite 1, Composite 2, S-Video, Component,

HDMI-DVI or PC depending on which input jacks you used to

connect your devices.

CH ^/v

Press and release CH,",/v. The

channel automatically stops at the

next channel set into memory.

For proper operation, before

selecting channels, they should be

set into the memory. See pages 16

and 17 "Memorizing channels".

DISPLAY

Press DISPLAY to display the current information on the screen.

When the TV receives a digital

signal, the digital information will

appear.

• Channel number

• Broadcast program name

• Station name

• Program guide

• V-CHIP RATING

When the TV receives a analog

signal, the analog information will

appear.

• Channel number orVIDEO mode

selected

• Channel label (if preset)

• Stereo or SAP (second audio

program) audio status

• Content rating

Press DISPLAY again to clear the call display.

QUICK VIEW

This button allows you to go back

to the last channel selected by

pressing QUICK VIEW. Press

QUICK VIEW again to return to the

last channel you were watching.

NOTE:

• The TV is capable of holding a still

video image or On screen display

image on your TV screen indefinitely.

If you leave the still video image or

On screen display image displayed

on your TV for an extended period of

time, you risk permanent damage to

your TV screen.

• When the TV receives an analog

signal, DISPLAY shows only analog

information.

• After 4 seconds, DISPLAY screen

will return to normal TV-operation

automatically.

MUTE

Press MUTE to switch off the sound.

The TV's sound will be silenced

and "Mute" will briefly appear on the

screen. The sound can be switched

back on by pressing this button

again or the VOL + or -.

TV operation

SLEEP

The sleep timer allows you to set a time when the LCD TV

automatically switches to standby.

Press SETUP/'rv MENU in the TV mode.The menu screen will

appear.

Press • or • to select

"Feature" menu, then

press ,.

Press • or • to select

"Sleep Timer".

Press I_ or ENTER

repeatedly to select the

desired sleep time (Off,

15 min, 30 min, 45 min,

60 min, 90 min, 120 min,

180 min or 240 min).

Press SETUP/'rv MENU to return to the normal screen.

NOTE:

• You can also set the sleep timer

by pressing SLEEP on the remote

control.

• After the sleep time is programmed,

the display will appear briefly 10

minutes and 5 minutes, 1 minute

before to remind you that the sleep

timer is operating.

• To confirm the sleep timer setting,

press SLEEP and the remaining time

will be displayed for a few seconds.

• To cancel the sleep timer, press _,-or

ENTER repeatedly to select "Off" in

step 4.

Labeling channels

Channel labels appear over the

channel number display each time

you turn on the TV, select a channel,

or press DISPLAY.

You can choose any seven

characters to identify a channel.

To create channel labels

Press SETUP/TV MENU in the TV mode, then press • or • to

select "Setup" menu, then press •.

Press • or • to select

"Channel Labels", then

press • or ENTER.

The "Channel Labels"

menu will appear.

Press • or • to select

a channel you want to

label.

Press • or • to enter a

character in the first

space.

Press • or • repeatedly

until the character you

want appears on the

screen.

The characters rotation

as follows: -- <--_ A...Z <-_ 0...9 _]

*_ ? _ SPACE

If the character which you desire appears, press •.

Repeat this step to enter the rest of the characters.

If you would like a blank space in the label name, you must

choose the empty space from the list of characters.

When you finish inputting the label name, press SETUP/TV

MENU to return to the normal screen.

Repeat steps 1-5 for other channel.You can assign a label to

each channel.

NOTE:

• The channel labels will be reset after

"Auto Ch Search".

Setting the V-Chip

An age limitation can be set to restrict children from viewing or hearing violent scenes or pictures

that you may choose to exclude. The restriction applies to "TV RATING" and "MPAA" if this data is

transmitted. You may set this restriction separately. To use the V-Chip function, you must register a

password.

To register a password

Press SETUP/TV MENU

in the TV mode. The

menu screen will appear.

Press • or • to select

"Feature" menu, then

press •.

Press • or • to select

"Password Set", then

press • or ENTER.

Use Number buttons

(0-9) to enter your

password

(The factory default

password is "0000"). ":_" appears instead of the number.

Select and enter a ........................

password (4 digits) using

Number buttons (0-9).

Enter the same password ..............

again to confirm.

The password is now

registered.

NOTE:

• If you forget the password, contact

Customer Service at 1-800-289-0980

for assistance.

Your original remote control will be

required.

• To avoid forgetting the password,

write it down and keep in a safe place.

Setting the V-Chip

To set the V-Chip

Press SETUP/TV MENU

in the TV mode.

Press • or • to select

"Feature" menu, then

press _,-.

Press • or • to select

"Parental Control", then

press _,-or ENTER.

Use Number buttons

(0-9) to enter your

password. The Parental

Control Menu appears.

Press • or • to select

"US Ratings", then press

_,-or ENTER.

To use the TV after the TV is

protected.

When a program is received that is

blocked by the V-Chip, press DISPLAY

or SETUP/TV MENU.

The protection will be temporarily

overridden. If theTV is turned off, the

V-Chip restriction will be reactivated.

NOTE:

• The V-Chip function is activated only

on programs and input sources that

include a rating signal.

TV Rating

NONE: TV Rating is not set

TV-Y: All children

TV-Y7: 7 years old and above

TV-G: General audience

TV-PG: Parental guidance

TV-14: 14 years old and above

TV-MA: 17 years old and above

ALL (All)

FV (Fantasy Violence)

L (Language)

S (Sex)

V (Violence)

D(Dialogue)

MPAA (Motion Picture Association of America)

NONE: MPAA is not set.

G: All ages

PG: Parental guidance

PG-13: Parental guidance less than 13 years old

R: Under 17 years old Parental guidance suggested

NC-17:17 years old and above

X: Adult only

Press SETUP/TV MENU to return to the normal screen.

Setting the V-Chip

To change the password

Press SETUP/'FV MENU in the TV mode.The TV menu screen

will appear.

Press • or • to select

"Feature" menu, then

press •.

Press • or • to select

"Password Set", then

press • or ENTER.

Use Number buttons

(0-9) to enter your

password.

Enter a new password ........................

(0-9).usingNumber buttons '_ _ • _ •

Enter the same password .............

again to confirm.

The password is now

registered.

Setting the V-Chip

Downloading the additional V-Chip rating system

As a supplement to the standard V-Chip rating system, your

television will be able to download an additional rating system, if

such a system becomes available in the future.

To download the additional V-Chip rating system

(when available)

Press SETUP/TV MENU

in a digital channel.

Press • or • to select

"Feature" menu, then

press _.

Press • or • to select

"Parental Control", then

press _ or ENTER.

Use Number buttons

(0-9) to enter your

password. The Parental

Control Menu appears.

Press • or • to select

"Advanced Rating", then

press _ to select "On".

The "Parental Lock

(DTV)" option appear.

NOTE:

• You can only download the additional

V-Chip rating system when your TV is

receiving a digital signal.

• When you download the additional

rating system, it may take some time

for the download to occur.

• The V-Chip rating information and

system are not determined or

controlled by the TV.

• The standard V-Chip rating system is

available whether your TV is receiving

a digital signal or not, and will block

both analog and digital programs.

To set the restriction level using the

standard V-Chip rating system, select

US Ratings in step 3.

• The downloadable V-Chip rating

system is an evolving technology, and

availability, content, and format may

vary.

• You cannot select this feature if theTV

is not receiving a digital signal for the

current station.

Press • or • to select ..................

"Parental Lock (DTV)",

then press _ or ENTER.

If the TV is not storing the additional rating system, the TV

will begin downloading it, which may take some time to be

completed.

Set your preferred content rating limits for the additional rating

system.

Closed Caption

WHAT IS CLOSED CAPTIONING?

This television has the capability to decode and display Closed Captioned television programs. Closed

Captioning will display text on the screen for hearing impaired viewers or it will translate and display text in

another language.

Captions: This Closed Caption Mode will display text on the screen in English or another language. Generally,

Closed Captions in English are transmitted on CCl and Closed Captions in other languages are transmitted on

CC2.

Text: The Text Closed Caption Mode will usually fill 1/2 of the screen with a programming schedule or other

information.

Press SETUP/TV MENU in the TV mode. Press • or •to

select "Feature" menu, then press _,-.

Press • or • to select "NTSC CC" or "ATSC CC".

When you select "NTSC

CC", you can choose

CC1, CC2, CC3, CC4,

TEXT1, TEXT2, TEXT3,

TEXT4 and Off.

When you select "ATSC

CC", you can choose

from CS1, CS2, CS3,

CS4, CS5, CS6 and Off.

NOTE:

• Depending on the

broadcast signal, some

Analog Captions will

function with a Digital

broadcast signal but

Digital Captions will take precedence on the TV/DVD.

To disable the Digital Captions, turn the "ATSC CC" off.

Press _,- or ENTER to select the desired Closed Caption mode.

NOTE:

• To turn the Closed Caption feature off, select "Off".

Press SETUP/TV MENU to return to the normal screen.

NOTE:

• If the program or video you selected is not closed-captioned, no captions will display on-screen.

• If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set the

Closed Caption feature to "Off".

• When selecting Closed Captions, the captioning will be delayed approx. 10 seconds.

• If no caption signal is received, no captions will appear, but the television will remain in the Caption Mode.

• Misspellings or unusual characters may occasionally appear during Closed Captioning.This is normal

withCIosed Captioning, especially with live programs. This is because during live programs, captions are also

entered live. These transmissions do not allow time for editing.

• When Captions are being displayed, on-screen displays, such as volume and mute may be seen but may

interfere with Closed Captions.

• •Some cable systems and copy protection systems may interfere with the Closed Captioned signal.

• If using an indoor antenna or ifTV reception is very poor, the Closed Caption Decoder may not appear or may

appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or

use an outdoor antenna. 27

CC advanced

When you have selected Custom as

the display method, you can adjust

the various setting listed below as

follows:

This feature is designed to customize Digital Captions only.

Press SETUP/TV MENU in theTV mode. menu screen

The TV

will appear.

Press • or • to select

"Feature" menu, then

press •.

Press • or • to select

"Digital Closed Caption",

then press • or ENTER.

The Digital Closed

Caption menu will

appear.

Press • or • to select

"Style", then press •

or ENTER to select

"Custom".

Press • or • to select

desired setting, then

press _,-or ENTER.

NOTE:

• Do not set the Closed Caption "Text

Color" and "Background Color" as the

same color or you will not be able to

see the text.

• Do not set both the "Text Opacity"

and the "Background Opacity" to

"Transparent" or you will not be able to

see the text.

Text Color:

Text Opacity:

Background Color:

Background Opacity:

Edge Effect:

Edge Color:

You can select from among the following items and parameters.

Size: Small, Normal, Large

Font: Default, Font 1, Font 2, Font 3, Font 4,

Font 5, Font 6, Font 7,

Red, Green, Blue, Yellow, Magenta,

Cyan, Black, White

Transparent, Translucent, Solid,

Flashing

Red, Green, Blue, Yellow, Magenta,

Cyan, B_ack, White

Transparent, Translucent, Solid,

Flashing

None, Raised, Depressed, Uniform,

Left Shadow, Right Shadow

Red, Green, Blue, Yellow, Magenta,

Cyan, Black, White

Press SETUP/TV MENU to return to the normal screen.

Setting the picture size

You can view 480i and 480p format

programs in a variety of picture

sizes-- Normal, Zoom, Wide and

Cinema.

Selecting the picture size

Press SETUP/TV MENU

in the TV mode.

Press • or • to select

"Picture" menu, then

press ,.

Press • or • to select

"Picture Size", then press

_,-or ENTER to select the

desired picture size, as

described below and on

the next page.

Press SETUP/TV MENU to return to the normal screen.

Normal picture size

In some cases, this image will display the size of standard 4:3 with

a black side bar.

Zoom picture size (for letter box programs with

subtitles)

To fill the width of the screen, it is extended horizontally. However; it

is only slightly extended at the top and the bottom.

The top and bottom edges of the picture may be hidden.

|ABCDEFG |

NOTE:

• You can also set the picture size

by pressing SCREEN SIZE on the

remote control.

• Some High Definition and/or Digital

broadcasts may not allow you to

change the picture size.

Setting the picture size

NOTE:

• In HDMI or COMPONENT mode with

a scanning rate of 720p or 1080i, only

the Normal and Cinema picture size

features are available.

• In PC mode, onlythe Normal and

Wide picture size features are

available.

• In Cinema picture size, some of the

on screen display items may be

positioned off the visible portion of the

screen.

Wide picture size (for 4:3 format programs)

To fill the screen, the right and left edges are extended, however;

the center of the picture remains near its former ratio.

The top and bottom edges of the picture may be hidden.

Cinema picture size (for letter box programs)

The entire picture is uniformly enlarged--it is stretched the same

amount both wider and taller (retains its original proportion).

The top and bottom edges of the picture may be hidden.

Adjustingthe picture preference/Picturecontrol adjustment

You can select four picture modes--

Vivid, Standard, Movie and User--as

described in the following table:

Adjusting the picture preference

Press SETUP/TV MENU in the

TV mode. Then press • or •to

select "Picture" menu, then press

•.

Press • or • to select"Picture

Mode".

Press • or ENTER to select the

item you want to adjust.

Mode Picture Quality

Vivid Bright and dynamic picture (factory-set)

Standard Standard picture quality (factory-set)

Movie Movie-like picture setting (factory-set)

User Your personal preferences (set by you; see

"Picture control adjustment" below).

After your desired setting, press SETUP/TV MENU to return to

the normal screen.

Picture control adjustment

Press SETUPFFV MENU in the

TV mode. Then press • or • to

select "Picture" menu, then press

•.

Press • or • to select the item

you want to adjust, then press •

or ENTER.

Press 4 or • to adjust the setting.

NOTE:

• The Contrust default setting is set to

maximum at the factory.

• Press • or • to change the

adjusting item.

• •

Contrast decrease contrast increase contrast

Brightness decrease brightness increase brightness

Sharpness makes picture softer makes picture clearer

Color be pale color be brilliant color

Tint be greenish color be reddish color

After your desired setting, press SETUP/TV MENU to return to

the normal screen. 31

DNR/Selecting the color temperature

DNR

DNR (Digital Noise Reduction) can reduce the roughness of the

picture.

Press SETUP/TV MENU in the

TV mode. Then press • or •

to select "Feature" menu, then

press •.

Press • or • to select

"Advanced Video Menu", then

press • or ENTER.

Press • or • to select"DNR". .........................

Press • or ENTER to select "On"

or "Off".

Press SETUP/TV MENU to return to the normal screen.

Selecting the color temperature

Change the picture quality by selecting from three preset color

temperatures--Cool, Normal, and Warm:

Press SETUP/TV MENU in the

TV mode. Then press • or •

to select "Feature" menu, then

press •.

Press • or • to select

"Advanced Video Menu", then

press • or ENTER.

3Press • or • to select"Color

Temperature".

Press•or ENTER to select the

mode you prefer.

Mode Picture Quality

Cool Bluish

Normal Neutral

Warm Reddish

Press SETUP/TV MENU to return to the normal screen.

Setting the 3D Y/C

3D Y/C reduces visible interference

in your TV picture, This is useful

when receiving a broadcast with

a weak signal (especially a Cable

channel) or playing a video cassette

or disc damaged by repeated use.

Press SETUP/TV MENU

in the TV mode. Then

press • or •to select

"Feature" menu, then

press •.

Press • or • to select

"Advanced Video Menu",

then press • or ENTER.

Press • or • to select

"3D Y/C".

Press • or ENTER to

select "On" or "Off".

Press SETUP/TV MENU to return to the normal screen.

Selecting Stereo/Second Audio Program (SAP)/

Sound control adjustment

The multi-channel TV sound (MTS)

feature provides high-fidelity stereo

sound. MTS also can transmit

a second audio program (SAP)

containing a second language or

other audio information.

When the TV receives a stereo or

SAP broadcast, the word "Stereo"

or "SAP" displays on-screen every

time you turn the TV on, change the

channel, or press DISPLAY.

Selecting Stereo/Second Audio Program (SAP)

Press SETUP/TV MENU in the tZ_

TV mode. Then press • or •

to select "Audio" menu, then

press •.

Press • or • to select"MTS",

then press • or ENTER to

select "Stereo".

3Press SETUP/TV MENU to return to the normal screen.

NOTE:

• Generally you can leave your TV in stereo mode because the

TV automatically outputs the type of sound being broadcast

(stereo or mono).

• If the stereo sound is noisy, select Mono to reduce the noise.

To listen to a second audio program (SAP)

Press • or ENTER to select "SAP" in step 2 above. The TV

speakers will output the second audio program instead of normal

audio.

Sound control adjustment

Press SETUP/TV MENU in the _

TV mode. Then press • or •

to select "Audio" menu, then

press •.

Press • or • to select the item

you want to adjust, then press

•or ENTER.

Bass: Press • or • to adjust the bass sound.

Treble: Press • or • to adjust the treble sound.

Balance: Press • or • to obtain an equal sound level from

both speakers.

• Press • or v t° change the I I

adjusting item.

After your desired setting, press SETUP/TV MENU to return to

the normal screen.

Selecting the audio language/

Selecting the digital output

Selecting the audio language

When two or more audio languages are included in a digital signal,

you can select one of the audio language.

Press SETUP/TV MENU

in the TV mode. Then

press • or •to select

"Audio" menu, then press

i_.

Press • or • to select

"Audio Language". Then

press • or ENTER to

select your desired

language.

Press SETUP/TV MENU to return to the normal screen.

Selecting the digital output

You can choose the format of the digital audio output signal.

Press SETUP/TV MENU

in the TV mode. Then

press • or • to select

"Audio" menu, then press

Press • or • to select

"Digital Audio Output",

then press • or ENTER

to select "PCM" or

"RAW".

Press SETUP/TV MENU to return to the normal screen.

Checking the Digital-signal strength/

Resetting your settings

Checking the Digital-signal strength

This TV will allow you to view the digital signal meter for digital

channels.

Press SETUP/TV MENU

in the TV mode. Then

press • or • to select

"Setup" menu, then press

i_.

Press • or • to select

"DTV Signal".

Press • or ENTER to

check the Digital-signal

strength.

Press SETUP/'rv MENU to return to the normal screen.

Resetting your settings

The Reset function returns your settings to the factory settings.

Press SETUP/'I'V MENU

in the TV mode. Then

press • or • to select

"Setup" menu, then press

i_.

Press • or • to select

"Reset".

NOTE:

• Signal meter feature is not available

for analog channels.

• After 180 seconds, DTV Signal screen

will return to normal TV-operation

automatically. Press • or ENTER to return your settings to the factory

settings.

Press SETUP/'I'V MENU to return to the normal screen.

Picturecontrol adjustment inthe Component and PC mode

You can adjust to optimize the

performance of the TV in the

Component and PC mode.

Example: Adjust the H-Pos in the component mode.

Press INPUT SELECT repeatedly to select the component

mode.

Press SETUP/TV MENU

during the component

mode. Then press • or •

to select "Feature" menu,

then press •.

Press • or • to select

"Component Set", then

press • or ENTER.

Press 41or • to adjust

the setting.

• Press • or • to

change the adjusting

item.

NOTE:

• If no buttons are pressed for more

than approx. 30 seconds, the Menu-

screen will return to normal Monitor-

screen automatically.

• The "Component Set" and "PC Set"

settings are not effective for other

input modes.

H-Pos:

V-Pos:

Clock:

Phase:

Auto Adjust

(PC Setting only):

To adjust the horizontal position of the

image on the Component or PC mode.

To adjust the vertical position of the image

on the Component or PC mode.

To minimize any vertical bars or stripes

visible on the screen background.

This must be adjusted after the frequency

of the Component or PC mode has been

set to 60Hz to optimize picture quality

(page 61).

To optimize "H-Pos", "V-Pos", "Clock" and

"Phase" automatically.

Setting: To return your settings to the factory

settings.

Press SETUP/TV MENU to return to the normal screen.

Preparation/Status display of disc

The following pages describe the

setup/operation in DVD mode. Preparation

Before DVD/CD operation, please make the following preparations.

Insert the AC cord plug into a standard 120V 60Hz polarized

AC outlet.

• If the AC cord plug is plugged in for the first time, wait for

about 5 seconds before pressing POWER.

NOTE: When connecting to other equipment, unplug the unit

from the AC outlet.

Press POWER on the unit or on the remote control to turn on

the unit. The POWER indicator will light.

• Each time you turn the unit ON, the TV/DVD starts from the

TV mode.

• When using an amplifier, switch on the amplifier.

Press TV/DVD to select DVD

mode.

The DVD startup screen will

appear on the screen.

Status display of disc

Press DISPLAY. The status display of the disc will appear on the

screen. ELAPSED TOTAL

DISCOPERATION TIME TIME

TITLE NO. CHAPTER

ANGLENO. SUBTITLELANGUAGE

AUDIO LANGUAGE A KIND OFAUDIO

TO make the status display screen disappear, press DISPLAY

again.

NOTE:

• If the unit does not operate

properly:

Static electricity, etc., may affect the

player's operation. Disconnect the

AC power cord once, then connect it

again.

Playback proced ure

Press TV/DVD to select DVD mode.

Place the disc in the disc

slot with the label side facing

forward. (If the disc has a

label.) Hold the disc without

touching either of its surfaces,

align it with the guides, and

place it in position.

On the screen, ",_," changes to

"Reading" and then playback

will commence.

• A menu screen may appear

on the TV screen, if the disc

has a menu feature. In this

case, press &, v, _1, • or

ENTER to operate a menu

feature.

NOTE:

• If a non-compatible disc is loaded,

"Incorrect Disc", "Region Code Error"

or "Parental Error" will appear on the

TV screen according to the type of

loaded disc. If these appear, check

your disc again (see pages 8 and 55).

• Some discs may take a minute or so

to start playback.

• If an 8 cm disc is placed into the disc

slot and picture playback or menu

display does not begin automatically,

press PLAY.

• A "Prohibition" symbol "X" may appear

at the upper left of the screen. This

symbol means either the feature you

tried is not available on the disc, or the

unit cannot access the feature at this

time. This does not indicate a problem

with the unit.

• If you place a single-faced disc label

backwards (i.e. the wrong way)

"Reading" will appear in the display

and then "Incorrect Disc" will be

displayed.

• Some playback operations of DVDs

may be intentionally fixed by software

producers. Since this unit plays

DVDs according to the disc content

recorded, some playback features

may not be available. Also refer to the

instructions supplied with the DVDs.

,!,

Press STOP to end playback.

• The unit memorizes the stopped point, depending on the

disc. "lu" appears on the screen. Press PLAY to resume

playback (from the scene point).

• If you press STOP again ("." appears on the screen) or

unload the disc, the unit will clear the stopped point.

Press _ (EJECT).

Remove the disc and then press POWER.

The unit turns off.

When you eject the disc, you may hear mechanism noise, but it

is not malfunction.

Special playback

NOTE:There may be a slight delay

between when you press the button

and the function activating.

Fast Forward Playback

Press SEARCH I_" during normal playback.

Each press of SEARCH _1_ will increase the speed of the search

(x 2), _ (x 4), _ (x 8), _ (x 15).

(CD: I_" (x 2), _ (x 4), _ (x 8), _ (x 20))

• To resume normal playback, press PLAY.

Review Playback

Press SEARCH 44 during normal playback.

Each press of SEARCH 44 will increase the speed of the search

(x 2), 444 (x 4), 4444 (x 8), 44444 (x 15).

(CD: 4,4 (x 2), 444 (x 4), 4444 (x 8), 44444 (x 20))

• To resume normal playback, press PLAY,

Still Playback

Press PAUSE/STILL during normal

playback to pause playback.

• To resume normal playback, press

PLAY.

Frame Advance

Press PAUSE/STILL during still playback.

One frame is advanced each time you press PAUSE/STILL.

• To resume normal playback, press PLAY.

Slow-motion Playback

Press SLOW -41Reverse or SLOW ID- Forward during normal

playback or still playback.

Each press of SLOW will change the speed of the slow xl/2, xl/4,

xl/6, xl/7.

• To resume normal playback, press PLAY.

• To resume the still playback, press PAUSE/STILL

Locating a chapter or track

Press SKIP _ Forward or SKIP _ Reverse during playback to

locate a chapter that you want to watch.

Each time you press the button, a chapter or track is skipped.

NOTE:

• The unit is capable of holding a still

video image or On screen display

image on your television screen

indefinitely. If you leave the still video

image or On screen display image

displayed on your TV for an extended

period of time, you risk permanent

damage to your television screen.

MP3/WMA/JPEG and Audio CD playback

This player can play back MP3/WMA/

JPEG-data which has been recorded on

CD-R or CD-RW, To produce MP3/WMA/

JPEG-data, you need a Windows-PC

with CD-ROM drive and MP3/WMA/

JPEG-encoding software (not supplied),

The Apple-HFS-System cannot be

played.

MP3/WMA/JPEG CD

information

Limitations on MP3/WMA/JPEG CD

playback

• MP3/WMA/JPEG CD is the disc that is

standardized by ISO9660, its file name

must include 3-digit extension letters,

"mp3", "wma", "jpg".

• The directory and file names of MP3/

WMA/JPEG CD must correspond to ISO

standardized files.

• This unit can read 2000 files per disc. If

one directory has more than 2000 files, it

reads up to 2000 files, the remaining files

will be omitted.

• MP3/WMA CDs cannot be used for

playback for the purpose of recording.

• If the CD has both audio tracks and

MP3/WMA/JPEG files, only audio tracks

are played.

• It may take more than one minute for

this unit to read MP3/WMA/JPEG files

depending on its structure.

• Music recorded by'Joliet Recording

Specification" can be played back.

• The music files recorded by"Hierarchicat

Fite System" (HFS) cannot be played.

• The unit can play back baseline and

progressive JPEG files.

Limitations on display

• The maximum number for display is

15 characters. Long file names will be

condensed.

• Available letters for display are the

following: capital or lowercase letters A

through Z, numbers 0 through 9, and

(under score).

• Other letters than those above are

replaced by a hyphen.

Notes on MP3/WMA/JPEG files

To play back MP3/WMA/JPEG CD in the

recorded order,

1. Use MP3/WMA/JPEG software that

records data alphabetically or numerically.

2. Name each file including a two-digit or

three-digit number (e.g. "01" "02" or "001"

"002").

3. Refrain from making too many sub-folders.

CAUTION:

• Some MP3/WMA/JPEG CDs cannot be

played back depending on the recording

conditions.

• The CD-R/RW that has no music data or

non-MP3/WMA/JPEG files can not be

played back.

MP3 CD/WMA and Audio CD playback

Load a MP3/WMA/JPEG CD or an Audio CD in the disc slot.

"Reading" will appear on the TV screen. Reading time will

depend on the number of files on the disc.

A file browser screen will appear on the TV screen.

Operation status Filenumber Elapsed time Selected file name

i i

Cursor Preview window

Tool kit

window

File list

File type

.b : Indicates Music fite (Audio CD/MP3/WMA)

[] :Indicates Picture fite (JPEG)

• In case the current directory includes 9 files or more, press •

or • to scroll in the file list.

• To see contents in folder, select the folder and then press

ENTER, To return to the parent directory, select '6 Go Up "

then press ENTER.

• In case of a CD containing a mixture of MP3, WMA and

JPEG files, the files are played back by selecting them from

the file browser.

Press • or • to select the desired ,_4p32 t_P3

file.

When PLAY is pressed after

displaying file browser

displayed, or when the disc tray

is closed by pressing PLAY,

playback begins automatically

starting from the first file.

In this case, if the first file is an MP3/WMA file, only MP3/WMA

files are played back in order. If the first file is a JPEG file,

the first JPEG file is played back. If there is no file at a root

directory, playback does not begin automatically.

Press ENTER.

The selected file starts playing back.

Press STOP to end playback.

• The unit records the stopped point. "IW" appears on the

screen. Press PLAY to resume playback (from the scene

point).

• If you press STOP again or unload the disc, the unit will clear

the stopped point.

NOTE:

• During MP3/WMA/JPEG-Playback, you cannot use JUMP

and A-B Repeat functions.

• You can use Repeat (Track or All), Random functions and

Program playback for MP3/WMA/JPEG and Audio CD

Playback (see pages 44 and 45). 41

MP3/WMA/JPEG and Audio CD playback (continued)

In the file browser, pressA/v to

select the desired JPEG file.

To display a thumbnail list, press

DVD MENU.

Press A/V/_I/D,- to select the

desired file.

(To return to the file browser,

press TOP MENU.)

When PLAY is pressed after displaying the file browser, or

when the disc tray is closed by pressing PLAY, playback begins

automatically starting from the first file. In this case, if the first

file is a JPEG file, the first JPEG file is played back. If the first

file is an MP3/WMA file, only MP3!WMA files are played back

in order. If there is no file at a root directory, playback does not

begin automatically.

Press ENTER.

The selected picture appears on

the TV screen.

Rotating an image

You can rotate an image by 90 degrees.

Press ANGLE during playback of the image.

"IL-", "_", "-_11" or "_" appears on the screen.

Zooming an image

Zoom function also can be used in viewing JPEG files.

Press ZOOM (See "Zooming" on page 46).

Press STOP to end playback.

The file browser appears on the TV screen.

If you want to watch the other file, repeat steps 1-2.

Select Files

The file type to make it display in the file browser can be chosen.

Press _1/_,-to select"Select Files" at right column in the file

browser.

• Press ENTER, then press A/v to select file type from the list

(Music or Picture).

Press ENTER to add/remove check mark.

Checked file type will be displayed in the file browser.

Press RETURN to save the setting.

NOTE:

• MP3 orWMA files on the KODAK

Picture CD are not recognized on this

unit.

Setting the JPEG interval

You can continuously play back all

JPEG files automatically. Press SETUP/TV MENU in the stop mode.

Press • or •to select _ option, then press 4/, or ENTER.

2Press • or • to select'3PEG

Interval", then press - or ENTER. _ TVSeree, :1e:9D

Display : On

Picture Mode :Auto

Press • or • to select your

desired time, then press ENTER. TVS ...... 16:9

Display : On

Picture Mode :Auto

Off:

Plays back one file at a time.

5Seconds:

Plays back images in the form of a slide show at 5 second

intervals.

10 Seconds:

Plays back images in the form of a slide show at 10 second

intervals.

15 Seconds:

Plays back images in the form of a slide show in 15 second

intervals.

Press SETUP/TV MENU or RETURN to remove the menu

screen.

Program playback (CD)

You can arrange the order of tracks -t

on the disc. /

In the file browser, press

A/v/,/, to select "Edit Mode",

then press ENTER.

When "Edit Mode" is black color,

you can mark the files which you

want to add into Program list.

Press A/V/_I/D,- to select the file

you want to add into the program

list.

Press ENTER. Selected file was

marked.

Repeat this procedure to select

the other files.

Press A/V/_I/D,- to select "Add To

Program".

Then press ENTER. All marked

files are added into the program

list.

When you finish storing the files

you want into the Program list,

select "Edit Mode" again and

press ENTER to release edit

mode.

Press A/v to select "Program View", then press ENTER. Pro-

gram View shows only the programed files that you have added

in Step 2.

Browser View Program View

In the Program View, press PLAY. The files start to playback in

programmed order that were added by you.

To remove file from program list in

stop mode

In the Edit Mode, switch to Program

View. Select the files you want to

remove, then press ENTER. Select

"Clear Program" and press ENTER.

Marked file is removed from program

list.

NOTE:

• The program is cancelled when you

eject the disc or turn the power off.

Repeat playback (CD)/Random playback (CD)

Repeat playback

In the file browser, press

A/V/_I/I,- to select "Repeat"

during stop mode.

Press ENTER repeatedly to

select "Track" or "All".

Press PLAY.

The unit automatically starts repeat playback after finishing the

current track.

To resume normal playback, select Repeat :"Off" in step 2.

Random playback

In the file browser, press

A/V/_I/I,- to select "Mode" during

stop mode.

Press ENTER to select

"Random".

Press PLAY.

The Random playback will start.

To resume normal playback, select Repeat :"Off" in step 2.

NOTE:

• The repeat or random function is

canceled when you eject the disc or

turn the power off.

• The track repeat function is canceled

when SKIP _ or _ is pressed.

• In case of Audio CD, the function of A-

B Repeat also can be used. See "A-B

Repeat playback" 47.

Zooming/Locating desired scene

Zooming

This unit will allow you to zoom in on the frame image.You can then

make selections by switching the position of the frame.

PressZOOM during playback.

The center part of the image will

be zoomed in.

Each press of ZOOM will change

the ZOOM magnification O,,1 (x

1.3), O_2 (x 1.5) and O_ 3 (x 2.0).

Press •/v/_l/, to view a different part of the frame.

You may move the frame from the center position UP, DOWN,

LEFT or RIGHT.

In the zoom mode press ZOOM repeatedly to return to a 1:1

view (Q, Off).

Locating desired scene

Use the title, chapter and time recorded on the disc to locate the

desired point to play back.

Press JUMP during playback or Jump

resume stop mode. [ TimeTitlechapter --:--:-------- }

Press • or •to select the "Time", "Title/track" or "Chapter".

Press Number buttons (0-9) to input the number.

• If you input a wrong number, press CANCEL.

• Refer to the package supplied with the disc to check the

numbers.

Press ENTER.

• Playback starts.

• When you change the title, playback starts from Chapter 1 of

the selected title.

• Some discs may not work in the above operation.

NOTE:

• You can select the Pause, Slow or

Search playback in the zoom mode.

• Some discs may not respond to zoom

feature.

Repeat playback

Title, Chapter, Track Playback

Press PLAY MODE during playback or stop mode.

Press ENTER repeatedly to

select "Chapter" or "Title".

The unit automatically starts

repeat playback after finishing the

current title or chapter.

• If you set the repeat mode during stop mode, press PLAY to

start Repeat playback.

Press PLAY MODE again to make the screen disappear.

• Press PLAY to start Repeat playback.

• To resume normal playback, select Repeat "Off" in step 2.

A-B Repeat Playback

A-B repeat playback allows you to repeat material between two

selected points.

Press REPEATA-B during

playback.

The start point is selected.

Press REPEAT A-B again.

The end point is selected.

Playback starts at the point that

you selected. Playback stops at

the end point, returns to Point A

automatically, then starts again.

To resume normal playback press REPEAT A-B again.

"_ Off" appears on the screen.

NOTE:

• Some discs may not work with the

repeat operation.

• In A-B repeat mode, subtitles near

point A or B may not appear.

• During the A-B Repeat Playback the

ANGLE feature will not operate.

• You may not be able to set A-B

Repeat, depending on the scenes of

the DVD.

• A-B Repeat does not work with an

interactive DVD, MP3/MPEG/WMA/

JPEG-CD.

Marking desired scenes

The TV/DVD stores the points that

you want to watch again.You can

resume playback from that scene.

Marking the Scenes

Press MARKER during playback. [ [Marker1 : : J

[Marker2 : :

Marker3 : :

Select the blank Marker using •

or v, then press ENTER at the

desired scene.

• Up to 3 scenes can be selected.

[Marker 1 00:27:54J

Marker 2 : :

Marker 3 : :

• Repeat this procedure to set the other 2 scenes.

Press MARKER to remove this display.

Returning to the Scenes

Press MARKER during playback

or stop mode.

I [Marker1 00:27:54}

Marker2 01:16:25

Marker 3 02:08:31

Press • or •to select the Marker

1-3.

I arker1 00:27:54

[Marker2 01:16:25J

Marker 3 02:08:31

Press ENTER.

Playback starts from the marked scene.

To Cancel the Mark

Press MARKER during playback or stop mode.

Press • or • to select the Marker 1-3.

Press CANCEL.

Press MARKER to remove this display.

NOTE:

• The marking is canceled when you

eject the disc or turn the power off.

• Some subtitles recorded around the

marker may fail to appear. [DVD]

Changing soundtrack language/Subtitles

Changing soundtrack language

You can select the language when you play a multilingual disc.

1Press AUDIOduring playback.

The current soundtrack language

will appear.

Press AUDIO repeatedly until the

desired language is selected.

The on-screen display will

disappear after a few seconds.

The on-screen display will disappear after a few seconds.

Subtitles

Turning the subtitles on and off

When playing back a disc recorded with subtitles, you can turn the

subtitles on or off.

Press SUBTITLE during playback

until "Off" appears.

Changing the subtitle language

You can select the language when playing back a disc recorded

with multi-lingual subtitles.

Press SUBTITLE repeatedly

during playback until your desired _ 1/5Eng

language appears.

NOTE:

• If the desired language is not heard

after pressing AUDIO several times,

the language is not recorded on the

disc.

• Changing soundtrack language is

cancelled when you eject the disc.

The initial default language or

available language will be heard if the

disc is played back again.

• Changing subtitle language is

cancelled when you eject the disc.

• Some functions may not work on

some DVDs.You may not be able

to turn subtitles on or off or change

subtitles. While playing the DVD, the

subtitle may change when:

- you eject the disc.

- you change the title.

• In some cases, the subtitle language

is not changed to the selected one

immediately.

The on-screen display will disappear after a few seconds.

Changing angles/Title selection/DVD menu

Changing angles

When playing back a disc recorded with multi-angle facility, you can

change the view angle.

Press ANGLE during playback.

The current angle will appear.

Press ANGLE repeatedly until the desired angle is selected.

Title selection

Two or more titles are recorded on some discs.

If the title menu is recorded on the disc, you can select the desired

title.

Press TOP MENU during playback.

Title menu appears on the screen.

Press A/v or 4/_,- to select the desired title.

Press ENTER or PLAY.

The playback of the selected title will start.

DVD menu

Some DVDs allow you to select the disc contents using the menu.

When you play back these DVDs, you can select the subtitle

language and soundtrack language, etc. using the DVD menu.

Press DVD MENU during playback.

The DVD menu appears on the screen.

• Press DVD MENU again to resume playback at the scene

when you pressed DVD MENU.

Press A/v or 4/_,- to select the desired item.

Press ENTER.

The menu continues to another screen. Repeat steps 2 and 3

to set additional items if any.

NOTE:

• Depending on the DVD, you may not

be able to change the angles even if

multi-angles are recorded on the DVD.

• Depending on the DVD, you may not

be able to select the title. Depending

on the DVD, a "title menu" may simply

be called a "menu" or "title" in the

instructions supplied with the disc.

Setting the language

You can select the language of

"Menu", "Subtitle" and "Audio"

if more than one languages are

recorded onto the disc,

Press • or • to select desired

option, then press • or ENTER.

Press SETUP/TV MENU in the stop mode.

Press • or • to select @ option, then press </• or ENTER.

Subtitle : Englis_hh

Audio : English

Press • or • to select your

desired language (e.g. English). Subtitle

Audio

English, Francais, Espanol :

The selected language will be heard or seen.

Other:

Other language can be selected (see the "Language code list"

on page 58).

Original (Audio):

The unit will select the first priority language of each disc.

Off (Subtitle):

Subtitles do not appear.

Press SETUP/TV MENU or RETURN to remove the menu

screen.

NOTE:

• If the selected language is not

recorded on the disc, the first priority

language is selected.

Settingthe aspectratioof TV screen/Settingon screendisplay

Setting the aspect ratio of TV screen

You can select the aspect ratio of the picture.

Press SETUP/TV MENU in the stop mode or No Disc.

Press • or •to select _ option, then press 4/• or ENTER.

Press • or • to select "TV

Screen", then press • or ENTER.

Press • or • to select your

desired screen type, then press

ENTER.

NOTE:

• It is not always possible for the DVD

disc to display the picture as per your

preferred picture setting - for example,

if you select "4:3 Panscan", the disc

may not offer this option. In this case

the picture would display the format

the disc is capable of playing back.

You have the following screen sizes to choose from:

4:3 i"l Letterbox

When playing back a wide screen DVD disc, it displays the wide

picture with black bands at the top and bottom of screen.

4:3 17 Panscan

It displays the wide picture on the whole screen with left and

right edges automatically cut off.

16:9 ri-] Wide

A wide screen picture is displayed full size.

Press SETUP/TV MENU or RETURN to remove the menu

screen.

Setting on screen display

On screen display can be switched on or off when you press the

DISPLAY button.

Press SETUP/TV MENU in the stop mode or No Disc.

Press • or • to select _ option, then press 4/• or ENTER.

Press • or • to select "Display",

then press • or ENTER.

Press • or • to select "On" or

"Off", then press ENTER.

TVScreen :16:9_

ic ure oe : u o

TVScreen :16:9_

On: On screen displays appear when you press the buttons

(factory setting).

Off: On screen displays do not appear when you press any

buttons except SUBTITLE, PLAY MODE, MARKER and

DISPLAY.

Press SETUP/TV MENU or RETURN to remove the menu

screen.

Setting the picture mode

There are two types of source

content in pictures recorded in DVD

video discs: film content (pictures

recorded from films at 24 frames

per second) and video content

(video signals recorded at 30 frames

per second). Make this selection

according to the type of content

being viewed.

Setting the picture mode

Press SETUP/TV MENU in the stop mode.

Press • or •to se ect _ option, then press 4/• or ENTER.

Press • or • to select"Picture

Mode", then press • or ENTER.

Press • or • to select your ,,_

desired picture mode, then press _ TV S.....

ENTER. D_p_°y

TV Screen :16:9_

Display :On

JPEG Interval :Off

:16:9_

:On

Auto:

Select this position normally.

The DVD player automatically detects source content, film or

video, of playback source.

Film:

Suitable for playback of film content pictures.

Video:

Suitable for playback of video content pictures.

Press SETUP/TV MENU or RETURN to remove the menu

screen.

NOTE:

• Depending on the disc, pictures may

be cut off or doubled. In this case,

select "Video".

Night Mode/Digital Out

Night Mode

Night Mode enables you to control the dynamic range so as to

achieve a suitable sound for your equipment.

Press SETUP/TV MENU in the stop mode or No Disc.

Press • or •to select (_ option, then press 4/I, or ENTER.

Press • or • to select "Night

Mode", then press • or ENTER.

Press • or • to select "On" or

"Off", then press ENTER.

On : Loud sound such as

explosion or similar is toned

down slightly when play

back. This makes it suitable

for when it is connected to a

stereo.

Off : It plays back at the

recording level on the disk.

Digital Out :PCM

Press SETUP/TV MENU or RETURN to remove the menu

screen.

Digital Out

You can select the digital output sound format corresponding to

your system connection.

Press SETUP/TV MENU in the stop mode or No Disc.

Press • or • to select (_ option, then press 4/• or ENTER.

Press • or • to select"Digital

Out", then press • or ENTER. Night Mode :Off

Press • or • to select"PCM",

"Bitstreem" or "Off", then press

ENTER.

NOTE:

• This function works only during

playback of Dolby Digital recorded

discs.

• The level of Dynamic Range

Reduction may differ depending on

DVD video disc.

• Even if you select"Bitstream", MPEG

audio will be output in PCM format.

PCM: Change Dolby Digital to PCM for the output. Select

when connected to a 2 channel digital stereo

amplifier.

Bitstream: Disc audio bitstream data will be output.

Off: There is no sound output from DIGITAL AUDIO

OUT jack.

Press SETUP/TV MENU or RETURN to remove the menu

screen.

Parental control setting

Some discs are specified not

suitable for children. Such discs can

be limited not to play back with the

unit.

Press SETUP/TV MENU in the stop mode or No Disc.

Press • or •to select _t option, then press ,/• or ENTER.

Press • or • to select"Parental",

then press • or ENTER.

"Enter Password" screen will

appear.

Password :Change

Press"0000" using Number

buttons (0-9). (Please note, this

pre-setting password of this unit).

Then press ENTER. The parental

level list will appear.

• Level Off : The parental control setting does not function.

• Level 8 : Virtually all DVD software can be played back.

• Level 1 : DVD software for adults cannot be played back.

• Select from level 1 to level 8. The limitation will be more

severe as the level number decreases.

• If you input a wrong number, press CANCEL.

4Press • or • to select the level _--

1 to level 8. The limitation will be _

more severe asthe level number _ P°°oword Oh°°9o

iS lower. Then press ENTER.

Press SETUP/TV MENU or RETURN to remove the menu

screen.

NOTE:

•If each setup (P.51-56) has been

completed, the unit can always

be operated under the same

conditions (especially with DVD

discs).

Each setup will be retained in the

memory when you turn the power

off.

• Depending on the discs, the unit

cannot limit playback.

• Some discs may not be encoded

with specific rating level information

though its disc jacket says "adult". For

those discs, the age restriction will not

work.

• After the rating is locked, the setting

cannot be changed unless you enter

the correct password.

Setting the new password

Press SETUP/TV MENU in the stop mode or No Disc.

Press • or •to select [_ option, then press ,/• or ENTER.

Press • or • to select

"Password", then press • or

ENTER.

"Enter Current Password" screen

will appear.

Parental : off

3Press Number buttons (0-9)

to enter the password you have

stored.

• If you input a wrong number,

press CANCEL.

Then press ENTER."Enter New

Password" screen will appear.

Press Number buttons (0-9) to

input the new password.

Parental :O_

Press ENTER.

Now your new password has been set.

Be sure to remember this number!

NOTE:

• Do not forget the password. If

you forget the password, contact

Customer Service at 1-800-289-0980.

The original remote control will be

required.

Temporary disabling of rating level by DVD disc

Some pre-recorded DVD discs may

attempt to temporarily cancel the

rating level that you have set. You

will be given the option to allow or

not allow the override.

Load a DVD disc (see page

39).

If the DVD disc has been designed to temporarily cancel the

Rating level, the screen which follows the "Reading" screen will

change, depending on which disc is played. If you select "YES"

with ENTER key, password input screen will then appear.

Enter the password with

Number buttons (0-9).

Then press ENTER.

• If you interrupt the entering,

press RETURN.

Playback will commence if the entered password was correct.

NOTE:

• This temporary cancellation of the

rating level will be kept until the disc is

ejected.

When the disc is ejected, the

original rating level will be set again

automatically.

Language code list

Enter the appropriate code number for the initial settings "Menu", "Subtitle" and/or "Audio" (see page 51 ).

Language Name Code Language Name Code Language Name Code Language Name Code

Abkhazian 1112 Fiji 1620 Lingala 2224 Singhalese 2919

Afar 1111 Finnish 1619 Lithuanian 2230 SIovak 2921

Afrikaans 1116 French 1628 Macedonian 2321 Slovenian 2922

Albanian 2927 Frisian 1635 Malagasy 2317 Somali 2925

Amharic 1123 Galician 1722 Malay 2329 Spanish 1529

Arabic 1128 Georgian 2111 Malayalam 2322 Sundanese 2931

Armenian 1835 German 1415 Maltese 2330 Swahili 2933

Assamese 1129 Greek 1522 Maori 2319 Swedish 2932

Aymara 1135 Greenlandic 2122 Marathi 2328 Tagalog 3022

Azerbaijani 1136 Guarani 1724 Moldavian 2325 Tajik 3017

Bashkir 1211 Gujarati 1731 Mongolian 2324 Tamil 3011

Basque 1531 Hausa 1811 Nauru 2411 Tatar 3030

Bengali;Bangla 1224 Hebrew 1933 Nepali 2415 Telugu 3015

Bhutani 1436 Hindi 1819 Norwegian 2425 Thai 3018

Bihari 1218 Hungarian 1831 Oriya 2528 Tibetan 1225

Breton 1228 Icelandic 1929 Panjabi 2611 Tigrinya 3019

Bulgarian 1217 Indonesian 1924 Pashto, Pushto 2629 Tonga 3025

Burmese 2335 Interlingua 1911 Persian 1611 Turkish 3028

Byelorussian 1215 Irish 1711 Polish 2622 Turkmen 3021

Cambodian 2123 Italian 1930 Portuguese 2630 Twi 3033

Catalan 1311 Japanese 2011 Quechua 2731 Ukrainian 3121

Chinese 3618 Javanese 2033 Rhaeto-Romance 2823 Urdu 3128

Corsican 1325 Kannada 2124 Romanian 2825 Uzbek 3136

Croatian 1828 Kashmiri 2129 Russian 2831 Vietnamese 3219

Czech 1329 Kazakh 2121 Samoan 2923 VolapQk 3225

Danish 1411 Kirghiz 2135 Sanskrit 2911 Welsh 1335

Dutch 2422 Korean 2125 Scots Gaelic 1714 Wolof 3325

English 1524 Kurdish 2131 Serbian 2928 Xhosa 3418

Esperanto 1525 Laothian 2225 Serbo-Croatian 2918 Yiddish 2019

Estonian 1530 Latin 2211 Shona 2924 Yoruba 3525

Faroese 1625 Latvian, Lettish 2232 Sindhi 2914 Zulu 3631

Connections to other equipment

The exact arrangement you use to interconnect various video and audio components to this unit is dependent

on the model and features of each component. Check the Owner's Manual provided with each component for

the location of video and audio inputs and outputs.

To connect the LCD TV/DVD to a VCR

Left side of the unit

Q @ To AUDIO/VIDEO IN 1 (or 2) To Audio/Video OUT/

....

ud,oMdeocord,notsu ,ed-CL I'

VCR

To connect the LCD TV/DVD to a VCR with an S-Video cord

If you connect aVCR with a S-VIDEO cable to the S-VIDEO IN jack on the rear lower right of the unit, you must

also connect the audio cables to the AUDIO IN jacks on the rear lower right of the unit.

The S-VIDEO cable only carries the video signal. The audio signal is separate.

NOTE:

• When the S-video cable and the standard video cable are connected at the same time, the S-video cable

takes precedence.

Left side of the unit

VCR

To S-VIDEO IN 1 To S-Video OUT/ \

=_::_ S-Video cord (not supplied) "_1_ l I I

Audio cord (not supplied)

To AUDIO IN 1 To Audio OUT

To connect to a DVD player with Component Video Input

You can enjoy a high quality picture by connecting the unit's COMPONENT VIDEO OUT jacks of your DVD

player with the COMPONENT video cables (not supplied).

Left side of the unit

_ To COMPONENT IN To Component OUT

__J Videocord (not supplied) _ .

©©@l /

___To A_UC iO i:idio cord (not supplied) To AL.do_OUT _

NOTE:

• Component Video input of the unit are for use with a device which output 480i/1080i interlaced signals and

480p/720p progressive signals.

Connections to other equipment (continued)

To connect a HDMI or a DVI device to the unit

The HDMI input receives digital audio and uncompressed video from a HDMI device or uncompressed digital

video from a DVI device.

When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate

analog audio cords required.

Left side of the unit

HDMI cable (type A connector)

T------ _3 J or

HDMI - to - DVI adapter cable

| (HDMI type A connector) _h

( PP )

_, _ To DV

J Audio cord (not supplied)

HDMI device 1

DVI device

Using an AV Amplifier with built-in digital surround

If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including

Dolby Digital Surround audio that sounds just like the movie.

Connect an AV amplifier with built-in Dolby Digital decoder, DTS decoder, or MPEG decoder etc. as

shown below.

Left side of the unit

] Front

| Speaker

__ Subwoofer | (Right)

(Left)Fr°nt_ %

Coaxial Digital Speaker_ /\

Audio Output

Center Speaker

©l

©@@l

Coaxial 0001

digital cable

(not supplied)

To Coaxia_ _ _ ,_-

Digital Audio Input _ L,_ U J______ _

II ......_ oo o_

AV Amplifier with built-in digital surround I L

decoder as listed above

_ Surround _ SurroundSpeaker (Left) Speaker

(Right)

NOTE:

• This unit will not work in conjunction with DTS audio.There will be no sound output if connected to an AV

amplifier with a built-in DTS decoder.

• Coaxial digital audio output is active only when receiving digital broadcasting, not when receiving analog

broadcasting.

Connections to other equipment (continued)

To connect the TV/DVD to a camcorder, or a TV Game

To playback from a camcorder, connect the camcorder to the unit as shown.

This unit can also be used as a display device for many video games. However, due to the wide variety of

signals generated by these devices and subsequent hook-up variations required, they have not all been

included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual for

additional information.

Left side of the unit

_ ©@1

iOO@l

ieeet

orITVGAMEI

To Audio/Video OUT ???

"I"AudioNideo cord (not supplied)

To connect the TV/DVD to a PC (Personal Computer)

Before you connect this TV/DVD to your PC, change the adjustment of your PC's Resolution and Refresh rate (60

Hz).

Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the VGA

connector PC MONITOR on the back of the TV/DVD. Attach the connectors firmly with the screws on the plug. In

case of a Multimedia computer, connect the audio cord to the audio output of your Multimedia computer and to

the AUDIO connector of the PC/HDMI AUDIO IN jacks of the TV/DVD.

Press INPUT SELECT on the remote control to select PC mode.

Switch on the computer. The TV/DVD can operate as the computer monitor.

Left side of the unit

pc]

000

IN jacks Audio cord (not supplied)

Monitor Display modes

MODE Resolution Refresh rate

VGA 640x480 60Hz

VGA 720x400 70Hz

SVGA 800x600 60Hz

XGA 1024x768 60Hz

WXGA 1280x768 60Hz

WXGA 1280x720 60Hz

WXGA 1360x768 60Hz

To return to normal mode

Press INPUT SELECT again.

NOTE:

• The on-screen displays will have a different appearance in PC mode than in TV mode.

• If there is no video signal from the PC when the unit is in PC mode, "NO SIGNAL' will appear on the TV-

screen.

Reception disturbances

Most types of television interference can be remedied by adjusting the height and position of the VHF/

UHF antenna. Outdoor antennas are recommended for best results. The most common types of television

interference are shown below. If one of these symptoms appear when the TV is connected to a Cable TV

system, the disturbance may be caused by the local Cable TV company broadcast.

IGNITION

Black spots or horizontal streaks may appear, the picture may flutter or

drift. Usually caused by interference from automobile ignition systems,

neon lamps or AC powered tools and appliances such as drills or hair

dryers.

GHOSTS

Ghosts are caused by the television signal following two paths. One is the

direct path and the other is reflected by tall buildings, hills or other large

objects. Changing the direction or position of the antenna may improve

the reception.

INOW

If the TV is located far from the TV station, in a fringe reception area where

the signal is weak, small dots may appear in the picture.

If the signal is extremely weak, the installation of a larger external antenna

may be necessary.

RADIO FREQUENCY INTERFERENCE (RFI)

Caused by two-way radios, this type of interference produces moving

ripples or diagonal streaks in the picture. Some cases may cause a loss of

contrast in the picture. Changing the direction and position of the antenna

or installing an RFI filter may improve the picture.

PICTURE SIZE VARIATION

A slight picture size variation is normal when you adjust the CONTRAST or

BRIGHTNESS settings. 1

CARE AND MAINTENANCE

To prevent fire or shock hazard, disconnect the TV from the power source before cleaning.

The finish on the cabinet may be cleaned with mild soap and a soft, damp cloth and cared for as other furniture.

Use caution when cleaning or wiping the plastic parts.

Problems and troubleshooting

Use the following check list for troubleshooting when you have problems with your TV/DVD. Consult your local

dealer or service outlet if problems persist.

Be sure all connections are properly made when using with other units.

•SYMPTOMS I POSSIBLE SOLUTIONS I PAGE_

POWER

• Make sure the power cord is plugged in.

TV/DVD does not operate. • Power is off, check fuse or circuit breaker. 12

• Unplug unit, then plug it back in.

TV BROADCAST RECEPTION

• Station or Cable TV experiencing problems, tune to another station. 19

Poor sound or no sound. • Check Volume adjustments. 19, 20

• Check for sources of possible interference. 62

• Station or Cable TV experiencing problems, tune to another station. 19

Poor picture or no picture. • Check antenna or Cable TV connections, reorient antenna. 13, 14

• Check for sources of possible interference. 62

• Check picture control adjustments. 31

Poor reception on some • Station or Cable TV experiencing problems, tune to another station. 19

channels. • Station signal is weak, reorient antenna to receive stronger station. 13

• Check for sources of possible interference. 62

• Station or Cable TV experiencing problems, tune to another station. 19

• Make sure channels are set into memory. 17

Poor color or no color. • Check picture control adjustments. 31

• Check antenna or Cable TV connections, reorient antenna. 13, 14

• Check for sources of possible interference. 62

• Station or Cable TV experiencing problems, tune to another station. 19

• Make sure channels are set into memory. 17

Picture wobbles or drifts. • CableTV company is scrambling signal.

• Check antenna orientation. 13

• Check all CableTV connections. 14

No Cable TV reception. • Set Tuning Band option to the "Cable" mode. 16

• Station or Cable TV system problems, try another station. 19

Horizontal or diagonal • Check antenna connections, reorient antenna. 13

bars on screen. • Check for sources of possible interference. 62

No reception above • Make sure Tuning Band option is in the appropriate mode. 16

channel 13. • If using antenna, check UHF antenna connections. 13

• No broadcast on station tuned. 19

TV shuts off. • SleepTimer is set. 21

• Power interrupted.

• TV station experiencing problems or program tuned is not closed 19

Closed - Caption is not captioned. Try another channel.

• Check CableTV connection or VHF/UHF antenna, reposition or 13, 14

activated. rotate antenna.

• Set NTSC CC or ATSC CC "On" in the menu. 27

Display is not shown in • Select proper language in the menu options. 15

your language.

Digital broadcasting

_creen problem. • Check digital signal strength. 36 .,,i

• The LCD panel is a very high technology product, giving you fine picture details. Occasionally, a few non-

active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not

affect the performance of your product.

Problems and troubleshooting (continued)

SYMPTOMSI POSS,BLESOLOT,ONS I PAGE"

DVD

• No disc is inserted. 39

Playback doesn't start. • The disc may be dirty. Clean up the disc. 8

• The unit cannot play CD-ROMs, etc. 8

No picture. • TV/DVD selector is not set correctly. 38

• Checkthe input selector of the amplifier is set properly.

No sound. • The unit is in the Special playback mode. 40

• Select the correct Audio Output position on AV amplifier. 60

Picture is distorted during • The picture will be distorted occasionally.

CUE or REVIEW.

Stopping playback,

search, slow-motion play,

repeat play, or program • Some discs may not allow some functions.

play, etc. cannot be

performed.

No 4:3 (16:9) picture. • The setup does not match your TV. 29, 30, 52

No on-screen display. • Select Display On. 52

No surround sound. • The setup does not match your stereo system. 60

The unit or remote • Turn off the unit and unplug the AC power cord for several minutes,

operation key is not then replug it. 15

functioning.

Playback does not start • Check the RATING LEVEL setup. 55, 56

when the title is selected.

Audio soundtrack and/or

subtitle language is not • Multilingual language is not recorded on the DVD disc. 49

changed when you play

back a DVD.

• Some discs have no subtitles.

No subtitle. 49

• Subtitles are cleared. Press SUBTITLE.

Angle cannot be changed. • Multi-angles are not recorded on the DVD disc. 50

"X" appears on the • The function is prohibited with the unit or the disc. 39

screen.

REMOTE CONTROL

• Aim at the remote control at the remote sensor.

The remote control does • Operate within Approx. 5 Meters or reduce the light in the room.

• Clear the path of the beam. 12

not function. • The batteries are weak. Replace the batteries.

• Check the batteries are inserted correctly.

r •

IfSANSUI®

FOR CUSTOMER SERVICE, ADDITIONAL SETUP AND OPERATING ASSISTANCE, OR TO ORDER ACCESSORIES PLEASE CALL:

1-800-289-0980

WHEN CALLING CUSTOMER SERVICE - PLEASE HAVE YOUR MODEL NUMBER READY

OR WRITE TO:

ORION SALES, INC.

3471 N. UNION DR.

OLNEY, ILLINOIS 62450

FOR INFORMATION ON OUR OTHER PRODUCTS, OR TOORDER ACCESSORIES ONLINE, PLEASEVISIT OURWEBSITE AT

www.orionsalesinc.com

Specifications

GENERAL

Power supply:

Power consumption:

Weight:

Dimensions:

Operating temperature:

Operating humidity:

TELEVISION

Type:

Display method:

Number of Pixels:

Viewing angle:

Tuner type:

Receiving channels:

Input:

Digital audio out:

Component video input:

HDMI input:

PC Monitor input:

Antenna input:

Speaker:

Audio output power:

DVD/CD player

Signal system:

Applicable disc:

Pickup:

ACCESSORIES:

AC 120V 60Hz

Operation: 130W

Stand by: lW

11.2 kg (24.7 Ibs)

Width: 663 mm (26-1/8 inches)

Height: 495 mm (19-1/2 inches)

Depth: 211 mm (8-5/16 inches)

5oc _40°C

Less than 80%

26.01 inches (660.5 mm diagonal)

Transmission TFT color LCD panel

1366 (H) x 768 (V)

Left/Right: 80/80 degree

Up/Down: 80/80 degree

NTSC standard

ATSC standard (8VSB), QAM

VHF 2-13

UHF 14-69

CATV 14-36 (A)-(W)

37-59 (AA)-(WW)

60-85 (AAA)-(ZZZ)

86-94 (86)-(94)

95-99 (A-5)-(A-1)

100-135 (100)-(135)

01 (5A)

S-Video: Y-Input:1.0V (p-p), 75 ohms

C-Input:0.3 V (p-p), 75 ohms

Video: (RCA) 1 V p-p/75 ohms

Audio: (RCA) -8 dBm/50K ohms

0.5 Vp-p 75 ohms terminated

(Y) 1 V (p-p), 75 ohms

(PB)/(PR) 0.7 V (p-p), 75 ohms

HDMI compliant (type A connector)

HDCP compliant

E-EDID compliant

Suggested scan rates: 1080i, 480p, 480i, 720p

HDMI Audio: 2-channel PCM

32/44.1/48 kHz sampling frequency

16/20/24 bits per sample

Mini-Dsub 15pin x 1

VHF/UHF In 75 ohms coaxial

41 mm x 122 mm (1-5/8 inches x 4-13/16 inches), 4 ohms x 2

5.0W + 5.0W

NTSC

1.DVD (12 cm, 8 cm)

2.CD (12 cm, 8 cm)

CD: Wavelength:790 nm

Maximum output power: 7 mW

DVD: Wavelength: 655 nm

Maximum output power: 5 mW

Remote control

Batteries (UM-4) x 2

AC Cord

Designs and specifications are subject to change without notice. 65

IJSANSUI®

fimited

WARRANTY

LCD TV WITH DVD PLAYER

ORION warrants this product to be free from manufacturing defects in material and workmanship under

normal use and conditions for a period of 1 year from date of original purchase in the United States.

Should service be necessary under this warranty for any reason due to a manufacturing defect or malfunc-

tion during the first 12 months from date of original purchase, ORION will provide carry-in service by an ORION

authorized Independent Service Center at no charge. Also, if an original part fails due to manufacturing defect

in material and workmanship within one year from date of original purchase we will replace the defective part,

provided the defect or malfunction is verified along with dated proof of purchase.

There are ORLON authorized Independent Service Centers located throughout the country. For the one

nearest you, DIAL TOLL FREE: 1-800-289-0980 or visit our website at www.orionsalesinc.com. This product is

eligible for CARRY-IN service only. ORLON will not be liable for damages incurred in shipment of the unit. If there

are no ORION authorized Independent Service Centers in your area please call - 1-888-296-7466 for assistance.

Note: This warranty is void if the product is:

(a) Damaged through negligence, misuse, abuse, or accident.

(b) Used in a commercial application or rentals.

warranty repairs to the class of product or by the ORION Factory Service Center.

(d) Damaged because it is improperly connected to the equipment of other manufacturers.

This warranty does not cover:

(a) Damage tovideo disc.

(b) Damage to equipment not properly connected to the product.

ORION Factory Service Center.

(d) Damage or improper operation of unit caused by customer abuse, misuse, negligence, or failure to follow

operating instructions provided with the product.

(e) Ordinary adjustments to the product which can be performed by customer as outlined in the owner's

manual.

(f) Signal reception problems caused by external antenna or cable systems.

THIS WARRANTY IS NON TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER AND

DOES NOT EXTEND TO SUBSEQUENT OWNERS OFTHE PRODUCT. ANY APPLICABLE IMPLIED WARRAN-

TIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED IN DURATION TO A PERIOD OF

THE EXPRESS WARRANTY AS PROVIDED HEREIN BEGINNING WITH THE DATE OF ORIGINAL PURCHASE

AT RETAIL AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED SHALL APPLY TO THIS PRODUCT

THEREAFTER. ORION MAKES NO WARRANTY AS TO THE FITNESS OF THE PRODUCT FOR ANY PARTIC-

ULAR PURPOSE AND USE.

UNDER NO CIRCUMSTANCES SHALL ORION BE LIABLE FOR ANY LOSS, DIRECT, INDIRECT, INCI-

DENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGE ARISING OUT OF OR IN CONNECTION WITH THE USE

OFTHIS PRODUCT.

THIS WARRANTY IS VALID ONLY IN THE UNITED STATES OF AMERICA. THIS WARRANTY GIVES YOU

SPECIFIC LEGAL RIGHTS, HOWEVER, YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE

TO STATE. SOME STATES DO NOT ALLOW LIMITATION ON IMPLIED WARRANTIES OR EXCLUSION OF

CONSEQUENTIAL DAMAGE, THEREFORE THESE RESTRICTIONS MAY NOT APPLY TO YOU.

ORION SALES, INC.

3471 N. UNION DR.

OLNEY, ILLINOIS 62450

Memo

IIIIIIIIIIIIIIIIMHIIIIIIIII

J50H0201A SH 07/10 [] Printed in Thailand
