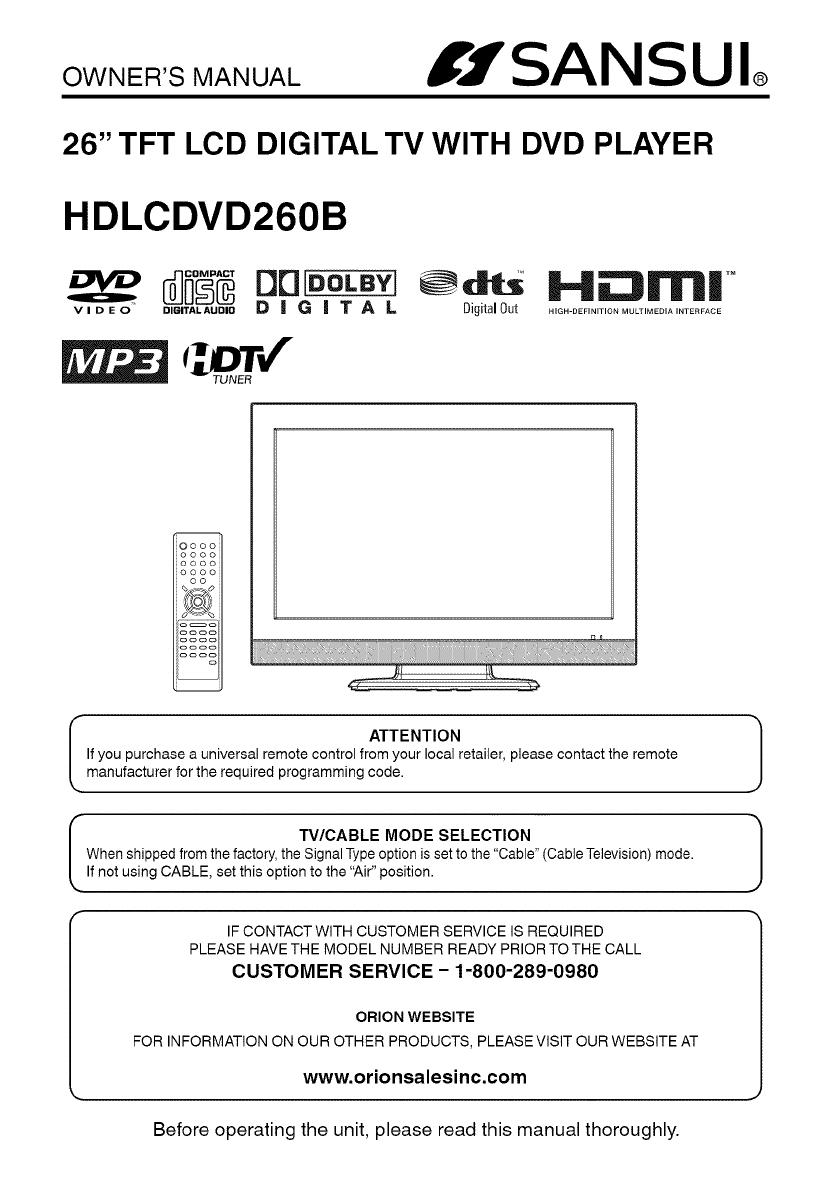

OWNER'S MANUAL IfSANSUl

26" TFT LCD DIGITAL TV WITH DVD PLAYER

HDLCDVD260B

VIDEO DIGITALAUBIOD| G |T A L Digital0ut H tTll| TM

HIGH-DEFINITION MULTIMEDIA INTERFACE

3000

oooo

o_o

ATTENTION

If you purchase a universal remote control from your local retailer, please contact the remote

manufacturer for the required programming code.

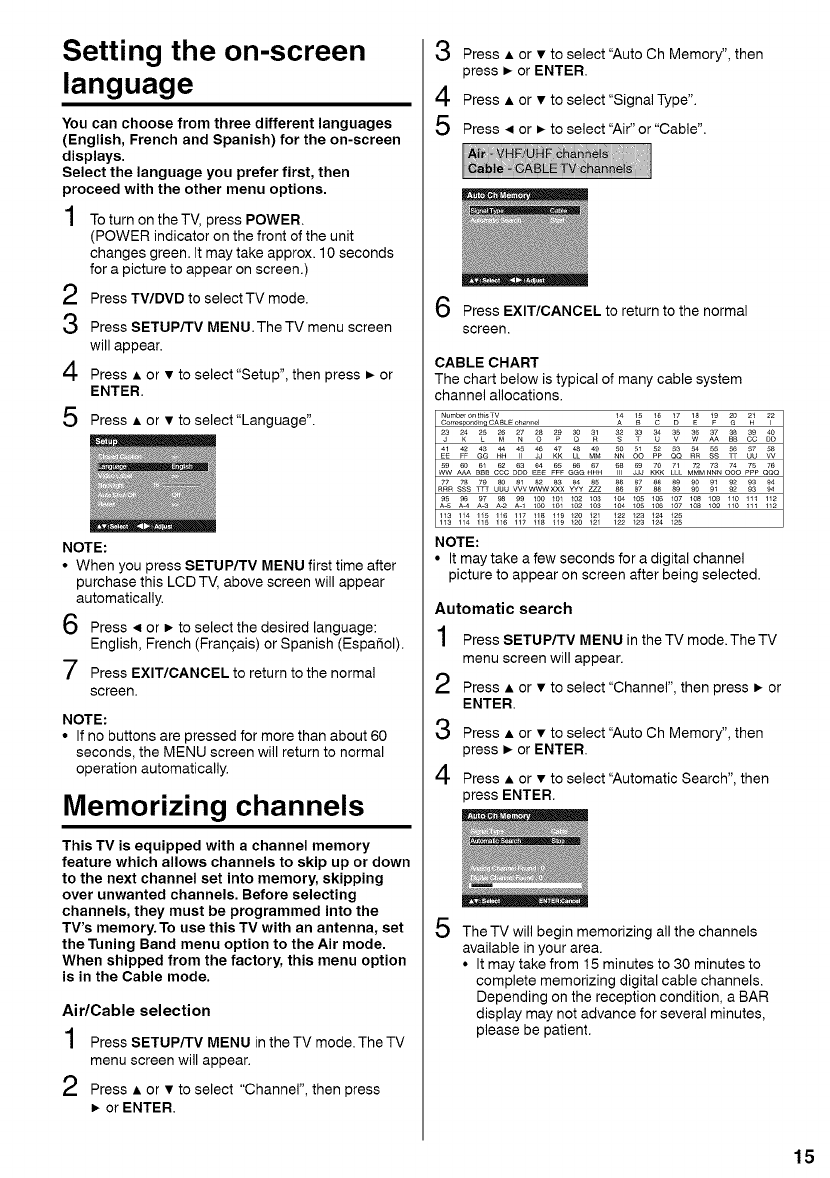

TV/CABLE MODE SELECTION

When shipped from the factory, the SignalType option isset to the "Cable" (CableTelevision)mode.

If not using CABLE, set this option to the "Air" position.

IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED

PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL

CUSTOMER SERVICE - 1-800-289-0980

ORION WEBSITE

FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT

www.orionsalesinc.com

Before operating the unit, please read this manual thoroughly.

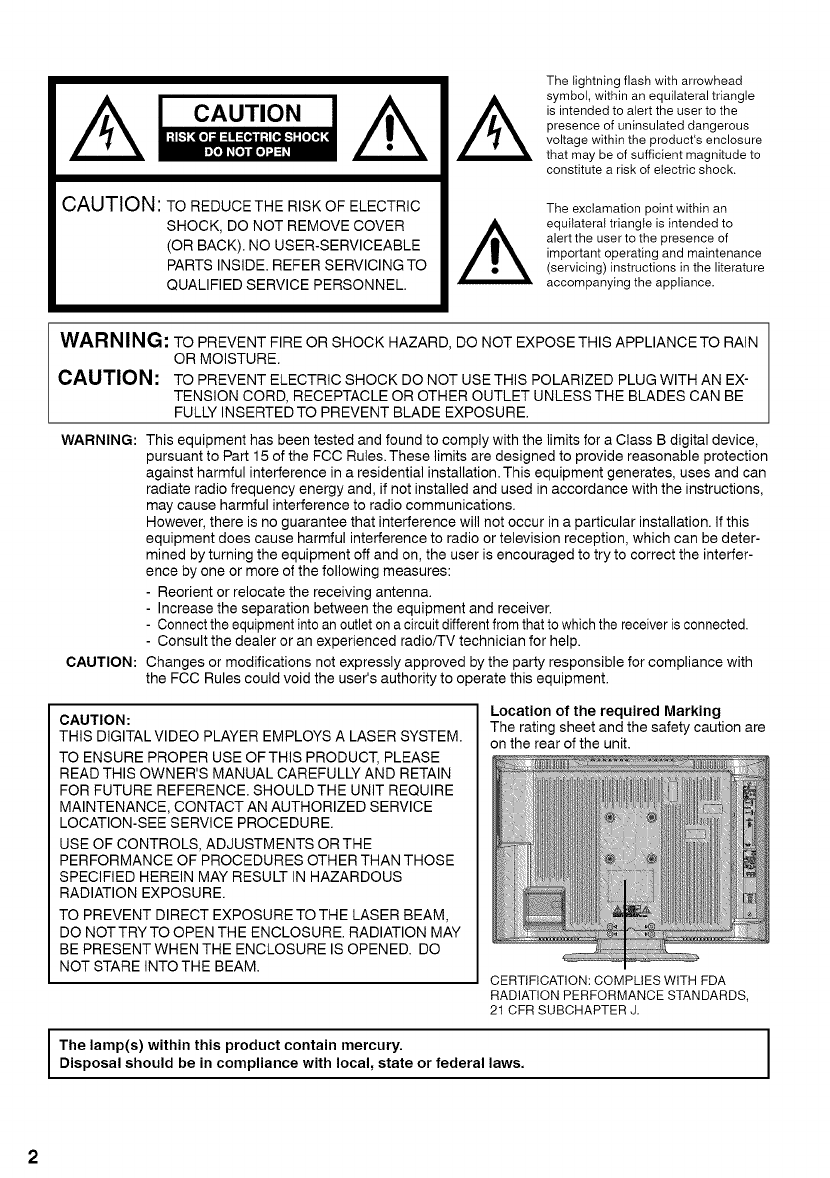

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER

(OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead

symbol, within an equilateral triangle

is intended to alert the user to the

presence of uninsulated dangerous

voltage within the product's enclosure

that may be of sufficient magnitude to

constitute a risk of electric shock.

The exclamation point within an

equilateral triangle is intended to

alert the user to the presence of

important operating and maintenance

(servicing) instructions in the literature

accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USETHIS POLARIZED PLUG WITH AN EX-

TENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE

FULLY INSERTED TO PREVENT BLADE EXPOSURE.

WARNING:

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is encouraged to try to correct the interfer-

ence by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance with

the FCC Rules could void the user's authority to operate this equipment.

CAUTION:

THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM.

TO ENSURE PROPER USE OFTHIS PRODUCT, PLEASE

READ THIS OWNER'S MANUAL CAREFULLY AND RETAIN

FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE

MAINTENANCE, CONTACT AN AUTHORIZED SERVICE

LOCATION-SEE SERVICE PROCEDURE.

USE OF CONTROLS, ADJUSTMENTS ORTHE

PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.

TO PREVENT DIRECT EXPOSURE TO THE LASER BEAM,

DO NOTTRY TO OPEN THE ENCLOSURE. RADIATION MAY

BE PRESENTWHEN THE ENCLOSURE IS OPENED. DO

NOT STARE INTO THE BEAM.

Location of the required Marking

The rating sheet and the safety caution are

on the rear of the unit.

CERTIFICATION: COMPLIES WITH FDA

RADIATION PERFORMANCE STANDARDS,

21 CFR SUBCHAPTER J.

The lamp(s) within this product contain mercury. I

Disposal should be in compliance with local, state or federal laws. I

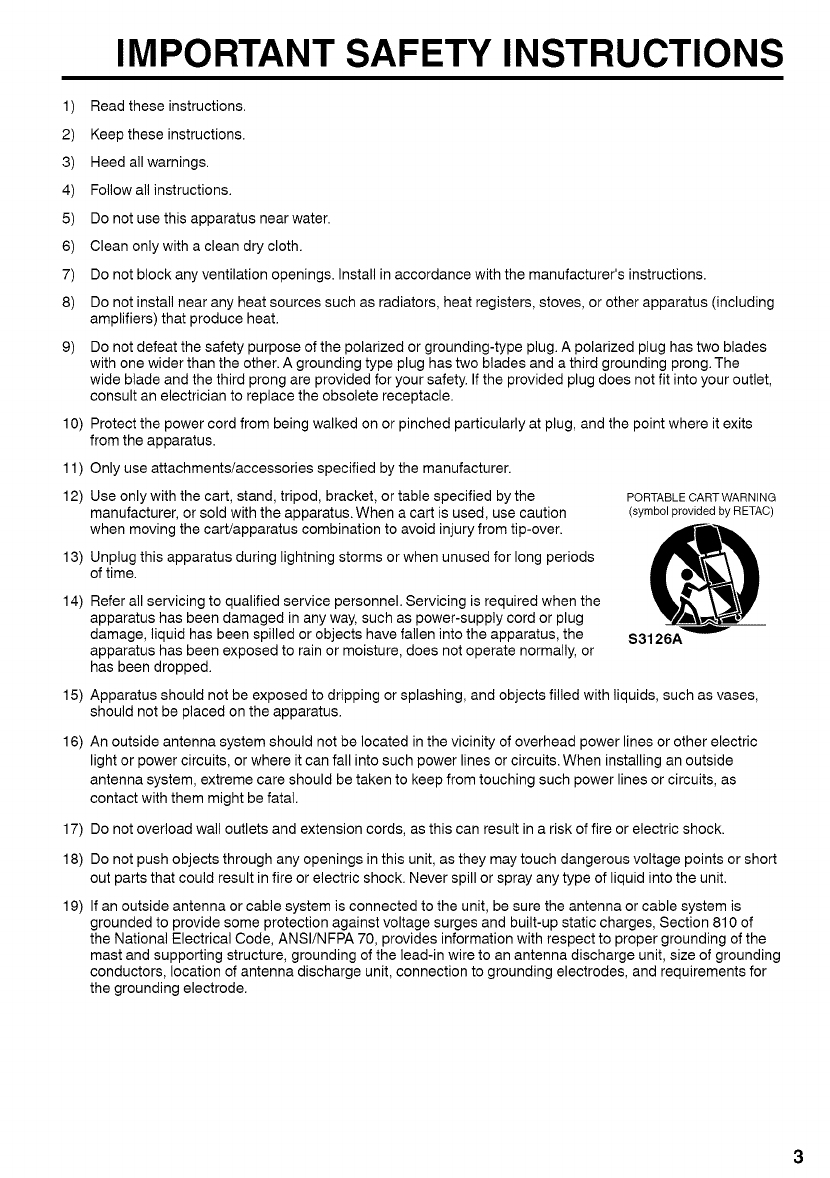

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with a clean dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and a third grounding prong. The

wide blade and the third prong are provided for your safety. If the provided plug does not fit into your outlet,

consult an electrician to replace the obsolete receptacle.

10) Protect the power cord from being walked on or pinched particularly at plug, and the point where it exits

from the apparatus.

11 ) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods

of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug

damage, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

PORTABLE CART WARNING

(symbol provided by RETAC)

15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as vases,

should not be placed on the apparatus.

16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric

light or power circuits, or where it can fall into such power lines or circuits. When installing an outside

antenna system, extreme care should be taken to keep from touching such power lines or circuits, as

contact with them might be fatal.

17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.

18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short

out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.

19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is

grounded to provide some protection against voltage surges and built-up static charges, Section 810 of

the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the

mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding

conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for

the grounding electrode.

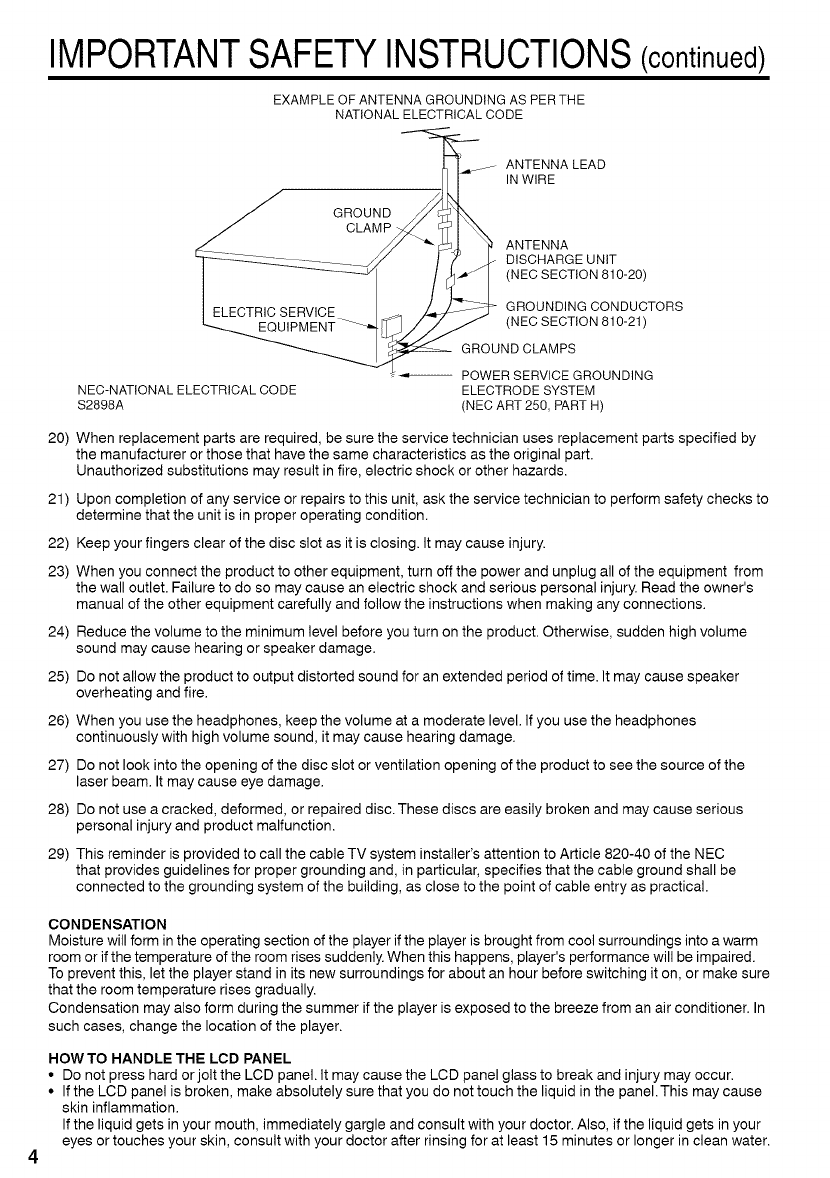

IMPORTANTSAFETY INSTRUCTIONS

EXAMPLE OF ANTENNA GROUNDING AS PER THE

NATIONAL ELECTRICAL CODE

(continued)

ANTENNA LEAD

IN WIRE

GROUND

CLAMP

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

ELECTRIC SERVICE

EQUIPMENT

NEC-NATIONAL ELECTRICAL CODE

S2898A

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

20)

21)

22)

23)

24)

25)

26)

27)

28)

29)

When replacement parts are required, be sure the service technician uses replacement parts specified by

the manufacturer or those that have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock or other hazards.

Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to

determine that the unit is in proper operating condition.

Keep your fingers clear of the disc slot as it is closing. It may cause injury.

When you connect the product to other equipment, turn off the power and unplug all of the equipment from

the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's

manual of the other equipment carefully and follow the instructions when making any connections.

Reduce the volume to the minimum level before you turn on the product. Otherwise, sudden high volume

sound may cause hearing or speaker damage.

Do not allow the product to output distorted sound for an extended period of time. It may cause speaker

overheating and fire.

When you use the headphones, keep the volume at a moderate level. If you use the headphones

continuously with high volume sound, it may cause hearing damage.

Do not look into the opening of the disc slot or ventilation opening of the product to see the source of the

laser beam. It may cause eye damage.

Do not use a cracked, deformed, or repaired disc.These discs are easily broken and may cause serious

personal injury and product malfunction.

This reminder is provided to call the cable TV system installer's attention to Article 820-40 of the NEC

that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be

connected to the grounding system of the building, as close to the point of cable entry as practical.

CONDENSATION

Moisture will form in the operating section of the player if the player is brought from cool surroundings into a warm

room or if the temperature of the room rises suddenly. When this happens, player's performance will be impaired.

To prevent this, let the player stand in its new surroundings for about an hour before switching it on, or make sure

that the room temperature rises gradually.

Condensation may also form during the summer if the player is exposed to the breeze from an air conditioner. In

such cases, change the location of the player.

HOWTO HANDLE THE LCD PANEL

•Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur.

• If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause

skin inflammation.

If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your

eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.

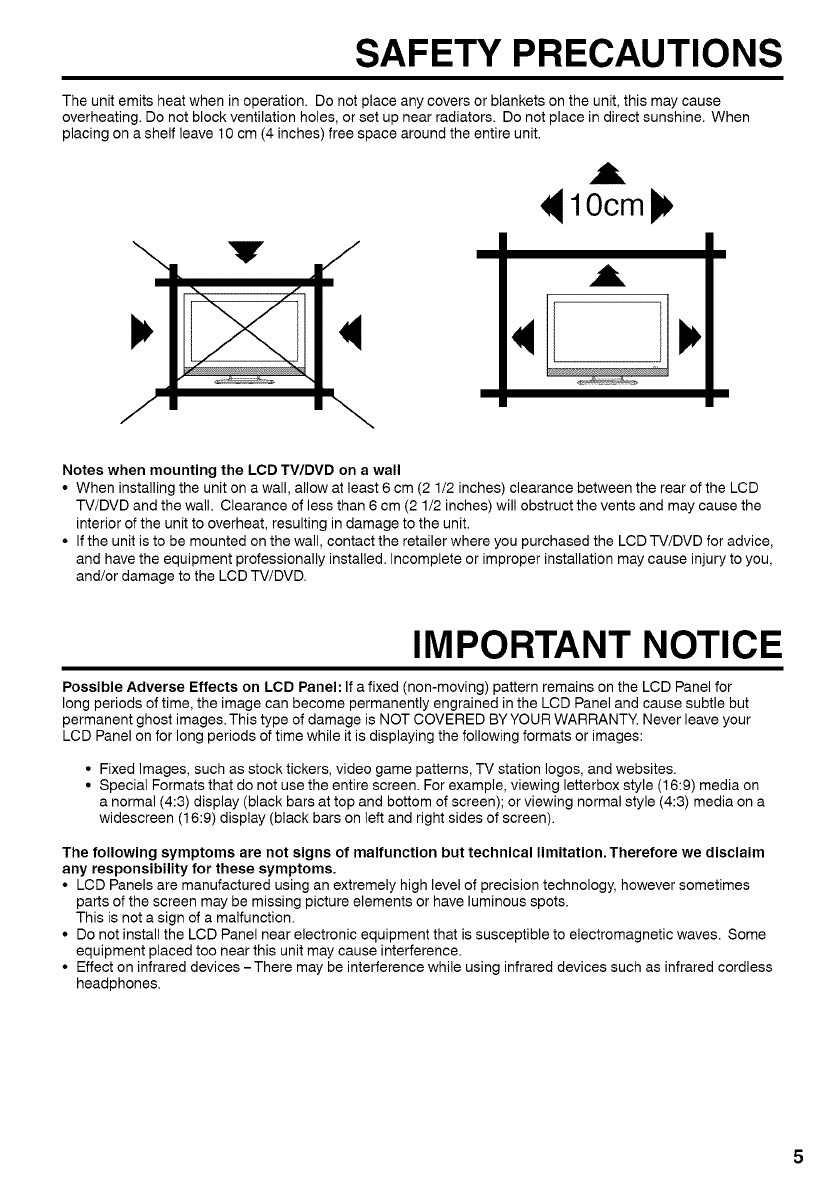

SAFETY PRECAUTIONS

The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause

overheating. Do not block ventilation holes, or set up near radiators. Do not place in direct sunshine. When

placing on a shelf leave 10 cm (4 inches) free space around the entire unit.

\ "v j

10cm

J \

Notes when mounting the LCD TV/DVD on a wall

•When installing the unit on a wall, allow at least 6 cm (2 1/2 inches) clearance between the rear of the LCD

TV/DVD and the wall. Clearance of less than 6 cm (2 1/2 inches) will obstruct the vents and may cause the

interior of the unit to overheat, resulting in damage to the unit.

• If the unit is to be mounted on the wall, contact the retailer where you purchased the LCD TV/DVD for advice,

and have the equipment professionally installed. Incomplete or improper installation may cause injury to you,

and/or damage to the LCD TV/DVD.

IMPORTANT NOTICE

Possible Adverse Effects on LCD Panel: If a fixed (non-moving) pattern remains on the LCD Panel for

long periods of time, the image can become permanently engrained in the LCD Panel and cause subtle but

permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your

LCD Panel on for long periods of time while it is displaying the following formats or images:

• Fixed Images, such as stock tickers, video game patterns, TV station Iogos, and websites.

• Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on

a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a

widescreen (16:9) display (black bars on left and right sides of screen).

The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim

any responsibility for these symptoms.

• LCD Panels are manufactured using an extremely high level of precision technology, however sometimes

parts of the screen may be missing picture elements or have luminous spots.

This is not a sign of a malfunction.

• Do not install the LCD Panel near electronic equipment that is susceptible to electromagnetic waves. Some

equipment placed too near this unit may cause interference.

• Effect on infrared devices -There may be interference while using infrared devices such as infrared cordless

headphones.

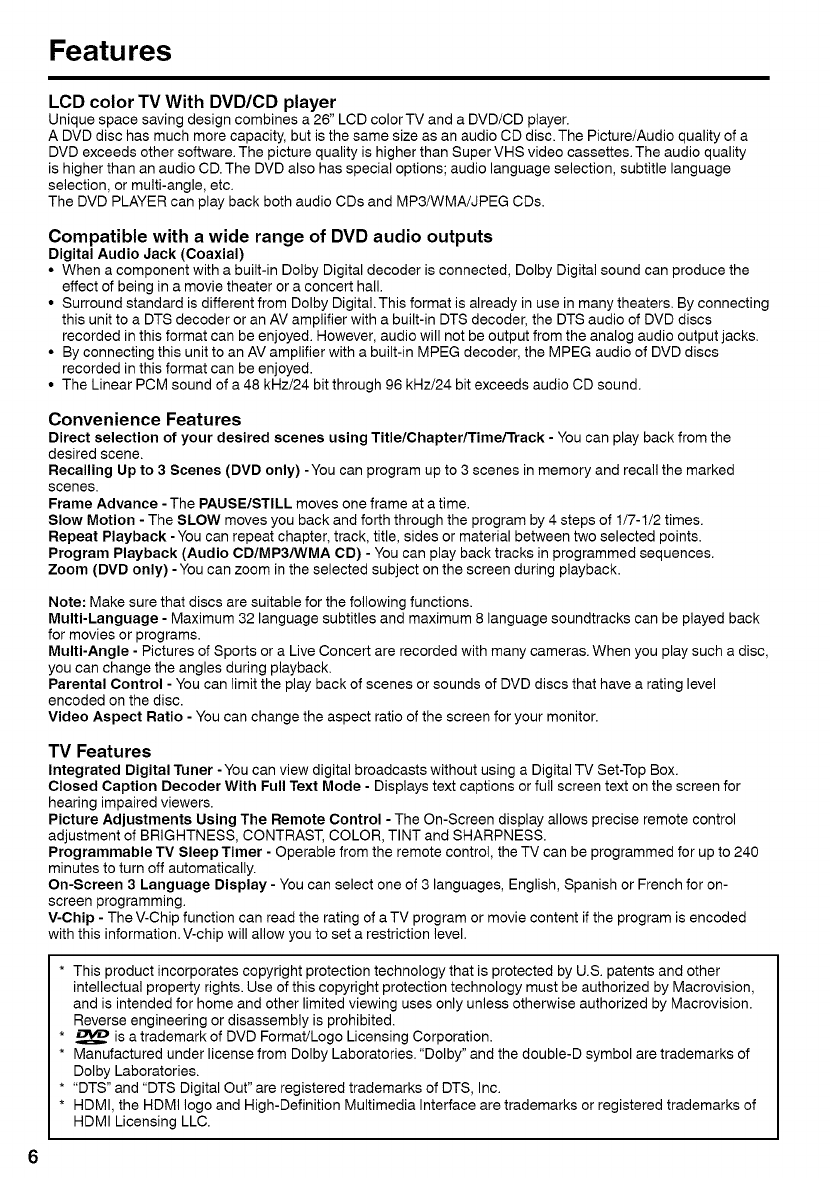

Featu res

LCD color TV With DVD/CD player

Unique space saving design combines a 26" LCD color TV and a DVD/CD player.

A DVD disc has much more capacity, but is the same size as an audio CD disc.The Picture/Audio quality of a

DVD exceeds other software. The picture quality is higher than Super VHS video cassettes. The audio quality

is higher than an audio CD. The DVD also has special options; audio language selection, subtitle language

selection, or multi-angle, etc.

The DVD PLAYER can play back both audio CDs and MP3/WMA/JPEG CDs.

Compatible with a wide range of DVD audio outputs

Digital Audio Jack (Coaxial)

•When a component with a built-in Dolby Digital decoder is connected, Dolby Digital sound can produce the

effect of being in a movie theater or a concert hall.

• Surround standard is different from Dolby Digital. This format is already in use in many theaters. By connecting

this unit to a DTS decoder or an AV amplifier with a built-in DTS decoder, the DTS audio of DVD discs

recorded in this format can be enjoyed. However, audio will not be output from the analog audio output jacks.

• By connecting this unit to an AV amplifier with a built-in MPEG decoder, the MPEG audio of DVD discs

recorded in this format can be enjoyed.

• The Linear PCM sound of a 48 kHz/24 bit through 96 kHz/24 bit exceeds audio CD sound.

Convenience Features

Direct selection of your desired scenes using Title/Chapter/Time/Track - You can play back from the

desired scene.

Recalling Up to 3 Scenes (DVD only) -You can program up to 3 scenes in memory and recall the marked

scenes.

Frame Advance - The PAUSE/STILL moves one frame at a time.

Slow Motion - The SLOW moves you back and forth through the program by 4 steps of 1/7-1/2 times.

Repeat Playback -You can repeat chapter, track, title, sides or material between two selected points.

Program Playback (Audio CD/MP3/WMA CD) - You can play back tracks in programmed sequences.

Zoom (DVD only) -You can zoom in the selected subject on the screen during playback.

Note: Make sure that discs are suitable for the following functions.

Multi-Language - Maximum 32 language subtitles and maximum 8 language soundtracks can be played back

for movies or programs.

Multi-Angle - Pictures of Sports or a Live Concert are recorded with many cameras. When you play such a disc,

you can change the angles during playback.

Parental Control - You can limit the play back of scenes or sounds of DVD discs that have a rating level

encoded on the disc.

Video Aspect Ratio - You can change the aspect ratio of the screen for your monitor.

TV Features

Integrated Digital Tuner -You can view digital broadcasts without using a Digital TV Set-Top Box.

Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for

hearing impaired viewers.

Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control

adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.

Programmable TV Sleep Timer - Operable from the remote control, the TV can be programmed for up to 240

minutes to turn off automatically.

On-Screen 3 Language Display - You can select one of 3 languages, English, Spanish or French for on-

screen programming.

V-Chip - The V-Chip function can read the rating of a TV program or movie content if the program is encoded

with this information. V-chip will allow you to set a restriction level.

*This product incorporates copyright protection technology that is protected by U.S. patents and other

intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision,

and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.

Reverse engineering or disassembly is prohibited.

*,_ is a trademark of DVD Format/Logo Licensing Corporation.

*Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of

Dolby Laboratories.

*"DTS" and "DTS Digital Out" are registered trademarks of DTS, Inc.

*HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing LLC.

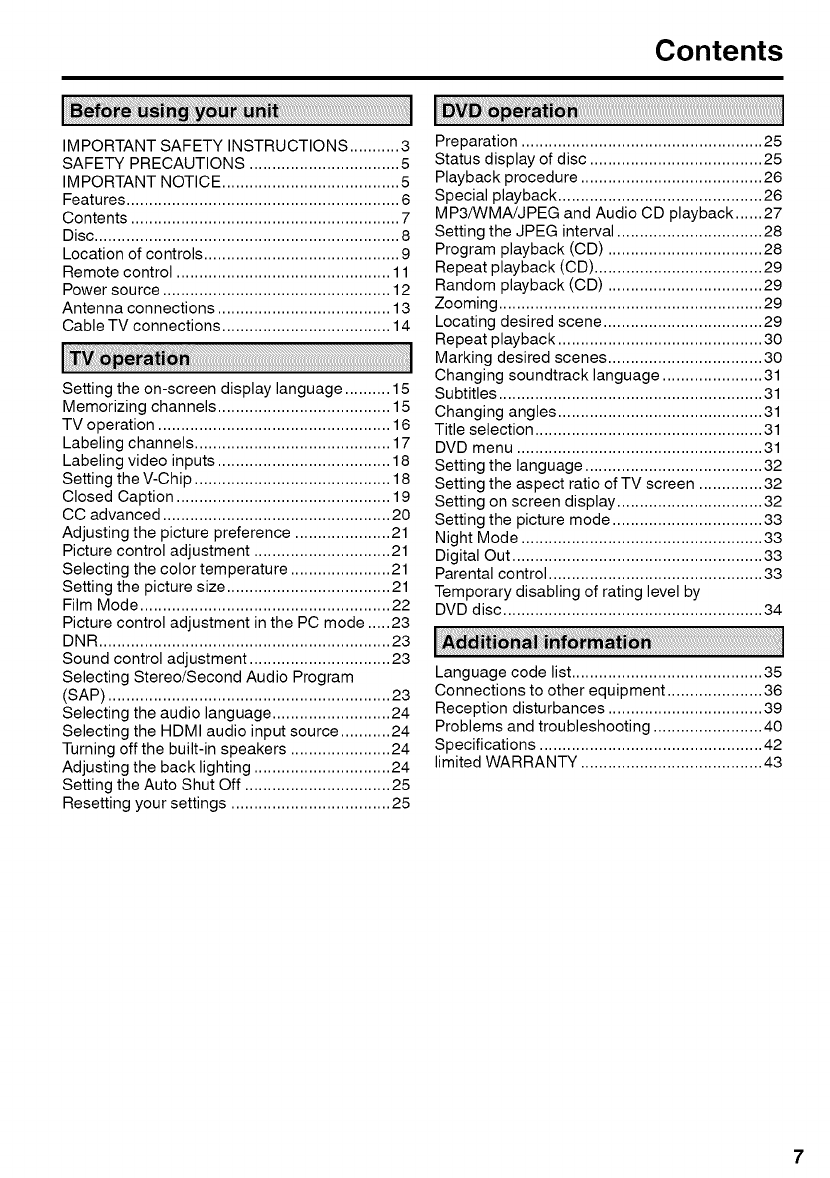

Contents

IMPORTANT SAFETY INSTRUCTIONS ........... 3

SAFETY PRECAUTIONS ................................. 5

IMPORTANT NOTICE ....................................... 5

Features ............................................................ 6

Contents ........................................................... 7

Disc ................................................................... 8

Location of controls ........................................... 9

Remote control ............................................... 11

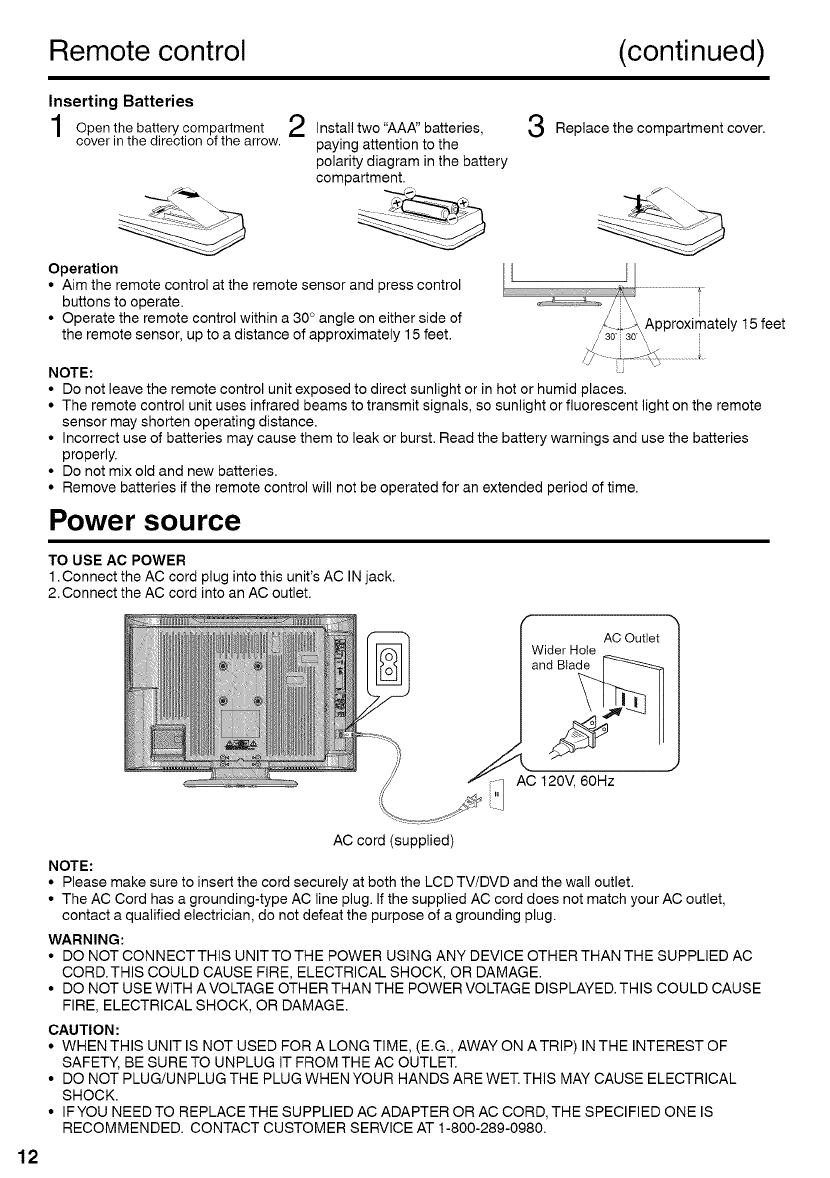

Power source .................................................. 12

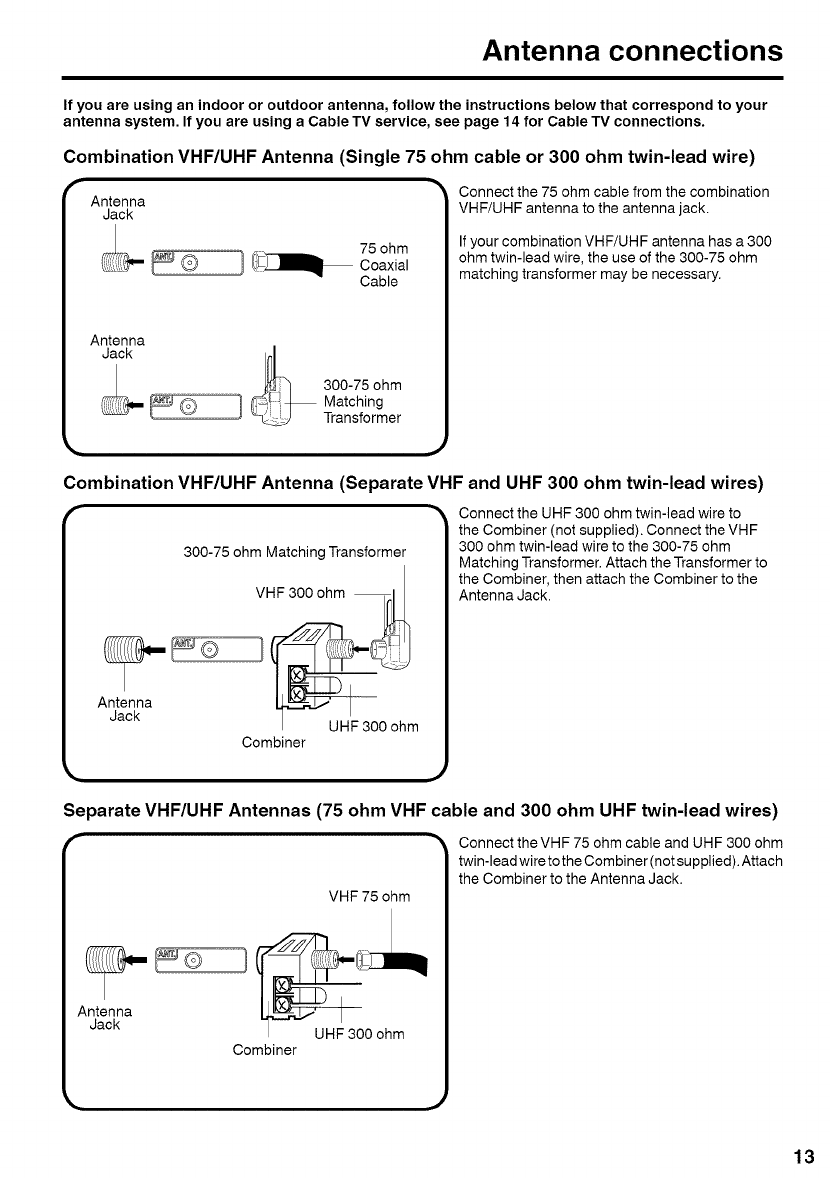

Antenna connections ...................................... 13

Cable TV connections ..................................... 14

Setting the on-screen display language .......... 15

Memorizing channels ...................................... 15

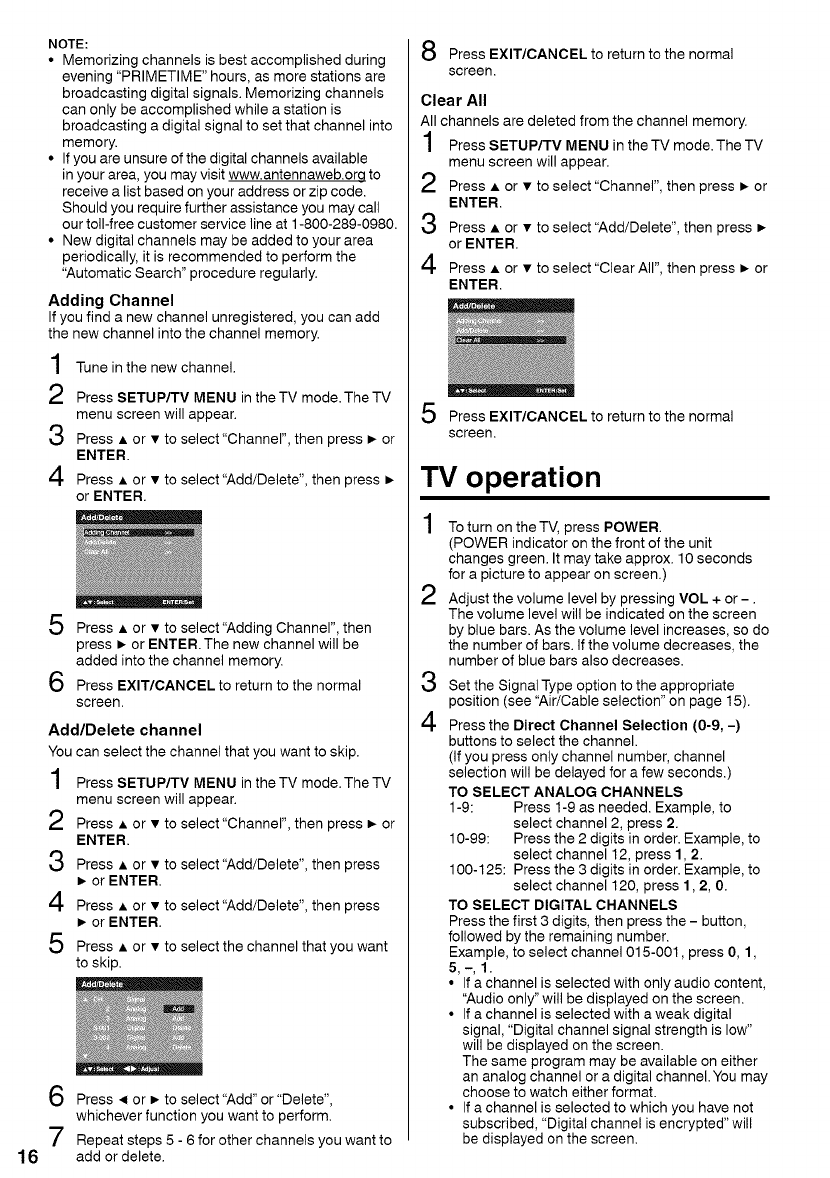

TV operation ................................................... 16

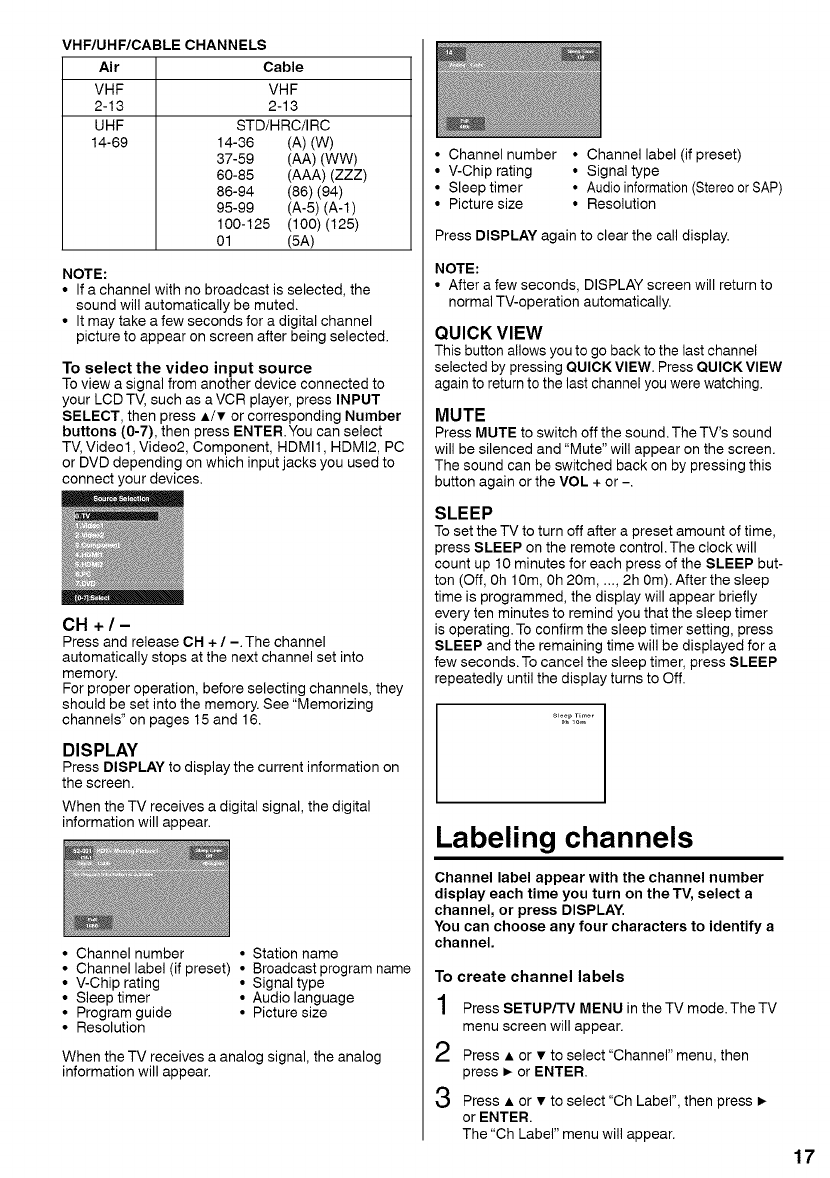

Labeling channels ........................................... 17

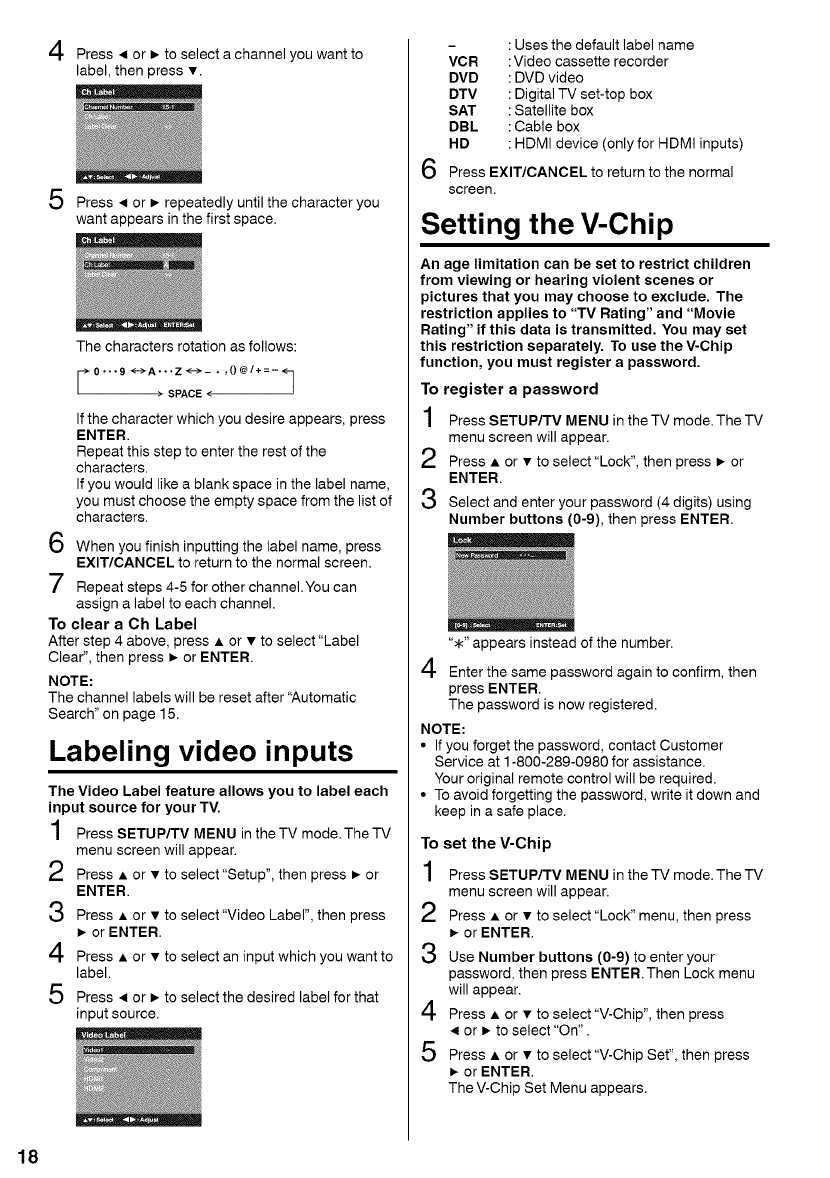

Labeling video inputs ...................................... 18

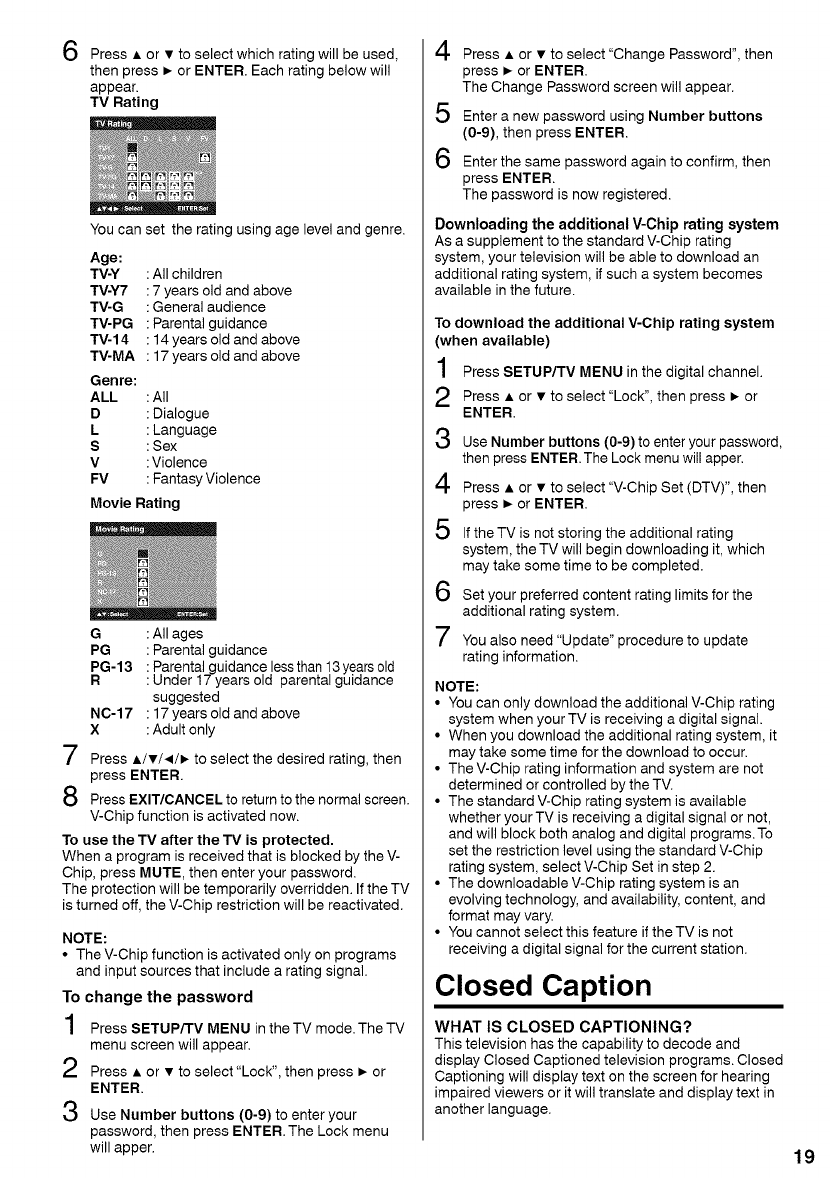

Setting the V-Chip ........................................... 18

Closed Caption ............................................... 19

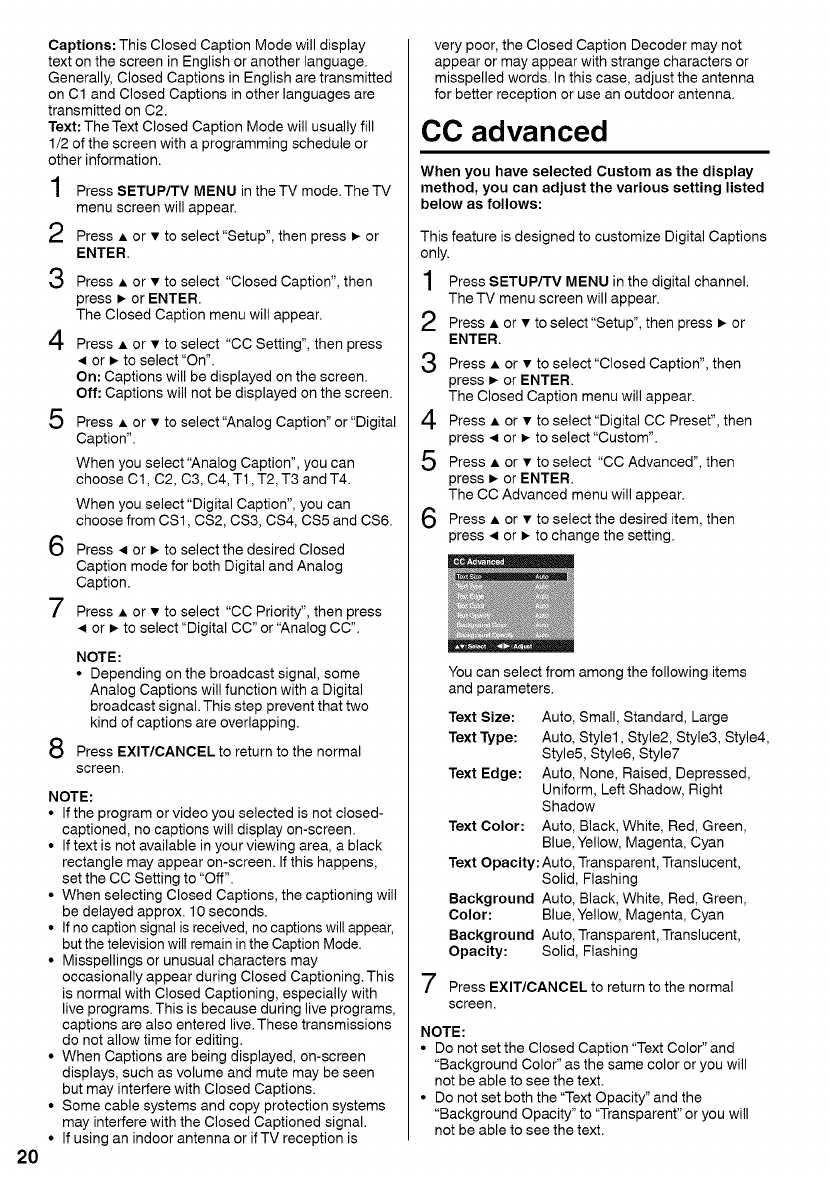

CC advanced .................................................. 20

Adjusting the picture preference ..................... 21

Picture control adjustment .............................. 21

Selecting the color temperature ...................... 21

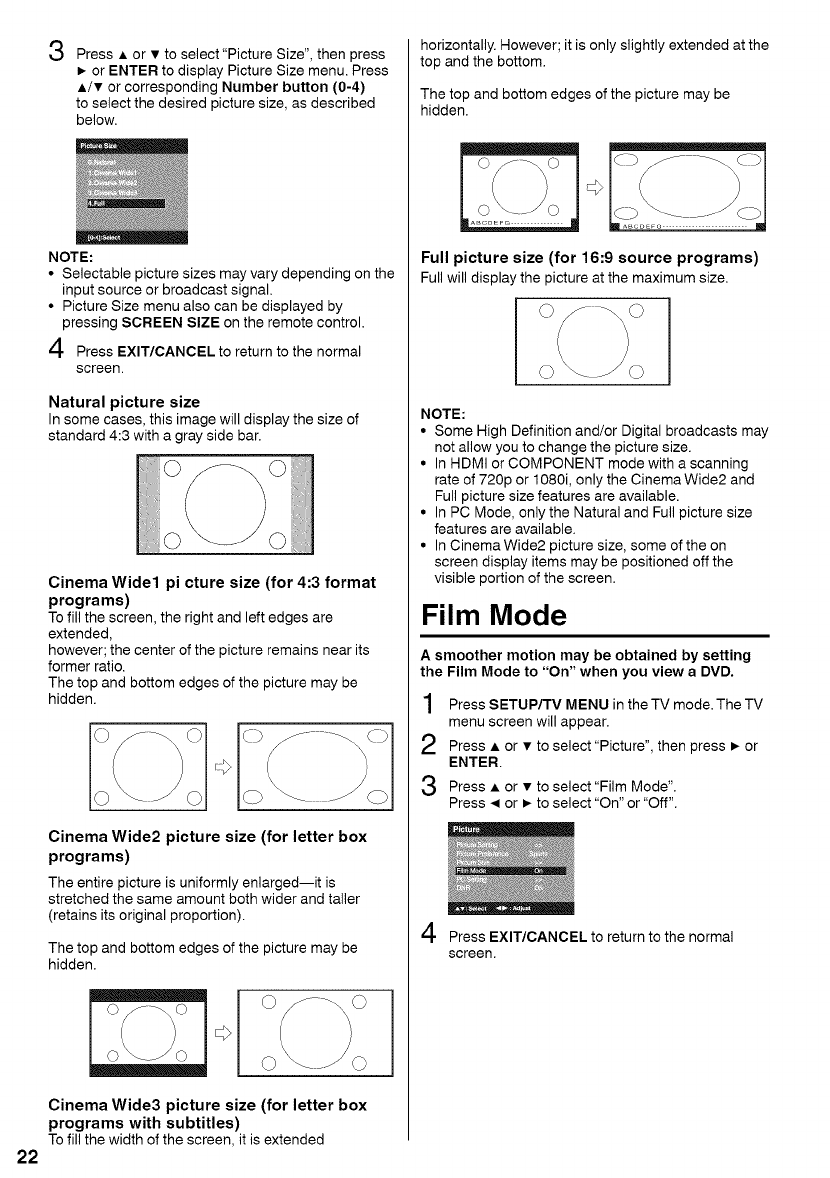

Setting the picture size .................................... 21

Film Mode ....................................................... 22

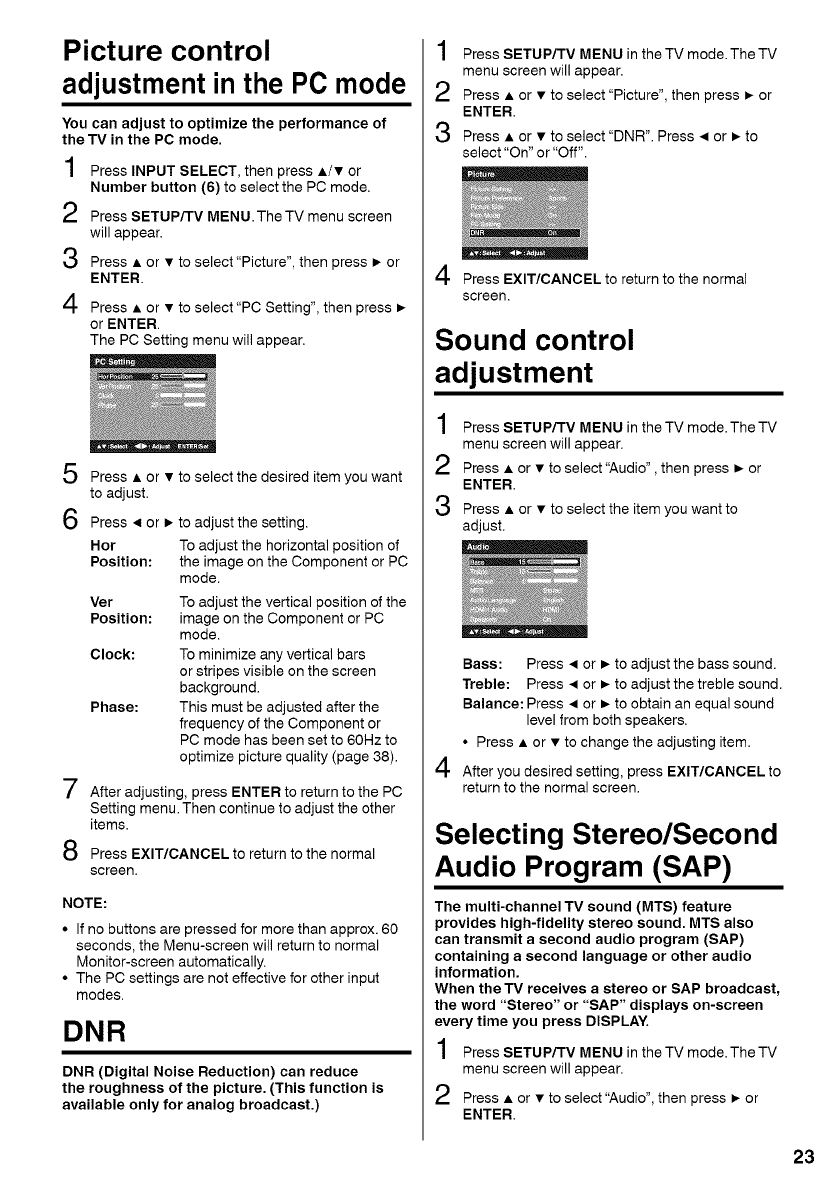

Picture control adjustment in the PC mode ..... 23

DNR ................................................................ 23

Sound control adjustment ............................... 23

Selecting Stereo/Second Audio Program

(SAP) .............................................................. 23

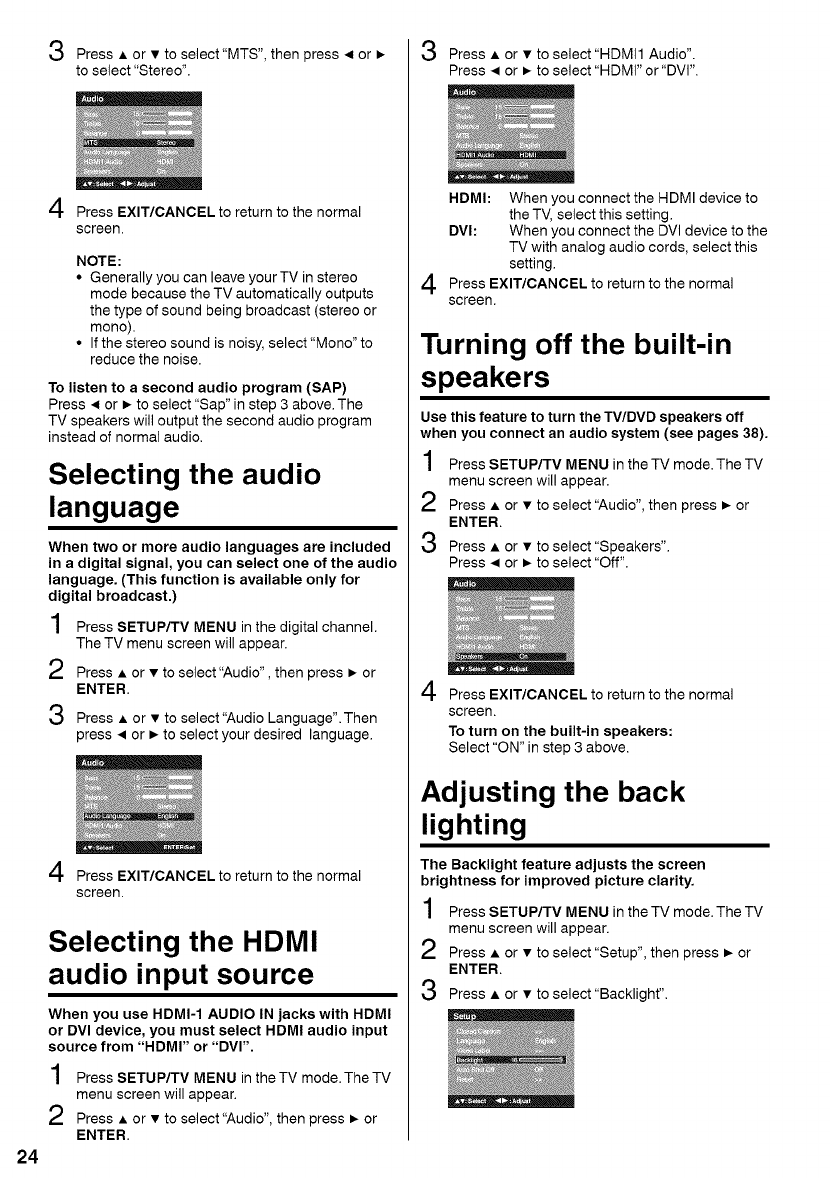

Selecting the audio language .......................... 24

Selecting the HDMI audio input source ........... 24

Turning off the built-in speakers ...................... 24

Adjusting the back lighting .............................. 24

Setting the Auto Shut Off ................................ 25

Resetting your settings ................................... 25

Preparation ..................................................... 25

Status display of disc ...................................... 25

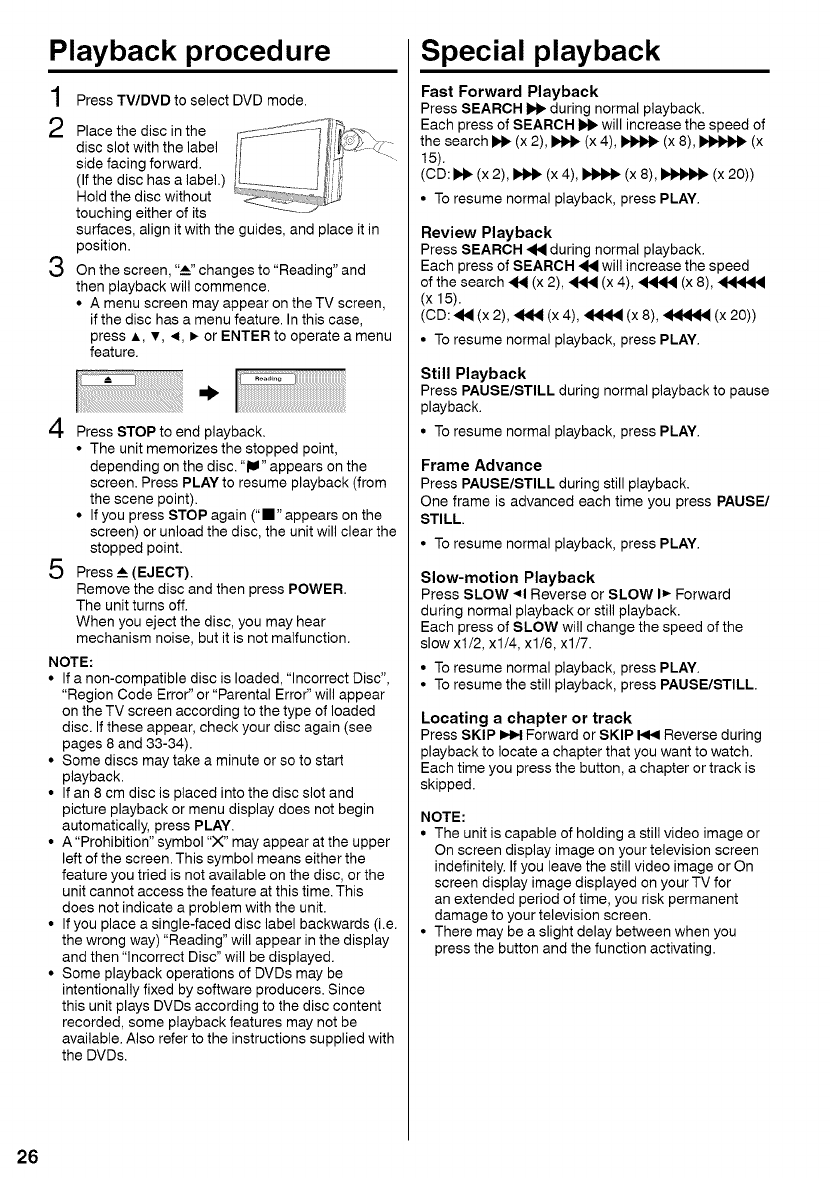

Playback procedure ........................................ 26

Special playback ............................................. 26

MP3/WMA/JPEG and Audio CD playback ...... 27

Setting the JPEG interval ................................ 28

Program playback (CD) .................................. 28

Repeat playback (CD) ..................................... 29

Random playback (CD) .................................. 29

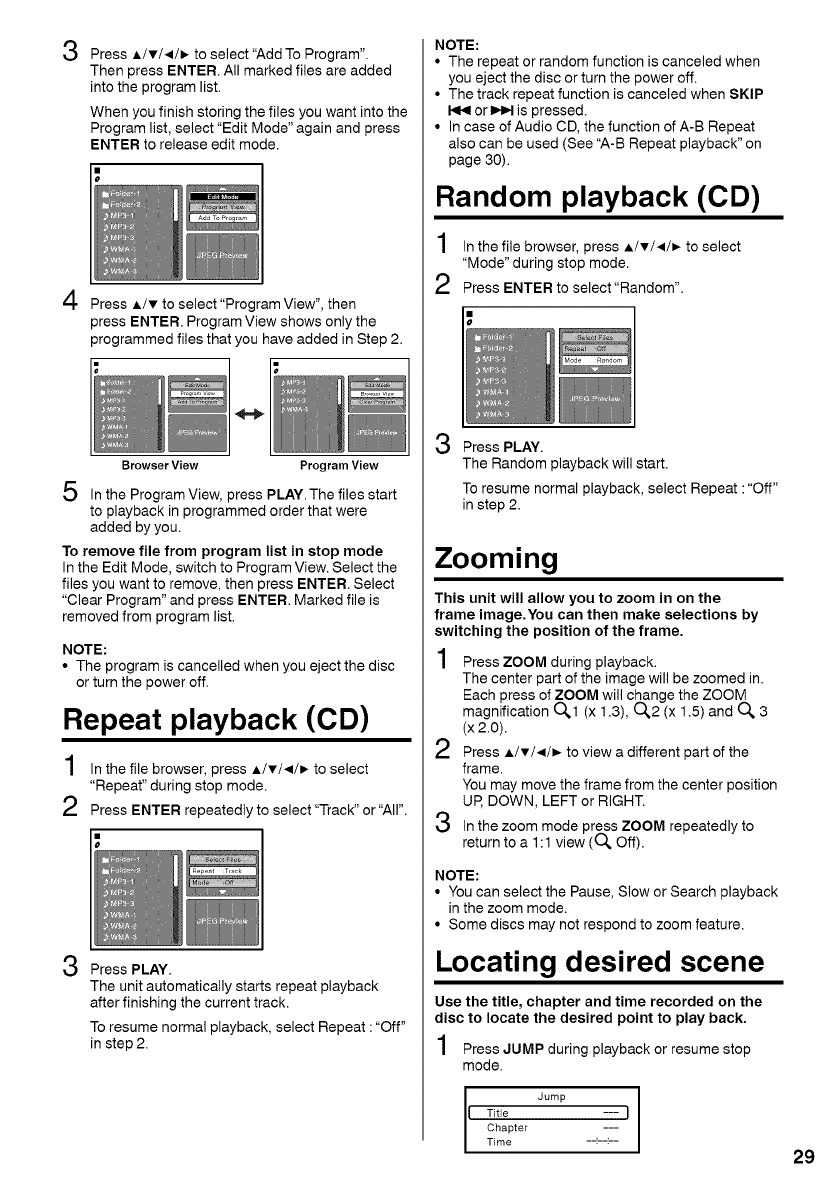

Zooming .......................................................... 29

Locating desired scene ................................... 29

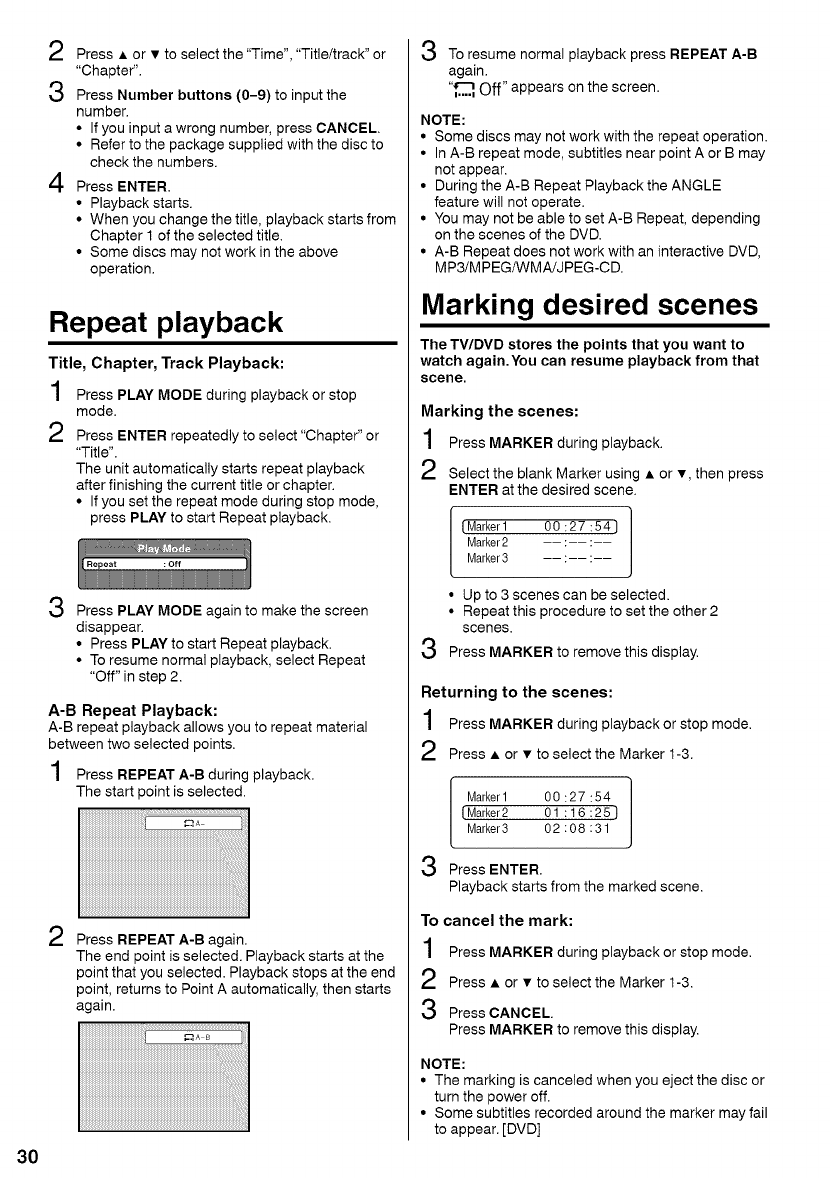

Repeat playback ............................................. 30

Marking desired scenes .................................. 30

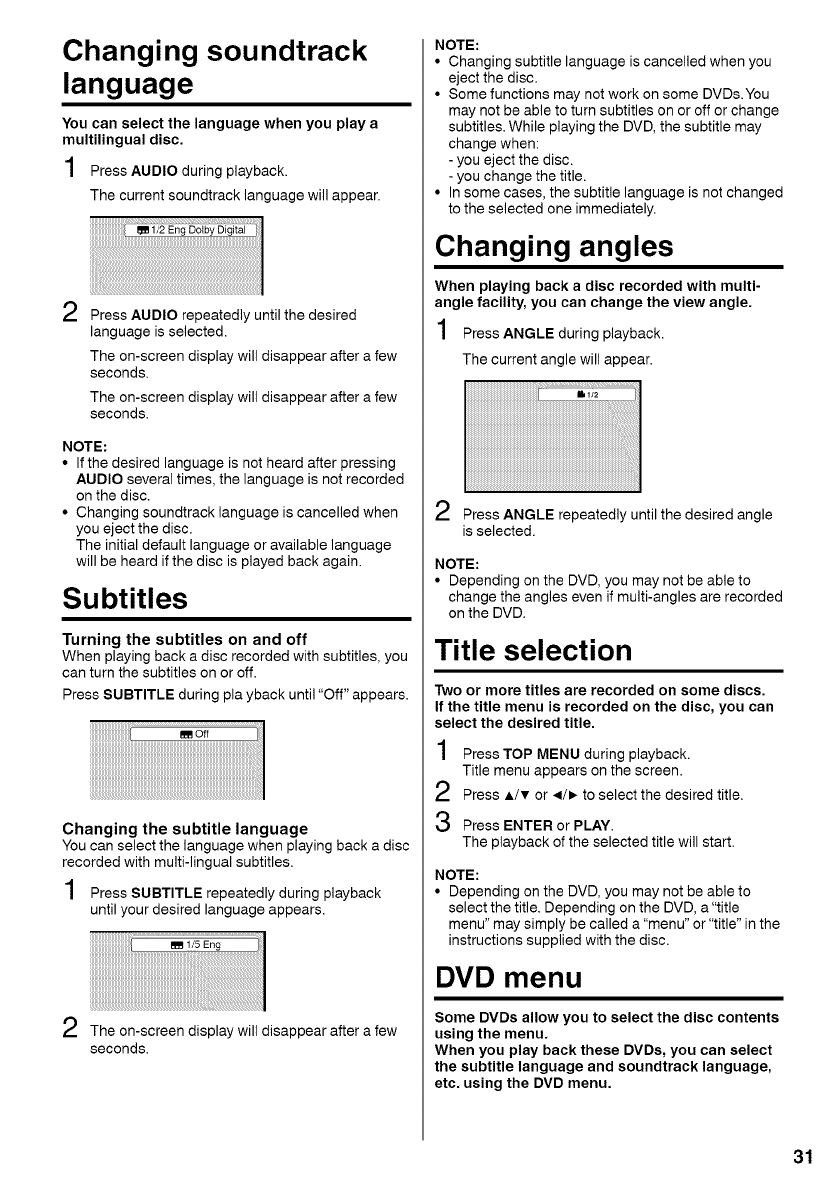

Changing soundtrack language ...................... 31

Subtitles .......................................................... 31

Changing angles ............................................. 31

Title selection .................................................. 31

DVD menu ...................................................... 31

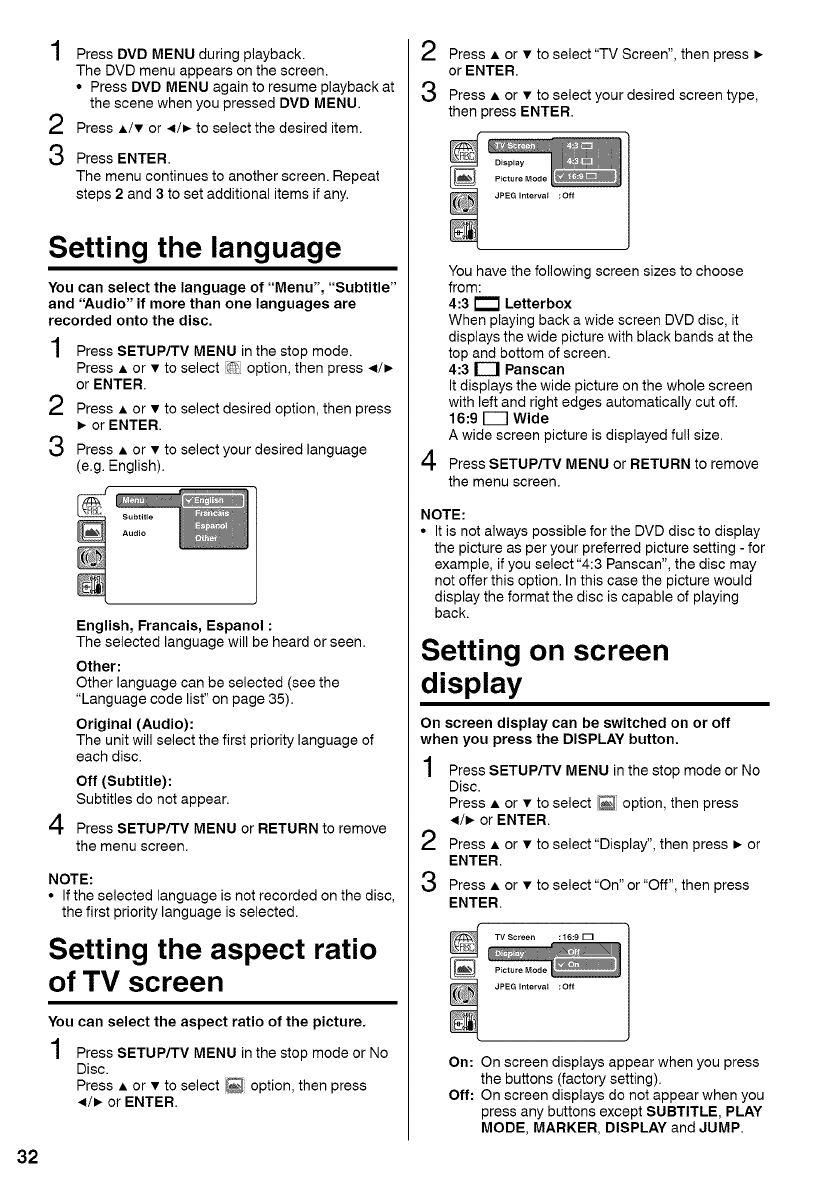

Setting the language ....................................... 32

Setting the aspect ratio of TV screen .............. 32

Setting on screen display ................................ 32

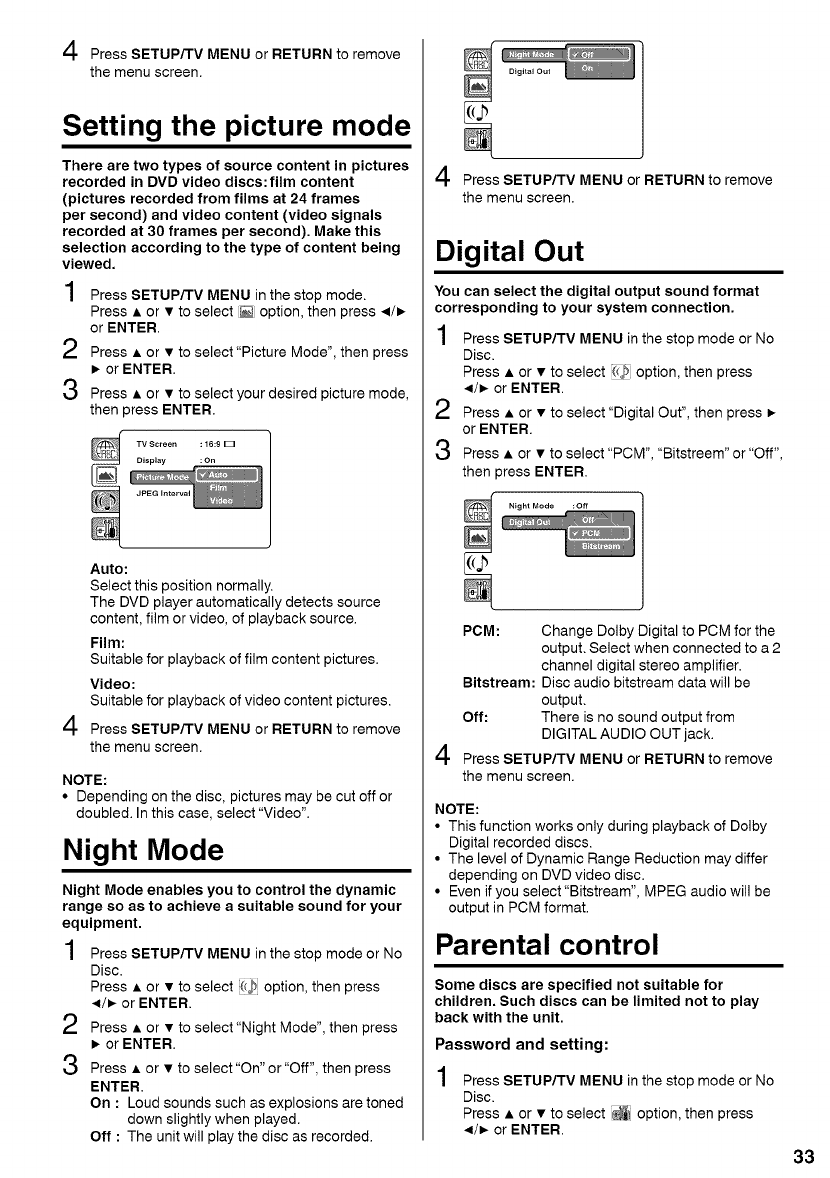

Setting the picture mode ................................. 33

Night Mode ..................................................... 33

Digital Out ....................................................... 33

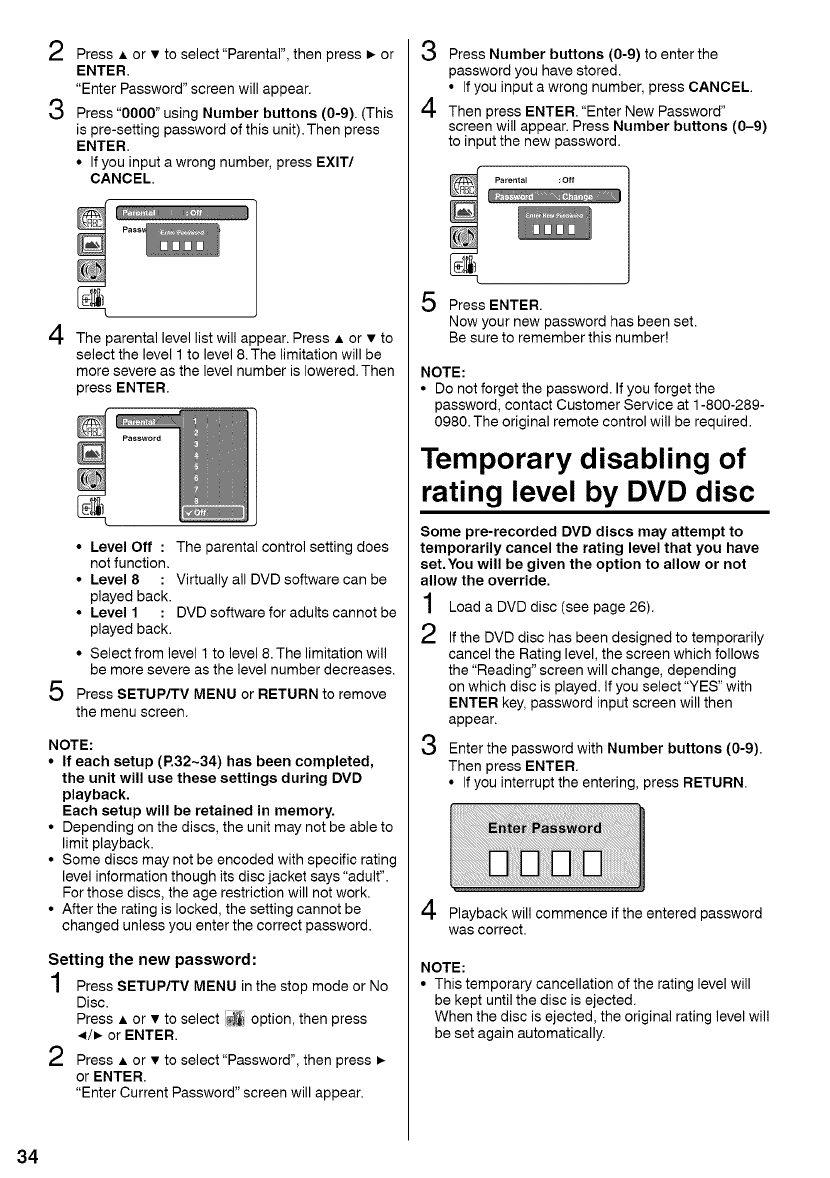

Parental control ............................................... 33

Temporary disabling of rating level by

DVD disc ......................................................... 34

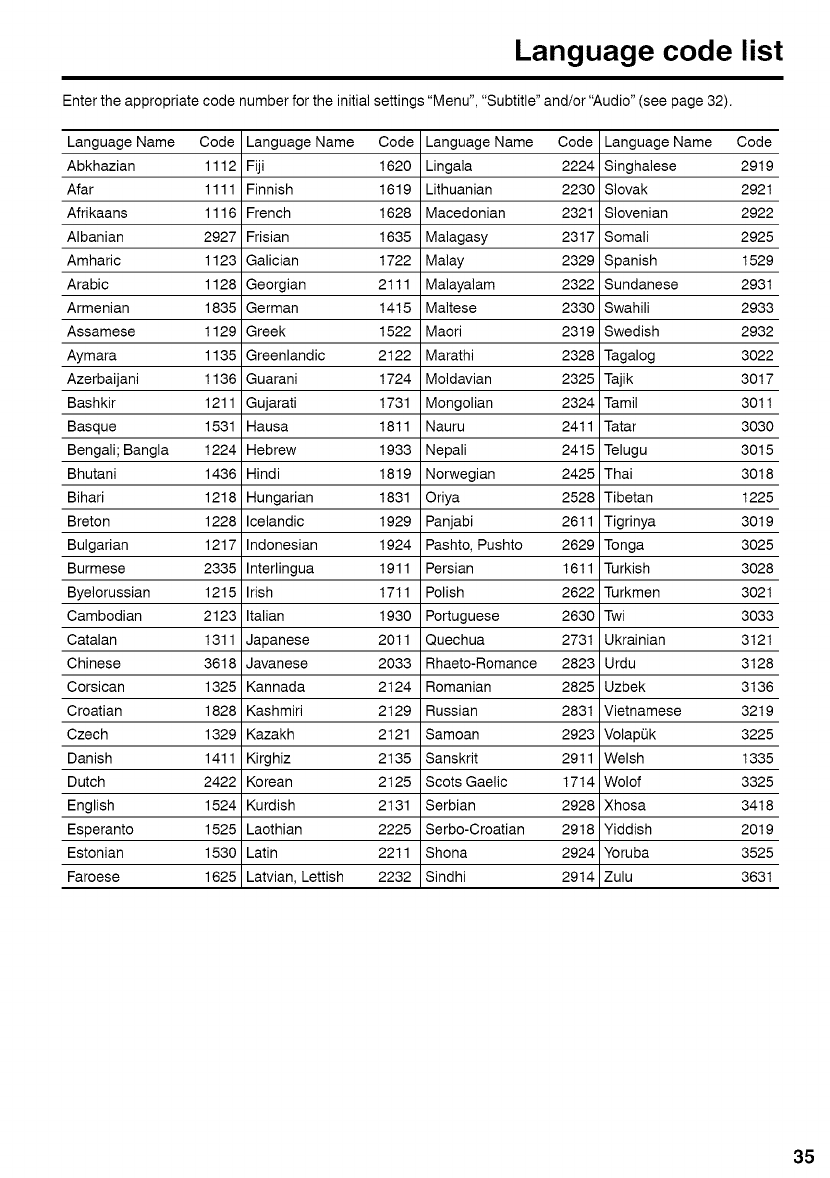

Language code list .......................................... 35

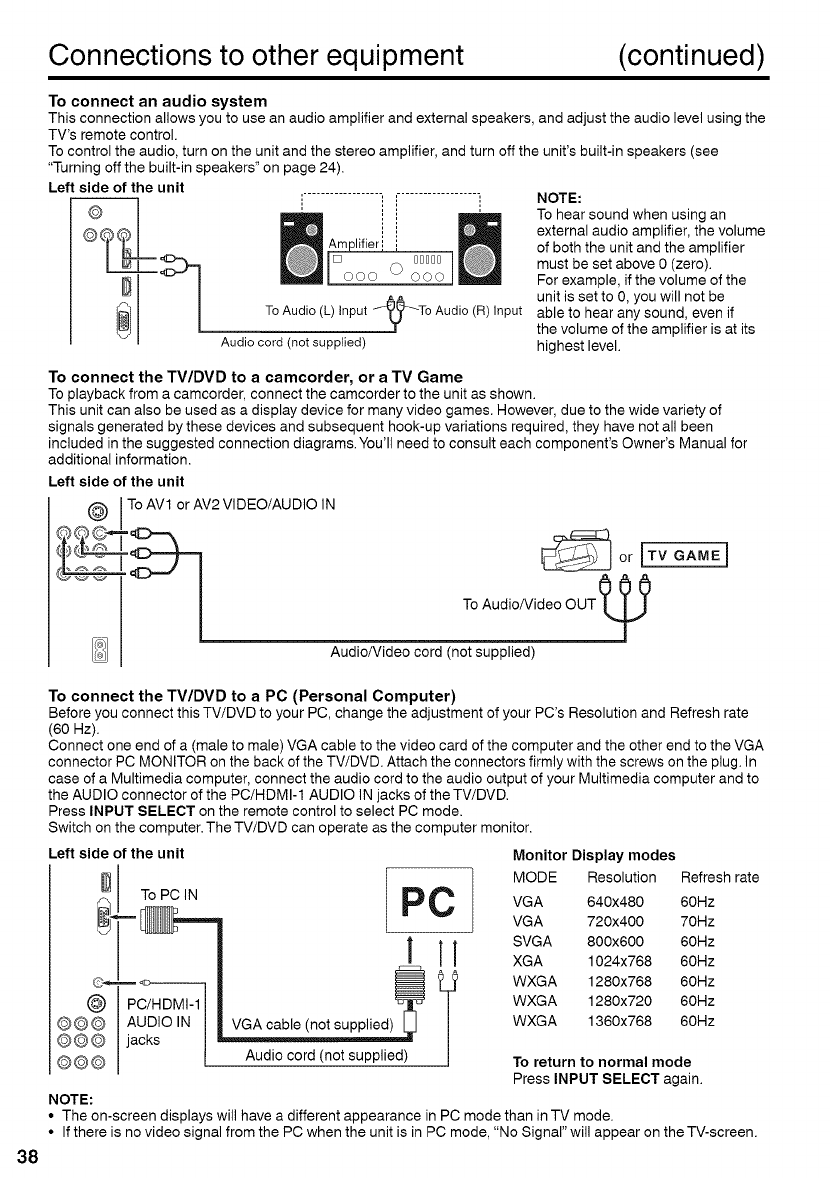

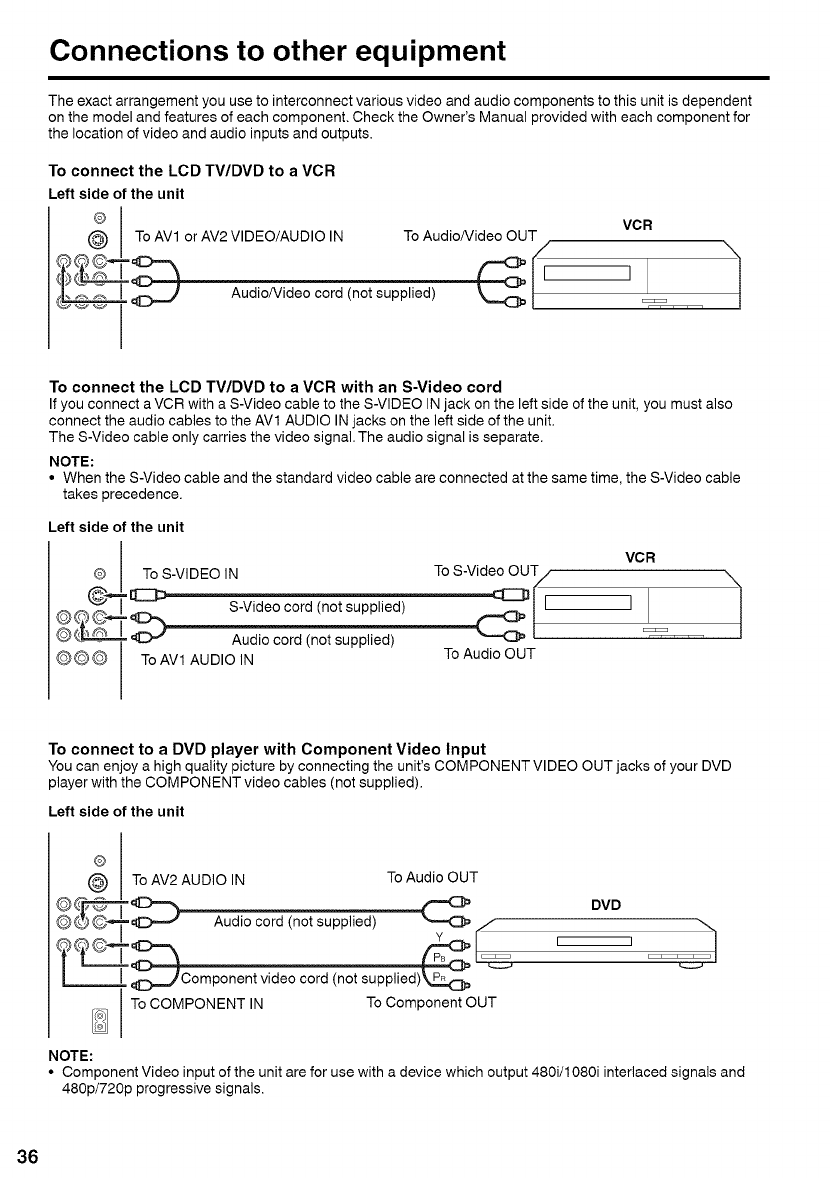

Connections to other equipment ..................... 36

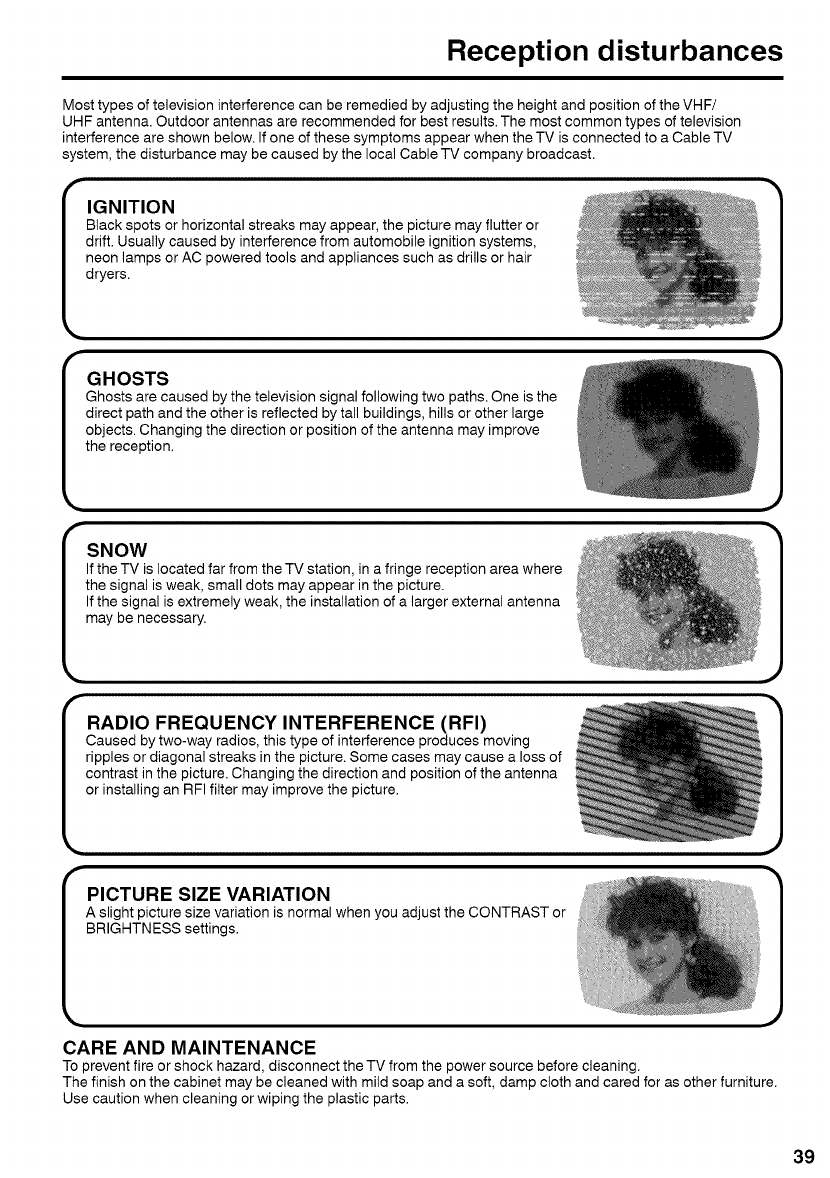

Reception disturbances .................................. 39

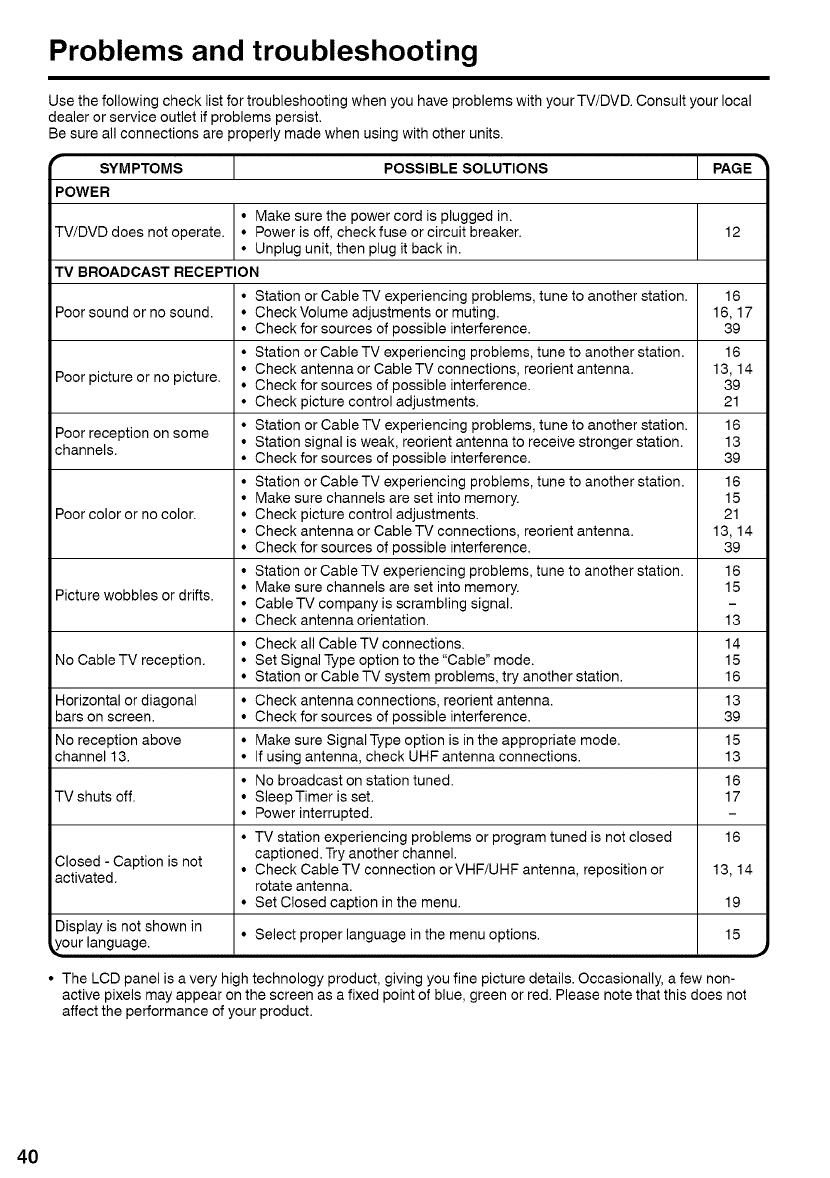

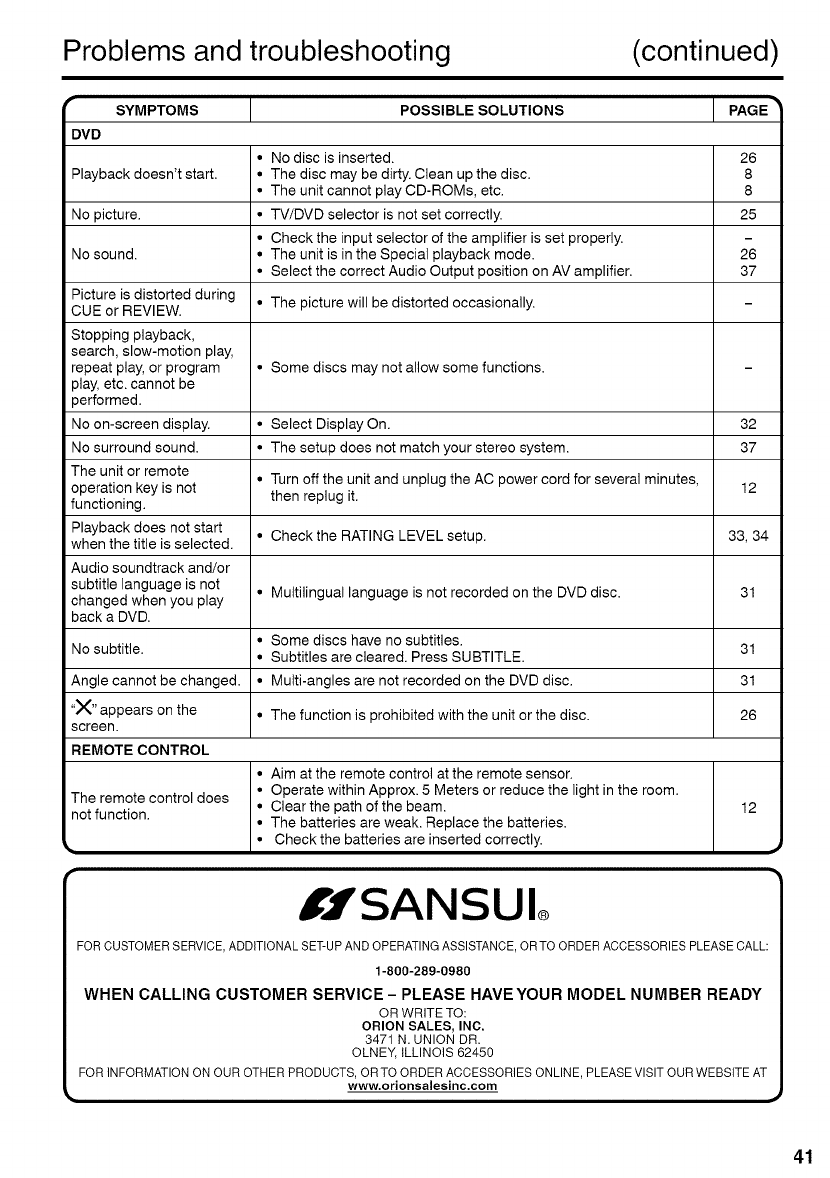

Problems and troubleshooting ........................ 40

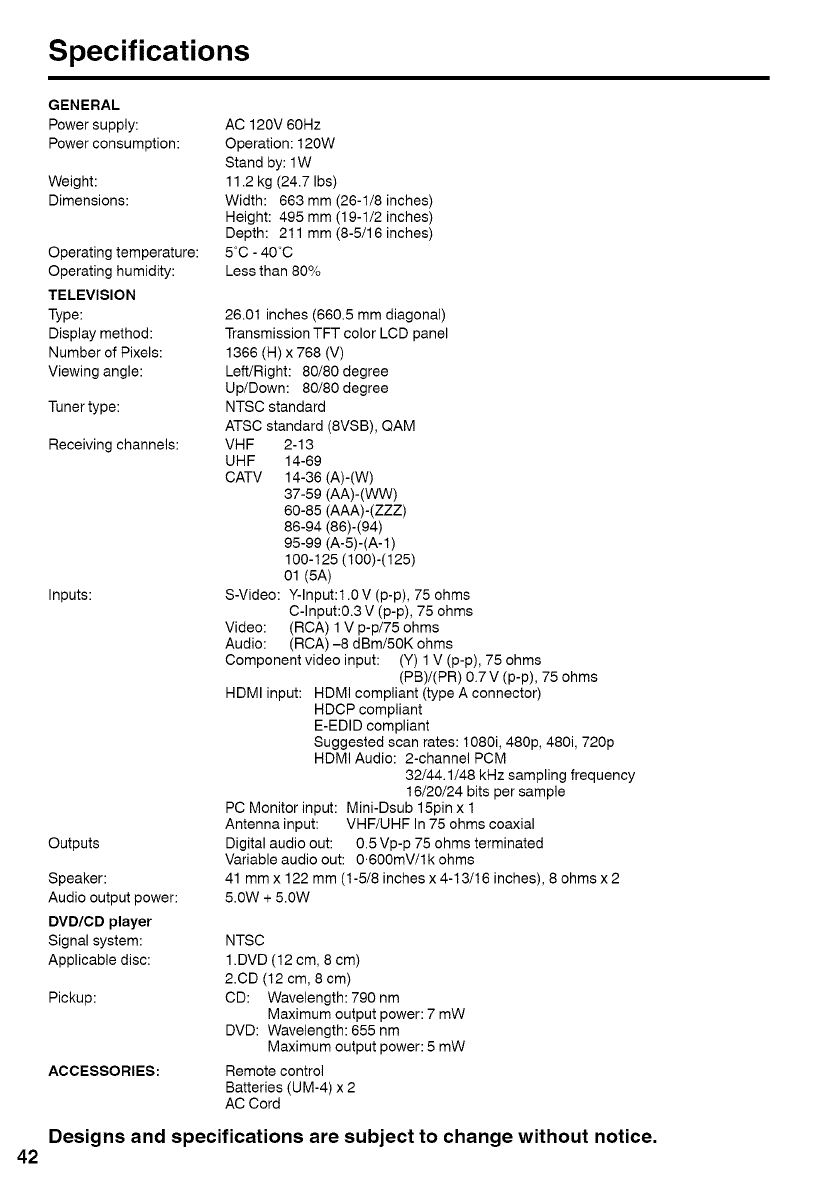

Specifications ................................................. 42

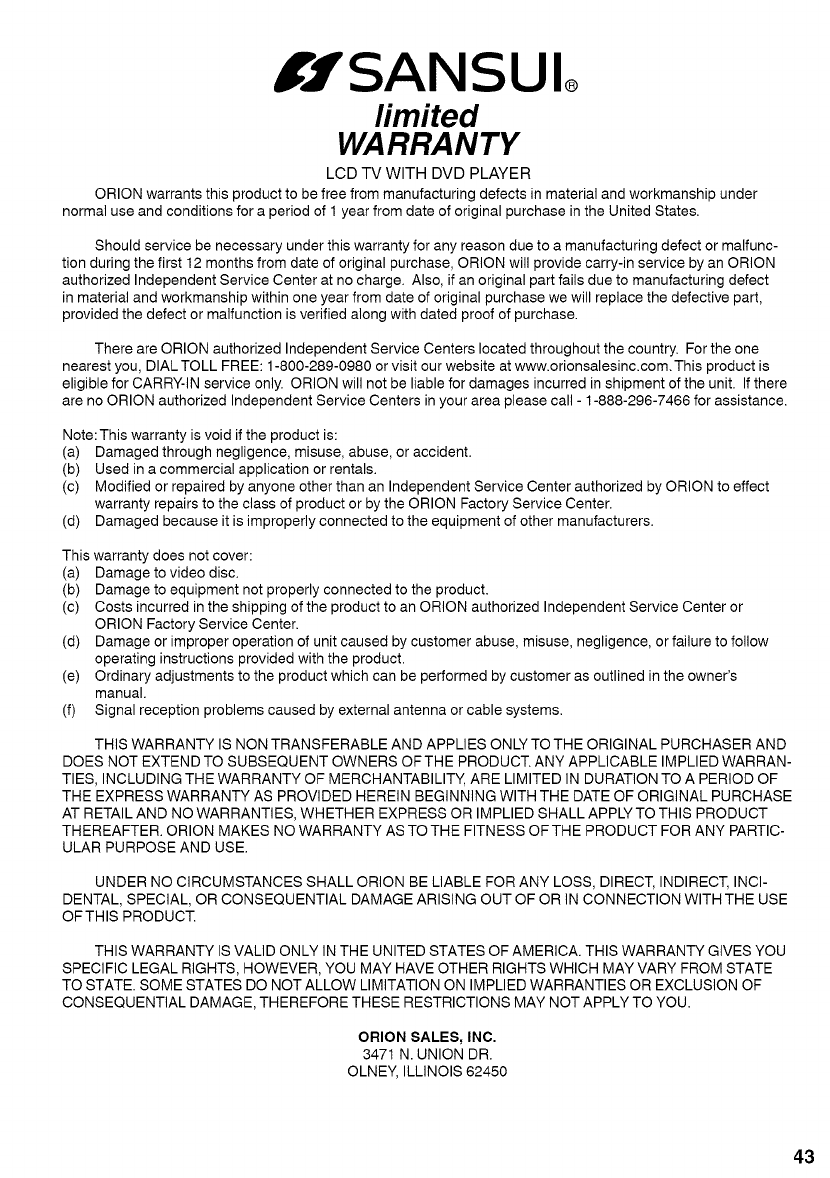

limited WARRANTY ........................................ 43

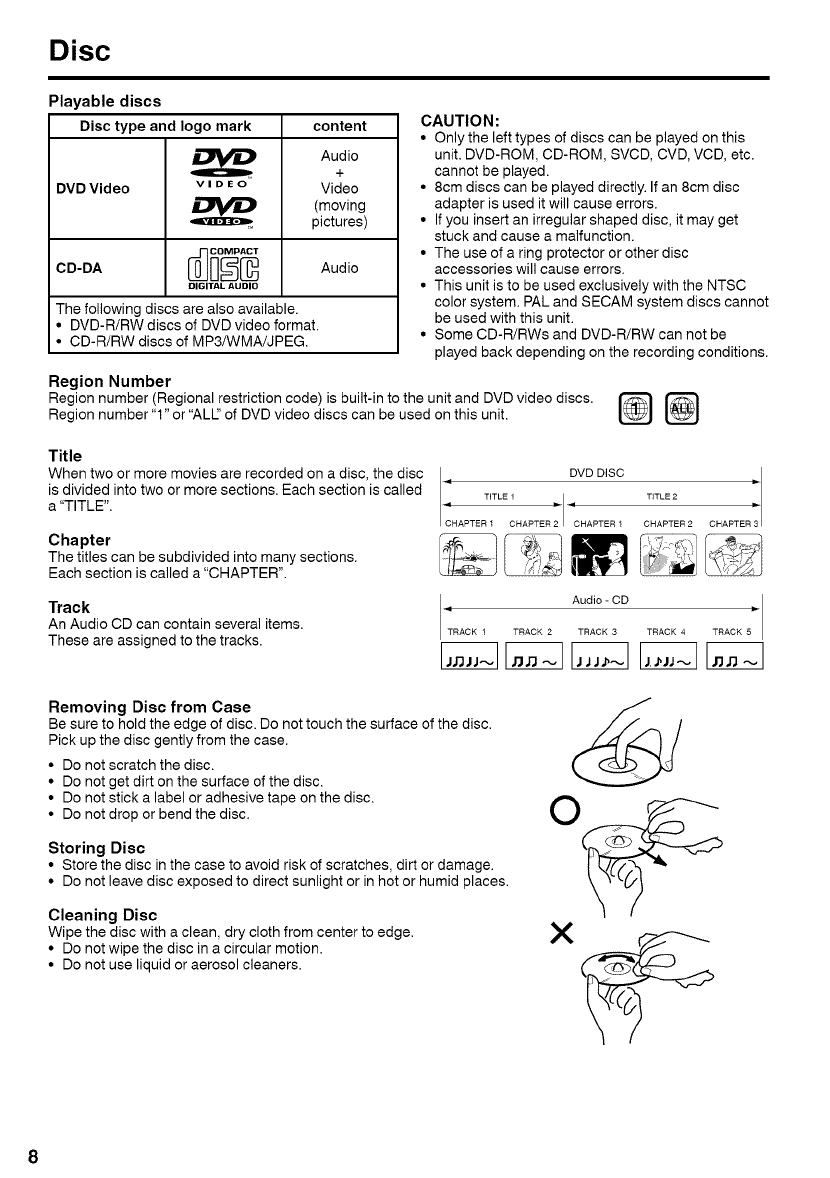

Disc

Playable discs

Disc type and logo mark content

Audio

DVD Video v =oE o Video

(moving

pictures)

CD-DA Audio

DIGITAL AUDIO

The following discs are also available.

• DVD-R/RW discs of DVD video format.

• CD-R/RW discs of MP3/WMA/JPEG.

CAUTION:

• Only the left types of discs can be played on this

unit. DVD-ROM, CD-ROM, SVCD, CVD, VCD, etc.

cannot be played.

• 8cm discs can be played directly. If an 8cm disc

adapter is used it will cause errors.

• If you insert an irregular shaped disc, it may get

stuck and cause a malfunction.

• The use of a ring protector or other disc

accessories will cause errors.

• This unit is to be used exclusively with the NTSC

color system. PAL and SECAM system discs cannot

be used with this unit.

• Some CD-R/RWs and DVD-R/RW can not be

played back depending on the recording conditions.

Region Number

Region number (Regional restriction code)is built-in to the unit and DVD video discs. _

Region number "1" or "ALl/' of DVD video discs can be used on this unit.

Title

When two or more movies are recorded on a disc, the disc

is divided into two or more sections. Each section is called

a "TITLE".

Chapter

The titles can be subdivided into many sections.

Each section is called a "CHAPTER".

Track

An Audio CD can contain several items.

These are assigned to the tracks.

<CHAPTERq TITLEI CHAPTER1 _2 _cDVDHAPTERDISC_CHAPTERTITLE2 2 CHAPTER D,_3

Audio - CD

_RACK 1 TRACK 2 TRACK 3 TRACK 4 TRACK 5 _

Removing Disc from Case

Be sure to hold the edge of disc. Do not touch the surface of the disc.

Pick up the disc gently from the case.

• Do not scratch the disc.

• Do not get dirt on the surface of the disc.

• Do not stick a label or adhesive tape on the disc.

• Do not drop or bend the disc.

Storing Disc

• Store the disc in the case to avoid risk of scratches, dirt or damage.

• Do not leave disc exposed to direct sunlight or in hot or humid places,

Cleaning Disc

Wipe the disc with a clean, dry cloth from center to edge.

• Do not wipe the disc in a circular motion.

• Do not use liquid or aerosol cleaners.

Top

Front

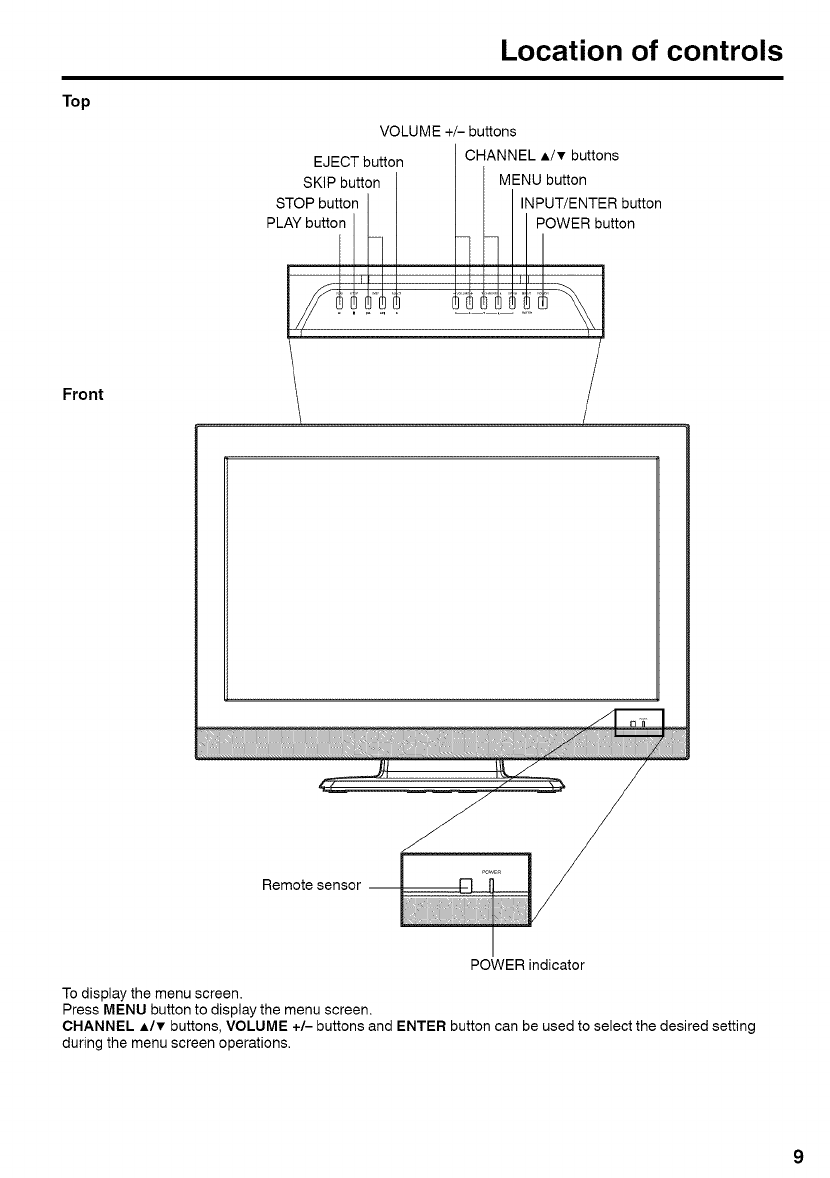

Location of controls

VOLUME +/- buttons

EJECT button CHANNEL A/v buttons

SKIP button MENU button

STOP button I I INPUT/ENTER button

___ i OWER buttonPLAY butt°i _-I

Remote sensor --

POWER indicator

To display the menu screen.

Press MENU button to display the menu screen.

CHANNEL A/v buttons, VOLUME +/- buttons and ENTER button can be used to select the desired setting

during the menu screen operations.

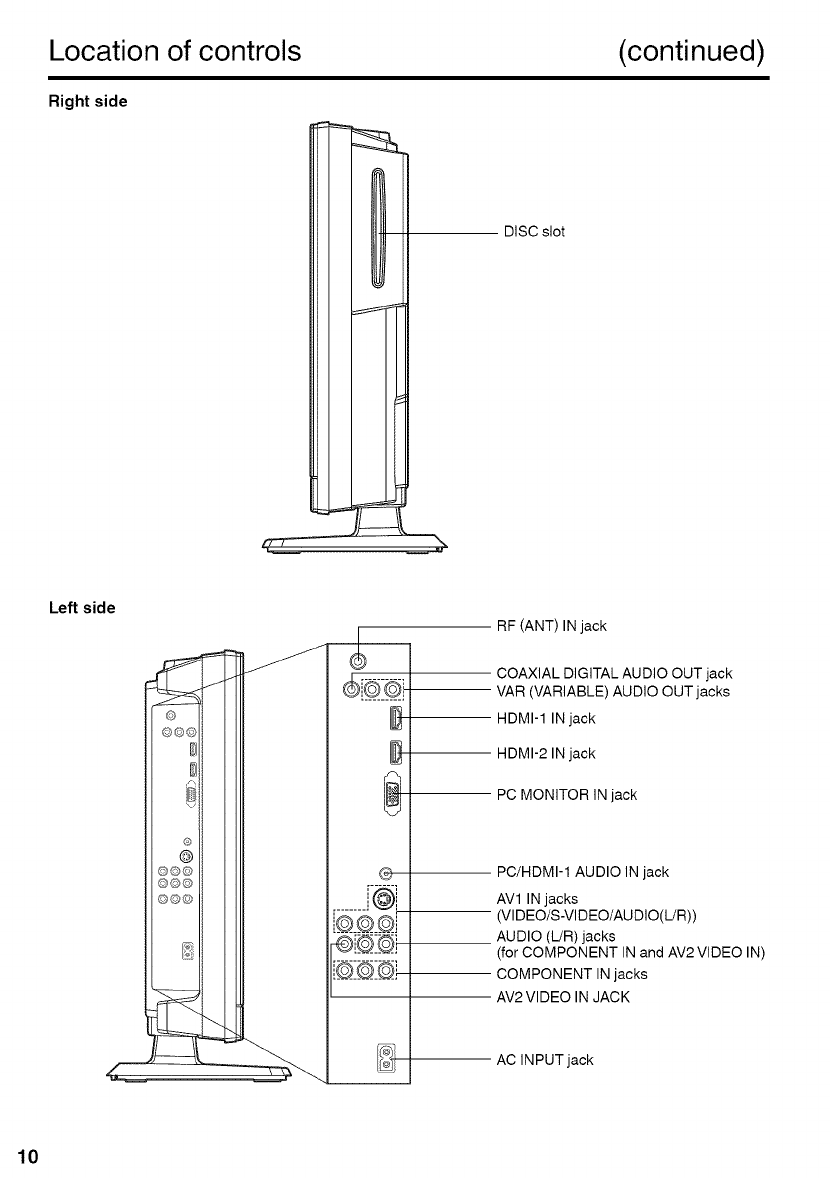

Location of controls

Right side

(continued)

DISC slot

Left side

RF (ANT) IN jack

COAXIAL DIGITAL AUDIO OUT jack

VAR (VARIABLE) AUDIO OUT jacks

HDMI-1 IN jack

HDMI-2 IN jack

PC MONITOR IN jack

PC/HDMI-1 AUDIO IN jack

AV1 IN jacks

(VIDEO/S-VIDEO/AUDIO(L/R))

AUDIO (L/R) jacks

(for COMPONENT IN and AV2 VIDEO IN)

COMPONENT IN jacks

AV2 VIDEO IN JACK

AC INPUT jack

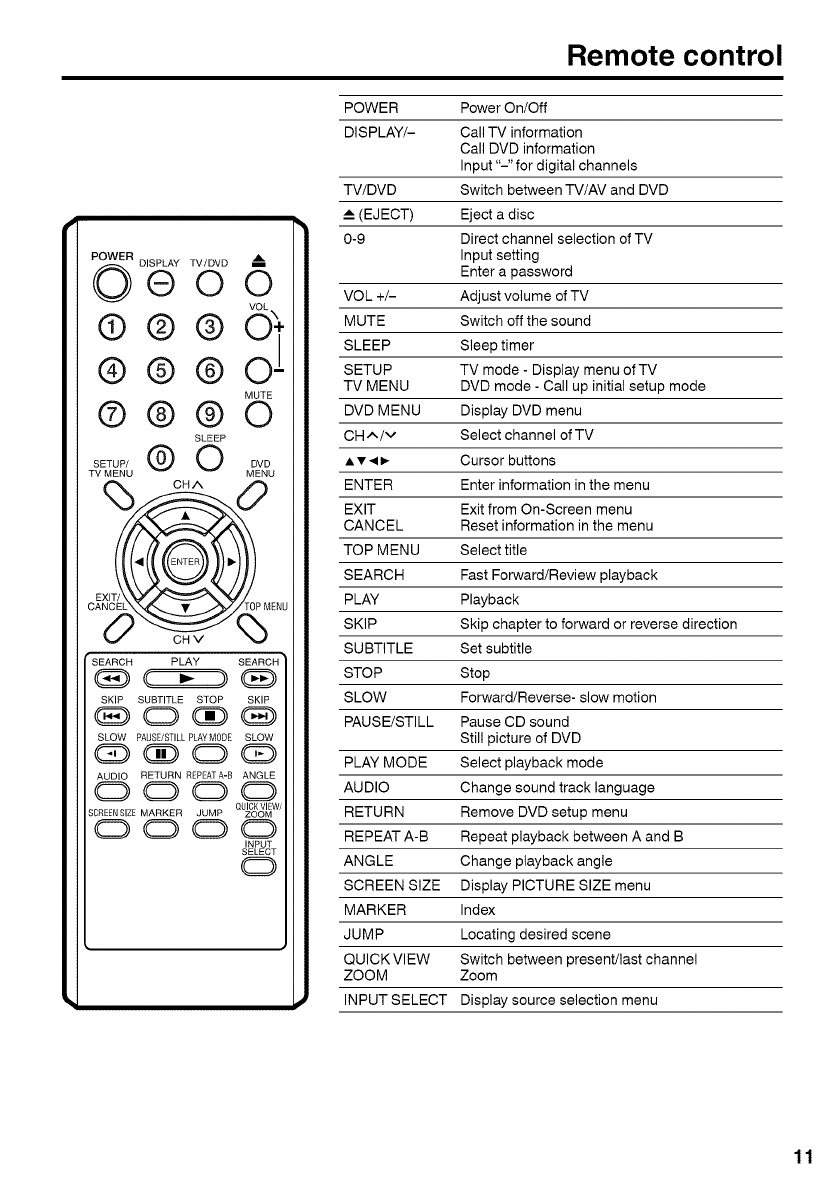

Remote control

DISPLAY TV/DVD®OO

VOL

©@@0*

®®®o L

MUTE

®®®O

SLEEP

SETUP/®ODvD

_MENU MENU

CHA O

EXIT_

CANC P MENU

O c.v %

PLAY

SKIP SUBTITLE STOP SKIP

SLOW PAUSE/STILL PLAYMODE SLOW

AUDIO RETURN REPEATA-B ANGLE

0000 QUICKVIEW/

SCREENSIZE MARKER JUMP ZOOM

0000 INPUT

SELECT

POWER Power On/Off

DISPLAY/- Call TV information

Call DVD information

Input "-" for digital channels

TV/DVD Switch between TV/AV and DVD

__ (EJECT) Eject a disc

0-9 Direct channel selection of TV

Input setting

Enter a password

VOL +/- Adjust volume of TV

MUTE Switch off the sound

SLEEP Sleep timer

SETUP TV mode - Display menu of TV

TV MENU DVD mode - Call up initial setup mode

DVD MENU Display DVD menu

CH ,,N/V Select channel of TV

• • • D. Cursor buttons

ENTER Enter information in the menu

EXIT Exit from On-Screen menu

CANCEL Reset information in the menu

TOP MENU Select title

SEARCH Fast Forward/Review playback

PLAY Playback

SKIP Skip chapter to forward or reverse direction

SUBTITLE Set subtitle

STOP Stop

SLOW Forward/Reverse- slow motion

PAUSE/STILL Pause CD sound

Still picture of DVD

PLAY MODE Select playback mode

AUDIO Change sound track language

RETURN Remove DVD setup menu

REPEAT A-B Repeat playback between A and B

ANGLE Change playback angle

SCREEN SIZE Display PICTURE SIZE menu

MARKER Index

JUMP Locating desired scene

QUICK VIEW Switch between present/last channel

ZOOM Zoom

INPUT SELECT Display source selection menu

Remote control (continued)

Inserting Batteries

1Open the battery compartment ,I Install two "AAA" batteries,

cover in the direction of the arrow, paying attention to the

polarity diagram in the battery

compartment.

---___/_.......

Operation

• Aim the remote control at the remote sensor and press control

buttons to operate.

• Operate the remote control within a 30 ° angle on either side of

the remote sensor, up to a distance of approximately 15 feet.

Replace the compartment cover.

......

___ _ Approxtmately 15 feet

/30_i 30\\

NOTE:

• Do not leave the remote control unit exposed to direct sunlight or in hot or humid places.

• The remote control unit uses infrared beams to transmit signals, so sunlight or fluorescent light on the remote

sensor may shorten operating distance.

• Incorrect use of batteries may cause them to leak or burst. Read the battery warnings and use the batteries

properly.

• Do not mix old and new batteries.

• Remove batteries if the remote control will not be operated for an extended period of time.

Power source

TO USE AC POWER

1. Connect the AC cord plug into this unit's AC IN jack.

2. Connect the AC cord into an AC outlet.

AC Outtet

Wider Hole

and

C 120V 60Hz

i '

AC cord (supplied)

NOTE:

• Please make sure to insert the cord securely at both the LCD TV/DVD and the wall outlet.

• The AC Cord has a grounding-type AC line plug. If the supplied AC cord does not match your AC outlet,

contact a qualified electrician, do not defeat the purpose of a grounding plug.

WARNING:

• DO NOT CONNECTTHIS UNITTO THE POWER USING ANY DEVICE OTHERTHAN THE SUPPLIED AC

CORD.THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.

• DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE DISPLAYED. THIS COULD CAUSE

FIRE, ELECTRICAL SHOCK, OR DAMAGE.

CAUTION:

• WHEN THIS UNIT IS NOT USED FOR A LONG TIME, (E.G., AWAY ON A TRIP) IN THE INTEREST OF

SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET.

• DO NOT PLUG/UNPLUG THE PLUG WHEN YOUR HANDS ARE WET. THIS MAY CAUSE ELECTRICAL

SHOCK.

• IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE IS

RECOMMENDED. CONTACT CUSTOMER SERVICE AT 1-800-289-0980.

Antenna connections

If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your

antenna system. If you are using a Cable TV service, see page 14 for Cable TV connections.

Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)

Antenna

Jack

75 ohm

Coax,a,

Cable

Antenna

Jack

_,_,,_ 300-75 ohm

_) Matching

Transformer

Connect the 75 ohm cable from the combination

VHF/UHF antenna to the antenna jack.

If your combination VHF/UHF antenna has a 300

ohm twin-lead wire, the use of the 300-75 ohm

matching transformer may be necessary.

Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin-lead wires)

300-75 ohm Matching Transformer

VHF 300 ohm fll

Antenna UHF 300 ohm

Combiner

Connect the UHF 300 ohm twin-lead wire to

the Combiner (not supplied). Connect the VHF

300 ohm twin-lead wire to the 300-75 ohm

Matching Transformer. Attach the Transformer to

the Combiner, then attach the Combiner to the

Antenna Jack.

Separate VHF/UHF Antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)

VHF 75 ohm

AnJen_a__@ ..............................1 _0ohmli_

Combiner

Connect theVHF 75 ohm cable and UHF 300 ohm

twin-lead wire tothe Combiner (not supplied). Attach

the Combiner to the Antenna Jack.

Cable TV connections

This TV has an extended tuning range and can tune most cable channels without using a Cable TV

Converter box, Some cable companies offer "premium pay channels" where the signal is scrambled.

Descrambling these signals for normal viewing requires the use of a descrambler device which is

generally provided by the Cable TV company.

For subscribers to basic Cable TV service

I75 ohm

Antenna Coaxial

Jack Cable

_" For basic Cable TV service not requiring a Converter/

Descrambler box, connect the 75 ohm Coaxial Cable directly

to the Antenna Jack on the back of the TV.

For subscribers to scrambled Cable TV service

If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect

the incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial

Cable, connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV. Follow the

connections shown below. Set the TV to the output channel of the Converter/Descrambler box (usually channel

3 or 4) and use the Converter/Descrambler box to select channels.

Incoming

75 ohm Antenna

Cable TV Jack

Cable I I75 ohm Cable to TV

D Converter/ D

Descrambler

i i

For subscribers to unscrambled Cable TV service with scrambled premium

channels

If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require

the use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available

from the Cable TV company or an electronics supply store). Follow the connections shown below. With the

switch in the "B" position, you can directly tune any nonscrambled channels on your TV. With the switch in the

"A" position, tune your TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the

Converter/Descrambler box to tune scrambled channels.

,ncom,ng Converter/

75 ohm Descrambler Antenna

Cable TV Jack

Cable 75 ohm Cable toTV

:- litter A/B Switch| _/_ | p,

Setting the on-screen

language

You can choose from three different languages

(English, French and Spanish) for the on-screen

displays.

Select the language you prefer first, then

proceed with the other menu options.

1To turn on the TV, press POWER.

(POWER indicator on the front of the unit

changes green. It may take approx. 10 seconds

for a picture to appear on screen.)

2Press TV/DVD to select TV mode.

3Press SETUP/TV MENU.TheTV menu screen

will appear.

4Press • or •to select"Setup", then press • or

ENTER.

5 Press • or • to select"Language".

NOTE:

• When you press SETUP/TV MENU first time after

purchase this LCD TV, above screen will appear

automatically.

6 Press 4 or • to select the desired language:

English, French (Frangais) or Spanish (Espai_ol).

7Press EXIT/CANCEL to return to the normal

screen.

NOTE:

• If no buttons are pressed for more than about 60

seconds, the MENU screen will return to normal

operation automatically.

Memorizing channels

This TV is equipped with a channel memory

feature which allows channels to skip up or down

to the next channel set into memory, skipping

over unwanted channels. Before selecting

channels, they must be programmed into the

TV's memory. To use this TV with an antenna, set

the Tuning Band menu option to the Air mode.

When shipped from the factory, this menu option

is in the Cable mode.

Air/Cable selection

1Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

2Press • or • to select "Channel", then press

• or ENTER.

3Press • or • to select"Auto Ch Memory", then

press • or ENTER.

4Press • or • to select"Signal Type".

5 Press 4 or • to select"Air" or"Cable".

O Press EXIT/CANCEL to return to the normal

screen.

CABLE CHART

The chart below is typical of many cable system

channel allocations.

N_JI_be,_,n_sTV 5S 565758212

o.............o............. , '2 '2 _ _ _ 7 _ _

23 24 25 26 27 28 29 30 31 DD8aAA CC

41 42 43 44 45 46 47 48 49 50 51 52 53 54

EE FF GG HH II JJ KK LL MM NN OO PP QQ RR SS vvuu

59 60 61 62 63 64 65 66 67 68

..................................... J6j_ 7K0 K 7.........

MMNNNN OOO PPP QOQ

77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94

95 96 97 98 99 100 101 102 103 105 108 109 110 111 112

A_5 A4 A_3 A-2 A-1 100 101 102 103 104 105 106 107 108 109 110 111 112

I13 I14 I15 I16 II7 118 119 120 121 122 123 124 125

114 115 116 117 118 119 120 121 122 123 124 125

NOTE:

• It may take a few seconds for a digital channel

picture to appear on screen after being selected.

Automatic search

1Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

2Press • or • to select"Channel", then press • or

ENTER.

3Press • or • to select"Auto Ch Memory", then

press • or ENTER.

4Press • or • to select"Automatic Search", then

press ENTER.

5The TV will begin memorizing all the channels

available in your area.

• It may take from 15 minutes to 30 minutes to

complete memorizing digital cable channels.

Depending on the reception condition, a BAR

display may not advance for several minutes,

please be patient.

NOTE:

•Memorizing channels is best accomplished during

evening "PRIMETIME" hours, as more stations are

broadcasting digital signals. Memorizing channels

can only be accomplished while a station is

broadcasting a digital signal to set that channel into

memory.

• If you are unsure of the digital channels available

in your area, you may visit www.antennaweb.orq to

receive a list based on your address or zip code.

Should you require further assistance you may call

our toll-free customer service line at 1-800-289-0980.

• New digital channels may be added to your area

periodically, it is recommended to perform the

"Automatic Search" procedure regularly.

Adding Channel

If you find a new channel unregistered, you can add

the new channel into the channel memory.

1Tune in the new channel.

2Press SETUP/TV MENU in theTV mode.TheTV

menu screen will appear.

3Press • or •to select"Channel", then press • or

ENTER.

4Press • or • to select"Add/Delete", then press •

or ENTER.

Press • or • to select "Adding Channel", then

press • or ENTER.The new channel will be

added into the channel memory.

Press EXIT/CANCEL to return to the normal

screen.

Add/Delete channel

You can select the channel that you want to skip.

1Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

Press • or • to select "Channel", then press • or

ENTER.

Press • or • to select "Add/Delete", then press

• or ENTER.

Press • or • to select "Add/Delete", then press

• or ENTER.

Press • or • to select the channel that you want

to skip.

O Press .,I or • to select "Add" or "Delete",

whichever function you want to perform.

[Repeat steps 5 - 6 for other channels you want to

add or delete.

O Press EXIT/CANCEL to return to the normal

screen.

Clear All

All channels are deleted from the channel memory.

"1 Press SETUP/'rv MENU in the TV mode.The TV

menu screen will appear.

Press • or • to select "Channel", then press • or

ENTER.

Press • or • to select "Add/Delete", then press •

or ENTER.

Press • or • to select "Clear All", then press • or

ENTER.

,,_ Press EXIT/CANCEL to return to the normal

screen.

TV operation

To turn on the TV, press POWER.

(POWER indicator on the front of the unit

changes green. It may take approx. 10 seconds

for a picture to appear on screen.)

Adjust the volume level by pressing VOL + or -.

The volume level will be indicated on the screen

by blue bars. As the volume level increases, so do

the number of bars. If the volume decreases, the

number of blue bars also decreases.

Set the Signal Type option to the appropriate

position (see "Air/Cable selection" on page 15).

Press the Direct Channel Selection (0-9, -)

buttons to select the channel.

(If you press only channel number, channel

selection will be delayed for a few seconds.)

TO SELECT ANALOG CHANNELS

1-9: Press 1-9 as needed. Example, to

select channel 2, press 2.

10-99: Press the 2 digits in order. Example, to

select channel 12, press 1, 2.

100-125: Press the 3 digits in order. Example, to

select channel 120, press 1,2, 0.

TO SELECT DIGITAL CHANNELS

Press the first 3 digits, then press the - button,

followed by the remaining number.

Example, to select channel 015-001, press 0, 1,

5,-,1.

• If a channel is selected with only audio content,

"Audio only" will be displayed on the screen.

• If a channel is selected with a weak digital

signal, "Digital channel signal strength is low"

will be displayed on the screen.

The same program may be available on either

an analog channel or a digital channel.You may

choose to watch either format.

• If a channel is selected to which you have not

subscribed, "Digital channel is encrypted" will

be displayed on the screen.

VHF/UHF/CABLE CHANNELS

CableAir

VHF

2-13

UHF

14-69

VHF

2-13

STD/HRC/IRC

14-36 (A) (W)

37-59 (AA) (WW)

60-85 (AAA) (ZZZ)

86-94 (86) (94)

95-99 (A-5) (A-l)

100-125 (100) (125)

01 (5A)

NOTE:

• If a channel with no broadcast is selected, the

sound will automatically be muted.

• It may take a few seconds for a digital channel

picture to appear on screen after being selected.

To select the video input source

To view a signal from another device connected to

your LCD TV, such as aVCR player, press INPUT

SELECT, then press •/v or corresponding Number

buttons (0-7), then press ENTER.You can select

TV, Video1, Video2, Component, HDMI1, HDMI2, PC

or DVD depending on which input jacks you used to

connect your devices.

CH+/-

Press and release CH + /-.The channel

automatically stops at the next channel set into

memory.

For proper operation, before selecting channels, they

should be set into the memory. See "Memorizing

channels" on pages 15 and 16.

DISPLAY

Press DISPLAY to display the current information on

the screen.

When the TV receives a digital signal, the digital

information will appear.

• Channel number • Station name

• Channel label (if preset) • Broadcast program name

• V-Chip rating • Signal type

• Sleep timer • Audio language

• Program guide • Picture size

• Resolution

When the TV receives a analog signal, the analog

information will appear.

• Channel number

• V-Chip rating

• Sleep timer

• Picture size

• Channel label (if preset)

• Signal type

• Audio information(Stereoor SAP)

• Resolution

Press DISPLAY again to clear the call display.

NOTE:

• After a few seconds, DISPLAY screen will return to

normal TV-operation automatically.

QUICK VIEW

This button allows you to go back to the last channel

selected by pressing QUICK VIEW. Press QUICK VIEW

again to return to the last channel you were watching.

MUTE

Press MUTE to switch off the sound. The TV's sound

will be silenced and "Mute" will appear on the screen.

The sound can be switched back on by pressing this

button again or the VOL + or -.

SLEEP

To set the TV to turn off after a preset amount of time,

press SLEEP on the remote control. The clock will

count up 10 minutes for each press of the SLEEP but-

ton (Off, Oh 10m, Oh 20m, ..., 2h 0m). After the sleep

time is programmed, the display will appear briefly

every ten minutes to remind you that the sleep timer

is operating. To confirm the sleep timer setting, press

SLEEP and the remaining time will be displayed for a

few seconds.To cancel the sleep timer, press SLEEP

repeatedly until the display turns to Off.

81_l, Time,

O. 1Ore

Labeling channels

Channel label appear with the channel number

display each time you turn on the TV, select a

channel, or press DISPLAY.

You can choose any four characters to identify a

channel,

To create channel labels

Press SETUP/TV MENU in the TV mode. The TV

menu screen will appear.

Press • or •to select "Channel" menu, then

press • or ENTER.

Press • or • to select "Ch Label", then press •

or ENTER.

The "Ch Label" menu will appear.

4Press 41or • to select a channel you want to

label, then press v.

5 Press _ or • repeatedly until the character you

want appears in the first space.

The characters rotation as follows:

r0'" "9 <-'_"AI';ZpI_E _ " '()@/+=-q

If the character which you desire appears, press

ENTER.

Repeat this step to enter the rest of the

characters.

If you would like a blank space in the label name,

you must choose the empty space from the list of

characters.

O When you finish inputting the label name, press

EXIT/CANCEL to return to the normal screen.

7 Repeat steps 4-5 for other channel.You can

assign a label to each channel.

To clear a Ch Label

After step 4 above, press • or •to select "Label

Clear", then press • or ENTER.

NOTE:

The channel labels will be reset after "Automatic

Search" on page 15.

Labeling video inputs

The Video Label feature allows you to label each

input source for your TV.

1 Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

Press • or •to select "Setup", then press • or

ENTER.

3Press • or • to select"Video Label", then press

• or ENTER.

4 Press • or • to select an input which you want to

label.

5 Press 4 or • to select the desired label for that

input source.

- : Uses the default label name

VCR :Video cassette recorder

DVD : DVD video

DTV : Digital TV set-top box

SAT : Satellite box

DBL : Cable box

HD : HDMI device (only for HDMI inputs)

Press EXIT/CANCEL to return to the normal

screen.

Setting the V-Chip

An age limitation can be set to restrict children

from viewing or hearing violent scenes or

pictures that you may choose to exclude. The

restriction applies to "TV Rating" and "Movie

Rating" if this data is transmitted. You may set

this restriction separately. To use the V-Chip

function, you must register a password.

To register a password

1Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

Press • or • to select "Lock", then press • or

ENTER.

3Select and enter your password (4 digits) using

Number buttons (0-9), then press ENTER.

4"€" appears instead of the number.

Enter the same password again to confirm, then

press ENTER.

The password is now registered.

NOTE:

• If you forget the password, contact Customer

Service at 1-800-289-0980 for assistance.

Your original remote control will be required.

• To avoid forgetting the password, write it down and

keep in a safe place.

set the V-Chip

Press SETUP/TV MENU in the TV mode. The TV

menu screen will appear.

Press • or • to select "Lock" menu, then press

• or ENTER.

Use Number buttons (0-9) to enter your

password, then press ENTER. Then Lock menu

will appear.

Press • or • to select "V-Chip", then press

4 or • to select "On".

Press • or • to select "V-Chip Set", then press

• or ENTER.

The V-Chip Set Menu appears.

0 Press• or•to select which rating will be used,

then press • or ENTER. Each rating below will

appear.

TV Rating

You can set the rating using age level and genre.

Age:

TV-Y : All children

TV-Y7 : 7 years old and above

TV-G : General audience

TV-PG :Parental guidance

TV-14 : 14 years old and above

TV-MA : 17 years old and above

Genre:

ALL : All

D : Dialogue

L : Language

S : Sex

V :Violence

FV : Fantasy Violence

Movie Rating

G: All ages

PG : Parental guidance

PG-13 : Parentalguidance less than 13 years old

R : Under 17 years old parental guidance

suggested

NC-17 : 17 years old and above

X : Adult only

7Press •/•/_1/• to select the desired rating, then

press ENTER.

Press EXIT/CANCEL to return to the normal screen.

V-Chip function is activated now.

To use the TV after the TV is protected.

When a program is received that is blocked by the V-

Chip, press MUTE, then enter your password.

The protection will be temporarily overridden. If the TV

is turned off, the V-Chip restriction will be reactivated.

NOTE:

• The V-Chip function is activated only on programs

and input sources that include a rating signal.

To change the password

1Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

2 Press • or • to select"Lock", then press • or

ENTER.

3Use Number buttons (0-9) to enter your

password, then press ENTER. The Lock menu

will apper.

Press • or • to select "Change Password", then

press • or ENTER.

The Change Password screen will appear.

Enter a new password using Number buttons

(0-9), then press ENTER.

Enter the same password again to confirm, then

press ENTER.

The password is now registered.

Downloading the additional V-Chip rating system

As a supplement to the standard V-Chip rating

system, your television will be able to download an

additional rating system, if such a system becomes

available in the future.

To download the additional V-Chip rating system

(when available)

1Press SETUP/TV MENU in the digital channel.

2Press • or • to select"Lock", then press • or

ENTER.

Use Number buttons (0-9) to enter your password,

then press ENTER. The Lock menu will apper.

Press • or • to select "V-Chip Set (DTV)", then

press • or ENTER.

If the TV is not storing the additional rating

system, the TV will begin downloading it, which

may take some time to be completed.

Set your preferred content rating limits for the

additional rating system.

You also need "Update" procedure to update

rating information.

NOTE:

• You can only download the additional V-Chip rating

system when your TV is receiving a digital signal.

• When you download the additional rating system, it

may take some time for the download to occur.

• The V-Chip rating information and system are not

determined or controlled by the TV.

• The standard V-Chip rating system is available

whether your TV is receiving a digital signal or not,

and will block both analog and digital programs.To

set the restriction level using the standard V-Chip

rating system, select V-Chip Set in step 2.

• The downloadable V-Chip rating system is an

evolving technology, and availability, content, and

format may vary.

• You cannot select this feature if the TV is not

receiving a digital signal for the current station.

Closed Caption

WHAT IS CLOSED CAPTIONING?

This television has the capability to decode and

display Closed Captioned television programs. Closed

Captioning will display text on the screen for hearing

impaired viewers or it will translate and display text in

another language.

Captions: This Closed Caption Mode will display

text on the screen in English or another language.

Generally, Closed Captions in English are transmitted

on C1 and Closed Captions in other languages are

transmitted on C2.

Text: The Text Closed Caption Mode will usually fill

1/2 of the screen with a programming schedule or

other information.

1Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

Press • or •to select "Setup", then press • or

ENTER.

Press • or • to select "Closed Caption", then

press • or ENTER.

The Closed Caption menu will appear.

Press • or • to select "CC Setting", then press

.,I or • to select "On".

On: Captions will be displayed on the screen.

Off: Captions will not be displayed on the screen.

Press • or • to select "Analog Caption" or "Digital

Caption".

When you select "Analog Caption", you can

choose C1, C2, C3, C4, T1, T2, T3 and T4.

When you select "Digital Caption", you can

choose from CS1, CS2, CS3, CS4, CS5 and CS6.

Press 4 or • to select the desired Closed

Caption mode for both Digital and Analog

Caption.

Press • or • to select "CC Priority", then press

4 or • to select "Digital CC" or "Analog CC".

NOTE:

• Depending on the broadcast signal, some

Analog Captions will function with a Digital

broadcast signal. This step prevent that two

kind of captions are overlapping.

Press EXIT/CANCEL to return to the normal

screen.

NOTE:

• If the program or video you selected is not closed-

captioned, no captions will display on-screen.

• If text is not available in your viewing area, a black

rectangle may appear on-screen. If this happens,

set the CC Setting to "Off".

• When selecting Closed Captions, the captioning will

be delayed approx. 10 seconds.

• If no caption signal is received, no captions will appear,

but the television will remain in the Caption Mode.

• Misspellings or unusual characters may

occasionally appear during Closed Captioning. This

is normal with Closed Captioning, especially with

live programs. This is because during live programs,

captions are also entered live. These transmissions

do not allow time for editing.

• When Captions are being displayed, on-screen

displays, such as volume and mute may be seen

but may interfere with Closed Captions.

• Some cable systems and copy protection systems

may interfere with the Closed Captioned signal.

• If using an indoor antenna or ifTV reception is

very poor, the Closed Caption Decoder may not

appear or may appear with strange characters or

misspelled words. In this case, adjust the antenna

for better reception or use an outdoor antenna.

CC advanced

When you have selected Custom as the display

method, you can adjust the various setting listed

below as follows:

This feature is designed to customize Digital Captions

only.

1Press SETUP/TV MENU in the digital channel.

The TV menu screen will appear.

Press • or • to select "Setup", then press • or

ENTER.

Press • or • to select "Closed Caption", then

press • or ENTER.

The Closed Caption menu will appear.

4Press • or • to select"Digital CC Preset", then

press 4 or • to select "Custom".

5 Press • or • to select "CC Advanced", then

press • or ENTER.

The CC Advanced menu will appear.

6 Press • or • to select the desired item, then

press 4 or • to change the setting.

You can select from among the following items

and parameters.

Text Size: Auto, Small, Standard, Large

Text Type: Auto, Style1, Style2, Style3, Style4,

Style5, Style6, Style7

Text Edge: Auto, None, Raised, Depressed,

Uniform, Left Shadow, Right

Shadow

Text Color: Auto, Black, White, Red, Green,

Blue, Yellow, Magenta, Cyan

Text Opacity:Auto, Transparent, Translucent,

Solid, Flashing

Background Auto, Black, White, Red, Green,

Color: Blue, Yellow, Magenta, Cyan

Background Auto, Transparent, Translucent,

Opacity: Solid, Flashing

Press EXIT/CANCEL to return to the normal

screen.

NOTE:

• Do not set the Closed Caption "Text Color" and

"Background Color" as the same color or you will

not be able to see the text.

• Do not set both the "Text Opacity" and the

"Background Opacity" to "Transparent" or you will

not be able to see the text.

Adjusting the picture

preference

You can select four picture modes--Sports,

Standard, Movie and Memory--as described in

the following table:

1Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

2 Press • or •to select"Picture", then press • or

ENTER.

3Press • or • to select"Picture Preference".

4Press 4 or • to select a mode you want to adjust.

_ Picture Quality

Bright and dynamic picture (factory-set)

Standard picture quality (factory-set)

Movie-like picture setting (factory-set)

Your personal preferences (set by you;

see "Picture controt adjustment" below).

5 After your desired setting, press EXIT/CANCEL

to return to the normal screen.

Picture control adjustment

/ Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

2 Press • or • to select"Picture", then press • or

ENTER.

3Press • or • to select"Picture Setting", then

press • or ENTER.

The Picture Setting menu will appear.

4 Press • or • to select the item you want to

adjust.

Press 4 or • to adjust the setting.

;;i'!i!i!_i;i!i_:!ii!iljii_!!!i!ii!¸_ii!ilil¸i¸¸;i!¸¸¸¸i_!ii_!!_!!_ii_iii¸!!i¸_!_ii!!iii!i!i!i_!!!i!i¸i!i¸ii_i!i_i¸_ii!_:i!_i!ii_!!l_i%;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i_i!;ii;i!!iSii_ii_iii;i!_!!

5 After adjusting, press ENTER to return to the

Picture Setting menu. Then continue to adjust the

other items.

Contrast decrease increase

contrast contrast

Brightness decrease increase

brightness brightness

Sharpness makes picture makes picture

softer clearer

Color be pale color be brilliant color

Tint be reddish color be greenish

color

O After your desired setting, press EXIT/CANCEL

to return to the normal screen.

NOTE:

• The Contrast default setting is set to maximum at

the factory.

Selecting the color

temperature

Press SETUP/TV MENU in the TV mode. The TV

menu screen will appear.

Press • or • to select "Picture", then press • or

ENTER.

Press • or • to select "Picture Setting", then

press • or ENTER.

The Picture Setting menu will appear.

Press • or • to select "Color Temperature', then

press • or • to change the setting.

Setting Picture Quality

Cool Bluish

Standard Neutral

Warm Reddish

5 Press EXIT/CANCEL to return to the normal

screen.

Setting the picture size

You can view 480i and 480p format programs in a

variety of picture sizes-- Natural, Cinema Wide1,

Cinema Wide2, Cinema Wide3 and Full.

Selecting the picture size

1Press SETUPFFV MENU in the TV mode.The TV

menu screen will appear.

2 Press • or • to select"Picture", then press • or

ENTER.

3Press • or •to select "Picture Size", then press

• or ENTER to display Picture Size menu. Press

•/• or corresponding Number button (0-4)

to select the desired picture size, as described

below.

NOTE:

• Selectable picture sizes may vary depending on the

input source or broadcast signal.

• Picture Size menu also can be displayed by

pressing SCREEN SIZE on the remote control.

4Press EXIT/CANCEL to return to the normal

screen.

Natural picture size

In some cases, this image will display the size of

standard 4:3 with a gray side bar.

Cinema Wide1 pi cture size (for 4:3 format

programs)

Tofill the screen, the right and left edges are

extended,

however; the center of the picture remains near its

former ratio.

The top and bottom edges of the picture may be

hidden.

Cinema Wide2 picture size (for letter box

programs)

The entire picture is uniformly enlarged--it is

stretched the same amount both wider and taller

(retains its original proportion).

The top and bottom edges of the picture may be

hidden.

Cinema Wide3 picture size (for letter box

programs with subtitles)

Tofill the width of the screen, it is extended

horizontally. However; it is only slightly extended at the

top and the bottom.

The top and bottom edges of the picture may be

hidden.

Full picture size (for 16:9 source programs)

Full will display the picture at the maximum size.

NOTE:

• Some High Definition and/or Digital broadcasts may

not allow you to change the picture size.

• In HDMI or COMPONENT mode with a scanning

rate of 720p or 1080i, only the Cinema Wide2 and

Full picture size features are available.

• In PC Mode, only the Natural and Full picture size

features are available.

• In Cinema Wide2 picture size, some of the on

screen display items may be positioned off the

visible portion of the screen.

Film Mode

A smoother motion may be obtained by setting

the Film Mode to "On" when you view a DVD.

| Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

2Press • or • to select"Picture", then press • or

ENTER.

3Press • or • to select"Film Mode".

Press • or • to select "On" or "Off".

z-I- Press EXIT/CANCEL to return to the normal

screen.

Picture control

adjustment in the PC mode

You can adjust to optimize the performance of

the TV in the PC mode.

|Press INPUT SELECT, then press •/v or

Number button (6) to select the PC mode.

2Press SETUP/TV MENU.TheTV menu screen

will appear.

3Press • or •to select"Picture", then press • or

ENTER.

4Press • or • to select"PC Setting", then press •

or ENTER.

The PC Setting menu will appear•

Press•or•

to adjust.

Press<or•

Hor

Position:

to select the desired item you want

to adjust the setting.

To adjust the horizontal position of

the image on the Component or PC

mode.

Ver

Position:

Clock:

Phase:

To adjust the vertical position of the

image on the Component or PC

mode.

To minimize any vertical bars

or stripes visible on the screen

background.

This must be adjusted after the

frequency of the Component or

PC mode has been set to 60Hz to

optimize picture quality (page 38).

"--2

/After adjusting, press ENTER to return to the PC

Setting menu. Then continue to adjust the other

items.

8 Press EXIT/CANCEL to return to the normal

screen.

NOTE:

• If no buttons are pressed for more than approx. 60

seconds, the Menu-screen will return to normal

Monitor-screen automatically.

• The PC settings are not effective for other input

modes.

DNR

DNR (Digital Noise Reduction) can reduce

the roughness of the picture. (This function is

available only for analog broadcast.)

| Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear•

Press • or • to select "Picture", then press • or

ENTER.

Press • or • to select"DNR". Press • or • to

select "On" or "Off".

t--I, Press EXIT/CANCEL to return to the normal

screen.

Sound control

adjustment

Press SETUP/TV MENU in the TV mode. The TV

menu screen will appear.

Press • or • to select"Audio", then press • or

ENTER.

Press • or • to select the item you want to

adjust.

Bass: Press •or • to adjust the bass sound.

Treble: Press • or • to adjust the treble sound.

Balance: Press • or • to obtain an equal sound

level from both speakers,

• Press • or • to change the adjusting item.

After you desired setting, press EXIT/CANCEL to

return to the normal screen.

Selecting Stereo/Second

Audio Program (SAP)

The multi-channel TV sound (MTS) feature

provides high-fidelity stereo sound. MTS also

can transmit a second audio program (SAP)

containing a second language or other audio

information.

When the TV receives a stereo or SAP broadcast,

the word "Stereo" or "SAP" displays on-screen

every time you press DISPLAY.

1Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

2Press • or • to select"Audio", then press • or

ENTER.

Press • or •to select "MTS", then press < or •

to select "Stereo".

z--I. Press EXIT/CANCEL to return to the normal

screen.

NOTE:

• Generally you can leave yourTV in stereo

mode because the TV automatically outputs

the type of sound being broadcast (stereo or

mono).

• If the stereo sound is noisy, select "Mono" to

reduce the noise.

To listen to a second audio program (SAP)

Press • or • to select "Sap" in step 3 above.The

TV speakers will output the second audio program

instead of normal audio.

Selecting the audio

language

When two or more audio languages are included

in a digital signal, you can select one of the audio

language. (This function is available only for

digital broadcast.)

1Press SETUP/TV MENU in the digital channel.

The TV menu screen will appear.

2Press • or • to select"Audio", then press • or

ENTER.

3Press • or • to select"Audio Language". Then

press • or • to select your desired language.

z--I. Press EXIT/CANCEL to return to the normal

screen.

Selecting the HDMI

audio input source

When you use HDMI-1 AUDIO IN jacks with HDMI

or DVI device, you must select HDMI audio input

source from "HDMI" or "DVI'.

| Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

Press • or • to select "Audio", then press • or

ENTER.

Press • or • to select "HDMI1 Audio".

Press • or • to select "HDMI" or "DVI".

When you connect the HDMI device to

the TV, select this setting.

DVh When you connect the DVI device to the

TV with analog audio cords, select this

setting.

Press EXIT/CANCEL to return to the normal

screen.

HDMI:

Turning off the built-in

speakers

Use this feature to turn the TV/DVD speakers off

when you connect an audio system (see pages 38).

1Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

Press • or • to select "Audio", then press • or

ENTER.

3 Press • or • to select"Speakers".

Press • or • to select "Off".

4Press EXIT/CANCEL to return to the normal

screen.

To turn on the built-in speakers:

Select "ON" in step 3 above.

Adjusting the back

lighting

The Backlight feature adjusts the screen

brightness for improved picture clarity.

1Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

Press • or • to select "Setup", then press • or

ENTER.

3Press • or • to select"Backlight".

4Press 4 or • to adjust the setting.

5 Press EXIT/CANCEL to return to the normal

screen.

Setting the Auto Shut Off

If the Auto Shut Off feature is On, a station being

viewed stops broadcasting and the TV is not

operated, the TV will automatically shut itself off

after 15 minutes.

/ Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

Press • or •to select "Setup", then press • or

ENTER.

3Press • or • to select"Auto Shut Off".

Press 4 or • to select "On" or "Off".

4. Press EXIT/CANCEL to return to the normal

Hscreen.

Resetting your settings

The Reset function returns your settings to the

factory settings,

1Press SETUP/TV MENU in the TV mode.The TV

menu screen will appear.

Press • or • to select"Setup", then press • or

ENTER.

3Press • or • to select"Reset".

¢-I" Press • or ENTER to return your settings to the

factory settings.

_) "Reset" will appear on the screen approx. 3

seconds, then it returns to the normal

Preparation

The following pages describe the setup/

operation in DVD mode.

Preparation

Before DVD/CD operation, please make the following

preparations.

1 Insert the AC cord plug into a standard 120V

60Hz polarized AC outlet.

• If the AC cord plug is plugged in for the first

time, wait for about 5 seconds before pressing

POWER.

NOTE:

• When connecting to other equipment, unplug

the unit from the AC outlet.

2Press POWER on the unit or on the remote

control to turn on the unit.The POWER indicator

will change to green.

• Each time you turn the unit ON, the TV/DVD

starts from the TV mode.

• When using an amplifier, switch on the

amplifier.

Press TV/DVD to select DVD mode.

The DVD startup screen will appear on the

screen.

NOTE:

•If the unit does not operate properly:

Static electricity, etc., may affect the player's

operation. Disconnect the AC power cord once,

then connect it again.

Status display of disc

Press DISPLAY. The status display of the disc will

appear on the screen.

ELAPSED TOTAL

DISC OPERATION TIME TIME

CHAPTER

NO.

AUDIO LANGUAGE A KiND OF AUDIO

To make the status display screen disappear, press

DISPLAY again.

Playback proced ure

Press TV/DVD to select DVD mode.

Place the disc in the

disc slot with the label

side facing forward.

(If the disc has a label.)

Hold the disc without

touching either of its

surfaces, align it with the guides, and place it in

position.

On the screen, ,,A,, changes to "Reading" and

then playback will commence.

• A menu screen may appear on the TV screen,

if the disc has a menu feature. In this case,

press A, v, 4, _,- or ENTER to operate a menu

feature.

Press STOP to end playback.

• The unit memorizes the stopped point,

depending on the disc. "lU" appears on the

screen. Press PLAY to resume playback (from

the scene point).

• If you press STOP again C'" appears on the

screen) or unload the disc, the unit will clear the

stopped point.

Press "_,(EJECT).

Remove the disc and then press POWER.

The unit turns off.

When you eject the disc, you may hear

mechanism noise, but it is not malfunction.

NOTE:

• If a non-compatible disc is loaded, "Incorrect Disc",

"Region Code Error" or "Parental Error" will appear

on theTV screen according to the type of loaded

disc. If these appear, check your disc again (see

pages 8 and 33-34).

• Some discs may take a minute or so to start

playback.

• If an 8 cm disc is placed into the disc slot and

picture playback or menu display does not begin

automatically, press PLAY.

• A "Prohibition" symbol "X" may appear at the upper

left of the screen. This symbol means either the

feature you tried is not available on the disc, or the

unit cannot access the feature at this time. This

does not indicate a problem with the unit.

• If you place a single-faced disc label backwards (i.e.

the wrong way) "Reading" will appear in the display

and then "Incorrect Disc" will be displayed.

• Some playback operations of DVDs may be

intentionally fixed by software producers. Since

this unit plays DVDs according to the disc content

recorded, some playback features may not be

available. Also refer to the instructions supplied with

the DVDs.

Special playback

Fast Forward Playback

Press SEARCH Im_ during normal playback.

Each press of SEARCH _1_ will increase the speed of

the search IN_ (x 2), _ (x 4), _ (x 8), _ (x

15).

(CD: _ (x 2), _ (x 4), _ (x 8), _ (x 20))

• To resume normal playback, press PLAY.

Review Playback

Press SEARCH 44 during normal playback.

Each press of SEARCH 44 will increase the speed

of the search 44 (x 2), _ (x 4), 4444 (x 8), 44444

(x 15).

(CD: 44 (x 2), _ (x 4), _ (x 8), _ (x 20))

• To resume normal playback, press PLAY.

Still Playback

Press PAUSE/STILL during normal playback to pause

playback.

• To resume normal playback, press PLAY.

Frame Advance

Press PAUSE/STILL during still playback.

One frame is advanced each time you press PAUSE/

STILL.

• To resume normal playback, press PLAY.

Slow-motion Playback

Press SLOW 41 Reverse or SLOW I_- Forward

during normal playback or still playback.

Each press of SLOW will change the speed of the

slow xl/2, xl/4, xl/6, xl/7.

• To resume normal playback, press PLAY.

• To resume the still playback, press PAUSE/STILL

Locating a chapter or track

Press SKIP _ Forward or SKIP _ Reverse during

playback to locate a chapter that you want to watch.

Each time you press the button, a chapter or track is

skipped.

NOTE:

• The unit is capable of holding a still video image or

On screen display image on your television screen

indefinitely. If you leave the still video image or On

screen display image displayed on your TV for

an extended period of time, you risk permanent

damage to your television screen.

• There may be a slight delay between when you

press the button and the function activating.

MP3/WMA/JPEG and

Audio CD playback

This player can play back MP3/WMA/JPEG-data

which has been recorded on CD-R or CD-RW.

To produce MP3/WMA/JPEG-data, you need a

Windows-PC with CD-ROM drive and MP3/WMA/

JPEG-encoding software (not supplied).

The Apple-HFS-System cannot be played.

MP3/WMA/JPEG CD information

Limitations on MP3/WMA/JPEG CD playback

• MP3/VVMA/JPEG CD is the disc that is

standardized by ISO9660, its file name must

include 3-digit extension letters, "mp3", "wma", "jpg".

• The directory and file names of MP3/WMA/JPEG

CD must correspond to ISO standardized files.

• This unit can read 2000 files per disc. If one

directory has more than 2000 files, it reads up to

2000 files, the remaining files will be omitted.

• MP3!VVMA CDs cannot be used for playback for the

purpose of recording.

• If the CD has both audio tracks and MP3/WMA/

JPEG files, only audio tracks are played.

• It may take more than one minute for this unit

to read MP3/WMA/JPEG files depending on its

structure.

• Music recorded by'Joliet Recording Specification"

can be played back.

• The music files recorded by"Hierarchical File

System" (HFS) cannot be played.

• The unit can play back baseline and progressive

JPEG files.

• MP3 orWMA files on the KODAK Picture CD are

not recognized on this unit.

Limitations on display

• The maximum number for display is 15 characters.

Long file names will be condensed.

• Available letters for display are the following:

capital or lowercase letters A through Z, numbers 0

through 9, and (under score).

• Other letters than those above are replaced by a

hyphen.

Notes on MP3/WMA/JPEG files

To play back MP3/WMA/JPEG CD in the recorded

order,

1. Use MP3!WMA/JPEG software that records data

alphabetically or numerically.

2. Name each file including a two-digit or three-digit

number (e.g. "01" "02" or "001" "002").

3. Refrain from making too many sub-folders.

CAUTION:

• Some MP3/WMA/JPEG CDs cannot be played

back depending on the recording conditions.

• The CD-R/RW that has no music data or non-MP3/

WMA/JPEG files can not be played back.

MP3 CD/WMA playback:

1Load a MP3/WMA/JPEG CD or an Audio CD in

the disc slot.

"Reading" will appear on the TV screen. Reading

time will depend on the number of files on the

disc.

A file browser screen will appear on the TV

screen.

Operation status File number Elapsed time Selected file name

File list

Tool kit

window

Cursor Preview window

File type

.b : Indicates Music file (Audio CD/MP3/WMA)

[] : Indicates Picture file (JPEG)

• In case the current directory includes 9 files or

more, press • or • to scroll in the file list.

• To see contents in folder, select the folder and

then press ENTER. To return to the parent

directory, select "i_ Go Up ..." then press

ENTER.

• In case of a CD containing a mixture of MP3,

WMA and JPEG files, the files are played back

by selecting them from the file browser.

Press • or • to select the desired file.

When PLAY is pressed after displaying file

browser displayed, or when the disc tray is closed

by pressing PLAY, playback begins automatically

starting from the first file.

In this case, if the first file is an MP3/WMA file,

only MP3/WMA files are played back in order. If

the first file is a JPEG file, the first JPEG file is

played back. If there is no file at a root directory,

playback does not begin automatically.

Press ENTER.

The selected file starts playing back.

Press STOP to end playback.

• The unit records the stopped point. "IW"

appears on the screen. Press PLAY to resume

playback (from the scene point).

• If you press STOP again or unload the disc, the

unit will clear the stopped point.

NOTE:

• During MP3/WMA/JPEG-Playback, you cannot

use JUMP and A-B Repeat functions.

• You can use Program playback, Repeat (Track

or All) and Random functions for MP3/WMA/

JPEG and Audio CD Playback (see pages 28

and 29).

JPEG playback:

1In the file browser, press•/v to select the desired

JPEG file.

To display a thumbnail list, press DVD MENU.

Press A/v/_l/1, to select the desired file.

(To return to the file browser, press TOP MENU.)

When PLAY is pressed after displaying the

file browser, or when the disc tray is closed by

pressing PLAY, playback begins automatically

starting from the first file. In this case, if the first

file is a JPEG file, the first JPEG file is played

back. If the first file is an MP3!WMA file, only

MP3!WMA files are played back in order. If there

is no file at a root directory, playback does not

begin automatically.

2Press ENTER.

The selected picture appears on the TV screen.

Rotating an image

You can rotate an image by 90 degrees.

Press ANGLE during playback of the image.

"i-", ")11,,,"'I" or "_" appears on the screen.

Zooming an image

Zoom function also can be used in viewing JPEG

files.

Press ZOOM (See "Zooming" on page 29).

Press STOP to end playback.

The file browser appears on the TV screen.

If you want to watch the other file, repeat steps

1-2.

Select Files

The file type to make it display in the file browser can

be chosen.

Press 41/1, to select "Select Files" at right column

in the file browser.

• Press ENTER, then press •/v to select file

type from the list (Music or Picture).

Press ENTER to add/remove check mark.

Checked file type will be displayed in the file

browser.

Press RETURN to save the setting.

Setting the JPEG

interval

You can continuously play back all JPEG files

automatically.

1Press SETUP/TV MENU in the stop mode.

Press • or •to select _ option, then press

4/I, or ENTER.

Press • or • to select 'tJPEG Interval", then press

1, or ENTER.

Press • or • to select your desired time, then

press ENTER.

TV Screen : 16:9

Display :On

Picture Mode :Auto

Off:

Plays back one file at a time.

5 Seconds:

Plays back images in the form of a slide show at 5

second intervals.

10 Seconds:

Plays back images in the form of a slide show at

10 second intervals.

15 Seconds:

Plays back images in the form of a slide show in

15 second intervals.

Press SETUP/TV MENU or RETURN to remove

the menu screen.

Program playback (CD)

You can arrange the order of tracks on the disc,

1In the file browser, press •/v/,(/1, to select"Edit

Mode", then press ENTER.

When "Edit Mode" is black color, you can mark

the files which you want to add into Program list.

2Press •/•/,(/1, to select the file you want to add

into the program list.

Press ENTER. Selected file was marked.

Repeat this procedure to select the other files.

t-t Press A/V/_I/_,- to select "Add To Program".

Then press ENTER. All marked files are added

into the program list.

When you finish storing the files you want into the

Program list, select "Edit Mode" again and press

ENTER to release edit mode.

4Press A/v to select "Program View", then

press ENTER. Program View shows only the

programmed files that you have added in Step 2.

Browser View Program View

,._ In the Program View, press PLAY.The files start

to playback in programmed order that were

added by you.

To remove file from program list in stop mode

In the Edit Mode, switch to Program View. Select the

files you want to remove, then press ENTER. Select

"Clear Program" and press ENTER. Marked file is

removed from program list.

NOTE:

• The program is cancelled when you eject the disc

or turn the power off.

Repeat playback (CD)

1In the file browser, press A/V/_I/_,- to select

"Repeat" during stop mode.

2Press ENTER repeatedly to select"Track" or"All".

3Press PLAY.

The unit automatically starts repeat playback

after finishing the current track.

To resume normal playback, select Repeat :"Off"

in step 2.

NOTE:

• The repeat or random function is canceled when

you eject the disc or turn the power off.

• The track repeat function is canceled when SKIP

or IHH is pressed.

• In case of Audio CD, the function of A-B Repeat

also can be used (See "A-B Repeat playback" on

page 30).

Random playback (CD)

1In the file browser, press A/V/_I/=,- to select

"Mode" during stop mode.

2Press ENTER to select"Random".

3Press PLAY.

The Random playback will start.

To resume normal playback, select Repeat :"Off"

in step 2.

Zooming

This unit will allow you to zoom in on the

frame image.You can then make selections by

switching the position of the frame.

1Press ZOOM during playback.

The center part of the image will be zoomed in.

Each press of ZOOM will change the ZOOM

magnification O.1 (x 1.3), 0.2 (x 1.5) and 0. 3

(x 2.0).

Press A/v/_l/, to view a different part of the

frame.

You may move the frame from the center position

UR DOWN, LEFT or RIGHT.

3In the zoom mode press ZOOM repeatedly to

return to a 1:1 view (O_ Off).

NOTE:

• You can select the Pause, Slow or Search playback

in the zoom mode.

• Some discs may not respond to zoom feature.

Locating desired scene

Use the title, chapter and time recorded on the

disc to locate the desired point to play back,

1Press JUMP during playback or resume stop

mode.

l! Jump

Title --- I

Chapter ---

Time --:--:-- 29

,I Press • or •to select the "Time", "Title/track" or

"Chapter".

Press Number buttons (0-9) to input the

number.

• If you input a wrong number, press CANCEL.

• Refer to the package supplied with the disc to

check the numbers.

4Press ENTER.

• Playback starts.

• When you change the title, playback starts from

Chapter 1 of the selected title.

• Some discs may not work in the above

operation.

Repeat playback

Title, Chapter, Track Playback:

1Press PLAY MODE during playback or stop

mode.

2 Press ENTER repeatedly to select"Chapter" or

"Title".

The unit automatically starts repeat playback

after finishing the current title or chapter.

• If you set the repeat mode during stop mode,

press PLAY to start Repeat playback.

3Press PLAY MODE again to make the screen

disappear.

• Press PLAY to start Repeat playback.

• To resume normal playback, select Repeat

"Off" in step 2.

A-B Repeat Playback:

A-B repeat playback allows you to repeat material

between two selected points.

1Press REPEAT A-B during playback.

The start point is selected.

2Press REPEAT A-B again.

The end point is selected. Playback starts at the

point that you selected. Playback stops at the end

point, returns to Point A automatically, then starts

again.

3To resume normal playback press REPEAT A-B

again.

"#"1 "

,...., Off appears on the screen.

NOTE:

• Some discs may not work with the repeat operation.

• In A-B repeat mode, subtitles near point A or B may

not appear.

• During the A-B Repeat Playback the ANGLE

feature will not operate.

• You may not be able to set A-B Repeat, depending

on the scenes of the DVD.

• A-B Repeat does not work with an interactive DVD,

MP3/M PEG/WMA/JPEG-CD.

Marking desired scenes

The TV/DVD stores the points that you want to

watch again. You can resume playback from that

scene.

Marking the scenes:

1Press MARKER during playback.

2Select the blank Marker using • or •, then press

ENTER at the desired scene.

[ Marker1 00:27:54] 1

Marker2 : :

Marker3 : :

• Up to 3 scenes can be selected.

• Repeat this procedure to set the other 2

scenes.

Press MARKER to remove this display.

Returning to the scenes:

1Press MARKER during playback or stop mode.

2Press • or • to select the Marker 1-3.

Marker1 O0:27:54 ]

[ Marker2 01:16:25J

Marker3 02:08:31

3Press ENTER.

Playback starts from the marked scene.

To cancel the mark:

1Press MARKER during playback or stop mode.

2Press • or • to select the Marker 1-3.

3Press CANCEL.

Press MARKER to remove this display.

NOTE:

• The marking is canceled when you eject the disc or

turn the power off.

• Some subtitles recorded around the marker may fail

to appear. [DVD]

Changing soundtrack

language

You can select the language when you play a

multilingual disc.

1Press AUDIO during playback.

The current soundtrack language will appear.

[ _l/2EngDolbyDigital

2Press AUDIO repeatedly until the desired

language is selected.

The on-screen display will disappear after a few

seconds.

The on-screen display will disappear after a few

seconds.

NOTE:

• If the desired language is not heard after pressing

AUDIO several times, the language is not recorded

on the disc.

• Changing soundtrack language is cancelled when

you eject the disc.

The initial default language or available language

will be heard if the disc is played back again.

Subtitles

Turning the subtitles on and off

When playing back a disc recorded with subtitles, you

can turn the subtitles on or off.

Press SUBTITLE during playback until "Off" appears.

Changing the subtitle language

You can select the language when playing back a disc

recorded with multi-lingual subtitles.

1Press SUBTITLE repeatedly during playback

until your desired language appears.

,I The on-screen display will disappear after a few

seconds.

NOTE:

• Changing subtitle language is cancelled when you

eject the disc.

• Some functions may not work on some DVDs.You

may not be able to turn subtitles on or off or change

subtitles. While playing the DVD, the subtitle may

change when:

- you eject the disc.

- you change the title.

• In some cases, the subtitle language is not changed

to the selected one immediately.

Changing angles

When playing back a disc recorded with multi-

angle facility, you can change the view angle,

1Press ANGLE during playback.

The current angle will appear.

FPress ANGLE repeatedly until the desired angle

is selected.

NOTE:

• Depending on the DVD, you may not be able to

change the angles even if multi-angles are recorded

on the DVD.

Title selection

Two or more titles are recorded on some discs.

If the title menu is recorded on the disc, you can

select the desired title.

Press TOP MENU during playback.

Title menu appears on the screen.

Press A/v or 4/_,- to select the desired title.

Press ENTER or PLAY.

The playback of the selected title will start.

NOTE:

• Depending on the DVD, you may not be able to

select the title. Depending on the DVD, a "title

menu" may simply be called a "menu" or "title" in the

instructions supplied with the disc.

DVD menu

Some DVDs allow you to select the disc contents

using the menu.

When you play back these DVDs, you can select

the subtitle language and soundtrack language,

etc. using the DVD menu.

Press DVD MENU during playback.

The DVD menu appears on the screen.

• Press DVD MENU again to resume playback at

the scene when you pressed DVD MENU.

Press •/v or 4/1, to select the desired item.

Press ENTER.

The menu continues to another screen. Repeat

steps 2 and 3 to set additional items if any.

Setting the language

You can select the language of "Menu", "Subtitle"

and "Audio" if more than one languages are

recorded onto the disc.

| Press SETUP/TV MENU in the stop mode.

Press • or •to select option, then press 4/1,

or ENTER.

Press • or • to select desired option, then press

1, or ENTER.

Press • or • to select your desired language

(e.g. English).

English, Francais, Espanol :

The selected language will be heard or seen.

Other:

Other language can be selected (see the

"Language code list" on page 35).

Original (Audio):

The unit will select the first priority language of

each disc.

Off (Subtitle):

Subtitles do not appear.

Press SETUP/TV MENU or RETURN to remove

the menu screen.

NOTE:

• If the selected language is not recorded on the disc,

the first priority language is selected.

Setting the aspect ratio

of TV screen

You can select the aspect ratio of the picture,

1Press SETUP/TV MENU in the stop mode or No

Disc.

Press • or • to select _ option, then press

4/I, or ENTER.

Press • or • to select "TV Screen", then press 1,

or ENTER.

Press • or • to select your desired screen type,

then press ENTER.

Displa

JPEG Interval :Off

You have the following screen sizes to choose

from:

4:3 I'"1 Letterbox

When playing back a wide screen DVD disc, it

displays the wide picture with black bands at the

top and bottom of screen.

4:3 r-] Panscan

It displays the wide picture on the whole screen

with left and right edges automatically cut off.

16:9 17 Wide

A wide screen picture is displayed full size.

Press SETUP/TV MENU or RETURN to remove

the menu screen.

NOTE:

• It is not always possible for the DVD disc to display

the picture as per your preferred picture setting - for

example, if you select "4:3 Panscan", the disc may

not offer this option. In this case the picture would

display the format the disc is capable of playing

back.

Setting on screen

display

On screen display can be switched on or off

when you press the DISPLAY button.

1Press SETUP/TV MENU in the stop mode or No

Disc.

Press • or • to select _ option, then press

4/1, or ENTER.

Press • or • to select "Display", then press 1, or

ENTER.

Press • or • to select "On" or "Off", then press

ENTER.

On: On screen displays appear when you press

the buttons (factory setting).

Off: On screen displays do not appear when you

press any buttons except SUBTITLE, PLAY

MODE, MARKER, DISPLAY and JUMP.

¢-I" Press SETUP/TV MENU or RETURN to remove

the menu screen.

Setting the picture mode

There are two types of source content in pictures

recorded in DVD video discs: film content

(pictures recorded from films at 24 frames

per second) and video content (video signals

recorded at 30 frames per second). Make this

selection according to the type of content being

viewed,

|Press SETUP/TV MENU in the stop mode.

Press • or •to select _ option, then press </,

or ENTER.

2 Press • or • to select"Picture Mode", then press

_,- or ENTER.

3 Press • or • to select your desired picture mode,

then press ENTER.

TV Screen :16:9_

Display :On

Auto:

Select this position normally.

The DVD player automatically detects source

content, film or video, of playback source.

Film:

Suitable for playback of film content pictures.

Video:

Suitable for playback of video content pictures.

4Press SETUP/TV MENU or RETURN to remove

the menu screen.

NOTE:

• Depending on the disc, pictures may be cut off or

doubled. In this case, select "Video".

Night Mode

Night Mode enables you to control the dynamic

range so as to achieve a suitable sound for your

equipment.

1Press SETUP/TV MENU in the stop mode or No

Disc.

Press • or • to select (_j5 option, then press

</I,, or ENTER.

2 Press • or • to select"Night Mode", then press

_,- or ENTER.

3Press • or • to select"On" or"Off", then press

ENTER.

On : Loud sounds such as explosions are toned

down slightly when played.

Off : The unit will play the disc as recorded.

¢-I" Press SETUP/TV MENU or RETURN to remove

the menu screen.

Digital Out

You can select the digital output sound format

corresponding to your system connection,

1Press SETUP/TV MENU in the stop mode or No

Disc.

Press • or • to select (ij5 option, then press

4/_,- or ENTER.

Press • or • to select "Digital Out", then press D,

or ENTER.

Press • or • to select "PCM", "Bitstreem" or "Off",

then press ENTER.

PCM: Change Dolby Digital to PCM for the

output. Select when connected to a 2

channel digital stereo amplifier.

Bitstream: Disc audio bitstream data will be

output.

Off: There is no sound output from

DIGITAL AUDIO OUT jack.

Press SETUP/TV MENU or RETURN to remove

the menu screen.

NOTE:

• This function works only during playback of Dolby

Digital recorded discs.

• The level of Dynamic Range Reduction may differ

depending on DVD video disc.

• Even if you select "Bitstream', MPEG audio will be

output in PCM format.

Parental control

Some discs are specified not suitable for

children, Such discs can be limited not to play

back with the unit.

Password and setting:

Press SETUP/TV MENU in the stop mode or No

Disc.

Press • or • to select _ option, then press

4/_,-or ENTER.

,I Press • or •to select"Parental", then press • or

ENTER.

"Enter Password" screen will appear.

Press "0000" using Number buttons (0-9). (This

is pre-setting password of this unit). Then press

ENTER.

• If you input a wrong number, press EXIT/

CANCEL.

Pass_

The parental level list will appear. Press • or • to

select the level 1 to level 8. The limitation will be

more severe as the level number is lowered.Then

press ENTER.

• Level Off : The parental control setting does

not function.

• Level 8 : Virtually all DVD software can be

played back.

• Level 1 : DVD software for adults cannot be

played back.

• Select from level 1 to level 8.The limitation will

be more severe as the level number decreases.

Press SETUP/TV MENU or RETURN to remove

the menu screen.

NOTE:

•If each setup (P.32~34) has been completed,

the unit will use these settings during DVD

playback.

Each setup will be retained in memory.

• Depending on the discs, the unit may not be able to

limit playback.

• Some discs may not be encoded with specific rating

level information though its disc jacket says "adult".

For those discs, the age restriction will not work.

• After the rating is locked, the setting cannot be

changed unless you enter the correct password.

Setting the new password:

1Press SETUP/TV MENU in the stop mode or No

Disc.

Press • or • to select _} option, then press

4/I, or ENTER.

2 Press • or • to select"Password", then press •

or ENTER.

"Enter Current Password" screen will appear.

Press Number buttons (0-9) to enter the

password you have stored.

• If you input a wrong number, press CANCEL.

4Then press ENTER."Enter New Password"

screen will appear. Press Number buttons (0-9)

to input the new password.

Parental :o_

Press ENTER.

Now your new password has been set.

Be sure to remember this number!

NOTE:

• Do not forget the password. If you forget the

password, contact Customer Service at 1-800-289-

0980. The original remote control will be required.

Temporary disabling of

rating level by DVD disc

Some pre-recorded DVD discs may attempt to

temporarily cancel the rating level that you have

set.You will be given the option to allow or not

allow the override.

1Load a DVD disc (see page 26).

2If the DVD disc has been designed to temporarily

cancel the Rating level, the screen which follows

the "Reading" screen will change, depending

on which disc is played. If you select "YES" with

ENTER key, password input screen will then

appear.

3Enter the password with Number buttons (0-9).

Then press ENTER.

• If you interrupt the entering, press RETURN.

./i

¢-'1" Playback will commence if the entered password

was correct.

NOTE:

• This temporary cancellation of the rating level will

be kept until the disc is ejected.

When the disc is ejected, the original rating level will

be set again automatically.

Language code list

Enter the appropriate code number for the initial settings "Menu", "Subtitle" and/or "Audio" (see page 32).

Language Name Code Language Name Code Language Name Code Language Name Code

Abkhazian 1112 Fiji 1620 Lingala 2224 Singhalese 2919

Afar 1111 Finnish 1619 Lithuanian 2230 Slovak 2921

Afrikaans 1116 French 1628 Macedonian 2321 Slovenian 2922

Albanian 2927 Frisian 1635 Malagasy 2317 Somali 2925

Amharic 1123 Galician 1722 Malay 2329 Spanish 1529

Arabic 1128 Georgian 2111 Malayalam 2322 Sundanese 2931

Armenian 1835 German 1415 Maltese 2330 Swahili 2933

Assamese 1129 Greek 1522 Maori 2319 Swedish 2932

Aymara 1135 Greenlandic 2122 Marathi 2328 Tagalog 3022

Azerbaijani 1136 Guarani 1724 Moldavian 2325 Tajik 3017

Bashkir 1211 Gujarati 1731 Mongolian 2324 Tamil 3011

Basque 1531 Hausa 1811 Nauru 2411 Tatar 3030

Bengali;Bangla 1224 Hebrew 1933 Nepali 2415 Telugu 3015

Bhutani 1436 Hindi 1819 Norwegian 2425 Thai 3018

Bihari 1218 Hungarian 1831 Oriya 2528 Tibetan 1225

Breton 1228 Icelandic 1929 Panjabi 2611 Tigrinya 3019

Bulgarian 1217 Indonesian 1924 Pashto, Pushto 2629 Tonga 3025

Burmese 2335 Interlingua 1911 Persian 1611 Turkish 3028

Byelorussian 1215 Irish 1711 Polish 2622 Turkmen 3021

Cambodian 2123 Italian 1930 Portuguese 2630 Twi 3033

Catalan 1311 Japanese 2011 Quechua 2731 Ukrainian 3121

Chinese 3618 Javanese 2033 Rhaeto-Romance 2823 Urdu 3128

Corsican 1325 Kannada 2124 Romanian 2825 Uzbek 3136

Croatian 1828 Kashmiri 2129 Russian 2831 Vietnamese 3219

Czech 1329 Kazakh 2121 Samoan 2923 VolapQk 3225

Danish 1411 Kirghiz 2135 Sanskrit 2911 Welsh 1335

Dutch 2422 Korean 2125 Scots Gaelic 1714 Wolof 3325

English 1524 Kurdish 2131 Serbian 2928 Xhosa 3418

Esperanto 1525 Laothian 2225 Serbo-Croatian 2918 Yiddish 2019

Estonian 1530 Latin 2211 Shona 2924 Yoruba 3525

Faroese 1625 Latvian, Lettish 2232 Sindhi 2914 Zulu 3631

Connections to other equipment

The exact arrangement you use to interconnect various video and audio components to this unit is dependent

on the model and features of each component. Check the Owner's Manual provided with each component for

the location of video and audio inputs and outputs.

To connect the LCD TV/DVD to a VCR

Left side of the unit

ToAV1 or AV2 VIDEO/AUDIO IN To Audio/Video OUT

-- --

ud,o.,deocord,notsu ,,ed,

VCR

To connect the LCD TV/DVD to a VCR with an S-Video cord

If you connect aVCR with a S-Video cable to the S-VIDEO IN jack on the left side of the unit, you must also

connect the audio cables to the AV1 AUDIO IN jacks on the left side of the unit.

The S-Video cable only carries the video signal.The audio signal is separate.

NOTE:

• When the S-Video cable and the standard video cable are connected at the same time, the S-Video cable

takes precedence.

Left side of the unit

@@@

VCR

To S-VIDEO IN To S-Video OUT,/t,S-Video cord (not supplied) !1 I

To AV1 AUDIO IN To Audio OUT

To connect to a DVD player with Component Video Input

You can enjoy a high quality picture by connecting the unit's COMPONENT VIDEO OUT jacks of your DVD

player with the COMPONENT video cables (not supplied).

Left side of the unit

@c,,_

@@©

To AV2 AUDIO IN To Audio OUT

=cC_-% .("==(_ DVD

==_3==J Audio cord (not supplied) _ /

_.JCompenent video cord (not supplied)_

To COMPONENT IN To Component OUT

NOTE:

• Component Video input of the unit are for use with a device which output 480i/1080i interlaced signals and

480p/720p progressive signals.

Connections to other equipment (continued)

To connect a HDMI or a DVI device to the unit

The HDMI input receives digital audio and uncompressed video from a HDMI device or uncompressed digital

video from a DVI device.

When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate

analog audio cords required.

Left side of the unit

To HDMI out

To HDMI-2 (or1) IN HDMI cable (type A connector)

[net supptied)

]IN I or

To HDMI- HDMI - to - DVI adapter cable

| (HDMI type A connector) _h

To PC/HDMI-1 AUDIO IN (net supphed) ......

Audio cord (net supplied) To DVIoutput

HDMI device

DVI device

NOTE:

• When you connect a DVI device, you must connect only with HDMI-1.

When using HDMI-1 to connect your HDMI or DVI devices, you must select the corresponding audio

input source (HDMI or DVI) on the menu screen (see "Selecting the HDMI audio input source" on

page 24). Otherwise you will only see the image with no sound,

• If you connect an external component (cable box, satellite receiver, etc.) to this LCD TV using an HDMI cable

or a DVI to HDMI cable, the image will not display if the output resolution of the component is set to 480i. To

receive the picture you must change the output resolution on the external component.

Should you require further instruction, please contact the manufacturer of the external component.

Using an AV Amplifier with built-in digital surround

If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including

Dolby Digital Surround audio that sounds just like the movie.

Connect an AV amplifier with built-in Dolby Digital decoder, DTS decoder, or MPEG decoder etc. as

shown below. Left side of the unit

r'__Coaxial Digital

_ Audio Output

digitC°aXb/l'l_ leI ,_

,notsu:,iio x, _

DigitalAudi°lnput _oo L--_oo o _1 _ I

AV Amplifier with built-in digital surround I I

decoder as listed above

Front

Speaker_ /\

(Left) _ (_

Front

Subwoofer I (SRPg_tk)er

_ Surround _ SurroundSpeaker (Left) Speaker

(Right)

NOTE:

• This unit will not work in conjunction with DTS audio.There will be no sound output if connected to an AV

amplifier with a built-in DTS decoder.

• Coaxial digital audio output is active only when receiving digital broadcasting, not when receiving analog

broadcasting. 37

Connections to other equipment (continued)

To connect an audio system

This connection allows you to use an audio amplifier and external speakers, and adjust the audio level using the

TV's remote control.

Tocontrol the audio, turn on the unit and the stereo amplifier, and turn off the unit's built-in speakers (see

"Turning off the built-in speakers" on page 24).

Left side of the unit

Amplifier!

To Audio (L) Input _To Audio (R) Input

Audio cord (not supplied)

NOTE:

To hear sound when using an

external audio amplifier, the volume

of both the unit and the amplifier

must be set above 0 (zero).

For example, if the volume of the

unit is set to 0, you will not be

able to hear any sound, even if

the volume of the amplifier is at its

highest level.

To connect the TV/DVD to a camcorder, or a TV Game

To playback from a camcorder, connect the camcorder to the unit as shown.

This unit can also be used as a display device for many video games. However, due to the wide variety of

signals generated by these devices and subsequent hook-up variations required, they have not all been

included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual for

additional information.

Left side of the unit

@To AV1 or AV2 VIDEO/AUDIO IN

_or_

AudioNideo cord (not supplied)

To connect the TV/DVD to a PC (Personal Computer)

Before you connect this TV/DVD to your PC, change the adjustment of your PC's Resolution and Refresh rate

(60 Hz).

Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the VGA

connector PC MONITOR on the back of the TV/DVD. Attach the connectors firmly with the screws on the plug. In

case of a Multimedia computer, connect the audio cord to the audio output of your Multimedia computer and to

the AUDIO connector of the PC/HDMI-1 AUDIO IN jacks of the TV/DVD.

Press INPUT SELECT on the remote control to select PC mode.

Switch on the computer. The TV/DVD can operate as the computer monitor.

Left side of the unit

To PC IN

{ m4>_

@ PC/HDMI-1

@@@ AUDIO IN

@@@ jacks

(3@@

pc]

111

Audio cord (not supplied)

Monitor Display modes

MODE Resolution Refresh rate

VGA 640x480 60Hz

VGA 720x400 70Hz

SVGA 800x600 60Hz

XGA 1024x768 60Hz

WXGA 1280x768 60Hz

WXGA 1280x720 60Hz

WXGA 1360x768 60Hz

To return to normal mode

Press INPUT SELECT again.

NOTE:

• The on-screen displays will have a different appearance in PC mode than in TV mode.

• If there is no video signal from the PC when the unit is in PC mode, "No Signal" will appear on the TV-screen.

Reception d istu rbances

Most types of television interference can be remedied by adjusting the height and position of the VHF/

UHF antenna. Outdoor antennas are recommended for best results. The most common types of television

interference are shown below. If one of these symptoms appear when the TV is connected to a Cable TV

system, the disturbance may be caused by the local Cable TV company broadcast.

IGNITION

Black spots or horizontal streaks may appear, the picture may flutter or

drift. Usually caused by interference from automobile ignition systems,

neon lamps or AC powered tools and appliances such as drills or hair

dryers.

GHOSTS

Ghosts are caused by the television signal following two paths. One is the

direct path and the other is reflected by tall buildings, hills or other large

objects. Changing the direction or position of the antenna may improve

the reception.

SNOW

If the TV is located far from the TV station, in a fringe reception area where

the signal is weak, small dots may appear in the picture.

If the signal is extremely weak, the installation of a larger external antenna

may be necessary.

RADIO FREQUENCY INTERFERENCE (RFI)

Caused by two-way radios, this type of interference produces moving

ripples or diagonal streaks in the picture. Some cases may cause a loss of

contrast in the picture. Changing the direction and position of the antenna

or installing an RFI filter may improve the picture.

PICTURE SIZE VARIATION

A slight picture size variation is normal when you adjust the CONTRAST or

BRIGHTNESS settings.

CARE AND MAINTENANCE

To prevent fire or shock hazard, disconnect the TV from the power source before cleaning.

The finish on the cabinet may be cleaned with mild soap and a soft, damp cloth and cared for as other furniture.

Use caution when cleaning or wiping the plastic parts.

Problems and troubleshooting

Use the following check list for troubleshooting when you have problems with your TV/DVD. Consult your local

dealer or service outlet if problems persist.

Be sure all connections are properly made when using with other units.

SYMPTOMS I POSSIBLE SOLUTIONS I PAGE •

POWER

• Make sure the power cord is plugged in.

TV/DVD does not operate. • Power is off, check fuse or circuit breaker. 12

• Unplug unit, then plug it back in.

TV BROADCAST RECEPTION

• Station or Cable TV experiencing problems, tune to another station. 16

Poor sound or no sound. • Check Volume adjustments or muting. 16, 17

• Check for sources of possible interference. 39

• Station or Cable TV experiencing problems, tune to another station. 16

Poor picture or no picture. • Check antenna or Cable TV connections, reorient antenna. 13, 14

• Check for sources of possible interference. 39

• Check picture control adjustments. 21

Poor reception on some • Station or Cable TV experiencing problems, tune to another station. 16

channels. • Station signal is weak, reorient antenna to receive stronger station. 13

• Check for sources of possible interference. 39

• Station or Cable TV experiencing problems, tune to another station. 16

• Make sure channels are set into memory. 15

Poor color or no color. • Check picture control adjustments. 21

• Check antenna or Cable TV connections, reorient antenna. 13, 14

• Check for sources of possible interference. 39

• Station or Cable TV experiencing problems, tune to another station. 16

• Make sure channels are set into memory. 15

Picture wobbles or drifts. • CableTV company is scrambling signal.

• Check antenna orientation. 13

• Check all CableTV connections. 14

No Cable TV reception. • Set Signal Type option to the "Cable" mode. 15

• Station or Cable TV system problems, try another station. 16

Horizontal or diagonal • Check antenna connections, reorient antenna. 13

bars on screen. • Check for sources of possible interference. 39

No reception above • Make sure Signal Type option is in the appropriate mode. 15

channel 13. • If using antenna, check UHF antenna connections. 13

• No broadcast on station tuned. 16

TV shuts off. • SleepTimer is set. 17

• Power interrupted.

• TV station experiencing problems or program tuned is not closed 16

Closed - Caption is not captioned. Try another channel.

activated. • Check CableTV connection or VHF/UHF antenna, reposition or 13, 14

rotate antenna.

• Set Closed caption in the menu. 19

Display is not shown in • Select proper language in the menu options. 15

_your language. •

• The LCD panel is a very high technology product, giving you fine picture details. Occasionally, a few non-

active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not

affect the performance of your product.

Problems and troubleshooting (continued)

• SYMPTOMSI POSS,BLESOLUT,ONS I PAGE

DVD

• No disc is inserted. 26

Playback doesn't start. • The disc may be dirty. Clean up the disc. 8

• The unit cannot play CD-ROMs, etc. 8

No picture. • TV/DVD selector is not set correctly. 25

• Check the input selector of the amplifier is set properly.

No sound. • The unit is in the Special playback mode. 26

• Select the correct Audio Output position on AV amplifier. 37

Picture is distorted during • The picture will be distorted occasionally.

CUE or REVIEW.

Stopping playback,

search, slow-motion play,

repeat play, or program • Some discs may not allow some functions.

play, etc. cannot be

performed.

No on-screen display. • Select Display On. 32

No surround sound. • The setup does not match your stereo system. 37

The unit or remote • Turn off the unit and unplug the AC power cord for several minutes,

operation key is not then replug it. 12

functioning.

Playback does not start • Check the RATING LEVEL setup. 33, 34

when the title is selected.

Audio soundtrack and/or

subtitle language is not • Multilingual language is not recorded on the DVD disc. 31

changed when you play

back a DVD.

• Some discs have no subtitles.

No subtitle. 31

• Subtitles are cleared. Press SUBTITLE.

Angle cannot be changed. • Multi-angles are not recorded on the DVD disc. 31

"X" appears on the • The function is prohibited with the unit or the disc. 26

screen.

REMOTE CONTROL

• Aim at the remote control at the remote sensor.

The remote control does • Operate within Approx. 5 Meters or reduce the light in the room.

• Clear the path of the beam. 12

not function. • The batteries are weak. Replace the batteries.

k, • Check the batteries are inserted correctly, j

f, fSANSU

FOR CUSTOMERSERVICE,ADDITIONALSETUP AND OPERATINGASSISTANCE,OR TO ORDERACCESSORIESPLEASECALL:

1-800-289-0980

WHEN CALLING CUSTOMER SERVICE- PLEASE HAVE YOUR MODEL NUMBER READY

OR WRITE TO:

ORION SALES, INC.

3471 N. UNION DR.

OLNEY, ILLINOIS 62450

FOR INFORMATION ON OUR OTHER PRODUCTS, OR TOORDER ACCESSORIES ONLINE, PLEASE VISIT OURWEBSITE AT

www.orionsalesinc.com

Specifications

GENERAL

Power supply:

Power consumption:

Weight:

Dimensions:

Operating temperature:

Operating humidity:

TELEVISION

Type:

Display method:

Number of Pixels:

Viewing angle:

Tuner type:

Receiving channels:

Inputs:

Outputs

Speaker:

Audio output power:

DVD/CD player

Signal system:

Applicable disc:

Pickup:

ACCESSORIES:

AC 120V 60Hz

Operation: 120W

Stand by: 1W

11.2 kg (24.7 Ibs)

Width: 663 mm (26-1/8 inches)

Height: 495 mm (19-1/2 inches)

Depth: 211 mm (8-5/16 inches)

5°C _40°C

Less than 80%

26.01 inches (660.5 mm diagonal)

Transmission TFT color LCD panel

1366 (H) x 768 (V)

Left/Right: 80/80 degree

Up/Down: 80/80 degree

NTSC standard

ATSC standard (8VSB), QAM

VHF 2-13

UHF 14-69

CATV 14-36 (A)-(W)

37-59 (AA)-(WW)

60-85 (AAA)-(ZZZ)

86-94 (86)-(94)

95-99 (A-5)-(A-1)

100-125 (100)-(125)

01 (5A)

S-Video: Y-Input:1.0V (p-p), 75 ohms

C-Input:0.3 V (p-p), 75 ohms

Video: (RCA) 1 V p-p/75 ohms

Audio: (RCA) -8 dBm/50K ohms

Component video input: (Y) 1 V (p-p), 75 ohms

(PB)/(PR) 0.7 V (p-p), 75 ohms

HDMI input: HDMI compliant (type A connector)

HDCP compliant

E-EDID compliant

Suggested scan rates: 1080i, 480p, 480i, 720p

HDMI Audio: 2-channel PCM

32/44.1/48 kHz sampling frequency

16/20/24 bits per sample

PC Monitor input: Mini-Dsub 15pin x 1

Antenna input: VHF/UHF In 75 ohms coaxial

Digital audio out: 0.5 Vp-p 75 ohms terminated

Variable audio out: 0.600mV/lk ohms

41 mm x 122 mm (1-5/8 inches x 4-13/16 inches), 8 ohms x 2

5.0W + 5.0W

NTSC

1.DVD (12 cm, 8 cm)

2.CD (12 cm, 8 cm)

CD: Wavelength:790 nm

Maximum output power: 7 mW

DVD: Wavelength: 655 nm

Maximum output power: 5 mW

Remote control

Batteries (UM-4) x 2

AC Cord

Designs and specifications are subject to change without notice.

IJSANSUI®

fimited

WARRANTY

LCD TV WITH DVD PLAYER

ORION warrants this product to be free from manufacturing defects in material and workmanship under

normal use and conditions for a period of 1 year from date of original purchase in the United States.

Should service be necessary under this warranty for any reason due to a manufacturing defect or malfunc-

tion during the first 12 months from date of original purchase, ORION will provide carry-in service by an ORION

authorized Independent Service Center at no charge. Also, if an original part fails due to manufacturing defect

in material and workmanship within one year from date of original purchase we will replace the defective part,

provided the defect or malfunction is verified along with dated proof of purchase.

There are ORLON authorized Independent Service Centers located throughout the country. For the one

nearest you, DIAL TOLL FREE: 1-800-289-0980 or visit our website at www.orionsalesinc.com. This product is

eligible for CARRY-IN service only. ORLON will not be liable for damages incurred in shipment of the unit. If there

are no ORION authorized Independent Service Centers in your area please call - 1-888-296-7466 for assistance.

Note: This warranty is void if the product is:

(a) Damaged through negligence, misuse, abuse, or accident.

(b) Used in a commercial application or rentals.

warranty repairs to the class of product or by the ORION Factory Service Center.

(d) Damaged because it is improperly connected to the equipment of other manufacturers.

This warranty does not cover:

(a) Damage tovideo disc.

(b) Damage to equipment not properly connected to the product.

ORION Factory Service Center.

(d) Damage or improper operation of unit caused by customer abuse, misuse, negligence, or failure to follow

operating instructions provided with the product.

(e) Ordinary adjustments to the product which can be performed by customer as outlined in the owner's

manual.

(f) Signal reception problems caused by external antenna or cable systems.

THIS WARRANTY IS NON TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER AND

DOES NOT EXTEND TO SUBSEQUENT OWNERS OFTHE PRODUCT. ANY APPLICABLE IMPLIED WARRAN-

TIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED IN DURATION TO A PERIOD OF

THE EXPRESS WARRANTY AS PROVIDED HEREIN BEGINNING WITH THE DATE OF ORIGINAL PURCHASE

AT RETAIL AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED SHALL APPLY TO THIS PRODUCT

THEREAFTER. ORION MAKES NO WARRANTY AS TO THE FITNESS OF THE PRODUCT FOR ANY PARTIC-

ULAR PURPOSE AND USE.

UNDER NO CIRCUMSTANCES SHALL ORION BE LIABLE FOR ANY LOSS, DIRECT, INDIRECT, INCI-

DENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGE ARISING OUT OF OR IN CONNECTION WITH THE USE

OFTHIS PRODUCT.

THIS WARRANTY IS VALID ONLY IN THE UNITED STATES OF AMERICA. THIS WARRANTY GIVES YOU

SPECIFIC LEGAL RIGHTS, HOWEVER, YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE

TO STATE. SOME STATES DO NOT ALLOW LIMITATION ON IMPLIED WARRANTIES OR EXCLUSION OF

CONSEQUENTIAL DAMAGE, THEREFORE THESE RESTRICTIONS MAY NOT APPLY TO YOU.

ORION SALES, INC.

3471 N. UNION DR.

OLNEY, ILLINOIS 62450

IIIIIIHIIIlUlIIIIIlUlIIIIIIIII

J50N0201A SH 08/01 [] Printed in Thailand

Sansui HDLCDVD260B User Manual LCD TELEVISION/DVD Manuals And Guides L0811558

SANSUI TV/VCR or DVD Combo Manual L0811558 SANSUI TV/VCR or DVD Combo Owner's Manual, SANSUI TV/VCR or DVD Combo installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
