Sanyo Electric Co CDR027 Internal CD-RW User Manual CRD BP1500U40XFCC1
Sanyo Electric Co Ltd Internal CD-RW CRD BP1500U40XFCC1
Users Manual
Page 3
Document No. Document Name
SANYO Electric Co., Ltd.
Included Document List
(1/1)
2. Included Document List
Document Name Document No. Page No.
General Description 1/3 ~ 3/3 4∼6
Dimensions, External View and
Names and Functions of Each Part
1/2 ~ 2/2 7∼8
Terminal Description 1/3 ~ 3/3 9∼11
Environmental Conditions 1/1 12
Reliability 1/3 ~ 3/3 13∼15
Lot No. Reliability Description 1/1 16
Safety Standards 1/1 17
Electrical Characteristics 1/3 ~ 3/3 18∼20
Function Description 1/3 ~ 3/3 21∼23
Handling Manual 1/1 24
Notes for Handling 1/5 ~ 5/5 25
Page 4
Document No. Document Name
SANYO Electric Co., Ltd.
General Description
(1/3)
General Description
(1) Model Name: CRD-BP1500U40X
(CD-R drive with MAX ×48 speed reading, ×40 speed writing, and ×12 speed
rewriting)

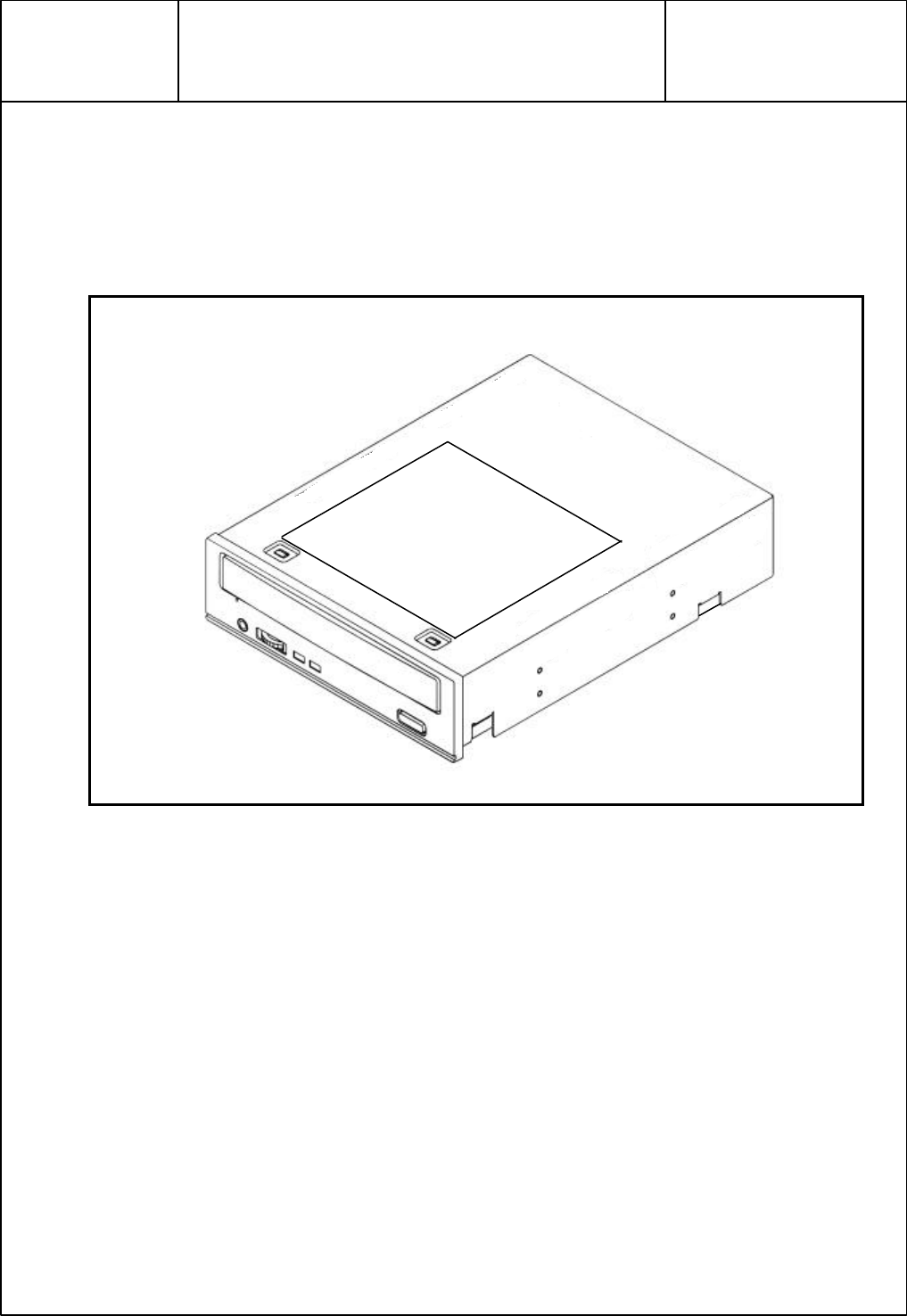

(2) External View
External View
(3) General Specifications
1) Characteristics
* Half-height and built-in type
* Conforms to Orange Book Part 2, 3
* Equipped with the newly developed automatic strategy LSI with the data reliability enhanced.
* MAX ×48 CAV speed reading, ×40 speed writing (ZCLV), and ×12 speed rewriting
* USB2.0 is employed to enable high speed data transmission.
* Automatic loading mechanism
* Vertical operation feasible.
* Emergency disc ejecting function
* Data verifying function
* Media condition check function
* CD-DA read function
* BURN-Proof Technology implemented
“BURN-Proof” stands for Proof against Buffer Under RuN error, not for proof against burning.
Page 5
Document No. Document Name
SANYO Electric Co., Ltd.
General Description
(2/3)
(4) Applications
Wide range of applications available, such as image data filing, management of CAD/CAM,
drawing data and financial affairs, audio data storage and electronic publication.
(5) Main Specifications
Items Specifications
Dimensions 146 (W) x 188.5 (D) x 41.3 (H) mm
Mass 1020 g
Recording Form Orange-book part 2, 3 Fixed packet
Disc-at-once Variable packet
Track-at-once
Front Panel Eject key, Emergency eject pinhole, LED (busy and write)
Headphone jack, Volume
Eject Automatic loading
Power Supply DC 5 × (1 ± 5 %) V
DC 12 × (1 ± 10 %) V
(6) Operational environment for the “write/rewrite” application software
Items Specifications
Host Machine IBM compatible PC (Pentium 166 MHz or more) (Note 1)
OS MS-Windows 95/98/98SE/ME/2000/NT4.0/XP (Note 2)
Memory MS-Windows 95/98/98SE/ME/NT: 64 MB required.
128 MB recommended.
MS-Windows2000/WindowsXP: 128 MB required.
256 MB recommended
Hard disc Empty Storage Capacity: 100 MB or more
Average seek time: 20 ms or less
Transmission rate: 2 MB/s or more
Do not use the HDD which caliblates thermaly during operation.
CD-R (×4 ~ ×40) : RITEK, CMC, DAXON, MBI, MITSUI
CHEMICAL , MITSUBISHI CHEMICAL,
HITACHI MAXELL
Recommended Media
CD-RW (×4 ,×10, ×12) :MITSUBISHI CHEMICAL, RICOH
(T.B.D) (Note 3)(Note 4)
(Note 1) If any problem occurs, negotiation is required to settle the matter.
(Note 2) (1) Install “Device Driver of USB 2.0” in OS. (A thing for the board of USB 2.0 which you
chose.)
(2) Install USB 2.0 Storage Driver (TPPinst.exe). Please,Downlode this site.
www.in-system.com/SW_License.html
(Note 3) We intend to add the proper media one by one in the near future.
(Note 4) Please refer to the latest information on the web: www.burn-proof.com.
Page 6
Document No. Document Name
SANYO Electric Co., Ltd.
General Description
(3/3)
(7) Scope
These delivery specifications are applied to the CD-R/RW drive “CRD-BP1500U40X” which is sold
by SANYO Electric Co., Ltd.
(8) Contents
1) Model No. CRD-BP1500U40X
2) Performance Write function onto CD-R/RW disc in combination with the write application
software and CD-ROM read function, in combination with the CD-ROM
application software.
3) Applications Write onto and read of the CD-R/RW disc.
Read of CD-ROM disc.
4) Dimensions Refer to the item “Dimensions and Dimensional Drawing”.
5) Notes for handling
Refer to the Manual and Notes for Handling.
6) Others
a. The specifications of this product are the same as in the delivery specifications.
If any fault or malfunction of the product occurs when it is used under any conditions except
for our guaranteed conditions, our company has no responsibility for the claim.
Service and the term of guarantee shall be described in the attached memorandum.
b. For the legal regulations for this product, refer to the attached document.
c. The specifications of this product are subject to change to enhance the performance.
d. The change of notice is issued when the specification is changed only.
e. If any doubt occurs regarding the contents of the specifications, negotiation is required to
settle the matter.
Page 7
Document No. Document Name
SANYO Electric Co., Ltd.
Dimensions, External View and Names and
Functions of Each Part
(1/2)
1. Dimensions and External View
(1) External View
Refer to the “General Description”.

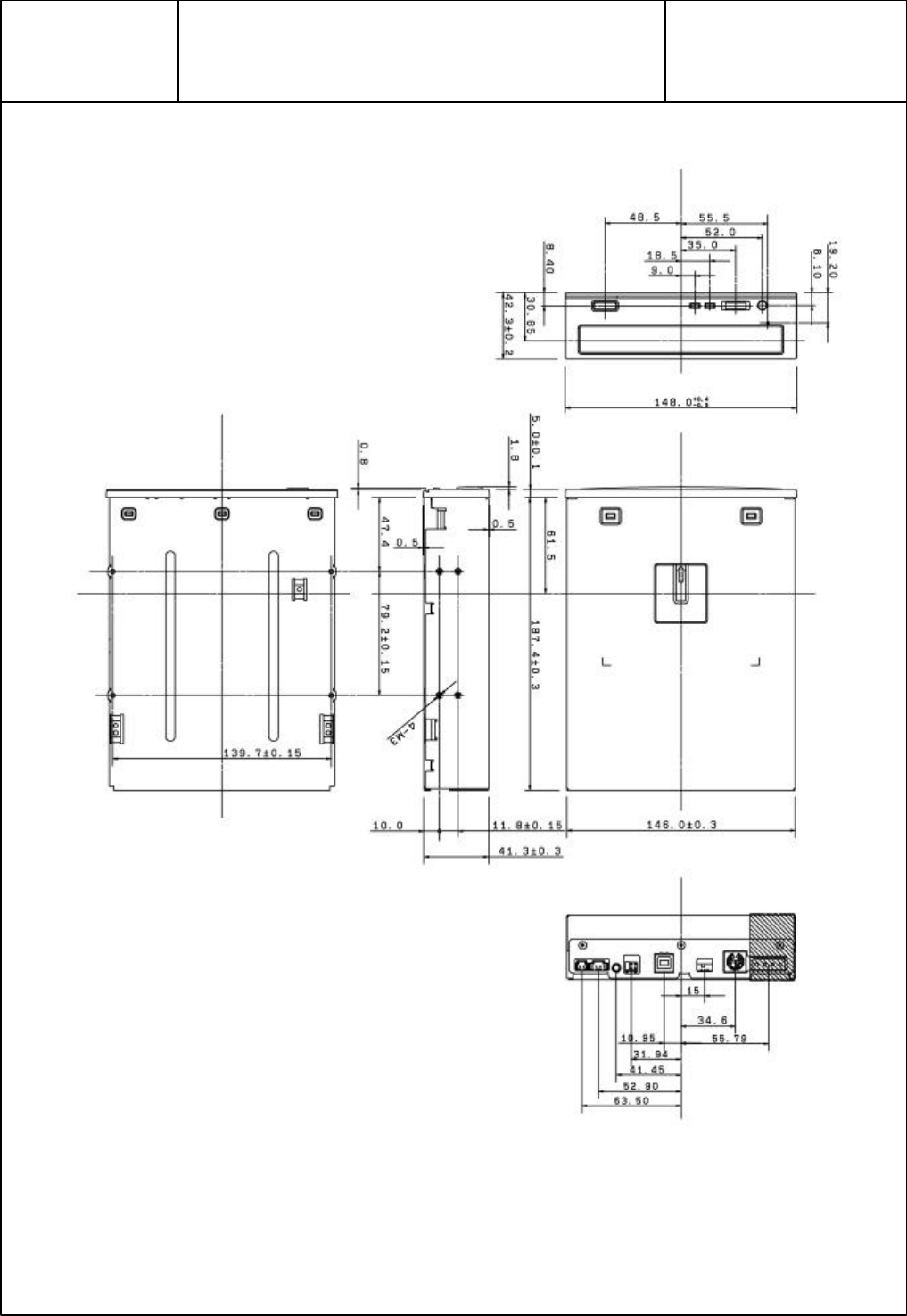

(2) Dimensions and Dimensional Drawing
Refer to the attached document “Dimensions and Dimensional Drawing”.

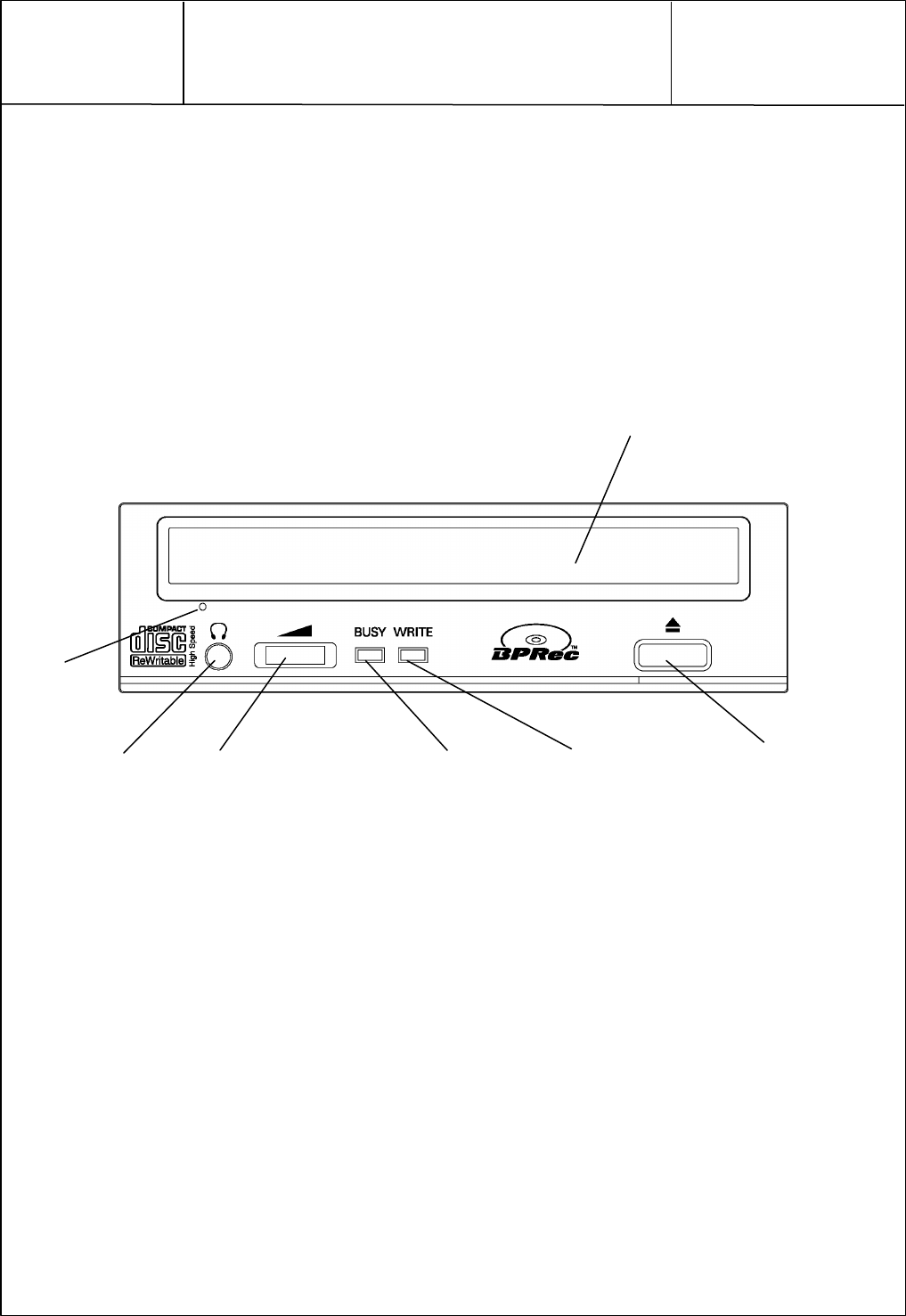

(3) Names and Functions of Each Part on the Front Panel
Front Panel
1. Headphone Terminal : The headphone with a stereo mini plug is connected through this
terminal.
2. Headphone Volume : The volume of the headphone connected to the headphone terminal is
adjusted using this volume dial. When the volume dial is turned right,
the volume becomes louder.
3. BUSY indicator : Command executing. (Power indicator)
ON : Power-On
ON-AND-OFF(Slow) : TOC reading condition & Eject condition
OFF Power-Off
4. WRITE indicator : This is ON when the data is written onto the disc.
5. EJECT key : The disc is ejected, using this key. This key is available even when the
tray is moving. When the PRV command is transmitted from HOST or
during writing, this key is not available.
6. Emergency eject
pinhole : If the disc is not ejected when the key is pressed, because of power
failure or run away of the software, this pinhole is used to take out the
disc.
7. Disc tray : The disc is placed on this tray.
6
7
5
1
24
3
Page 8
Document No. Document Name
SANYO Electric Co., Ltd.
Dimensions, External View and Names and
Functions of Each Part
(2/2)

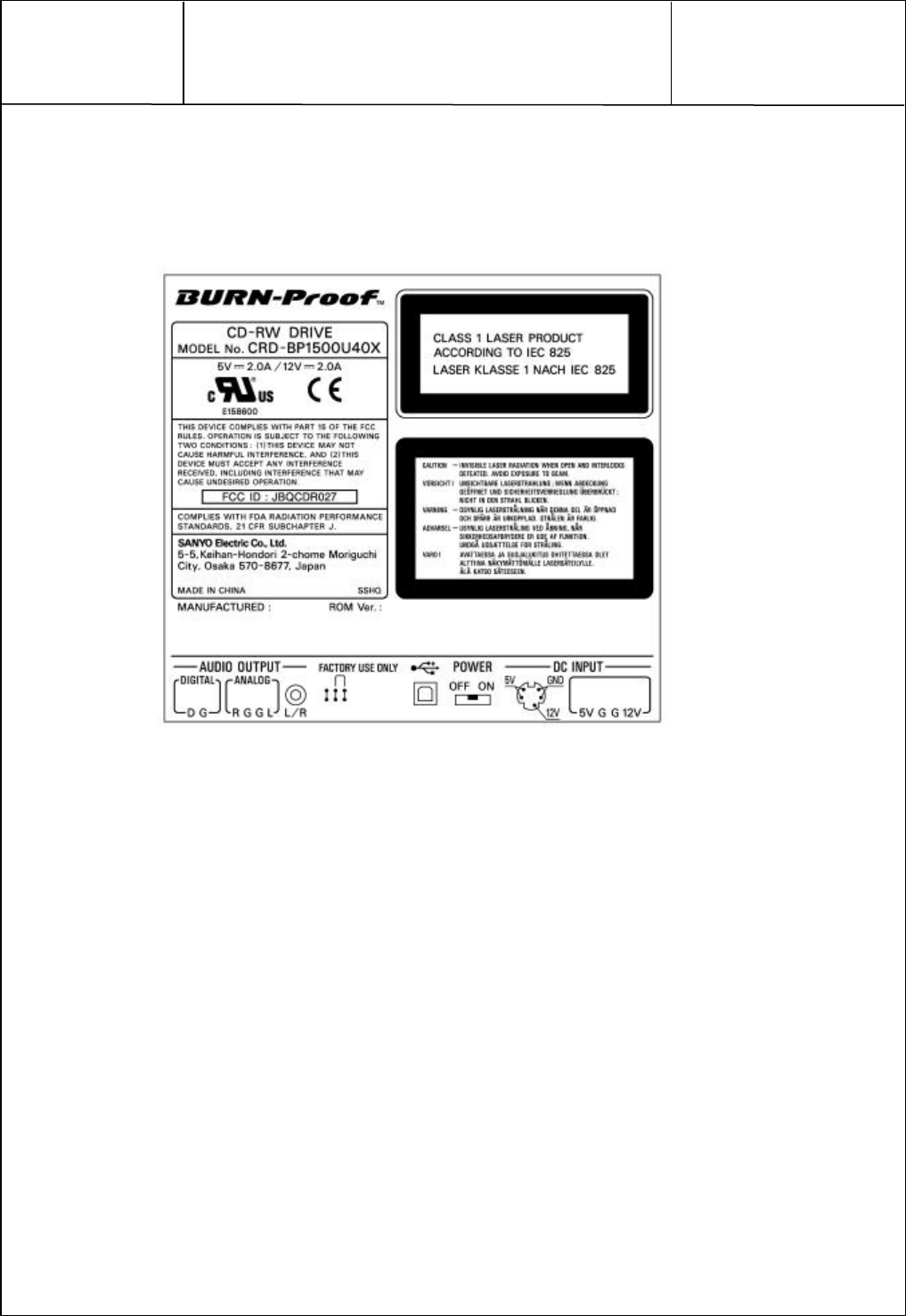

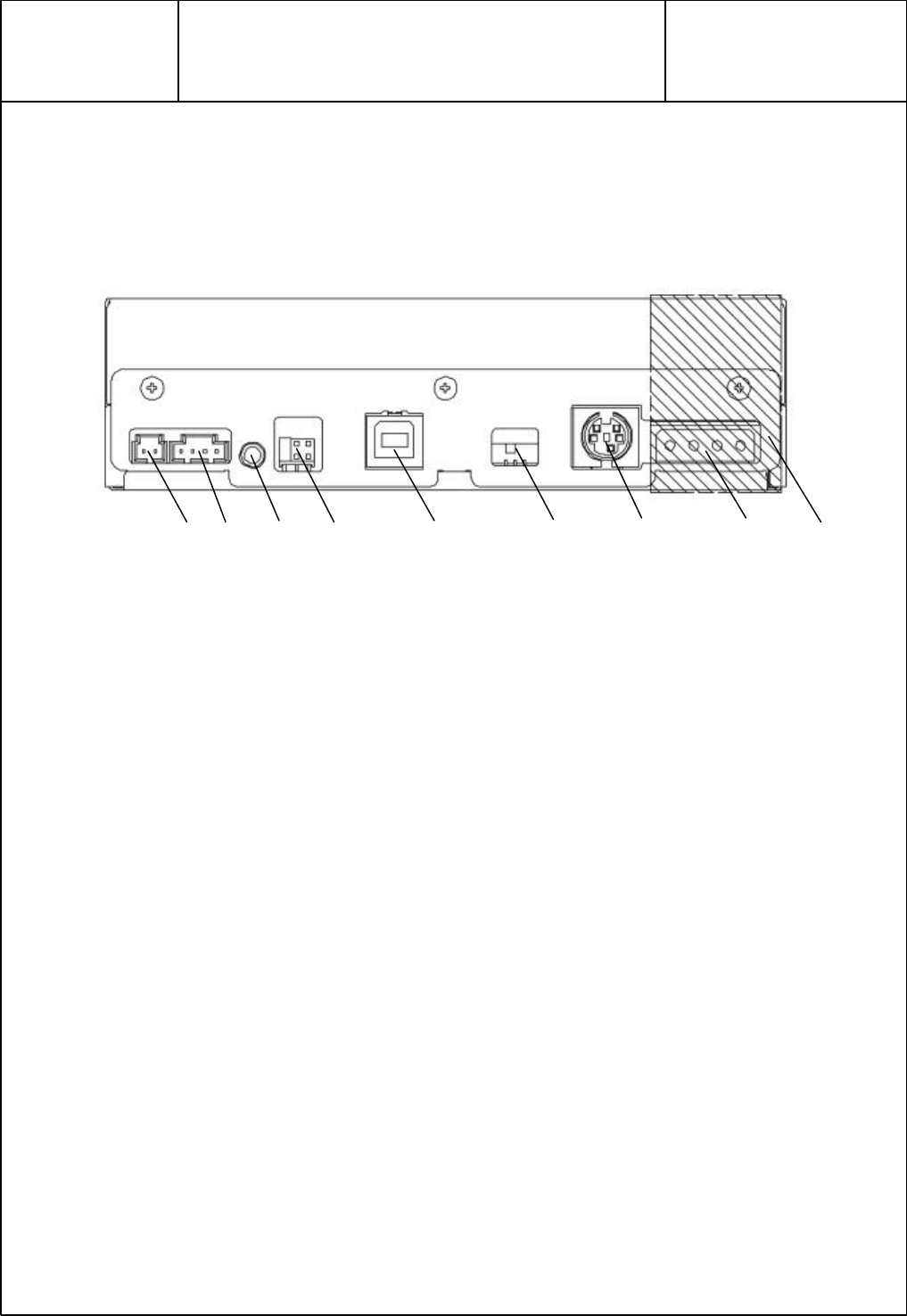

(4) Names and Functions of Each Part on the Rear Panel
Rear Panel
1. DIGITAL AUDIO Connector (Note 1)
2. ANALOG AUDIO Connector
3. Stereo Jack 3P
4. Factory use only Pins
5. USB 2.0 Connector(Not BUS Powerd)
6. Power Switch (When using DC Connector 5 P.)
7. DC Connector 5 P (Note 2)
8. DC Connector 4 P (Note 2)
9. TAPE DC 4P (Note 3)
(Note 1)
(1) Digital Audio output is under control of firmware. A default is OFF.
(Note 2)
(1) Switch OFF position on the Power Switch when using DC Connector 4P.
(2) Don't connect both of Connector 4P and Connector 5P at the same time.
(Note 3)
(1) Remove the tape when using.
(2) The Power through DC connector 4P is always available.
3 5
2 1
4 6 7
8 9
Page 9
Document No. Document Name
SANYO Electric Co., Ltd.
Terminal Description
(1/3)

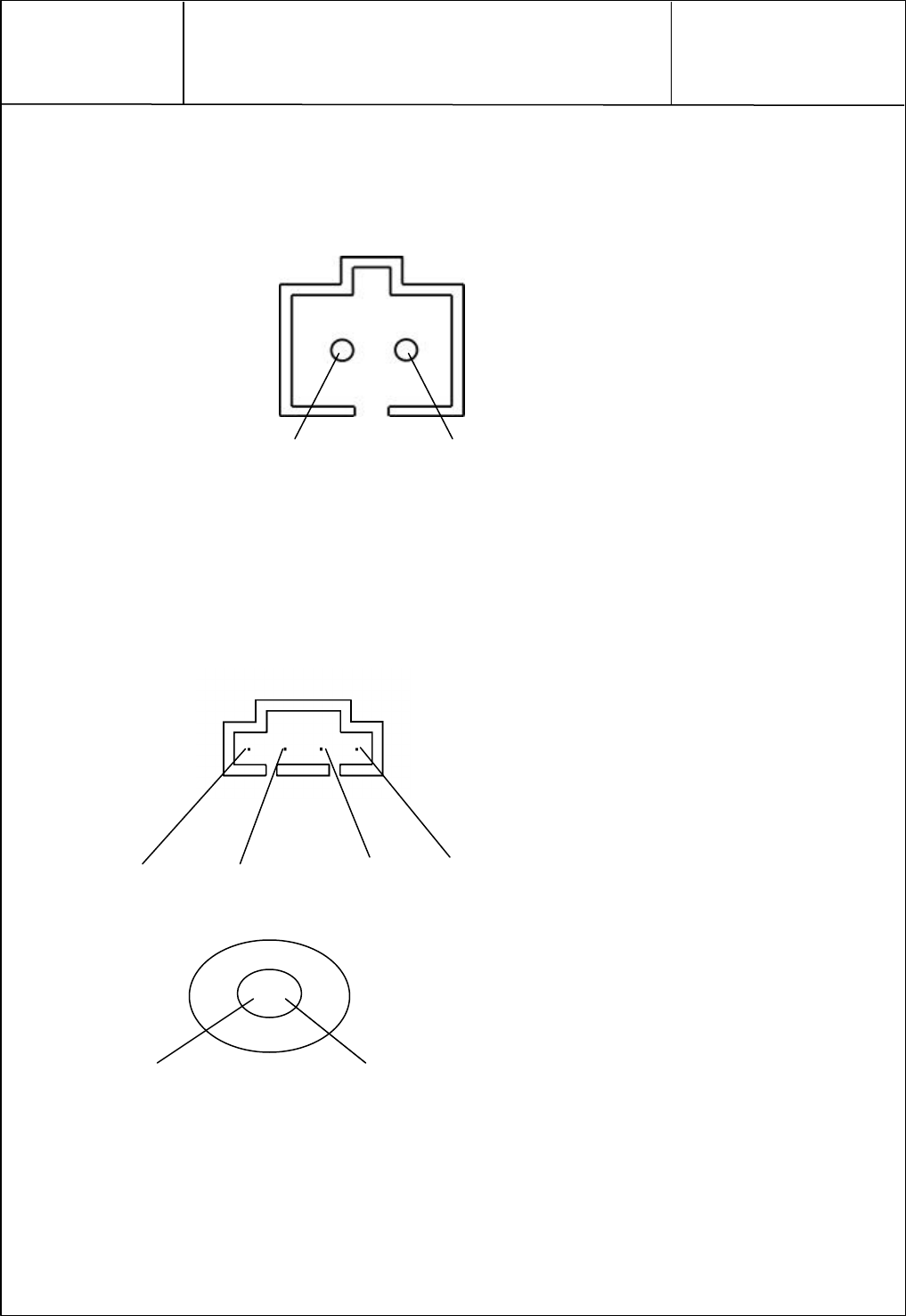

1. DIGITAL AUDIO Connector
The audio digital signal output connector.
Connect the personal computer’s audio internal cable here.
2. ANALOG AUDIO Terminals
The audio signal is output through these terminals. These terminals are used when the sound
board applicable to these terminals, is attached to the personal computer.
Connect the personal computer’s audio internal cable here
３．Audio(Line out) connector
R-ch L-ch
Connect the personal computer’s audio external cable here
DIGITAL GND
L-ch GND R-
ch
GND
Page 10
Document No. Document Name
SANYO Electric Co., Ltd.
Terminal Description
(2/3)

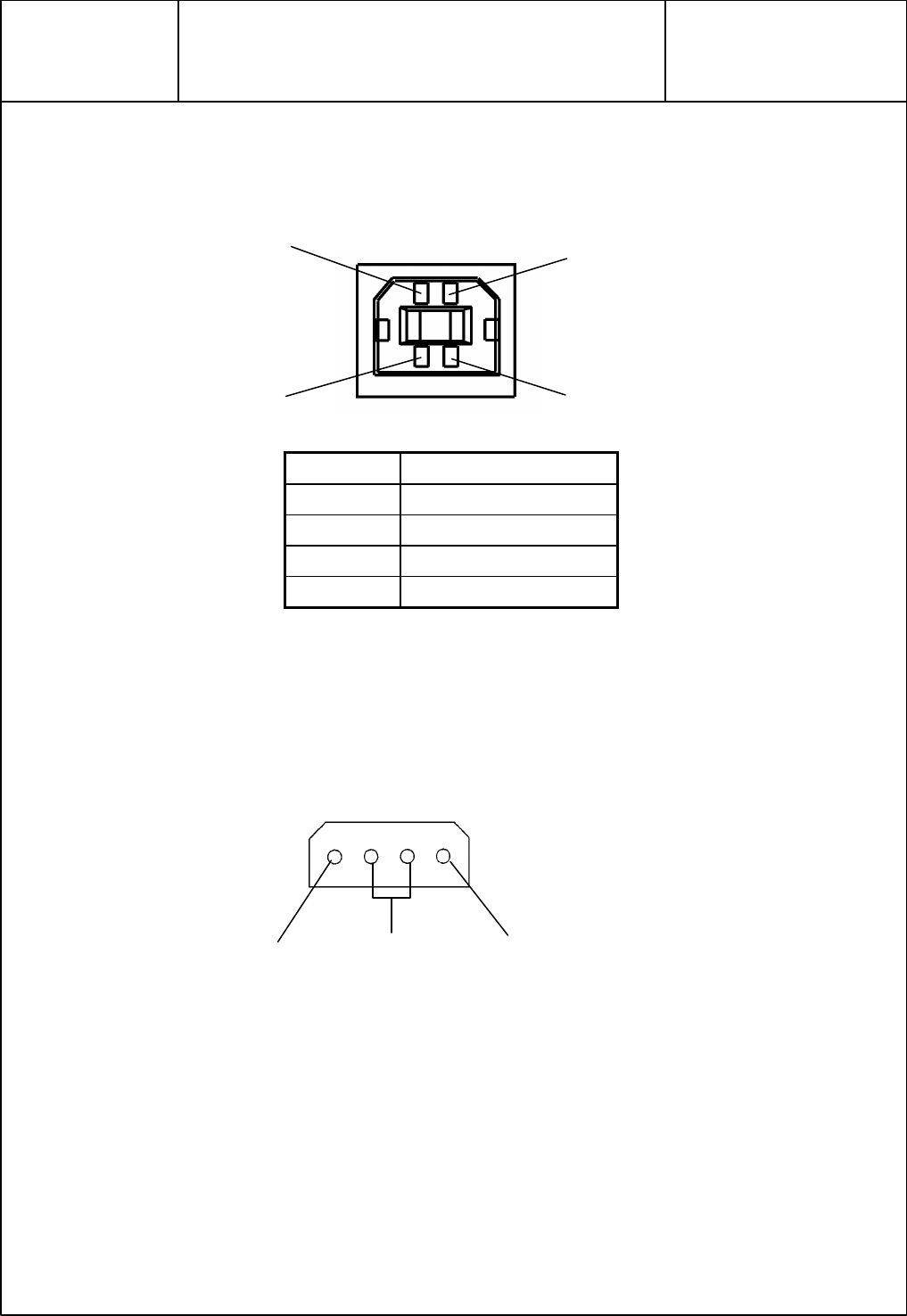

3. IDE Connector Terminals (USB2.0 CONNECTOR)
USB2.0 is connected to the host computer.
PIN NO. SIGNAL NAME
1 VBUS
2 D −
3 D +
4 GND
4. DC Connector Terminals (DC INPUT) 4 P
The DC power supply cable is connected through these terminals.
(Connect the personal computer’s DC power cable here)
1
4 3
2
5V 12V
GND
Page 11
Document No. Document Name
SANYO Electric Co., Ltd.
Terminal Description
(3/3)

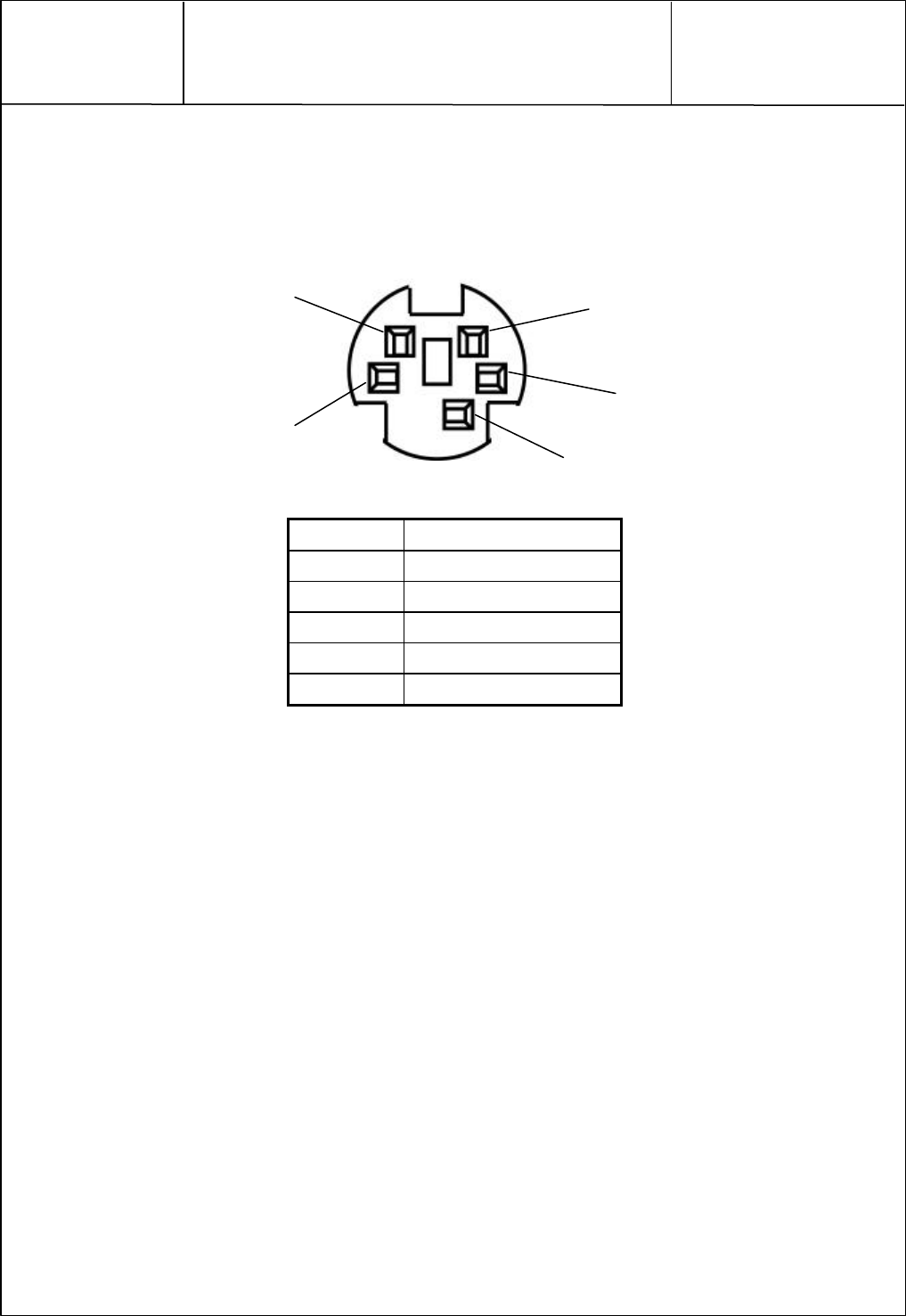

5. DC Connector Terminals (DC INPUT) 5 P
The DC power supply cable is connected through these terminals.
The DC power supply external cable is connected through these terminals.
PIN NO. SIGNAL NAME
1 +12 V
2 GND
3 +5 V
4 GND
5 +5 V
2
4
1
3
5
(Front View)
Page 12
Document No. Document Name
SANYO Electric Co., Ltd.
Environmental Conditions
(1/1)
Environmental Conditions
Items Environmental Conditions
Temperature
Operation : 5 °C < to < 40 °C
Storage : −30 °C < tNO < 60 °C
Humidity Operation : (20 to 80) % (non-condensing)
Storage : 90 % (40 °C, 48 h)
Mean-Time-Between-Failure (MTBF)
30000 POH DUTY 20 % (read operation) (Note 1)
Life Tray loading : 20000 cycles
Traverse mechanism : 1000000 seek
Vibration Operation: Read 0.98 m/s2 (0.1 G) [(10 to 500) Hz]
Random Vibration
Without operation (transportation):
800 cpm (13.3 Hz), 3 mm (1.06 G), Up/Down 20 min.
Impact Drop Impact: 490 m/s2 (50 G), 3 directions, 6 ms
(Note 1) POH : Power On Hour (live current time)
DUTY : Actual operation time
Page 13
Document No. Document Name
SANYO Electric Co., Ltd.
Reliability
(1/3)
1. Estimate Conditions
1) Standard test position
For the standard test position, the + side of the Z axis shall be in the upper direction, provided
that the Z axis shall be the outgoing beam and the direction of the outgoing beam shall be + side.
2) Standard Estimate Environments
Temperature : (22 ± 2) °C
Humidity : (50 ± 5) % RH
However, when no doubt occurs regarding the judgment, the test may be performed under the
following conditions.
Temperature : (15 to 30) °C
Humidity : (45 to 85) % RH
3) Disc to be estimated
Test Disc made by ALMEDIO Inc. ROM DISK, DA DISK, CD-R DISK (RICOH),
CD-RW (RICOH, MITSUBISHI CHEMICAL)
However, when no doubt occurs regarding the judgment, TCD-784 made by ALMEDIO Inc. may
be used.
4) Power Supply Voltage
Power supply : DC 5 × (1 ± 5 %) V
Power supply : DC 12 × (1 ± 10 %) V
2. Reliability
The results should conform to the criteria of each item after the test has been performed under the
following conditions.
There shall be no crack, deformation or distortion from the external view of the product after the
test.
Unless otherwise specified, the measurement conditions of this test for each item shall be subject to
the above estimate conditions.
However, the temperature in this test shall be specified to the surrounding temperature of the
drive unit, rather than the surrounding temperature of the set unit where this product is built-in.
Page 14
Document No. Document Name
SANYO Electric Co., Ltd.
Reliability
(2/3)
Test items Test conditions Criteria
1. Operating
temperature test Operation under low temperature: +5 °C
Operation under high temperature: +40 °C
Leave the product for 4 hours without operation in
the environmental temperatures, as above. Turn on
the power and leave the product for 10 minutes.
Immediately after that, check the performance
under the same environmental temperatures as
above. However, there should be no dew
condensation.
The performance should
conform to the
standards described in
the Reliability
Estimation Standard
Table.
2. Practical
operation
temperature test
Operation under low temperature: +5 °C
Operation under high temperature: +40 °C
Leave the product for 4 hours without operation in
the environmental temperatures, as above. Turn on
the power of the product and leave the product for 10
minutes. Immediately after that, check the
performance under the same environmental
temperatures as above. However, there should be no
dew condensation.
There should be no
errors in the practical
operation. When this
product is built in the
set unit, make sure that
the temperature does
not exceed the range
described on the left.
3. Storage test
under low
temperature.
Temperature: (−30 ± 2) °C
Leave the product for 24 hours without operation in
the above environmental temperature range, and
then leave it at normal temperature for 24 hours.
After that, measure the characteristic change.
However, there should be no dew condensation.
The characteristics
should conform to the
standards described in
the Reliability
Estimation Standards
Table.
4. Storage test
under high
temperature
Temperature: (60 ± 2) °C
Leave the product for 24 hours without operation in
the above environmental temperature range, and
then leave it at normal temperature for 24 hours.
After that, measure the characteristic change.
However, there should be no dew condensation.
The characteristics
should conform to the
standards described in
the Reliability
Estimation Standards
Table.
5. Storage under
high
temperature and
high humidity
Temperature and humidity: (40 ± 2) °C, (90 ± 2) %
RH
Leave the product for 24 hours without operation in
the above environmental temperature range, and
then leave it at normal temperature for 24 hours.
After that, measure the characteristic change.
However, there should be no dew condensation.
The characteristics
should conform to the
standards described in
the Reliability
Estimation Standards
Table.
6. Unit Vibration
(without
operation)
Amplitude:800 cpm (13.3 Hz)
3 mm (1.06 G)
The above amplitude is applied to the product for 20
minutes for Up/Down direction.
The characteristics
should conform to the
standards described in
the Reliability
Estimation Standards
Table.
7. Unit Impact
(without
operation)
Impact: 490 m/s2 (50 G), 3 directions
Impact time: 6 ms
Measure the performance after applying the above
impact for each direction.
The characteristics
should conform to the
standards described in
the Reliability
Estimation Standards
Table.
8. Pick-up
Slide Operation Random Seek
After 1000000 times operation, the performance is
checked.
There should be no
errors in the practical
operation.
9. Jamming When the product is built in the set unit, the level of electromagnetic wave
which is emitted from the unit shall conform to the local radio wave standards.
(When any problems occurs, the negotiation is required to support the counter
measures).
Page 15
Document No. Document Name
SANYO Electric Co., Ltd.
Reliability
(3/3)
The following table shows the reliability standards for the main parts (units) which are used in this
product.
Test items Test conditions Criteria
10. Laser diode life
Check the recorded power after 1000 hours of
operation at 60 °C.
(except for breakage caused by static electricity)
The error rate should be
1 % or less.
11. Spindle motor life Measure the current in the motor after 1000 hours
operation. The initial value should
be +35 % or less.
12. Feeder motor life
After the pick-up slide operation as described in
item 8, measure the consumption current in the
motor.
The values should
conform to the minimum
start-up volume (500
PPS Vc: 1.0 V or less)
and pull-out torque [2000
PPS 6.86 × 10−4 N-m (7
gf-cm) or more].
6. Reliability Standards
The change in values after estimation under the reliability conditions, should conform to the values
in the following table.
Items Before Test Change in
Values after Test Remarks
1/3 stroke mean access
time ×48 CAV
speed 0.27 s or less 0.35 s or less Mean value measured after
reciprocating operation for
(0 to 20) min. (one way
value)
Page 16
Document No. Document Name
SANYO Electric Co., Ltd.
Lot No. Reliability Description
(1/1)
Lot No. Description
[Serial No. Indication]
1 2 3 4 5 6 7 8
A B C D D D D D
A. Factory: Korea Tokyo Electronics: 6,
Sanyo Media Tech: 3, SSHQ: 8
B. Year of manufactured: (1996: 6, 1997: 7, 1998: 8, 1999: 9, 2000: 0, 2001: 1,
2002: 2, 2003: 3, 2004: 4, 2005: 5)
C. Month of manufactured: Form Jan. to Sep.: 1 ~ 9 & Form Oct. to Dec.:X ~Z
(Jan: 1, Feb: 2, Mar: 3, Apr: 4, May: 5, Jun: 6, Jul: 7,
Aug:8, Sep: 9, Oct: X, Nov: Y, Dec: Z)
D. Manufacturing Serial No.: Start from 00001.
(5 digits) When the number reach to 99999, the next is 00000,
then 00001 again.
Page 17
Document No. Document Name
SANYO Electric Co., Ltd.
Safety Standards
(1/1)
Safety Standards
6. UL (UL1950 / FDA1040)
(2) CUL (UL1950)
(3) Label
Page 18
Document No. Document Name
SANYO Electric Co., Ltd.
Electrical Characteristics
(1/3)
Electrical Performance
Items Specifications
Reading speed ×16 ~ ×48 (CAV) speed : 2.4 MB/s (disc in side) to (Note 1)
7.2 MB/s (disc out side)
(typical)
Writing speed CD-R ×4, ×8, ×16, ×20 CLV, ×20 ~ ×40 (ZCLV)
CD-RW ×4, ×10, ×12 CLV
Mean random seek
time 130 ms (typical)
Buffer size 4 MB
Photo CD Applied
Sampling Frequency 44.1 kHz
Line Out Headphone T.H.D.
(Total Harmonic
Distortion) 0.15 %
(1 kHz)
0.4 %
(1 mW, 1 kHz)
Channel Separation 60 dB 28 dB
Audio
S/N ratio 70 dB 65 dB
Max Output 0.6 V (typical) 0.8 V (typical)
Error rate < 10–9 (soft read error)
< 10–12 (hard read error)
Power Consumption
Item Specifications
Power Consumption DC 5 V 2.0 A (Peak)
DC 12 V 2.0 A (Peak)
(Note 1) Reading speed x48 : +5%/-10%
Page 19
Document No. Document Name
SANYO Electric Co., Ltd.
Electrical Characteristics
(2/3)
Mechanisms
Items Specifications
Pick-up NA : 0.50
Focus : Astigmatism
Tracking : DPP
Wave length : 783 nm (standard)
Traverse mechanism Stepping motor
Spindle motor DC brushless motor
Loading mechanism Automatic loading system
Page 20
Document No. Document Name
SANYO Electric Co., Ltd.
Electrical Characteristics
(3/3)
Application Discs
Items Specifications
CD-ROM mode 1
CD-ROMXA (Video CD) mode 2 form 1, mode 2 form 2
CD-DA Applicable
Photo CD Single session, multi-session
CD-I, CD-G, CD-TEXT Applicable
CD Extra 2 Session
First Session : CD-DA
Second Session : Data
Disc dia. 12 cm, 8 cm
Storage capacity 12 cm : 656 MB (mode 1)
748 MB (mode 2)
8 cm : 180 MB
Disc thickness 1.2 mm
Track pitch 1.6 µm
Interface
Items Specifications
Interface USB2.0
Transfer Rate 480 MB/s
Connector
Item Specifications
I/O terminal (rear panel) Power connector (4 P), (5 P)
USB2.0 terminal
Audio out (4 P), (2 P)
Page 21
Document No. Document Name
SANYO Electric Co., Ltd.
Function Description
(1/3)
1. External View/Mechanism
(1) Tray type disc loading system
The disc is loaded on the TRAY.
(2) LED Indicator
BUSY : ON — Power ON
ON-AND-OFF (Slow) — TOC reading condition & Eject condition
ON-AND-OFF (Fast) —Reading disc and accessing condition.
OFF—Power OFF
WRITE : ON — Recording condition
OFF — Others
(3) EJECT key
The disc is taken out using this key. This key is available even when the tray is moving.
However, this key is not available under the recording condition or when the PRV command is
transmitted from the HOST.
(4) 8 cm/12 cm disc applicable.
The read of 8 cm and 12 cm pit discs and the write of 12 cm pit discs of the CD-R disc are
available.
2. Data read processing
(1) Read speed
The standard, ×16 ~ ×48 CAV are applicable. Arbitrary speed can be set using the ATAPI
command.
(2) Read data mode (Note 1-1)
MODE 1
MODE 2 / Form 1
MODE 2 / Form 2
CD-DA
ISRC
Media catalogue No.
Sub-codeQ R-W
(3) Audio playback
TNO playback (MSF search)
PAUSE function
(Note 1-1) Audio playback becomes possible by using the host application.
(as per ATAPI command specifications)
Page 22
Document No. Document Name
SANYO Electric Co., Ltd.
Function Description
(2/3)
3. Data write processing
(1) Write speed
i. CD-R ×4, ×8, ×16, ×20, ×20 ~ ×40 (ZCLV) write speed are applicable. (mastering write)
ii. CD-RW ×4, ×10 , ×12 (CLV), write speed are applicable.
Arbitrary speed can be set using the ATAPI command.
(2) Write system
Track-at-once
Disc-at-once
Packet write (variable-length/fixed-length)
(3) Write data mode
MODE 1
MODE 2
MODE 2 / Form 1
MODE 2 / Form 2
MODE 2 / Combination of Form 1 and Form 2 (Note 2-1)
CD-DA (Note 2-2)
ISRC
Media catalogue No.
CD-TEXT
(4) Optimum write function
The strategy and write laser power are set automatically according to the characteristics of the
disc. This is performed when the disc is replaced or the CLV speed is changed.
In addition, the write condition is checked during writing the data, and the running OPC
function which sets the optimum laser power, is performed.
(5) BURN-Proof
Seamless Linking is defined for the action and the signal quality to stop and start recording in
the one EFM recording.
(Note 2-1) This is applicable only within the approved range of the CD-ROM and CD-ROM XA.
(Note 2-2) Host computer makes and transfers the RAW data which includes pre-gap in the case of
the disc-at-once writing.
At this time, the track management information needs to provide instructions to
transfer the start and end address of the actual audio data portion.
Page 23
Document No. Document Name
SANYO Electric Co., Ltd.
Function Description
(3/3)
4. Servo/access
(1) Servo Automatic Adjustment
When the disc is loaded, the focus, tracking offset and servo gain are adjusted automatically.
(2) Sled Control using the Stepping Motor Driving
The mechanisms and circuits related to the sled are simplified. The micro step operation is
controlled using the micro computer when the access-time-specific trapezoidal driving occurs
and the read/write operation is performed.
(3) High speed access using the learning function
The number of tracks calculated from the CLV speed and pick-up position are corrected so that
the disc program area is kept at the access time accompanied with the travel of the sled. Then,
the corrected number of tracks is stored and the final number of tracks on the disc are
calculated in order to reduce the number of seeks.
5. Other Functions
(1) Multi-volume applicable
To switch the sessions, the SESSION SELECTOR is used.
(2) Disc identification codes
The discs produced by each manufacturer are identified using the disc identification codes
prepared by the Orange Society for the Research. This is referred to when the laser power and
strategy are decided, when the writing operation is performed.
(3) Device type
Device type is 05 (CD-ROM) only.
6. CRD-BP1500U40X Interface
The host computer interface of the CRD-BP1500U40X conforms to the USB2.0.
7. BURN-Proof
In some case of disc condition, an error may happen by the failer of BURN-Proof function because it
controls previous recorded data and new recording data by the advanced signal management system.
In addition to the stated above, a BURN-Proof function also does not work correctly due to the
unexpected accident like a power cut and a malfunction of PC and so forth.
Page 24
Document No. Document Name
SANYO Electric Co., Ltd.
Handling Manual
(1/1)
(1) Installation of the device driver
In order to use this product, the device driver for the CD-R drive has to be installed. Before using
this product, install the device driver according to the device driver "Install Manual" attached to
the “OS” or “Mother Board”.
(2) Connection to the audio equipment
When the sound is played back though your stereo amplifier, connect the stereo mini plug of the
cable to the headphone terminal of this product.
(3) How to use
Before using this product, make sure that the device driver for the CD-R driver is installed in the
personal computer.
1) How to insert the disc.
i. Turn on the power of the main machine where the product is attached.
ii. Press the eject key to open the disc tray.
iii. Place the disc on the tray so that the printed side is upside.
iv. Press the eject key to close the disc tray.
v. Read the disc. The read indicator goes on-and-off during the TOC read operation. Then the
indicator goes on.
Write the data onto the disc. The write indicator goes on while the data is written.
2) How to take out the disc.
i. Make sure that each indicator is OFF.
ii. Press the eject key to open the disc tray.
iii. Take out the disc.
iv. Press the eject key to close the disc tray.
3) How to take out the disc in an emergency.
When the disc can't be ejected because of power failure or run-away of the software, take the
following measures to force the take out of the disc.
i. Prepare a steel paper clip. Extend the paper clip.
ii. Insert the end of the paper clip into the emergency eject hole and press it strongly to eject
the disc tray.
iii. Pull the disc tray toward you and take out the disc.
Push back the disc tray.
(4) Product ID, Vender ID
Product ID: CRD-BP1700U , Vender ID: GENERIC
(5) USB ID(Fixd)
Vender ID:0×0474h Product ID:0×0401h
Page 25
Document No. Document Name
SANYO Electric Co., Ltd.
Notes for Handling
(1/6)
1. Don't look at the laser beam.
Don't look at the laser beam source.
If the laser beam hits your eyes, it might cause damage to your eyes.
2. Don't use deformed or cracked CDs.
Don't use cracked, deformed CDs or CDs repaired with adhesives. As the disc turns with high
speed within the product, broken pieces might scatter and hurt you.
3. Don't touch the inside components of this product.
Don't disassemble or modify this product. It might cause the breakdown of this product.
4. Don't touch the connector parts.
If you touch the connector parts of this product, it might cause a contact fault or breakdown
because of the oil from your hands or static electricity. Also, don't touch the connector part on the
personal computer when this product is connected or disconnected.
5. Don't connect and disconnect this product excessively.
When this product is connected and disconnected repeatedly, the connector part becomes heavily
loaded and this might cause the breakdown of this product. Don't connect and disconnect this
product excessively, except for necessary cases.
6. How to prevent the breakdown
(1) Don't impact or vibrate this product.
(2) Keep the product where no fluid or alien substances can enter into this product.
(3) Don't use this product on an incline.
(4) Don't move this product with the disc inside.
7. Installation Place
Avoid the following places for using this product.
(1) Places of high temperature or greate changes in temperature.
(2) Places where sunlight can hit the product directly.
(3) Places with strong vibrations.
(4) Places with uneven surfaces.
Page 26
Document No. Document Name
SANYO Electric Co., Ltd.
Notes for Handling
(2/6)
8. Maintenance
(1) The dirt on this product should be cleaned off lightly with a soft cloth with some water or
diluted neutral detergent.
(2) Make sure not to use volatile chemicals such as benzine and thinner, because they might cause
deformation and color change of the product.
9. Notes for the Handling of the Disc.
(1) When you carry the disc, don’t touch the side where no letters are printed.
(2) Don't write letters on the disc or attach paper or a seal.
(3) Dust or finger prints on the side without any printing should be cleaned off by a soft cloth.
(4) When the disc is cleaned, always clean from the center to the outer rim.
(5) Don't use benzine, thinner, cleaner for analog LP or a static electricity preventing agent,
because these might cause damage to the disc.
(6) Keep the discs in the disc case. Don't put the disc in a place where sunlight can hit directly or
the temperature increases.
10. It is prohibited from copying, selling and transfering datas and programs that are protected by the
copyright to the authorities without permission.
However, personal use of the sound and images that are recorded with this product is permitted.
11. Application
The following applications may be supported by this product, in future.
(Therefore, we are not responsible for any defects or damages using other applications. Also, some
version no. of above Applications may not recognize the drive. Please contact to the Application
maker.)
- NERO (AHEAD Software gmbh)
- InCD (AHEAD Software gmbh)
- Media Player (Microsoft Windows)
- CD Player (Microsoft Windows)
- Kodak Photo CD Player V2.0 or more (Kodak)
12. Recommended accessory
(1) Case
Company Product No.
Do Top Technology DEL-1831, DEL-2002
Page 27
Document No. Document Name
SANYO Electric Co., Ltd.
Notes for Handling
(3/6)
(2) USB 2.0 PCI board
Company Product No.
Ratoc SYSTEN REX-PCIU2, REX-CBU2
MELCO INC. IFC-USB2P
Adaptec INC AUA-3100LP, AUA-5100
Orange Micro Orange USB 2.0 Hi-Speed PCI Board
Orange USB 2.0 Hi-Speed Card Bus PC Card
ATEN International IC-250U 5 port USB2.0 PCI Host Controller
IC-230U / USB 2.0 Low Profile PCI card (3 ports)
(3) AC Adaptor
Company Product No.
NIDEC POTRANS
CORPORATION
SKB2505B, SKB2505A, SMB2505A
AK ⅡTECHNOLOGY
CO., LTD.
A25B1-02MP, A25F2-02MI
DELTA ELECTRONICS,
INC.
ADP-30RB
13. Drive Mount
This drive has holes for heat radiation at top cabinet and side cabinet. Please do not fill these
ventilation holes.
Please avoid any components from these ventilation holes over 5mm in order to keep circulation.
Page 28
Document No. Document Name
SANYO Electric Co., Ltd.
Notes for Handling
(4/6)
Dimensions
The following items should be considered when enclosure chassis for this drive is designed.
1. Over 5 mm space should needed between top of drive and enclosure chassis.
2. Don’t press the production label even if there are any reasons.
Page 29
Document No. Document Name
SANYO Electric Co., Ltd.
Notes for Handling
(5/6)
Package
Page 30
Document No. Document Name
SANYO Electric Co., Ltd.
Notes for Handling
(6/6)

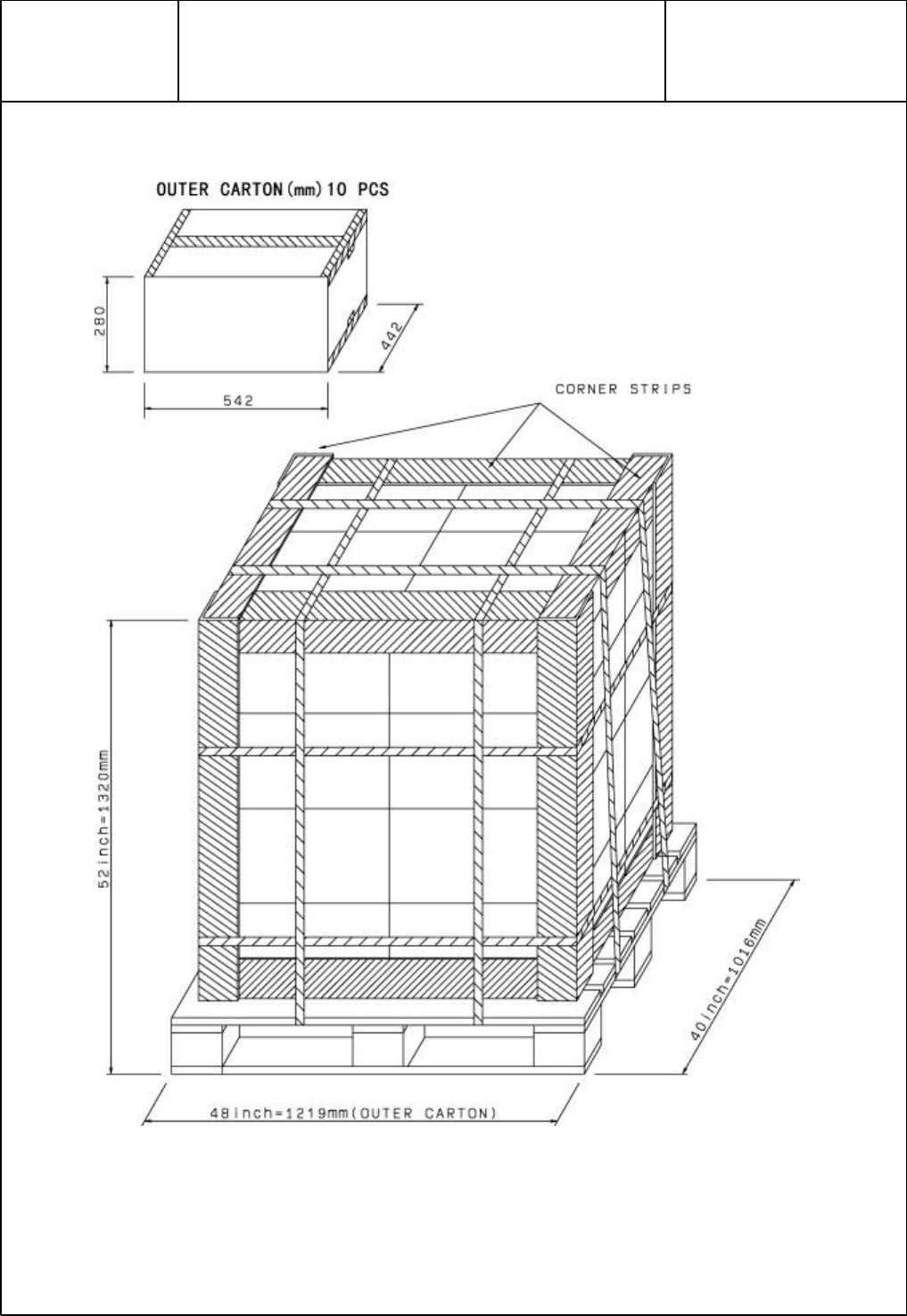

Package Configuration
GROSS WEIGHT 12 kg
160 unit 1 pallet: 4 box × 4 stack (16 box)
Pallets are to be banded and stretch-wrapped.
Corner strips are attached.
