Operating Instructions

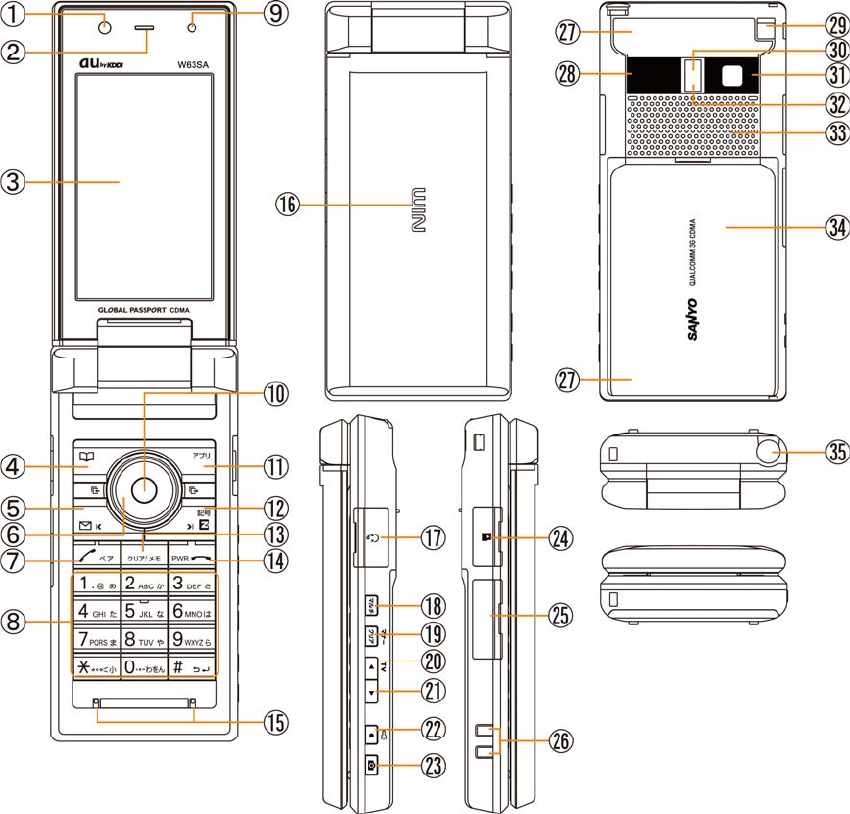

Name & Function of Parts
a Sub Camera
b Earpiece
c Display
d Address book key
e Mail key
f Cursor key
g Send / Pair key
h Dial keys
i Optical Sensor
j Center key
k EZ apps key
l EZweb key
m Clear / Memo key
n Power / End key
o Microphone
p Incoming indicator
q Flat-type Earphone Jack
s Manner key
t TV key
u Side key
v Pocket light key
w Camera key
x microSD Memory Card Slot
y External Connector
z Charging Terminals
A Built-in Antenna
B Infrares Port
C Strap Hole
D Flash/ Pocket light
E Main Camera
F Shooting illuminator
G Speaker
H Battery Pack Cover/ Battery Pack
I Whip Antenna
r Multi key
- 1 -
![](/img.php?id=921918&img=bg2.png)
■ Power saving during standby
In order to minimize the power consumption, the W63SA display turns automatically to power saving
mode when key operation is stopped for a while.
The indication restores with key operation.
■key
In this manual, the point at which to press the key is indicated as shown below.
Example) Press or →
Getting Ready to Make a Call
1. Charging with the AC Adapter
The battery charger can be charged by directly inserting the AC Adapter connector into the external
connection terminal on the W63SA Main Unit.
2. Turning the power on
Press and hold or more than one second.
◆Turning the power off
Press and hold for more than one second.
Switch to English
1. Press on the standby screen.
2. Select "機能設定" and press (選択).
3. Press .
4. Select "English" and press (設定).
Displaying your own phone number
1. Press on the standby screen.
2. Select "Function" and press (Select) .
3 Press to display your au telephone number.
Making a Call
1. Enter the phone number you want to call on the standby screen.
Area code - Local code - Subscriber's number.
<Example> 03-0001-XXXX
Always include the area code, even when calling to a number in the same area you are in.
If you enter a wrong number:
● Press briefly - the last dialed digit will be deleted.
● Press and hold - the entire phone number will be deleted.
2. Press to make a call.
- 2 -
![](/img.php?id=921918&img=bg3.png)
Making an International Call
1. Enter the phone number you want to call using the following pattern on the standby screen.
International dial code - Country code - Area code - Subscriber's number
2. Press to make a call.
<Example> to call United States, number 212-123-XXXX in the USA.
Operation Explanation
1 Pressing "005345" Access code
2 Pressing "1" Country code of United States: 1
3 Pressing "212" Area code ※ : 212
4 Pressing "123-XXXX" Subscriber's number: 123-XXXX
5 Press The following operation is the same as the normal telephone
operation.
※ When the first number of the area code is "0", press the area code number without "0".
Adjusting the receiver volume
1. During a call, press .
: Volume level raised.
: Volume level lowered.
Answering a call
1. The ringer tone sounds/vibrator buzzes, and the incoming call lamp flashes.
2. Press to answer the call.
An incoming call can also be answered by pressing any of the ~, , , ,keys.
If you do not answer the call or the caller disconnects before the call is answered,
" Missed Call X " will be displayed. (A number appears in the "X".)
Entering characters
This is the method of entering names for registering address book and writing mail.
1. Press (Char.Type).
2. Select the entry mode you want.
漢字 "Kanji", "Hiragana" entry mode (full size) 1234 "Number" entry mode (half size)
カナ "Katakana" entry mode (full size)
"Pictographs" entry mode
カタカナ "Katakana" entry mode (half size) Sym "Symbol" entry mode
AB・ab "Alphanumeric" entry mode (full size) Face "Face marks" entry mode
12 "Number" entry mode (full size)
ABCD・
abcd "Alphanumeric" entry mode (half size)
When you press the (Undo) just after the characters are confirmed, the characters return to the
previous state.
- 3 -
![](/img.php?id=921918&img=bg4.png)

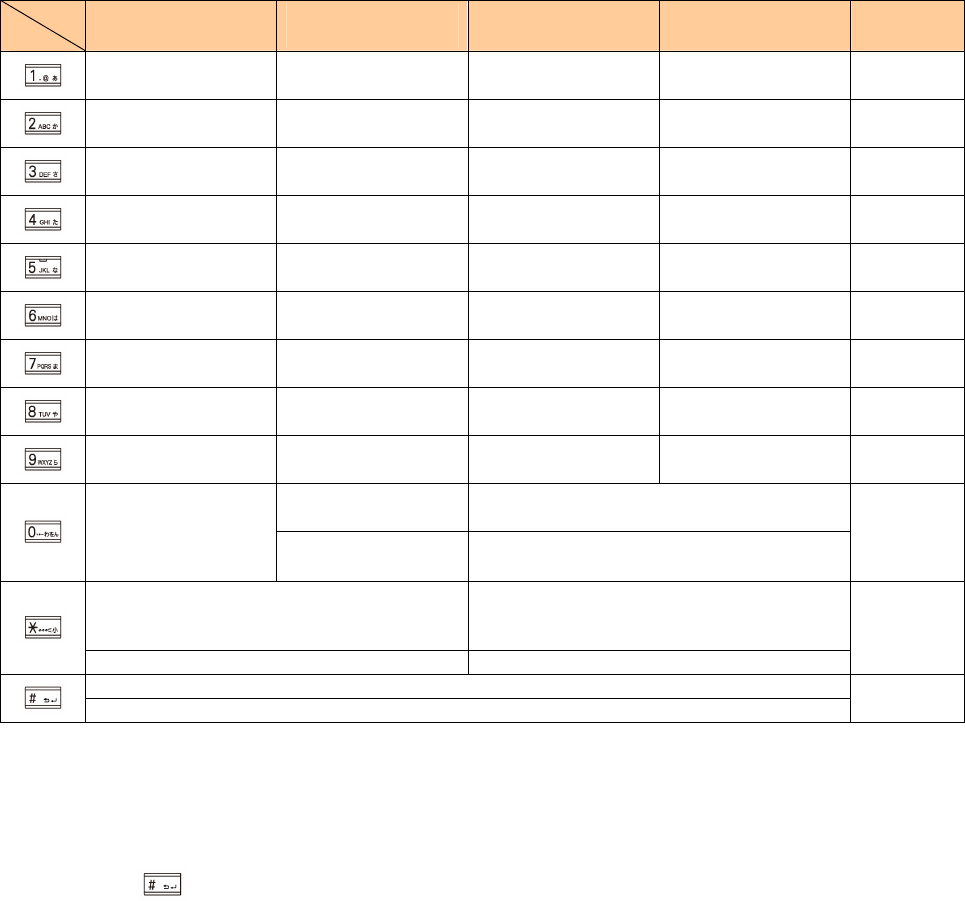

[Assignment of characters and key functions]
Characters are assigned to each key as shown below. Press a key repeatedly to cycle through characters
assigned to that key.
Entry
mode
key
Kanji・Hiragana
漢字
Katakana
カナ・カタカナ
Alphanumeric
AB・ABCD
Alphanumeric
ab・abcd
Number
12・1234
あいうえおぁぃぅぇぉ アイウエオァィゥェォ . @ - _ / : ~ 1 . @ - _ / : ~ 1 1
かきくけこ カキクケコ ABC2 abc2 2
さしすせそ サシスセソ DEF3 def3 3
たちつてとっ タチツテトッ GHI4 ghi4 4
なにぬねの ナニヌネノ JKL5 jkl5 5
はひふへほ ハヒフヘホ MNO6 mno6 6
まみむめも マミムメモ PQRS7 pqrs7 7
やゆよゃゅょ ヤユヨャュョ TUV8 tuv8 8
らりるれろ ラリルレロ WXYZ9 wxyz9 9
[カナ]ワヲンヮ、。ー
-・.!?(space)0 [AB] [ab] 0(space)! ? ・ , ’ ”_ .-
わをんゎ、。-・~!?
(space) [カタカナ] ワヲン、。ー
-・.!?(space)0
[ABCD] [abcd] 0(space) ! " #$%& ' ( )* + , - . / : ;
<=>?@[¥]^_` { | }
~
0
(before confirm)゛ (Voiced Sound symbol)
゜(Semi-voiced Sound symbol)
Switches lowercase/uppercase
(before confirm)
Switcheslowercase/uppercase
(after confirm) 、。-・~!?(スペース) (after confirm) . , - ! ?
.
(before confirm)Reverse toggle of entered characters
(after confirm)line change line change
Remarks:
■ “~”can be inputted only when inputting full-sized characters.It changes to“
~
”when inputting helf-sized
characters.
■ It is not likely to be able to change line on the input of part of character screen.
■ Inputting voiced sound symbol/semi-voiced sound symbol or switching uppercase/lowcase can be done
by pressing after inputting the character.
(A list of Pictographs, Face marks, and Characters is displayed if you press it after the inputted character is
set.)
< Example >つ→っ→づ→つ ハ→バ→パ→ハ a→A→a
- 4 -
![](/img.php?id=921918&img=bg5.png)
Registering in the Address Book
You can register frequently used phone numbers and E-mail addresses.
Up to 1000 addresses can be registered in the address book.
■ Registering in the address book
1. Press and hold for more than one second on the standby screen.
The address book registration screen list is displayed.
2. Enter the item you want.
Select the icon of the item you want by and press (Select) to enter it.
As for the items you can enter, see "Items to register in the address book".
3. Press (Reg) .

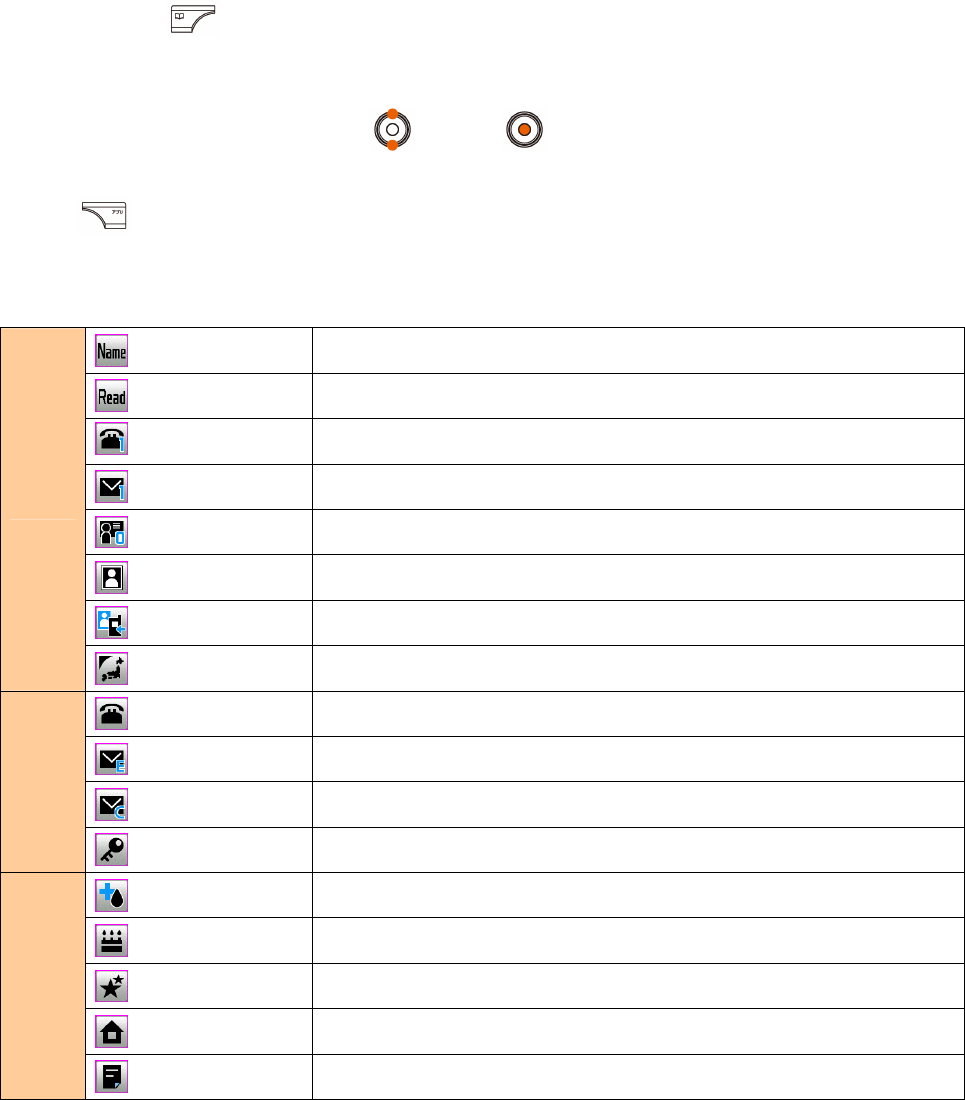

■ Items to register in the address book
The following data can be put in the address book.
Name Up to 12 full size (24 half size) characters.
Reading Up to 24 half size characters.
Registered automatically after "Name" is entered.
Phone No.1~3
Up to 32 digits.
Sellecting from 6 Phone number types.
E-mail Address 1~3 Up to 64 half size alphanumeric characters.
Sellecting from 6 E-mail address types.
Group You can classify it into 20 classes for managing.
Image An image stored in the data folder is selected.
Call Img Dsp You can set the display of the registered image.
Basic
Obtain GPS Info You can register the position by using the EZnaviwalk.
Incoming Call Setting the action for voice call reception.
E-Mail Receive Setting the action for E-mail reception.
C-Mail Receive Setting the action for C-mail reception.
Set
Secret Setup Setting not to display the content of the address book.
Blood Type Sellecting from 4 blood types and “No Settings”.
Birthday Inputting date of birth.
Star Sign Sellecting from 13 constellations and “No Settings”.
Address Up to 40 full size (80 half size) characters.
Other
Memo Up to 40 full size (80 half size) characters.
- 5 -
![](/img.php?id=921918&img=bg6.png)
Calling from the Address Book
Saved phone number in the Address Book can be loaded and a call is placed to that number.
1. Press on the standby screen.
2. Use to scroll through and display the name you want.
3. Press .
Creating and Sending E-Mail
1. Press on the standby screen.
2. Use to select “Create New”and press
.
Icons
: ”Address”to which you send E-Mail
: ”Subject”of E-Mail
: ”Attachment”of E-Mail
: ”Text”which is the mail contents.
3. Use to select “ [Address]” and press (Select).
4. Use to select “Address Input” and press (OK).
5. Enter the address and press (OK).
6. Use to select “ [Subject]” and press (Select).
7. Enter the subject and press (OK).
8. Use to select “ [Text]” and press (Select).
9. Enter the body sentences and press (OK).
10. Press (Send).
Reading Received C-Mail
■ When you receive C-Mail
The message “ C-Mail # ” appears when receive new C-Mail.
The received C-Mail is stored in the Inbox.
1. Use to select “ C-Mail # ” and press (OK) .
Received C-Mail is displayed.
■ Reading C-Mail from the Inbox
C-Mail can be read from the Standby Screen when any now-read mail read again.
1. Press and hold for more than one second on the standby screen.
2. Use to select“ Inbox” and press (Select) .
3. Use to select the folder including the C-Mail to read and press (Select) .
4. Use to select the C-Mail to read and press (View) .
- 6 -
![](/img.php?id=921918&img=bg7.png)
Using the EZweb Service
1. Press on the standby screen.
2. Select "au one Top" and press (Select).
To access information sites (sites that provide information):
Select the desired information site,and press (Select).
■ Pressing returns the display to the previous display.Holding down for a longer time returns you
to au one Top.
Pressing exits EZweb.
you can scroll the display up and down by pressing .
List of Basic Setup
■ M0 Profile
Mode No. Function Description
M0 Profile Displaying own phone number and E-mail address
■ M1 Time / Toll / Sub
Mode No. Function Description
M11 Inquire Tool Inquiring the call charge
M12 Call Time / Tool Confirming the last call time and charge
M121 Voice Call Confirming about voice call
M122 Voice Call(Overseas) Confirming about voice call(overseas)
M123 Videophone Confirming about videophone
M124 Group Videophone Confirming about group videophone
M13 Tool Display Displaying estimated charge after call
M14 Tool Rate Setting the multiplication of charge
M141 Voice Call Setting for charge about voice call
M142 Videophone Setting for charge about videophone
M143 Group Videophone Setting for charge about group videophone
M15 PC Site Viewer Rate Confirming the last charge about PC Site Viewer
M151 PC Site Viewer(Japan) Confirming about PC Site Viewer(japan)
M152 PC Site Viewer(Overseas) Confirming about PC Site Viewer(overseas)
M16 Subscription Connecting the site for various application
■ M2 Sound/Vib/Lamp
Mode No. Function Description
M21 Incoming Setup Setting for reception
M211 Incoming Call Setting for voice call reception
M212 E-Mail Receive Setting for E-mail reception
M213 Unreg E-Mail Setting for unreg E-Mail reception
M214 Message Receive Setting for message reception
M215 C-mail Receive Setting for C-mail reception
M216 NewsFlash Receive Setting for NewsFlash reception
M22 Machi-Uta Setup Setting for Machi-Uta
M23 Operation Tone Setting for operation tone
M231 Keypad Tone Setting key-in confirm tone volume
M232 OK Tone Setting OK tone volume
M233 NG Tone Setting NG tone volume
M234 Opening Tone Setting sound/ volume of opening tone
M235 Closing Tone Setting sound/ volume of closing tone
M236 RechargeStartTn Setting recharge start tone volume
M237 RechargeComp.Tn
Setting recharge complete tone volume
M238 Wake-Up Tone Setting wake-up tone
M239 Power OFF Tone Setting power OFF
M24 Earphone Setup Setting for earphone
M241 Earphone Type Setting of kind of earphone
- 7 -
![](/img.php?id=921918&img=bg8.png)
M242 Sound Output Seting at output destination of earphone
M243 Auto Answer Setting for answering calls automatically
M25 Call Vibration Setting for vibration when connect is made
M26 Lamp Setup Setting for various lamp
M261 Talking Lamp Setting for lamp while talking
M262 Information Lamp Setting for Information lamp
M263 Illumination Setting for iIllumination patern
M27 Safety Buzzer Setting for crime prevention buzzer
■ M3 Screen Display
Mode No. Function Description
M31 Display Setting display
M311 Standby Screen Setting image to display on standby screen
M312 Information Setup Setting information to display on standby screen
M313 Mail Sendg Scrn Setting image to display while sending mail
M314 Mail Rcvg Scrn Setting image to display while receiving mail
M315 EZ Connect Scrn Setting image to display while connecting to EZweb
M32 Disp. Lighting Setting lighting of display and keys
M321 Display Light Setting lighting of display
M322 Key Light Setting lighting of keys
M323 Recharging Display Setting lighting of recharging display
M33 Font Size Setting character size
M331 Input Size Setting character size for input
M332 Mail Display Setting character size for mail display
M333 EZweb Display Setting character size for EZweb display
M334 Address Book Setting character size for address book
M335 History Setting character size for history
M336 Phone No. Setting character size for phone number
M34 Set Language Setting the English/Japanese display
M35 Keitai-Arrange Setting main menu,incoming tone and call images all together
■ M4 Privacy/Rstr
Mode No. Function Description
M41 Security Lock Locked setting
M411 Auto Lock Setting auto lock
M412 Close & Lock Setting auto lock when closing the handset
M413 AddresBookLock Setting addres book lock
M414 REM. Ctrl Lock Setting remote auto lock
M42 User Restrict Restricted setting
M421 Dial Restrict Disabling dial-up calls
M422 EZweb Restrict Restricting EZweb access
M423 PC Site Viewer Rstr Restricting the start of PC Site Viewer
M424 Mail Restrict Restricting mail access
M425 EZapps Restrict Restricting EZappli access
M426 MediaTuner Rstr Restricting MediaTuner
M427 Secret Mode Setting Secret
M43 Incom ing Reject Rejecting designated unwanted phone numbers
M431 Incom ing Call Restricting voice call from unwanted phone numbers
M432 Videophone Incm Restricting videophone from unwanted phone numbers
M44 Change Lock No. Changing lock number
M45 Reset Various resets
M451 Learning Reset Initializing the character memory
M452 Function Reset Initializing all functions
M453 Memory Reset Initializing all memories
M454 EZapps Reset Initializing the EZapplis
M455 All Reset Initializing all functions and memories
M46 Caller ID Announcing your number to the other party
M47 PIN Code Setup PIN code setting
M471 Change PIN Code Changing PIN code
M472 Need/No Setup Setting whether to input PIN code when powered ON or using au certificate
M48 Cert. Setup Certificate setting
M481 Cert. Disp Displaying downloaded certificate in detail
M482 Confirm Disp Setting whether to display check screen when sending certificate
M483 Root CA Setting to display Root Certificate
M49 Emer. Position On emergency call,location information notified to emergency can be viewed
- 8 -
![](/img.php?id=921918&img=bg9.png)
■ M5 User Support
Mode No. Function Description
M51 Input Setting for the character input
M511 User Dictionary Registering words in the list
M512 Edit Phrase Editting phrases
M513 Edit Face Mark Editting face mark
M514 Input Setup Setting for the input prediction
M515 D/L Dictionary Registering the dictionary downloaded from EZweb
M52 Emission OFF Restricting call and transmission functions
M53 Network Setting for network service
M531 Play Voice Mail Listening to messages
M532 Voice Mail1 Setting the answering message service 1
M533 Voice Mail2 Setting the answering message service 2
M534 Voice Mail OFF Stopping the answering message service
M535 Change Ans. Msg Recording/Confirming/Changing response messages
M536 Eng. Guidance Switching to English language guidance
M537 Jpn. Guidance Switching to Japanese language guidance
M538 Call Waiting ON Setting call waiting service
M539 Call Waiting OFF Stopping call waiting service
M54 MultiPlayWindow Setting for Multi Play Window
M541 Conf. W-Scr.OFF Displaying check screen when changing from split to full screen
M542 Prior new Ntc Displaying pop-up when interrupted dyring other function
M55 Auto Time Adj Setting auto time set
M56 No.Append Setup Registering prefix or area code memory
M561 Prefix Setup Registering prefix
M562 AreaCode Memory Registering area code memory
M57 Data Comm/USB Exchanging dada connecting phone to PC
M571 Conn. Environment Checking connection
M572 Ext.Mem.TransMd Exchanging microSD dada with external device
M573 USB Setup Setting operation when connecting USB cable
M574 USB Charge Setting for USB charge
M58 Maintenance Updating software or checking for failure in the phone
M581 Software Update Beginning to update
M582 Check Menu checking for failure in the phone
M583 StatsDataSending Setting status data sending of au phone
■ M6 Videophone
Mode No. Function Description
M61 Outgoing Call Setting operation when calling videophone
M62 Videophone Incm Setting operation when receiving videophone
M63 Alternative Image Setting alyernative to send during videophone
M64 Monitoring Incm Setting operation for monitoring incoming
■ Guide Function (M#)
Mode No. Function Description
M# Guide Function Displaying the operation instructions for functions other than M functions
M#1 Operation Guide Displaying the operation instructions for functions
M#2 Top Icon Guide Displaying explanation of top icon on screen
M#3 au Online Manual Connecting to EZweb au On^Line Manual and check the operations
Specifications
Weight: approximately XX g (including battery pack)
Continuous talk time: approximately XX minutes ★
Continuous standby time: approximately XX hours ★
Dimensions (H/W/D): approximately XX mm x XX mm x XX mm ※
※ The height and depth are the dimensions when the telephone is folded.
★Used Japan
●The continuous talk time and continuous standby time are the average values of when the signals can be
received normally while the telephone is in the standstill status.
The operation time may be reduced to utmost half due to charging conditions, temperature, and other
operation environment conditions, signal condition at the location of use, function setting, roaming area.
- 9 -
![](/img.php?id=921918&img=bga.png)
FCC notice
The phone may cause TV or radio interference if used in close proximity to receiving
equipment. The FCC can require you to stop using the telephone if such interference cannot
be eliminated. If you need assistance, contact your local dealer.
And last, but certainly not least, vehicles using liquefied petroleum gas(such as propane or
butane) must comply with the National Fire ProtectionStandard (NFPA-58). For a copy of this
standard, contact the National Fire Protection Association,
One Batterymarch Park, Quincy, MA02169-7471, Attn: Publication Sales Division.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1)This device may not cause harmful interference, and (2)this device must accept
any interference received,including interference that may cause undesired operation.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception,which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio / TV technician for help and for additional
suggestions.
Warning
The user is cautioned that changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate the equipment.
In August 1996, the Federal Communications Commission(FCC) of the United States, with its
action in Report and Order FCC 96-326, adopted an updated safety standard for human
exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters.
Those guidelines are consistent with the safety standard previously set by both U.S.and
international standards bodies. The design of this phone complies with the FCC guidelines and
these international standards.
CAUTION
Use only the supplied or an approved antenna. Unauthorized antennas,modifications, or
attachments could impair call quality, damage the phone,or result in violation of FCC
regulations.
Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with
the skin, a minor burn may result. Please contact your local dealer for a replacement antenna.
FCC RF EXPOSURE INFORMATION
Warning! Read this information before using your phone.
10
Body-worn Operation
This device was tested for typical body-worn operations with the back of the phone kept 0.59
inches (1.5cm) from the body. To comply with FCC RF exposure requirements, a minimum
separation distance of 0.59 inches(1.5cm) must be maintained between the user's body and
the back of the phone, including the antenna, whether extended or retracted.All
beltclips,holsters and similar accessories used by this device must not contain any metallic
components. Body-worn accessories that do not meet these requirements may not comply
with FCC RF exposure limits and should be avoided.
Turn off your phone before flying
You should turn off your phone when boarding any aircraft. To prevent possible interference
with aircraft systems, U.S.Federal Aviation Administration(FAA) regulations require you to
have permission from a crew member to use your phone while the plane is on the ground. To
prevent any risk of interference ,FCC regulations prohibit using your phone while the plane is
in the air.
Specific Absorption Rate (SAR) for Wireless Phones
The highest reported SAR values W63SA are:
CDMA modes(Part 22) . Head: 0.447 W/kg; Body-worn: 0.658 W/kg
11
