IWXGA Resolution
IHD Ready
I2 Scart Sockets
I2 HDMI input
IPicture In Picture
IPC input
IUSB input
IBlack Gloss Finish

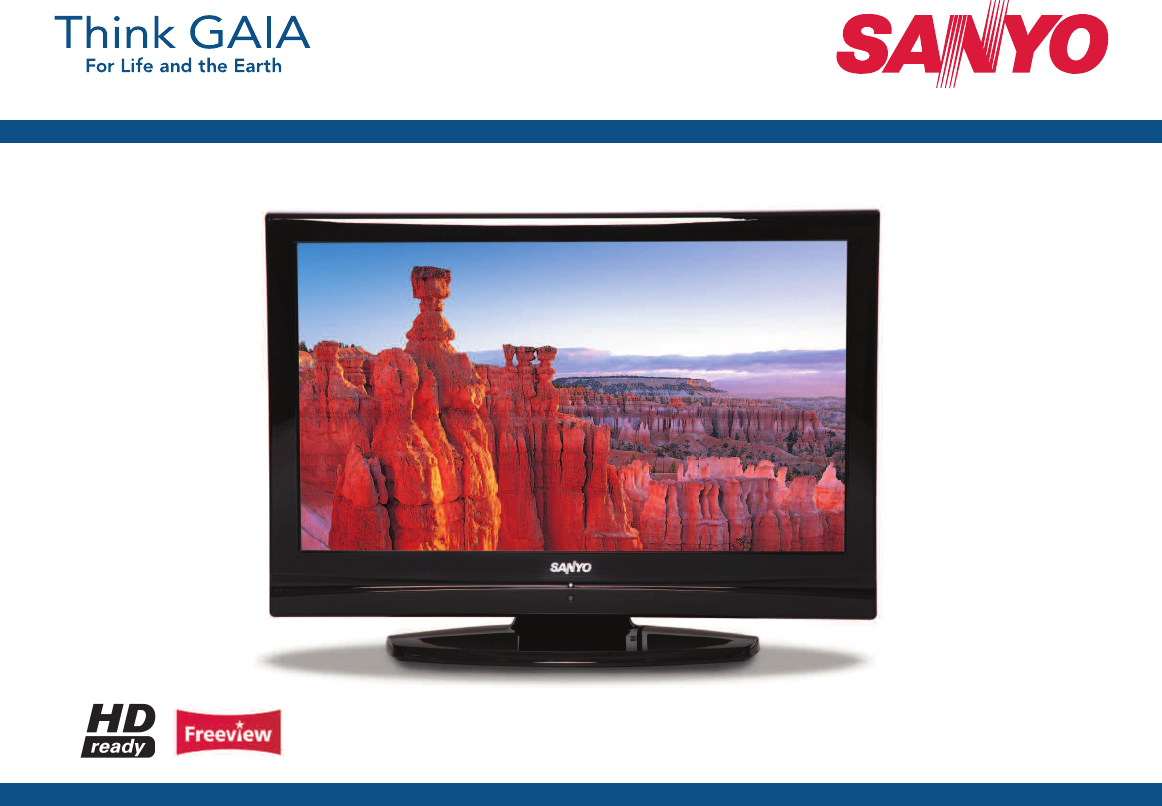

CE26LD90-B
CE26LD90-B
TECHNICAL DETAILS CE26LD90-B
Screen Size (inch / cm) 26/66
Resolution 1366 x 768
Brightness (cd/m2) 400 m2
Dynamic Contrast Ratio 8000:1
Viewing Angle (H/V) 160/150
Response Time (ns) 8
Tuning System
Analog Broadcasting - F/S Tuning Yes
Full Auto Tuning Yes
Channel Swap Yes
Fine Tuning Yes
Plug & Play Yes
ATS (Automatic Tuning System with Auto Sort) Yes
Digital Broadcasting - Full Auto Tuning Yes
Auto Logical Channel Sort Yes
Manual Channel Sort Yes
EPG Yes
Definition (both HD & SD/SD Only) SD
OFDM Demodulation Yes
Channel Positions - Analogue/Digital 200/1000
Built In Freeview Yes
System
Colour System PAL/SECAM
NTSC 3.58 via scart, 4.43 via scart
Sound System B/G-D/K-K’-I/I’-L/L’
NICAM Stereo Yes
A2 Stereo Yes
Comb Filter Digital (4H/2H) PAL/NTSC Comb Filter 3D Comb Filter
Colour Temperature Control Yes
Sound
Bass Expander No
Automatic Volume Level Control Yes
Headphone Jack Yes
Audio Output Power 10% THD (Watt) 2x6w
Head Phone Volume Control Yes
Teletext - page memory Yes – 1000 Page Memory
Terminal
SCART 1 Yes
SCART 2 Yes
USB Terminal Yes
Audio out (via mini din connector) Yes
HDMI - HD Ready/DVI Yes (x2)
YPbPr Yes
SPDIF Yes
PC-in (VGA) Yes
PC-Audio in Yes
Other features
PAP/PIP Yes (PIP Picture)
Hotel Mode Yes
Auto Wide Selection Yes
Picture Selection Mode Eco, Dynamic, Natural, Cinema
Timer On/Off Yes
Child Lock Yes
Power Spec
Power Supply Voltage/Current 220 – 240 V AC
Power Consumption Standby Mode Less than 1W
Power On 100W
Weight (kg) without stand 8 kg
Dimensions (W x H x D mm) without stand 645 x 433 x 88 mm
Weight (kg) with stand 8.45kg
Dimensions (W x H x D mm) with stand 645 x 483 x 164 mm
Boxed Weight (kg) 10kg
Boxed Dimensions (W x H x D mm) 743 x 575 x 209 mm
Vesa Size (mm) 200 x 200 mm
Barcode / EAN 4994334267399
Technical specifications subject to change without notice. Status 06/2009
