Sanyo Dp50747 Owners Manual WEB OM

2015-11-13

: Sanyo Sanyo-Dp50747-Owners-Manual-820139 sanyo-dp50747-owners-manual-820139 sanyo pdf

Open the PDF directly: View PDF PDF.
Page Count: 52

Model No: DP50747
Owner’s Manual
Table of Contents . . . . . . . . . . . 5
Frequent Asked
Questions (FAQ) . . . . . . . . . . . 47
© 2007 Sanyo Manufacturing Corporation
If you need additional assistance?
Call toll free 1.800.877.5032
We can Help!
2
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUT-
ING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING
AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOM-
PANYING THIS UNIT.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
CAUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODUCT AND IN THE OPERATING INSTRUCTIONS.
BEFORE OPERATING THE PRODUCT, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRUCTIONS.
RETAIN THIS LITERATURE FOR REFERENCE.
Follow all instructions...
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other appa-
ratus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding-type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the pro-
vided plug does not fit fully into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or mois-
ture, does not operate normally, or has been
dropped.
(CONTINUED ON NEXT PAGE.)
3
15. If an outside antenna is connected to the televi-
sion equipment, be sure the antenna system is
grounded so as to provide some protection
against voltage surges and built up static
charges. In the U.S. Selection 810-21 of the
National Electrical Code provides information
with respect to proper grounding of the mast
and supporting structure, grounding of the lead-
in wire to an antenna discharge unit, size of
grounding conductors, location of antenna dis-
charge unit, connection to grounding electrodes,
and requirements for the grounding electrodes.
16. An outside antenna system should not be
located in the vicinity of overhead power lines or
other electrical light or power circuits, or where
it can fall into such power lines or circuits. When
installing an outside antenna system, extreme
care should be taken to keep from touching such
power lines or circuits as contact with them
might be fatal.
17. Wall or Ceiling Mounting—The product should
be mounted to a wall or ceiling only as recom-
mended by the manufacturer.
18. "Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus."
19. When the MAINS plug is used as the disconnect
device, the disconnect device shall remain
readily operable.
CAUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODUCT AND IN THE OPERATING INSTRUCTIONS.
BEFORE OPERATING THE PRODUCT, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRUCTIONS.
RETAIN THIS LITERATURE FOR REFERENCE.
Follow all instructions...
IMPORTANT SAFETY INSTRUCTIONS
EXAMPLE OF ANTENNA GROUNDING ACCORDING
TO NATIONAL ELECTRICAL CODE,
ANSI/NFPA 70
“Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to
Article 820-40 of the NEC that provides guidelines for proper grounding
and, in particular, specifies that the cable ground shall be connected to
the grounding system of the building, as close to the point of cable entry
as practical.”
4
Welcome to the World of Sanyo
Thank you for purchasing this Sanyo High-Definition Digital Plasma Television.
You made an excellent choice for Performance, Reliability, Features, Value, and
Styling.
Important Information
Before installing and operating this DTV, read this manual thoroughly. This DTV
provides many convenient features and functions. Operating the DTV properly
enables you to manage those features and maintain it in good condition for many
years to come.
If your DTV seems to operate improperly, read this manual again, check
operations and cable connections and try the solutions in the “Helpful Hints”
sections of this manual.
If the problem still persists, please call 1-800-877-5032.We can help!
TO THE OWNER
“Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to
Article 820-40 of the NEC that provides guidelines for proper grounding
and, in particular, specifies that the cable ground shall be connected to
the grounding system of the building, as close to the point of cable entry
as practical.”
The screen is likely to be damaged if it is
not maintained properly. Do not use hard
objects such as hard cloth or paper. Do not
use excessive pressure when cleaning the screen;
excessive pressure can cause permanent discol-
oration or dark spots.
NEVER spray liquids on the screen.
PROTECTING THE PLASMA SCREEN
5
TO THE OWNER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . 3 ~ 4
PROTECTING THE PLASMA SCREEN . . . . . . . . . . . . . . . . 4
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
HANDLING PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . .8
POSITIONING PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . 8
REMOVING THE PLASMA STAND (OPTIONAL) . . . . . . . . . .9
WALL MOUNTING (OPTIONAL) . . . . . . . . . . . . . . . . . . . .9
HDTV BACK RIGHT SIDE PANEL—JACKS LOCATIONS
& FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
HDTV BACK SIDE PANEL—JACKS LOCATIONS
& FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 ~ 12
GLOSSARY OF CABLES . . . . . . . . . . . . . . . . . . . . . . . . 13
CHOOSE YOUR CONNECTION . . . . . . . . . . . . . . . . . . . . 14
Installing two “AA” Batteries . . . . . . . . . . . . . . . . . . . . . . . 15
Initial Signal Connections Integrated Digital (DTV) /
Analog (RF) Antenna Connection . . . . . . . . . . . . . . . . . . . 15
Connecting AC Power Cord . . . . . . . . . . . . . . . . . . . . . . . . 16
All Channel Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
HDMI CONNECTIONS
OPTION 1: Connect a DVD Player or Game System . . . . . 18
Helpful Hints for HDMI Input 2/3 connections . . . . . . 18
OPTION 2: Connect a Set-Top (STB) to DVI . . . . . . . . . . . 19
Helpful Hints for HDMI Input 1 connections . . . . . . . . 19
VIDEO2 / VIDEO3 Component Jacks
OPTION 1: Connect a Set-Top (STB) . . . . . . . . . . . . . . . . . 20
Helpful Hints for Video2/3 connections . . . . . . . . . . . . 20
OPTION 2: Connect a DVD Player . . . . . . . . . . . . . . . . . . 21
Helpful Hints for Video2/3 connections . . . . . . . . . . . 21
OPTION 3: Connect a Game System . . . . . . . . . . . . . . . . . 22
Helpful Hints for Video2/3 connections . . . . . . . . . . . 22
VIDEO1 COMPOSITE JACKS
OPTION 1: Connect Analog Cable, Cable Box, VCR,
and an Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Helpful Hints for Video1 connections . . . . . . . . . . . . . 23
OPTION 2: Connect Analog Cable, VCR, and an Antenna . . 24
Helpful Hints for Video1 connections . . . . . . . . . . . . . 24
OPTION 3: Connect a DVD Player . . . . . . . . . . . . . . . . . . . 25
Helpful Hints for Video1 connections . . . . . . . . . . . . . 25
Connecting an AV Receiver . . . . . . . . . . . . . . . . . . . . . . . 26
Helpful Hints for Digital Audio Out connections . . . . . 26
Connecting a Stereo Amplifier . . . . . . . . . . . . . . . . . . . . . . 27
Helpful Hints for Analog Audio Out connections . . . . . 27
Remote Control Keys (functions) . . . . . . . . . . . . . . . 28 ~ 31
Helpful Hints for Remote Control . . . . . . . . . . . . . . . . 31
How to Operate the On-Screen Menu . . . . . . . . . . . . . . . . 32
Menu Navigation Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
All Channel Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Digital Cable Search (Optional) . . . . . . . . . . . . . . . . . . . . . 34
Helpful Hints for Digital Cable Search . . . . . . . . . . . . . 34
Digital Add-On Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Helpful Hints for Digital Add-On Search . . . . . . . . . . . 35

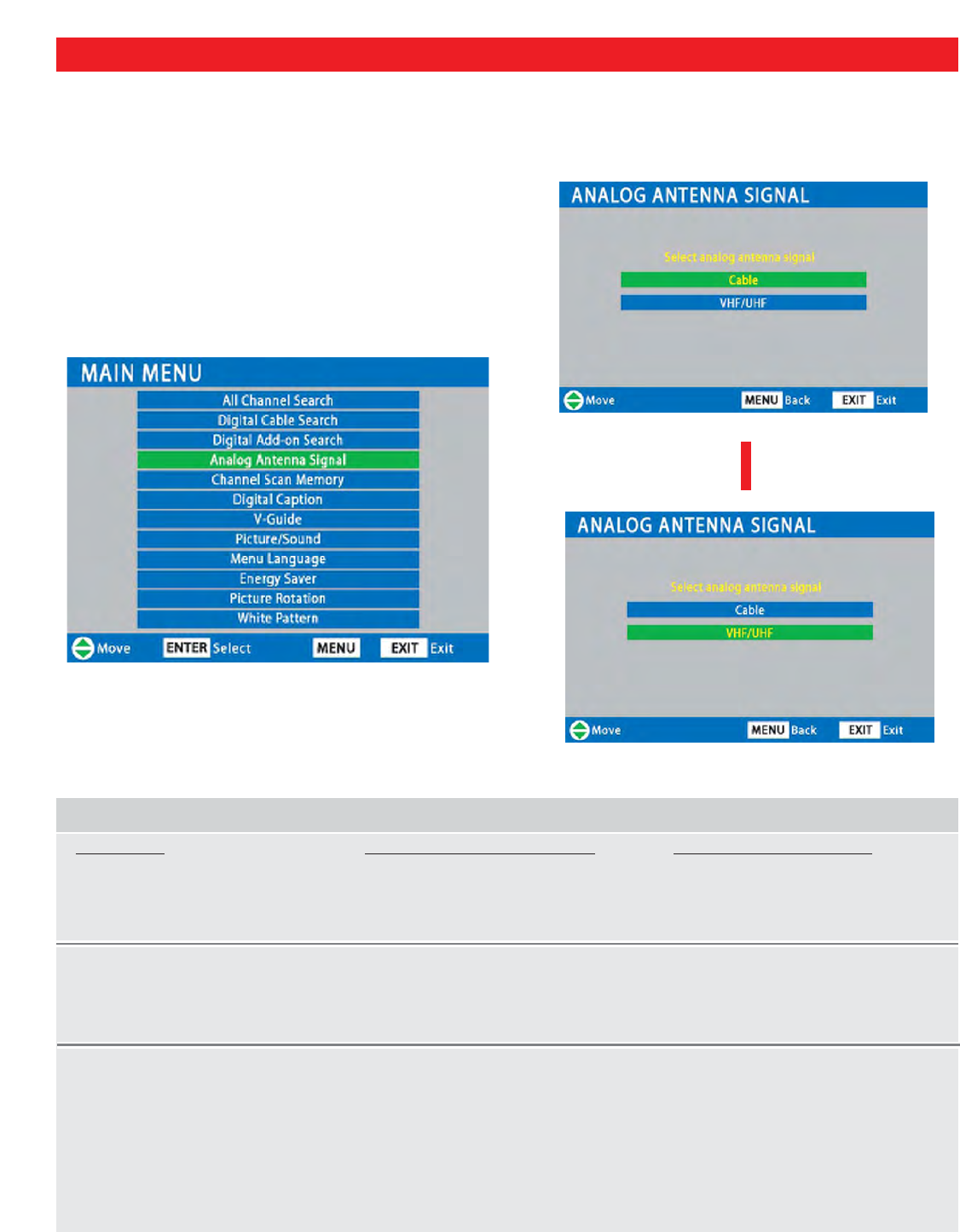

Analog Antenna Signal (Optional) . . . . . . . . . . . . . . . . . . . 36
Helpful Hints for Analog Antenna Signal . . . . . . . . . . . 36

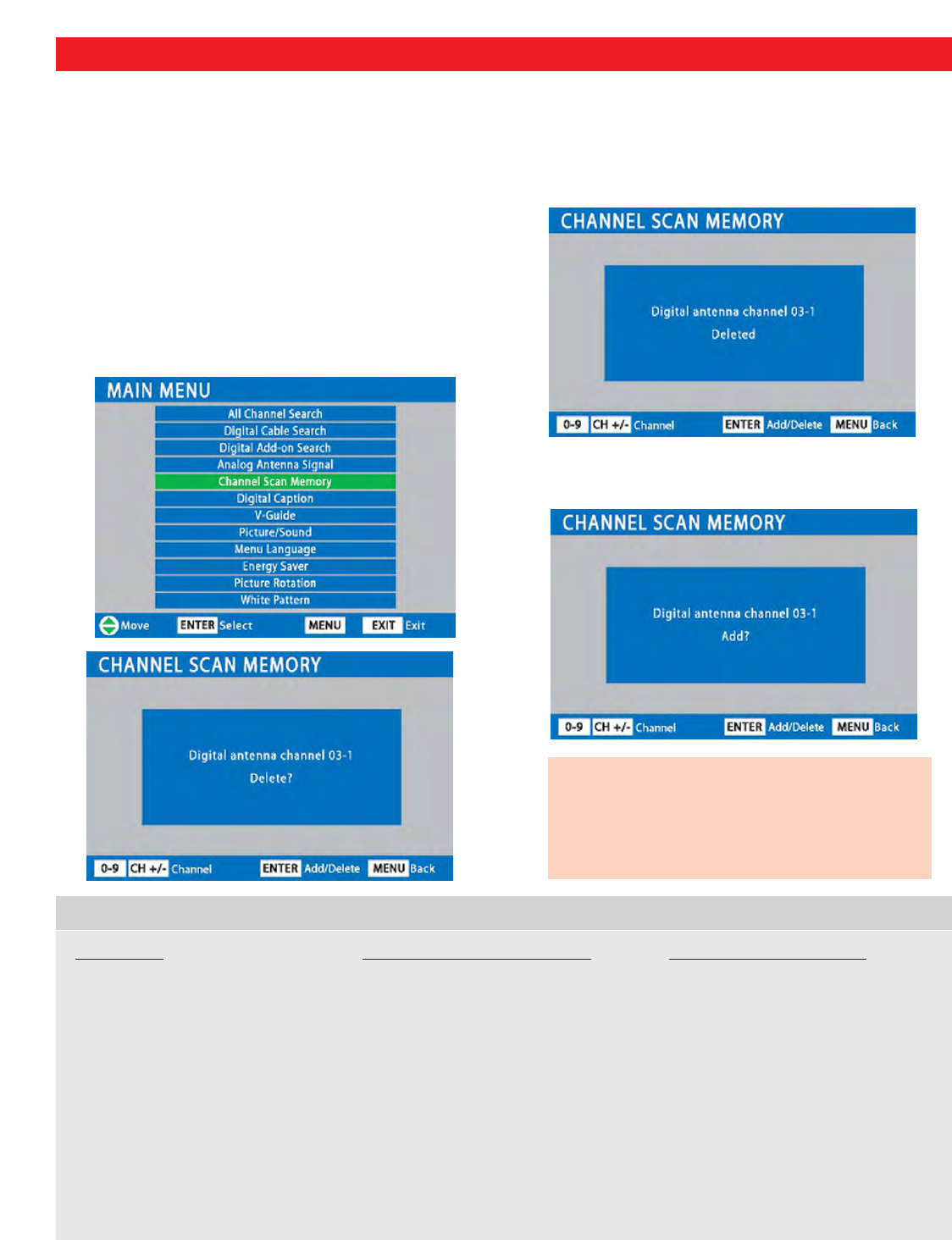

Channel Scan Memory: Deleting Channels . . . . . . . . . . . . 37
Helpful Hints for Channel Scan Memory . . . . . . . . . . 37
Channel Scan Memory: Adding Channels . . . . . . . . . . . . . 38
Helpful Hints for Channel Scan Memory . . . . . . . . . . 38
Digital Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Changing the Look of Digital Captioning . . . . . . . . . . . 39
To View Captions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Helpful Hints for Digital Caption . . . . . . . . . . . . . . . . . 40
V-Guide (Parental Control) . . . . . . . . . . . . . . . . . . . . . . . . 41
To Block MPAA Movie or TV Programs . . . . . . . . . . . . 41
To Setup V-Guide Ratings . . . . . . . . . . . . . . . . . . . . . . 41
On-Screen View of Blocked TV program . . . . . . . . . . . 42
To Temporarily Unblock MPAA Movie or TV Rating . . 42
To Unblock All MPAA Movie or All TV Rating . . . . . . . 42
TV Ratings (Age and Content-Based)
Symbol Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
MPAA Movie Ratings (Age-Based)
Symbol Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Picture/Sound Adjustment . . . . . . . . . . . . . . . . . . . . 44 ~ 45
Helpful Hints for Picture/Sound . . . . . . . . . . . . . . . . . 45
Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Energy (Power) Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Picture Rotation (Screen Saver) . . . . . . . . . . . . . . . . . . . . 48
White Pattern (Panel Repair) . . . . . . . . . . . . . . . . . . . . . . . 49
GLOSSARY OF TERMS . . . . . . . . . . . . . . . . . . . . . . . . . 50
FAQ (FREQUENTLY ASKED QUESTIONS) . . . . . . . . . . . . . 51
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
CONTENTS
DIGITAL AV CONNECTIONS
GETTING STARTED (REQUIRED INITIAL SETUP) . . . . . . . . 15
ANALOG AV CONNECTIONS
AUDIO CONNECTIONS
MENU OPTIONS
DTV ADJUSTMENT AND SETUP
USING THE REMOTE CONTROL
6
50" Plasma HDTV
Detachable Stand
Trilingual Menu Options (English, Spanish, or
French)
Integrated Digital/Analog Tuner
Energy Saver Mode
Screen Savers: White Pattern
Picture Rotation
Automatic Channel Search
3-D Y/C Comb Filter
V-Chip for Movies and TV guidelines rating
limits (parental control)
Closed-Captioning: Analog EIA-608
Digital EIA-708
Audio Modes: Digital—Main and Sub
Analog—Stereo, Mono,
and SAP
Front speakers (two): 6 x 12 cm
Factory preset adjustments for picture/sound:
Auto, Manual with Tone Control
Picture Shape: PIX1 ~ PIX4
Audio Format: Dolby® Digital for ATSC (DTV)
and Analog for NTSC
Receivable Formats: Digital Tuner for ATSC
terrestrial broadcasts and nonscrambled
(ClearQAM) cable channels.
NTSC analog tuner for VHF/UHF or CATV
Channel Scan Memory
Receives 181 Analog Channels (VHF 2~13 and
UHF 14~69; Cable 14~125); and 99 Digital
Channels
XDS (Extended Data Services) displays station
call letters, title of show, and ratings when
broadcast
Sleep Timer (3 hours)
32-Key Remote Control
TERMINAL and CONNECTORS:
RF Antenna Input Jack: Digital and Analog
HDMI (Three sets) (with HDCP, and one
DVI Connection
Component Video (Y-Pb-Pr) Input (Two Sets)
S-Video Input
Rear Composite AV Input Jacks
Coaxial Digital Audio Out
Fixed Audio (Left/Right) Out
Service Port
FEATURES
7
SPECIFICATIONS
SCREEN SIZE: 50" Wide Screen (Measured
Diagonally)
SCANNING FORMAT: 720p (All Signals are
Converted to 720p)
RESOLUTION: 1365 x 768 (WXGA)
RF ANTENNA INPUT: 75 ohm—Digital/Analog
POWER REQUIREMENT: Source: AC 120V, 60Hz
POWER CONSUMPTION: 460 Watts (Average)
SOUND: Two Speakers, size: 6 x 12 cm
MOUNTING BRACKET: Vesa Standard or Universal
480 x 360 or 480 x 200
AMPLIFIER: Built-in with 7.0W/ch
JACKS / CONNECTORS:
VIDEO1 Composite Video and Audio R/L
S-Video
VIDEO2 Component (Y/ Pb / Pr) with
Audio R/L Input
VIDEO3 Component (Y/ Pb / Pr) with
Audio R/L Input
Digital Audio Output: Dolby® Digital (Coaxial Cable)
Analog Audio Output: Audio R/L
HDMI 1 Input: 19-pin connector
(Picture/Sound with HDCP)
HDMI1 with DVI Interface port
HDMI 2 Input: 19-pin connector
(Picture/Sound with HDCP)
HDMI 3 Input: 19-pin connector
(Picture/Sound with HDCP)
Download Jack Service port for production use
only.
SIZE AND WEIGHT (APPROXIMATELY):
Horizontal Dim. (Width): 49.4 in. (1255mm)
Vertical Dim. (Height): 33.3 in. (846.0mm)
Depth Dim. (Thickness): 11.1 in. (281.0mm)
Weight: 102.0 (lbs.) 46.3(Kg)
Specifications are subject to change without notice.
CAUTION: FCC Regulations state that improper modifications or un-
authorized changes to this unit may void the user’s authority
to operate the unit.
This symbol on the nameplate means the product is
Listed by Underwriters’ Laboratories Inc. It is designed
and manufactured to meet rigid U.L. safety standards
against risk of fire, casualty and electrical hazards.
Trademarks Information:
Manufactured under license from Dolby Laboratories.
“Dolby” is a trademark of Dolby Laboratories.
ENERGY STAR
“As an ENERGY STAR®Partner, Sanyo
Manufacturing Corporation has determined
that this product meets the ENERGY STAR®
guidelines for energy efficiency.”
with a double “Z” is a registered trademark of
Sanyo Manufacturing Corporation.
8
HANDLING PRECAUTIONS
• Place this Plasma DTV as indicated here. Failure to
do so may result in a fire hazard. Allowing the proper
amount of space at the top, sides, and rear of the
Plasma DTV cabinet is critical for proper air circula-
tion and cooling of the unit. The dimensions shown
here indicate the minimum space required. If the
Plasma DTV is to be built into a compartment or sim-
ilarly enclosed, these minimum distances must be
maintained.
• Do not cover the ventilation slots on the Plasma
DTV. Heat build-up can reduce the life of your
Plasma DTV, and can also be dangerous.
• If the Plasma DTV is not to be used for an extended
period of time, unplug it from the power outlet.
POSITIONING PRECAUTIONS
• Handle the Plasma DTV carefully when installing.
Do Not Drop.
• Throughout the installation process, handling by
more than two people is recommended.
• When removing the stand, use a working space
that is larger than the screen size. The work
surface must be flat and covered with a soft cloth
or blanket to protect the screen surface.
• Before placing the Plasma DTV face down, make
sure there are no objects under the screen.
Leaving any object may cause damage on the
screen surface.
Note: All dimensions
are in inches.
9
Tools Needed: Phillips screwdriver
Important Note: Place DTV face down on a padded
or cushioned surface that is larger than the screen
size to protect the screen and finish. Handling by
more than two people is recommended.
1Remove four (4) screws from the metal bracket.
CAUTION: Hold the stand firmly as you remove
the last screw.
2Carefully remove the stand.
REMOVING THE STAND (OPTIONAL)
Use the threaded inserts on the back of your Plasma
DTV to secure it using a wall mounting kit.
(UNIVERSAL standard interface 480 x 200 and 480 x
360.)
Note: Wall Mounting kit is not supplied.
Mounting screws measurements:
M6 Diameter, Length—12mm (maximum).
WALL MOUNTING (OPTIONAL)
10
RIGHT SIDE PANEL (VIEWED FROM FRONT)
These keys operate exactly like the Remote Control keys.
(Go to page 28, for more detail information, if needed.)
POWER
VOLUME
+ –
CHANNEL

11
HDTV BACK PANEL
(CONTINUED ON NEXT PAGE.)
Analog / Digital Antenna Input—Connect
an RF antenna or Analog Cable system to this
jack.
See PAGE 15 for Signal connections.
Analog Audio Out (L/R) Jacks—Connect
external audio equipment here.
See PAGE
27 for Audio Out jack connections.
HDMI INPUT1/2/3 (High-Definition
Multi-media Interface), PAGE 7—
Connect digital video equipment to this
jack. It takes only one cable (not sup-
plied) to communicate between
audio/video equipment and this DTV.
HDMI (DVI) INPUT1 jack is compatible
with DVI equipped AV devices. (Sepa-
rate audio connection and an adapter
are required for DVI device.)
See
PAGES 18 and 19 for HDMI connec-
tion.
Digital Audio Output—Use a Phono-Type
Coaxial Digital Audio Out Cable to connect
Digital Audio Output to an advanced stereo
home theater system equipped with Dolby®
Digital 5.1.
See PAGE 26 for Digital Audio
Out jack connection.
Audio/Video Input (VIDEO1)—Connect
analog video equipment here.
See PAGES 23,
24, and 25 for AV VIDEO1 jack connection.
Note: S-Video connection overrides the (Video1) com-
posite video connection.
12
HDTV BACK PANEL
(Continued)
Service Port—For production use only. AC IN 120V—Connect power cord
here.
See PAGE 16.
S-Video Input (VIDEO1)—To enhance video
detail use the S-Video jack instead of the Video
jack, if available on your external equipment.
(S-Video connection will override a connection
to the Video input jack [VIDEO1]).
See PAGES
23 and 25 for S-Video connection.
Component Video Input (VIDEO2 or
VIDEO3)—Connect digital video equipment
to the Y (green), Pb (blue), Pr (red) and Audio
L/R jacks. These jacks will automatically
detect the type of signal being received.
See
PAGES 20, 21, and 22 for Component jack
connections.
13
Coaxial Digital Audio—Use this cable to
connect the DTV‘s digital audio output to a
multichannel audio receiver.
DVI (Digital Visual Interface) Cable—Use
this cable to connect your digital video equip-
ment to the HDMI1 jack (adapter is required
(not supplied). Separate analog audio connec-
tions are required with this cable.
HDMI (High-Definition Multimedia Inter-
face) Cable—Use this one cable to receive
both digital and audio video, for the ultimate
picture resolution.
S-Video Cable—This cable provides separate
luminance and color signals for higher resolu-
tion and better picture
quality. Use this cable
instead of the regular
composite video
cable (RCA type),
when available.
NOTE: None of these
cables are sup-
plied with this DTV.
Audio Cables—Provides analog left/right
audio for your external equipment
connections.
Component: Y, Pb, Pr—Use these cables to
connect your component equipment. This
connection provides the best picture, but does
not include sound. (Cable colors: Y = green,
Pb = blue, and Pr = red.)
Composite Audio/Video (RCA type)—Use
these cables for standard analog audio/video
connections. Normally cables are color coded:
Yellow for Video, White for (L) Audio, and Red
for (R) Audio.
75 Ohm Coaxial Cable with F-Connector—
Used to connect a signal to your digital or
Analog RF Antenna In terminal.
GLOSSARY OF CABLES
14
CHOOSE YOUR CONNECTION
Digital Signal Compatible External Cables Needed Go to
Connections Equipment
(Not Supplied)
Page
20
21
22
This DTV is designed to handle several different connec-
tions making it compatible with Digital and Analog
devices.
In order to receive the best performance from your DTV,
choose your connection using this chart; then go to the
specified page for detailed instructions.
COMPONENT
(Y, Pb, Pr) IN
Will accept HDTV,
EDTV, or SDTV Video
content.
(Requires separate
audio connections.)
COMPONENT VIDEO
CABLE
COMPOSITE VIDEO
OR
S-VIDEO IN
23
24
25
DIGITAL AUDIO
OUT
(Only available when
received as part of the
Digital RF signal dis-
played on-screen.)
COAXIAL DIGITAL
CABLE 26
ANALOG AUDIO
OUT JACKS 27
AUDIO CABLE
S-VIDEO CABLE
Analog Signal Compatible External Cables Needed Go to
Connections Equipment
(Not Supplied)
Page
COMPOSITE VIDEO
CABLE
AV RECEIVER
VCR
STEREO AMPLIFIER
SYSTEM
LEFT / RIGHT
ANALOG AUDIO IN
AUDIO CABLE
VIDEO GAME
VIDEO GAME
DVD PLAYER
HDMI
Will accept HDTV
(High Bandwidth
Video component)
19 PIN HDMI
DIGITAL SET-TOP BOX
or DVD PLAYER
VIDEO GAME
DIGITAL SET-TOP BOX
or DVD PLAYER
18
19
15
1Install batteries in remote control (2AA, not included).
2Connect Signal to the DTV’s Integrated Analog / Digital
75 ohm Antenna Input terminal.
GETTING STARTED (REQUIRED INITIAL SETUP)
PRECAUTIONS
To ensure safe operation, please observe the following
precautions:
Replace both batteries at the same time. Do not use a new
battery with a used battery.
Risk of explosion, if battery is replaced by an incorrect
type.
Do not expose the Remote Control Unit to moisture or
heat.
RF ANTENNA
CABLE
OR
CABLE BOX OR SATELLITE BOX
OR
ANALOG / DIGITAL
ANTENNA IN
THE TUNER IN THIS DTV CAN RECEIVE:
1. Digital and / or Analog Off-Air Signals from an RF
antenna.
OR
2. Analog or ClearQAM cable channels.
Note:You must search for ClearQAM channels using
the “Digital Cable Search” menu option.
OR
3. The output from a VCR or cable box.
Digital signals from a Set-top (STB) Box should be
received through the Component jacks.
This DTV can receive ANY unscrambled RF signal
being broadcast.
(CONTINUED ON NEXT PAGE.)
Match the “+” and “–”
signs on the batteries with
marks inside the remote
control.
4Press the POWER key.
(Follow on-screen instructions).
16
3Connect AC Power Cord (supplied) to the Plasma DTV and electrical outlet as shown here.
The AC outlet must be near this equipment and must be
easily accessible.
To 120 V AC outlet.
GETTING STARTED (REQUIRED INITIAL SETUP)
Continued
To POWER CORD CONNECTOR
on back of Plasma HDTV.
POWER
5Perform “All Channel Search.” The All Channel
Search will search for off-air digital and analog chan-
nels, and analog cable channels. The DTV can
receive cable or off-air channels, but not at the same
time. If after two searches the DTV still fails to
detect any channels, the DTV will tune to Video1.
17
ANALOG CHANNELS
Note: If
EXIT
is pressed, the DTV will skip
Channel Search and tune to Video1
without storing any channels in the
Channel Map databases.
DIGITAL CHANNELS
INITIAL ON-SCREEN ALL CHANNEL SEARCH
GETTING STARTED (REQUIRED INITIAL SETUP)
Continued
EXIT
18
HDMI CONNECTIONS (INCLUDES HDCP COPY PROTECTION)—
Receiving
the ultimate picture
HDMI CABLE
[Gently insert this cable
into HDMI jack for
Audio/ Video input.]
DVD PLAYER
(or similar device)
HDMI INPUT 2 OR INPUT 3 CONNECTION:
Connection Option 1
DTV HDMI INPUT2 / INPUT 3
GAME
SYSTEM
REMOTE CONTROL
INPUT
1Connect the external equipment’s HDMI Output to a DTV HDMI Input.
2Press INPUT to select HDMI 2 or HDMI 3 to view the digital program.
OPERATING TIPS:
Press the INPUT key after connecting
cables to access the HDMI2 or
HDMI3 input. There is NO need to
tune to a blank channel.
HDMI INPUT2, and HDMI INPUT3
jacks have identical functions with
HDMI INPUT1 having an additional
feature for DVI connection. Compati-
ble video devices can be connected
to either set of jacks.
Refer to the owner’s manuals and
user’s guides that came with your
external equipment for connection
options.
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
“No Signal” will appear randomly
on the screen when no signal is
detected at the HDMI jack.
Check Audio/Video connections.
Check external equipment
connections.
Check external equipment setting.
Press the INPUT key.
Switch on external equipment.
Set external equipment output
connections to match input
connections.
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
19
HDMI TO
DVI
CABLE
(CABLES NOT SUPPLIED.)
DVI TO HDMI INPUT1 CONNECTIONS (INCLUDES HDCP COPY
PROTECTION)—
Receiving the ultimate picture
HDMI INPUT1 CONNECTION:
Connection Option 2
1Connect the Set-top Box (STB) DVI Output to the
DTV’s HDMI INPUT1.
2Connect the STB Audio out to the DTV’s
VIDEO3 Audio In L / R.
3Press INPUT to select HDMI 1 to view the digital
program.
IMPORTANT FACT:
Only the HDMI INPUT1 jack can
accept a DVI (digital video interface) signal.
Note:Check with your local electronics store for a DVI to
HDMI Adapter Cable that matches your equipment
and the DTV.
SET-TOP BOX (or similar device)
REMOTE CONTROL
INPUT
OPERATING TIPS:
Press the INPUT key after connecting
cables to access the HDMI1 input. There
is NO need to tune to a blank channel.
Use HDMI (DVI) INPUT1 to connect your
DVI device, make sure you connect Audio
out to the DTV’s VIDEO 3 Audio In.
The VIDEO 3 audio jacks are used to
receive the audio from the DVI device.
These video jacks cannot be used when a
DVI device is connected.
Refer to the owner’s manuals and user’s
guides that came with your external equip-
ment for connection options.
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
“No Signal” will appear randomly
on the screen when no signal is
detected at the HDMI jack.
Check Audio/Video connections.
Check external equipment
connections.
Check external equipment setting.
Press the INPUT key.
Switch on external equipment.
Set external equipment output
connections to match input
connections.
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
DTV HDMI INPUT1
AUDIO
CABLE
20
SET-TOP BOX
(HD Satellite, HD Cable, etc.)
1Connect a Component Cable to the VIDEO2 Green,
Blue, and Red video jacks.
2Connect an Audio Cable to the matching VIDEO2
White and Red audio jacks.
3Press INPUT to select Video 2 to view the program.
Note: VIDEO2 and VIDEO3 jacks have identical functions.
Compatible video devices can be connected to either
or both sets of jacks.
VIDEO2 & 3 COMPONENT JACKS:
Connection Option 1
GREEN, BLUE,
RED VIDEO
JACKS
CONNECTING A SET-TOP (STB)
DTV VIDEO2
AUDIO L/R
JACKS
OPERATING TIP:
Refer to the owner’s
manuals and user’s
guides that came with
your external equipment
for connection options.
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
“No Signal” will appear randomly
on the screen when no signal is
detected at the video jacks.
Check Audio/Video connections.
Check external equipment
connections.
Check external equipment setting.
Press the INPUT key.
Switch on external equipment.
Set external equipment output
connections to match input
connections.
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
REMOTE CONTROL
INPUT
21
1Connect a Component Cable to the VIDEO3 Green,
Blue, and Red video jacks.
2Connect an Audio Cable to the matching VIDEO3
White and Red audio jacks.
3Press INPUT to select Video 3 to view the program.
Note: VIDEO2 and VIDEO3 jacks have identical functions.
Compatible video devices can be connected to either
or both sets of jacks.
CONNECTING A DVD PLAYER
DVD PLAYER
(HD Satellite, HD Cable, etc.)
GREEN, BLUE,
RED VIDEO
JACKS
DTV VIDEO3
AUDIO L/R
JACK
OPERATING TIP:
Refer to the owner’s manuals and
user’s guides that came with your
external equipment for connec-
tion options.
VIDEO2 & 3 COMPONENT JACKS:
Connection Option 2
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
“No Signal” will appear randomly
on the screen when no signal is
detected at the video jacks.
Check Audio/Video connections.
Check external equipment
connections.
Check external equipment setting.
Press the INPUT key.
Switch on external equipment.
Set external equipment output
connections to match input
connections.
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
REMOTE CONTROL
INPUT
22
VIDEO2 & 3 COMPONENT JACKS:
Connection Option 3
1Connect a Component Cable to the VIDEO2 / 3
Green, Blue, and Red video jacks.
2Connect an Audio Cable to the VIDEO2 / 3 White
and Red audio jacks.
3Press INPUT to select Video 2 or Video 3 to view
the program.
CONNECTING A GAME SYSTEM
GAME
SYSTEM
GREEN, BLUE,
RED VIDEO
JACKS
DTV VIDEO2
OPERATING TIPS:
Press the INPUT key after connecting cables to access the VIDEO2
or VIDEO3 input. There is NO need to tune to a blank channel.
VIDEO2 and VIDEO3 jacks have identical functions. Compatible
video devices can be connected to either or both sets of jacks.
Refer to the owner’s manuals and user’s guides that came with
your external equipment for connection options.
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
“No Signal” will appear randomly
on the screen when no signal is
detected at the video jacks.
Check Audio/Video connections.
Check external equipment
connections.
Check external equipment setting.
Press the INPUT key.
Switch on external equipment.
Set external equipment output
connections to match input
connections.
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
REMOTE CONTROL
INPUT
AUDIO L/R
JACKS
23
CONNECTING ANALOG CABLE, CABLE BOX, VCR, AND AN ANTENNA TO
THE DTV
VIDEO1 COMPOSITE (ANALOG) JACKS:
Connection Option 1
VCR
1Connect Analog Cable Box “Antenna Out” to the
VCR “Antenna In.”
2Connect the VCR AV out jacks to VIDEO1 Yellow,
White, and Red jacks.
33OPTIONAL FOR A SUPER VHS VCR
Connect VCR to the DTV S-Video In Jack. Discon-
nect the VIDEO1 yellow connector.
4Connect an Antenna to the DTV ANT terminal.
5Tune VCR to channel 3 or 4 to match your Cable
Box.
6Press INPUT to select Video 1 to watch Analog
Cable channels OR to TV channels to watch
Antenna channels.
7Select Cable channels with the cable box remote
control. Select Antenna channels with the DTV
remote control.
IMPORTANT FACTS:
Composite jacks offer only 480i
(SDTV) resolution.
“No Signal” will appear randomly
on the screen when no signal is
detected at the video jack.
Check Audio/ Video connections.
Check external equipment
connections.
Check external equipment setting.
Press the INPUT key.
Switch on external equipment.
Set external equipment output
connections to match input
connections.
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
CABLE BOX
DTV ANALOG/DIGITAL
ANTENNA IN (ANT)
OPERATING TIP:
Refer to the owner’s manuals and user’s
guides that came with your external
equipment for connection options.
CABLE SYSTEM
(Service provider)
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
DTV VIDEO1
REMOTE CONTROL
INPUT
YELLOW, WHITE,
& RED JACKS
ANTENNA
VCR
S-VIDEO JACK
(Optional)
24
CONNECTING ANALOG CABLE, VCR, AND AN ANTENNA TO THE DTV
VIDEO1 COMPOSITE (ANALOG) JACKS:
Connection Option 2
VCR
1Connect Analog Cable system to the VCR
“Antenna In.”
2Connect the VCR AV out jacks to VIDEO1 Yellow,
White, and Red jacks.
3Connect an Antenna to the DTV ANT terminal.
4Press INPUT to select Video 1 to watch Analog
Cable channels OR to TV channels to watch
Antenna channels.
5Select channels with the VCR’s remote control.
Select Antenna channels with the DTV remote
control.
IMPORTANT FACT:
Composite jacks offer only
480i (SDTV ) resolution.
YELLOW, WHITE,
& RED JACKS
“No Signal” will appear randomly
on the screen when no signal is
detected at the video jack.
Check Audio/ Video connections.
Check external equipment
connections.
Check external equipment setting.
Press the INPUT key.
Switch on external equipment.
Set external equipment output
connections to match input
connections.
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
DTV VIDEO1
CABLE SYSTEM
(Service provider)
OPERATING TIP:
Refer to the owner’s manuals and user’s guides that
came with your external equipment for connection
options.
REMOTE CONTROL
INPUT
DTV ANALOG/DIGITAL
ANTENNA IN (ANT)
ANTENNA
25
CONNECTING A DVD PLAYER TO THE DTV
DVD PLAYER
S-VIDEO
JACK
VIDEO1 COMPOSITE (ANALOG) JACKS:
Connection Option 3
“No Signal” will appear randomly
on the screen when no signal is
detected at the S-Video jack.
Check Audio/ Video connections.
Check external equipment
connections.
Check external equipment setting.
Press the INPUT key.
Switch on external equipment.
Set external equipment output
connections to match input
connections.
VIDEO1 jack connection
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
OPERATING TIP:
Refer to the owner’s manuals
and user’s guides that came
with your external equipment
for connection options.
DTV VIDEO1
REMOTE CONTROL
INPUT
1Connect DVD Player to the TV S-Video In Jack.
2Connect an Audio cable to the VIDEO1 White and
Red AV jacks.
3Press INPUT to select Video1 to view a DVD.
WHITE & RED
AUDIO JACKS
26
CONNECTING AN AV RECEIVER TO THE DTV
DTV AUDIO OUT JACKS (DIGITAL & ANALOG)
DTV AUDIO OUT
COAXIAL
CABLE
AV RECEIVER
No Sound or Poor Sound Check external equipment
connections.
Switch on external equipment.
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
OPERATING TIP:
Refer to the owner’s manual that
came with your external equipment
for connection options.
AUDIO OUT
[For Stereo
Sound]
1Connect a Coaxial Digital Audio cable from the DTV Digital
Audio Output jack to a Coaxial Digital Audio In jack on an AV
Receiver.
2Connect an Audio cable from the DTV Audio Out jacks to Audio
In jacks on the AV Receiver.
Note: Dolby®Digital 5.1 audio is available only at the Digital Audio Output
and only when received as part of a Digital Antenna signal.
27
CONNECTING A STEREO AMPLIFIER TO THE DTV
STEREO AMPLIFIER
DTV AUDIO OUT
1Connect a Stereo Amplifier to the TV Audio
Out jacks as shown.
Note:
Do not
connect external speakers directly
to the DTV.
DTV AUDIO OUT JACKS (ANALOG)
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
No Sound or Poor Sound Check external equipment
connections.
Switch on external equipment.
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
OPERATING TIP:
Refer to the owner’s manual that
came with your external equip-
ment for connection options.
28
REMOTE CONTROL OPERATION
1
4 5 6
7 8
0
9
2 3
POWER
INPUT
INFO
RECALL
MENU
CAPTION EXIT
VOL
RESETAUDIOPIX SHAPE
CH
ENTER
1-- MUTE
SLEEP
Input Key—Press to select the program source
to watch: Analog RF Digital RF Video 1 Video
2 Video 3 HDMI 1 HDMI 2 HDMI 3
Analog RF.
Number Keys—Two keys must be pressed to
select a direct channel. Example: Press 0then 6to
select channel 6. (See item #5 below.)
Note:Numerical direct channel selection works for
either Analog or Digital channels in memory but
not both at the same time.
Menu Navigational Keys:
Menu—Press to display on-screen menu.
Cursor (up) (down) keys—Press these keys to
move the cursor up and down within the menu.
Cursor < (left) > (right) keys—Press these keys to
move the cursor left and right within the menu.
Enter Key—Press to select an option from the menu
system, when required.
Exit Key—Press to exit from the menu system.
Channel Scanning (CH ) Keys—Press to scan
through the channels in memory.
Volume Keys—Press VOL – + to adjust.
PIX Shape Key—Use to change the video display
format. Available options depend on signal received
and the broadcast’s aspect ratio.
Note: If you cannot display picture on a full screen,
press the PIX Shape key to change setting.
(CONTINUED ON NEXT PAGE.)
POINT
TOWARDS TV
29
REMOTE CONTROL OPERATION
1
4 5 6
7 8
0
9
2 3
POWER
INPUT
INFO
RECALL
MENU
CAPTION EXIT
VOL
RESETAUDIOPIX SHAPE
CH
ENTER
1-- MUTE
SLEEP
(CONTINUED ON NEXT PAGE.)
Info Key—Press to display the Digital and Analog Full
Banner information. The banner contains the follow-
ing: program title, station ID, program rating, signal
strength, channel number, tuner ID, and audio
information.
DIGITAL INFO BANNER
ANALOG INFO BANNER
Recall Key—Press to switch between the last two
channels selected. The Recall key cannot toggle
between a Digital channel and an Analog channel.
1– – Key—For Analog Cable channels above 100,
press this key, then press the other two numbers.
Caption Key—Captioning is text information transmit-
ted along with the picture and sound so it can be
displayed on the TV screen.
Press CAPTION to select mode options: Digital
CC1 ~ Digital CC6, or Analog CC1 ~ CC4, OFF, or
QuikCap. (QuikCap switches captions on and off with
the Mute function.) Digital Captions can be changed
using the menu settings.
Reset Key—Press this key twice to restore factory set-
tings. The TV will automatically start Channel Search and
clear all customized settings.
Note: Channel scan memory database list of digital
and analog channels will be replaced. If desired, per-
sonal settings can be made again using the menu
options.
11
11
POINT
TOWARDS TV
30
1
4 5 6
7 8
0
9
2 3
POWER
INPUT
INFO
RECALL
MENU
CAPTION EXIT
VOL
RESETAUDIOPIX SHAPE
CH
ENTER
1-- MUTE
SLEEP
REMOTE CONTROL OPERATION
(Continued)
Sleep Key—Press this key then the “0” key to set
the Sleep Off Timer. Time can be set in 30-minute
increments up to 3 hours.
Note: The Sleep Timer cancels when the TV is turned off or if
a power failure occurs.
12
13
Mute Key—Press once to mute the sound. Press
again to restore the sound.
12
13
(CONTINUED ON NEXT PAGE.)
POINT
TOWARDS TV
31
REMOTE CONTROL OPERATION
(Continued)
Remote Control will NOT work
the TV.
Check batteries.
Check if TV is plugged in
Replace batteries.
Aim remote control at front of TV.
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
1
4 5 6
7 8
0
9
2 3
POWER
INPUT
INFO
RECALL
MENU
CAPTION EXIT
VOL
RESETAUDIOPIX SHAPE
CH
ENTER
1-- MUTE
SLEEP
14
Audio Key—Press to select the desired audio mode (if
available as part of the broadcast signal).
StereoS t e r e o
MonoM o n o
SAPSAP
DIGITAL AUDIO MODE SELECTIONS
ANALOG AUDIO MODE SELECTIONS
14
POINT
TOWARDS TV
32
DTV ADJUSTMENT AND SETUP
MENU NAVIGATION MAP
(Composite view)
MAIN SUB MENUS
HOW TO OPERATE THE MENU
1Press the MENU key to display the Main menu.
2Use the CURSOR  keys to highlight menu
item.
3Use the CURSOR < > keys to select or adjust
menu item.
4Press ENTER to activate setting, if needed.
5When you have finished making adjustments,
press the EXIT key to return to normal TV viewing.
Note: For menu items that have sub menus, follow
on-screen instructions to select and make
adjustments.
1
4 5 6
7 8
0
9
2 3
POWER
INFO
RECALL
CAPTION
VOL
RESETAUDIOPIX SHAPE
CH
1-- MUTE
SLEEP
INPUT
C
H
EXIT
ENTERMENU
REMOTE CONTROL NAVIGATION KEYS
MENU options:
Along with the on-screen instructions,
each menu feature is explained in
detail on the following pages.
MENU
OPERATING TIPS:
Some Menu options are specific to Digital or
Analog signals. To access these options, you
must first tune the TV to a digital or Analog
channel Use the INPUT key on the remote to
step through the input options. (See INPUT key
on page 28.)
“Not Available” will be displayed on the screen
if an unavailable menu option is selected.
EXIT
ENTER
CURSOR KEYS
All Channel Search
Digital Cable Search
Digital Add-on Search
No
Yes
No
Yes
No
Yes
Analog Antenna Signal Cable
VHF/UHF
Channel Scan Memory Delete?
Add?
Digital Caption Font Size
Font Style
Background Color
Foreground Color
Background Opacity
Foreground Opacity
V-Guide oOff
• On
Picture/Sound oAuto
•Manual
Menu Language English
Español
Français
Color
Tint
Contrast
Brightness
Sharpness
Tone
Adjust
Energy Saver Off
Low
High
Picture Rotation Off
On
White Pattern Off
On
33
MENU OPTION—
ALL CHANNEL SEARCH
1Press the MENU key to display the Main menu.
3Use the CURSOR key to select Yes. Press ENTER.
The All Channel Search will search for off-air digital and
analog channels, and analog cable channels. The DTV can
receive cable or off-air channels, but not at the same
time. If after two searches the DTV still fails to detect any
channels, the DTV will tune to Video1.
OPERATING TIPS:
DTV will select the correct Antenna
mode for the type of signal connected
automatically.
If you move the DTV to a new location, press
the RESET key twice after connecting the
signal and turning on the DTV.
2Use the CURSOR  keys to highlight the All
Channel Search. Press ENTER.
34
MENU OPTION—
DIGITAL CABLE SEARCH (Optional)
IMPORTANT FACTS:
This DTV maintains only one
database of digital channels. Therefore, when you
search for ClearQAM digital cable channels, the data-
base of antenna digital channels will be deleted. You
will be able to receive only those ClearQAM channels
your cable company provides.
To restore the antenna digital channel database, recon-
nect the antenna and use the menu system to perform
an All Channel Search.
This DTV can receive unscrambled (ClearQAM) digital
cable channels, when available. However, not all cable
companies provide ClearQAM digital channels.
Digital Cable Search process will take about 10 minutes,
please be patient.
NOTE: After Channel Search is complete, the DTV will tune
to the lowest Digital Cable channel.
4Use the CURSOR key to select Yes. Press
ENTER.
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
Cannot select menu option, DIGITAL
CABLE SEARCH.
Did the word Not Available
appear on-screen?
DTV must be tuned to a digital
channel.
The DTV is in the Analog mode,
therefore, try performing another
“All Channel Search.”
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
1Tune to a Digital Channel.
2Press the MENU key to display the Main menu.
3Use the CURSOR  keys to highlight the Digital
Cable Search. Press ENTER.
35
MENU OPTION—
DIGITAL ADD-ON SEARCH
Cannot select menu option, DIGITAL
ADD-ON SEARCH.
Did the word Not Available
appear on-screen?
DTV must be tuned to a digital
channel.
The DTV is in the Analog mode,
therefore, try performing another
“All Channel Search.”
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
To add new digital channels to the existing antenna
channel database, use Digital Add-on Search. Also, use
this feature to add channels when broadcast towers are
in multiple directions from your location.
For more info go to www.antennaweb.org and type in
your zip code to obtain specific tower and antenna infor-
mation. Then adjust your antenna and repeat the Digital
Add-on Search.
4Use the CURSOR key to select Yes. Press
ENTER.
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
1Tune to a Digital Channel.
2Press the MENU key to display the Main menu.
3Use the CURSOR  keys to highlight the Digital
Add-on Search. Press ENTER.
36
MENU OPTION—
ANALOG ANTENNA SIGNAL (Optional)
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
4Use the CURSOR  keys to choose Cable or
VHF/ UHF. Press ENTER.
Use this feature to switch between analog off-air
channels and analog cable channels.
Cannot select menu option,
ANALOG ANTENNA SIGNAL.
NO Cable channels above
number 13
NO UHF; VHF Channels OK.
Did the word Not Available
appear on-screen?
Cable Channel Indicator “C”
should appear next to channel
number.
Cable Channel Indicator Cshould
not
appear next to the channel
number.
Press INPUT Key to select TV
Analog mode.
Switch Menu option–Analog
Antenna Signal selection to
CABLE.
Switch Menu option–Analog
antenna signal to VHF/UHF.
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
1Tune to an Analog Channel.
2Press the MENU key to display the Main menu.
32Use the CURSOR  keys to highlight Analog
Antenna Signal. Press ENTER.
37
MENU OPTION—
CHANNEL SCAN MEMORY
Cannot select or scan some
channels.
Channels may be removed from
memory.
Check antenna connections.
NO digital signal being broadcast.
Weak Signal.
V-Guide is set to block
programming.
Select Channel Scan memory and
manually add channels or start an
“All Channel Search.”
Turn antenna, install signal
booster.
Set V-Guide to “Off” or press
RESET key to clear all settings and
restart channel search.
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
3Use the CHANNEL (CH ) keys or numerical
0 ~ 9 keys to select desired channel.
4Press the ENTER key to delete the channel. The
display will change to “deleted.”
1Press the MENU key to display the Main menu.
2Use the CURSOR  keys to highlight Channel
Scan Memory. Press ENTER.
DELETING ANALOG OR DIGITAL
CHANNELS FROM MEMORY
Channel Scan Memory is a list of active channels that
you can scan through using the Channel Scan CH (up)
CH (down) keys. This list can be customized by delet-
ing and/or adding channels.
After 3 seconds the TV screen will display
“Add?”
OPERATING TIPS:
When a digital channel is deleted, all of that
channel’s sub-channels are deleted as well.
Only previously deleted digital channels can be
added back to the Channel Scan Memory.
38
MENU OPTION—
CHANNEL SCAN MEMORY
Cannot select or scan some
channels.
Channels may be removed from
memory.
Check antenna connections.
NO digital signal being broadcast.
Weak Signal.
V-Guide is set to block program-
ming.
Select Channel Scan memory and
manually add channels or start an
“All Channel Search.”
Turn antenna, install signal
booster.
Set V-Guide to “Off” or press
RESET key to clear all settings and
restart channel search.
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
3Use the CHANNEL (CH ) keys or numerical
0 ~ 9 keys to select desired channel.
4Press the ENTER key to add the channel. The
display will change to “added.”
1Press the MENU key to display the Main menu.
2Use the CURSOR  keys to highlight Channel
Scan Memory. Press ENTER.
ADDING DIGITAL OR ANALOG
CHANNELS TO MEMORY
Channel Scan Memory is a list of active channels that
you can scan through using the Channel Scan CH
(up) CH (down) keys. This list can be customized by
deleting and/or adding channels.
After 3 seconds the TV screen will display
“Delete?”
OPERATING TIP:
If one digital sub-channel is added back to the
Channel Scan Memory list, all of that channel’s
sub-channels will be added back.
39
MENU OPTION—
DIGITAL CAPTION
1Tune to a Digital Channel.
2Press the MENU key to display the Main menu.
3Use the CURSOR  keys to highlight Digital
Caption. Press ENTER.
4Use the CURSOR  keys to highlight an option.
Press ENTER.
Closed-Captioning is text information transmitted
along with the picture and sound. Turning Captioning
ON causes the DTV to open these captions (digital or
analog) and superimpose them on the screen. (Local
broadcasters decide which caption signals to transmit.)
Digital Captions can be changed using the menu
settings as shown.
(CONTINUED ON NEXT PAGE.)
5Use the CURSOR < > keys to select the desired
effect.
OPERATING TIPS:
If Background Opacity is set to transparent,
captions may be difficult to see.
Only true EIA 708B Digital Closed-Captions
are affected by all of these settings.
QUIKCAP OPERATION
QuikCap turns captioning on and off with the Mute func-
tion. Press the MUTE key on the remote control to block
the TV sound; the captions display automatically, if avail-
able. Press the MUTE key again to restore the sound.
Captions will disappear.
1
4 5 6
7 8
0
9
2 3
POWER
INFO
RECALL
CAPTION
VOL
RESETAUDIOPIX SHAPE
CH
1-- MUTE
SLEEP
INPUT
EXIT
MENU ENTER
MUTE
40
MENU OPTION—
DIGITAL CAPTION (Continued)
NO Captioning
Cannot customize Caption.
Check if station is broadcasting a
Closed-Caption signal.
Digital Caption signal not
broadcast.
Press CAPTION key to select
Captioning.
Press CAPTION key to select
Analog captioning.
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
TO VIEW CAPTIONS
Press the CAPTION key to select caption modes.
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
Digital modes: Digital CC1 through Digital
CC6, QuikCap, and Off.
Analog modes: CC1 through CC4,
QuikCap, and Off.
1
4 5 6
7 8
0
9
2 3
POWER
INFO
RECALL
CAPTION
VOL
RESETAUDI OPIX SHAPE
CH
1-- MUTE
SLEEP
INPUT
EXIT
ENTERMENU
CAPTION
41
MENU OPTION—
V-GUIDE (PARENTAL CONTROL)
NOTE: THIS FEATURE IS DESIGNED TO COMPLY
WITH THE UNITED STATES OF AMERICA’S FCC
V-CHIP REGULATIONS. THEREFORE, IT MAY NOT
FUNCTION WITH BROADCASTS THAT ORIGINATE IN
OTHER COUNTRIES.
Use this feature to automatically block programs with
content you deem as inappropriate for children to view.
This Sanyo television is equipped with an electronic
V-Chip to interpret MPAA (Motion Picture Association of
America) and TV Parental Guidelines rating codes. When
these codes are detected, the DTV will automatically
display or block the program, depending upon choices
you make when setting up the V-Guide system.
TO BLOCK MOVIE OR TV PROGRAM
1Press the MENU key to display the Main menu.
2Use the CURSOR  keys to highlight
V-Guide. Press ENTER.
3Use the CURSOR  keys to select ON. Press
ENTER.
5Press CURSOR  and < > keys to select MOVIE,
TV Rating, or Content Ratings. (A green square will
appear beside the selected item.)
6Press the ENTER key to Block or Unblock selected
option. A lock will appear beside the selected rating
option indicating it is blocked.
Content ratings are represented by the initials: FV
(fantasy violence), L (adult language), S (sexual situa-
tions), V (violence), and D (suggestive dialog).
(CONTINUED ON NEXT PAGE.)
TO SETUP V-GUIDE RATINGS
4Use the CURSOR to select Adjust. Press ENTER.
42
OPERATING TIPS:
You can block portions of a DTV rating by choosing one or
more of the Content ratings (D, L, S, and V). By blocking
just the L and S content ratings of TV-14, for example, TV-
14 rated programs with a D and/or V content rating could
still be viewed.
V-Guide limits on programming received via the Analog
antenna input, Digital antenna input, Video 1 input, and any
480i signals received through the Component jacks can be
controlled by this DTV.
V-Guide Limits on digital programming received through
the component jacks are controlled by the external equip-
ment connected to these jacks. Refer to your external
device’s owner’s manual for instructions on setting
V-Guide Limits.
MENU OPTION—
V-GUIDE (PARENTAL CONTROL) Continued
ON-SCREEN VIEW OF BLOCKED TV
PROGRAM
TO TEMPORARILY UNBLOCK MOVIE
OR TV PROGRAM
1Press the MENU key to display the Main menu.
2Use the CURSOR  keys to highlight V-Guide.
Press ENTER.
3Use the CURSOR  keys to select OFF. Press
ENTER.
This will temporarily set V-Guide to OFF. When
V-Guide is reset to ON (follow steps 1~2), the DTV will
automatically revert to previously selected block ratings.
TO UNBLOCK ALL MOVIE OR ALL
TV RATING
1Press the MENU key to display the Main menu.
2Use the CURSOR  keys to highlight V-Guide.
Press ENTER.
3Press ENTER to select Adjust.
4Highlight the “Allow All” option using the
CURSOR  and < > keys, if needed. Press
ENTER.
(CONTINUED ON NEXT PAGE.)
43
MENU OPTION—
V-GUIDE (PARENTAL CONTROL) Continued
ALL CHILDREN—Program is designed to
be appropriate for children ages 2-6.
DIRECTED TO OLDER CHILDREN—
Program is designed for children 7 and
above. Material may include mild fantasy
violence (FV) or comedic violence.
GENERAL AUDIENCE—Program suitable
for all ages. Contain little or no violence, no
strong language or sexual dialogue or situa-
tions.
PARENTAL GUIDANCE SUGGESTED—
Program contains material that may be
unsuitable for younger children. Material
contains one or more for the following:
moderate violence (V), some sexual situa-
tions (S), infrequent coarse language (L), or
some suggestive dialogue (D).
PARENTS STRONGLY CAUTIONED—
Some material is unsuitable for children
under 14 years of age. Parents are strongly
urged to use caution against letting children
under age 14 watch unattended. Material
contains intense violence (V), intense
sexual situations (S), strong coarse
language (L), or intensely suggestive
dialogue (D).
MATURE AUDIENCE ONLY—Program is
designed to be viewed by adults and there-
fore may be unsuitable for children under
17 years of age.
TV RATINGS (AGE/CONTENT-BASED)
G GENERAL AUDIENCES—All ages admitted.
PG PARENTAL GUIDANCE SUGGESTED—Some
material may not be suitable for children.
PG-13 PARENTAL GUIDANCE CAUTIONED—Some
material may be inappropriate for children
under 13.
R RESTRICTED—Under 17 requires accompany-
ing parent or adult guardian
NC-17 NO ONE 17 AND UNDER ADMITTED
MPAA MOVIE RATINGS (AGE-BASED)
When codes are being transmitted and received, and
V-Guide is set to ON, the V-Chip blocks programming
according to the settings you choose.
44
1Press the MENU key to display the Main menu.
2Use the CURSOR  keys to highlight
Picture/Sound. Press ENTER.
3Use the CURSOR  keys to highlight Auto
(factory preset settings) or Manual. Press ENTER.
MENU OPTION—
PICTURE/SOUND
(CONTINUED ON NEXT PAGE.)
MANUAL ADJUSTMENTS
4Use the CURSOR  keys to select the option you
want to adjust.
5Then use the CURSOR < > keys to make an
adjustment.
45
MENU OPTION—
PICTURE/SOUND (Continued)
MANUAL ADJUSTMENTS (CONTINUED)
4Use the CURSOR  keys to select the option you
want to adjust.
5Then use the CURSOR < > keys to make an
adjustment.
No picture, sound
(Digital Picture)
Poor Picture/Sound
(watching Analog)
Weak Signal.
Check antenna/external
connections.
May be station trouble, NO signal
broadcast.
MUTE function may be on.
Check if program is in color.
Check antenna/external
connections.
Color or Tint misadjusted.
May be station trouble.
May be MUTE function is on.
Adjust antenna. Install booster
Press the RESET key to restart
channel search.
Try a different channel.
Adjust Volume.
Try a different channel.
Adjust antenna.
Press the RESET key to restart
channel search.
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
HELPFUL HINTS (PROBLEMS/SOLUTIONS)
46
MENU OPTION—
MENU LANGUAGE
1Press the MENU key to display the Main menu.
2Use the CURSOR  keys to highlight Menu
Language. Press ENTER.
3Use the CURSOR  keys to select English,
Español, or Français.
47
MENU OPTION—
ENERGY (POWER) SAVER
This power saving feature reduces the brightness level.
The power saving function options:
•OFF – the feature is off and the power consumption is
normal.
•LOW – power saving level is low and the brightness
level is lower than normal.
•HIGH – power saving level is high and the brightness is
set to the lowest level.
1Press the MENU key to display the Main menu.
2Use the CURSOR  keys to highlight Energy
Saver. Press ENTER.
3Use the CURSOR  keys to highlight
desired option.
48
MENU OPTION—
PICTURE ROTATION (SCREEN SAVER)
Displaying a still picture for a long time may cause an
“afterimage” or “ghost” on the screen. To neutralize this
situation, use the Picture Rotation function.
Note: When the Picture Rotation is set to ON, the DTV auto-
matically changes the display position every 15 minutes
to avoid afterimage.
1Press the MENU key to display the Main menu.
2Use the CURSOR  keys to highlight Picture
Rotation. Press ENTER.
3Use the CURSOR  keys to set Picture
Rotation Off or On.
49
MENU OPTION—
WHITE PAT TERN (PANEL REPAIR)
1Press the MENU key to display the Main menu.
2Use the CURSOR  keys to highlight White
Pattern. Press ENTER.
3Use the CURSOR  keys to set White
Pattern Off or On.
Use this feature to repair the Plasma
screen.
If an afterimage occurs, use the White Pattern
feature immediately to repair the panel. The more severe
the afterimage, the longer the curing process may take. It
may be impossible to repair all cases of afterimage burn.
The sooner you remove a still picture and activate White
Pattern, the more likely it is that the panel can be repaired.
Notes: Afterimage (or image burn) is not covered under
warranty.
When the White Pattern is activated the screen
will instantly turn completely white. The On time is
automatically set for 30 minutes.
Pressing any key except
Volume
,
Mute
, and
Audio
will cancel the curing process and return the
DTV to normal viewing.
50
GLOSSARY OF TERMS
Analog—Commonly refers to the current NTSC transmission
standard for televisions.
Aspect Ratio—The ratio of the width to the height of a TV screen
independent of the screen size (x units wide by x units high). Analog
is 4:3; Digital can be 4:3 or 16:9 (also called wide screen).
ATSC—Advanced Television Systems Committee
AV Jacks—Audio Video Jacks
Bandwidth—The range of frequencies assigned to a broadcast
channel. A TV channel is 6 MHz wide.
Component Jacks (Y Pb Pr)—Green, Blue, and Red video jacks
that accept 480i, 480p, 720p, and 1080i signals. By separating the
Green (Y), Blue (Pb), and Red (Pr) video signal components, clearer,
more-defined images that exceed the performance of S-Video and
Composite video jacks are achieved.
Composite Jacks—White, Red, and Yellow AV jacks. The White
and Red jacks carry the Left and Right audio signals while the
Yellow jack carries the composite video signal.
Dolby® Digital (Formally known as Dolby AC-3)—A 5.1 channel
(Front L/R, Rear L/R, Center, and Bass) surround sound audio
standard for digital television.
Downconverting—The removal of pixels. Frame rate and/or scan-
ning format may also change. Broadcasters may use this process to
make room in their bandwidth for additional services, such as,
sub-channels.
DTV (Digital Television)—Comprises four elements, HDTV,
EDTV, SDTV, and Multicasting.
DVI—Digital Visual Interface. A pure digital video interface that
can pass standard-definition and high-definition video signals. It
supports the HDCP copy protection standard, allowing transmission
of copy-protected digital content.
EDTV—Enhanced-Definition TV (480p)
HDMI—High-Definition Multimedia Interface. An all digital
audio/video interface that accepts uncompressed video signals for
the very best picture possible. It supports the HDCP copy protection
standard, allowing transmission of copy-protected digital content.
The signal can also include Dolby®Digital or PCM audio, when
available.
HDTV—High-Definition TV (720p, 1080i, & 1080p)
Input / Output Jacks—Used to receive (input) and send (output)
signals from one device to another. Such as, from a DVD player
(Output) to the TV (Input).
Interlaced Scanning—The process of scanning two fields of video
then combining (interlacing) them to make one frame of video (or
one complete image).
Letter Box—This term is used to describe a 16:9 ratio image being
displayed on a 4:3 ratio display device. Black bands appear at the top
and bottom of the screen.
MPEG2—A compression scheme for moving images and audio. It
was developed by the Motion Picture Experts Group. This makes
HDTV and multicasting possible.
Multicasting—The dividing of a station’s broadcast signal into sub-
channels of programming or data services. The resolution of the
main channel must be reduced to make room for sub-channels.
NTSC—National Television Systems Committee
Pillar Boxing—This term is used to describe a 4:3 ratio image being
displayed on a 16:9 ratio display device. Black bars (or pillars)
appear at the sides of the screen.
Pixel—Picture Element
Progressive Scanning—The process of scanning lines sequentially.
One scan produces one frame of video (or one complete image).
Set-Top Box (STB)—A device that receives and converts signals for
display on a television screen (can be digital or analog). Many digital
STBs have cable and over-the-air tuners.
SDTV—Standard-Definition TV (480i)
Signal—The picture, sound, and data transmitted or received
through the air to an antenna, over a Cable TV system, from a Satel-
lite to a dish and receiver, or between external components of an
Audio/Video system.
Simulcast—Simultaneously broadcasting the same program on two
or more channels. This is required by the FCC during the transition
from analog to digital. Simulcasting is scheduled to end and only
digital broadcasts will continue after February 17, 2009.
S-Video Jack—A round 4-pin jack that accepts separated luminance
and chroma signals from a DVD player, Super VHS VCR, or similar
analog device. The resolution of this input exceeds that of a com-
posite video input (yellow connector), but is lesser than the
resolution of component inputs (Y Pb Pr).
Terrestrial—An over-the-air broadcast to an antenna.
Upconverting—A process of converting original analog program-
ming to digital for DTV broadcasting. Pixels may be duplicated and
inserted between existing pixels to simulate HDTV. This does not
increase the resolution. The resolution of an image is set during the
recording process. It cannot be increased through conversion
processes.
Wide Screen—Used to describe a 16:9 or greater aspect ratio. 16:9
is the standard aspect ratio for HDTV digital displays. Movies
screens are often slightly wider.
51
1. What channel do I put my television on to watch a DVD
player?
To determine where the DVD player is connected, turn the DVD
player and TV on and set the TV on channel 3. Then press the
INPUT key on the remote control to scroll through the signal
inputs to locate the DVD player startup screen.
2. I am not receiving all of my VHF and UHF channels or cable
channels?
Make sure an antenna or your cable service is connected to
the “ANT” Terminal. If there is a VCR connected, make sure it
is turned off. Press the RESET key on the remote two times to
begin an automatic channel search.
3. How do you turn the caption on and off?
To turn captioning on or off, press and release the CAPTION
key on the remote until the desired caption mode appears (CC1
and Digital CC1 are used most commonly).
4. I’m connected to a satellite system. How do I get my
television to go to channel 73?
Turn on the satellite receiver then press the RESET key on the
remote twice to begin a channel search. If after the search no
satellite channels appear. Tune the TV to channel 3. Press the
MENU key on the remote and select “Analog Antenna
Signal.” Use the CURSOR keys to select CABLE. Press the
EXIT key, then press in channel 73.
5. How do I get a full picture on the screen?
If you are connected to a Cable box or Satellite receiver, bring
up the box menus and select 16.9 as the screen aspect ratio.
Then press the PIX SHAPE key on the television remote
control for the desired screen shape.
6. Is my remote universal?
No, this remote control is designed to operate a Sanyo
television only.
7. When I do a channel search some of my digital channels
disappear. What is wrong?
Many digital stations are not on-the-air 24 hours a day. After
doing the initial channel search, always use the menu system
to perform a “Digital Add-on Search” to add new digital chan-
nels, so that stations not on-the-air during the search will not
be erased.
8. There is no picture, sound is ok?
Check appropriate video connection to make sure it corre-
sponds to the audio connection being used. If the sound is
associated with component jacks on a DVD player, it may be
necessary to access the DVD menu to select the component
outputs or S-Video output.
9. There is no sound, picture is clear?
If you are connecting your television through the Composite
jacks (Video1), S-Video jack (Video1), or Component jacks
(Video2 or Video3) the matching audio jacks must also be
connected.
10. The picture is not as clear as it should be. Am I using the
best quality connection?
Picture quality is classified as follows:
Analog RF signal (off-air or cable) . . . . . . . . . . . . . . . . Basic
Video1 (Composite – yellow) . . . . . . . . . . . . . . . . . . . . . Good
Video1 (S-Video) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Better
Video2 (Component – green, blue, red) . . . . . . Exceptional
Video3 (Component – green, blue, red) . . . . . . Exceptional
Digital RF (off-air, when the signal is HD) . . . . . . . Ultimate
HDMI 1 / 2 / 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ultimate
11. How do I register my television warranty?
No registration is necessary, just hold on to your sales receipt.
We will warranty the television from the date on the receipt.
12. Where is the code for a Sanyo television to program into
my universal remote?
You must obtain the code from the manufacturer of the remote
control you want to program. Refer to the remote’s owner’s
manual.
13. When I adjust the volume on the television why does the
volume level on the surround sound system remain steady?
The audio output jacks are set to a fixed level and do not vary
with the television volume. The volume control on the surround
sound system must be used.
14. My digital channel number doesn’t match the station
number.
On some digital channels the channel number displayed on the
television will be different than the channel ID number. This is
determined by the digital package broadcasted from the local
station through the digital signal.
15. What is the recommended method for cleaning the cabinet
and screen?
The screen is likely to be damaged if it is
not maintained properly. Do not use hard
objects such as hard cloth or paper. Do
not use excessive pressure when clean-
ing the screen; excessive pressure can
cause permanent discoloration or dark
spots.
NEVER spray liquids on the screen.
FREQUENTLY ASKED QUESTIONS (FAQ)
For your protection in the event of theft or loss of this product, please fill in the information requested below and KEEP IN A SAFE
PLACE FOR YOUR OWN PERSONAL RECORDS.
Model No.______________________________ Date of Purchase _________________________
Serial No.______________________________ Purchase Price ___________________________
Where Purchased_________________________
(Located on back of unit)
AS
Sanyo Manufacturing Corp.
3333 Sanyo Road, Forrest City, AR 72335
ONE-YEAR LIMITED PARTS AND LABOR WARRANTY
THIS LIMITED PARTS AND LABOR WARRANTY IS VALID ONLY ON SANYO TELEVISIONS PURCHASED AND
USED IN THE UNITED STATES OF AMERICA, CANADA, AND PUERTO RICO, EXCLUDING ALL OTHER U.S.
TERRITORIES AND PROTECTORATES. THIS LIMITED WARRANTY APPLIES ONLY TO THE ORIGINAL RETAIL
PURCHASER, AND DOES NOT APPLY TO PRODUCTS USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES.
WARRANTY APPLICATION
FOR ONE YEAR from the date of original retail purchase Sanyo Manufacturing Corporation (SMC) warrants
this TV to be free from manufacturing defects in materials and workmanship under normal use and
conditions for parts and labor.
For the FIRST 90 DAYS from the date of original retail purchase, Sanyo Manufacturing Corporation will
replace any defective TV via exchange at the retailer. To ensure proper warranty application, keep the
original-dated-sales receipt for evidence of purchase. Return the defective TV to the retailer along with
the receipt and the included accessories, such as the remote control. The defective TV will be
exchanged for the same model, or a replacement model of equal value, if necessary. Replacement model
will be contingent on availability and at the sole discretion of Sanyo Manufacturing Corporation.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
OBLIGATIONS
For one year from the date of purchase, Sanyo Manufacturing Corporation warrants this product to be free
from defects in material and workmanship under normal use and conditions. During the first 90 days under
this warranty for any manufacturing defect or malfunction Sanyo Manufacturing Corporation will provide
a new TV via exchange at the retailer.
HOW TO MAKE A CLAIM UNDER THIS WARRANTY
Please call 1-800-877-5032. Please be prepared to give us the television’s model number and serial number
when you call. The model number and serial number are printed on a label attached to the back of the unit.
For customer assistance, call toll free 1-800-877-5032.
Weekdays 7:30 AM – 7:00 PM Central Time
Saturday 7:30 AM – 4:00 PM Central Time
This warranty expresses specific contractual rights; retail purchasers may have additional statutory rights
which vary from state to state.
(EFFECTIVE: March 1, 2007)

Navigation menu
