REMOTE CONTROL

COLOR TV/MONITOR

ST-21XS2S

ST-21YS2S

ST-21YS2BS

ST-21YS22

ST-21YS22B

ST-21KS2

ST-21KS2K

ST-21KS22

ST-21KS22K

ST-21SF1

ST-21SF1K

ST-21VF1S

ST-21VF1KS

ST-21MS22

ST-21MS22T

ST-21MS22B

OWNER’S MANUAL

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 1

UNPACKING

Treat the TV as a precise piece of equipment that requires careful handling. Keep the shipping

carton until you are sure the TV has not been damaged. Report any damage to the place of

purchase.

Check to find the following items:

♦Remote Control

♦Two AA Batteries

Safety Precautions

Do not squash power supply cord under the

television receiver.

No objects filled with liquids such as vases, shall

be placed on this appliance. Do not drop or push

objects into the television cabinet slots or

openings.

To prevent electrical shock, do not remove the

back cover. This unit is fully transistorized and

does not contain user-serviceable components.

Report any problems to qualified service

personnel.

To reduce the risk of fire or electrical shock, do

not expose this appliance to rain or other

moisture

When playing TV video games, do not use

intense brightness and/or contrast settings over

an extended period of time. This may leave a

permanent image of the playing field on the

picture screen.

Please read and keep these instructions.

Avoid exposing the television receiver to direct

sunlight and other source of the heat. Do not

stand the television receiver directly on other

products which give off heat. E.g. video cassette

players, audio amplifiers.

Do not place this product on an unstable cart,

stand, tripod, bracket, or table. The product may

fall, causing serious personal injury and serious

damage to the product.

Even if your TV is turn off and the power cord is

plugged in, there is still connection to the AC

power source (mains). Unplug the TV set before

moving it or if you are not going to use it for

several days.

If the television is to be built into a compartment

or similarly enclosed, the minimum distances

must be maintained. Heat build-up can reduce

the service life of your television, and can also be

dangerous.

5cm

10cm

20cm

Do not block the ventilation

holes in the back cover.

Adequate ventilation is

essential to prevent failure of

electrical components.

No naked flame sources, such

as lighted candles, should be

placed on the apparatus.

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 2

CONTENTS

DESCRIPTION

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Front Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

Operating Control Functions . . . . . . . . . . . . . . . . . . . . . . . . . 7

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

SETUP

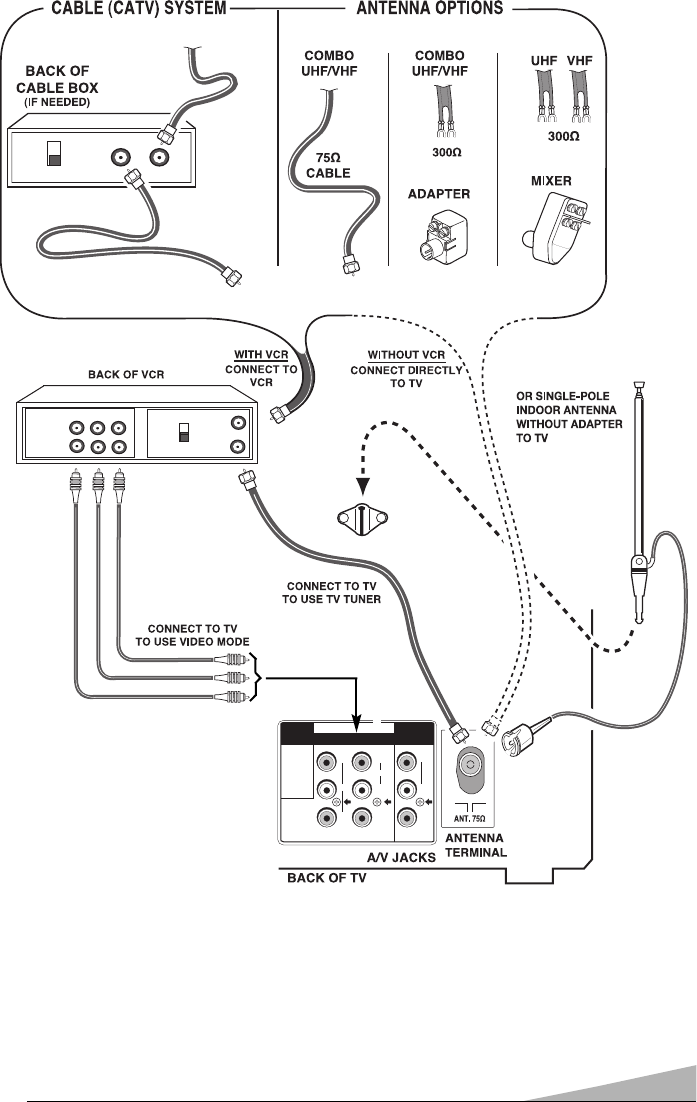

Connecting the Antenna or Cable . . . . . . . . . . . . . . . . . . 10-11

Plug in the Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

OPERATION

Turn On the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Plug & Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

On-Screen Menu System . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Channel Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Setting the Antenna Mode . . . . . . . . . . . . . . . . . . . . . . . . 14

Resetting Channel Search. . . . . . . . . . . . . . . . . . . . . . . . 14

Skipping Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Picture Adjustment Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Picture Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Audio Adjustment Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Audio Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Selecting the Picture Mode . . . . . . . . . . . . . . . . . . . . . . . . . 18

Timer Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-20

Setting of the Private Position . . . . . . . . . . . . . . . . . . . . . 21-22

Checking the Channel Number, Off-Time or On-Timer . . . . . . 22

Selecting the Colour System in AV Mode . . . . . . . . . . . . . . . 23

Resetting the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the Audio/Video Input Jacks . . . . . . . . . . . . . . . . . . . . 24

Using the DVD Inputs Jacks . . . . . . . . . . . . . . . . . . . . . . . . 25

Using the Audio/Video Output Jacks . . . . . . . . . . . . . . . . . . . 26

Helpful Hints – Problems/Solutions . . . . . . . . . . . . . . . . . . 37

Authorized SANYO Service Centers . . . . . . . . . . . . . . . . . . . 28

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 3

❏181-channel frequency synthesizer tuner

❏Cable ready

❏Plug & Play (Automatic Setting Up Channels)

❏Automatic channel search with manual skip

❏Digital picture controls with on-screen display

❏Picture mode (Personal/Dynamic/Natural/Eco/Game) Selection

❏Audio/Video inputs

❏Monitor output

❏On/Off timers

❏Channel recall

❏Mute key

❏Automatic power shut-off

FEATURES

CARE AND CLEANING

The surface of the cabinet can be damaged if not properly maintained. Many common

household aerosol sprays, cleaning agents, solvents and polishes will cause permanent

damage to the fine surface.

1. Unplug the power cord before cleaning the Television.

2. Clean the screen with a soft cloth dampened with glass cleaner or warm water.

3. Clean the cabinet with a soft cloth dampened with a mild household detergent and

warm water. Dry thoroughly.

Note: NEVER spray liquids on the screen because they can run down and drip onto

the chassis. This may cause component failure not covered under Warranty.

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 4

Remote Control Transmitter

Numbered Channel Selection,

Channel Scanning Up/Down,

Volume Up/Down, Mute, Power,

Recall, Display, Sleep, Menu,

Image, Surround, TV/AV.

Power Requirement:

127

240 V AC, 50/60 Hz

Dimensions (WxHxD)

Model ST-21XS2S:

654 mm x 467 mm x 335 mm

(25.8 in x 18.4 in x 13.2 in)

Model ST-21YS2/S/BS:

598 mm x 465 mm x 396 mm

(23.5 in x 18.3 in x 15.6 in)

Model ST-21YS22/B:

598 mm x 465 mm x 328 mm

(23.5 in x 18.3 in x 12.9 in)

Model ST-21KS2/K, ST-21KS22/K:

580 mm x 465 mm x 326 mm

(22.8 in x 18.3 in x 12.8 in)

Model ST-21SF1/K:

570 mm x 460 mm x 465 mm

(22.4 in x 18.1 in x 18.3 in)

Model ST-21VF1/S/KS:

580 mm x 460 mm x 468 mm

(22.8 in x 18.1 in x 18.4 in)

Model ST-21MS22/T/B:

580 mm x 465 mm x 328 mm

(22.8 in x 18.3 in x 12.9 in)

Weight (Approximate)

Model ST-21XS2S:

19.6Kg (43.2 Lb)

Model ST-21YS2/S/BS:

20.1Kg (44.3 Lb)

Model ST-21KS2/K:

19.7Kg (43.4 Lb)

Model ST-21SF1/K:

19.8Kg (43.6 Lb)

Model ST-21VF1/S/KS:

20.5Kg (45.2 Lb)

Model ST-21YS22/B:

18.0Kg (39.6 Lb)

Model ST-21MS22/T/B, ST-21KS22/K

17.9Kg (39.4 Lb)

♦Designs and specifications are subject to change without notice.

SPECIFICATIONS

Picture Tube Size

(measured diagonally)

All Models:

(21-inch) – 510 mm viewing screen

Television System: NTSC

181 Channel Tuning System:

VHF Channels 2-13

UHF Channels 14-69

Cable TV (CATV) 1,14 -125

Automatic Fine Tuning on

VHF and Cable Channels

Speakers:

Model ST-21YS2/S/BS, ST-21KS2/K,

ST-21SF1/K, ST-21VF1/S/KS,

ST-21YS22/B, ST-21KS22/K,

ST-21MS22/T/B:

5 x 9 cm, 2 pcs.

Model ST-21XS2S:

5 x 9 cm, 2 pcs.

Sound output:

Model ST-21XS2S:

10 W + 10 W (RMS)

Model ST-21YS2/S/BS, ST-21KS2/K,

ST-21SF1/K, ST-21VF1/S/KS,

ST-21YS22/B, ST-21KS22/K,

ST-21MS22/T/B:

5.0 W + 5.0 W (RMS)

Antenna Input:

VHF/UHF/CATV 75 ohms

Unbalanced

A/V Input Jacks:

Model ST-21XS2S, ST-21YS2/S/BS,

ST-21KS2/K, ST-21VF1/S/KS,

ST-ST-21YS22/B, ST-21KS22/K,

ST-21MS22/T/B:

♦Video Input (2)

♦DVD Input (Y, CB, CR) (1)

♦Audio Input (R/L-2)

... (RCA Connectors)

Model ST-21SF1/K:

♦Video Input (1)

♦DVD Input (Y, CB, CR) (1)

♦Audio Input (R/L-1)

... (RCA Connectors)

Monitor Output Jacks:

Video Output (1)

Audio Output (R/L-1)

... (RCA Connectors)

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 5

TV/AV

POWER

- +

FRONT CONTROL PANEL

Model ST-21XS2S

VIDEO

TV/AV MENU - + CH

L-AUDIO-R

Press to open

Model ST-21YS2S, ST-21YS2BS, ST-21YS22, ST-21YS22B

VIDEO

AV2 IN

TV/AV MENU - + CH

L-AUDIO-R

Press to open

TV/AV

POWER

- +

Model ST-21KS2, ST-21KS2K, ST-21KS22, ST-21KS22K

AUDIO

VIDEO

Pull to open

Model ST-21SF1, ST-21SF1K

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 6

1. MAIN POWER Switch

Press to turn on the TV. Then the

power indicator lights and the TV is

ready for remote operation.

2. Remote Sensor

Receives the infrared control signals

from the hand held remote control

unit. Point the remote control toward

here.

3. POWER Indicator

4. CHANNEL Scanning ▼/▲Keys

Press ▼(down) or ▲(up) to scan

through the channels in memory.

5. VOLUME –/+ Keys

Press to adjust the volume level. The

volume level indicator will appear on

the screen.

6. MENU Key

Use this key along with the Channel

▼/▲keys and the VOLUME – / +

keys to adjust the features in the on-

screen menu.

7. TV/AV Key

Press to select the program mode: TV

or AV1

or AV1(DVD)

or AV2.

Note: In model ST-21SF1 / ST-

21SF1K This button used to select

mode: T

TVor AAV1 or AV1(DVD).

8. Front AUDIO/VIDEO INPUT Jacks

Connect to the audio/video output

jacks of your external video

equipment (such as camcorder or

VCR, etc.) to these jacks.

(See page 24-26.)

Note: Model ST-21SF1 / ST-21SF1K

is not equipped with Front AV2 input

terminal.

OPERATING CONTROL FUNCTIONS

VOLUME 40

BASS EXPANDER ON

FRONT CONTROL PANEL

Model ST-21VF1S, ST-21VF1KS

TV/AV

POWER

- +

L-AUDIO-R

VIDEO

Model ST-21MS22, ST-21MS22T, ST-21MS22B

VIDEO TV/AV MENU - + CH

L-AUDIO-R

Press to open

7 4

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 7

REMOTE CONTROL

The remote control uses an invisible (infrared) light beam to operate the TV. Objects

between the TV and the remote can block this light beam. Therefore, for correct

operation the remote control must be pointed directly at the front of the TV with no

obstructions.

INSTALLING BATTERIES

The remote control requires two “AA”

batteries (supplied).

•Remove the battery compartment

cover.

•Install batteries to match the “+” and

“–” marks inside case. Incorrectly

installed batteries can damage the

remote control.

•Replace the battery cover.

Remove the batteries if the remote

control will not be used for a month or

more. Weak batteries may leak and

cause damage. (Normal battery life is

roughly six months.)

JXMRL

1--

TV/AV POWER

RECALL DISPLAY IMAGE

VOL VOL

MUTE

SLEEPV-GUIDE

RESET SURROUND

Point at the Front of TV

Battery Cover

Do not expose batteries (battery pack

or batteries installed) to excessive heat

such as sunshine, fire or the like.

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 8

REMOTE CONTROL KEYS OPERATION

1. DISPLAY Key

Press once to display the channel

number, off-time, on-timer or on-

channel number by on-timer on the

screen for 5 seconds

Press again to remove the display.

(See page 22.)

This button also used to select the

Colour System in AV Mode (See

page 23.)

2. POWER Key

Press to turn the TV On and Off.

While the power indicator lights, the

remote operation is available.

3. IMAGE Key

Press to select the picture mode:

PERSONAL, DYNAMIC,

NATURAL, ECO

or GAME. (See

page 18.)

4. MENU Key

Use this key with the ▲/▼and –/+

keys to adjust the features of the on-

screen menu system.

(See pages 13-17.)

5. CHANNEL SCANNING (▲/▼) Keys

Press ▲(up) or ▼(down) to scan

through the channels in memory.

6. MUTE Key

Press once to turn off volume.

Press again to restore volume.

7. SURROUND Key

Press this key to get surround sound.

8. TV/AV Key

Press to select the program mode:

TV or AV1

or AV1(DVD)

or AV2.

(See pages 24-26.)

Note: In model ST-21SF1, ST-21SF1K

This button used to select mode: T

or AAV1 or AV1(DVD).

9. RECALL Key

Use this key to recall the last

selected channel.

10. NUMBER Keys

Press to directly select channels.

Two keys must be pressed.

For channels 1 through 9, press “0”

first, then the number.

For channels 10 through 99, press

the two numbers in sequence.

For channels 100 through 125,

press “1--” key to display C 1 –

–,

then press the other two numbers in

sequence.

11. VOLUME –/+ Keys

Press to adjust the volume level. The

volume indicator will appear on the

screen.

12. V-GUIDE Key

This key could not be operated.

13. RESET Key

Press this key to reset the TV to

factory settings. (See page 23.)

14. SLEEP Key

Use this key to set off-timer, on timer,

on-channel number by on-timer. (See

page 19-20.)

VOLUME 40

BASS EXPANDER ON

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 9

CONNECTING THE ANTENNA OR CABLE

To obtain the best possible picture, use a quality antenna system. Inspect your antenna

system for loose connections, broken wires, cracked insulation or other potential

problems. These conditions can cause poor reception.

AUTOMATIC POWER SHUT-OFF

The TV will switch off automatically after 10 minutes if a signal is not being received.

(This feature is not active while the AV mode is selected.)

CONNECT YOUR ANTENNA OR CABLE

Identify the type of antenna and antenna wire you have, then follow the diagram shown

on page 11.

VCR CONNECTION

The antenna signal must be connected to your VCR antenna input. With connect the

VCR output to the television. Refer to the VCR owner’s manual for details.

Note: The VCR can be connected to your TV using the A/V jacks.

(See pages 11, 24-26 for Using the Audio Video Jacks.)

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 10

OUT

CH3

CH4

OUT

INPUT

OUTPUT

A/V JACKS

CH3

CH4

MONITOR OUT

AV1/DVD

(MONO)

VIDEO

INPUT

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 11

PLUG IN THE POWER CORD

Plug the power cord into a convenient wall outlet that has standard house power of

230 volts ac, 50/60 Hz.

CAUTION: To prevent electric shock,

insert the AC PLUG fully into the outlet.

Note: As a safety precaution, unplug or turn

off the TV with the MAIN POWER

switch on the TV front panel when you

plan to be away for an extended

period of time.

TURN ON THE TV

Press the POWER key.

Note: The TV will switch off automatically after 10 minutes if a signal is not being

received. (This feature is not active while the A

AVmode is selected.)

AC PLUG

PLUG & PLAY (Automatic setting up channels)

This TV set provides a self-automatic tuning and sorting system function called “Plug &

Play”. It automatically begins searching and storing of all available channels when

switching-on the TV set for the first time.

2Press any of the control buttons to make the ending message disappear.

(Or will automatically return to normal TV display after 10 seconds.)

This procedure only appears at the first switch-on time.

■If no TV stations are found, the display shown below will appear. Please check if

the antenna is connected properly.

1Connect power cord of the TV set to a wall outlet, and turn on the TV set by

pressing the Mains ON/OFF button. Self-automatic tuning system will be started.

After completing this procedure, the lowest available programme position is selected and

the ending messages on the screen.

Note: The Plug & Play can be cancelled at any time by pressing the MENU button.

Let’s start !

NO STATION.

PLEASE CONNECT

ANTENNA PLUG.

If it isn’t connected properly, connect

antenna and Automatic Tuning will be reset.

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 12

ON-SCREEN MENU SYSTEM

The system has 3 different modes:

PICTURE — COLOR, BRIGHTNESS,

CONTRAST, TINT, SHARPNESS and

WHITE TONE

AUDIO — BASS, TREBLE, BALANCE,

BASS EXPANDER ON/OFF and

SURROUND ON/OFF.

PRESET — ANTENNA, SEARCH,

CHANNEL, SKIP and MEMORY

The On-Screen Menu System allows the viewer to program television features to their

personal preference. Adjustments can be made by using the keys either on the TV front

panel (see pages 6 and 7) or on the remote control (see pages 8 and 9). Read this

page for information on selecting menus.

GENERAL OPERATION

To open the Main Menu, press MENU on the remote control or on the TV front panel.

You will notice that PICTURE is in yellow and is indicated by the blue background. The

blue background let you know which mode you have selected. To select another mode,

use the CHANNEL ▲(up) or CHANNEL ▼(down) key.

After making your selection, press the VOLUME – or VOLUME + key to enter to each

adjustment menu. Now use the VOLUME – or VOLUME + key to make adjustments to

your selection.

If you wait too long to make selection, the menu will disappear (usually after 15

seconds). Just press MENU twice to return to where you were. Now you can finish your

selections.

Once you have completed your selections and you want to clear the menu from the

screen, press MENU or wait for about 15 seconds.

Main Menu

AUDIO

PRESET

SELECT ADJUST

EXIT


OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 13

SETTING THE ANTENNA MODE

1Press MENU. The Main Menu will

appear. (See page 13.)

2Press the CHANNEL ▲(up) or ▼

(down) key to select PRESET;

then press the VOLUME + or – key.

3Press the CHANNEL ▲(up) or ▼

(down) key to select ANTENNA.

4Use the VOLUME + or – key to select

VHF/UHF or CABLE.

Select either VHF/UHF (VHF channels

2-13 and UHF channels 14-69), or

CABLE (channels 1-125). The Cable

indicator Cappears with the channel

number. (For example: C 34.)

Your TV can receive 181 channels: Off-Air VHF 2-13 and UHF 14-69 or Cable 1-125.

The available channels are stored in the channel scanning memory in this TV.

Make sure that your antenna is connected to the TV before setting the Antenna Mode

or resetting the Channel Search.

CHANNEL SETUP MENU

Select Antenna mode

1Press MENU. The Main Menu will

appear. (See page 13.)

2Press the CHANNEL ▲(up) or ▼

(down) key to select CHANNEL;

then press the VOLUME + or – key.

3Press the CHANNEL ▲(up) or

▼(down) key to select SEARCH.

4Use the VOLUME + or – key to select

START.

The TV will begin searching through the

channels. After the search is completed,

the lowest available channel will be

selected.

RESETTING CHANNEL SEARCH

You can automatically program the tuning system of this TV to scan only the channels

available in your area. Then when you press one of the CHANNEL SCANNING (▲/▼)

keys, the TV will select only those channels.

Note: If additional channels become available (you move to another city or cable is

installed), perform another channel search.

Starting automatic channel search

Select CHANNEL and press VOLUME

+ or -

➧

AUDIO


PRESET

SKIP

CHANNEL

START

(C34)

OFF

MEMORY

SELECT ADJUST

EXIT

ANTENNA VHF/UHF (CABLE)

SKIP

CHANNEL 02

OFF

MEMORY

ANTENNA VHF/UHF

SEARCH START

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 14

When there is a channel you do not use,

Channel 4 for example, by setting the

SKIP Channel function it is possible to

jump over this channel, when you are

selecting a channel using the CHANNEL

▲(up) or ▼(down) key.

For example, to set channel “4” as

Skip channel ;

1Press MENU. The Main Menu will

appear. (See page 13.)

2Press the CHANNEL ▲(up) or ▼

(down) key to select PRESET,

then press the VOLUME + or –key.

3Press the CHANNEL ▲(up) or ▼

(down) key to select CHANNEL.

4Select channel that you want to skip

with the VOLUME + or

key, (for this

example is channel “4”).

For cable channels above 99, press

and hold the 1key until C1 – –

appears. Then press the other two

digits.

5Select SKIP by pressing the

CHANNEL ▲(up) or ▼(down) key.

6Press the VOLUME + or

key to set

SKIP to ON. To cancel Skip Channel

function, set to OFF.

7Select MEMORY by pressing the

CHANNEL ▲(up) or ▼(down) key.

8Press the VOLUME + or

key to

memorize.

9Press MENU key to exit.

➧

Select CHANNEL that you want to SKIP

➧

Select SKIP by pressing CHANNEL ▲

(up) or ▼(down) key

Press Volume + or – key to memorize

➧

SKIP OFF

MEMORY

ANTENNA VHF/UHF

SEARCH START

CHANNEL 02

SKIP OFF

MEMORY

ANTENNA VHF/UHF

SEARCH START

CHANNEL 04

MEMORY

ANTENNA VHF/UHF

SEARCH START

CHANNEL 04

SKIP ON (OFF)

SKIP ON

MEMORY --

ANTENNA VHF/UHF

SEARCH START

CHANNEL 04

➧

Select MEMORY by pressing

CHANNEL ▲(up) or ▼(down) key

SKIP ON

MEMORY OK

ANTENNA VHF/UHF

SEARCH START

CHANNEL 04

SKIPPING CHANNELS

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 15

PICTURE ADJUSTMENTS – KEY + KEY

COLOR Adjusts color intensity Lighter Deeper

BRIGHTNESS Adjusts picture brightness Darker Brighter

CONTRAST Adjusts picture contrast Lighter Deeper

TINT Adjusts color tints Reddish Greenish

SHARPNESS Adjusts picture detail Softer Crisper

WHITE TONE Adjusts white balance Reddish Bluish

This feature is used to adjust the color, brightness, contrast, tint, sharpness and white

tone to your personal preferences.

PICTURE ADJUSTMENTS

1Press MENU. The Main Menu will

appear. (See page 13.)

2Press the CHANNEL ▲(up) or ▼

(down) key to select PICTURE.

3Press VOLUME + or –key.

The Manual Adjustment menu will

appear.

4Press the CHANNEL ▲(up) or ▼

(down) key to select the control you

want to adjust.

5Use the VOLUME + or –key to

adjust the control.

Use the chart below as a guide when you

make adjustments.

6Press MENU key to exit.

PICTURE ADJUSTMENT MENU

➧

Picture adjustment menu

Select PICTURE and press Menu

AUDIO

PRESET

SELECT ADJUST

EXIT


BRIGHTNESS

TINT

CONTRAST

SHARPNESS

WHITE TONE

SELECT ADJUST

EXIT

COLOUR

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 16

AUDIO ADJUSTMENTS

1Press MENU. The Main Menu will

appear. (See page 13.)

2Press the CHANNEL ▲(up) or ▼

(down) key to select AUDIO.

3Press VOLUME + or –key. The

Audio Adjustment menu will appear.

4Press the CHANNEL ▲(up) or ▼

(down) key to select the control you

want to adjust.

5Use the VOLUME + or –key to make

adjustments.

6Press MENU key to exit.

Select AUDIO

➧

Audio adjustment menu in TV mode

This feature uses the on-screen menu system to adjust the audio controls: Bass,

Treble, Balance, Bass Expander on or off, Surround on or off and Stereo stereo or

mono (this feature available in AV mode only).

AUDIO ADJUSTMENT MENU

SELECT ADJUST

EXIT


PRESET

AUDIO

TREBLE

BASS EXPANDER

BALANCE

SURROUND

OFF

SELECT ADJUST

EXIT

BASS

(ON)

Audio adjustment menu in AV mode

TREBLE

BASS EXPANDER

BALANCE

SURROUND

OFF

SELECT ADJUST

EXIT

BASS

STEREO STEREO

(ON)

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 17

SELECTING THE PICTURE MODE

●Press the IMAGE key on the remote

control to select the picture mode:

PERSONAL, DYNAMIC, NATURAL,

ECO

or GAME.

Use the chart below as a guide when you

select the picture mode.

●Press the IMAGE key once to check

the picture mode.

PICTURE MODE Picture Adjustment Settings

PERSONAL for your preference as adjusted with Picture adjustment

menu.

DYNAMIC for high color, contrast and brightness picture settings

suitable for viewing

an ordinary TV program in a brightly lit room.

NATURAL for normal viewing with factory settings.

ECO for low color, contrast and brightness picture settings

suitable for viewing

movies in a dimly lit room.

This mode is economical of the TV power consumption.

GAME This mode is gentle on the eyes. Perfect for TV game due

to subdued color and soft contrast.

Note: If, while DDYNAMIC, NNATURAL,EECO or GGAME mode is selected, the Color,

Brightness, Contrast, Sharpness, Tint or White tone control is readjusted by using

the Picture Adjustment menu, the picture mode will automatically change to

PERSONAL.

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 18

TIMER SETTING

OFF TIMER SETTING

The OFF Timer will switch off the TV automatically. Use your remote control to set the

Off Timer.

1Press the SLEEP key until the desired

time delay appears.

2Press the VOLUME + or -key to

select the time period.

CANCELLING THE SLEEP TIMER

●Press the SLEEP key, then select

OFF:0:00 by pressing VOLUME + or

-key.

Note:

●

Press the SLEEP key once to check

the remaining time.

●

Just one minute before switching off

the TV, OOFF 0:01 will be display on

the screen.

●

The OFF TIMER cancels when the TV

set is turned off or if a power failure

occurs.

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 19

ON TIMER SETTING

When the ON TIMER is set. TV will automatically be switched on to the selected

Channel number when the specified time has elapsed.

1Press the SLEEP key twice.

2Press the VOLUME + or -key to

select the time period. The set time will

be increased or decreased by 10

minutes each time when the VOLUME

+or -key is pressed ; the maximum

time which can be set is 24 hours.

3Use Number key function to insert

Channel number for when the TV set

is switched on by ON TIMER. (see

page 9.)

Note:

●

If no operation is performed after the

TV has been switched on by the ON

TIMER, such as if you are not at

home, the TV will be automatically

switched off after approximately

2 hours

●

If the TV is already switched on when

the time set for the ON TIMER has

been reached, only the Channel

number will be changed to the set

Channel number.

●

Cancelling ON TIMER. To cancel the

ON TIMER, press the VOLUME + or -

key to set it to O

ON 0:00 while the ON

TIMER screen is shown. Switching off

the TV by pressing the Mains Power

Switch will also cancel the ON TIMER

settings.

Channel number for when TV is

switched on by ON TIMER.

(ON TIMER Setting Mode)

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 20

Private position is used to restrict of channel positions that you do not want others

to watch. Any position can be set as the Private position.

SETTING OF THE PRIVATE POSITION

HOW TO SET PRIVATE

POSITION

For example, to set the channel “15” as

the private position.

1Select channel “15”.

2Press and hold the DISPLAY key for

more than 2 seconds.

3Press MENU key.

4The picture will disappear, and “

15” will be display on the screen.

The private position setting is now

completed.

➧

Press and hold DISPLAY key

➧

Press MENU key to active it

TO VIEW A CHANNEL ON

PRIVATE POSITION

1Select private position (In this case

channel “15”).

2Press and hold the DISPLAY key for

more than 2 seconds.

3Press the DISPLAY key once again

for watching a TV programme.

➧

Press and hold DISPLAY key

➧

Press DISPLAY key to watch it

Note: The position “15” is still in the private

position.

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 21

The private position is now cancelled.

CANCELLING THE PRIVATE

POSITION

1Select private position (In this case

channel “15”).

2Press and hold the DISPLAY key for

more than 2 seconds.

3Press the MENU key once again for

watching a TV programme.

➧

Press and hold DISPLAY key

➧

Press MENU key to watch it

To check the channel number, time or sleep timer, press the DISPLAY key on the

remote control. Press the DISPLAY key once for about 5 second display. Press the

DISPLAY key again to clear the screen.

CHECKING THE CHANNEL NUMBER, OFF-TIMER

OR ON-TIMER

Off 5 Second Display

OOFF

FFFF

00::

::33

3300

OONN

00::

::22

2200

#11

1111

OOFF

FFFF

00::

::33

3300

**SS

SSTT

TTEE

EERR

RREE

EEOO

OONN

00::

::22

2200

#11

1111

AV1

TV Mode

Video Mode

* The Colour System appear in AV mode only (AUTO, PAL, NTSC, NTSC4.43). Press

the DISPLAY key repeatedly select a suitable colour system in AV Mode (see page 23).

# Channel number for when TV is switched on by ON TIMER.

** Select “STEREO

or MONO” channel of the audio channel in the TV set with the

AUDIO menu setting in AV mode.

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 22

SELECTING THE COLOUR SYSTEM IN AV MODE

AV1

Depending on the type of video tape or

connected AV equipment being used, it

may be necessary to select colour system.

In this case, press the DISPLAY key and

select a suitable colour system.

Each time the DISPLAY key is pressed,

colour system is changed as follow;

RESETTING THE TV

This feature automatically resets the television to factory settings. If your adjustments

have been changed or your personal preferences are not satisfactory, just press

RESET key on the remote control twice. This feature will automatically reset:

●Video Mode to TV

●Antenna Mode to VHF/UHF

●Channel Memory (Clear all channels)

●Picture Adjustments in PERSONAL

mode: Color, Contrast, Brightness,

Sharpness and Tint to factory settings

●Clock and On/Off/Sleep Timers (Clear)

●Plug & Play (Returned to the state

where it does not perform.)

If desired, personal settings can be made

again using the menu options.

PPRR

RREE

EESS

SSSS

RREE

EESS

SSEE

EETT

KKEE

EEYY

AAGG

GGAA

AAII

IINN

TTOO

RREE

EETT

TTUU

UURR

RRNN

FFAA

AACC

CCTT

TTOO

OORR

RRYY

YYPP

PPRR

RREE

EESS

SSEE

EETT

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 23

ANTENNA

TERMINAL

BACK OF TV

CABLE

A/V JACKS

FRONT AV JACKS

BACK OF VCR

OUT

OUTPUT CH3

CH4

R–AUDIO–L VIDEO

S-VIDEO

BCR

ANT. 75Ω

MONITOR OUT

AV1/DVD

(MONO)

VIDEO

INPUT

CAMCORDER

■To watch video input picture, select AV1

position by pressing the TV/AV key.

AV1

■To watch video

input picture,

select AV2

position by

pressing the

TV/AV key.

AV2

Note: Model ST-21SF1 / ST-21SF1K is not

equipped with Front AV2 input terminal

USING THE AUDIO/VIDEO INPUT JACKS

You can connect your VCR, camcorder, video game, stereo system, etc. directly to the

TV using the Audio and Video jacks. Be sure to switch off TV and external equipment

before connecting cables. Make sure all cable connectors are fully seated on the jacks to

avoid possible signal loss and audio hum. (Cables are not supplied.)

CONNECTING AUDIO VIDEO INPUT JACKS

•Connect the video output from the external equipment to the TV’s video input jack.

•Stereo (R/L) audio: Connect the right and left audio output from the external equipment to

the TV’s right and left audio input jacks.Then select “STEREO” channel of the audio

channel in the TV set with the AUDIO menu setting in AV mode.

If the external audio signal is a monaural one in this connection, please use “Mono to

Stereo Adapter” (not supplied) and connect to TV set. Note: AV stereo in AV mode always

fixed on “STEREO” channel

•Mono (single jack) audio: Connect the audio output from the external equipment to the

TV’s left (L) audio input jack.

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 24

USING THE DVD INPUT JACKS

CONNECTING TO a DVD PLAYER WITH AV1(DVD) VIDEO

COMPONENT INPUT TERMINAL (Y, Cb or Cr)

ANTENNA

TERMINAL

BACK OF TV

CABLE

A/V JACKS

BACK OF DVD

Player

OUT

OUTPUT CH3

CH4

R–AUDIO–L VIDEO

S-VIDEO

BCR

ANT. 75Ω

MONITOR OUT

AV1/DVD

(MONO)

VIDEO

INPUT

■To watch video input picture, select

AV1(DVD) position by pressing the

TV/AV key.

AV1(DVD)

Connect the component output terminal on your DVD player to the component video

input terminal of this product. (NOTE: When a signal of Y,Cb,Cr/Y,Pb,Pr is received, the

output signal from monitor output terminal will be corresponding but without colour

(black and white image).)

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 25

USING THE AUDIO/VIDEO OUTPUT JACKS

The picture signal being displayed on the TV screen is output through the Monitor

Output Jacks. Use these terminals to record TV broadcasts and for video dubbing from

AV input terminals.

CONNECTING ANOTHER VCR

•Connect the video output from TV to another VCR’s video input jack (refer to the

VCR owner’s manual).

•Connect the audio output from TV to another VCR’s audio input jack.

Note: The audio left channel and right channel which were inputted from AV Input

Jacks are mixed, and are outputted from Monaural Audio Monitor Output

Jack.

ANTENNA

TERMINAL

BACK OF TV

BACK OF VCR CABLE

A/V JACKS

OUT

INPUT

OUTPUT

CH3

CH4

R–AUDIO–L VIDEO

S-VIDEO

STEREO AMPLIFIER

TV/MONITOR

AUDIO

AV1 INPUT

VIDEO

(MONO)

S-VIDEO

MONITOR

OUT

ANT. 75

■To dub video from the AV1 Input terminal,

select AV mode by pressing the TV/AV key.

■To record TV programme, select TV mode

by pressing the TV/AV key.

TV mode AV1

ANTENNA

TERMINAL

A/V JACKS

ANT. 75Ω

MONITOR OUT

AV1/DVD

(MONO)

VIDEO

INPUT

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 26

Cabinet makes

popping sound.

●Press POWER key.

●Turn off the TV with the

MAIN POWER switch momentarily.

TV turns off

automatically.

HELPFUL HINTS - Problems/Solutions

BEFORE REQUESTING SERVICE CHECK THE FOLLOWING CHART.

Problem: Check these Conditions: Try these solutions:

●TV will automatically switch off.

(See pages 10, 19 and 20.)

●Power surge protection feature.

No picture or

poor picture

●Check antenna connections.

●May be station trouble.

●Possible interference from

household appliance.

●

Brightness or Contrast misadjusted

●Adjust antenna.

●Try a different channel.

●Press IMAGE key to select

NATURAL picture mode.

(See page 18.)

Poor color or no

color

●Check if program is in color.

●Check antenna connections.

●May be station trouble.

●Color or Tint misadjusted.

●Try a different channel.

●Adjust antenna.

●Press IMAGE key to select

NATURAL picture mode.

(See page 18.)

Blue screen with

AV1

AV1(DVD

AV2

displayed.

●Check A/V connections.

●Check external equipment.

●Press TV/AV key.

●Switch on external equipment.

Black screen

with and

Channel number

displayed.

●Check to see if channel is set

as the Private Position.

●See Setting of the Private

Position (See pages 21-22.)

No sound or

poor sound.

●May be station trouble.

●MUTE may be on.

●Check A/V connections.

●Try a different channel.

●Press MUTE key.

●Press VOLUME + key.

No Cable

channels above

number 13.

●Cable channel Indicator C

should appear next to

channel number.

●Select CABLE signal and

reset channel search.

(See page 14.)

No UHF

channels,

VHF OK.

●Cable channel Indicator C

should not appear next to

channel number.

●Select VHF/UHF signal

and reset channel search.

(See page 14.)

●This is a normal condition during warm-up and cool down of

the plastic cabinet parts.

Cannot select

or scan some

channels.

●Channel may be removed

from memory.

●Check antenna connections.

●Skip channel to memory

manually. (See page 15.)

Remote Control

will not work.

●Check batteries.

●Check if TV set is plugged in.

●Replace batteries.

●Aim remote towards front

of TV.

Colour Spot On

The CRT

●Keep away your TV set from magnetic source, then turn-off your

TV set and disconnect TV's power cord from AC outlet, keep this

condition about more than 60 minutes and turn-on again your TV

set if time is reach. If colour spot is not disappear after this solution

have done, please contact your local dealer.

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 27

AUTHORIZED SERVICE CENTERS

SANYO Service Center

Basement, Solid House Building 2285 Don Chino Roces, Avenue, Ext. Makati City (632) 892-1493 (632) 892-1260

Quezon City Branch

137-A Roosevelt Ave., SFDM, Quezon City (02) 374-1349

(02) 414-9647

Dagupan Branch

No.3 Pinkies Bldg., Zamora cor. Gomez St., Dagupan City, Pangasinan

(075) 522-0254 (075) 522-0254

San Fernando Branch

Cher-Hil Subd., Mac Arthur Highway San Fernando City, Pampanga

(045) 860-4252 (045) 860-4252

San Pablo Branch

175 C Bgy. San Rafael San pablo City, Laguna (049) 562-0666 (049) 562-0666

Naga Branch

Door No. 8, Bldg. 1, Puritan Land Devt. Corp. Roxas Ave. Naga City (054) 472-3650 (054)811-1601

Cebu Branch

PO 238 Lopez Jaena St. Tipolo, Mandaue City (032) 346-8048 (032) 346-0471

Iloilo Branch

D’ Appliance Arcade, South Fundidor, Molo, Iloilo City (033) 336-8698 (033) 337-1313

Tacloban Branch

No. 35 T. Claudio St.Tacloban City (053) 321-6212 (053) 321-6212

Davao Branch

San Josua Realty Bldg. Km 7, Lanang. Davao City (082) 300-6586 (082) 300-8381

Cagayan De Oro Branch

Door 1 True Value Bldg., Lapasan St., Cagayan De Oro City (088)231-4628 (08822)724-482

Authorized SANYO

Service Centers

TEL NO. FAX NO.

Part No. 1AA6P1P5575-E BE4P-E (FC8-A)

Printed in Indonesia Website :

www.sanyo.com.ph

SANYO PHILIPPINES INC.

MAKATI CITY, PHILIPPINES

OM BE4P-E (FC8-A) 1/4/10 8:50 AM Page 28

Sanyo Flat Panel Television St 21Ks2 Users Manual OM BE4P E (FC8 A)

ST-21KS2K to the manual da89cb04-552d-4b57-a0ca-35c43600cc4d

Navigation menu

Versions of this User Manual:

Views

Navigation
