x DLP is a registered trademark of Texas Instruments. BrilliantColor and DynamicBlack are trademarks of Texas Instru-

ments.

x IBM is a trademark or registered trademark of International Business Machines Corporation.

x Macintosh, Mac OS X and PowerBook are trademarks of Apple, Inc., registered in the U.S. and other countries.

x Windows, Windows 98, Windows Me, Windows XP or Windows 2000 are trademarks or registered trademarks of Mi-

crosoft Corporation.

x Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other coun-

tries and areas.

x Other product and company names mentioned in this user's manual may be the trademarks or registered trademarks of

their respective holders.

Notes

(1) The contents of this user’s manual may not be reprinted in part or whole without permission.

(2) The contents of this user’s manual are subject to change without notice.

(3) The On-Screen Menu and figures in this manual may differ slightly from the product.

(4) Great care has been taken in the preparation of this user’s manual; however, should you notice any questionable

points, errors or omissions, please contact us.

(5) Notwithstanding article (3), SANYO will not be responsible for any claims on loss of profit or other matters deemed to

result from using the Projector.

To the Owner

Before installing and operating the projector, read this

manual thoroughly.

The projector provides many convenient features and

functions. Operating the projector properly enables you

to manage those features and maintains it in good condi-

tion for many years to come.

Improper operation may result in not only shortening the

product life, but also malfunctions, fire hazard, or other

accidents.

If your projector seems to operate improperly, read this

manual again, check operations and cable connections

and try the solutions in the “Troubleshooting” section in

the back of this booklet. If the problem still persists, con-

tact the dealer where you purchased the projector or the

service center.

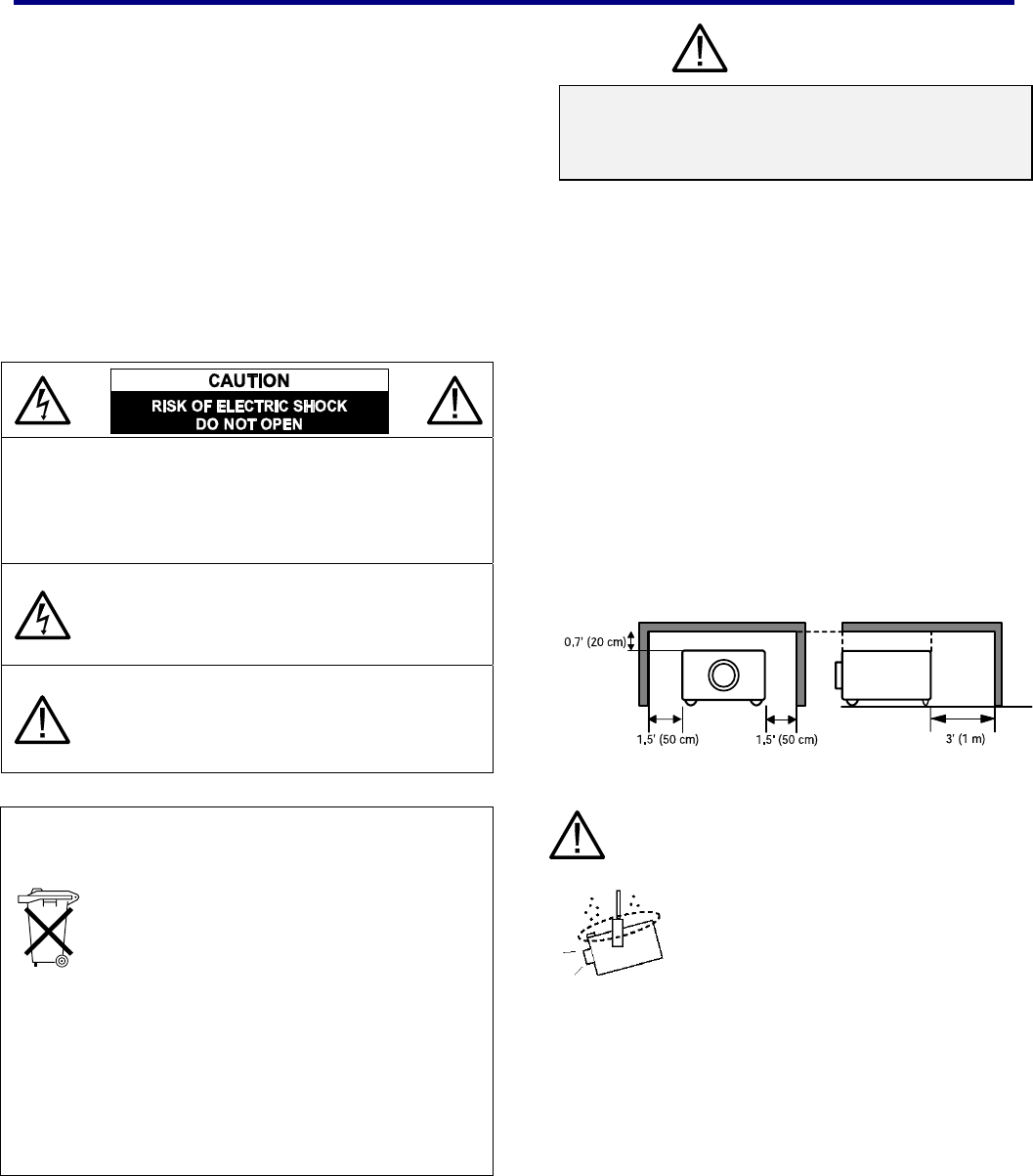

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE EXCEPT LAMP REPLACEMENT.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT

DANGEROUS VOLTAGE CONSTITUTING A

RISK OF ELECTRIC SHOCK IS PRESENT

WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE

ARE IMPORTANT OPERATING AND

MAINTENANCE INSTRUCTIONS IN THE

USER’S MANUAL WITH THIS UNIT.

NOTE: This symbol and recycle system are applied

only to EU countries and not applied to the

countries in the other area of the world.

Your SANYO product is designed and manu-

factured with high quality materials and

components which can be recycled and

reused.

This symbol means that electrical and elec-

tronic equipment, at their end-of-life, should

be disposed ofseparately from your house-

hold waste.

Please dispose of this equipment at your local commu-

nity waste collection/recycling centre.

In the European Union there are separate collection

systems for used electrical and electronic products.

Please help us to conserve the environment we live in!

READ AND KEEP THIS USER’S MANUAL FOR LATER

USE.

Safety Precaution

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

 This projector produces intense light from the projec-

tion lens. Do not stare directly into the lens as much

as possible, otherwise eye damage could result. Be

especially careful that children do not stare directly

into the beam.

 Install the projector in a proper position. Otherwise it

may result in fire hazard.

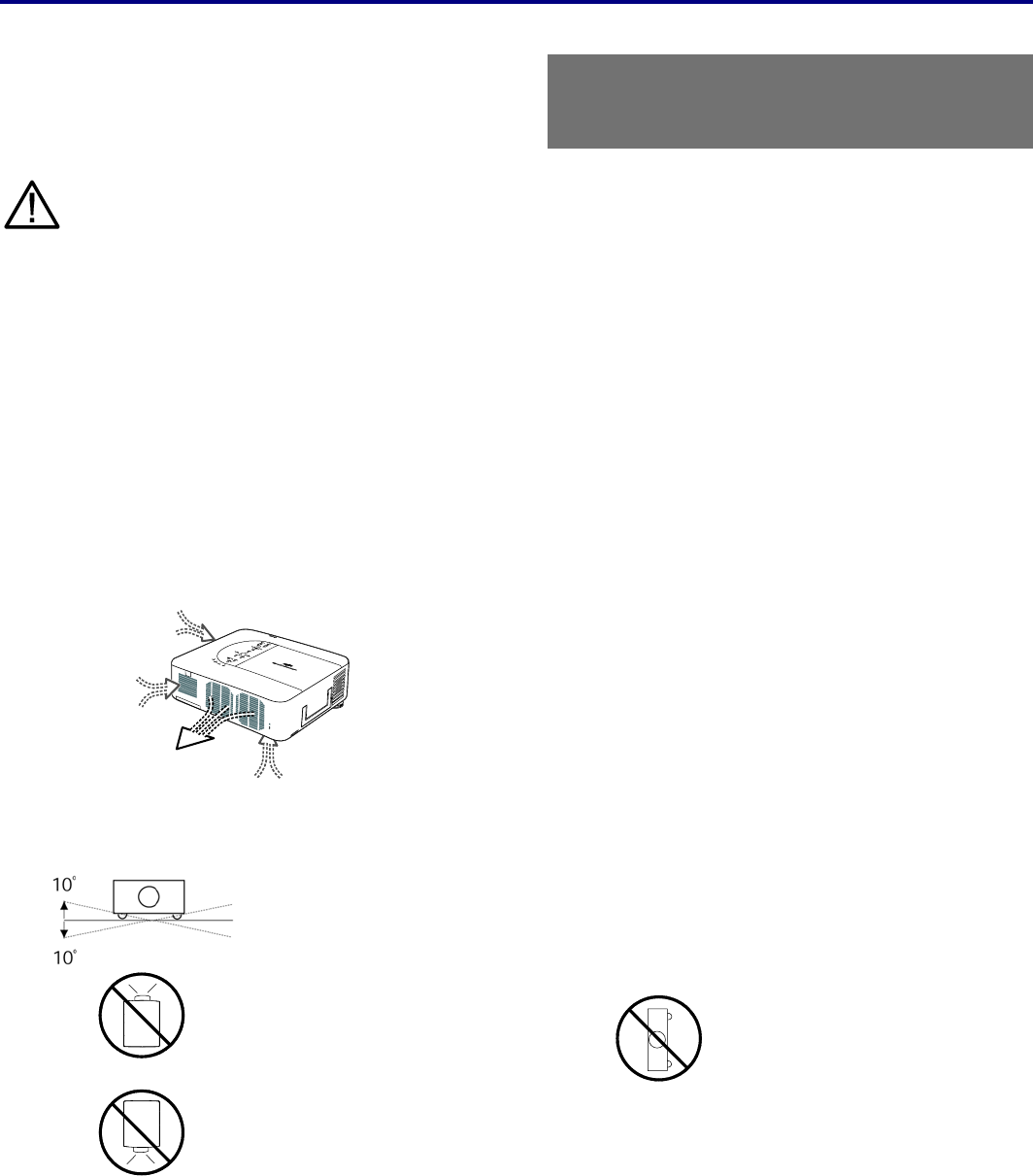

 Allowing the proper amount of space on the top,

sides, and rear of the projector cabinet is critical for

proper air circulation and cooling of the unit. The di-

mension shown here indicates the minimum space

required.

If the projector is to be built into a compartment or

similarly enclosed, these minimum distances must be

maintained.

 Do not cover the ventilation slot on the projector.

Heat build-up can reduce the service life of your

projector, and can also be dangerous.

SIDE and TOP REAR

 If the projector is unused for an extended time,

unplug the projector from the power outlet.

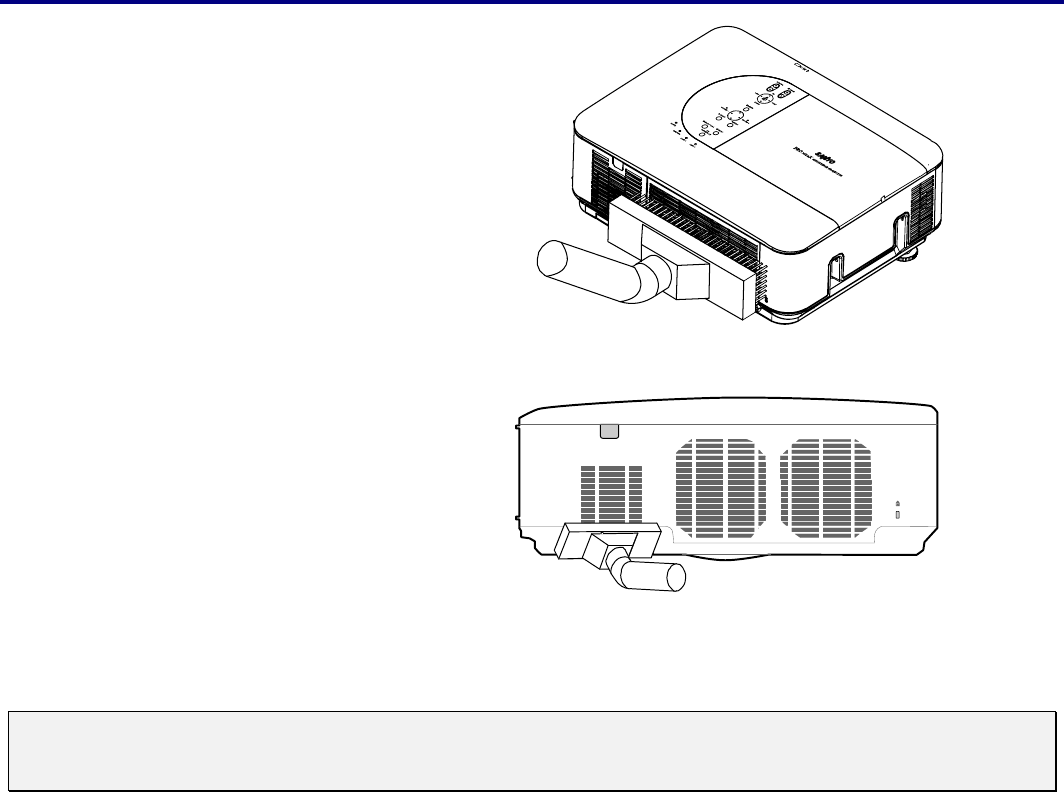

CAUTION ON HANGING FROM THE CEILING

When hanging the projector from the ceil-

ing, clean air intake vents, filters, or top of

the projector periodically with a vacuum

cleaner. If you leave the projector unclean

for a long time, the cooling fans can be

clogged with dust, and it may cause a

breakdown.

DO NOT SET THE PROJECTOR IN GREASY, WET, OR

CONDITIONS SUCH AS IN A KITCHEN TO PREVENT

A BREAKDOWN. IF THE PROJECTOR COMES IN

CONTACT WITH OIL OR CHEMICALS, IT MAY

BECOME DETERIORATED.

WARNING:

Not for use in a computer room as defined in the Stan-

dard for the Protection of Electronic Computer/Data

Processing Equipment, ANSI/NFPA 75.

Ne peut être utilisé dans une salle d’ordinateurs telle que

définie dans la norme ANSI/NFPA 75 Standard for Pro-

tection of Electronic Computer/Data Processing

Equipment.

Safety Instructions

All the safety and operating instructions should be read

before the product is operated.

Read all of the instructions given here and retain them for

later use. Unplug this projector from AC power supply

before cleaning. Do not use liquid or aerosol cleaners.

Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the pro-

jector.

For added protection to the projector during a lightning

storm, or when it is left unattended and unused for long

periods of time, unplug it from the wall outlet. This will

prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for

example, in a wet basement, near a swimming pool,

etc...

Do not use attachments not recommended by the manu-

facturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or

table. The projector may fall, causing serious injury to a

child or adult, and serious damage to the projector. Use

only with a cart or stand recommended by the manufac-

turer, or sold with the projector. Wall or shelf mounting

should follow the manufacturer’s instructions, and should

use a mounting kit approved by the manufacturers.

An appliance and cart combination

should be moved with care. Quick

stops, excessive force, and uneven sur-

faces may cause the appliance and cart

combination to overturn.

Slots and openings in the back and bottom of the cabinet

are provided for ventilation, to ensure reliable operation

of the equipment and to protect it from overheating.

The openings should never be covered with cloth or

other materials, and the bottom opening should not be

blocked by placing the projector on a bed, sofa, rug, or

other similar surface. This projector should never be

placed near or over a radiator or heat register.

This projector should not be placed in a built-in installa-

tion such as a bookcase unless proper ventilation is

provided.

Never push objects of any kind into this projector through

cabinet slots as they may touch dangerous voltage points

or short out parts that could result in a fire or electric

shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of air-

conditioning equipment.

This projector should be operated only from the type of

power source indicated on the marking label. If you are

not sure of the type of power supplied, consult your au-

thorized dealer or local power company.

Do not overload wall outlets and extension cords as this

can result in fire or electric shock. Do not allow anything to

rest on the power cord. Do not locate this projector where

the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as open-

ing or removing covers may expose you to dangerous

voltage or other hazards. Refer all servicing to qualified

service personnel.

Unplug this projector from wall outlet and refer servicing

to qualified service personnel under the following condi-

tions:

a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the projector.

c. If the projector has been exposed to rain or water.

d. If the projector does not operate normally by follow-

ing the operating instructions. Adjust only those

controls that are covered by the operating instruc-

tions as improper adjustment of other controls may

result in damage and will often require extensive

work by a qualified technician to restore the projector

to normal operation.

e. If the projector has been dropped or the cabinet has

been damaged.

f. When the projector exhibits a distinct change in per-

formance-this indicates a need for service.

When replacement parts are required, be sure the ser-

vice technician has used replacement parts specified by

the manufacturer that have the same characteristics as

the original part. Unauthorized substitutions may result in

fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projec-

tor, ask the service technician to perform routine safety

checks to determine that the projector is in safe operating

condition.

oor de

klant

en in

Neder

land

Bij dit produkt zijn batterijen ge-

leverd.

Wanneerdezeleeg zijn, moet u ze

niet weggooien maar inleveren als

KCA.

Important Information

Air Circulation

Openings in the cabinet are provided for ventilation. To

ensure reliable operation of the product and to protect it

from overheating, these openings must not be blocked or

covered.

CAUTION

Hot air is from the exhaust vent. When using or installing

the projector, the following precautions should be taken.

 Do not put any flammable objects or spray cans near

the projector, hot air is exhausted from the air vents.

 Keep the exhaust vent at least 3 feet (1 m) away from

any objects.

 Do not touch peripheral parts in the exhaust vents,

especially screws and metallic parts. These areas will

become hot while the projector is used.

 Do not put anything on the cabinet. Objects put on

the cabinet will not only get damaged but may also

cause a fire hazard.

Cooling fans are provided to cool down the projector. The

fans’ running speed is changed according to the tem-

perature inside the projector.

IMPORTANT!

Clean the Filter Regularly!!

The projector uses a lamp which generates significant

heat. The cooling fans and air vents are provided to dis-

sipate the heat by drawing air into the housing and the

filter is located in the intake vents to prevent dust from

getting inside of the projector.

In order to care for the projector appropriately, regular

cleaning is required. Remove any dirt or dust that has

accumulated on the projector and on or in the filter.

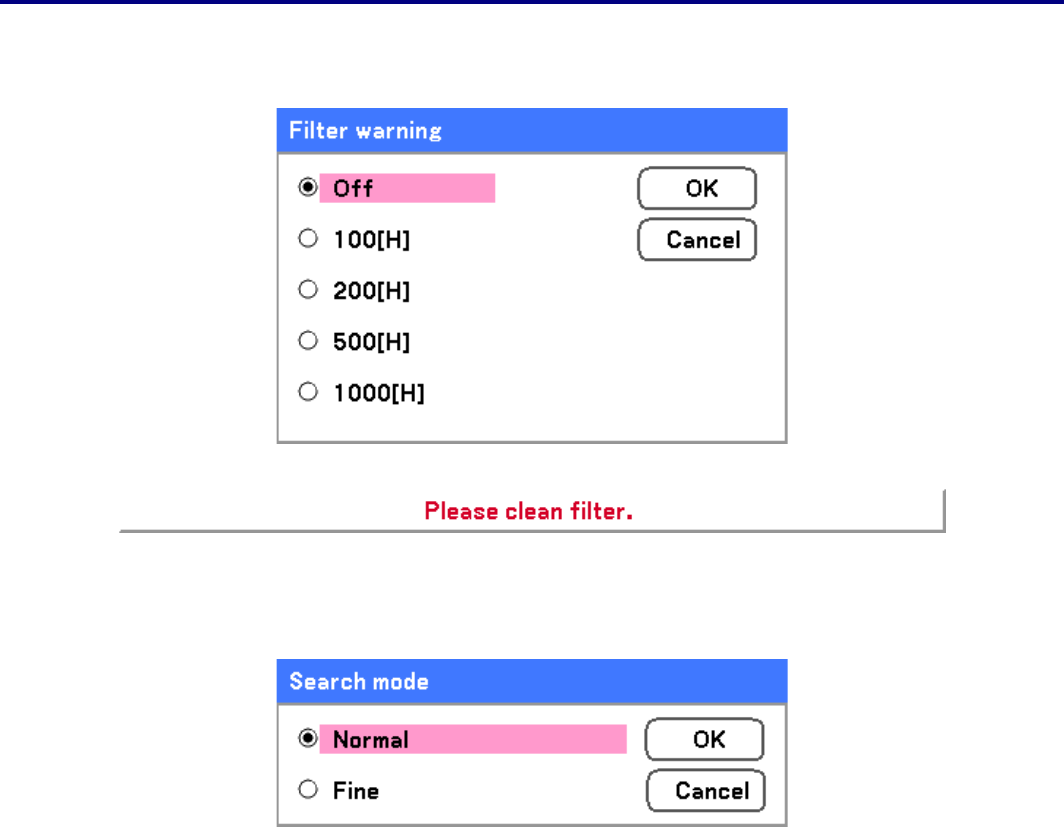

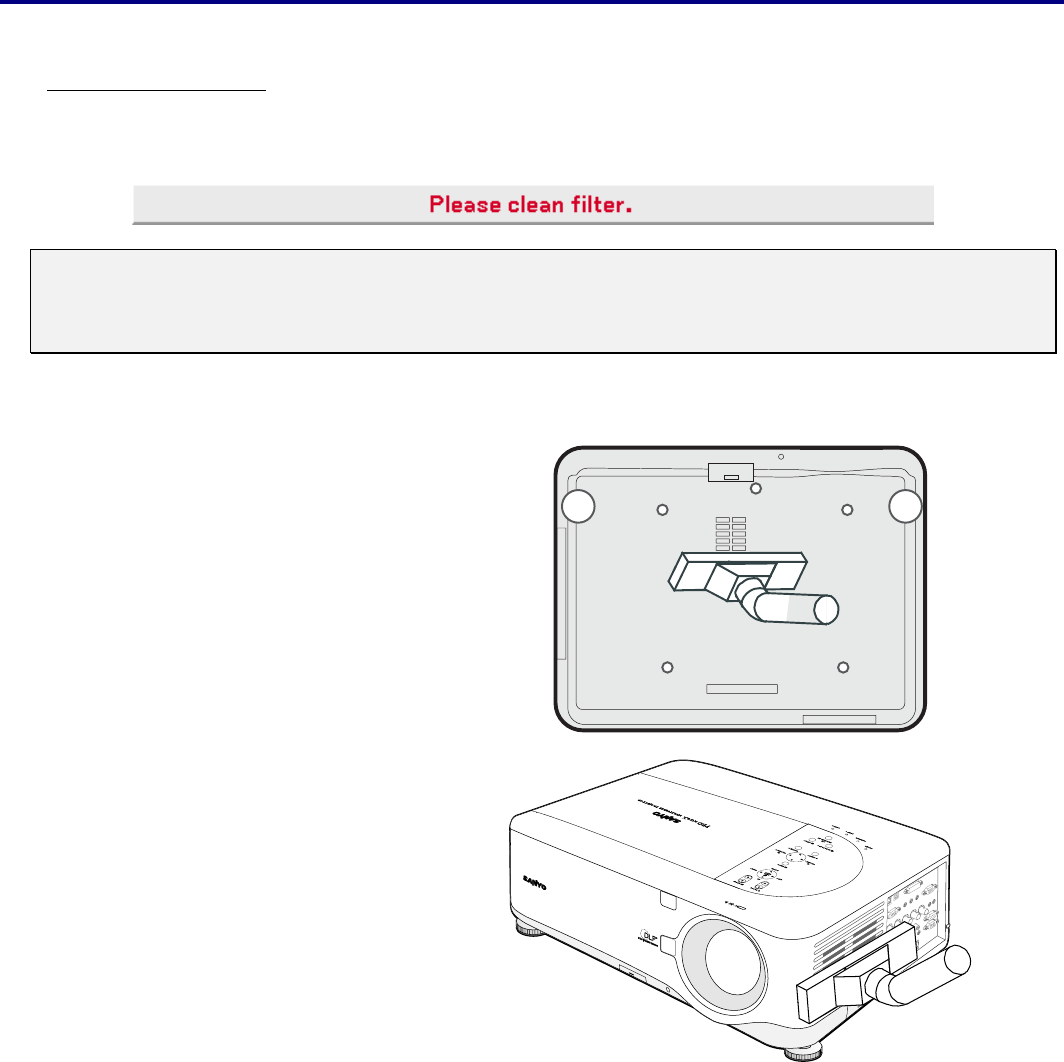

When the “Please clean filter” message is displayed, stop

using the projector immediately and clean or replace the

filter.

Blocking the air vents and leaving the projector un-

cleaned for a long time may not only damage the projec-

tor and may require costly repairs but may also cause

accidents or fire.

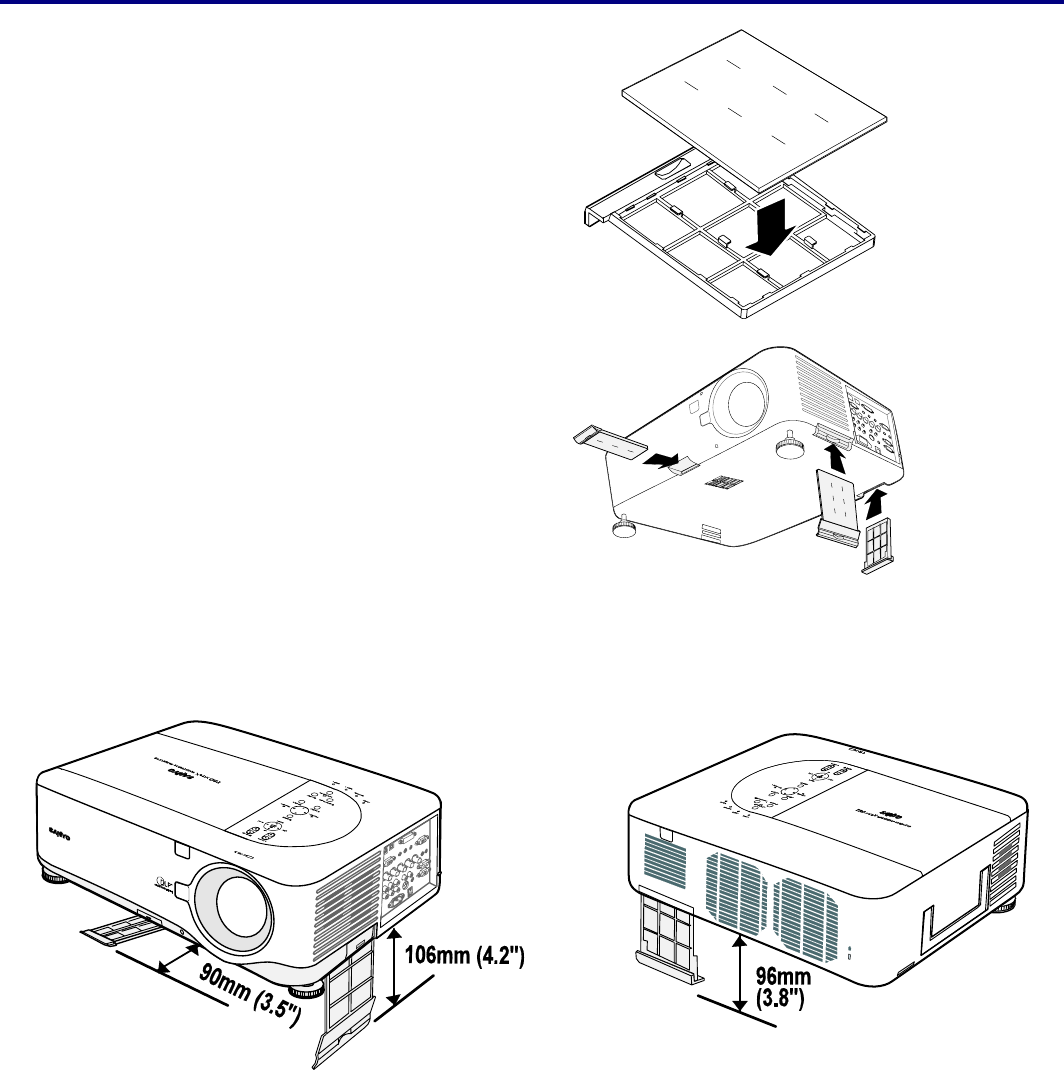

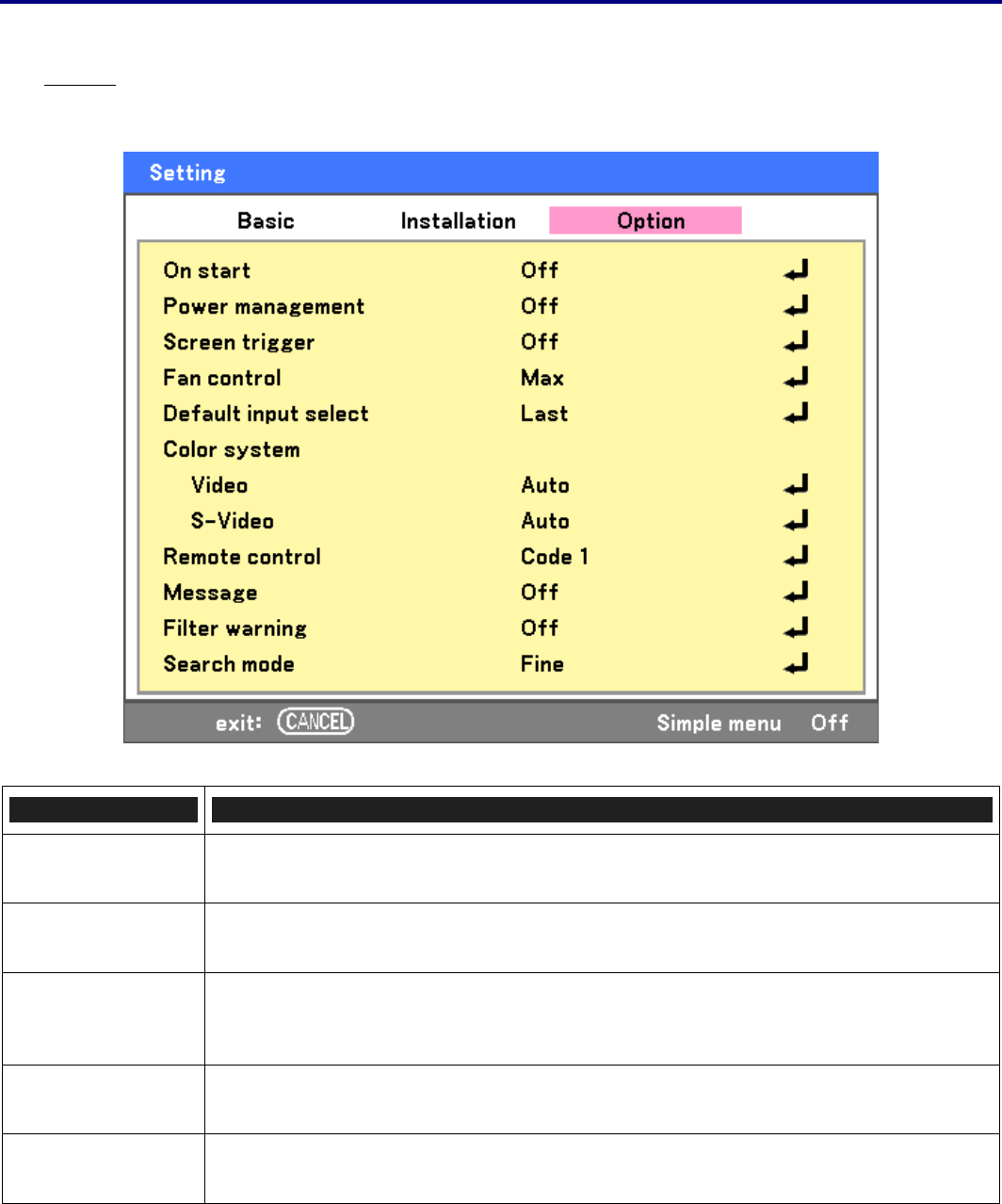

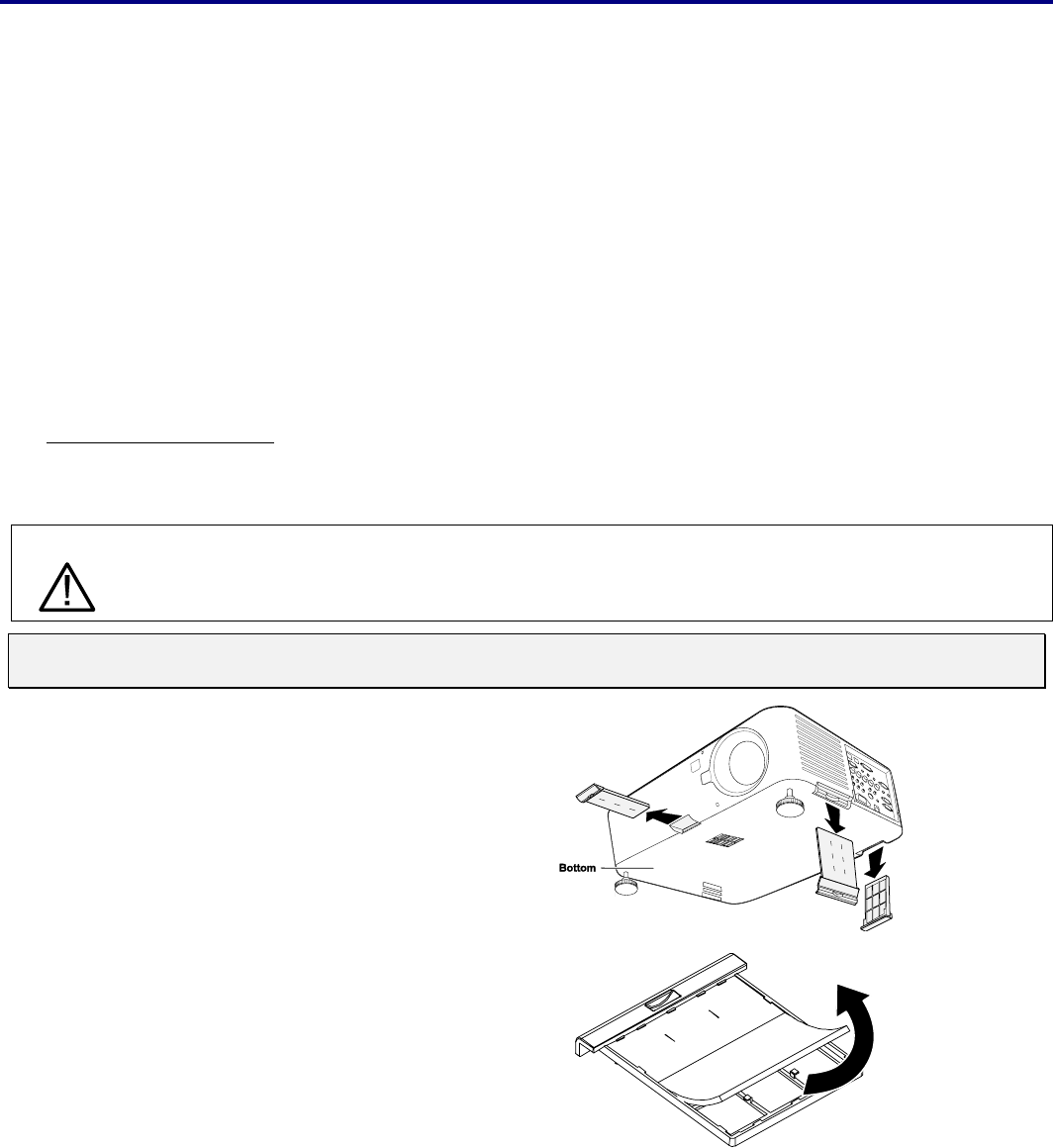

For maintenance of the filter, refer to “Option” on page 83

and “Replacing the Filters” on pages 97 – 98.

Damages to the projector caused by using an

un-cleaned filter or improper maintenance will void

the warranty on the projector.

Installing the Projector in Proper Position

Install the projector properly. Improper installation may reduce the lamp lifetime and cause a fire hazard.

Do not tilt the projector

more than 10 degrees

above and below.

NO UPWARD

Do not point the projector

up to project an image.

NO DOWNWARD

Do not point the projector

down to project an image.

NO SIDEWAYS

Do not put the projector

on either side to project

an image.

Compliance

ederal Communications

Commission

Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal-

lation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele-

vision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

 Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes

or modifications should be made, you could be required to stop operation of the equipment.

Model Number(s) : PDG-DXT10L

Trade Name : Sanyo

Responsible party : SANYO FISHER COMPANY

Address : 21605 Plummer Street, Chatsworth, California 91311 U.S.A.

Telephone No. : (818)998-7322

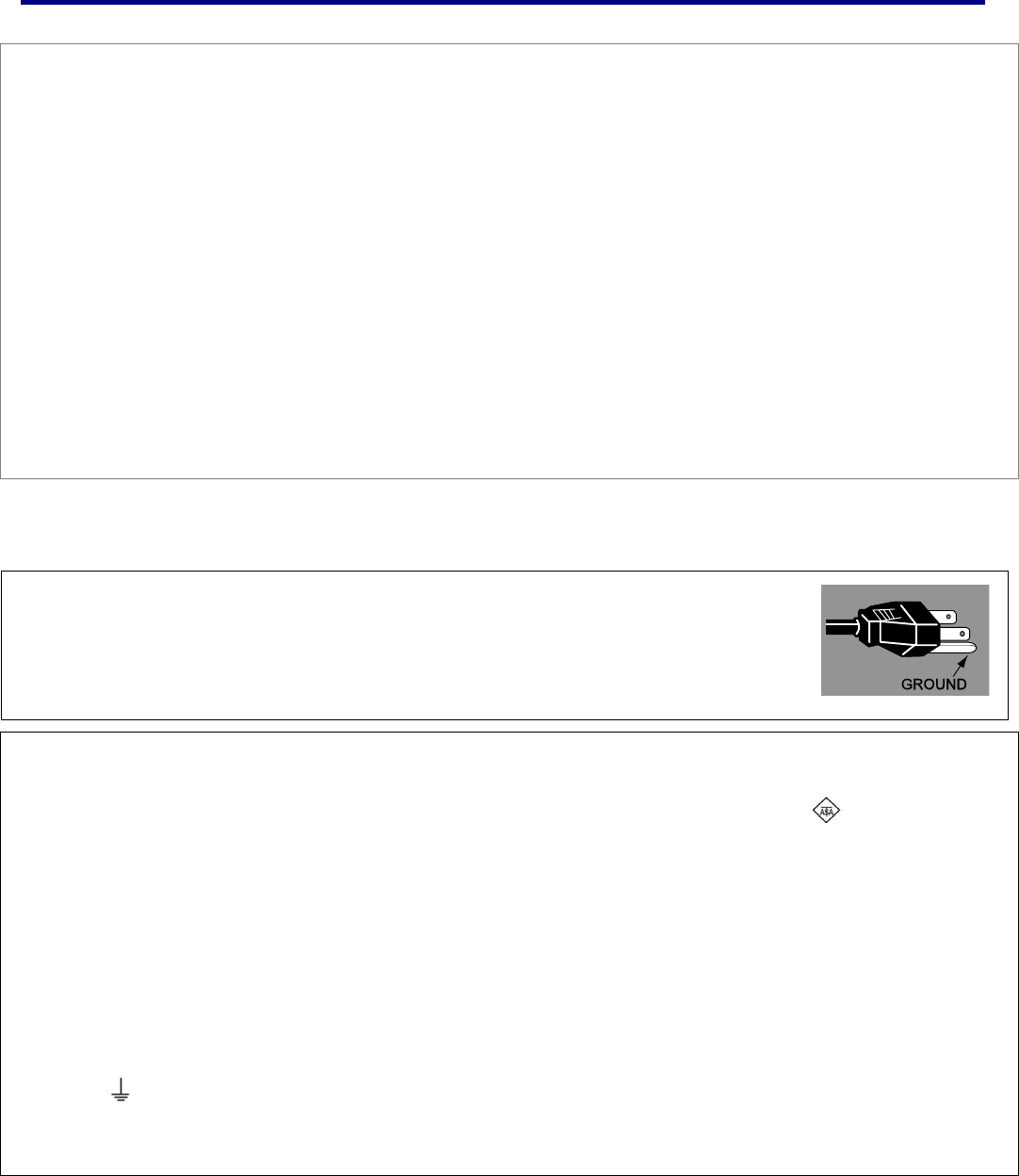

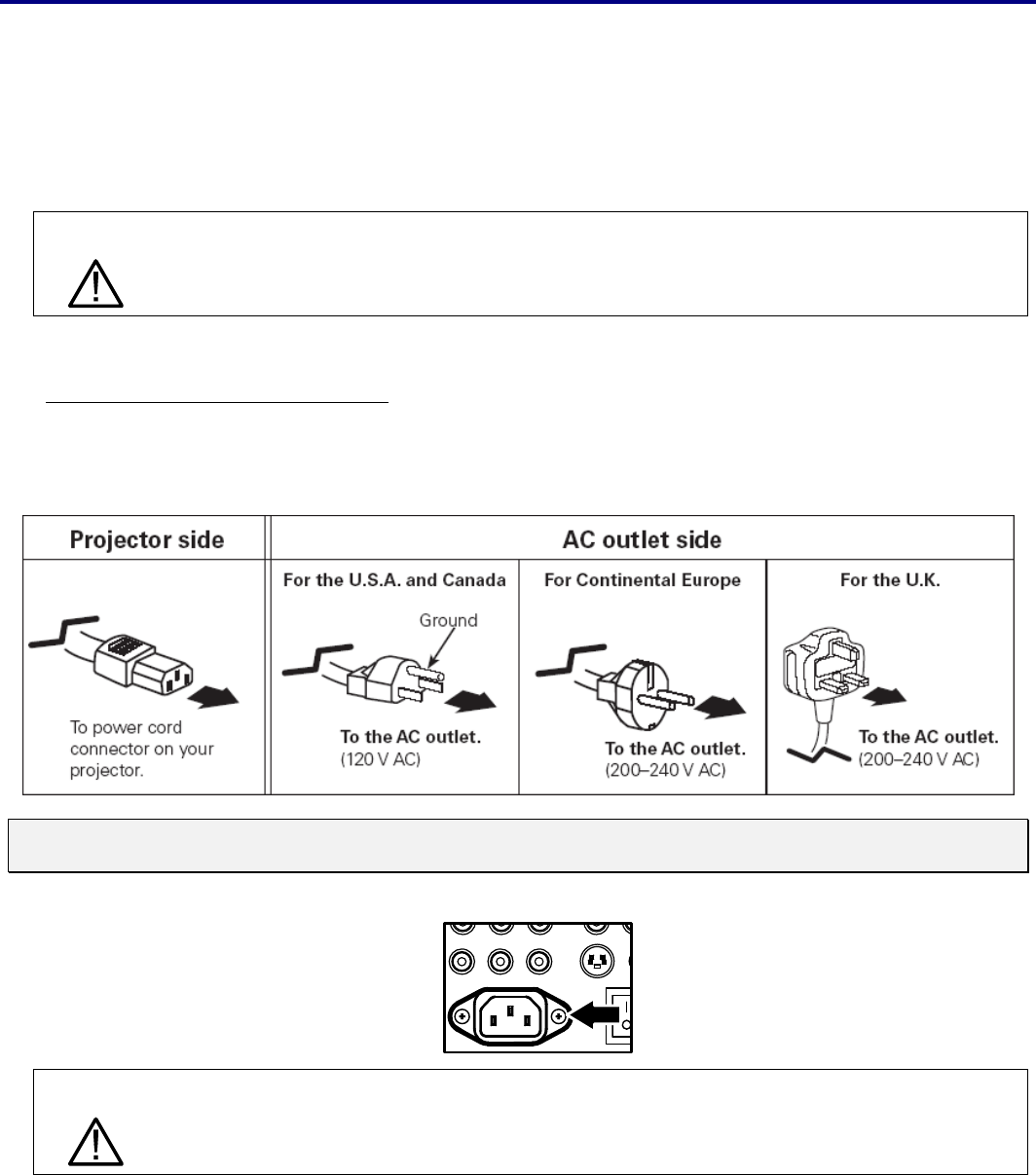

AC Power Cord Requirement

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada:

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories

(UL) and certified by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the

plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to

insert the plug into the outlet, contact your electrician.

AC Power Cord for the United Kingdom:

This cord is already fitted with a modulized plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should

the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus . If the fuse cover is

detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same color as that visi-

ble on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User

Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord

should be suitably prepared and the correct plug fitted.

WARNING: A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are colored in accordance with the following code:

Green-and-yellow ············ Earth

Blue ································· Neutral

Brown ······························ Live

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in

your plug proceed as follows:

The wire which is colored green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety

earth symbol or colored green or green-and-yellow.

The wire which is colored blue must be connected to the terminal which is marked with the letter N or colored black. The wire which is

colored brown must be connected to the terminal which is marked with the letter L or colored red.

WARNING: THIS APPARATUS MUST BE EARTHED.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

Table of Contents

1. INTRODUCTION ..................................................................................................................................................................................1

nWHAT’S IN THE BOX?..........................................................................................................................................................................1

oINTRODUCTION TO THE PROJECTOR...................................................................................................................................................2

Features you’ll enjoy:........................................................................................................................................................................2

pPART NAMES OF THE PROJECTOR .....................................................................................................................................................3

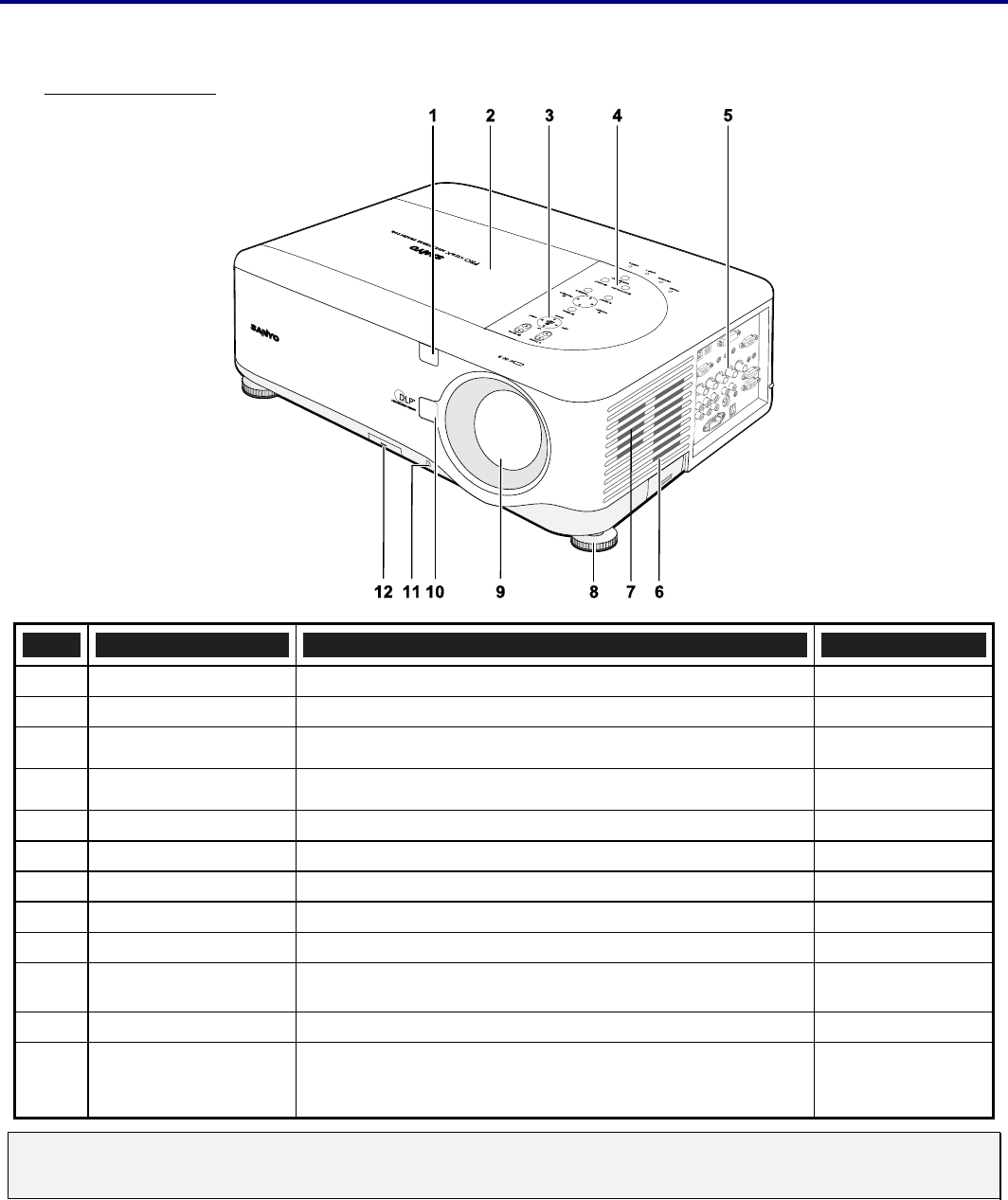

Front-right View .................................................................................................................................................................................3

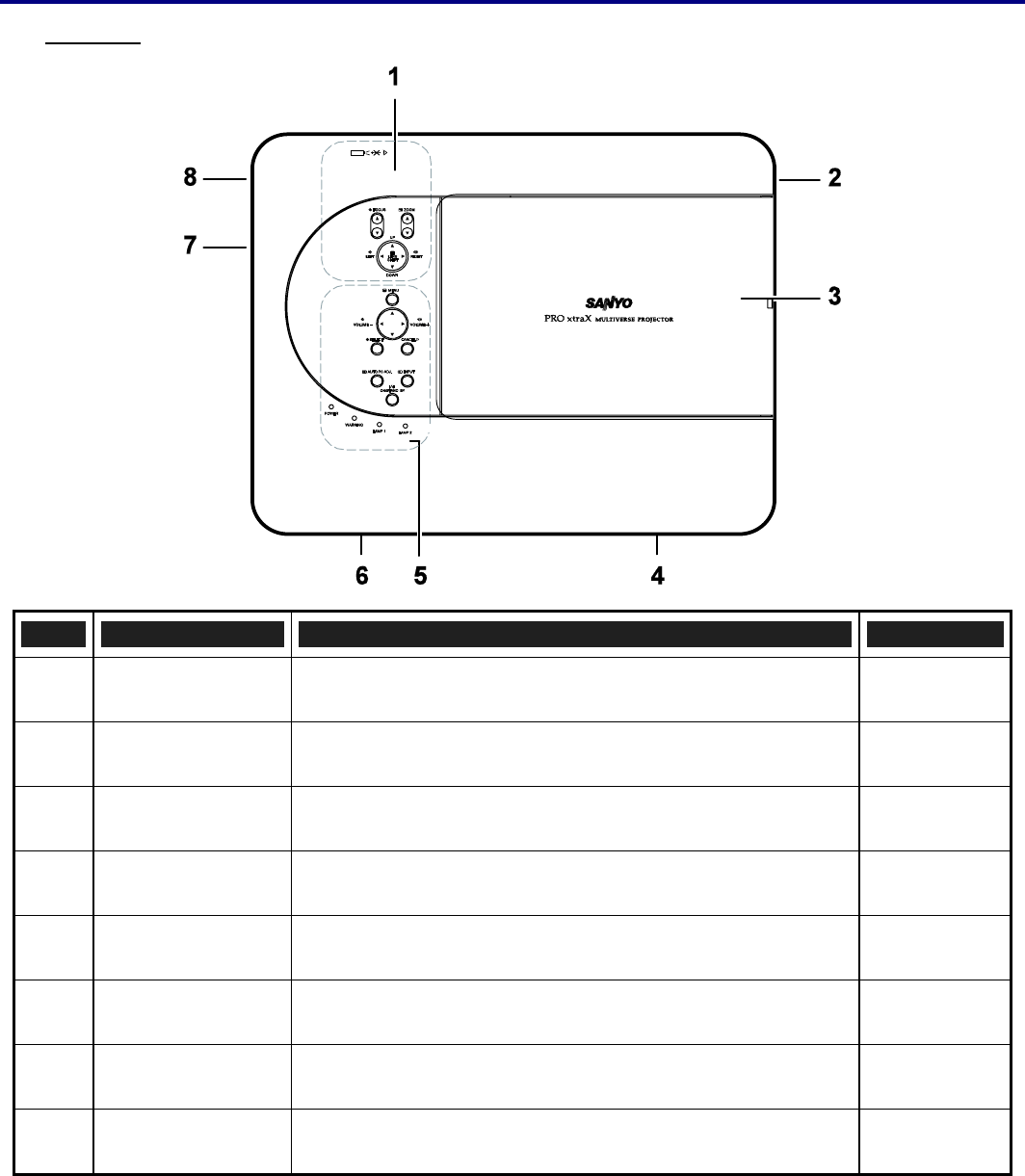

Top view .............................................................................................................................................................................................4

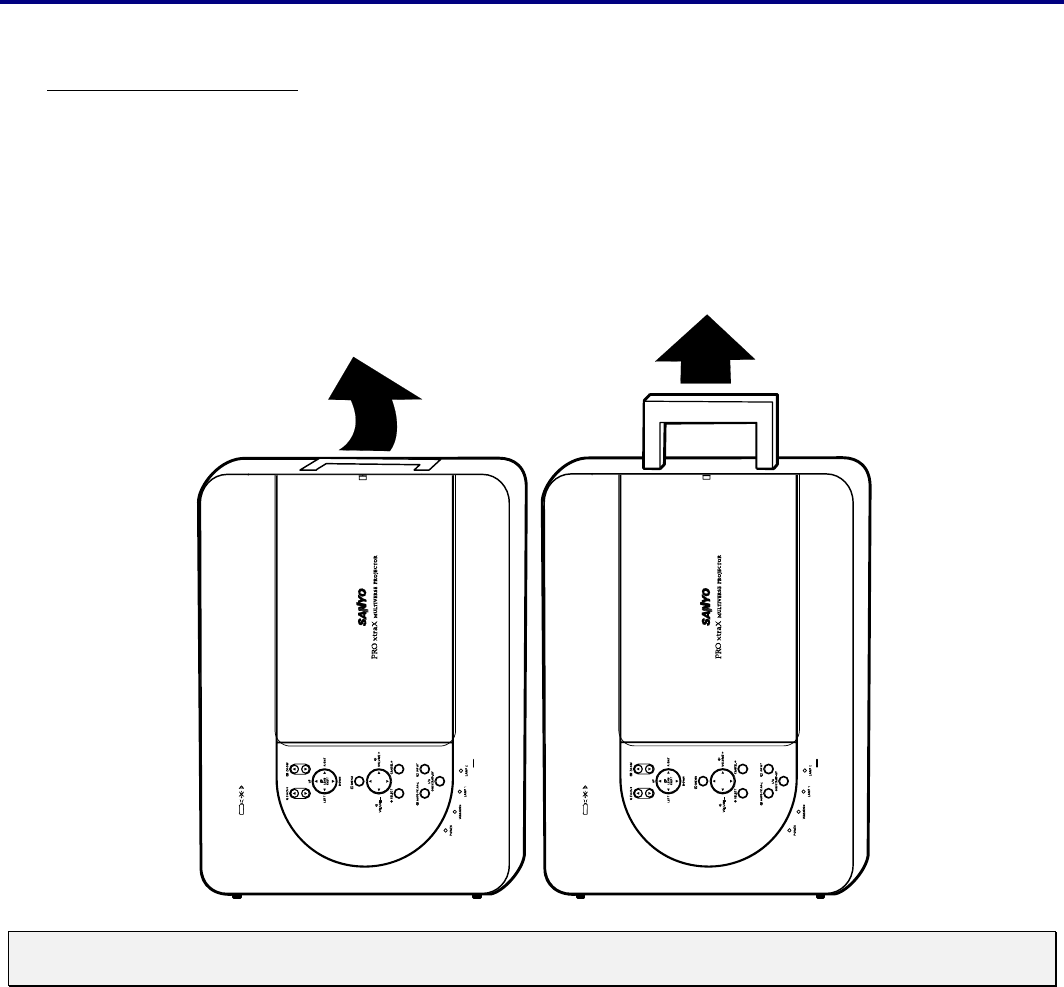

Carrying the Projector ......................................................................................................................................................................5

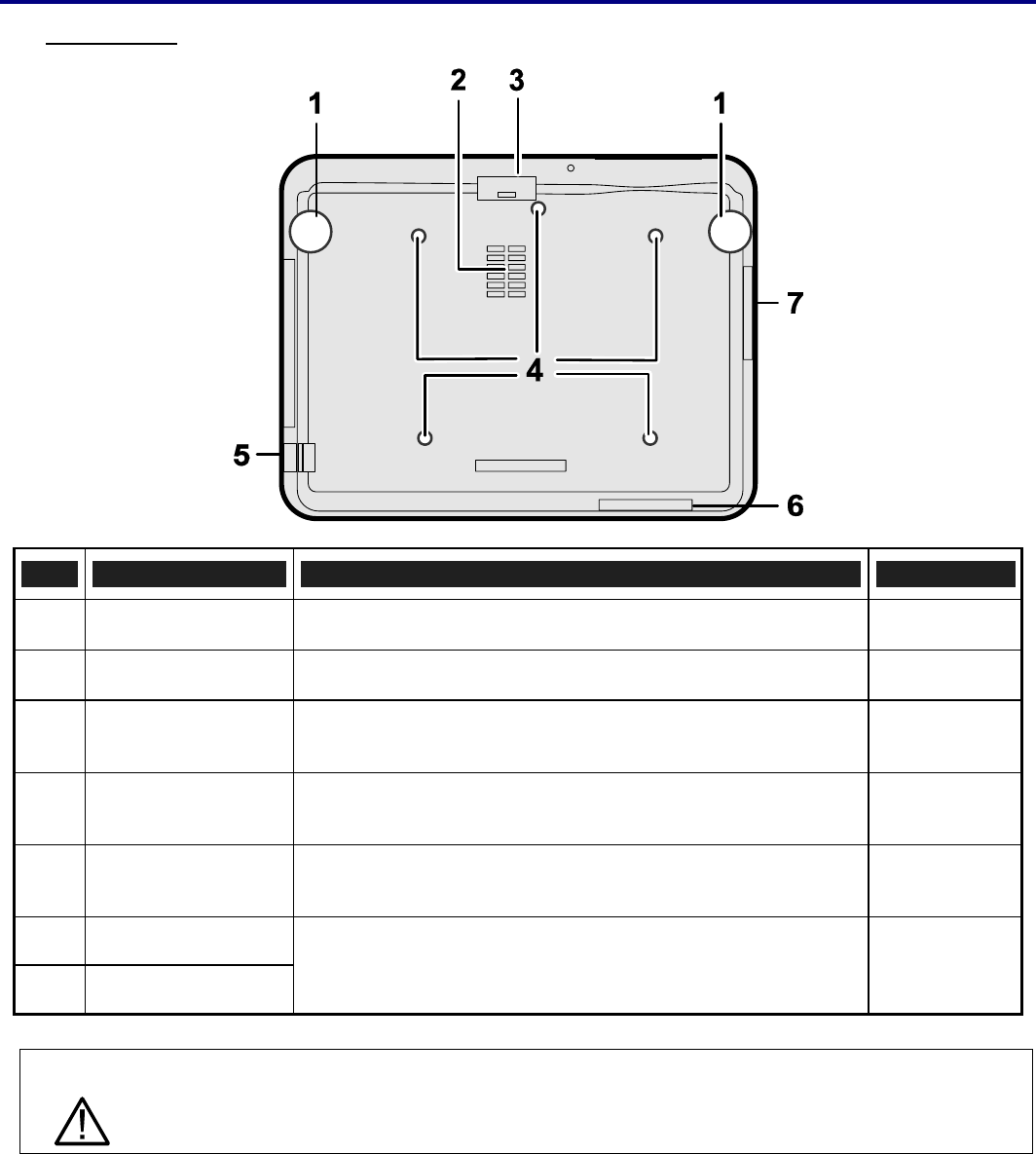

Bottom view .......................................................................................................................................................................................6

qTOP FEATURES ...................................................................................................................................................................................7

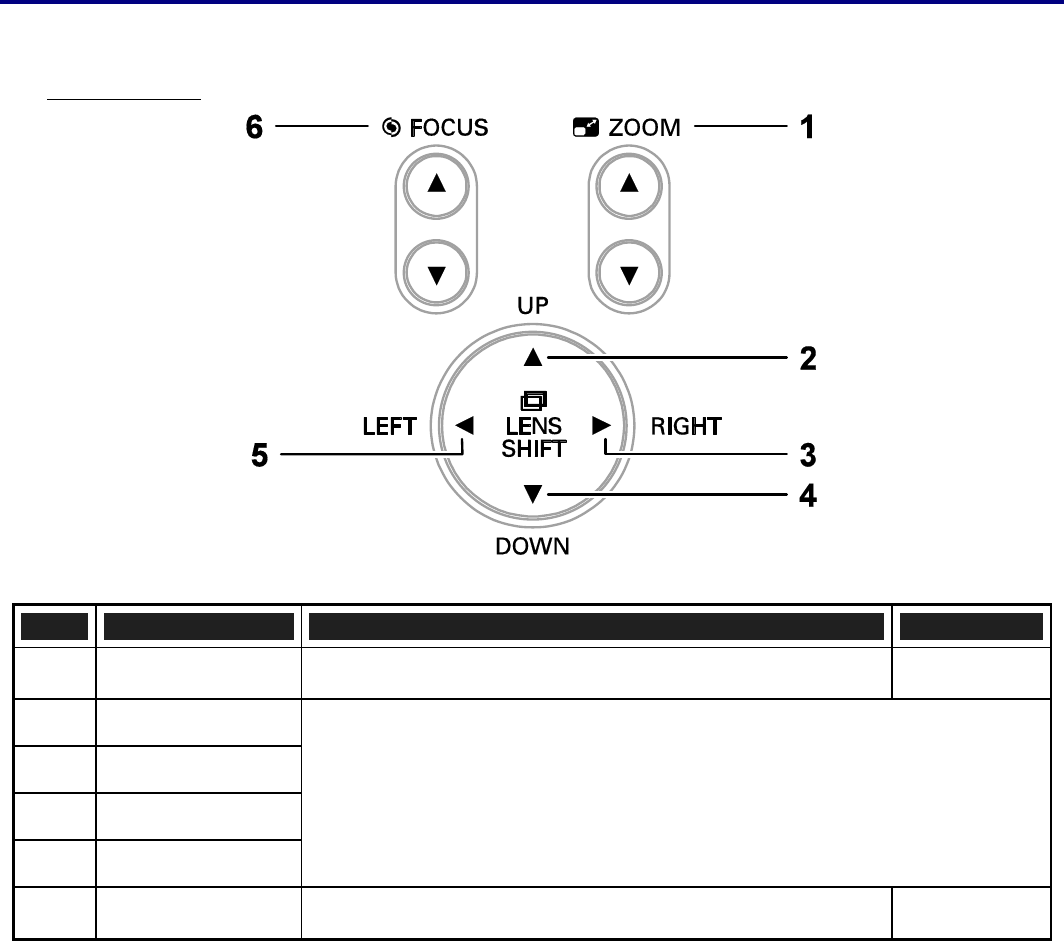

Lens Controls.....................................................................................................................................................................................7

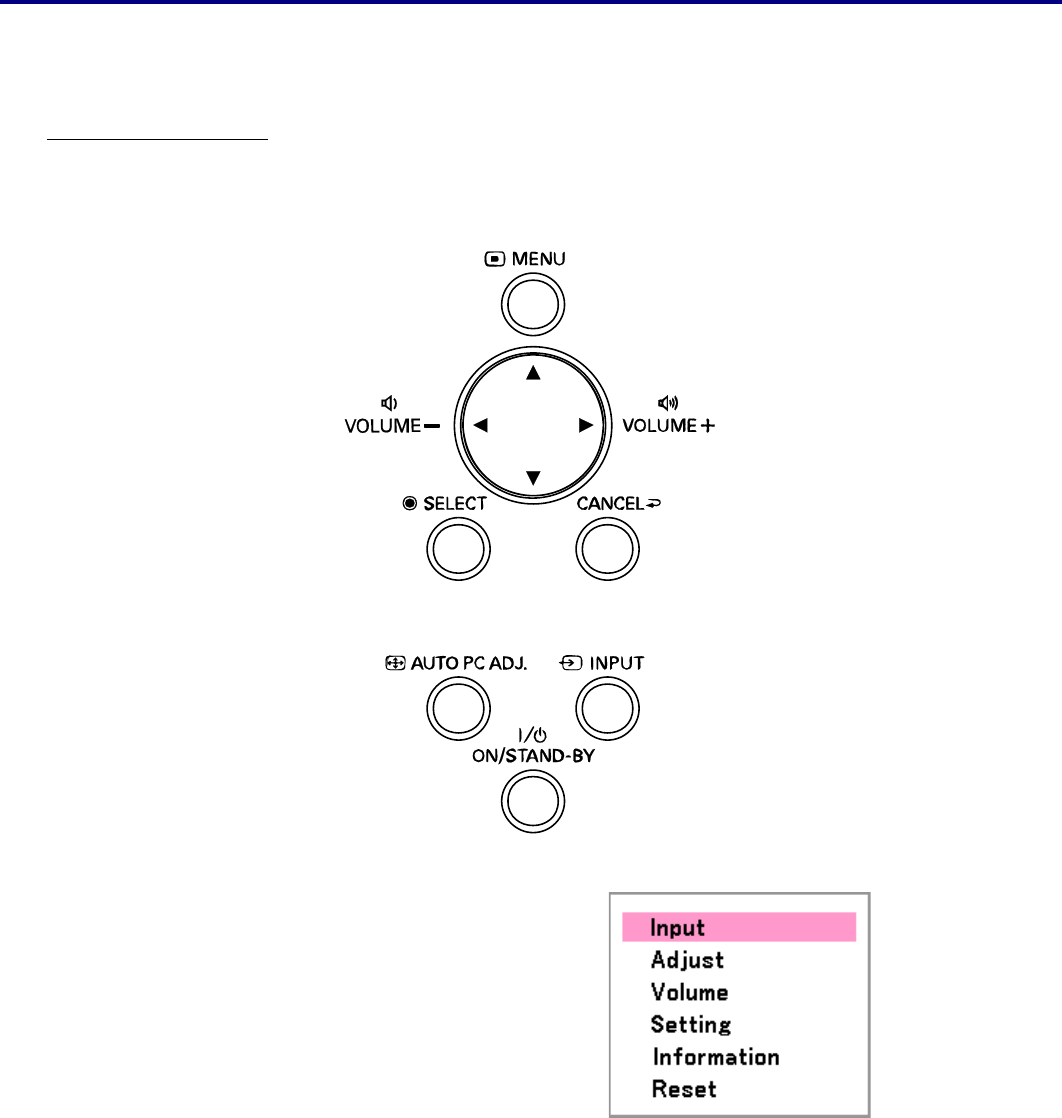

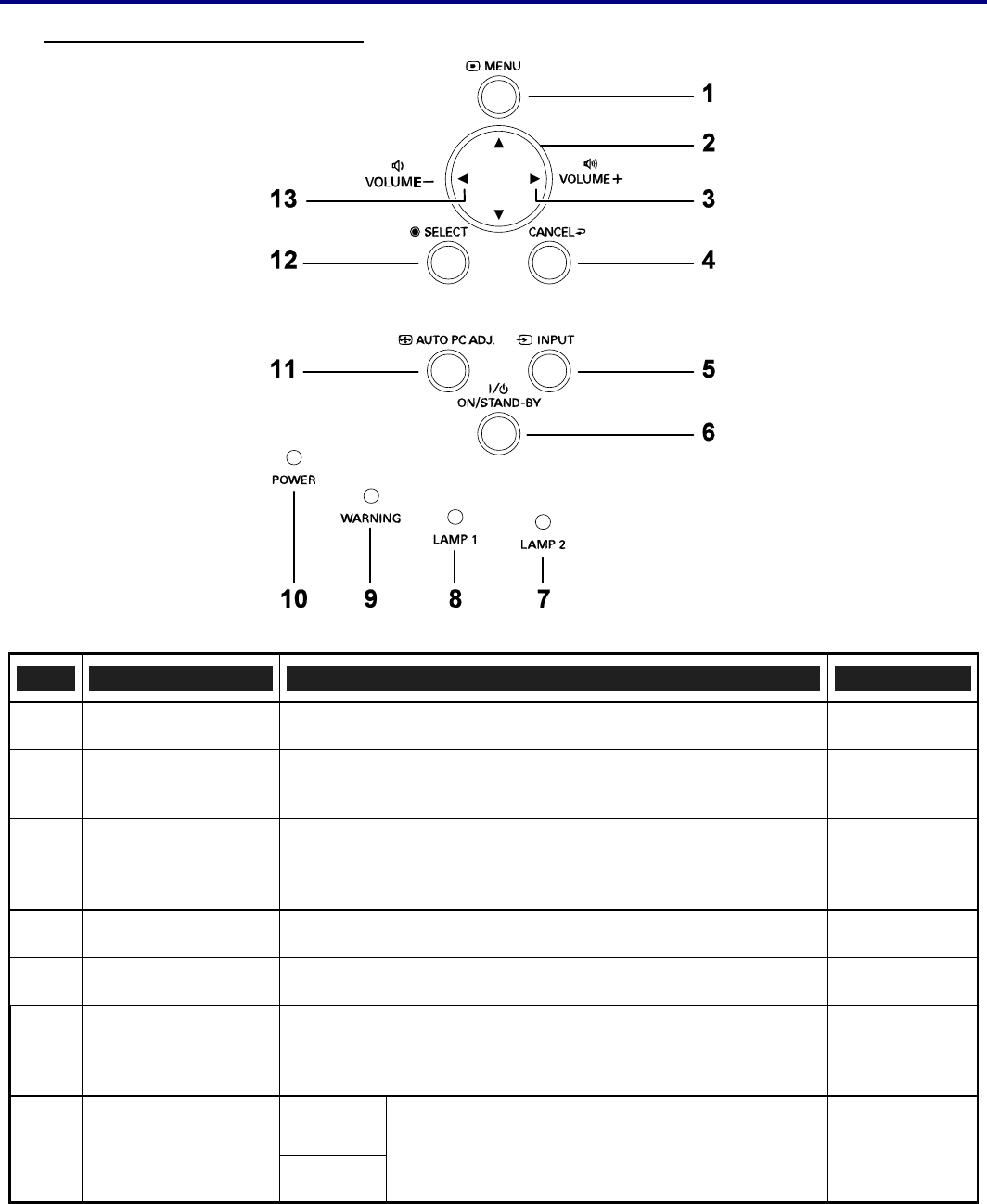

OSD Controls and Status LEDs......................................................................................................................................................8

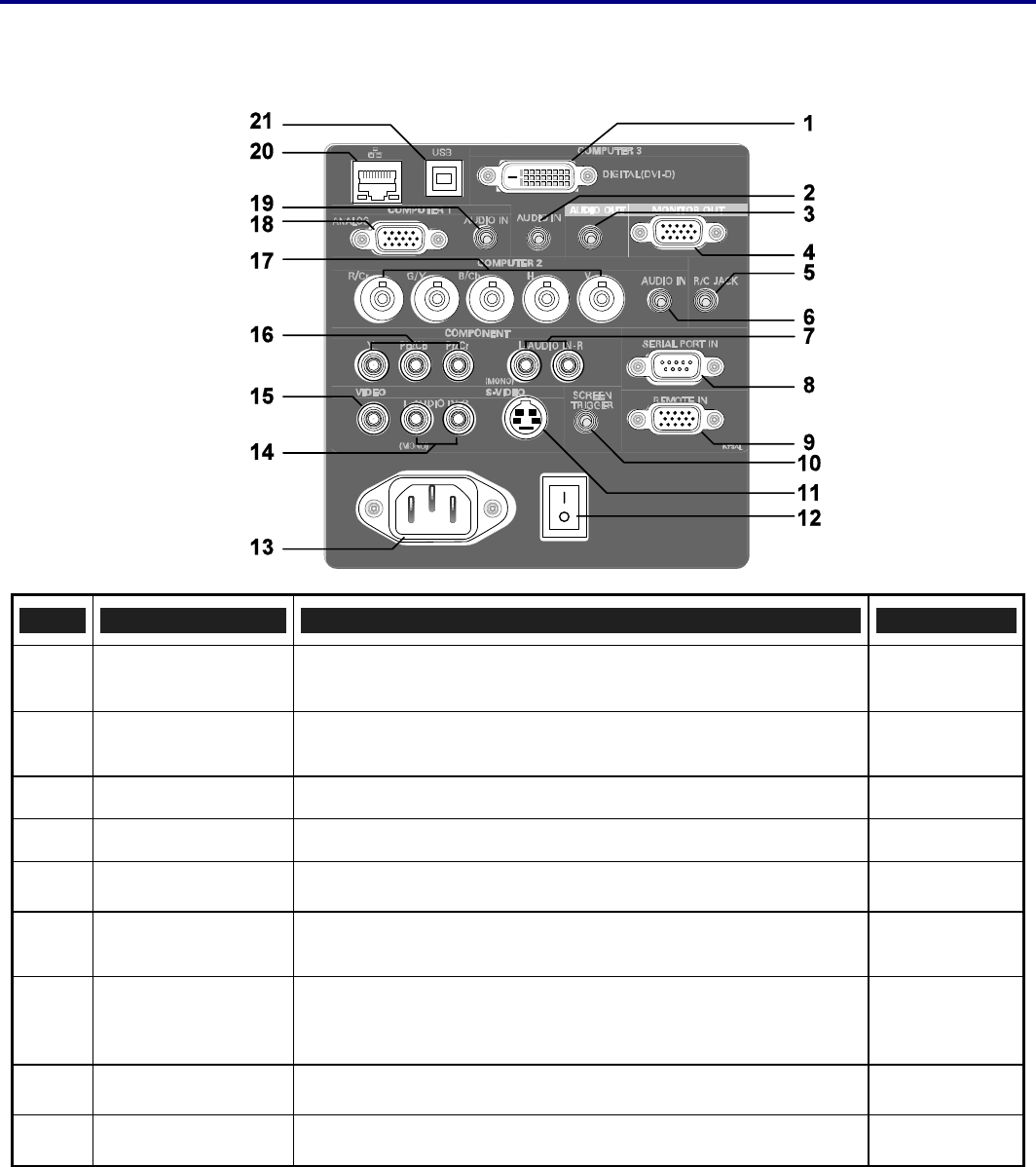

rTERMINAL PANEL FEATURES ............................................................................................................................................................10

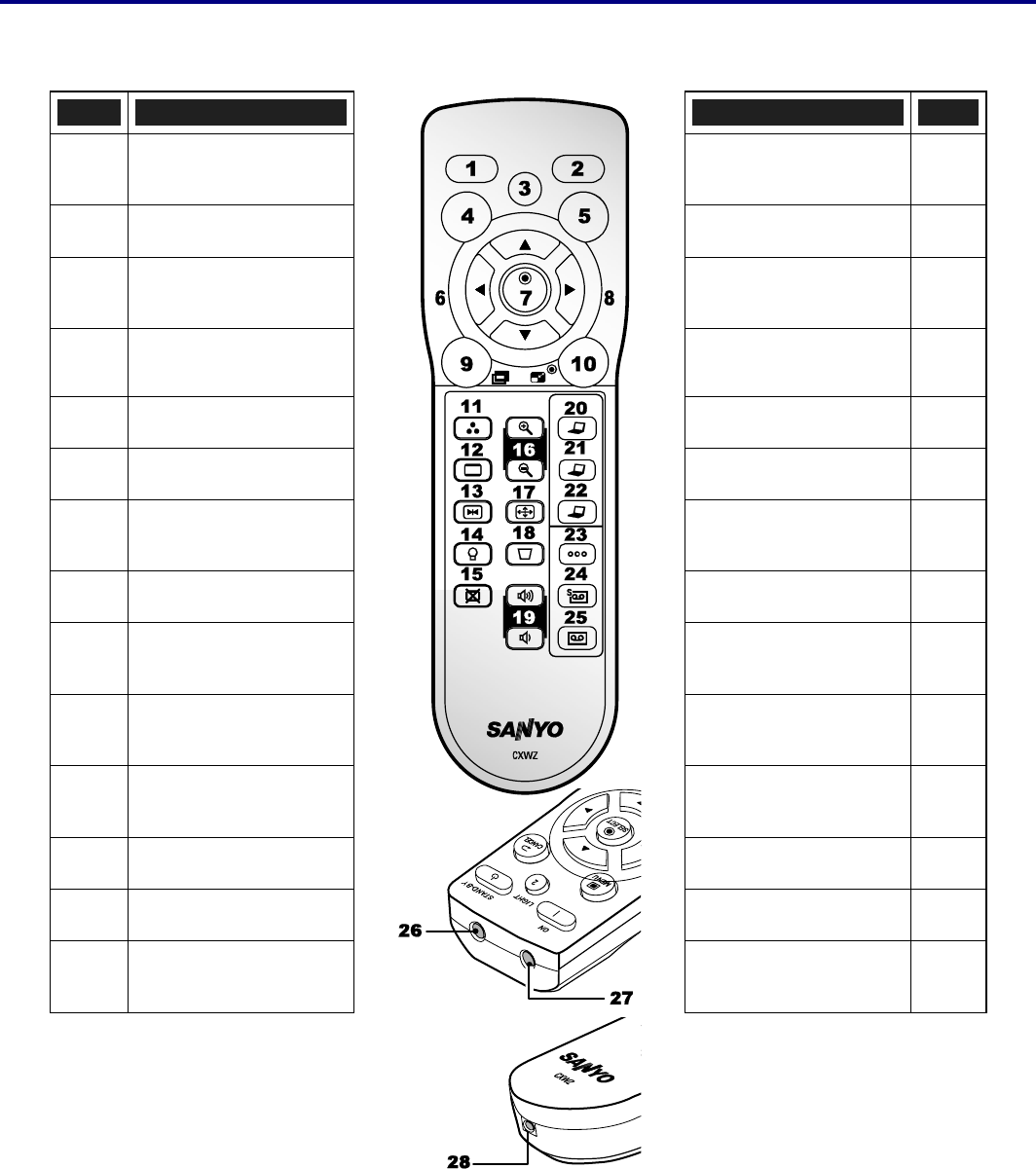

sPART NAMES OF THE REMOTE CONTROL ........................................................................................................................................12

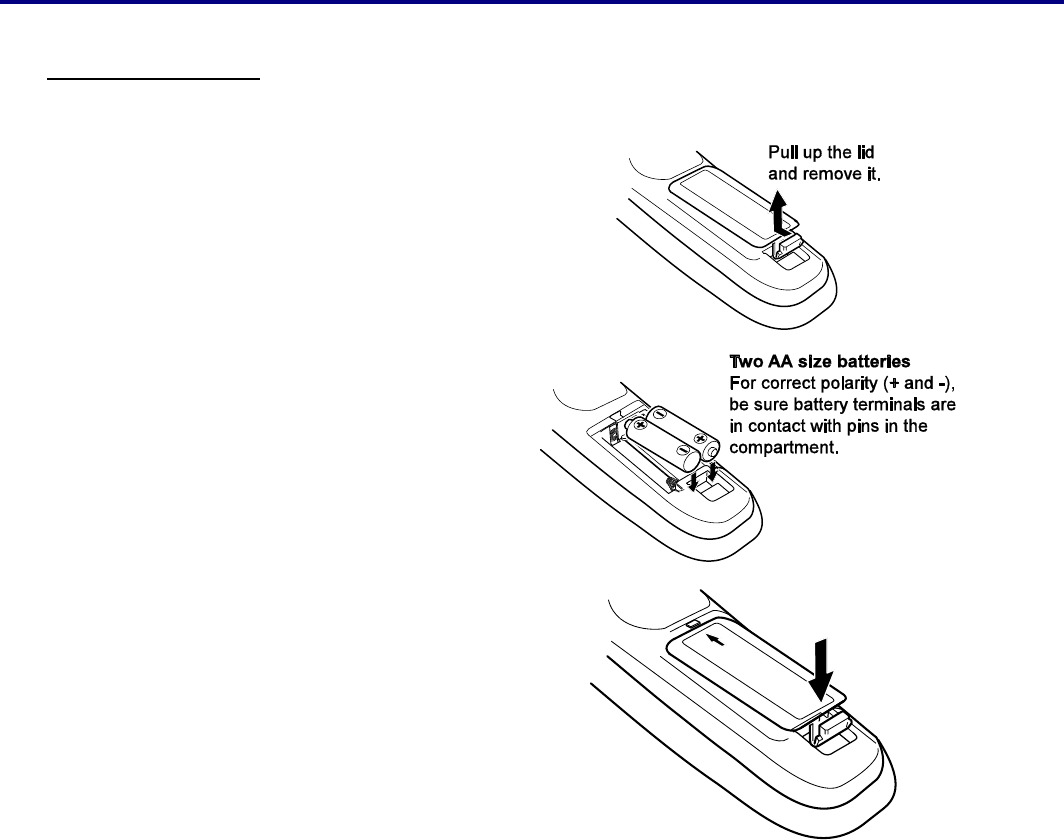

Battery Installation ..........................................................................................................................................................................14

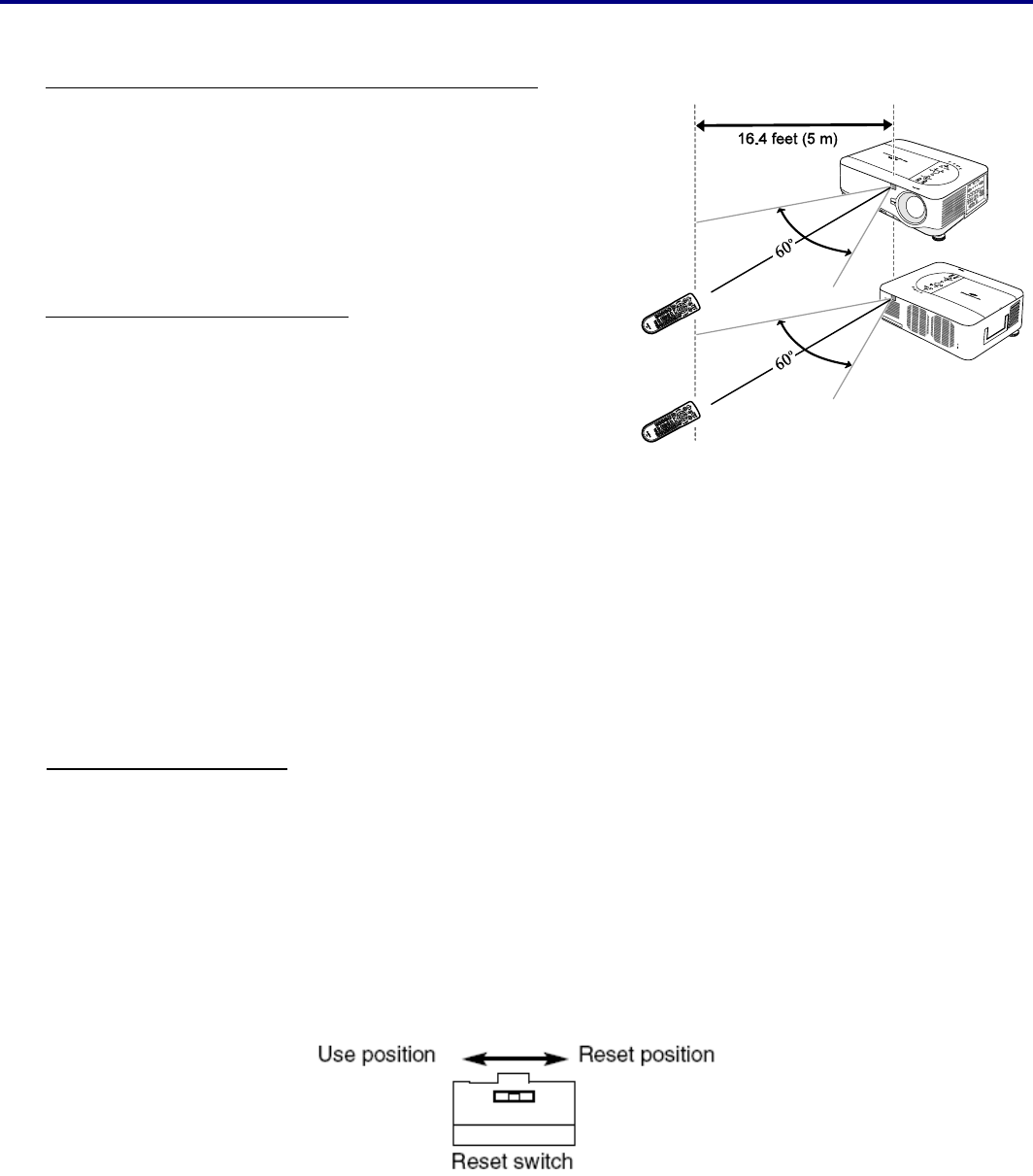

Operating Range for Wireless Remote Control..........................................................................................................................15

Remote Control Precautions .........................................................................................................................................................15

Remote Control Codes...................................................................................................................................................................15

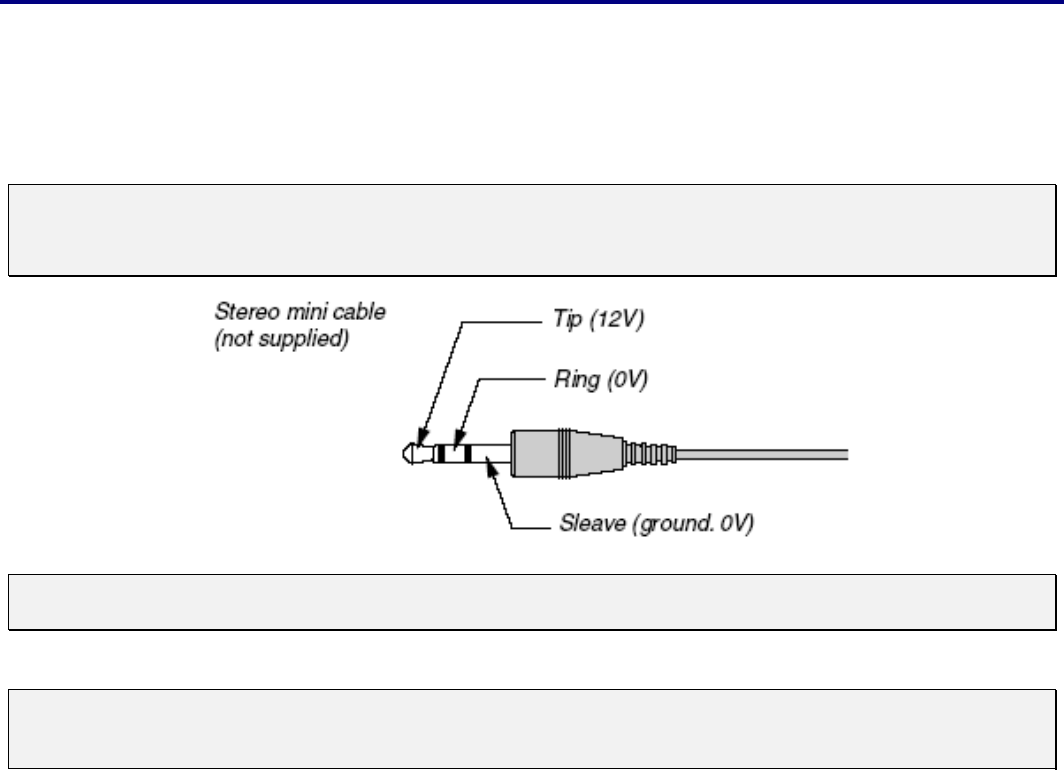

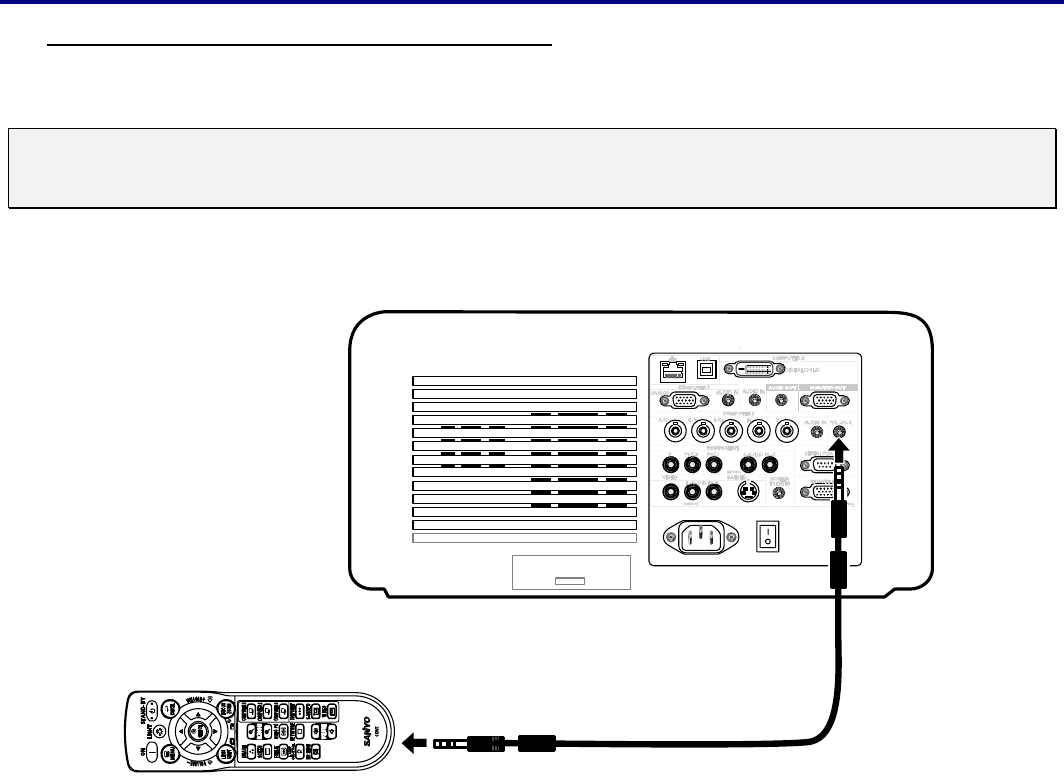

Using the Remote Control in Wired Operation ...........................................................................................................................16

2. INSTALLATION AND CONNECTIONS .........................................................................................................................................17

nSETTING UP THE SCREEN AND THE PROJECTOR.............................................................................................................................17

oSELECTING A LOCATION....................................................................................................................................................................18

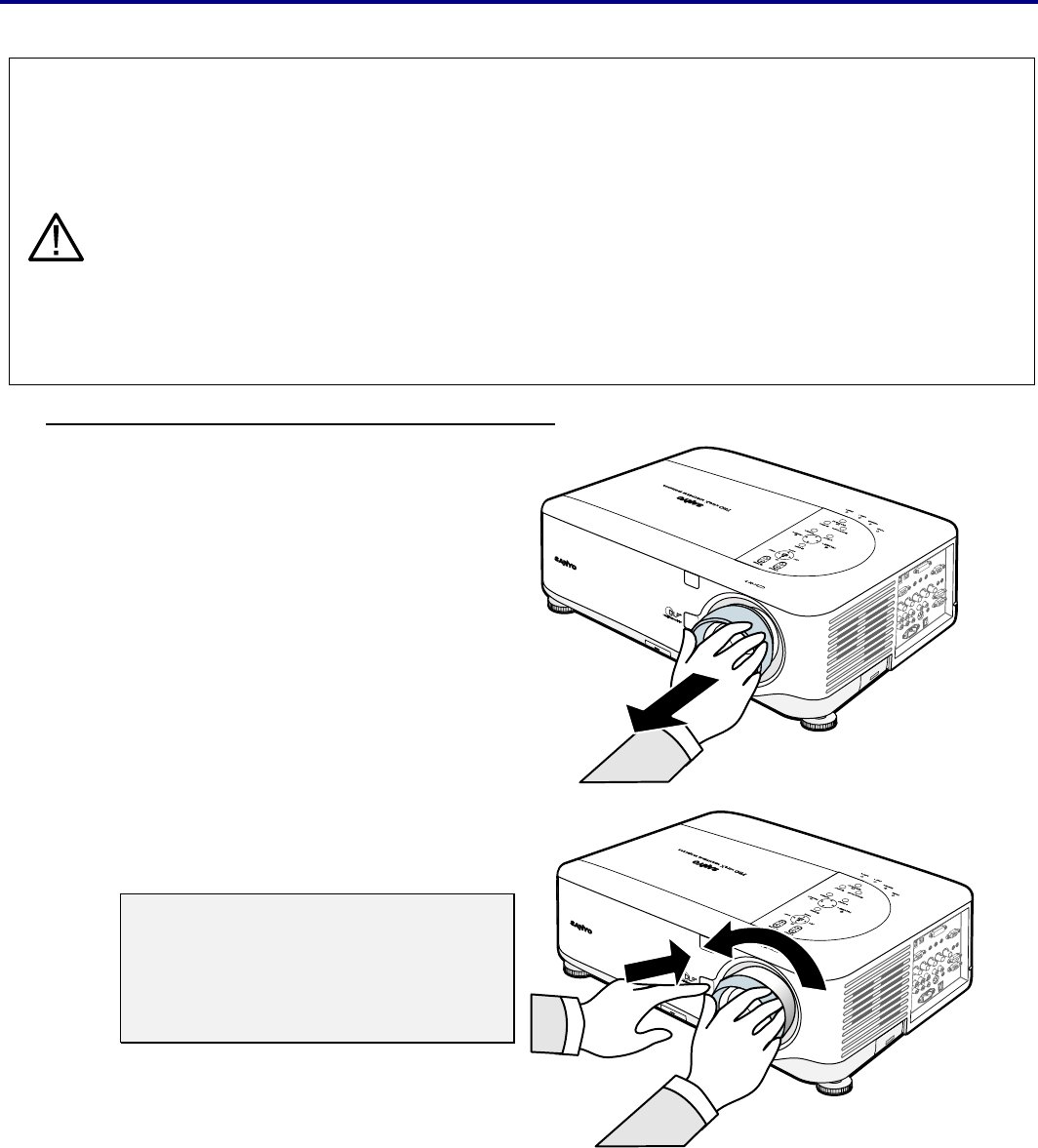

pINSTALLING OR REMOVING THE OPTIONAL LENS .............................................................................................................................19

Removing the Existing Lens From the Projector........................................................................................................................19

Installing the New Lens..................................................................................................................................................................20

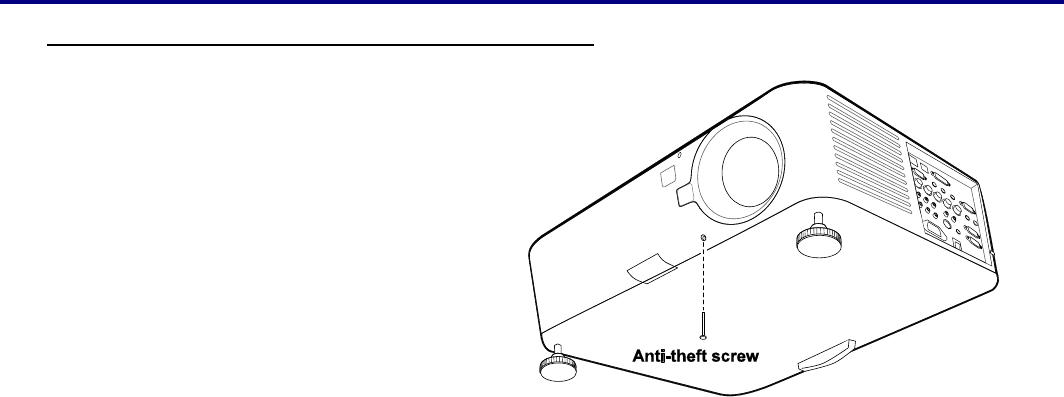

Installing the New Lens Using the anti-theft screw ....................................................................................................................21

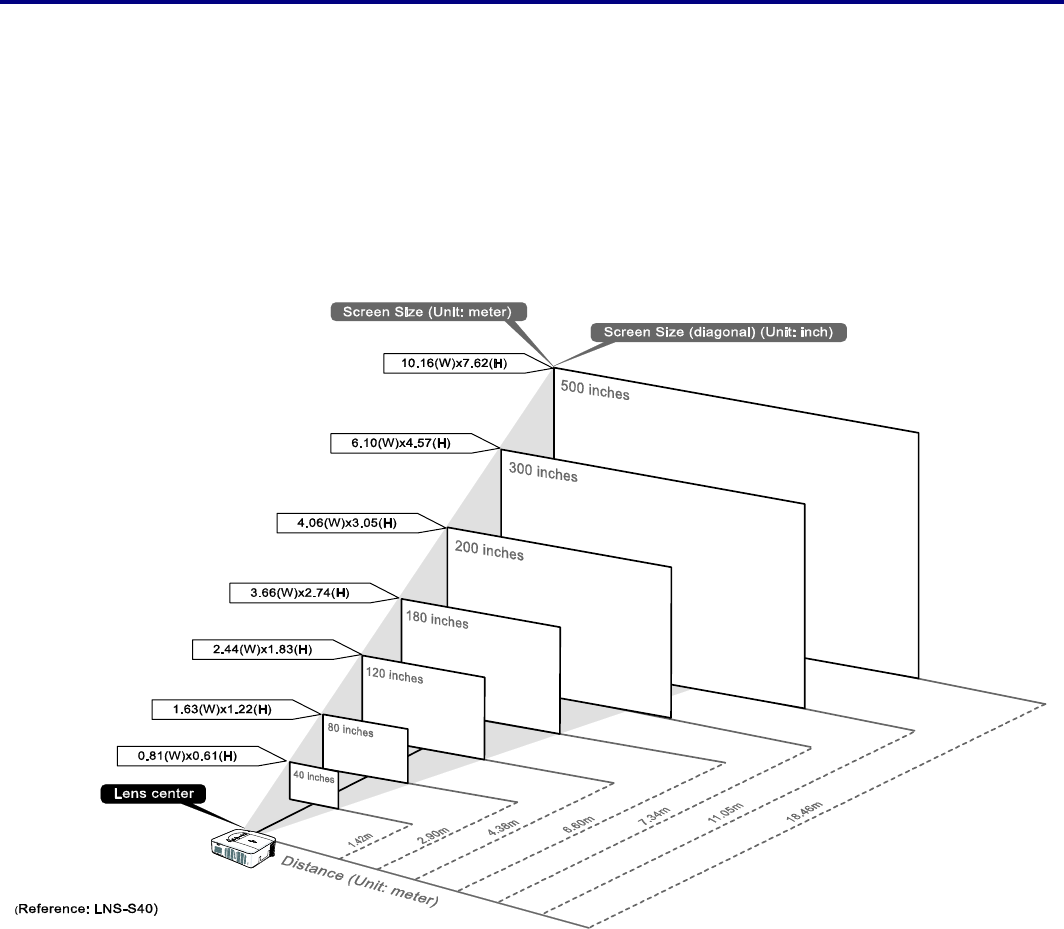

qTHROW DISTANCE AND SCREEN SIZE ..............................................................................................................................................22

rINSTALLING THE OPTIONAL COLOR WHEEL .....................................................................................................................................24

sMAKING CONNECTIONS.....................................................................................................................................................................26

Connecting Your PC or Macintosh Computer.............................................................................................................................26

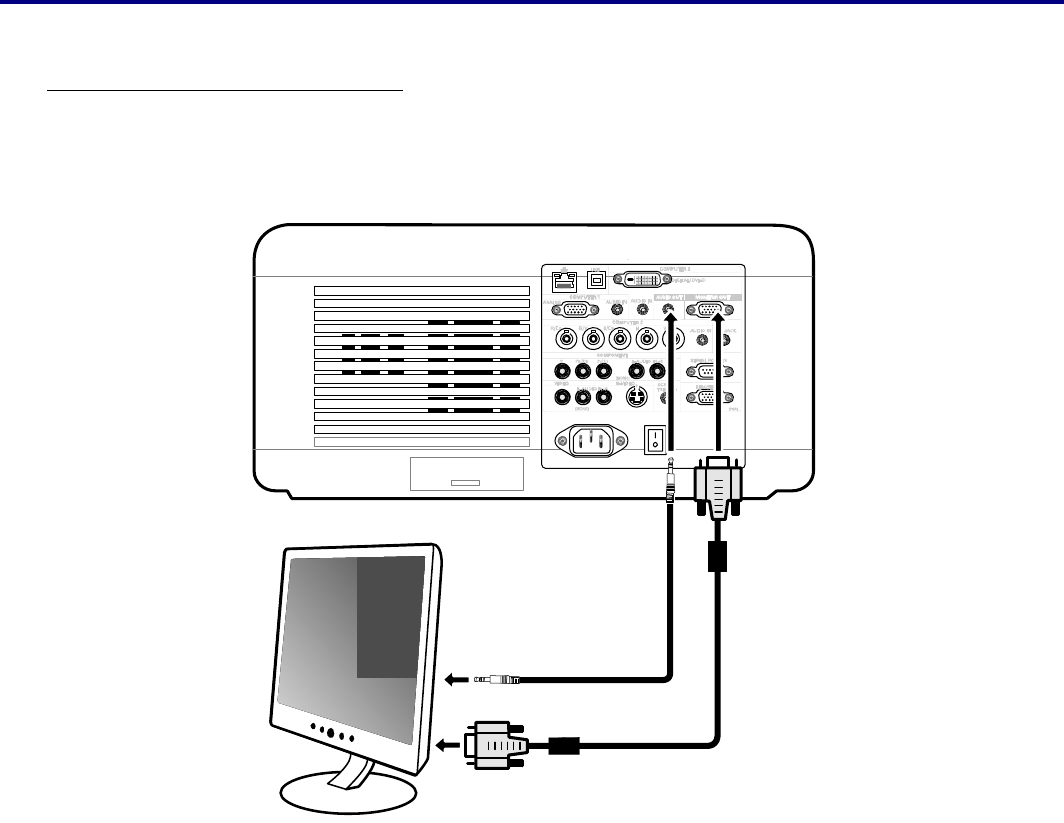

Connecting an External Monitor....................................................................................................................................................28

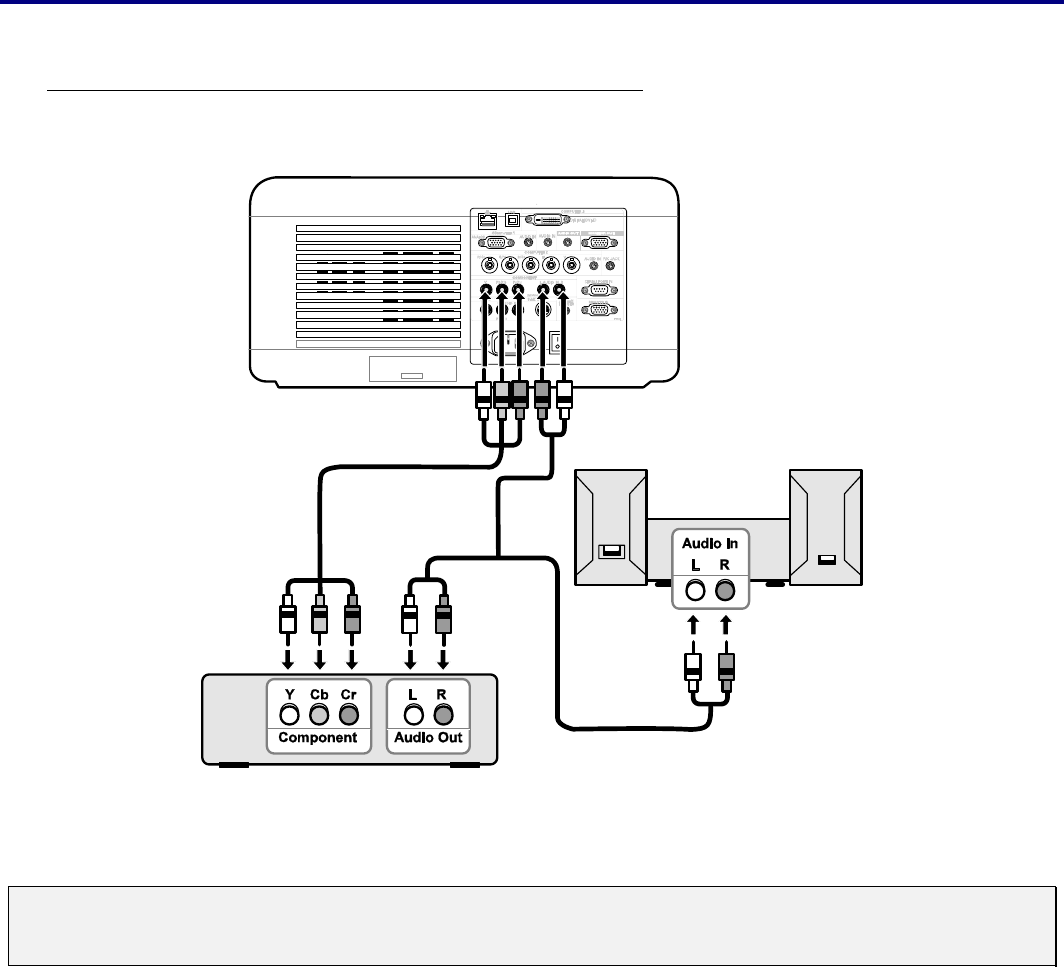

Connecting Your DVD Player with Component Output.............................................................................................................29

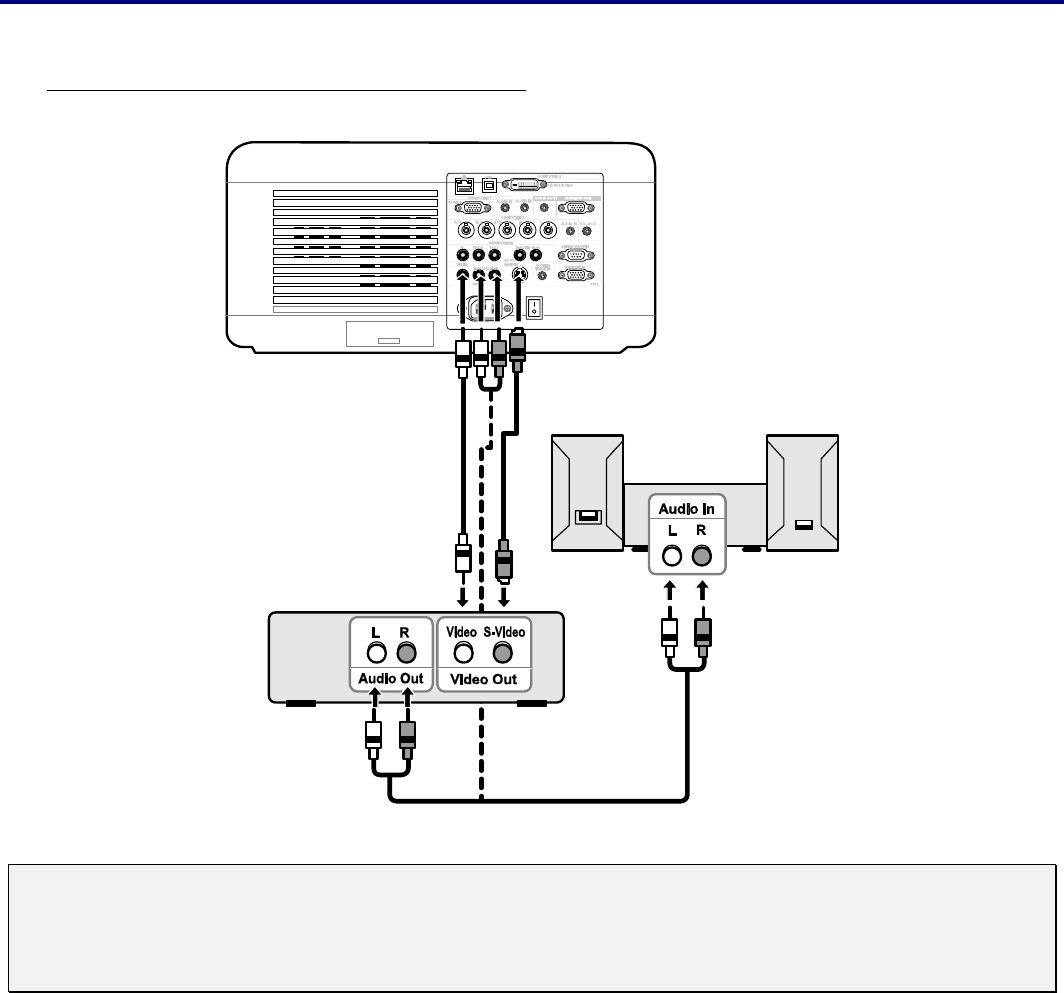

Connecting Your VCR or Laser Disc Player ...............................................................................................................................30

tCONNECTING THE SUPPLIED POWER CABLE ...................................................................................................................................31

NOTE ON THE POWER CORD ...................................................................................................................................................31

3. PROJECTING AN IMAGE (BASIC OPERATION) .......................................................................................................................32

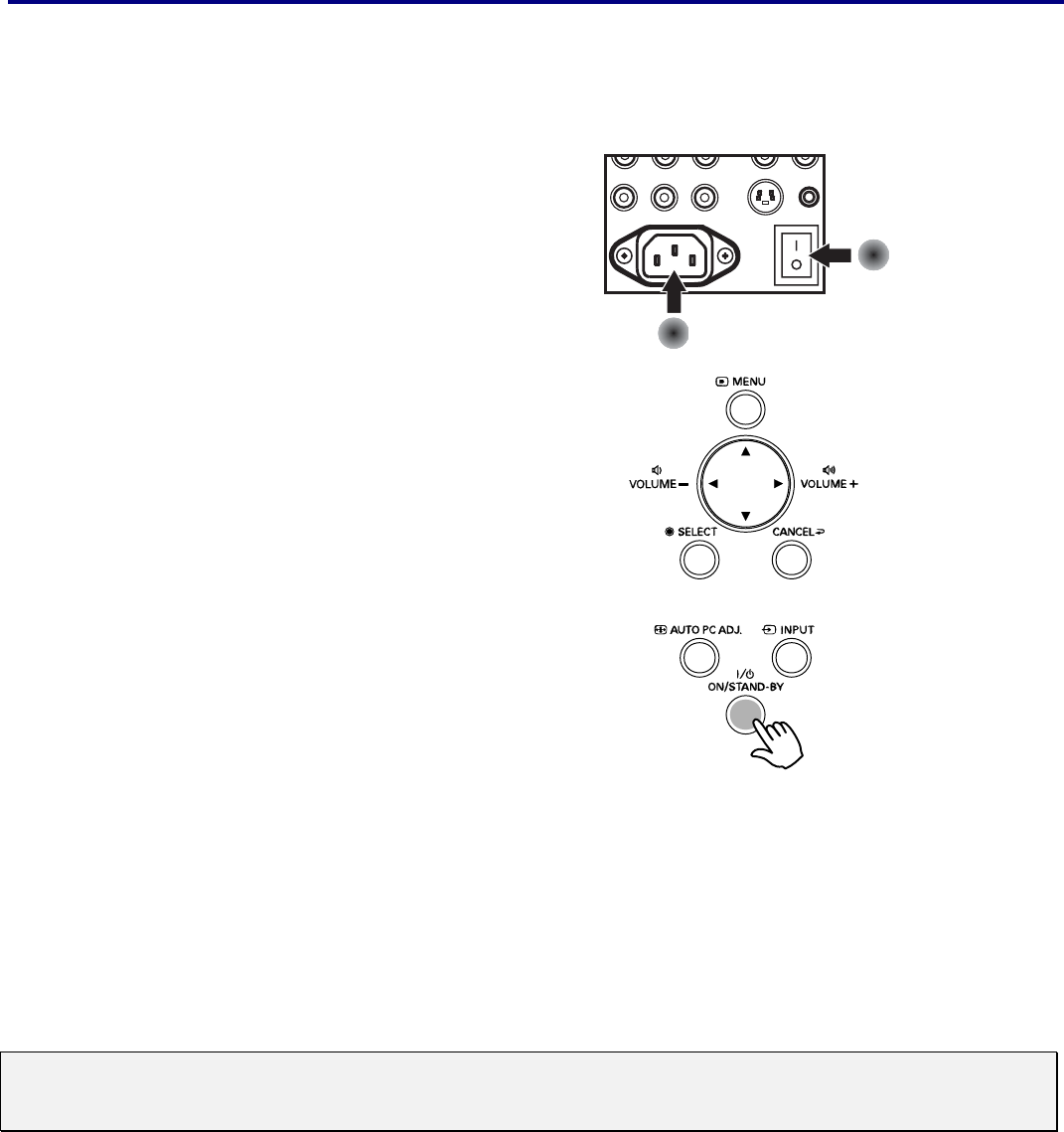

nTURNING ON THE PROJECTOR..........................................................................................................................................................32

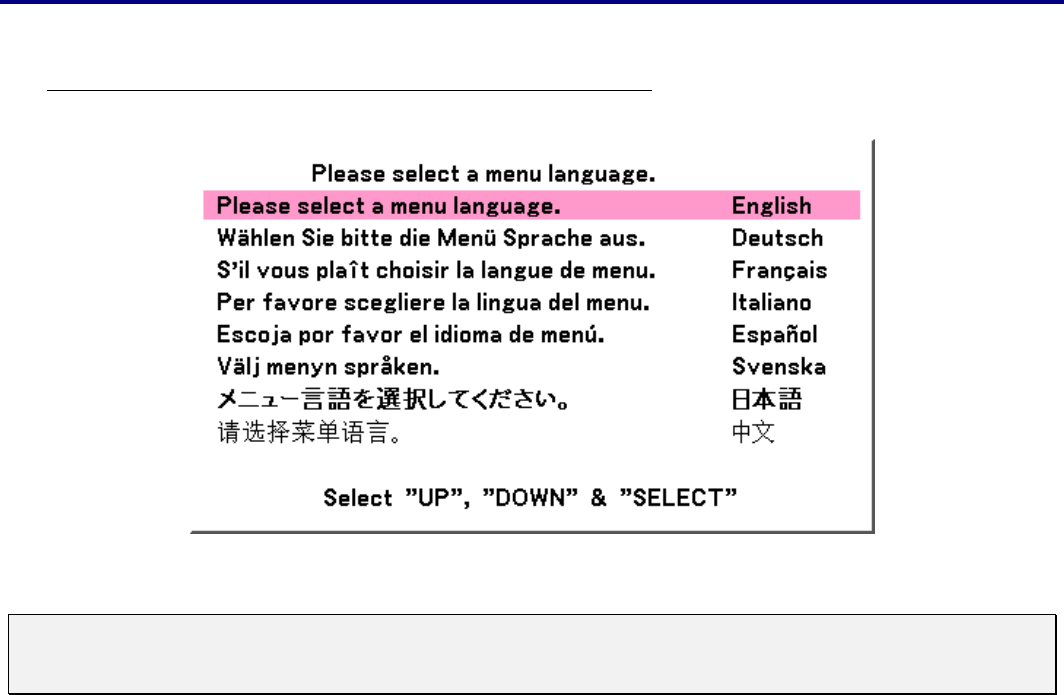

Note on Startup Screen (Menu Language Select screen) ........................................................................................................33

oSELECTING AN INPUT SOURCE .........................................................................................................................................................34

pADJUSTING THE PICTURE POSITION AND PICTURE SIZE..................................................................................................................35

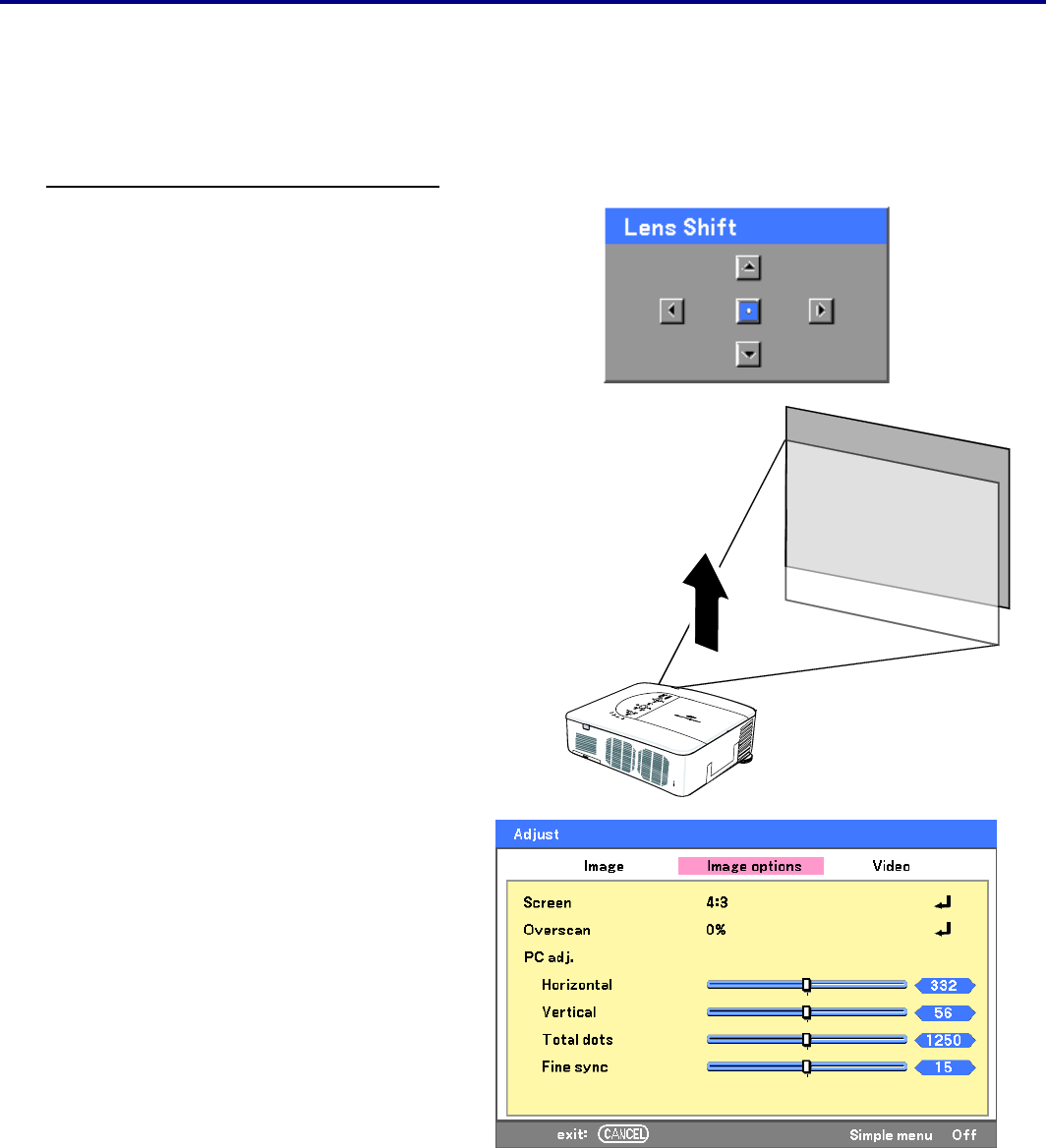

Adjusting Picture Position Manually .............................................................................................................................................35

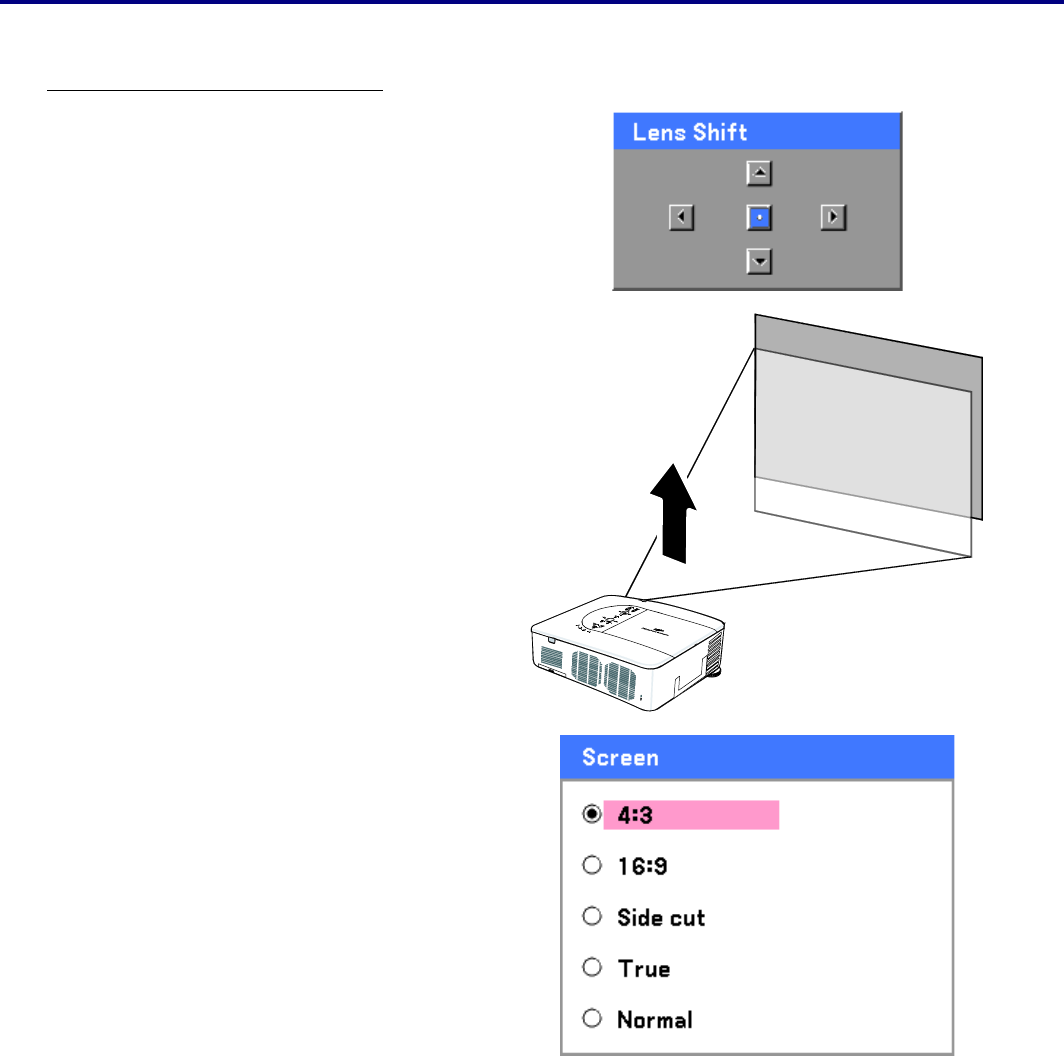

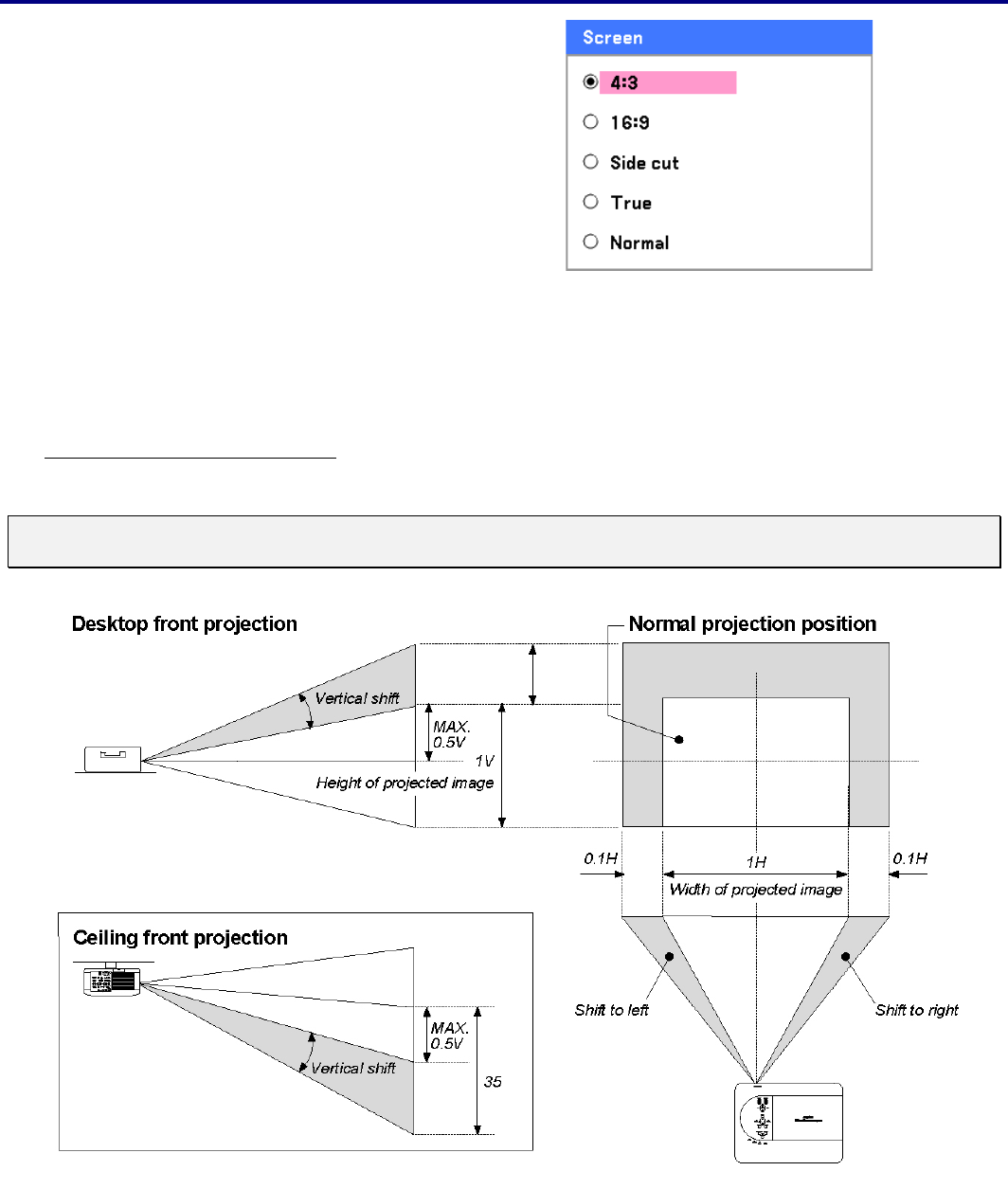

Lens Shift Adjustable Range.........................................................................................................................................................36

From the Remote Control Unit ......................................................................................................................................................37

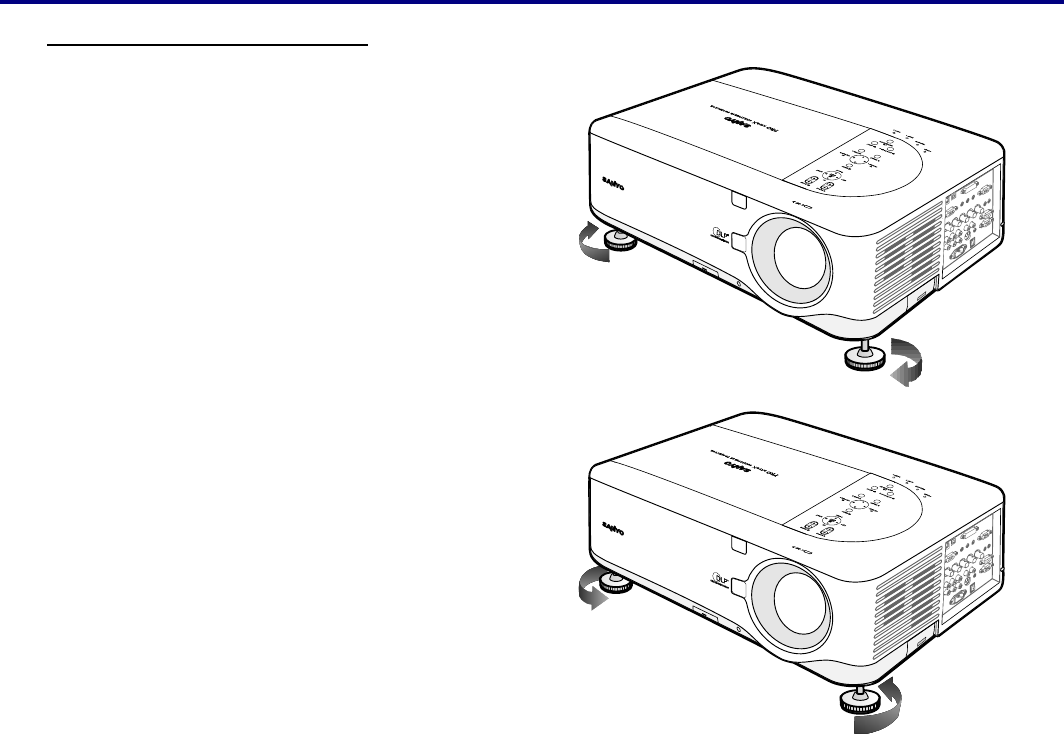

Adjusting the Projector Level.........................................................................................................................................................38

qOPTIMIZING AN RGB IMAGE AUTOMATICALLY .................................................................................................................................39

Adjusting the Image Using AUTO PC ADJ. ................................................................................................................................39

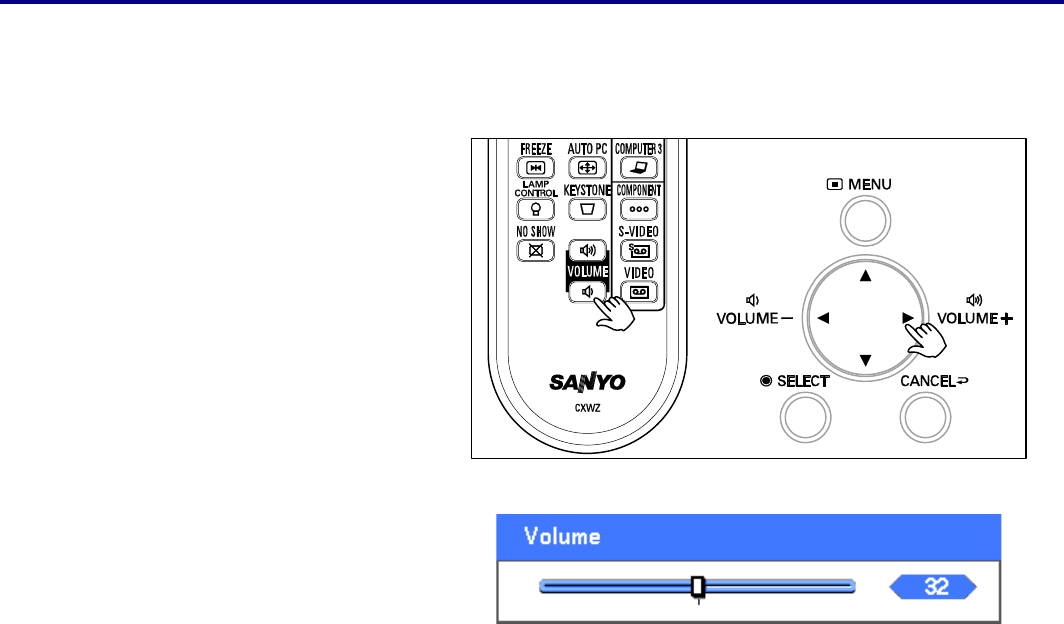

rADJUSTING VOLUME UP AND DOWN ................................................................................................................................................40

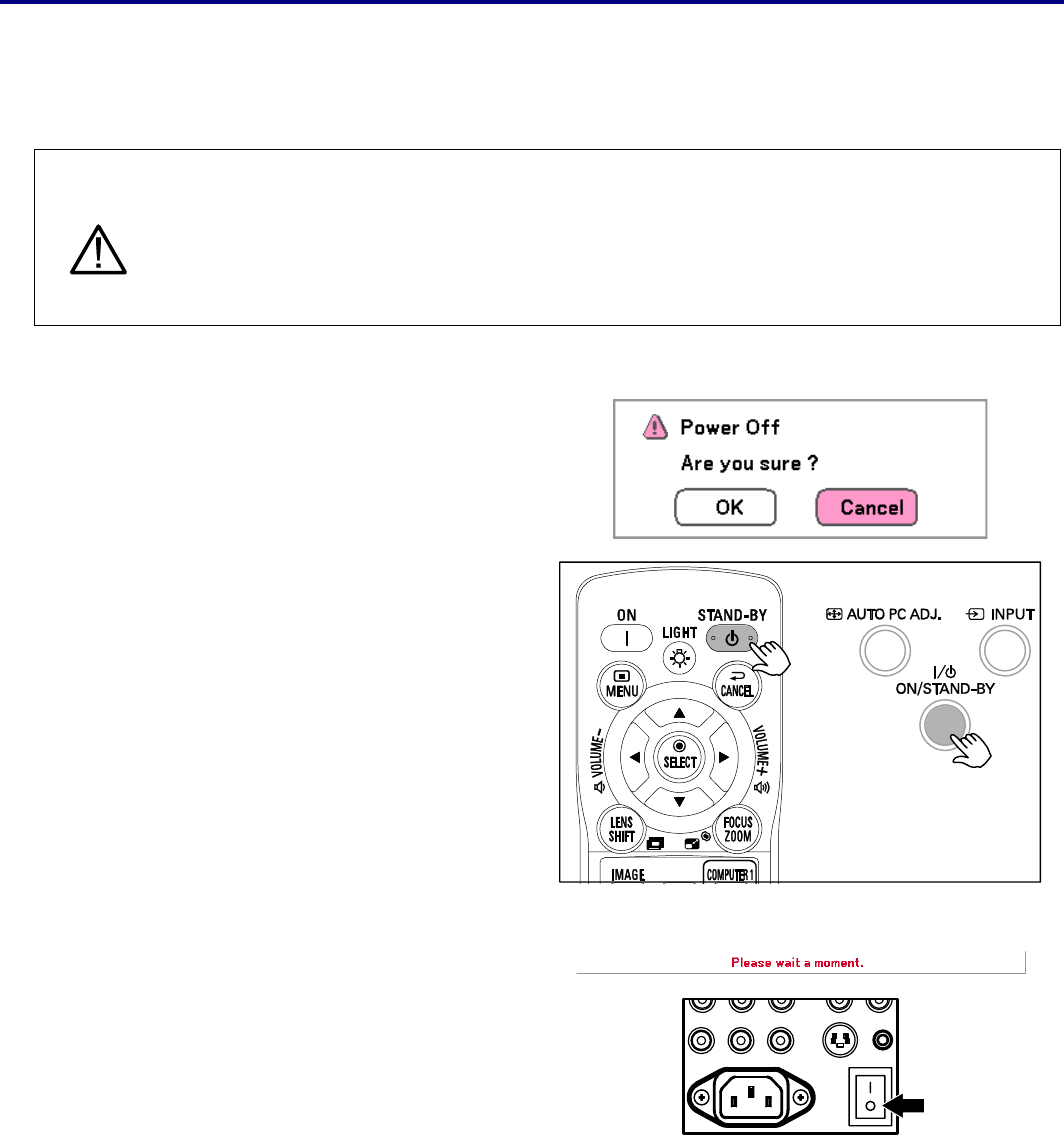

sTURNING OFF THE PROJECTOR ........................................................................................................................................................41

About Direct Power Off...................................................................................................................................................................42

After Use...........................................................................................................................................................................................42

viii

Table of Contents

4. CONVENIENT FEATURES ..............................................................................................................................................................43

nTURNING OFF THE IMAGE AND SOUND.............................................................................................................................................43

oFREEZING A PICTURE........................................................................................................................................................................43

pADJUSTING THE FOCUS/ZOOM MANUALLY.......................................................................................................................................44

Adjusting by Using the OSD Control Panel.................................................................................................................................44

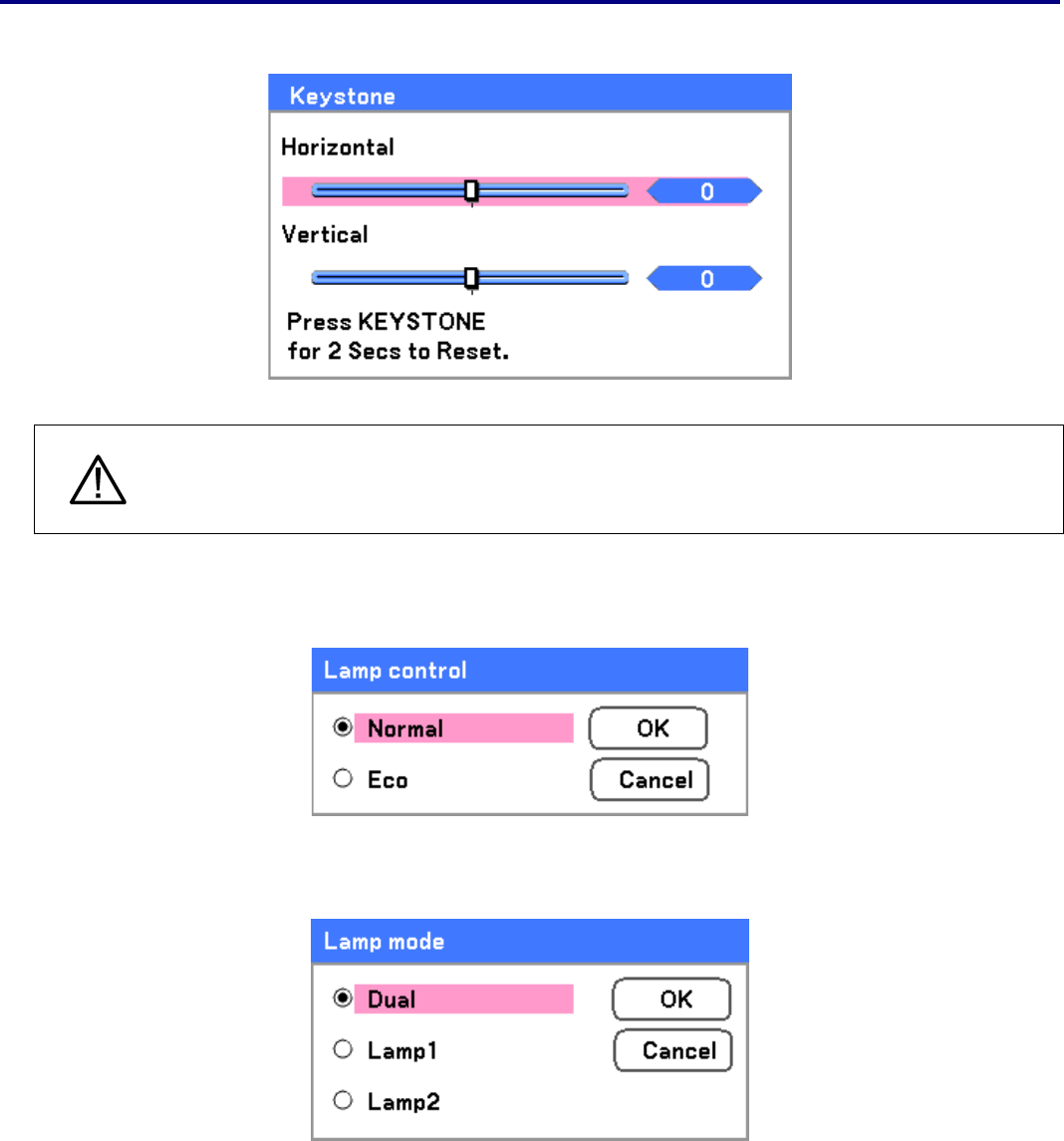

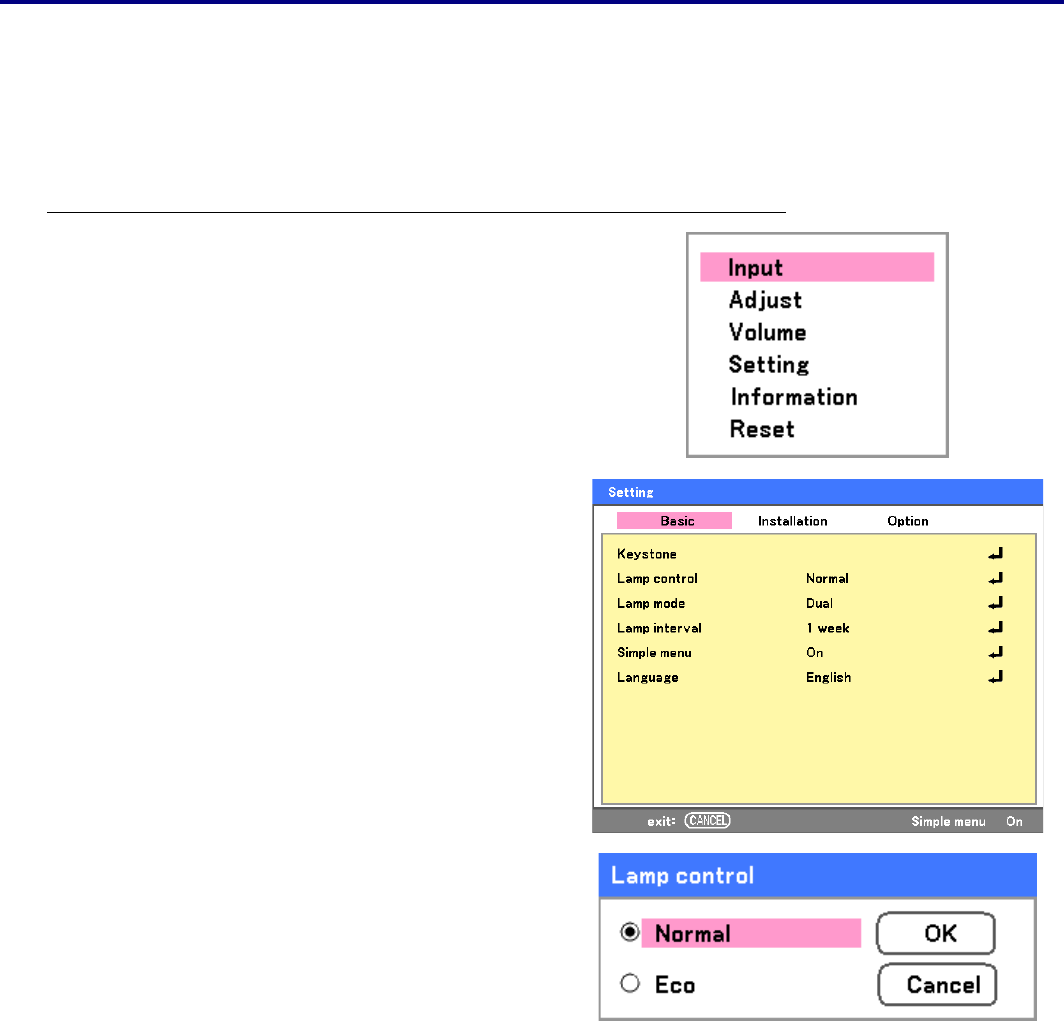

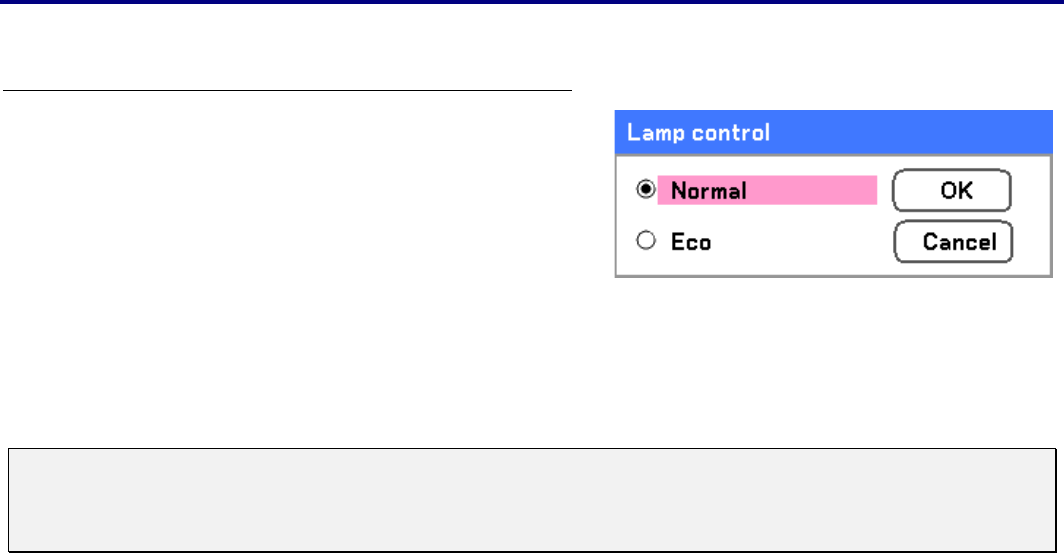

qCHANGING LAMP MODE....................................................................................................................................................................45

Changing Lamp Mode by Using the Projector's OSD Control Panel ......................................................................................45

Changing Lamp Mode by Using the Remote Control ................................................................................................................46

rGETTING INFORMATION.....................................................................................................................................................................47

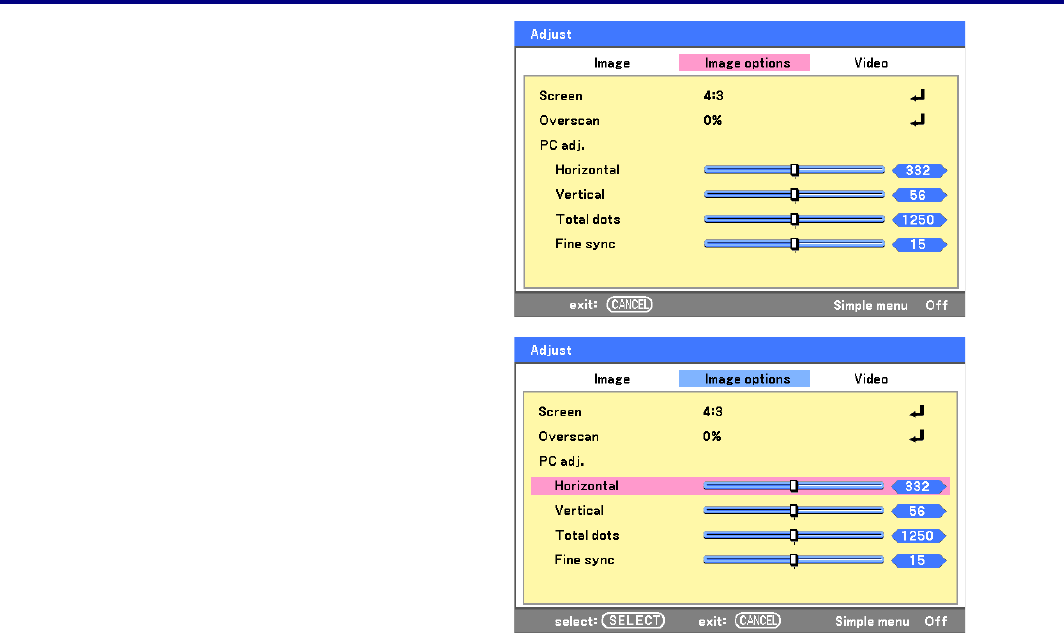

sADJUSTING POSITION/TOTAL DOTS/FINE SYNC ..............................................................................................................................48

Adjusting Position/Total Dots/Fine Sync by using the OSD Control Panel ............................................................................48

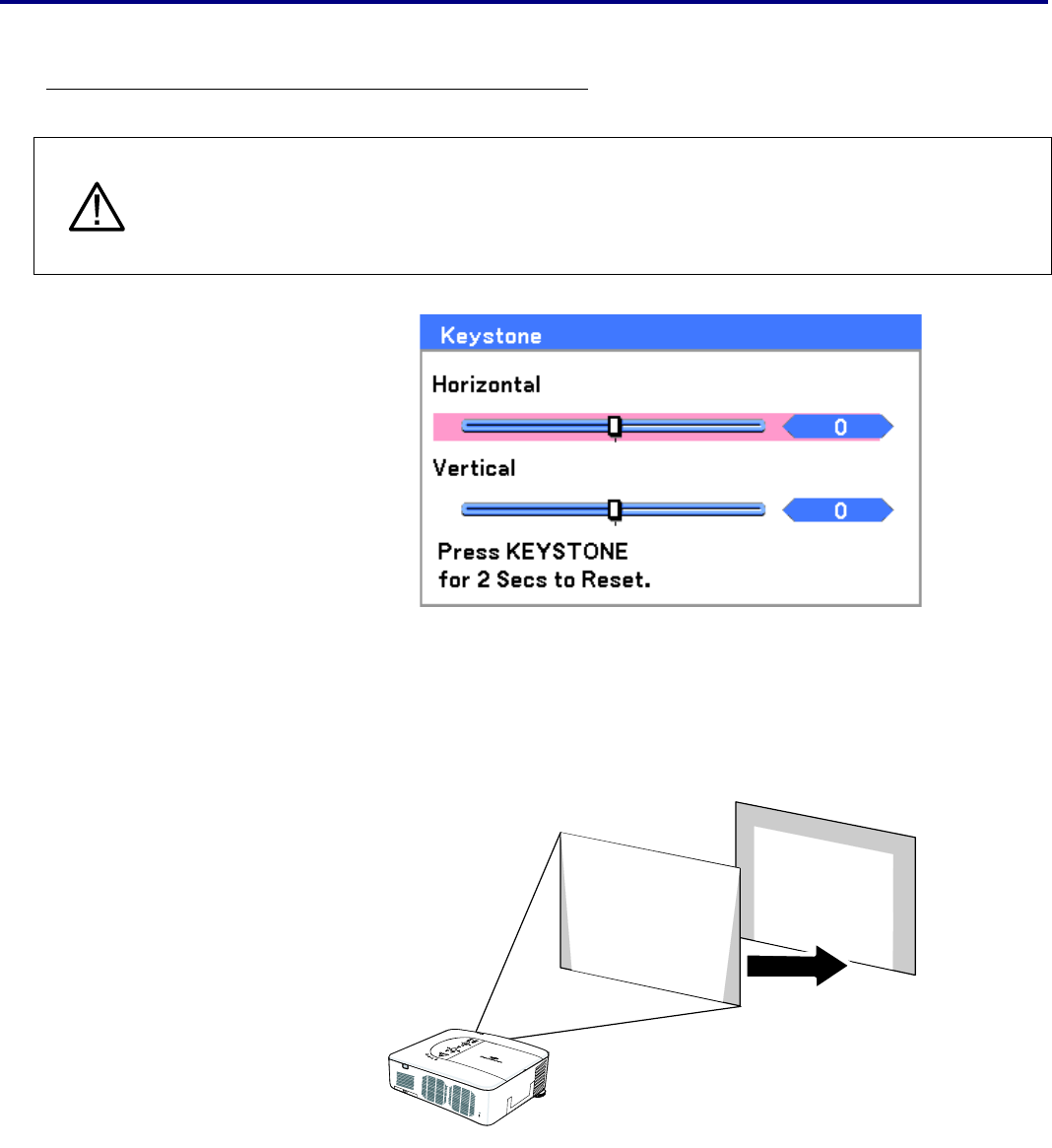

Correcting Keystone by Using the Remote Control ...................................................................................................................49

tPREVENTING THE UNAUTHORIZED USE OF THE PROJECTOR ..........................................................................................................51

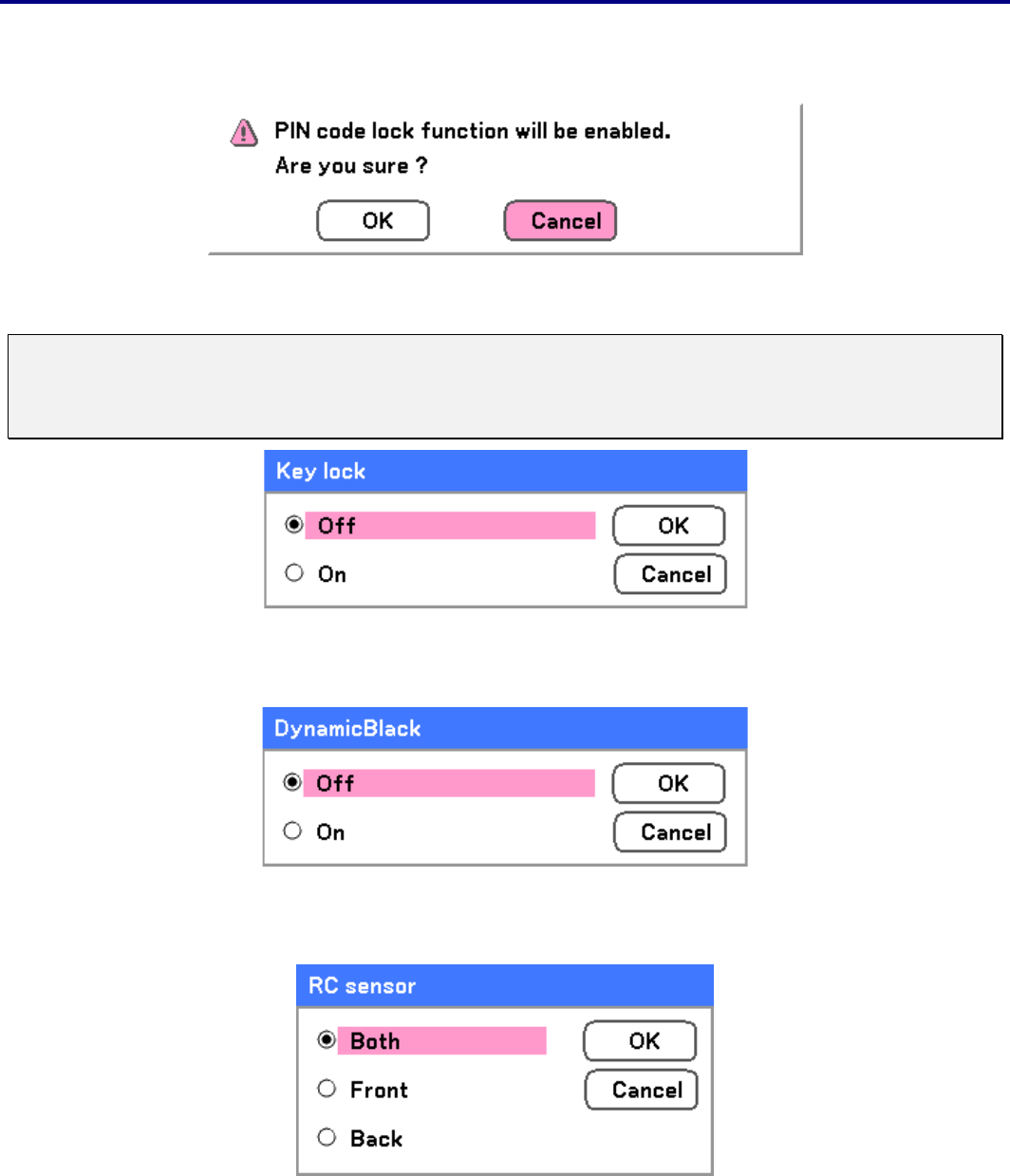

Locking the Projector......................................................................................................................................................................51

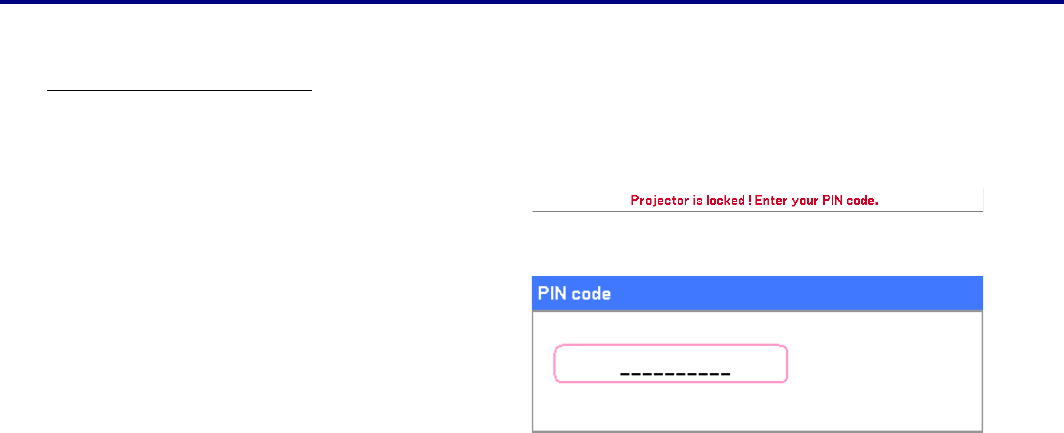

Unlocking the Projector ..................................................................................................................................................................53

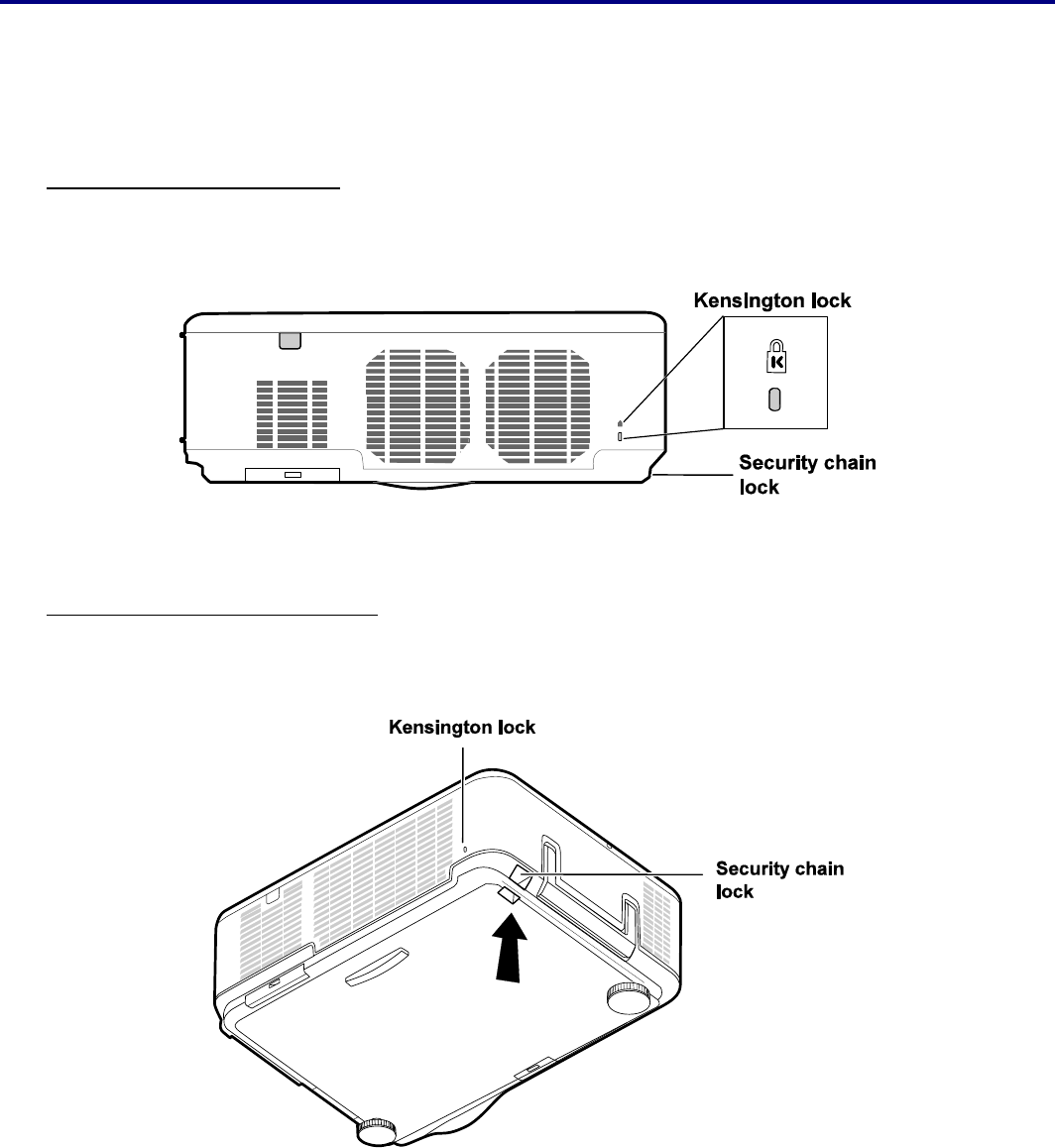

uUSING THE PHYSICAL LOCK..............................................................................................................................................................54

Using the Kensington Lock............................................................................................................................................................54

Using the Security Chain Lock......................................................................................................................................................54

5. USING ON-SCREEN DISPLAY.......................................................................................................................................................55

nUSING THE MENUS............................................................................................................................................................................55

Navigating the OSD........................................................................................................................................................................55

oMENU TREE.......................................................................................................................................................................................57

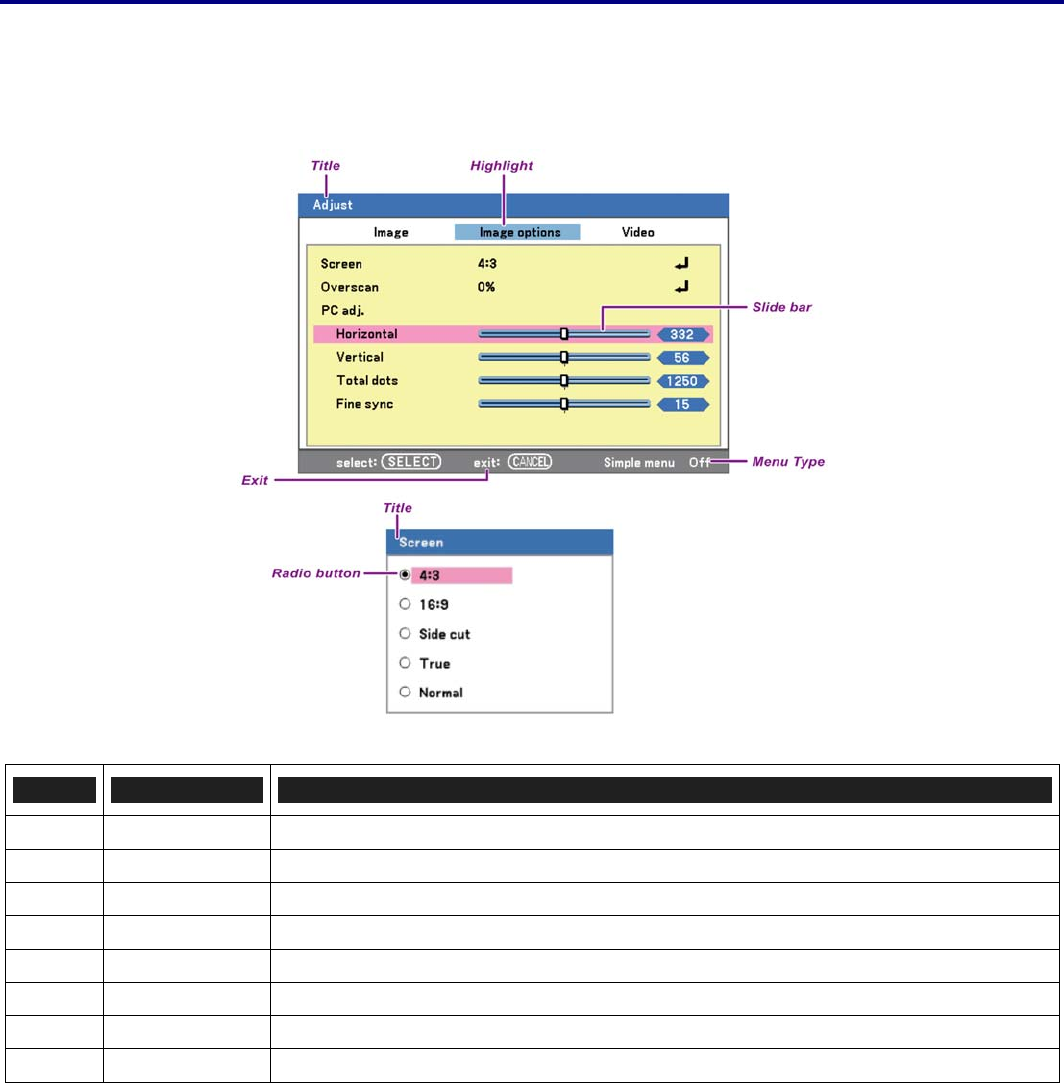

pMENU ELEMENTS ..............................................................................................................................................................................59

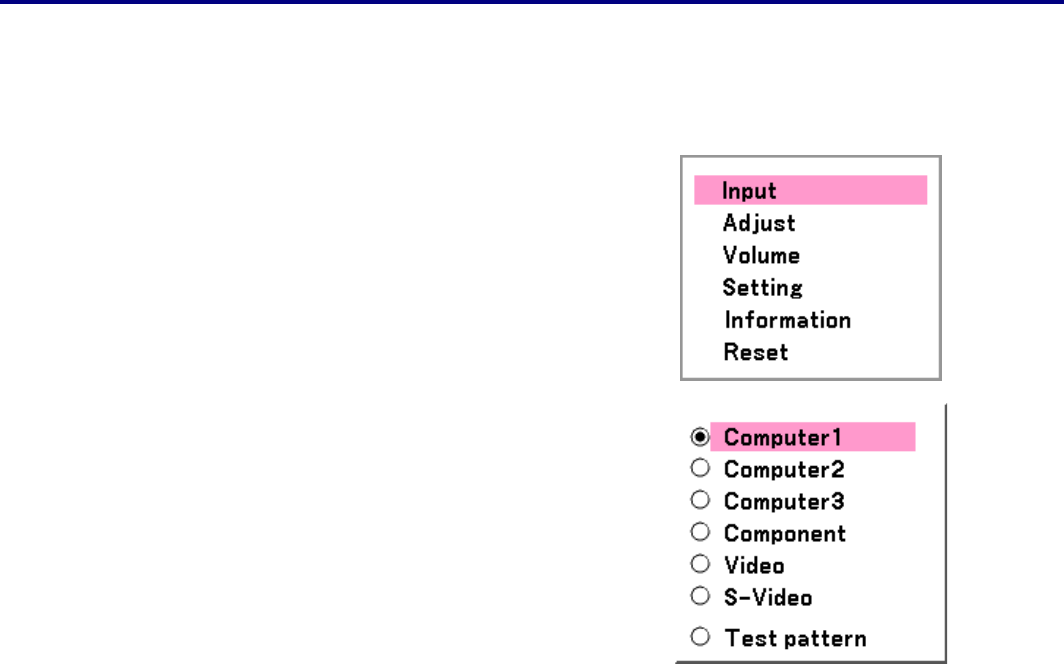

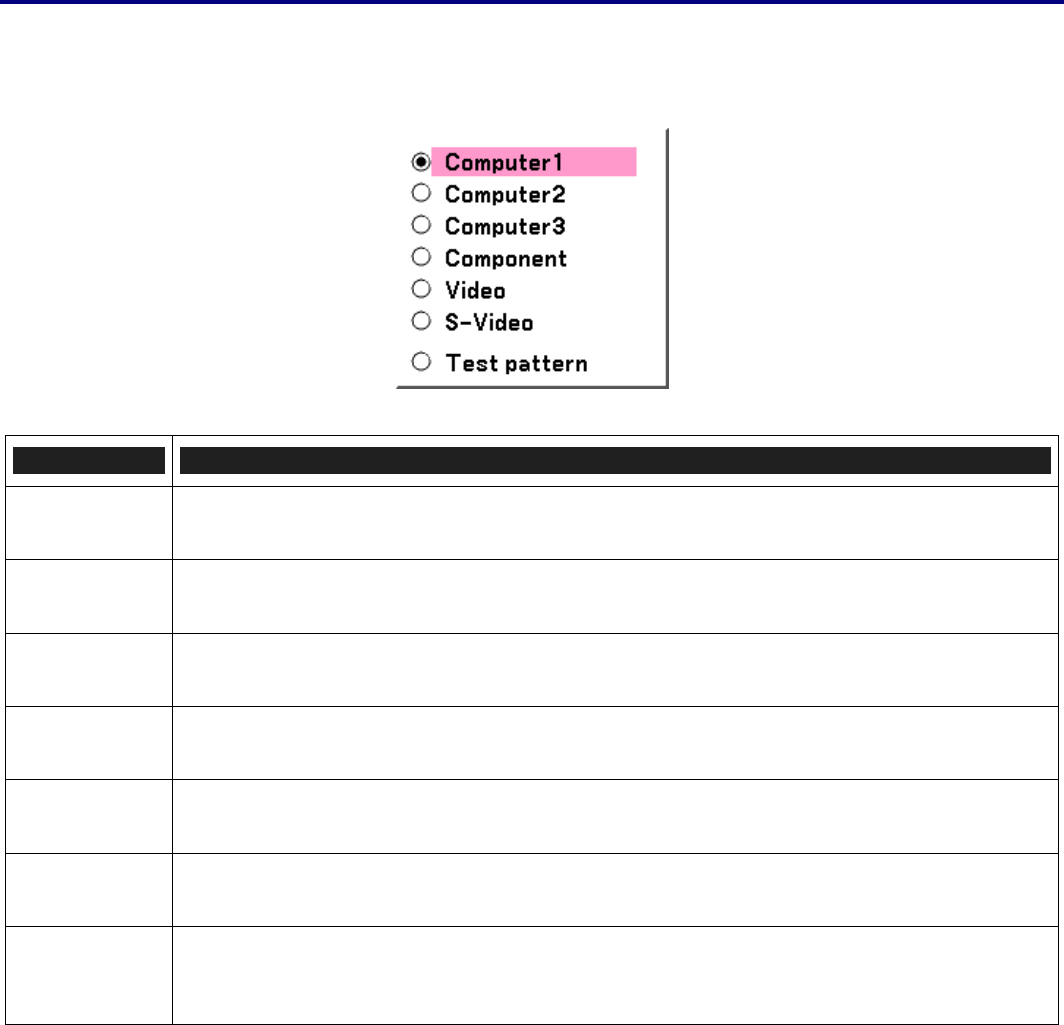

qSOURCE MENU DESCRIPTIONS AND FUNCTIONS.............................................................................................................................60

rADJUST MENU DESCRIPTIONS AND FUNCTIONS ..............................................................................................................................61

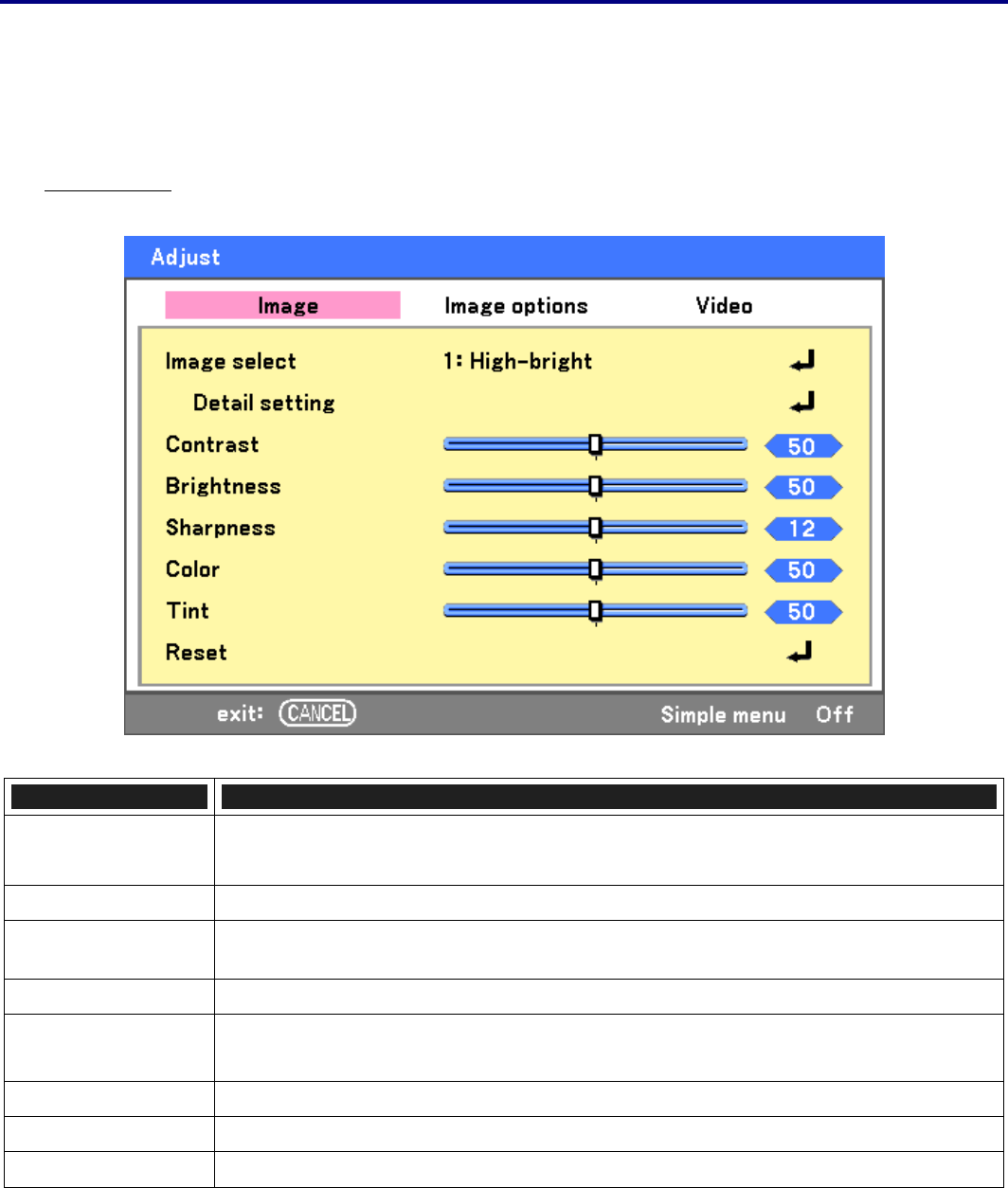

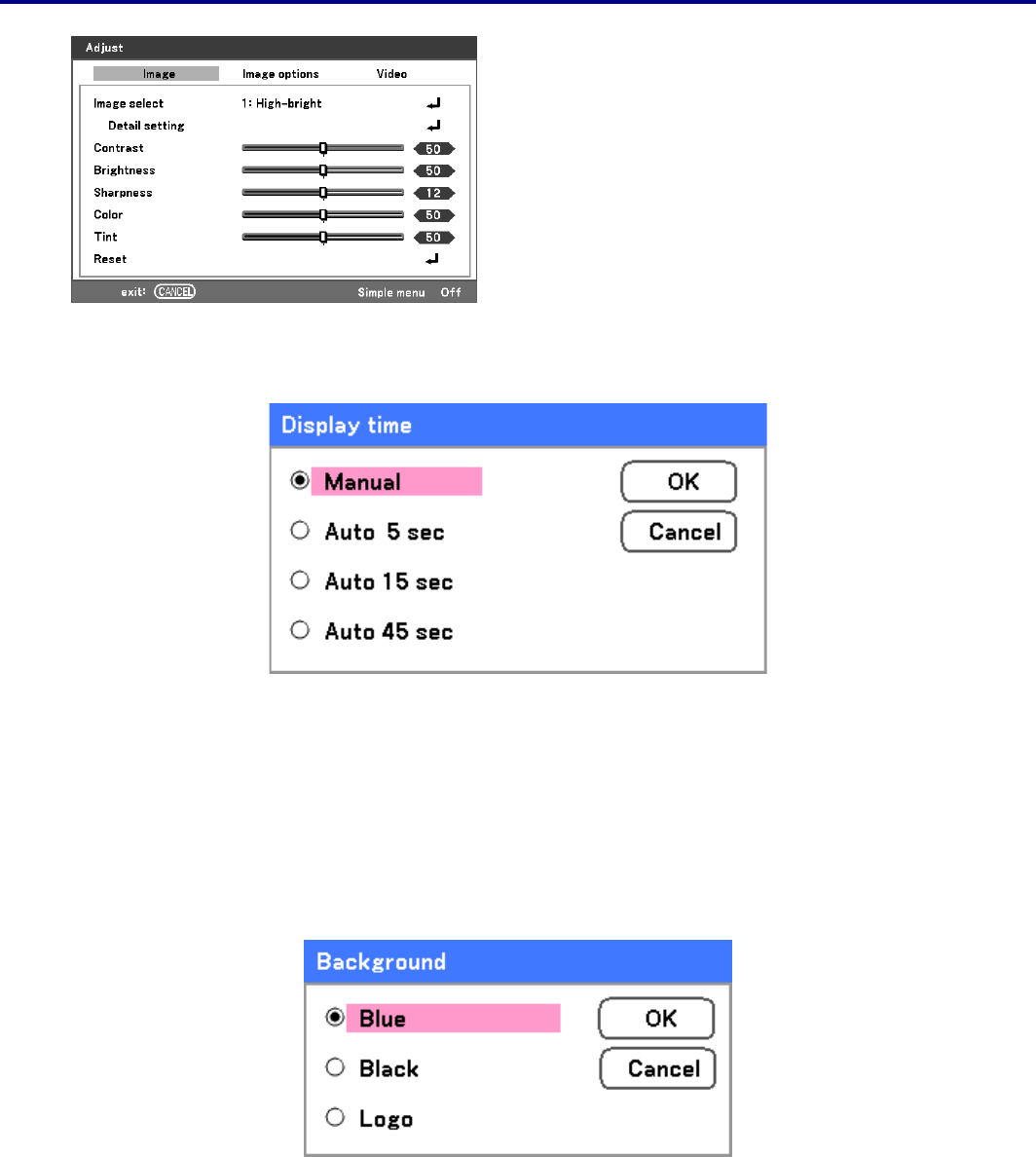

Image menu .....................................................................................................................................................................................61

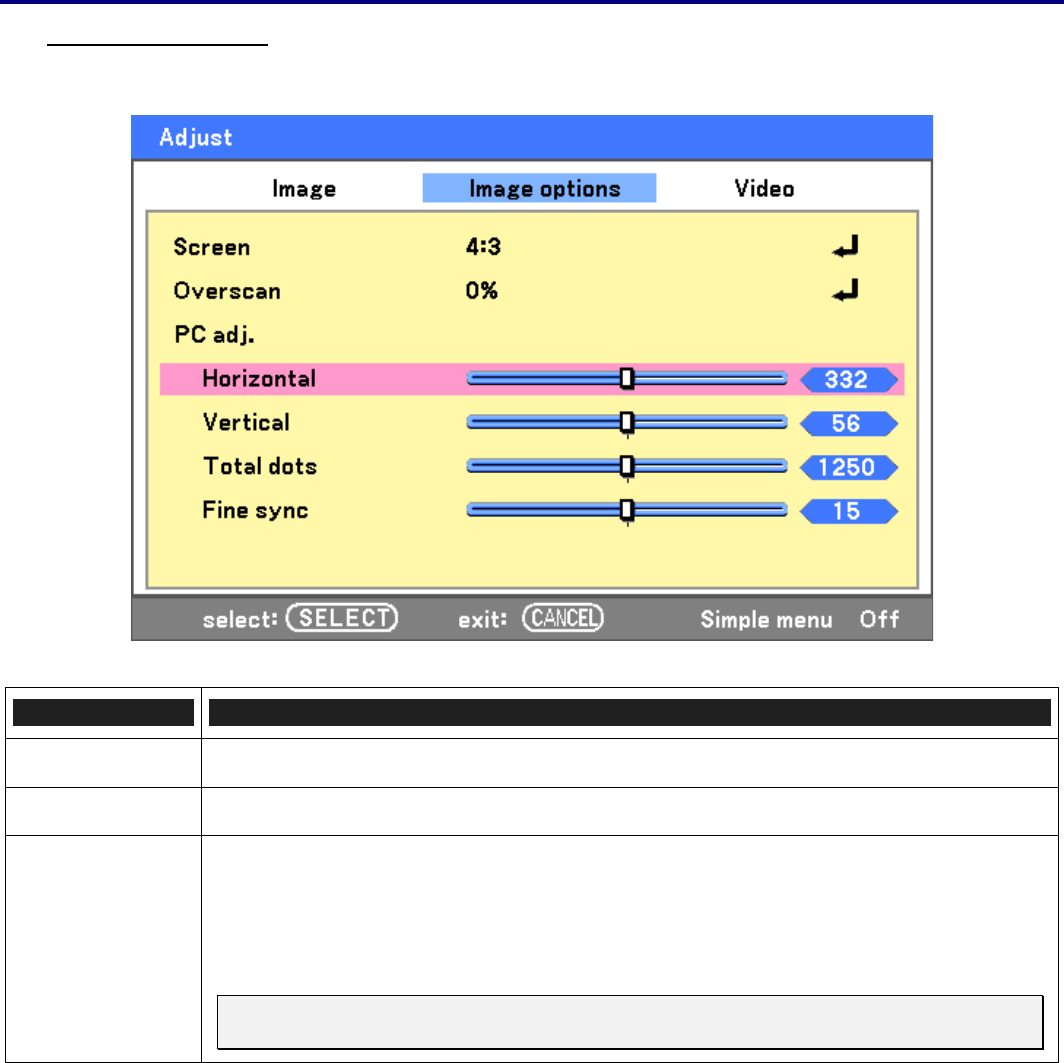

Image options menu .......................................................................................................................................................................62

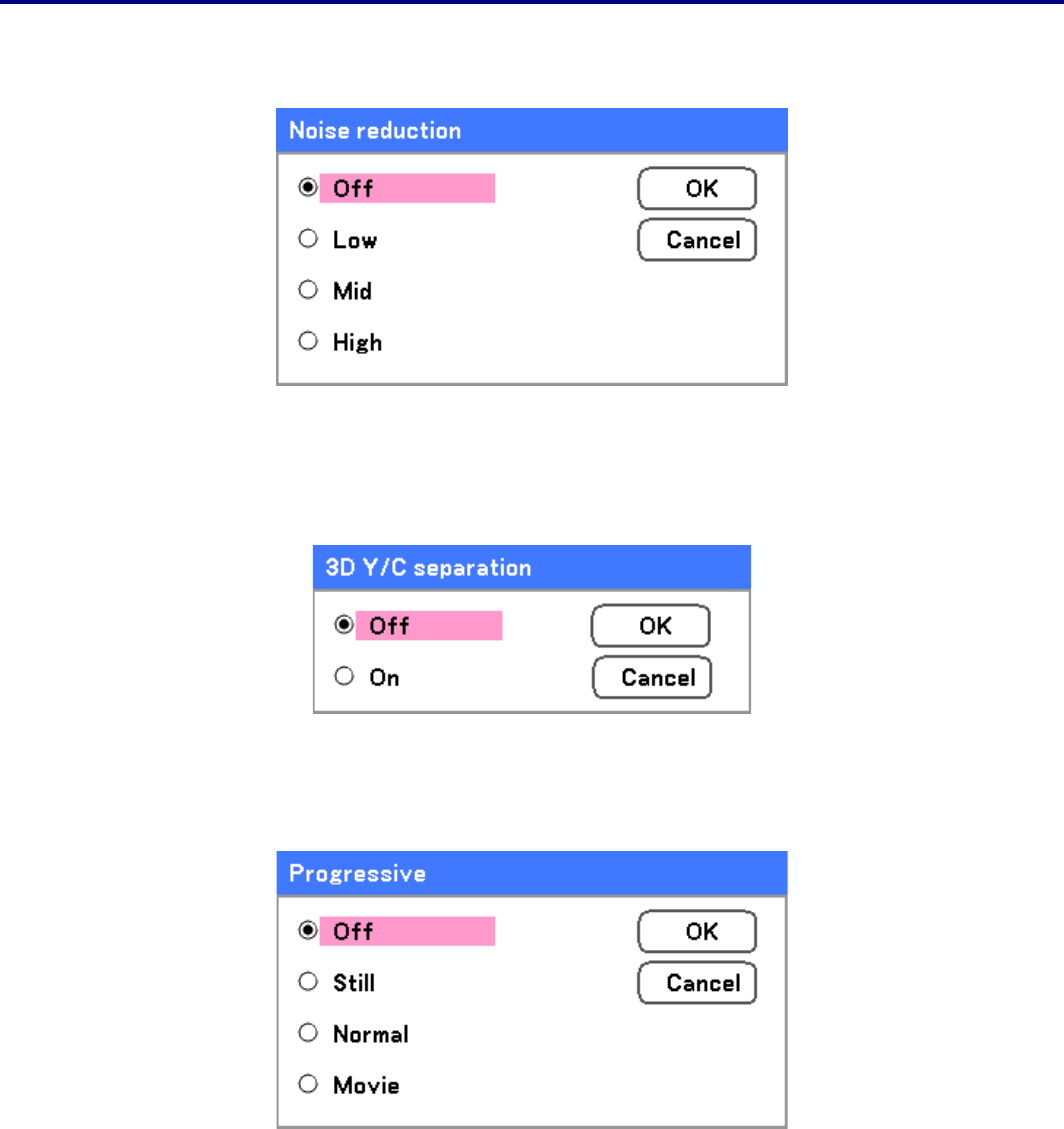

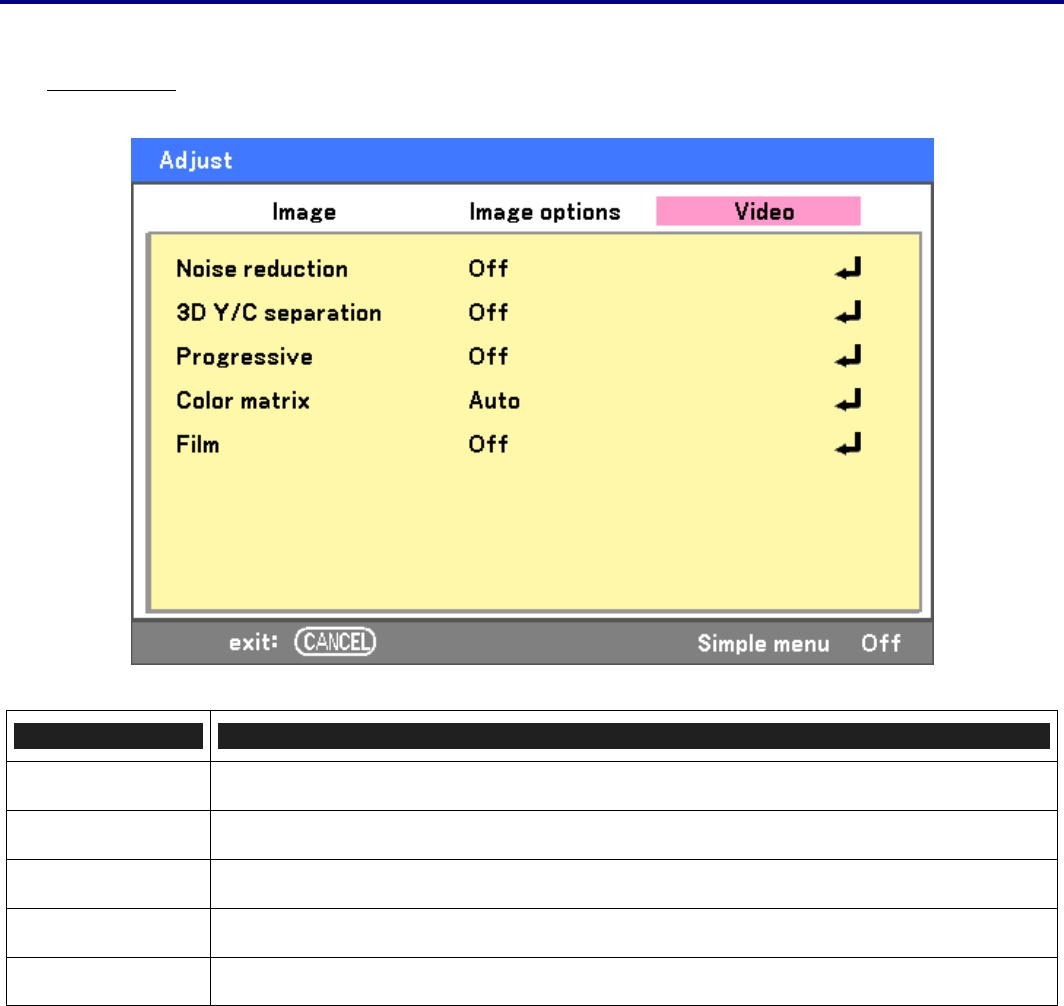

Video menu......................................................................................................................................................................................64

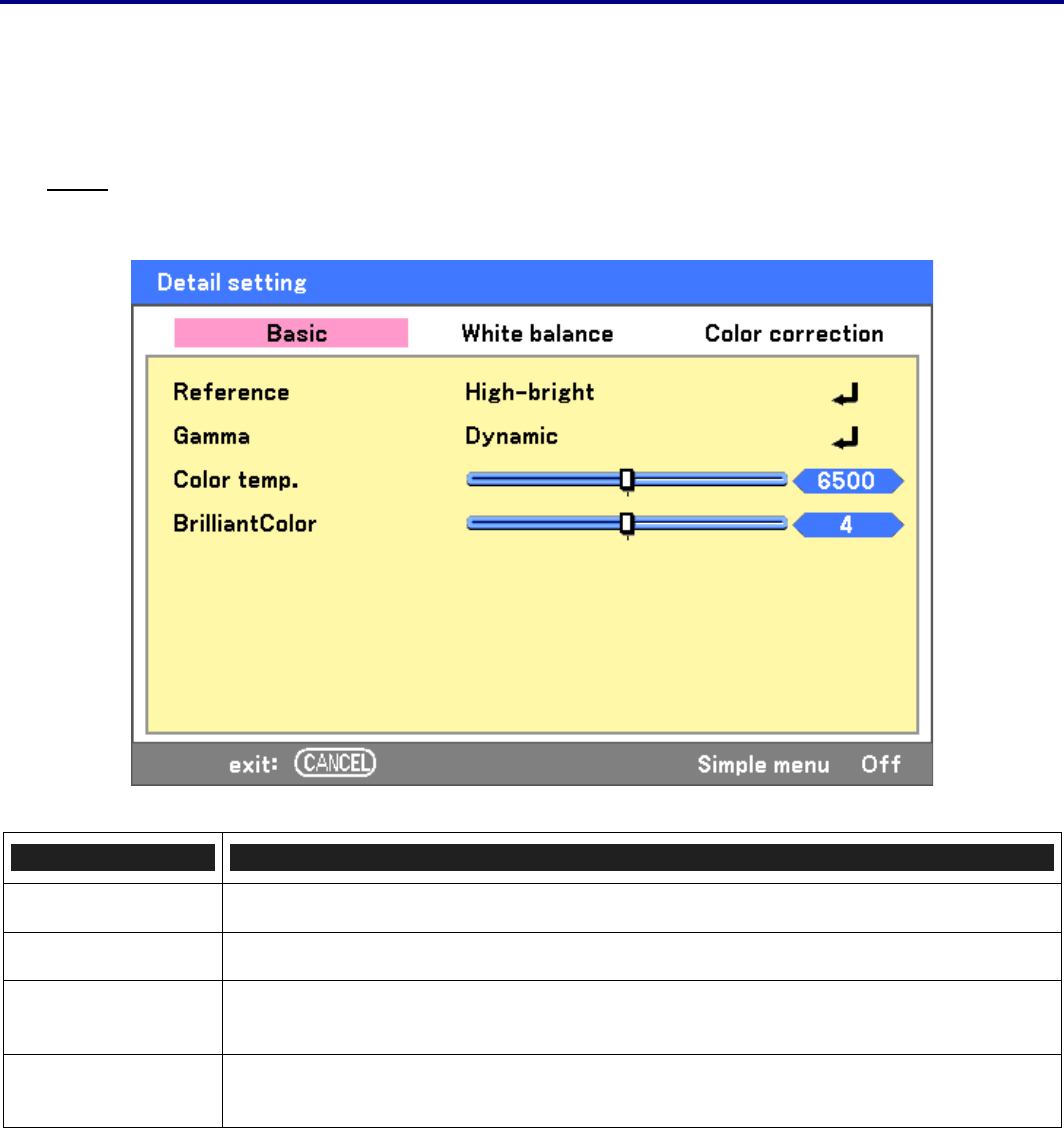

sDETAIL SETTINGS MENU DESCRIPTIONS AND FUNCTIONS ..............................................................................................................67

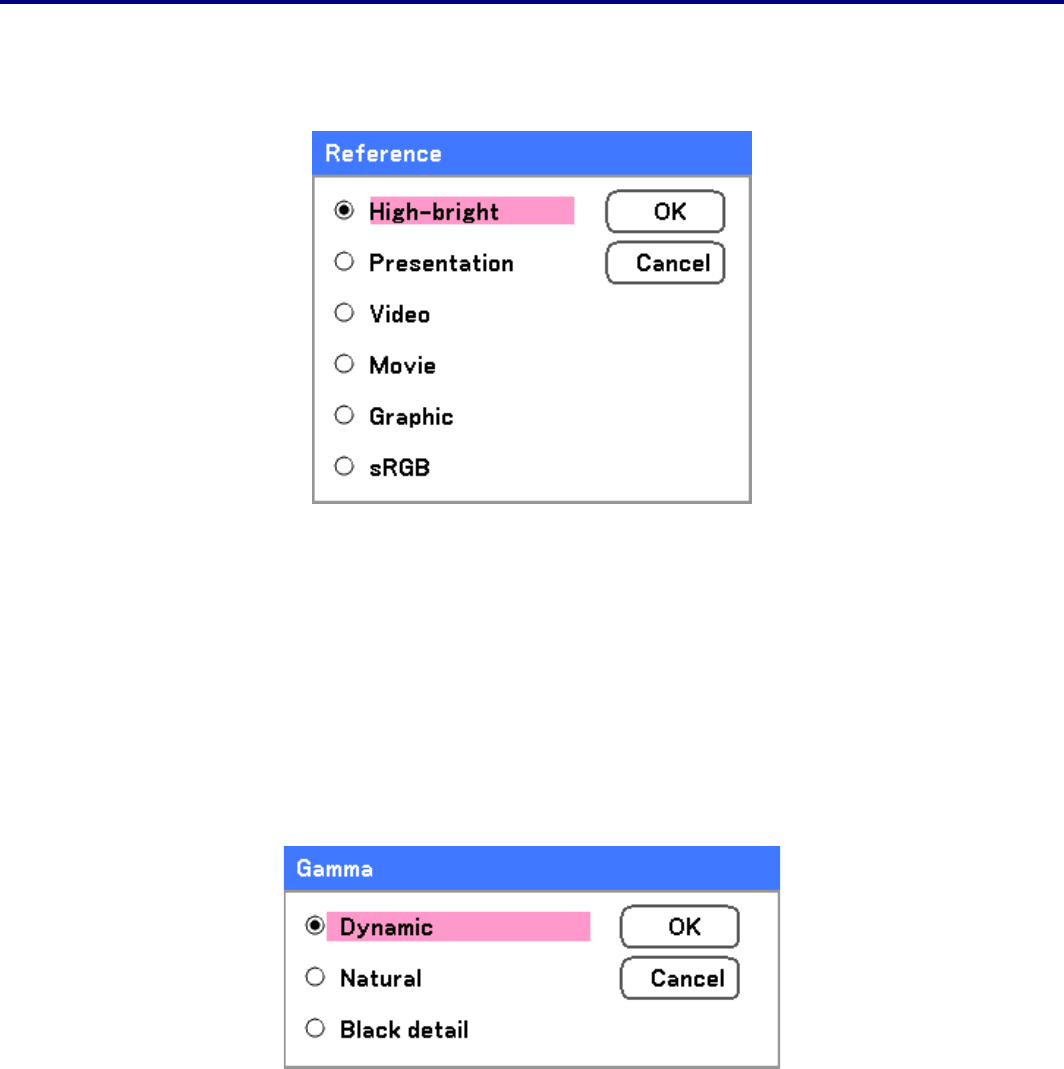

Basic .................................................................................................................................................................................................67

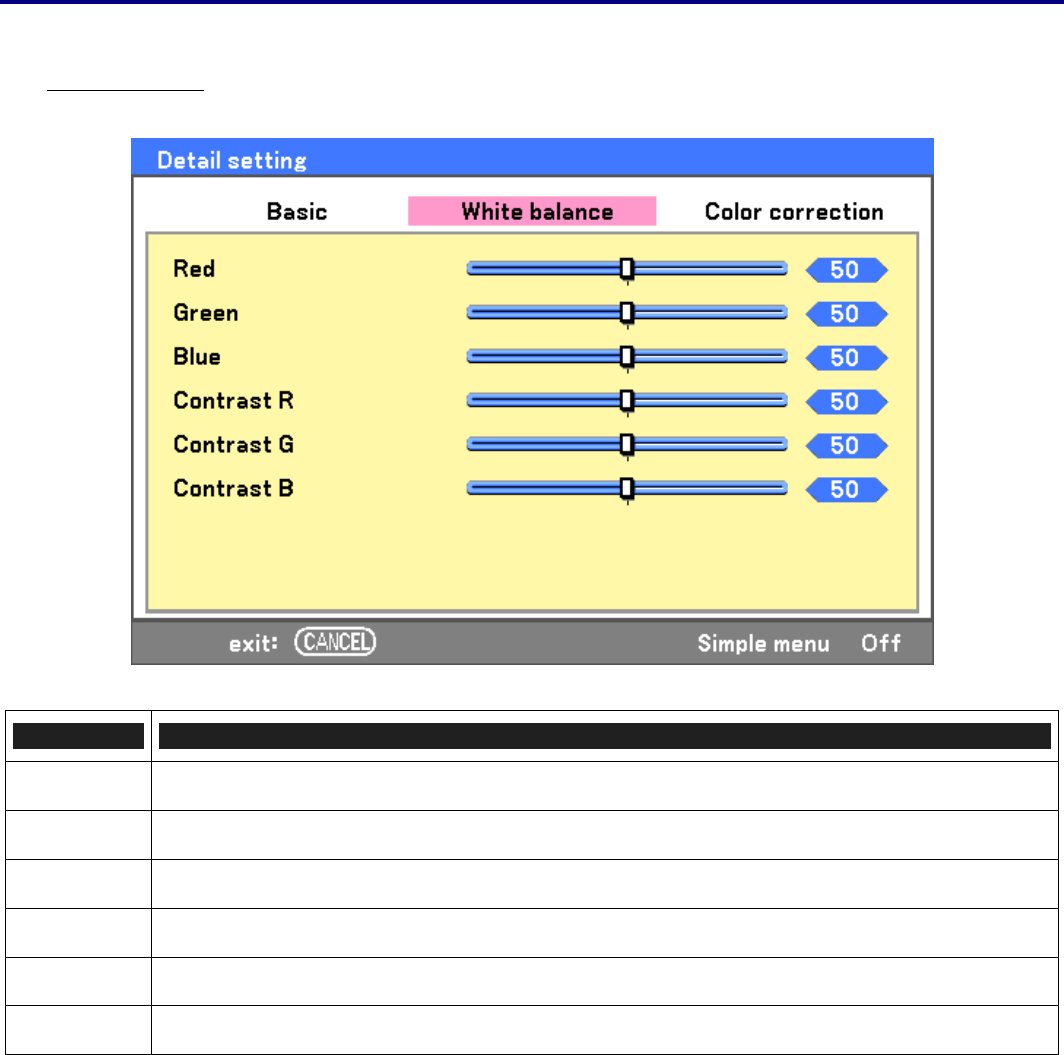

White balance..................................................................................................................................................................................69

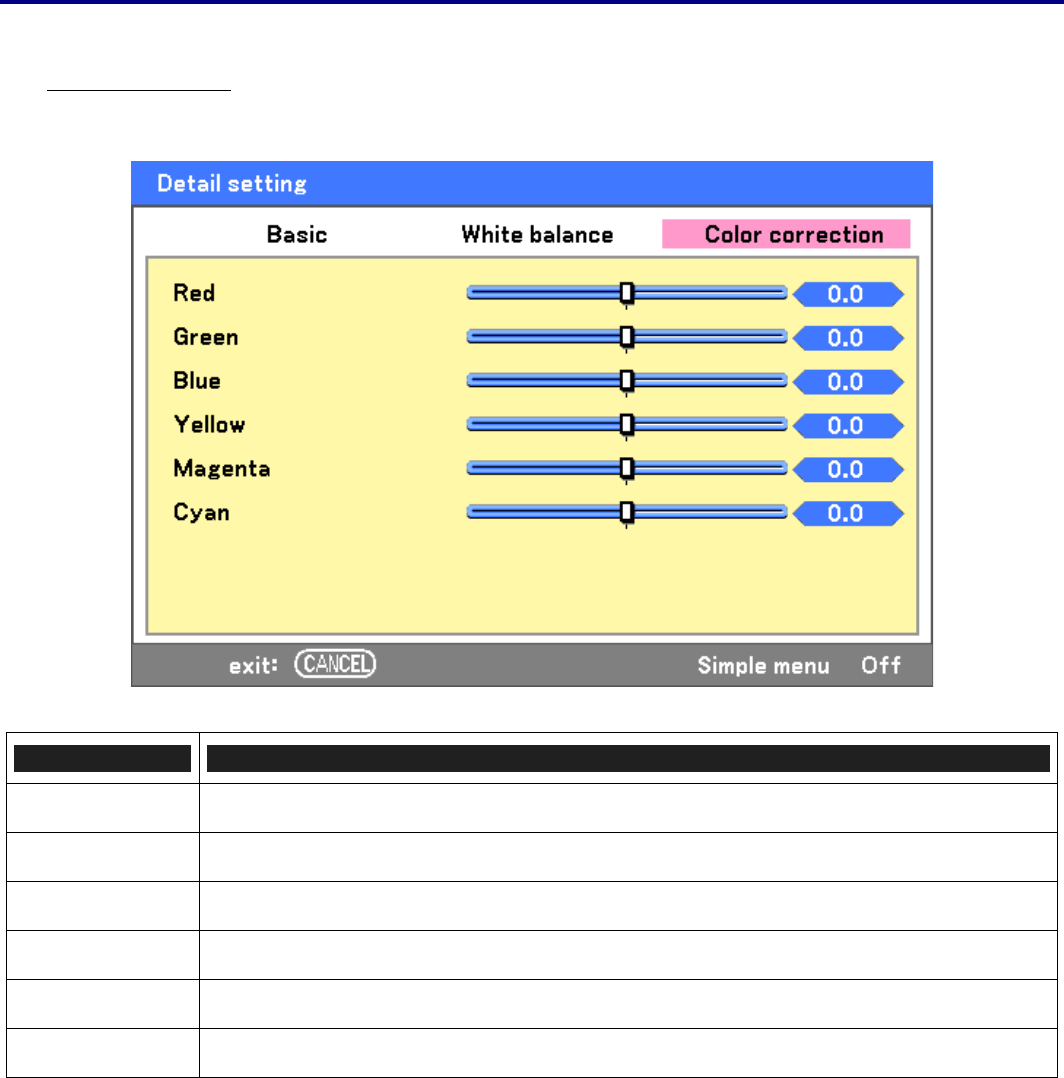

Color correction ...............................................................................................................................................................................70

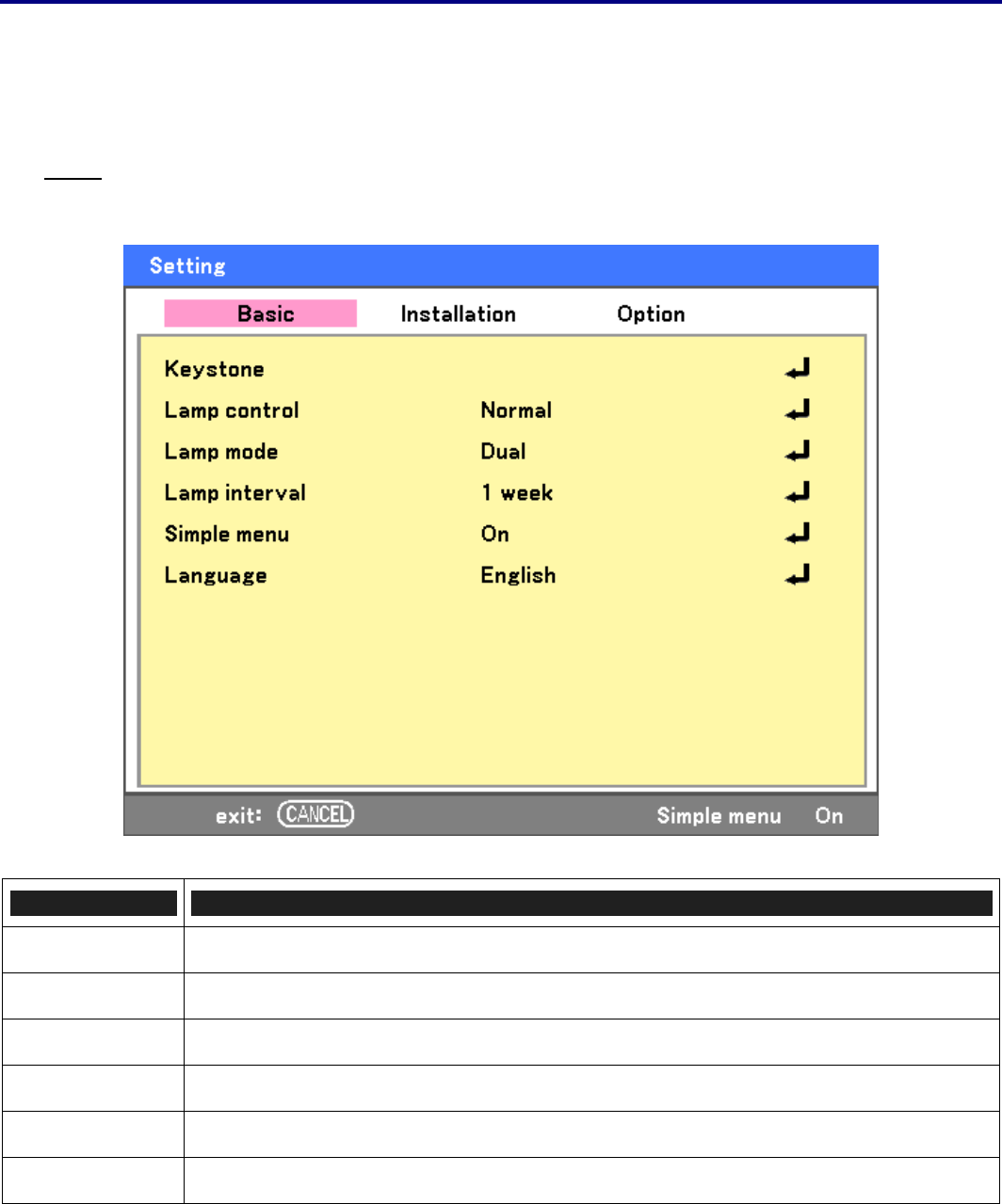

tSETTING MENU DESCRIPTIONS AND FUNCTIONS.............................................................................................................................71

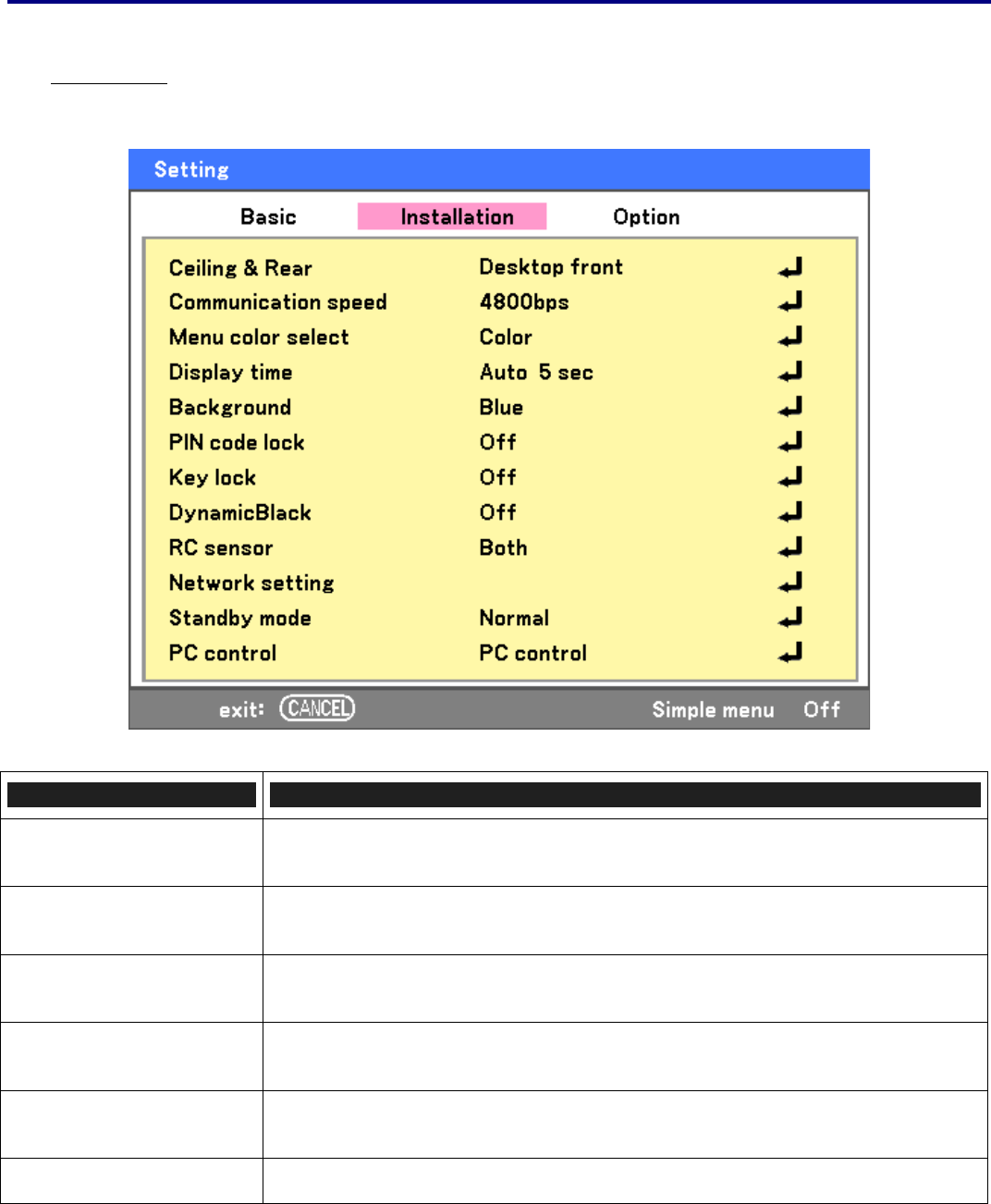

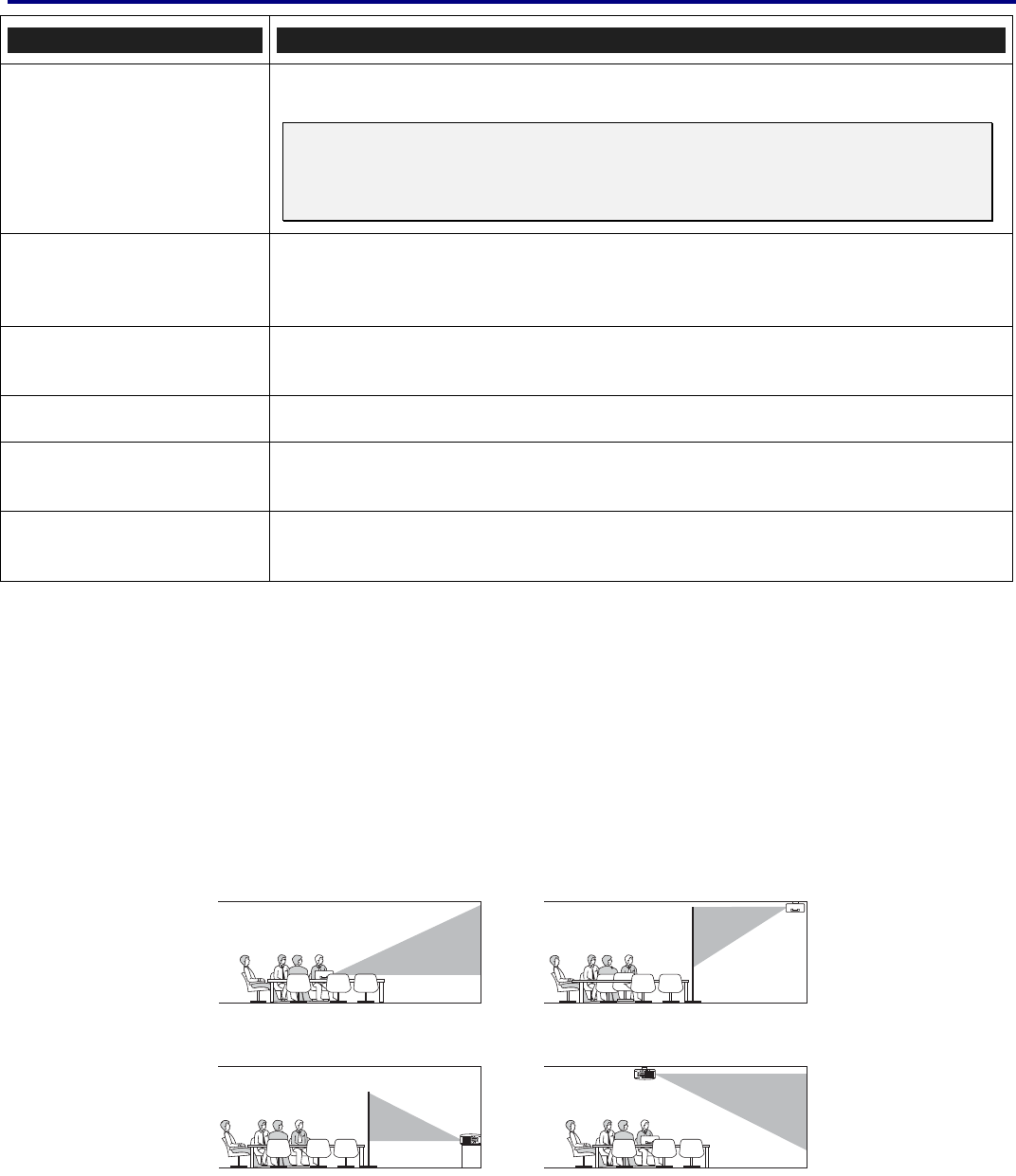

Installation ........................................................................................................................................................................................75

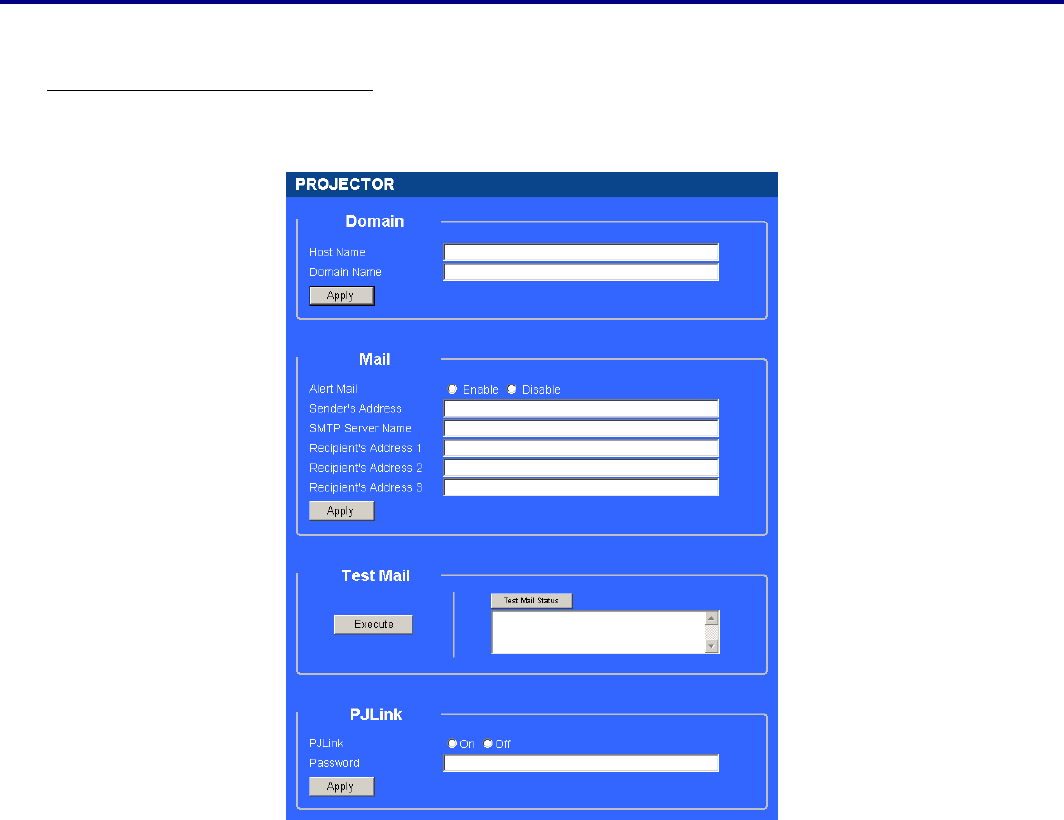

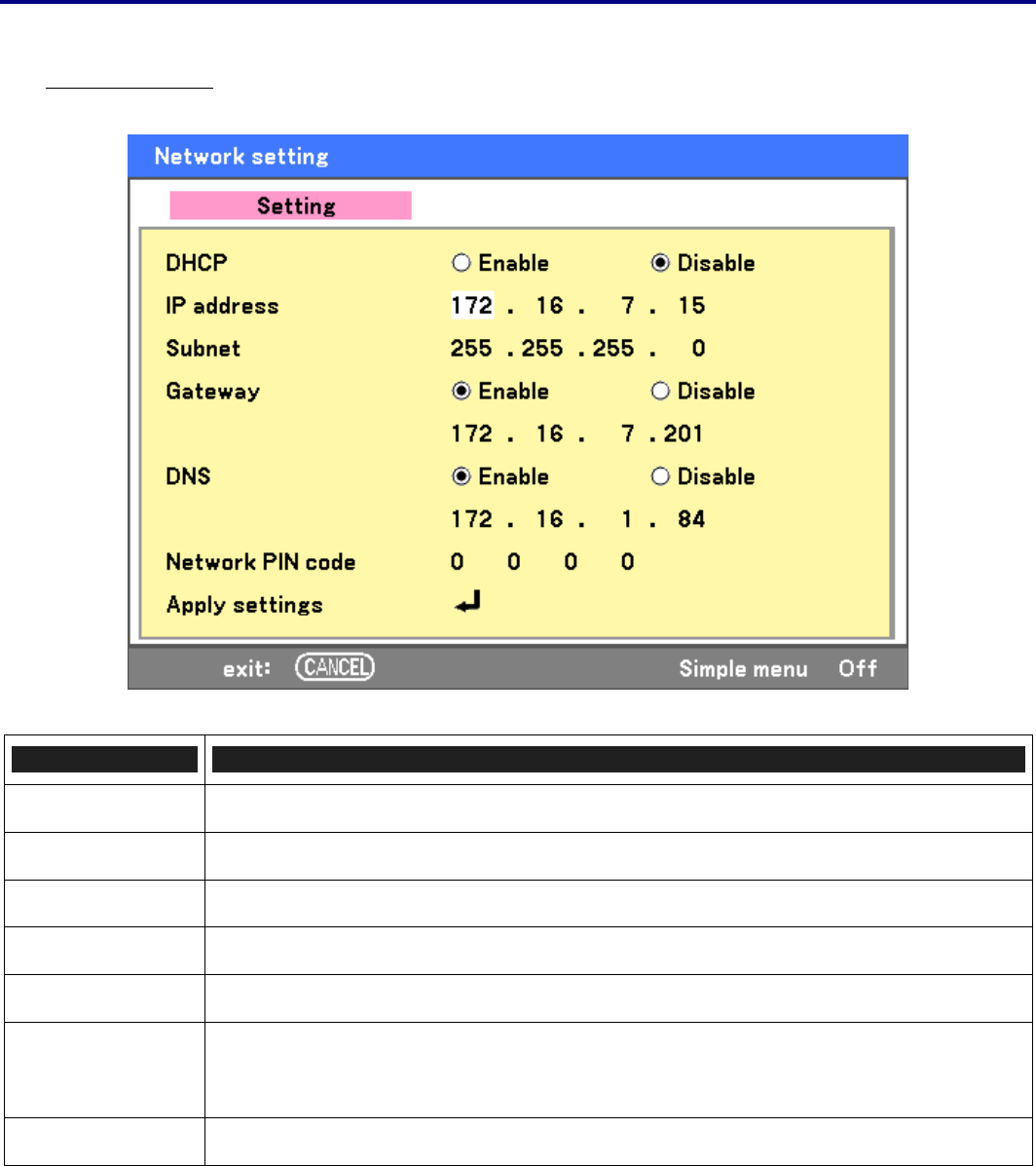

Network setting................................................................................................................................................................................82

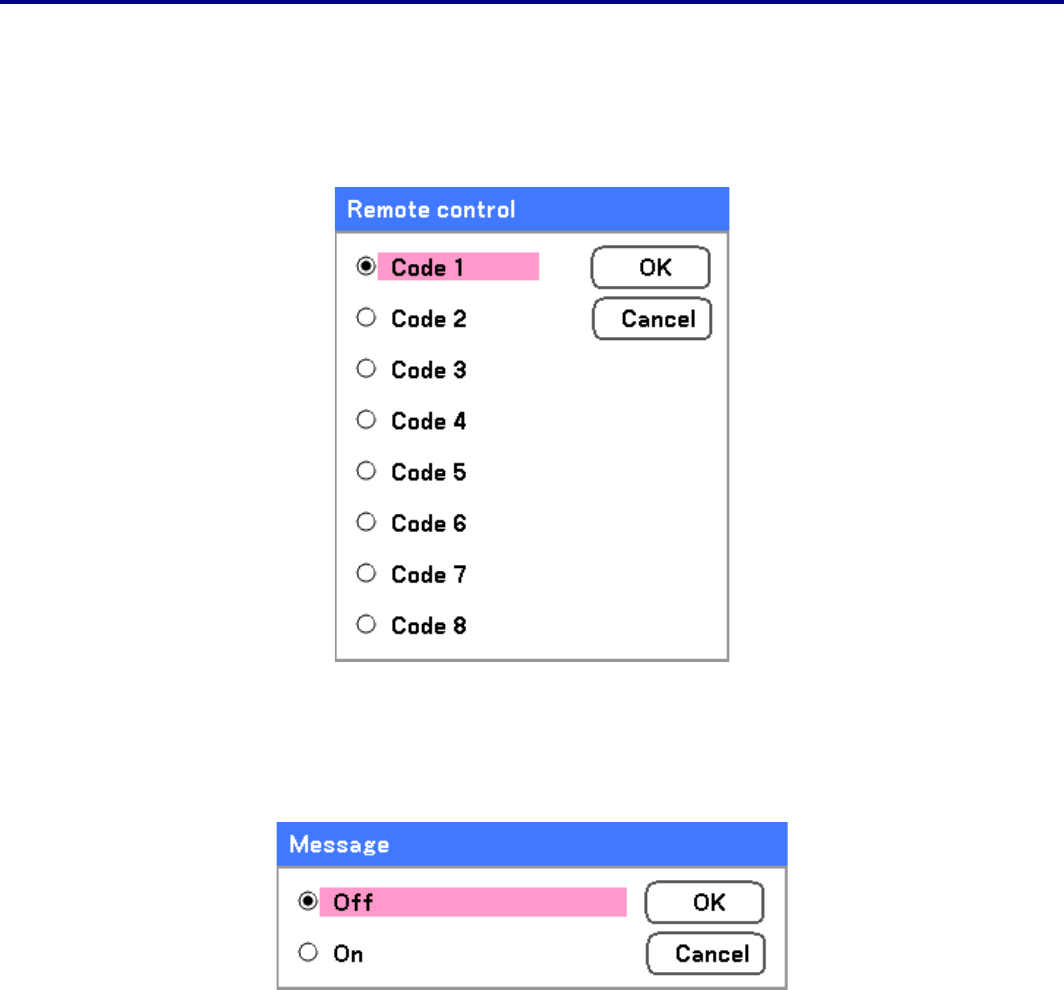

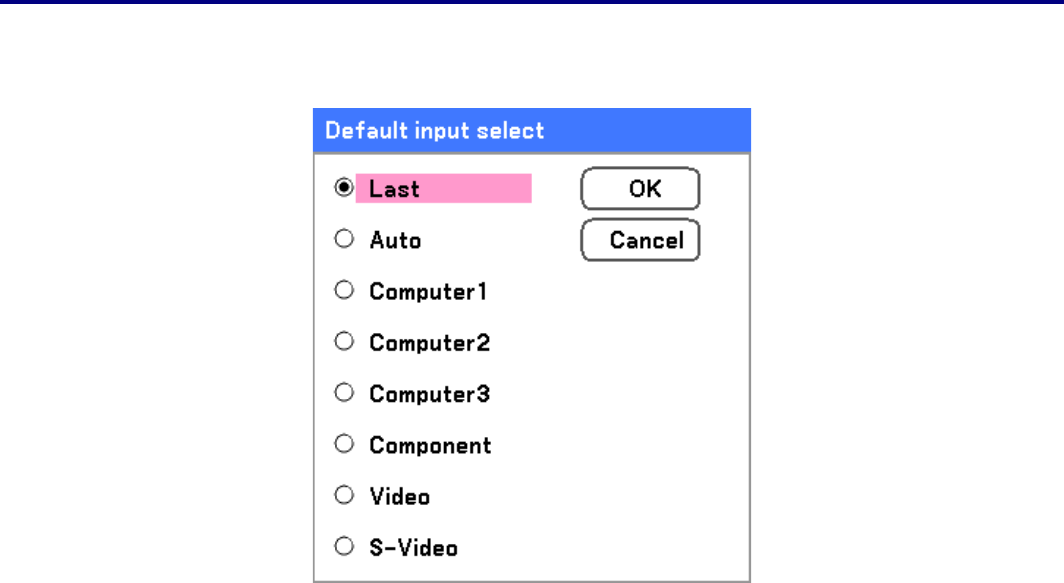

Option ...............................................................................................................................................................................................83

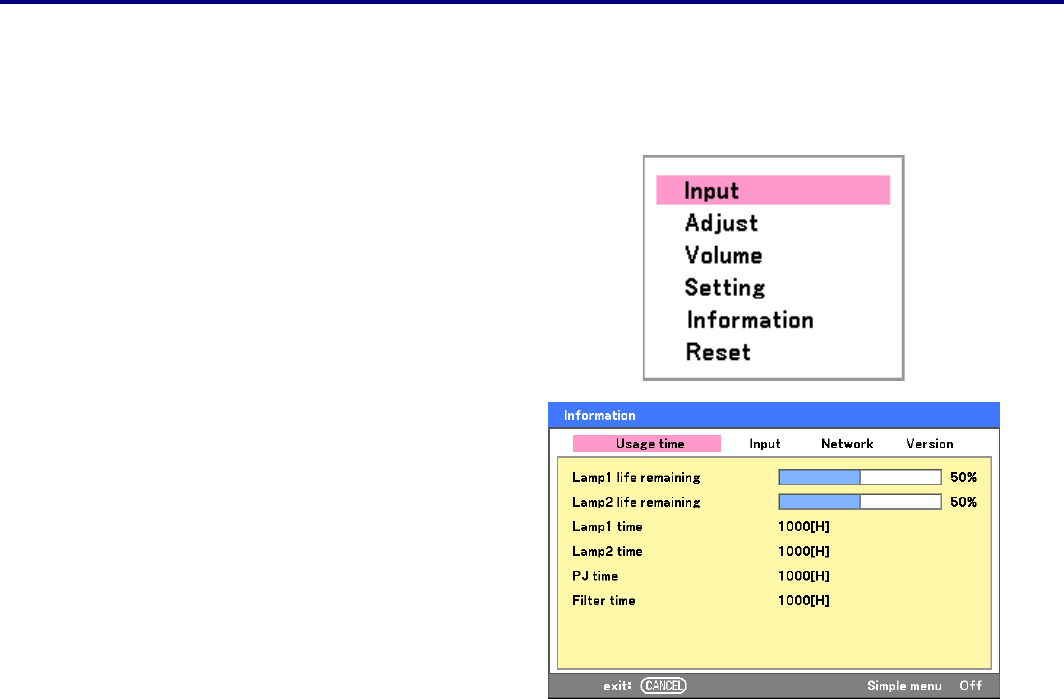

uINFORMATION MENU DESCRIPTIONS AND FUNCTIONS.....................................................................................................................89

Usage time .......................................................................................................................................................................................89

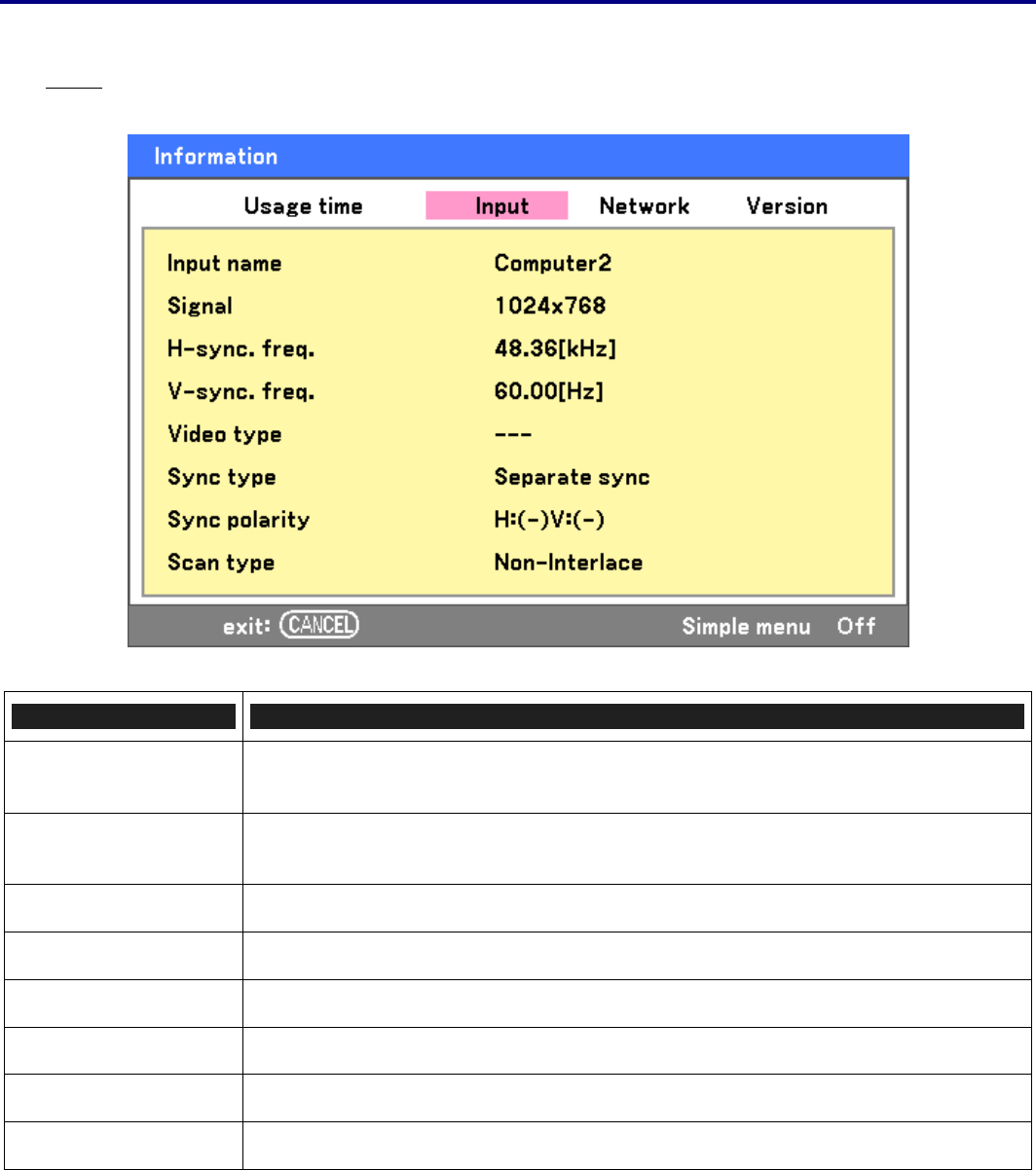

Input ..................................................................................................................................................................................................90

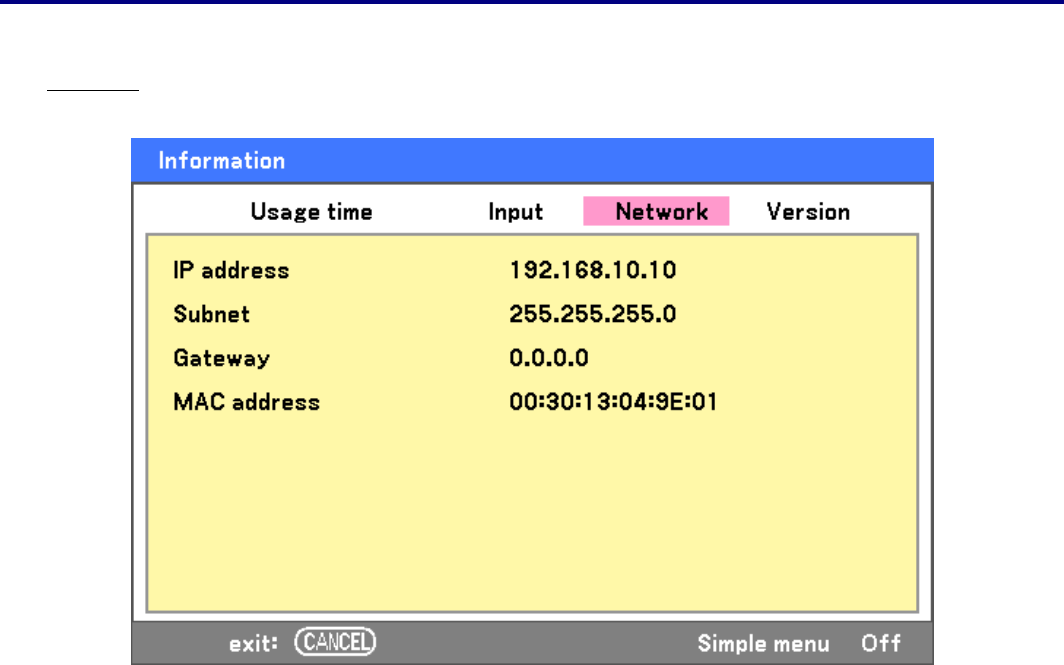

Network.............................................................................................................................................................................................91

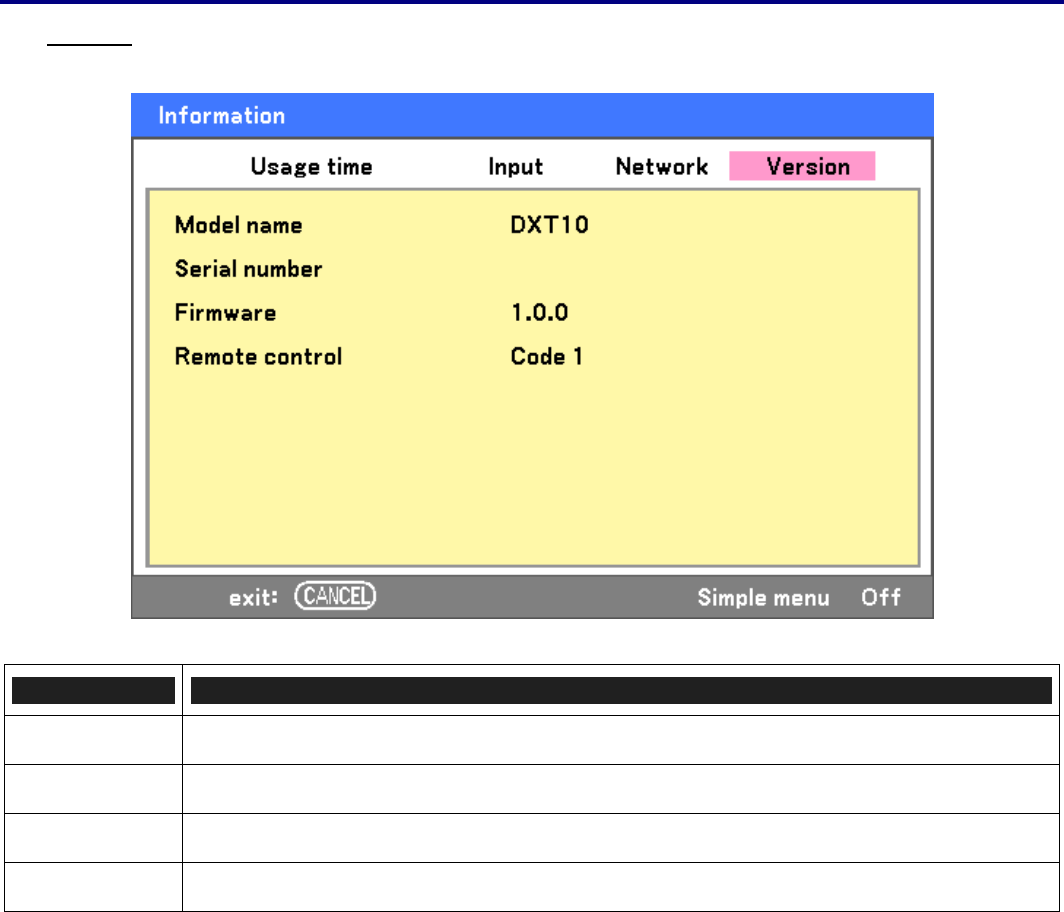

Version..............................................................................................................................................................................................92

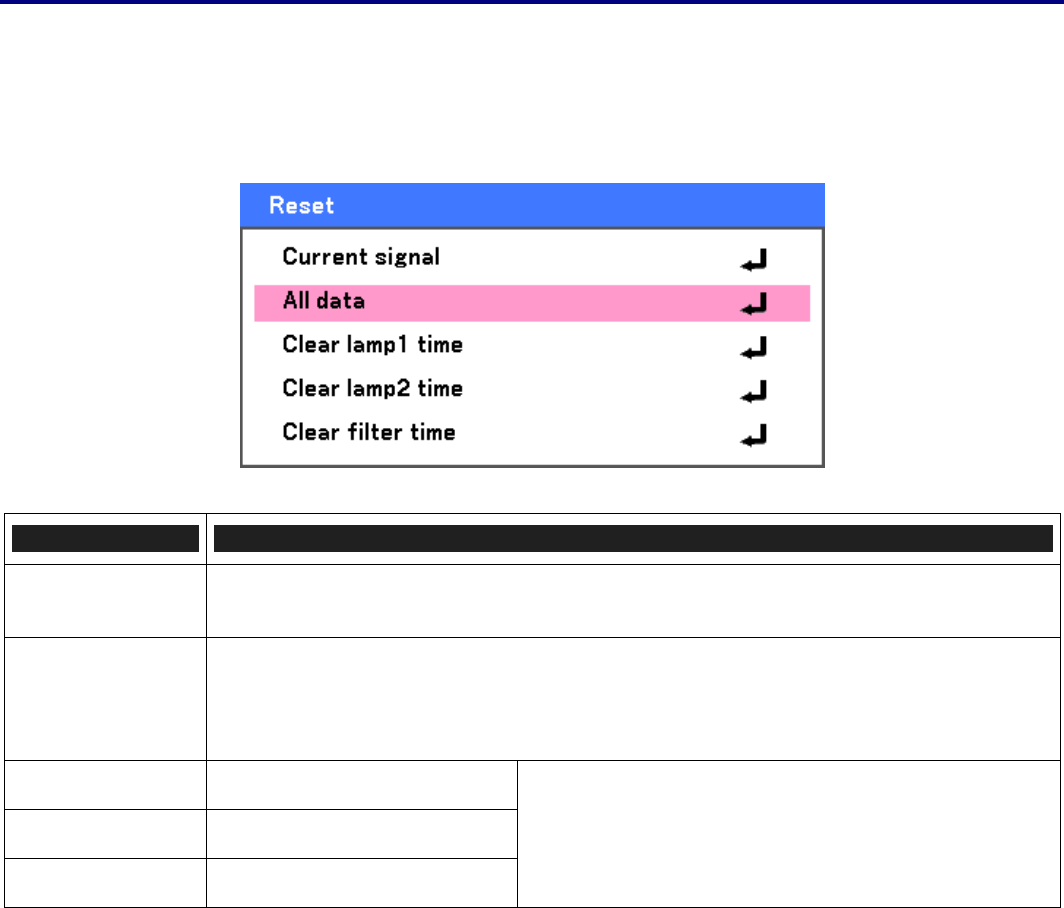

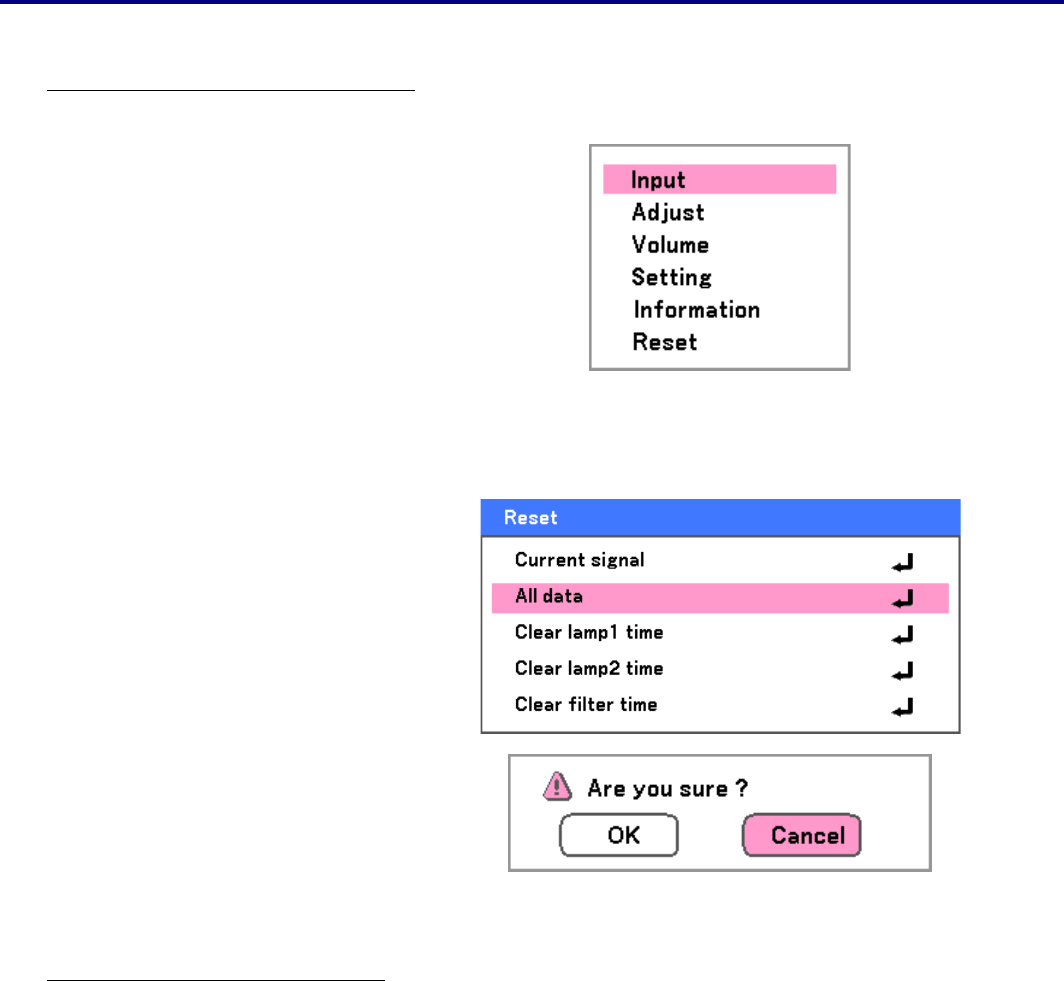

vRESET MENU DESCRIPTIONS AND FUNCTIONS................................................................................................................................93

6. MAINTENANCE .................................................................................................................................................................................94

nCLEANING THE PROJECTOR ..............................................................................................................................................................94

Cleaning the Cabinet......................................................................................................................................................................94

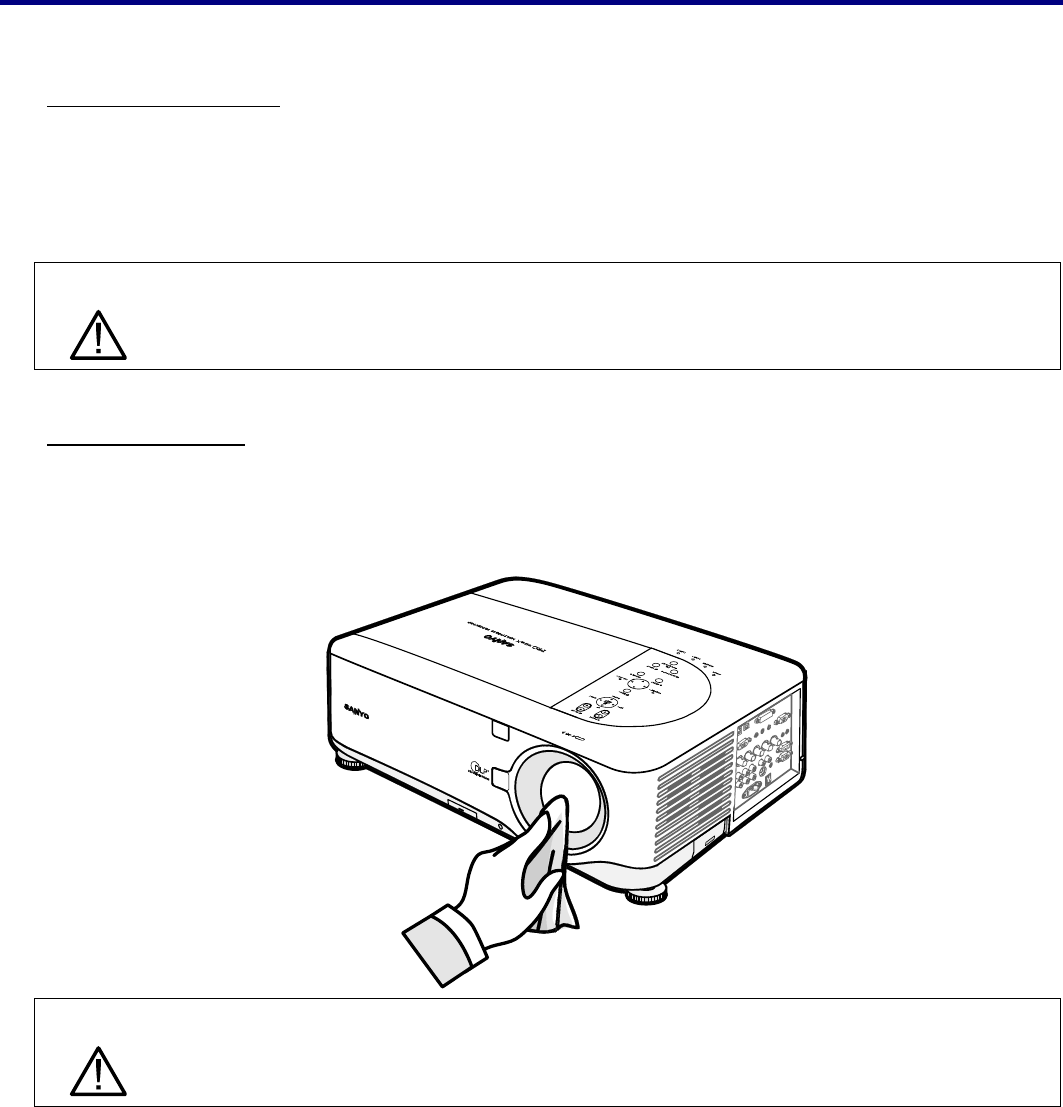

Cleaning the Lens ...........................................................................................................................................................................94

Cleaning the Filters.........................................................................................................................................................................95

oREPLACING CONSUMABLE PARTS ....................................................................................................................................................97

Replacing the Filters.......................................................................................................................................................................97

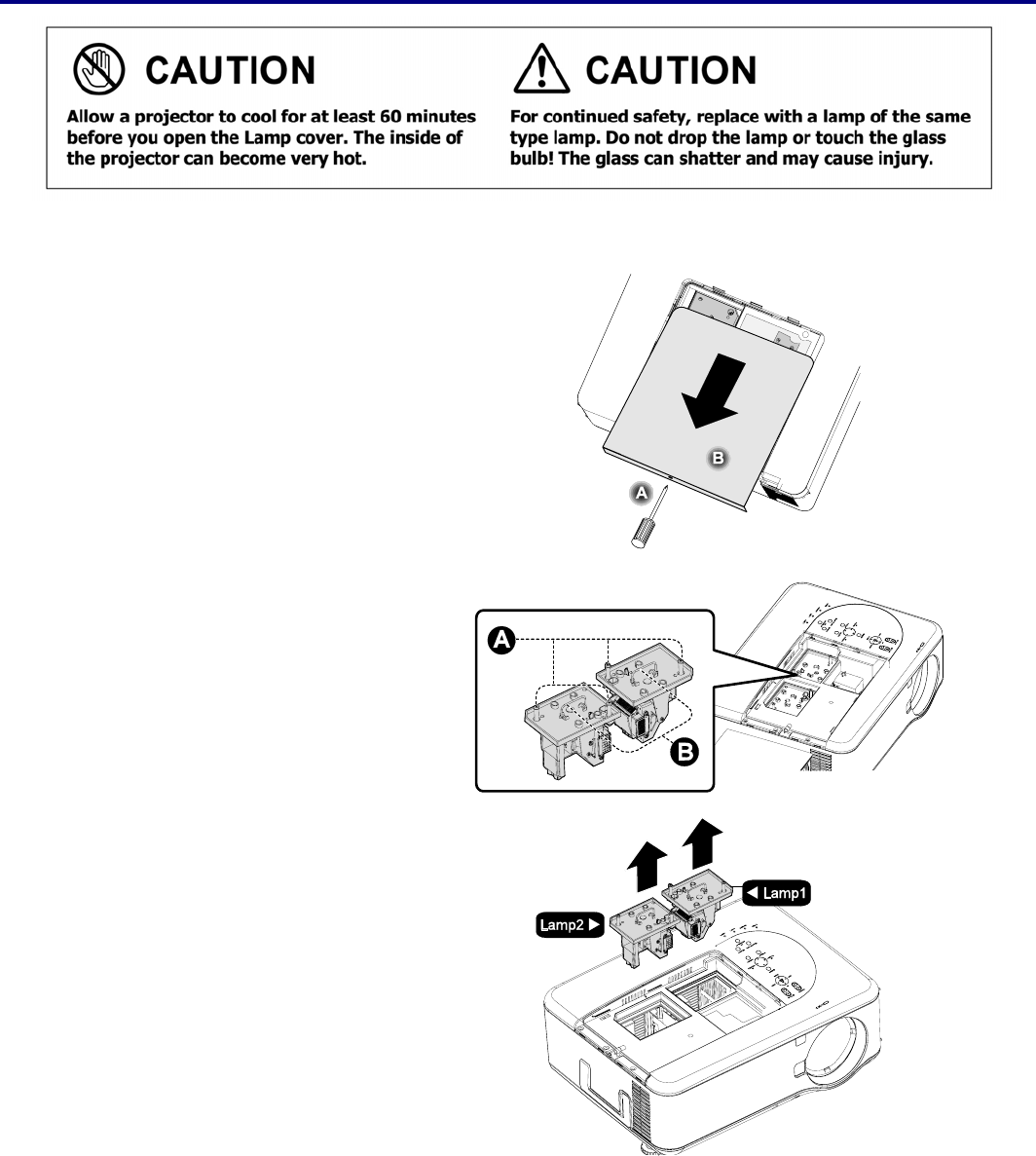

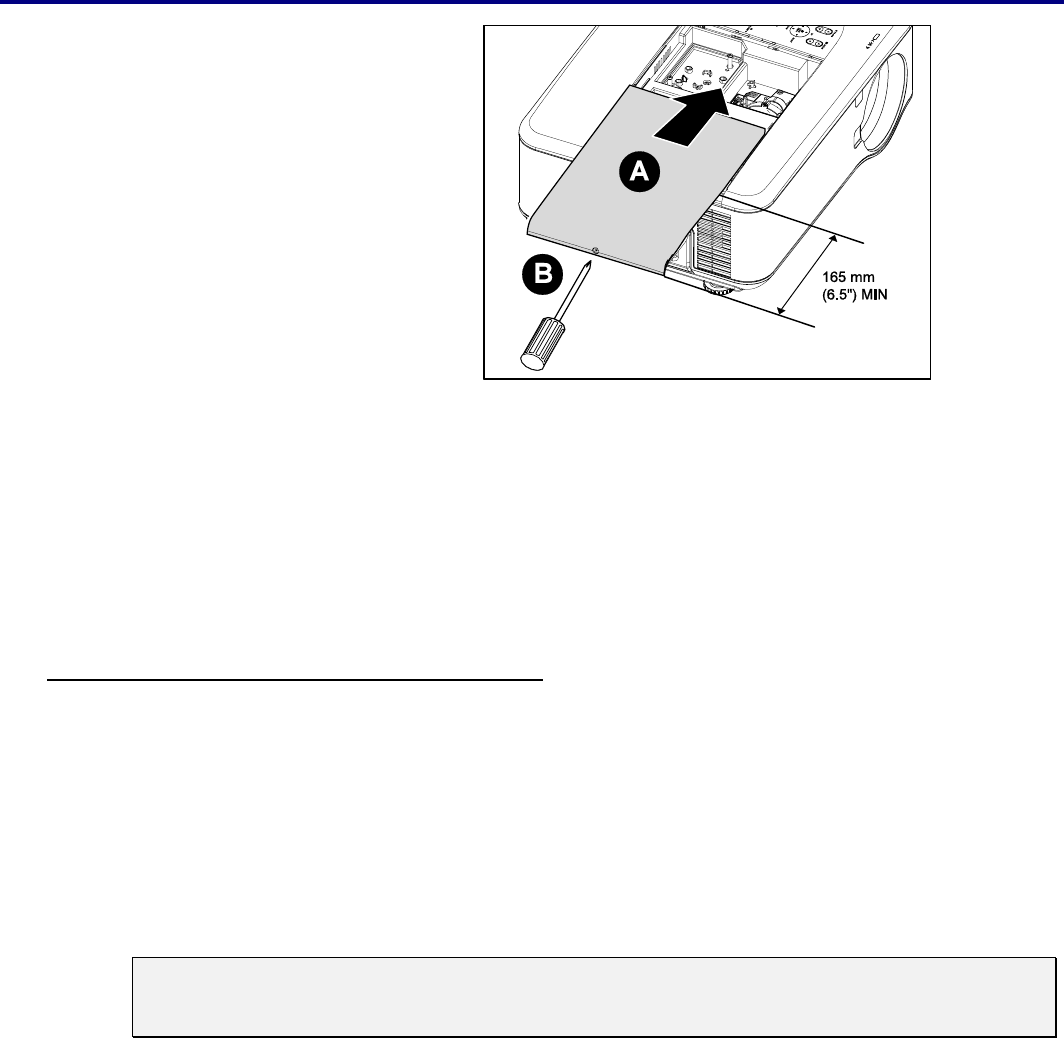

Replacing the Lamps......................................................................................................................................................................99

Resetting the Lamp Time Counter..............................................................................................................................................101

Ordering a Replacement Lamp...................................................................................................................................................101

Table of Contents

7. APPENDIX ........................................................................................................................................................................................102

nTROUBLESHOOTING ........................................................................................................................................................................102

Indicator Messages.......................................................................................................................................................................102

Common Problems and Solutions..............................................................................................................................................104

Tips for Troubleshooting ..............................................................................................................................................................104

oIMAGE PROBLEMS ...........................................................................................................................................................................105

Lamp Problems .............................................................................................................................................................................105

Remote Control Problems ...........................................................................................................................................................106

Audio Problems .............................................................................................................................................................................106

pHAVING THE PROJECTOR SERVICED ..............................................................................................................................................106

8. SPECIFICATIONS ...........................................................................................................................................................................107

nPROJECTOR SPECIFICATIONS.........................................................................................................................................................107

Optical Specifications ...................................................................................................................................................................107

Electrical Specifications ...............................................................................................................................................................108

Mechanical Specifications ...........................................................................................................................................................109

Environmental Considerations ....................................................................................................................................................109

Regulations ....................................................................................................................................................................................109

Optional Parts................................................................................................................................................................................110

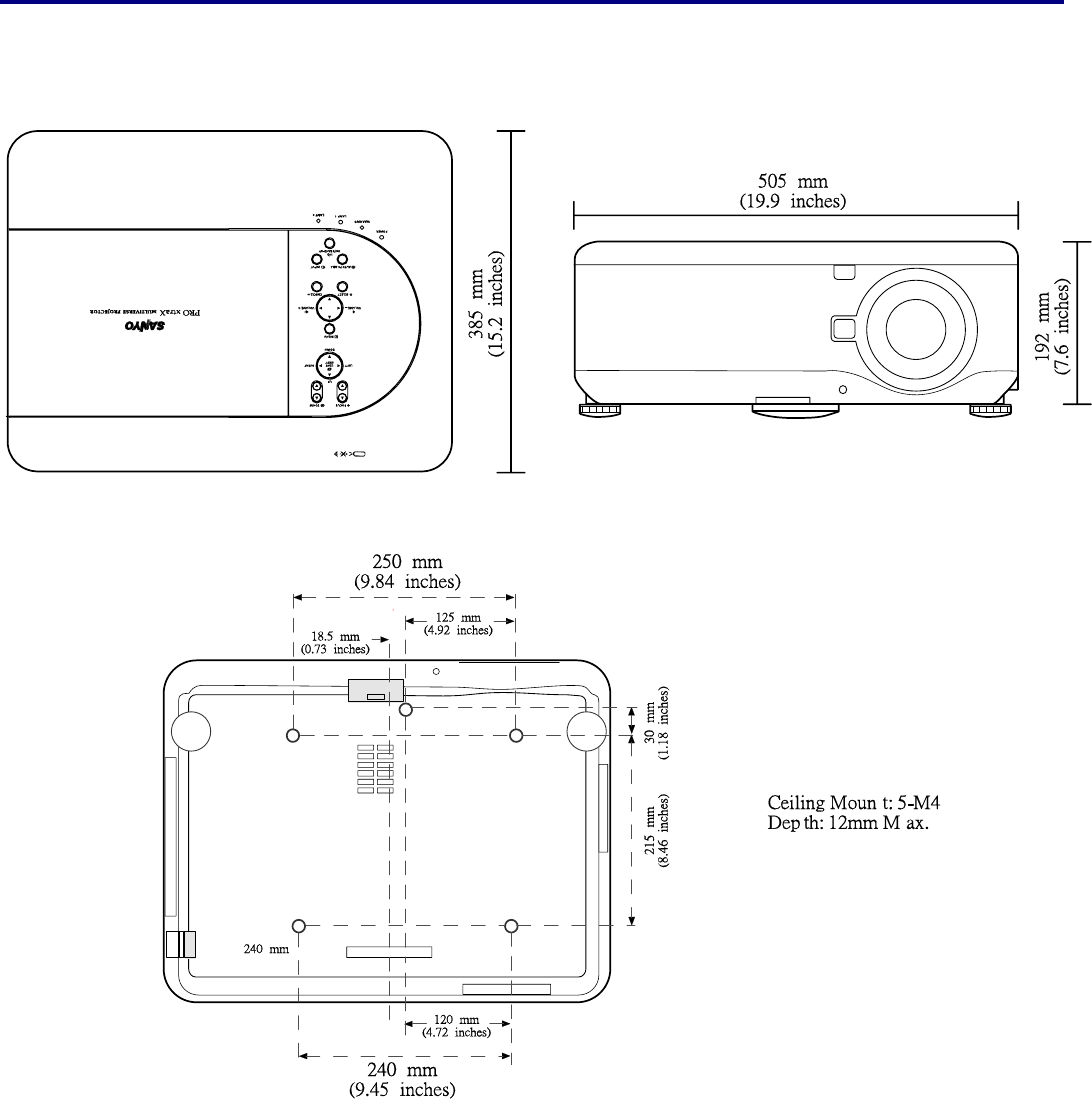

oCABINET DIMENSIONS.....................................................................................................................................................................111

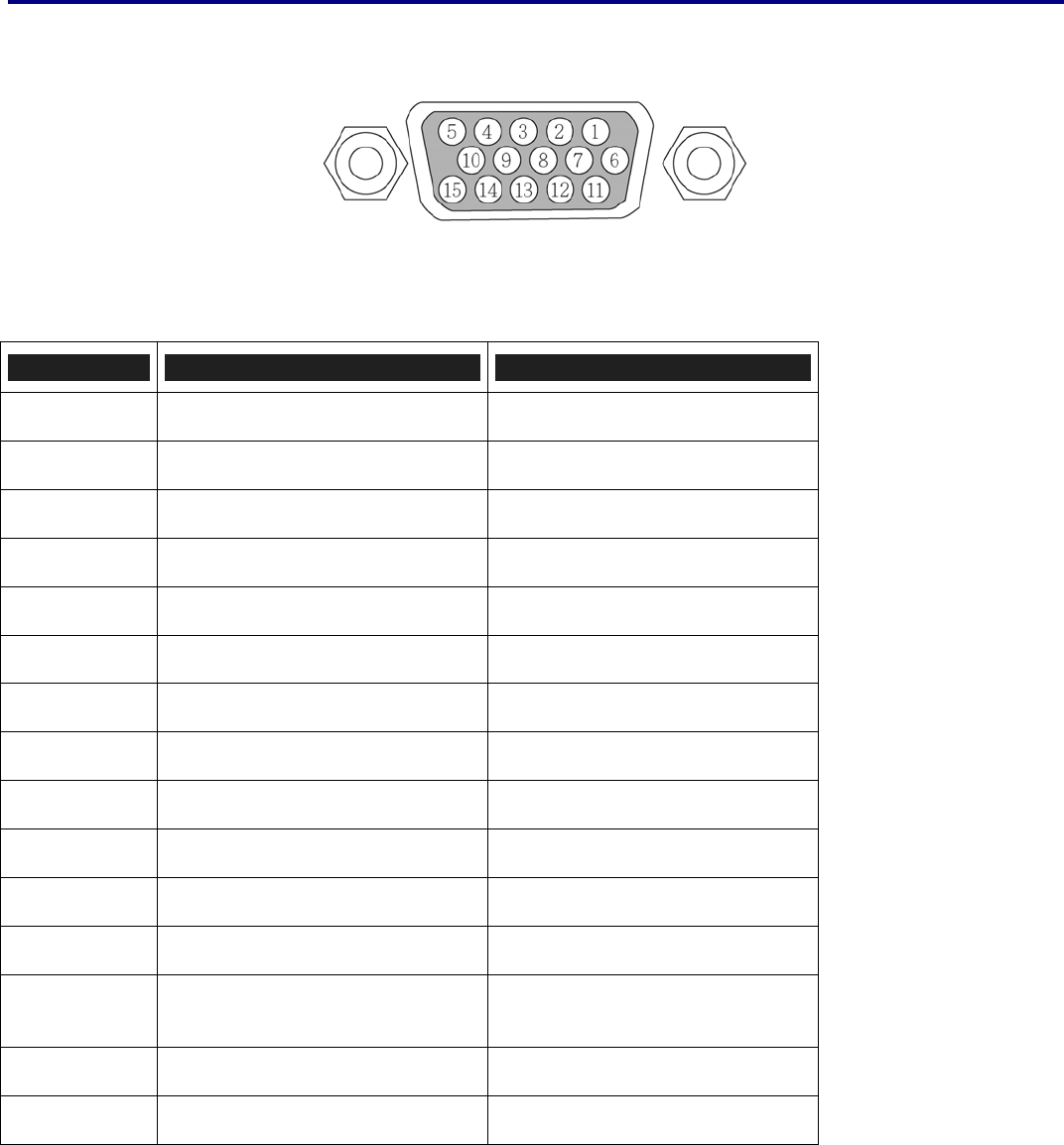

pPIN ASSIGNMENTS OF MINI D-SUB 15 PIN INPUT CONNECTOR ....................................................................................................112

qCOMPATIBLE INPUT SIGNAL LIST....................................................................................................................................................113

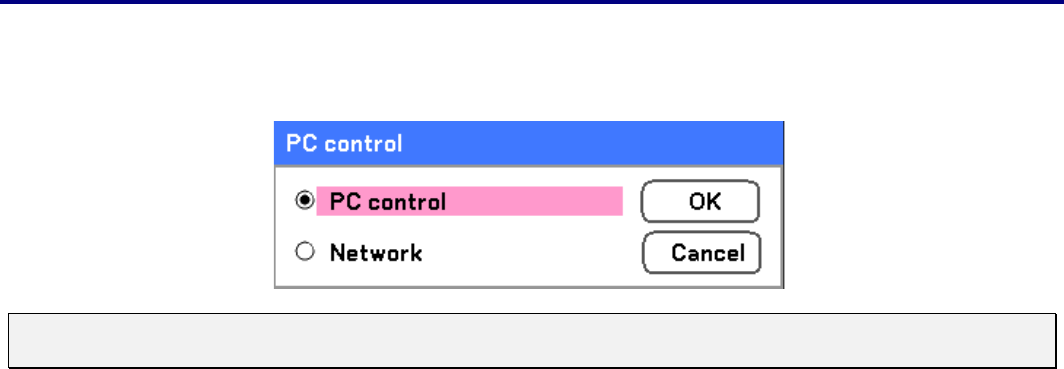

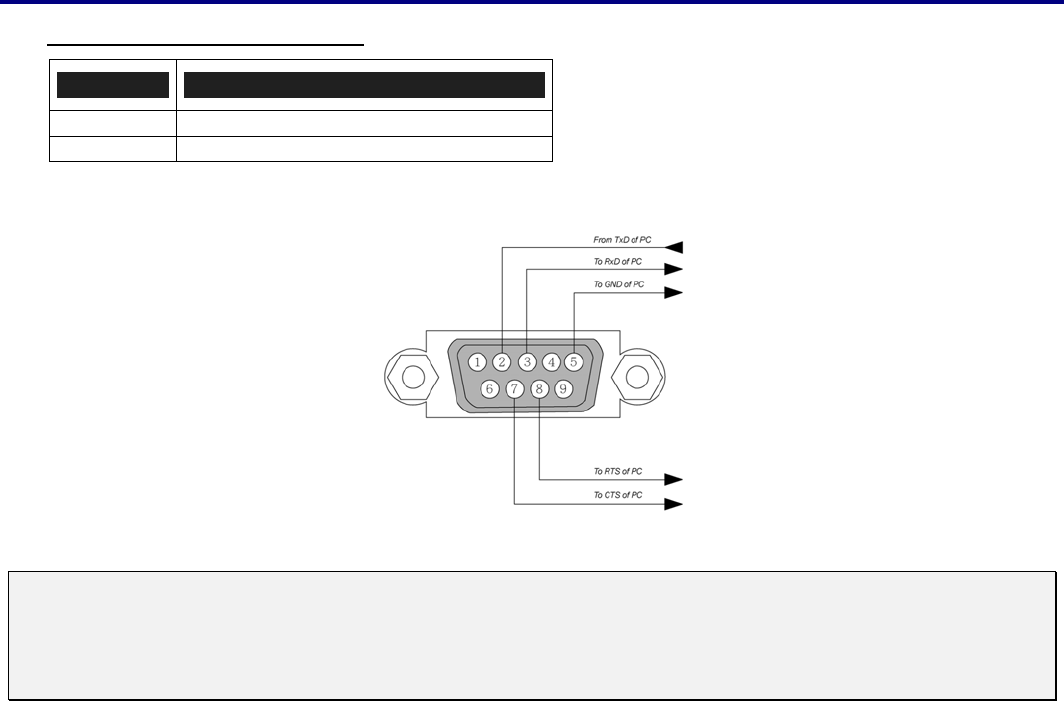

rPC CONTROL CODES AND CABLE CONNECTIONS.........................................................................................................................115

Functional Execution Command Table......................................................................................................................................115

Status Read Command Table.....................................................................................................................................................116

sSCREEN TRIGGER ...........................................................................................................................................................................117

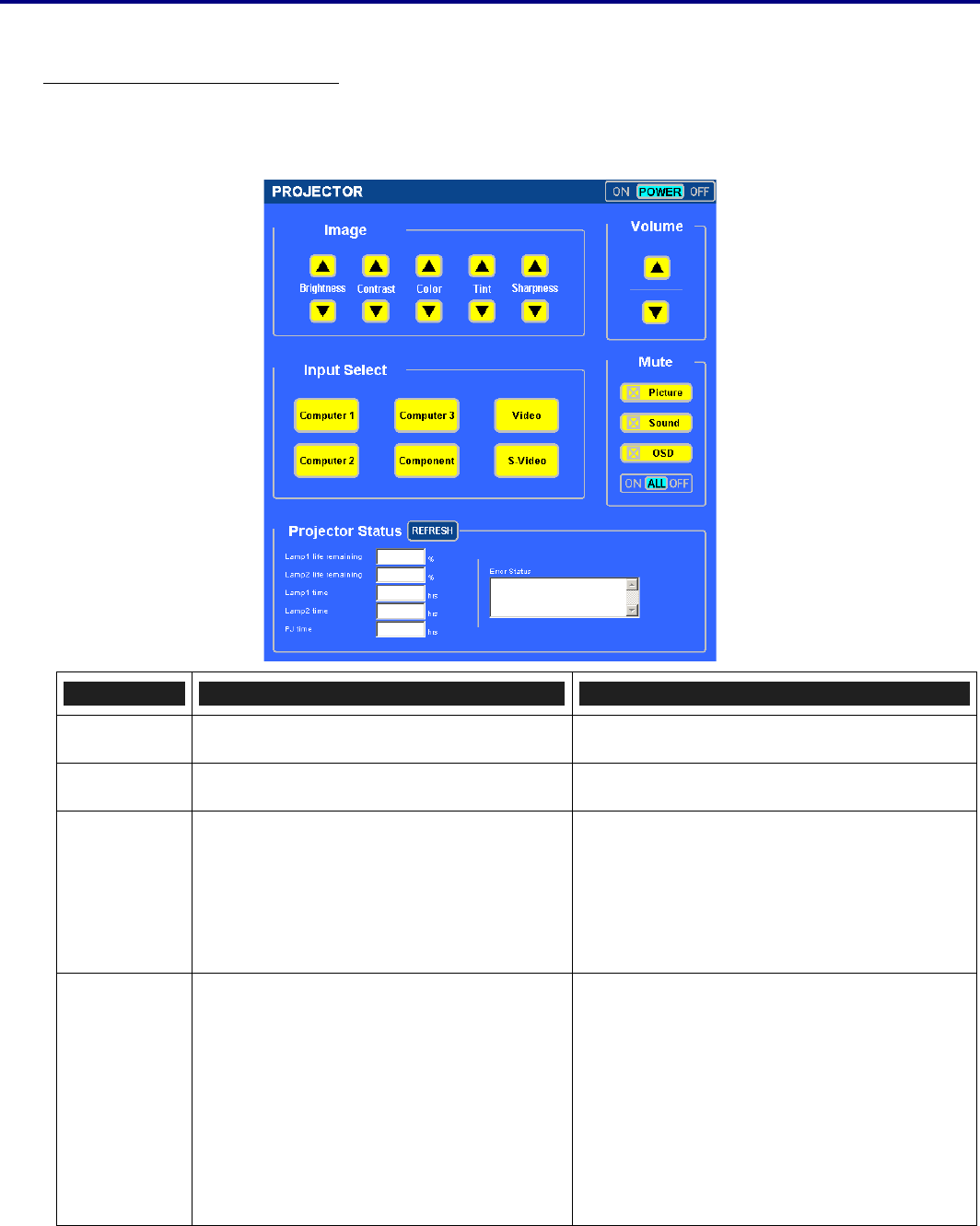

tOPERATION USING HTTP BROWSER.............................................................................................................................................118

Overview.........................................................................................................................................................................................118

Preparation Before Use................................................................................................................................................................118

Handling of the Address for Operation by Using a Browser...................................................................................................118

Configuring Network Settings......................................................................................................................................................119

Structure of the HTTP Server......................................................................................................................................................121

u15 PIN GPIO CONTROL .................................................................................................................................................................123

9. TROUBLESHOOTING CHECK LIST ...........................................................................................................................................124

1. Introduction

n What’s in the Box?

Carefully unpack the projector and check that the following items are included:

PDG-DXT10L Projector Remote Control

(with Two AA alkaline batteries)

Power Cable

(3.6m/11.8 ft.)

ĺ For North

America,

Europe and

the UK

Remote Cable

(10m/33ft)

VGA Cable

Quick Start Guide

CD-ROM

(This User’s manual)

Lens Hole Cap

(Installed)

Anti-Theft

Screw for lens

x 1

Security

Sticker

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.

CAUTION

Avoid using the projector in dusty environments.

1. Introduction

o Introduction to the Projector

Features you’ll enjoy:

DLP projector with high resolution

The combination of BrilliantColor™ and a six-segment color wheel (optional) offer a more true color reproduction.

Installation Flexibility

This projector has many useful functions such as powered lens shifting, ceiling and rear projection, variety of extensive op-

tional powered lens with bayonet mount with release button, etc.

Multiple Interface Terminals

The projector has several interface terminals that can support various types of equipment and signals.

Dual Lamp Control System

The two-lamp control system offers high brightness, maintained lamp life and energy savings along with redundancy. The

lamp control function offers brightness of the lamp can be selected. The power management function also reduces power

consumption and maintains lamp life.

Simple Computer System Setting

The projector has the Multi-scan system to conform to almost all computer output signals quickly. Up to UXGA resolution

can be accepted.

Security Function

The Security function helps you to ensure security of the projector. With the Key lock function, you can lock the operation on

the top control. PIN code lock functions prevent unauthorized use of the projector.

Multilanguage Menu Display

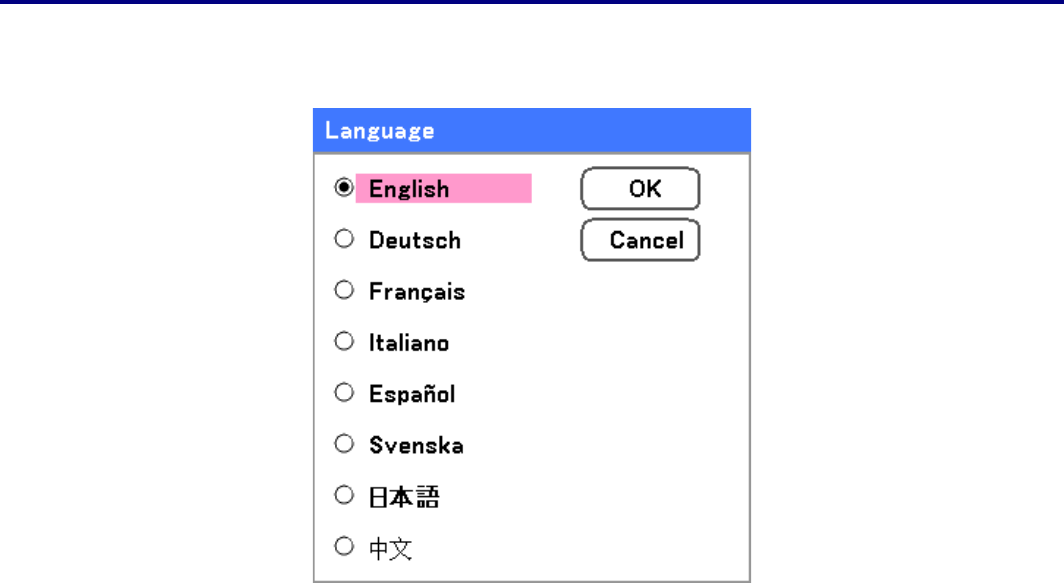

Operation menu is available in 8 languages: English, German, French, Italian, Spanish, Swedish, Chinese, and Japanese.

Multi-use Remote Control

Use the remote control as wired or wireless. Eight remote control codes are available.

3W + 3W Stereo Speaker

Built in 3W x 2 speakers are provided.

Helpful Maintenance Functions

The lamp and filter maintenance functions provide for better and proper maintenance of the projector. Easy maintenance

cover is provided for lamp and color wheel replacement.

Network-capable

Through an optional Network Manager with serial port in, you can operate and control the projector.

Direct Power Off and On Start

The Direct Power Off function allows the projector to be turned off (even when projecting an image) using a power strip

equipped with a switch and a breaker. The On Start function allows the projector to be turned on by supplied AC power.

Note:

Before using Direct Power Off, be sure to allow at least 20 minutes immediately after turning on the projector

and starting to display an image. Also, the power cord can be removed immediately after turning off the pro-

jector. On Start manual may differ slightly from the product.

On Start eliminates the need to always use the POWER (ON/STANDBY) button on the remote control or

projector cabinet.

1. Introduction

p Part Names of the Projector

Front-right view

ITEM LABEL DESCRIPTION SEE PAGE:

1. IR receiver Receiver for IR signal from remote control 12

2. Lamp cover Remove cover to replace lamp or color wheel 99

3. Lens control panel See Lens Controls 7

4. OSD control panel See OSD Controls and Status LEDS 8

5. I/O connector panel Connect various input devices 10

6. Intake vent Lamp cooling vent – do not obstruct —

7. Speakers Built-in stereo speakers —

8. Height adjuster Adjusts level of projector 6

9. Lens Remove lens cap before use —

10. Lens release button Press the release button before removing the lens —

11. Anti-Theft screw Prevent theft of the lens —

12. Intake vent and front

filter

Keeps the front fan free of dust

– clean regularly for optimum performance

– do not obstruct

Important:

Grill openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do not obstruct any of the grill

openings.

1. Introduction

Top view

ITEM LABEL DESCRIPTION SEE PAGE:

1. Lens control panel See Lens Controls 7

2. Right-hand speaker Right-hand speaker —

3. Lamp cover Remove cover to replace lamp or color wheel 99

4. Exhaust vent Exhaust vent – do not obstruct —

5. OSD control panel See OSD Controls and Status LEDS 8

6. Rear intake vent Rear cooling intake – do not obstruct —

7. Left intake vent Left-hand cooling intake – do not obstruct —

8. Left-hand speaker Left-hand speaker —

1. Introduction

Carrying the Projector

Always carry your projector by the handle.

Before moving or carrying the projector, disconnect the power cable and any other cables that may be attached to it.

When moving the projector or when the projector is not in use, cover the lens with the lens cap.

To extend the projector handle, refer to the following guide.

1. Stand the projector on its end with the control panels at the bottom.

2. Lift the handle in the direction shown until it is fully extended.

Note:

Stand the projector on its end by lifting the cabinet. Do not use the handle to place the projector upright.

1. Introduction

Bottom view

ITEM LABEL DESCRIPTION SEE PAGES:

1. Height adjusters Adjust projection height 38

2. Intake vent Color wheel cooling vent – do not obstruct —

3. Front filter Keep the fan free of dust – clean regularly for optimum perform-

ance 95

4. Ceiling support holes Contact your dealer for information on mounting the projector on

a ceiling —

5. Security chain

opening Attach anti-theft device – see u Using the Physical Lock 54

6. Rear filter

7. Side filter

Keep the fans free of dust – clean regularly for optimum per-

formance 95

CAUTION With ceiling installation, use approved mounting hardware & M4 screws; maximum depth of screw: 12 mm; dis-

tance from ceiling/ wall: 20 cm (0.7 feet) for proper ventilation; distance from fluorescent lamps: at least 1 m (3

feet) front and back of the projector. For permanent installations, follow local codes.

1. Introduction

q Top Features

Lens Controls

ITEM LABEL DESCRIPTION SEE PAGE:

1. ZOOM Increase/decrease projected image size 44

2. UP CURSOR

3. RIGHT CURSOR

4. DOWN CURSOR

5. LEFT CURSOR

Move image left, right, up, or down

6. FOCUS Focus the projected image 44

1. Introduction

OSD Controls and Status LEDs

ITEM LABEL DESCRIPTION SEE PAGE:

1. MENU Open / Close the OSD 55

2. UP/ DOWN/ LEFT/

RIGHT BUTTONS Navigate and change settings in the OSD 55

RIGHT CURSOR/

VOLUME

INCREASE

Increase volume 40

4. CANCEL Exit the On-Screen Display (OSD) 55

5. INPUT Change or select the input device 34

6. ON/STAND-BY

Turn the projector on or off (main power switch must be turned

on first).

Press to place the projector in standby mode.

Green

7. LAMP 2 (LED)

Flashing

See Indicator Messages 102

1. Introduction

ITEM LABEL DESCRIPTION SEE PAGE:

Green

8. LAMP 1 (LED)

Flashing

See Indicator Messages 102

Green

Red

Orange

9. WARNING (LED)

Flashing

See Indicator Messages 102

Green

Orange

10. POWER (LED)

Flashing

See Indicator Messages 102

11. AUTO PC ADJ. Optimize image size, position, and resolution 10

12. SELECT Select or change settings in the OSD 55

13.

LEFT

CURSOR/VOLUME

DECREASE

Decrease volume 40

1. Introduction

r Terminal Panel Features

ITEM LABEL DESCRIPTION SEE PAGE:

1. COMPUTER 3 IN Connect the DVI-D cable (not supplied) from a computer 26

2. AUDIO IN

(COMPUTER 3) Connect the audio cable (not supplied) from the input device —

3. AUDIO OUT Audio loop-thru —

4. MONITOR OUT Connect to a monitor —

5. R/C JACK Connect the remote to the projector 15

6. AUDIO IN

(COMPUTER 2) Connect the audio cable (not supplied) from the input device —

AUDIO IN

[L(MONO)/R]

(COMPONENT)

Connect an RCA audio cables (not supplied) from the input de-

vice right and left channels —

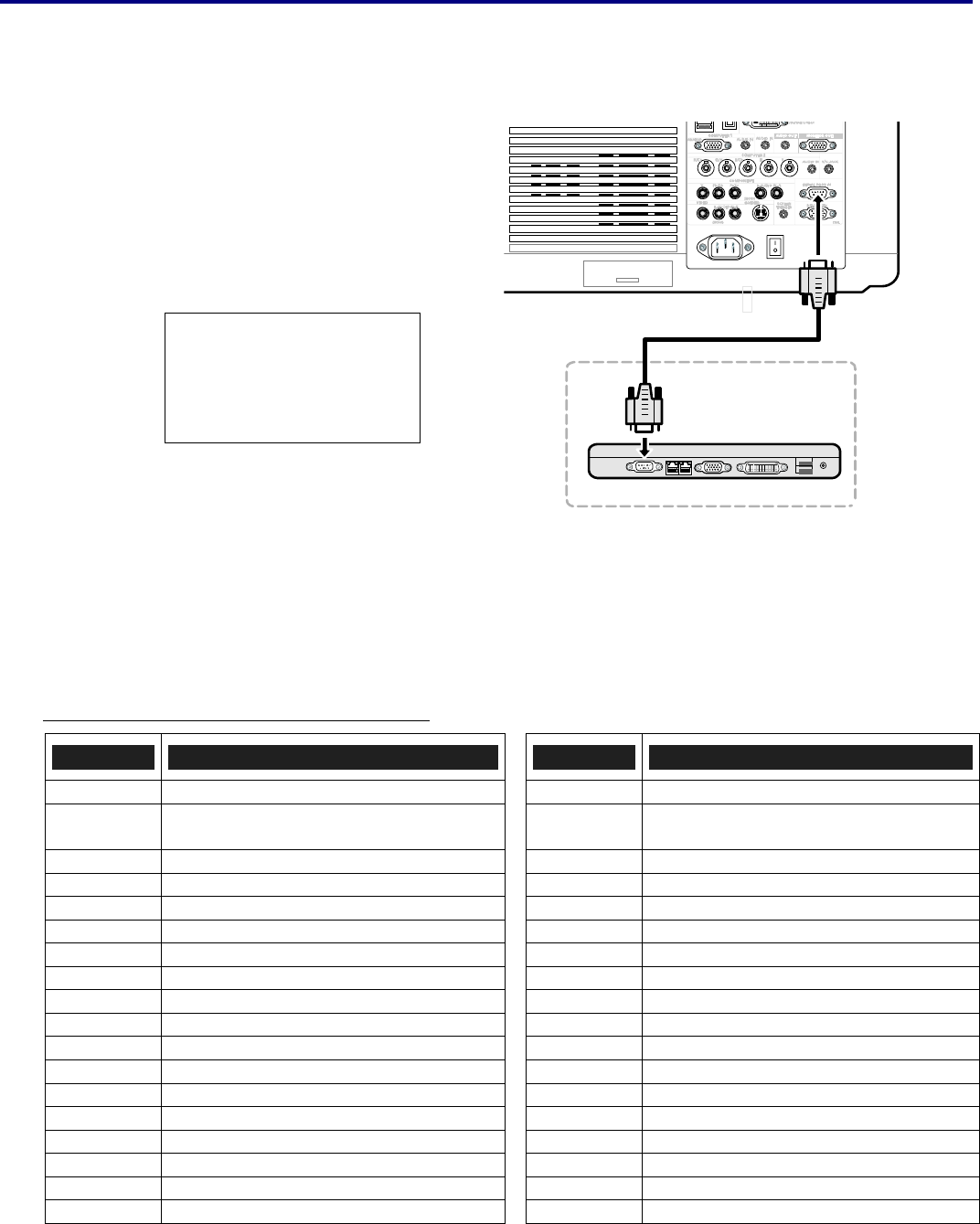

8. SERIAL PORT IN Installation control 117

9. REMOTE IN For external control 117

1. Introduction

ITEM LABEL DESCRIPTION SEE PAGE:

10. SCREEN

TRIGGER

When connected to the screen through a commercially available

cable, the screen deploys automatically on start up of the projec-

tor. The screen retracts when the projector is powered off

(see notes below)

117

11. S-VIDEO Connect a commercially available S-video cable from a video

device 29

12. POWER SWITCH Turn on/off the projector 41

13. AC IN Connect the supplied power cable 31

14.

AUDIO IN

[L(MONO)/R]

(VIDEO)

Connect RCA audio cables (not supplied) from the input device

right and left channels. This audio jack is shared with S-Video

input.

—

15. VIDEO IN Connect a composite video cable (not supplied) from a video de-

vice to the yellow RCA jack 30

16. COMPONENT IN

(Y, Cb/Pb, Cr/Pr) Connect a component video enabled device 30

17.

COMPUTER 2 IN

(R/Cr, G/Y, B/Cb,

H, V)

Connect RGBHV or Component signal from computer or com-

ponent video enabled device 30

18. COMPUTER 1 IN Connect a VGA cable (supplied) from a computer 26

19. AUDIO IN

(COMPUTER 1) Connect the audio cable (not supplied) from the input device —

20. LAN Connect a LAN cable (not supplied) from a computer 26

21. SERVICE Connect the USB cable (not supplied) from a computer. For ser-

vice personnel only. —

Note:

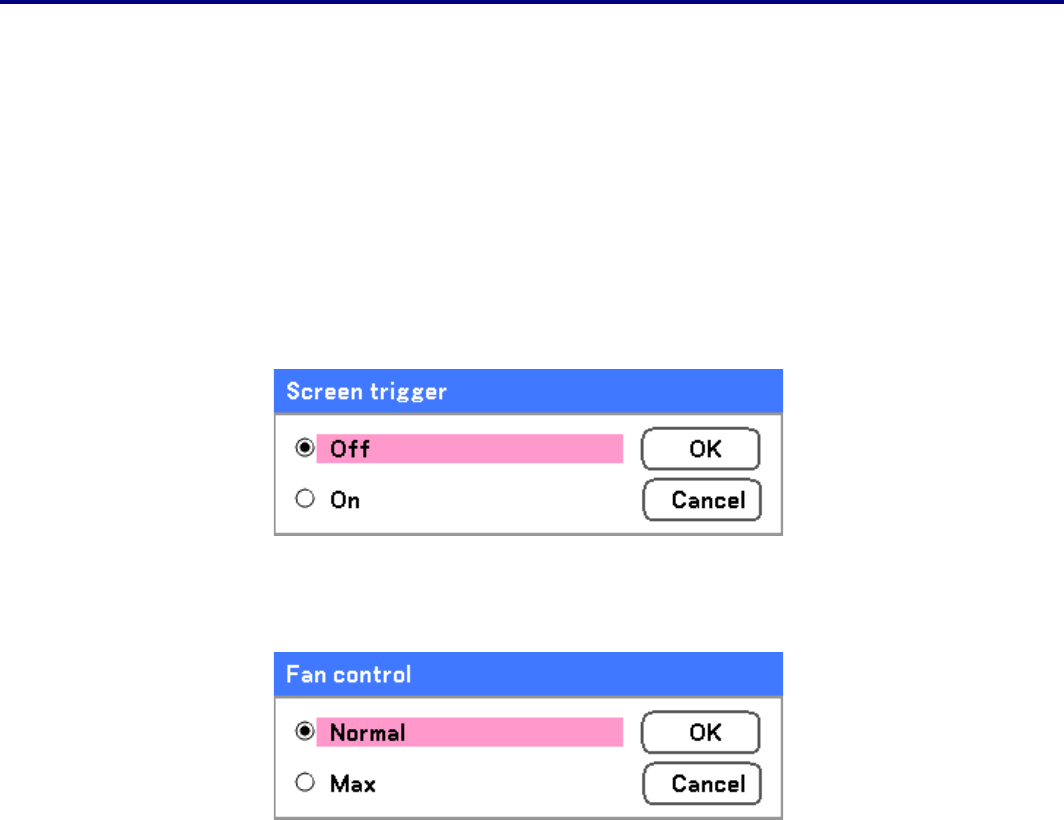

To use this feature, you must turn on the Screen Trigger function on the OSD.

Screen controllers are supplied and supported by screen manufacturers.

Do not use this jack for anything other than intended use. Connecting the wired remote control to the

Trigger mini jack causes damage to the remote control.

1. Introduction

s Part Names of the Remote Control

ITEM LABEL LABEL ITEM

1. ON

NO SHOW

Temporarily turns off screen

image.

15.

2. STAND-BY D. ZOOM -/+

Zoom in/out function. 16.

3. LIGHT

Illuminate the remote panel.

AUTO PC

Automatically adjust the

computer image.

17.

Open or close the on-Screen

menu.

KEYSTONE

Correct keystone distortion. 18.

5. CANCEL VOLUME -/+ 19.

6. VOLUME - COMPUTER 1 20.

SELECT

Executes a selected menu

item

COMPUTER 2 21.

8. VOLUME + COMPUTER 3 22.

LENS SHIFT

Shift the lens up, down, right

and left.

COMPONENT

Select the component input

source.

23.

10. FOCUS/ZOOM

Correct image distortion.

S-VIDEO

Select the S-video input

source.

24.

11. IMAGE

Select image mode

VIDEO

Select the video input

source.

25.

12. SCREEN

Select the screen size. IR TRANSMITTER 26.

13. FREEZE

Freeze the picture. IR TRANSMITTER 27.

14. LAMP CONTROL

Select a lamp mode.

REMOTE JACK

Connect a wired remote con-

trol.

28.

1. Introduction

Important:

Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights

can disrupt remote control operation.

1. Be sure nothing obstructs the path between the remote control and the projector. If the path between re-

mote and projector is obstructed, you can bounce the remote signal off certain reflective surfaces such as

projector screens.

2. The buttons and keys on the projector have the same functions as the corresponding buttons on the re-

mote control. This user’s manual describes the functions based on the remote control.

Note:

* To turn off the projector, press the STAND-BY button twice.

1. Introduction

Battery Installation

The Remote Control unit included with the projector does not contain batteries, though batteries are supplied as part of the

complete package. To insert (or replace) the batteries, refer to the following guide.

1. Remove the battery compartment cover

by squeezing the locking catch and slid-

ing the cover in the direction of the

arrow.

2. Insert the supplied batteries taking note

of the polarity (+/-) as shown.

3. Replace the cover locator, and then

click locking catch into place as shown.

1. Introduction

Operating Range for Wireless Remote Control

Point the remote control toward the projector (to Infrared Remote Re-

ceivers) when pressing the buttons. Maximum operating range for the

remote control is about 16.4 feet (5 m) and 60 degrees in front and rear

of the projector.

Infrared remote receivers are provided both in front and back of the pro-

jector. You can conveniently use both of the receivers.

Remote Control Precautions

The following precautions ensure that the remote operates correctly and

safely.

x Use two (2) AA or LR6 type alkaline batteries.

x Always replace batteries in sets.

x Do not use a new battery with a used one.

x Avoid contact with water or liquid.

x Do not expose the remote control to moisture or heat.

x Do not drop the remote control.

x If the battery has leaked on the remote control, carefully wipe the

case clean and install new batteries.

x Risk of an explosion if battery is replaced by an incorrect type.

x Dispose of used batteries according to the instructions.

Remote Control Codes

This projector provides eight different remote control codes (Code 1–Code 8); the factory-set, initial code (Code 1) and the

other seven codes (Code 2 to Code 8). This switching function prevents remote control interference when operating sev-

eral projectors or video equipment at the same time.

The same code should be set on both the projector and the remote control.

For example operating the projector in “Code 7”, both the projector and the remote control must be switched to “Code 7”.

To change the code for the projector;

Select a remote control code in the Menu.

To change the code for the remote control;

Check the Reset Switch to Use position in the compartment lid on back of the remote control.

With holding down the MENU button, press the IMAGE button. By pressing the IMAGE button, the code switches in a se-

quential order.

To reset the code for the remote control;

Slide the Reset Switch to "Reset position" in the compartment lid on back of the remote control.

1. Introduction

Using the Remote Control in Wired Operation

Connect the supplied remote cable to the R/C jack on the projector (see r Terminal Panel Features on page 10) and the

other end to the remote jack on the remote control (see item 1, s Part Names of the Remote Control on page 12).

Note:

Connecting the remote cable to the R/C jack on the terminal panel will make the wireless operation unavail-

able.

2. Installation and Connections

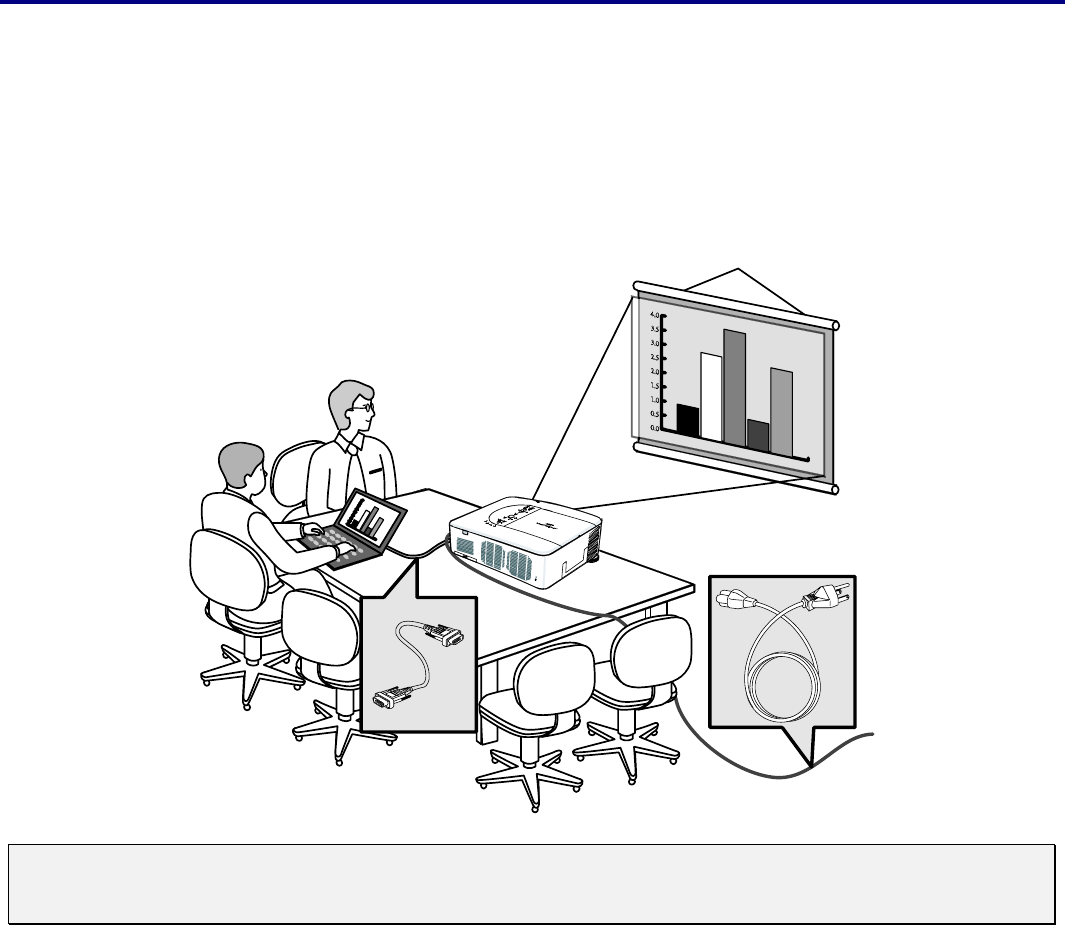

n Setting Up the Screen and the Projector

This section briefly describes how to set up your projector and how to connect video and

audio sources.

Your projector is simple to set up and use. But before you get started, you must first:

x Set up a screen and the projector.

x Connect your computer or video equipment to the projector. See s Making Connections on page 26.

x Connect the supplied power cable. See t Connecting the Supplied Power Cable on page 31.

Note:

Ensure that the power cable and any other cables are disconnected before moving the projector. When

moving the projector or when it is not in use, cover the lens with the lens cap.

2. Installation and Connections

o Selecting a Location

Locating the projector correctly ensures optimum performance and a longer parts life.

Take note of the following when setting up the projector:

x The projector table or stand should be level and sturdy.

x Position the projector so that it is perpendicular to the screen.

x Ensure cables do not cause a trip hazard.

2. Installation and Connections

p Installing or Removing the Optional Lens

CAUTION

x Do not shake or place excessive pressure on the projector or the lens components as the projector and

lens components contain precision parts.

x When shipping the projector with the optional lens, remove the optional lens before shipping the projec-

tor. The lens and the lens shift mechanism may encounter damage caused by improper handling during

transportation.

x Before removing or installing the lens, be sure to turn off the projector, wait until the cooling fans stop,

and turn off the main power switch.

x Do not touch the lens surface when removing or installing the lens.

x Keep fingerprints, dust or oil off the lens surface. Do not scratch the lens surface.

x Work on a level surface with a soft cloth under it to avoid scratching.

x If you remove and store the lens, attach the lens cap to the projector to keep off dust and dirt.

Removing the Existing Lens From the Projector

1. Pull out the lens cap.

2. Push the LENS RELEASE button all the way

in and rotate the lens counterclockwise.

The existing lens will be disengaged.

Note:

If the lens cannot be removed even by

using the LENS RELEASE button, the

anti-theft screw for lens may be in use

to secure the lens. If that is the case,

remove the anti-theft screw first.

2. Installation and Connections

3. Pull out the existing lens slowly.

CAUTION When Installing the lens into the projector, be sure to remove the lens cap from the back of the optional

lens before installing the optional lens into the projector. Failure to do so will cause damage to the projec-

tor.

Installing the New Lens

1. Insert the lens label side up.

2. Rotate the lens clockwise until it

clicks into place.

2. Installation and Connections

Installing the New Lens Using the anti-theft screw

Using the anti-theft screw to prevent theft of

the lens.

Tighten the supplied anti-theft screw on the

front bottom.

2. Installation and Connections

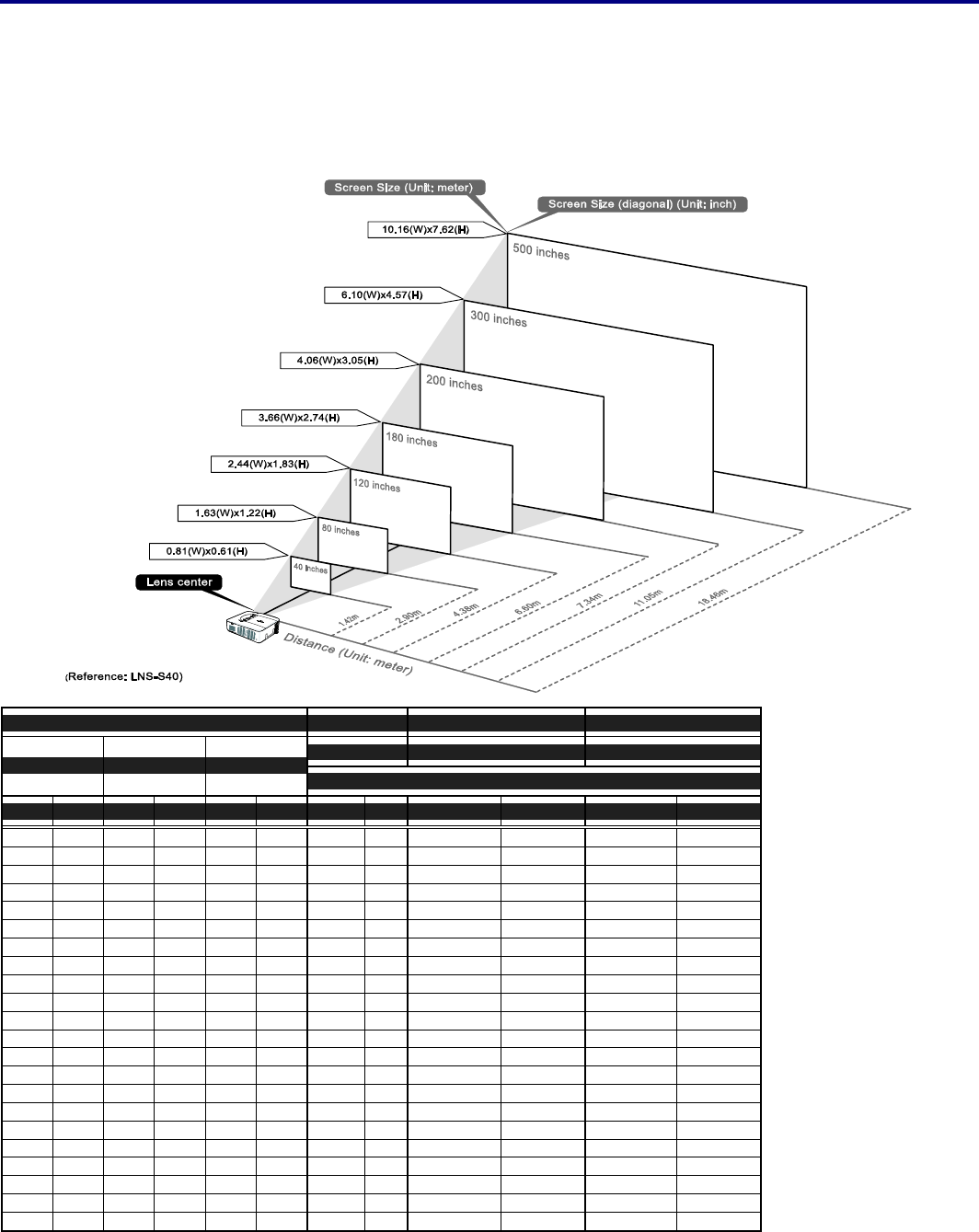

q Throw Distance and Screen Size

Example of LNS-S40:

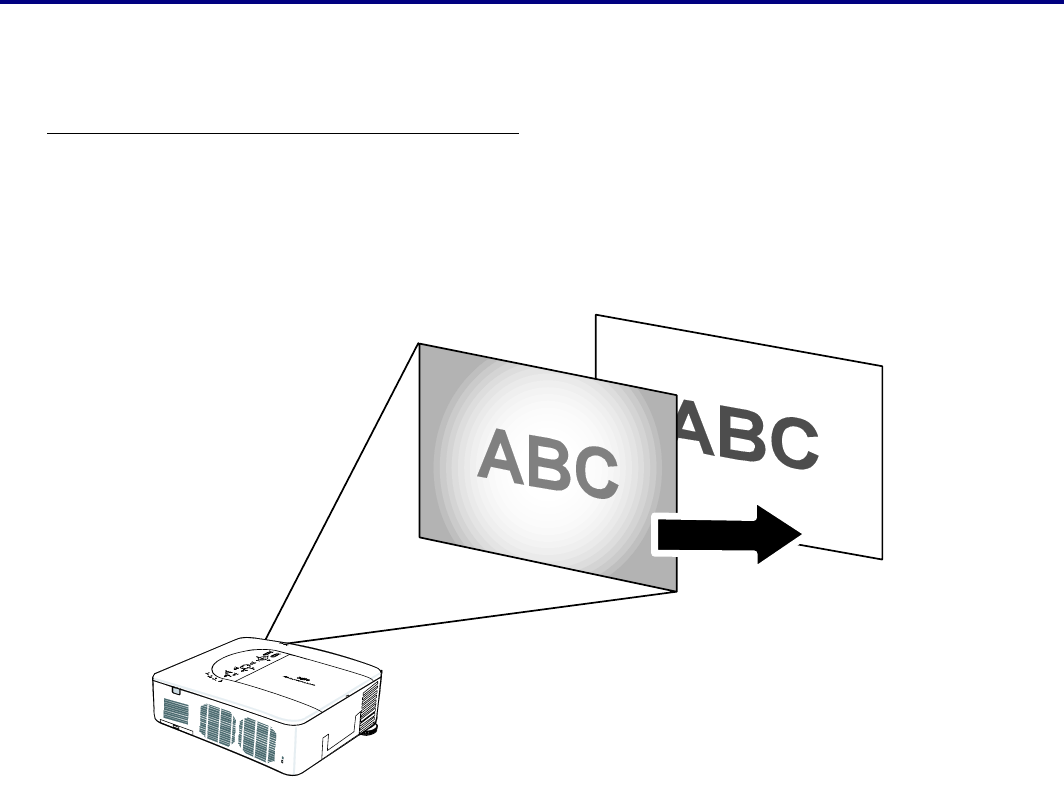

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approxi-

mately 40 inches (1 m) measured diagonally when the projector is roughly 65 inches (1.7 m) from the wall or screen. The

largest the image can be is 500 inches (12.7 m) when the projector is about 843 inches (21.4 m) from the wall or screen.

Screen Size LNS-W41 LNS-W40 LNS-S40

0.77 1.33 - 1.79 1.78 - 2.35

Diagonal Width Height

Distance

[inches] [m] [inches] [m] [inches] [m] [inches] [m] [inches] [m] [inches] [m]

40 1.02 32 0.81 24 0.61 41.7 - 56.8 1.06 - 1.44 55.8 - 74.4 1.42 - 1.89

50 1.27 40 1.02 30 0.76 30.7 0.78 52.6 - 71.5 1.34 - 1.82 70.4 - 93.7 1.79 - 2.38

60 1.52 48 1.22 36 0.91 37.1 0.94 63.5 - 86.1 1.61 - 2.19 85.0 - 112.9 2.16 - 2.87

67 1.70 54 1.36 40 1.02 41.6 1.06 71.1 - 96.4 1.81 - 2.45 95.2 - 126.4 2.42 - 3.21

72 1.83 58 1.46 43 1.10 44.9 1.14 76.6 - 103.7 1.94 - 2.63 102.5 - 136.0 2.60 - 3.45

80 2.03 64 1.63 48 1.22 50.0 1.27 85.3 - 115.4 2.17 - 2.93 114.1 - 151.3 2.90 - 3.84

84 2.13 67 1.71 50 1.28 52.6 1.34 89.6 - 121.3 2.28 - 3.08 120.0 - 159.0 3.05 - 4.04

90 2.29 72 1.83 54 1.37 56.5 1.44 96.2 - 130.1 2.44 - 3.30 128.7 - 170.6 3.27 - 4.33

100 2.54 80 2.03 60 1.52 63.0 1.60 107.0 - 144.7 2.72 - 3.68 143.3 - 189.8 3.64 - 4.82

120 3.05 96 2.44 72 1.83 75.9 1.93 128.8 - 174.0 3.27 - 4.42 172.5 - 228.2 4.38 - 5.80

150 3.81 120 3.05 90 2.29 95.3 2.42 161.5 - 218.0 4.10 - 5.54 216.2 - 285.9 5.49 - 7.26

180 4.57 144 3.66 108 2.74 114.6 2.91 194.1 - 261.9 4.93 - 6.65 260.0 - 343.6 6.60 - 8.73

200 5.08 160 4.06 120 3.05 127.6 3.24 215.9 - 291.2 5.48 - 7.40 289.1 - 382.0 7.34 - 9.70

210 5.33 168 4.27 126 3.20 226.8 - 305.9 5.76 - 7.77 303.7 - 401.3 7.71 - 10.19

240 6.10 192 4.88 144 3.66 259.5 - 349.8 6.59 - 8.89 347.5 - 458.9 8.83 - 11.66

261 6.63 209 5.30 157 3.98 282.3 - 380.6 7.17 - 9.67 378.1 - 499.3 9.60 - 12.68

270 6.86 216 5.49 162 4.11 292.1 - 393.8 7.42 - 10.00 391.2 - 516.6 9.94 - 13.12

300 7.62 240 6.10 180 4.57 324.8 - 437.7 8.25 - 11.12 435.0 - 574.3 11.05 - 14.59

350 8.89 280 7.11 210 5.33 379.2 - 511.0 9.63 - 12.98 507.9 - 670.4 12.90 - 17.03

400 10.16 320 8.13 240 6.10 433.7 - 584.3 11.02 - 14.84 580.8 - 766.5 14.75 - 19.47

450 11.43 360 9.14 270 6.86 488.1 - 657.5 12.40 - 16.70 653.7 - 862.6 16.60 - 21.91

500 12.70 400 10.16 300 7.62 542.6 - 730.8 13.78 - 18.56 726.6 - 958.7 18.46 - 24.35

2. Installation and Connections

Screen Size LNS-T40 LNS-T41

2.22 - 4.43 4.43 - 8.3

Diagonal Width Height

Distance

[inches] [m] [inches] [m] [inches] [m] [inches] [m] [inches] [m]

40 1.02 32 0.81 24 0.61 69.4 - 142.3 1.76 - 3.61 139.2 - 266.9 3.54 - 6.78

50 1.27 40 1.02 30 0.76 87.8 - 178.9 2.23 - 4.54 175.3 - 335.0 4.45 - 8.51

60 1.52 48 1.22 36 0.91 106.2 - 215.5 2.70 - 5.47 211.5 - 403.1 5.37 - 10.24

67 1.70 54 1.36 40 1.02 119.0 - 241.2 3.02 - 6.13 236.8 - 450.8 6.01 - 11.45

72 1.83 58 1.46 43 1.10 128.2 - 259.5 3.26 - 6.59 254.8 - 484.9 6.47 - 12.32

80 2.03 64 1.63 48 1.22 142.9 - 288.8 3.63 - 7.34 283.7 - 539.4 7.21 - 13.70

84 2.13 67 1.71 50 1.28 150.3 - 303.5 3.82 - 7.71 298.2 - 566.6 7.57 - 14.39

90 2.29 72 1.83 54 1.37 161.3 - 325.4 4.10 - 8.27 319.9 - 607.5 8.12 - 15.43

100 2.54 80 2.03 60 1.52 179.7 - 362.1 4.56 - 9.20 356.0 - 675.6 9.04 - 17.16

120 3.05 96 2.44 72 1.83 216.4 - 435.3 5.50 - 11.06 428.3 - 811.8 10.88 - 20.62

150 3.81 120 3.05 90 2.29 271.6 - 545.2 6.90 - 13.85 536.6 -

1016.1

13.63 - 25.81

180 4.57 144 3.66 108 2.74 326.7 - 655.1 8.30 - 16.64 645.0 -

1220.5

16.38 - 31.00

200 5.08 160 4.06 120 3.05 363.5 - 728.3 9.23 - 18.50 717.3 -

1356.7

18.22 - 34.46

210 5.33 168 4.27 126 3.20 381.9 - 765.0 9.70 - 19.43 753.4 -

1424.8

19.14 - 36.19

240 6.10 192 4.88 144 3.66 437.0 - 874.9 11.10 - 22.22 861.8 -

1629.1

21.89 - 41.38

261 6.63 209 5.30 157 3.98 475.6 - 951.8 12.08 - 24.18 937.7 -

1772.2

23.82 - 45.01

270 6.86 216 5.49 162 4.11 492.2 - 984.7 12.50 - 25.01 970.2 -

1833.5

24.64 - 46.57

300 7.62 240 6.10 180 4.57 547.3 -

1094.6

13.90 - 27.80

1078.6

2037.8

27.40 - 51.76

350 8.89 280 7.11 210 5.33 639.2 -

1277.8

16.24 - 32.46

1259.2

2378.3

31.98 - 60.41

400 10.16 320 8.13 240 6.10 731.1 -

1460.9

18.57 - 37.11

1439.9

2718.9

36.57 - 69.06

450 11.43 360 9.14 270 6.86 823.0 -

1644.0

20.90 - 41.76

1620.5

3059.4

41.16 - 77.71

500 12.70 400 10.16 300 7.62 914.9 -

1827.2

23.24 - 46.41

1801.2

3400.0

45.75 - 86.36

CAUTION

Ceiling installation must be done by a qualified professional. Contact your SANYO dealer for more

information.

It is not recommended you install the projector yourself.

Only use the projector on a solid, level surface. Serious injury and damage can occur if the projector

is dropped.

Do not use the projector in an environment where extreme temperature occurs. The projector must

be used at temperatures between 41 degrees Fahrenheit (5 degrees Celsius) and 104 degrees Fahr-

enheit (40 degrees Celsius).

Screen damage will occur if the projector is exposed to moisture, dust or smoke.

Do not cover the vents on the projector. Proper ventilation is required to dissipate heat. Damage to

the projector will occur if the vents are covered.

2. Installation and Connections

r Installing the Optional Color Wheel

The PDG-DXT10L projector comes with a four-segment color wheel installed. An additional six-segment color wheel is op-

tional. To replace the color wheel (located under the lamp cover adjacent to lamp 1) refer to the following guide.

Note:

Wait until the lamp house and the color wheel cool off.

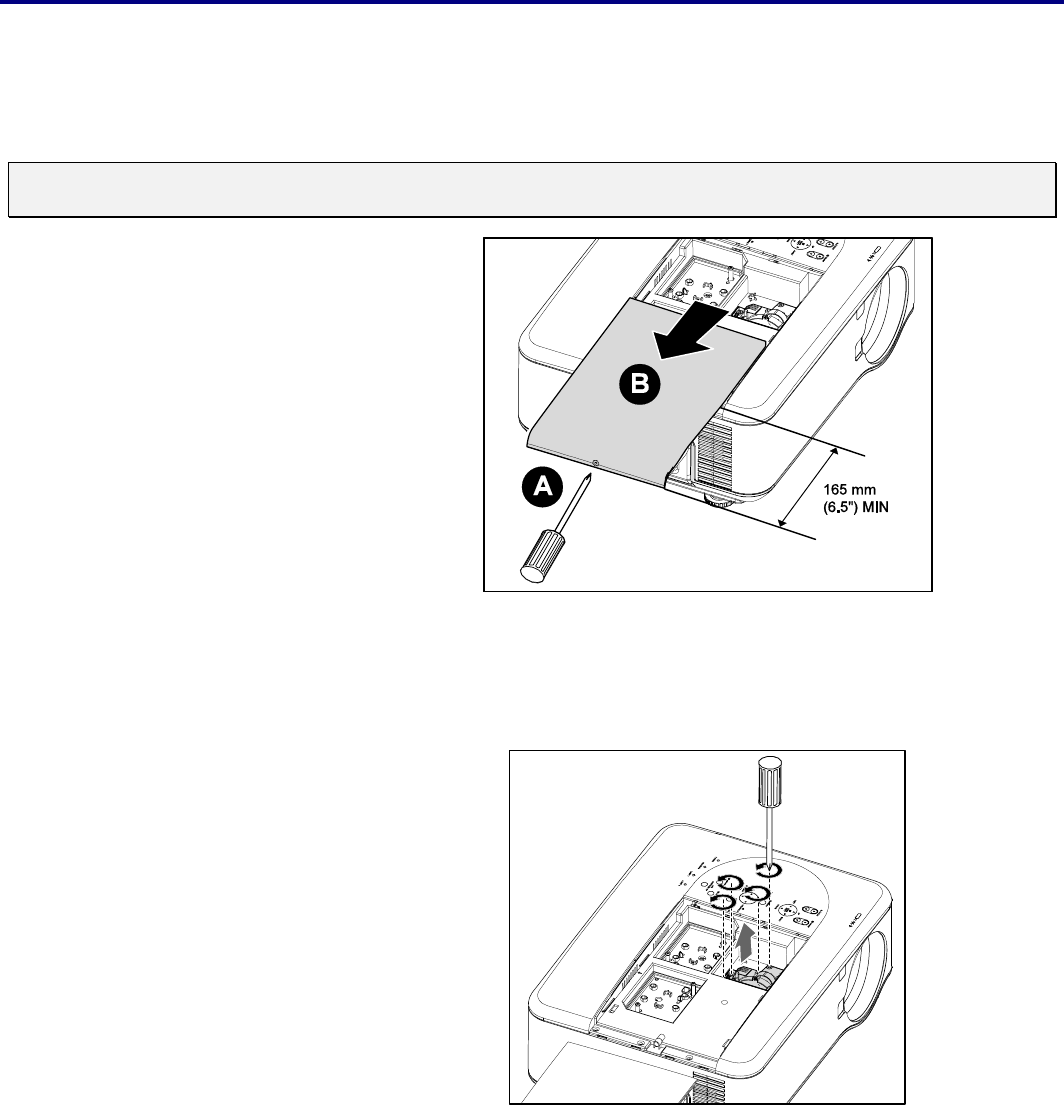

1. Loosen the captive screw (A)

on the lamp cover.

2. Remove the lamp cover by

sliding it in the direction of

the arrow (B).

3. Unscrew the retaining screws

(x 4) on the four-segment

color wheel.

2. Installation and Connections

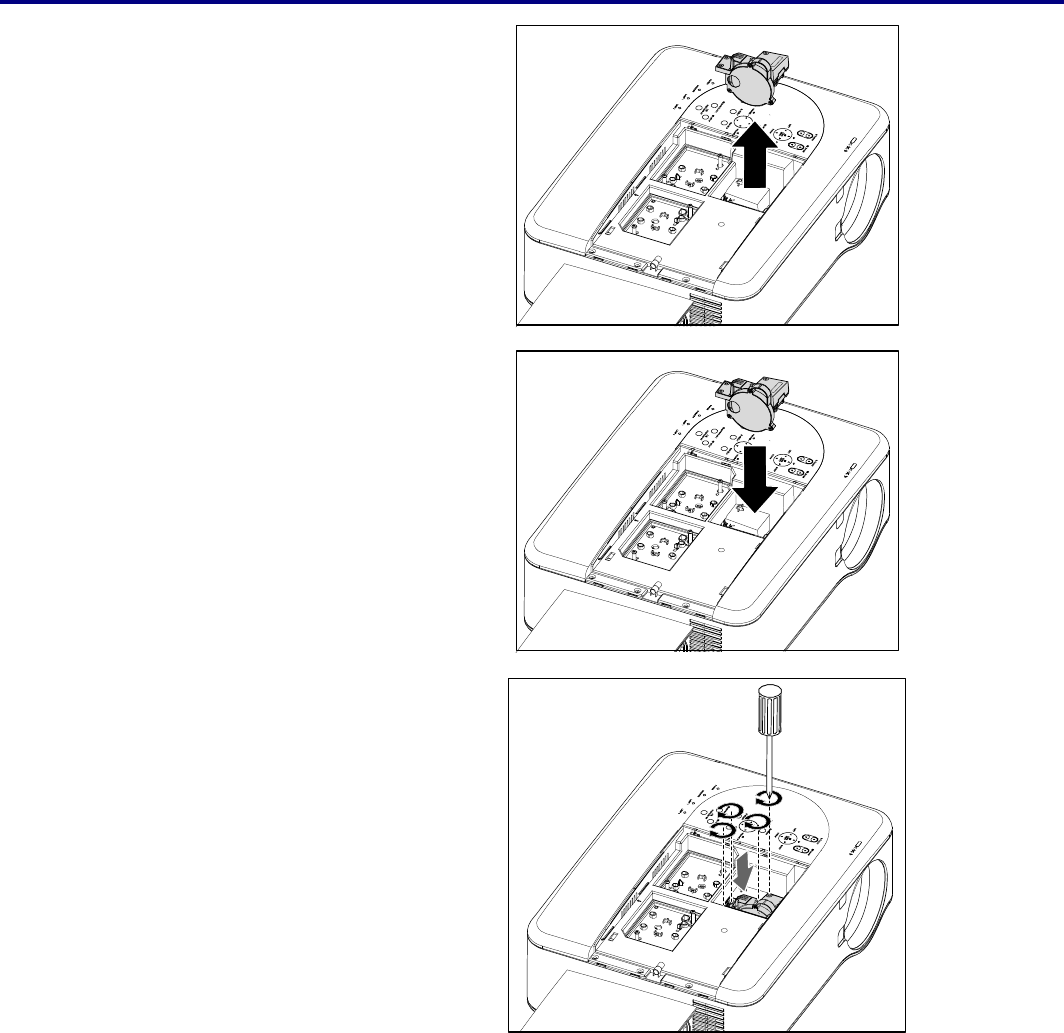

4. Lift the color wheel in the

direction shown

5. Insert the six-segment color

wheel

6. Secure the retaining screws as

shown.

2. Installation and Connections

7. Align the lamp cover (A) with

the arrow mark on the cabinet

and slide it into place.

8. Secure the captive screw (B).

Storing Unused Color Wheel:

Keep the unused color wheel in the zipper bag in which the 6-segment color wheel (not supplied) was packaged.

This bag prevents dust from falling or collecting on the color wheel.

s Making Connections

Connecting Your PC or Macintosh Computer

Enabling the computer’s external display

Displaying an image on the notebook PC’s screen does not necessarily mean it outputs a signal to the projector. When

using a PC compatible laptop, a combination of function keys will enable/disable the external display. Usually, the combi-

nation of the Fn-key along with one of the 12 function keys activates the external display.

To connect a PC or Macintosh computer to the projector, refer to the following guide.

1. Connect a computer to the projector through one of the three available input data connections before turning

on the PC or the projector. The best signal order (from best to least suitable) is as follows:

 Computer 3 in (see item 1, r Terminal Panel Features on page 10) is a digital signal and offers the best

connection to your computer.

Note:

The DVI (DIGITAL) connector (COMPUTER 3) accepts VGA (640 x 480), 1152 x 864,

XGA (1024 x 768), SXGA (1280 x 1024@up to 60Hz) and SXGA+(1400 x 1050 @ up to 60Hz).

 Computer 2 in (see item 17, r Terminal Panel Features on page 10) is an analog signal; use a DSUB-15

cable-to-5BNC connection.

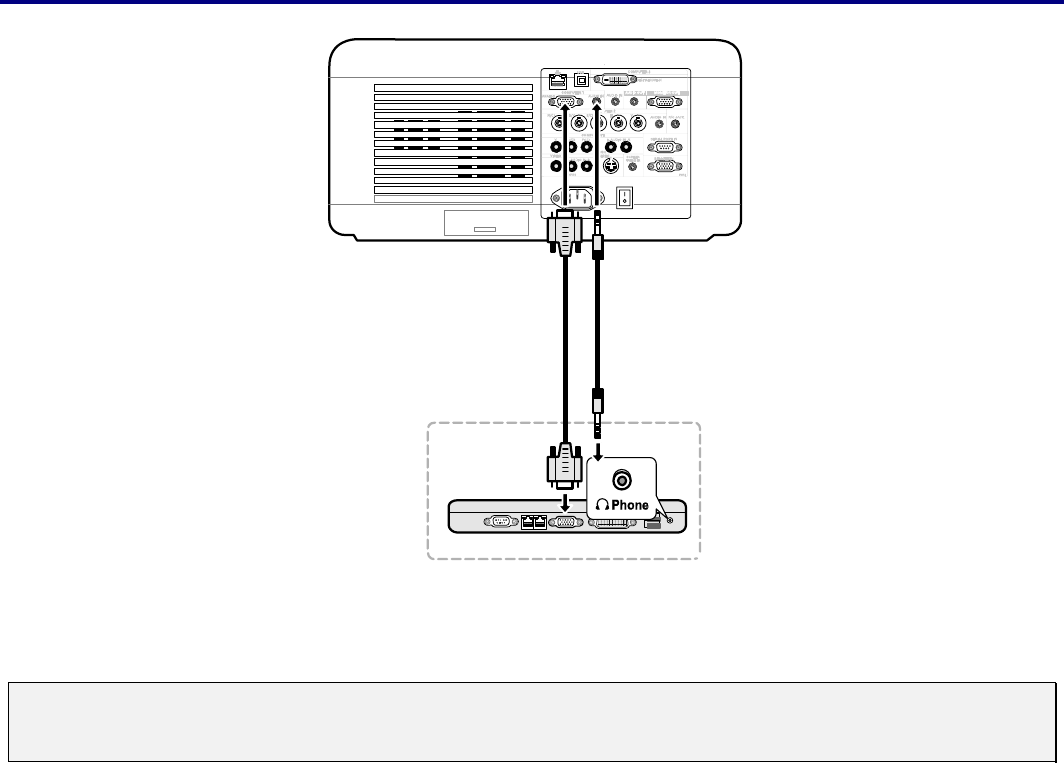

 Computer 1 in as shown below (see item 18, r Terminal Panel Features on page 10) is an analog signal

that uses a standard RGB computer cable.

2. Installation and Connections

2. Turn on the projector and select the chosen method of connection from the source menu before turning on the

PC (see o Selecting an Input Source on page 34).

3. Turn on the PC.

Note:

Failure to follow the above steps may not activate the digital output of the graphics card resulting in no pic-

ture being displayed. Should this happen, restart your PC.

2. Installation and Connections

Connecting an External Monitor

Connect an external monitor to the projector through RGB out connections as shown below

(see item 4, r Terminal Panel Features on page 10)

2. Installation and Connections

Connecting Your DVD Player with Component Output

To connect a DVD Player to the projector, refer to the following guide.

1. Connect the DVD Player to the projector as shown below before turning on the Player or the projector.

2. Turn on the projector and select Component from the source menu before turning on the DVD Player

(see o Selecting an Input Source on page 34).

3. Turn on the DVD Player.

Note:

Refer to your DVD player's user's manual for more information about your DVD player's video output re-

quirements.

2. Installation and Connections

Connecting Your VCR or Laser Disc Player

To connect your VCR or Laser Disc Player, refer to the following diagram.

Note:

Refer to your VCR or laser disc player user’s manual for more information about your device’s requirements.

Images may not be displayed correctly when using an S-Video or Video connection to fast-forward or fast-

rewind scanning.

The AUDIO IN RCA jack is shared between VIDEO IN and S-VIDEO IN.

2. Installation and Connections

t Connecting the Supplied Power Cable

This projector uses nominal input voltages of 100–120V or 200–240V AC and it automatically selects the correct input volt-

age. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of

electrical shock, do not plug into any other type of power system. If you are not sure of the type of power being supplied,

consult your authorized dealer or service station. Connect the projector with all peripheral equipment before turning the

projector on.

CAUTION For safety, unplug the AC power cord when the projector is not in use. When the projector is con-

nected to an outlet with the AC power cord, it is in stand-by mode and consumes a small amount of

electrical power.

NOTE ON THE POWER CORD

The AC power cord must meet the requirements of the country where you are utilizing the projector. Confirm the AC plug

type with the chart below. The proper AC power cord must be used. If the supplied AC power cord does not match your AC

outlet, contact your sales dealer.

Note:

Make sure that the prongs are fully inserted into both the AC IN and the wall outlet.

CAUTION

Ensure that the cables do not create a trip hazard.

3. Projecting an Image (Basic Operation)

n Turning on the Projector

Once the projector is correctly located and the power cable and other connections are in place, it is important that the pro-

jector is powered on correctly in order to avoid damage to components and unnecessary wear and tear. Refer to the

following guide to power on the projector.

1. Connect the power cable (A). Press the

main power switch to the on ( I) posi-

tion as shown (B). The power LED

lights orange and warning LED lights

green.

2. Press the On/Standby button once (see

OSD Controls and Status LEDS on

page 8). The power LED lights green

and the internal cooling fan starts.

3. After approximately 10 seconds, the

power LED flashes intermittently green.

4. The Lamp1 and Lamp2 LEDs light

green and the Power LED flashes more

rapidly.

5. Once the power LED is lit a solid green,

the projector is ready for use.

Note:

If any of the LEDs remain flashing or blink there may be a problem with the startup. Please refer to the

Troubleshooting section on page 102.

3. Projecting an Image (Basic Operation)

Note on Startup Screen (Menu Language Select screen)

In the first instance of powering on the projector, the language menu is displayed to select the default language.

Select the required default language using the Ÿ or ź buttons on the OSD menu panel or the remote control unit and

press Select.

Note:

The language select screen only appears on the first instance of power on. All subsequent operations as-

sume the selected default language. To change the default see page 74.

3. Projecting an Image (Basic Operation)

o Selecting an Input Source

The Input Source can be selected from the projector's control panel or from the remote control unit. Refer to the following

guide to select the Input Source.

1. Press Menu on the OSD control panel or on the remote

control unit to display the Main Menu. Scroll to the

Input menu using Ÿorź and press Select.

Note:

Return to the projected image by pressing Cancel

twice.

2. Select the required source using Ÿorź and press

Select.

3. Projecting an Image (Basic Operation)

p Adjusting the Picture Position and Picture Size

The Picture Position and Picture Size can be adjusted manually from the lens control panel or from the remote control unit.

Refer to the following guides to adjust Picture Position manually.

Adjusting Picture Position Manually

1. Press the Select keypad in any direction to

bring up the Lens Shift window.

2. Press the directional key as required to

shift the image. Releasing the

directional arrow will

re-center the cursor.

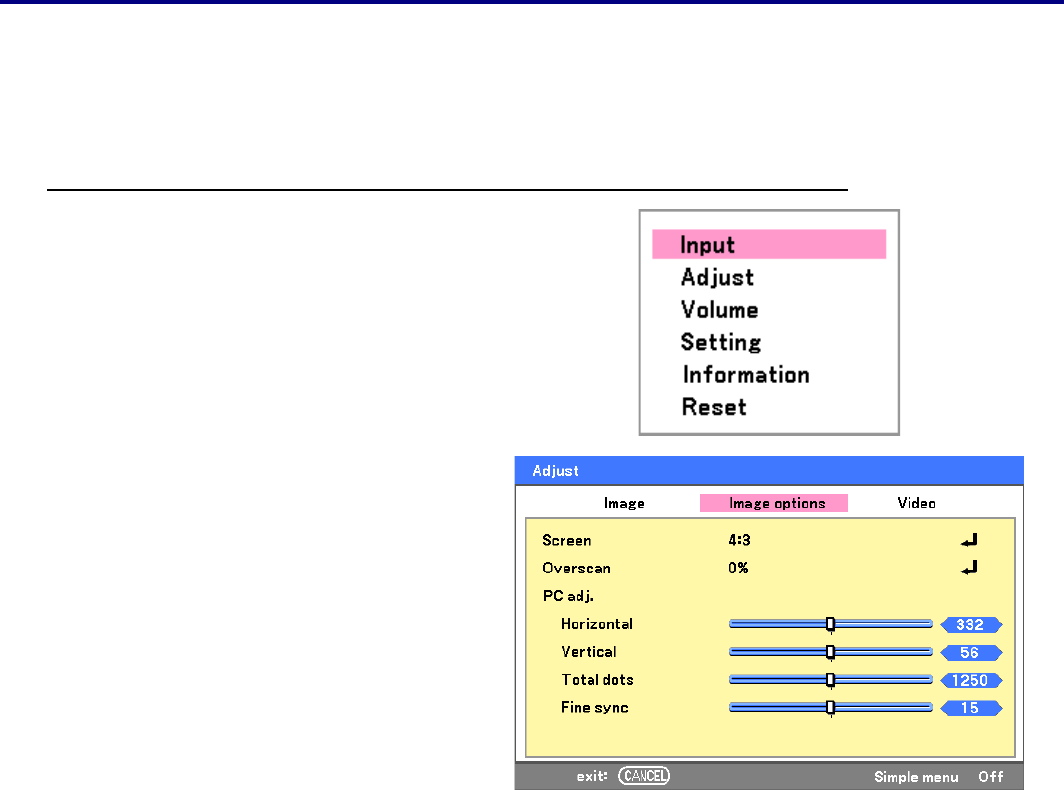

3. To alter the picture size, press Menu and

select the Adjust menu using Ÿorź. Press

Select to open the Adjust menu. Press

ŻorŹ to select Image Options followed

by Ÿorź to select Screen. Press

Select.

3. Projecting an Image (Basic Operation)

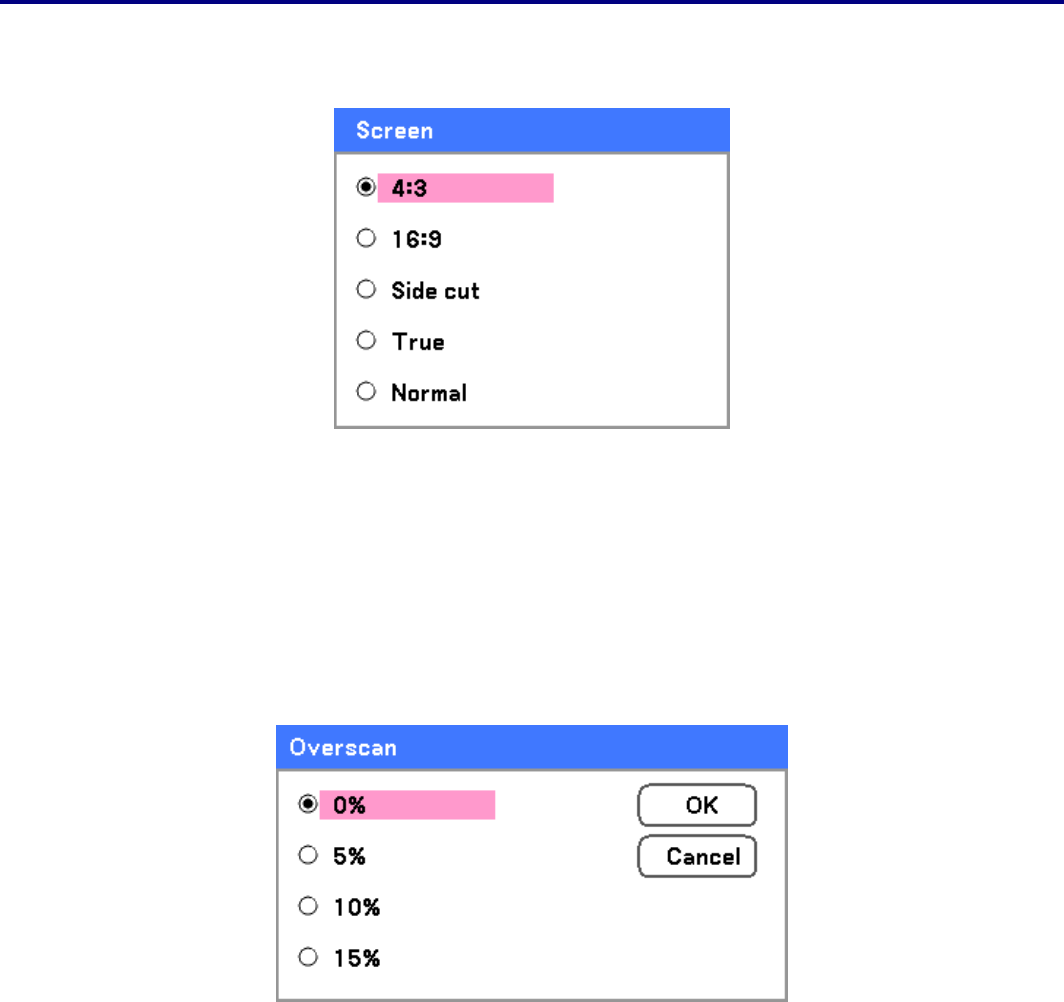

4. The Screen window is displayed. Select

the desired picture size using Ÿorź and

press Select.

5. When finished, press Cancel to return to

the projected image.

Lens Shift Adjustable Range

The adjustable range for lens shift is tabulated below and subject to the conditions listed.

Note:

The drawings below apply to the standard lens (LNS-S40) only.

3. Projecting an Image (Basic Operation)

From the Remote Control Unit

1. Press the Lens Shift button to bring up the

Lens Shift window.

2. Press the directional keys as required to

shift the image. Releasing the directional

arrow will re-center the cursor.

3. To alter the picture size, press the Screen

button to display the Screen window.

4. Select the desired picture size using Ÿorź

and press Select.

5. When finished, press Cancel to return to

the projected image.

3. Projecting an Image (Basic Operation)

Adjusting the Projector Level

1. To raise the level of the projector, twist the adjust-

ers clockwise.

2. To lower the level of the projector, lift the projector

and twist the adjusters counter clockwise.

3. Projecting an Image (Basic Operation)

q Optimizing an RGB Image Automatically

Adjusting the Image Using AUTO PC ADJ.

To optimize an RGB image automatically refer to the following guide.

Press the AUTO PC button on the remote control (see item 17, s Part Names of the Remote Control on page 12) or the

AUTO PC ADJ. button on the OSD control panel to optimize an RGB image automatically.

This adjustment may be necessary when you connect your computer for the first time.

3. Projecting an Image (Basic Operation)

r Adjusting Volume Up and Down

The volume can be adjusted from the OSD Control Panel or with the Remote Control unit. Refer to the following as a guide.

1. Press the Volume +/- buttons on the remote

control or the ŻŹbuttons on the OSD con-

trol panel. The volume level is displayed on

screen.

2. Use the Volume +/- buttons or the ŻŹbut-

tons on the OSD control panel to adjust the

level.

3. Projecting an Image (Basic Operation)

s Turning off the Projector

Once the projector is no longer required, it is important to shut it down correctly to avoid damage or unnecessary wear and

tear to the projector.

CAUTION

x Do not unplug the power cable from the wall outlet or projector when the projector is powered on.

Doing so can cause damage to the AC IN connector of the projector and (or) the prong plug of the

power cable. To turn off the AC power supply when the projector is powered on, use a power strip

equipped with a switch and a breaker.

x Do not turn off the AC power supply within 10 seconds of making adjustment or setting changes

and closing the menu. Doing so can cause loss of adjustments and settings and return to default.

Refer to the following guide to shut down the projector.

1. Press the On/Standby button once. The Power Off

window displays.

2. Press the On/Standby button or Select again on the

OSD control panel or remote control to verify

power off.

The cooling fans continue to operate (cooling-off

time).

The cooling fans stop operating when the projector

turns off.

3. The projector enters Standby mode and the power

LED lights orange.

4. Press the Main Power switch to the off position (O)

to turn off the projector.

3. Projecting an Image (Basic Operation)

About Direct Power Off

The projector has a feature called "Direct Power Off". This feature allows the projector to be turned off (even when projecting an image)

using a power strip equipped with a switch and a breaker.

Note:

Before using Direct Power Off, be sure to allow at least 20 minutes immediately after turning on the projector

and starting to display an image.

After Use

Preparation: Make sure that the projector is turned off.

1. Unplug the power cable.

2. Disconnect any other cables.

3. Return the height adjusters to their original, minimum position.

4. Cover the lens with the lens cap.

4. Convenient Features

n Turning Off the Image and Sound

The projected image and sound can be turned off for short periods of time with the remote control. This feature is useful for

breaking up presentations or for other brief interruptions in projections. To turn off the picture and image, refer to the

following guide

1. Press the NO SHOW button on the remote control once (see s Part Names of the Remote Control on page 12).

2. The image does not display.

3. To resume projection, press the NO SHOW button once more.

Note:

For extended periods of time it is recommended that the projector be powered off.

o Freezing a Picture

The projected image can be frozen for short periods of time by using the remote control. This feature is useful for capturing

still images from movies or freezing an animation at a particular point. To freeze the projected image, refer to the following

guide.

1. Press the FREEZE button on the remote control once (see s Part Names of the Remote Control on page 12).

2. The screen freezes.

3. To resume, press the FREEZE button once more.

Note:

For extended periods of time it is recommended that the projector be powered off.

4. Convenient Features

p Adjusting the Focus/Zoom Manually

The focus and zoom can be adjusted manually from the projector focus/zoom panel or from the remote control unit. Refer

to the following guides to adjust the focus and zoom manually.

Adjusting by Using the OSD Control Panel

1. Press the Focus or Zoom button

on the projector panel to display

the appropriate window.

2. Adjust the Focus/Zoom using the

increase and decrease buttons as

required.

3. Press Cancel to return to the pro-

jected image.

4. Convenient Features

q Changing Lamp Mode

The projector has two lamp modes available, Normal and Eco. The Normal mode is used for everyday standard projec-

tion, whereas the Eco mode is used for saving power and lamp life. To change the Lamp Mode, refer to the following

guides.

Changing Lamp Mode by Using the Projector's OSD Control Panel

1. Press Menu on the projector's OSD control panel to dis-

play the Main Menu. Scroll to the

Setting menu using Ÿorź and press Select.

2. Select the Basic tab using ŻorŹ and select Lamp con-

trol using Ÿorź. Press Select.

3. From the Lamp control window, select Normal or Eco

using Ÿorź. Select OK and press Select.

4. Convenient Features

Changing Lamp Mode by Using the Remote Control

1. Press the Lamp control button on the remote control to ac-

cess the Lamp control menu.

2. From the Lamp control window, select Normal or Eco us-

ing Ÿorź. Move the cursor to OK and press Select.

Note:

When the projector is in Eco mode, brightness may be affected.

Normal Mode: 100% Brightness

Eco Mode: approx. 85% Brightness

4. Convenient Features

r Getting Information

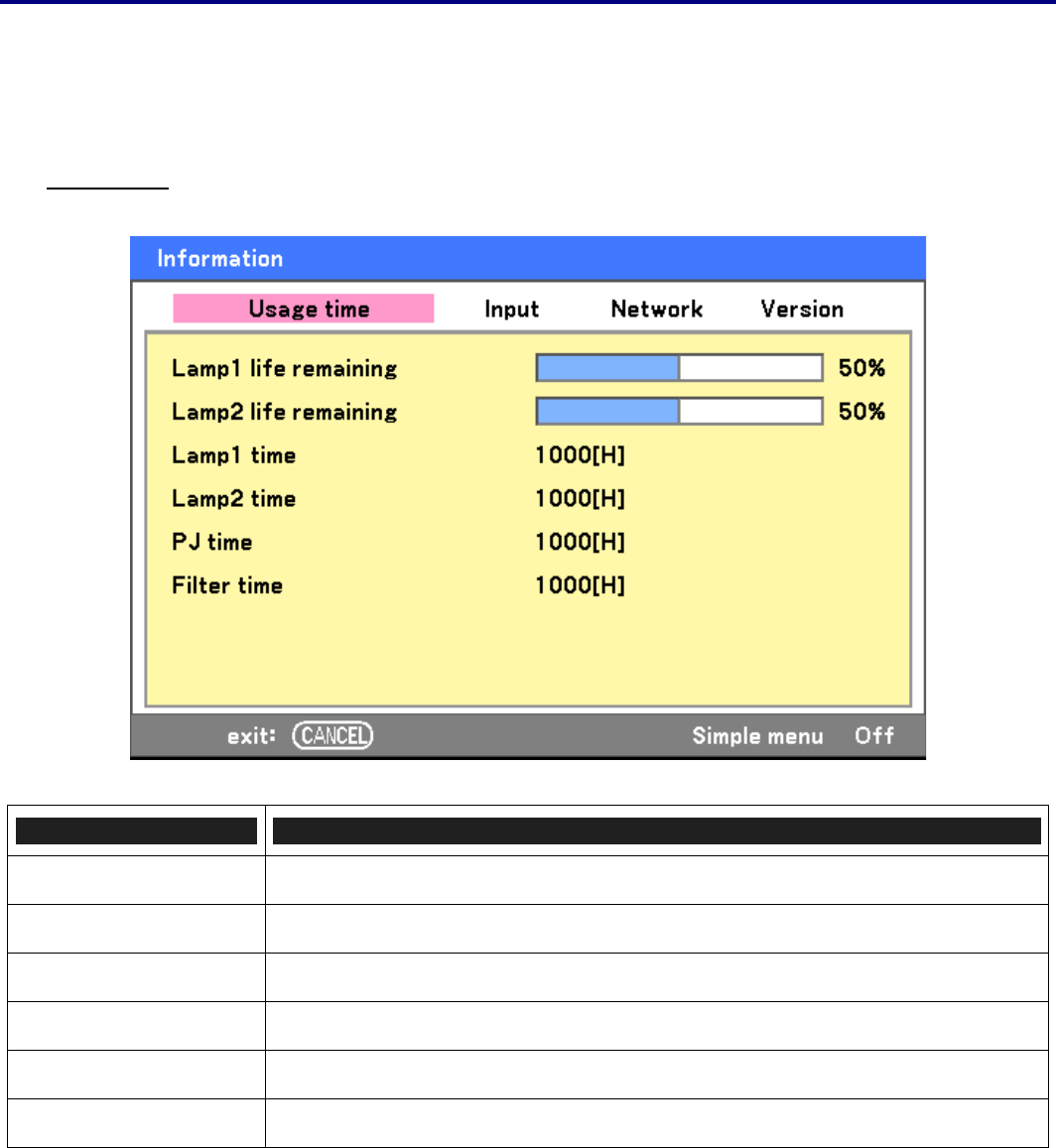

The Information screen provides details on the life of consumable items within the projector as well as other information

such as software version. To access the Information screen, refer to the following guide.

1. Press Menu on the projector's OSD control

panel or remote control to display the Main

Menu. Scroll to the Information menu using

Ÿorź and press Select.

2. The Usage time menu is displayed as the de-

fault view. The menu items in this screen are

for display and cannot be modified.

3. Press Cancel to return to the projected image.

4. Convenient Features

s Adjusting Position/Total Dots/Fine Sync

The Position/Total dots/Fine sync and Keystone Correction can be adjusted manually from the projector's control panel or

from the remote control unit. Refer to the following guides to adjust the Keystone Distortion manually.

Adjusting Position/Total Dots/Fine Sync by using the OSD Control Panel

1. Press the Menu button to display the Main

menu. Select the Adjust menu using Ÿorź

and press Select to display the

Adjust menu.

2. From the Adjust menu, press ŻorŹ to select

Image Options and scroll using Ÿorź to

Horizontal,Vertical, Total dots, or Fine

sync.

3. Adjust the Horizontal,Vertical,Total dots,

or Fine sync sliding bars using the select

ŸźŻŹ buttons.

4. Press Cancel to return to the projected image.

4. Convenient Features

Correcting Keystone by Using the Remote Control

IMPORTANT:

When adjusting the keystone, place the projector in the following position.

x Horizontal: set to the lens center

x Vertical: set to the maximum top

1. Press the Keystone but-

ton to display the

Keystone window.

2. Adjust the Horizontal

and Vertical sliding bars

using the select ŸźŻŹ

buttons.

3. Adjust the slide bars until

the screen trapezoid is a

regular shape (see dia-

gram).

4. Press Cancel to return to

the projected image.

4. Convenient Features

Note:

Holding down the Keystone button for 2 seconds resets the default keystone values.

ADJUSTMENT HORIZONTAL VERTICAL

Keystone Max. +/– 35° approx. Max. +/– 40° approx.

The following are conditions under which the maximum angle is achieved:

 When the standard lens (LNS-S40) is used

 When the lens shift is set to H for center and V for 0.5 shift.

 When the lens shift is used and yet you do not get the above-mentioned condition (H for center and V for 0.5 shift),

you cannot adjust the lens shift correctly.

 Image is projected in Wide mode

 Resolution is XGA

Note:

Higher resolution than XGA narrows the adjustable range.

Menu items should be set as follows:

 Aspect Ratio ........... 4:3

Horizontal and Vertical are adjusted separately.

A combination of both adjustments narrows the adjustable range.

4. Convenient Features

t Preventing the Unauthorized Use of the Projector

The projector has an built-in security feature to lock the OSD control panels and deny remote control operation. The secu-

rity feature has no default keyword; in the first instance of enabling the security feature, the user must define a keyword.

Locking the Projector

To setup the security keyword, refer to the following guide.

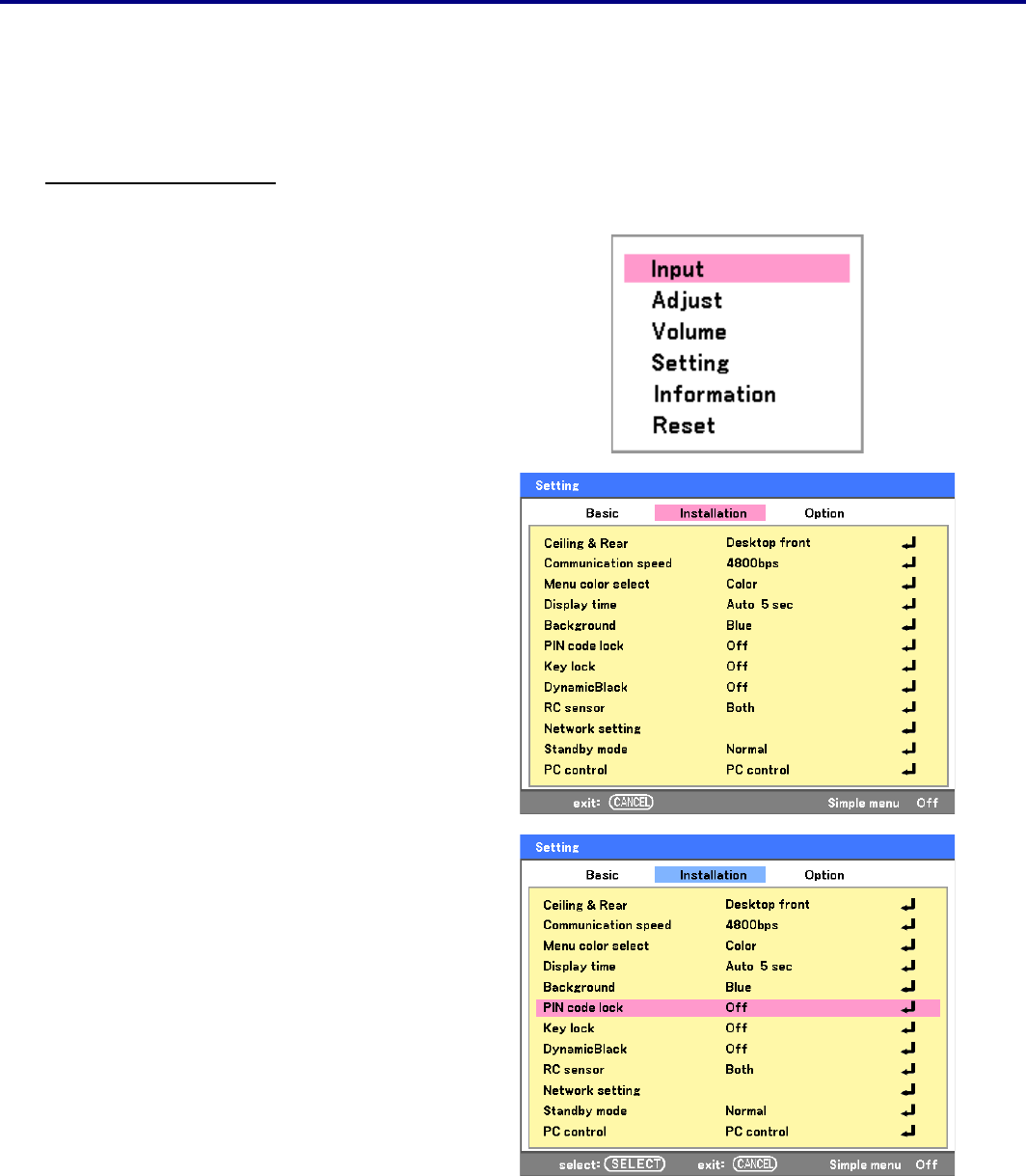

1. Press Menu on the OSD control panel on the

projector or remote control to display the

Main Menu. Scroll to the Setting menu us-

ing Ÿorź and press Select.

2. The Setting menu is displayed. Select the

Installation tab using ŻorŹ.

3. Select PIN code lock using Ÿorź. Press

Select. You are prompted to enable the PIN

code lock function. Select On using Ÿorź.

Select OK and press Select.

4. Convenient Features

4. The PIN code window is displayed. Enter a

PIN code between 4 and 10 characters using

ŸźŻŹ. The PIN code characters change

to “*”. Press Select.

5. Once a successful PIN code is entered, a

confirmation screen is displayed. Enter the

same password as the previous step and

write it down for later reference. Press

Select. A security activation message is dis-

played. Select Cancel to return to the

Setting menu or select OK to enable secu-

rity.

CAUTION When you have set or changed the PIN code, take a memo and keep it securely. If you forget your

PIN code, the projector can no longer be started. Contact your dealer or the service center.

While the projector is locked with the PIN code...

Put on the label below (supplied) in a prominent place of the projector's body while it is locked with a PIN code.

4. Convenient Features

Unlocking the Projector

To unlock the projector, refer to the following guide.

1. When the projector is locked, either by re-

quest during operation or at start up, the

locked message is displayed.

2. To unlock the projector, press Menu on the

control panel or remote control. The PIN

code window is displayed. Enter the previ-

ously defined PIN code to activate the

projector.

4. Convenient Features

u Using the Physical Lock

For security and authorized usage, the projector comes with two types of security features, the Kensington Lock and the

Security Chain Lock.

Using the Kensington Lock

If you are concerned about security, attach the projector to a permanent object with the

Kensington slot and a security cable.

Using the Security Chain Lock

In addition to the password protection function and the Kensington lock, the security chain opening helps protect the

projector from unauthorized use.

See the following illustration.

5. Using On-Screen Displa

n Using the Menus

The projector has an On-Screen Display (OSD) that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control or the buttons on the top of the projector to navigate and make changes to the OSD. The

following illustration shows the corresponding buttons on the remote control and on the projector.

1. To open the OSD, press the Menu but-

ton on the OSD control panel or remote

control. There are six initial menus.

Press the cursor Ÿorź buttons to

move through the initial menus and

Select to enter the desired menu.

5. Using On-Screen Display

2. Press the cursor Ż or Ź button to

move through secondary menus.

3. Press Ÿorź to select menu items and

ŻorŹ to change values for settings.

Press Select to confirm the new setting.

4. Press Cancel to close the OSD or leave

a submenu.

5. Using On-Screen Display

o Menu Tree

The gray shaded areas indicate factory default settings.

MENU ITEM

Input Computer 1, Computer 2, Computer 3, Component, Video, S-Video

Test pattern CrossHatch, Raster(0%), Raster(25%), Raster(50%), Raster(100%), Raster Red, Raster

Green, Raster Blue, Raster Blue 60, Gray Raster 10, Gray Raster 30, Ramp H, Ramp V

Adjust Image Image select High-bright/Presentation/Video/Movie/Graphic/sRGB

Detail setting Basic Reference High-Bright/Presentation/

Video/Movie/Graphic/sRGB

Gamma Dynamic/Natural/Black detail

Color

temp.

5000K/6500K/7800K/

8500K/9300K/10500K

Brilliant color 1 to 3

White balance Red 1 to 100

Green 1 to 100

Blue 1 to 100

Contrast R 1 to 100

Contrast G 1 to 100

Contrast B 1 to 100

Color correction Red, Green, Blue,

Yellow, Magenta, Cyan –60 to 60

Contrast 0 to 100

Brightness 0 to 100

Sharpness 0 to 31

Color 0 to 100

Tint 0 to 100

Reset


options Screen 4:3/16:9/Side cut/True/Normal

Overscan 0%/5%/10%/15%

PC Adj.

Horizontal ±50

Vertical ±25

Total dots ±50

Fine sync 0 to 63

Video Noise reduction Off/Low/Mid/High

3D Y/C separation Off/On

Progressive Off/Still/Normal/Movie

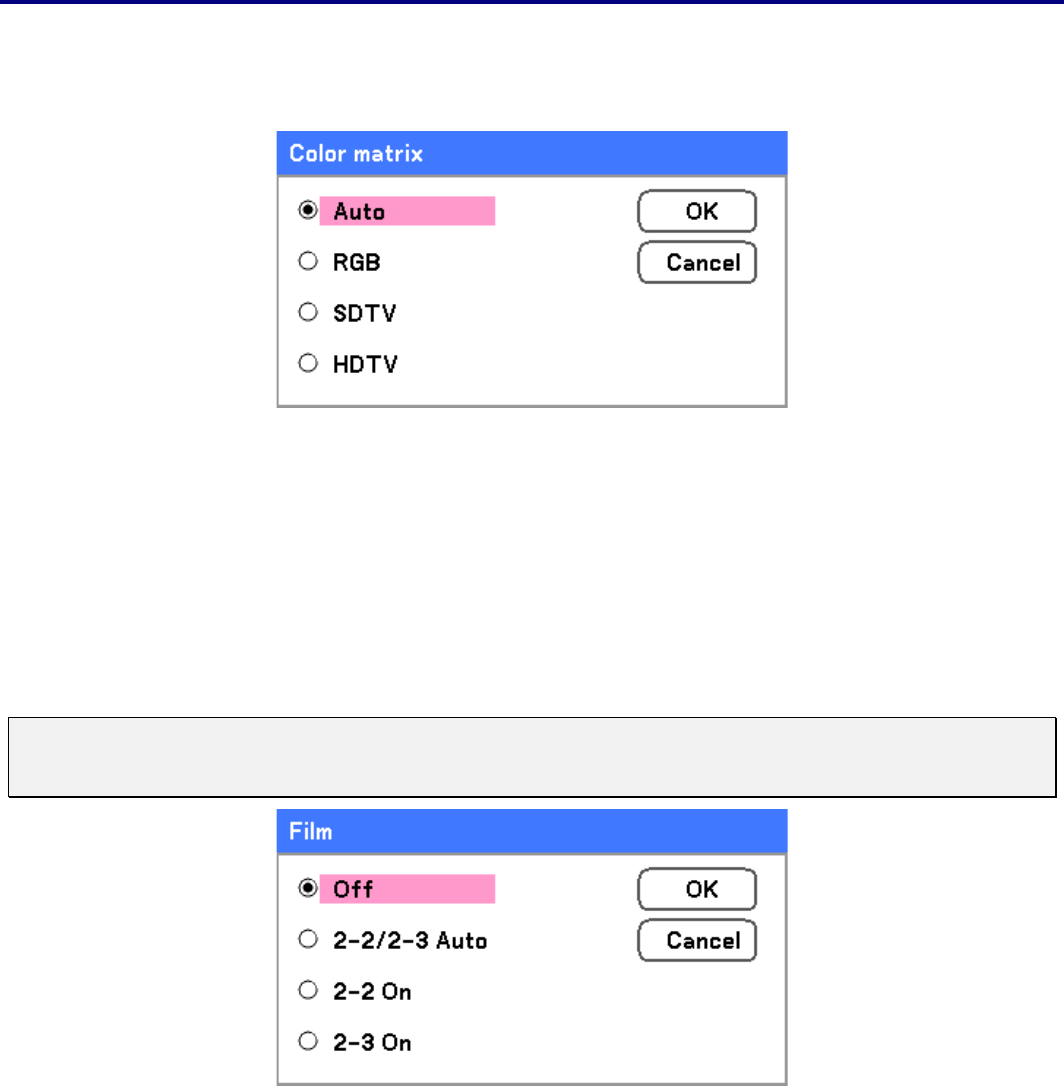

Color matrix Auto/RGB/SDTV/HDTV

Motion adaptive mode Motion adaptor/Field Jam/Scaled Field/Mixed Mode

Film Off/2-2/2-3 Auto/2-2 On/2-3 On

Volume 0~61

Setting Basic Keystone Horizontal

Vertical

Lamp control Normal/Eco

Lamp mode Dual/Lamp1/Lamp2

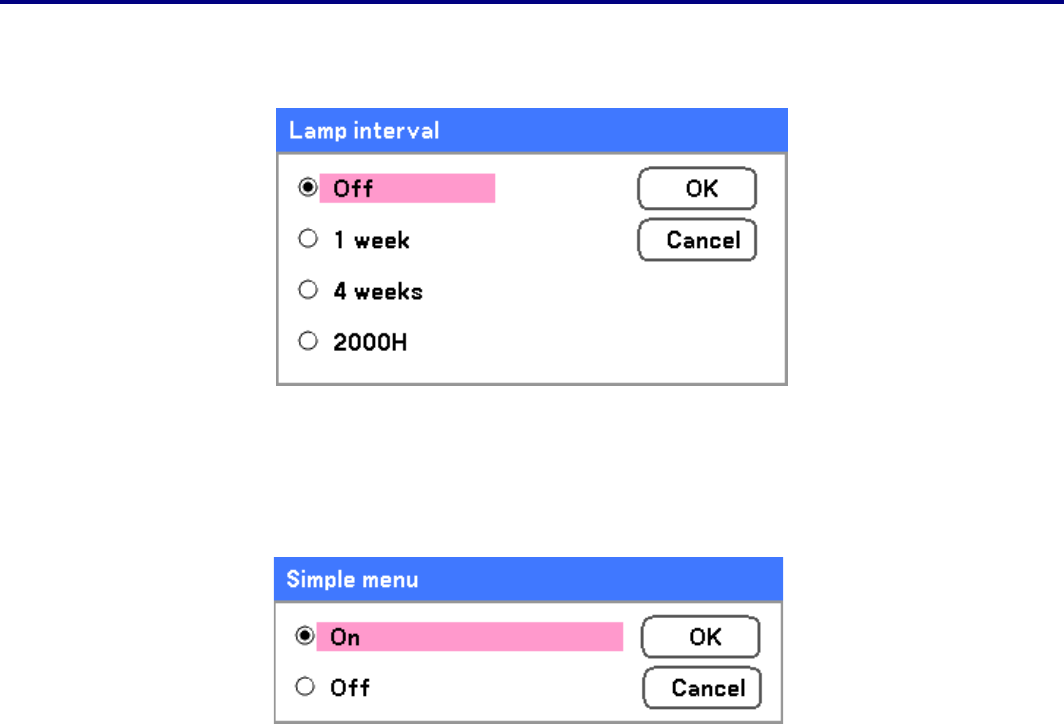

Lamp Interval Off/1 week/4 week/2000H

Simple menu On/Off

Language English/Deutsch/Français/Italiano/Español/Svenska/Ⱬⶲ儤/ᒳⰍ

5. Using On-Screen Display

MENU ITEM

Installation Ceiling & Rear Desktop Front/Ceiling Rear/Desktop Rear/Ceiling Front

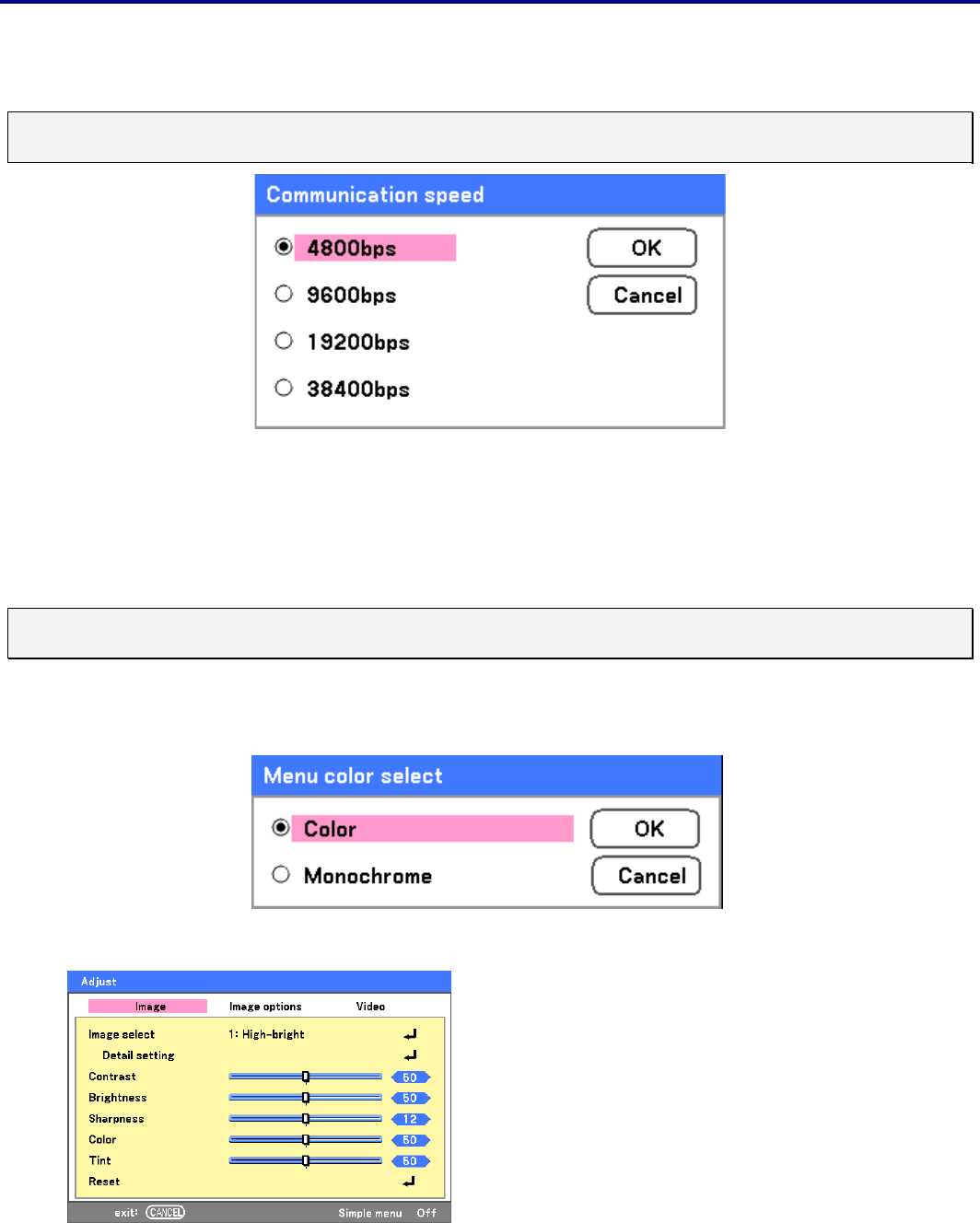

Communication speed 4800bps/9600bps/19200bps/38400bps

Menu color select Color/Monochrome

Display time Manual/Auto 5sec/Auto 15sec/Auto 45sec

Background Blue/Black/Logo

PIN code lock Off/On

Key lock Off/On

Dynamic black Off/On

RC sensor Both, Front, Back

Network setting DHCP Enable/Disable

IP address

Subnet

Gateway

DNS

Network PIN code (0000 to 9999)

Apply settings

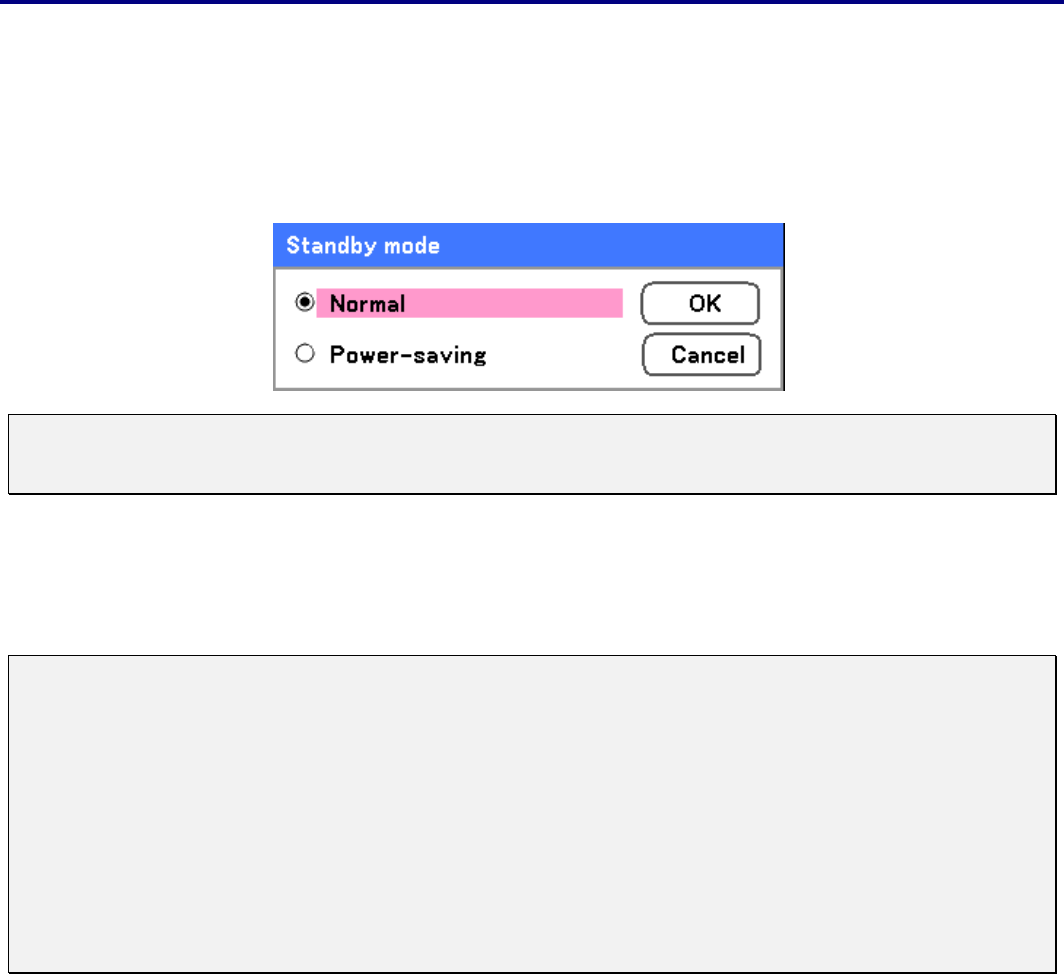

Standby mode Normal/Power-saving

PC control PC control/Network

Option On start Off/On

Power management Off/00:05/00:10/00:20/00:30

Screen trigger Off/On

Fan control Normal/Max

Default input select Last/Auto/Computer1/Computer2/Computer3/

Component/Video/S-Video

Color system

Video Auto/NTSC/PAL/SECAM

S-Video Auto/NTSC/PAL/SECAM

Remote control Code1/Code2/Code3/Code4/Code5/Code6/Code7/Code8

Message Off/On

Filter warning Off/100[H]/200[H]/500[H]/1000[H]

Search mode Normal/Fine

Information Usage time Lamp1 life remaining, Lamp2 life remaining

Lamp1 time, Lamp2 time

PJ time

Filter time

Input Input name

Signal

H-sync freq.

V-sync freq.

Video type

Sync type

Sync polarity

Scan type

Network IP address, Subnet, Gateway, MAC address

Version Model name, Serial number, Firmware, Data, Remote control

Reset Current signal, All data, Clear lamp1 time, Clear lamp2 time, Clear filter time

5. Using On-Screen Display

p Menu Elements

Some menus and windows contain large amounts of information in a small area. Refer to the following guide to navigate

through options more easily.

Menu windows or dialog windows typically contain the following elements:

LABEL ITEM DESCRIPTION

1 Title Indicates the menu title.

2 Highlight Indicates the selected menu or item.

3 Menu type Advanced Menu or Basic Menu.

4 Radio button Click this round button to select an option in a dialog box.

5 Slide bar Indicates a representation of adjustable values.

6 Exit Return to the previous menu.

7 OK Accepts changes.

8 Cancel Reject changes and returns to previous menu.

5. Using On-Screen Display

q Source Menu Descriptions and Functions

The Source menu displays all supported image sources.

Select the required source from the menu using Ÿ or ź and press Select to confirm.

ITEM DESCRIPTION

Computer 1 Select the source connected to the Computer 1 input

(see Connecting Your PC or Macintosh Computer on page 26).

Computer 2 Select the source connected to the Computer 2 input

(see Connecting Your PC or Macintosh Computer on page 26).

Computer 3 Select the source connected to the Computer 3 input

(see Connecting Your PC or Macintosh Computer on page 26).

Component Select the source connected to the Component input

(see Connecting Your DVD Player with Component Output on page 29).

Video Select the source connected to the Video input

(see Connecting Your VCR or Laser Disc Player on page 30).

S-Video Select the source connected to the S-Video input

(see Connecting Your VCR or Laser Disc Player on page 30).

Test Pattern

Displays information about the type of test pattern (Range: CrossHatch, Raster (0%), Raster (25%),

Raster (50%), Raster (100%), Raster Red, Raster Green, Raster Blue, Raster Blue 60, Gray Raster

10, Gray Raster 30, Ramp H, Ramp V).

5. Using On-Screen Display

r Adjust Menu Descriptions and Functions

The Adjust menu contains overall projector settings for image output such as sharpness, overscan and color matrix.

Three tabs are accessible through the Adjust menu, Picture, Image Options and Video.

Image menu

The image menu is used to alter picture settings and can be accessed from the Adjust menu.

The following table lists all functions with a description and the default setting.

ITEM DESCRIPTION

Image select Select a set of preset values using Ż or Ź from the list. Notice that the below values will

change depending on the preset selection.

Detail Setting See s Detail Settings Menu Descriptions and Functions on page 67.

Contrast Adjust the Contrast value using ŻorŹ to highlight the differences between light and dark

areas of the picture.

Brightness Adjust the Brightness value using ŻorŹ to lighten or darken the picture.

Sharpness Adjust the Sharpness value using ŻorŹ to sharpen or blur the borders between colors and

objects.

Color Adjust the Color value using ŻorŹ to increase or decrease color input to the picture.

Tint Adjust the Tint value using ŻorŹ to increase or decrease the color Hue of the picture.

Reset The settings and adjustments are set to initial factory settings.

5. Using On-Screen Display

Image options menu

The Image Options menu is used to configure image options such as screen positioning and aspect ratio. Access the im-

age options menu in the Adjust menu.

The following table lists all functions with a description and the default setting.

ITEM DESCRIPTION

Screen Select Screen using ŻorŹ from the list (see page 63).

Overscan Set the Overscan value using ŻorŹ (see page 63).

PC adj.

Adjust the position values using the slides.

Horizontal: Adjusts the image location horizontally using ŻorŹ.

Vertical: Adjusts the image location vertically using ŻorŹ.

Total dots: Fine tune a computer image or remove any vertical banding that might appear.

Fine sync: Adjust the clock phase or reduce video noise, dot or cross talk.

Note:

Only use the Phase settings after the total dots settings have been modified.

5. Using On-Screen Display

Screen

The screen option allows for the adjustment of the aspect ratio to alter the appearance or ratio of the projected image.

4:3 – Standard TV screen (4:3), proportionally four units wide for every three units high, no matter the size of the screen.

16:9 – A wide-screen aspect ratio for video.

Side cut – Crops the image.

True – Displays the current image in its true resolution.

Normal – Displays the current image in its aspect ratio.

Overscan

Video images normally exceed the size of the display screen. The edge of the picture may or may not be displayed cor-

rectly. The border area that is cropped can be adjusted by using the Overscan menu.

Set the overscan percentage between 0 – 15% to compensate for different screen sizes.

5. Using On-Screen Display

Video menu

The Video menu is used to configure image options such as film. Access the Video menu in the Adjust menu.

The following table lists all functions with a description and the default setting. A detailed description follows the table.

ITEM DESCRIPTION

Noise reduction Select Noise reduction mode (see page 65).

3D Y/C separation Select 3D Y/C separation mode (see page 65).

Progressive Select Progressive mode (see page 65).

Color matrix Select Color matrix mode (see page 65).

Film Select Film mode (see on page 65).

5. Using On-Screen Display

Noise reduction

Select the level of noise reduction required.

Range: Off, Low, Mid, High.

3D Y/C separation

3D Y/C Separation separates composite signal to Y (brightness) signal and C (color) signal, and can help to produce

clearer and sharper images without overlapping colors (rainbow effect).

Set 3D Y/C Separation On or Off.

Progressive

Progressive converts an interlaced image to a progressive scan image.

Select the form of Deinterlacing required from:

Still – Select for stills such as slide projections or screen shots.

Normal – Select Normal for non-specialized projection.

Movie – Select for movie projection.

5. Using On-Screen Display

Color matrix

Color Matrices define the amount of the three-color components R (red), G (green), and B (blue) in a single point in color

space.

Select from the following:

Auto – Auto selects the color matrix.

RGB – Sets the color matrix to RGB, use for PC monitor or camera imaging.

SDTV – Sets the color matrix to SDTV, use for Standard Definition imaging.

HDTV – Sets the color matrix to HDTV, use for High Definition imaging.

Film

Film aids in converting motion picture film images into video. The process adds additional frames to the picture in order to

increase the frame rate.

Note:

This feature is only available when Progressive is turned on and SDTV

signal is selected.

Select from the following:

Off – Film mode is turned off.

2-2/2-3 Auto – Detects pull-down correction method.

2-2 On – Uses 2-2 pull-down correction method.

2-3 On - Uses 2-3 pull-down correction method.

5. Using On-Screen Display

s Detail Settings Menu Descriptions and Functions

The Detail settings menu contains basic and advanced color adjustment options such as gamma correction, color contrast

and color correction.

Basic

The Basic tab contains general Detail Settings such as gamma correction and color temperature. Access to the General

tab is through the Detail Settings menu.

The following table lists all functions with a brief description.

ITEM DESCRIPTION

Reference Set Reference mode (see page 68).

Gamma Select Gamma Correction mode (see page 68).

Color temp. Move the slider bar left or right to set the color temperature value in Kelvin (K). Compensate

for the amount of light available. Daylight is approximately 5500K.

BrilliantColor Move the slider bar left or right to set the BrilliantColorTM value. BrilliantColor extends the

exposure range and sharpens detail for grain free images.

5. Using On-Screen Display

Reference

The Reference mode allows the projector to differentiate between source materials for example movies, PC images or

video stills.

Select from the following:

High-bright – Select for use in a brightly lit room.

Presentation – Select if the projector is to be used for presentation purposes.

Video – Select for video projection.

Movie – Select for Movie projection.

Graphic – Select Graphic for still images.

sRGB – Select for projecting PC or web page images.

Gamma

Gamma enables adjustment to the light intensity (brightness) of an image in order to match the source more closely.

Select from the following:

Dynamic – Allows the projector to alter the gamma correction automatically.

Natural – Attempts to emulate the original source as closely as possible.

Black detail – Black detail highlights boundaries between light and dark areas of the image more clearly.

5. Using On-Screen Display

White balance

White Balance allows the projector to compensate for different colors of light being emitted by different light sources.

The following table lists all functions with a brief description.

ITEM DESCRIPTION

Red Set the value to compensate for red light sources.

Green Set the value to compensate for green light sources.

Blue Set the value to compensate for blue light sources.

Contrast R Set the Contrast R value to compensate for red light sources.

Contrast G Set the Contrast G value to compensate for green light sources.

Contrast B Set the Contrast B value to compensate for blue light sources.

5. Using On-Screen Display

Color correction

The Color correction tab enables the adjustment of color values in an image to remove unwanted effects, improve color,

characteristics or add more of a particular color.

The following table lists all functions with a brief description.

ITEM DESCRIPTION

Red Increase or decrease the amount of red in the projected output using Ż and Ź.

Green Increase or decrease the amount of green in the projected output using Ż and Ź.

Blue Increase or decrease the amount of blue in the projected output using Ż and Ź.

Yellow Increase or decrease the amount of yellow in the projected output using Ż and Ź.

Magenta Increase or decrease the amount of magenta in the projected output using Ż and Ź.

Cyan Increase or decrease the amount of cyan in the projected output using Ż and Ź.

5. Using On-Screen Display

t Setting Menu Descriptions and Functions

The Setup menus contain the most often used settings during installation and options to customize the general output of

the projector. Three tabs are accessible through the Setup menu, general, installation and option.

Basic

The Basic tab contains general setup options such as lamp mode and OSD language settings and can be accessed with

the projector control panel or with the remote control unit.

The following table lists all functions with a brief description.

ITEM DESCRIPTION

Keystone Adjust the Keystone trapezoid (see Keystone page 72).

Lamp control Select Lamp control. Range: Normal or Eco.

Lamp mode Select Lamp configuration. Range: Dual, Lamp1 or Lamp2.

Lamp interval Select Lamp interval. Range: Off, 1 week, 4 weeks or 2000 hours.

Simple menu Displays menus with minimum essential options. This setting is best suited to novices.

Language Select the OSD language (see Language on page 74).

5. Using On-Screen Display

Keystone

The keystone trapezoid can be adjusted by selecting this option.

Select Horizontal or Vertical using Ÿorź then, use ŻorŹ to adjust the projected image appearance as required.

IMPORTANT:

When adjusting the keystone, place the projector in the following position.

x Horizontal: set to the lens center

x Vertical: set to the maximum top

Lamp control

Select Normal or Eco from the lamp mode window. The lamp life can be extended by using the Eco mode and the fan

noise can be reduced.

Lamp mode

Select the lamps to be used for projection.

Select from the following:

Dual – Uses both lamps simultaneously.

Lamp1 – Uses Lamp1 only.

Lamp2 – Uses Lamp2 only.

5. Using On-Screen Display

Lamp interval

The period of time for regulating lamp usage when not in dual lamp mode.

Select from the following:

Off,1 week,4 weeks and 2000H

Simple menu

Select the Simple menu to display.

Set Simple menu On or Off.

5. Using On-Screen Display

Language

Select the OSD language to be used.

Select from the following:

 English

 German

 French

 Italian

 Spanish

 Swedish

 Japanese

 Simplified Chinese

5. Using On-Screen Display

Installation

The Installation tab contains menu options for various setup conditions such as orientation and remote sensor mode and is

accessed through the Setup menu.

The following table lists all functions with a brief description.

ITEM DESCRIPTION

Ceiling & Rear Select from four projection methods depending on projection site

(see Ceiling & Rear page 76).

Communication speed Select Communication speed.

Range: 4800bps, 9600bps, 19200bps, 38400bps

Menu color select Select the menu color from the list.

Range: color or monochrome.

Display time Select Display time.

Range: Manual, Auto 5s, Auto 15s, Auto 45s

Background Select Background appearance when there is no signal.

Range: blue, black or logo

PIN code lock Set PIN code lock On/Off (see PIN Code Lock on page 79).

5. Using On-Screen Display

ITEM DESCRIPTION

Key lock

Set Control panel lock On/Off.

Note:

This Control Panel Lock does not affect the remote control functions.

When the control panel is locked, pressing and holding the Cancel button

on the projector cabinet for about 10 seconds. The setting will change to Off.

DynamicBlack

DynamicBlackTM improves the black level of the projector. Black level is the darkest

part of a picture and varies between viewing devices and environments.

Set DynamicBlack on/off.

RC sensor Set RC sensor fields.

Range: Both, Front, Back

Network setting Opens Network preferences tab (see Network setting on page 80).

Standby mode Select Standby mode.

Range: Normal and Power-saving

PC control Enables the path selection for PC control.

Range: PC control or Network.

Ceiling & Rear

Ceiling & Rear enables you to set how the projected image is displayed.

Select from the following:

Desktop Front – Standard forward facing projection (Default setting).

Desktop Rear – Standard rear projection. Enables the projector to produce the image from behind the screen by reversing

the image.

Ceiling Front – Forward facing ceiling mounted projection. Enables ceiling mounted projection by inverting the image.

Ceiling Rear – Rear ceiling mounted projection. Enables ceiling mounted projection from behind the screen by inverting

and reversing the image.

Desktop front Ceiling rear

Ceiling frontDesktop rear

5. Using On-Screen Display

Communication speed

Select communication speed to set the baud rate of the connection.

Note:

Longer cable connections may require lower settings.

Select from the following options:

 4800bps

 9600bps

 19200bps

 38400bps

Note:

In the Network mode, Communication Speed function is not available.

Menu color select

Select color mode to set the menu color.

Select from the following options:

 Color

5. Using On-Screen Display

 Monochrome

Display time

Sets the amount of time a menu is displayed.

Select from the following:

Manual – Menus stay on screen until the Menu button is pressed again.

Auto 5 secs—Menu is displayed for 5 seconds.

Auto 15 secs – Menu is displayed for 15 seconds.

Auto 45 secs – Menu is displayed for 45 seconds.

Background

Background enables you to display a blue/black screen when there is no signal. The default background is blue.

Select from the following:

 Blue

 Black

 Logo

5. Using On-Screen Display

PIN Code Lock

See t Preventing the Unauthorized Use of the Projector on page 51 – 53.

Key lock

Turn On/Off the Key Lock function for cabinet buttons.

Note:

This Control Panel Lock does not affect the remote control functions.

When the control panel is locked, pressing and holding the Cancel button on the projector cabinet for

about 10 seconds. The setting will change to Off.

DynamicBlack

DynamicBlackTM enables you to improve the black level of the projector.

RC sensor

Set the operating range for the wireless remote control.

Select from the following:

 Both

 Front

 Back

5. Using On-Screen Display

Network Setting

See Network setting on page 82.

Standby mode

There are two standby modes available: Normal and Power-saving. Power-saving mode allows you to put the projector in

the standby condition to consume less power than Normal.

Note:

Be sure to connect the projector and computer while the projector is in standby mode and before turning on

the computer.

Select from the following:

 Normal

 Power-saving

Note:

The HTTP server functions are not available during Power-saving mode.

The MONITOR OUT function is not available during Power-saving mode.

Control through the PC Control connector and Network mode is not available during Power-saving mode.

For PC control and Network mode of the projector it is recommended to leave the projector in the Normal

mode.

Normal mode: POWER indicator: Orange light

WARNING indicator: Green light

Power-saving mode: POWER indicator: Orange light

WARNING indicator: Off

5. Using On-Screen Display

PC control

This function enables you to select the path for PC control (see r PC Control Codes and Cable Connections

on page 115).

Note:

In the Network mode, Communication Speed function is not available.

Select from the following:

 PC control

 Network

5. Using On-Screen Display

Network setting

The Network setting tab is accessed by using the Setup/Installation tab and contains the general LAN settings.

The following table lists all functions with a description and the default setting.

ITEM DESCRIPTION

DHCP Select either a static IP or DHCP IP setting by selecting the appropriate radio button.

IP address Displays the IP address.

Subnet Displays the subnet mask.

Gateway Enable or disable the network gateway setting. Click on the radio button to change the setting.

DNS Enable or disable the DNS server settings. Click on the radio button to change the setting.

Network PIN code

A password can be set to restrict access to the setting pages of the projector using the web

browser. The default password is "0000".

Range: 0000 ~ 9999

Apply settings Apply and save settings.

5. Using On-Screen Display

Option

The Option tab contains miscellaneous setup menu settings such as Power Management and Default Input Select and can

be accessed by using the Setting Menu.

The following table lists all functions with a description and the default setting.

ITEM DESCRIPTION

On start Set this item on to enable the projector to power up when AC plug in.

Range: On or Off

Power management Select the amount of time the projector remains idle before powering down.

Range: Off, 0:05, 0:10, 0:20, 0:30

Screen trigger

Set this item to On to enable the projector to automatically lower the projection screen when

powering on.

Range: On or Off

Fan control Select Fan control.

Range: Normal or Max (see Fan control page 85)

Default input select Select the default input for projection.

Range: Last, Auto, Computer1, Computer2, Computer3, Component, Video, S-Video

5. Using On-Screen Display

ITEM DESCRIPTION

Remote control This option switches remote control codes.

Range: Code 1, Code 2, Code 3, Code 4, Code 5, Code 6, Code 7, Code 8

Message This option turns on or off messages.

Range: Off or On

Filter warning Set this item to on to have the projector display a message when the air filter needs servicing.

Range: Off, 100[H], 200[H], 500[H], 1000[H]

Search mode This feature sets the Auto Adjust mode.

Range: Normal, Fine

On start

On start enables the projector to start automatically when the power cable is connected to an active power outlet and the

main power switch is on. This eliminates the need to always use the POWER (On) button on the remote control or projec-

tor cabinet. To use the On start function, you must first press the main power switch to On before connecting the power

cable.

Note:

When the projector is off by using the POWER button (or put in the standby mode) and the power cable is

disconnected, On start will not activate after power (AC) is applied.

When the projector is off by using the Direct Power Off function or after the power (AC) is removed (no

standby mode), On start will be activated after power (AC) is applied.

The Direct Power Off function means you can turn off the power (AC) to the projector by using a power

strip equipped with a switch and a breaker.

Power management

Power management enables the projector to automatically turn off if there is no signal received by any input.

5. Using On-Screen Display

Select from the following:

 Off

 5 minutes

 10 minutes

 20 minutes

 30 minutes

Screen trigger

Set Screen trigger to On to enable the projector to automatically lower the projection screen when powering on. When

powering off, Screen trigger stops sending a low voltage trigger to the screen controller and the screen goes up.

Fan control

Fan control is used to set the speed of the internal cooling fan. Set Fan Speed to Max in altitudes over 1500 meters (5000

feet).

The Fan control option default is Normal, which enables the projector to automatically detect fan requirements. For higher

temperature locations or prolonged use, the Max option is available to provide greater cooling capacity.

5. Using On-Screen Display

Default input select

The Default input is the image source that the projector will search for automatically on startup.

Last – Uses the most recently used image source.

Auto – Auto detects the default image source.

Computer1/2/3 – Uses Computer1, 2 or 3 as the default image source.

Component – Uses last component as the default image source.

Video – Uses last video input as default image source.

S-Video – Uses last S-video input as default image source.

5. Using On-Screen Display

Remote control

This projector has eight different remote control codes; the factory set normal mode (Code 1) and the other seven codes

(Code 2 to Code 8). This switching function prevents remote control operation mixture (jam) when operating several projec-

tors or video equipment together.

To change the code of Projector:

To change the Remote control code of the projector used in ON SCREEN MENU is selectable from Code 1 to Code 8.

Message

This option turns on or off messages. Even though selecting [Off], the following message will appear. “Projector is locked”

when the projector security is unlocked, the message will disappear.

5. Using On-Screen Display

Filter warning

Set Filter warning to have the projector display a message when the air filter needs servicing.

The message below shows when this function is activated.

Search mode

This feature sets the Auto Adjust mode so that the RGB image can be automatically or manually adjusted for noise and

stability. You can automatically make adjustments in two ways: [Normal] and [Fine].

Normal: The RGB image will be automatically adjusted. Normally select this option (Default).

Fine: Select this option if fine adjustment is needed. It takes more time to switch to the source than the Normal settings.

5. Using On-Screen Display

u Information Menu Descriptions and Functions

The information menu provides only screens for the quick access of menus. The Information menu contains four distinct

tabs.

Usage time

The Usage Time tab displays information about lamp usage and remaining lamp life.

The following table lists all items with a description.

ITEM DESCRIPTION

Lamp1 Life remaining Displays the Lamp1 life remaining as a percentage.

Lamp2 Life remaining Displays the Lamp2 life remaining as a percentage.

Lamp1 time Displays the Lamp1 total usage in hours.

Lamp2 time Displays the Lamp2 total usage in hours.

PJ time Displays the projector total usage in hours.

Filter time Displays how many hours the filter has been used.

5. Using On-Screen Display

Input

The Input tab displays various source and frequency values at a glance.

The following table lists all items with a description.

ITEM DESCRIPTION

Input name Displays the Input Terminal that is presently being used

(see Default input select on page 86).

Signal Displays the Source name of the signal presently being used

(see Option on page 83).

H-sync. freq. Displays Horizontal frequency in KHz.

V-sync. freq. Displays Vertical frequency in Hz.

Video type Displays Video type.

Sync type Displays Sync type.

Sync polarity Displays Sync polarity.

Scan type Displays Scan type.

5. Using On-Screen Display

Network

The Network tab displays LAN settings as previously defined (see Network setting on page 82).

5. Using On-Screen Display

Version

The Version tab displays all the version and product details of the projector and associated software (for display only).

The following table lists all items with a description.

ITEM DESCRIPTION

Model name Displays Product ID.

Serial number Displays projector Serial number.

Firmware Displays Firmware version and Color Wheel currently installed (4-seg or 6-seg).

Remote control Displays remote control code.

5. Using On-Screen Display

v Reset Menu Descriptions and Functions

Occasionally, circumstances may require that factory defaults be reset, for demonstration purposes for example, or when

components are replaced.

The Reset menu contains options for returning settings to the factory default and is accessed by using the Main menu.

The following table lists all items with a description.

ITEM DESCRIPTION

Current signal Reset the adjustments for current signal to factory preset levels. All items in Adjust can

be reset.

All data

Resets all options to factory default regardless of when they were changed.

Reset all the adjustments and settings for all the signals to the factory preset except Language,

Background,Key lock,Security, Network Mode,Communication Speed,Lamp life re-

maining,Lamp time, and Filter time.

Clear lamp1 time Reset lamp1 time

Clear lamp2 time Reset lamp2 time

Clear filter time Reset filter hours

These options should only be used when components are

cleaned or replaced (see 6. Maintenance on page 94)

6. Maintenance

n Cleaning the projector

Cleaning the Cabinet

Refer to the following guide to clean the projector cabinet.

1. Wipe off dust with a clean dampened cloth.

2. Moisten the cloth with warm water and mild detergent and wipe the cabinet.

3. Rinse all detergent from the cloth and wipe the projector again.

CAUTION

To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.

Cleaning the Lens

Refer to the following guide to clean the projector lens.

1. Apply a little optic lens cleaner to a clean, lint free cloth (do not apply the cleaner directly to the lens).

2. Lightly wipe the lens in a circular motion.

CAUTION Do not use abrasive cleaners or solvents.

To prevent discoloration or fading, avoid getting cleaner on the projector case.

6. Maintenance

Cleaning the Filters

The projector uses three filters to keep the fans free of dust and other particles, and should be cleaned every 500 hours of

operation. In dusty environments, it is recommended to clean the filters more frequently. If the filter is dirty or clogged, your

projector may overheat. When the message below is displayed, the filters must be cleaned.

Note:

When the Please clean filter message is displayed, please clean or replace all three filters at the same

time to synchronize the Filter time display.

The Filter Message item should be enabled in the Options menu. Refer to Option on page 83.

Refer to the following guide to clean the filters.

1. Lift the projector to expose the under-

side to locate the first filter.

See the drawing on the right.

Note: Only clean the outside of the ex-

haust vents with a vacuum cleaner.

Bottom view

2. The left-side filter and intake grille (lo-

cated in the rear) can be cleaned as

demonstrated in the following images.

6. Maintenance

3. The rear filter can be

accessed as shown.

Once the filters are cleaned, please reset the filter hours by using the Clear filter time option in the

v Reset Menu Descriptions and Functions on page 93.

Note:

Using the projector without the air filter fitted inside, dirt and dust are sucked into the projector, causing fail-

ure.

6. Maintenance

x e.

x A minimum space is required for replacement. See page 24 and 98 for more details.

o Replacing Consumable Parts

During the course of normal usage, consumable parts become worn out resulting in reduced performance. The following

guides detail how to replace the various consumable parts within the projector quickly and safely.

x Before replacing any of the parts, please take note of the following:

x Ensure that the projector is turned off and disconnected from the power supply.

x Ensure that the projector is in a clean, stable position before replacing parts.

x Allow at least one hour after shutdown for the projector to cool before attempting replacing any consumable parts.

Do not interchange Lamp 1 and Lamp 2 after the projector has been used onc

Doing so will not allow the projector to display the correct lamp usage hours.

Replacing the Filters

When the lamps are replaced, the filters should also be replaced, not cleaned.

Refer to the following guide to replace the filters.

CAUTION and or fingers while lifting the projector to replace the filters. Doing so

could injure your hand or fingers.

Do not drop the projector on your h

Note:

The filters on the side and the rear are located on the bottom.

1. Gently slide the filter covers in the di-

rection shown.

2. Lift the foam from all three filters in

the direction shown. Remove com

pletely fr

om the filter cover and

discard.

6. Maintenance

3. Insert replacement foam and press

down firmly.

4. Replace the filter covers by pushing

gently in the direction shown.

Once the filters are replaced, please reset the filter hours by using the Clear filter time option in the

v Reset Menu Descriptions and Functions on page 93.

6. Maintenance

Replacing the Lamps

When a lamp reaches the end of it’s usable life, the following message is displayed. Replace the lamp.

The projection lamps should be replaced when they burn out. They should only be replaced with a certified replacement

part, contact your local dealer if unsure.

Note:

1. Lamps are positioned differently. Take care not to force the lamps when replacing.

2. Installation of both lamp modules (Lamp 1 and Lamp 2) is required to operate the projector in dual or sin-

gle lamp mode. If only a single lamp module is installed, the projector's lamp will not turn on and will appear

as a lamp failure.

3. Lamps last approximately 2000-2100 hours (2500-2600 hours in Eco mode) and the End of lamp life

message is displayed during the lamps' final 100 hours of operational life. Please replace during 2000-2100

hour.

Important:

1. The lamp contains a certain amount of mercury and should be disposed of according to local ordinance

regulations.

2. Avoid touching the glass surface of the new lamp: doing so may shorten its operation life.

CAUTION

Lamp Handling Precautions

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling

may result in accidents, injury, or create a fire hazard.

x Lamp life may differ from lamp to lamp and according to the environment of use. There is no guar-

antee of the same life for each lamp. Some lamps may fail or terminate their life in a shorter period

of time than other similar lamps.

x If the projector indicates that the lamp should be replaced, i.e., if LAMP 1 and/or LAMP 2 light up,

replace the lamp with a new one IMMEDIATELY after the projector has cooled down. (Follow care-

fully the instructions in the Lamp Replacement section of this manual.) Continuous use of the lamp

with LAMP 1 and/or LAMP 2 lighted may increase the risk of lamp explosion.

x A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as

its lifetime draws to an end. Risk of explosion may differ according to the environment or condi-

tions in which the projector and lamp are being used.

If a lamps explodes, the following safety precautions should be taken:

Disconnect the projector’s AC plug from the AC outlet immediately. Contact an authorized service station

for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are

no broken shards or pieces of glass around the projector or coming out from the cooling air circulation

holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the pro-

jector except those who are authorized trained technicians and who are familiar with projector service.

Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to

do so, may result in an accident or injury caused by pieces of broken glass.

6. Maintenance

100

Check the lamp number to be replaced by using Information Menu.

Turn off the projector and disconnect the AC plug. Allow the projector to cool for at least 60 minutes.

1. Loosen the screw on the lamp cover

(A), and remove the lamp cover as

shown (B).

2. Loosen the two captive screws on

the lamp module (A). Lift the mod-

ule handle up as shown (B).

3. Pull firmly on the module handle in

the direction shown to remove the

lamps.

4. Reverse steps 1 to 3 to install the

new lamp module and replace the

lamp cover.

6. Maintenance

101

Resetting the Lamp Time Counter

After replacing the lamp(s), the lamp hour counter(s) should be reset to zero. Refer to the following guide:

1. Press the Menu button on the OSD

control panel or Remote Control to

open the Main menu.

2. Press the Ÿorź button to move to

the Reset menu and press Select.

3. The Reset menu is displayed. Se-

lect Clear lamp1 time or Clear

lamp2 time as required using

Ÿorź and press Select.

4. A confirmation box is displayed.

Select OK using Ż or Ź and

press Select to reset the selected

Lamp hours to zero.

Ordering a Replacement Lamp

Replacement lamp can be ordered through your dealer. When ordering, give the following information to the dealer.

x Model No. of your projector: PDG-DXT10L, PDG-DXT10KL

x Replacement Lamp Type No: POA-LMP117

(Service Parts No. 610 335 8406)

102

7. Appendix

n Troubleshooting

Indicator Messages

Several indicator messages are used by the projector to alert users of problems with setup or internal parts. The LEDs on

the top surface of the projector show the status of the WARNING and lamp 1/2 as well as the general working order of the

projector through the WARNING LED (see OSD Controls and Status LEDS on page 8 for location). The following tables

describe the various states of the 4 LEDs.

The POWER LED

PROJECTOR STATUS LED CONDITION LED SEQUENCE PROJECTOR CONDITION

AC off Off Off Off

Cooling Orange blink 0.5 secs on

0.5 secs off After power off

Power up sequence Green blink 0.5 secs on

0.5 secs off Start up

Standby Orange on On Standby

Power on Green on On On

The WARNING LED

PROJECTOR STATUS LED CONDITION LED SEQUENCE PROJECTOR CONDITION

Normal condition Off Off Power on

Cover ERROR Red 1 time blink

(repeatedly)

0.5 secs on

2.5 secs off ERROR

Temperature ERROR Red 2 times blink

(repeatedly)

(0.5 secs ON > 0.5 secs

OFF) * 2 > 2.0 secs OFF ERROR

Power ERROR Red 3 times blink (0.5 secs ON > 0.5 secs

OFF) *3 > 2.0 secs OFF ERROR

Fan ERROR Red 4 times blink

(repeatedly)

(0.5 secs ON > 0.5 secs

OFF) * 4 > 2.0 secs OFF ERROR

Keylocked

(when push key) Orange light up On Keylocked function

enabled

Standby

(Power-saving) Off Off Standby

(Power-saving)

Standby (Normal) Green light On Standby (Normal)

7. Appendix

103

The LAMP LEDs

PROJECTOR STATUS LED CONDITION LED SEQUENCE PROJECTOR CONDITION

Lamp off Off Off Lamp off

End of the lamp life Red blink 0.5 secs on

0.5 secs off Replace lamp

No lamp Red 1 time blink (re-

peatedly)

0.5 secs on

2.5 secs off ERROR

Lamp ERROR Red 6 times blink (

peatedly)

re- (0.5 secs ON > 0.5 secs

OFF) * 6 > 2.0 secs OFF ERROR

Cooling lamp Orange blink 0.5 secs ON > 0.5 secs

OFF Switching lamp1 and 2

Re-light up sequence Green blink 0.5 secs ON > 0.5 secs

OFF Start up

Lamp life over Red on On Replace lamp

Eco mode Orange on On Power on

Normal mode Green on On Power on

7. Appendix

104

Common Problems and Solutions

These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains

unsolved, contact your dealer for assistance.

Often the problem is something as simple as a loose connection. Check the following before proceeding to the problem-

specific solutions.

x Use some other electrical device to confirm that the electrical outlet is working.

x Ensure the projector is turned on.

x Ensure all connections are securely attached.

x Ensure the attached device is turned on.

x Ensure a connected PC is not in suspend mode.

x Ensure a connected notebook computer is configured for an external display. (This is usually done by press-

ing an Fn-key combination on the notebook.)

Tips for Troubleshooting

In each problem-specific section, try the steps in the order suggested. This may help you to solve the problem more

quickly.

Try to pinpoint the problem to avoid replacing non-defective parts.

For example, if you replace batteries and the problem remains, put the original batteries back and go to the next step.

Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical sup-

port or for passing on to service personnel.

7. Appendix

105

o Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.

2. Turn off all equipment and power up again in the correct order.

Problem: The image is blurred

1. Adjust the Focus on the projector.

2. Press the AUTO PC ADJ. button on the remote control or projector.

3. Ensure the projector-to-screen distance is within the specified range.

4. Check that the projector lens is clean.

5. Remove the lens cover.

Problem: The image is wider at the top or bottom (trapezoid effect)

1. Position the projector so it is as perpendicular to the screen as possible.

2. Use the Keystone button on the remote control to correct the problem.

Problem: The image is reversed or upside down

z Check the Ceiling & Rear setting on the Setting menu of the OSD.

Problem: The image is streaked

1. Set the Total dots and Fine sync. settings on the Adjust menu of the OSD to the default settings.

2. To ensure the problem is not caused by a connected PC’s video card, connect to another computer.

Problem: The image is flat with no contrast

1. Adjust the Contrast setting on the Adjust menu of the OSD.

2. Adjust the Brightness setting on the Adjust menu of the OSD.

Problem: The color of the projected image does not match the source image.

z Adjust the Color temp. and Gamma settings on the Detail setting menu of the OSD.

Lamp Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.

2. Ensure the power source is good by testing with another electrical device.

3. Restart the projector in the correct order and check that the Power LED is green.

4. If you have replaced the lamp recently, try resetting the lamp connections.

5. Replace the lamp module.

6. Remove the lens cap.

7. Put the old lamp back in the projector and have the projector serviced.

Problem: The lamp goes off

1. Power surges can cause the lamp to turn off. Press the power button twice to turn off the projector.

When the Power LED is orange, press the power button.

2. Replace the lamp module.

3. Put the old lamp back in the projector and have the projector serviced.

7. Appendix

106

Remote Control Problems

Problem: The projector does not respond to the remote control

1. Direct the remote control towards remote sensor on the projector.

2. Ensure the path between remote and sensor is not obstructed.

3. Turn off any fluorescent lights in the room.

4. Check the battery polarity.

5. Replace the batteries.

6. Turn off other Infrared-enabled devices in the vicinity.

7. Have the remote control serviced.

8. Ensure that the remote control code conforms to the projector's code.

9. Ensure that the reset switch in the compartment lid on back of the remote control is set to use

position.

Audio Problems

Problem: There is no sound

1. Adjust the volume on the remote control.

2. Adjust the volume of the audio source.

3. Check the audio cable connection.

4. Test the source audio output with other speakers.

5. Have the projector serviced.

Problem: The sound is distorted

1. Check the audio cable connection.

2. Test the source audio output with other speakers.

3. Have the projector serviced.

p Having the Projector Serviced

If you are unable to solve the problem, you should have the projector serviced. Pack the projector in the original carton.

Include a description of the problem and a checklist of the steps you took when trying to fix the problem. The information

may be useful to the service personnel. Return the projector to the place you purchased it.

107

8. Specifications

n Projector Specifications

This section provides technical information about the projector's performance.

Optical Specifications

ITEM DESCRIPTION

Projection system Single DLP® chip, 4 segment color wheel

Resolution 1024 x 768 pixels* (up to UXGA @ 60 Hz, up to SXGA+ @ 60 Hz on DVI-D)

Lamp 260 W AC (230 W in Eco mode), Dual lamp system

Image size (diagonal) 50" - 200" / 1.27m - 5.08m (LNS-W41)

40" - 500" / 1.02m – 12.7m (LNS-W40, LNS-S40, LNS-T40, LNS-T41)

Lens options

LNS-W41: Power focus, throw ratio 0.77:1, F2.0, f=11.4 mm

LNS-W40: Power zoom and focus, throw ratio 1.33-1.79:1, F1.8-2.3, f=19.3-25.8 mm

LNS-S40: Power zoom and focus, throw ratio 1.78-2.35:1, F1.7-1.9, f=26-34 mm

LNS-T40: Power zoom and focus, throw ratio 2.22-4.43:1, F2.1-2.9, f=32-63 mm

LNS-T41: Power zoom and focus, throw ratio 4.43-8.3:1, F2.2-3.1, f=63.5-117.4 mm

Lens shift Vertical + 0.5V, Horizontal +/- 0.1H (LNS-W40, LNS-S40, LNS-T40, LNS-T41)

*Effective pixels are more than 99.99%

8. Specifications

108

Electrical Specifications

ITEM DESCRIPTION

Inputs

1 Analog RGB (Mini D-Sub 15P), 1 Analog RGB R/Cr, G/Y, B/Cb, H, V

(BNC x 5), 1 Digital RGB (DVI-D 24P), 1 Component Y, Cb/Pb, Cr/Pr

(RCA x 3), 1 Component (Mini D-Sub 15P) shared with COMPUTER 1

IN, 1 S-Video (Mini DIN 4P), 1 Video, 3 Stereo Mini Audio, 2

(L/R) RCA Audio, 1 Remote Control (Stereo Mini)

Outputs 1 RGB (Mini D-Sub 15P), 1 Stereo Mini Audio, 1 Screen Trigger

Control 1 PC Control Port (D-Sub 9P), 1 GPIO (Mini D-sub 15P)

USB Port 1 B Type (for Service)

LAN Port RJ-45

Video Compatibility NTSC, NTSC4.43, PAL, PAL-60/N/M/B/G/H/I), SECAM, HDTV: 1080i, 720p, SDTV: 576p,

576i, 480p, 480i

Scan Rate Horizontal: 15 kHz, 31 to 90 kHz (RGB: 31 kHz or over) Vertical: 50 Hz to 85 Hz

Video Bandwidth RGB: 100 MHz (-3dB)

Color Reproduction 16.7 million colors simultaneously, Full color

Horizontal Resolution NTSC / NTSC4.43 / PAL / PAL-M / PAL-N / PAL60: 540 TV lines

SECAM: 300 TV lines

RGB: 1024 dots (H) x 768 dots (V)

External Control RS232, IR, LAN, GPIO

Sync Compatibility Separate Sync / Composite Sync / Sync on G

Built-in Speakers 3W x 2

Power Requirement 100 - 240V AC, 50/60Hz

Input Current 7.7A

8. Specifications

109

ITEM DESCRIPTION

Power Consumption

655W in Dual Lamp Normal mode / 580W in Dual Lamp Eco mode

350W in Single Lamp Normal mode / 315W in Single Lamp Eco mode

< 30W in Standby mode Normal

< 5W in Standby mode Power saving

Mechanical Specifications

ITEM DESCRIPTION

Dimensions

19.9" (W) x 7.6" (H) x 15.2" (D)

505 mm (W) x 192 mm (H) x 385 mm (D)

(not including protrusions)

Weight 36.3 lbs/16.5 kg

Environmental Considerations

ITEM DESCRIPTION

Operational Temperatures 41qҏto 104qF / 5qҏto 40qC, 10% to 90% humidity (non-condensing)

Storage Temperatures 14qto 140qF (-10qto 60qC), 5% to 90% humidity (non-condensing)

Regulations

UL/C-UL Approved (UL 60950-1, CSA 60950-1)

Meets FCC Class B requirements

Meets DOC Canada Class B requirements

Meets AS/NZS CISPR.22 Class B

Meets EMC Directive (EN55022, EN55024, EN61000-3-2, EN61000-3-3)

Meets Low Voltage Directive (EN60950-1, TÜV GS Approved)

8. Specifications

110

Optional Parts

The parts listed below are optionally available. When ordering those parts, specify the item name and Model No. to the

sales dealer.

Standard Zoom Lens : LNS-S40

Long Zoom Lens : LNS-T40

Ultra Long Zoom Lens : LNS-T41

Short Zoom Lens : LNS-W40

Fixed Short Zoom Lens : LNS-W41

Six-segment Color Wheel : POA-CW01

Wired Remote Cable (30m) : POA-CA-RC30

8. Specifications

111

o Cabinet Dimensions

8. Specifications

112

p Pin Assignments of Mini D-Sub 15 Pin Input Connector

Signal Levels

Video signal: 0.7Vp-p (Analog)

Sync signal: TTL level

PIN NUMBER RGB SIGNAL (ANALOG)YCBCRSIGNAL

1Red Cr

2 Green or Sync on Green Y

3Blue Cb

4 Ground

5 Ground

6 Red Ground Cr Ground

7 Green Ground Y Ground

8 Blue Ground Cb Ground

9 No Connection

10 Sync Signal Ground

11 No Connection

12 Bi-directional DATA (SDA)

13 Horizontal Sync or Composite

Sync

14 Vertical Sync

15 Data Clock

8. Specifications

113

q Compatible Input Signal List

The following table shows compatible signal types, their resolution and frequency refresh rates.

Horizontal: 15kHz, 31kHz to 90 kHz

Vertical: 50 Hz to 85 Hz

SIGNAL RESOLUTION

(DPI)

FREQUENCY REFRESH

RATE (KHZ)

FREQUENCY REFRESH

RATE (HZ)

NTSC – – 15.73 60.00

PAL – – 15.63 50.00

PAL60 – – 15.73 60.00

SECAM – – 15.63 50.00

VESA D 640 x 480 31.47 59.94

MAC D 640 x 480 35.00 66.67

VESA D 640 x 480 37.86 72.81

VESA D 640 x 480 37.50 75.00

VESA D 640 x 480 43.27 85.01

VESA D 800 x 600 35.16 56.25

VESA D 800 x 600 37.88 60.32

VESA D 800 x 600 48.08 72.19

VESA D 800 x 600 46.88 75.00

VESA D 800 x 600 53.67 85.06

MAC D 832 x 624 49.72 74.55

VESA D 1024 x 768 48.36 60.00

VESA D 1024 x 768 56.48 70.07

MAC D 1024 x 768 60.24 74.93

VESA D 1024 x 768 60.02 75.03

VESA D 1024 x 768 68.68 85.00

VESA D 1152 x 864 67.50 75.00

8. Specifications

114

SIGNAL RESOLUTION

(DPI)

FREQUENCY REFRESH

RATE (KHZ)

FREQUENCY REFRESH

RATE (HZ)

VESA D 1280 x 960 60.00 60.00

VESA D 1280 x 1024 63.98 60.02

VESA D 1400 x 1050 65.30 60.00

HDTV (1080i)(1125i) – 1920 x 1080 33.75 60.00 Interlace

HDTV (1080i)(1125i) – 1920 x 1080 28.13 50.00 Interlace

HDTV (720p)(750p) – 1280 x 720 45.00 60.00 Progressive

HDTV (720p) – 1280 x 720 37.50 50.00 Progressive

SDTV(576p)(625p) – – 31.25 50.00 Progressive

SDTV (480p)(525p) – – 31.47 59.94 Progressive

DVD YCbCr – – 15.73 59.94 Interlaced

DVD YCbCr – – 15.63 50.00 Interlaced

Note:

Images above flagged with "D" are supported by digital signal.

An image with higher or lower resolution than the projector’s native resolution (1024 x 768) will be com-

pressed.

Some Composite and Sync on Green signals may not be displayed correctly.

Signals other than those specified in the table above may not be displayed correctly. If this should happen,

change the refresh rate or resolution on your PC. Refer to Display Properties help section of your PC for

procedures.

8. Specifications

115

r PC Control Codes and Cable Connections

This projector provides a function to control and monitor the projector's operations by using the RS-232C serial port.

1. Connect a RS-232C serial cross cable to

SERIAL PORT IN on the projector and serial

port on the PC.

Launch a communication software provided

with PC and setup the communication condi-

tion as follows:

Baud rate : 38400 bps

Parity check : none

Stop bit : 1

Flow control : none

Data bit : 8

Type the command for controlling the projec-

tor and then enter the "Enter" key.

Example

When you want to change the input to Computer 2, Type “C” “0” “6” “Enter.”

The below table shows the typical command lists for controlling the projector. Please consult your local dealer for further

information of another commands.

Functional Execution Command Table

COMMAND FUNCTION COMMAND FUNCTION

C00 Turn the projector ON C3A Pointer RIGHT

C01 Turn the projector OFF

(immediately OFF) C3B Pointer LEFT

C05 Selects Computer 1 C3C Pointer UP

C06 Selects Computer 2 C3D Pointer DOWN

C07 Selects Computer 3 C3F Enter

C08 Selects Component C46 Zoom DOWN

C09 Volume UP C47 Zoom UP

C0A Volume DOWN C4A Focus DOWN

C0B Audio mute ON C4B Focus UP

C0C Audio mute OFF C5D Lens shift UP

C0D Video mute ON C5E Lens shift DOWN

C0E Video mute OFF C5F Lens shift LEFT

C0F Aspect 4:3 C60 Lens shift RIGHT

C10 Aspect 16:9 C89 Auto PC Adj.

C1C Menu ON C8E Keystone UP

C1D Menu OFF C8F Keystone DOWN

C33 Selects Video C90 Keystone RIGHT

C34 Selects S-video C91 Keystone LEFT

8. Specifications

116

Status Read Command Table

COMMAND FUNCTION

CR0 Status Read

CR6 Temperature Read

PC Control Connector (DIN-9P)

Note:

1. Pin 1, 4, 6 and 9 are not used.

2. Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify the cable

connection.

3. For long cables, it is recommended to set communication speed within projector menus to 9600 bps.

8. Specifications

117

s Screen Trigger

When the projector is powered ON the screen trigger output sends a low voltage trigger to the screen controller and the

screen will go down. When the projector is powered OFF the screen trigger stops sending a low voltage trigger to the

screen controller and the screen will go up.

Note:

To use this feature, you must turn on the Screen Trigger function. See Screen Trigger on page 85 for more

information.

Note:

Screen controllers are supplied and supported by screen manufacturers.

Note:

Do not use this jack for anything other than intended use. Connecting the wired remote control to the

SCREEN TRIGGER Mini Jack causes damage to the remote control.

8. Specifications

118

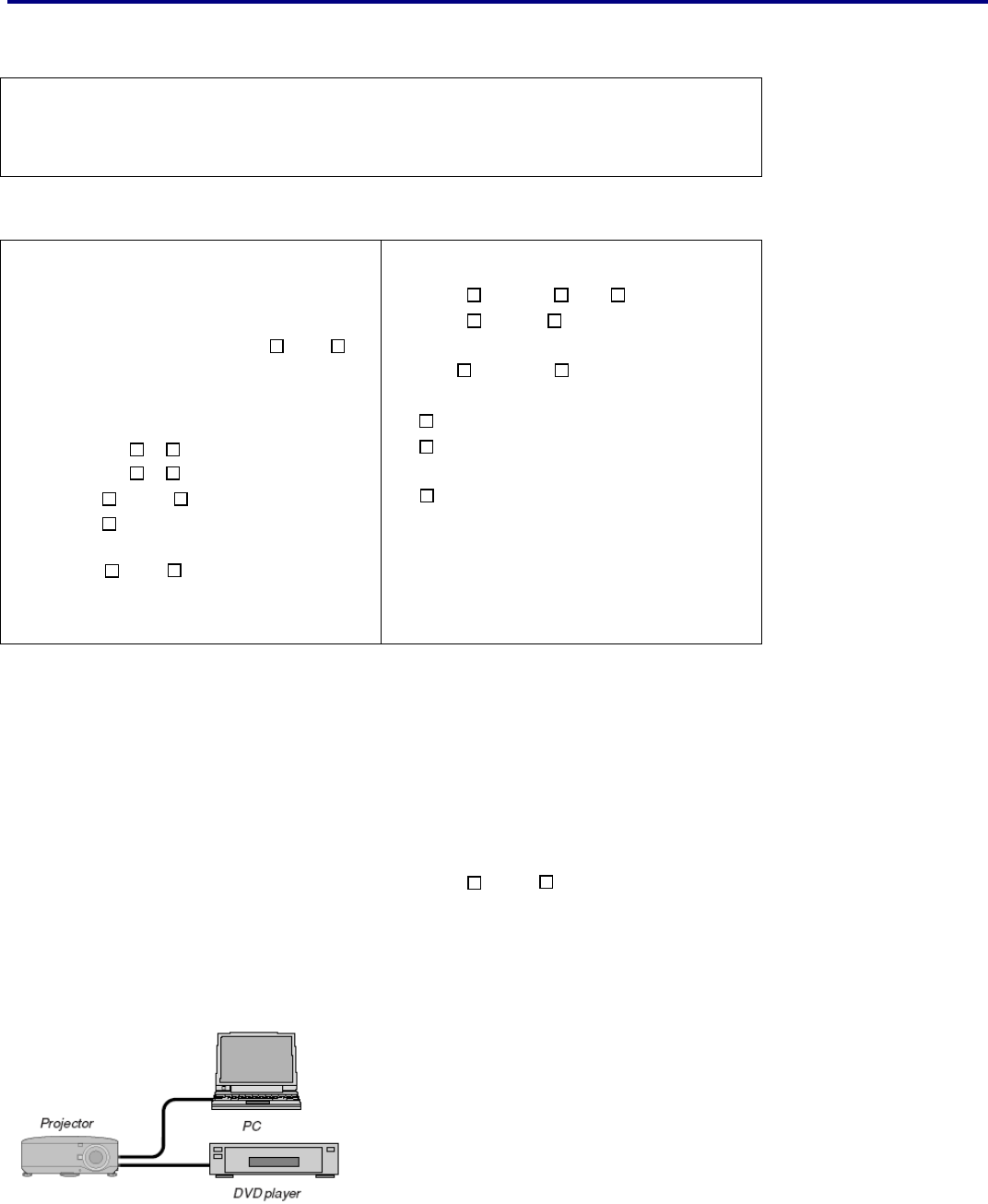

t Operation Using HTTP Browser

Overview

The use of HTTP server functions will allow control of the projector from a web browser without the installation of special

software. Please be sure to use “Microsoft Internet Explorer 4.x” or a higher version for the web browser. (This device uses

“JavaScript” and “Cookies” and the browser should be set to accept these functions. The setting method will vary depend-

ing on the version of browser. Please refer to the help files and the other information provided in your software).

Access is gained to the HTTP server functions by specifying the following address in the entry column of the URL:

http:// <the projector’s IP address> /index.html

http:// <the projector's IP address> /lanconf.html

Note:

The display or button responses can be slowed down or operation may not be accepted depending the set-

tings of your network. Should this happen, consult your network administrator. The projector may not

respond if its buttons are repeatedly pressed in rapid intervals. Should this happen, wait a moment and re-

peat. If you still can’t get any response, turn off and back on the projector.

Preparation Before Use

Make network connections, set up the projector and confirm that it is complete before engaging in browser operations

(see Network setting on page 80 for more information).

Operation with a browser that uses a proxy server may not be possible depending on the type of proxy server and the set-

ting method. Although the type of proxy server will be a factor, it is possible that items that have actually been set will not

be displayed depending on the effectiveness of the cache, and the contents set from the browser may not be reflected in

operation. It is recommended that a proxy server not be used unless it is unavoidable.

Handling of the Address for Operation by Using a Browser

Regarding the actual address that is entered for the address or entered to the URL column when operation of the projector

is via a browser, the host name can be used as it is when the host name corresponding to the IP address of the projector

has been registered to the domain name server by a network administrator, or the host name corresponding to the IP ad-

dress of the projector has been set in the “HOSTS” file of the computer being used.

Example 1:

When the IP address of the projector is 192.168.73.1, access is gained to the HTTP server functions by specifying

http://192.168.73.1/index.html for the address or the entry column of the URL.

8. Specifications

119

Configuring Network Settings

The Network Settings screen is displayed as follows:

http:// <the projector's IP address> /lanconf.html

Domain

Host Name: Type in a hostname. Up to 60 alphanumeric characters can be used.

Domain Name: Type in domain name of the network connected to the projector. Up to 60 alphanumeric characters can be used.

Apply: Click to reflect the entries.

Mail

Alert Mail: Click “Enable” to enable Alert Mail feature. This option notifies your computer of an error message via e-mail

when using wired LAN. The error message will be notified when the projector lamp has reached the end of its usable life or

an error occurs in the projector.

Sender's Address: Specify the sender’s address. Up to 60 alphanumeric and symbols, characters can be used.

SMTP Server Name: Type in the SMTP server name to be connected to the projector. Up to 60 alphanumeric characters

can be used.

Recipient's Address 1 to 3: Type in your recipient's address. Up to 60 alphanumeric and symbols characters can be

used.

Apply: Click to apply the settings.

8. Specifications

120

Test Mail

Send a test mail to check if your settings are correct. Click to “Execute” to enable this feature.

Test Mail Status Button: Click to display the test result.

Sample of a message sent from the projector:

Projector Name: X X X X

Lamp 1 or 2 Hours Used: xxxx [H]

The lamp is at the end of its usable life. Please replace the lamp.

Note:

If you entered an incorrect address in a test, you may not receive an Alert mail. Should this happen, check if

the Recipient's Address is correctly set.

Unless any one of the [Sender's Address], [SMTP Server's Name] or [Recipient's Address 1-3] is selected,

[Test Mail] is not available.

PJLink

This option allows you to set a password when you use the PJLink feature.

On/Off: Enable or disable the password.

Password: Enter a password (up to 32 characters)

Note:

PJLink is a standardization of protocol used for controlling projectors of different manufacturers. This stan-

dard protocol is established by Japan Business Machine and Information System Industries Association

(JBMIA) in 2005.

The projector supports all the commands of PJLink Class 1.

PROJECTOR INPUT PJLINK INPUT PARAMETER

Computer 1 RGB 1 11

Computer 2 RGB 2 12

Video VIDEO 1 21

S-Video VIDEO 2 22

Component VIDEO 3 23

Computer 3 DIGITAL 1 31

8. Specifications

121

Structure of the HTTP Server

Once the projector is connected to a network and configured correctly, the following screen is displayed through the web

browser.

http:// <the projector's IP address> /index.html

FUNCTION SETTING DESCRIPTION

Power Panel On

Off

This controls the power to the projector

Volume Panel Ÿ – Increases the volume adjustment value

ź – Decreases the volume adjustment value

This controls the volume of the projector

Mute Panel Picture On – Mutes the video

Picture Off – Cancels the video muting

Sound On – Mutes the audio

Sound Off – Cancels the audio muting

OSD On – Mutes the on-screen display

OSD Off – Cancels the muting of the on-screen display

All On – Mutes each of the video, audio, and on-screen display func-

tions

All Off – Cancels the muting of each of the video, audio, and on-

screen display functions

This controls the mute functions of the projector

Image Panel Brightness Ÿź – Increases or decreases the brightness adjustment

value

Contrast Ÿź – Increases or decreases the contrast adjustment value

Color Ÿź – Increases or decreases the color

adjustment value

Tint Ÿź – Increases or decreases the hue

adjustment value

Sharpness Ÿź – Increases or decreases the

sharpness adjustment value

Controls the video adjustments of the projector

8. Specifications

122

FUNCTION SETTING DESCRIPTION

Input Select Panel Computer1 – Switches to the COMPUTER 1 IN connector

Computer2 – Switches to the COMPUTER 2 IN connector

Computer3 – Switches to the COMPUTER 3 IN connector

Component – Switches to the COMPONENT IN connectors

Video – Switches to the VIDEO IN connector

S-Video – Switches to the S-VIDEO IN connector

This switches the input connector of the projector

Projector Status Panel Refresh – Updates the panel with the latest

information available

Lamp1 life remaining – Displays the remaining life of Lamp 1 as a

percentage

Lamp2 life remaining – Displays the remaining life of Lamp 2 as a

percentage

Lamp1 time – Displays the number of hours Lamp 1 has been used

Lamp2 time – Displays the number of hours Lamp 2 has been used

PJ time – Displays the number of hours the project has been used

Error Status – Displays the status of errors

occurring within the projector

This displays the status of selected projector functions

Note:

The functions that can be controlled will vary depending on the signal being input to the projector

(see

Selecting an Input Source on page 34 for more information).

8. Specifications

123

u 15 Pin GPIO Control

Type: 15Pin D-SUB black female type

PIN NO. SHORT/OPEN FUNCTION

14 SHORT

OPEN

EXTERNAL CONTROL MODE ON

EXTERNAL CONTROL MODE OFF

5SHORT

OPEN

POWER ON

POWER OFF

10 SHORT

OPEN

PICTURE MUTE ON

PICTURE MUTE OFF

3SHORT

OPEN

SOUND MUTE ON

SOUND MUTE OFF

4, 8, 12, 11 11 12 8 4

OPEN OPEN OPEN OPEN COMPUTER1

OPEN OPEN OPEN SHORT VIDEO1

OPEN OPEN SHORT OPEN S-VIDEO1

OPEN OPEN SHORT SHORT COMPONENT

OPEN SHORT OPEN OPEN NOT AVAILABLE

OPEN SHORT OPEN SHORT COMPUTER2

OPEN SHORT SHORT OPEN NOT AVAILABLE

OPEN SHORT SHORT SHORT NOT AVAILABLE

SHORT OPEN OPEN OPEN COMPUTER3 (DVI)

SHORT OPEN OPEN SHORT NOT AVAILABLE

SHORT OPEN SHORT OPEN NOT AVAILABLE

SHORT OPEN SHORT SHORT NOT AVAILABLE

SHORT SHORT OPEN OPEN NOT AVAILABLE

SHORT SHORT OPEN SHORT NOT AVAILABLE

SHORT SHORT SHORT OPEN NOT AVAILABLE

SHORT SHORT SHORT SHORT NOT AVAILABLE

Note:

The term “SHORT” is defined as having a connection to pin 15.

124

9. Troubleshooting Check List

Before contacting your dealer or service personnel, check the following list to be sure repairs are needed also by referring

to the n Troubleshooting section on page 102 of your user’s manual. This checklist below will help us solve your problem

more efficiently.

Frequency of Occurrence always sometimes (How often?________) other (________)

Power

No power (POWER indicator does not light green) See also “Status Indica-

tor (WARNING)”.

Power cable's plug is fully inserted into the wall outlet.

Main power switch is pressed to the ON position.

Lamp cover is installed correctly.

Lamp Time (lamp operation hours) was cleared after lamp replacement.

Shut down during operation.

Power cable's plug is fully inserted into the wall outlet.

Lamp cover is installed correctly.

Power Management is turned off.

Video and Audio

No image is displayed from your PC or video equipment to the projector.

Still no image even though you connect the projector to the PC first,

then start the PC.

Enabling your notebook PC’s signal output to the projector.

A combination of function keys will enable/disable the external display.

Usually, the combination of the “Fn” key along with one of the 12 func-

tion keys turns the external display on or off.

No image (blue background, logo, no display).

Still no image even though you press the AUTO PC ADJ. button.

Still no image even though you carry out [Reset] in the projector’s

menu.

Signal cable's plug is fully inserted into the input connector

A message appears on the screen.

( __________________________________ )

The source connected to the projector is active and available.

Still no image even though you adjust the brightness and/or the con-

trast.

Input source's resolution and frequency are

supported by the projector.

Image is too dark.

Remains unchanged even though you adjust the brightness and/or the

contrast.

Image is distorted.

Image appears to be trapezoidal (unchanged even though you carry out

the [Keystone] adjustment).

Parts of the image are lost.

Still unchanged even though you press the AUTO PC ADJ. button.

Still unchanged even though you carry out [Reset] in the projector’s

menu.

Image is shifted in the vertical or horizontal direction.

Horizontal and vertical positions are correctly adjusted on a computer

signal.

Input source's resolution and frequency are supported by the projector.

Some pixels are lost.

Image is flickering.

Still unchanged even though you press the AUTO PC ADJ. button.

Still unchanged even though you carry out [Reset] in the projector’s

menu.

Image shows flickering or color drift on a computer signal.

Image appears blurry or out of focus.

Still unchanged even though you checked the signal’s resolution on PC

and changed it to projector’s native resolution.

Still unchanged even though you adjusted the focus.

No sound.

Audio cable is correctly connected to the audio input of the projector.

Still unchanged even though you adjusted the volume level.

AUDIO OUT is connected to your audio equipment.

Other

Remote control does not work.

No obstacles between the sensor of the projector

and the remote control.

Projector is placed near a fluorescent light that can

disturb the infrared remote controls.

Batteries are new and are not reversed in installa-

tion.

The remote control code conforms to the projector's

code.

Buttons on the projector cabinet do not work.

Control Panel Lock is not turned on or is disabled in

the menu.

Still unchanged even though you press and hold the

CANCEL button for a minimum of 10 seconds.

9. Troubleshooting Check List

125

In the space below please describe your problem in detail.

Information on application and environment where your projector is used

Projector

Model number:

Serial No:

Date of purchase:

Lamp operating time (hours): Lamp Mode: Normal Eco

Information on input signal:

Horizontal synch frequency [ ] kHz

Vertical synch frequency [ ] Hz

Synch polarity H (+) (–)

V (+) (–)

Synch type Separate Composite

Sync on Green

WARNING Indicator:

Steady light Orange Green

Flashing light [ ] cycles

Remote control model number:

Installation environment

Screen size: inch

Screen type: White matte Beads Polarization

Wide angle High contrast

Throw distance: feet/inch/m

Orientation: Ceiling mount Desktop

Power outlet connection:

Connected directly to wall outlet

Connected to power cord extender or other (the number

of connected equipment______________)

Connected to a power cord reel or other (the number

of connected equipment______________)

Signal cable

SANYO standard or other manufacturer’s cable?

Model number: Length: inch/m

Distribution amplifier

Model number:

Switcher

Model number:

Adapter

Model number:

Computer

Manufacturer:

Model number:

Notebook PC / Desktop

Native resolution:

Refresh rate:

Video adapter:

Other:

Video equipment

VCR, DVD player, Video camera, Video game or other

Manufacturer:

Model number:

SANYO Electric Co., Ltd.

KT3AL

Sanyo Pdg Dxt10Kl Users Manual DXT10_English
