Multimedia Projector

MODEL PLC-XU110

Owner’s Manual

Network Supported

❏Wireless LAN

IEEE802.11b/g

❏Wired LAN

100-Base-TX/10-Base-T

Memory Viewer

❏USB Memory Viewer (optionally available)

Compatible with a dedicated USB memory

✽Refer to the owner’s manuals below for details about

network and memory viewer function.

■Network Set-up and Operation

■Owner's Manual USB Memory

This manual is provided with optionally supplied

USB memory.

Features and Design

◆Compact Design

This projector is designed compact in size and weight.

It is easy to carry and installed anywhere you wish to

use.

◆Capable of 360-degree Projection

This projector is capable of 360-degree projection.

*Some restriction required, see page 8.

◆Antitheft Alarm Function

This projector is equipped with an Antitheft alarm

function which sounds when vibration is detected

(pp.58–61). A built-in rechargeable battery is used for

the alarm.

◆Simple Computer System Setting

The projector has the Multi-scan system to conform to

almost all computer output signals quickly (p.32). Up to

UXGA resolution can be accepted.

◆Useful Functions for Presentations

-The digital zoom function allows you to focus on the

crucial information during a presentation (p.39).

-Blackboards* can be used as a projection screen.

*The board color is limited to Green (pp.36, 43).

◆

Power Management

The Power management function reduces power

consumption and maintains the lamp life (p.52).

◆Lamp Control

Brightness of the projection lamp can be selected

(pp.28, 53).

◆Logo Function

The Logo function allows you to customize the screen

logo (pp.49–50). You can capture an image for the

screen logo and use it for the starting-up display or

between presentations.

◆Multilanguage Menu Display

Operation menu is available in 16 languages; English,

German, French, Italian, Spanish, Portuguese, Dutch,

Swedish, Finnish, Polish, Hungarian, Romanian,

Russian, Chinese, Korean, and Japanese (p.47).

◆Security Function

The Security function helps you to ensure security of

the projector. With the Key lock function, you can lock

the operation on the top control or remote control

(p.54). PIN code lock functions prevents unauthorized

use of the projector (pp.22, 54–55).

◆

Helpful Maintenance Functions

Lamp and filter maintenance functions provide for

better and proper maintenance of the projector.

◆LAN Network Function

This projector is loaded with the Wired and Wireless

LAN network function. You can project an image on a

computer as well as operate and manage the projector

via network. For details, refer to the owner’s manual

“Network Set-up and Operation.”

◆Memory Viewer Function (Optional Function)

Insert the dedicated USB memory (optionally supplied:

POA-USB02) into the projector to project images or

presentation data stored within. You do not have to

carry computers or other equipment for a presentation

*For details, refer to the owner’s manual provided with

optionally supplied USB memory.

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use.

This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display

(LCD) technology.

✔Notes:

•The On-Screen Menu and figures in this manual may differ slightly from the product.

•The contents of this manual are subject to change without notice.

4
Table of Contents
Trademarks
Each name of corporations or products in this book is either a registered trademark or a trademark of its respective
corporation.
Features and Design  . . . . . . . . . . . . . . . .3
Table of Contents  . . . . . . . . . . . . . . . . . .4
To  the Owner  . . . . . . . . . . . . . . . . . . . . . .5
Safety Instructions  . . . . . . . . . . . . . . . . .6
Air Circulation 7
Moving the Projector 7
Installing the Projector in Proper Directions 8
Compliance  . . . . . . . . . . . . . . . . . . . . . . .9
Part Names and Functions  . . . . . . . . . .10
Front 10
Back 10
Bottom 10
Rear Terminal 11
Top Control 12
Remote Control 13
Laser Pointer Function 14
Pointer Function 14
Wireless Mouse Operation 15
Remote Control Code 15
Remote Control Battery Installation 16
Remote Control Operating Range 16
Adjustable Feet 16
Installation  . . . . . . . . . . . . . . . . . . . . . . .17
Positioning the Projector 17
Connecting the AC Power Cord 18
Connecting to a Computer 19
Connecting to Video Equipment 20
Connecting to Component Video Equipment 21
Basic Operation  . . . . . . . . . . . . . . . . . . .22
Turning On the Projector 22
Turning Off the Projector 23
How to Operate the On-Screen Menu 24
Menu Bar 25
Zoom and Focus Adjustment 26
Auto Setup Function 26
Keystone Correction 26
Sound Adjustment 27
Remote Control Operation 28
Computer Input   . . . . . . . . . . . . . . . . . .30
Input Source Selection
(RGB: Computer 1 (Analog)/Computer 2 ) 30
Input Source Selection
(RGB (PC digital), RGB (AV HDCP)) 31
Computer System Selection 32
Auto PC Adjustment 33
Manual PC Adjustment 34
Image Mode Selection  36
Image Adjustment 37
Screen Size Adjustment 38
Video Input  . . . . . . . . . . . . . . . . . . . . . .40
Input Source Selection (Video, S-video) 40
Input Source Selection
(Component, RGB Scart 21-pin) 41
Video System Selection 42
Image Mode Selection  43
Image Adjustment 44
Screen Size Adjustment 46
Setting  . . . . . . . . . . . . . . . . . . . . . . . . . .47
Setting 47
Antitheft Alarm Function  . . . . . . . . . . .58
How to Use the Antitheft Alarm Function 58
Maintenance and Cleaning . . . . . . . . . .62
Warning Indicator 62
Cleaning the Filter 63
Resetting the Filter Counter 63
Slide Shutter 64
Cleaning the Projection Lens 64
Cleaning the Projector Cabinet 64
Lamp Replacement 65
Resetting the Lamp Counter 66
Appendix  . . . . . . . . . . . . . . . . . . . . . . . .67
Troubleshooting 67
Menu Tree 69
Indicators and Projector Condition 71
Compatible Computer Specifications 72
Technical Specifications 74
Optional Parts 75
PJ Link Notice 76
Configurations of Terminals 77
PIN Code Number Memo 78

To the Owner

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE EXCEPT LAMP REPLACEMENT.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS

VOLTAGE CONSTITUTING A RISK OF ELECTRIC

SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE

IMPORTANT OPERATING AND MAINTENANCE

INSTRUCTIONS IN THE OWNER'S MANUAL WITH

THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before installing and operating this projector, read this

manual thoroughly.

This projector provides many convenient features and

functions. Operating the projector properly enables you

to manage those features and maintains it in good

condition for many years to come.

Improper operation may result in not only shortening

the product-life, but also malfunctions, fire hazard, or

other accidents.

If your projector seems to operate improperly, read this

manual again, check operations and cable connections

and try the solutions in the “Troubleshooting” section in

the back of this booklet. If the problem still persists,

contact the dealer where you purchased the projector or

the service center.

Safety Precaution

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

–This projector produces intense light from the projection

lens. Do not stare directly into the lens, otherwise eye

damage could result. Be especially careful that children

do not stare directly into the beam.

–Install the projector in a proper position. Otherwise it

may result in fire hazard.

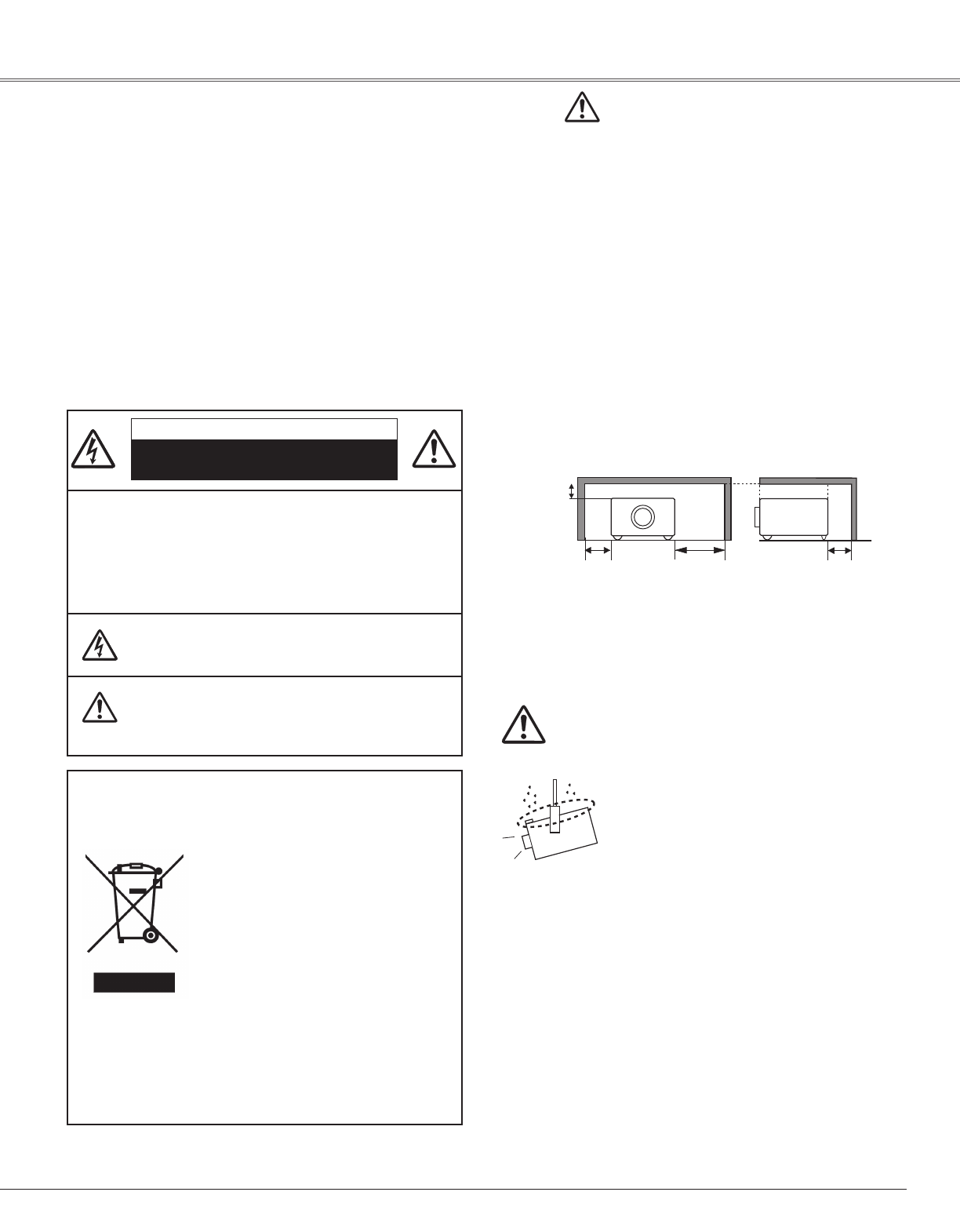

–Allowing the proper amount of space on the top, sides,

and rear of the projector cabinet is critical for proper air

circulation and cooling of the unit. The dimension

shown here indicate the minimum space required. If the

projector is to be built into a compartment or similarly

enclosed, these minimum distances must be

maintained.

–Do not cover the ventilation slot on the projector. Heat

build-up can reduce the service life of your projector,

and can also be dangerous.

–If the projector is unused for an extended time, unplug

the projector from the power outlet.

0.7' (20 cm)

1.5' (50 cm) 3' (1 m) 1.5' (50 cm)

SIDE and TOP REAR

NOTE: This symbol and recycle system are applied only to EU

countries and not applied to the countries in the other

area of the world.

Your SANYO product is designed and

manufactured with high quality

materials and components which can be

recycled and reused.

This symbol means that electrical and

electronic equipment, at their end-of-

life, should be disposed of separately

from your household waste.

Please dispose of this equipment at your local community

waste collection/recycling centre.

In the European Union there are separate collection

systems for used electrical and electronic products.

Please help us to conserve the environment we live in!

CAUTION

Not for use in a computer room as defined in the

Standard for the Protection of Electronic Computer/Data

Processing Equipment, ANSI/NFPA 75.

Ne peut être utilisé dans une salle d’ordinateurs telle

que définie dans la norme ANSI/NFPA 75 Standard for

Protection of Electronic Computer/Data Processing

Equipment

CAUTION ON HANGING FROM THE CEILING

When hanging the projector from the ceil-

ing, clean air intake vents, filters, or top of

the projector periodically with a vacuum

cleaner. If you leave the projector unclean

for a long time, the cooling fans can be

clogged with dust, and it may cause a

breakdown or a disaster.

DO NOT SET THE PROJECTOR IN GREASY, WET, OR

SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT

A BREAKDOWN OR A DISASTER. IF THE PROJECTOR

COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY

BECOME DETERIORATED.

READ AND KEEP THIS OWNER'S MANUAL FOR

LATER USE.

Safety Instructions

All the safety and operating instructions should be read

before the product is operated.

Read all of the instructions given here and retain them for

later use. Unplug this projector from AC power supply

before cleaning. Do not use liquid or aerosol cleaners.

Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the

projector.

For added protection to the projector during a lightning

storm, or when it is left unattended and unused for long

periods of time, unplug it from the wall outlet. This will

prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for

example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the

manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or

table. The projector may fall, causing serious injury to a

child or adult, and serious damage to the projector. Use

only with a cart or stand recommended by the

manufacturer, or sold with the projector. Wall or shelf

mounting should follow the manufacturer’s instructions,

and should use a mounting kit approved by the

manufacturers.

An appliance and cart combination

should be moved with care. Quick

stops, excessive force, and uneven

surfaces may cause the appliance

and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet

are provided for ventilation, to ensure reliable operation of

the equipment and to protect it from overheating.

The openings should never be covered with cloth or other

materials, and the bottom opening should not be blocked

by placing the projector on a bed, sofa, rug, or other

similar surface. This projector should never be placed near

or over a radiator or heat register.

This projector should not be placed in a built-in installation

such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through

cabinet slots as they may touch dangerous voltage points

or short out parts that could result in a fire or electric

shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of air-

conditioning equipment.

This projector should be operated only from the type of

power source indicated on the marking label. If you are

not sure of the type of power supplied, consult your

authorized dealer or local power company.

Do not overload wall outlets and extension cords as this

can result in fire or electric shock. Do not allow anything

to rest on the power cord. Do not locate this projector

where the cord may be damaged by persons walking on

it.

Do not attempt to service this projector yourself as

opening or removing covers may expose you to

dangerous voltage or other hazards. Refer all servicing to

qualified service personnel.

Unplug this projector from wall outlet and refer servicing

to qualified service personnel under the following

conditions:

a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the projector.

c. If the projector has been exposed to rain or water.

d. If the projector does not operate normally by following

the operating instructions. Adjust only those controls

that are covered by the operating instructions as

improper adjustment of other controls may result in

damage and will often require extensive work by a

qualified technician to restore the projector to normal

operation.

e. If the projector has been dropped or the cabinet has

been damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service

technician has used replacement parts specified by the

manufacturer that have the same characteristics as the

original part. Unauthorized substitutions may result in fire,

electric shock, or injury to persons.

Upon completion of any service or repairs to this

projector, ask the service technician to perform routine

safety checks to determine that the projector is in safe

operating condition.

Voor de klanten in Nederland

Bij dit produkt zijn batterijen

geleverd.

Wanneer deze leeg zijn, moet u

ze niet weggooien maar inleveren

als KCA.

Safety Instructions

Openings in the cabinet are provided for ventilation. To

ensure reliable operation of the product and to protect it

from overheating, these openings must not be blocked

or covered.

CAUTION

Hot air is exhausted from the exhaust vent. When using

or installing the projector, the following precautions

should be taken.

–Do not put any flammable object or spray can near the

projector, hot air is exhausted from the air vents.

–Keep the exhaust vent at least 3’ (1 m) away from any

objects.

– Do not touch a peripheral part of the exhaust vent,

especially screws and metallic parts. These areas will

become hot while the projector is being used.

– Do not put anything on the cabinet. Objects put on

the cabinet will not only get damaged but also may

cause fire hazard by heat.

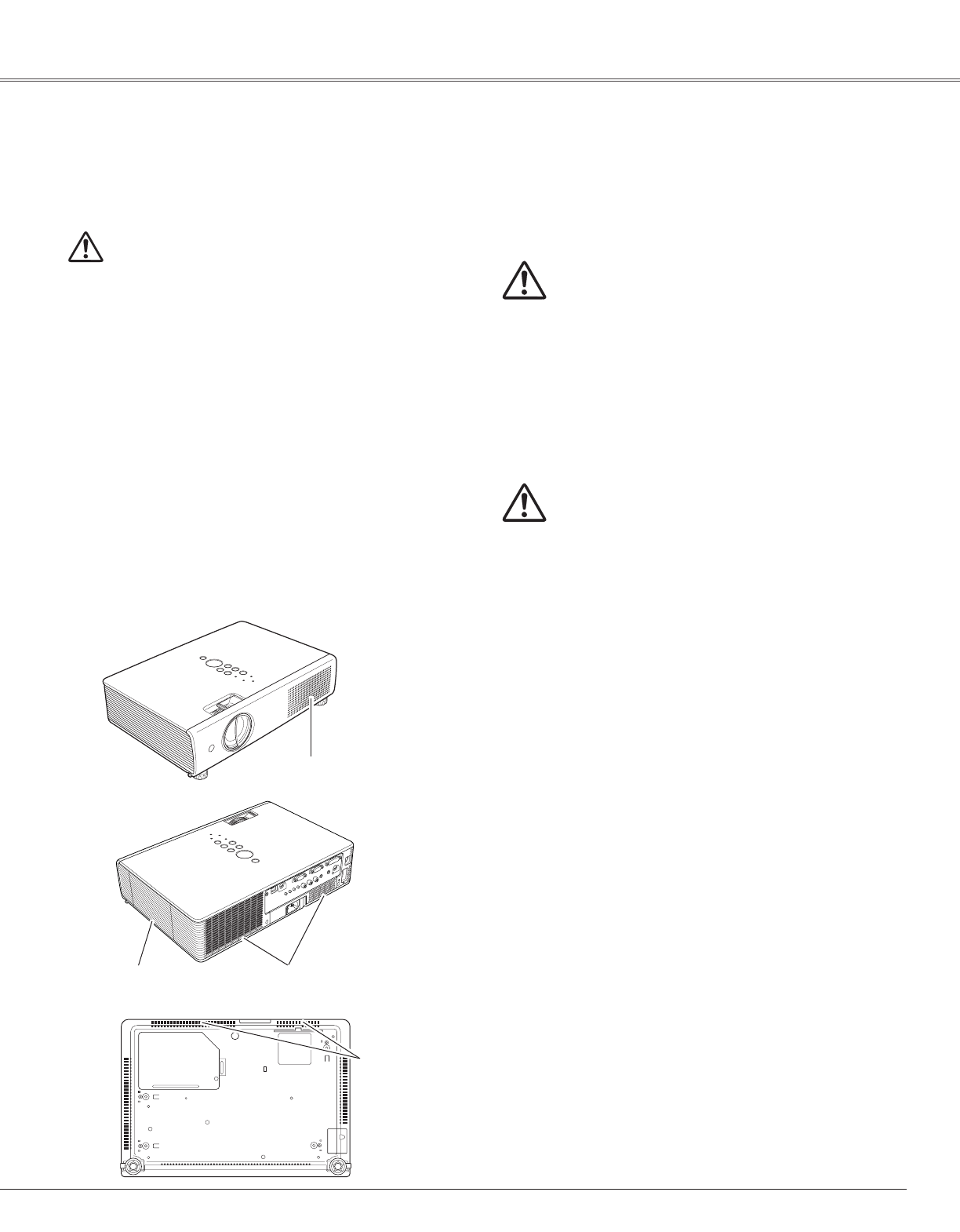

Cooling fans are provided to cool down the projector.

The fans’ running speed is changed according to the

temperature inside the projector.

Air Intake

Vents

Exhaust Vent

(Hot air exhaust)

Air Intake Vent

CAUTION IN CARRYING OR TRANSPORTING

THE PROJECTOR

–Do not drop or bump the projector, otherwise damages

or malfunctions may result.

–When carrying the projector, use a suitable carrying case.

–Do not transport the projector by courier or any other

transport service in an unsuitable transport case. This

may cause damage to the projector. For information

about transporting the projector by courier or any other

transport service, consult your dealer.

–Do not put the projector in a case before the projector is

cooled enough.

Moving the Projector

When moving the projector, close the slide shutter and

retract adjustable feet to prevent damage to the lens and

cabinet.

When the projector is not in use for an extended period,

put it into the supplied carrying case with the lens side up.

CAUTION

The carrying case (supplied) is intended for protection

against dust and scratches on surface of the cabinet, and

it is not designed to protect an appliance from external

forces. Do not transport the projector by courier or any

other transport service with this case, otherwise the

projector can be damaged. When handling the projector,

do not drop, bump, subject it to strong forces, or put

other things on the cabinet.

Air Circulation

Safety Instructions

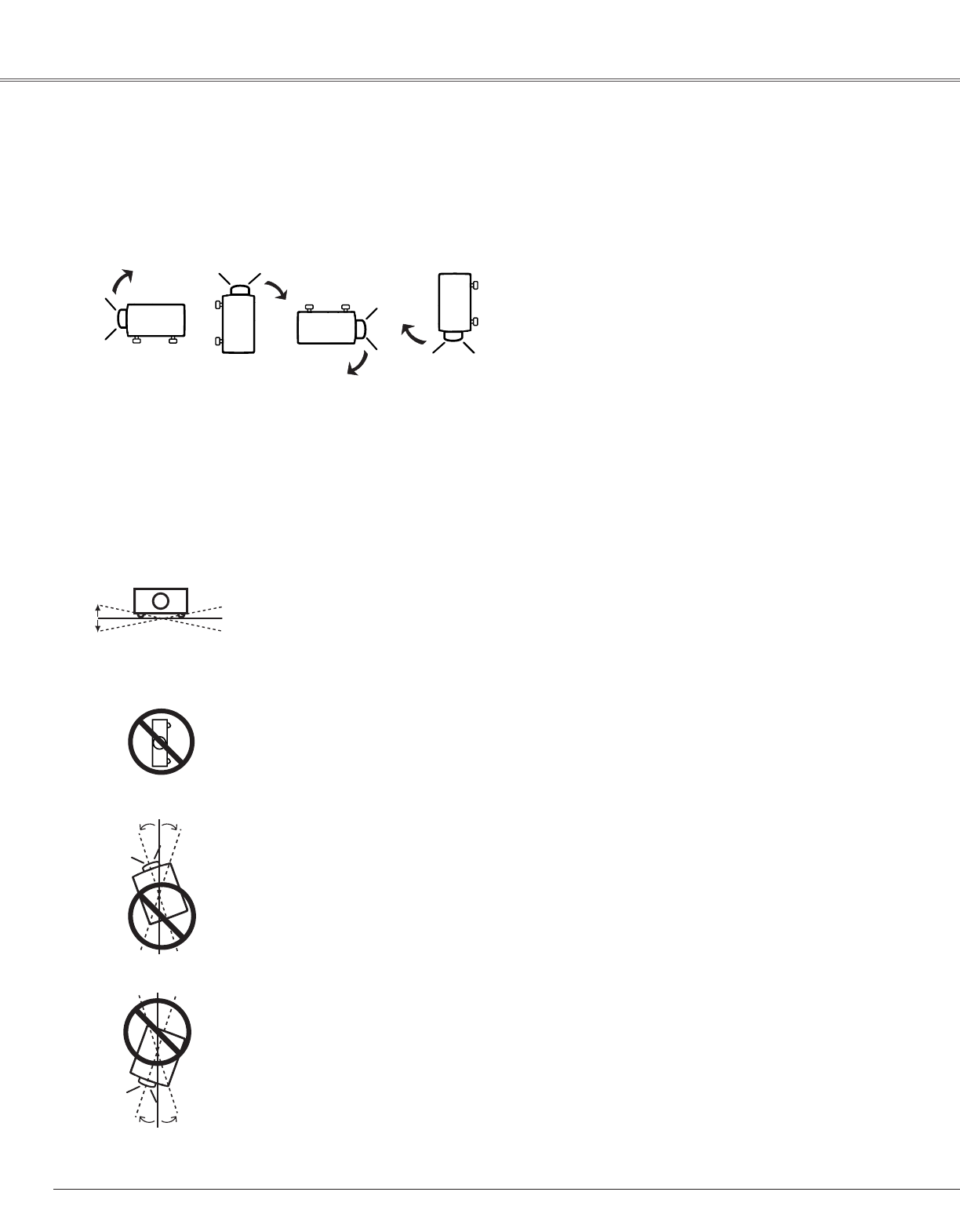

Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in

severe accident or fire hazard.

This projector can project the picture upward, downward, or backward, perpendicular to the plane of the screen

as shown in the figure below.

Bottom

Downward

(Usual)

Front

Downward

Bottom

Upward

Front

Upward

Installing the Projector in Proper Directions

Avoid positioning the projector as described below when installing.

Positioning Precautions

Do not tilt the projector more than 20 degrees from side to side.

Do not put the projector on either side to project an image.

20˚

10˚ 10˚

In upward projection, do not tilt the projector over 10 degrees right and left.

In downward projection, do not tilt the projector over 10 degrees right and left.

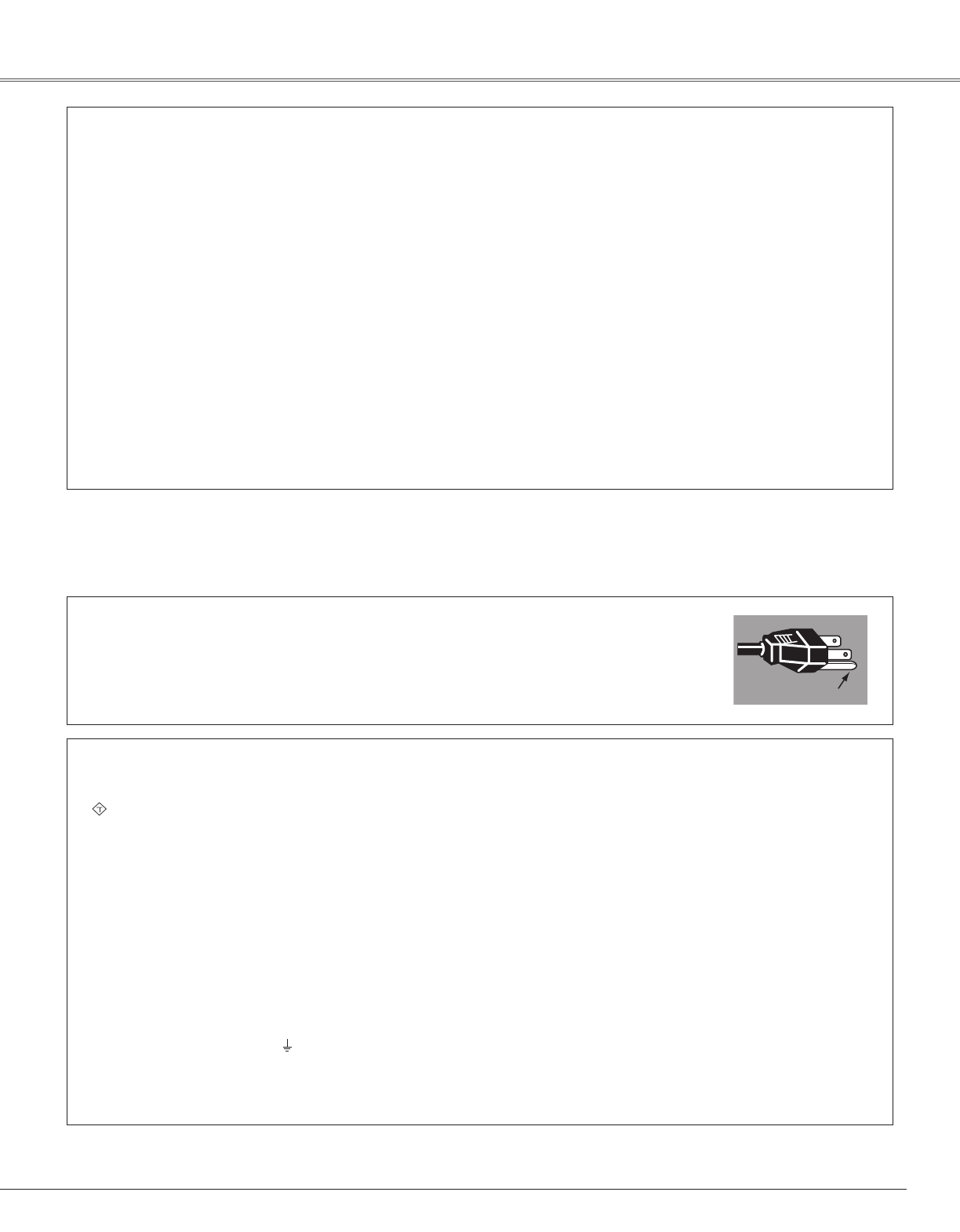

Compliance

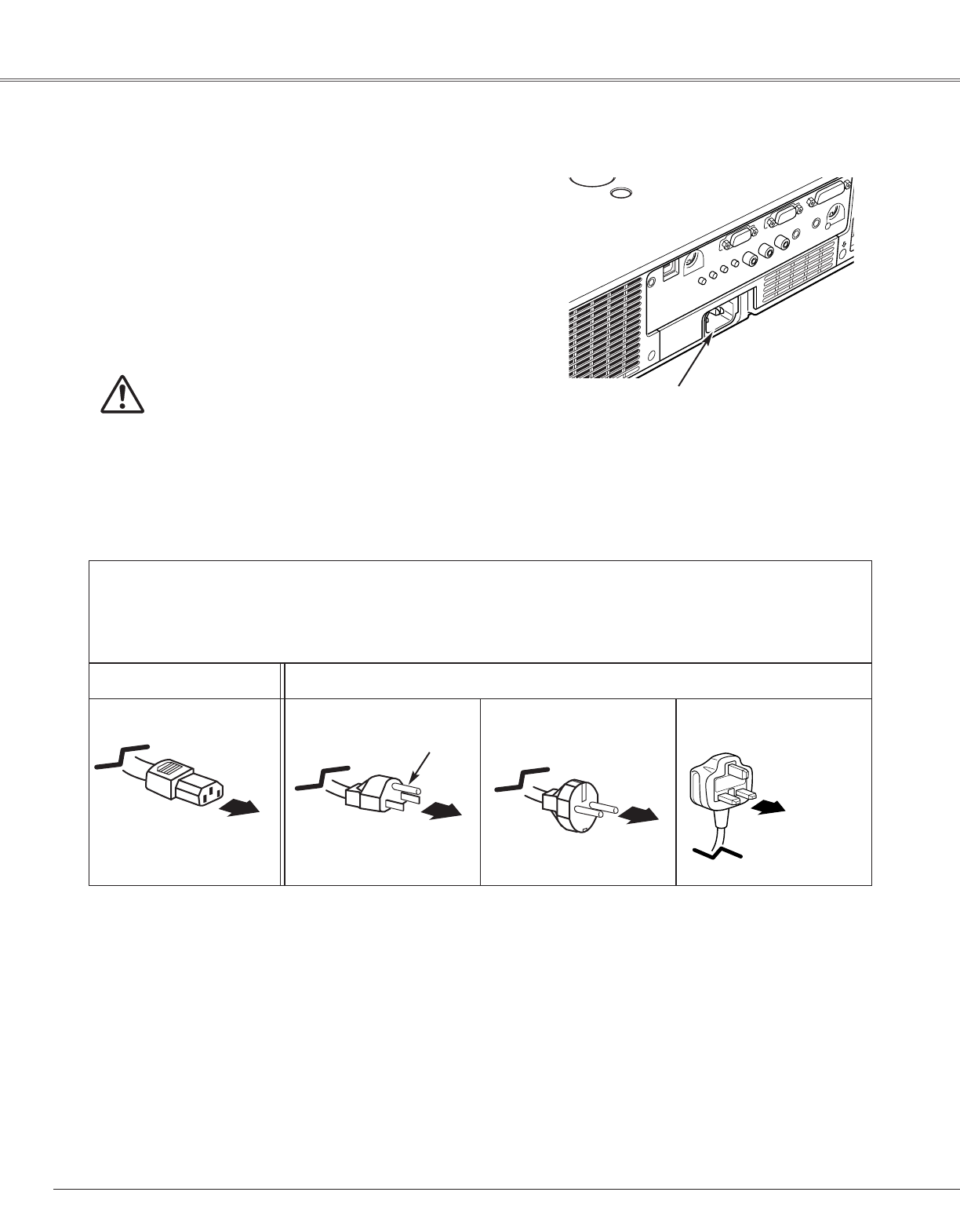

AC Power Cord for the United Kingdom:

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the

plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus

. If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required,

ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from

the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should

be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted.

WARNING: A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET

OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow ············ Earth

Blue ································· Neutral

Brown ······························ Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying

the terminals in your plug proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E

or by the safety earth symbol or coloured green or green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPARATUS MUST BE EARTHED.

ASA

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada:

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories

(UL) and certified by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug

will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert

the plug into the outlet, contact your electrician.

GROUND

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC Power Cord Requirement

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

–Reorient or relocate the receiving antenna.

–Increase the separation between the equipment and receiver.

–Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

–Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes

or modifications should be made, you could be required to stop operation of the equipment.

Model Number(s) : PLC-XU110

Trade Name : Sanyo

Responsible party : SANYO FISHER COMPANY

Address : 21605 Plummer Street, Chatsworth, California 91311 U.S.A.

Telephone No. : (818)998-7322

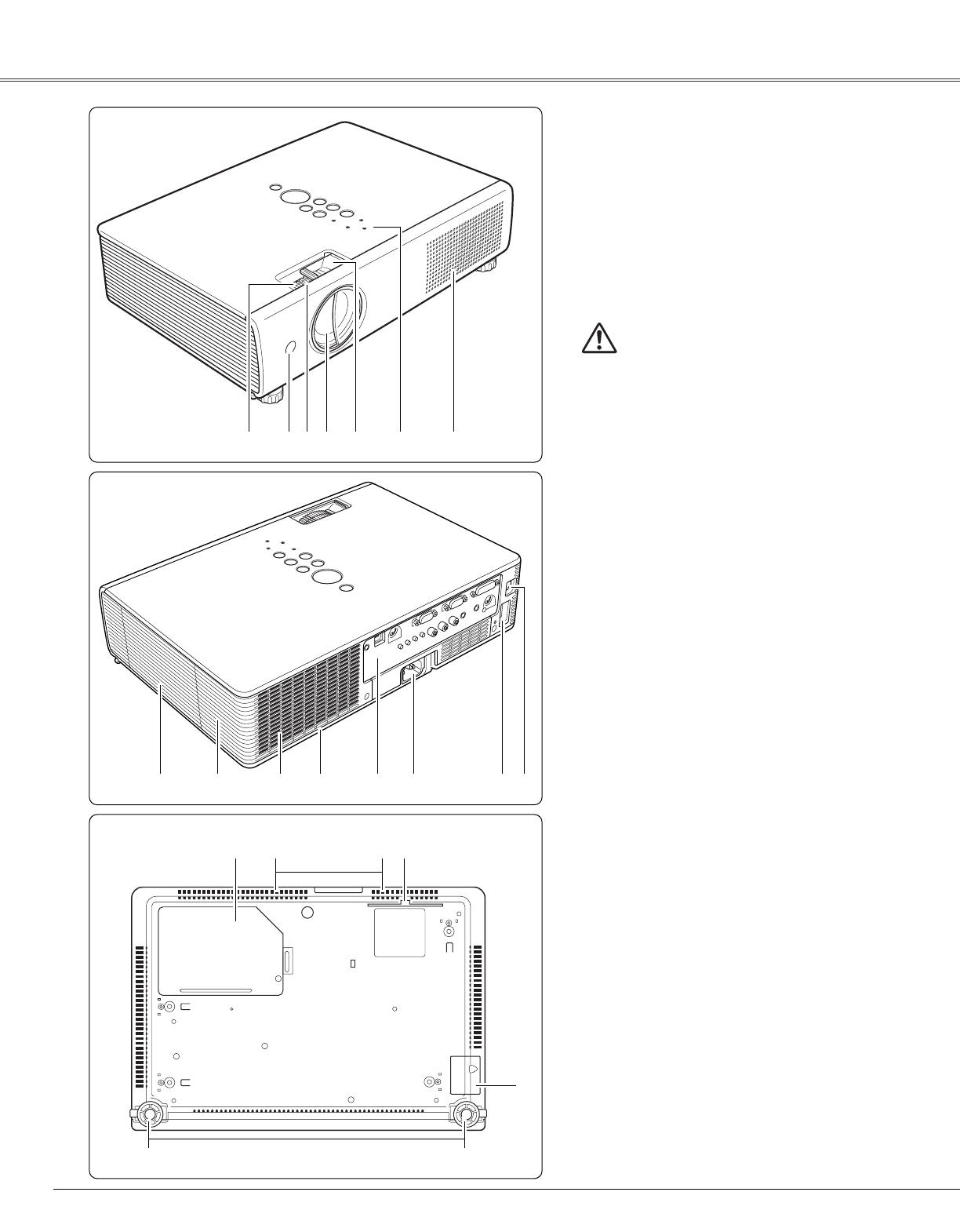

Bottom

Back

qZoom Ring

wInfrared Remote Receiver

eFocus Ring

rProjection Lens

tSlide Shutter Lever

yTop Controls and Indicators

uExhaust Vent

!5!4

!1 !2

CAUTION

Hot air is exhausted from the exhaust

vents. Do not put heat-sensitive objects

near this side.

e r t y

Front

Part Names and Functions

q w

✔Note:

•!2 USB Terminal and !3 LAN Connection

Terminal are for the Network function. Refer

to the owner’s manual “Network Set-up and

Operation” and owner’s manual of Memory

viewer (optionally available).

o o

iSpeaker

oAir Intake Vents

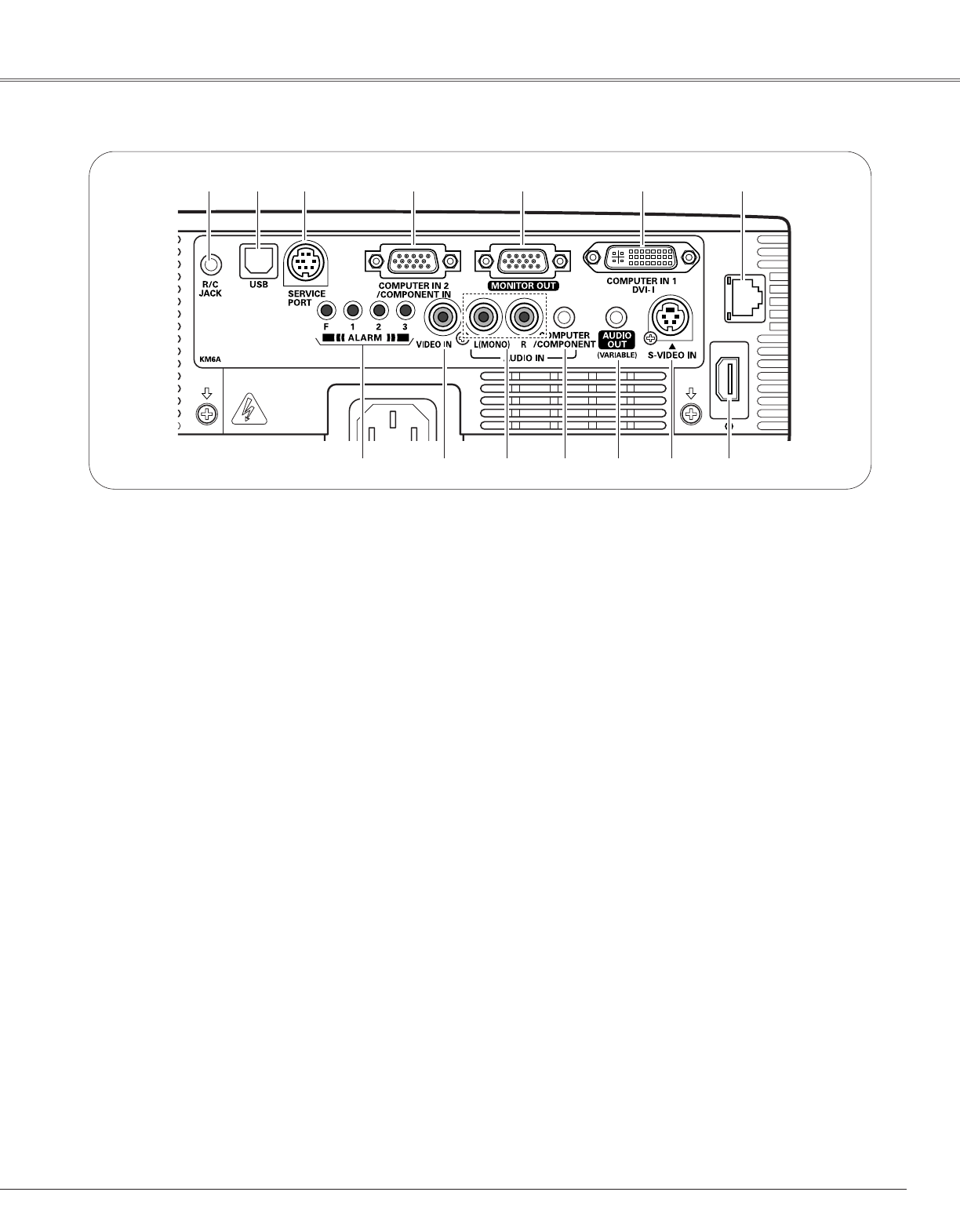

!0 Terminals and Connectors

!1 Power Cord Connector

!2 USB Terminal

!3 LAN Connection Terminal

!4 Lamp Cover

!5 Air Filter

!6 Adjustable Feet

!7 Battery Cover

✽Kensington Security Slot

This slot is for a Kensington lock used to deter

theft of the projector.

*Kensington is a registered trademark of ACCO Brands

Corporation.

✽

Part Names and Functions

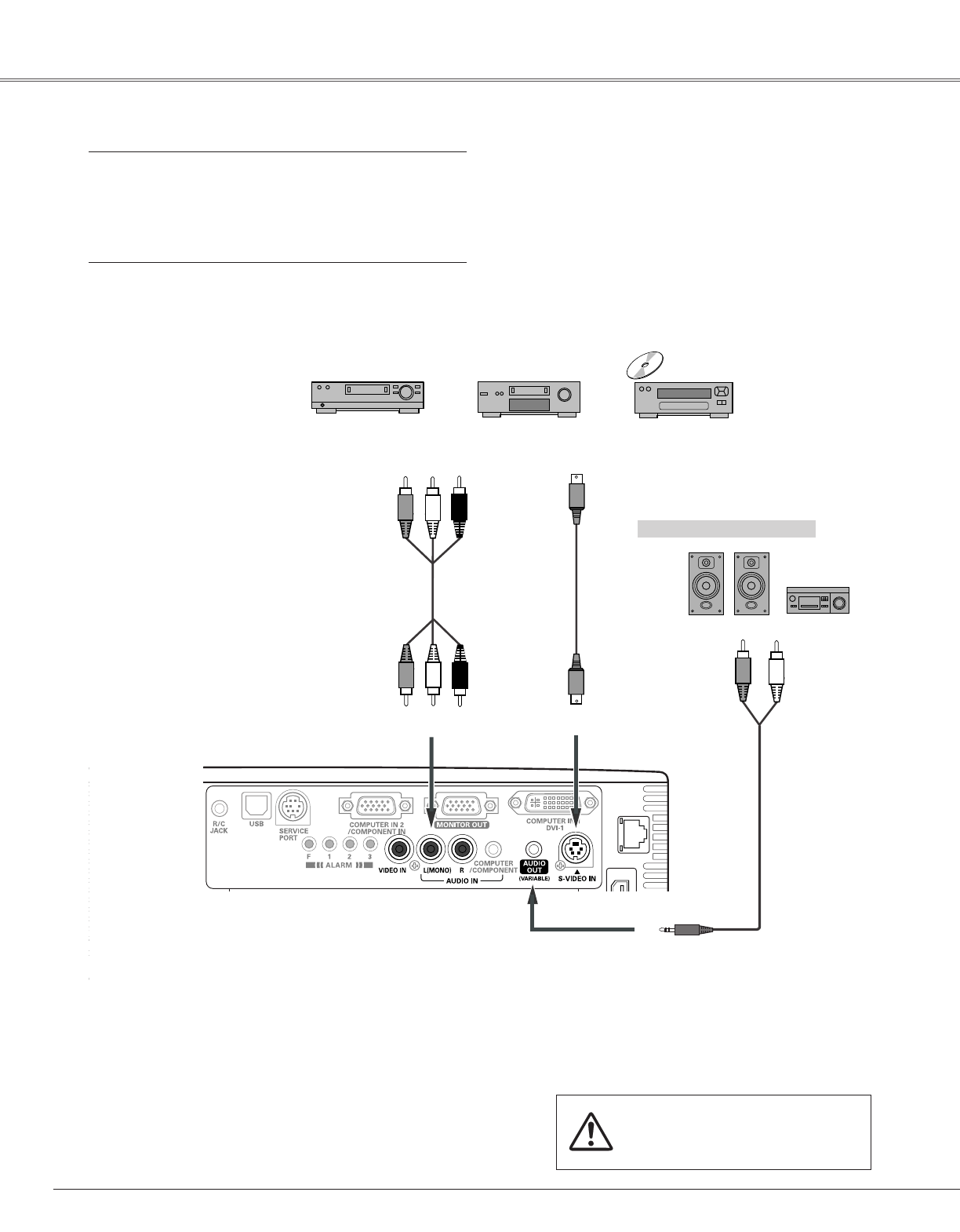

!3 S-VIDEO IN

Connect the S-VIDEO output signal from video

equipment to this jack (p.20).

!0 AUDIO IN

Connect the audio output signal from video

equipment connected to oor !3 to this jack. For a

mono audio signal (a single audio jack), connect it

to the L (MONO) jack (p.20).

!1 COMPUTER/COMPONENT AUDIO IN

Connect the audio output (stereo) signal from a

computer or video equipment connected to ror

yto this jack (pp.19, 21).

oVIDEO IN

Connect the composite video output signal to this

jack (p.20).

rCOMPUTER IN 2/COMPONENT IN

Connect the computer or component video (or RGB

Scart) output signal to this terminal (pp.19, 21).

Use the supplied VGA cable or a Component-VGA

cable commercially available. !2 AUDIO OUT (VARIABLE)

Connect an external audio amplifier to this jack

(pp.19–21).

This terminal outputs sound from AUDIO IN terminal

(!0 or !1).

qR/C JACK

When using the wired remote control, connect the

wired remote control to this jack with a remote

control cable (not supplied).

eSERVICE PORT

This jack is used to service the projector.

yCOMPUTER IN 1/DVI-I

Connect computer output (Digital/Analog DVI-I

type) to this terminal (p.19). !4 USB (Series A)

Connect the supplied USB Wireless LAN Adapter or

optionally available USB memory for Memory

viewer operation (refer to the owner’s manual

supplied with the optionally available USB memory).

uLAN Connection Terminal

Connect the LAN cable (refer to the owner’s manual

“Network Set-up and Operation”).

Rear Terminal

q w e r t y

o !0 !1

wUSB (Series B)

In order to operate the computer with the remote

control and use the PAGE ed buttons on the

remote control during a presentation, connect the

USB port of the computer to the USB terminal with

a USB cable (not supplied) (pp.13, 19).

tMONITOR OUT

This terminal can be used to output the incoming

signal from COMPUTER IN 2/COMPONENT IN

terminal to the other monitor (p.19).

iALARM buttons

Use these buttons when setting up the Alarm

function (pp.58–59).

!2 !3 !4

Part Names and Functions

wLAMP REPLACE indicator

Lights yellow when the projection lamp reaches its

end of life (pp.65, 71).

iWARNING indicator

–Lights red when the projector detects an abnormal

condition.

–Blinks red when the internal temperature of the

projector exceeds the operating range (pp.62, 71).

eON/STAND–BY button

Turn the projector on or off (pp.22–23).

oPOWER indicator

–Lights red when the projector is in stand-by mode.

–Lights green during operations.

–Blinks green in the Power management mode

(p.52).

rINPUT button

Select an input source (pp.30–31, 40–41).

!1 MENU button

Open or close the On-Screen Menu (p.24).

yPOINT ed7 8 (VOLUME +/–) buttons

–Select an item or adjust the value in the On-Screen

Menu (p.24).

–Pan the image in the Digital zoom + mode (p.39).

–Adjust the volume level (Point 7 8 buttons) (p.27).

qALARM indicator

Blinks red when informing the setting or battery

status (pp.58–59).

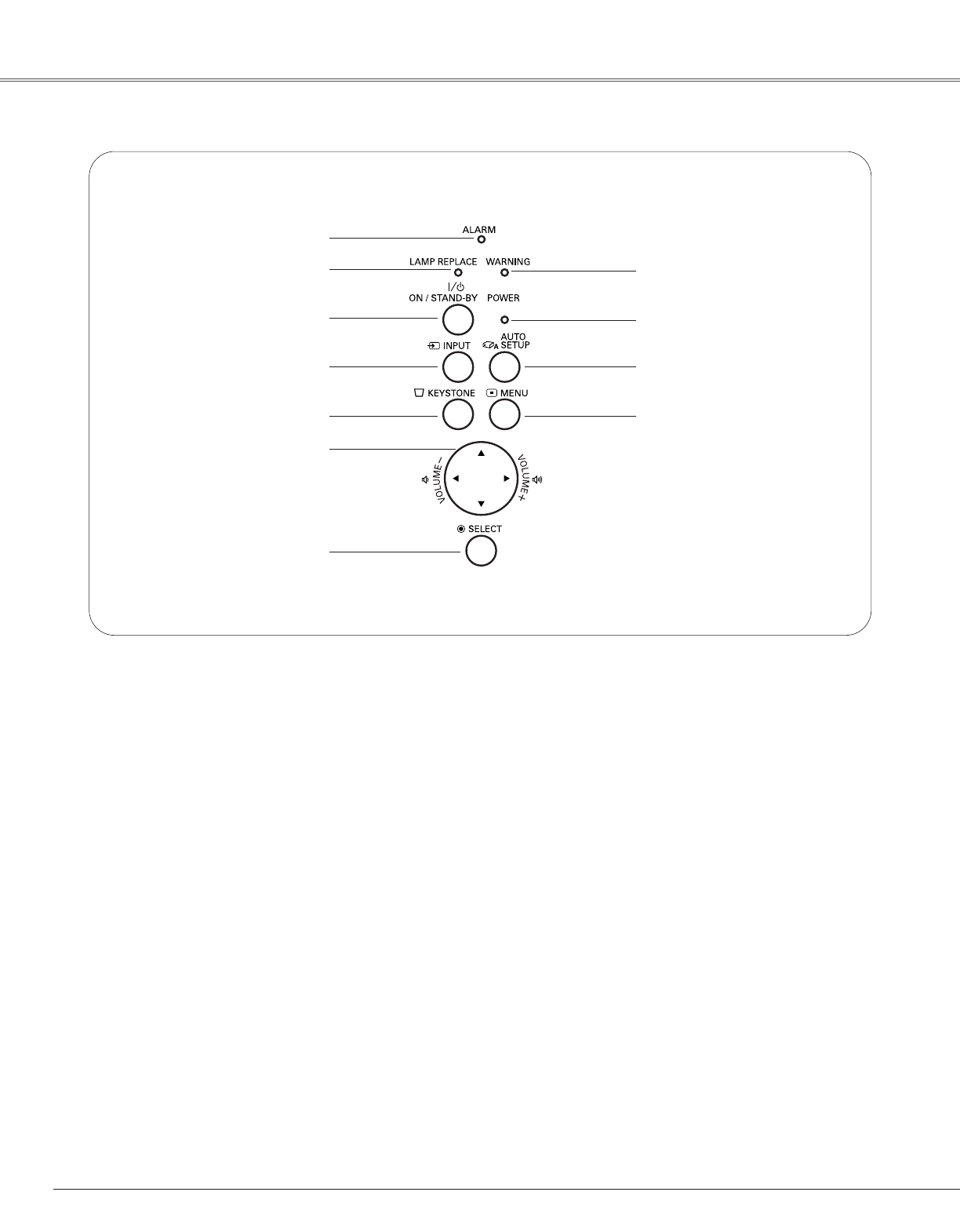

Top Control

!0 AUTO SETUP button

Correct vertical keystone distortion and adjust

computer display parameters such as Fine sync.,

Total dots, and Picture position (pp.26, 47).

uSELECT button

–Execute the selected item (p.24).

–Expand or compress the image in the Digital zoom

mode (p.39).

tKEYSTONE button

Correct keystone distortion (pp.26, 48).

Part Names and Functions

To ensure safe operation, please

observe the following precautions:

–Do not bend, drop, or expose the remote

control to moisture or heat.

–For cleaning, use a soft dry cloth. Do not

apply benzene, thinner, splay, or any

chemical material.

eWIRED REMOTE jack

Connect the remote control cable (not supplied) to this jack when using as a wired

remote control.

yCOMPUTER button

Select the COMPUTER input source (pp.30–31, 41).

!0 MENU button

Open or close the On-Screen Menu (p.24).

!3 PAGE ed buttons

Scroll back and forth the pages on the screen when giving a presentation. To use

these buttons, connect the projector and your computer with a USB cable (pp.11, 19)

!5 D.ZOOM ed buttons

Zoom in and out the images (pp.28, 39).

uAUTO PC button

Automatically adjust the computer image to its optimum setting (pp.28, 33, 47).

!7 IMAGE button

Select an image mode (pp.29, 36, 43).

!1 FREEZE button

Freeze the picture on the screen (p.28).

!8 MUTE button

Mute the sound (p.27).

!9 P-TIMER button

Operate the P-timer function (p.29).

@0 NO SHOW button

Temporarily turn off the image on the screen (p.29).

iKEYSTONE button

Correct keystone distortion (pp.26, 48).

oPoint ed 7 8 (VOLUME

+/–)

buttons

–Select an item or adjust the value in the On-Screen Menu (p.24).

–Pan the image in the Digital zoom + mode (p.39).

–Adjust the volume level (Point 7 8 buttons) (p.27).

@2 SELECT button

–Execute the selected item (p.24).

–Expand or compress the image in the Digital zoom mode (p.39).

Remote Control

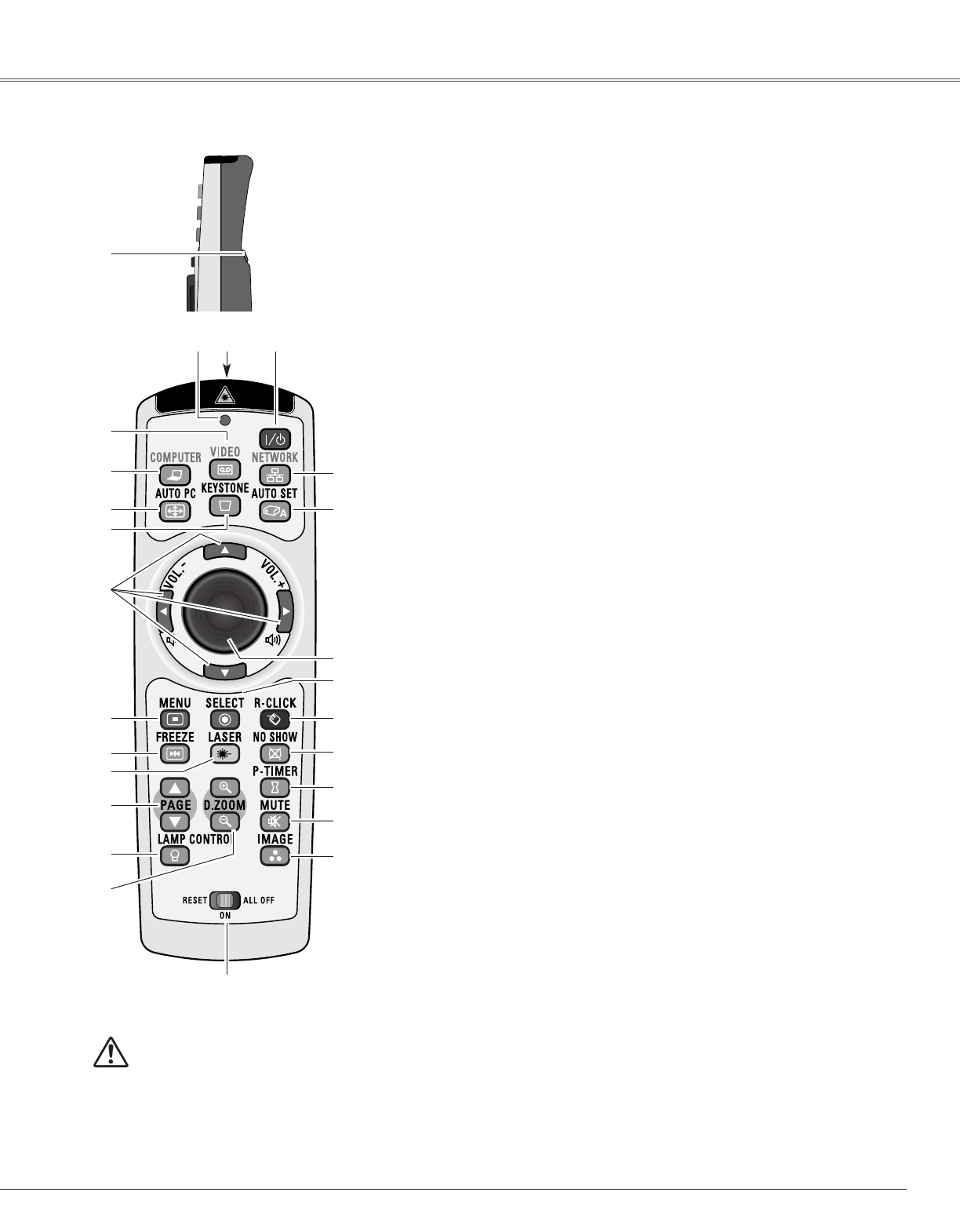

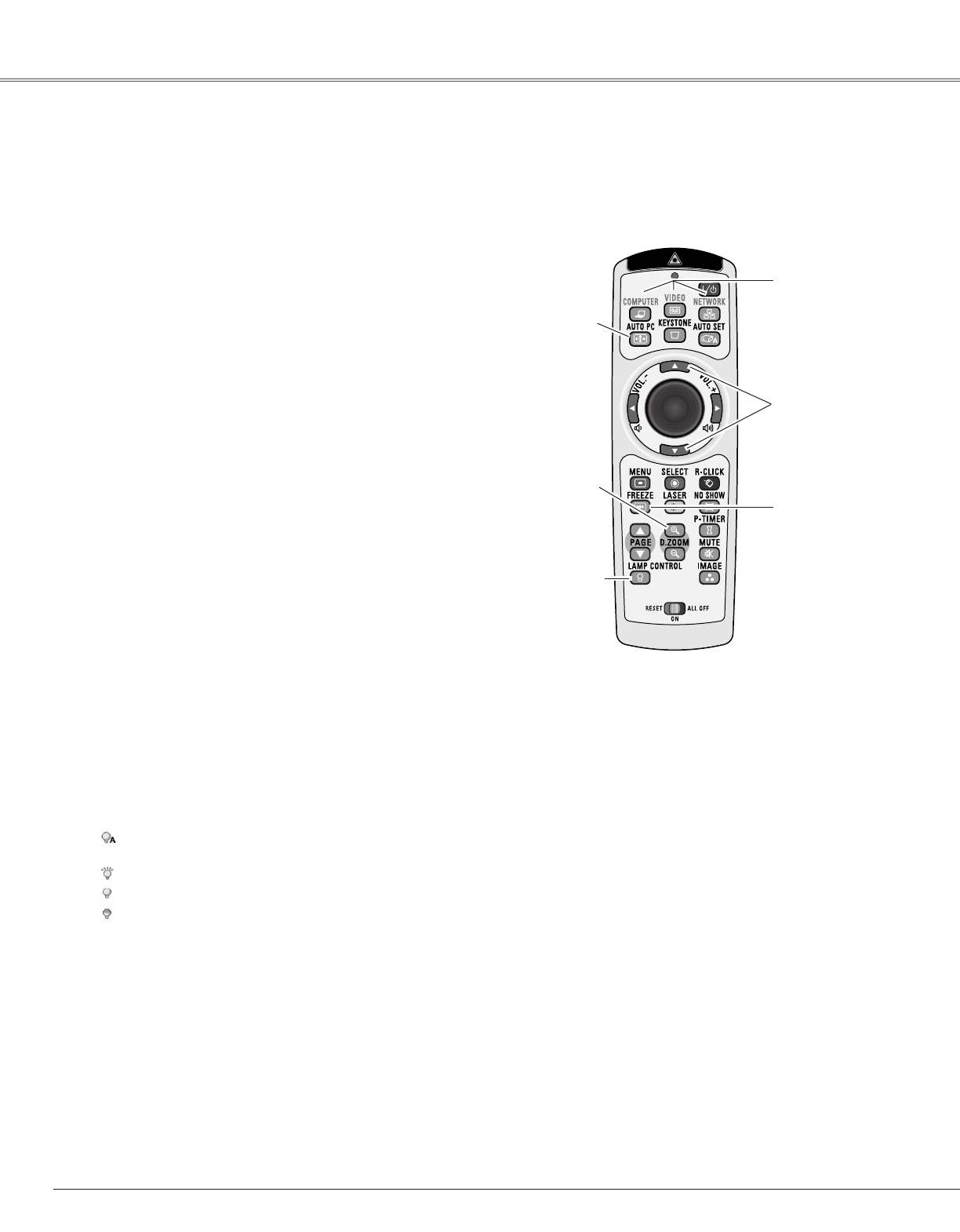

!4 LAMP CONTROL button

Select a lamp mode (pp.28, 53).

qL-CLICK button

Act as the left mouse button for wireless mouse operation (p.15).

rSIGNAL EMISSION indicator

Lights red while the laser beam is being emitted from the laser light window or a

signal is being sent from the remote control to the projector.

!2 LASER button

–Operate the Laser pointer function. Laser beam is emitted while pressing this

button for one minute. When using this laser pointer for more than one minute,

release this button and press it again (p.14).

–Display the Pointer on the screen (p.14).

!6 RESET/ON/ALL-OFF switch

When using the remote control, set this switch to “ON.” Set it to “ALL OFF” for power

saving when it is not used. Slide this switch to “RESET” to initialize the remote control

code or switch the Spotlight and Pointer to the Laser pointer function (pp.14–15).

@1 R-CLICK button

Act as the right mouse button for wireless mouse operation (p.15).

@3 PRESENTATION POINTER button

Move a pointer of the projector or a pointer for wireless mouse operation (pp.14–15).

@4 AUTO SET button

Correct vertical keystone distortion and adjust the PC display parameters (pp.26, 47).

@5 NETWORK button

Select the Network input or Memory viewer input. See the owner’s manual “Network

Set-up and Operation” and owner’s manual of Memory viewer (optionally available).

wON/STAND-BY button

Turn the projector on or off (pp.22–23).

tVIDEO button

Select the VIDEO input source (p.40).

Part Names and Functions

Spotlight

Pointer Function

Pointer

Laser Light Window

Signal Emission Indicator

Laser Pointer Function

LASER button

PRESENTATION POINTER

button

MENU button

NO SHOW button

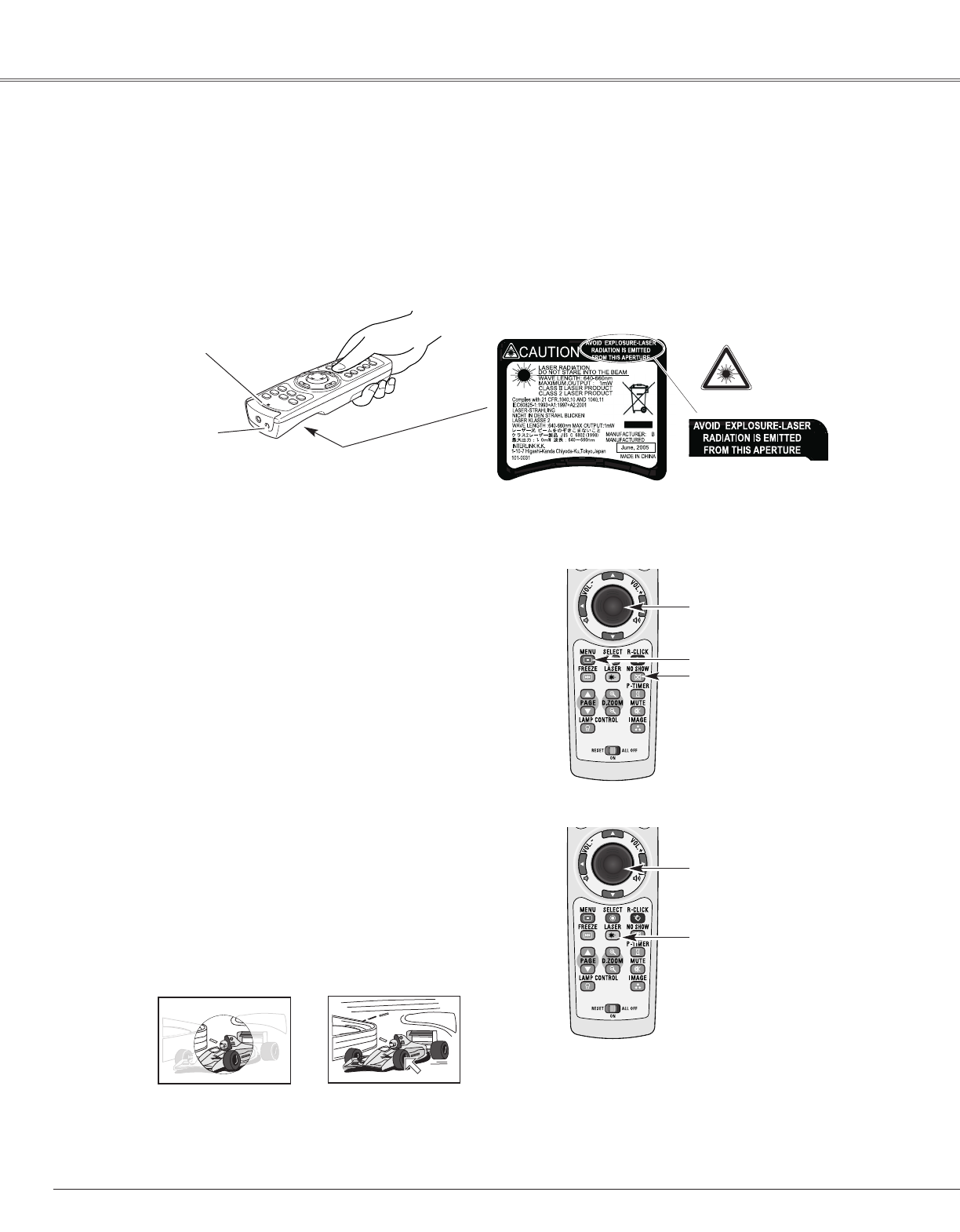

This remote control emits a laser beam from the laser light window. Press the LASER button to activate the

laser pointer. The signal emission indicator lights red and the red laser beam is emitted. If the LASER button is

pressed for more than one minute or if it is released, the laser light goes off.

The laser emitted is a Class II laser. Do not look into the laser light window or point the laser beam at yourself

or other people. The following is the caution label for the laser beam.

CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure. Never look directly into the laser light window while a laser

is emitted, otherwise eye damage may result.

The caution label is put on the remote control.

You can move the Spotlight or Pointer of the projector with the remote control to emphasize a part of the

projected image.

Press and hold the MENU and NO SHOW buttons for

more than 10 seconds to activate the Pointer function.

(The Laser pointer has switched to the Pointer function.)

Press the LASER button on the remote control pointing

toward the projector. The Spotlight or Pointer is

displayed on the screen with the LASER button lighting

green. Then move the Spotlight or Pointer with the

PRESENTATION POINTER button. If the LASER button

does not light green and continues to emit a laser

beam, try the abovementioned procedure until the

LASER button lights green.

To clear the Spotlight or Pointer out the screen, press

the LASER button pointing toward the projector and see

if the LASER button lighting is turned off.

To switch to the Laser pointer again, press and hold the

NO SHOW and MENU buttons for more than 10

seconds or slide the RESET/ON/ALL-OFF switch to

“RESET” and then to “ON”.

When you reset the Pointer function, the remote control

code will be reset, as well.

✔Note:

•You can choose the size of Spotlight (Large/Middle/Small) and the

pattern of Pointer (Arrow/Finger/Dot) in the Setting Menu. See

“Pointer” on page 53.

Press and hold the MENU

and NO SHOW buttons for

more than 10 seconds.

PRESENTATION POINTER

button

After the Laser pointer has

switched to the Pointer, use the

LASER button as the Pointer

function ON-OFF switch. Press the

LASER button pointing toward the

projector and see if it lights green.

Part Names and Functions

PRESENTATION POINTER

button

R-CLICK button

L-CLICK button

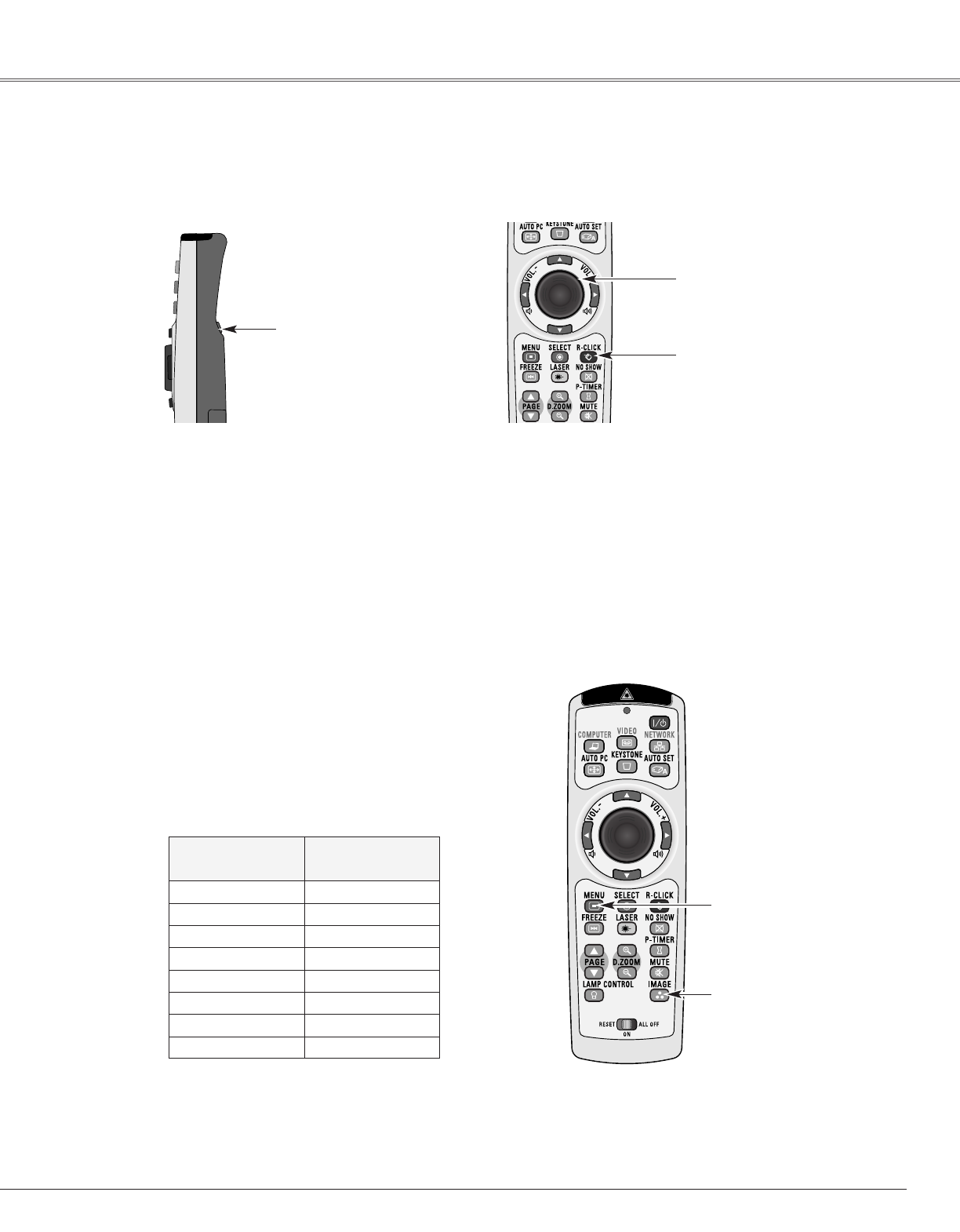

While pressing the MENU

button, press the IMAGE

button number of times

corresponding to the

remote control code.

MENU button

IMAGE button

Remote Control Code

Remote Control Code Number of Times

Pressing IMAGE

Button

Code 1 1

Code 2 2

Code 3 3

Code 4 4

Code 5 5

Code 6 6

Code 7 7

Code 8 8

Wireless Mouse Operation

The remote control can be used as a wireless mouse for your computer. Before operating the wireless mouse,

connect your computer and the projector with a USB cable (not supplied). See “Connecting to a Computer” on

page 19. When the Pointer function is used, the wireless mouse is not available.

Acts as left (click) mouse

button while the projector

and a computer are

connected with a USB

cable.

Move the pointer on the screen

with this button.

Acts as right (click) mouse

button while the projector and a

computer are connected with a

USB cable.

The eight different remote control codes (Code 1–Code 8) are assigned to this projector. Switching the remote

control codes prevents interference from other remote controls when several projectors or video equipment

next to each other are operated at the same time. Change the remote control code for the projector first before

changing that for the remote control. See “Remote control” in the Setting Menu on page 53.

Press and hold the MENU and IMAGE buttons for

more than five seconds to switch between the codes.

The code switches sequentially for one pressing the

IMAGE button. See the list below.

To initialize the remote control code, slide the RESET/

ON/ALL-OFF switch to “RESET,” and then to “ON.”

The initial code is set to Code 1.

Adjustable Feet Feet Lock Latches

Adjustable Feet

Part Names and Functions

To insure safe operation, please observe the following precautions :

●Use two (2) AAA or LR03 type alkaline batteries.

●Always replace batteries in sets.

●Do not use a new battery with a used battery.

●Avoid contact with water or liquid.

●Do not expose the remote control to moisture or heat.

●Do not drop the remote control.

●If the battery has leaked on the remote control, carefully wipe the case clean and install new batteries.

●Risk of an explosion if battery is replaced by an incorrect type.

●Dispose of used batteries according to the instructions.

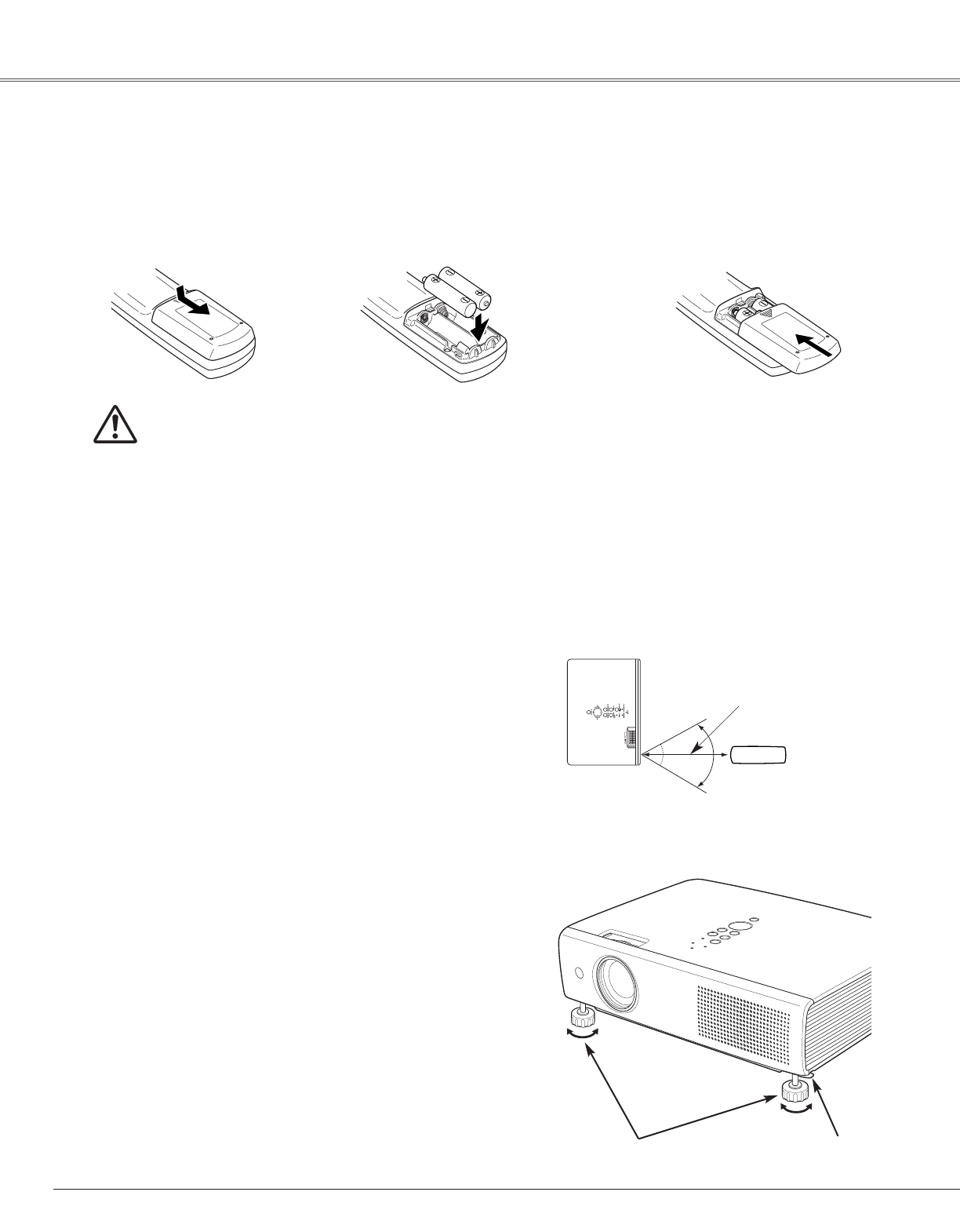

Press the lid

downward and slide it.

Open the battery

compartment lid.

Install new batteries

into the compartment.

Replace the

compartment lid.

Two AAA size

batteries

For correct polarity (+

and –), be sure battery

terminals are in contact

with pins in

compartment.

12 3

Point the remote control toward the projector (Infrared

Remote Receiver) when pressing the buttons. Maximum

operating range for the remote control is about 16.4’ (5 m)

and 60 degrees in front of the projector.

16.4’

(5 m)

60° Remote control

Remote Control Operating Range

Remote Control Battery Installation

Projection angle can be adjusted up to 9.0 degrees with the

adjustable feet.

Lift the front of the projector and pull the feet lock latches

on both side of the projector upward.

Release the feet lock latches to lock the adjustable feet and

rotate the adjustable feet to a proper height, and tilt.

Keystone distortion can be adjusted automatically with the

Auto setup function or manually by using the remote control

or the menu operation (see pages 26, 47–48).

Positioning the Projector

Installation

100"

150"

200"

300"

247"

166"

124"

82"

33"

40"

32.8’ (10.0 m)

22.0’ (6.7 m)

16.4’ (5.0 m)

10.8’ (3.3 m)

Max. Zoom

Min. Zoom

A : B = 9 : 1

Screen Size

(W x H) mm

4 : 3 aspect ratio

Zoom (min)

40”

Zoom (max)

813 x 610

5.2’ (1.6m)

4.3’ (1.3m)

100”

2032 x 1524

13.1’ (4.0 m)

10.8’ (3.3 m)

150”

3048 x 2286

20.0’ (6.1 m)

16.4’ (5.0 m)

200”

4064 x 3048

26.6’ (8.1 m)

22.0’ (6.7 m)

300”

6096 x 4572

––––

32.8’ (10.0 m)

(Inch Diagonal)

4.3’ (1.3 m)

(Center)

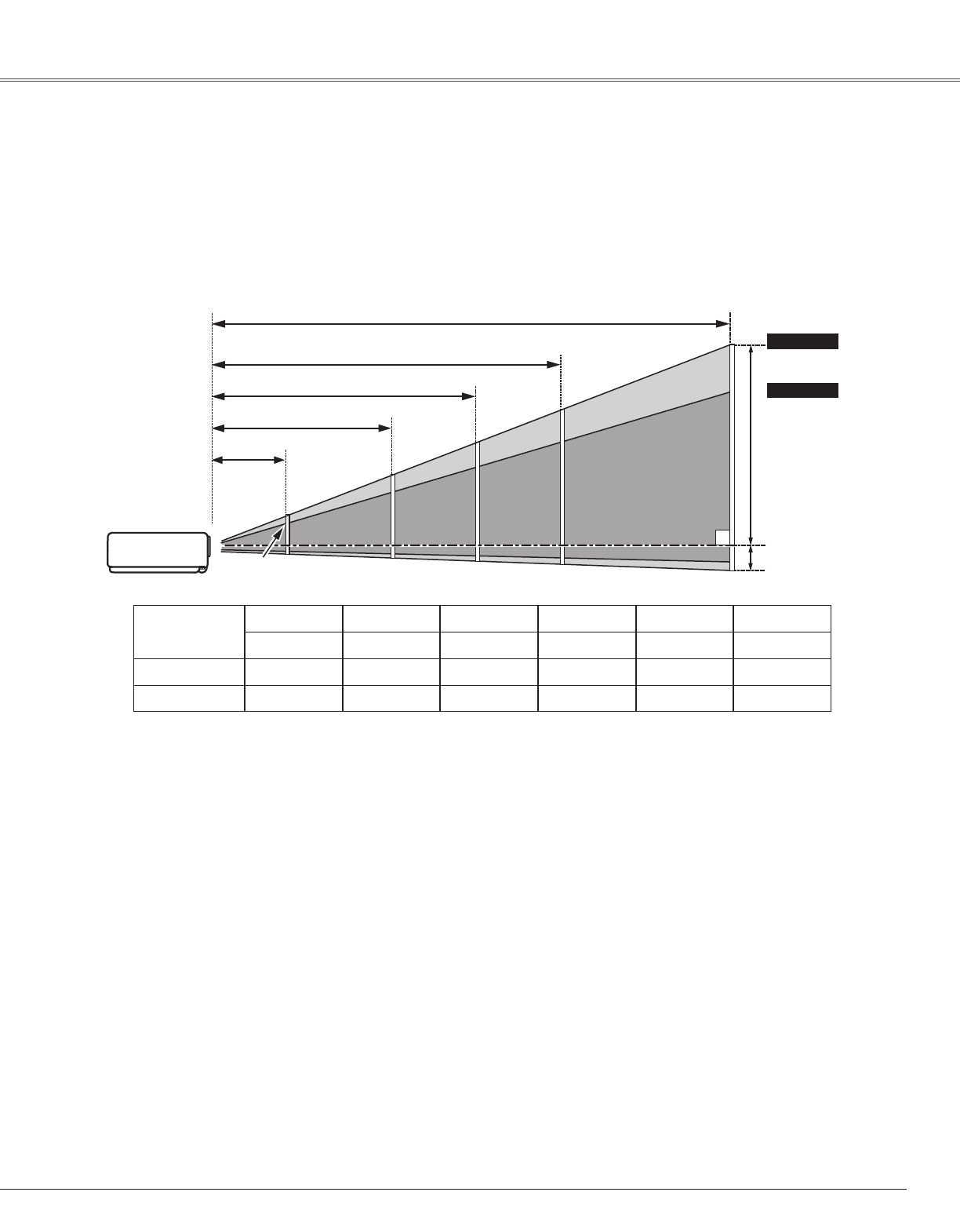

For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the

screen.

✔Notes:

•The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain

the best image.

•All measurements are approximate and may vary from the actual sizes.

33”

671 x 503

4.3’ (1.3 m)

––––

Connecting the AC Power Cord

Installation

NOTE ON THE POWER CORD

AC power cord must meet the requirements of the country where you use the projector.

Confirm the AC plug type with the chart below and proper AC power cord must be used.

If supplied the AC power cord does not match your AC outlet, contact your sales dealer.

To power cord

connector on your

projector.

Projector side AC outlet side

Ground

To the AC outlet.

(120 V AC)

For Continental EuropeFor the U.S.A. and Canada

This projector uses nominal input voltages of 100–120 V or

200–240 V AC and it automatically selects the correct input

voltage. It is designed to work with single-phase power

systems having a grounded neutral conductor. To reduce the

risk of electrical shock, do not plug into any other type of

power system.

If you are not sure of the type of power being supplied,

consult your authorized dealer or service station.

Connect the projector with all peripheral equipment before

turning the projector on.

CAUTION

For safety, unplug the AC power cord when the projector

is not in use. When the projector is connected to an outlet

with the AC power cord, it is in stand-by mode and

consumes a little electric power.

Connect the AC power cord (supplied) to the

projector.

The AC outlet must be near this equipment

and must be easily accessible.

For the U.K.

To the AC outlet.

(200–240 V AC)

To the AC outlet.

(200–240 V AC)

Installation

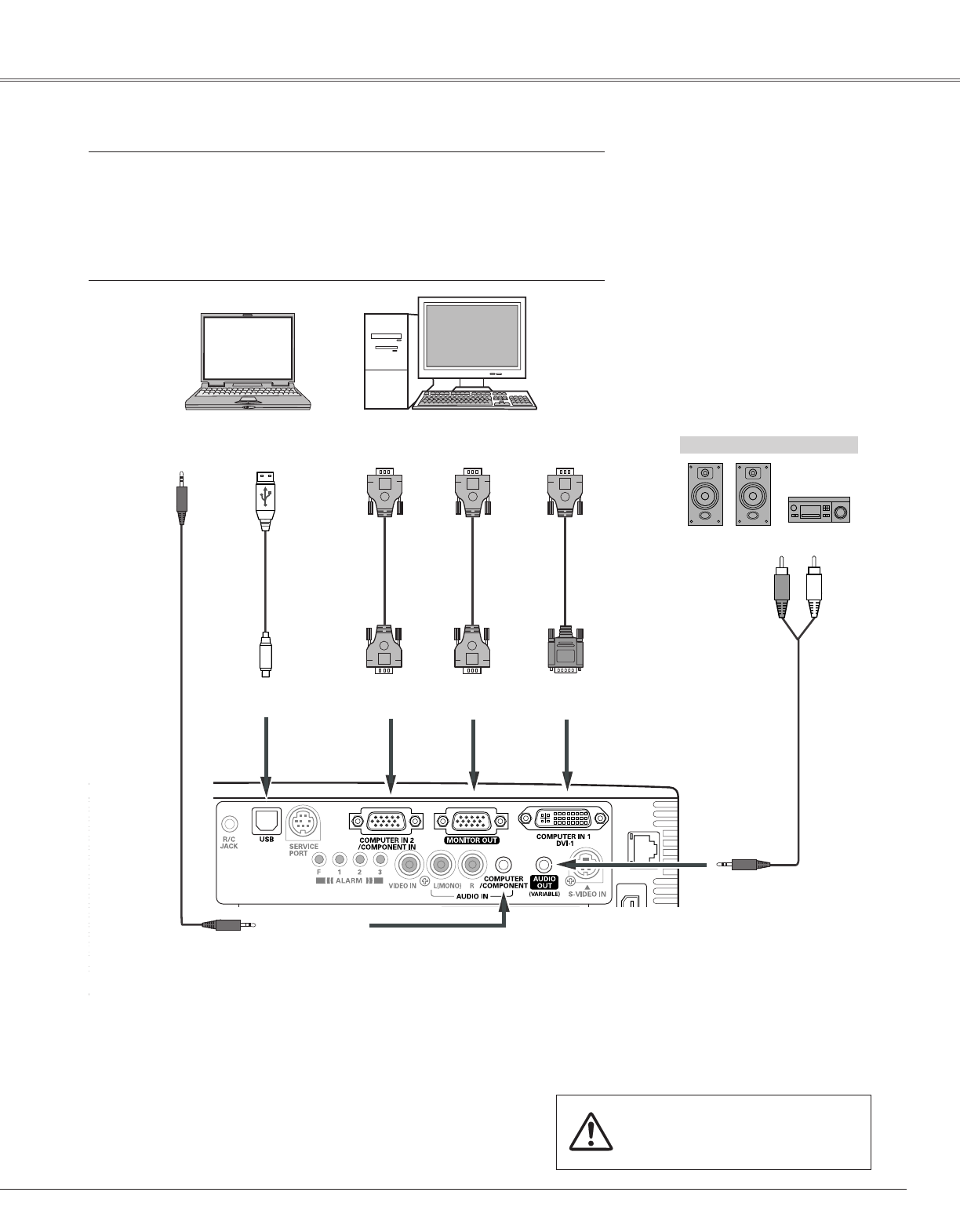

Connecting to a Computer

Cables used for connection

• VGA Cable (Mini D-sub 15 pin)*

• DVI-I/VGA Cable

• USB Cable

• Audio Cables

(*One cable is supplied; other cables are not supplied with the projector.)

External Audio Equipment

DVI-I/VGA

cable

USB cable

Audio cable

(stereo)

USB portAudio Output

USB

COMPUTER/

COMPONENT

AUDIO IN

AUDIO OUT

(stereo)

Audio Input

COMPUTER IN 1

DVI-I

✔Notes:

•Input sound to the COMPUTER/COMPONENT AUDIO IN terminal

when using the COMPUTER IN 1/DVI-I and the COMPUTER IN 2/

COMPONENT IN terminal as input.

•When connecting the AUDIO OUT to external audio equipment, the

projector’s built-in speaker is disconnected.

•USB cable connection is needed when operating the computer with

the remote control or using the PAGE

buttons on the remote

control.

Monitor

Output

COMPUTER IN 2/

COMPONENT

VGA cable

MONITOR

OUT

Audio cable

(stereo)

Unplug the power cords of both the

projector and external equipment from

the AC outlet before connecting cables.

VGA cable

Monitor

Output

Monitor

Input

Installation

Connecting to Video Equipment

Cables used for connection

• Video and Audio Cable (RCA x 3)

• S-VIDEO Cable

• Audio Cable

(Cables are not supplied with the projector.)

External Audio Equipment

Audio cable

(stereo)

VIDEO S-VIDEO

S-video cableVideo and

audio cable

Composite Video and Audio Output S-video Output

AUDIO IN

Audio Input

AUDIO OUT

(stereo)

(R) (L) (Video)

Unplug the power cords of both the

projector and external equipment from

the AC outlet before connecting cables.

✔Notes:

•When connecting the AUDIO OUT to external audio equipment,

the projector’s built-in speaker is disconnected.

•The S-VIDEO jack connection overrides the VIDEO jack connection

when selecting AUTO in the Input Menu (p.40).

•See page 75 for ordering optional cables.

Installation

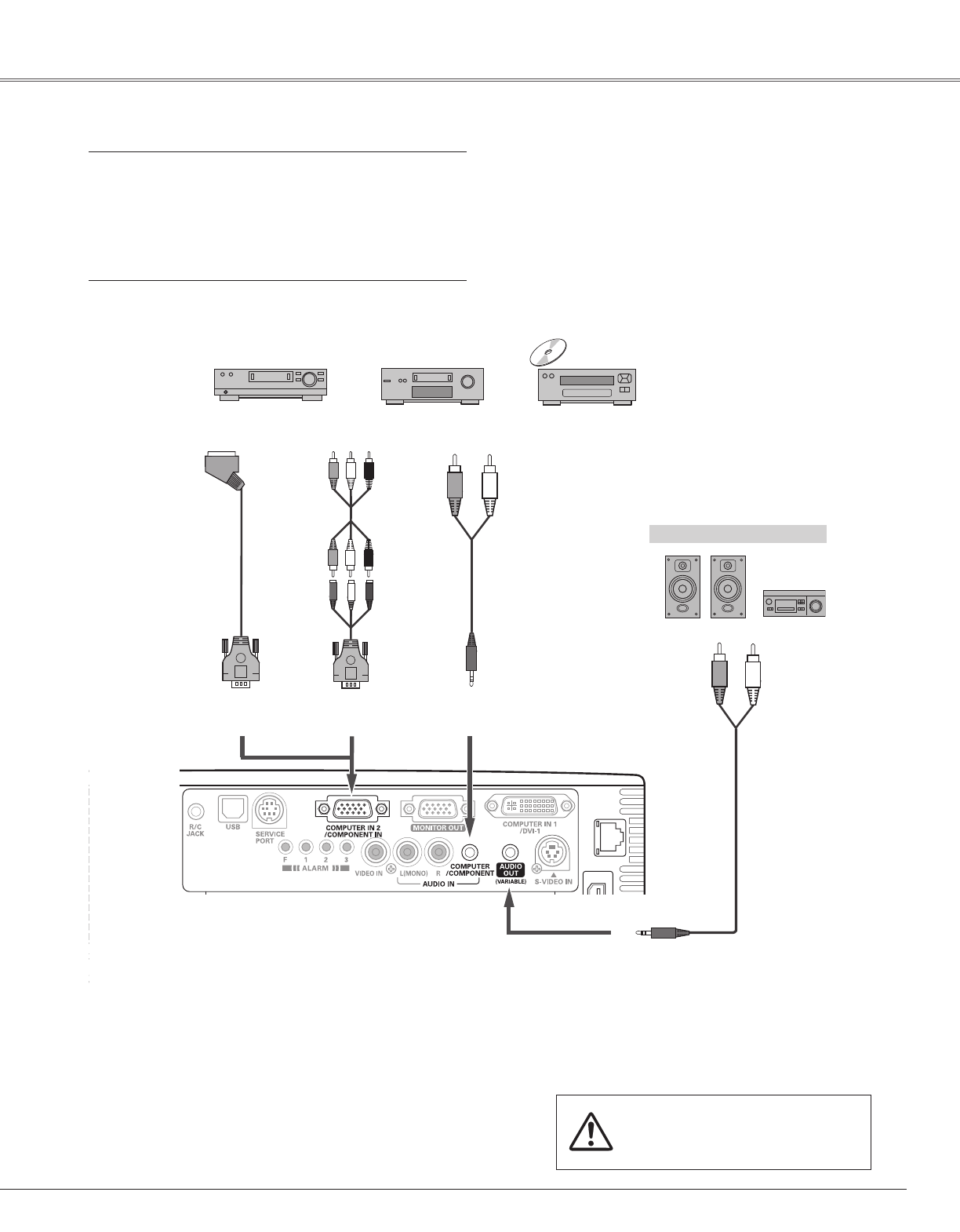

Connecting to Component Video Equipment

Cables used for connection

• Audio Cables

• Scart-VGA Cable

• Component Cable

• Component-VGA Cable

(Cables are not supplied with the projector.)

External Audio Equipment

Audio cable

(stereo)

Audio cable

(stereo)

Audio Input

Component Video Output

(Y, Pb/Cb, Pr/Cr)

RGB Scart

21-pin Output Audio Output

Scart-VGA

cable

Component-

VGA cable

AUDIO OUT

(stereo)

Component

cable

COMPUTER IN 2/COMPONENT IN COMPUTER/COMPONENT

AUDIO IN

✔Notes:

•When connecting the AUDIO OUT to external audio equipment,

the projector’s built-in speaker is disconnected.

•See page 75 for ordering optional cables.

Unplug the power cords of both the

projector and external equipment from

the AC outlet before connecting cables.

The preparation display will disappear

after 30 seconds.

(See page 53 for Lamp control status.)

Lamp control status

Tu rning On the Projector

Basic Operation

Connect the projector’s AC power cord into an AC outlet.

The POWER indicator lights red. Open the slide shutter

by sliding the slide shutter lever (see pages 10, 64).

Press the ON/STAND-BY button on the top control or the

remote control. The POWER indicator lights green and

the cooling fans start to operate. The preparation display

appears on the screen and the count down starts.

4After the countdown, the input source that was

selected the last time and the lamp control status icon

(see page 53) appear on the screen.

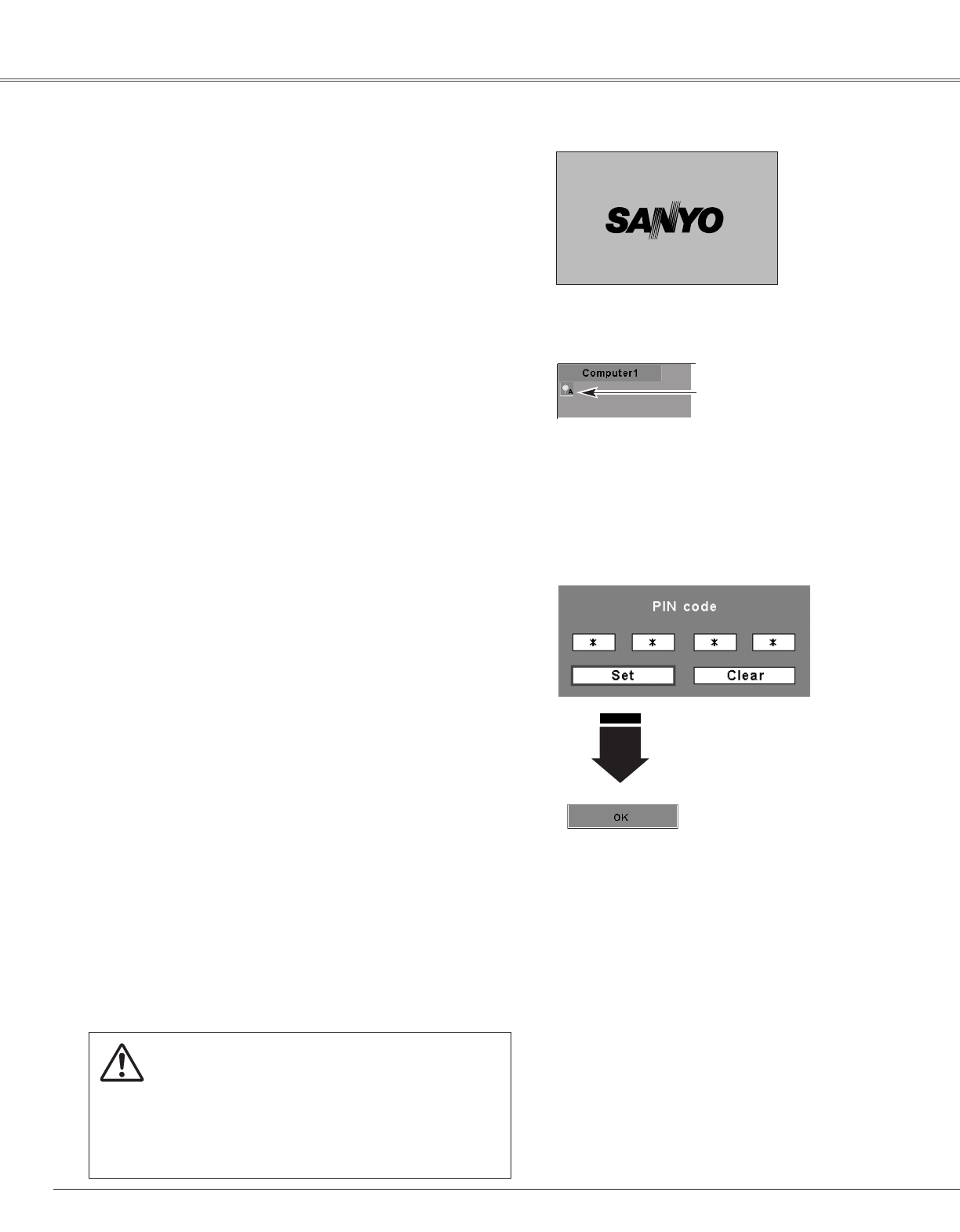

If the projector is locked with a PIN code, PIN code

input dialog box will appear. Enter the PIN code as

instructed below.

Complete peripheral connections (with a computer,

VCR, etc.) before turning on the projector.

What is PIN code?

PIN (Personal Identification Number) code is a security code

that allows the person who knows it to operate the

projector. Setting a PIN code prevents unauthorized use of

the projector.

A PIN code consists of a four-digit number. Refer to the PIN

code lock function in the Setting Menu on pages 54–55 for

locking operation of the projector with your PIN code.

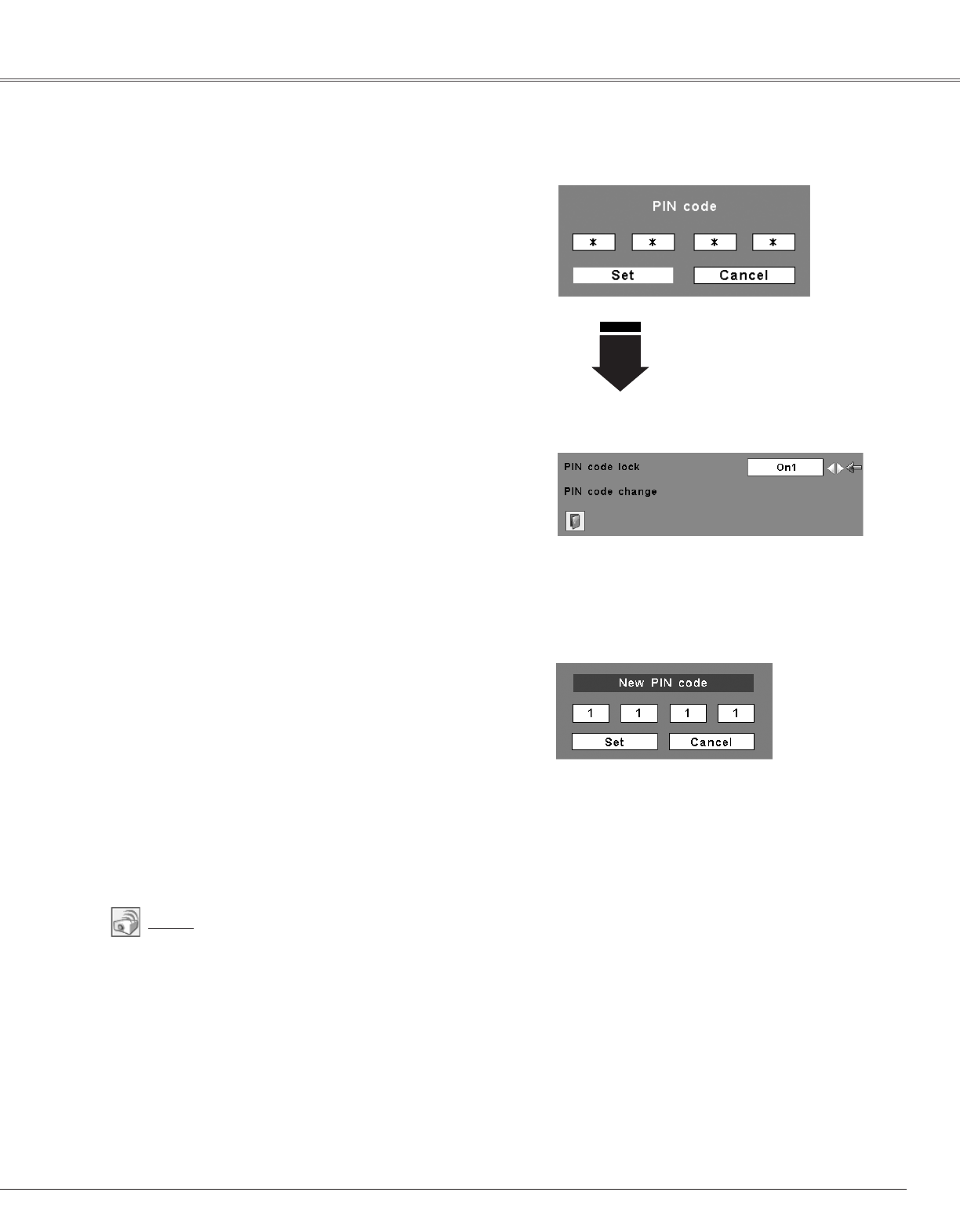

Enter a PIN code

Use the Point ed buttons to enter a number. Press the Point

8button to fix the number and move the red frame pointer to

the next box. The number changes to “✳.” If you fixed an

incorrect number, use the Point 7button to move the pointer

to the number you want to correct, and then enter the correct

number.

Repeat this step to complete entering a four-digit number.

After entering the four-digit number, move the pointer to

“Set.” Press the SELECT button so that you can start to

operate the projector.

If you entered an incorrect PIN code, “PIN code” and the

number (✳✳✳✳) will turn red for a moment. Enter the correct

PIN code all over again.

CAUTION ON HANDLING PIN CODE

If you forget your PIN code, the projector can no

longer be started. Take a special care in setting a

new PIN code; write down the number in a

column on page 78 of this manual and keep it at

hand. Should the PIN code be missing or

forgotten, consult your dealer or service center.

Selected Input Source and Lamp Control

After the OK icon disappears,

you can operate the projector.

PIN Code Input Dialog Box

✔Notes:

•When the Logo select function is set to “Off,”

the logo will not be shown on the screen (p.50).

•When the “Countdown off” or “Off” is selected

in the Display function, the countdown will not

be shown on the screen (p.48).

•During the countdown period, all operations are

invalid.

•If the correct PIN code number is not entered

within three minutes after the PIN code dialog

box appeared, the projector will be turned off

automatically.

•The “1234” is set as the initial PIN code at the

factory.

•When the Input Search function is set to “On1”

or “On2”, the input signal will be searched

automatically (p.51).

✔Note:

•The Filter warning and Lamp replacement icons

may appear on the screen depending on the

usage state of the projector.

Basic Operation

TO MAINTAIN THE LIFE OF THE LAMP, ONCE

YOU TURN THE PROJECTOR ON, WAIT AT

LEAST FIVE MINUTES BEFORE TURNING IT OFF.

“Power off?” disappears after 4 seconds.

Tu rning Off the Projector

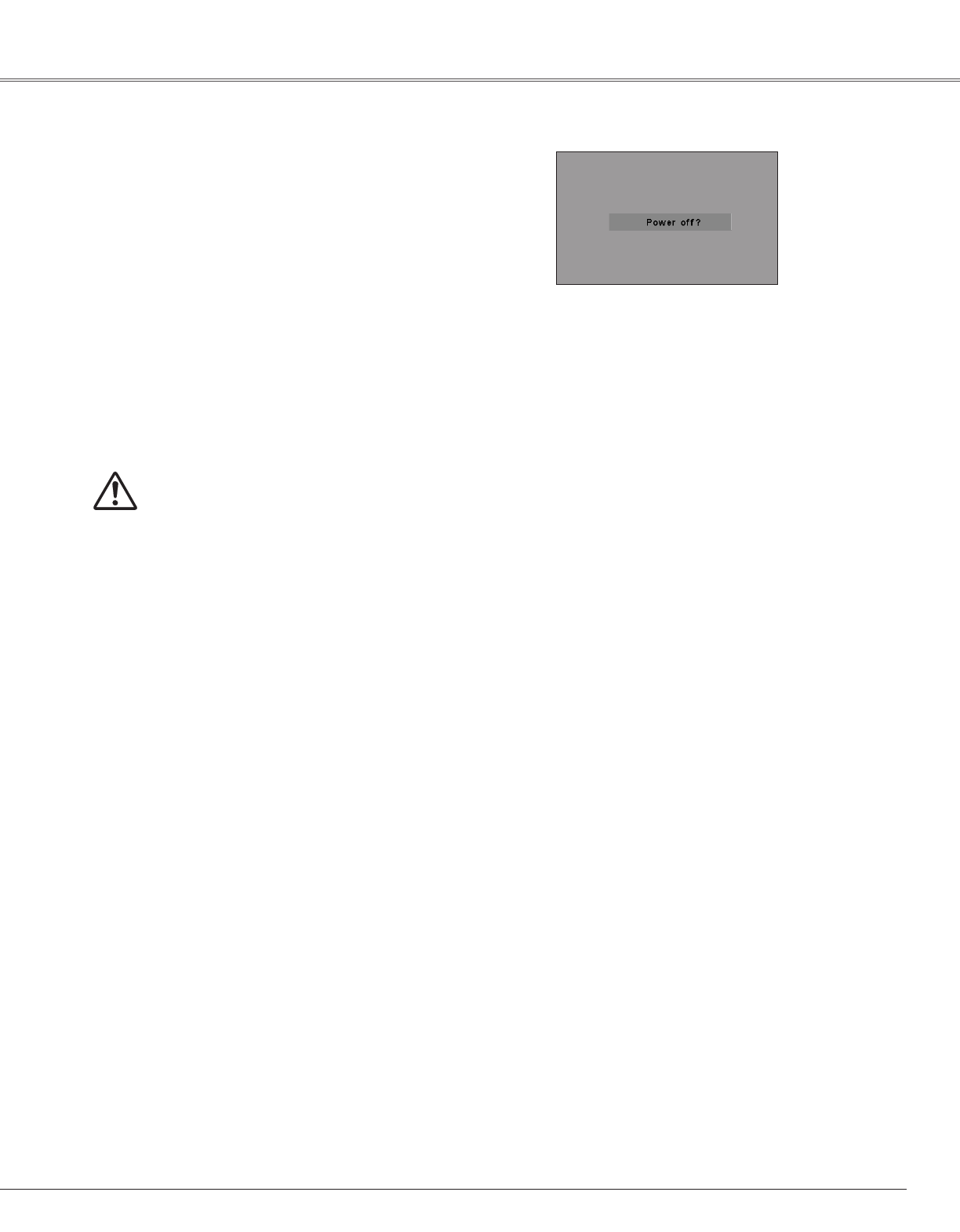

Press the ON/STAND-BY button on the top control or on

the remote control, and “Power off?” appears on the

screen.

Press the ON/STAND-BY button again to turn off the

projector. The POWER indicator starts to blink red, and

the cooling fans keep running. (You can select the level

of fans’ quietness and speed. See “Fan” on page 56.)

At this time, you can unplug the AC power cord even if

the fans are still running.

3When the projector has cooled down enough, the

POWER indicator stops blinking and you can turn on

the projector. After it is cooled down completely,

unplug the AC power cord.

✔Notes:

•When the On start function is set to “On,” the projector will be

turned on automatically by connecting the AC power cord to an AC

outlet (p.53).

•Do not operate the projector continuously without rest. Continuous

use may result in shortening the lamp life. Turn off the projector

and let stand for about an hour in every 24 hours.

•The running speed of cooling fans is changed according to the

temperature inside the projector.

•Do not put the projector in a case before the projector is cooled

enough.

•If the WARNING indicator blinks or lights red, see “Warning

Indicators” on page 62.

•While the POWER indicator is blinking, the lamp is being cooled

down and the projector cannot be turned on. Wait until the

POWER indicator stops blinking to turn on the projector again.

Basic Operation

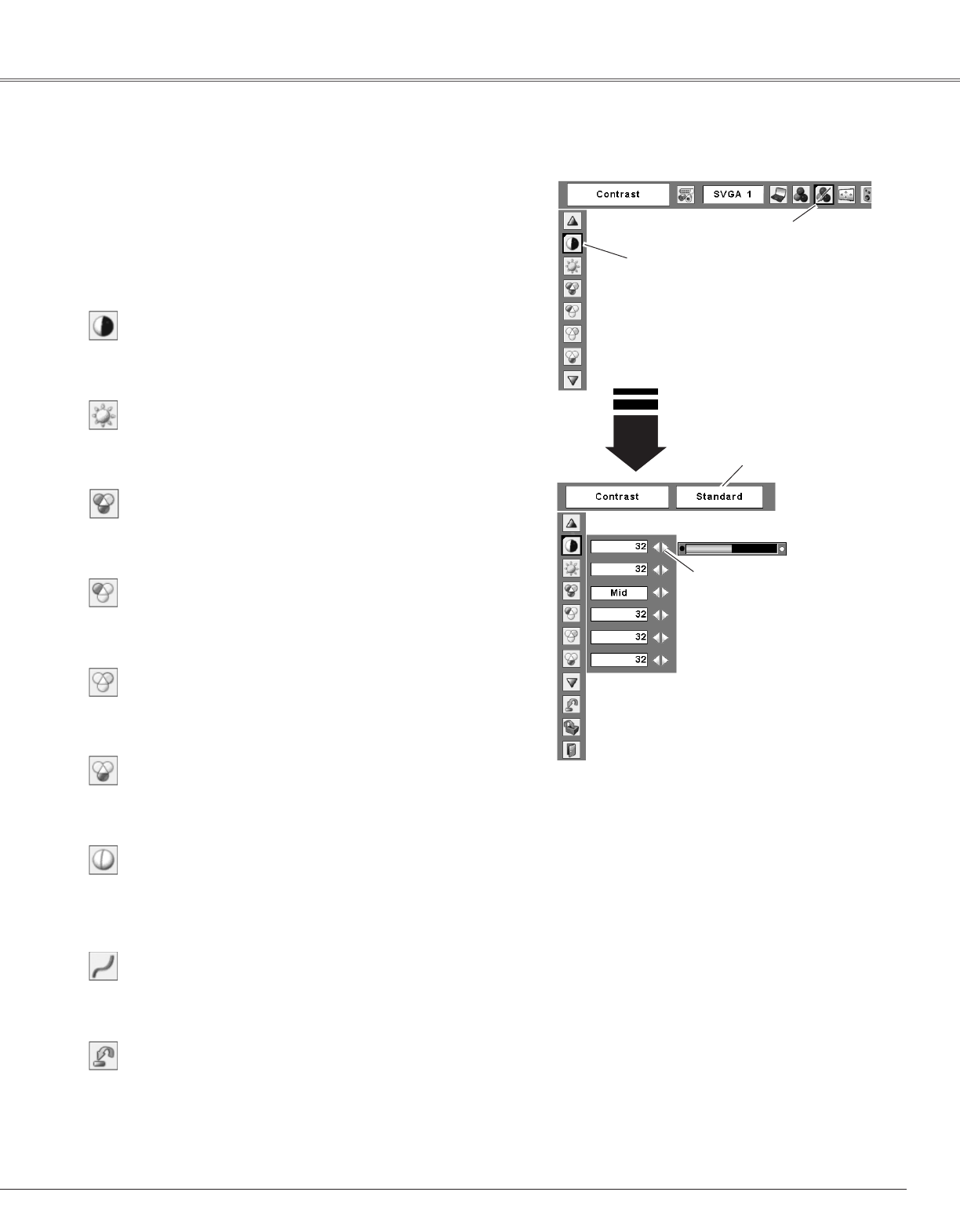

How to Operate the On-Screen Menu

The projector can be adjusted or set via the On-Screen

Menu. For each adjustment and setting procedure, refer to

the respective sections in this manual.

Use the Point 7 8 buttons to select a Menu icon. Use

the Point ed buttons to select an item in the selected

menu.

Press the SELECT button to show the item data. Use

the Point 7 8 buttons to adjust the values.

To close the On-Screen Menu, press the MENU

button again.

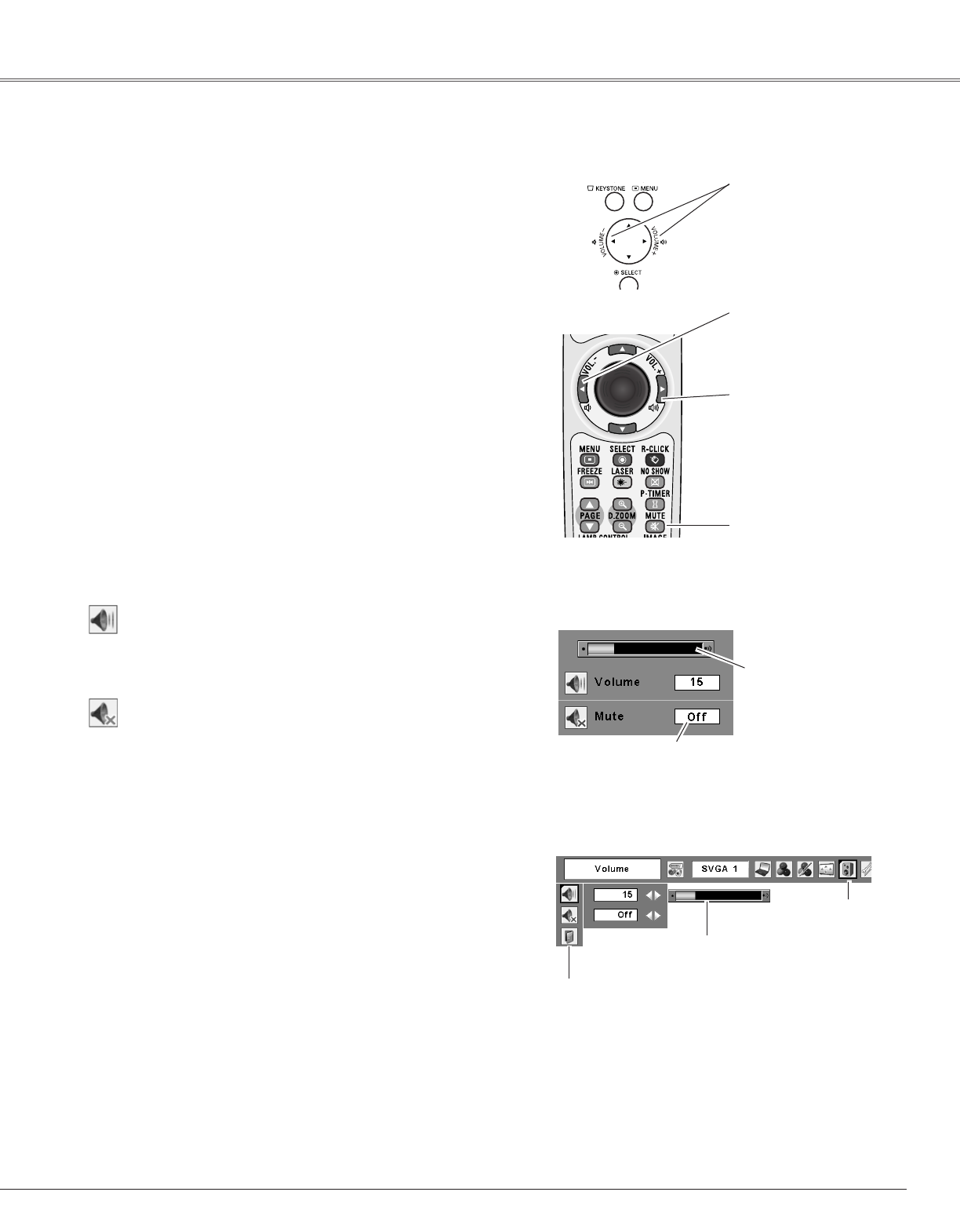

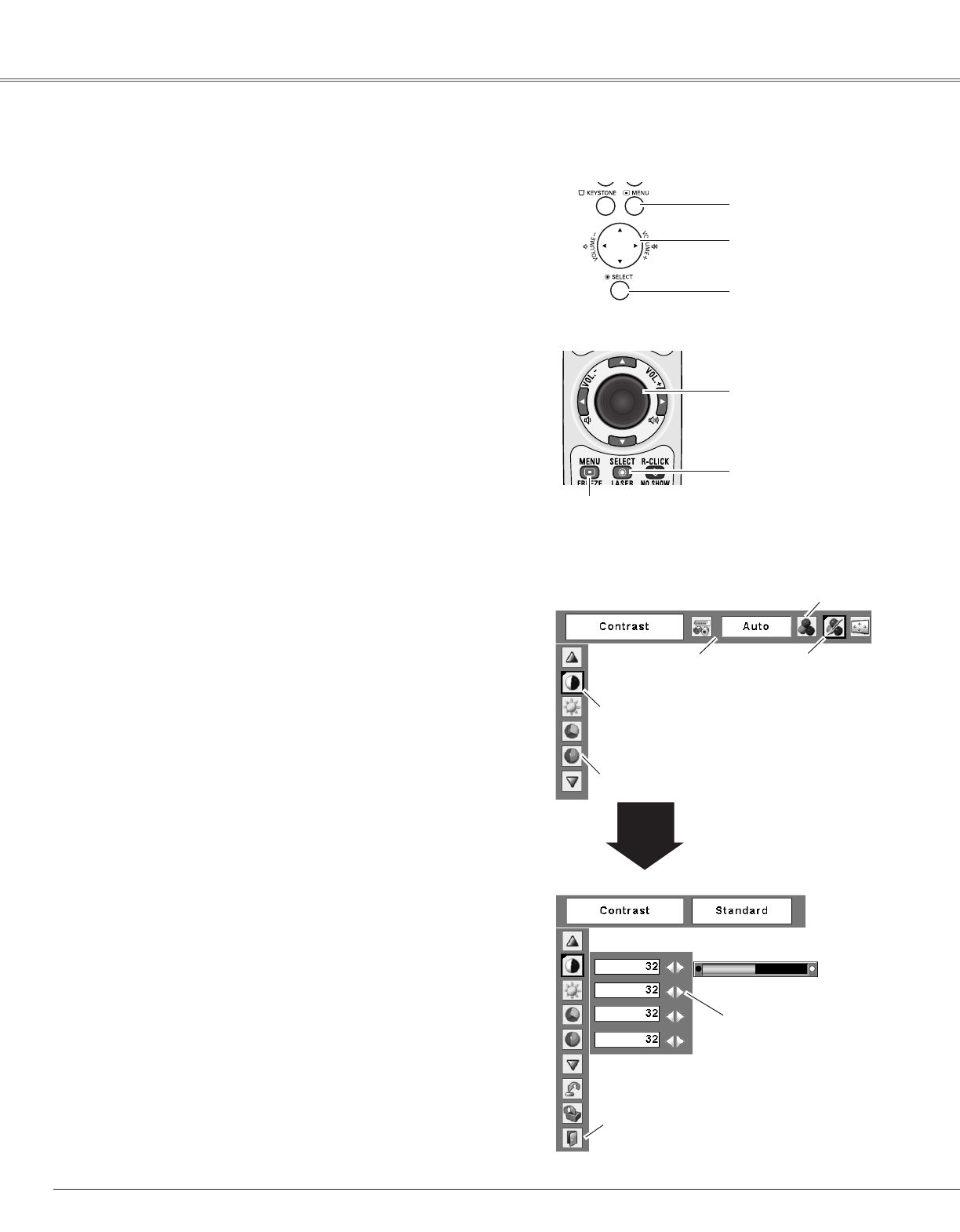

Press the MENU button on the top control or the

remote control to display the On-Screen Menu.

✔Note:

•The selected item is not active until the SELECT button is pressed.

Menu bar Pointer

(red frame)

Menu icon

Item data

Press the Point 7 8

buttons to adjust the

value.

SELECT

button

Pointer (red frame)

Press the Point ed buttons

to move the pointer.

Item

On-Screen Menu

Quit

Exit this menu.

Top Control

POINT buttons

SELECT button

MENU button

Remote Control

SELECT button

POINT buttons

MENU button

Basic Operation

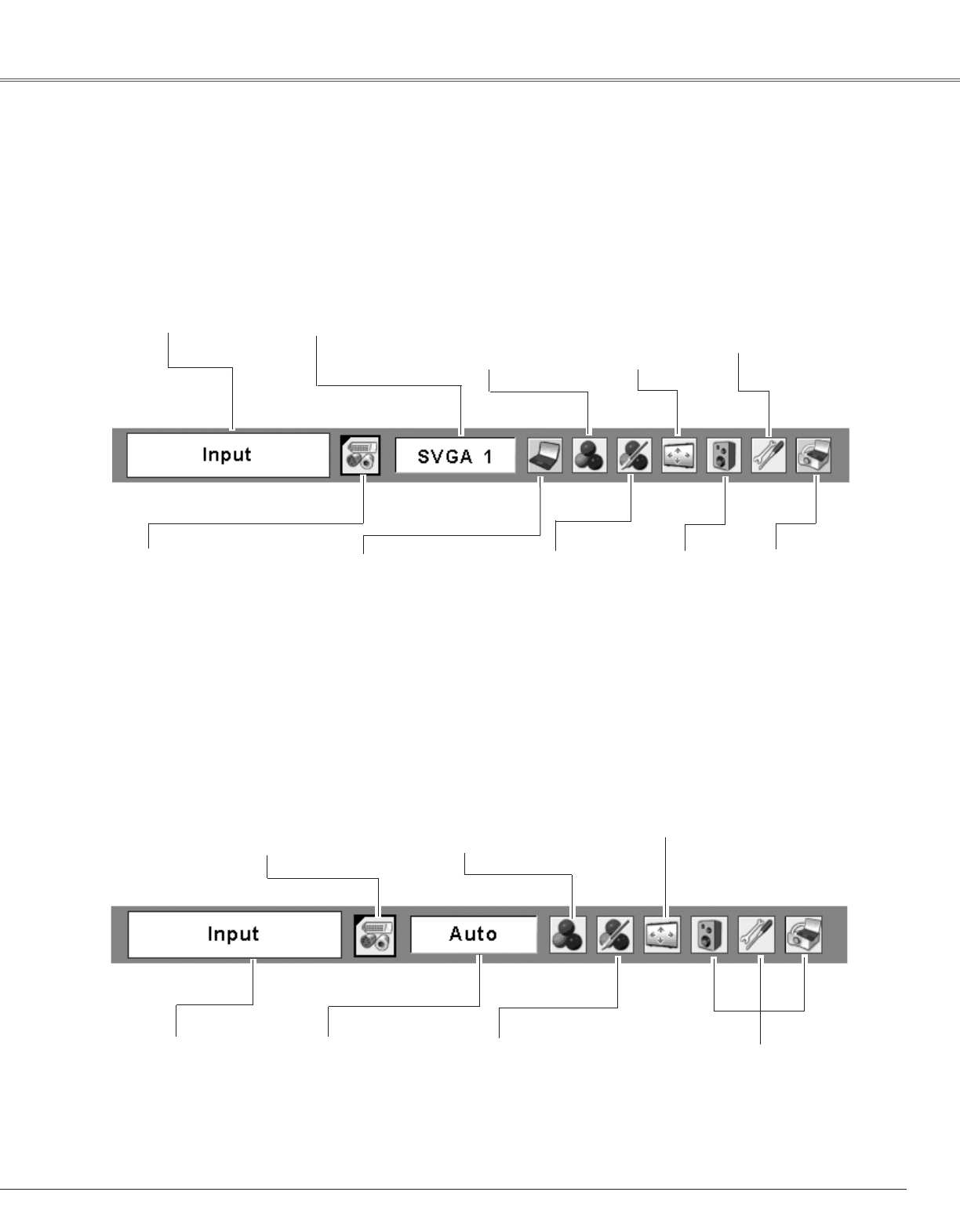

Menu Bar

PC System Menu

Used to select

computer

system (p.32).

Image Adjust Menu

Used to adjust computer

image [Contrast/Brightness/

Color temp./White balance

(R/G/B)/Sharpness/Gamma]

(pp.37–38).

Setting Menu

Used to set the

projector’s operating

configurations (pp.47-

57).

Used to adjust

the volume or

mute the sound

(p.27).

Image Select Menu

Used to select an image

mode among Dynamic,

Standard, Real,

Blackboard(Green), and

Image 1–4 (p.36).

For computer source

AV System Menu

Used to select

system of

selected video

source (p.42).

Image Adjust Menu

Used to adjust picture image

[Contrast/Brightness/Color/Tint/

Color temp./White balance

(R/G/B)/Sharpness/Gamma/

Noise reduction/Progressive]

(pp.44–45).

For video source

Same function as

computer menu.

Input Menu

Used to select an

input source either

Video or Computer

(pp.40, 41).

PC Adjust Menu

Used to adjust

parameters to match

with input signal

format (pp.33–35).

Image Select Menu

Used to select an image mode

among Dynamic, Standard,

Cinema, Blackboard(Green)

and Image 1–4 (p.43).

Screen Menu

Used to set size of

image to Normal or

Wide (p.46).

Guide Window

Show the selected

Menu of the On-

Screen Menu.

Same function as

menu for computer

source.

Input Menu

Used to select an

input source either

Computer or Video.

(pp.30–31).

Screen Menu

Used to adjust size of

the image [Normal/

True/Wide/Full

screen/Digital zoom

+/–] (pp.38–39).

For detailed functions of each menu, see “Menu Tree” on pages 69–70.

Sound Menu

See owner’s manual

“Network Setup

and Operation.”

Wired Menu

Basic Operation

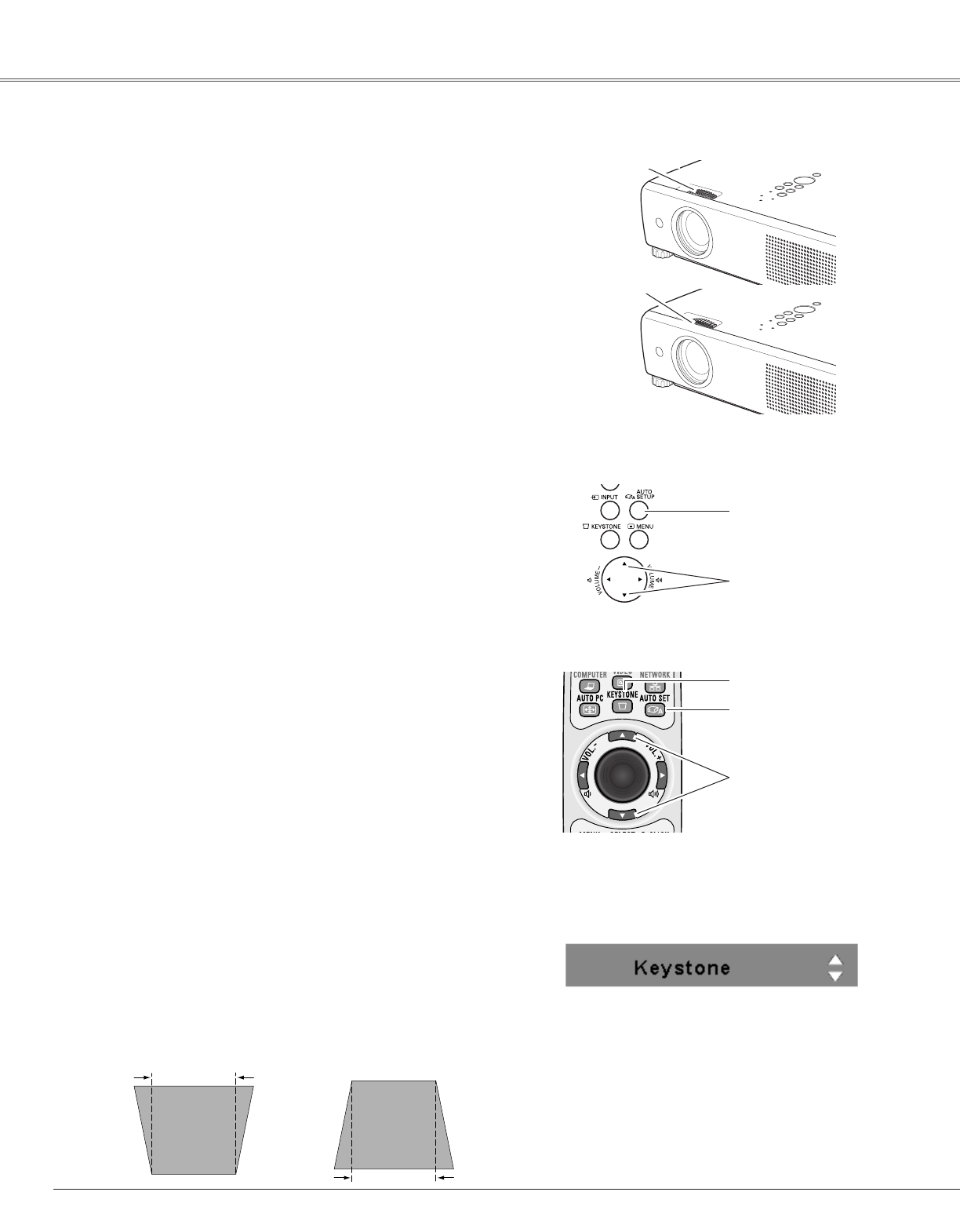

If a projected picture still has keystone distortion after

pressing the AUTO SETUP button on the top control or the

AUTO SET button on the remote control, correct the image

manually as follows:

Press the KEYSTONE button on the remote control. The

Keystone dialog box appears. Use the Point ed buttons to

correct keystone distortion. The keystone adjustment can

be stored (see page 48).

Auto setup function is provided to automatically correct

Keystone distortion according to the projector’s tilt and

adjust the computer display parameters (Fine sync, Total

dots, and Picture position) by just pressing the AUTO

SETUP button on the top control or the AUTO SET button

on the remote control. The operational setup for the Auto

setup can be changed in the Setting menu. Refer to page

47 for the setting of the Auto setup function.

✔Notes:

•Auto Keystone corrects vertical distortion only; it does not correct

horizontal distortion.

•Auto Keystone cannot work when Ceiling feature is set to “On” in

the Setting menu (p.51).

•Perfect correction of the image distortion cannot be ensured with the

Auto setup function. If the distortion cannot be corrected properly by

pressing the AUTO SETUP/AUTO SET button, adjust manually by

pressing the KEYSTONE button on the remote control or selecting

Keystone in the Setting menu (p.48).

Rotate the Zoom Ring to zoom in and out.

Rotate the Focus Ring to adjust the focus of the image.

Zoom Ring

Focus Ring

Keystone Correction

Reduce the upper width

with the Point ebutton.

Reduce the lower width

with the Point dbutton.

•The white arrows indicate that there is no

correction.

•A red arrow indicates the direction of correction.

•An arrow disappears at the maximum correction.

•If you press the KEYSTONE button on the remote

control once more while the keystone dialog box is

being displayed, the keystone adjustment will be

canceled.

Top Control

POINT ed buttons

AUTO SET UP

button

Remote Control

KEYSTONE button

POINT ed buttons

AUTO SET button

Auto Setup Function

Zoom and Focus Adjustment

Basic Operation

Sound Adjustment

Top Control

VOLUME+/- buttons

Remote Control VOL – button

MUTE button

VOL + button

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the Sound Menu icon.

Press the VOLUME+/– buttons on the top control or on the

remote control to adjust the volume. The volume dialog box

appears on the screen for a few seconds.

Press the MUTE button on the remote control to temporarily

turn off the sound. To turn the sound back on, press the

MUTE button again or press the VOLUME +/– buttons. The

Mute function is also effective for the AUDIO OUT jack.

Press the Point 7 8 buttons to switch the mute function

On/Off. When the sound is turned off, “On” is displayed.

Press the Point 7 8 buttons again to turn the sound back

on.

Use the Point ed buttons to move the red frame

pointer to the desired item, and then press the SELECT

button.

Volume

Mute

Press the Point 8button to turn up the volume; press the

Point 7button to turn down the volume.

Mute

Direct Operation

Menu Operation

Approximate level of the volume.

Exit the Sound Menu.

Approximate level

of the volume.

Press the MUTE button to set the Mute function

On or Off. The dialog box disappears after 4

seconds.

Sound Menu

Sound Menu icon

Volume Dialog Box

Basic Operation

Remote Control Operation

Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons

enables you to make the desired operation quickly without calling up the On-Screen Menu.

COMPUTER/VIDEO/

NETWORK button

Press the FREEZE button on the remote control to freeze

the picture on the screen. To cancel the Freeze function,

press the FREEZE button again or press any other button.

FREEZE button

Press the COMPUTER, VIDEO, or NETWORK button on the

remote control to select the input source. For more detail,

see pages 30–31, 40–41.

Refer to the owner’s manual “Network Set-up and

Operation” for details about the network input.

COMPUTER/VIDEO/NETWORK button

FREEZE button

Press the AUTO PC button on the remote control to operate

the Auto PC Adj. function. The computer screen adjustment

can be done easily by pressing this button. See page 33 for

details.

AUTO PC button

Press the D.ZOOM buttons on the remote control to enter

to the Digital zoom +/– mode. See page 39 for details.

D.ZOOM buttons

LAMP CONTROL button

D.ZOOM

buttons

AUTO PC

button

POINT ed buttons

LAMP

CONTROL

button

Remote Control

✔Note:

•See the next page for the description of other

buttons.

Press the LAMP CONTROL button on the remote control to

select the lamp mode for changing the brightness on the

screen.

Auto ........... The brightness according to the input

signal (between High and Eco mode).

High ........... Brighter than the Normal mode.

Normal ....... Normal brightness

Eco............. Lower brightness reduces the lamp lower

consumption and extends the lamp life.

Basic Operation

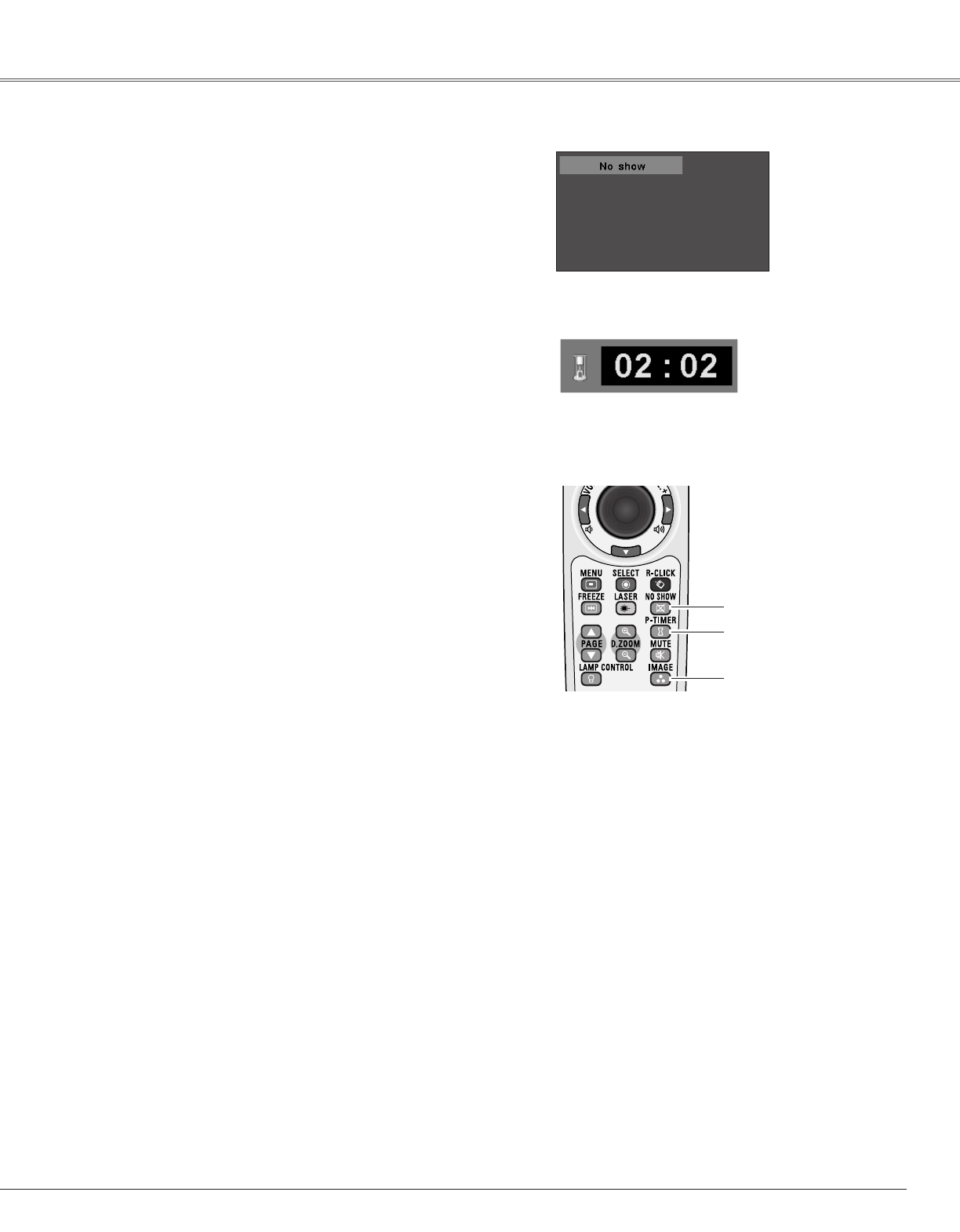

black out ➜the captured image ➜normal ➜ • • • • •

Press the NO SHOW button on the remote control to black

out the image. To restore to normal, press the NO SHOW

button again or press any other button. When a projected

image is captured and set as “User” in the Logo selection

(see page 49), the screen changes each time you press the

NO SHOW button as follows. “No show” disappears after 4 seconds.

NO SHOW button

Press the P-TIMER button on the remote control. The P-Timer

display “00:00” appears on the screen and the countdown

starts (00:00–59:59).

To stop the countdown, press the P-TIMER button. To cancel

the P-Timer function, press the P-TIMER button again.

P-TIMER button

P-Timer display

Press the IMAGE button on the remote control to select a

desired image mode of the screen. For more detail, see

pages 36, 43.

IMAGE button

Remote Control

P-TIMER button

NO SHOW button

✔Note:

•See the previous page for the description of

other buttons.

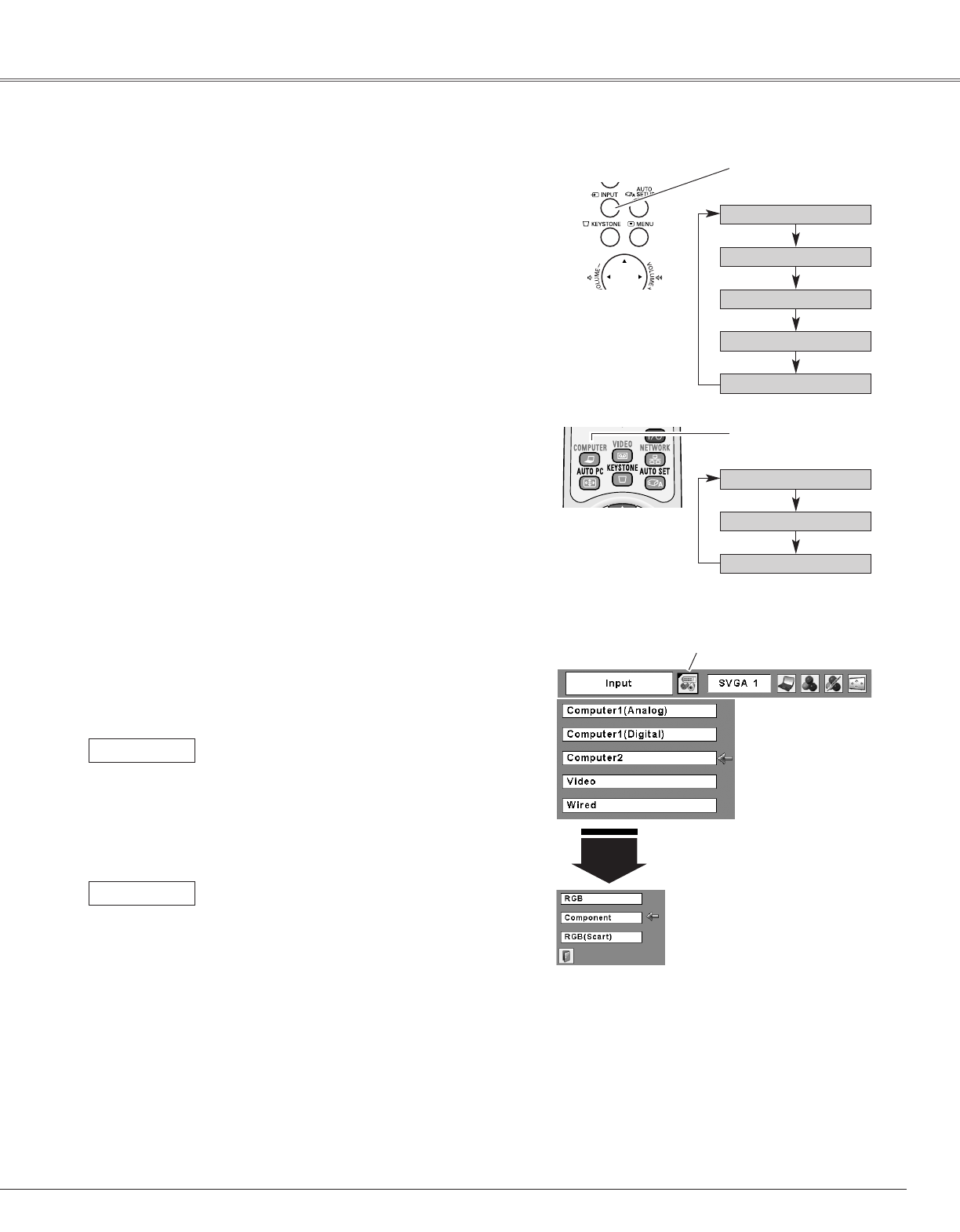

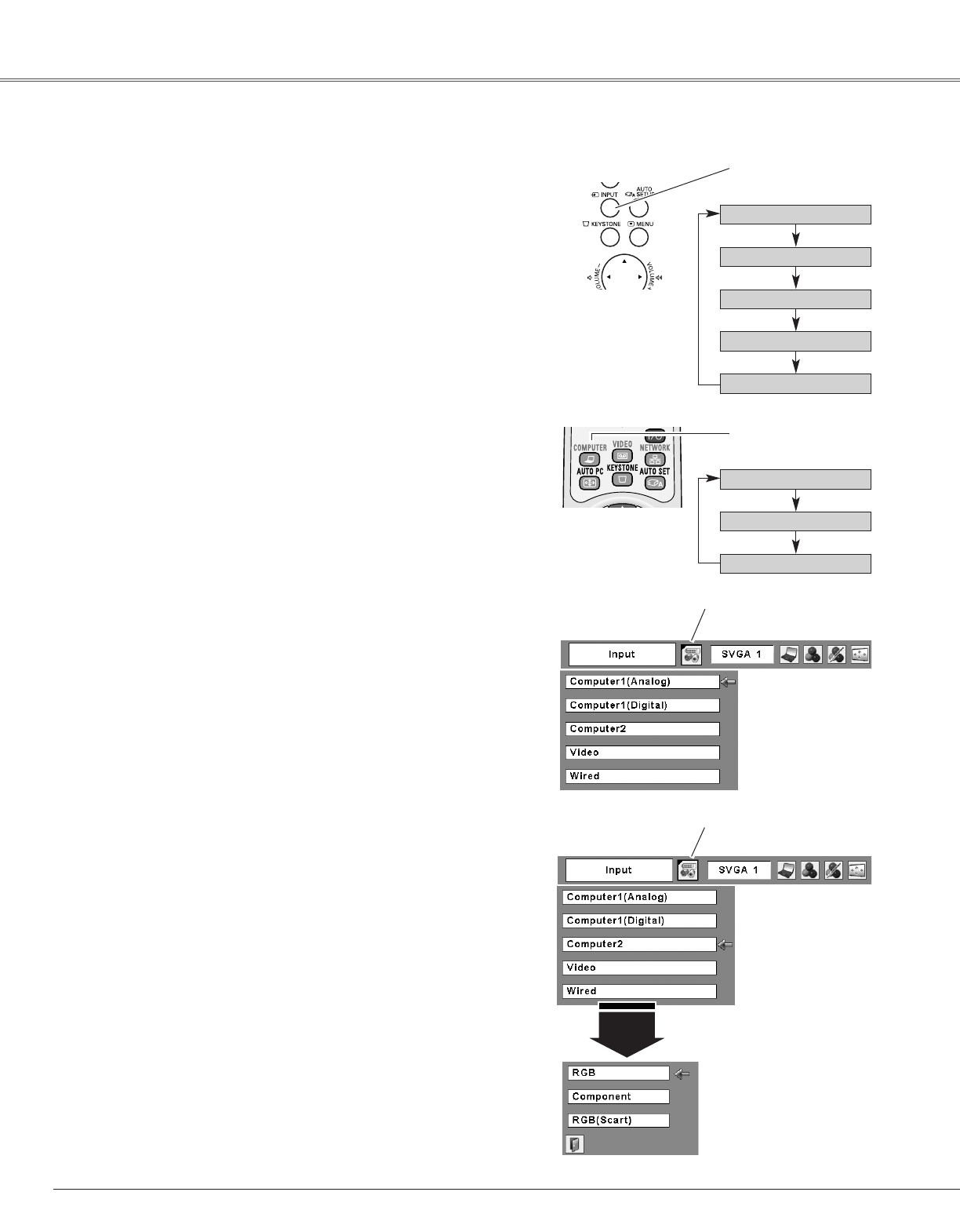

Choose either Computer 1 (Analog) or Computer 2 by

pressing the INPUT button on the top control or press the

COMPUTER button on the remote control.

Before using these buttons, correct input source should be

selected through Menu operation as described below.

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the Input Menu icon.

1Input Menu

Use the Point ed buttons to move the red arrow

pointer to either Computer 1 (Analog) or Computer 2,

and then press the SELECT button.

When selecting Computer 1 (Analog), RGB input

source will be selected directly.

When selecting Computer 2, the Source Select Menu

appears. Move the pointer to RGB and then press the

SELECT button.

Computer 1 (Analog)

Video

Computer 2

Input Source Selection (RGB: Computer 1 (Analog)/Computer 2 )

Computer Input

Move the pointer (red

arrow) to Computer 1

(Analog) and press the

SELECT button.

Input Menu icon

COMPUTER button

✔Notes:

•Computer 2 (COMPUTER IN 2/COMPONENT IN) can accept only

RGB signal.

•Wired, Wireless, and Memory viewer are for the Network function.

See owner’s manual “Network Set-up and Operation” and owner’s

manual of Memory viewer (optionally available).

•When the Input Search function is set to “On1” or “On2”, the

input signal will be searched automatically (p.51).

Move the pointer

(red arrow) to RGB.

Move the pointer (red

arrow) to Computer 2

and press the SELECT

button.

Input Menu icon

Computer

Wired

Top Control INPUT button

Computer 1 (Digital)

Remote Control

Computer 1 (Analog)

Computer 2

Computer 1 (Digital)

Direct Operation

Menu Operation

Input Menu

Computer Input

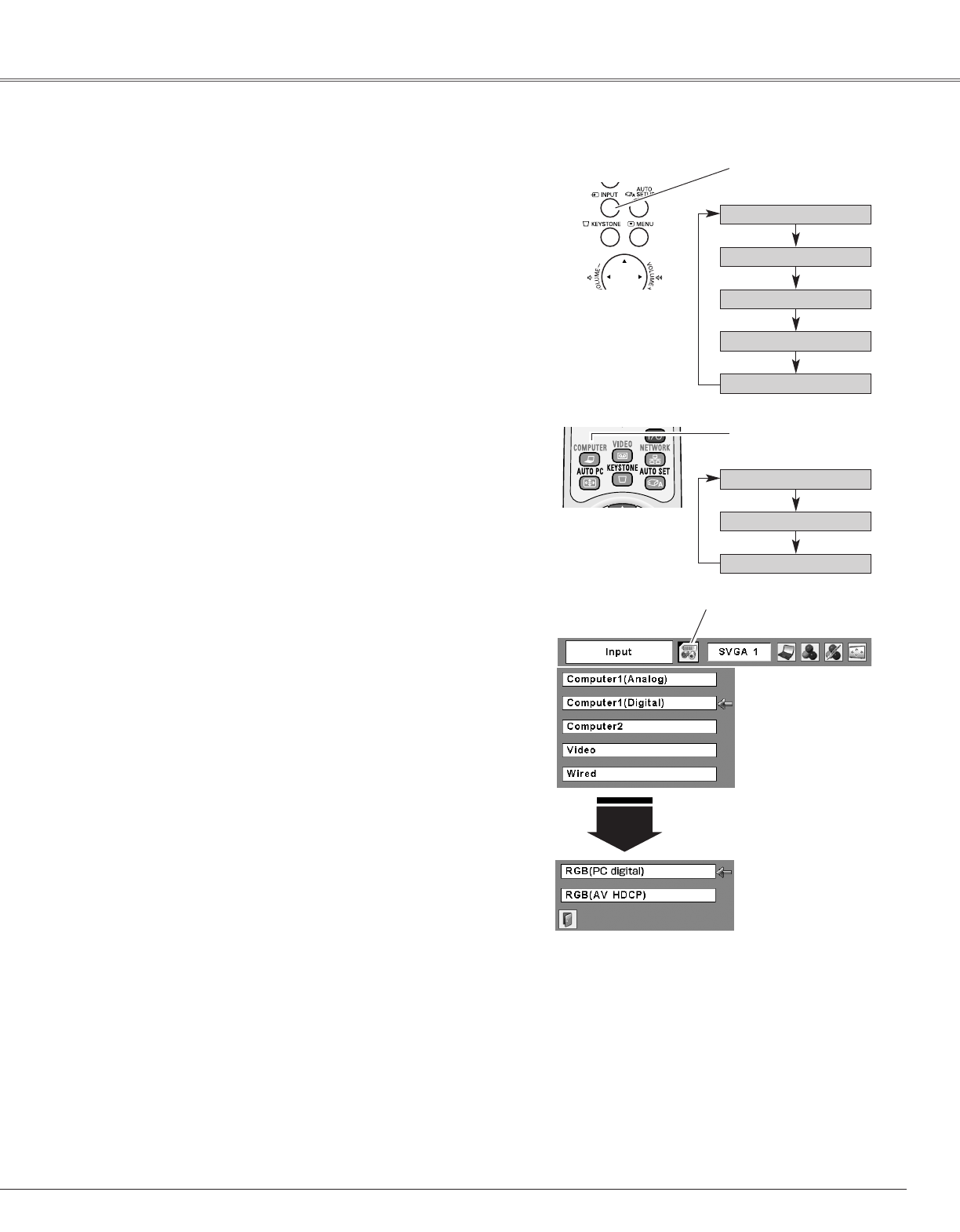

Choose Computer 1(Digital) by pressing the INPUT button

on the top control or press the COMPUTER button on the

remote control.

Before using these buttons, correct input source should be

selected through Menu operation as described below.

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the Input Menu icon.

1Input Menu

Use the Point ed buttons to move the red arrow

pointer to Computer 1 (Digital), and then press the

SELECT button.

After the Source Select Menu appeared for Computer

1 (Digital), move the pointer to RGB (PC digital) or RGB

(AV HDCP), and then press the SELECT button.

Input Source Selection (RGB (PC digital), RGB (AV HDCP))

Move the pointer

(red arrow) to

Computer 1 (Digital)

and press the

SELECT button.

Input Menu icon

✔Notes:

•Computer 2 (COMPUTER IN 2/COMPONENT IN) can accept only

RGB signal.

•HDCP (High-bandwidth Digital Content Protection) is a system for

protecting digital entertainment content delivered by DVI (Digital

Visual Interface) from being copied. The specification of HDCP is

decided and controlled by Digital Content Protection, LLC. Should

the specification be changed, this projector may not display the

digital content protected by HDCP.

•Wired, Wireless, Memory viewer are for the Network function.

See owner’s manual “Network and Set-up Operation” and owner’s

manual of Memory viewer (optionally available).

•When the Input Search function is set to “On1” or “On2”, the

input signal will be searched automatically (p.51).

Move the pointer to

the source that you

want to select and

press the SELECT

button.

Computer

Computer 1 (Analog)

Video

Computer 2

COMPUTER button

Wired

Top Control INPUT button

Computer 1 (Digital)

Remote Control

Computer 1 (Analog)

Computer 2

Computer 1 (Digital)

Direct Operation

Menu Operation

Computer Input

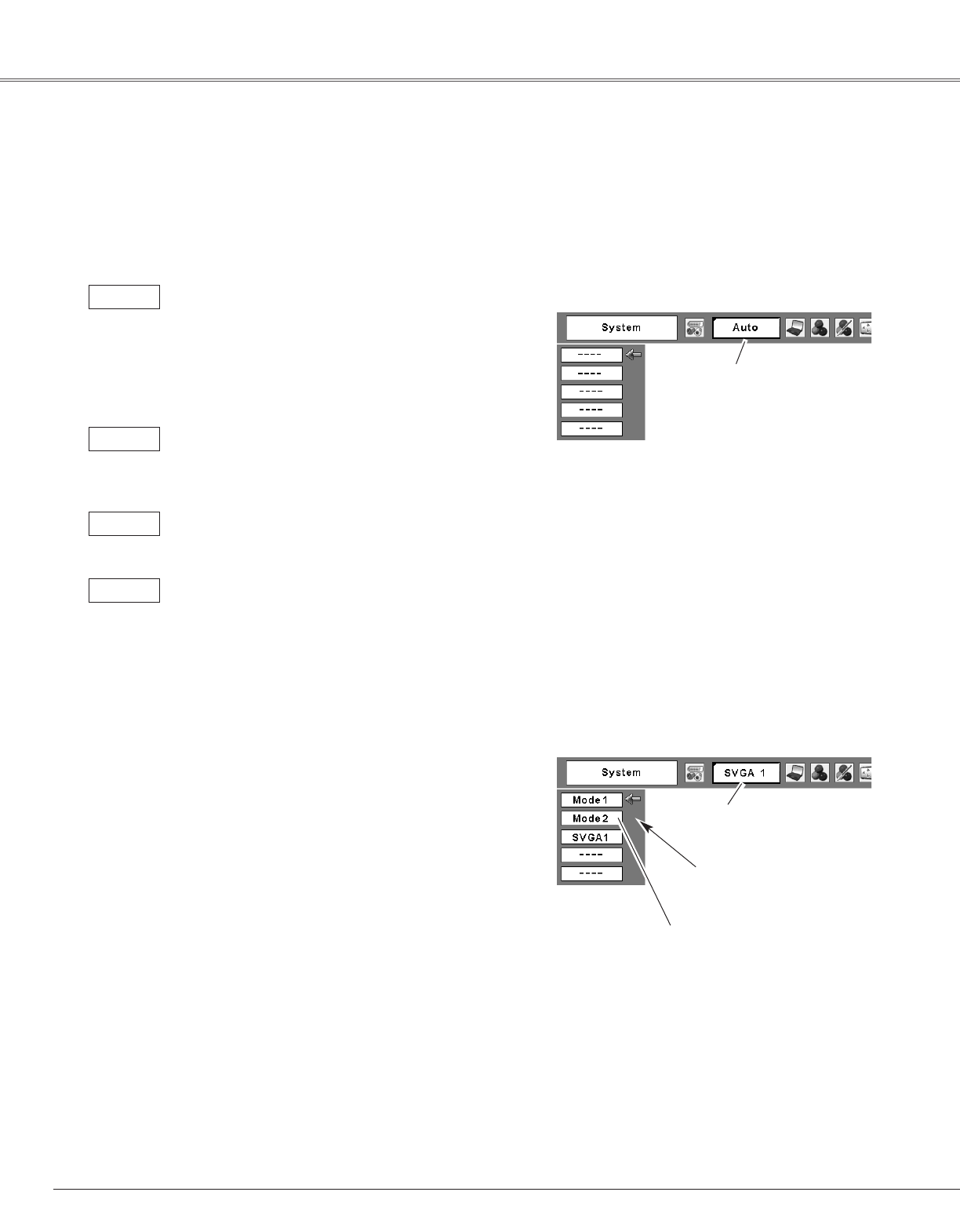

The Auto PC Adjustment

function operates to adjust

the projector.

PC System Menu

The PC System Menu icon

Selected system is

displayed.

Systems in this dialog box

can be selected.

PC System Menu

Customized Mode (1–5) set in

the PC Adjust Menu (pp.34–35).

Computer System Selection

This projector automatically tunes to various types of computers based on VGA, SVGA, XGA, SXGA, WXGA, or

UXGA with its Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, this

projector automatically detects the signal format and tunes to project a proper image without any additional

settings. (Signal formats provided in this projector are shown on pages 72–73.)

One of the following messages may appear when:

The projector cannot recognize the connected

signal conforming to the provided PC Systems.

The “Auto” is displayed on the System Menu

box and the Auto PC Adjustment function works

to display proper images. If the image is not

projected properly, a manual adjustment is

required (pp.34–35).

There is no signal input from the computer.

Check the connection between your computer

and the projector. (See “Troubleshooting” on

page 67.)

Auto

-----

The preset system is manually adjusted in the

PC Adjust Menu. The adjusted data can be

stored in Mode 1–5 (pp.34–35).

Mode 1

PC Systems provided in this projector is chosen.

The projector chooses a proper system provided

in the projector and displays it.

SVGA 1

*Mode 1 and SVGA 1 are examples.

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the PC System Menu icon.

Use the Point ed buttons to move the red arrow

pointer to the desired system and then press the

SELECT button.

PC system can also be selected manually.

Selecting Computer System Manually

Computer Input

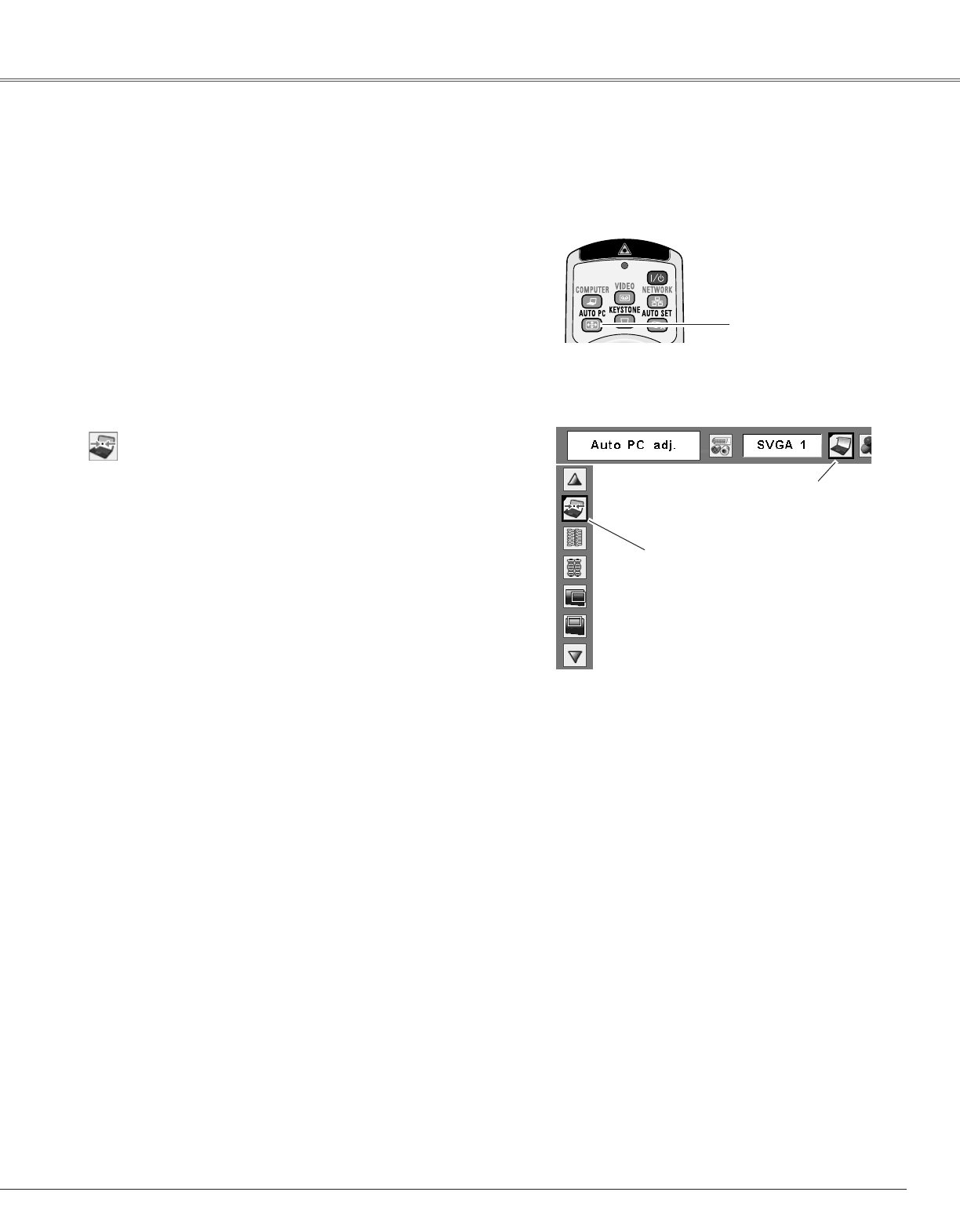

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical

positions to conform to your computer.

Move the red frame pointer

to Auto PC Adj. and press

the SELECT button.

“Please wait...” appears

while the Auto PC

adjustment is in process.

PC Adjust Menu

PC Adjust Menu icon

Auto PC Adjustment

Remote Control

AUTO PC button

The Auto PC adjustment function can be operated directly

by pressing the AUTO PC button on the remote control.

Direct Operation

To store adjustment parameters

The adjusted parameters from the Auto PC Adjustment can

be stored in the projector. Once the parameters are stored,

the setting can be done just by selecting a Mode (1–5) in

the PC System Menu (see page 32). See also “Store” on

page 35.

✔Notes:

•Fine sync, Total dots, Horizontal and Vertical position of some

computers cannot be fully adjusted with the Auto PC Adjustment

function. When the image is not provided properly with this

operation, manual adjustments are required (pp.34–35).

•The Auto PC Adjustment cannot be operated when 480i, 575i,

480p, 575p, 720p,1035i, or 1080i is selected in the PC System

Menu (p.32), or when the signal is coming from the DVI-terminal.

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the PC Adjust Menu icon.

2Use the Point ed buttons to move the red frame

pointer to Auto PC Adj. and then press the SELECT

button twice.

Auto PC Adj.

Menu Operation

Computer Input

PC Adjust Menu

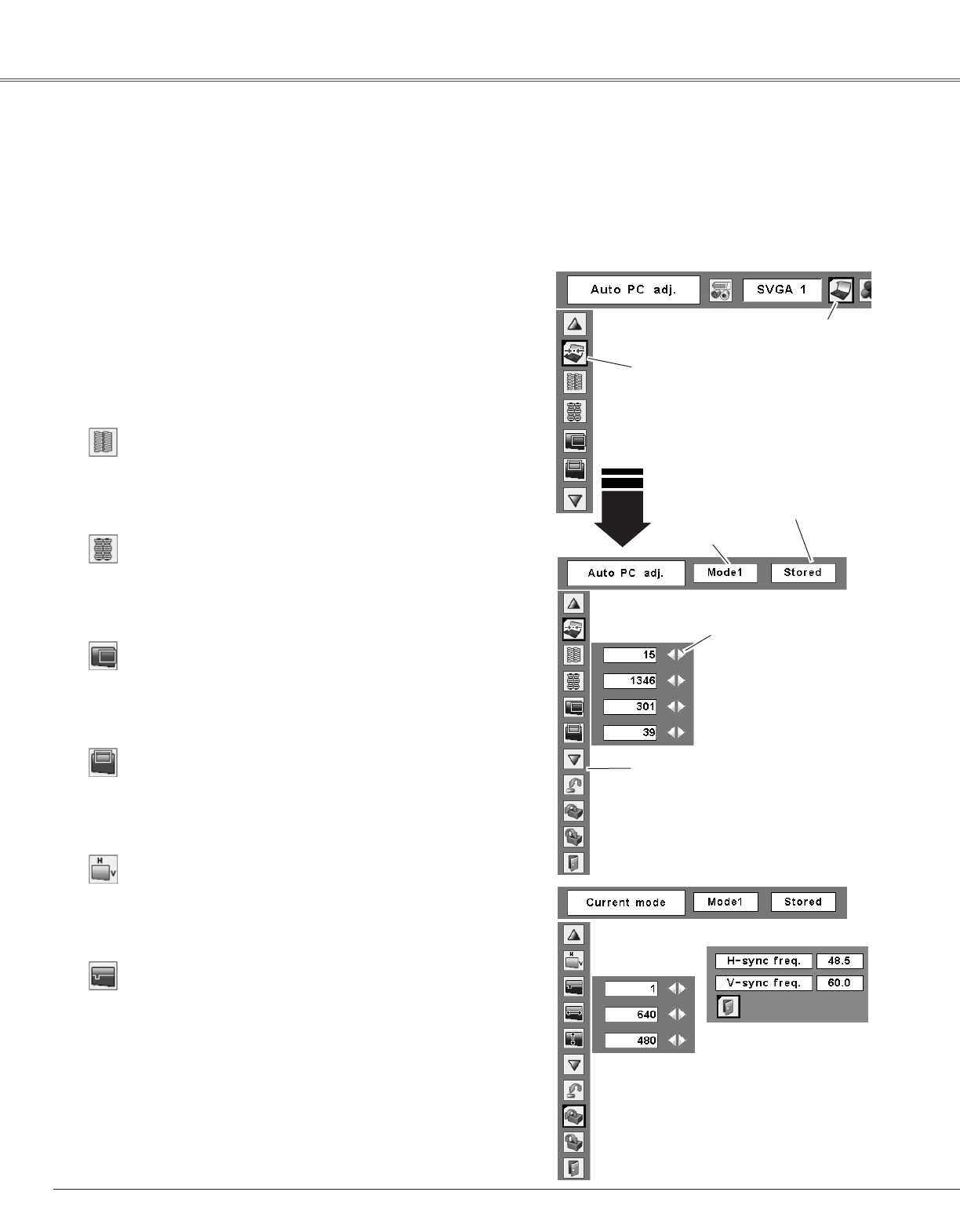

Manual PC Adjustment

Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector.

Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The

projector has five independent memory areas to store those parameters manually adjusted. It allows you to

recall the setting for a specific computer.

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the PC Adjust Menu icon.

2Use the Point ed buttons to move the red frame

pointer to the desired item and then press the SELECT

button to display the adjustment dialog box. Use the

Point 7 8 buttons to adjust the setting value. Move the red frame pointer

to the desired item and

press the SELECT button.

PC Adjust Menu icon

Press the SELECT button

here to adjust other items.

Use the Point 7 8 buttons

to adjust the value.

Status (Stored/Free) of the

selected Mode.

Selected Mode

Press the SELECT button at

Current mode to show the

information of the connected

computer.

Use the Point 7 8 buttons to adjust the value, eliminating a

flicker from the image displayed (from 0 to 31).

Fine sync

Use the Point 7 8 buttons to adjust the number of total

dots in one horizontal period to match your PC image.

Total dots

Use the Point 7 8 buttons to adjust the horizontal picture

position.

Horizontal

Use the Point 7 8 buttons to adjust the vertical picture

position.

Vertical

Press the SELECT button to show H-sync freq. and V-sync

freq. of the connected computer.

Current mode

Use the Point 7 8 buttons to adjust the clamp level. When

the image has dark bars, try this adjustment.

Clamp

Computer Input

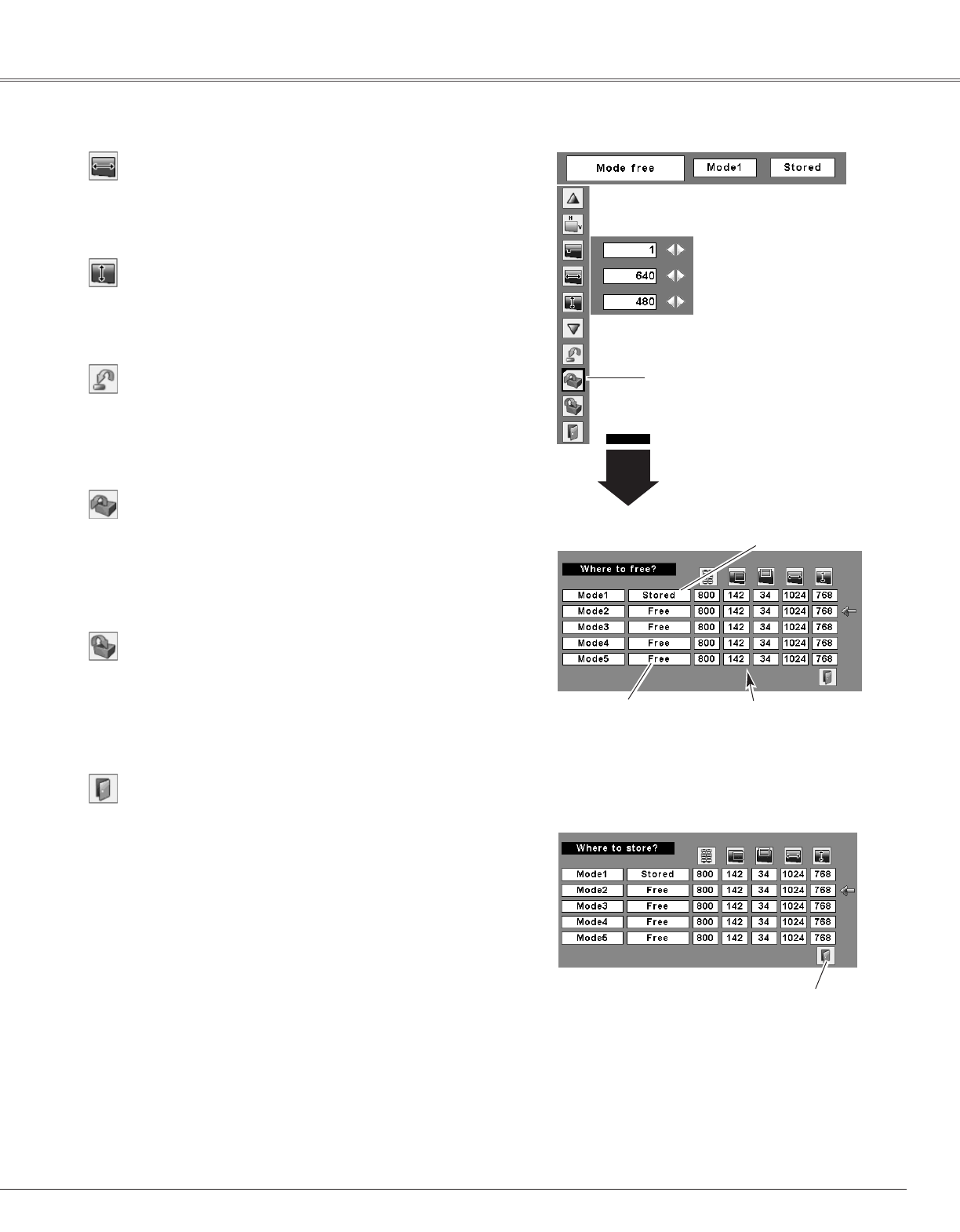

Vacant Values of “Total dots,”

“Horizontal,” “Vertical,”

“Display area H,” and

“Display area V.”

Close this dialog box.

To store adjusted data

To clear adjusted data This Mode has stored

parameters.

Move the red frame pointer

to the desired item and

press the SELECT button.

Use the Point 7 8 buttons to adjust the horizontal area

displayed by this projector.

Display area H

Use the Point 7 8 buttons to adjust the vertical area

displayed by this projector.

Display area V

Reset

Store

Exit the PC Adjust Menu.

Quit

To store the adjusted data, select Store and then press the

SELECT button. Move the red arrow pointer to one of the

Modes 1 to 5 in which you want to store, and then press

the SELECT button.

To reset the adjusted data, select Reset and press the

SELECT button. A confirmation box appears and then select

[Yes]. All adjustments will return to their previous figures.

Mode free

To clear the stored data, select Mode free and then press

the SELECT button. Move the red arrow pointer to the

Mode that you want to clear and then press the SELECT

button.

✔Notes:

•Display area (H/V) cannot be selected when 480i, 575i, 480p,

575p, 720p, 1035i, or 1080i is selected in the PC System Menu

(p.32).

•PC Adjust Menu cannot be selected when Computer 1(Digital) is

selected in the Input Menu (p.31).

Computer Input

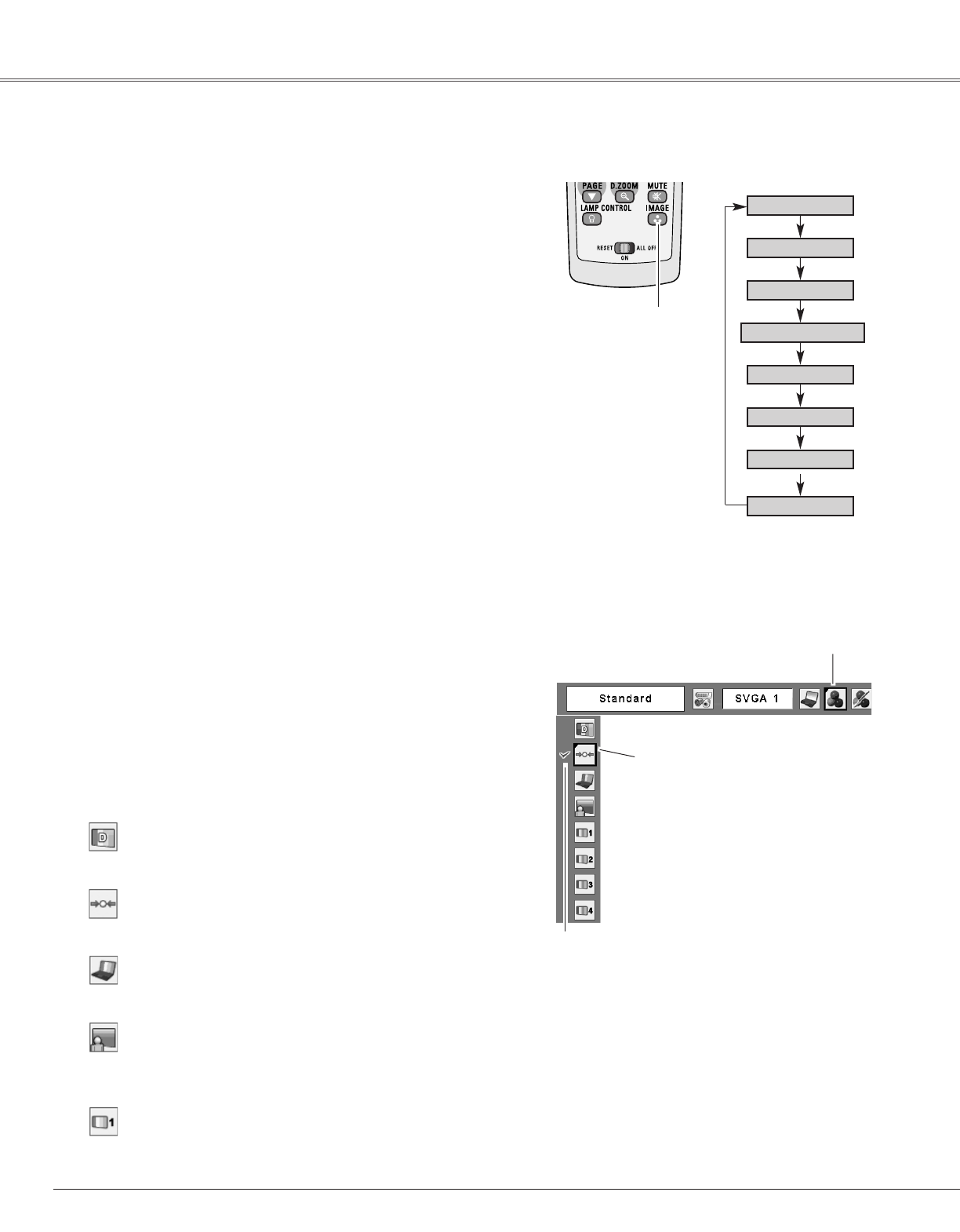

Move the red frame pointer to

the desired image mode and

press the SELECT button.

The selected image mode is check marked.

Image Select Menu

Normal picture mode preset on the projector.

Standard

Picture mode with improved halftone for graphics.

Real

For the image projected on a blackboard. See above for

further description.

Blackboard(Green)

Image Select Menu icon

IMAGE button

Dynamic

Real

Image 1

Image 2

Image 3

Image Mode Selection

Image 4

For viewing with the user preset image mode in the Image

Adjust Menu (see page 37–38).

Image 1~4

Blackboard(Green)

For viewing pictures in a bright room.

Dynamic

Standard

Remote Control

IMAGE button

Select the desired image mode from among Dynamic,

Standard, Real, Blackboard (Green), Image 1, Image 2,

Image 3, and Image 4 by pressing the IMAGE button on the

remote control.

Standard

Picture mode with improved halftone for graphics.

Real

Blackboard (Green)

Image 1–4

For the image projected on a blackboard.

This mode help enhance the image projected on a blackboard.

This is mainly effective on a green colored board, not truly

effective on a black colored board.

Dynamic

Direct Operation

For viewing pictures in a bright room.

Normal picture mode preset on the projector.

For viewing with the user preset image mode in the Image

Adjust Menu (see page 37–38). This Image memory is

provided in each computer, component, and video input

source.

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the Image Select Menu icon.

2Use the Point ed buttons to move the red frame

pointer to the desired image mode and then press the

SELECT button.

Menu Operation

Computer Input

Use the Point 7 8 buttons

to adjust the setting value.

Move the red frame

pointer to the desired

item and then press

the SELECT button.

Image Adjust Menu

Image Adjust Menu icon

Selected Image mode

Image Adjustment

Reset

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the Image Adjust Menu icon.

2Use the Point ed buttons to move the red frame

pointer to the desired item and then press the SELECT

button to display the adjustment dialog box. Use the

Point 7 8 buttons to adjust the setting value.

✔Note:

•When the White balance Red, Green, or Blue is

adjusted, the Color temp. level will change to “Adj.”.

Press the Point 7button to decrease the contrast; press

the Point 8button to increase the contrast (from 0 to 63).

Press the Point 7button to decrease the brightness; press

the Point 8button to increase the brightness (from 0 to 63).

Contrast

Brightness

Press the Point 7button to lighten red tone; press the

Point 8button to deepen red tone (from 0 to 63).

White balance (Red)

Press the Point 7button to lighten green tone; press the

Point 8button to deepen green tone (from 0 to 63).

White balance (Green)

Press the Point 7button to lighten blue tone; press the

Point 8button to deepen blue tone (from 0 to 63).

White balance (Blue)

Use the Point 7 8 buttons to select the desired Color temp.

level (High, Mid, Low, or XLow).

Color temp.

Use the Point 7 8 buttons to adjust the gamma value to

obtain a better balance of contrast (from 0 to 15).

Gamma

Press the Point 7button to decrease the sharpness of the

image; press the Point 8button to increase the sharpness

of the image (from 0 to 15).

Sharpness

To reset the adjusted data, select Reset and press the

SELECT button. A confirmation box appears and then select

[Yes]. All adjustments will return to their previous figures.

Computer Input

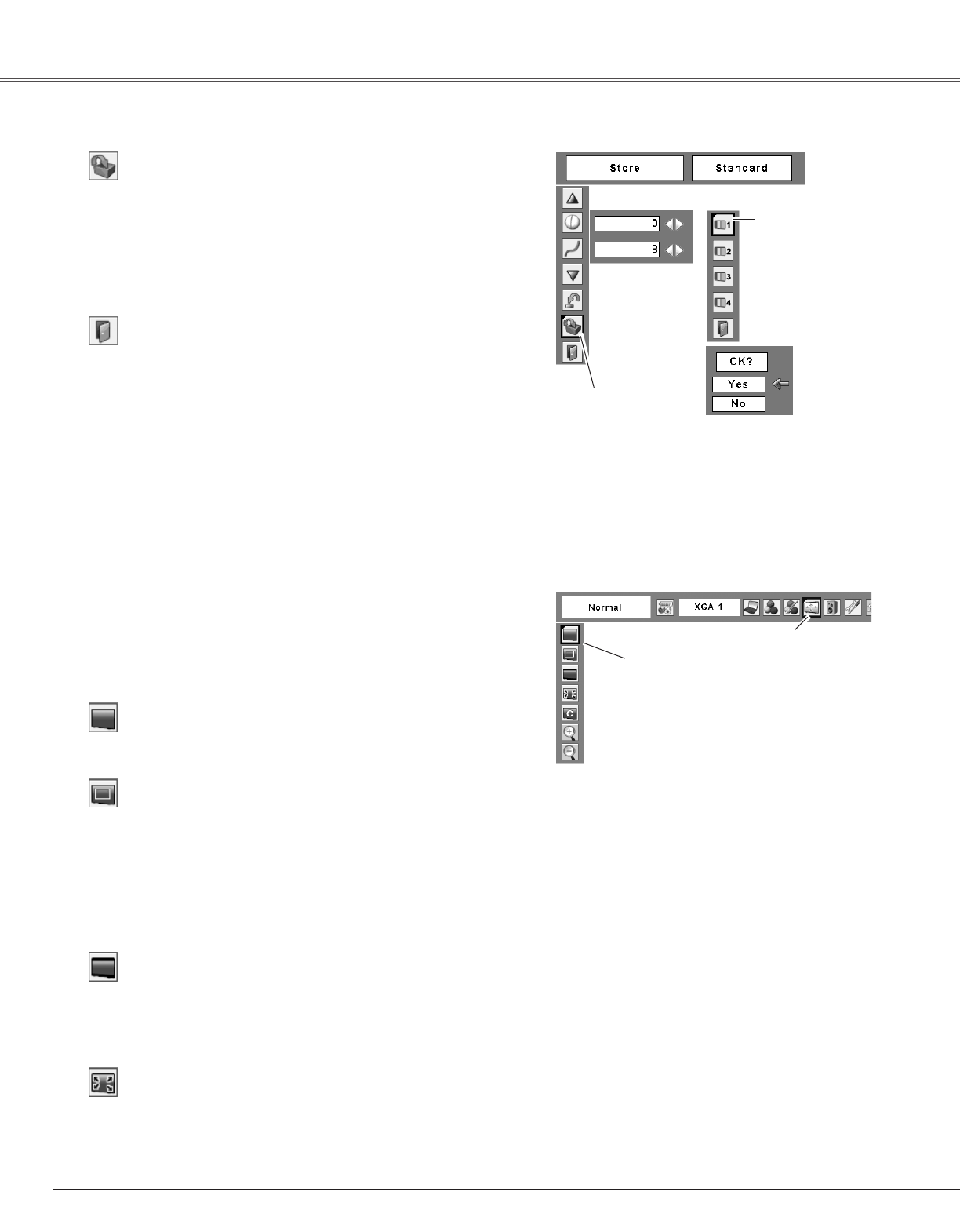

Store

Exit the Image Adjust Menu.

Quit

Store icon

This projector has the picture screen resize function, which enables you to customize the image size.

Move the red frame

pointer to the function

and press the SELECT

button.

Screen Menu

Screen Menu icon

Screen Size Adjustment

Wide

Provide the image to fit the screen size.

Normal

True

Provide the image in its original size. When the original

image size is larger than the screen size (1024 x 768), the

projector enters to the panning mode automatically. Use the

Point ed7 8 buttons to pan the image. When adjusted,

the arrows will turn red. When reached to the correction

limits, the arrows will disappear.

Provide the image to fit the wide video aspect ratio (16:9)

by expanding the image width uniformly. This function can

be used for providing a squeezed video signal at 16:9.

Full screen

Provide the full screen image.

✔Notes:

•This Screen Menu cannot be operated when

720p(HDTV), 1035i (HDTV), or 1080i (HDTV)

is selected in the PC System Menu (p.32).

•This projector cannot display any resolution

higher than 1600 x 1200. If your computer’s

screen resolution is higher than it, reset the

resolution to the lower before connecting to the

projector.

•The image data in other than 1024 x 768 is

modified to fit the screen size in initial mode.

•True, Full screen, and Digital zoom +/– cannot

be selected when 480i, 575i, 480p, or 575p is

selected in the PC System Menu (p.32).

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the Screen Menu icon.

Use the Point ed buttons to move the red frame

pointer to the desired function and then press the

SELECT button.

To store the adjusted data, select Store and press the

SELECT button. Use the Point ed buttons to select one

from Image 1 to 4 and press the SELECT button. A

confirmation box appears and then select [Yes]. Stored data

can be called up by selecting an “Image (1–4)” in the Image

Mode Selection on page 36.

Image Mode Menu

Move the red frame

pointer to an image

item to be set and

then press the

SELECT button.

A confirmation

box appears

and then select

[Yes]

Computer Input

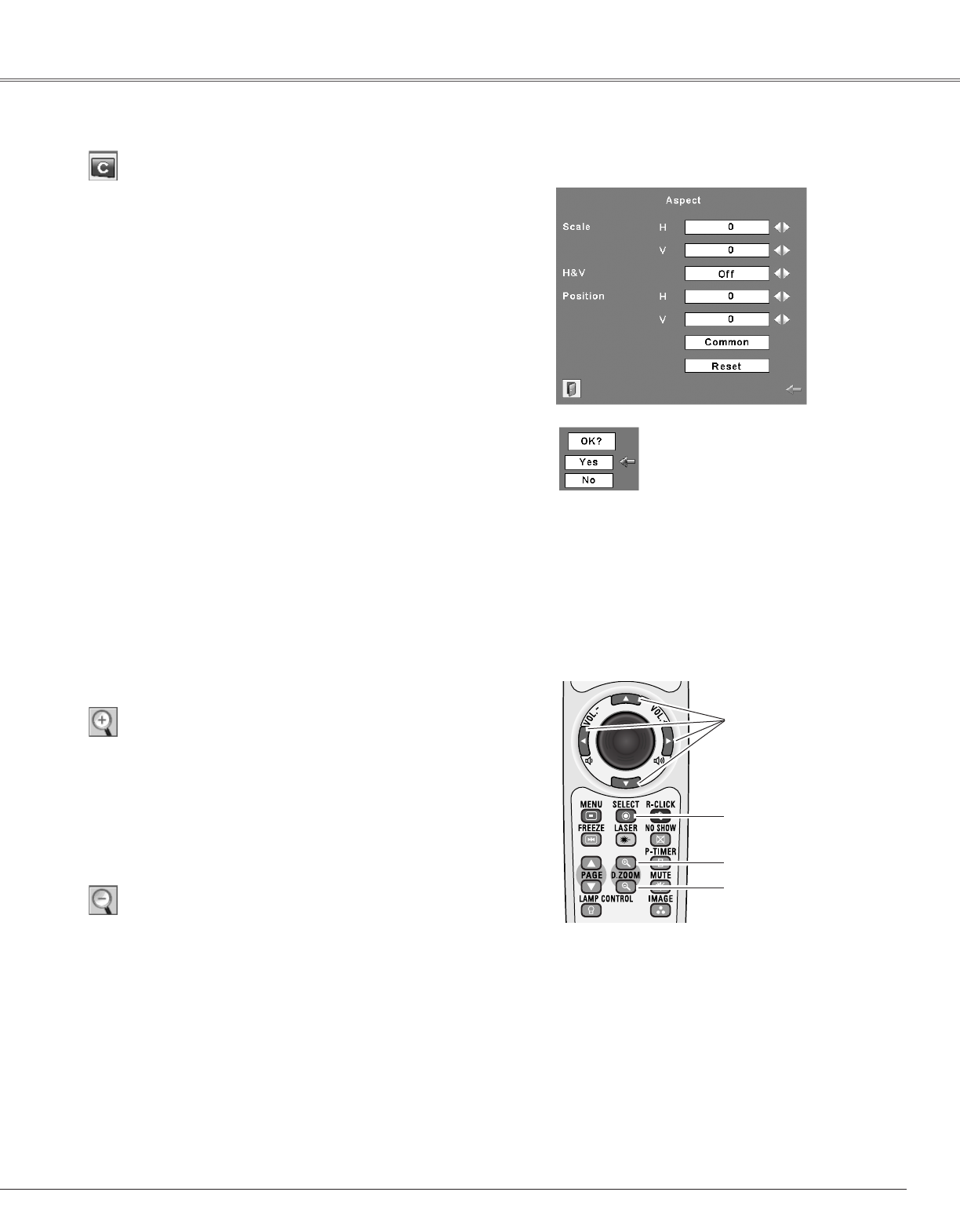

Select Digital zoom +. The On-Screen Menu disappears and

“D. zoom +” appears. Press the SELECT button to expand

the image size. Use the Point ed7 8 buttons to pan the

image. The Panning function can work only when the image

is larger than the screen size.

A projected image can be also expanded by pressing the

D.ZOOM ebutton on the remote control.

To exit the Digital zoom +/– mode, press any button except

the D.ZOOM ed buttons, SELECT, and Point buttons.

Digital zoom +

Select Digital zoom –. The On-Screen Menu disappears and

“D. zoom –” appears. Press the SELECT button to compress

image size.

The projected image can be also compressed by pressing the

D.ZOOM d button on the remote control.

Digital zoom –

To return to the previous screen size, select a screen size

from the Screen Size Adjustment Menu or select an input

source from the Input Source Selection Menu (see pages

30–31) again, or adjust the screen size with the D.ZOOM

ed buttons.

For zooming in and out the images

✔Notes:

•The panning function may not operate properly if

the stored Mode in the PC Adjust Menu is used

(p.35).

•Minimum compression ratio can be limited

depending on the input signal or when the

Keystone function is working.

• True, Full screen, and Digital zoom +/– cannot

be selected when 480i, 575i, 480p, or 575p is

selected in the PC System Menu (p.32).

•Digital zoom +/- cannot be selected when Full

screen or True is selected.

D.ZOOM + button

Remote Control

SELECT button

POINT buttons

D.ZOOM – button

Adjust the screen scale and position manually with this

function.

Press the SELECT button at Custom and the “Custom” is

displayed on the screen for a few seconds and then the

Aspect dialog box appears.

Scale H/V............ Adjust the Horizontal/Vertical screen scale.

H&V.................... When set to “On,” the aspect ratio is

fixed. The “Scale V” appears dimmed and

becomes unavailable. Adjust “Scale H,”

then the screen scale is automatically

modified based on the aspect ratio.

Position H/V ....... Adjust the Horizontal/Vertical screen

position.

Common ............ Save the adjusted scale. Press the

SELECT button at Common to display a

confirmation box. To save the scale, press

the SELECT button at “Yes.” When

Custom is selected, the saved scale is

used.

Reset.................. Reset the Common data. Press the

SELECT button at Reset to display a

confirmation box. To reset, press the

SELECT button at “Yes.”

Custom

✔Notes:

•When no signal is detected, “Normal” is set

automatically and the Aspect dialog box disappears.

•The adjustable range for Scale H/V and Position H/V

is limited depending on the input signal.

Press the SELECT button at

Common or Reset, to display a

confirmation box.

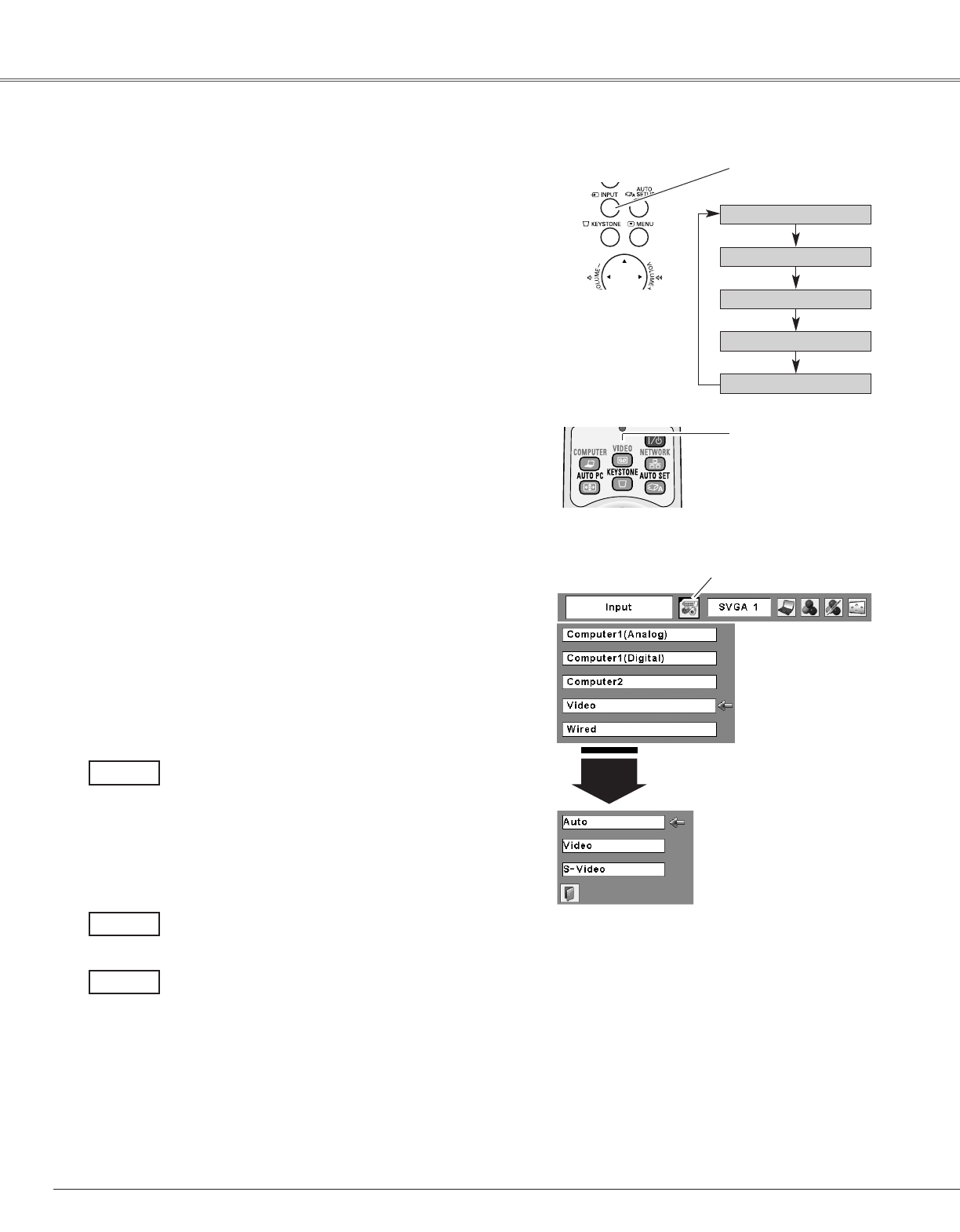

Choose Video by pressing the INPUT button on the top

control or the VIDEO button on the remote control.

Before using these buttons, correct input source should be

selected through menu operation as described below.

Use the Point ed buttons to move the red arrow

pointer to Video and then press the SELECT button to

display the Source Select Menu.

Move the pointer to

Video and press the

SELECT button.

VIDEO

Move the pointer to the source

that you want to select and

press the SELECT button.

Source Select Menu (VIDEO)

Input Menu

Move the pointer to the desired source and then press

the SELECT button.

When selecting Auto, the projector automatically

detects incoming video signal, and adjusts itself

to optimize its performance. The projector selects

connection in the following order:

1. S-video

2. Video

Auto

When video input signal is connected to the

VIDEO jack, select Video.

Video

When video input signal is connected to the S-

VIDEO jack, select S-video.

S-video

Input Source Selection (Video, S-video)

✔Notes:

•Wired, Wireless, and Memory viewer are for the Network function.

See the owner’s manual “Network Set-up and Operation” and

owner’s manual of Memory viewer (optionally available).

•When the Input Search function is set to “On1” or “On2”, the

input signal will be searched automatically (p.51).

Input Menu icon

Video Input

Computer 1 (Analog)

Video

Computer 2

INPUT button

VIDEO button

Wired

Top Control INPUT button

Computer 1 (Digital)

Remote Control

Direct Operation

Menu Operation

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the Input Menu icon.

Video Input

Choose Computer 2 by pressing the INPUT button on the

top control or press the COMPUTER button on the remote

control.

Before using these buttons, correct input source should be

selected through Menu operation as described below.

Computer

Input Menu

Use the Point ed buttons to move the red arrow

pointer to Computer 2 and then press the SELECT

button.

After the Source Select Menu appeared for Computer

2, move the pointer to Component or RGB(Scart) and

then press the SELECT button.

Input Source Selection (Component, RGB Scart 21-pin)

Move the pointer (red

arrow) to Computer 2

and press the SELECT

button.

Input Menu icon

Move the pointer to

Component or RGB(Scart)

and press the SELECT

button.

Source Select Menu

When the input source is coming from video

equipment connected to the COMPUTER IN

2/COMPONENT IN terminal with a

Component-VGA Cable, select Component.

Component

When the input source is coming from video

equipment connected to the COMPUTER IN

2/COMPONENT IN terminal with a Scart-

VGA Cable, select RGB (Scart).

RGB (Scart)

✔Note:

•Wired, Wireless, Memory viewer are for the Network function. See

owner’s manual “Network Set-up and Operation” and owner’s

manual of Memory viewer (optionally available).

•When the Input Search function is set to “On1” or “On2”, the

input signal will be searched automatically (p.51).

Computer 1 (Analog)

Video

Computer 2

COMPUTER button

Wired

Top Control INPUT button

Computer 1 (Digital)

Remote Control

Computer 1 (Analog)

Computer 2

Computer 1 (Digital)

Direct Operation

Menu Operation

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the Input Menu icon.

Video Input

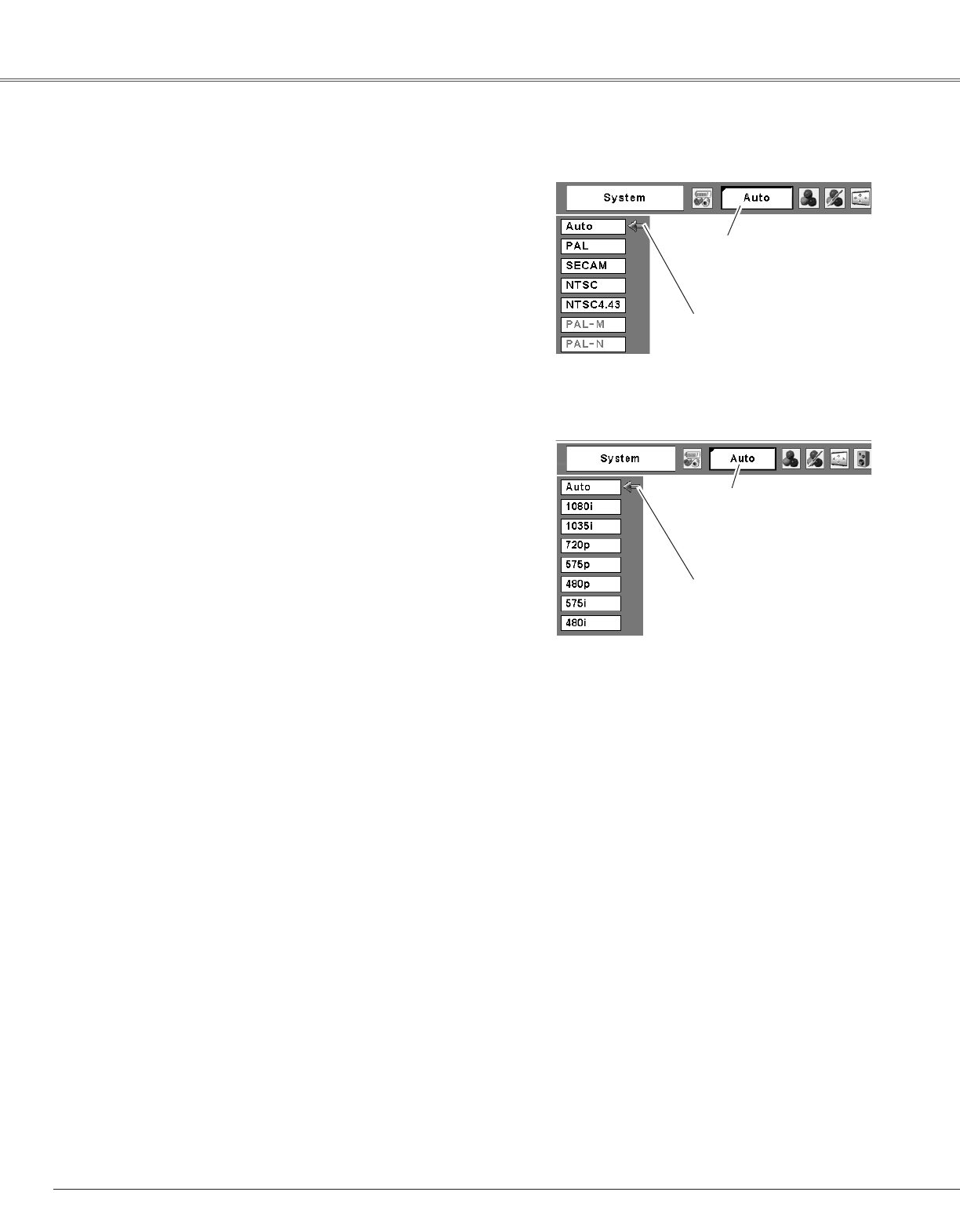

Video System Selection

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the AV System Menu icon.

1AV System Menu (Video or S-Video)

AV System Menu (Component)

Use the Point ed buttons to move the red arrow

pointer to the desired system and then press the

SELECT button.

If the projector cannot reproduce proper video image, select

a specific broadcast signal format from among PAL,

SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

Move the pointer to the

desired system and press

the SELECT button.

PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N

The projector automatically detects an incoming video

signal, and adjusts itself to optimize its performance.

If the projector cannot reproduce proper video image, select

a specific component video signal format from among 480i,

575i, 480p, 575p, 720p, 1035i, and 1080i.

Auto

COMPONENT VIDEO SIGNAL FORMAT

Video or S-Video

Component

The projector automatically detects an incoming video

system, and adjusts itself to optimize its performance.

When Video System is PAL-M or PAL-N, select the system

manually.

Auto

AV System Menu icon

The selected system is

displayed.

Move the pointer to the

desired system and press

the SELECT button.

AV System Menu icon

The selected system is

displayed.

✔Note:

•The AV System Menu cannot be selected when selecting RGB

(Scart).

Video Input

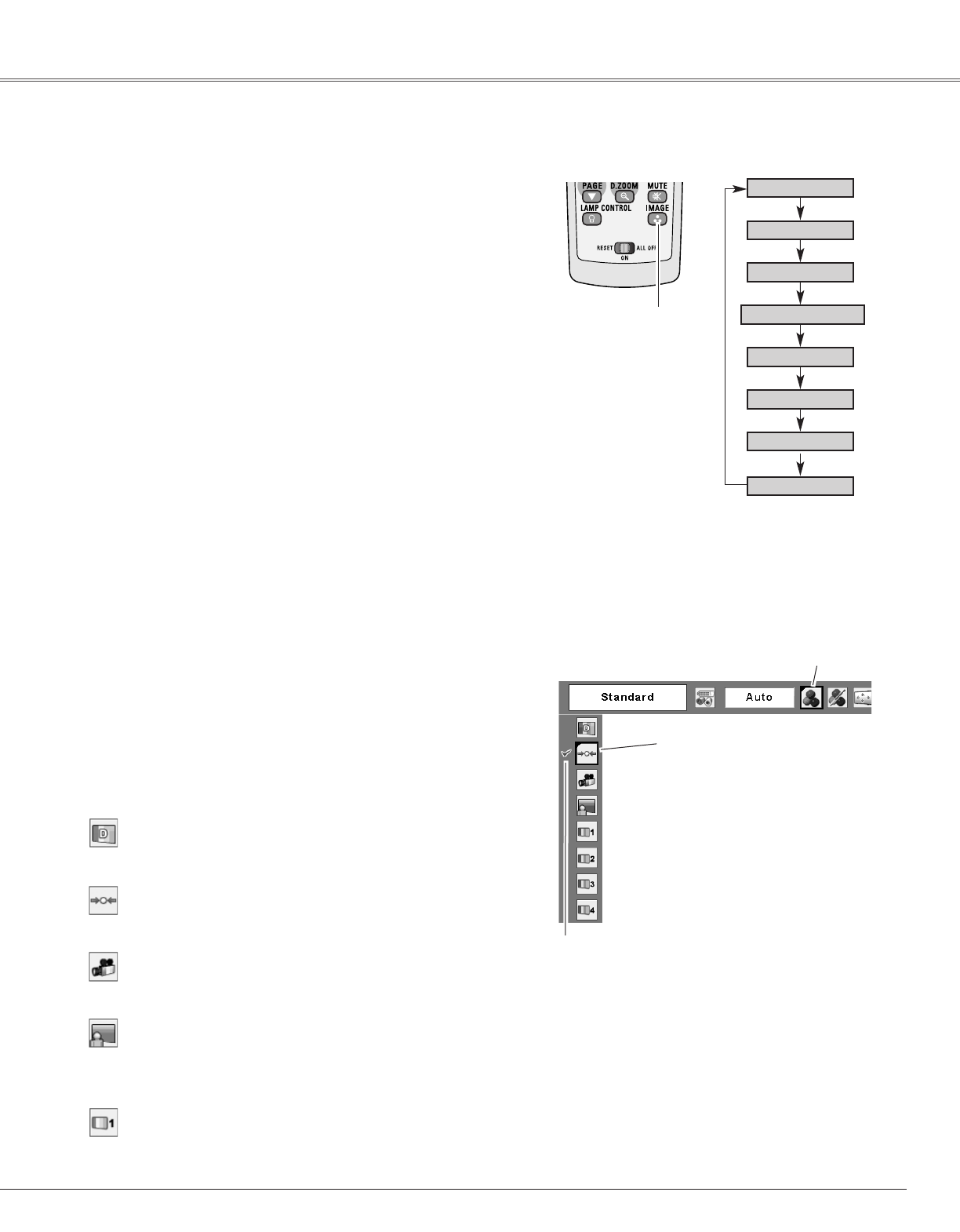

Move the red frame pointer to

the desired image mode and

press the SELECT button.

The selected image mode is check marked.

Image Select Menu

Standard

Cinema

Blackboard(Green)

For viewing with the user preset image mode in the Image

Adjust Menu (see page 44–45).

Image1–4

Image Select Menu icon

Select the desired image mode from among Dynamic,

Standard, Cinema, Blackboard (Green), Image 1, Image 2,

Image 3, and Image 4 by pressing the IMAGE button on the

remote control.

Standard

Picture mode adjusted with fine tone.

Cinema

Blackboard (Green)

Image 1–4

IMAGE button

Dynamic

Cinema

Image 1

Image 2

Image 3

Image 4

Image Mode Selection

For the image projected on a blackboard.

This mode help enhance the image projected on a blackboard.

This is mainly effective on a green colored board, not truly

effective on a black colored board.

For the image projected on a blackboard. See above for

further description.

Blackboard (Green)

Dynamic

Standard

Remote Control

IMAGE button

Direct Operation

For viewing pictures in a bright room.

Normal picture mode preset on the projector.

For viewing with the user preset image mode in the Image

Adjust Menu (see page 44–45). This Image memory is

provided in each computer, component, and video input

source.

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the Image Select Menu icon.

2Use the Point ed buttons to move the red frame

pointer to the desired image mode and then press the

SELECT button.

Menu Operation

For viewing pictures in a bright room.

Normal picture mode preset on the projector.

Picture mode adjusted with fine tone.

Video Input

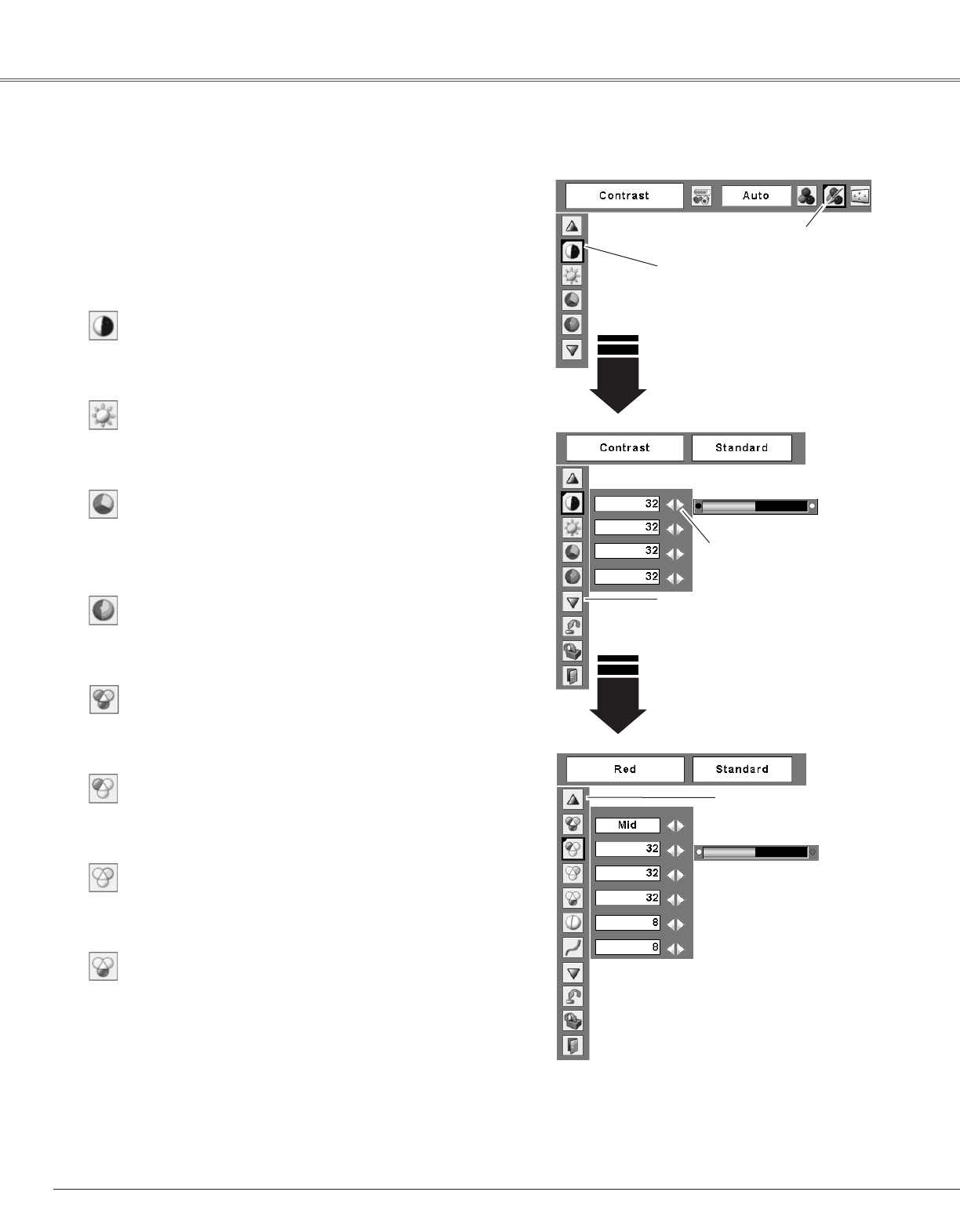

Image Adjustment

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the Image Adjust Menu icon.

2Use the Point ed buttons to move the red frame

pointer to the desired item and then press the SELECT

button to display the adjustment dialog box. Use the

Point 7 8 buttons to adjust the setting value.

Press the Point 7button to decrease the contrast; press

the Point 8button to increase the contrast (from 0 to 63).

Press the Point 7button to decrease the brightness; press

the Point 8button to increase the brightness (from 0 to 63).

Contrast

Brightness

Press the Point 7button to lighten red tone; press the

Point 8button to deepen red tone (from 0 to 63).

White balance (Red)

Press the Point 7button to lighten green tone; press the

Point 8button to deepen green tone (from 0 to 63).

White balance (Green)

Press the Point 7button to lighten blue tone; press the

Point 8button to deepen blue tone (from 0 to 63).

White balance (Blue)

Use the Point 7 8 buttons to select the desired Color temp.

level (High, Mid, Low, or XLow).

Color temp.

Press the Point 7button decrease the intensity of the

color; press the Point 8 button increase the intensity of the

color (from 0 to 63).

Press the Point 7 8 buttons to adjust the tint value to get a

proper color balance (from 0 to 63).

Color

Tint

✔Notes:

•When the White balance Red, Green, or Blue is adjusted, the Color

temp. level will change to “Adj.”.

•Tint cannot be selected when the video system is PAL, SECAM,

PAL-M, or PAL-N (p.42).

Use the Point 7 8 buttons to

adjust the setting value.

Move the red frame

pointer to the desired

item and then press

the SELECT button.

Image Adjust Menu

Press the SELECT button

at this item to display other

items.

Image Adjust Menu icon

Press the SELECT button

here to display the previous

items.

Video Input

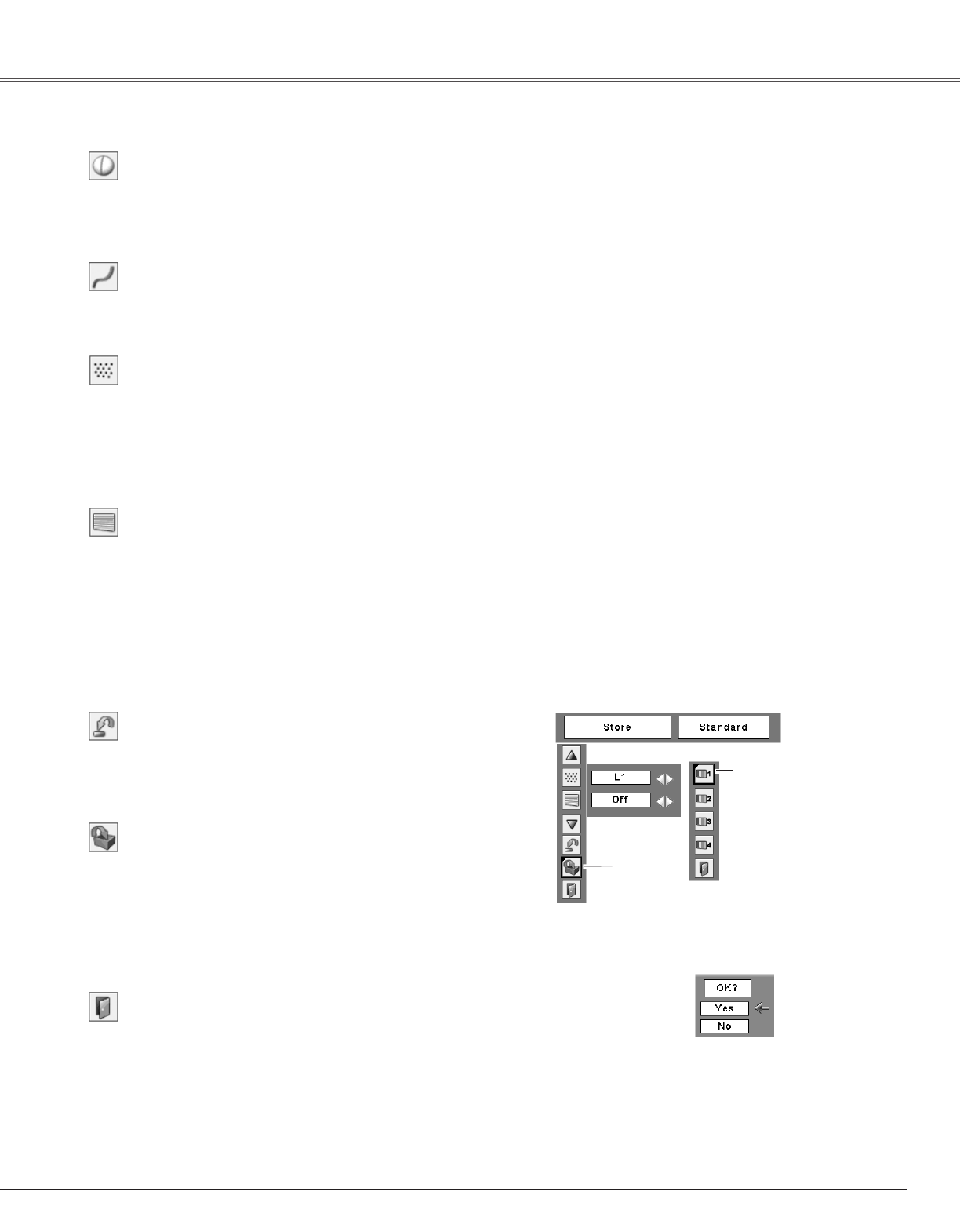

Use the Point 7 8 buttons to adjust the gamma value to

obtain a better balance of contrast (from 0 to 15).

Gamma

Press the Point 7button to decrease the sharpness of the

image; press the Point 8button to increase the sharpness

of the image (from 0 to 15).

Sharpness

An interlaced video signal can be displayed in progressive

mode. Select one of the following options.

Off.......... Disabled.

L1........... For an active picture.

L2........... For a still picture.

Film ........ For watching a film. With this function, the

projector reproduces pictures faithful to the

original film quality.

Progressive

Noise reduction

Noise interference on the screen can be reduced. Select

one of the following options to get smoother images.

Off.......... Disabled.

L1........... Lower reduction

L2........... Higher reduction

✔Notes:

•Noise reduction and Progressive cannot be selected when 480p,

575p, 720p, 1035i, or 1080i is selected (p.42).

•Reset and Store icons will be displayed when any adjustment is

made.

To store the adjusted data, select Store and press the

SELECT button. Use the Point ed buttons to select one

from Image 1 to 4 and press the SELECT button. A

confirmation box appears and then select [Yes]. Stored data

can be called up by selecting an “Image (1–4)” in the Image

Select Menu on page 43.

To reset the adjusted data, select Reset and press the

SELECT button. A confirmation box appears and then select

[Yes]. All adjustments will return to their previous figures.

Reset

Store

Exit the Image Adjust Menu.

Quit

Image Mode Menu

Move the red frame

pointer to an image

item to be set and

then press the

SELECT button.

Store icon

A confirmation box

appears and then

select [Yes].

Video Input

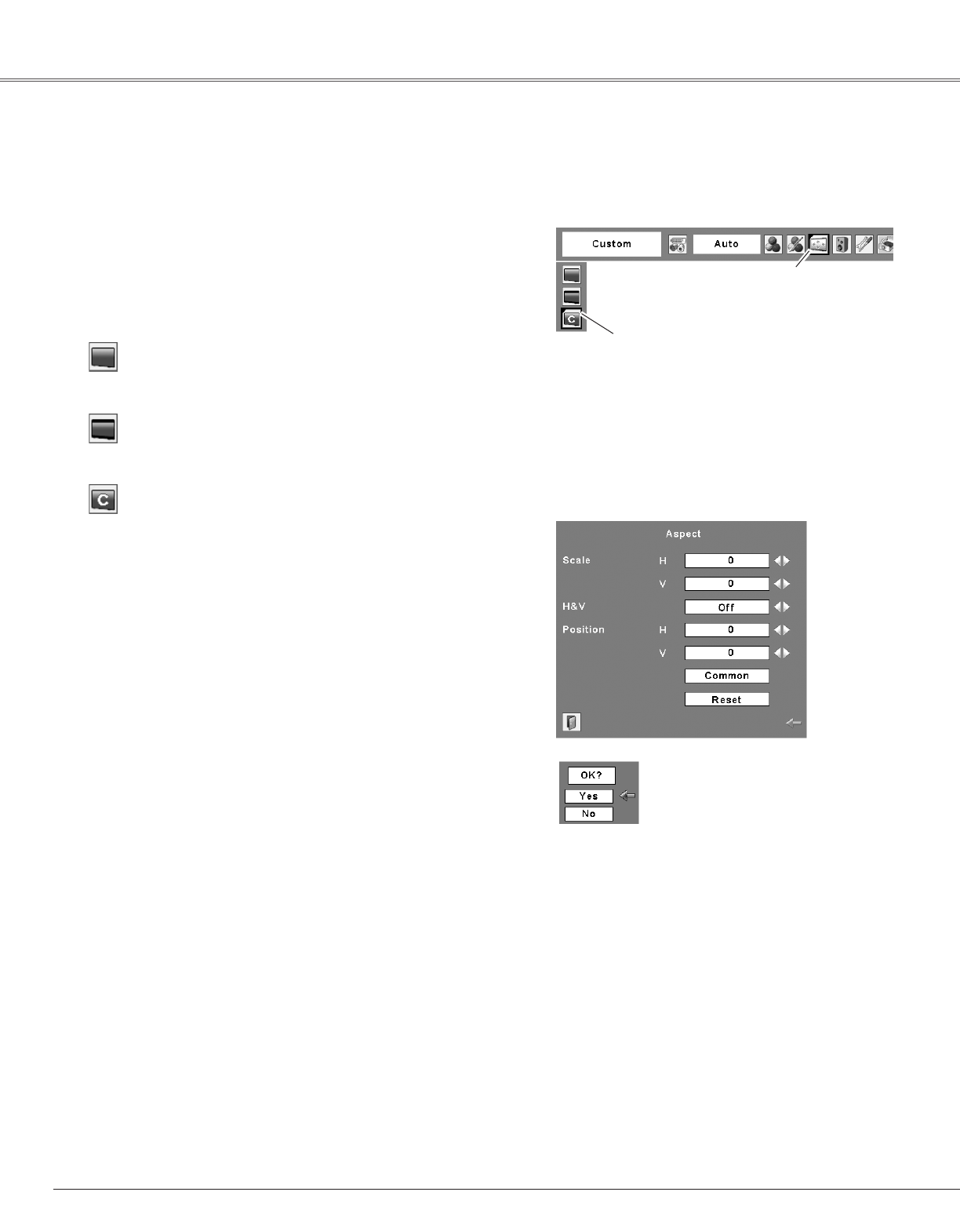

This projector has the picture screen resize function, which enables you to customize the image size.

Wide

Normal

Screen Size Adjustment

Adjust the screen scale and position manually with this

function.

Press the SELECT button at Custom and the “Custom” is

displayed on the screen for a few seconds and then the

Aspect dialog box appears.

Scale H/V............ Adjust the Horizontal/Vertical screen

scale.

H&V.................... When set to “On,” the aspect ratio is

fixed. The “Scale V” appears dimmed

and becomes unavailable. Adjust the

“Scale H,” then the screen scale is

automatically modified based on the

aspect ratio.

Position H/V ....... Adjust the Horizontal/Vertical screen

position.

Common ............ Save the adjusted scale. Press the

SELECT button at Common to display a

confirmation box. To save the scale,

press the SELECT button at “Yes.”

When Custom is selected, the saved

scale is used.

Reset.................. Reset the Common data. Press the

SELECT button at Reset to display a

confirmation box. To reset, press the

SELECT button at “Yes.”

Custom

✔Notes:

•When no signal is detected, “Normal” is set automatically and the

Aspect dialog box disappears.

•The adjustable range for Scale H/V and Position H/V is limited

depending on the input signal.

•Screen Menu cannot be operated when 720p, 1035i, or 1080i is

selected in the AV System Menu (p42).

Press the SELECT button at

Common or Reset, to display

a confirmation box.

Move the red frame pointer to the

desired function and press the

SELECT button.

Screen Menu

Screen Menu icon

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the Screen Menu icon.

Use the Point ed buttons to move the red frame

pointer to the desired function and then press the

SELECT button.

Provide the image at the 4:3 normal video aspect ratio.

Provide the image at the 16:9 wide screen ratio.

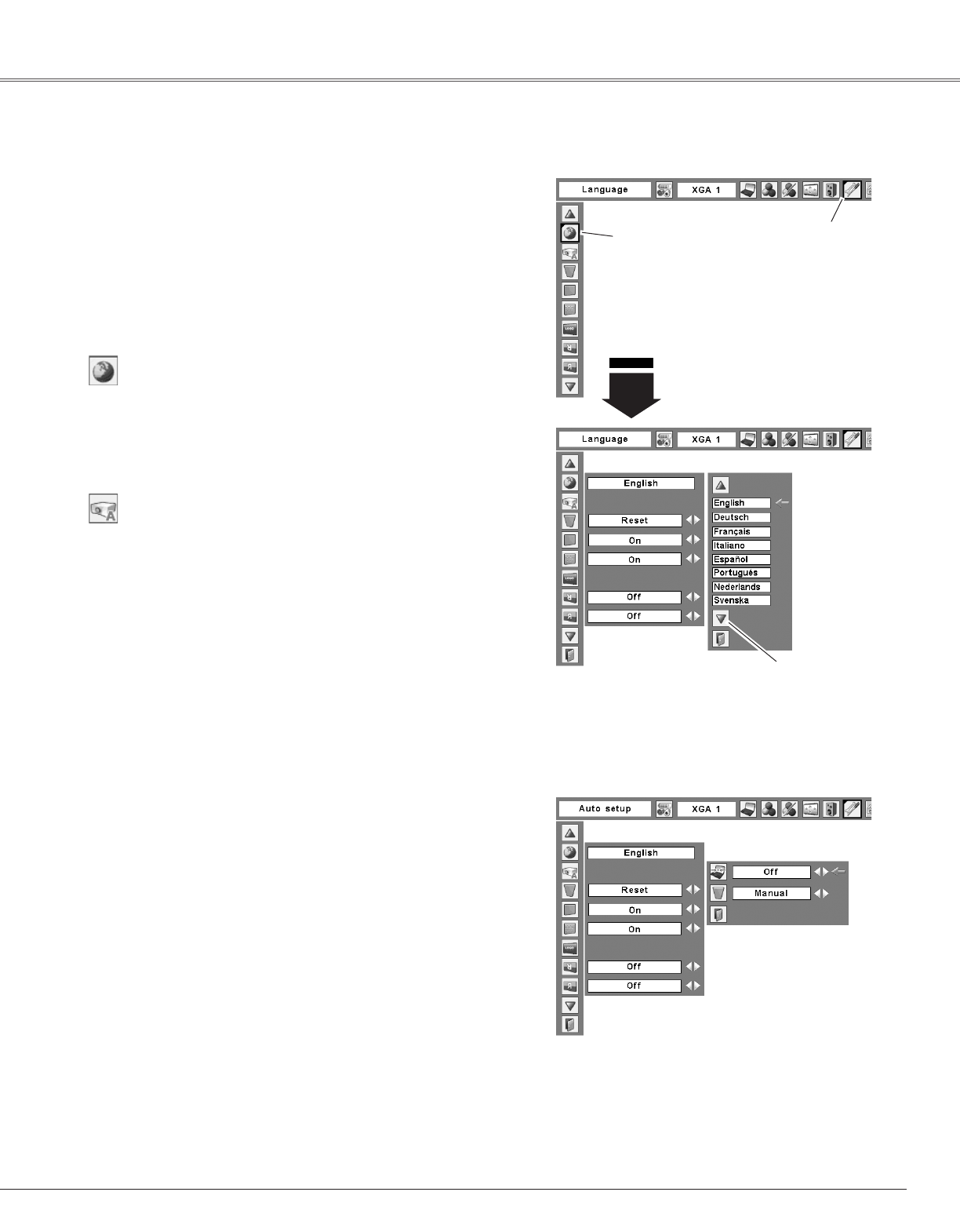

Language

The language used in the On-Screen Menu is available in

English, German, French, Italian, Spanish, Portuguese,

Dutch, Swedish, Finnish, Polish, Hungarian, Romanian,

Russian, Chinese, Korean, and Japanese.

Set the red frame

pointer to the item

and press the

SELECT button.

Press the SELECT button at

Language, then the

Language Menu appears.

Setting Menu (Language)

Setting Menu icon

Setting

Auto setup

This function enables Auto Keystone correction and Auto

PC adjustment by pressing the AUTO SETUP button on the

top control or the AUTO SET button on the remote control.

Settings for those functions can be altered as follows:

Auto PC Adj.

On . . . . . .Enables Auto PC Adjustment when pressing

the AUTO SET button on the remote control or

the AUTO SETUP button on the top control.

Off . . . . . .Disables Auto PC Adjustment.

Auto Keystone

Auto . . . . . Always works and corrects keystone distortion

according to the projector's tilt.

Manual . . .Works only when pressing the AUTO SET

button on the remote control or the AUTO

SETUP button on the top control.

Off . . . . . .Disables Auto Keystone.

✔Notes:

•Auto PC Adj. and Auto Keystone cannot be set "Off" at the same

time.

•Auto Keystone corrects vertical distortion only, not correct horizontal

distortion.

•The Auto Keystone cannot work when Ceiling feature is On in the

Setting menu (p.51).

•Perfect correction of the image distortion cannot be ensured with

the Auto setup function. If the distortion is not corrected properly

by pressing the AUTO SETUP/AUTO SET button, adjust manually

by pressing the KEYSTONE button on the remote control or

selecting Keystone in the Setting menu (p.26).

Auto setup

Select Auto setup and this

box appears. Choose the

desired setting for Auto

keystone and Auto PC adj.

with the Point 7 8 buttons.

Press the SELECT button

here to display the other

languages.

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the Setting Menu icon.

2Use the Point ed buttons to move the red frame

pointer to the desired item and then press the SELECT

button. The Setting dialog box appears.

This projector has a Setting menu that allows you to set up

the other various functions described below.

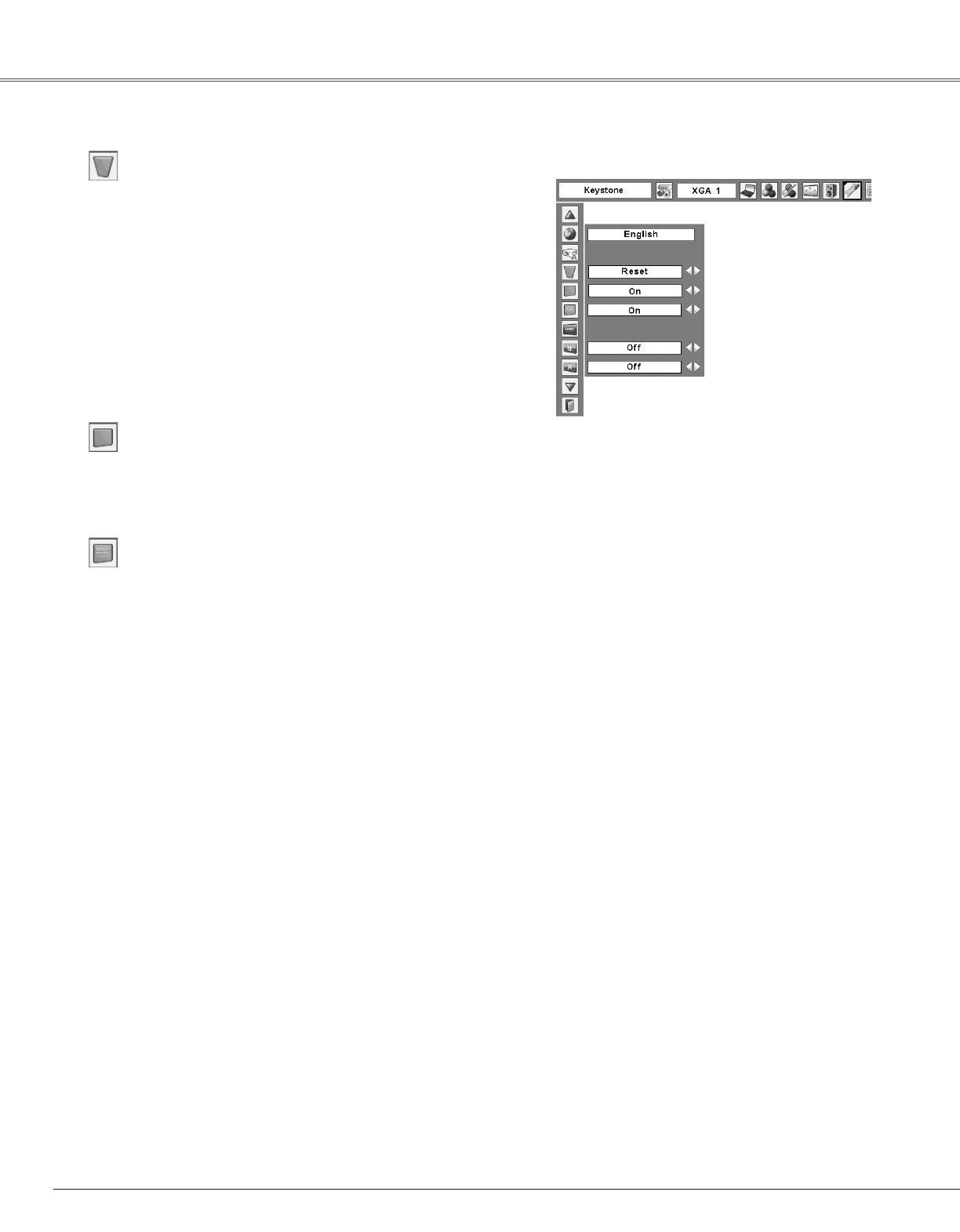

Setting

Display

Blue back

When this function is “On,” a blue image is displayed while

the input signal is not detected.

Keystone

This function is used to store or reset the keystone

correction when the AC power cord is unplugged. Use the

Point 7 8 buttons to switch between each option.

Store ........ Keep the keystone correction even when the

AC power cord is unplugged.

Reset ....... Release the keystone correction when the AC

power cord is unplugged.

To correct keystone distortion, press the SELECT button.

The “Keystone” appears on the screen. Use the Point ed

buttons to correct keystone distortion (p.26).

Keystone

This function decides whether to display On-Screen Displays.

On ............................ Show all the On-Screen displays. Use

this function when you want to

project images after the lamp

becomes bright enough. The factory

default setting is in this option.

Countdown Off ........ Show the input image instead of the

countdown when turning on the

projector. Use this function when you

want to project the image as early as

possible even when the lamp is not

bright enough.

Off ............................ Hide the On-Screen Displays except;

●On-Screen Menu

●“Power off?” (p.23)

●“No signal” for Power management

(p.52)

●“Please wait ...”

●White arrows for the True function

in the Screen Menu (p.38)

Use the Point 7 8

buttons to switch

between the options.

Setting

Select [Yes] to capture

the projected image.

Select [Yes] to

stop capturing.

Capture

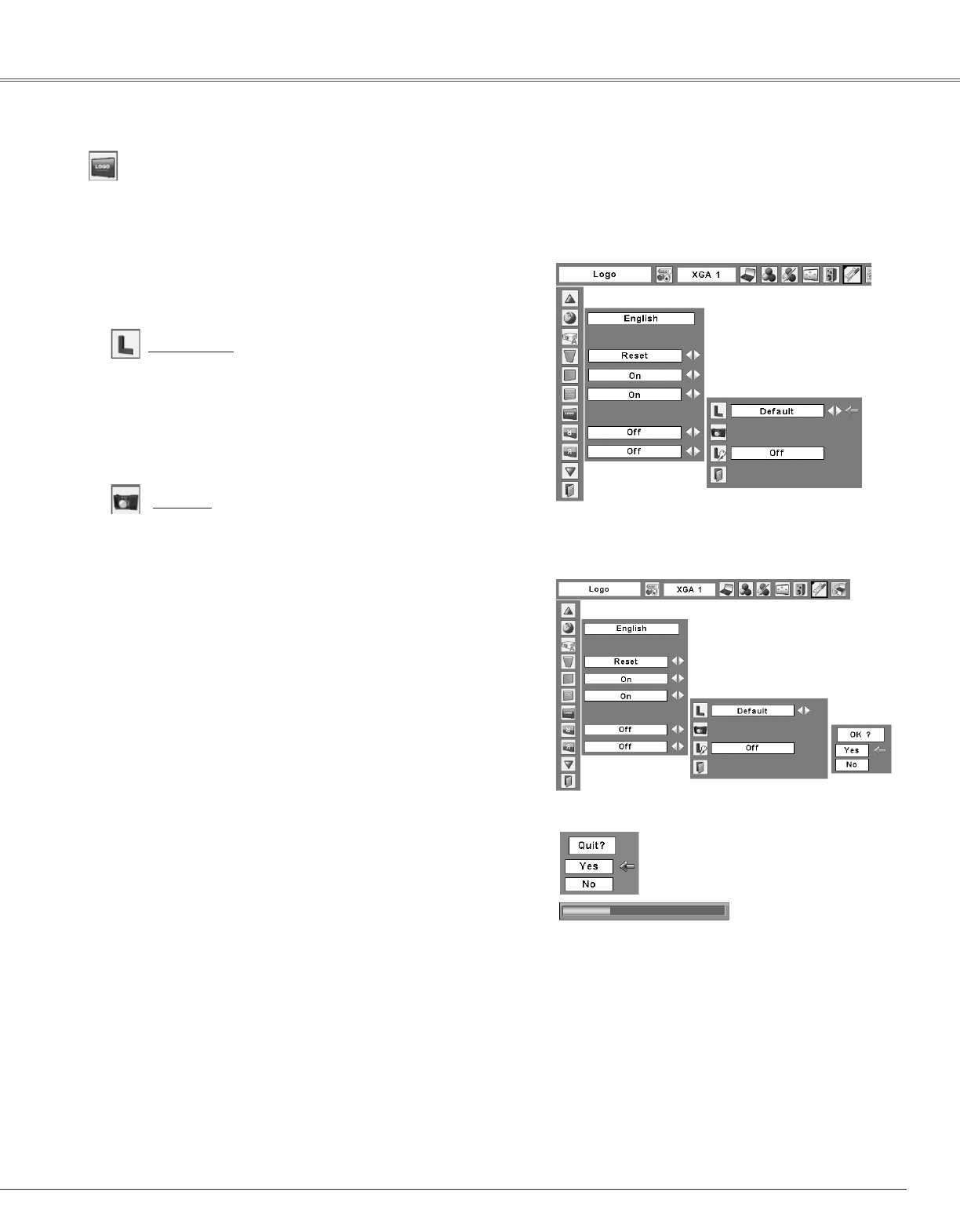

Logo (Logo and Logo PIN code lock settings)

Logo select

This function allows you to customize the screen logo with

Logo select, Capture, and Logo PIN code lock functions.

✔Note:

•When “On” is selected in the Logo PIN code lock function, Logo

select and Capture functions cannot be selected.

Capture

This function enables you to capture an image being

projected to use it for a starting-up display or interval of

presentations.

Select Capture and press the SELECT button.

A confirmation box appears and select [Yes] to capture

the projected image.

After capturing the projected image, go to the Logo select

function and set it to “User”. Then the captured image

will be displayed the next time you turn on the projector

or when you press the NO SHOW button (see page 29).

To cancel the Capture function, select [No].

Logo select

This function decides on the starting-up display from

among following options.

User ......... Show the image you captured

Default ..... Show the factory-set logo

Off............ Show the countdown display only

✔Notes:

•Before capturing an image, select “Standard” in the Image

Select Menu to capture a proper image (pp.36, 43).

•A signal from a computer can be captured up to XGA (1024 x

768). A signal from video equipment can be captured except

for 720p, 1035i, and 1080i.

•When capturing the image that has been adjusted by the

Keystone function, the adjusted data is automatically reset and

the projector captures an image without keystone correction.

•When the Logo PIN code lock function is set to “On,” the

Capture function cannot be selected.

•When starting to capture a new image, the previously stored

image is cleared even if you cancel the capturing.

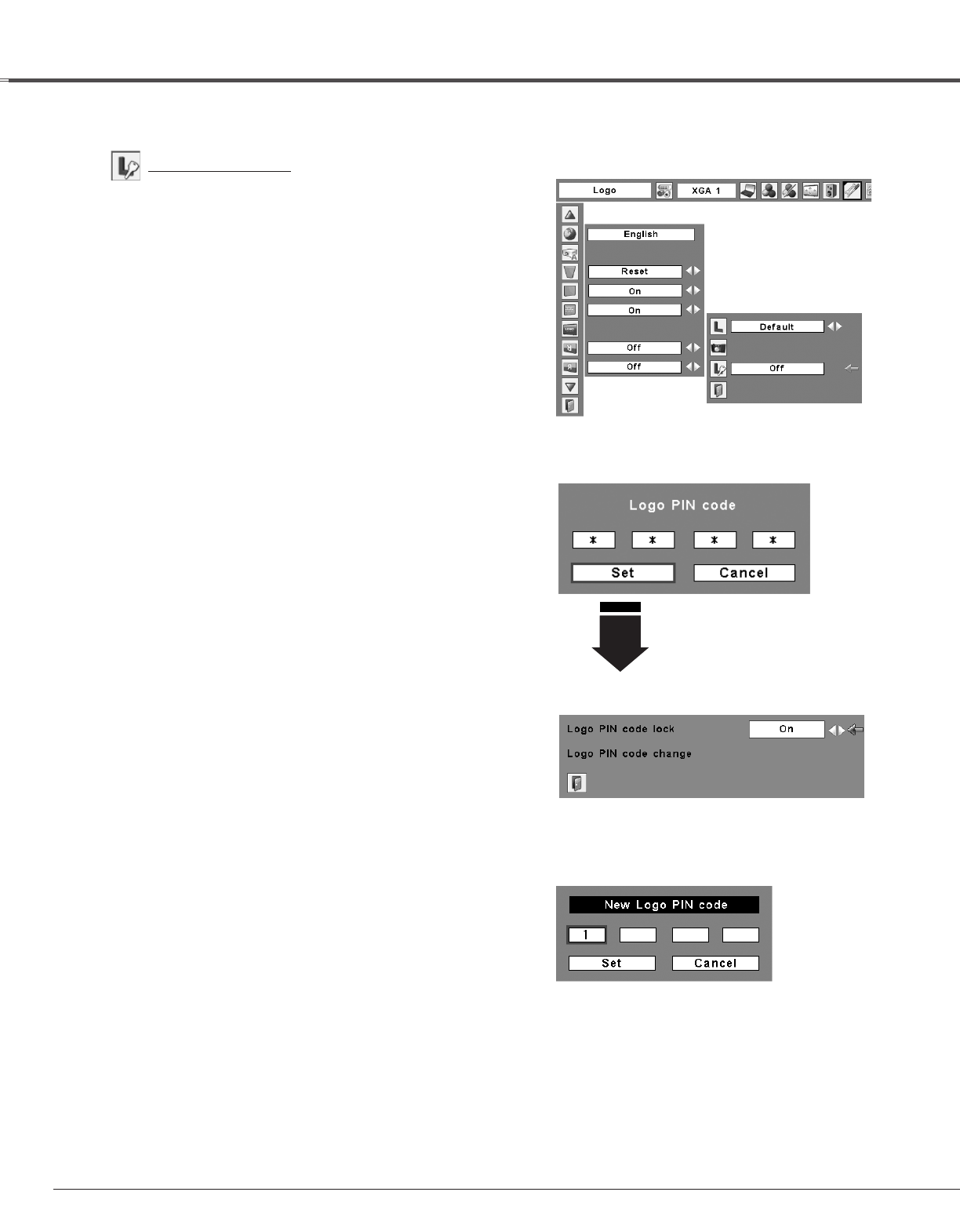

Logo PIN code lock

Setting

This function prevents an unauthorized person from

changing the screen logo.

Off............ The screen logo can be changed freely from

the Logo Menu (p.49).

On ............ The screen logo cannot be changed without

a Logo PIN code.

If you want to change the Logo PIN code lock setting,

press the SELECT button and the Logo PIN code dialog

box appears. Enter a Logo PIN code by following the

steps below. The initial Logo PIN code is set to “4321”

at the factory.

Logo PIN code lock

Enter a Logo PIN code

Use the Point ed buttons to enter a number. Press the

Point 8button to fix the number and move the red frame

pointer to the next box. The number changes to “✳.” If

you fixed an incorrect number, use the Point 7button to

move the pointer to the number you want to correct, and

then enter the correct number.

Repeat this step to complete entering a four-digit number.

After entering the four-digit number, move the pointer to

“Set.” Press the SELECT button so that you can start to

operate the projector.

If you entered an incorrect Logo PIN code, “Logo PIN

code” and the number (✳✳✳✳) will turn red for a moment.

Enter the correct Logo PIN code all over again.

Change the Logo PIN code

Logo PIN code can be changed to your desired four-digit

number. Press the Point dbutton to select “Logo PIN

code change” and then press the SELECT button. The

New Logo PIN code input dialog box appears. Set a new

Logo PIN code.

Be sure to note the new Logo PIN code and keep it at

hand. If you lost the number, you could no longer change

the Logo PIN code setting. For details on PIN code

setting, refer to “PIN code lock” on pages 54–55.

Use the Point 7 8 button to switch On/Off, and then

press the Point dbutton to move the pointer to “Quit.”

Press the SELECT button to close the dialog box.

Change the Logo PIN code lock setting

Enter a Logo PIN code

After a correct Logo PIN code

is entered, the following

dialog box appears.

CAUTION:

WHEN YOU HAVE CHANGED THE LOGO PIN

CODE, WRITE DOWN THE NEW PIN CODE IN

COLUMN OF THE LOGO PIN CODE NO. MEMO

ON PAGE 78, AND KEEP IT SECURELY.

SHOULD THE LOGO PIN CODE BE LOST OR

FORGOTTEN, THE LOGO PIN CODE SETTING

CAN NO LONGER BE CHANGED.

Change the Logo PIN code lock setting

Change the Logo PIN code

Use the Point 7 8 buttons to

switch On/Off.

Setting

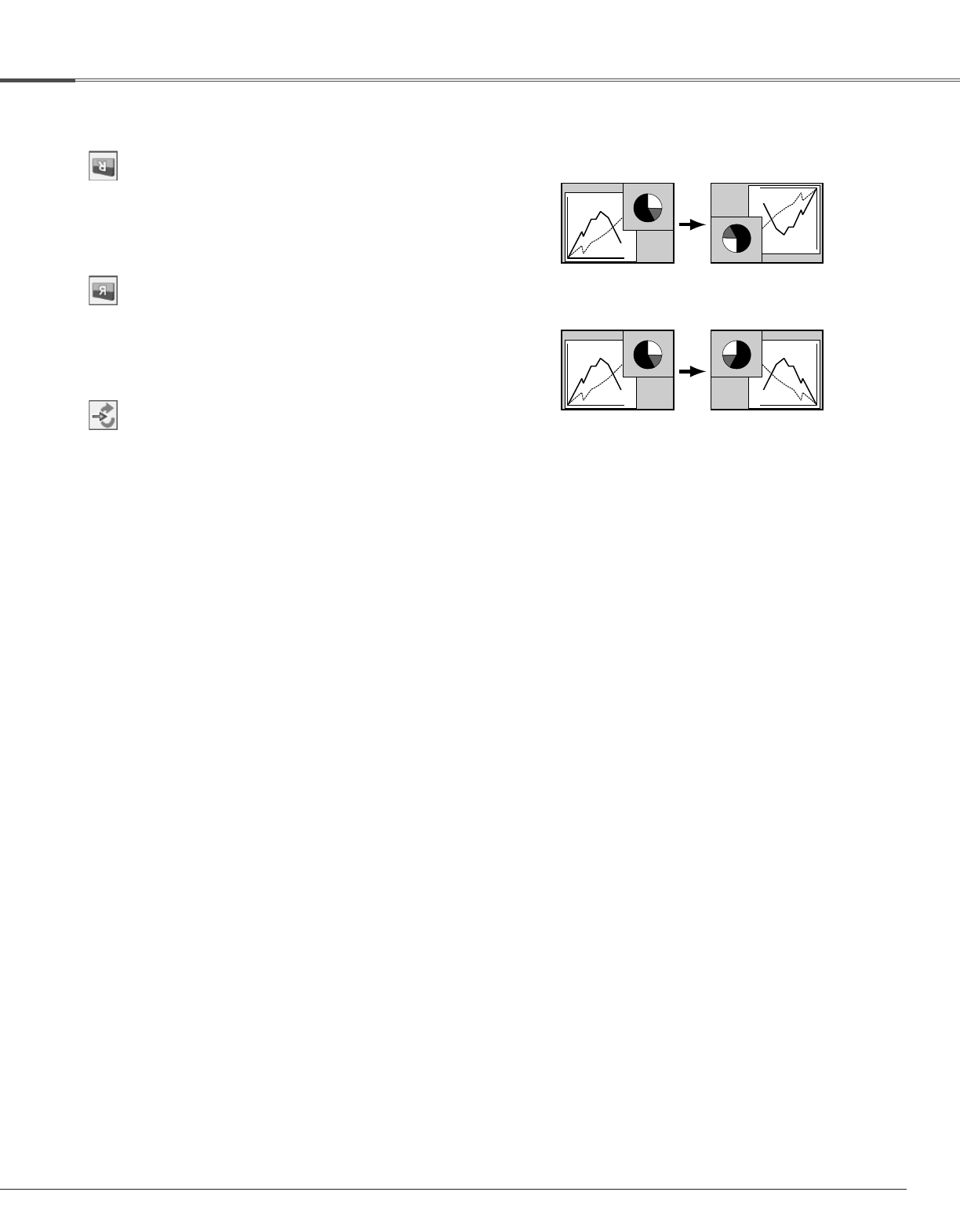

Ceiling

Rear

Ceiling

When this function is set to “On,” the picture will be

top/bottom and left/right reversed. This function is used to

project the image from a ceiling-mounted projector.

Rear

When this function is set to “On,” the picture will be

left/right reversed. This function is used to project the

image from rear of the screen.

Input search

This function detects the input signal automatically. When a

signal is found, the search will stop. Use the Point 7 8

buttons to select one of the following options.

Off.......... Input search will not work.

On1 ........ Input search works under the following situation.

–When pressing the INPUT button on the top

control.

–When pressing the COMPUTER button or

VIDEO button on the remote control.

On2 ........ Input search works under the following situation.

–When turning on the projector by pressing the

ON/STAND-BY button on the top control or the

remote control.

–When pressing the COMPUTER button or

VIDEO button on the remote control.

–When pressing the INPUT button on the top

control.

–When the current input signal is cut off.*

*If the No show or Freeze function is active, cancel it to

activate the Input search. It is also unavailable when On-

Screen menu is displayed.

✔Notes:

•While Input search is set to “On1” or “On2,” the status of Input and Lamp are displayed every time the signal is switched.

•Only the last selected input source can be detected.

•After searching all input signal and still can not detect any signal, Input search will operate as below:

–When pressing the INPUT button, Input search will select an input source other than previous one.

–When pressing the COMPUTER button, Input search will stop at the previous COMPUTER input.

–When pressing the VIDEO button, Input search will stop at Video.

•If the INPUT button on the top control or COMPUTER or VIDEO buttons on the remote control is pressed during Input search is

in progress, Input search will stop and go back to the previous input signal.

Setting

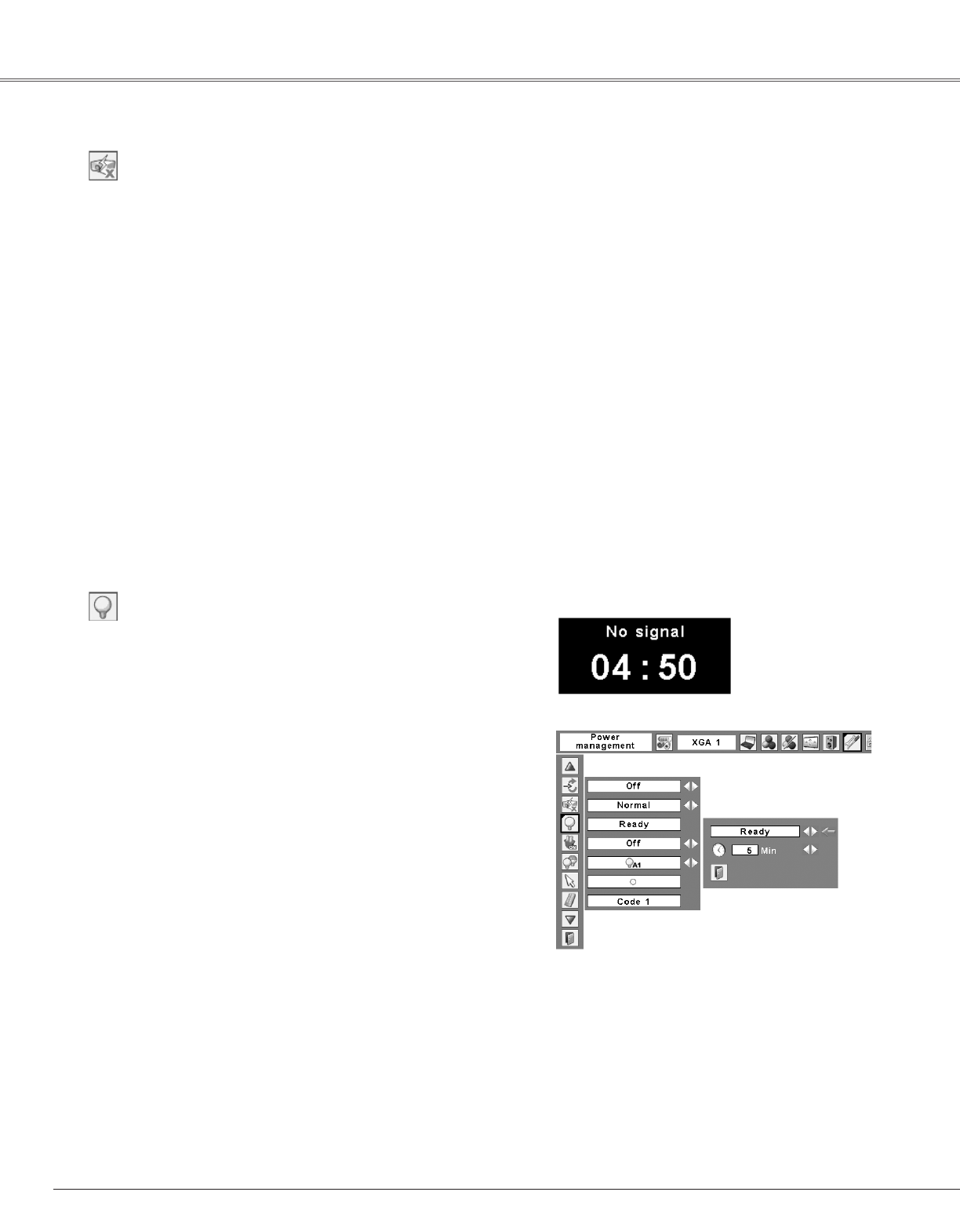

Power management

Time left before Lamp is off.

Power management

For reducing power consumption as well as maintaining the

lamp life, the Power management function turns off the

projection lamp when the projector is not operated for a

certain period.

If the input signal is interrupted and no button is pressed for

more than 30 seconds, the timer display with “No signal”

appears. It starts the countdown until the lamp is turned off.

Use the Point 7 8 buttons to set the countdown timer.

Select one of the following options:

Ready ................... When the lamp has been fully cooled

down, the POWER indicator changes to

green blinking. In this condition, the

projection lamp will be turned on if the

input signal is reconnected or any button

on the top control or remote control is

pressed.

Shut down............ When the lamp has been fully cooled

down, the power will be turned off.

Off........................ Power management function is off.

Standby mode

This function is available when operating the projector via

network.

Normal ....... Supply the power to the network function

even after turning off the projector. You can

turn on/off the projector via network, modify

network environment, and receive an e-mail

about projector status while the projector is

powered off.

Eco............. Select “Eco” when you do not use the

projector via network. The projector’s

network function will stop when turning off

the projector.

Refer to the owner’s manual “Network Setup and

Operation.”

✔Note:

•When selecting Normal, the cooling fans may be running

depending on the temperature inside the projector even if the

projector is turned off.

Press the SELECT button at

Power management and this

dialog box appears. Use the

Point 7 8 buttons to choose

one of the three options.

Press the Point dbutton to

select the timer, and then

use the Point 7 8 buttons to

set timer.

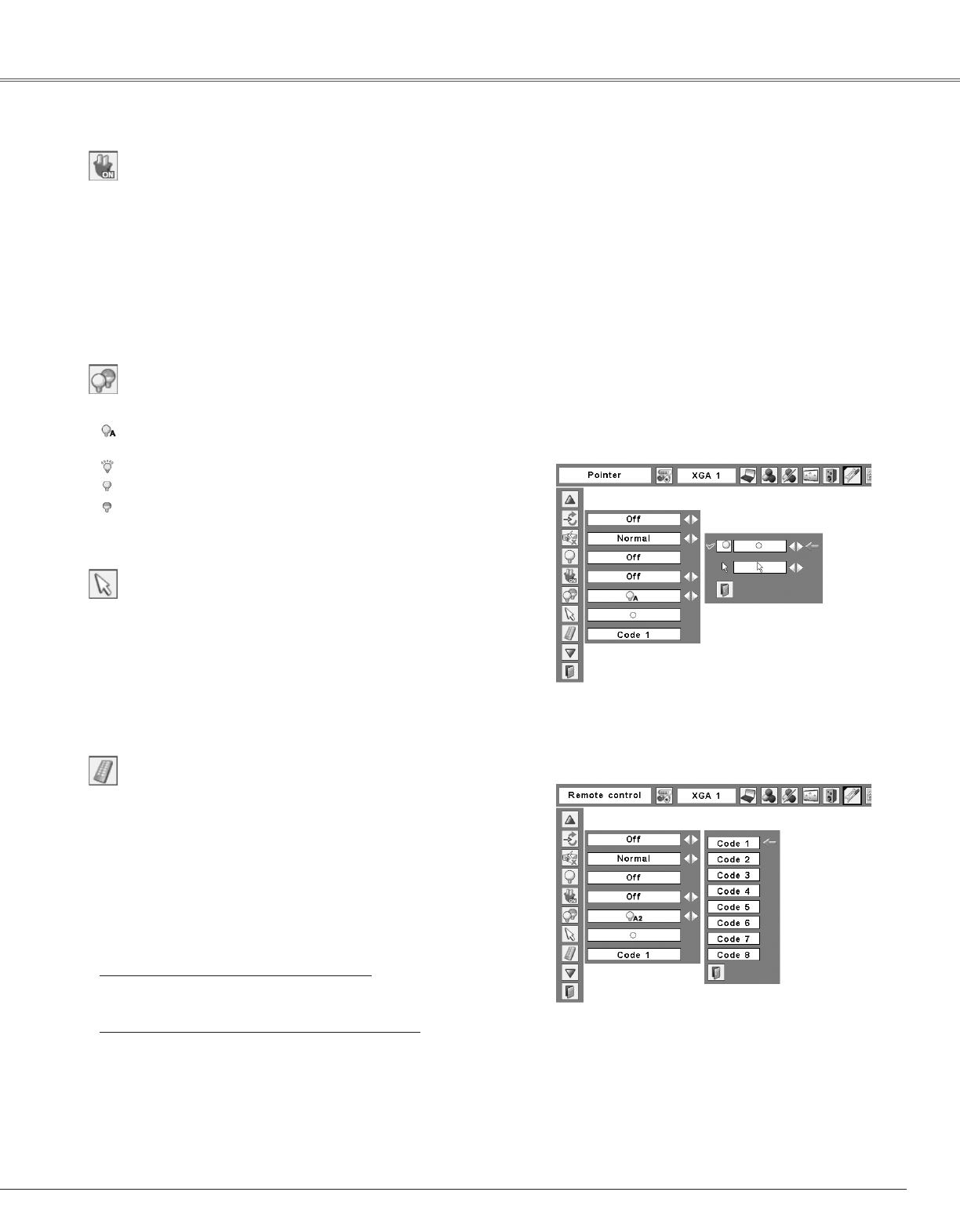

Setting

On start

Lamp control

Remote control Remote control

Pointer

When this function is set to “On,” the projector will be

automatically turned on just by connecting the AC power

cord to a wall outlet.

✔Note:

•Be sure to turn off the projector properly (see “Turning Off the

Projector” on page 23). If the projector is turned off in the incorrect

sequence, the On start function does not work properly.

This function allows you to change brightness of the screen.

Auto ........... The brightness according to the input

signal (between High and Eco mode).

High ........... Brighter than the Normal mode.

Normal ....... Normal brightness

Eco............. Lower brightness reduces the lamp lower

consumption and extends the lamp life.

You can emphasize a part of the projected image with this

function. Use the Point ed buttons to choose either

Spotlight or Pointer and press the SELECT button. Then use

the Point 7 8 buttons to select a size of the Spotlight

(Large, Middle, or Small) or a pattern of the Pointer (Arrow,

Finger, or Dot). See “Pointer Function” on page 14.

Pointer

Use the Point ed buttons

to choose either Spotlight

or Pointer, and then use

the Point 7 8 buttons to

switch between the

options.

The eight different remote control codes (Code 1–Code 8)

are assigned to the projector; the factory-set, initial code

(Code 1) and the other seven codes (Code 2 to Code 8).

The same code should set on both the projector and the

remote control. For example, operating the projector in

“Code 7”, the remote control code also must be switched

to “Code 7”.

To change the code for the projector

Select a remote control code in this Setting Menu.

To change the code for the remote control:

While holing down the MENU button, press the IMAGE

button the number of times corresponding to the remote

control code for the projector. See “Remote Control

Code” on page 15.

Setting

Key lock

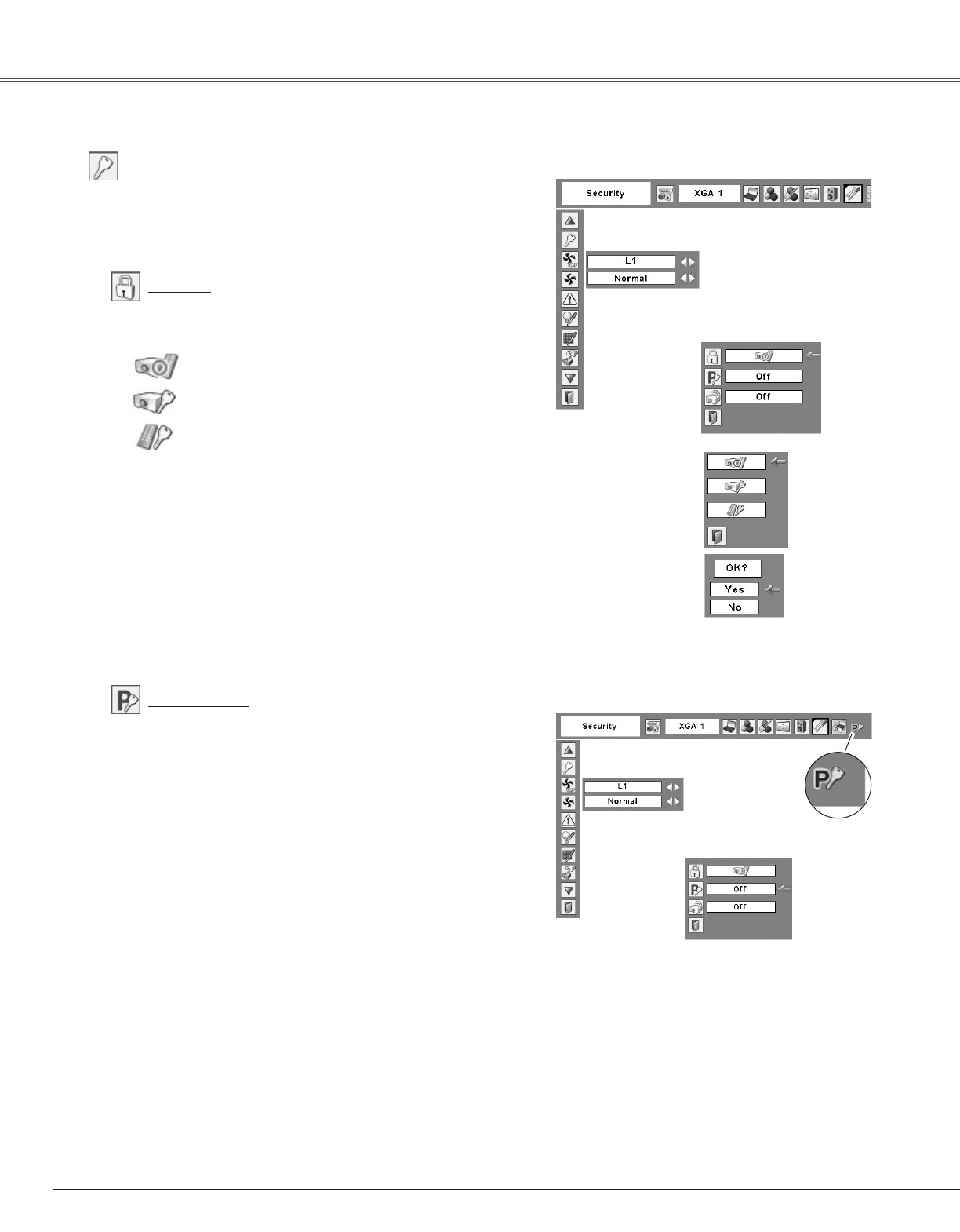

Security (Key lock, PIN code lock, Alarm settings)

PIN code lock PIN code lock

This function locks the top control and remote control

buttons to prevent operation by unauthorized persons.

...... Unlocked.

...... Lock the operation of the top control. To

unlock, use the remote control.

...... lock the operation of the remote control.

To unlock, use the top control.

If the top control accidentally becomes locked and you

do not have the remote control nearby or there is

something wrong with your remote control, contact the

dealer where you purchased the projector or the service

center.

This function allows you to use the Key lock, PIN code lock,

and Alarm function to set the security for the projector

operation.

Select Key lock. Use

the Point ed

buttons to choose

one of the options

and select [Yes] to

activate it.

This function prevents the projector from being operated

by unauthorized persons and provides the following

setting options for security.

Off............ Unlocked.

On1 .......... Enter the PIN code every time turning on

the projector.

On2 .......... Enter the PIN code to operate the projector

once the power cord is disconnected; as

long as the AC power cord is connected,

the projector can be operated without a PIN

code.

Whenever you change the PIN code lock setting or the

PIN code (the four-digit number), you are required to

enter the PIN code. The “1234” is set as the initial PIN

code at the factory.

If you want to change the PIN code lock setting, Press

the SELECT button and the PIN code dialog box appears.

When the projector is locked

with a PIN code, the PIN code

lock symbol appears on the

menu bar.

Setting

Change the PIN code lock setting

Use the Point 7 8 buttons to

switch between the options.

Use the Point 7 8 button to select Off, On1, or On2 and

then move the pointer to “Quit” with the Point dbutton.

Press the SELECT button to close the dialog box.

Change the PIN code lock setting

Enter a PIN code

Use the Point ed buttons to enter a number. Press the

Point 8button to fix the number and move the red frame

pointer to the next box. The number changes to “✳.” If

you fixed an incorrect number, use the Point 7button to

move the pointer to the number you want to correct, and

then enter the correct number.

Repeat this step to complete entering a four-digit number.

After entering the four-digit number, move the pointer to

“Set.” Press the SELECT button so that you can start to

operate the projector.

If you entered an incorrect PIN code, “PIN code” and the

number (✳✳✳✳) will turn red for a moment. Enter the

correct PIN code all over again.

Enter a PIN code

After a correct PIN code is

entered, the following dialog

box appears.

The PIN code can be changed to your desired four-digit

number. Press the Point dbuttons to select “PIN code

change” and press the SELECT button. The New PIN

code input dialog box appears. Set a new PIN code.

Change the PIN code Change the PIN code

CAUTION:

WHEN YOU HAVE CHANGED THE PIN CODE, WRITE

DOWN THE NEW PIN CODE IN COLUMN OF THE PIN

CODE NO. MEMO ON PAGE 78, AND KEEP IT

SECURELY. IF YOU FORGET YOUR PIN CODE, THE

PROJECTOR CAN NO LONGER BE STARTED.

Alarm

This function allows you to configure the Alarm

operation. See “How to Use the Antitheft Alarm

Function” on pages 58–61.

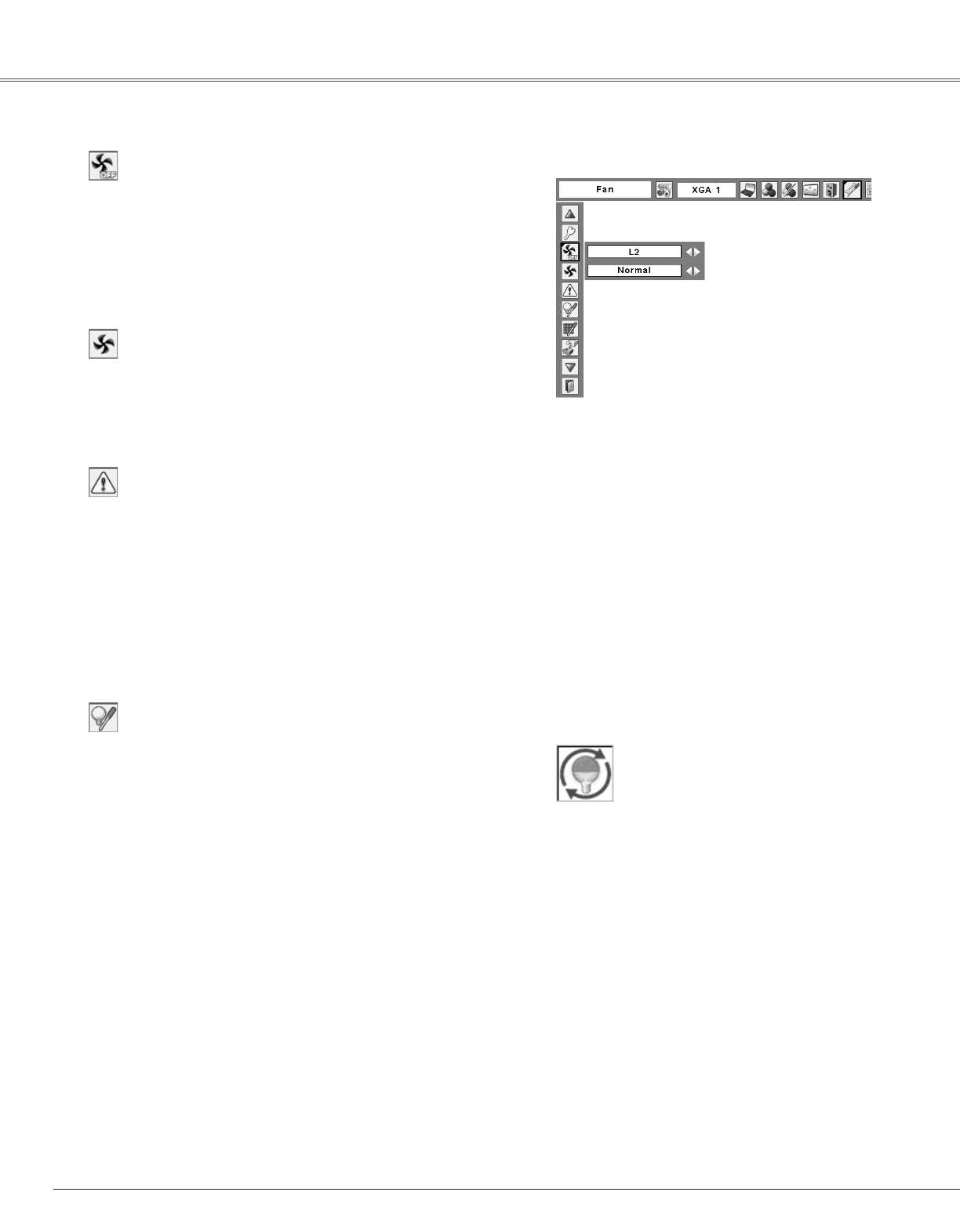

This function provides the following options in the cooling

fans’ operation when the projector is turned off (p.23).

L1....... Normal operation

L2....... Slower and lower-sound than the normal operation

(L1), but it takes more time to cool the projector

down.

Fan

Setting

Choose the running speed of cooling fans from the following

options.

Normal ..... Normal speed

Max.......... Faster than the normal speed.

Fan control

Fan

Warning log

This function records anomalous operations while the

projector is in operation and use it when diagnosing faults.

Up to 10 warning logs are displayed with the latest warning

message at the top of the list, followed by previous warning

messages in chronological order.

✔Note:

•When the Factory default function is executed, all the warning log

records will be deleted.

This function is used to reset the lamp counter.

When the lamp life is left less than 100 hours, the Lamp

replacement icon appears on the screen, indicating that the

end of lamp life is approaching.

When replacing the projection lamp, reset the lamp counter.

See “Resetting the Lamp Counter” on page 66.

Lamp counter

This icon appears on the screen when the end of

lamp life is approaching.

✔Note:

•The Lamp replacement icon will not appear

when the Display function is set to “Off” (p.48),

during “Freeze” (p.28), or “No show” (p.29).

Setting

Factory default

This function returns all setting values except for the user

logo, PIN code lock, Logo PIN code lock, lamp counter, and

filter counter to the factory default settings.

Exit the Setting Menu.

Quit

Select Factory default and this

box appears. Select [Yes], and

the next box appears.

Select [Yes] to

activate it.

Factory default

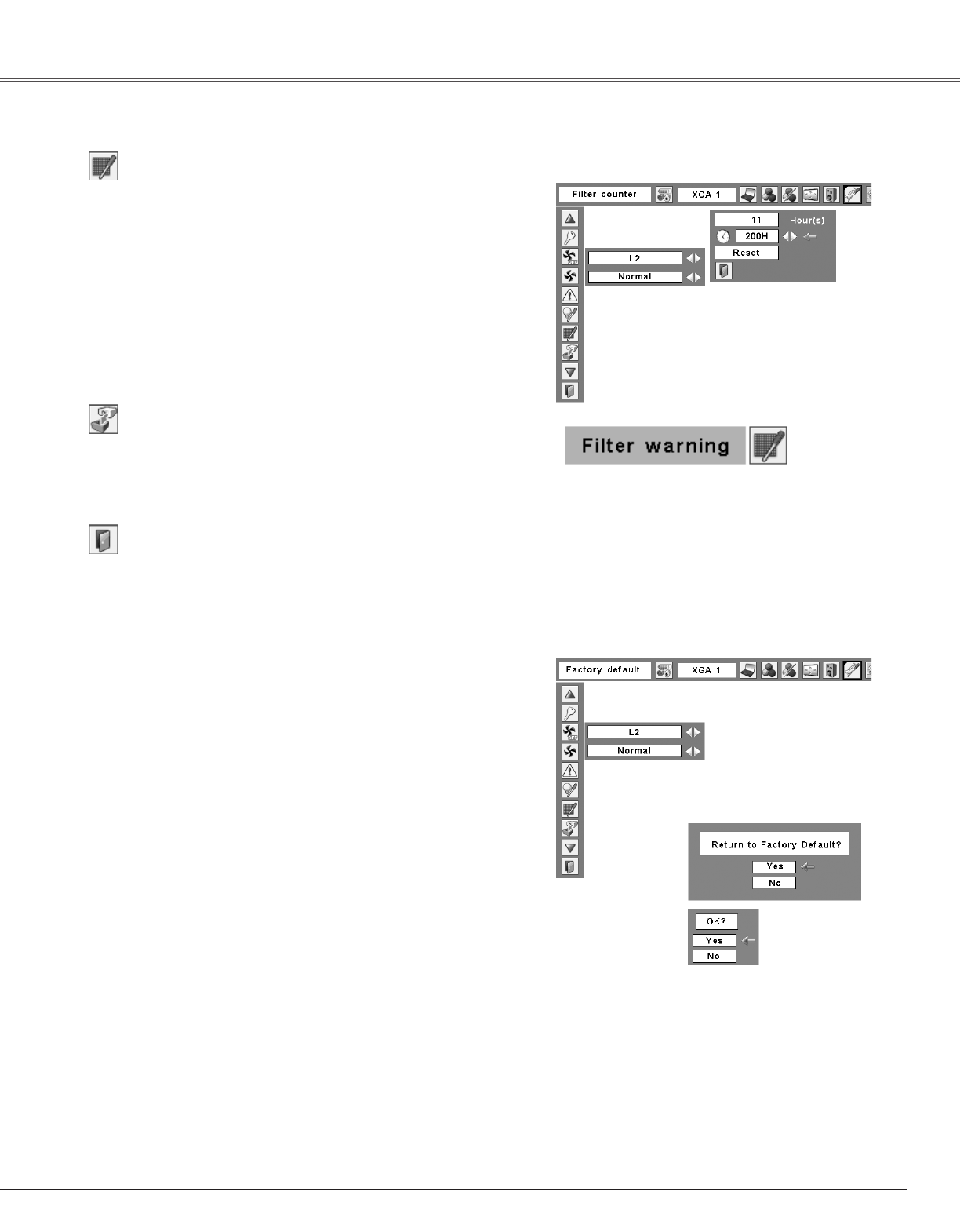

This function is used to set a frequency for the filter cleaning.

When the projector reached a specified time between

cleanings, a Filter warning icon appears on the screen,

notifying the cleaning is necessary. After cleaning the filter,

be sure to select RESET and set the timer. The Filter warning

icon will not turn off until the filter counter is reset.

For details about resetting the timer, refer to “Resetting the

Filter Counter” on page 63.

Filter counter Filter counter

Use the Point 7 8 buttons

to set the timer. Select

from (Off/100H/ 200H/

300H) depending on the

use environment.

Filter warning icon appears on the screen at a set

time.

✔Note:

•The Filter warning icon will not appear when the

Display function is set to “Off” (p.48), during

“Freeze” (p.28), or “No show” (p.29).

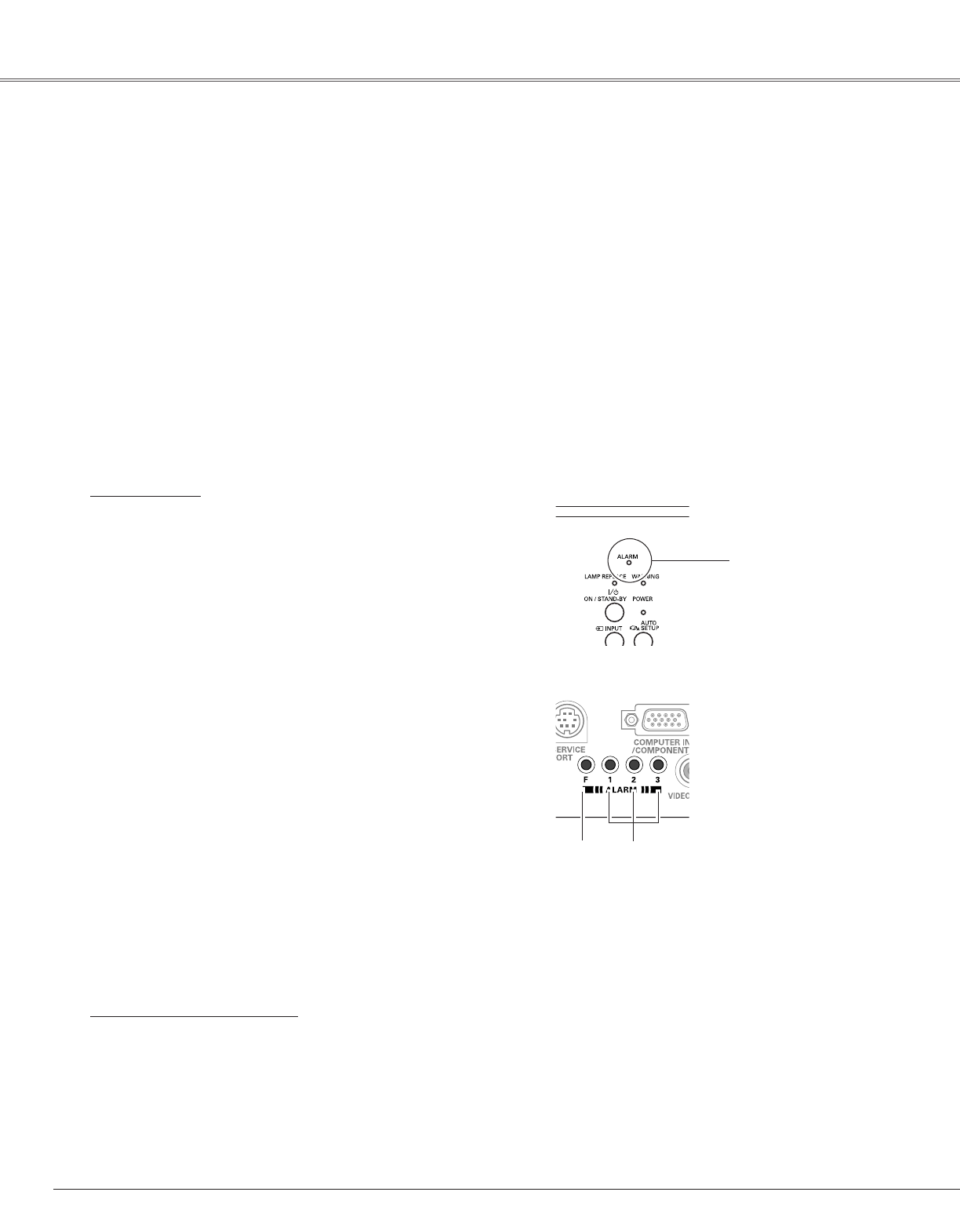

How to Use the Antitheft Alarm Function

Antitheft alarm function is provided to prevent the projector from being stolen. When this function is set to

“On,” the alarm rings as an unauthorized person tries to move the projector.

To activate the Alarm function for the first time after purchase, you must turn on the power once.

Press the F button three times to turn the alarm function on.

The ALARM indicator blinks for a few seconds and the

projector enters the warning mode. (If the battery is not

charged enough for the alarm function to operate normally, it

bleeps and the Alarm indicator will blink red every 20

seconds.)

During the Antitheft alarm function is on, the projector emits

a low-pitched sound when it detects vibration.

When the projector does not detect vibration for a few

seconds after the sound, it goes back to the warning mode.

When the projector detects more vibrations after the low-

pitched sound, the alarm starts ringing.

The Alarm operating configuration (Battery charge, Alarm

volume, Sensitivity, and Ringing time) can be selected in the

menu. See page 59.

Set the alarm

Release the alarm setting

✔Notes:

•This function is not a guarantee against stealing.

•The alarm does not ring while the AC power cord is connected to an outlet even if the projector detects vibrations.

•The alarm will stop, as the AC power cord is connected to an outlet, except when the battery cover is open.

•Pressing the buttons is always accompanied by a sound. If no sound is produced after pressing a button, you need to press it again.

F button Button 1, 2, 3

Set and release the Antitheft alarm function

✔Notes:

•You can test the alarm sound without setting the alarm function.

Press and hold the F button, then the alarm starts ringing. The

duration of the alarm sound is the same as the “Ringing Time”

setting (p.59).

•If you want to stop the alarm while it is ringing, insert the AC power

cord to an outlet or press the F button and enter the four-digit PIN

code number.

The Alarm function is operated by a built-in rechargeable

battery. The alarm will not work properly if the battery is not

charged enough. See page 60 for details.

Press the F button and enter the four-digit PIN code number

within about 10 seconds. (The default PIN code is set to

“1111.”) When the alarm is released, you will hear a high-

pitched confirmation sound.

When you enter an incorrect PIN code, you will hear a low-

pitched sound. If you enter an incorrect PIN code three

times in a row, the alarm will start ringing.

The Alarm setting and release and PIN Code change can be

made without an AC power connection.

Top Control

ALARM indicator

Rear Terminal

Antitheft Alarm Function

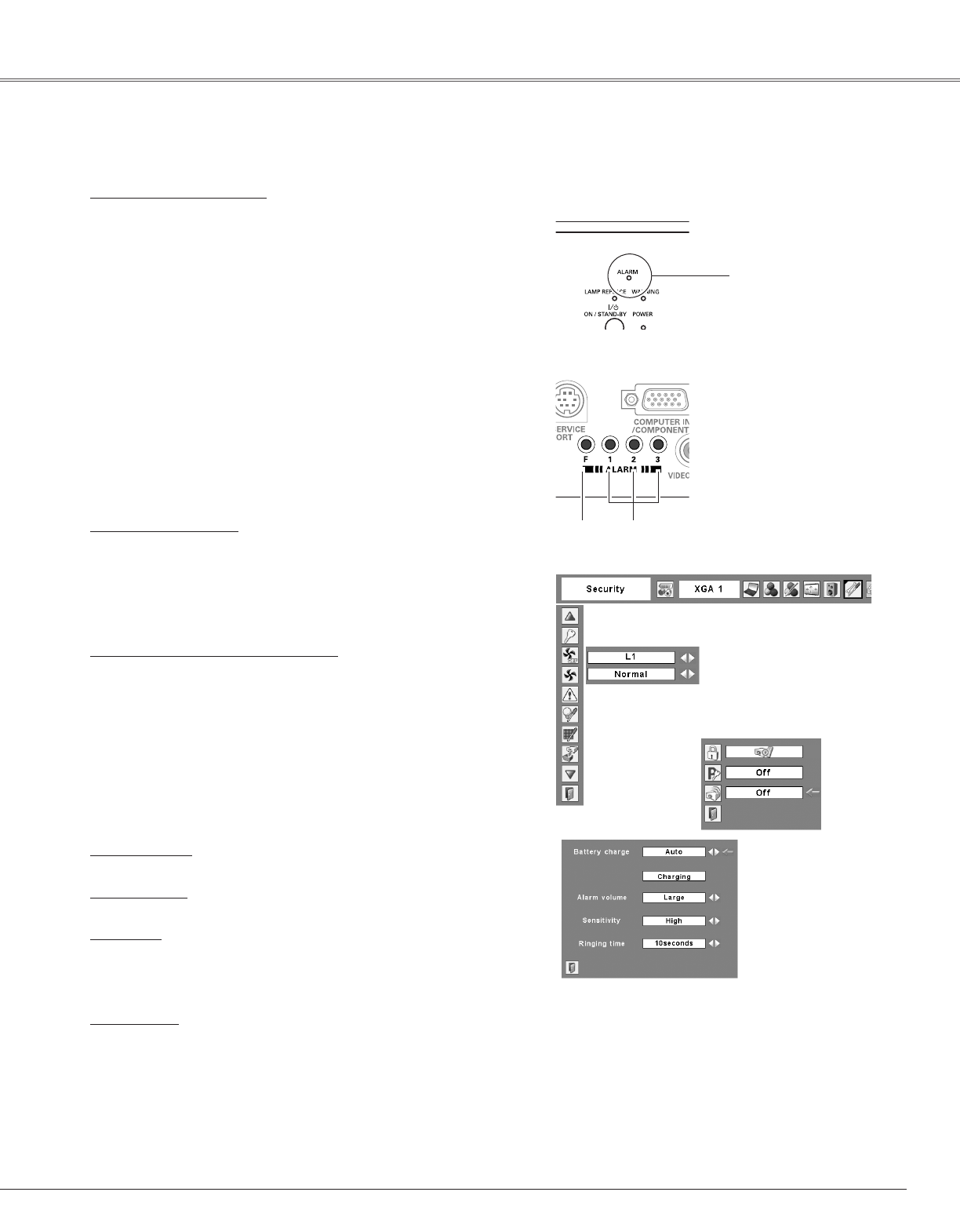

CAUTION:

WHEN YOU HAVE CHANGED THE PIN CODE, WRITE DOWN

THE NEW PIN CODE AND KEEP IT SECURELY. IF YOU FORGET

YOUR PIN CODE, SOME SETTINGS OF THE ANTITHEFT ALARM

FUNCTION CAN NO LONGER BE CHANGED.

Change the PIN code

Press the F button and enter the four-digit PIN code

number within about 10 seconds. The ALARM indicator

blinks red for a few seconds and a high-pitched

confirmation sound is produced.

Other settings

Reset the settings

Select “Factory default” in the Setting menu to reset the

settings for the Antitheft alarm function.

2While the indicator is blinking, enter a new PIN code,

then you will hear a high-pitched confirmation sound

and the ALARM indicator is turned off.

When you enter an incorrect PIN code, you will hear a

low-pitched sound. If you enter incorrect PIN code

three times in a row, the alarm will start ringing.

The PIN code for the Antitheft alarm function is a

combination of 1, 2, or 3. Use the buttons 1, 2, and 3 to

enter the PIN code. The default PIN code is “1111.”

✔Note:

•This is effective only when the Antitheft alarm setting is released.

The Alarm operating configuration can be changed when

the Antitheft alarm function is set to “Off.” See page 58 for

setting or releasing this function.

Press the SELECT button at Alarm icon in the Setting Menu

to display the Alarm setting dialog box. Use the Point ed

buttons to select the desired option; use the Point 7 8

buttons to set the selected option.

Battery charge

See the next page for details.

Alarm volume

Small, Medium, Large

Sensitivity

Low .....................Less sensitive

Medium ..............Normal sensitivity

High ....................Highly sensitive (default)

Ringing time

10 seconds .........Rings about 10 seconds (default).

60 seconds .........Rings about 60 seconds.

Long time............Rings until the end of the battery life.

Alarm

Press the SELECT button at

the Alarm icon to display the

Alarm setting dialog box.

✔Notes:

•The Alarm icon appears dimmed and can be

unavailable when the Antitheft alarm function is set

to “On” or if the battery is not installed, discharged,

or coming to the end of its life.

•While the Alarm icon is selected, the Antitheft alarm

setting buttons can be unavailable.

•When selecting “Long time” option in the Ringing

time, the duration of alarm sounding differs

depending on the battery life.

Use the Point 7 8

buttons to set the

selected option.

Alarm operating configuration

F button Button 1, 2, 3

Top Control

ALARM indicator

Rear Terminal

Antitheft Alarm Function

Charge the built-in batteries

Set the Battery charge option in the Alarm setting menu to

“Auto.” The default setting is “Auto.”

As long as the AC power cord is connected and this option is

set to “Auto,” the built-in battery for Alarm function is being

charged at all times. While charging the battery, “Charging”

is displayed in the menu.

The “Charging”appears dimmed when the battery is fully

charged or the Battery charge option is set to“Off,” or if

charging malfunction occurs. Set the option to “Off” when

not using the Alarm function. This can save the power and

battery life.

✔Note:

•The PIN code and settings you have changed are effective even after

the battery is changed.

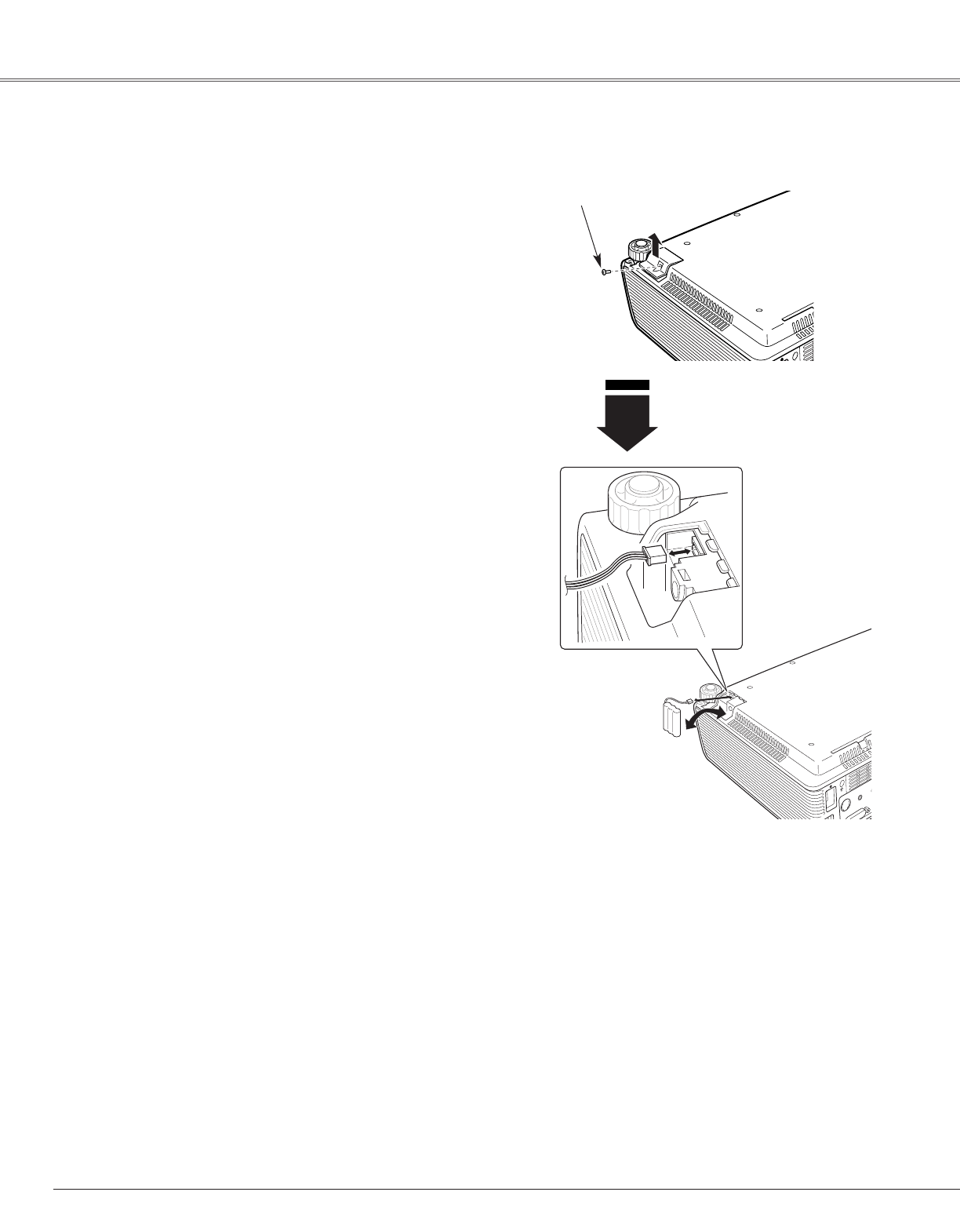

Remove the screw and

open the battery cover.

Install the battery, then put back the battery

cover and secure it with the screw.

Screw

Replace the rechargeable batteries

Use only the specified battery for this projector. Using other

types of battery may cause accident or fire hazard.

Replacement Battery: SANYO Ni-MH BATTERY PACK

Part No. 645 089 8587

How to replace the rechargeable batteries

Unplug the AC power cord from a wall outlet.

2Set the Alarm function to “Off” (see page 58). If it is

not released, the alarm will start ringing when you try

to remove the rechargeable battery cover.

Remove the screw from the rechargeable battery

cover and open the cover.

Pull out the battery connector and remove the battery.

Install new battery and plug the connector into the

socket.

Note: The battery connector has polarity. Observe

battery polarity when installing.

Put back the battery cover and secure it with the screw.

Caution: Tighten the screw securely. If you fail to do

so, the alarm will not operate. Do not use any

other screws. This may cause damage to the

projector.

Antitheft Alarm Function

SAFETY PRECAUTIONS FOR Ni-MH BATTERY PACK

Observe the following precautions when handling the built-in battery pack of the projector:

●MAKE SURE THAT THE BATTERY PACK IS INSTALLED IN THE PROJECTOR WHEN RECHARGING.

USING THE CHARGERS OTHER THAN THE PROJECTOR MAY CAUSE EXPLOSION OR A FIRE.

●The rechargeable battery pack is for use exclusively with this projector. Do not use in other products or

this may cause accident.

●Do not throw the battery into fire or heat it. Doing so may cause an explosion or fire.

●Never attempt to disassemble, modify, reconstruct, or solder lead wires directly on to the battery.

●Do not drop or subject to strong forces. Doing so may cause the battery to leak fluid or explode.

●Do not expose to direct sunlight or high temperatures. This may degrade battery performance or cause

leakage.

●Avoid contact with water or liquid. Exposure to water or liquid could result in battery corrosion or

damage.

●Keep out of reach of children. They may accidentally swallow the battery.

●Do not short-circuit battery terminals with metal objects. Do not store with metal objects or in a metal

case.

●The rechargeable battery pack has a limited number of charge cycles and eventually need to be

replaced. If it can no longer be recharged, stop charging immediately and replace it with new one.

●Recharge the battery in a place where the temperature is always between 32˚F to 104˚F (0˚C to 40˚C).

Charging in the temperature out of this range may result in fluid leak, heat generation, or shortening

battery life.

●If you do not use the projector or the Antitheft alarm function for a long period of time, remove the

battery from the projector and store it in a place where the temperature is always between –4˚F to

86˚F (–20˚C to 30˚C).

●If a battery leaks and fluid comes in contact with skin, this may cause skin irritation. Flush the affected

area thoroughly with water.

●If a battery leaks and fluid gets in contact with eyes, wash your eyes with water immediately and seek

medical attention.

●Dispose of used batteries according to your local disposal rule and guidelines.

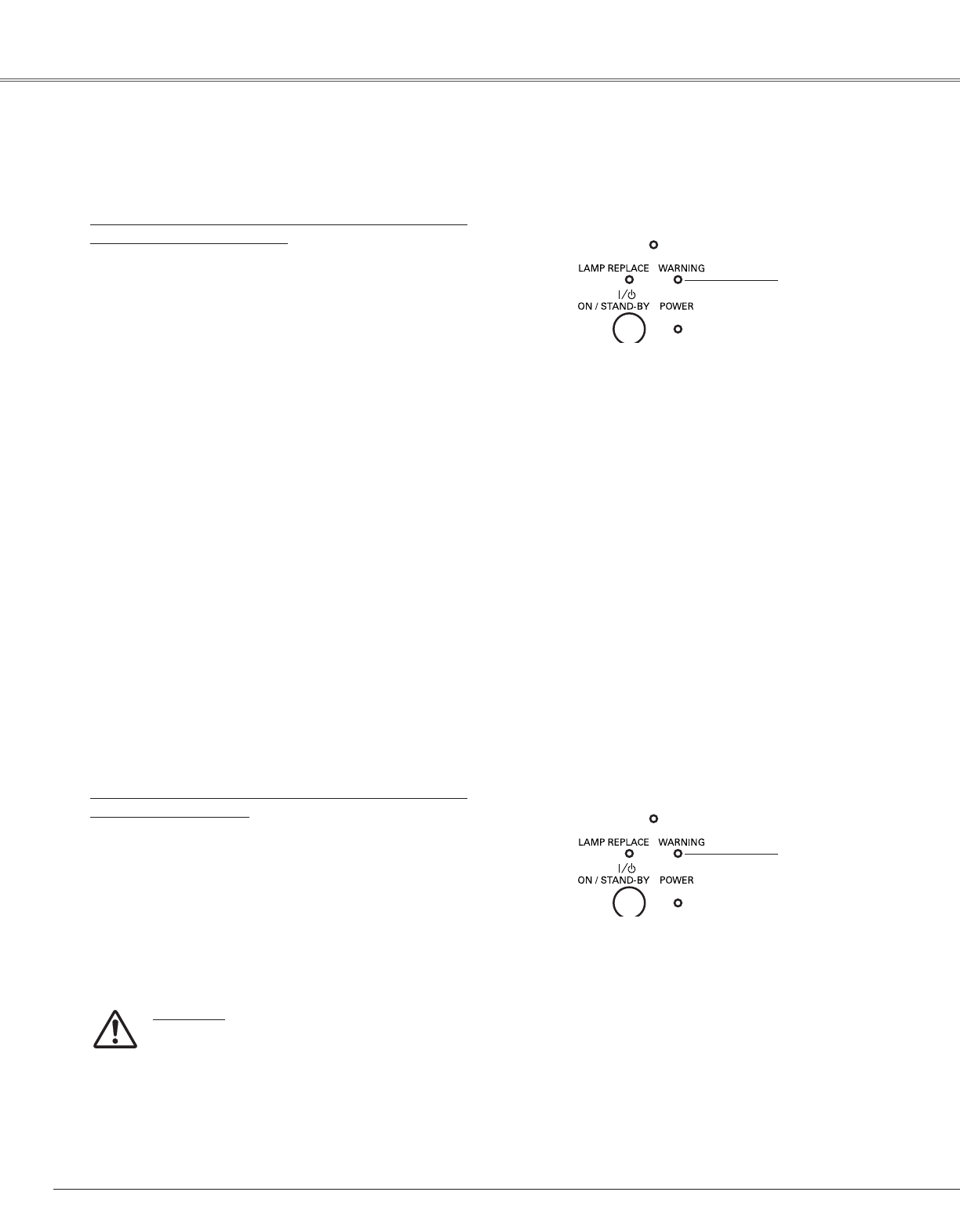

The WARNING indicator shows the state of the function which protects the projector. Check the state of the

WARNING indicator and the POWER indicator to take proper maintenance.

Warning Indicator

The projector is shut down and the WARNING

indicator is blinking red.

When the temperature inside the projector reaches a

certain level, the projector will be automatically shut down

to protect the inside of the projector. The POWER indicator

is blinking while the projector is being cooled down. When

the projector has cooled down enough (to its normal

operating temperature), it can be turned on again by

pressing the ON/STAND-BY button.

The projector is shut down and the WARNING

indicator lights red.

When the projector detects an abnormal condition, it is

automatically shut down to protect the inside of the

projector and the WARNING indicator lights red. In this

case, unplug the AC power cord and reconnect it, and then

turn the projector on once again to verify operation. If the

projector cannot be turned on and the WARNING indicator

still lights red, unplug the AC power cord and contact the

service station.

CAUTION

DO NOT LEAVE THE PROJECTOR WITH THE AC

POWER CORD CONNECTED UNDER AN

ABNORMAL CONDITION. IT MAY RESULT IN

FIRE OR ELECTRIC SHOCK.

Maintenance and Cleaning

Top Control

WARNING

blinking red

Top Control

WARNING

lights red

✔Note:

•The WARNING indicator continues to blink even after the

temperature inside the projector returns to normal. When the

projector is turned on again, the WARNING indicator stops

blinking.

Then check the matters below:

–Did you provide appropriate space for the projector to be

ventilated? Check the installing condition to see if the air

vents of the projector are not blocked.

–Has the projector been installed near an Air-Conditioning/

Heating Duct or Vent? Move the installation of the

projector away from the duct or vent.

–Is the filter clean? Clean the filter periodically.

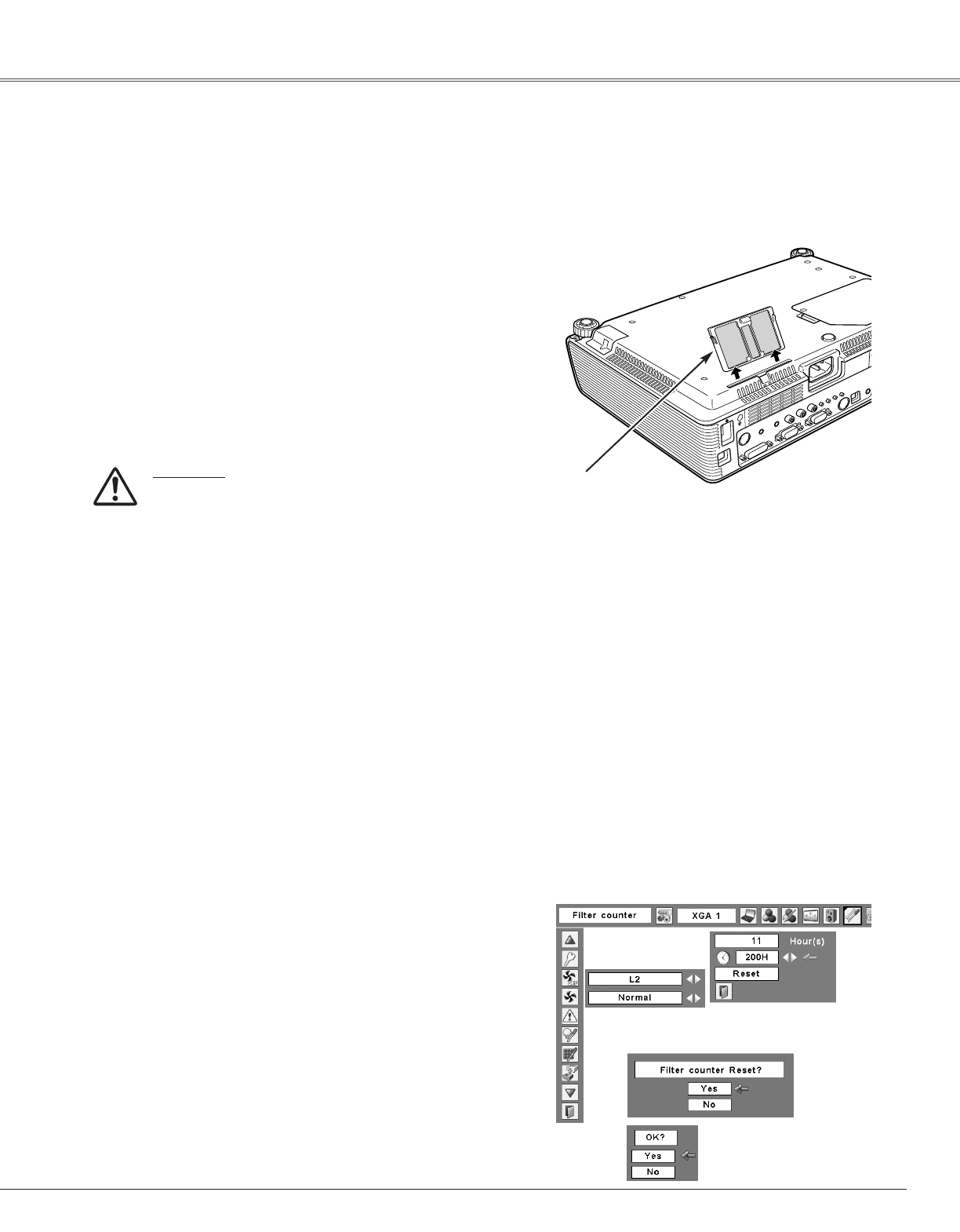

Maintenance and Cleaning

Turn off the projector, and unplug the AC power cord

from the AC outlet.

Turn the projector over and remove the filter by pulling

the latches upward.

Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter becomes

clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and

adversely affect the life of the projector. If a “Filter warning” icon appears on the screen, clean the filter

immediately. Clean the filter by following the steps below.

Gently clean the filter by using a brush or rinse it

softly.

When rinsing the filter, dry it well. Replace the filter

properly. Make sure that the filter is fully inserted to

the projector.

CAUTION

Do not operate the projector with the filter

removed. Dust may accumulate on the optical

elements degrading picture quality.

Do not put anything into the air vents. Doing so

may result in malfunction of the projector.

RECOMMENDATION

We recommend avoiding dusty/smoky environments

when you operate the projector. Usage in these

environments may cause poor image quality.

When using the projector under dusty or smoky conditions,

dust may accumulate on a lens, LCD panels, or optical

elements inside the projector degrading the quality of a

projected image. When the symptoms above are noticed,

contact your authorized dealer or service station for proper

cleaning.

✔Note:

•When reinserting this filter, be sure that the slit

part is facing the outer side.

Filter

Pull up and remove.

Be sure to reset the Filter counter after cleaning or replacing the filter.

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the Setting Menu icon.

Use the Point ed buttons to move the red frame

pointer to Filter counter and then press the SELECT

button. A dialog box appears showing the total

accumulated time of the filter use, a timer setting

option, and the reset option. Select Reset and the

“Filter counter Reset?” appears. Select [Yes] to

continue.

Resetting the Filter Counter

Filter counter

Select Reset and the “Filter

counter Reset?” appears.

Select [Yes],

then another

confirmation

box appears.

Select [Yes] again to reset

the Filter counter.

Another confirmation dialog box appears, select [Yes]

to reset the Filter counter.

Cleaning the Filter

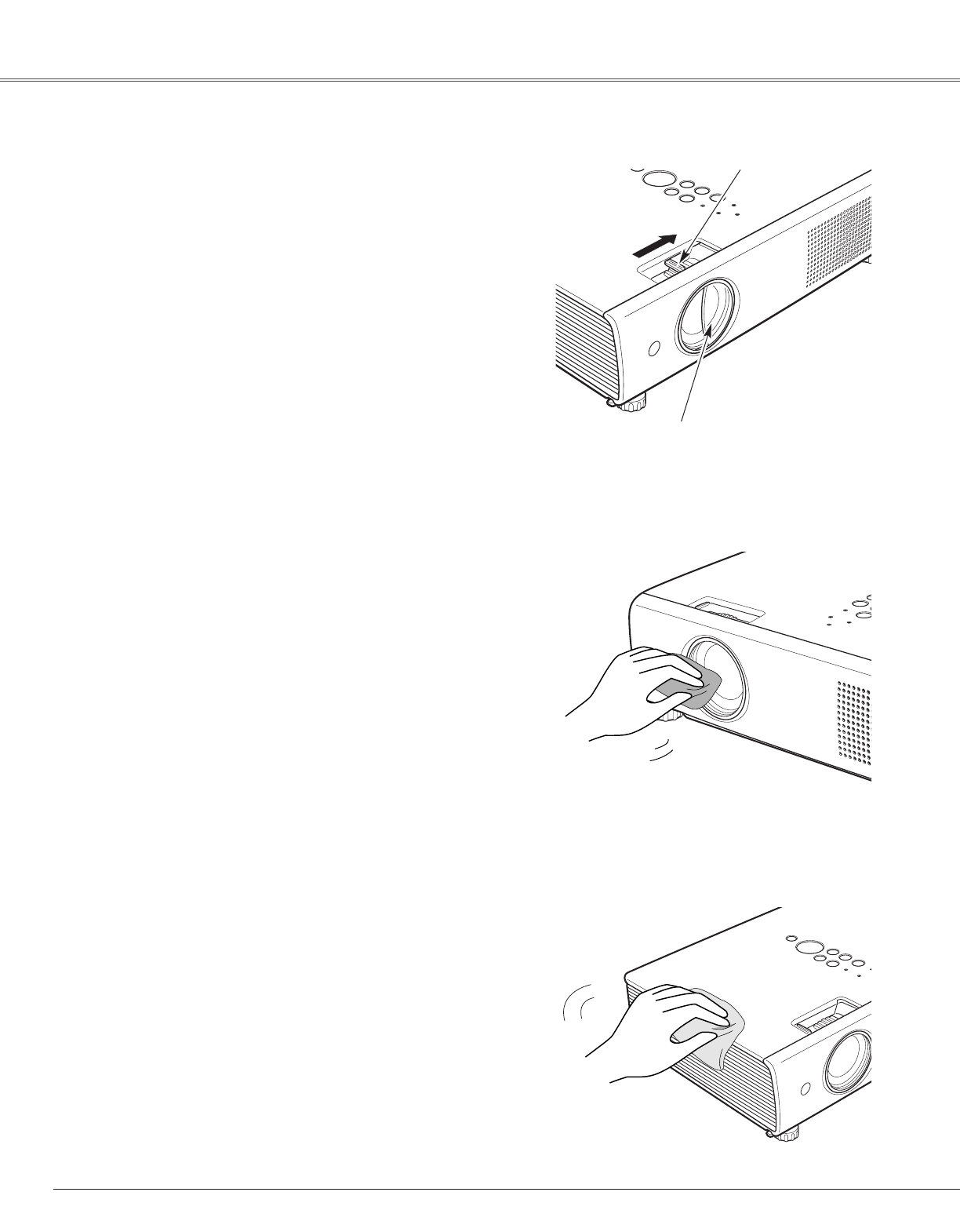

Maintenance and Cleaning

Cleaning the Projector Cabinet

Cleaning the Projection Lens

Slide Shutter is provided to protect the surface of the lens

against scratches and dirt. When you are not using the

projector, close the Slide Shutter.

To open or close, use the Slide Shutter Lever on the top of

the cabinet.

Do not close the shutter when the projection lamp is on.

Slide Shutter

Slide Shutter Lever

Slide Shutter

Unplug the AC power cord before cleaning.

Gently wipe the projection lens with a cleaning cloth that

contains a small amount of non-abrasive camera lens cleaner,

or use a lens cleaning paper or commercially available air

blower to clean the lens.

Avoid using an excessive amount of cleaner. Abrasive

cleaners, solvents, or other harsh chemicals might scratch

the surface of the lens.

Unplug the AC power cord before cleaning.

Gently wipe the projector body with a soft dry cleaning

cloth. When the cabinet is heavily soiled, use a small

amount of mild detergent and finish with a soft dry cleaning

cloth. Avoid using an excessive amount of cleaner. Abrasive

cleaners, solvents, or other harsh chemicals might scratch

the surface of the cabinet.

When the projector is not in use, put the projector in an

appropriate carrying case to protect it from dust and

scratches.

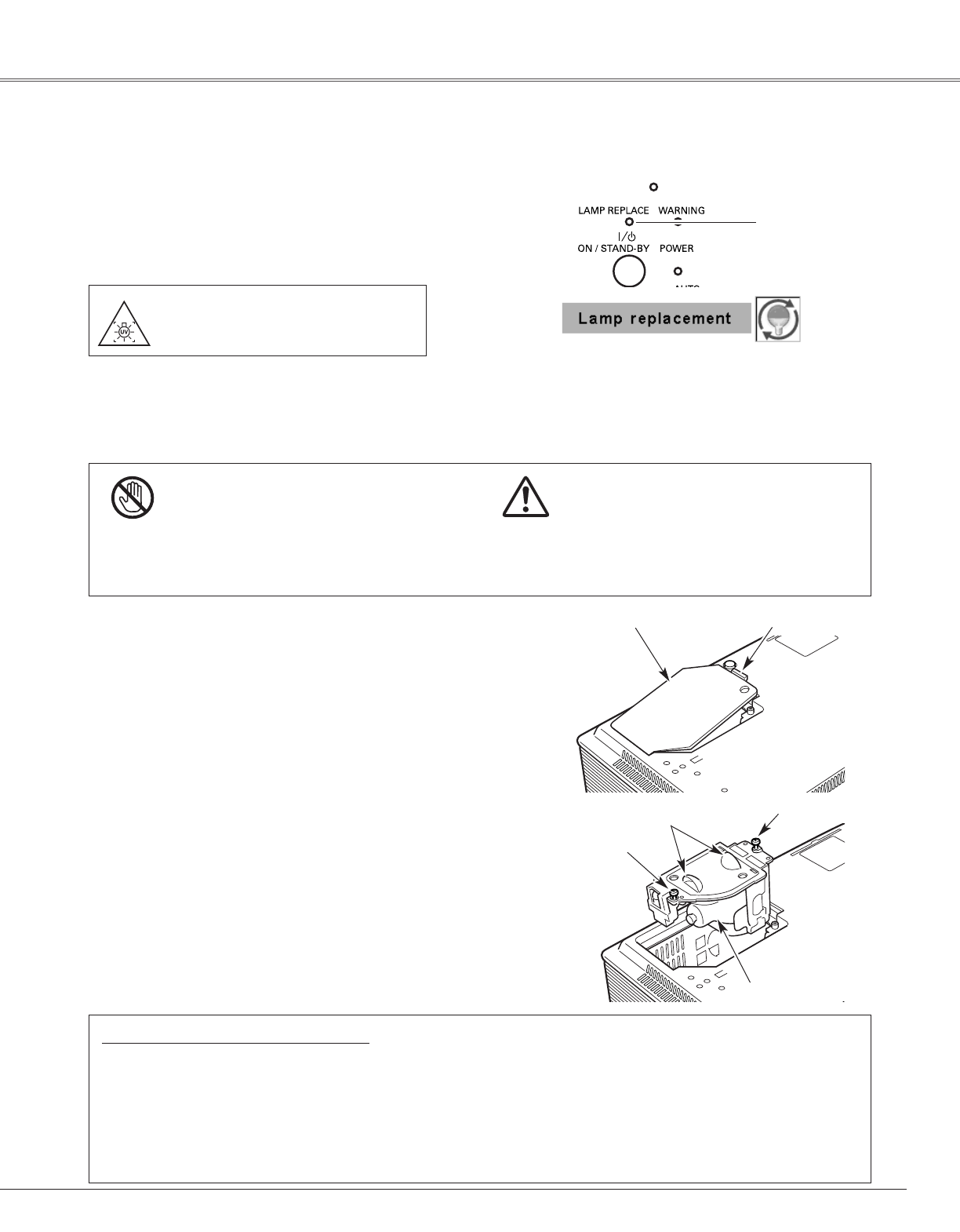

Maintenance and Cleaning

When the projection lamp of the projector reaches its end of

life, the Lamp replacement icon appears on the screen and

LAMP REPLACE indicator lights yellow. Replace the lamp with

a new one promptly. The timing when the LAMP REPLACE

indicator should light is depending on the lamp mode.

Follow these steps to replace the lamp.

Lamp

ORDER REPLACEMENT LAMP

Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following

information to the dealer.

●Model No. of your projector : PLC-XU110

●Replacement Lamp Type No. : POA-LMP103

(Service Parts No. 610 331 6345)

For continued safety, replace with a lamp of the

same type. Do not drop a lamp or touch a glass

bulb! The glass can shatter and may cause injury.

Allow a projector to cool for at least 45 minutes

before you open the Lamp cover. The inside of

the projector can become very hot.

CAUTION

Screw

Turn off the projector and unplug the AC power cord.

Let the projector cool for at least 45 minutes.

Remove the two (2) screws that secure the lamp. Lift

the lamp out of the projector by using the handle.

Replace the lamp with a new one and secure the two

(2) screws. Make sure that the lamp is set properly.

Close the lamp cover.

Open the lamp cover.

Connect the AC power cord to the projector and turn

on the projector.

6Reset the lamp counter.

See “Resetting the Lamp Counter” on the next page.

Lamp Replacement

Handle

Screw

CAUTION

Lamp Cover

WARNING:

TURN OFF THE UV LAMP BEFORE

OPENING THE LAMP COVER

Top Control

LAMP REPLACE

indicator

Lamp replacement icon

Press here and pull upward.

✔Note:

•The Lamp replacement icon will not appear when

the Display function is set to “Off” (p.48), during

“Freeze” (p.28), or “No show” (p.29).

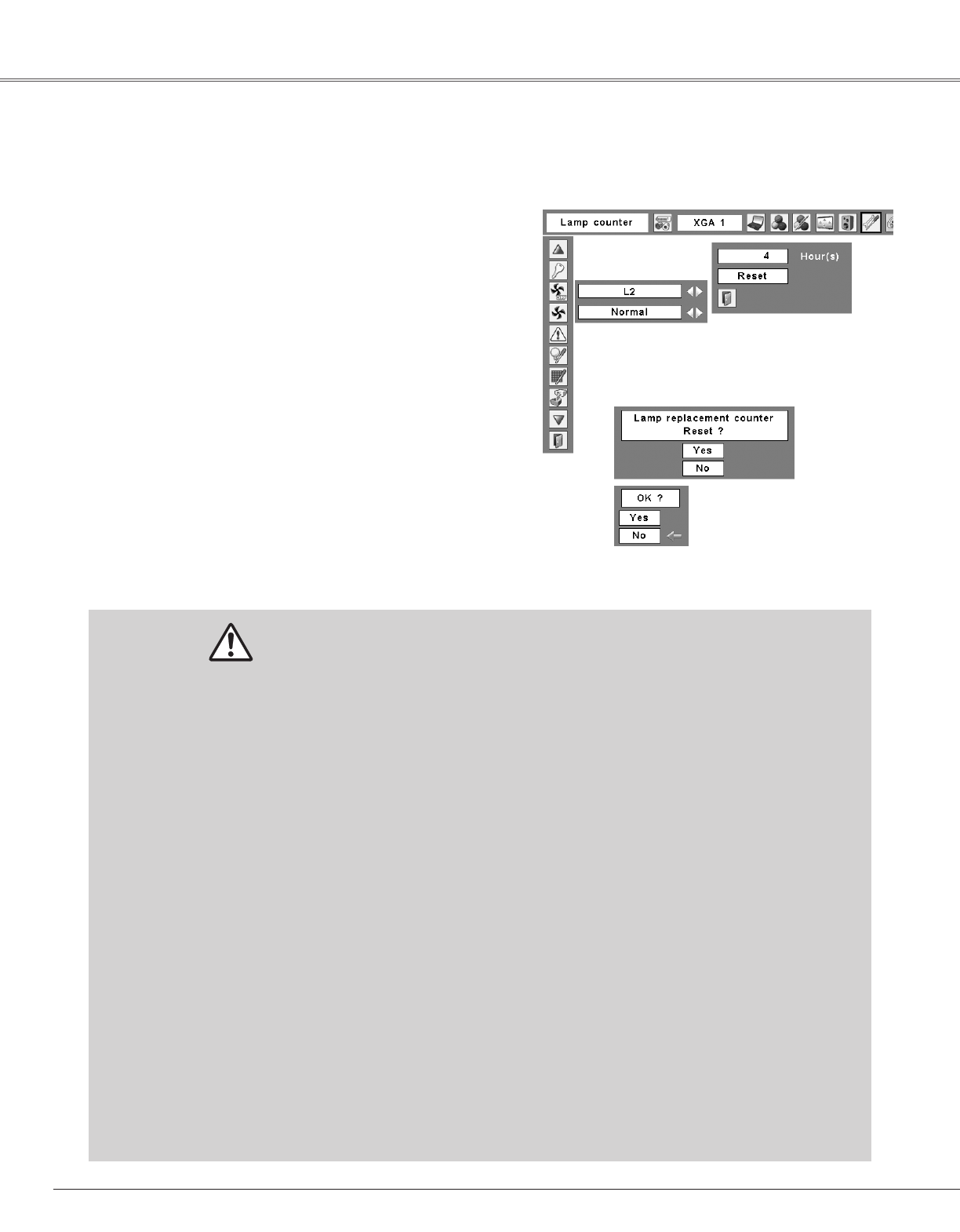

Maintenance and Cleaning

This projector uses a high-pressure lamp which must be handled carefully and properly.

Improper handling may result in accidents, injury, or create a fire hazard.

●Lamp life may differ from lamp to lamp and according to the environment of use. There is no guarantee

of the same life for each lamp. Some lamps may fail or terminate their life in a shorter period of time

than other similar lamps.

●If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights

up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down.

(Follow carefully the instructions in the Lamp Replacement section of this manual.) Continuous use of

the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion.

●A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its

lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in

which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an

authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check

carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out

from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one

should check the inside of the projector except those who are authorized trained technicians and who are

familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who

are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken

glass.

LAMP HANDLING PRECAUTIONS

Resetting the Lamp Counter

Be sure to reset the Lamp counter after the lamp is replaced. When the Lamp counter is reset, the LAMP

REPLACE indicator stops lighting and the Lamp replacement icon disappears.

Press the MENU button to display the On-Screen

Menu. Use the Point 7 8 buttons to move the red

frame pointer to the Setting Menu icon.

Use the Point ed buttons to move the red frame

pointer to Lamp counter and then press the SELECT

button. A dialog box appears showing the total

accumulated time of the lamp usage and the reset

option. Select Reset and the “Lamp replacement

counter Reset?” appears. Select [Yes] to continue.

Another confirmation dialog box appears, select [Yes]

to reset the Lamp counter.

✔Note:

•Do not reset the Lamp counter without implementing lamp

replacement. Be sure to reset the Lamp counter only after replacing

the lamp.

Select Reset and the “Lamp

replacement counter

Reset?” appears.

Select [Yes],

then another

confirmation

box appears.

Select [Yes] again to reset the

Lamp counter.

Tr oubleshooting

Before calling your dealer or service center for assistance, check the items below once again.

–Make sure you have properly connected the projector to peripheral equipment as described on pages 19–21.

–Make sure all equipment is connected to AC outlet and the power is turned on.

–When the projector does not project an image from the connected computer, restart the computer.

Appendix

Problem: –Solutions

No power –Plug the power cord of the projector into the AC outlet.

–See if the POWER indicator lights red.

–Wait 90-120 seconds after the projector is turned off when turning

the projector back on. The projector can be turned on after the

POWER indicator turns red. See on page 22.

–Check the WARNING indicator. If the WARNING indicator lights red,

projector cannot be turned on. See on page 62.

–Check the projection lamp. See page 65.

–Unlock the Key lock function for the projector. See page 54.

Image is out of focus. –Adjust focus of the projector. See page 26.

–Provide proper distance between the projector and the projection

screen. See page 17.

–Check the projection lens to see if it needs cleaning. See page 64.

–Moving the projector from a cool to warm place may result in

moisture condensation on the projection lens. In such cases, leave

the projector off and wait until condensation evaporates.

No image –Check the connection between your computer or video equipment

and the projector. See page 19–21.

–See if the input signal is correctly output from your computer. Some

laptop computers may need to change the setting for monitor output

when connecting to a projector. See your computer’s instruction

manual for the setting.

–It takes about 30 seconds to display an image after turning on the

projector. See page 22.

–See if the selected system is corresponding with your computer or

video equipment. See pages 32, 42.

–Select correct input source once again through menu operation. See

pages 30–31, 40–41.

–Make sure the temperature is not out of the specified Operating

Temperature (41˚F–95˚F [5˚C–35˚C]).

Image is Left/Right reversed. –Check the Ceiling/Rear function. See page 51.

Image is Top/Bottom reversed. –Check the Ceiling function. See page 51.

No sound –Check the audio cable connection from audio input source.

–Adjust the audio source.

–Press the Volume + button. See page 27.

–Press the Mute button. See page 27.

Appendix

Some displays are not seen –Check the Display function. See page 48.

during the operation.

PIN code dialog box appears –PIN code lock is being set. Enter a PIN code (the “1234” or numbers

at start-up. you have set). See pages 22, 54–55.

The Remote Control does –Check the batteries.

not work. –Make sure no obstruction is between the projector and remote

control.

–Make sure you are not too far from the projector when using the

remote control. Maximum operating range is 16.4’ (5 m).

–Make sure the code of the remote control is conformed to the

projector’s code. See page 53.

–Unlock the Key lock function for the remote control function. See

page 54.

This symbol on the nameplate means the product

is Listed by Underwriters Laboratories Inc. It is

designed and manufactured to meet rigid U.L.

safety standards against risk of fire, casualty and

electrical hazards.

The CE Mark is a Directive

conformity mark of the European

Community (EC).

WARNING :

High voltages are used to operate this projector. Do not attempt to open the cabinet.

If problems still persist after following all operating instructions, contact the dealer where you purchased the

projector or the service center. Specify the model number and explain about the problem. We will advise you

how to obtain service.

Pixelworks ICs used.

Appendix

Menu Tree

SVGA 1

Mode 1

Mode 2

- - - -

Auto PC Adj.

Total dots

Horizontal

Vertical

Display area H

Display area V

Reset

Dynamic

Real

Blackboard (Green)

Image 1

Image 2

Image 3

Image Adjust Contrast

Brightness

Color temp.

Red

Gamma

Store

Quit

Normal

True

Wide

Digital zoom +

Full screen

0–63

Computer Input

PC Adjust

Mode 1

Mode 2

Mode 3

Mode 4

Mode 5

Image Select

High

0–63

0–15

Image 1

Image 2

Image 3

Image 4

Screen

Quit

Yes/No

✽Systems displayed in the System Menu vary

depending on an input signal.

Reset Yes/No

Sharpness 0–15

Computer Input/Video Input

Sound

Volume

Mute

Quit

On/Off

Sound 0–63

Input

Video Auto

Go to System (3)

Video

Go to System (3)

Go to System (1)

S-video

Standard

Mode 3

Mode 4

Mode 5

Quit

H-sync freq.

Quit

Clamp

Current mode

Custom

Green

Blue

0–63

Quit

Store

Mode free

System (1)

Quit

Mid

Low

XLow

Quit

Adj.

N/ARGB (AV HDCP)

N/AComputer 1 (Digital) RGB (PC digital)

Computer 1 (Analog)

Go to System (2)Component

Go to System (1)Computer 2 RGB

N/ARGB (Scart)

See owner’s manual “Network Setup and Operation.”Wired

Image 4

Wireless*

Memory viewer*

See owner’s manual “Network Setup and Operation.”

See owner’s manual of Memory viewer (optionally available)

N/A ........not applicable

*............The menu will be displayed when connecting

device for the input source.

Fine sync 0–31

Mode 1

Mode 2

V-sync freq.

Digital zoom –

Appendix

Auto

PAL

SECAM

NTSC

NTSC 4.43

PAL-M

PAL-N

Video Input

Auto

1080i

1035i

720p

575p

480p

575i

480i

Dynamic

Cinema

Blackboard (Green)

Image 1

Image 2

Image 3

Quit

Normal

Wide

0–63

Off

Setting

Image Select

System (2)

System (3)

Image Adjust Contrast

Brightness

Color

Tint

Red

Green

Blue

Sharpness

Reset

Store

Gamma

Progressive

0–63

0–15

Image 1

Screen

Yes/No

Quit

Image 4

Language

Setting 16 languages provided.

On/Off

On/Countdown off/Off

Logo select

On/Off

Off

On/Off

Auto/High/Normal/Eco

Code 1–Code 8

Keystone

Blue back

Display

Logo

Ceiling

Rear

Power management

On start

Lamp control

Remote control

Ready

Shut down

Security

PIN code lock

Alarm

Timer (1–30 Min.)

Quit

L1/L2Fan

Standard

OffNoise reduction

Store/Reset

Mid

Low

XLow

0–63

Image 2

Image 3

Image 4

Quit

Off

User

Capture

Yes/No

Off/On

Logo PIN code change

Quit

Logo PIN code lock

Logo PIN code entry

Off

Projector

Remote control

Quit

Key lock

Default

Off/On1/On2

PIN code change

Quit

PIN code lock entry

Adj.

Film

Auto setup

On/Off

Standby mode Eco/Normal

Spotlight/PointerPointer

Quit

Color temp. High

Quit

Auto PC adj.

Custom

Auto keystone

Auto

Manual

Off

Normal/MaxFan control

Warning log

Hour(s)Lamp counter

Yes/No

Hour(s)Filter counter

Yes/No

Off/100H/200H/300H

Reset

Yes/NoFactory default

Quit

Alarm volume

Sensitivity

Ringing time

Off

Quit

Small/Medium/Large

Low/Medium/High

Battery charge Off/Auto

10 seconds/

60 seconds/Long time

Appendix

Check the indicators for projector condition.

• • • green. • • • red • • • off

• • • blinks green.

When the projection lamp reaches its end of life, the LAMP REPLACE indicator lights yellow. When this indicator

lights yellow, replace the projection lamp with a new one promptly. Reset the lamp replacement counter after

replacing the lamp. See pages 65–66.

The projector is off. (The AC power cord is unplugged.)

The projector is in stand-by mode. Press the ON/STAND-BY button

to turn on the projector.

The temperature inside the projector is abnormally high. The

projector cannot be turned on. When the projector is cooled down

enough and the temperature returns to normal, the POWER

indicator stops blinking and the projector can be turned on. (The

WARNING indicator keeps blinking.) Check and clean the filter.

Projector Condition

The projector is preparing for stand-by or the projection lamp is

being cooled down. The projector cannot be turned on until cooling

is completed and the POWER indicator stops blinking.

POWER

red/green

Indicators

LAMP

REPLACE

yellow

WARNING

red

The projector detects an abnormal condition and cannot be turned

on. Unplug the AC power cord and plug it again to turn on the

projector. If the projector is turned off again, unplug the AC power

cord and contact the dealer or the service center for service and

checkup. Do not leave the projector on. It may cause an electric

shock or a fire hazard.

✽

The projector is operating normally.

The projector is in the Power management mode.

✽

The projector has been cooled down enough and the temperature

returns to normal. When turning on the projector, the WARNING

indicator stops blinking. Check and clean the air filter.

Indicators and Projector Condition

• • • blinks red.

The projector’s Network or Memory viewer function is in an

abnormal condition.

✽

Appendix

Compatible Computer Specifications

Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned

below and less than 140 MHz of Dot Clock for analog signal and 110 MHz of Dot Clock for digital signal.

When selecting these modes, PC adjustment can be limited.

ON-SCREEN

DISPLAY RESOLUTION H-Freq.

(KHz)

V-Freq.

(Hz)

VGA 1 640 x 480 31.47 59.88

VGA 2 720 x 400 31.47 70.09

VGA 3 640 x 400 31.47 70.09

VGA 4 640 x 480 37.86 74.38

VGA 5 640 x 480 37.86 72.81

VGA 6 640 x 480 37.50 75.00

MAC LC13

640 x 480 34.97 66.60

MAC 13 640 x 480 35.00 66.67

MAC 16 832 x 624 49.72 74.55

MAC 19 1024 x 768 60.24 75.08

SXGA 1 1152 x 864 64.20 70.40

SVGA 1 800 x 600 35.156 56.25

SVGA 2 800 x 600 37.88 60.32

SVGA 3 800 x 600 46.875 75.00

SVGA 4 800 x 600 53.674 85.06

SVGA 5 800 x 600 48.08 72.19

SVGA 6 800 x 600 37.90 61.03

SVGA 7 800 x 600 34.50 55.38

SVGA 8 800 x 600 38.00 60.51

SVGA 9 800 x 600 38.60 60.31

SVGA 11 800 x 600 38.00 60.51

ON-SCREEN

DISPLAY RESOLUTION H-Freq.

(KHz)

V-Freq.

(Hz)

XGA 10 1024 x 768

XGA 11 1024 x 768

XGA 12 1024 x 768

XGA 13 1024 x 768

62.04 77.07

XGA 14 1024 x 768

61.00 75.70

XGA 15 1024 x 768

35.522

86.96

(Interlace)

46.90 58.20

XGA 8 1024 x 768

47.00 58.30

XGA 9 1024 x 768

58.03 72.00

SXGA 4 1280 x 1024

63.48 79.35

36.00

87.17

(Interlace)

63.34 59.98

SXGA 5 1280 x 1024

SXGA 6 1280 x 1024

SXGA 7 1280 x 1024

63.74 60.01

71.69 67.19

SXGA 10 1280 x 960

81.13 76.107

60.00 60.00

XGA 1 1024 x 768

XGA 4 1024 x 768

48.36 60.00

XGA 6 1024 x 768

XGA 7 1024 x 768

56.476 70.07

48.50 60.02

44.00 54.58

SXGA 8 1280 x 1024

SXGA 9 1280 x 1024

63.98 60.02

79.976 75.025

XGA 5 1024 x 768 60.31 74.92

VGA 7 640 x 480 43.269 85.00

575i –––––––– 15.625

50.00

(Interlace)

480i –––––––– 15.734

60.00

(Interlace)

SXGA 12 1152 x 900 71.40 75.60

SXGA 11 1152 x 900 61.20 65.20

SVGA 10 800 x 600 32.70 51.09

SXGA 13 1280 x 1024 50.00

86.00

(Interlace)

SXGA 2 1280 x 1024 62.50 58.60

SXGA 3 1280 x 1024 63.90 60.00

XGA 2 1024 x 768 68.677 84.997

XGA 3 1024 x 768 60.023 75.03

SXGA 18 1280 x 1024 46.43

86.70

(Interlace)

SXGA 19 1280 x 1024 63.79 60.18

SXGA 14 1280 x 1024

SXGA 15 1280 x 1024

SXGA 16 1280 x 1024

SXGA 17 1152 x 900

50.00

94.00

(Interlace)

63.37 60.01

76.97 72.00

61.85 66.00

MAC 1280 x 960 75.00 75.08

MAC 1280 x 1024 80.00 75.08

1080i 1920 x 1080 33.75

60.00

(Interlace)

720p 1280 x 720

1035i 1920 x 1035

45.00 60.00

33.75

60.00

(Interlace)

1080i 1920 x 1080 28.125

50.00

(Interlace)

SXGA+ 1 1400 x 1050 63.97 60.19

MAC21 1152 x 870 68.68 75.06

UXGA 4 1600 x 1200 93.75 75.00

WXGA 2 1360 x 768

WXGA 3 1376 x 768

WXGA 4 1360 x 768

UXGA 1 1600 x 1200

47.70 60.00

UXGA 2 1600 x 1200

48.36 60.00

UXGA 3 1600 x 1200

56.16 72.00

75.00 60.00

81.25 65.00

WXGA 1 1366 x 768

87.5 70.00

48.36 60.00

SXGA+ 2 1400 x 1050 65.35 60.12

SXGA+ 3 1400 x 1050 65.12 59.90

SXGA 20 1280 x 1024 91.146 85.024

480p

640 x 480 31.47 59.88

575p 768 x 575 31.25 50.00

WXGA 7 1360 x 768

WXGA 8 1376 x 768

WXGA 9 1360 x 768

47.70 60.00

48.36 60.00

49.600 60.050

WXGA 6 1366 x 768 48.36 60.00

Appendix

ON-SCREEN

DISPLAY RESOLUTION H-Freq.

(KHz)

V-Freq.

(Hz)

D-VGA 640 x 480 31.47 59.94

D-480p 640 x 480 31.47 59.88

D-575p 768 x 575 31.25 50.00

D-SVGA 800 x 600 37.879 60.32

D-WXGA 1 1366 x 768 48.36 60.00

ON-SCREEN

DISPLAY RESOLUTION H-Freq.

(KHz)

V-Freq.

(Hz)

D-720p 1280 x 720 45.00 60.00

D-1035i 1920 x 1035

D-1080i 1920 x 1080

33.75

60.00

(Interlace)

33.75

60.00

(Interlace)

28.125

50.00

(Interlace)

D-XGA 1024 x 768 43.363 60.00

D-WXGA 2 1360 x 768 47.7 60.00

D-WXGA 3 1376 x 768 48.36 60.00

When the input signal is digital from DVI terminal, refer to the chart below.

✔Note:

•When the input signal is D-SXGA 1, D-SXGA 2, or D-SXGA 3, images may not be displayed properly depending on computers.

D-WXGA 4 1360 x 768 56.160 72.000

D-WXGA 5 1366 x 768 46.500 50.000

D-WXGA 6 1280 x 768 47.776 59.870

D-WXGA 7 1280 x 768 60.289 74.893

D-WXGA 8 1280 x 768 68.633 84.837

D-WXGA 9 1280 x 800 49.600 60.050

D-SXGA1 1280 x 1024 63.98 60.02

D-SXGA2 1280 x 1024 60.276 58.069

D-SXGA+ 1 1400 x 1050 63.97 60.19

Appendix

Te c hnical Specifications

Mechanical Information

Projector Type Multi-media Projector

Dimensions (W x H x D) 13.15” x 3.07” x.9.13” (334 mm x 78 mm x 232 mm) (Not including adjustable feet)

Net Weight 7.7 lbs (3.5 kg)

Feet Adjustment 0˚ to 9.0˚

Panel Resolution

LCD Panel System 0.8” TFT Active Matrix type, 3 panels

Panel Resolution 1,024 x 768 dots

Number of Pixels 2,359,296 (1,024 x 768 x 3 panels)

Signal Compatibility

Color System

PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N

High Definition TV Signal 480i, 480p, 575i, 575p, 720p, 1035i, and 1080i

Scanning Frequency H-sync. 15 kHz–100 kHz, V-sync. 50–100 Hz

Optical Information

Projection Image Size (Diagonal) Adjustable from 33” to 300”

Throw Distance 4.3’–32.8’ (1.3 m–10.0 m)

Projection Lens F1.7–2.1 lens with f26.7 mm–32.0 mm with manual zoom and focus

Projection Lamp 300 W

Interface

Video Input Jack RCA Type x 1

S-video Input Jack Mini DIN 4 pin x 1

Audio Input Jacks RCA Type x 2

Computer Input 1/DVI-I Input Terminal DVI-I Terminal X 1

Computer Input 2/Component Input Terminal Analog RGB (Mini D-sub 15 pin) Terminal x 1

Monitor Output Terminal Analog RGB (Mini D-sub 15 pin) Terminal x 1

Computer/Component Audio Input Jack Mini Jack (stereo) x 1

Service Port Connector Mini DIN 8 pin x 1

USB Connector USB Series A connector x 1/USB Series B connector x 1

Audio Output Jack Mini Jack (stereo) x 1 (variable)

LAN Connection Terminal 100 Base-TX (100 Mbps)/10 Base-T (10Mbps), RJ45

Audio

Internal Audio Amp 1.0 W RMS

Built-in Speaker 1 speaker, ø1.1” (28 mm)

Power

Voltage and Power Consumption AC 100–120 V (4.9A Max. Ampere), 50/60 Hz (The U.S.A and Canada)

AC 200–240 V (2.2A Max. Ampere), 50/60 Hz (Continental Europe and The U.K.)

Operating Environment

Operating Temperature 41˚F–95˚F (5 ˚C–35 ˚C)

Storage Temperature 14˚F–140˚F (-10˚C–60 ˚C)

Remote Control

Battery AAA or LR03 Type x 2

Operating Range 16.4’ (5 m)/±30˚

Dimensions 1.8” (W) x 1.0” (H) x 5.7” (D) (45 mm x 25 mm x 145 mm)

Net Weight 3.5 oz (99 g) (including batteries)

Laser Pointer Class II Laser (Max. Output: 1 m W/Wave length: 640–660 nm)

Built-In Battery (Antitheft Alarm)

SANYO Ni-MH BATTERY PACK 3.6V

(Part No. 645 089 8587)

Appendix

Model No.

COMPONENT-VGA Cable : POA-CA-COMPVGA

SCART-VGA Cable : POA-CA-SCART

Remote Control Cable (10 m) : KV-VC-RC10

Remote Control Cable (30 m) : POA-CA-RC30

VGA-Cable (10 m) : KA-MC-DB10

USB Memory :POA-USB02

The parts listed below are optionally available. When ordering those parts, specify the item name and Model

No. to the sales dealer.

Optional Parts

Accessories

Owner’s Manual (CD-ROM)

Quick Reference Guide

AC Power Cord

Remote Control and Batteries

VGA Cable

PIN Code Label

Alarm Label

Network Application (CD-ROM)

Soft Carrying Case

USB Wireless LAN Adapter

●The specifications are subject to change without notice.

●LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are

effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD

panels.

(This is used for Memory viewer operation.)

Appendix

This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information

System Industries Association). This projector supports all commands defined by PJLink Class 1 and is verified

conformance with PJLink Standard Class 1.

For PJ Link password, see page 49 on the owner’s manual “Network Set-up and Operation.”

Projector Input

RGB

Computer1 (Analog)

RGB (AV HDCP)

RGB (PC digital)

Component

RGB (Scart)

Auto

PJLink Input

RGB 2

RGB 1

DIGITAL 2

DIGITAL 1

RGB 3

RGB 4

Video

S-video

VIDEO 2

VIDEO 3

VIDEO 1

NETWORK 1Wired

Computer1

(Digital)

Computer2

Video

PJLink is a registered trademark of JBMIA and pending trademark in some countries.

PJ Link Notice

Wireless

Memory viewer

NETWORK 2

STORAGE 1

Parameter

Appendix

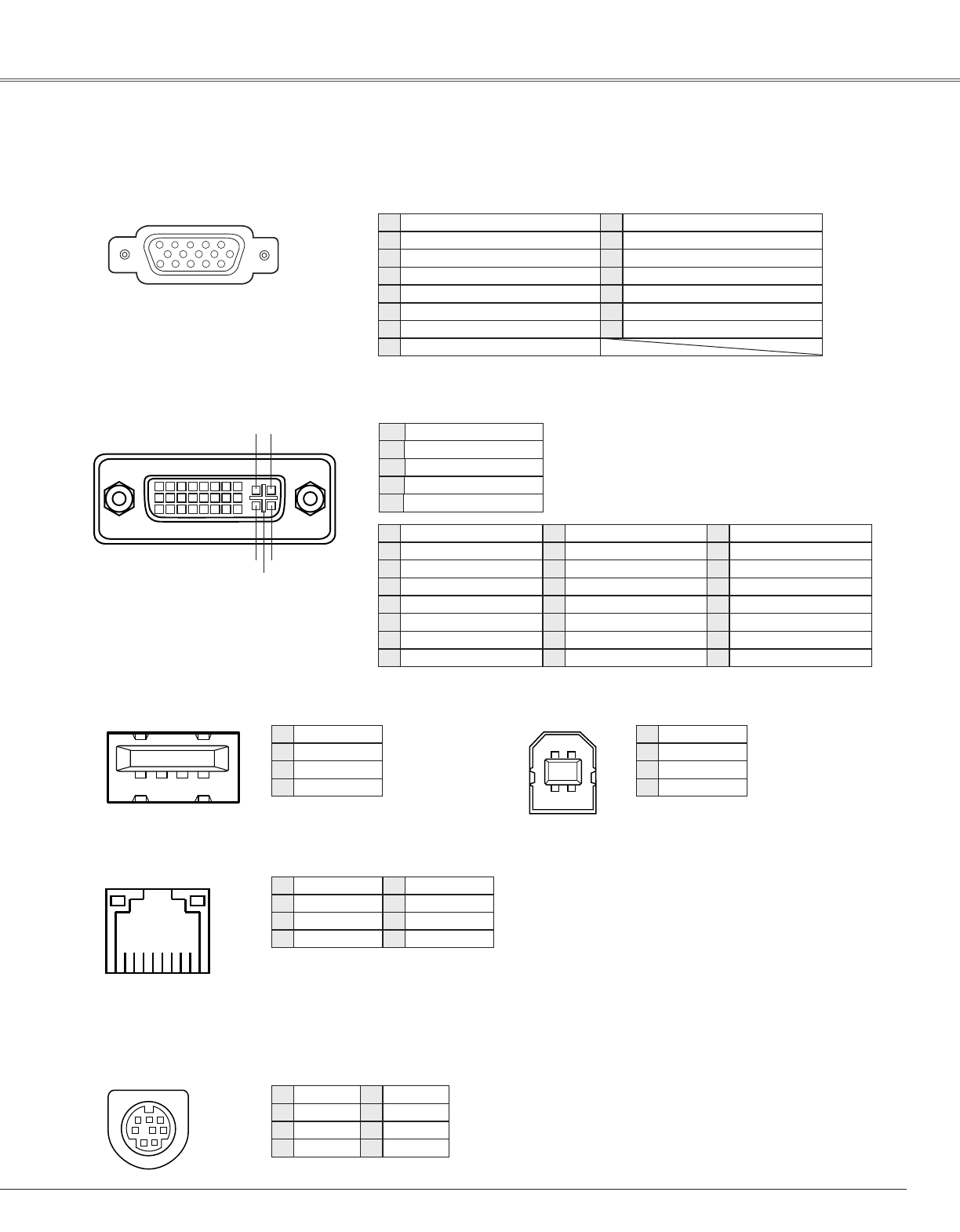

Terminal : Mini DIN 8-PIN

SERVICE PORT CONNECTOR

Vcc

- Data

+ Data

Ground

USB CONNECTOR (Series A)

R X D

-----

GND

RTS/CTS

GND

COMPUTER IN 2 /COMPONENT IN /MONITOR OUT (ANALOG)

Terminal: Analog RGB (Mini D-sub 15 pin)

9 678

15 14 13 11

Configurations of Terminals

Red (R/Cr) Input/Output

Ground (Horiz.sync.)

Green (G/Y) Input/Output

-----

Blue (B/Cb) Input/Output

Ground (Red)

Ground (Green)

Ground (Blue)

-----

Horiz. sync. Input/Output (Composite H/V sync.)

Ground (Vert.sync.)

-----

Ground

Vert. sync.

-----

T X D

VCC(5V)

– DATA

+ DATA

1234

RX –

TX +

TX –

RX +

87654321

USB CONNECTOR (Series B)

Ground

LAN TERMINAL

-----

----------

DVI-I TERMINAL (DIGITAL/ANALOG)

C1 C2

T.M.D.S. Data2–

No Connect

T.M.D.S. Data2+

No Connect

T.M.D.S. Data2 Shield

DDC Clock

DDC Data

Analog Vert. sync

T.M.D.S. Data1–

No Connect

T.M.D.S. Data1+

No Connect

T.M.D.S. Data1 Shield

+5V Power

Ground (for +5V)

Hot Plug Detect

T.M.D.S. Data0–

No Connect

T.M.D.S. Data0+

No Connect

T.M.D.S. Data0 Shield

T.M.D.S. Clock Shield

T.M.D.S. Clock+

T.M.D.S. Clock–

Analog Red Input

Analog Ground (R/G/B)

Analog Green Input

Analog Horiz. sync

Analog Blue Input

8 7 6

Appendix

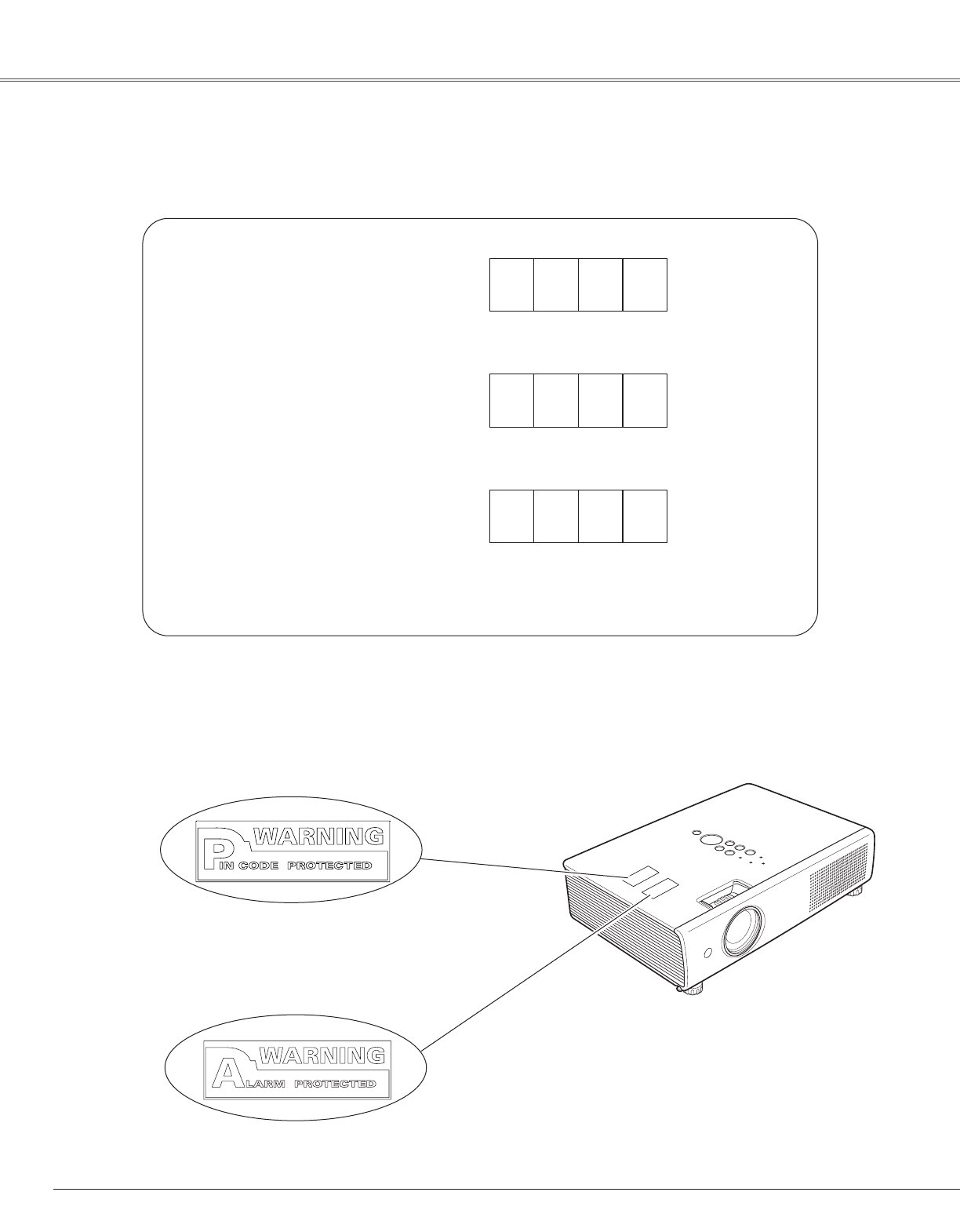

Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or

lost the number and unable to operate the projector, contact the service station.

PIN Code Number Memo

Factory default set No: 1 2 3 4*

Factory default set No: 4 3 2 1*

*Should the four-digit number be changed,

the factory set number will be invalid.

Put the label below (supplied) on in a prominent place of the

projector’s body while it is locked with a PIN code.

While the projector is locked with the PIN code....

PIN Code Lock No.

Logo PIN Code Lock No.

Factory default set No: 1 1 1 1*

Alarm PIN Code No.

Put the label below (supplied) on in a prominent place of the

projector’s body while the Antitheft alarm function is set.

While the Antitheft alarm function is set....

SANYO Electric Co., Ltd.

KM6A

Sanyo Plc Xu110 Users Manual XU110(English)

PLC-XU110 projector_manual_3477

PLC-XU110 to the manual 5ccaaf4f-f389-4ffe-afb9-763e44a9eaf7

Navigation menu

Versions of this User Manual:

Views

Navigation
