Sanyo Projector Plc Xu45 Users Manual Service XU45, XU46

PRODUCT CODE

1 122 181 00 (ME3A)

1 122 182 00 (PE3A)

1 122 182 02 (PE3C) REFERENCE NO. SM5110464

Chassis No. ME3-XU4500

MF3-XU4600

NOTE: Match the Chassis No. on the unit’s

back cover with the Chassis No. in the

Service Manual.

If the Original Version Service

Manual Chassis No. does not match

the unit’s, additional Service

Literature is required.You must refer to

“Notices” to the Original Service

Manual prior to servicing the unit.

Multimedia Projector

SERVICE MANUAL

FILE NO.

Model No. PLC-XU45

PLC-XU46

U.S.A., Canada,

Europe, Asia, Africa

U.K

Original Version

PLC-XU46 PLC-XU45

1 122 183 00 (MF3A)

1 122 184 00 (PF3A)

1 122 184 02 (PF3C)

-2-

■Contents

■Contents________________________________________________________2

■Safety Instructions ________________________________________________3

PRODUCT SAFETY NOTICE ____________________________________3

SERVICE PERSONNEL WARNING ______________________________3

SAFETY PRECAUTIONS ______________________________________3

■Specifications ____________________________________________________4

■Adjustments after Parts Replacement ________________________________5

■Circuit Protections ________________________________________________6

Fuse ______________________________________________________6

Thermal switch ______________________________________________6

Interlock switch ______________________________________________6

Warning temperature and power failure protection __________________7

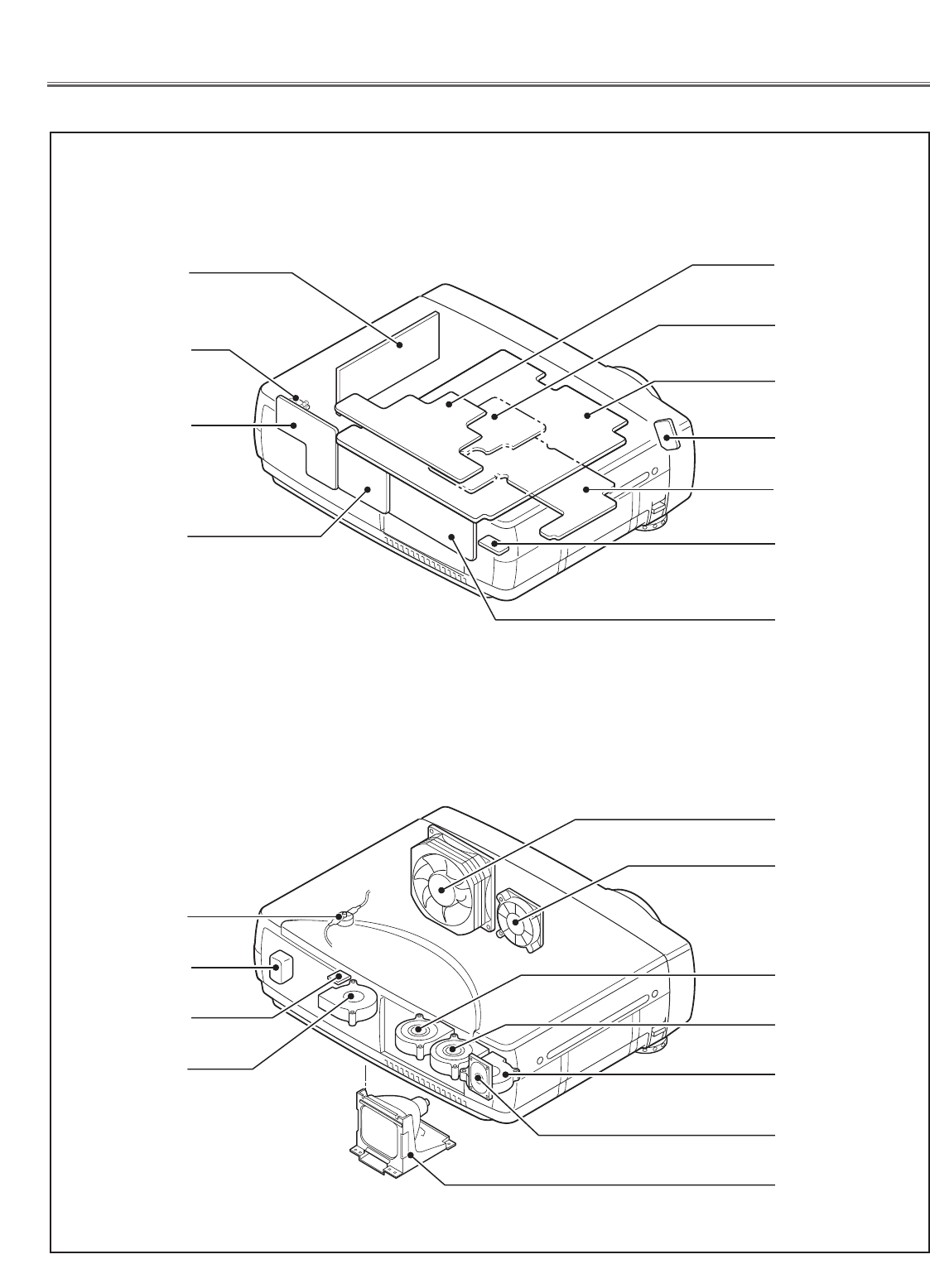

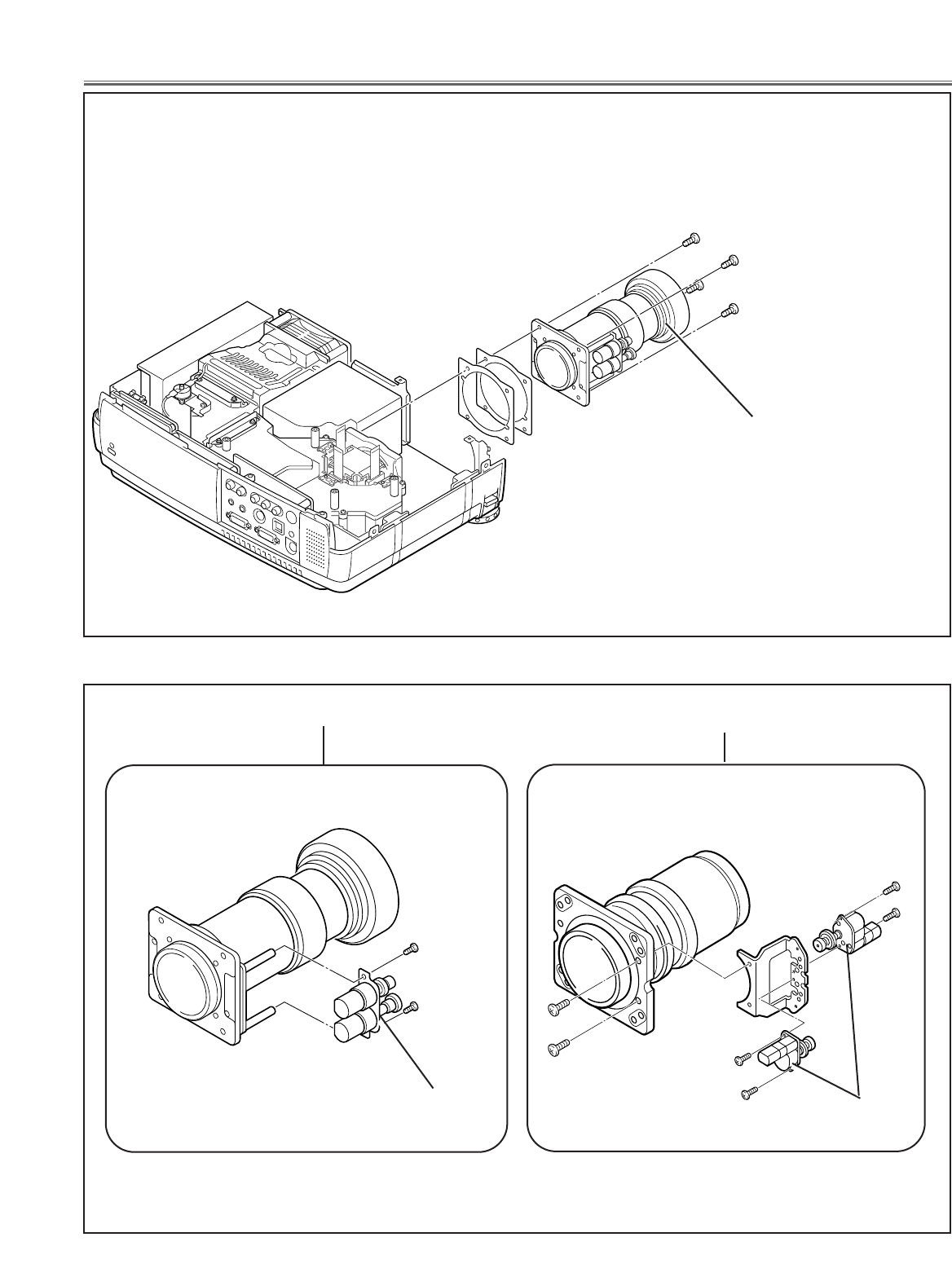

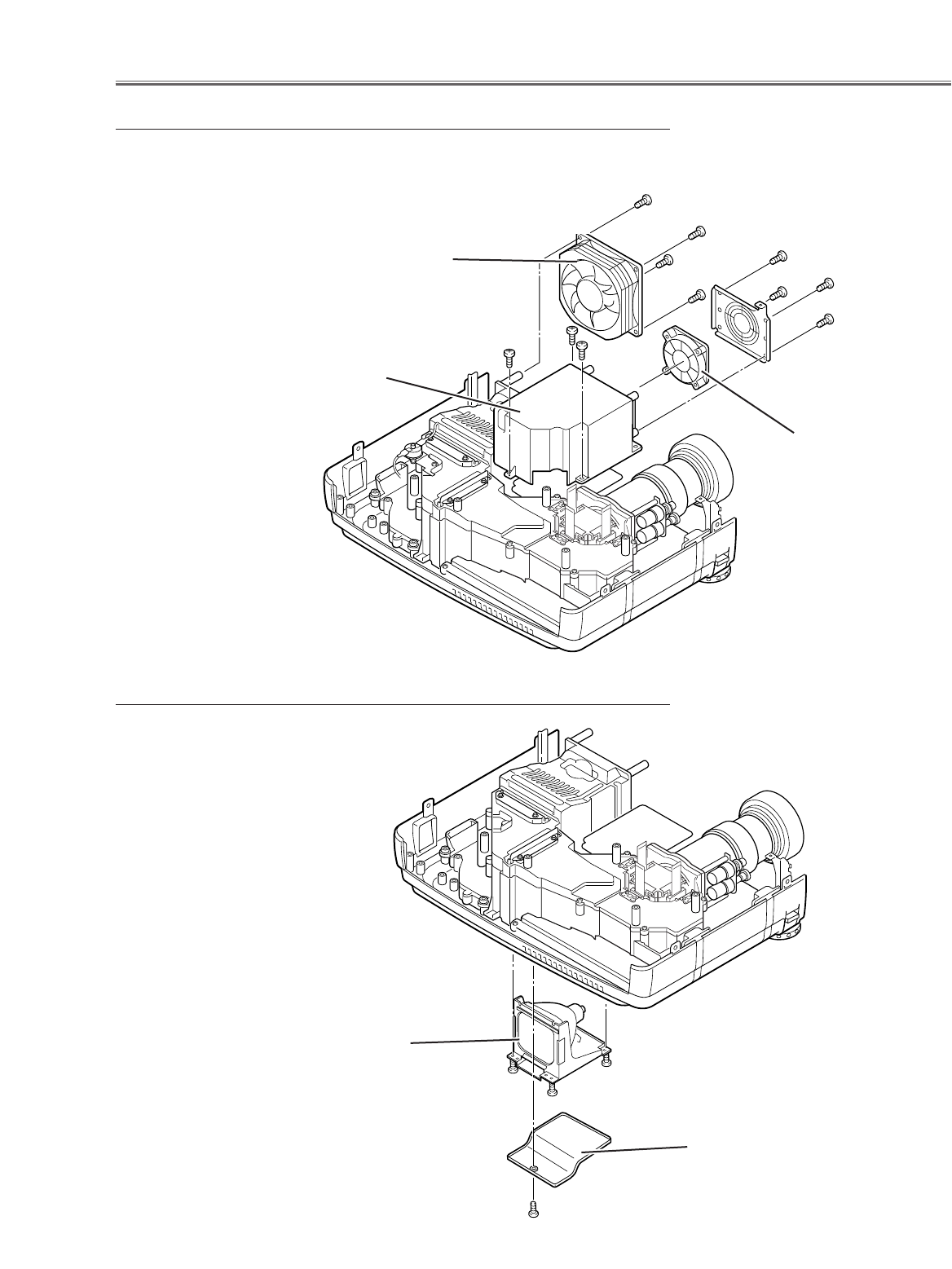

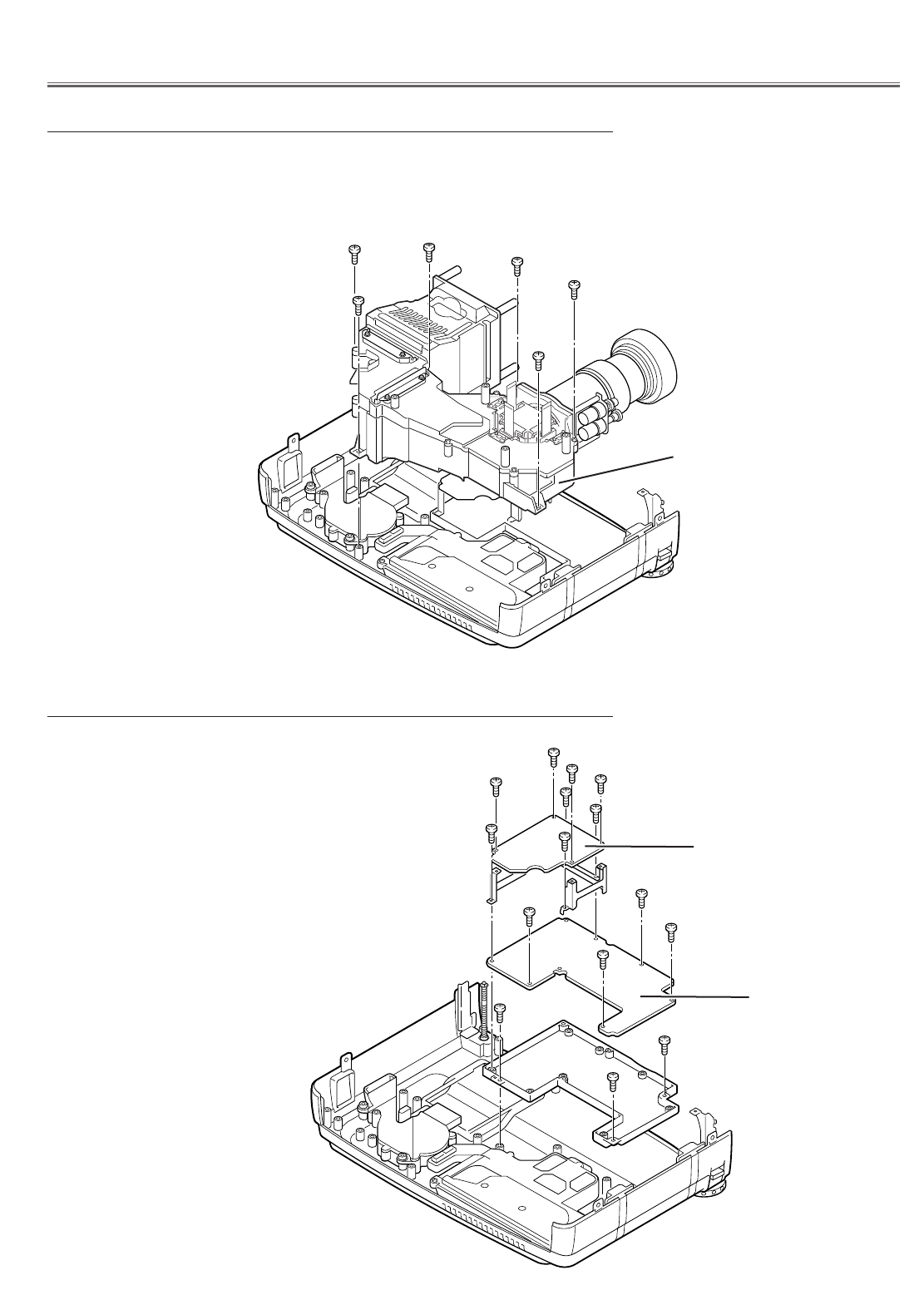

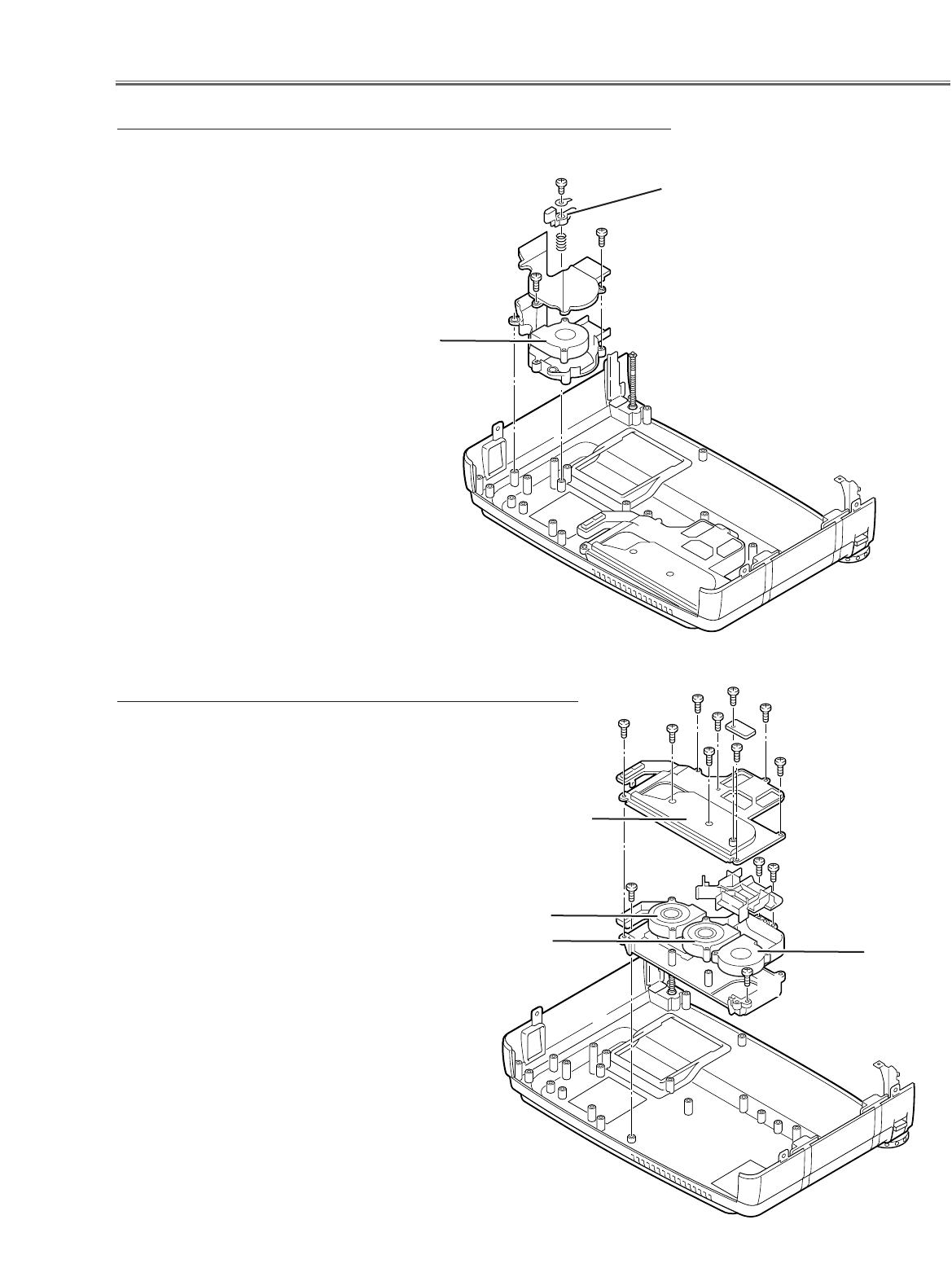

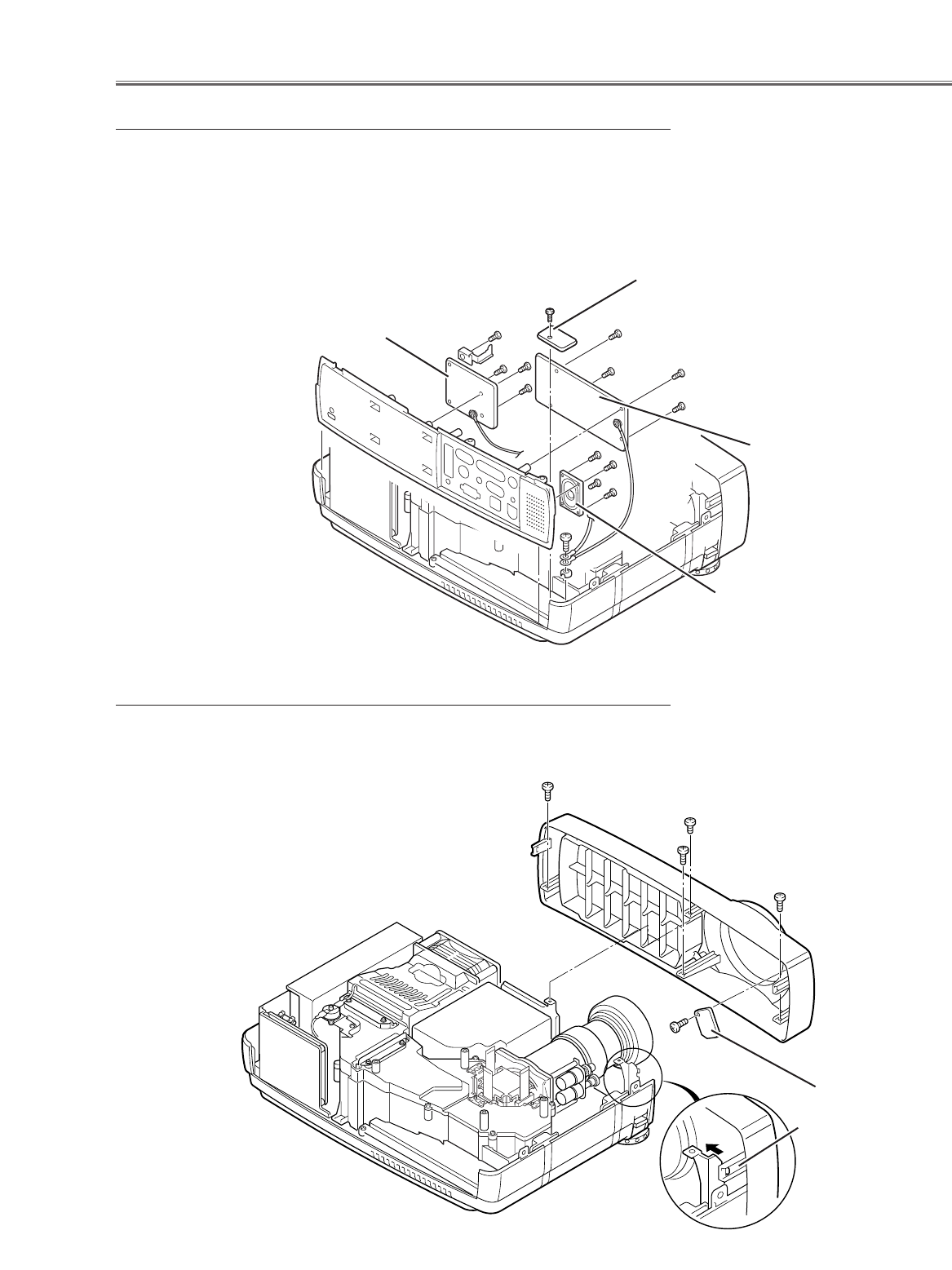

■Mechanical Disassemblies__________________________________________8

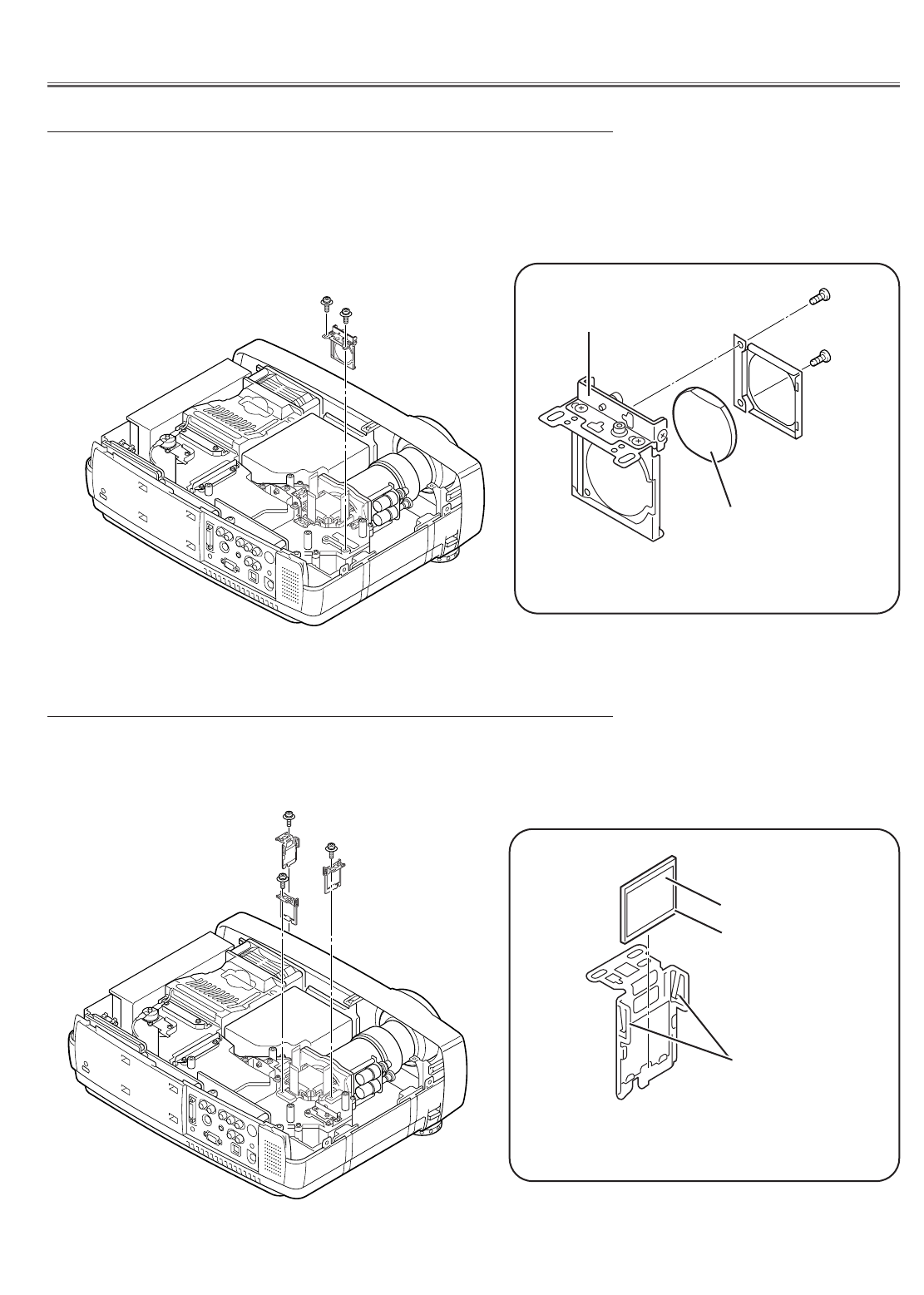

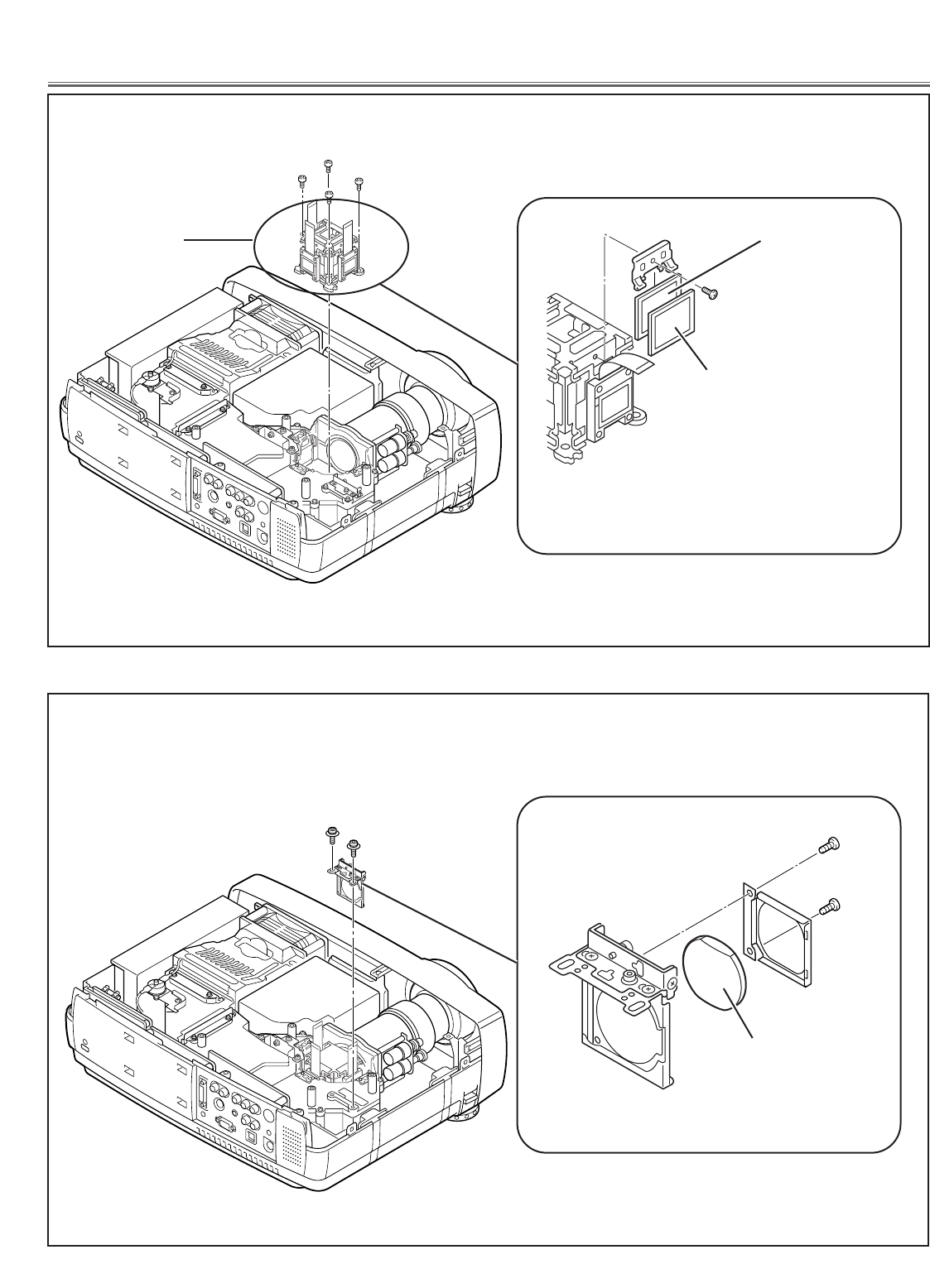

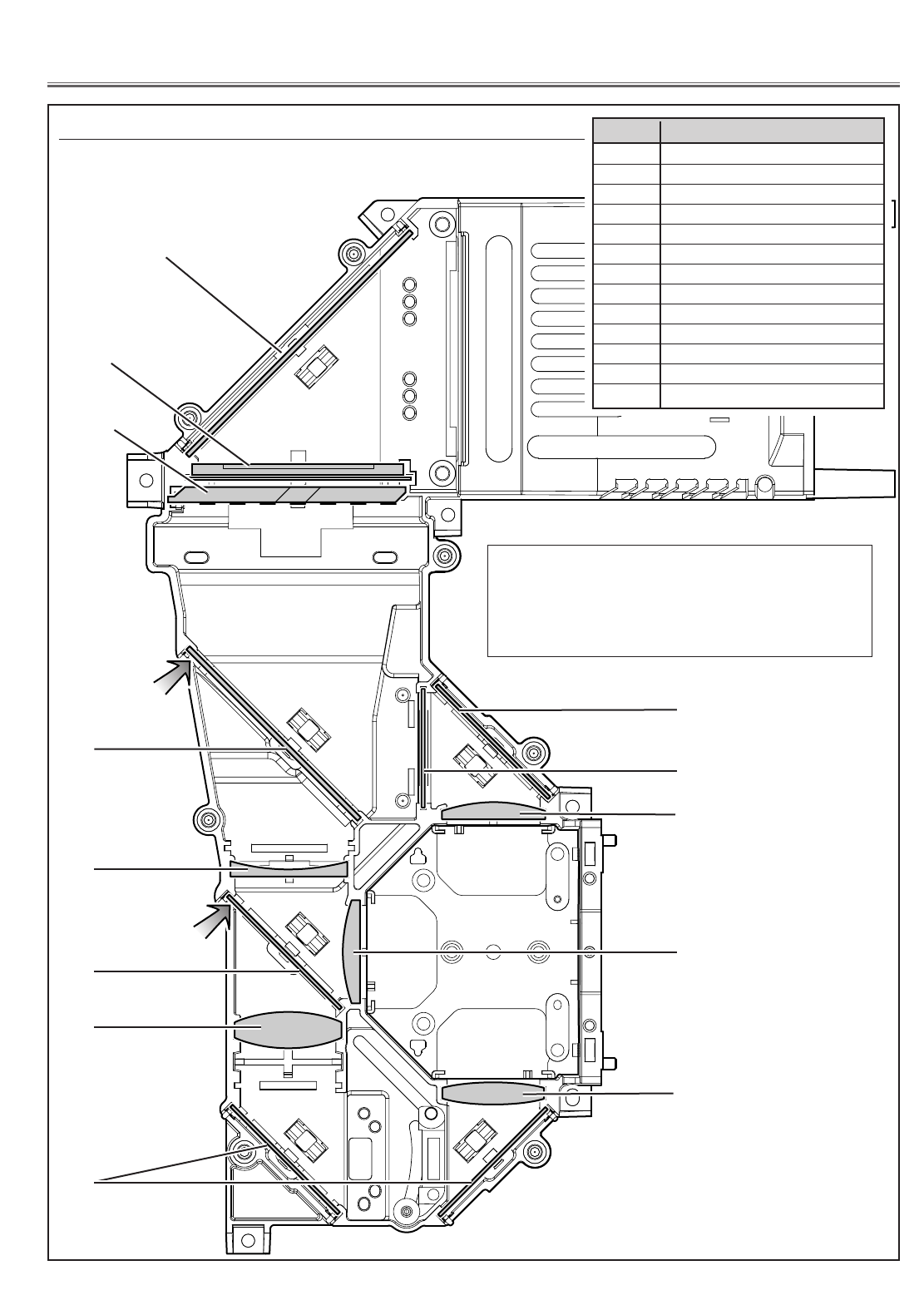

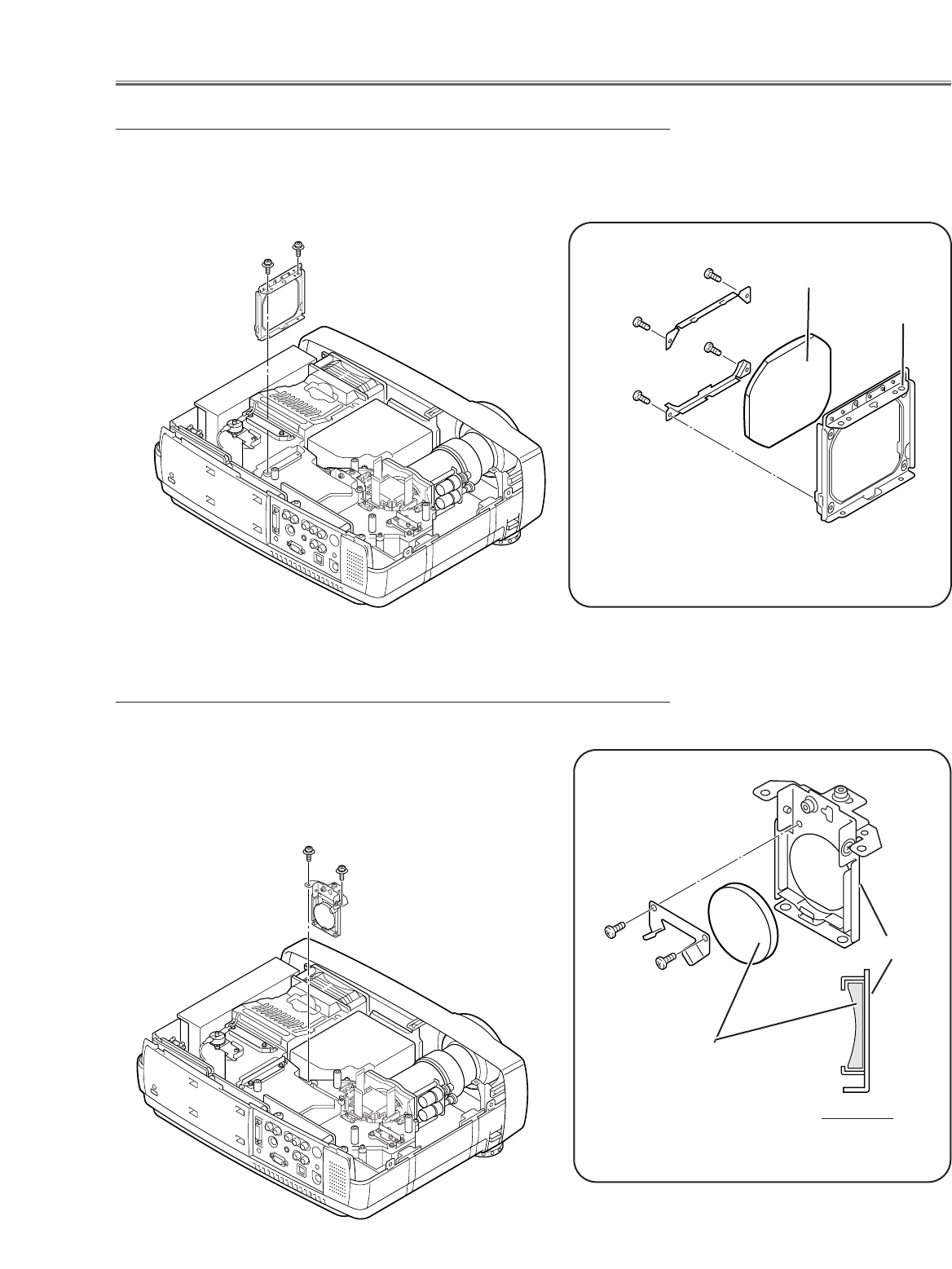

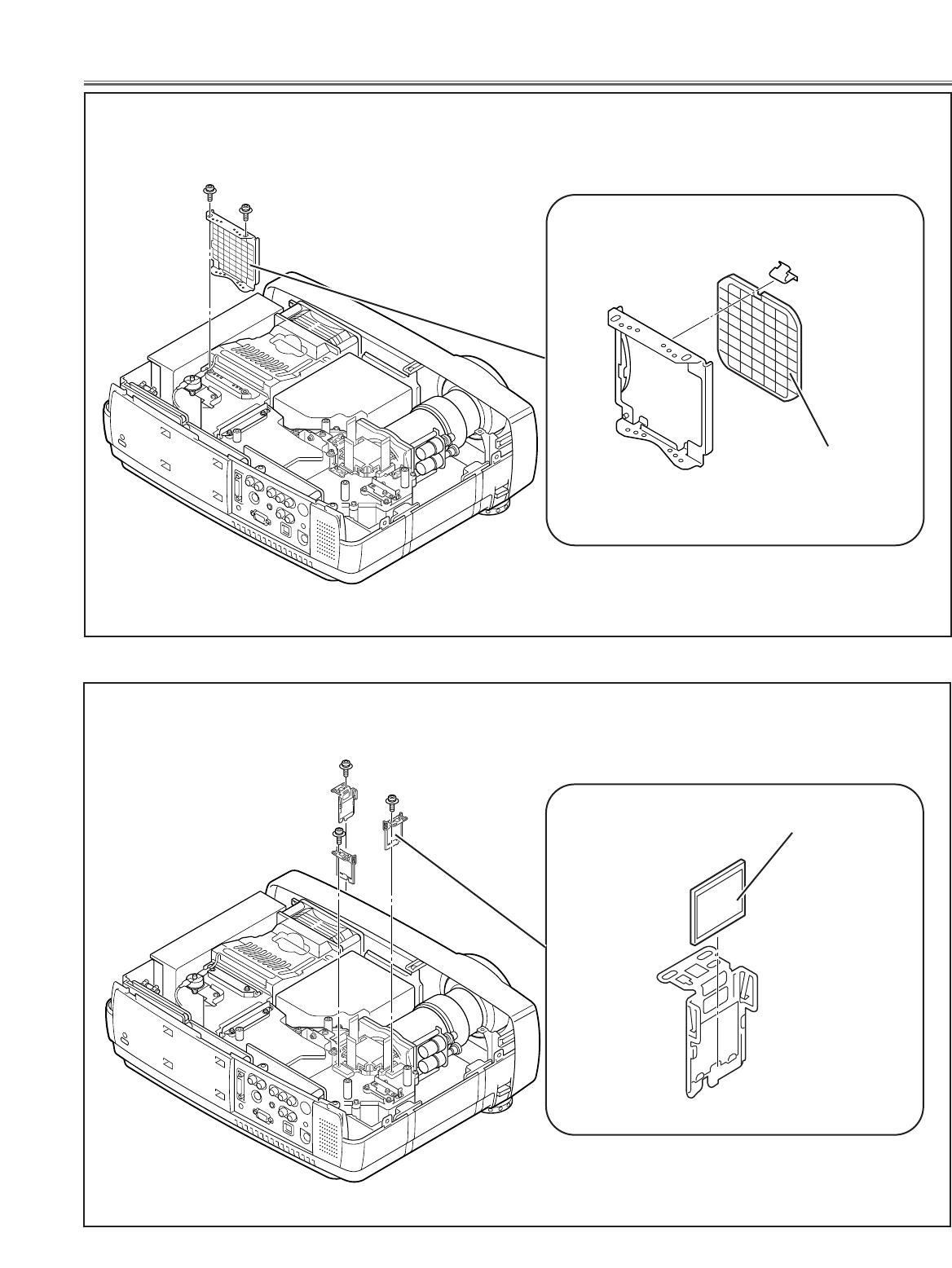

■Optical Parts Disassemblies ______________________________________14

■LCD Panel/Prism Ass’y Replacement ________________________________19

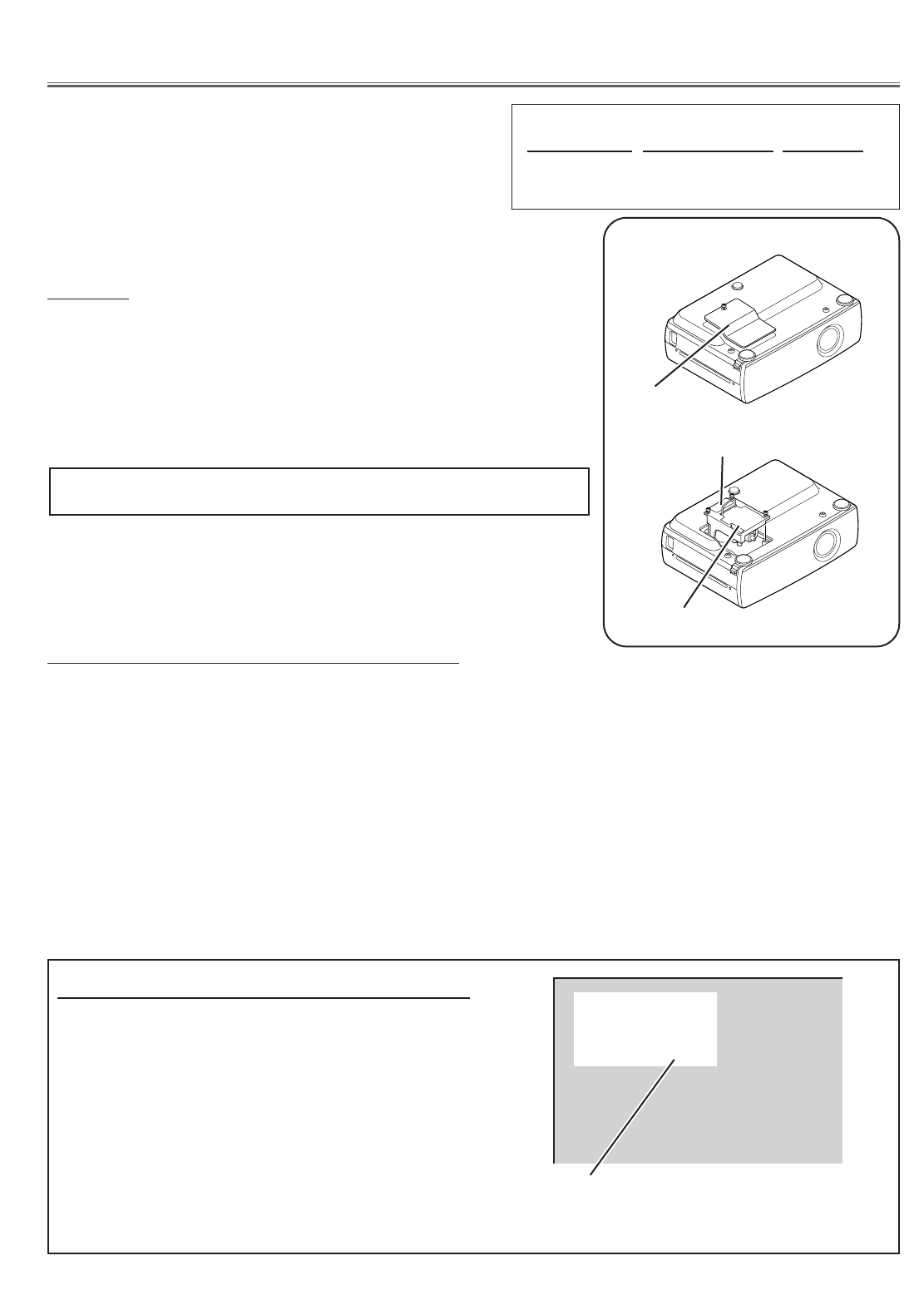

■Lamp Replacement ______________________________________________20

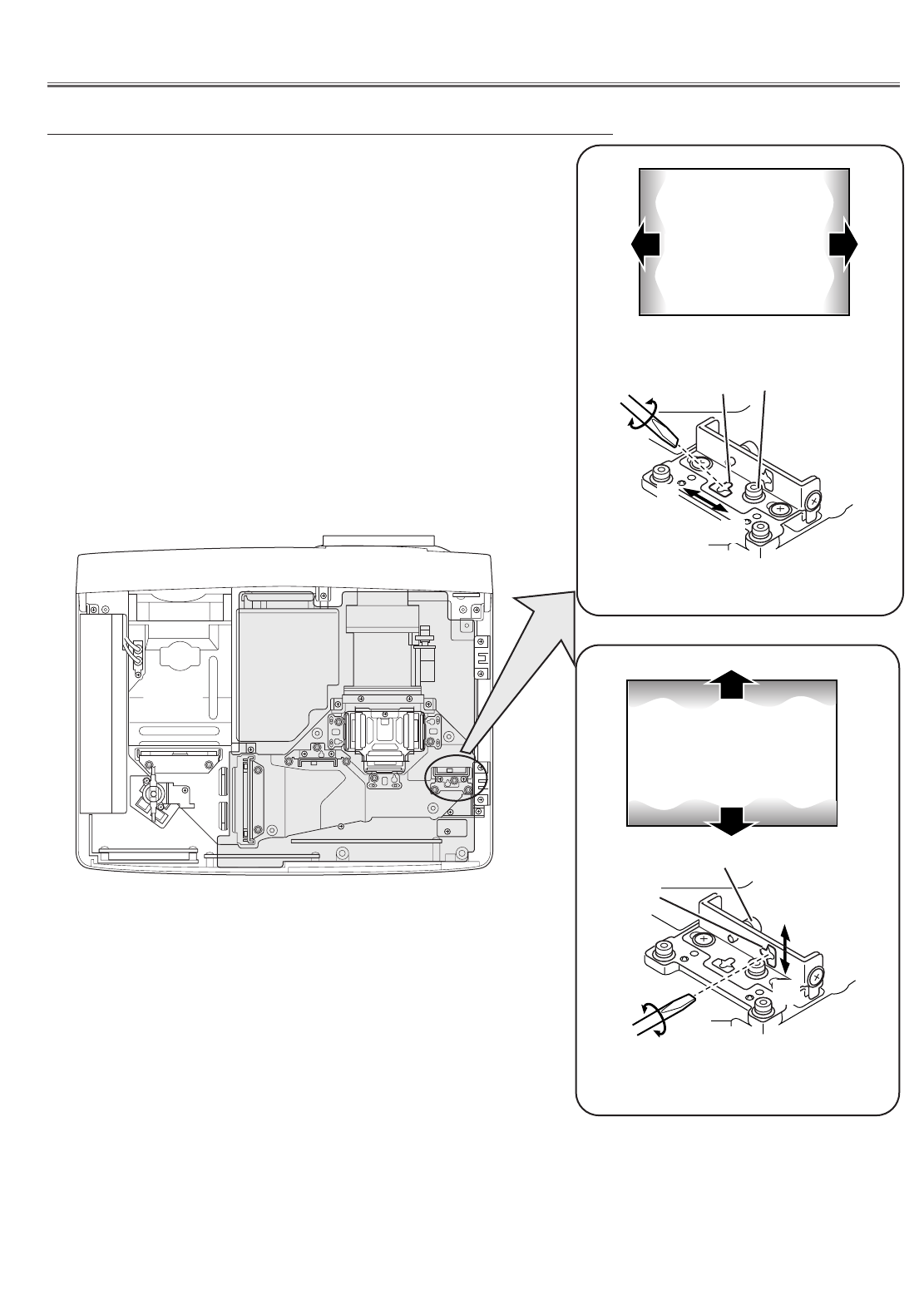

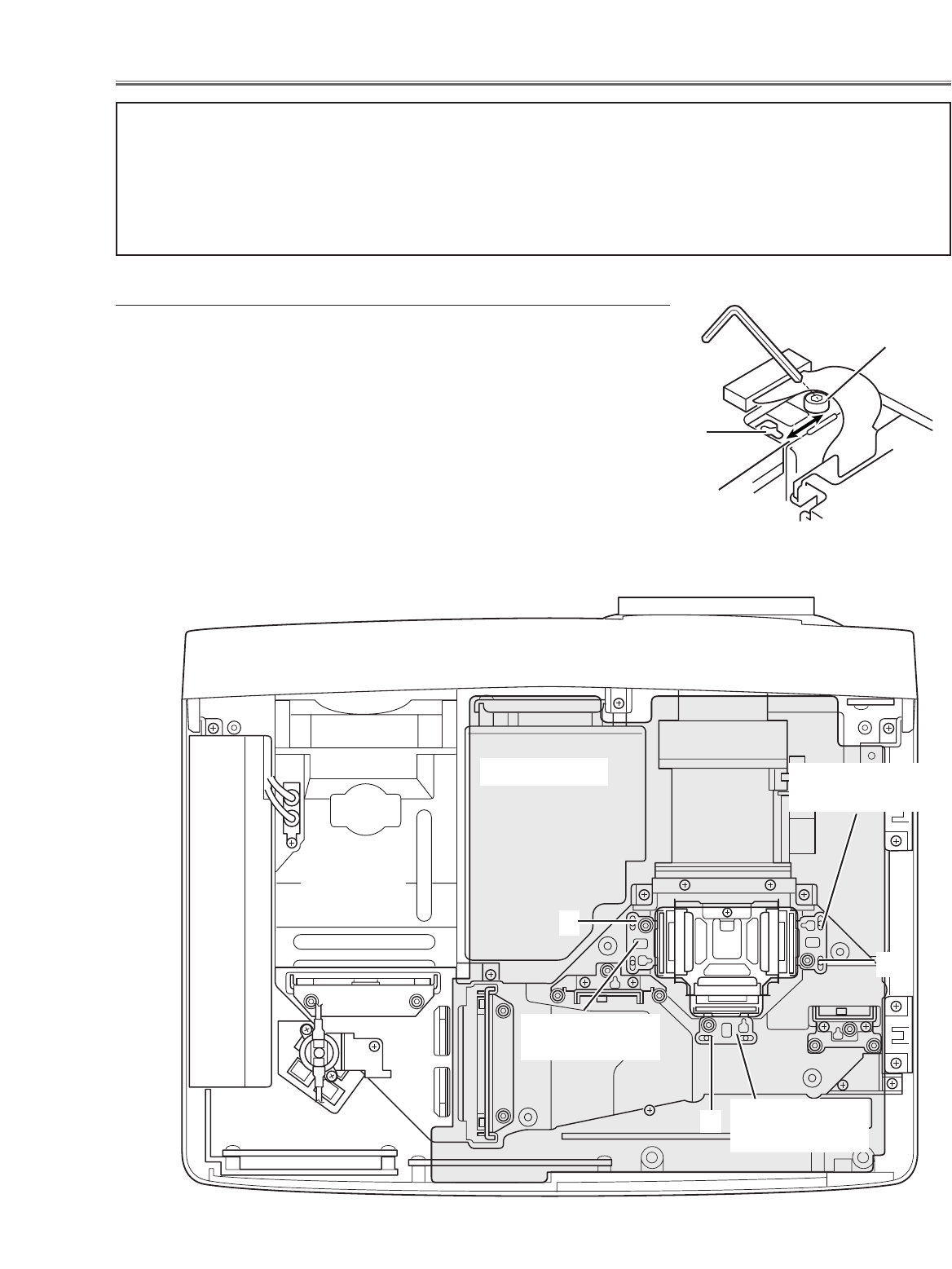

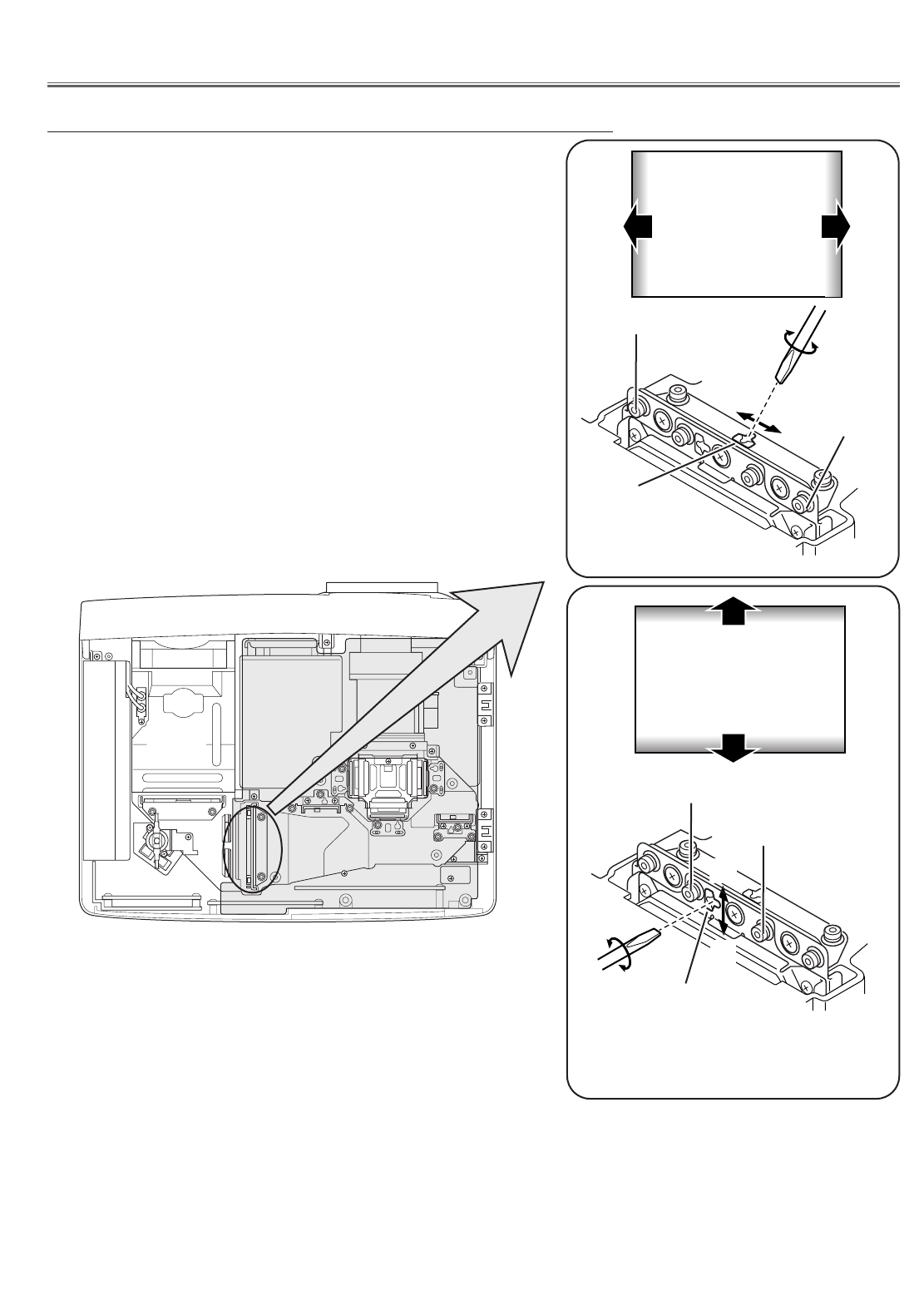

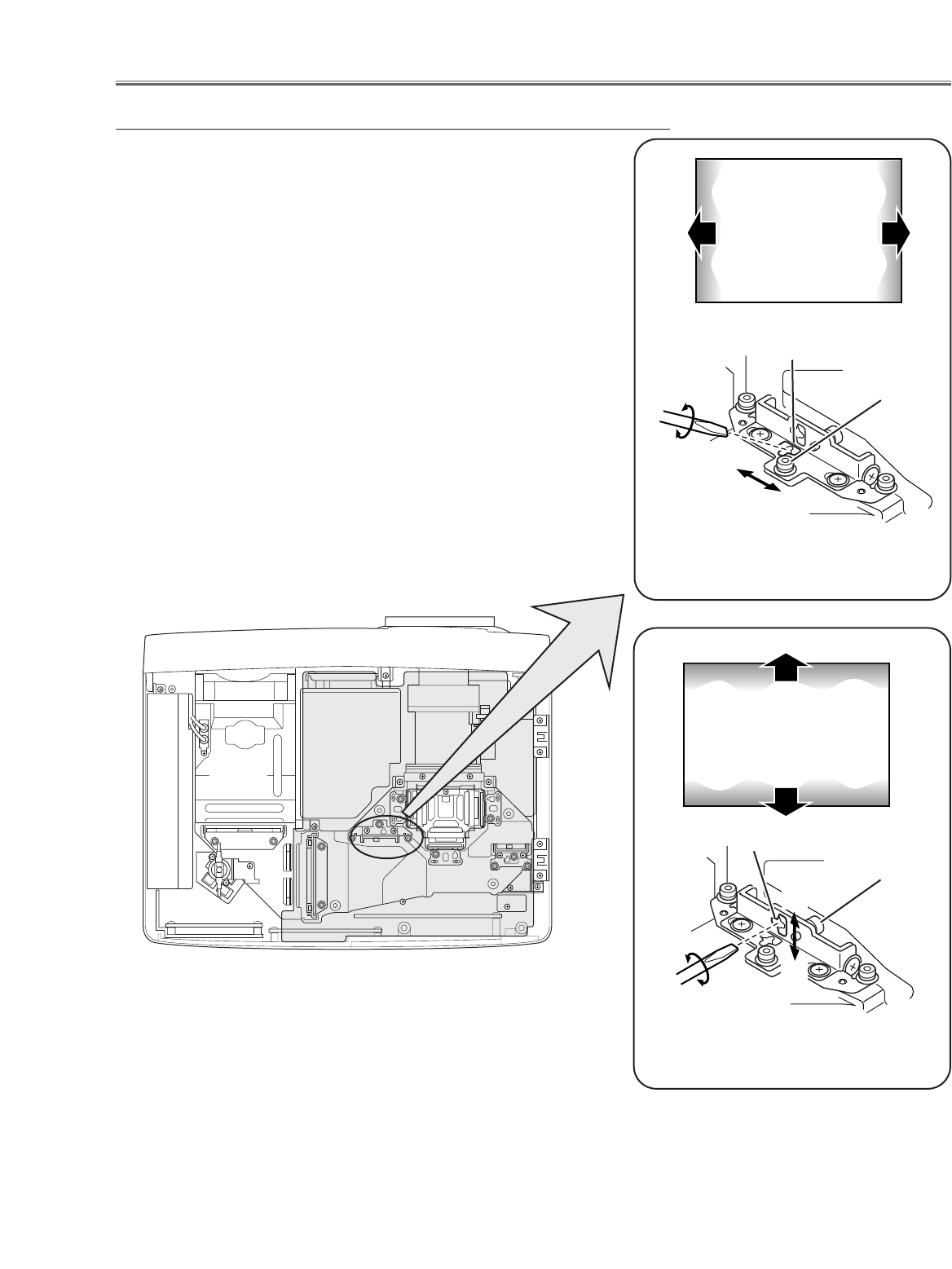

■Optical Adjustments ______________________________________________21

■Electrical Adjustments ____________________________________________25

Service Adjustment Menu Operation______________________________25

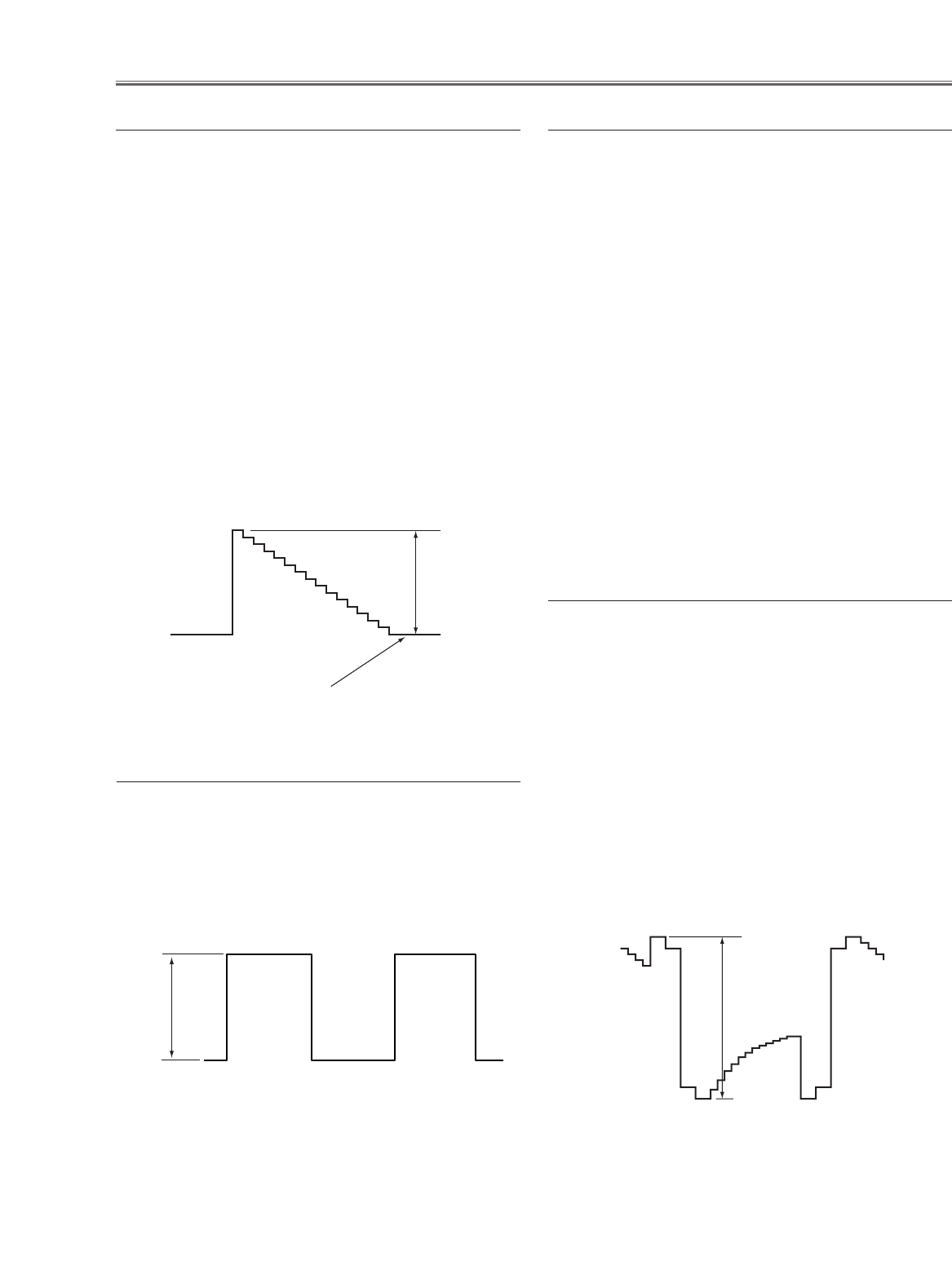

Circuit Adjustments __________________________________________26

Service Adjustment Data Table __________________________________30

Test Points and Locations ______________________________________34

■Troubleshooting ________________________________________________35

No Power __________________________________________________35

No Picture __________________________________________________37

No Sound __________________________________________________39

Lens Motor Problems__________________________________________39

■Control Port Functions ____________________________________________40

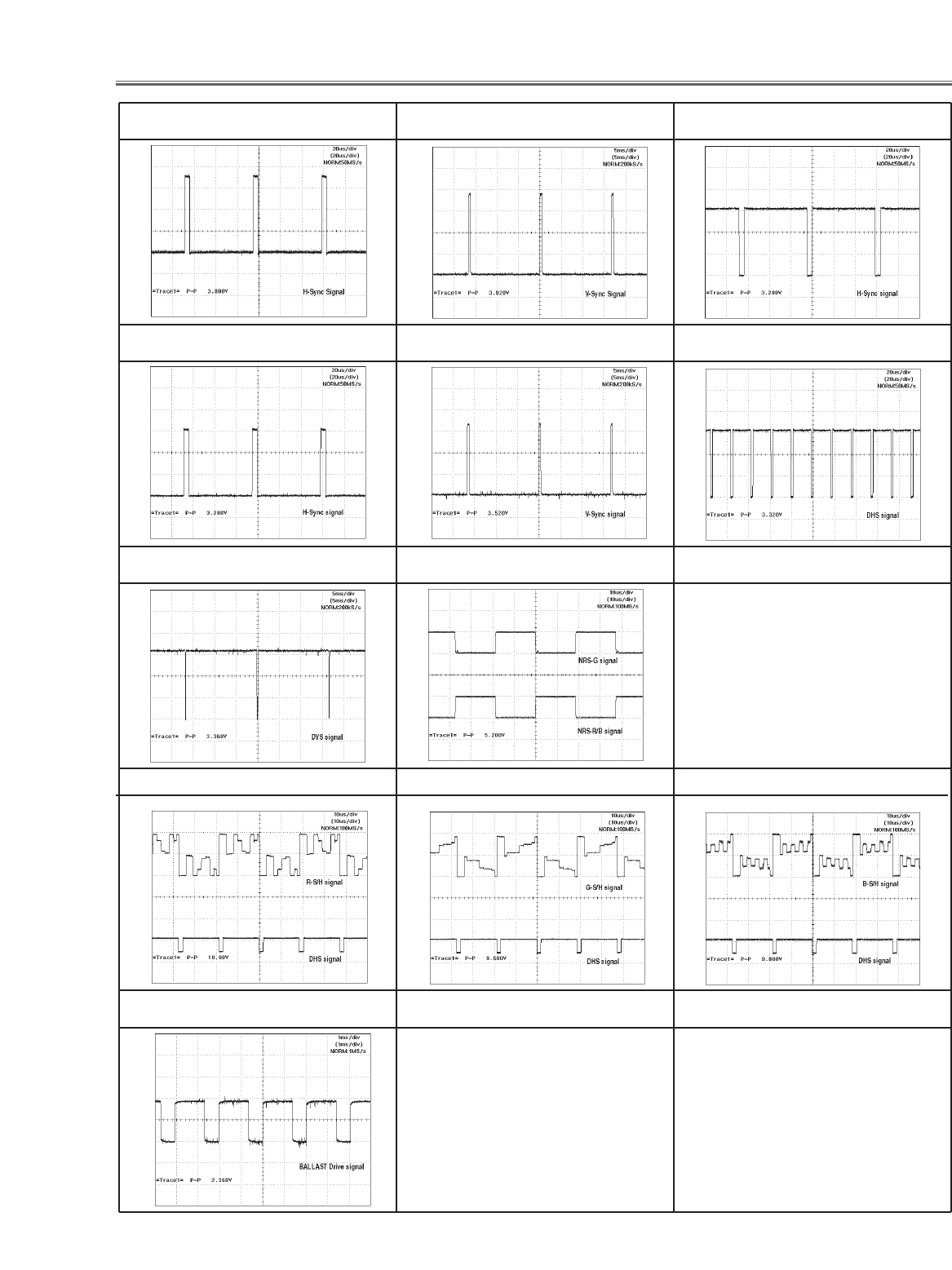

■Waveform ______________________________________________________44

■Cleaning ______________________________________________________46

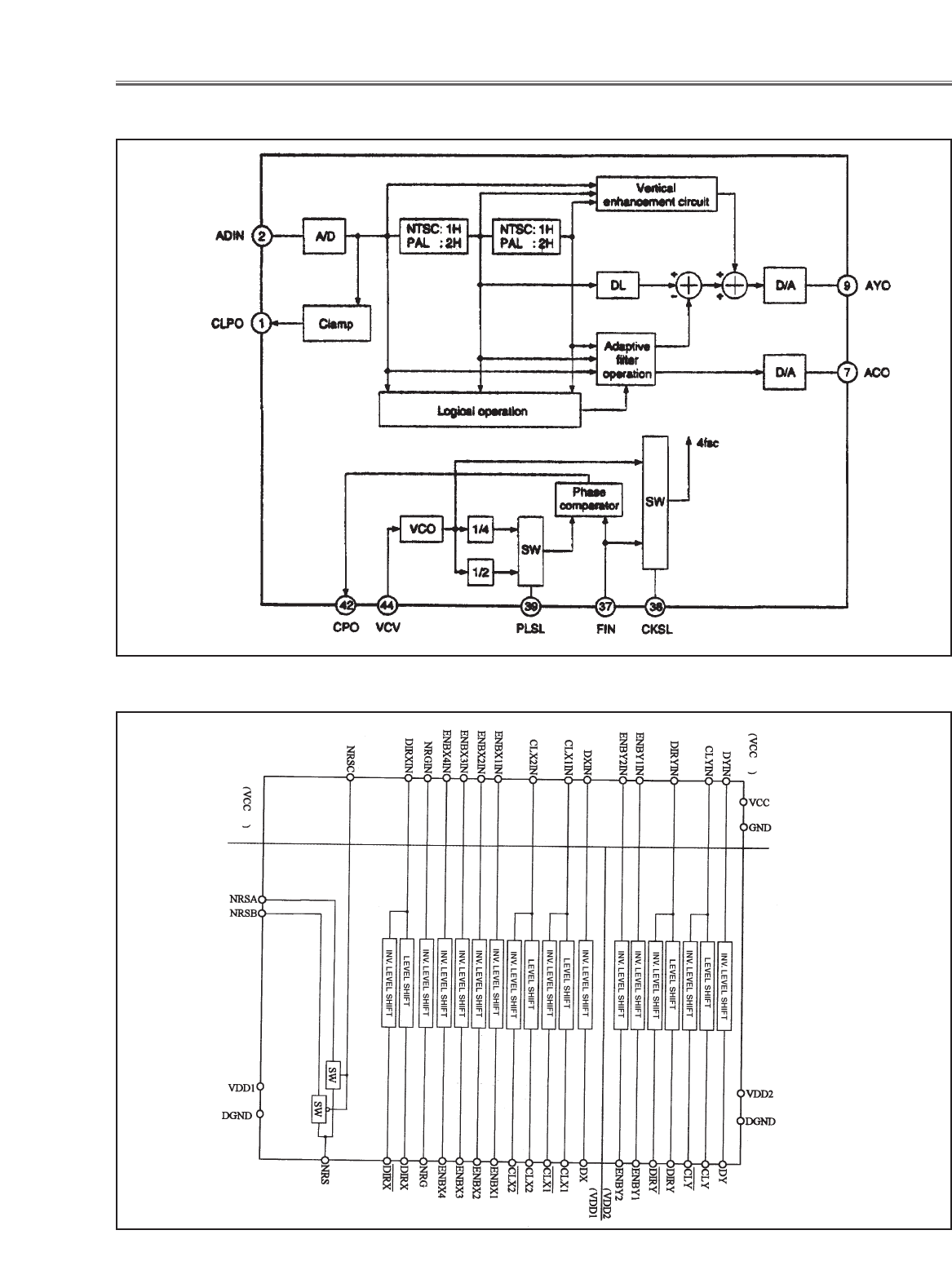

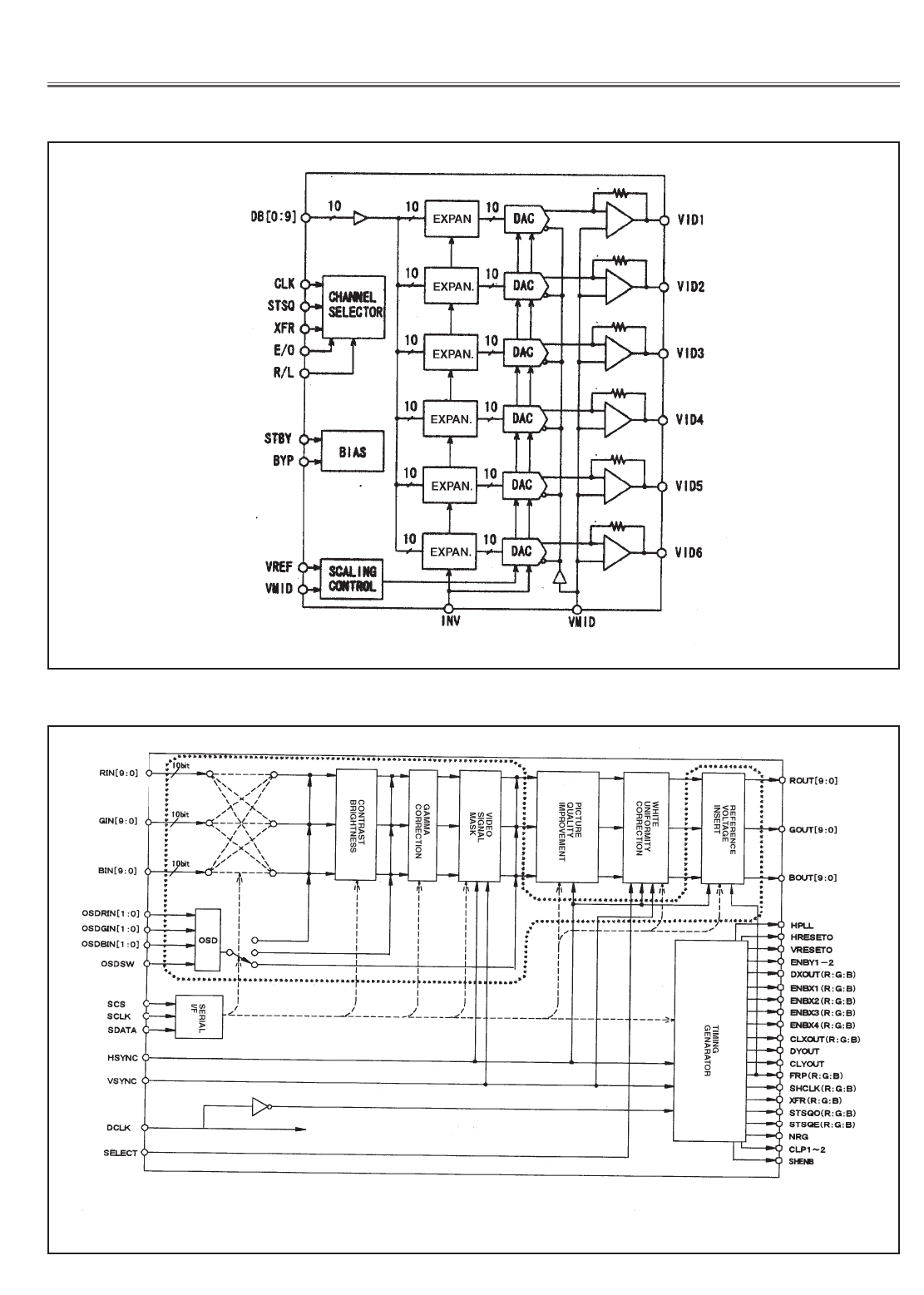

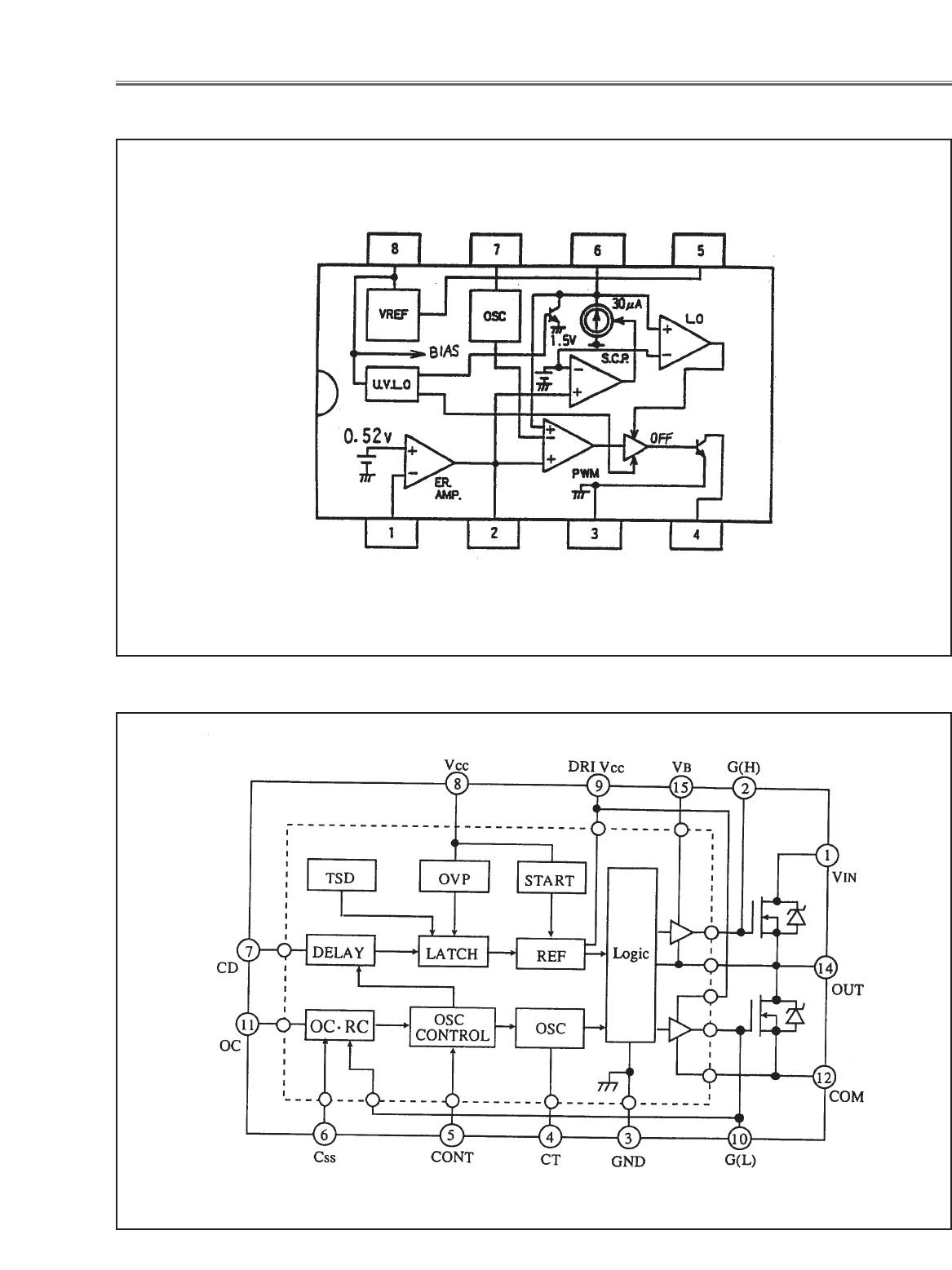

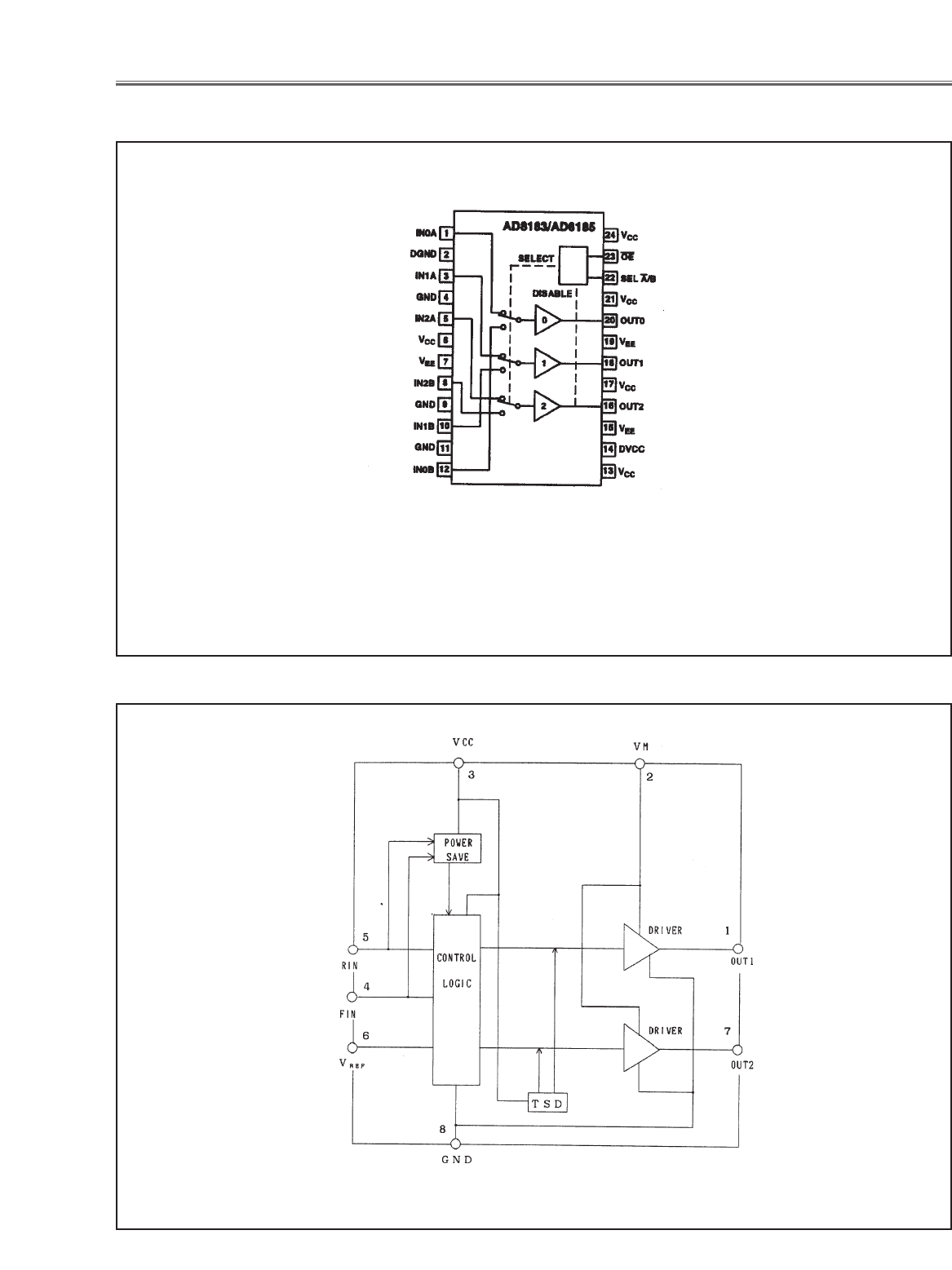

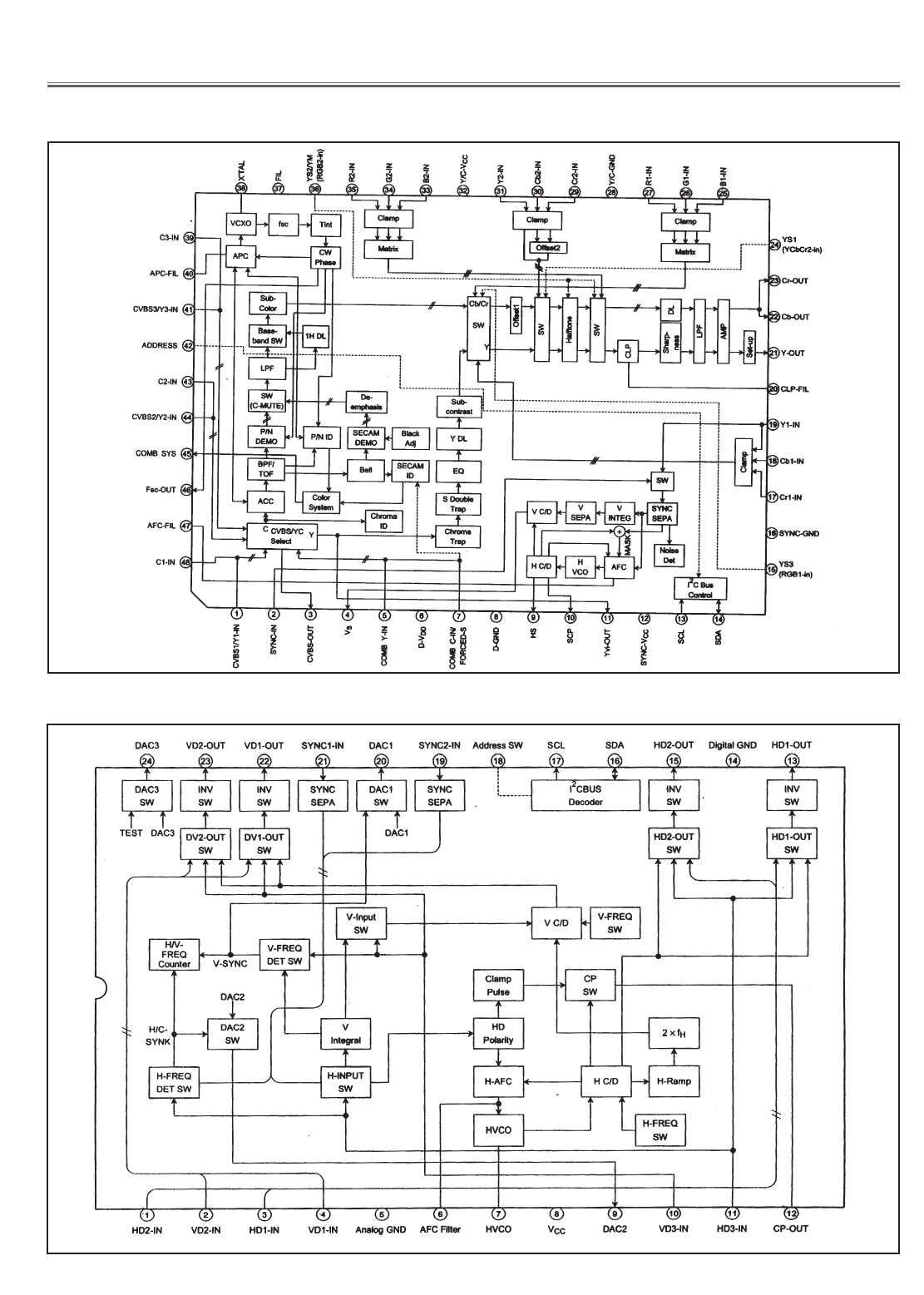

■IC Block Diagrams ______________________________________________47

■Service parts lists ____________________________________________ 55-87

●Electrical parts list ______________________________________ 55-80

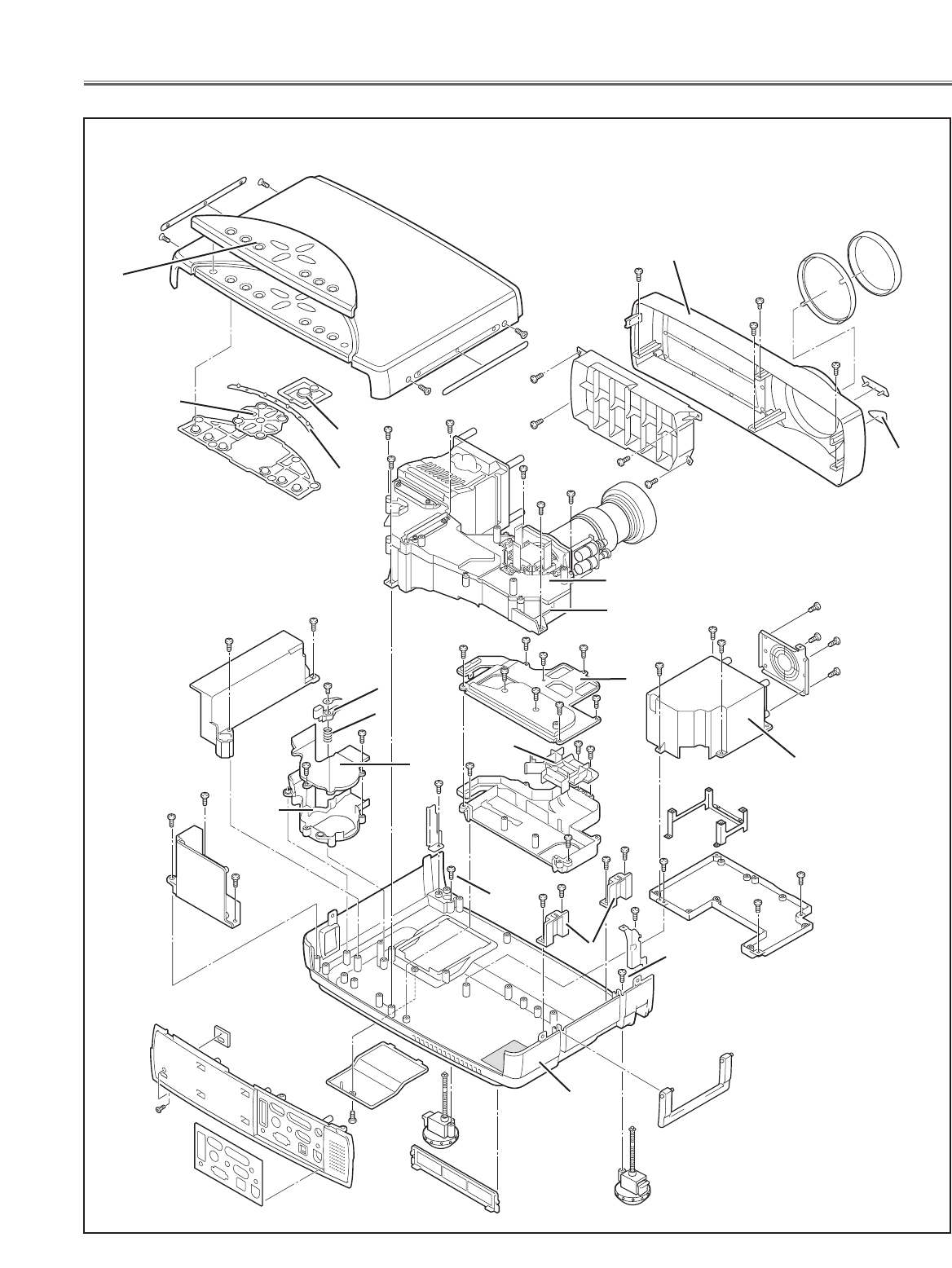

●Mechanical parts list ____________________________________ 81-87

Drawings & Diagrams ______________________________________ A1-A18

■Parts description and reading in schematic diagram ____________________ A2

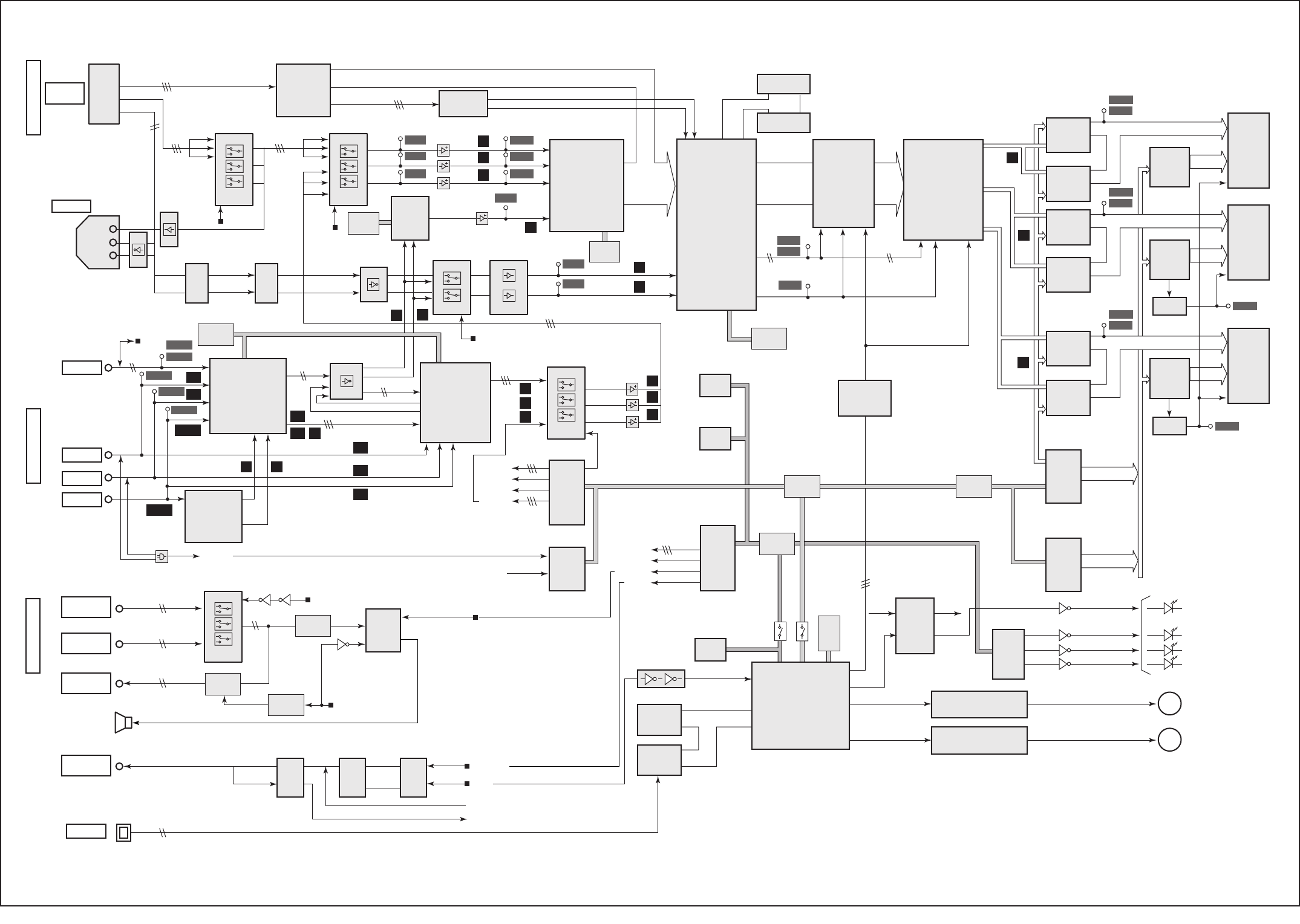

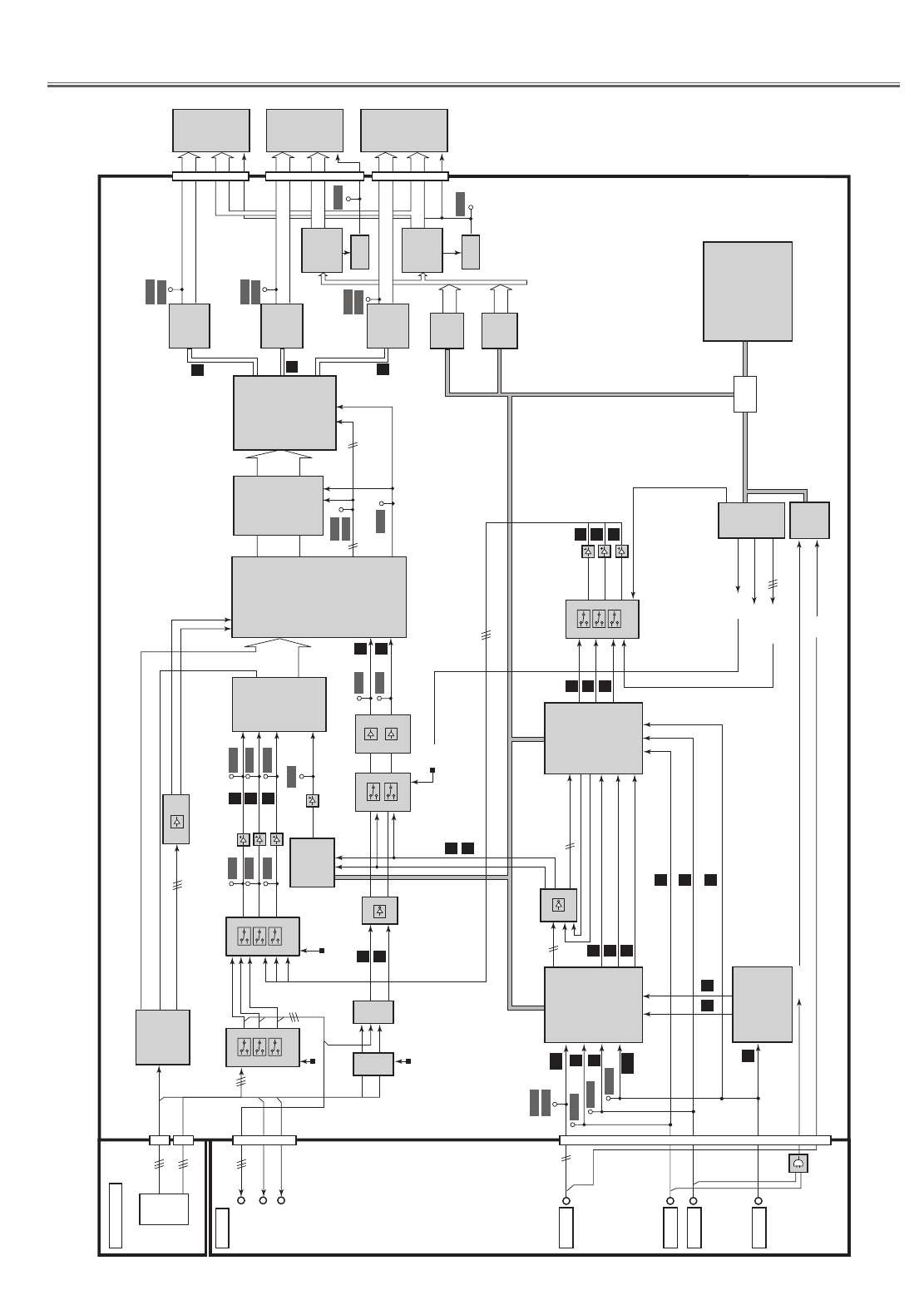

■Circuit block diagram ____________________________________________ A3

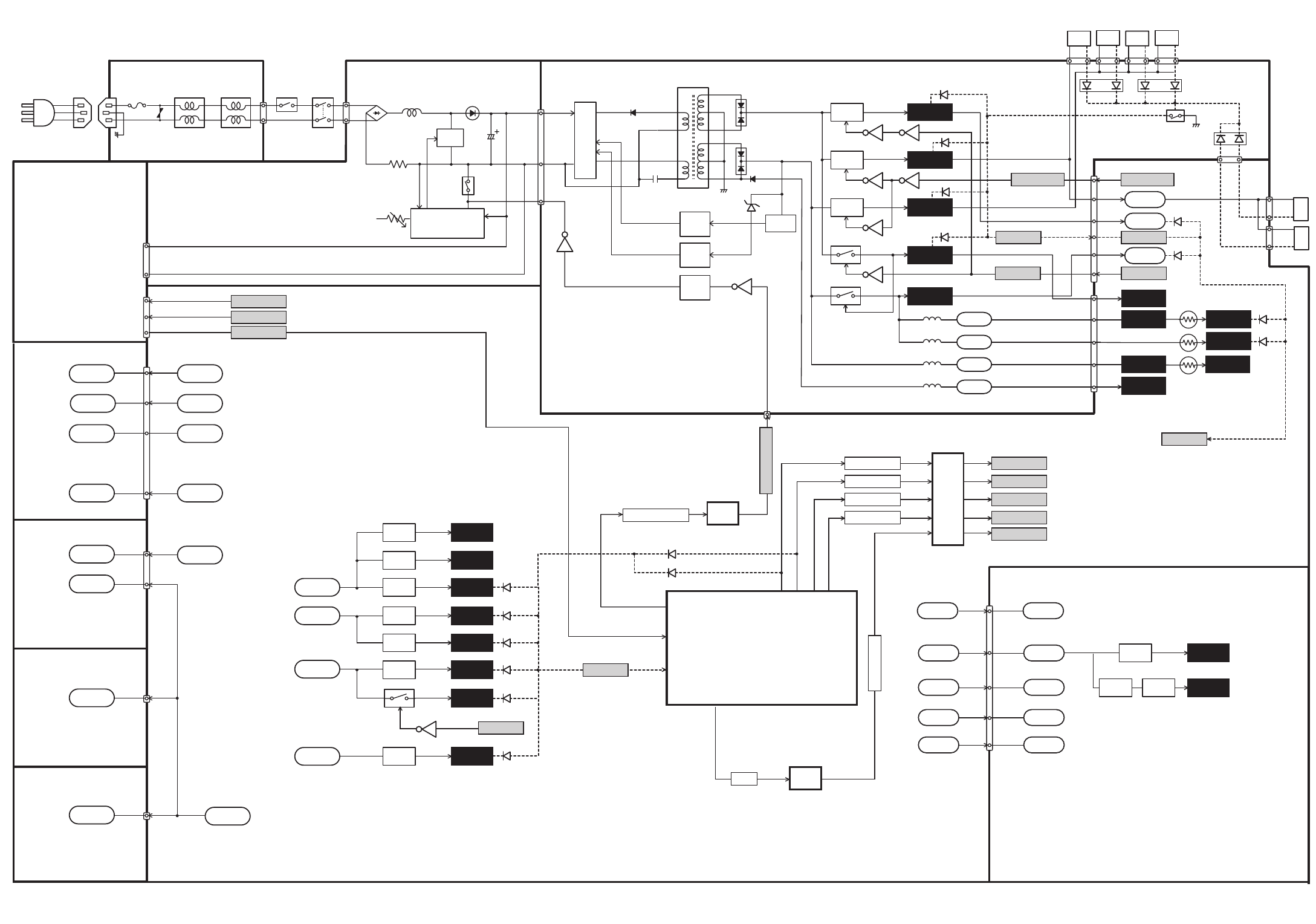

■Power supply lines ______________________________________________ A4

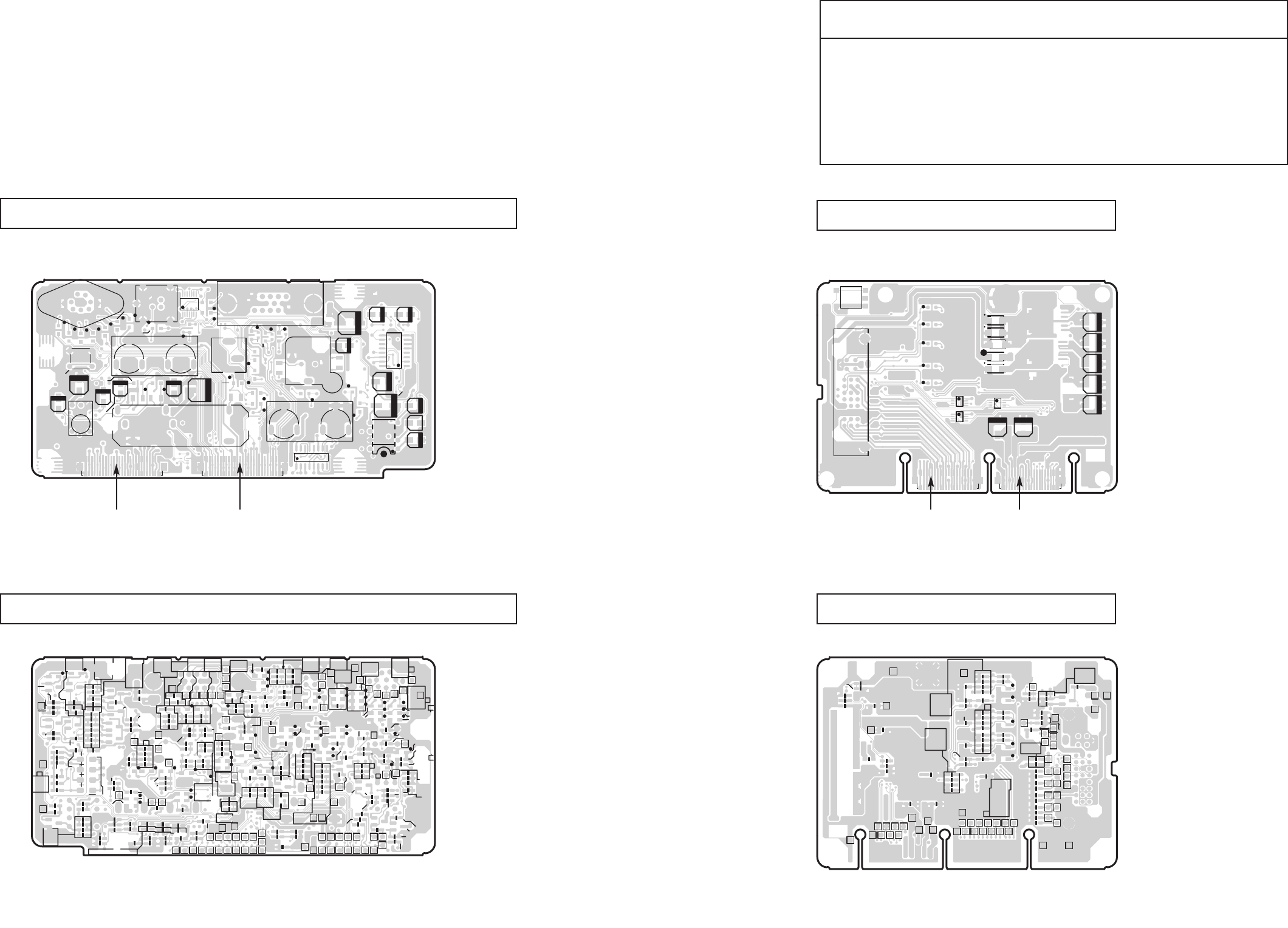

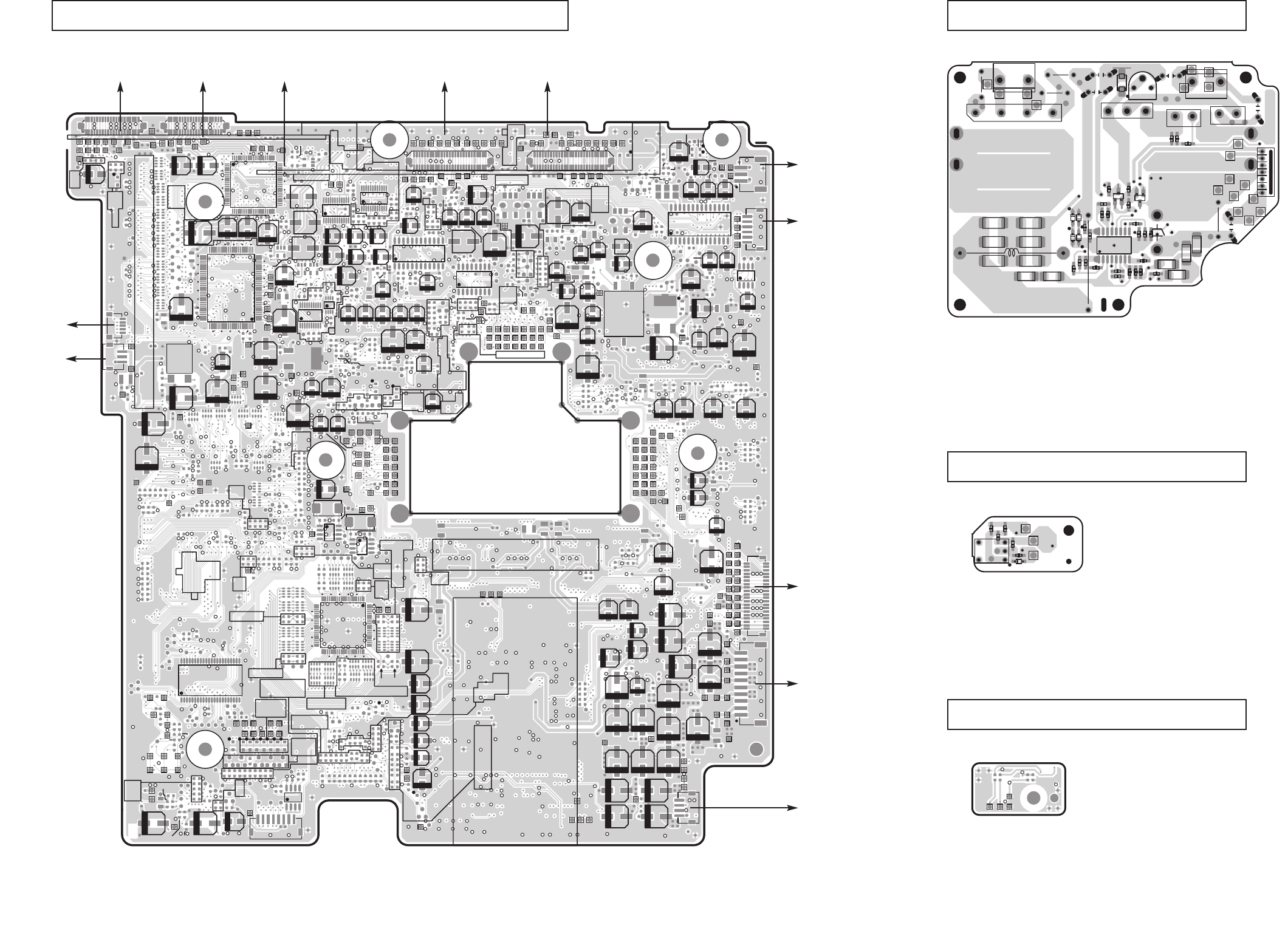

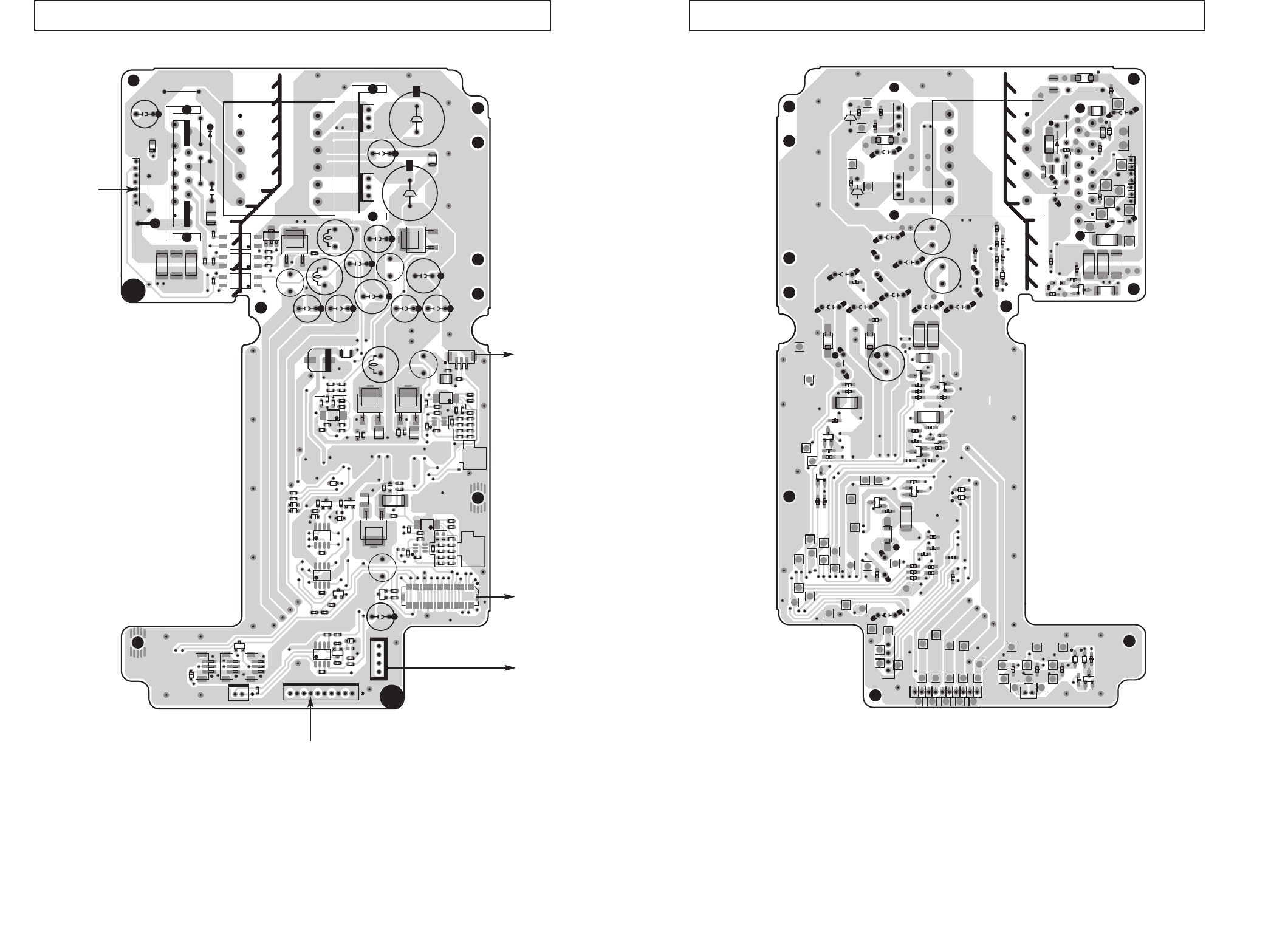

■Printed wiring board diagrams ________________________________ A5-A10

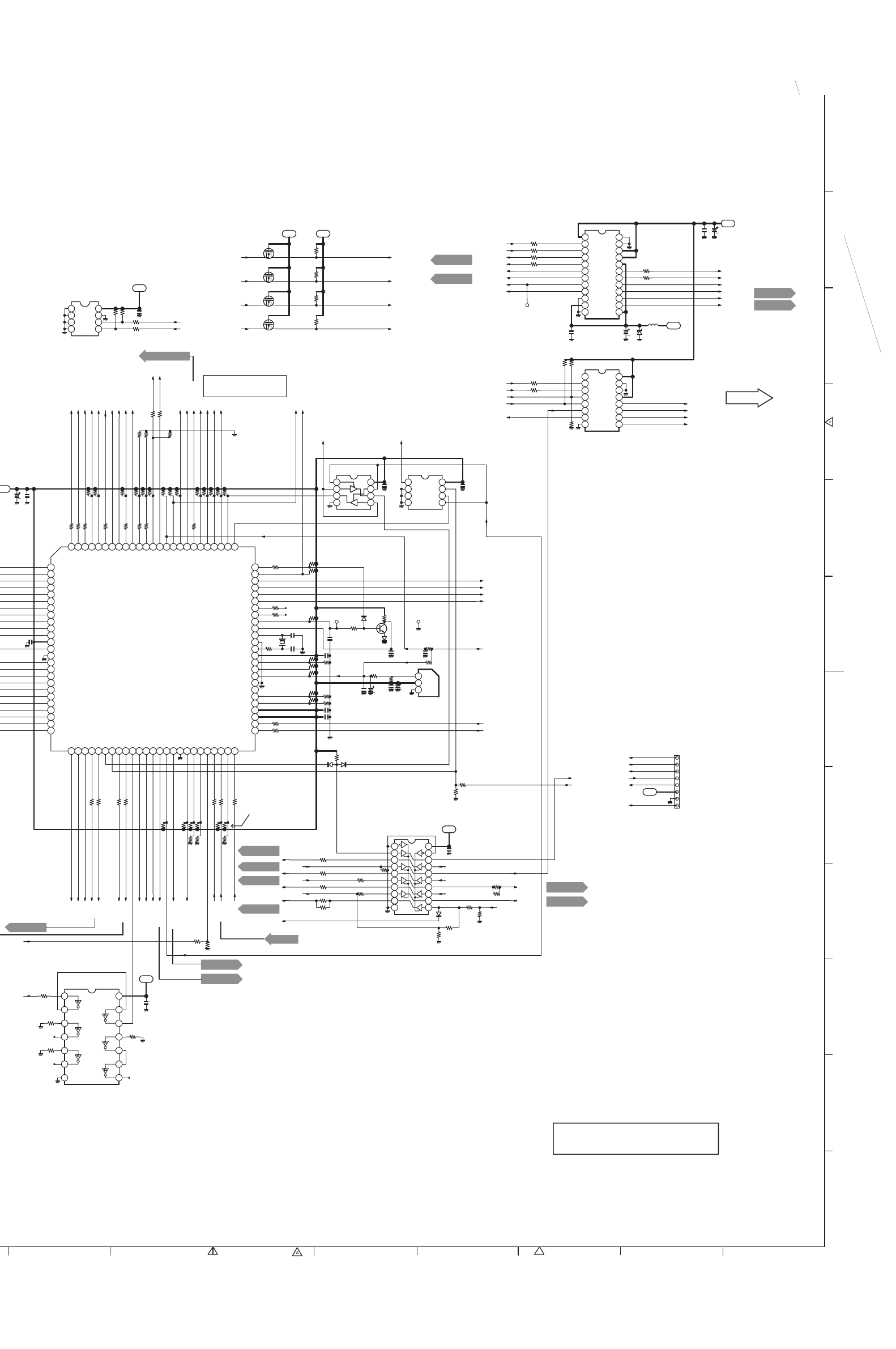

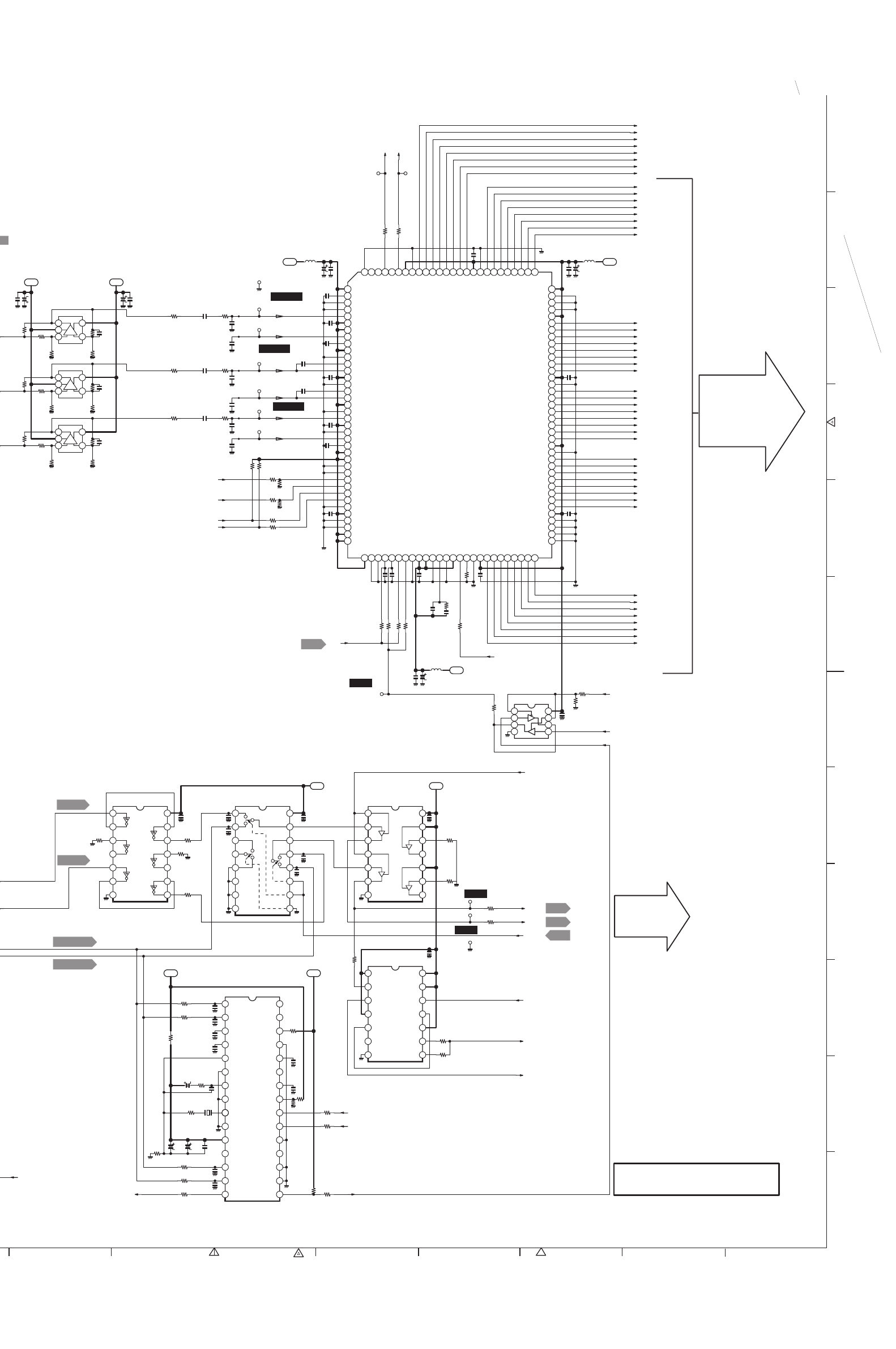

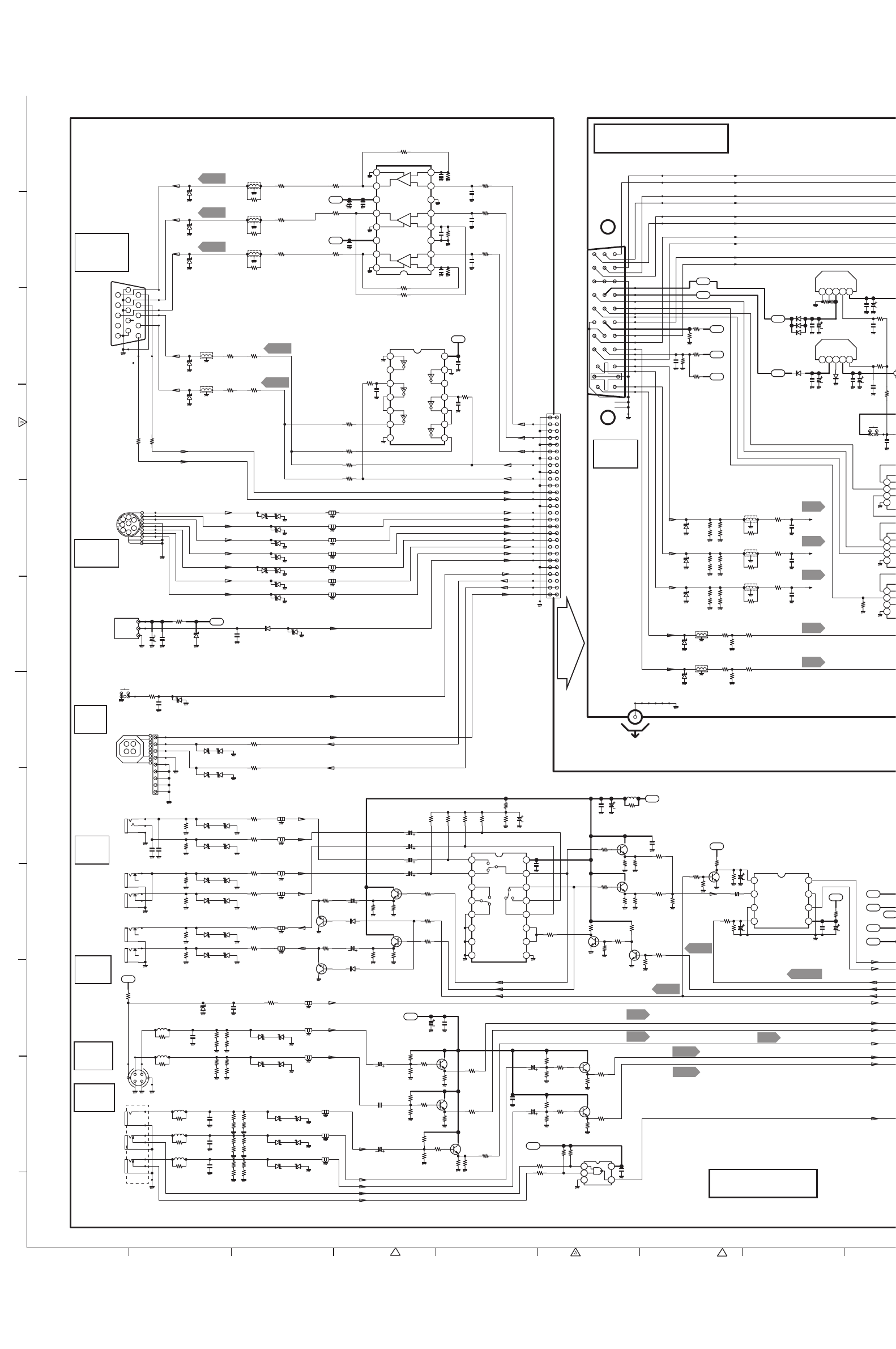

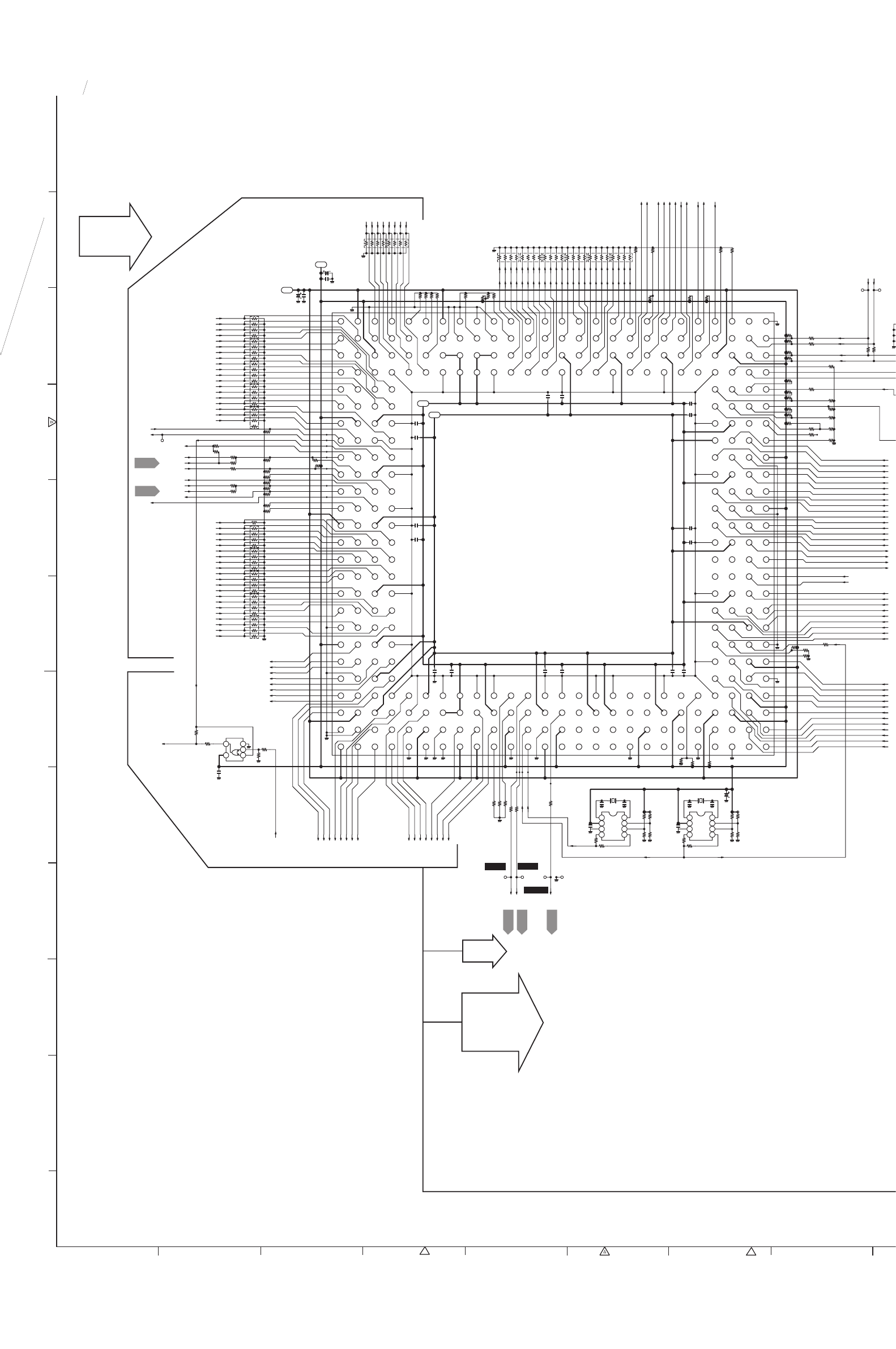

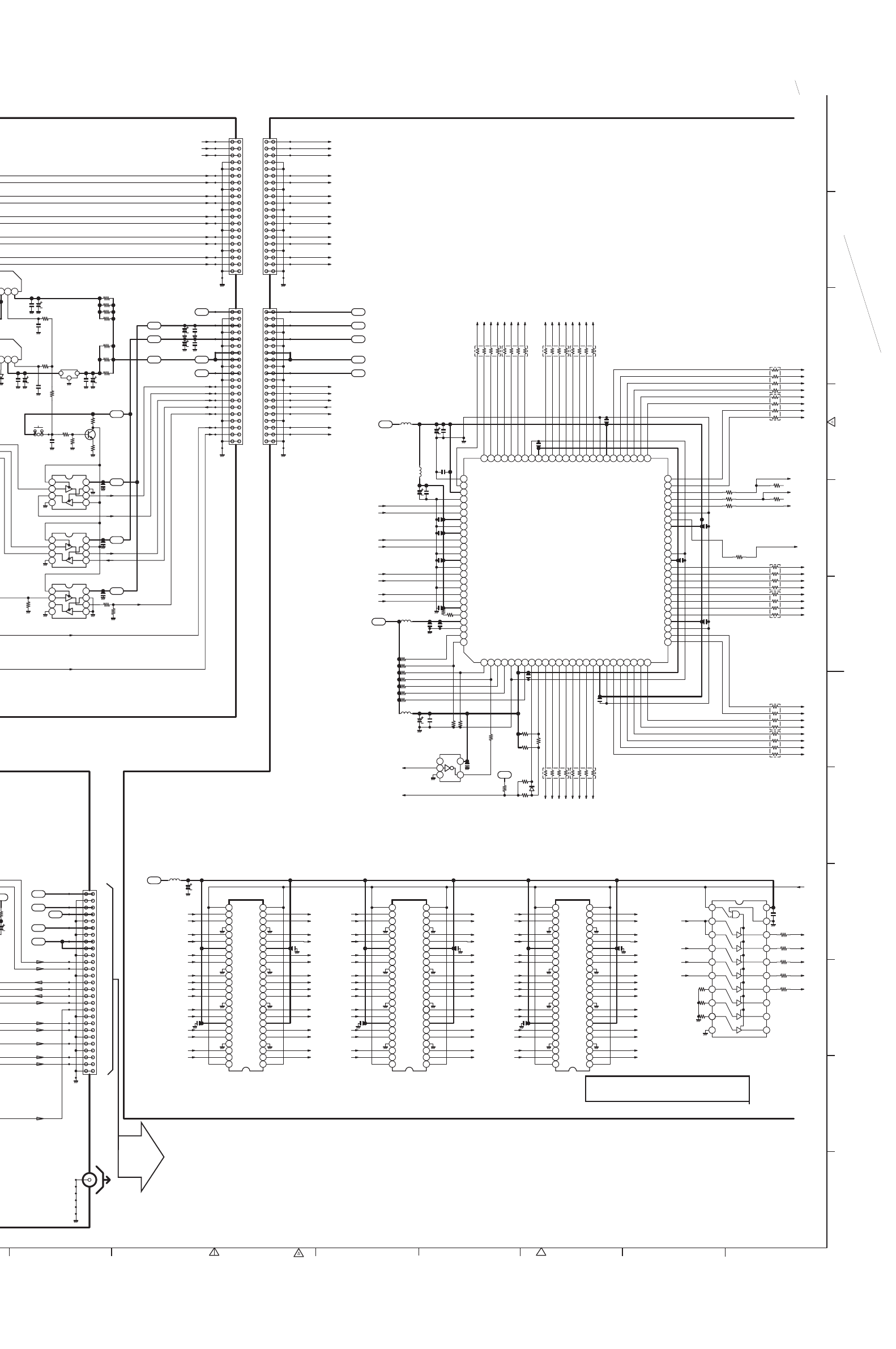

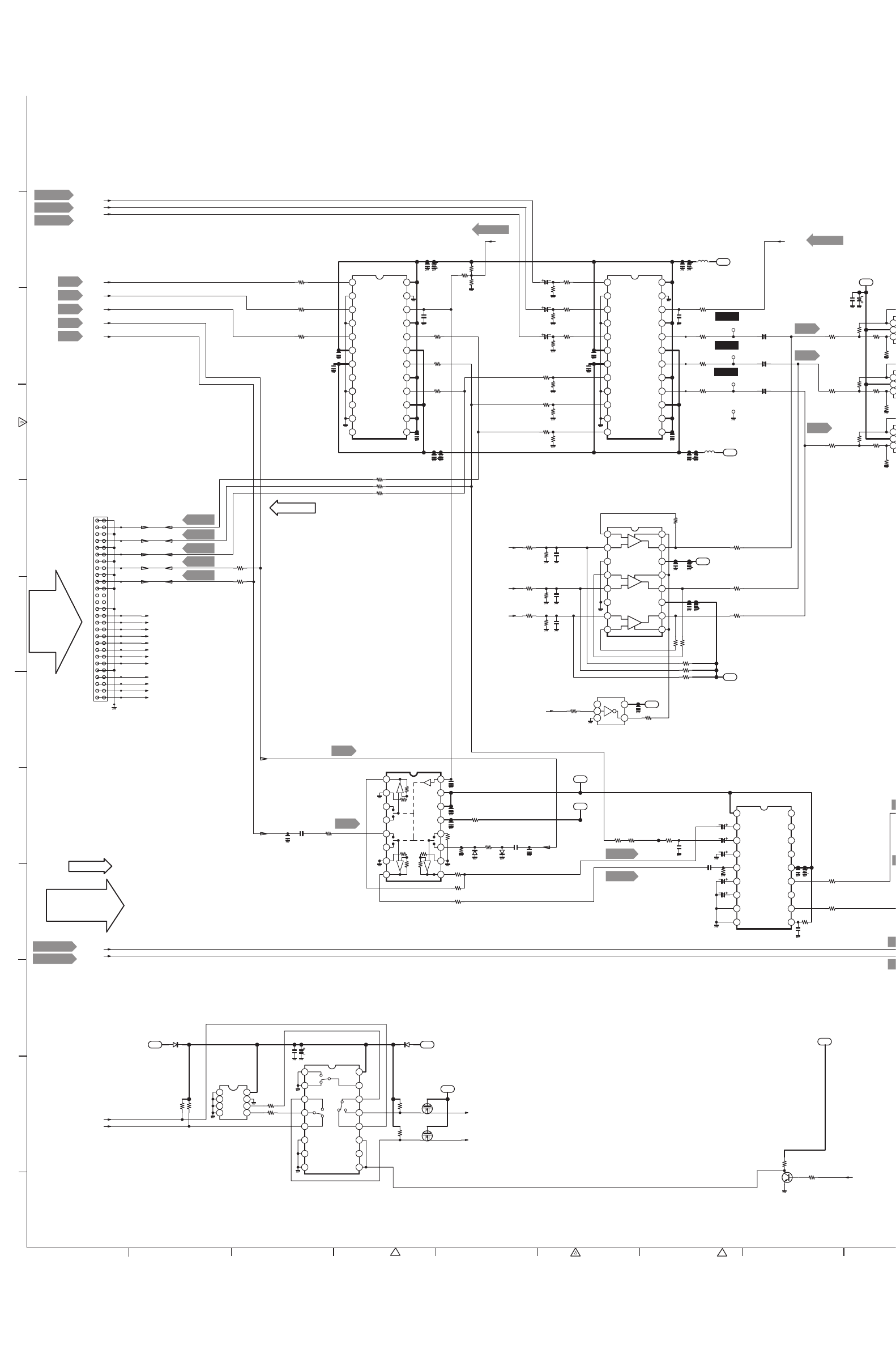

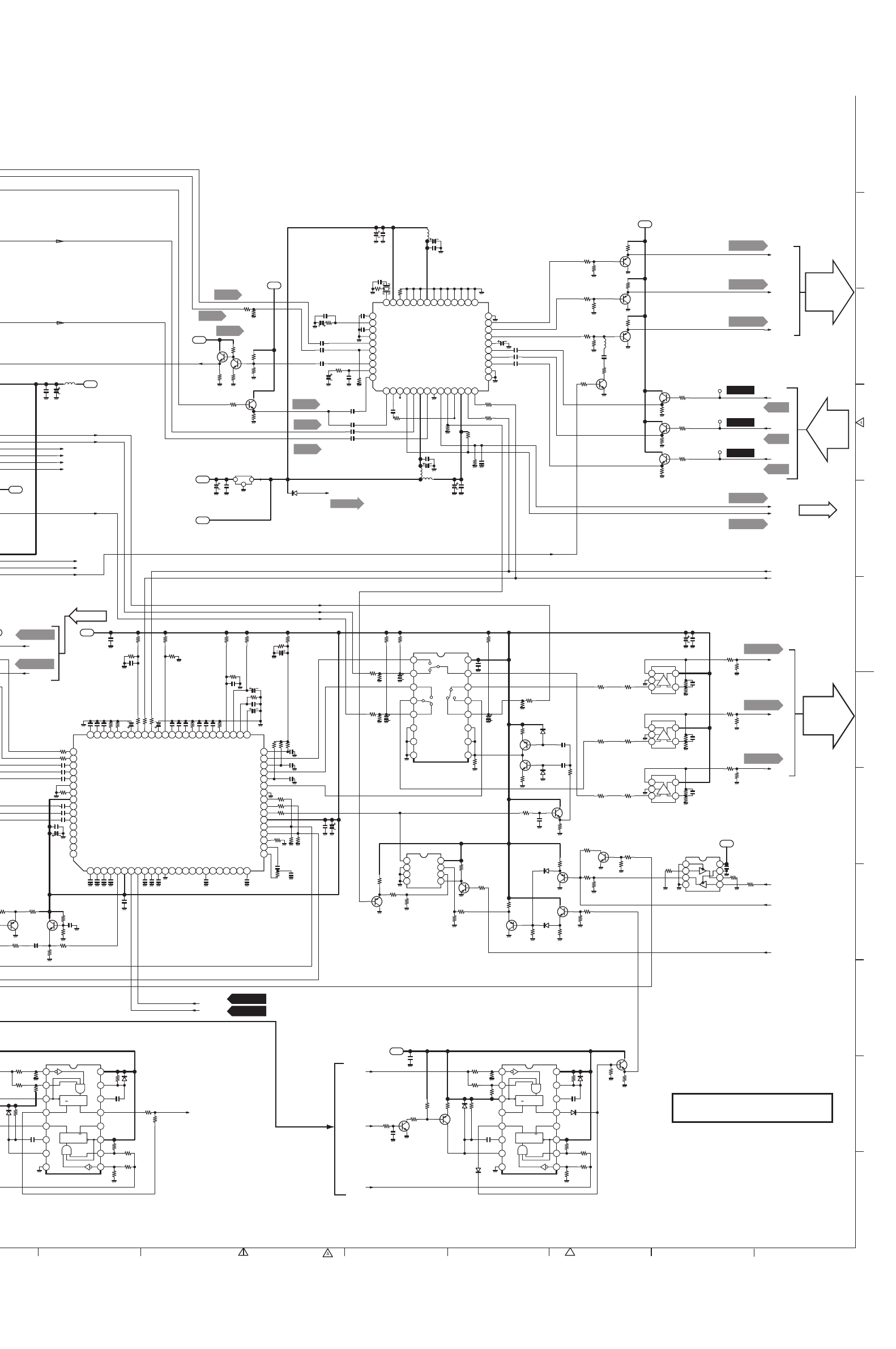

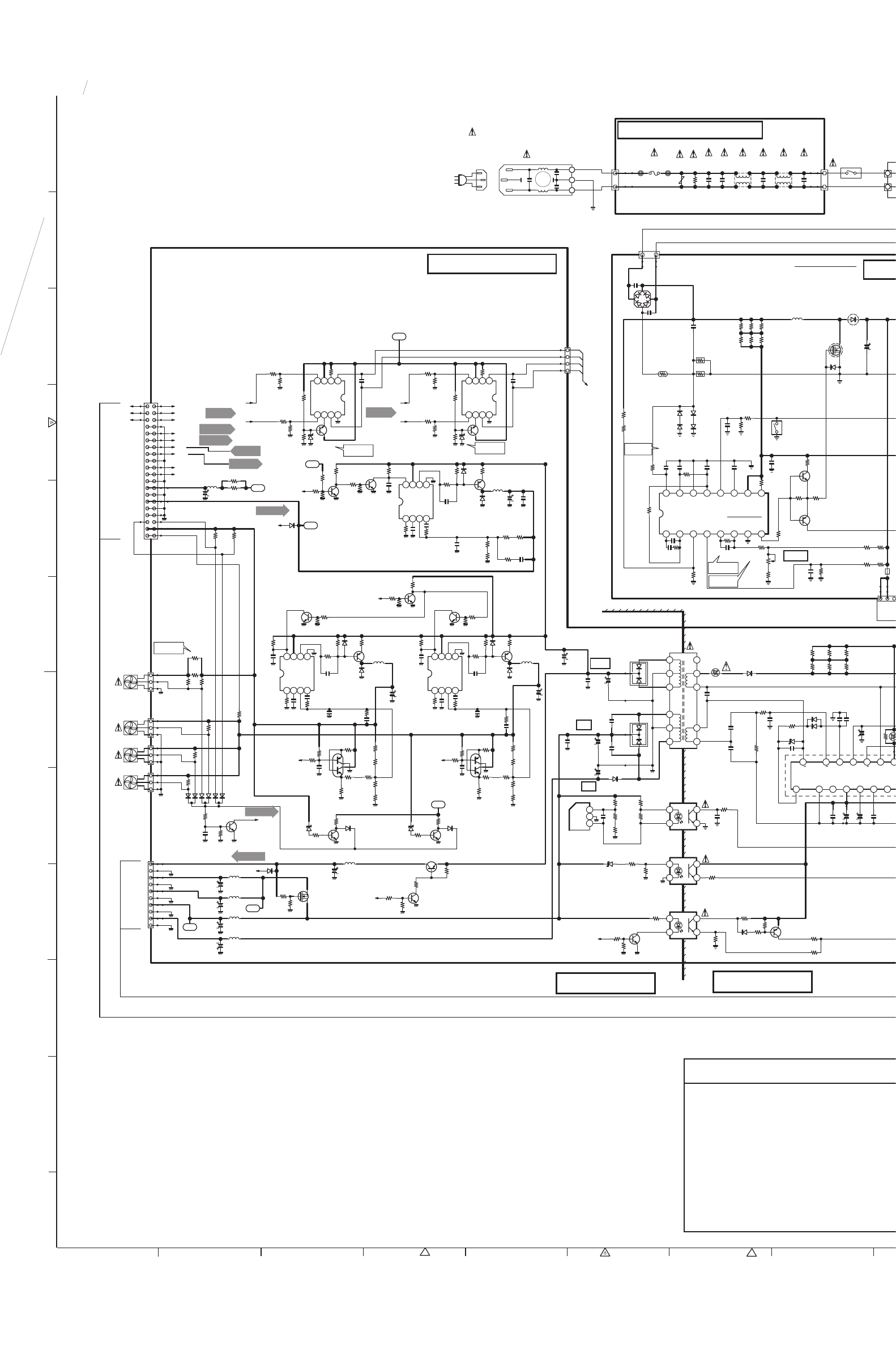

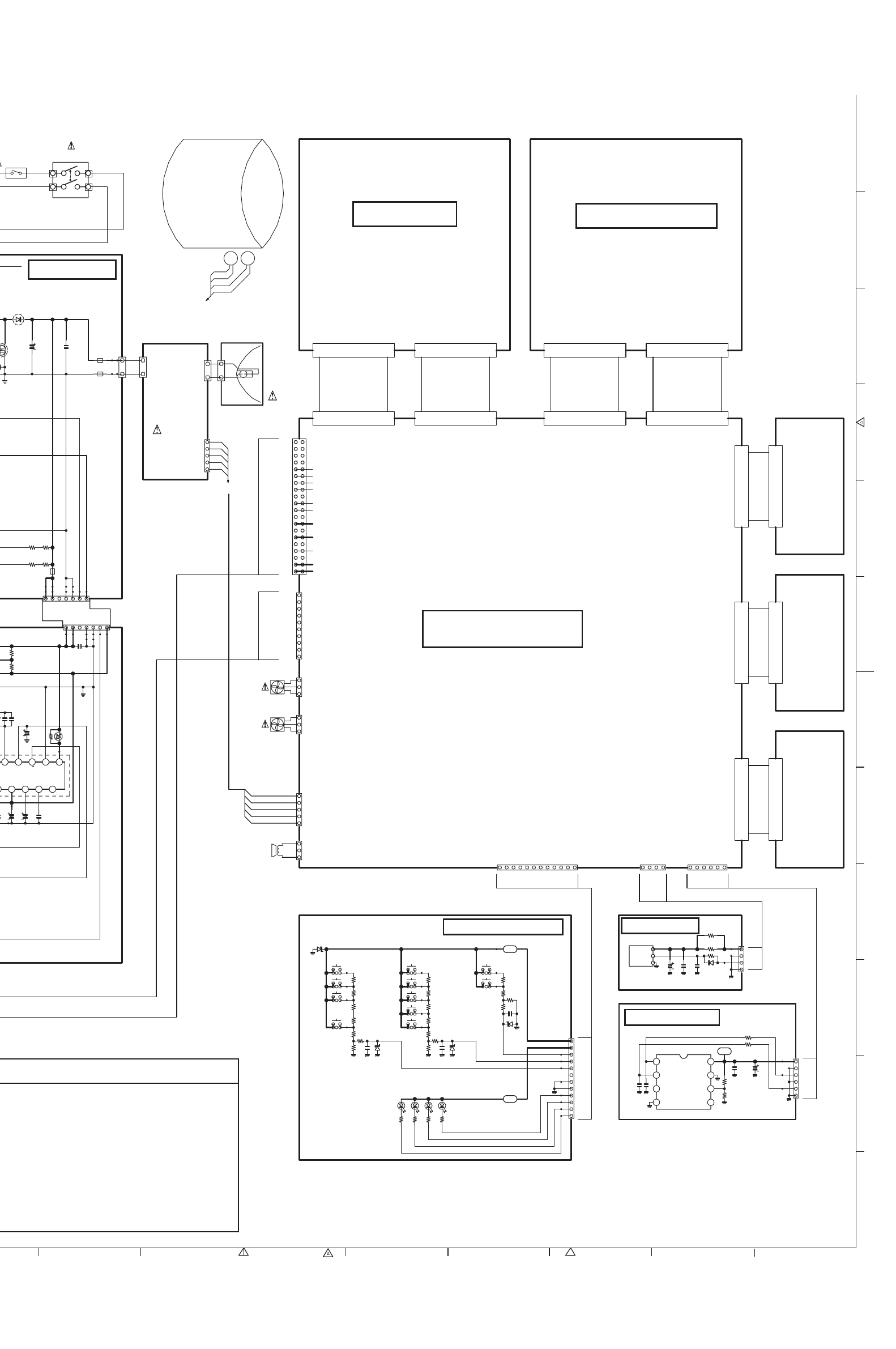

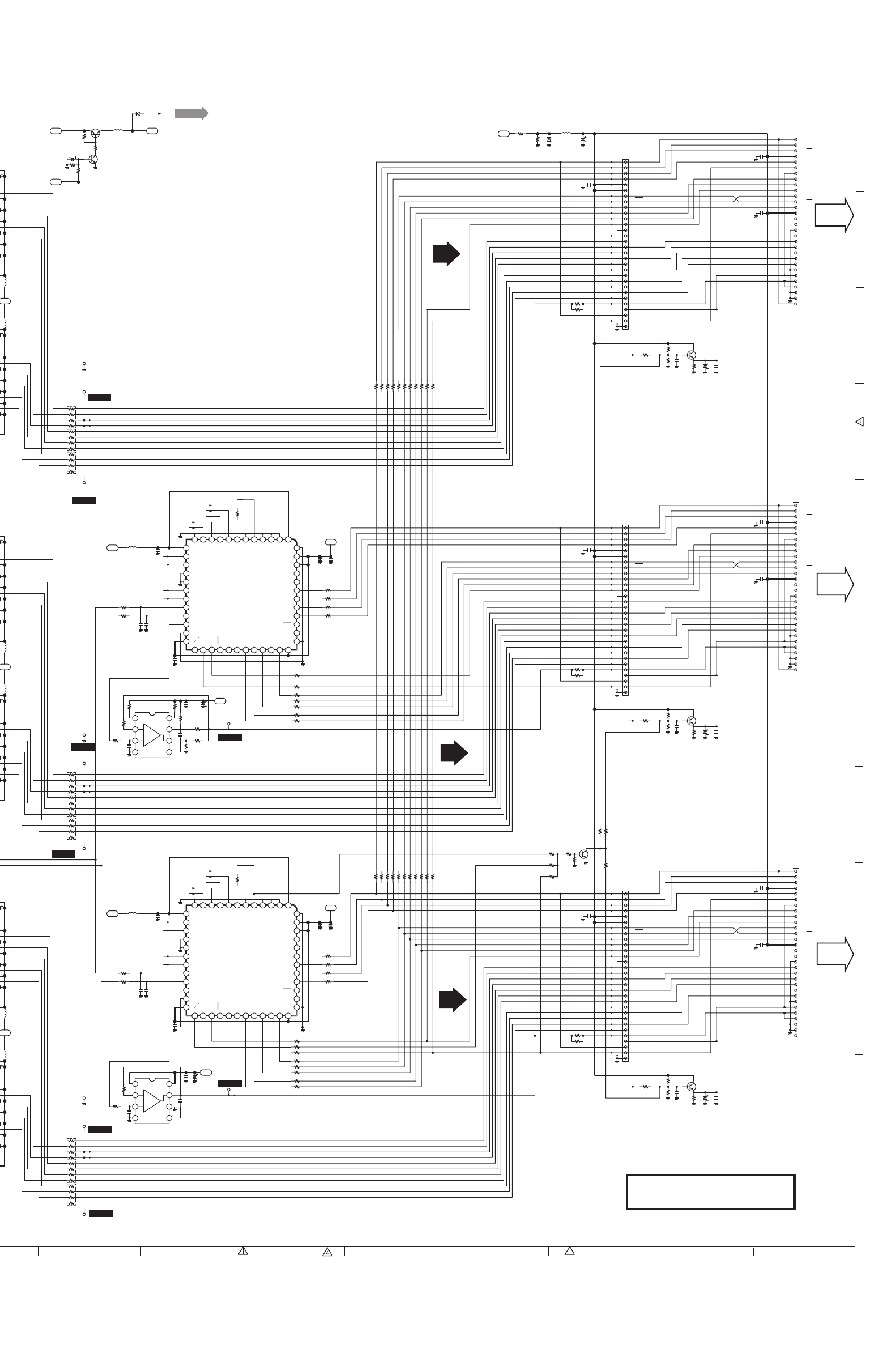

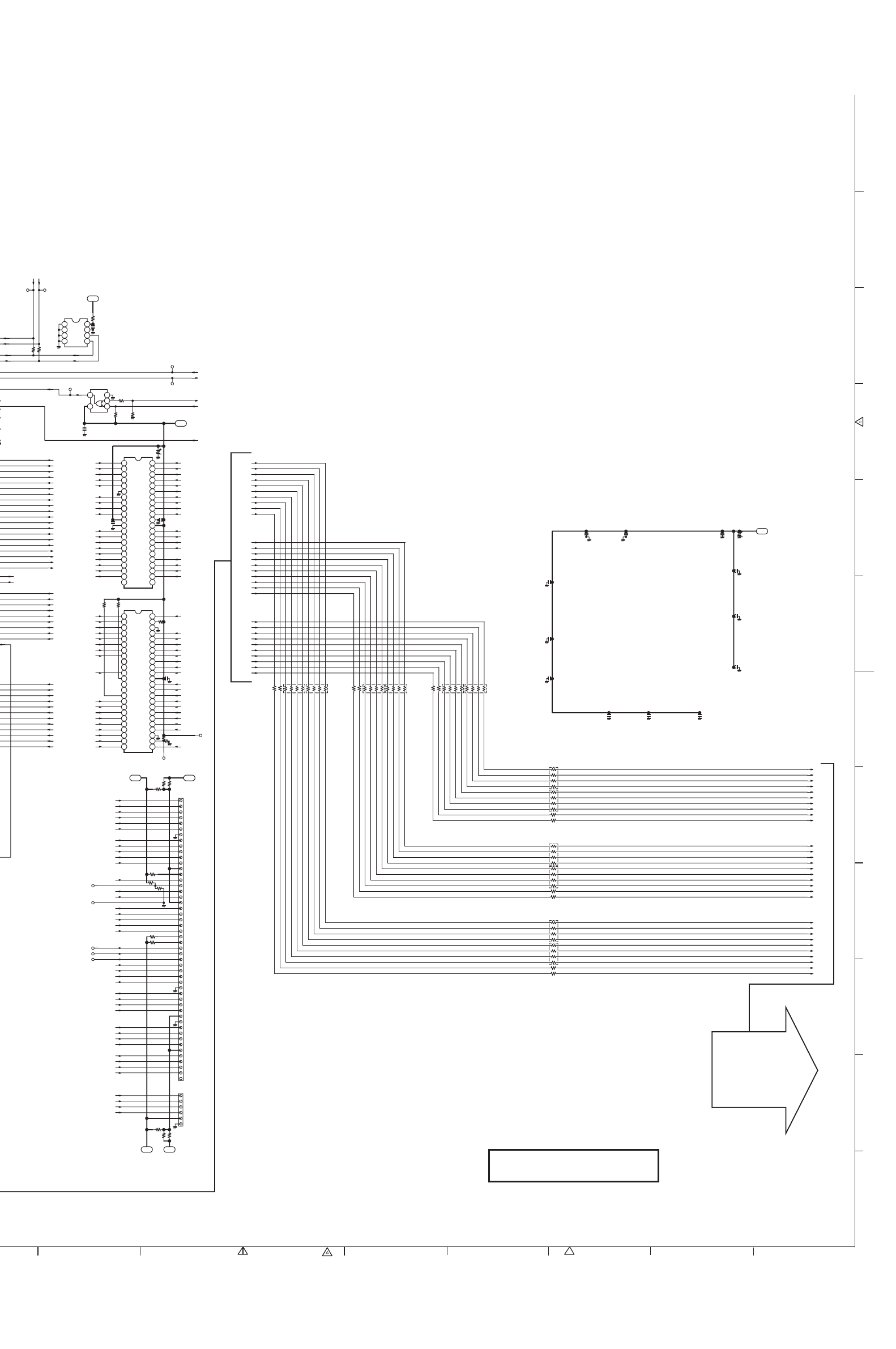

■Schematic diagrams ________________________________________ A11-A18

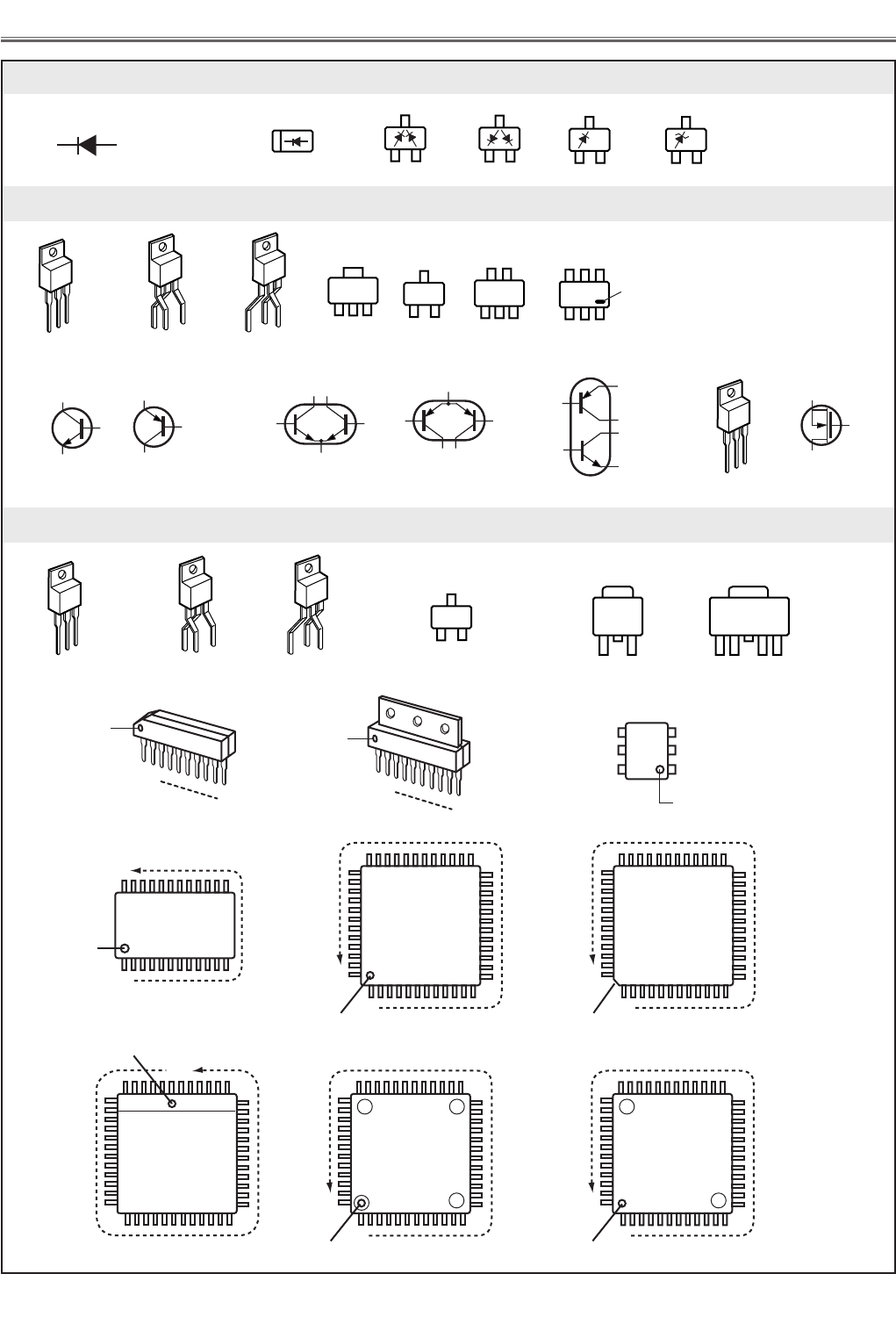

■Pins description of ICs, transistors, diodes __________________________ A19

-3-

■Safety Instructions

WARNING:

The chassis of this projector is isolated (COLD) from AC line by using the converter transformer. Primary side of

the converter and lamp power supply unit circuit is connected to the AC line and it is hot, which hot circuit is iden-

tified with the line ( ) in the schematic diagram. For continued product safety and protection of personnel

injury, servicing should be made with qualified personnel.

The following precautions must be observed.

SAFETY PRECAUTIONS

1: An isolation transformer should be connected in the

power line between the projector and the AC line

before any service is performed on the projector.

2: Comply with all caution and safety-related notes pro-

vided on the cabinet back, cabinet bottom, inside the

cabinet or on the chassis.

3: When replacing a chassis in the cabinet, always be

certain that all the protective devices are installed

properly, such as, control knobs, adjustment covers

or shields, barriers, etc.

DO NOT OPERATE THIS PROJECTOR WITHOUT

THE PROTECTIVE SHIELD IN POSITION AND

PROPERLY SECURED.

4: Before replacing the cabinet cover, thoroughly

inspect the inside of the cabinet to see that no stray

parts or tools have been left inside.

Before returning any projector to the customer, the

service personnel must be sure it is completely safe to

operate without danger of electric shock.

SERVICE PERSONNEL WARNING

Eye damage may result from directly viewing the light produced by the Lamp used in this equipment. Always turn

off Lamp before opening cover. The Ultraviolet radiation eye protection required during this servicing.

Never turn the power on without the lamp to avoid electric-shock or damage of the devices since the stabilizer

generates high voltages(15kV - 25kV) at its starts.

Since the lamp is very high temperature during units operation replacement of the lamp should be done at least

45 minutes after the power has been turned off, to allow the lamp cool-off.

PRODUCT SAFETY NOTICE

Product safety should be considered when a component replacement is made in any area of the projector.

Components indicated by mark in the parts list and the schematic diagram designate components in which

safety can be of special significance. It is, therefore, particularly recommended that the replacement of there parts

must be made by exactly the same parts.

DO NOT ATTEMPT TO SERVICING THE

REMOTE CONTROL UNIT.

Laser Beam may be leaked out when in disassemble

the Unit. As the Laser Beam used in this Remote con-

trol unit is harmful to the eyes.

LASER RADIATION

DO NOT STARE INTO BEAM

MAX. OUTPUT: 1mW

WAVE LENGTH: 650 ±20nm

CLASS II LASER PRODUCT

This product is complied with 21 CFR

part 1040.10

CAUTION LASER RADIATION

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

LASER-STRAHLING

NICHT IN DEN STRAHL BLICKEN

LASER KLASSE 2

IEC60825-1, Am. 1 1997

MAX OUTPUT ( ) : 1 mW

WAVE LENGTH ( ) : 650±20nm

-4-

Projector Type Multi-media Projector

Dimensions (W x H x D) 13.11” x 3.52” x 9.96” (333mm x 89.5mm x 253mm)

Net Weight 9.3 lbs (4.2 kg) (PLC-XU45), 9.8 lbs (4.4 kg) (PLC-XU46)

LCD Panel System 0.9” TFT Active Matrix type, 3 panels

Panel Resolution 1024 x 768 dots

Number of Pixels 2,359,296 (1024 x 768 x 3 panels)

Color System 6 color system (PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N)

High Definition TV SIgnals 480i, 480p, 575i, 575p, 720p. 1035i and 1080i

Scanning Frequency H-sync. 15 ~ 100kHz, V-sync. 50 ~ 100Hz

Projection Image Size (diagonal) Adjustable from 31” to 300” (PLC-XU45)

Adjustable from 34” to 300” (PLC-XU46)

Horizontal Resolution 800 TV lines

Projection Lens F 1.7 ~ 2.0 lens with f 37.4mm ~ 48.3mm with motor zoom and focus (PLC-XU45)

F 1.9 ~ 2.1 lens with f 21.3mm ~ 25.6mm with motor zoom and focus (PLC-XU46)

Throw Distance 5.3’ ~ 40.0’ (1.6m ~ 12.2m) (PLC-XU45)

3.0’ ~ 22.6’ (0.9m ~ 6.9m) (PLC-XU46)

Projection Lamp 200watts

Video Input Jacks RCA Type x 3 (Video/Y, Cb/Pb, Cr/Pr) and Mini DIN 4 pin x 1(S-Video)

Audio Input Jacks RCA Type x 2

Computer Input Terminal DVI-I Terminal (Digital/Analog)

Monitor Output Terminal (VGA) HDB15 Terminal x 1

Computer Audio Input Jack Mini Jack (stereo)

Control Port Connector Mini DIN 8 pin x 1

USB Connector USB Series B receptance x 1

Audio Output Jacks RCA Type x 2

Internal Audio Amp. 1.0watt RMS (monaural)

Built-in Speaker 1 speaker, 1.18” x 1.57” (30mm x 40mm)

Feet Adjustment 0˚ to 15.6˚

Voltage and AC 100 ~ 120V (3.6A Max. Ampere), 50/60Hz (The U.S.A and Canada)

Power Consumption AC 200 ~ 240V (1.8A Max. Ampere), 50/60Hz (Continental Europe and the U.K)

Operating Temperature 41˚F ~ 95˚F (5˚C ~ 35˚C)

Storage Temperature 14˚F ~ 140˚F (-10˚C ~ 60˚C)

Remote Control Transmitters Wireless Remote Control, batteries AA, UM3 or R06 Type x 2

■Specifications

●The specifications are subject to change without notice.

This symbol on the nameplate means the product is Listed by Underwriters

Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety stan-

dards against risk of fire, casualty and electrical hazards.

-5-

Condenser lens adjustment ❍●

Condenser lens-out adjustment ❍●

Relay lens-out adjustment ❍●

Contrast Adjustment

R-Contrast adjustment ●

G-Contrast adjustment ●

B-Contrast adjustment ●

Output voltage adjustment

Fan voltage adjustment ●

Pedestal adjustment ●

NRS adjustment ●

Signal center adjustment ●

Black level adjustment ●

PC offset adjustment ●

PC gain adjustment ●

AV gain adjustment ●

Common center adjustment ● ●

Gamma shift adjustment ❍ ●

White balance adjustment ❍ ❍

Disassembly / Replaced Parts

LCD/

Prism

Ass’y

Condenser

Lens

Polarized glass

RGB

Optical Adjustments

Electrical Adjustments

● :Adjustment necessary ❍ :Check necessary

P. F.

Board

Main

Board

Condenser

Lens-Out

■Adjustments after Parts Replacement

Relay

Lens-Out

Power

Board

-6-

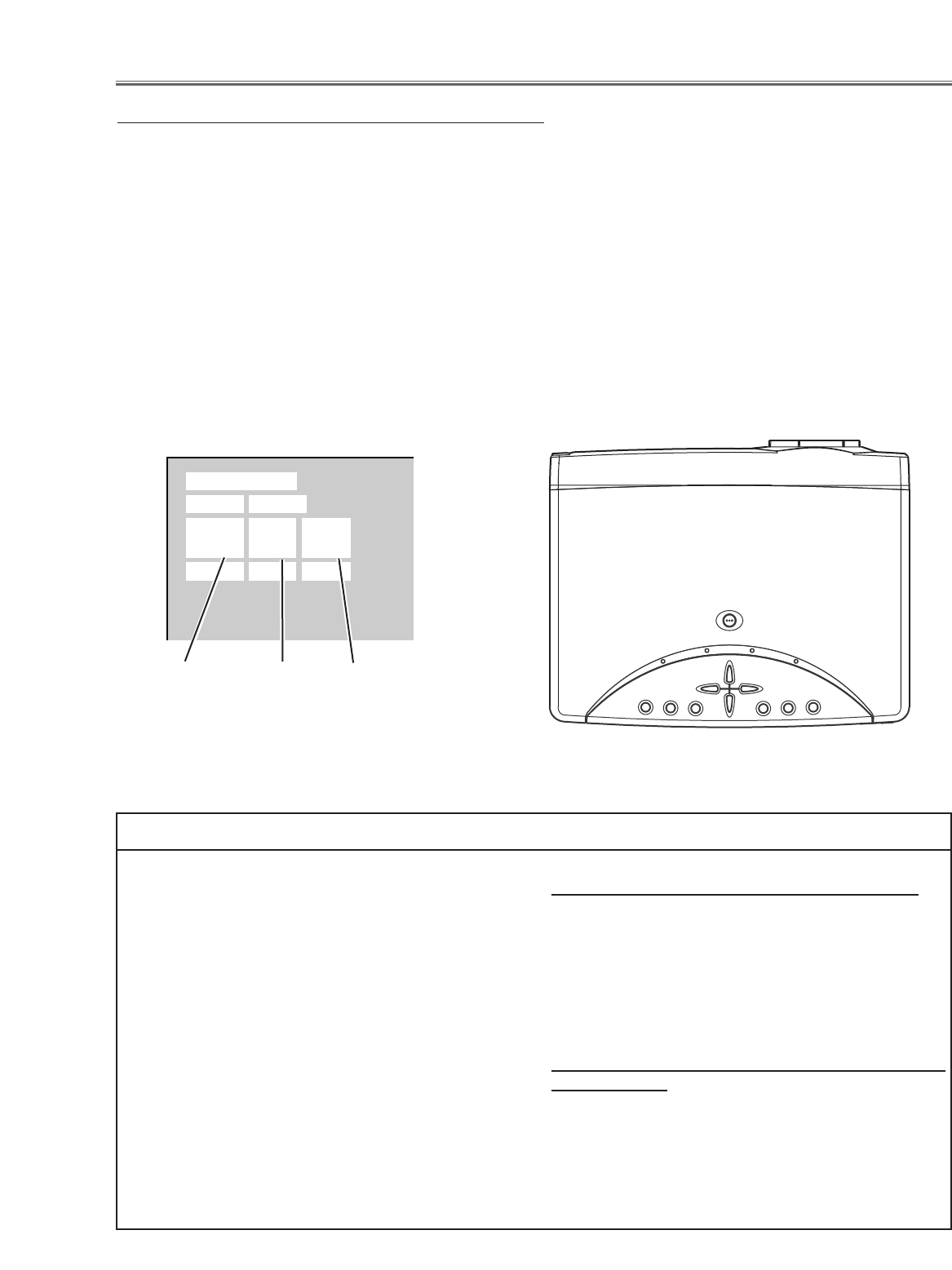

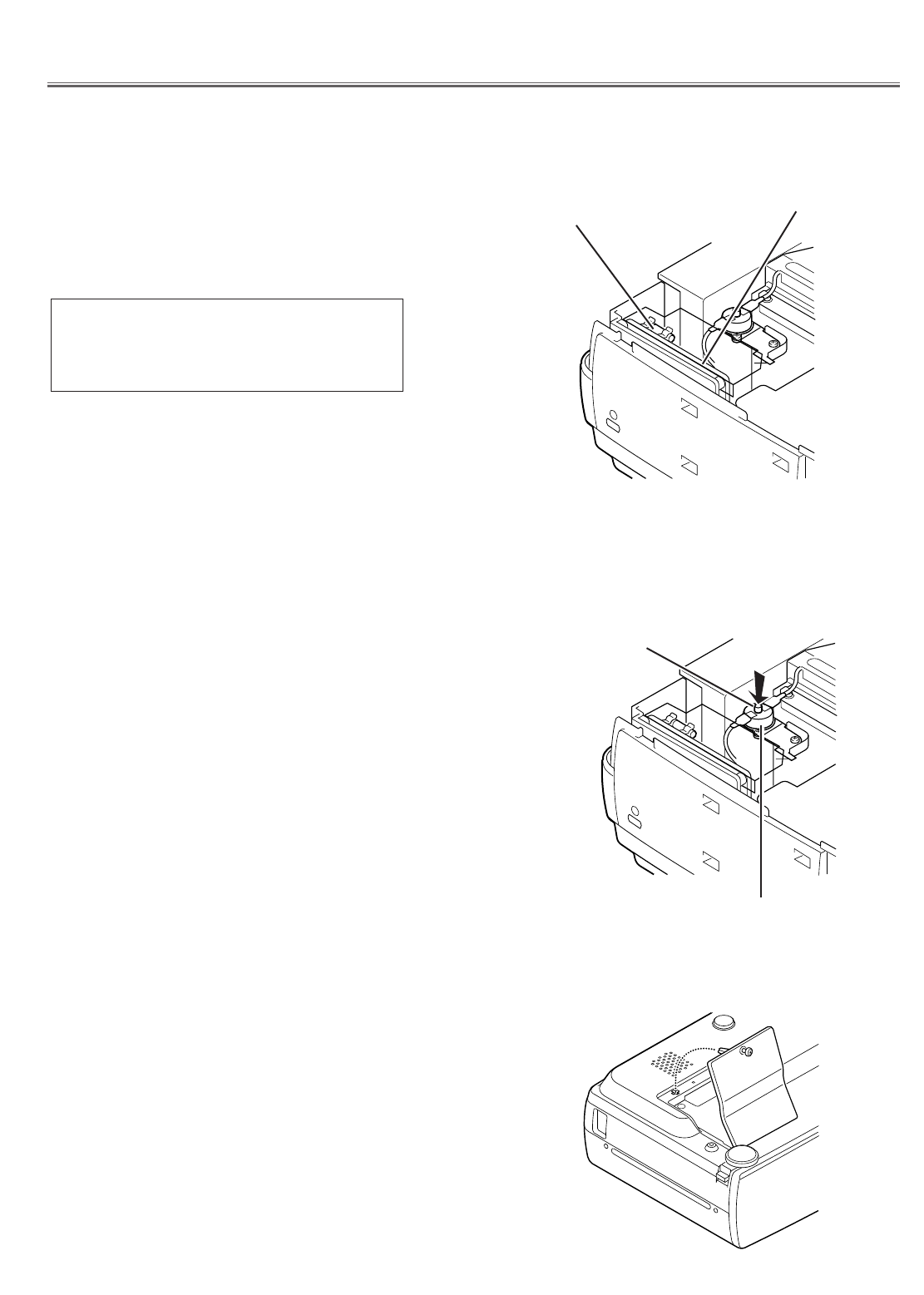

●Interlock switch

The interlock switch (SW904) cuts off the AC mains power supply

when the lamp cover is removed. After opening the lamp cover for

replacing the lamp ass’y, place the lamp cover correctly otherwise

the projector can not turn on.

●Thermal switch

There is the thermal switch (SW902) inside of the projector to

prevent the internal temperature from rising abnormally. When the

internal temperature reaches near 100˚C, turn off the AC main

power supply automatically.

The thermal switch is not reset to normal automatically even if the

internal temperature becomes normal. Reset the thermal switch

following procedure.

Check the resistance between terminals of thermal switch by

using the tester. If it has high impedance, thermal switch may be

in operative.

How to reset the thermal switch

1. Remove the cabinet top following to “Mechanical

Disassemblies”.

2. Press the reset button on the thermal switch.

CAUTION:

Before press the reset button, disconnect the AC cord from the

projector.

■Circuit Protections

This projector is equipped with the following circuit protections to operate in safety. If the abnormality occurs inside

the projector, it will automatically turn off by operating one of the following protection circuits.

●Fuse

The fuse is located inside of the projector. When either the LAMP

indicator or the READY indicator is not illuminated, fuse may be

opened. Check the fuse as following steps.

It should be used the specified fuse as follows;

How to replace the fuse

1. Remove the cabinet top following to “Mechanical

Disassemblies”.

2. Remove the fuse from fuse holder.

To install the fuse, take reversed step in the above.

Fuse Part No.: 423 022 2102

TYPE T4.0AH 250V FUSE

LITTLE FUSE INC. TYPE 215004

Fuse

Thermal switch (SW902)

Reset Button

Line Filter Board

-7-

Circuit Protections

●Warning temperature and power failure protection

The TEMP WARNING indicator flashes red and the projector will automatically turn off when the internal tempera-

ture of the projector exceeds the normal temperature or when stopping cooling fans or when the internal power

supply lines are failed.

Check the following possible causes and wait until stopping the TEMP WARNING indicator flashing.

Possible causes

- Air filter is clogged with dust particles. Remove dust from the air filter by following instructions in the “Air filter

care and cleaning” below.

- Ventilation slots of the projector are blocked. In such an event, reposition the projector so that ventilation slots are

not obstructed.

- Check if projector is used at higher temperature place (Normal operating temperature is 5 to 35 ˚C or 41 to 95˚F)

If the TEMP WARNING indicator still continues to flash, there may be defects on cooling fans or power supply cir-

cuits. Please check fan operation and power supply lines referring to the “Power Supply Lines Chart”.

Air filter care and cleaning

The removable air filter prevents dust from accumulation on the surface of the projection lens and projection mirror.

Should the air filter become clogged with dust particles, it will reduce the cooling fan’s effectiveness and may result

in internal heat build up and reduce the life of the projector.

To clean up the air filter, follow the cleaning procedure

below:

1. Turn the power off, and disconnect the AC power cord

from the AC outlet.

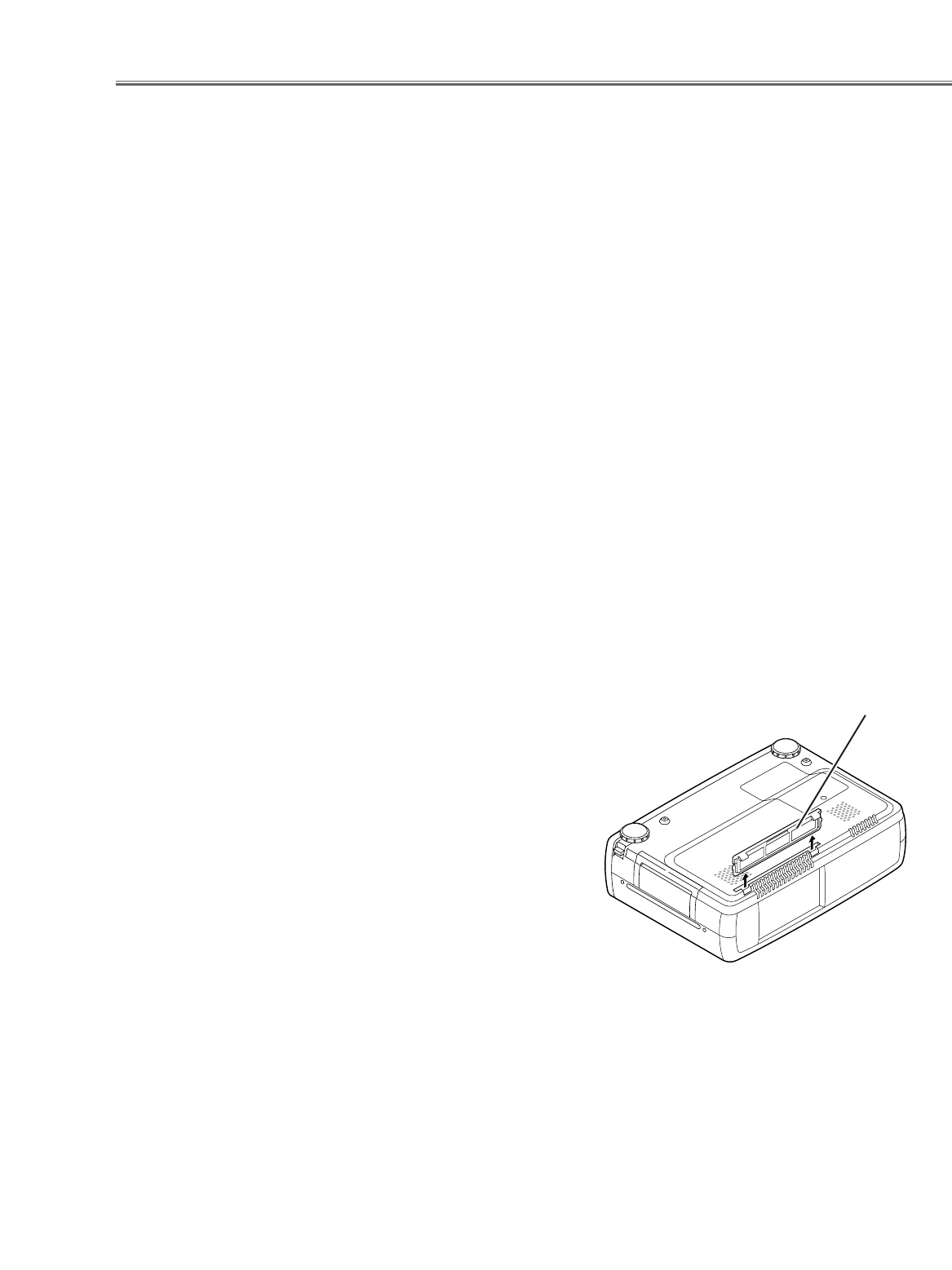

2. Turn the projector up side down and remove an air filter

by pulling the latches of them upward.

3. Clean the air filter with brush or wash out the dust and

particles.

4. Replace the air filter properly. Make sure that the air fil-

ter is fully inserted.

CAUTION:

Do not operate the projector with the air filter removed. The

dust is stuck on the LCD panel and the mirror, and it may

spoil the fine picture image.

Do not put the small parts into the air intake vents. It may

result in the malfunction of the projector. The air filter is

small parts. Take care that children don’t eat or swallow it.

RECOMMENDATION

We recommend to avoid dusty, smoky place for operating the projector. Using in dusty place may cause the picture

of poor quality.

When using under the dusty or smoky conditions, dust may accumulate on the LCD panel and lens inside it, and

may resultantly be projected on the screen together with the picture.

When the above symptoms are noticed, please clean up the LCD panel and lens following to the “Cleaning

Method”.

Air filter

-8-

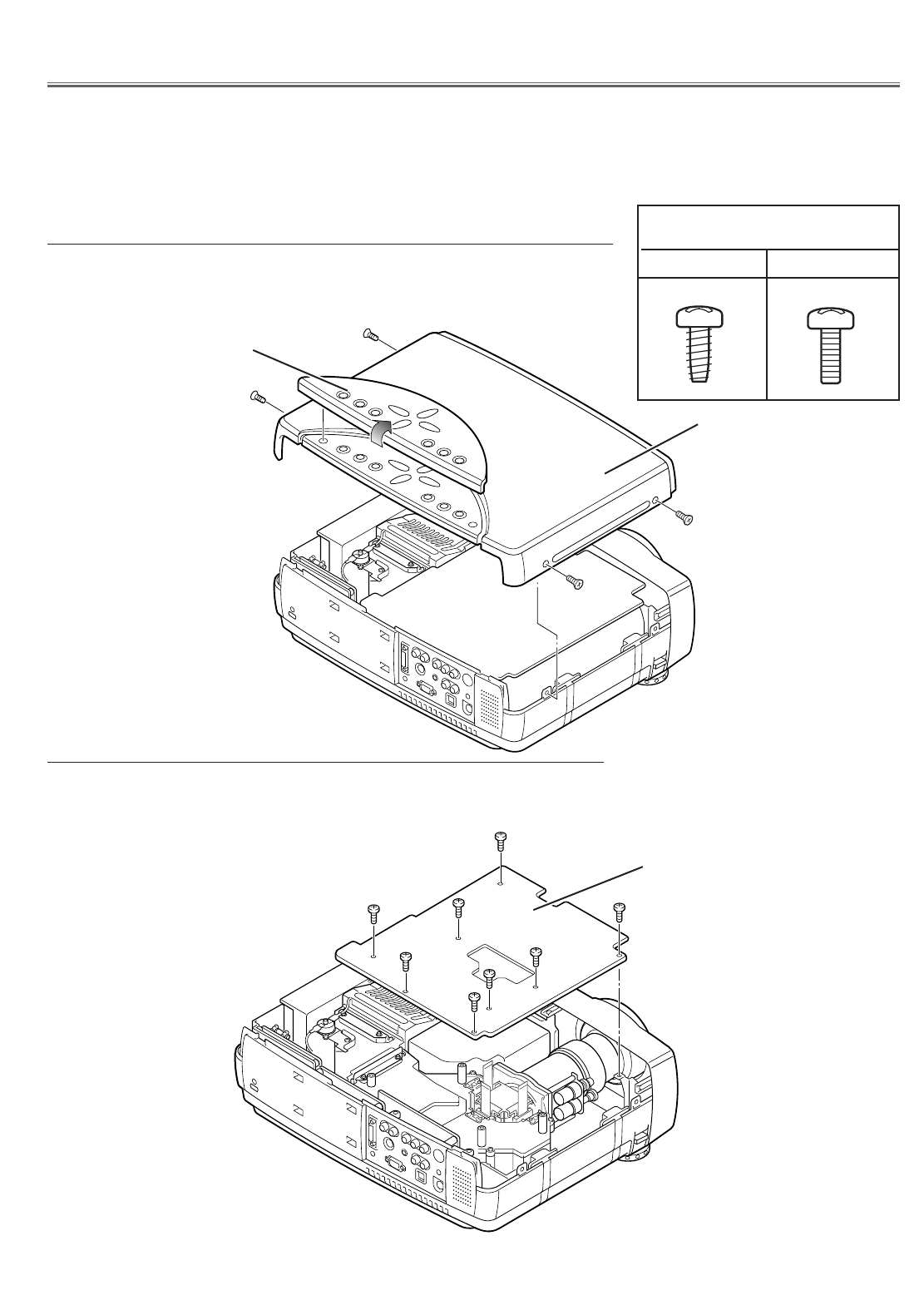

■Mechanical Disassemblies

Mechanical disassemble should be made following procedures in numerical order.

Following steps show the basic procedures, therefore unnecessary step may be ignored.

Caution:

The parts and screws should be placed exactly the same position as the original otherwise it may cause loss of

performance and product safety.

1Remove 4 screws A(M3x6) to take the Cabinet Top Ass’y upward off.

2Remove the Control Panel off from the Cabinet Top by lifting the edge of

control panel.

Fig.1

1Remove 8 screws (M3x6) to take the Main Board upward off.

Fig.2

zCabinet Top and Control Panel removal

xMain Board removal

A

Main Board

Control panel

Cabinet top

Screws Expression

(Type Diameter x Length) mm

T type M Type

-9-

Mechanical Disassemblies

1Remove 1 screw A(M4x8) to release grounding wires.

2 Pull the Rear Panel ass’y upward.

3Remove 4 screws B(T3x6) and remove the AV Board.

4Remove 4 screws C(T3x6) and remove the DVI Board.

5Remove 4 screws D(T2.6x6) and remove the speaker.

6Remove 1 screws E(T3x8) and remove the Sensor Board.

Fig.3

Fig.4

1Remove 3 screws A (M3x4), 1 screw B (M3x8) and unhook 2 hooks Cat

the both of left and right side, and the take the Front Panel ass’y off.

2Remove 1 screw D (T3x8) to take the R/C Board off.

cAV, DVI, Temp Board and Speaker removal

vFront Panel and R/C Board removal

A

B

C

A

B

C

D

DVI board

AV board

Speaker

R/C board

B

C

D

E

Temp board

-10-

Mechanical Disassemblies

1Remove 1 screw A(M3x4) and remove SW902, and then remove 1 screw

B(M3x6) and disconnect the Lamp Socket.

2Remove 2 screws C(M3x6) to take the Lamp Ballast ass’y upward off.

3Remove 2 screws D(T2x6) to take the isolation sheet off.

4Remove 4 screws E(T3x6) to take the lamp ballast board off.

Fig.5

1Remove 3 screws A(M3x6) and pull the Filter Board ass’y upward.

2Remove 1 screw B(M4x8) to take the grounding lead from the cabinet bottom.

3Remove 4 screws C(T3x8) to take the Filter Board off.

Fig.6

bLamp Ballast Unit removal

nFilter Board removal

B

Lamp ballast board

C

E

A

B

C

Filter board

D

Isolation sheet

A

Lamp ballast socket

SW902

-11-

Mechanical Disassemblies

1Remove 4 screws A(M3x12) to take the Fan(FN901) off.

2Remove 4 screws B(M3x8) to take the Fan(FN906) off.

3Remove 3 screws C(M3x6) to take the Power Box Cover

upward off.

1Remove 1 screw A(M3x6) to take the Lamp

Cover off.

2Loosen 3 screws Bto take the Lamp assembly by

pulling the handle.

Step to next procedure.

Fig.8-1

Fig.7

mPower Box Cover and Fans(FN901, FN906) removal

,Optical Unit removal (1)

A

B

BB

B

C

FN901

FN906

Power box cover

Lamp cover

Lamp ass’y

A

B

BB

-12-

Mechanical Disassemblies

Step from previous procedure.

3Remove 6 screws C (M3x8) to take the Optical Unit upward upward off.

To mount optical unit, mount optical unit first then mount the Lamp assembly

and Lamp Cover.

1Remove 4 screws A(T3x6), 4 screws B(T3x8) to

take the Power Board ass’y upward off.

2Remove 4 screws C(M3x6) to take the P. F. Board

from the Power Board.

3Remove 3 screws D(M3x6) to take the Power

Board holder from the Cabinet Bottom.

Fig.9

.Power and P.F. Board removal

A

Power board

A

BB

B

C

CCC

D

P. F. board

Fig.8-2

,Optical Unit removal (2)

Optical unit

C

-13-

Mechanical Disassemblies

1Remove 1 screw A(M3x6) and take a Washer,

Spring and Interlock Switch lever.

2Pull the Fan and duct ass’y upward, then remove the

2 screws B (M3x6) to take the Fan (FN905) off.

Fig.10

1Remove 8 screws A(T3x8) and to take the Fan

Duct Top off and remove the Fans (FN902,

FN903, FN904).

2Remove 4 screws B (M3x6) to take the Fan Duct

Bottom off from the Cabinet Bottom.

Fig.11

⁄0 Fan (FN905) removal

⁄1 Fans (FN902, FN903, FN904) removal

Interlock switch lever

A

B

FN905

AA

A

BB

B

FN904

FN903 FN902

Fan duct top

-14-

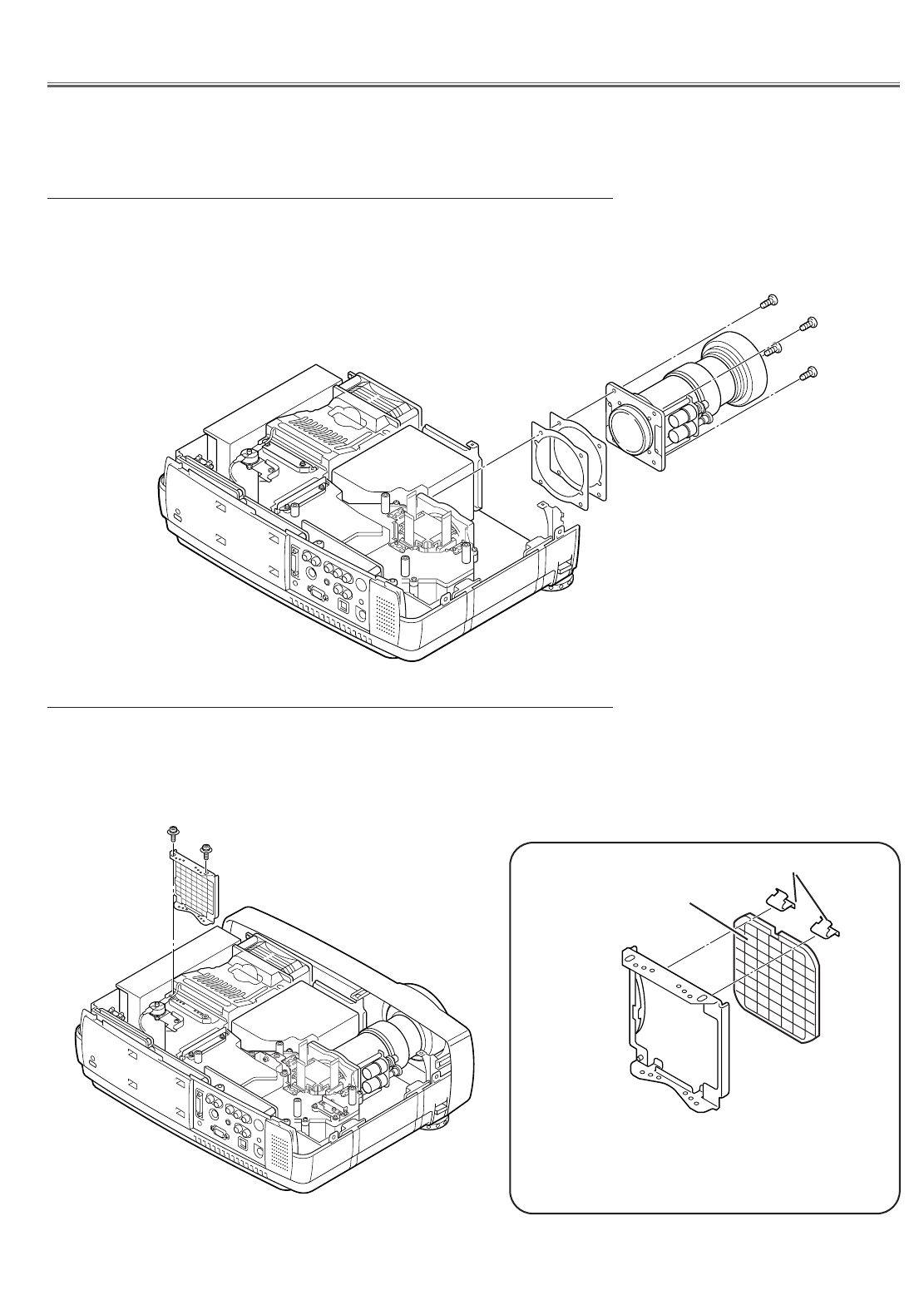

■Optical Parts Disassemblies

Before taking this procedure, remove Cabinet Top and Main Board following to the “Mechanical Disassemblies”.

Disassembly requires a 2.0mm hex wrench and a screwdriver.

1Remove the Front Panel following to “Front Panel Removal” on “Mechanical

Disassemblies”.

2Remove 4 screws (M3x10) to take the Projection Lens ass’y off.

1Remove 2 screws A(M2.5x6) and pull the Integrator Lens-In ass’y upward.

2Remove 1 stoppers Band then take the Lens off from the holder.

Fig.1

Integrator Lens

* Lens should be placed as the

rugged surface side comes to

the holder side.

Fig.2-1

Fig.2-2

zProjection Lens removal

xIntegrator Lens-In disassembly

Stopper B

A

-15-

Optical Pats Disassemblies

1Remove 2 screws A(M2.5x6) and pull the Condenser Lens ass’y upward.

2Remove 4 screws B(M2x4) to take the Lens off from the holder.

1Remove 2 screws A(M2.5x6) and pull the Condenser Lens-Out ass’y

upward.

2Remove 2 screws B(M2x4) to take the Lens off from the holder.

Note:

Should be place the lens as shown in the figure.

A

BCondenser Lens

Fig.3-2

Fig.3-1

* Lens should be placed as the flat

surface side comes to the holder

side.

Holder

A

Fig.4-2

Fig.4-1

B

Holder

Condenser Lens-Out

A

cCondenser lens disassembly

vCondenser Lens-Out disassembly

B

Side View

-16-

Optical Parts Disassemblies

1Remove 2 screws A(M2.5x6) and pull the Relay Lens-Out ass’y upward.

2 Remove 2 screws B(M2x4) to take the Lens off from the holder.

Note:

There is no mounting direction of the lens.

1Remove each screw (M2.5x6) and pull the Polarized Glass-In ass’y

upward.

2Unhook the stoppers and take the glass off upward.

Hooks

Polarized Glass-In

Fig.6-2

Fig.6-1

*Should be places the glass as the

film attached side comes to the

prism side.

Phase Sheet

A

Fig.5-2

Fig.5-1

B

Holder

Relay Lens-Out

A

bRelay Lens-Out disassembly

nPolarized Glass-In removal

-17-

Optical Parts Disassemblies

1Remove 9 screws (M3x10) to take the Optical Unit Top off upward.

Fig.8

,Optical Unit Top removal

Optical Unit Top

1Remove 4 screws A(M2.5x4) and take the LCD/Prism ass’y off upward

from the optical unit.

2Remove each screw B and take the glass off upward.

LCD Panel/

Prism Ass’y

Note:

Do not replace the LCD panel

separately otherwise it can

not obtain proper picture.

Fig.7-1

mPolarized Glass-Out/Pre-Polarized Glass removal

A

LCD Panel/Prism

Ass’y

Fig.7-2

*Glasses should be placed as the

film attached side comes to the

LCD panel side.

LCD Panel

B

Polarized Glass-Out

Optical filter

-18-

Optical Parts Disassemblies

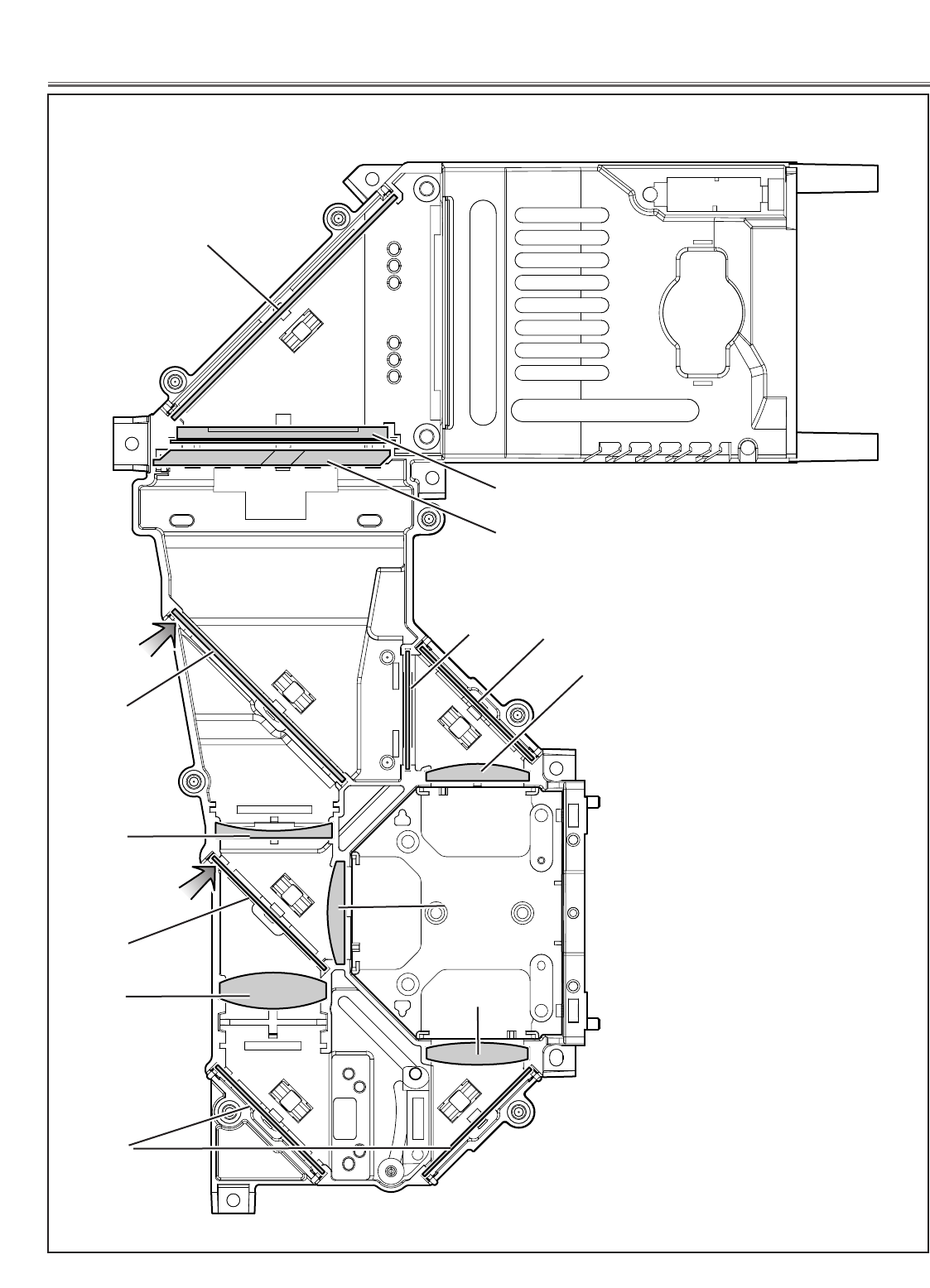

When mounting or assembling the optical parts in the optical unit, the

parts must be mounted in the specified location and direction as

shown in figure below.

5

8

9

Fig.9

2

4

1

The printed marker

comes this side. 13

3

7

10

Locations and Directions

6

12

1Mirror (W)

2Integrator lens (OUT)

3Prism beam splitter (PBS)

4Dichroic mirror (B)

5Condenser lens (OUT)

6Dichroic mirror (G)

7Relay lens (IN)

8Mirror (R)

9Condenser lens (R)

10 Condenser lens

11 Condenser lens (B)

12 Optical filter (UV cut)

13 Mirror (B)

Key No. Description

The printed marker

comes this side.

11

Note: The arrows in the figure are indicated that

there are the direction of part placement.

Place each part as the printed marker on the

part comes to each arrow direction.

-19-

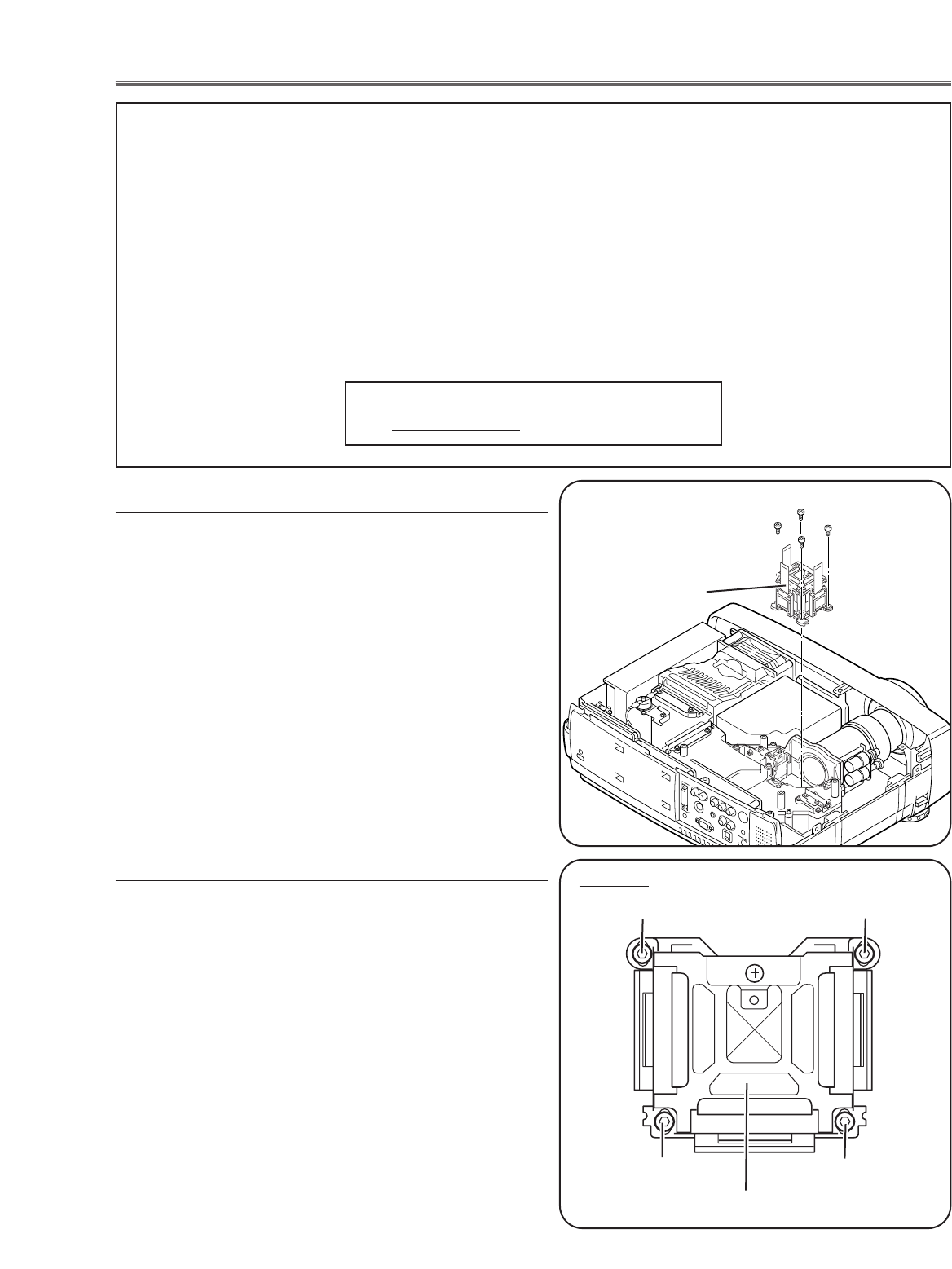

■LCD Panel/Prism Ass’y Replacement

1Remove the cabinet top and main board following to

“Mechanical Disassemblies”.

2Remove 4 screws by using the 2.0 mm hex driver and

take the LCD Panel/Prism ass’y off upward from the

optical unit.

LCD Panel/Prism

Ass’y

After replacing or installing the LCD Panel/Prism ass'y,

please make sure to obtain the best focus in both TELE

and WIDE zoom. If the focus adjustment is required,

please adjust the positioning of LCD Panel/Prism Ass’y by

following below procedure.

Mounting Procedure:

1 Loosen 4 screws Aon the LCD Panel/Prism ass'y with

2.0 mm hex driver.

2Turn the projector on and project the image with WIDE

zoom, and adjust the FOCUS control to obtain the best

focus.

3Turn the ZOOM control to the TELE position.

4Move the LCD Panel/Prism Ass’y backward or forward

(about 0mm ~ 0.8mm) to obtain the proper focus.

Confirm the focus at TELE and WIDE zoom.

5Tighten 4 screws Ato fix the LCD Panel/Prism ass'y.

Top View

A

LCD Panel/Prism Ass’y

Note:

Do not replace the LCD

panel separately otherwise

it can not obtain proper pic-

ture.

IMPORTANT NOTICE on LCD Panel/Prism Ass'y Replacement

LCD panels used for this model can not be replaced separately. Do not disassemble the LCD Panel/Prism Ass’y.

These LCD panels are installed with precision at the factory. When replacing the LCD panel, should be replaced

whole of the LCD panels and prism ass’y at once.

After replacing LCD Panel/Prism ass’y, please check the following adjustments.

- Check the “Condenser Lens Adjustment” , “Condenser Lens-Out Adjustment” and “Relay Lens-Out

Adjustment” following to chapter “Optical Adjustment”.

- Check the “White Balance Adjustment” , “Common Center Adjustment” and “Gamma Shift Adjustment”

following to chapter “Electrical Adjustment”.

- Check the white uniformity on the screen.

If you find the color shading, please adjust the white uniformity by using the proper computer and

“Color Shading Correction” software supplied separately. The software can be ordered as follows;

COLOR SHADING CORRECTION

Service Parts No.645 051 2308

LCD Panel/Prism Ass’y removal

Note on LCD Panel/Prism Ass’y Mounting

-20-

WARNING:

- For continued safety, replace with a lamp assembly of the

same type.

- Allow the projector to cool for at least 45 minutes before you

open the lamp cover. The inside of the projector can become

very hot.

- Do not drop the lamp module or touch the glass bulb! The glass can

shatter and cause injury.

Procedure

1Turn off the projector and disconnect the AC cord. Allow the projector to

cool for at least 45 minutes.

2Remove a screw with a screwdriver and remove the lamp cover.

3Remove 2 screws and pull out the lamp assembly by grasping the han-

dle.

4Replace the lamp assembly securely and tighten 3 screws.

5Place the lamp cover and tighten a screw.

6Connect the AC cord to the projector and turn on.

Note:

- Do not reset the Lamp Replace Counter, except after lamp is replaced.

- The projector can not be turned-on with lamp cover removed, because

when the lamp cover is removed, the interlock switch is also released to

switch off the mains power for safety.

7Reset the Lamp Replace Counter, see below explanation.

■Lamp Replacement

1Turn the projector on, and press the MENU button

and the on-screen menu will appear. Press the POINT

LEFT/RIGHT buttons to move a red frame pointer to

SETTING menu icon.

2Press the POINT DOWN button to move a red frame

pointer to “Lamp counter reset” and then press the

SELECT button. The message “Lamp replace counter

reset?” is displayed. Move the pointer to [Yes] and the

press the SELECT button.

3Another confirmation dialog box appears and select

[Yes] to reset Lamp Replace Counter .

Please refer to the owners manual for further informa-

tion.

Recommendation

Should the air filter become clogged with dust particles,

it will reduce the cooling fan’s effectiveness and may

result in internal heat build up and short lamp life. We

recommend cleaning the air filter after the projection

lamp is replaced.

Refer to “Air Filter Cleaning”.

Lamp cover

Lamp Assembly

Handle

ORDER REPLACEMENT LAMP

Type No.Service Parts No.Model

POA-LMP63 610 304 5214 PLC-XU45

POA-LMP56 610 305 8801 PLC-XU46

How to reset Lamp Replace Counter

The LAMP REPLACEMENT indicator will illuminate

when the Lamp Replace Counter reaches 1500

hours. This is to indicate that lamp replacement is

required.

You can check the lamp replace counter following to

below procedure.

1Press and hold the pointer UP on the projector for

more than 20 seconds.

2 The Lamp replace Counter is displayed on upper

left corner of the screen briefly.

Normal 123 h

Eco 50 h

Total 173 h

Lamp replace counter data

How to check Lamp Replace Counter

-21-

[Before Adjustment]

- Input a 100% of black raster signal.

[R/G/B-CONTRAST ADJUSTMENT]

1Loosen a screw A(Fig.1-1/1-2) on the polarized glass mounting

base which you intend to adjust.

2Turn the polarized glass mounting base as shown in Fig.1-1 to

obtain the darkest brightness on the screen.

3Tighten the screw Ato fix the polarized glass mounting base.

Repeat steps 1 to 3 for remaining polarized glasses.

B-Polarized Glass

Mounting Base

R-Polarized Glass

Mounting Base

G-Polarized Glass

Mounting Base

A

Slot B

Fig.1-2

Fig.1-1

Polarized glass

mounting base

■Optical Adjustments

Main Board

A

Contrast adjustment

Before taking optical adjustments below, remove the Cabinet Top and Main Board following to the “Mechanical

Disassemblies”

Adjustments require a 2.0mm hex wrench and a slot screwdriver. When you adjust Condenser lens, Condenser

lens-out or Relay lens adjustment, you need to disconnect some connectors and FPC cables of LCD panels on the

main board.

Note: Do not disconnect connectors K8N, K8P, K8H, K8R and K8S on the main board, because the projector can

not turn on due to operate the power failure protection.

-22-

Optical Adjustments

Fig.2-2

1 Tu rn the projector on by a state of without FPC cables.

2 Project only green light on the screen.

3 Adjust the adjustment base of condenser lens assy to make color

uniformity in green.

1) If the shading appears on the left or right of the screen as

shown in Fig.2-1, loosen 2 screws Awith the 2.0mm hex driv-

er, and adjust the slot Bto make color uniformity in green by

using a slot screwdriver.

2) If the shading appears on the top or bottom of the screen as

shown in Fig.2-2, loosen 2 screw Cwith the 2.0mm hex driver,

and adjust the slot Dto make color uniformity in green by using

a slot screwdriver

4 Tighten screws Aand Cto fix the Condenser lens unit.

Note:

The relay lens adjustment must be carried out after completing this

adjustment.

y

x

Moving of Slot D

Slot D

C

ab

a

b

Moving of slot B

Fig.2-1

Slot B

A

C

y

x

Green

Condenser Lens adjustment

A

-23-

1Turn the projector on by a state of without FPC cables.

2 Project green and blue lights on the screen.

3Adjust the adjustment base of condenser lens-out assy to make

color uniformity in cyan.

1) If the shading appears on the left or right of the screen as shown

in Fig.3-1, loosen 1 screw Awith the 2.0mm hex driver, and

adjust the slot Bto make color uniformity in cyan by using a slot

screwdriver.

2) If the shading appears on the top or bottom of the screen as

shown in Fig.3-2, loosen 1 screw Cwith the 2.0mm hex driver,

and adjust the slot Dto make color uniformity in cyan by using a

slot screw driver.

4Tighten the screw Aand Cto fix the relay lens unit.

Fig.3-1

A

Slot B

Optical Adjustments

a

b

Moving of slot B

a

Cyan

Fig.3-2

D

Moving of slot D

y

x

C

Condenser Lens-Out adjustment

y

x

Cyan

-24-

1Turn the projector on by a state of without FPC cables.

2 Project all of lights on the screen.

3Adjust the adjustment base of relay lens assy to make color unifor-

mity in white.

1) If the shading appears on the left or right of the screen as shown

in Fig.4-1, loosen 1 screw Awith the 2.0mm hex driver, and

adjust the slot Bto make color uniformity in white by using a slot

screwdriver.

2) If the shading appears on the top or bottom of the screen as

shown in Fig.4-2, loosen 1 screw Cwith the 2.0mm hex driver,

and adjust the slot Dto make color uniformity in white by using

a slot screwdriver.

4Tighten the screws Aand Cto fix the relay lens unit.

Fig.4-1

A

Slot B

a

b

Moving of slot B

a

White

Fig.4-2

Slot D

Moving of slot D

y

x

C

Optical Adjustments

y

x

Relay lens-Out adjustment

White

-25-

■Electrical Adjustments

To enter the service mode

To enter the “Service Mode”, press and hold the MENU and IMAGE button on the projector at the same time for

more than 3 seconds. The service menu appears on the screen as follows.

To adjust service data

Select the adjustment group no. by pressing the MENU (+) or IMAGE (-) button, and select the adjustment item

no. by pressing the pointer UP or DOWN button, and change the data value by pressing the VOLUME – or VOL-

UME + button.Refer to the “Service Adjustment Data Table” for further description of adjustment group no., item

no. and data value.

To exit the service mode

To exit the service mode, press the POWER ON-OFF button on the projector or remote control unit.

● Service Adjustment Menu Operation

IC1801 on the main board stores the data for the serv-

ice adjustments, and should not be replaced except for

the case of defective device.

If replaced, it should be performed the re-adjustments

following to the “Electrical Adjustments”.

The data of lamp replacement monitor timer is stored

in the IC1801.

Please note that the lamp replace counter is reset

when the memory IC (IC1801) is replaced.

(Lamp replace counter can not be set to the previous

value.)

● Caution to memory IC replacement

When IC1801 is replaced with new one, the CPU

writes down the default data of the service adjustments

to the replaced IC, refer to the service adjustment

table. As these data are not the same data as factory

shipped data, it should be required to perform the re-

adjustments following to the “Electrical Adjustments”.

Please note that the lamp replace counter is reset.

● Caution of Main Board replacement (in the case

IC1801 is not defective)

When the main board is replaced, IC1801 should be

replaced with the one on previous main board. After

replacement, it should be required to perform the re-

adjustments following to the “Electrical Adjustments”.

In this case, the lamp replace counter can be kept the

value as before.

● Memory IC Replacement

Service Mode

Input Video

Group No. Data

0032

Ver. 1 .00

Group No. Data value

Item No.

-26-

After replacing the Power Board, PF.C. Board, read-

just the Output voltage adjustment as follows.

1. Connect a digital voltmeter to pins 1 (+) and 3 (-)

of K6D.

2. Adjust the voltage by using VR611 as following.

AC Input Reading

230V 380V ±2V

Caution:Be sure to connect the lamp when taking

this adjustment.

* This adjustment is not required even if the power board is

replaced because this adjustment is carried out before

parts shipment.

● Circuit Adjustments

CAUTION: The each circuit has been made by the fine adjustment at factory. Do not attempt to adjust the follow-

ing adjustments except requiring the readjustments in servicing otherwise it may cause loss of per-

formance and product safety.

Electrical Adjustments

Output Voltage adjustment (For PLC-XU46]

[Adjustment Condition]

●Input signal

Video signal .......................... 1.0Vp-p/75Ωterminated, 16 steps gray

scale (Composite video signal)

Computer signal .................... 0.7Vp-p/75Ωterminated, 16 steps gray

scale pattern (XGA)

Component Video signal ...... 0.7Vp-p/75Ωterminated, 16 steps gray

scale (Component video signal with

480p or 1080i format)

●Picture control mode .............. “STANDARD” mode unless otherwise

noted.

Note:

* Please refer to “Service Adjustment Menu Operation” for entering the

service mode and adjusting the service data.

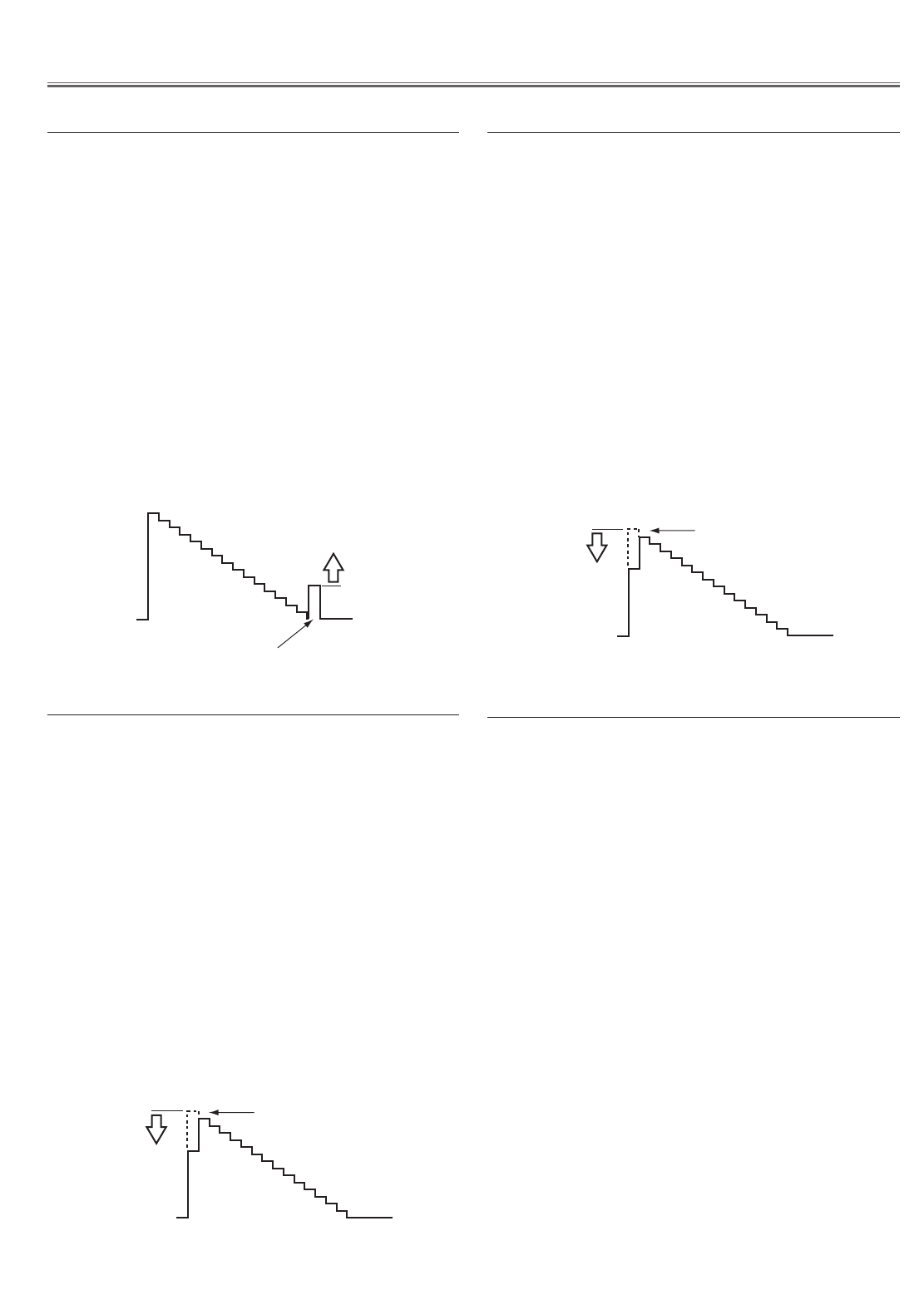

White 100% Black 100%

16 steps gray scale pattern

After replacing the Power Board, PF.C. Board, read-

just the Output voltage adjustment as follows.

1. Connect a digital voltmeter to pins 1 (+) and 3 (-)

of K6D.

2. Adjust the voltage by using VR611 as following.

AC Input Reading

230V 370V ±2V

Caution:Be sure to connect the lamp when taking

this adjustment.

* This adjustment is not required even if the power board is

replaced because this adjustment is carried out before

parts shipment.

Output Voltage adjustment (For PLC-XU45]

1. Enter the service mode and select group no. “11”and

item no. “0”. Set data value to “1”.

2. Connect a digital voltmeter to test point “TP12V1”(+)

and chassis ground (-). Select item no. “1”and adjust

the voltage to be 8.0 ±0.1Vdc by changing the data

value.

3. Connect a digital voltmeter to test point “TP12V2”

(+) and chassis ground (-). Select item no. “2”and

adjust the voltage to be 10.0 ±0.1Vdc by changing

the data value.

4. Select group no. “11”and item no. “0”and set data

value to “3”.

5. Connect a digital voltmeter to test point “TP12V1”(+)

and chassis ground (-). Select item no. “3”and adjust

the voltage to be 13.5 ±0.1Vdc by changing the data

value.

6. Connect a digital voltmeter to test point “TP12V2”

(+) and chassis ground (-). Select item no. “4”and

adjust the voltage to be 13.5 ±0.1Vdc by changing

the data value.

zFan Voltage adjustment (For PLC-XU46]

1. Enter the service mode and select group no. “11”and

item no. “0”. Set data value to “1”.

2. Connect a digital voltmeter to test point “TP12V1”(+)

and chassis ground (-). Select item no. “1”and adjust

the voltage to be 8.0 ±0.1Vdc by changing the data

value.

3. Connect a digital voltmeter to test point “TP12V2”

(+) and chassis ground (-). Select item no. “2”and

adjust the voltage to be 9.0 ±0.1Vdc by changing

the data value.

4. Select group no. “11”and item no. “0”and set data

value to “3”.

5. Connect a digital voltmeter to test point “TP12V1”(+)

and chassis ground (-). Select item no. “3”and adjust

the voltage to be 13.5 ±0.1Vdc by changing the data

value.

6. Connect a digital voltmeter to test point “TP12V2”

(+) and chassis ground (-). Select item no. “4”and

adjust the voltage to be 13.5 ±0.1Vdc by changing

the data value.

zFan Voltage adjustment (For PLC-XU45]

-27-

Electrical Adjustments

1. Receive the 16-step grey scale computer signal.

2. Set to COMPUTER mode.

3. Enter the service mode.

4. Connect a digital voltmeter to test point “TP25R1”(+)

and chassis ground (-).

5. Select group no. “3”, item no. “0”and change data

value to adjust the voltage to be 7.30 ±0.05V.

6. Connect a digital voltmeter to test point “TP25G1”(+)

and chassis ground (-).

7. Select group no. “3”, item no. “1”and change data

value to adjust the voltage to be 7.30 ±0.05V.

8. Connect a digital voltmeter to test point “TP25B1”(+)

and chassis ground (-).

9. Select group no. “3”, item no. “2”and change data

value to adjust the voltage to be 7.30 ±0.05V.

1. Receive the 16-step grey scale computer signal.

2. Set to COMPUTER mode.

3. Connect an oscilloscope to test point “TP3551” (+)

and chassis ground (-).

4. Enter the service mode, select group no. “3”, item no.

“7”and change data value to adjust amplitude “a” to

be 5.5 ±0.1V.

(a)

121v Signal Center adjustment

121c NRS adjustment

1. Receive the 16-step grey scale computer signal.

2. Set to COMPUTER mode.

3. Enter the service mode.

4. Connect an oscilloscope to test point “TP25R1”(+)

and chassis ground (-).

5. Select group no. “3”, item no. “3”and change data

value to adjust amplitude “a” to be 10.0 ±0.1V.

6. Connect an oscilloscope to test point “TP25G1”(+)

and chassis ground (-).

7. Select group no. “3”, item no. “4”and change data

value to adjust amplitude “a” to be 10.0 ±0.1V.

8. Connect an oscilloscope to test point “TP25B1”(+)

and chassis ground (-).

9. Select group no. “3”, item no. “5”and change data

value to adjust amplitude “a” to be 10.0 ±0.1V.

(a)

black level

bBlack Level adjustment

1. Receive the 16-step grey scale video signal.

2. Set to VIDEO mode.

3. Enter the service mode.

4. Connect an oscilloscope to test point “TP201R”(+)

and chassis ground (-).

5. Select group no. “3”, item no. “14”and change data

value to adjust the pedestal level and black level to be

the same level.

6. Connect an oscilloscope to test point “TP201G”(+)

and chassis ground (-).

7. Select group no. “3”, item no. “15”and change data

value to adjust the pedestal level and black level to be

the same level.

8. Connect an oscilloscope to test point “TP201B”(+)

and chassis ground (-).

9. Select group no. “3”, item no. “16”and change data

value to adjust the pedestal level and black level to be

the same level.

Pedestal level = Black level

(a)

1211x Pedestal adjustment

-28-

1. Receive the 1 dot black & white pattern computer sig-

nal.

2. Set to COMPUTER mode.

3. Enter the service mode.

4. Project only green light component to the screen.

5. Select group no. “3”, item no. “8”and change data

value to obtain the minimum flicker on the screen.

6. Project only blue light component to the screen.

7. Select group no. “3”, item no. “9”and change data

value to obtain the minimum flicker on the screen.

8. Project only red light component to the screen.

9. Select group no. “3”, item no. “10”and change data

value to obtain the minimum flicker on the screen.

Electrical Adjustments

.Common Center adjustment

1. Receive the 16-step gray scale computer signal.

2. Set to COMPUTER mode.

3. Enter the service mode.

4. Connect an oscilloscope to test point “TP25R1”(+)

and chassis ground (-).

5. Select group no. “2”, item no. “3”and change data

value to adjust waveform “a” to be minimum ampli-

tude.

6. Connect an oscilloscope to test point “TP25G1”(+)

and chassis ground (-).

7. Select group no. “2”, item no. “4”and change data

value to adjust waveform “a” to be minimum ampli-

tude.

8. Connect an oscilloscope to test point “TP25B1”(+)

and chassis ground (-).

9. Select group no. “2”, item no. “5”and change data

value to adjust waveform “a” to be minimum ampli-

tude.

White Level

(a)

121m PC Gain adjustment

1. Receive the 16-step gray scale video signal.

2. Set to VIDEO mode.

3. Enter the service mode.

4. Connect an oscilloscope to test point “TP25R1”(+)

and chassis ground (-).

5. Select group no. “2”, item no. “3”and change data

value to adjust waveform “a” to be minimum ampli-

tude.

6. Connect an oscilloscope to test point “TP25G1”(+)

and chassis ground (-).

7. Select group no. “2”, item no. “4”and change data

value to adjust waveform “a” to be minimum ampli-

tude.

8. Connect an oscilloscope to test point “TP25B1”(+)

and chassis ground (-).

9. Select group no. “2”, item no. “5”and change data

value to adjust waveform “a” to be minimum ampli-

tude.

White Level

(a)

,AV Gain adjustment

1. Receive the 16-step gray scale computer signal.

2. Set to COMPUTER mode.

3. Enter the service mode.

4. Connect an oscilloscope to test point “TP25R1”(+)

and chassis ground (-).

5. Select group no. “3”, item no. “11”and change data

value to adjust the waveform “a” (black portion ) to

be maximum amplitude.

6. Connect an oscilloscope to test point “TP25G1”(+)

and chassis ground (-).

7. Select group no. “3”, item no. “12”and change data

value to adjust the waveform “a” (black portion ) to

be maximum amplitude.

8. Connect an oscilloscope to test point “TP25B1”(+)

and chassis ground (-).

9. Select group no. “3”, item no. “13”and change data

value to adjust the waveform “a” (black portion ) to

be maximum amplitude.

Black Level

(a)

nPC Offset adjustment

-29-

Electrical Adjustments

[PC-GAMMA OFF ADJUSTMENT]

1. Receive the 16-step gray scale computer signal.

2. Set to COMPUTER mode.

3. Enter the service mode, select group no. “2”, item

no. “6”and change data value to reproduce the prop-

er gray scale picture on the screen.

[AV-GAMMA OFF ADJUSTMENT]

4. Receive the 16-step gray scale video signal.

5. Set to VIDEO mode.

6. Enter the service mode, select group no. “2”, item

no. “6”and change data value to reproduce the prop-

er gray scale picture on the screen.

1⁄0 Gamma Shift adjustment

[PC WHITE BALANCE ADJUSTMENT]

1. Receive the 16-step gray scale computer signal.

2. Set to COMPUTER mode.

3. Enter the service mode, select group no. “2”, item no.

“7”(Red) or “8”(Blue), and change data values

respectively to make a proper white balance.

[AV WHITE BALANCE ADJUSTMENT]

4. Receive the 16-step grey scale video signal.

5. Set to VIDEO mode.

6. Enter the service mode, select group no. “2”, item no.

“7”(Red) or “8”(Blue), and change data values

respectively to make a proper white balance.

Confirm that the same white balance is obtained in

video and computer input.

1⁄1 White Balance adjustment

If you find the color shading on the screen, please

adjust the white uniformity by using the proper comput-

er and “Color Shading Correction” software supplied

separately. The software can be ordered as follows;

COLOR SHADING CORRECTION

Service Parts No.645 051 2308

NOTE ON WHITE UNIFORMITY

ADJUSTMENT

-30-

Group: 0 TB1274

0TINT 32 0 ~63

1SHP_EQ 2 0 ~ 3

2SHP_FO 1 0 ~ 3

3SHP_GAIN 10/10/10/10 0 ~15 VideoNT,PAL,PALM,PALN/SECAM,NT443/S-Video/YCbCr

4Y_OUT_LEVEL 30/30/31/31/ VideoNT/VideoNT443/PAL,PALM,PALN/SECAM/

30/31/31/31/ 0 ~ 63 S-VideoNT,NT443/S-VideoPAL/S-VideoSECAM/YCbCr

30/31/31/31

5C_OUT_LEVEL 32/32/32/32/ 0 ~ 63 VideoNT/VideoNT443/PAL,PALM,PALN/SECAM/

32/32/32/32 S-VideoNT,NT443/S-VideoPAL/S-VideoSECAM/YCbCr

S-VideoNT,NT443/S-VideoPAL/S-VideoSECAM/YCbCr

6Y_DELAY 6/6/6/4/4 0 ~ 15 Video NT/PAL,PALM,PALN/SECAM/NT443/PAL60

4/4/3/3/4 S-Video NT/PAL,PALM,PALN/SECAM/NT443/PAL60

7COL_SYS - - Read only

8 X'TAL - -

9NOISE_DET - -

10 V_FREQ - -

11 Vert. Std - -

12 CID - -

13 V_SIG - -

14 Cinema SHP_GAIN 8/8/8/8 0 ~15 For Cinema VideoNT,PAL,PALM,PALN/SECAM,NT443/S-Video/YCbCr

15 NVM

16 AFC_GAIN

17 V-C/D MODE 0 0~3

Group: 1 CXA2101

0PICTURE 30 0 ~ 63

1BRIGHT 31 0 ~ 63

2R_DRIVE 31 0 ~ 63

3G_DRIVE 31 0 ~ 63

4B_DRIVE 31 0 ~ 63

5HSEP_SEL 1 0 ~ 1

6CR_OFFSET1 7/10 0 ~ 15 15KHz/others

7CB_OFFSET1 7/10 0 ~ 15 15KHz/others

8BLK_BOTTOM 15 0 ~ 15

9R-Y/R 6/13/6/6 0 ~ 15 YPbPr without NT,NT443/PAL,SECAM/1035i/YCbCr,1035i

10 R-Y/B 5/15/5/5 0 ~ 15

11 G-Y/R 8/8/8/8 0 ~ 15

12 G-Y/B 10/4/10/10 0 ~ 15

13 MAT_OUT 0/0/0/1 0 ~ 3

14 SYSTEM 0/1/2 0 ~ 3 15KHz(NT,PAL,SECAM,NT443,PALM,PALN,480i,575i) / 480p,575p / 1080i,1035i,720p

15 V_TC 3/3/3 0 ~ 3

16 H_WIDTH 3/2/0 0 ~ 3

17 HS_MASK 0/1/1 0 ~ 1

18 CTI_LEVEL 2/2/2/2 0 ~ 3 Video,S-Video/15KHz(NT,PAL,SECAM,NT443,PALM,PALN,480i,575i) / 480p,575p / 1080i,1035i,720p

19 SUB_SHP 3/3/3 0 ~ 3 15KHz(NT,PAL,SECAM,NT443,PALM,PALN,480i,575i) / 480p,575p / 1080i,1035i,720p

20 SHP_FO 0/2/3 0 ~ 3

21 PRE_OVER 2/2/3 0 ~ 3

22 LTI_LEVEL 0/1/1 0 ~ 3 15KHz(NT,PAL,SECAM,NT443,PALM,PALN,480i,575i) / 480p,575p / 1080i,1035i,720p

23 D_PIC 0/0/0 0 ~ 3 15KHz(NT,PAL,SECAM,NT443,PALM,PALN,480i,575i) / 480p,575p / 1080i,1035i,720p

24 HUE 31 0 ~ 63 Adjustable at PAL,SECAM

25 SUB_COL 3/3/10/ NT,NT443/PAL,SECAM/525i,480p/625i,575p/1035i/1035i and others

10/4/7 0 ~ 15

26 SUB_HUE 7/7/8/ NT,NT443/PAL,SECAM/525i,480p/625i,575p/1035i/1035i and others

7/9/6 0 ~ 15

27 Cinema CTI_LEVEL 2 0 ~ 3 This data value is fixed at Cinema Mode.

28 Cinema LTI_LEVEL 0 0 ~ 3 This data value is fixed at Cinema Mode.

Group: 2 L3E07050 (Digital Gamma, Color Shading & Timing Controler)

0R_SUB_BRT 0/0 0 ~ 1023 PC/DVI(MCI),AV

1G_SUB_BRT 0/0 0 ~ 1023

2B_SUB_BRT 0/0 0 ~ 1023

3R_SUB_GAIN 573/573/492 0 ~ 1023 PC/AV/DVI(MCI) ✻ Gain Adjustment [R]

4G_SUB_GAIN 573/573/492 0 ~ 1023 ✻ Gain Adjustment [G]

5B_SUB_GAIN 573/573/492 0 ~ 1023 ✻ Gain Adjustment [B]

6Standard G GAMMA SHIFT 415/415 *note1 PC,DVI(MCI) Std /AV Std *Change RGB data at same time ✻ Gamma Shift Adjustment

7Standard R GAMMA SHIFT 415/415 *note1 PC,DVI(MCI) Std /AV Std ✻ White Balance Adjustment

8Standard B GAMMA SHIFT 415/415 *note1 PC,DVI(MCI) Std /AV Std ✻ White Balance Adjustment

9Standard GAMMA 0 0/0 0 ~ 1023

10 Standard GAMMA 1 210/166 0 ~ 1023

No. Adjustment Item Initial Value Range Input source / Description

Electrical Adjustments

● Service Adjustment Data Table These initial values are the reference data written from the CPU

ROM to memory IC when replaced new memory IC. The adjust-

ment items indicated with “✻”are required to readjust following

to the “Electrical adjustments”. Other items should be used with

the initial data value.

-31-

11 Standard GAMMA 2 340/290 0 ~ 1023 PC,DVI(MCI) Standard / AV Standard

12 Standard GAMMA 3 436/406 0 ~ 1023

13 Standard GAMMA 4 511/496 0 ~ 1023

14 Standard GAMMA 5 574/560 0 ~ 1023

15 Standard GAMMA 6 633/626 0 ~ 1023

16 Standard GAMMA 7 674/672 0 ~ 1023

17 Standard GAMMA 8 709/709 0 ~ 1023

18 Standard GAMMA 9 740/740 0 ~ 1023

19 Standard GAMMA 10 770/770 0 ~ 1023

20 Standard GAMMA 11 800/800 0 ~ 1023

21 Standard GAMMA 12 832/838 0 ~ 1023

22 Standard GAMMA 13 884/877 0 ~ 1023

23 Standard GAMMA 14 950/940 0 ~ 1023

24 Standard GAMMA 15 1023/1023 0 ~ 1023

25 Real/Cinema G GAMMA SHIFT 506/507 *note1

26 Real/Cinema R GAMMA SHIFT 512/512 *note1

27 Real/Cinema B GAMMA SHIFT 504/504 *note1

28 Real/Cinema GAMMA 0 512/512 0 ~ 1023

29 Real/Cinema GAMMA 1 492/538 0 ~ 1023 PC,DVI(MCI) Real / AV Cinema

30 Real/Cinema GAMMA 2 497/524 0 ~ 1023 (Differential value from Standard)

31 Real/Cinema GAMMA 3 502/519 0 ~ 1023

32 Real/Cinema GAMMA 4 507/516 0 ~ 1023

33 Real/Cinema GAMMA 5 509/515 0 ~ 1023

34 Real/Cinema GAMMA 6 510/512 0 ~ 1023

35 Real/Cinema GAMMA 7 510/511 0 ~ 1023

36 Real/Cinema GAMMA 8 510/510 0 ~ 1023

37 Real/Cinema GAMMA 9 510/510 0 ~ 1023

38 Real/Cinema GAMMA 10 510/510 0 ~ 1023

39 Real/Cinema GAMMA 11 509/510 0 ~ 1023

40 Real/Cinema GAMMA 12 508/510 0 ~ 1023

41 Real/Cinema GAMMA 13 506/509 0 ~ 1023

42 Real/Cinema GAMMA 14 502/502 0 ~ 1023

43 Real/Cinema GAMMA 15 512/512 0 ~ 1023

44 R2 127 0 ~ 255 Correction for R-vertical line

45 G2 127 0 ~ 255 Correction for G-vertical line

46 B2 127 0 ~ 255 Correction for B-vertical line

47 Red MID2 Level 453 0 ~ 1023 *Grayscale level adjustment

48 Red MID1 Level 500 0 ~ 1023

49 Red MAX Level 576 0 ~ 1023

50 Green MID2 Level 453 0 ~ 1023

51 Green MID1 Level 500 0 ~ 1023

52 Green MAX Level 575 0 ~ 1023

53 Bllue MID2 Level 418 0 ~ 1023

54 Blue MID1 Level 465 0 ~ 1023

55 Blue MAX Level 541 0 ~ 1023

56 DVI Standard G GAMMA SHIFT 512 0 ~ 1023 DVI(MCI) Differential value *Change only G

57 DVI Standard R GAMMA SHIFT 512 0 ~ 1023 DVI(MVI) Differential value

58 DVI Standard B GAMMA SHIFT 512 0 ~ 1023 DVI(MCI) Differential value

Group: 3 DAC

0R_VIDEO_CENTER 74 0 ~ 255 ✻ R-Signal Center Adjustment

1G_VIDEO_CENTER 74 0 ~ 255 ✻ G-Signal Center Adjustment

2B_VIDEO_CENTER 74 0 ~ 255 ✻ B-Signal Center Adjustment

3REF_R 136 0 ~ 255 ✻ R Black Level Adjustment

4REF_G 136 0 ~ 255 ✻ G-Black Level Adjustment

5REF_B 136 0 ~ 255 ✻ B-Black Level Adjustment

6NRS_B 128 0 ~ 255 ✻ NRS Adjustment

7NRS_A 190 0 ~ 255 ✻ NRS Adjustment

8G_V_COM 140 0 ~ 255 ✻ G-Common Center Adjustment

9B_V_COM 140 0 ~ 255 ✻ B-Common Center Adjustment

10 R_V_COM 140 0 ~ 255 ✻ R-Common Center Adjustment

11 R_CLMP 63 0 ~ 255 ✻ R-Offset Adjustment

12 G_CLMP 63 0 ~ 255 ✻ G-Offset Adjustment

13 B_CLMP 63 0 ~ 255 ✻ B-Offset Adjustment

14 R_BLK_DC 76 0 ~ 255 ✻ R-AV Pedestal Adjustment

15 G_BLK_DC 76 0 ~ 255 ✻ G-AV Pedestal Adjustment

16 B_BLK_DC 76 0 ~ 255 ✻ B-AV Pedestal Adjustment

Group: 4 TA1318

0SEP_LEV 0/0/0/0 0 ~ 3 15KHz/31KHz/33KHz/45KHz

1HD_PHASE 36/38/36/32/32 0 ~ 63 1080i/720p/480p/575i,PAL,SECAM/480i,NTSC

2V_FREQ - - Read only

3H_FREQ - -

4HD_IN - -

Group: 5 LP05 (Turbo)

0LP05_R_GAIN 128 0 ~ 255

1LP05_G_GAIN 128 0 ~ 255

No. Adjustment Item Initial Value Range Input source / Description

Electrical Adjustments

-32-

2LP05_B_GAIN 128 0 ~ 255

3TURBO_GAIN 19 0 ~ 255

Group: 10 Option

0Lamp Time Monitor - - Read only

1RS232C Baudrate 0 0 ~ 1 0: 19200bps 1: 9600bps

2Shootout Mode 0 0 ~ 2 1:Mode-1(change when no signal) 2:Mode-2(AV-priority) 0: Disable

3Cooling Time 3 0 ~ 15 Cooling time periods 1: 30 sec. 3: 90sec.15: 450sec. 0: continuos-on

4Hi-Land SW 0 0 ~ 1 0:Normal mode(Normal operation) 1:Highland mode (Fan max speed)

5V-Douki SW 0 0 ~ 1 0: V-sync 1:no V-sync

6Color Shading SW 1 0 ~ 1 Color shading correction 0: On 1: Off Not memorized

7MCI Output Auto 1 0 ~ 1 1: Auto for output from MCI 0: Fixed output to Panel size

8Keystone Option 0 0 ~ 1 0: Fixed Limitation 1: Vary limitation at Input

9Syukka SW 0 0 ~ 10 Reset control values when this value reaches 10.

10 Power Fail Monitor 0 0 ~ 10 Read only

11 MUPO Option 0 0 ~ 4 0: 90ºC1: 53ºC 2: 37ºC: 28ºC 4: 13ºC

Group: 11 Fan Control

0Fan Speed Mode 0 0 ~ 3 0:FanControl-On 1:min 2:Mid 3:Max Adjustable but not memorized ✻ Fan Control Adjustment

1Fan-1 Min Data 44 0 ~ 127 Decides minimum output data at fan control. ✻ Fan Control Adjustment

2Fan-2 Min Data 63 0 ~ 127 Decides minimum output data at fan control. ✻ Fan Control Adjustment

3Fan-1 Max Data 217 128 ~ 255 Decides maximum output data at fan control. ✻ Fan Control Adjustment

4Fan-2 Max Data 236 128 ~ 255 Decides maximum output data at fan control. ✻ Fan Control Adjustment

5Temp Low 37 10 ~ 80 Data to decide the DAC output for Temp.

6Temp High 45 30 ~ 80 Compensates linearly DAC min. at the value of Temp Low and DAC max. at the Temp High.

7Fan-1 Temp Error 56 30 ~ 80 Temperature to judge the abnormal temp. for cabinet, optical and Man unit.

8Fan-2 Temp Error 48 30 ~ 80 Temperature to judge the abnormal temp. for external temp and other unit.

9Fan-1 Speed Monitor - 0 ~ 255 Read only (cabinet, optical, Man unit)

10 Fan-2 Speed Monitor - 0 ~ 255 Read only (External temp, other unit)

11 Temp Monitor - 0 ~ 9999 Read only, upper 2 bytes for Fan-1 and lower 2 types for Fan-2.

12 Eco Mode Fan-1 Min Data 229/229 0 ~ 255 Eco Mode Deferential value from standard(0: ±0, 1:+1, 255:-1)

13 Eco Mode Fan-2 Min Data 229/197 0 ~ 255 *Depending on the type of lamp. (Osram/Philips)

14 Eco Mode Fan-1 Max Data 182/182 0 ~ 255

15 Eco Mode Fan-2 Max Data 182/182 0 ~ 255

Group: 12 PC Real / AV Cinema

0PC Real Contrast 32 0 ~ 63

1PC Real Brightness 32 0 ~ 63

2PC Real Red 32 0 ~ 63

3PC Real Green 32 0 ~ 63

4PC Real Blue 32 0 ~ 63

5PC Real Gamma 8 0 ~ 15

6AV Cinema Contrast 32 0 ~ 63

7AV Cinema Brightness 32 0 ~ 63

8AV Cinema Color 32 0 ~ 63

9AV Cinema Tint 32 0 ~ 63

10 AV Cinema Red 32 0 ~ 63

11 AV Cinema Green 32 0 ~ 63

12 AV Cinema Blue 32 0 ~ 63

13 AV Cinema Sharpness 15 0 ~ 31

14 AV Cinema Gamma 8 0 ~ 15

Group: 500 ADC

0ADC R-OFFSET 128 0 ~ 255

1ADC G-OFFSET 128 0 ~ 255

2ADC B-OFFSET 128 0 ~ 255

3ADC R-GAIN 254 0 ~ 255

4ADC G-GAIN 254 0 ~ 255

5ADC B-GAIN 254 0 ~ 255

6ADC BandWidth PC 3 0 ~ 3

7ADC BandWidth AV 3 0 ~ 3

Group: 510 NTSC Gakaku

0NTSC TOTAL DOTS 2626 0 ~ 2047

1NTSC DISP DOTS 1024 0 ~ 2047

2NTSC H BACK PORCTH 230 0 ~ 2047

3NTSC V BACK PORCTH 46 0 ~ 2047

4NTSC DISP LINE 456 0 ~ 2047

5NTSC CLAMP 4 0 ~ 2047

Group: 511 PAL Gakaku

0PAL TOTAL DOTS 2694 0 ~ 2047

1PAL DISP DOTS 1024 0 ~ 2047

2PAL H BACK PORCTH 266 0 ~ 2047

3PAL V BACK PORCTH 62 0 ~ 2047

4PAL DISP LINE 533 0 ~ 2047

5PAL CLAMP 4 0 ~ 2047

Group: 512 HDTV 1080i-60 Gakaku

0TOTAL DOTS 1206 0 ~ 2047

1DISP DOTS 1024 0 ~ 2047

2H BACK PORCTH 145 0 ~ 2047

No. Adjustment Item Initial Value Range Input source / Description

Electrical Adjustments

-33-

3V BACK PORCTH 52 0 ~ 2047

4DISP LINE 1048 0 ~ 2047

5CLAMP 5 0 ~ 2047

Group: 513 HDTV 1080i-50 Gakaku

0TOTAL DOTS 1448 0 ~ 2047

1DISP DOTS 1024 0 ~ 2047

2H BACK PORCTH 144 0 ~ 2047

3V BACK PORCTH 64 0 ~ 2047

4DISP LINE 1044 0 ~ 2047

5CLAMP 5 0 ~ 2047

Group: 514 HDTV 1035i Gakaku

0TOTAL DOTS 1206 0 ~ 2047

1DISP DOTS 1024 0 ~ 2047

2H BACK PORCTH 145 0 ~ 2047

3V BACK PORCTH 90 0 ~ 2047

4DISP LINE 1006 0 ~ 2047

5CLAMP 5 0 ~ 2047

Group: 515 HDTV 720p Gakaku

0TOTAL DOTS 1354 0 ~ 2047

1DISP DOTS 1024 0 ~ 2047

2H BACK PORCTH 260 0 ~ 2047

3V BACK PORCTH 36 0 ~ 2047

4DISP LINE 698 0 ~ 2047

5CLAMP 5 0 ~ 2047

Group: 516 HDTV 575p Gakaku

0TOTAL DOTS 1348 0 ~ 2047

1DISP DOTS 1024 0 ~ 2047

2H BACK PORCTH 240 0 ~ 2047

3V BACK PORCTH 60 0 ~ 2047

4DISP LINE 524 0 ~ 2047

5CLAMP 0 0 ~ 2047

Group: 517 HDTV 480p Gakaku

0TOTAL DOTS 1288 0 ~ 2047

1DISP DOTS 1024 0 ~ 2047

2H BACK PORCTH 212 0 ~ 2047

3V BACK PORCTH 46 0 ~ 2047

4DISP LINE 451 0 ~ 2047

5CLAMP 0 0 ~ 2047

No. Adjustment Item Initial Value Range Input source / Description

Electrical Adjustments

K25R

K8P

K25G

K25B

IC4101

IC301

IC401

IC801

TP12V2

TP12V1 TP3581

TP25R1

TP25R2

TP3551

TP11SC TP11SY

TP25G2

TP11CV

TP11PB

TP11PR

TP25G1

TP62V

TP62H

TP52R

TP52B

TP52G

TP201G

TP201B

TP201R

TP205

TP25B1

TP25B2

TPDCLK

TPDHS

TPDVS

-34-

Electrical Adjustments

●MAIN BOARD

Test Points and Locations

-35-

■Troubleshooting

No Power

The possible causes of No Power are listed below. Please

check following and refer to power supply and protection cir-

cuits diagram in the figure opposite.

1. Stop the operation of power supply circuit due

to detection of abnormality.

- Detected the abnormality on the secondary power supply

lines.

Power failure detection diodes detect an abnormal volt-

age on the power supply. Check the shortage of second-

ary circuits, ICs, condensers, etc.

- Detected the operation stop of cooling fans.

Power failure detection diodes detect the fan operation

stop. Check Fans FN901, FN902, FN903, FN904, FN905

and FN906

Check fan's power supply lines and detection diodes and

transistors D69A, D69B, D69C and Q69A

- Detected the abnormal temperature rise inside the projec-

tor.

Temperature sensor ICs detect abnormal temperature.

Check peripheral circuits and sensor ICs IC4881 and

IC2881.

Thermal switch (TSW611) detects abnormal temperature.

Check peripheral circuits and TSW611.

TSW611.................... open in normal

TSW611 shorts when the peripheral temperature is over

90°C.

Thermal switch (SW902) detects abnormal temperature.

Check peripheral circuits and SW902.

SW902...................... short in normal

SW902 opens when peripheral temperature is over

100°C.

- Detected the abnormality on the lamp ballast unit.

The lamp ballast unit outputs error signal (LAMP_ERR)

to pin 47 of IC801.

LAMP_ERR .............. High in abnormal

- Detected the over load/over voltage on power supply circuit.

Feedback circuits detect over load or over voltages.

Check PC641, PC642 and peripheral circuits.

- Operated the mechanical protect on the Interlock switch

(SW904). Check lamp cover fixed correctly.

- Fuse (F601) open.

2. Abnormality occurs on drive signals for power

or lamp circuit.

- Abnormality on power starter signals (POWER, 5V_SW).

POWER signal is output from pin 1 of IC801 and sent to

pin 17 of IC1881, and output from pin 3 by the name of

5V_SW signal. 5V_SW signal drives 15.5V and 9VMCI

power supply circuits on the power board.

POWER/5V_SW ............ High in power on

Check POWER and 5V_SW signals, 9V regulator circuit

Q65A, Q65B, Q65C, IC65A and peripheral circuit, 15.5V

switch circuit Q661, Q662 and peripheral circuit on the

Power Board.

- Abnormality on lamp ballast drive signal (BALLAST_AC).

BALLAST_AC signal is output from pin 39 of IC801 and

sent to pin 11 of IC1881, and output from pin 9 by the

name of BALLAST_AC1 signal. BALLAST_SW1 signal

drives the lamp ballast unit.

Check BALLAST_AC and BALLAST_AC1 signals and

lamp ballast unit.

- Abnormality on fan drive signal (FAN DRIVE).

FAN DRIVE signal is output from pin 41 of IC801 and

sent to pin 15 of IC1881, and output from pin 5 by the

name of FAN DRIVE1 signal. FAN DRIVE1 signal drives

fan supply voltages (12V/12V1) on the power board.

FAN DRIVE/

FAN DRIVE1 .............. High in power on

Check FAN DRIVE/FAN DRIVE1 signals, 12V regulator

circuits IC681, Q681, Q682, Q66A, IC671, Q671, Q672

and peripheral circuits.

- Abnormality on power drive signal (LAMP_BST_SW).

LAMP_BST_SW signal is output from pin 82 of IC801

and sent to pin 2 of IC1871, and output from pin 18 by

the name of LAMP_BST_SW1 signal. LAMP_BST_SW1

signal drives the power factor control IC on the P.F. board

through the Power board.

LAMP_BST_SW/

LAMP_BST_SW1 ............ High in power on

Check LAMP_BST_SW and LAMP_BST_SW1 signal,

photo-coupler PC643, transistors Q651, Q641 and

peripheral circuits.

- Error on lamp optional setting.

Check lamp optional setting input voltage at pin 88 of

IC801 as follows;

Pin 88 High ........ lamp type Osram

Pin 88 Low .......... lamp type Philips

3. Abnormality occurs on the power circuit.

- Abnormality on power primary circuit

Check Line filters, L601, L602, D614, L611, IC631, D632,

etc.

- Abnormality on power secondary circuit

Check D651, D652, D653, IC651, etc.

SW904

Interlock sw.

SW902

Thermal sw.

F601

Fuse

11

3

147

1

2

1

2

47

3

5

53

1 34

2 51

2 1 5

1 4 3 1 2

Power

Oscillator

Circuit

15.5V

6V

-6V

FN901FN902

FN903

FN904

FN905

FN906

BALAST_AC1

LAMP_SW1

LAMP_BST_SW1

P-FAILP-FAIL

5V_SW5V_SW

FAN DRIVE1FAN DRIVE1

Fan Control

IC681IC671

IC801

SUB CPU

IC1881

BUFFER

IC1871

BUFFER

IC1851

D/A

IC2881

TEMP.SENSOR

IC4881

TEMP. SENS.

TEMP. SENSOR

BOARD

9-10

13-14

15-16

11-12

1

2

1

2

47 80 81

48

82

80

81

3

39

1

415

3

9

12

SCL

SDA

2

3

18 2

8

14 6

11

17

15

Q661

37-38

P.F BOARD

POWER BOARD MAIN BOARD

LAMP BALLAST UNIT

AC IN

K6D

K6E

K6F

K6J

K6K

K6M

K6L

K6S K8S

K8H

K8B

K8E

K48E

K8N

K8P

CB1

CB2

LAMP Ass'y

LAMP_ERR

SDA

SCL

ECO_SW1

IC611

P. F.CONTROL

TSW611

LAMP

On: High

Failure: Low Failure: Low

Failure: High

On: High

On: Low

On: High

F601

SW902

SW904

IC2881

IC4881

-36-

Troubleshooting

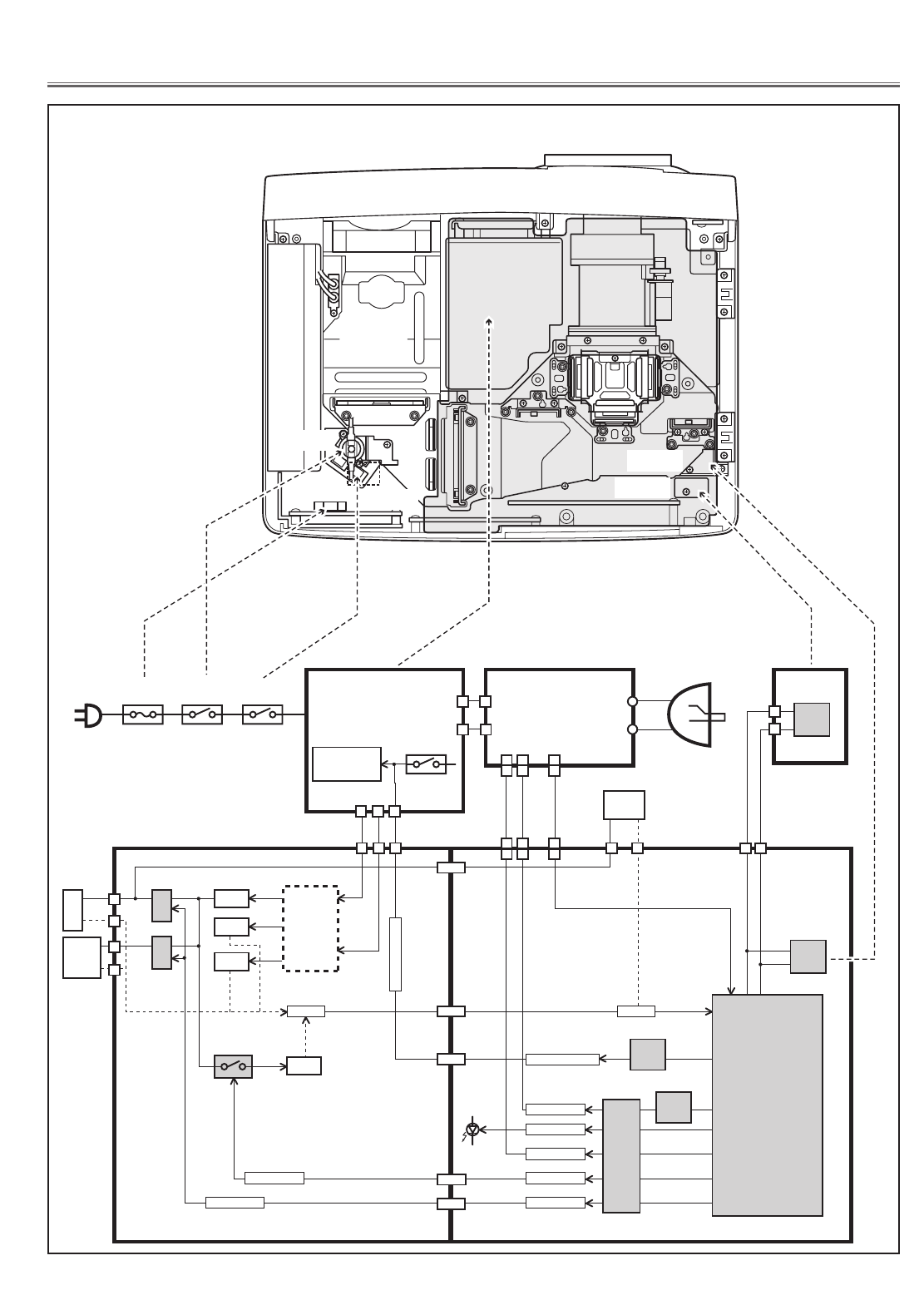

Power supply drive and protection diagrams and locations

-37-

The possible causes of No Picture are listed below. Please

check following and refer to video signal processing dia-

grams in the figure opposite.

1. No picture from Video source

Composite Video Input

Check composite video signal at pins 45 and 46 of K10U

on the AV Board and K3U on the Main Board.

Check Y, C signals at pins 7 and 9 of IC2101.

Check Y, C signals at pins 5 and 7 of IC1101

S-Video Input

Check S-video signals at pins 39, 40 (Y), 41, 42 (C) of

K10U and K3U.

Check Y, C signals at test points TP11SC and TP11SY.

Check Y, C signals at pins 43 and 44 of IC1101.

Component Input

Check component signals at pins 49, 50(Pb), 51, 52 (Pr)

of K10U and K3U.

Check component signals (Y, Pr, Pb) at test points

TP11CV, TP11PB and TP11PR.

All of video signals

Check component signals (Y, Cr, Cb) at pins 21, 22 and

23 of IC1101.

Check component signals (Y, Cr, Cb) at pins 67, 68 and

69 of IC4101.

Check component signals (Y, Pr, Pb) at pins 73, 74 and

75 of IC4101.

Check Sync signals (AV_HSYNC, AV_VSYNC) at pins 4

and 9 of IC1101.

Check Sync signals (AV_HSYNC, AV_VSYNC) at pins 65

and 66 of IC4101.

Check RGB signals at pin 35, 37 and 39 of IC4101.

Check RGB signals at pins 14, 4 and 15 of IC3101.

Check blanking signal at pin 9, 10, 11 of IC3101.

Check RGB signals at pins 1, 3 and 5 of IC5241.

Check Sync signals (AV_HSYNC, AV_VSYNC) at pins 2

and 12 of IC6261.

Check AV/PC switching signal at pin 22 of IC5241 and

pins 10 and 11 of IC6261.

AV :Low, PC : High

2. No picture from Computer source [Analog]

Check RGB signals at pins 35-36, 37-38 and 39-40 of

K10V on the DVI Board and K3V on the Main Board.

Check Sync signals (IN_H, IN_V) at pins 5-6 and 3-4) of

K10W on the DVI Board and K3W on the Main Board.

Check RGB signals at pins 1, 3 and 5 of IC5211.

Check RGB signals at pins 12, 10 and 8 of IC5241.

Check Sync signals at pins 13 and 11 of IC6241.

Check Sync signals at pins 1 and 13 of IC6261.

Check AV/PC switching signal at pin 22 of IC5241 and

pins 10 and 11 of IC6261.

AV :Low, PC : High

3. No picture from DVI source.

Check power supply voltages on the DVI board.

5VDVI on pins 39-40, 5VS on pins 35-36, 3.3VS on pins

31-32, 9VMCI on pins 35-8, 5VD on pins 21-22 of K10W

and K3Ws.

Check Sync signal at pins 16 and 18 of IC8081.

Check ICs IC8001, IC7021, IC7031 and peripheral cir-

cuits.

4. No picture from both of Video and Computer

sources.

Check RGB signals at test points TP52R, TP52G and

TP52B.

Check RGB signals at test points TP201R, TP5201G and

TP201B.

Check HSYNC signal at test point TP205.

Check Sync signals at test points at TP62H and TP62V.

5. No picture from all of sources

Check RGB S&H signals at test points TP25B1, TP25B2,

TP25G1, TP25G2, TP25R1 and TP25R2.

Check NRS signals at test points TP3551 and TP3581.

Check power supply circuit 15.5V and 15VL and peripher-

al circuit.

Check ICs IC501, IC531, IC561, IC1501, IC1531, IC1561,

IC3531, IC3561, IC801, IC301, IC401and peripheral cir-

cuits.

Troubleshooting

No Picture

SIGNAL K10W/K3W

V-Sync 3-4

H-Sync 5-6

SIGNAL K10V/K3V

B35-36

G37-38

R39-40

SIGNAL K10U/K3U

Video 45-46

S-C 41-42

S-Y 39-40

PB 49-50

PR 51-52

-38-

Troubleshooting

DGB0-9

3

1

5

22

8

16

18

20

IC5241

AV/PC-RGB-SW

AV/PC

PC : H

AV : L

IC5271

IC5281

IC5291

2

13

12

1

10 11

14

15

IC8001

DVI

I/F

DVI

DIGITAL/ANALOG

MONITOR

RGB

H-SYNC

V-SY NC

IC6241

SYNC DET.

IC6201

SYNC SW

1

5

12

8

IC6251

INVERTER

IC6101

INVERTER

2

11 9

8

16

5

3

5

11

13

IC5251

AV/PC

SYNC-SW

5

2

6

3

IC6271

BUFFER

HAFC

IC251

TP52R

TP52B

TP52G

TP201R

TP201B

TP201G

TP205

HSYNC

IC201

A/D

22

40

7

15

TP62H

TP62V

GB00-7

GBE0-7

GG00-7

GGE0-7

GR00-7

GRE0-7

HS

VS

48

|

46

10

|

77

D_BE0-7

D_B00-7

D_GE0-7

D_G00-7

D_RE0-7

D_R00-7

IC8081

BUFFER

2

4

6

16

18

GHS

GVS

80

|

90

PX+-, CLK, DATA

H

V

IC4101

RGB

MATRIX

AV/PC

66

55 56

65

29

28

69

68

67 73 74 75

HS_OUT

VS_OUT

HD_HSYNC

HD_VSYNC

AV_HSYNC

AV_VSYNC

IC1101

VIDEO

DECODER

9

13 14

4

21

22

23

43

44

17

18

19

7

5

S_SW

Y/C

Cr_SW

TP11SC

TP11SY

TP11PR

TP11PB

TP11CV

Cb_SW

IC2101

DIGITAL

COMB

FILTER

97

2

IC5161

C_SWIN

2

5

12

1

3

13

15

14

9,10

4

39

37

35

IC3101

BLANKING

IC3121

IC2131

IC3141

VIDEO_RGB

IC2161

D/A

IC2181

I/O

BLANK_SW

AV/PC

SYNC_SW

BLKC_DC

C_SWIN

S_SW

7

8

IC1401

DIGITAL

BRIGHTER

CONTROL

DB0-9

DG0-9

DR0-9

DGB0-9

DGA0-9

DRA0-9

5,4 9,1

TPDHS

TPDVS

TPCLK

DCLK

TURBO_1

DBB0-9

DRB0-9

VIDEO/Y

Pb/Cb

Pr/Cr

IC1581

D/A

IC2571

D/A

TP25G1

TP25G2

TP25B1

TP25B2

TP25R1

TP25R2

IC3551

NRS

36

IC3581

NRS

37

NRS

VCOM

RGT

DWN

B-LCD

PANE L

G-LCD

PANE L

R-LCD

PANE L

4,5,6

8

9,18,19

7

13

11

12

IC531

IC1531

S&H_G

IC401

DIGITAL

COLOR

UNIFORMITY

CORRECTION

TIMING

CONTROL

6,7 13

IC501

IC1501

S&H_B

SCL2_5

SDA2_5

IC801

SUB

CPU

79,78

IC561

IC1561

S&H_R

IC3531

G_LEVEL

SHIFT

IC3561

R_LEVEL

SHIFT

22

IC301

SCAN

CONVERTER

SYSTEM

CONTROL

323

244

240

133

34

133 34

12

10

22

1

16

18

20

IC5211

CG1/CG2 RGB-SW

CG1/CG2

5

3

R

G

B

R

G

B

IC6171

AFC

DET

16

1

21 22 2

13

11

1

5

4

8

12

10

DHS/DVS

TP3551

TP3581

14

|

19

5

|

7

12

13

2

3

2

3

S-VIDEO

15

2

3

DVI BOARD

AV BOARD MAIN BOARD

K25B

K25G

K25R

K3V

K10V

K3W

K10W

K3T

K10T

K3U

K10U

9

|

40

3

|

6

3

|

12

15

16

39

41

51

52

49

50

45

46

35

36

33

34

19

20

R

H

Y/C

Y

C

V

Pr

Cr

Cb

Cr

Pb

Cb

Y

CV/Y

CV

H

V

G

B

R

G

B

R

G

B

PC : H

AV : L

PC : H

AV : L

S-In: H

Component-In: H

VSYNC

HSYNC

ANALOG SYNC

ANALOG RGB

Video Signal processing diagrams

-39-

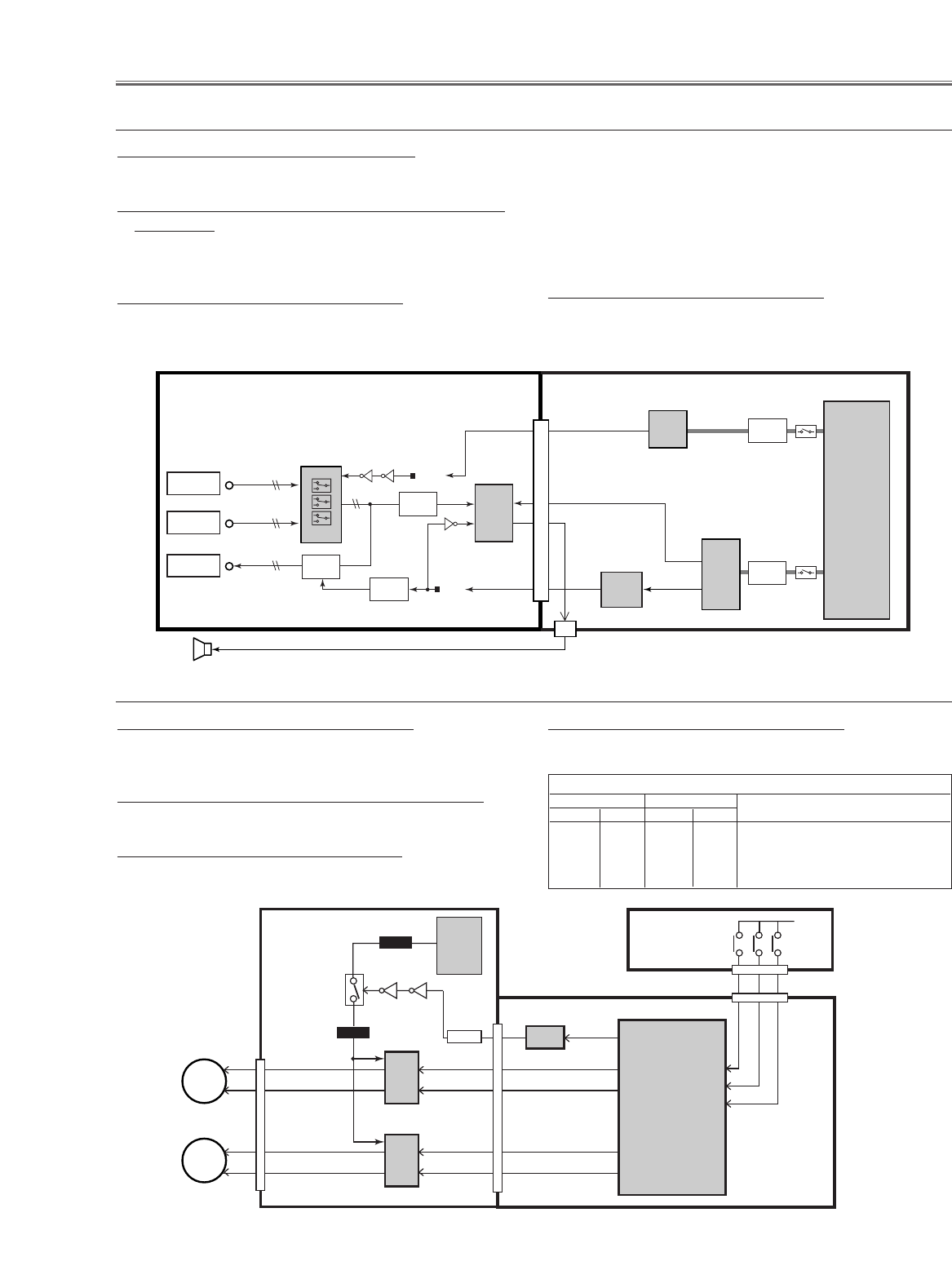

1. No drive signals supplied at motors

Check drive signals at pins 1 to 4 of K6U on Power Board.

Check ICs IC5501, IC5551 and peripheral circuits. Check

motor drive power supply (9VMCI).

2. No drive signals supplied at motor drive ICs.

Check drive signals at pins 3-4 (ZOOM), 5-6 (FOCUS) of

k6S. Check IC801.

3. No drive signals output from CPU.

Check drive signals at pins 29,30, 33, 34 of IC801(SUB

CPU). Check IC801.

4. No key switch signals input to CPU.

Check signals at pins 50 to 52 of IC801 when pressing the

key buttons. Check key buttons.

Troubleshooting

1

7

3

34

29

30

33

1

4 52

51

50

5

317

16

15

16

5

2

IC5551

FOCUS

MOTOR DRIVE

IC1881

BUFFER

IC801

SUB CPU

1

7

3

4

5

34

3

4

IC5501

ZOOM

MOTOR DRIVE

M

FOCUS

MOTOR

ZOOM

MOTOR

K6U K6S K8S

K8A

K68A

KEY SW BOARD

MAIN BOARD

POWER BOARD

9V MCI

15V

FOCUS +

FOCUS -

ZOOM +

ZOOM -

345

FOCUS

ZOOM

LEVEL +

LEVEL -

Power

Supply

Circuit

Q65A

Q65B Q65C

5V_SW POWER

ON: H

Logic Table of IC5501/IC5551

Input Output Operation

45 71

HL LHForward drive

LHHLReverse drive

HH LLBraking

LL --Stand by

Lens Motor Problems

IC2161

D/A

AV/PC 7

8

IC1831

D/A

AUDIO MUTE

IC1881

BUFFER

13

7

MUTE

IC5011

AUDIO-SW

1

13

2

12

10

11

15

14

PC_L/R

AV_L/R

IC001

AUDIO

CONTROL

2

1

4

6

8

Q5072

Q1816

Q1817

Q1818

Q1819

Q011

AV/PC

Q5031

Q5041

Q5051

Q5061

Q5081

Q5082 MUTE

VOLUME

SPEAKER

72

3

2

3

14

7

SCL2_5

SDA2_5

SCL1_5

SDA1_5

IC801

SUB

CPU

80,81

79,78

COMPUTER

AUDIO IN

VIDEO

AUDIO IN

MONITOR

AUDIO OUT

29

30

27

28

21

|

24

31

32

1,3

K3UK10U

K8F

AV BOARD MAIN BOARD

PC: H

AV : L

MUTE On: H

No Sound

1. No audio signals at AV input circuit.

Check audio signals at pins14 and 15 of IC5011 on the AV

Board. Check IC5011 and peripheral circuits.

2. Incorrect operation of VIDEO/COMPUTER mode

switching.

Check AV/PC switching signal at pins 10 and 11 of IC5011.

Check IC5011, IC801 and switching signal.

AV :Low, PC : High

3. No audio output signal at speaker.

Check audio signal at pins 1 and 3 of K8F on the Main

Board.

Check MUTE signal at pin 1 of IC001.

Mute On : Low

Check MUTE signal at pin 7 of IC1831, pins 7 and 13 of

IC1881, and peripheral circuit.

Mute On : High

Check sound volume signal at pin 4 of IC001, and pin 14

of IC1831.Check IC IC001, IC1831 and peripheral circuit.

Volume Min.: Low

4. No power supply at audio circuit.

Check 6V(6V AUDIO) power supply line.

-40-

●System Control & I/O Port Table (IC801)

■Control Port Functions

1PE5/D5 POWER_SW Power_SW O H: On

2PE6/D6 SYS SW Peripheral IC power supply SW O L: On

3PE7/D7 LAMP_SW Lamp LED O H: On

4PD0/D8 DATA0 Data Bus 0 I/O -

5PD1/D9 DATA1 Data Bus 1 I/O -

6PD2/D10 DATA2 Data Bus 2 I/O -

7PD3/D11 DATA3 Data Bus 3 I/O -

8PD4/D12 DATA4 Data Bus 4 I/O -

9PD5/D13 DATA5 Data Bus 5 I/O -

10 PD6/D14 DATA6 Data Bus 6 I/O -

11 PD7/D15 DATA7 Data Bus 7 I/O -

12 CVCC CVCC Power supply - -

13 PC0/A0 ADDRESS0 Address Bus 0 O -

14 VSS VSS Vss - -

15 PC1/A1 ADDRESS1 Address Bus 1 O -

16 PC2/A2 ADDRESS2 Address Bus 2 O -

17 PC3/A3 ADDRESS3 Address Bus 3 O -

18 PC4/A4 ADDRESS4 Address Bus 4 O -

19 PC5/A5 ADDRESS5 Address Bus 5 O -

20 PC6/A6 ADDRESS6 Address Bus 6 O -

21 PC7/A7 ADDRESS7 Address Bus 7 O -

22 PB0/A8/TIOCA3 ADDRESS8 Address Bus 8 O -

23 PB1/A9/TIOCB3 ADDRESS9 Address Bus 9 O -

24 PB2/A10/TIOCC3 ADDRESS10 Address Bus 10 O -

25 PB3/A11/TIOCD3 ADDRESS11 Address Bus 11 O -

26 PB4/A12/TIOCA4 ADDRESS12 Address Bus 12 O -

27 PB5/A13/TIOCB4 ADDRESS13 Address Bus 13 O -

28 PB6/A14/TIOCA5 ADDRESS14 Address Bus 14 O -

29 PB7/A15/TIOCB5 ZOOM + Zoom + O L: Zoom +

30 PA0/A16 ZOOM - Zoom - O L: Zoom -

31 PA1/A17/TxD2 Tx RS232C TxD O L: active

32 PA2/A18/RxD2 Rx RS232C RxD I L: active

33 PA3/A19/SCK2 FOCUS + Focus + O L: Focus +

34 P10/TIOCA0/A20 FOCUS - Focus - O L: Focus -

35 P11/TIOCB0/A21 R/C Remote control signal input I L: active

36 P12/TIOCC0/TCLKA/A22 USB_RESET USB Reset signal output O L: active

37 P13/TIOCD0/TCLKB/A23 USB_BRST USB_BRST O L: On”

38 P14/TIOCA1/IRQ0 SCLK Serial clock output O H: active

39 P15/TIOCB1/TCLKC BLAST_AC Lamp Ballast control signal O PWM output

40 P16/TIOCA2/IRQ1 TXD_SW TXD_SW O H: PW-Main CPU

41 P17/TIOCB2/TCLKD FAN ON/OFF Fan Drive output O H: on

42 AVSS Avss A/D ground - -

43 P97/DA1 PIXEL WRITE PIXEL write I L: PW write

44 P96/DA0 TEMP_DET TEMP DET I L: Temperature abnormal

45 P47/AN7 OPT2 Option input I L: XGA H: SVGA

46 P46/AN6 USB_VBUS USB VBUS Input I H: USB exist

47 P45/AN5 LAMP_ERR Lamp Error I H: Lamp not lit

48 P44/AN4 POWER_FAIL Power Fail (Abnormal less than 2V) I Abnormal less that 1V

49 P43/AN3 OPT1 Destination option I

50 P42/AN2 KEY3 Key Input3 (A/D Input) I

51 P41/AN1 KEY2 Key Input2 (A/D Input) I

52 P40/AN0 KEY1 Key Input1 (A/D Input) I

53 Vref Vref Reference voltage for analog - -

54 AVCC AVCC A/D power supply - -

55 MD0 MD0 Operation mode control 0 I Fixed L

56 MD1 MD1 Operation mode control 1 I Fixed H

57 OSC2 OSC2 Sub-clock output (Not used) O open

58 OSC1 OSC1 Sub-clock output (Not used) I Connected to GND

59 RES RESET Reset input I Reset L to H

60 NMI NMI Non-maskable input (not used) I Fixed H

61 STBY STBY Stand-by I -

62 VCC VCC Vcc - -

63 XTAL XTAL Oscillator input I -

64 VSS VSS GND - -

65 EXTAL EXTAL Oscillator output O -

66 FWE FEW Write enable input for Flash ROM I H: Enable

Pin No. Name Function Name Function I/O Action

-41-

67 MD2 MD2 Operation mode control 2 I Fixed H

68 PF7/¢ ¢ ¢ output O -

69 PF6/AS AS AS output O -

70 PF5/RD RD Read signal O Control for SRAM

71 PF4/HWR HWR Write signal (upper 8 bit) O Control for SRAM

72 PF3/LWR/ADTRG/IRQ3 IRO_CS Color uniformity correction (E7050) Chip Select OL: active

73 PF2/WAIT TURBO_CS Turbo gate array Chip Select O H: active

74 PF1/BACK/BUZZ SDA 4 IIC Bus 4 SDA I/O L: active

75 PF0/BREQ/IRQ2 FLASH_MODE FWE control O

76 P30/TxD0 PW TX PW365 TxD O L: active

77 P31/RxD0 PW RX PW365 RxD I L: active

78 P32/SCK0/SDA1/IRQ4 SDA 2 IIC Bus 2 SDA I/O L: active

79 P33/TxD1/SCL1 SCL 2 IIC Bus 2 SCL O L: active

80 P34/RxD1/SDA0 SDA 1 IIC Bus 1 SDA (EEPROM,DAC-1) I/O L: active

81 P35/SCK1/SCL0/IRQ5 SCL 1 IIC Bus 1 SCL (EEPROM,DAC-1) O L: active

82 P36 BLAST_SW Lamp ballast 400VON/OFF O H: on

83 P77/TXD3 MCI TX Viewer TxD O L: active

84 P76/RXD3 MCI RX Viewer RxD I L: active

85 P75/TMO3/SCK3 SCL 4 IIC Bus 4 SCL O L: active

86 P74/TMO2/MRES M-RESET Manual reset I L: reset

87 P73/TMO1/CS7 OPW_IN0 PW365 Data Input I

88 P72/TMO0/CS6 OPT_LAMPBRAND Lamp Brand Option I H: Philips, L:Osram

89 P71/TMRI23/TMCI23/CS5 OPT_ECO Eco Mode Option I H: Eco

90 P70/TMRI01/TMCI01/CS4 OPT_BRAND2 Destination2 I

91 PG0/IRQ6 SDATA Serial data output O L: active

92 PG1/CS3/IRQ7 USB_INTR USB interrupt signal input I L active

93 PG2/CS2 CS 2 SRAM Chip Select O L: active

94 PG3/CS1 CS 1 USB Chip Select O L: active

95 PG4/CS0 W_LAN_IN Wireless unit On/Off I H: Wireless On

96 PE0/D0 SDA 3 IIC Bus 3 SDA I/O L: active

97 PE1/D1 SCL 3 IIC Bus 3 SCL O L: active

98 PE2/D2 PW_OUT0 PW365 Data output 0 O

99 PE3/D3 PW_OUT1 PW365 Data output 1 O

100PE4/D4 PW_RESET PW365 Reset output O Reset L -> H -> L

Pin No. Name Function Name Function I/O Action

Control Port Functions

-42-

1S Reset Open -

2SCL IIC SCL Active “L” -

3SDA IIC SDA Active “L” -

4D0 CARD_IN L: CARD H: No CARD IN

5D1 VIEWER_ON L: VIEWER Unit exist IN

6D2 SCDT1 DVI Sync. detection H: DVI IN

7D3 TURBO_LED H: on L: off OUT

8VSS GND - -

9D4WARNING_LED H: on L: off OUT

10 D5 LAMPREP_LED H: on L: off OUT

11 D6 READY_LED H: on L: off OUT

12 D7 Not used Fixed “L”OUT

13 VDD 5 V Vcc -

14 CS2 Chip Select 2 Fixed “L”-

15 CS1 Chip Select 1 Fixed “L”-

16 CS0 Chip Select 0 Fixed “H” -

Pin No. Name Function Action I/O

●IIC Bus I/O Expander (IC1851) Port Functions

●IIC Bus I/O Expander (IC2181) Port Functions

1R Reset Fixed “H”

2SCL IIC SCL Active “L”

3SDA IIC SDA Active “L”

4AO7 FAN_CONT_1 0xFFh:Min 0x00h:Max

5AO8 FAN_CONT_2 0xFFh:Min 0x00h:Max

6AO9 EDIDEN L: H8 side H: PC side

7AO10 AUDIOMUTE L: Mute Off H: Mute On

8AO11 PWRDN0 AD Power down (L:DVI/MCI H:PC)

9AO12 DCOM_OFF Digital Comb Filter Usage L: at composite SECAM, NTSC4.43, PAL60

10 VrefL D/A converter lower ref. voltage Connect to GND

11 VrefU1 D/A converter upper ref. voltage (CH7~CH12) Vcc

12 GND GND GND

13 VrefU2 D/A converter upper ref. voltage (CH1~CH6) Vcc

14 AO1VOL_CNT Control sound output volume, L: minimum

15 AO2 CG1_CG2 L: CG1, H: CG2

16 AO3MOUSE Air mouse On/Off H: On L: Off

17 AO4MOUSE_RESET Air mouse CPU reset Reset start: H->L->H

18 AO5 TURBO + Turbo motor control (+) L: On

19 AO6 TURBO - Turbo motor control (-) L: On

20 Vcc Digital power supply

21 Vdd Analog power supply

22 CS2 Chip Select 2 Fixed “H”

23 CS1 Chip Select 1 Fixed “H”

24 CS0 Chip Select 0 Fixed “L”

Pin No. Name Function Action

●IIC Bus DA Converter (IC1831) Port Functions

Control Port Functions

1S Reset Open -

2SCL IIC SCL Active “L”-

3SDA IIC SDA Active “L”-

4D0 MOD 2 Composite NTSC4.43, PAL60: H else: L OUT

5D1 MOD 1 Fixed “L”OUT

6D2 PNR NTSC, NTSC4.43: L else: H OUT

7D3 NTPL 2 PAL-M, PAL-N: H else: L OUT

8VSS GND - -

9D4 NTPL 1 PAL, PAL-N: H else: L IN

10 D5 4.43 TRAP Composite SECAM, NTSC4.43, PAL60: L, else: H OUT

11 D6 C -SWIN Component signal detection (L: Component) IN

12 D7 S _ SW S signal detection (L: S-Input) IN

13 VDD 5 V Vcc(5V) -

14 CS2 Chip Select 2 Fixed “L”-

15 CS1 Chip Select 1 Fixed “L”-

16 CS0 Chip Select 0 Fixed “L”-

Pin No. Name Function Action I/O

-43-

1R Reset Fixed “H”

2SCL IIC SCL Active “L”

3SDA IIC SDA Active “L”

4AO7 RCLP R Signal clamp reference voltage

5AO8 GCLP G Signal clamp reference voltage

6AO9 BCLP B Signal clamp reference voltage

7AO10 AV/PC AV/PC switch (L: AV H: PC)

8AO11 SYNC_SW Fixed “H”

9AO12 G_BLK_DC Video G signal pedestal voltage

10 VrefL D/A converter lower ref. voltage Connected to GND

11 VrefU1 D/A converter upper ref. voltage (CH7~CH12) Vcc(5V)

12 GND GND GND

13 VrefU2 D/A converter upper ref. voltage(CH1~CH6) Vcc(5V)

14 AO1 SCP SW Sandcastle pulse SW Video/S-Video/480i/575i: L else: H

15 AO2 BLANK SW H Blank width SW 1080i/1035i/720p/480p/575p: H else: L

16 AO3MACRO H: PC, AV(1080i50Hz) L: AV

17 AO4CBAL_SW Color uniformity correction SW

18 AO5 B_BLK_DC Video B signal pedestal voltage

19 Ao6 R_BLK_DC Video R signal pedestal voltage

20 Vcc Digital power supply Vcc(5V)

21 Vdd Analo gpower supply Vcc(5V)

22 CS2 Chip Select 2 Fixed “L”

23 CS1 Chip Select 1 Fixed “H”

24 CS0 Chip Select 0 Fixed “H”

Pin No. Name Function Action

●IIC Bus DA Converter (IC2161) Port Functions

Control Port Functions

1R Reset Fixed “H”

2SCL IIC SCL Active “L”

3SDA IIC SDA Active “L”

4AO7 REF_B D/A reference voltage

5AO8 REF_G D/A reference voltage

6AO9 REF_R D/A reference voltage

7AO10 Not used 0V fixed

8AO11 Not used 0V fixed

9AO12 Not used 0V fixed

10 VrefL D/A converter lower ref. voltage Connected to GND

11 VrefU1 D/A converter upper ref. voltage (CH7~CH12) Vcc(5V)

12 GND GND GND

13 VrefU2 D/A converter upper ref. voltage (CH1~CH6) Vcc(5V)

14 AO1 B-CENT Video center voltage

15 AO2 G-CENT Video center voltage

16 AO3 R-CENT Video center voltage

17 AO4DWN Panel control signal

18 AO5RGT Panel control signal

19 AO6XRGTPanel control signal

20 Vcc Digital power supply Vcc(5V)

21 Vdd Analog power supply Vcc(5V)

22 CS2 Chip Select 2 Fixed “L”

23 CS1 Chip Select 1 Fixed “L”

24 CS0 Chip Select 0 Fixed “L”

Pin No. Name Function Action

●IIC Bus DA Converter (IC1581) Port Functions

1R Reset Fixed “H”

2SCL IIC SCL Active “L”

3SDA IIC SDA Active “L”

4AO5 Not used

5AO6 VCOMR

6AO7 VCOMG

7AO8 VCOMB

8VrefL D/A converter lower ref. voltage Connected to GND

9VrefU1 D/A converter upper ref. voltage (CH5~CH8) Connected to Vcc

10 GND GND GND

11 VrefU2 D/A converter upper ref. voltage (CH1~CH4) Connected to Vcc

12 AO1 NRSB

13 AO2 NRSA

14 AO3 Not used

15 AO4 Not used

16 Vcc 5 V Vcc(5V)

17 Vdd 5 V Vdd(5V)

18 CS2 Chip Select 2 Fixed “L”

19 CS1 Chip Select 1 Fixed “L”

20 CS0 Chip Select 0 Fixed “H”

Pin No. Name Function Action

●IIC Bus DA Converter (IC2571) Port Functions

-44-

■Waveform

VIDEO-IN Y-IN <IC1101-5> C-IN <IC1101-7>

Y-OUT <IC1101-21> CB-OUT <IC1101-22> CR-OUT <IC1101-23>

H-SYNC OUT <IC1101-9> V-SYNC OUT <IC1101-4>

R-OUT <IC4101-35> G-OUT <IC4101-37> B-OUT <IC1101-7>

R-DRIVE <TP52R/TP201R> G-DRIVE <TP52G/TP201G> B-DRIVE <TP52B/TP201G>

H-SYNC OUT <IC4101-29> V-SYNC OUT <IC4101-28> H-SYNC IN <TP205>

H-SYNC DRIVE <TP62H> V-SYNC DRIVE <TP62V> DHS <TPDHS>

DVS <TPDVS> NRS <TP3551/TP3581>

R-S&H OUT <TP25R1/TP25R2> G-S&H OUT <TP25G1/TP25G2> B-S&H OUT <TP25B1/TP25B2>

BALLAST SW <TP28L>

Waveform

-45-

-46-

■Cleaning

Cleaning with air spray

1. Remove the cabinet top following to “Mechanical

Disassemblies”.

2. Clean up the LCD panel and polarizing plate by using

the air spray from the cabinet top opening.

Caution:

Use a commercial (inert gas) air spray designed for

cleaning camera and computer equipment. Use a resin-

based nozzle only. Be vary careful not to damage opti-

cal parts with the nozzle tip. Never use any kind of

cleanser on the unit. Also, never use abrasive materials

on the unit as this may cause irreparable damage.

After long periods of use, dust and other particles will accumulate on the LCD panel, prism, mirror, polarized glass,

lens, etc., causing the picture to darken or color to blur. If this occurs, clean the inside of optical unit.

Remove dust and other particles using air spray. If dirt cannot be removed by air spray, disassemble and clean

the optical unit.

Disassembly Cleaning

Disassembly cleaning method should only be per-

formed when the unit is considerable dirty and cannot

be sufficiently cleaned by air spraying alone.

Be sure to readjust the optical system after per-

forming disassembly cleaning.

1. Remove the cabinet top and main units following to

“Mechanical Disassemblies”.

2. Remove the optical base top following to “Optical Unit

Disassemblies”. If the LCD panel needs cleaning,

remove the LCD panel unit following to “LCD panel

replacement”.

3. Clean the optical parts with a soft cloth. Clean

extremely dirty areas using a cloth moistened with

alcohol.

Caution:

The surface of the optical components consists of mul-

tiple dielectric layers with varying degrees of refraction.

Never use organic solvents (thinner, etc.) or any kind of

cleanser on these components.

Since the LCD panel is equipped with an electronic cir-

cuit, never use any liquids (water, etc.) to clean the unit.

Use of liquid may cause the unit to malfunction.

-47-

■IC Block Diagrams

●AD8183ARU, AD8185ARU <Selector, IC5241, IC5211>

● BA6287F <Motor Drive IC5501, IC5551>

-48-

●CXA2101AQ <RGB Matrix, IC4101>

IC Block Diagrams

●BA7078AF <Selector, IC6241>

-49-

●CXD2064Q <Digital Comb Filter, IC2101>

●L3E01031 <Level Shift, IC3531, IC3561>

IC Block Diagrams

-50-

●L3E06070 <D/A-Sample & Hold, IC501, IC531, IC561, IC1501, IC1531, IC1561>

●L3E07050 <Color, Gamma Correction & Timing Controller , IC401>

IC Block Diagrams

-51-

●ML60851 <USB I/F, IC9801>

●M62393 <D/A, IC2571>

IC Block Diagrams

-52-

●TA1318N <AFC Detector, IC6171>

●TB1274AF <Video Decoder, IC1101>

IC Block Diagrams

-53-

●FA7612CA <PWC Controller, IC65A, IC671, IC681>

IC Block Diagrams

●STR-Z2156 <Switching Controller, IC631>

-54-

ME3-XU4500, MF3-XU4600

-55-

■Electrical Parts List

Product safety should be considered when a component replacement is made in any area of a projector.

Components indicated by a ! mark in this parts list and the circuit diagram show components whose value have spe-

cial significance to product safety. It is particularly recommended that only parts specified on the following parts list be

used for components replacement pointed out by the mark.

Read description in the Capacitor and Resistor as follows:

CAPACITOR CERAMIC 100P K 50V

Rated Voltage

Tolerance Symbols:

Less than 10pF

A : Not specified B : ±0.1pF C : ±0.25pF

D : ±0.5pF E : +0 -1pF F : ±1PF

G : ±2pF H : +0.1 -0pF L : +0 -0.1pF

R : ±0.25 -0pF S : +0-0.25pF

More than 10pF

A : Not specified B : ±0.1% C : ±0.25%

D : ±0.5% F : ±1% G : ±2%

H : ±3% J : ±5% K : ±10%

L : ±15% M : ±20% N : ±30%

P : +100-0% Q : +30-10% T : +50-10%

U : +75-10% V : +20-10% W : +100-10%

X : +40-20% Y : +150-10% Z : +80-20%

Rated value: P=pico farad, U=micro farad

Material:

CERAMIC........... Ceramic

MT-PAPER......... Metallized Paper

POLYESTER...... Polyester

MT-POLYEST.....Metallized Polyester

POLYPRO.......... Polypropylene

MT-POLYPRO....Metallized Polypropylene

COMPO FILM.....Composite film

MT-COMPO........Metallized Composite

STYRENE...........Styrene

TA-SOLID........... Tantalum Oxide Solid Electrolytic

AL-SOLID........... Aluminium Solid Electrolytic

ELECT................ Aluminum Foil Electrolytic

NP-ELECT..........Non-polarised Electrolytic

OS-SOLID.......... Aluminium Solid with Organic Semiconductive Electrolytic

POS-SOLID........ Polymerized Organic Semiconductive

DL-ELECT.......... Double Layered Electrolytic

PPS-FILM...........Polyphenylene Sulfide Film

MT-PPS-FILM.....Metalized Polyphenylene Sulfide Film

MT-PEN-FILM.....Metalized Polyethylenenaphthalate Film

CAPACITOR.......Other

CARBON 4.7K J A 1/4W

Rated Wattage

Performance Symbols:

A: General B: Non flammable Z: Low noise

Other: Temperature coefficient

Tolerance Symbols:

A: ±0.05% B: ±0.1% C: ±0.25% D: ±0.5%

F: ±1% G: ±2% J: ±5% K: ±10%

M: ±20% P: +5-15% Z: 0 ohm

Rated value, ohms:

K: 1,000, M: 1,000,000

Material:

CARBON........... Carbon

MT-FILM............ Metal Film

OXIDE-MT......... Oxide Metal Film

SOLID................ Composition

MT-GLAZE......... Metal Glaze

WIRE WOUND...Wire Wound

CERAMIC RES.. Ceramic

FUSIBLE RES....Fusible

RESISTOR ........Other

T: ±10ppm/°C U: ±25ppm/°C C: ±50ppm/°C

D: ±100ppm/°C E: ±200ppm/°C F: ±250ppm/°C

G: ±350ppm/°C H: ±1000ppm/°C±10% W: ±1200ppm/°C±10%

Y: ±1400ppm/°C±10% J: ±2000ppm/°C±10% K: ±2400ppm/°C±10%

L: ±2700ppm/°C±10% M: ±3000ppm/°C±10% N: ±3300ppm/°C±10%

P: ±3600ppm/°C±10% Q: ±3900ppm/°C±10% R: ±4200ppm/°C±10%

S: ±4300ppm/°C±10% V: ±4500ppm/°C±10% X: ±8000ppm/°C±10%

RESISTOR

●Read Description in the parts list

ME3-XU4500, MF3-XU4600

Electrical Parts List

-56-

●OUT OF CIRCUIT BOARD

Note: Parts order must contain Chassis No., Part No., and Descriptions.

F601

Fuse

SW902

Thermal Switch

FN905

Cooling Fan

FN902

Cooling Fan

SW904

Interlock switch

AV Board

Main Board

Temp Board

Line Filter

Board

A901

Ballast Board

SP901

Speaker

RC Front Board

FN903

Cooling Fan

FN901

Cooling Fan

DVI Board

FN906

Cooling Fan

FN904

Cooling Fan

LP901

Lamp Ass’y

LF901

Noise Filter

Power Board

P.F. Board

Key SW Board

ME3-XU4500, MF3-XU4600

-57-

Electrical Parts List

!610 292 5609 ASSY,PWB,KEY SW MS6A

!610 299 7330 ASSY,PWB,AV MK8A

!610 299 7347 ASSY,PWB,DVI MK8A

!610 301 0939 ASSY,PWB,POWER MK8A *

!610 301 0946 ASSY,PWB,P.F. MK8A *

!610 301 0953 ASSY,PWB,LINE FILTER MK8A

!610 301 0960 ASSY,PWB,R/C MK8A

!610 304 8925 ASSY,PWB,MAIN ME3A *

!610 304 8932 ASSY,PWB,TEMP ME3A

!LF901 645 056 9630 UNIT,NOISE FILTER

!LP900 610 304 5214 COMPL,OPTICAL LAMP-ME3A *

L901 645 044 6207 CORE,FERRITE

L902 645 044 6207 CORE,FERRITE

L903 645 003 3834 CORE,FERRITE

!A901 645 057 7703 UNIT,BALLAST *

!FN901 645 047 6211 MOTOR,FAN DC 1.5W

!FN902 645 058 8723 MOTOR,FAN DC 2.28W

!FN903 645 058 8730 MOTOR,FAN DC 2.28W

!FN904 645 058 8730 MOTOR,FAN DC 2.28W

!FN905 645 058 8747 MOTOR,FAN DC 2.28W

!FN906 645 052 0754 MOTOR,FAN DC 3.0W

SP901 645 030 6150 SPEAKER,8

!SW902 645 026 5457 SWITCH,THERMAL

645 048 3158 SWITCH,THERMAL

!SW904 645 024 8986 SWITCH,PUSH 2P-2TX2

WK8A-68A 645 050 2545 CORD,ID CONNECTOR

WK8E-48E 645 048 2410 CORD,ID CONNECTOR

WK8G-28D 645 053 2566 CORD,ID CONNECTOR

!610 292 5609 ASSY,PWB,KEY SW MS6A

!610 299 7330 ASSY,PWB,AV MK8A

!610 299 7347 ASSY,PWB,DVI MK8A

! 610 305 8641 ASSY,PWB,POWER MF3A *

! 610 305 8658 ASSY,PWB,P.F. MF3A *

!610 301 0953 ASSY,PWB,LINE FILTER MK8A

!610 301 0960 ASSY,PWB,R/C MK8A

!610 305 8696 ASSY,PWB,MAIN MF3A *

!610 304 8932 ASSY,PWB,TEMP ME3A

!LF901 645 056 9630 UNIT,NOISE FILTER

!LP900 610 305 8801 COMPL,OPTICAL LAMP-MF3A *

L901 645 044 6207 CORE,FERRITE

L902 645 044 6207 CORE,FERRITE

L903 645 003 3834 CORE,FERRITE

!A901 645 058 3520 UNIT,BALLAST *

A901A 610 305 9075 CABLE,BALLAST *

!FN901 645 047 6211 MOTOR,FAN DC 1.5W

!FN902 645 058 8723 MOTOR,FAN DC 2.28W

!FN903 645 058 8730 MOTOR,FAN DC 2.28W

!FN904 645 058 8730 MOTOR,FAN DC 2.28W

!FN905 645 058 8747 MOTOR,FAN DC 2.28W

!FN906 645 052 0754 MOTOR,FAN DC 3.0W

SP901 645 030 6150 SPEAKER,8

!SW902 645 026 5457 SWITCH,THERMAL

645 048 3158 SWITCH,THERMAL

!SW904 645 024 8986 SWITCH,PUSH 2P-2TX2

WK8A-68A 645 050 2545 CORD,ID CONNECTOR

WK8E-48E 645 048 2410 CORD,ID CONNECTOR

WK8G-28D 645 053 2566 CORD,ID CONNECTOR

Note: This parts list is mentioned for models PLC-XU45 and PLC-

XU46. The deferential parts are indicated with mark (*) after

the parts description.

610 292 5609 ASSY,PWB,KEY SW MS6A

CAPACITOR

C6801 403 164 0204 CERAMIC 0.1U Z 25V

C6802 403 164 0204 CERAMIC 0.1U Z 25V

C6803 403 164 0204 CERAMIC 0.1U Z 25V

RESISTOR

R6801 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R6802 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6804 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6806 401 105 1600 MT-GLAZE 15K JA 1/16W

R6807 401 105 6605 MT-GLAZE 6.8K JA 1/16W

R6808 401 105 4601 MT-GLAZE 3.9K JA 1/16W

R6809 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R6811 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6812 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6816 401 105 1600 MT-GLAZE 15K JA 1/16W

R6817 401 105 6605 MT-GLAZE 6.8K JA 1/16W

R6818 401 105 4601 MT-GLAZE 3.9K JA 1/16W

R6819 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R6821 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6822 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6831 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6832 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6833 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6834 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

DIODE

D6801 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D6802 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D6803 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D6804 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D6831 407 209 7401 LED SML-210YT-K-T86

407 209 7500 LED SML-210YT T86 L

D6832 407 203 7803 LED SML-210LT T86 M

D6833 407 203 7902 LED SML-210MT T86 M

D6834 407 203 7803 LED SML-210LT T86 M

MISCELLANEOUS

SW6801 645 026 2791 SWITCH,PUSH 1P-1TX1

SW6802 645 026 2791 SWITCH,PUSH 1P-1TX1

SW6803 645 026 2791 SWITCH,PUSH 1P-1TX1

SW6804 645 026 2791 SWITCH,PUSH 1P-1TX1

SW6805 645 026 2791 SWITCH,PUSH 1P-1TX1

SW6806 645 026 2791 SWITCH,PUSH 1P-1TX1

SW6807 645 026 2791 SWITCH,PUSH 1P-1TX1

SW6808 645 026 2791 SWITCH,PUSH 1P-1TX1

SW6809 645 026 2791 SWITCH,PUSH 1P-1TX1

SW6810 645 026 2791 SWITCH,PUSH 1P-1TX1

KEY SW BOARD

OUT OF CIRCUIT BOARDS (MF3-XU4600, PLC-XU46)

ASSEMBLIED BOARDS (MF3-XU4600, PLC-XU46)

OUT OF CIRCUIT BOARDS (ME3-XU4500, PLC-XU45)

ASSEMBLIED BOARDS (ME3-XU4500, PLC-XU45)

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

Electrical Parts List

-58-

SW6812 645 026 2791 SWITCH,PUSH 1P-1TX1

610 299 7330 ASSY,PWB,AV MK8A

TRANSISTOR

Q011 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q5031 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q5041 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q5051 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q5061 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q5071 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q5072 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q5081 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q5082 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q5111 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q5121 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q5131 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q5141 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q5151 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

INTEGRATED CIRCUIT

IC001 409 506 5609 IC AN7513

IC3011 409 461 7403 IC LT1399CS

IC3041 409 464 1408 IC TC74ACT14FT

IC5011 409 051 2900 IC TC4053BF(EL)

IC5161 409 404 7200 IC TC7SET00FU-(TE85L)

CAPACITOR

C001 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C002 403 164 0204 CERAMIC 0.1U Z 25V

C011 403 162 4709 ELECT 10U M 16V

403 335 0309 ELECT 10U M 16V

AV BOARD

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

-59-

Electrical Parts List

C012 403 266 8108 NP-ELECT 1U M 50V

C013 403 162 6208 ELECT 1U M 50V

C1041 403 157 3601 CERAMIC 100P J 50V

C1042 403 157 3601 CERAMIC 100P J 50V

C1061 403 164 0204 CERAMIC 0.1U Z 25V

C2023 403 164 0204 CERAMIC 0.1U Z 25V

C2811 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C2812 403 283 6309 CERAMIC 1U Z 10V

C2813 403 157 6602 CERAMIC 470P K 50V

C3011 403 304 2105 ELECT 47U M 6.3V

C3012 403 164 0204 CERAMIC 0.1U Z 25V

C3013 403 164 0204 CERAMIC 0.1U Z 25V

C3017 403 157 1508 CERAMIC 3P C 50V

C3018 403 157 1508 CERAMIC 3P C 50V

C3019 403 157 1508 CERAMIC 3P C 50V

C3041 403 164 0204 CERAMIC 0.1U Z 25V

C5001 403 229 3508 ELECT 100U M 16V

403 335 0408 ELECT 100U M 16V

C5002 403 164 0204 CERAMIC 0.1U Z 25V

C5011 403 205 7803 TA-SOLID 2.2U M 16V

C5012 403 205 7803 TA-SOLID 2.2U M 16V

C5013 403 205 7803 TA-SOLID 2.2U M 16V

C5014 403 205 7803 TA-SOLID 2.2U M 16V

C5021 403 304 3300 ELECT 47U M 16V

C5022 403 164 0204 CERAMIC 0.1U Z 25V

C5031 403 164 0204 CERAMIC 0.1U Z 25V

C5051 403 162 4709 ELECT 10U M 16V

403 335 0309 ELECT 10U M 16V

C5061 403 162 4709 ELECT 10U M 16V

403 335 0309 ELECT 10U M 16V

C5101 403 229 3508 ELECT 100U M 16V

403 335 0408 ELECT 100U M 16V

C5102 403 164 0204 CERAMIC 0.1U Z 25V

C5108 403 164 0204 CERAMIC 0.1U Z 25V

C5111 403 304 2105 ELECT 47U M 6.3V

C5121 403 162 4709 ELECT 10U M 16V

403 335 0309 ELECT 10U M 16V

C5131 403 348 5803 CERAMIC 0.47U K 10V

C5141 403 162 4709 ELECT 10U M 16V

403 335 0309 ELECT 10U M 16V

C5151 403 162 4709 ELECT 10U M 16V

403 335 0309 ELECT 10U M 16V

C5161 403 164 0204 CERAMIC 0.1U Z 25V

RESISTOR

RC2811 645 034 5029 UNIT,REMOCON RECEIVER

R001 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R011 401 105 0603 MT-GLAZE 10K JA 1/16W

R012 401 105 0603 MT-GLAZE 10K JA 1/16W

R013 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R014 401 105 0603 MT-GLAZE 10K JA 1/16W

R016 401 105 0603 MT-GLAZE 10K JA 1/16W

R017 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R1016 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1017 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1018 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1021 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1023 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1024 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1026 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1041 401 105 5509 MT-GLAZE 470K JA 1/16W

R1042 401 105 5509 MT-GLAZE 470K JA 1/16W

R1043 401 105 0405 MT-GLAZE 100 JA 1/16W

R1044 401 105 0405 MT-GLAZE 100 JA 1/16W

R1061 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1065 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1066 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2001 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2002 401 113 4402 MT-GLAZE 75 JA 1/16W

R2003 401 113 4402 MT-GLAZE 75 JA 1/16W

R2004 401 113 4402 MT-GLAZE 75 JA 1/16W

R2005 401 113 4402 MT-GLAZE 75 JA 1/16W

R2006 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2007 401 113 4402 MT-GLAZE 75 JA 1/16W

R2008 401 113 4402 MT-GLAZE 75 JA 1/16W

R2009 401 113 4402 MT-GLAZE 75 JA 1/16W

R2010 401 113 4402 MT-GLAZE 75 JA 1/16W

R2011 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2012 401 113 4402 MT-GLAZE 75 JA 1/16W

R2013 401 113 4402 MT-GLAZE 75 JA 1/16W

R2014 401 113 4402 MT-GLAZE 75 JA 1/16W

R2015 401 113 4402 MT-GLAZE 75 JA 1/16W

R2021 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2022 401 113 4402 MT-GLAZE 75 JA 1/16W

R2023 401 113 4402 MT-GLAZE 75 JA 1/16W

R2024 401 113 4402 MT-GLAZE 75 JA 1/16W

R2025 401 113 4402 MT-GLAZE 75 JA 1/16W

R2026 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2027 401 113 4402 MT-GLAZE 75 JA 1/16W

R2028 401 113 4402 MT-GLAZE 75 JA 1/16W

R2029 401 113 4402 MT-GLAZE 75 JA 1/16W

R2030 401 113 4402 MT-GLAZE 75 JA 1/16W

R2031 401 105 0603 MT-GLAZE 10K JA 1/16W

R2032 401 105 0405 MT-GLAZE 100 JA 1/16W

R2041 401 105 5509 MT-GLAZE 470K JA 1/16W

R2042 401 105 5509 MT-GLAZE 470K JA 1/16W

R2043 401 105 0405 MT-GLAZE 100 JA 1/16W

R2044 401 105 0405 MT-GLAZE 100 JA 1/16W

R2051 401 105 0702 MT-GLAZE 100K JA 1/16W

R2052 401 105 0702 MT-GLAZE 100K JA 1/16W

R2053 401 105 0405 MT-GLAZE 100 JA 1/16W

R2054 401 105 0405 MT-GLAZE 100 JA 1/16W

R2811 401 105 2706 MT-GLAZE 220 JA 1/16W

R2812 407 225 0202 DIODE RB751S-40

R3011 401 113 4402 MT-GLAZE 75 JA 1/16W

R3012 401 113 4402 MT-GLAZE 75 JA 1/16W

R3013 401 113 4402 MT-GLAZE 75 JA 1/16W

R3014 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R3015 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R3016 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R3021 401 105 3208 MT-GLAZE 270 JA 1/16W

R3022 401 105 3208 MT-GLAZE 270 JA 1/16W

R3023 401 105 3208 MT-GLAZE 270 JA 1/16W

R3041 401 105 6407 MT-GLAZE 68 JA 1/16W

R3042 401 105 6407 MT-GLAZE 68 JA 1/16W

R3043 401 105 0306 MT-GLAZE 10 JA 1/16W

R3044 401 105 0306 MT-GLAZE 10 JA 1/16W

R5011 401 105 0702 MT-GLAZE 100K JA 1/16W

R5012 401 105 0702 MT-GLAZE 100K JA 1/16W

R5013 401 105 0702 MT-GLAZE 100K JA 1/16W

R5014 401 105 0702 MT-GLAZE 100K JA 1/16W

R5021 401 105 6605 MT-GLAZE 6.8K JA 1/16W

R5022 401 105 6605 MT-GLAZE 6.8K JA 1/16W

R5031 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5032 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R5034 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R5041 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5042 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R5044 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R5046 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R5051 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5052 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R5054 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R5061 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

Electrical Parts List

-60-

R5062 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R5064 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R5071 401 105 2904 MT-GLAZE 22K JA 1/16W

R5072 401 105 0603 MT-GLAZE 10K JA 1/16W

R5073 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R5074 401 105 0603 MT-GLAZE 10K JA 1/16W

R5076 401 105 0603 MT-GLAZE 10K JA 1/16W

R5077 401 105 0603 MT-GLAZE 10K JA 1/16W

R5078 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5081 401 105 0504 MT-GLAZE 1K JA 1/16W

R5111 401 105 5400 MT-GLAZE 47K JA 1/16W

R5112 401 105 4700 MT-GLAZE 39K JA 1/16W

R5113 401 105 1402 MT-GLAZE 150 JA 1/16W

R5114 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R5116 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R5117 401 105 5103 MT-GLAZE 47 JA 1/16W

R5121 401 105 5400 MT-GLAZE 47K JA 1/16W

R5122 401 105 4700 MT-GLAZE 39K JA 1/16W

R5123 401 105 1402 MT-GLAZE 150 JA 1/16W

R5124 401 105 0504 MT-GLAZE 1K JA 1/16W

R5126 401 105 5103 MT-GLAZE 47 JA 1/16W

R5131 401 105 5400 MT-GLAZE 47K JA 1/16W

R5132 401 105 4700 MT-GLAZE 39K JA 1/16W

R5133 401 105 1402 MT-GLAZE 150 JA 1/16W

R5134 401 105 0504 MT-GLAZE 1K JA 1/16W

R5136 401 105 5103 MT-GLAZE 47 JA 1/16W

R5141 401 105 5400 MT-GLAZE 47K JA 1/16W

R5142 401 105 4700 MT-GLAZE 39K JA 1/16W

R5143 401 105 1402 MT-GLAZE 150 JA 1/16W

R5144 401 105 0504 MT-GLAZE 1K JA 1/16W

R5146 401 105 5103 MT-GLAZE 47 JA 1/16W

R5151 401 105 5400 MT-GLAZE 47K JA 1/16W

R5152 401 105 4700 MT-GLAZE 39K JA 1/16W

R5153 401 105 1402 MT-GLAZE 150 JA 1/16W

R5154 401 105 0504 MT-GLAZE 1K JA 1/16W

R5156 401 105 5103 MT-GLAZE 47 JA 1/16W

R5161 401 105 0405 MT-GLAZE 100 JA 1/16W

R5162 401 105 0405 MT-GLAZE 100 JA 1/16W

R5163 401 105 0603 MT-GLAZE 10K JA 1/16W

R5164 401 105 0603 MT-GLAZE 10K JA 1/16W

COIL

L1001 645 044 8843 FILTER,EMI 200MHZ

L1002 645 044 8843 FILTER,EMI 200MHZ

L1003 645 044 8843 FILTER,EMI 200MHZ

L1021 645 044 8843 FILTER,EMI 200MHZ

L1022 645 044 8843 FILTER,EMI 200MHZ

L1041 645 045 6183 FILTER,EMI 25MHZ

L1042 645 045 6183 FILTER,EMI 25MHZ

L1051 645 045 6183 FILTER,EMI 25MHZ

L1052 645 045 6183 FILTER,EMI 25MHZ

L1053 645 045 6183 FILTER,EMI 25MHZ

L1054 645 045 6183 FILTER,EMI 25MHZ

L1055 645 045 6183 FILTER,EMI 25MHZ

L1056 645 045 6183 FILTER,EMI 25MHZ

L1057 645 045 6183 FILTER,EMI 25MHZ

L2004 645 044 8836 FILTER,EMI 100MHZ

L2005 645 044 8836 FILTER,EMI 100MHZ

L2006 645 044 8836 FILTER,EMI 100MHZ

L2023 645 044 8836 FILTER,EMI 100MHZ

L2024 645 044 8836 FILTER,EMI 100MHZ

L2025 645 045 6183 FILTER,EMI 25MHZ

L2041 645 045 6183 FILTER,EMI 25MHZ

L2042 645 045 6183 FILTER,EMI 25MHZ

L2051 645 045 6183 FILTER,EMI 25MHZ

L2052 645 045 6183 FILTER,EMI 25MHZ

L5001 645 026 0988 INDUCTOR,2.2U M

DIODE

D1001 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D1002 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D1003 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D1021 407 187 8209 ZENER DIODE UDZ12B-TE-17

D1022 407 187 8209 ZENER DIODE UDZ12B-TE-17

D1041 407 187 8209 ZENER DIODE UDZ12B-TE-17

D1042 407 187 8209 ZENER DIODE UDZ12B-TE-17

D1043 407 187 8209 ZENER DIODE UDZ12B-TE-17

D1044 407 187 8209 ZENER DIODE UDZ12B-TE-17

D1051 407 187 8605 ZENER DIODE UDZ20B-TE-17

D1052 407 187 8605 ZENER DIODE UDZ20B-TE-17

D1053 407 187 8605 ZENER DIODE UDZ20B-TE-17

D1054 407 187 8605 ZENER DIODE UDZ20B-TE-17

D1055 407 187 8605 ZENER DIODE UDZ20B-TE-17

D1056 407 187 8605 ZENER DIODE UDZ20B-TE-17

D1057 407 187 8605 ZENER DIODE UDZ20B-TE-17

D1058 407 187 8605 ZENER DIODE UDZ20B-TE-17

D1059 407 187 8605 ZENER DIODE UDZ20B-TE-17

D1061 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D1065 407 187 8209 ZENER DIODE UDZ12B-TE-17

D1066 407 187 8209 ZENER DIODE UDZ12B-TE-17

D1067 407 187 8209 ZENER DIODE UDZ12B-TE-17

D1068 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2001 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D2002 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D2003 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D2004 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D2005 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D2006 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D2021 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D2022 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D2023 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D2024 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D2025 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2041 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2042 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2043 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2044 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2051 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2052 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2053 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2054 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2811 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D2812 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D5081 407 149 0807 DIODE 1SS355-TE-17

D5082 407 149 0807 DIODE 1SS355-TE-17

MISCELLANEOUS

K10A 645 009 8093 SOCKET,D-SUB 15P

K10B 645 000 2571 JACK,PHONE D8.0

K10C 645 000 2595 SOCKET,DIN 8P

K10D 645 028 0382 SOCKET,USB 4P

K20A 645 042 2799 JACK,RCA-3

K20B 645 030 6297 SOCKET,DIN 4P

K20C 645 047 8499 JACK,RCA-2

K20D 645 047 8499 JACK,RCA-2

SW1061 645 042 8104 SWITCH,PUSH 1P-1TX1

610 299 7347 ASSY,PWB,DVI MK8A

TRANSISTOR

Q7011 405 014 4509 TR 2SC2412K T146 R

DVI BOARD

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

-61-

Electrical Parts List

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

INTEGRATED CIRCUIT

IC7021 409 428 8405 IC TC7WT125FU-TE12L

IC7031 409 334 0104 IC TC7W125FU

IC7041 409 503 7903 IC BA033SFP

IC7051 409 529 6201 IC PQ070XZ1HZP

IC7061 409 416 6505 IC BA05FP-E2

IC7071 409 334 0104 IC TC7W125FU

CAPACITOR

C1086 403 164 0204 CERAMIC 0.1U Z 25V

C7001 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C7002 403 164 0204 CERAMIC 0.1U Z 25V

C7003 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C7004 403 164 0204 CERAMIC 0.1U Z 25V

C7011 403 164 0204 CERAMIC 0.1U Z 25V

C7018 403 323 8805 CERAMIC 2.2U Z 16V

C7021 403 164 0204 CERAMIC 0.1U Z 25V

C7031 403 164 0204 CERAMIC 0.1U Z 25V

C7041 403 304 3300 ELECT 47U M 16V

C7042 403 164 0204 CERAMIC 0.1U Z 25V

C7043 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C7044 403 164 0204 CERAMIC 0.1U Z 25V

C7051 403 304 3300 ELECT 47U M 16V

C7052 403 164 0204 CERAMIC 0.1U Z 25V

C7053 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C7054 403 164 0204 CERAMIC 0.1U Z 25V

C7061 403 304 3300 ELECT 47U M 16V

C7062 403 164 0204 CERAMIC 0.1U Z 25V

C7071 403 164 0204 CERAMIC 0.1U Z 25V

RESISTOR

R1086 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R1088 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3051 401 113 4402 MT-GLAZE 75 JA 1/16W

R3052 401 113 4402 MT-GLAZE 75 JA 1/16W

R3053 401 113 4402 MT-GLAZE 75 JA 1/16W

R3054 401 113 4402 MT-GLAZE 75 JA 1/16W

R3055 401 113 4402 MT-GLAZE 75 JA 1/16W

R3056 401 113 4402 MT-GLAZE 75 JA 1/16W

R3057 401 113 4402 MT-GLAZE 75 JA 1/16W

R3058 401 113 4402 MT-GLAZE 75 JA 1/16W

R3059 401 113 4402 MT-GLAZE 75 JA 1/16W

R3060 401 113 4402 MT-GLAZE 75 JA 1/16W

R3061 401 113 4402 MT-GLAZE 75 JA 1/16W

R3062 401 113 4402 MT-GLAZE 75 JA 1/16W

R3063 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3064 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3065 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3066 401 105 0405 MT-GLAZE 100 JA 1/16W

R3067 401 105 0405 MT-GLAZE 100 JA 1/16W

R3068 401 105 0405 MT-GLAZE 100 JA 1/16W

R3071 401 105 0405 MT-GLAZE 100 JA 1/16W

R3073 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3074 401 105 0405 MT-GLAZE 100 JA 1/16W

R3075 401 105 0603 MT-GLAZE 10K JA 1/16W

R3076 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R7011 401 105 0603 MT-GLAZE 10K JA 1/16W

R7012 401 105 0603 MT-GLAZE 10K JA 1/16W

R7013 401 105 0603 MT-GLAZE 10K JA 1/16W

R7014 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R7016 401 105 0405 MT-GLAZE 100 JA 1/16W

R7017 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R7018 401 105 2904 MT-GLAZE 22K JA 1/16W

R7041 401 218 8602 MT-GLAZE 5.6 JA 1W

R7042 401 218 8602 MT-GLAZE 5.6 JA 1W

R7043 401 218 8602 MT-GLAZE 5.6 JA 1W

R7051 401 190 1707 MT-GLAZE 0.000 ZA 1W

R7056 401 113 6208 MT-GLAZE 3.6K JA 1/16W

R7057 401 105 0504 MT-GLAZE 1K JA 1/16W

R7071 401 105 0603 MT-GLAZE 10K JA 1/16W

R7072 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R7073 401 105 6605 MT-GLAZE 6.8K JA 1/16W

COIL

L3071 645 044 8843 FILTER,EMI 200MHZ

L3072 645 044 8843 FILTER,EMI 200MHZ

DIODE

D3051 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D3052 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D3053 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D3071 407 187 8209 ZENER DIODE UDZ12B-TE-17

D3072 407 187 8209 ZENER DIODE UDZ12B-TE-17

D7041 407 190 4106 DIODE SFPL-52V

D7042 407 190 4106 DIODE SFPL-52V

D7052 407 190 4106 DIODE SFPL-52V

D7053 407 190 4106 DIODE SFPL-52V

MISCELLANEOUS

K10E 645 053 7967 SOCKET,DVI 29P

SW7011 645 036 1074 SWITCH,PUSH

(For ME3-XU4500, PLC-XU45)

610 301 0939 ASSY,PWB,POWER MK8A

(For MF3-XU4600, PLC-XU46)

610 305 8641 ASSY,PWB,POWER MF3A

TRANSISTOR

Q5501 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q5551 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q65A 405 047 9007 TR 2SB1204-S-TL

405 047 9106 TR 2SB1204-T-TL

Q65B 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

POWER BOARD

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

Electrical Parts List

-62-

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q65C 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q651 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q66A 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q661 405 047 9007 TR 2SB1204-S-TL

405 047 9106 TR 2SB1204-T-TL

Q662 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q67A 405 139 7706 TR IMZ1A-T108

Q67P 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q671 405 047 9007 TR 2SB1204-S-TL

405 047 9106 TR 2SB1204-T-TL

Q672 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q68A 405 139 7706 TR IMZ1A-T108

Q68P 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q681 405 047 9007 TR 2SB1204-S-TL

405 047 9106 TR 2SB1204-T-TL

Q682 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q69A 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q691 405 154 3301 TR 2SK3280-TL

INTEGRATED CIRCUIT

IC5501 409 362 1104 IC BA6287F

IC5551 409 362 1104 IC BA6287F

IC631 409 421 4701 IC STR-Z2156

IC65A 409 531 6206 IC FA7701V-TE1

IC651 409 344 6509 IC UPC1093T-E1

IC671 409 531 6206 IC FA7701V-TE1

IC681 409 531 6206 IC FA7701V-TE1

CAPACITOR

C5503 403 149 9208 CERAMIC 0.01U Z 50V

C5553 403 149 9208 CERAMIC 0.01U Z 50V

C630 403 323 8706 MT-POLYEST 0.047U K 450V

C631 403 192 4809 TA-SOLID 2.2U M 35V

C633 403 113 3805 CERAMIC 1000P K 50V

C634 403 247 3306 CERAMIC 330P K 2K

C635 403 167 8603 CERAMIC 220P K 2K

C636 403 070 2606 CERAMIC 0.1U Z 50V

C637 403 157 6800 CERAMIC 680P K 50V

C638 403 208 1402 TA-SOLID 1U M 25V

C639 403 356 1804 ELECT 220U M 35V

C640 403 164 0204 CERAMIC 0.1U Z 25V

C641 403 281 5205 CERAMIC 0.22U Z 16V

C642 403 083 4307 POLYPRO 0.022U J 400V

C643 403 256 2406 CERAMIC 0.22U Z 50V

C65B 403 164 0204 CERAMIC 0.1U Z 25V

C65D 403 155 2309 CERAMIC 4700P K 50V

C65E 403 281 5205 CERAMIC 0.22U Z 16V

C65F 403 194 4609 ELECT 470U M 16V

C65G 403 164 0204 CERAMIC 0.1U Z 25V

C651 403 369 2409 ELECT 2700U M 25V

C652 403 350 5303 ELECT 3900U M 10V

C653 403 331 0303 ELECT 470U M 16V

C654 403 164 0204 CERAMIC 0.1U Z 25V

C655 403 164 0204 CERAMIC 0.1U Z 25V

C656 403 345 9606 CERAMIC 0.47U K 10V

C657 403 157 6404 CERAMIC 330P K 50V

C658 403 157 6404 CERAMIC 330P K 50V

C659 403 218 8101 ELECT 1000U M 25V

C661 403 218 8101 ELECT 1000U M 25V

C671 403 281 5205 CERAMIC 0.22U Z 16V

C672 403 164 0204 CERAMIC 0.1U Z 25V

C674 403 155 2309 CERAMIC 4700P K 50V

C676 403 194 4609 ELECT 470U M 16V

C681 403 281 5205 CERAMIC 0.22U Z 16V

C682 403 164 0204 CERAMIC 0.1U Z 25V

C684 403 155 2309 CERAMIC 4700P K 50V

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

-63-

Electrical Parts List

C686 403 194 4609 ELECT 470U M 16V

C69Z 403 164 0204 CERAMIC 0.1U Z 25V

C691 403 206 9004 ELECT 1000U M 6.3V

C692 403 206 9004 ELECT 1000U M 6.3V

C693 403 206 9004 ELECT 1000U M 6.3V

C694 403 206 9004 ELECT 1000U M 6.3V

C695 403 280 0805 ELECT 330U M 6.3V

RESISTOR

R5501 401 105 0504 MT-GLAZE 1K JA 1/16W

R5502 401 105 0504 MT-GLAZE 1K JA 1/16W

R5503 401 105 5202 MT-GLAZE 470 JA 1/16W

R5504 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5505 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R5506 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R5551 401 105 0504 MT-GLAZE 1K JA 1/16W

R5552 401 105 0504 MT-GLAZE 1K JA 1/16W

R5553 401 105 5202 MT-GLAZE 470 JA 1/16W

R5554 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5555 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R5556 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R63B 401 275 2902 MT-GLAZE 68K JA 1W

R63C 401 275 2902 MT-GLAZE 68K JA 1W

R63D 401 275 2902 MT-GLAZE 68K JA 1W

R63E 401 275 2902 MT-GLAZE 68K JA 1W

R632 401 190 1707 MT-GLAZE 0.000 ZA 1W

!R633 402 079 7803 FUSIBLE RES 22 JH 1/4W

R634 401 238 4509 MT-GLAZE 47 JA 1/3W

R635 401 105 0504 MT-GLAZE 1K JA 1/16W

R636 401 257 7406 MT-GLAZE 120 JA 1/3W

R637 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R638 401 105 0603 MT-GLAZE 10K JA 1/16W

R643 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R645 401 105 0603 MT-GLAZE 10K JA 1/16W

R65A 401 276 4707 MT-GLAZE 0.000 ZA 1/3W

R65B 401 105 4007 MT-GLAZE 330 JA 1/16W

R65C 401 230 4705 MT-GLAZE 680 JA 1W

R65E 401 113 8400 MT-GLAZE 75K JA 1/16W

R65G 401 105 0702 MT-GLAZE 100K JA 1/16W

R65H 401 105 4700 MT-GLAZE 39K JA 1/16W

R65J 401 105 2904 MT-GLAZE 22K JA 1/16W

R65K 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R65L 401 105 4601 MT-GLAZE 3.9K JA 1/16W

R65P 401 105 0603 MT-GLAZE 10K JA 1/16W

R65Q 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R65V 401 105 0603 MT-GLAZE 10K JA 1/16W

R65W 401 105 0603 MT-GLAZE 10K JA 1/16W

R65X 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R65Y 401 105 8005 MT-GLAZE 1M JA 1/16W

R651 401 105 0504 MT-GLAZE 1K JA 1/16W

R652 401 105 0306 MT-GLAZE 10 JA 1/16W

R653 401 186 0202 MT-GLAZE 10K DA 1/16W

R654 401 185 9305 MT-GLAZE 560 DA 1/16W

R655 401 185 9503 MT-GLAZE 6.8K DA 1/16W

R656 401 105 3208 MT-GLAZE 270 JA 1/16W

R657 401 105 0504 MT-GLAZE 1K JA 1/16W

R658 401 105 0504 MT-GLAZE 1K JA 1/16W

R659 401 105 0504 MT-GLAZE 1K JA 1/16W

R66A 401 105 0603 MT-GLAZE 10K JA 1/16W

R66B 401 105 0603 MT-GLAZE 10K JA 1/16W

R66C 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R660 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R661 401 105 0603 MT-GLAZE 10K JA 1/16W

R662 401 230 8000 MT-GLAZE 1K JA 1/3W

R663 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R664 401 105 0603 MT-GLAZE 10K JA 1/16W

R67A 401 217 3806 MT-GLAZE 27K FA 1/16W

R67B 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R67C 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R67D 401 219 1107 MT-GLAZE 1.8K FA 1/16W

R67E 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R67F 401 105 0603 MT-GLAZE 10K JA 1/16W

R67G 401 105 0504 MT-GLAZE 1K JA 1/16W

R67H 401 105 2904 MT-GLAZE 22K JA 1/16W

R67I 401 105 0504 MT-GLAZE 1K JA 1/16W

R67K 401 105 0603 MT-GLAZE 10K JA 1/16W

R67P 401 105 0504 MT-GLAZE 1K JA 1/16W

R67Q 401 105 0603 MT-GLAZE 10K JA 1/16W

R670 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R671 401 276 4707 MT-GLAZE 0.000 ZA 1/3W

R672 401 105 4007 MT-GLAZE 330 JA 1/16W

R673 401 230 4705 MT-GLAZE 680 JA 1W

R674 401 105 8005 MT-GLAZE 1M JA 1/16W

R675 401 113 8400 MT-GLAZE 75K JA 1/16W

R676 401 105 0702 MT-GLAZE 100K JA 1/16W

R679 401 105 0603 MT-GLAZE 10K JA 1/16W

R68A 401 217 3806 MT-GLAZE 27K FA 1/16W

R68B 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R68C 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R68D 401 219 1107 MT-GLAZE 1.8K FA 1/16W

R68E 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R68F 401 105 0603 MT-GLAZE 10K JA 1/16W

R68G 401 105 0504 MT-GLAZE 1K JA 1/16W

R68H 401 105 2904 MT-GLAZE 22K JA 1/16W

R68I 401 105 0504 MT-GLAZE 1K JA 1/16W

R68K 401 105 0603 MT-GLAZE 10K JA 1/16W

R68P 401 105 0504 MT-GLAZE 1K JA 1/16W

R68Q 401 105 0603 MT-GLAZE 10K JA 1/16W

R680 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R681 401 276 4707 MT-GLAZE 0.000 ZA 1/3W

R682 401 105 4007 MT-GLAZE 330 JA 1/16W

R683 401 230 4705 MT-GLAZE 680 JA 1W

R684 401 105 8005 MT-GLAZE 1M JA 1/16W

R685 401 113 8400 MT-GLAZE 75K JA 1/16W

R686 401 105 0702 MT-GLAZE 100K JA 1/16W

R689 401 105 0603 MT-GLAZE 10K JA 1/16W

R69A 401 105 0603 MT-GLAZE 10K JA 1/16W

R69B 401 105 0603 MT-GLAZE 10K JA 1/16W

R69C 401 105 0603 MT-GLAZE 10K JA 1/16W

R69D 401 105 0603 MT-GLAZE 10K JA 1/16W

R69E 401 105 0603 MT-GLAZE 10K JA 1/16W

R69F 401 105 0603 MT-GLAZE 10K JA 1/16W

R69G 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R69H 401 105 0504 MT-GLAZE 1K JA 1/16W

(ME3-XU4500, PLC-XU45)

R69R 401 258 7504 MT-GLAZE 12 JA 1/3W

(MF3-XU4600, PLC-XU46)

R69R 401 276 4707 MT-GLAZE 0.000 ZA 1/3W

R69Z 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R691 401 105 2904 MT-GLAZE 22K JA 1/16W

R692 401 105 0702 MT-GLAZE 100K JA 1/16W

R695 401 225 4604 MT-GLAZE 1.2 JA 1W

TRANSFORMER

!T651 645 030 7126 TRANS,POWER,PULSE

COIL

L65A 645 007 7975 INDUCTOR,100U K

L661 645 048 5688 INDUCTOR,47U K

L671 645 048 5381 INDUCTOR,100U K

L681 645 048 5381 INDUCTOR,100U K

L691 645 048 5664 INDUCTOR,390U K

L692 645 007 8118 INDUCTOR,390U K

L693 645 007 7975 INDUCTOR,100U K

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

Electrical Parts List

-64-

L694 645 001 4512 INDUCTOR,10U K

L695 645 020 1776 INDUCTOR,3.3U M

DIODE

(ME3-XU4500, PLC-XU45)

D5501 407 206 6308 ZD UDZS-TE-175.1B

407 179 1706 ZENER DIODE UDZ5.1B-TE-17

D5551 407 222 5903 ZENER DIODE UDZS3.6B-TE

407 179 6305 ZENER DIODE UDZ-TE-173.6B

(MF3-XU4600, PLC-XU46)

D5501 407 209 4509 ZD UDZS-TE-176.8B

407 187 7806 ZENER DIODE UDZ6.8B-TE-17

D5551 407 209 4509 ZD UDZS-TE-176.8B

407 187 7806 ZENER DIODE UDZ6.8B-TE-17

D631 407 190 4106 DIODE SFPL-52V

D633 407 187 8209 ZENER DIODE UDZ12B-TE-17

D636 407 226 7101 DIODE SC311-06

D65A 407 201 2701 DIODE RB051L-40-TE25

D65B 407 149 0807 DIODE 1SS355-TE-17

D651 407 222 9604 DIODE FMB-2306

D652 407 222 9703 DIODE FMJ-23L

D653 407 190 4106 DIODE SFPL-52V

D654 407 209 1201 ZD UDZS-TE-176.2B

D661 407 149 0807 DIODE 1SS355-TE-17

D67P 407 206 6308 ZD UDZS-TE-175.1B

407 179 1706 ZENER DIODE UDZ5.1B-TE-17

D67Q 407 149 0807 DIODE 1SS355-TE-17

D671 407 201 2701 DIODE RB051L-40-TE25

D68P 407 206 6308 ZD UDZS-TE-175.1B

407 179 1706 ZENER DIODE UDZ5.1B-TE-17

D68Q 407 149 0807 DIODE 1SS355-TE-17

D681 407 201 2701 DIODE RB051L-40-TE25

D69A 407 004 0706 DIODE DCB015-TB

D69B 407 004 0706 DIODE DCB015-TB

D69C 407 149 0807 DIODE 1SS355-TE-17

D69D 407 149 0807 DIODE 1SS355-TE-17

MISCELLANEOUS

!PC641 407 223 7302 PC TLP421F(D4-GB-TP4)

407 223 8309 PC TLP421F(D4-GR-TP4)

!PC642 407 223 7302 PC TLP421F(D4-GB-TP4)

407 223 8309 PC TLP421F(D4-GR-TP4)

!PC643 407 223 7302 PC TLP421F(D4-GB-TP4)

407 223 8309 PC TLP421F(D4-GR-TP4)

(For ME3-XU4500, PLC-XU45)

610 301 0946 ASSY,PWB,P.F. MK8A

(For MF3-XU4600, PLC-XU46)

610 305 8658 ASSY,PWB,P.F. MF3A

TRANSISTOR

Q611 405 140 3704 TR 2SK2698

Q621 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q622 405 134 5905 TR 2SA1037AK-T146-R

405 147 2205 TR 2SA1037AK-S-T146

405 002 0308 TR 2SA1037K T146 R

405 002 0407 TR 2SA1037K T146 S

405 002 6706 TR 2SA1179-M6-TB

405 002 6904 TR 2SA1179-M7-TB

405 163 1503 TR 2SA1179N-M6-TB

405 163 2708 TR 2SA1179N-M7-TB

405 173 9605 TR 2SA1235A1E

405 173 9704 TR 2SA1235A1F

INTEGRATED CIRCUIT

IC611 409 523 1400 IC FA5502M

CAPACITOR

C611 403 222 1303 CERAMIC 1000P K 1K

C612 403 222 1303 CERAMIC 1000P K 1K

C615 403 275 6003 MT-POLYEST 1.5U J 400V

C617 404 085 9802 ELECT 180U M 450V

C618 403 323 8706 MT-POLYEST 0.047U K 450V

C62A 403 157 3304 CERAMIC 68P J 50V

C62B 403 157 6602 CERAMIC 470P K 50V

(ME3-XU4500, PLC-XU45)

C62C 403 281 5007 CERAMIC 0.033U K 25V

C62K 403 343 4603 CERAMIC 0.022U K 50V

(MF3-XU4600, PLC-XU46)

C62C 403 325 6304 CERAMIC 0.22U K 10V

C62K 403 323 3602 CERAMIC 0.047U K 50V

C62D 403 164 0204 CERAMIC 0.1U Z 25V

C62E 403 164 0204 CERAMIC 0.1U Z 25V

C62F 403 370 9107 CERAMIC 0.068U K 50V

C62I 403 149 9208 CERAMIC 0.01U Z 50V

C62J 403 169 2807 CERAMIC 330P J 50V

C62M 403 164 0204 CERAMIC 0.1U Z 25V

RESISTOR

R61A 401 237 0007 MT-GLAZE 47K JA 1W

R61B 401 237 0007 MT-GLAZE 47K JA 1W

R61C 401 237 0007 MT-GLAZE 47K JA 1W

R61D 401 237 0007 MT-GLAZE 47K JA 1W

R61E 401 237 0007 MT-GLAZE 47K JA 1W

R61F 401 237 0007 MT-GLAZE 47K JA 1W

R613 402 088 0307 RESISTER 0.15 KA 2W

R614 402 088 0307 RESISTER 0.15 KA 2W

R615 401 242 3901 MT-GLAZE 240K JA 1/2W

R616 401 242 3901 MT-GLAZE 240K JA 1/2W

R617 401 259 9002 MT-GLAZE 150K FA 1/2W

R618 401 259 9002 MT-GLAZE 150K FA 1/2W

R619 401 259 9002 MT-GLAZE 150K FA 1/2W

R62A 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R62B 401 105 0603 MT-GLAZE 10K JA 1/16W

R62C 401 105 5509 MT-GLAZE 470K JA 1/16W

(ME3-XU4500, PLC-XU45)

R62D 401 113 8707 MT-GLAZE 130K JA 1/16W

(MF3-XU4600, PLC-XU46)

R62D 401 105 3802 MT-GLAZE 30K JA 1/16W

R62E 401 113 5805 MT-GLAZE 1.1K JA 1/16W

R62F 401 218 4406 MT-GLAZE 1.2K FA 1/16W

R62G 401 105 0405 MT-GLAZE 100 JA 1/16W

R62H 401 105 4007 MT-GLAZE 330 JA 1/16W

R62I 401 159 0604 MT-GLAZE 8.2 JA 1/16W

R62J 401 105 2607 MT-GLAZE 22 JA 1/16W

R62L 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R62M 401 105 4502 MT-GLAZE 390 JA 1/16W

R62P 401 105 5400 MT-GLAZE 47K JA 1/16W

R62Q 401 105 2607 MT-GLAZE 22 JA 1/16W

P.F BOARD

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

-65-

Electrical Parts List

R62R 401 177 2208 MT-GLAZE 5.6M JA 1/16W

R620 401 259 9002 MT-GLAZE 150K FA 1/2W

R623 401 105 5301 MT-GLAZE 4.7K JA 1/16W

VARIABLE RESISTOR

VR611 645 002 3460 VR,SEMI,1K S

TRANSFORMER

TSW611 645 027 4145 SWITCH,THERMAL

645 031 0256 THERMOSTATS

COIL

L611 645 048 4742 INDUCTOR,850U

DIODE

DB611 407 202 7705 DIODE D10XB60

D613 407 149 6304 DIODE SFPB-54V

D614 407 191 3900 DIODE FML-G16S

D616 407 149 0807 DIODE 1SS355-TE-17

D617 407 149 0807 DIODE 1SS355-TE-17

D618 407 149 0807 DIODE 1SS355-TE-17

D619 407 149 0807 DIODE 1SS355-TE-17

MISCELLANEOUS

FB611 610 229 3531 CORE

FB612 610 229 3531 CORE

FB613 610 229 3531 CORE

PTH611 408 037 4600 THERMISTOR NTH11D8R0LA

610 301 0953 ASSY,PWB,LINE FILTER MK8A

CAPACITOR

!C601 404 081 4702 MT-POLYEST 0.22U M 275V

!C602 404 081 4702 MT-POLYEST 0.22U M 275V

!C603 404 081 4702 MT-POLYEST 0.22U M 275V

!C604 404 081 4702 MT-POLYEST 0.22U M 275V

RESISTOR

!R601 401 287 5700 MT-GLAZE 220K JA 1W

VARIABLE RESISTOR

!VA601 408 018 9808 VARISTOR ENC471D-14AS

COIL

!L601 645 050 2231 LINE FILTER

!L602 645 025 7810 LINE FILTER

MISCELLANEOUS

!F601 423 022 2102 FUSE 250V 4A

F601A 645 000 5077 HOLDER,FUSE

F601B 645 000 5077 HOLDER,FUSE

610 301 0960 ASSY,PWB,R/C MK8A

CAPACITOR

C2801 403 304 2402 ELECT 100U M 10V

C2802 403 283 6309 CERAMIC 1U Z 10V

C2803 403 157 6602 CERAMIC 470P K 50V

RESISTOR

RC2801 645 034 5029 UNIT,REMOCON RECEIVER

R2801 401 105 2706 MT-GLAZE 220 JA 1/16W

R2802 401 105 2706 MT-GLAZE 220 JA 1/16W

DIODE

D2801 407 210 5601 DIODE RB500V-40-TE-17

(For ME3-XU4500, PLC-XU45)

610 304 8925 ASSY,PWB,MAIN ME3A

(For MF3-XU4600, PLC-XU46)

610 305 8696 ASSY,PWB,MAIN MF3A

TRANSISTOR

Q111 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1131 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1132 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1133 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1141 405 134 5905 TR 2SA1037AK-T146-R

Q1142 405 134 5905 TR 2SA1037AK-T146-R

Q1143 405 134 5905 TR 2SA1037AK-T146-R

Q1151 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1152 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1153 405 014 4509 TR 2SC2412K T146 R

MAIN BOARD

R/C BOARD

LINE FILTER BOARD

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

Electrical Parts List

-66-

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1161 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q131 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q132 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q151 405 134 5905 TR 2SA1037AK-T146-R

Q152 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q171 405 134 5905 TR 2SA1037AK-T146-R

Q172 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q1816 405 045 8705 TR 2SK536-TB

Q1817 405 045 8705 TR 2SK536-TB

Q1818 405 045 8705 TR 2SK536-TB

Q1819 405 045 8705 TR 2SK536-TB

Q2506 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q2516 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q2526 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q2531 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q2816 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q2851 405 134 5905 TR 2SA1037AK-T146-R

Q2856 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q2861 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q2865 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q3111 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q3112 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

-67-

Electrical Parts List

Q3113 405 134 5905 TR 2SA1037AK-T146-R

Q3162 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q3163 405 134 5905 TR 2SA1037AK-T146-R

Q3171 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q3172 405 134 5905 TR 2SA1037AK-T146-R

Q3181 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q3182 405 134 5905 TR 2SA1037AK-T146-R

Q3591 405 002 8304 TR 2SA1203-Y-TE12L

Q3592 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q4171 405 134 5905 TR 2SA1037AK-T146-R

Q4172 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q6126 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q6127 405 134 5905 TR 2SA1037AK-T146-R

Q6137 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q8101 405 045 8705 TR 2SK536-TB

Q8102 405 045 8705 TR 2SK536-TB

Q8141 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q856 405 014 4509 TR 2SC2412K T146 R

405 014 4608 TR 2SC2412K T146 S

405 015 8704 TR 2SC2812-L6-TB

405 015 8902 TR 2SC2812-L7-TB

405 163 1602 TR 2SC2812N-L6-TB0

405 163 1701 TR 2SC2812N-L7-TB0

405 173 9803 TR 2SC3928A1R

405 173 9902 TR 2SC3928A1S

Q9801 405 134 5905 TR 2SA1037AK-T146-R

INTEGRATED CIRCUIT

IC1101 409 504 9005 IC TB1274AF

IC1171 409 416 6505 IC BA05FP-E2

IC121 410 300 4804 IC MM1031XM

IC1301 409 339 3605 IC 24LC16BT/SN-T

IC1311 409 301 5309 IC TC7S32FU-TE85L

IC1331 410 397 0406 IC IC61LV6416-15T

IC1341 410 471 4900 IC MBM29LV800TA90C173

IC1351 409 501 9107 IC ICS512MT

IC1361 409 501 9107 IC ICS512MT

IC1371 409 301 5309 IC TC7S32FU-TE85L

IC1501 409 502 3302 IC L3E06070D0A

IC1531 409 502 3302 IC L3E06070D0A

IC1561 409 502 3302 IC L3E06070D0A

IC1581 409 506 0406 IC M62392FP

IC1801 409 339 3605 IC 24LC16BT/SN-T

IC1811 410 409 7201 IC IS61LV256-12T

IC1821 410 349 4100 IC TC7W241FU(TE12L)

IC1826 409 400 7105 IC TC7W53FU-(TE12L)

IC1831 409 506 0406 IC M62392FP

IC1851 409 404 6302 IC M62320FP

IC1861 410 337 0503 IC TC74LCX14FT

410 337 0602 IC HD74LVC14T

IC1871 410 325 4605 IC TC74LCX244FT

IC1881 410 315 5506 IC HD74HCT244TV

410 356 7507 IC SN74HCT244PWR

IC201 409 520 4305 IC AD9888KS-140

IC2101 409 442 1307 IC CXD2064Q

IC2161 409 506 0406 IC M62392FP

IC2181 409 404 6302 IC M62320FP

IC251 410 349 4100 IC TC7W241FU(TE12L)

IC2571 409 458 3401 IC M62393FP

IC2881 409 481 8602 IC LM76CHMX-5

IC301 409 501 8308 IC PW365-10U

IC3101 409 211 7301 IC MC14053BF

409 051 2900 IC TC4053BF-TP1

IC3121 409 461 7304 IC AD8057ART

IC3131 409 461 7304 IC AD8057ART

IC3141 409 461 7304 IC AD8057ART

IC3161 409 428 8405 IC TC7WT125FU-TE12L

IC3181 409 323 8906 IC TC4W53FU(TE12L)

IC3531 409 502 3203 IC L3E01031F0A

IC3551 409 390 0001 IC LM7171AIMX

409 486 7709 IC LM7171BIMX

IC3561 409 502 3203 IC L3E01031F0A

IC3581 409 343 0201 IC LT1206CS8

IC3801 409 380 6303 IC HIN232CB

409 273 3501 IC SP232ACT

IC3821 410 296 5700 IC TWM7000-151020

IC3831 409 404 7200 IC TC7SET00FU-(TE85L)

IC3841 410 275 5707 IC TWM7000-162020

410 275 5806 IC TWM7000-162020

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

Electrical Parts List

-68-

IC401 409 502 3401 IC L3E07050 K0A

IC4101 409 474 0002 IC CXA2101AQ

IC4186 409 428 8405 IC TC7WT125FU-TE12L

IC501 409 502 3302 IC L3E06070D0A

IC5211 409 462 6009 IC AD8185ARU

IC5241 409 470 2604 IC AD8183ARU

IC5251 409 357 6602 IC LT1260CS

IC5261 410 343 7008 IC SN74AHCT1G14DBVR

IC5271 409 461 7304 IC AD8057ART

IC5281 409 461 7304 IC AD8057ART

IC5291 409 461 7304 IC AD8057ART

IC531 409 502 3302 IC L3E06070D0A

IC561 409 502 3302 IC L3E06070D0A

IC6101 409 431 6009 IC MC74VHC14DT

410 356 8009 IC SN74LV14APWR

IC6121 409 158 5804 IC TC74HC123AF-TP1

IC6141 409 158 5804 IC TC74HC123AF-TP1

IC6171 409 523 5002 IC TA1318AF

IC6201 409 407 7900 IC EL4332CS

IC6241 409 484 2003 IC BA7078AF-E2

IC6251 409 431 6009 IC MC74VHC14DT

410 356 8009 IC SN74LV14APWR

IC6261 409 211 7301 IC MC14053BF

409 051 2900 IC TC4053BF-TP1

IC6271 410 354 6304 IC SN74LVC126APWR

IC6281 409 429 6806 IC TC74LCX74FT-(EL)

IC6621 409 124 5708 IC L78M09T-TR

IC6631 409 416 6406 IC BA033FP-E2

IC6641 409 416 6406 IC BA033FP-E2

IC6651 409 416 6406 IC BA033FP-E2

IC6661 409 499 1701 IC PQ025EZ01ZP

409 461 7700 IC PQ2TZ15

IC6671 409 499 1701 IC PQ025EZ01ZP

409 461 7700 IC PQ2TZ15

IC8001 410 451 8805 IC SII161BCT100

IC8002 409 397 3005 IC TC7SET04FU-(TE85L)

IC801 410 471 4801 IC HD64F2238ATE13-C172

IC8051 410 321 8300 IC TC74VCX16244FT

IC8061 410 321 8300 IC TC74VCX16244FT

IC8071 410 321 8300 IC TC74VCX16244FT

IC8081 410 407 4004 IC TC74VCX541FT

IC8101 409 211 7301 IC MC14053BF

409 051 2900 IC TC4053BF-TP1

IC8111 409 417 5507 IC 24LC04BT/SN

IC841 409 433 4201 IC MN13821-H-TX

IC9801 409 468 8908 IC ML60851CTB

409 521 4502 IC ML60851DTB

CAPACITOR

C1101 403 304 2105 ELECT 47U M 6.3V

C1102 403 164 0204 CERAMIC 0.1U Z 25V

C1103 403 304 2105 ELECT 47U M 6.3V

C1104 403 164 0204 CERAMIC 0.1U Z 25V

C1105 403 304 2105 ELECT 47U M 6.3V

C1106 403 164 0204 CERAMIC 0.1U Z 25V

C1107 403 304 2105 ELECT 47U M 6.3V

C1108 403 164 0204 CERAMIC 0.1U Z 25V

C111 403 304 3300 ELECT 47U M 16V

C1111 403 164 0204 CERAMIC 0.1U Z 25V

C1112 403 164 0204 CERAMIC 0.1U Z 25V

C1113 403 164 0204 CERAMIC 0.1U Z 25V

C1114 403 149 9208 CERAMIC 0.01U Z 50V

C1115 403 157 2901 CERAMIC 47P J 50V

C1116 403 164 0204 CERAMIC 0.1U Z 25V

C1117 403 164 0204 CERAMIC 0.1U Z 25V

C1118 403 164 0204 CERAMIC 0.1U Z 25V

C1119 403 162 5300 ELECT 4.7U M 25V

C112 403 164 0204 CERAMIC 0.1U Z 25V

C1121 403 157 1805 CERAMIC 9P D 50V

C1122 403 164 0204 CERAMIC 0.1U Z 25V

C1123 403 149 9208 CERAMIC 0.01U Z 50V

C1124 403 162 6000 ELECT 0.47U M 50V

C1126 403 164 0204 CERAMIC 0.1U Z 25V

C1127 403 149 9208 CERAMIC 0.01U Z 50V

C1128 403 164 0204 CERAMIC 0.1U Z 25V

C1129 403 164 0204 CERAMIC 0.1U Z 25V

C1131 403 215 2904 CERAMIC 0.022U K 25V

C1132 403 162 6604 ELECT 2.2U M 50V

C1133 403 113 3805 CERAMIC 1000P K 50V

C1161 403 155 4204 CERAMIC 15P J 50V

C1171 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C1172 403 164 0204 CERAMIC 0.1U Z 25V

C122 403 164 0204 CERAMIC 0.1U Z 25V

C123 403 266 8108 NP-ELECT 1U M 50V

C1301 403 164 0204 CERAMIC 0.1U Z 25V

C131 403 164 0204 CERAMIC 0.1U Z 25V

C1311 403 164 0204 CERAMIC 0.1U Z 25V

C1331 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C1332 403 164 0204 CERAMIC 0.1U Z 25V

C1333 403 164 0204 CERAMIC 0.1U Z 25V

C1342 403 164 0204 CERAMIC 0.1U Z 25V

C1351 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C1352 403 164 0204 CERAMIC 0.1U Z 25V

C1362 403 164 0204 CERAMIC 0.1U Z 25V

C1371 403 164 0204 CERAMIC 0.1U Z 25V

C1401 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C1402 403 164 0204 CERAMIC 0.1U Z 25V

C1403 403 164 0204 CERAMIC 0.1U Z 25V

C1404 403 164 0204 CERAMIC 0.1U Z 25V

C1406 403 164 0204 CERAMIC 0.1U Z 25V

C1407 403 164 0204 CERAMIC 0.1U Z 25V

C1408 403 164 0204 CERAMIC 0.1U Z 25V

C1409 403 164 0204 CERAMIC 0.1U Z 25V

C1411 403 164 0204 CERAMIC 0.1U Z 25V

C1412 403 164 0204 CERAMIC 0.1U Z 25V

C1413 403 164 0204 CERAMIC 0.1U Z 25V

C1414 403 164 0204 CERAMIC 0.1U Z 25V

C1416 403 164 0204 CERAMIC 0.1U Z 25V

C1501 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C1502 403 164 0204 CERAMIC 0.1U Z 25V

C1503 403 304 3300 ELECT 47U M 16V

C1504 403 164 0204 CERAMIC 0.1U Z 25V

C1506 403 164 0204 CERAMIC 0.1U Z 25V

C1507 403 164 0204 CERAMIC 0.1U Z 25V

C1508 403 164 0204 CERAMIC 0.1U Z 25V

C1509 403 164 0204 CERAMIC 0.1U Z 25V

C151 403 304 3300 ELECT 47U M 16V

C1511 403 164 0204 CERAMIC 0.1U Z 25V

C1512 403 164 0204 CERAMIC 0.1U Z 25V

C1513 403 164 0204 CERAMIC 0.1U Z 25V

C152 403 164 0204 CERAMIC 0.1U Z 25V

C153 403 267 0804 NP-ELECT 47U M 6.3V

C1531 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C1532 403 164 0204 CERAMIC 0.1U Z 25V

C1533 403 304 3300 ELECT 47U M 16V

C1534 403 164 0204 CERAMIC 0.1U Z 25V

C1536 403 164 0204 CERAMIC 0.1U Z 25V

C1537 403 164 0204 CERAMIC 0.1U Z 25V

C1538 403 164 0204 CERAMIC 0.1U Z 25V

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

-69-

Electrical Parts List

C1539 403 164 0204 CERAMIC 0.1U Z 25V

C154 403 164 0204 CERAMIC 0.1U Z 25V

C1541 403 164 0204 CERAMIC 0.1U Z 25V

C1542 403 164 0204 CERAMIC 0.1U Z 25V

C1543 403 164 0204 CERAMIC 0.1U Z 25V

C1561 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C1562 403 164 0204 CERAMIC 0.1U Z 25V

C1563 403 304 3300 ELECT 47U M 16V

C1564 403 164 0204 CERAMIC 0.1U Z 25V

C1566 403 164 0204 CERAMIC 0.1U Z 25V

C1567 403 164 0204 CERAMIC 0.1U Z 25V

C1568 403 164 0204 CERAMIC 0.1U Z 25V

C1569 403 164 0204 CERAMIC 0.1U Z 25V

C1571 403 164 0204 CERAMIC 0.1U Z 25V

C1572 403 164 0204 CERAMIC 0.1U Z 25V

C1573 403 164 0204 CERAMIC 0.1U Z 25V

C1581 403 164 0204 CERAMIC 0.1U Z 25V

C1582 403 304 2105 ELECT 47U M 6.3V

C1583 403 164 0204 CERAMIC 0.1U Z 25V

C171 403 164 0204 CERAMIC 0.1U Z 25V

C1801 403 164 0204 CERAMIC 0.1U Z 25V

C1811 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C1812 403 164 0204 CERAMIC 0.1U Z 25V

C1821 403 164 0204 CERAMIC 0.1U Z 25V

C1826 403 164 0204 CERAMIC 0.1U Z 25V

C1831 403 304 2105 ELECT 47U M 6.3V

C1832 403 164 0204 CERAMIC 0.1U Z 25V

C1833 403 304 2105 ELECT 47U M 6.3V

C1834 403 164 0204 CERAMIC 0.1U Z 25V

C1861 403 164 0204 CERAMIC 0.1U Z 25V

C1871 403 164 0204 CERAMIC 0.1U Z 25V

C1881 403 164 0204 CERAMIC 0.1U Z 25V

C201 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C202 403 164 0204 CERAMIC 0.1U Z 25V

C203 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C204 403 164 0204 CERAMIC 0.1U Z 25V

C205 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C206 403 164 0204 CERAMIC 0.1U Z 25V

C2101 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C2102 403 164 0204 CERAMIC 0.1U Z 25V

C2103 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C2104 403 164 0204 CERAMIC 0.1U Z 25V

C2105 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C2106 403 164 0204 CERAMIC 0.1U Z 25V

C211 403 157 7203 CERAMIC 3900P K 50V

C2111 403 175 4802 NP-ELECT 10U M 10V

C2112 403 164 0204 CERAMIC 0.1U Z 25V

C2113 403 164 0204 CERAMIC 0.1U Z 25V

C2117 403 164 0204 CERAMIC 0.1U Z 25V

C2118 403 164 0204 CERAMIC 0.1U Z 25V

C2119 403 164 0204 CERAMIC 0.1U Z 25V

C2121 403 164 0204 CERAMIC 0.1U Z 25V

C2124 403 149 9208 CERAMIC 0.01U Z 50V

C2126 403 149 9208 CERAMIC 0.01U Z 50V

C2127 403 215 2904 CERAMIC 0.022U K 25V

C213 403 338 0108 CERAMIC 0.039U K 25V

C2161 403 304 2105 ELECT 47U M 6.3V

C2162 403 164 0204 CERAMIC 0.1U Z 25V

C2163 403 304 2105 ELECT 47U M 6.3V

C2164 403 164 0204 CERAMIC 0.1U Z 25V

C221 403 164 0204 CERAMIC 0.1U Z 25V

C222 403 164 0204 CERAMIC 0.1U Z 25V

C223 403 164 0204 CERAMIC 0.1U Z 25V

C225 403 164 0204 CERAMIC 0.1U Z 25V

C228 403 164 0204 CERAMIC 0.1U Z 25V

C229 403 164 0204 CERAMIC 0.1U Z 25V

C231 403 164 0204 CERAMIC 0.1U Z 25V

C232 403 164 0204 CERAMIC 0.1U Z 25V

C233 403 164 0204 CERAMIC 0.1U Z 25V

C234 403 164 0204 CERAMIC 0.1U Z 25V

C235 403 164 0204 CERAMIC 0.1U Z 25V

C2501 403 164 0204 CERAMIC 0.1U Z 25V

C2502 403 164 0204 CERAMIC 0.1U Z 25V

C2503 403 164 0204 CERAMIC 0.1U Z 25V

C2506 403 164 0204 CERAMIC 0.1U Z 25V

C2507 403 304 3508 ELECT 10U M 25V

C2508 403 164 0204 CERAMIC 0.1U Z 25V

C251 403 164 0204 CERAMIC 0.1U Z 25V

C2511 403 164 0204 CERAMIC 0.1U Z 25V

C2512 403 164 0204 CERAMIC 0.1U Z 25V

C2513 403 164 0204 CERAMIC 0.1U Z 25V

C2516 403 164 0204 CERAMIC 0.1U Z 25V

C2517 403 304 3508 ELECT 10U M 25V

C2518 403 164 0204 CERAMIC 0.1U Z 25V

C2521 403 164 0204 CERAMIC 0.1U Z 25V

C2522 403 164 0204 CERAMIC 0.1U Z 25V

C2523 403 164 0204 CERAMIC 0.1U Z 25V

C2526 403 164 0204 CERAMIC 0.1U Z 25V

C2527 403 304 3508 ELECT 10U M 25V

C2528 403 164 0204 CERAMIC 0.1U Z 25V

C2571 403 164 0204 CERAMIC 0.1U Z 25V

C2572 403 304 2105 ELECT 47U M 6.3V

C2573 403 164 0204 CERAMIC 0.1U Z 25V

C2591 403 229 3508 ELECT 100U M 16V

403 335 0408 ELECT 100U M 16V

C278 403 164 0204 CERAMIC 0.1U Z 25V

C2807 403 157 2901 CERAMIC 47P J 50V

C2821 403 164 0204 CERAMIC 0.1U Z 25V

C2822 403 164 0204 CERAMIC 0.1U Z 25V

C2823 403 164 0204 CERAMIC 0.1U Z 25V

C288 403 164 0204 CERAMIC 0.1U Z 25V

C2882 403 164 0204 CERAMIC 0.1U Z 25V

C298 403 164 0204 CERAMIC 0.1U Z 25V

C301 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C302 403 164 0204 CERAMIC 0.1U Z 25V

C303 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C304 403 164 0204 CERAMIC 0.1U Z 25V

C306 403 164 0204 CERAMIC 0.1U Z 25V

C307 403 164 0204 CERAMIC 0.1U Z 25V

C308 403 164 0204 CERAMIC 0.1U Z 25V

C309 403 164 0204 CERAMIC 0.1U Z 25V

C3101 403 162 4709 ELECT 10U M 16V

403 335 0309 ELECT 10U M 16V

C3102 403 162 4709 ELECT 10U M 16V

403 335 0309 ELECT 10U M 16V

C3103 403 164 0204 CERAMIC 0.1U Z 25V

C3104 403 162 4709 ELECT 10U M 16V

403 335 0309 ELECT 10U M 16V

C311 403 164 0204 CERAMIC 0.1U Z 25V

C3112 403 163 9802 CERAMIC 0.047U Z 25V

C3113 403 163 9802 CERAMIC 0.047U Z 25V

C312 403 164 0204 CERAMIC 0.1U Z 25V

C3122 403 157 1904 CERAMIC 10P D 50V

C3126 403 304 1801 ELECT 100U M 6.3V

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

Electrical Parts List

-70-

403 373 7704 ELECT 100U M 6.3V

C3127 403 164 0204 CERAMIC 0.1U Z 25V

C313 403 164 0204 CERAMIC 0.1U Z 25V

C3132 403 157 1904 CERAMIC 10P D 50V

C314 403 164 0204 CERAMIC 0.1U Z 25V

C3142 403 157 1904 CERAMIC 10P D 50V

C316 403 164 0204 CERAMIC 0.1U Z 25V

C3161 403 164 0204 CERAMIC 0.1U Z 25V

C317 403 164 0204 CERAMIC 0.1U Z 25V

C318 403 164 0204 CERAMIC 0.1U Z 25V

C319 403 164 0204 CERAMIC 0.1U Z 25V

C321 403 164 0204 CERAMIC 0.1U Z 25V

C322 403 164 0204 CERAMIC 0.1U Z 25V

C323 403 164 0204 CERAMIC 0.1U Z 25V

C324 403 164 0204 CERAMIC 0.1U Z 25V

C3532 403 164 0204 CERAMIC 0.1U Z 25V

C3533 403 229 3508 ELECT 100U M 16V

403 335 0408 ELECT 100U M 16V

C3534 403 164 0204 CERAMIC 0.1U Z 25V

C3536 403 164 0204 CERAMIC 0.1U Z 25V

C3538 403 164 0204 CERAMIC 0.1U Z 25V

C3539 403 164 0204 CERAMIC 0.1U Z 25V

C3551 403 229 3508 ELECT 100U M 16V

403 335 0408 ELECT 100U M 16V

C3552 403 164 0204 CERAMIC 0.1U Z 25V

C3553 403 157 3601 CERAMIC 100P J 50V

C3562 403 164 0204 CERAMIC 0.1U Z 25V

C3563 403 229 3508 ELECT 100U M 16V

403 335 0408 ELECT 100U M 16V

C3564 403 164 0204 CERAMIC 0.1U Z 25V

C3566 403 164 0204 CERAMIC 0.1U Z 25V

C3568 403 164 0204 CERAMIC 0.1U Z 25V

C3569 403 164 0204 CERAMIC 0.1U Z 25V

C3581 403 229 3508 ELECT 100U M 16V

403 335 0408 ELECT 100U M 16V

C3582 403 164 0204 CERAMIC 0.1U Z 25V

C3583 403 157 3601 CERAMIC 100P J 50V

C3584 403 149 9208 CERAMIC 0.01U Z 50V

C3592 403 162 4709 ELECT 10U M 16V

403 335 0309 ELECT 10U M 16V

C3801 403 164 0204 CERAMIC 0.1U Z 25V

C3802 403 162 6208 ELECT 1U M 50V

C3803 403 162 6208 ELECT 1U M 50V

C3804 403 162 6208 ELECT 1U M 50V

C3806 403 162 6208 ELECT 1U M 50V

C3821 403 164 0204 CERAMIC 0.1U Z 25V

C3831 403 164 0204 CERAMIC 0.1U Z 25V

C3841 403 162 6208 ELECT 1U M 50V

C3842 403 164 0204 CERAMIC 0.1U Z 25V

C3843 403 164 0204 CERAMIC 0.1U Z 25V

C3844 403 304 2105 ELECT 47U M 6.3V

C401 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C402 403 164 0204 CERAMIC 0.1U Z 25V

C403 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C404 403 164 0204 CERAMIC 0.1U Z 25V

C406 403 164 0204 CERAMIC 0.1U Z 25V

C407 403 164 0204 CERAMIC 0.1U Z 25V

C408 403 164 0204 CERAMIC 0.1U Z 25V

C409 403 164 0204 CERAMIC 0.1U Z 25V

C4102 403 164 0204 CERAMIC 0.1U Z 25V

C4103 403 280 1604 ELECT 220U M 16V

C4104 403 164 0204 CERAMIC 0.1U Z 25V

C4105 403 304 3300 ELECT 47U M 16V

C4106 403 164 0204 CERAMIC 0.1U Z 25V

C411 403 164 0204 CERAMIC 0.1U Z 25V

C4116 403 164 0204 CERAMIC 0.1U Z 25V

C412 403 164 0204 CERAMIC 0.1U Z 25V

C4127 403 283 6309 CERAMIC 1U Z 10V

C413 403 164 0204 CERAMIC 0.1U Z 25V

C4134 403 149 9208 CERAMIC 0.01U Z 50V

C4137 403 283 6309 CERAMIC 1U Z 10V

C4138 403 164 0204 CERAMIC 0.1U Z 25V

C4139 403 164 0204 CERAMIC 0.1U Z 25V

C414 403 164 0204 CERAMIC 0.1U Z 25V

C4141 403 164 0204 CERAMIC 0.1U Z 25V

C4142 403 162 4709 ELECT 10U M 16V

403 335 0309 ELECT 10U M 16V

C4143 403 162 6000 ELECT 0.47U M 50V

C4144 403 149 9208 CERAMIC 0.01U Z 50V

C4146 403 162 4709 ELECT 10U M 16V

403 335 0309 ELECT 10U M 16V

C4147 403 164 0204 CERAMIC 0.1U Z 25V

C4148 403 149 9208 CERAMIC 0.01U Z 50V

C4149 403 149 9208 CERAMIC 0.01U Z 50V

C4151 403 149 9208 CERAMIC 0.01U Z 50V

C4152 403 149 9208 CERAMIC 0.01U Z 50V

C4153 403 149 9208 CERAMIC 0.01U Z 50V

C4154 403 149 9208 CERAMIC 0.01U Z 50V

C4156 403 162 4709 ELECT 10U M 16V

403 335 0309 ELECT 10U M 16V

C4158 403 162 6000 ELECT 0.47U M 50V

C4159 403 149 9208 CERAMIC 0.01U Z 50V

C416 403 164 0204 CERAMIC 0.1U Z 25V

C4161 403 149 9208 CERAMIC 0.01U Z 50V

C4162 403 149 9208 CERAMIC 0.01U Z 50V

C4163 403 164 0204 CERAMIC 0.1U Z 25V

C4164 403 164 0204 CERAMIC 0.1U Z 25V

C4166 403 164 0204 CERAMIC 0.1U Z 25V

C4167 403 164 0204 CERAMIC 0.1U Z 25V

C4168 403 164 0204 CERAMIC 0.1U Z 25V

C4169 403 164 0204 CERAMIC 0.1U Z 25V

C417 403 164 0204 CERAMIC 0.1U Z 25V

C4176 403 164 0204 CERAMIC 0.1U Z 25V

C4177 403 175 4802 NP-ELECT 10U M 10V

C418 403 164 0204 CERAMIC 0.1U Z 25V

C4186 403 164 0204 CERAMIC 0.1U Z 25V

C419 403 164 0204 CERAMIC 0.1U Z 25V

C421 403 164 0204 CERAMIC 0.1U Z 25V

C422 403 164 0204 CERAMIC 0.1U Z 25V

C423 403 164 0204 CERAMIC 0.1U Z 25V

C501 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C502 403 164 0204 CERAMIC 0.1U Z 25V

C503 403 304 3300 ELECT 47U M 16V

C504 403 164 0204 CERAMIC 0.1U Z 25V

C506 403 164 0204 CERAMIC 0.1U Z 25V

C507 403 164 0204 CERAMIC 0.1U Z 25V

C508 403 164 0204 CERAMIC 0.1U Z 25V

C509 403 164 0204 CERAMIC 0.1U Z 25V

C511 403 164 0204 CERAMIC 0.1U Z 25V

C512 403 164 0204 CERAMIC 0.1U Z 25V

C513 403 164 0204 CERAMIC 0.1U Z 25V

C5201 403 304 2105 ELECT 47U M 6.3V

C5202 403 164 0204 CERAMIC 0.1U Z 25V

C5203 403 304 2105 ELECT 47U M 6.3V

C5204 403 164 0204 CERAMIC 0.1U Z 25V

C5206 403 304 2105 ELECT 47U M 6.3V

C5207 403 164 0204 CERAMIC 0.1U Z 25V

C5208 403 304 2105 ELECT 47U M 6.3V

C5209 403 164 0204 CERAMIC 0.1U Z 25V

C521 403 164 0204 CERAMIC 0.1U Z 25V

C5216 403 164 0204 CERAMIC 0.1U Z 25V

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

-71-

Electrical Parts List

C5217 403 164 0204 CERAMIC 0.1U Z 25V

C5218 403 164 0204 CERAMIC 0.1U Z 25V

C5219 403 149 9208 CERAMIC 0.01U Z 50V

C522 403 164 0204 CERAMIC 0.1U Z 25V

C5231 403 162 4006 ELECT 22U M 6.3V

C5232 403 162 4006 ELECT 22U M 6.3V

C5233 403 162 4006 ELECT 22U M 6.3V

C5241 403 164 0204 CERAMIC 0.1U Z 25V

C5242 403 164 0204 CERAMIC 0.1U Z 25V

C5243 403 164 0204 CERAMIC 0.1U Z 25V

C5244 403 149 9208 CERAMIC 0.01U Z 50V

C5246 403 267 0804 NP-ELECT 47U M 6.3V

C5247 403 267 0804 NP-ELECT 47U M 6.3V

C5248 403 267 0804 NP-ELECT 47U M 6.3V

C5251 403 164 0204 CERAMIC 0.1U Z 25V

C5252 403 164 0204 CERAMIC 0.1U Z 25V

C5253 403 164 0204 CERAMIC 0.1U Z 25V

C5256 403 304 3300 ELECT 47U M 16V

C5257 403 164 0204 CERAMIC 0.1U Z 25V

C5258 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C5259 403 164 0204 CERAMIC 0.1U Z 25V

C5261 403 164 0204 CERAMIC 0.1U Z 25V

C5271 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C5272 403 283 6309 CERAMIC 1U Z 10V

C5273 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C5274 403 283 6309 CERAMIC 1U Z 10V

C5276 403 157 1904 CERAMIC 10P D 50V

C5277 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

C5278 403 157 2901 CERAMIC 47P J 50V

C5286 403 157 1904 CERAMIC 10P D 50V

C5287 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

C5288 403 157 2901 CERAMIC 47P J 50V

C5296 403 157 1904 CERAMIC 10P D 50V

C5297 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

C5298 403 157 2901 CERAMIC 47P J 50V

C531 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C532 403 164 0204 CERAMIC 0.1U Z 25V

C533 403 304 3300 ELECT 47U M 16V

C534 403 164 0204 CERAMIC 0.1U Z 25V

C536 403 164 0204 CERAMIC 0.1U Z 25V

C537 403 164 0204 CERAMIC 0.1U Z 25V

C538 403 164 0204 CERAMIC 0.1U Z 25V

C539 403 164 0204 CERAMIC 0.1U Z 25V

C541 403 164 0204 CERAMIC 0.1U Z 25V

C542 403 164 0204 CERAMIC 0.1U Z 25V

C543 403 164 0204 CERAMIC 0.1U Z 25V

C551 403 164 0204 CERAMIC 0.1U Z 25V

C552 403 164 0204 CERAMIC 0.1U Z 25V

C561 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C562 403 164 0204 CERAMIC 0.1U Z 25V

C563 403 304 3300 ELECT 47U M 16V

C564 403 164 0204 CERAMIC 0.1U Z 25V

C566 403 164 0204 CERAMIC 0.1U Z 25V

C567 403 164 0204 CERAMIC 0.1U Z 25V

C568 403 164 0204 CERAMIC 0.1U Z 25V

C569 403 164 0204 CERAMIC 0.1U Z 25V

C571 403 164 0204 CERAMIC 0.1U Z 25V

C572 403 164 0204 CERAMIC 0.1U Z 25V

C573 403 164 0204 CERAMIC 0.1U Z 25V

C581 403 164 0204 CERAMIC 0.1U Z 25V

C582 403 164 0204 CERAMIC 0.1U Z 25V

C6101 403 164 0204 CERAMIC 0.1U Z 25V

C6121 403 164 0204 CERAMIC 0.1U Z 25V

C6127 403 155 1302 CERAMIC 150P J 50V

C6131 403 163 9802 CERAMIC 0.047U Z 25V

C6141 403 164 0204 CERAMIC 0.1U Z 25V

C6147 403 163 9802 CERAMIC 0.047U Z 25V

C6151 403 163 9802 CERAMIC 0.047U Z 25V

C6170 403 229 3508 ELECT 100U M 16V

403 335 0408 ELECT 100U M 16V

C6171 403 229 3508 ELECT 100U M 16V

403 335 0408 ELECT 100U M 16V

C6172 403 164 0204 CERAMIC 0.1U Z 25V

C6176 403 164 0204 CERAMIC 0.1U Z 25V

C6177 403 164 0204 CERAMIC 0.1U Z 25V

C6178 403 215 2201 CERAMIC 0.01U K 50V

C6179 403 162 6604 ELECT 2.2U M 50V

C6183 403 164 0204 CERAMIC 0.1U Z 25V

C6184 403 164 0204 CERAMIC 0.1U Z 25V

C6202 403 283 6309 CERAMIC 1U Z 10V

C6204 403 283 6309 CERAMIC 1U Z 10V

C6206 403 149 9208 CERAMIC 0.01U Z 50V

C6211 403 313 8006 CERAMIC 1000P J 25V

C6212 403 348 5803 CERAMIC 0.47U K 10V

C6221 403 313 8006 CERAMIC 1000P J 25V

C6222 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

C6241 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C6242 403 164 0204 CERAMIC 0.1U Z 25V

C6243 403 205 7803 TA-SOLID 2.2U M 16V

C6244 403 205 7803 TA-SOLID 2.2U M 16V

C6245 403 162 6208 ELECT 1U M 50V

C6246 403 348 5803 CERAMIC 0.47U K 10V

C6247 403 162 6604 ELECT 2.2U M 50V

C6248 403 162 6208 ELECT 1U M 50V

C6249 403 157 3601 CERAMIC 100P J 50V

C6251 403 164 0204 CERAMIC 0.1U Z 25V

C6261 403 164 0204 CERAMIC 0.1U Z 25V

C6265 403 157 3809 CERAMIC 120P J 50V

C6266 403 157 3809 CERAMIC 120P J 50V

C6267 403 157 3809 CERAMIC 120P J 50V

C6268 403 157 3809 CERAMIC 120P J 50V

C6271 403 164 0204 CERAMIC 0.1U Z 25V

C6281 403 164 0204 CERAMIC 0.1U Z 25V

C6601 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C6602 403 164 0204 CERAMIC 0.1U Z 25V

C6603 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C6604 403 164 0204 CERAMIC 0.1U Z 25V

C6606 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C6607 403 164 0204 CERAMIC 0.1U Z 25V

C6611 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C6612 403 164 0204 CERAMIC 0.1U Z 25V

C6613 403 280 1604 ELECT 220U M 16V

C6614 403 164 0204 CERAMIC 0.1U Z 25V

C6616 403 280 1604 ELECT 220U M 16V

C6617 403 280 1604 ELECT 220U M 16V

C6621 403 229 3508 ELECT 100U M 16V

403 335 0408 ELECT 100U M 16V

C6622 403 164 0204 CERAMIC 0.1U Z 25V

C6623 403 229 3508 ELECT 100U M 16V

403 335 0408 ELECT 100U M 16V

C6624 403 164 0204 CERAMIC 0.1U Z 25V

C6631 403 229 3508 ELECT 100U M 16V

403 335 0408 ELECT 100U M 16V

C6632 403 164 0204 CERAMIC 0.1U Z 25V

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

Electrical Parts List

-72-

C6633 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C6634 403 164 0204 CERAMIC 0.1U Z 25V

C6642 403 164 0204 CERAMIC 0.1U Z 25V

C6643 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C6644 403 164 0204 CERAMIC 0.1U Z 25V

C6652 403 164 0204 CERAMIC 0.1U Z 25V

C6653 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C6654 403 164 0204 CERAMIC 0.1U Z 25V

C6662 403 164 0204 CERAMIC 0.1U Z 25V

C6663 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C6664 403 164 0204 CERAMIC 0.1U Z 25V

C6665 403 164 0204 CERAMIC 0.1U Z 25V

C6672 403 164 0204 CERAMIC 0.1U Z 25V

C6673 403 322 7809 ELECT 220U M 6.3V

403 349 4706 ELECT 220U M 6.3V

C6674 403 164 0204 CERAMIC 0.1U Z 25V

C6675 403 164 0204 CERAMIC 0.1U Z 25V

C8001 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C8002 403 164 0204 CERAMIC 0.1U Z 25V

C8003 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C8004 403 164 0204 CERAMIC 0.1U Z 25V

C8005 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C8006 403 164 0204 CERAMIC 0.1U Z 25V

C801 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C8011 403 164 0204 CERAMIC 0.1U Z 25V

C8012 403 155 1500 CERAMIC 180P J 50V

C8013 403 169 2807 CERAMIC 330P J 50V

C8014 403 169 2807 CERAMIC 330P J 50V

C8016 403 155 1500 CERAMIC 180P J 50V

C8017 403 169 2807 CERAMIC 330P J 50V

C8019 403 169 2807 CERAMIC 330P J 50V

C802 403 164 0204 CERAMIC 0.1U Z 25V

C8021 403 155 1500 CERAMIC 180P J 50V

C8022 403 169 2807 CERAMIC 330P J 50V

C8023 403 157 3601 CERAMIC 100P J 50V

C8024 403 157 3601 CERAMIC 100P J 50V

C8026 403 157 3601 CERAMIC 100P J 50V

C8027 403 157 3601 CERAMIC 100P J 50V

C8028 403 157 3601 CERAMIC 100P J 50V

C8029 403 164 0204 CERAMIC 0.1U Z 25V

C8051 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C8052 403 164 0204 CERAMIC 0.1U Z 25V

C8053 403 164 0204 CERAMIC 0.1U Z 25V

C8062 403 164 0204 CERAMIC 0.1U Z 25V

C8063 403 164 0204 CERAMIC 0.1U Z 25V

C8072 403 164 0204 CERAMIC 0.1U Z 25V

C8073 403 164 0204 CERAMIC 0.1U Z 25V

C8082 403 164 0204 CERAMIC 0.1U Z 25V

C8101 403 304 1801 ELECT 100U M 6.3V

403 373 7704 ELECT 100U M 6.3V

C8102 403 164 0204 CERAMIC 0.1U Z 25V

C811 403 164 0204 CERAMIC 0.1U Z 25V

C812 403 164 0204 CERAMIC 0.1U Z 25V

C813 403 164 0204 CERAMIC 0.1U Z 25V

C814 403 164 0204 CERAMIC 0.1U Z 25V

C841 403 304 2105 ELECT 47U M 6.3V

C842 403 164 0204 CERAMIC 0.1U Z 25V

C843 403 162 4709 ELECT 10U M 16V

403 335 0309 ELECT 10U M 16V

C844 403 283 6309 CERAMIC 1U Z 10V

C846 403 164 0204 CERAMIC 0.1U Z 25V

C851 403 145 9905 CERAMIC 22P J 50V

C852 403 145 9905 CERAMIC 22P J 50V

C9802 403 164 0204 CERAMIC 0.1U Z 25V

C9803 403 164 0204 CERAMIC 0.1U Z 25V

C9804 403 164 0204 CERAMIC 0.1U Z 25V

C9806 403 164 0204 CERAMIC 0.1U Z 25V

C9811 403 113 3805 CERAMIC 1000P K 50V

C9812 403 153 9102 CERAMIC 5P C 50V

C9813 403 164 0204 CERAMIC 0.1U Z 25V

RESISTOR

RB1431 645 037 0663 R-NETWORK 22X4 0.063W

645 033 2210 R-NETWORK 22X4 1/16W

RB1432 645 037 0663 R-NETWORK 22X4 0.063W

645 033 2210 R-NETWORK 22X4 1/16W

RB1433 645 037 0663 R-NETWORK 22X4 0.063W

645 033 2210 R-NETWORK 22X4 1/16W

RB1434 645 037 0663 R-NETWORK 22X4 0.063W

645 033 2210 R-NETWORK 22X4 1/16W

RB1435 645 037 0663 R-NETWORK 22X4 0.063W

645 033 2210 R-NETWORK 22X4 1/16W

RB1436 645 037 0663 R-NETWORK 22X4 0.063W

645 033 2210 R-NETWORK 22X4 1/16W

RB1441 645 037 0656 R-NETWORK 0X4 0.063W

645 027 1519 R-NETWORK 0X4 1/16W

RB1442 645 037 0656 R-NETWORK 0X4 0.063W

645 027 1519 R-NETWORK 0X4 1/16W

RB1443 645 037 0656 R-NETWORK 0X4 0.063W

645 027 1519 R-NETWORK 0X4 1/16W

RB1444 645 037 0656 R-NETWORK 0X4 0.063W

645 027 1519 R-NETWORK 0X4 1/16W

RB1445 645 037 0656 R-NETWORK 0X4 0.063W

645 027 1519 R-NETWORK 0X4 1/16W

RB1446 645 037 0656 R-NETWORK 0X4 0.063W

645 027 1519 R-NETWORK 0X4 1/16W

RB301 645 020 7822 R-NETWORK 10KX4 0.063W

645 026 8014 R-NETWORK 10KX4 1/16W

RB302 645 020 7822 R-NETWORK 10KX4 0.063W

645 026 8014 R-NETWORK 10KX4 1/16W

RB303 645 020 7822 R-NETWORK 10KX4 0.063W

645 026 8014 R-NETWORK 10KX4 1/16W

RB304 645 020 7822 R-NETWORK 10KX4 0.063W

645 026 8014 R-NETWORK 10KX4 1/16W

RB305 645 020 7822 R-NETWORK 10KX4 0.063W

645 026 8014 R-NETWORK 10KX4 1/16W

RB306 645 020 7822 R-NETWORK 10KX4 0.063W

645 026 8014 R-NETWORK 10KX4 1/16W

RB307 645 020 7822 R-NETWORK 10KX4 0.063W

645 026 8014 R-NETWORK 10KX4 1/16W

RB308 645 020 7822 R-NETWORK 10KX4 0.063W

645 026 8014 R-NETWORK 10KX4 1/16W

RB309 645 020 7822 R-NETWORK 10KX4 0.063W

645 026 8014 R-NETWORK 10KX4 1/16W

RB310 645 020 7822 R-NETWORK 10KX4 0.063W

645 026 8014 R-NETWORK 10KX4 1/16W

RB311 645 020 7822 R-NETWORK 10KX4 0.063W

645 026 8014 R-NETWORK 10KX4 1/16W

RB312 645 020 7822 R-NETWORK 10KX4 0.063W

645 026 8014 R-NETWORK 10KX4 1/16W

RB3821 645 020 7822 R-NETWORK 10KX4 0.063W

645 026 8014 R-NETWORK 10KX4 1/16W

RB411 645 037 0663 R-NETWORK 22X4 0.063W

645 033 2210 R-NETWORK 22X4 1/16W

RB412 645 037 0663 R-NETWORK 22X4 0.063W

645 033 2210 R-NETWORK 22X4 1/16W

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

-73-

Electrical Parts List

RB413 645 037 0663 R-NETWORK 22X4 0.063W

645 033 2210 R-NETWORK 22X4 1/16W

RB414 645 037 0663 R-NETWORK 22X4 0.063W

645 033 2210 R-NETWORK 22X4 1/16W

RB415 645 037 0663 R-NETWORK 22X4 0.063W

645 033 2210 R-NETWORK 22X4 1/16W

RB416 645 037 0663 R-NETWORK 22X4 0.063W

645 033 2210 R-NETWORK 22X4 1/16W

RB501 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB502 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB503 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB531 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB532 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB533 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB561 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB562 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB563 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB8001 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB8002 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB8003 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB8004 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB8005 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB8006 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB8007 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB8008 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB8011 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB8012 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB8013 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB8014 645 037 3107 R-NETWORK 10X4 0.063W

645 028 5998 R-NETWORK 10X4 1/16W

RB9801 645 021 0365 R-NETWORK 100KX4 0.063W

645 026 8021 R-NETWORK 100KX4 1/16W

RB9802 645 021 0365 R-NETWORK 100KX4 0.063W

645 026 8021 R-NETWORK 100KX4 1/16W

R110 401 105 0405 MT-GLAZE 100 JA 1/16W

R1101 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1102 401 105 6605 MT-GLAZE 6.8K JA 1/16W

R1103 401 105 6605 MT-GLAZE 6.8K JA 1/16W

R1104 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R1105 401 105 0405 MT-GLAZE 100 JA 1/16W

R1106 401 105 0405 MT-GLAZE 100 JA 1/16W

R1122 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1123 401 105 1105 MT-GLAZE 12K JA 1/16W

R1127 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1129 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R113 401 105 0504 MT-GLAZE 1K JA 1/16W

R1131 401 105 3406 MT-GLAZE 27K JA 1/16W

R1132 401 105 7503 MT-GLAZE 82K JA 1/16W

R1133 401 105 1006 MT-GLAZE 1.2K JA 1/16W

R1134 401 105 0504 MT-GLAZE 1K JA 1/16W

R1136 401 105 0504 MT-GLAZE 1K JA 1/16W

R1137 401 105 0405 MT-GLAZE 100 JA 1/16W

R1139 401 105 0504 MT-GLAZE 1K JA 1/16W

R114 401 105 6506 MT-GLAZE 680 JA 1/16W

R1141 401 105 5905 MT-GLAZE 560 JA 1/16W

R1142 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R1143 401 105 0504 MT-GLAZE 1K JA 1/16W

R1144 401 105 5905 MT-GLAZE 560 JA 1/16W

R1145 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R1146 401 105 0504 MT-GLAZE 1K JA 1/16W

R1147 401 105 5905 MT-GLAZE 560 JA 1/16W

R1148 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R1149 401 105 0504 MT-GLAZE 1K JA 1/16W

R1151 401 105 0405 MT-GLAZE 100 JA 1/16W

R1152 401 105 0504 MT-GLAZE 1K JA 1/16W

R1153 401 105 0405 MT-GLAZE 100 JA 1/16W

R1154 401 105 0504 MT-GLAZE 1K JA 1/16W

R1155 401 105 0405 MT-GLAZE 100 JA 1/16W

R1156 401 105 0504 MT-GLAZE 1K JA 1/16W

R116 401 105 3307 MT-GLAZE 2.7K JA 1/16W

R1161 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1162 401 105 0504 MT-GLAZE 1K JA 1/16W

R121 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R123 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1301 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R131 401 105 0405 MT-GLAZE 100 JA 1/16W

R1311 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1312 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1313 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R132 401 105 0504 MT-GLAZE 1K JA 1/16W

R133 401 105 0405 MT-GLAZE 100 JA 1/16W

R134 401 105 0504 MT-GLAZE 1K JA 1/16W

R1341 401 105 0603 MT-GLAZE 10K JA 1/16W

R1342 401 105 0603 MT-GLAZE 10K JA 1/16W

R1344 401 105 0603 MT-GLAZE 10K JA 1/16W

R1346 401 105 0603 MT-GLAZE 10K JA 1/16W

R1352 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1353 401 105 0603 MT-GLAZE 10K JA 1/16W

R1357 401 105 0603 MT-GLAZE 10K JA 1/16W

R1362 401 113 4402 MT-GLAZE 75 JA 1/16W

R1366 401 105 0603 MT-GLAZE 10K JA 1/16W

R1371 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R1372 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R1373 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1383 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1384 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1386 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1388 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1389 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1391 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1431 401 105 2607 MT-GLAZE 22 JA 1/16W

R1432 401 105 2607 MT-GLAZE 22 JA 1/16W

R1433 401 105 2607 MT-GLAZE 22 JA 1/16W

R1434 401 105 2607 MT-GLAZE 22 JA 1/16W

R1435 401 105 2607 MT-GLAZE 22 JA 1/16W

R1436 401 105 2607 MT-GLAZE 22 JA 1/16W

R1441 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1442 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1443 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1444 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1445 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1446 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1502 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1503 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

Electrical Parts List

-74-

R152 401 105 8104 MT-GLAZE 56K JA 1/16W

R153 401 105 3406 MT-GLAZE 27K JA 1/16W

R1532 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1533 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R154 401 105 0504 MT-GLAZE 1K JA 1/16W

R156 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R1562 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1563 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R157 401 105 6506 MT-GLAZE 680 JA 1/16W

R158 401 105 3307 MT-GLAZE 2.7K JA 1/16W

R1581 401 105 0405 MT-GLAZE 100 JA 1/16W

R1582 401 105 0405 MT-GLAZE 100 JA 1/16W

R1583 401 105 0603 MT-GLAZE 10K JA 1/16W

R1584 401 105 0603 MT-GLAZE 10K JA 1/16W

R1586 401 105 0603 MT-GLAZE 10K JA 1/16W

R1587 401 105 0405 MT-GLAZE 100 JA 1/16W

R1588 401 105 0405 MT-GLAZE 100 JA 1/16W

R1589 401 105 0405 MT-GLAZE 100 JA 1/16W

R159 401 105 0504 MT-GLAZE 1K JA 1/16W

R1591 401 105 7404 MT-GLAZE 8.2K JA 1/16W

R1592 401 105 7404 MT-GLAZE 8.2K JA 1/16W

R1593 401 105 7404 MT-GLAZE 8.2K JA 1/16W

R171 401 105 7503 MT-GLAZE 82K JA 1/16W

R172 401 105 3406 MT-GLAZE 27K JA 1/16W

R173 401 105 0504 MT-GLAZE 1K JA 1/16W

R174 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R176 401 105 6506 MT-GLAZE 680 JA 1/16W

R177 401 105 3307 MT-GLAZE 2.7K JA 1/16W

R178 401 105 0504 MT-GLAZE 1K JA 1/16W

R1801 401 105 0405 MT-GLAZE 100 JA 1/16W

R1802 401 105 0405 MT-GLAZE 100 JA 1/16W

R1816 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R1817 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R1818 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R1819 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R1831 401 105 0405 MT-GLAZE 100 JA 1/16W

R1832 401 105 0405 MT-GLAZE 100 JA 1/16W

R1833 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1834 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1836 401 105 0405 MT-GLAZE 100 JA 1/16W

R1837 401 105 0405 MT-GLAZE 100 JA 1/16W

R1851 401 105 0405 MT-GLAZE 100 JA 1/16W

R1852 401 105 0405 MT-GLAZE 100 JA 1/16W

R1853 401 105 0603 MT-GLAZE 10K JA 1/16W

R1855 401 105 0603 MT-GLAZE 10K JA 1/16W

R1861 401 105 0405 MT-GLAZE 100 JA 1/16W

R1862 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1863 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1864 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1876 401 105 0405 MT-GLAZE 100 JA 1/16W

R1877 401 105 0405 MT-GLAZE 100 JA 1/16W

R1878 401 105 0405 MT-GLAZE 100 JA 1/16W

R1879 401 105 0504 MT-GLAZE 1K JA 1/16W

R1881 401 105 0405 MT-GLAZE 100 JA 1/16W

R1882 401 105 0405 MT-GLAZE 100 JA 1/16W

R1883 401 105 0405 MT-GLAZE 100 JA 1/16W

R1884 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1888 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R1889 401 105 0504 MT-GLAZE 1K JA 1/16W

R1891 401 105 0504 MT-GLAZE 1K JA 1/16W

R1892 401 105 0603 MT-GLAZE 10K JA 1/16W

R1896 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R201 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R204 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R206 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R207 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R208 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R209 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R2101 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2102 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2103 401 105 3901 MT-GLAZE 33 JA 1/16W

R2104 401 105 1907 MT-GLAZE 180 JA 1/16W

R2105 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R2106 401 105 0306 MT-GLAZE 10 JA 1/16W

R2107 401 105 3901 MT-GLAZE 33 JA 1/16W

R2108 401 105 1907 MT-GLAZE 180 JA 1/16W

R2109 401 105 0306 MT-GLAZE 10 JA 1/16W

R2110 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R2111 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R2112 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R2113 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R2117 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2118 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2119 401 105 0405 MT-GLAZE 100 JA 1/16W

R2121 401 105 0405 MT-GLAZE 100 JA 1/16W

R2123 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R2124 401 105 8104 MT-GLAZE 56K JA 1/16W

R2125 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2126 401 105 5905 MT-GLAZE 560 JA 1/16W

R2128 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R213 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2131 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R214 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R216 401 113 6604 MT-GLAZE 7.5K JA 1/16W

R2161 401 105 0405 MT-GLAZE 100 JA 1/16W

R2162 401 105 0405 MT-GLAZE 100 JA 1/16W

R217 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R218 401 105 0603 MT-GLAZE 10K JA 1/16W

R2181 401 105 0405 MT-GLAZE 100 JA 1/16W

R2182 401 105 0405 MT-GLAZE 100 JA 1/16W

R221 401 105 5103 MT-GLAZE 47 JA 1/16W

R222 401 105 0405 MT-GLAZE 100 JA 1/16W

R2501 401 148 6006 MT-GLAZE 2.2 JA 1/16W

R2502 401 148 6006 MT-GLAZE 2.2 JA 1/16W

R2506 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R2507 401 105 4601 MT-GLAZE 3.9K JA 1/16W

R2508 401 105 4700 MT-GLAZE 39K JA 1/16W

R2509 401 105 0504 MT-GLAZE 1K JA 1/16W

R251 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R2511 401 148 6006 MT-GLAZE 2.2 JA 1/16W

R2512 401 148 6006 MT-GLAZE 2.2 JA 1/16W

R2516 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R2517 401 105 4601 MT-GLAZE 3.9K JA 1/16W

R2518 401 105 4700 MT-GLAZE 39K JA 1/16W

R2519 401 105 0504 MT-GLAZE 1K JA 1/16W

R252 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R2521 401 148 6006 MT-GLAZE 2.2 JA 1/16W

R2522 401 148 6006 MT-GLAZE 2.2 JA 1/16W

R2526 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R2527 401 105 4601 MT-GLAZE 3.9K JA 1/16W

R2528 401 105 4700 MT-GLAZE 39K JA 1/16W

R2529 401 105 0504 MT-GLAZE 1K JA 1/16W

R253 401 105 0405 MT-GLAZE 100 JA 1/16W

R2533 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2534 401 105 4205 MT-GLAZE 33K JA 1/16W

R2536 401 105 0603 MT-GLAZE 10K JA 1/16W

R2537 401 105 0702 MT-GLAZE 100K JA 1/16W

R2538 401 105 0702 MT-GLAZE 100K JA 1/16W

R2539 401 105 0702 MT-GLAZE 100K JA 1/16W

R2541 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2542 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2543 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2544 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2545 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

-75-

Electrical Parts List

R2546 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2547 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2548 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2549 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2550 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2551 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2552 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2553 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2554 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2555 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2556 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2557 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2558 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2559 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2560 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2561 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2562 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2571 401 105 0405 MT-GLAZE 100 JA 1/16W

R2572 401 105 0405 MT-GLAZE 100 JA 1/16W

R2576 401 105 0504 MT-GLAZE 1K JA 1/16W

R2577 401 105 0504 MT-GLAZE 1K JA 1/16W

R2581 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R2584 401 105 4601 MT-GLAZE 3.9K JA 1/16W

R2591 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

R2806 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2807 401 105 0405 MT-GLAZE 100 JA 1/16W

R2816 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2818 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2821 401 105 5202 MT-GLAZE 470 JA 1/16W

R2822 401 105 5202 MT-GLAZE 470 JA 1/16W

R2823 401 105 5202 MT-GLAZE 470 JA 1/16W

R2824 401 105 0603 MT-GLAZE 10K JA 1/16W

R2825 401 105 0603 MT-GLAZE 10K JA 1/16W

R2826 401 105 0603 MT-GLAZE 10K JA 1/16W

R2841 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2842 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2843 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2844 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2851 401 105 0504 MT-GLAZE 1K JA 1/16W

R2852 401 105 0504 MT-GLAZE 1K JA 1/16W

R2853 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R2854 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R2856 401 105 0504 MT-GLAZE 1K JA 1/16W

R2857 401 105 0504 MT-GLAZE 1K JA 1/16W

R2858 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R2861 401 105 0504 MT-GLAZE 1K JA 1/16W

R2862 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R2866 401 105 4502 MT-GLAZE 390 JA 1/16W

R2867 401 105 4502 MT-GLAZE 390 JA 1/16W

R2868 401 105 5301 MT-GLAZE 4.7K JA 1/16W

(ME3-XU4500, PLC-XU45)

R2872 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2874 401 105 1006 MT-GLAZE 1.2K JA 1/16W

R2898 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2899 401 105 1006 MT-GLAZE 1.2K JA 1/16W

R2877 401 105 2904 MT-GLAZE 22K JA 1/16W

(MF3-XU4600, PLC-XU46)

R2871 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2875 401 105 4502 MT-GLAZE 390 JA 1/16W

R2896 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2897 401 105 4502 MT-GLAZE 390 JA 1/16W

R2881 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2882 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2883 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2884 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2887 401 105 0603 MT-GLAZE 10K JA 1/16W

R2889 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R2891 401 105 0603 MT-GLAZE 10K JA 1/16W

R301 401 105 0603 MT-GLAZE 10K JA 1/16W

R302 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R306 401 105 0603 MT-GLAZE 10K JA 1/16W

R307 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R308 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3100 401 105 7305 MT-GLAZE 820 JA 1/16W

R3101 401 105 6001 MT-GLAZE 5.6K JA 1/16W

R3102 401 105 6001 MT-GLAZE 5.6K JA 1/16W

R3103 401 105 7305 MT-GLAZE 820 JA 1/16W

R3104 401 105 1006 MT-GLAZE 1.2K JA 1/16W

R3105 401 105 1006 MT-GLAZE 1.2K JA 1/16W

R3106 401 105 2904 MT-GLAZE 22K JA 1/16W

R3107 401 105 6001 MT-GLAZE 5.6K JA 1/16W

R3108 401 105 1006 MT-GLAZE 1.2K JA 1/16W

R3109 401 105 7305 MT-GLAZE 820 JA 1/16W

R3111 401 105 0504 MT-GLAZE 1K JA 1/16W

R3112 401 105 0504 MT-GLAZE 1K JA 1/16W

R3113 401 105 1907 MT-GLAZE 180 JA 1/16W

R3114 401 158 4108 MT-GLAZE 4.7 JA 1/16W

R3115 401 112 8005 MT-GLAZE 5.6 JA 1/16W

R312 401 105 0603 MT-GLAZE 10K JA 1/16W

R3121 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3122 401 105 3901 MT-GLAZE 33 JA 1/16W

R3123 401 105 0504 MT-GLAZE 1K JA 1/16W

R3126 401 105 1402 MT-GLAZE 150 JA 1/16W

R3127 401 105 1402 MT-GLAZE 150 JA 1/16W

R313 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3131 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3132 401 105 3901 MT-GLAZE 33 JA 1/16W

R3133 401 105 0504 MT-GLAZE 1K JA 1/16W

R3136 401 105 1402 MT-GLAZE 150 JA 1/16W

R3137 401 105 1402 MT-GLAZE 150 JA 1/16W

R314 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3141 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3142 401 105 3901 MT-GLAZE 33 JA 1/16W

R3143 401 105 0504 MT-GLAZE 1K JA 1/16W

R3146 401 105 1402 MT-GLAZE 150 JA 1/16W

R3147 401 105 1402 MT-GLAZE 150 JA 1/16W

R316 401 105 0603 MT-GLAZE 10K JA 1/16W

R3163 401 105 0405 MT-GLAZE 100 JA 1/16W

R3164 401 105 0603 MT-GLAZE 10K JA 1/16W

R3165 401 105 3307 MT-GLAZE 2.7K JA 1/16W

R3168 401 105 0504 MT-GLAZE 1K JA 1/16W

R3169 401 105 0504 MT-GLAZE 1K JA 1/16W

R317 401 105 0603 MT-GLAZE 10K JA 1/16W

R3171 401 105 0504 MT-GLAZE 1K JA 1/16W

R3172 401 105 3307 MT-GLAZE 2.7K JA 1/16W

R3173 401 105 0504 MT-GLAZE 1K JA 1/16W

R3174 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R3176 401 105 0504 MT-GLAZE 1K JA 1/16W

R3177 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R318 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3181 401 105 0603 MT-GLAZE 10K JA 1/16W

R3182 401 105 0603 MT-GLAZE 10K JA 1/16W

R3184 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3185 401 105 0504 MT-GLAZE 1K JA 1/16W

R319 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R322 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R323 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R324 401 105 0603 MT-GLAZE 10K JA 1/16W

R328 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R329 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R331 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R332 401 105 2607 MT-GLAZE 22 JA 1/16W

R333 401 105 2607 MT-GLAZE 22 JA 1/16W

R334 401 105 2607 MT-GLAZE 22 JA 1/16W

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

Electrical Parts List

-76-

R336 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R338 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R344 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R346 401 105 0603 MT-GLAZE 10K JA 1/16W

R348 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R349 401 105 0603 MT-GLAZE 10K JA 1/16W

R352 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3531 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3532 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3534 401 105 0306 MT-GLAZE 10 JA 1/16W

R3535 401 105 0306 MT-GLAZE 10 JA 1/16W

R3537 401 105 0306 MT-GLAZE 10 JA 1/16W

R3538 401 105 0306 MT-GLAZE 10 JA 1/16W

R3539 401 105 0306 MT-GLAZE 10 JA 1/16W

R354 401 105 0603 MT-GLAZE 10K JA 1/16W

R3540 401 105 0306 MT-GLAZE 10 JA 1/16W

R3541 401 105 0306 MT-GLAZE 10 JA 1/16W

R3543 401 105 0306 MT-GLAZE 10 JA 1/16W

R3544 401 105 0306 MT-GLAZE 10 JA 1/16W

R3545 401 105 0306 MT-GLAZE 10 JA 1/16W

R3546 401 105 0306 MT-GLAZE 10 JA 1/16W

R3547 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3552 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R3553 401 105 0504 MT-GLAZE 1K JA 1/16W

R3556 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3558 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R356 401 105 0603 MT-GLAZE 10K JA 1/16W

R3561 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3562 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3563 401 105 0306 MT-GLAZE 10 JA 1/16W

R3564 401 105 0306 MT-GLAZE 10 JA 1/16W

R3565 401 105 0306 MT-GLAZE 10 JA 1/16W

R3567 401 105 0306 MT-GLAZE 10 JA 1/16W

R3568 401 105 0306 MT-GLAZE 10 JA 1/16W

R3569 401 105 0306 MT-GLAZE 10 JA 1/16W

R3570 401 105 0306 MT-GLAZE 10 JA 1/16W

R3571 401 105 0306 MT-GLAZE 10 JA 1/16W

R3573 401 105 0306 MT-GLAZE 10 JA 1/16W

R3574 401 105 0306 MT-GLAZE 10 JA 1/16W

R3575 401 105 0306 MT-GLAZE 10 JA 1/16W

R3576 401 105 0306 MT-GLAZE 10 JA 1/16W

R3577 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R358 401 105 0603 MT-GLAZE 10K JA 1/16W

R3581 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R3582 401 105 0504 MT-GLAZE 1K JA 1/16W

R359 401 105 0603 MT-GLAZE 10K JA 1/16W

R3591 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R3592 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R3593 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R3594 401 105 0603 MT-GLAZE 10K JA 1/16W

R361 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R362 401 105 0603 MT-GLAZE 10K JA 1/16W

R364 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R366 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R368 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R371 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3801 401 105 0405 MT-GLAZE 100 JA 1/16W

R3802 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3803 401 105 0603 MT-GLAZE 10K JA 1/16W

R3804 401 105 0405 MT-GLAZE 100 JA 1/16W

R3806 401 105 0405 MT-GLAZE 100 JA 1/16W

R381 401 105 0603 MT-GLAZE 10K JA 1/16W

R3821 401 105 0603 MT-GLAZE 10K JA 1/16W

R3822 401 105 4205 MT-GLAZE 33K JA 1/16W

R3823 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R383 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3831 401 105 0405 MT-GLAZE 100 JA 1/16W

R3832 401 105 0405 MT-GLAZE 100 JA 1/16W

R3835 401 105 0504 MT-GLAZE 1K JA 1/16W

R384 401 105 0603 MT-GLAZE 10K JA 1/16W

R3841 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R3842 401 105 0603 MT-GLAZE 10K JA 1/16W

R3843 401 105 0603 MT-GLAZE 10K JA 1/16W

R3844 401 105 0405 MT-GLAZE 100 JA 1/16W

R3846 401 105 0603 MT-GLAZE 10K JA 1/16W

R3847 401 105 0603 MT-GLAZE 10K JA 1/16W

R3848 401 105 0603 MT-GLAZE 10K JA 1/16W

R387 401 105 0603 MT-GLAZE 10K JA 1/16W

R388 401 105 0603 MT-GLAZE 10K JA 1/16W

R391 401 105 0603 MT-GLAZE 10K JA 1/16W

R392 401 105 0603 MT-GLAZE 10K JA 1/16W

R393 401 105 0603 MT-GLAZE 10K JA 1/16W

R394 401 105 0603 MT-GLAZE 10K JA 1/16W

R4103 401 105 5202 MT-GLAZE 470 JA 1/16W

R4104 401 217 5404 MT-GLAZE 47K FA 1/16W

R4106 401 105 8104 MT-GLAZE 56K JA 1/16W

R4107 401 105 8104 MT-GLAZE 56K JA 1/16W

R4108 401 105 0405 MT-GLAZE 100 JA 1/16W

R4109 401 105 0405 MT-GLAZE 100 JA 1/16W

R411 401 105 2607 MT-GLAZE 22 JA 1/16W

R4111 401 105 0405 MT-GLAZE 100 JA 1/16W

R4112 401 105 0603 MT-GLAZE 10K JA 1/16W

R4113 401 105 0603 MT-GLAZE 10K JA 1/16W

R4114 401 105 0603 MT-GLAZE 10K JA 1/16W

R4116 401 105 6001 MT-GLAZE 5.6K JA 1/16W

R4117 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R4118 401 114 0908 MT-GLAZE 3.3M JA 1/16W

R4119 401 105 0603 MT-GLAZE 10K JA 1/16W

R412 401 105 2607 MT-GLAZE 22 JA 1/16W

R4121 401 105 0603 MT-GLAZE 10K JA 1/16W

R4123 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R4124 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R4127 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R4128 401 105 0405 MT-GLAZE 100 JA 1/16W

R4129 401 105 0405 MT-GLAZE 100 JA 1/16W

R413 401 105 2607 MT-GLAZE 22 JA 1/16W

R4131 401 105 0405 MT-GLAZE 100 JA 1/16W

R4133 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R4134 401 105 0405 MT-GLAZE 100 JA 1/16W

R4136 401 105 0405 MT-GLAZE 100 JA 1/16W

R4137 401 105 0405 MT-GLAZE 100 JA 1/16W

R4138 401 105 0405 MT-GLAZE 100 JA 1/16W

R4139 401 217 4100 MT-GLAZE 22K FA 1/16W

R414 401 105 2607 MT-GLAZE 22 JA 1/16W

R415 401 105 2607 MT-GLAZE 22 JA 1/16W

R416 401 105 2607 MT-GLAZE 22 JA 1/16W

R4174 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R4176 401 105 0405 MT-GLAZE 100 JA 1/16W

R4177 401 105 0504 MT-GLAZE 1K JA 1/16W

R4178 401 105 2805 MT-GLAZE 2.2K JA 1/16W

R4179 401 105 1006 MT-GLAZE 1.2K JA 1/16W

R4181 401 105 0405 MT-GLAZE 100 JA 1/16W

R4182 401 105 3000 MT-GLAZE 220K JA 1/16W

R4183 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R420 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R422 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R423 401 105 3901 MT-GLAZE 33 JA 1/16W

R424 401 105 3901 MT-GLAZE 33 JA 1/16W

R426 401 105 3901 MT-GLAZE 33 JA 1/16W

R427 401 105 3901 MT-GLAZE 33 JA 1/16W

R428 401 105 3901 MT-GLAZE 33 JA 1/16W

R429 401 105 3901 MT-GLAZE 33 JA 1/16W

R431 401 105 3901 MT-GLAZE 33 JA 1/16W

R432 401 105 3901 MT-GLAZE 33 JA 1/16W

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

-77-

Electrical Parts List

R433 401 105 3901 MT-GLAZE 33 JA 1/16W

R434 401 105 3901 MT-GLAZE 33 JA 1/16W

R436 401 105 3901 MT-GLAZE 33 JA 1/16W

R437 401 105 3901 MT-GLAZE 33 JA 1/16W

R438 401 105 3901 MT-GLAZE 33 JA 1/16W

R439 401 105 3901 MT-GLAZE 33 JA 1/16W

R441 401 105 3901 MT-GLAZE 33 JA 1/16W

R442 401 105 3901 MT-GLAZE 33 JA 1/16W

R443 401 105 3901 MT-GLAZE 33 JA 1/16W

R444 401 105 3901 MT-GLAZE 33 JA 1/16W

R446 401 105 3901 MT-GLAZE 33 JA 1/16W

R447 401 105 3901 MT-GLAZE 33 JA 1/16W

R448 401 105 3901 MT-GLAZE 33 JA 1/16W

R449 401 105 3901 MT-GLAZE 33 JA 1/16W

R451 401 105 3901 MT-GLAZE 33 JA 1/16W

R457 401 105 3901 MT-GLAZE 33 JA 1/16W

R458 401 105 3901 MT-GLAZE 33 JA 1/16W

R459 401 105 3901 MT-GLAZE 33 JA 1/16W

R461 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R462 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R463 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R464 401 105 0603 MT-GLAZE 10K JA 1/16W

R466 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R467 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R468 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R469 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R471 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R472 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R473 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R501 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R504 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5201 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5202 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5203 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5204 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5205 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5208 401 105 0405 MT-GLAZE 100 JA 1/16W

R521 401 105 6001 MT-GLAZE 5.6K JA 1/16W

R5210 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5211 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5212 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5216 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5217 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5218 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5221 401 113 4402 MT-GLAZE 75 JA 1/16W

R5222 401 105 0900 MT-GLAZE 120 JA 1/16W

R5223 401 113 4402 MT-GLAZE 75 JA 1/16W

R5224 401 105 0900 MT-GLAZE 120 JA 1/16W

R5225 401 113 4402 MT-GLAZE 75 JA 1/16W

R5226 401 105 0900 MT-GLAZE 120 JA 1/16W

R523 401 113 6406 MT-GLAZE 5.1K JA 1/16W

R5231 401 105 0405 MT-GLAZE 100 JA 1/16W

R5232 401 105 0603 MT-GLAZE 10K JA 1/16W

R5233 401 105 0405 MT-GLAZE 100 JA 1/16W

R5234 401 105 0603 MT-GLAZE 10K JA 1/16W

R5235 401 105 0405 MT-GLAZE 100 JA 1/16W

R5236 401 105 0603 MT-GLAZE 10K JA 1/16W

R524 401 105 7404 MT-GLAZE 8.2K JA 1/16W

R5241 401 105 0306 MT-GLAZE 10 JA 1/16W

R5243 401 105 0306 MT-GLAZE 10 JA 1/16W

R5245 401 105 0306 MT-GLAZE 10 JA 1/16W

R5248 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5251 401 105 0504 MT-GLAZE 1K JA 1/16W

R5252 401 105 0504 MT-GLAZE 1K JA 1/16W

R5253 401 105 0504 MT-GLAZE 1K JA 1/16W

R5254 401 105 0405 MT-GLAZE 100 JA 1/16W

R5255 401 105 0405 MT-GLAZE 100 JA 1/16W

R5256 401 105 0405 MT-GLAZE 100 JA 1/16W

R5261 401 105 0504 MT-GLAZE 1K JA 1/16W

R5262 401 105 0504 MT-GLAZE 1K JA 1/16W

R5263 401 105 0504 MT-GLAZE 1K JA 1/16W

R5264 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5265 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5266 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5268 401 105 0405 MT-GLAZE 100 JA 1/16W

R5269 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5270 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5271 401 105 1402 MT-GLAZE 150 JA 1/16W

R5274 401 105 3901 MT-GLAZE 33 JA 1/16W

R5276 401 105 0504 MT-GLAZE 1K JA 1/16W

R5277 401 105 7404 MT-GLAZE 8.2K JA 1/16W

R5278 401 105 5103 MT-GLAZE 47 JA 1/16W

R5280 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5281 401 105 1402 MT-GLAZE 150 JA 1/16W

R5284 401 105 3901 MT-GLAZE 33 JA 1/16W

R5286 401 105 0504 MT-GLAZE 1K JA 1/16W

R5287 401 105 7404 MT-GLAZE 8.2K JA 1/16W

R5288 401 105 5103 MT-GLAZE 47 JA 1/16W

R5290 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R5291 401 105 1402 MT-GLAZE 150 JA 1/16W

R5294 401 105 3901 MT-GLAZE 33 JA 1/16W

R5296 401 105 0504 MT-GLAZE 1K JA 1/16W

R5297 401 105 7404 MT-GLAZE 8.2K JA 1/16W

R5298 401 105 5103 MT-GLAZE 47 JA 1/16W

R531 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R534 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R551 401 105 6001 MT-GLAZE 5.6K JA 1/16W

R553 401 113 6406 MT-GLAZE 5.1K JA 1/16W

R554 401 105 7404 MT-GLAZE 8.2K JA 1/16W

R561 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R564 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R581 401 105 6001 MT-GLAZE 5.6K JA 1/16W

R583 401 113 6406 MT-GLAZE 5.1K JA 1/16W

R584 401 105 7404 MT-GLAZE 8.2K JA 1/16W

R6102 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6104 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6106 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6122 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6123 401 105 0405 MT-GLAZE 100 JA 1/16W

R6126 401 105 0702 MT-GLAZE 100K JA 1/16W

R6127 401 105 0702 MT-GLAZE 100K JA 1/16W

R6128 401 105 0702 MT-GLAZE 100K JA 1/16W

R6129 401 105 2102 MT-GLAZE 18K JA 1/16W

R6130 401 105 1600 MT-GLAZE 15K JA 1/16W

R6131 401 105 1105 MT-GLAZE 12K JA 1/16W

R6133 401 105 0405 MT-GLAZE 100 JA 1/16W

R6136 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6137 401 105 0603 MT-GLAZE 10K JA 1/16W

R6138 401 105 0504 MT-GLAZE 1K JA 1/16W

R6142 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6143 401 105 0405 MT-GLAZE 100 JA 1/16W

R6148 401 105 0405 MT-GLAZE 100 JA 1/16W

R6149 401 105 1105 MT-GLAZE 12K JA 1/16W

R6151 401 105 1105 MT-GLAZE 12K JA 1/16W

R6153 401 105 0405 MT-GLAZE 100 JA 1/16W

R6156 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6157 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6171 401 105 6001 MT-GLAZE 5.6K JA 1/16W

R6172 401 113 5201 MT-GLAZE 360 JA 1/16W

R6173 401 105 0405 MT-GLAZE 100 JA 1/16W

R6174 401 105 0405 MT-GLAZE 100 JA 1/16W

R6176 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R6177 401 105 0405 MT-GLAZE 100 JA 1/16W

R6178 401 105 0405 MT-GLAZE 100 JA 1/16W

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

Electrical Parts List

-78-

R6179 401 105 0405 MT-GLAZE 100 JA 1/16W

R6183 401 158 4108 MT-GLAZE 4.7 JA 1/16W

R6184 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6187 401 105 0603 MT-GLAZE 10K JA 1/16W

R6188 401 105 0405 MT-GLAZE 100 JA 1/16W

R6189 401 105 0405 MT-GLAZE 100 JA 1/16W

R6201 401 258 9904 MT-GLAZE 10 JA 1/3W

R6206 401 105 1402 MT-GLAZE 150 JA 1/16W

R6207 401 105 1402 MT-GLAZE 150 JA 1/16W

R6208 401 105 1402 MT-GLAZE 150 JA 1/16W

R6211 401 105 0504 MT-GLAZE 1K JA 1/16W

R6221 401 105 0504 MT-GLAZE 1K JA 1/16W

R6231 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6232 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6237 401 105 0405 MT-GLAZE 100 JA 1/16W

R6241 401 105 8005 MT-GLAZE 1M JA 1/16W

R6242 401 105 4601 MT-GLAZE 3.9K JA 1/16W

R6243 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6244 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6251 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6252 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6253 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6254 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6271 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6272 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6273 401 105 5103 MT-GLAZE 47 JA 1/16W

R6274 401 105 5103 MT-GLAZE 47 JA 1/16W

R6281 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R6283 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

!R6601 402 083 5109 FUSIBLE RES 5.6 JH 1/4W

!R6602 402 083 5109 FUSIBLE RES 5.6 JH 1/4W

!R6606 402 080 7007 FUSIBLE RES 1.8 JH 1/4W

!R6607 402 080 7007 FUSIBLE RES 1.8 JH 1/4W

!R6616 645 030 1056 PROTECTOR,IC 3.8A 72V

R6622 401 198 7701 MT-GLAZE 33 JA 1W

R6623 401 198 7701 MT-GLAZE 33 JA 1W

R6624 401 198 7701 MT-GLAZE 33 JA 1W

R6652 401 235 6209 MT-GLAZE 2.7 JA 1W

R6661 401 105 0405 MT-GLAZE 100 JA 1/16W

R6671 401 105 0405 MT-GLAZE 100 JA 1/16W

R6672 401 235 6209 MT-GLAZE 2.7 JA 1W

R6681 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8001 401 105 0603 MT-GLAZE 10K JA 1/16W

R8002 401 105 0603 MT-GLAZE 10K JA 1/16W

R8006 401 105 0603 MT-GLAZE 10K JA 1/16W

R8007 401 105 0603 MT-GLAZE 10K JA 1/16W

R8008 401 105 0603 MT-GLAZE 10K JA 1/16W

R801 401 105 0405 MT-GLAZE 100 JA 1/16W

R8011 401 105 0603 MT-GLAZE 10K JA 1/16W

R8012 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8013 401 105 0603 MT-GLAZE 10K JA 1/16W

R8018 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R802 401 105 0405 MT-GLAZE 100 JA 1/16W

R8021 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8022 401 105 0306 MT-GLAZE 10 JA 1/16W

R8023 401 105 0306 MT-GLAZE 10 JA 1/16W

R8024 401 105 0306 MT-GLAZE 10 JA 1/16W

R8028 401 105 4007 MT-GLAZE 330 JA 1/16W

R8029 401 105 3109 MT-GLAZE 27 JA 1/16W

R803 401 105 0405 MT-GLAZE 100 JA 1/16W

R804 401 105 0405 MT-GLAZE 100 JA 1/16W

R806 401 105 0603 MT-GLAZE 10K JA 1/16W

R807 401 105 2003 MT-GLAZE 1.8K JA 1/16W

R808 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R8081 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8082 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8083 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R8085 401 105 0405 MT-GLAZE 100 JA 1/16W

R8086 401 105 0405 MT-GLAZE 100 JA 1/16W

R8087 401 105 0405 MT-GLAZE 100 JA 1/16W

R8088 401 105 0405 MT-GLAZE 100 JA 1/16W

R8089 401 105 0405 MT-GLAZE 100 JA 1/16W

R8101 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R8102 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R8108 401 105 0603 MT-GLAZE 10K JA 1/16W

R8109 401 105 0603 MT-GLAZE 10K JA 1/16W

R811 401 105 4106 MT-GLAZE 3.3K JA 1/16W

R8111 401 105 0405 MT-GLAZE 100 JA 1/16W

R8112 401 105 0405 MT-GLAZE 100 JA 1/16W

R812 401 105 0603 MT-GLAZE 10K JA 1/16W

R814 401 105 0603 MT-GLAZE 10K JA 1/16W

R8141 401 105 0603 MT-GLAZE 10K JA 1/16W

R8143 401 105 0603 MT-GLAZE 10K JA 1/16W

R817 401 105 0603 MT-GLAZE 10K JA 1/16W

R819 401 105 6605 MT-GLAZE 6.8K JA 1/16W

R821 401 105 0405 MT-GLAZE 100 JA 1/16W

R822 401 105 0405 MT-GLAZE 100 JA 1/16W

R823 401 105 0603 MT-GLAZE 10K JA 1/16W

R826 401 105 8203 MT-GLAZE 68K JA 1/16W

R827 401 105 0603 MT-GLAZE 10K JA 1/16W

R828 401 105 0405 MT-GLAZE 100 JA 1/16W

R831 401 105 0405 MT-GLAZE 100 JA 1/16W

R832 401 105 0405 MT-GLAZE 100 JA 1/16W

R834 401 105 0603 MT-GLAZE 10K JA 1/16W

R836 401 105 0603 MT-GLAZE 10K JA 1/16W

R841 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R842 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R846 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R847 401 105 0603 MT-GLAZE 10K JA 1/16W

R848 401 105 0603 MT-GLAZE 10K JA 1/16W

R851 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R856 401 105 1006 MT-GLAZE 1.2K JA 1/16W

R857 401 105 0603 MT-GLAZE 10K JA 1/16W

R858 401 105 0603 MT-GLAZE 10K JA 1/16W

R861 401 105 0405 MT-GLAZE 100 JA 1/16W

R862 401 105 0405 MT-GLAZE 100 JA 1/16W

R866 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R867 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R868 401 105 0603 MT-GLAZE 10K JA 1/16W

R871 401 105 0603 MT-GLAZE 10K JA 1/16W

R872 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R873 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R874 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R876 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R877 401 105 0405 MT-GLAZE 100 JA 1/16W

R878 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R879 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R881 401 105 0603 MT-GLAZE 10K JA 1/16W

R882 401 105 0405 MT-GLAZE 100 JA 1/16W

R884 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

(ME3-XU4500, PLC-XU45)

R885 401 105 0603 MT-GLAZE 10K JA 1/16W

(MF3-XU4600, PLC-XU46)

R880 401 105 0603 MT-GLAZE 10K JA 1/16W

R886 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R887 401 105 0405 MT-GLAZE 100 JA 1/16W

R888 401 105 0603 MT-GLAZE 10K JA 1/16W

R889 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R891 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R892 401 105 5301 MT-GLAZE 4.7K JA 1/16W

R893 401 105 0405 MT-GLAZE 100 JA 1/16W

R894 401 105 0405 MT-GLAZE 100 JA 1/16W

R895 401 105 0603 MT-GLAZE 10K JA 1/16W

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

-79-

Electrical Parts List

R896 401 105 0405 MT-GLAZE 100 JA 1/16W

R899 401 105 0603 MT-GLAZE 10K JA 1/16W

R9801 401 105 5400 MT-GLAZE 47K JA 1/16W

R9803 401 105 1501 MT-GLAZE 1.5K JA 1/16W

R9806 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R9807 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

R9811 401 105 8005 MT-GLAZE 1M JA 1/16W

R9812 401 105 0405 MT-GLAZE 100 JA 1/16W

R9813 401 105 0405 MT-GLAZE 100 JA 1/16W

R9814 401 105 0405 MT-GLAZE 100 JA 1/16W

R9816 401 105 0405 MT-GLAZE 100 JA 1/16W

R9822 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

TRANSFORMER

T111 645 044 3626 FILTER,LP 7MHZ

T151 645 044 3626 FILTER,LP 7MHZ

T171 645 044 3626 FILTER,LP 7MHZ

COIL

L1101 645 004 1990 INDUCTOR,47U K

L1102 645 001 4512 INDUCTOR,10U K

L1103 645 024 8665 INDUCTOR,4.7U M

L1161 645 021 1799 INDUCTOR,82U J

L1501 645 020 1776 INDUCTOR,3.3U M

L1502 645 020 1776 INDUCTOR,3.3U M

L151 645 026 1008 INDUCTOR,3.3U M

L1531 645 020 1776 INDUCTOR,3.3U M

L1532 645 020 1776 INDUCTOR,3.3U M

L1561 645 020 1776 INDUCTOR,3.3U M

L1562 645 020 1776 INDUCTOR,3.3U M

L1581 645 026 1008 INDUCTOR,3.3U M

L1831 645 026 1008 INDUCTOR,3.3U M

L201 645 026 0988 INDUCTOR,2.2U M

L202 645 026 0988 INDUCTOR,2.2U M

L203 645 026 0988 INDUCTOR,2.2U M

L2101 645 024 8641 INDUCTOR,33U K

L2102 645 001 4512 INDUCTOR,10U K

L2103 645 024 8641 INDUCTOR,33U K

L2161 645 026 1008 INDUCTOR,3.3U M

L2571 645 026 1008 INDUCTOR,3.3U M

L2591 645 020 1776 INDUCTOR,3.3U M

L3531 645 020 1776 INDUCTOR,3.3U M

L3561 645 020 1776 INDUCTOR,3.3U M

L3591 401 035 4306 MT-GLAZE 10 JA 1/8W

L501 645 020 1776 INDUCTOR,3.3U M

L502 645 020 1776 INDUCTOR,3.3U M

L5201 401 035 4108 MT-GLAZE 0.000 ZA 1/8W

L5202 645 020 1776 INDUCTOR,3.3U M

L531 645 020 1776 INDUCTOR,3.3U M

L532 645 020 1776 INDUCTOR,3.3U M

L561 645 020 1776 INDUCTOR,3.3U M

L562 645 020 1776 INDUCTOR,3.3U M

L6601 645 020 1776 INDUCTOR,3.3U M

L8001 645 026 0988 INDUCTOR,2.2U M

L8002 645 026 0988 INDUCTOR,2.2U M

L8003 645 026 0988 INDUCTOR,2.2U M

L8004 645 026 0988 INDUCTOR,2.2U M

L8051 645 026 0988 INDUCTOR,2.2U M

L9811 645 021 1645 INDUCTOR,2.2U J

DIODE

D1171 407 149 0807 DIODE 1SS355-TE-17

D1891 407 149 0807 DIODE 1SS355-TE-17

D2806 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D2807 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D2821 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2822 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2823 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2841 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2842 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2843 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2844 407 187 8209 ZENER DIODE UDZ12B-TE-17

D2871 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D2872 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D2873 407 179 0501 ZENER DIODE UDZ6.2B-TE-17

D3111 407 149 0807 DIODE 1SS355-TE-17

D3112 407 149 0807 DIODE 1SS355-TE-17

D3161 407 149 0807 DIODE 1SS355-TE-17

D3171 407 149 0807 DIODE 1SS355-TE-17

D3591 407 149 0807 DIODE 1SS355-TE-17

D3801 407 149 0807 DIODE 1SS355-TE-17

D3802 407 149 0807 DIODE 1SS355-TE-17

D3821 407 179 1706 ZENER DIODE UDZ5.1B-TE-17

D3831 407 149 0807 DIODE 1SS355-TE-17

D6126 407 149 0807 DIODE 1SS355-TE-17

D6127 407 149 0807 DIODE 1SS355-TE-17

D6131 407 149 0807 DIODE 1SS355-TE-17

D6132 407 149 0807 DIODE 1SS355-TE-17

D6146 407 149 0807 DIODE 1SS355-TE-17

D6151 407 149 0807 DIODE 1SS355-TE-17

D6211 407 149 0807 DIODE 1SS355-TE-17

D6212 407 149 0807 DIODE 1SS355-TE-17

D6601 407 149 0807 DIODE 1SS355-TE-17

D6602 407 149 0807 DIODE 1SS355-TE-17

D6606 407 149 0807 DIODE 1SS355-TE-17

D6611 407 149 0807 DIODE 1SS355-TE-17

D6621 407 149 0807 DIODE 1SS355-TE-17

D6631 407 149 0807 DIODE 1SS355-TE-17

D6641 407 149 0807 DIODE 1SS355-TE-17

D6642 407 149 0807 DIODE 1SS355-TE-17

D6661 407 149 0807 DIODE 1SS355-TE-17

D6662 407 149 0807 DIODE 1SS355-TE-17

D801 407 149 0807 DIODE 1SS355-TE-17

D802 407 149 0807 DIODE 1SS355-TE-17

D8101 407 149 0807 DIODE 1SS355-TE-17

D8106 407 201 2701 DIODE RB051L-40-TE25

D856 407 149 0807 DIODE 1SS355-TE-17

D857 407 149 0807 DIODE 1SS355-TE-17

MISCELLANEOUS

X1101 645 047 1568 OSC,CRYSTAL 16.200MHZ

X1351 645 047 6587 OSC,CRYSTAL 26.000MHZ

X1361 645 047 6846 OSC,CRYSTAL 24.000MHZ

X3821 645 021 1218 OSC,CERAMIC 8.00MHZ

645 037 5187 OSC,CERAMIC 8.00MHZ

X3841 645 021 1218 OSC,CERAMIC 8.00MHZ

645 037 5187 OSC,CERAMIC 8.00MHZ

X6171 645 053 7677 OSC,CERAMIC 503.0KHZ

X851 645 030 5436 OSC,CRYSTAL 12.288MHZ

X9811 645 035 8906 OSC,CRYSTAL 48MHZ

610 304 8932 ASSY,PWB,TEMP ME3A

INTEGRATED CIRCUIT

IC4881 409 481 8602 IC LM76CHMX-5

CAPACITOR

C4881 403 205 7803 TA-SOLID 2.2U M 16V

C4882 403 164 0204 CERAMIC 0.1U Z 25V

C4883 403 157 3809 CERAMIC 120P J 50V

C4884 403 155 1609 CERAMIC 33P J 50V

TEMP BOARD

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

Electrical Parts List

-80-

RESISTOR

R4881 401 105 0306 MT-GLAZE 10 JA 1/16W

R4882 401 105 0306 MT-GLAZE 10 JA 1/16W

R4884 401 105 0603 MT-GLAZE 10K JA 1/16W

645 054 3111 CABLE,MOUSE PS/2

645 054 3128 CABLE,MOUSE PS/2

645 039 7202 CABLE,MOUSE PS/2

610 298 7041 CARRY BAG-MD8A

645 057 3972 CABLE,INTERFACE DVI-VGA

REMOTE CONTROL

645 052 0433 ASSY,REMOCON CXLA

610 283 3867 RC-BATTERY LID-CXFJ

!AC CORD

US 645 054 1162 CORD,POWER-3.0MK

EU 645 054 1155 CORD,POWER-3.0MK

UK 645 054 1148 CORD,POWER-3.138MK

OWNER’S MANUAL

(ME3-XU4500, PLX-XU45)

(Englih) 610 304 4804 OWNER'S MANUAL-ME3A

(Germany) 610 304 4811 OWNER'S MANUAL-ME3A-D

(French) 610 304 4828 OWNER'S MANUAL-ME3A-F

(Italian) 610 304 4835 OWNER'S MANUAL-ME3A-I

(Spanish) 610 304 4842 OWNER'S MANUAL-ME3A-E

(MF3-XU4600, PLX-XU46)

(Englih) 610 304 4750 OWNER'S MANUAL-MF3A

(Germany) 610 304 4767 OWNER'S MANUAL-MF3A-D

(French) 610 304 4774 OWNER'S MANUAL-MF3A-F

(Italian) 610 304 4781 OWNER'S MANUAL-MF3A-I

(Spanish) 610 304 4798 OWNER'S MANUAL-MF3A-E

ACCESSORIES

Key No. Part No. Description Key No. Part No. Description

ME3-XU4500, MF3-XU4600

-81-

■Mechanical Parts List

Note: Parts order must contain Chassis No., Part No., and Descriptions.

● Cabinet Parts

1

15

12

3

7-a

34

7-b

24

19

8

4

7

13

37

6

18

27

11

14

25

36

33

30

26

32

16

17

28

7-a

41

10

42

13

42

7-b

35

23

29

31

2

5

9

ME3-XU4500, MF3-XU4600

-82-

47

44

47

44

Mechanical Parts List

47 57

56

47

● Optical Parts

ME3-XU4500, MF3-XU4600

-83-

44

54

67 (Red)

68 (Green)

69 (Blue)

45

Mechanical Parts List

ME3-XU4500, MF3-XU4600

-84-

43

53-d (Red)

53-e (Green/Blue)

*Optical filter(WV)

61

44

47

43

47

53

Mechanical Parts List

53-a (Red)

53-b (Green)

53-c (Blue)

*Polarized glass

ME3-XU4500, MF3-XU4600

-85-

Mechanical Parts List

52-a

52

45

52

52-a

52

Model PLC-XU45

Model PLC-XU46

ME3-XU4500, MF3-XU4600

-86-

Mechanical Parts List

58

70

63

71

57

60

65

59

64

66

51

55

62

ME3-XU4500, MF3-XU4600

-87-

Mechanical Parts List

CABINET PARTS

1 610 292 5630 BUTTON CONTROL-MS6A

2 610 292 5647 BUTTON ZOOM-MS6A

3 610 292 5654 BUTTON POWER-MS6A

4 610 297 2283 CABINET TOP-MD8A

(ME3-XU4500, PLC-XU45)

5 610 298 6686 CABINET RING-MF8A

6 610 301 8706 CABINET FRONT SERVICE-MF8

(Including Key No.5)

9 610 298 4040 CAP LNS-MF8A

(MF3-XU4600, PLC-XU46)

5 610 297 2344 CABINET RING-MD8A

6 610 301 3343 CABINET FRONT SERVICE-MD8

(Including Key No.5)

9 610 297 2481 CAP LNS-MD8A

7 610 300 2248 COMPL,CABINET BOTTOM-MD8A

(Including Key No.7-a and b)

7-a 610 292 6958 ASSY,STAND LEG-MD8A

7-b 411 025 6500 SCR S-TPG BIN 3X8

8 610 300 3122 CABINET BACK-MK8A

10 610 293 0153 COVER LMP-MD8A

11 610 293 0177 COVER CABI TOP-MD8A

12 610 292 7306 DEC LED-MS6A

13 610 294 1548 DEC SASH-MS6A

14 610 292 7344 DEC AV SHEET-MK8A

15 610 294 9308 DEC SHEET RC-MW6A

16 610 293 0184 HANDLE-MD8A

17 610 292 5753 HOLDER HANDLE-MS6A

18 610 297 2665 MOUNTING DUCT FR-MD8A

19 645 047 8031 BADGE,SANYO*26.2X5.7L26.0

610 289 1812 BADGE V MARK S-MK6A

CHASSIS PARTS

23 610 294 1760 ARM SW-MS6A

24 610 292 6040 COVER DUCT TOP-MS6A

25 610 292 6064 COVER DUCT BTM-MS6A

26 610 292 6088 COVER DUCT LMP PWB TOP-MS

27 610 292 6095 COVER DUCT LMP PWB BTM-MS

28 610 292 6101 COVER MAIN POW-MS6A

29 610 292 6125 FILTER BASE A-MS6A

(ME3-XU4500, PLC-XU45)

30 610 292 6217 HOLDER LMP PWB-MS6A

(MF3-XU4600, PLC-XU46)

30 610 298 4088 HOLDER LMP PWB-MD8A

31 610 294 5249 HOLDER POWER PCB A-MS6A

32 610 292 5760 MOUNTING SW-MS6A

33 610 292 6408 MOUNTING MAIN POWER-MS6A

34 610 305 6913 MOUNTING DUCT-ME3A

35 610 285 8631 SPRING INT-MK6A

36 610 292 6590 OPTICAL BASE BTM-MS6A

37 610 292 6606 OPTICAL BASE TOP-MS6A

SCREWS

41 411 001 8504 SCR BIN 3X4

42 411 052 9109 SCR OVL 3X6

43 412 058 5409 SPECIAL SCREW

44 411 174 9308 BOLT HEX-SCT+SW+W 2.5X6

45 411 098 3604 SCR S-TPG FLT 3X10

46 411 037 4105 SCR PAN+W 3X10

47 411 002 4901 SCR PAN 2X4

OPTICAL PARTS

(ME3-XU4500, PLC-XU45)

52 645 047 0226 ASSY,LENS,PROJECTION

52-a 645 047 6129 MOTOR,LENS(F,Z) DC 0.2W

(MF3-XU4600, PLC-XU46)

52 645 057 1466 ASSY,LENS,PROJECTION

52-a 645 057 1480 MOTOR,LENS

51 645 046 8483 ASSY,PRISM(PBS)

53 610 307 2739 ASSY,LD PNL/PRISM-ME3A

(Including Key No. 53-a, b, c, d and e)

53-a 645 060 1453 POLARIZED GLASS(OUT/R)SA

53-b 645 060 1460 POLARIZED GLASS(OUT/G)SA

53-c 645 060 1477 POLARIZED GLASS(OUT/B)SA

53-d 645 060 1408 OPTICAL FILTER (WV)R

53-e 645 060 1415 OPTICAL FILTER (WV)GB

54 645 051 8898 LENS,INTEGRATOR(IN)

55 645 046 8056 LENS,INTEGRATOR(OUT)

56 645 046 8087 LENS,CONDENSER(IN)

or 645 051 1318 LENS,CONDENSER(IN)

57 645 046 8094 LENS,CONDENSER(OUT)

or 645 051 1325 LENS,CONDENSER(OUT)

58 645 046 8100 LENS,CONDENSER

or 645 051 1332 LENS,CONDENSER

59 645 046 8117 LENS,CONDENSER (R)

or 645 051 1349 LENS,CONDENSER (R)

60 645 046 8124 LENS,RELAY(IN)

or 645 051 1356 LENS,RELAY(IN)

61 645 046 8131 LENS,RELAY(OUT)

or 645 051 1363 LENS,RELAY(OUT)

62 645 050 2040 LENS,CONDENSER (B)

63 645 047 1797 MIRROR(W-COLD)

64 645 047 1803 MIRROR(B)

65 645 047 1810 MIRROR(R)

66 645 059 4908 OPTICAL FILTER(UV CUT)

67 645 060 1422 POLARIZED GLASS(IN/R)DM

68 645 060 1439 POLARIZED GLASS(IN/G)SA

69 645 060 1446 POLARIZED GLASS(IN/B)SA

70 645 047 1933 DICHROIC MIRROR (B)

71 645 057 1350 DICHROIC MIRROR (G)

Key No. Part No. Description Key No. Part No. Description

(ME3A) Mar. 2003 BB 400 Printed in Japan SANYO Electric Co., Ltd.

A1

ME3-XU4500, MF3-XU4600

Schematic Diagrams

Printed Wiring Board Drawings

Model Chassis No.

PLC-XU45 ME3-XU4500

PLC-XU46 MF3-XU4600

■Diagrams & Drawings

These schematic diagrams and printed wiring board drawings are part of the

service manual original for chassis No. ME3-XU4500, MF3-XU4600 models PLC-

XU45, PLC-XU46.

File with the service manual No. SM5110464-00.

Note:

All the information of part numbers and values indicated on these diagrams are at the beginning of

production. To improve the performance, there may be some differences to the actual set. When you

order the service parts, use service parts code mentioned on the parts list in this service manual.

A2

ME3-XU4500, MF3-XU4600

■Parts description and reading in schematic diagram

1. The parts specification of resistors, capacitors and

coils are expressed in designated code. Please check

the parts description by the following code table.

2. Some of transistors and diodes are indicated in mark

for the substitution of parts name. Please check the

parts name by the following code table.

3. Voltages and waveforms were taken with a video color

bar signal(1Vp-p at 75 ohms terminated) and controls

to normal.

4. Voltages were taken with a high-impedance digital

voltmeter.

Example 2000 K K 1000 BG

Characteristic

Example 160 E M 10

Capacitance value

Tolerance

Type

Rated voltage

Excepting electric capacitors, all

capacitance values of less than 1

are expressed in µF and more

than 1 are in pF.

Example L2 C1 4R7 K N

Tolerance

Inductance value

Manufacture code

Unique code

Mark Material

E Electrolytic

PElectrolytic (non-polarized)

CCeramic (temperature compensation)

K Ceramic

FPolyester

NPolypropylene

MMetalized polypropylene

HMetalized polypromylar

BCeramic (semiconductor)

GMetalized polyestel

YComposite film

S Styrol

TTantalum oxide solid electrolytic

UOrganic semiconductive electrolyte

DElectric double layer electrolytic

Mark Tolerance

Anot specified

B±0.1

C±0.25

D±0.5

F±1

G±2

E±2.5

H±3

J±5

K±0

M±20

N±30

P +100 -0

Q +30 -10

T +50 -10

U +75 -10

V +20 -10

W +100 -10

X +40 -20

Y +150 -10

Z +80 -20

Mark Tolerance (nH) Mark Tolerance (%)

C±0.25 G ±2

D±0.5 J ±5

S±0.3 K ±10

A±0.2 L ±15

M±20

Coil Reading

Capacitor Reading

Example 1/2 D J 10K B

Example 6 W K 8.2

Example 1/2 C K 1M

Resistor Reading

Characteristic

Z (Carbon fuse)

B (Non-burnable)

Resistance value

Tolerance (see below table)

Material (see below table)

Rated wattage (W)

K indicates in K

M indicate in M

Note: Resistor which is indicated with resistance value only are

1/6W carbon resistor. Resistor which is indicated with materi-

al, tolerance and value are 1/4W rated wattage.

Mark Material

D Carbon

NMetal film

SOxide metal film

C Solid

GMetal glaze

WWire wounding or cement

H Ceramic

F Fusible

Mark Tolerance

A±0.05

B±0.1

C±0.25

D±0.5

F±1

G±2

J±5

K±10

M±20

P+5-15

Zused in 0 ohm

Tolerance table

Material table

Mark Type number

R 1S2076A,1S2473,1N4148

AA 1S2076A,1S2473,1SS133,1N4148

Diode

Mark Type number

-- 2SC536 2SC945A 2SC1815 2SC1740S

AD NF, NG PA, QA Y, GR Q, R, S

AE NF, NG PA, QA, RA O, Y, GR Q, R, S

Transistor

(1) NPN type

Diode/Transistor Type Reading

Mark Type number

-- 2SA608 2SA564A 2SA1015 2SA933S

AB NF R Y, GR R

AC NF Q, R O, Y, GR Q, R

(2) PNP type

Mark Type number

-- 2SA1179/N 2SA1037K 2SA1037AK 2SC2812/N 2SC2412K

AJ M6, M7 R, S R, S

AH L6, L7 R, S

(3) Chip type

Tolerance table

BLK_ME3A A3

3

1

5

22

8

16

18

20

IC5241

AV/PC-RGB-SW

PC/AV-SW

IC5271

IC5281

IC5291

2

13

12

1

10 11

14

15

IC8001

DVI

I/F

DVI

DIGITAL

ANAOG

MONITOR

RGB

H-SYNC

V-SYNC

IC6241

SYNC DET.

1

5

12

8

IC6251

INVERTER

IC6101

INVERTER

2

511

13

IC6201

SYNC-SW

3

58

9

IC5251

AV/PC

SYNC-SW

5

2

6

3

IC6271

BUFFER

HAFC

IC251

TP52R

TP52B

TP52G

TP201R

TP201B

TP201G

TP205

HSYNC

IC201

A/D

22

40

7

15

29 30

TP62H

TP62V

P-SDA2

P-SCL2

GB00-7

GBE0-7

GG00-7

GGE0-7

GR00-7

GRE0-7

HS

VS

48

|

46

10

|

77

D_BE0-7

D_B00-7

D_GE0-7

D_G00-7

D_RE0-7

D_R00-7

IC8081

BUFFER

2

4

6

16

18

GHS

GVS

80

|

90

PX+-, CLK, DATA

H

VV

H

V

IC4101

RGB

MATRIX

AV/PC

66

65

29

28

67

69

73 74 75

55 56

HS_OUT

VS_OUT

HD_HSYNC

HD_VSYNC

AV_H SYNC

AV_VSYNC

IC1101

VIDEO

DECODER

9

4

21

22

23

13 14

43

44

17

18

19

75

SCL2_5

SDA2_5

S_SW

Cr_SW

TP11SC

TP11SY

TP11PR

TP11PB

TP11CV

Cb_SW

IC2101

DIGITAL

COMB

FILTER

9

7

2

IC5161

C_SWIN

Y

C

2

5

12

1

3

13 15

14

9,10

4

39

37

35

IC3101

BLANKING

IC3121

IC2131

IC3141

VIDEO_RGB

RGB

IC2161

D/A

IC2181

I/O

CLMP

BLANK_SW

AV/PC

SYNC_SW

BLKC_DC

C_SWIN

S_SW

7

8

IC1401

DIGITAL

BRIGHTER

CONTROL

DB0-9

DG0-9

DR0-9

D0-D15

A0-A19

DGB0-9

DGA0-9

DRA0-9

5,4 9,1 2,3

TPDHS

TPDVS

TPCLK

DCLK

TURBO_1

SCLK1

SDATA 1

IROMURA_CS_1

IC1871

BUFFER

5,7,3

15,13,17

119

120

121

DBB0-9

DGB0-9

DRB0-9

IC4881

TEMP

SENSOR

IC2881

TEMP

SENSOR

IC1831

D/A

FAN _CONT

AUDIO MUTE

VOL_CONT

MOUSE

Q1818/Q1819

Q1816/Q1817

IC1801

EEP-ROM

IC5501

MONITOR DRIVE

IC5551

MONITOR DRIVE

4,5

1,7

IC1861

IC1811

SRAM

IC9801

USB

I/F

IC1881

BUFFER

LAMP_SW

812

13 7MUTE

AUDIO

MUTE

IC1851

I/O

11

9

10

Q2851

Q2865

Q2861

Q2856

LAMP_SW1

M

ZOOM MOTOR

FOCUS MOTOR

LAMP

READY

WARNING

LAMP REPLACE

SLK

SDATA

IROMURA_CS

IC5011

AUDIO-SW

1

13

2

12

10

11

15

14

PC_L/R

AV_L/R

VIDEO/Y

Pb/Cb

Pr/Cr

SRIAL

PORT

IC001

AUDIO

CONTROL

2

1

4

6

8

Q5072 Q5071

Q011

AV/PC

Q5031

Q5041

Q5051

Q5061

Q5081

Q5082 MUTE

VOLUME

SPEAKER

USB

IC3801

RS232C

IC3821

MOUSE

CONTROLLER

IC3841

MOUSE

CONTROLLER

TXD TXD

RXD

107

13 12

14

|

7

19

18

5

|

12

CPU_TXD

CPU_RXD

MOUSE

R/C

USB_D+, D-

121

IC1581

D/A

IC2571

D/A

TP25G1

TP25G2

TP25B1

TP25B2

TP25R1

TP25R2 IC3551

NRS

36

IC3581

NRS

37

CENT

REF

NRS

VCOM

RGT

DWN

B-LCD

PA N E L

G-LCD

PA N E L

R-LCD

PA N E L

4,5,6

8

9,18,19

7

13

11

12

IC1501

S&H_B2

IC531

S&H_G1

IC401

DIGITAL

COLOR

UNIFORMITY

CORRECTION

TIMING

CONTROL

6,7 13

IC501

S&H_B1

4,5

2

3

14

7

16

1

2

1

2

SCL2_5

SDA2_5

SCL2_5

SDA2_5

SCL1_5

SDA1_5

SCL3

SDA3

IC801

SUB

CPU

80,81 79,78 96,97

91

29

30

33

34

IC1531

S&H_G2

IC561

S&H_R1

IC1561

S&H_R2

IC3501

B_LEVEL

SHIFT

IC3531

G_LEVEL

SHIFT

IC3561

R_LEVEL

SHIFT

29

30

3

22

IC301

SCAN

CONVERTER

SYSTEM

CONTROL

323

244

240133

34

133 34

100 101

P-SDA2

P-SCL2

12

10

22

1

16

18

20

IC5211

CG1/CG2-RGB-SW

CG1/CG2-SW

5

3

R

G

B

R

G

B

SDA2_5

SCL2_5

IC6171

AFC

DET 13

12

17

16

IC3041

INVERTER

IC3011

RGB AMP

13

11

1

5

4

8

12

10

DHS/DVS

TP3551

TP3581

4

5

614

|

19

5

|

7

12

13

2

3

2

3

2

3

COMPUTER

AUDIO IN

VIDEO

AUDIO IN

MONITOR

AUDIO OUT

S-VIDEO

VIDEO IN COMPUTER IN

AUDIO IN

4

15

2

3

IC1341

FLASH ROM

IC1391

SRAM

5

6

35

4

|

28

RAM_A0-7

RAM_D0-7

R

H

V

H

Y

C

V

G

B

R

G

B

R

G

B

Pr

Pb

Y

Cr

Cb

Cr

Cb

Y/CV

R

G

B

R,G.B

H, V

■Circuit Block Diagram

A4 BLK_ME3A

9,10

K6S

K8S

15.5V

6V 5V

15.5V

9V MCI

6V AUDIO

5VD

6VS 5VS

-5VS

6V AUDIO

AC CORD

C617

MAIN BOARD DVI BOARD

AV BOARD

P. F. BOARD

POWER BOARD

KEY SW BOARD

IC611

P. F.CONTROL

TSW611

Q641

LAMP BALLAST

BOARD

LINE FILTER BOARD

9V MCI

PC643

PC641

Q651

IC651

Q611

VR611

T651

CONVERTER

TRANSFORMER

IC631

SWITCHING

POWER SUPPLY

F601

FUSE VA601 L601 L602

SW902

THERMAL

SW.

SW904

INTER LOCK

SW.

K6C

K6B

DB611 L611 D614

R613/

R614

D632

8

1

2

3

5

410

8

7

11

9

6

12 14

7

5

C642 D653

D652

D651

K6D

1

3

PC642

D654

FEED BACK

OVER VOLT._DET.

K8H (K8B)

2(1)

5(3)

FAN_DRIVE1 FAN_DRIVE1

LAMP_SW

LAMP_BST_SW

IIC

LAMP_BST_SW1

BALAST_AC

POWER

FAN DRIVE

LAMP_SW1

BALAST_AC1

5V_SW

FAN DRIVE1

K3W K10W

21,22

35,36

39,40

1,2

5-6

7-8

15-18

K3UK10U

IC65A,

Q65A

5VS

D69B D69C

3.3V REG.

9V REG.

D65B

12V

IC681,

Q681

Q65C

D682

Q65B

Q66A

Q682

12V REG.

D6602

D6601

D6611

D6606

12V1

IC671,

Q671

D678

L691

L692

L693

L694

Q672

Q662

12V REG.

D661

IC6641

5VD

15.5V

9V

5V AUDIO5V AUDIO

5VS

9V

D6641

D6631

D1891

D1889

5V REG.

5V

(IC1101)

IC1171

6V

15VL D3591

2.5V REG.

2.5V

3.3V

D6661

9V REG.

9V

IC6621 D6621

Q3591

-5VS -5VS

3.3V

1

K8GK28D

5VS

R/C BOARD

1

K8AK68A

3.3VS

TEMP BOARD

3.3VS

5VS

1

K8EK48E

5VS 5VS

IC801

SUB CPU

IC1881

BUFFER

11

17

15

3

82

80,81

48

47

39 41

1

3

9

12

5

8

146

IC1871

BUFFER

18

2

3.3V REG.

IC3361

6VS

2.5V REG.

2.5VS

3.3VAS

IC6671

IC1851

D/A

12

2

3

3.3V REG.

3.3VS

IC6651

D1171

2

K6FK6E

4,5

1,2

6

Q691

Q661

Q69A

K6J K6K

FN902

FN901

K6L

FN903

K6N

FN904

K8N

K8P

FN906

FN905

K6S

K8S

6V

6VD

6VS

-5VS

K8SK6S

29,39

37,38

13,14

25,26

15,16

11,12

36 35

K8R

K6R

10

8

6

4

2

5V_SW 5V_SW

P-FAIL P-FAIL

P-FAIL

R6611

R6601

R6607

D69C

12V

5VD5VD

5VS5VS

5VDVI5VDVI

Q3592

IC6661

P-FAIL

ECO_SW

ECO_SW1

31,32 3.3VS3.3VS

25-28 9V MCI9V MCI

LAMP_ERR

BALAST_AC1

1(4)

ECO_SW1

REG.

15.5V

-6V

6V

5V REG.

5VMCI

IC7051

3.3V REG.

3.3MCI

IC7041

5V REG.

IC7061

■Power Supply Lines

PCB_ME3A A5

L1

C011 C012

1

8

4

5

IC001

8

9

L2042

PB1

1AA4B10C3130A

side a

C001

C013

C3011

C5001C5021

C5051

C5061

1

16

8

9

IC5011

L2022

L204 1

L5001

PB2

R1015

R1014

R1013

L2024

L202 3

L2021

L1042

L1041

L1003

L1002

K20C

K20B

K10T

2

1

K10A

IC3011

16

1

L205 2

L2004

L2001

L102 2

L102 1

K20D

K20A

53

54

K10B

IC5161

IC3041

8

7

14

1

C5121

C5101

L100 1

RC2811

PB4

K10U

53

54

1

K100G SW1061

PB3

L205 1

L2006

L2005

L200 3

L1057

L1056

L1055

L1054

L1053

L1052

L1051

K10D K10C

C5151

C2811

C5111

C5141

L200 2

2

L202 5

L4

C002

C3017

C3018 C3021

C5012

D2044

Q011

R001

R011

R012

R013

R014

R016

R017

R3001

R3011

R3012

R3014

R3015R3016

R3017

R3021

R3022

R5012

C2022

C2023

C5011

C5013

C5014

C5022

C5031

D2024

D5081

D5082

Q5031

Q5041

Q5051

Q5061

Q5071

Q5072

Q5081

Q5082

R2026

R2027

R2028

R2029

R2030

R2042

R5001

R5011

R5013

R5014

R5021

R5022

R5031

R5032

R5033

R5034

R5041

R5042

R5043

R5044

R5046

R5051

R5052

R5053

R5054

R5061

R5062

R5063

R5064

R5071

R5072

R5074

R5076

R5077

R5078

R5081

R2044

R3044

R3023

R3019

R3013

R3005

R3003

R2041

R2025

R2024

R2023

R2022

R2021

R1044

R1042

R1037

R1036

R1018

R1017

R1016

R1010

R1008

R1007 R1006R1005

D2042

D2041

D2022D2021

D1044

D1043

D1003

D1002

D1001

C3044

C3023

C3019

C3013

C3012

C2021

C1042

C1003

C1002

C1001

R5162

R5161

R5124

R5123

R5122

R5121

R3042

R3041R3004

R2054

R2052

R2005 R2004

R2003 R2002

R2001

R1041

R1032

R1026

R1025

R1024

R1004

R1003

R1002

R1001

D2054

D2002

D2001

D1042

D1041

D1032

D1022

D1021

C5161

C5102

C2001

C1041

D1031

R1031

R1043

R5156

R5153

R5152

R5146

R5144

R5143

R5141

R5136

R5126

R5117

R5116

R2015

R2014

R2013

R2012

Q5151

Q5141

Q5111

R5154 R5151

R5142

R5133

R5132

R5131

R5113

R5112

R5111

R3043

R2812

R2811

R2053

R2051 R2010

R2009

R2008

R2007

R2006

R1066

R1065

R1061

R1023

R1022 R1021

Q5131

D2812

D2811

D2052

D2051

D2005

D2004

D2003

D1066

D1065

D1061

D1059

D1058

D1057

D1056

D1055

D1054

D1053

D1052

D1051

C5131

C3043

C3041

C2813

C2812

C2002

C1061

C5108

R5114

R5134

R5164

R5163

R2011

Q5121

D2053

D2006

D1068

D1067

C2003

C3022

C5002

D2023

D2025

D2043

R1009

R1011

R1012

R2031

R2032

R2043

R3002

R3018

R5073

C

R

B

E

A

E

F

A

side b

B

■Printed Wiring Board Diagrams

This projector is isolated from AC line by using the internal converter transformer.

Please pay attention to the following notes in servicing

1. Do not touch the part on hot side (primary circuit) or both parts on hot and cold

sides (secondary circuit) at the same time.

2. Do not shorten the circuit between hot and cold sides.

3. The grounding lead must be connected to the ground of the same circuit when

measuring of voltages and waveforms.

! CAUTION

AV (SIDE:A)

AV (SIDE:B)

MAIN “K3U”

L1

C7041 C7043

C7061

17

9

1

side a

24

8

16

27 25

30 29

26

28

C7001 C7003

D7041

D7042

D7054

1

8

4

5

IC7021

1

8

4

5

IC7031

IC7041

IC7061

1

8

4

5

IC7071

K10E

1

40

2

39

K10V

1

40

2

39

K10W

L3051

L3053

L3072

PB1

PB4

1AA4B10C3130B

SW7011

PB3

PB2

L3071

L3052

K700G

IC7051

D7052

C7053C7051

D7053

L4

side b

A

R7041 R7042

R7052 R7053

R7054

C3051

C3053

C7002

C7004

C7017

C7021

C7031

C7042

C7044

C7062

C7071

D3051

D3053

D3072

R1081

R1082

R1086

R1087

R1088

R1089

R1090

R1091

R1092

R1093

R1094

R1095

R1096

R1097

R1098

R3051

R3052

R3053

R3054

R3059

R3060

R3062

R3063

R3065

R3066

R3068

R3074

R3075

R3076

R7017

R7071

R7072

R7073

R7043

R7057

R7056

R7018

R7016

R7014

R7013

R7012

R7011

R3072 R3071

R3067

R3058

R3057

R3056

R3055

Q7011

D3071

D3052

C7052

C7018

C7011

C3052

C1086

C7054 R3061

R3064 R3073

R7051

DVI (SIDE:A)

DVI (SIDE:B)

MAIN “K3T” MAIN “K3W”MAIN “K3V”

MAIN (SIDE:A)

L1

F

TP3551

RB411

R6672

R6671

R6661

R6656

R446

R3559

R3558

R3557

R3556

R3554

R2807

R2806

R1864

R1863

R1862

R1861

IC6671

IC6661

IC1871 20

1

IC1861

8

7

14

1

D6662

D6661

D6642

D6641

D2807

D2806

C6675

C6674

C6672

C6665

C6664

C6662

C6654

C6644

C6642

C3554

C2807

C2806

C1861

B

C1117

C1118

C1583

C2124

C2126

C2127

C3582

C3583

C414

C4186

C421

C6604

C6607

C6612

D6606 D6611

1

10

11

IC2571

14

IC6641

L257 1

R1141

R1144

R1147

R2123

R2124

R2126

R2131

R2132

R2571 R2572

R3582

R411

R412

R413

R414

R441

R442

R443

R444

R6601

R6602 R6607

R6608

R6616

R6652

RB413

RB414

C

C1581

C2102

C2117

C2118

C2119

C3562

C3568

C3569

C3584

D6602

1

24

12 13

IC1581

85

IC3581

R1563

R1581

R1582

R1583

R1584

R1586

R1587

R1588

R1589

R1591

R1592

R1593

R2103R2104

R2106

R2107

R2108

R2109 R2110

R2111

R2112

R2576

R2577

R2581

R2582

R2583

R2584

R3581

R431

R432

R561

R562

R563

R564

TP12V1

TP12V2

TP3581

R6612

R6611

R6606

R433

L158 1

20

C1116

C2106

C3552

C6652

IC6651

L210 3

RB412

R567

R566

R3577

R3576

R3575

R3574

R3573

R3571

R3570

R3569

R3568

R3567

R3565

R3564

R3563

R2562

R2560

R2558

R2556

L356 1

IC561

36 24

48

25

13

37

12

1

IC3561

36 24

48

25

13

37

12

1

36

48

37

1

D6601

C571

C3566 C1573 C1572

D

TP25R2

TP25R1 RB563

RB562

RB561

R584

R583

R582

R581

R534

R533

R532 R3532

R2529

R2528

R2527

R2526

R2522

R2521

R2120

R2118

R2117

R2115

R2114

R2113

R1532

Q2526

30

K25R

30

IC1851

8

16

1

13

12

D1831

C582C581

C3536

C2528

C2526

C2523

C2522

C2521

C2121

C1568

C1567

9

L561

R2542

R2544

R2546

R2548

R2550

R2552

R2554

TE25RE

R3562

R3561

R1564

C573

C572

C569

RB415

R457

R456

R454

R453

R452

R451

R449

R448 R428

R427

R426

R424

R423

R1897

R1896

R1879

R1878

R1877

R1876

R1562 R1561

R1503

L1502

88

89

45

44

IC1881

20

1

11

10

24

25

13

12

36

48

37

1

C423

C422

C413

C412

C1881

C1571

C1566

C1564 C1513

C1512

C1506

TP302

R523

R522

R521

R506

R503

R466

R464

R463

R462

R461

R459

R422

R421

R420

R416

R415

R1502

R1501

5

8

1

24

25

13

12

D1891

C522

C521

C513

C461

C411

C1821

C1511

C1509

C1508

C1507

C1502

C1504

IC1501

10

11

IC401

R1504

R458

RB416

RB501

TE25BE

RB502

R524

R473

R472

R471

R469

R468

R467

R4177

R4174

R3592

R1894

R1893

R1892

R1816

R1129

Q3591

Q1816

L3591

IC501

36

48 37

1

132

176

133

1

IC1826

5

4

8

1

D3591

C507

C506

C409

C408

C407

C406

C402

C1133

C1111

A

X851

R858 R502

R501

R4176

R4172

R3516

R3515

R3514

R3513

R2551

R2509

R2508

R2507

R2506

R1818

R1104

R1103

R1102

Q4171

Q2506

Q1818

Q1817

24

25

13

D6132

C857 C802

C508

C502

C4112

C4111

C3504

C2508

C2506

C1115

C1114

C1104

C1112

C404

C509 C511

IC4171

12

R1817

R3591

R4173

R507

RB503

TE401

R504

R3594

R3593

Q3592

IC1821

4

C512

C504

C1826

C1871

C416

C417

C418

C419

IC1561

R429

R447

E

TP801

R899

R898

R897 R895

R6282R6281

R6138

R6124

R6123

R6122

R6121

R5279

R5278

R5276 R5274

R5273

R5272

R5270

R5264

R5263

R5254

R5236

R5234

R4183

R3517

R2547

R1891

R1889

R1888

R1887

R1886

R1884

R1883

R1882

R1881

Q6137 L350 1

K25B

36

48

37

1

C5277

C5276

C5274

C4119

C4118

C4117

C4114 C3502

C1106

O

TP25B2

R828

R821

R819

R818

R812

R811

R804 R6244

R6243

R6241

R6237

R6236

R6235

R6234

R6232 R6231

R2541

R1404

R1403

R1401 R1367

R1366

R1364 R1363

R1362 R1357

Q6231

1

75

50

76

24

25

13

C6246

C6244

C6243

C6236

C3506

C1416C1414

C1413

C1412

C1402

C1362

H

12

IC3501

51

R2543

R2545

TP25B1

RB326

RB324RB323

R827 R826

R814

R813

R806 R8026

R5299

R5297

R5206

R3511

R3510

R3509

R3134

R3132 R3131

R3105

R3102

R3101

R3100

R2553

R213

R211

R1413

R1412

R1411

R1408 R1356

R1354

R1353

R1352

R1351

IC801

100

26

25

1

IC3131

IC3101

D802

D801

C3131

C229

C228

C1409

C1408 C1407 C1406

C1404C1403

C1352

M

TP301

TP205 RB321

RB311

R817

R8021 R8012

R5286

R5283

R5282

R5280

R5277

R5275

R5271

R5265

R5257

R3507

R3505

R3504

R2866

R2865

R2861

R2857

R2856 R2843

R2842

R2841

R216

R214

IC8003

IC8002

IC1811

8

C8012

C8011

C5286

C5251

C235 C213

C211

C204

C813

C842

C844

R212 R3508

R816

R831

R832

R834

R837

R849

R803 R5207 R3136

R3133

R1406 R1361

C6266

C6265

C3132

C2502

C2501

C1411

13

X9811

TE28E

RB9802

RB9801

R9822

R9807

R2852

R2851

R2832

R2831

R2826

R2825

R2819

R2818

R2817 R2816

Q2816

K8 P

IC9801

33

22

44

23

12

34

11

1

21

28

1

C9804

C2823

C2822

C2821

6

1

14

1

TPDHS

TP28L T P1385TP1384

TP1382

TP1342

TP1341

TP1311

TP1302 TP1301

R8027

R8023

R5298

R5296

R5295

R5290

R5285

R2844

R2824

R2823

R2822

R2821

R1346

R1342

R1341

R1313

R1312

R1311

R1303

R1302

R1301

K8Y

1

K8B

K8A

IC134125

24

48

1

IC1311

IC1301

5

4

8

1

D2873

D2872

C5297

C5296

C1333

C1311

C1301

D2871

K

C2104

C2122

C3111

C3112

C3113

C3122

D3111

IC301

50

K8X

Q3111

R2119

R2121

R2122

R2125

R3111

R3113

R3114

R3123

R3124

R3185

TE301E

TP1381TP1383

TPDVS

J

TPDCLK

1AA4B10C3120A_A

12

C5287

R2867

R5251

R5262R5284

R5287

R5289

TE801E

R6137

R4139

R4138

R4137

R2549

R1819

R1101

Q1819

D857 D6127

C4174

C4173

C4169

C4168

C4167

C4166

C4164

C4163

C4113

TPPWR

RB533

RB532

R554

R553

R536

R3543

R1534

R1533

L531

L1532

L1531

1

IC531

36 24

48

25

13

37

12

1

IC3531

36

24

48

25

13

37

1

IC1831

24

1

IC1531

36 24

48

25

13

37

12

1

C552

C542

C1541

C1532

E

D

C

R 531

R3553 R3552

R3551

R2592

R2591

R2519

R2518

R2517

R2516

R2105

R2102

R1139

R1138

R1137

R1136R1134

R1133

R1132 R1131

Q2516

Q1133

Q1132

Q1131

IC3551

5

4

8

1

IC2101

48 13

12

1D2591

C551

C3553

C2516

C2113

C2112

C1131C1129

12

L3531

R3547

R551

R552

TE25GE

B

X3841

R3846

R3844

R3843

R3842

R3841

R3835

R3804

R3803

R3802

R3801

R2893

R2892

R2891 R2889

R2888

R2887

R2886

R2884

R2883

R2882

R2881

IC3841

24

1

IC3831

IC3801

1

D3831

C3843

C3842

C3831C3801

C2882

K

C1126

C3821

D3821

D8121

D8126

25

24

36

1

16

8

IC2181

8

9

12 13

1

16

IC8121

1

8

4

5

IC8131

L2102

R1123

R1127

R1128

R3806

R3821

R3822

R3823

R3831

R3832

R3834

R3847

R3848

R8121

R8129

R8131

RB3821

C1102

C1108

C112

C1122

C1123

C116

C117

C122

C124

C131

1

37

48

39

IC1101

1

4

2

3

IC121

8

9

Q111

Q117

Q131

Q132

Q8141

R110

R111

R112

R1122

R113

R114

R116

R121

R122

R123

R127

R131

R132

R133

R134

R8141

R8142

R8143

R8144

TP11SC TP11SY

9

C8122

C1128

C1127

37

16

R3833

R1124

F

TP25G2

R6623

R6622 R178

R177

R176

R174

R173

R172

R171

R157

R156

R154

R153

R152

R126

R1106

R1105 Q171 Q151

Q116

30

24

25

15

14

D6221C6222

C171

C154

C152

TP25G1

TP11PR

TP11PB

TP11CV

R6216

R159

Q172

Q152

Q1143

Q1142

Q1141

K25GG

K25G

D6621

D6226

D6216

C6624

C6622

C6227

C6226

C6221

C6217

C6216

IC6621 R158

A

O

R6227

R6222

R6217

R6207

R6206

R6154

R6153

R6152

R6149

1

16

1

IC6101

8

7

14

1

D6227

D6222

D6217

D6151

D6146 C6206

C6202

C6151

C6147 C6101

TP62V

R6202

R6201

R6151

R5208

R4136

R4134

R4132

IC6251

8

7

14

1

IC6241

10

9

IC6201

9

8

64

80

65

1

C6251

C6204

C4161

C4159

C4157

C4162

R6203

R6233 R6226

R6221

R6158

R6157

R6156

1

18

C6242

C2518

C3534

L151

L2591

R151

R3544 R3545

R3546

R6624

TP62H

R6283 R5205

R5204

R5203

R4133

R4129

R4128

R4124

R266

L5202

IC6261

9

8

16

1

IC6121 16

1

IC4101

D6211

C6212

C6211

C6121

C4154

C4153

C4152

C2162

N

R6272

R6271

R6136

R6134

R6133

R6132 R4123

R4121

R4119

R4118 R268

R267

30

14

1

8

7

9

8

41

25

24

C6271

C6131

C5242 C5241

C5218

C5204 C5202

C4149

C4144

C4134

C4127

C4147

C4148

C4151

C5217

1

14

IC6271

30

R262

R4122

R6131

TE62E

RB301

R3172

R3147

R3144

R3122

R3121

R3108

R3107

R1374

R1371

Q3171

5

4

5

8

1

IC3141

9

8

1

IC1371

D3161

C3127

C3121

C302

J

H

TP52R

TP52G

TP52B

TP201B0

R5288

R5248

R5246

R5245

R5244

R5243

R5242

R5241

R3171

R3164

R3143

L8003

8

7

IC5251

9

8

16

1

C8024

C8023

C8022

C5298

C5288

C5278

C5259

C5257

C5244

C3142

C202

Q3162

Q3163

R3165

R3169

R8085

G

R3146

R269

R2502

IC6281

IC4186

8

1

4016

C6281

C5243

C5216

TPGBLK

R6182

R6181

R6179

R6178

R6176

R6175

R6174

R6173

R323

R322

R321

R319

R3182

R3181

R318

R3178

R3177 R3176

R3174

R317

R3127

R3126

R312

R3115

R3112

R311

R3106

R307

R306

R304

R301

Q3181

Q3172

Q3113

IC6171

16

15

D3112

C6184

C6183

C6182

C6181

C6178

C6172

C304

G

TP207

TP206

TP201R0

R8112

R8111

R6189

R6188

R313

R308

R299

R290

R289

R2873

R2872

R2871

R280

R279

R270

R253

R252

R251

Q8102 Q8101

IC8111

5

4

8

1

30

1

IC251

5

4

8

1

D8106

C8053

C6177

C6176

C6174

C6173

C287

C277

C251

R302

R303

R6171

R6187

M

C234

C298

C5252

C8002

C8014

C8016

C8028

C8029

D8001

L8001

L8004

R202

R204

R206

R207

R208

R209

R217

R218

R298

R5252

R5253

R5256

R5259

R5261

R5266

R5281

R5291

R5292

R5293

R5294

R8009

R8013

R8014

R8016

R8017

R8018

R8019

R8022

R8024

R8028

R8029

TP201G0

C221

C222

C223

C226

C239

C8004

C8006

C8018

C8063

48

25 48 25

IC8061

48 25

L8002 L8051

R203

R8001

R8003

R8004

R8006

R8007

R8008

R8011

RB8001

RB8002 RB8003

RB8004

RB8005

RB8006 RB8007

RB8008

RB8011

RB8012

RB8013

TE201E

TP201B1

TP201G1

TP201R1

R8002

R201

C233

C232

C231

C225

N

TE52E

R5235

R5233

R5232

R5231

R5224

R5223

R5222

R5221

R5218

R5217

R5216

R5202

R5201

R4117

R4116

R4114

R4113

R4112

R4111

R4108

R4106

R3168

R3167

R3166

R265

R264

IC8101

9

8

16

1

IC8071

24

11

24

1

C5219

C5207

C4141

C4139

C4138

C8073

IC8051

24

RB8014

R288

R278

C297

C288

C278

C238

C1371

C5253

C8019

C8021

C8026

C8027

D3171

4

R1372

R1373

R3173

R6274

R6273

R6254

R6212

R6211

R6208

R4131

D6212

C6261

C1539

C3532

C3539

C538

C543

IC3121

IC3181

K25BB

K25RR

Q3112

Q3182

R1531

R2501

R3183

R3184

RB312

-+

1AA4B10C3250B_C

7

3

1

3

1

TSW611

D614

K6E

FB612

R614

R613

FB611

VR611

C615

C618

C612

C611

PTH611

DB611

C617

L611

FB613

Q611

K6D K6C

P.F (SIDE:A)

FN906

KEY SW “K68A”

R-LCD

Panel

B-LCD

Panel

G-LCD Panel

LAMP BALLAST “A901”

INTER LOCK

SW “SW904”

POWER

“K6F”

1AA4B10C

3250D_C

14

RC2801

C2801

K28D

R/C (SIDE:A)

MAIN “K8G”

1AA4B10C3120B_A

C4881

C4883

C4884

1

85

4

IC4881

K48E

C4882

TEMP (SIDE:A)

MAIN “K8E”

A6 PCB_ME3A

L8

K8G

C6673

C6671

C6663

C6661

C6641

C6602

C2571

C2572

C2573

C401

C403

C6601

C6603

C6606

C6611

C6651

K8R

L660 1

R434

R436

R437

R438

R439

C1501

C1503 C1582

C6613

C6614

C6617

40

39

C3581

C6643

C6653

K8S

2

1

C568

C567

C566

C564

C563

C562

C561

C3564

C3563

C1569

C1563

C1562

C1561

R1855

R1854

R1853

R1852

R1851

R1837

R1836 R1834

R1833

L562

L1831

C1834

C1833

C1831

C2527

C6616

L1561

R848

R847

R844

R843

R841

R836

R833

C814

L1501

R888

C846

R2559

R2557

R2555

L502

L501

C843 C841

C801 C503 C501C3592 C1401

R867

R866

R862

R861

R857

R856

R851

R846

R842

IC841

C856

L1562

RB1466

RB1465

RB1464

RB1446

RB1445

RB1444

R868

R368

R1446

R1445

R1444

R1443

Q856D856

D6631

C852 C851

X1361

RB1451

RB1431

R879

R878

R876

R874

R873

R872

R871

R823

R822

R802

R371

R369

R1462

R1442

R1409

R1407

75

100

76

1

IC1361

5

8

1

C2503

C1366

C1367

C812

IC1401

R1402

R1463

R1464

R1465

R1466

R367

RB1443

RB1463

RB1462

RB1461

RB1452

RB1442

RB1441

R892

R891

R886

R885 R884

R883

R882

R881

R880

R877

R808

R807

R1452

R1451 R1431Q2856

51

26

25

IC1351

5

4

8

1

C811

C1356

R896

R894

R893

R889

R388

R387

R386

R384

R383

R382

R381

R379

R376

R366

R363

R359

R358

R357

R2869

R2868

R2863

R2862

R2859

R2858R2853

R1801

Q2865

Q2851

Q2831

IC1801

5

4

8

1

D2843

50

K8Z

Q2861 R1432

R1802

R801

R887 RB1453

RB1454

X1351

RB1432

R1461

R1441

4

C1357

C1351

R9823

R9816

R9814

R9813

R9812

R9811

R9806

R9804

R9803

R9802

R9801

R2896

R1804

Q9801

L9811

C9813 C9812

C9811

C9806C9803

C9802

C2872

C2871 C1811

C1801

RB1456 RB1455

RB1436 RB1435

R2898

R2897

R2877

R2875

R2874

R2854

R2834

R2833

R1454

R1453

R1436

R1435

R1434

R1433

R1381

R1344

R1343

IC1331

23

22

44

1

D2844

D2841

D2831

D2823

D2822

C1342

C1332

D2821

R2899

C308

C311

C313

C314

C316

C3161

C317

C318

C319

C321

C323

IC3161

IC8081

R1383

R1384

R1386

R1387

R1388

R1389

R1391

R1392

R1393

R314

R316

R3161

R3162

R3163

R324

R328

R329

R331

R332

R333

R334

R336

R337

R338

R341

R342

R343

R344

R346

R347 R348

R349 R351

R352

R353

R354

R356

R361

R362

R364

R377

R378

R8081

R8082

R8083

R8087

R8088

R8089

RB303RB308

RB322

RB325

RB1434

R1382

C1812

C322

C324

D2842

R1455

R1456

R1803 R2855 RB1433

R2561

C3503

R537

R531

R3537

R3535

R3534

R3531

R1831

C541

C539

C536

C533

C532

C531

C3538

C1832

C1538

C1537

C1534

C1533C1531

X1101

T3551

R2101

R1100

IC1171

C3551

C3533

C2517

C2111 C2105

C2101

C1171

C1132

C1536

C1542

C1543

C534

C537

L532

R2128

L2101

K8F

K8E

15

14

IC2881

5

4

8

1

C3841

C3804

C3803

C111

C1121

C123

C2103

C3806

C3844

C8121 D3801

D3802

1

28

IC3821

Q8122

R2116

R2181

R2182

R8122

R8126

R8127

R8128

R8132

X3821

C1101

C1103

C1107

C1113

C1124

C151

D8122

54

53

L1101

L1103

Q1161

R1126

R1142

R1145

R1148

R1152

R1154

R1156

R1161

T111

Q8121

C3802

R2127

D1171

C2881

C1172

R6101

R2512

R2511

Q1153

L1161

L1102

K3U

2

1

C153

C1161

C1119

C1105

T171

R6253

R6252

R6251

R6148

R6144

R6143

R6141

R6104R6102

R1155

R1153

R1151

R1149

R1146Q1152

Q1151

C6623

C6621

C6253

C6252

C2513

C2512

C2511

R1143

T151

R6242

R6106

R4171

9

1

D6126 C6249

C6247

C6241

R6142

R4181

R2539

R2538

R2537

R2534

R2532

R2531

L5201

K3T

IC2161

13

12

C6248

C6231

C4172

C2507

C2164

C2163

C4106

C6127

16

IC6141

Q2531

R2533

R2536

R6130

R6107

53

54

8

C6245

C2591

R1162

R3538

R3539

R3540

R3541

R6129

R6128

R6127

R6126

R5215

R4182

R4179

R4178

R4127

R4126

R3103 R2162

R2161

Q6126

Q4172

2

1

13

12

24

1

C6268

C5233 C5215

C5208

C5206

C5203

C4156

C4116

C4105

R5225

R5214

R5213

R5212

R4109

R4104

R3141

R3137

R261

L2161

24

1

D6131

C5214

C5213

C5201

C4176

C4143

C4102

C3103

C3101

C2161

C4103

C4136

C4137

C4146

C5232

C6126

IC5211

R263

R4103

R394

R393

R392

R391

R3142

R3109

R3104

10

1

IC6631

4

1

C6634 C6632

C6267

C4104

C3126

C3104

C306

C301

C201

R8086

R5269

R5268

R5258

R5255

R5211 R5210

L201

11

20

75

51

IC5281

IC5271

IC5261

IC5241

24

1

58

C8082

C8013

C5273

C5261

C5256

C5247

C5246

C5231

C5211

C5210

R5226

R4107

13

12

C5212

C4142

C3141

RB310

RB309

RB307

RB306

RB305

RB304

R6682

R6681

R6184

C6633

C6171

C6170

C312

C309

C307

C303

C1331

X6171 R6183

R6177

R222

R221

L203

K8N K8H

IC201

102

128

103

1

C6631

C6179

C206

C205

R6172

C5248

C527238

39

IC5291

1

25

26

100

IC8001

40

39

C203

C236

C237

C5271

C8001

C8003

C8005

C8017

C8051

65

64

1

2

K3V

40

39

L202

RB8051

RB8052

RB8053 RB8061

RB8062

RB8063

RB8064

RB8071

RB8072

RB8073

RB8074

R8109

R8108

R8102

R8101

K3W

2

1

D8101

C8102

C8101

C8072 C8062

C8052

RB8054

C5258

76

50

RB302

Q6127

C6141

C5209

C4177

C4158

C3102

R1832

R

P

MAIN (SIDE:B)

X

1AA4B10C3250B_C

1

7

16

10

9

8

1

3

13

TSW611 D614

K6E

FB612

R614

R613

FB611

VR611

C615

C618

C612

C611

PTH611

DB611

C617

L611

FB613

Q611

K6D

K6C

R62E

R62I

R62H

Q621

Q622

R62J

R619

R62D

R618

R620

R62G

R62L

IC611

C62A

R62R

R62B

C62B

C62I

R62P

C62F

C62E

C62K

R62Q

C62J

D618 D619

D616

D617

R623

C62M

R62M

R62F

C62D

R62A

R62C

C62C R617

R61E

R61A

R61C

R61B

R61F

R61D

R615 R616

D613

P.F (SIDE:B)

FN905

DVI “K10W” DVI “K10V” AV “K10Y” AV “K10T” AV “K10U”

SP901

TEMP. “K48E”

POWER “K6S”

POWER “K6R”

P/C “K28D”

1AA4B10C3250D_C

RC2801

C2803

R2802

R2801

R2803

C2802

D2801

R/C (SIDE:B)

R4881

R4882

R4883

R4884

TEMP (SIDE:B)

PCB_ME3A A7

LAMP BALLAST

CB2

A8 PCB_ME3A

444

22

2

333

11

1

1AA4B10C

3250A_C

17

10 1

12

3940

14

31

+

14

5

8

+

13

1

4

5

8

5

4

1

14

58

1

3

4

6

64

3

1

8

5

41

14

5

8

L671

L681

C659

K6F

C691

C692

L692

L691

L661

C661

K6T

C693

C630

K6U

C651

C653

C652

C639

D632

C632

C635

C642

C634

D651 D652

IC631

T651

K6R

C694

C686

L65A

C65F

C676

L693

R631

C677

D672

D682

D65C

R69C

Q661

K6J

PC642

PC641

PC643

R65P

C631

D69B

C641

R656

R657

R638

R637

R63E

R63C

R63A

K6S

Q671

L695

C5563

R673

R67I

IC5561

D5561

R5563

R5564

R5565

R5566

R5561

R5562

Q69A

D69A

R69B

R69A

R69G

C695

L694

Q5561

R5567

Q691

R69H

C69Z

C638

R645

R5568

K6M

K6L

K6K

PB1

PB2

R65B

R672

IC5501 IC5551

D5551

R5553

Q5551

R5557

R5503

Q5501

R65A

R671

Q681

Q65A

R69R

R69S

IC651

C656

R691

R681

R682

IC671

R675

C672

R67D

R674

R67G

R67F

R67A R67B

R67E

R67C

C673

Q67A

R67K

C671

C67A

R67H

C674

R676

R679

D67P

D68P

R68Q

D69C

D68Q

R5504

R5554

D5501

R5507

R67JC67B

C68B R68J

R686

C684

R68H

C68A C681

R68K

Q68A

C683

R68C

R68E

R68BR68A

R68F

R68G

R684

R68D

C682

R685

IC681

IC65A

C65D

R65G

C65B

R65E

R65J R65H

C65JR65M

R65L

R65K

C65A

C65E

R65Y

R66B

POWER (SIDE:A)

X

1AA4B10C3250A_C

17

101

14

L671

L681

C659

K6F

C691C692

L692

L691

L661

C661

K6T

C693

C630

K6U

C651

C653

C652

C639

D632

C632

C635

C642

C634

D651D652

IC631

T651

K6R

C694

C686

L65A

C65F

C676

L693

R631

Q672

Q65B

C687

C65C

R5569

R658

D671

D681

D65A

R65Q

R66C

R65V

Q65C

R65U

R65W

Q662

D633

D65B

C65G

R636

C643

R643

R633

C655

R662

R63B

R655

R641

Q641

R640

R642

D634

R654

D631

R634

R63D

R63F

C658

C657

D653

C654

C636

R65C

R651

R692

C5503

R652

R653

D654

R696

R695

R644

R69F

R69E

R69D

C633

C640

R635

C637

R69Z

D636

R661

C5553

R664

R663

Q66A

R66A

R670

D69D

D67Q

Q67P

R67P

R67Q

R68P

Q68P

R5501

R5502

R5505

R5506

R5556

R5555

R5552

R5551

R683

Q651

R659

R660

Q682

R689

R680

R68I

D661

R65X

R632

R69T

POWER (SIDE:B)

MAIN “K8R”

LENS MOTOR

MAIN “K8S”

EXHAUST FAN

“FN901”

P. F. “K6E”

PCB_ME3A A9

FOCUS

SELECT ZOOM

R6816

SW6801

R6817

SW6808

SW6809

R6801

P-DOWN

SW6804

SW6805

SW6807

SW6803

MENU


INPUT

SW6810SW6802

R6802 R6818

R6811

R6809

R6803

POWER(R)

P-RIGHT

P-UP

P-LEFT

R6804

R6806

R6808

R6807

SW6806

TEMP WARNING(R)

LAMP REPLACE(Y)

1AA4B10C2860A_B

112

a side

READY(G)

D6833

D6804

D6803

C6803

D6802

R6812

R6813

R6822

R6823

R6833

R6831

R6832

C6801

C6802

R6834

K68A

D6832

D6831 D6801

D6834

POWER

SW6812

R6821

R6819

VOL- VOL+

KEY SW (SIDE:A)

KEY SW (SIDE:B)

MAIN “K8A”

13

1

3

L601

250V

T4AH215004TYPE:

1AA4B10C

3250C_C

F601

LIVE

NEUT

K6B

K6A

L602

C601C602

C603

C604

F601A

F601B

VA601

LINE FILTER (SIDE:A)

LF901

SW902

SW904

X

31

3

1

L601

1AA4B10C3250C_C

F601

LIVE NEUT

K6B

K6A

L602

C601

C602

C603

C604

F601A F601B

VA601

R601

LINE FILTER (SIDE:B)

A10 PCB_ME3A

INTAKE FAN

EXHAUST FAN

INTAKE FAN

TO LENS

MOTOR

AC CORD

AC100-120V

AC200-240V

1AV4W11B

00800

INT

E

SW

THERMOSTAT

SW

(SET TO OPEN

AT 100+/-5 C)

F.G.

(NEUT)

(LIVE)

1

3

2

1(LIVE)

(NEUT)

POWER FACTOR CORRECTION

3

2

1

S

D

G

IDET CT SYNC REF ON

OFF CS VCC VC

OUT

GND

VIN-

VFBOVP

VDET

IIN-

IFB

P.F.CONTROL

<B-1K>

12

2

1

F/B DET

O/V DET

1

3

1

-5VS

(60mA)

15.5V

-5VS

10

1

(600mA)

6V

4

1

6V

(2.17A)

(250mA)

15.5V

CATHODE

ANODE

REF

1

6VD(600mA)

6VS(1.02A)

1

3

(60mA)

12

39 40

REF

RT CS

VCC

OUT

GND

FB

IN

(300mA)

9VMCI(1.15A)

IN

FB GND

OUT

VCC

CS

RT

REF

RT CS

VCC

OUT

GND

FB

IN

VINGNDCONTCDOCOUT DRI

CTCSSVCCOSVB

135791114

15 12 10 8 6 4 2

FN903

FN902

FN901

FN904

S

SW902

K901S

K902S

AT1

U20B30101

LF901

VA601 R601 L601

C601

F601B

F601A

K6B

F601 C604

L602

C603

K6A_4K6A_3

K6A_1

C602

K6A_2

K6A

K6B_1 K6B_2

K6B_3 K6B_4

TSW611

D613

R613

R620R619

R618

R617

R616

R615

C615

K6C

C611

PTH611

D614

R61C

R61D

R61F

R61E

L611

R62I

C62J

C62A

R62D

R62H

Q622

Q621

R62E

R62A

C62C

R62C

R62B

C62B

R614

R62R

K6E

FB612

D618

D619

D617

D616

Q611

VR611

DB611

C612

K6C_3

K6C_4

K6C_1

K6C_2

K6E_1B K6E_2B

C62I

R61A

R61B

C617

K6E_1A K6E_2A

R62L

R62Q

R62P

C62M

R62J

R623

R62M

C62E

C62K

R62F

C62D

C62F

R62G

R642

R641

Q641

R658

R637

PC641

C641

R651

K6L

K6M

C693

Q69A

C661

L693

L691

L692

K6U

Q651

R659

R660

C656 R653

R655

R656

R657

D631

T651

D651

D652

C642

R63E

C652

R638

C640 C639

C635

C634

R635

R636

C637

C638

C636

R634

C633

C632

R633

D653

C651

C692

C691

D69A

D69B

Q662

R664

R661

R69G

R692

R691

D634

D661

R663

K6U_1

K6U_2

K6U_3

K6U_4

K6S_6

K6R_1

K6R_2A

K6R_3

K6R_4A

K6R_5

K6R_6A

K6R_7

K6R_8A

K6R_9

K6S_36

K6L_1

K6L_2

K6L_3

K6M_1

K6M_2

K6M_3

K6R_10A

R63B

R654

C639_2

C639_1

C651_2

C651_1

C652_2

C652_1

L671

R69A

R69B

R69C

C653

C658

R69F

R69E

C676

R63D

R63C

C654

C655

D633

C67A

L681

L661

K6K

K6K_3

K6K_2

K6K_1

R69D

K6J

K6J_3

K6J_2

K6J_1

C686

K6F

K6S_4

K6S_2

C657

L694

R67E

R67A

R67B

R67F R67C

R67D

R67G

R67H

R67I

R68AR68H

R68I

R68G

R68D

R68C

R68F

R68B

R68E

C68A

R5503

R5502

R5501 C5503

D5501

D5551

C5553

R5552

R5553

K6S

C65F

L65A

R65B

K6R

K6S_1

K6S_5

K6S_7

K6S_3

K6S_9

K6S_11

K6S_13

K6S_15

R5506

R5505 R5555

R5556

R5551

K6S_33

L695 R695

K6S_35

K6S_39

K6S_37

K6S_29

K6S_25

K6S_21

K6S_19

D65B

R69Z

C694

Q65A

Q691

R640

C65G

D65A

Q66A

D671

R66B

R66A

Q67A

R67K

Q68A

R68K

Q5551Q5501

R696

R5507

R5557

IC63_1

K6R_2B

K6R_4B

K6R_6B

K6R_8B

K6R_10B

K6S_26

K6S_30

K6S_38

C69Z

R69H

R69S

R644

R645

D632

D636

C643

R652

D654

C65D

R65G

C65E

Q65B

R65V

R65C

C65B

R65E

R65Y

R65K

R65L

R65J R65H

R65W

R65X

R684

R685

C682

R683

C681

R686

C684

D681

Q681

R682 R672

Q671

C674

R676

C671

R673

C672

R675

R674

Q672

R670

R679

Q68P

R68P

R68Q

D68Q D67Q

R67Q

R67P Q67P

Q65C

R662

R671R681

R65A

R5554R5504

C695

C65A

C673

C683

D69DD69C

R643

C67B

R67J

R68J

C68B

R65M C65J

D68P D67P

R689

R680

Q682

R65Q

R65U

R65P

R66C

PC642

PC643

Q661

C631

C659

D672

C677

D682

C687

C65C

D65C

R63F

R63A

R69T

R69R

R632

M10B19310

M10B19309

M10B19400

M10B19310

S

S10B3590N

:S10B5070N

:S10B5470N J11B

2450N

J11B

2450N

VEV

0043 1GJ

220K

F35B

1010N

275GM

0.22

UVCA

J20B

00100

J20B

00100

J10EM

020N

4A250V

TCSL

275GM

0.22

UVCA

F35B

0680N

275GM

0.22

UVCA

NT2NT2

NT2

275GM

0.22

UVCA

NT2

J10EM

020N

NT2 NT2

S10B3640N

:S40B0030N

SFPB

-54P

2XK

0.15

VBD

1/2GF

150K

1/2GF

150K

1/2GF

150K

1/2GF

150K

1/2

GJ

240K

1/2

GJ

240K

400GJ

1.5P

J10EM

020N

1000KK

1000NH

3

1

DHXAVB002

(90C)

FML-G16S

1GJ47K

L26B

4140N

1/16GJ

8.2C

CJ330

CGQY

CJ68

CGQY

1/16GJ

130KC

1/16

GJ

330C

AJ

AH

1/16GJ

1.1KC

1/16GJ

1.5KC

25KK

0.033

0.033 -PLC-XU45

0.022 -PLC-XU46

0.022 -PLC-XU45

0.047 -PLC-XU46

30K -PLC-XU46

1/16

GJ

470KC

1/16

GJ

10KC

KK470

GQBY

2XK

0.15VBD

1/16

GJ

5.6MC

J11CB070N

Z20051---

1SS

355

1SS

355

1SS

355

1SS

355

2SK

2698

R3G4102

SJ

D10XB60

1000KK

1000NH

NT2

NT2 NT2

KZ

0.01

GQFY

1GJ47K

450EM

180VCJ

NT2 NT2

1/16GJ

4.7KC

1/16

GJ

22C

(850UH,2A)

1/16

GJ

47KC

25KZ

0.1

GQFY

1/16

GJ

22C

1/16

GJ

4.7KC

1/16

GJ

390C

25KZ0.1

GQFY

KK

0.022

LZBY

1/16GF

1.2KC

25KZ

0.1

GQFY

KK

0.068

GQ

1/16

GJ

100C

X

1/16

GJ

1KC

1/16GJ

4.7KC

TLP421F-GBP

:TLP421F-GRP

16KZ

0.22

GQFY

1/16GJ

1KC

J10ES

036G

J10ES

036G

6.3EM

1000CD

AH

25EM

1000CD

L2E6

101KN

L2M9

391KN

L2E6

391KN

J10EA

040N

AH

1/16GJ

1KC

1/16

GJ

4.7KC

10KK

0.47LZB 1/16GD

10KC

1/16GD

6.8KC

1/16GJ

270C

1/16GJ

1KC

SFPL-52P

L51B2190N

FMB-2306

FMJ-23L

400NJ

0.022EAQ

1GJ

68K

10EM

3900

2H

1/16GJ

10KC

25KZ

0.1

GQFY

35EM

220SZ

2000KK

220AHH

2000KK

330NH

1/16GJ1KC

1/3

GJ

120

KK680

GQBY

25TM

1FD

KZ0.1

FA

1/3GJ47

KK1000

GQBY

X

FJ22VRH

SFPL-52P

25EM

2700

2F

6.3EM

1000CD

6.3EM

1000CD

DCB

015P

DCB

015P

AH

1/16GJ

10KC

1/16GJ

10KC

1/16

GJ

4.7KC

1/16

GJ

100KC

1/16

GJ

22KC

X

1SS355

1/16GJ

4.7KC

NT2

1GJ

68K

1/16GD

560C

NT2

L2M9

101KN

1/16

GJ

10KC

1/16

GJ

10KC

1/16GJ

10KC

16EM

470SZ

KK330

GQBY

1/16GJ

10KC

1/16GJ

10KC

16EM

470CD

1GJ

68K

1GJ

68K

25KZ

0.1

GQFY

25KZ

0.1

GQFY

UDZ12B

X

L2M9

101KN

L2M9

470KN

J10ES

036G

NT2

1/16

GJ

10KC

J10ES

036G

NT2

16EM

470CD

J10RK070N

NT2

KK330

GQBY

L2A7

100KG

1/16

GJ

4.7KC

1/16

GF

27KC

1/16

GZ0C

1/16

GJ

10KC

1/16

GZ0C

1/16GF

1.8KC

1/16GJ

1KC

1/16GJ

22KC

1/16GJ

1KC

1/16

GF

27KC

1/16GJ

1KC

1/16GJ

1KC 1/16GF

1.8KC

1/16

GZ0C

1/16

GJ

10KC

1/16

GZ0C

1/16

GJ

4.7KC

X

1/16GJ

22KC

1/16GJ

470C

1/16GJ

1KC

1/16GJ

1KC KZ0.01

GQFY

UDZ5.1BG

:UDZS5.1BG UDZ3.6BG

:UDZS3.6BG

KZ0.01

GQFY

1/16GJ

1KC

1/16GJ

470C

J10QG401G

16EM

470CD

L2E6

101KN

1/16

GJ

330C

J10AU

100N

NT2

1/16GJ

4.7KC

1/16GJ

4.7KC 1/16GJ

4.7KC

1/16GJ

4.7KC

1/16GJ

1KC

NT2

L2A7

3R3MG

1GJ1.2

NT2

1SS355

1/16

GZ0C

6.3EM

1000CD

2SB1204TP

:2SB1204SP

2SK

3280P

X

25KZ

0.1

GQFY

RB051

L-40G

AH

RB051

L-40G

1/16GJ

10KC

1/16GJ

10KC

IMZ1AG

1/16

GJ

10KC

IMZ1AG

1/16

GJ

10KC

AHAH

X

NT2

25KZ

0.1

GQFY

1/16GJ

1KC

X

1/3GJ12

X

1/16GJ

10KC

X

SC311

-06G

KZ0.22

FA

1/16GJ

10C

UDZS

6.2BG

KK4700

GQBY

1/16GJ

100KC

16KZ

0.22

GQFY

AH

1/16

GJ

10KC

1GJ

680

25KZ0.1

GQFY

1/16GJ

75KC

1/16GJ

1MC

1/16GJ

4.7KC

1/16GJ

3.9KC

1/16

GJ

22KC

1/16

GJ

39KC

1/16

GJ

10KC 1/16GJ

4.7KC

1/16GJ

1MC

1/16GJ

75KC

25KZ0.1

GQFY

1GJ

680

16KZ

0.22

GQFY

1/16GJ

100KC

KK4700

GQBY

RB051

L-40G

2SB1204TP

:2SB1204SP

1/16

GJ

330C

1/16

GJ

330C 2SB1204TP

:2SB1204SP

KK4700

GQBY

1/16GJ

100KC

16KZ

0.22

GQFY

1GJ

680

25KZ0.1

GQFY

1/16GJ

75KC

1/16GJ

1MC

AH

1/16GJ

4.7KC

1/16GJ

10KC

AH

1/16GJ

1KC

1/16

GJ

10KC 1SS355 1SS355

1/16

GJ

10KC

1/16GJ

1KC

AH

1/3GJ

1000

1/3GZ01/3GZ0

1/3GZ0

1/16GZ0C1/16GZ0C

6.3EM

330D

X

1SS3551SS

355

1/16

GZ0C

X

XX

UDZ5.1BG

:UDZS5.1BG UDZ5.1BG

:UDZS5.1BG

1/16GJ

10KC

1/16GJ

4.7KC

AH

1/16

GJ

4.7KC

X

1/16

GJ

10KC

1/16GJ

4.7KC

TLP421F-GBP

:TLP421F-GRP

TLP421F-GBP

:TLP421F-GRP

2SB1204TP

:2SB1204SP

35TM

2.2DA

25EM

1000CD

X

1GZ0

16 15 14 13 12 11 10 9

87654321

14

3

2

3

2

1

10 2

1

2

3

4

5

6

7

8

9

10

11

12

14

15

8765

4321 1234

5678

8765

4321

1234

5678 8765

4321

2

3

41

14

3

2

3

5

410

8

7

6

9

11

1

P-FAIL

LAMP-BST-SW

FAN_CONT_1FAN_CONT_2

FAN_CONT_2

5V_SW

7V

MCI

6V

AUDIO

TURBO -

Z00M -

FOCUS -

FAN_DRIVE1

5V_SW

Z00M - FOCUS -

FAN_CONT_1

P-FAIL

5V_SW

FAN_DRIVE1

7V

MCI

6V

AUDIO

TURBO +

ZOOM +

FOCUS +

ZOOM + FOCUS +

6VS

5.1V -PLC-XU45

6.8V -PLC-XU46

12 -PLC-XU45

0 -PLC-XU46

3.6V -PLC-XU45

6.8V -PLC-XU46

130K -PLC-XU45

IC5551

BA6287F

FOCUS MOTOR DRIVE

ZOOM MOTOR

DRIVE

IC5501

BA6287F

IC65A

FA7612CN

IC611

FA5332M

P.F.CONTROL

IC671

FA7701V

IC681

FA7701V

IC651

UPC1093T

IC631 STR-Z2156

Current Resonan

c

Power Supply

P.F.

B

LINE FILTER BAORD

POWER BOARD

15.5V

6V

-6V

12345678

A

B

C

D

E

F

G

H

I

J

K

L

ON: H

ON: H ON: L

ON: H

ON: L

ON: H

FAN CONTROL

COLD SIDE HOT SIDE

ON: H

+9V REG. VR611

ME3A-01

P.FAIL

ZOOM

FAN_DRIVE1

5V_SW

LAMP-BST-SW

FOCUS

■ Schematic Diagrams

SCH_ME3A

CAUTIO

Components indicated by a mark !in this sc

significance in the safety. It is therefore, partic

ment of those parts must be made by exactly

specified fuse. Unauthorized substitutions may

This projector is isolated from AC line by usin

Please pay attention to the following notes in

1. Do not touch the part on hot side (primary c

cold sides (secondary circuit) at the same t

2. Do not shorten the circuit between hot and

3. The grounding lead must be connected to t

measuring the voltages and waveform.

! CAUTION:

Fuse must be used with the specified part number.

Unauthorized substitutions may result in fire or accident.

-1-

Schematic Diagrams PLC-XU45,46 Page A11 [Left]

11

2

22

2

22

53

54 54

5454

39

40

39

40

29 29

30 30

40

39

2

1

30

20

10

GND

3

1

10

5VS

5VD

5V

GND

-5VS

1

3

15.5V

TURBO-

ZOOM-

FOCUS-

GND

LAMP_BST_SW1

FAN_DRIVE1

P_FAIL

5V_SW

FAN_CONT_1

FAN_CONT_2

5VAUDIO

9VMCI

FAN_GND

LCCK_SENS

12V2

SP+

SP-

GND

FOCUS+

ZOOM+

TURBO+

GND GND

GND

GND GND

GNDGND

LCCK_SENS

FAN_GND

LCCK_SENS

12V2

LCCK_SENS

12V2

FAN_GND

N.C.

12V1

1

A901 LP901

200W

400V 140W

1

LENS

MM

FROM POWER K6U

TO MAIN

3

LAMP_ERR

GND

ZOOM

MOTOR FOCUS

MOTOR

M10B19201

R6831-R6834

D6834 POWER(R)

D6833 READY(G)

D6832 TEMP WARNING(R)

D6831 LAMP REPLACE(Y)

SW6801-SW6812

1

4

VCC

VOUT

GND

1

3

R/C PRE AMP

SDA

SCL

O.S.

GND

+VS

A0

A1

INT OUT

TEMP.SENS

1

6

INTER LOCK

SW

T

HERMOSTAT

S

W

(SET TO OPEN

T

100+/-5 C)

3

1

R

ECTION

3

2

S

D

12

71

VINGNDCONTCDDRI

CTCSSVCC

13579

8642

R

LCD

PANEL

G

LCD

PANEL

B

LCD

PANEL

K10T K10U K10WK10V

K25RR

K25R

K25G

K25GG

K25BB

K25B

K3UK3T K3V K3W

K8R

K8S

K8P

K8N

K8F

112 61

FN905

FN906

SP901

K8A K8EK8G

14

K8H

3

5

CB1

METAL HALIDE LAMP

1AV4Z10B23200

CB2

1AV4M10B

19100

K68A

R6834

D6834

D6833

R6833

D6832

R6832

R6831

D6831

R6822

R6823

R6803R6802

D6804

D6801

C6801

R6804

R6821

R6819

R6818

R6817

R6816

SW6812

SW6810

SW6809

SW6808

12

1

ZOOM

FOCUS


POWER

K68A_7

K68A_5

K68A_4

K68A_3

K68A_2

K68A_1

K68A_9

K68A_10

K68A_11

K68A_12

C6803 D6803

SW808_1

SW809_1

SW810_1

SW812_1 SW807_1

SW806_1

SW805_1

SW804_1

SW803_1

D6802

C6802

SW6803

SW6804

SW6805

SW6806

SW6807

R6806

R6807

R6808

R6809

R6811

R6813

R6812

MENU

P-UP

P-DOWN

P-LEFT

P-RIGHT

SW801_1

SW802_1

SW6802

SW6801

SELECT

INPUT

R6801

SW801_3

K28D_3

K28D_2

K28D_1

RC2801

R2802

R2801

C2801 C2802 C2803

K28D

D2801

R2803

R4881

R4882

R4883

R4884

K48E_1

K48E_2

K48E_3

K48E_5

C4881

K48E

C4883

C4884

C4882

SW904

SW902

K904S

K903S

K901S

K902S

K6D

R620R619

R618

R617

FB611

C618

D614

I

K6E

FB612

K6D_1 K6D_2

K6D_4K6D_3

K6E_1B K6E_2B K6E_4B K6E_5B K6E_7

K6E_6

C617

K6E_1A K6E_2A K6E_4A K6E_5A

FB613

R63E

C639

C637

C638

C

632

K6F_1A K6F_2A K6F_4A K6F_5A K6F_7

C630

C639_2

C639_1

6

3D

R

63C

K6F

K6F_6

IC63_1

K6F_4B K6F_5B

C643

C631 R631

R63F

R632

J11MD540G J11MD540G J11MD400G

X

J11EA300G

X

J11EA300G

J10ML540GJ10ML540G J10ML400G J10ML400G

J11MD400G

J10EP100G

J10QY400G

J10EG030G

J10EP030G

M10B19311

M10B22500

A10B14200

J10EZ120G J10EG060GJ10EG040G

J10EZ050G

X

J10EZ120G

1/16

GZ0C

SML-210LTMG

SML-210MTMG

1/16

GZ0C

SML-210LTMG

1/16

GZ0C

1/16

GZ0C

SML-210YTLG

:SML-210YTKG

1/16GZ0C

X

X1/16

GZ0C

UDZ6.2B

25KZ

0.1

GQFY

1/16

GZ0C

1/16

GZ0C

1/16GJ

3.3KC

1/16GJ

3.9KC

1/16GJ

6.8KC

1/16GJ

15KC

S10B3530GS10B3530GS10B3530GS10B3530G

NT1

25KZ0.1

GQFY UDZ6.2B

NT1

NT1 NT1

NT1

UDZ6.2B

25KZ0.1

GQFY

S10B3530GS10B3530GS10B3530GS10B3530GS10B3530G

1/16GJ

15KC

1/16GJ

6.8KC

1/16GJ

3.9KC

1/16GJ

3.3KC

1/16

GZ0C

X

1/16GZ0C

NT1

S10B3530GS10B3530G

1/16GJ

3.3KC

NT1

U20B24400

1/16GJ

220C

1/16GJ

220C

10EM

100WM 10KZ1U

GQFY KK470

GQBY

J10EG

040G

RB500V

-40G

X

1/16GJ10C

1/16GJ

10C

X

1/16GJ

10KC

NT1

16TM

2.2FD

J10EG

060G

CJ120

CGQY

CJ33

CGQY

25KZ

0.1

GQFZ

S10B3370N

S10B3590N

:S10B5070N

:S10B5470N J11B

2450N

J11B

2450N

J11B

2450N

J11B

2450N

J10EM

020N

1/2GF

150K

1/2GF

150K

1/2GF

150K

1/2GF

150K

Z20051---

450GK

0.047

DK

FML-G16S

G

J

J11CB070N

Z20051---

NT2 NT2

NT2NT2

NT2 NT2 NT2 NT2 NT2

NT2

450EM

180VCJ

NT2 NT2 NT2 NT2

Z20051---

F

1GJ

68K

Y

35EM

220SZ

KK680

GQBY

25TM

1FD

X

NT2 NT2 NT2 NT2 NT2

450GK

0.047DK

NT2

GJ

8K

GJ

6

8K

J10RK070N

NT2

NT2 NT2

J

KZ0.22

FA

35TM

2.2DA X

X

1GZ0

1

2

3

45

6

7

8

2

1

2

3

4

5

6

7

8

9

U+LED

LAMP_SW

ECO_SW

3.3VS

5VS

F

.CONTROL

MAIN BOARD

STR-Z2156

u

rrent Resonance

o

wer Supply

IC4881

LM76CHMX-5

KEY SW BOARD R/C BOARD

TEMP. BOARD

DVI BOARD

AV BOARD

LAMP BALLAST

P.F. BOARD

910111213141516

A

B

C

D

E

F

G

H

I

J

K

A11

CAUTION

k !in this schematic diagram have the special

erefore, particularly recommended that the replace-

ade by exactly the same parts.Must be used with a

bstitutions may result in fire or accident.

C line by using the internal converter transformer.

wing notes in servicing.

side (primary circuit) or both parts on the hot and

at the same time.

ween hot and cold sides.

connected to the ground of the same circuit when

waveform.

-2-

Schematic Diagrams PLC-XU45,46 Page A11 [Right]

L

H

C

A

B

A

B

CGND

AUDIO SW

VCC

Y

PC R

PC L

AV R

AV L

PC

L/R-IN

PC

MONITOR

OUT

S-V

Y/VIDEO

Cr/Pr

Cb/Pb

MOUSE_SEL1

MOUSE_SEL0

TXD

RTS/CTS

DATA

ADB/CLK

RXD

AV

L/R-IN

PC/AV

L/R-OUT

L OUT

L

R

L

R OUT

3

2

4

11

4

1

2

3

USB

R/C

PRE AMP

2

12

22

32

42

52

4

6

8

10

14

16

18

20

24

26

28

30

34

36

38

40

44

46

48

50

54

51

41

31

21

11

1

RESET_SW

SDAPC

SCLPC

STANDBY

INPUT

GND

VOLUME

OUTPUT-

GND

OUTPUT+

VCC

+

-

B

G

+

-

+

-

R

V-

V+

GND

SCLPC

SDAPC

RXD

ADB/CLK

DATA

RTS/CTS

TXD

MOUSE_SEL0

MOUSE_SEL1

R/C

CPU_RESET

USB_D+

USB_D-

USB_VBUS

USB_D-

USB_D+

CPU_RESET

SP-

SP+

S_SW

VOL_CONT

AV/PC

MUTE

S_SW

MUTE

S_Y

S_C

C_V

AV_PB

AV_PR

C_SWIN

GND

VCC

2

1

3

4

5

8

7

6

1

8

GND

VCC

MCI_SW

G

N

G

N

1

G

N

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

2930

R5078

C5022

C5012

C5011

C5014

C5013

Q5041

R5042

R5032

Q5031 C5031

R5041

R5031

R5044

R5034

R5046

R5014 R5013 R5012 R5011 R5022

R5021 C5021

C5001C5002

R5054 C5051

Q5051

Q5081 D5081

R5052

R5051

R5061

R5062

D5082

Q5082

Q5061

C5061

R5064

R5081

Q5072

R5077

R5076

R5074

R5071

R5072

R5073

Q5071

D1003

D1002

D1001

D2025

D2044D2043

D2041 D2042

D2001 D2002

D1044D1043

D1041 D1042

D1054

D1055

D1053

D1057

D1059

D1058

D1051 D1052

K20C_6

K10B_1

K20B_5

K20B_6 K20B_3

K20B_4

K10B_3

K10B_2

K10C_1

K10A_5

K10A_14

K10A_13

K10A_3

K10A_2

K10A_1

L1022

L1021

L1053

L1054

L1052

L1055

L1057

L1056

R2044

L2025

R2032

C2023

L2024

L2023

R2043

L1041

L1042

L2004

R1044

R1043

R1042

R1041

K10B

L1003

L1002

L1001

K10A

L2042

L2041

C2001

C2021

L2001

L2022

L2021

R2041

R2042

K20B

R2031

L1051

K10C_2

K10C_3

K10C_5

K10C_6

K10C_7

K10C_8

D1056

L2002

C2002

D2004D2003

D2005 D2006

C2003

L2003

K20A

L2005

L2006

K20C_5

K20C_2

K20A_8

K20A_7

K20A_6

K20A_4

K20A_2

K20A_1

R2022 R2024

R2023 R2025

R2051

R2052

R2053

R2054 L2052

L2051

K20D_5

K20D_2

D2052D2051

D2053 D2054

K20A_3

K20D

K20C

R1016

R1017

R1018

D2024D2023

D2021 D2022

C5101

C5121

C5131

C5111

R5134

R5124

Q5131

Q5121

R5153

R5143

C5151

R5151

R5152

R5142

R5141

C5141

C5102

R5144

R5154

C2811

R2811

RC2811

D2812

D2811

K1

0

D1068

D1066

D1067

D1065

K10D

K10D_2

K10D_3

K10D_4

K10D_5

R1065

R1066

R1024

R2030R2028

R2029R2027

R2002 R2004

R2003 R2005

R2010R2008

R2009R2007

R2012 R2014

R2013 R2015

R5113

R5111

R5112

C2813

C2812

R1031

K10A_12K10A_15

K10A_9

L-OUT

R-OUT

S_C

S_Y

B_OUT

R_OUT

G_OUT

AV_PB

AV_PR

C_V

C/B-SW

C/R-SW

K10T_3

K10T_7

K10T_11

K10T_15

K10T_19

K10T_23

K10T_25

K10T_29

K10T_31

K10T_33

K10T_35

K10T_37

K10T_39

K10T_41

K10T_43

K10T_47

K10T_49

K10T_51

K

1

K10T

K10T_1

Q5141

Q5151

R5161

R5162

R5164R5163

R1061

SW1061

R5053

R5063

R5033

R5043

D1061

C1061

C1042 C1041

L5001

R5001

R2021

R2026

R2001

R2006

R2011

R5133

R5123

R5131

R5132

R5122

R5121

R5136

R5126

R5117

R5156

R5146

C5108

C5161

R1021

R1026

R1023

C002 C001

R017

C013

R016

C012

C011

R014

Q011

R012

R013

R011

R001

AUDIO_IN

Q5111

R5114 R5116

K10C

RC2811_2

SW1061_1

R1013

R1014

R1015

R3041

C3013

C3012

R3021

R3022

R3023

R3011

R3012

R3013

R3042

R3044

C3041

C3043

C3044

C3011

D1021

D1022

R3043

R3004

R3005

R3014

C3017

R3017

R3016

R3015

C3019

R3019

C3018

R3018

K10D_1

K10T_53

H_OUT

V_OUT

R_OUT

G_OUT

B_OUT

H_OUT

V_OUT

C3021

C3022

C3023

RC2811_1 R2812

PC

INPUT

R

7

C7011

R

SW7011

K700G

TO F.G.

K10EB

K10EA

R1089

R1088

C1086

R1086

R1087

K10E_16

K10E_24

K10E_23

K10E_3

K10E_14

K10E_6

K10E_21

K10E_13

K10E_20

K10E_4

K10E_12

K10E_7

K10E_17

K10E_18

K10E_9

K10E_10

K10E_1

K10E_2

GND_21

GND_22

GND_23

GND_24

GND_25

GND_26

SW7011_1

R7017

C7017

K10E

R

G

B

H

VK10E_8

K10E_25

K10E_27

K10E_26

K10E_28

D7042

C7043

C7044

D7041 C7042 C7041

C7051C7052

C7054

C7053

D7052

C7018 R70

1

R70

1

R3065

R3064

R3063

R3059 R3061

R3060 R3062

R3058R3056

R3057R3055

R3051 R3053

R3052 R3054

C3053

C3052

C3051

R3068

R3067

R3066

L3051

L3052

L3053

D3051

D3052

D3053

IN_G

IN_R

IN_B

D3072

D3071

R3073

R3076

R3071

R3074

R3075

R3072

L3071

L3072

IN_H

IN_V

R7071

K10E_5 R7056

R7057

D7053

7051_3

7041_4

PC DIGITAL INPUT

R1090

D7054

1/16

GZ0C

25KZ0.1

GQFY

16TM2.2FD

AH

1/16GJ

2.2KC

1/16

GJ2.2KC

AH 25KZ

0.1

GQFY

1/16

GZ0C

1/16

GZ0C

1/16

GJ

1.5KC

1/16

GJ

1.5KC

1/16

GJ

1.8KC

1/16GJ

100KC 1/16

GJ

100KC

1/16

GJ

100KC

1/16

GJ

100KC

1/16GJ

6.8KC

1/16GJ

6.8KC 16EM

47WM

16EM100D

:16EM100F1

25KZ

0.1

GQFY

1/16GJ

2.2KC 16EM10D

:16EM10F1

AH

AH 1SS355

1/16GJ

2.2KC

1/16

GZ0C

1/16

GZ0C

1/16GJ

2.2KC

1SS355

AH

16EM10D

:16EM10F1

1/16GJ

2.2KC

1/16GJ

1KC

AH

1/16GJ

10KC

1/16GJ

10KC

1/16GJ

10KC

1/16GJ

22KC

1/16GJ

10KC

1/16GJ

4.7KC

AH

UDZ

6.2B

UDZ

6.2B

UDZ

6.2B

UDZ12B

UDZ12BUDZ12B

UDZ12B UDZ12B

UDZ6.2B UDZ6.2B

UDZ12BUDZ12B

UDZ12B UDZ12B

UDZ20BG

UDZ20BG UDZ20BG

NT1

NT1 NT1

NT1

F34EA207G

F34EA

256G

F34EA

256G

F34EA

256G

F34EA

256G

F34EA

256G

F34EA

256G

1/16

GJ100C

F34EA256G

1/16

GJ100C

25KZ

0.1

GQFY

F34EA107G

1/16

GJ100C

F34EA256G

F34EA107G

1/16GJ

100C

1/16GJ

100C

1/16GJ

470KC

1/16GJ

470KC

J12A

00400

F34EA207G

J11B0990N

F34EA256G

X

1/16GJ

470KC

1/16GJ

470KC

J11B2990N

1/16GJ

10KC

F34EA

256G

NT1

UDZ20BG

X

UDZ6.2BUDZ6.2B

UDZ6.2B UDZ6.2B

X

J12B2761N

F34EA107G

NT1

1/16GJ

75C 1/16GJ

75C

1/16GJ

75C 1/16GJ

75C

1/16GJ

100KC

1/16GJ

100KC

1/16GJ

100C

1/16GJ

100C F34EA256G

F34EA256G

NT1

UDZ12BUDZ12B

UDZ12B UDZ12B

NT1

J12B2642N

1/16

GZ0C

1/16

GZ0C

1/16

GZ0C

UDZ6.2BUDZ6.2B

UDZ6.2B UDZ6.2B

16EM100D

:16EM100F1

16EM10D

:16EM10F1

10KK

0.47

UGQBY

6.3EM

47WM

1/16GJ

1KC

1/16GJ

1KC

AH

1/16GJ

150C

1/16GJ

150C

16EM10D

:16EM10F1

1/16

GJ

47KC

1/16GJ

39KC

1/16GJ

39KC

1/16GJ

47KC

16EM10D

:16EM10F1

25KZ

0.1

GQFY

1/16GJ

1KC

1/16GJ

1KC

6.3EM100

(WM:F1)

1/16

GJ220C

U20B

24400

UDZ6.2B

J30

B

UDZ12B

J11B2770N

NT1

1/16

GZ0C

1/16

GZ0C

1/16

GZ0C

1/16GJ

75C

1/16GJ

75C

1/16GJ

75C

1/16GJ

75C

1/16GJ

75C 1/16GJ

75C

1/16GJ

75C 1/16GJ

75C

1/16GJ

75C

1/16GJ

75C

1/16GJ

75C

1/16GJ

75C

1/16GJ

75C 1/16GJ

75C

1/16GJ

75C 1/16GJ

75C

1/16

GJ150C

1/16GJ

47KC

1/16GJ

39KC

KK470

GQBY

10KZ

1U

GQFY

X

NT1NT1

NT1

J11

M

J11MD540G

NT1

AH

1/16GJ

100C

1/16GJ

100C

1/16

GJ

10KC

1/16

GJ

10KC

1/16

GZ0C

S10B5110N

X

UDZ6.2B

25KZ

0.1

GQFY

CJ100

CGQY CJ100

CGQY

L2PD2R2MG

X

1/16

GZ0C

1/16

GZ0C

1/16

GZ0C

1/16

GZ0C

1/16

GZ0C

1/16GJ

150C

1/16GJ

150C

1/16GJ

47KC

1/16GJ

39KC

1/16GJ

39KC

1/16GJ

47KC

1/16GJ

47C

1/16GJ

47C

1/16GJ

47C

1/16GJ

47C

1/16GJ

47C

25KZ

0.1

GQFY

25KZ

0.1

GQFY

1/16

GZ0C

1/16

GZ0C

1/16

GZ0C

25KZ

0.1

GQFY

6.3EM220

(WM:F1)

1/16GJ

3.3KC

EM1D

1/16GJ

10KC

PM

1DB

16EM10D

:16EM10F1

1/16

GJ

10KC

AH

1/16GJ

10KC

1/16

GJ

2.2KC

1/16GJ

10KC

1/16

GZ0C

AH

1/16GJ

1.5KC 1/16GJ

1.5KC

J11A00300

NT1

X

1/16GJ

68C

25KZ

0.1

GQFY

25KZ0.1

GQFY

1/16

GJ270C

1/16

GJ270C

1/16

GJ270C

1/16GJ

75C

1/16GJ

75C

1/16GJ

75C

1/16GJ

68C

1/16GJ

10C

25KZ

0.1

GQFY

X

6.3EM

47WM

UDZ

12B

UDZ

12B

1/16GJ

10C

X

1/16GJ1.5KC

CC3

CGQY

X

1/16GJ1.5KC

CC3

CGQY

X

CC3

CGQY

X

NT1

X

NT1

RB751S

-40G

1/

1

G

J

10

25KZ0.1

GQFY

1

/

1

0

S10B

4490G

J30B1630N

SMXAANX1008A-

X

1/16

GZ0C

25KZ

0.1

GQFY

1/16GJ

2.2KC

X

NT1

NT1 NT1 NT1 NT1 NT1 NT1

NT1

1/16

GZ0C

X

J11B

5550N

NT1

SFPL-52P

6.3EM100

(WM:F1)

25KZ

0.1

GQFY SFPL

-52P 25KZ

0.1

GQFY

16EM

47WM

B

A

16EM

47WM

25KZ

0.1

GQFY

25KZ

0.1

GQFY

6.3EM100

(WM:F1)

SFPL-52P

16KZ

2.2FA

1/16

G

22K

C

1/16

GJ

100

C

1/16

GZ0C

1/16

GZ0C

1/16

GZ0C

1/16GJ

75C 1/16GJ

75C

1/16GJ

75C 1/16GJ

75C

1/16GJ

75C

1/16GJ

75C

1/16GJ

75C

1/16GJ

75C

1/16GJ

75C 1/16GJ

75C

1/16GJ

75C 1/16GJ

75C

X

1/16GJ

100C

1/16GJ

100C

1/16GJ

100C

X

UDZ

6.2B

UDZ

6.2B

UDZ

6.2B

UDZ

12B

UDZ

12B

1/16

GZ0C

1/16

GZ0C

1/16GJ

100C

1/16GJ

100C

1/16GJ

10KC

X

F34EA207G

1/16

GJ

10KC

NT1

1/16GJ

3.6KC

1/16GJ

1KC

SFPL-52P

NT1

X

1

2

3

4

5

6

7

89

10

11

12

13

14

15

16

3

2

1

3

2

1

3

2

1

3

2

1

3

2

1

3

2

1

3

2

1

3

2

1

3

2

1

3

2

1

3

2

1

3

2

1

14

2

15

3

4

5

6

7

8

9

10

11

12

13

1

2

3

2

1

2

3

1

2

3

2

1

2

3

1

2

3

1

2

34

5

1

2

3

45

6

7

8

16

15

14

13

12

11

10

98

7

6

5

4

3

2

1

3

4

5

6

78

9

10

11

12

1

213

14

1

2

3

4

1

2

3

4

12345

3

54321

4

3

2

1

9V

5VS

9V

5VS

9V

5VS

5VPC

5V

AUDIO

5V

AUDIO

5V

AUDIO

5VS

-5VS

5VDVI

5VD

DDC_CLK

DDC_DATA

5VMCI

3.3V

MCI

RX2+

RX2-

RX1+

RX1-

RX0+

RX0-

RXC+

RXC-

3.3V

MCI

5VMCI

IN_R

IN_G

IN_B

5VS

MAIN BOARD

K3T

IC6171

TA1318AF

IC5011

TC4053BF(EL)

IC5161

TC7SET00FU

-(TE85L)

AUDIO

AMP

AN7513

SW.

PC: H

AV: L

SERIAL

PORT

PC

INPUT

USB

PORT

AUDIO

INPUT

AUDIO

OUTPUT

S-VIDEO

INPUT

Y/VIDEO

INPUT

COMPUTER

MONITOR

OUTPUT

12345678

9

A

B

C

D

E

F

G

H

I

J

K

L

PC: H

AV: L

AV BOARD

DVI BOARD

ME3A-02

IC3011

LT1399CSP

RGB AMP

IC3041

TC74ACT14FTP

INVERTER

AV_PB

VOL_CONT

AV/PC

MUTE

C_V

AV_PR

S_Y

IN_R

IN_G

IN_B

IN_H

IN_V

IC7021

IC7031

IC7041

IC7051

IC7071

TC

7

TC7

W

BA033SFPP

PQ070XZ1HZPP

TC7

W

S_C

R_OUT

G_OUT

B_OUT

H_OUT

V_OUT

A12

-3-

Schematic Diagrams PLC-XU45,46 Page A12 [Left]

1

11

21

31

41

51

54

50

48

46

44

40

38

36

34

30

28

26

24

20

18

16

14

10

8

6

4

52

42

32

22

12

2

SP-

SP+

S_SW

VOL_CONT

AV/PC

MUTE

S_Y

S_C

C_V

AV_PB

AV_PR

C_SWIN

MCI_SW

GND

VCC

GND

VCC

1

2

39

40

40 39

21

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

10

20

30

37

35

33

31

29

27

25

23

21

19

17

15

13

11

9

7

5

3

10

20

30

VCC

GND

OCK_INV

RESERVED

PGND

PVCC

EXT_RES

AVCC

RXC-

RXC+

AGND

RX0-

RX0+

AGND

AVCC

AGND

RX1-

RX1+

AVCC

AGND

AVCC

RX2-

RX2+

AGND

OVCC

QO23

OGND

QO22

QO21

QO20

QO19

QO18

QO17

QO16

GND

VCC

QO15

QO14

QO13

QO12

QO11

QO10

QO9

QO8

OGND

OVCC

QO7

QO6

QO5

QO4

QO3

QO2

QO1

QO0

HSYNC

VSYNC

DE

OGND

ODCK

OVCC

CTL3

CTL2

CTL1

GND

VCC

QE23

QE22

QE21

QE20

QE19

QE18

QE17

QE16

OVCC

OGND

QE15

QE14

QE13

QE12

QE11

QE10

QE9

QE8

OGND

OVCC

QE7

QE6

QE5

QE4

QE3

QE2

QE1

QE0

PDO

SCDT

STAG_OUT

VCC

GND

PIXS

ST

PD

DFO

OE3 OE4

4A4 4Y4

4A3 4Y3

GND GND

4A2 4Y2

4A1 4Y1

VCC VCC

3A4 3Y4

3A3 3Y3

GND GND

3A2 3Y2

3A1 3Y1

2A4

2A3 2Y3

2Y4

GND GND

2A2 2Y2

2A1 2Y1

VCC VCC

1A4 1Y4

1A3 1Y3

GND

1A2

1A1

OE2

GND

1Y2

1Y1

OE1OE1

1Y1

1Y2

GND

OE2

1A1

1A2

GND

1Y31A3

1Y41A4

VCCVCC

2Y12A1

2Y22A2

GNDGND

2Y4

2Y32A3

2A4

3Y13A1

3Y23A2

GNDGND

3Y33A3

3Y43A4

VCCVCC

4Y14A1

4Y24A2

GNDGND

4Y34A3

4Y44A4

OE4OE3 VCC

GND

OE3 OE4

4A4 4Y4

4A3 4Y3

GND GND

4A2 4Y2

4A1 4Y1

VCC VCC

3A4 3Y4

3A3 3Y3

GND GND

3A2 3Y2

3A1 3Y1

2A4

2A3 2Y3

2Y4

GND GND

2A2 2Y2

2A1 2Y1

VCC VCC

1A4 1Y4

1A3 1Y3

GND

1A2

1A1

OE2

GND

1Y2

1Y1

OE1

1

2

39

40

40 39

21

30

20

10

38

36

34

32

29

28

26

24

22

19

18

16

14

12

9

8

6

4

29

19

9

4

6

8

12

14

16

18

22

24

26

28

32

34

36

38

10

20

30

K100G

TO F.G.

K10U

K10U_1

K10U_15

K10U_27

K10U_29

K10U_31

K10U_35

K10U_39

K10U_33

K10U_41

K10U_45

K10U_49

K10U_51

K10U_3

K10U_11

K10U_5

K10U_23

K10U_21

GND_11

GND_12

GND_13

GND_14

GND_15

GND_16

K10U_7

K10W_39

K10W_27

K10W_31

K10V_1

K10W_35

K10V_3

K10V_5

Q7011

R7013

R7012

C7011

R7011

SW7011

R7014

K10W_15

K10W_13

K10W_17

C7003 C7004

C7002C7001

C7021

C7031

K10V

K10V_11

K10V_9

K10V_15

K10V_17

K10V_23

K10V_21

K10V_27

K10V_29

K10W

K10W_1

K10W_3

K10W_5

SW7011_1

R7017

C7017

0

41 C7042 C7041

IC7061

C7062 C7061

R7041

R7042

R7043

C7051C7052

C7018 R7018

R7052

R7051

R7016

C7071

R7071

R7072 R7073

K10W_11

K10W_9

R7053

R7054

5

1_3

K10V_35

K10V_37

K10V_39

K10W_21

R8024

R8023

R8022

C8011

D8001

R8012

C8023

C8024

C8026

C8013

C8014

C8017

L8002

C8019

R8011

R8009

R8008

R8007

R8006

R8004

R8003

R8002

R8001

C8029

C8028

C8027

C8012

C8016

C8021

C8001

C8005

C8003

RB8001 RB8002

RB8004

RB8003

RB8005

RB8006

RB8012 RB8011RB8014 RB8013

RB8008

RB8007

L8003

C8004

C8022

C8006

L8004

L8001

C8002

R8018

R8028

R8029

R8016

R8017

R8014

R8019

R8021

R8013

R8027

R8026

R8089

C8051

C8073C8063

C8053 C8053 C8053

C8072C8062C8052

R8088

R8087

R8086

R8085

C8082

R8083

R8082

R8081

L8051

K3W_5

K3W_13

K3W_9

K3W_11

K3W_3

K3W_1

K3W

K3W_21

K3W_17

K3W_35

K3W_39

K3V_37

K3V_35

K3V_29

K3V_39

K3V_27

K3V_23

K3V_17

K3V_21

K3V

K3V_15

K3V_11

K3V_1

K3V_9

K3V_3

K3W_15

K3W_31

K3W_27

K3V_5

J30B1630N

J11MD540G

NT1

M

220

:

F1)

NT1

AH

1/16GJ

10KC

1/16

GJ

10KC

25KZ0.1

GQFY

1/16GJ

10KC

S10B

4490G

1/16

GZ0C

NT1

6.3EM100

(WM:F1) 25KZ0.1

GQFY

25KZ0.1

GQFY

6.3EM100

(WM:F1)

25KZ

0.1

GQFY

25KZ

0.1

GQFY

J11MD400G

NT1

J11MD400G

NT1

1/16

GZ0C

X

F

PL

2

P25KZ

0.1

GQFY

16EM

47WM

BA05FP-E2P

25KZ

0.1

GQFY

16EM

47WM

1GJ5.6

16EM

47WM

25KZ

0.1

GQFY

0

)

16KZ

2.2FA

1/16GJ

22KC

X

1GZ0

1/16

GJ

100C

25KZ

0.1

GQFY

1/16

GJ

10KC 1/16

GJ

3.3KC

1/16

GJ

6.8KC

NT1

X

NT1

1/16GJ10C

25KZ

0.1

GQFZ

X

1/16

GZ0C

CJ100

CGQY

CJ100

CGQY

CJ100

CGQY

CJ330

CGQY

CJ330

CGQY

CJ330

CGQY

L2PD

2R2MG

CJ330

CGQY

1/16

GJ

10KC

X

1/16GJ10KC

X

1/16GJ10KC

1/16GJ

10KC

25KZ

0.1

GQFZ

CJ100

CGQY

CJ100CGQY

CJ180CGQY

CJ180

CGQY

CJ180

CGQY

6.3EM100

(WM:F1)

6.3EM100

(WM:F1)

6.3EM100

(WM:F1)

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

L2PD

2R2MG

25KZ

0.1

GQFZ

CJ330

CGQY

25KZ

0.1

GQFZ

L2PD

2R2MG

L2PD

2R2MG

25KZ

0.1

GQFZ

1/16

GZ0C

1/16GJ330C

1/16GJ27C

X

1/16GZ0C

1/16

GJ

10KC

X

1/16GJ

100C

6.3EM100

(WM:F1)

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

1/16GJ

100C

1/16GJ

100C

1/16GJ

100C

1/16GJ

100C

25KZ

0.1

GQFZ

1/16

GZ0C

1/16

GZ0C

1/16

GZ0C

L2PD2R2MG

NT1

J10ML400G

NT1

J10ML400G

NT1

1

2

3

45

6

7

8

1

2

3

45

6

7

8

123

1

2

3

321

8

7

6

54

3

2

1

5

43

2

1

100

99

98

97

96

95

94

93

92

91

90

89

88

87

86

85

84

83

82

81

80

79

78

77

76

75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25242322212019181716151413121110987654321

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25 24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

1

22

1

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

2425

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

20

19

18

17

16

15

14

13

12

1110

9

8

7

6

5

4

3

2

1

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25 24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

1

2

9V

5VS

5VPC

5

V

DIO

5V

AUDIO

-5VS

3.3VS

5VS

5VDVI

7VMCI

3.3VS

5VS

VIEWER_TXD

VIEWER_RXD

CARD_IN

VIEWER_RXD

VIEWER_TXD

VIEWER_ON

3.3VS

RXC-

RXC+

RX0-

RX0+

RX1-

RX1+

RX2-

RX2+

DDC_DATA

DDC_CLK

IN_B

VIEWER_ON

7VMCI

IN_G

IN_R

IN_H

IN_V

IN_H

IN_V

5VS

W_LAN_IN

5VD

PWRDN

SCDT

3.3V

DE_DIF

DIFCLK

V_DIF

H_DIF

D_BO0

D_BO1

D_BO2

D_BO3

D_BO4

D_BO5

D_BO6

D_BO7

D_RE7

D_RE6

D_RE5

D_RE4

D_RE3

D_RE2

D_RE1

D_RE0

D_GE7

D_GE6

D_GE5

D_GE4

D_GE3

D_GE2

D_GE1

D_GE0

D_BE7

D_BE6

D_BE5

D_BE4

D_BE3

D_BE1

D_BE0

D_BE2

RX2+

RX2-

RX1+

RX1-

RX0+

RX0-

RXC+

RXC-

D_GO0

D_GO1

D_GO2

D_GO3

D_GO4

D_GO5

D_GO6

D_GO7

D_RO0

D_RO1

D_RO2

D_RO3

D_RO4

D_RO5

D_RO6

D_RO7

5VDVI

PWRDN

DIFCLK

DE_DIF

V_DIF

H_DIF

GCLK

GPEN

GVS

GFBK

GHS

GBE0

GBE1

GBE2

GBE3

GBE4

GBE5

GBE6

GBE7

GBO0

GBO1

GBO2

GBO3

GBO4

GBO5

D_BO5

D_BO4

D_BO3

D_BO1

D_BO0

D_BE7

D_BE6

D_BE5

D_BE4

D_BE3

D_BE2

D_BE1

D_BE0

GGO5

GGO4

GGO3

GGO2

GGO1

GGO0

GGE7

GGE6

GGE5

GGE4

GGE3

GGE2

GGE1

GGE0

D_BO2

3.3V

GBO6

GBO7

D_BO7

D_BO6

D_GE0

D_GE1

D_GE2

D_GE3

D_GE4

D_GE5

D_GE6

D_GE7

D_GO0

D_GO1

D_GO3

D_GO4

D_GO5

D_GO6

D_GO7 GGO7

GGO6

GRE0

GRE1

GRE2

GRE3

GRE4

GRE5

GRE6

GRE7

GRO0

GRO1

GRO2

GRO3

GRO4

GRO5

GRO6

GRO7

D_RO7

D_RO6

D_RO5

D_RO4

D_RO3

D_RO1

D_RO0

D_RE7

D_RE6

D_RE5

D_RE4

D_RE3

D_RE2

D_RE1

D_RE0

D_RO2 D_GO2

9VMCI

3.3VS

DDC_CLK

DDC_DATA

RX2+

RX2-

RX1+

RX1-

RX0+

RX0-

RXC+

RXC-

5VDVI

5VS

CARD_IN

VIEWER_ON

VIEWER_RXD

VIEWER_TXD

IN_R

IN_G

IN_B

IN_H

IN_V

5VD

W_LAN_IN

IC6171

T

A1318AF

MAI N

BOARD

"K3U"

MAIN BOARD-1/6

910 11 12 13 14 15 16

A

B

C

D

E

F

G

H

I

J

K

IC7021

IC7031

IC7051

IC7071

TC7WT125FUK

TC7W125FUK

PQ070XZ1HZPP

TC7W125FUK

IC8001

DVI I/F

SII161ACT100

IC8002

TC7SET04FUP

IC8071

IC8061

IC8081

IC8051

TC74VCX16244FT

TC74VCX541FT

SCH_ME3A

-4-

Schematic Diagrams PLC-XU45,46 Page A12 [Right]

R

SCL

SDA

A07

A08

A09

A10

A11

A12

VREF

VREFU1

GND

VREFU2

A01

A02

A03

A04

A05

A06

VCC

VDD

CS1

CS2

CS0

VCC

GND

(TO PIXEL)

CLPO

AD-IN

RB

ADVS

ADVD

RT

ACO

DAVD

AYO

DAVS

VG

VRF

IRF

VB

TEST

DVDD

MOD-2

DVSS

MOD-1

VEH3

SO

VEH1

PNR

DTR

NTPL2

NTPL1

DVDD

TEST

DVSS

APCN

TRAP

TEST

DVDD

TEST

DVSS

FIN

CKSL

PLSL

MCKO

ADCK

CPO

PLVS

VCV

PLVD

CLVD

CLPEN

CLVS

Cout

Yout

SO

SCL

SDA

D0

D1

D2

D3

VSS

CS0

CS1

CS2

VDD

D7

D6

D5

D4

Y

C

RTS/CTS

RESETRESET

ADB/CLK

DATA

SRC11

SRC10

SRC01

SRC00

SRD03

SRD02

SRD01

SRD00

SRD07

SRD06

SRD05

SRD04

SEL1

SEL0

DATA IN

SA

XB

SDATA INT

Ready

TXD

YB

YA

RC01

RC00

RC11

RC10

RD13

RD12

RD11

RD10

RD17

RD16

RD15

RD14

SEL0

SEL1

TXD

R1

OUT

R2

IN

T2

OUT

V-

C2-

C2+

C1-

V+

C1+

R2

OUT

T2

IN

T1

IN

R1

IN

T1

OUT

GND

VCC

3

1

SP+

SP-

53

49

47

45

43

39

37

35

33

29

27

25

23

19

17

15

13

9

7

5

3

1

11

21

31

41

51 52

42

32

22

12

2

VCC

GND

6DB

VCC

VSS

GND

VCC

GND

VCC

GND

R2162

R2161

R2109

R2106

R2104

R2108

R2103

R2107

C2101 C2102

R2102

C2117

L2101

C2121

R2113

R2123

L2103

C2111

R2118

R2114

R2101

C2118

R2117

R2116

R2121

R2119

C2122

R2122L2102

R2126

C2106

C2105

C2127

C2104C2103

C2162

R2182

R2181

R151

Q4171

R4177

R4181 R4182

R4

Q4172

R4139

R41

C4163

C4164

C4166

C4167

C4168

C4169

C4106

R4

C153

R153

R152

C171

R172

R171

T171

T151

R173

Q171

R174

R176

R177

Q172

R178

R159

Q152

R158

R157

R156

Q151

R154

C154

C151 C152

D3821

R3822

R3821

C3821

X3841

R3842

R3843

R3846

R3847

R3848

R3841

C3842

R3844

R3806

R3804

R3803

RB3821

R3823

R3802

X3821

C3802

C3841

D3801

CPU-TXD

MOUSE_SEL0

MOUSE_SEL1

CPU_RXD

MOUSE-TXD

C3844

R3801

C3843

C3803

C3804

C3806

RXD

TXD-DRV

C3801

R3833 R3834

R3832

R3831

R134

Q132

Q131

R132

C131

R3835

R4138

C4177

C112 Q111

R116

R113

R114

C111

T111

R112

R111

L151

D3831

R6104

C410

5

R6106

R6101

R6102

R6107

R4176

R4174

C2126

R2124

C2112 C2113

R2111

R2112

C2119

R133

R131

D3802

C3831

TP11SC

TP11SY

C2163C2164

C2124

K8F_3

K8F_1

K8F

K3U_23

K3U_21

K3U_5

K3U

K3U_1

K3U_15

K3U_27

K3U_29

K3U_31

K3U_35

K3U_39

K3U_33

K3U_41

K3U_45

K3U_49

K3U_51

K3U_3

K3U_11

C4186

C6141

R6144

R6141

R6143

R6149

D6146

C6147

R6142

R2105

R6148

R2131

R2132

IC121

C123

R123

C122

R121

R2115

R2120

R2110

R2125

R2127

R2128

C124

R110

K3U_7

1/16GJ100C

1/16GJ

10C

1/16GJ

10C

1/16GJ

180C

1/16GJ

180C

1/16GJ

33C

1/16GJ

33C

6.3EM100

(WM:F1) 25KZ0.1

GQFZ

1/16

GZ0C

25KZ0.1

GQFZ

L2A7

330KG

25KZ0.1

GQFZ

1/16GJ

3.3KC

1/16GJ

4.7KC

L2A7

330KG

10PM

10DB

1/16

GZ0C

X

1/16

GZ0C

25KZ0.1

GQFZ

1/16

GZ0C

X

1/16GJ

100C

1/16GJ

100C

X

L2A7

100KG

1/16GJ

560C

25KZ0.1

GQFZ

6.3EM100

(WM:F1)

25KK

0.022

GQBY

25KZ0.1

GQFZ

6.3EM100

(WM:F1)

25KZ0.1

GQFZ

1/16GJ100C

X

2SA1037

AKR

1/16GJ

1KC

1/16GJ

100C 1/16GJ

220KC

1/1

2.2

AH

1/16GF

22KC

1/1

6

100

C

25KZ0.1GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

1/1

G

Z

6.3PM

47DB

1/16GJ

27KC

1/16GJ

56KC

25KZ0.1

GQFZ

1/16GJ

27KC

1/16GJ

82KC

F30B2820G

1/16GJ

1KC

2SA

1037AKR

1/16GJ

1.8KC 1/16GJ

680C

1/16GJ

2.7KC

AH

1/16GJ

1KC

1/16GJ

1KC

AH

1/16GJ

2.7KC

1/16GJ

680C

1/16GJ

1.8KC

2SA

1037AKR

1/16GJ

1KC

25KZ0.1

GQFZ

16EM

47WM 25KZ

0.1

GQFZ

UDZ5.1BG

1/16GJ

33KC

1/16GJ

10KC

25KZ0.1

GQFZ

V11B0770P;

V11B1240G

1/16

GJ10KC

1/16

GJ10KC

1/16

GJ10KC

1/16

GJ10KC

1/16

GJ10KC

1/16

GZ0C

25KZ0.1

GQFZ

1/16GJ

100C

1/16

GJ100C

1/16GJ

100C

1/16GJ

10KC

R1HA1034G

:R1A41034G

1/16

GZ0C

1/16

GZ0C

V11B0770P;

V11B1240G

EM1D

1SS355

6.3EM

47WM

1/16

GJ100C

25KZ0.1

GQFZ

EM1D

25KZ

0.1

GQFZ

XX

1/16GJ

100C

1/16GJ

100C

1/16GJ

1KC

AH

1/16GJ

1KC

25KZ

0.1

GQFZ

1/16GJ

1KC

1/16GJ

100C

10PM

10DB

25KZ

0.1

GQFZ

AH

1/16GJ

2.7KC

1/16GJ

1KC

1/16GJ

680C

16EM

47WM

F30B2820G

X

L2PD

3R3MG

1SS355

1/16

GZ0C

16EM

47WM

1/16

GZ0C

X

1/16

GZ0C

X

1/16GJ

100C

1/16

GZ0C

KZ0.01

GQFZ

1/16GJ

56KC

25KZ0.1

GQFZ 25KZ0.1

GQFZ

1/16GJ

3.3KC

1/16GJ

2.2KC

25KZ

0.1

GQFZ

1/16GJ

100C

1/16GJ

100C

1SS355

25KZ

0.1

GQFZ

J30B

1640G

J30B

1640G

6.3EM

47WM

25KZ0.1

GQFZ

KZ

0.01

GQFZ

NT1

J10EP030G

NT1

J10ML540G

NT1

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

X

1/16GJ

100C

1/16GJ

12KC

1SS355

25KZ0.047

GQFY

1/16

GZ0C

1/16GJ

3.3KC

1/16GJ

100C

1/16GJ

4.7KC

X

QXXAVB157P

PM

1DB

1/16

GZ0C

25KZ

0.1

GQFZ

1/16

GZ0C

X

1/16GJ

3.3KC

1/16

GZ0C

X

1/16

GZ0C

X

1/16GJ

100C

NT1

1

2

3

4

5

6

7

8

9

10

11

12 13

14

15

16

17

18

19

20

21

22

23

24

1

2

3

4

5

6

7

89

10

11

12

13

14

15

16

1

2

3

4

5

6

78

9

10

11

12

13

14

123

46

78

87

64

321

24

23

22

21

20

19

18

17

16

15

14

1312

11

10

9

8

7

6

5

4

3

2

1

28

27

26

25

24

23

22

21

20

19

18

17

16

15 14

13

12

11

10

9

8

7

6

5

4

3

2

1

16

15

14

13

12

11

10

98

7

6

5

4

3

2

1

5

43

2

1

123

46

78

13

14

15

16

17

18

19

20

21

22

23

24

252627282930313233343536

37

38

39

40

41

42

43

44

45

46

47

48

123456789101112

8

7

6

54

3

2

1

2

3

4

5

6

7

8

4

32

1

G_CLMP

B_CLMP

R_CLMP

5V

AV_HSYNCHD_VSYNC

HD_HSYNC

AV_VSYNC

VIDEO_CR

VIDEO_CB

VIDEO_Y

C_V

AV_PB

AV_PR

9V

AV/PC

5VS

MOUSE_RESET

CPU_RXD

CPU_TXD

MOUSE

R/C

MOUSE_SEL0

MOUSE_SEL1

TXD

RTS/CTS

RXD

DATA

ADB/CLK

5VS

C_V

S_Y

S_C

9V

SDA2_5

SCL2_5

9V

HS_OUT

VS_OUT

5V

CLKFSC

SP-

SP+

SP-

VOL_CONT

5V

AUDIO

C_SWIN

AV/PC

S_SW

S_Y

S_C

C_V

AV_PR

MUTE

AV_PB

9V

5VS

5VPC

SYNC_SW

MACRO

5V

VS_OUT

DCOM_OFF

5V

-5VS

IC3821

TWM7000-151020

I

TC74

H

IC4186

TC7WT125FU

IC3841

TWM7000-162020

IC3801

SP232ACT

HIN232CB

IC3831

TC7SET00FU

IC6101

SN74LV14APW

MC74VHC14DT

IC2181

M62320FP

IC2101

CXD2064Q

IC121

MM1031XM

IC2161

M62392FP

AV

BOARD

"K10U"

TP11SC

TP11SY

3.2V

D/A

IC1101

IC4101

DIGITAL

COMB

FILTER

I/O

RS232C

DRIVER

IC6261

AV/PC -

SYNC SW .

AV

BOARD

"K3U "

IC1101

2.5V

4.6V

4.9V

5.1V

2.5V

2

0.2 V

4.8 V

0V

0.4V

5.0 V

0V 0.4V

4.6V

1.5V

0V

0.7V

5.0V

4.7V

4.7 V

0V

0V 0V

0V

5.3V

0V

5V

AIR MOUSE

CONTROLLER

PC: H

AV: L

12345678

A

B

C

D

E

F

G

H

I

J

K

L

ME3A-03

EXTERNAL

SPEAKER

S_C

S_Y

Yout

Cout

C_V

VIDEO_CR

HD_VSYNC

AV_VSYNC

AV/PC

AV_VSYNC

HD_HSYNC

VIDEO_CB

VIDEO_Y

AV_PR

AV_PB

C_V

SCH_ME3A

-5-

Schematic Diagrams PLC-XU45,46 Page A13 [Left]

L

H

VCC

C

A

B

A

B

CGND

+-

IN I-IN

OUT V+

V-

V+OUT

I-ININ

-+

+-

IN I-IN

OUT V+

V-

IN2-H

IN2-V

IN2-1

IN2-2

IN2-3

IN3-H

IN3-V

IN3-1

IN3-2

IN3-3

IN4-H

IN4-V

VCC-MAT

EY-IN

ECB-IN

ECR-IN

LB2-IN

LG2-IN

YCBCR-SW

VM/SHP/COL-OFF

VM-OUT

CLP-C

DPLC-MUTE

SDA

SCL

DPIC-C

ADDRESS

V1-IN

H1-IN

CR1-IN

CB1-IN

Y1-IN

SELCR-IN

SELCB-IN

SELY-IN

SELY-OUT

SELCB-OUT

SELCR-OUT

SELH-OUT

SELV-OUT

GND-SIG

IREF-YC

VCC-SIG

IN4-1

IN4-2

IN4-3

IN5-H

IN5-V

IN5-1

IN5-2

IN5-3

GND-MAT

H-HP

B-SH

B-OUT

G-SH

G-OUT

R-SH

R-OUT

GND-OUT

VCC-OUT

HS-OUT

VS-OUT

HP-IN

VTIM-IN

SCP-IN

IREF-SYNC

YG-IN

YG-OUT

LR2-IN

LB1-IN

LG1-IN

LR1-IN

ABL-IN

IK-IN

ABL-FIL

PABL-FIL

YS/YM-2

YS/YM-1

Y

C

H/V_BLK

SYS

C_IN

AFC

FSC_OUT

Y_IN

C_IN

ADDRES

CV_IN

APC

CS_IN

XTAL

YS2

R2_IN

G2_IN

B2_IN

VCC(Y/C)

Y2_IN

VB2_IN

CR2_IN

G1_IN

B1_IN

R1_IN

GND(Y/C)

VCC(SYNC)

YS1

CR_OUT

CB_OUT

Y_OUT

CLP

Y_IN

CB_IN

CR_IN

GND

YS3

SDA

SCL

YOUT

SCP

HS

GND_D

C_IN

VDD_D

Y_IN

VS

VBS

SYNCIN

CV_IN

GND

VCC

T

RD

QQ

VCC

GND

QQ

RD

T

RD

QQ

VCC

GND

QQ

RD

T

L2161

C2161

C2162

R3182

R3181

Q3181

R3164

R3165

R3166

Q3162

R3172R3173

R3141

R3131

R3121

4

171

R4177

R3169

R3167

R3168

Q3163

D3161

R3171

Q3171

R3174

Q3172

R3176

R4181 R4182

C4176

R4178

Q4172

R4179

R4131

R4129

R4128

R4132

C4157

R4139

C4153

C4154

C4156

R4126

R4133 R4127

R4134

R4136

C4159

C4161

C4162

R4137

C4163

C4164

C4166

C4167

C4168

C4169

C4106

R4183

R4119

C4143

C4103

C4104

R4104

R4116R4117 R3101

R3115

R3114

R3103

C4102

C4142

C4144

R4118

C4146

C4147

R4122

R4123

R4124

C4148

C4149

C4151

C4152

C3103

R3102

R4121

R3106

R3104

Q3111

C3113

C3112

D3112

D3111

R3113

R3112

C3111

R3111

Q3113

Q3112

C3127

R3134

R3144

R3124

R3123

R3133

R3143

C3132

C3122

C3142

C3126

R3147

R3127

R3137

R3146

R3136

R3126

R6121

R6123

R6130

D6126

C6127

Q6126 Q6127

R6129

R6127

C6126

R6126

R6133

R6134

D6127

Q6137

R6137

C6131

R6131

D6131

R6138

Q1153

R1155

R1156

R1154

R1153

Q1152

Q1151

R1151

R1152

R1127

R1139

R1137

Q1133

R1147

R1148

R1145

R1144

R1143

Q1141

R1141

C1101

C1102 C1108

C1107

R1136 R1134

R1133

Q1132 Q1131

R1132

R1131 C1128

C1127

C1104

C1103

C1114

L1102

1101_11

C1116

C1119

L1103

C1121

1101_3

R1129

C1129

X1101

R4138

C4177

R6132

R6136

R6124

R6122

R6128

D3171

D6132

C4105

C4158

C4141

C4139

C4138

R4114

R4113

R4112

C4137

R4103

R4111

C4136

R4106 R4107

R4109

R4108

C4134

C4127

C4119

C4118

C4117

C4114

C4113

C4116

1

74

C1117

C1118

R1122

C1131C1132

C1126

C1122

R1123

C1123

C1124

R1126

C1113

C1111 R1101

C1112

R1103

R1104L1101

R1106

R1105

R3142

R3132

R3122

C4112

C4111

C6121

TP11CV

TP11PB

TP11PR

R1142

R1102

C1115

C1106C1105

R3105

R3100

C3102

C3101

C3104

R3107

R3108

R3109

C1133

Q1142

R1146

R1149

Q1143

L1161

C1161

R1161

Q1161

R1162

R3177

R3178

C3161

R3161

R3162

R6158

R6157

R6144

R6141

1

43

R6149

6

C6147

R6153

R6154

C6151

R6151

D6151

R6152

R6156

R6142

R3163

Q3182

R3185

R3184 R3183

C1171 C1172 D1171

R1100

R1124

1171_3

L2PD

3R3MG

6.3EM

47WM

25KZ0.1

GQFZ

1/16GJ

10KC

1/16GJ

10KC

AH

1/16GJ

10KC

1/16GJ

2.7KC

X

AH

1/16

GJ

2.7KC

1/16

GJ

1KC

1/16

GZ0C

1/16

GZ0C

1/16

GZ0C

A

1037

A

KR

1/16GJ

1KC

1/16

GJ

1KC

X

1/16GJ

1KC

2SA

1037

AKR

1SS355

1/16

GJ1KC

AH

1/16GJ

4.7KC

2SA

1037

AKR

1/16GJ

1KC

1/16GJ

100C 1/16GJ

220KC

25KZ0.1

GQFZ

1/16GJ

2.2KC

AH

1/16GJ

1.2KC

1/16GJ100C

X

1/16GF

22KC

KZ0.01GQFZ

16EM10D

:16EM10F1

X

1/16

GZ0C 1/16

GZ0C

1/16GJ100C

KZ0.01GQFZ

1/16GJ

100C

25KZ0.1GQFZ

25KZ0.1

GQFZ

1/16

GZ0C

1/16GJ

10KC

EM0.47D

16EM

220D

25KZ0.1

GQFZ

1/16GF

47KC

1/16GJ

5.6KC

1/16GJ

2.2KC 1/16GJ

5.6KC

1/16GJ

5.6C

1/16GJ

4.7C

1/16GJ

820C

25KZ0.1

GQFZ

16EM10D

:16EM10F1

KZ0.01

GQFZ

1/16GJ

3.3MC

16EM10D

:16EM10F1

25KZ

0.1

GQFZ

X

1/16GZ0C

KZ0.01GQFZ

25KZ

0.1

GQFZ

1/16GJ

5.6KC

1/16GJ

10KC

1/16

GJ

22KC

1/16GJ

1.2KC

AH

25KZ

0.047

GQFY

25KZ

0.047

GQFY

1SS355

1/16GJ

180C

1/16

GJ

1KC

X

1/16GJ

1KC

2SA1037

AKR

AH

25KZ

0.1

GQFZ

X

1/16GJ

1KC

1/16GJ

1KC

1/16GJ

1KC

CD10

CGQY

CD10

CGQY

CD10

CGQY

6.3EM100

(WM:F1)

1/16GJ

150C

1/16GJ

150C

1/16GJ

150C

1/16GJ

150C

1/16GJ

150C

1/16GJ

150C

X

1/16GJ

100C

1/16GJ

15KC

1SS355

CJ150

CGQY

AH 2SA

1037

AKR

1/16

GJ

18KC

1/16GJ

100KC

X

1/16GJ

100KC

1/16GJ

100C

X

1SS355

AH

1/16GJ

10KC

25KZ0.047

GQFY

1/16GJ

12KC

1SS355

1/16GJ

1KC

AH

1/16GJ

100C

1/16GJ

1KC

1/16GJ

1KC

1/16GJ

100C

AH

1/16GJ

100C

1/16GJ

1KC

1/16GZ0C

1/16GJ

1KC

1/16GJ

100C AH

1/16GJ

560C

1/16GJ

1.5KC

1/16GJ

1.5KC

1/16GJ

560C

1/16

GJ

1KC

2SA

1037

AKR

1/16GJ

560C

6.3EM

47WM

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

6.3EM

47WM

1/16GJ

1KC 1/16GJ

1KC

1/16GJ

1.2KC

AH AH

1/16GJ

82KC

1/16GJ

27KC

25KZ0.1GQFZ

KZ0.01GQFZ

25KZ

0.1

GQFZ

6.3EM

47WM

KZ0.01GQFZ

L2A7100KG

NT1

25KZ0.1GQFZ

25EM

4.7D

L2A7

4R7MG

CD9

CGQY

NT1

1/16

GJ

2.2KC

25KZ

0.1

GQFZ

V10B5050G

1/16GJ

100C

10PM

10DB

X

1/16

GZ0C

X

1/16

GZ0C

1/16GJ

100KC

1SS355

16EM

47WM

EM0.47D

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

1/16GJ

10KC

1/16GJ

10KC

1/16GJ

10KC

10KZ1U

GQFZ

1/16GJ

470C

1/16GJ

100C

X

1/16GJ

56KC 1/16GJ

56KC

1/16GJ

100C

1/16GJ

100C

KZ0.01GQFZ

10KZ1UGQFZ

X

25KZ0.1GQFZ

6

0

C

25KZ0.1GQFZ

1/16GZ0C

25KK

0.022

GQBY

EM2.2D

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

1/16GJ

12KC

KZ0.01

GQFZ

EM0.47D

X

25KZ0.1GQFZ

25KZ0.1GQFZ 1/16

GZ0C

25KZ

0.1

GQFZ

1/16GJ

6.8KC

1/16

GJ

3.3KC

L2A7

470KG

1/16GJ

100C

1/16GJ

100C

1/16GJ

33C

1/16GJ

33C

1/16GJ

33C

X

25KZ

0.1

GQFZ

J30B

1640G

J30B

1640G

J30B

1640G

1/16GJ

1.5KC

1/16GJ

6.8KC

CJ47

CGQY

25KZ0.1

GQFZ

6.3EM

47WM

1/16GJ

1.2KC

1/16GJ

820C

16EM10D

:16EM10F1

16EM10D

:16EM10F1

16EM10D

:16EM10F1

1/16GJ

5.6KC

1/16GJ

1.2KC

1/16GJ

820C

KK1000GQBZ

2SA

1037

AKR

1/16

GJ

1KC

1/16

GJ

1KC

2SA

1037

AKR

L2A5

820JG

CJ15

CGQY

1/16

GZ0C

AH

1/16GJ

1KC

1/16

GZ0C

X

25KZ0.1

GQFZ

X

1/16

GZ0C

X

6

GJ

0

C

1/16GJ

12KC

5

25KZ0.047

GQFY

1/16GJ

100C

X

25KZ0.047

GQFY

1/16GJ

12KC

1SS355

X

1/16

GZ0C

1/16

GZ0C

1/16GJ

100C

2SA

1037

AKR

1/16GJ

1KC

1/16

GZ0C X

6.3EM220WM

:6.3EM220F1 25KZ0.1

GQFZ 1SS355

X

NT1

1

2

3

45

6

7

8

1234567891011121314

5152535455565758596061626364

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

15 16 17 18 19 20 21 22 23 24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41424344454647484950

1

2

3

4

5

6

7

89

10

11

12

13

14

15

16

1

2

34

5

43

2

1

2

34

5

48

47

46

45

44

43

42

41

40

39

38 37 36 35 34 33 32 31 30 29 28 27 26 25

24

23

22

21

20

19

18

17

16

15

1413121110987654321

1

2

3

4

5

6

7

89

10

11

12

13

14

15

16

1

2

3

45

6

7

8

1

2

3

4

5

6

7

89

10

11

12

13

14

15

16

1

2

3

SCPSW

5V

C_SWIN

S_SW

SCPSW

AV_HSYNC

AV_VSYNC

VIDEO_B

VIDEO_G

VIDEO_R

5V

AV_PR

AV_PB

C_V

AV_VSYNC

AV_HSYNC

5V

CLKFSC

9V

VIDEO_Y

VIDEO_CB

VIDEO_CR

MACRO

VS_OUT

BLANK_SW

HS_OUT

9V

SDA2_5

SCL2_5

BLANK_SW

B_BLK_DC

R_BLK_DC

5V

GBLKSPL

AV_VSYNC

AV_HSYNC

CBAL_SW

CAFC

R_BLK_DC

B_BLK_DC

G_BLK_DC

4.43TRAP

5V

MCOAST

6V

P_FAIL

5V

IC6141

TC74HC123AF-TP1

IC6121

TC74HC123AF-TP1

IC3161

TC7WT125FU-TE12L

IC3181

TC4W53FU(TE12L)

IC4101

CXA2101AQ

IC3101

MC14053BFL

TC4053BF-TP 1

IC3141

AD8057ART

IC3131

AD8057ART

IC1171

BA05FP-E2

IC1101

TB1274AF

VIDEO

DECODER

IC3121

AD8057ART

BLANKING

SW.

RGB

MATRIX

H/V BLANKING

IC5241

AV/PC-

RGB SW.

IC4101

RGB

MATRI X

AV

BOAR D

"K3U "

TP11CV

TP11PB

TP11PR

3.1V

IC6101

3.2V

IC1101

MAIN BOARD-2/6

0V

0.2 V

5.0 V

0.3 V

0V

4.7V

0V

0.4 V

0V

0.1 V

5.0V

4.9 V

0.5V

5.0 V

3.0V

1.4 V

2.1V

1.4 V

0V

9.0V

7.7 V

7.7V

1.4V

2.1 V

2.2V

3.0V

0.5V

0.8V

2.1V

0.4V

1.5V

0.7V

3.1V

2.5V

4.6V

4.9V

5.1V

0V

2.5V

9.0V

2.5V

0V

4.8V

2.4V

0V

3.5V

2.6V

0V

1.7V

1.9V

0V

3.1V

3.7V

1.7V

2.3V

2.0V

0.7V

2.3V

4.9V

2.5V

0V

1.5V

0.8V

2.5V

5.0V

4.7V

0V

1.6V

1.7V

2.3V

1.4V

2.5V

0V

910111213141516

A

B

C

D

E

F

G

H

I

J

K

P.FAIL

S_C

S_Y

Y

CV

C

AV_VSYNC

AV_HSYNC

AV_VSYNC

VIDEO_CR

AV_HSYNC

AV_VSYNC

VIDEO_CB

VIDEO_Y

VIDEO_R

VIDEO_G

VIDEO_B

C_V

A13

-6-

Schematic Diagrams PLC-XU45,46 Page A13 [Right]

1

11

21

31

41

51 52

42

32

22

12

2

53

49

47

45

43

39

37

35

33

29

27

25

23

19

17

15

13

9

7

5

3

G-SYNC

+

-B

G

+

-

+

-R

V-

V+

GND

A0

A1

A2

VSS SDA

SCL

TEST

VDD

L

H

VCC

C

A

B

A

B

CGND

SD

G

DS

+

++

K3T_1

K3T

K3T_51

K3T_49

K3T_47

K3T_43

K3T_41

K3T_39

K3T_37

K3T_35

K3T_33

K3T_31

K3T_29

K3T_19

K3T_15

K3T_11

K3T_7

K3T_3

R6237

C6236

R6232R6231

R6242

C6249

C6245

C6248

C6247

R6241

R6244

R6243

H-SYNC

V-SYNC

H-SYNC

POLH

EXIH

POLV

EXIV

VCC

HDRV

CLAMP

VDRV

CPWIDGND

CPSEL

CVEXI

CVPOL

VSYNC IN

VSEPA

G-SYNC IN

(VIDEO IN)

C/HSYNC

IN

HSCTL

V-SYNC

R5226

R5232

R5234

R5236

R5224

R5222

R5225

R5223

R5221

R5248

C5243

C5204

C5202 C5201

C5244

C5241

C5242

C5203

L5202

L5201

C5233

C5232

C5231

R5233

R5231

R5235 R5241

R5243

R5245

5241_20

5241_18

5241_16

C5246

TE52E

C5258C5259

R5263

R5261

C5257 C5256

C5251

C5252

C5253

R5251

R5252

R5253 R5266

R5265

R5264

C5248

C5247

C5274 C5273

R5273

R5283

R5293

R5274

R5284

R5294

R5

2

R5

2

R5

2

TP52R

TP52G

TP52B

R5271

R5281

R5291

SW2

SW1

+5V

-5V

GND

+5V

R-OUT

B-OUT

G-OUT

AV-G

AV-R

AV-B

CG-B

CG-G

CG-R

Q8141

R8143

R8141

D8101

R8101

R8102

C8102

C8101

D8106

R8112

R8111

C6242

C6241

Q8102

Q8101

R5262

C6244

C6243

R8108R8109

R5254

R5255

R5256

R5257

R5258

R5259

C5261

R5268

R5269

C6246

C5208

C5217

C5216

C5219

C5206C5207

C5209

C5218

CG2-R

CG2-G

CG2-B

CG1-B

CG1-R

CG1-G

G-OUT

B-OUT

R-OUT

+5V

GND

-5V

+5V

SW1

SW2

R5204

R5205

R6202

R6206

R6201

C6204

C6202

R6207

R6208

C6206

CG1/H-SYNC

-5V

+5V

CG1-V

CG2-V

V-SW

H-SW

SW

V-OUT

CG2/H-SYNC

C6222 R6221

C6221

D6211D6212 C6211

C6212

R6211

H-SW

CG1/H-OUT

CG2/H-OUT

R6212

R5206

R5207

R5208

R5210

R5211

R5212

IN_H

IN_V

R5201

R5202

R5203

R5218

R5217

R5216

K3T_53

IN/OUT_V

IN/OUT_H

IN/OUT_B

IN/OUT_G

IN/OUT_R

IN_H

NT1

J10ML540G

NT1

1/16GJ

100C

X

1/16

GZ0C

1/16

GZ0C

1/16GJ

3.9KC

CJ100

CGQY

EM1D

EM2.2D

1/16GJ

1MC

1/16

GZ0C

1/16

GZ0C

1/16GJ

120C

1/16GJ

10KC

1/16GJ

10KC

1/16GJ

10KC

1/16GJ

120C

1/16GJ

120C

1/16GJ

75C

1/16GJ

75C

1/16GJ

75C

1/16

GZ0C

25KZ0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

6.3EM

47WM

KZ

0.01

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

6.3EM

47WM

L2A73R3MG

1/8GZ000

6.3EM

22D

6.3EM

22D

6.3EM

22D

1/16

GJ100C

1/16

GJ100C

1/16

GJ100C 1/16GJ

10C

1/16GJ

10C

1/16GJ

10C

NT2

6.3PM47DB

J30B

1640G

6.3EM100

(WM:F1)

25KZ0.1

GQFZ

1/16

GJ

1KC

1/16GJ

1KC

25KZ

0.1

GQFZ

16EM

47WM

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

1/16GJ

1KC

1/16GJ

1KC

1/16GJ

1KC 1/16

GZ0C

1/16

GZ0C

1/16

GZ0C

6.3PM47DB

10KZ

1U

GQFZ

6.3EM100

(WM:F1)

X

1/16GJ

33C

1/16GJ

33C

1/16GJ

33C

X

J30B

1640G

J30B

1640G

J30B

1640G

1/16GJ

150C

1/16GJ

150C

1/16GJ

150C

AH

1/16

GJ

10KC 1/16GJ

10KC

1SS355

1/16

GJ

4.7KC

1/16

GJ

4.7KC

25KZ

0.1

GQFZ

6.3EM100

(WM:F1)

RB051L-40G

1/16GJ

100C

1/16GJ

100C

25KZ

0.1

GQFZ

6.3EM100

(WM:F1)

2SK

536P

2SK

536P

1/16

GJ

1KC

16TM2.2FD

1/16

GJ

10KC

1/16

GJ

10KC

1/16GJ

100C

1/16GJ

100C

1/16GJ

100C

X

25KZ

0.1

GQFZ

1/16GJ

100C

1/16

GZ0C

10KK0.47

UGQBY

6.3EM

47WM

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

KZ

0.01

GQFZ

6.3EM

47WM

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

1/16

GZ0C

1/16

GZ0C

X

1/16GJ

150C

1/3GJ

10

10KZ

1U

GQFZ

10KZ

1U

GQFZ

1/16GJ

150C

1/16GJ

150C

KZ

0.01

GQFZ

1/16

GZ0C 1/16GJ

1KC

25CJ

1000

CGQ

1SS3551SS355 25CJ

1000

CGQ

10KK0.47

UGQBY

1/16GJ

1KC

X

1/16

GJ100C

1/16

GZ0C

1/16

GZ0C

1/16

GZ0C

1/16GZ0C

1/16

GZ0C

1/16

GZ0C

1/16

GZ0C

NT1

18

17

16

15

14

13

12

11

109

8

7

6

5

4

3

2

1

24

23

22

21

20

19

18

17

16

15

14

1312

11

10

9

8

7

6

5

4

3

2

1

16

15

14

13

12

11

10

98

7

6

5

4

3

2

1

2

3

2

1

2

3

1

2

3

45

6

7

8

1

2

3

4

5

6

7

89

10

11

12

13

14

15

16

1

2

34

5

1

2

3

4

5

6

7

8

9

10

11

12 13

14

15

16

17

18

19

20

21

22

23

24

16

15

14

13

12

11

10

98

7

6

5

4

3

2

1

RXD

ADB/CLK

DATA

RTS/CTS

TXD

MOUSE_SEL0

MOUSE_SEL1

R/C

CPU_RESET

USB_D-

USB_D+

5VS

-5VS

B_CLMP

G_CLMP

R_CLMP

GBLKSPL

-5VS

5V

5VS

EDIDEN1

5VDVI

3.3VS

SDA3

SCL3

5VS

HD_VSYNC

HD_HSYNC

VIDEO_R

VIDEO_G

VIDEO_B

DDC_DATA

DDC_CLK

5VS

-5VS

5V

IN_V

IN_H

IN_B

IN_G

IN_R

CG1/CG2 AV/PC

USB_VBUS

12345678

9

A

B

C

D

E

F

G

H

I

J

K

L

IC6241

BA7078AF-E2

IC5261

SN74AHCT1G14DBVR

IC5251

LT1260CS

I

A

D

A

D

A

D

IC5241

AD8183ARU

OUT_R/G/B

CG1/CG2-SW. AV/PC RGB-SW.

TP52R

TP52G

TP52B

-0.1V

AV

BOARD

"K10T"

CLAMP

IC6101

5.0V

0.8V

2.5V

0.4V

0.8V

0V

5.0V

0.5V

0.1V

0V

0.4V

0.1 V

0.1V

0.5 V

4.9V

0.6V

5.0V

5.0 V

0.4V

-5.6V

0.5

V

5.0V

IC3121/IC3131

IC3141

AV: L

PC: H

SYNC

DETECTOR

ME3A-04

IC5211

AD8185ARU

CG1/CG2

AV/PC

IC6201

EL4332CSP

VIDEO_R

VIDEO_G

VIDEO_B

OUT_R

OUT_G

OUT_B

OUT_H

OUT_V

IN_R

R-OUT

G-OUT

B-OUT

IN_G

IN_B

IN_H

IN_V

IN_H

H-SYNC

H

V-SYNC

V

IN_V

HD_HSYNC

HD_VSYNC

H

D

H

D

IC8101

TC4053BF

:MC14053BFL

IC8111

24LC04BT/SNP

A14

-7-

Schematic Diagrams PLC-XU45,46 Page A14 [Left]

VCC

+-

IN I-IN

OUT V+

V-

V+OUT

I-ININ

-+

+-

IN I-IN

OUT V+

V-

VD

REFBYPASS

GND

RAIN0

VD

RAIN1

RMIDSCV

VD

GND

SOGIN0

GAIN0

VD

GND

SOGIN1

GAIN1

VD

GND

VD

GND

BAIN1

BMIDSCV

VD

GND

CKINV

CLAMP

BAIN0

GND

VD

GND

VSYNC1

HSYNC1

VSYNC0

HSYNC0

GND

PVD

GND

FILT

GND

PVD

COAST

CKEXT

GND

VDD

DBB7

DBB6

DBB5

DBB4

DBB3

DBB2

DBB1

DBB0

VDD

GND

VDD

DGA0

DGA1

DGA2

DGA3

DGA4

DGA5

DGA6

DGA7

VDD

GND

DGB0

DGB1

DGB2

DGB3

DGB4

DGB5

DGB6

DGB7

VDD

GND

DBA0

DBA1

DBA2

DBA3

DBA4

GND

VSOUT

SOGOUT

HSOUT

DATACKB

DATACK

VDD

GND

DRA0

DRA1

DRA2

DRA3

DRA4

DRA5

DRA6

DRA7

VDD

GND

DRB0

DRB1

DRB2

DRB3

DRB4

DRB5

DRB6

DRB7

SDA

SCL

A0

VD

GND

VD

DBA5

DBA6

DBA7

VDD

GND

VCC

GND

VCC

GND

VCC

R6282

R6281

R6251

C6265

TP62V

R6274

R6273

R6252

C6267

R6254

R6253

C6271

C6261C6251

4

3

H-SYNC

V-SYNC

C5274 C5273 C5271

R5287

R5297

R5277

R5276

R5286

R5296

R5273

R5283

R5293

C5286

C5276

C5296

R5274

R5284

R5294

R5275

R5285

R5295

7

1

8

1

9

1

C6266

C6268

C6281

R6271

R6272

C5272

TP62H

TE62E

R6283

R6183

R6187

C6184

C6183

R6181

R6182

R6178

R6179

R6177R6174

R6175

C6182

C6181

R6173

C6170

C6172

C6171

R6184

X6171

C6178

R6171

C6179

R6189

R6188

C6173

C6174

C6177

C6176

NC

DAC3

VD2-OUT

VD1-OUT

SYNC1-IN

DAC1

SYNC2-IN

ADDRESS

SW

SCL

SDA

HD2-OUT

D-GND

HD1-OUTCP-OUT

HD3-IN

VD3-IN

DAC2

VCC

HVCO

AFC

FILTER

HD2-IN

VD2-IN

HD1-IN

VD1-IN

A-GND

C238

C237

C239

L203

C206 C205

C236

R218

C235

C211

R216

C213

C229C228

C221

C231

C232

C233

C234

C222

C223

R211

R212

R213

R214

R217

R222

R221

C201

C202

L201

C203

C204

L202

R201

R203

R204

R207

R209

R208

TE201E

C288

C298

C278

TP201B1

TP21_B1

TP201G1

TP21_G1

TP201R1

TP21_R1

C277

C5287

TP21_G0

TP201G0

R5288 C5288

C5297

TP21_B0

TP201B0

R5298 C5298

C5277

TP21_R0

TP201R0

R5278 C5278

R202

R206

C225

C226

TP207

TP205

R253

R252

R251

C251

TP206

R6176

R6172

R_IN0

R_IN1

G_IN0

G_IN1

B_IN0

B_IN1

R5270

R5280

R5290

X

1/16

GZ0C

1/16

GZ0C

CJ120

CGQY

J30B

1640G

1/16GJ

47C

1/16GJ

47C

1/16

GZ0C

CJ120

CGQY

1/16

GZ0C

1/16

GZ0C

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

10KZ

1U

GQFZ

6.3EM100

(WM:F1) 6.3EM100

(WM:F1)

1/16GJ

8.2KC

1/16GJ

8.2KC

1/16GJ

8.2KC

1/16GJ

1KC

1/16GJ

1KC

1/16GJ

1KC

X

CD10

CGQY

CD10

CGQY

CD10

CGQY

1/16GJ

33C

1/16GJ

33C

1/16GJ

33C

X

G

J

C

G

J

C

G

J

C

CJ120

CGQY

CJ120

CGQY

25KZ

0.1

GQFZ

1/16

GZ0C

1/16

GZ0C

10KZ

1U

GQFZ

J30B

1640G

J30B

1640G

1/16

GZ0C

1/16GJ

4.7C

1/16

GJ

10KC

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

X

1/16GJ

100C

1/16GJ

100C

1/16GJ

100C

1/16GJ

100C

X

1/16GJ

100C

16EM100D

:16EM100F1

25KZ

0.1

GQFZ

16EM100D

:16EM100F1

1/16

GZ0C

V11B

1640G

KK0.01

GQBY

1/16GJ

5.6KC

EM

2.2D

1/16GJ

100C

1/16GJ

100C

X

25KZ0.1

GQFZ

25KZ0.1

GQFZ

X

L2PD2R2MG

25KZ

0.1

GQFZ

6.3EM220WM

:6.3EM220F1

X

1/16

GJ

10KC

25KZ

0.1

GQFZ

KK

3900

GQ

1/16

GJ

7.5KC

25KK

0.039

GQBY

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

X

1/16GZ0C

1/16GJ100C

1/16GJ47C

6.3EM220WM

:6.3EM220F1

25KZ

0.1

GQFZ

L2PD2R2MG

6.3EM220WM

:6.3EM220F1

25KZ

0.1

GQFZ

L2PD2R2MG

1/16

GZ0C

X

1/16

GZ0C

1/16

GZ0C

1/16

GJ

1.8KC

1/16

GJ

1.8KC

J30B

1640G

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

X

NT2

X

NT2

X

NT2

1/16

GZ0C

NT2

J30B

1640G

1/16GJ

47C CJ47

CGQY

1/16

GZ0C

NT2

J30B

1640G

1/16GJ

47C CJ47

CGQY

1/16

GZ0C

NT2

J30B

1640G

1/16GJ

47C CJ47

CGQY

X

1/16

GZ0C

25KZ

0.1

GQFZ

X

J30B

1640G

J30B

1640G

1/16

GJ

100C 1/16GJ

3.3KC

1/16GJ

1.8KC

25KZ0.1

GQFZ

J30B

1640G

1/16

GJ

3.3KC

1/16GJ

360C

1/16

GZ0C

1/16

GZ0C

14

13

12

11

10

9

87

6

5

4

3

2

1

14

13

12

11

10

9

87

6

5

4

3

2

114

13

12

11

10

9

87

6

5

4

3

2

1

16

15

14

13

12

11

10

98

7

6

5

4

3

2

1

2

34

5

43

2

1

2

34

5

30

29

28

27

26

25

24

23

22

21

20

19

18

17

1615

14

13

12

11

10

9

8

7

6

5

4

3

2

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103104105106107108109110111112113114115116117118119120121122123124125126127128

8

7

6

54

3

2

1

GCLK

GFIELD

3.3V

HS

VS

AV/PC

5V

-5VS 5V

EDIDEN1

GFBK

PWRDN

9V 3.3V

SDA2_5

SCL2_5

HAFC

CAFC

GBE7

GBE6

GBE5

GBE4

GBE3

GBE2

GBE1

GBE0

GGE7

GGE6

GGE5

GGE4

GGE3

GGE2

GGE1

GGE0

GGO2

GGO3

GGO4

GGO5

GGO6

GGO7

GGO0

GGO1

GRO7

GRO6

GRO5

GRO4

GRO3

GRO2

GRO1

GRO0

GRE0

GRE1

GRE2

GRE3

GRE4

GRE5

GRE6

GRE7

GCLK

GFBK

3.3VS

3.3VAS

VS

COAST

GBO0

GBO1

GBO2

GBO3

GBO4

GBO5

GBO6

GBO7

3.3VAS

GHSFOUT

GBLKSPL

P-SDA2

P-SCL2

HAFC

AD_HS

SYNC_SW

910111213141516

A

B

C

D

E

F

G

H

I

J

K

MAIN BOARD-3/6

IC6281

TC74LCX74FT-(EL)

IC6251

SN74LV14APWR

MC74VHC14DT

IC6261

TC4053BF-TP1

MC14053BFL

IC6271

SN74LVC126APW

IC251

TC7W241FU

(TE12L)

IC5291

IC5281

AD8057ART

IC201

AD9884AKS-100

A/D

CONVERTER

IC5271

AD8057ART

TP201R0

TP201G0

TP201B0

IC301

SCAN

CONVERTER

IC301

SCAN

CONVERTER

TP205

3.1V

AV/PC-SYNC

SW.

AV: L

PC: H

TP62V

TP62H

3.4V

5.0V

1.7V

0V

3.4V 3.4V

0V -0.1 V

0.3V

3.4V

0V

0.4V

0.3V

3.3V

0.1V

0V

3.4V

0V

3.4V

5.0V

0.4V

0V

5.0V

0.3V

0.1V

5.0V

0.1V

0V

5.0V

0V

5.0V

0V

5.0V

0V

5.0V

0V

5.0 V

C

IC6171

TA1318AFP

VS

H-SYNC

VS

HS

AV/PC

V-SYNC

HD_HSYNC

HD_VSYNC

SCH_ME3A

-8-

Schematic Diagrams PLC-XU45,46 Page A14 [Right]

CPUEN

UCSRC

EXTIN2

SCANMOD

SCANEN

X1

VDD

GND

REF CLK

S0

S1

X2X2

S1

S0

CLKREF

GND

VDD

X1

A1A2A3A4A5A6A7A8A9A10A11A12A13A14A15A16A17A18A19A20A21A22A23A24A25A26

B26 B25 B24 B23 B22 B21 B20 B19 B18 B17 B16 B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2

B1

C1C2

C3

C4C5C6C7C8C9C10C11C12C13C14C15C16C18 C17C19C20C21C22C23

C24C25

C26

D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2

D1

E1E2E3E4E23E24E25E26

F26 F25 F24 F23 F4 F3 F2 F1

G1G2G3G4G23G24G25G26

H26 H25 H24 H23 H4 H3 H2 H1

J1J2J3J4J23J24J25J26

K26 K25 K24 K23 K4 K3 K2 K1

L1L2L3L4L23L24L25L26

M26 M25 M24 M23 M4 M3 M2 M1

N1N2N3N4N23N24N25N26

P26 P25 P24 P23 P4 P3 P2 P1

R1R2R3R4R23R24R25R26

T26 T25 T24 T23 T4 T3 T2 T1

U1U2U3U4U23U24U25U26

V26 V25 V24 V23 V4 V3 V2 V1

W1W2W3W4W23W24W25W26

Y26 Y25 Y24 Y23 Y4 Y3 Y2 Y1

AA1AA2AA3AA4AA23AA24AA25AA26

AB26 AB25 AB24 AB23 AB4 AB3 AB2 AB1

AC1AC2

AC3AC4

AC5AC6AC7AC8AC9AC10AC11AC12AC13AC14AC15AC16AC17AC18AC19AC20AC21AC22

AC23AC24

AC25AC26

AD26 AD25 AD24 AD23 AD22 AD21 AD20 AD19 AD18 AD17 AD16 AD15 AD14 AD13 AD12 AD11 AD10 AD9 AD8 AD7 AD6 AD5 AD4 AD3

AD2 AD1

AE1

AE2AE3AE4

AE5AE6AE7AE8AE9AE10AE11AE12AE13AE14AE15AE16AE17AE18AE19AE20AE21AE22

AE23AE24AE25

AE26

AF26 AF25 AF24 AF23 AF22 AF21 AF20 AF19 AF18 AF17 AF16 AF15 AF14 AF13 AF12 AF11 AF10 AF9 AF8 AF7 AF6 AF5 AF4 AF3 AF2 AF1

R337

R338

C301

C302

C303 C304

C311 C312

C314C313 C317

C316

C318

C319

C322

C321

C323

C324

C306

C307

C308

C309

IC1351

X1351

R1353 R1356

R1352R1362

R1366R1363

X1361

R343

R336

R1302 R1303

TP1301 TP1302

301_35

301_133

301_34

301_33

301_131

301_301

301_220

301_223

301_157

301_62

301_323

301_244

301_246

R342

RB301

RB311RB312 RB322 RB321RB323RB324RB326 RB325

R341

R328

R329

R331

R334

R1357R1354

R1351

C1352

R1364 R1367

R1361

C1362

R371

R368

R366

R364

R363

R362

R357

R359

R361

R354

R358

R356

R352 R353

R348 R349

R351

R347 R346

R367

R369

R344

R381 R382

R383

R378

R377

R384

R388

R387

R386

R391

R392

R393

R394

R302

R301

R303

R304

R311

R306

R313

R307

R308

R312

R314

R318

R319

R316

R317

R321

R322

R323

R324

C1371

R1371

R1372

R1374

R1373

R379

R376

R333

R332

C1351

C1367C1366 C1356 C1357

RB302

RB303

RB304

RB305

RB306

RB307

RB308

RB309

RB310

TPDHS TPDCLKTPDVS TE301E

TPGBLK

301_95

X

1/16

GZ0C

6.3EM220WM

:6.3EM220F1

25KZ

0.1

GQFZ

6.3EM220WM

:6.3EM220F1 25KZ

0.1

GQFZ

25KZ0.1

GQFZ 25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

ICS512MTP

V10B

5090G

1/16

GJ

10KC X

1/16

GZ0C

1/16GJ

75C

1/16GJ

10KCX

V10B

5100G

X

1/16

GZ0C

XX

J30B

1640G

J30B

1640G

NT1

NT1 NT1NT1 NT1

NT1

X

R1HA1034G

:R1A41034G

R1HA1034G

:R1A41034G

R1HA1034G

:R1A41034G XXXXXX

X

1/16GZ0C

1/16GJ22C

1/16

GJ

10KC

X

25KZ

0.1

GQFZ

XX

X

25KZ

0.1

GQFZ

1/16GZ0C

1/16GJ1.8KC

X

1/16GJ10KC

X

1/16GJ10KC

1/16GZ0C

1/16GJ10KC

1/16GZ0C X

1/16GZ0C 1/16GJ10KC

X

X1/16GJ10KC

X

1/16GZ0C

1/16GJ10KC X

1/16GZ0C

X

1/16GJ10KC

X

1/16GJ10KC

1/16GZ0C

1/16GJ10KC

X

1/16GJ10KC

1/16GZ0C

1/16GJ10KC

1/16GZ0C

1/16GJ10KC

X

1/16GZ0C

1/16

GJ

10KC

25KZ0.1

GQFZ

1/16GJ

1.8KC

1/16GJ

3.3KC

X

1/16

GZ0C

X

1/16GJ22C

6.3EM100

(WM:F1)

XXXX

R1HA1034G

:R1A41034G

R1HA1034G

:R1A41034G

R1HA1034G

:R1A41034G

R1HA1034G

:R1A41034G

R1HA1034G

:R1A41034G

R1HA1034G

:R1A41034G

R1HA1034G

:R1A41034G

R1HA1034G

:R1A41034G

R1HA1034G

:R1A41034G

J30B

1640G J30B

1640G

J30B

1640G J30B

1640G

J30B

1640G

NT1

1

2

3

45

6

7

88

7

6

54

3

2

1

5

43

2

1

1234567891011121314151617181920212223242526

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100101102103104105106107108109110111112113114115116117118119120121122123124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192193194195196197198199200201202203204205206207208209210211212213214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276277278279280281282283284285286287288289290291292293294295296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

P_S_0

GBO3

GBO7

GBE1

P_S_1

GBO4

GBO1

GBE0

GBE5

P-SDA

P-SCL

BOOTWE

S_P_1

GBO2

GBO6

GBE4

GBE6

S_P_0

GBE2

GGO1

GGO2

GBO5

GBO0

RESET

GGO5

GGO4

GBE7

GBE3

GGO0

GGO3

GGO6

GGO7

GGE1

D1

D0

GGE0

GGE2

GFBK

D3

D2

GHS

GBLKSPL

AD_HS

GPEN

D4

D5

D6

D7

D8

D9

GCLK

GVS

D1

0

D11

GHSFOUT

D1

2

D1

3

D1

4

D1

5

RA

M

RA

M

GGE3

GGE4

GGE5

GGE6

RO

M

RO

M

GGE7

GRO0

GRO1

GRO2

CS2

CS3

GRO3

GRO4

GRO5

GRO6

BH

E

A0

GRO7

GRE0

A1

A2

A4

A5

GRE2

GRE1

GRE3

GRE4 A3

A6

A7

GRE7

GRE6

GRE5

A8

A10

A9

A12

A16

A11

A17

A13

A15

A14

A19

A18

DCKEXT

DB3

DG9

DG8

CLKIN

DB9

DB7

DB6

DB5

DB2

DG7

DCLK

DVS

DB8

DB4

DG5

DHS

DG6

2.5VS

3.3VS

2.5VS

HS

VS

CLKIN

DCKEXT

P-SDA2

P-SCL2

DB1

DR0

DB0

DG1

DR1

DG0

DR2

DR7

DR6

DR4

DR3

DR5

DR9

DR8

VB7

VB6

VB5

VB4

VB3

VB2

VB1

VB0

VG7

VG6

VG5

VG4

VG3

VG2

VG1

VG0

VR7

VR6

VR5

VR4

VR3

VR2

VR1

VR0

GFIELD

DG4

DG3

DG2

CLKIN CLKIN

P-SCL2

P-SDA2

VR0

VR1

VR2

VR3

VR4

VR5

VR6

VR7

VG0

VG1

VG2

VG3

VG4

VG5

VG6

VG7

VB0

VB1

VB2

VB3

VB4

VB5

VB6

VB7

GCOAST

MCOAST

COAST

GCOAST

24L

C

IC301

PW365-10U

IC1371

TC7S32FU

-TE85L

IC1361

ICS512MT

IC1351

ICS512MT

TPDCLK

TPDVS

TPDHS

3.3V

1.5V

3.0V

IC1401

BRIGHTER

IC401

DIGITAL COLOR

UNFORMITY

CORRECTION

TIMING CONTROL

SCAN

CONVERTER

SYSTEM CONTROL

IC201

A/ D

IC8001

DVI I/F

C

M

12345678

A

B

C

D

E

F

G

H

I

J

K

L

ME3A-05

VS

HS

DVS

DCLK

DHS

SCH_ME3A

-9-

Schematic Diagrams PLC-XU45,46 Page A15 [Left]

A4

A3

A2

A1

A5

A6

A7

OE

A0

CS

I/O

BHE

BLE

I/O

VDD

VSS

I/O

I/O I/O

I/O

WE

A15

A14

A13

A12

NC

A8

A9

A10

A11

NC NC

A15

A14

A13

A12

A11

A10

A9

A16

BYTE

VSS

D15

D7

D14

D6

A8

NC

WE

RESET

D13

D5

D12

D4

VCC

NC

D11

D3

D10

D2

D9

D1

RY

BY

A18

A17

A7

A6

A5

A4

A3

A2

A1 A0

CE

VSS

OE

D0

D8

1

6

50

1

5

10

15

20

25

30

35

40

45

LSB

A0

A1

A2

VSS SDA

SCL

TEST

VDD

R1301

C1301

K8X

K8Y

R1341

TP1342

TP1381

TP1382

R1388

R1389

R1391

R1311

R1302 R1303

TP1301 TP1302

TP1341

TP1311

TP301

TP302

R1444

R1443

R1436

R1435

RB1436 RB1435

RB1445

R1441

R1442

R1446

R1445

C1416

C1404 C1403 C1402

C1401

C1406

C1407

C1408

C1409 C1412

C1411

C1414

C1413

RB1446

RB1443

RB1444

RB1441

RB1442

RB1433RB1434

R1433

R1434

R1432

R1431

RB1432 RB1431

R363

R358

R356

R353

R349

R346

C1331

C1333C1332

R1346

C1342

R1344

R1343

C1311

R1393R1392

R1381 R1382

R1383

R1384

R1386

R1387

TP1383

TP1384

TP1385

R1313 R1312

R1342

1/16

GZ0C

25KZ0.1

GQFZ

J11B2940G

J10EG060G

1/16

GJ

10KC

J30B

1640G

J30B

1640G

J30B

1640G

1/16GZ0C

1/16

GZ0C

1/16

GZ0C

XX

J30B

1640G

J30B

1640G

J30B

1640G

J30B

1640G

J30B

1640G

J30B

1640G

1/16GZ0C

1/16GJ22C

R1HA2204G

:R1A42204G

R1HA2204G

:R1A42204G

R1HA0R04G

:R1A40R04G

1/16GZ0C

25KZ0.1

GQFZ

25KZ0.1

GQFZ 25KZ0.1

GQFZ

6.3EM220WM

:6.3EM220F1

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

R1HA0R04G

:R1A40R04G

R1HA0R04G

:R1A40R04G

R1HA0R04G

:R1A40R04G

R1HA0R04G

:R1A40R04G

R1HA0R04G

:R1A40R04G

R1HA2204G

:R1A42204G

R1HA2204G

:R1A42204G

1/16GJ22C

R1HA2204G

:R1A42204G

R1HA2204G

:R1A42204G

X

1/16GJ10KC

X

1/16GJ10KC

G

Z0C

6.3EM220WM

:6.3EM220F1

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

1/16GJ

10KC

25KZ0.1

GQFZ

1/16GJ10KC

X

25KZ

0.1

GQFZ

XX

1/16

GZ0C

1/16

GZ0C

1/16GZ0C

X

J30B

1640G

J30B

1640G

J30B

1640G

1/16

GJ

3.3KC

1/16

GZ0C

1/16

GJ

10KC

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22 23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24 25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

1

2

34

5

1

2

3

45

6

7

8

P-SDA

P-SCL

PW_RXD

PW_TXD

RESET

NMI

D1

D0

D3

D2

D4

D5

D6

D7

D8

D9

D10

D11

D12

D13

D14

D15

RAMWE

RAMOE

ROMWE

ROMOE

CS2

CS3

BHEN

A0

A1

A2

A4

A5

A3

A6

A7

A8

A10

A9

A12

A16

A11

A17

A13

A15

A14

A19

A18

LKIN

A5

A4

A3

A2

A1

A6

A7

A8

RAMOE

BHEN

A0

D15D0

D14

D13

D12

D11

D10

D9

D8

A9

A10

A11

A12

D1

D2

D3

D4

D5

D6

D7

RAMWE

A16

A15

A14

A13

A16

A15

A14

A13

A12

A11

A10

A9

A17

D15

D7

D14

D6

D13

D5

ROMWE

A19

A18

A8

A7

A6

A5

A4

D12

D4

D11

D3

D10

D2

D9

D1

D8

D0

ROMOE

A1

A3

A2

A1

A4

A3

A6

A5

A7

A9

A8

A11

A10

A12

A14

A13

A15

A17

A16

A19

A18

BOOTWE

ROMWE

ROMOE

D15

D7

D14

D6

D13

D5

D12

D4

D11

D3

D10

D2

D9

D1

D8

D0

ICE_RESET

NMI

CS3

CS2

3.3VS

PW_RESET

P-SDA2

P-SCL2

DB9

DB8

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

DG0

DG1

DG2

DG3

DG4

DG5

DG6

DG7

DG8

DG9

DR9

DR8

DR7

DR6

DR5

DR4

DR3

DR2

DR1

DR0

DBA0

DBA1

DBA2

DBA3

DBA4

DBA5

DBA6

DBA7

DBA8

DBA9

DGA9

DGA8

DGA7

DGA6

DGA5

DGA4

DGA3

DGA2

DGA1

DGA0

DRA0

DRA1

DRA2

DRA3

DRA4

DRA5

DRA6

DRA7

DRA8

DRA9

3.3V

RESET

P-SCL

P-SDA

3.3VS

P-SCL2

P-SDA2

ICE_RESET

5VS

5VS3.3VS

IC1301

24LC16BT/SN-T

IC1311

TC7S32FU-TE85L

IC1331

IS61LV6416-15

IC1341

MBM29LV800TA90

CONTROL

MEMORY

910111213141516

A

B

C

D

E

F

G

H

I

J

K

IC401

DIGITAL COLOR

UNFORMITY

CORRECTION

TIMING CONTROL

MAIN BOARD-4/6

FLASH ROM SRAM

A15

-10-

Schematic Diagrams PLC-XU45,46 Page A15 [Right]

SY

S

LA

M

D0

D1

D2

D3

PO

W

D4

D5

D6

D7

VD

A0

VS

S

A1

A2

A3

A4

A5

A6

A7

A8

A9

A1

0

A1

1

D+

D-

VSS

CS_1

RD

WRH

USBRESET

USBINT

A0

A1

A2

A3

A4

A5

A6

A7

VSS

DO

D1

D2

D3

VDD

VSS

D4

D5

D6

D7

VSS

KEYSW1

KEYSW2

KEYSW3

TURBO_LED

LAMPREP_LED

WARNING_LED

READY_LED

LAMP_LED

KEYSW.LED

FAN.SENS

15.5V

FAN_GND

12V2

LOCK_SENS

FAN_GND

3

1

-5VS

GND

6V

6VD

6VS

10

1

3

12

39 40

A2

A1

A0

I/O0

I/O1

I/O2

GND

I/O3

I/O4

I/O5

I/O6

I/O7

CE

A3

A4

A5

A6

A7

A12

A14

VCC

WE

A13

A8

A9

A11

A10OE

GND

5VS

3.3VS

GND

5VS

GND

SDA1_5

SCL1_5

10

20

30

12V2

GND

R/C

GND

5VS

R/C

1

VCC

GND

C6673

R6671

C6675 C6674C6671 C6672

C811

R9811X9811

C9811

C9812

L9811

R9812

R9813

R9814

R9816

C9813

C9804

C9806

R9823

Q9801

R9801

R9802

R9822

C1871

R2877

Q2861

K8A_12

K8A_11

K8A_10

K8A_9

K8A_7

K8A_6

K8A_5

K8A_4

K8A_3

K8A_1

R2823

R2822

R2824 R2826

C2821 C2823C2822

R2825

R2821

K8A

R2844

R2843

R2842

R2841

R2858

R2862

K8E_2

K8E_3

K8E_1

K8E_5

R2889

R2888

R2887

R2886

R2892

R2891 R2893

R2884

R2883

C2882

R2881

R2882

R2851

R2865

R2866

R2852

Q2851

R2853

R2855

R2854

R2869

Q2865

R2867

R2863

R2861

R2856

Q2856

R2859

R2868

C2871

1

6

+VSSDA

SCL

O.S.

GND

A0

A1

INT OUT

12

1

K8N_2

K8N_3

K8P_2

K8N_1

K8R_10

K8N

K8R_8

K8R_6

K8R_4

K8R_2

K8R_1

K8P

C6622C6621 C6623 C6624

L6601

C6602C6601

C6604C6603

R6601

R6602

C6607R6608R6607

R6606

C6606

C6611

R6611

R6612 C6612

C6614C6617

K8A_2

D6606

D6611

C6662C6661 C6664C6665

R6661

C6663

D2821

D2822

D2823

D2844

D2843 D2842

D2841

C9803

R9803

R1879

R1878

R1876

R1877

C6631 C6632 C6633 C6634

R1861

R1862

R1863

1861_4

1861_6

C2807

C2806 R2806

R2807

D2806

D2807

K8E

C9802

RB9801 RB9802

C802C801

K8S

TP28L

TE28E

D6631 D6621

D6662D6641

C6644

C6643C6642C6641

C6651 C6652 C6653 C6654

K8R

K8S_4K8S_3

K8S_5 K8S_6

K8S_2K8S_1

K8S_7

K8S_15

K8S_11

K8S_13

K8S_9

K8S_21

K8S_19

K8S_25

K8S_29

K8S_36

K8S_37

K8S_33

K8S_35

C1811 C1812

R2857

C2881

D6661

K8S_39

TP12V1TP12V2

GND_1

GND_2

GND_3

GND_4

GND_5

GND_6

GND_7

GND_8

GND_9

GND_10

K8G

K8G_1

K8G_2

K8G_3

4

1

K8H

5

R6616

R9804

R9806

R9807

R6652 R6672

R6624

R6623

R6622

C6616C6613

K8S_26

K8S_30

K8S_38

K8R_22

K8R_44

K8R_66

K8R_88

K8R_20

D6601

D6602

D6642

C2872

R6656

D2873

D2871 D2872

K8P_1

R6681

R6682

6631_3

6641_3

6651_3 6671_3

6661_3

6621_3

K8H_1

K8H_2

K8H_3

K8H_4

K8H_5

K8H_33

K8H_22

K8H_11

6.3EM220WM

:6.3EM220F1

1/16GJ

100C

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

X25KZ

0.1

GQFZ

25KZ0.1

GQFZ

1/16GJ

1MC

V10B

3960G

KK1000

GQBZCC5

CGQY

L2A5

2R2JG

1/16GJ100C

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

X

2SA

1037

AKR

1/16GJ

47KC

X

1/16

GZ0C

25KZ

0.1

GQFZ

1/16GJ

22KC

AH

NT2

1/16GJ470C

1/16

GJ

10KC

1/16

GJ

10KC

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

1/16

GJ

10KC

1/16GJ470C

J10EZ120G

1/16GZ0C

1/16GJ

4.7KC

1/16GJ

4.7KC

NT2

1/16GZ0C

X

1/16GJ

10KC

X

1/16GJ

10KC X

1/16

GZ0C

1/16

GZ0C

25KZ

0.1

GQFZ

1/16

GZ0C

1/16

GZ0C

1/16GJ

1KC

X

1/16GJ

390C

1/16GJ

1KC

2SA1037

AKR

1/16GJ

1.8KC X

1/16GJ

4.7KC

X

AH

1/16GJ

390C

X

1/16GJ

1KC

1/16GJ

1KC

AH

X

1/16GJ

4.7KC

X

NT2

J10EG030G

NT2

J10EG030G

25KZ

0.1

GQFZ

16EM100D

:16EM100F1 16EM100D

:16EM100F1 25KZ

0.1

GQFZ

L2A73R3MG

25KZ0.1

GQFZ

6.3EM220WM

:6.3EM220F1

25KZ0.1

GQFZ

6.3EM220WM

:6.3EM220F1

1/4FJ

5.6VRH

1/4FJ

5.6VRH

25KZ0.1

GQFZ

X

1/4FJ

1.8VRH

1/4FJ

1.8VRH

6.3EM220WM

:6.3EM220F1

6.3EM220WM

:6.3EM220F1

X

X25KZ0.1

GQFZ

25KZ0.1

GQFZ

16EM

220D

NT2

1SS355

25KZ

0.1

GQFZ

X25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

1/16GJ

100C

6.3EM220WM

:6.3EM220F1

UDZ12B

UDZ12B UDZ12B

UDZ12B

25KZ0.1

GQFZ

1/16GJ

1.5KC

1/16GJ

1KC

1/16GJ

100C

1/16GJ

100C

1/16GJ

100C

16EM100D

:16EM100F1 25KZ

0.1

GQFZ

6.3EM220WM

:6.3EM220F1 25KZ

0.1

GQFZ

1/16GJ

100C

1/16

GZ0C

1/16

GZ0C

NT1

CJ47

CGQY

X1/16

GZ0C

1/16GJ

100C

UDZ

6.2B

UDZ

6.2B

J10EG060G

25KZ

0.1

GQFZ

R1HA1044G

:R1A41044G R1HA1044G

:R1A41044G

25KZ

0.1

GQFZ

6.3EM100

(WM:F1)

J10QY400G

J30B

1640G

J30B

1640G

1SS355 1SS355

1SS3551SS355

25KZ

0.1

GQFZ

6.3EM220WM

:6.3EM220F1

25KZ

0.1

GQFZ

X

X25KZ

0.1

GQFZ

6.3EM220WM

:6.3EM220F1 25KZ

0.1

GQFZ

J10EP100G

NT2NT2

NT2 NT2

NT2NT2

NT2

6.3EM100

(WM:F1) 25KZ0.1

GQFZ

1/16GJ

1KC

X

1SS355

NT2

J30B

1640G

J30B

1640G

NT2

J10EG040G

NT2

J10EZ050G

S30CA

3R8G

X

1/16GZ0C

1GJ2.7 1GJ2.7

1GJ33

16EM

220D

16EM

220D

NT2

1SS355

X

UDZ

6.2B

UDZ

6.2B UDZ

6.2B

NT2

1/16

GZ0C

X

NT2

NT2 NT2

NT2

12345

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

1

2

3

4

5

6

7

8

9

10

11

12 13 14 15 16 17 18 19 20 21 22

23

24

25

26

27

28

29

30

31

32

33

3435363738394041424344

81

2

3

45

6

7

54321

1

2

3

4

5

6

7

8

9

10 11

12

13

14

15

16

17

18

19

20

1

2

3

1

2

3

4

5

6

78

9

10

11

12

13

14

15

16

17

18

19

20

2122

23

24

25

26

27

28

3

2

1

2

3

2

1

2.5VS6VS

POWER

SYSSW

LAMP_SW

RAM_D0

RAM_D1

RAM_D2

RAM_D3

RAM_D4

RAM_D5

RAM_D6

RAM_D7

RAM_A0

RAM_A1

RAM_A2

RAM_A3

RAM_A4

RAM_A5

RAM_A6

RAM_A7

RAM_A8

RAM_A9

RAM_A10

RAM_A11

USB_INT RAM_D0

RAM_D1

RAM_D2

RAM_D3

RAM_D4

RAM_D5

RAM_D6

RAM_D7

3.3VS

SYSSW

SDATA1

SCLK1

IROMURA_CS_1

SDATA

SCLK

IROMURA_CS

KEYSW3

KEYSW2

KEYSW1

LAMP_SW1

WARNING_LED

LAMPREP_LED

READY_LED

5VS

SCL1_5

SDA1_5

BLAST_AC1

LAMP_ERR

3.3VS

5VS

15.5V

5V

5VD

5VS

-5VS

LAMP_BST_SW1

FAN_DRIVE1

5V_SW

P_FAIL

FOCUS_+

ZOOM_+

TURBO_+

15.5V 9V

3.3VS

P_FAIL

5VD 2.5V

3.3VS

LAMP_BST_SW

EDIDEN

LAMP_BST_SW1

EDIDEN1

6VS

3.3VAS

R/C

5VS

3.3V5VD

6VS 3.3VS

TURBO_-

ZOOM_-

FOCUS_-

FAN_CONT_1

FAN_CONT_2

5V

AUDIO

9VMCI

RAM_A0

RAM_A1

RAM_A2

RAM_A3

RAM_A4

RAM_A5

RAM_A6

RAM_A7

RAM_D7

RAM_D6

RAM_D5

RAM_D4

RAM_D3

RAM_D2

RAM_D1

RAM_D0

RAM_A10

RAM_CS_2

RAM_A0

RAM_A1

RAM_A2

RAM_A3

RAM_A4

RAM_A5

RAM_A6

RAM_A7

RAM_A12

RAM_A14

RAM_WRH

RAM_A13

RAM_A8

RAM_A9

RAM_A11

RAM_RD

3.3VS

USB_CS_1

RAM_RD

RAM_WRH

USBRESET

USB_BRST

USB_D+

USB_D-

TURBO_CS

TURBO_CS1

PWRDN0

PWRDN

6VS

6V

ECO_SW1

USB_VBUS

LAMP_ERR

GND

U+LED

LAMP_SW

ECO_SW

LAMP_ERR

PLC-XU45

PLC-XU46

GND

U+LED

LAMP_SW

ECO_SW

*R2872

R2873

*R2897

*R2896

*R2899

R2898

R2816

Q2816

*R2874

Model PLC-XU45 PLC-XU46

R2871 open 1/16GZ0C

R2872 1/16GZ0C open

R2874 1/16GJ1.2KC open

R2875 open 1/16GJ390C

R2896 open 1/16GZ0C

R2897 open 1/16GJ390C

R2898 1/16GZ0C open

R2899 1/16GJ1.2KC open

*R2875 R2819

R2817

R2818

1/16

GZ0C

X

*R2871

X

1/16GJ

1.2KC

*1/16

GZ0C

X

1/16

GZ0C

AH

1/16GJ1.2KC

X

1/16

GZ0C 5VS

Differential table

TP12V2

TP12V1

12.6V

POWER

BOARD

"K6R"

POWER

BOARD

"K6S"

TEMP.

BOARD

"K48E"

R/C BOARD

"K28A"

LAMP

BALLAST

KEY SW

BOARD

"K68A"

12345678

9

A

B

C

D

E

F

G

H

I

J

K

L

2

IC1811

IS61LV256-12T

IC9801

IC2881

LM76CHMX-5

ML60851CTB

IC1871

TC74LCX244FT

IC6621

L78M09T-TR

IC6661

PQ2TZ15

IC6641

BA033FP-E2

IC6631

BA033FP-E2

IC6651

IC6671

PQ2TZ15

FN906

FN905

IC801

50-52

IC1851

9-11

Normal:H

Normal:L

SRAM

S

M

POWER ON: H

IC1881-12

IC801-47

IC1861-1

IC1881-14

TEMP.

SENSOR

IC1801-28-34

IC1801-5

IC1871-18

IC801-48

IC1881-3

IC1831-4, 5

12.1V

IC801-82

USB

I/F

3.3V

0V

ME3A-06

POWER

FOCUS+-

P.FAIL

LAMP_SW

ZOOM+-

A16

-11-

Schematic Diagrams PLC-XU45,46 Page A16 [Left]

SYSSW

LAMP_SW

D0

D1

D2

D3

POWER

D4

D5

D6

D7

VDD

A0

VSS

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A12

A13

A14

ZOOM+

ZOOM-

RS232C_TX

RS232C_RX

FOCUS+

FOCUS-

R/C

USBRESET

USB_BRST

USB_INT

BLAST_AC

FAN_DRIVE

AVSS

PIXEL_WRITE

TEMP_DET

LAMP_ERR

P_FAIL

OPT1

KEY3

KEY2

KEY1

VDD

OSC1

RESETSW

VDD

GND

RD

WRH

SDA2

SCL2

SDA1

SCL1

LAMP_BST_SW

MCI_TXD

MCI_RXD

SDA3

SCL3

CS2

CS1

PW_IN0

PW_IN1

PW_OUT0

PW_OUT1

PW_RESET

OPT2

M_RESET

SCL4

SD

G

DS

G

DS

SD

G

GND

VCC

D4

D5

D6

D7

VDD

CS2

CS1

CS0

VSS

D3

D2

D1

D0

SDA

SCL

SO

CS0

CS2

CS1

VDD

VCC

A06

A05

A04

A03

A02

A01

VREFU2

GND

VREFU1

VREF

A12

A11

A10

A09

A08

A07

SDA

SCL

R

MD0

MD1

OSC2

NMI

STBY

XTAL

EXTAL

FEW

MD2

IRO_CS

TURBO_CS

F_MODE

PW_RXD

PW_TXD

SDATA

SCLK

TXD_SW

SDA4

A0

A1

A2

VSS SDA

SCL

TEST

VDD

USB_VBUS

OPT_ECO

OPT3

W_LAN_IN

* R826

OPTIONAL RESISTOR

See Parts List

GND

VCC

C812

C813

R834

R837

X851

C851

C852

TP801

801_68

801_69

C811

R1816

R1817

D802

R1851

R1852

K8Z

Q1817

Q1816

C846

Q1818

Q1819

R892

R891

R881

R879

R878

R871

R876

R874

R873

R872

R896

R889

R894

R893

R883

R882

R877

R821

R822

R828

R812

R823

R816

R817

D801

R806

R808

R807

R836

R833

R847 R849

R848

C814

R851

R831

R832

R861

R862

R867

R856

R857

C856

D856

Q856

R858

D857

C857

C843

C844

C842 C841

R842 R843

C1826C1821

R844

R846

R1861

R1862

R1863

1861_4

1861_6

R1864

C1861

R1881

R1882

R1883

R1884

C1881

R841

C802C801

1861_8

R1818

R1819

C1833C1834

R1832

R1831

L1831

C1832

C1831

R1888

R1889

R804

R803

R802

R801

R1886

R868

R1833

R1834

R1836

R1837

D1831

R1853

R1854

R1887

TE801E

R811

R887

R888

R866

R884

TPPWR

C1801

R1803R1804

R1801

R1802

R1891

D1891

R1855

R1892

R1894 R1893

R1896

R1897

R814 R813

*R895 R897

R819

R818

R826R827

R899

R898

R886

R885

*R880

25KZ0.1GQFZ

1/16GJ10KC

X

V10B

3540G

CJ22CGQY

J30B

1640G

NT1

25KZ0.1

GQFZ

1/16GJ

4.7KC

1/16GJ

4.7KC

1SS355

1/16GJ100C

J10EG080G

2SK

536P

2SK

536P

25KZ0.1

GQFZ

2SK

536P

2SK

536P

1/16GJ4.7KC

1/16GJ10KC

1/16GJ4.7KC

1/16GJ10KC

1/16GJ4.7KC

1/16GJ100C

1/16GZ0C

1/16GJ100C

X

1/16GJ100C

1/16GJ10KC

X1/16GJ10KC

1SS355

1/16GJ

10KC

1/16GJ

3.3KC

1/16GJ

1.8KC

1/16GJ10KC

X

1/16GJ10KC X

1/16GJ10KC 25KZ0.1

GQFZ

1/16

GZ0C

1/16GJ100C

1/16GZ0C

1/16GJ1.2KC

1/16

GJ

10KC

X

1SS355

AH

1/16GJ

10KC

1SS355

X

16EM10D

:16EM10F1

10KZ1U

GQFZ

25KZ

0.1

GQFZ

6.3EM

47WM

1/16

GZ0C X

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

X

1/16

GZ0C

1/16GJ

100C

1/16

GZ0C

1/16

GZ0C

NT1

1/16

GZ0C

25KZ

0.1

GQFZ

1/16GJ100C

1/16GZ0C

25KZ

0.1

GQFZ

1/16GJ4.7KC

25KZ

0.1

GQFZ

3

EM100

W

M:F1)

NT1

1/16GJ

4.7KC

1/16GJ

4.7KC

6.3EM

47WM

25KZ0.1

GQFZ

1/16GJ100C

L2PD

3R3MG

25KZ0.1

GQFZ

6.3EM

47WM

1/16GZ0C

1/16GJ1KC

1/16GJ100C

X

1/16GJ10KC

1/16GZ0C

1/16GJ100C

X

1/16GJ

10KC

X

J30B

1640G

1/16GJ3.3KC

1/16GJ100C

1/16GJ10KC

1/16GJ4.7KC

1/16GZ0C

J30B

1640G

25KZ

0.1

GQFZ

XX

1/16GJ100C

1/16GJ1KC

1SS355

1/16GJ

10KC

1/16GJ

10KC

XX

1/16

GZ0C

X

1/16GJ10KC X

1/16GJ

6.8KC

X

1/16GJ10KC

X

1/16GZ0C

1/16GJ10KC

X

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

767778798081828384858687888990919293949596979899100

1

2

3

1

2

3

45

6

7

81

2

3

45

6

7

8

1

2

3

4

5

6

78

9

10

11

12

13

14

1

2

3

4

5

6

7

8

9

10 11

12

13

14

15

16

17

18

19

20

16

15

14

13

12

11

10

98

7

6

5

4

3

2

1

24

23

22

21

20

19

18

17

16

15

14

1312

11

10

9

8

7

6

5

4

3

2

1

2

3

45

6

7

8

RAM_RD

RAM_WRH

PW_RESET

S_P_1

S_P_0

P_S_1

P_S_0

SDA4

SCL3

SDA3

PW_TXD

5VS

SCL2

SDA2

KEYSW3

P_FAIL

LAMP_ERR

FAN_DRIVE

BLAST_AC

SCLK

USB_BRST

USBRESET

ZOOM_-

ZOOM_+

RAM_A14

RAM_A13

RAM_A12

FOCUS_-

FOCUS_+

KEYSW1

KEYSW2

VIEWER_RXD

VIEWER_TXD

SCL1

SDA2

SCL2

SDA1

USB_CS_1

PW_RXD

TURBO_LED LAMPREP_LED

WARNING_LED

PIXEL_WRITE

USB_D+

USB_D-

CPU_RXD

5VS

PIXEL_WRITE

LAMP_BST_SW

SCL4

READY_LED

3.3VS

SDA2_5

SCL2_5

3VS

SCDT1

SCL1

SDA1 SDA1_5

SCL1_5

CPU_TXD

SDA1_5

SCL1_5

R/C

3.3VS

5VS

POWER

FAN_DRIVE

AUDIOMUTE

BLAST_AC

5V_SW

FAN_DRIVE1

MUTE

BLAST_AC1

CPU_TXD

CPU_RXD

TURBO_-

TURBO_+

MOUSE_RESET

5VS

VOL_CONT

MOUSE

FAN_CONT_1

FAN_CONT_2

5VS

SDA1_5

SCL1_5

SCDT1

SCDT

SDATA

USB_INT

TURBO_CS

IROMURA_CS

RAM_CS_2

2

CPU_RESET

RESET_SW

M_RESET

RESET_SW

M_RESET

CARD_IN

VIEWER_ON

EDIDEN

AUDIOMUTE

TXD_SW

ICE_RESET

PWRDN0

3.3VS

SDA1

SCL1

LAMP_SW1

LAMP_SW

P_FAIL

DCOM_OFF

ECO_SW

ECO_SW1

ECO_SW

CG1/CG2

USB_VBUS

W_LAN_IN

Model PLC-XU45 PLC-XU46

R880 open 1/16GJ10KC

R885 1/16GJ10KC open

Differential table

910111213141516

A

B

C

D

E

F

G

H

I

J

K

IC1831

M62392FP

IC1801

24LC16BT/SN-T

IC1821

TC7W241FU

(TE12L)

IC1826

TC7W53F

-(TE12L)

IC1851

M62320FP

IC801

HD64F2238ATE13

IC841

MN13821

-H-TW

IC1881

MC74HCT244AD T

HD74HCT244PW R

AD9884AKS-100

IC1861

HD74LVC14T

TC74LCX14FT

SERVICE

MEMORY MUTE ON: H

D/A

Normal:H

I/O EXPANDER

Normal:L

SUB

CPU

BUFFER

P-ON:H

MUTE:H

P-ON: H

P-FAIL:L

0V

3.3V

5.2V

0.2V

5.3V

0V

3.3V

0V

5.3V

0V

5.3V

3.3V

0V

3.3V

0V

3.0 V

3.3V

3.0V

3.3V

0V

3.3V

0V

3.3V

0V

3.3V

0.1V

3.2V

0V

3.3V

V

3.3V

0V

4.8V

4.7V

5.3V

5.2V

0V

5.3V

0V

5.1 V

5.3V

4.7V

3.0V

0V

5.3V

0V

5.3V

0V 5.3 V

1.7 V

0V

5.3V

5.2V

5.2 V

5.3 V

5.3V

0V

MAIN BOARD-5/6

LAMP_BST_SW

5V_SW

P.FAIL

LAMP_SW1

ECO_SW1

FAN_DRIVE1

FAN_DRIVE

BLAST_AC

MUTE

BALLAST_AC1

ZOOM+-

FAN_CONT

CG1_CG2

VOL_CONT

MUTE

IC1881-6

SCH_ME3A

-12-

Schematic Diagrams PLC-XU45,46 Page A16 [Right]

LSB

VDD2

TEST1

TEST2

TEST3

GND

SELECT

HSYNC

VSYNC

HRESETO

VRESETO

HPLL

VDD2

DCLK

GND

VDD1

CLP1

CLP2

SHENB

ROUT9

ROUT8

GND

ROUT7

ROUT6

VDD2

ROUT5

ROUT4

ROUT3

ROUT2

GND

ROUT1

ROUT0

SHCLKR

VDD2

XFRR

STSQER

STSQOR

GND

FRPR

ENBX1R

ENBX2R

ENBX3R

VDD2

VDD1

ENBX4R

DXOUTR

GND

CLXOUTR

GOUT9

GOUT8

GND

GOUT7

GOUT6

GOUT5

GND

VDD2

GOUT4

GOUT3

GOUT2

GOUT1

GOUT0

SHCLKG

GND

VDD2

XFRG

STSQEG

STSQOG

FRPG

ENBX1G

ENBX2G

GND

VDD1

VDD2

ENBX3G

ENBX4G

DXOUTG

CLXOUTG

VDD2

GND

BOUT9

BOUT8

GND

BOUT7

BOUT6

BOUT5

VDD2

BOUT4

BOUT3

BOUT2

GND

BOUT1

BOUT0

SHCLKB

XFRB

VDD2

STSQEB

STSQOB

GND

FRPB

VDD1

ENBX1B

ENBX2B

ENBX3B

ENBX4B

DXOUTB

VDD2

GND

CLXOUTB

NRG

DYOUT

CLYOUT

ENBY1

ENBY2

SDATA

SCLK

SCS

RESET

GND

OSDSW

OSDRIN0

OSDRIN1

OSDGIN0

OSDGIN1

OSDBIN0

OSDBIN1

VDD2

VDD1

BIN0

BIN1

BIN2

BIN3

BIN4

BIN5

BIN6

BIN7

GND

BIN8

BIN9

GIN0

GIN1

GIN2

GIN3

GIN4

GIN5

GIN6

GIN7

GIN8

GIN9

VDD2

GND

RIN0

RIN1

RIN2

RIN3

RIN4

VDD1

RIN5

RIN6

RIN7

RIN8

RIN9

GND

TDI

TMS

TCK

TRST

TDO

TEST4

VDD2

DB0(LSB)

DB1

DB2

DB3

DB4

DB5

DB6

DB7

DB8

DB9(MSB)

NC

E/O

R/L

INV

DGND

DVCC

AVCC

(BIAS)

NC

STBY

BYP

AGND

(BIAS)

NC

AGND6

VID6

AVCC5,6

VID5

AGND4,5

VID4

AVCC3,4

VID3

AGND2,3

VID2

AVCC1,2

VID1

AGND1

VMID

VREF

AGND

(DAC)

AVCC

(DAC)

CLK

XFR

STSQ

TEST

DB0(LSB)

DB1

DB2

DB3

DB4

DB5

DB6

DB7

DB8

DB9(MSB)

NC

E/O

R/L

INV

DGND

DVCC

AVCC

(BIAS)

NC

STBY

BYP

AGND

(BIAS)

NC

AGND6

VID6

AVCC5,6

VID5

AGND4,5

VID4

AVCC3,4

VID3

AGND2,3

VID2

AVCC1,2

VID1

AGND1

VMID

VREF

AGND

(DAC)

AVCC

(DAC)

CLK

XFR

STSQ

TEST

DB0(LSB)

DB1

DB2

DB3

DB4

DB5

DB6

DB7

DB8

DB9(MSB)

NC

E/O

R/L

INV

DGND

DVCC

AVCC

(BIAS)

NC

STBY

BYP

AGND

(BIAS)

NC

AGND6

VID6

AVCC5,6

VID5

AGND4,5

VID4

AVCC3,4

VID3

AGND2,3

VID2

AVCC1,2

VID1

AGND1

VMID

VREF

AGND

(DAC)

AVCC

(DAC)

CLK

XFR

STSQ

TEST

DB0(LSB)

DB1

DB2

DB3

DB4

DB5

DB6

DB7

DB8

DB9(MSB)

NC

E/O

R/L

INV

DGND

DVCC

AVCC

(BIAS)

NC

STBY

BYP

AGND

(BIAS)

NC

AGND6

VID6

AVCC5,6

VID5

AGND4,5

VID4

AVCC3,4

VID3

AGND2,3

VID2

AVCC1,2

VID1

AGND1

VMID

VREF

AGND

(DAC)

AVCC

(DAC)

CLK

XFR

STSQ

TEST

DB0(LSB)

DB1

DB2

DB3

DB4

DB5

DB6

DB7

DB8

DB9(MSB)

NC

E/O

R/L

INV

DGND

DVCC

AVCC

(BIAS)

NC

STBY

BYP

AGND

(BIAS)

NC

AGND6

VID6

AVCC5,6

VID5

AGND4,5

VID4

AVCC3,4

VID3

AGND2,3

VID2

AVCC1,2

VID1

AGND1

VMID

VREF

AGND

(DAC)

AVCC

(DAC)

CLK

XFR

STSQ

TEST

DB0(LSB)

DB1

DB2

DB3

DB4

DB5

DB6

DB7

DB8

DB9(MSB)

NC

E/O

R/L

INV

DGND

DVCC

AVCC

(BIAS)

NC

STBY

BYP

AGND

(BIAS)

NC

AGND6

VID6

AVCC5,6

VID5

AGND4,5

VID4

AVCC3,4

VID3

AGND2,3

VID2

AVCC1,2

VID1

AGND1

VMID

VREF

AGND

(DAC)

AVCC

(DAC)

CLK

XFR

STSQ

TEST

R

SCL

SDA

A07

A08

VREF

L

VREF

U1

GND VREF

U2

A01

A02

A03

A04

A05

A06 VCC

VDD

CS1

CS2

CS0

R

SCL

SDA

A07

A08

A09

A10

A11

A12

VREF

VREFU1

GND

VREFU2

A01

A02

A03

A04

A05

A06

VCC

VDD

CS1

CS2

CS0

L1581

R1581

R1582

C501L501

C504 C513

C512

R504

R503

R501

R502 C502 C509 C511

C506

C507

C508

C503

C1503

C1508

C1507

C1506

C1511

C1509C1502

R1502

R1501

R1503

R1504

C1512

C1513C1504

L1501 C1501

C531L531

C534 C543

C542

R534

R533

R531

R532 C532 C539 C541

C536

C537

C538

C533

C1533

C1538

C1537

C1536

C1541

C1539C1532

R1532

R1531

R1533

R1534

C1542

C1543C1534

L1531 C1531

C561

L561

C564 C573

C572

R564

R563

R561

R562 C562 C569 C571

C566

C567

C568

C563

C1563

C1568

C1567

C1566

C1571

C1569C1562

R1562

R1561

R1563

R1564

C1572

C1573C1564

L1561 C1561

R521

R522

C521

C522

R524

R523

R553

R554 C552

C551

R552

R551

R581

R582

C581

C582

R584

R583

L502

L1502

L532

L1532

L562

L1562

C403

C401

C404

C406

C407

C408

C409

C412 C413

C414

C416

C417

C418

C419

C421

C402

R3593

RB5

6

RB562

R

RB532

RB5

3

R

RB502

RB503

R2571

R2572

R414

R413

R415

R416

R411

R412

RB411

R421

R422

401_11

401_10

401_9

C411

R423

R424

R426

R427

R428

R434

R436

R437

R438

R439

R448

R446

R447

R449

R451

R464

R466

R467

R468

R469

R471

R472

R473

C461

R459

R458

R457

R456

R454

R453

R452

R441

R442

R443

R444

R433

R432

R429

R431

RB412

RB413

RB414

RB415

RB416

L2571

C1581 C2571

C2573 C2572

C422

C423

C1583 C1582

TE401

R461

R462

R463

R1583

R1589

R1584

R1586

R1593

R1592

R1591

R1588

R1587

R2577

R2576

R2581 R2583

R2584R2582

R420

R506

R507

R537

R536

R566

R567

L2PD

3R3MG

1/16GJ100C

6.3EM100

(WM:F1)

L2A73R3MG

25KZ0.1

GQFZ 25KZ0.1

GQFZ

25KZ0.1

GQFZ

1/16GZ0C

X

1/16GZ0C

X25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

16EM

47WM

16EM

47WM

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

1/16GZ0C

X

1/16GZ0C

X

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

L2A73R3MG 6.3EM100

(WM:F1)

6.3EM100

(WM:F1)

L2A73R3MG

25KZ0.1

GQFZ 25KZ0.1

GQFZ

25KZ0.1

GQFZ

1/16GZ0C

X

1/16GZ0C

X25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

16EM

47WM

16EM

47WM

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

1/16GZ0C

X

1/16GZ0C

X

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

L2A73R3MG 6.3EM100

(WM:F1)

6.3EM100

(WM:F1)

L2A73R3MG

25KZ0.1

GQFZ 25KZ0.1

GQFZ

25KZ0.1

GQFZ

1/16GZ0C

X

1/16GZ0C

X25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

16EM

47WM

16EM

47WM

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

1/16GZ0C

X

1/16GZ0C

X

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

L2A73R3MG 6.3EM100

(WM:F1)

1/16GJ

5.6KC

X

25KZ0.1

GQFZ

25KZ0.1

GQFZ

1/16GJ

8.2KC

1/16GJ

5.1KC

1/16GJ

5.1KC

1/16GJ

8.2KC

25KZ0.1

GQFZ

25KZ0.1

GQFZ

X

1/16GJ

5.6KC

1/16GJ

5.6KC

X

25KZ0.1

GQFZ

25KZ0.1

GQFZ

1/16GJ

8.2KC

1/16GJ

5.1KC

L2A7

3R3MG

L2A7

3R3MG

L2A7

3R3MG

L2A7

3R3MG

L2A7

3R3MG

L2A7

3R3MG

6.3EM220WM

:6.3EM220F1

6.3EM220WM

:6.3EM220F1

25KZ0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ 25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

1/16GJ

4.7KC

R1HA

:R1A4

1

R

:

R

R1HA1004G

:R1A41004G

R

:R

R1HA1004

G

:R1A41004G

R1H

A

:R1A

4

R

:

R

R1HA1004G

:R1A41004G

R1HA1

0

:R1A41

0

1/16GJ100C

1/16GJ22C

R1HA2204G

:R1A42204G

X

1/16GJ

3.3KC

NT1NT1NT1

25KZ

0.1

GQFZ

1/16GJ33C

1/16GJ10KC

1/16GZ0C

X

1/16GJ33C

X

1/16GJ33C

R1HA2204G

:R1A42204G

R1HA2204G

:R1A42204G

R1HA2204G

:R1A42204G

R1HA2204G

:R1A42204G

R1HA2204G

:R1A42204G

L2PD

3R3MG

25KZ0.1

GQFZ 25KZ0.1

GQFZ

25KZ0.1

GQFZ 6.3EM

47WM

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

25KZ0.1

GQFZ 6.3EM

47WM

J30B

1640G

1/16GZ0C

1/16GJ10KC

1/16GJ100C

1/16GJ10KC

1/16GJ8.2KC

1/16GJ100C

1/16GJ1KC

1/16GJ

1.8KC X

1/16GJ

3.9KC

X

1/16GJ

1.8KC

X

234567891011121314151617181920212223242526272829303132333435363738394041424344

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

8990919293949596979899100101102103104105106107108109110111112113114115116117118119120121122123124125126127128129130131132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

1

2

3

4

5

6

7

8

9

10

11

12

13 14 15 16 17 18 19 20 21 22 23 24

25

26

27

28

29

30

31

32

33

34

35

36

373839404142434445464748

1

2

3

4

5

6

7

8

9

10

11

12

13 14 15 16 17 18 19 20 21 22 23 24

25

26

27

28

29

30

31

32

33

34

35

36

373839404142434445464748

1

2

3

4

5

6

7

8

9

10

11

12

13 14 15 16 17 18 19 20 21 22 23 24

25

26

27

28

29

30

31

32

33

34

35

36

373839404142434445464748

1

2

3

4

5

6

7

8

9

10

11

12

13 14 15 16 17 18 19 20 21 22 23 24

25

26

27

28

29

30

31

32

33

34

35

36

373839404142434445464748

1

2

3

4

5

6

7

8

9

10

11

12

13 14 15 16 17 18 19 20 21 22 23 24

25

26

27

28

29

30

31

32

33

34

35

36

373839404142434445464748

1

2

3

4

5

6

7

8

9

10

11

12

13 14 15 16 17 18 19 20 21 22 23 24

25

26

27

28

29

30

31

32

33

34

35

36

373839404142434445464748

1

2

3

4

5

6

7

8

9

10 11

12

13

14

15

16

17

18

19

201

2

3

4

5

6

7

8

9

10

11

12 13

14

15

16

17

18

19

20

21

22

23

24

SCL2_5

SDA2_5

5V

REF_R

REF_G

REF_B

R_CENT

G_CENT

B_CENT

3.3V

SHCLKB

XFRR

STSQOB

STSQEB

STSQOB

STSQEB

XFRR

SHCLKB

3.3V

SHCLKG

XFRG

STSQOG

STSQEG

STSQOG

XFRG

SHCLKG

3.3V

SHCLKR

XFRB

STSQOR

STSQER

STSQOR

XFRB

SHCLKR

3.3V

FRPR

RGT

XRGT

B_CENT

REF_B

15.5V

REF_G

G_CENT

R_CENT

REF_R

15.5V

FRPG

XRGT

RGT

15.5V

FRPB

RGT

XRGT

15.5V

2.5V

3.3V

DBB0

DBB1

DBB2

DBB3

DBB4

DBB5

DBB6

DBB7

DBB8

DBB9

DGB0

DGB1

DGB2

DGB3

DGB4

DGB5

DGB6

DGB7

DGB8

DGB9

DRB0

DRB1

DRB2

DRB3

DRB4

DRB5

DRB6

DRB7

DRB8

DRB9

15.5V

3.3V

SCL2_5

SDA2_5

5V

VCOMR

VCOMG

VCOMB

DBA0

DBA1

DBA2

DBA3

DBA4

DBA5

DBA6

DBA7

DBA8

DBA9

DGA9

DGA8

DGA7

DGA6

DGA5

DGA4

DGA3

DGA2

DGA1

DGA0

DRA0

DRA1

DRA2

DRA3

DRA4

DRA5

DRA6

DRA7

DRA8

DRA9

DVS

DHS

DCLK

SHCLKR

XFRR

STSQER

STSQOR

FRPR

SHCLKG

XFRG

STSQEG

STSQOG

FRPG

STSQEB

SHCLKB

XFRB

STSQOB

FRPB

IROMURA_CS_1

SCLK1

SDATA1

CLYOUT

DYOUT

NRG

CLXOUTB

DXOUTB

ENBX2B

ENBX1B

ENBX1G

ENBX2G

DXOUTG

CLXOUTG

CLXOUTR

DXOUTR

ENBX1R

ENBX2R

DBB9

DBB8

DBB7

DBB6

DBB5

DBB4

DBB3

DBB2

DBB1

DBB0

DGB9

DGB8

DGB7

DGB6

DGB5

DGB4

DGB3

DGB2

DGB1

DGB0

DGB1

DGB2

DGB3

DGB4

DGB5

DGB6

DGB7

DGB8

DGB9

DRB9

DRB8

DRB7

DRB6

DRB5

DRB4

DRB3

DRB2

DRB1

DRB0

5V

DWN

RGT

XRGT

DRB9

DRB8

DRB7

DRB6

DRB5

DRB4

DRB3

DRB2

DRB1

DRB0

15VL

CBAL_SW

12345678

A

B

C

D

E

F

G

H

I

J

K

L

IC1561

L3E06070D0A

S&H_R2

IC561

L3E06070D0A

S&H_R1

IC1531

L3E06070D0A

S&H_G2

IC2571

M62393FP

IC1581

M62392FP

IC531

L3E06070D0A

S&H_G1

IC1501

L3E06070D0A

S&H_B2

IC401

L3E07050K0A

IC501

L3E06070D0A

S&H_B1

IC301

SCAN

CONVERTER

IC1401

DIGITAL

BRIGHTER

D/A

DIGITAL

COLOR

UNIFORMITY & GAMMA

CORRECTION

TIMING CONTROL

TP

2

G

S

R

S

5.0V

4.5V

2.5V

0V

5.0V

0V

5.0V

2.0V

0V

4.5V

5.0V

0V

5.0V

0V

4.5V

2.5V

0V

5.0V

0V

5.0V

0V

5.0V

2.7V

2.5V

5.0V

ME3A-07

DHS

DVS

DCLK

SCH_ME3A

-13-

Schematic Diagrams PLC-XU45,46 Page A17 [Left]

N.C N.C

N.CV

V

+

-

1DY

CLY2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

CLY

VDDY

NRG

DIRY

LCCOM

ENB1

ENB2

DIRX

CLX

DX

VDDX

N.C.

VSSX

VSIG1

VSIG2

VSIG3

VSIG4

VSIG5

VSIG6

VSSX

LCCOM

NRS1

NRS2

VSSY

DY

VSSY

NRS2

NRS1

LCCOM

VSSX

VSIG6

VSIG5

VSIG4

VSIG3

VSIG2

VSIG1

VSSX

N.C.

VDDX

DX

CLX

DIRX

ENB2

ENB1

LCCOM

DIRY

NRG

VDDY

CLY

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2CLY

DY1

1DY

CLY2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

CLY

VDDY

NRG

DIRY

LCCOM

ENB1

ENB2

DIRX

CLX

DX

VDDX

N.C.

VSSX

VSIG1

VSIG2

VSIG3

VSIG4

VSIG5

VSIG6

VSSX

LCCOM

NRS1

NRS2

VSSY

DY

-

+

-

+

ENBY1

DY

CLY

NRG

CLX2

DGND

VDD1

CLX1

DX

ENBX4

ENBX3

ENBX2

ENBX1

DIRX

DIRY

VDD1

DGND

NRS

NRSB

NRSA

NRSC

DIRXIN

ENBX1IN

ENBX2IN

ENBX3IN

ENBX4IN

VCC

GND

NRGIN

DYIN

CLYIN

DXIN

CLX1IN

CLX2IN

DIRYIN

ENBY1IN

ENBY2IN

GND

ENBY2

VDD2

DGND

VCC

DGND

VDD2

ENBY2

GND

ENBY2IN

ENBY1IN

DIRYIN

CLX2IN

CLX1IN

DXIN

CLYIN

DYIN

NRGIN

GND

VCC

ENBX4IN

ENBX3IN

ENBX2IN

ENBX1IN

DIRXIN

NRSC

NRSA

NRSB

NRS

DGND

VDD1

DIRY

DIRX

ENBX1

ENBX2

ENBX3

ENBX4

DX

CLX1

VDD1

DGND

CLX2

NRG

CLY

DY

ENBY1

30 VSSY

29 DIRY

28 DY

27 LCCOM

26 NRS

25 VID12

24 VID11

23 VID10

22 VID9

21 VID8

20 VID7

19 VID6

18 VID5

17 VID4

16 VID3

15 VID2

14 VID1

13 VSSX

12 DIRX

11 ENB1

10 ENB2

9 DX

8 CLX

7 CLX

6 VDDX

5 VDDY

4 NRG

3 CLY

2 CLY

1 DY

2 CLY

3 CLY

4 NRG

5 VDDY

6 VDDX

7 CLX

8 CLX

9 DX

10 ENB2

11 ENB1

12 DIRX

13 VSSX

14 VID1

15 VID2

16 VID3

17 VID4

18 VID5

19 VID6

20 VID7

21 VID8

22 VID9

23 VID10

24 VID11

25 VID12

26 NRS

27 LCCOM

28 DY

29 DIRY

30 VSSY

29 DIRY

28 DY

27 LCCOM

26 NRS

25 VID12

24 VID11

23 VID10

22 VID9

21 VID8

20 VID7

19 VID6

18 VID5

17 VID4

16 VID3

15 VID2

14 VID1

13 VSSX

12 DIRX

11 ENB1

10 ENB2

9 DX

8 CLX

7 CLX

6 VDDX

5 VDDY

4 NRG

3 CLY

2 CLY

1 DY

C506

C507

C508

C503

C1503

C1508

C1507

C1506

C536

C537

C538

C533

C1533

C1538

C1537

C1536

C566

C567

C568

C563

C1563

C1568

C1567

C1566

L502

L1502

L532

L1532

L562

L1562

C3563 C3564

R3577

C3566

L3561

C3562

R3591

R3592

C3592

R3593 Q3592

Q3591

R3594

L3591

R3582

C3584 TP3581

R3581 C3581C3582

C3583

R3576

R3575

R3574

R3568

R3567

R3571

R3570

R3569

R3563

R3565

C3553

R3551 R3554

R3552

R3556

C3554

R3559

R3557

R3558

R3553

R3532

R3531

D3591

TP3551

T3581

R3535

R3534

R3539

R3540

R3541

R3537

R3538

R3544

R3545

R3546

C3532

L3531

C3536

R3547

C3534C3533

K25R_30

C2521

C2501

C2511

R2522

K25R_23

K25R_9

K25R_10

K25R_11

K25R_12

K25R_3

K25R_2

K25R_1

K25R_15

K25R_16

K25R_17

K25R_20

K25R_21

K25R_22

K25R_24

K25R_25

K25G_1

K25G_2

K25G_3

K25G_8

K25G_9

K25G_10

K25G_11

K25G_12

K25G_15

K25G_16

K25G_17

K25G_21

K25G_22

K25G_24

K25G_25

K25B_1

K25B_2

K25B_8

K25B_9

K25B_10

K25B_11

K25B_12

K25B_15

K25B_16

K25B_17

K25B_21

K25B_22

K25B_24

K25B_25

K25B_29

R2512

R2502

Q2531

R2536

R2501

R2511

R2521

K25B

K25R_8

K25R_7

K25R_4

K25R_14

K25R_18

K25R_19

K25G

K25G_30

K25B_30

K25R

K25G_4

K25G_18

K25G_19

K25G_20

K25G_23

K25G_14

K25G_7

K25G_27

K25B_3

K25B_4

K25B_7

K25B_14

K25B_18

K25B_19

K25B_20

K25B_23

R2532

RB563

RB561

RB562

TP25B2

TP25B1

TP25G2

TP25G1

RB531

RB532

RB533

RB501

RB502

RB503

TP25R2

TP25R1

K25R_5

K25R_26

K25R_27

K25G_5

K25G_26

K25B_5

K25B_26

K25B_27

R2531

R2533

R2534

R2537 R2538

R2539

K25R_29

K25G_29

R2592

R2591 L2591

C2591

D2591

T3551

C3569C3568

R3564

R2542

R2544

R2562

R2541

R2543

R2561

R3543

R3573

R2545

R2547

R2549

R2551

R2553R2554

R2552

R2550

R2548

R2546

R2559

R2557

R2555R2556

R2558

R2560

R2526

R2528

R2527

R2529

C2526

Q2526

Q2516

C2516

R2519

R2517

R2518

R2516

R2506

R2508

R2507

R2509

C2506

Q2506

K25RR

C2523

C2522

C2512

C2513

K25GG

K25BB

C2503

C2502

C3552

C3551

C2507 C2508

C2518C2517

C2527 C2528

TE25RE

TE25GE

TE25BE

R3561

R3562

C3538 C3539

TP25B_1

TP25B_2

TP25G_2

TP25G_1

TP25R_1

TP25R_2

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

16EM

47WM

16EM

47WM

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

16EM

47WM

16EM

47WM

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

16EM

47WM

16EM

47WM

25KZ

0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

L2A7

3R3MG

L2A7

3R3MG

L2A7

3R3MG

L2A7

3R3MG

L2A7

3R3MG

L2A7

3R3MG

16EM100D

:16EM100F1 25KZ0.1

GQFZ

1/16

GZ0C

25KZ0.1

GQFZ

L2A73R3MG

25KZ

0.1

GQFZ

1/16GJ

1.5KC

1/16GJ

4.7KC

16EM10D

:16EM10F1

1/16GJ

4.7KC

AH

2SA1203Y

1/16GJ

10KC

1/8GJ10

1/16GJ

1KC

KZ0.01

GQFZ J30B

1640G

1/16

GJ

2.2KC

16EM100D

:16EM100F1

25KZ

0.1

GQFZ

CJ100

CGQY

1/16GJ10C

CJ100

CGQY

XX

1/16

GJ

2.2KC

1/16

GZ0C

X

1/16

GZ0C

1/16GJ

1KC

1/16GZ0C

1SS355

J30B

1640G

NT1

1/16GJ10C

25KZ

0.1

GQFZ

L2A73R3MG

25KZ0.1

GQFZ

1/16

GZ0C

25KZ0.1

GQFZ

16EM100D

:16EM100F1

NT1

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

1/16GJ2.2C

NT1

1/16GJ2.2C

AH

1/16GJ

10KC

1/16GJ2.2C

J11EA300G

NT1

J11EA300G

NT1

J11EA300G

NT1

X

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

J30B

1640G

J30B

1640G

J30B

1640G

J30B

1640G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

R1HA1004G

:R1A41004G

J30B

1640G

J30B

1640G

NT1

X

1/16GZ0C

1/16GJ

33KC

1/16GJ

100KC 1/16GJ

100KC

1/16GJ

100KC

NT1

X

1/8GZ000 L2A7

3R3MG

16EM100D

:16EM100F1

X

NT1

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

1/16GJ10C

1/16GZ0C

1/16GJ10C

1/16GZ0C

1/16GZ0C1/16GZ0C

1/16GZ0C

1/16GZ0C1/16GZ0C

1/16GZ0C

1/16GJ

2.2KC

1/16GJ

39KC

1/16GJ

3.9KC

1/16GJ

1KC

25KZ

0.1

GQFZ

AH

25KZ

0.1

GQFZ 1/16GJ

1KC

1/16GJ

3.9KC

1/16GJ

39KC

1/16GJ

2.2KC

1/16GJ

2.2KC

1/16GJ

39KC

1/16GJ

3.9KC

1/16GJ

1KC

25KZ

0.1

GQFZ

AH

X

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ0.1

GQFZ

X

25KZ0.1

GQFZ

25KZ0.1

GQFZ

25KZ

0.1

GQFZ

16EM100D

:16EM100F1

25EM

10WM 25KZ0.1

GQFZ

25KZ0.1

GQFZ

25EM

10WM

25EM

10WM 25KZ0.1

GQFZ

J30B

1640G

J30B

1640G

J30B

1640G

1/16GZ0C

25KZ

0.1

GQFZ

25KZ

0.1

GQFZ

NT1

12 11 10 987654321

48

47

46

45

44

43

42

41

40

39

38

37

363534333231302928272625

24

23

22

21

20

19

18

17

16

15

14

13

8

7

6

54

3

2

1

2

3

45

6

7

8

13

14

15

16

17

18

19

20

21

22

23

24

25 26 27 28 29 30 31 32 33 34 35 36

37

38

39

40

41

42

43

44

45

46

47

48

123456789101112

15.5V

15VL

3.3V

15VL

P_FAIL

15VL

NRG

ENBX1G

ENBX2G

3.3V

CLXOUTG

DXOUTG

DYOUT

CLYOUT

15VL

CLYOUT

DYOUT

DXOUTR

CLXOUTR

3.3V

ENBX2R

ENBX1R

NRG

15.5V

VCOMR

DWN

FRPR

XRGT

FRPG

RGT

VCOMG

VCOMB

910111213141516

A

B

C

D

E

F

G

H

I

J

K

IC3581

LT1206CS8

IC3561

L3E01031F0A

IC3551

LM7171BIM

LM7171AIM

IC3531

L3E01031F0A

G-LEVEL

SHIFT

B/R-LEVEL

SHIFT

B-LCD

PANEL

G-LCD

PANEL

R-LCD

PANEL

MAIN BOARD-6/6

NRS DRIVER

TP25R2

7.4V

TP25R1

7.4V

TP3581

4.5V

TP25G2

7.4V

TP25G1

7. 4

TP3551

4.5V

TP25B2

7.4V

TP25B1

7.4V

B-D/A &

SAMPLE

HOLD

G-D/A &

SAMPLE

HOLD

R-D/A &

SAMPLE

HOLD

14.5 V

4.5 V

4.5V

0V 4.5V

0V

4.5V

14.5 V

-0.6V

4.5 V

0V 0V

4.5V

14.5V

0V

R

G

B

P.FAIL

A17

-14-

Schematic Diagrams PLC-XU45,46 Page A17 [Right]

12345678

9

A

B

C

D

E

F

G

H

I

J

K

L

A18

-15-

Schematic Diagrams PLC-XU45,46 Page A18 [Left]

910111213141516

A

B

C

D

E

F

G

H

I

J

K

SCH_ME3A

-16-

Schematic Diagrams PLC-XU45,46 Page A18 [Right]

A19

ME3-XU4500, MF3-XU4600

■Pin description of diode, transistor and IC

A

K

C

BE

C2

C1

B1 B2

E

C

CBE

KA

C

B

E

B2

B1

C1 C2

E

B

C

B2

B1

C1 C2

E

B2

B1

C1

C2

E1

E2

K

AA

A

KK

K

A

K

A

C

B

ECB

EC

B

E

1

2

3

4

5

6

Index

12

N

Index Index

12

N

2

13

(IN) (OUT)

(GND)

21 4

2

1

3

Index

1

N

Index

1

N

Index

1

N

Index

1

N

Index

1

N

Index

1N

2

1

3

1

232

1

3

RESET GND

Vdd

5

3

D

G

SD

G

S

K: Cathode

A: Anode

C: Collector

B: Base

E: Emitter

D: Drain

G: Gate

S: Source

● Diode

● Tr ansistor/FET

● IC

E1

C2

E2 C1

B2

B1

Index

●Diode

●Transistor/FET

●IC

FET

Sanyo Projector Plc Xu45 Users Manual Service XU45, XU46

PLC-XU46 SM5110464

PLC-XU45 to the manual 797ecc3c-e2c2-463b-a93b-89675d1edf77

Navigation menu

Versions of this User Manual:

Views

Navigation
