INSTRUCTION MANUAL

MANUEL D’INSTRUCTIONS

MANUAL DE INSTRUCCIONES

VCC-ZM400

COLOR CCD ZOOM camera

Caméra CCD COULEURS avec ZOOM

Cámara CCD ZOOM A COLOR

About this manual

Before installing and using the camera, please read this manual

carefully. Be sure to keep it handy for later reference.

À propos de ce manuel

Avant d’installer et d’utiliser la caméra, veuillez lire ce manuel

attentivement. Gardez-le à portée de main pour toute référence

ultérieure.

Acerca de este manual

Lea cuidadosamente este manual antes de instalar y usar

la cámara. Asegúrese de guardarlo a su alcance para

futuras consultas.

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

CONTENTS

INFORMATION TO USER......................................................... 2

PRECAUTIONS.......................................................................... 3

PARTS NAMES AND FUNCTIONS ........................................... 4

CONNECTIONS ......................................................................... 6

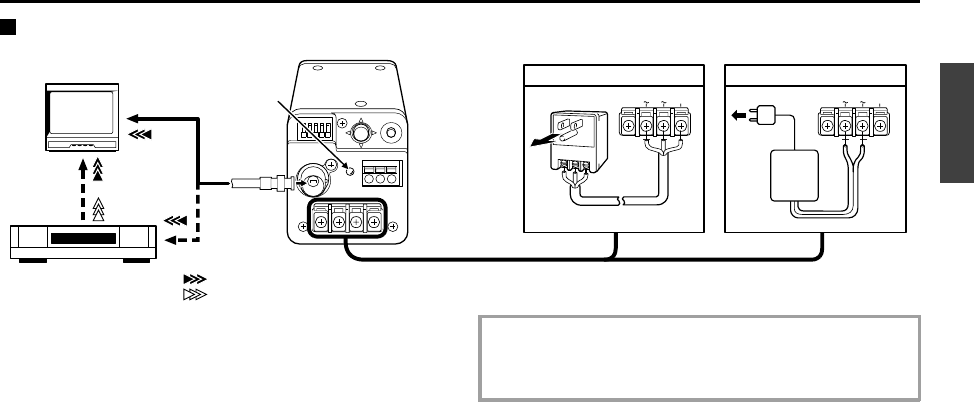

Basic connection for monitoring or recording......................... 6

Connection of peripheral equipment and controller

terminal...................................................................................... 7

DISPLAYING/CLOSING THE MENU SCREEN .......................... 8

MENU ITEM FLOW AND MENU OPERATION........................ 9

LANGUAGE SETTING............................................................... 10

CAMERA ID SETTING............................................................... 11

Camera ID setting...................................................................... 11

SYNC SETTING (SYNC) ............................................................ 12

Power source synchronization (L-L) setting ............................ 12

PRIVACY MASK SETTING (PRIVACY MASK) ......................... 13

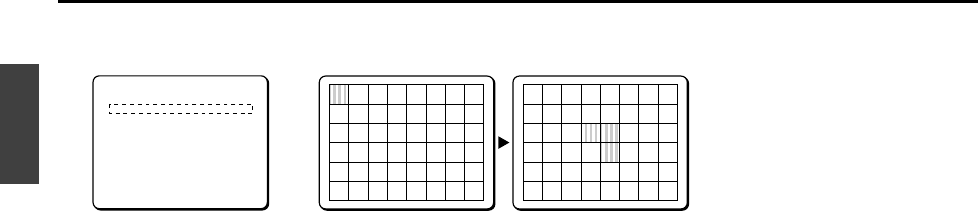

Mask setting .............................................................................. 13

PASSWORD setting ................................................................... 15

PASSWORD LOCK cancellation................................................. 16

PASSWORD changes ................................................................. 16

LENS SETTING ITEM FLOW ..................................................... 17

LENS SETTING (LENS).............................................................. 18

AFOCUS setting .................................................................................. 18

BZOOM setting................................................................................... 21

CDAY/NIGHT setting ......................................................................... 23

DVIEW ANGLE setting........................................................................ 31

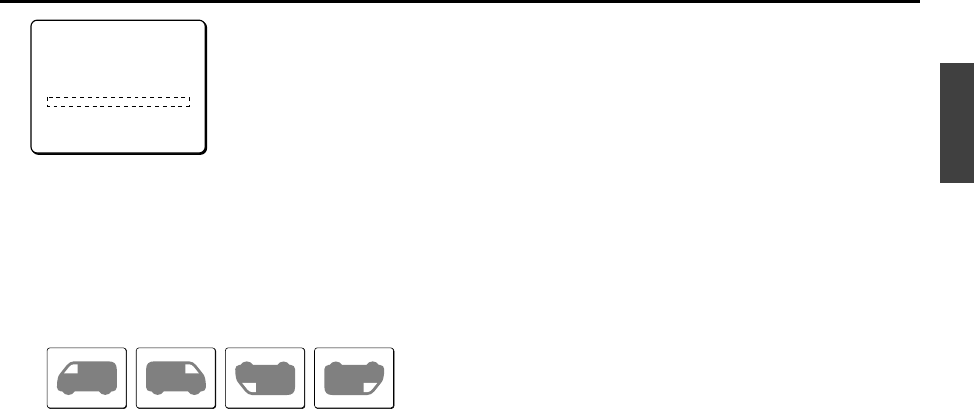

MIRROR SETTING..................................................................... 32

VIEW SETTING ITEM FLOW..................................................... 33

VIEW SETTING.......................................................................... 35

AIRIS setting ....................................................................................... 35

Autoiris setting (AUTO) ............................................................ 35

SENSE UP setting ...................................................................... 40

LEVEL setting............................................................................. 40

Manual iris setting .................................................................... 41

BWHITE BALANCE adjustment ......................................................... 42

MWB setting ............................................................................. 43

ATW setting............................................................................... 43

AWC setting .............................................................................. 45

CElectronic SHUTTER setting ............................................................ 46

Fast shutter speed (SHORT) mode setting.............................. 46

Slow shutter speed (LONG) mode setting.............................. 47

DMOTION detector setting ............................................................... 48

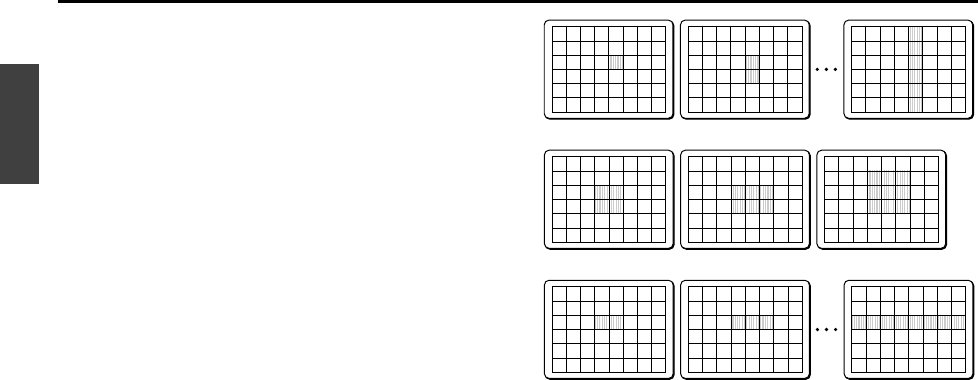

MOTION MASKING setting...................................................... 50

SENSITIVITY setting.................................................................. 51

ZOOM setting............................................................................ 52

INTERVAL setting...................................................................... 52

ALARM SIGN setting................................................................. 53

EProfile compensation setting (APERTURE).................................... 54

FGAMMA correction setting............................................................. 55

OPTION SETTING ..................................................................... 56

CONTROL setting ...................................................................... 56

ADDRESS setting....................................................................... 57

ALARM setting .......................................................................... 57

AAlarm input setting (ALARM IN) ............................................. 57

BColor/black & white selection setting (DAY/NIGHT) ............. 59

CAlarm output setting (ALARM OUT) ....................................... 60

DOperation of alarm signal output to the System

Controller setting (LINE OUT) .................................................. 61

MENU FLOW............................................................................. 62

SPECIFICATIONS ...................................................................... 64

MAIN FEATURES...................................................................... 65

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

1

INFORMATION TO USER

Safety Guard

THIS SYMBOL INDICATES THAT THERE ARE

IMPORTANT OPERATING AND MAINTENANCE

INSTRUCTIONS IN THE LITERATURE

ACCOMPANYING THIS UNIT.

WARNING:

TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK , DO

NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

This installation should be made by a qualified service person and

should conform to all local codes.

For the customers in Canada

This Class B digital apparatus complies with Canadian ICES-003.

Pour la clientèle canadienne

Cet appareil numerique de la Classe B est conforme à la

norme NMB-003 du Canada.

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or

more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and

receiver.

– Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for

help.

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must

accept any interference received, including interference that

may cause undesired operation.

Changes or modifications not expressly approved by Sanyo

may void the user’s authority to operate this camera.

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

2

PRECAUTIONS

In case of problem

Do not use the camera if smoke or a strange odour comes from

the unit, or if it seems not to function correctly. Disconnect the

power cord immediately, and consult your dealer (or a Sanyo

Authorized Service Centre).

Do not open or modify

Do not open the cabinet, as it may be dangerous and cause

damage to the unit. For internal settings and repairs, consult your

dealer (or a Sanyo Authorized Service Centre).

Do not put objects inside the unit

Make sure that no metal objects or flammable substance get

inside the camera. If used with a foreign object inside, it could

cause a fire, short-circuits or damages.

If water or a liquid gets inside the camera, disconnect the power

cord immediately, and consult your dealer (or a Sanyo Authorized

Service Centre). Be careful to protect the camera from rain, sea

water, etc.

Be careful when handling the unit

To prevent damages, do not drop the camera or subject it to

strong shock or vibration.

Install away from electric or magnetic fields

If installed close to a TV, radio transmitter, magnet, electric motor,

transformer, audio speakers the magnetic field they generate will

distort the image.

Protect from humidity and dust

To prevent damages to the camera, do not install it where there is

greasy smoke or steam, where the dampness may get too high,

or where there is a lot of dust.

Protect from high temperatures

Do not install close to stoves, or other heat generating devices,

such as spotlights, etc., or where it could be subject to direct

sunlight, as that could cause deformation, discoloration or other

damages.

Be careful when installing close to the ceiling, in a kitchen or

boiler room, as the temperature may raise to high levels.

Install where the temperature range will stay between –10° C and

50° C. (no condensation)

Cleaning

•Dirt can be removed from the cabinet by wiping it with a soft

cloth. To remove stains, wipe with a soft cloth moistened with

a soft detergent solution and wrung dry, then wipe dry with a

dry soft cloth.

•Do not use benzine, thinner or other chemical product on the

cabinet, as that may cause deformation and paint peeling.

Before using a chemical cloth, make sure to read all

accompanying instructions. Make sure that no plastic or

rubber material comes in contact with the cabinet for a long

period of time, as that may cause damage or paint peeling.

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

3

PARTS NAMES AND FUNCTIONS

1Video output connector (VIDEO OUT: BNC type)

Connect this connector to a device such as a time lapse VCR or

monitor with a VIDEO IN connector.

2Power indicator (POWER)

Comes on when the power to the camera is on.

Note: After connecting the power supply the POWER indicator

will blink for 5 seconds. During this time no adjustments

using the menus or any other operation are possible.

3Cursor button (See p8)

j: Press this button to move the cursor up.

c: Press this button to move the cursor to the right, or to

turn the settings ON/OFF etc.

d: Press this button to move the cursor to the left, or to turn

the settings ON/OFF etc.

l: Press this button to move the cursor down.

4SET button (SET) (See p8)

Connect the camera to the monitor, then press the SET

button for about 3 seconds to display the on-screen menu.

5RS-485 control push-lock terminals (RS485, A, B, G)

Use a cable thicker than AWG22.

A: Twisted-pair cable terminal G: Ground terminal

B: Twisted-pair cable terminal

624 V AC or 12 V DC input terminals (AC 24 V, DC 12 V,

GND)

Lens cap

The cap is installed to protect the lens section. Remove the cap

when using the camera.

SET

RS485

GND

AC24V

DC12V CLASS 2 WIRING

ABG

POWER

VIDEO OUT

FOCUS ALARM IN

OUT

ZOOM COM

2

5

6

4

3

1

Control

terminals

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

4

PARTS NAMES AND FUNCTIONS

Camera installation bracket

The bracket can be fixed at the top or bottom of the camera.

CAUTION: When installing the camera bracket, select a location

that can support the total weight of the camera and

accessories.

Control terminals

1Zoom terminal (ZOOM)

Sets the zoom to wide angle or telescoping.

2Focus terminal (FOCUS)

Sets the focus to infinite or close range.

3Grounding terminal (COM)

4Alarm output terminal (ALARM OUT)

A detection alarm based on the motion sensor is sent to

connected equipment such as a buzzer or lamp or a time

lapse VCR device.

5Alarm input and color/black & white selection

terminal (ALARM IN)

•When using this terminal for alarm input, connect an

external alarm switch for detecting intruders.

•This terminal can also be used for selecting color or black &

white input. It can be used to force selection of color or

black & white mode by external operation.

Note: The ALARM IN terminal can only receive one type of

input at a time. When using this terminal, use the

ALARM settings to set the type of input. (See p57)

FOCUS ALARM INZOOM COM

12345

OUT

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

5

CONNECTIONS

Basic connection for monitoring or recording

The peripheral devices (VCR, monitor, lens, etc.) and cables

are sold separately.

1Make the video signal connection between the camera

and the monitor or time lapse VCR.

2Power supply choices

•When using a commercially available 24 V AC adaptor,

make sure to use a cable with an earth line (22AWG or

more) to connect to the grounding terminal. (Fig.1.)

•When using a DC 12 V power supply, make the

connections as indicated in Fig. 2.

CAUTION:

To prevent camera and/or power supply failure, pay close

attention to polarity when making the connections.

3Insert the plug of this power supply into a wall outlet.

The POWER indicator (A) will light. Adjust the picture on the

monitor using the Brightness and Contrast controls.

GND

AC24V

DC12V CLASS 2 WIR

GND

AC24V

DC12V CLASS 2 WIR

(Video signal connections)

: VIDEO IN

: VIDEO OUT

(A)

AC 24 V connection DC 12 V connection

Fig. 1 Fig. 2

Time lapse VCR or

Digital video recorder

(sold separately)

TV monitor

(sold separately)

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

6

CONNECTIONS

Coaxial cable type and maximum length

•Cable type RG-59U (3C-2V), 250 m maximum.

•Cable type RG-6U (5C-2V), 500 m maximum.

•Cable type RG-11U (7C-2V), 600 m maximum.

CAUTION:

•The RG-59U type cable should not be run through electrical

conduits or through the air.

•Using CCTV/Video-grade coaxial cable.

Connection of peripheral equipment and

controller terminal

GAB

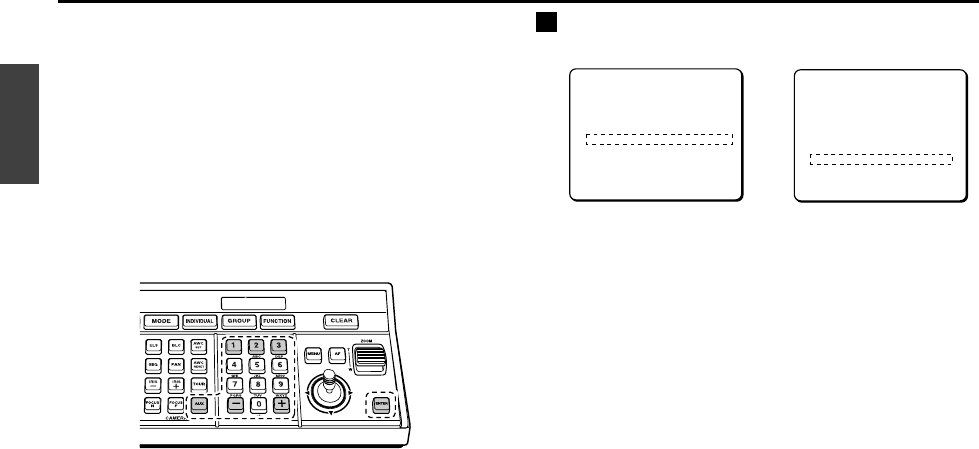

System controller (sold separately)

RS-485 connector

Multiplexer

(sold separately)

Buzzer or lamp

CAMERA IN

terminal

• Focus adjustment

DC+6V/12V: Infinite

DC–6V/12V: Close range

• Zoom adjustment

DC+6V/12V: Wide angle

DC–6V/12V: Telescoping

G

ABG

AB

External alarm

switch or color/

black & white select

switch

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

7

DISPLAYING/CLOSING THE MENU SCREEN

1Press the SET button for about 3 seconds.

The MAIN MENU screen will appear.

2Using the cursor button

1Use the cursor button (l) to move the cursor down.

When the cursor reaches the bottom of the screen, it goes

back up to the top of the screen.

2Use the cursor button (j) to move the cursor up. When

the cursor reaches the top of the screen, it goes back

down to the bottom of the screen.

3Use the cursor button (c) to move the cursor to the right.

This button is also used to change ON/OFF settings etc.

4Use the cursor button (d) to move the cursor to the left.

This button is also used to change ON/OFF settings etc.

3Switching to sub-menu screens

Use the cursor button (j l d c) until an item with a “y”

next to it is flashing, then press the SET button.

4 Closing a settings screen

•To return to the previous screen, use the cursor button (l)

to select BACK for MENU, then press the SET button.

•To return to the normal screen, use the cursor button (d or

c) to select END for MENU, then press the SET button.

☞Returning to the default setting

Use cursor button (l, then d or c) to change the PRESET

setting to ON, then press the SET button.

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

LANGUAGE

LANGUAGE ENGLISH

LANGUE FRENCH

IDIOMA SPANISH

MENU BACK

MAIN MENU screen Sub-menu screen

SET

Cursor button SET button

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

8

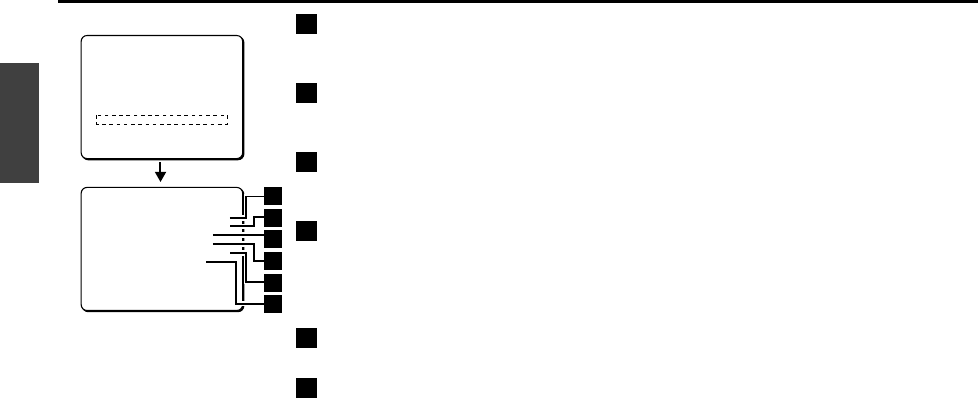

MENU ITEM FLOW AND MENU OPERATION

1 LANGUAGE setting (See p10)

Choose from among English, French and Spanish.

2 CAMERA ID setting (See p11)

3SYNC setting (See p12)

Sets camera to internal synchronization (INT) or power source

synchronization (L-L).

Power source synchronization, the vertical synchronization phase

as adjusted on a sub-menu screen.

4 PRIVACY MASK setting (See p13)

This covers an area of the screen with a gray pattern for areas

that may infringe on privacy.

Gray patterns can be placed on up to 4 areas.

5LENS setting (See p17)

This lets you make settings such as automatic and manual focus

settings, zoom speed and zoom ratio. In addition, it can also be

used for automatic switching to color images during daytime, or

to black and white images at times of low luminance such as

nighttime.

6 MIRROR setting (See p32)

The image can be rotated horizontally then vertically or vertically

then horizontally.

7 VIEW SETTING (See p33)

Different detailed settings can be made for each camera (9

screens). After they are set, these are linked to “VIEW SETTING

(0 – 8)” settings for preset positions.

8OPTION setting (See p56)

For setting communications conditions and alarms.

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

1 2 3 4 5 6 7 8

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

9

LANGUAGE SETTING

Select one of the languages shown on the menu screen (English, French, Spanish).

1In the MAIN MENU, use the cursor button (j or l) to

select SET for LANGUAGE, then press the SET button.

The LANGUAGE screen will appear.

2Use the cursor button (j or l) to move the cursor to

language (e.g. FRENCH) then press the SET button.

The interface language becomes French.

3Use the cursor button (j or l) to select RETOUR for

MENU, then press the SET button.

The MENU PRINCIPAL screen will reappear.

Information in the MAIN MENU screen will appear in the

selected language.

☞Use the cursor button (l) to select FIN, then press the

SET button. The display will return to the normal

monitor screen.

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

LANGUE

LANGUAGE ANGLAIS

LANGUE FRANCAIS

IDIOMA ESPAGNOL

MENU RETOUR

LANGUAGE

LANGUAGE ENGLISH

LANGUE FRENCH

IDIOMA SPANISH

12

3

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

10

CAMERA ID SETTING

Camera ID setting

Example: Setting the Camera ID to “CAM 1”

1Use the cursor button (j or l) to move the cursor to

CAMERA ID, and then use the cursor button (d or c) to

change the setting to ON. Then press the SET button.

The CAMERA ID SETTING screen will appear.

2Use the cursor button (j l d c) to move the cursor to

the letter “C” in the character selection palette, then

press the SET button.

☞After at least one character is displayed in the ID field,

the carriage return mark (y) will appear at the lower

right corner of the character selection palette. Selecting

this mark between the characters of the field will create

a new line at that place.

3Use the same steps to select “A”, “M” and “1” from the

palette, then press the SET button.

The characters “CAM1” appear in the ID field.

12

MAIN MENU

LANGUAGE SET ‚

CAMERA ID ON ‚

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

CAMERA ID SETTING

ABCDEFGHIJKLM

NOPQRSTUVWXYZ

0123456789 :-‚

ID ????????????????

-

POSITION SET ‚

PRESET OFF

MENU BACK

ID CAM1????????????

-

Camera ID screen

1Character selection palette:

By moving the cursor to letters or numbers in this palette,

you can select characters.

Selected characters will appear in the corresponding field

under ID.

2ID:

When CAMERA ID is set to “OFF”, the 16 characters in the

ID field will all change to “?” but will not be displayed on

the screen. In addition, when the setting is “ON”, “?”

characters will appear on the screen when no ID has been

entered.

3POSITION:

After characters are displayed in the ID field, moving the

cursor to the POSITION field with the cursor button and

pressing the SET button will display the camera ID on the

normal screen.

4PRESET:

When this item is turned to ON, the ID fields are cleared

(question marks appear). Use this function when you want

to change the ID.

CAMERA ID SETTING

ABCDEFGHIJKLM

NOPQRSTUVWXYZ

0123456789 :-‚

ID ????????????????

-

POSITION SET ‚

PRESET OFF

MENU BACK

1

2

3

4

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

11

CAMERA ID SETTING

4Use the cursor button (j or l) to move the cursor to

POSITION, and then press the SET button.

The camera ID will be displayed on one line.

(Displaying the ID on 2 lines.)

1Use the cursor button (d or c) to move the cursor to the

location in the ID field where the carriage return is wanted.

2Use the cursor button (j l d c) to move the cursor to

the carriage return mark (y) at the lower right corner of

the character selection palette, and then press the SET

button.

5Moving the on-screen title display position

Use the cursor button (j l d c) to move the title

display to the preferred position on the screen, then

press the SET button.

The CAMERA ID SETTING screen will reappear.

SYNC SETTING (SYNC)

Default setting is internal synchronization (INT), so it does not

need to be set again. Follow the steps below to change the

setting to power source synchronization (L-L).

Power source synchronization (L-L) setting

1Use the cursor button (j l d c) to select L-L for

SYNC, then press the SET button.

The L-L SETTING screen will appear.

2Use the cursor button (d or c) to adjust the position

of the vertical synchronization indicator shown on the

screen.

The numerical value will change, allowing adjustment of

vertical synchronization.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

CAMERA ID SETTING

ABCDEFGHIJKLM

NOPQRSTUVWXYZ

0123456789 :-‚

ID CAM1????????????

POSITION SET ‚

PRESET OFF

MENU BACK

CAM1

Camera ID

12

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

L-L SETTING

(V SYNC PHASE)

ú------+------ü 0

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

12

PRIVACY MASK SETTING (PRIVACY MASK)

Mask setting

1Use the cursor button (j or l) to select SET for

PRIVACY MASK, then press the SET button.

The PRIVACY MASK SETTING screen will appear.

2Use the cursor button (j or l) to move the cursor to

SET for MASK SET and press the SET button.

The MASK NO. SELECT screen will appear.

Note: When PASSWORD LOCK is ON, moving the cursor to

MASK SET and press the SET button to bring up a

password access screen. The password must be entered in

this screen.

3Use the cursor button (j or l) to move the cursor to a

mask number (e.g. MASK 3), and then use the cursor

button (c) to change the setting to SET. Then press the

SET button.

The MASK 3 SET (POSITION) screen will appear, and SETy

will be blinking. The gray mask will appear in the center of the

screen.

Cursor button operation

OFF: to c side (ON appears), to c side again (SET appears)

•SET: Mask POSITION and SIZE can be set

•ON: Masks can be displayed

•OFF: Masks can be deleted

12

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

PRIVACY MASK SETTING

PASSWORD LOCK ON ‚

PASSWORD CHANGE SET ‚

MASK SET SET ‚

MASK NO.SELECT

MASK 1 OFF

MASK 2 OFF

MASK 3 OFF

MASK 4 OFF

3

MASK NO.SELECT

MASK 1 OFF

MASK 2 OFF

MASK 3 SET ‚

MASK 4 OFF

PRESET OFF

MENU BACK

MASK 3 SET

(POSITION)

SET ‚

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

13

PRIVACY MASK SETTING (PRIVACY MASK)

(About the POSITION screen)

It is possible to set as many as 4 masks on the same POSITION

screen.

4Use the cursor button (j l d c) to move the gray

mask, then press the SET button.

The SIZE screen will appear, and the mask that was positioned

in the POSITION screen will be displayed.

5Use the cursor button (j l d c) to adjust the size of

the gray mask, then press the SET button.

PRESET and MENU will appear at the bottom of the screen.

Move the cursor to BACK for MENU and press the SET button.

The screen will return to MASK NO. SELECT.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

34

MASK 1 2

45

MASK 3 SET

(SIZE)

SET ‚

MASK 3 SET

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

14

PRIVACY MASK SETTING (PRIVACY MASK)

PASSWORD setting

You can lock the privacy masks in place as gray patterns after they have been set. The password requirement is initially set to OFF, but to

begin using it, you must enter the factory set password “1234”.

1Use the cursor button (j or l) to move the cursor to

OFF for PASSWORD LOCK in the PRIVACY MASK

SETTING screen. Then press the SET button.

The PASSWORD screen will appear.

2Enter the factory set password “1234”.

Use the cursor button (j or l) to select “1”, then use

the cursor button (c).

To move the cursor to the next “*” digit.

3Use the same steps to enter “2”, “3” and “4”, then press

the SET button.

“OK” will appear and BACK for MENU will be blinking. Press

the SET button again. The PRIVACY MASK SETTING screen

will reappear and “ON” will be blinking for PASSWORD LOCK.

Note: If a different password is required, “NG” will appear.

Please carefully maintain the password so that it will not be

forgotten.

1

PRIVACY MASK SETTING

PASSWORD LOCK OFF ‚

PASSWORD CHANGE SET ‚

MASK SET SET ‚

MENU BACK

PASSWORD

¤¤¤¤ SET ‚

-

MENU BACK

1¤¤¤

3

PASSWORD

1234 SET ‚

-

OK

MENU BACK

PRIVACY MASK SETTING

PASSWORD LOCK ON ‚

PASSWORD CHANGE SET ‚

MASK SET SET ‚

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

15

PRIVACY MASK SETTING (PRIVACY MASK)

PASSWORD LOCK cancellation

For use when PASSWORD LOCK is ON

1Press the SET button.

The PASSWORD screen will appear.

2Enter the factory set password “1234”.

Use the cursor button (j or l) to select “1”, then use

the cursor button (c).

To move the cursor to the next “*” digit.

3Use the same steps to enter “2”, “3” and “4”, then press

the SET button.

“OK” will appear and BACK for MENU will be blinking. Press

the SET button again. The PRIVACY MASK SETTING screen

will reappear and “OFF” will be blinking for PASSWORD LOCK.

PASSWORD changes

You can change the password with PASSWORD LOCK in either

the ON or OFF setting.

1Use the cursor button (j or l) to move the cursor to

SET for PASSWORD CHANGE and press the SET button.

The PASSWORD (NOW PASSWORD) screen will appear.

2Use the cursor button (d or c, j) to enter the current

password (e.g. 1234), then press the SET button.

The PASSWORD (NEW PASSWORD) screen will appear.

3Use the cursor button (d or c, j) to enter a new

password (e.g. 4321), then press the SET button.

“OK” will appear and BACK for MENU will be blinking. Press

the SET button again.

The PRIVACY MASK SETTING screen will reappear.

13

PASSWORD

¤¤¤¤ SET ‚

-

MENU BACK

PASSWORD

1234 SET ‚

-

OK

PRIVACY MASK SETTING

PASSWORD LOCK OFF ‚

PASSWORD CHANGE SET ‚

MASK SET SET ‚

12

PRIVACY MASK SETTING

PASSWORD LOCK ON ‚

PASSWORD CHANGE SET ‚

MASK SET SET ‚

PASSWORD

(NOW PASSWORD)

**** SET ‚

-

PASSWORD

(NOW PASSWORD)

1234 SET ‚

-

PASSWORD

(NEW PASSWORD)

**** SET ‚

-

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

16

LENS SETTING ITEM FLOW

AFOCUS: (See p18)

These settings let you select automatic focus (AUTO) or manual focus. Change the focus settings in

accordance with the monitoring conditions.

BZOOM: (See p21)

These settings let you adjust the speed and zoom ratio when using electronic zoom.

CDAY/NIGHT: (See p23)

These settings can be used for automatic switching to color images during daytime, or to black and

white images at times of low luminance such as nighttime. Three modes (AUTO, COLOR and B/W) can

be selected. Change the settings in accordance with the monitoring conditions.

DVIEW ANGLE: (See p31)

These settings are for setting the image angle.

If “OVER” is set, the image angle is set to approximately 1.05.

LENS

FOCUS MANU ‚

ZOOM SET ‚

DAY/NIGHT AUTO ‚

VIEW ANGLE OFF

PRESET OFF

MENU BACK

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

A

B

C

D

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

17

LENS SETTING (LENS)

This item allows adjustment of focus (for manual focus or autofocus) and adjustment of zoom when needed.

AFOCUS setting

☞Setting the manual focus (MANU)

Sets a limit for near distance focusing and sets focus speed for manual focus.

1Use the cursor button (j or l) to select SET for LENS,

then press the SET button.

The LENS screen will appear.

2Use the cursor button (d or c) to select MANU, then

press the SET button.

The FOCUS SETTING screen will appear.

3LIMIT NEAR focus distance setting

Use the cursor button (j or l) to move the cursor to

LIMIT NEAR, then use the cursor button (d or c) to

change the distance value. (e.g. 3M)

Available settings: 1M (meter), 3M, 10C (centimeters), 30C,

50C

Note: Focusing becomes difficult when near distance limit is set

to less than “1M”.

4SPEED of focus setting

Use the cursor button (j or l) to move the cursor to

SPEED, then use the cursor button (d or c) to select the

focus adjustment speed value. (e.g. 3)

Available settings: 1, 2, 3, 4 (Quickest speed)

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

12

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

LENS

FOCUS MANU ‚

ZOOM SET ‚

FOCUS SETTING

LIMIT NEAR 1M

SPEED 2

PRESET OFF

MENU BACK

3

FOCUS SETTING

LIMIT NEAR 3M

SPEED 2

PRESET OFF

MENU BACK

4

FOCUS SETTING

LIMIT NEAR 3M

SPEED 3

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

18

LENS SETTING (LENS)

☞Setting the autofocus (AUTO)

Sets a limit for near distance focusing and sets focusing sensitivity and focus target area.

Note: As a normal practice, use manual focus when keeping the camera focused on the same target object for a long period of time

(over 24 hours). This can be used with the one-push autofocus function when needed (operated from the system controller). Long

periods of surveillance with the autofocus in operation will shorten the work life of the lens.

1Use the cursor button (j or l) to select SET for LENS,

then press the SET button.

The LENS screen will appear.

2Use the cursor button (d or c) to select AUTO, then

press the SET button.

The FOCUS SETTING screen will appear.

3LIMIT NEAR focus distance setting

Use the cursor button (j or l) to move the cursor to

LIMIT NEAR, then use the cursor button (d or c) to

change the distance value. (e.g. 3M)

Available settings: 1M (meter), 3M, 10C (centimeters), 30C,

50C

Note: Focusing becomes difficult when near distance limit is set

to less than “1M”.

4Setting focus SENSITIVITY

Use the cursor button (j or l) to move the cursor to

SENSITIVITY, then use the cursor button (d or c) to

change the setting. (e.g. LOW)

Available settings:

•HIGH: High sensitivity focusing

•LOW: Low sensitivity focusing

Note: When focus SENSITIVITY is set to HIGH, it may react to

even slight movements of the target object. In this case,

change the setting to LOW.

12

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

LENS

FOCUS AUTO ‚

ZOOM SET ‚

FOCUS SETTING

LIMIT NEAR 1M

SENSITIVITY HIGH

AREA SET ‚

34

FOCUS SETTING

LIMIT NEAR 3M

SENSITIVITY HIGH

AREA SET ‚

PRESET OFF

MENU BACK

FOCUS SETTING

LIMIT NEAR 3M

SENSITIVITY LOW

AREA SET ‚

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

19

LENS SETTING (LENS)

5Use the cursor button (j or l) to move the cursor to

SET for AREA, and press the SET button.

The AREA SETTING screen for AREA 2 (default setting) will

appear to allow setting of focus target area.

6Use the cursor button (d or c) to select the focus target

area. (e.g. 3)

The focus target area will become narrow.

Available settings: 1/full screen, 2/center of screen,

3/smaller center

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

5

FOCUS SETTING

LIMIT NEAR 3M

SENSITIVITY LOW

AREA SET ‚

PRESET OFF

MENU BACK

AREA SETTING

AREA 2

PRESET OFF

MENU BACK

6

AREA SETTING

AREA 3

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

20

LENS SETTING (LENS)

BZOOM setting

Sets zooming speed and magnification power of the electronic zoom. This item also has a setting for improvement of vertical resolution

sensitivity of still pictures.

1Use the cursor button (j or l) to select SET for LENS,

then press the SET button.

The LENS screen will appear.

2Use the cursor button (j or l) to select SET for ZOOM,

then press the SET button.

The ZOOM SETTING screen will appear.

3Zoom speed setting

Use the cursor button (d or c) to select the zooming

speed. (e.g. 4)

Available settings: 1, 2, 3, 4 (Quickest speed)

4EL ZOOM (Electronic zoom) magnification setting

Use the cursor button (j or l) to move the cursor to EL

ZOOM, then use the cursor button (d or c) to select the

electronic zoom magnification power. (e.g. x4)

Available settings: OFF, x2, x4, x8, x16 (16 power)

12

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

LENS

FOCUS MANU ‚

ZOOM SET ‚

DAY/NIGHT AUTO ‚

VIEW ANGLE OFF

PRESET OFF

MENU BACK

34

ZOOM SETTING

SPEED 4

EL ZOOM OFF

V-RESO.UP OFF

PRESET OFF

MENU BACK

ZOOM SETTING

SPEED 4

EL ZOOM x4

V-RESO.UP OFF

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

21

LENS SETTING (LENS)

5V-RESO.UP (Vertical resolution sensitivity) setting

Use the cursor button (j or l) to move the cursor to

V-RESO.UP, then use the cursor button (d or c) to

select the vertical resolution sensitivity. (e.g. ON)

Note: When V-RESO.UP is set to “ON”, vertical resolution

sensitivity for still pictures in the electronic zoom field will

be improved but afterimages of moving objects will be

more conspicuous.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

Note:

V-RESO. UP will be automatically set to OFF when any of the

following settings is made.

•IRIS SETTING: SENSE UP (x2...)(See p40)

•VIEW SETTING: SHUTTER (LONG)(See p47)

•D/N SETTING: DNR (ON)(See p25)

5

ZOOM SETTING

SPEED 4

EL ZOOM x4

V-RESO.UP ON

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

22

LENS SETTING (LENS)

CDAY/NIGHT setting

The DAY/NIGHT mode can be set to one of three settings (AUTO, COLOR or B/W) to improve the appearance of images. This lets you set

the filming mode to color mode during times of normal brightness, or to black & white mode to increase sensitivity when there is less light.

When you select a mode, you may then need to make detailed settings for the respective mode used.

•AUTO: Automatic mode; The mode switches automatically

between color mode and black & white mode depending on

the luminance of the objects being monitored. (See p24)

•COLOR: Color mode; Images are filmed in color regardless of

the luminance of the objects being monitored. (See p27)

•B/W: Black & white mode; Images are filmed in black & white

regardless of the luminance of the objects being monitored.

(See p28)

Note: When “COLOR” is selected, the mode is fixed at color and

you can only view images that are in color. The same

applies to B/W mode. However, you can also use the

ALARM IN terminal on the rear panel to force the mode to

change from COLOR to B/W or from B/W to COLOR. Refer

to the “Color/black & white selection setting” for

details on the setting method. (See p59)

Note:

•A sound may be heard when the colour image or black and

white image is switched. Also, the image will be distorted as

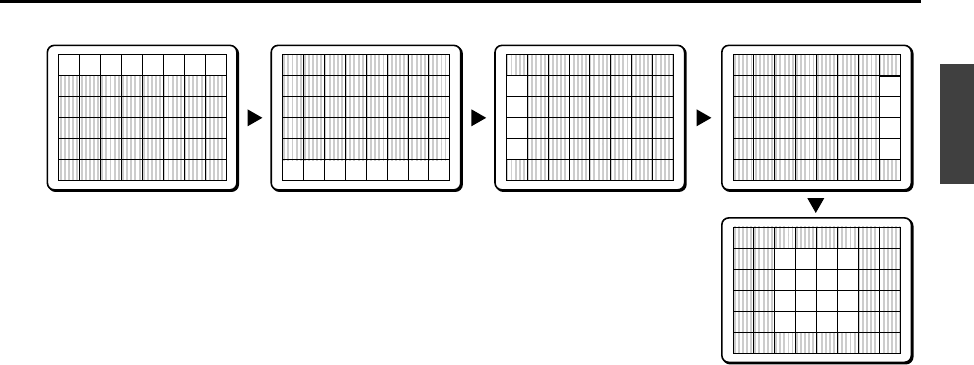

shown in Fig. 1. This is normal and does not indicate a

problem.

•When using infrared lighting, if there is a strong reflection on

the subject, the optical filter may switch from black and white

to colour mode. Use only enough infrared lighting so that the

mode is not switched.

LENS

FOCUS MANU ‚

ZOOM SET ‚

DAY/NIGHT AUTO ‚

VIEW ANGLE OFF

PRESET OFF

MENU BACK

AUTO,

COLOR,

B/W

(Fig. 1)

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

23

LENS SETTING (LENS)

☞AUTO mode setting

Note:

•If the backlight compensation has been set to “MULTI”, the backlight compensation will be canceled when the mode is switched to

B/W.

•If “SENSE UP” has been activated, SENSE UP mode will be activated after the mode switches to B/W mode.

1Use the cursor button (j or l) to select SET for LENS,

then press the SET button.

The LENS screen will appear.

2Use the cursor button (j or l) to move the cursor to

DAY/NIGHT, use the cursor button (d or c) to select

the mode (e.g. AUTO), and then press the SET button.

The D/N SETTING - AUTO screen will appear, and the “+9dB”

setting for “AGC MAX GAIN” will be blinking.

1Sets the maximum AGC gain.

2Sets the digital noise reduction.

3Sets burst suppression. If other peripheral devices (such

as a multiplexer) are connected to the system, bursts

(distortion of image color) can occur when switching

between color and black & white. If this happens,

change the BURST setting to “ON”.

4Sets the focus when switching to black & white mode.

5Sets the switching level for color mode and black & white

mode. The three available settings are LOW, MID or HIGH.

In addition, the switching level can be set manually (ADJ).

LENS

FOCUS MANU ‚

ZOOM SET ‚

DAY/NIGHT AUTO ‚

VIEW ANGLE OFF

PRESET OFF

MENU BACK

1

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

2 D/N SETTING - AUTO

AGC MAX GAIN +9·

DNR OFF

BURST OFF

FOCUS 1

LEVEL MID

PRESET OFF

MENU BACK

1

2

3

5

4

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

24

LENS SETTING (LENS)

3AGC MAX GAIN setting

Use the cursor button (j or l) to move the cursor to

AGC MAX GAIN, and then use the cursor button (d or

c) to select the gain.

Available settings: Select the maximum AGC gain from

+9dB, +12dB or +15dB.

4DNR setting

Use the cursor button (j or l) to move the cursor to

DNR, and then use the cursor button (d or c) to select

the digital noise reduction setting (e.g. ON).

Available settings:

•ON: DNR (digital noise reduction) is applied. This reduces

interference at low luminance levels.

•OFF: DNR is not applied.

Note: Digital noise reduction operates when the gain control

increases. In addition, blurring and ghosting of images

can occur when moving images are being monitored,

and so the resolution is also reduced slightly.

5BURST setting

Use the cursor button (j or l) to move the cursor to

BURST, and then use the cursor button (d or c) to

select the burst setting (e.g. ON).

Available settings:

•ON: The color burst signal is turned on.

•OFF: This should normally be set to “OFF”.

6FOCUS setting

Use the cursor button (j or l) to move the cursor to

FOCUS, and then use the cursor button (d or c) to

select the focus setting (e.g. 1).

Available settings:

•1: Near-infrared wavelength correction is set.

(around 900 nm)

•2: Visible light spectrum is set.

Note: This is set to “1” at the time of shipment from the

factory. If the images are out of focus, change it to “2”.

D/N SETTING - AUTO

AGC MAX GAIN +9·

DNR OFF

BURST OFF

FOCUS 1

LEVEL MID

PRESET OFF

MENU BACK

34 5 6

D/N SETTING - AUTO

AGC MAX GAIN +9·

DNR ON

BURST OFF

FOCUS 1

LEVEL MID

PRESET OFF

MENU BACK

D/N SETTING - AUTO

AGC MAX GAIN +9·

DNR ON

BURST ON

FOCUS 1

LEVEL MID

PRESET OFF

MENU BACK

D/N SETTING - AUTO

AGC MAX GAIN +9·

DNR ON

BURST ON

FOCUS 1

LEVEL MID

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

25

LENS SETTING (LENS)

7LEVEL setting

Use the cursor button (j or l) to move the cursor to

LEVEL, use the cursor button (d or c) to select the level

setting (e.g. ADJ) and then press the SET button.

The LEVEL SETTING screen will appear.

Available settings:

•LOW: The mode switches when the luminance of the

objects being monitored is comparatively dark.

•MID: The mode switches when the luminance of the

objects being monitored is between the LOW and

HIGH levels.

•HIGH: The mode switches when the luminance of the

objects being monitored is comparatively bright.

•ADJ: The switching level for color mode to black & white

mode and for black & white mode to color mode

respectively can be set manually.

8Use the cursor button (j or l) to move the cursor to

COLOR†B/W, and then use the cursor button (d or c)

to select the value.

Available settings: 1 – 7

Note:

•The larger the value, the darker the switching level.

•Changing the setting for one of the switching level settings

(from color mode to black & white mode or from black &

white mode to color mode) causes the other setting to

change also.

•Set the switching level from black & white mode to color

mode in the same way.

D/N SETTING - AUTO

AGC MAX GAIN +9·

DNR OFF

BURST OFF

FOCUS 1

LEVEL ADJ ‚

PRESET OFF

MENU BACK

78

LEVEL SETTING

(COLOR†B/W)

4

(B/W†COLOR)

4

PRESET OFF

MENU BACK

LEVEL SETTING

(COLOR†B/W)

4

(B/W†COLOR)

4

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

26

LENS SETTING (LENS)

☞COLOR mode setting

1Use the cursor button (j or l) to select SET for LENS,

then press the SET button.

The LENS screen will appear.

2Use the cursor button (j or l) to move the cursor to

DAY/NIGHT, use the cursor button (d or c) to select

the level setting (e.g. COLOR) and then press the SET

button.

The D/N SETTING - COLOR screen will appear, and the “±0dB”

setting for “AGC MAX GAIN” will be blinking.

1Sets the maximum AGC gain.

2Sets the digital noise reduction.

3AGC MAX GAIN setting

Use the cursor button (j or l) to move the cursor to

AGC MAX GAIN, and then use the cursor button (d or

c) to select the gain.

Available settings: Select the maximum AGC gain from OFF,

–6dB, ±0dB, +6dB or +9dB.

Setting fixed gain manually

Set AGC MAX GAIN to “OFF” and then press the SET

button.

The GAIN SETTING screen will appear. You can use this screen

to set the gain value manually to within a range of 0 – 30 dB.

Note:

•If “OFF” is selected, no maximum gain will be set.

•If “OFF” is selected, the SENSE UP function will be forcibly set

to “OFF”. However, the setting display will not change.

D/N SETTING - COLOR

AGC MAX GAIN ±0·

DNR OFF

PRESET OFF

MENU BACK

1

2

2, 3

LENS

FOCUS MANU ‚

ZOOM SET ‚

DAY/NIGHT COLOR‚

VIEW ANGLE OFF

PRESET OFF

MENU BACK

1

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

27

LENS SETTING (LENS)

4DNR setting

Use the cursor button (j or l) to move the cursor to

DNR, and then use the cursor button (d or c) to select

the digital noise reduction setting (e.g. ON).

Available settings:

•ON: DNR (digital noise reduction) is applied. This reduces

interference at low luminance levels.

•OFF: DNR is not applied.

Note:

•Digital noise reduction operates when the gain control

increases. In addition, blurring and ghosting of images can

occur when moving images are being monitored, and so the

resolution is also reduced slightly.

•If AGC MAX GAIN is set to “OFF”, DNR will be forcibly set to

“OFF”.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

☞B/W mode setting

1Use the cursor button (j or l) to select SET for LENS,

then press the SET button.

The LENS screen will appear.

4 D/N SETTING - COLOR

AGC MAX GAIN ±0·

DNR OFF

PRESET OFF

MENU BACK

LENS

FOCUS MANU ‚

ZOOM SET ‚

DAY/NIGHT B/W ‚

VIEW ANGLE OFF

PRESET OFF

MENU BACK

1

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

28

LENS SETTING (LENS)

2Use the cursor button (j or l) to move the cursor to

DAY/NIGHT, use the cursor button (d or c) to select

the level setting (e.g. B/W) and then press the SET

button.

The D/N SETTING – B/W screen will appear, and the “+6dB”

setting for “AGC MAX GAIN” will be blinking.

1Sets the maximum AGC gain.

2Sets the digital noise reduction.

3Sets burst suppression. If other peripheral devices (such

as a multiplexer) are connected to the system, bursts

(distortion of image color) can occur when switching

between color and black & white. If this happens,

change the BURST setting to “ON”.

4Sets the focus when switching to black & white mode.

3AGC MAX GAIN setting

Use the cursor button (j or l) to move the cursor to

AGC MAX GAIN, and then use the cursor button (d or

c) to select the gain.

Available settings: Select the maximum AGC gain from OFF,

–6dB, ±0dB, +6dB, +9dB, +12dB or

+15dB.

Setting fixed gain manually

Set AGC MAX GAIN to “OFF” and then press the SET

button.

The GAIN SETTING screen will appear. You can use this screen

to set the gain value manually to within a range of 0 – 30 dB.

Note:

•If “OFF” is selected, no maximum gain will be set.

•If “OFF” is selected, the SENSE UP function will be forcibly set

to “OFF”. However, the setting display will not change.

23

D/N SETTING - B/W

AGC MAX GAIN +6·

DNR OFF

BURST OFF

FOCUS 1

PRESET OFF

MENU BACK

1

2

3

4

D/N SETTING - B/W

AGC MAX GAIN +6·

DNR OFF

BURST OFF

FOCUS 1

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

29

LENS SETTING (LENS)

4DNR setting

Use the cursor button (j or l) to move the cursor to

DNR, and then use the cursor button (d or c) to select

the digital noise reduction setting (e.g. ON).

Available settings:

•ON: DNR (digital noise reduction) is applied. This reduces

interference at low luminance levels.

•OFF: DNR is not applied.

Note:

•Digital noise reduction operates when the gain control

increases. In addition, blurring and ghosting of images can

occur when moving images are being monitored, and so the

resolution is also reduced slightly.

•If AGC MAX GAIN is set to “OFF”, DNR will be forcibly set to

“OFF”.

5BURST setting

Use the cursor button (j or l) to move the cursor to

BURST, and then use the cursor button (d or c) to

select the burst setting (e.g. ON).

Available settings:

•ON: The color burst signal is turned on.

•OFF: This should normally be set to “OFF”.

6FOCUS setting

Use the cursor button (j or l) to move the cursor to

FOCUS, and then use the cursor button (d or c) to

select the focus setting (e.g. 1).

Available settings:

•1: Near-infrared wavelength correction is set.

(around 900 nm)

•2: Visible light spectrum is set.

Note: This is set to “1” at the time of shipment from the factory.

If the images are out of focus, change it to “2”.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

4 5, 6

D/N SETTING - B/W

AGC MAX GAIN +6·

DNR ON

BURST OFF

FOCUS 1

PRESET OFF

MENU BACK

D/N SETTING - B/W

AGC MAX GAIN +6·

DNR ON

BURST ON

FOCUS 1

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

30

LENS SETTING (LENS)

☞Day/Night mode operation from the system controller

The Day/Night setting (AUTO, COLOR and B/W) can be

switched using “CAMERA” operating range of the system

controller. Press the following buttons in the order given to

change the mode setting.

•COLOR mode:

“AUX“ → “AUX” → “1” → “Enter” → “+” button

•B/W mode:

“AUX“ → “AUX” → “2” → “Enter” → “+” button

•AUTO mode:

“AUX“ → “AUX” → “3” → “Enter” → “+” button

DVIEW ANGLE setting

The VIEW ANGLE setting should normally be left at “OFF”.

1Use the cursor button (j or l) to select SET for LENS,

then press the SET button.

The LENS screen will appear.

2Use the cursor button (j or l) to move the cursor to

VIEW ANGLE, and then use the cursor button (d or c)

to select the setting (e.g. OFF).

Available settings:

•OVER: The image angle for images being monitored is set

to 1.05.

•OFF: This should normally be set to “OFF”.

Note: This should normally be set to “OFF”. However, vignetting

may occur in the corners of the images because of the

zoom position. This is not normally a problem, but if you

are concerned about it, change the setting to “OVER”. The

vignetting will then be less apparent.

LENS

FOCUS MANU ‚

ZOOM SET ‚

DAY/NIGHT AUTO ‚

VIEW ANGLE OFF

PRESET OFF

MENU BACK

1

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

2

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

31

MIRROR SETTING

1Use the cursor button (j or l) to move the cursor to

MIRROR, then use the cursor button (d or c) to select

the mirror image effect (e.g. H).

The image will change as described below each time the

cursor button is pressed.

•OFF: Normal image •V: Inverted vertically

•H: Inverted horizontally •HV: Inverted horizontally and

vertically

2To return to the normal screen, use the cursor button

(l) to select END at the bottom of the screen, then press

the SET button.

1

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

OFF H V HV

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

32

VIEW SETTING ITEM FLOW

☞Setting the VIEW SETTING

Signifies that VIEW

SETTING 1 is the camera

setting 1. The cursor

button can be used (d or

c) to select one of the

nine VIEW SETTING

patterns (0 – 8).

AIRIS setting (See p35)

This setting allows selection of IRIS to either autoiris (AUTO) or manual iris (MANU). Default setting is

autoiris.

BWHITE BALANCE adjustment (See p42)

Three white balance methods are available: auto trace white balance (ATW), one-push automatic

white balance (AWC), and manual white balance (MWB). Default setting is auto trace white balance.

CElectronic SHUTTER setting (See p46)

This setting chooses either a fast shutter speed (SHORT) for target objects that may be moving quickly

or a slower shutter speed (LONG) for darker target objects.

DMOTION detector setting (See p48)

This function generates an alarm when a suspicious figure is detected. Each of the settings will enable

certain kinds of detection based on the natural image (swaying trees, flickers of light, etc.). It is also

possible to enable zooming in on target objects and intruders that have unusual brightness levels

(moving, bright) or are fast-moving.

EProfile compensation setting (APERTURE) (See p54)

This setting emphasizes the target object profile (horizontally or vertically).

FGAMMA correction setting (See p55)

This setting enables contrast sensitivity to be boosted by controlling the gamma characteristics. Three

gamma controls are available: gamma correction (ON), smart gamma correction 1 (SMART 1), and

smart gamma correction 2 (SMART 2). Default setting is ON.

VIEW SETTING 1

IRIS AUTO ‚

WHITE BALANCE ATW ‚

SHUTTER OFF

MOTION OFF

APERTURE ON ‚

GAMMA ON

PRESET OFF

MENU BACK

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

A

B

C

D

E

F

☞

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

33

VIEW SETTING ITEM FLOW

(About creating image setting files in VIEW SETTING)

You can set 9 different patterns with view files. Use the cursor

button (d or c) to change the file number (1) for VIEW SETTING

and press the SET button. The selected image setting file will

appear. Neither the mask function nor the motion detector

function can be used with image setting file “0”, so they will not

appear as options in the screen for pattern 0.

Note: When each of the following functions is ON (shown by

single circle), it may be possible to use other functions in

conjunction with it (shown by double circle). View columns

vertically to determine which functions can be used

together.

IRIS AUTO: SENSE UP (activated) FTTTT

MANU: EI (ON) TFTTE

SHUTTER LONG TTFTT

SHORT TTTFE

MOTION TETEF

F: Function is set T: Not allowable E: Allowable

VIEW SETTING 1

IRIS AUTO ‚

WHITE BALANCE ATW ‚

SHUTTER OFF

MOTION OFF

APERTURE ON ‚

GAMMA ON

PRESET OFF

MENU BACK

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

VIEW SETTING 0

IRIS AUTO ‚

WHITE BALANCE ATW ‚

SHUTTER OFF

MOTION ---

APERTURE ON ‚

GAMMA ON

PRESET OFF

MENU BACK

(Screen for image setting 0)

(Screen for image setting 1 – 8)

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

34

VIEW SETTING

AIRIS setting

There are 2 possible settings for IRIS, autoiris (AUTO) and manual iris (MANU).

Autoiris setting (AUTO)

Sets backlight compensation, magnification of electronic

sensitivity and iris level.

1Use the cursor button (j or l) to move the cursor to

VIEW SETTING, then press the SET button. (e.g. 1)

The VIEW SETTING 1 screen will appear and AUTO for IRIS will

be blinking.

Available settings:

•AUTO: Sets automatic adjustment of iris.

•MANU: Sets manual adjustment of iris.

Note:

When AUTO is selected, the following 3 types of detailed

backlight compensation settings will be available.

•Multi-spot evaluative metering (MULT)

•5 spot centerweighted average metering (CENT)

•48 multi-spot metering (MASK)

2Press the SET button.

The IRIS SETTING screen will appear.

VIEW SETTING 1

IRIS AUTO ‚

WHITE BALANCE ATW ‚

SHUTTER OFF

MOTION OFF

APERTURE ON ‚

GAMMA ON

PRESET OFF

MENU BACK

1

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

35

VIEW SETTING

Backlight compensation additional settings 1

Backlight compensation settings

•MULT (Multi-spot evaluative metering): Evaluates the entire

screen and corrects according to the best image obtained.

•CENT (5 spot centerweighted average metering): Measures

light mainly at the center and corrects according to the best

image obtained. (See p37)

•MASK (48 multi-spot metering): Covers bright areas such as

persons with mask patterns and treats light measurement

output as irrelevant. (See p39)

•

••

•Multi-spot evaluative metering (MULT)

1Use the cursor button (j or l) to move the cursor to

BLC, then use the cursor button (d or c) to select a

backlight compensation method. (e.g. MULT) Then press

the SET button.

The BLC SETTING screen will appear.

2Use the cursor button (d or c) to select the value of

BLC WEIGHT. (Sets backlight and brightness level.)

Available settings: 0 – 15

Note: The larger the number, the more backlighting works.

3Use the cursor button (j or l) to move the cursor to

BRIGHT, and then use the cursor button (d or c) to

select the compensation level.

Available settings: 0 – 15

Note: When the number becomes larger, it brightens, and the

compensation level can be set for the brightness of the

backlighting.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

Note:

•When using multi-spot evaluative metering, the background

behind the target object will become very dark. If a target

image in the center of the image is too bright while using the

multi-spot evaluative metering mode, switch to the 5 spot

centerweighted average metering mode.

•If DAY/NIGHT is set to “AUTO” and the images are in black &

white mode, multi-spot evaluative metering will not operate.

12

IRIS SETTING

BLC MULT ‚

SENSE UP OFF

(LEVEL)

í-----ú+------ü 40

BLC SETTING

(BLC WEIGHT)

í------ú------ü 7

(BRIGHT)

í------ú------ü 7

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

36

VIEW SETTING

Backlight compensation additional settings 2

•

••

•5 spot centerweighted average metering (CENT)

1Use the cursor button (d or c) to select CENT, then

press the SET button.

The BLC SETTING (POSITION) screen will appear.

2Use the cursor button (j l d c) to shift the position

of the central light sensing zone.

The zone can be moved up or down and left or right.

Note:

•If the zone fills the right side it will become smaller.

•If the zone fills the bottom side it will become smaller.

3Press the SET button.

The BLC SETTING (SIZE) screen will appear.

4Use the cursor button (j l d c) to adjust the size of

the central light sensing zone.

5Press the SET button.

The BLC WINDOW WEIGHTING screen will appear.

12

IRIS SETTING

BLC CENT ‚

SENSE UP OFF

(LEVEL)

í-----ú+------ü 40

PRESET OFF

MENU BACK

4

BLC SETTING

(SIZE)

BLC SETTING

(POSITION)

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

37

VIEW SETTING

Example of setting the mask in the center weighting position.

6Use the cursor button (j or l) to select a zone, then

use the cursor button (d or c) to adjust weighting.

Each setting will change as shown in the illustration.

The area from each of the zones 0 – 7, except CENTER, can

be adjusted.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

6

BLC WINDOW WEIGHTING

TOP 0

BOTTOM 0

LEFT 0

RIGHT 0

CENTER(FIX) 7

PRESET OFF

MENU BACK

BLC WINDOW WEIGHTING

TOP 0

BOTTOM 0

LEFT 0

RIGHT 0

CENTER(FIX) 7

PRESET OFF

MENU BACK

BLC WINDOW WEIGHTING

TOP 0

BOTTOM 0

LEFT 0

RIGHT 0

CENTER(FIX) 7

PRESET OFF

MENU BACK

BLC WINDOW WEIGHTING

TOP 0

BOTTOM 0

LEFT 0

RIGHT 0

CENTER(FIX) 7

PRESET OFF

MENU BACK

23 4

5

1

BLC WINDOW WEIGHTING

TOP 0

BOTTOM 0

LEFT 0

RIGHT 0

CENTER(FIX) 7

PRESET OFF

MENU BACK

1 TOP: Weighting is at top.

2 BOTTOM: Weighting is at bottom.

3 LEFT: Weighting is at left.

4 RIGHT: Weighting is at right.

5 CENT (FIX): Center weighting is fixed by the number 7.

If this is set to “0”, the light intensity will be ignored. The larger the setting value, the

greater is the weighting given to light coming from the respective side.

Note:

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

38

VIEW SETTING

Backlight compensation additional settings 3

•

••

•48 multi-spot metering (MASK)

1Use the cursor button (d or c) to select MASK, then

press the SET button.

The BLC MASKING screen will appear and the mask pattern

will be blinking.

2Use the cursor button (j l d c) to move the cursor to

move the mask pattern over the area not to be sensed,

then press the SET button.

The mask pattern will be set. You can use the same steps to

set additional mask patterns.

Note: The initial mask pattern is at the upper left of the screen,

and it is not set. To clear a mask pattern after it is set,

press the SET button again.

3Finishing mask pattern setting

Use the cursor button (j or l) to move a mask pattern to

the bottom area of the screen and continue holding it for 3

seconds. The PRESET and MENU items will appear on the

screen.

•Use the cursor button (l) to select BACK for MENU and

press the SET button. The IRIS SETTING screen will

reappear.

•Use the cursor button (l) to move the cursor to BACK for

MENU, use the cursor button (d or c) to select END, and

then press the SET button. The normal screen will reappear.

12

IRIS SETTING

BLC MASK ‚

SENSE UP OFF

(LEVEL)

í-----ú+------ü 40

PRESET OFF

MENU BACK

BLC MASKING

CONTINUE (ñ)

BLC MASKING

CONTINUE (ñ)

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

39

VIEW SETTING

SENSE UP setting

Use the cursor button (j or l) to move the cursor to

SENSE UP, then use the cursor button (d or c) to select the

power of the electronic sensitivity. (e.g. x4)

Available settings: OFF, x2, x4, x8, x16, x32

Note:

•Electronic sensitivity boosting (SENSE UP) automatically

lengthens the CCD exposure time in dark situations.

Accordingly, do not use for light target objects. Because

exposure time is lengthened while in operation, moving target

objects may cause conspicuous afterimages and blurs.

•It is not possible to set SENSE UP (activated) or SHUTTER

(LONG) when MOTION is set to “ON”.

•When SENSE UP is activated for IRIS SETTING, the electronic

shutter cannot be forcibly moved.

•If DAY/NIGHT is set to “AUTO” and the images are in color

mode, electronic sensitivity boosting will not operate.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

LEVEL setting

Use the cursor button (j or l) to move the cursor to

LEVEL, then use the cursor button (d or c) to adjust the iris

level.

Available settings: 0 – 100

Note: The larger the number, the more it brightens.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

IRIS SETTING

BLC MULT

SENSE UP x4

(LEVEL)

í-----ú+------ü 40

PRESET OFF

MENU BACK

IRIS SETTING

BLC MULT

SENSE UP x4

(LEVEL)

í----ú-+------ü 40

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

40

VIEW SETTING

Manual iris setting

Sets electronic iris ON/OFF, lens aperture and iris level.

1Use the cursor button (j or l) to move the cursor to

VIEW SETTING, then press the SET button. (e.g. 1)

The VIEW SETTING 1 screen will appear.

2Use the cursor button (d or c) to select MANU, then

press the SET button.

The IRIS SETTING screen will appear.

3Electronic IRIS setting

Use the cursor button (d or c) to select El. (e.g. ON)

Note: When SENSE UP is activated for IRIS SETTING, the

electronic shutter cannot be forcibly moved.

4Lens aperture setting

Use the cursor button (j or l) to move the cursor to IRIS

STOP, then use the cursor button (d or c) to select the value.

Available settings: 1 – 17 (Aperture opening)

Note:

•The smaller the value the more the aperture closes and the

image darkens.

•Changes to the value directly control the aperture of the lens.

5Use the cursor button (j or l) to move the cursor to

LEVEL, then use the cursor button (d or c) to select the

value.

Available settings: 0 – 100 (Level of opening)

Note:

•The smaller the value the more the video level drops,

becoming darker.

•The LEVEL setting controls both AGC circuit gain and shutter

speed, changing the amount of exposure.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

Note:

•If the iris views an unusually bright image, it can cause a

smear that cannot be corrected by adjusting the light entering

through the lens. In this case, arrange the physical angle of

lighting in a way that will prevent on-screen smearing.

•If flickering of the target object occurs because of florescent

lighting in the camera location, changing to incandescent

lighting will prevent the flickering.

12 3 5

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

VIEW SETTING 1

IRIS MANU ‚

WHITE BALANCE ATW ‚

SHUTTER LONG ‚

MOTION OFF

APERTURE ON ‚

GAMMA ON

IRIS SETTING

EI ON

(IRIS STOP)

í------+------ú 17

(LEVEL)

í----ú-+------ü 40

IRIS SETTING

EI ON

(IRIS STOP)

í------+------ú 17

(LEVEL)

í----ú-+------ü 40

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

41

VIEW SETTING

BWHITE BALANCE adjustment

Adjustments can be made to 3 methods of white balance correction: Auto trace white balance (ATW), one-push automatic white balance

(AWC), and manual white balance (MWB).

1Use the cursor button (j or l) to move the cursor to

VIEW SETTING, then press the SET button. (e.g. 1)

The VIEW SETTING 1 screen will appear.

2Use the cursor button (j or l) to move the cursor to

WHITE BALANCE, then use the cursor button (d or c)

to select a white balance type “MWB”. Then press the

SET button.

The MWB SETTING screen will appear.

The following methods are available for white balance correction.

See the corresponding reference sections for additional setting

options.

Available methods:

ATW (Auto trace white balance)

Even when light sources change, automatic adjustment assures

capture of most suitable colors. When a bright light source

prevents effective white balance, a mask can be placed over the

light source. (See p43)

AWC (One-push automatic white balance)

White balance is adjusted automatically with one-push activation.

AWC is usually set for white target objects (walls, paper, etc.) that

do not return color faithfully in the ATW method. (See p45)

MWB (Manual white balance)

Fine adjustments for preferred colors can be done manually. This

method is preferable when suitable colors cannot be obtained

with the ATW method. (See p43)

12

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

VIEW SETTING 1

IRIS AUTO ‚

WHITE BALANCE MWB ‚

SHUTTER OFF

MOTION OFF

APERTURE ON ‚

GAMMA ON

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

42

VIEW SETTING

White balance additional settings 1

MWB setting

1Use the cursor button (j or l) to move the cursor to

WHITE BALANCE, then use the cursor button (d or c)

to select a white balance type (e.g. MWB). Then press

the SET button.

The MWB SETTING screen will appear.

2Use the cursor button (d or c) to adjust the value for

“R” (red).

Available settings: 0 – 255

Note: The larger the number, the stronger red becomes.

3Use the cursor button (j or l) to move the cursor to

“B”, then use the cursor button (d or c) to adjust the

“Blue” value.

Available settings: 0 – 255

Note: The larger the number, the stronger blue becomes.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

White balance additional settings 2

ATW setting

Automatic white balance settings are completed when ATW is

selected. However, white balance will not be suitably adjusted if a

bright light source or an excessively dark area from the

environment is in the image. In this case, the bright light source or

dark area should be masked so that it will not be detected.

1Use the cursor button (j or l) to move the cursor to

ATW for WHITE BALANCE and press the SET button.

The ATW SETTING screen will appear.

2Use the cursor button (d or c) to select ON for

MASKING, then press the SET button.

The ATW MASKING screen will appear with the mask pattern

blinking in the upper left corner of the screen.

12

VIEW SETTING 1

IRIS AUTO ‚

WHITE BALANCE MWB ‚

SHUTTER LONG ‚

MOTION OFF

APERTURE ON ‚

GAMMA ON

MWB SETTING

(OFFSET)

R í---ú--+------ü 70

B í---ú--+------ü 66

12

VIEW SETTING 1

IRIS AUTO ‚

WHITE BALANCE ATW ‚

SHUTTER OFF

MOTION OFF

APERTURE ON ‚

GAMMA ON

ATW SETTING

MASKING ON ‚

SMART ATW OFF

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

43

VIEW SETTING

3Use the cursor button (j l d c) to move the mask

pattern over the bright light source, then press the SET

button.

Use the same steps to place addition masks as needed.

Note: Initial settings place no masks on the screen. To cancel the

placement of masks, press the SET button again.

4Use the cursor button (j or l) to move a mask pattern

to the bottom area of the screen and continue holding

the cursor button straight down for 3 seconds.

The PRESET and MENU items will appear on the screen. Use

the cursor button (j or l) to select BACK, then press the

SET button. The ATW SETTING screen will reappear.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

☞SMART ATW setting

If saturation is high or a scene is bright, the most suitable colors

may not be obtained. In this case, set the SMART ATW to ON.

5Use the cursor button (j or l) to move the cursor to

SMART ATW, then use the cursor button (d or c) to set

ON.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

3

ATW MASKING

CONTINUE (ñ)

ATW MASKING

CONTINUE (ñ)

45

ATW SETTING

MASKING ON ‚

SMART ATW OFF

PRESET OFF

MENU BACK

ATW SETTING

MASKING ON ‚

SMART ATW ON

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

44

VIEW SETTING

White balance additional settings 3

AWC setting

1Use the cursor button (j or l) to move the cursor to

AWC for WHITE BALANCE and press the SET button.

The AWC SETTING screen will appear.

2With SET blinking for AWC LOCK, press the SET button.

SET will light and adjustment of white balance will begin. After

about 3 seconds, SET will begin blinking again, signaling that

adjustment is complete.

Note:

For even finer adjustment of coloration, choose SET for GO TO

MWB. White balance mode will become MWB for fine

adjustment. After fine adjustment with GO TO MWB, the white

balance mode will automatically switch to MWB.

Note: Full adjustment may not be possible with just one

activation of SET for AWC LOCK. In that case, press the

SET button again.

3GO TO MWB setting

Use the cursor button (j or l) to move the cursor to

SET for GO TO MWB and press the SET button.

The MWB SETTING screen will appear and the “R” value will

be blinking.

4Use the cursor button (d or c) to adjust the value for

“R” (red).

Available settings: 0 – 255

Note: The larger the number, the stronger red becomes.

5Use the cursor button (j or l) to move the cursor to

“B”, then use the cursor button (d or c) to adjust the

“Blue” value.

Available settings: 0 – 255

Note: The larger the number, the stronger blue becomes.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

12 3 4

VIEW SETTING 1

IRIS AUTO ‚

WHITE BALANCE AWC ‚

SHUTTER OFF

MOTION OFF

APERTURE ON ‚

GAMMA ON

AWC SETTING

AWC LOCK SET

GO TO MWB SET ‚

AWC SETTING

AWC LOCK SET

GO TO MWB SET ‚

MWB SETTING

(OFFSET)

R í---ú--+------ü 70

B í---ú--+------ü 66

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

45

VIEW SETTING

CElectronic SHUTTER setting

Sets the electronic shutter to either the fast shutter speed mode (SHORT) or the slow shutter speed mode (LONG).

Fast shutter speed (SHORT) mode setting

1Use the cursor button (j or l) to move the cursor to

VIEW SETTING, then press the SET button. (e.g. 1)

The VIEW SETTING 1 screen will appear.

2Use the cursor button (j or l) to move the cursor to

SHUTTER, then use the cursor button (d or c) to select

the speed mode for the electronic shutter. (e.g. SHORT)

Then press the SET button.

The ES SETTING screen will appear and 60 (1/60 sec) will be

blinking. This setting is suitable for fast moving target objects.

3Use the cursor button (d or c) to select a electronic

shutter speed.

Available settings: 60, 100, 250, 500, 1000, 2000, 4000,

10000

Note: SHORT mode cannot be set if SENSE UP is activated or IRIS

is “ON”.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

12 3

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

VIEW SETTING 1

IRIS MANU ‚

WHITE BALANCE ATW ‚

SHUTTER SHORT‚

MOTION OFF

APERTURE ON ‚

GAMMA OFF

PRESET OFF

MENU BACK

ES SETTING

SHUTTER SPEED 60

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

46

VIEW SETTING

Slow shutter speed (LONG) mode setting

1Use the cursor button (j or l) to move the cursor to

SHUTTER, then use the cursor button (d or c) to select

the speed mode for the electronic shutter. (e.g. LONG)

Then press the SET button.

The ES SETTING screen will appear and x1 (1/60 sec) will be

blinking. This setting is suitable for dark target objects.

Note: When setting the electronic shutter, the ELS button on the

system controller can only be used to turn the electronic

shutter on and off.

2Use the cursor button (d or c) to select a electronic

shutter speed.

Available settings: x1, x2, x4, x8, x16, x32 (Field times

shown as multiples.)

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

Note:

SHUTTER (LONG) cannot be set if any of the following settings is

active.

•MOTION: ON

•IRIS: AUTO item SENSE UP (activated) or MANU item El

(ON)

12

ES SETTING

SHUTTER SPEED x1

PRESET OFF

MENU BACK

VIEW SETTING 1

IRIS MANU ‚

WHITE BALANCE ATW ‚

SHUTTER LONG ‚

MOTION OFF

APERTURE ON ‚

GAMMA ON

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

47

VIEW SETTING

DMOTION detector setting

This function divides the monitor screen into 48 zones (8 x 6). Based on information from the separate zones, target images that show

intruder movements are detected and an alarm is generated. The degree of motion to be detected can be finely set.

Note:

•Before activating this setting, use the cursor button to select a surveillance location that will not detect motion.

•When SHUTTER speed is in LONG mode and IRIS SETTING has SENSE UP activated, the MOTION function cannot be turned ON.

1Use the cursor button (j or l) to move the cursor to

VIEW SETTING, then press the SET button. (e.g. 1)

The VIEW SETTING 1 screen will appear.

2Use the cursor button (j or l) to move the cursor to

MOTION, and then use the cursor button (d or c) to

select ON. Then press the SET button.

The MOTION SETTING screen will appear and SET for SIZE will

be blinking.

3MOTION SIZE setting

Sets the target object size desired for detection in the 48 zone

screen.

Press the SET button again.

The MOTION SIZE screen appears and the “1” for “V” will be

blinking.

12

MOTION SETTING

SIZE SET ‚

MASKING ON ‚

SENSITIVITY SET ‚

ZOOM OFF

INTERVAL 5S

ALARM SIGN OFF

PRESET OFF

MENU BACK

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

VIEW SETTING 1

IRIS MANU ‚

WHITE BALANCE ATW ‚

SHUTTER LONG ‚

MOTION ON ‚

APERTURE ON ‚

GAMMA ON

PRESET OFF

MENU BACK

3

MOTION SIZE

V 1

H 1

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

48

VIEW SETTING

4Set the size of the target object desired for detection

1Determine the vertical size

Tilt the cursor button to the right (c).

The “V” value (vertical pattern) will change to “2” and the

detection pattern will expand downward. Repeating this

motion will expand the pattern in the up and down

direction. Tilting the cursor button to the left will reduce

the pattern size.

2Determine the horizontal size

Use the cursor button (l) to move the cursor to the

“1” for “H”, then tilt the cursor button to the right

(c).

The “H” value (horizontal pattern) will change to “2” and the

detection pattern will expand to the left. Repeating this

motion will expand the pattern in the left and right direction.

Tilting the cursor button to the left will reduce the pattern

size.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

MOTION SIZE

V 1

H 1

PRESET OFF

MENU BACK

MOTION SIZE

V 2

H 1

PRESET OFF

MENU BACK

MOTION SIZE

V 6

H 1

PRESET OFF

MENU BACK

MOTION SIZE

V 2

H 2

PRESET OFF

MENU BACK

MOTION SIZE

V 2

H 3

PRESET OFF

MENU BACK

MOTION SIZE

V 3

H 3

PRESET OFF

MENU BACK

MOTION SIZE

V 1

H 2

PRESET OFF

MENU BACK

MOTION SIZE

V 1

H 3

PRESET OFF

MENU BACK

MOTION SIZE

V 1

H 8

PRESET OFF

MENU BACK

V1, H1 V2, H1 V6, H1

V2, H2 V2, H3 V3, H3

V1, H2 V1, H3 V1, H8

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

49

VIEW SETTING

MOTION MASKING setting

Masking target objects that are not desired for detection (swaying trees, flickers of light , etc.) will prevent unwanted alarms from being

generated. This is done in the MOTION SETTING screen.

1Use the cursor button (j or l) to move the cursor to

MASKING, and then use the cursor button (d or c) to

select ON. Then press the SET button.

The MOTION MASKING screen will appear, and the mask

pattern will be blinking in the upper left corner of the screen.

2Use the cursor button (j l d c) to move the mask

pattern to the target object that is not to be detected,

then press the SET button.

Repeat these steps to set mask patterns in other locations.

Note: To clear a mask pattern, press the SET button again on

the pattern.

3Finishing motion pattern setting

Use the cursor button (j or l) to move a mask pattern to

the bottom area of the screen and continue holding it for 3

seconds. The PRESET and MENU items will appear on the

screen.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

12

MOTION SETTING

SIZE SET ‚

MASKING ON ‚

SENSITIVITY SET ‚

ZOOM OFF

INTERVAL 5S

ALARM SIGN OFF

PRESET OFF

MENU BACK

MOTION MASKING

CONTINUE (ñ)

MOTION MASKING

CONTINUE (ñ)

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

50

VIEW SETTING

SENSITIVITY setting

Set the degree of sensitivity for motion detection corresponding

to MOTION SIZE. Sensitivity can be set so that natural motions on

the screen such as wind and light changes will not be detected.

When this is necessary, activate the following setting.

Use the cursor button (j or l) to move the cursor to

SENSITIVITY, and then use the cursor button (d or c) to

select SET. Then press the SET button.

The SENSITIVITY screen will appear.

When necessary, adjust the following settings.

☞Motion sensitivity (MOVE) setting

Use the cursor button (j or l) to move the cursor to

MOVE, then use the cursor button (d or c) to adjust the

movement value.

To avoid detection of small movements such as wind, make the

value larger.

Available settings: 1 – 10

☞ Brightness level (Y-LEVEL)

Use the cursor button (j or l) to move the cursor to

Y-LEVEL, then use the cursor button (d or c) to adjust the

brightness level.

When noise from a dark screen is causing erroneous detections,

make the value larger.

Available settings: 1 – 10

☞Brightness differences (Y-DIFFER)

Use the cursor button (j or l) to move the cursor to

Y-DIFFER, then use the cursor button (d or c) to adjust the

brightness differences.

Changes in brightness can sometimes be mistakenly detected as

motion. To avoid detection of the turning on and off of lighting,

make the value larger.

Available settings: 1 – 10

☞DURATION setting

Use the cursor button (j or l) to move the cursor to

DURATION, then use the cursor button (d or c) to adjust

the detection time duration.

To avoid detecting fast movements, make the value larger.

Available settings: 1 – 60

☞Detected motion confirmation mode (DEMO)

Use the cursor button (j or l) to move the cursor to OFF for

DEMO, then use the cursor button (d or c) to change ON.

When a motion is detected, patterns are shown in that location.

While the detected motion is being confirmed, the SENSITIVITY

settings are optimized. This mode can only be activated in the

SENSITIVITY setting screen.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

MOTION SETTING

SIZE SET ‚

MASKING ON ‚

SENSITIVITY SET ‚

ZOOM OFF

INTERVAL 5S

ALARM SIGN OFF

SENSITIVITY

MOVE í---ú----ü 5

Y-LEVEL í---ú----ü 5

Y-DIFFER í---ú----ü 5

DURATION ú--------ü 1

DEMO OFF

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

51

VIEW SETTING

ZOOM setting

This item is set in the MOTION SETTING screen.

Use the cursor button (j or l) to move the cursor to

ZOOM, then use the cursor button (d or c) to select the

zoom magnification power (e.g. x2).

Available settings: OFF, x1.4, x2, x2.8, x4, x6

Note:

•When a suspicious motion is detected, the camera zooms in

according to the set magnification power. The zoom takes

effect for 5 seconds and then returns to the previous

magnification level.

•The zoom focuses on the center of the screen. If the

maximum optical performance is exceeded, zooming will stop

at maximum magnification.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

INTERVAL setting

This item is set in the MOTION SETTING screen.

Use the cursor button (j or l) to move the cursor to

INTERVAL, then use the cursor button (d or c) to select the

time interval (e.g. 15S).

Available settings: 5S, 10S, 15S, 20S, 30S, 1M, 2M, 3M, 4M,

5M

Note: When a motion is detected, no other motions will be

detected within the set interval of time.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

MOTION SETTING

SIZE SET ‚

MASKING ON ‚

SENSITIVITY SET ‚

ZOOM OFF

INTERVAL 5S

ALARM SIGN OFF

PRESET OFF

MENU BACK

MOTION SETTING

SIZE SET ‚

MASKING ON ‚

SENSITIVITY SET ‚

ZOOM OFF

INTERVAL 5S

ALARM SIGN OFF

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

52

VIEW SETTING

ALARM SIGN setting

This item is set in the MOTION SETTING screen.

Use the cursor button (j or l) to move the cursor to OFF

for ALARM SIGN, and then use the cursor button (d or c)

to select ON.

Available settings:

•ON: The camera ID display blinks when motion is detected.

•OFF: The camera ID display does not blink when motion is

detected.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

MOTION SETTING

SIZE SET ‚

MASKING ON ‚

SENSITIVITY SET ‚

ZOOM OFF

INTERVAL 5S

ALARM SIGN OFF

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

53

VIEW SETTING

EProfile compensation setting (APERTURE)

Set this function to further emphasize the profile of the target object. The amount of compensation can be adjusted for horizontal or

vertical directions.

1Use the cursor button (j or l) to move the cursor to

VIEW SETTING, then press the SET button. (e.g. 1)

The VIEW SETTING 1 screen will appear.

2Use the cursor button (j or l) to move the cursor to

APERTURE and then use the cursor button (d or c) to

select ON. Then press the SET button.

The APERTURE SETTING screen will appear and the “H” value

will be blinking.

3Select the amount of profile compensation

Available settings: 1 – 15 (Compensation intensity)

1Set the horizontal profile compensation

Use the cursor button (d or c) to adjust the value for

“H” (horizontal).

2Set the vertical profile compensation

Use the cursor button (j or l) to move the cursor to “V”

(vertical), then use the cursor button (d or c) to adjust

the value for “V”.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

12 3

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

APERTURE SETTING

H í------ú------ü 8

V í------ú------ü 8

PRESET OFF

MENU BACK

VIEW SETTING 1

IRIS AUTO ‚

WHITE BALANCE ATW ‚

SHUTTER OFF

MOTION OFF

APERTURE ON ‚

GAMMA ON

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

54

VIEW SETTING

FGAMMA correction setting

In addition to turning gamma correction ON or OFF, contrast sensitivity can be boosted at 2 levels.

1Use the cursor button (j or l) to move the cursor to

VIEW SETTING, then press the SET button. (e.g. 1)

The VIEW SETTING 1 screen will appear.

2Use the cursor button (j or l) to move the cursor to

ON for GAMMA, then use the cursor button (d or c) to

select the gamma correction.

Available settings:

•OFF: No gamma correction

•ON: Gamma correction (γ = 0.45)

•SMART 1: Correction 1

•SMART 2: Correction 2 (improves contrast for dark

locations)

Note: When using SMART 1 or SMART 2, the target object may

be too bright, so determine which setting is better for the

target object.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

12

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

VIEW SETTING 1

IRIS AUTO ‚

WHITE BALANCE ATW ‚

SHUTTER OFF

MOTION OFF

APERTURE ON ‚

GAMMA ON

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

55

OPTION SETTING

☞Option settings

•CONTROL setting: This sets whether other peripheral devices

can be used to operate the camera by means of the RS-485

interface or a linked coaxial cable.

•ADDRESS setting: Use this to set the address for this camera

when more than one camera is connected or when other

peripheral devices or a system controller have been connected.

(See p57)

•ALARM setting: This is used for settings related to alarm

input and alarm output. In addition, it is also used to force

selection of COLOR mode or B/W mode when the

DAY/NIGHT setting function is being used. (See p57)

CONTROL setting

1Use the cursor button (j or l) to move the cursor to

SET for OPTION, then press the SET button.

The OPTION screen will appear.

Note: The PRESET ON setting cannot be used when OPTION

settings are in use.

2Use the cursor button (j or l) to move the cursor to

485 for CONTROL, use the cursor button (d or c) to

select the device to be operated (e.g. 485), and then

press the SET button.

The RS-485 SETTING screen will appear.

Available settings:

•485: For operation by the System Controller

•COAX: For operation of device by linked coax cable.

3Use the cursor button (d or c) to select 19200 for BAUD

RATE.

Available settings: 19200, 9600, 4800, 2400

4Use the cursor button (j or l) to move the cursor to

TERMINATE, and then use the cursor button (d or c) to

select the terminate setting.

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

12 3 4

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

OPTION

CONTROL 485 ‚

ADDRESS 0

ALARM SET ‚

RS-485 SETTING

BAUD RATE 19200

TERMINATE OFF

RS-485 SETTING

BAUD RATE 19200

TERMINATE OFF

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

56

OPTION SETTING

ADDRESS setting

1Use the cursor button (j or l) to move the cursor to

SET for OPTION, then press the SET button.

The OPTION screen will appear.

Note: The PRESET ON setting cannot be used when OPTION

settings are in use.

2Use the cursor button (j or l) to move the cursor to

ADDRESS, and then use the cursor button (d or c) to

select the address.

Available settings: 0 (d) – 127 (c)

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

ALARM setting

AAlarm input setting (ALARM IN)

Make the following settings for alarm detection.

Connect the external alarm switch to the alarm input terminal on

the back of the camera.

1Use the cursor button (j or l) to move the cursor to

SET for OPTION, then press the SET button.

The OPTION screen will appear.

Note: The PRESET ON setting cannot be used when OPTION

settings are in use.

2Use the cursor button (j or l) to move the cursor to

SET for ALARM, then press the SET button.

The ALARM SETTING screen will appear.

3Alarm input setting

Use the cursor button (j or l) to move the cursor to

ALM for ALARM IN, and then use the cursor button (d

or c) to set the input (e.g. ALM).

12

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

OPTION

CONTROL 485 ‚

ADDRESS 0

ALARM SET ‚

12

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

OPTION

CONTROL 485 ‚

ADDRESS 0

ALARM SET ‚

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

57

OPTION SETTING

4POLARITY setting

Use the cursor button (j or l) to move the cursor to

POLARITY, then use the cursor button (d or c) to select

“NO” or “NC”.

Available settings:

•NO: Normal open (Normally open so closed condition is

detected as input.)

•NC: Normal closed (Normally closed so open condition is

detected as input.)

5Motion sensor input setting (MOTION)

Use the cursor button (j or l) to move the cursor to

MOTION, then use the cursor button (d or c) to select

the input.

Matches information from the camera’s motion sensor and

the external alarm and outputs it.

Available settings:

•OFF: Does not output a motion sensor alarm.

•AND: Outputs an alarm when an external alarm input and

motion sensor alarm are detected at the same time.

1External alarm input

2Motion sensor detection

•OR: Outputs an alarm if either an external alarm or a

motion sensor alarm is detected.

6Alarm duration setting (DURATION)

Use the cursor button (j or l) to move the cursor to

DURATION, then use the cursor button (d or c) to

select the alarm duration.

Set the duration for the following alarm input reception.

Available settings: 5S (default setting), 10S, 15S, 20S, 30S,

1M, 2M, 3M, 4M, 5M

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

3, 4

ALARM SETTING

ALARM IN ALM

POLARITY NO

MOTION OFF

DURATION 5S

ALARM OUT OFF

POLARITY NO

ALARM TIME 5S

LINE OUT OFF

1

DURATION

ALARM OUT

ALARM TIME

2

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

58

OPTION SETTING

BColor/black & white selection setting (DAY/NIGHT)

The ALARM IN terminal on the rear panel can be used to force

the image mode to color mode or black & white mode. Use this

setting when using this terminal to force the mode selection.

However, when this setting is being used, external alarm input

cannot be received.

1Set DAY/NIGHT in the LENS setting screen to “COLOR”.

First change the DAY/NIGHT setting in the LENS setting screen

to “COLOR”. (See p23)

2Color/black & white selection setting

Use the cursor button (j or l) to move the cursor to

ALM for ALARM IN, and then use the cursor button (d

or c) to set the input (e.g. COLOR).

•ALM: The control terminal (ALARM IN) is used for alarm input.

•COLOR: The control terminal (ALARM IN) is used for

color/black & white selection input. External operations can

then be used to forcibly switch the mode to color mode or

black & white mode.

3POLARITY setting

Use the cursor button (j or l) to move the cursor to

POLARITY, then use the cursor button (d or c) to select

“NO” or “NC”.

Available settings:

•NO: Normally open (Normally open, and mode switches

between color and black & white when closed)

•NC: Normally closed (Normally closed, and mode switches

between color and black & white when opened)

POLARITY setting Between ALARM

IN - COM terminals

Mode after

selection

When set to NO Open COLOR

Closed B/W

When set to NC Open COLOR

Closed B/W

Note:

•If DAY/NIGHT has been set to “COLOR”, color/black &

white selection will not be possible.

•If COLOR is selected, settings relating to external alarm

input will not be displayed, and it will not be possible to

receive external alarm inputs.

•The color/black & white selection setting is applied from the

point after the menu is exited.

1

LENS

FOCUS MANU ‚

ZOOM SET ‚

DAY/NIGHT COLOR‚

VIEW ANGLE OFF

PRESET OFF

MENU BACK

2, 3

ALARM SETTING

ALARM IN ALM

POLARITY NO

MOTION OFF

DURATION 5S

ALARM OUT OFF

POLARITY NO

ALARM TIME 5S

LINE OUT OFF

PRESET OFF

MENU BACK

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

59

OPTION SETTING

CAlarm output setting (ALARM OUT)

1ALARM OUT setting

Use the cursor button (j or l) to move the cursor to

ALARM OUT, then use the cursor button (d or c) to

select “ON” or “ OFF”.

Available settings:

•ON: Output an alarm (for activation of buzzer or lamp)

•OFF: Does not output an alarm

2POLARITY setting

Use the cursor button (j or l) to move the cursor to

POLARITY, then use the cursor button (d or c) to select

“NO” or “NC”.

Available settings:

•NO: Normal open (Normally open so closed condition is

detected as input.)

•NC: Normal closed (Normally closed so open condition is

detected as input.)

3ALARM TIME setting

Use the cursor button (j or l) to move the cursor to

ALARM TIME, then use the cursor button (d or c) to

select the amount of time for external alarm output.

Available settings: 5S, 10S, 15S, 20S, 30S, 1M, 2M, 3M, 4M,

5M

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

12

ALARM SETTING

ALARM IN ALM

POLARITY NO

MOTION OFF

DURATION 5S

ALARM OUT OFF

POLARITY NO

ALARM TIME 5S

LINE OUT OFF

ALARM SETTING

ALARM IN ALM

POLARITY NO

MOTION OFF

DURATION 5S

ALARM OUT OFF

POLARITY NO

ALARM TIME 5S

LINE OUT OFF

3

ALARM SETTING

ALARM IN ALM

POLARITY NO

MOTION OFF

DURATION 5S

ALARM OUT OFF

POLARITY NO

ALARM TIME 5S

LINE OUT OFF

PRESET OFF

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

60

OPTION SETTING

DOperation of alarm signal output to the System

Controller setting (LINE OUT)

Outputs alarm signal to the System Controller. The ALARM lamp

on the System Controller will blink when it receives an alarm

signal. An alarm list can be displayed to show information such as

date/time alarm was received, the device sending the alarm and

the alarm type.

Use the cursor button (j or l) to move the cursor to LINE

OUT, then use the cursor button (d or c) to select “ON” or

“OFF”.

Available settings:

•ON: Outputs alarm signal to the System Controller

•OFF: Does not output alarm signal to the System Controller

☞To close the menu screen or return to the previous

screen, select BACK or END for MENU and press the SET

button.

1

ALARM SETTING

ALARM IN ALM

POLARITY NO

MOTION OFF

DURATION 5S

ALARM OUT OFF

POLARITY NO

ALARM TIME 5S

LINE OUT OFF

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

61

MENU FLOW

MAIN MENU

LANGUAGE SET ‚

CAMERA ID OFF

SYNC INT

PRIVACY MASK SET ‚

LENS SET ‚

MIRROR OFF

VIEW SETTING 1 ‚

OPTION SET ‚

PRESET OFF

MENU END

PRIVACY MASK SETTING

PASSWORD LOCK ON ‚

PASSWORD CHANGE SET ‚

MASK SET SET ‚

MENU BACK

LANGUAGE

LANGUAGE ENGLISH

LANGUE FRENCH

IDIOMA SPANISH

MENU BACK

PASSWORD

1234 SET ‚

-

OK

PASSWORD

(NOW PASSWORD)

**** SET ‚

-

MASK NO.SELECT

MASK 1 OFF

MASK 2 OFF

MASK 3 OFF

MASK 4 OFF

CAMERA ID SETTING

ABCDEFGHIJKLM

NOPQRSTUVWXYZ

0123456789 :-‚

ID ????????????????

POSITION SET ‚

L-L SETTING

(V SYNC PHASE)

ú------+------ü 0

MASK 3 SET

(POSITION)

SET ‚

PASSWORD

(NEW PASSWORD)

**** SET ‚

-

FOCUS SETTING

LIMIT NEAR 1M

SPEED 2

ZOOM SETTING

SPEED 3

EL ZOOM OFF

V-RESO.UP OFF

FOCUS SETTING

LIMIT NEAR 1M

SENSITIVITY HIGH

AREA SET ‚

LENS

FOCUS MANU ‚

ZOOM SET ‚

DAY/NIGHT AUTO ‚

VIEW ANGLE OFF

PRESET OFF

MENU BACK

AUTO, COLOR, B/W

OFF, ON

OPTION

CONTROL 485 ‚

ADDRESS 0

ALARM SET ‚

RS-485 SETTING

BAUD RATE 19200

TERMINATE OFF

ALARM SETTING

ALARM IN ALM

POLARITY NO

MOTION OFF

DURATION 5S

ALARM OUT ON

POLARITY NO

ALARM TIME 5S

LINE OUT OFF

A

AREA SETTING

AREA 3

PRESET OFF

MENU BACK

See page 63

MANU

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

62

MENU FLOW

VIEW SETTING 1

IRIS AUTO ‚

WHITE BALANCE ATW ‚

SHUTTER OFF

MOTION OFF

APERTURE ON ‚

GAMMA ON

PRESET OFF

MENU BACK

IRIS SETTING

BLC OFF

SENSE UP OFF

(LEVEL)

í------ú------ü 40

IRIS SETTING

EI OFF

(IRIS STOP)

í------ú------ü 17

(LEVEL)

í

------

ú

------ü 60

BLC SETTING

(BLC WEIGHT)

í------ú------ü 7

(BRIGHT)

í------ú------ü 7

ATW SETTING

MASKING OFF

SMART ATW OFF

AWC SETTING

AWC LOCK SET

GO TO MWB SET ‚

MWB SETTING

(OFFSET)

R í---ú--+------ü 70

B

í

---

ú

--+------ü 66

ES SETTING

SHUTTER SPEED 60

ES SETTING

SHUTTER SPEED x1

MOTION SIZE

V 1

H 1

PRESET OFF

MENU BACK

MOTION MASKING

CONTINUE (ñ)

SENSITIVITY

MOVE í---ú----ü 5

Y-LEVEL í---ú----ü 5

Y-DIFFER í---ú----ü 5

DURATION ú--------ü 1

DEMO OFF

PRESET OFF

MENU BACK

MOTION SETTING

SIZE SET ‚

MASKING ON ‚

SENSITIVITY SET ‚

ZOOM OFF

INTERVAL 5S

ALARM SIGN OFF

APERTURE SETTING

H í------ú------ü 8

V

í

------

ú

------ü 8

BLC WINDOW WEIGHTING

TOP 0

BOTTOM 0

LEFT 0

RIGHT 0

CENTER(FIX) 7

PRESET OFF

MENU BACK

BLC SETTING

(POSITION)

BLC SETTING

(SIZE)

MULT

MANU

SHORT

LONG

CENT MASK

BLC MASKING

CONTINUE (ñ)

A

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

63

SPECIFICATIONS

Pickup device :1/4"

Effective pixels :768 (H) x 494 (V)

Horizontal resolution :Over 520 TV lines

Lens :x22 zoom lens, f=3.6 – 79.2mm (F1.6 – 3.8)

Electronic zoom and gearing

Zoom speed setting possible

Electronic zoom :16 power (combined with optic zoom gives

352 power max)

Max zoom magnification setting possible

Vertical resolution ON/OFF setting

Autofocus :AUTO/MANUAL

AF area setting possible (3 step)

Iris control :AUTO/MANUAL, 1/2 EV steps

Synchronization method :Internal synchronization/Line lock,

V phase adjustment possible

Lowest image illumination:1.2 lx (F1.6, AGC gain at maximum, COLOR

mode)

0.06 lx (F1.6, B/W mode)

0.04 lx (F1.6, x32 electronic sensitivity

increased, COLOR mode)

0.002 lx (F1.6, x32 SENSE UP, B/W mode)

S/N :Over 48dB

Backlight compensation :Multi-spot evaluative metering

5 spot centerweighted average metering

48 multi-spot metering

Day/Night :AUTO / COLOR / B/W settings available

Electronic shutter :•Fast shutter speed mode (SHORT);

1/60, 1/100, 1/250, 1/500, 1/1000,

1/2000, 1/4000, 1/10000

•Slow shutter speed mode (LONG);

x1, x2, x4, x8, x16, x32

Electronic sensitivity

boosting :AUTO/OFF, works with auto iris

Up to x32 max setting possible

White balance :ATW/AWC/MWB

AGC gain :OFF/–6/±0/+6/+9/+12/+15dB

Motion detector :ON/OFF, ON allows setting of detection

patterns on a 48 zone screen for 6 motion

settings (size, masking, sensitivity, zoom,

interval, alarm sign)

Privacy masking :ON/OFF, max of 4 masked locations

Password lock possible

Alarm input/output

(back panel control

terminals) :Alarm input: 1 (for external alarm switch)

Alarm output: 1 (for sending a signal to the

system controller or an alarm detection

device such as a buzzer)

Mirror image effect :Horizontally (H), vertically (V), horizontally

and vertically (HV)

Camera ID :ON/OFF, 16 characters

View settings :9 (0 – 8) screen files can be established, and

each file can set 7 capturing characteristics

such as iris

Communications :Coaxial control, RS-485

Operational

temperature/humidity :–10 – +50°C/below 90% RH

Power source :24 V AC, 60 Hz/12 – 15 V DC

Power consumption :4.5 W

Weight :380 g

SERVICE

This camera is a precision instruments and if treated with care,

will provide years of satisfactory performance. However, in the

event of a problem, the owner is advised not to attempt to make

repairs or open the cabinet. Servicing should always be referred to

your dealer or Sanyo Authorized Service Centre.

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

64

SPECIFICATIONS

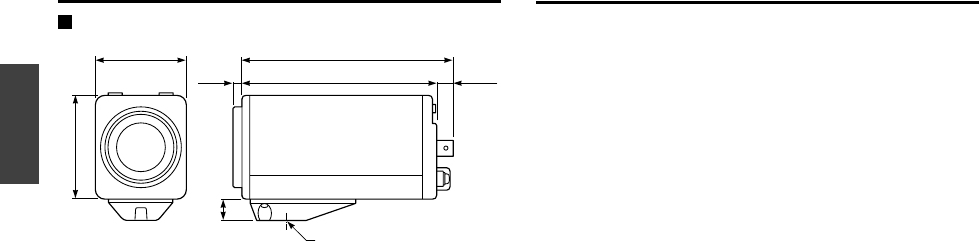

Dimensions

External appearance and specifications subject to change

without notice.

MAIN FEATURES

•Built in Interline transfer method 1/4” CCD, approx. 410,000

picture elements.

•High sensitivity, minimum required illumination is 1.2 lux.

(F1.6, gain max)

•More than 520 TV lines of horizontal resolution.

•Equipped with intelligent Backlight compensation.

•Special Gamma mode (contrast up)

•Built in high speed electronic shutter and slow shutter.

•32X Electronic sensitivity

•Built in Digital Motion Detection

•Built in Privacy masking function

•12VDC/24V AC dual operation(electrically isolate) .

•Internal sync. / Line Lock.

•22x optical zoom and 16x electronic zoom.

•Coaxial control or RS485, operation via SSP.

•The Day/Night function is a function that can adapt to a wide

range of changing luminance levels by automatically switching

to color during daytime, or to black and white at times of low

luminance such as nighttime.

125.3 mm54 mm

1/4"-20UNC

116 mm 9.3 mm6 mm

11.8 mm

62 mm

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

English

65

SANYO INDUSTRIAL VIDEO

COLOR VIDEO CAMERA LIMITED WARRANTY

OBLIGATIONS

In order to obtain warranty service, the product must be delivered to and picked up from an Authorized Sanyo Service Center at the user’s expense, unless specifically stated otherwise in this warranty. The names and

addresses of Authorized Sanyo Service Centers may be obtained by calling the toll-free number listed below.

For product operation, authorized service center referral, service assistance or problem resolution, call

CUSTOMER INFORMATION 1-800-421-5013

Weekdays 8:30 AM – 5:00 PM Pacific Time

For accessories and/or parts, call

PARTS ORDER INFORMATION 1-800-726-9662

Weekdays 8:30 AM – 5:00 PM Pacific Time

THIS WARRANTY IS VALID ONLY ON SANYO PRODUCTS PURCHASED OR RENTED IN THE UNITED STATES OF AMERICA, EXCLUDING ALL U.S. TERRITORIES AND PROTECTORATES. THIS WARRANTY APPLIES

ONLY TO THE ORIGINAL RETAIL PURCHASER OR END-USER. THE ORIGINAL DATED BILL OF SALE, SALES SLIP OR RENTAL AGREEMENT MUST BE SUBMITTED TO THE AUTHORIZED SANYO SERVICE CENTER

AT THE TIME WARRANTY SERVICE IS REQUESTED.

Subject to the OBLIGATIONS above and EXCLUSIONS below, SANYO Fisher Company warrants this SANYO product against defects in materials and workmanship for the periods specified below. SFC will repair or

replace (at its option) the product and any of its parts which fail to conform to this warranty. The warranty period commences on the date the product was first purchased or rented at retail.

LABOR PARTS IMAGE DEVICE

3 YEARS 3 YEARS 3 YEARS

EXCLUSIONS

This warranty does not cover (A) the adjustment of customer-operated controls as explained in the appropriate model’s instruction manual, or (B) the repair of any product whose serial number has been altered, defaced

or removed.

This warranty shall not apply to the cabinet or cosmetic parts, batteries or routine maintenance.

This warranty does not apply to uncrating, setup, installation, removal of the product for repair or reinstallation of the product after repair.

This warranty does not apply to repairs or replacements necessitated by any cause beyond the control of SFC including, but not limited to, any malfunction, defect or failure caused by or resulting from unauthorized

service or parts, improper maintenance, operation contrary to furnished instructions, shipping or transit accidents, modification or repair by the user, abuse, misuse, neglect, accident, incorrect power line voltage, fire,

flood or other Acts of God, or normal wear and tear.

The foregoing is in lieu of all other expressed warranties and SFC does not assume or authorize any party to assume for it any other obligation or liability.

SFC DISCLAIMS ALL OTHER WARRANTIES EXPRESS OR IMPLIED, WITH REGARD TO THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS). IN NO EVENT SHALL SFC BE LIABLE

FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE OWNERSHIP OR USE OF THIS PRODUCT OR FOR ANY DELAY IN THE PERFORMANCE OF ITS OBLIGATIONS UNDER THIS

WARRANTY DUE TO CAUSES BEYOND ITS CONTROL. SFC’S LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER, ARISING OUT OF OR IN CONNECTION WITH

THE SALE, USE OR OWNERSHIP OF THIS PRODUCT INCLUDING WARRANTOR’S NEGLIGENCE, ALLEGED DAMAGED OR DEFECTIIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT,

SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT.

ATTENTION

For your protection in the event of theft or loss of this product, please fill in the information below for you own personal records.

Model No._____________________________________________________________________ Serial No. _____________________________________________________________________

(Located on back or bottom side of unit.)

Date of Purchase _______________________________________________________________ Purchase Price _________________________________________________________________

Where Purchased _________________________________________________________________________________________________________________________________________________

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

Printed on recycled paper

Imprimé sur du papier recyclé

Impreso en papel reciclado

1AC6P1P2630--

L5AD2/US(1202KP-CZ)a

SANYO Electric Co., Ltd.

Printed in Japan

L5AD2/US (VCC-ZM400) GB 2003, 2, 4

Sanyo Vcc Zm400 Users Manual Ventura

VCC-ZM400 to the manual 6ec07913-3679-44ed-b279-5e34fdc1be72

Navigation menu

Versions of this User Manual:

Views

Navigation
