Sargent 80 Series Parts Manual 80Series Exit Device

A8231 3/17

For assistance, contact SARGENT at

800-727-5477 or www.sargentlock.com

80 Series Parts Manual

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

3

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Table of Contents

700 Series ET Control ......................................................... 4-34

80 Series Chassis Assemblies .......................................... 35-54

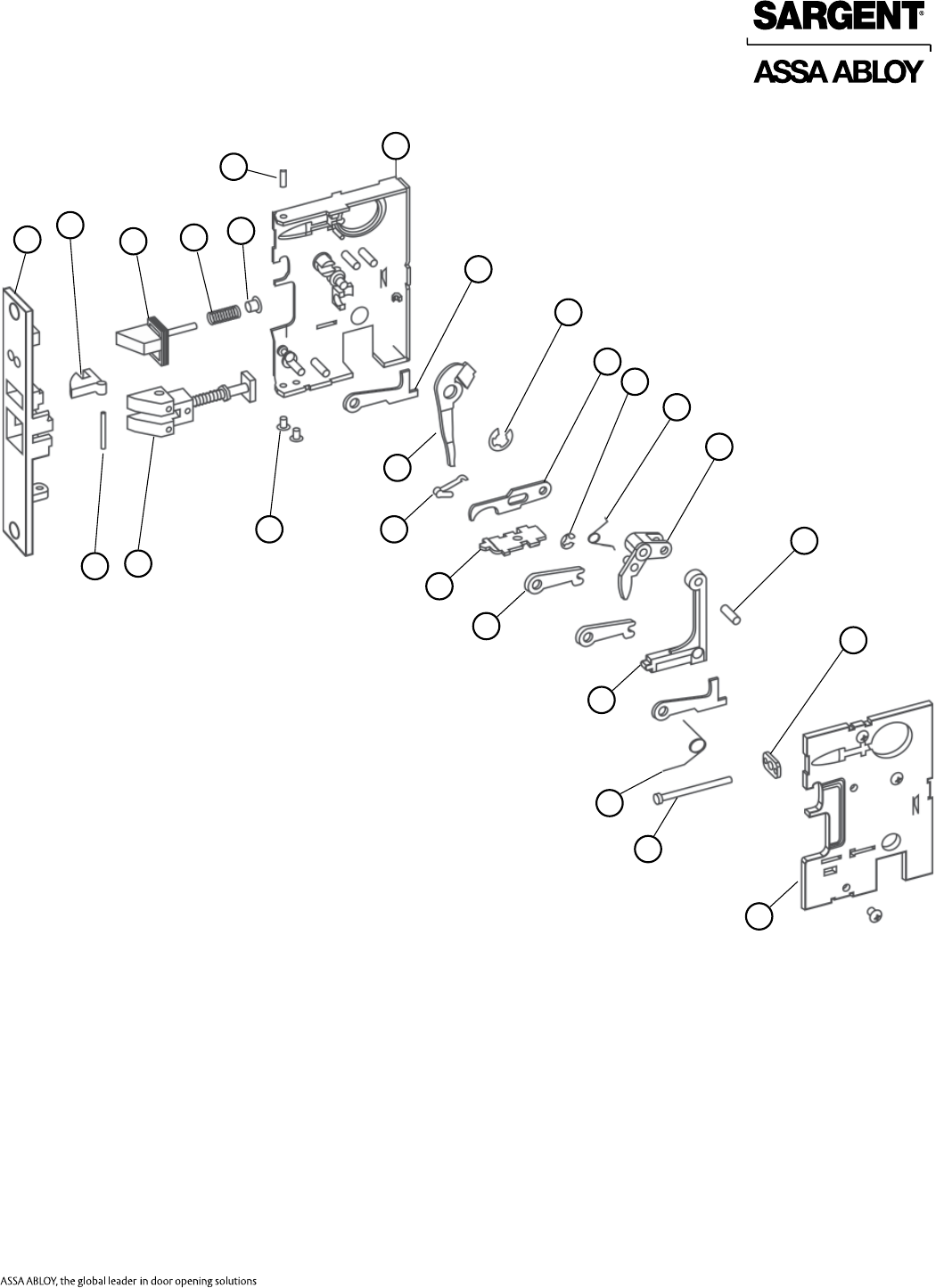

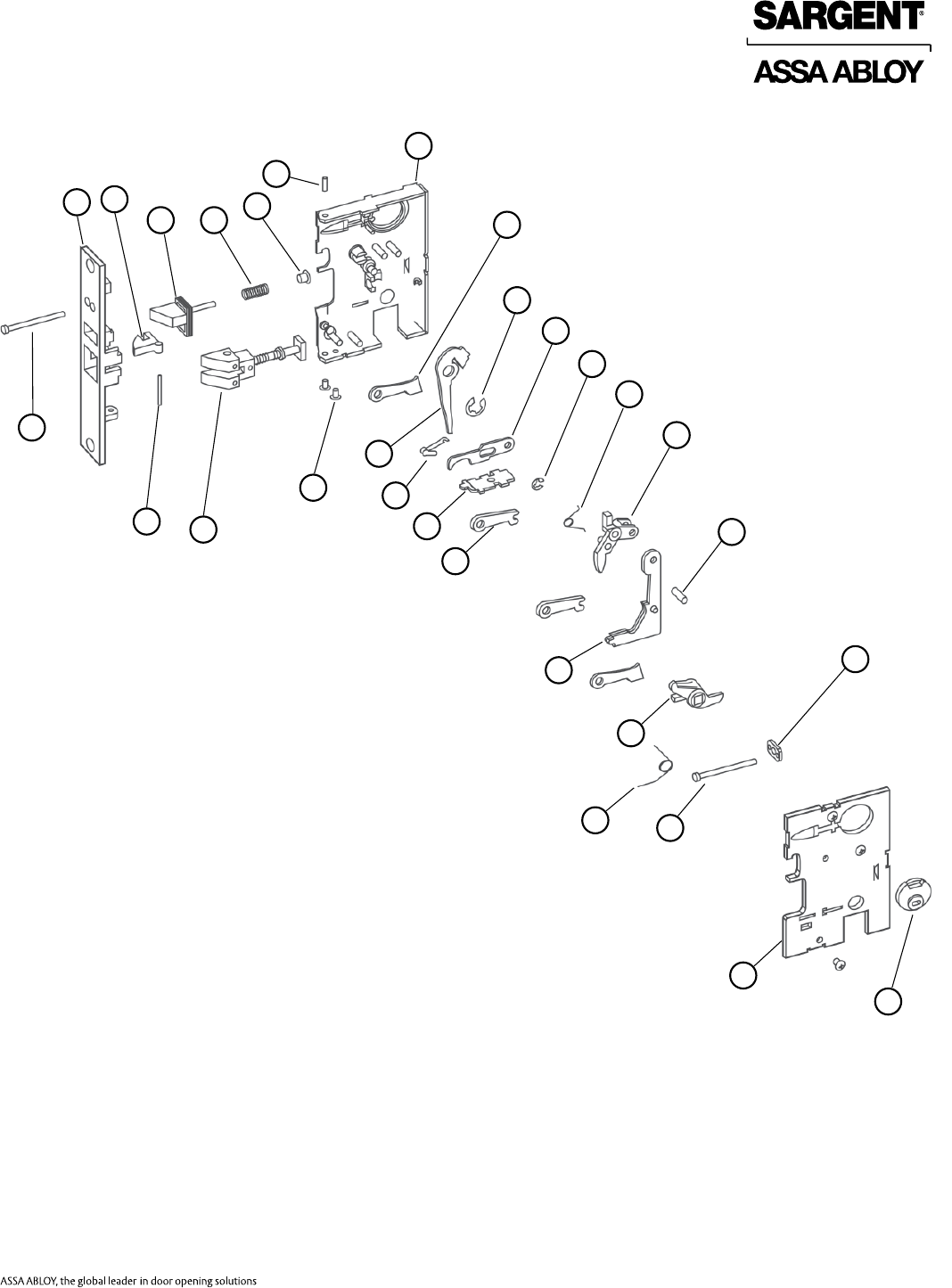

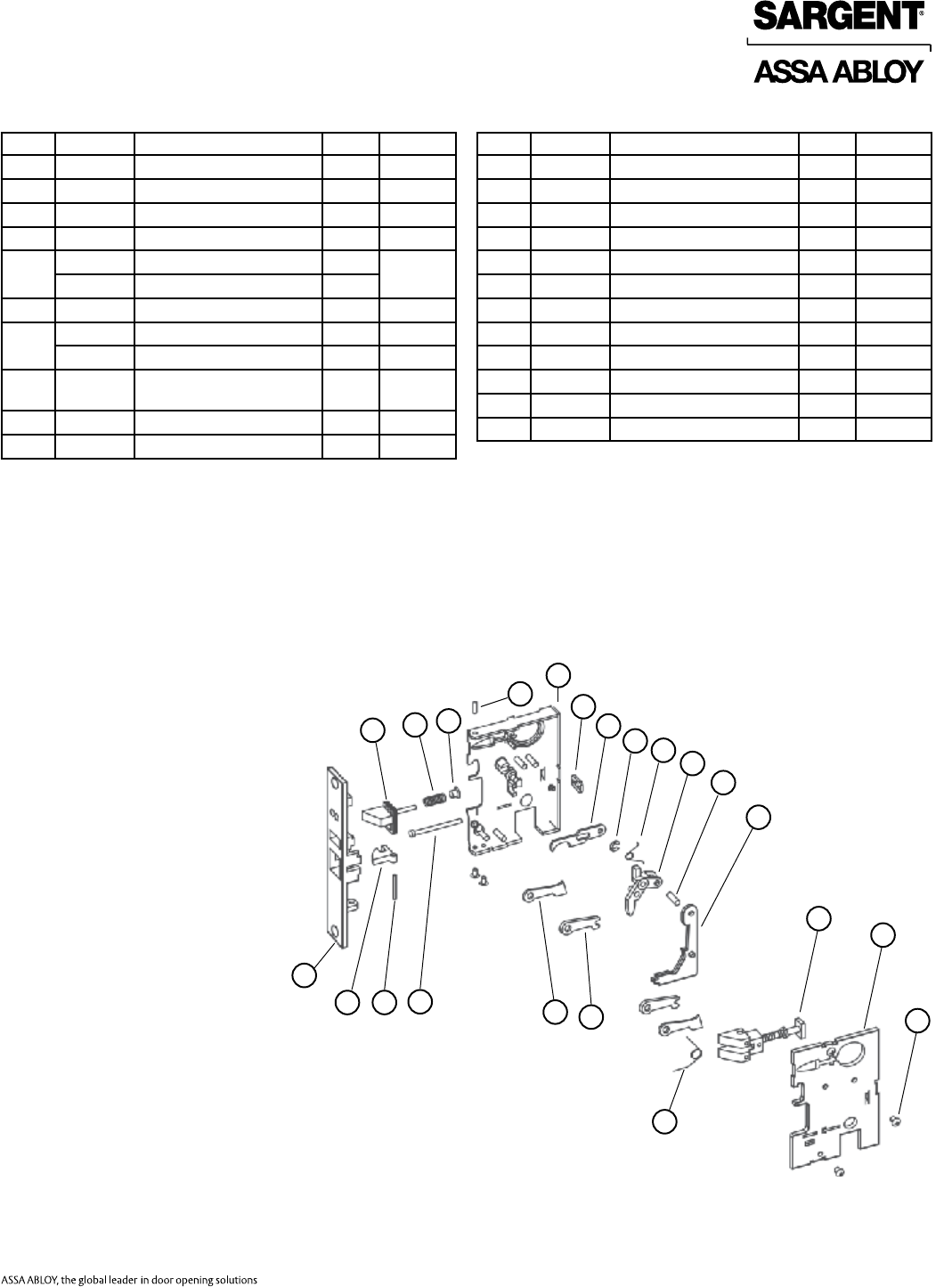

900 Series Mortise Locks .................................................. 55-67

4

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET

Function Exit Devices

8300 AD8400

MD8400 8500

AD8600

MD8600

WD8600

SP86002

PP86002

PR86002

04 704 — 704 — —

7441— 7441— —

06 — 706-4 — 706-4 706-6

— 746-41— 746-41746-61

10 710 710-4 710 710-4 710-6

7401740-417401740-41740-61

13 713 713-4 713-8 713-4 713-6

7431743-41743-81743-41743-61

15 715 715-4 715-8 715-4 715-6

16—————

73 — 773-4 773-8 773-4 773-6

74 — 774-4 774-8 774-4 774-6

75 775 — — — —

76 776 — — — —

77—————

78—————

1. 740, 743, 744 & 746 are freewheeling levers

2. Designates discontinued products

5

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

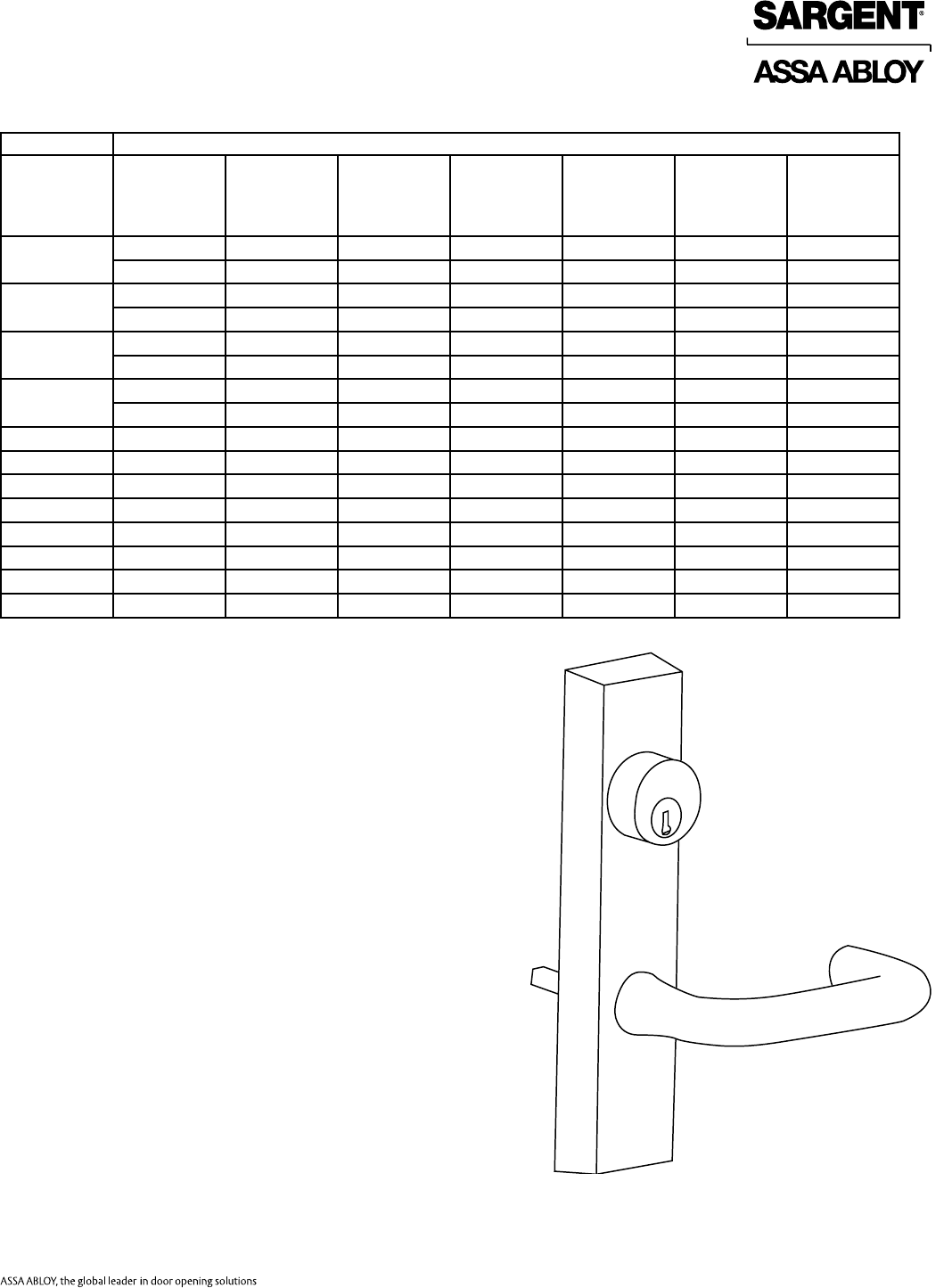

Function Exit Devices

LS8600

LP8600

LR8600

8700

FM8700

HC48700

HC8700

NB8700

SP87002

PP87002

PR87002

8800 8888

HC8800 8900

04 — — — — 704 704 704

— — — — 744174417441

06 706-6 706 706-8 706-8 706-8 706-8 —

746-617461746-8 746-81746-81746-81—

10 710-6 710 710 710 710 710 710

740-617401740 7401740174017401

13 713-6 713 — 713-8 713-8 713-8 713

743-617431743-81743-81743-81743-817431

15 715-6 715 715-8 715-8 715-8 715-8 715

16 — — — — 716 — 716

73 773-6 773 773-8 773-8 — — —

74 774-6 774 774-8 774-8 — — —

75 — — — — 775-8 775-8 775

76 — — — — 776-8 776-8 776

77 — — — — 777-8 777-8 777

78 — — — — 778-8 778-8 778

1. 740, 743, 744 & 746 are freewheeling levers

2. Designates discontinued products

700 Series ET

6

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 704 & 710

18

23

9

7

6

4

5

Item Part No. Description Qty Sellable

1 97-0427 ET Case (704) 1 No

97-0429 ET Case (710) 1 No

2 97-0477 Bushing Insert 1 Yes

3 68-1393 Retaining Plate 1 Yes

4 97-0760 Cap Nut 1 Yes

5 97-0522 Hub Plate (704/710) 1 Yes

6 97-0573 Spindle (704/710) 1 Yes

7 01-1183 Cr-Thms #10-32 X 5/16" 1 Ye s

8 — Lever Handle1,2 1 Ye s

9 A6407 Information Tag 1 No

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify nish

2. Specify lever design by hand

7

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

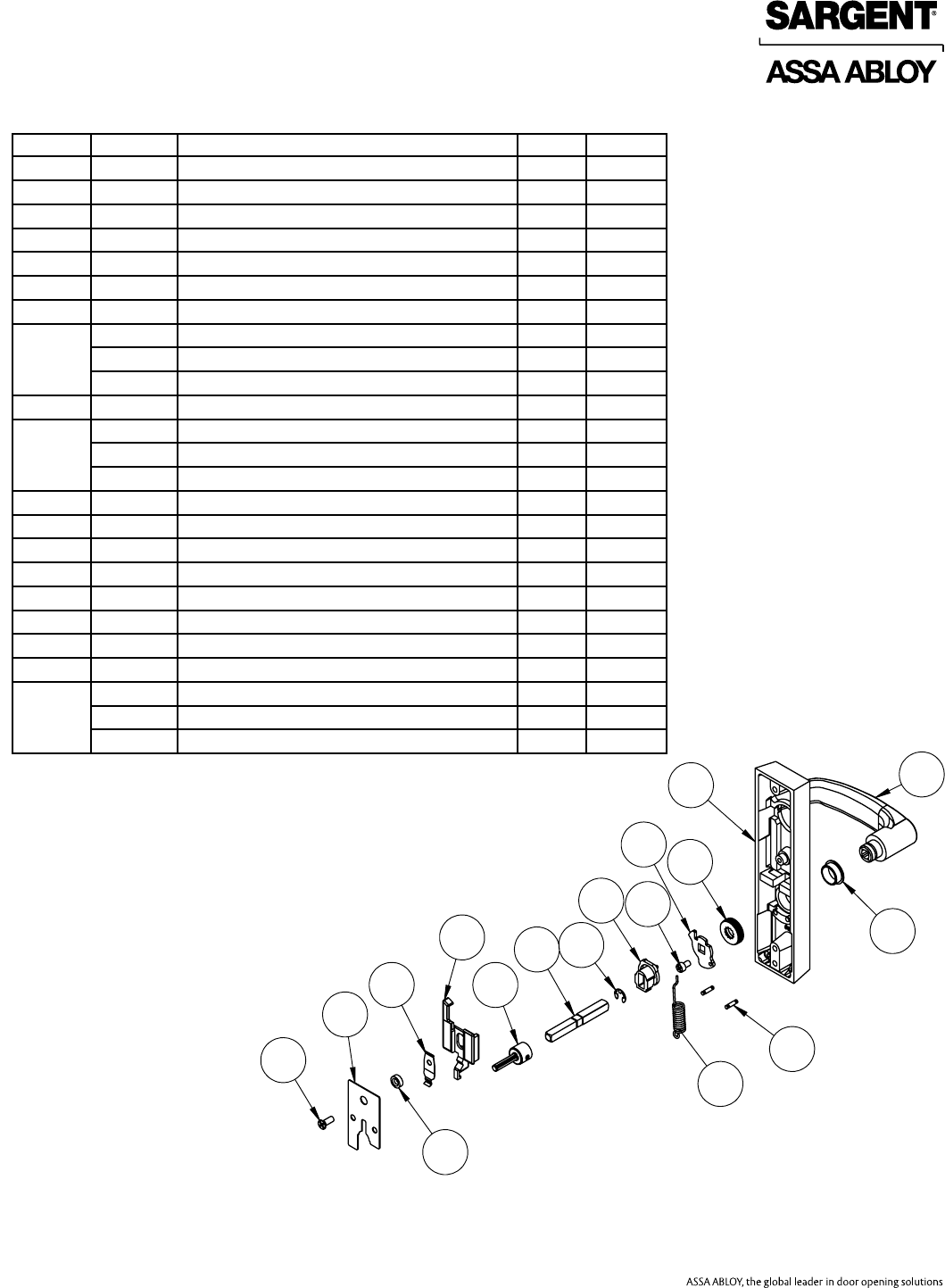

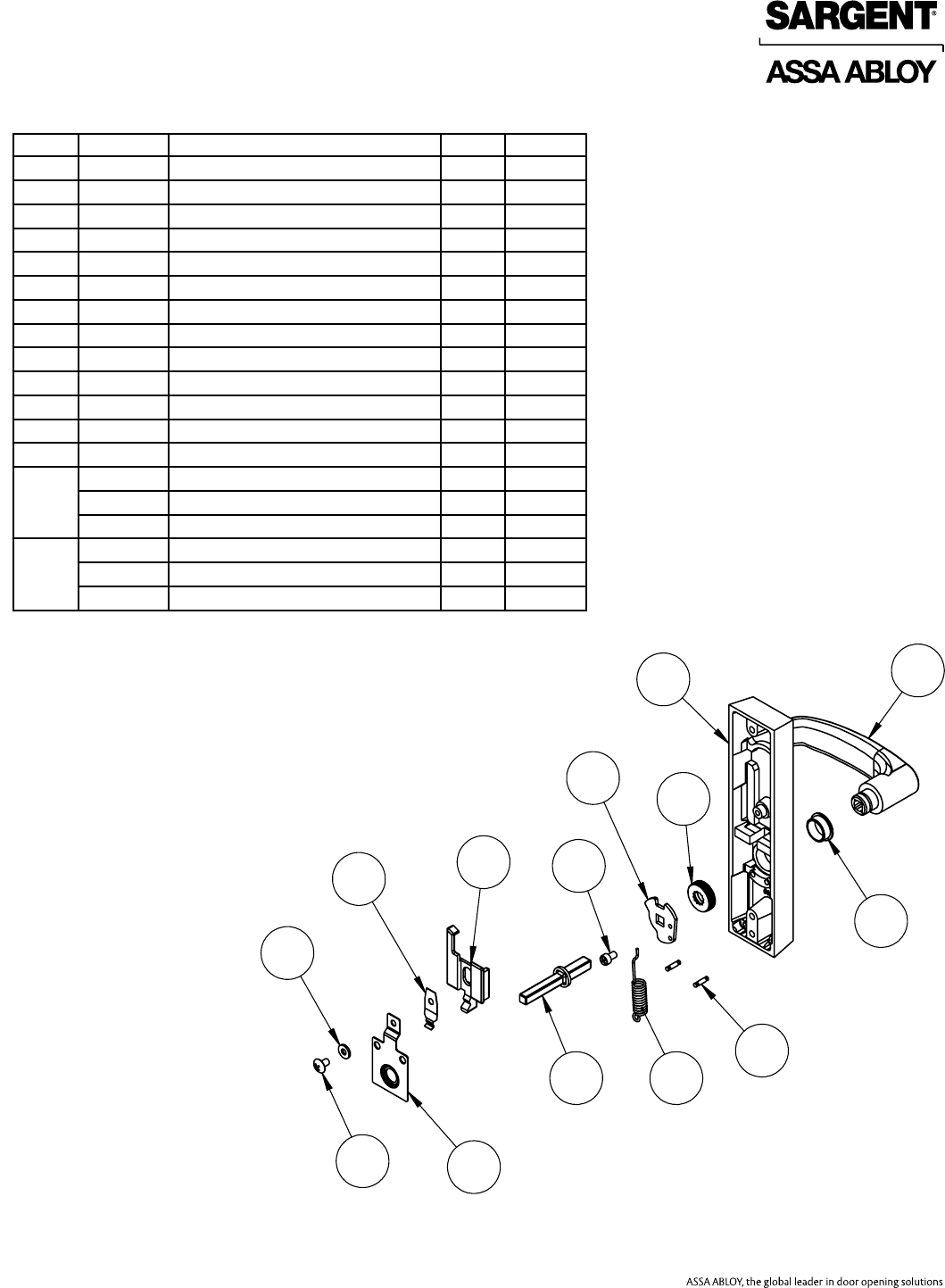

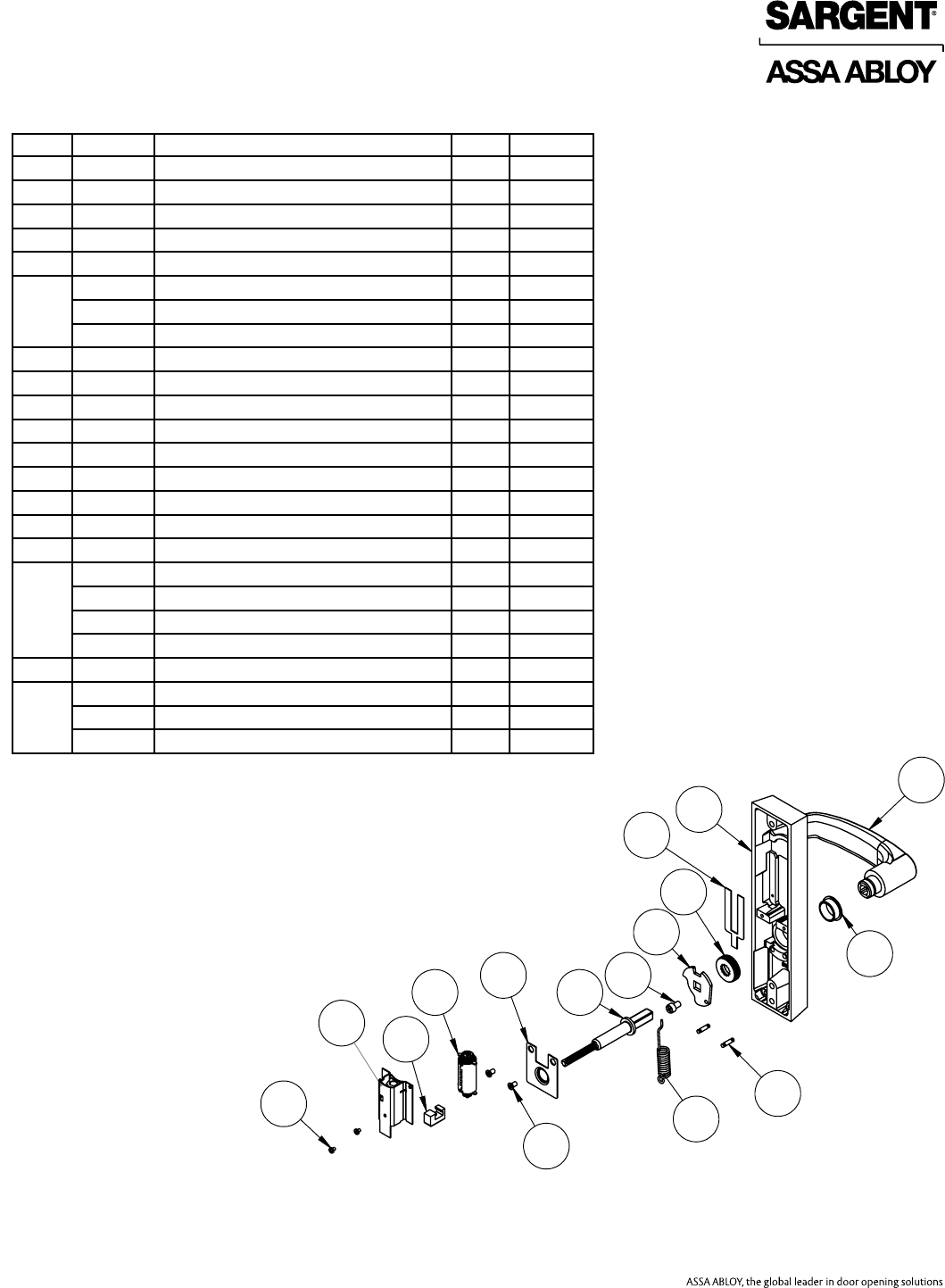

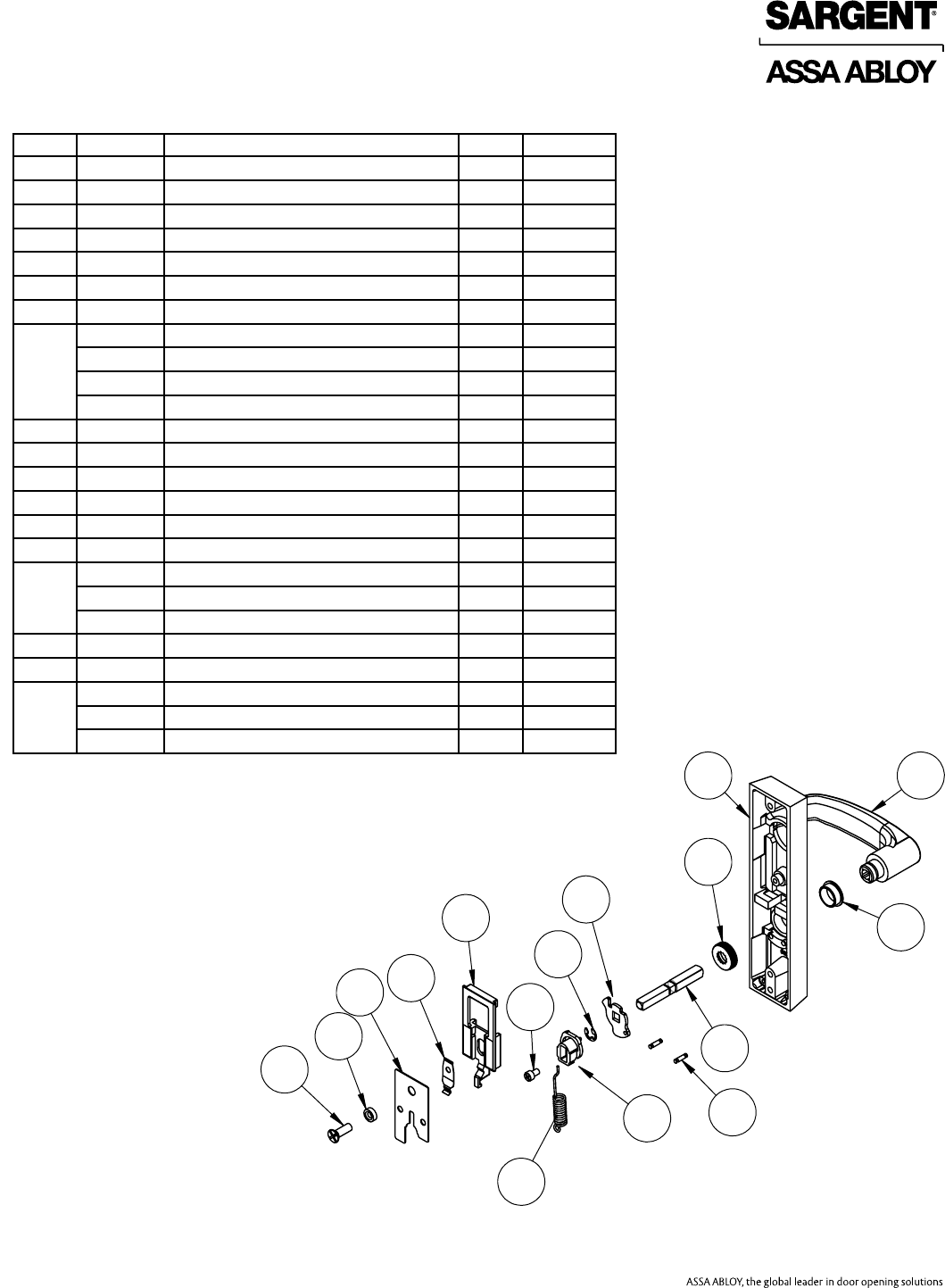

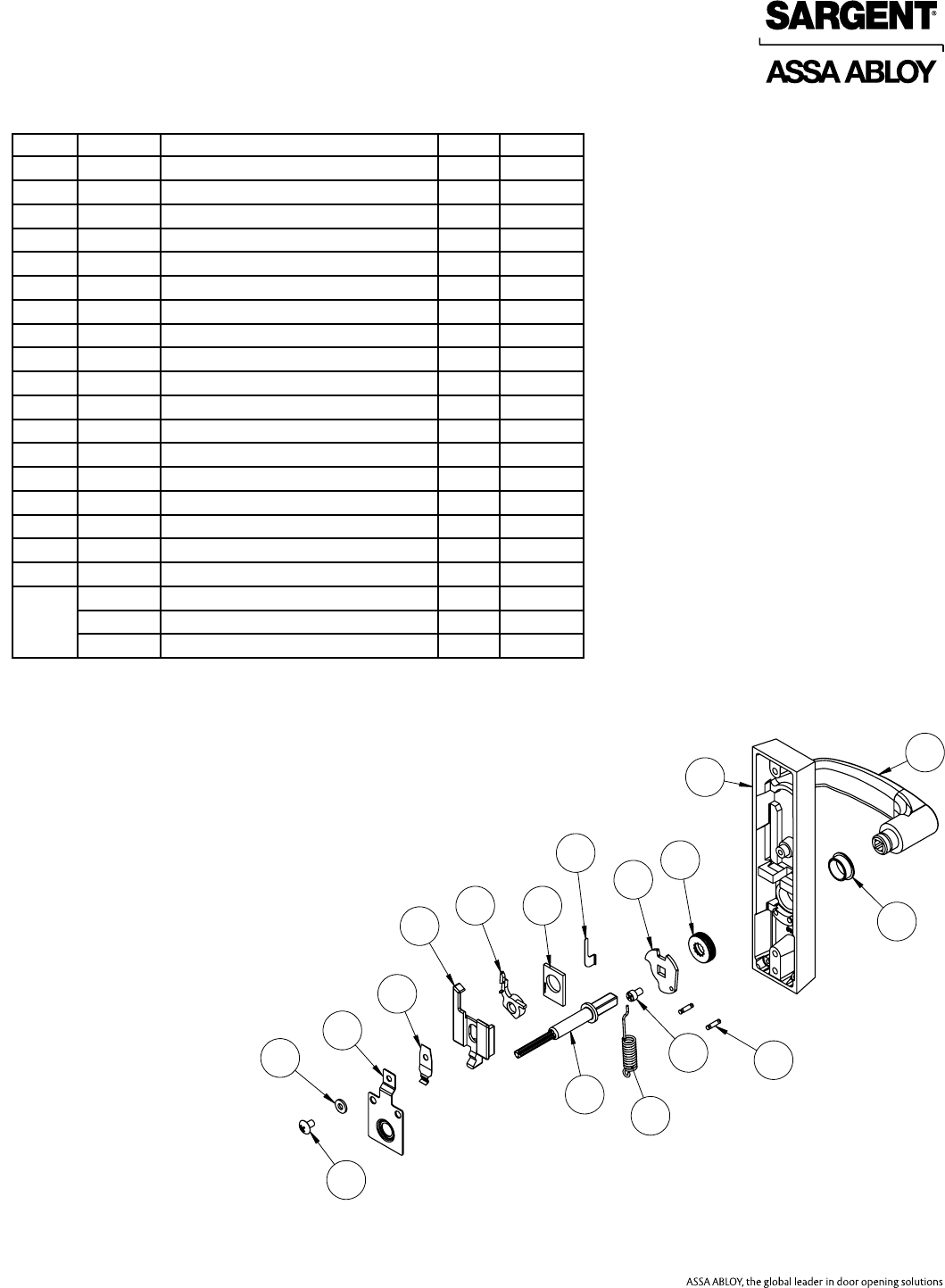

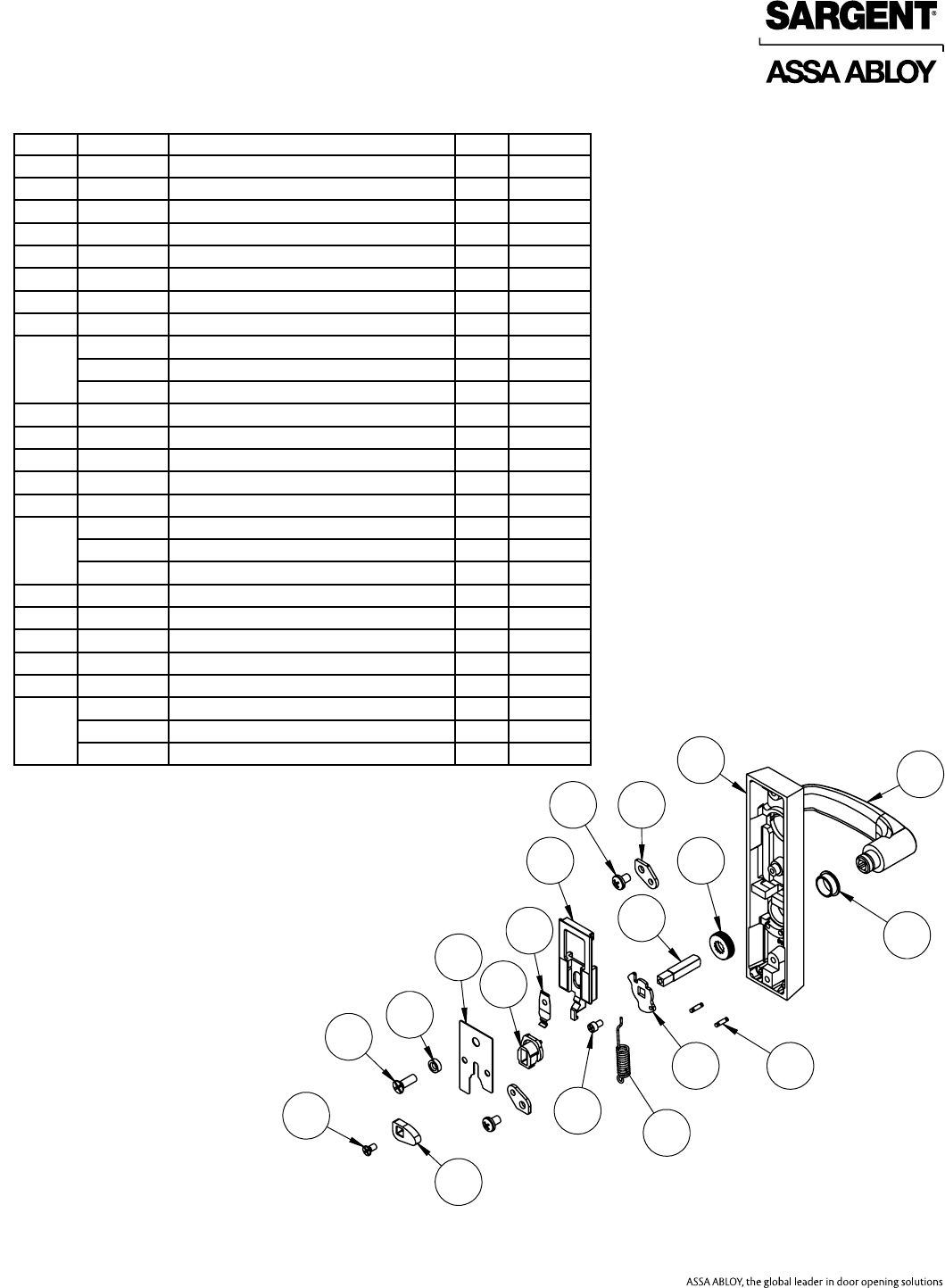

700 Series ET, 706 & 713

6

2

3

7

4

1

5

8

9

10

11

12

16

13

17

14 15

Item Part No. Description Qty Sellable

1 97-0428 ET Case 1 No

2 97-0477 Bushing Insert 1 Yes

3 68-1393 Retaining Plate 1 Yes

4 97-0760 Cap Nut 1 Yes

5 01-1183 Cr-Thms #10-32 X 5/16" 1 Yes

6 — Lever Handle1,3 1 Yes

Not

Shown

— Cylinder Assembly1,2 1 Ye s

97-0350 Collar11 Yes

13-0180 Cylinder Nut 1 Yes

7 97-0355 Locking Slide (706) (607-2) 1 Yes

97-0356 Locking Slide (713) (607-1) 1 Yes

8 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

9 97-0528 Hub Plate (Std) 1 Ye s

10 97-0557 Fusible Link 1 Ye s

11 97-0571 Locking Slide Spring 1 Ye s

12 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

13 97-0425 Hub Spring (Std) 1 Yes

14 97-0558 Slide Support 1 No

15 97-0563 Spring Support 1 No

16 97-0564 Return Spring 1 No

17

97-0549 Spindle (1 3/4" Door) (730-1) 1 Yes

97-0550 Spindle (2" Door) (730-2) 1 Yes

97-0551 Spindle (2 1/4" Door) (730-3) 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" ( 2 1/4" Door) 2 Yes

1. Specify nish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts for specied door

thickness

Note: 607 kit includes items 5, 7, 10, 11, 14, 15, and 16.

8

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

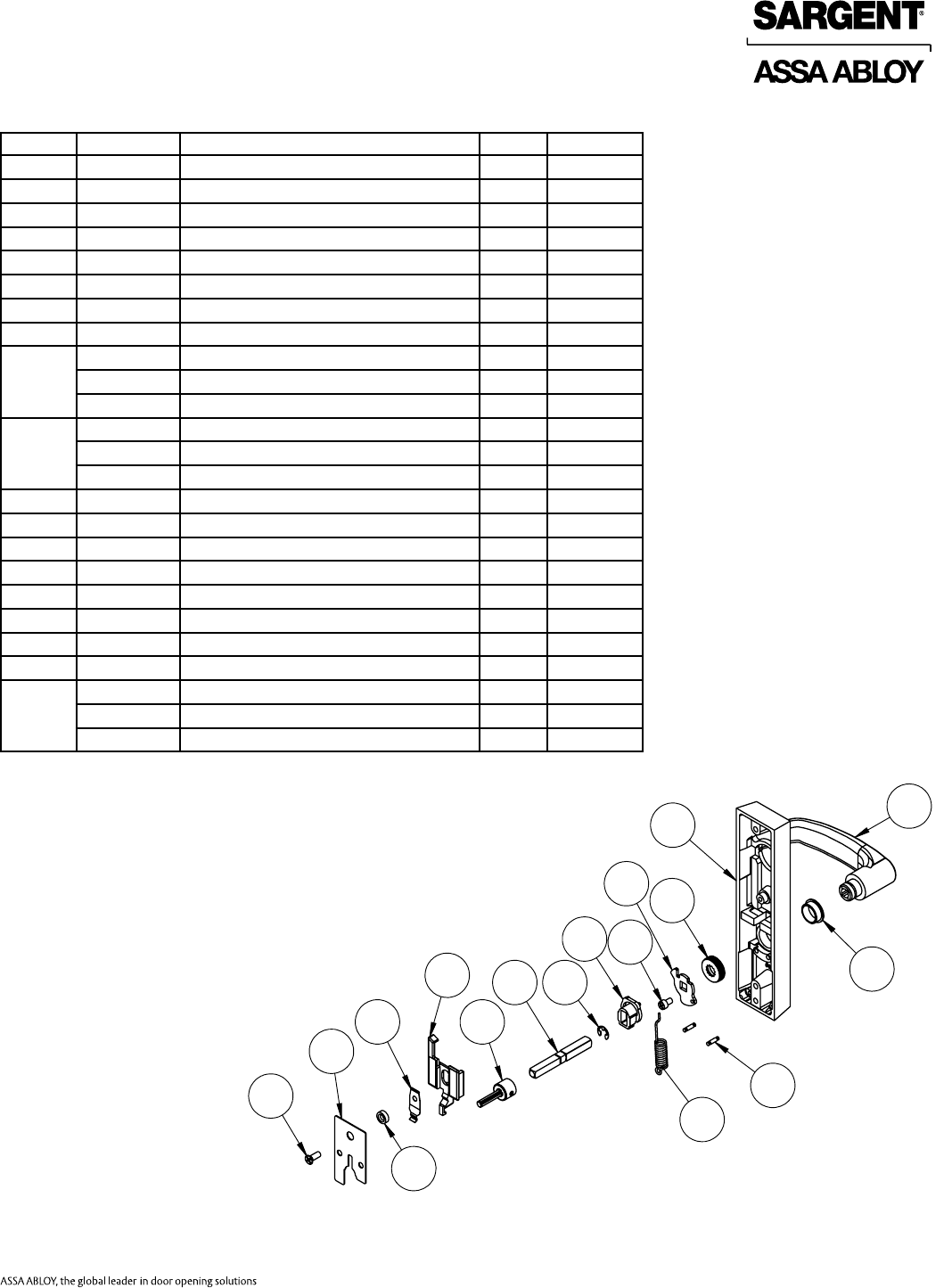

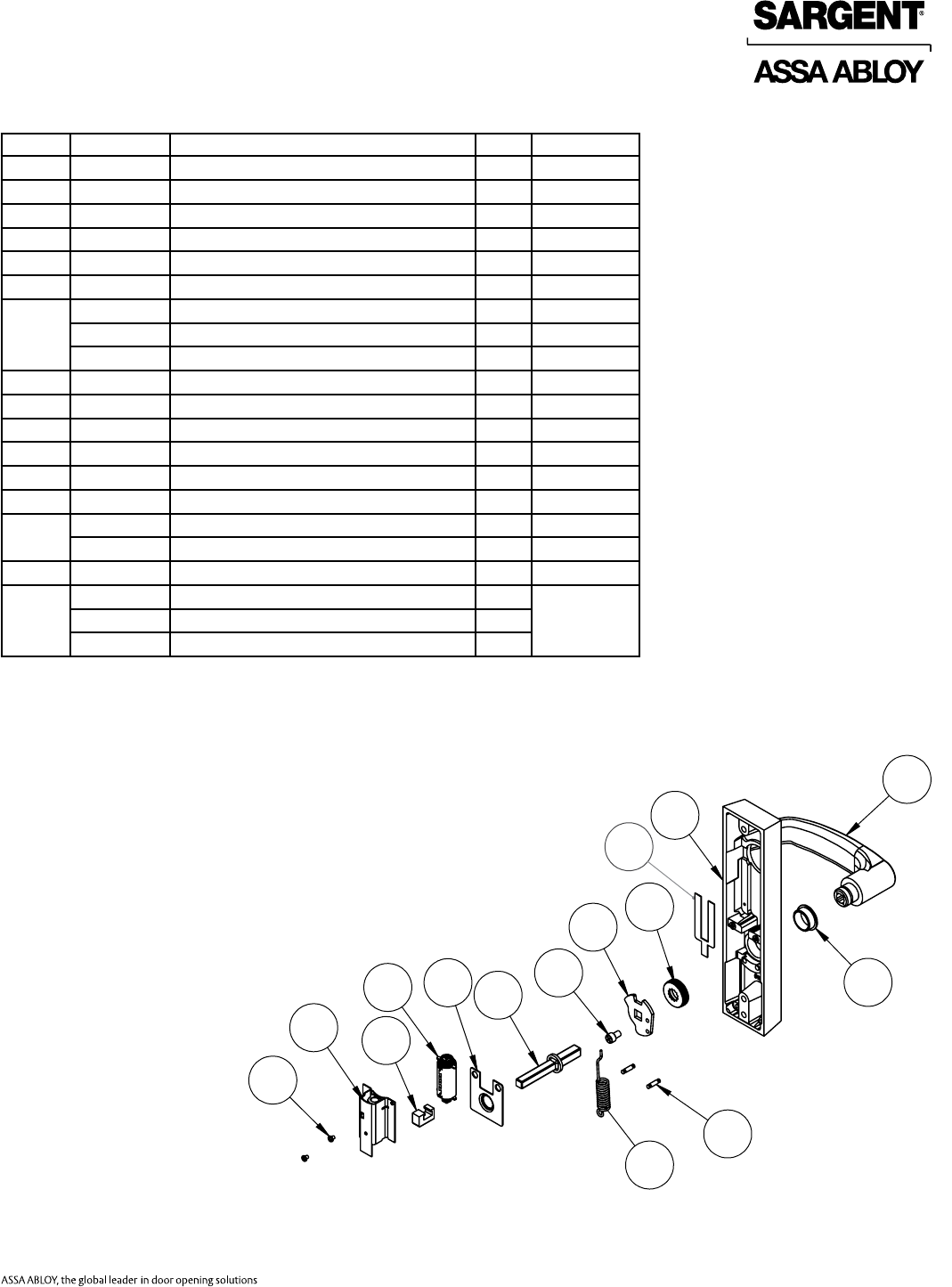

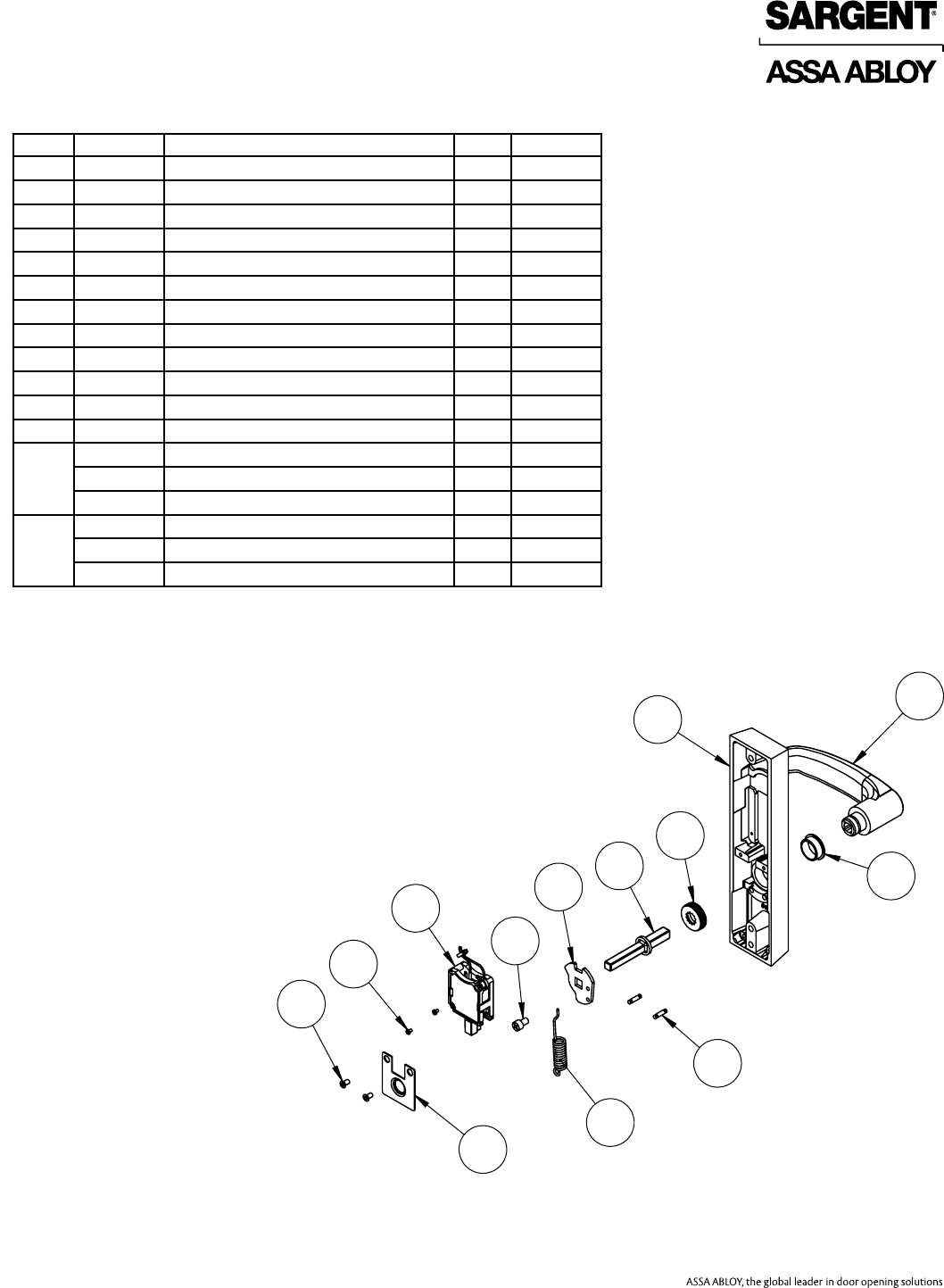

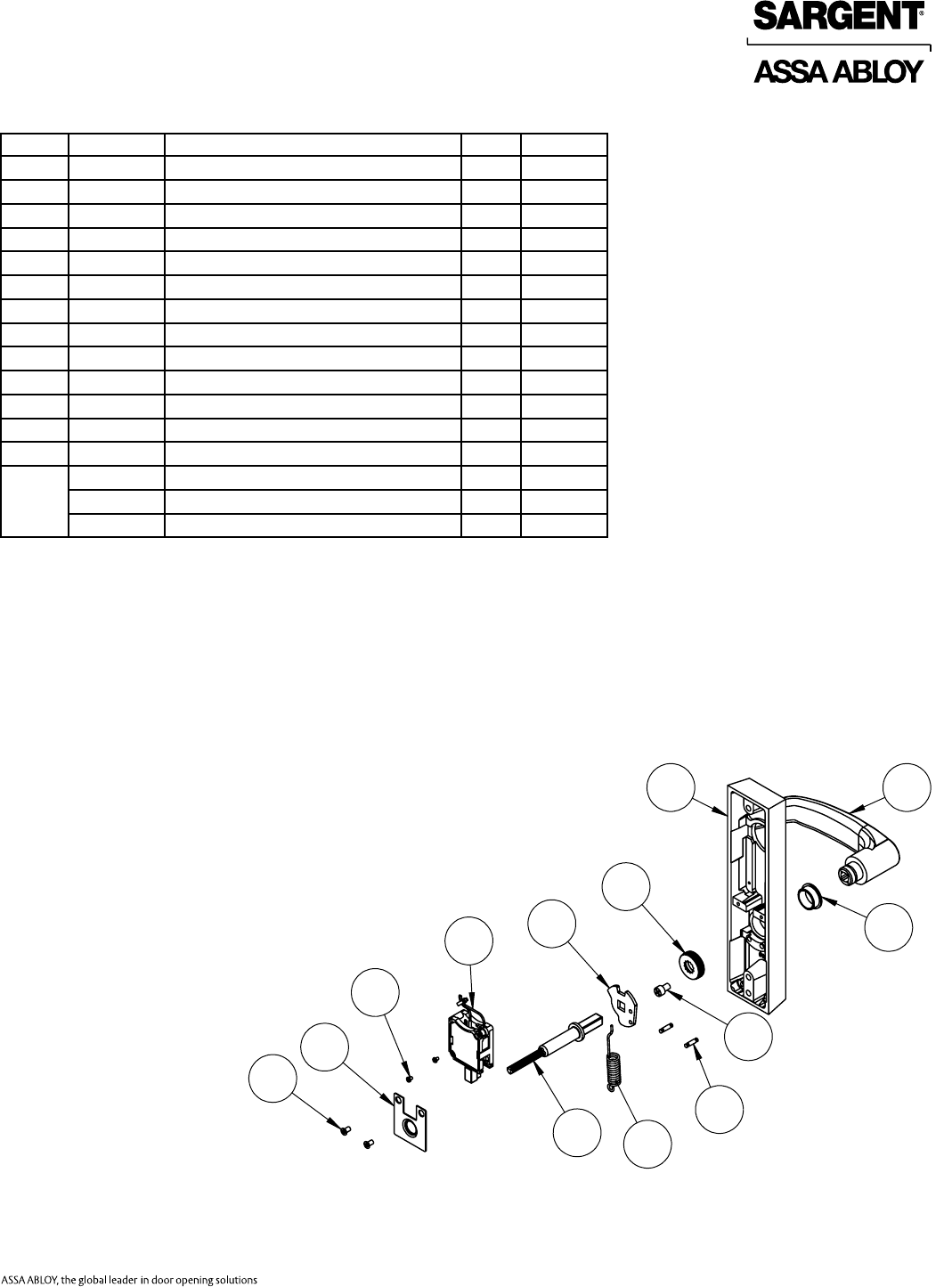

700 Series ET, 715

6

2

3

4

1

11

5

7

12

10

8

9

13

14

Item Part No. Description Qty Sellable

1 97-0429 ET Case 1 No

2 97-0477 Bushing Insert 1 Yes

3 68-1393 Retaining Plate 1 Yes

4 97-0760 Cap Nut 1 Ye s

5 01-1183 Cr-Thms #10-32 X 5/16" 1 Yes

6 — Lever Handle1,2 1 Yes

7 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

8 97-0528 Hub Plate (Std) 1 Ye s

9 97-0557 Fusible Link 1 Yes

10 97-0571 Locking Slide Spring 1 Ye s

11 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

12 97-0425 Hub Spring (Std) 1 Ye s

13 97-0356 Locking Slide (713) 1 Ye s

14

730-1 Spindle Retrot Kit (1 3/4" Door) 1Yes

730-2 Spindle Retrot Kit (2" Door) 1Yes

730-3 Spindle Retrot Kit (2 1/4" Door) 1Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify nish

2. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts for specied

door thickness

9

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

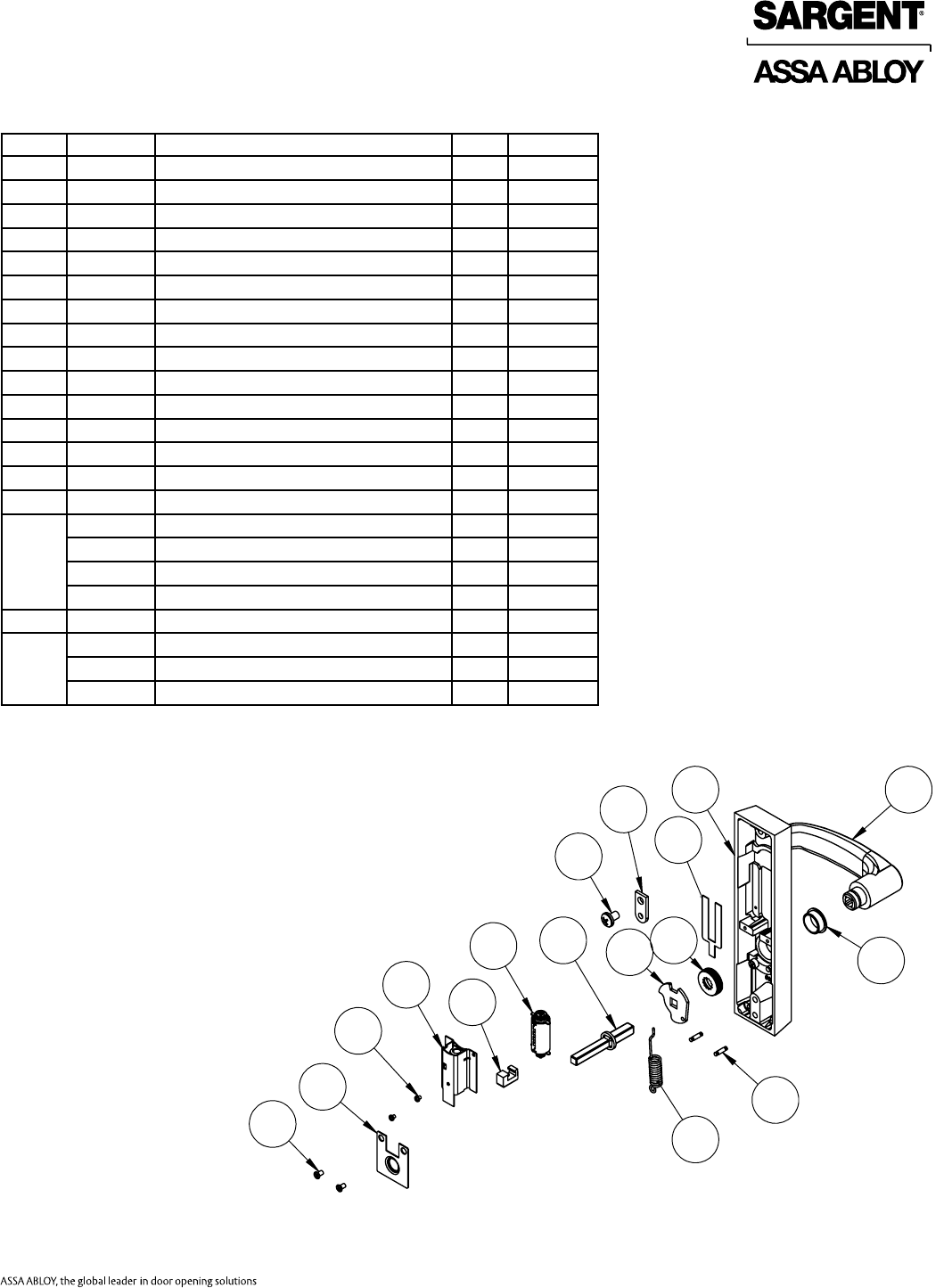

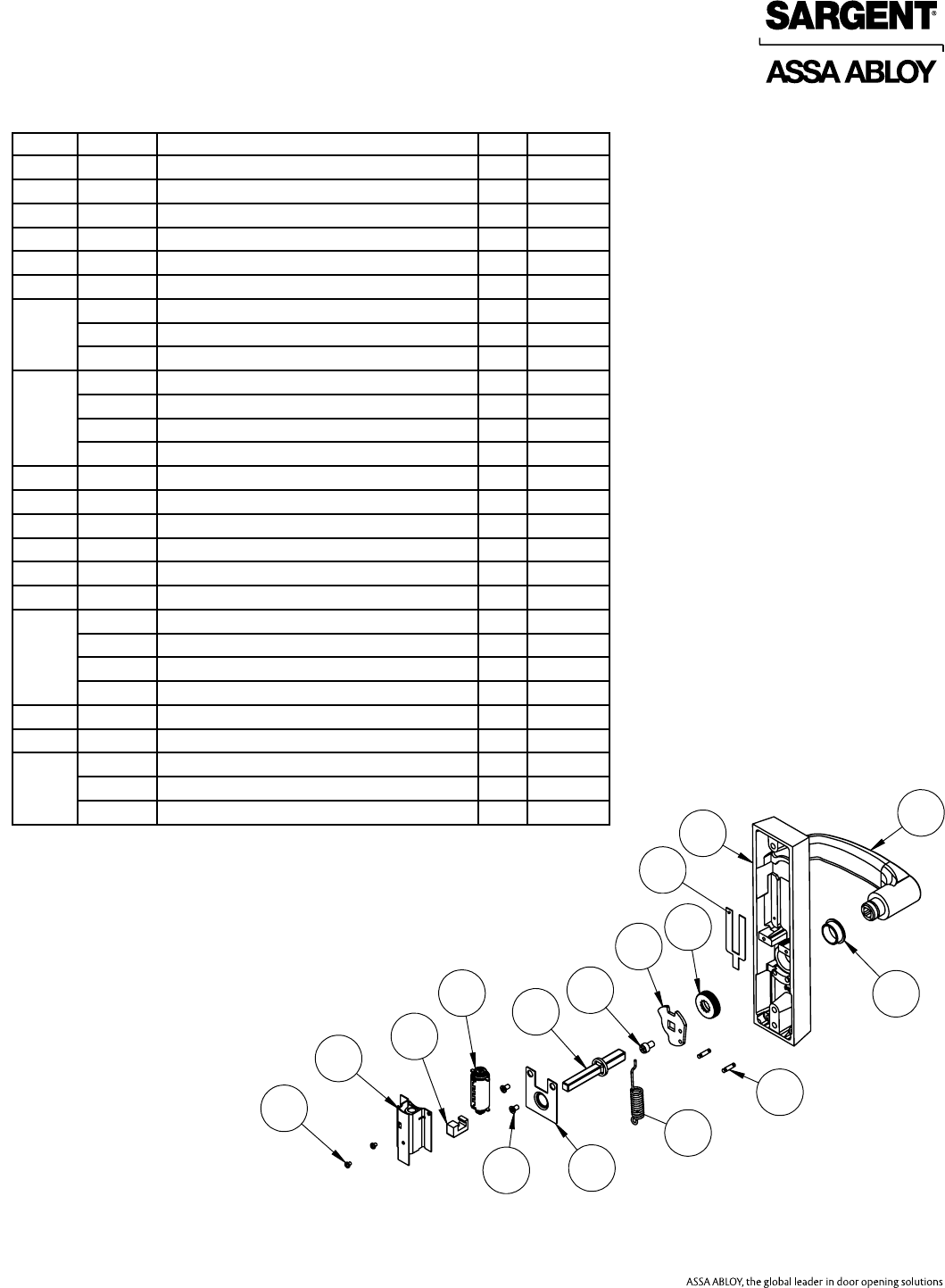

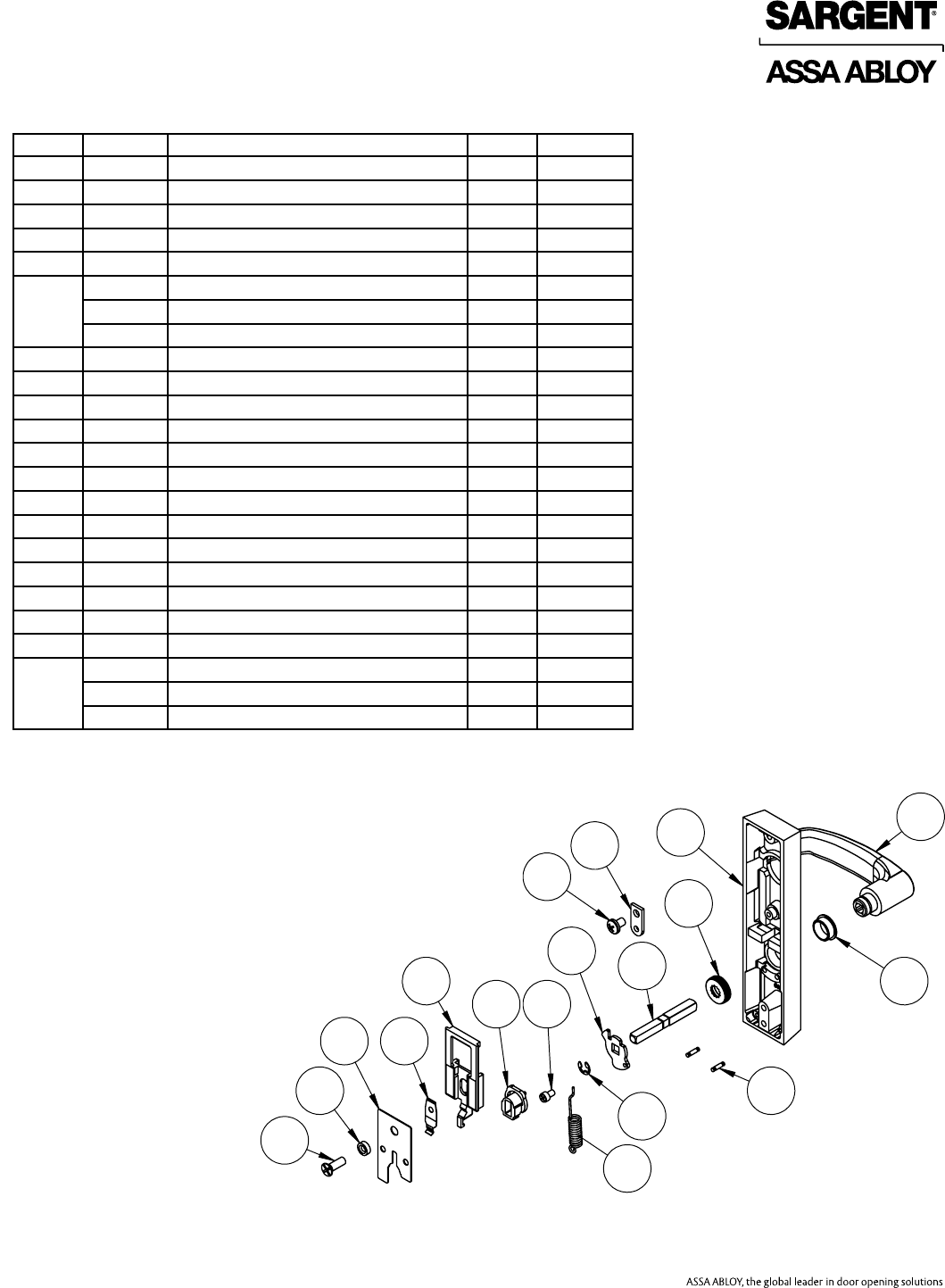

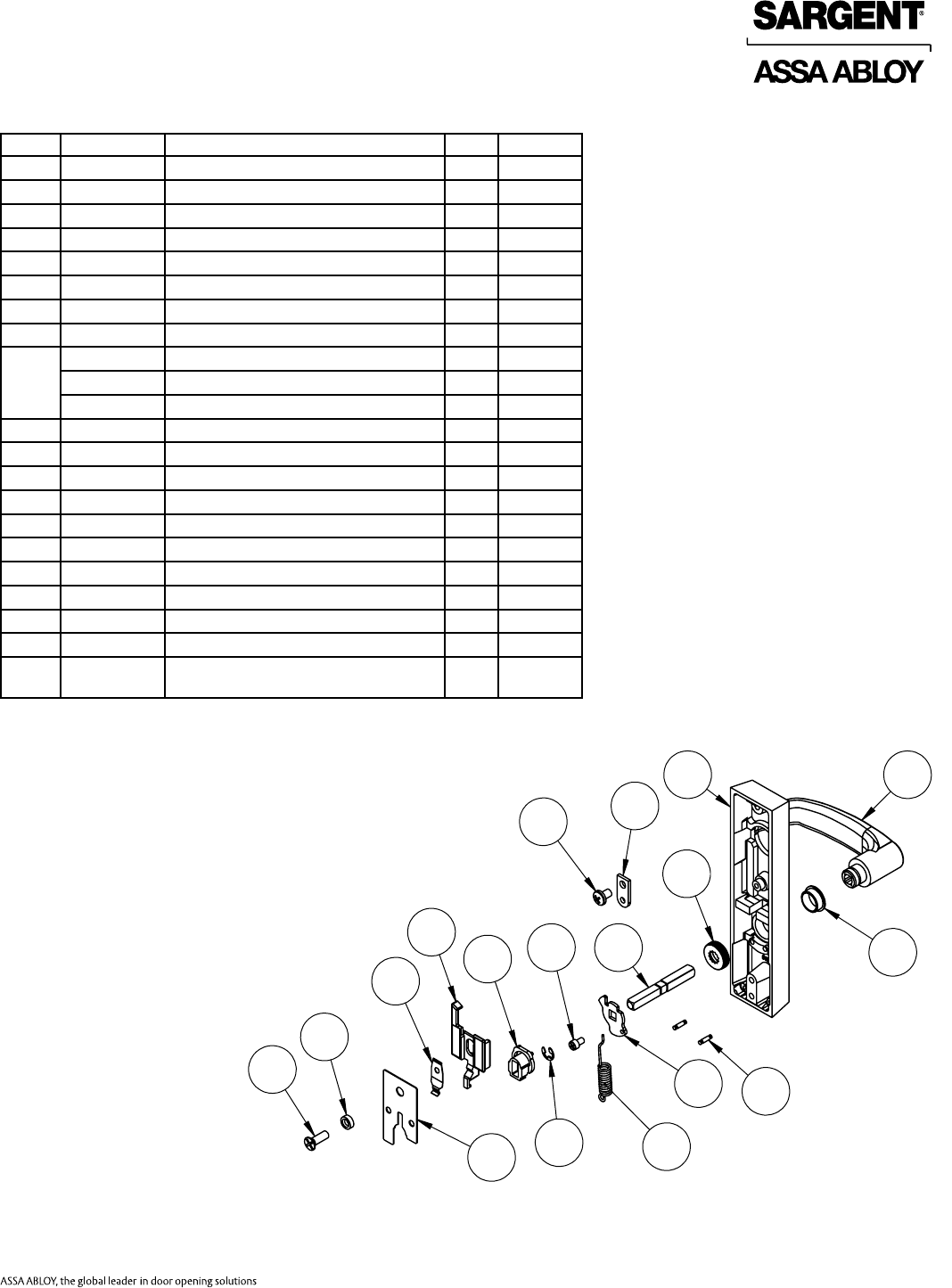

700 Series ET, 716

1

6

2

3

5

4

11

7

12

10

8

9

14

13

Item Part No. Description Qty Sellable

1 97-0427 ET Case 1 No

2 97-0477 Bushing Insert 1 Yes

3 68-1393 Retaining Plate 1 Yes

4 97-0760 Cap Nut 1 Yes

5 01-1183 Cr-Thms #10-32 X 5/16" 1 Yes

6 — Lever Handle1,3 1 Yes

7 01-4507 1/8" X 1/2' Double Ended Groove Pin 2 No

8 97-0528 Hub Plate (Std) 1 Yes

9 97-0557 Fusible Link 1 Yes

10 97-0571 Locking Slide Spring 1 Yes

11 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

12 97-0425 Hub Spring (Std) 1 Yes

Not

Shown

— Cylinder1,2,2a 1 Yes

97-0350 Cylinder Collar11 Yes

13-0180 Cylinder Nut 1 Yes

13-0086 Backplate (8816 Only) 1 Yes

13-0074 Connecting Screw (8816 Only) 2 Yes

13-0075 Connecting Screw (8816 Only)

(2 1/2" Door And Over) 2Yes

13 97-0439 Locking Slide (716) 1 Yes

14

97-0549 Spindle (1 3/4" Door) (730-1) 1 Yes

97-0550 Spindle (2" Door) (730-2) 1 Yes

97-0551 Spindle (2 1/4" Door) (730-3) 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 1 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 1 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 1 Yes

1. Specify nish

2. Specify cylinder size

2a. By keying Requirements

2b. #34 Cylinder for 8816

#46 Mortise cylinder for 8916 & 9916

3. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts for specied door

thickness

10

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

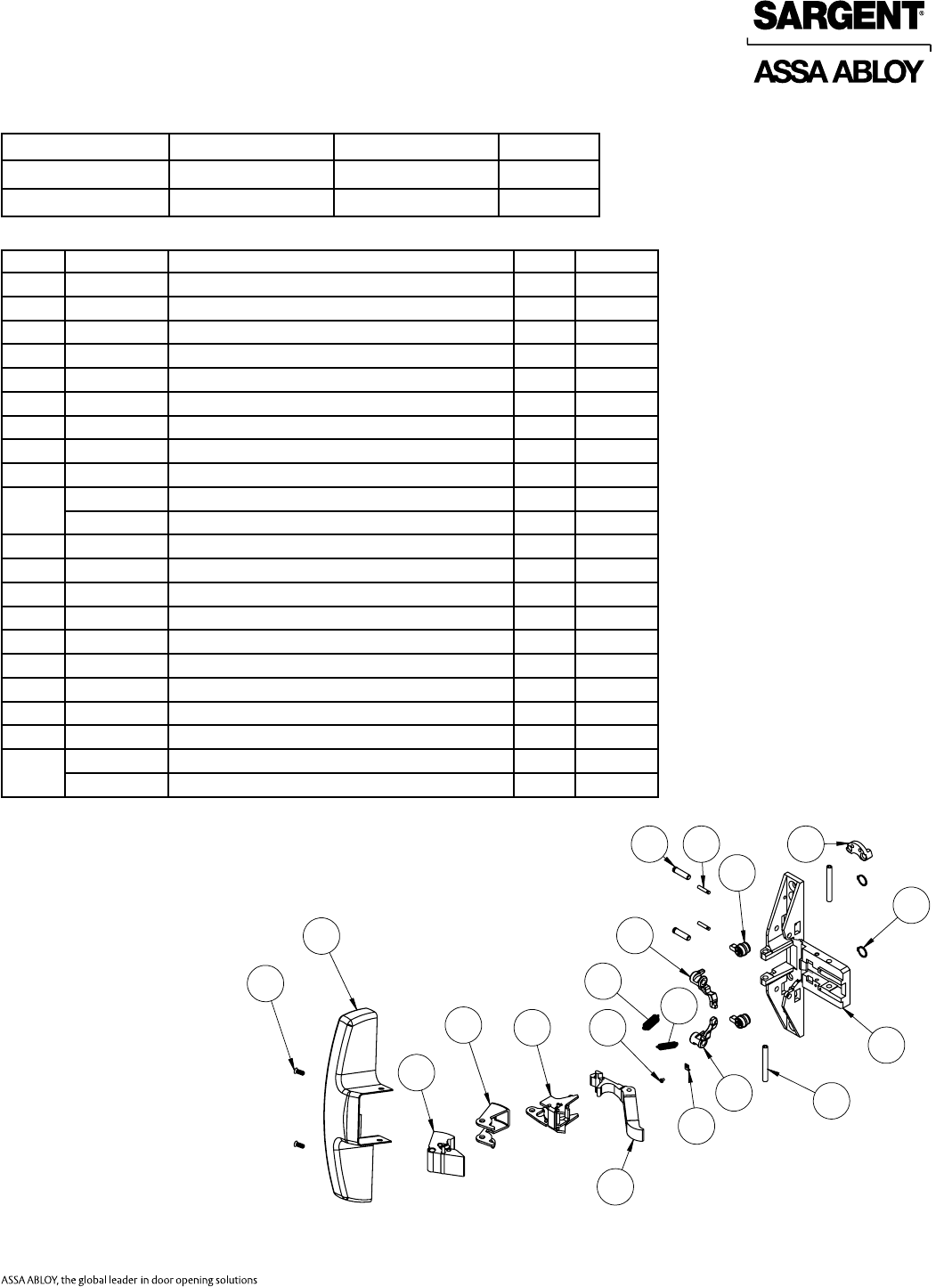

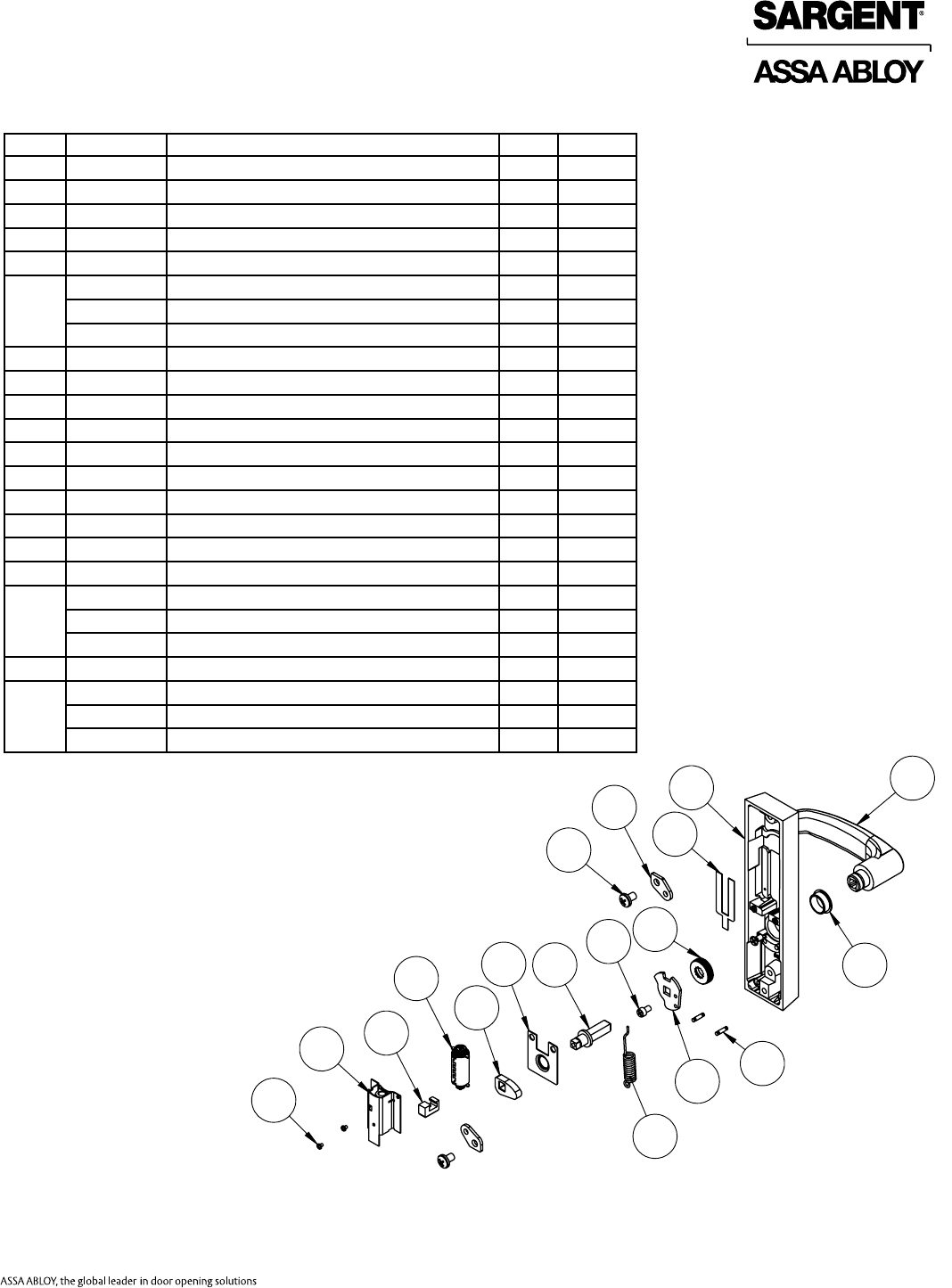

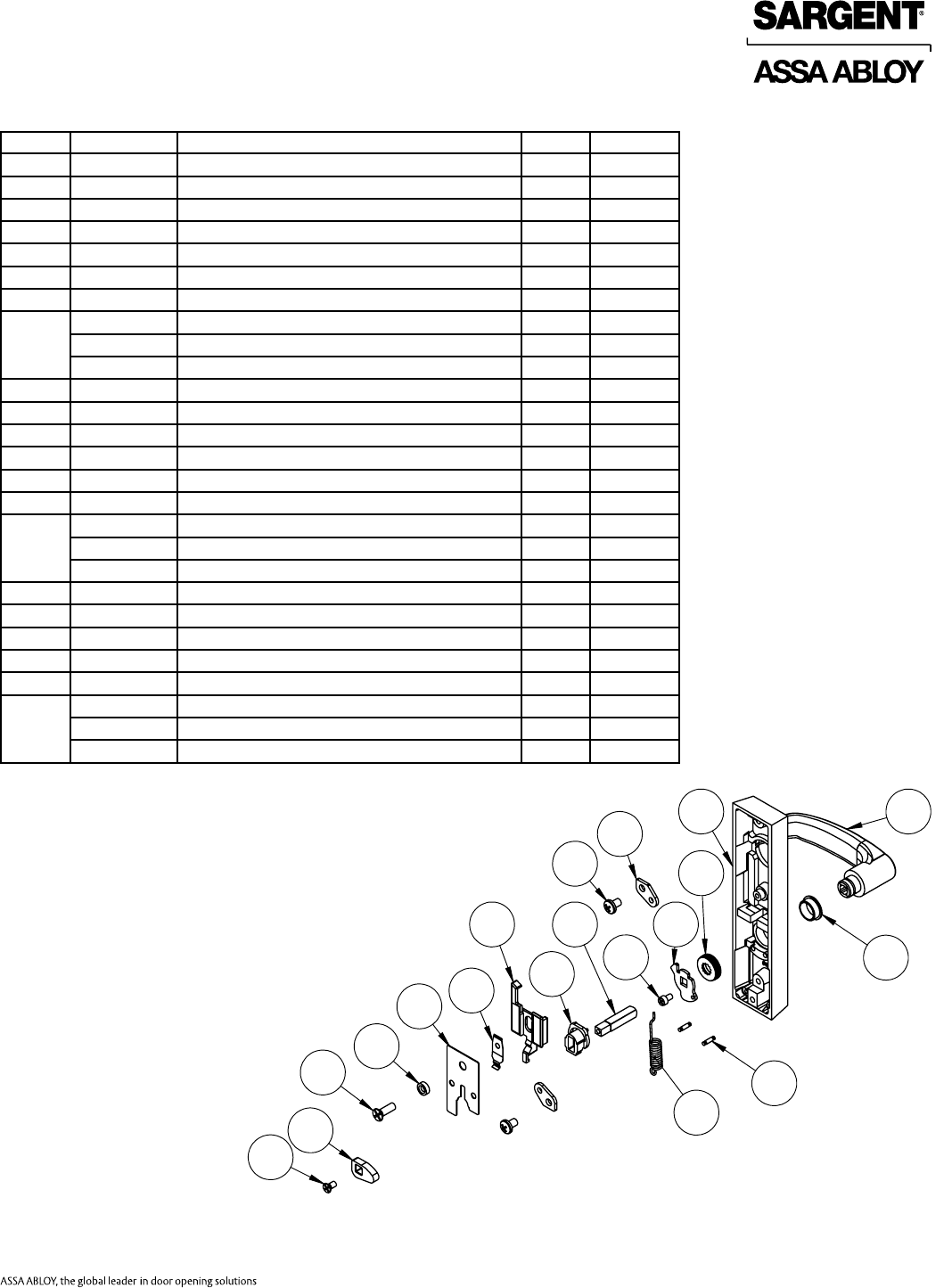

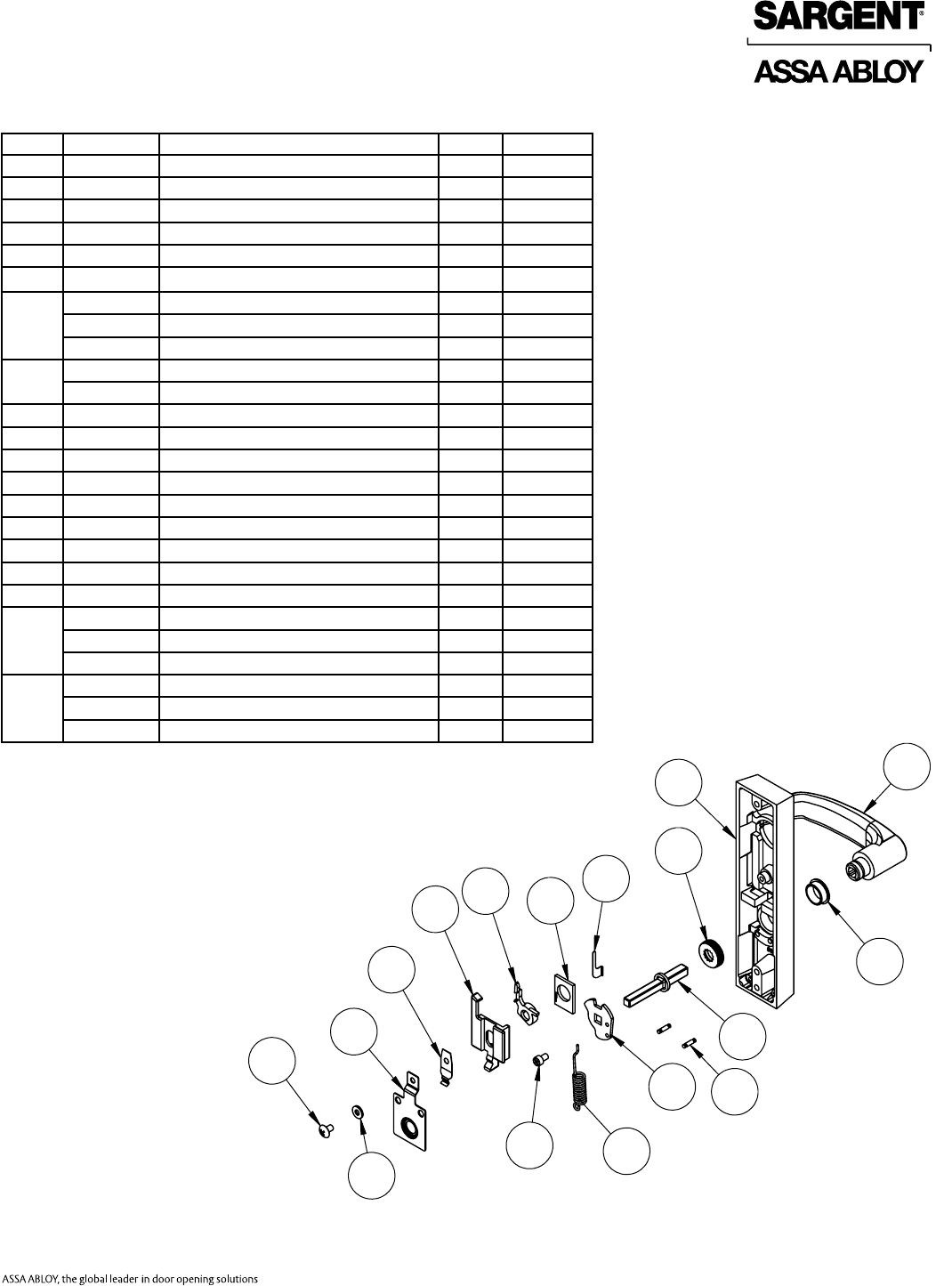

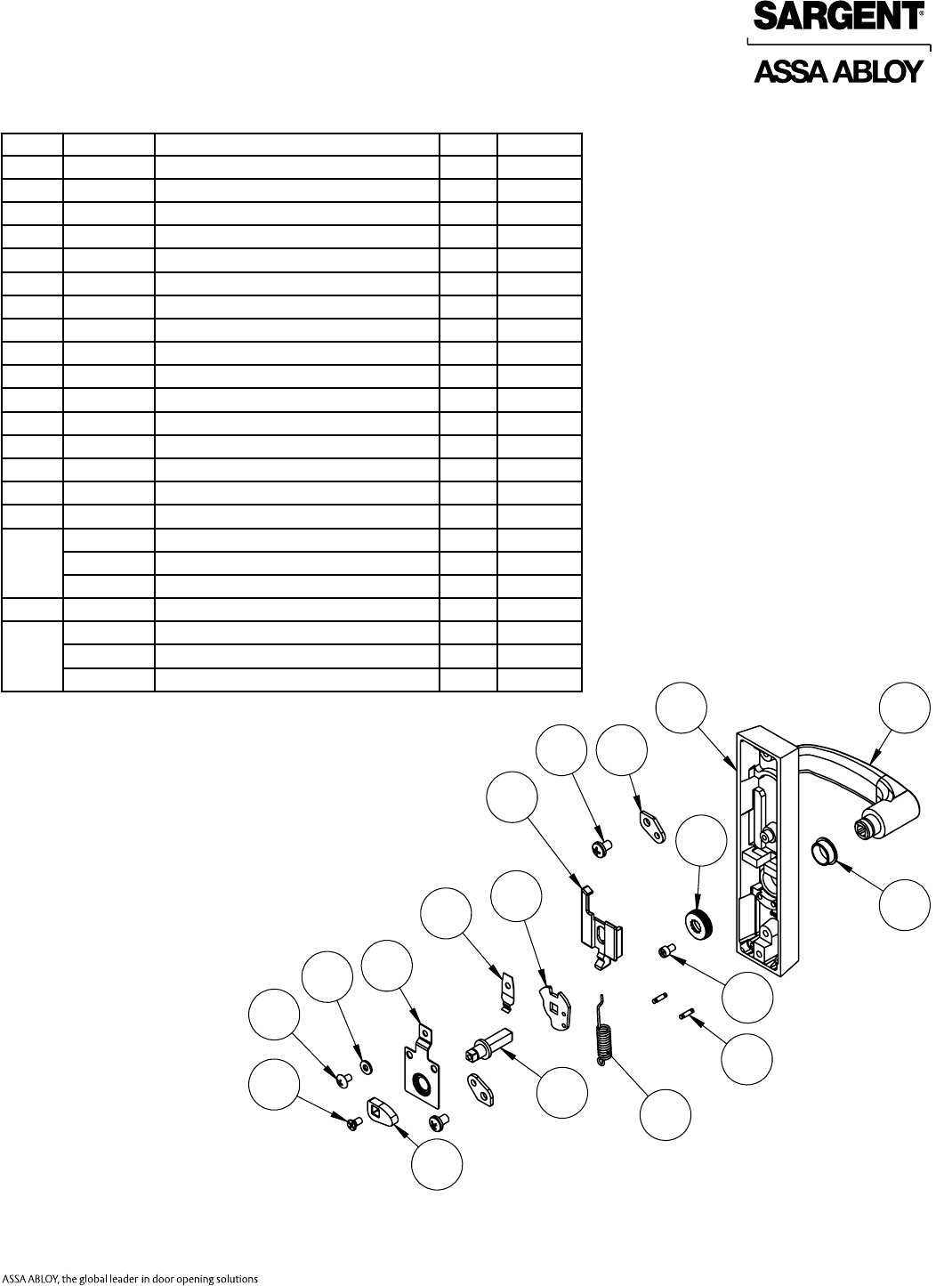

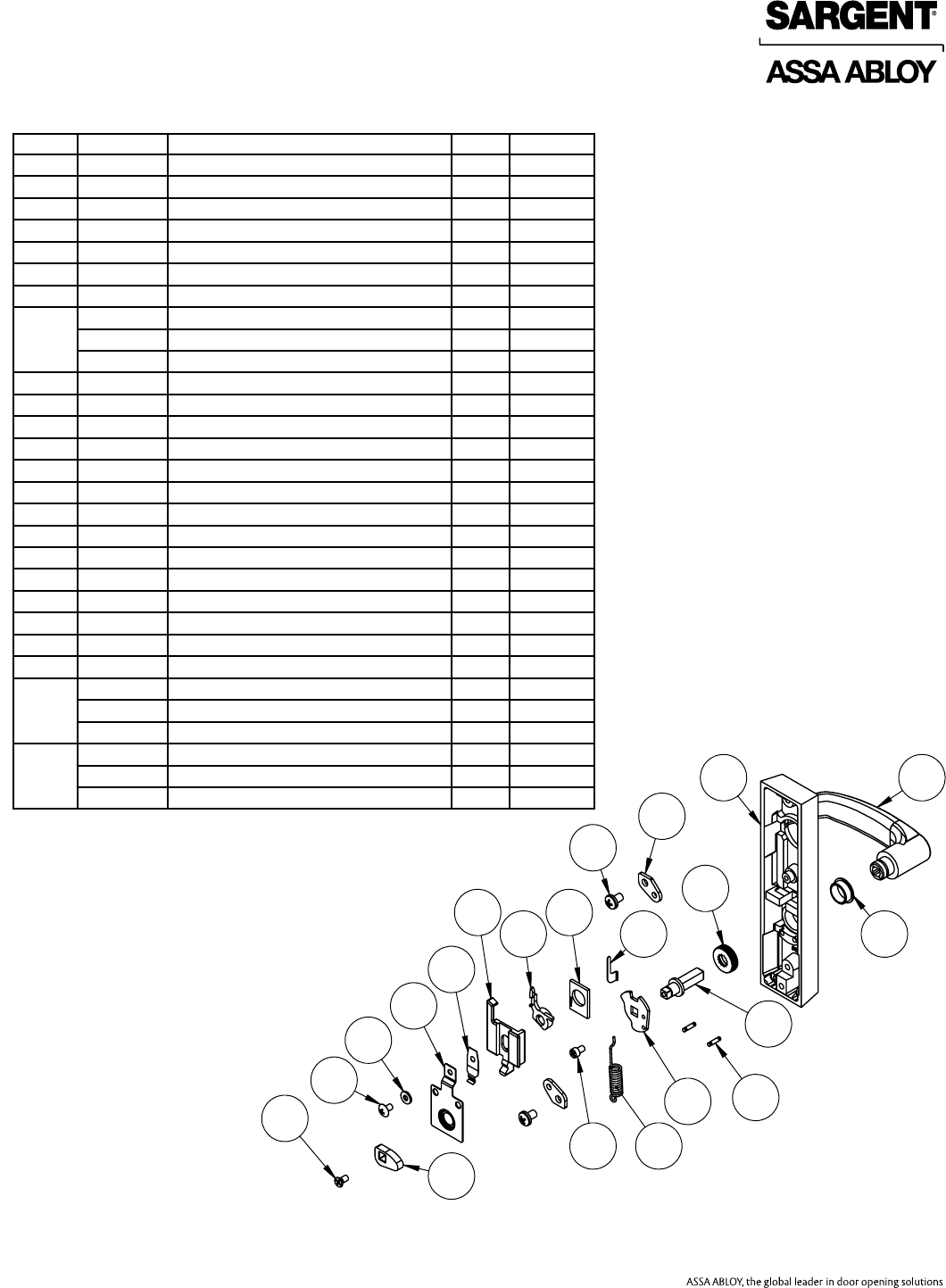

700 Series Freewheeling ET, 743

1

2

3

4

5

6

78

9

10

11

12

13

14

15

17

16

Item Part No. Description Qty Sellable

1 97-0428 ET Case 1 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap Nut 1 Yes

4 — Lever Handle1,3 1 Ye s

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0347 Locking Slide Spring 1 Yes

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

Not

Shown

— Cylinder1,2 1 Yes

97-0350 Collar11 Ye s

13-0180 Cylinder Nut 1 Yes

97-0571 Locking Slide Spring Yes

8 97-0425 Hub Spring (Std) 1 Ye s

9 97-0478 Lower Hub Plate 1 Yes

10 97-0479 Spindle Lock 1 Yes

11 97-0475 Locking Slide (743) 1 Ye s

12 97-0581 Retaining Plate 1 Yes

13 97-0582 Spacer 1 Yes

14

97-3092 Spindle Assembly (1 3/4" Door) 1 Yes

97-3093 Spindle Assembly (2" Door) 1 Ye s

97-3094 Spindle Assembly (2 1/4" Door) 1 Yes

15 01-1479 Cr-Fhms #10-32 X 1/2" 1 Yes

16 01-1183 Ct-Thms #10-32 X 5/16" 1 Yes

17 97-0527 E Clip 0.312 Shaft 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify nish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 607 kit includes items 6, 11, and 16

11

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

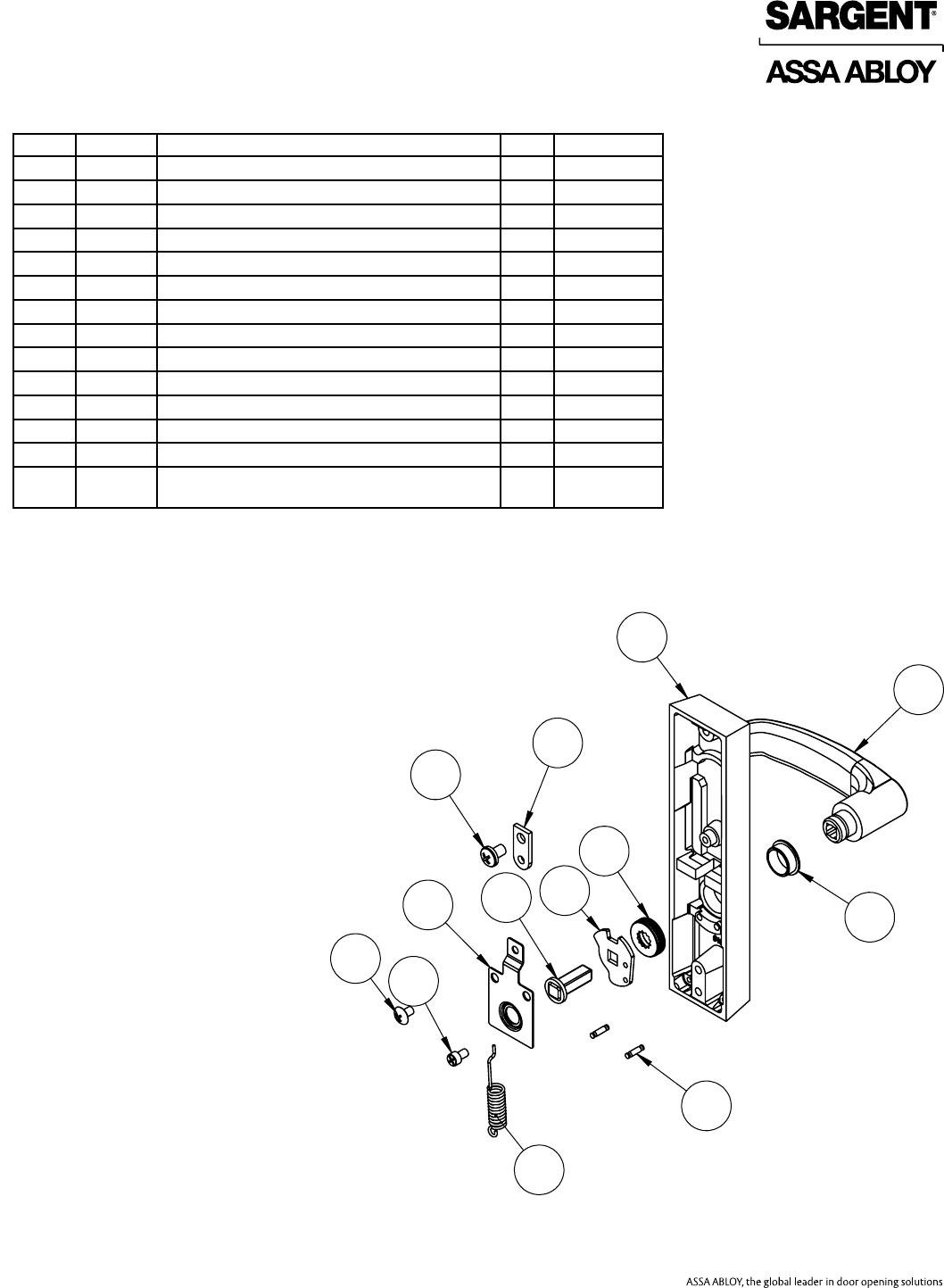

700 Series Freewheeling ET, 740 & 744

1

2

3

4

5

6

7

8

10

11 9

Item Part No. Description Qty Sellable

1 97-0429 ET Case (740) 1 No

97-0427 ET Case (744) 1 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap Nut 1 Ye s

4 01-1183 Cr-Thms #10-32 X 5/16" 1 Ye s

5 — Lever Handle1,2 1 Ye s

6 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 Ye s

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

8 97-0425 Hub Spring (Std) 1 Ye s

9 97-0528 Hub Plate 1 Ye s

10 97-0573 Spindle 1 Ye s

11 68-1393 Retaining Plate 1 Ye s

Not

Shown

— Rim Cylinder (744 Only)1,2 1Yes

13-0086 Backplate (744 Only) 1 Ye s

13-0074 Connecting Screw (744 Only) 2 Yes

13-0075 Connecting Screw (744 Only) (2 1/2" Door And Over) 2 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify nish

2. Specify #34 cylinder (#46 cylinder for 8300 or 8900) by keying requirements

3. Specify lever design by hand

12

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 746

1

2

3

4

5

6

7

8

9

10

12

13 14

16

15

11

Item Part No. Description Qty Sellable

1 97-0428 ET Case 1 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,3 1 Yes

5 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

6 97-0347 Locking Slide Spring 1 Ye s

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

Not

Shown

— Cylinder1,2 1 Ye s

97-0350 Collar11 Ye s

13-0180 Cylinder Nut 1 Ye s

97-0571 Locking Slide Spring W/ Bl Dyk 1 Ye s

8 97-0425 Hub Spring (Std) 1 Yes

9 97-0478 Lower Hub Plate 1 Yes

10 97-0479 Spindle Lock 1 Ye s

11 97-0476 Locking Slide (746 Function) 1 Ye s

12 97-0581 Retaining Plate 1 Yes

13 97-0582 Spacer 1 Ye s

14

97-3092 Spindle Assembly (1 3/4" Door) 1 Yes

97-3093 Spindle Assembly (2" Door) 1 Ye s

97-3094 Spindle Assembly (2 1/4" Door) 1 Yes

15 01-1183 Cr-Fhms #10-32 X 5/16" 1 Ye s

16 97-0527 E Clip 0.312 Shaft 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify nish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 607 kit includes items 6, 11, and 15

13

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 773 & 774

1

2

4

3

6

8

7

9

5

12

14

10

13

11

15

Item Part No. Description Qty Sellable

1 97-0574 ET Case 1 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,2 1 Ye s

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0528 Hub Plate 1 Ye s

7

97-0549 Spindle (1 3/4" Door) 1

97-0550 Spindle (2" Door) 1 Yes

97-0551 Spindle (2 1/4" Door) 1

8 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

9 97-0425 Hub Spring (Std) 1 Ye s

10 97-0329 Locking Tail 1 Ye s

11 97-3932 Solenoid Cover Assembly (Fail Secure) 1 Ye s

12 68-1402 Retainer Plate, Electrical Function 1 Yes

13 01-3563 Machine Screw #5-40 X 1/4" 2 Ye s

14 52-3287 24V Pull Solenoid & Bridge Assy, Exit Trim 1 Yes

52-3289 24V Push Solenoid & Bridge Assy, Exit Trim 1 Yes

15 97-0799 Fork 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2

Yes01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2

1. Specify nish

2. Specify lever design by hand

14

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 775 & 776

1

2

3

8

15

4

5

10

7

9

6

12

14

15

16

11

Item Part No. Description Qty Sellable

1 97-0574 ET Case 1 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,2 1 Ye s

5 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

6 97-0528 Hub Plate 1 Ye s

7

97-0549 Spindle (1 3/4" Door) 1 Yes

97-0550 Spindle (2" Door) 1 Ye s

97-0551 Spindle (2 1/4" Door) 1 Ye s

Not

Shown

— Cylinder1,3 1 Ye s

13-0086 Backplate 1 Ye s

13-0074 Connecting Screw 2 Yes

13-0075 Connecting Screw ( 2 1/2" Door And Over) 2 Yes

8 01-1182 CR-CHMS #10-32 X .297 1 Ye s

9 97-0425 Hub Spring (Std) 1 Ye s

10 97-0329 Locking Tail 1 Ye s

11 97-3932 Solenoid Cover 1 Ye s

12 68-1402 Retainer Plate, Electrical Function 1 Ye s

13 01-1154 #6-32 X 1/4" PH Flat Undercut Ms 2 Ye s

14

52-3287 24V Pull Solenoid & Bridge Assy, Exit Trim 1 Ye s

52-3289 24V Push Solenoid & Bridge Assy, Exit Trim 1 Ye s

52-3288 12V Pull Solenoid & Bridge Assy, Exit Trim 1 Ye s

52-3290 12V Push Solenoid & Bridge Assy, Exit Trim 1 Yes

15 01-4560 #3-48 X 1/8" Pan CR-Ohms 2 Ye s

16 97-0799 Fork 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify nish

2. Specify lever design by hand

3. Specify #46 cylinder by keying requirements

15

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 777

1

2

3

4

5

6

7

8

9

10

11

12

13

Item Part No. Description Qty Sellable

1 97-0574 Electric ET Case W/ Cylinder Prep 1 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,3 1 Ye s

5 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

Not

Shown — Cylinder1,2 1 Yes

6 97-0528 Hub Plate (Std) 1 Yes

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

8 97-0425 Hub Spring (Std) 1 Ye s

9 52-2556 Motor & Housing Assembly 1 Ye s

10 68-1402 Retainer Plate, Electrical Function 1 Ye s

11 01-1154 #6-32 X 1/4" Ph Flat Head Machine Screw 2 Ye s

12 01-4540 #3-48 X 5/8" Ph Pan Head Machine Screw 2 Yes

13

97-0549 Spindle (1 3/4" Door) 1 Ye s

97-0550 Spindle (2" Door) 1 Yes

97-0551 Spindle (2 1/4" Door) 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify nish

2. Specify #46 cylinder by keying requirements

3. Specify lever design by hand

16

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 778

Item Part No. Description Qty Sellable

1 97-0575 Electric ET Case W/O Cylinder Prep11 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap Nut 1 Yes

4 — Lever Handle1,2 1 Ye s

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0528 Hub Plate (Std) 1 Ye s

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

8 97-0425 Hub Spring (Std) 1 Ye s

9 52-2556 Motor & Housing Assembly 1 Ye s

10 68-1402 Retainer Plate, Electrical Function 1 Yes

11 01-1154 #6-32 X 1/4" Ph Flat Head Machine Screw 2 Ye s

12 01-4540 #3-48 X 5/8" Ph Pan Head Machine Screw 2 Ye s

13

97-0549 Spindle (1 3/4" Door) 1 Yes

97-0550 Spindle (2" Door) 1 Ye s

97-0551 Spindle (2 1/4" Door) 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify nish

2. Specify lever design by hand

1

2

3

4

5

6

7

8

9

10

11

12

13

17

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 710-4

10

1

23

9

8

4

5

6

7

Item Part No. Description Qty Sellable

1 97-0435 ET Case, Off-Set Mounting11 No

2 97-0477 Bushing Insert 1 Ye s

3 68-1393 Retaining Plate 1 Ye s

4 97-0760 Cap Nut 1 Yes

5 97-0522 Hub Plate (704/710) 1 Yes

6 97-0573 Spindle (704/710) 1 Yes

7 01-1183 Cr-Thms #10-32 X 5/16" 1 Ye s

8 68-0853 Bracket 2 Ye s

9 01-1478 Cr Pan Hd Mach Screw #1/4-20 X 3/8" 2 Ye s

10 — Lever Handle1,2 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 3 7/8" (2 1/4" Door) 2 Ye s

1. Specify nish

2. Specify lever design by hand

18

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 706-4 & 713-4

1

2

3

4

5

7

8

9

10

11

12 13

14

15

16

17

18

21

6

19

20

Item Part No. Description Qty Sellable

1 97-0436 ET Case, Off-Set Mounting 1 No

2 97-0477 Bushing Insert 1 Yes

3 68-1393 Retaining Plate 1 Yes

4 97-0760 Cap Nut 1 Yes

5 01-1027 Ph Fl U'cut Ms #10-24 X 3/8" 1 Yes

6 01-1183 Cr-Thms #10-32 X 5/16" 1 Ye s

7 — Lever Handle1,3 1 Ye s

Not

Shown

— Cylinder Assembly1,2 1 Yes

97-0350 Collar11 Yes

13-0180 Cylinder Nut 1 Yes

8 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

9 97-0528 Hub Plate (Std) 1 Ye s

10 97-0557 Fusible Link 1 Ye s

11 97-0571 Locking Slide Spring 1 Yes

12 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

13 97-0425 Hub Spring (Std) 1 Ye s

14 97-0355 Locking Slide (706) 1 Ye s

97-0356 Locking Slide (713) 1 Ye s

15 97-0558 Slide Support 1 No

16 97-0563 Spring Support 1 No

17 97-0564 Return Spring 1 No

18 68-0852 Cam 700-4 1 Yes

19 68-0853 Bracket 2 Yes

20 01-1478 Cr Pan Hd Mach Screw #1/4-20 X 3/8" 2 Yes

21

97-0549 Spindle (1 3/4" Door) (730-4) 1 Ye s

97-0550 Spindle (2" Door) (730-5) 1 Ye s

97-0551 Spindle (2 1/4" Door) (730-6) 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify nish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and

thru bolts for specied door thickness

Note: 607 kit includes items 6, 10, 11, 14, 15, 16, and 17

19

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 715-4

1

2

3

4

6

7

10

11

8

9

12

1516

17

5

14

13

18

Item Part No. Description Qty Sellable

1 97-0435 ET Case, Off-Set Mounting 1 No

2 97-0477 Bushing Insert 1 Yes

3 68-1393 Retaining Plate 1 Ye s

4 97-0760 Cap Nut 1 Yes

5 01-1183 Cr-Thms #10-32 X 5/16" 1 Yes

6 — Lever Handle1,2 1 Yes

7 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

8 97-0528 Hub Plate (Std) 1 Ye s

9 97-0557 Fusible Link 1 Ye s

10 97-0571 Locking Slide Spring 1 Ye s

11 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

12 97-0425 Hub Spring (Std) 1 Ye s

13 97-0356 Locking Slide (713) 1 Yes

14 68-0852 Cam 700-4 1 Yes

15 68-0853 Bracket 2 Ye s

16 01-1478 Cr Pan Hd Mach Screw #1/4-20 X 3/8" 2 Ye s

17

730-4 Spindle Retrot Kit (1 3/4" Door) 1 Yes

730-5 Spindle Retrot Kit (2" Door) 1Yes

730-6 Spindle Retrot Kit (2 1/4" Door) 1Ye s

18 01-1027 Cr-Fhms #10-24 X 3/8" 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-30 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify nish

2. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts

for specied door thickness

20

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

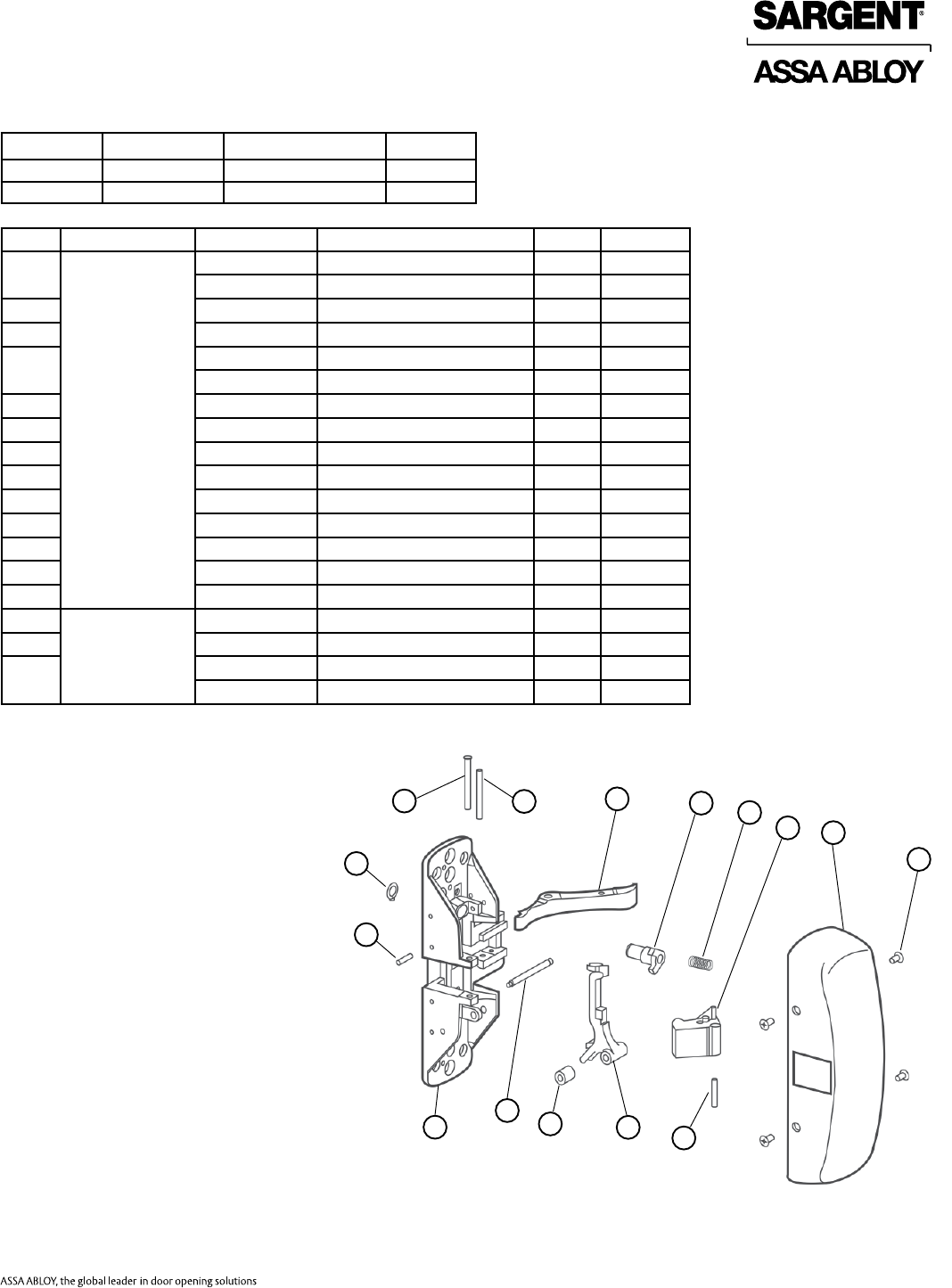

700 Series ET, 740-4

1

2

3

4

5

6

7

9

10

11

13

12

8

Item Part No. Description Qty Sellable

1 97-0435 ET Case, Off-Set Mounting11 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap Nut 1 Ye s

4 01-1183 Cr-Thms #10-32 X 5/16" 1 Ye s

5 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

6 — Lever Handle1,2 1 Ye s

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

8 97-0528 Hub Plate 1 Ye s

9 97-0425 Hub Spring (Std) 1 Ye s

10 68-0853 Bracket 2 Ye s

11 01-1478 Cr Pan Hd Mach Screw #1/4-20 X 3/8" 2 Yes

12 97-0573 Spindle 1 Ye s

13 68-1393 Retaining Plate 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify nish

2. Specify lever design by hand

21

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

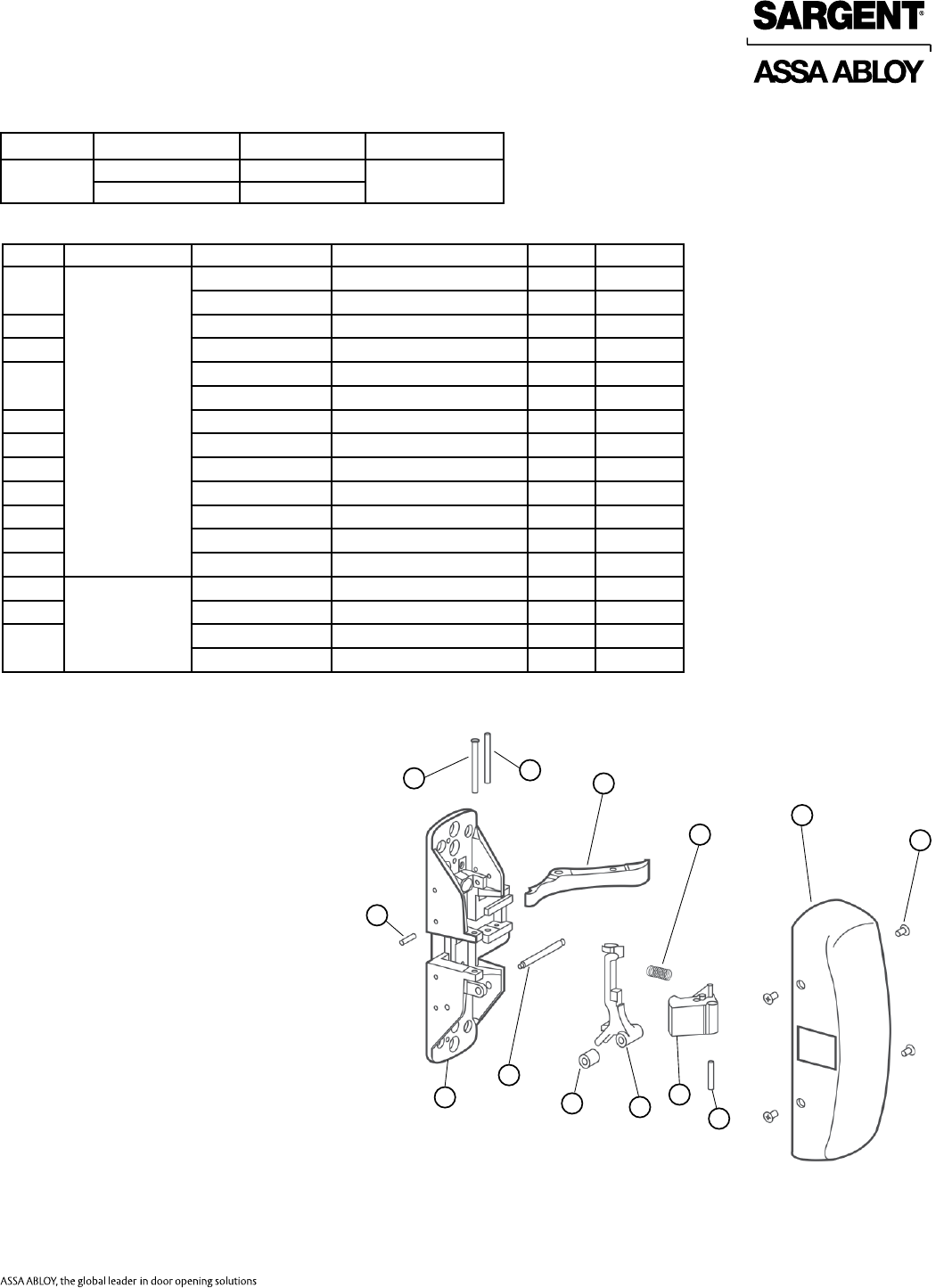

700 Series Freewheeling ET, 743-4

1

2

3

5

6

7

8

11

12

4

9

10

13

1415

16

17

18

19

Item Part No. Description Qty Sellable

1 97-0436 ET Case, Off-Set Mounting 1 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap Nut 1 Ye s

4 01-1027 Cr-Fhms #10-24 X 3/8" 1 Ye s

5 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

6 — Lever Handle1,3 1 Ye s

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

Not

Shown

— Cylinder1,2 1 Ye s

97-0350 Collar11 Ye s

13-0180 Cylinder Nut 1 Yes

8 97-0478 Lower Hub Plate 1 Ye s

9 97-0479 Spindle Lock 1 Ye s

10 97-0425 Hub Spring (Std) 1 Yes

11 68-0853 Bracket 2 Yes

12 01-1478 Cr Pan Hd Ms #1/4-20 X 3/8" 2 Yes

13 01-1183 Cr-Fhms #10-32 X 5/16" 1 Yes

14

97-3098 Spindle Assembly (1 3/4" Door) 1 Ye s

97-3099 Spindle Assembly (2" Door) 1 Ye s

97-3100 Spindle Assembly (2 1/4" Door) 1 Ye s

15 97-0475 Locking Slide (743) 1 Ye s

16 97-0581 Retaining Plate 1 Ye s

17 97-0582 Spacer 1 Yes

18 68-0852 Cam 700-4 1 Ye s

19 97-0347 Locking Slide Spring 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify nish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 607 kit includes items 13, 15, 17 and 19

22

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 746-4

1

2

3

5

6

7

8

1112

4

10

13

14

15

16

17

18

9

19

Item Part No. Description Qty Sellable

1 97-0436 ET Case, Off-Set Mounting 1 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap 1 Ye s

4 01-1027 Cr-Fhms #10-24 X 3/8" 1 Ye s

5 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

6 — Lever Handle1,3 1 Ye s

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

8 97-0478 Lower Hub Plate 1 Ye s

Not

Shown

— Cylinder1,2 1 Ye s

97-0350 Collar11 Ye s

13-0180 Cylinder Nut 1 Ye s

9 97-0479 Spindle Lock 1 Yes

10 97-0425 Hub Spring (Std) 1 Ye s

11 68-0853 Bracket 2 Ye s

12 01-1478 Cr Pan Hd Ms #1/4-20 X 3/8" 2 Ye s

13 01-1183 Cr-Fhms #10-32 X 3/8" 1 Yes

14

97-3092 Spindle Assembly (1 3/4" Door) 1 Ye s

97-3093 Spindle Assembly (2" Door) 1 Yes

97-3094 Spindle Assembly (2 1/4" Door) 1 Yes

15 97-0476 Locking Slide (746) 1 Ye s

16 97-0581 Retaining Plate 1 Ye s

17 97-0582 Spacer 1 Yes

18 68-0852 Cam 700-4 1 Yes

19 97-0347 Locking Slide Spring 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify nish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 607 kit includes items 13, 15, 17 and 19

23

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

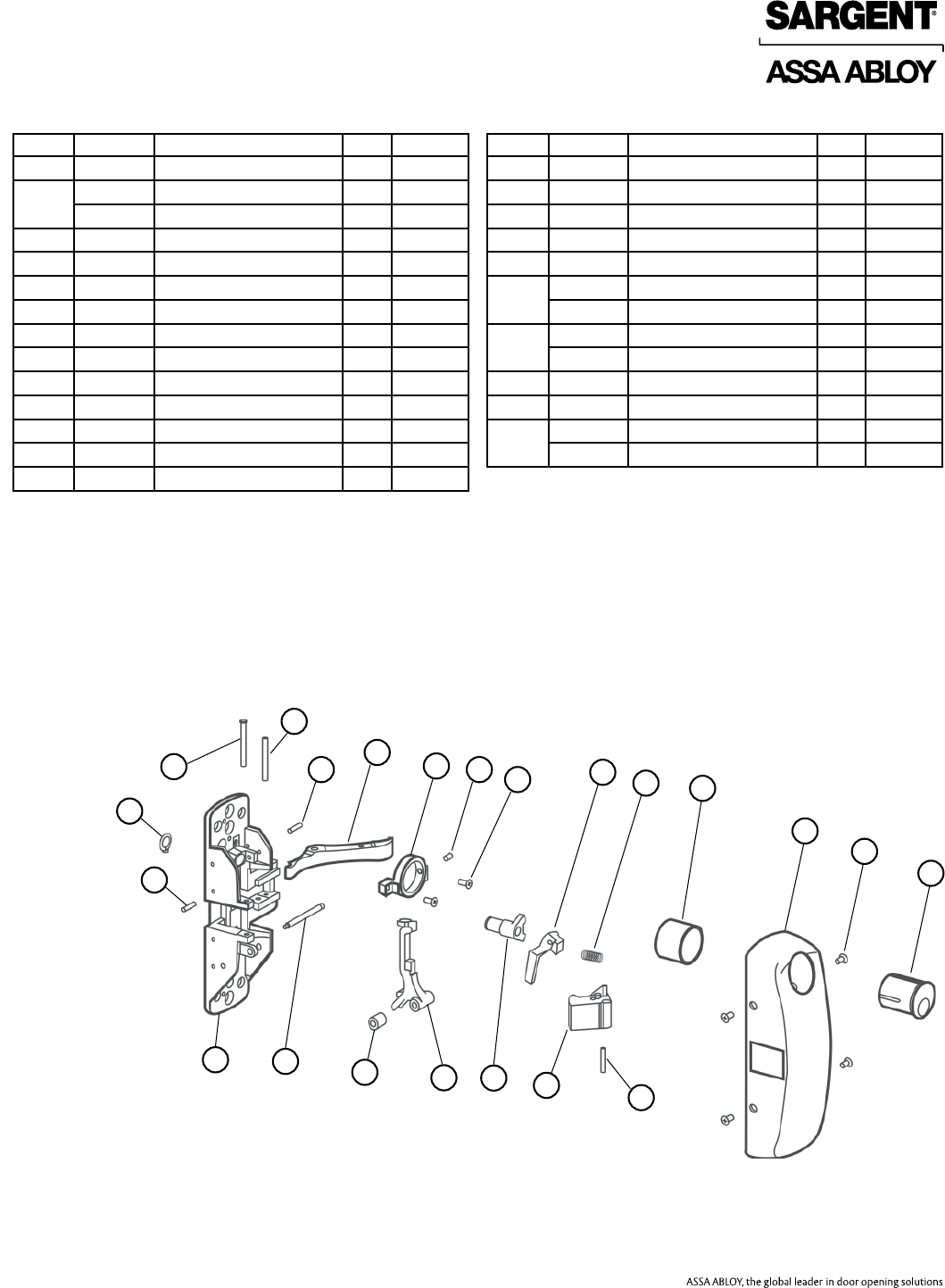

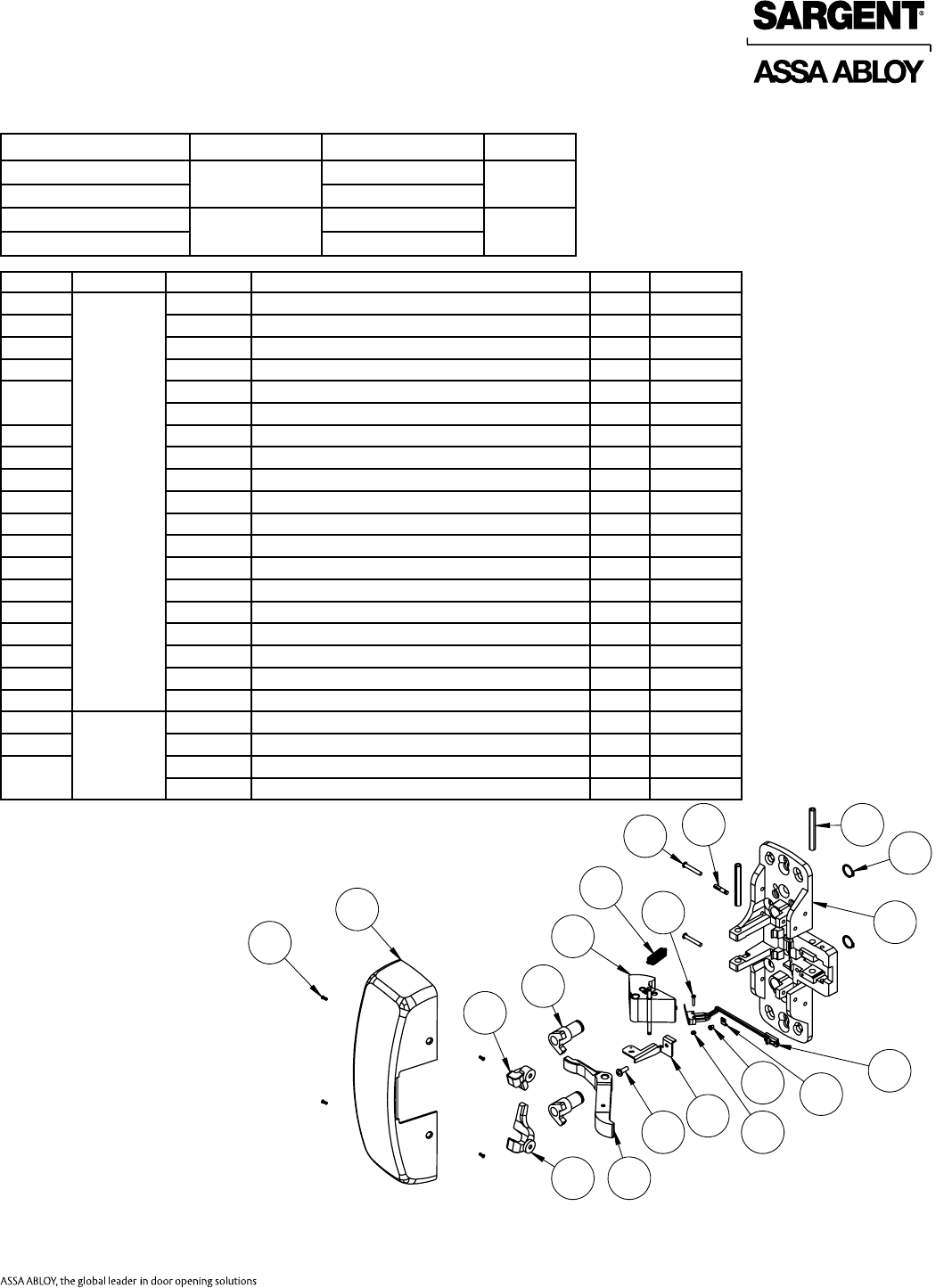

700 Series ET, 773-4 & 774-4

1

2

3

8

14

4

5

11

6

9

10

13

15

16

7

17

12

18

Item Part No. Description Qty Sellable

1 97-0437 ET Case, Off-Set Mounting 1 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap Nut 1 Yes

4 — Lever Handle1,2 1 Yes

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6

730-4 Spindle Retrot Kit (1 3/4" Door) 1 Ye s

730-5 Spindle Retrot Kit (2" Door) 1Yes

730-6 Spindle Retrot Kit (2 1/4" Door) 1Yes

7 01-1478 Cr Pan Hd Mach Screw #1/4 X 3/8" 2 Ye s

8 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

9 97-0425 Hub Spring (Std) 1 Ye s

10 97-0528 Hub Plate 1 Yes

11 97-0329 Locking Tail 1 Ye s

12 97-3932 Solenoid Cover Assembly (Fail Secure) 1 Yes

13 68-1402 Retainer Plate, Electrical Function 1 Yes

14 01-3563 Machine Screw #5-40 X 1/4" 2 Ye s

15 68-0852 Cam 700-4 1 Yes

16 68-0853 Bracket 2 Yes

17

52-3287 24V Pull Solenoid & Bridge Assy, Exit Trim 1 Yes

52-3289 24V Push Solenoid & Bridge Assy, Exit Trim 1 Ye s

52-3290 12V Push Solenoid & Bridge Assy, Exit Trim 1 Yes

18 97-0799 Fork 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify nish

2. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts for specied

door thickness

24

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 740-6

1

2

3

5

6

7

8

9

10

11

4

12

13

1. Specify nish

2. Specify lever design by hand

Item Part No. Description Qty Sellable

1 97-0523 ET Case, Drop Mounting 1 No

2 — Lever Handle11 Ye s

3 97-0477 Bushing Insert 1 Yes

4 97-0528 Hub Plate 1 Yes

5 97-0760 Cap Nut 1 Ye s

6 01-1182 Cr-Thms #10-32 X 19/64" 1 Yes

7 01-1183 Cr-Thms #10-32 X 5/16" 1 Yes

8 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

9 97-0425 Hub Spring (Std) 1 Ye s

10 68-1254 Extension Bracket 1 Ye s

11 01-1478 Cr Pan Hd Mach Screw #1/4-20 X 3/8" 1 Yes

12 97-0573 Spindle 1 Ye s

13 68-1393 Retaining Plate 1 Ye s

Not

Shown 01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

25

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

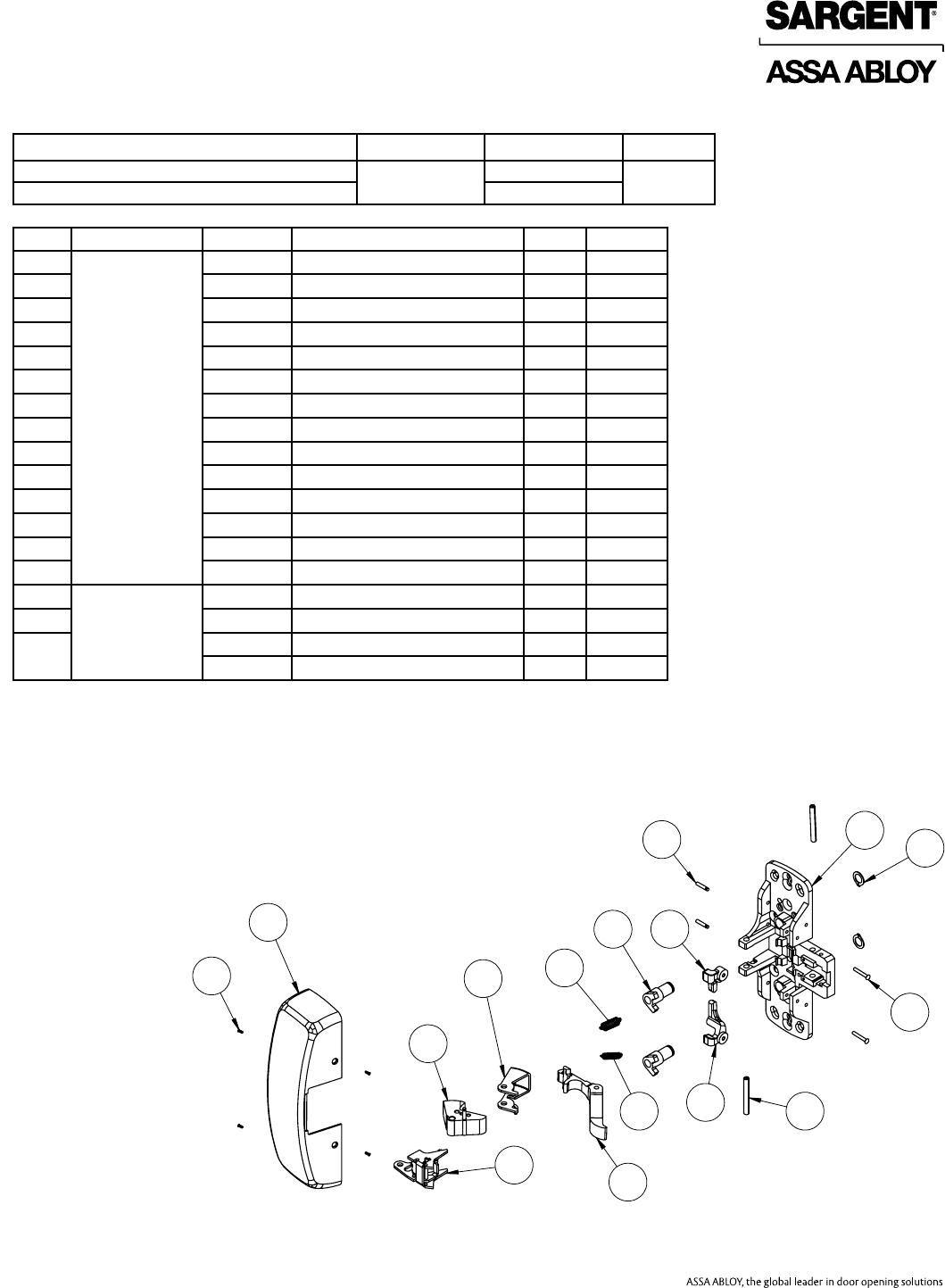

700 Series Freewheeling ET, 743-6

12

3

5

6

8

9

10

11

7

12

13

14

15

16

17

18

4

Item Part No. Description Qty Sellable

1 97-0524 ET Case, Drop Mounting 1 No

2 — Lever Handle1,3 1 Ye s

3 97-0477 Bushing Insert 1 Yes

4 97-0478 Lower Hub Plate 1 Ye s

5 97-0760 Cap Nut 1 Yes

6 01-1182 Cr-Thms #10-32 X 19/64" 1 Ye s

7 01-1183 Cr-Fhms #10-32 X 5/16" 1 Yes

8 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

Not

Shown

— Cylinder1,2 1Yes

97-0350 Collar11Yes

13-0380 Cylinder Nut 1 Yes

9 97-0425 Hub Spring (Std) 1 Ye s

10 68-1254 Extension Bracket 1 Ye s

11 01-1478 Cr Pan Hd Ms #1/4-20 X 3/8" 1 Ye s

12 97-0347 Locking Slide Spring 1 Ye s

13 97-0479 Spindle Lock 1 Ye s

14 97-0475 Locking Slide (743) 1 Yes

15 97-0581 Retaining Plate 1 Ye s

16 97-0582 Spacer 1 Yes

17 97-3092 Spindle Assembly 1 Yes

18 97-0527 E Clip 0.312 Shaft 1 Yes

Not

Shown 01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

1. Specify nish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 700-6 ET control is only available for 1-3/4" doors

Note: 607 kit contains items 7, 12, 14 and 16

26

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 746-6

12

3

5

6

4

8

9

10

11

7

12

13

15

16

18

17

14

Item Part No. Description Qty Sellable

1 97-0524 ET Case, Drop Mounting 1 No

2 — Lever Handle1,3 1 Ye s

3 97-0477 Bushing Insert 1 Ye s

4 97-0478 Lower Hub Plate 1 Ye s

5 97-0760 Cap Nut 1 Ye s

Not

Shown

— Cylinder1,2 1 Ye s

97-0350 Collar11 Ye s

13-0180 Cylinder Nut 1 Ye s

6 01-1182 Cr-Thms #10-32 X 19/64" 1 Yes

7 01-1183 Cr-Fhms #10-32 X 3/8" 1 Ye s

8 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

9 97-0425 Hub Spring (Std) 1 Ye s

10 68-1254 Extension Bracket 1 Yes

11 01-1478 Cr Pan Hd Ms #1/4-20 X 3/8" 1 Ye s

12 97-0347 Locking Slide Spring 1 Ye s

13 97-0479 Spindle Lock 1 Ye s

14 97-0526 Locking Slide (746-6) 1 No

15 97-0581 Retaining Plate 1 Ye s

16 97-0582 Spacer 1 Yes

17 97-3092 Spindle Assembly 1 Ye s

18 97-0527 E Clip 0.312 Shaft 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify nish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 700-6 ET control is only available for 1-3/4" doors

Note: 607 kit includes items 7, 12, 14 and 16

27

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 773-6 & 774-6

1

2

36

13

4

5

12

16

14

8

11

9

7

15

17

10

Item Part No. Description Qty Sellable

1 97-0525 ET Case, Drop Mounting 1 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,2 1 Yes

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0549 Spindle (Lockable 700 And 700-6) 1 Yes

7 97-0480 Locking Piece For -6 And -8 1 Ye s

8 97-0425 Hub Spring (Std) 1 Yes

9 97-0329 Locking Tail 1 Ye s

10 97-3932 Solenoid Cover Assembly 1 Ye s

11 68-1402 Retainer Plate, Electrical Function 1 Ye s

12 01-3563 Machine Screw #5-40 X 1/4" 2 Yes

13 01-1154 CR-FHMS #6-32 X 1/4" 2 Ye s

14 01-1478 CR Pan Hd Mach Screw #1/4-20 X 3/8" 1 Yes

15 68-1254 Extension Bracket 1 Ye s

16

52-3287 24V Pull Solenoid & Bridge Assy, Exit Trim 1 Yes

52-3288 12V Pull Solenoid & Bridge Assy, Exit Trim 1 Yes

52-3289 24V Push Solenoid & Bridge Assy, Exit Trim 1 Ye s

52-3290 12V Push Solenoid & Bridge Assy, Exit Trim 1 Ye s

17 97-0799 Fork 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify nish

2. Specify lever design by hand

Note: 700-6 ET control is only available for 1 3/4" doors

28

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 706-8 & 713-8

1

2

3

4

5

6

7

10

11

12

14

8

9

13

17 15

16

Item Part No. Description Qty Sellable

1 97-0429 ET Case 1 No

2 97-0477 Bushing Insert 1 Yes

3 68-1393 Retaining Plate 1 Ye s

4 97-0760 Cap Nut 1 Ye s

5 01-1183 Cr-Thms #10-32 X 5/16" 1 Ye s

6 — Lever Handle1,3 1 Ye s

7 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

8 97-0480 Locking Piece For -6 And -8 1 Yes

9 97-0557 Fusible Link 1 Ye s

10 97-0571 Locking Slide Spring 1 Yes

11 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

12 97-0425 Hub Spring (Std) 1 Ye s

13 97-0355 Locking Slide (706) 1 Yes

97-0356 Locking Slide (713) 1 Yes

14 97-0541 Spindle (Cross) 1 Ye s

15 97-0563 Spring Support 1 No

16 97-0564 Return Spring 1 No

17 97-0558 Slide Support 1 No

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify nish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts for specied

door thickness

Note: 607 kit includes items 5, 9, 10, 13, 15, 16, and 17

29

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 715-8

1

2

3

4

5

6

7

10

11

12

14

8

9

13

Item Part No. Description Qty Sellable

1 97-0429 ET Case 1 No

2 97-0477 Bushing Insert 1 Yes

3 68-1393 Retaining Plate 1 Yes

4 97-0760 Cap Nut 1 Yes

5 01-1183 Cr-Thms #10-32 X 5/16" 1 Ye s

6 — Lever Handle1,2 1 Ye s

7 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

8 97-0480 Locking Piece For -6 And -8 1 Yes

9 97-0557 Fusible Link 1 Ye s

10 97-0571 Locking Slide Spring 1 Ye s

11 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

12 97-0425 Hub Spring (Std) 1 Ye s

13 97-0356 Locking Slide (713) 1 Yes

14

730-7 Spindle Retrot Kit (1 3/4" Door) 1 Yes

730-8 Spindle Retrot Kit (2" Door) 1Ye s

730-9 Spindle Retrot Kit (2 1/4" Door) 1Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" ( 2 1/4" Door) 2 Ye s

1. Specify nish

2. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts for specied

door thickness

30

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 743-8

1

2

4

3

8

7

9

6

5

11

10

12

13

17

14

16

15

Item Part No. Description Qty Sellable

1 97-0428 ET Case 1 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,3 1 Ye s

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0425 Hub Spring (Std) 1 Yes

7 97-0479 Spindle Lock 1 Yes

Not

Shown

— Cylinder1,2 1 Ye s

97-0350 Collar11 Yes

13-0180 Cylinder Nut 1 Ye s

8 97-0478 Lower Hub Plate 1 Ye s

9

97-3092 Spindle Assembly (1 3/4" Door) 1 Yes

97-3093 Spindle Assembly (2" Door) 1 Ye s

97-3094 Spindle Assembly (2 1/4" Door) 1 Ye s

10 97-0527 E Clip 0.312 Shaft 1 Ye s

11 68-3671 Spindle Adapter 1 Ye s

12 97-0347 Locking Slide Spring 1 Ye s

13 97-0581 Retaining Plate 1 Yes

14 97-0475 Locking Slide (743) 1 Ye s

15 97-0582 Spacer 1 Ye s

16 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

17 01-1183 Cr-Fhms #10-32 X 5/16" 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify nish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 607 kit includes items 12, 14, 15 and 17

31

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 746-8

1

2

4

3

8

7

9

6

5

11

10

12

13

17

14

6

15

Item Part No. Description Qty Sellable

1 97-0428 ET Case 1 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,3 1 Ye s

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0425 Hub Spring (Std) 1 Yes

7 97-0479 Spindle Lock 1 Ye s

8 97-0478 Lower Hub Plate 1 Yes

Not

Shown

— Cylinder1,2 1 Ye s

97-0350 Collar11Yes

13-0180 Cylinder Nut 1 Yes

9

97-3092 Spindle Assembly (1 3/4" Door) 1 Ye s

97-3093 Spindle Assembly (2" Door) 1 Ye s

97-3094 Spindle Assembly (2 1/4" Door) 1 Ye s

10 97-0527 E Clip 0.312 Shaft 1 Yes

11 68-3671 Spindle Adapter 1 Ye s

12 97-0347 Locking Slide Spring 1 Yes

13 97-0581 Retaining Plate 1 Yes

14 97-0476 Locking Slide (746 Function) 1 Ye s

15 97-0582 Spacer 1 Yes

16 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

17 01-1183 Cr-Fhms #10-32 X 3/8" 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify nish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 607 kit includes items 12, 14, 15 and 17

32

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 773-8 & 774-8

1

2

3

6

12

4

5

9

14

8

11

15

7

13

10

16

Item Part No. Description Qty Sellable

1 97-0575 ET Case 1 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap 1 Ye s

4 — Lever Handle1,2 1 Ye s

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

Not

Shown

730-7 Spindle Retrot Kit (1 3/4" Door) 1Ye s

730-8 Spindle Retrot Kit (2" Door) 1Yes

730-9 Spindle Retrot Kit (2 1/4" Door) 1Yes

6 97-0541 Spindle 1 Ye s

7 97-0480 Lower Hub Plate 1 Yes

8 97-0425 Hub Spring (Std) 1 Ye s

9 97-0329 Locking Tail 1 Ye s

10 97-3932 Solenoid Cover Assembly 1 Yes

11 68-1402 Retainer Plate, Electrical Function 1 Ye s

12 01-3563 Machine Screw #5-40 X 1/4" 2 Ye s

13 01-1154 Cr-Fhms #6-32 X 1/4" 2 Ye s

14 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

15

52-3287 24V Pull Solenoid & Bridge Assy, Exit Trim 1 Yes

52-3288 12V Pull Solenoid & Bridge Assy, Exit Trim 1 Yes

52-3289 24V Push Solenoid & Bridge Assy, Exit Trim 1 Ye s

52-3290 12V Push Solenoid & Bridge Assy, Exit Trim 1 Ye s

16 97-0799 Fork 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify nish

2. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts for

specied door thickness

33

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 777-8

1

2

3

4

5

6

7

8

9

10

11

12

13

Item Part No. Description Qty Sellable

1 97-0574 Electric ET Case W/ Cylinder Prep 1 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap Nut 1 Yes

4 — Lever Handle1,2 1 Ye s

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0480 Hub Plate (700-8) 1 Ye s

7 01-1182 CR-CHMS #10-32 X 19/64" 1 Yes

8 97-0425 Hub Spring (Std) 1 Ye s

9 52-2556 Motor & Housing Assembly 1 Yes

10 68-1402 Retainer Plate, Electrical Function 1 Ye s

11 01-1154 #6-32 X 1/4" Ph Flat Head Machine Screw 2 Ye s

12 01-4540 #3-48 X 5/8" Ph Pan Head Machine Screw 2 Ye s

13 97-0541 Spindle (Lockable 700-8) 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify nish

2. Specify lever design by hand

34

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 778-8

1

2

3

4

5

6

7

8

9

10

11

12

13

Item Part No. Description Qty Sellable

1 97-0575 Electric ET Case W/O Cylinder Prep11 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,2 1 Yes

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0480 Hub Plate (700-8) 1 Ye s

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

8 97-0425 Hub Spring (Std) 1 Ye s

9 52-2556 Motor & Housing Assembly 1 Ye s

10 68-1402 Retainer Plate, Electrical Function 1 Yes

11 01-1154 #6-32 X 1/4" Ph Flat Head Machine Screw 2 Ye s

12 01-4540 #3-48 X 5/8" Ph Pan Head Machine Screw 2 Ye s

13 97-0541 Spindle (Lockable 700-8) 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify nish

2.Specify lever design by hand

35

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

(12-)8304 (12-)8310 (12-)8313 (12-)8315

(12-)8328 (12-)8343 (12-)8344 (12-)8363

(12-)8375 (12-)8376

Function Assembly No. Description Sellable

(12-) All

functions

1 3/4" Door

68-2481 LHRB Ye s

68-2482 RHRB Yes

2"-2 3/4" Door

68-2483 LHRB Ye s

68-2484 RHRB Yes

1

2

3

45

6

7

Item Part No. Description Qty Sellable

1 68-0486 Chassis 1 No

2 68-0241 Lift Arm 1 Yes

3 68-0239 Pivot Pin (Lift Arm) 1 Yes

4

68-0489 Lift Lever LHRB 1 3/4" Door 1 Yes

68-0490 Lift Lever RHRB 1 3/4" Door 1 Yes

68-0491 Lift Lever LHRB 2 3/4" Door 1 Yes

68-0492 Lift Lever RHRB 2 3/4" Door 1 Yes

5 68-0479 Pivot Pin (Lift Lever) 1 Yes

6 68-0496 Cover11 Ye s

7 68-3905 Cover Screw Pack12 Ye s

Not

Shown

— 900 Series Mortise Assembly1,2,4 1 Yes

68-2520 Screw Pack Standard 1 Ye s

68-2522 Screw Pack (12-) 1 Yes

C908 Strike Pack3 (1 1/4" Standard Lip) 1 Yes

1. Specify nish

2. Specify hand

3. Specify lip length

4. Specify function

36

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

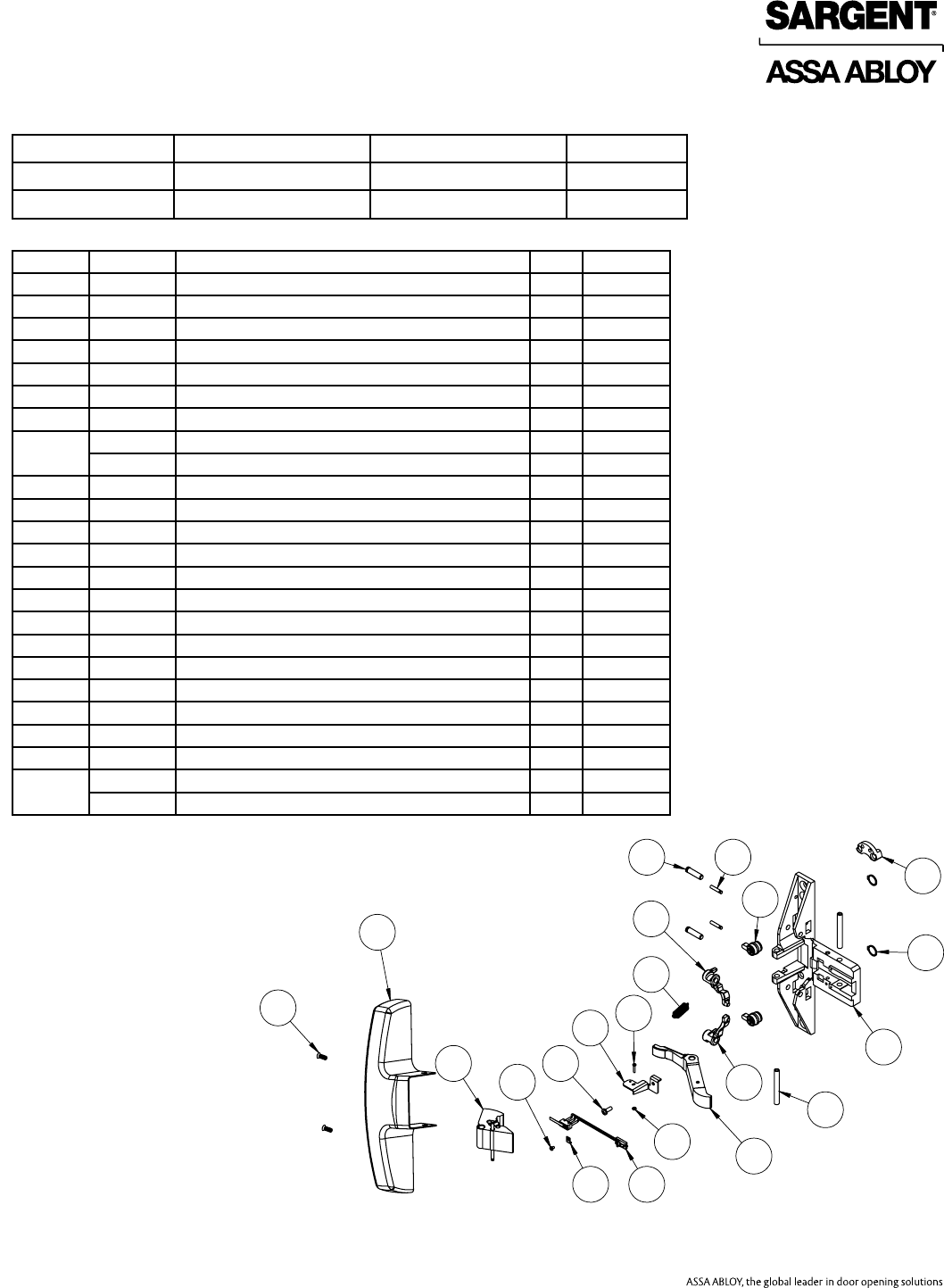

(12/53-)8504 (12/53-)8506 (12/53-)8510

(12/53-)8513 (12/53-)8515 (12/53-)8540

(12/53-)8543 (12/53-)8544 (12/53-)8546

(12/53-)8573 (12/53-)8574

Function Assembly No. Description Sellable

(12-) All functions 68-5880 LHRB/RHRB Yes

(12-) 53- All functions 68-7411 LHRB/RHRB Yes

8

4

3

14

17

15

5

16

12

7

11

13 6

9

10

18

19

20

21

2

1

Item Part No. Description Qty Sellable

1 68-0495 Cover11 Ye s

2 68-3905 Cover Screw Pack11 Ye s

3 68-1137 Lift Arm 1 Yes

4 98-0028 Latchbolt Spring 1 Ye s

5 01-4512 Spirol Pin 2 Yes

6 01-0008 Groove Pin 2 No

7 68-1624 8500 Chassis 1 Ye s

868-7420 Latchbolt Assembly (53-) 1 Ye s

68-6021 Latchbolt Assembly (Std) 1 Yes

9 68-1625 Lift Lever (RHRB) 1 Yes

10 68-1626 Lift Lever (LHRB) 1 Ye s

11 94-0088 Cylinder Hub 2 Yes

12 01-0005 Retaining Ring, Truarc 5100-43 2 Ye s

13 68-0479 Lift Lever Pivot Pin 2 No

14 52-0310 Cable Clamp (53-) 1 Yes

15 01-1482 Cr-Phms (#2-56 X 1/8") (53-) 1 Yes

16 13-0458 Cylinder Retainer Pack (04 & 044 Functions Only) 1 Ye s

17 68-1686 Switch Bracket (53-) 1 Ye s

18 01-1220 #6-32 X 3/8" Length Ph Pn Hd Machine Screw (53-) 1 Yes

19 52-4545 Switch Assembly (53-) 1 Ye s

20 01-9446 Machine Screw (#1-72 X 11/32" Ph Fl Hd) (53-) 1 Yes

21 01-0909 Hex Machine Screw Nut (53-) 1 Ye s

Not

Shown

68-2512 Screw Pack 1 Yes

657 Strike Pack 1 Yes

1. Indicates nish required

37

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

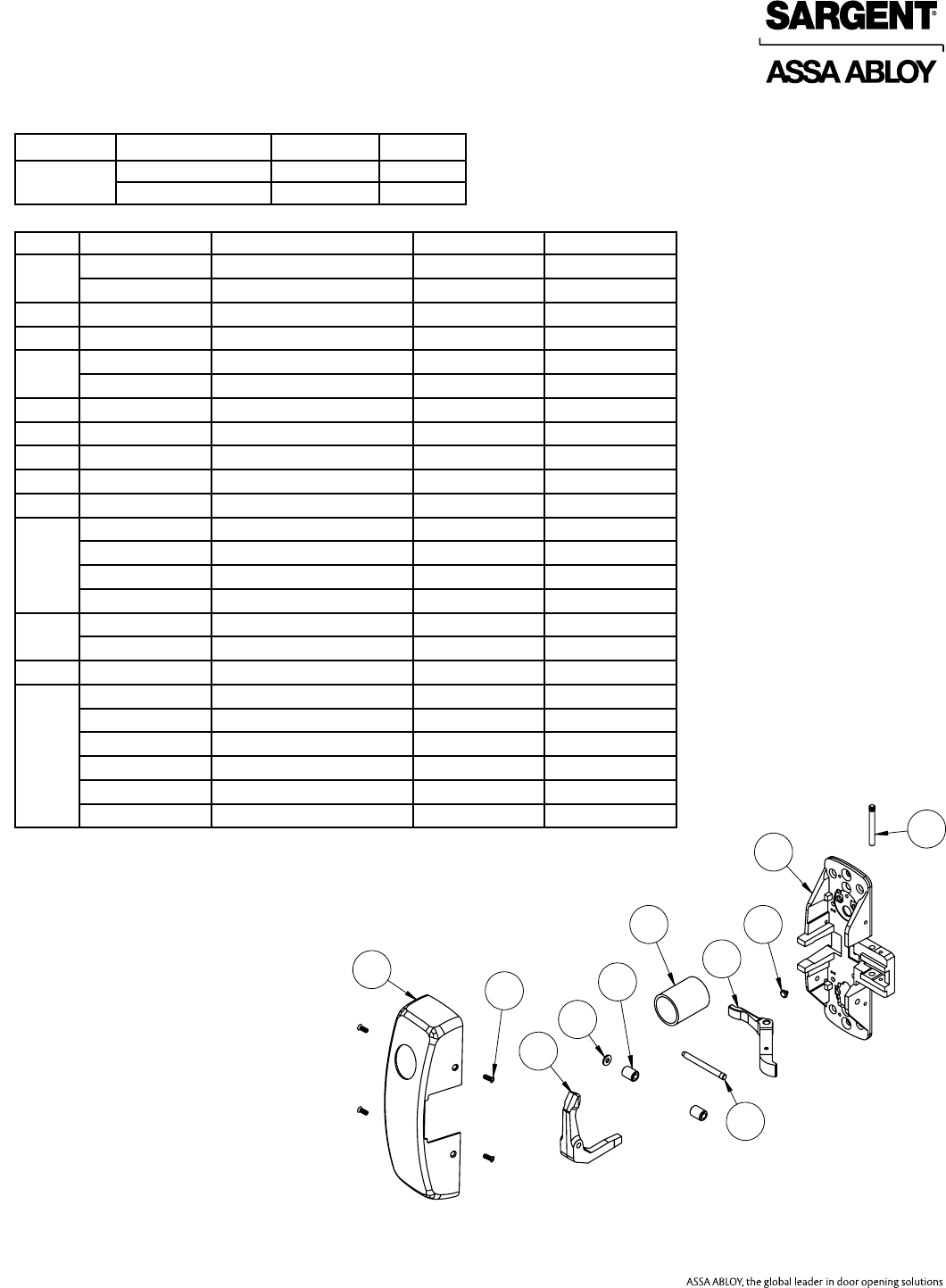

(12-/GL-/59-)8504 (12-/GL-/59-)8506 (12-/GL-/59-)8510

(12-/GL-/59-)8513 (12-/GL-/59-)8515 (12-/GL-/59-)8540

(12-/GL-/59-)8543 (12-/GL-/59-)8544 (12-/GL-/59-)8546

(12-/GL-/59-)8573 (12-/GL-/59-)8574

Function Assembly No. Description Sellable

(12-)GL- All functions 68-5881 LHRB/RHRB YES

(12-)59- All functions 68-5882 LHRB/RHRB YES

3

4

8

5

617

7

11

9

10

12

13

14

15

16

18

19

1

2

Item Part No. Description Qty Sellable

1 68-1020 Cover11 Ye s

2 — Screw Pack11 Yes

3 68-1353 Lift Arm (Guarded) 1 Yes

4 98-0028 Latchbolt Spring 1 Ye s

5 01-4512 Spirol Pin 2 Ye s

6 01-0008 Groove Pin 2 No

7 68-1352 Guide 1 Ye s

8 68-1394 Extension Spring 1 Ye s

9 68-1624 8500 Chassis 1 No

10 68-5949 Guard Bracket & Switch Assembly (59-) 1 No

68-5947 8500 Guard Bracket Assembly (Gl-) 1 No

11 68-4415 Guarded Latchbolt 1 Ye s

12 52-0310 Cable Clamp (59-) 1 Yes

13 68-1625 Lift Lever (RhRb) 1 Yes

14 68-1626 Lift Lever (LhRb) 1 Yes

15 94-0088 Cylinder Hub 2 Ye s

16 01-0005 Retaining Ring 2 Yes

17 68-0479 Lift Lever Pivot Pin 2 Yes

18 01-1482 Cr-Phms (#2-56 X 1/8") (59-) 1 Ye s

19 13-0458 Cylinder Retainer Pack (04 & 044 Functions Only) 1 Ye s

Not

Shown

68-2512 Screw Pack 1 Ye s

657 Strike Pack 1 Ye s

1. Indicates nish required

38

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

(WS-/53-)8804 (WS-/53-)8806 (WS-/53-)8810 (WS-/53-)8813

(WS-/53-)8815 (WS-/53-)8840 (WS-/53-)8843 (WS-/53-)8844

(WS-/53-)8846 (WS-/53-)8873 (WS-/53-)8874 (WS-/53-)8875

(WS-/53-)8876 (WS-/53-)8877 (WS-/53-)8878 (WS-/53-)8881

(WS-/53-)8882 (WS-/53-)8888

1

7

5

4

3

8

2

9

10

6

11

12

13

14

15

16

18 17

19

20

Item Assy No. Part No. Description Qty Sellable

1

See chart

above

68-1389 Chassis Blank (Std) 1 No

2 98-0018 Outside Cylinder Hub 2 Yes

3 68-1366 Lift Lever (RH) 1 Ye s

4 68-1367 Lift Lever (LH) 1 Ye s

5 68-4413 Standard Latchbolt (68-4261) 1 Ye s

68-7417 53- Standard Latchbolt (68-6075) 1 Ye s

6 98-0028 Latchbolt Spring 1 Ye s

7 68-1137 Lift Arm 1 Ye s

8 98-0011 Latchbolt Lever Pivot Pin 2 Yes

9 01-4512 Spirol Pin 2 Ye s

10 01-0005 Retaining Ring, Truarc 5100-43 2 Ye s

11 01-0008 Groove Pin 1 No

12 68-1685 Switch Bracket (53- Only) 1 Ye s

13 01-1482 #2-56 X 1/8" Ph Pn Hd Machine Screw (53- Only) 1 Yes

14 52-4545 Switch Assembly (53- Only) 1 Yes

15 01-9446 #1-72 X 11/32" Ph Fl Hd Machine Screw (53- Only) 1 Ye s

16 01-0909 Hex Machine Screw Nut (53- Only) 1 Ye s

17 52-0310 Cable Clamp (53- Only) 1 Ye s

18 01-1482 Cr-Phms #2-56 X 1/8" (53- Only) 1 Yes

19

N/A

68-0406 Cover11 Yes

20 68-3905 Screw Pack11 Ye s

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack 1 Yes

1. Indicates nish required

Function Assembly No. Description Sellable

All functions 68-4261 LHRB/RHRB Ye s

WS- All functions LHRB/RHRB

53- All functions 68-6075 LHRB/RHRB Ye s

WS-53- All functions LHRB/RHRB

39

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

(12-/WS-/53)8804 (12-/WS-/53)8806 (12-/WS-/53)8810 (12-/WS-/53)8813

(12-/WS-/53)8815 (12-/WS-/53)8840 (12-/WS-/53)8843 (12-/WS-/53)8844

(12-/WS-/53)8846 (12-/WS-/53)8873 (12-/WS-/53)8874 (12-/WS-/53)8875

(12-/WS-/53)8876 (12-/WS-/53)8877 (12-/WS-/53)8878 (12-/WS-/53)8881

(12-/WS-/53)8882 (12-/WS-/53)8888

1

7

5

4

3

8

2

9

10

6

11

12

13

14

15

16

18 17

19

20

Item Assy No. Part No. Description Qty Sellable

1

See chart

above

68-1378 Chassis Blank (12-) 1 No

2 98-0018 Outside Cylinder Hub 2 Ye s

3 68-1366 Lift Lever (RH) 1 Ye s

4 68-1367 Lift Lever (LH) 1 Yes

5 68-4414 Fire Rated Latchbolt (68-4263) 1 Ye s

68-7418 12-53- Standard Latchbolt (68-6076) 1 Yes

6 98-0028 Latchbolt Spring 1 Yes

7 68-1137 Lift Arm 1 Yes

8 98-0011 Latchbolt Lever Pivot Pin 2 Yes

9 01-4512 Spirol Pin 2 Ye s

10 01-0005 Retaining Ring, Truarc 5100-43 2 Ye s

11 01-0008 Groove Pin 1 No

12 68-1685 Switch Bracket (53- Only) 1 Yes

13 01-1482 #2-56 Ph Pn Hd Machine Screw (53- Only) 1 Yes

14 52-4545 Switch Assembly (53- Only) 1 Ye s

15 01-9446 #1-72 X 11/32" Ph Fl Hd Machine Screw (53- Only) 1 Ye s

16 01-0909 Hex Machine Screw Nut (53- Only) 1 Yes

17 52-0310 Cable Clamp (53- Only) 1 Ye s

18 01-1482 Cr-Phms #2-56 X 1/8" (53- Only) 1 Ye s

19

N/A

68-0406 Cover11 Yes

20 68-3905 Cover Screw Pack (#8-32 X 5/16")11 Yes

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack 1 Ye s

1. Indicates nish required

Function Assembly No. Description Sellable

12- All functions 68-4263 LHRB/RHRB YES

WS-12- All functions LHRB/RHRB

12-53- All functions 68-6076 LHRB/RHRB YES

WS-12-53- All functions LHRB/RHRB

40

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

AL- AND GL- PREFIXES

8804 8806 8810 8813 8815 8840

8843 8844 8846 8875 8876 8877

8878 8881 8882

1

4

12

3

13

8

5

6

2

10

14

7

9

11

1

16

Item Assembly No. Part No. Description Qty Sellable

1

See chart above

68-1485 Chassis (Std) 1 No

2 98-0018 Outside Hub 2 Yes

3 98-0011 Latchbolt Lever Pin 2 Ye s

4 01-0005 Retaining Ring, Truarc 5100-43 2 Ye s

5 68-1366 Lift Lever (RH) 1 Ye s

6 68-1367 Lift Lever (LH) 1 Ye s

7 68-4415 Guarded Latchbolt 1 Yes

8 68-1353 Lift Arm 1 Yes

9 68-1352 Guide 1 Yes

10 98-0028 Latchbolt Spring 1 Yes

11 68-4417 Guard Bracket Std 1 Yes

12 01-4512 Spirol Pin 2 Ye s

13 01-0008 Groove Pin 2 No

14 68-1394 Guide Spring 1 Ye s

15

N/A

68-1014 Cover11 Yes

16 68-3905 Cover Screw Pack11 Ye s

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack 1 Yes

1. Indicates nish required

Function Assembly No. Description Sellable

AL- (All Functions Except 77,78,81, And 82) 68-4410 LHRB/RHRB Yes

GL- (All Functions) LHRB/RHRB

41

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

AL- AND GL- PREFIXES

12-8804 12-8806 12-8810 12-8813

12-8815 12-8840 12-8843 12-8844

12-8846 12-8875 12-8876 12-8877

12-8878 12-8881 12-8882

1

4

12

3

13

8

5

6

2

10

14

7

9

11

1

2

Item Assembly No. Part No. Description Qty Sellable

1

See chart above

68-1378 Chassis (12-) 1 No

2 98-0018 Outside Hub 2 Yes

3 98-0011 Latchbolt Lever Pin 2 Ye s

4 01-0005 Retaining Ring, Truarc 5100-43 2 Ye s

5 68-1366 Lift Lever (Rh) 1 Ye s

6 68-1367 Lift Lever (Lh) 1 Ye s

7 68-4415 Guarded Latchbolt 1 Yes

8 68-1353 Lift Arm 1 Ye s

9 68-1352 Guide 1 Ye s

10 98-0028 Latchbolt Spring 1 Ye s

11 68-4417 Guard Bracket Std 1 No

12 01-4512 Spirol Pin 2 Ye s

13 01-0008 Groove Pin 2 No

14 68-1394 Guide Spring 1 Ye s

15

N/A

68-1014 Cover11 Ye s

16 68-3905 Cover Screw Pack11 Yes

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack 1 Ye s

1. Indicates nish required

Function Assembly No. Description Sellable

12-AL- (All Functions Except 77,78,81,82, And 88) 68-4411 LHRB/RHRB Ye s

12-GL- (All Functions)

42

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

8816

26

25

24

23

22

21

20

8

5

4

19

18

17

6

7

910

11

1

3

2

1312

14

15

16

Item Part No. Description Qty. Sellable

1 68-0408 Chassis Assembly 1 No

2 01-0008 Groove Pin 1 No

3 97-0050 Spring Knob Return 1 Ye s

4 68-0271 Pivot Pin Knob Lever 1 Yes

5 68-0273 Bushing Knob Lever 1 Yes

6

68-4236 Knob Lever Assy

(LHRB) 1 Yes

68-4235 Knob Lever Assy

(RHRB) 1 Yes

7

68-0237 Latchbolt Lever

(LHRB)21 Ye s

68-0238 Latchbolt Lever

(RHRB)21 Ye s

8 98-2034 Latchbolt Assy 1 Yes

9 97-0040 Bushing Latchbolt 1 Ye s

10 98-0028 Spring Latchbolt 1 Ye s

11 01-3384 Screw 8-32 x 5/16 4 Yes

12 68-0367 Knob Hub Cover 1 Yes

13 97-0042 Knob Hub 1 Ye s

14 97-0043 Knob Hub Retainer 1 Ye s

Item Part No. Description Qty. Sellable

15 01-0005 Retaining Ring 1 Ye s

16 01-0013 Screw Latchbolt Pivot 1 Yes

17 01-4512 Pivot Pin Left Arm 1 Ye s

18 98-0011 Pivot Pin Latchbolt

Lever 1 Yes

19 98-0020 Inside Cylinder

Retainer 1 Yes

20 01-1095 Set Screw #8-32 x 1/4

Cup Point 1 Yes

21 98-0018 Outside Cylinder Hub 1 Ye s

22 68-0241 Lift Arm 1 Yes

23 98-0021 Blocking Ring11 Ye s

24 68-0408 Cover (LHRB)1

1 Ye s

68-0409 Cover (RHRB)1

25 68-3908 Cover Screw Pack 1 Yes

— 68-2143 Screw Pack 1 Ye s

26 — Cylinder1,3 1 Ye s

— 649 Strike Pack11 Ye s

1. Specify nish

2. Order opposite hand from door

3. Specify #44 cylinder by keying requirements

43

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

AL- and GL- Prefixes

8816

14

15

13

8

7

6

1

5

11

9

12

10

4

32

16

Item Assembly No. Part No. Description Qty Sellable

1

See chart above

68-1015 Chassis 1 No

2 68-0237 Latchbolt Lever (LHRB)21 Ye s

68-0238 Latchbolt Lever (RHRB)21 Ye s

3 98-0011 Latchbolt Lever Pivot Pin 1 Ye s

4 98-0018 Outside Cylinder Hub 1 Ye s

5 01-0005 Retaining Ring 1 Ye s

6 98-0020 Inside Cylinder Retainer 1 Ye s

7 01-1095 Cylinder Set Screw 1 Yes

8 01-1146 Machine Screw (8-32 x 5/16) 2 Ye s

9 97-0042 Knob Hub 1Yes

10 97-0043 Knob Hub Retainer 1 Ye s

11 68-0367 Knob Hub Cover 1 Yes

12 01-3384 Machine Screw (8-32 x 3/8) 2 Ye s

13

N/A

98-0021 Blocking Ring11 Ye s

14 - Cylinder1,3 1 Yes

15 68-1015 Cover (LHRB)11 Ye s

68-1016 Cover (RHRB)11 Ye s

16 68-3908 Cover Screw Pack11 Yes

Not

Shown

68-2143 Screw Pack 1 Ye s

649 Strike Pack 1 Ye s

1. Specify  nish

2. Order opposite hand from door

3. Specify #44 cylinder by keying requirements

Function Assembly No. Description Sellable

AL-/GL-8816 68-4075 LHRB Yes

AL-/GL-8816 68-4076 RHRB

44

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

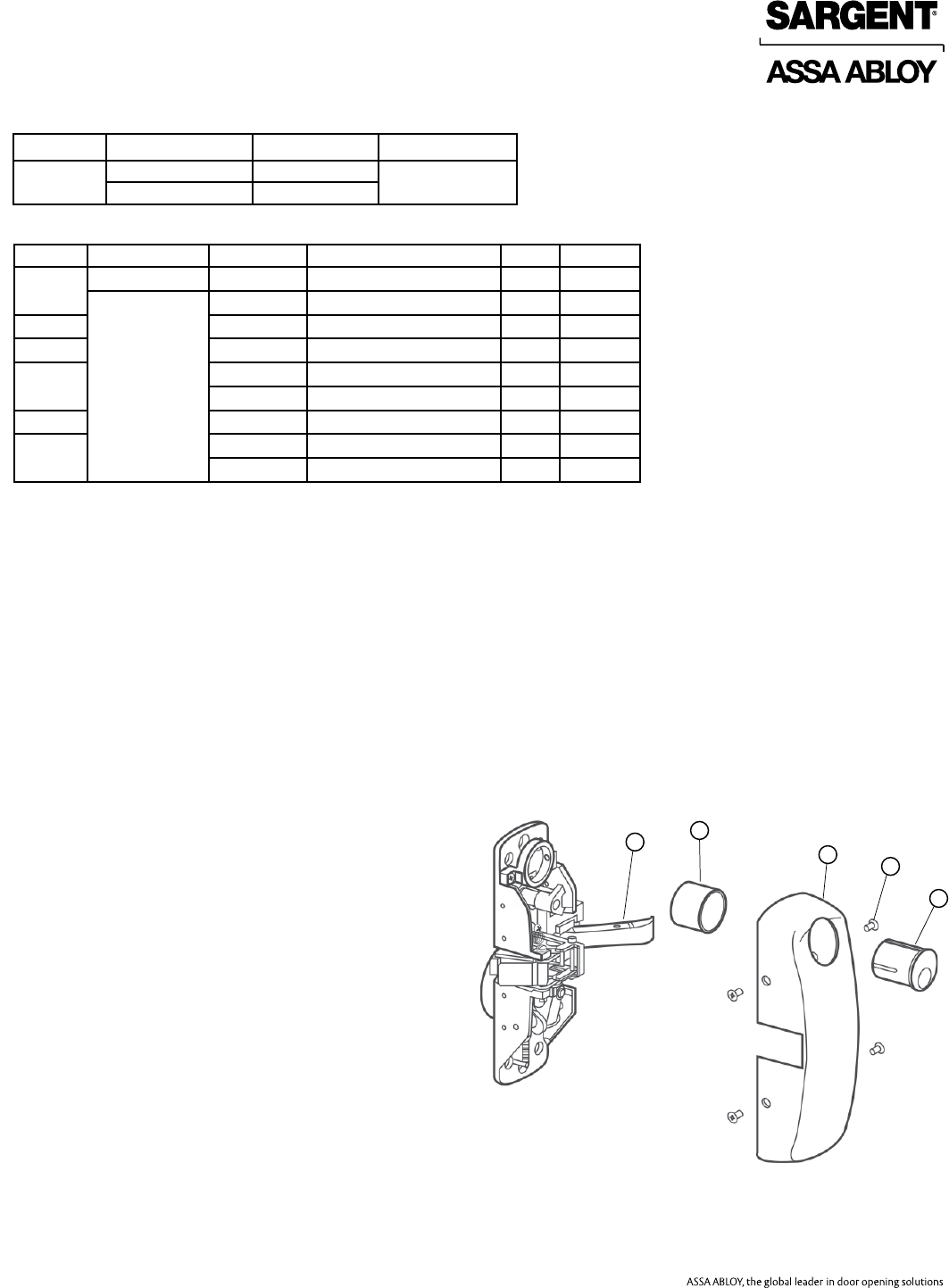

AL- and GL- Prefixes

12-8816

1

2

3

4

5

Item Assembly No. Part No. Description Qty Sellable

1See chart above 68-4077 Chassis Assembly (LHRB) 1 Ye s

N/A

68-4078 Chassis Assembly (RHRB) 1 Yes

2 98-0021 Blocking Ring11 Ye s

3 — Cylinder1,2 1 Ye s

468-1015 Cover (LHRB)11 Ye s

68-1016 Cover (RHRB)11 Yes

5 68-3908 Cover Screw Pack11 Ye s

Not

Shown

68-2165 Screw Pack 1 Ye s

649 Strike Pack 1 Yes

1. Specify nish

2. Specify #44 cylinder by keying requirements

Function Assembly No. Description Sellable

8816 68-4077 LHRB Yes

68-4078 RHRB

45

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

8828

5

4

13

2

11

7

8

9

10

6

12

13

Item Assembly No. Part No. Description Qty. Sellable

1

See chart above

— Chassis (LHRB) 1 No

— Chassis (RHRB) 1 No

2 68-0271 Pivot Pin Thumb Lever 1 Yes

3 68-0273 Bushing Thumb Lever 1 Yes

468-0260 Thumb Piece Lever (LHRB) 1 Ye s

68-0261 Thumb Piece Lever (RHRB) 1 Yes

5 98-2034 Latchbolt Assy 1 Yes

6 98-0028 Spring Latchbolt 1 Yes

7 01-0008 Groove Pin 1 No

8 01-0013 Screw Latchbolt Pivot 1 Ye s

9 01-4512 Pivot Pin Lift Arm 1 Ye s

10 68-0241 Lift Arm 1 Ye s

11 97-0040 Bushing Latchbolt 1 Yes

12

N/A

68-0406 Cover11 Ye s

13 68-3908 Cover Screw Pack11 Yes

Not

Shown

68-2143 Screw Pack 1 Ye s

649 Strike Pack 1 Yes

1. Specify nish

Function Assembly No. Description Sellable

8828 68-2106 LHRB Yes

68-2107 RHRB

46

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

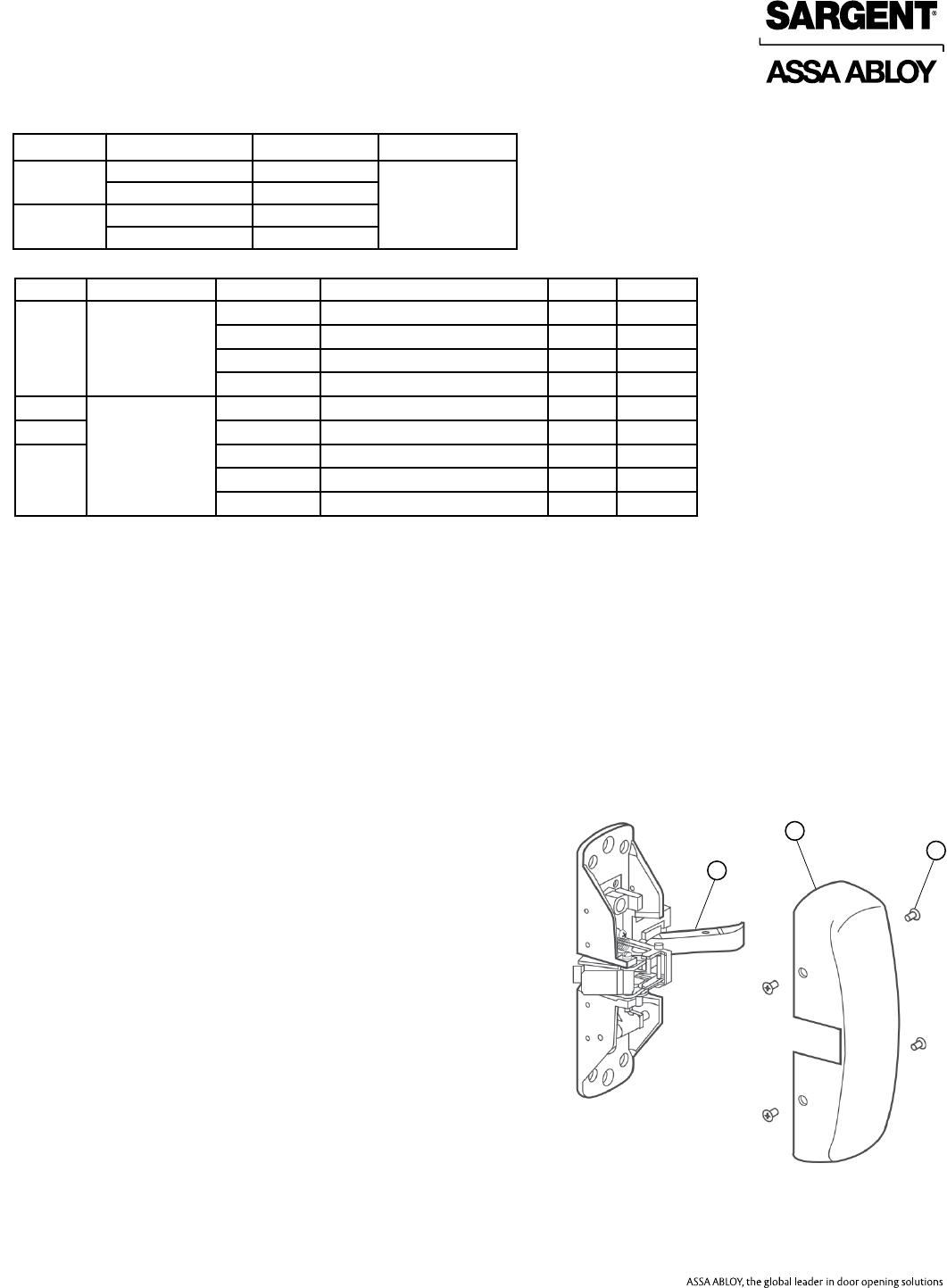

AL- and GL- Prefixes

12-8828

1

2

3

Item Assembly No. Part No. Description Qty Sellable

1 See chart above

68-4080 Chassis Assembly STD LHRB 1 Yes

68-4081 Chassis Assembly STD RHRB 1 Ye s

68-4082 Chassis Assembly 12- LHRB 1 Ye s

68-4083 Chassis Assembly 12- RHRB 1 Yes

2

N/A

68-1014 Cover11 Ye s

3 68-3908 Cover Screw Pack11 Yes

Not

Shown

68-2143 Screw Pack STD 1 Yes

68-2165 Screw Pack 12 1 Yes

649 Strike Pack 1 Yes

1. Specify nish

Function Assembly No. Description Sellable

AL- GL- 68-4080 LHRB

Yes

68-4081 RHRB

12- GL- 68-4082 LHRB

68-4083 RHRB

47

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

8863

5

4

13

2

8

10 11 13 12

14

15

9

6

7

Item Assembly No. Part No. Description Qty. Sellable

1

See chart above

— Chassis Assembly (LHRB) 1 No

— Chassis Assembly (RHRB) 1 No

2 68-0271 Pivot Pin Thumb Lever 1 Yes

3 68-0273 Bushing Thumb Lever 1 Yes

468-0260 Thumb Piece Lever LHRB 1 Ye s

68-0261 Thumb Piece Lever RHRB 1 No

5 97-0040 Bushing Latchbolt 1 Yes

6 98-0028 Spring Latchbolt 1 Yes

7 98-2034 Latchbolt Assy 1 Ye s

8 01-0008 Groove Pin 1 No

9 01-0005 Retaining Ring 1 Yes

10 01-0013 Screw Latchbolt Pivot 1 Yes

11 01-4512 Pivot Pin Lift Arm 1 Ye s

12 98-0018 Outside Cylinder Hub 1 Ye s

13 68-0241 Lift Arm 1 Yes

14

N/A

68-0406 Cover11 No

15 68-3908 Cover Screw Pack11 Yes

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack 1 Yes

1. Specify nish

Function Assembly No. Description Sellable

8863 68-2109 LHRB Yes

8863 68-2110 RHRB Yes

48

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

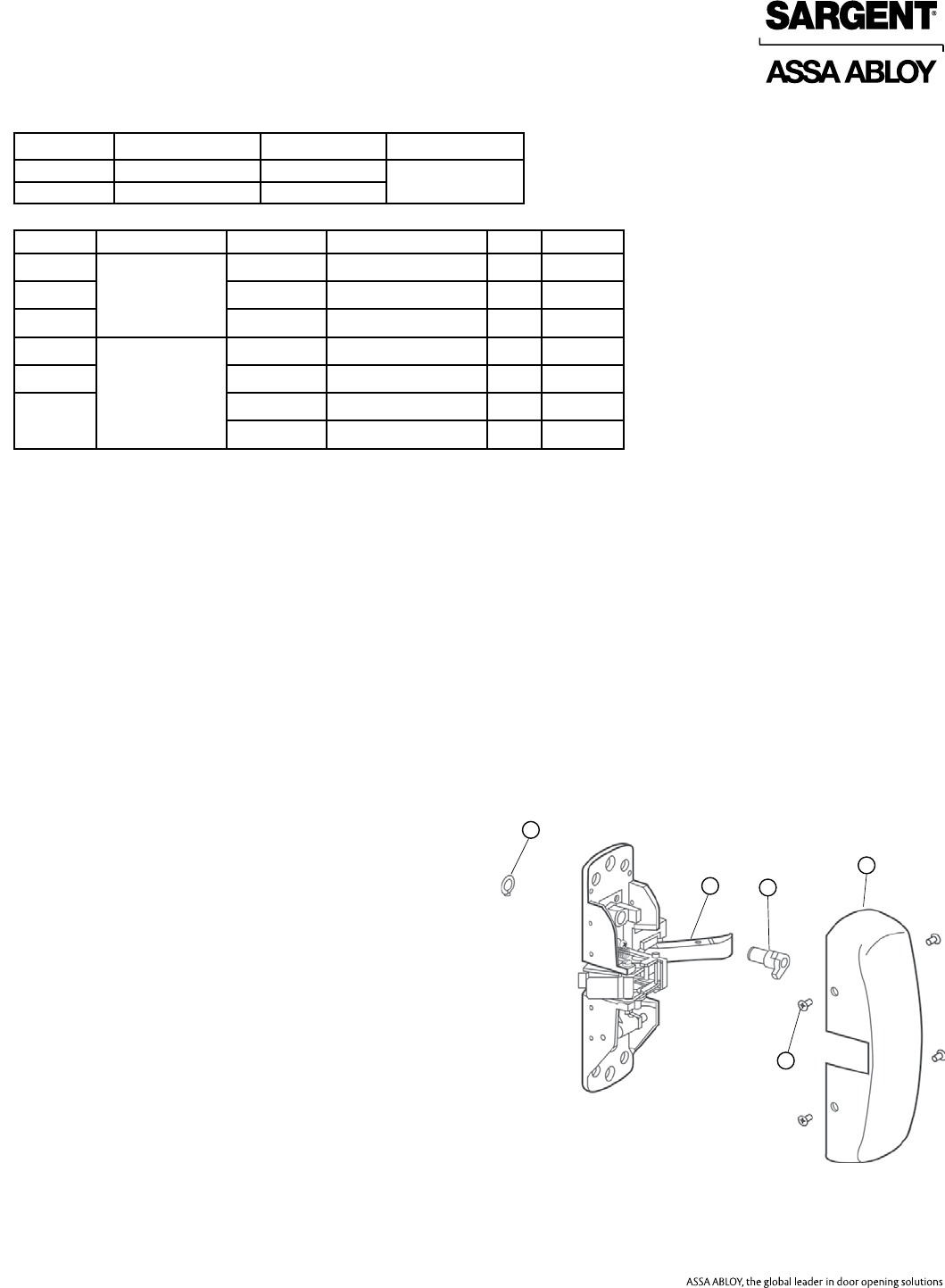

AL- and GL- Prefixes

8863

12

3

4

5

Item Assembly No. Part No. Description Qty Sellable

1

See chart above

Chassis 1 No

2 98-0018 Outside Cylinder Hub 1 Ye s

3 01-0005 Retaining Ring 1 Yes

4

N/A

68-1014 Cover11 Ye s

5 68-3908 Cover Screw Pack11 Ye s

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack 1 Ye s

1. Specify nish

Function Assembly No. Description Sellable

AL-/GL-8863 68-4097 LHRB Ye s

AL-/GL-8863 68-4098 RHRB

49

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

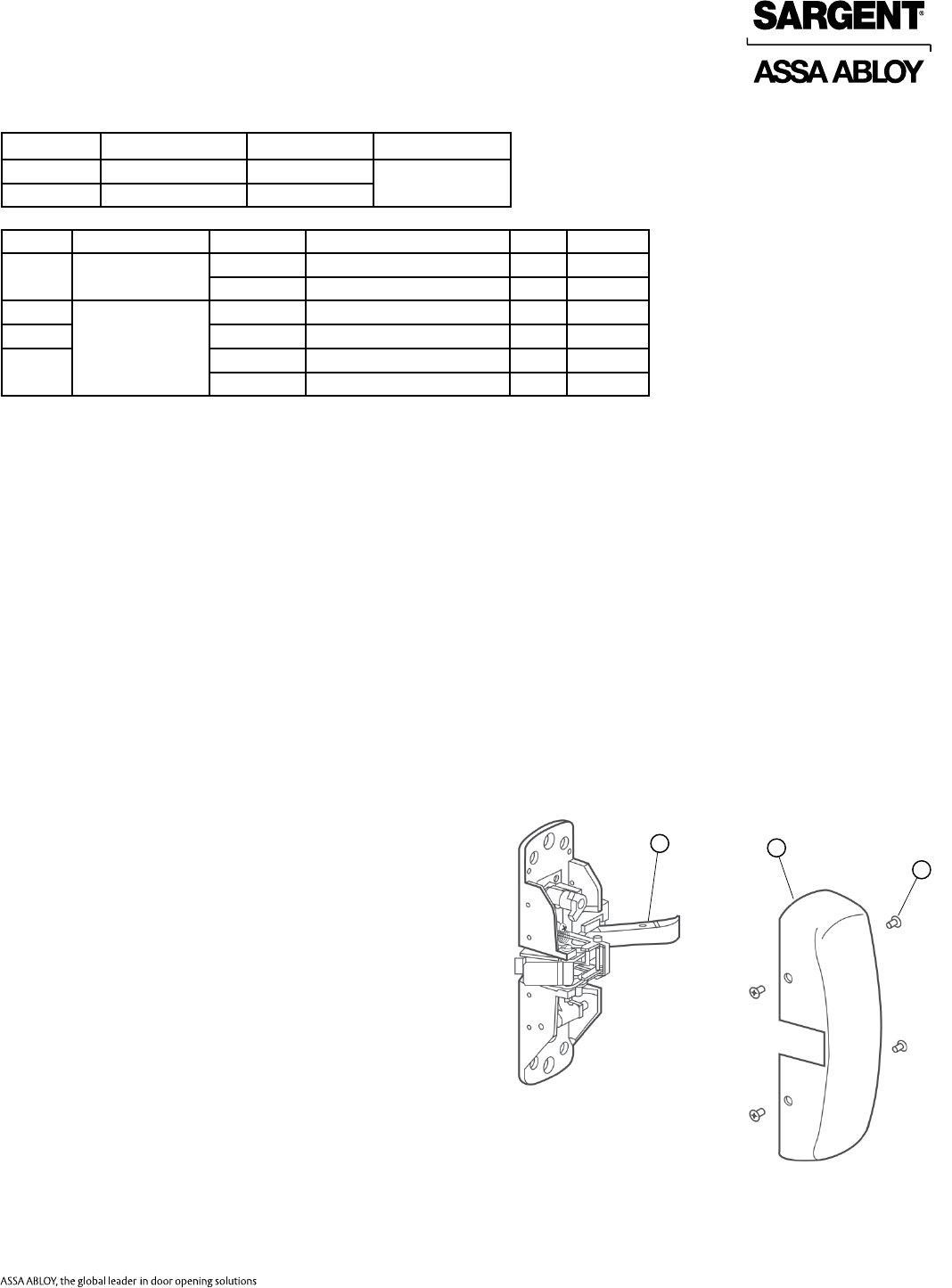

AL- and GL- Prefixes

12-8863

12

3

Item Assembly No. Part No. Description Qty Sellable

1 See chart above 68-4099 Chassis Assembly (LHRB) 1 Yes

68-4100 Chassis Assembly (RHRB) 1 Ye s

2

N/A

68-1014 Cover11Ye s

3 68-3908 Cover Screw Pack11 Ye s

Not

Shown

68-2165 Screw Pack 1 Ye s

649 Strike Pack 1 Ye s

1. Specify nish

Function Assembly No. Description Sellable

AL-/GL-8863 68-4099 LHRB Ye s

AL-/GL-8863 68-4100 RHRB

50

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

8866

5

2

1

4

3

17

15

14

13

12

18

20

16

19

7

6

11 10

98

22

21

Item Part No. Description Qty. Sellable

1 - Chassis Assembly 1 No

268-0260 Thumb Piece Lever LHRB 1 Ye s

68-0261 Thumb Piece Lever RHRB 1 Ye s

3 68-0271 Pivot Pin 1 Ye s

4 68-0273 Bushing 1 Ye s

5 98-0018 Outside Cylinder Hub 1 Ye s

6 98-2034 Latchbolt 1 Ye s

7 97-0040 Bushing, Latchbolt 1 Ye s

8 97-0028 Spring, Latchbolt 1 Ye s

9 01-3384 Screw #8-32 x 5/16 2 Ye s

10 01-1095 Set Screw 1 Ye s

11 98-0020 Inside Cylinder Retainer 1 Ye s

12 68-0241 Lift Arm 1 Ye s

13 98-0011 Pivot Pin (Lift Lever) 1 Ye s

Item Part No. Description Qty. Sellable

14 01-4512 Pivot Pin (Lift Arm) 1 Ye s

15 01-0013 Latchbolt Screw 1 Ye s

16 01-0005 Retaining Ring 1 Yes

17 01-0008 Groove Pin 1 No

18 98-0021 Blocking Ring11 Yes

19 68-0237 Lift Lever LHRB 1 Ye s

68-0238 Lift Lever RHRB 1 Ye s

20 68-0408 Cover11 Ye s

68-0409 Cover11 Ye s

21 - Inside Cylinder1,2 1 Yes

22 68-3908 Cover Screw Pack11Yes

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack11 Ye s

1. Specify nish

2. Specify #44 cylinder by keying requirements

51

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

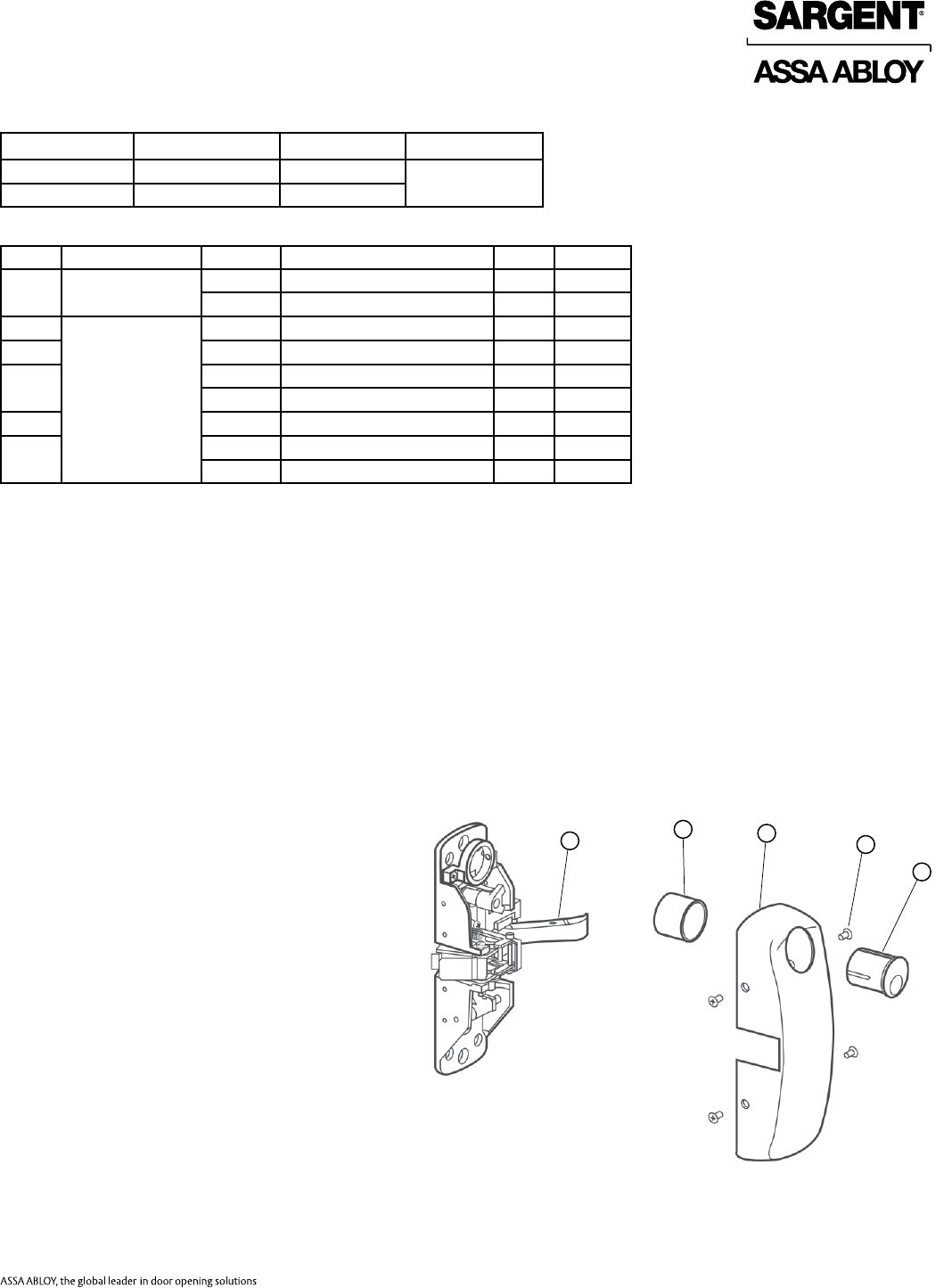

AL- and GL- Prefixes

12-8866

1

2

3

4

5

Item Assembly No. Part No. Description Qty. Sellable

1 See chart above — Chassis Assembly (LHRB) 1 Ye s

— Chassis Assembly (RHRB) 1 Ye s

2

N/A

98-0021 Blocking Ring11 Ye s

3 68-4411 Cylinder1,2 1 Ye s

468-1015 Cover (LHRB)11 Yes

68-1016 Cover (RHRB)11 Yes

5 68-3908 Cover Screw Pack11 Yes

Not

Shown

68-2165 Screw Pack 1 Ye s

649 Strike Pack 1 Yes

1. Specify nish

2. Specify #44 cylinder by keying requirements

Function Assembly No. Description Sellable

AL-/GL/12-8866 68-4104 LHRB Ye s

AL-/GL/12-8866 68-4105 RHRB

52

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

AL- and GL Prefixes

8866

10

11

9

2

7

6

1

8

5

4

3

12

Item Assembly No. Part No. Description Qty Sellable

1

See chart above

- Chassis Assembly 1 No

268-0237 Latchbolt Lever (LHRB)21 Ye s

68-0238 Latchbolt Lever (RHRB)21 Ye s

3 98-0011 Latchbolt Lever Pivot Pin 1 Yes

4 98-0018 Outside Cylinder Hub 1 Ye s

5 01-0005 Retaining Ring 1 Ye s

6 98-0020 Inside Cylinder Retainer 1 Yes

7 01-1095 Cylinder Set Screw 1 Ye s

8 01-1146 Machine Screw (8-32 x 5/16) 2 Ye s

9

N/A

98-0021 Blocking Ring * 1 Yes

10 - Cylinder1,3 1 Ye s

11 68-1015 Cover (LHRB)11 Ye s

68-1016 Cover (RHRB)11 Ye s

12 68-3908 Cover Screw Pack11 Yes

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack 1 Ye s

1. Specify nish

2. Order opposite hand from door

3. Specify #44 cylinder by keying requirements

Function Assembly No. Description Sellable

AL-/GL-8866 68-A102 LHRB Ye s

AL-/GL-8866 68-A103 RHRB

53

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

(12-)8904 (12-)8910 (12-)8913

(12-)8915 (12-)8928 (12-)8943

(12-)8944 (12-)8963 (12-)8970

(12-)8971 (12-)8975 (12-)8976

1

2

3

4

5

67

8

9

10

Item Assembly No. Part No. Description Qty Sellable

1

See chart above

68-0339 Chassis 1 No

2 68-1137 Lift Arm 1 Yes

3 68-0239 Pivot Pin 1 Yes

4 68-0337 Left Hand Lift Lever 1 Ye s

68-0338 Right Hand Lift Lever 1 Yes

5 68-0273 Bushing 2 Yes

6 01-9370 Washer 1 Yes

7 68-0271 Pivot Pin (63 Function) 1 Yes

8 68-1294 Stop Pin 1 No

9

N/A

68-0407 Cover11 Yes

10 68-3905 Cover Screw Pack11 Yes

Not

Shown

68-2172 (LHRB) 900 Series Mortise Assembly1,2,3 1 Ye s

68-2173 (RHRB) 1 Ye s

68-2143 Screw Pack Standard 1 Ye s

68-2165 Screw Pack (12-) 1 Yes

C908 Strike Pack LHRB 1 3/4" (C908)1,3 1 Yes

C908 Strike Pack RHRB 1 3/4" (C908)1,3 1 Ye s

1. Specify nish

2. Specify function

3. Specify hand

Function Assembly No. Description Sellable

(12-) (All Functions Except 16 & 66) 68-2172 LHRB Ye s

68-2173 RHRB Ye s

54

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

(12-) 8916

(12-) 8966

1

2

3

4

5

6

7

89

10

11

Item Part No. Description Qty Sellable

1 68-0341 Chassis RHRB 1 No

68-0342 Chassis LHRB 1 No

2 68-1137 Lift Arm 1 Ye s

3 68-0239 Pivot Pin 1 Ye s

4 68-0337 Left Hand Lift Lever 1 Yes

68-0338 Right Hand Lift Lever 1 Ye s

5 68-0273 Bushing 2 Ye s

6 01-9370 Washer 1 Ye s

7 68-0271 Pivot Pin (63 Function) 1 Yes

8 68-1294 Stop Pin 1 No

9 99-0007 Cylinder Blocking Ring11 Ye s

Not

Shown

13-0085 Locking Tail 1 Ye s

13-0080 Cylinder Barrel Retainer 1 Yes

— Cylinder Assembly2 1 Ye s

13-0074 Connecting Screw 2 Ye s

10 68-0410 Cover LHRB11 Ye s

68-0411 Cover RHRB11 Ye s

11 68-3905 Cover Screw Pack11 Yes

Not

Shown

916 Mortise Assy 16 Funtion1,3 1 Ye s

966 Mortise Assy 66 Function1,3 1 Ye s

68-2143 Screw Pack Standard 1 Yes

68-2165 Screw Pack (12-) 1 Ye s

C908 Strike Pack LHRB (C908)3 1 Ye s

C908 Strike Pack RHRB (C908)31 Yes

1. Specify nish

2. Specify function

3. Specify hand

Function Assembly No. Description Sellable

(12-) 68-2213 LHRB Yes

68-2214 RHRB Ye s

55

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

904, 910, 940, 944

Item Part No. Description Qty. Sellable

1 99-2351 Case Assy 1 No

2 01-0273 Roll Pin 1 Ye s

3 99-0072 Guard Bolt Eyelet 1 Ye s

4 99-0057 Guard Bolt Spring 1 Ye s

599-0279 Guard Bolt Assy LHRB 1 Yes

99-0280 Guard Bolt Assy RHRB 1

6 99-0075 Anti-Friction Latchbolt 1 Ye s

799-0216 Front RHRB11 No

99-0217 Front LHRB11 No

8 99-0098 Pivot Pin Anti-Friction

Latchbolt 1Ye s

9 99-0078 Cylinder Set Screw 1 Yes

10 99-0076 Slide Spacer 2 Yes

Item Part No. Description Qty. Sellable

11 99-0058 Slide Guide 2 Ye s

12 99-2059 Lever Slide Assembly 1 Yes

13 99-0061 Spring Thumbpiece Lever 1 No

14 99-0236 Cylinder Screw Support 1 Yes

15 99-0060 Guard Bolt Lever 1 Ye s

16 01-0098 Retaining Ring 1 Yes

17 99-0063 Spring Guard Bolt Lver 1 Yes

18 99-2389 Latchbolt Lever Assembly 1 Yes

19 99-0212 Pivot Pin Lever Slide 1 Yes

20 99-2247 Latchbolt Assembly 1 Yes

21 99-2361 Cap Assembly 1 No

22 01-1142 Case Screw #8-32 x 1/4 5 No

11

10

89

7

5

14

18

20

2

19

13

15

16

17

12

22

21

6

43

1

1. Specify nish

Note: Items 5 and 15 to be sold as a set only.

56

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

913

Item Part No. Description Qty. Sellable

1 99-2351 Case Assy 1 No

2 01-0273 Roll Pin 1 Ye s

3 99-0072 Guard Bolt Eyelet 1 Yes

4 99-0057 Guard Bolt Spring 1 Ye s

599-0279 Guard Bolt Assy LHRB 1 Ye s

99-0280 Guard Bolt Assy RHRB 1 Ye s

6 99-0075 Anti-Friction Latchbolt 1 Yes

799-0216 Front RHRB11 No

99-0217 Front LHRB11 No

8 99-0098 Pivot Pin Anti-Friction Latchbolt 1 Ye s

9 99-2247 Latchbolt Assembly 1 Ye s

10 01-1142 Case Screw #8-32 x 1/4 5 Ye s

11 99-0076 Slide Spacer 2 Ye s

12 99-0208 Locking Lever 1 Ye s

13 01-0074 Retaining Ring 1 Ye s

14 77-1165 Spring Stop Works 2 Yes

15 99-0060 Guard Bolt Lever 1 Ye s

16 77-1040 Button Tail Stop Works 1 No

17 01-0098 Retaining Ring 1 Ye s

18 99-0058 Slide Guide 2 Ye s

19 99-0063 Spring Guard Bolt Lever 1 Ye s

20 99-2385 Latchbolt Lever Assembly 1 Ye s

21 99-2059 Lever Slide Assembly 1 Ye s

22 99-0212 Pivot Pin Lever Slide 1 Ye s

23 99-0206 Knob Hub 1 Yes

24 99-0061 Spring Thumbpiece Lever 1 Yes

25 99-0236 Cylinder Screw Support 1 Ye s

26 99-0078 Cylinder Set Screw 1 Ye s

27 99-2361 Cap Assembly 1 No

1. Specify nish

Notes:

• Items 5 and 15 to be sold as a set only.

• For 8313 x ET or 8913 x ET, use 915 Mortise Assembly.

57

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

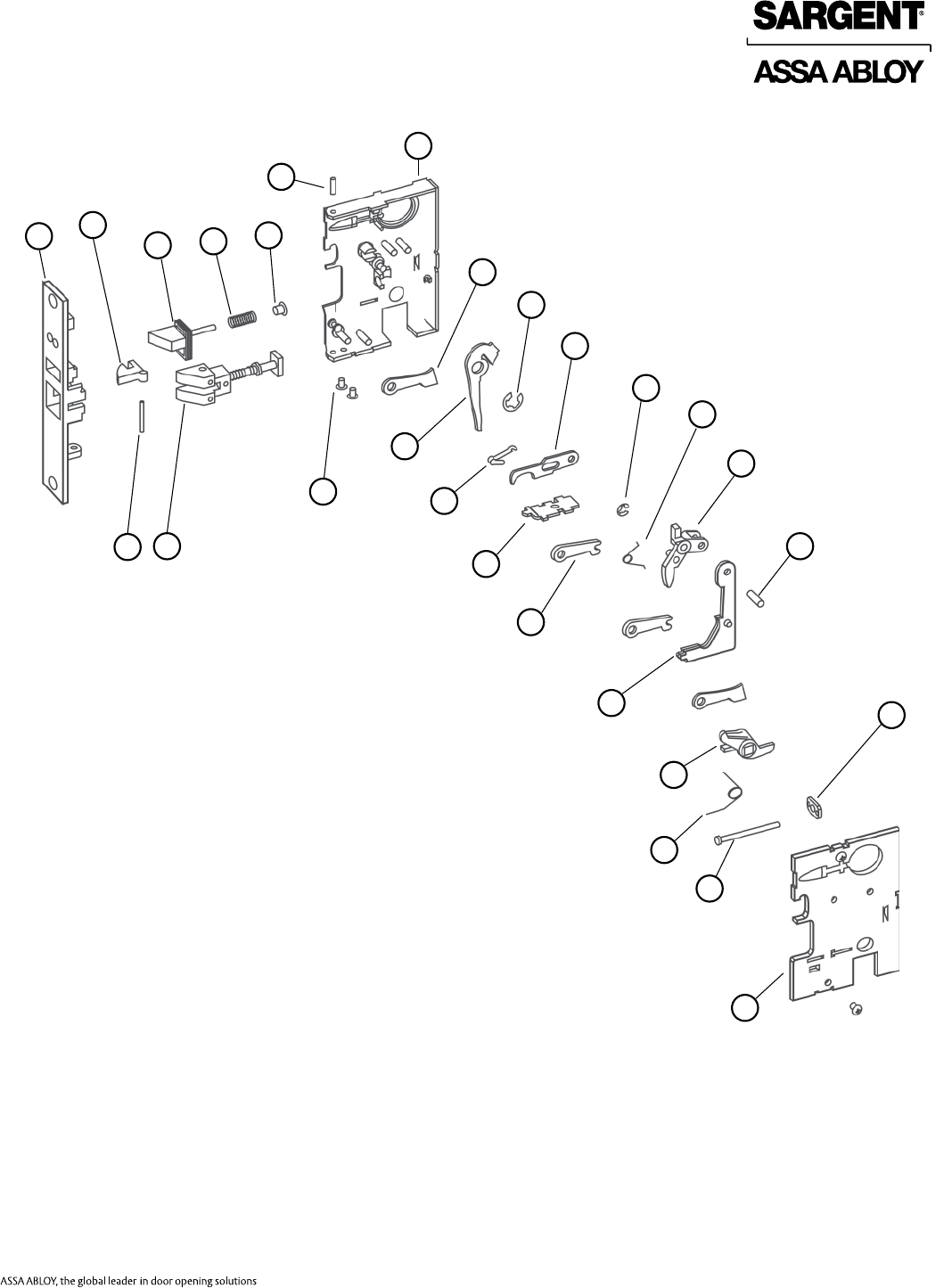

900 Series Mortise Locks

913

11

10

89

75

13

20

2

19

14

15

17

12

22

6

43

1

16

18

21

23

24

26

25

27

Note: Items 5 and 15 to be sold as a set only.

58

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

915, 975, 976, 943

Item Part No. Description Qty. Sellable

1 99-2351 Case Assy 1 No

2 01-0273 Roll Pin 1 Ye s

3 99-0072 Guard Bolt Eyelet 1 Ye s

4 99-0057 Guard Bolt Spring 1 Yes

599-0279 Guard Bolt Assy LHRB 1 Ye s

99-0280 Guard Bolt Assy RHRB 1 Ye s

6 99-0075 Anti-Friction Latchbolt 1 Ye s

799-0216 Front RHRB11 No

99-0217 Front LHRB11 No

8 99-0098 Pivot Pin Anti-Friction Latchbolt 1 Ye s

9 99-2247 Latchbolt Assembly 1 Ye s

10 01-1142 Case Screw #8-32 x 1/4 5 Yes

11 99-0076 Slide Spacer 2 Ye s

15 99-0060 Guard Bolt Lever 1 Ye s

17 01-0098 Retaining Ring 1 Ye s

18 99-0058 Slide Guide 2 Ye s

19 99-0063 Spring Guard Bolt Lever 1 Yes

20 99-2385 Latchbolt Lever Assembly 1 Ye s

21 99-2059 Lever Slide Assembly 1 Ye s

22 99-0212 Pivot Pin Lever Slide 1 Ye s

23 99-0206 Knob Hub 1 Ye s

24 99-0061 Spring Thumbpiece Lever 1 Ye s

25 99-0236 Cylinder Screw Support 1 Ye s

26 99-0078 Cylinder Set Screw 1 Yes

27 99-2361 Cap Assembly 1 No

- 68-2597 Bridge Rectier Pack21 Yes

1. Specify nish

2. Use with 975 and 976 only

Note: Items 5 and 15 to be sold as a set only.

59

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

915, 975, 976, 943

11

10

89

75

17

2

22

18

19

20

15

643

1

21

23

24

26

27

25

Note: Items 5 and 15 to be sold as a set only.

60

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

916

Item Part No. Description Qty. Sellable

199-2352 Case Assy LHRB 1 No

99-2351 Case Assy RHRB

2 01-0273 Roll Pin 1 Ye s

3 99-0072 Guard Bolt Eyelet 1 Ye s

4 99-0057 Guard Bolt Spring 1 Yes

599-0279 Guard Bolt Assy LHRB 1 Ye s

99-0280 Guard Bolt Assy RHRB 1 Yes

6 99-0075 Anti-Friction Latchbolt 1 Ye s

799-0226 Front LHRB11 No

99-0227 Front RHRB11 No

8 99-0098 Pivot Pin Anti-Friction Latchbolt 1 Ye s

9 99-2247 Latchbolt Assembly 1 Ye s

10 01-1142 Case Screw #8-32 x 1/4 5 Yes

11 99-0076 Slide Spacer 2 Yes

12 99-0208 Locking Lever 1 Yes

13 01-0074 Retaining Ring 1 Ye s

14 77-1165 Spring Stop Works 2 Yes

15 99-0060 Guard Bolt Lever 1 Ye s

16 77-1040 Button Tail Stop Works 1 No

17 01-0098 Retaining Ring 1 Ye s

18 99-0058 Slide Guide 2 Yes

19 99-0063 Spring Guard Bolt Lever 1 Yes

20 99-2387 Latchbolt Lever Assembly LHRB 1 Ye s

99-2388 Latchbolt Lever Assembly RHRB 1 Ye s

21 99-2059 Lever Slide Assembly 1 Ye s

22 99-0212 Pivot Pin Lever Slide 1 Yes

23 99-0206 Knob Hub 1 Yes

24 99-0061 Spring Thumbpiece Lever 1 Ye s

25 99-0236 Cylinder Screw Support 1 Yes

26 99-0078 Cylinder Set Screw 2 Ye s

27 99-2361 Cap Assembly LHRB 1 No

99-2362 Cap Assembly RHRB 1 No

28 13-2162 Cylinder Attachment 1 Ye s

1. Specify nish

Note: Items 5 and 15 to be sold as a set only.

61

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

916

11

10

89

7

5

13

20

2

19

14

15

17

12

22

6

4

3

1

16

18

21

23

24 26

25

27

26

28

Note: Items 5 and 15 to be sold as a set only.

62

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

928

Item Part No. Description Qty. Sellable

1 99-2351 Case Assy 1 No

2 01-0273 Roll Pin 1 Ye s

3 99-0072 Guard Bolt Eyelet 1 Ye s

4 99-0057 Guard Bolt Spring 1 Ye s

599-0279 Guard Bolt Assy LHRB 1 Yes

99-0280 Guard Bolt Assy RHRB 1 Yes

6 99-0075 Anti-Friction Latchbolt 1 Yes

799-0216 Front RHRB11 No

99-0217 Front LHRB11 No

8 99-0098 Pivot Pin Anti-Friction Latchbolt 1 Ye s

9 99-2247 Latchbolt Assembly 1 Ye s

10 01-1142 Case Screw #8-32 x 1/4 5 Yes

11 99-0088 Thumb Piece Lever 2 Ye s

15 99-0060 Guard Bolt Lever 1 Yes

17 01-0098 Retaining Ring 1 Yes

18 99-0058 Slide Guide 2 Yes

19 99-0063 Spring Guard Bolt Lever 1 Ye s

20 99-2385 Latchbolt Lever Assembly 1 Yes

21 99-2050 Lever Slide Assembly 1 Ye s

22 99-0212 Pivot Pin Lever Slide 1 Yes

24 99-0061 Spring Thumbpiece Lever 1 Yes

25 99-0236 Cylinder Screw Support 1 Yes

26 99-0078 Cylinder Set Screw 1 Ye s

27 99-2361 Cap Assembly 1 No

1. Specify nish

Note: Items 5 and 15 to be sold as a set only.

63

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

928

11

10

89

75

17

2

21

18

19

20

15

64

3

1

22

24

26

27

25

Note: Items 5 and 15 to be sold as a set only.

64

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

963

Item Part No. Description Qty. Sellable

1 99-2351 Case Assy RHRB 1 No

99-2352 Case Assy LHRB 1 No

2 01-0273 Roll Pin 1 Ye s

3 99-0072 Guard Bolt Eyelet 1 Ye s

4 99-0057 Guard Bolt Spring 1 Ye s

599-0279 Guard Bolt Assy LHRB 1 Yes

99-0280 Guard Bolt Assy RHRB 1 Ye s

6 99-0075 Anti-Friction Latchbolt 1 Yes

799-0216 Front RHRB11 No

99-0217 Front LHRB11 No

8 99-0098 Pivot Pin Anti-Friction Latchbolt 1 Yes

9 99-2247 Latchbolt Assembly 1 Yes

10 01-1142 Case Screw #8-32 x 1/4 5 Ye s

11 99-0088 Thumb Piece Lever 2 Yes

12 99-0208 Locking Lever 1 Yes

13 01-0074 Retaining Ring 1 Yes

14 77-1165 Spring Stop Works 2 Yes

15 99-0060 Guard Bolt Lever 1 Yes

16 77-1040 Button Tail Stop Works 1 No

17 01-0098 Retaining Ring 1 Yes

18 99-0058 Slide Guide 2 Yes

19 99-0063 Spring Guard Bolt Lever 1 Ye s

20 99-2385 Latchbolt Lever Assembly 1 Ye s

21 99-2050 Lever Slide Assembly 1 Yes

22 99-0212 Pivot Pin Lever Slide 1 Yes

24 99-0061 Spring Thumbpiece Lever 1 Ye s

25 99-0236 Cylinder Screw Support 1 Yes

26 99-0078 Cylinder Set Screw 1 Yes

27 99-2361 Cap Assembly 1 No

1. Specify nish

Note: Items 5 and 15 to be sold as a set only.

65

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

963

Note: Items 5 and 15 to be sold as a set only.

1

25

11

10

89

75

17

2

18

19

20

16

6

43

22

24

26

27

21

14

12

13

15

66

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

966

Item Part No. Description Qty. Sellable

199-2352 Case Assy LHRB 1 No

99-2351 Case Assy RHRB 1 No

2 01-0273 Roll Pin 1 Yes

3 99-0072 Guard Bolt Eyelet 1 Ye s

4 99-0057 Guard Bolt Spring 1 Ye s

599-0279 Guard Bolt Assy LHRB 1 Yes

99-0280 Guard Bolt Assy RHRB 1 Ye s

6 99-0075 Anti-Friction Latchbolt 1 Yes

799-0216 Front RHRB11 No

99-0217 Front LHRB11 No

8 99-0098 Pivot Pin Anti-Friction Latchbolt 1 Ye s

9 99-2247 Latchbolt Assembly 1 Ye s

10 01-1142 Case Screw #8-32 x 1/4 5 Yes

11 99-0088 Thumb Piece Lever 2 Ye s

12 99-0208 Locking Lever 1 Ye s

13 01-0074 Retaining Ring 1 Yes

14 77-1165 Spring Stop Works 2 Ye s

15 99-0060 Guard Bolt Lever 1 Yes

16 77-1040 Button Tail Stop Works 1 No

17 01-0098 Retaining Ring 1 Yes

18 99-0058 Slide Guide 2 Yes

19 99-0063 Spring Guard Bolt Lever 1 Yes

20 99-2387 Latchbolt Lever Assembly LHRB 1 Yes

99-2388 Latchbolt Lever Assembly RHRB 1 Yes

21 99-2050 Lever Slide Assembly 1 Ye s

22 99-0212 Pivot Pin Lever Slide 1 Ye s

24 99-0061 Spring Thumbpiece Lever 1 Ye s

25 99-0236 Cylinder Screw Support 1 Ye s

26 99-0078 Cylinder Set Screw 1 Ye s

27 99-2361 Cap Assembly LHRB 1 No

99-2362 Cap Assembly RHRB 1 No

28 13-2162 Cylinder Attachment 1 Ye s

1. Specify nish

Note: Items 5 and 15 to be sold as a set only.

67

A8231 5/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

966

11

10

89

75

13

20

2

19

14

15

17

12

22

6

4

3

1

16

18

21

24

26

25

27

26

28

Note: Items 5 and 15 to be sold as a set only.

SARGENT Manufacturing Company

100 Sargent Drive

New Haven, CT 06511 USA

800-727-5477

www.sargentlock.com

Founded in the early 1800s, SARGENT® is a market leader in locksets, cylinders, door closers, exit devices, electro-mechanical products and access control systems for

new construction, renovation, and replacement applications. The company’s customer base includes commercial construction, institutional, and industrial markets.

written permission of SARGENT Manufacturing is prohibited. A8231 5/17

Sargent 80 Series Parts Manual 80Series Exit Device

Navigation menu

Versions of this User Manual:

Views

Navigation
