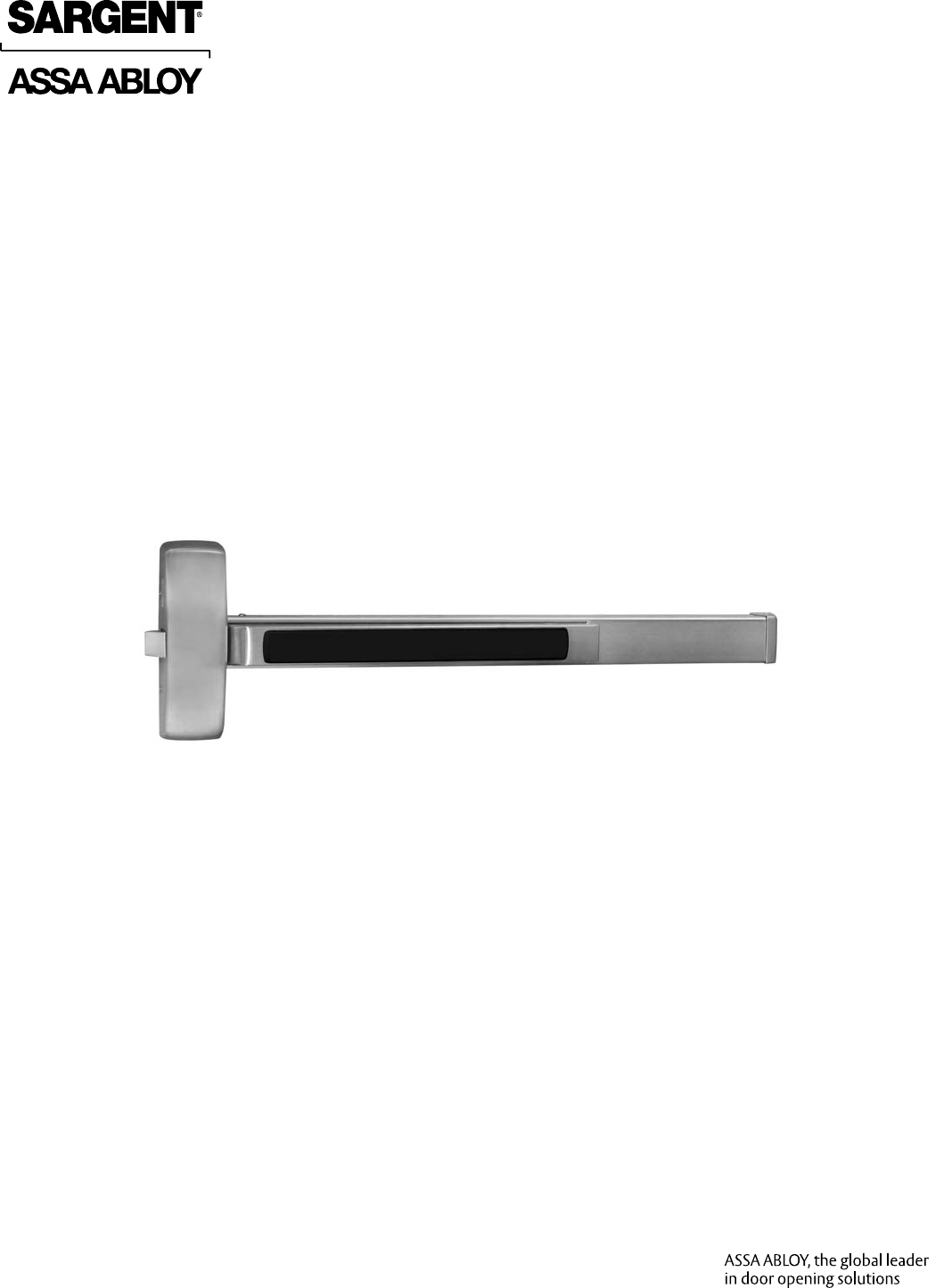

Sargent 80 Series Parts Manual

A8231 12/17

For assistance, contact SARGENT at

800-727-5477 or www.sargentlock.com

80 Series Parts Manual

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

3

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Table of Contents

Chassis Assemblies

8300 .................................................................................4

8400 ........................................................................... 5-10

8500 ......................................................................... 11-12

8600 ......................................................................... 13-28

8700 ......................................................................... 29-52

8800 ......................................................................... 53-67

8900 ......................................................................... 68-69

900 Series Mortise Locks .................................................. 70-82

Rail Assemblies ............................................................... 83-102

700 Series ET Control ................................................... 103-133

Auxiliary Controls .......................................................... 134-136

4

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

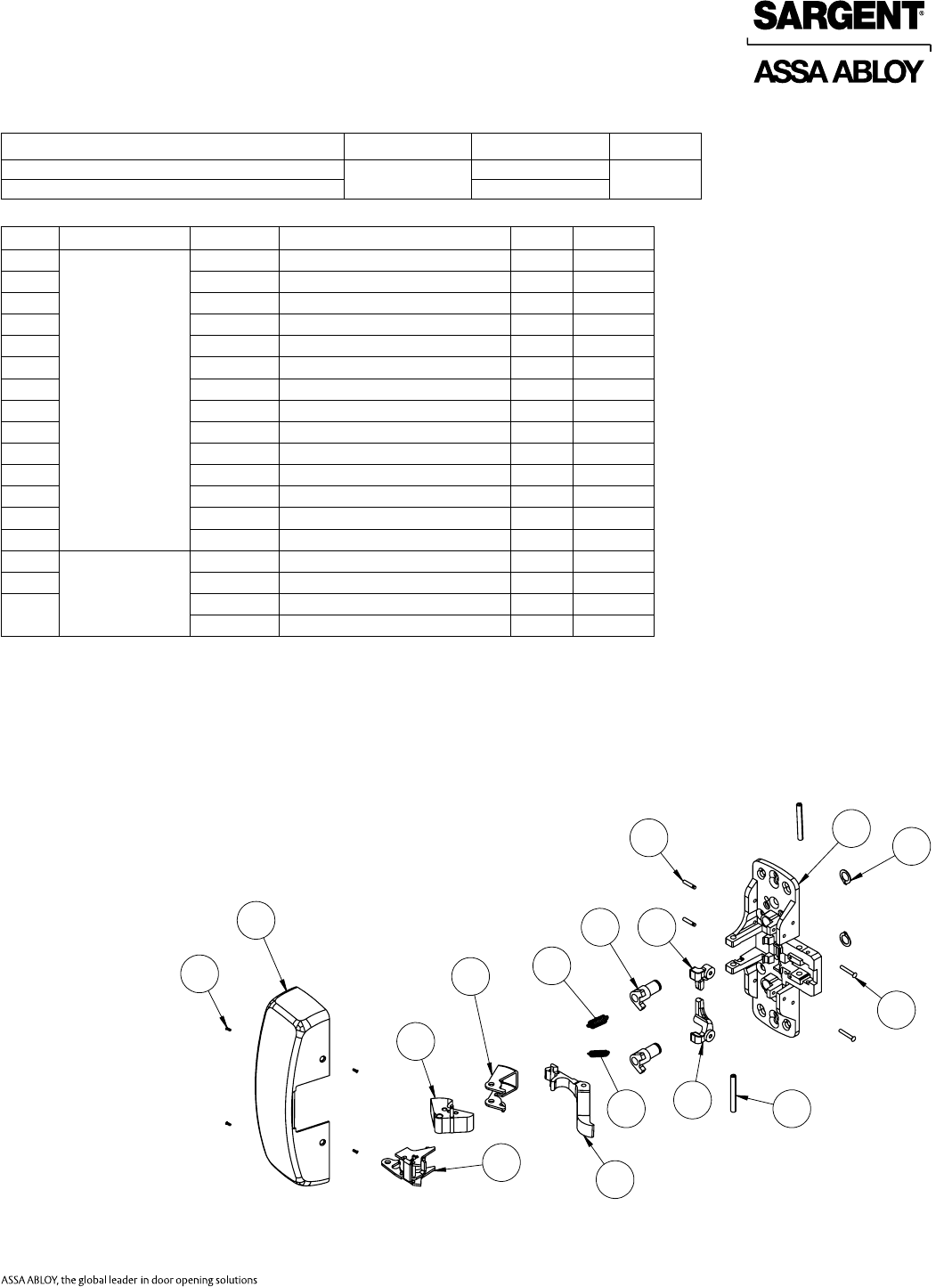

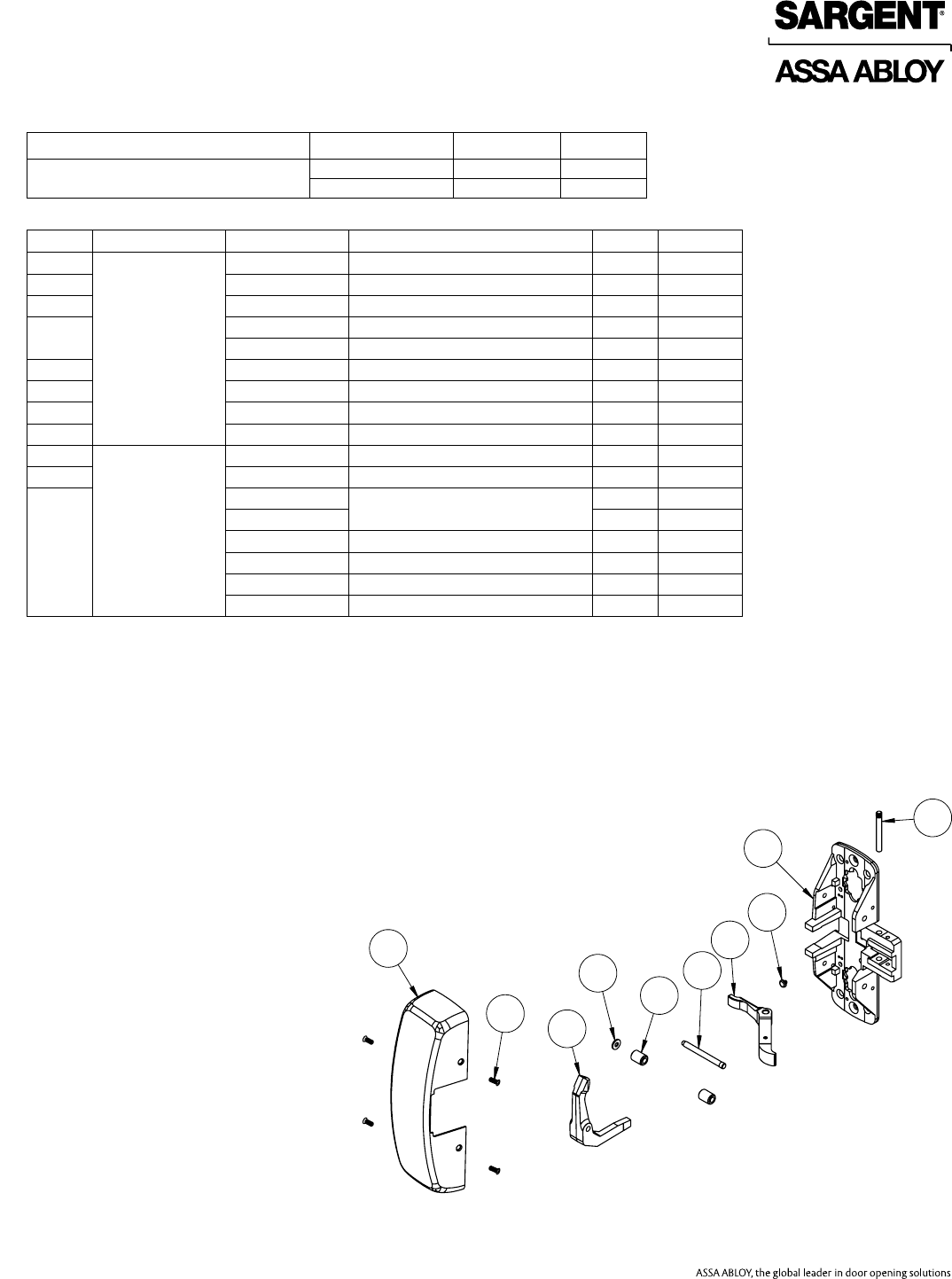

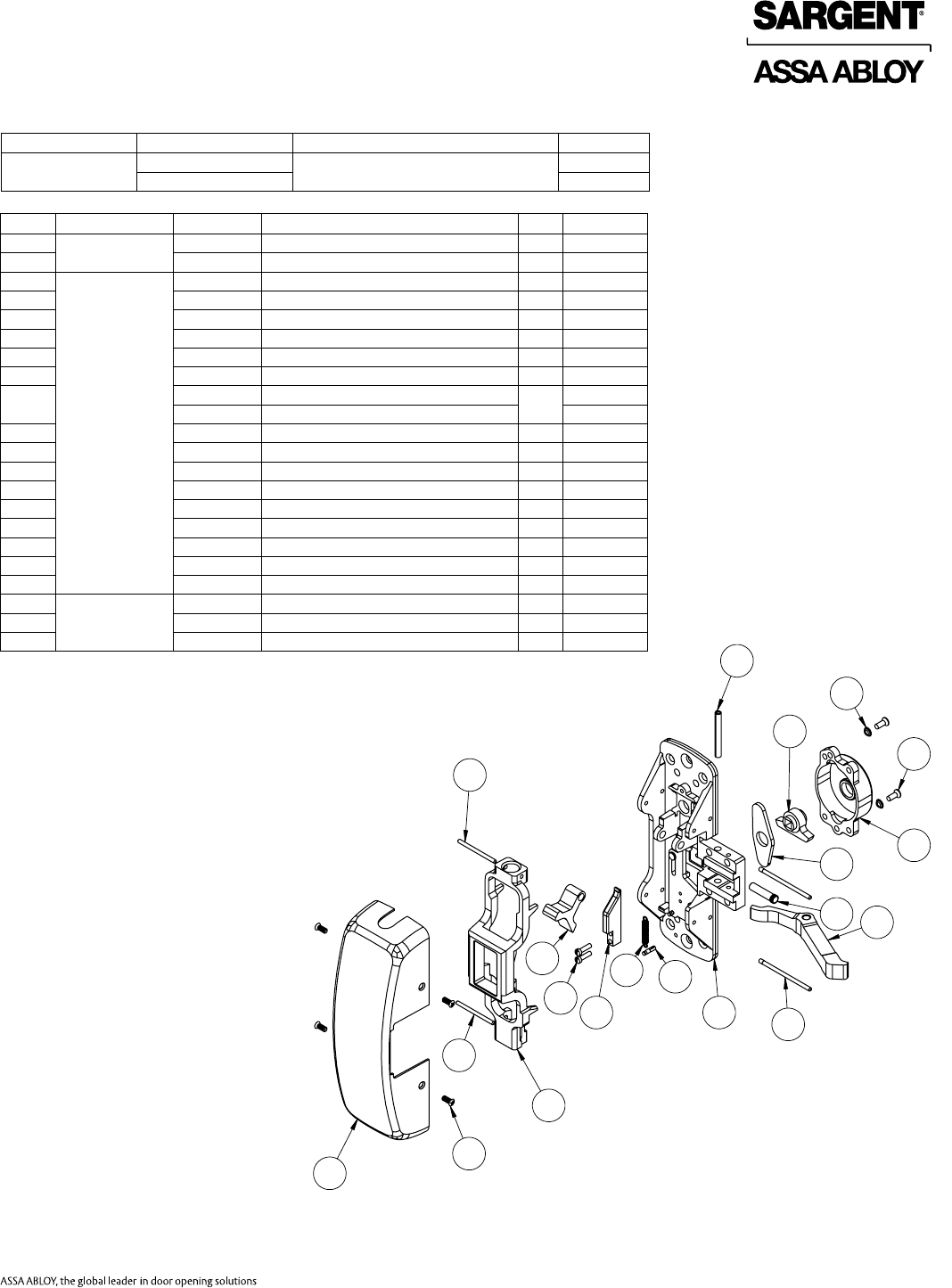

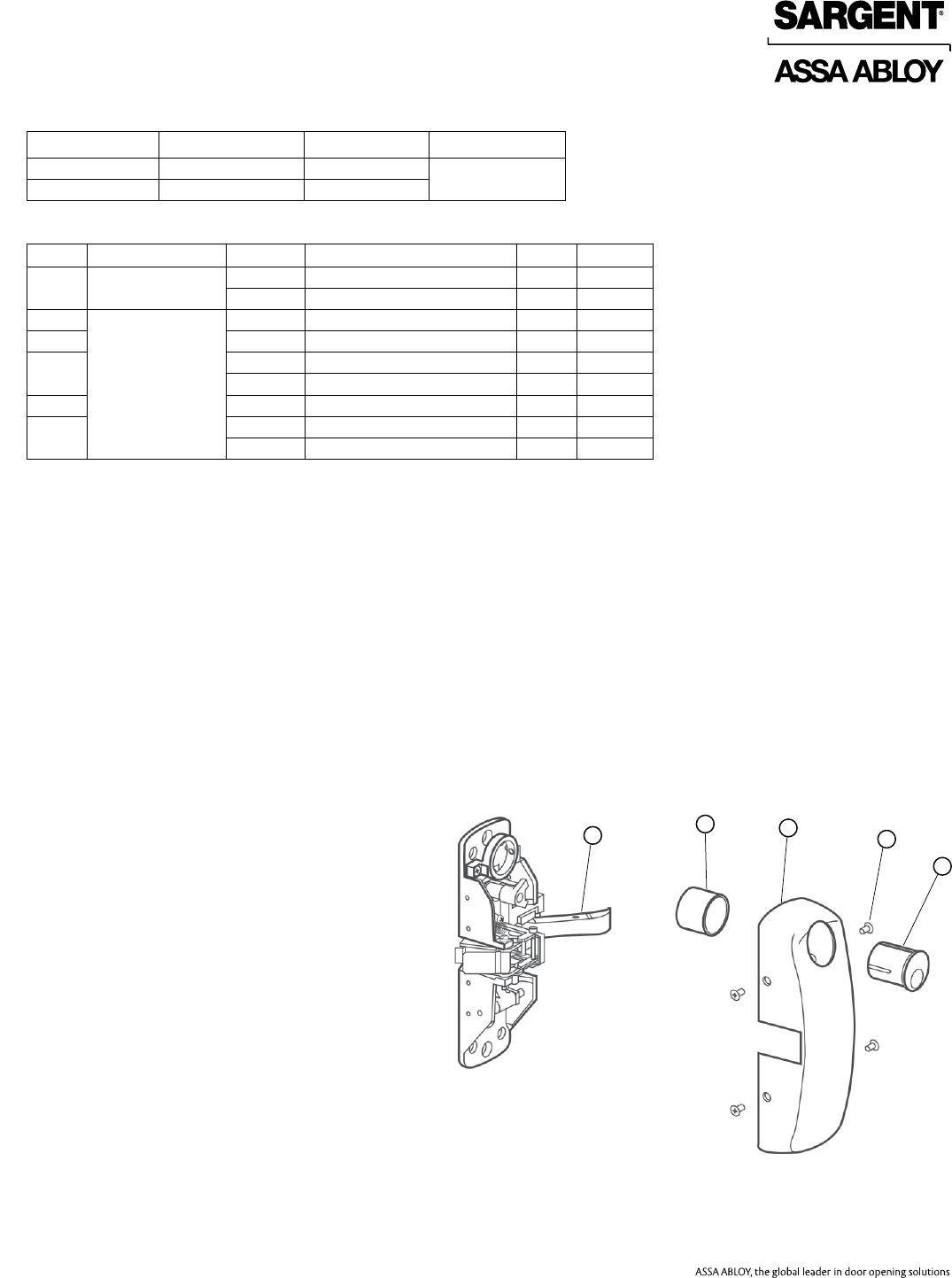

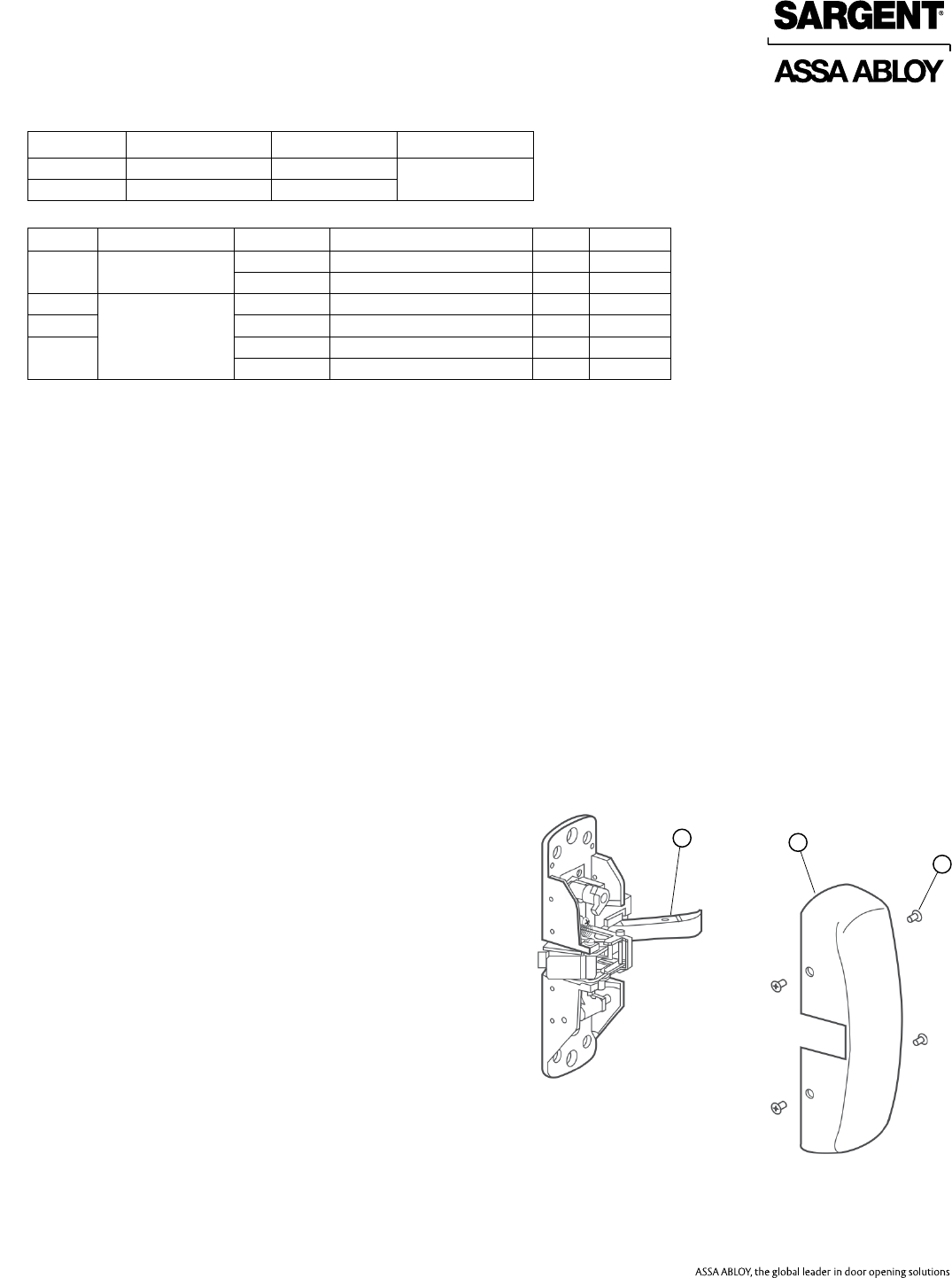

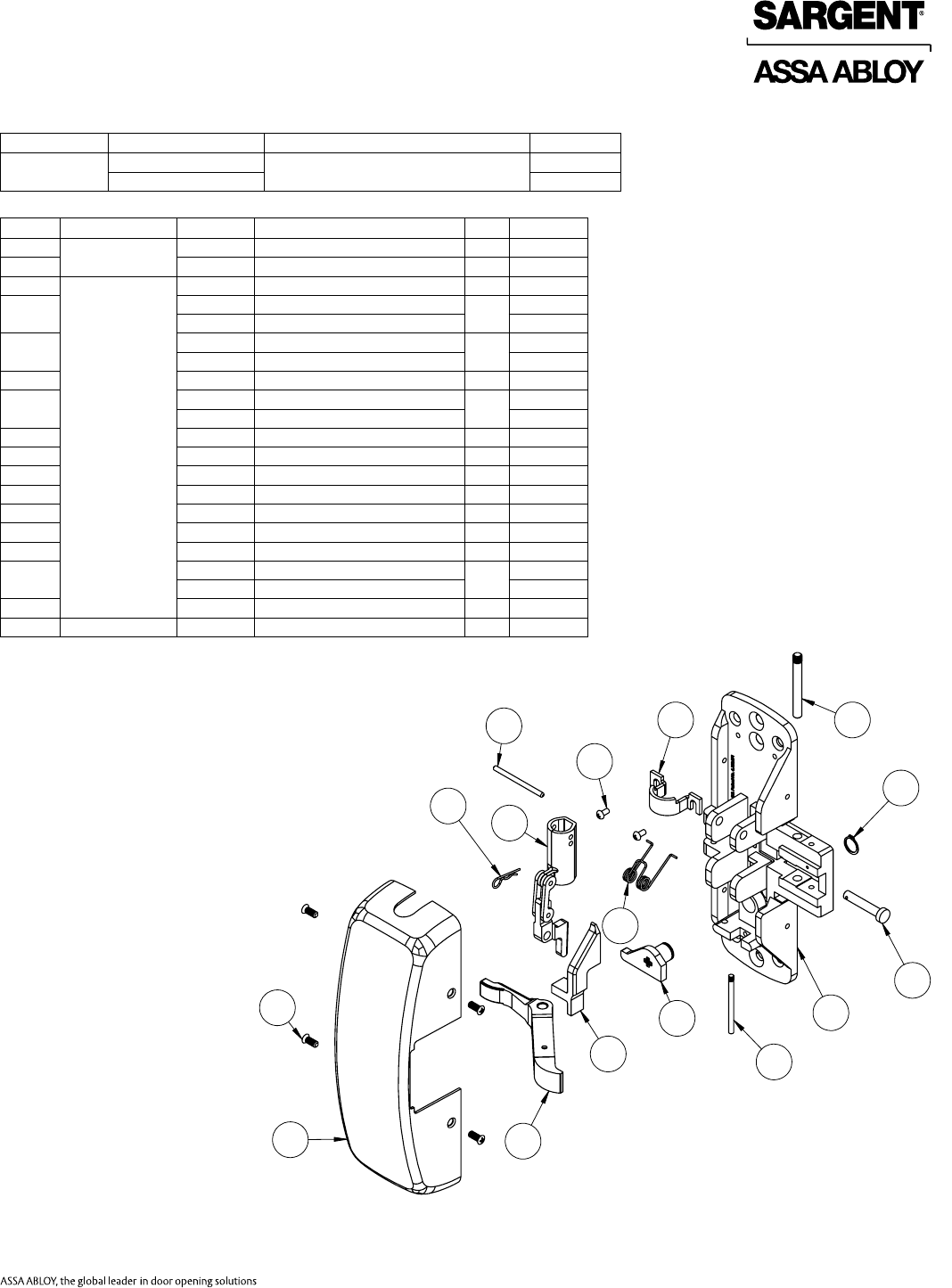

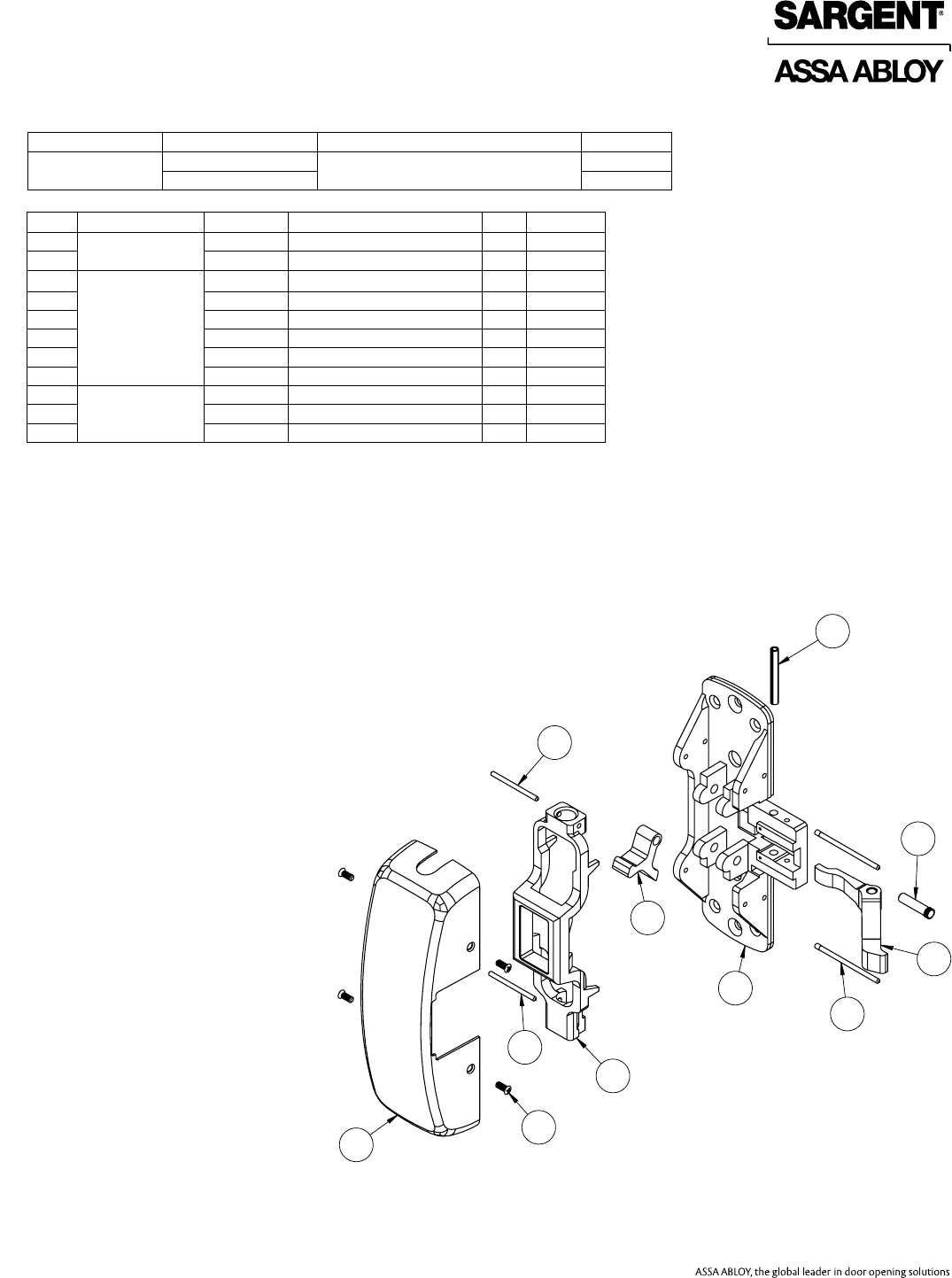

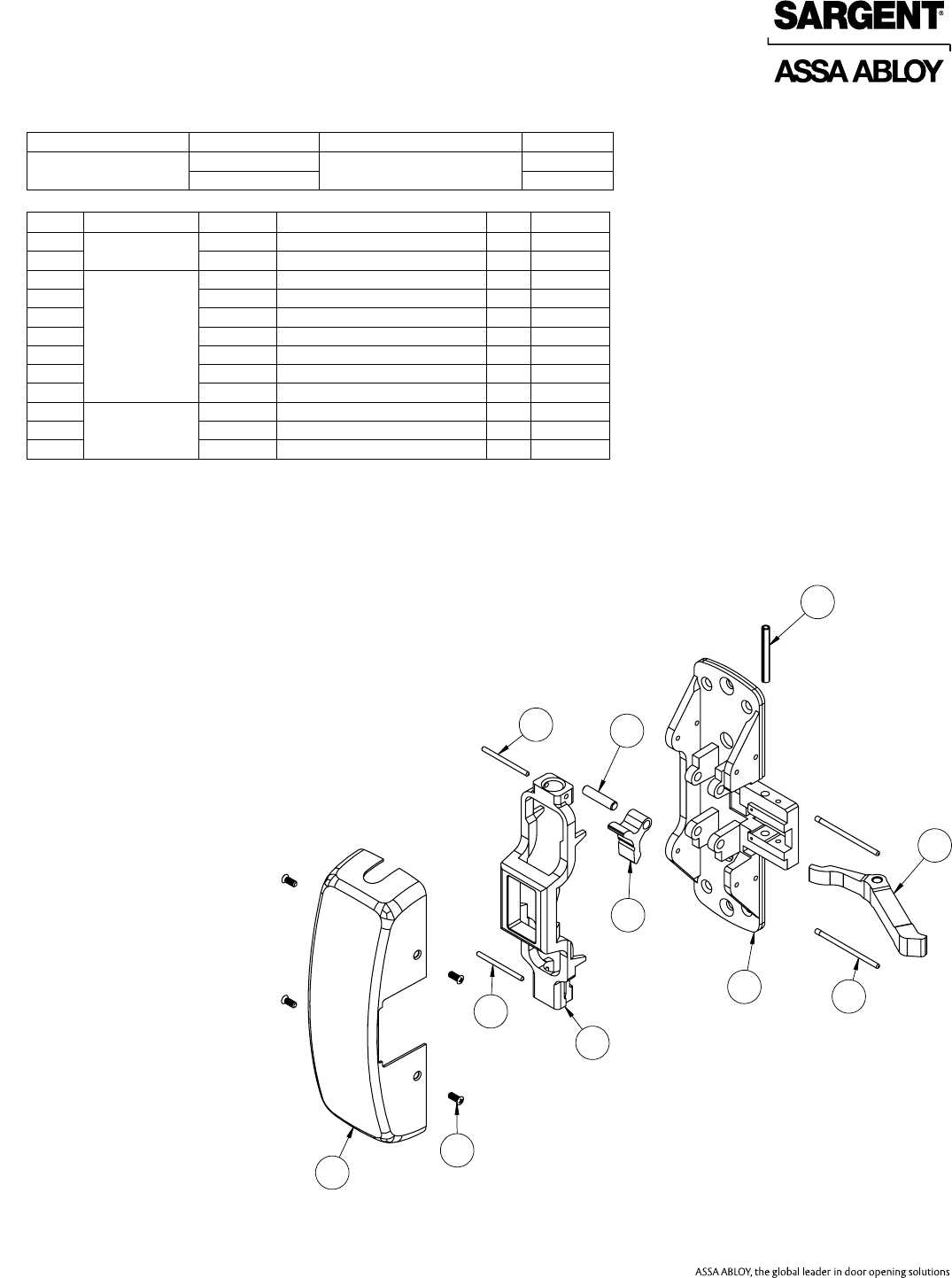

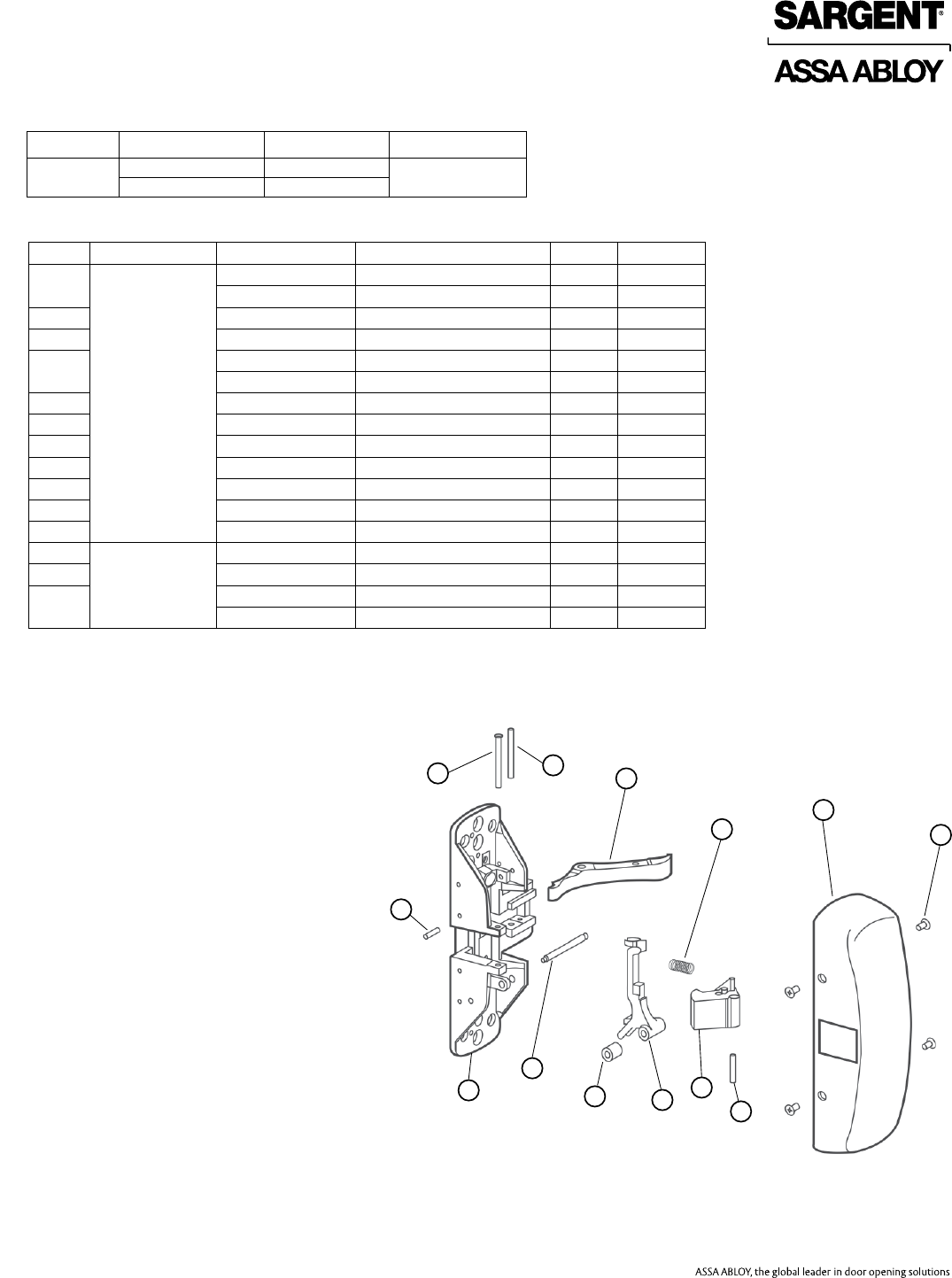

(12-)8304 (12-)8310 (12-)8313 (12-)8315

(12-)8328 (12-)8343 (12-)8344 (12-)8363

(12-)8375 (12-)8376

Function Assembly No. Description Sellable

(12-) All

functions

1 3/4" Door 68-2481 LHRB Yes

68-2482 RHRB Yes

2"-2 3/4" Door 68-2483 LHRB Yes

68-2484 RHRB Yes

1

2

3

45

6

7

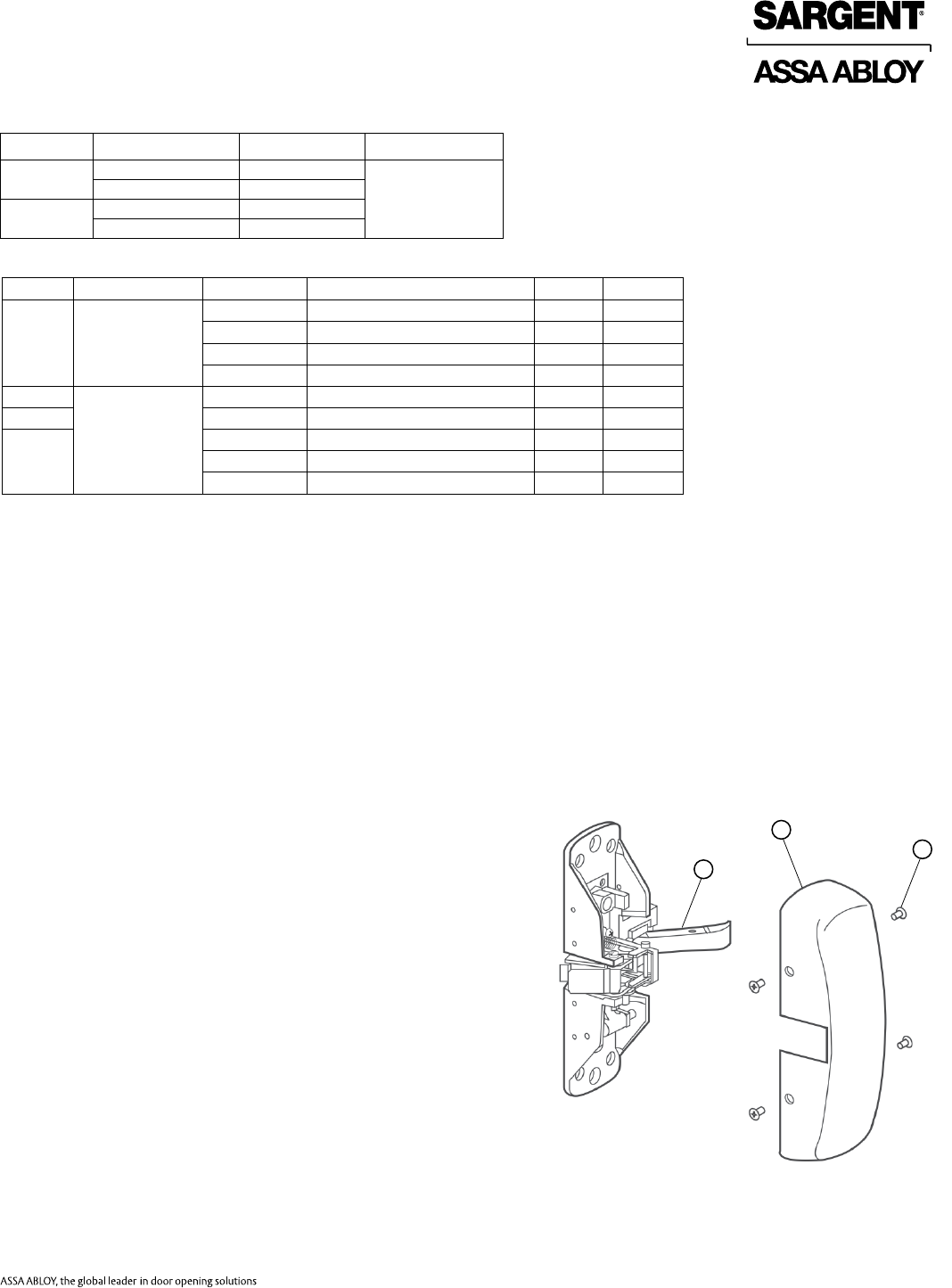

Item Part No. Description Qty Sellable

1 68-0486 Chassis 1 Yes

2 68-0241 Lift Arm 1 Yes

3 68-0239 Pivot Pin (Lift Arm) 1 Yes

4

68-0489 Lift Lever LHRB 1 3/4" Door 1 Yes

68-0490 Lift Lever RHRB 1 3/4" Door 1 Yes

68-0491 Lift Lever LHRB 2 3/4" Door 1 Yes

68-0492 Lift Lever RHRB 2 3/4" Door 1 Yes

5 68-0479 Pivot Pin (Lift Lever) 1 Yes

6 68-0496 Cover11 Yes

7 68-3905 Cover Screw Pack12 Yes

Not

Shown

— 900 Series Mortise Assembly1,2,4 1 Yes

68-2520 Screw Pack Standard 1 Ye s

68-2522 Screw Pack (12-) 1 Yes

C908 Strike Pack3 (1 1/4" Standard Lip) 1 Yes

1. Specify ﬁnish

2. Specify hand

3. Specify lip length

4. Specify function

5

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

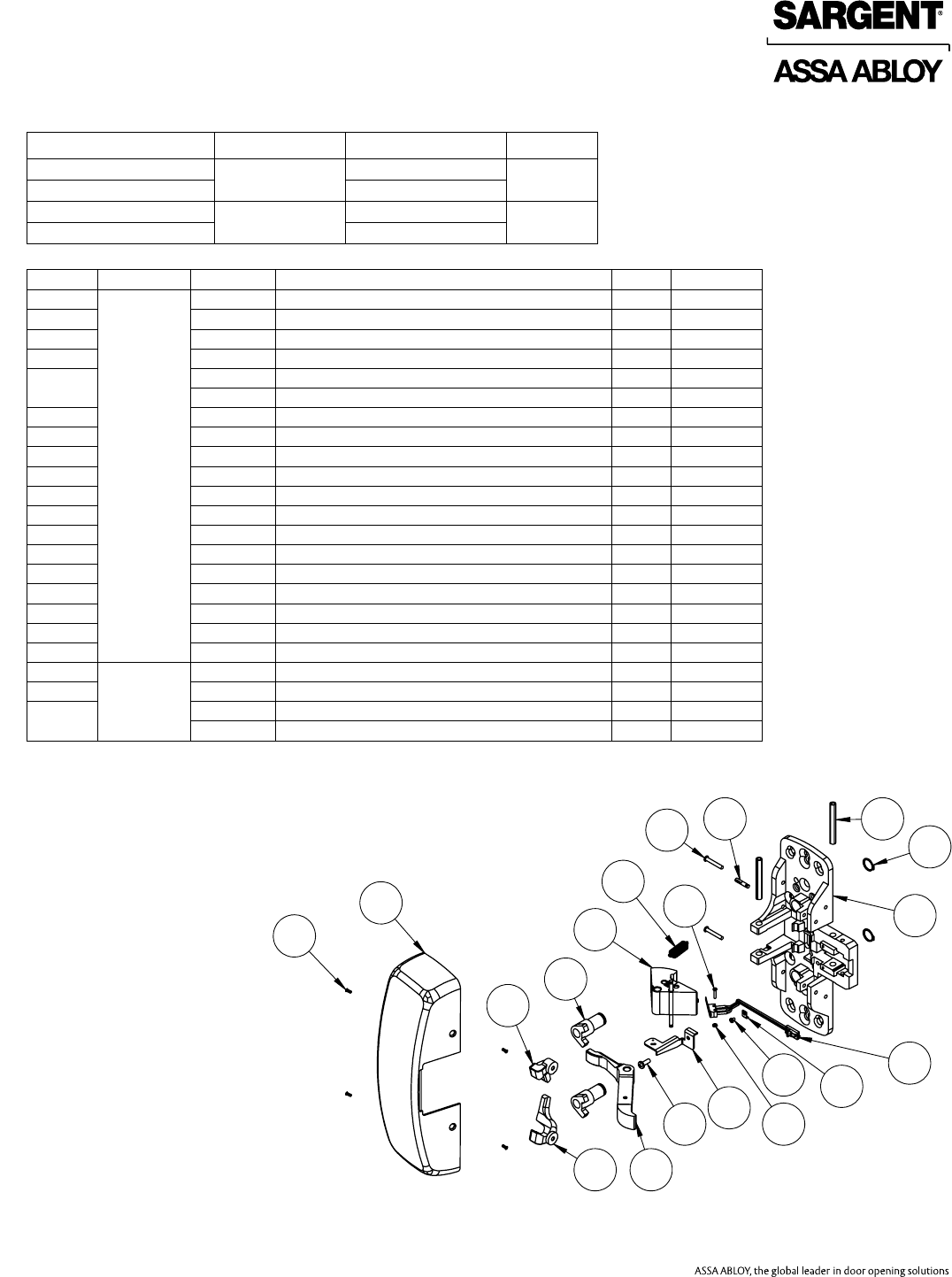

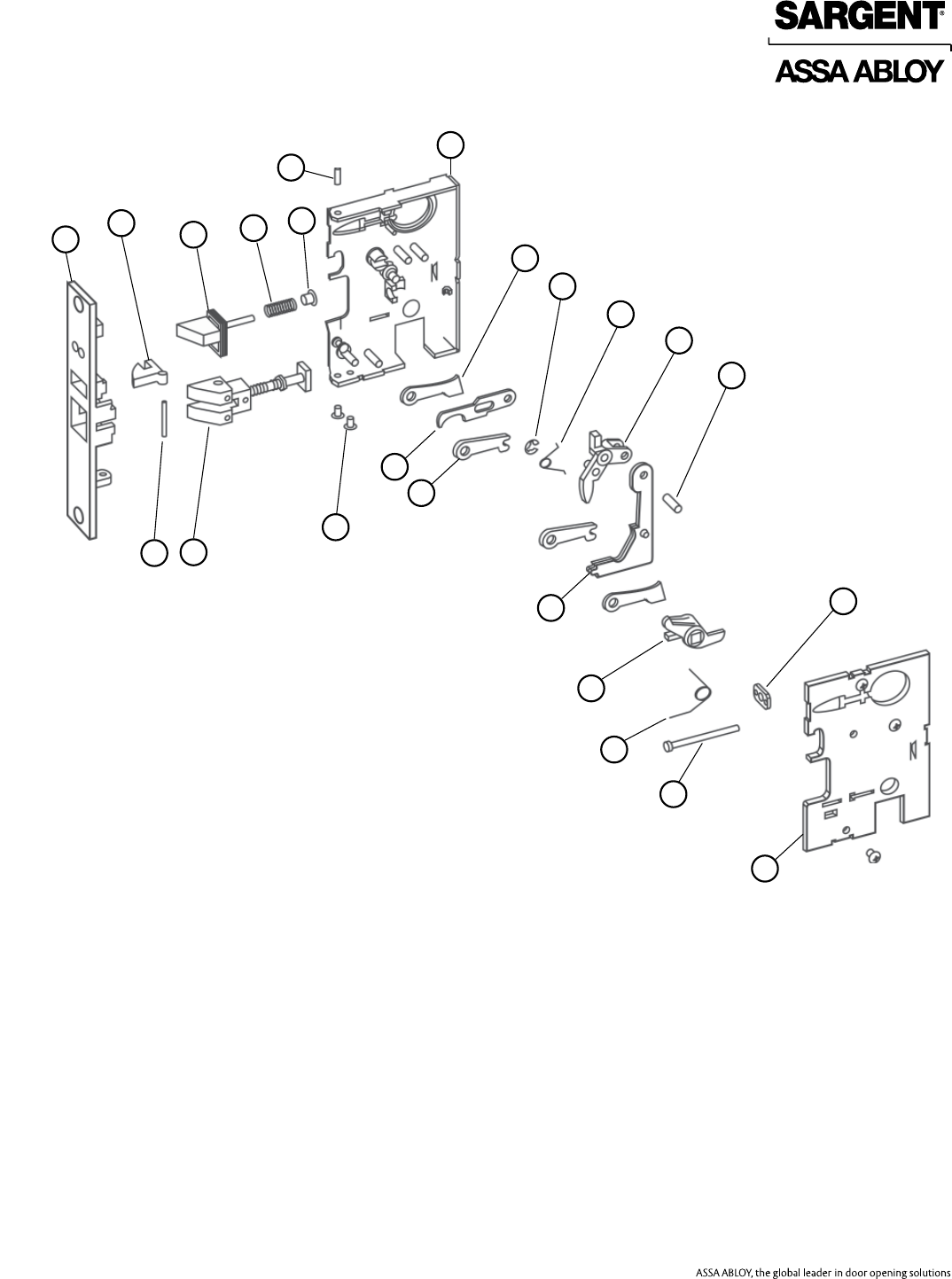

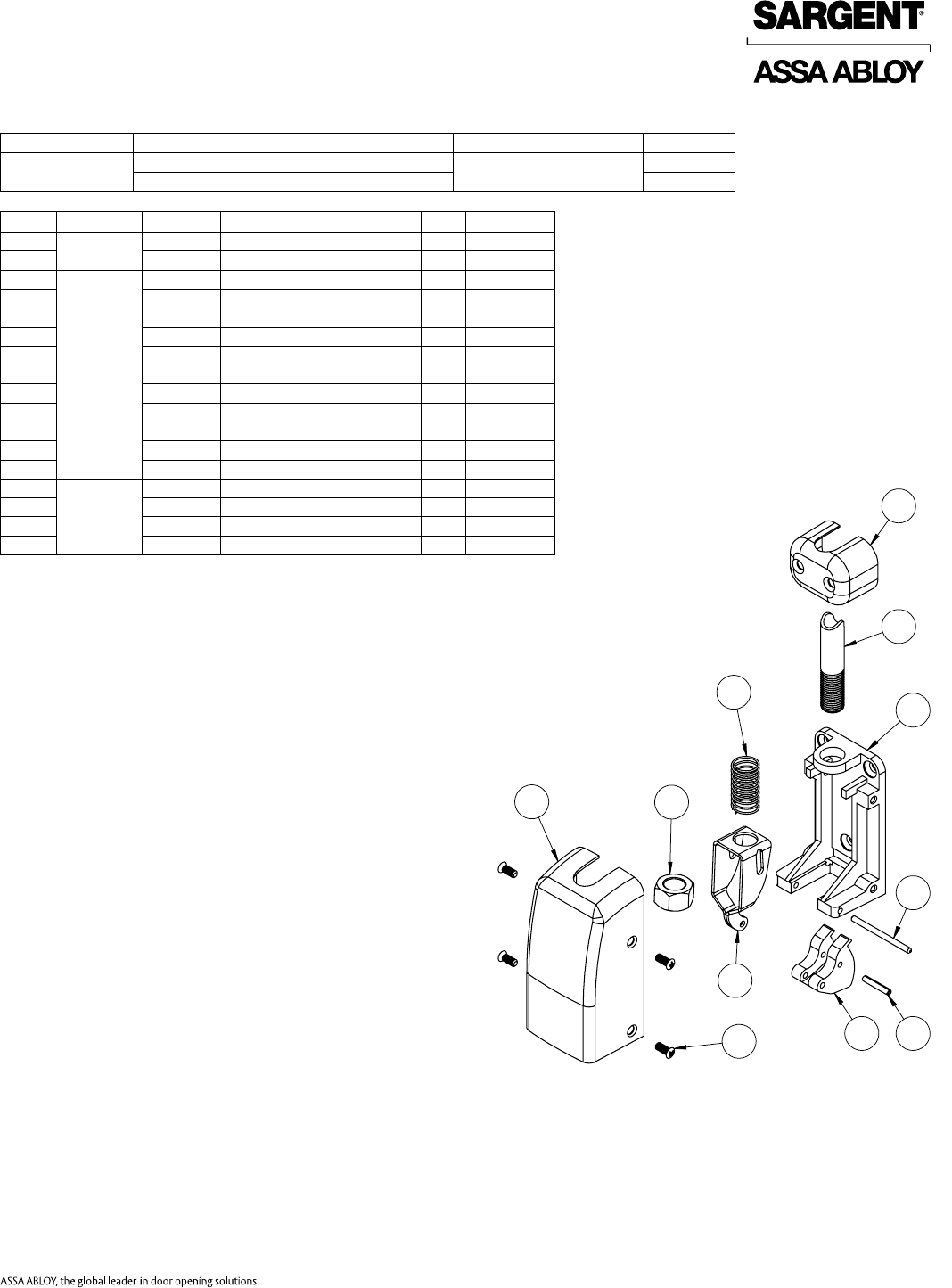

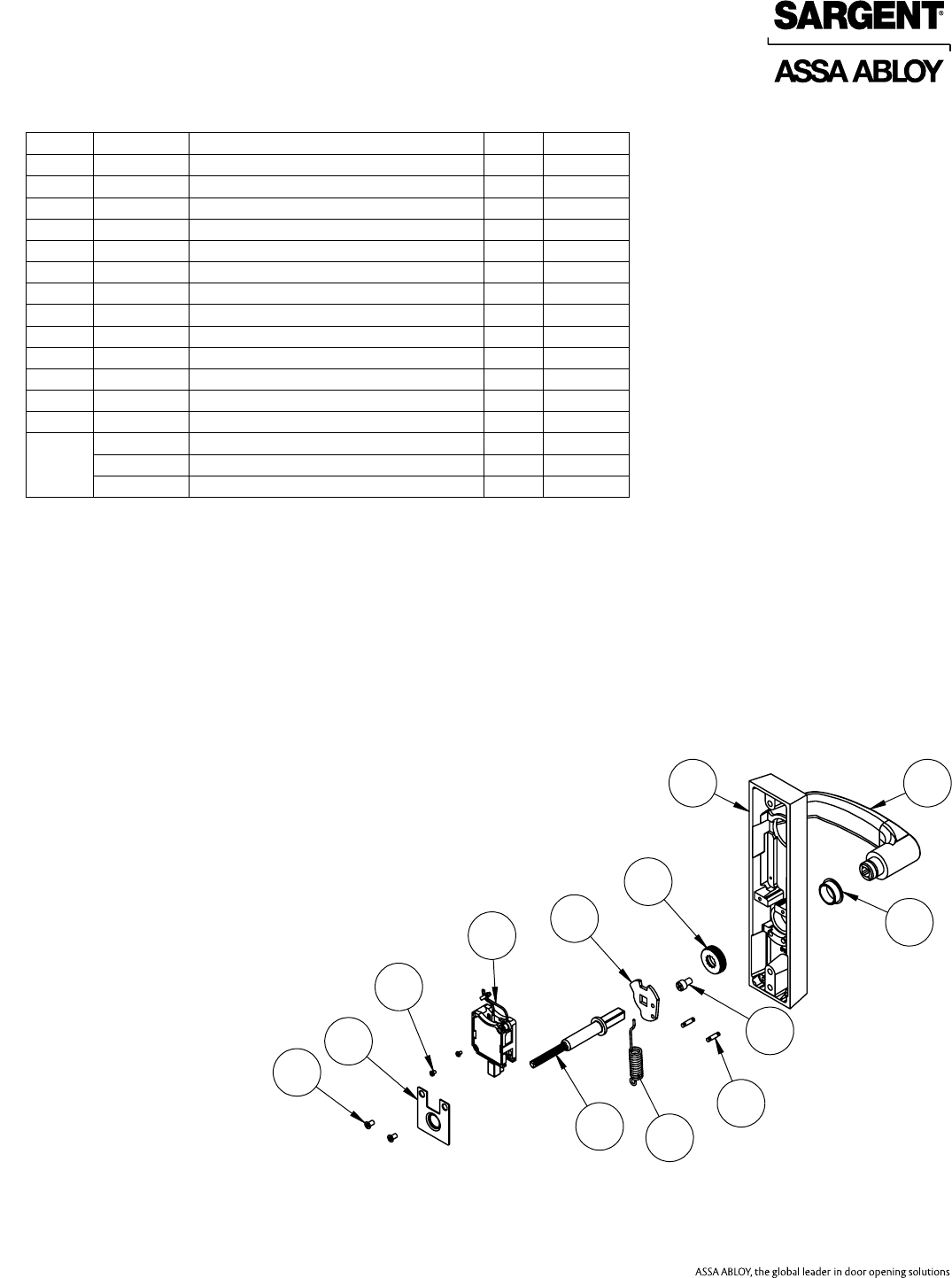

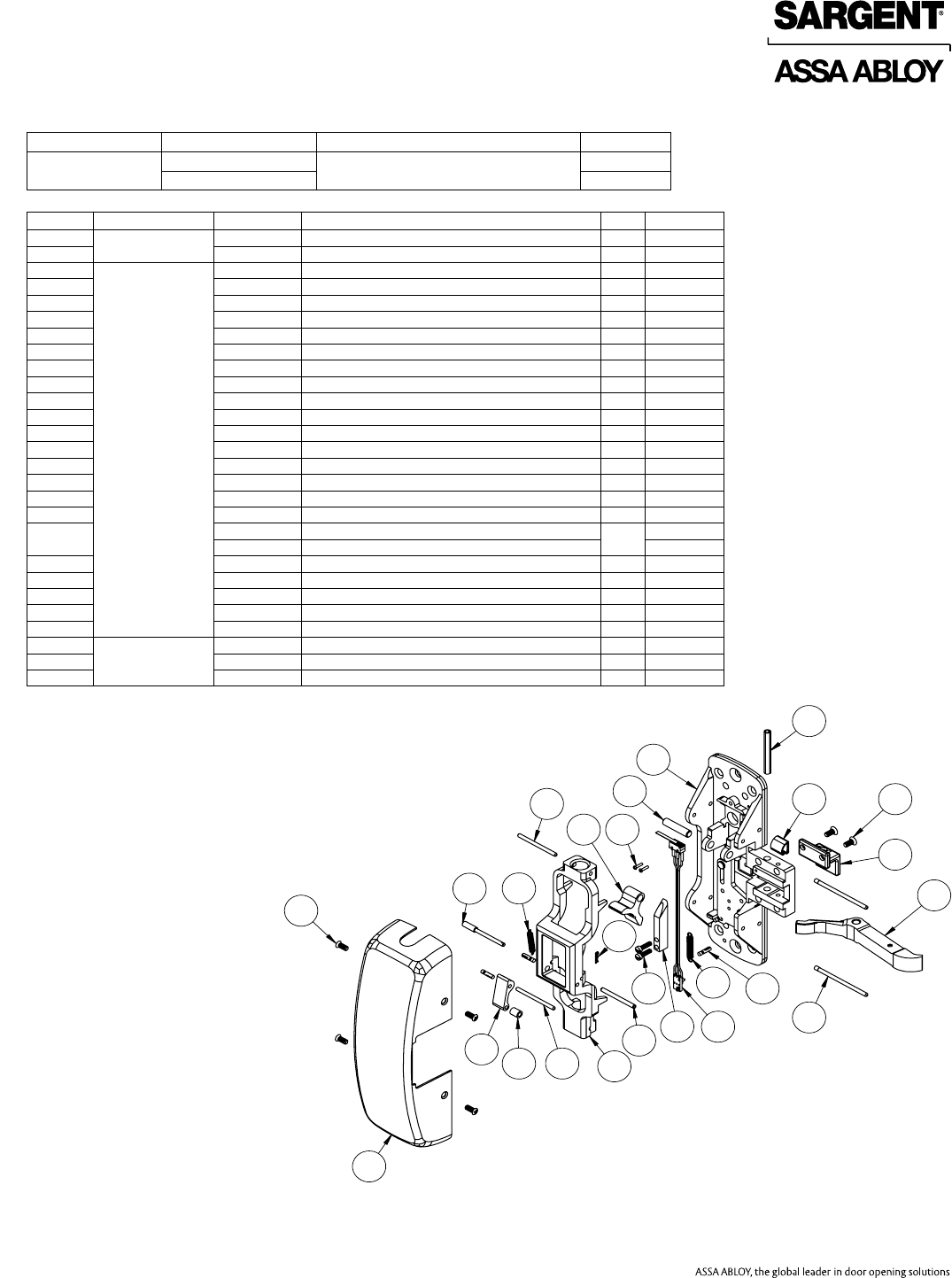

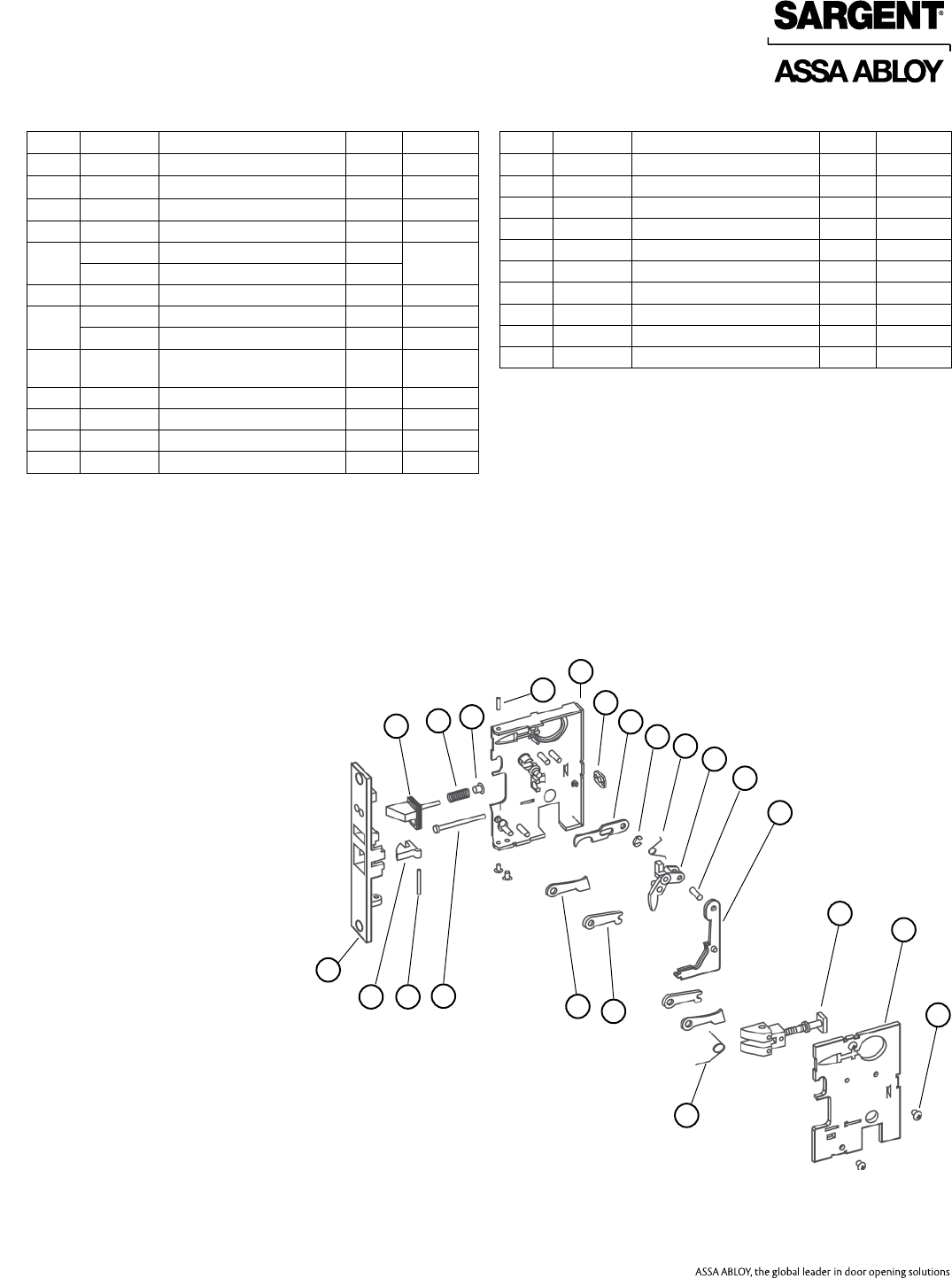

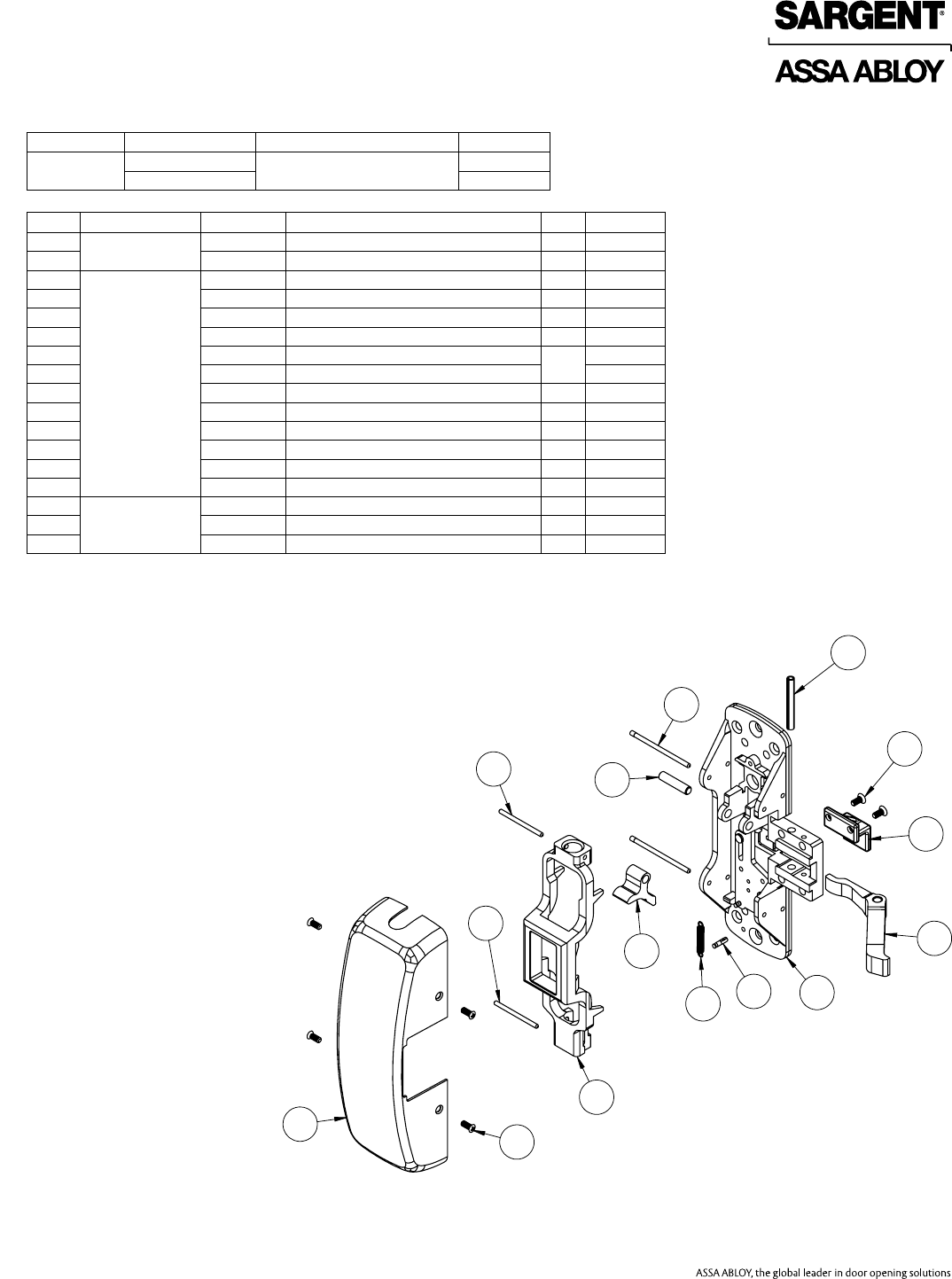

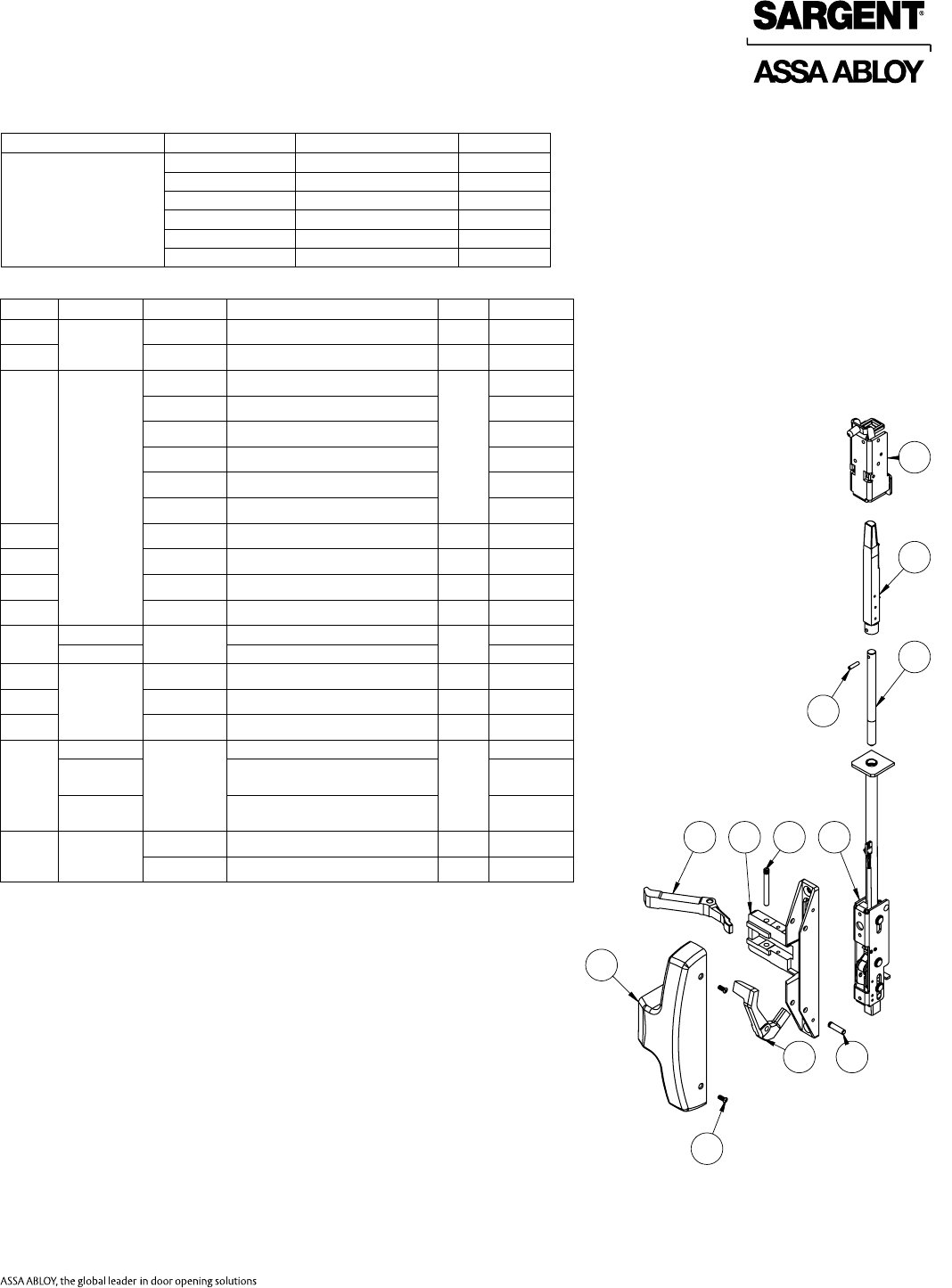

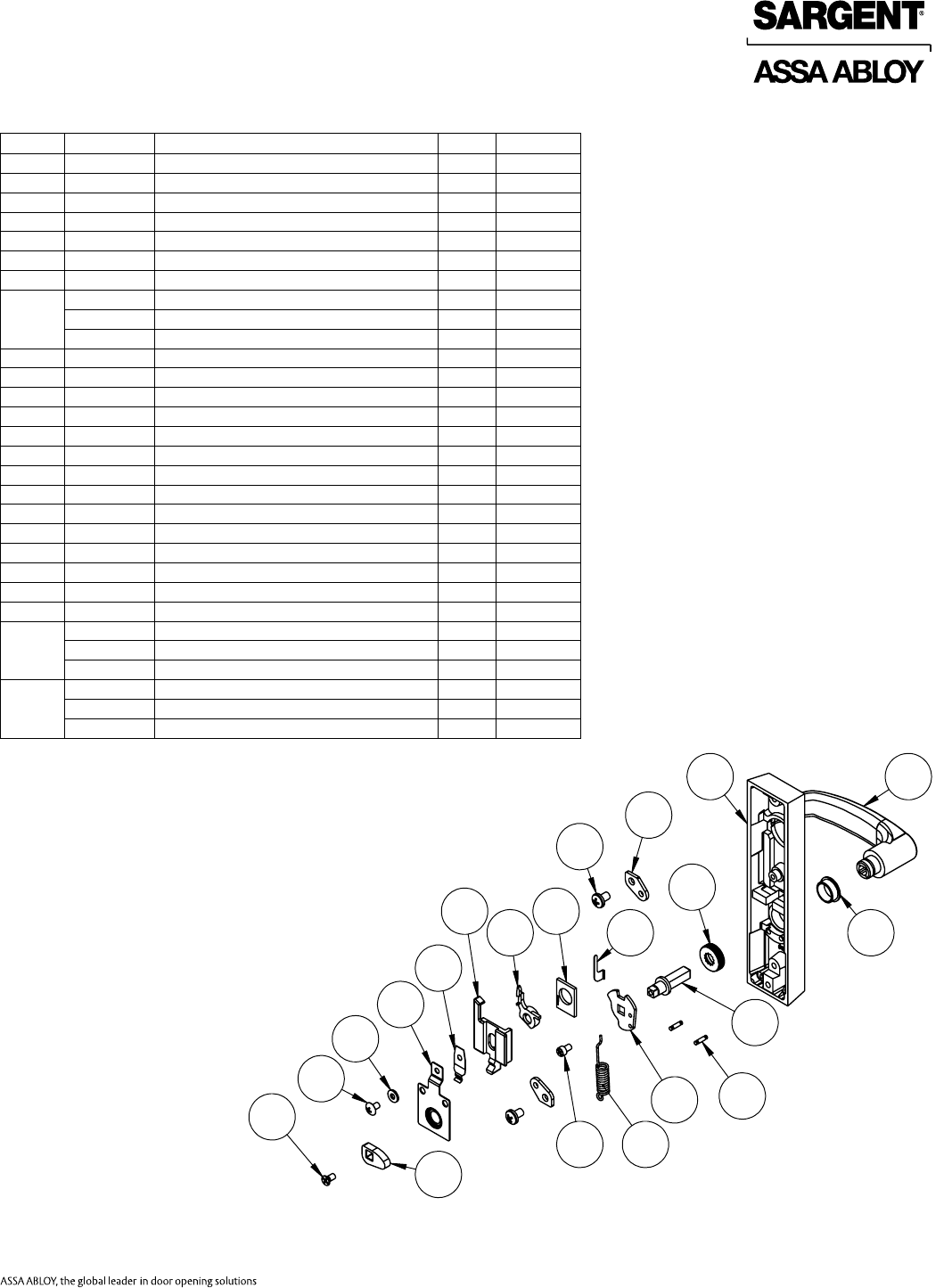

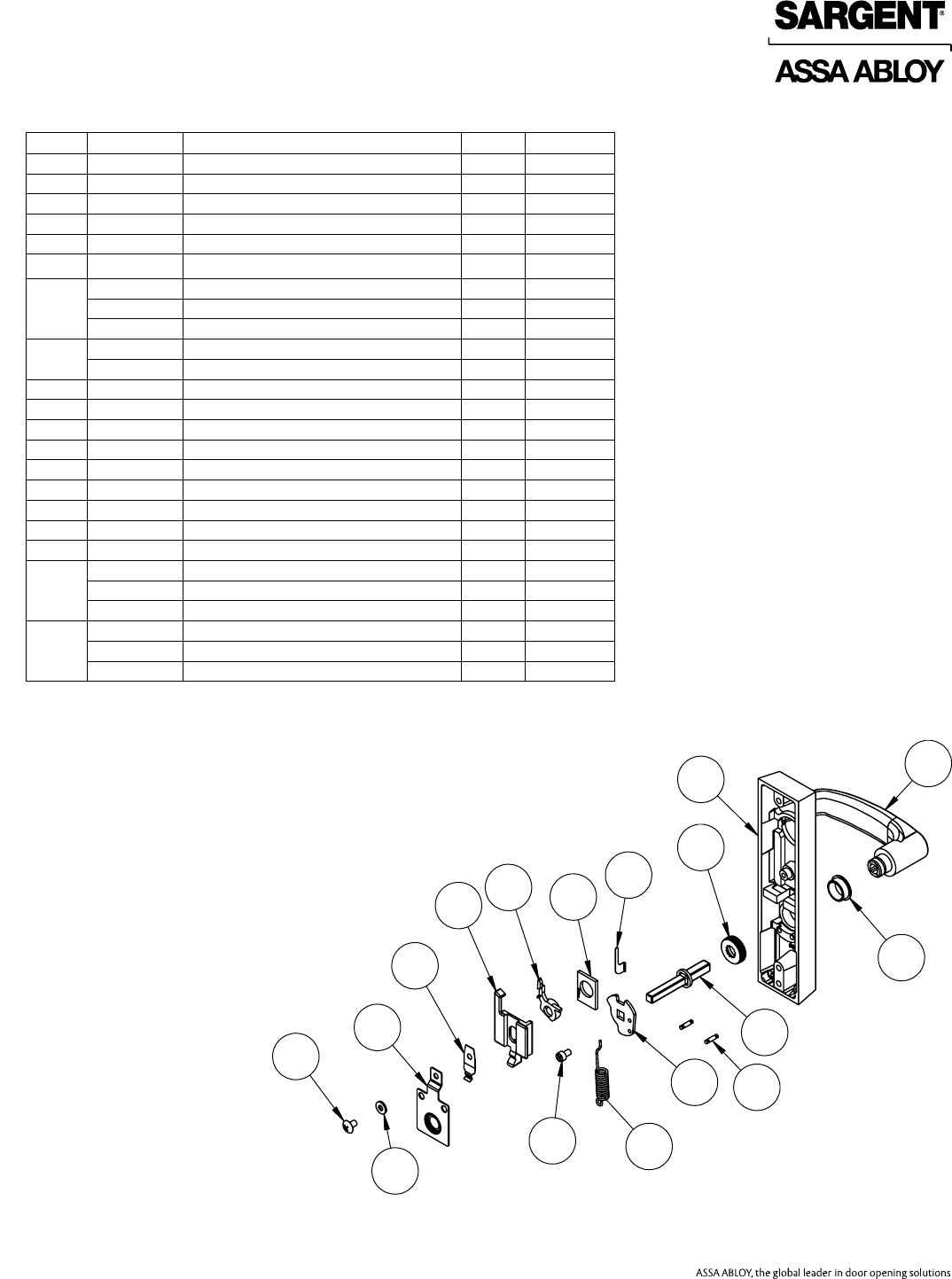

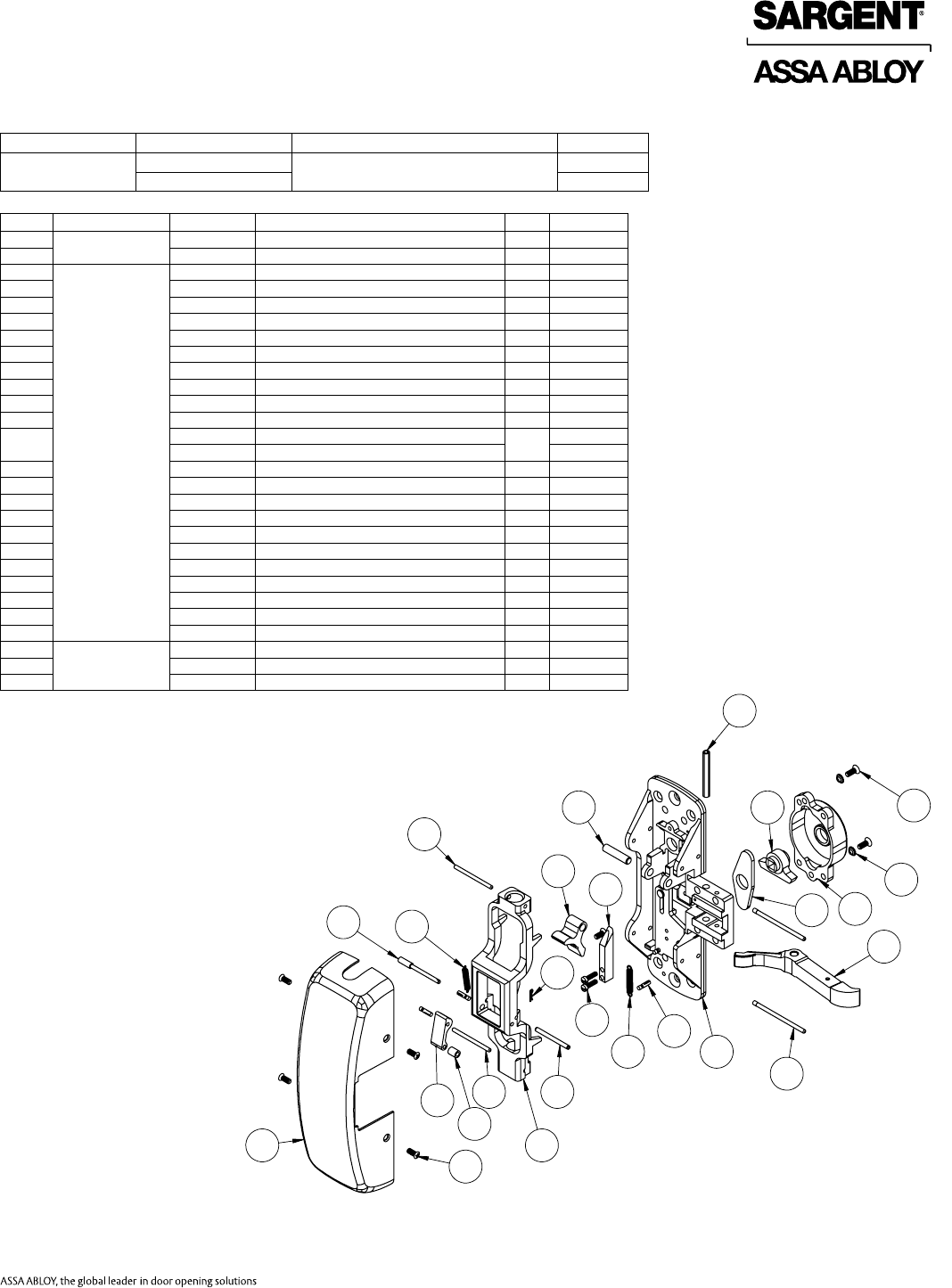

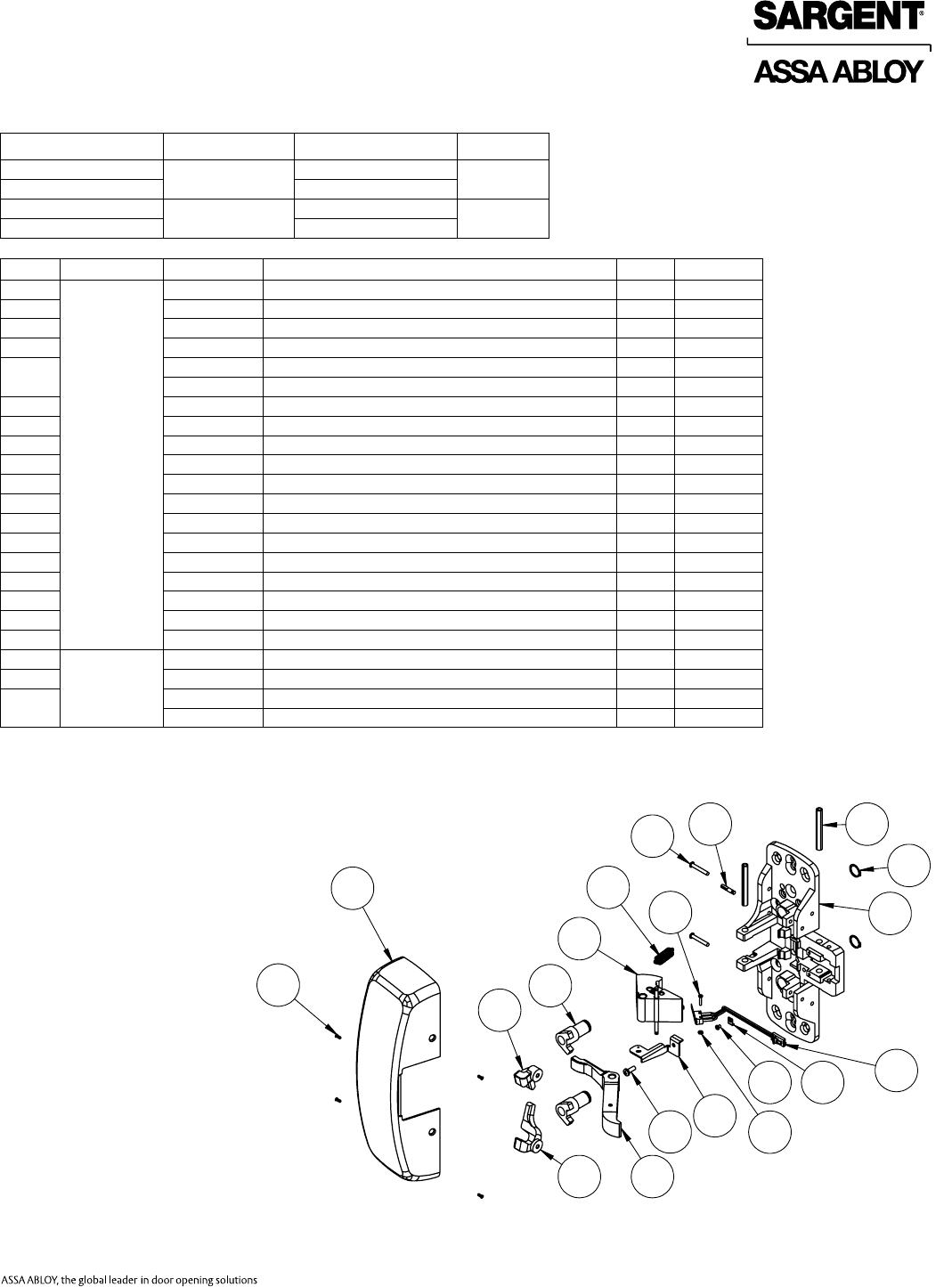

53-MD 8406 8443 8446 8473

MD- 8410 8413 8415

8440 8474

12

34

5678

9

11

12

18

10

14

13

15 16

17

Function Assembly No. Description Sellable

53-MD-(All Functions)

MD-(All Functions)

68-5944 LHRB Non-Cladded Yes

68-5945 RHRB Non-Cladded Yes

68-5946 LHRB 1/2" Cladded Yes

68-5951 RHRB 1/2" Cladded Yes

68-6013 LHRB 1/4" Cladded Yes

68-6014 RHRB 1/4" Cladded Yes

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0496 Chassis Cover, Narrow* 1 Yes

2 68-3905 Screw Pack (B)* 1 Yes

3

See chart

above

68-1644 LHRB Non-Cladded

1

Yes

68-1645 RHRB Non-Cladded Yes

68-1646 LHRB 1/2" Cladded Yes

68-1647 RHRB 1/2" Cladded Ye s

68-1649 LHRB 1/4" Cladded Yes

68-1650 RHRB 1/4" Cladded Ye s

4 68-0479 Lift Lever Pivot Pin 1 Yes

5 68-0241 Lift Arm 1 Yes

6 68-0239 Pivot Pin (Lift Arm) 1 Yes

7 68-0486 Chassis 1 Yes

8

94-2008

N/A

Inner Chassis Assembly

1

Yes

68-3854 53-Inner Chassis

Assembly Yes

9

MD691T

MD660T Top Rod1,2 1 Ye s

10 01-0696 Coiled Pin 2 Yes

11 68-4840 Latch Bolt Assembly 1 Ye s

12

68-5374

N/A

Top Case Assembly STD

1

Yes

68-5375 Top Case Assembly 1/4"

Cladded Yes

68-5376 Top Case Assembly 1/2"

Cladded Yes

13

691B

660B Bottom Rod1,2 1 Yes

14 94-0039 Bolt Sleeve 1 Yes

15 01-4389 Roll Pin 1 Ye s

16 97-0454 Spring (Bottom Bolt) 1 Yes

17 94-0038 Bottom Bolt 1 Yes

18 N/A

68-0888 Bottom Plate 1 Yes

68-3676 Screw Pack* 1 Yes

652 Strike Pack 1 Yes

*Specify Finish

1. Specify AFF

2. Specify Opening Height

6

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

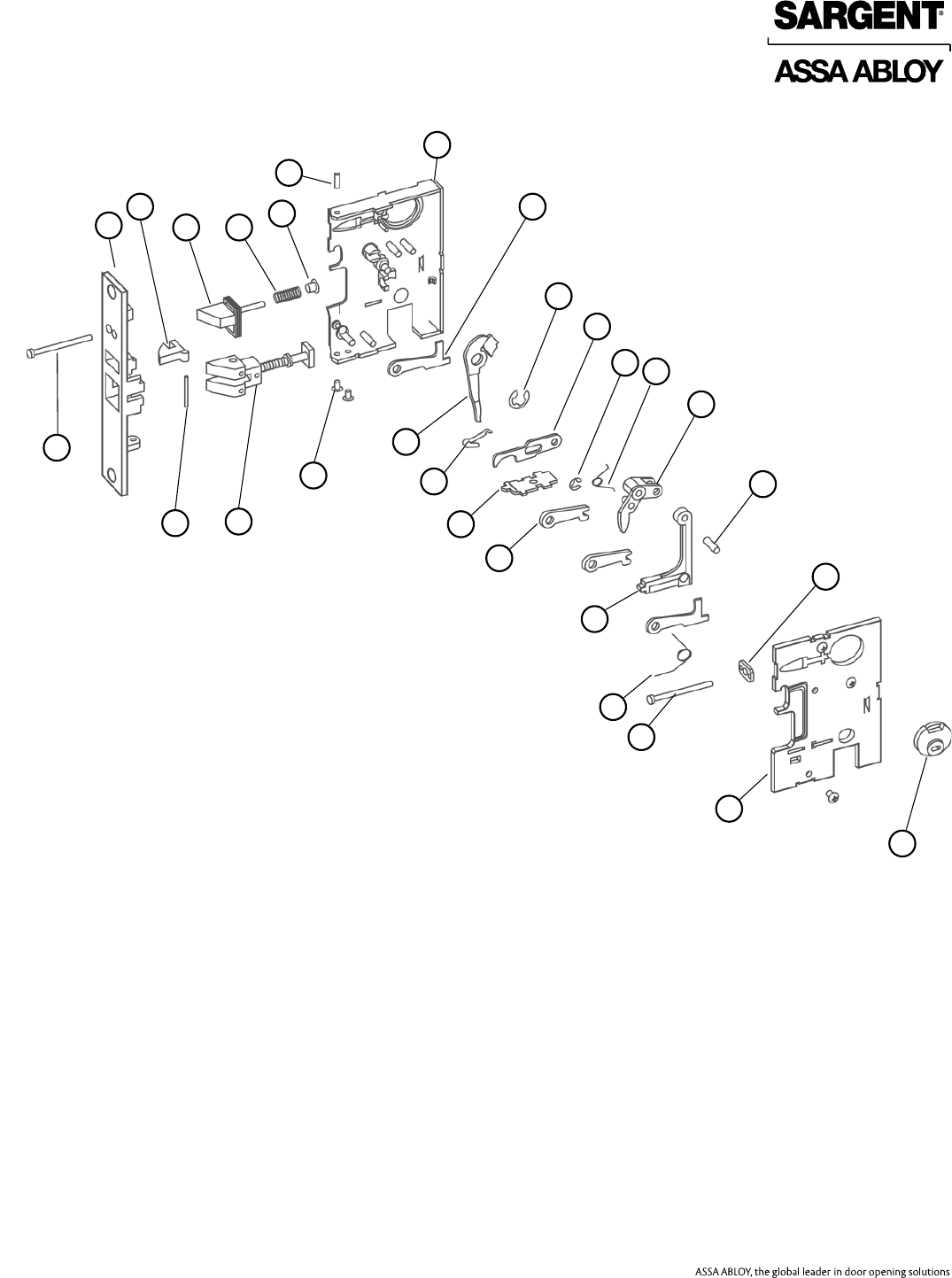

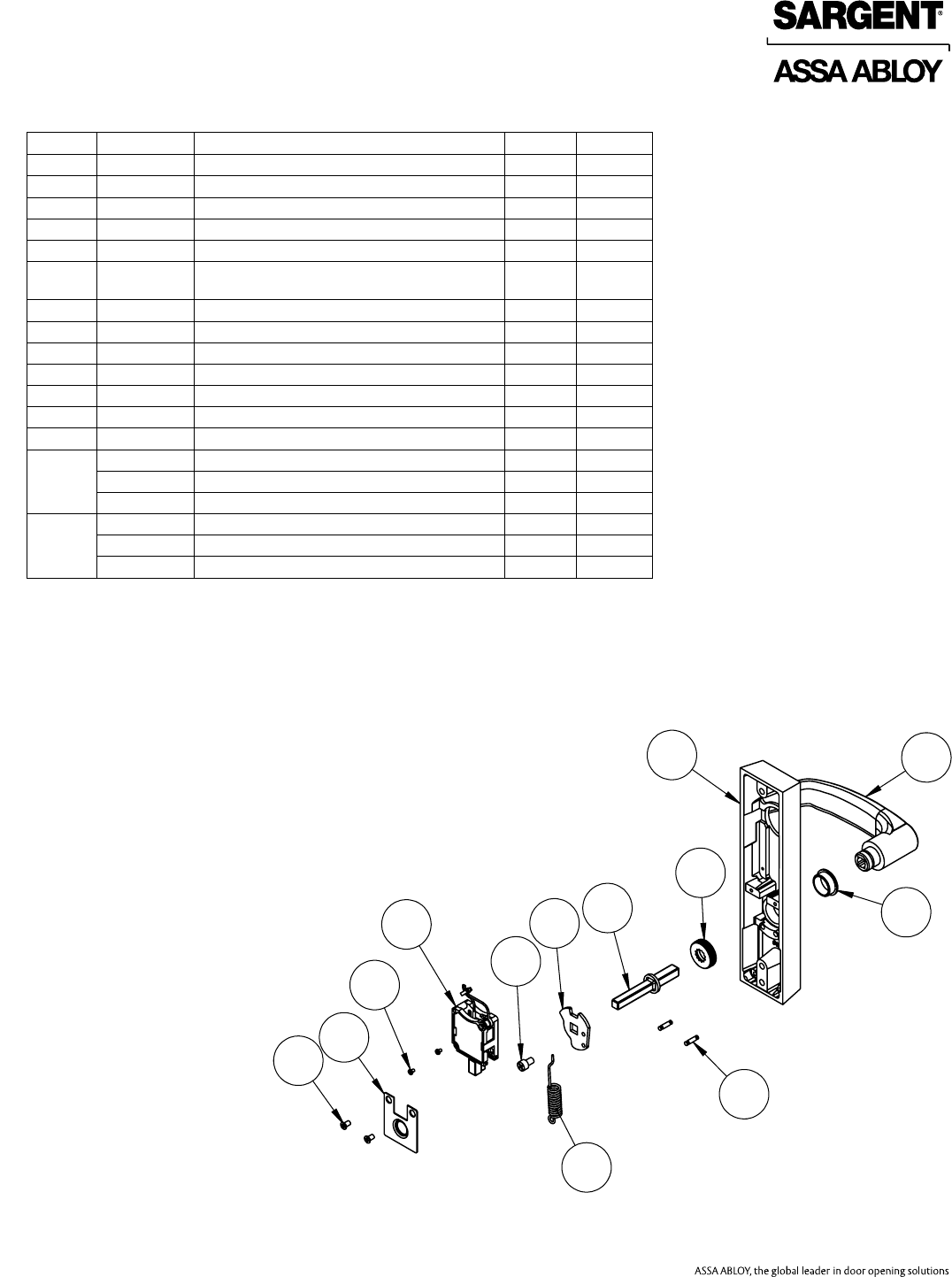

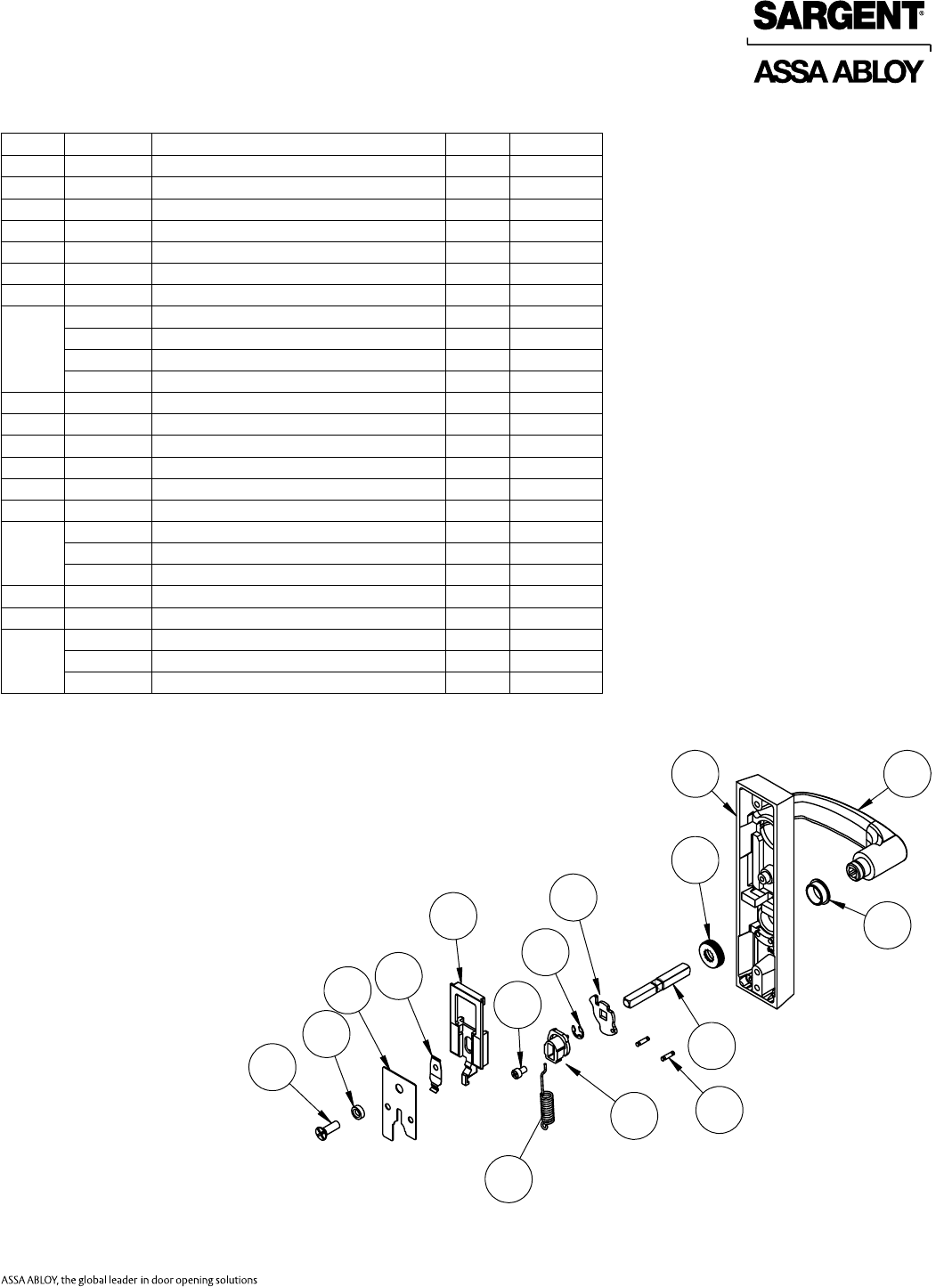

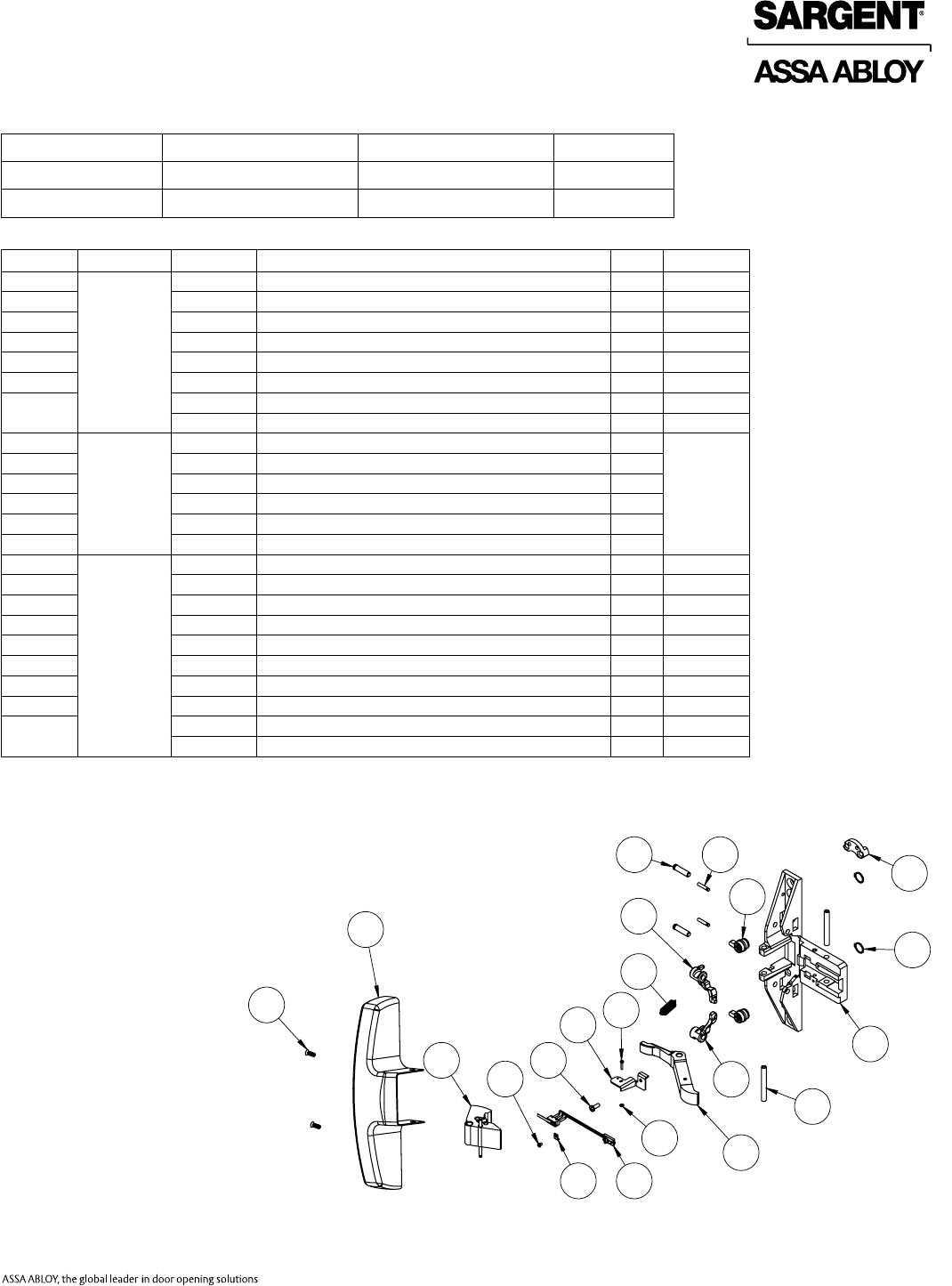

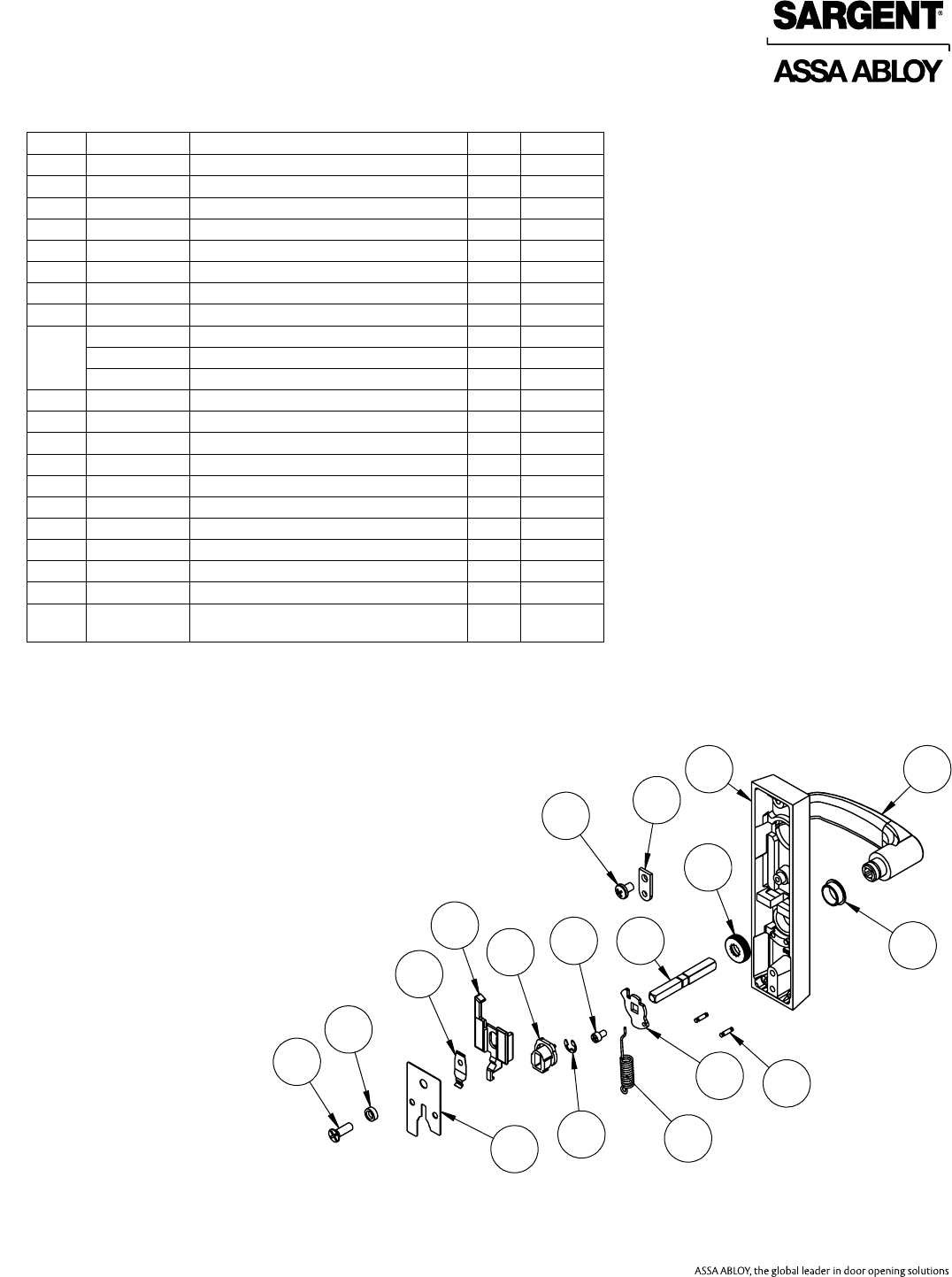

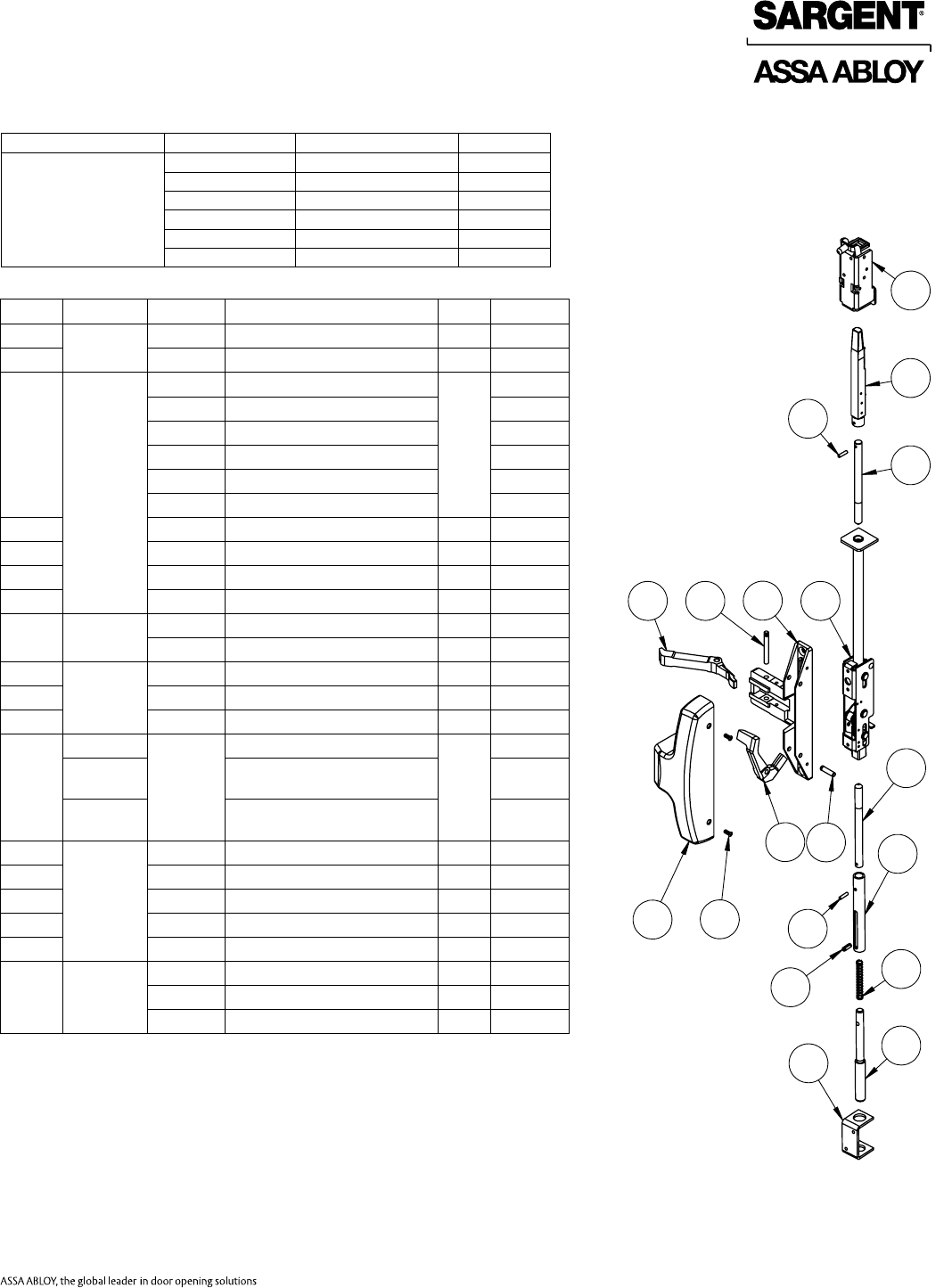

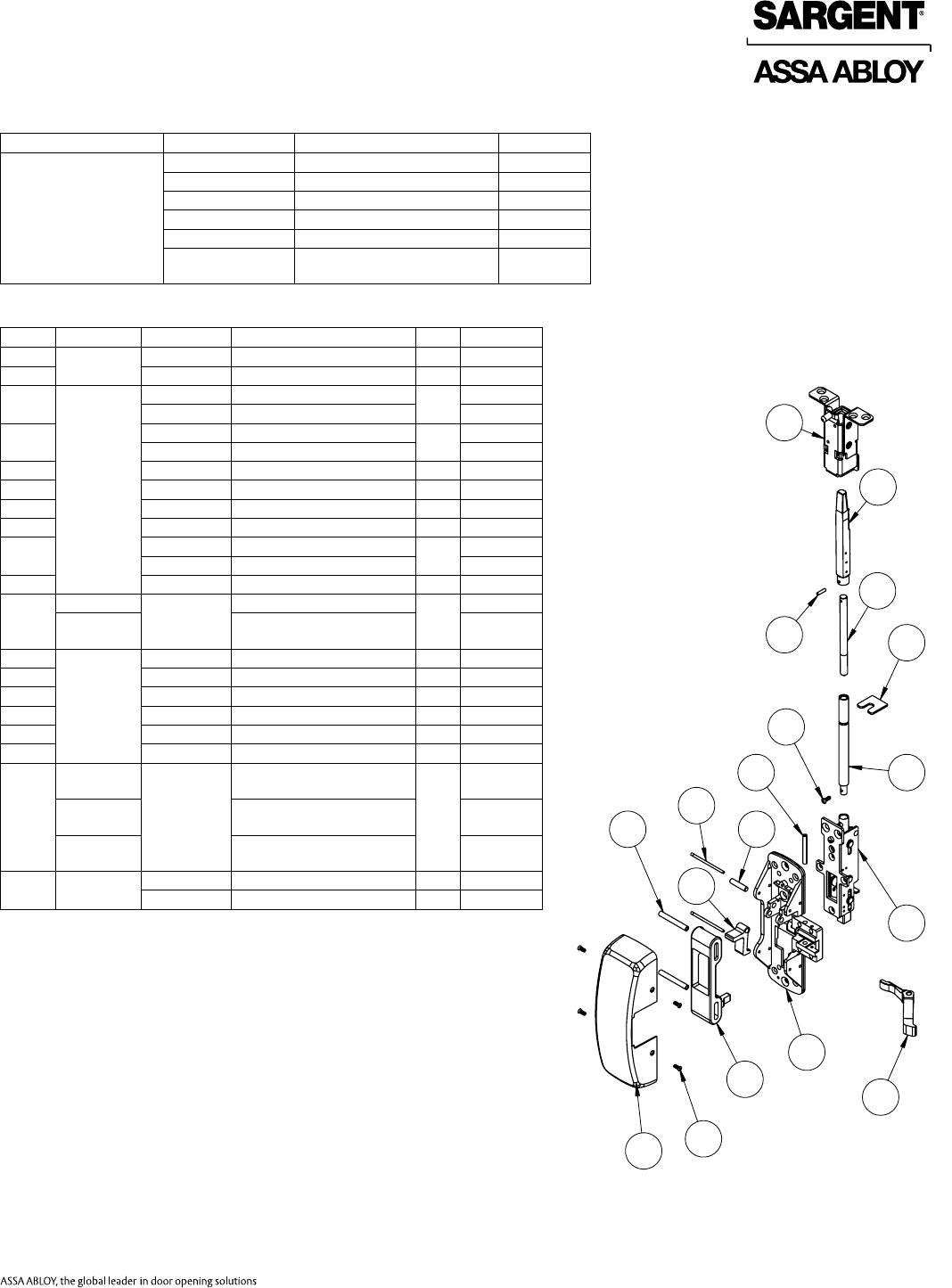

12-53-MD- 8406 8443 8446 8473

12-MD- 8410 8413 8415 8440

8474

12

34

567

9

11

12

18

10

14

8

13

15

16

17

Function Assembly No. Description Sellable

12-53-MD-(All

Functions)

12-MD-(All

Functions)

68-5944 LHRB Non-Cladded Yes

68-5945 RHRB Non-Cladded Yes

68-5946 LHRB 1/2" Cladded Yes

68-5951 RHRB 1/2" Cladded Yes

68-6013 LHRB 1/4" Cladded Yes

68-6014 RHRB 1/4" Cladded Yes

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0496 Chassis Cover, Narrow* 1 Ye s

2 68-3905 Screw Pack (B)* 1 Yes

3

See chart

above

68-1644 LHRB Non-Cladded

1

Yes

68-1645 RHRB Non-Cladded Yes

68-1646 LHRB 1/2" Cladded Yes

68-1647 RHRB 1/2" Cladded Yes

68-1649 LHRB 1/4" Cladded Yes

68-1650 RHRB 1/4" Cladded Yes

4 68-0479 Lift Lever Pivot Pin 1 Ye s

5 68-0241 Lift Arm 1 Ye s

6 68-0239 Pivot Pin (Lift Arm) 1 Yes

7 68-0486 Chassis 1 Ye s

8

68-3627

N/A

12- Inner Chassis Assembly

1

Yes

68-3855 12-53- Inner Chassis

Assembly Yes

9

MD691T

MD660T Top Rod1,2 1 Ye s

10 01-0696 Coiled Pin 2 Ye s

11 68-4840 Latch Bolt Assembly 1 Ye s

12

68-5374

N/A

Top Case Assembly STD

1

Yes

68-5375 Top Case Assembly 1/4"

Cladded Yes

68-5376 Top Case Assembly 1/2"

Cladded Yes

13

691B

660B Bottom Rod1,2 1 Ye s

14 94-0039 Bolt Sleeve 1 Yes

15 01-4389 Roll Pin 1 Ye s

16 97-0454 Spring (Bottom Bolt) 1 Ye s

17 94-0038 Bottom Bolt 1 Yes

18 N/A

68-0888 Bottom Plate 1 Ye s

68-3676 Screw Pack* 1 Ye s

650 Top Strike Pack 1 Ye s

606 Bottom Strike Pack 1 Yes

*Specify Finish

1. Specify AFF

2. Specify Opening Height

7

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

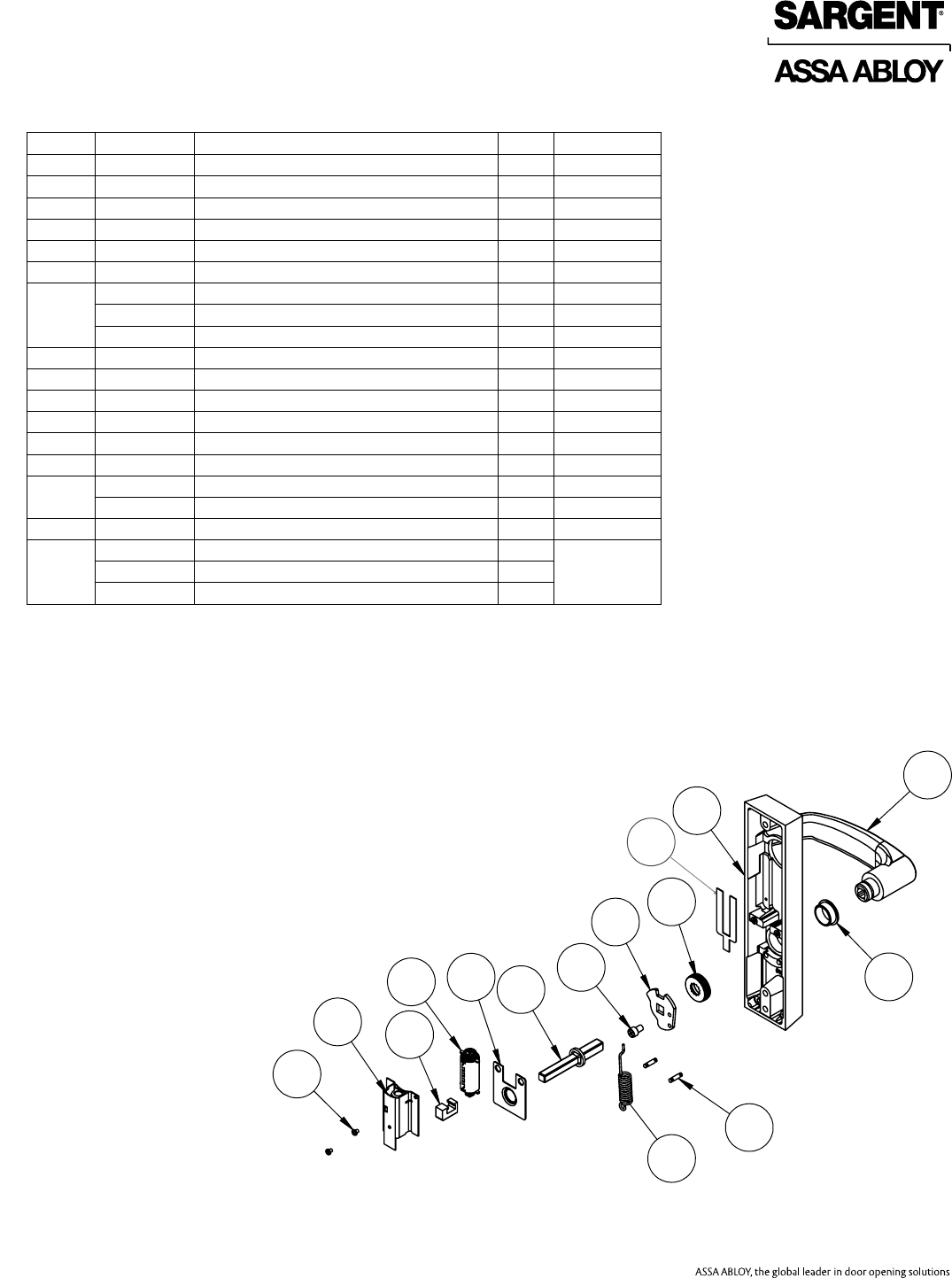

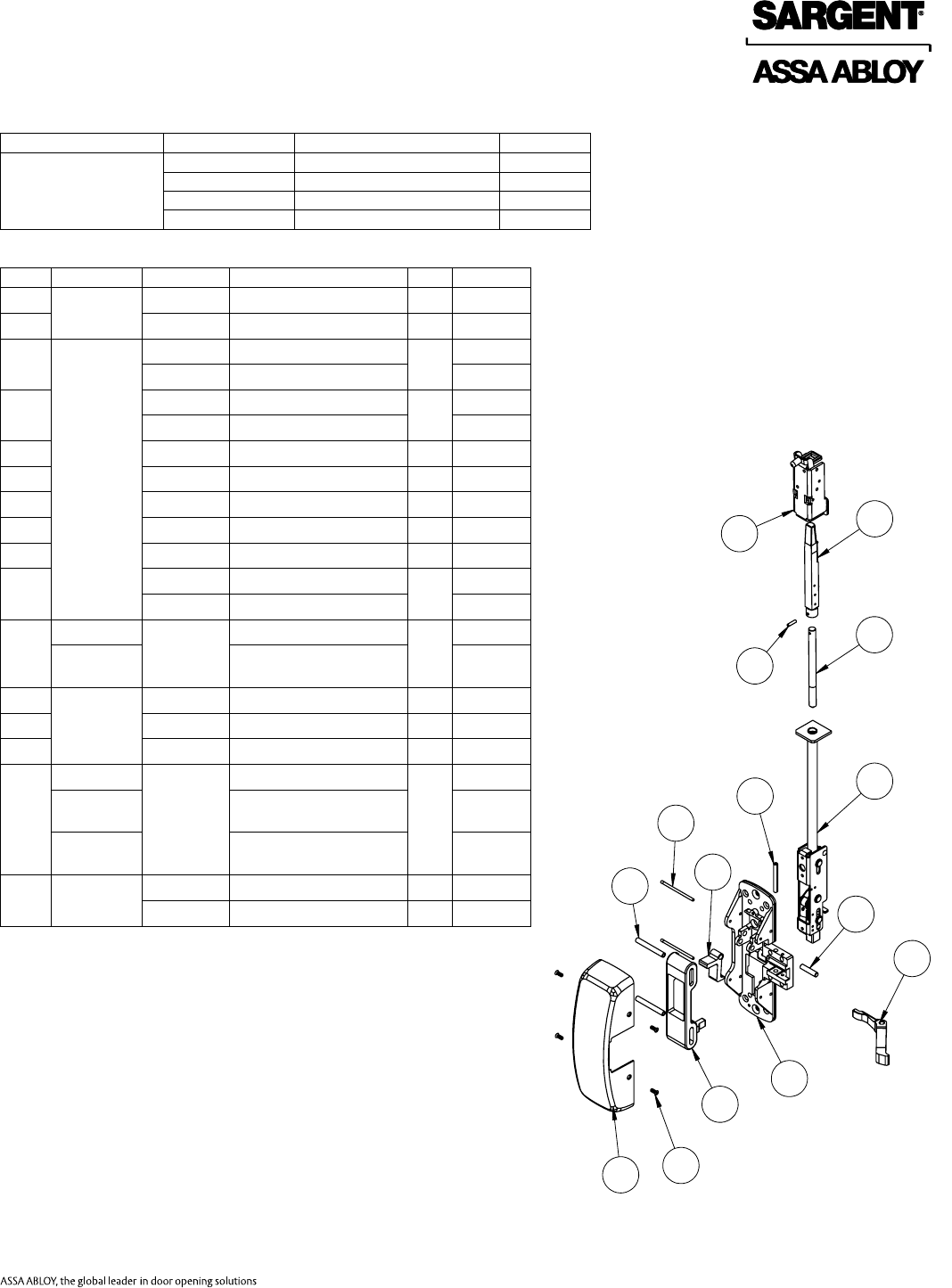

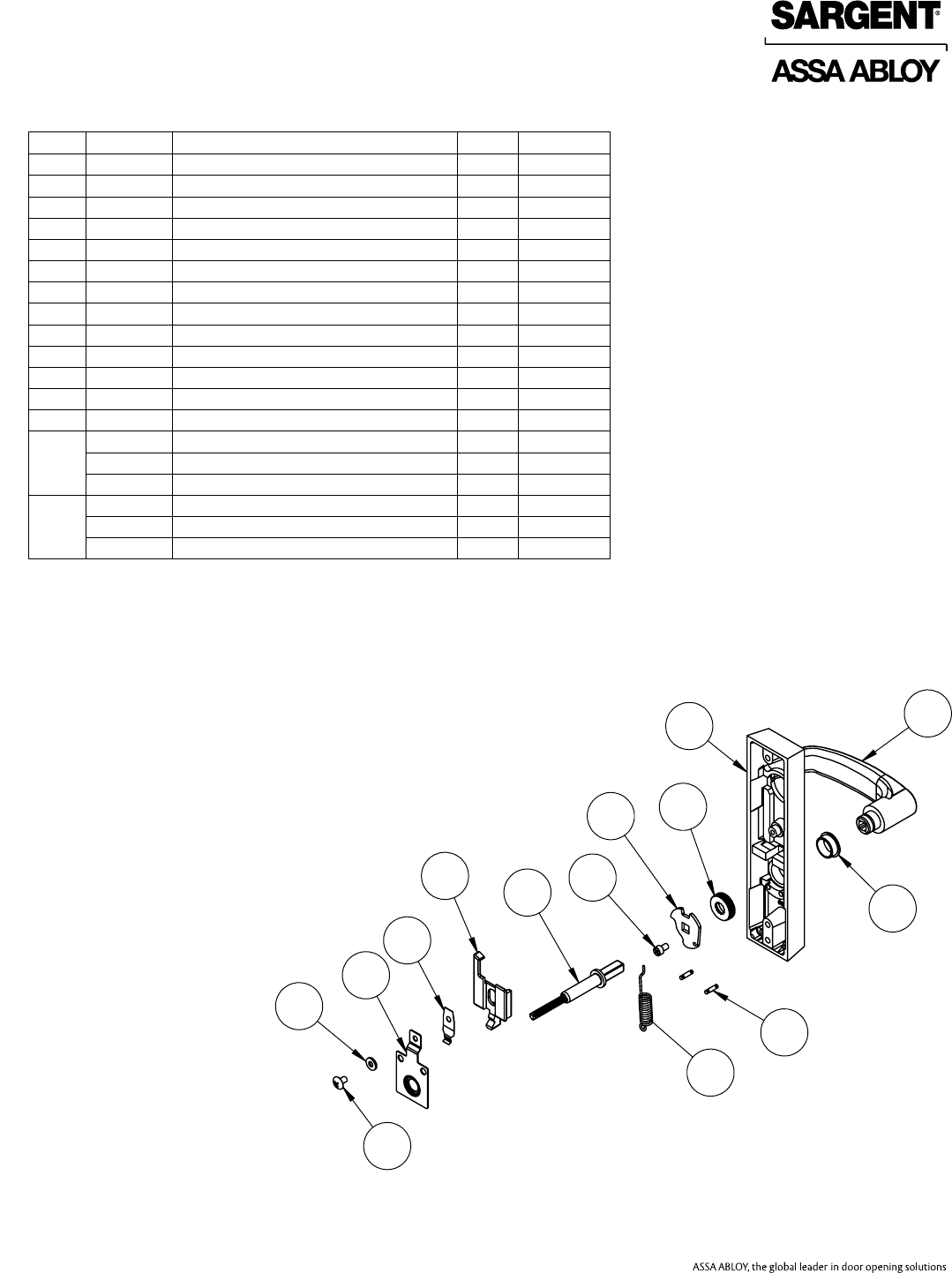

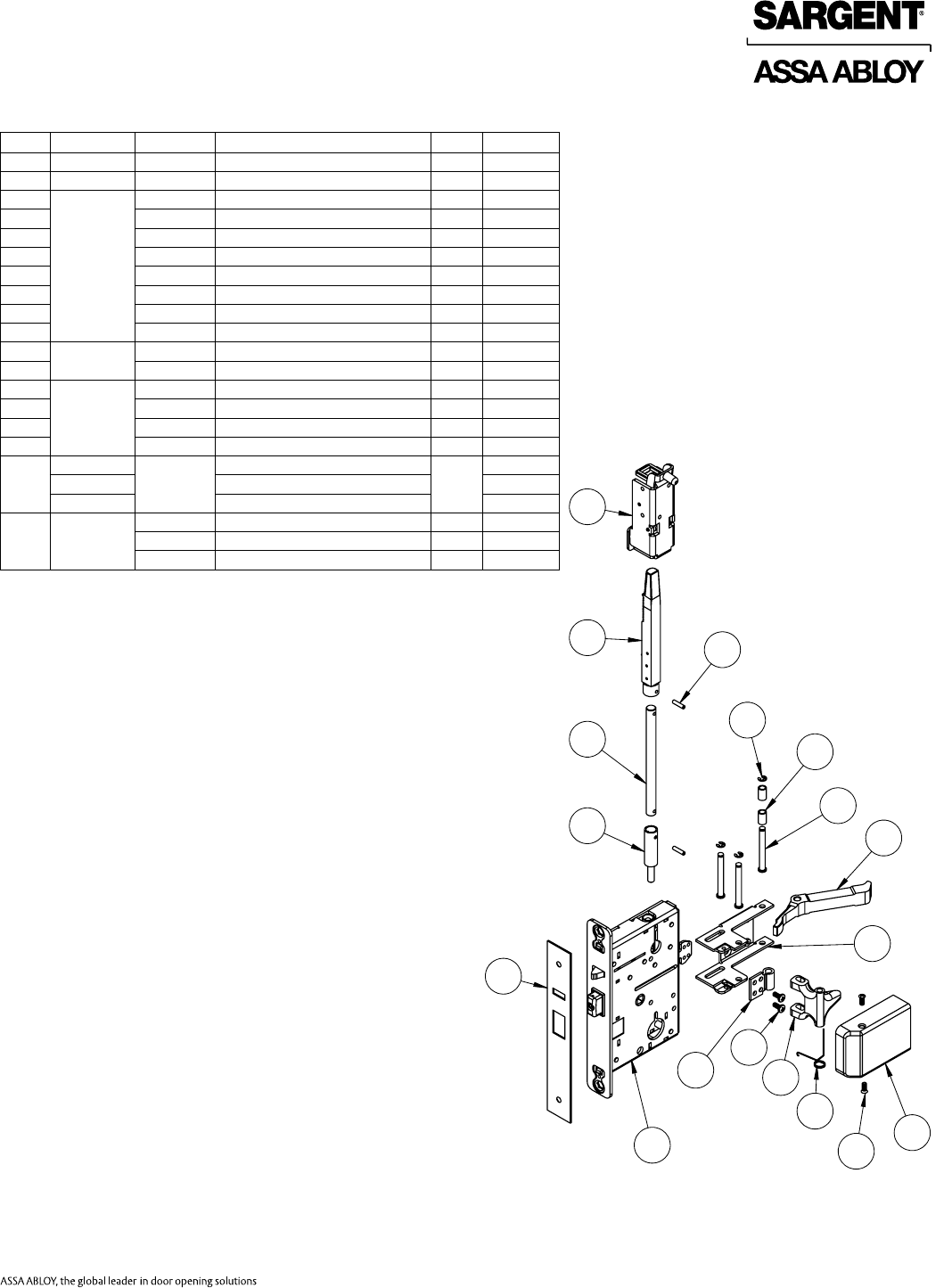

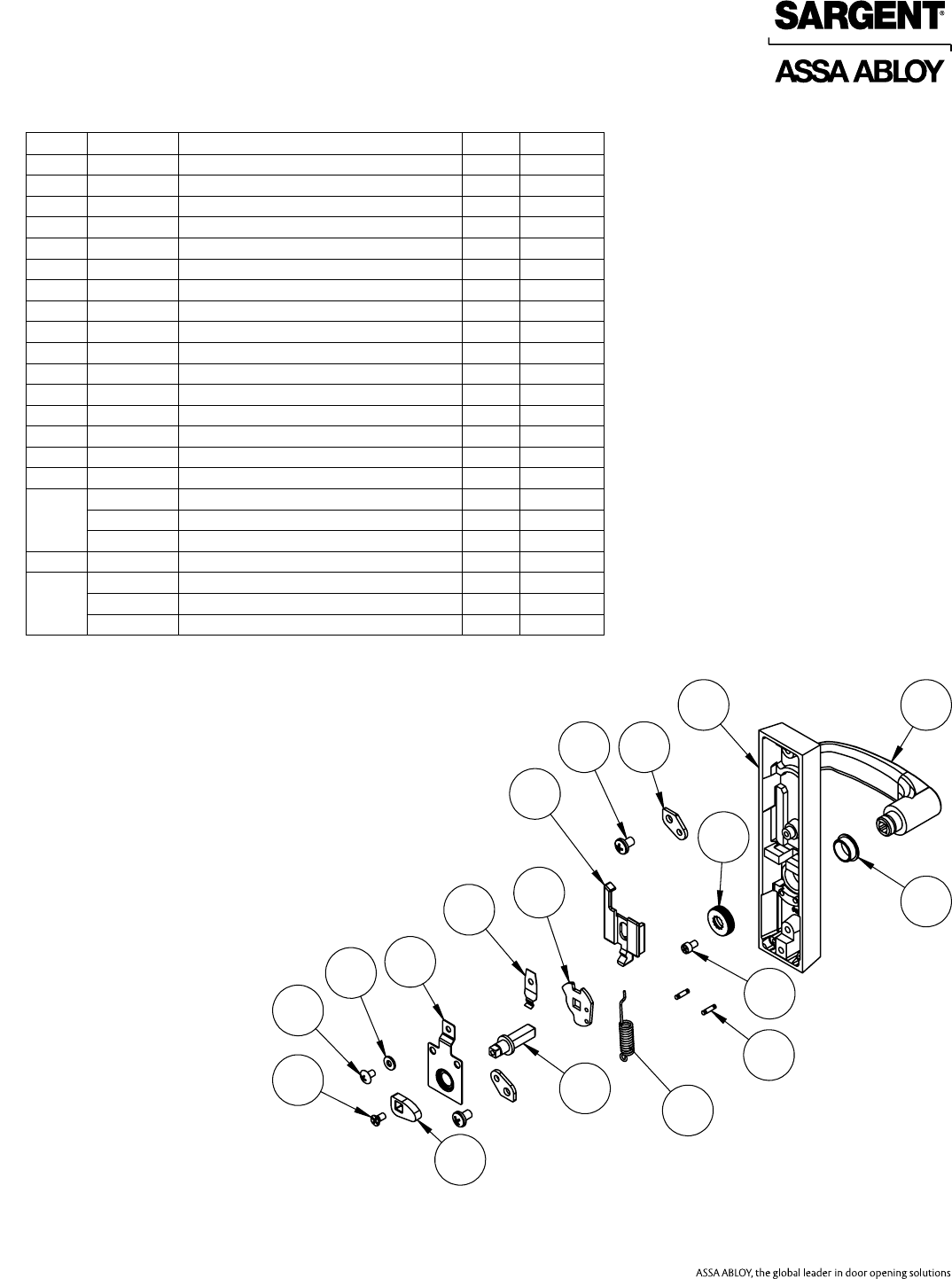

53-NB-MD 8406 8443 8446 8473

NB-MD- 8410 8413 8415 8440

8474

1

576

43

2

9

11

12

10

8

Function Assembly No. Description Sellable

53-NB-MD-(All

Functions)

NB-MD-(All

Functions)

68-5944 LHRB Non-Cladded Yes

68-5945 RHRB Non-Cladded Yes

68-5946 LHRB 1/2" Cladded Yes

68-5951 RHRB 1/2" Cladded Yes

68-6013 LHRB 1/4" Cladded Yes

68-6014 RHRB 1/4" Cladded Yes

*Specify Finish

1. Specify AFF

2. Specify Opening Height

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0496 Chassis Cover, Narrow* 1 Ye s

2 68-3905 Screw Pack (B)* 1 Yes

3

See chart

above

68-1644 LHRB Non-Cladded

1

Yes

68-1645 RHRB Non-Cladded Yes

68-1646 LHRB 1/2" Cladded Yes

68-1647 RHRB 1/2" Cladded Yes

68-1649 LHRB 1/4" Cladded Yes

68-1650 RHRB 1/4" Cladded Yes

4 68-0479 Lift Lever Pivot Pin 1 Ye s

5 68-0241 Lift Arm 1 Yes

6 68-0486 Chassis 1 Yes

7 68-0239 Pivot Pin (Lift Arm) 1 Ye s

894-2008 N/A Inner Chassis Assembly 1Ye s

68-3854 53-Inner Chassis Assembly Ye s

9

MD691T

MD660T Top Rod1,2 1 Yes

10 01-0696 Coiled Pin 1 Ye s

11 68-4840 Latch Bolt Assembly 1 Ye s

12

68-5374

N/A

Top Case Assembly STD

1

Yes

68-5375 Top Case Assembly 1/4"

Cladded Yes

68-5376 Top Case Assembly 1/2"

Cladded Yes

13 N/A 68-3676 Screw Pack* 1 Yes

650 Top Strike Pack 1 Yes

8

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

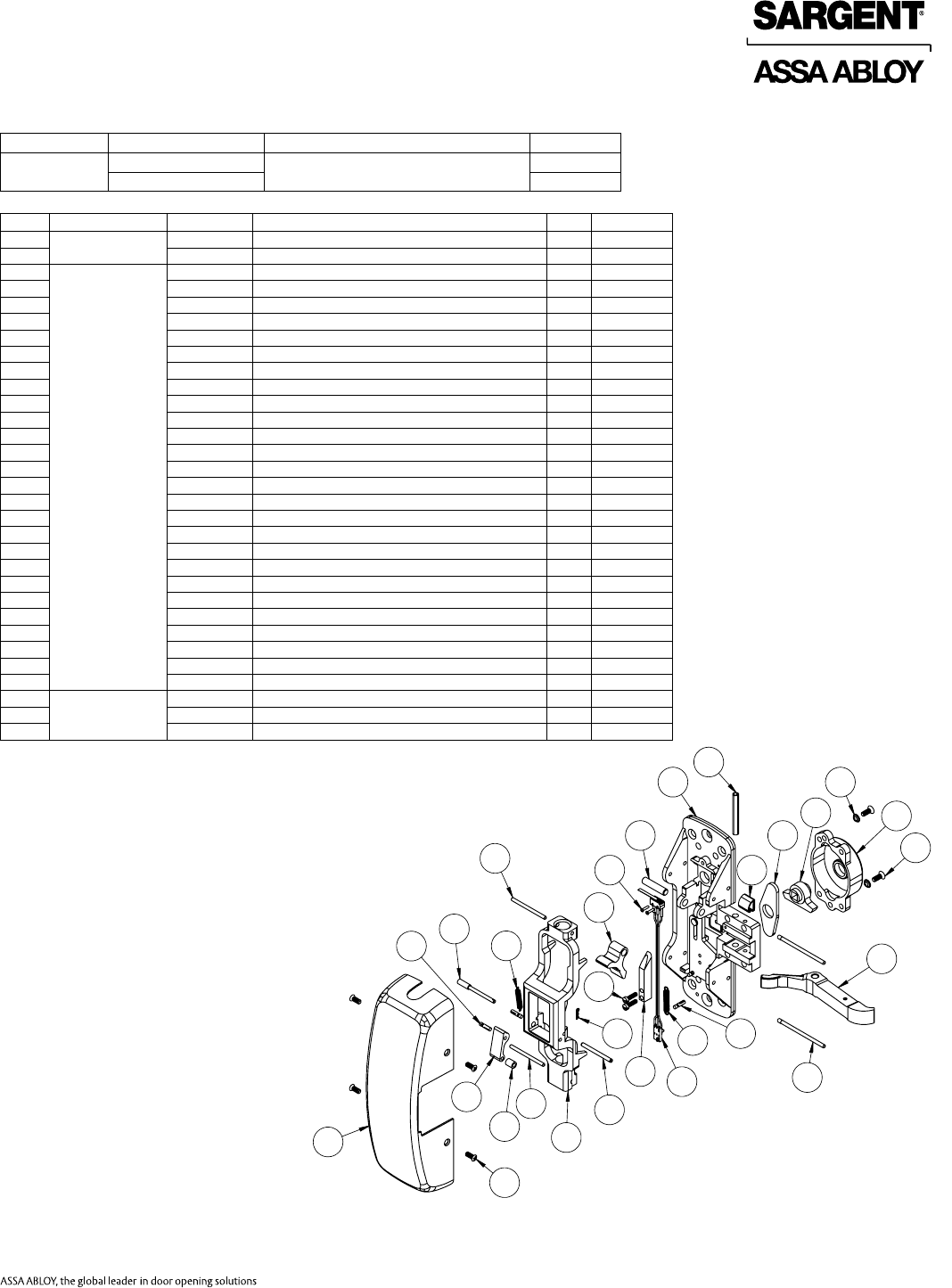

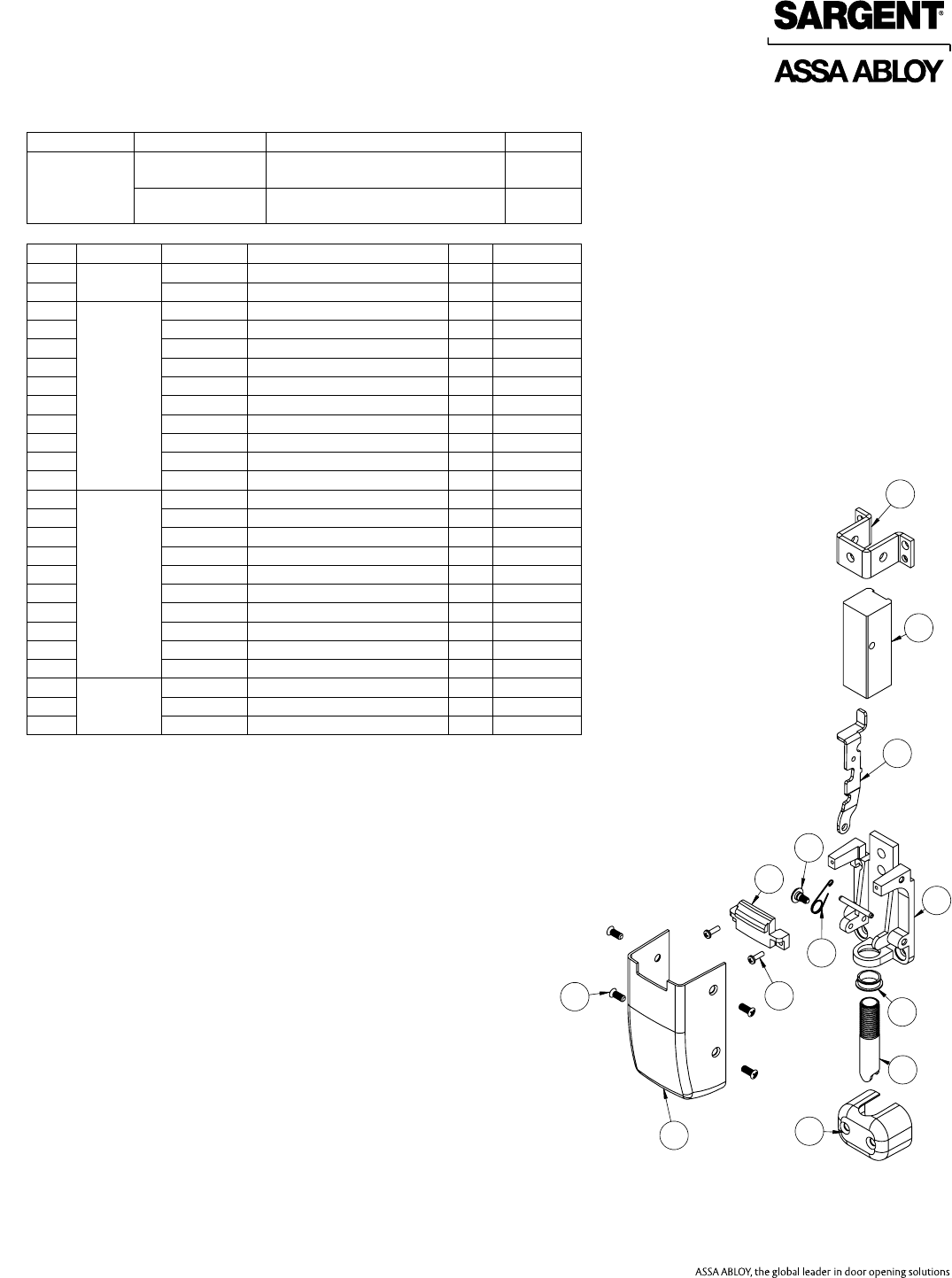

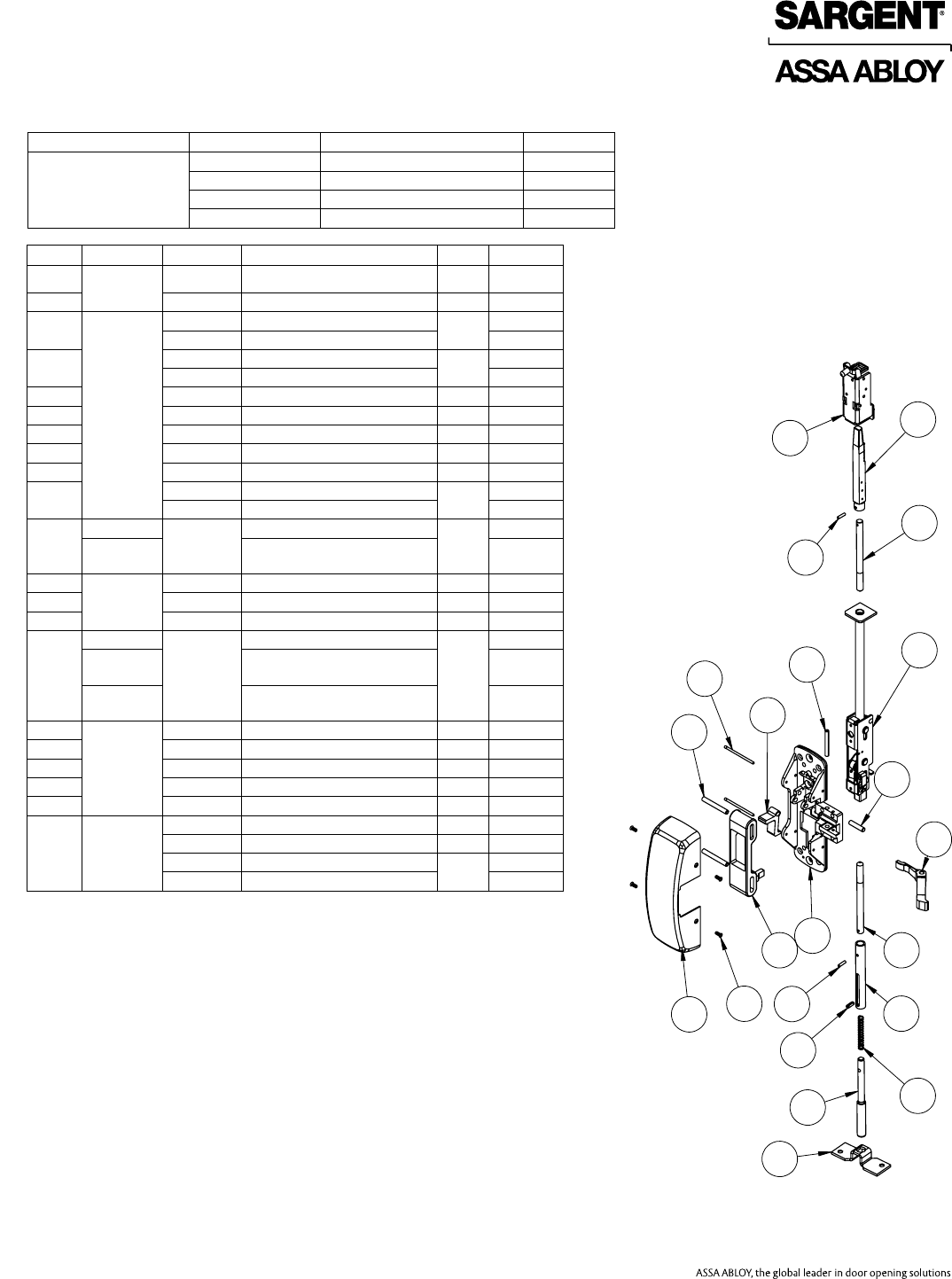

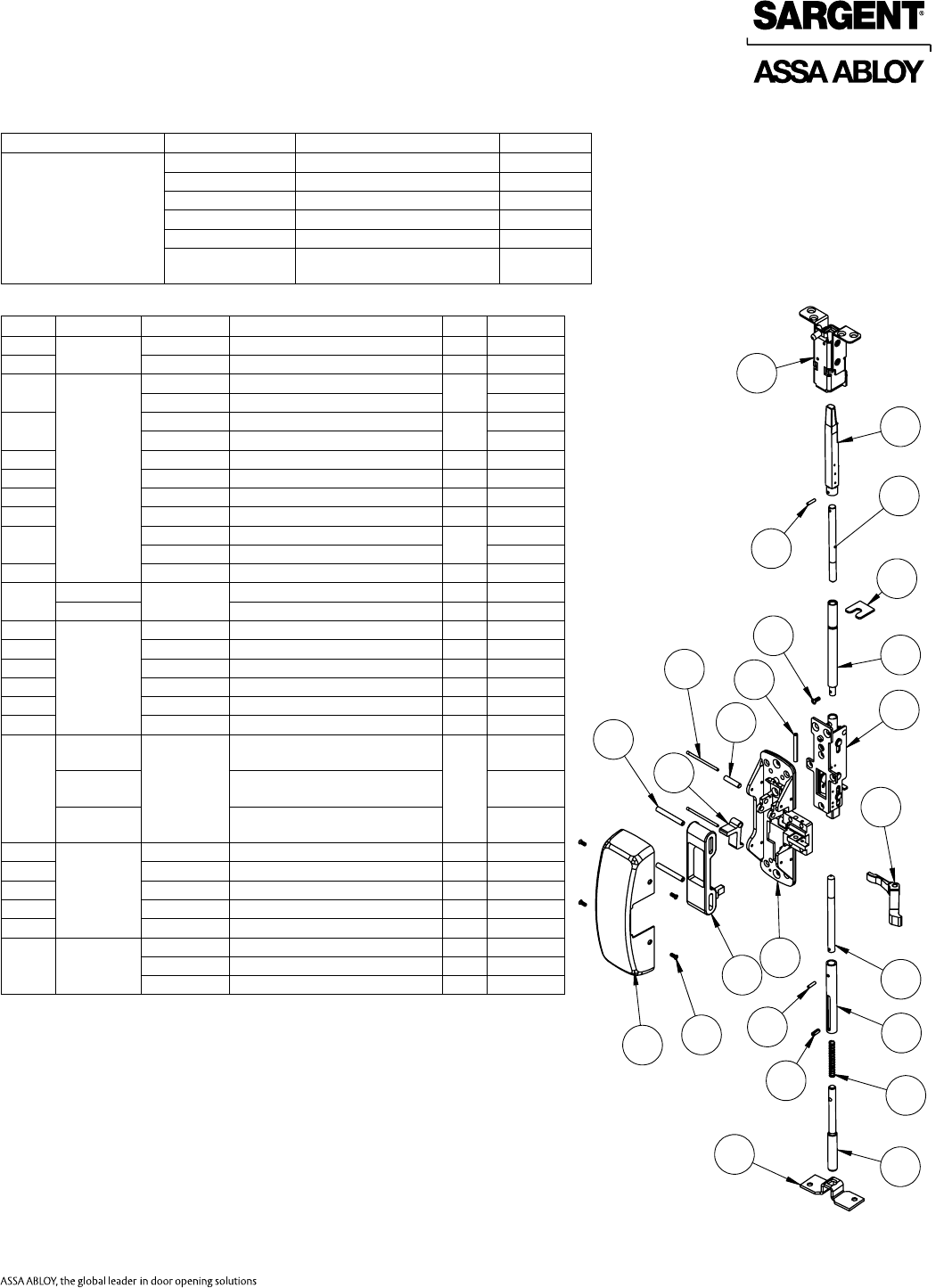

12-53-NB-MD- 8406 8410 8413 8415 8440

12-NB-MD 8443 8446 8473 8474

1

576

43

2

9

11

12

10

8

Function Assembly No. Description Sellable

12-53-NB-MD-

(All Functions)

12-NB-MD-(All

Functions)

68-5944 LHRB Non-Cladded Yes

68-5945 RHRB Non-Cladded Yes

68-5946 LHRB 1/2" Cladded Yes

68-5951 RHRB 1/2" Cladded Yes

68-6013 LHRB 1/4" Cladded Yes

68-6014 RHRB 1/4" Cladded Ye s

*Specify Finish

1. Specify AFF

2. Specify Opening Height

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0496 Chassis Cover, Narrow* 1 Ye s

2 68-3905 Screw Pack (B)* 1 Yes

3

See chart

above

68-1644 LHRB Non-Cladded

1

Yes

68-1645 RHRB Non-Cladded Yes

68-1646 LHRB 1/2" Cladded Yes

68-1647 RHRB 1/2" Cladded Yes

68-1649 LHRB 1/4" Cladded Yes

68-1650 RHRB 1/4" Cladded Yes

4 68-0479 Lift Lever Pivot Pin 1 Yes

5 68-0241 Lift Arm 1 Ye s

6 68-0486 Chassis 1 Yes

7 68-0239 Pivot Pin (Lift Arm) 1 Ye s

8

94-2008

N/A

Inner Chassis Assembly

1

Yes

68-3854 53-Inner Chassis

Assembly Yes

9

MD691T

MD660T Top Rod1,2 1 Ye s

10 01-0696 Coiled Pin 1 Yes

11 68-4840 Latch Bolt Assembly 1 Ye s

12

68-5374

N/A

Top Case Assembly STD

1

Yes

68-5375 Top Case Assembly 1/4"

Cladded Yes

68-5376 Top Case Assembly 1/2"

Cladded Yes

13 N/A 68-3676 Screw Pack* 1 Yes

650 Top Strike Pack 1 Ye s

9

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

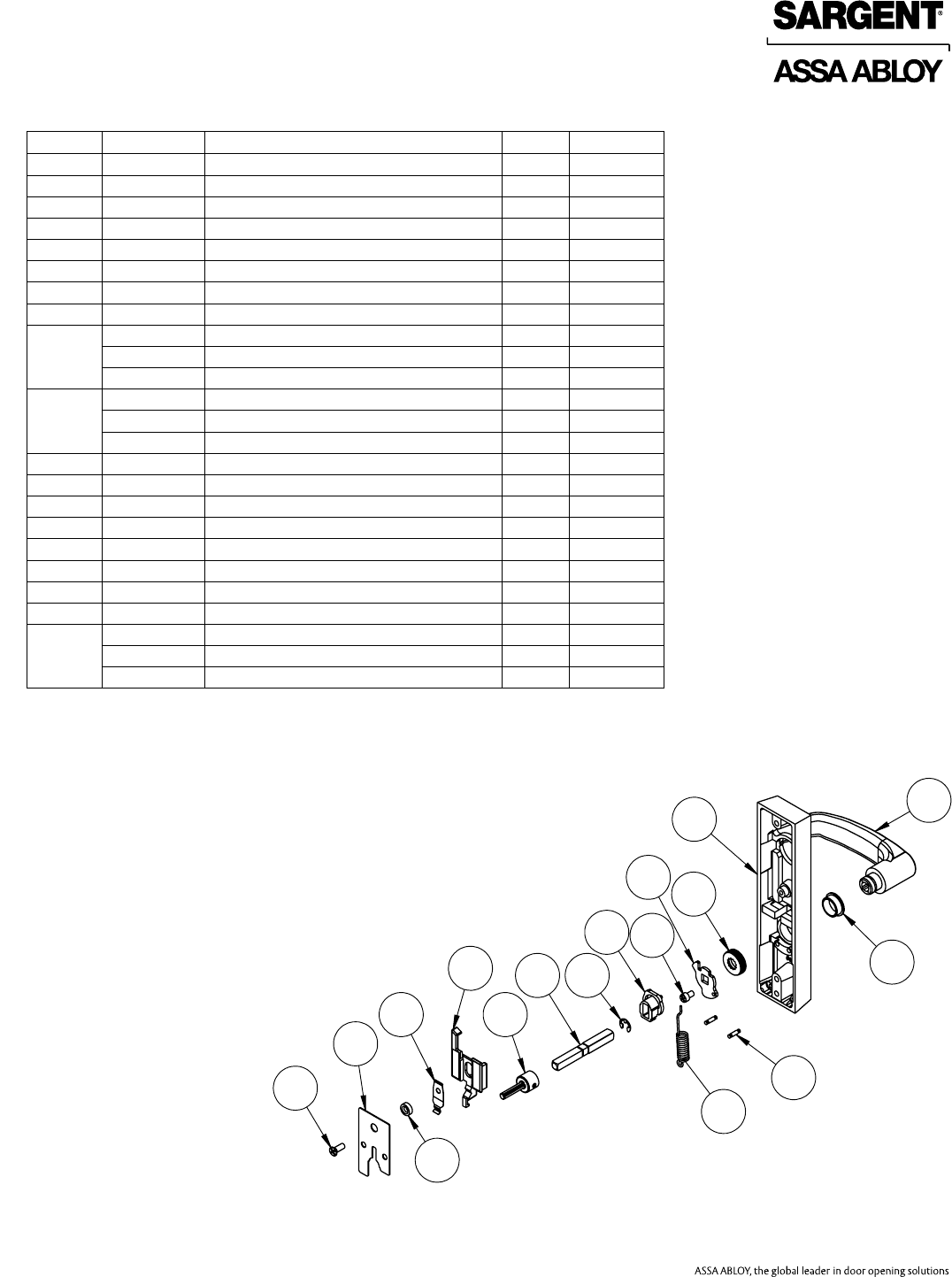

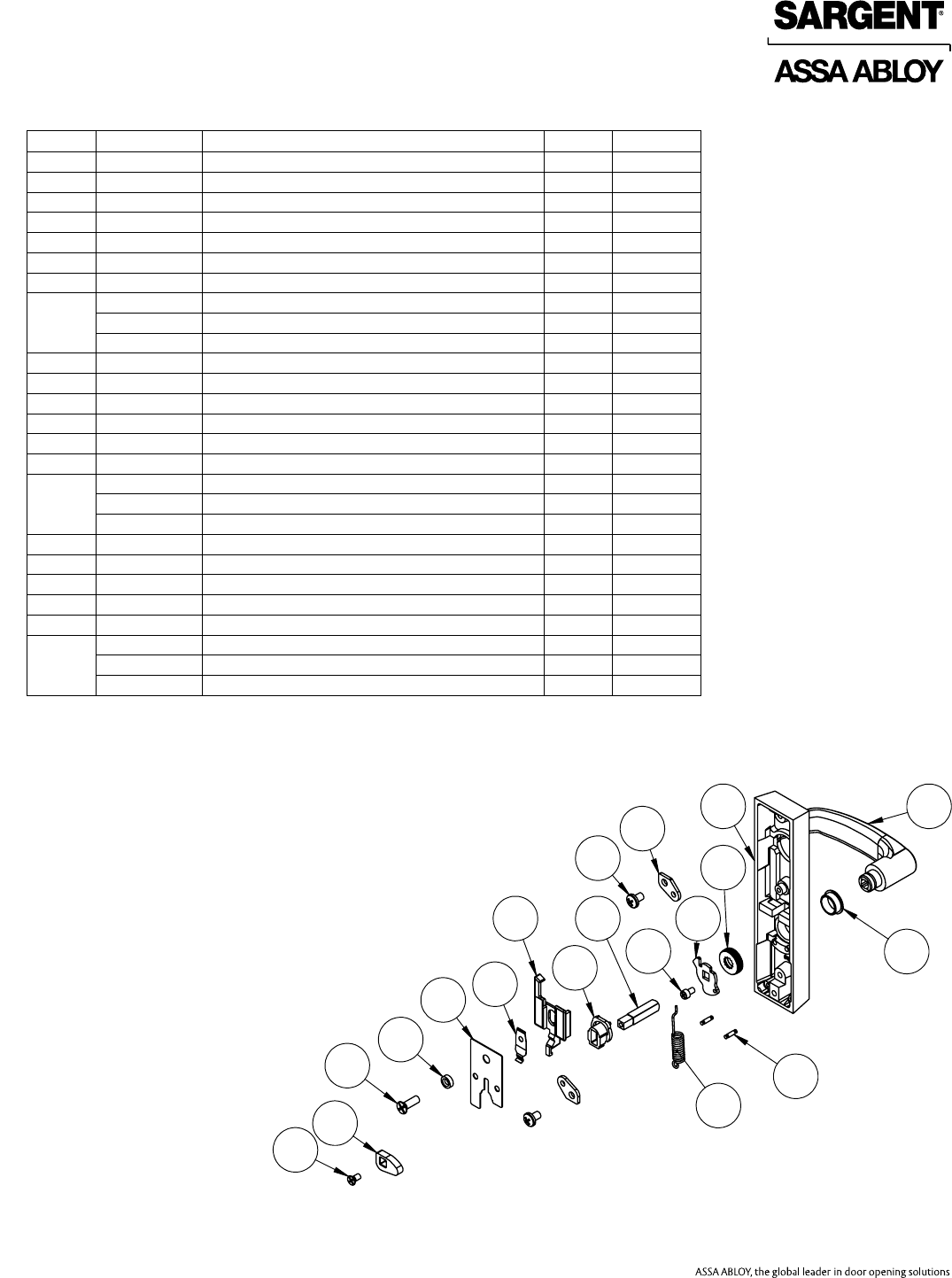

53-AD 8406 8474 8440 8410

AD 8413 8415 8443 8446

8473

12

34

5678

9

11

12

10

14

18

13

15

16

17

Function Assembly No. Description Sellable

53-AD-(All

Functions)

AD-(All

Functions)

68-5944 LHRB Non-Cladded Yes

68-5945 RHRB Non-Cladded Yes

68-5946 LHRB 1/2" Cladded Yes

68-5951 RHRB 1/2" Cladded Yes

68-6013 LHRB 1/4" Cladded Yes

68-6014 RHRB 1/4" Cladded Yes

*Specify Finish

1. Specify AFF

2. Specify Opening Height

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0496 Chassis Cover, Narrow* 1 Yes

2 68-3905 Screw Pack (B)* 1 Yes

3

See chart

above

68-1644 LHRB Non-Cladded

1

Yes

68-1645 RHRB Non-Cladded Yes

68-1646 LHRB 1/2" Cladded Yes

68-1647 RHRB 1/2" Cladded Yes

68-1649 LHRB 1/4" Cladded Yes

68-1650 RHRB 1/4" Cladded Yes

4 68-0479 Lift Lever Pivot Pin 1 Yes

5 68-0241 Lift Arm 1 Ye s

6 68-0239 Pivot Pin (Lift Arm) 1 Yes

7 68-0486 Chassis 1 Ye s

8 94-2008 N/A Inner Chassis Assembly 1 Ye s

68-3854 53- Inner Chassis Assembly Yes

9

MD691T

MD660T Top Rod1,2 1 Ye s

10 01-0696 Coiled Pin 2 Ye s

11 68-4840 Latch Bolt Assembly 1 Ye s

12

68-5374

N/A

Top Case Assembly STD

1

Yes

68-5375 Top Case Assembly 1/4"

Cladded Yes

68-5376 Top Case Assembly 1/2"

Cladded Yes

13

691B

660B Bottom Rod1,2 1 Ye s

14 94-0039 Bolt Sleeve 1 Ye s

15 01-4389 Roll Pin 1 Ye s

16 97-0454 Spring (Bottom Bolt) 1 Yes

17 94-0038 Bottom Bolt 1 Ye s

18 N/A

68-0037 Bottom Case 1 Ye s

68-3676 Screw Pack* 1 Ye s

640 Aluminum Door Strike Pack 1 Ye s

10

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

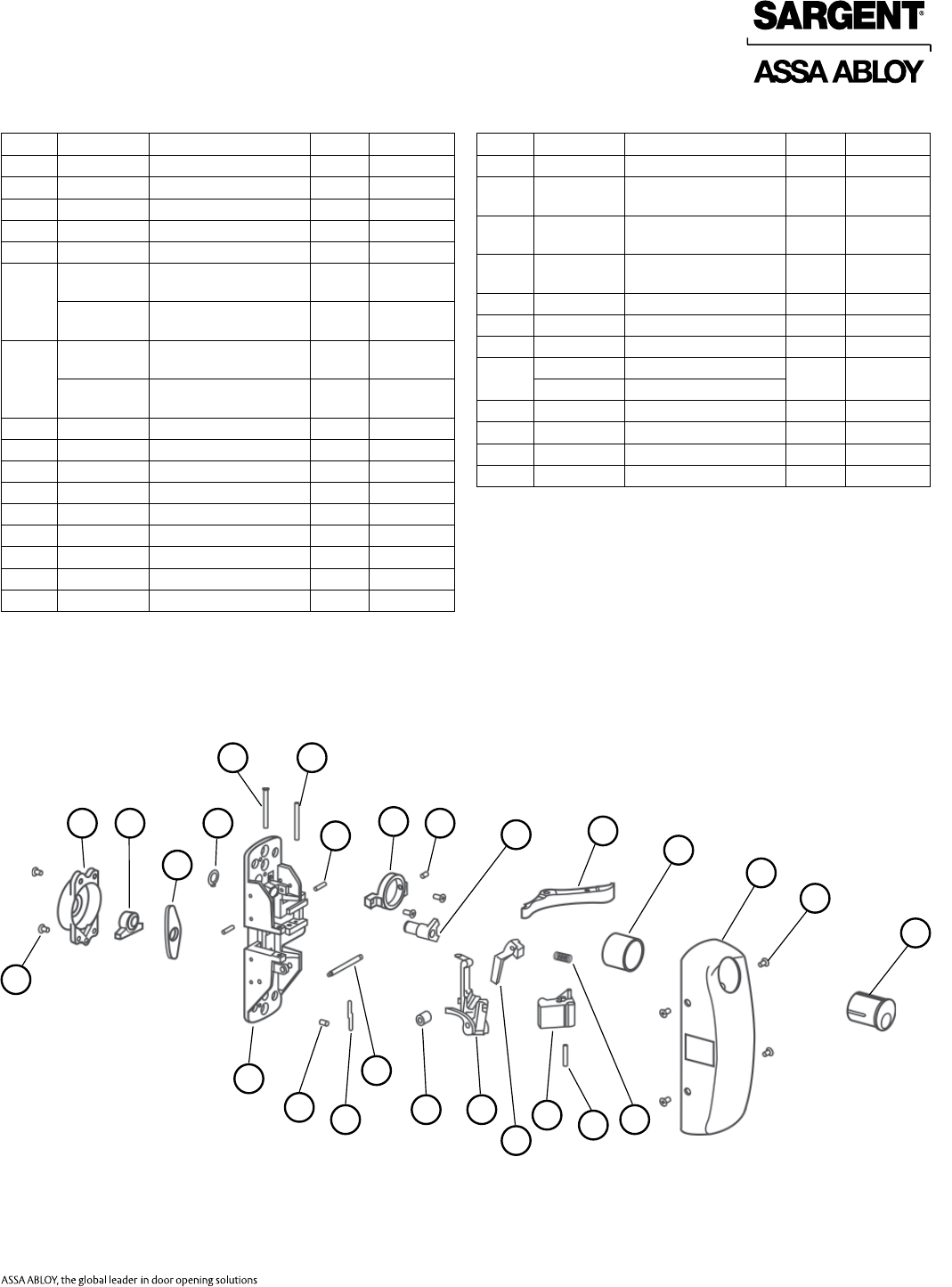

53-NB-AD 8406 8410 8413 8415 8440

NB-AD- 8443 8446 8473 8474

1

57

6

43

2

9

11

12

10

8

Function Assembly No. Description Sellable

53-NB-AD-(All

Functions)

NB-AD-(All

Functions)

68-5944 LHRB Non-Cladded Yes

68-5945 RHRB Non-Cladded Yes

68-5946 LHRB 1/2" Cladded Yes

68-5951 RHRB 1/2" Cladded Yes

68-6013 LHRB 1/4" Cladded Yes

68-6014 RHRB 1/4" Cladded Yes

*Specify Finish

1. Specify AFF

2. Specify Opening Height

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0496 Chassis Cover, Narrow* 1 Yes

2 68-3905 Screw Pack (B)* 1 Ye s

3

See chart

above

68-1644 LHRB Non-Cladded

1

Yes

68-1645 RHRB Non-Cladded Yes

68-1646 LHRB 1/2" Cladded Ye s

68-1647 RHRB 1/2" Cladded Yes

68-1649 LHRB 1/4" Cladded Ye s

68-1650 RHRB 1/4" Cladded Yes

4 68-0479 Lift Lever Pivot Pin 1 Yes

5 68-0241 Lift Arm 1 Ye s

6 68-0486 Chassis 1 Ye s

7 68-0239 Pivot Pin (Lift Arm) 1 Ye s

894-2008 N/A Inner Chassis Assembly 1Ye s

68-3854 53- Inner Chassis Assembly Yes

9

MD691T

MD660T Top Rod1,2 1 Ye s

10 01-0696 Coiled Pin 1 Ye s

11 68-4840 Latch Bolt Assembly 1 Ye s

12

68-5374

N/A

Top Case Assembly STD

1

Yes

68-5375 Top Case Assembly 1/4"

Cladded Yes

68-5376 Top Case Assembly 1/2"

Cladded Yes

13 N/A 68-3676 Screw Pack* 1 Yes

639 Aluminum Door Strike Pack 1 Ye s

11

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

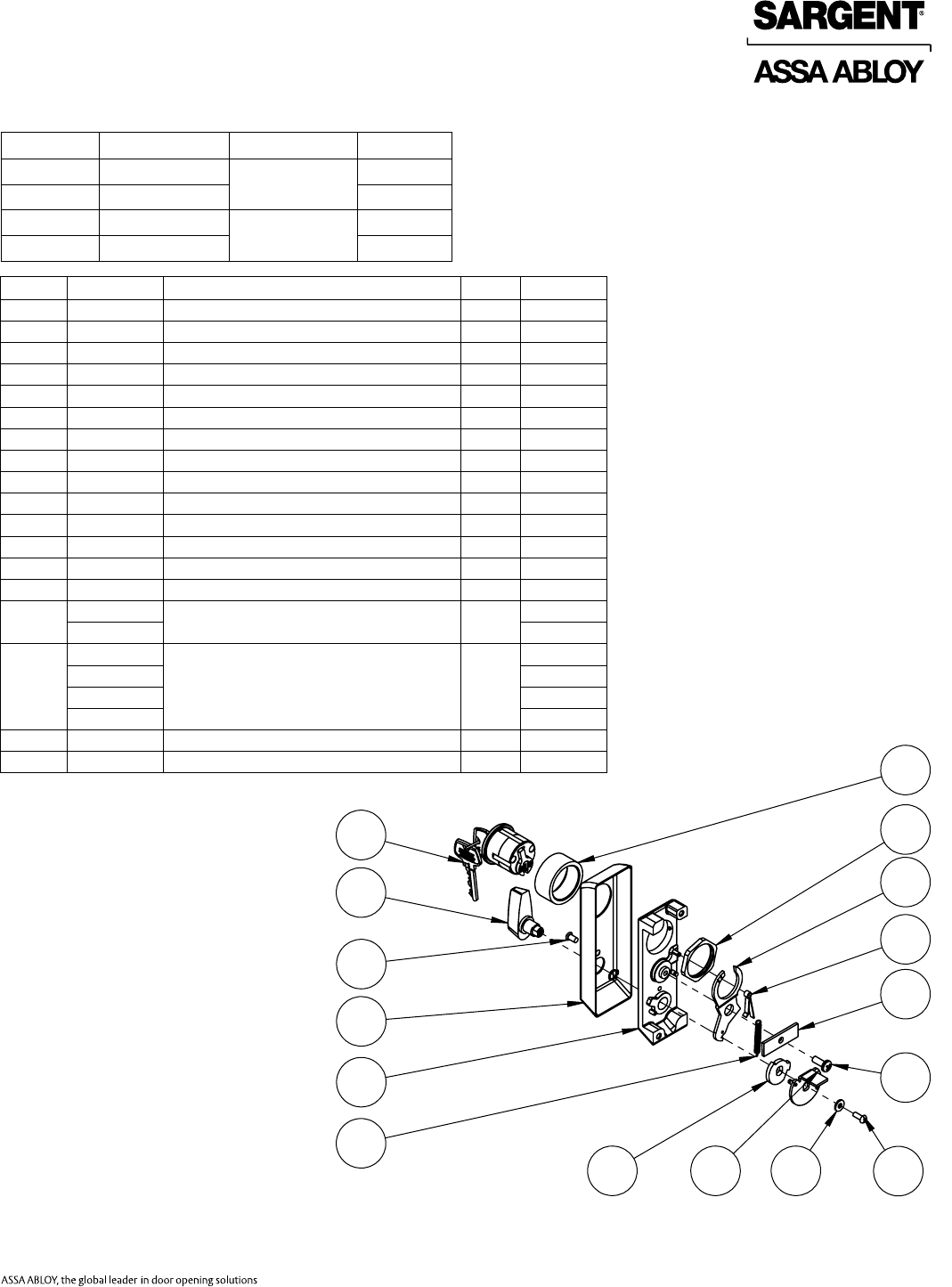

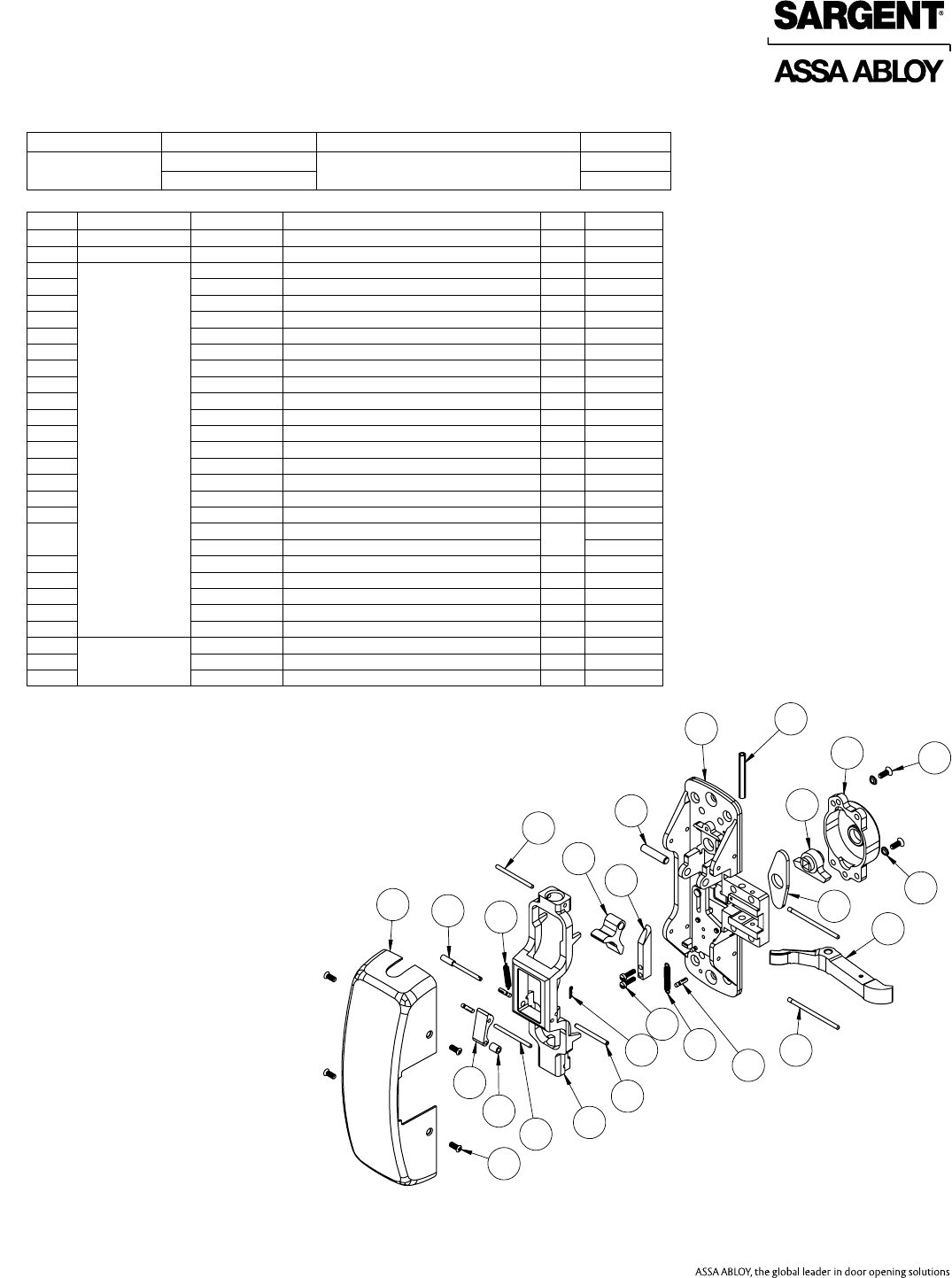

(12/53-)8504 (12/53-)8506 (12/53-)8510

(12/53-)8513 (12/53-)8515 (12/53-)8540

(12/53-)8543 (12/53-)8544 (12/53-)8546

(12/53-)8573 (12/53-)8574

Function Assembly No. Description Sellable

(12-) All functions 68-5880 LHRB/RHRB Ye s

(12-) 53- All functions 68-7411 LHRB/RHRB Ye s

7

4

3

14

17

15

5

16

12

8

11

13 6

9

10

18

19

20

21

2

1

Item Assy. No. Part No. Description Qty Sellable

1

N/A

68-0495 Cover11 Yes

2 68-3905 Cover Screw Pack11 Ye s

3 68-1137 Lift Arm 1 Yes

4 98-0028 Latchbolt Spring 1 Yes

5 01-4512 Spirol Pin 2 Ye s

6 01-0008 Groove Pin 2 No

768-7420 Latchbolt Assembly (53-) 1 Ye s

68-6021 Latchbolt Assembly (Std) 1 Ye s

8

68-6082

68-1624 8500 Chassis 1

Yes

9 68-1625 Lift Lever (RHRB) 1

10 68-1626 Lift Lever (LHRB) 1

11 94-0088 Cylinder Hub 2

12 01-0005 Retaining Ring, Truarc 5100-43 2

13 68-0479 Lift Lever Pivot Pin 2

14

N/A

52-0310 Cable Clamp (53-) 1 Yes

15 01-1482 Cr-Phms (#2-56 X 1/8") (53-) 1 Ye s

16 13-0458 Cylinder Retainer Pack (04 & 044 Functions Only) 1 Ye s

17 68-1686 Switch Bracket (53-) 1 Yes

18 01-1220 #6-32 X 3/8" Length Ph Pn Hd Machine Screw (53-) 1 Ye s

19 52-4545 Switch Assembly (53-) 1 Ye s

20 01-9446 Machine Screw (#1-72 X 11/32" Ph Fl Hd) (53-) 1 Ye s

21 01-0909 Hex Machine Screw Nut (53-) 1 Yes

Not

Shown

68-2512 Screw Pack 1 Yes

657 Strike Pack 1 Ye s

1. Indicates ﬁnish required

12

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

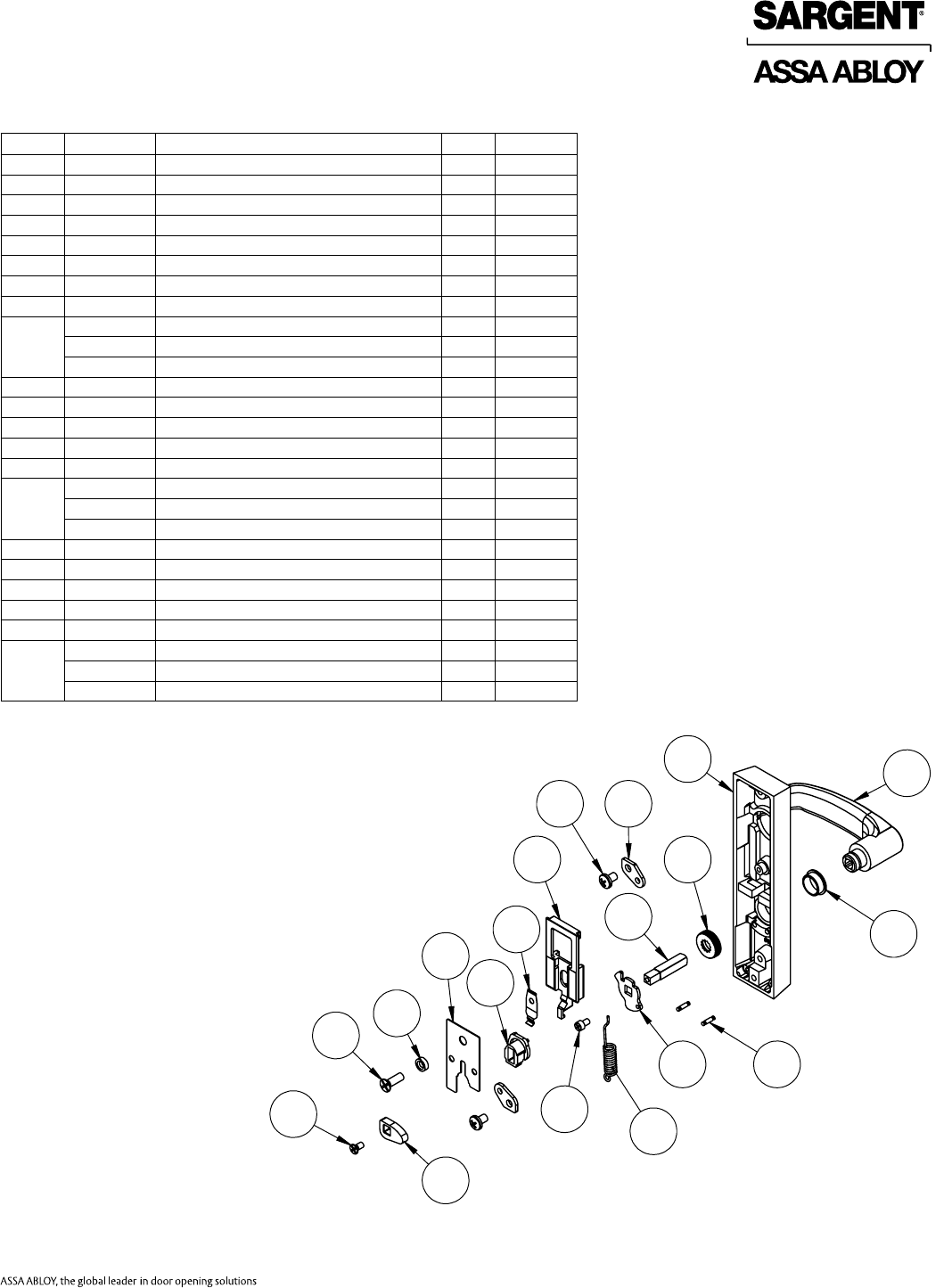

(12-/GL-/59-)8504 (12-/GL-/59-)8506 (12-/GL-/59-)8510

(12-/GL-/59-)8513 (12-/GL-/59-)8515 (12-/GL-/59-)8540

(12-/GL-/59-)8543 (12-/GL-/59-)8544 (12-/GL-/59-)8546

(12-/GL-/59-)8573 (12-/GL-/59-)8574

Function Assembly No. Description Sellable

(12-)GL- All functions 68-5881 LHRB/RHRB YES

(12-)59- All functions 68-5882 LHRB/RHRB YES

3

4

8

5

617

7

11

12

10

9

13

14

15

16

18

19

1

2

Item Assy. No. Part No. Description Qty Sellable

1

N/A

68-1020 Cover11 Ye s

2 — Screw Pack11 Ye s

3 68-1353 Lift Arm (Guarded) 1 Ye s

4 98-0028 Latchbolt Spring 1 Ye s

5 01-4512 Spirol Pin 2 Ye s

6 01-0008 Groove Pin 2 No

7 68-1352 Guide 1 Ye s

8 68-1394 Extension Spring 1 Ye s

9 52-0310 Cable Clamp (59-) 1 Ye s

10 68-5949 Guard Bracket & Switch Assembly (59-) 1 No

68-5947 8500 Guard Bracket Assembly (Gl-) 1 No

11 68-4415 Guarded Latchbolt 1 Ye s

12

68-6082

68-1624 8500 Chassis 1

Yes

13 68-1625 Lift Lever (RhRb) 1

14 68-1626 Lift Lever (LhRb) 1

15 94-0088 Cylinder Hub 2

16 01-0005 Retaining Ring 2

17 68-0479 Lift Lever Pivot Pin 2

18

N/A

01-1482 Cr-Phms (#2-56 X 1/8") (59-) 1 Ye s

19 13-0458 Cylinder Retainer Pack (04 & 044 Functions Only) 1 Ye s

Not

Shown

68-2512 Screw Pack 1 Ye s

657 Strike Pack 1 Yes

1. Indicates ﬁnish required

13

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

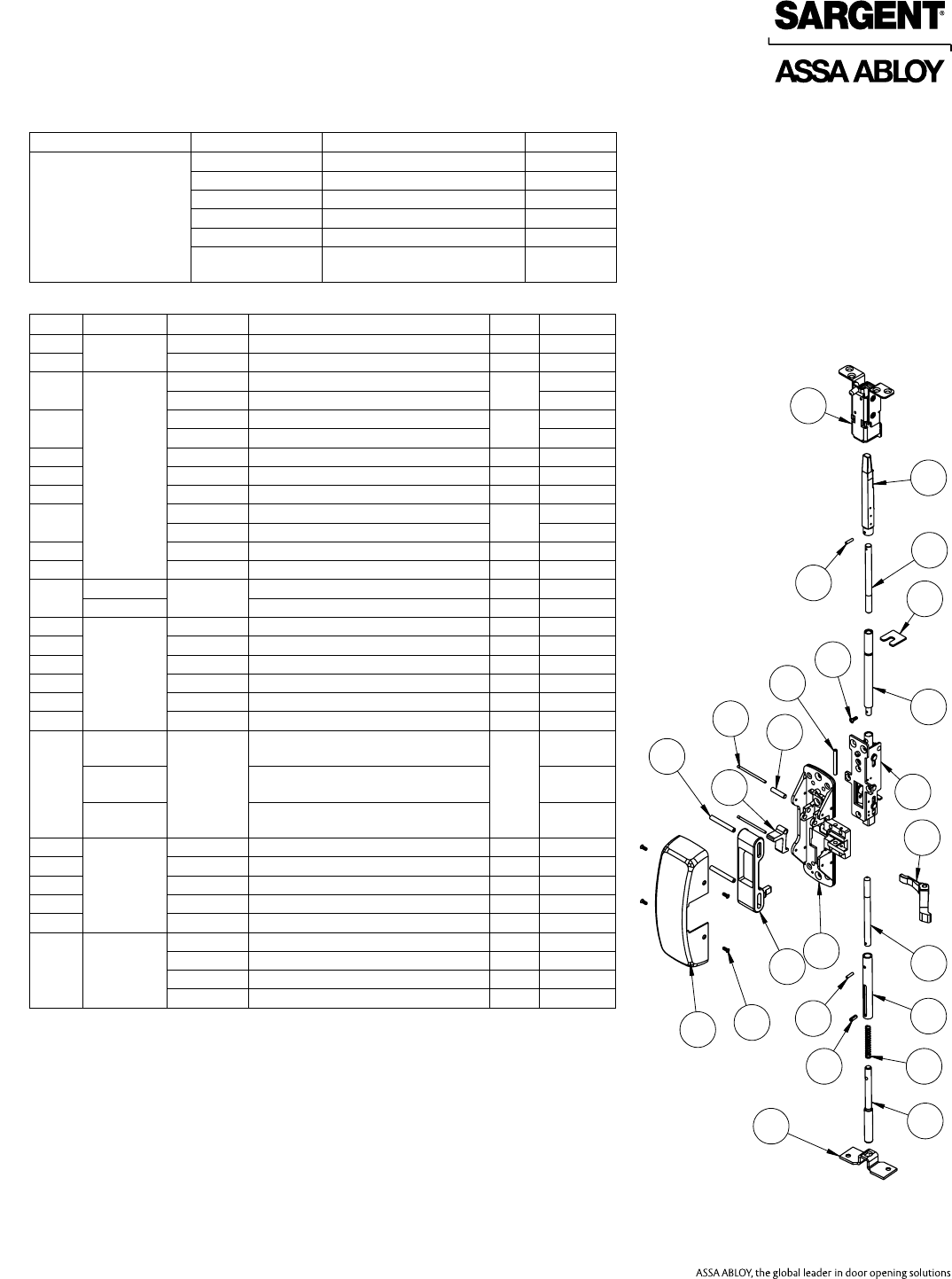

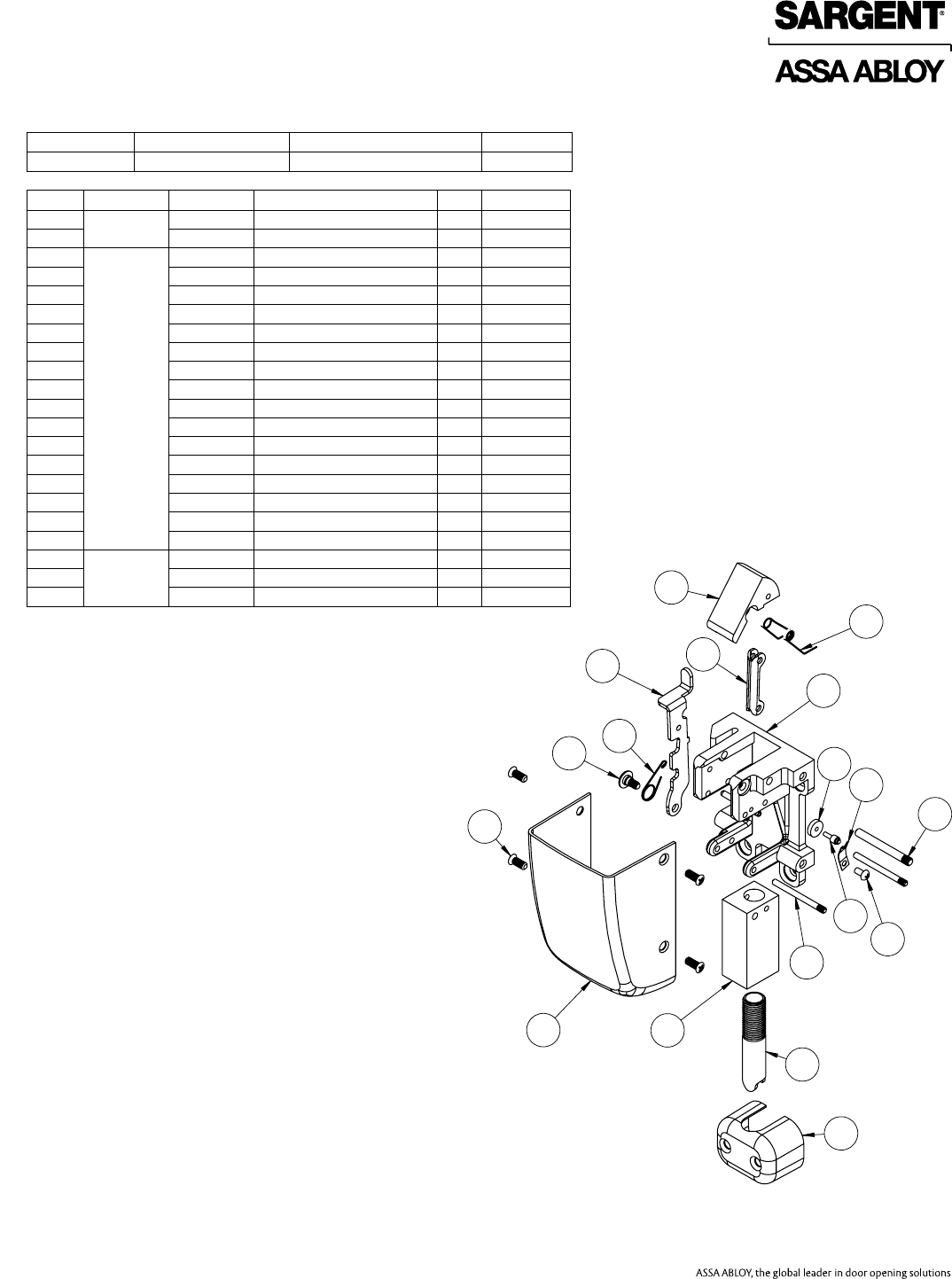

53-MD- 8606 8643 8646 8673

59-MD 8610 8613 8615 8674

MD- 8640

12

4

5

8

6

16

17

21

13

11

12

13

14

15

7

3

10

9

19

20

18

Function Assembly No. Description Sellable

53-MD-

59-MD-

MD-

(All Functions)

68-5068 LHRB Chassis Assembly Yes

68-5069 RHRB Chassis Assembly Yes

68-5070 59- LHRB Chassis Assembly Ye s

68-5071 59- RHRB Chassis Assembly Ye s

*Specify Finish

1. Specify AFF

2. Specify Opening Height

3. Also used with 59-

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0407 Chassis Cover* 1 Ye s

2 68-3905 Screw Pack (B)* 1 Yes

3

See chart

above

68-0011 Main Slide 1Yes

68-1815 59- Main Slide Yes

468-1505 Chassis (LH) 1Yes

68-1506 Chassis (RH) Yes

5 68-1503 Lift Lever 1 Yes

6 68-0012 Roller (Main Slide) 2 Ye s

7 01-4512 Spirol Pin 1 Yes

8 68-0324 Lift Lever Pivot Pin 1 Ye s

9 68-0323 Chassis Pin 2 Yes

10 68-0241 Lift Arm 1Ye s

68-1137 59- Lift Arm Yes

11 94-2008 N/A Inner Chassis Assembly 1Ye s

68-3854 53- Inner Chassis Assembly3Yes

12

MD691T

MD660T Top Rod1,2 1 Ye s

13 01-0696 Coiled Pin 2 Ye s

14 68-4840 Latch Bolt Assembly 1 Yes

15

68-5374

N/A

Top Case Assembly STD

1

Yes

68-5375 Top Case Assembly 1/4" Cladded Yes

68-5376 Top Case Assembly 1/2" Cladded Yes

16

691B

660B Bottom Rod1,2 1 Yes

17 94-0039 Bolt Sleeve 1 Ye s

18 01-4389 Roll Pin 1 Yes

19 97-0454 Spring (Bottom Bolt) 1 Ye s

20 94-0038 Bottom Bolt 1 Ye s

21 N/A

68-0888 Bottom Plate 1 Ye s

68-4389 Screw Pack (W)* 1 Ye s

652 Strike Pack 1 Yes

14

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

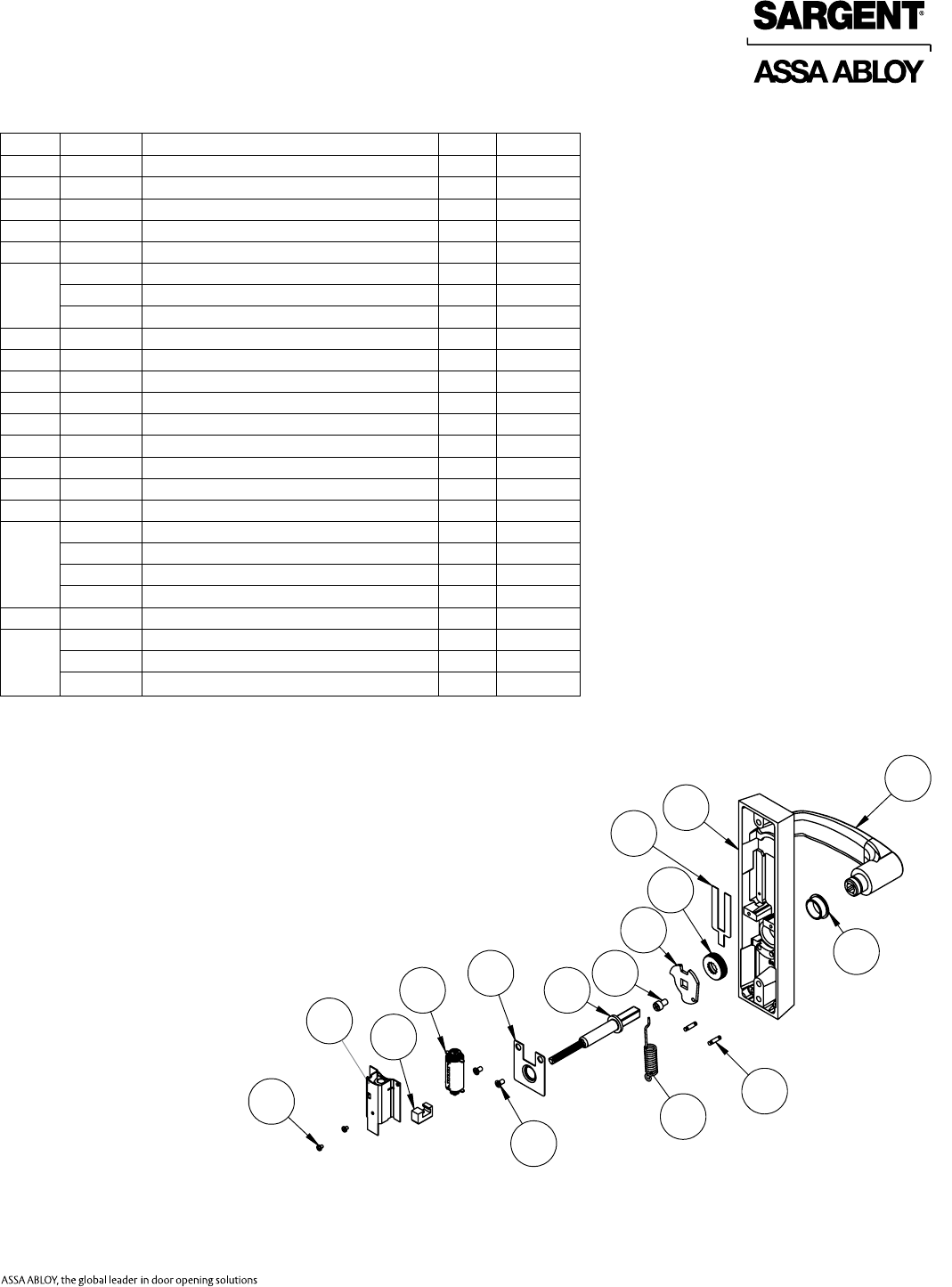

12-53-MD- 8606 8643 8646 8673

12-59-MD- 8610 8613 8615 8674

12-MD- 8640

12

4

5

8

9

16

17

21

13

12

13

14

15

7

3

10

11

6

19

20

18

Function Assembly No. Description Sellable

12-53-MD-

12-59-MD-

12-MD-

(All Functions

68-5068 LHRB Chassis Assembly Ye s

68-5069 RHRB Chassis Assembly Yes

68-5070 59- LHRB Chassis Assembly Ye s

68-5071 59- RHRB Chassis Assembly Ye s

*Specify Finish

1. Specify AFF

2. Specify Opening Height

3. Also used with 12-59-

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0407 Chassis Cover* 1 Ye s

2 68-3905 Screw Pack (B)* 1 Yes

3

See chart

above

68-0011 Main Slide 1Ye s

68-1815 59- Main Slide Yes

468-1505 Chassis (LH) 1Ye s

68-1506 Chassis (RH) Yes

5 68-1503 Lift Lever 1 Ye s

6 68-0012 Roller (Main Slide) 2 Ye s

7 01-4512 Spirol Pin 1 Ye s

8 68-0324 Lift Lever Pivot Pin 1 Ye s

9 68-0323 Chassis Pin 2 Ye s

10 68-0241 Lift Arm 1Ye s

68-1137 59- Lift Arm Yes

11

68-3627

N/A

12- Inner Chassis Assembly

1

Yes

68-3855 12- 53- Inner Chassis

Assembly3Yes

12

MD691T

MD660T Top Rod1,2 1 Ye s

13 01-0696 Coiled Pin 2 Ye s

14 68-4840 Latch Bolt Assembly 1 Ye s

15

68-5374

N/A

Top Case Assembly STD

1

Yes

68-5375 Top Case Assembly 1/4"

Cladded Ye s

68-5376 Top Case Assembly 1/2"

Cladded Ye s

16

691B

660B Bottom Rod1,2 1 Ye s

17 94-0039 Bolt Sleeve 1 Ye s

18 01-4389 Roll Pin 1 Yes

19 97-0454 Spring (Bottom Bolt) 1 Ye s

20 94-0038 Bottom Bolt 1 Ye s

21 N/A

68-0888 Bottom Plate 1 Yes

68-4389 Screw Pack(W)* 1 Ye s

650 Top Strike Pack 1 Ye s

606 Bottom Strike Pack Ye s

15

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

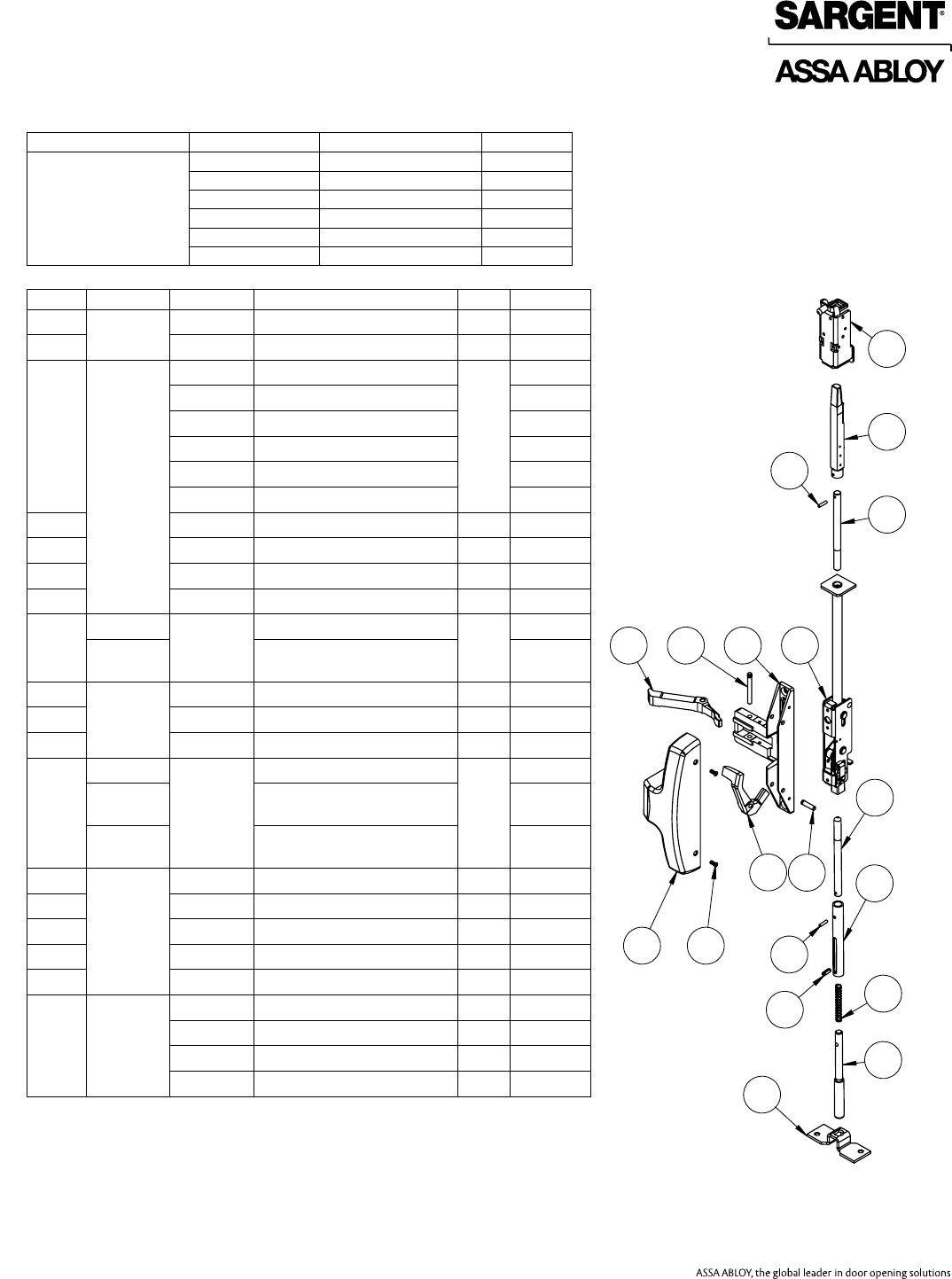

53-NB-MD- 8606 8610 8613 8615

59-NB-MD- 8640 8643 8646 8673

NB-MD- 8674

12

4

5

8

6

11

12

13

14

15

7

3

10

9

Function Assembly No. Description Sellable

53-NB-MD-

59-NB-MD-

NB-MD-

(All Functions)

68-5068 LHRB Chassis Assembly Ye s

68-5069 RHRB Chassis Assembly Yes

68-5070 59- LHRB Chassis Assembly Ye s

68-5071 59- RHRB Chassis Assembly Ye s

*Specify Finish

1. Specify AFF

2. Specify Opening Height

3. Also used with 59-

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0407 Chassis Cover* 1 Ye s

2 68-3905 Screw Pack (B)* 1 Yes

3

See chart

above

68-0011 Main Slide 1Yes

68-1815 59- Main Slide Yes

468-1505 Chassis (LH) 1Ye s

68-1506 Chassis (RH) Yes

5 68-1503 Lift Lever 1 Yes

6 68-0012 Roller (Main Slide) 2 Ye s

7 01-4512 Spirol Pin 1 Ye s

8 68-0324 Lift Lever Pivot Pin 1 Ye s

9 68-0323 Chassis Pin 2 Ye s

10 68-0241 Lift Arm 1Yes

68-1137 59- Lift Arm Yes

11

94-2008

N/A

Inner Chassis Assembly

1

Yes

68-3854 53- Inner Chassis

Assembly3Yes

12

MD691T

MD660T Top Rod1,2 1 Ye s

13 01-0696 Coiled Pin 1 Yes

14 68-4840 Latch Bolt Assembly 1 Yes

15

68-5374

N/A

Top Case Assembly STD

1

Yes

68-5375 Top Case Assembly 1/4"

Cladded Yes

68-5376 Top Case Assembly 1/2"

Cladded Yes

N/A 68-4389 Screw Pack(W)* 1 Ye s

650 Top Strike Pack 1 Yes

16

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

12-53-NB-MD- 8606 8610 8613 8615

12-59-NB-MD- 8640 8643 8646 8673

12-NB-MD- 8674

12

4

5

8

6

12

13

14

15

7

3

9

11

10

Function Assembly No. Description Sellable

12-53-NB-MD-

12-59-NB-MD-

12-NB-MD-

(All Functions)

68-5068 LHRB Chassis Assembly Ye s

68-5069 RHRB Chassis Assembly Ye s

68-5070 59- LHRB Chassis Assembly Ye s

68-5071 59- RHRB Chassis Assembly Ye s

*Specify Finish

1. Specify AFF

2. Specify Opening Height

3. Also used with 12-59-

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0407 Chassis Cover* 1 Ye s

2 68-3905 Screw Pack (B)* 1 Ye s

3

See chart

above

68-0011 Main Slide 1Yes

68-1815 59- Main Slide Ye s

468-1505 Chassis (LH) 1Ye s

68-1506 Chassis (RH) Ye s

5 68-1503 Lift Lever 1 Yes

6 68-0012 Roller (Main Slide) 2 Ye s

7 01-4512 Spirol Pin 1 Ye s

8 68-0324 Lift Lever Pivot Pin 1 Ye s

9 68-0323 Chassis Pin 2 Ye s

10 68-0241 Lift Arm 1 Yes

68-1137 59- Lift Arm

11

68-3627

N/A

12- Inner Chassis

Assembly 1

Yes

68-3855 12- 53- Inner Chassis

Assembly3Yes

12

MD691T

MD660T Top Rod1,2 1 Ye s

13 01-0696 Coiled Pin 1 Ye s

14 68-4840 Latch Bolt Assembly 1 Ye s

15 68-5374

N/A Top Case Assembly STD

1

Yes

68-5375 Top Case Assembly 1/4"

Cladded Ye s

68-5376 Top Case Assembly 1/2"

Cladded Ye s

N/A 68-4389 Screw Pack(W)* 1 Yes

650 Top Strike Pack 1 Ye s

17

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

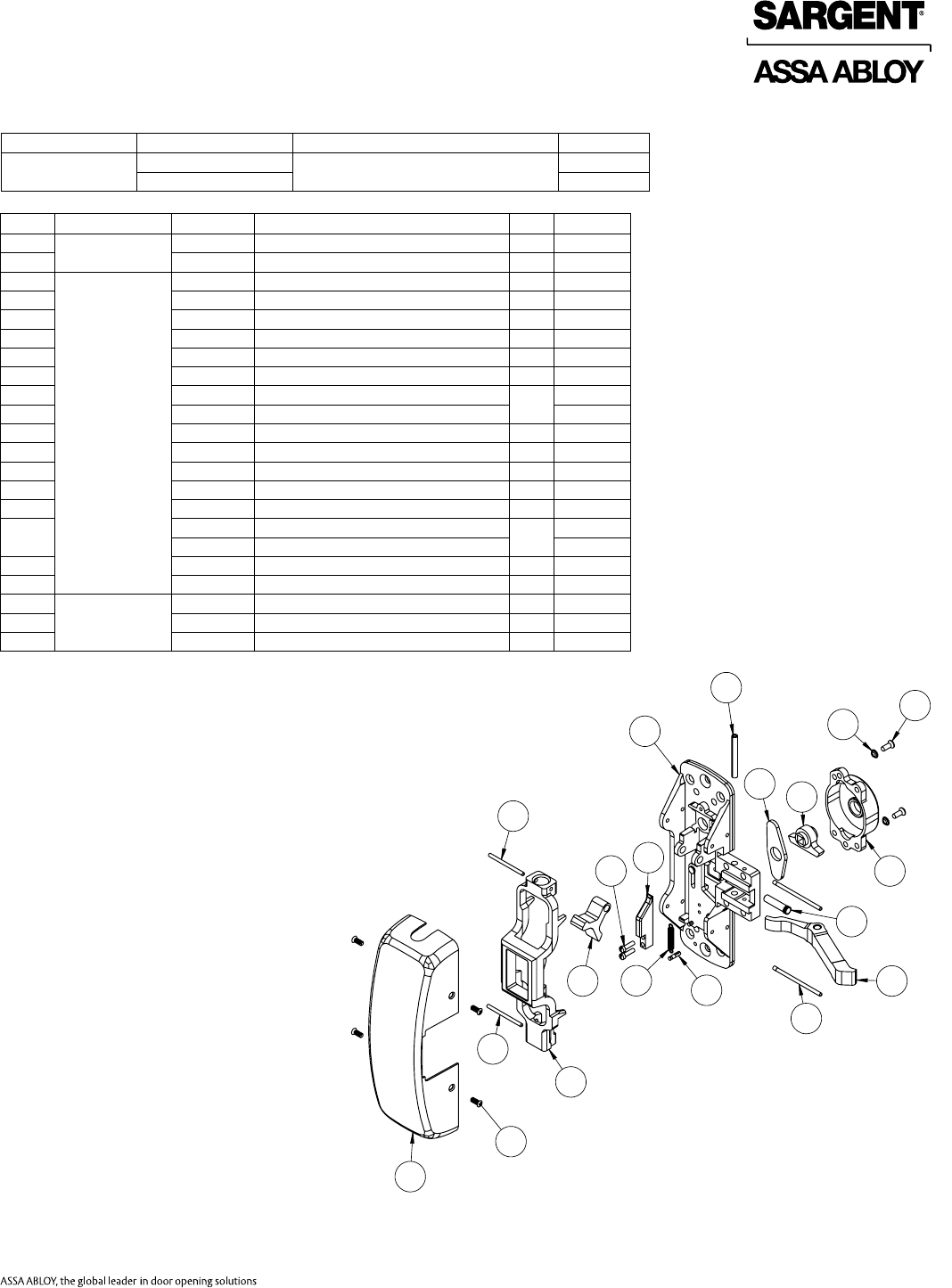

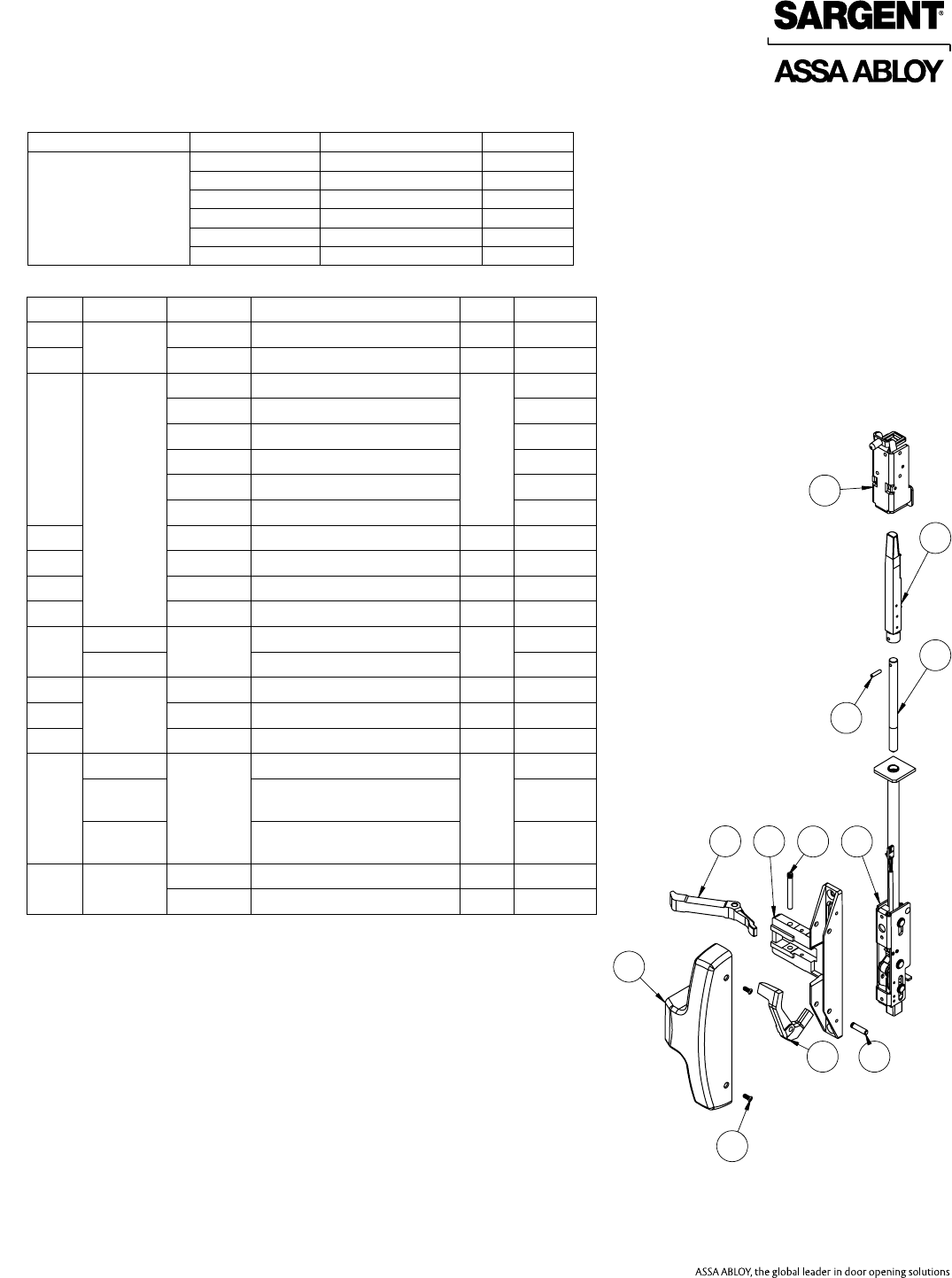

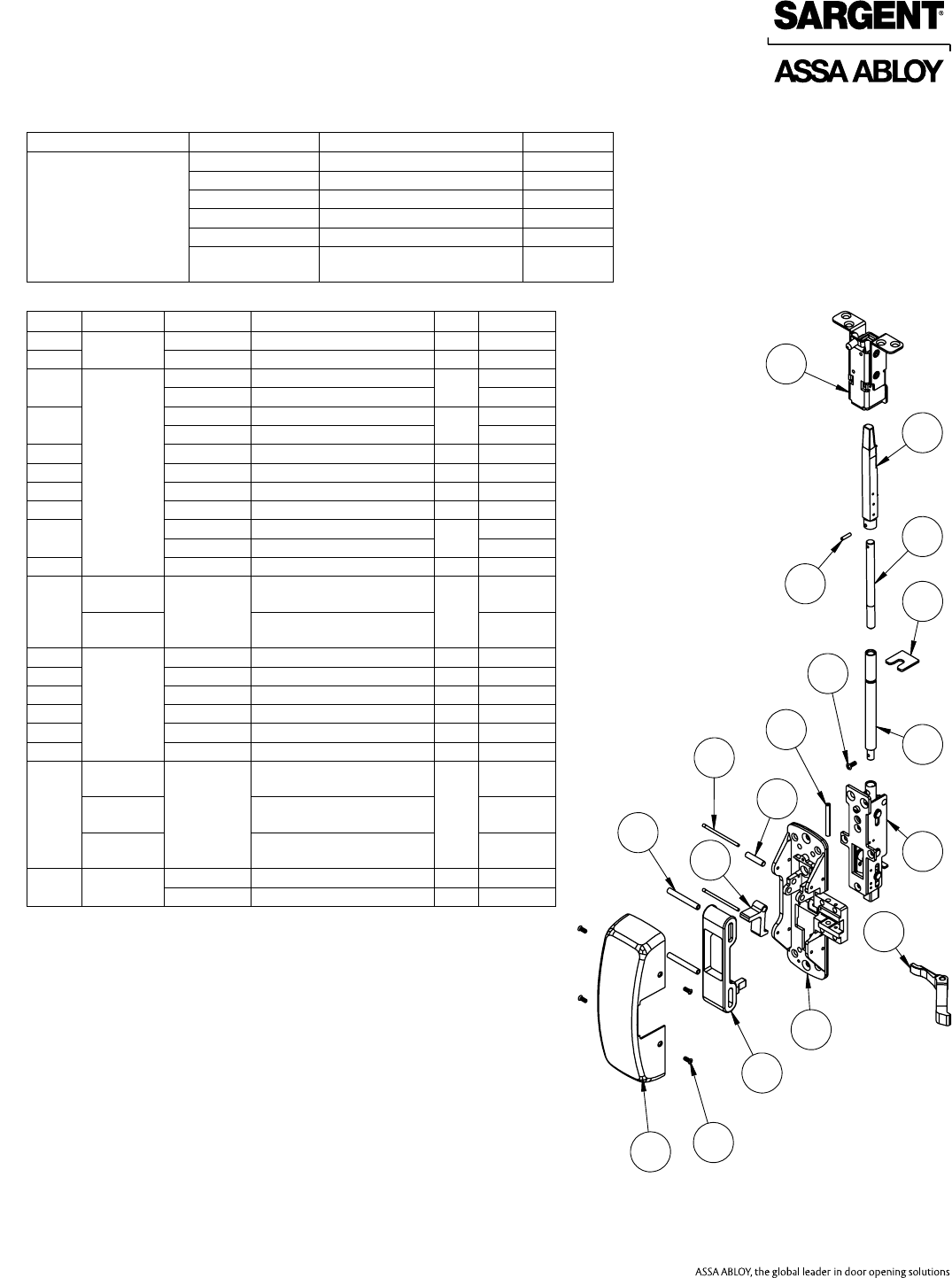

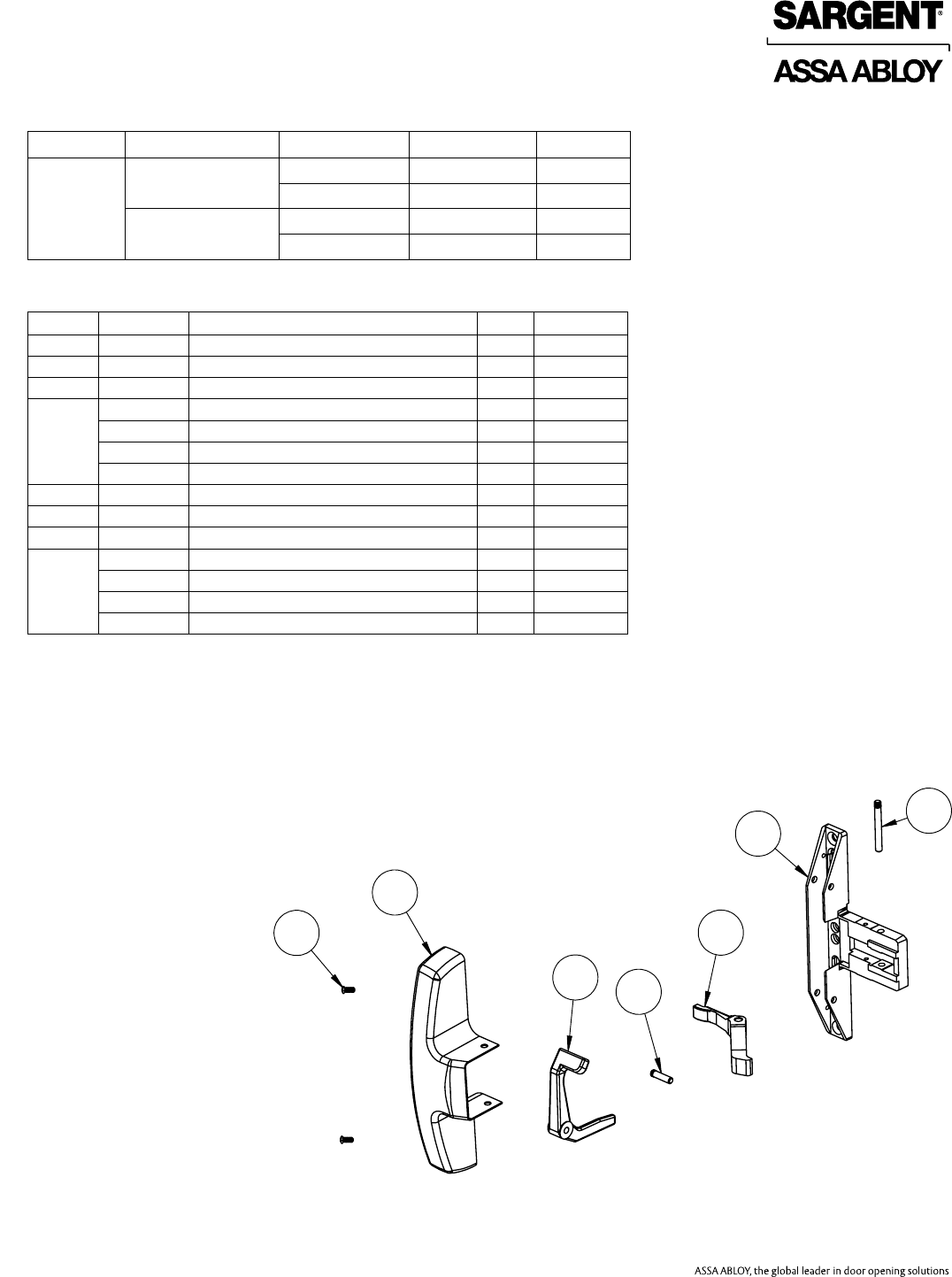

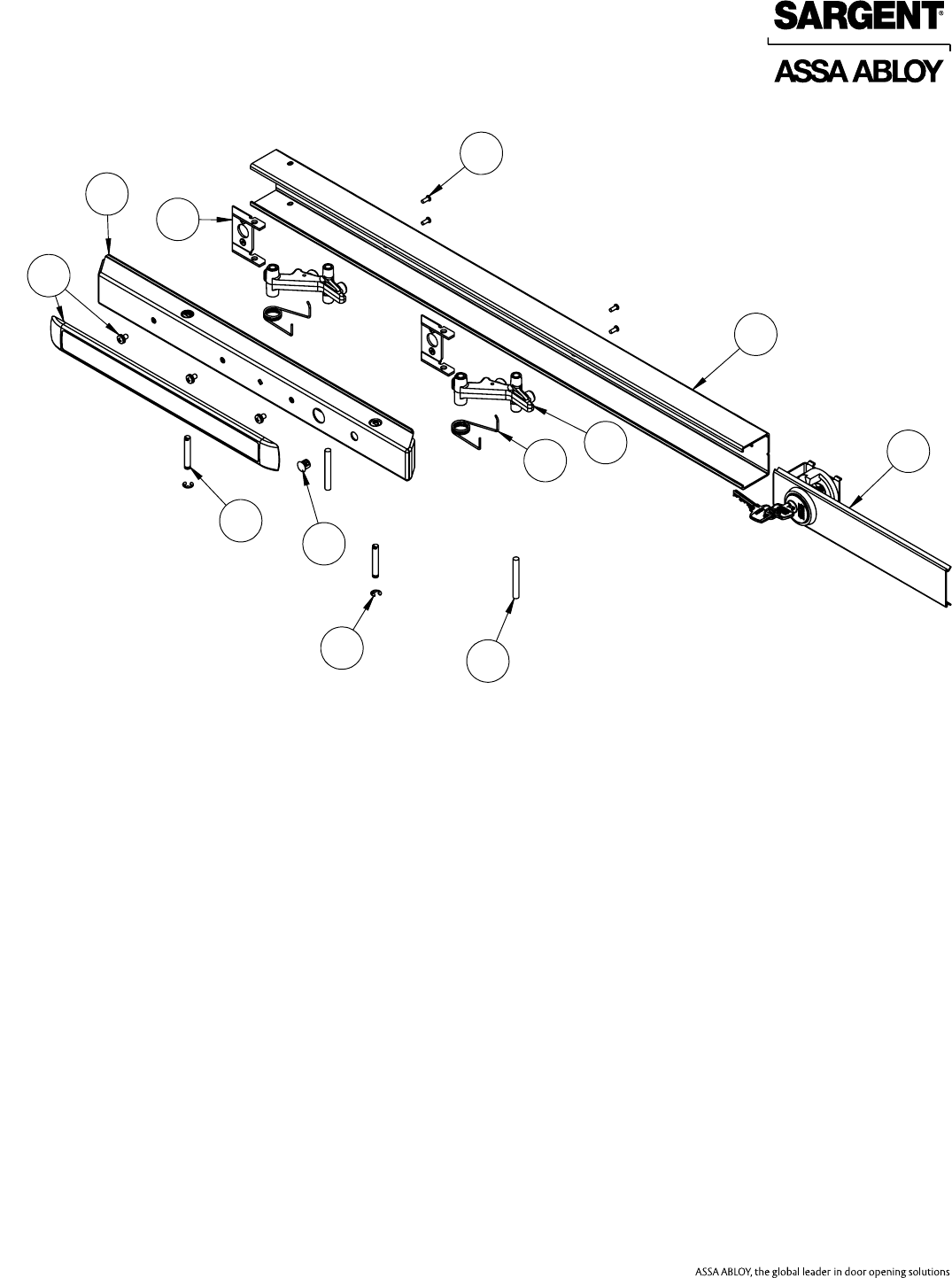

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0407 Chassis Cover* 1 Yes

2 68-3905 Screw Pack (B)* 1 Ye s

3

See chart

above

68-0011 Main Slide 1Ye s

68-1815 59- Main Slide Yes

468-1505 Chassis (LH) 1Ye s

68-1506 Chassis (RH) Yes

5 68-1503 Lift Lever 1 Ye s

6 68-0012 Roller (Main Slide) 2 Ye s

7 68-0324 Lift Lever Pivot Pin 1 Ye s

8 01-4512 Spirol Pin 1 Ye s

968-0241 Lift Arm 1Ye s

68-1137 59- Lift Arm Ye s

10 68-0323 Chassis Pin 2 Yes

11 68-3580 N/A Inner Chassis Assembly 1 Ye s

68-3859 53- Inner Chassis Assembly3 1 Ye s

12

See chart

above

01-1137 Screw #8-32 x 7/1641 Ye s

13 68-0918 Extension Rod41 Ye s

14 68-0917 Auxillary Control Plate41 Ye s

15 WD660T Top Rod1,2 1 Ye s

16 01-0696 Coiled Pin 2 Ye s

17 68-4840 Latch Bolt Assembly 1 Ye s

18

68-3522

N/A

Top Case and Bracket

Assembly STD

1

Yes

68-3523 Top Case and Bracket

Assembly 1/4" Cladded Ye s

68-3524 Top Case and Bracket

Assembly 1/2" Cladded Ye s

19

691B

660B Bottom Rod1,2 1 Ye s

20 94-0039 Bolt Sleeve 1 Ye s

21 01-4389 Roll Pin 1 Ye s

22 97-0454 Spring (Bottom Bolt) 1 Ye s

23 94-0038 Bottom Bolt 1 Ye s

24 N/A

68-0888 Bottom Plate 1 Ye s

68-4389 Screw Pack(W)* 1 Ye s

652 Strike Pack 1 Ye s

53-WD- 8606 8610 8613 8615

59-WD 8640 8643 8646 8673

WD- 8674

12

4

5

7

6

19

20

24

16

15

16

17

8

3

9

11

13

14

12

10

18

21

22

23

Function Assembly No. Description Sellable

53-WD-

59-WD-

WD-

(All Functions)

68-5068 LHRB Chassis Assembly Ye s

68-5069 RHRB Chassis Assembly Yes

68-5070 59- LHRB Chassis Assembly Ye s

68-5071 59- RHRB Chassis Assembly Ye s

WD691T Top Rod and Bolt Kit Ye s

WDA691T4 Top Rod and Bolt Kit with

Aux Kit (Parts 12, 13, 14) Yes

*Specify Finish

1. Specify AFF

2. Specify Opening Height

3. Also used with 59-

4. Only when used w/ Aux Control

18

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

12-53-WD- 8606 8610 8613 8615

12-59-WD- 8640 8643 8646 8673

12-WD- 8674

12

4

5

7

6

19

20

24

16

15

16

17

9

3

8

11

13

14

12

10

18

2221

23

Function Assembly No. Description Sellable

12-53-WD-

12-59-WD-

12-WD-

(All Functions)

68-5068 LHRB Chassis Assembly Ye s

68-5069 RHRB Chassis Assembly Yes

68-5070 59- LHRB Chassis Assembly Ye s

68-5071 59- RHRB Chassis Assembly Ye s

WD691T Top Rod and Bolt Kit Ye s

WDA691T4Top Rod and Bolt Kit with

Aux Kit (Parts 12, 13, 14) Yes

*Specify Finish

1. Specify AFF

2. Specify Opening Height

3. Also used with 12-59-

4. Only when used w/ Aux Control

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0407 Chassis Cover* 1 Ye s

2 68-3905 Screw Pack (B)* 1 Ye s

3

See chart

above

68-0011 Main Slide 1Ye s

68-1815 59- Main Slide Yes

468-1505 Chassis (LH) 1Ye s

68-1506 Chassis (RH) Yes

5 68-1503 Lift Lever 1 Ye s

6 68-0012 Roller (Main Slide) 2 Ye s

7 68-0324 Lift Lever Pivot Pin 1 Ye s

868-0241 Lift Arm 1Ye s

68-1137 59- Lift Arm Yes

9 01-4512 Spirol Pin 1 Ye s

10 68-0323 Chassis Pin 2 Yes

11 68-3580 N/A 12-Inner Chassis Assembly 1 Ye s

68-3859 12-53- Inner Chassis Assembly31 Ye s

12

See chart

above

01-1137 Screw #8-32 x 7/164 1 Ye s

13 68-0918 Extension Rod4 1 Ye s

14 68-0917 Auxillary Control Plate41 Ye s

15 WD660T Top Rod1,2 1 Ye s

16 01-0696 Coiled Pin 2 Ye s

17 68-4840 Latch Bolt Assembly 1 Ye s

18

68-3522

N/A

Top Case and BracketAssembly

STD

1

Yes

68-3523 Top Case and Bracket Assembly

1/4" Cladded Yes

68-3524 Top Case and Bracket Assembly

1/2" Cladded Ye s

19

691B

660B Bottom Rod1,2 1 Ye s

20 94-0039 Bolt Sleeve 1 Ye s

21 01-4389 Roll Pin 1 Ye s

22 97-0454 Spring (Bottom Bolt) 1 Ye s

23 94-0038 Bottom Bolt 1 Ye s

24 N/A

68-0888 Bottom Plate 1 Ye s

68-4389 Screw Pack(W)* 1 Ye s

650 Top Strike Pack 1 Ye s

606 Bottom Strike Pack 1 Yes

19

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0407 Chassis Cover* 1 Ye s

2 68-3905 Screw Pack (B)* 1 Yes

3

See chart

above

68-0011 Main Slide 1Yes

68-1815 59- Main Slide Ye s

468-1505 Chassis (LH) 1Ye s

68-1506 Chassis (RH) Ye s

5 68-1503 Lift Lever 1 Ye s

6 68-0012 Roller (Main Slide) 2 Ye s

7 68-0324 Lift Lever Pivot Pin 1 Ye s

8 01-4512 Spirol Pin 1 Yes

10 68-0241 Lift Arm 1Ye s

68-1137 59- Lift Arm Yes

9 68-0012 Roller (Main Slide) 1 Ye s

11

68-3580

N/A

Inner Chassis Assembly

1

Yes

68-3859 53- Inner Chassis

Assembly3Yes

12

See chart

above

01-1137 Screw #8-32 x 7/1641 Ye s

13 68-0918 Extension Rod41 Ye s

14 68-0917 Auxillary Control Plate41 Ye s

15 WD660T Top Rod1,2 1 Ye s

16 01-0696 Coiled Pin 1 Ye s

17 68-4840 Latch Bolt Assembly 1 Yes

18

68-3522

N/A

Top Case and Bracket

Assembly STD

1

Yes

68-3523 Top Case and Bracket

Assembly 1/4" Cladded Yes

68-3524 Top Case and Bracket

Assembly 1/2" Cladded Yes

19 N/A 68-4389 Screw Pack(W)* 1 Ye s

650 Top Strike Pack 1 Ye s

53-NB-WD- 8606 8610 8613 8615

59-NB-WD- 8640 8643 8646 8673

NB-WD- 8674

12

4

5

76

15

16

17

8

3

10

11

13

14

12

9

18

Function Assembly No. Description Sellable

53-NB-WD-

59-NB-WD

NB-WD-

(All Functions)

68-5068 LHRB Chassis Assembly Ye s

68-5069 RHRB Chassis Assembly Yes

68-5070 59- LHRB Chassis Assembly Ye s

68-5071 59- RHRB Chassis Assembly Ye s

WD691T Top Rod and Bolt Kit Ye s

WDA691T4Top Rod and Bolt Kit with

Aux Kit (Parts 12, 13, 14) Yes

*Specify Finish

1. Specify AFF

2. Specify Opening Height

3. Also used with 59-

4. Only when used w/ Aux Control

20

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

12-53-NB-WD- 8606 8610 8613 8615

12-59-NB-WD- 8640 8643 8646 8673

12-NB-WD- 8674

12

4

5

7

6

15

16

17

8

3

9

11

13

14

12

10

18

Function Assembly No. Description Sellable

12-53-NB-WD-

12-59-NB-WD-

12-NB-WD-

(All Functions)

68-5068 LHRB Chassis Assembly Ye s

68-5069 RHRB Chassis Assembly Yes

68-5070 59- LHRB Chassis Assembly Ye s

68-5071 59- RHRB Chassis Assembly Ye s

WD691T Top Rod and Bolt Kit Ye s

WDA691T (4) Top Rod and Bolt Kit with

Aux Kit (Parts 12, 13, 14) Yes

*Specify Finish

1. Specify AFF

2. Specify Opening Height

3. Also used with 12-59-

4. Only when used w/ Aux Control

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0407 Chassis Cover* 1 Yes

2 68-3905 Screw Pack (B)* 1 Ye s

3

See chart

above

68-0011 Main Slide 1Yes

68-1815 59- Main Slide Yes

468-1505 Chassis (LH) 1Ye s

68-1506 Chassis (RH) Yes

5 68-1503 Lift Lever 1 Ye s

6 68-0112 Roller (Main Slide) 2 Yes

7 68-0324 Lift Lever Pivot Pin 1 Ye s

8 01-4512 Spirol Pin 1 Ye s

968-0241 Lift Arm 1 Yes

68-1137 59- Lift Arm

10 68-0323 Chassis Pin 2 Ye s

11

68-3580

N/A

12-Inner Chassis

Assembly 1

Yes

68-3859 12-53- Inner Chassis

Assembly3Yes

12

See chart

above

01-1137 Screw #8-32 x 7/1641 Ye s

13 68-0918 Extension Rod41 Yes

14 68-0917 Auxillary Control Plate41 Ye s

15 WD660T Top Rod1,2 1 Yes

16 01-0696 Coiled Pin 1 Yes

17 68-4840 Latch Bolt Assembly 1 Yes

18

68-3522

N/A

Top Case and Bracket

Assembly STD

1

Yes

68-3523 Top Case and Bracket

Assembly 1/4" Cladded Yes

68-3524 Top Case and Bracket

Assembly 1/2" Cladded Yes

N/A 68-4389 Screw Pack(W)* 1 Ye s

650 Top Strike Pack 1 Yes

21

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

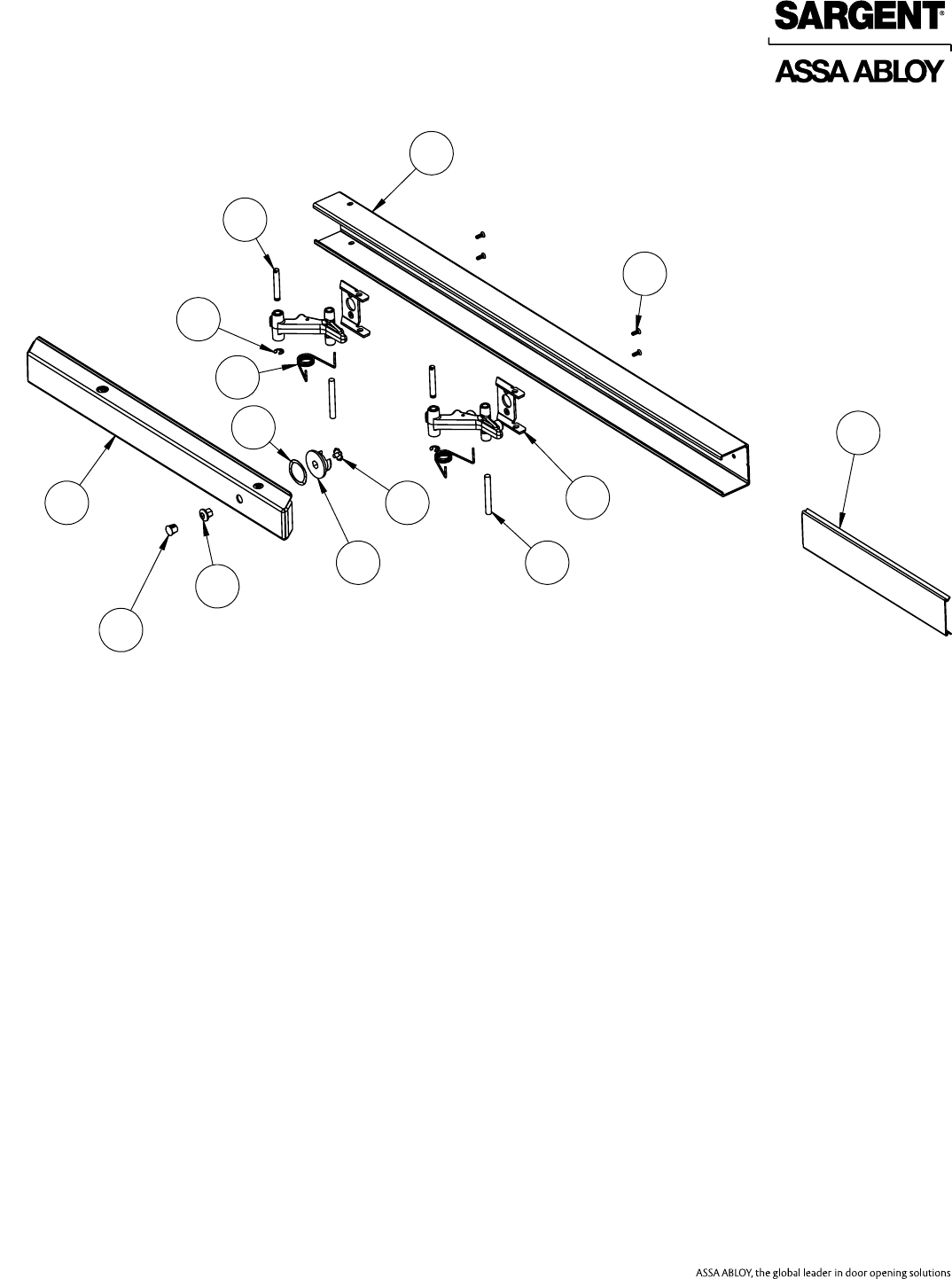

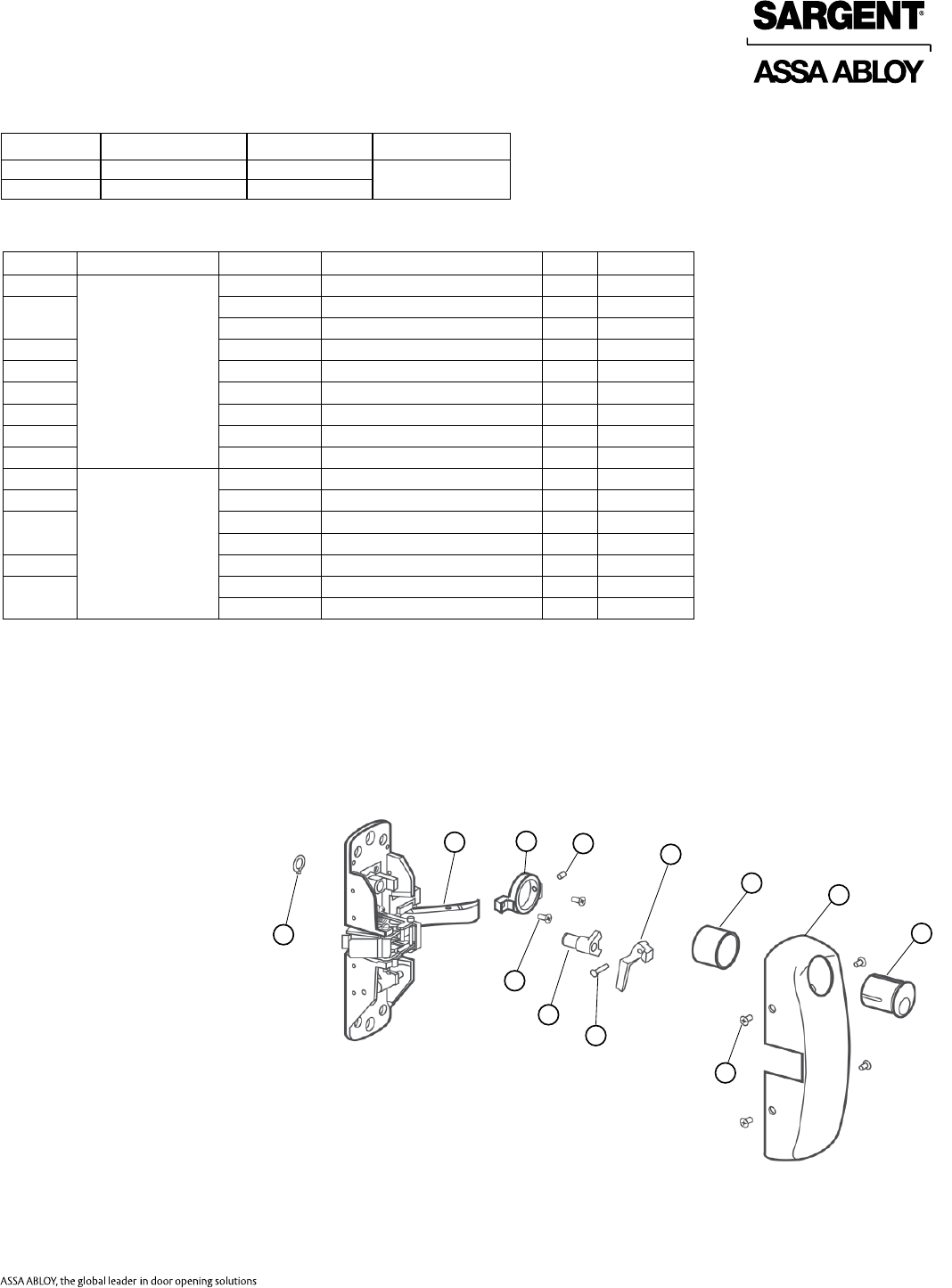

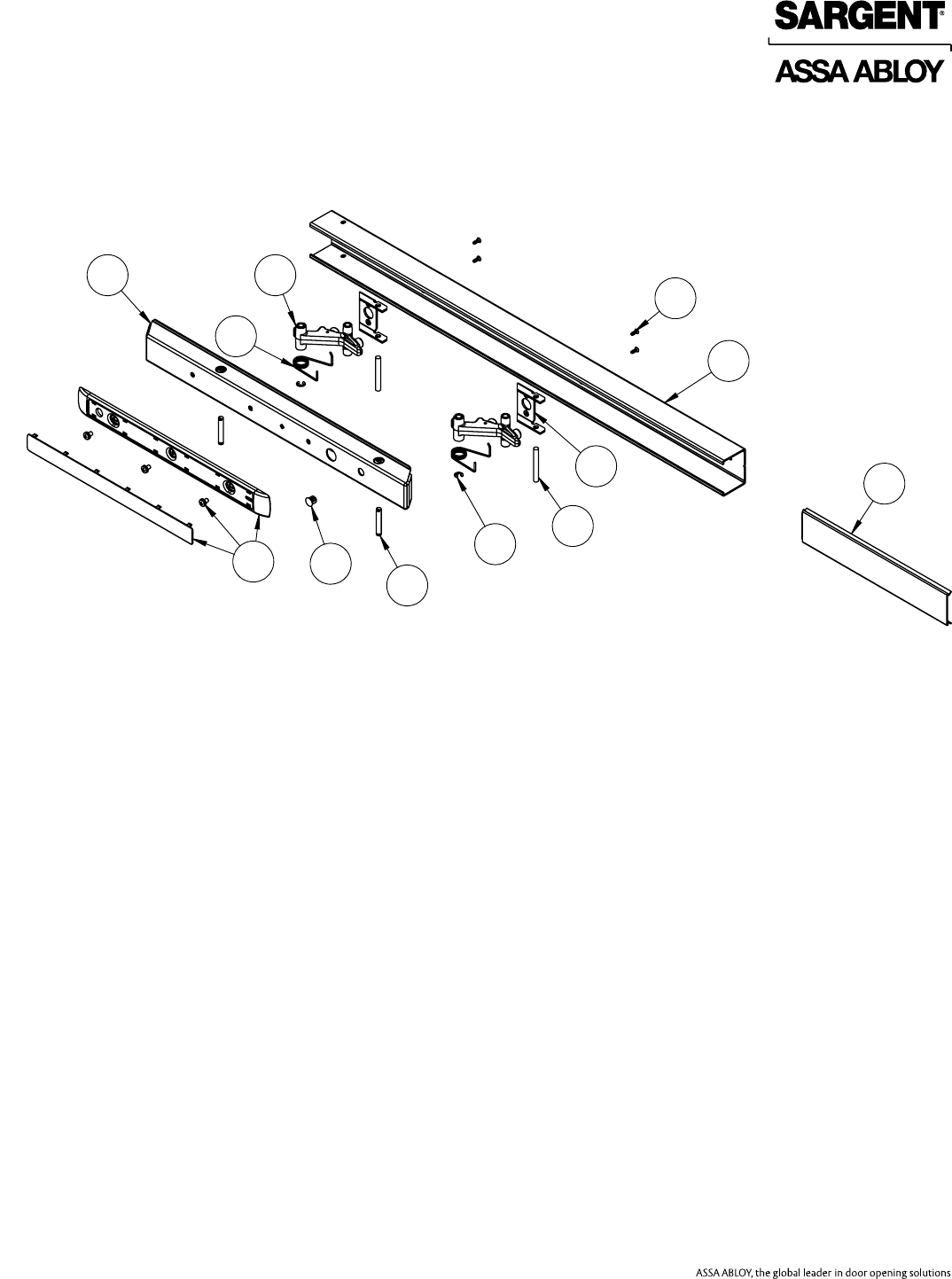

53-AD- 8606 8610 8613 8615

59-AD 8640 8643 8646 8673

AD- 8674

1

2

4

5

8

6

16

17

13

11

12

13

14

15

7

3

10

21

9

18

19

20

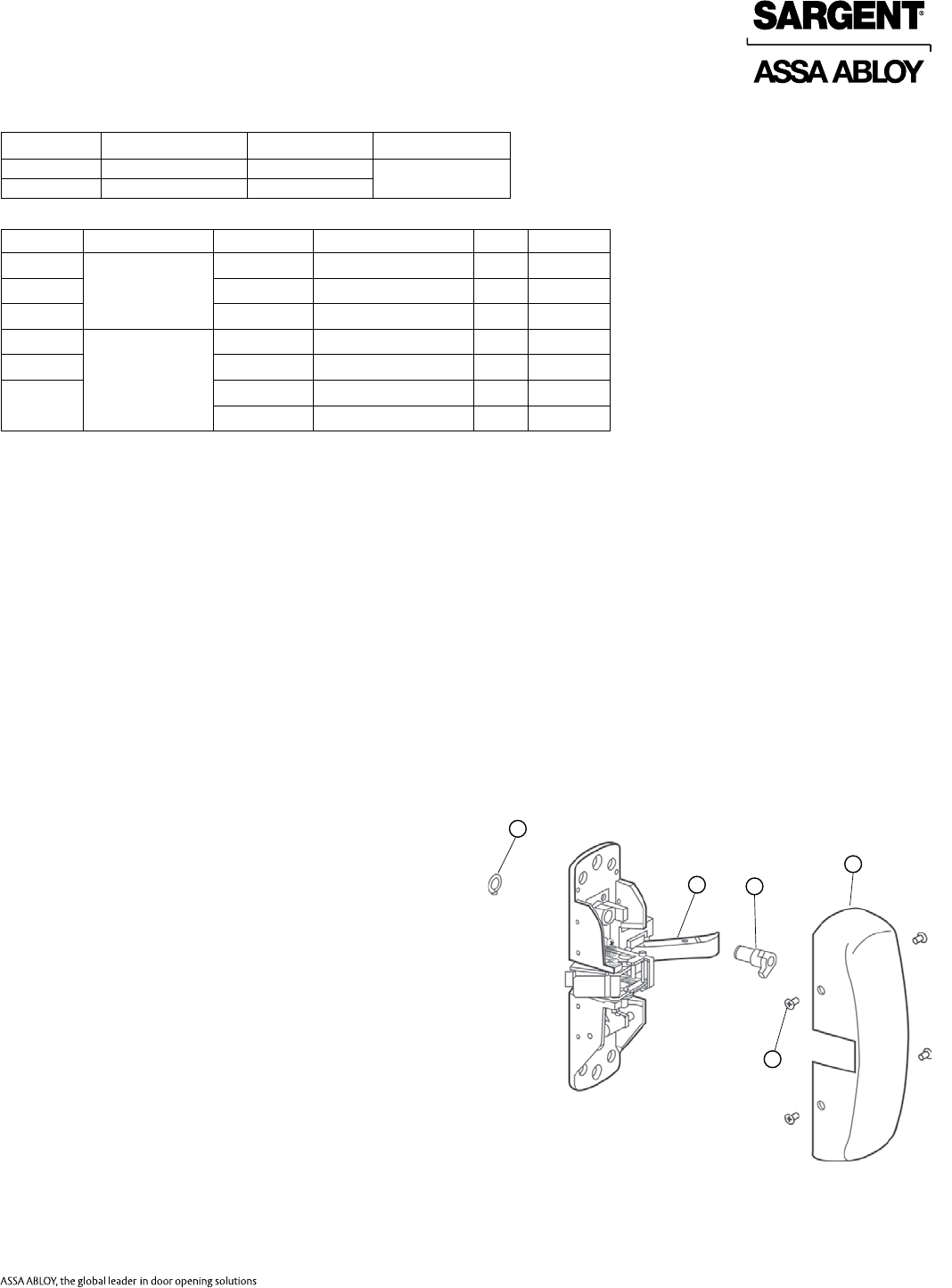

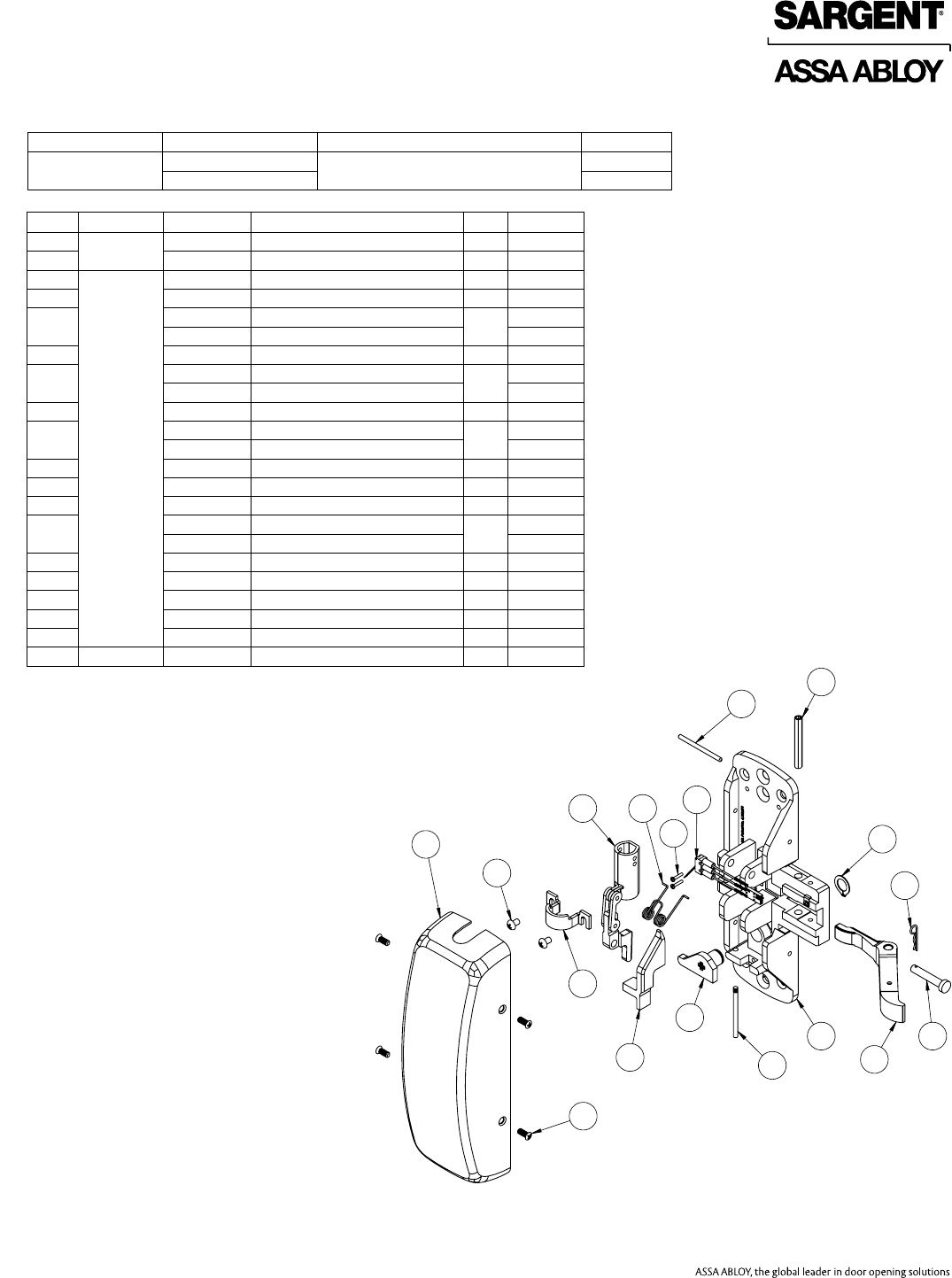

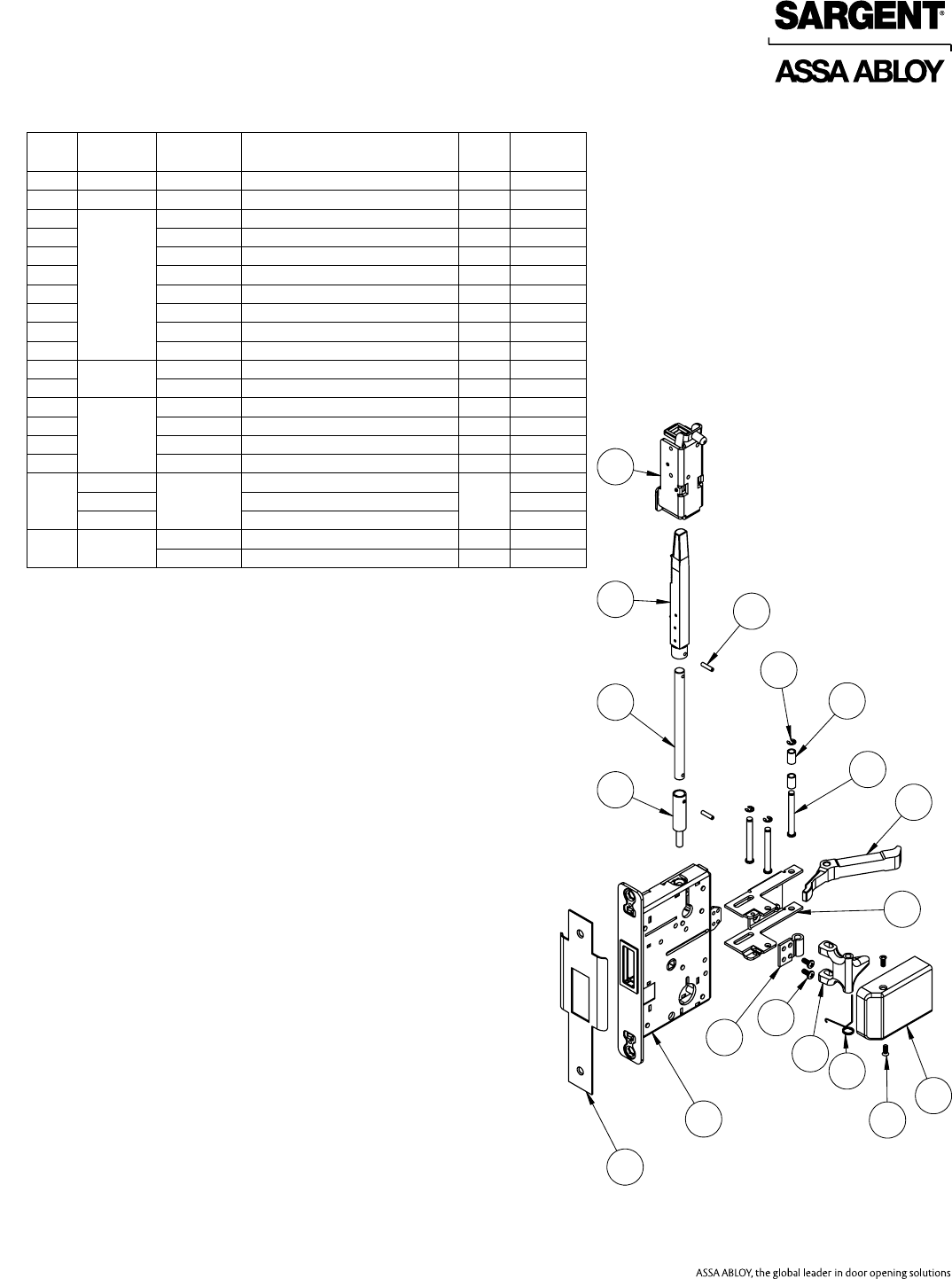

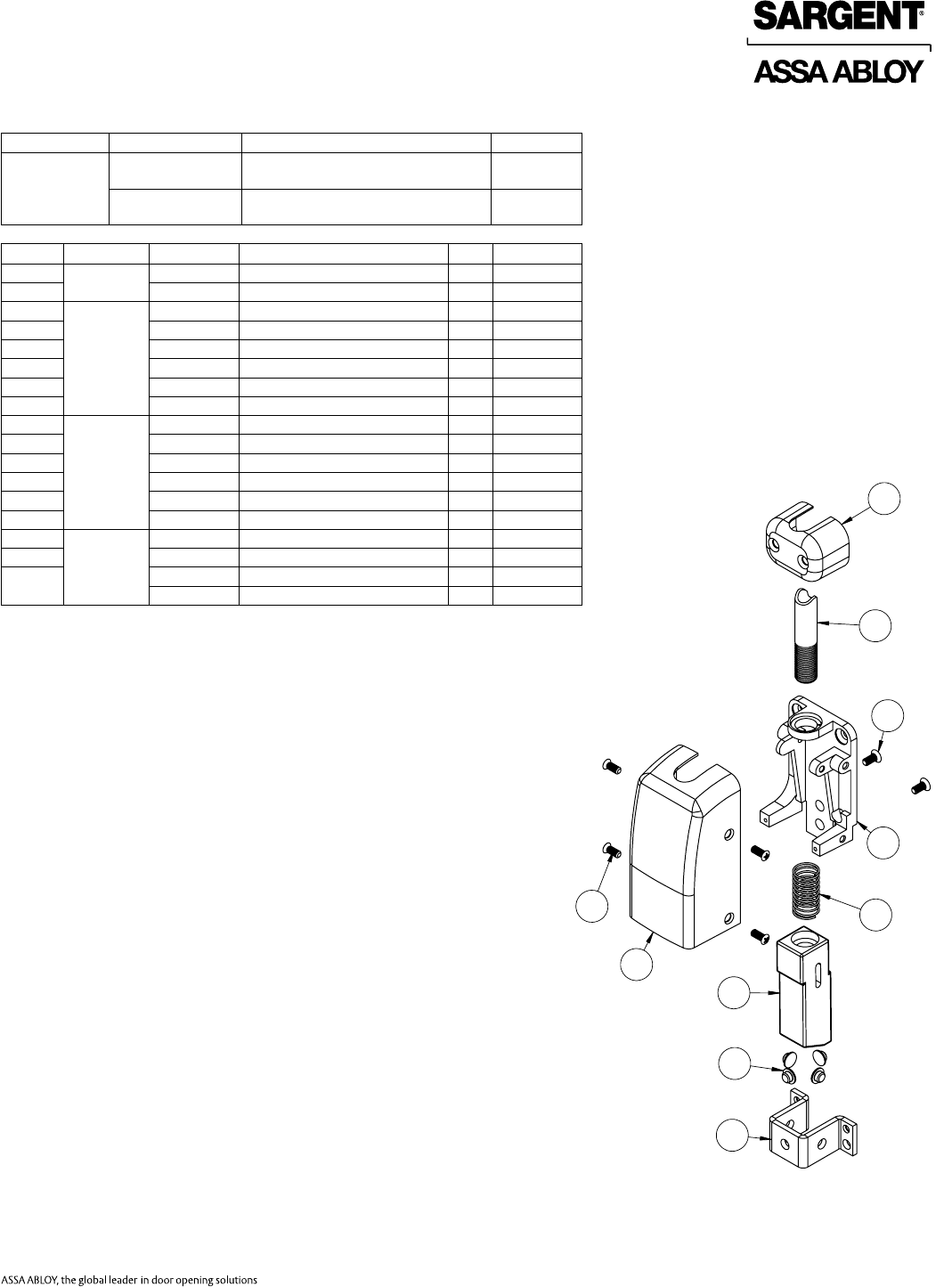

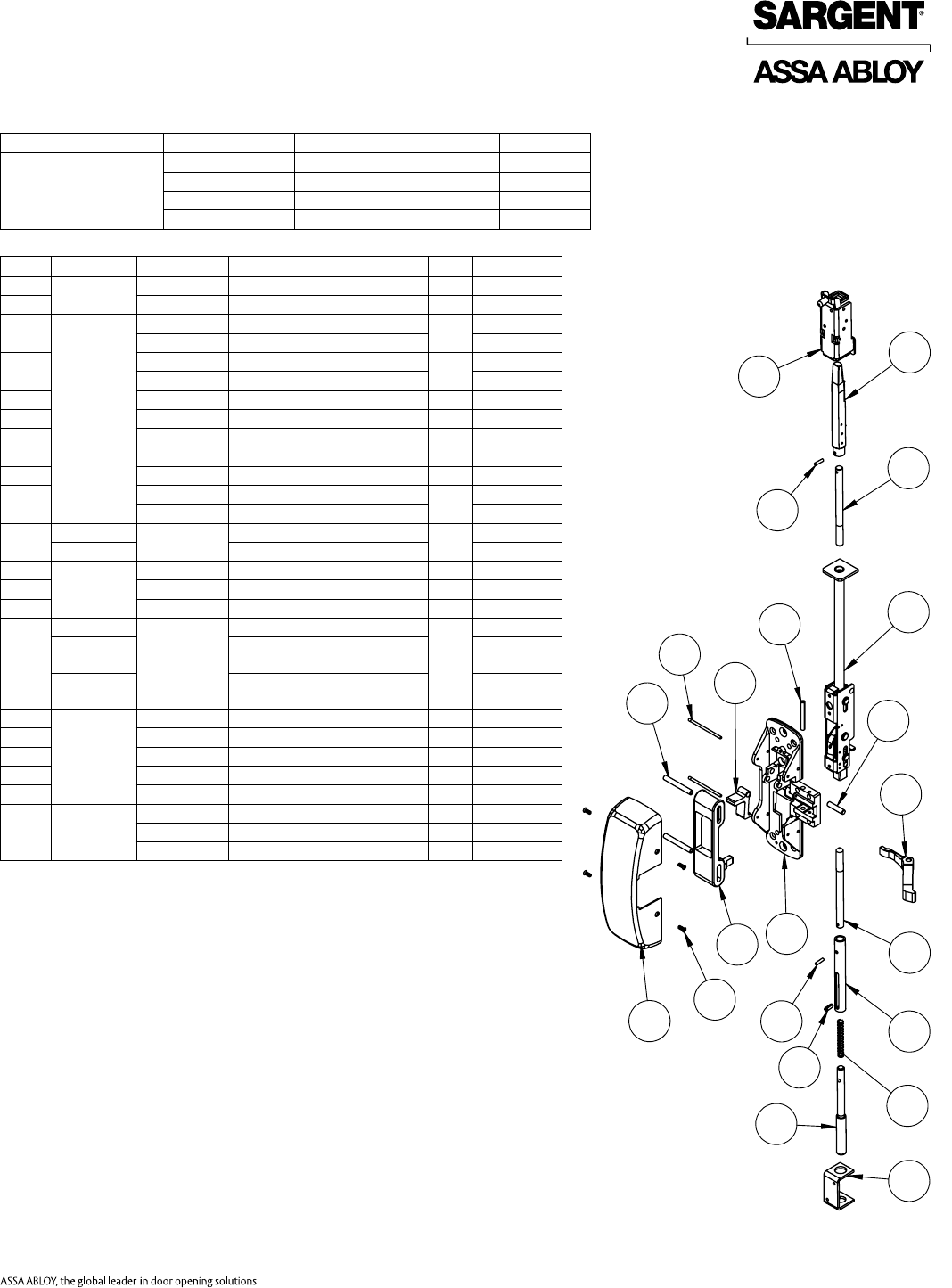

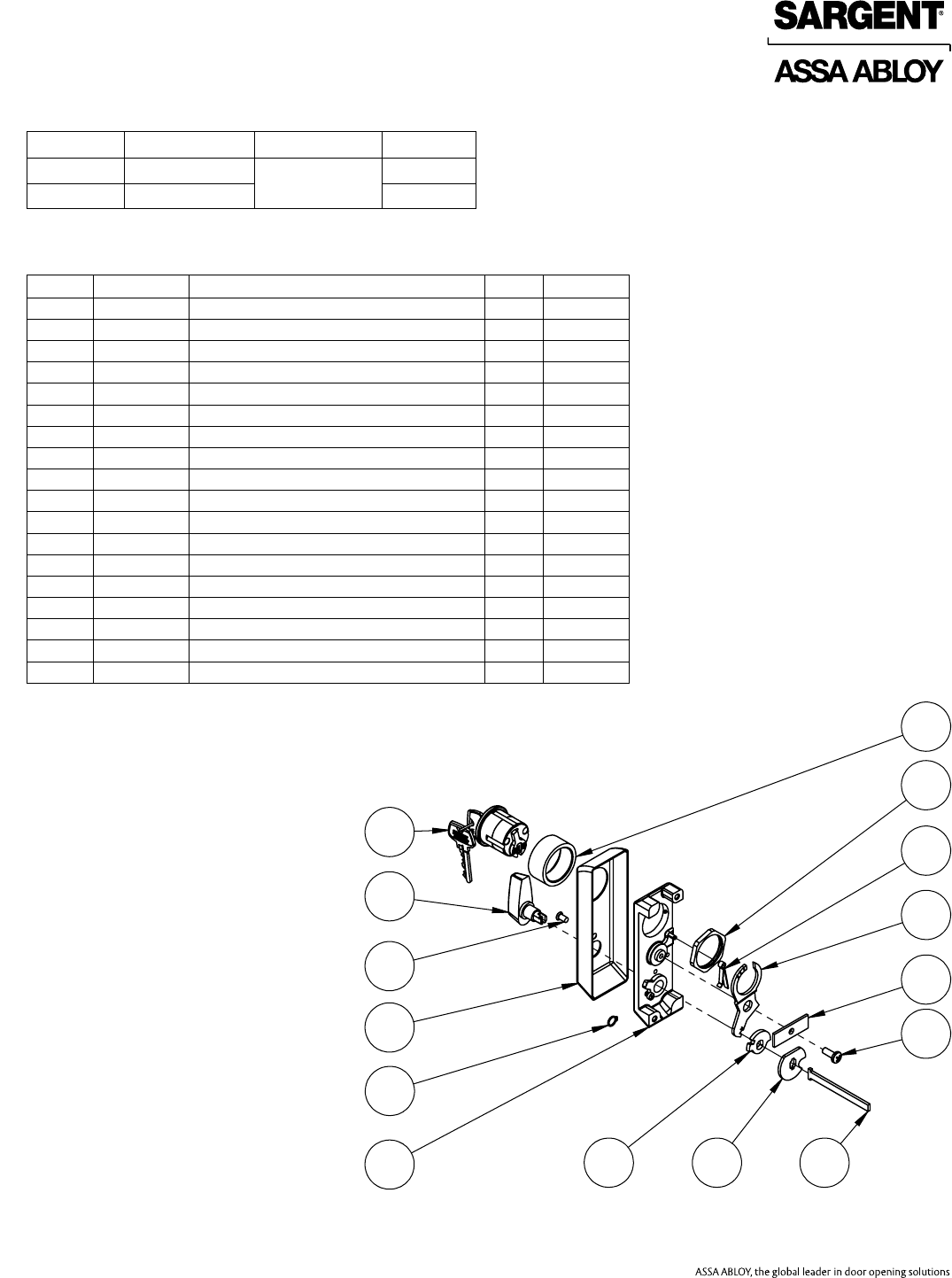

Function Assembly No. Description Sellable

53-AD-

59-AD-

(All Functions)

68-5068 LHRB Chassis Assembly Ye s

68-5069 RHRB Chassis Assembly Yes

68-5070 59- LHRB Chassis Assembly Ye s

68-5071 59- RHRB Chassis Assembly Ye s

*Specify Finish

1. Specify AFF

2. Specify Opening Height

3. Also used with 59-

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0407 Chassis Cover* 1 Yes

2 68-3905 Screw Pack (B)* 1 Ye s

3

See chart

above

68-0011 Main Slide 1Yes

68-1815 59- Main Slide Yes

468-1505 Chassis (LH) 1Yes

68-1506 Chassis (RH) Yes

5 68-1503 Lift Lever 1 Yes

6 68-0012 Roller (Main Slide) 2 Yes

7 01-4512 Spirol Pin 1 Yes

8 68-0324 Lift Lever Pivot Pin 1 Yes

9 68-0323 Chassis Pin 2 Yes

10 68-0241 Lift Arm 1Ye s

68-1137 59- Lift Arm Ye s

11 94-2008 N/A Inner Chassis Assembly 1Ye s

68-3854 53- Inner Chassis Assembly3Yes

12

MD691T

MD660T Top Rod1,2 1Ye s

13 01-0696 Coiled Pin 2 Ye s

14 68-4840 Latch Bolt Assembly 1 Ye s

15

68-5374

N/A

Top Case Assembly STD

1

Yes

68-5375 Top Case Assembly 1/4"

Cladded Ye s

68-5376 Top Case Assembly 1/2"

Cladded Ye s

16

691B

660B Bottom Rod1,2 1 Yes

17 94-0039 Bolt Sleeve 1 Ye s

18 01-4389 Roll Pin 1 Ye s

19 97-0454 Spring (Bottom Bolt) 1 Ye s

20 94-0038 Bottom Bolt 1 Yes

21 N/A

68-0037 Bottom Case 1 Ye s

68-4389 Screw Pack (W)* 1 Yes

640 Aluminum Door Strike Pack 1 Ye s

22

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Item Assy No. Part No. Description Qty Sellable

1N/A 68-0407 Chassis Cover* 1 Yes

2 68-3905 Screw Pack (B)* 1 Ye s

3

See chart

above

68-0011 Main Slide 1Yes

68-1815 59- Main Slide Ye s

468-1505 Chassis (LH) 1Ye s

68-1506 Chassis (RH) Ye s

5 68-1503 Lift Lever 1 Ye s

6 68-0012 Roller (Main Slide) 2 Ye s

7 01-4512 Spirol Pin 1 Yes

8 68-0241 Lift Arm 1 Yes

9 68-0323 Chassis Pin 2 Yes

10 68-0241 Lift Arm 1Yes

68-1137 59- Lift Arm Ye s

11

94-2008

N/A

Inner Chassis Assembly

1

Yes

68-3854 53- Inner Chassis

Assembly3Ye s

12

MD691T

MD660T Top Rod1,2 1 Ye s

13 01-0696 Coiled Pin 1 Yes

14 68-4840 Latch Bolt Assembly 1 Yes

15

68-5374

N/A

Top Case Assembly STD

1

Yes

68-5375 Top Case Assembly 1/4"

Cladded Yes

68-5376 Top Case Assembly 1/2"

Cladded Yes

N/A

68-4389 Screw Pack(W)* 1 Yes

639 Aluminum Door Strike

Pack 1 Yes

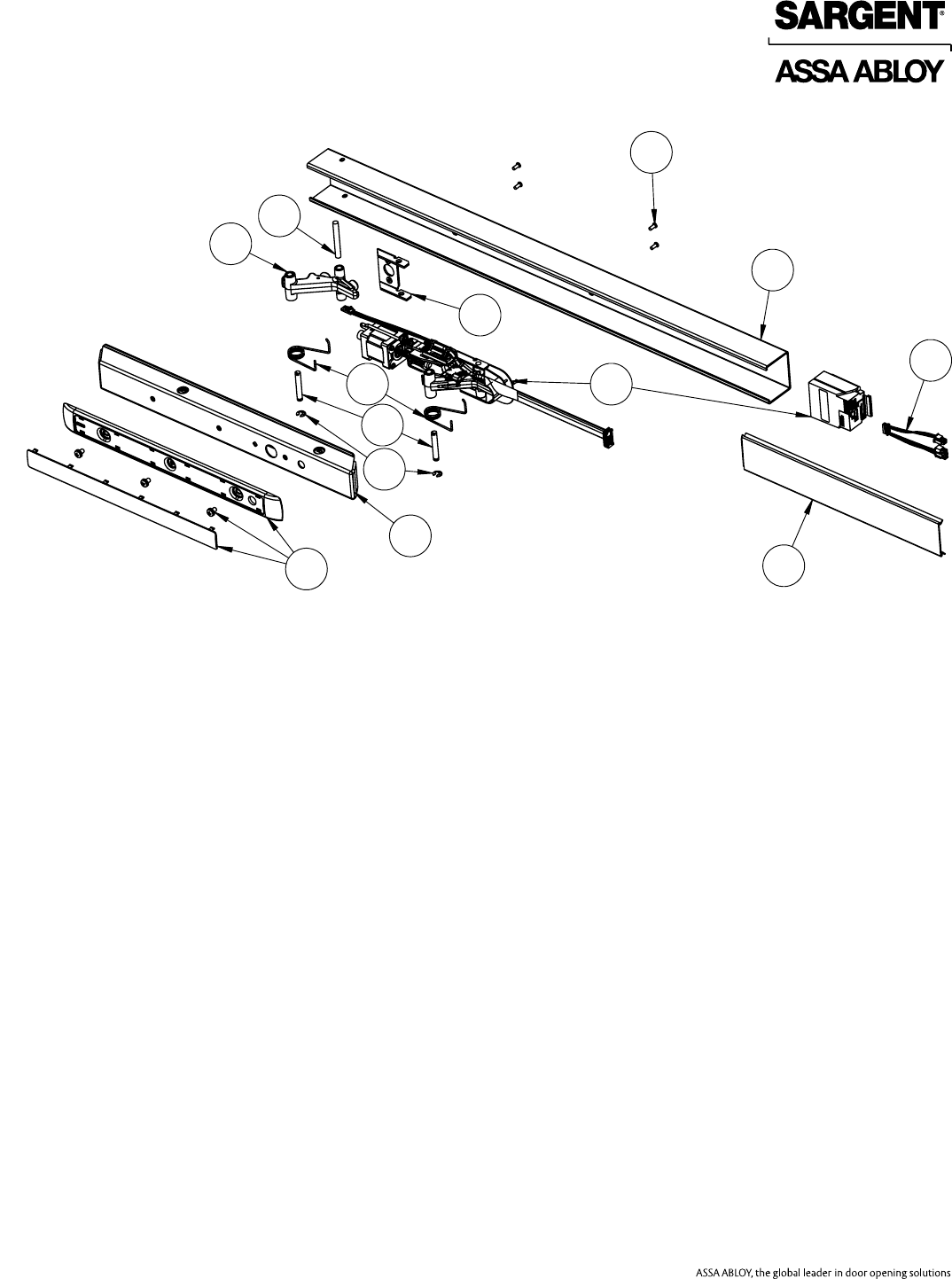

53-NB-AD- 8606 8610 8613 8615

59-NB-AD- 8640 8643 8646 8673

NB-AD- 8674

12

4

5

8

6

11

12

13

14

15

7

3

10

9

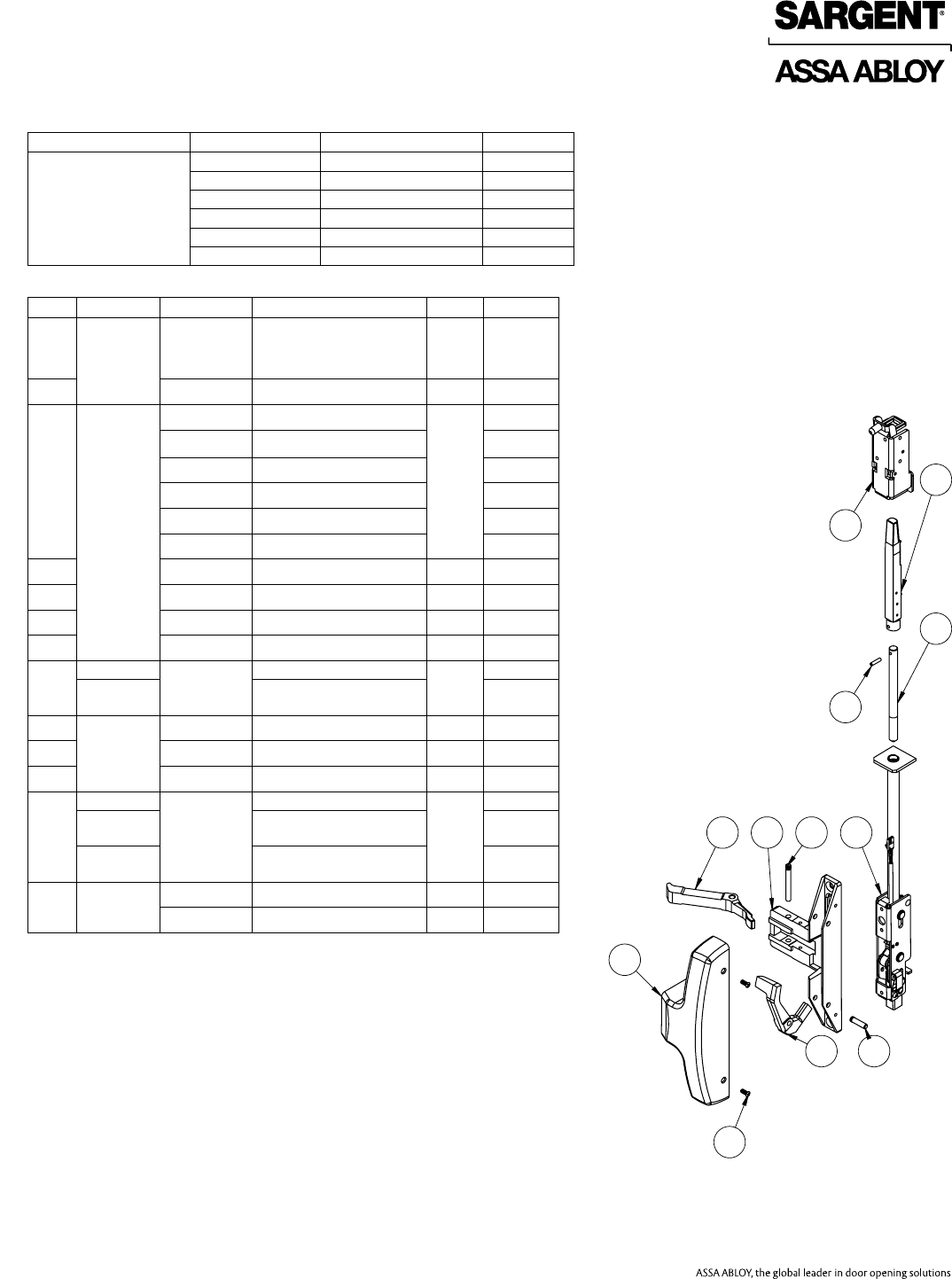

Function Assembly No. Description Sellable

53-NB-AD-

59-NB-AD-

AD-

(All Functions)

68-5068 LHRB Chassis Assembly Ye s

68-5069 RHRB Chassis Assembly Yes

68-5070 59- LHRB Chassis Assembly Ye s

68-5071 59- RHRB Chassis Assembly Ye s

*Specify Finish

1. Specify AFF

2. Specify Opening Height

3. Also used with 59-

23

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

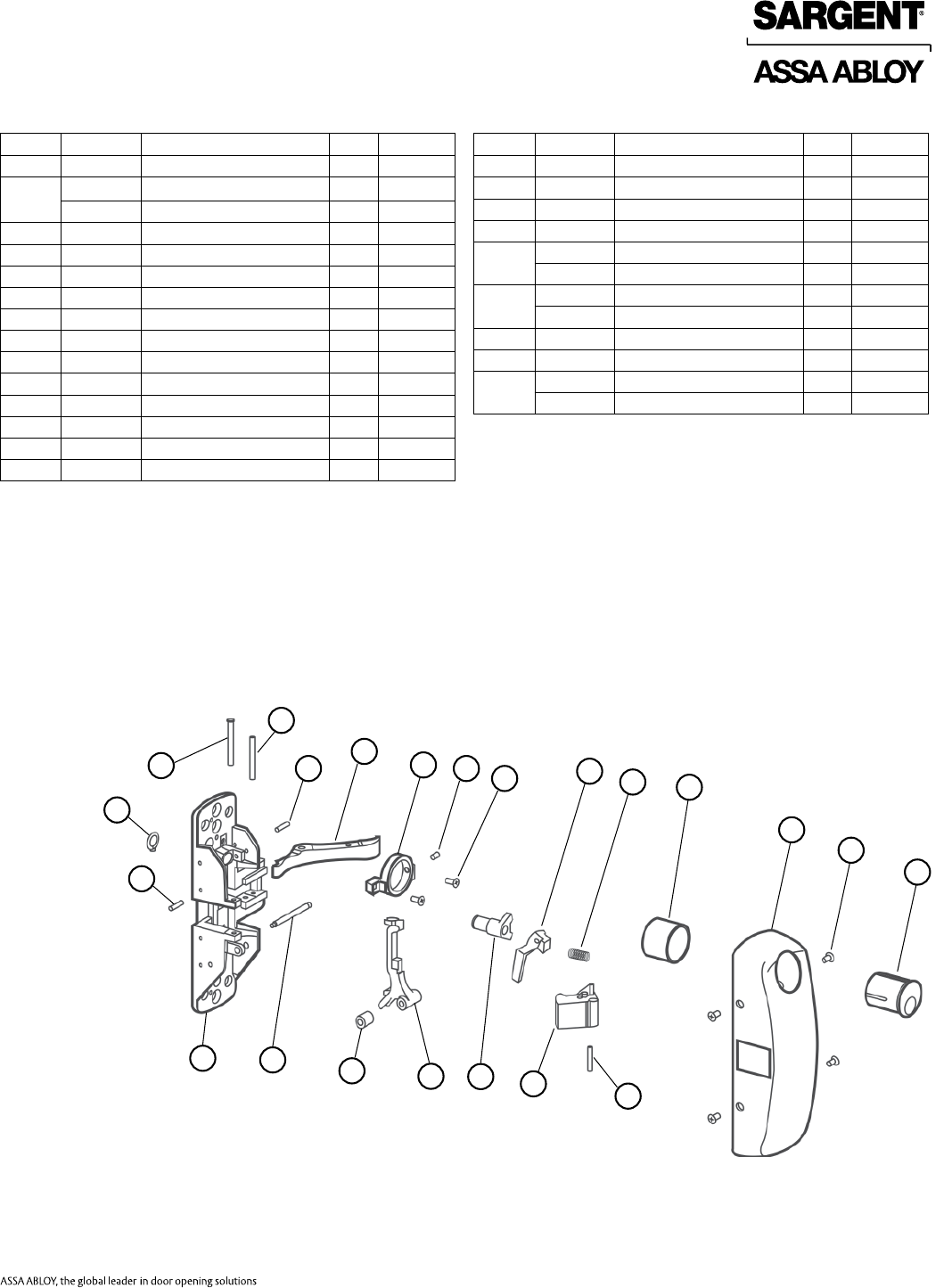

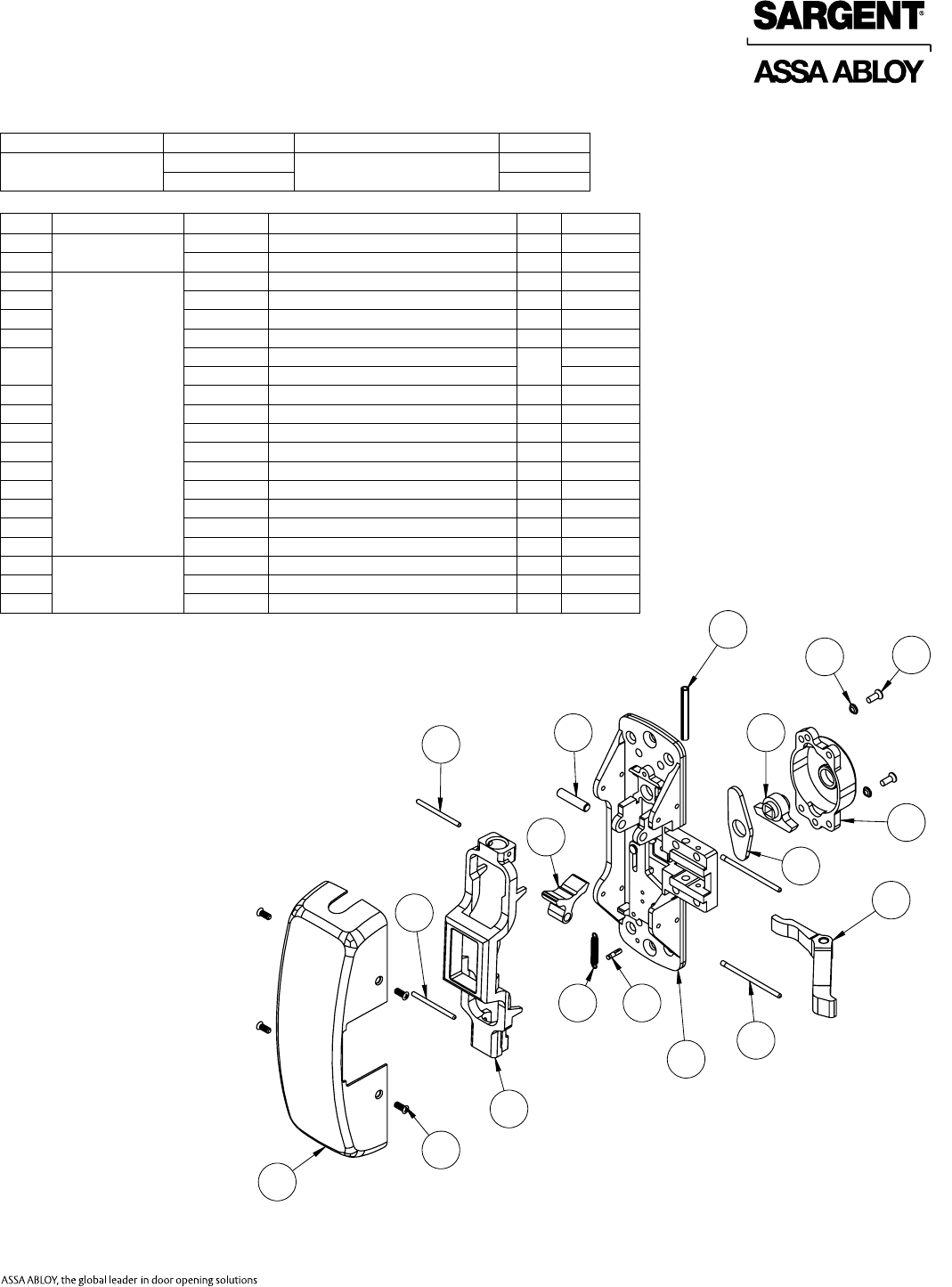

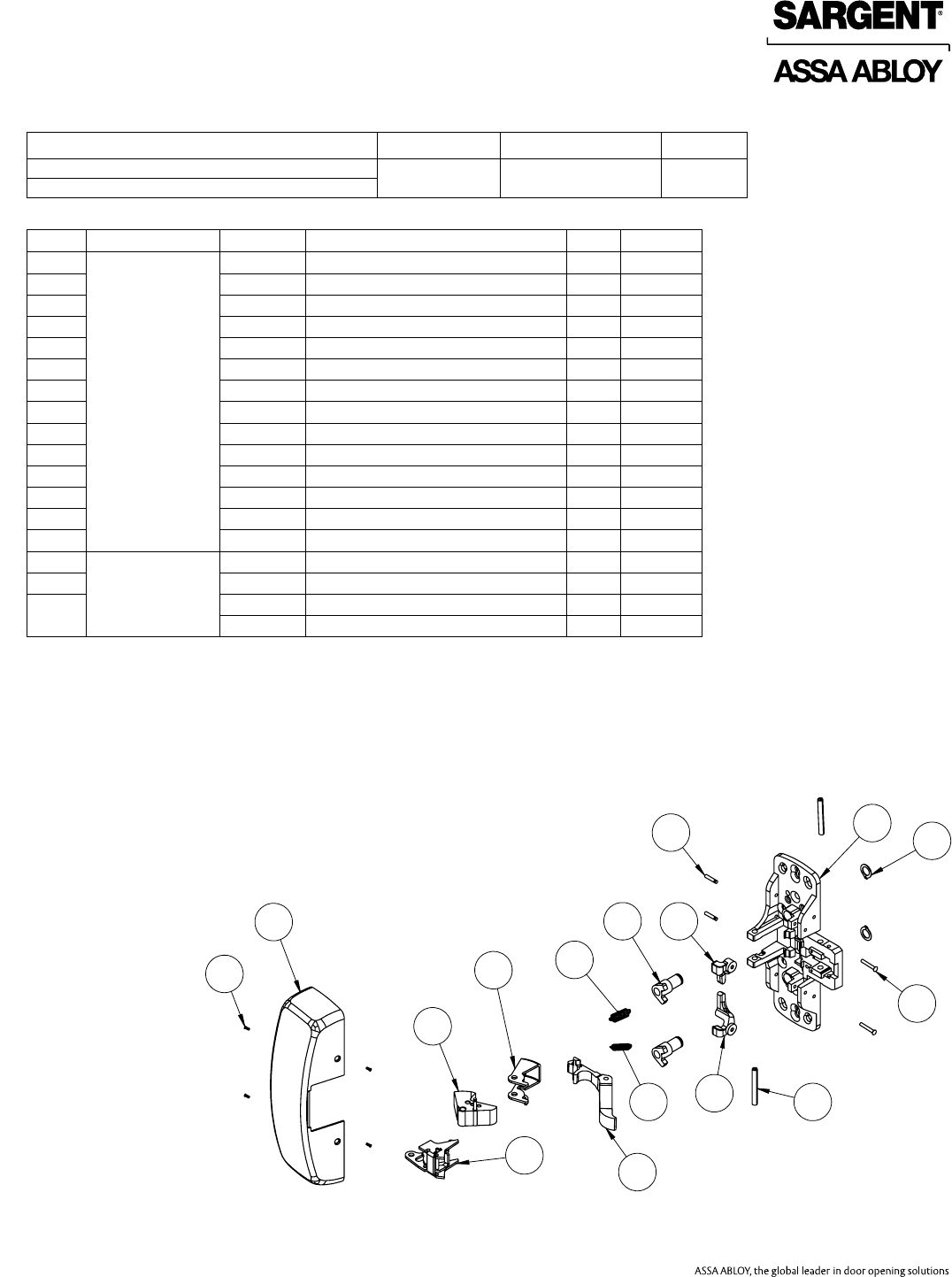

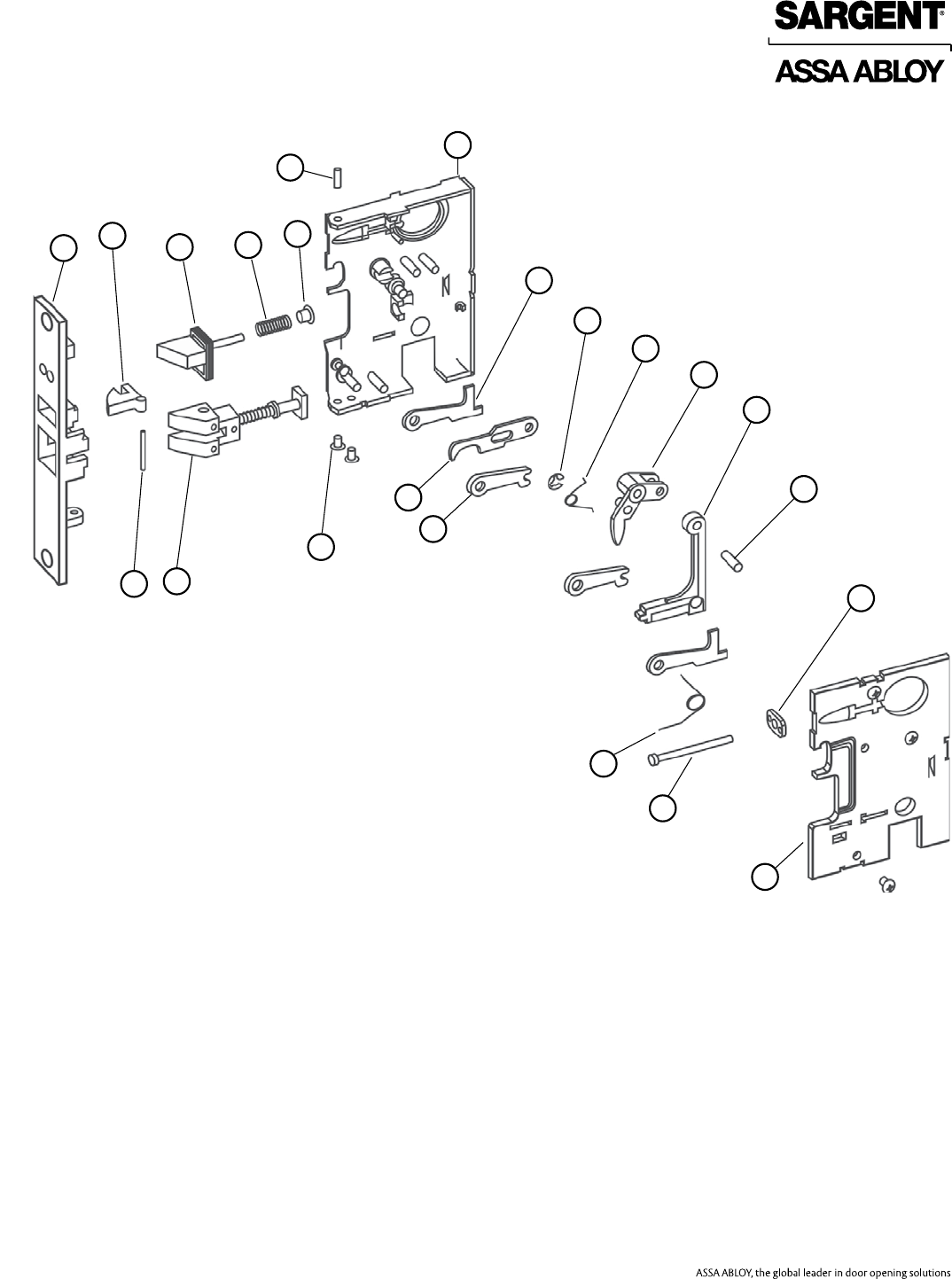

12-LP 8606 8610 8613 8615

LP 8640 8643 8646 8673

12-LS 8674

LS

1

211

5

4

3

7

9

10

8

14

15

16

17

13

12

6

11

*Specify Finish

1. Only available in 32D ﬁnish

2. LS function only

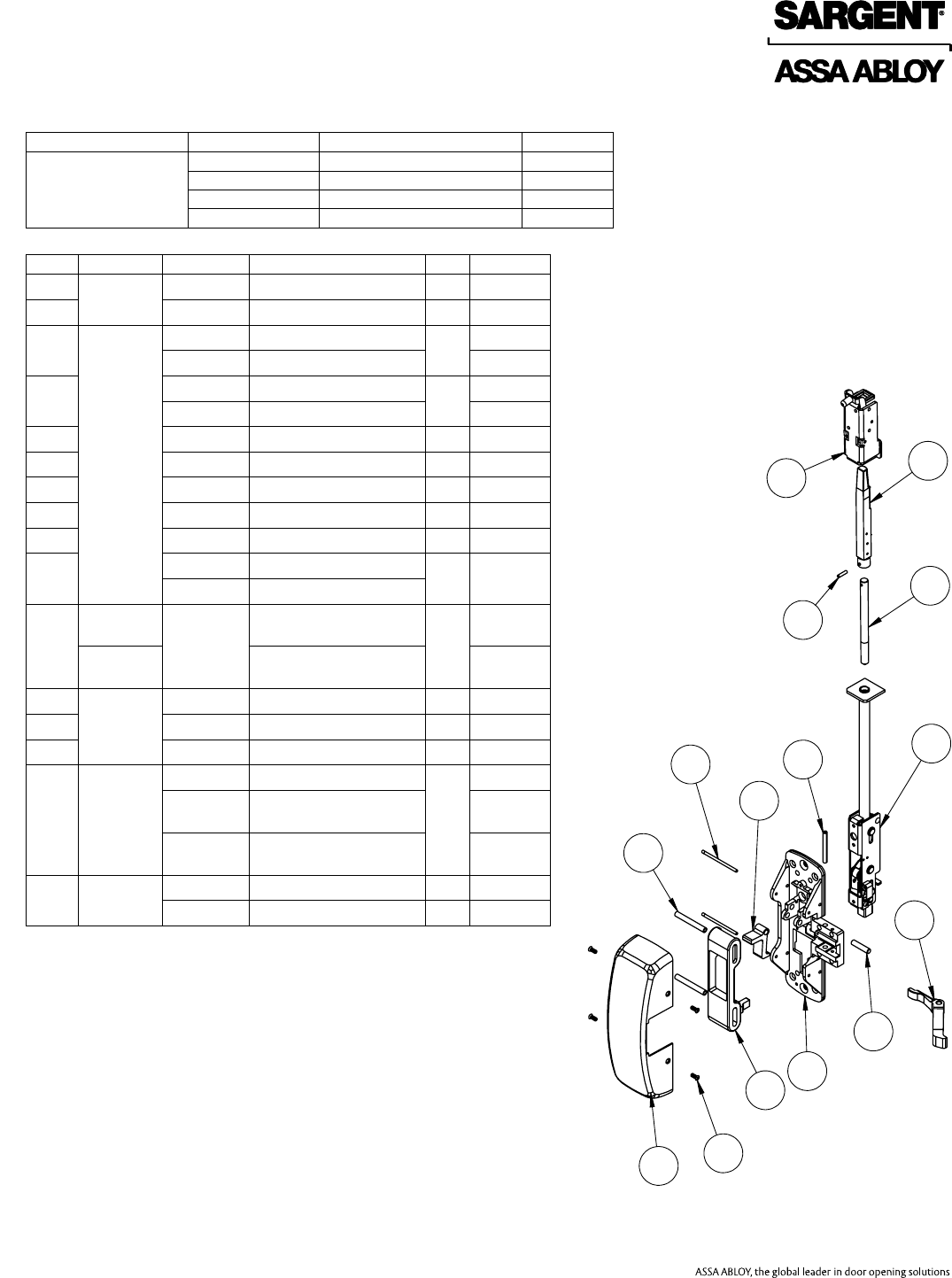

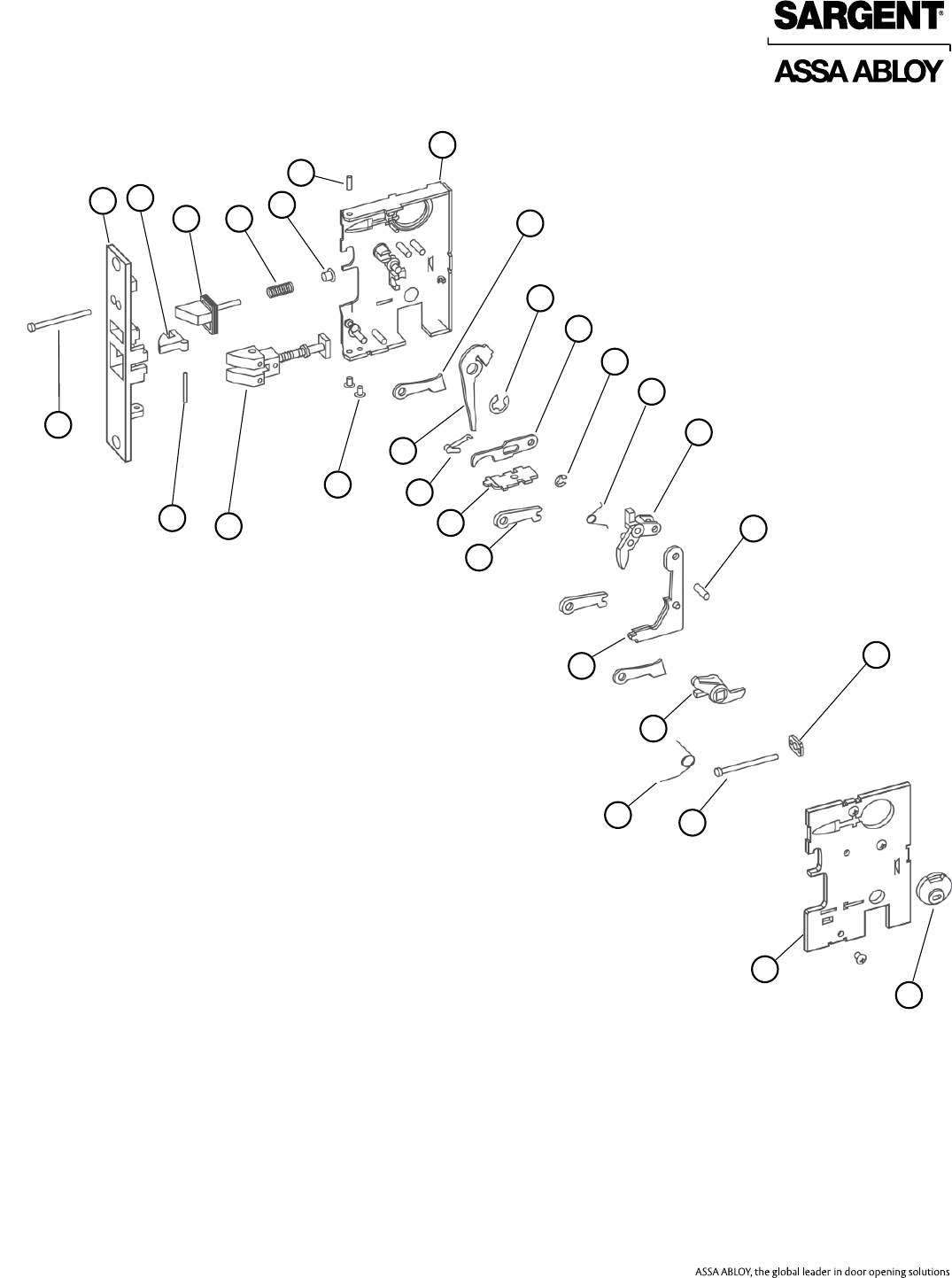

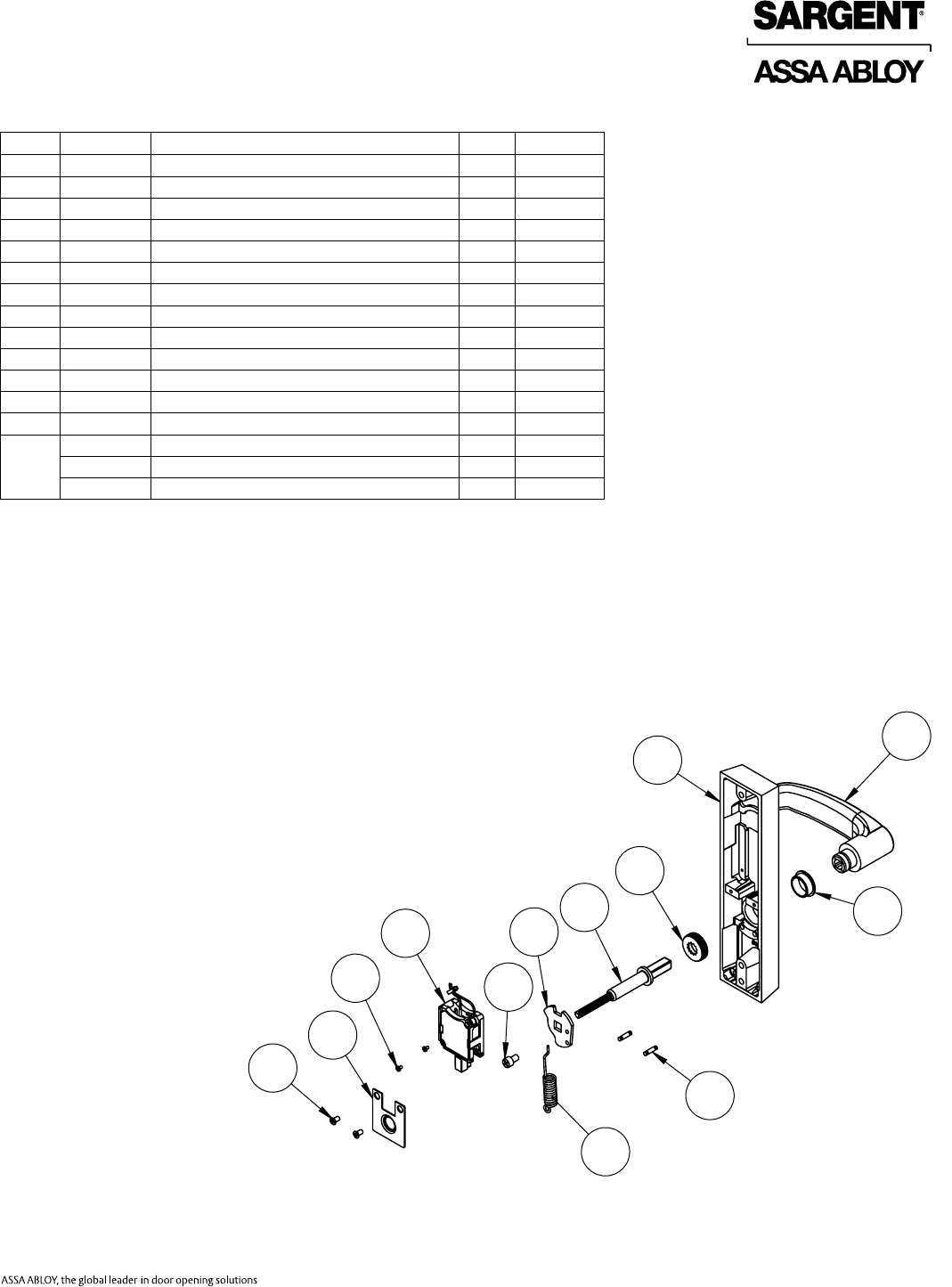

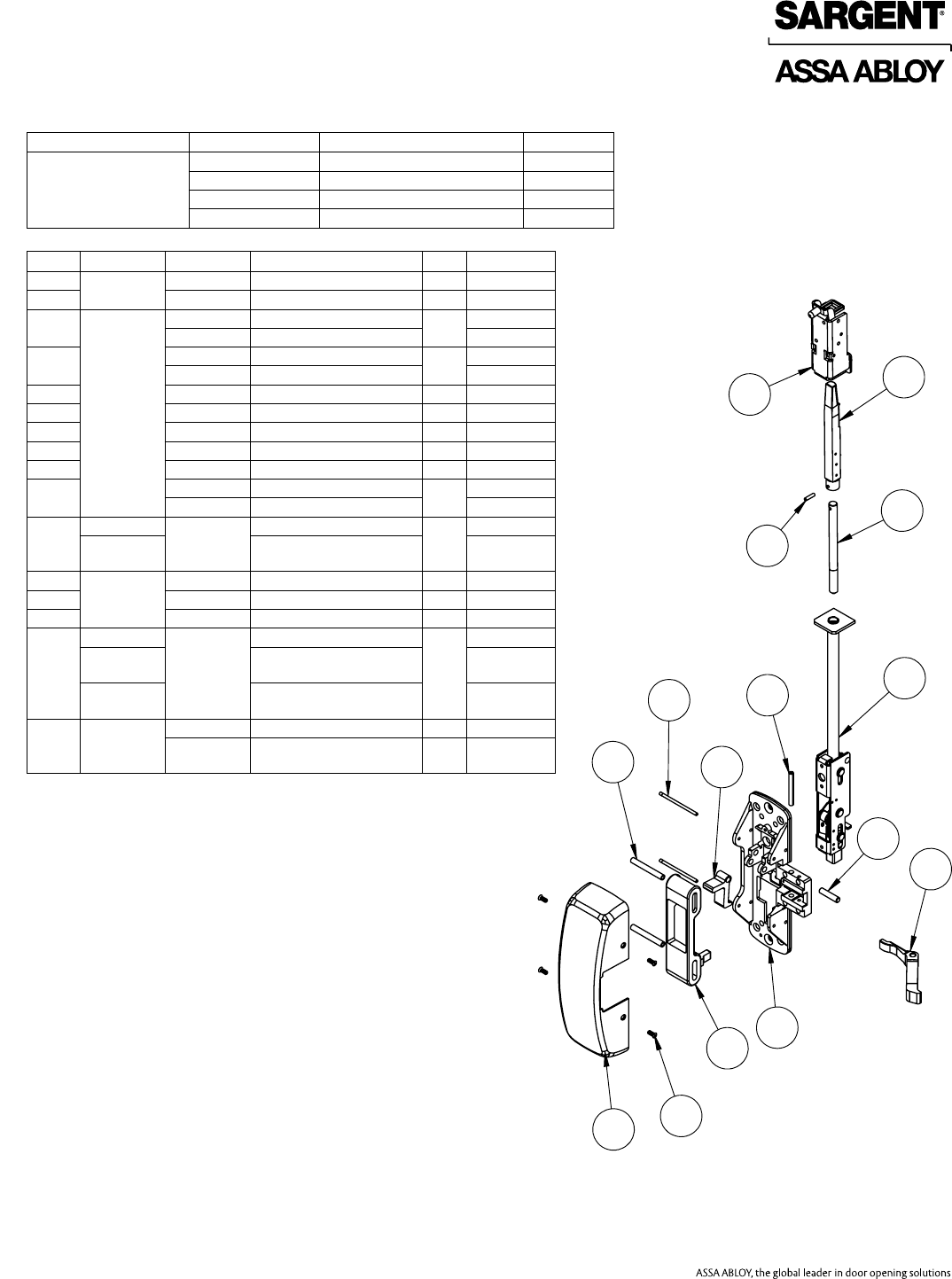

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-1186 Active Outside Front11 Yes

2 68-4239 N/A Active Mortise Case 1 Ye s

3

68-4264

68-1327 Link Connect (Pull Lever) 1 Ye s

4 68-1309 Pull Lever Low Proﬁle 1 Yes

5 68-1332 Torsion Spring (Pull Lever) 1 Yes

6 68-1313 Pivot Pin 3 Ye s

7 68-0241 Lift Arm 1 Ye s

8 68-1310 Pivot Bracket 1 Ye s

9 01-4509 Retaining Ring 3 Yes

10 68-1311 Lift Arm Spacer 2 Yes

11 N/A 68-4373 Screw Pack (LP) 1 Ye s

12 68-1317 Chassis Cover (LP)* 1 Ye s

13

692L

01-0696 Coiled Pin 2 Yes

14 68-1339 Connecting Tube 1 Yes

15 661L Top Rod (LP) 1 Yes

16 68-4840 Latch Bolt Assembly 1 Ye s

17

68-5374

N/A

Top Case Assembly STD

1

Yes

68-5375 Top Case Assembly 1/4" Panel Ye s

68-5376 Top Case Assembly 1/2" Panel Ye s

N/A

68-4389 Screw Pack 1 Yes

650 Strike Pack 1 Yes

77-0883 A.S.A. Strike (Curved Lip)*21 Ye s

24

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

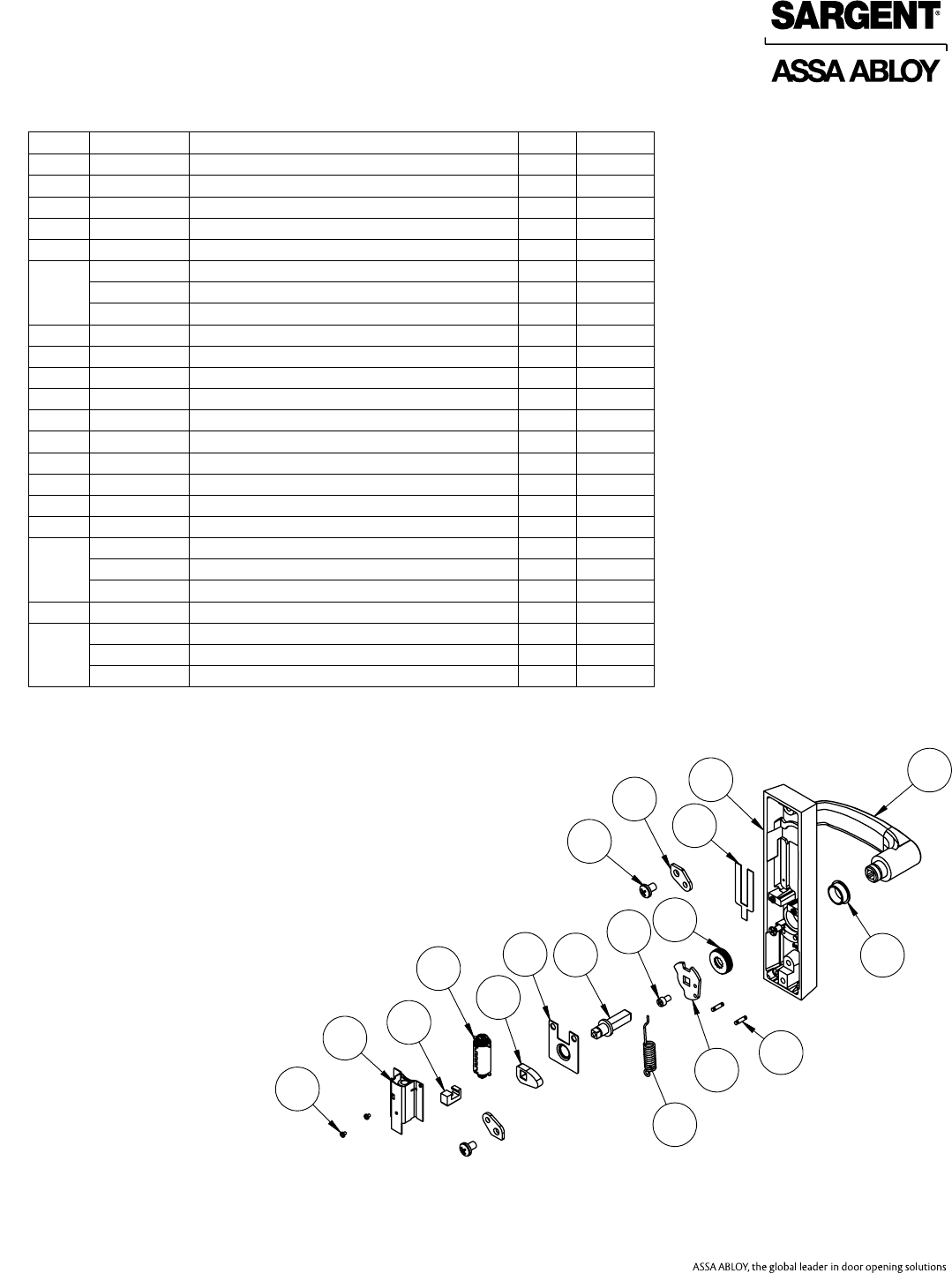

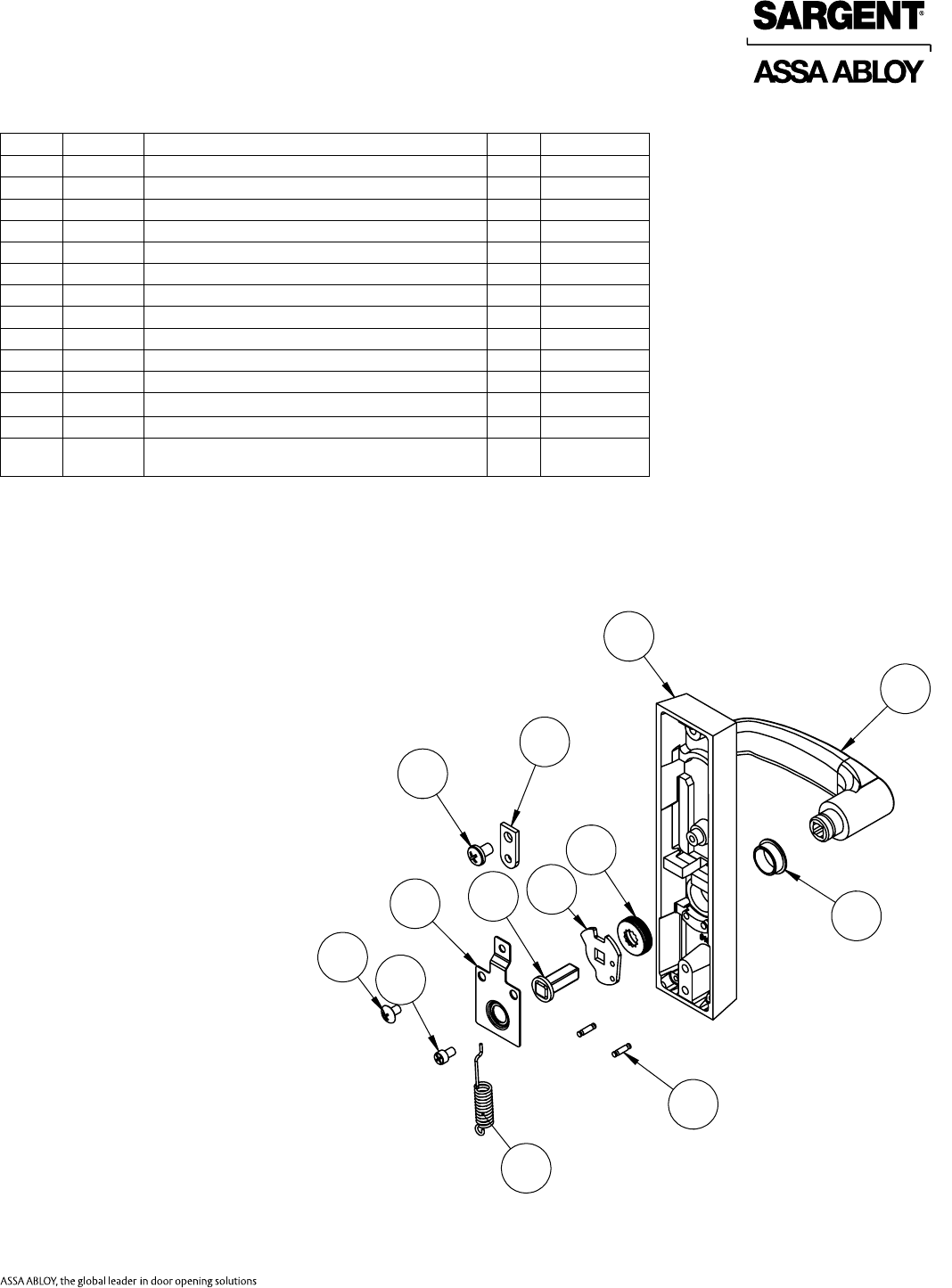

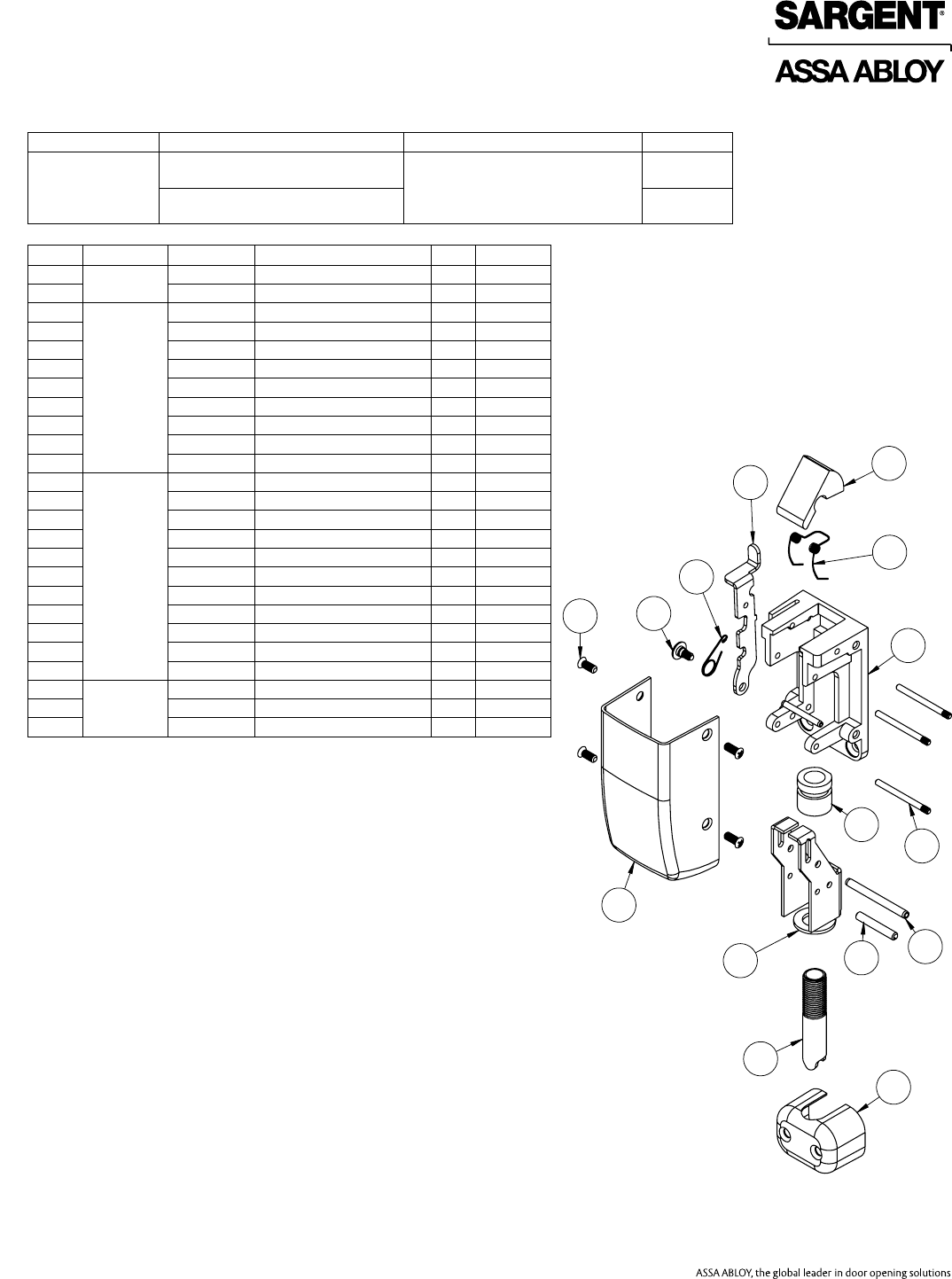

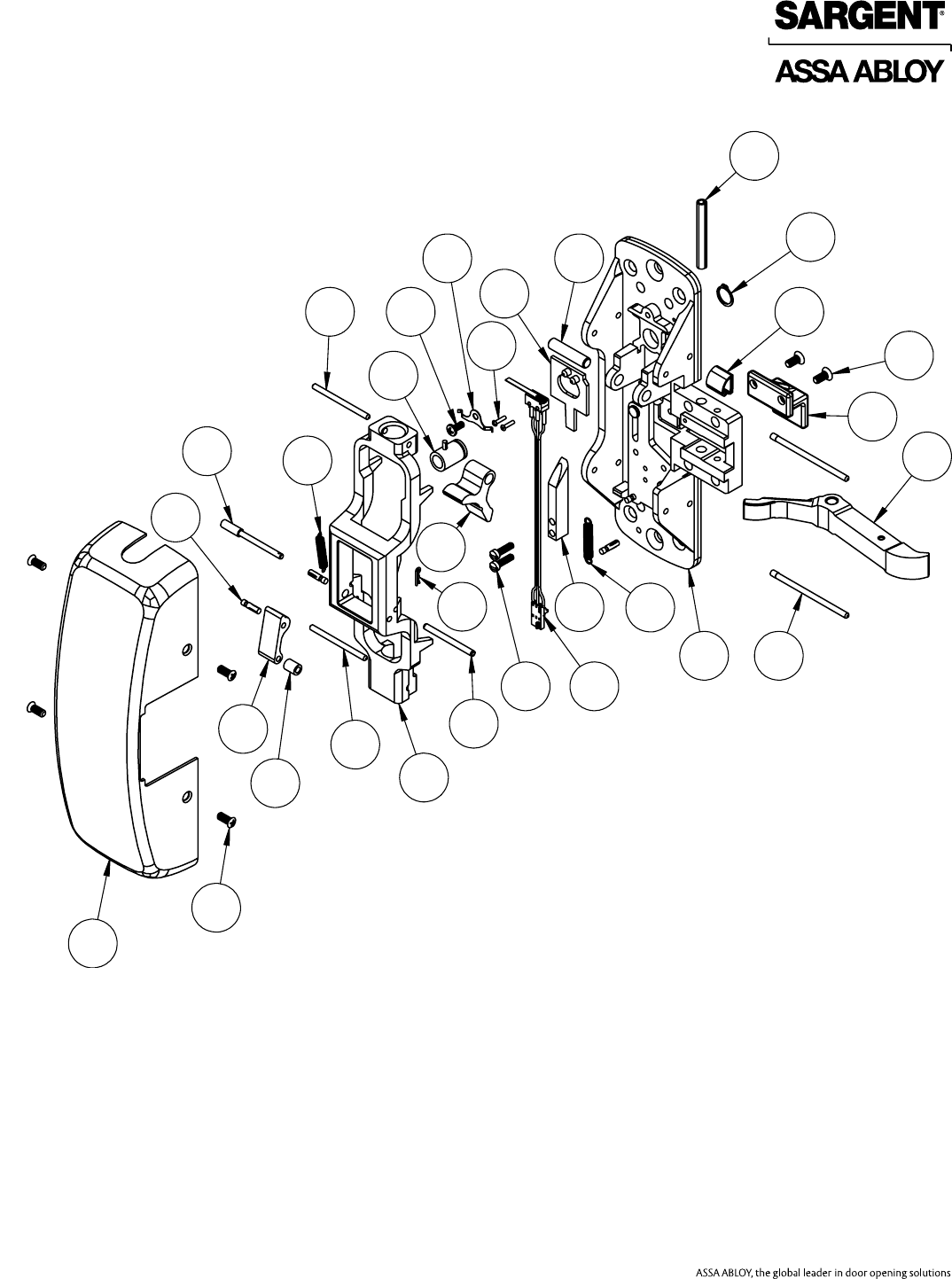

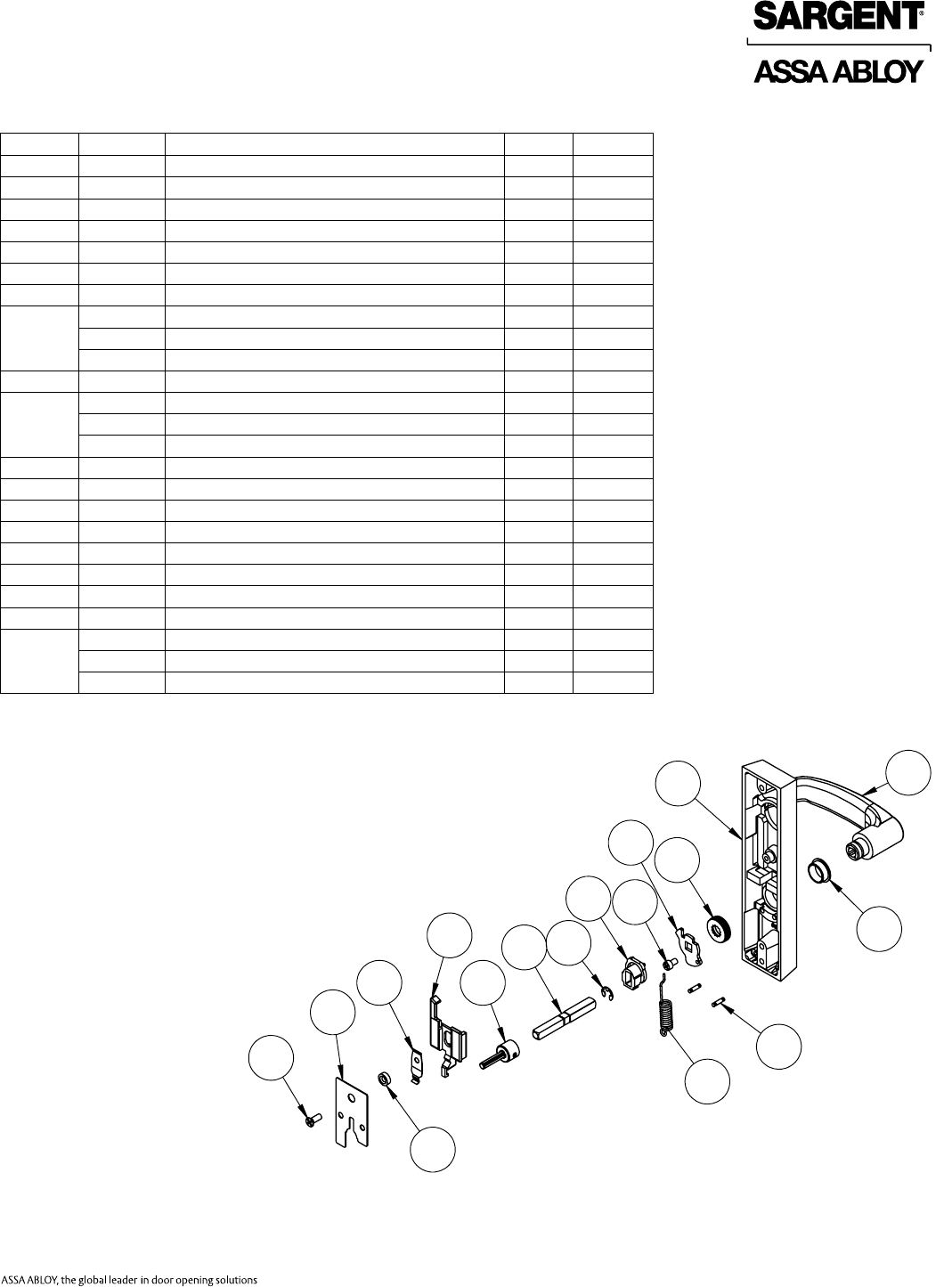

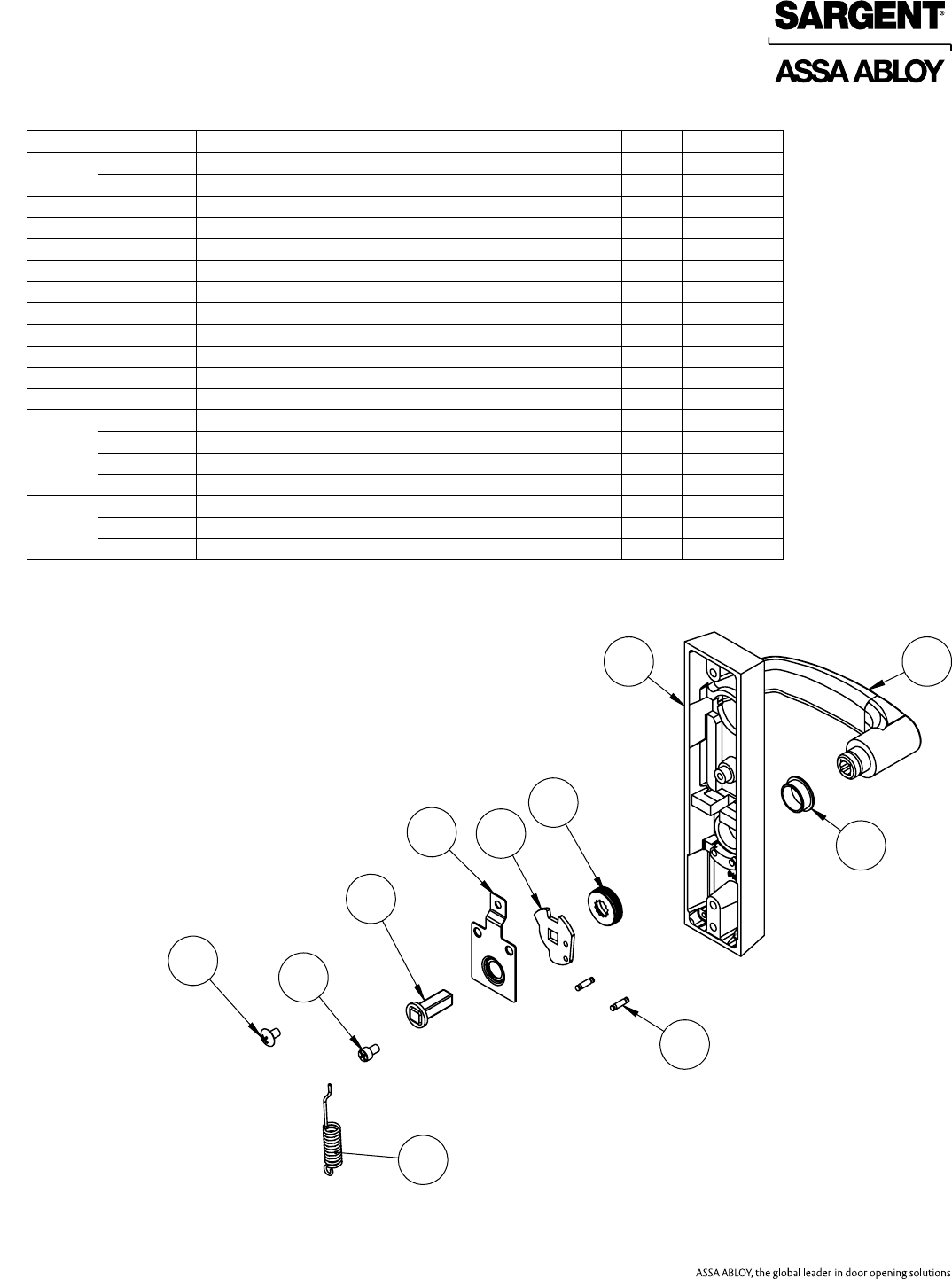

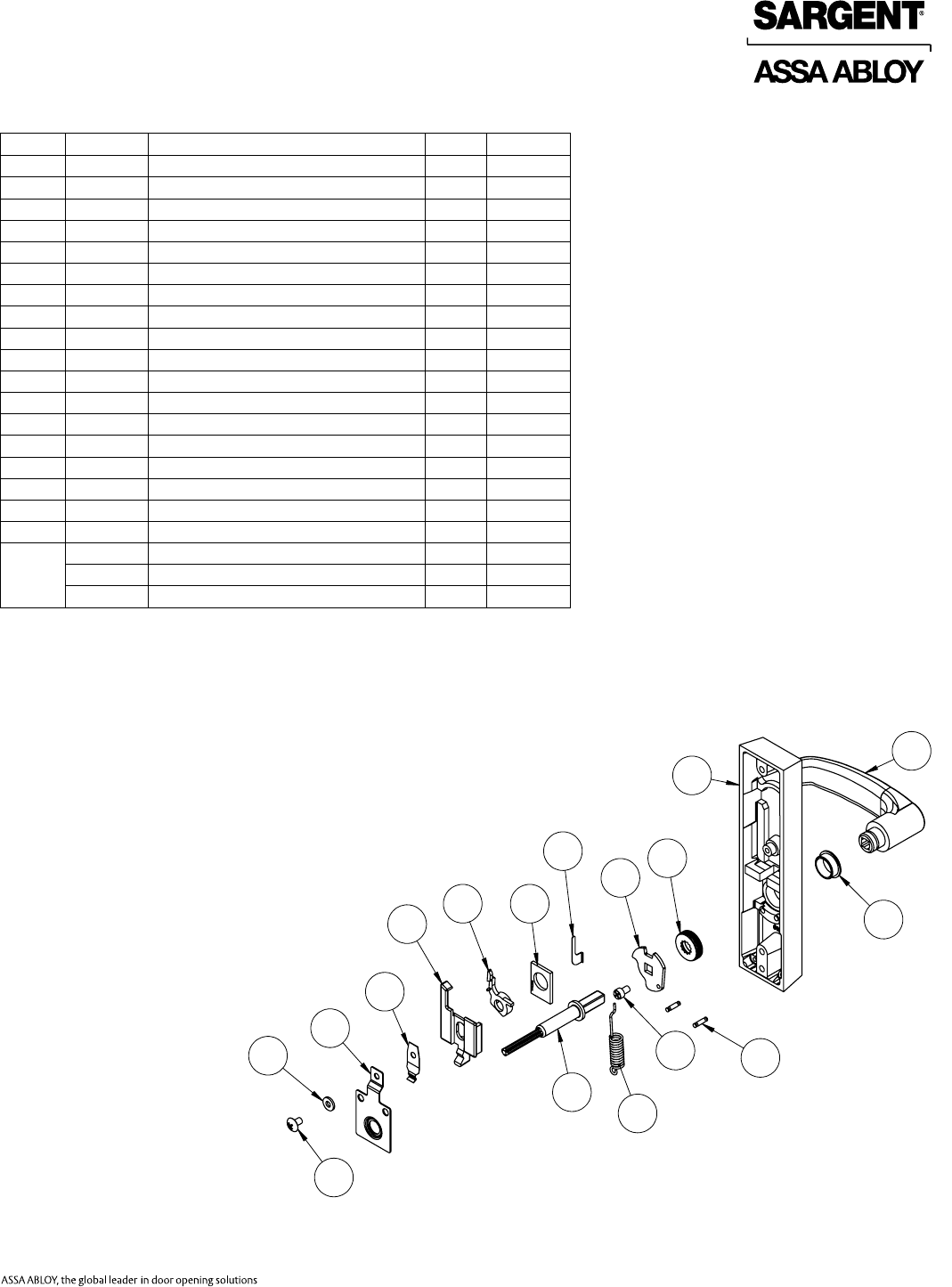

Item Part No. Description Qty Sellable

1 68-1188 Active Inside Front 1 No

2 68-1167 Active Latchbolt 1 Ye s

3 68-1166 Activation Bolt 1 Ye s

4 01-4402 #8-32x7/16" Flat PH U/C MS 7 Ye s

5 68-1338 Mortise Cap 1 No

6 68-1476 Outside Hub (LP) 1 Ye s

7 68-1291 Slide 1 No

8 68-1330 Bushing (LP) 2 Ye s

9 68-1168 Active Case Pivot 1 Yes

10 68-1172 Retractor 1 Ye s

11 68-1293 Fire Stop 1 Ye s

12 68-1220 Active Bolt Guide 1 Ye s

13 82-0294 Post (Screw and Case) 8 No

14 68-1337 Mortise Case 1 No

15 68-1253 Spring (Top Mount) 1 Ye s

16 68-1265 Spring (Active Lever) 1 Ye s

17 68-1333 Active Lever 1 Ye s

18 68-1198 Torsion Spring (Retractor) 1 Ye s

19 68-1246 Top Pusher Guide 1 Ye s

20 68-1328 Link Latchbolt Tail 1 No

21 68-1334 Latchbolt Extension/Slide 1 No

22 68-1292 Upper Guard 1 Ye s

23 68-1336 Top Mount 1 Ye s

24 01-0424 Rivet 2 No

12-LP 8606 8610 8613 8615

LP 8640 8643 8646 8673

12-LS 8674

LS

25

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

1

2

3

4

5

23

21

22

20

19

6

7

8

9

18

10

17

11

15

16

12

14

13

24

12-LP 8606 8610 8613 8615

LP 8640 8643 8646 8673

12-LS 8674

LS

26

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

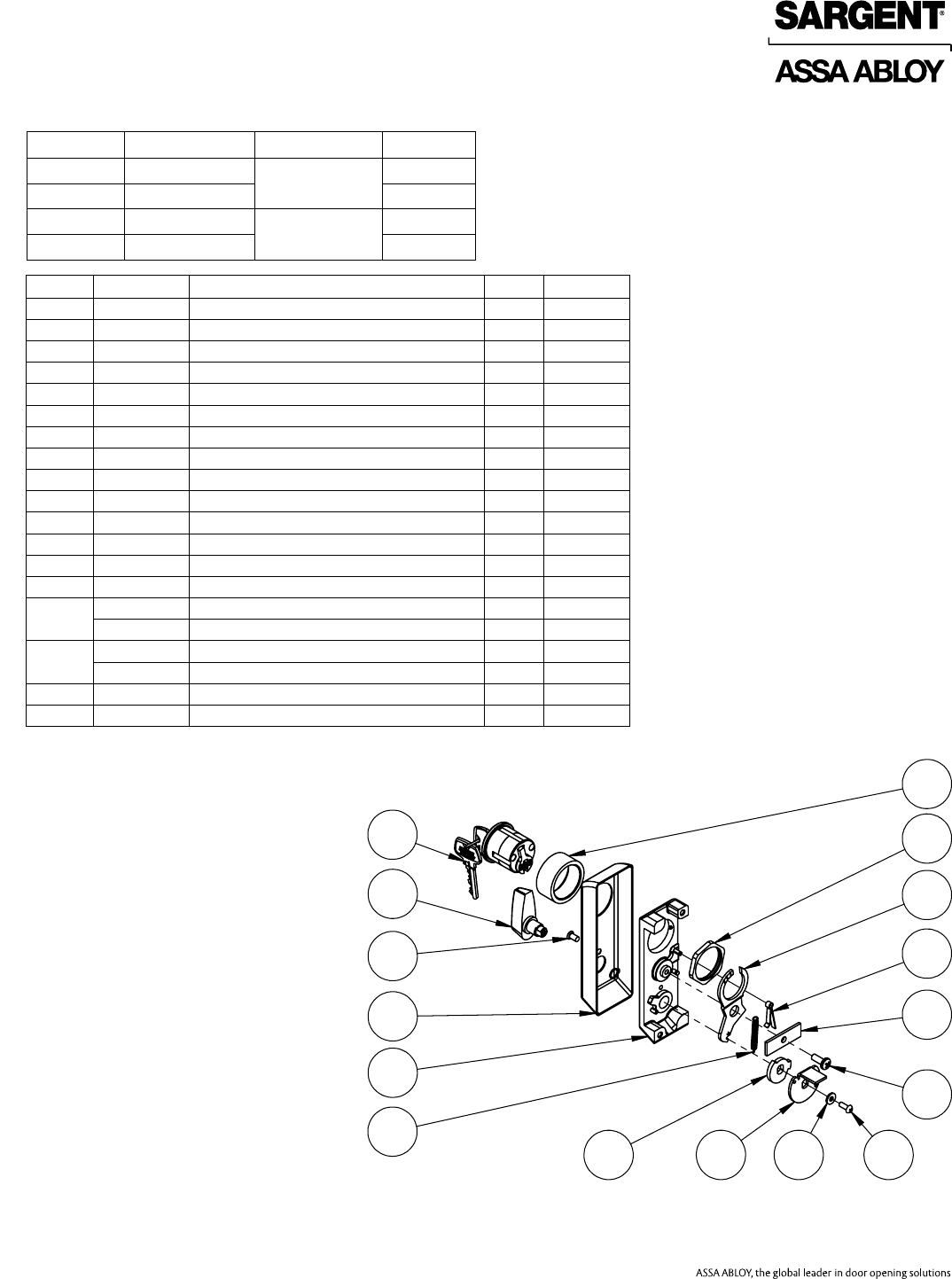

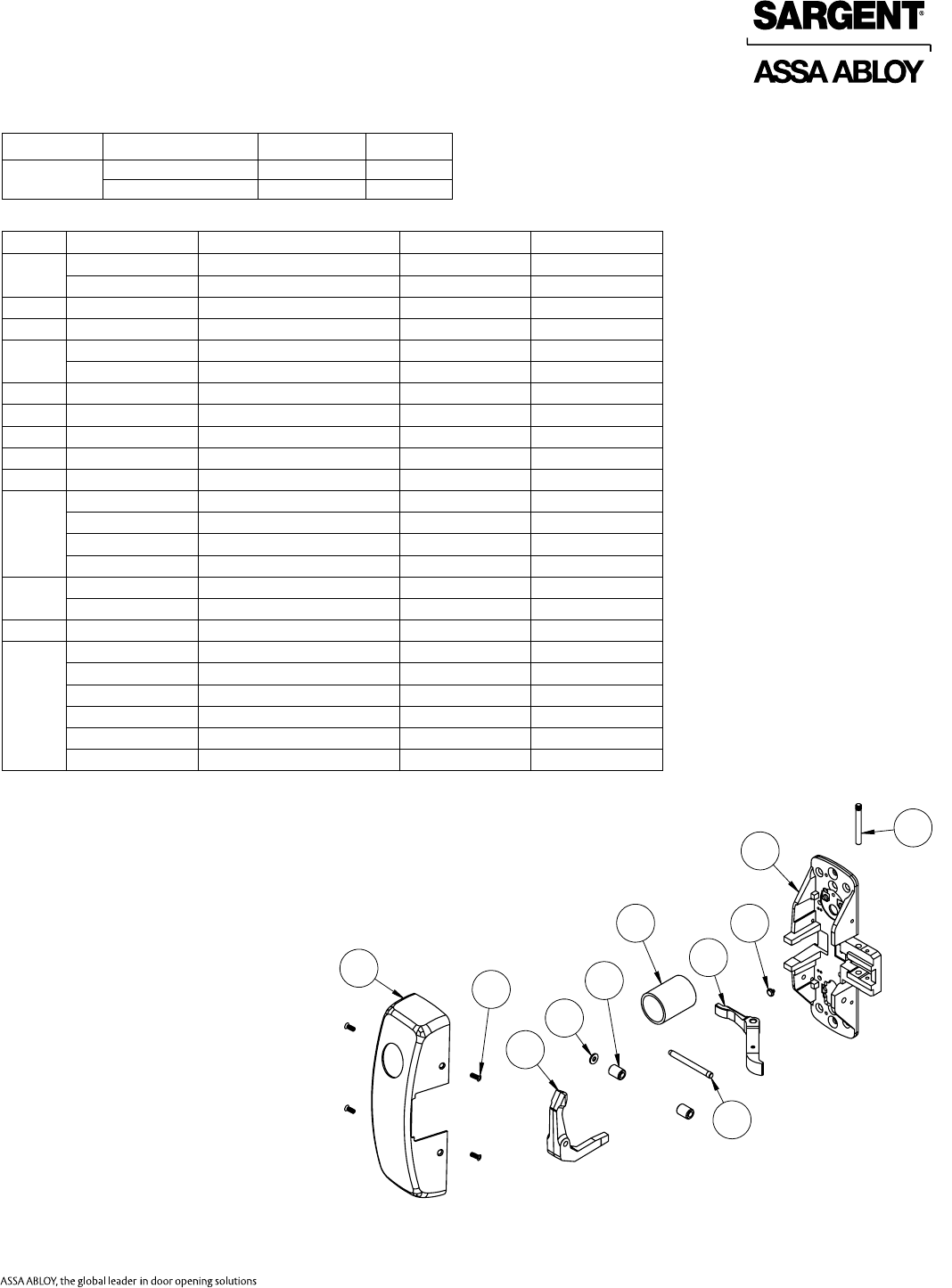

12-LR 8606 8610 8613 8615

LR 8640 8643 8646 8673

8674

11

5

4

3

7

9

10

8

14

15

16

17

13

12

6

1

2

11

*Specify Finish

1. Only available in 32D ﬁnish

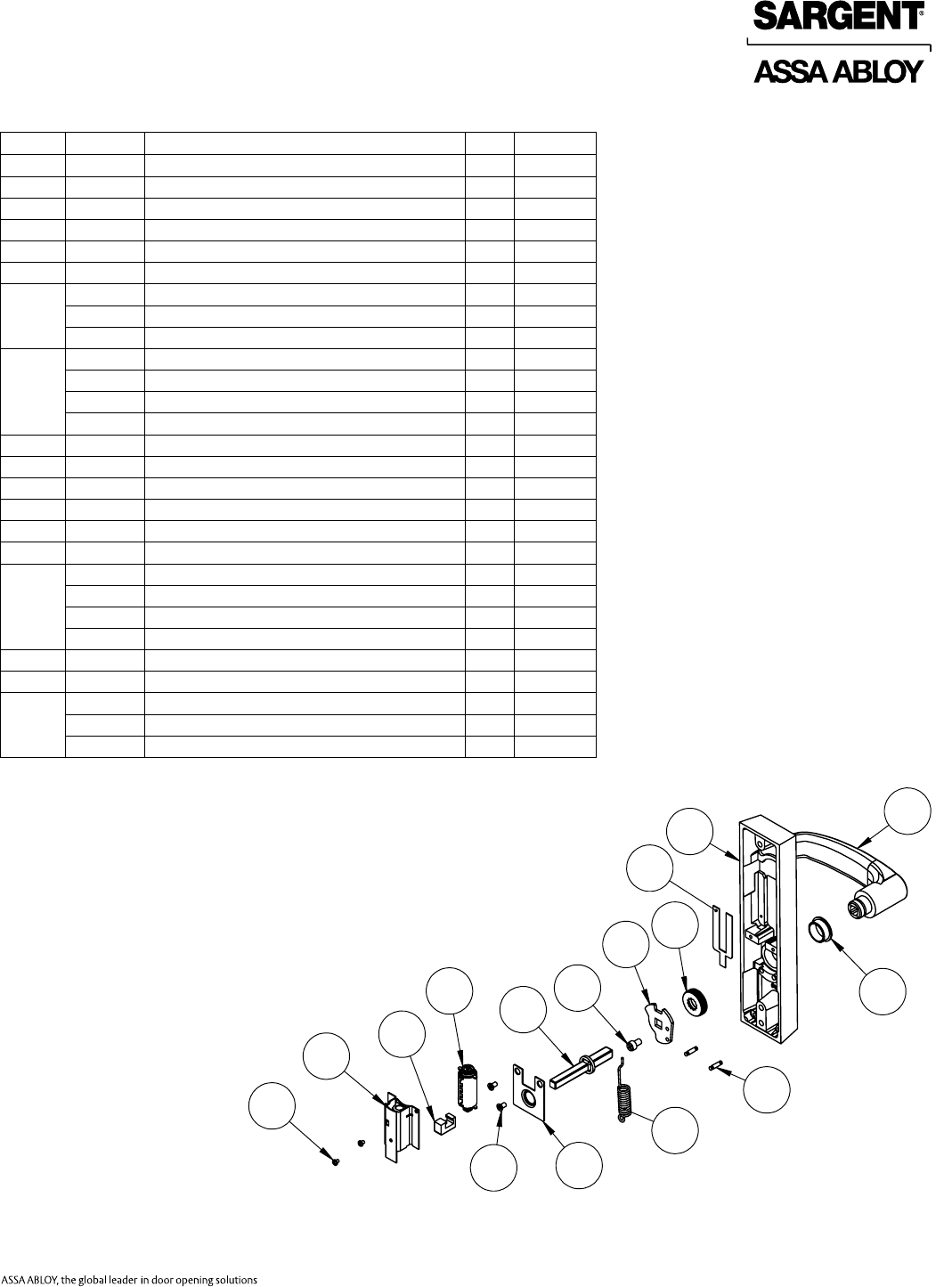

Item Assy

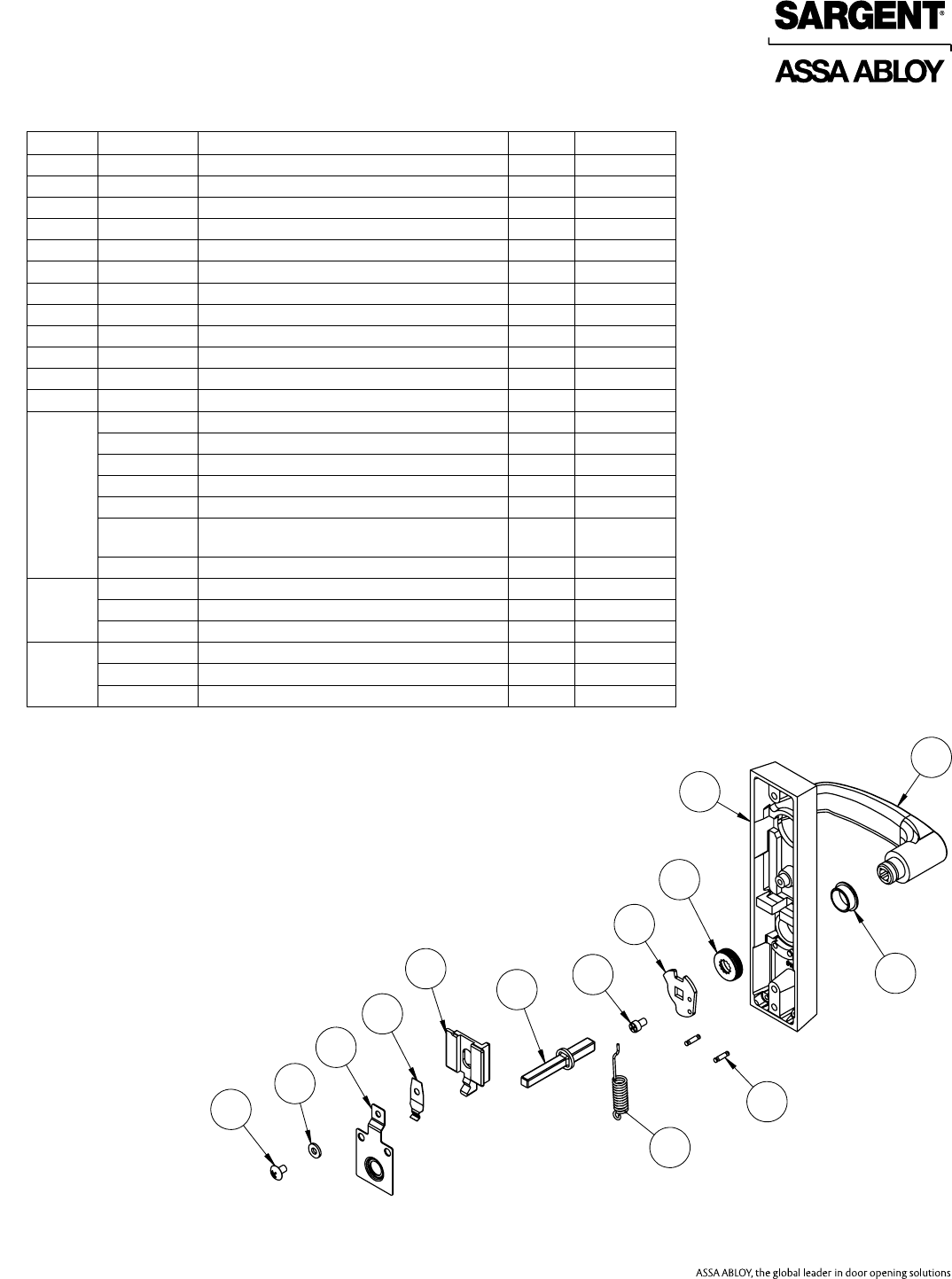

No. Part No. Description Qty Sellable

1 N/A 68-1183 Inactive Outside Front11 Ye s

2 68-4238 N/A Inactive Mortise Case 1 Yes

3

68-4264

68-1327 Link Connect (Pull Lever) 1 Yes

4 68-1309 Pull Lever Low Proﬁle 1 Yes

5 68-1332 Torsion Spring (Pull Lever) 1 Ye s

6 68-1313 Pivot Pin 3 Ye s

7 68-0241 Lift Arm 1 Ye s

8 68-1310 Pivot Bracket 1 Ye s

9 01-4509 Retaining Ring 3 Ye s

10 68-1311 Lift Arm Spacer 2 Ye s

11 N/A 68-1317 Chassis Cover (LP)* 1 Yes

12 68-4373 Screw Pack (LP) 1 Ye s

13

692L

01-0696 Coiled Pin 2 Ye s

14 68-1339 Connecting Tube 1 Yes

15 661L Top Rod (LP) 1 Ye s

16 68-4840 Latch Bolt Assembly 1 Ye s

17

68-5374

N/A

Top Case Assembly STD

1

Yes

68-5375 Top Case Assembly 1/4" Panel Ye s

68-5376 Top Case Assembly 1/2" Panel Ye s

N/A 68-4389 Screw Pack 1 Yes

650 Strike Pack 1 Yes

27

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

12-LR 8606 8610 8613 8615

LR 8640 8643 8646 8673

8674

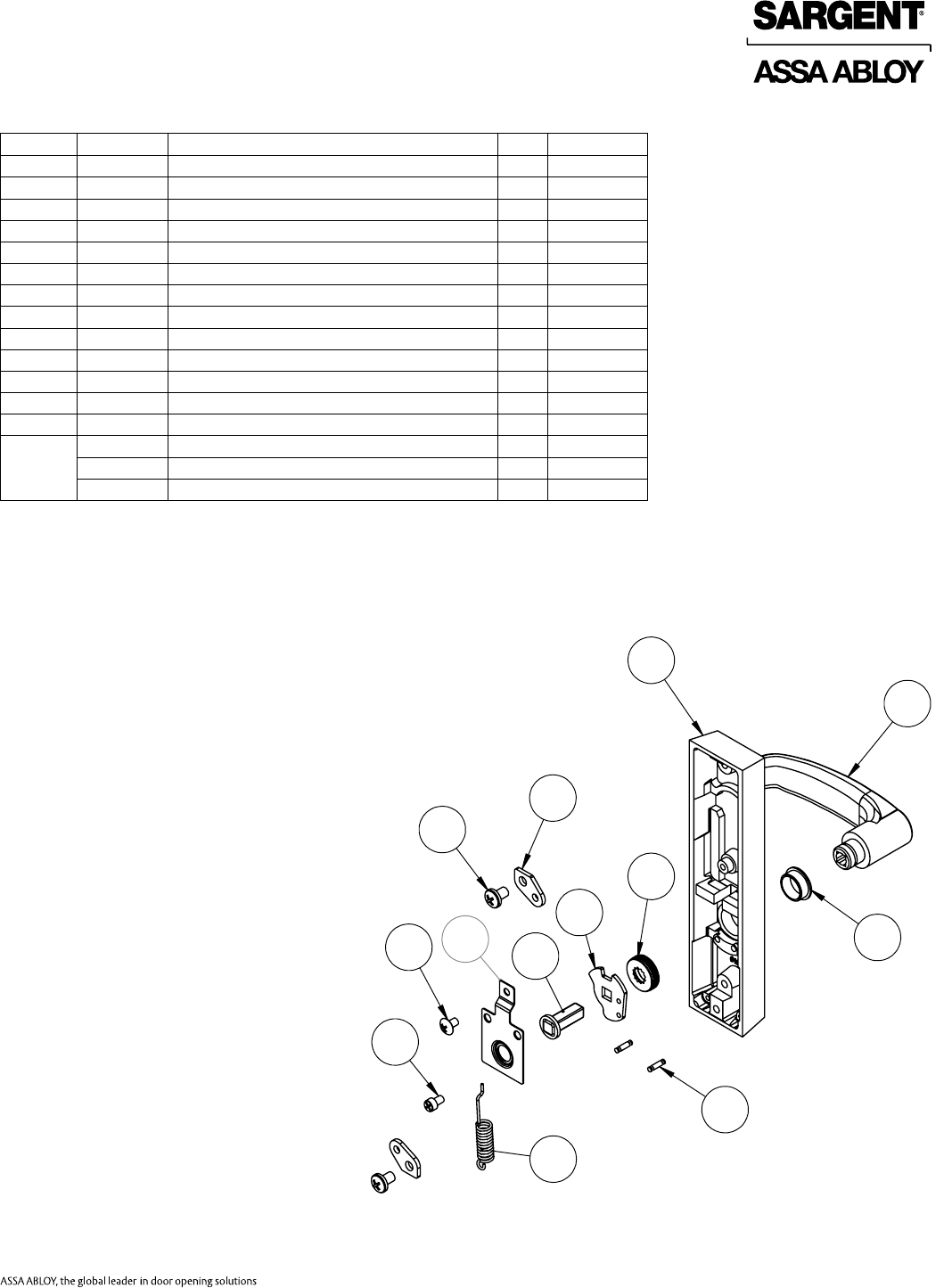

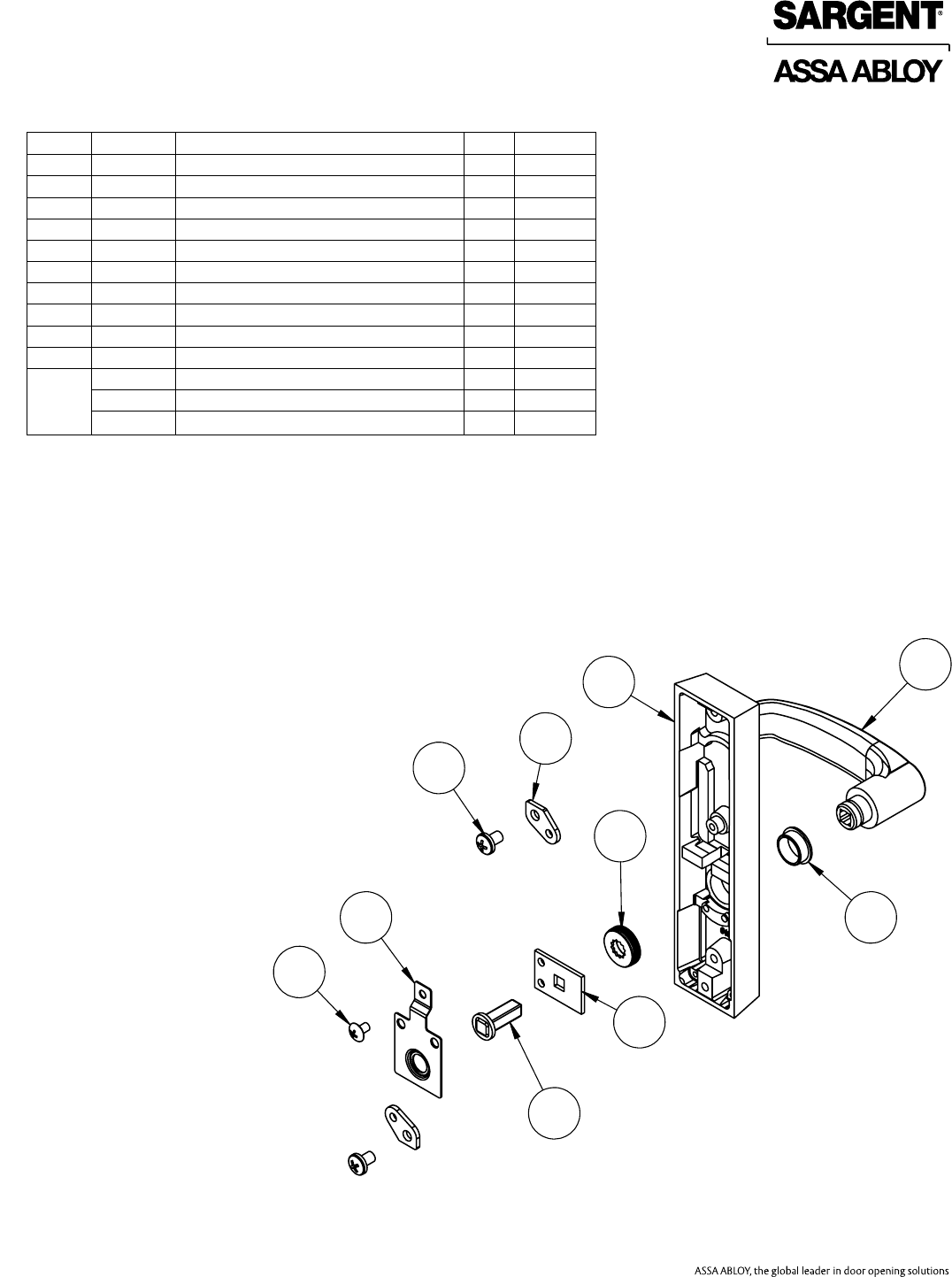

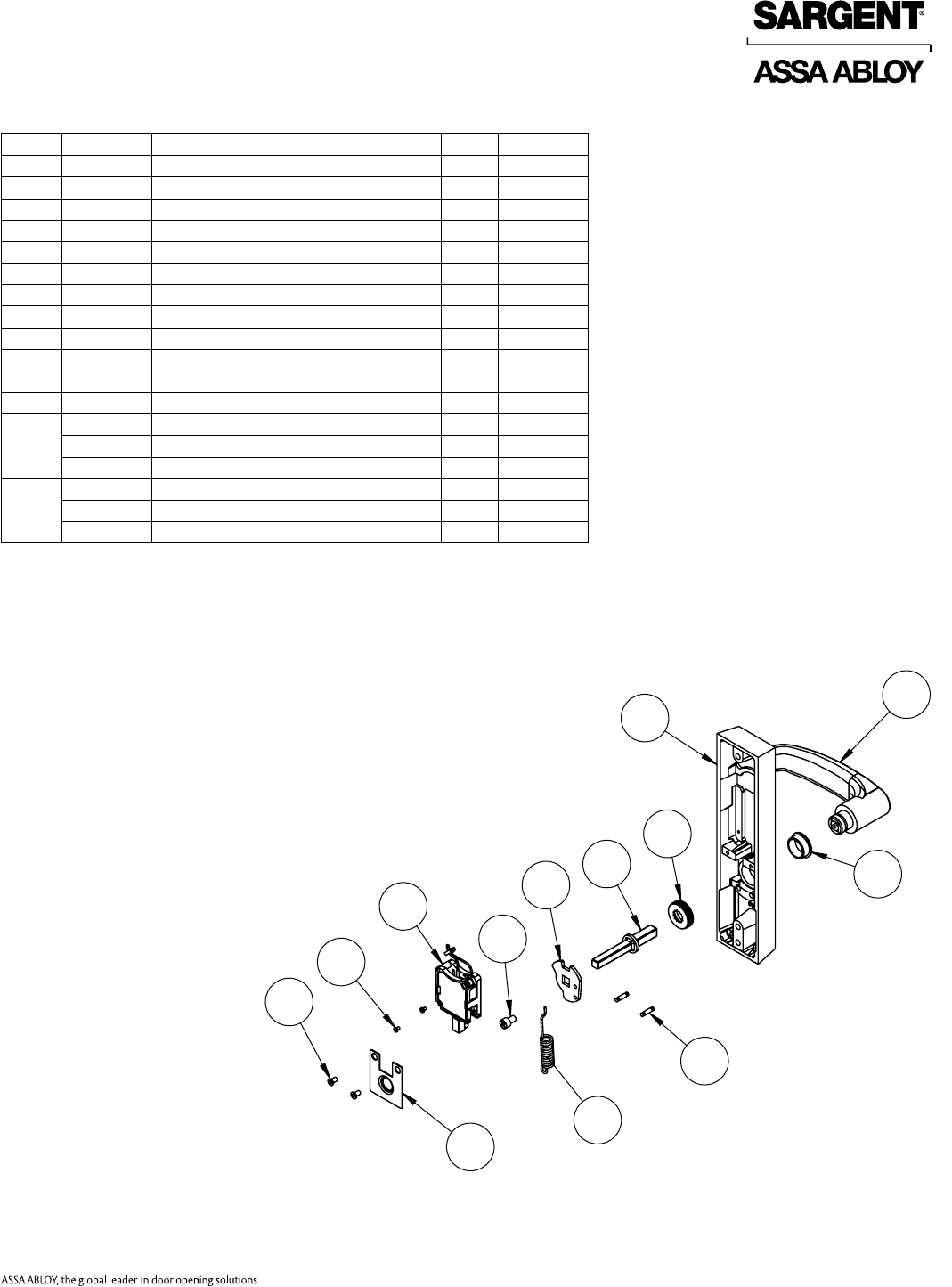

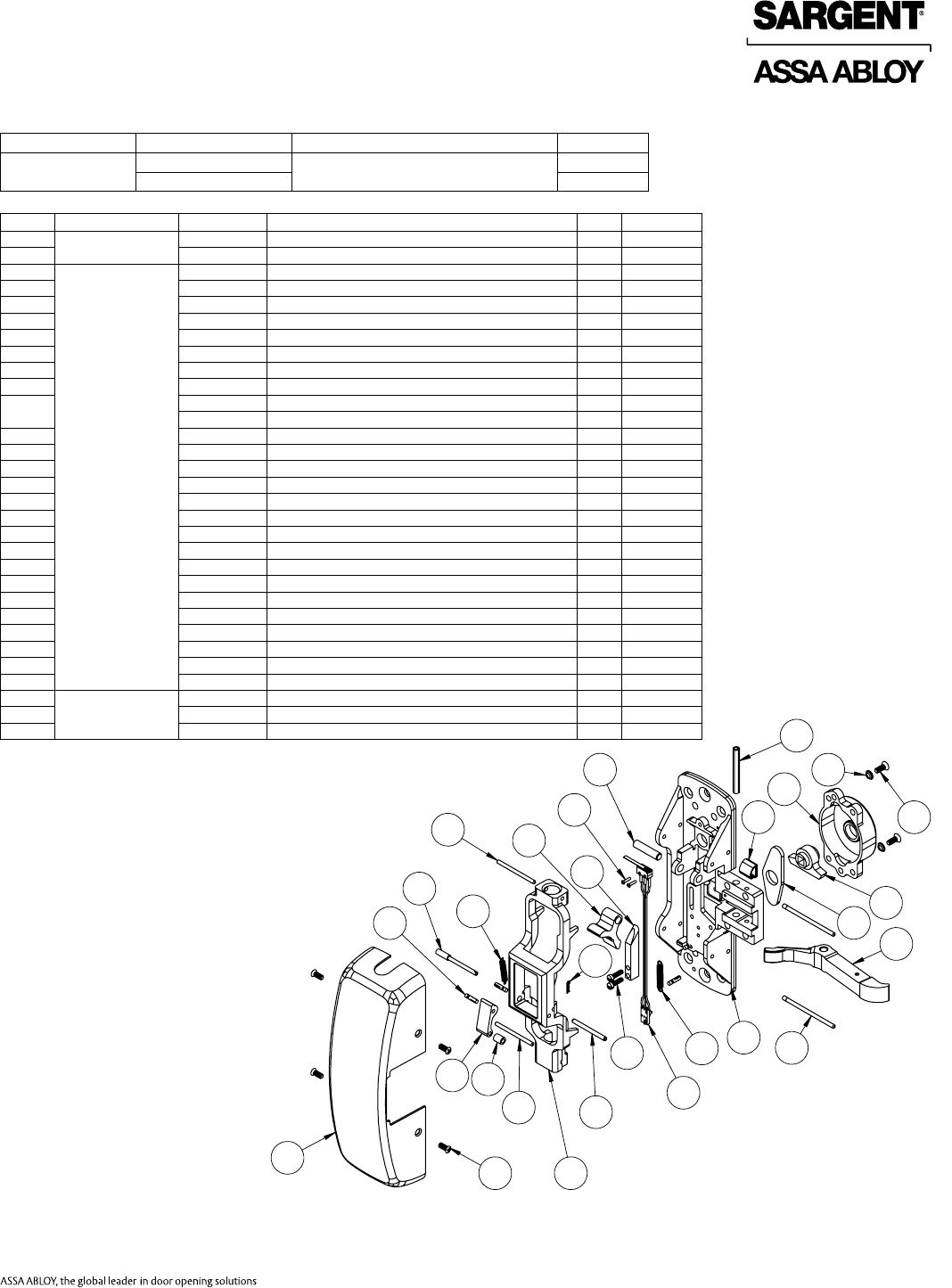

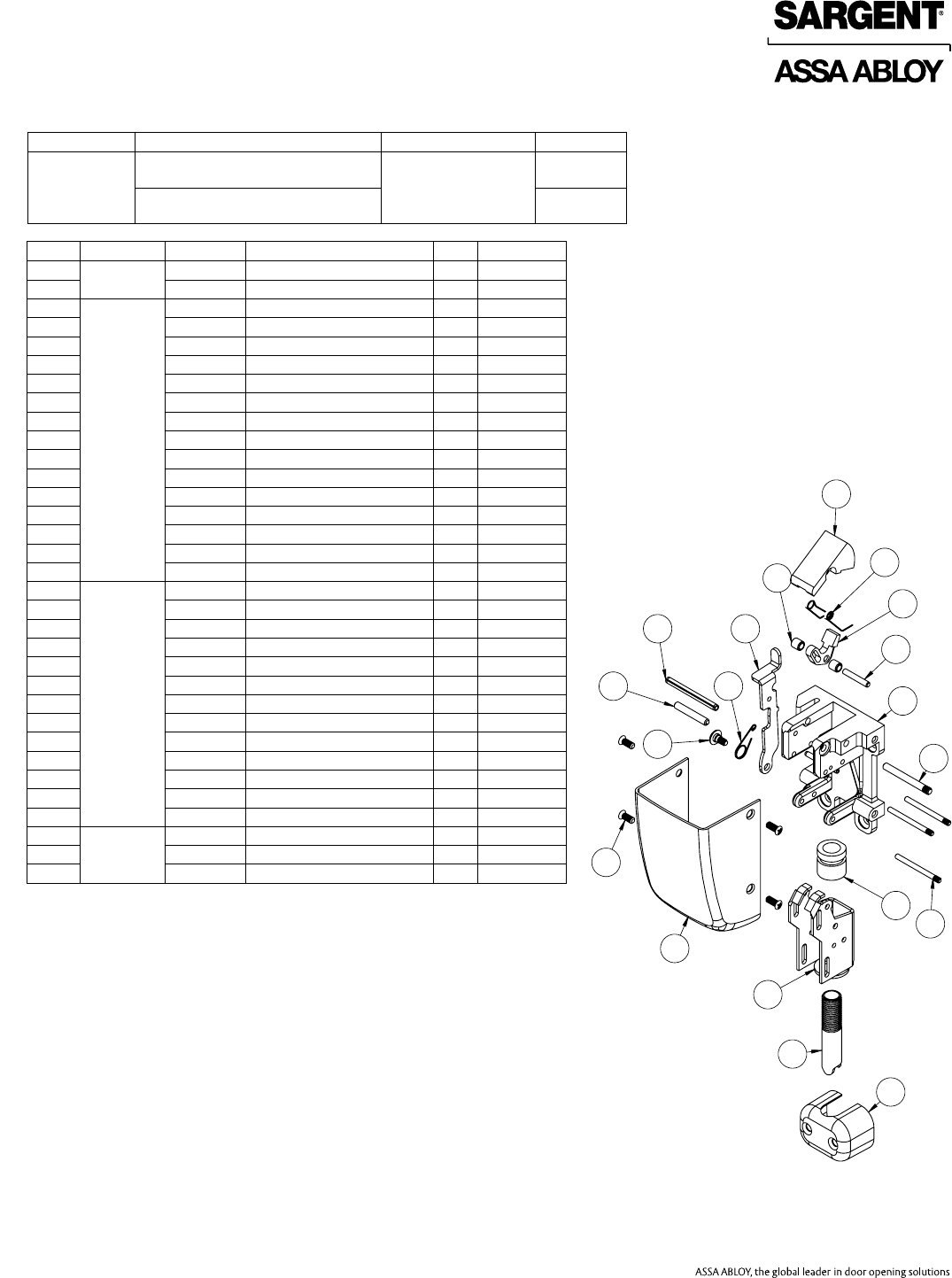

Item Part No. Description Qty Sellable

1 01-4402 #8-32x7/16" Flat PH U/C MS 9 Ye s

2 68-1338 Mortise Cap 1 No

3 68-1164 Pusher Lever 2 Ye s

4 68-1476 Outside Hub (LP) 1 Ye s

5 68-1174 Pusher Slide 1 Yes

6 68-1176 Pusher Rod Guide 1 No

7 68-1177 Pusher Rod 1 No

8 99-0057 GD Bolt Spring 2 Yes

9 68-1491 Rod Guide Stop 2 No

10 68-1163 Pusher Bolt 1 Yes

11 68-1329 Inactive Latchbolt Actuator 1 No

12 82-0294 Post (Screw and Case) 7 No

13 68-1531 Inactive Bolt Guide 1 Yes

14 68-1187 Inactive Inside Front 1 No

15 68-1222 Inactive Bolt Guide 1 Yes

16 68-1337 Mortise Case 1 No

17 68-1328 Link Latchbolt Tail 1 No

18 01-0424 Rivet 2 No

19 68-1335 Inactive Latchbolt Tail 1 No

20 68-1336 Top Mount 1 Ye s

21 68-1253 Spring (Top Mount) 1 Yes

22 68-1405 Inactive Lever 1 Ye s

23 68-1246 Top Pusher Guide 1 Yes

24 68-1251 Pusher Rod 1 No

25 99-0072 GD Bolt Eyelet 2 Ye s

28

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

12-LR 8606 8610 8613 8615

LR 8640 8643 8646 8673

8674

1

2

3

4

24

23

5

25

7

8914

13

15

16

19

21

22

6

10

11

18

20

17

12

8

25

9

29

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

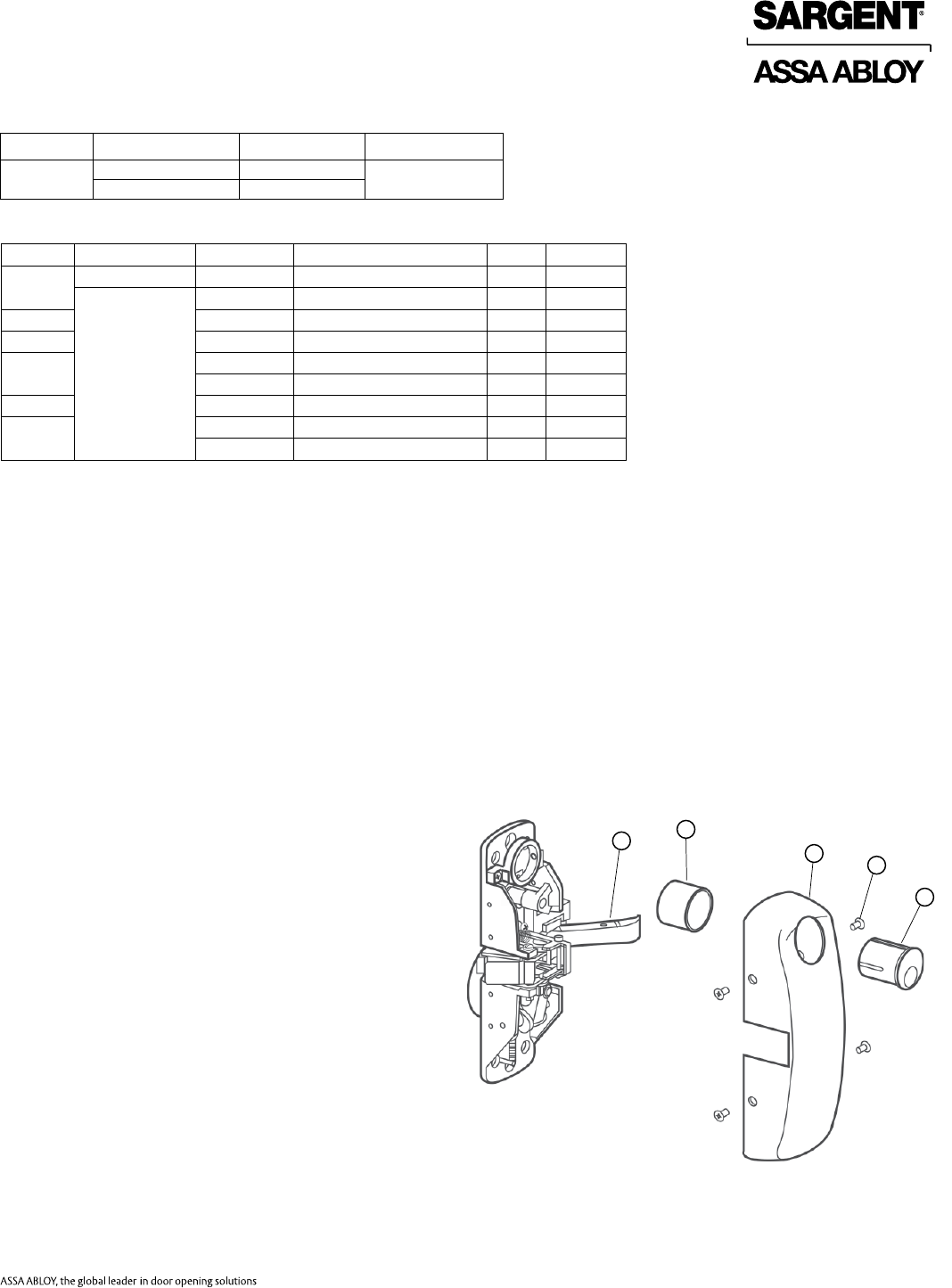

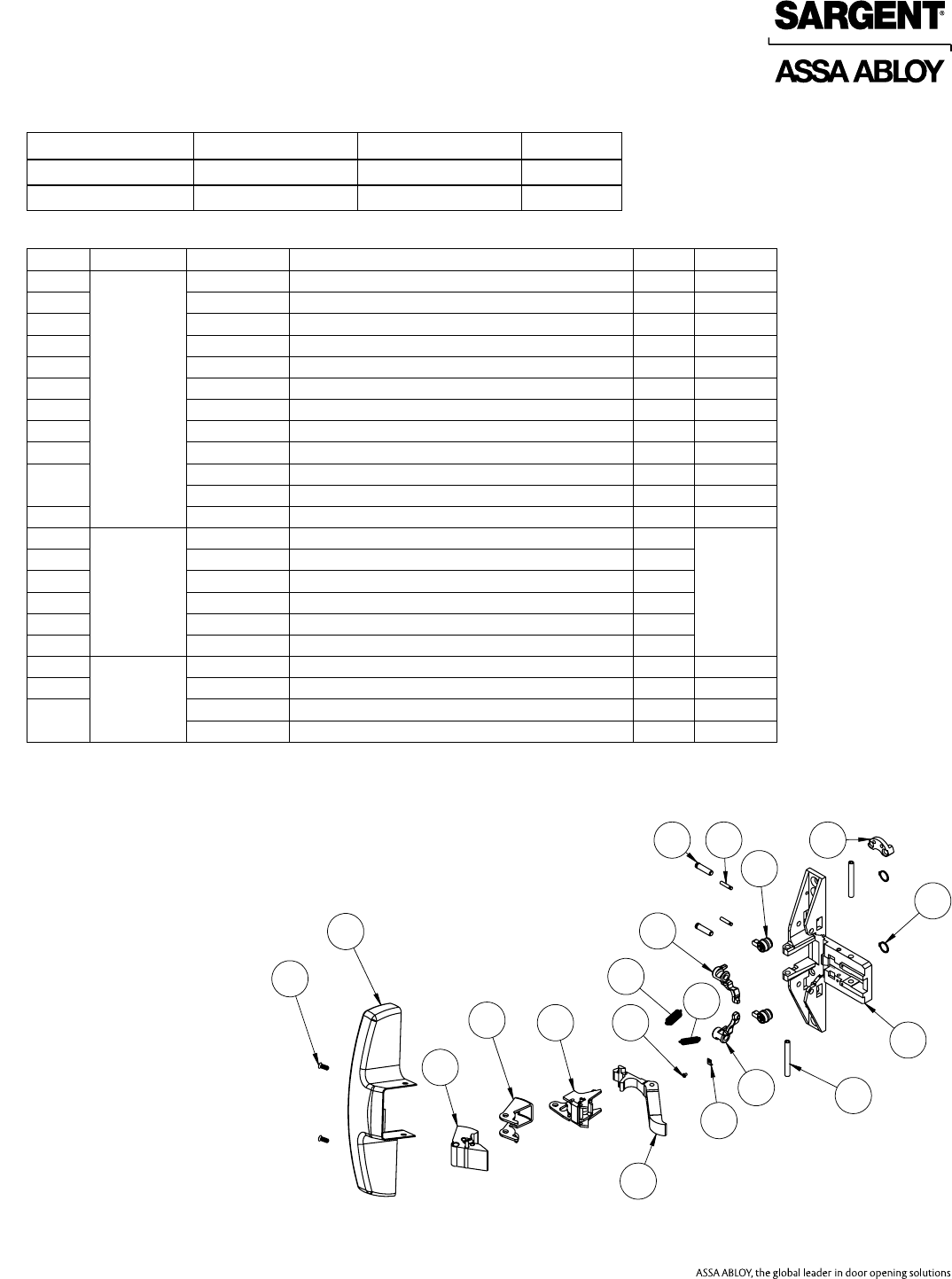

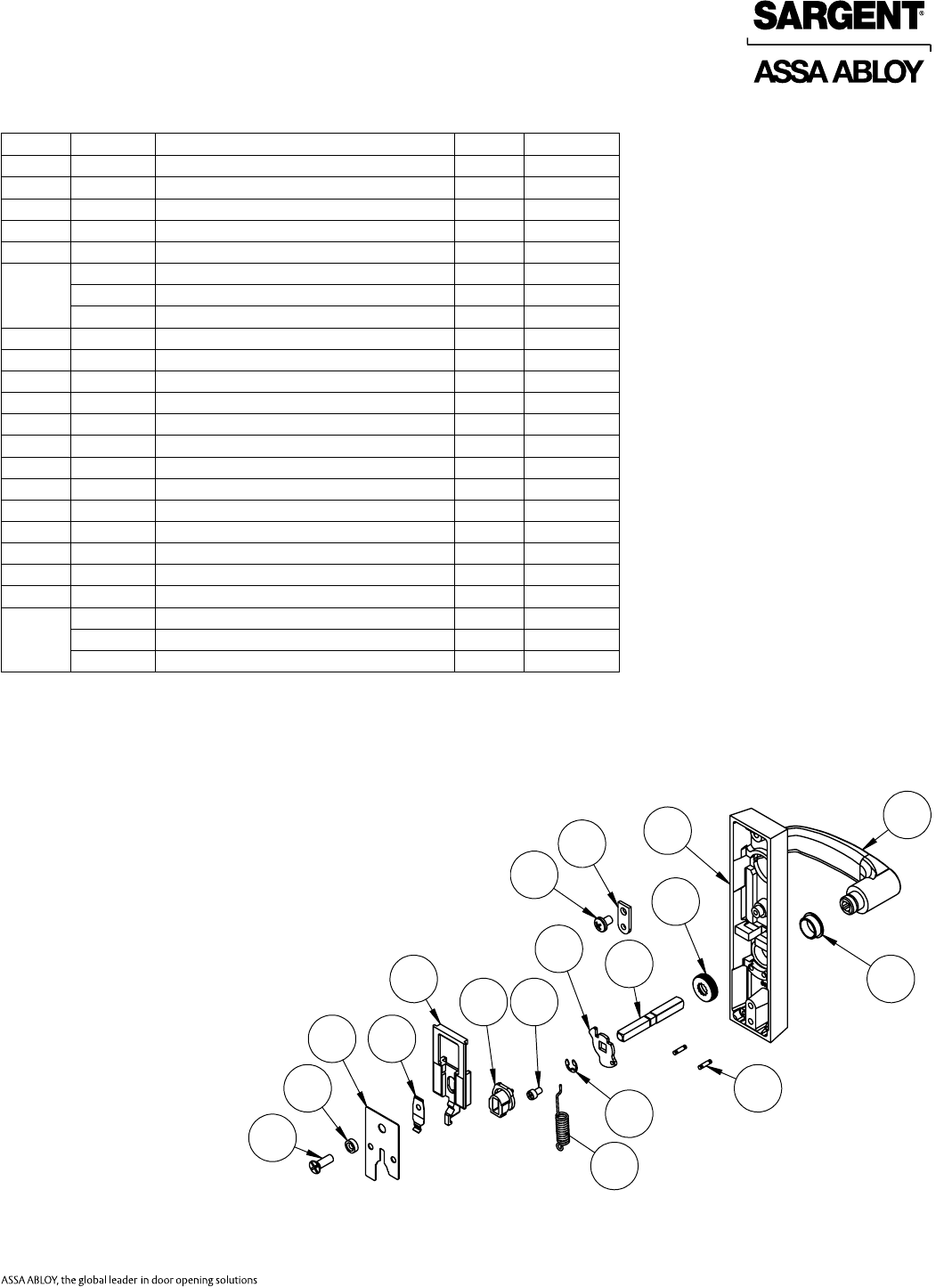

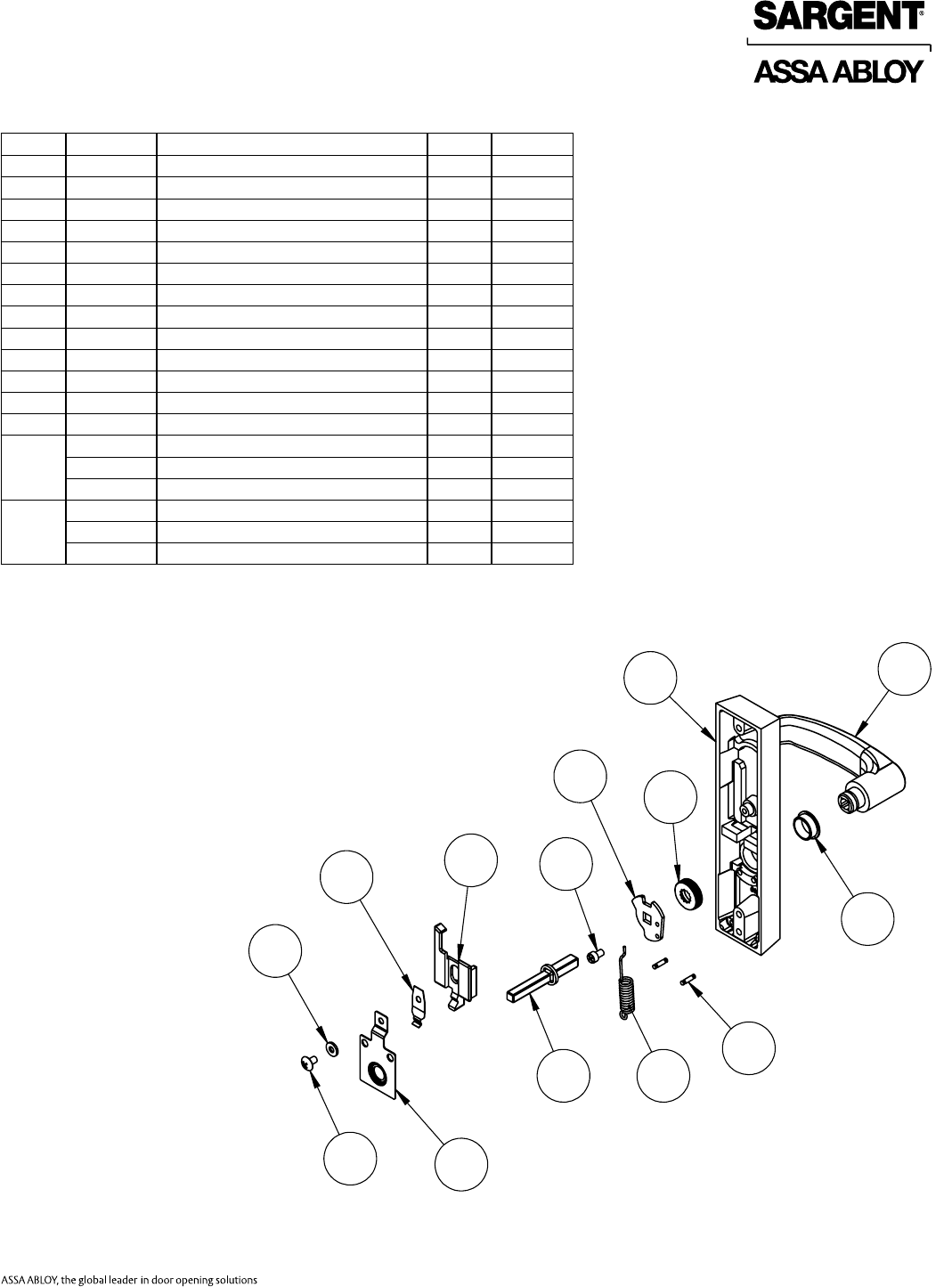

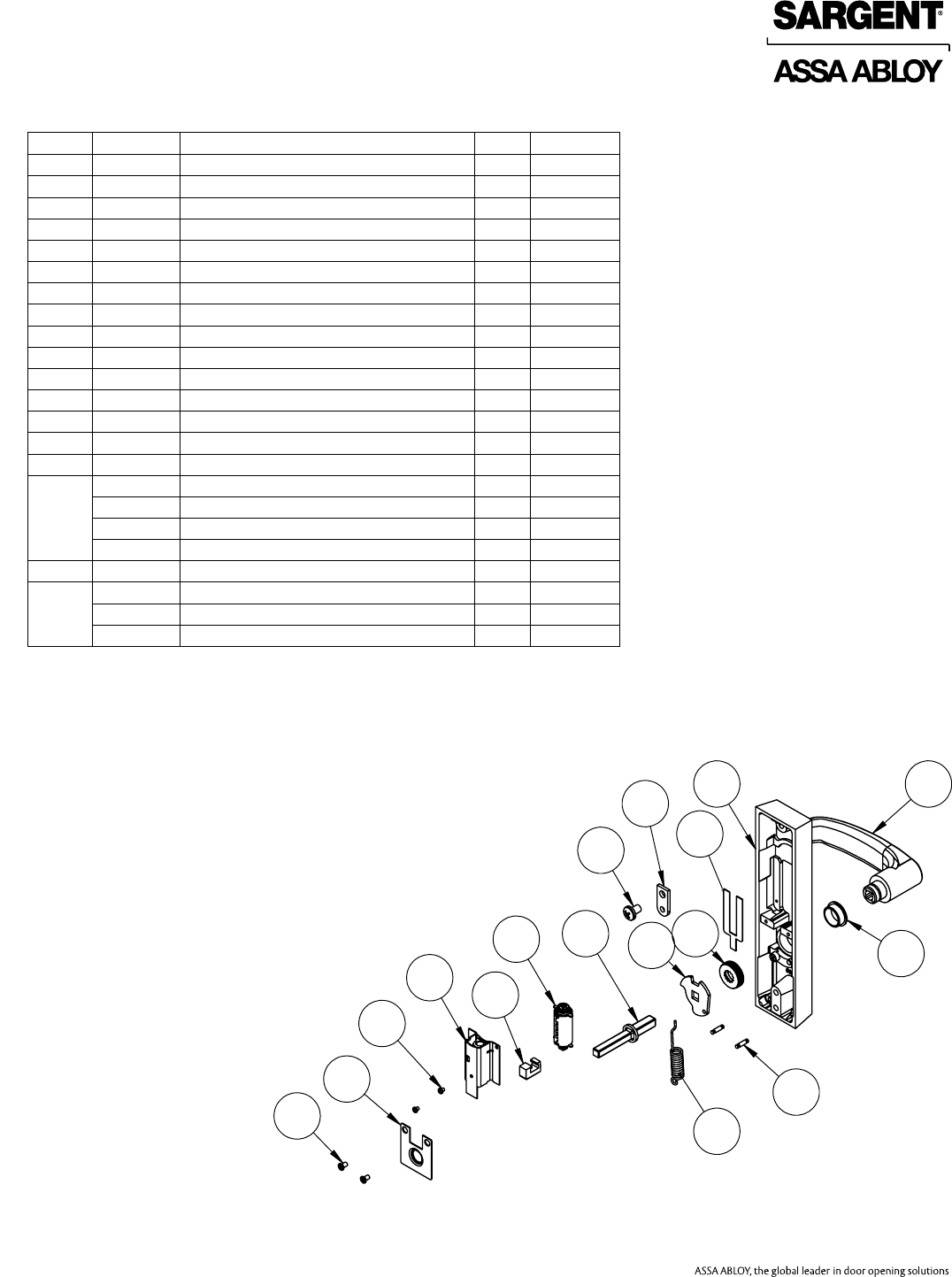

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Ye s

2 97-2563 Auxillary Screw Pack* 1 Ye s

3

68-2201(LHRB)

68-2202(RHRB)

68-0327 Main Slide 1 Yes

4 68-1090 Lift Lever 1 Ye s

5 97-0050 Knob Return Spring 1 Yes

6 01-0749 Groove Pin 1 No

7 68-2413 Chassis and Slide Assembly, LHRB 1 No

68-2414 Chassis and Slide Assembly, RHRB No

8 68-0323 Chassis Pin 2 Ye s

9 68-0241 Lift Arm 1 Ye s

10 97-0043 Knob Hub Retainer 1 Ye s

11 68-0367 Knob Hub Cover 2 Ye s

12 01-3384 8-32x7/16 PH FH MS 2 Ye s

13 01-0930 Countersunk Lock Washer 2 Ye s

14 97-0042 Knob Hub 1 Ye s

15 01-4512 Spirol Pin 1 Ye s

16 68-0324 Lift Lever Pivot Pin 1 Ye s

17

N/A

97-0049 Top Rod Adjustment Pin 1 Ye s

18 97-0048 Bottom Rod Adjustment Pin 1 Ye s

19 68-5991 Mounting Screw Pack 1 Ye s

STD 8706 8713

12-

HC-

12-HC-

Function Assembly No. Description Sellable

06, 13 68-2201 (LHRB) Chassis Assembly Ye s

68-2202 (RHRB) Yes

*Specify Finish

1

2

3

4

56

7

8

9

10

11

12

13

1416

17

18

15

30

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Ye s

2 68-2113 Screw Pack* 1 Yes

3

68-2163(LHRB)

68-2164(RHRB)

68-0327 Main Slide 1 Ye s

4 68-1090 Lift Lever 1 Yes

5 68-0326 Chassis 1 Ye s

6 68-0323 Chassis Pin 2 Ye s

7 68-0241 Lift Arm 1 Ye s

8 01-4512 Spirol Pin 1 Ye s

9 68-0324 Lift Lever Pivot Pin 1 Ye s

10

N/A

97-0049 Top Rod Adjustment Pin 1 Yes

11 97-0048 Bottom Rod Adjustment Pin 1 Yes

12 68-5991 Mounting Screw Pack 1 Ye s

STD 8710 8740

12-

HC-

12-HC-

Function Assembly No. Description Sellable

10, 40 68-2163 (LHRB) Chassis Assembly Ye s

68-2164 (RHRB) Yes

*Specify Finish

1

2

3

4

56

7

9

10

11

8

31

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Ye s

2 97-2563 Cover Screw Pack* 1 Ye s

3

68-2207(LHRB)

68-2208(RHRB)

68-0327 Main Slide 1 Ye s

4 68-1090 Lift Lever 1 Ye s

5 97-0050 Knob Return Spring 1 Ye s

6 01-0749 Groove Pin 1 No

7 68-2413 Chassis and Slide Assembly, LHRB 1 No

68-2414 Chassis and Slide Assembly, RHRB No

8 68-1137 Lift Arm 1 Ye s

9 97-0043 Knob Hub Retainer 1 Ye s

10 97-0042 Knob Hub 1 Ye s

11 68-0367 Knob Hub Cover 2 Ye s

12 01-0930 Countersunk Lock Washer 2 Ye s

13 01-3384 8-32x7/16 PH FH MS 2 Ye s

14 01-4512 Spirol Pin 1 Ye s

15 68-0323 Chassis Pin 2 Yes

16 68-0324 Lift Lever Pivot Pin 1 Ye s

17

N/A

97-0049 Top Rod Adjustment Pin 1 Ye s

18 97-0048 Bottom Rod Adjustment Pin 1 Ye s

19 68-5991 Mounting Screw Pack 1 Yes

STD 8715 8743 8746 8773 8774

12-

HC-

12-HC-

Function Assembly No. Description Sellable

15, 43, 46, 73, 74 68-2207 (LHRB) Chassis Assembly Ye s

68-2208 (RHRB) Yes

*Specify Finish

1

2

3

4

567

8

9

10

11

12

13

14

15

16

17

18

32

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

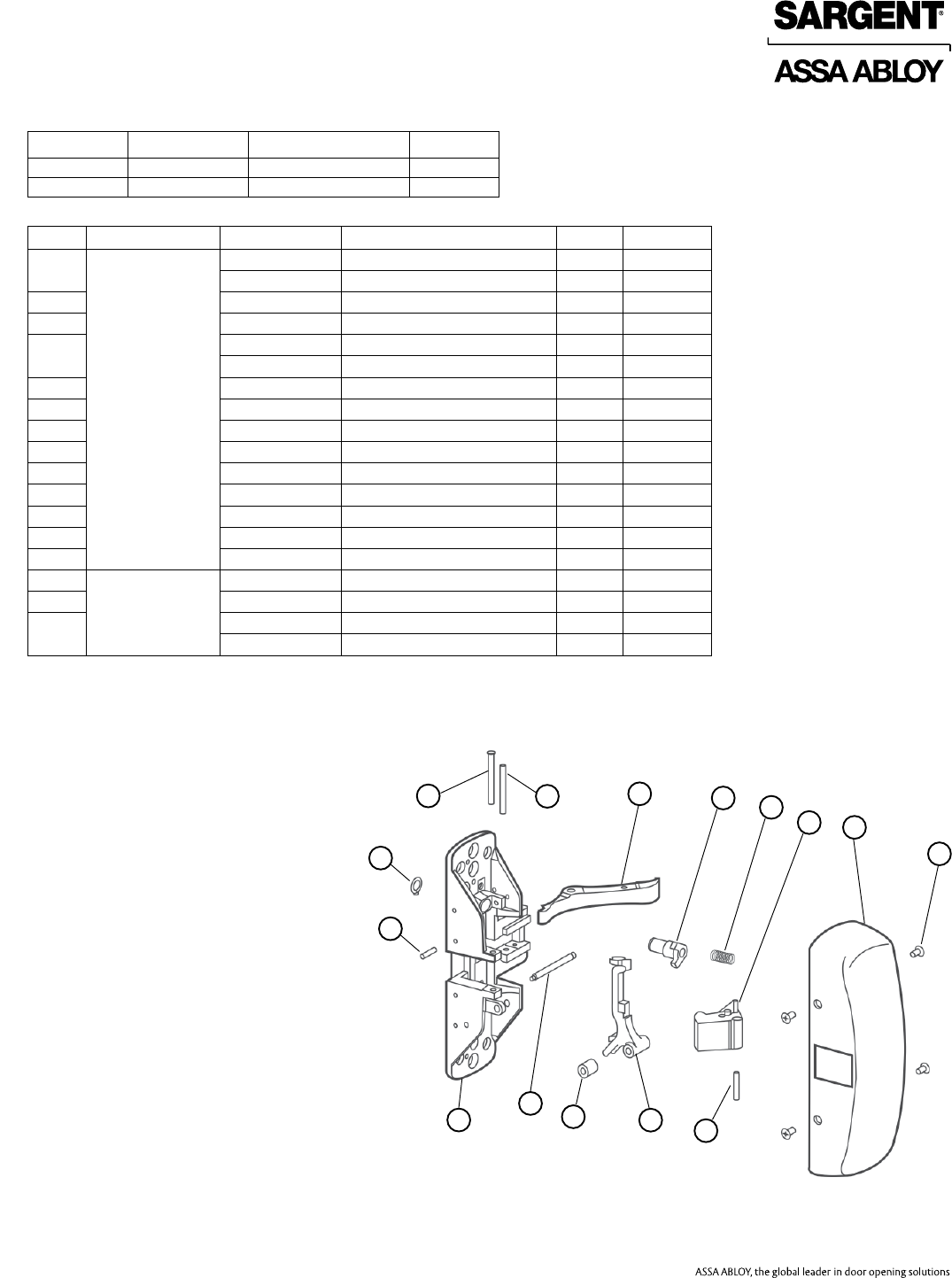

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Yes

2 68-2113 Screw Pack* 1 Ye s

3

68-2210(LHRB)

68-2211(RHRB)

68-0327 Main Slide 1 Ye s

4 68-1090 Lift Lever 1 Ye s

5 97-0050 Knob Return Spring 1 Ye s

6 01-0749 Groove Pin 1 No

7 68-2415 Chassis and Slide Assembly, LHRB 1 No

68-2416 Chassis and Slide Assembly, RHRB No

8 68-0241 Lift Arm 1 Yes

9 97-0089 Thumb Piece Lever 1 Ye s

10 01-1146 8-32x3/8 PH FH U'CUT Screw 2 Ye s

11 01-4512 Spirol Pin 1 Ye s

12 68-0323 Chassis Pin 2 Ye s

13 68-0324 Lift Lever Pivot Pin 1 Ye s

14

N/A

97-0049 Top Rod Adjustment Pin 1 Yes

15 97-0048 Bottom Rod Adjustment Pin 1 Yes

16 68-5991 Mounting Screw Pack 1 Ye s

STD 8728

12-

HC-

12-HC-

Function Assembly No. Description Sellable

28 68-2210 (LHRB) Chassis Assembly Ye s

68-2211 (RHRB) Yes

*Specify Finish

1

2

15

3

4

5

67

8

9

12

13

14

10

11

33

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

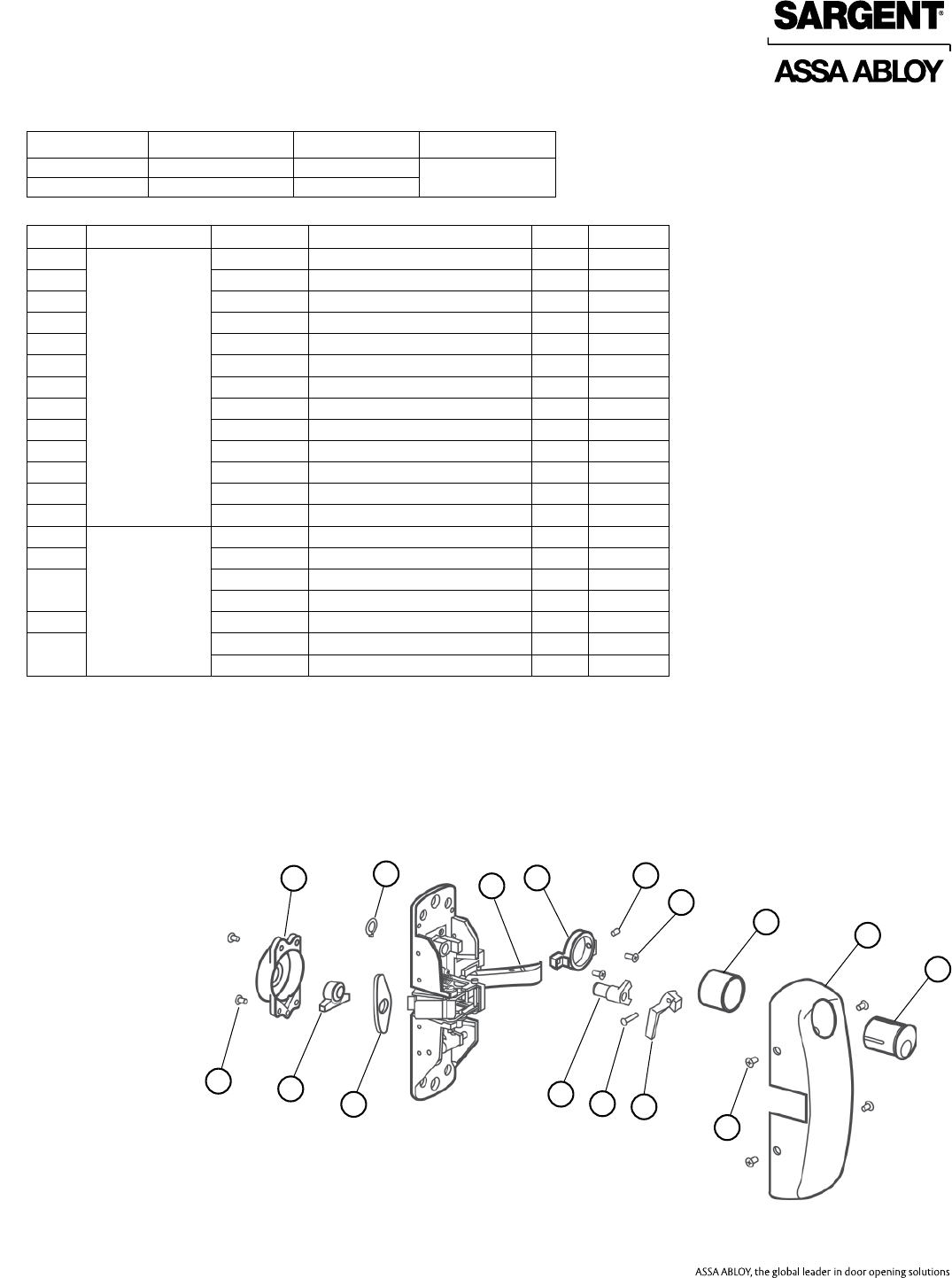

STD 8762 8763

12-

Function Assembly No. Description Sellable

62, 63 68-2204 (LHRB) Chassis Assembly Ye s

68-2205 (RHRB) Yes

*Specify Finish

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Yes

2 68-2113 Screw Pack* 1 Ye s

3

68-2204(LHRB)

68-2205(RHRB)

68-0327 Main Slide 1 Ye s

4 68-1090 Lift Lever 1 Yes

5 97-0050 Knob Return Spring 1 Yes

6 01-0749 Groove Pin 1 No

7 68-2415 Chassis and Slide Assembly, LHRB 1 No

68-2416 Chassis and Slide Assembly, RHRB No

8 68-0241 Lift Arm 1 Yes

9 68-0323 Chassis Pin 2 Yes

10 97-0089 Thumb Piece Lever 1 Yes

11 01-1146 8-32x3/8 PH FH U'CUT Screw 2 Ye s

12 01-0005 Retaining Ring 1 Yes

13 01-4512 Spirol Pin 1 Yes

14 68-0324 Lift Lever Pivot Pin 1 Ye s

15 68-2198 Locking Slide Assembly, LHRB 1 Yes

68-2199 Locking Slide Assembly, RHRB Ye s

16 97-2048 Cylinder Hub and Pin Assembly 1 Yes

17 68-0368 Locking Slide Spring, LHRB 1 Ye s

97-0006 Locking Slide Spring, RHRB Yes

18 01-1190 6-32x5/16 PH PNHD Self Tap 1 Ye s

19

N/A

97-0049 Top Rod Adjustment Pin 1 Ye s

20 97-0048 Bottom Rod Adjustment Pin 1 Ye s

21 68-5991 Mounting Screw Pack 1 Yes

12

3

4

5

67

8

10

12

9

14

17

18

19

20

15

16

11

13

34

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Item Assy No. Part No. Description Qty Sellable

1 N/A 97-0018 Top Cover* 1 Ye s

2 68-3905 Screw Pack (B)* 1 Yes

3

97-2434

97-0065 Latch Release Lever Pin 1 Ye s

4 97-0579 Spring, Torsion 1 Ye s

5 68-1155 Latch Retracting Lever 1 Ye s

6 97-0296 Latch Bolt 1 Yes

7 97-0300 L.B. Spring 1 Ye s

8 97-0299 Chassis 1 Ye s

9 97-0294 Pivot Pin 3 Ye s

11 01-0461 Spirol Pin 1 Yes

12 01-0002 Roll Pin 1 Yes

3

68-4557

97-0065 Latch Release Lever Pin 1 Ye s

4 97-0579 Spring, Torsion 1 Ye s

5 68-1155 Latch Retracting Lever 1 Ye s

6 97-0296 Latch Bolt 1 Yes

7 97-0300 L.B. Spring 1 Ye s

8 97-0299 Chassis 1 Ye s

9 97-0294 Pivot Pin 1 Yes

10 68-1455 Top Rod Adjuster 1 Ye s

11 01-0461 Spirol Pin 1 Yes

12 01-0002 Roll Pin 1 Yes

13 97-0298 Top Slide 1 Yes

14

N/A

670T Top Rod 1 Yes

15 97-0020 Rod Guide* 1 Yes

16 646 Strike Pack 1 Yes

STD 8706 8710 8713 8715

8728 8740 8743 8746

8762 8763 8773 8774

Function Assembly No. Description Sellable

(All Functions)

97-2434

Manufactured Before 11/11/2002 Top Case

Assembly

Yes

68-4557

Manufactured After 11/11/2002 Yes

*Specify Finish

1

23

4

5

7

6

8

10

9

11

12

13

14

15

35

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Item Assy No. Part No. Description Qty Sellable

1 N/A 97-0018 Bottom Cover* 1 Yes

2 68-3905 Screw Pack (B)* 1 Yes

3

97-2038

97-0035 Retractor 1 Yes

4 97-0084 Adjustment Pin, Bottom Rod 1 Ye s

5 97-0025 Bottom Chassis 1 Yes

6 97-0053 Bottom Latch Bolt 1 Ye s

7 01-0697 Spirol Pin 1 Yes

3

68-4549

97-0035 Retractor 1 Yes

4 97-0084 Adjustment Pin, Bottom Rod 1 Ye s

5 97-0025 Bottom Chassis 1 Yes

6 97-0053 Bottom Latch Bolt 1 Ye s

7 01-0697 Spirol Pin 1 Yes

8 97-0572 Rod Adjustment Nut 1 Yes

9

N/A

97-0101 Spring, Compression 1 Ye s

10 670B Bottom Rod 1 Ye s

11 97-0020 Rod Guide* 1 Ye s

12 624 Bottom Strike Pack 1 Yes

STD 8706 8710 8713 8715

8728 8740 8743 8746

8762 8763 8773 8774

Function Assembly No. Description Sellable

(All Functions) 97-2038 (Manufactured Before 11/11/2002) Bottom Case Assembly Ye s

68-4549 (Manufactured After 11/11/2002) Yes

*Specify Finish

18

3

6

9

7

4

5

10

11

2

36

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Item Assy No. Part No. Description Qty Sellable

1 N/A 97-0018 Top Cover* 1 Yes

2 68-3905 Screw Pack (B)* 1 Ye s

3

68-4559

97-0065 Latch Release Lever Pin 1 Yes

4 01-0002 Roll Pin 1 Yes

5 01-0461 Spirol Pin 1 Ye s

6 97-0579 Spring, Torsion 1 Ye s

7 97-0399 Latch Retracting Lever 1 Ye s

8 97-0391 Sleeve 2 Yes

9 97-0398 Latch Bolt 1 Ye s

10 97-0400 Top Case Spring 1 Yes

11 97-0405 Guard Lever 1 Ye s

12 97-0393 Pivot Pin 1 Yes

13 97-0402 Top Chassis 1 Yes

14 97-0394 Latch Bolt Pivot Pin 1 Ye s

15 97-0294 Pivot Pin 3 Yes

16 68-1455 Top Rod Adjuster 1 Ye s

17 97-0397 Slide 1 Yes

3

97-2963

97-0065 Latch Release Lever Pin 1 Ye s

5 01-0461 Spirol Pin 1 Ye s

6 97-0579 Spring, Torsion 1 Ye s

7 97-0399 Latch Retracting Lever 1 Ye s

8 97-0391 Sleeve 2 No

9 97-0398 Latch Bolt 1 Ye s

10 97-0400 Top Case Spring 1 No

11 97-0405 Guard Lever 1 No

12 97-0393 Pivot Pin 1 No

13 97-0402 Top Chassis 1 Yes

14 97-0394 Latch Bolt Pivot Pin 1 Ye s

15 97-0294 Pivot Pin 3 Yes

17 97-0397 Slide 1 Yes

18

N/A

670T Top Rod 1 Yes

19 97-0020 Rod Guide* 1 Ye s

20 646 Strike Pack 1 Yes

12- 8706 8710 8713 8715

8728 8740 8743 8746

8762 8763 8773 8774

Function Assembly No. Description Sellable

(All Functions)

97-2693

Manufactured Before 11/11/2002 Top Case Assembly

Yes

68-4559

Manufactured After 11/11/2002 Yes

*Specify Finish

5

2

19

18

17

16

14

15

13

12

8

11

10

9

3

46

57

37

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Item Assy No. Part No. Description Qty Sellable

1 N/A 97-0018 Bottom Cover* 1 Ye s

2 68-3905 Screw Pack (B)* 1 Ye s

3

97-2002

97-0076 Bottom Bolt 1 Yes

4 97-0305 Nylon Insert 4 Ye s

5 97-0270 Reinforcement 1 Yes

6 97-0101 Spring, Compression 1 Ye s

7 97-0080 Chassis 1 Ye s

8 01-4404 CR-FH #6 Head 8-32 Screw 2 Ye s

3

68-4558

68-1454 Bottom Bolt 1 Yes

4 97-0305 Nylon Insert 4 Yes

5 97-0270 Reinforcement 1 Ye s

6 97-0101 Spring, Compression 1 Ye s

7 97-0080 Chassis 1 Yes

8 01-4404 CR-FH #6 Head 8-32 Screw 2 Ye s

9

N/A

670B Bottom Rod 1 Yes

10 97-0020 Rod Guide* 1 Ye s

11 655 Flat Strike Pack (STD, HC) 1 Ye s

653 Bottom Strike Pack (FM) 1 Ye s

FM, 12-FM 12- 8706 8710 8713 8715

12-HC 12-HC4 8728 8740 8743 8746

HC HC4 8762 8763 8773 8774

Function Assembly No. Description Sellable

(All Functions)

97-2002 Bottom Case Assembly

Manufactured Before 11/11/2002 Ye s

68-4558 Bottom Case Assembly

Manufactured After 11/11/2002 Yes

*Specify Finish

1

2

5

4

3

6

7

8

9

10

38

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Item Assy No. Part No. Description Qty Sellable

1 N/A 97-0084 Top Cover* 1 Yes

2 68-3905 Screw Pack (B)* 1 Yes

3

97-2003

97-0079 Top Case Filler 1 Ye s

4 01-1490 #4-40 x 3/8 PH Pan MS 2 Ye s

5 97-0579 Spring, Torsion 1 Yes

6 97-0065 Pin, Latch Release Lever 1 Yes

7 01-0695 Spirol Pin 1 Ye s

8 97-0270 Top Reinforcement 1 Yes

9 97-2046 Top Slide Assembly 1 Yes

10 68-1155 Latch Release Lever 1 Yes

11 97-0080 Chassis 1 Ye s

12 01-0476 Snap-In Nyliner 1 Ye s

3

68-4561

97-0079 Top Case Filler 1 Ye s

4 01-1490 #4-40 x 3/8 PH Pan MS 2 Ye s

5 97-0579 Spring, Torsion 1 Yes

6 97-0065 Pin, Latch Release Lever 1 Yes

7 01-0695 Spirol Pin 1 Ye s

8 97-0761 Top Reinforcement 1 Yes

9 68-4560 Top Slide Assembly 1 Yes

10 68-1665 Latch Release Lever 1 Yes

11 97-0080 Chassis 1 Ye s

12 01-0476 Snap-In Nyliner 1 Ye s

13

N/A

670T Top Rod 1 Yes

14 97-0020 Rod Guide* 1 Ye s

15 659 Strike Pack 1 Ye s

12-(FM, HC, HC4) 8706 8710 8713 8715

(FM, HC, HC4) 8728 8740 8743 8746

8762 8763 8773 8774

Function Assembly No. Description Sellable

(All Functions)

97-2003 Top Case Assembly

Manufactured Before 11/11/2002 Ye s

68-4561 Top Case Assembly

Manufactured After 11/11/2002 Ye s

*Specify Finish

1

2

14

12

4

3

5

6

11

10

9

8

13

39

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

12-NB 8706 8710 8713

NB 8715 8740 8743

8746 8773 8774

Function Assembly No. Description Sellable

(All Functions) 68-4568 (LHRB) Chassis Assembly Ye s

68-4569 (RHRB) Yes

*Specify Finish

1

2

3

4

5

6

10

7

8

11

13

15

14

16

12

9

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Yes

2 68-3905 Screw Pack (B)* 1 Ye s

3

68-4568(LHRB)

68-4569(RHRB)

68-1137 Lift Arm 1 Yes

4 68-1170 Outside Actuator, LH 1 Ye s

68-1171 Outside Actuator, RH Ye s

5 68-1208 ET Cam, LH 1 Yes

68-1209 ET Cam, RH Ye s

6 68-1184 Guide Pin 1 Ye s

7 68-1205 Chassis, LH 1 Ye s

68-1206 Chassis, RH Ye s

8 68-1191 Link Pin 1 Ye s

9 01-0005 Retaining Ring 1 Ye s

10 68-0239 Pivot Pin 1 Ye s

11 68-1180 Tube Support 1 Yes

12 01-3595 Machine Screw 2 Ye s

13 68-1193 Spring, Upper Link 1 Yes

14 97-0048 Rod Adjustment Pin 1 Ye s

15 68-4270 Upper Link Assembly, LHRB 1 Yes

68-4271 Upper Link Assembly, RHRB Yes

16 68-1210 Hair Pin 1 Yes

17 N/A 68-5991 Mounting Screw Pack 1 Yes

40

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Item Assy No. Part No. Description Qty Sellable

1 N/A 97-0392 Top Cover* 1 Ye s

2 68-3905 Screw Pack (B)* 1 Ye s

3

68-3933

97-0065 Latch Release Lever Pin 1 Yes

4 97-0579 Spring, Torsion 1 Ye s

5 68-1155 Latch Retracting Lever 1 Ye s

6 68-1153 Top Case Latch Bolt 1 Yes

7 01-0697 Spirol Pin 2 Ye s

8 97-0400 Top Case Spring 1 Ye s

9 68-1460 Link, Pivot 1 Yes

10 97-0402 Top Chassis 1 Yes

11 97-0394 Pivot Pin, Latch Bolt 1 Yes

12 01-0461 Spirol Pin 1 Ye s

13 97-0294 Pivot Pin 2 Yes

14 68-0991 Fusible Link 1 No

15 68-0419 Guide Spring 1 No

16 01-3563 #5-40 x 1/4 PH RD HD MS 1 No

17 68-0420 Pin, Fire Stop 1 No

18 68-1458 Top Rod Link 1 Yes

19

N/A

97-0020 Rod Guide* 1 Yes

20 670T Top Rod 1 Yes

21 646 Strike Pack 1 Ye s

12-NB 8706 8710 8713

NB 8715 8740 8743

8746 8773 8774

Function Assembly No. Description Sellable

(All Functions) 68-3933 Top Case Assembly Yes

*Specify Finish

11

15

16

17

14

13

18

19

20

1

2

3

4

5

6

9

8

10

41

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

12-53- 12-53-HC 8706 8713

53- 53-HC

12-53-NB 12-53-HC4

53-NB 53-HC4

*Specify Finish

1

2

3

5

6

4

7

8

28

9

10

26

11

12

13 14

15 5

25

16

17

24

23

22

21

20

18

19

27

29

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Ye s

2 97-2563 Auxillary Screw Pack* 1 Ye s

3

68-3714(LHRB)

68-3715(RHRB)

68-1768 Spacer 1 No

4 68-1087 Locking Lever 1 No

5 01-0749 Groove Pin 3 No

6 68-1128 Slide Pivot Pin 1 No

7 68-1123 Lock Lever Spring 1 No

8 68-1671 Main Slide 1 No

9 68-1127 Roll Pin 1 No

10 98-0238 Guard Bracket Hairpin 1 Yes

11 68-1090 Lift Lever 1 Ye s

12 01-4396 59-80 Machine Screw 2 No

13 68-1092 Lift Block 1 No

14 52-2217 Switch Assembly 1 Yes

15 97-0050 Knob Return Spring 1 Ye s

16 68-0323 Chassis Pin 2 Ye s

17 68-1137 Lift Arm 1 Ye s

18 01-3384 8-32x7/16 PH FH MS 2 Ye s

19 68-0367 Knob Hub Cover 1 Ye s

20 01-0930 CS Lock Washer 2 Ye s

21 97-0042 Knob Hub 1 Ye s

22 97-0043 Knob Hub Retainer 1 Ye s

23 01-0150 Wire Clip 1 Yes

24 01-4512 Spirol Pin 1 Yes

25 68-1105 Chassis w/ Locking Slide Assembly, LHRB 1 No

68-1106 Chassis w/ Locking Slide Assembly, RHRB No

26 68-0324 Lift Lever Pivot Pin 1 Ye s

27 01-4381 Machine Screw 2 No

28

N/A

97-0049 Top Rod Adjustable Pin 1 Ye s

29 97-0048 Bottom Rod Adjustable Pin 1 Ye s

30 68-5991 Mounting Screw Pack 1 Yes

Function Assembly No. Description Sellable

06, 13 68-3714 (LHRB) Chassis Assembly Yes

68-3715 (RHRB) Yes

42

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Yes

2 97-2563 Auxillary Screw Pack* 1 Yes

3

68-3823(LHRB)

68-3824(RHRB)

68-1123 Spring, Locking Lever 1 No

4 68-1087 Locking Lever 1 No

5 68-1768 Spacer 1 No

6 68-1671 Main Slide 1 No

7 68-1127 Roll Pin 1 No

8 98-0238 Guard Bracket Hairpin 1 Ye s

9 68-1294 Stop Pin 1 Yes

10 68-1113 Chassis, LHRB 1 No

68-1114 Chassis, RHRB No

11 68-0323 Chassis Pin 2 Ye s

12 68-1137 Lift Arm 1 Ye s

13 01-0150 Wire Clip 1 Ye s

14 01-4512 Spirol Pin 1 Yes

15 68-0324 Lift Lever Pivot Pin 1 Yes

16 52-2217 Switch Assembly 1 Ye s

17 01-4381 Machine Screw 2 No

18 68-1090 Lift Lever 1 Yes

19 68-1128 Slide Pivot Pin 1 No

20 01-0749 Groove Pin 2 No

21

N/A

97-0049 Top Rod Adjustment Pin 1 Yes

22 97-0048 Bottom Rod Adjustment Pin 1 Yes

23 68-5991 Mounting Screw Pack 1 Yes

12-53- 8710 8740

53-

12-53-HC

53-HC

*Specify Finish

1

2

5

3

19

6

7

9

8

16

17

20

15

10

11

12

13

18

4

22

21

14

Function Assembly No. Description Sellable

10, 40 68-3823 (LHRB) Chassis Assembly Yes

68-3824 (RHRB) Yes

43

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

12-53- 12-53-HC 8715 8743 8746

53- 53-HC 8773 8774

12-53-NB 12-53-HC4

53-NB 53-HC4

*Specify Finish

2

1

4

3

25

27

26

5

6

28

7

24

8

23

22

21

9

10 11 12

13

14

15

18

19

20

17

16

29

Function Assembly No. Description Sellable

15, 43, 46, 73, 74 68-3717 (LHRB) Chassis Assembly Yes

68-3718 (RHRB) Yes

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Ye s

2 97-2563 Auxillary Screw Pack* 1 Yes

3

68-3717(LHRB)

68-3718(RHRB)

68-1087 Locking Lever 1 No

4 68-1768 Spacer 1 No

5 68-1671 Main Slide 1 No

6 68-1127 Roll Pin 1 Ye s

7 98-0238 Guard Bracket Hairpin 1 Ye s

8 01-4396 59-80 Machine Screw 2 Yes

9 52-2217 Switch Assembly 1 Ye s

10 97-0050 Knob Return Spring 1 Ye s

11 68-2413 Chassis w/ Locking Slide Assembly, LHRB 1 No

68-2414 Chassis w/ Locking Slide Assembly, RHRB No

12 68-0323 Chassis Pin 2 Ye s

13 68-1137 Lift Arm 1 Yes

14 97-0043 Knob Hub Retainer 1 Yes

15 97-0042 Knob Hub 1 Ye s

16 01-3384 8-32x7/16 PH FH MS 2 Ye s

17 01-0930 Countersunk Lock Washer 2 Ye s

18 68-0367 Knob Hub Cover 1 Ye s

19 01-0150 Wire Clip 1 Yes

20 01-4512 Spirol Pin 1 Yes

21 68-0324 Lift Lever Pivot Pin 1 Ye s

22 01-4381 Machine Screw 2 Yes

23 68-1092 Lift Block 1 Ye s

24 68-1090 Lift Lever 1 Yes

25 01-0749 Groove Pin 3 No

26 68-1123 Spring, Locking Lever 1 No

27 68-1128 Slide Pivot Pin 1 No

28

N/A

97-0049 Top Rod Adjustment Pin 1 Ye s

29 97-0048 Bottom Rod Adjustment Pin 1 Ye s

30 68-5991 Mounting Screw Pack 1 Ye s

44

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Yes

2 68-3905 Auxillary Screw Pack* 1 Ye s

3

68-3829(LHRB)

68-3830(RHRB)

68-1087 Locking Lever 1 No

4 68-1768 Spacer 1 No

5 68-1671 Main Slide 1 Yes

6 68-1127 Roll Pin 1 No

7 98-0238 Guard Bracket Hairpin 1 Yes

8 01-4396 59-80 Machine Screw 2 Ye s

9 68-1092 Lift Block 1 Yes

10 52-2217 Switch Assembly 1 Ye s

11 97-0050 Knob Return Spring 1 Ye s

12 01-0749 Groove Pin 3 No

13 68-0323 Chassis Pin 2 Yes

14 68-1137 Lift Arm 1 Yes

15 97-0089 Thumb Piece Lever 1 Ye s

16 01-1146 8-32x3/8 PH FL U'CUT W/NY 1 Yes

17 01-0150 Wire Clip 1 Ye s

18 01-4512 Spirol Pin 1 Ye s

19 68-2413 Chassis w/ Locking Slide Assembly, LHRB 1 No

68-2414 Chassis w/ Locking Slide Assembly, RHRB No

20 68-0324 Lift Lever Pivot Pin 1 Ye s

21 01-4381 Machine Screw 2 No

22 68-1090 Lift Lever 1 Ye s

23 68-1123 Spring, Locking Lever 1 No

24 68-1128 Slide Pivot Pin 1 No

25

N/A

97-0048 Bottom Rod Adjustable Pin 1 Yes

26 97-0049 Top Rod Adjustable Pin 1 Ye s

27 68-5991 Mounting Screw Pack 1 Yes

12-53- 12-53-HC 8728

53- 53-HC

12-53-HC4

53-HC4

*Specify Finish

2

1

4

3

25 5

6

7

8

22 21

910

11 12

19

13

14

15

1617

18

26

23

24

20

Function Assembly No. Description Sellable

28 68-3829 (LHRB) Chassis Assembly Ye s

68-3830 (RHRB) Yes

45

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

12-53- 8762 8763

53-

12-53-HC

53-HC

*Specify Finish

Function Assembly No. Description Sellable

62, 63 68-3826 (LHRB) Chassis Assembly Ye s

68-3827 (RHRB) Yes

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Yes

2 97-2563 Auxillary Screw Pack* 1 Ye s

3

68-3826(LHRB)

68-3827(RHRB)

68-1087 Locking Lever 1 No

4 68-1768 Spacer 1 No

5 68-1671 Main Slide 1 No

6 68-1127 Roll Pin 1 No

7 98-0238 Guard Bracket Hairpin 1 Ye s

8 68-1090 Lift Lever 1 Yes

9 01-4396 59-80 Machine Screw 2 Ye s

10 52-2217 Switch Assembly 1 Ye s

11 68-1092 Lift Block 1 Ye s

12 97-0050 Knob Return Spring 1 Ye s

13 68-2413 Chassis and Locking Slide Assembly, LHRB 1 No

68-2414 Chassis and Locking Slide Assembly, RHRB No

14 68-0323 Chassis Pin 2 Yes

15 68-1137 Lift Arm 1 Yes

16 97-0089 Thumb Piece Lever 1 Yes

17 01-1146 8-32x3/8 PH FL U'CUT W/NY 1 Yes

18 01-0150 Wire Clip 1 Ye s

19 01-0005 Retaining Ring 1 Yes

20 01-4512 Spirol Pin 1 Yes

21 68-0324 Lift Lever Pivot Pin 1 Ye s

22 68-2198 Locking Slide Assembly, LHRB 1 Yes

68-2199 Locking Slide Assembly, RHRB Ye s

23 01-4381 Machine Screw 2 Yes

24 68-0368 Locking Slide Spring, LHRB 1 Ye s

97-0006 Locking Slide Spring, RHRB Ye s

25 01-1190 6-32x5/16 PH PNHD Self Tap Screw 1 Yes

26 97-2048 Cylinder Hub and Pin Assembly 1 Ye s

27 68-1123 Lock Lever Spring 1 No

28 68-1128 Slide Pivot Pin 1 No

29 01-0749 Groove Pin 3 No

30

N/A

97-0049 Top Rod Adjustable Pin 1 Ye s

31 97-0048 Bottom Rod Adjustable Pin 1 Ye s

32 68-5991 Mounting Screw Pack 1 Ye s

46

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

1

2

3

4

31

5

6

10

7

8

26

25

24

23

12

13 14

15

17

16

18

19

20

21

27

28

29

30

9

11

22

12-53- 8762 8763

53-

12-53-HC

53-HC

47

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

12-FM 8706 8713 8743 8746

FM

1

2

3

4

5

6

8

9

10

11

12

13

14

15

16

17

18

19

20

7

Function Assembly No. Description Sellable

06, 13, 43, 46 68-7306 (LHRB) Chassis Assembly Ye s

68-7307 (RHRB) Yes

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Ye s

2 97-2563 Auxillary Screw Pack* 1 Ye s

3

68-7306(LHRB)

68-7307(RHRB)

68-1664 Main Slide 1 Ye s

4 68-1656 Lift Lever 1 Yes

5 01-4396 59-80 Machine Screw 2 Ye s

6 68-1655 Lift Block 1 Yes

7 97-0050 Knob Return Spring 1 Yes

8 01-0749 Groove Pin 1 No

9 68-7310 Chassis and Slide Assembly, LHRB 1 No

68-7311 Chassis and Slide Assembly, RHRB No

10 68-0323 Chassis Pin 2 Yes

11 68-0241 Lift Arm 1 Ye s

12 01-9372 Lift Lever Pivot Pin 1 Ye s

13 97-0043 Knob Hub Retainer 1 Ye s

14 68-0367 Knob Hub Cover 2 Ye s

15 01-3384 8-32x7/16 PH FH MS 2 Yes

16 01-0930 Countersunk Lock Washer 2 Ye s

17 97-0042 Knob Hub 1 Ye s

18 01-4512 Spirol Pin 1 Yes

19

N/A

97-0049 Top Rod Adjustment Pin 1 Yes

20 97-0048 Bottom Rod Adjustment Pin 1 Ye s

21 68-5991 Mounting Screw Pack 1 Ye s

*Specify Finish

48

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Ye s

2 97-2563 Auxillary Screw Pack* 1 Ye s

3

68-7308(LHRB)

68-7309(RHRB)

68-1664 Main Slide 1 Yes

4 68-1656 Lift Lever 1 Ye s

5 68-1660 Chassis 1 Ye s

6 68-0323 Chassis Pin 2 Yes

7 68-0241 Lift Arm 1 Ye s

8 01-9372 Lift Lever Pivot Pin 1 Ye s

9

N/A

97-0049 Top Rod Adjustment Pin 1 Yes

10 97-0048 Bottom Rod Adjustment Pin 1 Ye s

11 68-5991 Mounting Screw Pack 1 Ye s

12-FM 8710 8740

FM

1

2

11

3

4

5

6

7

8

10

9

Function Assembly No. Description Sellable

(10, 40) 68-7308 (LHRB) Chassis Assembly Ye s

68-7309 (RHRB) Yes

*Specify Finish

49

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

12-FM 8715 8773 8774

FM

1

2

3

18

4

17

6

5

7

8

9

14

13

10

12

11

15

16

19

20

Function Assembly No. Description Sellable

(15, 73, 74) 68-7312 (LHRB) Chassis Assembly Yes

68-7313 (RHRB) Yes

*Specify Finish

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Ye s

2 97-2563 Auxillary Screw Pack* 1 Yes

3

68-7312(LHRB)

68-7313(RHRB)

68-1664 Main Slide 1 Ye s

4 68-1656 Lift Lever 1 Yes

5 97-0050 Knob Return Spring 1 Yes

6 01-0749 Groove Pin 1 No

7 68-0323 Chassis Pin 2 Ye s

8 68-0241 Lift Arm 1 Yes

9 01-9372 Lift Lever Pivot Pin 1 Ye s

10 68-0367 Knob Hub Cover Ye s

11 01-3384 8-32x7/16 PH FH MS 2 Ye s

12 01-0930 Countersunk Lock Washer 2 Yes

13 97-0042 Knob Hub 1 Yes

14 97-0043 Knob Hub Retainer 1 Ye s

15 01-4512 Spirol Pin 1 Ye s

16 68-7310 Chassis and Slide Assembly, LHRB 1 No

68-7311 Chassis and Slide Assembly, RHRB No

17 68-1655 Lift Block 1 Ye s

18 01-4396 Machine Screw #6-32x1/2 2 Ye s

19

N/A

97-0049 Top Rod Adjustment Pin 1 Yes

20 97-0048 Bottom Rod Adjustment Pin 1 Yes

21 68-5991 Mounting Screw Pack 1 Yes

50

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Yes

2 68-3905 Screw Pack (B)* 1 Yes

3

68-5449

68-5450

01-3595 #8-32x1/4" Machine Screw* 1 Yes

4 68-1180 Tube Support 1 Yes

5 68-4270 Upper Link Assembly, LHRB 1 Ye s

68-4271 Upper Link Assembly, RHRB Yes

6 68-1193 Upper Link Spring 1 Yes

7 68-1170 Outside Actuator, LHRB 1 Yes

68-1171 Outside Actuator, RHRB Ye s

8 01-1237 #1-72 PH Pan Head MS 1 Yes

9 68-1208 ET Cam, LH 1 Yes

68-1209 ET Cam, RH Ye s

10 52-5133 Switch and Wire Assembly 1 Yes

11 68-1184 Guide Pin 1 Yes

12 01-4512 Spirol Pin 1 Ye s

13 68-1205 Chassis, LH 1 No

68-1206 Chassis, RH No

14 01-0005 Retaining Ring 1 Ye s

15 68-1137 Lift Arm 1 Yes

16 68-1210 Hair Pin 1 Ye s

17 68-1191 Link Pin 1 Ye s

18 97-0048 Bottom Rod Adjustment Pin 1 Yes

19 N/A 68-5991 Mounting Screw Pack 1 Yes

NB- 8706 8710 8713 8715

53-NB- 8740 8743 8746 8773

8774

2

1

3

4

7

9

11

13

15

17

16

14

12

10

65

8

18

Function Assembly No. Description Sellable

(All Functions) 68-5449 (LHRB) Chassis Assembly Ye s

68-5450 (RHRB) Yes

*Specify Finish

51

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

12-HC4- 8706 8710 8713 8740

HC4-

1

2

3

4

26

5

6

7

9

8

10

11 13

14

15

16

20

17

18

19

21

22

25

24 23

12

Function Assembly No. Description Sellable

06, 10, 13, 40 68-6042 (LHRB) Chassis Assembly Ye s

68-6043 (RHRB) Yes

*Specify Finish

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Ye s

2 97-2563 Auxillary Screw Pack* 1 Ye s

3

68-6042(LHRB)

68-6043(RHRB)

68-1087 Locking Lever 1 No

4 68-1768 Spacer 1 No

5 68-1671 Main Slide 1 Ye s

6 68-1127 Roll Pin 1 No

7 98-0238 Guard Bracket Hairpin 1 Ye s

8 01-4396 59-80 Machine Screw 2 No

9 68-1090 Lift Lever 1 Ye s

10 68-1092 Lift Block 1 Yes

11 97-0050 Knob Return Spring 1 Ye s

12 01-0749 Groove Pin 3 Ye s

13 68-2413 Chassis and Slide Assembly, LHRB 1 No

68-2414 Chassis and Slide Assembly, RHRB No

14 68-0323 Chassis Pin 2 Ye s

15 68-1137 Lift Arm 1 Ye s

16 97-0043 Knob Hub Retainer 1 Ye s

17 68-0367 Knob Hub Cover 1 Yes

18 01-0930 Countersunk Lock Washer 2 Ye s

19 01-3384 8-32x7/16 PH FH MS 2 Ye s

20 97-0042 Knob Hub 1 Ye s

21 01-4512 Spirol Pin 1 Yes

22 68-0324 Lift Lever Pivot Pin 2 Ye s

23 68-1123 Return Spring, Guarding 1 No

24 68-1128 Slide Pivot Pin 1 No

25

N/A

97-0048 Bottom Rod Adjustment Pin 1 Ye s

26 97-0049 Top Rod Adjustment Pin 1 Ye s

27 68-5991 Mounting Screw Pack 1 Ye s

52

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Item Assy No. Part No. Description Qty Sellable

1 N/A 68-0405 Chassis Cover* 1 Yes

2 97-2563 Auxillary Screw Pack* 1 Ye s

3

68-6044(LHRB)

68-6045(RHRB)

68-1087 Locking Lever 1 No

4 68-1768 Spacer 1 Ye s

5 68-1671 Main Slide 1 Yes

6 68-1127 Roll Pin 1 No

7 98-0238 Guard Bracket Hairpin 1 Ye s

8 01-4396 59-80 Machine Screw 2 No

9 97-0050 Knob Return Spring 1 Ye s

10 01-0749 Groove Pin 3 Ye s

11 68-0323 Chassis Pin 2 Ye s

12 68-1137 Lift Arm 1 Ye s

13 97-0043 Knob Hub Retainer 1 Ye s

14 01-0930 Countersunk Lock Washer 2 Yes

15 01-3384 8-32x7/16 PH FH MS 2 Ye s

16 68-0367 Knob Hub Cover 1 Ye s

17 97-0042 Knob Hub 1 Ye s

18 01-4512 Spirol Pin 1 Ye s

19 68-2413 Chassis and Slide Assembly, LHRB 1 No

68-2414 Chassis and Slide Assembly, RHRB No

20 68-0324 Lift Lever Pivot Pin 2 Ye s

21 68-1092 Lift Block 1 No

22 68-1090 Lift Lever 1 Ye s

23 68-1123 Return Spring, Guarding 1 No

24 68-1128 Slide Pivot Pin 1 No

25

N/A

97-0048 Bottom Rod Adjustment Pin 1 Yes

26 97-0049 Top Rod Adjustment Pin 1 Ye s

27 68-5991 Mounting Screw Pack 1 Yes

12-HC4-87: 15, 43, 46, 73, 74

HC4-87: 15, 43, 46, 73, 74

1

2

3

4

25

5

6

7

22

8

21

9

10

20

19 18

11

12

13

17

16 15

14

24 23

26

Function Assembly No. Description Sellable

12, 43, 46, 73, 74 68-6044 (LHRB) Chassis Assembly Yes

68-6045 (RHRB) Yes

*Specify Finish

53

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

(WS-/53-)8804 (WS-/53-)8806 (WS-/53-)8810 (WS-/53-)8813

(WS-/53-)8815 (WS-/53-)8840 (WS-/53-)8843 (WS-/53-)8844

(WS-/53-)8846 (WS-/53-)8873 (WS-/53-)8874 (WS-/53-)8875

(WS-/53-)8876 (WS-/53-)8877 (WS-/53-)8878 (WS-/53-)8881

(WS-/53-)8882 (WS-/53-)8888

1

7

5

4

3

8

2

9

10

6

11

12

13

14

15

16

18 17

19

20

Item Assy No. Part No. Description Qty Sellable

1

See chart

above

68-1389 Chassis Blank (Std) 1 No

2 98-0018 Outside Cylinder Hub 2 Ye s

3 68-1366 Lift Lever (RH) 1 Yes

4 68-1367 Lift Lever (LH) 1 Yes

5 68-4413 Standard Latchbolt (68-4261) 1 Ye s

68-7417 53- Standard Latchbolt (68-6075) 1 Yes

6 98-0028 Latchbolt Spring 1 Yes

7 68-1137 Lift Arm 1 Yes

8 98-0011 Latchbolt Lever Pivot Pin 2 Yes

9 01-4512 Spirol Pin 2 Yes

10 01-0005 Retaining Ring, Truarc 5100-43 2 Ye s

11 01-0008 Groove Pin 1 No

12 68-1685 Switch Bracket (53- Only) 1 Yes

13 01-1482 #2-56 X 1/8" Ph Pn Hd Machine Screw (53- Only) 1 Ye s

14 52-4545 Switch Assembly (53- Only) 1 Yes

15 01-9446 #1-72 X 11/32" Ph Fl Hd Machine Screw (53- Only) 1 Yes

16 01-0909 Hex Machine Screw Nut (53- Only) 1 Ye s

17 52-0310 Cable Clamp (53- Only) 1 Ye s

18 01-1482 Cr-Phms #2-56 X 1/8" (53- Only) 1 Yes

19

N/A

68-0406 Cover11 Ye s

20 68-3905 Screw Pack11 Ye s

Not

Shown

68-2143 Screw Pack 1 Ye s

649 Strike Pack 1 Ye s

1. Indicates ﬁnish required

Function Assembly No. Description Sellable

All functions 68-4261 LHRB/RHRB Yes

WS- All functions LHRB/RHRB

53- All functions 68-6075 LHRB/RHRB Yes

WS-53- All functions LHRB/RHRB

54

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

(12-/WS-/53)8804 (12-/WS-/53)8806 (12-/WS-/53)8810 (12-/WS-/53)8813

(12-/WS-/53)8815 (12-/WS-/53)8840 (12-/WS-/53)8843 (12-/WS-/53)8844

(12-/WS-/53)8846 (12-/WS-/53)8873 (12-/WS-/53)8874 (12-/WS-/53)8875

(12-/WS-/53)8876 (12-/WS-/53)8877 (12-/WS-/53)8878 (12-/WS-/53)8881

(12-/WS-/53)8882 (12-/WS-/53)8888

1

7

5

4

3

8

2

9

10

6

11

12

13

14

15

16

18 17

19

20

Item Assy No. Part No. Description Qty Sellable

1

See chart

above

68-1378 Chassis Blank (12-) 1 No

2 98-0018 Outside Cylinder Hub 2 Ye s

3 68-1366 Lift Lever (RH) 1 Ye s

4 68-1367 Lift Lever (LH) 1 Yes

5 68-4414 Fire Rated Latchbolt (68-4263) 1 Ye s

68-7418 12-53- Standard Latchbolt (68-6076) 1 Ye s

6 98-0028 Latchbolt Spring 1 Ye s

7 68-1137 Lift Arm 1 Ye s

8 98-0011 Latchbolt Lever Pivot Pin 2 Yes

9 01-4512 Spirol Pin 2 Yes

10 01-0005 Retaining Ring, Truarc 5100-43 2 Yes

11 01-0008 Groove Pin 1 No

12 68-1685 Switch Bracket (53- Only) 1 Yes

13 01-1482 #2-56 Ph Pn Hd Machine Screw (53- Only) 1 Ye s

14 52-4545 Switch Assembly (53- Only) 1 Ye s

15 01-9446 #1-72 X 11/32" Ph Fl Hd Machine Screw (53- Only) 1 Ye s

16 01-0909 Hex Machine Screw Nut (53- Only) 1 Yes

17 52-0310 Cable Clamp (53- Only) 1 Ye s

18 01-1482 Cr-Phms #2-56 X 1/8" (53- Only) 1 Ye s

19

N/A

68-0406 Cover11 Ye s

20 68-3905 Cover Screw Pack (#8-32 X 5/16")11 Yes

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack 1 Ye s

1. Indicates ﬁnish required

Function Assembly No. Description Sellable

12- All functions 68-4263 LHRB/RHRB YES

WS-12- All functions LHRB/RHRB

12-53- All functions 68-6076 LHRB/RHRB YES

WS-12-53- All functions LHRB/RHRB

55

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

AL- AND GL- PREFIXES

8804 8806 8810 8813 8815 8840

8843 8844 8846 8875 8876 8877

8878 8881 8882

1

4

12

3

13

8

5

6

2

10

14

7

9

11

1

16

Item Assembly No. Part No. Description Qty Sellable

1

See chart above

68-1485 Chassis (Std) 1 No

2 98-0018 Outside Hub 2 Ye s

3 98-0011 Latchbolt Lever Pin 2 Yes

4 01-0005 Retaining Ring, Truarc 5100-43 2 Ye s

5 68-1366 Lift Lever (RH) 1 Yes

6 68-1367 Lift Lever (LH) 1 Ye s

7 68-4415 Guarded Latchbolt 1 Yes

8 68-1353 Lift Arm 1 Ye s

9 68-1352 Guide 1 Ye s

10 98-0028 Latchbolt Spring 1 Ye s

11 68-4417 Guard Bracket Std 1 Yes

12 01-4512 Spirol Pin 2 Ye s

13 01-0008 Groove Pin 2 No

14 68-1394 Guide Spring 1 Ye s

15

N/A

68-1014 Cover11 Yes

16 68-3905 Cover Screw Pack11 Ye s

Not

Shown

68-2143 Screw Pack 1 Ye s

649 Strike Pack 1 Yes

1. Indicates ﬁnish required

Function Assembly No. Description Sellable

AL- (All Functions Except 77,78,81, And 82) 68-4410 LHRB/RHRB Yes

GL- (All Functions) LHRB/RHRB

56

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

AL- AND GL- PREFIXES

12-8804 12-8806 12-8810 12-8813

12-8815 12-8840 12-8843 12-8844

12-8846 12-8875 12-8876 12-8877

12-8878 12-8881 12-8882

1

4

12

3

13

8

5

6

2

10

14

7

9

11

15

16

Item Assembly No. Part No. Description Qty Sellable

1

See chart above

68-1378 Chassis (12-) 1 No

2 98-0018 Outside Hub 2 Ye s

3 98-0011 Latchbolt Lever Pin 2 Ye s

4 01-0005 Retaining Ring, Truarc 5100-43 2 Yes

5 68-1366 Lift Lever (Rh) 1 Ye s

6 68-1367 Lift Lever (Lh) 1 Yes

7 68-4415 Guarded Latchbolt 1 Ye s

8 68-1353 Lift Arm 1 Ye s

9 68-1352 Guide 1 Yes

10 98-0028 Latchbolt Spring 1 Ye s

11 68-4417 Guard Bracket Std 1 No

12 01-4512 Spirol Pin 2 Yes

13 01-0008 Groove Pin 2 No

14 68-1394 Guide Spring 1 Yes

15

N/A

68-1014 Cover11 Yes

16 68-3905 Cover Screw Pack11 Ye s

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack 1 Yes

1. Indicates ﬁnish required

Function Assembly No. Description Sellable

12-AL- (All Functions Except 77,78,81,82) 68-4411 LHRB/RHRB Yes

12-GL- (All Functions)

57

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

8816

26

25

24

23

22

21

20

8

5

4

19

18

17

6

7

910

11

1

3

2

1312

14

15

16

Item Part No. Description Qty. Sellable

1 68-0408 Chassis Assembly 1 No

2 01-0008 Groove Pin 1 No

3 97-0050 Spring Knob Return 1 Ye s

4 68-0271 Pivot Pin Knob Lever 1 Ye s

5 68-0273 Bushing Knob Lever 1 Ye s

6

68-4236 Knob Lever Assy

(LHRB) 1 Ye s

68-4235 Knob Lever Assy

(RHRB) 1 Ye s

7

68-0237 Latchbolt Lever

(LHRB)21 Yes

68-0238 Latchbolt Lever

(RHRB)21 Yes

8 98-2034 Latchbolt Assy 1 Yes

9 97-0040 Bushing Latchbolt 1 Ye s

10 98-0028 Spring Latchbolt 1 Ye s

11 01-3384 Screw 8-32 x 5/16 4 Ye s

12 68-0367 Knob Hub Cover 1 Ye s

13 97-0042 Knob Hub 1 Ye s

14 97-0043 Knob Hub Retainer 1 Ye s

15 01-0005 Retaining Ring 1 Ye s

16 01-0013 Screw Latchbolt Pivot 1 Yes

Item Part No. Description Qty. Sellable

17 01-4512 Pivot Pin Left Arm 1 Ye s

18 98-0011 Pivot Pin Latchbolt

Lever 1 Ye s

19 98-0020 Inside Cylinder

Retainer 1 Ye s

20 01-1095 Set Screw #8-32 x 1/4

Cup Point 1 Ye s

21 98-0018 Outside Cylinder Hub 1 Ye s

22 68-0241 Lift Arm 1 Yes

23 98-0021 Blocking Ring11 Yes

24 68-0408 Cover (LHRB)1

1 Yes

68-0409 Cover (RHRB)1

25 68-3908 Cover Screw Pack11 Ye s

— 68-2143 Screw Pack 1 Ye s

26 — Cylinder1,3 1 Yes

— 649 Strike Pack 1 Ye s

1. Specify ﬁnish

2. Order opposite hand from door

3. Specify #44 cylinder by keying requirements

58

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

AL- and GL- Prefixes

8816

14

15

13

8

7

6

1

5

11

9

12

10

4

32

16

Item Assembly No. Part No. Description Qty Sellable

1

See chart above

68-1015 Chassis 1 No

2 68-0237 Latchbolt Lever (LHRB)21 Yes

68-0238 Latchbolt Lever (RHRB)21 Yes

3 98-0011 Latchbolt Lever Pivot Pin 1 Yes

4 98-0018 Outside Cylinder Hub 1 Ye s

5 01-0005 Retaining Ring 1 Ye s

6 98-0020 Inside Cylinder Retainer 1 Yes

7 01-1095 Cylinder Set Screw 1 Ye s

8 01-1146 Machine Screw (8-32 x 5/16) 2 Yes

9 97-0042 Knob Hub 1 Yes

10 97-0043 Knob Hub Retainer 1 Ye s

11 68-0367 Knob Hub Cover 1 Yes

12 01-3384 Machine Screw (8-32 x 3/8) 2 Ye s

13

N/A

98-0021 Blocking Ring11 Yes

14 - Cylinder1,3 1 Yes

15 68-1015 Cover (LHRB)11 Ye s

68-1016 Cover (RHRB)11 Ye s

16 68-3908 Cover Screw Pack11 Ye s

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack 1 Yes

1. Specify ﬁnish

2. Order opposite hand from door

3. Specify #44 cylinder by keying requirements

Function Assembly No. Description Sellable

AL-/GL-8816 68-4075 LHRB Ye s

AL-/GL-8816 68-4076 RHRB

59

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

AL- and GL- Prefixes

12-8816

1

2

3

4

5

Item Assembly No. Part No. Description Qty Sellable

1See chart above 68-4077 Chassis Assembly (LHRB) 1 Ye s

N/A

68-4078 Chassis Assembly (RHRB) 1 Ye s

2 98-0021 Blocking Ring11 Yes

3 — Cylinder1,2 1 Ye s

468-1015 Cover (LHRB)11 Yes

68-1016 Cover (RHRB)11 Ye s

5 68-3908 Cover Screw Pack11 Ye s

Not

Shown

68-2165 Screw Pack 1 Yes

649 Strike Pack 1 Ye s

1. Specify ﬁnish

2. Specify #44 cylinder by keying requirements

Function Assembly No. Description Sellable

8816 68-4077 LHRB Yes

68-4078 RHRB

60

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

8828

5

4

13

2

11

7

8

9

10

6

12

13

Item Assembly No. Part No. Description Qty. Sellable

1

See chart above

— Chassis (LHRB) 1 No

— Chassis (RHRB) 1 No

2 68-0271 Pivot Pin Thumb Lever 1 Yes

3 68-0273 Bushing Thumb Lever 1 Yes

468-0260 Thumb Piece Lever (LHRB) 1 Yes

68-0261 Thumb Piece Lever (RHRB) 1 Yes

5 98-2034 Latchbolt Assy 1 Yes

6 98-0028 Spring Latchbolt 1 Ye s

7 01-0008 Groove Pin 1 No

8 01-0013 Screw Latchbolt Pivot 1 Ye s

9 01-4512 Pivot Pin Lift Arm 1 Yes

10 68-0241 Lift Arm 1 Ye s

11 97-0040 Bushing Latchbolt 1 Ye s

12

N/A

68-0406 Cover11 Ye s

13 68-3908 Cover Screw Pack11 Ye s

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack 1 Yes

1. Specify ﬁnish

Function Assembly No. Description Sellable

8828 68-2106 LHRB Yes

68-2107 RHRB

61

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

AL- and GL- Prefixes

12-8828

1

2

3

Item Assembly No. Part No. Description Qty Sellable

1 See chart above

68-4080 Chassis Assembly STD LHRB 1 Yes

68-4081 Chassis Assembly STD RHRB 1 Ye s

68-4082 Chassis Assembly 12- LHRB 1 Yes

68-4083 Chassis Assembly 12- RHRB 1 Ye s

2

N/A

68-1014 Cover11 Ye s

3 68-3908 Cover Screw Pack11 Yes

Not

Shown

68-2143 Screw Pack STD 1 Ye s

68-2165 Screw Pack 12 1 Ye s

649 Strike Pack 1 Ye s

1. Specify ﬁnish

Function Assembly No. Description Sellable

AL- GL- 68-4080 LHRB

Yes

68-4081 RHRB

12- GL- 68-4082 LHRB

68-4083 RHRB

62

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

8863

5

4

13

2

8

10 11 13 12

14

15

9

6

7

Item Assembly No. Part No. Description Qty. Sellable

1

See chart above

— Chassis Assembly (LHRB) 1 No

— Chassis Assembly (RHRB) 1 No

2 68-0271 Pivot Pin Thumb Lever 1 Yes

3 68-0273 Bushing Thumb Lever 1 Yes

468-0260 Thumb Piece Lever LHRB 1 Ye s

68-0261 Thumb Piece Lever RHRB 1 No

5 97-0040 Bushing Latchbolt 1 Ye s

6 98-0028 Spring Latchbolt 1 Yes

7 98-2034 Latchbolt Assy 1 Yes

8 01-0008 Groove Pin 1 No

9 01-0005 Retaining Ring 1 Ye s

10 01-0013 Screw Latchbolt Pivot 1 Ye s

11 01-4512 Pivot Pin Lift Arm 1 Yes

12 98-0018 Outside Cylinder Hub 1 Yes

13 68-0241 Lift Arm 1 Ye s

14

N/A

68-0406 Cover11 No

15 68-3908 Cover Screw Pack11 Ye s

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack 1 Yes

1. Specify ﬁnish

Function Assembly No. Description Sellable

8863 68-2109 LHRB Ye s

8863 68-2110 RHRB Yes

63

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

AL- and GL- Prefixes

8863

12

3

4

5

Item Assembly No. Part No. Description Qty Sellable

1

See chart above

Chassis 1 No

2 98-0018 Outside Cylinder Hub 1 Ye s

3 01-0005 Retaining Ring 1 Ye s

4

N/A

68-1014 Cover11 Ye s

5 68-3908 Cover Screw Pack11 Yes

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack 1 Yes

1. Specify ﬁnish

Function Assembly No. Description Sellable

AL-/GL-8863 68-4097 LHRB Ye s

AL-/GL-8863 68-4098 RHRB

64

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

AL- and GL- Prefixes

12-8863

12

3

Item Assembly No. Part No. Description Qty Sellable

1 See chart above 68-4099 Chassis Assembly (LHRB) 1 Ye s

68-4100 Chassis Assembly (RHRB) 1 Yes

2

N/A

68-1014 Cover11Ye s

3 68-3908 Cover Screw Pack11 Ye s

Not

Shown

68-2165 Screw Pack 1 Ye s

649 Strike Pack 1 Ye s

1. Specify ﬁnish

Function Assembly No. Description Sellable

AL-/GL-8863 68-4099 LHRB Ye s

AL-/GL-8863 68-4100 RHRB

65

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

8866

5

2

1

4

3

17

15

14

13

12

18

20

16

19

7

6

11 10

98

22

21

Item Part No. Description Qty. Sellable

1 - Chassis Assembly 1 No

268-0260 Thumb Piece Lever LHRB 1 Ye s

68-0261 Thumb Piece Lever RHRB 1 Ye s

3 68-0271 Pivot Pin 1 Yes

4 68-0273 Bushing 1 Ye s

5 98-0018 Outside Cylinder Hub 1 Ye s

6 98-2034 Latchbolt 1 Yes

7 97-0040 Bushing, Latchbolt 1 Ye s

8 97-0028 Spring, Latchbolt 1 Yes

9 01-3384 Screw #8-32 x 5/16 2 Ye s

10 01-1095 Set Screw 1 Ye s

11 98-0020 Inside Cylinder Retainer 1 Ye s

12 68-0241 Lift Arm 1 Yes

13 98-0011 Pivot Pin (Lift Lever) 1 Ye s

14 01-4512 Pivot Pin (Lift Arm) 1 Ye s

Item Part No. Description Qty. Sellable

15 01-0013 Latchbolt Screw 1 Ye s

16 01-0005 Retaining Ring 1 Yes

17 01-0008 Groove Pin 1 No

18 98-0021 Blocking Ring11 Yes

19 68-0237 Lift Lever LHRB 1 Yes

68-0238 Lift Lever RHRB 1 Ye s

20 68-0408 Cover11 Ye s

68-0409 Cover11 Ye s

21 - Inside Cylinder1,2 1 Ye s

22 68-3908 Cover Screw Pack11Yes

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack11 Yes

1. Specify ﬁnish

2. Specify #44 cylinder by keying requirements

66

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

AL- and GL- Prefixes

12-8866

1

2

3

4

5

Item Assembly No. Part No. Description Qty. Sellable

1 See chart above — Chassis Assembly (LHRB) 1 Yes

— Chassis Assembly (RHRB) 1 Ye s

2

N/A

98-0021 Blocking Ring11 Ye s

3 68-4411 Cylinder1,2 1 Ye s

468-1015 Cover (LHRB)11 Yes

68-1016 Cover (RHRB)11 Yes

5 68-3908 Cover Screw Pack11 Ye s

Not

Shown

68-2165 Screw Pack 1 Yes

649 Strike Pack 1 Ye s

1. Specify ﬁnish

2. Specify #44 cylinder by keying requirements

Function Assembly No. Description Sellable

AL-/GL/12-8866 68-4104 LHRB Ye s

AL-/GL/12-8866 68-4105 RHRB

67

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

AL- and GL Prefixes

8866

10

11

9

2

7

6

1

8

5

4

3

12

Item Assembly No. Part No. Description Qty Sellable

1

See chart above

- Chassis Assembly 1 No

268-0237 Latchbolt Lever (LHRB)21 Ye s

68-0238 Latchbolt Lever (RHRB)21 Ye s

3 98-0011 Latchbolt Lever Pivot Pin 1 Yes

4 98-0018 Outside Cylinder Hub 1 Ye s

5 01-0005 Retaining Ring 1 Yes

6 98-0020 Inside Cylinder Retainer 1 Yes

7 01-1095 Cylinder Set Screw 1 Ye s

8 01-1146 Machine Screw (8-32 x 5/16) 2 Ye s

9

N/A

98-0021 Blocking Ring * 1 Yes

10 - Cylinder1,3 1 Ye s

11 68-1015 Cover (LHRB)11 Ye s

68-1016 Cover (RHRB)11 Ye s

12 68-3908 Cover Screw Pack11 Ye s

Not

Shown

68-2143 Screw Pack 1 Yes

649 Strike Pack 1 Ye s

1. Specify ﬁnish

2. Order opposite hand from door

3. Specify #44 cylinder by keying requirements

Function Assembly No. Description Sellable

AL-/GL-8866 68-A102 LHRB Ye s

AL-/GL-8866 68-A103 RHRB

68

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

(12-)8904 (12-)8910 (12-)8913

(12-)8915 (12-)8928 (12-)8943

(12-)8944 (12-)8963 (12-)8970

(12-)8971 (12-)8975 (12-)8976

1

2

3

4

5

67

8

9

10

Item Assembly No. Part No. Description Qty Sellable

1

See chart above

68-0339 Chassis 1 No

2 68-1137 Lift Arm 1 Yes

3 68-0239 Pivot Pin 1 Ye s

4 68-0337 Left Hand Lift Lever 1 Ye s

68-0338 Right Hand Lift Lever 1 Ye s

5 68-0273 Bushing 2 Ye s

6 01-9370 Washer 1 Ye s

7 68-0271 Pivot Pin (63 Function) 1 Ye s

8 68-1294 Stop Pin 1 No

9

N/A

68-0407 Cover11 Yes

10 68-3905 Cover Screw Pack11 Ye s

Not

Shown

68-2172 (LHRB) 900 Series Mortise Assembly1,2,3 1 Ye s

68-2173 (RHRB) 1 Ye s

68-2143 Screw Pack Standard 1 Ye s

68-2165 Screw Pack (12-) 1 Ye s

C908 Strike Pack LHRB 1 3/4" (C908)1,3 1 Yes

C908 Strike Pack RHRB 1 3/4" (C908)1,3 1 Ye s

1. Specify ﬁnish

2. Specify function

3. Specify hand

Function Assembly No. Description Sellable

(12-) (All Functions Except 16 & 66) 68-2172 LHRB Ye s

68-2173 RHRB Ye s

69

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

(12-) 8916

(12-) 8966

1

2

3

4

5

6

7

89

10

11

Item Part No. Description Qty Sellable

1 68-0341 Chassis RHRB 1 No

68-0342 Chassis LHRB 1 No

2 68-1137 Lift Arm 1 Ye s

3 68-0239 Pivot Pin 1 Ye s

4 68-0337 Left Hand Lift Lever 1 Ye s

68-0338 Right Hand Lift Lever 1 Ye s

5 68-0273 Bushing 2 Ye s

6 01-9370 Washer 1 Ye s

7 68-0271 Pivot Pin (63 Function) 1 Ye s

8 68-1294 Stop Pin 1 No

9 99-0007 Cylinder Blocking Ring11 Yes

Not

Shown

13-0085 Locking Tail 1 Ye s

13-0080 Cylinder Barrel Retainer 1 Ye s

— Cylinder Assembly2 1 Yes

13-0074 Connecting Screw 2 Yes

10 68-0410 Cover LHRB11 Ye s

68-0411 Cover RHRB11 Ye s

11 68-3905 Cover Screw Pack11 Ye s

Not

Shown

916 Mortise Assy 16 Funtion1,3 1 Yes

966 Mortise Assy 66 Function1,3 1 Yes

68-2143 Screw Pack Standard 1 Ye s

68-2165 Screw Pack (12-) 1 Yes

C908 Strike Pack LHRB (C908)3 1 Ye s

C908 Strike Pack RHRB (C908)31 Ye s

1. Specify ﬁnish

2. Specify function

3. Specify hand

Function Assembly No. Description Sellable

(12-) 68-2213 LHRB Ye s

68-2214 RHRB Yes

70

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

904, 910, 940, 944

Item Part No. Description Qty. Sellable

1 99-2351 Case Assy 1 No

2 01-0273 Roll Pin 1 Yes

3 99-0072 Guard Bolt Eyelet 1 Ye s

4 99-0057 Guard Bolt Spring 1 Yes

599-0279 Guard Bolt Assy LHRB 1 Yes

99-0280 Guard Bolt Assy RHRB 1

6 99-0075 Anti-Friction Latchbolt 1 Ye s

799-0216 Front RHRB11 No

99-0217 Front LHRB11 No

8 99-0098 Pivot Pin Anti-Friction

Latchbolt 1Yes

9 99-0078 Cylinder Set Screw 1 Yes

10 99-0076 Slide Spacer 2 Yes

11 99-0058 Slide Guide 2 Yes

12 99-2059 Lever Slide Assembly 1 Yes

Item Part No. Description Qty. Sellable

13 99-0061 Spring Thumbpiece Lever 1 No

14 99-0236 Cylinder Screw Support 1 Yes

15 99-0060 Guard Bolt Lever 1 Ye s

16 01-0098 Retaining Ring 1 Yes

17 99-0063 Spring Guard Bolt Lver 1 Ye s

18 99-2389 Latchbolt Lever Assembly 1 Ye s

19 99-0212 Pivot Pin Lever Slide 1 Ye s

20 99-2247 Latchbolt Assembly 1 Yes

21 99-2361 Cap Assembly 1 No

22 01-1142 Case Screw #8-32 x 1/4 5 No

11

10

89

7

5

14

18

20

2

19

13

15

16

17

12

22

21

6

43

1

1. Specify ﬁnish

Note: Items 5 and 15 to be sold as a set only.

71

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

913

Item Part No. Description Qty. Sellable

1 99-2351 Case Assy 1 No

2 01-0273 Roll Pin 1 Yes

3 99-0072 Guard Bolt Eyelet 1 Ye s

4 99-0057 Guard Bolt Spring 1 Ye s

599-0279 Guard Bolt Assy LHRB 1 Ye s

99-0280 Guard Bolt Assy RHRB 1 Yes

6 99-0075 Anti-Friction Latchbolt 1 Ye s

799-0216 Front RHRB11 No

99-0217 Front LHRB11 No

8 99-0098 Pivot Pin Anti-Friction Latchbolt 1 Yes

9 99-2247 Latchbolt Assembly 1 Yes

10 01-1142 Case Screw #8-32 x 1/4 5 Yes

11 99-0076 Slide Spacer 2 Yes

12 99-0208 Locking Lever 1 Ye s

13 01-0074 Retaining Ring 1 Yes

14 77-1165 Spring Stop Works 2 Ye s

15 99-0060 Guard Bolt Lever 1 Yes

16 77-1040 Button Tail Stop Works 1 No

17 01-0098 Retaining Ring 1 Yes

18 99-0058 Slide Guide 2 Ye s

19 99-0063 Spring Guard Bolt Lever 1 Yes

20 99-2385 Latchbolt Lever Assembly 1 Ye s

21 99-2059 Lever Slide Assembly 1 Yes

22 99-0212 Pivot Pin Lever Slide 1 Yes

23 99-0206 Knob Hub 1 Ye s

24 99-0061 Spring Thumbpiece Lever 1 Ye s

25 99-0236 Cylinder Screw Support 1 Ye s

26 99-0078 Cylinder Set Screw 1 Ye s

27 99-2361 Cap Assembly 1 No

1. Specify ﬁnish

Notes:

• Items 5 and 15 to be sold as a set only.

• For 8313 x ET or 8913 x ET, use 915 Mortise Assembly.

72

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

913

11

10

89

75

13

20

2

19

14

15

17

12

22

6

43

1

16

18

21

23

24

26

25

27

Note: Items 5 and 15 to be sold as a set only.

73

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

915, 975, 976, 943

Item Part No. Description Qty. Sellable

1 99-2351 Case Assy 1 No

2 01-0273 Roll Pin 1 Ye s

3 99-0072 Guard Bolt Eyelet 1 Ye s

4 99-0057 Guard Bolt Spring 1 Ye s

599-0279 Guard Bolt Assy LHRB 1 Yes

99-0280 Guard Bolt Assy RHRB 1 Ye s

6 99-0075 Anti-Friction Latchbolt 1 Yes

799-0216 Front RHRB11 No

99-0217 Front LHRB11 No

8 99-0098 Pivot Pin Anti-Friction Latchbolt 1 Ye s

9 99-2247 Latchbolt Assembly 1 Yes

10 01-1142 Case Screw #8-32 x 1/4 5 Ye s

11 99-0076 Slide Spacer 2 Ye s

15 99-0060 Guard Bolt Lever 1 Yes

17 01-0098 Retaining Ring 1 Ye s

18 99-0058 Slide Guide 2 Ye s

19 99-0063 Spring Guard Bolt Lever 1 Yes

20 99-2385 Latchbolt Lever Assembly 1 Yes

21 99-2059 Lever Slide Assembly 1 Yes

22 99-0212 Pivot Pin Lever Slide 1 Ye s

23 99-0206 Knob Hub 1 Yes

24 99-0061 Spring Thumbpiece Lever 1 Ye s

25 99-0236 Cylinder Screw Support 1 Yes

26 99-0078 Cylinder Set Screw 1 Ye s

27 99-2361 Cap Assembly 1 No

- 68-2597 Bridge Rectiﬁer Pack21 Ye s

1. Specify ﬁnish

2. Use with 975 and 976 only

Note: Items 5 and 15 to be sold as a set only.

74

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

915, 975, 976, 943

11

10

89

75

17

2

22

18

19

20

15

643

1

21

23

24

26

27

25

Note: Items 5 and 15 to be sold as a set only.

75

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

916

Item Part No. Description Qty. Sellable

199-2352 Case Assy LHRB 1 No

99-2351 Case Assy RHRB

2 01-0273 Roll Pin 1 Ye s

3 99-0072 Guard Bolt Eyelet 1 Ye s

4 99-0057 Guard Bolt Spring 1 Ye s

599-0279 Guard Bolt Assy LHRB 1 Ye s

99-0280 Guard Bolt Assy RHRB 1 Yes

6 99-0075 Anti-Friction Latchbolt 1 Ye s

799-0226 Front LHRB11 No

99-0227 Front RHRB11 No

8 99-0098 Pivot Pin Anti-Friction Latchbolt 1 Ye s

9 99-2247 Latchbolt Assembly 1 Yes

10 01-1142 Case Screw #8-32 x 1/4 5 Yes

11 99-0076 Slide Spacer 2 Ye s

12 99-0208 Locking Lever 1 Yes

13 01-0074 Retaining Ring 1 Yes

14 77-1165 Spring Stop Works 2 Yes

15 99-0060 Guard Bolt Lever 1 Yes

16 77-1040 Button Tail Stop Works 1 No

17 01-0098 Retaining Ring 1 Yes

18 99-0058 Slide Guide 2 Yes

19 99-0063 Spring Guard Bolt Lever 1 Yes

20 99-2387 Latchbolt Lever Assembly LHRB 1 Yes

99-2388 Latchbolt Lever Assembly RHRB 1 Ye s

21 99-2059 Lever Slide Assembly 1 Yes

22 99-0212 Pivot Pin Lever Slide 1 Yes

23 99-0206 Knob Hub 1 Yes

24 99-0061 Spring Thumbpiece Lever 1 Ye s

25 99-0236 Cylinder Screw Support 1 Yes

26 99-0078 Cylinder Set Screw 2 Ye s

27 99-2361 Cap Assembly LHRB 1 No

99-2362 Cap Assembly RHRB 1 No

28 13-2162 Cylinder Attachment 1 Yes

1. Specify ﬁnish

Note: Items 5 and 15 to be sold as a set only.

76

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

916

11

10

89

7

5

13

20

2

19

14

15

17

12

22

6

4

3

1

16

18

21

23

24 26

25

27

26

28

Note: Items 5 and 15 to be sold as a set only.

77

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

928

Item Part No. Description Qty. Sellable

1 99-2351 Case Assy 1 No

2 01-0273 Roll Pin 1 Ye s

3 99-0072 Guard Bolt Eyelet 1 Ye s

4 99-0057 Guard Bolt Spring 1 Yes

599-0279 Guard Bolt Assy LHRB 1 Ye s

99-0280 Guard Bolt Assy RHRB 1 Ye s

6 99-0075 Anti-Friction Latchbolt 1 Ye s

799-0216 Front RHRB11 No

99-0217 Front LHRB11 No

8 99-0098 Pivot Pin Anti-Friction Latchbolt 1 Yes

9 99-2247 Latchbolt Assembly 1 Ye s

10 01-1142 Case Screw #8-32 x 1/4 5 Ye s

11 99-0088 Thumb Piece Lever 2 Ye s

15 99-0060 Guard Bolt Lever 1 Ye s

17 01-0098 Retaining Ring 1 Ye s

18 99-0058 Slide Guide 2 Ye s

19 99-0063 Spring Guard Bolt Lever 1 Yes

20 99-2385 Latchbolt Lever Assembly 1 Ye s

21 99-2050 Lever Slide Assembly 1 Yes

22 99-0212 Pivot Pin Lever Slide 1 Yes

24 99-0061 Spring Thumbpiece Lever 1 Yes

25 99-0236 Cylinder Screw Support 1 Yes

26 99-0078 Cylinder Set Screw 1 Ye s

27 99-2361 Cap Assembly 1 No

1. Specify ﬁnish

Note: Items 5 and 15 to be sold as a set only.

78

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

928

11

10

89

75

17

2

21

18

19

20

15

64

3

1

22

24

26

27

25

Note: Items 5 and 15 to be sold as a set only.

79

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

963

Item Part No. Description Qty. Sellable

1 99-2351 Case Assy RHRB 1 No

99-2352 Case Assy LHRB 1 No

2 01-0273 Roll Pin 1 Yes

3 99-0072 Guard Bolt Eyelet 1 Ye s

4 99-0057 Guard Bolt Spring 1 Yes

599-0279 Guard Bolt Assy LHRB 1 Ye s

99-0280 Guard Bolt Assy RHRB 1 Ye s

6 99-0075 Anti-Friction Latchbolt 1 Ye s

799-0216 Front RHRB11 No

99-0217 Front LHRB11 No

8 99-0098 Pivot Pin Anti-Friction Latchbolt 1 Ye s

9 99-2247 Latchbolt Assembly 1 Ye s

10 01-1142 Case Screw #8-32 x 1/4 5 Yes

11 99-0088 Thumb Piece Lever 2 Ye s

12 99-0208 Locking Lever 1 Ye s

13 01-0074 Retaining Ring 1 Yes

14 77-1165 Spring Stop Works 2 Ye s

15 99-0060 Guard Bolt Lever 1 Yes

16 77-1040 Button Tail Stop Works 1 No

17 01-0098 Retaining Ring 1 Yes

18 99-0058 Slide Guide 2 Ye s

19 99-0063 Spring Guard Bolt Lever 1 Yes

20 99-2385 Latchbolt Lever Assembly 1 Ye s

21 99-2050 Lever Slide Assembly 1 Yes

22 99-0212 Pivot Pin Lever Slide 1 Yes

24 99-0061 Spring Thumbpiece Lever 1 Yes

25 99-0236 Cylinder Screw Support 1 Yes

26 99-0078 Cylinder Set Screw 1 Ye s

27 99-2361 Cap Assembly 1 No

1. Specify ﬁnish

Note: Items 5 and 15 to be sold as a set only.

80

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

963

Note: Items 5 and 15 to be sold as a set only.

1

25

11

10

89

75

17

2

18

19

20

16

6

43

22

24

26

27

21

14

12

13

15

81

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

966

Item Part No. Description Qty. Sellable

199-2352 Case Assy LHRB 1 No

99-2351 Case Assy RHRB 1 No

2 01-0273 Roll Pin 1 Yes

3 99-0072 Guard Bolt Eyelet 1 Yes

4 99-0057 Guard Bolt Spring 1 Yes

599-0279 Guard Bolt Assy LHRB 1 Yes

99-0280 Guard Bolt Assy RHRB 1 Ye s

6 99-0075 Anti-Friction Latchbolt 1 Yes

799-0216 Front RHRB11 No

99-0217 Front LHRB11 No

8 99-0098 Pivot Pin Anti-Friction Latchbolt 1 Yes

9 99-2247 Latchbolt Assembly 1 Yes

10 01-1142 Case Screw #8-32 x 1/4 5 Ye s

11 99-0088 Thumb Piece Lever 2 Yes

12 99-0208 Locking Lever 1 Yes

13 01-0074 Retaining Ring 1 Ye s

14 77-1165 Spring Stop Works 2 Yes

15 99-0060 Guard Bolt Lever 1 Yes

16 77-1040 Button Tail Stop Works 1 No

17 01-0098 Retaining Ring 1 Ye s

18 99-0058 Slide Guide 2 Yes

19 99-0063 Spring Guard Bolt Lever 1 Ye s

20 99-2387 Latchbolt Lever Assembly LHRB 1 Yes

99-2388 Latchbolt Lever Assembly RHRB 1 Yes

21 99-2050 Lever Slide Assembly 1 Yes

22 99-0212 Pivot Pin Lever Slide 1 Yes

24 99-0061 Spring Thumbpiece Lever 1 Yes

25 99-0236 Cylinder Screw Support 1 Yes

26 99-0078 Cylinder Set Screw 1 Ye s

27 99-2361 Cap Assembly LHRB 1 No

99-2362 Cap Assembly RHRB 1 No

28 13-2162 Cylinder Attachment 1 Yes

1. Specify ﬁnish

Note: Items 5 and 15 to be sold as a set only.

82

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

900 Series Mortise Locks

966

11

10

89

75

13

20

2

19

14

15

17

12

22

6

4

3

1

16

18

21

24

26

25

27

26

28

Note: Items 5 and 15 to be sold as a set only.

83

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

12-

*Specify Finish

Assembly No. Description Option Sellable

68-2702 Wide Stile E Rail Assembly*

(12-)

Fire Rated

Yes

68-2703 Wide Stile F Rail Assembly* Yes

68-2704 Wide Stile G Rail Assembly* Yes

68-2705 Wide Stile J Rail Assembly* Ye s

68-2724 Narrow Stile E Rail Assembly* Yes

68-2725 Narrow Stile F Rail Assembly* Yes

68-2726 Narrow Stile G Rail Assembly* Yes

68-2727 Narrow Stile J Rail Assembly* Yes

Item Assy No. Part No. Description Qty Sellable

1

See Chart

Above

68-0550 Mounting Rail Insert Wide(E)*

1

Yes

68-0549 Mounting Rail Insert Wide(F)* Ye s

68-0554 Mounting Rail Insert Wide(J)* Ye s

68-0551 Mounting Rail Insert Wide(G)* Ye s

68-1375 Mounting Rail Insert Narrow(E, F)* Ye s

68-0553 Mounting Rail Insert Narrow(J)* Ye s

68-0552 Mounting Rail Insert Narrow(G)* Yes

2

68-0950 Mounting Rail Wide(E)*

1

Yes

68-0952 Mounting Rail Wide(F)* Yes

68-0948 Mounting Rail Wide(J)* Ye s

68-0949 Mounting Rail Wide(G)* Ye s

68-0958 Mounting Rail Narrow(E)* Ye s

68-0955 Mounting Rail Narrow(F)* Yes

68-0956 Mounting Rail Narrow(J)* Ye s

68-0957 Mounting Rail Narrow(G)* Yes

3 01-1236 #6-32x 3/8" PH FL U'Cut 4 Yes

4 68-0943 Bracket 2 Yes

5 68-0945 Pivot Pin 2 Ye s

6 01-0098 Retainer Ring 2 Ye s

7 68-0229 Pivot Pin, Push Rail* 2 Yes

8 68-0236 Spring, Rail Arm 2 Ye s

9 68-3609 Connecting Arm Assembly 2 Yes

10

68-0615 Push Rail (E)*

1

Yes

68-0618 Push Rail (F)* Yes

68-0616 Push Rail (J)* Ye s

68-0617 Push Rail (G)* Yes

11 809 TouchPad Assembly 1 Ye s

12 01-4537 Standard Hole Plug 1 Yes

84

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

12-

7

10

6

5

8

9

2

1

3

4

111111 12

Assembly 68-2703 Shown Above

85

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

12-56-

56-

Parts 3-13 Available as Assembly No. 52-3541 for E, 52-3542 for F, 52-3543 for J, 52-3544 for G

*Specify Finish

Assembly No. Description Option Sellable

68-5542 Wide Stile E Rail Assembly*

(12-56-)

(56-)

Yes

68-3212 Wide Stile F Rail Assembly* Yes

68-3211 Wide Stile G Rail Assembly* Ye s

68-3213 Wide Stile J Rail Assembly* Yes

68-5578 Narrow Stile E Rail Assembly* Ye s

68-3217 Narrow Stile F Rail Assembly* Yes

68-3216 Narrow Stile G Rail Assembly* Yes

68-3218 Narrow Stile J Rail Assembly* Ye s

Item Assy No. Part No. Description Qty Sellable

1

See Chart

Above

68-0550 Mounting Rail Insert Wide(E)*

1

Yes

68-0549 Mounting Rail Insert Wide(F)* Yes

68-0554 Mounting Rail Insert Wide(J)* Ye s

68-0551 Mounting Rail Insert Wide(G)* Ye s

68-1375 Mounting Rail Insert Narrow(E, F)* Ye s

68-0553 Mounting Rail Insert Narrow(J)* Ye s

68-0552 Mounting Rail Insert Narrow(G)* Ye s

2

68-0950 Mounting Rail Wide(E)*

1

Yes

68-0952 Mounting Rail Wide(F)* Ye s

68-0948 Mounting Rail Wide(J)* Ye s

68-0949 Mounting Rail Wide(G)* Ye s

68-0958 Mounting Rail Narrow(E)* Ye s

68-0955 Mounting Rail Narrow(F)* Ye s

68-0956 Mounting Rail Narrow(J)* Ye s

68-0957 Mounting Rail Narrow(G)* Yes

3

M56AE Rail Motor Kit, E

1

Yes

M56AF Rail Motor Kit, F Yes

M56AJ Rail Motor Kit, J Yes

M56AG Rail motor Kit, G Yes

4 68-0229 Pivot Pin, Push Rail* 2 Yes

5 68-0236 Spring, Rail Arm 2 Yes

6 01-0098 Retaining Ring 2 Ye s

7 809 TouchPad Assembly 1 Ye s

8

68-0615 Standard Push Rail, E*

1

Yes

68-0618 Standard Push Rail, F* Yes

68-0616 Standard Push Rail, J* Yes

68-0617 Standard Push Rail, G* Ye s

9 68-3609 Connecting Arm Assembly 1 Ye s

10 52-1261 56- Input Harness Assembly 2 Ye s

11 01-1236 #6-32x3/8" PH FL U'CUT 4 Ye s

12 68-0945 Pivot Pin 1 Ye s

13 68-0943 Bracket 1 Ye s

Option Code E Wide F Wide J Wide G Wide E Narrow F Narrow J Narrow G Narrow Sellable

19-56-HK-* 68-5515 68-5516 68-5517 68-5518 68-5602 68-5603 68-5604 68-5605 Yes

53-56-HK-* 68-5554* 68-5555* 68-5556* 68-5557* 68-5594* 68-5595* 68-5596* 68-5597* Ye s

53-55-56-HK-* 68-5558* 68-5559 68-5560 68-5561* 68-5598* 68-5599* 68-5600* 68-5601* Ye s

19-53-56-HK-* 68-5519* 68-5520* 68-5521* 68-5522* 68-5610* 68-5611* 68-5612* 68-5613* Yes

19-53-55-56-HK- * 68-5538* 68-5539* 68-5540* 68-5541* 68-5614* 68-5615* 68-5616* 68-5617* Ye s

All Related HK- Assemblies Listed Below

86

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

12-56-

56-

7

8

6

5

9

1

2

10

12

11

33

13

4

Assembly 68-5578 Shown Above

87

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

12-59-

59-

Assembly No. Description Option Sellable

68-6098 Wide Stile E Rail Assembly*

(59-)

Yes

68-3780 Wide Stile F Rail Assembly* Ye s

68-3781 Wide Stile G Rail Assembly* Ye s

68-3782 Wide Stile J Rail Assembly* Ye s

68-6100 Narrow Stile E Rail Assembly* Ye s

68-3788 Narrow Stile F Rail Assembly* Ye s

68-3789 Narrow Stile G Rail Assembly* Yes

68-3790 Narrow Stile J Rail Assembly* Ye s

68-6099 Wide Stile E Rail Assembly*

(12-59-)

Yes

68-3784 Wide Stile F Rail Assembly* Ye s

68-3785 Wide Stile G Rail Assembly* Ye s

68-3786 Wide Stile J Rail Assembly* Ye s

68-6101 Narrow Stile E Rail Assembly* Ye s

68-3792 Narrow Stile F Rail Assembly* Ye s

68-3793 Narrow Stile G Rail Assembly* Yes

68-3794 Narrow Stile J Rail Assembly* Ye s

Item Assy No. Part No. Description Qty Sellable

1

See Chart

Above

809 TouchPad

Assembly 1 Ye s

2

68-1027 Push Rail, E*

1

No

68-1030 Push Rail, F* Yes

68-1028 Push Rail, G* Yes

68-1029 Push Rail, J* Yes

3 68-0582 Lockdown Cam1 1 Ye s

4 01-4537 Standard Hole

Plug 1 Ye s

5 01-0098 Retaining Ring 2 Yes

6 68-0229 Pivot Pin, Push

Rail* 2 Yes

7 68-1049 Rubber Cushion 1 No

8 68-1039 Support Plate 1 No

9 52-1701 59- Wire Guide 1 Ye s

10 68-0236 Spring, Rail Arm 2 Yes

11 68-0945 Pivot Pin 2 Yes

12 01-0711 Flanged Nyliner 8 Ye s

13 52-4765 59- Connecting

Arm 1 No

14 68-0943 Bracket 1 Ye s

15 52-0935 Wire Barrier 1 Ye s

16

52-4733 59- Harness Sub-

Plate Assembly 1

No

52-4734 59- Harness Sub-

Plate Assembly No

17 01-0610 Wave Spring

Washer1 1 Ye s

18 68-0583 Lockdown

Button 11 Ye s

19 01-4466 Machine Screw

SEMS1 1 No

20 01-1236 #6-32X3/8" PH

FL U'Cut 6** Yes

21 68-6127 Connecting Arm 1 Ye s

Item Assy No. Part No. Description Qty Sellable

22

See Chart

Above

68-1045 Mounting Rail, E

Narrow*

1

Yes

68-1042 Mounting Rail, F

Narrow* Ye s

68-1043 Mounting Rail, J

Narrow* Ye s

68-1044 Mounting Rail, G

Narrow* Ye s

68-0950 Mounting Rail, E

Wide* Yes

68-1058 Mounting Rail, F

Wide* Yes

68-1059 Mounting Rail, J

Wide* Yes

68-1060 Mounting Rail, G

Wide* Yes

23

68-6090 Insert Assembly,

E Wide

1

No

68-6091 Insert Assembly,

F Wide No

68-6092 Insert Assembly,

J Wide No

68-6093 Insert Assembly,

G Wide No

68-6097 Insert Assembly,

E Narrow No

68-6094 Insert Assembly,

F Narrow No

68-6095 Insert Assembly,

J Narrow No

68-6096 Insert Assembly,

G Narrow No

24

52-1292 Harness

Assembly 1

Yes

52-1293 Harness

Assembly Ye s

*Specify Finish

**Qty is 6 in Sizes F J G, 4 in Size E

1. Do not use on any 12- Rail Assembly

88

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

12-59-

59-

1

6

5

18 4

17

3

19

10

11

21

12

15

14

7

816 20

22

23

24

11

2

9

13

Assembly 68-3780 Shown Above

89

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

Standard-Non-Fire Rated

Assembly No. Description Option Sellable

68-2694 Wide Stile E Rail Assembly*

Standard

Rails

Yes

68-2695 Wide Stile F Rail Assembly* Ye s

68-2696 Wide Stile G Rail Assembly* Ye s

68-2697 Wide Stile J Rail Assembly* Ye s

68-2716 Narrow Stile E Rail Assembly* Ye s

68-2717 Narrow Stile F Rail Assembly* Ye s

68-2718 Narrow Stile G Rail Assembly* Yes

68-2719 Narrow Stile J Rail Assembly* Ye s

Item Assy No. Part No. Description Qty Sellable

1

See Table

Above

68-0550 Mounting Rail Insert Wide(E)*

1

Yes

68-0549 Mounting Rail Insert Wide(F)* Ye s

68-0554 Mounting Rail Insert Wide(J)* Yes

68-0551 Mounting Rail Insert Wide(G)* Ye s

68-1375 Mounting Rail Insert Narrow(E, F)* Ye s

68-0553 Mounting Rail Insert Narrow(J)* Ye s

68-0552 Mounting Rail Insert Narrow(G)* Ye s

2 01-1236 #6-32x3/8 PH FL U'Cut 4 Yes

3

68-0950 Mounting Rail, E Wide*

1

Yes

68-0952 Mounting Rail, F Wide* Ye s

68-0948 Mounting Rail, J Wide* Yes

68-0949 Mounting Rail, G Wide* Yes

68-0958 Mounting Rail, E Narrow* Ye s

68-0955 Mounting Rail, F Narrow* Ye s

68-0956 Mounting Rail, J Narrow* Yes

68-0957 Mounting Rail, G Narrow* Ye s

4 68-0943 Bracket 2 Ye s

5 68-3609 Connecting Arm Assembly 2 Ye s

6 01-4466 Machine Screw SEMS1 1 Yes

7 68-0582 Lockdown Cam1 1 Ye s

8 01-0610 Wave Spring Washer1 1 Ye s

9 68-0236 Spring, Rail Arm 2 Ye s

10 68-0945 Pivot Pin 2 Ye s

11 01-0098 Retaining Ring 2 Yes

12 68-0229 Pivot Pin Push Rail* 2 Ye s

13 68-0583 Lockdown Button1 1 Yes

14 809 Touch Pad Assembly 1 Ye s

15

68-0615 Push Rail, E*

1

Yes

68-0618 Push Rail, F* Ye s

68-0616 Push Rail, J* Ye s

68-0617 Push Rail, G* Yes

*Specify Finish

1. Do not use on any 12- Rail Assembly

90

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

Standard-Non-Fire Rated

11

13

12

10

14

15

9

8

7

6

5

43

2

1

14

Assembly 68-2695 Shown Above

91

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

16-

Assembly No. Description Option Sellable

68-2698 Wide Stile E Rail Assembly*

16-

Yes

68-2699 Wide Stile F Rail Assembly* Ye s

68-2700 Wide Stile G Rail Assembly* Ye s

68-2701 Wide Stile J Rail Assembly* Ye s

68-2720 Narrow Stile E Rail Assembly* Ye s

68-2721 Narrow Stile F Rail Assembly* Ye s

68-2722 Narrow Stile G Rail Assembly* Yes

68-2723 Narrow Stile J Rail Assembly* Ye s

*Specify Finish

1. Do not use on any 12- Rail Assembly

Item Assy No. Part No. Description Qty Sellable

1

See Table

Above

809 Touch Pad Assembly 1 Yes

2

68-0615 Push Rail, E*

1

Yes

68-0618 Push Rail, F* Yes

68-0616 Push Rail, J* Yes

68-0617 Push Rail, G* Ye s

3 68-0943 Bracket 2 Ye s

4 01-1236 CR-FHMS 6-32X3/8" 4 Ye s

5

68-0950 Mounting Rail, E Wide*

1

Yes

68-0952 Mounting Rail, F Wide* Yes

68-0948 Mounting Rail, J Wide* Ye s

68-0949 Mounting Rail, G Wide* Yes

68-0958 Mounting Rail, E Narrow* Ye s

68-0955 Mounting Rail, F Narrow* Ye s

68-0956 Mounting Rail, J Narrow* Ye s

68-0957 Mounting Rail, G Narrow* Yes

6

816-5 Insert Assembly, E Wide1*

1

Yes

816-1 Insert Assembly, F Wide1* Ye s

816-7 Insert Assembly, J Wide1* Yes

816-4 Insert Assembly, G Wide1* Yes

816-2 Insert Assembly, E/F Narrow1* Ye s

816-6 Insert Assembly, J Narrow1* Ye s

816-3 Insert Assembly, G Narrow1* Yes

7 68-0945 Pivot Pin 2 Yes

8 01-0098 Retaining Ring 2 Ye s

9 68-0229 Pivot Pin, Push Rail* 2 Yes

10 68-0236 Spring, Rail Arm 2 Yes

11 68-3609 Connecting Arm Assembly 2 Yes

12 01-4537 Standard Hole Plug 1 Ye s

92

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

16-

1

8

9

7

1

2

10

12

3

11

4

5

6

Assembly 68-2699 Shown Above

93

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

12-19-

19-

*Specify Finish

1. Do not use on any 12- Rail Assembly

Assembly No. Description Option Sellable

68-2918 E Wide Rail Assembly*

19-

Yes

68-2919 F Wide Rail Assembly* Yes

68-2921 J Wide Rail Assembly* Ye s

68-2920 G Wide Rail Assembly* Yes

68-2905 E Narrow Rail Assembly* Ye s

68-2906 F Narrow Rail Assembly* Yes

68-2908 J Narrow Rail Assembly* Ye s

68-2907 G Narrow Rail Assembly* Ye s

68-2926 12- E Wide Rail Assembly*

12-19-

Yes

68-2927 12- F Wide Rail Assembly* Ye s

68-2929 12- J Wide Rail Assembly* Ye s

68-2928 12- G Wide Rail Assembly* Ye s

68-2913 12- E Narrow Rail Assembly* Ye s

68-2914 12- F Narrow Rail Assembly* Ye s

68-2916 12- J Narrow Rail Assembly* Ye s

68-2915 12- G Narrow Rail Assembly* Ye s

Item Assy No. Part No. Description Qty Sellable

1

See

Table

Above

68-0583 Lockdown Button1 1 Ye s

2

68-0736 Push Rail, E*

1

Yes

68-0739 Push Rail, F* Ye s

68-0737 Push Rail, J* Ye s

68-0738 Push Rail, G* Ye s

3 01-0610 Wave Spring Washer1 1 Yes

4 68-0582 Lockdown Cam1 1 Yes

5 01-4466 SEMS Machine Screw1 1 Ye s

6 68-0236 Spring, Rail Arm 2 Ye s

7 01-0098 Retaining Ring 2 Yes

8 68-0229 Pivot Pin, Push Rail 2 Yes

9 68-0945 Pivot Pin, Mounting Rail 2 Yes

10 68-0943 Bracket 2 Ye s

11

68-0950 Mounting Rail, E*

1

Yes

68-0952 Mounting Rail, F* Ye s

68-0949 Mounting Rail, J* Yes

68-0948 Mounting Rail, G* Yes

12 01-1236 #6-32X3/8" Machine Screw1 4 Yes

13

68-0550 Mounting Rail Insert, E*

1

Yes

68-0549 Mounting Rail Insert, F* Ye s

68-0552 Mounting Rail Insert, J* Yes

68-0551 Mounting Rail Insert, G* Yes

14 01-4537 Standard Hole Plug 1 Ye s

94

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

12-19-

19-

1

2

3

4

5

6

9

10

8

7

11

12

13

14

Assembly 68-2919 Shown Above

95

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

All Related AL- Assemblies

Option Code F Wide J Wide G Wide E Narrow F Narrow J Narrow G Narrow Sellable

AL- 68-4010 68-4011 68-4012 68-4025 68-4022 68-4023 68-4024 Yes

12-AL- 68-4018 68-4019 68-4020 68-4033 68-4030 68-4031 68-4032 Yes

19-AL- 68-4035 68-4036 68-4037 68-4050 68-4047 68-4048 68-4049 Yes

12-19-AL- 68-4043 68-4044 68-4045 68-4058 68-4055 68-4056 68-4057 Yes

53-AL- 68-4716 68-4717 68-4718 68-4723 68-4724 68-4725 68-4726 Ye s

12-53-AL- 68-4720 68-4721 68-4722 68-4727 68-4728 68-4729 68-4730 Yes

19-53-AL- 68-4842 68-4843 68-4844 68-4849 68-4850 68-4851 68-4852 Yes

12-19-53-AL- 68-4846 68-4847 68-4848 68-4853 68-4854 68-4855 68-4856 Yes

53-55-AL- 68-4922 68-4923 68-4924 68-4929 68-4930 68-4931 68-4932 Yes

12-53-55-AL- 68-4926 68-4927 68-4928 68-4933 68-4934 68-4935 68-4936 Yes

Notes:

• Individualpartsareavailableforsaleforeachoftheassembliesabove,contactfactoryforavailability.

• Specifynish.

96

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

All Related TL- Assemblies

Option Code E Wide F Wide J Wide G Wide E Narrow F Narrow J Narrow G Narrow Sellable

TL- 68-5048 68-5049 68-5051 68-5050 68-5009 68-5010 68-5012 68-5011 Ye s

16-TL- 68-5052 68-5053 68-5055 68-5054 68-5013 68-5014 68-5016 68-5015 Ye s

12-TL- 68-5056 68-5057 68-5059 68-5058 68-5017 68-5018 68-5020 68-5019 Ye s

TL- Inactive 68-5060 68-5061 68-5063 68-5062 N/A N/A N/A N/A Yes

TL- (8895 Only) 68-5164 68-5165 68-5167 68-5166 N/A N/A N/A N/A Yes

55-TL-(8895 Only) 68-5168 68-5169 68-5171 68-5170 N/A N/A N/A N/A Yes

55-56-TL- 68-5689 68-5173 68-5174 68-5172 68-5692 68-5176 68-5177 68-5175 Yes

16-55-56-TL- 68-5706 68-5707 68-5708 68-5709 68-5738 68-5739 68-5740 68-5741 Ye s

55-56-HK-TL- 68-5722 68-5723 68-5724 68-5725 68-5754 68-5755 68-5756 68-5757 Yes

AL-TL- N/A 68-5190 68-5191 68-5192 68-5199 68-5196 68-5197 68-5198 Yes

12-AL-TL- N/A 68-5193 68-5194 68-5195 68-5203 68-5200 68-5201 68-5202 Ye s

59-TL- N/A 68-5178 68-5179 68-5180 N/A 68-5187 68-5188 68-5189 Ye s

12-59-TL- N/A 68-5181 68-5182 68-5183 N/A 68-5187 68-5188 68-5189 Ye s

55-AL-TL- N/A 68-5314 68-5315 68-5316 68-5323 68-5320 68-5321 68-5322 Yes

12-55-AL-TL- N/A 68-5317 68-5318 68-5319 68-5327 68-5324 68-5325 68-5326 Ye s

53-58-TL- 68-5252 68-5253 68-5254 68-5255 68-5264 68-5265 68-5266 68-5267 Ye s

12-53-58-TL- 68-5260 68-5261 68-5262 68-5263 68-5272 68-5273 68-5274 68-5275 Ye s

16-53-58-TL- 68-5256 68-5257 68-5258 68-5259 68-5268 68-5269 68-5270 68-5271 Ye s

53-55-TL- 68-5228 68-5229 68-5230 68-5231 68-5240 68-5241 68-5242 68-5243 Ye s

12-53-55-TL- 68-5236 68-5237 68-5238 68-5239 68-5248 68-5249 68-5250 68-5251 Ye s

16-53-55-TL- 68-5232 68-5233 68-5234 68-5235 68-5244 68-5245 68-5246 68-5247 Ye s

53-TL- 68-5204 68-5205 68-5206 68-5207 68-5216 68-5217 68-5218 68-5219 Ye s

12-53-TL- 68-5208 68-5209 68-5210 68-5211 68-5220 68-5221 68-5222 68-5223 Ye s

16-53-TL- 68-5212 68-5213 68-5214 68-5215 68-5224 68-5225 68-5226 68-5227 Ye s

56-TL- 68-5691 68-5162 68-5163 68-5161 68-5688 68-5159 68-5160 68-5158 Ye s

56-HK-TL- 68-5750 68-5751 68-5752 68-5753 68-5718 68-5719 68-5720 68-5721 Yes

16-56-TL- 68-5734 68-5735 68-5736 68-5737 68-5702 68-5703 68-5704 68-5705 Ye s

57-TL- N/A 68-5096 68-5098 68-5097 68-5102 68-5403 68-5105 68-5104 Ye s

12-57-TL- N/A 68-5099 68-5101 68-5100 68-5106 68-5107 68-5109 68-5108 Ye s

55-57-TL- N/A 68-5178 68-5179 68-5180 N/A 68-5181 68-5182 68-5186 Ye s

12-55-57-TL- N/A 68-5184 68-5185 68-5186 N/A 68-5187 68-5188 68-5189 Yes

55-58-TL- 68-5134 68-5135 68-5137 68-5136 68-514 68-5147 68-5149 68-5148 Ye s

12-55-58-TL- 68-5142 68-5143 68-5145 68-5144 68-5154 68-5155 68-5157 68-5156 Ye s

16-55-58-TL- 68-5138 68-5139 68-5141 68-5140 68-5150 68-5151 68-5153 68-5152 Ye s

58-TL- 68-5110 68-5111 68-5113 68-5112 68-5122 68-5123 68-5125 68-5124 Ye s

12-58-TL- 68-5118 68-5119 68-5121 68-5120 68-5130 68-5131 68-5133 68-5132 Ye s

16-58-TL- 68-5114 68-5115 68-5117 68-5116 68-5126 68-5127 68-5129 68-5128 Ye s

Notes:

• Individualpartsareavailableforsaleforeachoftheassembliesabove,contactfactoryforavailability.

• Specifynish.

97

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

All Related LP- Assemblies

Option Code L M N Sellable

LP 68-4242 68-4243 68-4244 Ye s

12-LP 68-4250 68-4251 68-4252 Ye s

16-LP 68-4246 68-4247 68-4248 Ye s

58-LP 68-4340 68-4341 68-4342 Ye s

12-58-LP 68-4344 68-4345 68-4346 Ye s

19-58-LP 68-4348 68-4349 68-4350 Yes

12-19-58-LP 68-4352 68-4353 68-4354 Yes

56-TL-LP 68-5352 68-5353 68-5354 Yes

16-56-TL-LP 68-5796 68-5797 68-5798 Ye s

56-HK-TL-LP 68-5808 68-5809 68-5810 Ye s

55-56-TL-LP 68-5348 68-5349 68-5350 Ye s

16-55-56-TL-LP 68-5799 68-5800 68-5801 Ye s

55-56-HK-TL-LP 68-5811 68-5812 68-5813 Yes

58-TL-LP 68-5356 68-5357 68-5358 Yes

12-58-TL-LP 68-5360 68-5361 68-5362 Ye s

55-58-TL-LP 68-5364 68-5365 68-5366 Ye s

12-55-58-TL-LP 68-5368 68-5369 68-5370 Ye s

19-LP 68-4292 68-4293 68-4294 Yes

12-19-LP 68-4300 68-4301 68-4302 Yes

16-19-LP 68-4296 68-4297 68-4298 Ye s

55-LP 68-4305 68-4306 68-4307 Ye s

12-55-LP 68-4309 68-4310 68-4311 Ye s

19-55-LP 68-4313 68-4314 68-4315 Yes

12-19-55-LP 68-4317 68-4318 68-4319 Yes

55-56-LP 68-4322 68-4323 68-4324 Ye s

19-55-56-LP 68-4326 68-4327 68-4328 Yes

16-55-56-LP 68-5769 68-5770 68-5771 Yes

16-19-55-56-LP 68-5775 68-5776 68-5777 Yes

55-56-HK-LP 68-5781 68-5782 68-5783 Ye s

19-55-56-HK-LP 68-5787 68-5788 68-5789 Yes

56-LP 68-4331 68-4332 68-4333 Ye s

19-56-LP 68-4335 68-4336 68-4337 Ye s

16-56-LP 68-5766 68-5767 68-5768 Yes

16-19-56-LP 68-5772 68-5773 68-5774 Yes

56-HK-LP 68-5778 68-5779 68-5780 Ye s

19-56-HK-LP 68-5784 68-5785 68-5786 Ye s

55-58-LP 68-4357 68-4358 68-4359 Ye s

12-55-58-LP 68-4361 68-4362 68-4363 Ye s

19-55-58-LP 68-4365 68-4366 68-4367 Yes

12-19-55-58-LP 68-4369 68-4370 68-4371 Yes

Notes:

• Individualpartsareavailableforsaleforeachoftheassembliesabove,contactfactoryforavailability.

• Specifynish.

98

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

All Related PL- Assemblies

Option Code F Wide J Wide G Wide E Narrow F Narrow J Narrow G Narrow Sellable

PL-57- (LHRB) 68-6180 68-6181 68-6182 68-6183 68-6196 68-6197 68-6198 Yes

PL-57- (RHRB) 68-6184 68-6185 68-6186 68-6187 68-6200 68-6201 68-6202 Yes

12-PL-57- (LHRB) 68-6188 68-6189 68-6190 68-6191 68-6204 68-6205 68-6206 Ye s

12-PL-57- (RHRB) 68-6192 68-6193 68-6194 68-6195 68-6208 68-6209 68-6210 Ye s

PL-59- (LHRB) 68-6128 68-6129 68-6130 68-6131 68-6160 68-6161 68-6162 Ye s

PL-59- (RHRB) 68-6132 68-6133 68-6134 68-6835 68-6164 68-6165 68-6166 Ye s

12-PL-59- (LHRB) 68-6144 68-6145 68-6146 68-6147 68-6168 68-6169 68-6170 Ye s

12-PL-59- (RHRB) 68-6148 68-6149 68-6150 68-6151 68-6172 68-6173 68-6174 Ye s

PL-55-57- (LHRB) 68-6216 68-6217 68-6218 68-6219 68-6232 68-6233 68-6234 Ye s

PL-55-57- (RHRB) 68-6220 68-6221 68-6222 68-6223 68-6836 68-6237 68-6238 Ye s

12-PL-55-57- (LHRB) 68-6224 68-6225 68-6226 68-6227 68-6240 68-6241 68-6242 Yes

12-PL-55-57- (RHRB) 68-6228 68-6229 68-6230 68-6231 68-6244 68-6245 68-6246 Yes

Notes:

• Individualpartsareavailableforsaleforeachoftheassembliesabove,contactfactoryforavailability.

• Specifynish.

99

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

All Related 12- Electrical Assemblies

Option Code E Wide F Wide J Wide G Wide E Narrow F Narrow J Narrow G Narrow Sellable

12-53- 68-4595 68-4596 68-4596 68-4597 68-4607 68-4608 68-4609 68-4610 Ye s

12-53-56- 68-5544 68-4687 68-4688 68-4689 68-5580 68-4690 68-4691 68-4692 Ye s

12-55- 68-2797 68-2798 68-2800 67-2799 68-2809 68-2810 68-2812 68-2811 Ye s

12-53-55- 68-4623 68-4624 68-4625 68-4626 68-4635 68-4636 68-4637 68-4638 Ye s

12-57- 68-6177 68-2829 68-2826 68-2825 68-2835 68-2836 68-2838 68-2837 Ye s

12-55-57- 68-6213 68-4942 68-4944 68-4943 68-4949 68-4950 68-4952 68-4951 Ye s

12-58- 68-3044 68-3045 68-3047 68-3046 68-3056 68-3057 68-3059 68-3058 Ye s

12-53-58- 68-4647 68-4648 68-4649 68-4650 68-4659 68-4660 68-4661 68-4662 Yes

12-19-53- 68-4735 68-4736 67-4737 68-4738 68-4747 68-4748 68-4749 68-4750 Yes

12-19-55- 68-2939 68-2940 68-2942 68-2941 68-2951 68-2952 68-2954 68-2953 Yes

12-19-57 68-6179 68-2973 68-2976 68-2975 68-2985 68-2986 68-2988 68-2987 Ye s

12-19-58- 68-3094 68-3095 68-3097 68-3096 68-3106 68-3107 68-3109 68-3108 Ye s

12-19-53-58- 68-4786 68-4787 68-4788 68-4789 68-4798 68-4799 68-4800 68-4801 Ye s

12-19-59- 68-6112 68-3801 68-3802 68-3803 68-6114 68-3809 68-3810 68-3811 Yes

Notes:

• Individualpartsareavailableforsaleforeachoftheassembliesabove,contactfactoryforavailability.

• Specifynish.

100

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

All Related 16- Electrical Assemblies

*For all associated parts in assemblies above, contact factory for availability

Option Code E Wide F Wide J Wide G Wide E Narrow F Narrow J Narrow G Narrow Sellable

16-53- 68-4599 68-4600 68-4601 68-4602 68-4611 68-4612 68-4613 68-4614 Yes

16-55- 68-2793 68-2794 68-2796 68-2795 68-2805 68-2806 68-2808 68-2807 Yes

16-53-55- 68-4619 68-4620 68-4621 68-4622 68-4631 68-4632 68-4633 68-4634 Ye s

16-56- 68-5562 68-5563 68-5564 68-5565 68-5618 68-5619 68-5620 68-5621 Yes

16-53-56- 68-5570 68-5571 68-5572 68-5773 68-5626 68-5627 68-5628 68-5629 Ye s

16-53-55-56- 68-5574 68-5575 68-5576 68-5577 68-5630 68-5631 68-5632 68-5633 Ye s

16-58- 68-3040 68-3041 68-3043 68-3042 68-3052 68-3053 68-3055 68-3054 Yes

16-53-58- 68-4643 68-4644 68-4645 68-4646 68-4655 68-4656 68-4657 68-4658 Ye s

16-53-55-58- 68-4667 68-4668 68-4669 68-4670 68-4675 68-4676 68-4677 68-4678 Ye s

16-19-53- 68-4739 68-4740 68-4741 68-4742 68-4751 68-4752 68-4753 68-4754 Ye s

16-19-55- 68-2935 68-2936 68-2938 68-2937 68-2947 68-2948 68-2950 68-2949 Ye s

16-19-56- 68-5650 68-5651 68-5652 68-5653 68-5634 68-5635 68-5636 68-5637 Ye s

16-19-53-56- 68-5513 68-5535 68-5536 68-5537 68-5642 68-5643 68-5644 68-5645 Ye s

16-19-53-55-56- 68-5531 68-5532 68-5533 68-5534 68-5646 68-5647 68-5648 68-5649 Ye s

16-19-58- 68-3090 68-3091 68-3093 68-3092 68-3102 68-3103 68-3105 68-3104 Ye s

16-19-53-58- 68-4782 68-4783 68-4784 68-4785 68-4794 68-4795 68-4796 68-4797 Ye s

101

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

All Related 19- Electrical Assemblies

*For all associated parts in assemblies above, contact factory for availability

Option Code E Wide F Wide J Wide G Wide E Narrow F Narrow J Narrow G Narrow Sellable

19-53- 68-4731 68-4732 68-4733 68-4734 68-4743 68-4744 68-4745 68-4746 Ye s

19-55- 68-2931 68-2932 68-2934 68-2933 68-2943 68-2944 68-2946 68-2945 Ye s

19-56- 68-5511 68-3225 68-3226 68-3224 68-5582 68-3230 68-3231 68-3229 Ye s

19-57- 68-6178 68-2965 68-2968 68-2967 68-2977 68-2978 68-2980 68-2979 Ye s

19-58- 68-3086 68-3087 68-3089 68-3088 68-3098 68-3099 68-3101 68-3100 Ye s

19-59- 68-6111 68-3797 68-3798 68-3799 68-6113 68-3805 68-3806 68-3807 Ye s

19-53-56- 68-5512 68-4826 68-4827 68-4828 68-5584 68-4829 68-4830 68-4831 Ye s

19-53-55-56- 68-5527 68-4953 68-4954 68-4955 68-5585 68-4956 68-4957 68-4958 Ye s

19-53-58- 68-4778 68-4779 68-4780 68-4781 68-4790 68-4791 68-4792 68-4793 Ye s

102

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

80 Series Rail Assemblies

All Related 19- Electrical Assemblies

•Forallassociatedpartsinassembliesabove,contactfactoryforavailability

•Specifynish

Option Code E Wide F Wide J Wide G Wide E Narrow F Narrow J Narrow G Narrow Sellable

53- 68-4591 68-4592 68-4593 68-4594 68-4603 68-4604 68-4605 68-4606 Ye s

55- 68-2789 68-2790 68-2792 68-2791 68-2801 68-2802 68-2804 68-2803 Ye s

53-55- 68-4615 68-4616 68-4617 68-4618 68-4627 68-4628 68-4629 68-4630 Ye s

53-56- 68-5544 68-4687 68-4688 68-4689 68-5580 68-4690 68-4691 68-4692 Ye s

53-55-56- 68-5545 68-4693 68-4694 68-4695 68-5581 68-4696 68-4697 68-4698 Ye s

57- 68-6176 68-2815 68-2818 68-2817 68-2827 68-2828 68-2830 68-2829 Ye s

55-57- 68-6212 68-4938 68-4940 68-4939 68-4945 68-4946 68-4948 68-4947 Ye s

58- 68-3036 68-3037 68-3039 68-3038 68-3048 68-3049 68-3051 68-3050 Ye s

53-58- 68-4639 68-4640 68-4641 68-4642 68-4651 68-4652 68-4653 68-4654 Ye s

53-55-58- 68-4663 68-4664 68-4665 68-4666 68-4675 68-4676 68-4677 68-4678 Ye s

103

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

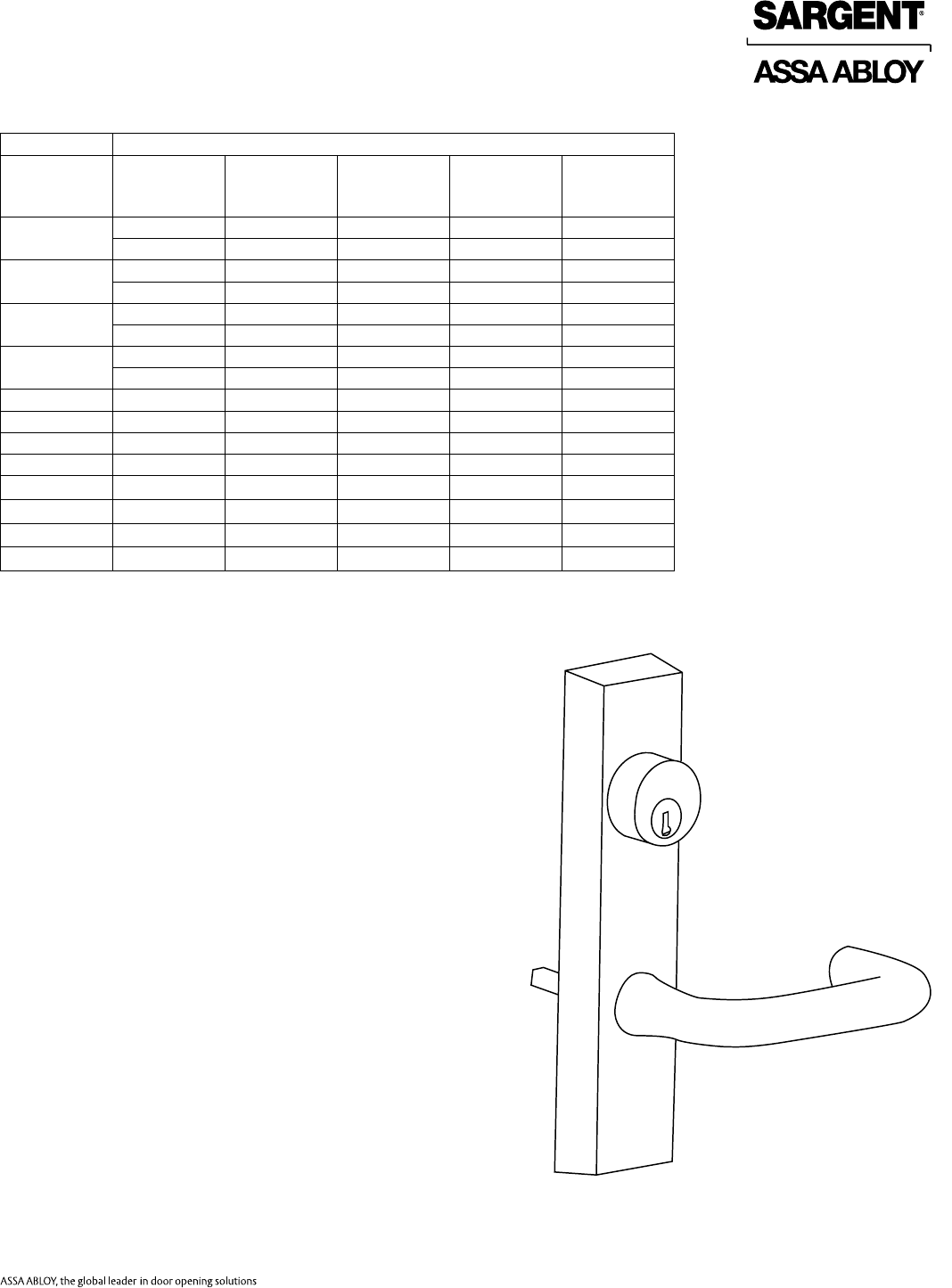

700 Series ET

Function Exit Devices

8300 AD8400

MD8400 8500

AD8600

MD8600

WD8600

SP86002

PP86002

PR86002

04 704 — 704 — —

7441— 7441— —

06 — 706-4 — 706-4 706-6

— 746-41— 746-41746-61

10 710 710-4 710 710-4 710-6

7401740-417401740-41740-61

13 713 713-4 713-8 713-4 713-6

7431743-41743-81743-41743-61

15 715 715-4 715-8 715-4 715-6

16—————

73 — 773-4 773-8 773-4 773-6

74 — 774-4 774-8 774-4 774-6

75 775 — — — —

76 776 — — — —

77—————

78—————

1. 740, 743, 744 & 746 are freewheeling levers

2. Designates discontinued products

104

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

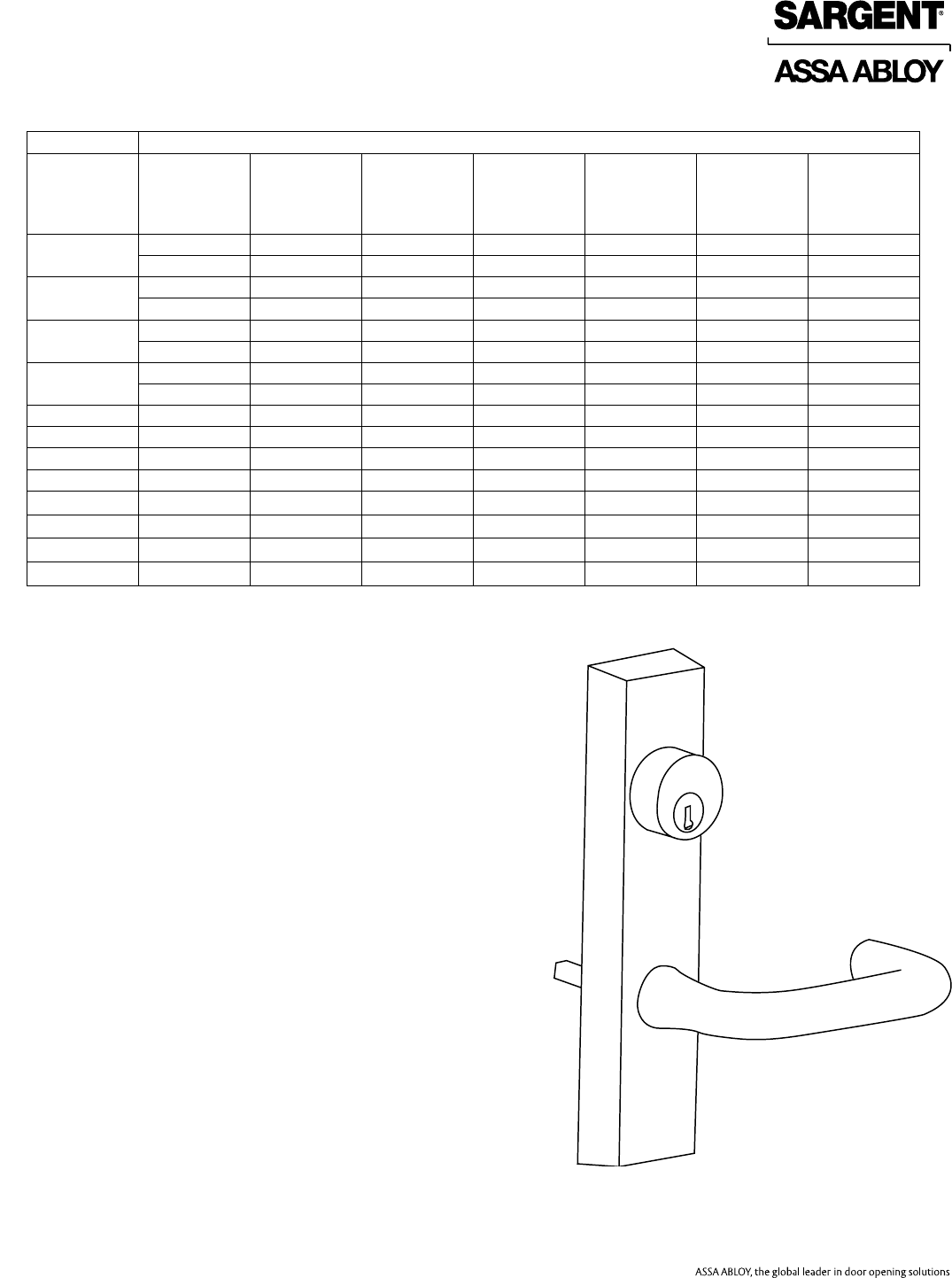

Function Exit Devices

LS8600

LP8600

LR8600

8700

FM8700

HC48700

HC8700

NB8700

SP87002

PP87002

PR87002

8800 8888

HC8800 8900

04 — — — — 704 704 704

— — — — 744174417441

06 706-6 706 706-8 706-8 706-8 706-8 —

746-617461746-8 746-81746-81746-81—

10 710-6 710 710 710 710 710 710

740-617401740 7401740174017401

13 713-6 713 — 713-8 713-8 713-8 713

743-617431743-81743-81743-81743-817431

15 715-6 715 715-8 715-8 715-8 715-8 715

16 — — — — 716 — 716

73 773-6 773 773-8 773-8 — — —

74 774-6 774 774-8 774-8 — — —

75 — — — — 775-8 775-8 775

76 — — — — 776-8 776-8 776

77 — — — — 777-8 777-8 777

78 — — — — 778-8 778-8 778

1. 740, 743, 744 & 746 are freewheeling levers

2. Designates discontinued products

700 Series ET

105

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 704 & 710

18

23

9

7

6

4

5

Item Part No. Description Qty Sellable

1 97-0427 ET Case (704) 1 No

97-0429 ET Case (710) 1 No

2 97-0477 Bushing Insert 1 Ye s

3 68-1393 Retaining Plate 1 Ye s

4 97-0760 Cap Nut 1 Yes

5 97-0522 Hub Plate (704/710) 1 Ye s

6 97-0573 Spindle (704/710) 1 Yes

7 01-1183 Cr-Thms #10-32 X 5/16" 1 Yes

8 — Lever Handle1,2 1 Ye s

9 A6407 Information Tag 1 No

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify ﬁnish

2. Specify lever design by hand

106

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 706 & 713

6

2

3

7

4

1

5

8

9

10

11

12

16

13

17

14 15

Item Part No. Description Qty Sellable

1 97-0428 ET Case 1 No

2 97-0477 Bushing Insert 1 Yes

3 68-1393 Retaining Plate 1 Ye s

4 97-0760 Cap Nut 1 Ye s

5 01-1183 Cr-Thms #10-32 X 5/16" 1 Ye s

6 — Lever Handle1,3 1 Ye s

Not

Shown

— Cylinder Assembly1,2 1 Ye s

97-0350 Collar11 Ye s

13-0180 Cylinder Nut 1 Ye s

7 97-0355 Locking Slide (706) (607-2) 1 Yes

97-0356 Locking Slide (713) (607-1) 1 Ye s

8 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

9 97-0528 Hub Plate (Std) 1 Yes

10 97-0557 Fusible Link 1 Yes

11 97-0571 Locking Slide Spring 1 Yes

12 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

13 97-0425 Hub Spring (Std) 1 Yes

14 97-0558 Slide Support 1 No

15 97-0563 Spring Support 1 No

16 97-0564 Return Spring 1 No

17

97-0549 Spindle (1 3/4" Door) (730-1) 1 Ye s

97-0550 Spindle (2" Door) (730-2) 1 Yes

97-0551 Spindle (2 1/4" Door) (730-3) 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" ( 2 1/4" Door) 2 Ye s

1. Specify ﬁnish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts for speciﬁed door

thickness

Note: 607 kit includes items 5, 7, 10, 11, 14, 15, and 16.

107

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 715

6

2

3

4

1

11

5

7

12

10

8

9

13

14

Item Part No. Description Qty Sellable

1 97-0429 ET Case 1 No

2 97-0477 Bushing Insert 1 Ye s

3 68-1393 Retaining Plate 1 Ye s

4 97-0760 Cap Nut 1 Ye s

5 01-1183 Cr-Thms #10-32 X 5/16" 1 Yes

6 — Lever Handle1,2 1 Ye s

7 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

8 97-0528 Hub Plate (Std) 1 Yes

9 97-0557 Fusible Link 1 Yes

10 97-0571 Locking Slide Spring 1 Ye s

11 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

12 97-0425 Hub Spring (Std) 1 Ye s

13 97-0356 Locking Slide (713) 1 Yes

14

730-1 Spindle Retroﬁt Kit (1 3/4" Door) 1 Ye s

730-2 Spindle Retroﬁt Kit (2" Door) 1 Ye s

730-3 Spindle Retroﬁt Kit (2 1/4" Door) 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify ﬁnish

2. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts for speciﬁed

door thickness

108

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 716

1

6

2

3

5

4

11

7

12

10

8

9

14

13

Item Part No. Description Qty Sellable

1 97-0427 ET Case 1 No

2 97-0477 Bushing Insert 1 Ye s

3 68-1393 Retaining Plate 1 Ye s

4 97-0760 Cap Nut 1 Ye s

5 01-1183 Cr-Thms #10-32 X 5/16" 1 Ye s

6 — Lever Handle1,3 1 Ye s

7 01-4507 1/8" X 1/2' Double Ended Groove Pin 2 No

8 97-0528 Hub Plate (Std) 1 Yes

9 97-0557 Fusible Link 1 Ye s

10 97-0571 Locking Slide Spring 1 Ye s

11 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

12 97-0425 Hub Spring (Std) 1 Ye s

Not

Shown

— Cylinder1,2,2a 1 Yes

97-0350 Cylinder Collar11 Ye s

13-0180 Cylinder Nut 1 Ye s

13-0086 Backplate (8816 Only) 1 Ye s

13-0074 Connecting Screw (8816 Only) 2 Ye s

13-0075 Connecting Screw (8816 Only)

(2 1/2" Door And Over) 2Yes

13 97-0439 Locking Slide (716) 1 Ye s

14

97-0549 Spindle (1 3/4" Door) (730-1) 1 Yes

97-0550 Spindle (2" Door) (730-2) 1 Yes

97-0551 Spindle (2 1/4" Door) (730-3) 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 1 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 1 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 1 Ye s

1. Specify ﬁnish

2. Specify cylinder size

2a. By keying Requirements

2b. #34 Cylinder for 8816

#46 Mortise cylinder for 8916 & 9916

3. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts for speciﬁed door

thickness

109

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 743

1

2

3

4

5

6

78

9

10

11

12

13

14

15

17

16

Item Part No. Description Qty Sellable

1 97-0428 ET Case 1 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,3 1 Yes

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0347 Locking Slide Spring 1 Ye s

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

Not

Shown

— Cylinder1,2 1 Yes

97-0350 Collar11 Yes

13-0180 Cylinder Nut 1 Yes

97-0571 Locking Slide Spring Ye s

8 97-0425 Hub Spring (Std) 1 Yes

9 97-0478 Lower Hub Plate 1 Ye s

10 97-0479 Spindle Lock 1 Ye s

11 97-0475 Locking Slide (743) 1 Ye s

12 97-0581 Retaining Plate 1 Ye s

13 97-0582 Spacer 1 Ye s

14

97-3092 Spindle Assembly (1 3/4" Door) 1 Ye s

97-3093 Spindle Assembly (2" Door) 1 Ye s

97-3094 Spindle Assembly (2 1/4" Door) 1 Ye s

15 01-1479 Cr-Fhms #10-32 X 1/2" 1 Yes

16 01-1183 Ct-Thms #10-32 X 5/16" 1 Yes

17 97-0527 E Clip 0.312 Shaft 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify ﬁnish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 607 kit includes items 6, 11, and 16

110

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 740 & 744

1

2

3

4

5

6

7

8

10

11 9

Item Part No. Description Qty Sellable

1 97-0429 ET Case (740) 1 No

97-0427 ET Case (744) 1 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap Nut 1 Ye s

4 01-1183 Cr-Thms #10-32 X 5/16" 1 Ye s

5 — Lever Handle1,2 1 Ye s

6 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 Ye s

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

8 97-0425 Hub Spring (Std) 1 Ye s

9 97-0528 Hub Plate 1 Ye s

10 97-0573 Spindle 1 Ye s

11 68-1393 Retaining Plate 1 Ye s

Not

Shown

— Rim Cylinder (744 Only)1,2 1Ye s

13-0086 Backplate (744 Only) 1 Yes

13-0074 Connecting Screw (744 Only) 2 Yes

13-0075 Connecting Screw (744 Only) (2 1/2" Door And Over) 2 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify ﬁnish

2. Specify #34 cylinder (#46 cylinder for 8300 or 8900) by keying requirements

3. Specify lever design by hand

111

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 746

1

2

3

4

5

6

7

8

9

10

12

13 14

16

15

11

Item Part No. Description Qty Sellable

1 97-0428 ET Case 1 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,3 1 Yes

5 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

6 97-0347 Locking Slide Spring 1 Yes

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

Not

Shown

— Cylinder1,2 1 Ye s

97-0350 Collar11 Yes

13-0180 Cylinder Nut 1 Ye s

97-0571 Locking Slide Spring W/ Bl Dyk 1 Yes

8 97-0425 Hub Spring (Std) 1 Yes

9 97-0478 Lower Hub Plate 1 Yes

10 97-0479 Spindle Lock 1 Ye s

11 97-0476 Locking Slide (746 Function) 1 Yes

12 97-0581 Retaining Plate 1 Yes

13 97-0582 Spacer 1 Ye s

14

97-3092 Spindle Assembly (1 3/4" Door) 1 Yes

97-3093 Spindle Assembly (2" Door) 1 Yes

97-3094 Spindle Assembly (2 1/4" Door) 1 Yes

15 01-1183 Cr-Fhms #10-32 X 5/16" 1 Ye s

16 97-0527 E Clip 0.312 Shaft 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify ﬁnish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 607 kit includes items 6, 11, and 15

112

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 773 & 774

1

2

4

3

6

8

7

9

5

12

14

10

13

11

15

Item Part No. Description Qty Sellable

1 97-0574 ET Case 1 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,2 1 Yes

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0528 Hub Plate 1 Yes

7

97-0549 Spindle (1 3/4" Door) 1

97-0550 Spindle (2" Door) 1 Yes

97-0551 Spindle (2 1/4" Door) 1

8 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

9 97-0425 Hub Spring (Std) 1 Yes

10 97-0329 Locking Tail 1 Yes

11 97-3932 Solenoid Cover Assembly (Fail Secure) 1 Yes

12 68-1402 Retainer Plate, Electrical Function 1 Ye s

13 01-3563 Machine Screw #5-40 X 1/4" 2 Yes

14 52-3287 24V Pull Solenoid & Bridge Assy, Exit Trim 1 Yes

52-3289 24V Push Solenoid & Bridge Assy, Exit Trim 1 Ye s

15 97-0799 Fork 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2

Yes01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2

1. Specify ﬁnish

2. Specify lever design by hand

113

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 775 & 776

1

2

3

8

15

4

5

10

7

9

6

12

14

15

16

11

Item Part No. Description Qty Sellable

1 97-0574 ET Case 1 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,2 1 Yes

5 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

6 97-0528 Hub Plate 1 Ye s

7

97-0549 Spindle (1 3/4" Door) 1 Ye s

97-0550 Spindle (2" Door) 1 Ye s

97-0551 Spindle (2 1/4" Door) 1 Ye s

Not

Shown

— Cylinder1,3 1 Ye s

13-0086 Backplate 1 Yes

13-0074 Connecting Screw 2 Ye s

13-0075 Connecting Screw ( 2 1/2" Door And Over) 2 Yes

8 01-1182 CR-CHMS #10-32 X .297 1 Ye s

9 97-0425 Hub Spring (Std) 1 Ye s

10 97-0329 Locking Tail 1 Ye s

11 97-3932 Solenoid Cover 1 Ye s

12 68-1402 Retainer Plate, Electrical Function 1 Yes

13 01-1154 #6-32 X 1/4" PH Flat Undercut Ms 2 Ye s

14

52-3287 24V Pull Solenoid & Bridge Assy, Exit Trim 1 Yes

52-3289 24V Push Solenoid & Bridge Assy, Exit Trim 1 Ye s

52-3288 12V Pull Solenoid & Bridge Assy, Exit Trim 1 Yes

52-3290 12V Push Solenoid & Bridge Assy, Exit Trim 1 Ye s

15 01-4560 #3-48 X 1/8" Pan CR-Ohms 2 Yes

16 97-0799 Fork 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify ﬁnish

2. Specify lever design by hand

3. Specify #46 cylinder by keying requirements

114

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 777

1

2

3

4

5

6

7

8

9

10

11

12

13

Item Part No. Description Qty Sellable

1 97-0574 Electric ET Case W/ Cylinder Prep 1 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,3 1 Ye s

5 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

Not

Shown — Cylinder1,2 1 Yes

6 97-0528 Hub Plate (Std) 1 Yes

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

8 97-0425 Hub Spring (Std) 1 Yes

9 52-2556 Motor & Housing Assembly 1 Ye s

10 68-1402 Retainer Plate, Electrical Function 1 Yes

11 01-1154 #6-32 X 1/4" Ph Flat Head Machine Screw 2 Yes

12 01-4540 #3-48 X 5/8" Ph Pan Head Machine Screw 2 Ye s

13

97-0549 Spindle (1 3/4" Door) 1 Yes

97-0550 Spindle (2" Door) 1 Ye s

97-0551 Spindle (2 1/4" Door) 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify ﬁnish

2. Specify #46 cylinder by keying requirements

3. Specify lever design by hand

115

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 778

Item Part No. Description Qty Sellable

1 97-0575 Electric ET Case W/O Cylinder Prep11 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,2 1 Ye s

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0528 Hub Plate (Std) 1 Yes

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

8 97-0425 Hub Spring (Std) 1 Yes

9 52-2556 Motor & Housing Assembly 1 Yes

10 68-1402 Retainer Plate, Electrical Function 1 Ye s

11 01-1154 #6-32 X 1/4" Ph Flat Head Machine Screw 2 Ye s

12 01-4540 #3-48 X 5/8" Ph Pan Head Machine Screw 2 Yes

13

97-0549 Spindle (1 3/4" Door) 1 Ye s

97-0550 Spindle (2" Door) 1 Yes

97-0551 Spindle (2 1/4" Door) 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify ﬁnish

2. Specify lever design by hand

1

2

3

4

5

6

7

8

9

10

11

12

13

116

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 710-4

10

1

23

9

8

4

5

6

7

Item Part No. Description Qty Sellable

1 97-0435 ET Case, Off-Set Mounting11 No

2 97-0477 Bushing Insert 1 Yes

3 68-1393 Retaining Plate 1 Yes

4 97-0760 Cap Nut 1 Ye s

5 97-0522 Hub Plate (704/710) 1 Yes

6 97-0573 Spindle (704/710) 1 Ye s

7 01-1183 Cr-Thms #10-32 X 5/16" 1 Yes

8 68-0853 Bracket 2 Yes

9 01-1478 Cr Pan Hd Mach Screw #1/4-20 X 3/8" 2 Ye s

10 — Lever Handle1,2 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 3 7/8" (2 1/4" Door) 2 Yes

1. Specify ﬁnish

2. Specify lever design by hand

117

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 706-4 & 713-4

1

2

3

4

5

7

8

9

10

11

12 13

14

15

16

17

18

21

6

19

20

Item Part No. Description Qty Sellable

1 97-0436 ET Case, Off-Set Mounting 1 No

2 97-0477 Bushing Insert 1 Ye s

3 68-1393 Retaining Plate 1 Yes

4 97-0760 Cap Nut 1 Yes

5 01-1027 Ph Fl U'cut Ms #10-24 X 3/8" 1 Ye s

6 01-1183 Cr-Thms #10-32 X 5/16" 1 Yes

7 — Lever Handle1,3 1 Ye s

Not

Shown

— Cylinder Assembly1,2 1 Ye s

97-0350 Collar11 Yes

13-0180 Cylinder Nut 1 Ye s

8 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

9 97-0528 Hub Plate (Std) 1 Yes

10 97-0557 Fusible Link 1 Ye s

11 97-0571 Locking Slide Spring 1 Yes

12 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

13 97-0425 Hub Spring (Std) 1 Ye s

14 97-0355 Locking Slide (706) 1 Yes

97-0356 Locking Slide (713) 1 Yes

15 97-0558 Slide Support 1 No

16 97-0563 Spring Support 1 No

17 97-0564 Return Spring 1 No

18 68-0852 Cam 700-4 1 Ye s

19 68-0853 Bracket 2 Yes

20 01-1478 Cr Pan Hd Mach Screw #1/4-20 X 3/8" 2 Yes

21

97-0549 Spindle (1 3/4" Door) (730-4) 1 Ye s

97-0550 Spindle (2" Door) (730-5) 1 Ye s

97-0551 Spindle (2 1/4" Door) (730-6) 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify ﬁnish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and

thru bolts for speciﬁed door thickness

Note: 607 kit includes items 6, 10, 11, 14, 15, 16, and 17

118

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 715-4

1

2

3

4

6

7

10

11

8

9

12

1516

17

5

14

13

18

Item Part No. Description Qty Sellable

1 97-0435 ET Case, Off-Set Mounting 1 No

2 97-0477 Bushing Insert 1 Yes

3 68-1393 Retaining Plate 1 Yes

4 97-0760 Cap Nut 1 Ye s

5 01-1183 Cr-Thms #10-32 X 5/16" 1 Yes

6 — Lever Handle1,2 1 Ye s

7 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

8 97-0528 Hub Plate (Std) 1 Yes

9 97-0557 Fusible Link 1 Yes

10 97-0571 Locking Slide Spring 1 Yes

11 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

12 97-0425 Hub Spring (Std) 1 Ye s

13 97-0356 Locking Slide (713) 1 Ye s

14 68-0852 Cam 700-4 1 Ye s

15 68-0853 Bracket 2 Ye s

16 01-1478 Cr Pan Hd Mach Screw #1/4-20 X 3/8" 2 Yes

17

730-4 Spindle Retroﬁt Kit (1 3/4" Door) 1 Ye s

730-5 Spindle Retroﬁt Kit (2" Door) 1 Ye s

730-6 Spindle Retroﬁt Kit (2 1/4" Door) 1 Ye s

18 01-1027 Cr-Fhms #10-24 X 3/8" 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-30 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify ﬁnish

2. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts

for speciﬁed door thickness

119

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 740-4

1

2

3

4

5

6

7

9

10

11

13

12

8

Item Part No. Description Qty Sellable

1 97-0435 ET Case, Off-Set Mounting11 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap Nut 1 Yes

4 01-1183 Cr-Thms #10-32 X 5/16" 1 Yes

5 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

6 — Lever Handle1,2 1 Yes

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

8 97-0528 Hub Plate 1 Ye s

9 97-0425 Hub Spring (Std) 1 Yes

10 68-0853 Bracket 2 Yes

11 01-1478 Cr Pan Hd Mach Screw #1/4-20 X 3/8" 2 Yes

12 97-0573 Spindle 1 Yes

13 68-1393 Retaining Plate 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify ﬁnish

2. Specify lever design by hand

120

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 743-4

1

2

3

5

6

7

8

11

12

4

9

10

13

1415

16

17

18

19

Item Part No. Description Qty Sellable

1 97-0436 ET Case, Off-Set Mounting 1 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap Nut 1 Yes

4 01-1027 Cr-Fhms #10-24 X 3/8" 1 Ye s

5 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

6 — Lever Handle1,3 1 Yes

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

Not

Shown

— Cylinder1,2 1 Ye s

97-0350 Collar11 Ye s

13-0180 Cylinder Nut 1 Yes

8 97-0478 Lower Hub Plate 1 Ye s

9 97-0479 Spindle Lock 1 Ye s

10 97-0425 Hub Spring (Std) 1 Yes

11 68-0853 Bracket 2 Ye s

12 01-1478 Cr Pan Hd Ms #1/4-20 X 3/8" 2 Ye s

13 01-1183 Cr-Fhms #10-32 X 5/16" 1 Yes

14

97-3098 Spindle Assembly (1 3/4" Door) 1 Yes

97-3099 Spindle Assembly (2" Door) 1 Yes

97-3100 Spindle Assembly (2 1/4" Door) 1 Ye s

15 97-0475 Locking Slide (743) 1 Yes

16 97-0581 Retaining Plate 1 Ye s

17 97-0582 Spacer 1 Ye s

18 68-0852 Cam 700-4 1 Yes

19 97-0347 Locking Slide Spring 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify ﬁnish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 607 kit includes items 13, 15, 17 and 19

121

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 746-4

1

2

3

5

6

7

8

1112

4

10

13

14

15

16

17

18

9

19

Item Part No. Description Qty Sellable

1 97-0436 ET Case, Off-Set Mounting 1 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap 1 Ye s

4 01-1027 Cr-Fhms #10-24 X 3/8" 1 Yes

5 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

6 — Lever Handle1,3 1 Yes

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

8 97-0478 Lower Hub Plate 1 Ye s

Not

Shown

— Cylinder1,2 1 Yes

97-0350 Collar11 Ye s

13-0180 Cylinder Nut 1 Ye s

9 97-0479 Spindle Lock 1 Ye s

10 97-0425 Hub Spring (Std) 1 Ye s

11 68-0853 Bracket 2 Yes

12 01-1478 Cr Pan Hd Ms #1/4-20 X 3/8" 2 Yes

13 01-1183 Cr-Fhms #10-32 X 3/8" 1 Ye s

14

97-3092 Spindle Assembly (1 3/4" Door) 1 Yes

97-3093 Spindle Assembly (2" Door) 1 Ye s

97-3094 Spindle Assembly (2 1/4" Door) 1 Yes

15 97-0476 Locking Slide (746) 1 Ye s

16 97-0581 Retaining Plate 1 Ye s

17 97-0582 Spacer 1 Yes

18 68-0852 Cam 700-4 1 Ye s

19 97-0347 Locking Slide Spring 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify ﬁnish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 607 kit includes items 13, 15, 17 and 19

122

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 773-4 & 774-4

1

2

3

8

14

4

5

11

6

9

10

13

15

16

7

17

12

18

Item Part No. Description Qty Sellable

1 97-0437 ET Case, Off-Set Mounting 1 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,2 1 Ye s

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6

730-4 Spindle Retroﬁt Kit (1 3/4" Door) 1 Yes

730-5 Spindle Retroﬁt Kit (2" Door) 1 Yes

730-6 Spindle Retroﬁt Kit (2 1/4" Door) 1 Yes

7 01-1478 Cr Pan Hd Mach Screw #1/4 X 3/8" 2 Yes

8 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

9 97-0425 Hub Spring (Std) 1 Ye s

10 97-0528 Hub Plate 1 Ye s

11 97-0329 Locking Tail 1 Ye s

12 97-3932 Solenoid Cover Assembly (Fail Secure) 1 Ye s

13 68-1402 Retainer Plate, Electrical Function 1 Yes

14 01-3563 Machine Screw #5-40 X 1/4" 2 Ye s

15 68-0852 Cam 700-4 1 Ye s

16 68-0853 Bracket 2 Ye s

17

52-3287 24V Pull Solenoid & Bridge Assy, Exit Trim 1 Yes

52-3289 24V Push Solenoid & Bridge Assy, Exit Trim 1 Ye s

52-3290 12V Push Solenoid & Bridge Assy, Exit Trim 1 Ye s

18 97-0799 Fork 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify ﬁnish

2. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts for speciﬁed

door thickness

123

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 740-6

1

2

3

5

6

7

8

9

10

11

4

12

13

1. Specify ﬁnish

2. Specify lever design by hand

Item Part No. Description Qty Sellable

1 97-0523 ET Case, Drop Mounting 1 No

2 — Lever Handle11 Yes

3 97-0477 Bushing Insert 1 Ye s

4 97-0528 Hub Plate 1 Ye s

5 97-0760 Cap Nut 1 Yes

6 01-1182 Cr-Thms #10-32 X 19/64" 1 Ye s

7 01-1183 Cr-Thms #10-32 X 5/16" 1 Ye s

8 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

9 97-0425 Hub Spring (Std) 1 Yes

10 68-1254 Extension Bracket 1 Ye s

11 01-1478 Cr Pan Hd Mach Screw #1/4-20 X 3/8" 1 Ye s

12 97-0573 Spindle 1 Ye s

13 68-1393 Retaining Plate 1 Ye s

Not

Shown 01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

124

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 743-6

12

3

5

6

8

9

10

11

7

12

13

14

15

16

17

18

4

Item Part No. Description Qty Sellable

1 97-0524 ET Case, Drop Mounting 1 No

2 — Lever Handle1,3 1 Ye s

3 97-0477 Bushing Insert 1 Ye s

4 97-0478 Lower Hub Plate 1 Ye s

5 97-0760 Cap Nut 1 Yes

6 01-1182 Cr-Thms #10-32 X 19/64" 1 Ye s

7 01-1183 Cr-Fhms #10-32 X 5/16" 1 Ye s

8 01-4507 1/8 X 1/2 Double Ended Groove Pin 2 No

Not

Shown

— Cylinder1,2 1Yes

97-0350 Collar11Ye s

13-0380 Cylinder Nut 1 Ye s

9 97-0425 Hub Spring (Std) 1 Yes

10 68-1254 Extension Bracket 1 Yes

11 01-1478 Cr Pan Hd Ms #1/4-20 X 3/8" 1 Yes

12 97-0347 Locking Slide Spring 1 Ye s

13 97-0479 Spindle Lock 1 Yes

14 97-0475 Locking Slide (743) 1 Ye s

15 97-0581 Retaining Plate 1 Yes

16 97-0582 Spacer 1 Yes

17 97-3092 Spindle Assembly 1 Ye s

18 97-0527 E Clip 0.312 Shaft 1 Yes

Not

Shown 01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

1. Specify ﬁnish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 700-6 ET control is only available for 1-3/4" doors

Note: 607 kit contains items 7, 12, 14 and 16

125

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 746-6

12

3

5

6

4

8

9

10

11

7

12

13

15

16

18

17

14

Item Part No. Description Qty Sellable

1 97-0524 ET Case, Drop Mounting 1 No

2 — Lever Handle1,3 1 Yes

3 97-0477 Bushing Insert 1 Ye s

4 97-0478 Lower Hub Plate 1 Yes

5 97-0760 Cap Nut 1 Yes

Not

Shown

— Cylinder1,2 1 Yes

97-0350 Collar11 Yes

13-0180 Cylinder Nut 1 Yes

6 01-1182 Cr-Thms #10-32 X 19/64" 1 Yes

7 01-1183 Cr-Fhms #10-32 X 3/8" 1 Yes

8 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

9 97-0425 Hub Spring (Std) 1 Yes

10 68-1254 Extension Bracket 1 Yes

11 01-1478 Cr Pan Hd Ms #1/4-20 X 3/8" 1 Ye s

12 97-0347 Locking Slide Spring 1 Ye s

13 97-0479 Spindle Lock 1 Yes

14 97-0526 Locking Slide (746-6) 1 No

15 97-0581 Retaining Plate 1 Yes

16 97-0582 Spacer 1 Ye s

17 97-3092 Spindle Assembly 1 Ye s

18 97-0527 E Clip 0.312 Shaft 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify ﬁnish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 700-6 ET control is only available for 1-3/4" doors

Note: 607 kit includes items 7, 12, 14 and 16

126

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 773-6 & 774-6

1

2

36

13

4

5

12

16

14

8

11

9

7

15

17

10

Item Part No. Description Qty Sellable

1 97-0525 ET Case, Drop Mounting 1 No

2 97-0477 Bushing Insert 1 Yes

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,2 1 Yes

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0549 Spindle (Lockable 700 And 700-6) 1 Yes

7 97-0480 Locking Piece For -6 And -8 1 Ye s

8 97-0425 Hub Spring (Std) 1 Yes

9 97-0329 Locking Tail 1 Ye s

10 97-3932 Solenoid Cover Assembly 1 Yes

11 68-1402 Retainer Plate, Electrical Function 1 Ye s

12 01-3563 Machine Screw #5-40 X 1/4" 2 Ye s

13 01-1154 CR-FHMS #6-32 X 1/4" 2 Yes

14 01-1478 CR Pan Hd Mach Screw #1/4-20 X 3/8" 1 Yes

15 68-1254 Extension Bracket 1 Ye s

16

52-3287 24V Pull Solenoid & Bridge Assy, Exit Trim 1 Yes

52-3288 12V Pull Solenoid & Bridge Assy, Exit Trim 1 Yes

52-3289 24V Push Solenoid & Bridge Assy, Exit Trim 1 Ye s

52-3290 12V Push Solenoid & Bridge Assy, Exit Trim 1 Ye s

17 97-0799 Fork 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify ﬁnish

2. Specify lever design by hand

Note: 700-6 ET control is only available for 1 3/4" doors

127

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 706-8 & 713-8

1

2

3

4

5

6

7

10

11

12

14

8

9

13

17 15

16

Item Part No. Description Qty Sellable

1 97-0429 ET Case 1 No

2 97-0477 Bushing Insert 1 Yes

3 68-1393 Retaining Plate 1 Yes

4 97-0760 Cap Nut 1 Yes

5 01-1183 Cr-Thms #10-32 X 5/16" 1 Ye s

6 — Lever Handle1,3 1 Yes

7 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

8 97-0480 Locking Piece For -6 And -8 1 Ye s

9 97-0557 Fusible Link 1 Ye s

10 97-0571 Locking Slide Spring 1 Ye s

11 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

12 97-0425 Hub Spring (Std) 1 Ye s

13 97-0355 Locking Slide (706) 1 Ye s

97-0356 Locking Slide (713) 1 Ye s

14 97-0541 Spindle (Cross) 1 Ye s

15 97-0563 Spring Support 1 No

16 97-0564 Return Spring 1 No

17 97-0558 Slide Support 1 No

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Yes

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify ﬁnish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts for speciﬁed

door thickness

Note: 607 kit includes items 5, 9, 10, 13, 15, 16, and 17

128

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 715-8

1

2

3

4

5

6

7

10

11

12

14

8

9

13

Item Part No. Description Qty Sellable

1 97-0429 ET Case 1 No

2 97-0477 Bushing Insert 1 Yes

3 68-1393 Retaining Plate 1 Ye s

4 97-0760 Cap Nut 1 Ye s

5 01-1183 Cr-Thms #10-32 X 5/16" 1 Ye s

6 — Lever Handle1,2 1 Ye s

7 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

8 97-0480 Locking Piece For -6 And -8 1 Ye s

9 97-0557 Fusible Link 1 Ye s

10 97-0571 Locking Slide Spring 1 Ye s

11 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

12 97-0425 Hub Spring (Std) 1 Ye s

13 97-0356 Locking Slide (713) 1 Yes

14

730-7 Spindle Retroﬁt Kit (1 3/4" Door) 1 Yes

730-8 Spindle Retroﬁt Kit (2" Door) 1 Ye s

730-9 Spindle Retroﬁt Kit (2 1/4" Door) 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" ( 2 1/4" Door) 2 Ye s

1. Specify ﬁnish

2. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts for speciﬁed

door thickness

129

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 743-8

1

2

4

3

8

7

9

6

5

11

10

12

13

17

14

16

15

Item Part No. Description Qty Sellable

1 97-0428 ET Case 1 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,3 1 Yes

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0425 Hub Spring (Std) 1 Yes

7 97-0479 Spindle Lock 1 Yes

Not

Shown

— Cylinder1,2 1 Ye s

97-0350 Collar11 Ye s

13-0180 Cylinder Nut 1 Yes

8 97-0478 Lower Hub Plate 1 Ye s

9

97-3092 Spindle Assembly (1 3/4" Door) 1 Yes

97-3093 Spindle Assembly (2" Door) 1 Ye s

97-3094 Spindle Assembly (2 1/4" Door) 1 Yes

10 97-0527 E Clip 0.312 Shaft 1 Ye s

11 68-3671 Spindle Adapter 1 Ye s

12 97-0347 Locking Slide Spring 1 Ye s

13 97-0581 Retaining Plate 1 Ye s

14 97-0475 Locking Slide (743) 1 Yes

15 97-0582 Spacer 1 Yes

16 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

17 01-1183 Cr-Fhms #10-32 X 5/16" 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify ﬁnish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 607 kit includes items 12, 14, 15 and 17

130

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series Freewheeling ET, 746-8

1

2

4

3

8

7

9

6

5

11

10

12

13

17

14

6

15

Item Part No. Description Qty Sellable

1 97-0428 ET Case 1 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,3 1 Ye s

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0425 Hub Spring (Std) 1 Yes

7 97-0479 Spindle Lock 1 Ye s

8 97-0478 Lower Hub Plate 1 Ye s

Not

Shown

— Cylinder1,2 1 Ye s

97-0350 Collar11Yes

13-0180 Cylinder Nut 1 Ye s

9

97-3092 Spindle Assembly (1 3/4" Door) 1 Ye s

97-3093 Spindle Assembly (2" Door) 1 Yes

97-3094 Spindle Assembly (2 1/4" Door) 1 Yes

10 97-0527 E Clip 0.312 Shaft 1 Yes

11 68-3671 Spindle Adapter 1 Ye s

12 97-0347 Locking Slide Spring 1 Yes

13 97-0581 Retaining Plate 1 Yes

14 97-0476 Locking Slide (746 Function) 1 Ye s

15 97-0582 Spacer 1 Yes

16 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

17 01-1183 Cr-Fhms #10-32 X 3/8" 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify ﬁnish

2. Specify #41 cylinder by keying requirements

3. Specify lever design by hand

Note: 607 kit includes items 12, 14, 15 and 17

131

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 773-8 & 774-8

1

2

3

6

12

4

5

9

14

8

11

15

7

13

10

16

Item Part No. Description Qty Sellable

1 97-0575 ET Case 1 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap 1 Yes

4 — Lever Handle1,2 1 Yes

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

Not

Shown

730-7 Spindle Retroﬁt Kit (1 3/4" Door) 1 Yes

730-8 Spindle Retroﬁt Kit (2" Door) 1 Yes

730-9 Spindle Retroﬁt Kit (2 1/4" Door) 1 Ye s

6 97-0541 Spindle 1 Ye s

7 97-0480 Lower Hub Plate 1 Ye s

8 97-0425 Hub Spring (Std) 1 Yes

9 97-0329 Locking Tail 1 Ye s

10 97-3932 Solenoid Cover Assembly 1 Yes

11 68-1402 Retainer Plate, Electrical Function 1 Ye s

12 01-3563 Machine Screw #5-40 X 1/4" 2 Yes

13 01-1154 Cr-Fhms #6-32 X 1/4" 2 Ye s

14 01-1182 Cr-Chms #10-32 X 19/64" 1 Ye s

15

52-3287 24V Pull Solenoid & Bridge Assy, Exit Trim 1 Ye s

52-3288 12V Pull Solenoid & Bridge Assy, Exit Trim 1 Ye s

52-3289 24V Push Solenoid & Bridge Assy, Exit Trim 1 Yes

52-3290 12V Push Solenoid & Bridge Assy, Exit Trim 1 Yes

16 97-0799 Fork 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Yes

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify ﬁnish

2. Specify lever design by hand

Note: 730 kit includes items required to replace the spindle and thru bolts for

speciﬁed door thickness

132

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 777-8

1

2

3

4

5

6

7

8

9

10

11

12

13

Item Part No. Description Qty Sellable

1 97-0574 Electric ET Case W/ Cylinder Prep 1 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,2 1 Ye s

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0480 Hub Plate (700-8) 1 Yes

7 01-1182 CR-CHMS #10-32 X 19/64" 1 Yes

8 97-0425 Hub Spring (Std) 1 Ye s

9 52-2556 Motor & Housing Assembly 1 Ye s

10 68-1402 Retainer Plate, Electrical Function 1 Ye s

11 01-1154 #6-32 X 1/4" Ph Flat Head Machine Screw 2 Yes

12 01-4540 #3-48 X 5/8" Ph Pan Head Machine Screw 2 Yes

13 97-0541 Spindle (Lockable 700-8) 1 Ye s

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Yes

1. Specify ﬁnish

2. Specify lever design by hand

133

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

700 Series ET, 778-8

1

2

3

4

5

6

7

8

9

10

11

12

13

Item Part No. Description Qty Sellable

1 97-0575 Electric ET Case W/O Cylinder Prep11 No

2 97-0477 Bushing Insert 1 Ye s

3 97-0760 Cap Nut 1 Ye s

4 — Lever Handle1,2 1 Ye s

5 01-4507 1/8" X 1/2" Double Ended Groove Pin 2 No

6 97-0480 Hub Plate (700-8) 1 Ye s

7 01-1182 Cr-Chms #10-32 X 19/64" 1 Yes

8 97-0425 Hub Spring (Std) 1 Ye s

9 52-2556 Motor & Housing Assembly 1 Yes

10 68-1402 Retainer Plate, Electrical Function 1 Yes

11 01-1154 #6-32 X 1/4" Ph Flat Head Machine Screw 2 Ye s

12 01-4540 #3-48 X 5/8" Ph Pan Head Machine Screw 2 Yes

13 97-0541 Spindle (Lockable 700-8) 1 Yes

Not

Shown

01-4451 Thru Bolt #1/4-20 X 2 3/8" (1 3/4" Door) 2 Ye s

01-4372 Thru Bolt #1/4-20 X 2 5/8" (2" Door) 2 Ye s

01-4373 Thru Bolt #1/4-20 X 2 7/8" (2 1/4" Door) 2 Ye s

1. Specify ﬁnish

2. Specify lever design by hand

134

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Auxiliary Controls

106

113

31-106

31-113

10

3

8

2

1

11

15

7

14

5

4161

31

2

6

9

Item Part No. Description Qty Sellable

1 94-2089 Chassis Subassembly 1 Yes

2 94-0119 Cover* 1 Yes

3 94-2121 Turn Lever Assembly* 1 Ye s

4 94-0110 Cam 1 Ye s

5 94-0051 Lever Locking Plate 1 Ye s

6 32-1254 #10-24 x 1/2 PHMS 1 Ye s

7 94-0054 Lever Spring 1 Yes

8 97-0052 #8-32 x 5/16 Ohms W/ #6 Head 1 Yes

9 — Cylinder & Key Assembly* 1 Yes

10 97-0350 Cylinder Collar* 1 Yes

11 13-0180 Cylinder Nut 1 Ye s

12 01-3582 #6-32 x 3/8 RHMS 1 Ye s

13 01-0204 #6-32 x 3/8 Flat Washer 1 Yes

14 94-0109 Extension Spring 1 Ye s

15 94-0114 Locking Lever 1 Yes

94-2249 Locking Lever & Pin Assembly 1 Yes

16 94-2087 Lever Assembly 1 Ye s

94-2419 Lever Assembly 1 Ye s

17 94-2448 H1 Aux Control Adapter Pack 1 Yes

18 94-2447 Wd Aux Control Adapter Pack 1 Yes

*Specify ﬁnish

Function Assembly No. Description Sellable

Night Latch 94-2093* Standard Yes

Classroom 94-2094* Yes

Night Latch 94-2426* Cladding Yes

Classroom 94-2427* Yes

135

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Auxiliary Controls

306

313

31-306

Item Part No. Description Qty Sellable

1 94-2089 Chassis Subassembly 1 Yes

2 94-0119 Cover* 1 Yes

3 94-2121 Turn Lever Assembly* 1 Ye s

4 94-0110 Cam 1 Ye s

5 94-0051 Lever Locking Plate 1 Yes

6 32-1254 #10-24 x 1/2 PHMS 1 Ye s

7 94-0054 Lever Spring 1 Yes

8 97-0052 #8-32 x 5/16 Ohms W/ #6 Head 1 Yes

9 — Cylinder & Key Assembly* 1 Ye s

10 97-0350 Cylinder Collar* 1 Yes

11 13-0180 Cylinder Nut 1 Ye s

12 01-3582 #6-32 x 3/8 RHMS 1 Ye s

13 01-0204 #6-32 x 3/8 Flat Washer 1 Yes

14 94-0109 Extension Spring 1 Ye s

15 94-0112 Locking Lever 1 Yes

94-0114 Yes

16

94-2329

Lever Assembly 1

Yes

94-2088 Yes

94-2421 Yes

94-2420 Yes

17 94-2448 H1 Aux Control Adapter Pack 1 Yes

18 94-2447 Wd Aux Control Adapter Pack 1 Yes

*Specify ﬁnish

Function Assembly No. Description Sellable

Night Latch 94-2091* Standard Yes

Classroom 94-2092* Yes

Night Latch 94-2428* Cladding Yes

Classroom 94-2429* Yes

9

3

2

8

10

1

15

7

14

5

4161312

6

11

136

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

Auxiliary Controls

NB-306

NB-313

9

3

8

2

15

1

11

7

12

41413

6

5

10

Item Part No. Description Qty Sellable

1 94-2372 Chassis Subassembly 1 Yes

2 94-0119 Cover* 1 Yes

3 94-2373 Turn Lever Assembly* 1 Ye s

4 94-0185 Locking Hub 1 Ye s

5 94-0051 Lever Locking Plate 1 Ye s

6 32-1254 #10-24 x 1/2 PHMS 1 Ye s

7 94-0054 Lever Spring 1 Yes

8 97-0052 #8-32 x 5/16 Ohms W/ #6 Head 1 Yes

9 — Cylinder & Key Assembly* 1 Ye s

10 97-0350 Cylinder Collar* 1 Yes

11 13-0180 Cylinder Nut 1 Ye s

12 94-0114 Locking Lever 1 Yes

94-2249 Locking Lever & Pin Assembly Ye s

13 94-0184 Tail Piece 1 Yes

14 94-0186 Space 1 Yes

15 01-4552 5/16 Retaining Ring 1 Yes

16 94-2448 H1 Aux Control Adapter Pack 1 Yes

17 94-2447 Wd Aux Control Adapter Pack 1 Yes

*Specify ﬁnish

Function Assembly No. Description Sellable

Night Latch 94-2093* NB Yes

Classroom 94-2094* Yes

137

A8231 12/17

in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification

causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and

quality control standards applicable to the original product and is no longer a genuine SARGENT product.

SARGENT Manufacturing Company

100 Sargent Drive

New Haven, CT 06511 USA

800-727-5477

www.sargentlock.com

Founded in the early 1800s, SARGENT® is a market leader in locksets, cylinders, door closers, exit devices, electro-mechanical products and access control systems for

new construction, renovation, and replacement applications. The company’s customer base includes commercial construction, institutional, and industrial markets.

written permission of SARGENT Manufacturing is prohibited. A8231 12/17

Sargent 80 Series Parts Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
