Series Mortise Locks

7800 / 8200

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is

prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

On The Cover

• 8237 Multi-function Lock LNJ LHRB

Table of Contents

Specifications & Certifications........................................................1

Windstorm Certifications ............................................................2

Features .............................................................................3

Simplí™ Roseless Trim & R8200 Mortise Lock.s . ......................................4

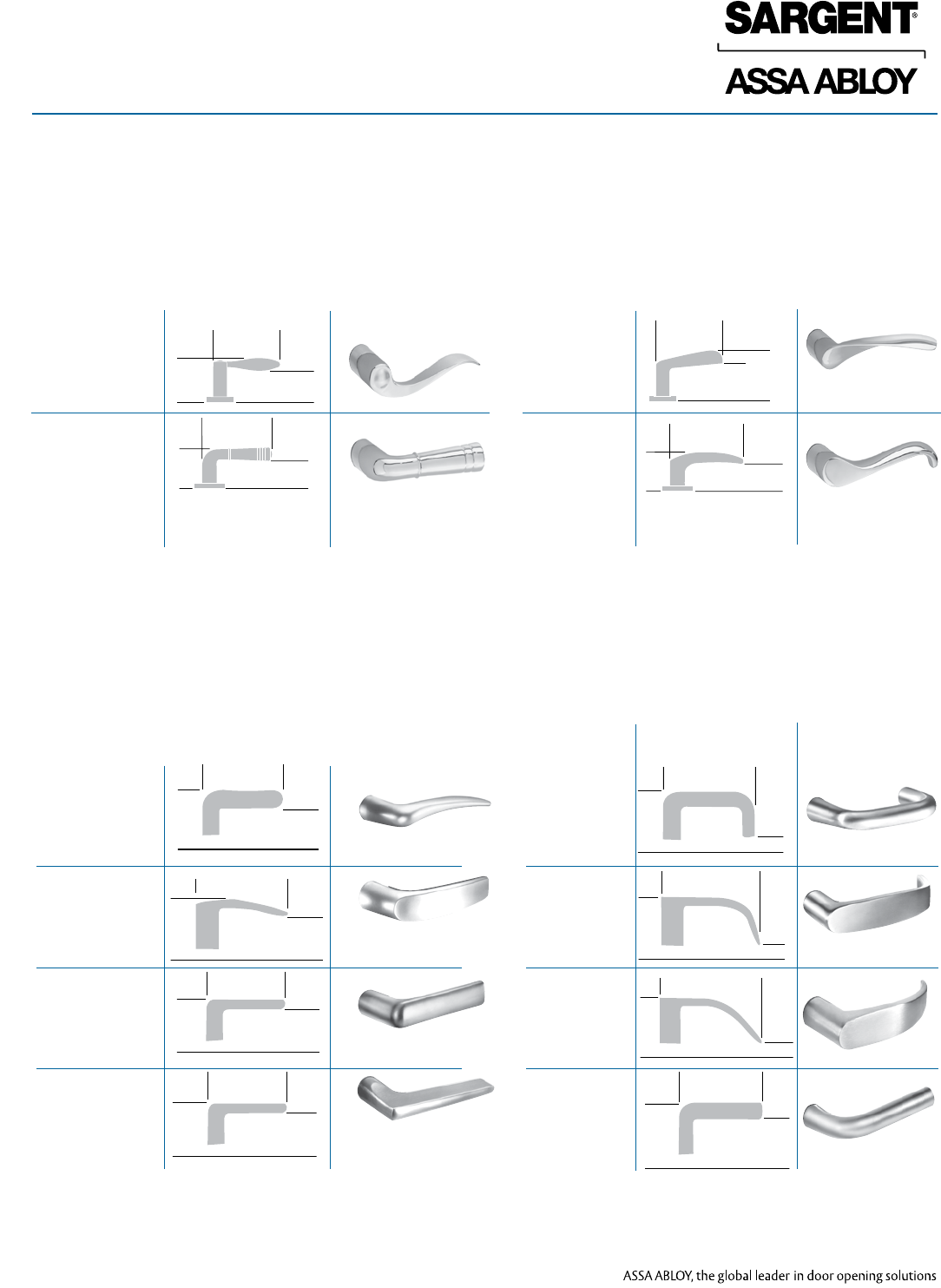

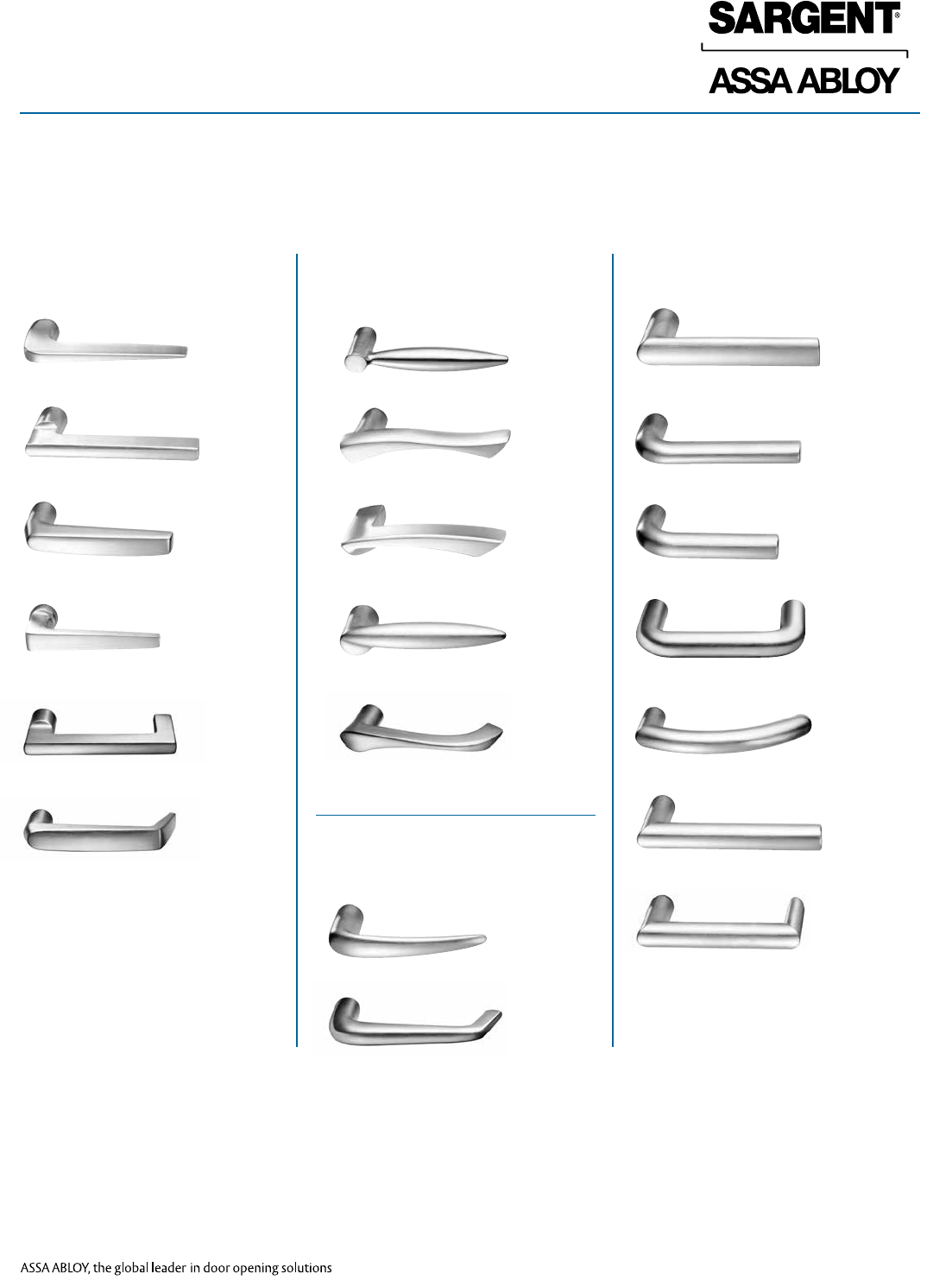

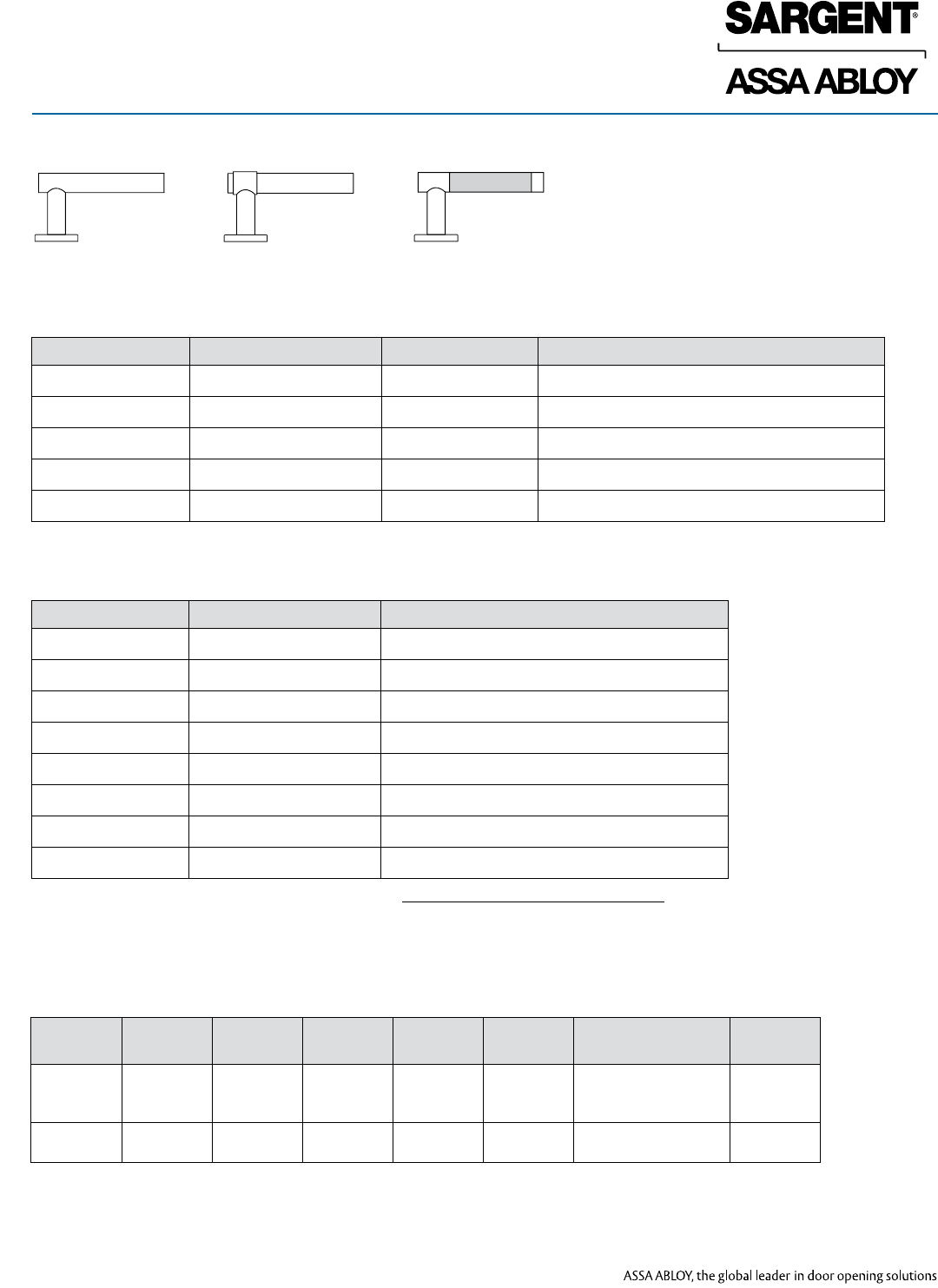

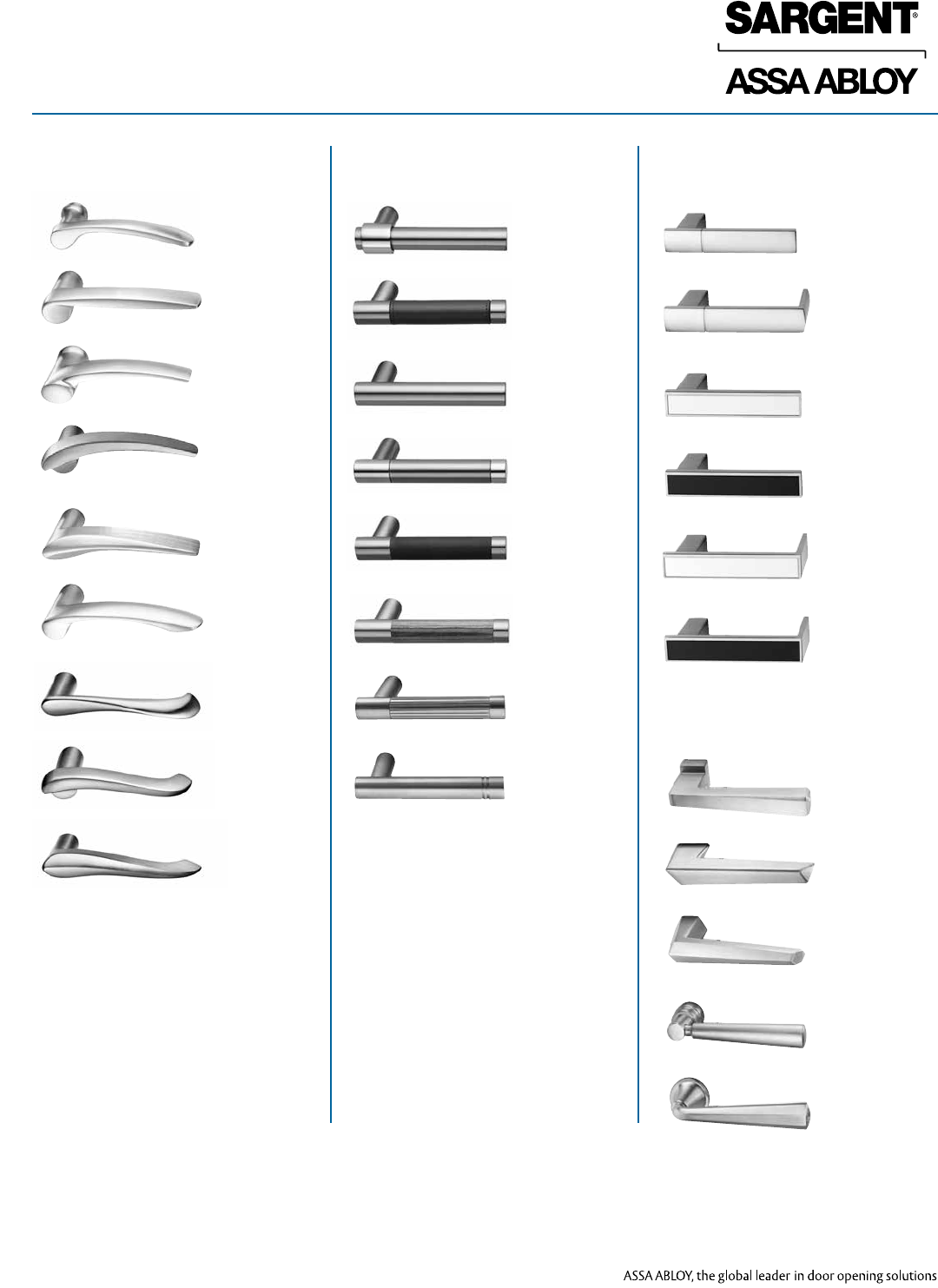

Studio Collection Levers & Trim ....................................................5-7

Coastal Series™ & Standard Levers & Trim..........................................8-9

Thumbturn Designs .................................................................10

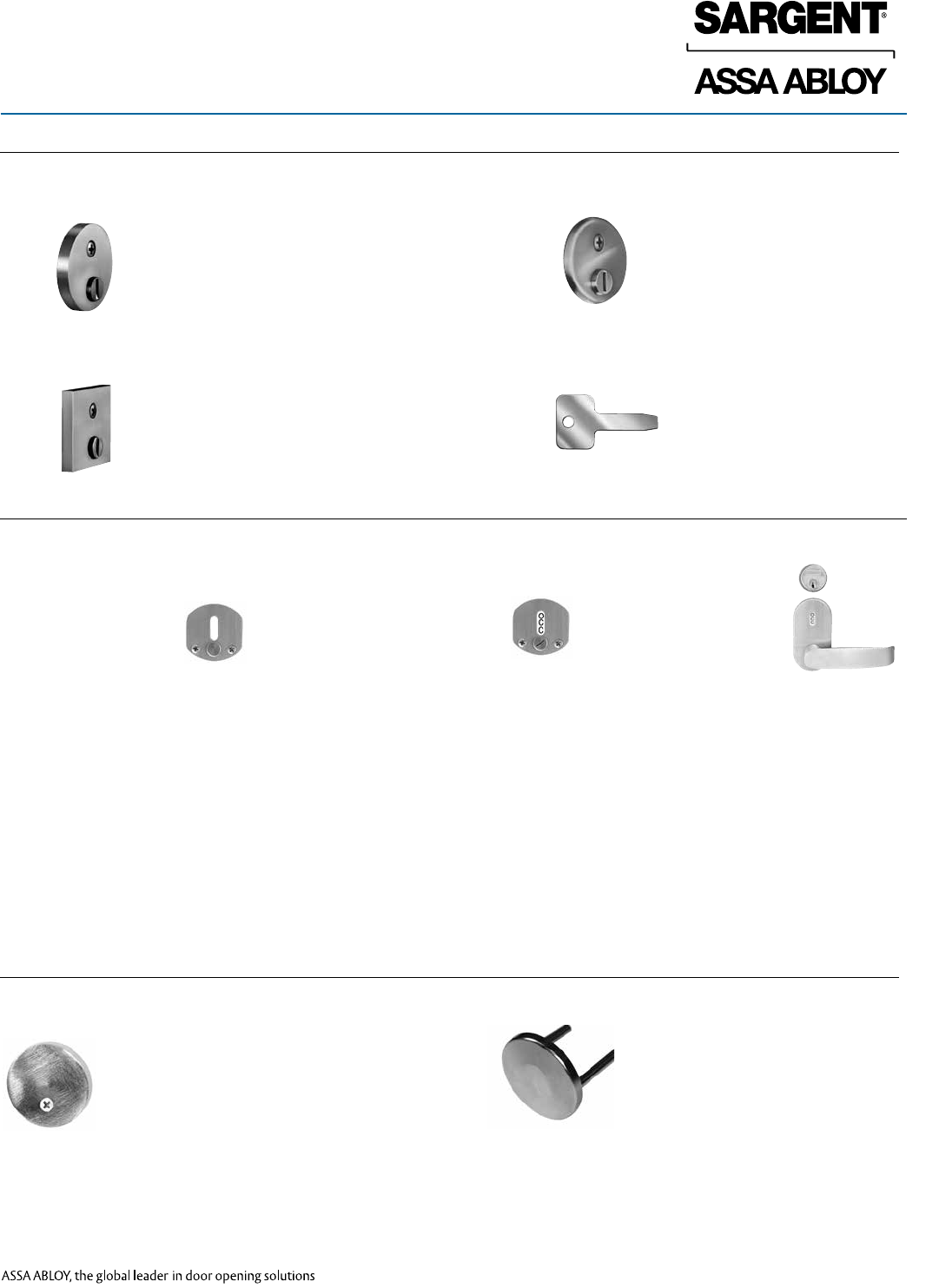

Emergency Releases, Indicators & Accessories .......................................11

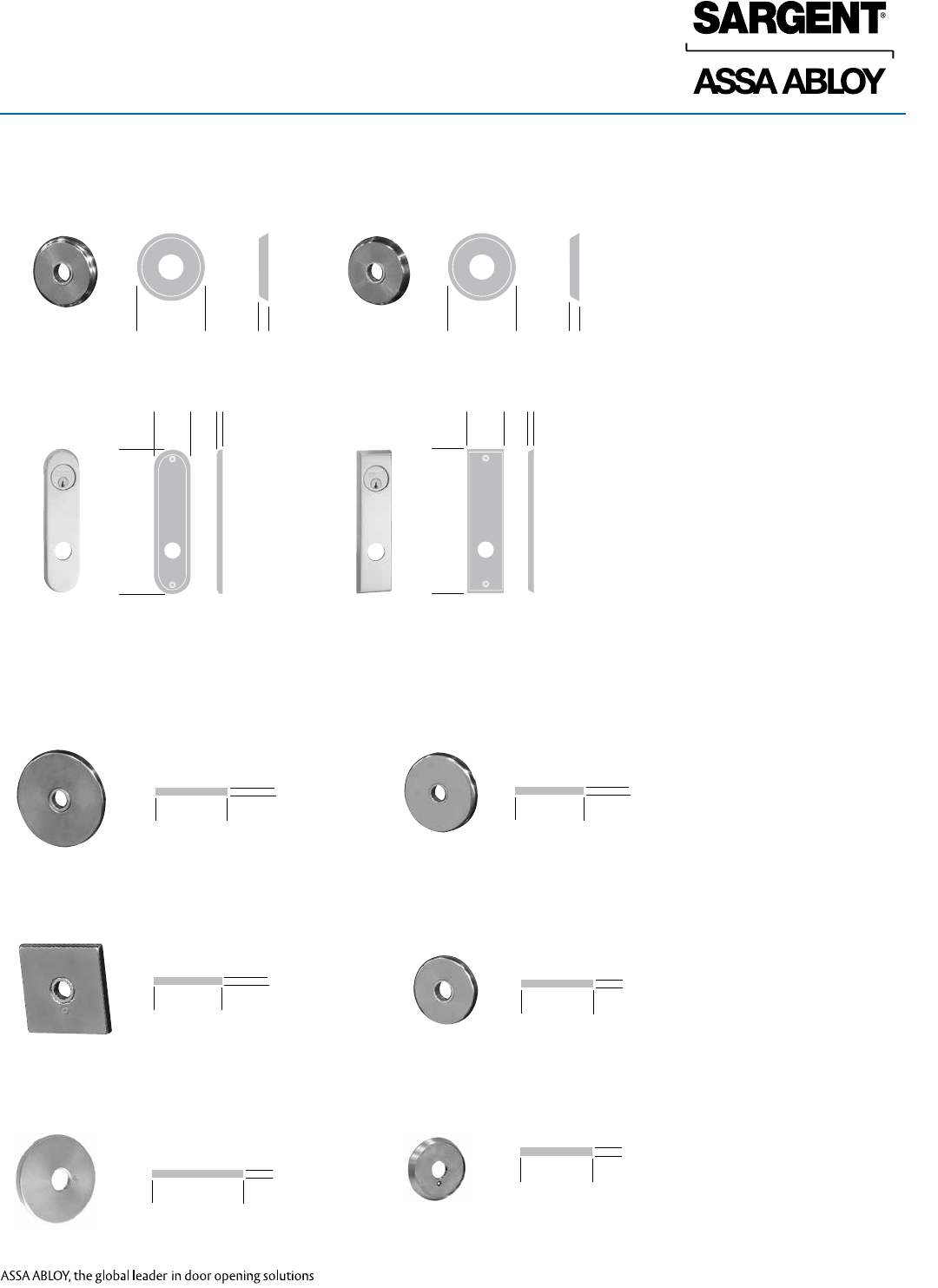

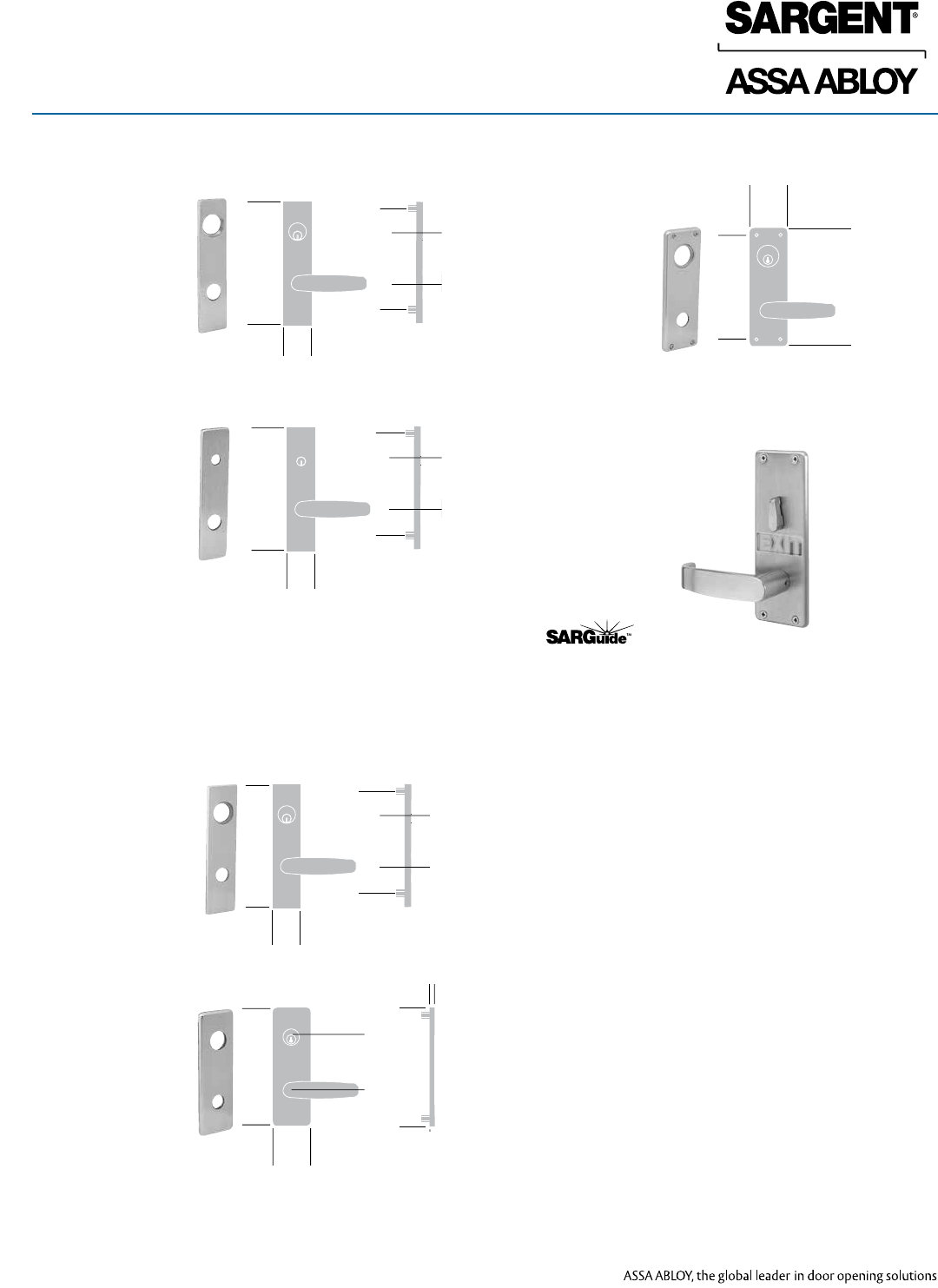

Escutcheon Designs .................................................................12

Freewheeling (FE) Trim Design, ADA & Handicap Warning ...........................13

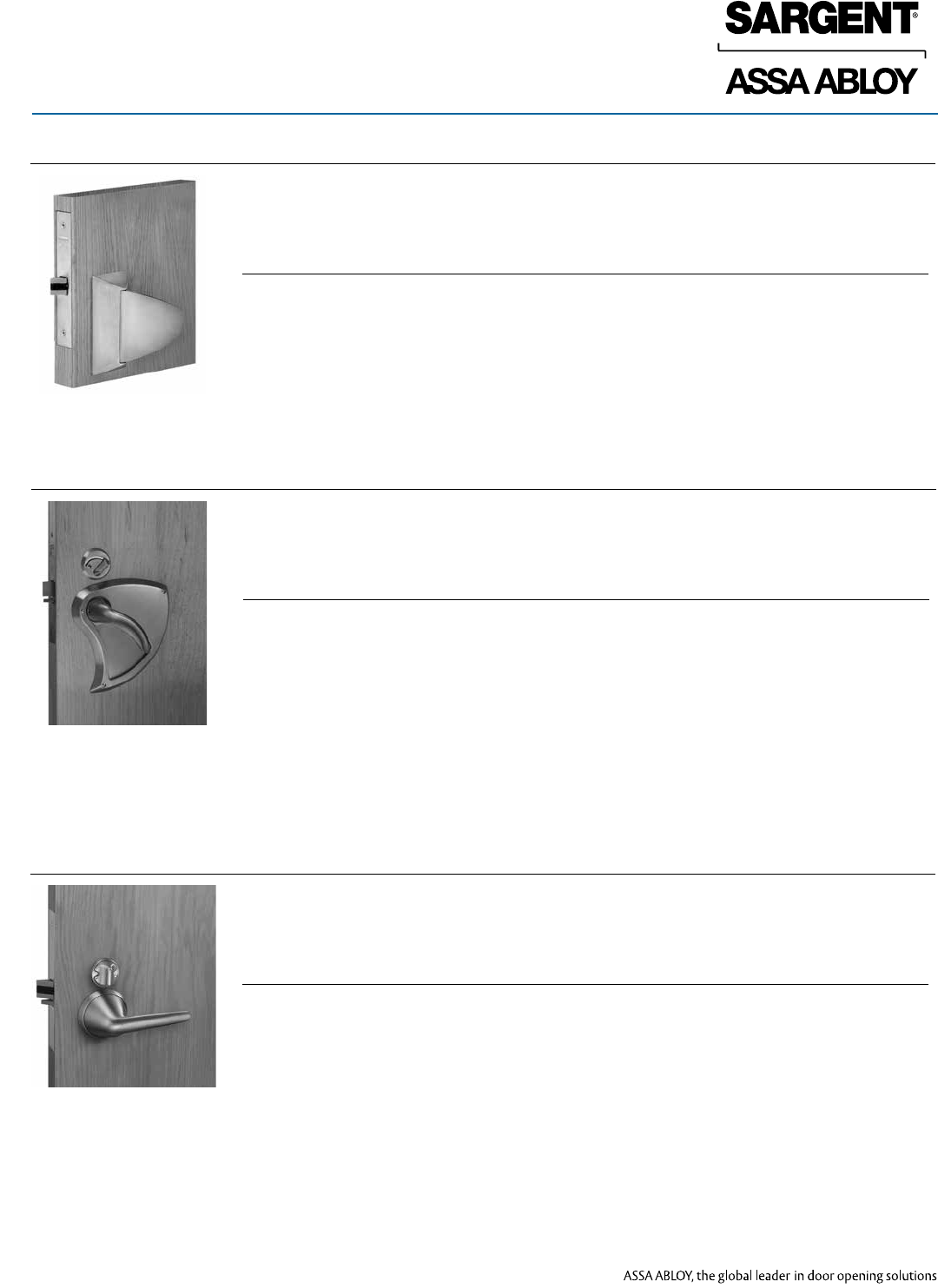

Behavioral Health Series™ Trim .....................................................14

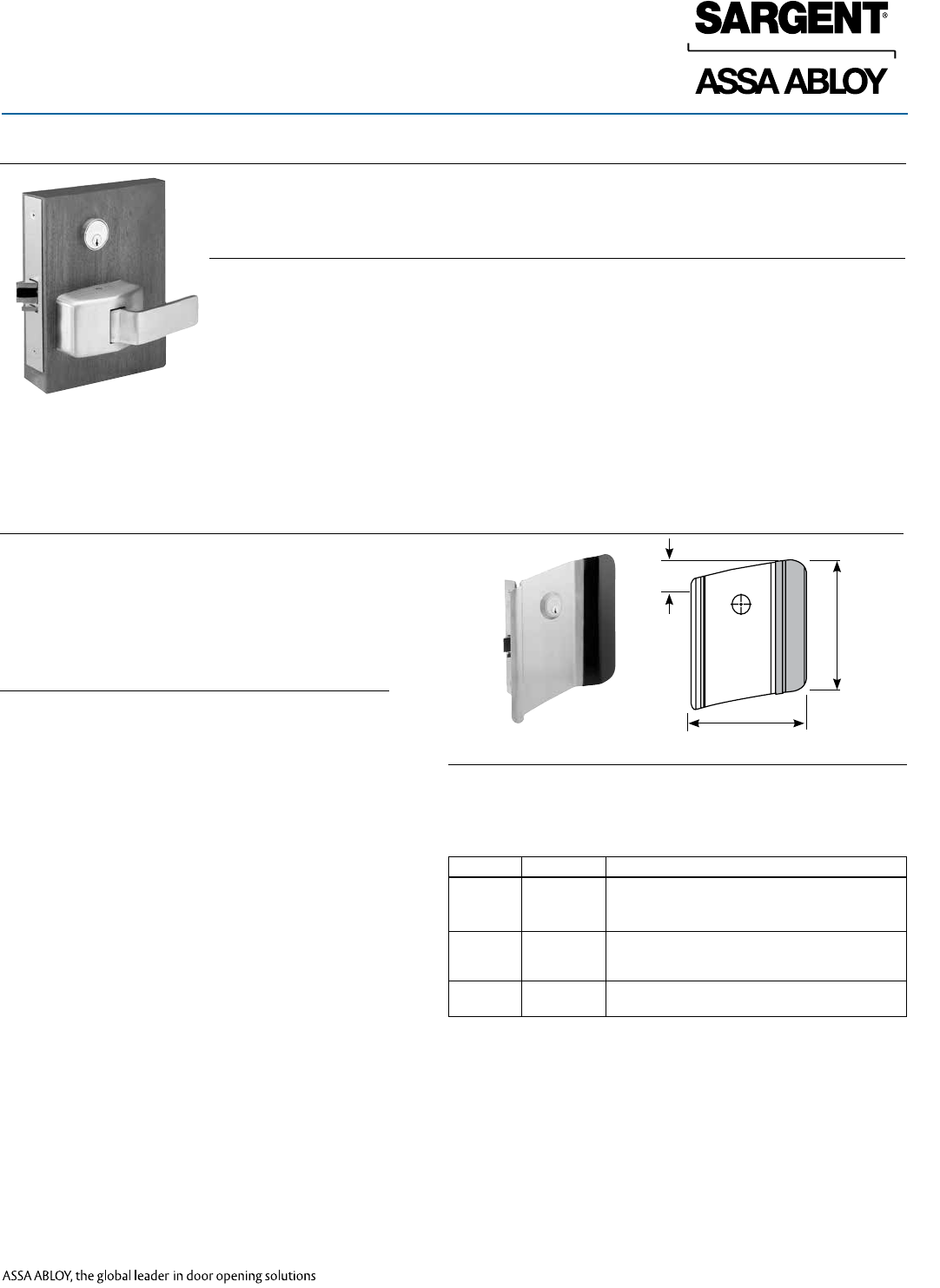

7800 PT Push/Pull Trims & 7800/8200 Anti-Vandal Option...........................15

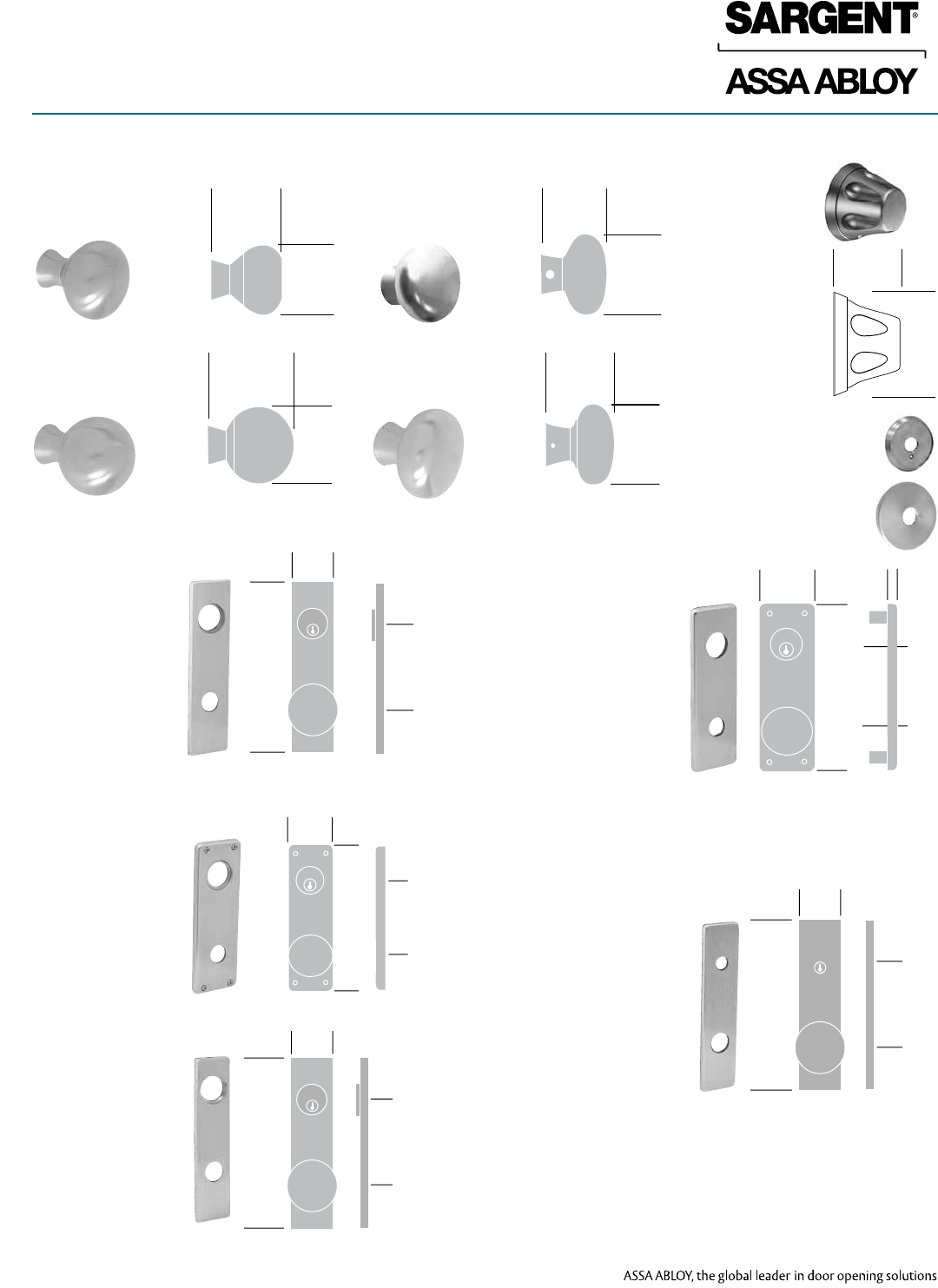

7800 Knob and Escutcheon Designs .................................................16

Functions & Descriptions........................................................ 17-23

Electrical Functions & Monitoring Options....................................... 23-24

Electrical Requirements & Accessories...............................................25

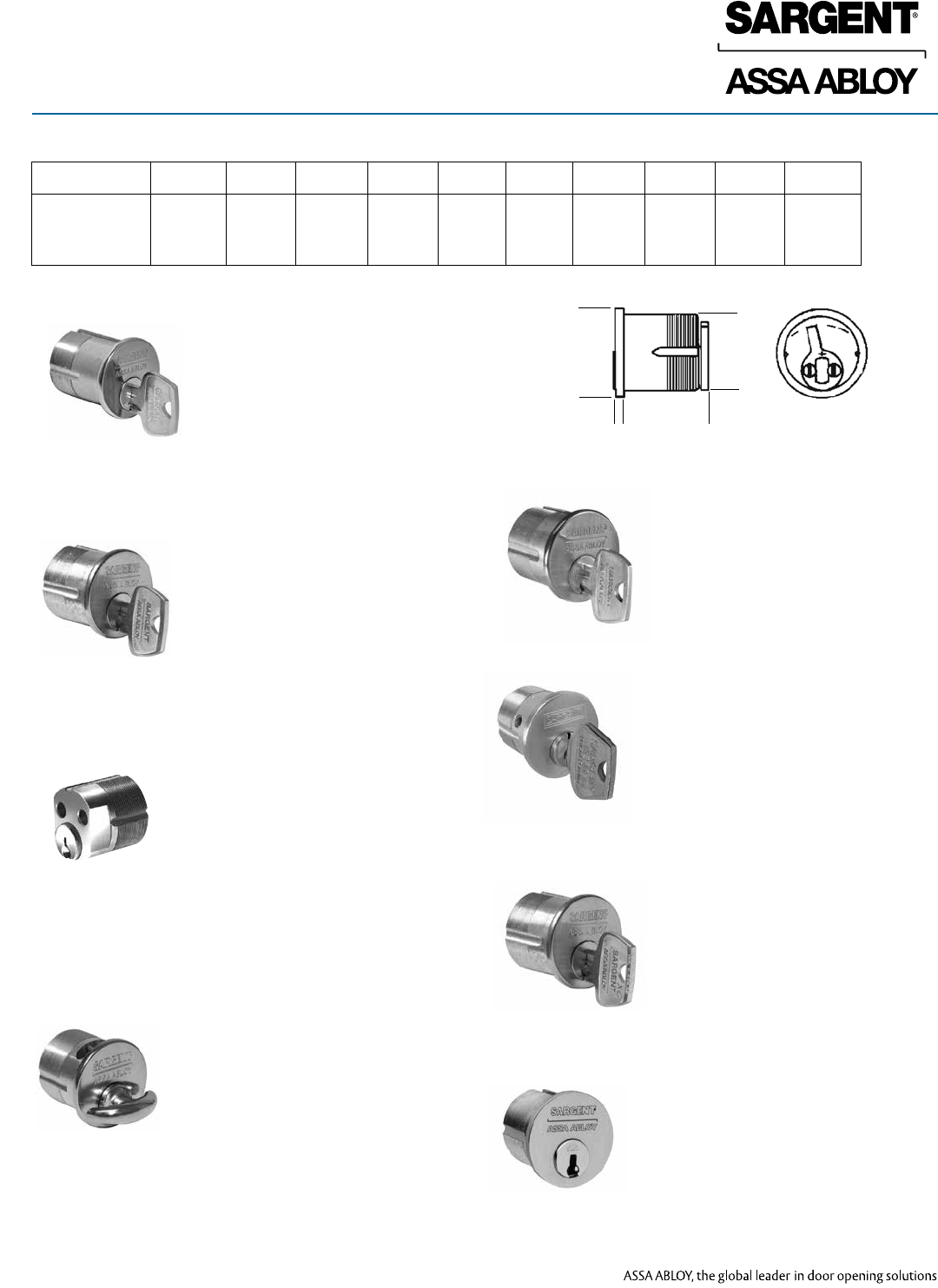

Cylinders............................................................................26

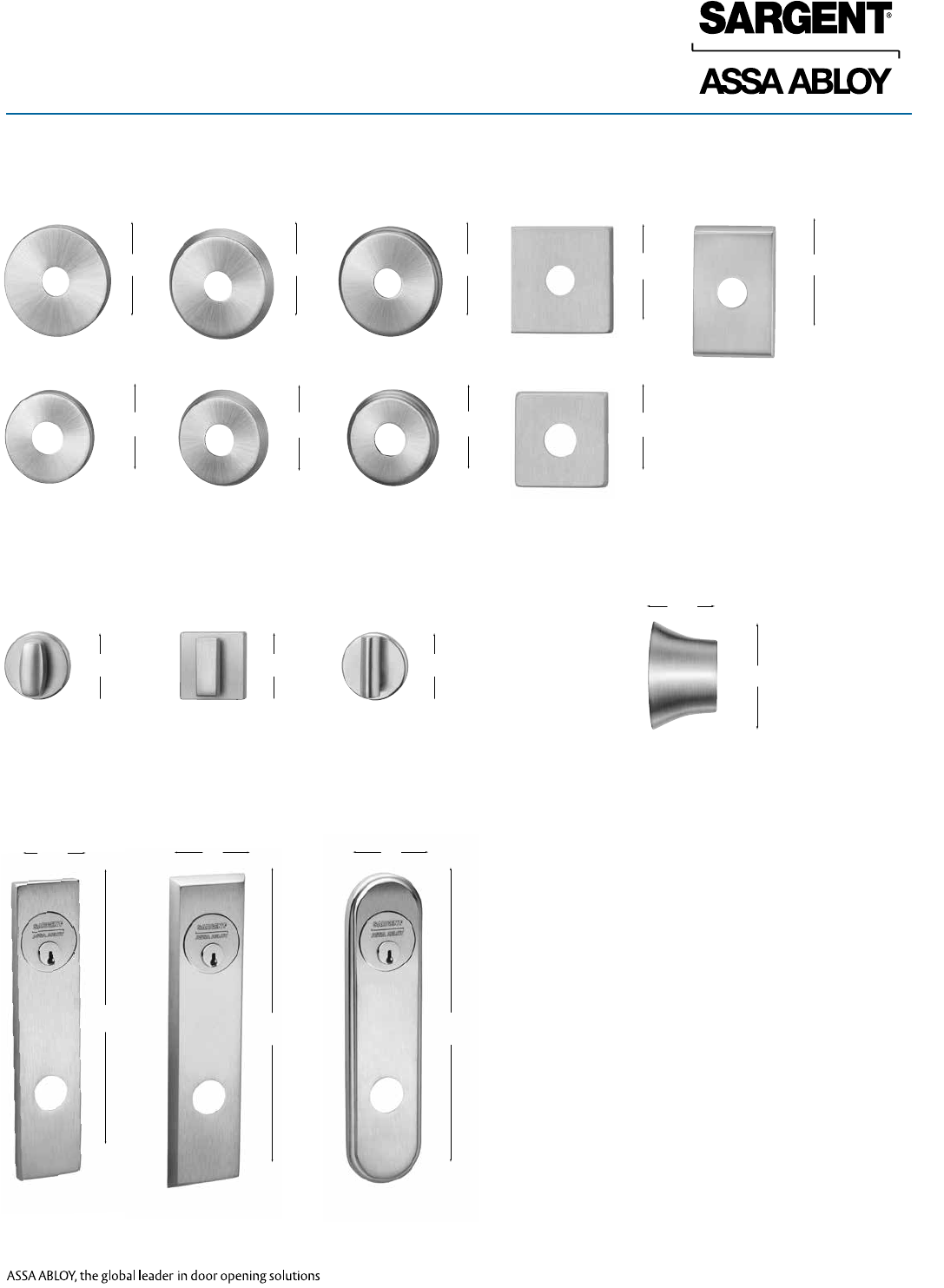

Cylinders & Rosettes ................................................................27

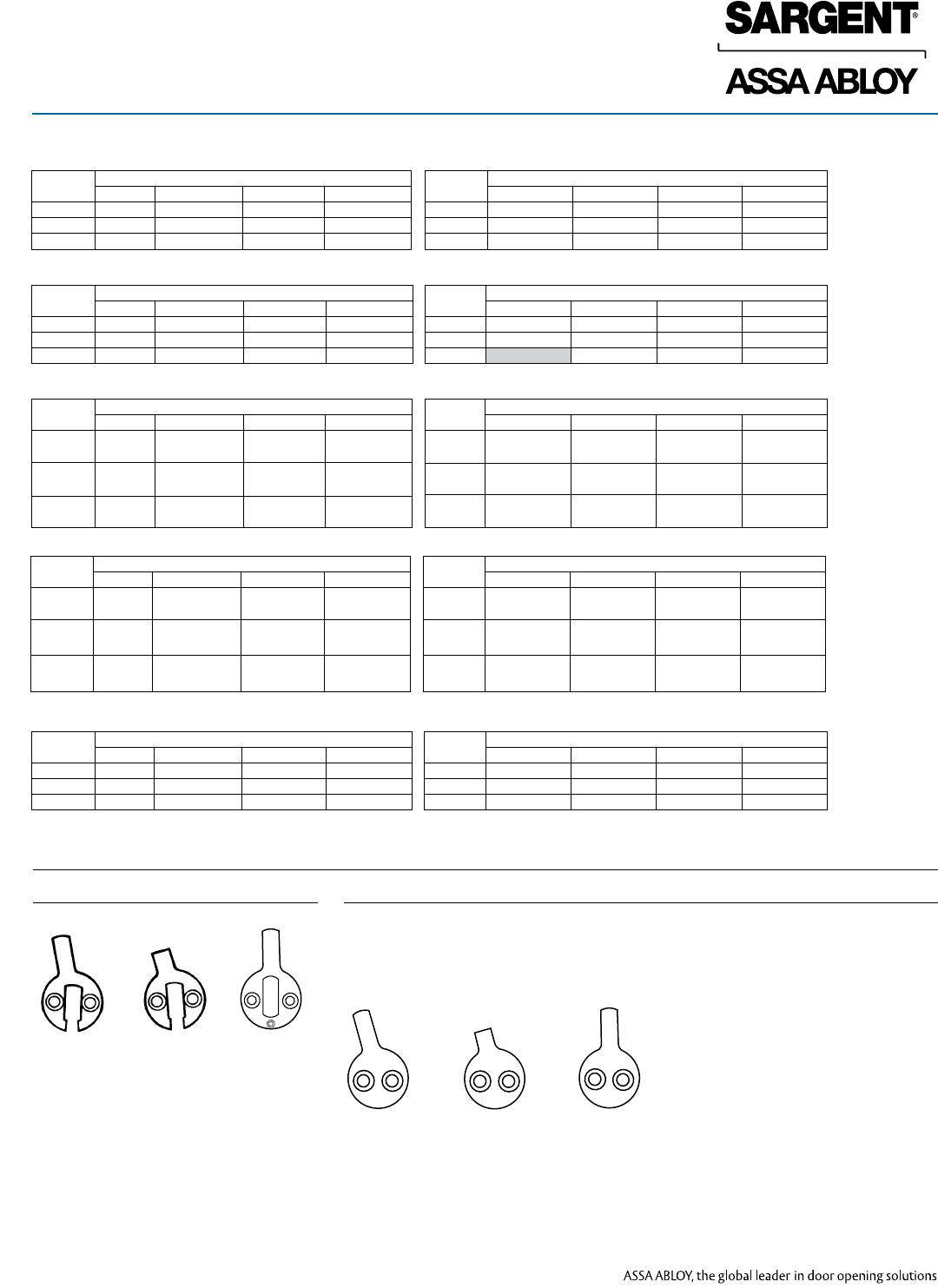

Cylinder Requirements & Cams .....................................................28

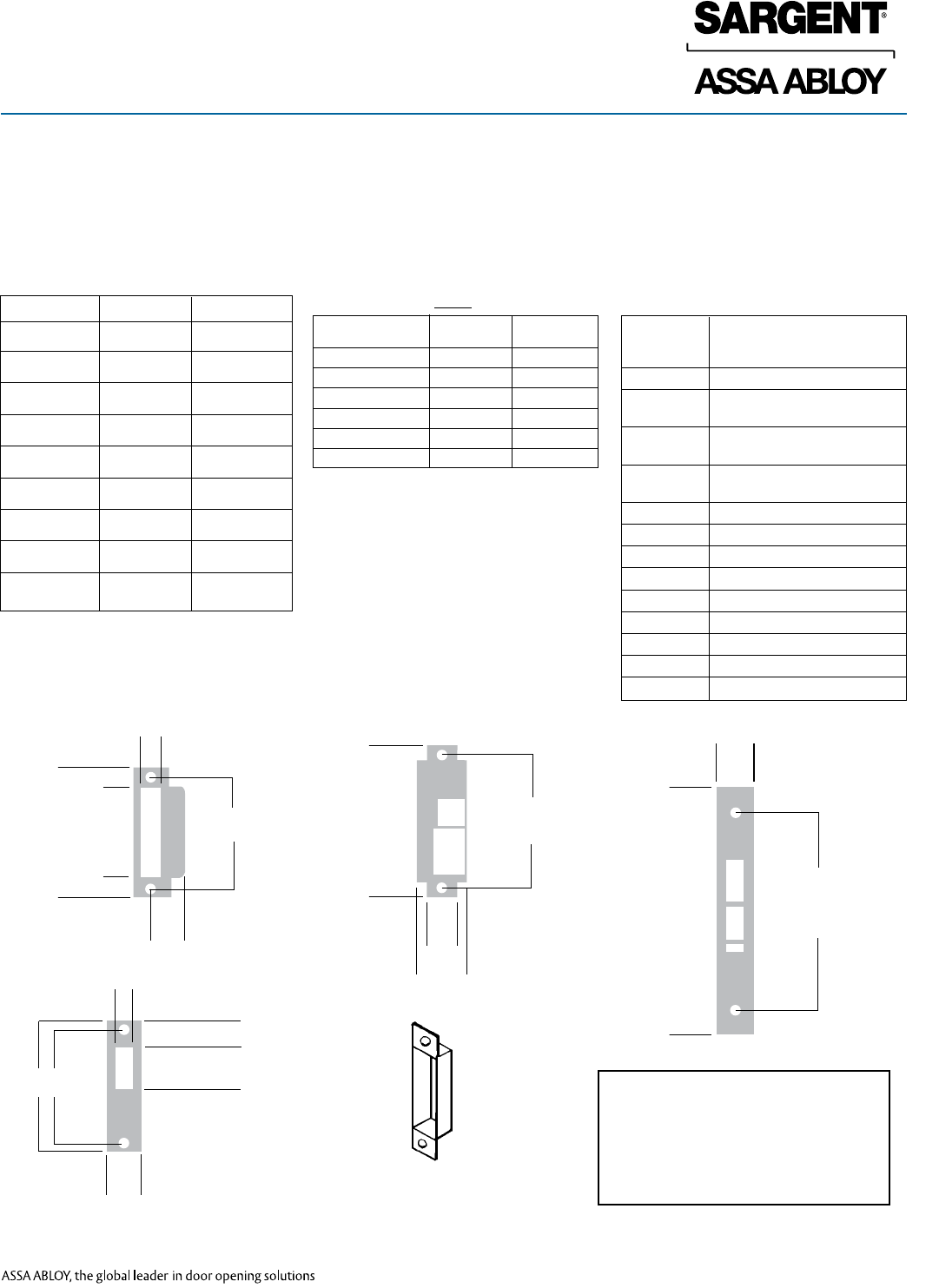

Strikes & Fronts .....................................................................29

Mechanical Options.................................................................30

Cylinder Options ................................................................ 31-32

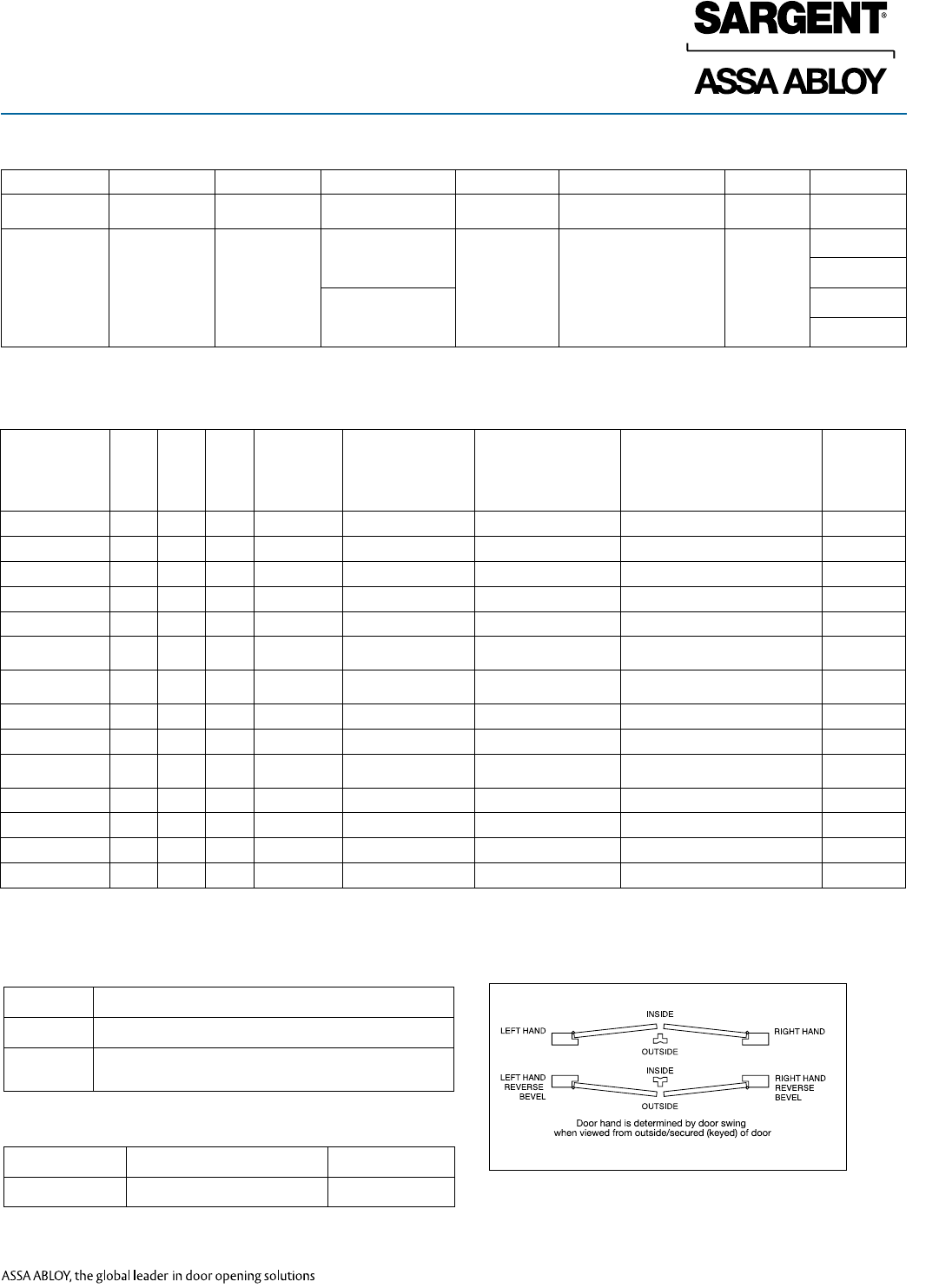

How to Order, Finishes, Packaging & Security Screw Chart ...........................33

How to Order Gramercy Series Levers ...............................................34

Multi-Functional Lockbody . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Architectural Specifications .........................................................36

SARGuide

• The SARGuide illuminated mortise lock increases visibility of exit locations in dark or smoke-filled passages, supplementing

existing codes for egress lighting

• SARGuide utilizes state-of-the-art FLATLITE electroluminescent lighting from E-Lite Technologies Inc.

• Green-blue electroluminescent light provides unsurpassed visibility in low light conditions

• SARGuide can be wired for continuous operation or activation by fire alarm system

• Mortise lock are placed low enough on a door to provide an extended window of opportunity for safe emergency egress

• Supplements building exit signs required by code

• Intuitive operation. Integral “EXIT” signage guides users directly to the means of egress

• SARGuide can be ordered by adding the TL option to any 8200 series mortise lock

with WT Trim, which allows free egress

• Additional TL- Information available page 12

8200 Mortise SARGuide

LiteGuide™

As part of their promise to provide innovative solutions to their

customers, certain ASSA ABLOY Group brands offer the LiteGuideTM

system, a luminescent egress marking system. LiteGuideTM

installation is facilitated by ASSA ABLOY’s ElectroLynx®, a

universal quick-connect system that simplifies the electrification

of the door.

LiteGuideTM is a registered trademark of ASSA ABLOY Inc.

8200/R8200/7800 Mortise Locks

Table of Contents

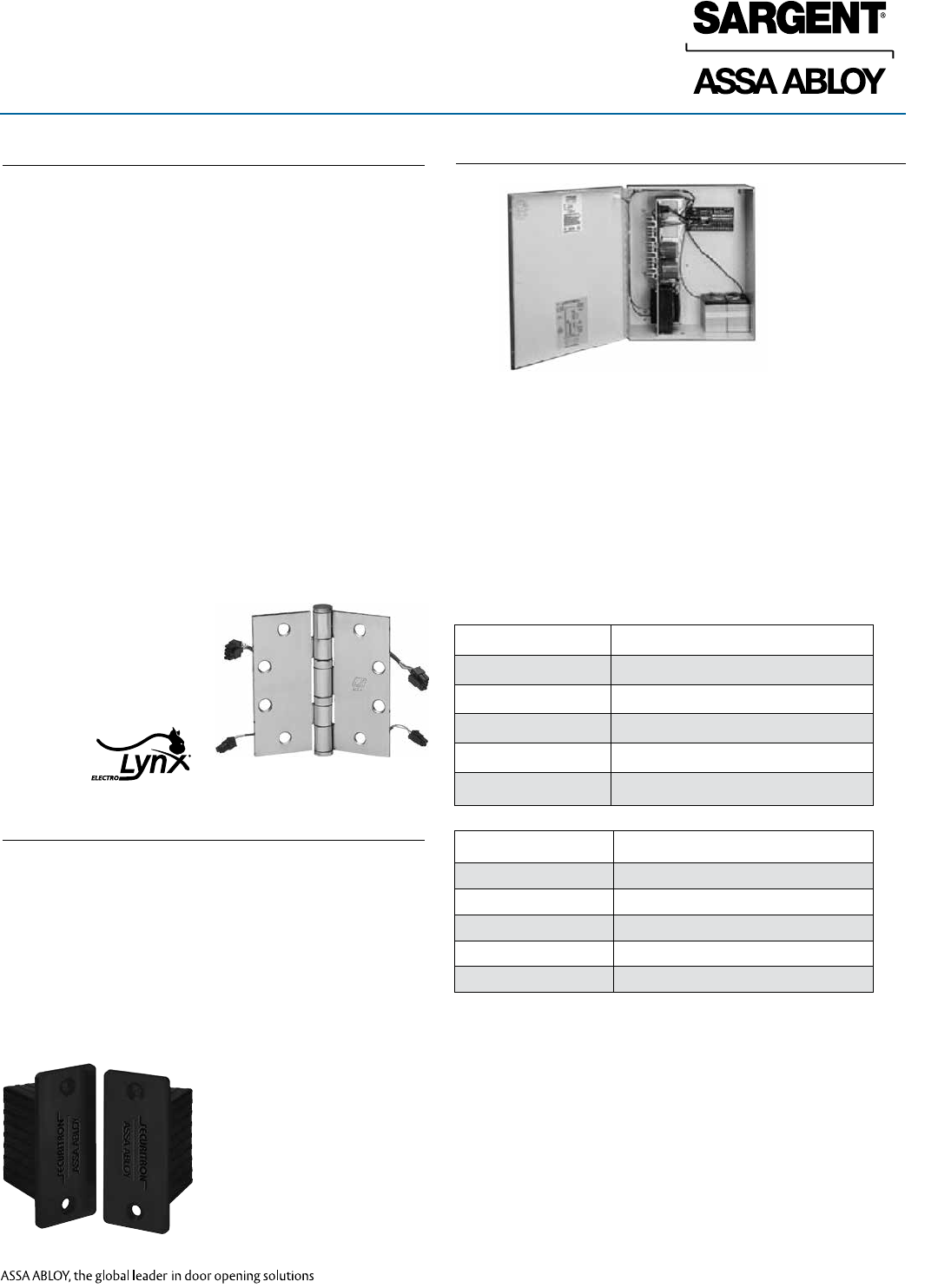

As part of their promise to provide innovative, fast and effective

high security solutions to their customers, certain ASSA ABLOY

Group brands offer ElectroLynx®, a universal quick-connect

system that simplifies the electrification of the door opening.

ElectroLynx® is a registered trademark of ASSA ABLOY Inc.

MicroShield® Coating

• Revolutionary finish coating available on all SARGENT product

lines, utilizes a silver-based antimicrobial compound from

Agion Technologies

• As an integral part of the finish coating, MicroShield® lasts

for the life of the hardware

• MicroShield® coating permanently suppresses the growth

of bacteria, algae, fungus, mold and mildew. It is effective

against a broad spectrum of bacteria.

• Non-toxic and completely safe. The Agion antimicrobial

compound is EPA and NSF approved and FDA listed for use

in medical and food preparation equipment.

• Applications: Anywhere there is need for a clean environment

(hospitals, laboratories, schools, medical centers, daycare,

food processing etc.)

MicroShield®

As part of their promise to provide innovative solutions to

their customers, certain ASSA ABLOY Group brands offer the

MicroShield® technology, a silver-based antimicrobial coating

designed to inhibit the growth of bacteria.

MicroShield® is a registered trademark of Yale Security Inc.,

an ASSA ABLOY Group company.

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

ANSI/BHMA Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.

ANSI/ASTM F476-84 Grade 40 with concealed mortise cylinder.

Note: LFIC (Removable) Cylinders and SFIC Cylinders do not meet Security Grade 1 requirements.

ADA Meets A117.1 Accessibility Code.

Meets BOMA International 4.13.8 Complies with American Disability Act; Consult local authorities

UL-cUL UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door)

and lesser class doors, stamped letter F and UL symbol on armored front indicate listing

Positive Pressure Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies

California California State Reference Code (Formerly Title 19, California State Fire Marshal Standard)

All levers with returns comply; levers return to within 1/2" (13mm) of door face

Tornado and Hurricane Codes See page 2

Certification Compliance

1-1/32"

3-5/8"

7/16"

7-1/4"

11/32"

1-3/16"

OF LEVER

OR KNOB

L OF

LOCK

FRONT

1/2"

1-1/4"

3/4"

5-31/32"

4 3/32"

5/8"

27/64"

2-15/32"

3-7/8"

BACKSET

1-51/64"

1 1/32"

2-3/4"

2-3/16"

7/32"

FLAT TO 1/8" IN

2" FRONT BEVEL

27/32"

L OF

ATTACHING SCREW

DEADLATCH

OUTSIDE FRONT

LATCHBOLT

L OF

DEADBOLT

1-1/4"

5/8"

8200/R8200/7800 Mortise Locks

Specifications & Certifications

1-800-727-5477 • www.sargentlock.com

8200 & 7800 Lockbody Dimensions

(R8200 Lockbody not shown)

Note: R8200 and 8200 lockbodies are dimensionally the same except for the through-bolt locations

Lockbody

Type¹ Trim Available x

Lockbody type Standard 8200

Door Prep Through

Bolted Trim Multi-function

lockbody available How to order lockbody only

8200 Lever x Rose/Escutcheon Yes Yes Yes 82 x Function x Finish³

7800 Knob x Rose/Escutcheon Yes Yes Yes 78 x Function x Finish³

R8200 Simplí™ roseless trim No Yes² Yes R82 x Function x Finish³

8200 for ALP ALP Push/Pull Trim Yes Yes Yes Six Digit Part # determined by function*

7800 PT PT Push/Pull Trim Yes Yes Yes Six Digit Part # determined by function*

Explanation of the 8200/7800 Lockbody types:

¹ Lockbodies can only be used with the specified trim

² Through Bolt locations are different from standard trim, special door prep required

³ Note: Cylinder and trim not included. Outside front, strike and screw pack are included

* See Price book; Note: Outside Fronts, Strikes, Cylinders and Trim are NOT included

Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes

no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or

specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance

with all applicable codes and ratings.

1-800-727-5477 • www.sargentlock.com

8200/R8200/7800 Mortise Locks

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Windstorm Certications

Florida Building Code: FL2998

UL Certification Directory: ZHEM.R21744 – Latching Hardware

UL Certification Directory: ZHLL.R21744 – Products for Use in Windstorm-rated Assemblies

ANSI/SDI-BHMA A250.13 “Testing and Rating of Severe Windstorm Resistant Components for Swinging Door Assemblies”

ANSI/ASTM E330 “Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by Uniform

Static Air Pressure Difference”

ANSI/ASTM E1886 “Standard Test Method for Performance of Exterior Windows, Curtain Walls, Doors, and Impact Protective Systems

Impacted by Missile(s) and Exposed to Cyclic Pressure Differentials”

ASTM E1996 “Standard Specification for Performance of Exterior Windows, Curtain Walls, Doors and Impact Protective Systems

Impacted by Windborne Debris in Hurricanes”

(TAS) 201 “Impact Test Procedures”*

(TAS) 202 “Criteria for Testing Impact and Non-Impact Resistant Building Envelope Components Using Uniform Static Air Pressure”

(TAS) 203 “Criteria for Testing Products Subject to Cyclic Wind Pressure Loading”*

ASTM E330 “Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by Uniform

Static Air Pressure Difference”

ANSI/ASTM E1886 “Standard Test Method for Performance of Exterior Windows, Curtain Walls, Doors, and Impact Protective Systems

Impacted by Missile(s) and Exposed to Cyclic Pressure Differentials”

ASTM E1996 “Standard Specification for Performance of Exterior Windows, Curtain Walls, Doors and Impact Protective Systems

Impacted by Windborne Debris in Hurricanes”

AAMA/WDMA/CSA

101/I.S.2/A440 “Standard/Specification for Windows, Doors, and Unit Skylights”

FEMA Publication 320 “Taking Shelter From the Storm: Building a Safe Room for Your Home or Small Business”, investigated with respect to

impact and pressure requirements only.

FEMA Publication 361 “Design and Construction Guidance for Community Safe Rooms”, investigated with respect to impact and pressure

requirements only.

ICC 500

“ICC/NSSA Standard for the Design and Construction of Storm Shelters”, investigated with respect to impact and pressure

testing. Minimum missile impact speeds vary with the design wind speed desired for a particular product. Table 305.1.1

of ICC 500 correlates design wind speed to the minimum missile speeds.

SARGENT Manufacturing’s products meet building codes that require hurricane, windstorm and FEMA certifications, including some of the

most stringent building codes as specified in the Florida Building Code, Miami Dade Code and the International Building Code. Listed below are

certifications and standards met by the 7800/8200 lock.

Certifications to meet assembly requirements are done in conjunction with doors from ASSA ABLOY Group companies CECO DOOR and CURRIES.

Windstorm Certifications: Florida Building Codes & UL Listings

* Published in the “Florida Building Code”

1-800-727-5477 • www.sargentlock.com 3

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Features

8200/R8200/7800 Mortise Locks

The patented SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and

durability. These locks represent over a century of innovation and experience in manufacturing hardware and are the industry’s benchmark for mortise

locks: strong, durable, flexible, innovative and secure.

• For Doors 1-3⁄4" (44mm) thick standard

• Backset 2-3⁄4" (70mm) only

• Outside Front Plate Brass, bronze or stainless steel. 8" (203mm) x

1-1⁄4" (31mm), ANSI/BHMA Standard A156.115

• Front adjustable at any angle from flat to beveled 1⁄8" (3mm)

in 2" (51mm)

• Hubs for Knobs/Levers

– 7800: sintered iron copper infiltrated

– 8200: cold forged steel

– R8200: investment cast steel

• Auxiliary Deadlatch is stainless steel and non-handed

• Specify hand on order; easily field reversible (if no hand is specified

RH will be provided)

• Strike: Brass, bronze or stainless steel; ANSI Standard;

curved lip, non-handed (strike box optional)

• Keys: Two, nickel silver (control key or emergency key must be

ordered when required)

• Cylinder: Brass, size #41 (1-1/8") standard (except for Freewheeling,

size #46 (1-3/4"))

• Can be masterkeyed or grand masterkeyed.

Construction keying available. LA standard keyway

• Stile: 4-1/2" (114mm) minimum stile for 7800/8200/R8200,

4-3/4" (121mm) minimum stile for electrical function locks

• Door Prep: ANSI/BHMA A156.115 or A156.115W modified per template

(see template)

• Warranty: 10 year limited warranty, 2 year limited warranty on

electrified locks. Warranty limited to replacement of lockbody

and/or components

Maximum Strength & Durability

• Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational

Grade 1 and Security Grade 1 with all standard trims

• Exceeds cycle testing requirements by 14 times the ANSI/BHMA

A156.13 Grade 1 standard

• Case: 12 gauge heavy duty wrought steel, zinc dichromate plated.

Thickness 7/64" (3mm) (.109")

• 1/8" (.125") cold-rolled steel inside front holds lock securely in door

• Heavy duty wrought steel hubs and high carbon steel spring cartridge

provide superior strength and cycle life for 8200 locks

• Latchbolt is stainless steel with 3/4" (19mm) projection one-piece,

anti-friction reversible latch

• Deadbolt is one-piece hardened stainless steel with 1" (25mm)

projection

• Optional 8200 stainless steel hubs for Institutional setting

(specify 3- option)

• Patent pending and/or patent www.assaabloydss.com/patents

Maximum Flexibility

• Fast and easy installation. Lock is easily re-handed without removing

parts or opening the lock case

• Aesthetic design. Many escutcheon and lever styles available to match a

wide range of styles

• Many standard architectural grade finishes, including Polished Nickel

(US14) & Satin Nickel (US15) finishes

• 53 functions including 4 electrical functions. The most in the industry

for a broad range of applications

• Versatile. Offered for door thicknesses ranging from 1-3/8" (35mm) to

6" (152mm)

• Available with vandalism deterrent trim and/or secure fastener

options Torx® and spanner screws for high abuse conditions

• Available with push/pull trim, perfect for hospital applications

Innovation

• First in the industry to offer a multi-functional lockbody that embodies

8 functions in 1 lockbody

• Easy operation. Only 30º of lever rotation required to retract latchbolt

• Lever springs contained inside of the lock case for easier installation

• SARGENT’s revolutionary MicroShield® available. This antimicrobial

silver-based finish coating permanently suppresses the growth of

bacteria, algae, fungus, mold and mildew. EPA and NSF approved and

FDA listed

• Broad offering of electro-mechanical configurations offer higher

security for the most demanding access/egress control applications

featuring ElectroLynx® quick connectors

Security

• Multiple security trim options available: free-wheeling, security

escutcheon and anti-vandal pull trim (patent pending)

• Security key systems available (Degree, Signature, Keso, Keso F1, & XC)

Specifications

1-800-727-5477 • www.sargentlock.com

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Information

Simplí™ Roseless Trim &

R8200 Mortise Locks

This elegant trim by SARGENT seamlessly unifies the lever and the door.

Compatible with most Studio Collection and Coastal Series decorative

levers, Simplí creates a flawless aesthetic vision on any door opening.

Simpli is offered on the R8200 Series mortise lock, which was specially

designed to accept the roseless trim. In addition to the R8200 Series,

Simpli is also available with the RDL Series tubular locks and Harmony

R8200 Series mortise locks.

• Certified to and exceeds ANSI/BHMA A156.13, Series 1000,

Operational Grade 1 and Security Grade 1

• Offered with most 8200 functions

• Available with Coastal Series and many Studio Collection levers

(except MC, MK, MN, MP, MT, Gramercy Series, Wooster Square and

Grant Park)

• Selected levers return within ½" of the door face

• Simpli roseless trim is not compatible with the 8200 lockbody;

can only be used with R8200 locks

• All standard cylinder options are available

• Patent pending and/or patent www.assaabloydss.com/patents

Exploded view of the Simpli™

roseless trim and R8200 lockbody

Simpli™ Collar

.810

1.500

1-800-727-5477 • www.sargentlock.com 5

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Studio Collection Levers

8200/R8200 Mortise Locks

MZ¹

MW¹

Rialto Series

(MZ Lever is Handed)

Aventura SeriesCentro Series Notting Hill Series

(Handed Levers)

Studio Collection trim is available in a broad array of designs and finishes. It allows for uniformity throughout a facility using the 8200, R8200 and 7900

Series Mortise Locks, Access Control Products, 80 Series Exit Devices, DL and RDL Series Tubular Locks.

All levers meet ADA compliance for national codes. Visit the online Decorative Hardware Product Selector at selector.sargentlock.com to mix and match

styles and finishes.

1 Lever returns within 1/2" (13mm) of door face

2 Levers are not available with Simpli™ Roseless trim

NF¹

MC²

MP²

ND¹

NJ¹

MT²

MY¹

1-800-727-5477 • www.sargentlock.com

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

8200/R8200 Mortise Locks

Studio Collection Levers

Gramercy Series2/3

MN²

MK²

MX¹

NS¹

NU¹

RCM

RAL

REM

RAM

RAS

RAW

Odéon Series

(Handed Levers)

RAG

RGM

Wooster Square2/4

Grant Park2

H001

H007

H002¹

H008

H003

H009

H004

H010

H005¹

H011

H006¹

1 Lever returns within 1/2" (13mm) of door face

2 Levers are not available with Simpli™ Roseless trim

3 Gramercy levers are customized. See page 34 for ordering information

4 H003-H006 - Contain white or black polycarbonate inserts. Not available with

MicroShield® antimicrobial coating.

1-800-727-5477 • www.sargentlock.com 7

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Studio Collection Trim

8200 Mortise Locks

1-1/2"

38.1mm

13/16"

20.6mm

Roses

(8200 Series)

Escutcheons

(8200 Series)

Thumbturns

(8200 & R8200 Series)

Thumbturn backplate will match rose design chosen. See page 10 for more information.

SimplÍ™ Roseless Collar

(R8200 Series)

¹ 1KA square cylinder collar and 130KA square

backplate automatically supplied with E2,

E3 and E4 roses.

TO Rose

2-3/16"

(55.56mm)

TR Rose

CO Rose

2-5/16"

(58.74mm)

CR Rose

O Rose E2 Rose1

2-3/4"

(69.85mm)

2-3/4"

(69.85mm)

2-3/4"

(69.85mm)

E3 Rose1

2-1/16"

(52.39mm)

2-1/8"

(52.39mm)

LN Rose

2-11/16"

(68.26mm)

E4 Rose1

3-1/4"

(82.55mm)

T1 Turn T2 Turn T3 Turn

1-1/2" dia.

(38mm)

1-1/2" dia.

(38mm)

1-1/2" dia.

(38mm)

TE Escutcheon

7-7/8"

(200.03mm)

(50.80mm)

CE Escutcheon

7-7/8"

(200.03mm)

(50.80mm)

LE1 Escutcheon

7-5/8"

(193.68mm)

1-3/4"

(44.45mm)

1-800-727-5477 • www.sargentlock.com

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

8200 Mortise Locks

Coastal Series™ & Standard Levers

Features

• All levers meet ADA compliance for national codes

• Not available with CO and TO roses

• Levers are solid cast brass

• Finishes available – 3, 4, 9, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D

• All lever height (+/- 1/16") measurements represent total distance from door face

G - Gulfport™

(Handed)

R - Rockport™

S - Sanibel™

(Handed)

Y - Yarmouth™

(Handed)

Coastal Series

(8200 & R8200 Series)

(127mm)

3-7/16"

(87mm)

+/- 2-1/2"

(63mm)

2-5/8"

(67mm)

(127mm)

+/- 1-7/8"

(47mm)

2-15/16"

(74mm)

(127mm)

+/- 1-15/16"

(50mm)

4-3/4"

(121mm)

2-3/4"

(70mm)

+/- 1-7/8"

(47mm)

Features

• All levers meet ADA compliance for national codes

• Solid forged or cast

• Lever designs J, L and P have lever returns within 1/2" (13mm) or less of door face and

meet California State Reference Fire Code

• All lever height (+/- 1/16") measurements represent total distance from door face

(Handed)

Standard Levers

(8200 Series Only)

5-1/4"

(133mm)

+/- 5/16"

(8mm)

2-13/16"

(71mm)

(127mm)

5-1/2"

(140mm)

2-3/8"

(60mm)

+/- 5/16"

(8mm)

+/- 5/16"

(8mm)

2-1/2"

(64mm)

2-1/2"

(64mm)

4-1/2"

(114mm)

+/- 2-1/16"

(52mm)

(127mm)

+/-

1-15/16"

(49mm)

2-15/16"

(51mm)

2-5/8"

(67mm)

(127mm)

+/-

1-5/8"

(41mm)

2-1/2"

(64mm)

4-1/2"

(114mm)

+/-

(51mm)

4-1/2"

(114mm)

+/-

1-15/16"

(49mm)

2-3/4"

(67mm)

1-800-727-5477 • www.sargentlock.com 9

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Coastal Series™ & Standard Trim

8200/R8200/7800 Mortise Locks

LN Rose

L Rose

E Rose

SL Rose BH Rose

O Rose

Coastal Series Roses & Escutcheons

Standard Roses

TR Traditional Rose

• Dual radii edge

5/16"

(8mm)

2-3/16"

(56mm)

CR Contemporary Rose

• Beveled edge

5/16"

(8mm)

2-3/16"

(56mm)

TE Traditional Escutcheon

• Dual radii edge 5/16"

(8mm)

(51mm)

7-7/8"

(200mm)

CE Contemporary Escutcheon

• Beveled edge 5/16"

(8mm)

(51mm)

7-7/8"

(200mm)

5/16"

(8mm)

3-1/2"

(89mm)

(51mm)

5/16"

(8mm)

3-1/16"

(78mm)

5/16"

(8mm)

2-3/4"

(67mm)

5/16"

(8mm)

(76mm)

7/16"

(11mm)

5/16"

(8mm)

3-1/2"

(89mm)

1-800-727-5477 • www.sargentlock.com

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

8200/R8200/7800 Mortise Locks

umbturn Designs

• Round backplate supplied standard with L, O, LN roses and

R8200 roseless trim

• Standard turn automatically supplied with sectional trim

for R8200 & 8200 locks

• Specify T1, T2 or T3 as an option for decorative turns

• 1-1/2" (38mm) round brass or stainless steel plate

• Meets ADA Requirements

• Square backplate supplied standard with E, E2, E3 or E4 roses

• Standard turn automatically supplied with sectional trim for R8200

& 8200 locks

• Specify T1, T2 or T3 as an option for decorative turns

• 1-1/2" (38mm) round brass or stainless steel plate

• Meets ADA Requirements

• Beveled edge backplate supplied standard with CO and CR roses

• Standard turn automatically supplied with sectional trim for R8200

& 8200 locks

• Specify T1, T2 or T3 as an option for decorative turns

• 1-3/4" (44mm) round brass or stainless steel plate

• Meets ADA Requirements

• 11-1/2" (38mm) round stainless steel plate

• Only available with BHL trim

• 2-3/4" x 1-13/16" rectangular shape

• Brass or stainless steel housing

• Only available with ALP trim

• Meets ADA Requirements

• Used with 7800 with sectional trim

• 1-1/2" (38mm) round brass or stainless

steel plate

• 2-1/4" round

• Stainless steel

• Only available with BHW trim

• Meets ADA Requirements

• 2-3/16" (56mm) round stainless steel backplate

• 2-3/8" (61mm) tall thumbturn

• Available in brass or bronze finishes only

• Surface mounted with three screws

• Order as “SST” trim with 7892 function

• Dual radii edge backplate supplied standard with TO and

TR roses

• Standard turn automatically supplied with sectional trim

for R8200 & 8200 locks

• Specify T1, T2 or T3 as an option for decorative turns

• 1-3/4" (44mm) round brass plate

• Meets ADA Requirements

• Available with R8200 & 8200 with sectional trim

• 40% larger than standard thumbturn

• Specify LB as an option for ADA turn

• 2" (51mm) round brass, zinc, or stainless steel plate & turn

• 130LT - Traditional backplate, 130LC — Contemporary

backplate

• Meets ADA Requirements

130KB Round Backplate

(Shown with Standard Turn)

130KA Square Backplate

(Shown with Standard Turn)

130KC Contemporary Backplate

(Shown with Standard Turn)

130KBH Turn for use with BHL Trim

130KALP Turn for use with 8200 Mortise ALP Trim

130W Round Backplate

(Shown with Standard Turn)

130KBHW Turn for use with 8200 BHW Trim

126 T-Turn

(7892 function only)

130KT Traditional Backplate

(Shown with Standard Turn)

130LB Large Round Backplate

(Shown with Large ADA Turn)

T1 Turn T1 Turn

T1 Turn

130LT

T2 Turn T2 Turn

T2 Turn

130LC

T3 Turn T3 Turn

T3 Turn

1-800-727-5477 • www.sargentlock.com 11

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Emergency Releases,

Indicators & Accessories

8200/R8200/7800 Mortise Locks

• Thumbturn plate

• Covers hole in door when

thumb turn is no longer needed

• 2" round

• Covers hole for levers and roses

• 1-1/2" (38mm) round brass, bronze

or stainless steel plate

• For 65, 66 and 68 functions only

Studio Collection Emergency Release

• 184KC Emergency Release Contemporary

• 184KT Emergency Release – Traditional



• Carbon steel

• For 65, 66 and 68 functions only

• Must be ordered separately

Emergency Key 14-0057

Trim One Side Kit

Refer to page 35 for a complete list of kits

• 1-1/2" (38mm) round brass, bronze

or stainless steel plate

• For 65, 66 and 68 functions only

184W Emergency Release (used with 7800 with

sectional trim)

184KB Emergency Release (used with R8200 & 8200 with

sectional trim)

• 1-1/2" (38mm) square brass, bronze

or stainless steel plate

• For 65, 66 and 68 functions only

184KA Emergency Release (used with E rose)

130KBCVR Cap 82-4023 Cap

Indicators

Accessories

Emergency Releases

49- Option Visual Status Indicator

for Non Secure Applications 50- Option Secured Indicator Rose49- Option Occupancy Indicator

with Emergency Release

• Designed to work

with Classroom

Security functions

• Red/White indicator

plate standard, field

replaceable OCC/VAC

plate included

• Mounts on inside of door

• Not available with escutcheon trim

• Functions and Roses available:

– 30, 36 & 37 Functions with 7800,

8200 and R8200 locks, CR, L, LN,

TR, E & O Roses

– 26, 29, 38, 39, 40 and 41 Functions

with 7800, 8200, and R8200 locks &

LN Roses Only

• As retrofit, order 185C x finish

• Ideal for restrooms or

conference rooms where

easy determination of

use needs to be made

• OCC/VAC indicator plate

standard, field replaceable

Red/White plate included

• Mounts on outside of door

• Not available with escutcheon trim

• Emergency coin operated release

standard

• Functions and Roses available:

– 65, 66, 68 Functions with 7800,

8200, and R8200 locks, CR, E, L,

LN, O & TR Roses

• As retrofit, order 185P x finish

• Non-handed with

lever and mounting

posts field reversible

• VAC/OCC indicator

plate standard, field

replaceable Red/White

plate included

• Mounts on outside of door

• Not available with escutcheon trim

• Available for the following functions:

24, 25, 26, 28, 29, 30, 36, 37, 38, 39, 40, 41, 43,

45, 50, 51, 52, 67 - with Rose Trim only

• Patent pending design

• Not available with Roseless trim (R8200)

• For retrofit, order 185S x suffix x finish:

Suffix Door Thickness

-1 1-3/8" (35mm)

-2 1-3/4" (44mm)

-3 2" (51mm)

-4 2-1/4" (57mm)

185C 185P

Inside Only

Note: For 49- and 50- Options, key will not retract latch when used with 37 and 38 functions

Door Thickness Part Number

1-3/8" 82-4022

1-3/4" 82-4023

2" 82-4024

2-1/4" 82-4025

1-800-727-5477 • www.sargentlock.com

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

8200 Mortise Locks

Escutcheon Designs

• Escutcheon: LW1-

Wrought

• (2) Exposed screws

inside

• LW1 is available with

standard levers only

• Escutcheon: LS-Forged

• Security Trim: Cylinder

is protected by the

Escutcheon

• (4) Spanner security

screws are exposed on

inside trim standard

• LS is available with

standard levers only

• Escutcheon:

WT-Heavy wrought

• Surface mounted

both inside and

outside

• (4) Exposed screws

both inside and

outside

• WT is available with

standard levers only

• Concealed Cylinder

designed Escutcheon,

Exposed Barrel Only

• Escutcheon:

LE-Cast

• LE3- (2) Exposed

screws inside

• LE4- (2) Concealed

screws inside

• Not available on double cylinder

functions

• Only available with #41 size cylinders

- limited keyway and key system

offerings – see cylinders section

• If cylinder is ordered separately: specify 78- for

concealed cylinder

• LE3 & LE4 are available with standard levers only

• UL437 not available

• Not available with DG2 & DG3 cylinders

• Escutcheon: LE-Cast

• LE1- (2) Exposed screws

inside

• LE2- (2) Concealed

screws inside

• LE1 is available with

standard, Coastal &

Studio Levers

• LE2 is available with

standard levers only

Cylinders will protrude from escutcheon face on double cylinder functions only.

LE1/LE2 Escutcheon Design

LE3/LE4 Escutcheon Design

LW1 Escutcheon Design

WT Escutcheon Design

LS Escutcheon Design

2-1⁄2"

(65mm)

2-1⁄2"

(64mm)

3/8"

(10mm)

7-5⁄8"

(194mm)

6-7⁄8"

(175mm)

6-9⁄16"

(170mm)

7-3⁄4"

(197mm)

3-7/8"

(98mm)

6-11⁄16"

(170mm)

(51mm)

(203mm)

L of

cylinder

L of

lever

3-7⁄8"

(98mm)

6-7⁄8"

(175mm)

1-3⁄4"

(44mm)

L of

cylinder

L of

lever

3-7⁄8"

(98mm)

6-7⁄8"

(175mm)

7-5⁄8"

(194mm)

1-3⁄4"

(44mm)

(Shown with L Lever)

7-3⁄8"

(187mm)

L of

cylinder

L of

lever

3-7⁄8"

(98mm)

L of

cylinder

L of

lever

• Escutcheon: TL-WT

Heavy wrought

• Surface mounted both

inside and outside

• (4) Exposed screws both

inside and outside

• SARGuide opening

2" x 3/4"

• TL-WT is available with

standard levers only

SARGuide™, with integrated electroluminescent “EXIT” signage,

addresses the increasing concern about safe public egress, particularly

in low-visibility conditions. SARGuide™ can be wired for continuous

operation or for operation only when an emergency alarm is activated.

Mortise Features

• Lamp can be used on internal trim (for external trim,

consult factory)

• Includes all features of the 8200 Mortise Lock

• Available with WT escutcheon design only and all standard lever

designs. Must specify TL- Option when ordering

SARGuide™ Features

• Illuminated utilizing the patented FLATLITE® electroluminescent lamp

embedded within the mortise lock escutcheon

• Dual voltage: 24VAC or VDC input with battery back-up

• Lamp replacement kit available

SARGuide™ 8200 Mortise Lock (TL- Option)

Note: SARGuide is only available with TL- WT Escutcheon.

Note: The LS Escutcheon is not available with cylinder options: 10-63-,

11-60-, 11-63-, 11-64-, 60-, 63-, 64-, 70-, 72-, 73-, 65-73-, 65-73-7P-,

73-7P-, 81-, 82-, 83-, 84-, F1-82-, F1-82- & F1-83-. Also not available with

electrified functions: 70, 71, 72, 73

1-800-727-5477 • www.sargentlock.com 13

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Freewheeling (FE) Trim Design

ADA and Handicap Warning

8200 Mortise Locks

Inside Outside

8225 FEL shown

1-13/16"

(46mm)

1-5/8"

(41mm)

13/16"

(21mm)

Outside Inside

6-11/16"

(169mm)

8-1/16"

(205mm)

3-7/8"

(99mm)

7-5/8"

(194mm)

L of

cylinder

L of

lever

Vandal Resistant Freewheeling Lever

Maximum projection varies by lever design. Largest projection is “A” lever – 3-9/16" (90mm)

2-3/8"

(60mm)

The Freewheeling Mortise Trim is designed for

areas that are susceptible to vandalism including

schools, universities, public buildings, back doors

of businesses and any exterior doors where

excessive or abusive force might be applied to

the lever handle trim.

This design allows the outside lever handle

to swing freely, down to 70°, in the “locked”

mode. This eliminates resetting the trim

after vandalism attempts because the lever

automatically returns to its original position.

• For 1-3/4" (44mm) doors standard. For 2"

(51mm) and 2-1/4" (57mm) thick doors,

must specify door thickness on order

• Vandal resistant trim

• Meets or exceeds ANSI/BHMA A156.13 Series

1000 Operational Grade 1 and Security

Grade 1. LFIC (Removable) and SFIC cylinders

do not meet Security Grade 1

• Forged brass outside escutcheon

trim provides added protection

against vandalism

• Stainless steel lever bushing protects

against wear

• Stainless steel lugs and through-bolted trim

design for proper alignment and increased

security

• Functions available — 04, 05, 16, 24, 25, 26,

31, 35, 36, 37, 38, 39, 40, 50, 51, 65, 66

• Levers A, B, E, F, J, L, P, W available

• Lever designs J, L and P have lever returns

within 1/2" (13mm)

• Cylinder will protrude from escutcheon

face on double cylinder functions only

• Cylinder sizes #46 (1-3/4") outside,

#41 (1-1/8") inside standard on

1-3/4" (44mm) doors

• Specify hand. Easily field rehanded

• Patent pending and/or patent

www.assaabloydss.com/patents

• Options available: 3-, 10-, 11-, 11-60-*,

11-63-*, 11-64-*, 11-70-7P-*, 11-72-7P-*,

11-73-7P-*, 11-65-73-7P-*, 21-, 23-, 36-,

37-, 60-*, 63-*, 64-*, 70-*, 72-*, 73-*, 65-73-*,

65-73-7P-*, 73-7P-*, 74-, 75-, 76-, 77-, 82-,

SG- & WBS-

* Can not be used as the inside cylinder with

freewheeling trim (#41 cylinder required)

Features

ADA and Handicap Warning

1-3⁄8"

(35mm) Turn

• Lever designs J, L and P

• Lever returns within 1/2" (13mm)

of door face or less

• Meets ADA Compliance for

national codes

Lever Return to Door

• Meets ADA Compliance for

national codes

• Order as: 130KB, 130KC,

130KT, 130W or 130KA x finish

See page 10 for design

Standard Thumbturn

• Meets the tougher local ADA

requirements

• 40% larger than standard

thumb turn

• Order as: 130LB, 130LC or

130 LT x finish

See page 10 for design

LB - Thumbturn

2" (51mm)

Turn

Tactile Handicapped Warning

• Knurled B & C Knobs available

• Knobs are NOT ADA compliant

Tactile Handicapped Warning

• Large key bows are available

• Standard key bows can have

attachments added to increase

the grip area

• Keys are NOT ADA compliant

Keys

• Abrasive Coating:

Options 85-, 86- & 87-

• Milled 1/16" Grooves:

Options 75-, 76- & 77-

– B, E, J, L, P and W Levers — Grooves on

backside surface of lever

– F Lever — Grooves on top and bottom

surface of lever

1-800-727-5477 • www.sargentlock.com

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

8200/7800 Mortise Locks

Behavioral Health Series™ Trim

The 8200 mortise lock with push/pull trim provides an aesthetically-pleasing alternative to standard push/pull

products. Ease of operation, along with the strength, versatility and integrity of the 8200 mortise lock, allows its

use in many types of environments. Perfect for health care facilities, including behavioral health units, patient room

doors and operating rooms.

The SARGENT BHL trim is part of the Behavioral Health Series™ of products. With an array of functions, this trim

can be used on virtually any opening in healthcare applications. Sloping surfaces and overlapping rose and lever

address safety concerns common in behavioral health. Optimal for tough environments, the SARGENT 8200

mortise lock provides impressive strength and reliability.

8200 Push/Pull Trim (ALP)

8200 with BHL* Trim

Features

• Paddles can be mounted in vertically (up or down)

and horizontally (towards hinge)

– with Cylinder - paddle mounts vertically down or

horizontally

• Easy installation

• Trim is non-handed; lockbody is easily field reversible

• Through-bolted trim for stability

• Torx® and spanner screws optional with ALP

• Lead lining is optional (Lockbody only), specify

74- option

• Covers are cast stainless steel or brass

• Paddles are cast stainless steel or bronze

• Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D,

32 & 32D

• Patent pending and/or patent

www.assaabloydss.com/patents

See Specialty Hardware Catalog 90712 for more details

• Available in 21 functions

• UL Fire Rated

• ANSI/BHMA Grade 1

• Bi-directional lever (outside only)

• Sloped surfaces

• Non-Handed

• Concealed hardware

• Overlapping lever and rose construction

• ADA compliant

• Finishes: 32 & 32D

• Available with MicroShield® antimicrobial coating

See Specialty Hardware Catalog 90712 for more details

(Paddle shown horizontally)

* Although these products are better designed for behavioral

health applications than traditional trim, they do not eliminate

the risk that an object can be affixed to, or around them

8200 Series with BHW* Trim

Part of the Behavioral Health Series™ of products, the 8200 mortise lock with BHW trim provides an innovative

solution for behavioral health environments. The unique integrated lever and escutcheon combines aesthetics

with safety. Ease of operation, along with the strength and versatility of the 8200 mortise lock allows its use in

many applications.

Features

• Available in 37 functions

• Uses standard mortise prep

• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• Available with MicroShield® antimicrobial coating

• Trim only option available with existing sectional

and escutcheon trim only

• Trim only kits

694-1 Trim only, non-keyed functions

694-2 Trim only, single cylinder functions

694-3 Trim only, double cylinder functions

• ADA Compliant

• Matching thumbturn available

• Finishes: 32 & 32D

• 6 Lobe head security screws (Torx® type)

• Patent pending and/or patent

www.assaabloydss.com/patents

See Specialty Hardware Catalog 90712 for more details

1-800-727-5477 • www.sargentlock.com 15

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

7800 PT Push/Pull Trims

& 7800/8200 Anti-Vandal Option

7800 Mortise Locks

667-1 Shown

Designed for exterior doors that require extra security or

resistance to vandalism. AV anti-vandal trim plates have an

extended lip on the active side of the door to provide extra

protection for the latchbolt, deadbolt and deadlatch. A matte

plastic coated grip edge provides a comfortable pull that feels

good over wide temperature ranges. Fully through-bolted without

exposed exterior fasteners for a clean look and increased security.

Features

• Heavy duty 12 gauge stainless steel in 32D finish only

• Through-bolted through mortise lockbody and door

for added strength

• Handed: specify RHRB or LHRB

• ADA Compliant

• Patent Pending

• Available with all inside trim except LS/KS, FE and PT

• Options not available with AV trim: 1-, 31-, 49-, 50-, 68-, 69,

76, 77-, 85, 86, 87, DX- & SG-

• See chart to right for available functions

• For inactive door, available without protective lip

• Anti-Vandal Trim is available as a 667-_ Kit or with the lock,

as an “AV” option

667 AV Kit

Retrofit kits for 7800, 7900, 8200 & 9200 mortise locks 667 Kit includes:

• AV Pull • 1SB Rosette

• (4) 1/4-20 screws • Instructions & Templates

• (4) Cup washers

RHRB LHRB Functions

667-1 667-2 04, 06, 17, 28, 29, 30, 50, 51, 52, 91 & 92

82-4034 82-4035 -1 & -2 Trim has an extended lip, cylinder hole

and through-bolt post for mounting Inside trim

667-3* 667-4* 03, 20, 21, 23, & 31

82-4036 82-4037 -3 & -4 Trim has an extended lip & cylinder

hole for deadbolt functions only

667-5* 667-6* -5 & -6 Trim is designed as a Pull does

82-4044 82-4045 not have an extended lip or cylinder hole

7800/8200 Anti-Vandal Trim (AV)

* For Deadbolt Functions only without lever trim

1-5/16"

(33mm)

10-9/16"

(268mm)

8-3/16"

(208mm)

Typically used in the healthcare environment, push/pull trim is known for its ease of operation. Because the mortise

lock with trim is more durable and secure than a cylindrical lock, conference rooms, handicapped restrooms,

laboratories and pharmacies are appropriate applications.

7800 Push/Pull Trim (PT)

Features

• Paddles can be mounted in vertically (up or down) and

horizontally (towards hinge)

– with Cylinder — paddle mounts vertically down or

horizontally

– with thumb turn — paddle mounts horizontally only

• Handing is easily field reversible

• Through-bolted trim for stability

• Functions available: 04, 15, 16, 17, 24, 26, 37, 43, 45,

50, 65

• Paddles & Covers are cast stainless steel, brass or bronze

See Specialty Hardware Catalog 90712 for more details

(Paddle shown horizontally)

1-800-727-5477 • www.sargentlock.com

8200/R8200/7800 Mortise Locks

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

7800 Knob & Escutcheon Designs

• B and C knob designs only are available with standard roses (LN, O, L & E) and escutcheons (KE1/KE2, KE3/KE4, KW1, & WT).

• Knob: C-Wrought

C Knob Design

2-5/8"

(67mm)

2-1/4"

(57mm)

2-1/8"

(54mm)

• Knob: B-Wrought

B Knob Design 3"

(76mm)

• Escutcheon: KE1-Cast

• KE1- (2) Exposed

screws inside

• KE2- (2) Concealed

screws inside

• Available with B & C

knobs only

(Shown with B Knob)

1-3/4"

(44mm)

7-5/8"

(194mm)

L of

cylinder

L of knob

3-7/8"

(98mm)

• Escutcheon: KW1-

Wrought

• (2) Exposed

screws inside

• Available with B & C

knobs only

• Escutcheon:

WT-Heavy wrought

• Surface mounted

• (4) Exposed screws

inside and outside

• Available with B, C &

N knobs only

2-1/2"

(65mm)

7-3/8"

(187mm)

3-7/8"

(98mm)

(51mm)

L of

cylinder

L of knob

L of

cylinder

L of knob

(203mm)

3-7/8"

(98mm)

• Knob: K-Cast

(prior designation 1485)

Only with KS escutcheon

K Knob Design

1-13/16"

(46mm)

2-1/4"

(57mm)

2-1/4"

(57mm)

• Knob: N-Wrought

(prior designation 1673)

Only with WT escutcheon

N Knob Design

(51mm)

KE1/KE2 Escutcheon Design

WT Escutcheon Design

KW1 Escutcheon Design

(Shown with B Knob)

1-3/4"

(44mm)

L of

cylinder

7-5/8"

(194mm)

3-7/8"

(98mm)

• Security Trim: cylinder is

protected by escutcheon

• Escutcheon: KS-Forged

• (4) Spanner screws are

exposed on inside trim

• All functions will have

escutcheons both sides

• Available with K knob only

KS Escutcheon Design**

Outside

2-1/2"

(64mm)

7-3/4"

(197mm)

3/8"

(10mm)

3-7/8"

(98mm)

L of

cylinder

L of

knob

• Machined from

Stainless Steel

• Only available

with BH or SL Rose

• Finishes: 32 & 32D

• Options not

available: 75, 76,

77, 85, 86 & 87

• Available with D Knob only

Must be ordered as BHD Trim

• For Detention Knob x

lever or knob, please

consult factory

D Knob

BH Rose

SL Rose

• Concealed Cylinder

designed Escutcheon,

Exposed Barrel Only

• Escutcheon: KE3-Cast

• KE3- (2) Exposed

screws inside

• KE4- (2) Concealed

screws inside

• Not available on double

cylinder functions

• Only available with #41 size

cylinders – limited keyway

and key system offerings —

see cylinders section

• If cylinder is ordered separately:

specify 78- for concealed

cylinder

• Available with B & C

knobs only

• UL437 not available

• Not available with DG2 & DG3

cylinders

** KS Escutcheon is not available with cylinder options:10-63-, 11-60-,

11-63-, 11-64-, 60-, 63-, 64-, 70-, 72-, 73-, 65-73-, 65-73-7P-, 73-7P-, 81-,

82-, 83-, 84-, F1-82-, F1-82- & F1-83-. Also not available with electrified

functions: 70, 71, 72, 73

L of knob

KE3/KE4 Escutcheon Design

(76mm)

1-800-727-5477 • www.sargentlock.com 17

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

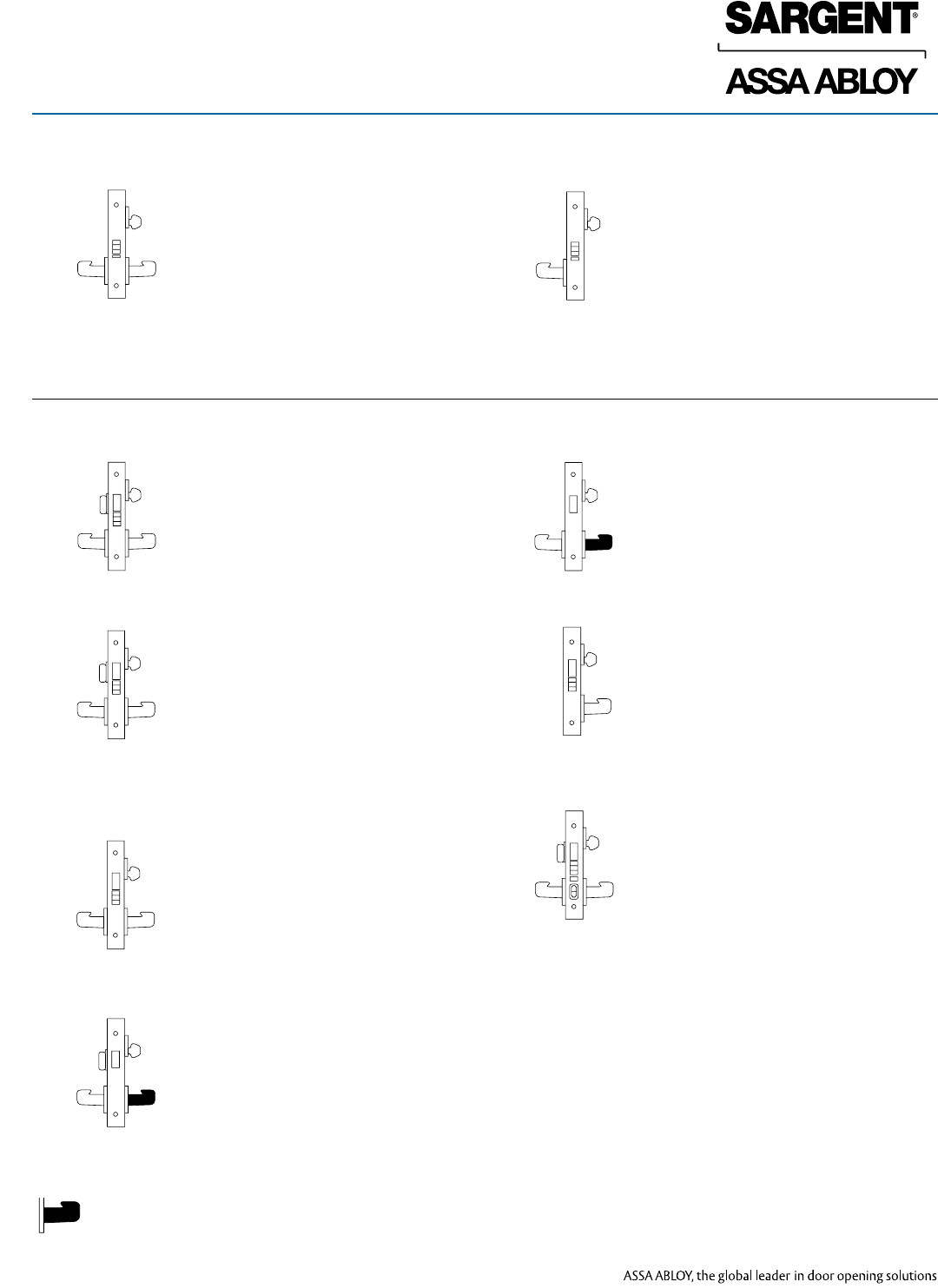

Functions & Descriptions

8200/R8200/7800 Mortise Locks

8200, R8200 & 7800 • Key outside retracts latchbolt

• Trim outside locked at all times

• Trim inside always retracts latchbolt

• Auxiliary deadlatch

• A Multi-Function 8200/R8200/7800

Lockbody

• ANSI F07

8200, R8200 & 7800 • Key outside retracts latchbolt, also locks &

unlocks outside trim

• Trim inside always retracts latchbolt,

trim outside remains locked

• Thumbturn inside locks & unlocks outside trim

• Auxiliary deadlatch

• A Multi-Function 8200/R8200/7800 Lockbody

• ANSI F04

The Multi-Function Advantage with rose trim:

1. Lock will accommodate 04, 05, 15 & 37 functions without

additional parts.

2. By adding an additional cylinder, lock will accommodate

38 function.

3. By adding a Trim One Side Kit, lock will accommodate

06, 13, 31 & 36 functions.

NOTE: Office/Entry Function with toggle is a 55 function.

8200, R8200 & 7800 • No trim outside, cylinder only

• Key outside retracts latchbolt

• Trim inside always retracts latchbolt

• Auxiliary deadlatch

• A Multi-Function 8200/R8200/7800 Lockbody

• Same as 04 Function without trim outside

*‡04 Storeroom or Closet

*05 Office or Entry

06 Storeroom or Service

8200, R8200 & 7800 • Key outside retracts latchbolt

• Trim outside is always locked

• No inside trim or cylinder

• A Multi-Function 8200/R8200/7800 Lockbody

• Auxiliary deadlatch

F*31 Utility

8200, R8200 & 7800 • Key locks and unlocks trim

• No inside trim or cylinder

• A Multi-Function 8200/R8200/7800 Lockbody

• Auxiliary dead latch

*F36 Closet

8200, R8200 & 7800 • Key outside retracts latchbolt, also locks &

unlocks outside trim

• Trim inside always retracts latchbolt

• Auxiliary deadlatch

• A Multi-Function 8200/R8200/7800 Lockbody

• ANSI F05

*‡37 Classroom

If shaded, knob or lever rigid at all times

*8200 Available with Freewheeling Trim

‡ 7800 Available with Push/Pull Trim

FCAUTION: Not recommended for use on any door used for Life Safety egress

Single Cylinder without Deadbolt

8200, R8200 & 7800 • Key outside retracts latchbolt

• Trim inside always retracts latchbolt, outside

trim remains locked

• Trim outside is locked & unlocked by the

toggle only

55 Office or Entry

8200, R8200 & 7800 • Key outside retracts latchbolt

• Trim inside always retracts latchbolt and unlocks

outside trim

• Trim outside is locked by thumbturn or key

• Auxiliary deadlatch

56 Office & Inner Entry Lock

8200, R8200 & 7800 • Key outside retracts latchbolt, overriding

thumbturn when held in locked position

• Thumbturn inside locks & unlocks outside trim

• Trim outside unlocks when the door closes or

by operating trim inside

• Trim inside always retracts latchbolt

• Auxiliary deadlatch

• ANSI F26

Note: Key does not lock trim outside, only unlocks it

67 Institutional Privacy

1-800-727-5477 • www.sargentlock.com

8200/R8200/7800 Mortise Locks

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

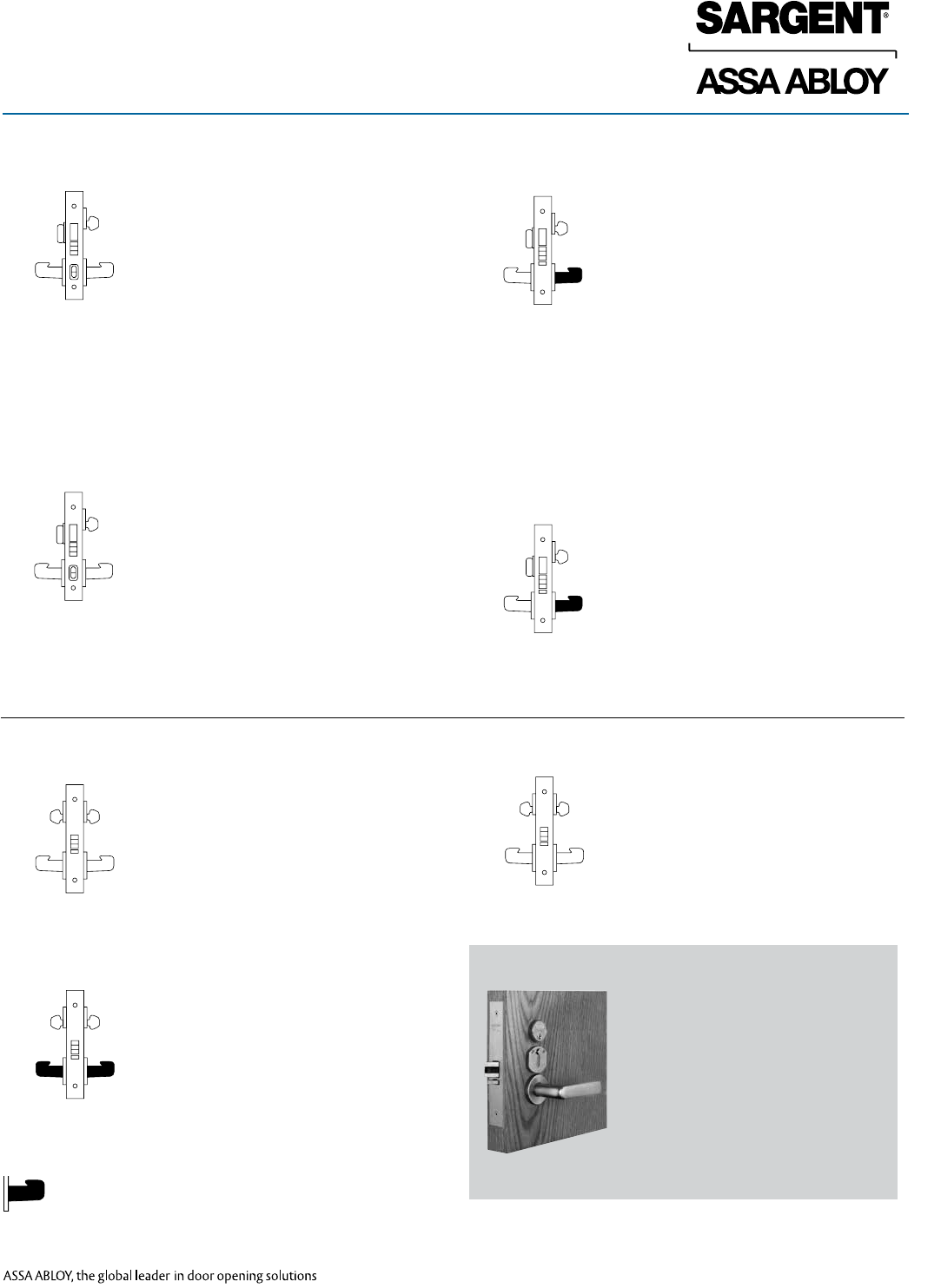

Functions & Descriptions

8200, R8200 & 7800 • Key outside or thumbturn inside retracts and

projects deadbolt

• Trim either side retracts latchbolt

• Latchbolt & deadbolt operate independently

of each other

• ANSI F21

8200, R8200 & 7800 • Key outside retracts and projects deadbolt

• Trim from either side retracts latchbolt

• Same as 24 function without thumbturn

• Latchbolt & deadbolt operate independently

of each other

8200, R8200 & 7800 • Key outside or thumbturn inside retracts and

projects deadbolt

• Trim from either side retracts latchbolt, when

the deadbolt is in the retracted position

• Trim outside is locked, when the deadbolt is

projected

• When deadbolt is projected, Trim inside

retracts latchbolt and deadbolt simultaneously,

unlocking outside trim

• ANSI F13

8200, R8200 & 7800 • Deadbolt operation only

• Key outside retracts and projects deadbolt

• Trim inside always retracts deadbolt

• Trim outside is always locked

• Same as 28 Function without a thumbturn

8200, R8200 & 7800 • Deadbolt operation only

• Key outside retracts and projects deadbolt

• Trim inside always retracts deadbolt

• Trim outside is always locked

• Thumbturn inside retracts and projects

deadbolt

28 Dummy Trim Deadlock

F*‡24 Room Door

*25 Dormitory or Exit

F27 Closet or Storeroom

30 Dummy Trim Deadlock

8200, R8200 & 7800 • Key outside retracts and projects deadbolt

• Trim outside retracts latchbolt, except when

deadbolt is projected

• No inside trim or cylinder

F*35 Storeroom

• Key outside retracts latchbolt, also locks &

unlocks outside trim

• Trim inside always retracts latchbolt

• Auxiliary deadlatch

• Latch holdback — to set, rotating & hold lever,

then rotate key twice toward latchbolt. Lever

will remain in rotated position indicating it

is unlocked

• ANSI F06

89 Holdback

Single Cylinder with Deadbolt

If shaded, knob or lever rigid at all times

*8200 Available with Freewheeling Trim

‡ 7800 Available with Push/Pull Trim

FCAUTION: Not recommended for use on any door used for Life Safety egress

8200, R8200 & 7800 • Key and thumbturn both retract & project

the deadbolt

• Trim outside is locked by toggle or

projecting deadbolt

• Trim outside is unlocked by toggle only

• Key retracts both latchbolt and deadbolt,

trim outside remains locked

• Trim inside always retracts latchbolt

(and deadbolt simultaneously), trim

outside remains locked

• Auxiliary deadlatch

• ANSI F20

‡43 Apartment Corridor Door

8200 • Key outside retracts latchbolt

• Key outside can lock latchbolt in retracted

position

• Trim inside always retracts latchbolt

• No outside trim

• Auxiliary deadlatch

• Latch holdback — set by rotating & holding

trim, then rotate key toward latchbolt. Lever

will remain in rotated position for unlocked

indication

91 All Purpose Holdback

8200

1-800-727-5477 • www.sargentlock.com 19

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Functions & Descriptions

8200/R8200/7800 Mortise Locks

8200, R8200 & 7800 • Key and thumbturn both retract & project

deadbolt

• Trim outside is locked by toggle or projecting

deadbolt

• Trim outside is unlocked by toggle only

• Key retracts both latchbolt and deadbolt, trim

outside remains locked

• Trim inside always retracts latchbolt (and

deadbolt simultaneously), trim outside

remains locked

• Same as an 8243 without Auxiliary Deadlatch

• ANSI F12

‡45 Dormitory or Exit

8200, R8200 & 7800 • Key and thumbturn both retract & project

deadbolt

• Trim outside is locked by toggle or projecting

deadbolt

• Trim outside is unlocked by toggle only

• Key retracts both latchbolt and deadbolt, trim

outside remains locked

• Trim inside retracts latchbolt only, deadbolt

is retracted manually & trim outside remains

locked

• ANSI F08/F10

F47 Front Door or Apartment Corridor Door

*‡16 Apartment, Exit or Public Restroom

8200, R8200 & 7800 • Key and thumbturn both retract & project

the deadbolt

• Key will also retract latchbolt

• Trim inside retracts latchbolt & deadbolt

simultaneously

• Trim outside is always locked

• Auxiliary deadlatch

• Same as 50 function with a std. cylinder

*51 Storeroom Deadbolt

If shaded, knob or lever rigid at all times

*8200 Available with Freewheeling Trim

‡ 7800 Available with Push/Pull Trim

FCAUTION: Not recommended for use on any door used for Life Safety egress

Double Cylinder without Deadbolt

8200, R8200 & 7800 • Key outside retracts latchbolt

• Key inside is required to lock and unlock

trim outside

• Trim inside always retracts latchbolt

• Auxiliary deadlatch

• Special -105 cam, required for inside

cylinder (supplied)

• ANSI F09

8200, R8200 & 7800 • Key from either side retracts latchbolt

• Trim on both sides are locked at all times

• Auxiliary deadlatch

• ANSI F30

F‡17 Asylum or Institutional

8200, R8200 & 7800 • Hotel Cylinder (50 Function) Required

(Standard & Emergency Keys)

• Standard Key retracts latchbolt only, will not

retract or project deadbolt

• Emergency Key will retract latchbolt & deadbolt

and also project deadbolt

• Thumbturn retracts & projects deadbolt

• Trim inside retracts latchbolt & deadbolt

simultaneously

• Trim outside is always locked

• Auxiliary deadlatch

• Available with Conventional, LFIC (60- & 63-),

Degree (60-, 63-, & 64-) and Keso (82- &

F1-82-) key systems

• ANSI F15

*‡ 50 Hotel Guest

8200, R8200 & 7800 • Key from either side locks & unlocks

outside trim

• Key from either side retracts latchbolt

• Trim outside retracts latchbolt, except

when locked

• Trim inside always retracts latchbolt

• A Multi-Function 8200/R8200/7800 Lockbody

• Auxiliary deadlatch

• ANSI F32

*38 Classroom Security Intruder Latchbolt

• 49- Indicator offers visual confirmation that

a door is secure or not, allowing for quick

response in a crisis

• Trim inside always allows immediate egress

• Key from either side locks & unlocks

outside trim

• Trim outside retracts latchbolt, except

when locked

• Auxiliary deadlatch

• Refer to page 10 for more information on

the 49- indicators

• ANSI F32

*49-8238 Classroom Security Intruder with Indicator

1-800-727-5477 • www.sargentlock.com

8200/R8200/7800 Mortise Locks

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Functions & Descriptions

8200, R8200 & 7800 • Key from either side retracts or projects

deadbolt which also unlocks or locks

outside trim

• Trim outside retracts latchbolt, except

when locked

• Trim outside is only locked by projecting

the deadbolt

• Trim inside retracts both latchbolt and deadbolt

simultaneously, and unlocks outside trim

• Auxiliary deadlatch

• Same as an 8239 with Auxiliary deadlatch

• ANSI F34

8200, R8200 & 7800 • Key from either side retracts and projects deadbolt

• When deadbolt is projected, 1st key rotation

retracts deadbolt, 2nd key rotation unlocks

trim outside

• Key retraction of latchbolt from either side unlocks

trim outside

• Trim outside retracts latchbolt, except

when locked

• Trim inside (when deadbolt is projected) retracts

both latchbolt and deadbolt simultaneously and

the outside trim remains locked

• Auxiliary deadlatch

8200, R8200 & 7800 • Key either from side retracts or projects

deadbolt which also unlocks or locks

outside trim

• Trim outside retracts latchbolt, except

when locked

• Trim outside is only locked by projecting

the deadbolt

• Trim inside retracts both latchbolt and

deadbolt simultaneously, and unlocks

outside trim

• ANSI F33

*39 Classroom Security Intruder Deadbolt

*40 Classroom Security Intruder Deadbolt

41 Classroom Security Intruder Deadbolt

8200, R8200 & 7800 • Key from either side retracts and projects deadbolt

• Key from either side retracts both latchbolt and

deadbolt, trim outside remains locked

• Trim outside is locked by toggle or projecting

deadbolt

• Trim outside is unlocked by toggle only

• Trim inside (when deadbolt is projected) retracts

both latchbolt and deadbolt simultaneously and

the outside trim remains locked

46 Dormitory or Exit

*8200 Available with Freewheeling Trim

‡ 7800 Available with Push/Pull Trim

FCAUTION: Not recommended for use on any door used for Life Safety egress

If shaded, knob or lever rigid at all times

Double Cylinder with Deadbolt

8200 • Key from either side

retracts latchbolt,

also locks & unlocks

outside trim

• Latchbolt can

be locked in the

retracted position by

key from either side

• Trim inside always

retracts latchbolt

• Auxiliary deadlatch

• Latch holdback — to set, rotating & hold

lever, then rotate key twice toward latchbolt.

Lever will remain in rotated position

indicating it is unlocked

90 Classroom Security Holdback

8200 & 7800 • Key outside retracts

latchbolt

• Key inside can lock

latchbolt in retracted

position when the lever

is rotated

• Trim inside always

retracts latchbolt

• No outside trim

• Auxiliary deadlatch

• 7892 “T ” turn is used in place of knob

• Special -105 cam required for inside cylinder

(Supplied Standard)

• Latch holdback — to set, rotating & hold lever,

then rotate key twice toward latchbolt. Lever

will remain in rotated position indicating it

is unlocked

92 All Purpose Holdback

8200, R8200 & 7800 • Key from either side retracts & projects

deadbolt

• Trim from either side retracts latchbolt

• Latchbolt and deadbolt are independent

of each other

• ANSI F14

F*‡26 Store Door

8200, R8200 & 7800 • Deadbolt operation only

• Key on either side retracts &

projects deadbolt

• Trim inside retracts deadbolt

• Trim outside is always locked

29 Dummy Trim Deadlock

8200 & R8200 • Key from either

side locks &

unlocks both the

inside & outside

trims

• Key from either

side retracts

latchbolt

• Key from either side can retract latchbolt

without unlocking trims

• Auxiliary deadlatch

F59 Double Locking

1-800-727-5477 • www.sargentlock.com 21

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Functions & Descriptions

8200/R8200/7800 Mortise Locks

8200, R8200 & 7800 • Trim from either side retracts latchbolt

at all times

• ANSI F01

‡15 Passage or Closet

8200, R8200 & 7800 • Trim from either side retracts latchbolt at

all times

• Thumbturn retracts and projects deadbolt

• Emergency release retracts and projects

deadbolt — by coin, screwdriver or Emergency

key (14-0057) ordered separately

• Latchbolt and deadbolt are independent of

each other

• ANSI F02

F68 Privacy Bath/Bedroom

8200, R8200 & 7800 • Trim on inside of door is always rigid

• Trim only used as door pull

• For double door applications, installed on the

inactive door, use template #4298 to accept

latchbolt from active door

Note: Lever is through-bolted

93 Trim Dummy

If shaded, knob or lever rigid at all times

*8200 Available with Freewheeling Trim

‡ 7800 Available with Push/Pull Trim

FCAUTION: Not recommended for use on any door used for Life Safety egress

8200, R8200 & 7800 • Trim outside retracts latchbolt except when

deadbolt is projected

• Trim inside retracts both latchbolt and deadbolt

simultaneously, unlocking the outside trim

• Emergency Release retracts and projects

deadbolt — by coin, screw driver or Emergency

key (14-0057) ordered separately

• Thumbturn retracts and projects deadbolt

• ANSI F19

*66 Privacy Bath/Bedroom

8200, R8200 & 7800 • Key from either side retracts and projects

deadbolt

• Key from either side retracts latchbolt

• Trim outside is locked by toggle or projecting

deadbolt and unlocked by toggle only

• Trim inside (when deadbolt is projected)

retracts latchbolt only, and outside trim

remains locked

• ANSI F25

F48 Store Door

8200, R8200 & 7800 • Key from either side retracts and projects

deadbolt

• Key from either side retracts latchbolt

• Trim inside and out are always locked

• Auxiliary deadlatch

F52 Institutional Deadbolt

Non-Keyed

8200, R8200 & 7800 • No outside trim or cylinder

• Trim inside retracts latchbolt

• A Multi-Function 8200/R8200/7800 Lockbody

• Auxiliary deadlatch

• ANSI F31

13 Exit Latch

8200, R8200 & 7800 • Trim outside retracts latchbolt except when

locked by thumbturn

• Trim inside retracts latchbolt and unlocks

outside trim

• Emergency Release locks/unlocks trim outside-by

coin, screwdriver or Emergency key (14-0057)

ordered separately

• Thumbturn locks and unlocks trim outside

• Closing the door will unlock outside trim

• ANSI F22

*‡ 65 Privacy Bath/Bedroom

8200 & R8200 • Key from either side retracts and projects

deadbolt

• Key from either side retracts latchbolt

• Trim inside & outside are locked only when

deadbolt is projected

F49 Security Deadbolt

1-800-727-5477 • www.sargentlock.com

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

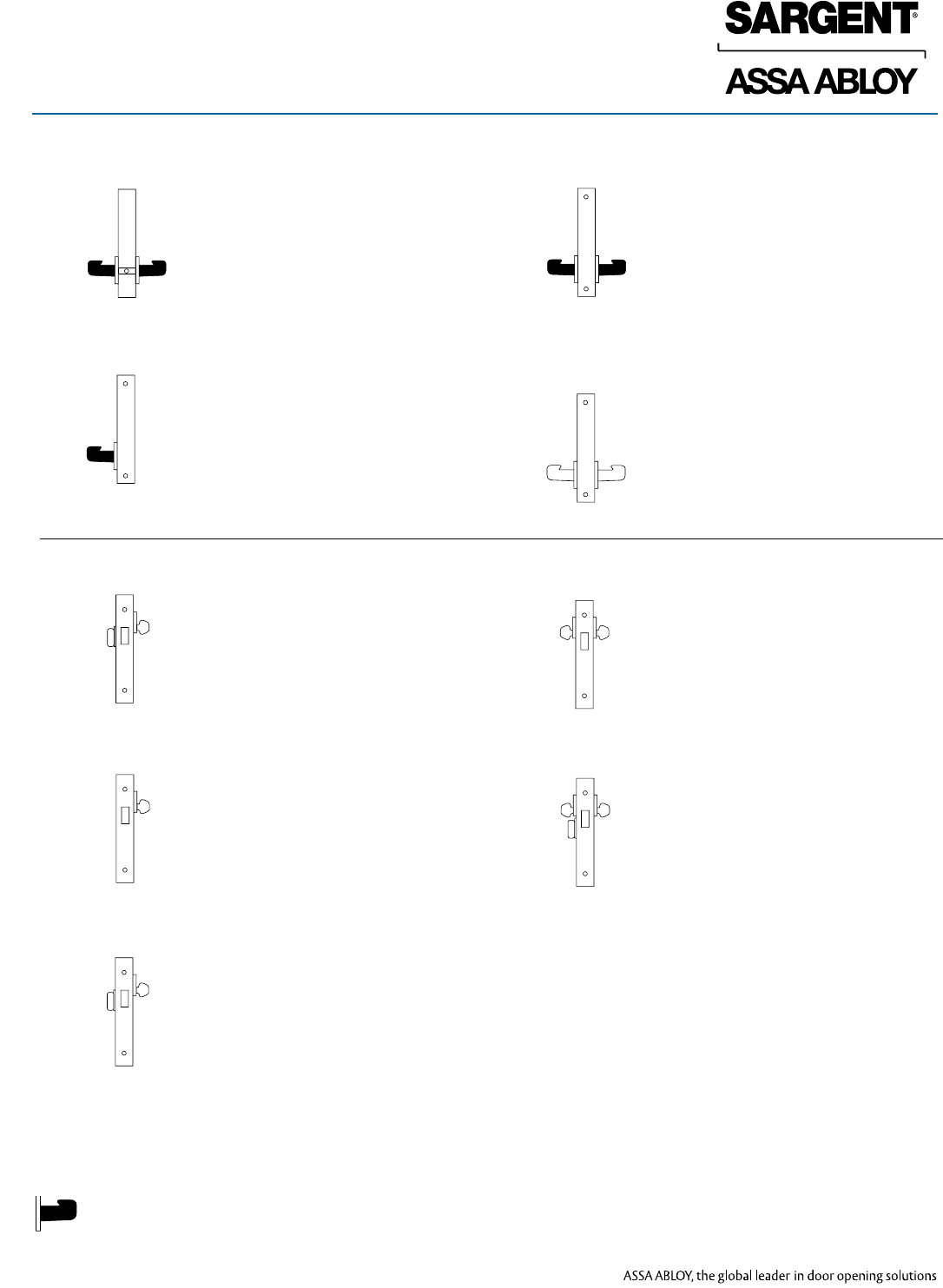

8200/R8200 Mortise Locks

Functions & Descriptions

8200, R8200 & 7800 • Trim on both sides are always rigid

• Trim only used as door pull

• Recommended for double door applications

on the inactive door, use template #4298, to

accept latchbolt from active door

Note: Lever not surface mounted

94 Trim Dummy

8200, R8200 & 7800 • Trim inside only

• Trim is always rigid

• Includes lock case and armor front

• Not recommended on double door

applications (will not accept latchbolt from

active door)

95 Single Trim Dummy

8200, R8200 & 7800 • Trim on both sides are active

• Includes lock case and armor front

• Not recommended on double door

applications (will not accept latchbolt from

active door)

97 Active Trim Dummy

8200, R8200 & 7800 • Trim on both sides of the door

• Both trims are always rigid

• Includes lock case and armor front

• Not recommended on double door applications

(will not accept latchbolt from active door)

96 Double Trim Dummy

If shaded, knob or lever rigid at all times

*8200 Available with Freewheeling Trim

‡ 7800 Available with Push/Pull Trim

FCAUTION: Not recommended for use on any door used for Life Safety egress

Deadbolt Only

8200 • Deadbolt operation only

• Key outside retracts and projects deadbolt

• No inside operation

• ANSI F18

8200 • Deadbolt operation only

• Key outside retracts and projects deadbolt

• Thumbturn inside retracts and projects

deadbolt

• ANSI F17

F20 Deadlock

F21 Deadlock

8200 • Deadbolt operation only

• Key outside or inside retracts and projects

deadbolt

• ANSI F16

F22 Deadlock

8200 • Deadbolt operation only

• Key outside retracts and projects deadbolt

• Thumbturn inside retracts deadbolt only, will

not project it

• ANSI F29

F03 Classroom Deadlock

8200 • Deadbolt only operation

• Key outside or inside retracts and projects

deadbolt

• Thumbturn inside retracts deadbolt, does

not project deadbolt

• Same as 03 function with cylinder inside

F23 Classroom Deadlock

1-800-727-5477 • www.sargentlock.com 23

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

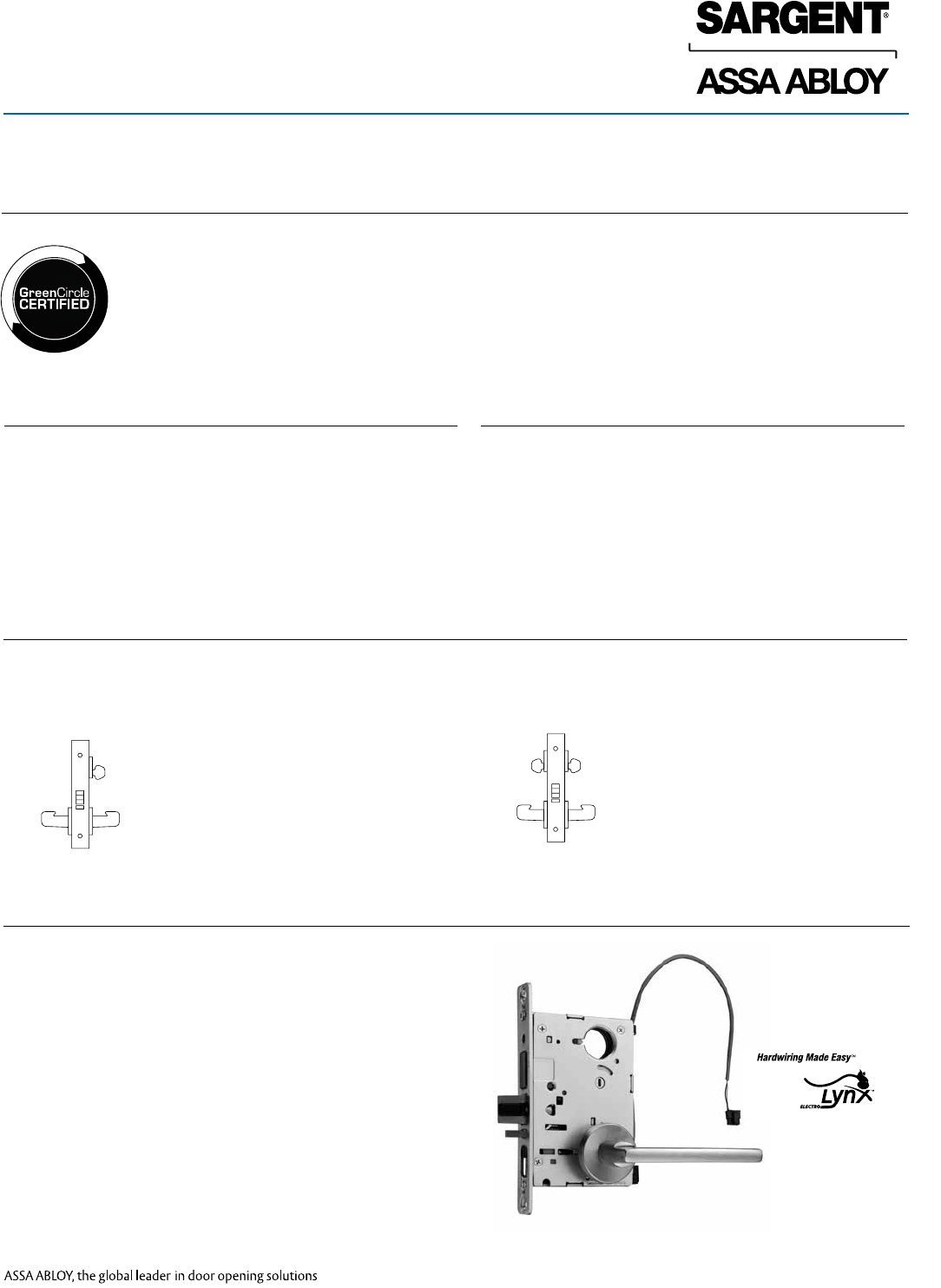

Electrical Functions

& Monitoring Options

8200/R8200 Mortise Locks

8200 & R8200 • 72 function — Power ON, locks both levers

• 73 function — Power ON, unlocks both levers

• Specify voltage: 12VDC or 24VDC (operates

from 12-24VDC)

• Key on either side retracts latchbolt

• Lever from either side retracts latchbolt,

except when levers are locked

• Both Levers can only be locked & unlocked

electronically

• Levers can not be locked separately, only

together

• Auxiliary deadlatch

F

72 Electrical (Fail Safe)

F73 Electrical (Fail Secure)

8200 & R8200 • 70 function — Power ON, locks outside lever

• 71 function — Power ON, unlocks outside

lever

• Specify voltage: 12VDC or 24VDC (operates

from 12-24VDC)

• Key outside retracts latchbolt

• Lever outside retracts latchbolt, except

when locked

• Lever outside can only be locked electronically

• Lever inside always retracts latchbolt

• Auxiliary deadlatch

70 Electrical (Fail Safe)

71 Electrical (Fail Secure)

Voltage: Operates from 12-24VDC Regulated. Full wave rectification installed

inside the lockbody.

Current:

• Actuator draw = .015 Amp continuous

• Maximum (2) locks per 1 Amp power supply

(1/2 Amp peak current draw)

Operating Temp.: Max. 151°F (66°C), Min –31°F (-35°C)

UL and CUL listed for use on Fire Doors

Note: Repeated operation at voltage exceeding +/- 10% is not recommended

Electrical Requirements for electromechanical functions:

• Do not connect locks to a circuit sharing an additional

electromagnetic device as the lock may be damaged

• Transient voltage must be suppressed at the source or before

connecting with the lock

• Varistor rated at 35 volts (peak) may be used for transient voltage

protection

Note: Opening the lockbody or the actuator replacement in the field by

non-authorized personnel voids UL label and lock warranty

Warning:

Electromechanical Functions

FCAUTION: Not recommended for use on any door used for Life Safety egress

SARGENT 8200 Electromechanical Mortise locks are designed to handle single opening, stand alone applications, or can be readily integrated into

sophisticated access control systems. They meet ANSI/BHMA A156.13 Grade 1 requirements, are UL listed on fire doors, and satisfy industry standards

for operating temperature, shock and fire hazard.

• Single Pole Double Throw (SPDT) type C switches

• RX- option — Request-to-Exit or Enter Signaling Switch

– Two switches mounted internally in lockbody that provide independent

monitoring of inside and outside lever rotation

– Available in all functions with non rigid levers

– Not available for the following options: 1-, 3P, 74

– Not available for the following trims: LS or FE

• LX- option — Latchbolt Monitor

– Single switch mounted within lockbody signaling latchbolt position

– Available for all non deadbolt functions

– Not available with DX

• DX- option — Deadbolt Monitor

– Switch mounted internally in lockbody that indicates deadbolt position

– Not available for the following options: 3P-, 74 or LX

– Available in all deadbolt functions

Electrified Mortise Locks with Standard Monitoring Options

• Reduces energy consumption up to 96%, as certified

by GreenCircle

– Lower operating costs

– Assists with load reduction in optimizing energy

performance credit in LEED

– Reduces number of power supplies required

• Field configurable to fail-safe or fail-secure

• Operates from 12-24VDC, offering greater flexibility in

system design

• Innovative actuator design provides superior reliability

– Higher performance and reduced maintenance

– Ability to have longer cable runs without negatively

impacting

lock function

– Reduces risk of voltage drops and eliminates inductive

kickback

– Lower total cost of ownership

*Patent pending

Featuring EcoFlex™ Technology*

1-800-727-5477 • www.sargentlock.com

8200/R8200/7800 Mortise Locks

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Electrical Functions

& High Security Monitoring Options

The high security monitoring options of our industry-leading Integrated Wiegand locks are now

available in a mortise lock that can be used as a stand-alone electrified lock or in conjunction with

a wall reader. Every NAC lock is shipped with door position and request to exit monitoring installed.

NAC locks ordered with deadbolt are supplied with deadbolt monitoring.

Electrified Mortise Locks with High Security Monitoring:

High Security Monitoring Options

Functions:

• Internal End-of-Line Monitoring

Integrated directly into the mortise lock, internal end-of-line resistors monitor the line from the

access control panel to the lock. Typically, resistors are installed at the panel or above the door,

creating vulnerability between the resistors and the locks. Incorporating resistors within the lock

eliminates any risk of undetected tampering or damage, while also reducing installation costs,

simplifying specifications, and offering the assurance of a factory installed and tested product.

Select a compatible resistor configuration and add the appropriate prefix to your

order string:

– R01: Mercury and Lenel compatible 1KΩ/2KΩ resistance supervision

– R03: Software House compatible 1KΩ/2KΩ resistance supervision

– R04: AMAG compatible 4-state supervision

• Deadbolt Privacy Function (PHR-)

– Engaging the deadbolt disables remote access control unlocking (keypad or card reader) or

scheduled unlock.

– Ideal for personal privacy areas, such as nursing rooms, on-call doctors’ rooms, restrooms,

and shower areas

– To order, add the PHR- prefix to your order string

• Integrated Door Position Switch (IDP-)

– The patented IDP option adds a magnetic door position switch in series with the

internal auxiliary latch and latchbolt position switches to provide three factor monitoring.

– This offers added assurance that the door is secure, reduces the likelihood of attack, and is

aesthetically pleasing because it conceals the door position switch behind the front plate and

the magnet behind the strike.

– To order, add the IDP- prefix to your order string

Ordering Examples:

R01-IDP-NAC-82271-12V-LN-MD-26D-LHR

R04-PHR-IDP-NAC-82280-24V-LN-MD-26D-RHR

If the lock needs to have: Then select:

Series Type Function

No key override and no deadbolt

Fail Safe NAC- 82 274

Fail Secure NAC- 82 275

No key override with deadbolt

Fail Safe NAC- 82 284

Fail Secure NAC- 82 285

Key override and no deadbolt

Fail Safe NAC- 82 270

Fail Secure NAC- 82 271

Key override and deadbolt

Fail Safe NAC- 82 280

Fail Secure NAC- 82 281

Description of Functions:

• Fail Safe: Power off, unlocks outside trim

• Fail Secure: Power off, locks outside trim

• Key Override: Key outside retracts latch

and/or deadbolt when trim is locked

electronically

• Deadbolt projected and retracted by

thumbturn or key

1-800-727-5477 • www.sargentlock.com 25

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Electrical Requirements & Accessories

8200/R8200/7800 Mortise Locks

Requirements for Electrical and Data Transfer

Securitron PowerJump™ ICPT

SARGENT MODEL No.DESCRIPTION

3521 12V - 1 AMP POWER SUPPLY

3541 12V - 3 AMP POWER SUPPLY

3551 12V - 4.5 AMP POWER SUPPLY

3571 12V - 6 AMP POWER SUPPLY

737 12V - 5 AMP HOUR BACKUP BATTERY

12VDC & 24VDC Power Supplies:

SARGENT MODEL No. DESCRIPTION

3520 24V - 1 AMP POWER SUPPLY

3540 24V - 2 AMP POWER SUPPLY

3550 24V - 4 AMP POWER SUPPLY

3570 24V - 6 AMP POWER SUPPLY

738 24V - 5 AMP HOUR BACKUP BATTERY

• UL Class 2 Listed

• Four 12V models and four 24V models available

• Integral battery charging capability keeps sealed lead acid

gel/cell at full charge in case of line voltage failure

(737-battery sold separately)

• Fused line voltage input with one, four, or eight DC outputs

(depending on model)

• Each circuit can be individually turned on and off via a slide

switch; the power status of each is shown by an LED

• In the event of a DC short, the problem is confined to the

zone of difficulty

• Fire alarm interface standard

To answer the demand for “smart” electronic access control and

locking solutions that require fast, easy, and cost-effective installation,

ASSA ABLOY Group brands use the ElectroLynx® standardized plug-in

connectors and color-coded wiring system.

With ElectroLynx®, doorway components come pre-wired for easy

hookup to the power source. The key to the system is the transfer device

hinge that carries power from the frame to the locking hardware.

Features of ElectroLynx®:

• Makes it easy to bring power to the locking hardware

• Wires have connectors that snap together, like plugging a telephone

into a jack

To connect an 8200 & R8200 Electrified Mortise Lock to the electronic

access control system, the following items are required:

• 8200 & R8200 Electrified Mortise Lock

• ASSA ABLOY Door Group pre-wired door, or ElectroLynx® retrofit

cable (order from McKINNEY)

• Electronic transfer device (ElectroLynx® electronic transfer hinge or

Electrical Power Transfer with standard hinge, from McKINNEY)

• ElectroLynx® cable from the hinge to above the ceiling (order from

McKINNEY)

Information regarding cable selection, hinge requirements and order

strings can be found in the McKINNEY Transfer Device Solutions

catalog. Consult 800-810-WIRE (9473) with questions on application

specifications and requirements.

McKINNEY QC8 ElectroLynx® Hinges

for 8270-8274 functions and the

RX- Option is recommended.

McKINNEY QC12 ElectroLynx® Hinges

for LX- or DX- Option is recommended.

The Securitron PowerJump ICPT Inductive Coupling Power Transfer

delivers power contactlessly and invisibly between the frame and

door to power electrified hardware on the door. The PowerJump can

be installed at the latch side or hinge side of the door and transfers

up to 6 watts of power without pins or wires across the door gap,

eliminating points of vulnerability and wear…and no need to core

drill the door. The PowerJump is field selectable for 12VDC or 24VDC

systems and is ideal for fail secure applications. The unit can hold

electrified latches open in continuous duty or can momentarily

energize the lockset for latch retraction.

Additional information regarding this product can be found at

www.securitron.com

1-800-727-5477 • www.sargentlock.com

8200/R8200/7800 Mortise Locks

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Cylinders

1⁄8"

(3mm) Dim X

1-5/16"

(33mm) 15⁄32"

(12mm)

• When door is locked by deadbolt, only

emergency key is able to unlock

• Must request emergency key

separately (14-0036 x keying info)

• Supplied with Cam suffix -115 for Hotel

Functions

• Standard for use only with SARGENT

Escutcheon Trims KE3, KE4, LE3, LE4

• Available 6-Pin standard or 7-Pin optional

• NOT available with 50-, 60-, 70- or other

specialty or higher security options

• See function table for cam required

• Not available in 50 function

• Plug finishes: 4, 15 (similar to 26 finish)

• Turn lever: Brass, bronze or aluminum

• Cap: Brass, bronze or stainless steel

• Must be ordered separately

40 Series Type Cylinder

7850/8250 Function Hotel Cylinder

78- Option Exposed Barrel

124 Series Mortise Cylinder Turn Lever

• Patented system works with

existing SARGENT keyway

adding increased security

• 11- XC standard cylinder

• 11-63- Large format

interchangeable core

• 11-73- Small format

interchangeable core

• Utility patented, bump resistant and

requires the use of a patented key

• All three locking mechanisms within the

same system to be operated with just

one key

• See Degree Key System Catalog for

available options

11- Option XC Key System

DG1, DG2, DG3 -

Degree Series

For complete cylinder information, see Cylinders & Components, Signature, Keso, Keso F1 or XC catalogs.

Cylinder Lengths (Dim X)

Cylinder No. 41 42 43 44 46 48 50 52 54 56

Dim X 1-1/8" 1-1/4" 1-3/8" 1-1/2" 1-3/4" 2" 2-1/4" 2-1/2" 2-3/4" 3"

(29mm) (32mm) (35mm) (38mm) (44mm) (51mm) (57mm) (64mm) (70mm) (76mm)

10- Option Signature Series



• The protected system offers the building

owner full control over duplication of keys.

Highly pick-resistant cylinders

• 10-63- Option — Signature cylinder with

Large Format Interchangeable Cores

Length Under

Cylinder Head

• The system offers the building owner

full control over duplication of keys

• Highly pick-resistant cylinders

• Expanded levels of masterkeying

• F1-83- & 83- Option — Keso

removable core

• 84- Option — Keso construction

core cylinder

F1-82- and 82- Option KESO

• Cylinder body: Solid brass

• Cap: Brass, bronze or stainless steel

• All functions take a Standard Cam Functions

• Standard Cam 13-0664

• 16 & 92 Inside Cam -105

• 50 Hotel Cam -115 supplied standard with

all Hotel Function Cylinders

1-800-727-5477 • www.sargentlock.com 27

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Cylinders & Rosettes

8200/R8200/7800 Mortise Locks

• Available for existing systems only

Permanent Removable Cores

• Control key used to remove core,

must request control key separately

• Standard for cylinders ordered separately

from hardware

• Standard for 7800 knob mortise & 4870

deadbolt

• Brass, bronze or stainless steel

• 1-11/16" diameter (43mm), 9/32"

(7mm) projection, includes compression

spring

• Finishes: 3, 4, 10, 10B, 10BE, 10BL, 20D,

32, 32D

• Used with mortise cylinders

• Furnished standard with the E, E2, E3 and E4 roses

• Brass, bronze or stainless steel

• 1-1/2" (38mm) Square, includes compression

spring

• Projection from door:

1KA-1 5/16" (8mm) — Standard

1KA-2 7/16" (11mm)

1KA-3 9/16" (14mm)

1KA-4 11/16" (16mm)

• Finishes: 3, 4, 10, 10B, 10BE, 10BL, 20D, 26, 26D,

32, 32D

63- Option Large Format Interchangeable

(Removable) Core

51- Option Old Style Removable Core

No. 97 Rosette with 7800 sectional trim

IKA Rosette with 8200 sectional trim

1KB-5 Cylinder Retaining Cap

• The SARGENT construction keying system protects the building owner

by providing temporary masterkeying during the construction period

21- Option Lost Ball Construction System

• Allows immediate removal of the core.

Virtually unlimited key changes

• Available 10-63-, 11-60-, 11-63- & 11-64-

• For disposable core, see 60- Option

• 64- Option- LFIC 6-Pin construction core

• Control key used to remove core, must

request control key separately

• For doors that do not require key locking

during the construction period

• Operate with coin or flat screw driver

• For use with LFIC (removable) (60- Option)

or SFIC (70- Option) core

60- or 70- Option Plastic Construction Core

7300B Interchangeable Core

• Small Format Interchangeable Core

• SARGENT Interchangeable Core cylinders and

MasterKey Systems are available for increased

security through quick change of keying. It is

unnecessary to remove a cylinder

• SARGENT 7300B Interchangeable Cores are

available in SARGENT 4A and 4B keyways, as

well as the following standard competitor

keyways: A, B, C, D, E, F, G, H, J, K, L, M

• For disposable core, see 70- Option

• 65-73 Option — 6-Pin Small Format Interchangeable Cores-

uncombinated

• 65-73-7P Option — 7-Pin Small Format Interchangeable Cores-

uncombinated

• 70- Option — Small Format Interchangeable disposable core

• 72- Option — Small Format Interchangeable construction core

• 11-72- Construction core provided for use with 11-7300 cylinder

housing

11-70- temporary plastic core prepared to accept 11-7300 core

• 73- Option — 6-Pin Small Format Interchangeable core, SARGENT

4A, 4B keyways

• 73-7P Option — 7-Pin Small Format Interchangeable core, SARGENT

4A, 4B keyways

• Control key used to remove core (provided separately)

• Used with mortise cylinders and No. 90 blocking

rings when cylinders project from door

• Furnished standard with L, O, LN, CO, CR, TO and

TR roses

• Brass, bronze or stainless steel

• 1-1/2" (38mm) diameter, includes compression

spring

• Finishes: 3, 4, 10, 10B, 10BE, 10BL, 20D, 26, 26D,

32, 32D

• Projection from door:

1KB-1 5/16" (8mm) — Standard

1KB-2 7/16" (11mm)

1KB-3 9/16" (14mm)

1KB Rosette with 8200 & R8200 sectional trim

• Used with 1KB rosettes as spacer when

mortise cylinder projects from face of door

• Brass, bronze or stainless steel

• Finishes: 3, 4, 10, 10B, 10BE, 10BL, 20D, 26,

26D, 32, 32D

No. 90 Blocking Ring

• Required for double cylinder functions on KS

and LS Escutcheon only

• Steel or stainless steel

• 1-15/32" (37mm) diameter

• 9/16" (14mm) projection

• Finishes: 3, 4, 9, 10, 10B, 10BE, 10BL, 20D, 26,

26D, 32, 32D

• Standard for 7800 BHD, 8200 BHL & BHW

mortise locks

• Stainless steel

• 1-29/32" diameter

• Finishes: 32, 32D

• Available in 4 sizes. See page 28 for specifics

on collar sizes and measurements

1SB Cylinder Collar

1-800-727-5477 • www.sargentlock.com

8200/R8200/7800 Mortise Locks

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Cylinders Requirements

& Cams

Cylinder Cams For Mortise Locks

SARGENT Conventional Cylinders

• Standard

Std Cam

(13-0664)

for all

functions

except for 50

and the Inside

cam for 16 &

92 function

locks

-105 Cam

(13-0665)

16 & 92

Function

Inside

Cylinder

Cam

-115 Cam

(13-2045)

50 Function

Hotel Cam,

supplied with

50 function

cylinders

SARGENT Large Format Interchangeable Core Cylinders

Std 6300 Cam

for all functions

except for 50

and the Inside

cam for 16 &

92 function

locks

-105 Cam

for 6300 Series

16 & 92 function

I/S Cylinder

-115 Cam

for 6300 Series

50 (Hotel)

function,

supplied with

50 function

cylinders

See Cylinder catalogs for additional information

• 6300 Cams are factory installed and are not removable

• 6300 Cams are not sold separately

• Specify required Cam as a suffix: 63-44-105 cam

• For Standard Cam: no suffix is required

Specialty Hardware (BHW, BHL, BHD, ALP)

Cylinder

Size

Door Thickness

1-3/8" 1-3/4" 2" 2-1/4"

41 97 Cylinder

Only

Cylinder

Only Cylinder Only

42 1SB-2 97 Cylinder

Only Cylinder Only

43 1SB-3 97 97 Cylinder

Only

Cylinder

Size

Door Thickness

1-3/8" 1-3/4" 2" 2-1/4"

41 1SB-2 97 Cylinder

Only Cylinder Only

42 1SB-3 1SB-2 97 Cylinder Only

43 1SB-4 1SB-2 1SB-2 97

Escutcheon Trim (WT)

Cylinder

Size

Door Thickness

1-3/8" 1-3/4" 2" 2-1/4"

41 1SB-2 1SB-1 1SB-1 1SB-1

42 1SB-3 1SB-2 1SB-2 1SB-1

43 1SB-4 1SB-3 1SB-3 1SB-3

Cylinder

Size

Door Thickness

1-3/8" 1-3/4" 2" 2-1/4"

41 1SB-3 1SB-2 1SB-1 1SB-1

42 1SB-4 1SB-3 1SB-2 1SB-1

43 1SB-4 1SB-4 1SB-3 1SB-2

Double Cylinder

Cylinder

Size

Door Thickness

1-3/8" 1-3/4" 2" 2-1/4"

41 1KB-2 1KB-1 1KB-1 1KB-1

42 1KB-3 1KB-2 1KB-2 1KB-1

43 1KB-4 1KB-3 1KB-3 1KB-3

Cylinder

Size

Door Thickness

1-3/8" 1-3/4" 2" 2-1/4"

41 1KA-2 1KA-1 1KA-1 1KA-1

42 1KA-3 1KA-2 1KA-2 1KA-1

43 1KA-4 1KA-3 1KA-3 1KA-3

Single Cylinder

Sectional Trim (CO, CR, L, LN, O, PT, SL, SN, TO, TR)

Cylinder

Size

Door Thickness

1-3/8" 1-3/4" 2" 2-1/4"

41 1KB-3 1KB-2 1KB-1 1KB-1

42 1KB-4 1KB-3 1KB-2 1KB-1

43 97-0352 1KB-4 1KB-3 1KB-2

Cylinder

Size

Door Thickness

1-3/8" 1-3/4" 2" 2-1/4"

41 1KA-3 1KA-2 1KA-1 1KA-1

42 1KA-4 1KA-3 1KA-2 1KA-1

43 1KA-4 1KA-3 1KA-2

Sectional Trim (E, E2, E3, E4)

Cylinder

Size

Door Thickness

1-3/8" 1-3/4" 2" 2-1/4"

41 1KB-1 Cylinder

Only

Cylinder

Only Cylinder Only

42 1KB-2 1KB-1 Cylinder

Only Cylinder Only

43 1KB-3 1KB-1 1KB-1 Cylinder Only

Cylinder

Size

Door Thickness

1-3/8" 1-3/4" 2" 2-1/4"

41 1KB-2 90 1/8 Cylinder

Only Cylinder Only

42 1KB-3 1KB-2 1KB-1 Cylinder

Only

43 1KB-4 1KB-3 1KB-2 90 1/8

Escutcheon Trim (CE, KE1, KE2, KW1, LE1, LE2, LW1, TE)

1-800-727-5477 • www.sargentlock.com 29

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Strikes & Fronts

8200/R8200/7800 Mortise Locks

• For both curved and flat lip strikes

• Optional: Specify WBS- when ordering

with lock

• If ordering separately, use part # 77-1141

1-1⁄32"

(26mm)

3⁄32"

(2mm)

Thick

1-1⁄2"

(38mm)

1-1/4"

(32mm)

or 1-1/16"

(27mm)

6-1/2"

(165.1mm)

Outside Front Plate

(203mm)

Standard

1-1/4" Functions

(32mm)

82-0423 15, 65

82-0424 04, 05, 06, 13, 16, 17,

31, 36, 37, 38, 67

82-0425 03, 20, 21, 22, 23, 28,

29, 30

82-0426 24, 25, 26, 27, 35, 39,

66, 68

82-0427 40, 41, 50, 52

82-0429 45, 46, 47, 48

82-0430 43

82-0424 89, 90, 91, 92

82-0424 70, 71, 72, 73

82-0424 78, 79

82-0427 76, 77

82-0431 95, 96, 97

82-0428 55

Outside Front Plate

1- Options Fronts - consult factory

Door Thickness Part No. Part No.

RHRB LHRB

1-3⁄4" (44mm) 82-0332 82-0333

2" (51mm) 82-0334 82-0335

2-1⁄4" (57mm) 82-0336 82-0337

2-1⁄2" (64mm) 82-0338 82-0339

2-3⁄4" (70mm) 82-0340 82-0341

3" (76mm) 82-0342 82-0343

877 Open Back Strike

• Strike handed by active leaf

• Curved lip strikes: Brass, bronze or stainless

steel

• 877 Open back strike: Brass plated

• To order strikes separately, specify strike

part number and finish. Will be furnished

with machine screws

• Order strike box 77-1141 separately

• All locks are packed standard with a universal

non-handed curved lip ANSI 4-7⁄8" (124mm)

strike

• Specify part number when ordering with

complete lock

• Open back strike not available for deadbolt

functions

Curved Lip Strike

Door Thickness Part No. Lip Length

1-3/8" – 1-1/2" 82-0109 1-1⁄8" (29mm)

(35mm) (38mm)

1-5/8" – 1-3/4" 82-0110 Standard 1-1⁄4" (32mm)

(41mm) (44mm)

1-7/8" – 2" 82-0111 1-3⁄8" (35mm)

(48mm) (51mm)

2-1/8" – 2-1/2" 82-0112 1-5⁄8" (41mm)

(54mm) (64mm)

2-5/8" – 3" 82-0113 1-7⁄8" (48mm)

(67mm) (76mm)

3-1/8" – 3-1/2" 82-0114 2-1⁄8"(54mm)

(79mm) (89mm)

3-3/8" – 4" 82-0115 2-3⁄8" (61mm)

(86mm) (101mm)

4-1/8" – 4-1/2" 82-0116 2-5⁄8" (67mm)

(105mm) (114mm)

4-5/8" – 5" 82-0117 2-7⁄8" (73mm)

(117mm) (127mm)

Curved Lip Strike (Standard)

4-7⁄8"

(124mm)

2-3⁄4"

(70mm)

1-1/4"

(32mm)

Lip Length

4-1/8"

(104.7mm)

1-3⁄4"

(45mm)

4-7⁄8"

(124mm)

1/8"

(3mm)

Thick

1-1⁄4"

(32mm)

4-1/8"

(104.7mm)

• Provided standard with deadlock

functions 03, 20, 21, 22, 23, 28, 29, 30

1-1⁄4"

(32mm)

4-7⁄8"

(124mm)

4-1/8"

(104.7mm)

78-0034 Deadbolt Strike

77-1141 Wrought Box Strike

877 Open Back Strike

No. 677 Rabbeted Door Kits

677 Kit adapts 7800/8200 locks for rabbeted

doors consists of rabbeted strip and strike.

standard for 1-3⁄4" to 2" doors.

Specify 2-677 for 2-1⁄4" thick doors.

Hardware finished.

3⁄32"

(2mm)

Thick

1-800-727-5477 • www.sargentlock.com

8200/R8200/7800 Mortise Locks

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Mechanical Options

Mechanical Options: Available mechanical

options by lock type

Categories How to

Specify Detailed Description 8200 R8200 7800

1-3/8" Door 1- 1-1/16" (27mm) wide front for 1-3/8" (35mm) doors (not available with RX-Option)

(1- for 93 + 94 function is a special order) X - X

Add Strength 3- Stainless steel hubs with in the mortise lock X -

Strike Option

23- 4-7/8" (124mm) ANSI flat lip strike X X X

OBS- Open back strike X X X

WBS- Wrought box strike X X X

Thick Doors 31-

For doors 1-7/8" (48mm) to 2-1/4" (57mm) thick — see cylinder options for limitations

on door thickness. When ordering the following information is required: Location of lock

within the door, door thickness -IF PANELED -must specify panel thickness & panel location

(inside or outside of the door) For doors thicker than 2-1/4" — consult factory.

X X X

Security Fasteners 36- 6 Lobe head security screws (Torx® type) X - X

37- Spanner head security screw (not available with Studio levers) X - X

Visual Indicators 49- Visual Status Indicator or Occupancy indicator with emergency release

(not available with escutcheon trim; see page 11 for details) X X X

50- Secured indicator rose (available with rose trim only; see page 11) X - X

Electrical Options

DX- Deadbolt monitoring — Monitor deadbolt position (not available with LX-) X X X

LX- Latchbolt monitor — Monitors latchbolt position (not available with deadbolt functions) X X X

RX-** Request to Exit — Monitors each lever independently (not available with LB-option) X X X

TL- SARGuide illuminated inside WT trim with the word EXIT illuminated

(4-1/2" pocket depth required) X - -

Lever/Knob

Combination

68- 8200 Lock furnished w/lever handle outside x knob inside (not available with the AV-Option

or FE Trim) X - -

69- 8200 Lock furnished w/lever handle inside x knob outside (not available with the AV-Option

or FE Trim) X - -

Lead Lining 74-**+ Lead lining or wrapping available with sectional trim only (not available with DX-or LX- Options) X - X

Tactile Warnings

75- Tactile Warning — Milled levers or knurled knobs. Inside trim only (not available with Studio

& Coastal levers, the A lever & K, N & D knobs) X - X

76- Tactile Warning — Milled levers or knurled knobs. Outside trim only (not available with

Studio & Coastal levers, the A lever & K, N & D knobs) X - X

77- Tactile Warning — Milled levers or knurled knobs. Inside & outside trim (not available with

Studio & Coastal levers, the A lever & K, N & D knobs) X - X

85- Tactile Warning — Abrasive coating inside trim only (not available with D knobs) X X X

86- Tactile Warning — Abrasive coating outside trim only (not available with D knobs) X X X

87- Tactile Warning — Abrasive coating inside & outside trim (not available with D knobs) X X X

Anti-Vandal Trim AV- Anti-Vandal pull trim (not available with LS & FE trim and Options 1-, 31-, 49-, 50-, 68-, 69-,

76-, 77-, 86-, 87-, DX-or SG-) X - X

Finish Protection CPC- Clear Powder Coat (available for 32 & 32D finishes) X X X

* SG- MicroShield® antimicrobial clear powder coat X X X

Thumbturns

(See page 7)

LB- ADA Extra large thumbturn; backplate matches rose design chosen X X X

T1- Decorative thumbturn; backplate matches rose design chosen X X -

T2- Decorative square thumbturn; backplate matches rose design chosen X X -

T3- Decorative cylinder thumbturn; backplate matches rose design chosen X X -

* Available on 15, 26D, and 32D Finishes only

** Not available in combination

+ Not available with R8200 Series

1-800-727-5477 • www.sargentlock.com 31

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Cylinder Options

8200/R8200/7800 Mortise Locks

Cylinder Options:

* Options not available with 50 function lockout cylinder

Note: Interchangeable core and removable core cylinders do not meet Security Grade 1 requirements

Categories How to

Specify Detailed Description Cylinder Sizes Available

Conventional Cylinder SARGENT Conventional Cylinders supplied standard 41-44,46,48,50,52,54,56

Degree Key System

DG1- SARGENT Degree Key System Level 1 (bump resistant with patented keys) 41-44, 46

DG1-21-* Degree Level 1 Construction Master Keying 41-44, 46

DG1-60- Degree Level 1 Removable Disposable Construction Core 41-44, 46

DG1-63- Degree Level 1 Removable Core 41-44, 46

DG1-64- Degree Level 1 Removable Construction Keyed LFIC 41-44, 46

DG1-65-* Degree Level 1 Unassembled/Uncombined Core 41-44, 46

DG1-78-* Degree Level 1 Exposed Plug (for use with LE3/LE4 escutcheons only) 41-43

DG2-*+ SARGENT Degree Key System Level 2 (geographically exclusive; bump and pick resistant) 41-44, 46

DG2-21-* Degree Level 2 Construction Master Keying 41-44, 46

DG2-60-* Degree Level 2 Removable Disposable Construction Core 41-44, 46

DG2-63-* Degree Level 2 Removable Core 41-44, 46

DG2-64-* Degree Level 2 Removable Construction Keyed LFIC 41-44, 46

DG2-65-* Degree Level 2 Unassembled/Uncombined Core 41-44, 46

DG3-*+ SARGENT Degree Key System Level 3 (geographically exclusive;

UL437 certified; bump and pick resistant) 41-44, 46

DG3-21-* Degree Level 3 Construction Master Keying 41-44, 46

DG3-60-* Degree Level 3 Removable Disposable Construction Core 41-44, 46

DG3-63-* Degree Level 3 Removable Core 41-44, 46

DG3-64-* Degree Level 3 Removable Construction Keyed LFIC 41-44, 46

Signature Key System 10-* SARGENT Signature Key System (not available with other key systems) 41-44,46,48,50,52,54,56

10-21-* SARGENT Signature Construction Key System (Lost Ball) 41-44,46,48,50,52,54,56

Signature Large Format

Interchangeable Core

(Removable Core)

10-63-* SARGENT Signature LFIC (removable) Core Cylinder 42, 43, 44 & 46

XC- Key System 11-* XC Key System (not available with other key systems, unless specified) 41-44,46,48,50,52,54,56

11-21-* XC- Construction Key System (Lost Ball) 41-44,46,48,50,52,54,56

XC- Large Format

Interchangeable Core

(Removable Core)

11-60-* Hardware to accept XC- Permanent LFIC (removable core), disposable plastic core provided 42, 43, 44 & 46

11-63-* Hardware provided with XC- LFIC (removable core) cylinder —

(Includes masterkeying, grand masterkeying) 42, 43, 44 & 46

11-64-* Hardware provided with keyed construction core to accept XC- LFIC (removable)

permanent core ordered separately 42, 43, 44 & 46

XC- Small Format

Interchangeable Cores

11-70-7P-* Hardware to accept XC- SFIC (7-Pin) XC- permanent cores, disposable plastic core provided 43 & 46

11-72-7P-* Hardware to accept XC- SFIC (7-Pin keyed construction core provided) cylinder permanent

core ordered separately 43 & 46

11-73-7P-* Hardware provided with XC- Small format 7-Pin interchangeable core

(Includes masterkeying, grand masterkeying) 43 & 46

11-65-73-7P-* Hardware provided to accept XC- Uncombinated 7-Pin SFIC (permanent) core — (packed loose) 43 & 46

Construction Key

System

21-* SARGENT Lost Ball Construction keying for conventional, XC and Signature Series

(N/A with 63- or 73-) –

22-* SARGENT Construction Split Key System for conventional cylinders

(existing systems only) (N/A with 10-, 11-, 63- or 73-) –

Old Style

Removable Core

51-* Removable core cylinder (Old style) provided (existing systems only) 142,143,144,146

52-* Removable construction core (Old style) permanent core ordered separately

(existing systems only) 142,143,144,146

1-800-727-5477 • www.sargentlock.com

8200/R8200/7800 Mortise Locks

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Cylinder Options

Cylinder Options:

Categories How to

Specify Detailed Description Cylinder Sizes

Available

Large Format

Interchangeable

Core

60- Hardware to accept SARGENT permanent LFIC (removable core), disposable plastic core

provided (permanent cores ordered separately) 42, 43, 44 & 46

63- Hardware provided with LFIC (removable core) cylinder - (Includes masterkeying, grand

masterkeying) 42, 43, 44 & 46

64- Hardware provided with Keyed construction core to accept LFIC (removable) permanent core

(ordered separately) 42, 43, 44 & 46

Small Format

Interchangeable

Cores

70-* Hardware to accept 6- or 7-Pin SFIC permanent cores, disposable plastic core provided 43 & 46

72-* Hardware to accept 6- or 7-Pin SFIC (keyed construction core provided) cylinder

(permanent core ordered separately) 43 & 46

73-* Hardware provided with 6-Pin SFIC (Includes masterkeying, grand masterkeying) 43 & 46

65-73-* Hardware provided to accept uncombinated 6-Pin SFIC (permanent) core —

(packed loose for field keying) 43 & 46

65-73-7P-* Hardware provided to accept uncombinated 7-Pin SFIC (permanent) core —

(packed loose for field keying) 43 & 46

73-7P-* Hardware provided with Small Format 7-Pin interchangeable core

(Includes masterkeying, grand masterkeying) 43 & 46

Keso & Keso F1

81-* Hardware provided with housings to accept Keso (83) & Keso F1 (F1-83-) removable cores

(permanent cores ordered separately) 172-174,176

82- Hardware provided with SARGENT Keso security cylinder 71-74,76

F1-82- Hardware provided with SARGENT Keso F1 security cylinder (patented) 71-74,76

83-* Hardware provided with SARGENT Keso security removable core cylinder 172-174,176

F1-83-* Hardware provided with SARGENT Keso F1 security removable core cylinder (patented) 172-174,176

84-* Hardware provided with SARGENT Keso construction cores

(permanent cores ordered separately) 172-174,176

Additional Security BR- Bump resistant cylinder (available with conventional & conventional XC cylinders only) –

Less Cylinder LC- Less cylinder – SARGENT supplies standard blocking rings for 1-1/8" cylinders

(for longer cylinders order collars/rings separately) –

Schlage Keyways SC-*^ Schlage C keyway cylinder, 0 bitted #41 Only

SE-*^ Schlage E keyway cylinder, 0 bitted #41 Only

Note: For V-10 Cylinders and information contact ASSA

^ Options not available with Freewheeling Trim

* Options not available with 50 function lockout cylinder

Note: When using Interchangeable Core Cylinders, the ANSI/BHMA Cylinder Grade determines the grade of the lock, even if the lock is certified

ANSI/BHMA Grade 1 with a standard cylinder

Cylinder Length SARGENT

Cylinder Sizes Keso

Cylinder Sizes Keso R/C

Cylinder Sizes

1-1/8" #41 #71 N/A

1-1/4" #42 #72 #172

1-3/8" #43 #73 #173

1-1/2" #44 #74 #174

1-3/4" #46 #76 #176

2" #48 N/A N/A

2-1/4" #50 N/A N/A

2-1/2" #52 N/A N/A

2-3/4" #54 N/A N/A

3" #56 N/A N/A

1-800-727-5477 • www.sargentlock.com 33

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

How To Order, Finishes,

Packaging & Security Screw Chart

8200/R8200/7800 Mortise Locks

* MicroShield® — optional designate SG- option (Available on 15, 26D, and 32D Finishes only)

Split Finishes — specify outside finish first, then inside finish example: US26D (outside) / US04 (inside)

Packaging

6 Lobe & Spanner Bit packs

8205 x LNL approx. 6.1 lbs. (2.7kg)/box 6 boxes/case

8205 x WTL approx. 7.2 lbs. (3.1kg)/box 6 boxes/case

Part Number Descriptions

82-3855 6 Lobe Bit Pack 6 bits

82-3856 (sizes- T8, T9, T10, T15, T20, T25, T27) 9/32" Driver

Spanner Bit Pack 5 bits (sizes- 6, 8, 10, 12, 14) 1/4" Driver

10- 82 71 12VDC TR MJ 15 RHR

Options* Series Function Voltage Roses/

Escutcheons Trim Finish Hand

For all

available

options

see Pages

30-32

R82

Mortise Lock

Pages 17-23

for Details

12VDC

24VDC Pages 7-12

(With R8200,

specify “R” for

roseless design)

Levers — Pages 5-6, 8

FW Trim — Page 13,

Push/Pull Trim —

Page 14-15,

Knobs — Page 16

Page 33

RHR

Must be specified

for Functions

70, 71, 72 & 73

LHR

How to Order 8200, R8200 & 7800 Mortise Locks

* Multiple options can be selected

Standard Levers

& Knobs

BHW

Trim

BHL

Trim

BHD

Trim

Studio

Collection

Lever Trim

8200 Coastal

Series™ Trim

and 8200

Freewheeling Trim 7800 Push/Pull Trim Description ANSI/BHMA

03 03 03 03 Polished brass, clear coated 605

04 04 04 04 Satin brass, clear coated 606

09 09 09 09 Polished bronze, clear coated 611

10 10 10 10 Satin bronze, clear coated 612

10B 10B 10B 10B Oxidized bronze, oil rubbed 613

10BE 10BE 10BE Dark oxidized satin bronze,

equivalent (613E)

10BL 10BL 10BL Oxidized satin, bronze, clear

coated 614

14 14 14 Polished nickel, clear coated 618

15 * 15 * 15 * Satin nickel, clear coated 619

20D 20D 20D Statuary dark bronze, clear

coated 624

26 26 26 Polished chrome 625

26D * 26D * 26D * Satin chrome 626

32 32 32 32 32 32 Polished stainless steel 629

32D * 32D * 32D * 32D * 32D * 32D * Satin stainless steel 630

Finishes

* Multiple options available

Wrought Box Strike optional — must order with

lockset as WBS- option

Door Handing

1-800-727-5477 • www.sargentlock.com

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

How to Order Gramercy Series Levers

8200 Mortise Locks

Gramercy Series Levers

REM, RGM RCM RAG, RAL, RAM**, RAS, RAW

Options Series Function Voltage Rose/

Escutcheon Lever Finish Hand

Select from

pages 27-29 82 Select from

pages 15-21

Specified for

electrical

functions

Select from

pages 5-6

Leather

insert

Bright stainless steel

with brown leather

RHR, RH, LHR,

or LH

10- 82 71 12VDC LN RAL 29BN29 RH

To order Gramercy Series levers with SARGENT products, see the examples below. When specifying finish, use the last two digits of the BHMA standard

finish code, i.e. use “29” for polished stainless, BHMA finish 629

How to Order 8200 Mortise Locks with Gramercy Levers

Gramercy Levers are available with E2, E3, E4, O, CO, TO, LN, CR, TR roses and CE, TE, LE1 escutcheons

Lever Designation Lever Description Available Finishes (AS ORDERED)

RAG Grooved Insert 2929 or 3030

RAL Leather Insert 29BK29, 29BN29 or 30BK30, 30BN30

RAM Satin Metal Insert 2930** only (SEE NOTATION)

RAS Santoprene Insert 29BK29 or 30BK30

RAW Wood Insert 29BH29 or 30BH30

RCM Raised Band 2929, 3030 or 2930**

REM Plain 2929 or 3030

RGM Two Grooves 2929 or 3030

ANSI/BHMA Finish SARGENT Finish Gramercy Code* Description

630 32D 30 Satin Stainless Steel

629 32 29 Bright Stainless Steel

N/A N/A BH Maple (wood insert)

N/A N/A BK Black (Santoprene™ or leather insert)

N/A N/A BN Brown (leather insert)

**Two-tone finish — grip of lever is 32D, balance of lever is 32. Rose/escutcheon and lock finish will be 32

*Code used to specify Gramercy Series finishes only. Use available finishes list to specify desired finish when ordering.

Gramercy Finish Codes

Gramercy Lever Descriptions & Available Finishes

1-800-727-5477 • www.sargentlock.com 35

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Multi-Functional Lockbody

8200/R8200/7800 Mortise Locks

Note: 8200/R8200/7800 mortise locks are certified for all functions including electrical functions and trims without exceptions.

How to Change Lock Function:

The Green Catch Screw must be located in the designated location

as specified on the lock case to produce the desired function.

There are three locations: one location for 05, 37 & 38 functions;

one location for 04, 06, 13, & 31 functions; and one location for

36 function.

Note: To change to functions 04, 06, 13, & 31, the hub must be at

the 45° position as specified on the case before screwing in the

green catch screw.

*Cylinder Collars: Noted are based on 1-3/4" Thick Doors with standard #41 size cylinders. Other sized doors and cylinders will required different collar

sizes and possibly blocking rings - see chart on page 30 of this catalog for details

** Inside trim sets include: Inside lever/knob, inside rose or escutcheon, trim pack (spindles, through-bolt screws, set screw, inside adapter plate

assembly), trim finish screws (for escutcheons)

*** Outside trim sets include: Outside lever/knob, outside rose or escutcheon, outside mounting plate, two through-bolt studs, washers, retaining nut,

and cylinder rosettes (for cylinder functions only)

+ Trim One-Side Kit includes: adapter assembly, spindle, through-bolt screws and plate adapter assembly. An inside lever is always used with this

kit and is used on either side of the door as required

++ Thumb turn: Rose trims use 130KB thumb turn for Levers, and 130W thumb turn for Knobs.

Escutcheon trims require escutcheon to be ordered according to function/design, to receive thumb turn affixed to it

Function #41 Cylinder Cyl. Collars Lever/Knob Requirements Thumb turn

04 Store Room / Closet (F07) 1* 1 - 1KB ** Inside Trim Set &

*** Outside Trim Set Not used

05 Office / Entry (F04) 1* 1 - 1KB ** Inside Trim Set &

*** Outside Trim Set ++ 1

06 Store Room / Service 1* 1 - 1KB + Trim One Side Kit, Inside Lever/

Knob & Rose/Escutcheon Not used

13 Communicating / Exit Not used Not used + Trim One Side Kit, Inside Lever/

Knob & Rose/Escutcheon Not used

31 Utility 1* 1 - 1KB + Trim One Side Kit, Inside Lever/

Knob & Rose/Escutcheon Not used

36 Closet 1* 1 - 1KB + Trim One Side Kit, Inside Lever/

Knob & Rose/Escutcheon Not used

37 Classroom (F05) 1* 1 - 1KB ** Inside Trim Set &

*** Outside Trim Set Not used

38 Classroom Security (F32) 2* 2 - 1KB-2 ** Inside Trim Set &

*** Outside Trim Set Not used

Function & Part Listing for the Multifunction Lockbody

Type of Rose/Escutcheon Kit Part Number

Trim One Side Kit E, O, KW, LN & LW1 (Standard trim only — not for use with Studio levers) 82-3208

Trim One Side Kit KE & LE (1 & 3) (Standard trim only — not for use with Studio levers) 82-3209

Trim One Side Kit L Rose & WT 82-3210

Trim One Side Kit Blank Rose 82-4023

1-800-727-5477 • www.sargentlock.com

8200/R8200/7800 Mortise Locks

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Architectural Specications

2.1 Heavy Duty Mortise Locks

A. Heavy duty mortise locks shall be 8200/

R8200/7800 Series as manufactured by

SARGENT Manufacturing Company,

New Haven, CT.

B. Locks shall meet or exceed the requirements

of ANSI/BHMA A156.13 Series 1000,

Operational Grade 1, and Security Grade 1

with all standard trims.

C. Locks shall be easily re-handed without

opening the lockbody.

D. Locks shall comply with UL 10C positive

pressure requirements.

E. Locks required for fire doors shall be listed

by Underwriters Laboratories for ratings of A

label (3 hours) and less, for doors up to 4'0"

(1.2m) x 10' 0" (3.05m) and pairs of doors

8'0" (2.4m) x 10'0" (3.05m).

F. Construction:

1. Lock functions shall be manufactured in

a single-sized case formed from 12 gauge

steel minimum.

2. Lock cases shall be closed on all sides and

back.

3. Locks shall have field adjustable, beveled,

armored front, with a .125 inch (3mm)

thickness minimum.

4. Locks shall have a one piece, 3/4" inch

(19mm) throw anti-friction stainless steel

latch.

5. Deadbolts, where specified, shall be full

one inch (25mm) throw made of one-

piece hardened stainless steel.

6. Where required by the Federal Bureau of

Prisons, locks can be furnished optionally

with stainless steel hubs.

G. Locks shall have a 2-3/4" (70mm) backset,

standard.

H. Strikes shall be non-handed with a curved

lip.

I. To ensure proper alignment, trim, knobs

or levers, shall be through-bolted and

fully interchangeable between rose and

escutcheon.

J. Locks shall have brass 6-Pin cylinder,

standard.

K. Locks shall have a 10 year limited warranty. 2

year limited warranty on electrified locks.

L. Behavioral Health, Mortise: ANSI/BHMA

A156.13, Series 1000, Operational and

Security Grade 1 mortise type manufactured

to accepted OMH requirements with

ligature-resistant lever and escutcheon

trim. Locksets to be manufactured with a

corrosion resistant, formed steel case. Levers

and escutcheons are manufactured from

stainless steel material. Provide optional

lead-lining (lock body), Torx® fasteners,

and Antimicrobial coating as specified in

Hardware Sets.

M. Behavioral Health, Mortise: ANSI/BHMA

A156.13, Series 1000, Operational and

Security Grade 1 mortise type manufactured

to Office of Mental Health (OMH)

requirements with behavioral health lever

and rose trim. Locksets to be manufactured

with a corrosion resistant, formed steel case.

Levers and roses are manufactured from

stainless steel material. Provide optional

lead-lining (lock body), Torx® fasteners,

and Antimicrobial coating as specified in

Hardware Sets.

2.2 EcoFlex™ Electrified Mortise Locks

A. SARGENT 8200/R8200 Electrified Mortise

Locks

1. General: ANSI/BHMA certified extra heavy

duty, lever type mortise lock conforming

to ANSI/BHMA 156.13 Series 1000,

Grade 1 requirements and ANSI A117.1

accessibility guidelines. All functions

manufactured in a single sized case

formed from a minimum 12 gauge steel.

Lockset is field-adjustable for handing

without opening the lock body with a

beveled armored front that is 0.125"

minimum thickness and utilizes a one-

piece 3/4" anti-friction stainless steel

latchbolt. To insure proper alignment,

all trim, shall be thru-bolted and fully

interchangeable between rose and

escutcheon designs. Lock is UL listed and

labeled for use on up to 3 hour fire rated

openings.

a. Backsets: 2-3/4".

b. Deadbolt: Optional 1" throw made of

stainless steel and 2 hardened steel

roller inserts.

c. Strikes: Provide wrought boxes and

strikes with proper lip length to protect

trim but not to project more than 1/8"

beyond trim, frame or inactive leaf.

Where required, provide open back

strike and protected to allow practical

and secure operation.

2. Provide access control mortise lock series,

type and functions where specified in

hardware groups, with provisions below:

a. Emergency override access capability

with key cylinder retraction of lock

latch bolt without necessary electronic

activation.

b. Inside lever retracts latch and deadbolt

simultaneously for free egress.

c. Refer to "KEYING" specification section

for keying system requirements.

d. Lever and finish to match

corresponding mechanical locking

hardware.

3. Locking and unlocking of the lever

handle by electronic operation contained

completely within the body of the mortise

lock.

a. Field configurable Fail Safe /Fail Secure

by means of an external DIP switch

setting.

b. Operationally voltage-insensitive 12 to

24 VDC.

c. Energy Performance: Maximum

standby current required for functional

operation not to exceed 50 mA at

24 VDC limiting potential inductive

kickback or the need for external

diodes.

d. Functional locking operation not

affected by cable runs greater than 500

feet using a minimum 22 AWG wire.

4. Monitoring: Optional real time monitoring

of latchbolt, deadbolt, door open/closed

status and valid egress where specified.

Valid egress signaled by activation of

the Request-to-Exit (RX) micro switch

integral to the inside lever of the lockset

on the unsecure side of the door capable

of shunting external alarms. Door open/

closed status provided by monitoring

the deadlatch and latchbolt in series

with optional integrated magnetic door

position switch.

5. Perform centralized control of the

integrated locking functions by means of

a single cable run to the access control

panel independent of any proprietary

power supplies, interface boards or

controllers.

a. End of line termination points by

means of factory pre-wired Molex®

connectors and harnesses.

b. Source power electrical hard wiring

and connections by others.

6. Specified Manufacturer:

Sargent Manufacturing (SA) —

8200/R8200 Series.

90115:T 02/12/16

Founded in the early 1800s, SARGENT® is a market leader in locksets, cylinders, door closers, exit devices, electro-mechanical products and access control systems for

new construction, renovation, and replacement applications. The company’s customer base includes commercial construction, institutional, and industrial markets.

written permission of Sargent Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

SARGENT Manufacturing Company

100 Sargent Drive

New Haven, CT 06511 USA

800-727-5477

www.sargentlock.com

Sargent 8200 Series Catalog 90115 U 7800 Mortise 8.22.16

Navigation menu

Versions of this User Manual:

Views

Navigation
