Product Catalog

Keypad (KP) Series

Standalone Access

Control Products

Keypad (KP) Series

permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

1-800-727-5477 • www.sargentlock.com

Standalone Access Control Products

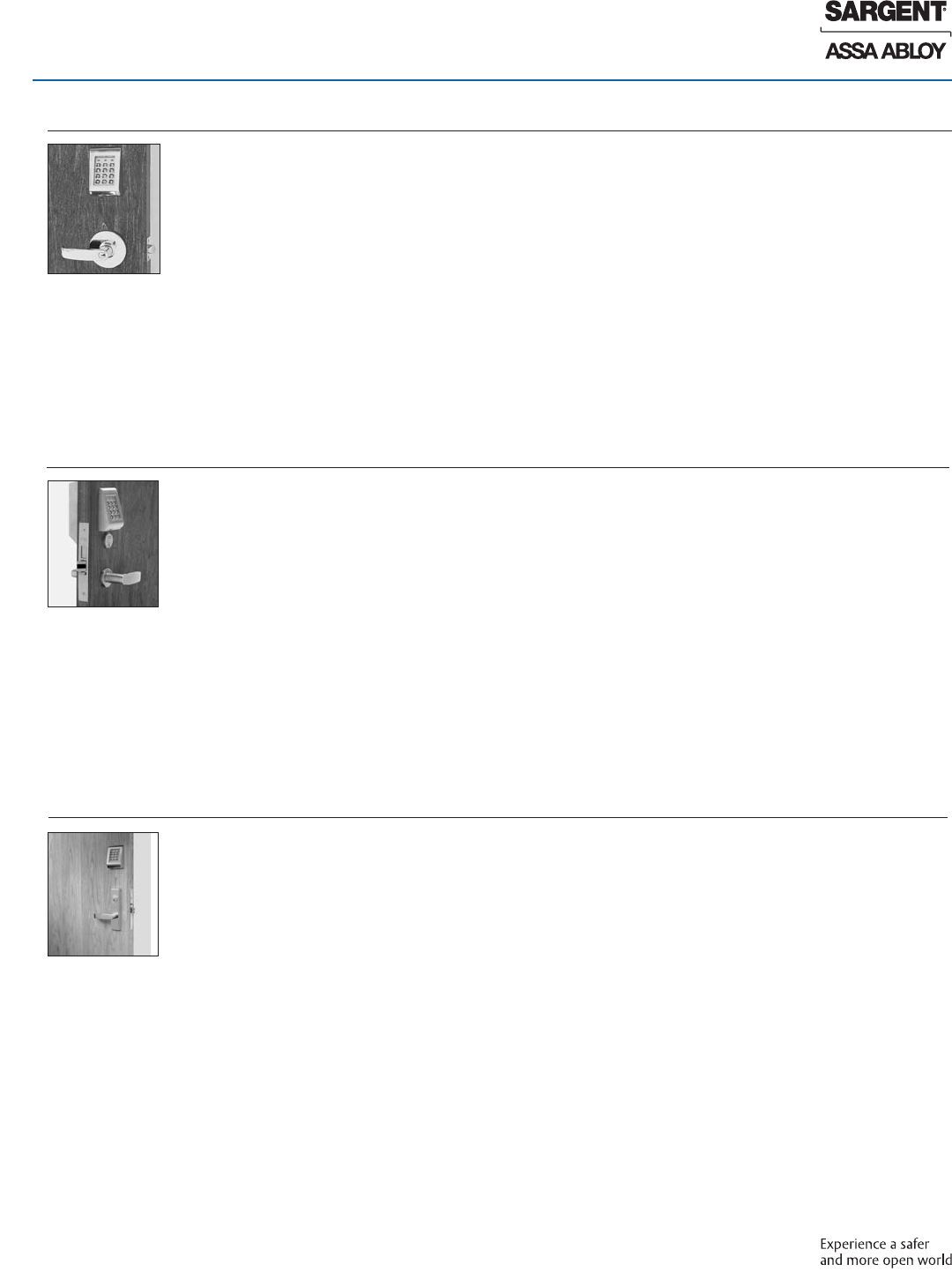

On The Cover

• SARGENT KP10G77

Overview and Features ..............................................................3

10 Line Cylindrical Locks.............................................................4

8200 Series Mortise Locks ...........................................................5

80 Series Exit Devices................................................................6

Finishes, ET Trim and Handing .......................................................7

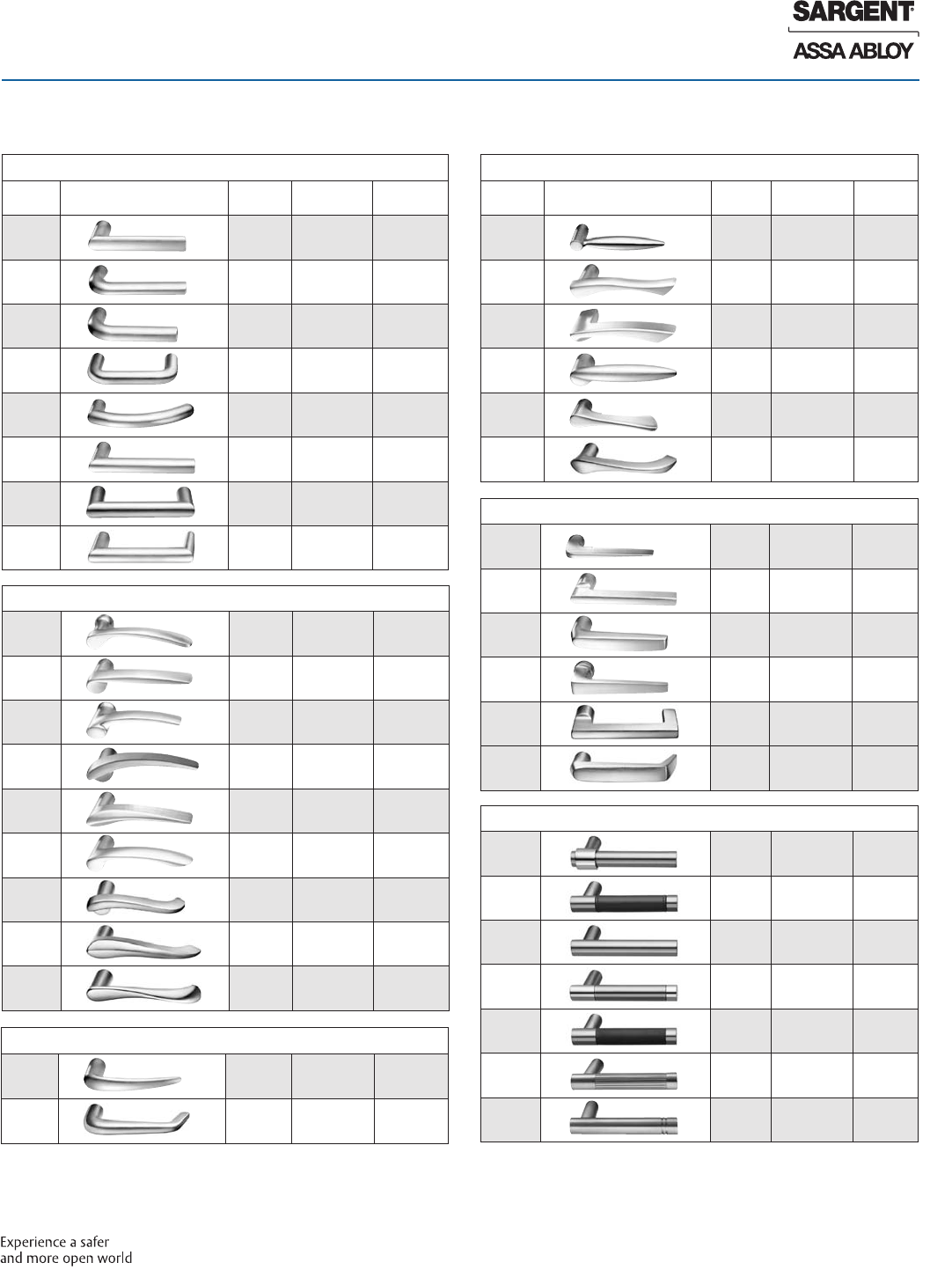

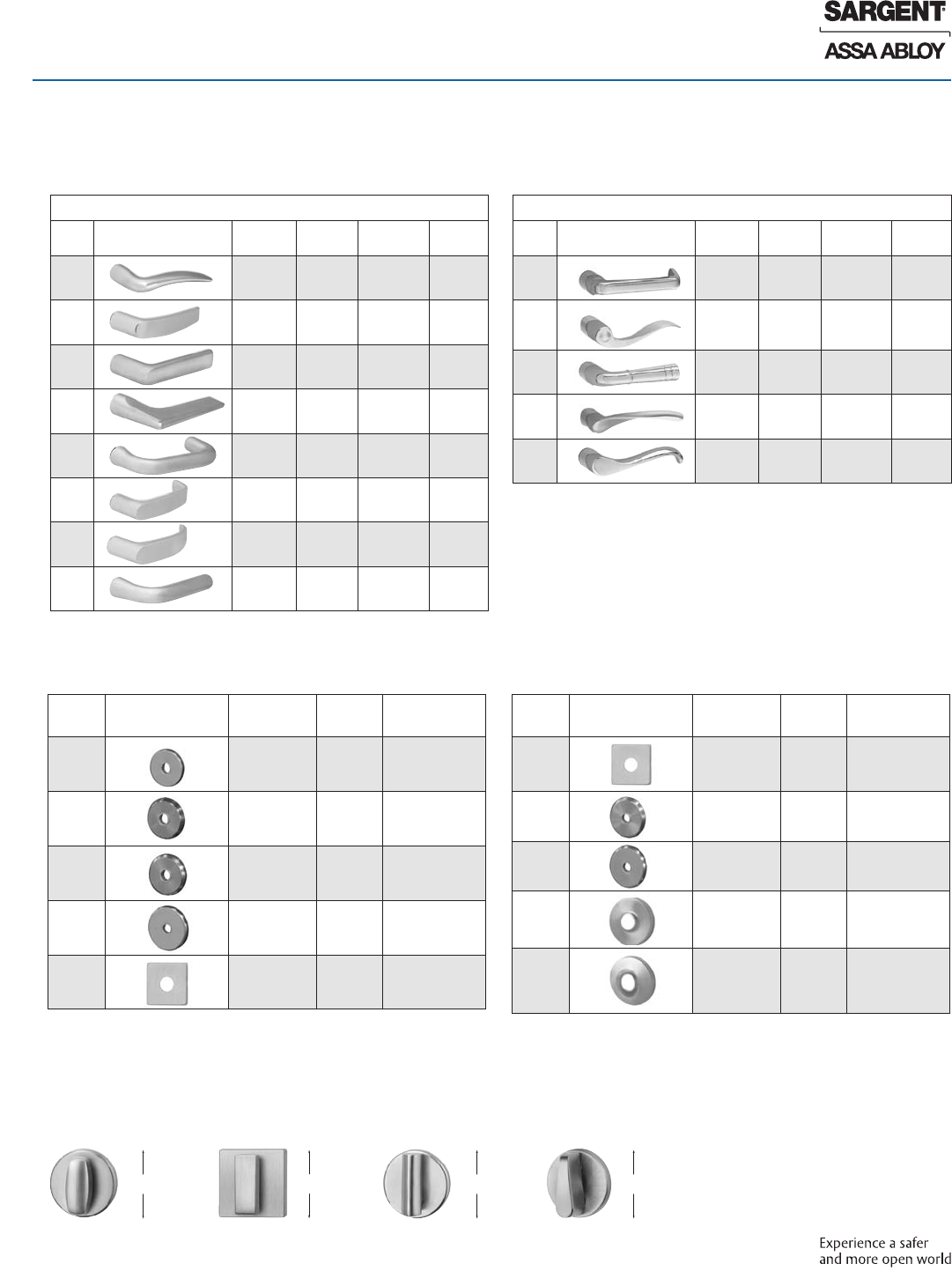

Standard and Coastal Series Levers, Rose and Thumbturn Designs ...................8

Studio Collection Levers..........................................................9-10

Mechanical and Cylinder Options...................................................11

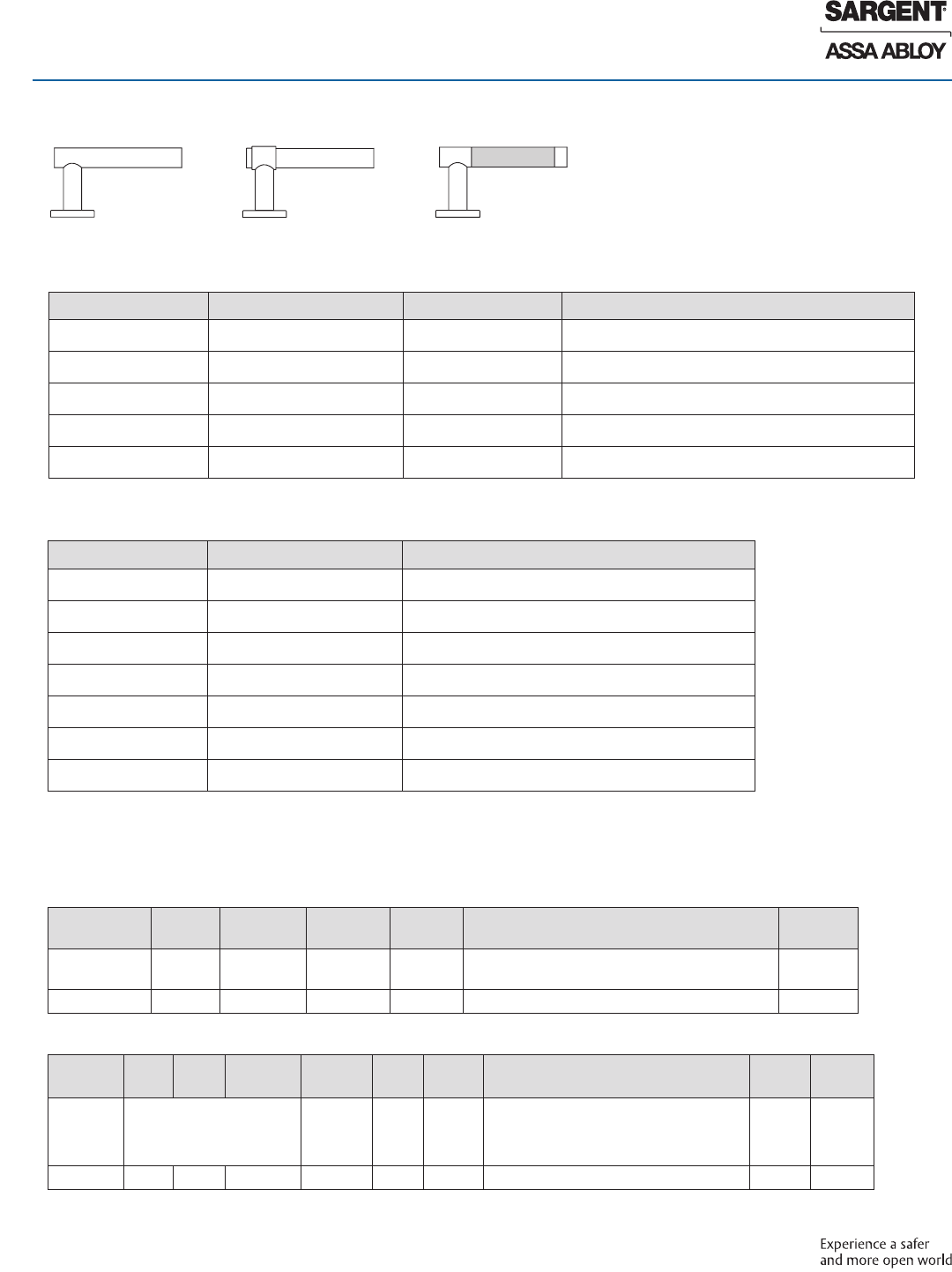

Cylinder Options ...................................................................12

Cylinder Options and Shipping Info .................................................13

Architectural Specifications ........................................................14

MicroShield® Coating

• Revolutionary finish coating available on all SARGENT product

lines, utilizes a silver-based antimicrobial compound from

Agion Technologies

• As an integral part of the finish coating, MicroShield® lasts

for the life of the hardware

• MicroShield® coating permanently suppresses the growth

of bacteria, algae, fungus, mold and mildew. It is effective

against a broad spectrum of bacteria.

• Non-toxic and completely safe. The Agion antimicrobial

compound is EPA and NSF approved and FDA listed for use

in medical and food preparation equipment.

• Applications: Anywhere there is need for a clean environment

(hospitals, laboratories, schools, medical centers, daycare,

food processing etc.)

MicroShield®

As part of their promise to provide innovative solutions to

their customers, certain ASSA ABLOY Group brands offer the

MicroShield® technology, a silver-based antimicrobial coating

designed to inhibit the growth of bacteria.

MicroShield® is a registered trademark of Yale Security Inc.,

an ASSA ABLOY Group company.

Note: Any retrofit or other field modification to a fire rated opening can potentially impact the

fire rating of the opening, and Sargent Manufacturing Company makes no representations or war-

ranties concerning what such impact may be in any specific situation. When retrofitting any por-

tion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please

consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure com-

pliance with all applicable codes and ratings

Keypad (KP) Series

permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

1-800-727-5477 • www.sargentlock.com 3

Overview and Features

Overview

The KP Series Keypad locks are designed for openings that require standalone, basic authorized entry capabilities. They are battery powered, motor

driven, self contained locks that use a microprocessor based controller with non-volatile memory. All programming is done at the door using the keypad

with functions selected by the user according to opening requirements.

Combined with the physical security of an ANSI Grade 1 mechanical locking mechanism (cylindrical, mortise or exit device), these locks provide the

security and functionality needed to control access to storerooms, offices, stairwells, conference rooms and rest rooms. With the cylinder override

feature, the keypad lock can be readily integrated into a new or existing master keyed system.

Features of the Keypad Operated Products

• Non-volatile memory

• All programming at keypad

• Keypad made of ultraviolet stable textured material

• Operating temperature for keypad: 4°F – 140°F

• Adjustable unlock time

• LEDs on keypad

- Green indicates unlocked

- Yellow indicates programming mode

- Flashing green and solid yellow indicates deadbolt thrown

• Use on exterior doors with weatherseal gasket and shroud

• UL Listed for fire doors (12 - required for KP8800/8900 Series)

• UL Listed to Canadian safety standards

• Built-in remote “Request to Enter” requires wire harness (52-2071)

• User Codes - over 1,100,000 possible user combinations

- 100 user codes

- Operates utilizing any one to six digits per code - digits may be repeated or start with “0”

- One master code - assigns emergency, supervisory and user codes, allows access during low battery

- One emergency code - allows entry when deadbolt is thrown (KP8276/KP8277) or during low battery

- One supervisory code - allows temporary lockout of selected users, changes unlock time duration, requests

infrared interrogation output, and may add user codes

- “One time” user codes allows visitors “one time” entry

- Entry of three wrong user codes in succession disables all codes for ten seconds

- Unit can be put in “passage only” mode at keypad

• Low battery indication - four chirps after code entry

• Operates with 4 “C” alkaline batteries (included)

• Typical 40,000 operations per set of batteries

Keypad (KP) Series

permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

1-800-727-5477 • www.sargentlock.com

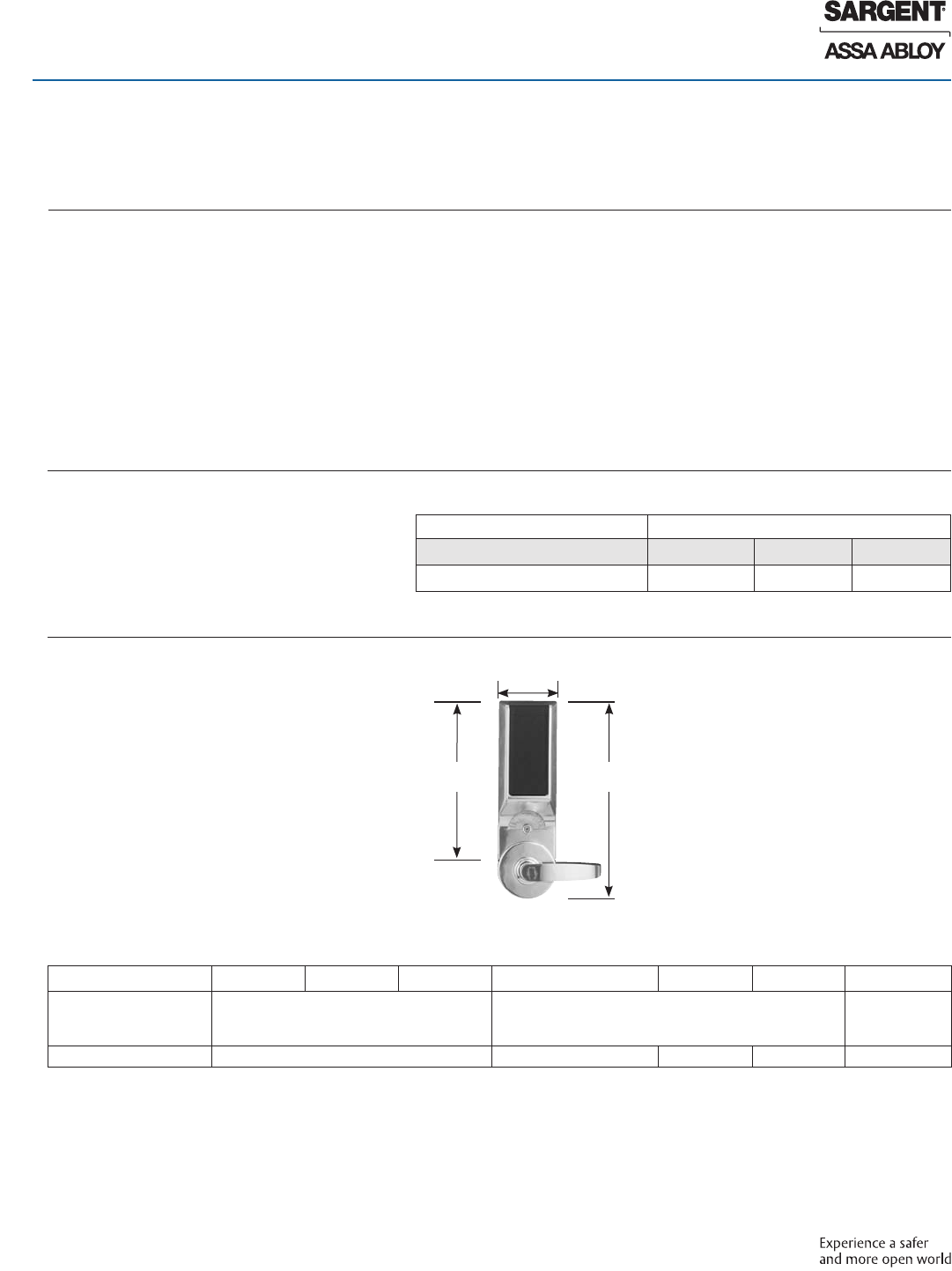

10 Line Cylindrical Locks

• Zinc die cast

• Projection at bottom 9/32" (7mm)

• Projection at top 2-1/8" (54mm)

9-17/32" (242mm) Inside Escutcheon

9-17/32"

(242mm)

KP10G77 Entry Lock With Cylinder

• Certified ANSI A156.2 Series 4000 - Grade 1

• UL listed to U.S.A. and Canadian safety standards Listed for 3 hour

doors (double doors require 41 - option)

• Motor driven 10 Line cylindrical lock

• Latchbolt brass, 1/2" (13mm) throw; UL Listed 3/4" (19mm) throw

(41- option) available

• 2-3/4" (70mm) backset standard. Consult factory for other

backsets available

• Non handed

• Heavy duty lever spring return rose assembly

• Steel spacer bushing and extended one-piece bearing sleeves

• Steel mounting studs

• 3 through-bolt position combinations

• Key override standard

• Includes code to activate horn when keypad buttons are pushed

• Not available with 82-, F1-82, 83-, F1-83, or 84- options

• For 1-3/4" (44mm) thick doors standard

• Lever inside always retracts latchbolt

• Key outside retracts latchbolt

• Outside lever rigid except when in

passage mode or valid user code entered

Inside Escutcheon

The Keypad Operated Products 10 Line Cylindrical lock is available with a wide selection of lever designs and hardware finishes. Its unique design

provides uniformity when used with other SARGENT locks at a facility. The KP products offer economical, standalone access control solutions.

Then select:

If the lock needs to have: Series Type Function

Cylinder override standard feature KP 10 G77

Options Series Type Function Roses Levers Finish Hand

Select from

pages 11 - 13

Select from KP Cylindrical Lock

Function chart above Select rose & finish from page 7, and lever from page 8 RHR, LHR, RH

or LH

28- KP-10G77 G L 03 RH

Mechanical Features

Cylindrical Lock Functions

Ordering KP Cylindrical Locks

3-1/2"

(89mm)

12-1/8"

(308mm)

Note: Specify 28- for 808 ANSI Strike (Standard strike is the 2-3/4" T strike)

Keypad (KP) Series

permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Inside Escutcheon

1-800-727-5477 • www.sargentlock.com 5

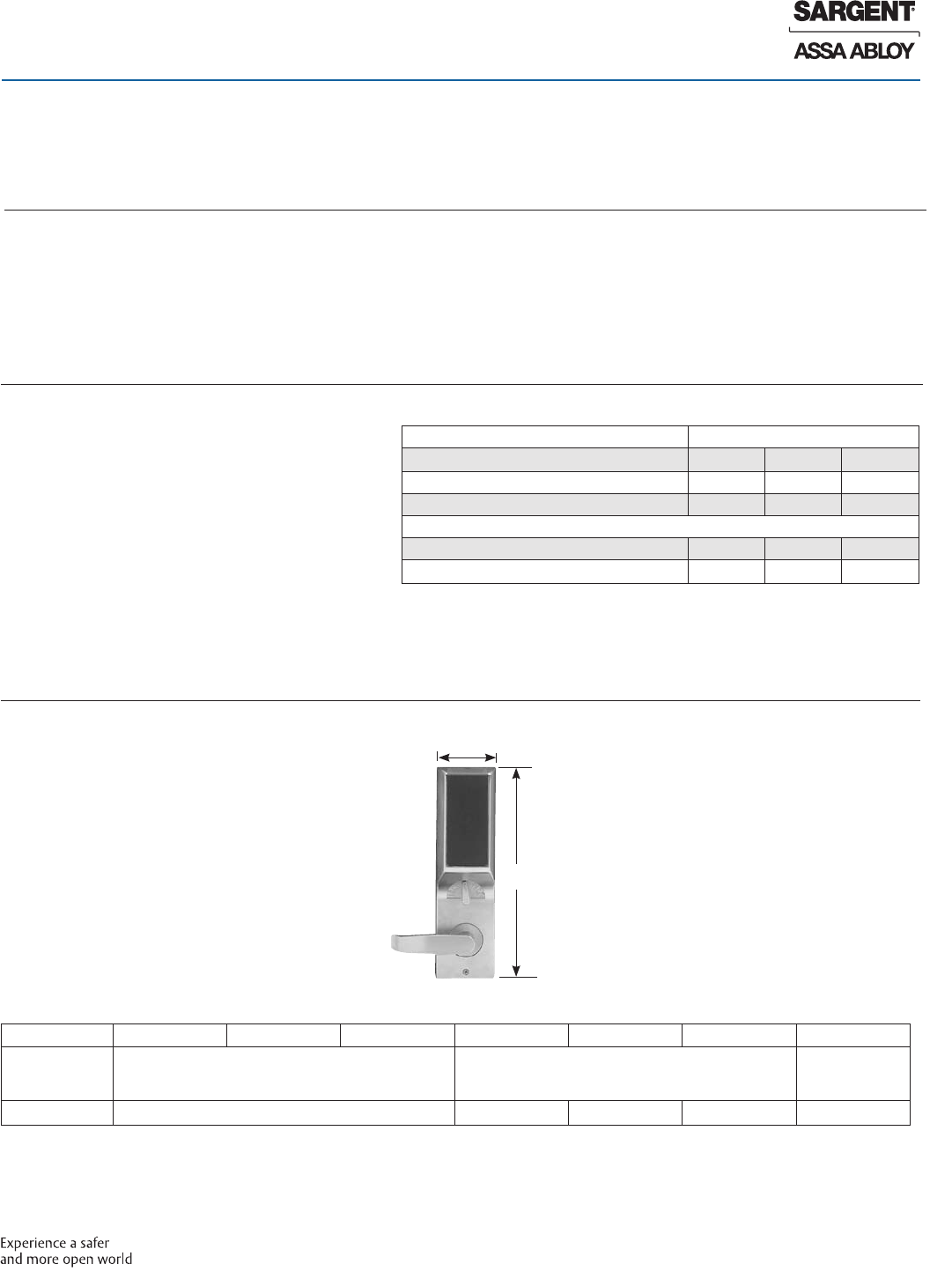

8200 Series Mortise Locks

Keypad Operated Products Mortise Lock Functions

All KP Mortise functions feature:

• Deadlatch deadlocks latchbolt

• Inside lever retracts latchbolt (and deadbolt

simultaneously) at all times

Cylinder Override Function features:

• Key outside retracts latchbolt

• Cylinder override requires a #41 Cylinder (1-1/8")

Deadbolt Function features:

• When deadbolt thrown, outside lever operable only

with Emergency or Master code

• 1" hardened stainless steel deadbolt

• Thumbturn retracts and projects deadbolt

12-17/32"

(318mm)

3-1/2"

(89mm)

• Zinc die cast

• Projection at bottom 9/32" (7mm)

• Projection at top 2-1/8" (54mm)

• Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1

and Security Grade 1 with all standard trims

• Motor driven 8200 Series mortise lock

• Stainless steel 3⁄4" (19mm) projection one-piece, anti-friction

reversible latch

• Stainless steel non-handed auxiliary deadlatch

The Keypad Operated Products motorized 8200 Series Mortise Lock has a clean, crisp design and is available with the SARGENT Studio Collection,

Coastal Series and traditional lever designs along with a full array of finishes. The mortise locks offer economical access control solutions for stand-alone

applications. The mortise locks are available with or without deadbolt and with or without cylinder override. KP Series mortise locks feature Ecoflex™

technology for improved battery life.

Mechanical Features

Then select:

If the lock needs to have: Series Type Function

Cylinder override and deadbolt KP 82 76

Cylinder override and no deadbolt KP 82 78

Deadbolt and no cylinder override KP 82 77

No deadbolt and no cylinder override KP 82 79

Options Series Type Function Roses Levers Finish Hand

Select from

pages 11 - 13

Select from KP Mortise Lock

Function chart above

Select rose from page 7, lever from Pages 8 - 9,

and finish from page 7

RHR, LHR, RH

or LH

3-10- KP-8276 LN MX 26D RH

Mortise Lock Functions

Ordering KP Mortise Locks

• Specify hand on order. Easily field reversible without disassembling

lock body

• Includes code to activate horn when keypad buttons are pushed

• Lever trim through-bolted for increased security and durability

• 1-3/4" (44mm) door standard. Consult factory for other thicknesses

• 4-3/4" (121mm) minimum stile for electrical function locks

permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Keypad (KP) Series

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

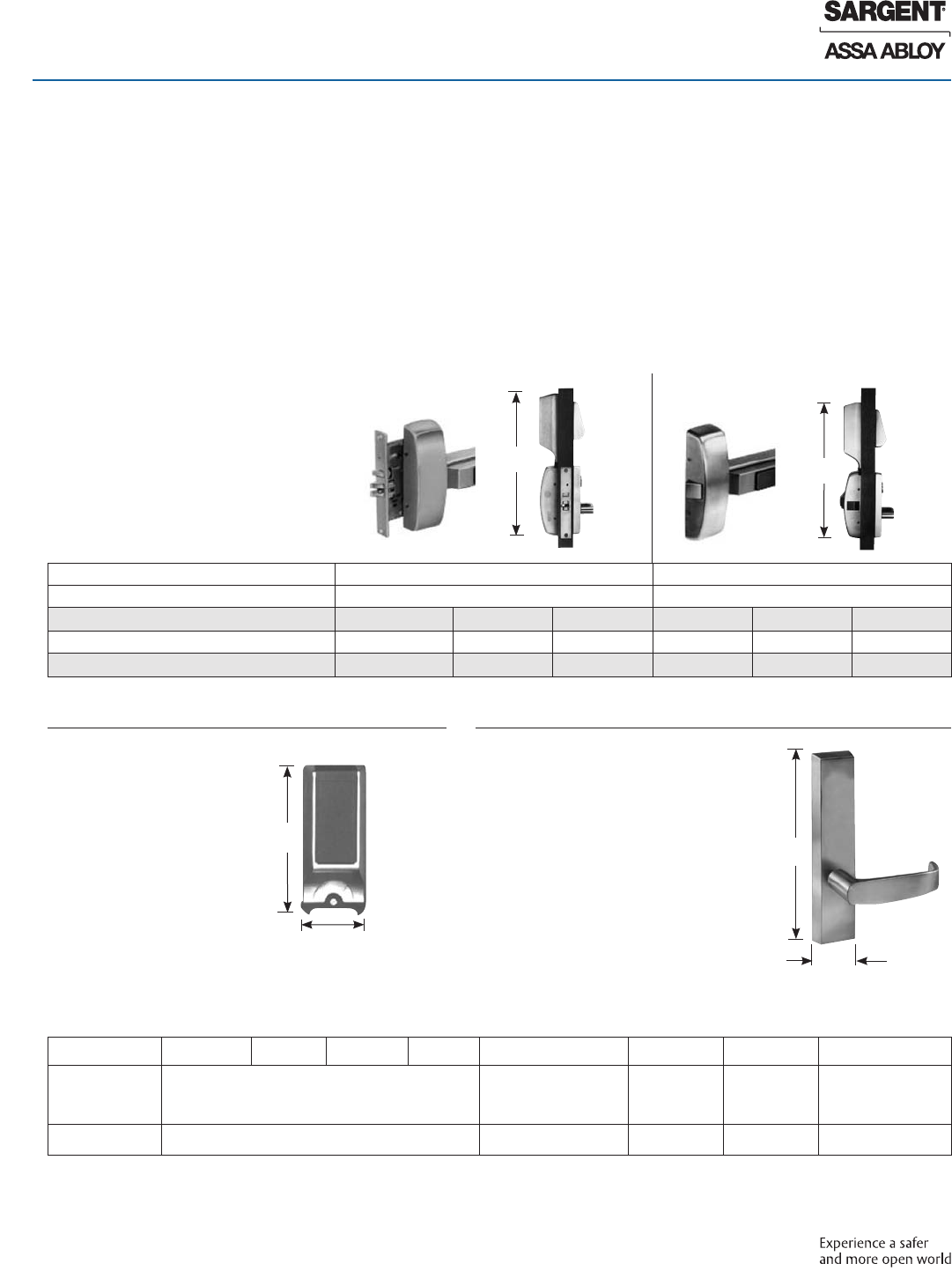

80 Series Exit Devices

Escutcheon

3-1/2"

(89mm)

8-3/4"

(222mm)

Inside

• Zinc die cast

• Fits above the center

chassis cover

• Projection at top

2-1/8" (54mm)

Outside ET Lever Control

• Cast escutcheon

• KP8877 uses 777-8 ET control

KP8878 uses 778-8 ET control

• KP8977 uses 777 ET control

KP8978 uses 778 ET control

The Keypad Operated Products 80 Series Exit Devices provide economical access control in many different environments.

• Certified to ANSI A156.3 Grade 1 requirements

• Latchbolt 3/4" (19mm) projection

• Cylinder override use 34 rim cylinder, 8877; 46 mortise cylinder, 8977

• 8977 not available with 70-, 72-, 73-, 73-7P-, SC- or SE- options

• Includes code to activate horn when keypad buttons are pushed

• Center Case Chassis – non ferrous alloy (except 12-KP8877 & 12-KP8878)

• KP Rim Devices use 649 strike and KP Mortise Lock Devices use C908 strike

• Rim exit devices are non handed; mortise exits are handed

Mechanical Features:

• Push Rail always retracts latchbolt allowing free egress

• Lever outside active in “passage” mode or with valid

user code

All KP Exit Devices feature:

Mortise Exit Rim Exit

Then select: Then select:

If the lock needs to have: Series Type Function Series Type Function

Cylinder override KP 89 77 KP 88 77

No cylinder override KP 89 78 KP 88 78

Options Series Type Function Rail Trim / Lever Hand Finish Door Width

Select from

pages 11 - 13

Select Device Type, Function & Rail Size

from chart above

ET followed

by lever designation

from page 8 - 10

RHR or LHR Select from

pages 7

If supplied, rails

will be cut to size

12- KP-8877F ETL RHR 32D 36"

Exit Device Functions

Ordering KP Exit Devices

1-13⁄16"

(46mm)

8-1/16"

(205mm)

ETL Shown

16-1/2"

(419mm) 16-1/2"

(419mm)

E Rail - 24" to 32" Doors

F Rail - 33" to 36" Doors

J Rail - 37" to 42" Doors

G Rail - 43' to 48" Doors

Rail Sizes:

permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

1-800-727-5477 • www.sargentlock.com 7

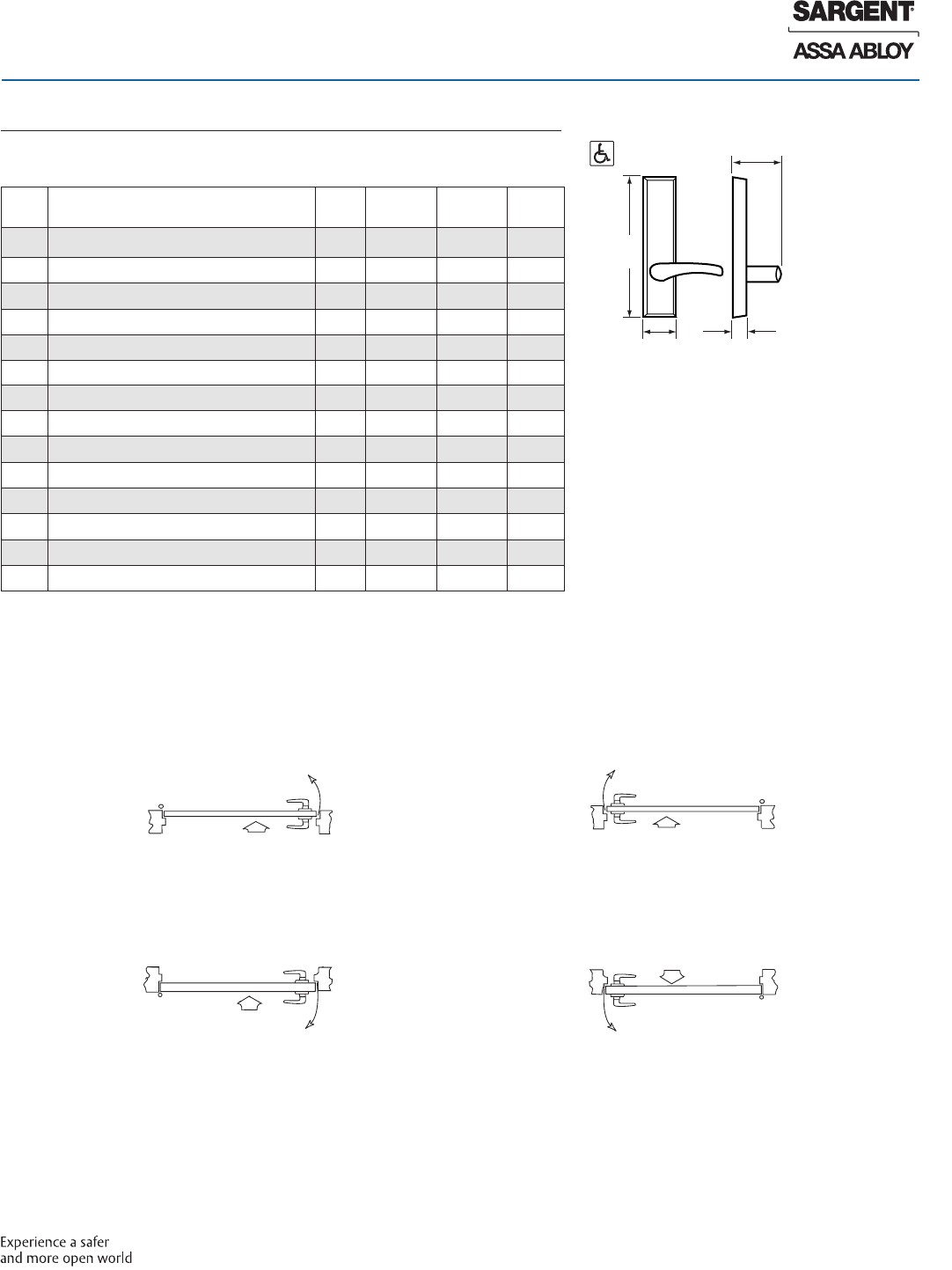

Finishes, ET Trim and Handing

Keypad (KP) Series

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

The 700 Series ET

and Lever Control

is the external

trim with all KP-80

Series exit devices

ET Escutcheons

and levers are

plated brass

Stainless steel

levers are available

Finishes

SARGENT offers many different finishes for KP products. Please reference the chart below for

finishes available.

Note: Exit devices are only available with ET Trim

Finishes ANSI Mortise

Locks

Cylindrical

Locks

Exit

Devices

03 Bright brass 605 X X X

04 Satin brass 606 X X X

09 Bright bronze 611 X X X

10 Satin bronze, clear powder 612 X X X

10B Oxidized satin bronze oil rubbed 613 X X X

10BE Dark Oxidized Satin Bronze — equivalent 613E X X X

10BL Oxidized satin bronze, clear power coat – X X X

14‡ Bright nickel, clear coated 618 X X X

15‡ Satin nickel, clear coated 619 X X X

20D Dark statuary bronze, clear powder coat – X X X

26‡ Bright chrome 625 X X X

26D‡ Satin chrome 626 X X X

32 Bright stainless steel 629 X – X

32D Satin stainless steel 630 X – X

ET Lever Trim for Exit Devices

13/16" (21mm)

1-13/16" (46mm)

8-1/16"

(205mm)

3-9/16" MAX (90mm)

Handing

Left Hand Door

Outside

Right Hand Door

Outside

Right Hand Reverse Door

Outside

RHR

Left Hand Reverse Door

LHR

Outside

‡ Exit Devices ordered in 32 or 32D will have the ET trims supplied in 26 or 26D; for nickel

finished ET trims, specify 14 or 15 finish and the exit will be supplied in 32 or 32D accordingly

permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

1-800-727-5477 • www.sargentlock.com

Standard and Coastal Series Levers,

Rose and Thumbturn Designs

Keypad (KP) Series

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

KP Series products are available with the following identified lever designs to provide uniformity throughout a facility. Lever projection from door

surface varies with lock type. KP mortise locks and cylindrical locks are specified by rose design followed by the lever designation (e.g., LNMX). KP Exit

devices are specified by the ET designation followed by the lever designation (e.g., ETMX).

The thumbturn backplate will match the rose design chosen. The turn designation must be specified as an option before the lock order string.

*The standard thumbturn will be supplied if T1, T2 or T3 are not listed. See page 10 in the 8200 mortise lock catalog for more information.

Note: KP-8200 mortise locks with standard levers are available with LN

and O roses only (not available with CO, CR, TO & TR roses)

Note: KP-8200 mortise locks with Coastal Series levers are available with

CR & TR roses (Not available with LN, O, CO & TO roses)

Roses Design Diameter Mortise

Locks

Cylindrical

Locks

LN 2" X

CR 2-3/16" X

TR 2-3/16" X

O2-3/4" X

E2 2-11/16" X

Roses Design Diameter Mortise

Locks

Cylindrical

Locks

E3 2-1/16" X

CO 2-3/4" X

TO 2-3/4" X

L 3-1/2" X

G 3-1/2" X

Levers

Thumbturns

T1 Turn T2 Turn T3 Turn Standard Turn*

1-1/2"

38mm

1-1/2" dia.

38mm

1-1/2" dia.

38mm

1-1/2" dia.

38mm

Standard Levers

Lever Design Handed Mortise

Locks

Cylindrical

Locks

Exit

Devices

A Yes X X

B – X X X

E – X X

F – X X

J – X X X

– X X X

P– X X X

W – X X

Coastal Levers

Lever Design Handed Mortise

Locks

Cylindrical

Locks

Exit

Devices

– X X

Yes X X

R – X X

Yes X X

Y Yes X X X

permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Keypad (KP) Series

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com 9

Studio Collection Levers

1. Lever returns within 1/2" (13mm) of door face

2. Gramercy levers are customized. Refer to page 9 for ordering information.

3. Contact factory for current lead times

4. Not available in 32D or 32 finish

Studio Collection Levers are available with the 8200 Series Mortise Locks. With Exit Device, the Studio Collection is available with the ET trim creating

uniformity throughout a facility.

Notting Hill Series

Lever Design Handed Mortise

Locks

Exit

Devices

MA3,4 Yes X X

MQ4Yes X X

MT4Yes X X

MM4Yes X X

MR3Yes X X

MY1,4 Yes X X

Centro Levers

MC3,4 – X X

MD – X X

– X X

MP4

– X X

ND1– X X

NJ1– X X

Aventura Series

Lever Design Handed Mortise

Locks

Exit

Devices

MB – X X

ME – X X

MF – X X

NF1

– X X

MG – X X

MI – X X

NI1– X X

MW1

– X X

Gramercy Levers2

RCM – X X

RAL

– X X

REM – X X

RAM – X X

RAS – X X

RAG – X X

RGM – X X

Rialto Series

MO4Yes X X

MZ1,4 Yes X X

Odeon Series

MN4Yes X X

MH4Yes X X

MK4Yes X X

MS4Yes X X

MU4Yes X X

MV4Yes X X

NS1,4 Yes X X

NU1,4 Yes X X

MX1,4 Yes X X

permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

1-800-727-5477 • www.sargentlock.com

Studio Collection Levers

Keypad (KP) Series

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Options Series/

Type Function Rose Lever Finish Hand

select from

pages 11 - 13 KP-82 select from

page 5

select from

below

Leather

insert Bright stainless steel with brown leather RHR, RH,

LHR, or LH

10- KP-82 76 LN RAL 29BN RH

Options Series Type Function Rail Size Trim Lever Finish Inside

Finish Door

Width

select

from

pages

11 - 13

Select from

80 Series Exit Device

Function chart from page 6

E, F,

J or G

Series

Leather

insert Bright stainless steel with brown leather

select

from

page 7

10- KP 88 77 F ET RAL 29BN 32D 36"

How to Order: KP- Exit Device x Gramercy Levers

How to Order: KP- Mortise Locks x Gramercy Levers

Gramercy Series Levers

REM, RGM RCM RAG, RAL, RAM, RAS

To order Gramercy Series levers with SARGENT products, see the examples below. When specifying finish, use the last two digits of the BHMA standard

finish code, i.e. use “29” for polished stainless, BHMA finish 629.

Lever Designation Lever Description Available Finishes (AS ORDERED)

RAG Grooved Insert 2929 or 3030

RAL Leather Insert 29BK, 29BN or 30BK, 30BN

RAM Metallic Insert 2930** only

RAS Santoprene Insert 29BK or 30BK

RCM Raised Band 2929, 3030 or 2930**

REM Plain 2929 or 3030

RGM Two Grooves 2929 or 3030

BHMA Finish SARGENT Finish Gramercy Code* Description

630 32D 30 Satin Stainless Steel

629 32 29 Bright Stainless Steel

N/A N/A BH Birch (wood insert)

N/A N/A BK Black (Santoprene™ or leather insert)

N/A N/A BN Brown (leather insert)

**Two-tone finish - grip of lever is 32D, balance of lever is 32. Rose/escutcheon and lock finish will be 32.

*Code used to specify Gramercy Series finishes only. Use available finishes list to specify desired finish when ordering.

Gramercy Finish Codes

Gramercy Lever Descriptions & Available Finishes

permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

1-800-727-5477 • www.sargentlock.com

Mechanical and Cylinder Options

Keypad (KP) Series

Mechanical Options:

Cylinder Options:

Note: More Cylinder Options on the following page

Fire Rated 12- UL Fire Label Exit hardware (KP8800 & KP8900 series Exits Only) (not available with 16-)

Cylinder Dogging 16- Cylinder Rail Dogging with # 41 Cylinder (not available with 12-, 57, 59- or AL- option) (KP8800 & KP8900 Series Exits)

Less Touch Pad 19- Pushbar without Lexan touchpad (KP8800 & KP8900 Series Exits)

Flat Lip Strike 23- Flat 4-7/8" (124mm) ANSI strike (KP8200 SeriesMortise)

Backset Options 23- 3-3/4" (95mm) Backset (for KP10G77 only)

25- 5" (127mm) Backset (for KP10G77 only)

Strike 28- 4-7/8" Curved Lip Strike #808 (KP10G77 only)

Security Fasteners 36- Six lobe security head screws

37- Spanner head screws

Double Doors 41- 3/4" Throw Latchbolt x 2-3/4" Backset

Tactile Warning

Options

75- Tactile Warning - Milled Inside Lever (Not available with Exit Devices, Studio & Coastal Levers and the A Lever)

76- Tactile Warning - Milled Outside Lever (Not available with Studio & Coastal Levers and the A Lever)

77- Tactile Warning - Milled Inside & Outside Lever (Not available with Exit Devices, Studio & Coastal Levers and the A Lever)

85- Tactile Warning - Abrasive Coating on Inside Lever (or Push Rail for Exits)

86- Tactile Warning - Abrasive Coating on Outside Lever

87- Tactile Warning - Abrasive Coating on Outside Lever & Inside Lever (or Push Rail for Exits)

CPC- Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)

SG- MicroShield® antimicrobial clear powder coat (Available with 15, 26D, and 32D finishes)

Degree Key

System

DG1- SARGENT Degree Key System Level 1

DG1-21- Degree Level 1 Construction Master Keying

DG1-60- Degree Level 1 Removable Disposable Construction Core (not available with cylindrical locks)

DG1-63- Degree Level 1 Removable Core (not available with cylindrical locks)

DG1-64- Degree Level 1 Removable Construction Keyed LFIC (not available with cylindrical locks)

DG1-65- Degree Level 1 Unassembled/Uncombined Core

DG1-78- Degree Level 1 Exposed Plug (not available with cylindrical locks or exit devices)

DG2- SARGENT Degree Key System Level 2

DG2-21- Degree Level 2 Construction Master Keying

DG2-60- Degree Level 2 Removable Disposable Construction Core (not available with cylindrical locks)

DG2-63- Degree Level 2 Removable Core (not available with cylindrical locks)

DG2-64- Degree Level 2 Removable Construction Keyed LFIC (not available with cylindrical locks)

DG2-65- Degree Level 2 Unassembled/Uncombined Core

DG2-78- Degree Level 2 Exposed Plug (not available with cylindrical locks or exit devices)

DG3- SARGENT Degree Key System Level 3

DG3-21- Degree Level 3 Construction Master Keying

DG3-60- Degree Level 3 Removable Disposable Construction Core (not available with cylindrical locks)

DG3-63- Degree Level 3 Removable Core (not available with cylindrical locks)

DG3-64- Degree Level 3 Removable Construction Keyed LFIC (not available with cylindrical locks)

DG3-78- Degree Level 3 Exposed Plug (not available with cylindrical locks or exit devices)

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Keypad (KP) Series

permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

1-800-727-5477 • www.sargentlock.com

Cylinder Options

Cylinder Options:

Degree Key

System

DG1- SARGENT Degree Key System Level 1

DG1-21- Degree Level 1 Construction Master Keying

DG1-60- Degree Level 1 Removable Disposable Construction Core (not available with cylindrical locks)

Signature Key

System

10- SARGENT Signature Key System (Not Available with other Key Systems)

10-21- SARGENT Signature Construction Key System (Lost Ball)

Signature

Large Format

Interchangeable

Core

10-63- SARGENT Signature Large Format Interchangeable Core (Removable Core) Cylinder

XC- Key System 11- XC Key System (not available with 10-, 22-)

11-21- XC- Construction Key System (Lost Ball)

XC- Large Format

Interchangeable

Core

11-60- Hardware to accept XC- Permanent LFIC (Removable Core), Disposable plastic Core- provided

11-63- Hardware provided with XC- LFIC (Removable Core) Cylinder - (Includes masterkeying, grand masterkeying)

11-64- Hardware provided with Keyed construction core to accept XC- LFIC (Removable) Permanent Core (ordered separately)

XC-

Interchangeable

Cores

11-70-7P- Hardware to accept XC- SFIC ( 7-Pin) XC- Permanent Cores, plastic disposable core provided (10 Line J lever not available)

11-72-7P- Hardware to accept XC- SFIC (7-Pin Keyed Construction Core provided) cylinder Permanent core ordered sepa-

rately (10 Line J lever not available)

11-73-7P- Hardware supplied with XC- Small Format 7-Pin interchangeable core (Includes masterkeying, grand masterkeying)

(10 Line J lever not available)

11-65-73-7P- Hardware provided to accept XC- Uncombinated 7-Pin SFIC (Permanent) Core (10 Line J lever not available)

Construction

Key Systems

21- SARGENT Lost Ball Construction Keying for Conventional, XC and Signature Series (N/A with 63- or 73-)

22- SARGENT Construction Split Key System for Conventional Cylinders (Existing Systems Only) (N/A with 10-, 11-, 63- or 73-)

Old Style

Removable Core

51- Removable Core Cylinder (Old Style) provided (Existing Systems Only)

52- Removable Construction Core (Old Style) Permanent Core ordered separately (Existing Systems Only)

Large Format

Interchangeable

Core

60- Hardware to accept SARGENT Permanent LFIC (Removable Core), Disposable Plastic Core provided

(Permanent Cores ordered separately)

63- Hardware provided with LFIC (Removable Core) Cylinder - (Includes masterkeying, grand masterkeying)

64- Hardware provided with Keyed construction core to accept LFIC (Removable) Permanent Core (ordered separately)

Interchangeable

Cores

70- Hardware to accept 6 or 7-Pin SFIC Permanent Cores, Plastic Disposable Core provided (10 Line J lever not available)

72- Hardware to accept 6 or 7-Pin SFIC (Keyed Construction Core provided) Cylinder (10 Line J lever not available)

(Permanent Core ordered separately)

73- Hardware supplied with 6 pin SFIC (Includes masterkeying, grand masterkeying) (10 Line J lever not available)

65-73- Hardware provided to accept Uncombinated 6-Pin SFIC (Permanent) Core (10 Line J lever not available)

65-73-7P- Hardware provided to accept Uncombinated 7-Pin SFIC (Permanent) Core (10 Line J lever not available)

73-7P- Hardware supplied with Small Format 7-Pin Interchangeable Core (Includes masterkeying, grand masterkeying)

(10 Line J lever not available)

Note: More Cylinder Options on the following page

permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Keypad (KP) Series

1-800-727-5477 • www.sargentlock.com

Cylinder Options and

Shipping Information

Lock Shipping Weight Pc. Count/Carton

KP8276 x lever trim (with cylinder) 10.0 lbs (4.5 kg) 1/carton

KP8277 x lever trim (no cylinder) 9.5 lbs (4.3 kg) 1/carton

KP8278 x lever trim (with cylinder/no deadbolt) 10.0 lbs (4.5 kg) 1/carton

KP8279 x lever trim (w/o cylinder/no deadbolt) 9.5 lbs (4.3 kg) 1/carton

KP8877 16 lbs (7.3 kg) 1/carton

KP8977 18 lbs (8.2 kg) 1/carton

KP10G77 LL 9.75 lbs (4.4 kg) 1/carton

Shipping Information

Cylinder Options:

Note: V-10 cylinders and information contact ASSA, Inc. @ 800-235-7482

Note: To order the KP-10 Line lock for use with ASSA V-10 (VA & VS) cylinders, specify the less cylinder (LC-) option

and the lever will accept VA & VS cylinders. (VC- & VC-VS- ASSA cylinders are not available with KP-10 Line locks)

Keso &

Keso F1

81- Hardware provided with housings to accept Keso (83) & Keso F1 (F1-83-) removable cores

(Not available with 10 Line) (Permanent Cores ordered separately)

82- Hardware provided with SARGENT Keso Security Cylinder

F1-82- Hardware provided with SARGENT Keso F1 Security Cylinder (Patented)

83- Hardware supplied with SARGENT Keso Security Removable Core cylinder (Not available with 10 Line)

F1-83- Hardware supplied with SARGENT Keso F1 Security Removable Core cylinder (Not available with 10 Line) (Patented)

84- Hardware provided with SARGENT Keso Construction Cores (Not available with 10 Line)

(Permanent Cores ordered separately)

Bump Resistant BR- Bump Resistant Cylinder (Available with Conventional & Conventional XC Cylinders Only)

Less Cylinder LC- Hardware supplied less cylinder

Accept Schlage

Cylinders

30- Lever to accept Schlage Cylinder-Cylinder is not provided (10 Line only)

SF- L Lever to accept Medeco KeyMark Large Format

Interchangeable and Schlage Full Size Interchangeable Core (10 Line only)

Schlage Keyways SC- Schlage C keyway cylinder, 0 bitted (Not available with 8900 Series exit devices)

SE- Schlage E keyway cylinder, 0 bitted (Not available with 8900 Series exit devices)

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Keypad (KP) Series

permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

1-800-727-5477 • www.sargentlock.com

Architectural Specifications

2.0 ACCESS CONTROL

CYLINDRICAL LOCK

A. Standalone access

control cylindrical locks

shall be KP10G77 as

manufactured by

SARGENT Manufacturing

Company, New Haven, CT.

B. Provide cylindrical lock series and function

where specified in hardware groups, with the

provisions below.

1. Cylinders: Provide SARGENT Signature

Series cylinders.

2. Backsets: 2-3/4 inches.

3. Strikes: Provide wrought boxes and strikes

with proper lip length to protect trim but not

to project more than 1/8 inch beyond trim,

frame or inactive leaf.

C. Locks shall meet ANSI/BHMA A156.2, Grade

1 requirements.

D. Locks shall be UL listed for use on fire doors.

E. Provide access control products with

non-volatile memory.

F. Provide keypad operated products with a

minimum of 100 user codes.

G. In addition to user codes, provide a Master

Code as standard. The Master Code assigns

emergency, supervisory, and user codes.

H. Provide the ability to print the last

fifteen entries via infrared printer.

I. Locking and unlocking of the lever handle

shall be done by a motor-driven battery pow-

ered unit (solenoids not acceptable) contained

completely within the body of the cylindrical

lock. The inside lever is always free for egress.

J. Provide lever design to match other locks on

the project.

K. Provide LED’s on unit to indicate status –

unlocked and programming mode.

L. Provide weatherseal gasketing for keypad at

exterior applications.

KP10G77 Cylindrical Locks

2.1 ACCESS CONTROL

MORTISE LOCKS

A.Stand alone access

control mortise locks shall

be KP8200 Series as

manufactured by SARGENT

Manufacturing Company,

New Haven, CT.

B. Provide access control

mortise lock series, type, and function where

specified in hardware groups, with the

provisions below.

1. Cylinders: Provide SARGENT Signature Series

mortise cylinders.

2. Backsets: 2-3/4 inches.

3. Strikes: Provide wrought boxes and strikes

with proper lip length to protect trim but not

to project more than 1/8 inch beyond trim,

frame or inactive leaf.

C. Locks shall meet ANSI/BHMA A156.13,

Grade 1 requirements.

D. Locks shall be UL listed for use on fire doors.

E. Provide access control products with

non-volatile memory.

F. In addition to user codes, provide a Master

Code as standard. The Master Code assigns

emergency, supervisory, and user codes.

G. Lock shall have the ability to print the last

fifteen entries via infrared printer.

H. Locking and unlocking of the lever handle

shall be done by a motor-driven battery

powered unit (solenoids not acceptable)

contained completely within the body of the

mortise lock. The inside lever is always free for

egress.

I. Provide lever design to match other locks on

the project.

J. Provide LED’s on unit to indicate status –

unlocked and programming mode.

K. Provide weatherseal gasketing for keypad at

exterior applications.

KP8200 Series Mortise Locks

2.2 ACCESS CONTROL EXIT

DEVICES

A. Standalone access

control exit devices shall be

KP8800/8900 Series

as manufactured by

SARGENT Manufacturing

Company, New Haven, CT.

B. Provide access control

exit device series, type, and function where

specified in hardware groups.

C. All exit devices shall be UL listed for

panic. Exit devices for labeled doors shall

be UL listed as “Fire Exit Hardware”.

D. Exit devices shall meet ANSI/BHMA A156.3,

Grade 1 requirements.

E. Provide exit devices factory cut to door width

and height. Locate exit devices at a height

recommended by the exit device manufacturer,

allowable by governing building codes, and

approved by the Architect.

F. Provide access control products with

non-volatile memory.

G. Provide keypad products with a minimum of

100 user codes.

H. In addition to user codes, provide a Master

Code as standard. The Master Code assigns

emergency, supervisory, and user codes.

I. Provide the ability to print the last fifteen

entries via infrared printer.

J. Locking and unlocking of the lever handle

shall be done by a motor-driven battery pow-

ered unit (solenoids not acceptable) contained

completely within the body of the outside trim.

Egress from the inside at all times.

K. Provide lever design to match other lock

levers on the project.

L. Provide LED’s on unit to indicate status –

unlocked and programming mode.

M. Provide weatherseal gasketing for keypad at

exterior applications.

N. Provide cylinder-dogging feature for non-

rated exit devices.

O. Provide keyed removable mullions, as

specified in the Hardware Groups.

P. Provide clear powder coating at exit devices

used in full exterior application, highly cor-

rosive areas, and where noted in the hardware

groups.

Q. Provide SARGENT Signature Series cylinders

for exit devices with cylinder override and

cylinder dogging.

KP8800/8900 Series Exit Devices

90130 09/19

Founded in the early 1800s, SARGENT® is a market leader in locksets, cylinders, door closers, exit devices, electro-mechanical products and access control systems for

new construction, renovation, and replacement applications. The company’s customer base includes commercial construction, institutional, and industrial markets.

Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

SARGENT Manufacturing Company

100 Sargent Drive

New Haven, CT 06511 USA

800-727-5477

www.sargentlock.com

Sargent Keypad Operated Products Catalog Access Control Series

Navigation menu

Versions of this User Manual:

Views

Navigation
