For assistance, contact SARGENT at
800-727-5477 or www.sargentlock.com
+A^cZEVgihA^hi
Copyright © 201, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Copyright ©2012, SARGENT Manufacturing company, as ASSA ABLOY Group company
6 Line Knob/Lever Lock Parts List Page No. 6.3
Rev. D 6/01/12
Item Part No. Description
1 Key Varies
2 Push Pin See Screw Packs
Outside Knob 06-0500
06-0501
06-0502
06-0503
06-0603 (LH) 06-0604 (RH)
06-0504
06-0505
B Design cylinder – Standard
B Design Push Button
B Design Plain/Passage
S Design Cylinder – Standard
S Design Cylinder – Removable Core
S Design Push Button
S Design Plain/Passage
3
Outside Lever 06-5181
06-5182
SL Design Plain/Passage
SL Design Push Button
4 Cylinder Varies
5 Knob Ferrule 06-0512
06-0528
B Design
S Design
6 Outside Rose
Assembly
06-5005
06-5006
B Design
O Design
Lockbodies
B Knob
06-5039
06-5040
06-5011
06-5017
06-5041
06-5240
06-5241
06-5043
06-5044
06-5045

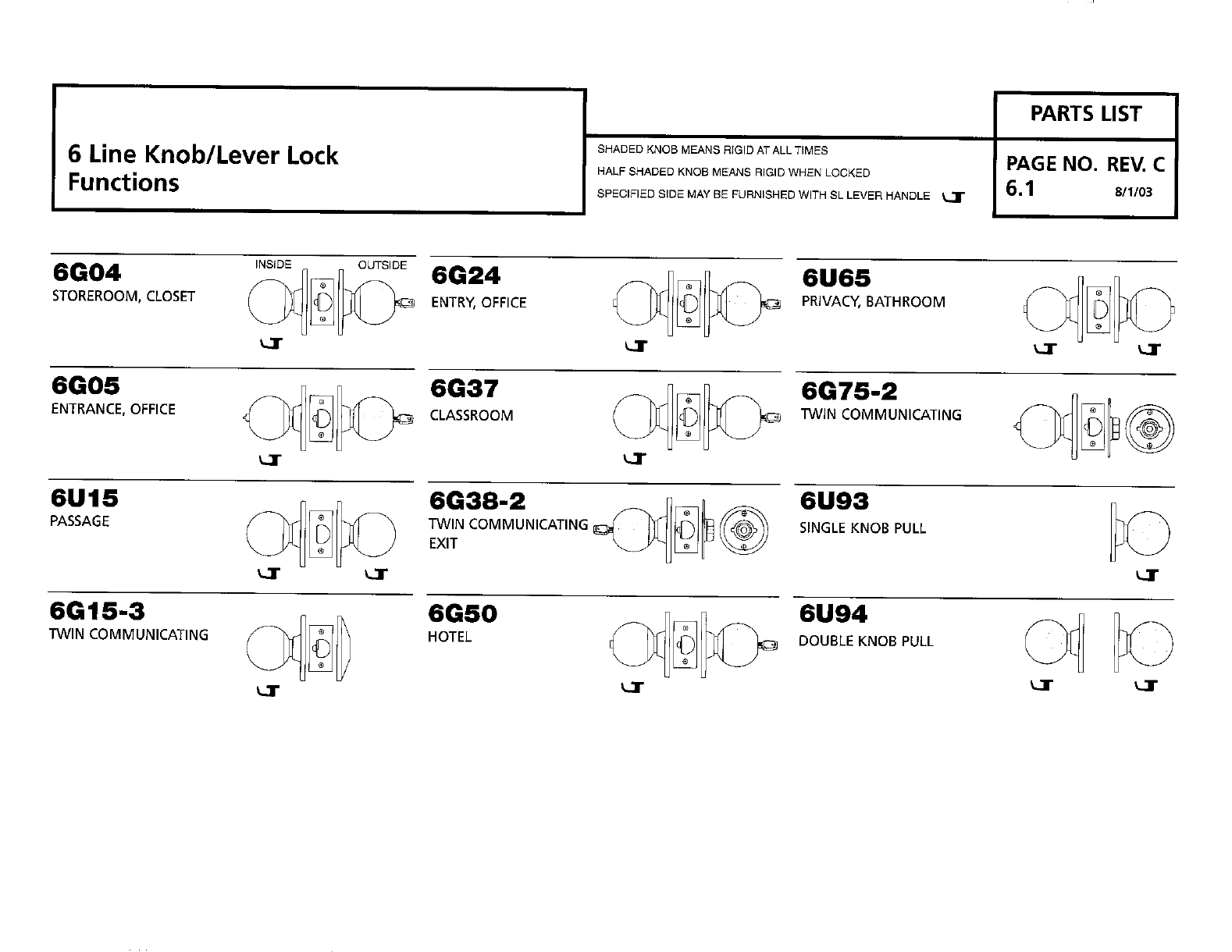

6G04 Lockbody
6G05 Lockbody
6U15 Lockbody
6G15-3 Lockbody
6G24 Lockbody
6G37 Lockbody
6G38-2 Lockbody
6G50 Lockbody
6U65 Lockbody
6G75-2 Lockbody
Lockbodies
S Knob/SL Lever
06-5016
06-5012
06-5011
06-5017
06-5013
06-5215
06-5018
06-5189
06-5019
06-5020
6G04 Lockbody
6G05 Lockbody
6U15 Lockbody
6G15-3 Lockbody
6G24 Lockbody
6G37 Lockbody
6G38-2 Lockbody
6G50 Lockbody
6U65 Lockbody
6G75-2 Lockbody
7
Lockbodies
Removeable Core
(S Knob)
06-5149 (LH) 06-5150 (RH)
06-5151 (LH) 065152- (RH)
06-5153 (LH) 06-5154 (RH)
06-5217 (LH) 06-5218 (RH)
06-5188 (LH) 06-5189 (RH)
6G04 Lockbody
6G05 Lockbody
6G24 Lockbody
6G37 Lockbody
6G50 Lockbody
6 Line Knob/Lever Lock Parts List Page No. 6.3
Rev. D 6/01/12
Item Part No. Description
8 Latchbolts 06-5083 Guarded 06-5225 Unguarded
06-5085 Guarded 06-5227 Unguarded
06-5094 Guarded 06-5231 Unguarded
06-5102 Guarded 06-5234 Unguarded
06-5096 Guarded 06-5232 Unguarded
06-5100 Guarded Drive-in Latchbolt
2-3/8” Backset – 2-1/4” x 1”
2-3/8” Radius Corner – 2-1/4” x 1”
2-3/4” Backset – 2-1/4” x 1-1/8”
2-3/4” Backset – 2-1/4” x 1”
3-3/4” Backset – 2-1/4” x 1”
9 Flat Head Screws See Screw Packs
10 Strikes 600 Kit
506 Kit
808 Kit
Standard Strike
Full Lip Strike
4-7/8” Strike
11 Strike Box Provided with Screw Pack
77-1141
Standard Strike Box
4-7/8” Strike Box
12 Mounting Plate 06-5003 B&O Rose
13 Mounting Screws See Screw Pack
14 Inside Rose 06-0532
06-0533
B Design
O Design
Inside Knob 06-0500
06-0501
06-0502
06-0503
06-0603 (LH) 06-0604 (RH)
06-0504
06-0505
B Design cylinder – Standard
B Design Push Button
B Design Plain/Passage
S Design Cylinder – Standard
S Design Cylinder – Removable Core
S Design Push Button
S Design Plain/Passage
15
Inside Lever 06-5182
06-5181
SL Design Push Button
SL Design Plain/Passage
Screw Packs
Standard Finish Screws 06-2675 4 qty. #6-20 x ¾”
Flat head screws & Strike Box
Mounting/Thru-bolt Screws 06-5056 2 qty. #10-32 x 1-3/8”
Machine screws
6U93
6U94 (Requires 2 screw packs)
Metal Door
06-5058 2 qty. #8-32 x ¾”
Sheet metal screws
6U93
6U94 (Requires 2 screw packs)
Wood Door
06-5059 2 qty. #6-20 x ¾”
Wood screws
