Bored Lock

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

11 Line

11 Line Bored Lock

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Table of Contents

1-800-727-5477 • www.sargentlock.com

Features, Benefits and Applications ................................................... 1

Windstorm Certifications............................................................. 2

STC Acoustic Door Systems........................................................... 3

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5

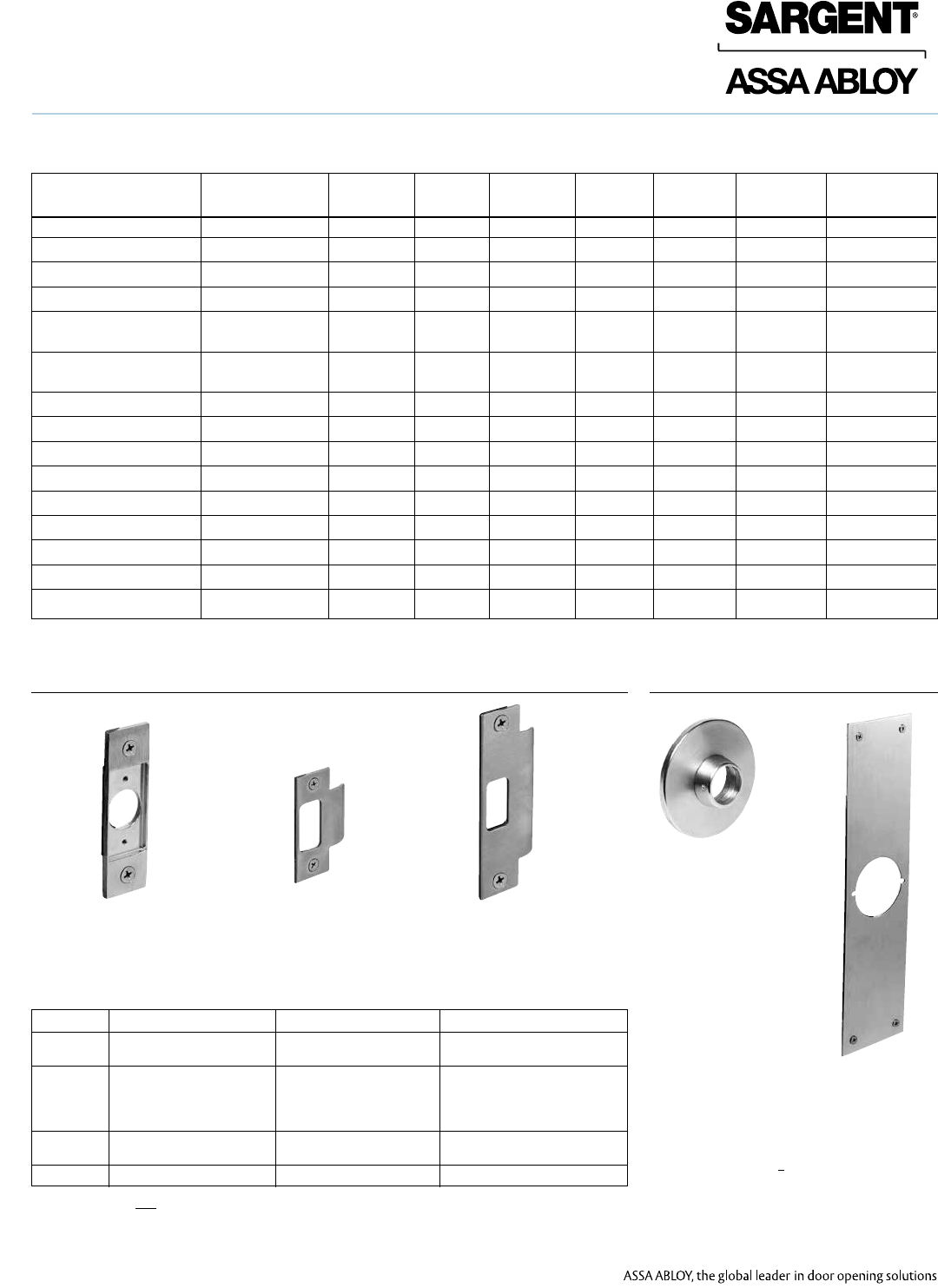

Function Conversion Chart and Retrofit Options ...................................... 6

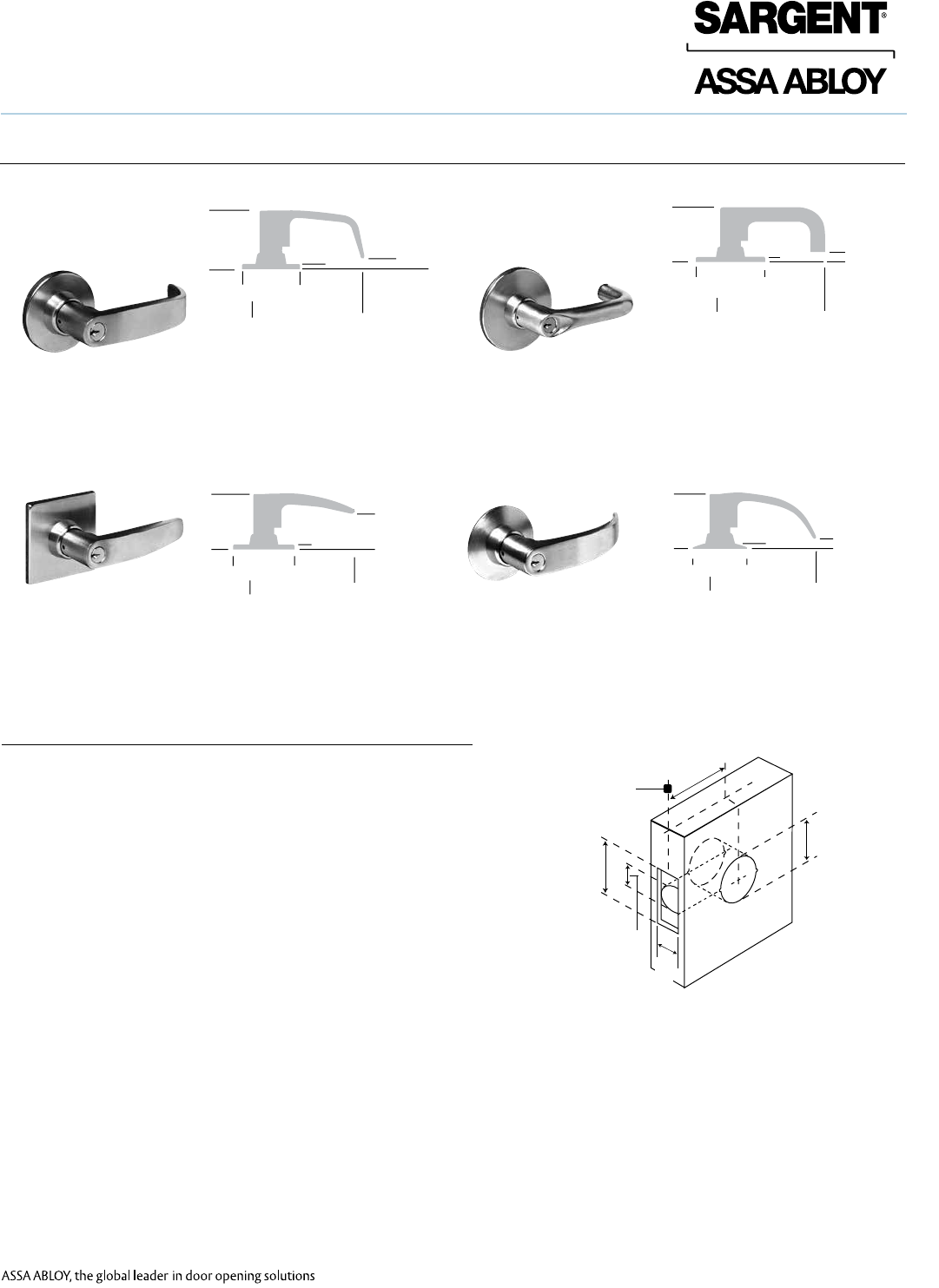

Lever and Rose Designs .............................................................. 7

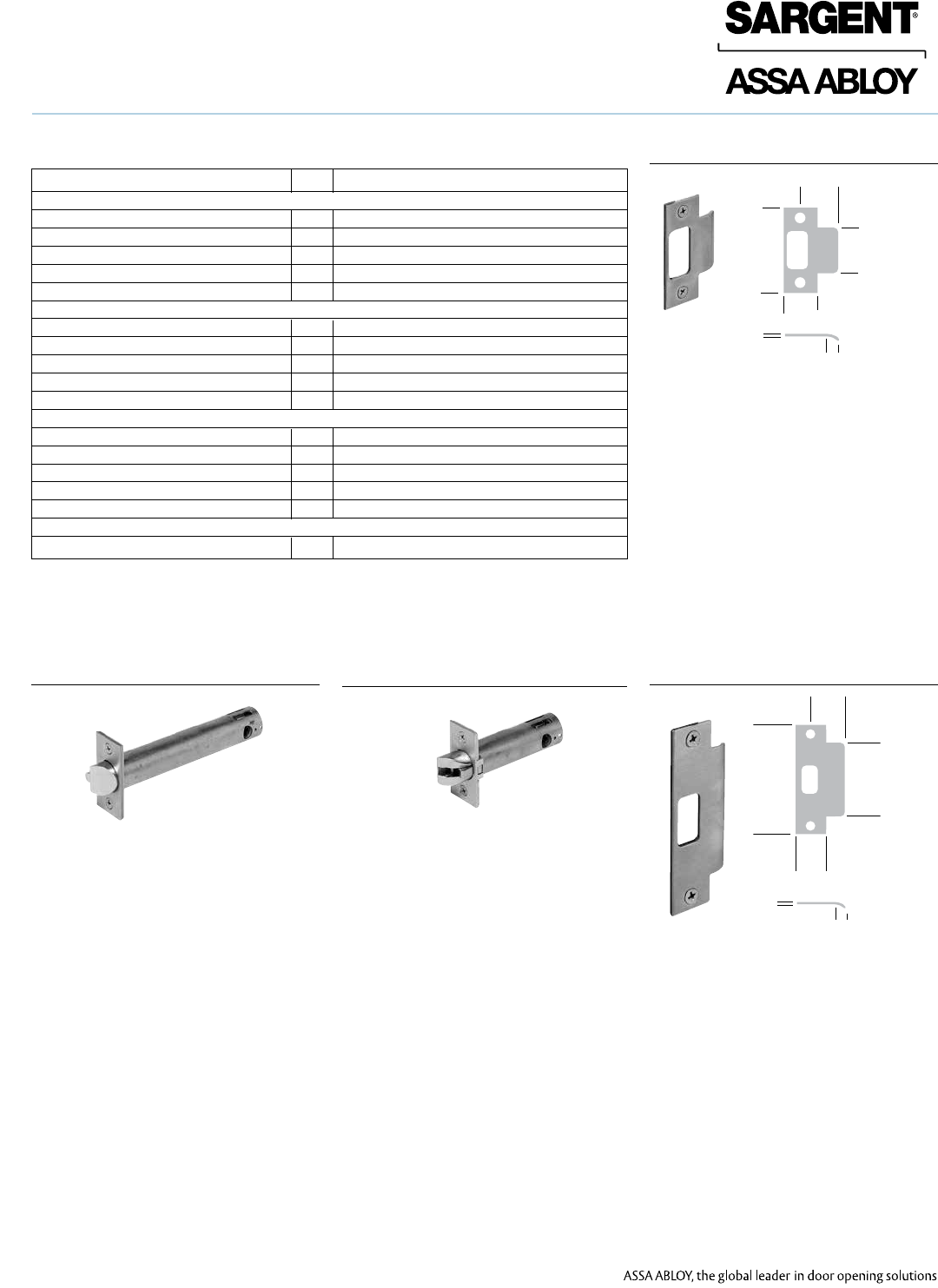

Latches and Strikes ................................................................... 8

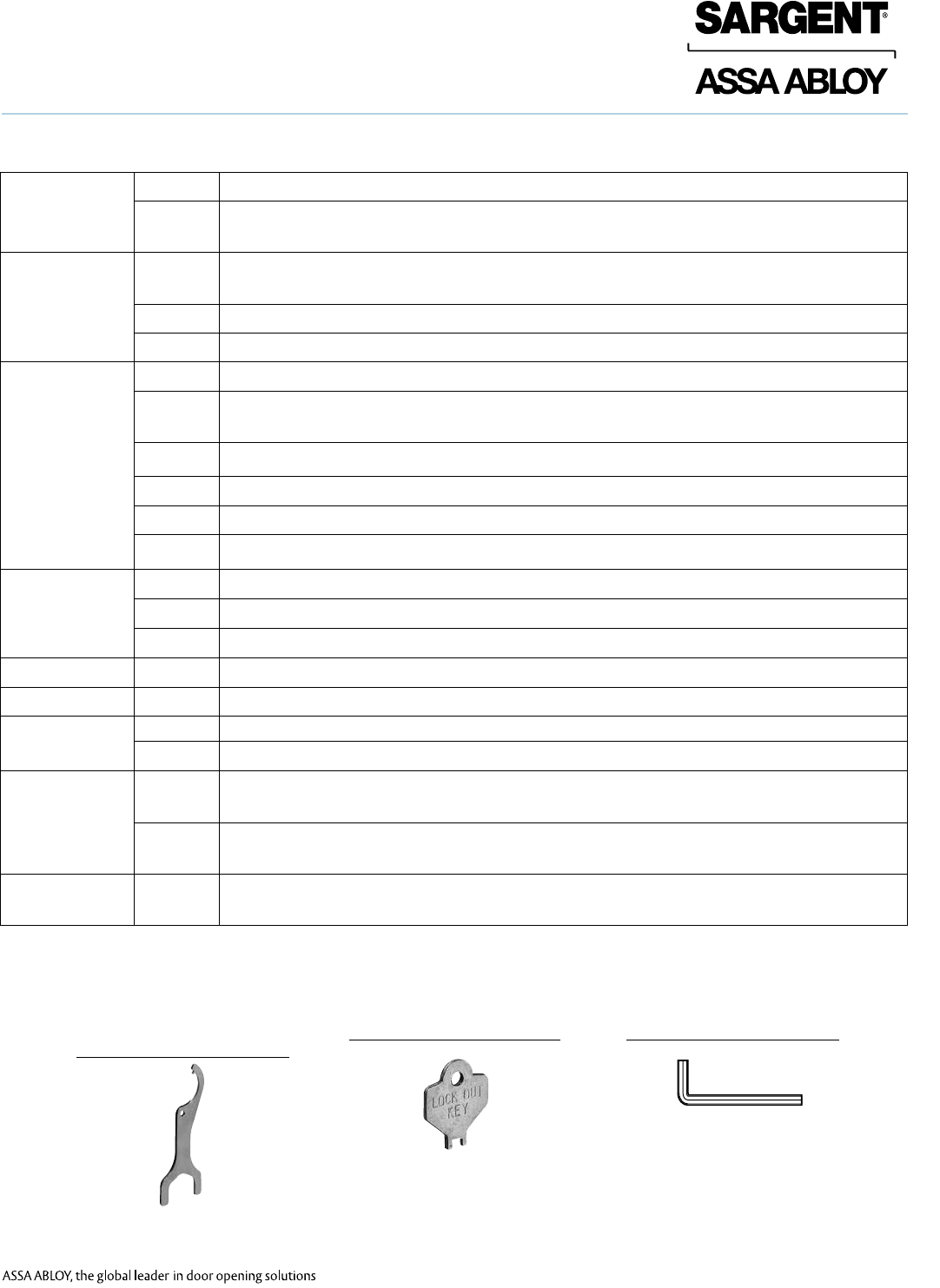

Mechanical and Cylinder Options..................................................9-10

Cylinder Options ....................................................................10

How to Order, Packaging, Finishes and Architectural Specifications...................11

For Doors 1-3/4" to 2" (44mm to 51mm) thick doors standard

Special order for doors over 2" thick, consult factory for lead time & pricing

Not available for 1-3/8" (35mm) thick doors

Backsets 2-3/4" (70mm) standard

3-3/4" (95mm) backset available (23- option)

5" (127mm) backset available (25- option)

Bearing Assembly Cast and machined stainless steel

Front Wrought brass, bronze or stainless steel

2-1/4" x 1-1/8" (57mm x 29mm)

Self-adjusting for flat to 1/8" (3mm) in 2" (51mm) bevel

Strike Wrought brass, bronze or stainless steel

800 curved lip strike standard

808 ANSI curved lip strike available (28- option)

Wrought box strike available (WBS- option)

Hand Universal, not handed

Levers Secured with 6 lobe security set screw standard

6 Lobe tool packed with each lock

Roses Heavy wrought brass, bronze or stainless steel

Latchbolt Stainless steel bolt 7/8" (22mm) dia. x 1/2" (13mm) throw

3/4" (19mm) throw for pairs of doors (41- option)

Cylinder Brass, 6-Pin, LA keyway standard

Keys Two, nickel silver

Masterkeying Can be masterkeyed or grand masterkeyed

Construction key systems available

Finishes 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D

Door Prep ANSI A115.2 (161)

Minimum Stile 4-1/4" (108mm) with B and O roses

4-1/2" (114mm) with E and L roses

Specifications

ANSI Meets and greatly exceeds ANSI A156.2 Series 4000 - Grade 1

UL UL and cUL listed to Canadian safety standards

Listed for 3 Hour Doors (double doors require 41- option)

Positive Pressure Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies

ADA All levers conform to ADA requirements for barrier-free accessibility.

Levers (L, J and P) conform to California Administrative Code Title 19

Windstorm UL Listed: ANSI/SDI-BHMA A250.13; ANSI/ASTM E330-2002;

Certifications ANSI/ASTM E1886-2005 & ASTM E1996-2009

UL Certification Directory ZHEM.R21744 Latching Hardware

Listed on Florida Building Code Website: FL4351-R1

Certification Compliance

On the Cover

11G05 x OL x 26D Entrance Lock

MicroShield® Coating

• Revolutionary finish coating available on all SARGENT

product lines, utilizes a silver-based antimicrobial

compound from Agion Technologies

• As an integral part of the finish coating, MicroShield® lasts for

the life of the hardware

• MicroShield® coating permanently suppresses the growth

of bacteria, algae, fungus, mold and mildew. It is effective

against a broad spectrum of bacteria.

• Non-toxic and completely safe. The Agion antimicrobial

compound is EPA and NSF approved and FDA listed for use in

medical and food preparation equipment.

• Applications: Anywhere there is need for a clean

environment (hospitals, laboratories, schools, medical

centers, daycare, food processing etc.)

MicroShield®

As part of their promise to provide innovative solutions to

their customers, certain ASSA ABLOY Group brands offer the

MicroShield® technology, a silver-based antimicrobial coating

designed to inhibit the growth of bacteria.

MicroShield® is a registered trademark of Yale Security Inc.,

an ASSA ABLOY Group company.

As part of their promise to provide innovative, fast and effective

high security solutions to their customers, certain ASSA ABLOY

Group brands offer ElectroLynx®, a universal quick-connect

system that simplifies the electrification of the door opening.

ElectroLynx® is a registered trademark of ASSA ABLOY Inc.

Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and

Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any

specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new

fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure

compliance with all applicable codes and ratings.

11 Line Bored Lock

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Features, Benefits and

Applications

1-800-727-5477 • www.sargentlock.com 1

The SARGENT 11 Line* sets a higher standard for Grade 1 bored-in locks. The unique, T-Zone construction

provides unequalled strength and durability for the most demanding applications such as schools and hospitals.

This is accomplished by true interlocking between the lockbody and the latchbolt.

Specify the SARGENT 11 Line when you need the ultimate in strength and durability in a bored-in lock.

Accept no substitute. There is no equal!

*U.S. Patent No. 6,626,018

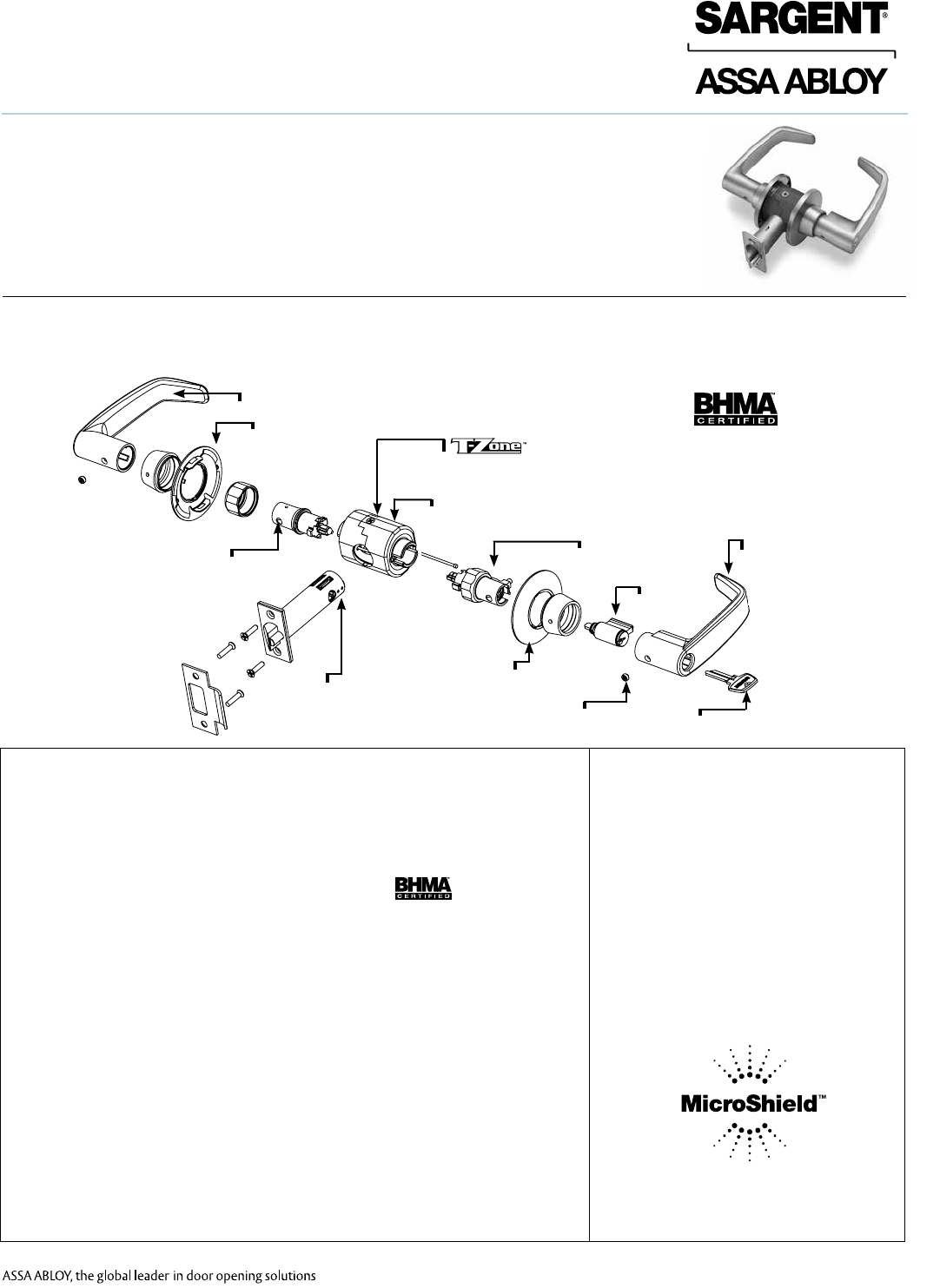

T-Zone Construction — There is no equal!

Direct linkage with fixed alignment between the hub and the latchbolt is the best construction for quietly and effectively operating the latchbolt. For this

reason, SARGENT has developed the interlocking aligning and latch tubes, which form a rugged torque resistant “T” in the critical twist area.

This “T-Zone” construction, combined with long lasting components, makes 11 Line bored locks outstanding!

Simple

cylinder removal

Many functions are easily

field changeable

Construction– Interlocking

construction between lockbody and

latchbolt

Solid cast levers

Accommodates doors

1-3/4" (44mm) to

2" (51mm) thick

and 2-1/4" (57mm) to

2-1/2" (64mm) thick

Seamless

brass tube

Master Key Systems

Small 2-3/4"

(70mm) dia. two-piece

rose assembly

Only 45° of lever

rotation to retract latch

Lockbody – Cast/machined

stainless steel

Security screw

Maximum Strength & Durability

• True interlocking between the cast/ machined stainless steel lockbody and latchbolt. Provides

unequalled strength and durability

• Independent Testing proves:

– Exceeds 15 TIMES ANSI/ BHMA A156.2 Grade 1 standard for cycle testing. Over 15,000,000 MILLION cycles!

– Withstands 3 TIMES ANSI/ BHMA A156.2 Grade 1 torque force on a locked lever.

Over 3000 in/lbs!

– Virtually no lever sag ever

• In a class of its own! This lock raises the bar and sets new standards!

• 10 Year limited warranty. No service required to maintain warranty

Maximum Convenience

• Two-piece rose assembly goes quickly into place

• “Out of the box and onto the door” packaging organizes the parts, has simple instructions and even a

small tool kit

• Fits any 161 prep; Does not fit 160 door prep

• Two piece rose & collar for easier installation

• Only 45° of lever rotation required to retract latchbolt

• 18 functions. Many functions are easily field changeable

• 4 ADA lever designs and 4 roses available to cover a wide variety of door preps and design requirements

• Simple cylinder removal. Easy change outs

• 11 Architectural grade finishes

• SARGENT uses engineered solutions and flexible manufacturing processes to accommodate special

applications

Security

• The only bored lock on the market available with security lever catch feature for high

vandalism application

• Resists vandalism

• Torx® and spanner screws

• Classroom security function available

• Security key systems available (Signature, Keso F1, XC)

Applications

• High traffic areas – offices, public buildings, hospitals

• High abuse areas – institutions, schools, retail

• Anywhere that requires the contemporary look of

a small rose and durability that exceeds

Grade 1 standards

Innovation

• Patented “11 Line” construction with true

interlocking between the lockbody and the latchbolt

Provides unequalled strength and durability for the

most demanding applications

• Revolutionary MicroShield® available, technology,

containing the Agion™ antimicrobial compound, that

suppresses the growth of destructive bacteria

Two-piece rose assembly

for easy installation

1-800-727-5477 • www.sargentlock.com

11 Line Bored Lock

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Windstorm Certifications

Florida Building Code: FL2998

UL Certification Directory: ZHEM.R21744 – Latching Hardware

UL Certification Directory: ZHLL.R21744 – Products for Use in Windstorm-rated Assemblies

ANSI/SDI-BHMA A250.13 “Testing and Rating of Severe Windstorm Resistant Components for Swinging Door Assemblies”

ANSI/ASTM E330 “Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by Uniform

Static Air Pressure Difference”

ANSI/ASTM E1886 “Standard Test Method for Performance of Exterior Windows, Curtain Walls, Doors, and Impact Protective Systems

Impacted by Missile(s) and Exposed to Cyclic Pressure Differentials”

ASTM E1996 “Standard Specification for Performance of Exterior Windows, Curtain Walls, Doors and Impact Protective Systems

Impacted by Windborne Debris in Hurricanes”

(TAS) 201 “Impact Test Procedures”*

(TAS) 202 “Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by Uniform

Static Air Pressure Difference”

(TAS) 203 “Criteria for Testing Products Subject to Cyclic Wind Pressure Loading”*

ASTM E330 “Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by Uniform

Static Air Pressure Difference”

ANSI/ASTM E1886 “Standard Test Method for Performance of Exterior Windows, Curtain Walls, Doors, and Impact Protective Systems

Impacted by Missile(s) and Exposed to Cyclic Pressure Differentials”

ASTM E1996 “Standard Specification for Performance of Exterior Windows, Curtain Walls, Doors and Impact Protective Systems

Impacted by Windborne Debris in Hurricanes”

AAMA/WDMA/CSA

101/I.S.2/A440 “Standard/Specification for Windows, Doors, and Unit Skylights”

FEMA Publication 320 “Taking Shelter From the Storm: Building a Safe Room for Your Home or Small Business”, investigated with respect to

impact and pressure requirements only.

FEMA Publication 361 “Design and Construction Guidance for Community Safe Rooms”, investigated with respect to impact and pressure

requirements only

ICC 500

“ICC/NSSA Standard for the Design and Construction of Storm Shelters”, investigated with respect to impact and

pressure testing. Minimum missile impact speeds vary with the design wind speed desired for a particular product. The

information below correlates design wind speed to the minimum missile speeds as discussed in Table 305.1.1 of ICC 500

SARGENT’s products meet building codes that require hurricane, windstorm and FEMA certifications, including some of the most stringent building

codes as specified in the Florida Building Code, Miami Dade Code and the International Building Code. Listed below are certifications and standards

met by the 11 Line lock.

Certifications to meet assembly requirements are done in conjunction with doors from ASSA ABLOY Group companies CECO DOOR and CURRIES.

Windstorm Certifications: Florida Building Codes & UL Listings

* Published in the “Florida Building Code”

11 Line Bored Lock

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

STC Acoustic Door System

SARGENT 11 Line bored locks are part of the STC Acoustical Door Systems from ASSA ABLOY Group brand Security Metal Products (SMP).

The STC Acoustical Door Systems are the perfect choice for any room where sound transmission needs to be kept to a minimum. This solution

encompasses door, frame, sound seals and threshold and lock. All door systems use standard locks. The STC55 requires a special version of

the 11 Line lock.

To order the 11 Line bored lock for use with the STC55 door system, include the STC prefix in the 11 Line order string and specify the B or O rose only.

With this prefix, it will be configured for use with the Acoustical Door System.

To learn more about SMP and the STC Acoustical Door Systems, please visit www.secmet.com

STC Acoustical Door Systems from Security Metal Products

1-800-727-5477 • www.sargentlock.com 3

1-800-727-5477 • www.sargentlock.com

11 Line Bored Lock

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Functions

• Deadlocking latch

• Latchbolt by lever inside or key outside

• Outside lever rigid at all times

• ANSI F86

• Deadlocking latch

• Latchbolt by either lever unless outside

lever is locked by push/turn button in

inside lever

• Turn button must be released manually

• Key only retracts latchbolt when

outside lever is locked

• ANSI F81

04 Storeroom or Closet

11G04

05 Entrance or Office

11G05

Single Cylinder Functions

• Deadlocking latch

• Latchbolt by either lever unless

outside lever is locked by key

• Key in outside lever locks or unlocks

outside lever

• Inside lever always operative

• ANSI F84

• Deadlocking latch

• Latchbolt by either lever unless outside lever

is locked by push button in inside lever

• Push button released by key or turning

inside lever

• Closing door does not unlock outside

lever or release button

• ANSI F82

24 Entrance or Office

11G24

37 Classroom

11G37

• Deadlocking latch

• Latchbolt by either lever unless outside

lever is locked by push button of inside

lever

• Key retracts latchbolt when outside

lever is locked

• Push button will not depress unless door

is in closed position

• Push button released by turning inside

lever or by key in outside lever unless

push button is fixed in locked position

by turning coin slot in inside lever

• ANSI F92

44 Service Station

11G44

• Deadlocking latch

• Latchbolt by key outside and lever inside

• Outside lever always rigid

• Depressing push button when door is closed shuts

out all keys except emergency key and projects

visual occupancy indicator in

cylinder face

• Push button will not depress unless door is closed

in position

• Push button released by turning inside lever

automatically reactivating all keys and retracting

visual occupancy indicator

• Lock out key fixes push button in locked position,

shutting out all keys except emergency

• Lock out key provided only when ordered

separately (14-0299)

• See option page for restrictions to 50 function

• ANSI F93

50 Hotel, Dormitory or Apartment

11G50

• Deadlocking latch

• Latchbolt by either lever unless outside lever is

locked by push button inside or key outside

• Rotating inside lever releases button

• Push button will not depress unless door is in

closed position

• Key outside locks or unlocks outside

lever and releases inside button

• ANSI F90

54 Corridor

11G54

Hand

INSIDE

OUTSIDE

LEFT HAND

REVERSE

BEVEL

RIGHT HAND

REVERSE

BEVEL

DOOR HANDS DETERMINED FROM OUTSIDE

DOOR HANDING

1-800-727-5477 • www.sargentlock.com

11 Line Bored Lock

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Functions

• For 161 and ANSI A115.2 prepared doors

• Lever and rose both sides joined by aligning tube

and latchbolt tube

• Dummy latch plate

• For wood or custom hollow metal doors

• Lever and rose attached by through-bolt and four

surface applied screws (hidden)

• Requires 5/16" (8mm) diameter hole

• For wood or custom hollow metal doors

• Lever and rose both sides joined by one

through-bolt and four surface applied screws

each side (hidden)

• Requires special door preparation – see template

• Latchbolt by either lever unless outside lever is

locked by push button in inside lever

• Turning inside lever or closing door

releases button

• Emergency button in outside lever unlocks, with

use of a blade screw driver in outside lever and

releases inside button

• Emergency key supplied only when ordered

separately (14-0057)

• ANSI F76

94 Double Lever Pull

11U94

65 Privacy/Bathroom

11U65

93 Single Lever Pull

11U93

94-2 Double Lever Pull

11U94-2

• Latch by either lever unless outside lever is

locked by push button in inside lever

• Turning inside lever or closing door

releases button

• Rotating thumbturn in outside lever

unlocks the outside lever and releases the

inside button

• Not available in the “J” lever design

68 Hospital Privacy

11G68

Double Cylinder Functions

Non-Cylinder Functions

• Deadlocking latch

• Latchbolt by inside lever

• Outside lever rigid at all times

• ANSI F89

• Latchbolt by either lever

• ANSI F75

13 Exit

11G13

15 Passage

11U15

• Deadlocking latch

• Latchbolt by either lever

• Key in either lever locks or unlocks its own lever only

• ANSI F80

• Deadlocking latch

• Both levers rigid at all times

• Latchbolt by key either side

• ANSI F87

30 Communicating

11G30

17 Utility, Asylum or Institutional

11G17

• Deadlocking latch

• Blank rose outside

• Latchbolt by lever inside

• Minimum clearance of 1-1/4" (32mm)

required between doors

15-3 Exit or Communicating

11G15-3

• Deadlocking latch

• Latchbolt by either lever unless outside

lever is locked by key in inside lever

• Key in outside lever only retracts

latchbolt when outside lever is locked

• ANSI F88

16 Classroom, Security, Apartment, Exit, Privacy

11G16

• Deadlocking latch

• Latchbolt by either lever unless outside lever is

locked by key

• Key in either lever locks or unlocks outside lever

• When inside key locks the outside lever only the

inside key can unlock the outside lever. The outside

key only retracts the latchbolt until outside lever is

unlocked by inside key

• Inside lever always operable

• Locking direction indicated on inside rose standard

with this function. Available on rose designs E, L and O

38 Classroom Security Intruder

11G38

Shaded lever indicates it is rigid at all times.

Use only on rooms with more than one exit.

1-800-727-5477 • www.sargentlock.com

11 Line Bored Lock

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Function Conversion Chart

and Retrofit Options

11 LINE FUNCTION CONVERSION CHART

INSIDE INSIDE INSIDE OUTSIDE OUTSIDE OUTSIDE

FUNCTION LEVER COLLAR SLEEVE LATCH BEARING SLEEVE COLLAR LEVER

04: Storeroom/Closet Passage lever 11-0031 11-2151 11-2106(B) 11-2899 11-2009 (On sleeve) Cylinder lever

05: Entrance/Office Pushbutton lever 11-0031 11-2152 11-2106(B) 11-2899 11-2009 (On sleeve) Cylinder lever

13: Exit Passage lever 11-0031 11-2151 11-2106(B) 11-2899 11-2010 (On sleeve) Passage lever

15: Passage Passage lever 11-0031 11-2153 11-2107(A) 11-2899 11-2153 11-0031 Passage lever

15-3: Exit or Passage lever 11-0031 11-2153 11-2106(B) 11-2899 None - See None - See None - See

Communicating Parts Book Parts Book Parts Book

16: Classroom Security/ Cylinder lever (On sleeve) 11-2011 11-2106(B) 11-2899 11-2009 (On sleeve) Cylinder lever

Apartment

17: Utility/Asylum Cylinder lever (On sleeve) 11-2013 11-2106(B) 11-2899 11-2012 (On sleeve) Cylinder lever

24: Entry Pushbutton lever 11-0031 11-2157 11-2108(K) 11-2899 11-2909 (On sleeve) Cylinder lever

30: Communicating Cylinder lever (On sleeve) 11-2014 11-2106(B) 11-2899 11-2015 (On sleeve) Cylinder lever

37: Classroom Passage lever 11-0031 11-2153 11-2106(B) 11-2899 11-2014 (On sleeve) Cylinder lever

38: Classroom Security Cylinder lever (On sleeve) 11-2011 11-2106(B) 11-2899 11-2017 (On sleeve) Cylinder lever

44: Service Station Pushbutton lever 11-0031 11-2154 11-2110(D) 11-2899 11-2009 (On sleeve) Cylinder lever

50: Hotel/Motel Pushbutton lever 11-0031 11-2155 11-2110(D) 11-2899 11-2016 (On sleeve) Cylinder lever

54: Dormitory Pushbutton lever 11-0031 11-2156 11-2110(D) 11-2899 11-2017 (On sleeve) Cylinder lever

65: Privacy/Bathroom Pushbutton lever 11-0031 11-2156 11-2111(C) 11-2899 11-2055 (On sleeve) Cylinder lever

Note: Functions 93, 94 and 94-2 are of different construction. See Parts Pages for parts and construction

• For installation of standard backset 11 Line lock replacing old 7600 Integra locks in wood

doors

• Finishes: 03, 04, 10, 10B, 10BE, 10BL, 15, 20D, 26 and 26D

• Replacement Kit consist of:

• To cover existing holes on face of door

• “L” roses can be ordered with the

11 Line lock

Example: 11G05 x LB x 26D

• Cover plate, if required, must be

ordered separately

SARGENT 6010 Replacement Kit — for 7600 Integra Lock Large Rose and Cover Plate

Sub Front 800 Strike 808 Strike

Quantity

Item

Item Number

Size

1 Sub Front 08-0562 x finish 4-1/4" x 1-1/4"

(108mm x 32mm)

1 Strike 800 x finish (with screws) 2-3/4" x 1-1/4" x 1-1/4"

(must specify 800 or 808) (70mm x 32mm x 32mm)

808 x finish (with screws) 4-7/8" x 1-1/8" x 1-1/4"

(121mm x 29mm x 32mm)

1 Strike Box 08-0055 For 800 Strike

77-1141 For 808 Strike (ANSI)

2 Sub Front Screws 01-5001 #10-24 x 3/4" (19mm)

“L” Rose

3-1/2” (89mm) diameter

Order: 11-2446 x finish

Cover Plate

3" x 12" (76mm x 305mm)

Order: 06-0037 x finish

(2 qty. required)

Screws

Order: 01-2037 x finish

(8 qty. required)

Note: Strikes will not retrofit for strikes 4-1/4" x 1-1/8" x 1-1/4" (108mm x 29mm x 32mm).

Lock will not retrofit for lock front plate size 5-1/4" x 1-1/4" (133mm x 32mm) –

36-7600 locks

1-800-727-5477 • www.sargentlock.com

11 Line Bored Lock

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Lever and Rose Designs

• Rose: O - Wrought

• Lever: L - Cast

EB Design

• Rose: E - Wrought

• Lever: B - Cast

LJ Design

• Rose: L - Wrought

• Lever: J - Cast

BP Design

• Rose: B - Wrought

• Lever: P - Cast

OL Design

Note: Any rose and lever on this page can be

combined to suit individual taste

Note: Lever projections shown are for 1-3/4"

(44mm) doors and will vary by door thickness

2-3/4"

(70mm)

4-15/16"

(125mm)

2-3/4"

(70mm)

1/4"

(6mm)

+/-1/2"

(13mm)

2-3/4"

(70mm)

5-5/16"

(135mm)

3-1/2"

(89mm)

1/4"

(6mm)

+/-1/2"

(13mm)

+/-1-13/16"

(46mm)

1/4"

(6mm)

5-1/8"

(130mm)

3-1/8"

(79mm)

2-3/4"

(70mm)

2-3/4"

(70mm)

5-3/8"

(137mm)

1/4"

(6mm)

+/-1/2"

(13mm)

2-3/4"

(70mm)

Lever & Rose Designs

Type 161 Cutout

If weather-stripping, acoustical materials or silencers are used on the door

or frame, care must be taken in the installation so that it will not interfere

with the ease in which the latchbolt enters the strike

2-3/4" Backset (70mm)

from center line of bevel

Type 161 cutout

Centerline

of bevel

1" Dia

(25mm)

2-1/4"

(57mm)

2-1/8"

(54mm)

1-1/8"

(29mm)

1-800-727-5477 • www.sargentlock.com

11 Line Bored Lock

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Latches and Strikes

Latch Assemblies

Part Code Functions

Standard 2-3/4" (70 mm) Backset

11-2106 B 04, 05, 13, 15-3, 16, 17, 30, 37, 38

11-2107 A 15

11-2108 K 24

11-2110 D 44, 50, 54

11-2111 C 65, 68

23- option 3-3/4" (95mm) Backset

11-2113 B 04, 05, 13, 15-3, 16, 17, 30, 37, 38

11-2114 A 15

11-2115 K 24

11-2117 D 44, 50, 54

11-2118 C 65, 68

25- option 5" (127mm) Backset

11-2120 B 04, 05, 13, 15-3, 16, 17, 30, 37, 38

11-2121 A 15

11-2122 K 24

11-2124 D 44, 50, 54

11-2125 C 65, 68

41-option 3/4" (19mm) Throw

08-2517 — 04, 05, 15, 15-3,16, 37

Note: Code letter stamped on inside corner of latch front identifies function(s) compatible with

the latch assembly

800 Curved Lip Strike Standard

• Furnished standard with 1-1/4" (32mm)

curved lip, measured from center of

strike screw holes to end of lip

• Lip lengths: 1-1/8" (29mm) to 2-7/8"

(73mm) in 1/4" (6mm) increments only

• To order 800 strike with lock, specify

lock and lip length

Example: 11G05 x LL x 10B x1-3/4" (44mm) lip

• To order strike separately, specify

800 strike x finish x lip length

• Wrought box strike, 08-0055, provided

standard

• Finishes: 03, 04, 09, 10, 10B, 10BE, 14, 15,

20D, 32, 32D

41- Option: 3/4" (19mm) Throw

for Pairs of Doors

• For use on pairs of doors

• Guarded latchbolts listed by

Underwriters Laboratories for use on

3-hour A Label pairs of doors

• Available functions: 11G04, 11G05, 11G15,

11G15-3, 11G16 and 11G37

• To order with lock, specify 41- option

Example: 41-11G05 x OB x 10B

• 2-3/4" (70mm) Backset only

• Requires 78° of lever rotation to

retract latchbolt

• Please note: special door prep required

for 41- option — refer to template

• Finishes: 03, 04, 09, 10, 10B, 10BE, 15, 20D,

26, 26D

23- or 25- Option:

Extended Backsets

• 11 Line latches are available with

extended backsets:

23- option 3-3/4" (95mm)

25- option 5" (127mm)

• To order with lock, specify 23- or

25- option and backset at end of order

Example: 23-11G05 x OL x 10B x 3-3/4"

(95mm) backset

• To order latch separately, specify:

Part number x finish (see table above)

• Finishes: 03, 04, 09, 10, 10B, 10BE, 15, 20D,

26, 26D

28- Option: 808 ANSI Curved

Lip Strike

• Conforms to ANSI standard 115.2

• Furnished standard with 1-1/4" (32mm)

curved lip, measured from center of

strike screw holes to end of lip

• Lip lengths: 1-1/8" (29mm), 1-1/4" (32mm)

and 1-3/8" (35mm) to 2-7/8" (73mm) in

1/4" (6mm) increments only

• To order 808 strike with lock, specify

28- option with lock and lip length

Example: 28-11G05 x LL x 10B x

1-3/4" (44mm) lip

• To order strike separately, specify

808 strike x finish x lip length

• Wrought box strike not provided, order

separately as 77-1141

• Finishes: 03, 04, 09, 10, 10B, 10BE, 15, 20D,

32, 32D

1-1⁄4"

(32mm)

2-3⁄4"

(70mm)

1-1⁄2"o

(38mm)

1-1⁄8"

(29mm)

1⁄16"

(2mm)

4-7⁄8"

(124mm)

1-1⁄4'

(32mm)

1-1⁄4"

(32mm)

5⁄64"

(2mm)

5⁄16" (8mm)

Radius

3⁄8" (10mm)

Start of Radius

5⁄16" (8mm)

Radius

3⁄8" (10mm)

Start of Radius

3-3⁄8"

(85mm)

1-800-727-5477 • www.sargentlock.com

11 Line Bored Lock

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Mechanical Options

Mechanical Options:

Backset Options 23- 3-3/4" Backset x 2-1/4" x 1-1/8" Front

25- 5" Backset x 2-1/4" x 1-1/8" Front

Strike 28- #808 Strike; Standard lip length 1-1/4". Other lip lengths must be specified; available lengths are 1-1/8",

1-3/8", 1-5/8", 1-7/8", 2-1/8", 2-3/8", 2-5/8" & 2-7/8"

Thick Doors 31- Special order for doors over 2" thick , specify as a 31- option, consult factory for lead time & pricing

Security Fasteners 36- Six lobe security head screws

37- Spanner head screws

3/4” Throw 41- 3/4" (19mm) Latch throw (04, 05, 15, 15-3, 16 and 37 functions only) 78° lever rotation required

Lead Lined 74- Lead Lining I/S rose, O/S rose, and Latch Tube

Tactile Warning

Options

75- Tactile Warning – Handicap warning milled on backside of inside lever

76- Tactile Warning – Handicap warning milled on backside of outside lever

77- Tactile Warning – Handicap warning milled on backside of both levers

85- Tactile Warning – Abrasive coating on inside lever

86- Tactile Warning – Abrasive coating on outside lever

87- Tactile Warning – Abrasive coating on both levers

Finish Protection SG- MicroShield® antimicrobial clear powder coat (Not available with 10B Finish)

Additional Security SL- High Security Lever attachment (Patent Pending) Available for keyed functions

Acoustical Door Systems STC STC 55 Acoustical Door System (see page 2)

Box Strike WBS- Wrought Box Strike

1-800-727-5477 • www.sargentlock.com

11 Line Bored Lock

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Cylinder Options

Cylinder Options:

Note: Cylinder Options continued on the following page

* Options not available with 11G50

Conventional Cylinder -SARGENT Conventional Cylinders supplied Standard (nomenclature not required)

Degree Key System

DG1- SARGENT Degree Key System Level 1

DG1-21* Degree Level 1 Construction Master Keying

DG1-60- Degree Level 1 Removable Disposable Construction Core

DG1-63- Degree Level 1 Removable Core

DG1-64 Degree Level 1 Removable Construction Keyed LFIC

DG1-65* Degree Level 1 Unassembled/Uncombined Core

DG2-* SARGENT Degree Key System Level 2

DG2-21* Degree Level 2 Construction Master Keying

DG2-65* Degree Level 2 Unassembled/Uncombined Core

DG2-60-* Degree Level 2 Removable Disposable Construction Core

DG2-63-* Degree Level 2 Removable Core

DG2-64* Degree Level 2 Removable Construction Keyed LFIC

DG3-* SARGENT Degree Key System Level 3

DG3-21-* Degree Level 3 Construction Master Keying

DG3-60-* Degree Level 3 Removable Disposable Construction Core

DG3-63-* Degree Level 3 Removable Core

DG3-64* Degree Level 3 Removable Construction Keyed LFIC

Signature Key System 10-* SARGENT Signature Key System

10-21-* SARGENT Signature Construction Key System (Lost Ball)

Signature

Removable Core 10-63-* SARGENT Signature Removable Core Cylinder

XC- Key System 11-* XC Key System (not available with other Key Systems, unless specified)

11-21-* XC- Construction Key System (Lost Ball)

XC- Large Format

Interchangeable Core

(Removable Core)

11-60-* Lock to accept XC- Permanent Removable Core, Disposable plastic Core-provided

11-63-* Lock provided with XC- Removable Core Cylinder – (includes masterkeying, grand masterkeying)

11-64-* Lock provided with Keyed construction core to accept XC- Removable Permanent Core (ordered separately)

XC- Small Format

Interchangeable

Cores

11-70-7P-* Lock to accept XC- SFIC (7-Pin) XC- Permanent Cores, plastic disposable core provided

11-72-7P-* Lock to accept XC- SFIC (7-Pin Keyed Construction Core provided) cylinder Permanent Core ordered separately

11-73-7P-* Lock supplied with XC- Small Format 7-Pin interchangeable core (includes masterkeying, grand masterkeying)

11-65-73-

7P-* Lock provided to accept XC- Uncombinated 7-Pin SFIC (Permanent) Core - (packed loose)

1-800-727-5477 • www.sargentlock.com

11 Line Bored Lock

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Cylinder Options

• Provided with each lock

11-0138 Installation

Wrench 14-0299 Lockout Key

• For hotel function only

• Order separately

T-ZONE WRENCH

6 LOBE WRENCH

PHILLIPS SCREW DRIVER

01-4530 6 Lobe Security

Tool (T-20)

• Two, 6 Lobe security lever set

screws packed standard with

each lock

• One T-20 tool packed per lock

Cylinder Options:

Construction Key

Systems

21-* SARGENT Lost Ball Construction Keying for Conventional, XC and Signature Series (N/A with 63- or 73-)

22-* SARGENT Construction Split Key System for Conventional Cylinders (existing systems only)

(N/A with 10-, 11-, 63- or 73-)

Large Format

Interchangeable

Core

(Removable Core)

60-* Lock to accept SARGENT Permanent Removable Core, Disposable plastic Core provided

(Permanent Cores ordered separately)

63-* Lock provided with Removable Core Cylinder (Includes masterkeying, grand masterkeying)

64-* Lock provided with Keyed construction core to accept Removable Permanent Core (ordered separately)

Small Format

Interchangeable

Cores

70-* Lock to accept 6- or 7-Pin SFIC Permanent Cores, plastic disposable core provided

72-* Lock to accept 6- or 7-Pin SFIC (Keyed Construction Core provided) Cylinder

(Permanent Core ordered separately)

73-* Lock supplied with 6-Pin SFIC (Includes masterkeying, grand masterkeying)

65-73-* Lock provided to accept Uncombinated 6-Pin SFIC (Permanent) Core - (packed loose for field keying)

65-73-7P-* Lock provided to accept Uncombinated 7-Pin SFIC (Permanent) Core - (packed loose for field keying)

73-7P-* Lock supplied with Small Format 7-Pin Interchangeable Core (includes masterkeying, grand masterkeying)

Keso &

Keso F1

80-* Lock to accept Keso and Keso F1 cylinders - no cylinders provided

82-* Lock provided with SARGENT Keso Security Cylinder

F1-82-* Lock provided with SARGENT Keso F1 Security Cylinder (Patented)

Bump Resistant BR- Bump Resistant Cylinder (available with Conventional & Conventional XC Cylinders only)

Less Cylinder LC- Lock supplied less Cylinder

Schlage

Keyways

SC-* Schlage C keyway cylinder, 0 bitted

SE-* Schlage E keyway cylinder, 0 bitted

Accepts Schlage

Cylinders

30-* Lever to accept Schlage Cylinder-Cylinder is not provided

SF-* L Lever to accept Medeco KeyMark Large Format Interchangeable and Schlage Full Size Interchangeable Core

(supplied less Cylinder, but with tailpiece needed)

ASSA V-10**

(See note below) VC- Lock provided to accept ASSA V-10 Interchangeable Core Cylinders. V-10 cylinders are available from

ASSA, Inc @ 800-235-7482

* Options not available with 10G50

** To use ASSA V-10 (VA & VS) cylinders with the 11 Line Lock, specify (LC-) less cylinder option and the lock will accept VA or VS cylinders.

V-10 cylinders are available from ASSA, Inc. @ 800-235-7482

1-800-727-5477 • www.sargentlock.com

11 Line Bored Lock

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Packaging

How to Order

82-3855 6 lobe bit pack

6 bits (Sizes – T8, T9, T10,

T15, T20, T25, T27)

Requires 9/32" driver

82-3856 Spanner bit pack

5 bits (Sizes – 6, 8, 10, 12, 14)

Requires 1/4" driver

6 Lobe and Spanner Bit Packs

5 11-28- 11G05 B B RH 15 Door 3

Quantity Options* Lock &

Function Rose Lever Hand Finish Additional

Information

Available

Options

Pg 7-8

(Note: 28-

for 808 ANSI

Strike)

Available

Functions

Pg 3-4

Available Roses

O, E, L & B

Pg 2

Available Levers

B, J, L & P

Pg 2

RH,

LH,

RHR,

LHR

Pg 3

Available

Finishes

Pg 9

Such as Item,

Heading Number,

Door Number,

Keyset

* Multiple Options may be selected

Note: Lock must be centered within door; For locks not centered contact factory

Note: 800 & 808 strikes have a standard 1-1/4 Lip length; all other lengths must be specified; available lengths are 1-1/8", 1-3/8",

1-5/8", 1-7/8", 2-1/8", 2-3/8", 2-5/8" & 2-7/8"

28-11G05 x OL

4 lbs. 8 oz./box (2.1 kg)

10 boxes/case

SARGENT # Description BHMA

03 Polished brass, clear coated 605

04 Satin brass, clear coated 606

09 Polished bronze, clear coated 611

10 Satin bronze, clear coated 612

10B Oxidized bronze, oil rubbed 613

10BE Dark oxidized satin bronze - Equivalent 613E

10BL Oxidized satin, bronze, clear coated 614

14 Polished nickel, clear coated 618

15 Satin nickel, clear coated 619

20D Statuary dark bronze, clear coated 624

26 Polished chrome 625

26D Satin chrome 626

SG- Option MicroShield® available on 15 & 26D finishes only

Zinc levers are plated to match BHMA finish.

Split finishes available. Specify outside finish first.

Custom colors available, consult factory.

Finishes

2.0 Bored Locksets – 11 Line

A. All bored lever locks shall be manufactured by

SARGENT Manufacturing Co., New Haven, CT.

B. Locksets shall be able to withstand 3000 inch

pounds of torque applied to the locked lever

without gaining access.

C. Locksets shall be cycle tested per ANSI A156.2,

1996, to nine million cycles without any

visible lever sag.

D. Locks required for fire doors shall be listed

by Underwriters Laboratories for ratings of A

label (3 hours) and less, for doors up to 4'0"

(1.2m) x 10'0" (3m) and pairs of doors 8'0"

(2.4m) x 10'0" (3m) (with 41-option).

E. Locksets shall be able to fit a standard

2-1/8" (55 mm) bore without the use of

through-bolts. Standard rose size shall be

2-3/4" (70 mm) in diameter.

F. Lockset levers shall be made of solid material

with no plastic fillers.

G. Latchbolt head shall be one piece

stainless steel.

H. Latchbolt assemblies shall be encased within

the lockbody.

I. Cylinders: SARGENT Signature Series

6-pin cylinders with patented key control.

J. Locks shall have 2-3/4" (70 mm) backset,

standard.

K. Strikes: Provide wrought boxes and

strikes with proper lip length to protect trim

but not to project more than 1/8" beyond

trim, frame or inactive leaf. Where required,

provide open back strike to allow practical

and secure operation.

L. Locksets shall have a ten year limited

warranty.

Suggested Architectural Specifications

How to Order, Packaging, Finishes and

Architectural Specifications

90640:N 12/08/15

Founded in the early 1800s, SARGENT® is a market leader in locksets, cylinders, door closers, exit devices, electro-mechanical products and access control systems for

new construction, renovation, and replacement applications. The company’s customer base includes commercial construction, institutional, and industrial markets.

written permission of Sargent Manufacturing Company is prohibited.

SARGENT Manufacturing Company

100 Sargent Drive

New Haven, CT 06511 USA

800-727-5477

www.sargentlock.com

Sargent 11 Line Catalog Web 90640 SAR 11Line TZone Cat Lo

Navigation menu

Versions of this User Manual:

Views

Navigation
