Satechi Aluminum Wireless KeyPad
User’s Manual
ST-AWKP
1
About This Manual
This manual is designed to assist you in installing and using the Bluetooth
Keypad. Information in this document has been carefully checked for
accuracy; however, no guarantee is given to the correctness of the
contents. The information in this document is subject to change without
notice.
Edition
1st Edition,
Copyright
© Copyright 2015
This document contains proprietary information protected by copyright. All
rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic or other means, in any form, without prior written
permission of the manufacturer.
Trademarks
All trademarks and registered trademarks are the property of their
respective owners.
2
FEDERAL COMMUNICATIONS COMMISSION STATEMENT
This Equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the Federal Communications
Commission (FCC) rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into and outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference that may
cause undesired operation.
3
Notice 1
You are cautioned that changes or modifications not expressly approved
by the part responsible for compliance could void the user’s authority to
operate the equipment.
Notice 2
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
Caution:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
4
Introduction
Thank you for purchasing the Bluetooth Keypad. This User’s Manual
contains information that will help to operate the device as well as
answering questions about certain special keys and buttons. Please keep
this manual in a safe place for future reference.
System Requirements
Hardware: Bluetooth-enabled computer (with either built-in Bluetooth
capability or external Bluetooth dongle )
Operating System: Windows XP/7/8/10 ; MAC OS X v10.4.6 or later.
Selecting Your Operating System
This keypad is designed to work with both Windows and Macintosh OS’s.
Please select OS at this point by sliding the OS switch located at the
bottom of the keypad to PC or Mac mode.
Package Contents
Bluetooth calculator keypad
2 x AAA batteries
User’s manual
Power Switch
There is a power switch at back of the keypad. When not in use, please
turn to OFF to save battery power.
Note: 1. After 30 minutes non-operation, the keypad will go to low-
power mode. Please press any key to wake up and wait the
blue LED turn off before using.
2. Power ON/OFF also need to press any key to reconnect and
wait the blue LED turn off before using.
5
Hot key function:
Function Name Function Description
Back Back to previous state
Cut Cut the selected item.
Copy Copy the selected item.
Paste Paste previously cut or
copied item.
Device pairing on MAC

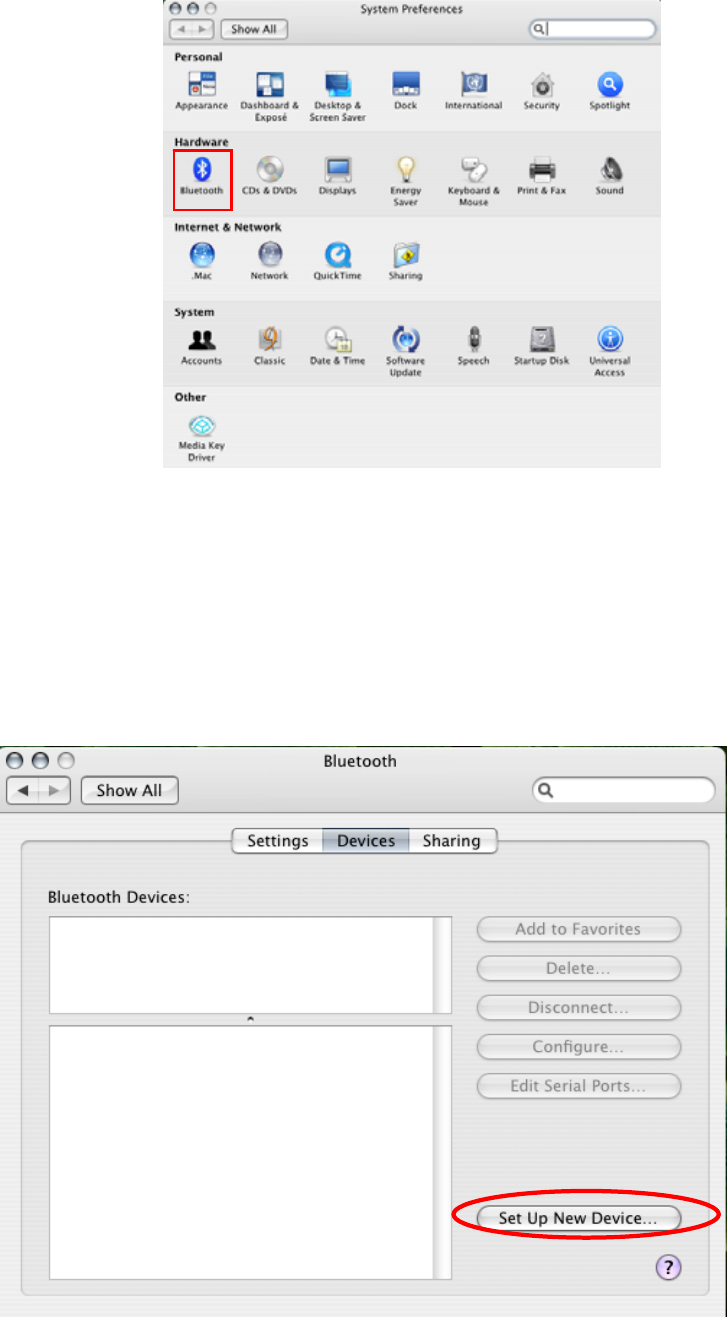

1. Click on the Apple icon and choose “System Preferences”
6
2. Click on the Bluetooth option.
3. Click the “Set Up New Device” .
7

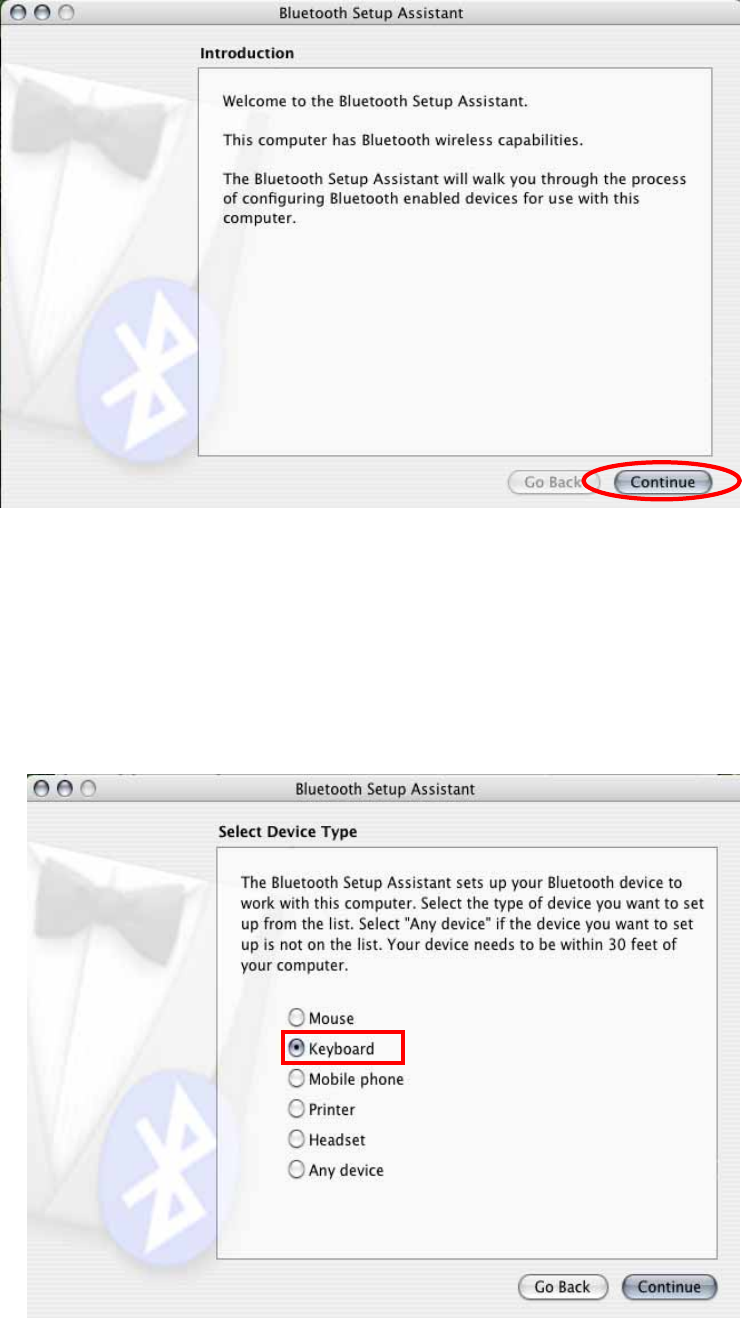

4. Click the “Continue” button.
5. Press the ‘Conn’ button at bottom of the Bluetooth keypad, then the led
will start flashing. Choose “Keyboard” and click the “Continue” button.
8

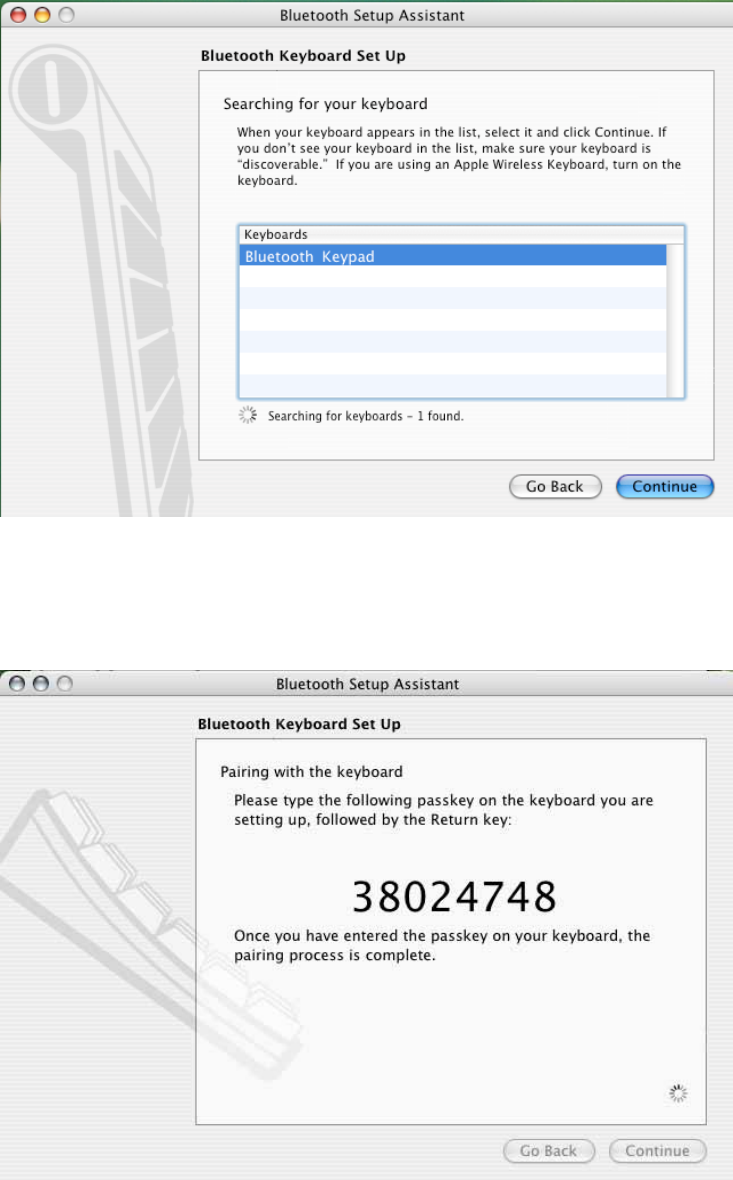

6. Choose “Bluetooth Keypad” and click the “Continue” button.
7. Just follow the screen display to input the Passkey then press “enter”
(the keypads enter)
9

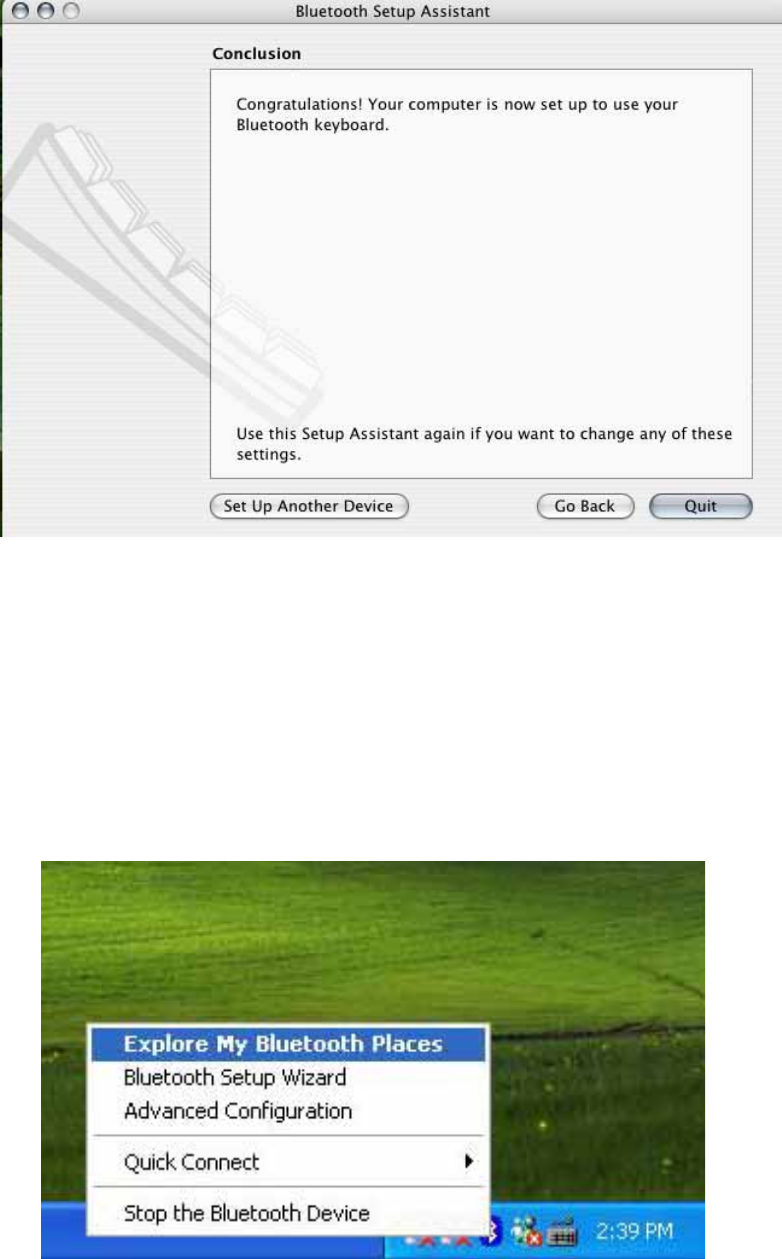

8. Click the “Quit” button. The Bluetooth keypad is ready to use.
Device pairing
Widcomm software:
1. Right click on the BT icon and choose “Explore My Bluetooth Places”
10
2. Press the ‘Conn’ button at bottom of the Bluetooth keypad, then the led
will start flashing.

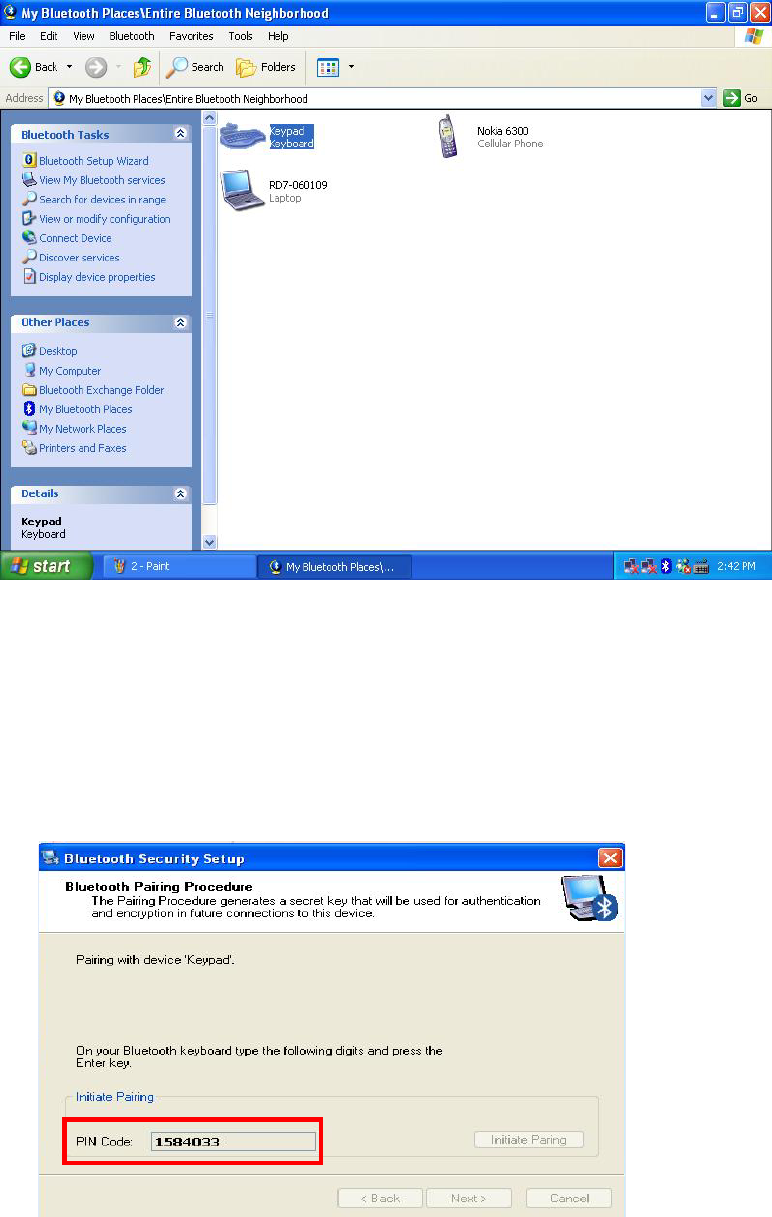

3. Click the “Search for devices in range” option, the “keypad” will be found.
3. Double click on the “Keypad” icon, it will pop-up another windows. Just
follow the screen display to input the Pin Code then press “enter” (the
keypads enter).
11
4. The Found New Hardware Wizard appears and the OS will install the
driver automatically. No other steps are necessary.
5. The Bluetooth icon will become to . The Bluetooth keypad is ready
to use.
Toshiba software:

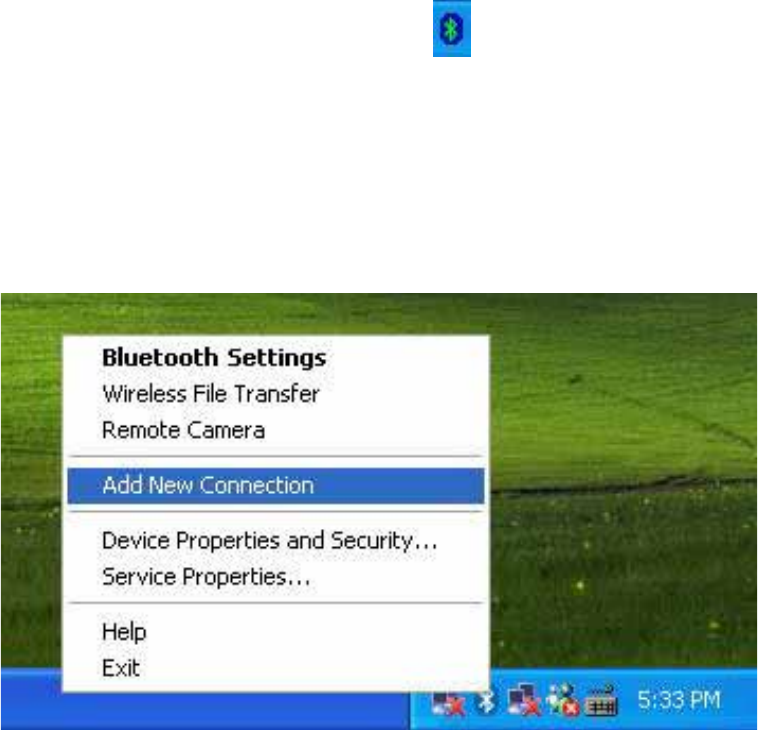

1. Right click on the BT icon and choose “Add New Connection”
2. Press the ‘Conn’ button at bottom of the Bluetooth keypad, then the
led will start flashing.
12

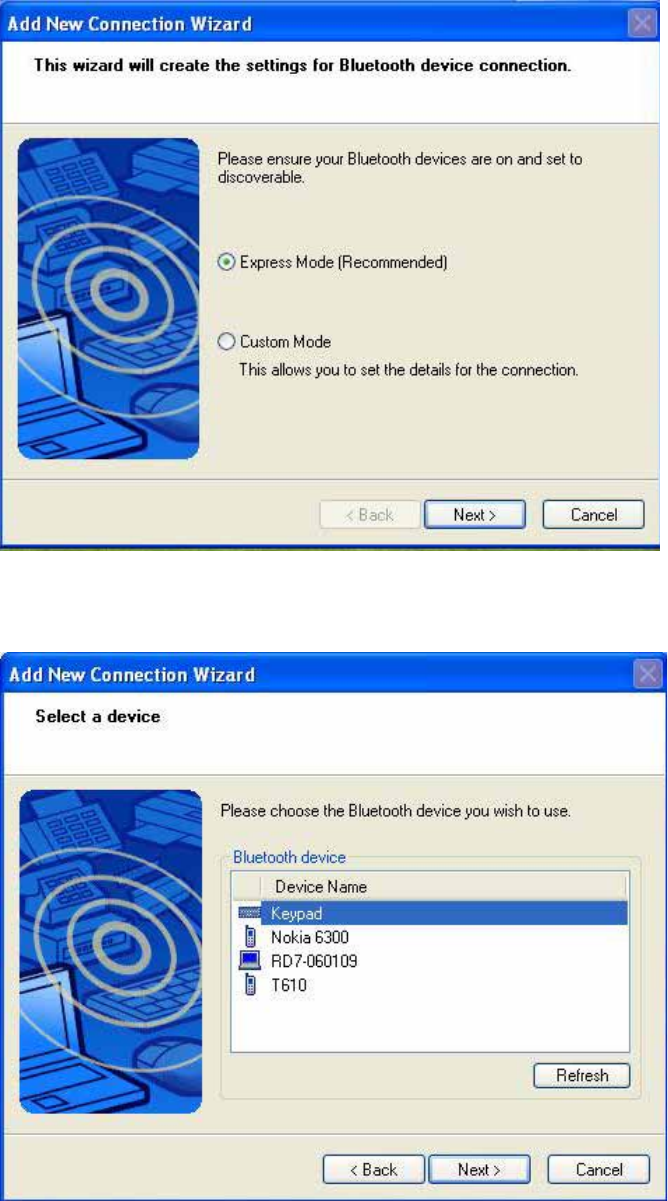

3. Click “Next”
4. Choose the “Keypad” device and click “Next”
13

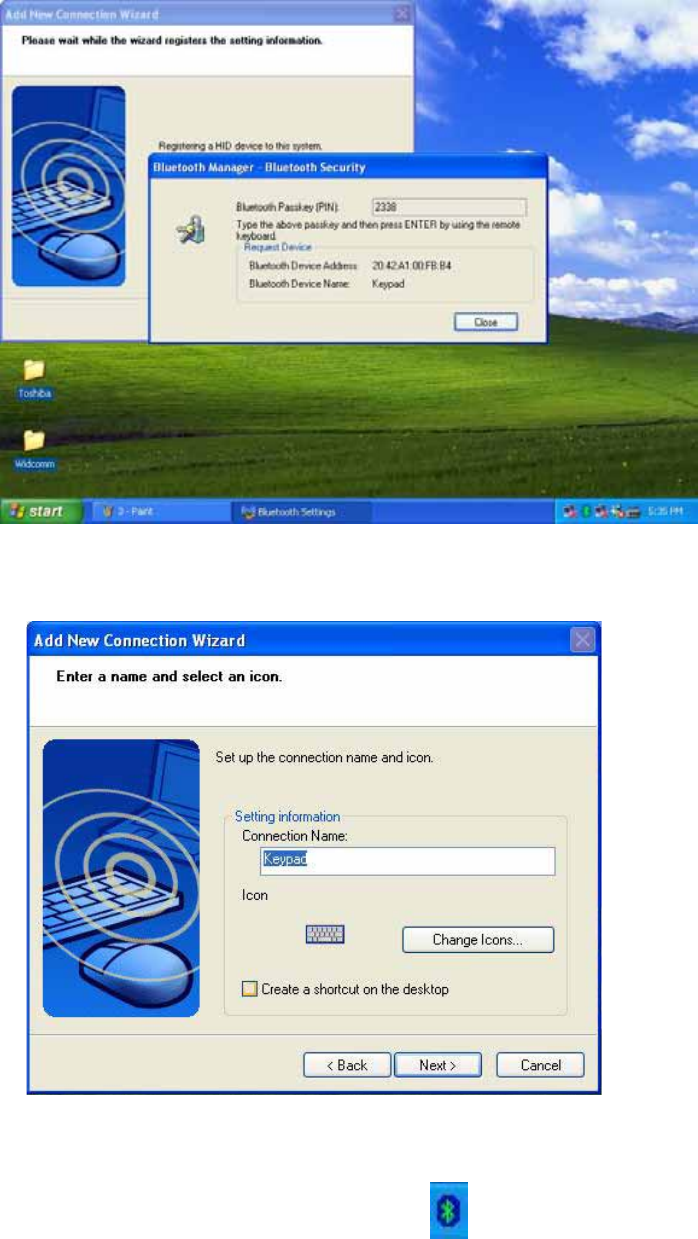

5. Just follow the screen display to input the Pin Code then press “enter”
(the keypads enter).
6. Click “Next”
7. The Found New Hardware Wizard appears and the OS will install the
driver automatically. No other steps are necessary.
8. The Bluetooth icon will become to . The Bluetooth keypad is ready
to use.
14
IVT Software:
1. Press the ‘Conn’ button at bottom of the Bluetooth keypad, then the led
will start flashing.

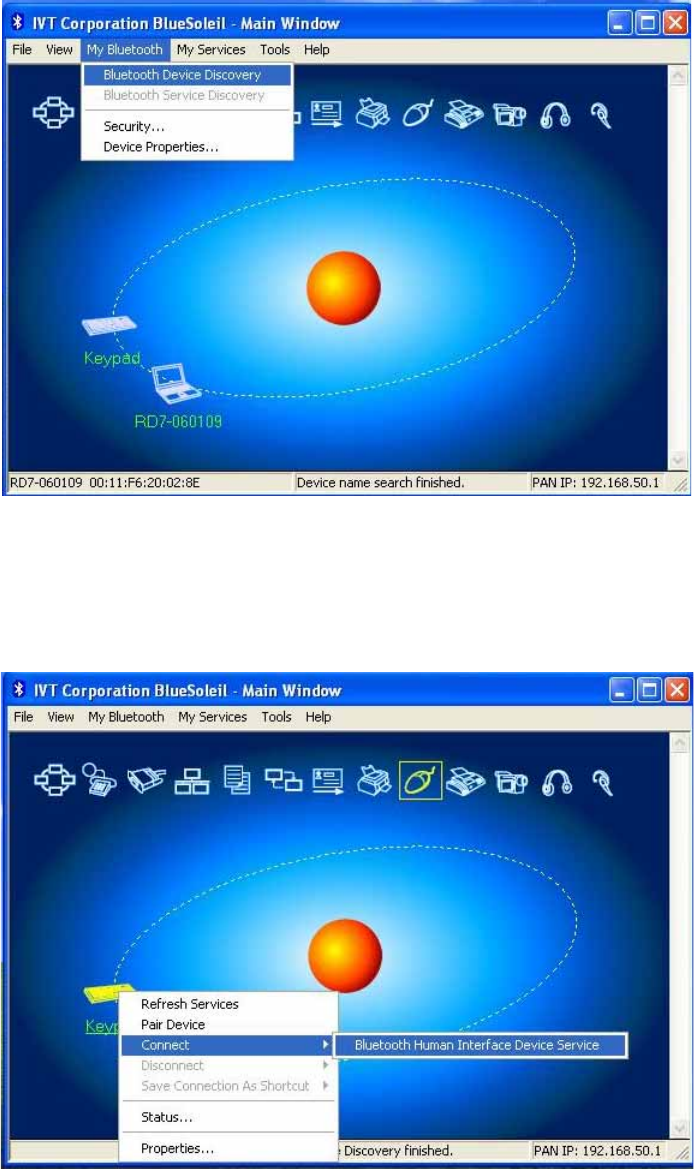

2. Double click the BT icon on the system tray and it wills pop-up a
windows. Choose “My Bluetooth” → ” Bluetooth Device Discovery”
3. It will find the “Keypad” device. Right click on the keypad icon and
choose “”Connect” → ” Bluetooth Human Interface Device Service”
15

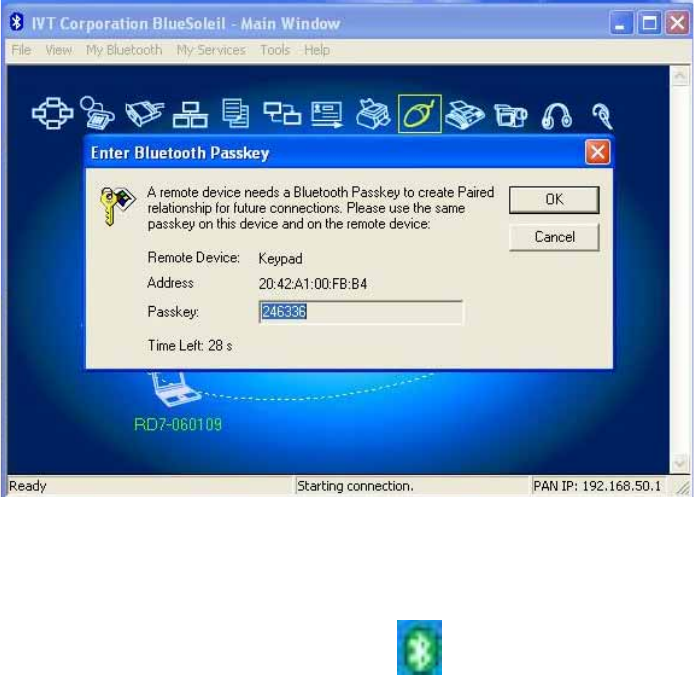

4. Just follow the screen display to input the Passkey then press “enter”
(the keypads enter).
5. The Found New Hardware Wizard appears and the OS will install the
driver automatically. No other steps are necessary.
6. The Bluetooth icon will become to . The Bluetooth keypad is ready
to use.
Troubleshooting
• Make sure the battery is installed correctly
• Check to see if the battery power is dead.
