Sato Vicinity MSTRP PJM STACK TAG TUNNEL READER User Manual USERS MANUAL

Sato Vicinity Pty Ltd PJM STACK TAG TUNNEL READER USERS MANUAL

USERS MANUAL

 Page 1 of 45 EMC Technologies Pty Ltd ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 Australia  Telephone      +61 2 9624 2777 Facsimile       +61 2 9838 4050 Email         syd@emctech.com.au www.emctech.com.au  Melbourne 176 Harrick Road Keilor Park, Vic 3042 Tel:   +61 3 9365 1000 Fax:  +61 3 9331 7455 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel:   +61 2 9624 2777 Fax:  +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel:   +61 7 3875 2455 Fax:  +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel:   +64 9 360 0862 Fax:  +64 9 360 0861        APPENDIX L OF TEST REPORT T71003_F   USER MANUAL     FCC ID:  TVN-MSTRP Manufacturer:  Magellan Technology Pty Limited Test Sample:  PJM Stack Tag Tunnel Reader Model:   MSTRP-5050 Serial No:  Production Prototype   Date:  25th October 2007

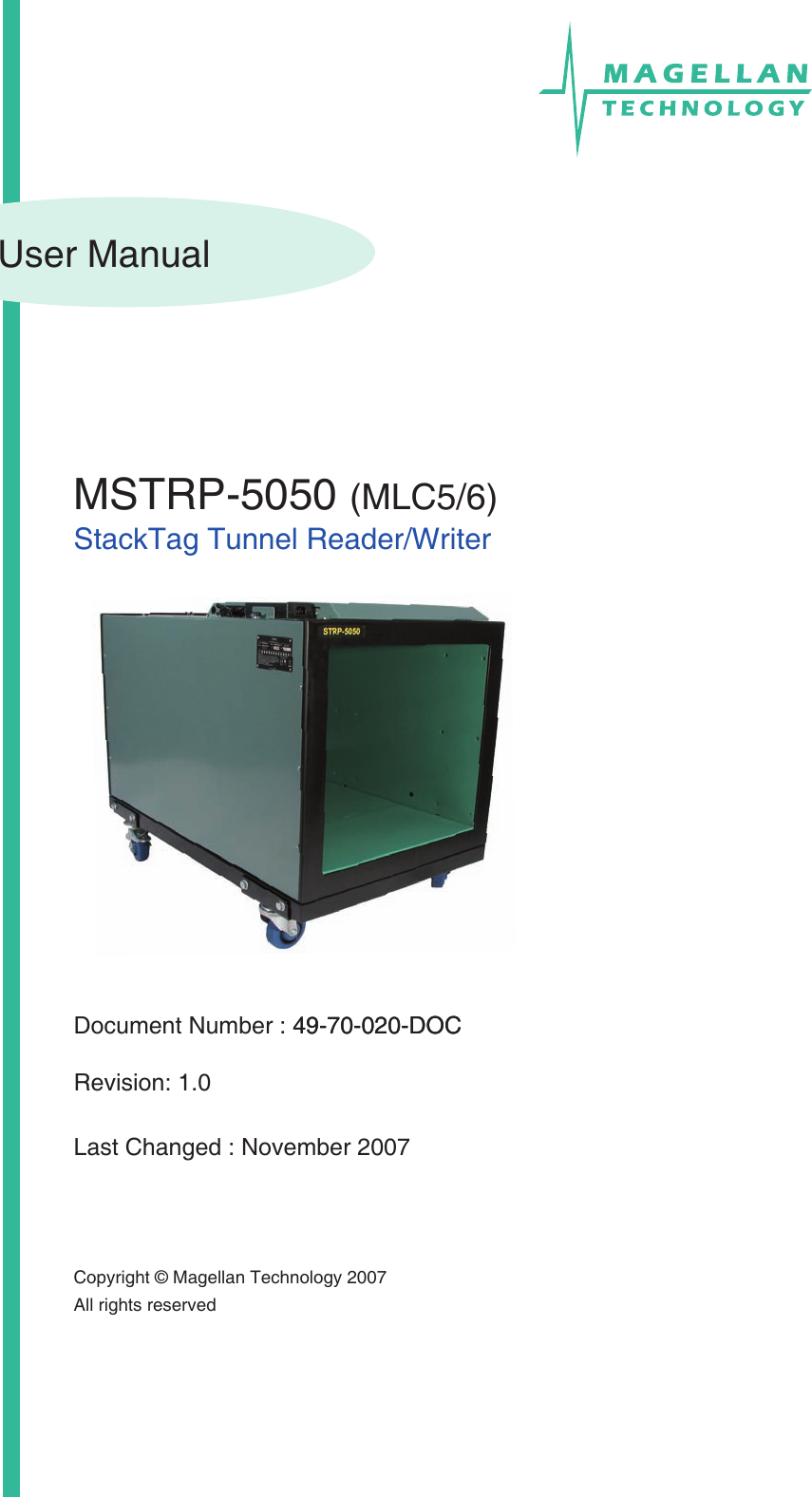

User ManualMSTRP-5050 (MLC5/6)StackTag Tunnel Reader/Writer Document Number : 49-70-020-DOC49-70-020-DOC Revision: 1.0Last Changed : November 2007Copyright © Magellan Technology 2007All rights reserved

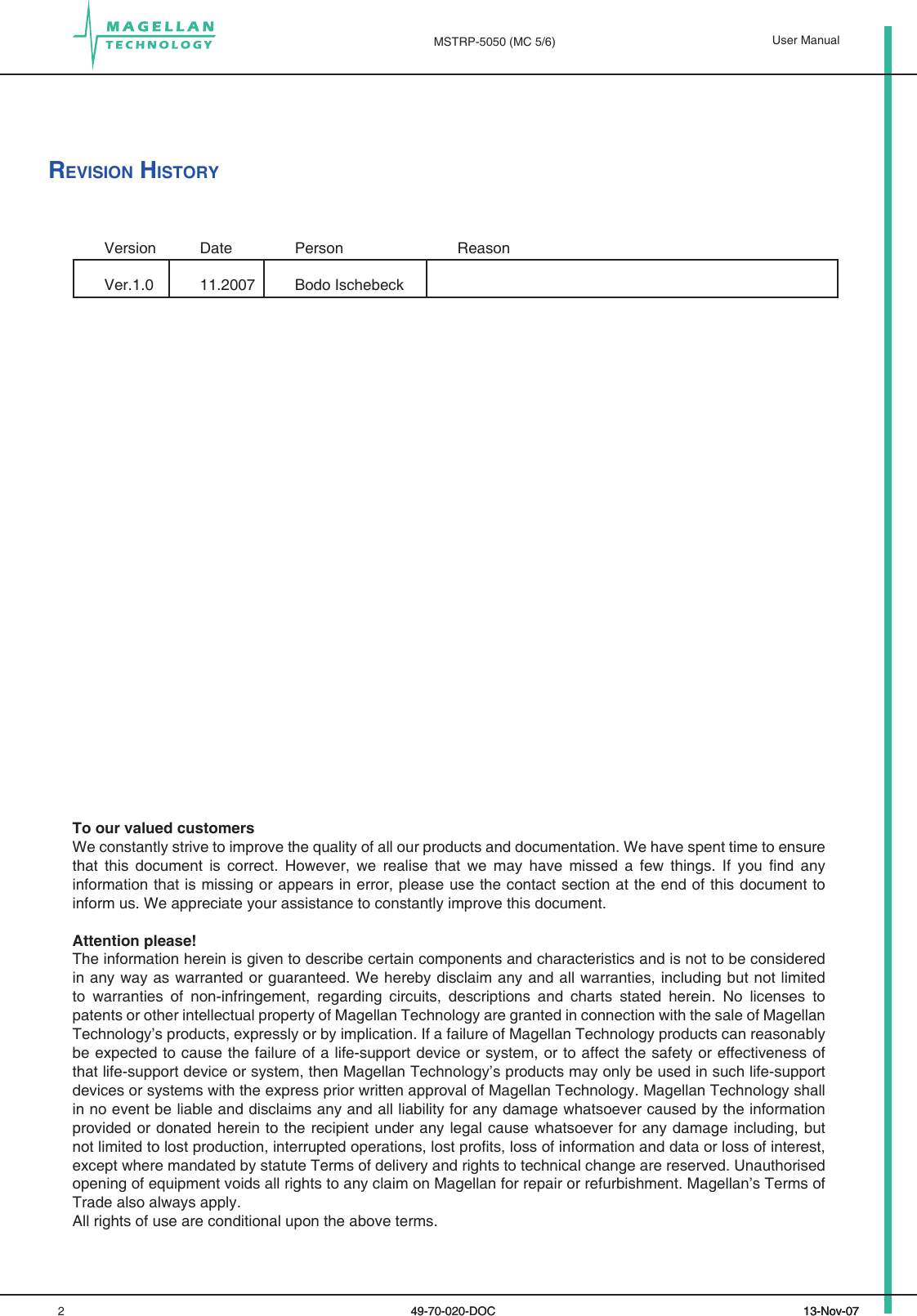

2                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)Revision HistoRyVersion Date Person ReasonVer.1.0 11.2007 Bodo IschebeckTo our valued customersWe constantly strive to improve the quality of all our products and documentation. We have spent time to ensure that  this  document  is  correct.  However,  we  realise  that  we  may  have  missed  a  few  things.  If  you  nd  any information that is missing or appears in error, please use the contact section at the end of this document to inform us. We appreciate your assistance to constantly improve this document.Attention please!The information herein is given to describe certain components and characteristics and is not to be considered in any way as warranted or guaranteed. We hereby disclaim any and all warranties, including but not limited to  warranties  of  non-infringement,  regarding  circuits,  descriptions  and  charts  stated  herein.  No  licenses  to patents or other intellectual property of Magellan Technology are granted in connection with the sale of Magellan Technology’s products, expressly or by implication. If a failure of Magellan Technology products can reasonably be expected to cause the failure of a life-support device or system, or to affect the safety or effectiveness of that life-support device or system, then Magellan Technology’s products may only be used in such life-support devices or systems with the express prior written approval of Magellan Technology. Magellan Technology shall in no event be liable and disclaims any and all liability for any damage whatsoever caused by the information provided or donated herein  to the recipient under any legal cause whatsoever for any damage including, but not limited to lost production, interrupted operations, lost prots, loss of information and data or loss of interest, except where mandated by statute Terms of delivery and rights to technical change are reserved. Unauthorised opening of equipment voids all rights to any claim on Magellan for repair or refurbishment. Magellan’s Terms of Trade also always apply.All rights of use are conditional upon the above terms.
13-Nov-07                                                     49-70-020-DOC 349-70-020-DOC 3                                                               3MSTRP-5050 (MC 5/6)User ManualContentsRevision History.......................................................................................................................................2About this manual ....................................................................................................................................5Meaning of Alert Symbols and Signal Words ..........................................................................................5Important Information ..............................................................................................................................51.  INTRODUCTION ...........................................................................................................................72.  BEFORE YOU BEGIN ..................................................................................................................92.1  Unpacking and Inspection .............................................................................................................92.1.1  Power Pack ..................................................................................................................................................92.1.2  Data Communication Cables .....................................................................................................................102.1.3  CD-ROM ....................................................................................................................................................102.2  Recommended System Requirements........................................................................................113.  PRODUCT OVERVIEW ..............................................................................................................133.1  MSTRP-5050...............................................................................................................................134.  INSTALLATION ..........................................................................................................................154.1  Quick Start Guide ........................................................................................................................154.2  Hardware Installation...................................................................................................................164.2.1  Connecting the reader to a power supply ..................................................................................................174.2.2  Connecting a Reader to a Computer using USB .......................................................................................174.2.3  Connecting a Reader to a Computer using Ethernet .................................................................................174.2.4  Connecting Multiple Readers to a local network ........................................................................................194.2.5  LEDs ..........................................................................................................................................................194.3  ReaderManager Software Installation .........................................................................................204.3.1  Installation and Functionality Test..............................................................................................................204.3.2  Upgrading software ....................................................................................................................................214.4  Connecting to a Reader using ReaderManager ..........................................................................214.4.1  Getting an IP address using Ethernet ........................................................................................................234.4.2  Getting an IP address using USB ..............................................................................................................244.4.3  Getting a Reader connected using the ReaderManager ...........................................................................264.5  Communication Test ...................................................................................................................285.  WORKING WITH TAGS .............................................................................................................295.1  How to reconfigure tags individually or en masse .......................................................................295.2  How to check a tag configuration mode ......................................................................................305.3  How to check a Tag Chip Type (IT or ST) ...................................................................................305.4  Tag-to-Antenna Orientation .........................................................................................................30
4                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)6.  APPENDIX ..................................................................................................................................336.1  Reader-Tag Compatibility............................................................................................................336.2  Specifications ..............................................................................................................................346.3  Regulation and Standards ...........................................................................................................356.3.1  FCC Radio Frequency Interference Statement (USA) ...............................................................................356.3.2  Industry Canada Radio Frequency Interference Declaration of Conformity  .............................................356.3.3  ISO/IEC 18000 – 3 Mode 2 (Air Interface at 13.56 MHz) Compliance.......................................................366.3.4  Human Safety ............................................................................................................................................366.4  Glossary of Terms and Abbreviations .........................................................................................376.5  Troubleshooting...........................................................................................................................396.5.1  LEDs ..........................................................................................................................................................396.5.2  Connecting a Reader .................................................................................................................................406.6  Reporting a Problem ...................................................................................................................416.6.1  Warranty Repairs .......................................................................................................................................416.6.2  Non-Warranty Repairs ...............................................................................................................................416.6.3  Warranty ....................................................................................................................................................426.4.4  Limitation of Liability...................................................................................................................................426.6.5  Service Form (editable pdf-file on your cd)..................................................................................436.7  Contact us ...................................................................................................................................44
13-Nov-07                                                     49-70-020-DOC 549-70-020-DOC 5                                                               5MSTRP-5050 (MC 5/6)User ManualAbout tHis mAnuAlPlease read this document before using Magellan’s readers.This manual is designed for use by engineers experienced with Radio Frequency Identication (RFID) devices. Regulatory, safety and warranty notices that must be followed are given in chapter 6.3 and 6.6.meAning of AleRt symbols And signAl WoRds Notes and Tips. Application Notes. Requires your attention.Indicates a potentially hazardous situation which, if not avoided, will result in minor or moderate injury, or may result in serious injury or death. Can cause signicant property damage.impoRtAnt infoRmAtionInstallation EnvironmentFor indoor use only unless otherwise specied. Install Magellan’s readers within the temperature and humidity range according to the product specication. For standard readers the temperature range is from +10°C to +45°C. The humidity range is from 10% to 80% (non-condensing humidity).The environment must not contain corrosive, ammable or explosive agents or be subject to rapid changes in temperature, to direct vibration or shock.InstallationMagellan’s  RFID  reader-writers  communicate  with  data  carriers (RFID  inlets,  labels  and  tags)  using  the 13.56  MHz  High  Frequency  (HF)  band.  Some  industrial  machines  and  electronic  devices  can  generate unwanted noise which may degrade communication. Make sure that other equipment is properly installed, grounded and at a reasonable distance from the reader and/or reader antennas.Wireless communication can be degraded by high-voltage and high-current lines and other sources of strong electric and magnetic elds. Installation in such locations should be avoided. ••••
6                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)Magellan’s  RFID  reader-writers  are  to  be  professionally  installed  by  authorised,  qualied  and  service-trained installation personnel only.MaintenanceAll Magellan’s  RFID  readers-writers  are  low  maintenance  equipment.  Except  for  externally  accessible  fuses there are no user-serviceable parts in any reader. There is no requirement to remove the cover of the reader. Removal of the reader cover by unauthorised personnel will void the product warranty.Do not attempt to clean internally. Periodic cleaning of external case parts with a damp cloth is advisable. Turn off the reader before cleaning. Do not use a solvent of any kind.Electrical Safety In order to avoid electric shock do not remove the reader cover or attempt to repair. The reader must be maintained by authorised, qualied and service-trained personnel only. Environmental    For disposal readers should be treated as industrial waste.This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.  Instead  it  shall  be  handed  over  to  an  appropriate  collection  point  for  the  recycling  of  electrical  and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city ofce, your household waste disposal service or the Magellan Technology regional sales ofce.
13-Nov-07                                                     49-70-020-DOC 749-70-020-DOC 7                                                               7MSTRP-5050 (MC 5/6)User Manual1.  INTRODUCTIONThank you for your recent purchase of a Magellan RFID reader-writer.This User Manual will provide you with information to rapidly adopt Magellan’s PJM technology for your needs, to install the reader hardware and ReaderManager software and get the reader running.Refer to the 66V10 PJM Condential Data Book (36-10-006-SPC) for the description of the PJM ItemTag® and PJM StackTag® products of Magellan Technolgoy. Refer to the ReaderManager Guide (40-01-006-DOC) for a description of the various tools and advanced options available in the ReaderManager software.Programming is covered in the Application Programmer’s Guide (40-01-000-DOC).Refer  to  Appendix  6.3  of  this  manual  for  details  of  the  Regulations  and  Standards  to  which  this  product complies.For details of Product Warranty refer to Appendix 6.6 of this manual.For a Glossary of Terms and Abbreviations used in this manual, refer to Appendix 6.4Magellan reserves the right to change its product design, specications and product range without notice. This document is subject to change without notice. This document is protected by copyright and is intended solely for use in conjunction with Magellan’s products. This  document  shall  not  be  copied,  reproduced or  transmitted  in any  form  or by  any  means without  written permission from Magellan Technology Pty Limited.
8                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)
13-Nov-07                                                     49-70-020-DOC 949-70-020-DOC 9                                                               9MSTRP-5050 (MC 5/6)User Manual2.  BEFORE YOU BEGIN2.1  unpACking And inspeCtionWhen you receive your system, inspect it for any obvious damage that may have occurred during shipment. If there is damage, notify the shipping carrier and the supplier of the equipment or Magellan if purchased directly from Magellan.Until you have checked the system, save the shipping carton and packaging materials in the event the unit has to be returned.The standard MSTRP-5050 package includes the following components:Tunnel reader/writer Quick Start Guide CD-ROM2.1.1  poWeR pACkThe reader is connected to the mains socket via a 3-lead power cable.A power cable is not included. End-users should purchase a power cable suitable for the country in which the equipment is being used.Only  power  cables  and  adapters that  are  compliant  with  the  regulations  in  the  country  of  use  may  be connected to Magellan’s equipment.Refer to the 4.2.1 Connecting to a Power Supply section of this manual.•••
10                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)2.1.2  dAtA CommuniCAtion CAblesThe reader can be connected to the network through a normal USB cable, Ethernet cable or cross over Ethernet cable.As shielded cables are generally required in order to comply with EMC emissions limits, the shielded cablesrecommended by Magellan Technology must be used. Unshielded cables may be used where explicitly allowed by the User Manual.Ethernet cable is not included with the supply.Magellan recommends CAT5 STP (shielded twisted pair) Ethernet cable.USB cable should not be longer than 3m.2.1.3  Cd-RomThe CD-ROM contains the following les:AdbeRdrxx_enu_full.exe Self-extracting installation kit for the Adobe Acrobat reader, which is required to read and print PDF les.40-01-000-DOCApplication Programmer Guide.pdfPDF document describing how to program all of Magellan’s Readers.40-01-006-DOCReaderManager GuidePDF document describing various tools and advanced options available in ReaderManager software.49-70-020-DOC User Manual.pdf PDF version of this document.ReaderManager-Install.exe Self-extracting installation kit for the ReaderManager. Once you installed the ReaderManager software the User Manuals and Guides can be opened in Windows:Start -> (All) Programs -> Magellan Technology -> User Manuals

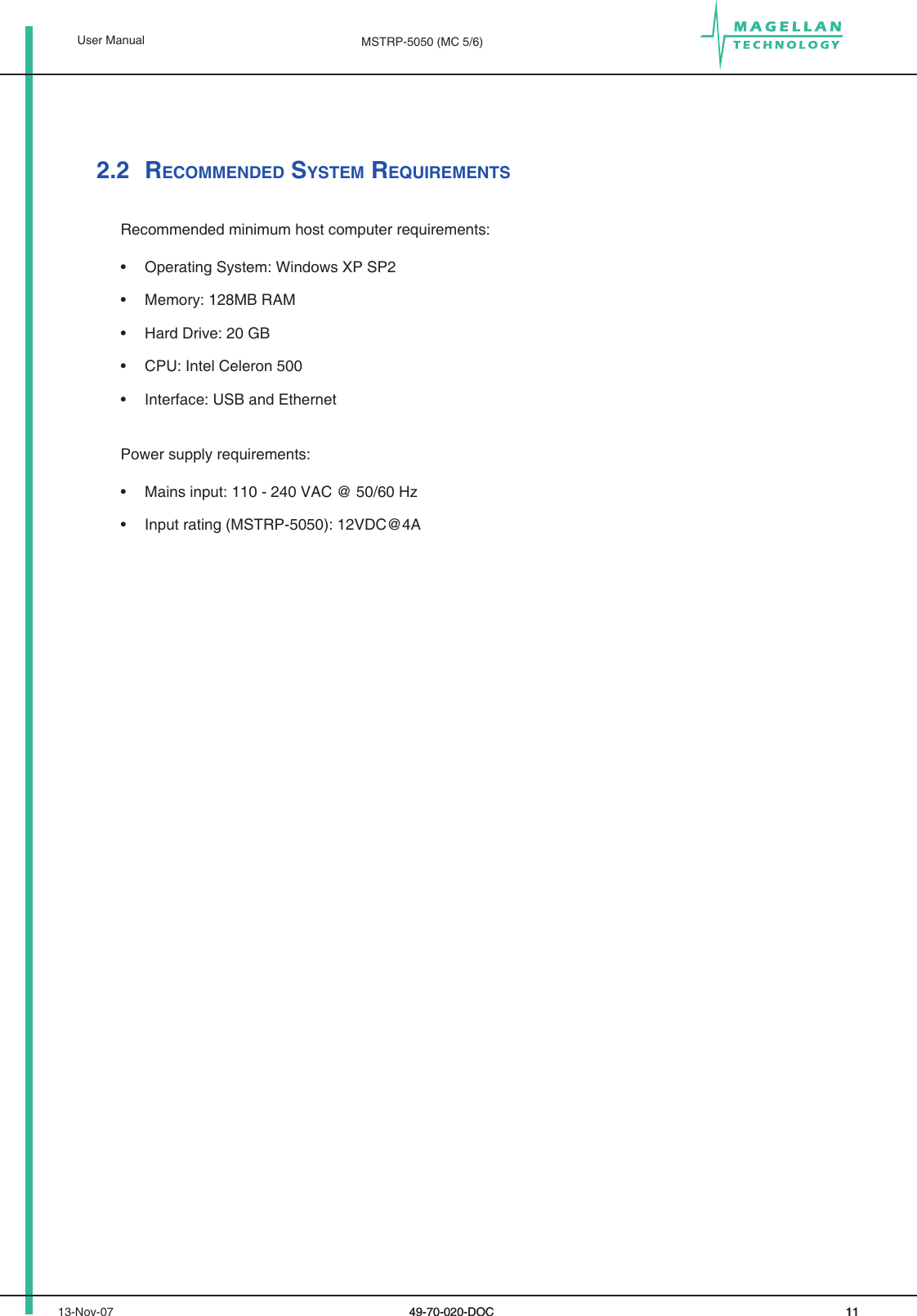

13-Nov-07                                                     49-70-020-DOC 1149-70-020-DOC 11                                                               11MSTRP-5050 (MC 5/6)User Manual2.2  ReCommended system RequiRementsRecommended minimum host computer requirements:Operating System: Windows XP SP2Memory: 128MB RAMHard Drive: 20 GBCPU: Intel Celeron 500Interface: USB and EthernetPower supply requirements:Mains input: 110 - 240 VAC @ 50/60 HzInput rating (MSTRP-5050): 12VDC@4A•••••••
12                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)
13-Nov-07                                                     49-70-020-DOC 1349-70-020-DOC 13                                                               13MSTRP-5050 (MC 5/6)User Manual3.  PRODUCT OVERVIEW Magellan’s RFID readers are intended to read and write information to individual Magellan ItemTags and multiple Magellan StackTags.The communication protocol used by the reader is compliant with ISO/IEC 18000 - 3 Mode 2 (Air Interface at 13.56 MHz).3.1  mstRp-5050StackTag Tunnel reader-writerInternal aperture: 500 x 500 mmFully shieldedThree orthogonal internal antennas                (guaranteed orientation insensitive operation)Rotating eld in x, y and z orientation8 PJM reply channels ••••••
14                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)
13-Nov-07                                                     49-70-020-DOC 1549-70-020-DOC 15                                                               15MSTRP-5050 (MC 5/6)User Manual4.  INSTALLATION4.1  quiCk stARt guideQuick Start GuideMSTRP-5050 (MLC5/6)1.   Hardware Installation(4.2 User Manual)Connect a power cableto the readerConnect a communication cable (USB or Ethernet) to the reader and host PC or network hub/switch2.   Software Installation(4.3 User Manual)Install the ReaderManager softwarefrom the supplied CD-ROM3.   Connecting to a reader using the ReaderManager(4.4 User Manual)OpenStart -> Settings -> Control Panel-> Network Connectionsin Windows(if using an Ethernet crossover cable)Turn on the reader. Wait for automatic networkconnection to be established.Open the Connection menu in theReaderManager. Find and click onthe reader you want to connect to4.   Tag Reading(4.5 User Manual)OpenTools -> System -> Grid of Tag Sight Countsin the ReaderManager. Place tag/s onto the antenna/sThe tag IDs and the number of times the tags were sighted will be displayedHF RFID Readers/WritersPJM®TechnologyISO/IEC 18000-3 Mode 2Quick Start GuideMSTRP-5050 (MLC5/6)1.   Hardware Installation(4.2 User Manual)Connect a power cableto the readerConnect a communication cable (USB or Ethernet) to the reader and host PC or network hub/switch2.   Software Installation(4.3 User Manual)Install the ReaderManager softwarefrom the supplied CD-ROM3.   Connecting to a reader using the ReaderManager(4.4 User Manual)OpenStart -> Settings -> Control Panel-> Network Connectionsin Windows(if using an Ethernet crossover cable)Turn on the reader. Wait for automatic networkconnection to be established.Open the Connection menu in theReaderManager. Find and click onthe reader you want to connect to4.   Tag Reading(4.5 User Manual)OpenTools -> System -> Grid of Tag Sight Countsin the ReaderManager. Place tag/s onto the antenna/sThe tag IDs and the number of times the tags were sighted will be displayedHF RFID Readers/WritersPJM®TechnologyISO/IEC 18000-3 Mode 2
16                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)4.2  HARdWARe instAllAtionInstallation overviewPower InstallationMSTRP-5050’s LAN and USB InterfaceLED panelPower adapter & controlUSB and EthernetinterfacesPower Switch Power portUSB device portLAN portUSB host port
13-Nov-07                                                     49-70-020-DOC 1749-70-020-DOC 17                                                               17MSTRP-5050 (MC 5/6)User Manual4.2.1  ConneCting tHe ReAdeR to A poWeR supplyConnection to the power source is realized via a power cable. The power cable is not supplied with the reader and recommended to be purchased in the country of use. Refer to the Unpacking and Inspection section of this Manual.Step 1:  Connect the reader to a host computer or a network hub/switch using an Ethernet cable. Use a    crossover cable to connect the reader directly to the network interface port on the PC. Alternatively    use a USB cable to connect the tunnel to a PC.Step 2:  Turn on the PC or network hub/switch.Step 3:  Connect the power cable to the main power socket and use the external power switch to turn on the    reader4.2.2  ConneCting A ReAdeR to A ComputeR using usbConnect the MSTRP-5050 reader to a host computer using the USB data communication cable by plugging the USB cable into the MSTRP-5050 USB device port and the host computer USB port.Only one Magellan reader can be connected to the PC via USB at a time (limited by Windows).When the USB connection is used only a screened USB cable should be used.4.2.3  ConneCting A ReAdeR to A ComputeR using etHeRnetConnect  the  MSTRP-5050  reader  to  a host  computer  using a  cross  over Ethernet  cable.  Plug the  Ethernet communication cable into the MSTRP-5050 Ethernet port and the network interface port on the PC.Always connect the Ethernet cable before power is applied to the reader.
18                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)Ethernet Installation 1Ethernet Installation 2Ethernet Installation 3
13-Nov-07                                                     49-70-020-DOC 1949-70-020-DOC 19                                                               19MSTRP-5050 (MC 5/6)User Manual4.2.4  ConneCting multiple ReAdeRs to A loCAl netWoRkMultiple  readers  can  be  connected  to  a  local  network  using  an  Ethernet  hub/switch.  Plug  the  Ethernet communication cable into the MSTRP-5050 Ethernet port and Ethernet hub/switch.Always connect the Ethernet cable before power is applied to the reader. 4.2.5  ledsWhen power is applied to the MSTRP-5050 reader the LEDs should operate as follows:the green Axis, Power and Channel LEDs will come on immediatelythen they will go off in about 1 minutethe green Axis and Power LEDs will come on again in 1-3 seconds and remain permanently lit indicating that the unit is in an operational mode; the green Channel LED will be off1.2.3.Axis LEDs User controlled output  LEDsWarning LEDChannel LEDsPower LED
20                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)once the unit is in an operational mode the green Channel LEDs will ash every time a tag is successfully readLEDs are controlled by the MSTRP-5050 softwareThe Warning LED shows a DSB malfunction and is always OFF. If the red light of the Warning LED is ON it means that the reader is faultyBefore power is applied to the reader the Ethernet cable must have been connected to an operating PC or network hub/switch4.3  ReAdeRmAnAgeR softWARe instAllAtionThe ReaderManager application software allows tag data to be viewed and programmed. The ReaderManager can only connect to one reader at a time. The Connections menu allows the user to connect to other readers by disconnecting from the currently connected reader and then establishing a connection to a new reader.It is possible to run many ReaderManagers on the same computer at the same time. Simply double click on the ReaderManager icon to open up multiple instances of the ReaderManager.Refer to the ReaderManager Guide (40-01-006-DOC) for various tools and advanced options available in the ReaderManager.4.3.1  instAllAtion And funCtionAlity testStep 1:  Insert the CD supplied with the reader into the CD-ROM.Step 2:  Open Windows Explorer, double click on ReaderManager-Install.Step 3:  Ensure all items in the Install dialog are ticked, and then click the Install button.If Python is not installed on your computer, the installation program will prompt you if you would like to install Python. Click the Yes button and accept all the default options during installation.When the ReaderManager and all the required libraries are installed the dialog box will be displayed. Ensure the dialog box shows Completed and no problems are reported.Step 4:   Click the Close button to continue.4.
13-Nov-07                                                     49-70-020-DOC 2149-70-020-DOC 21                                                               21MSTRP-5050 (MC 5/6)User ManualIf the ReaderManager is already installed, double click ReaderManager-Upgrade. Follow steps 3 to 4 above.If Python and PyQt are already installed, the installation program will not re-install them. To force the installation program to re-install these libraries, click the relevant check boxes.Step 5:   To start the ReaderManager double click the ReaderManager icon or select ReaderManager                from the Programs Start menu. Step 6:   Functionality test.Select  Help>About  ReaderManager  from  menu  to  see  the  version  of  the  ReaderManager  software  and  its status.4.3.2  upgRAding softWAReMagellan recommends to upgrade the ReaderManager software at least once a month and ReaderServer software on network based readers every 3-4 months.You are able to download the latest version of the ReaderManager operating software from Magellan’s website. Contact Magellan or its representatives to receive a user name and password. Refer to the ReaderManager Guide (Upgrading Reader Software) for more information about how to upgrade the ReaderServer from the ReaderManager File menu.4.4  ConneCting to A ReAdeR using ReAdeRmAnAgeRMagellan’s readers are complex and powerful network devices. As most network devices they should be handled by well trained network administrators.The tunnel provides an Ethernet and USB device interface to allow for user connection. Before you open the ReaderManager and connect to a reader using the ReaderManager you must obtain an Ethernet IP address if you are using a normal Ethernet cable or an Ethernet cross over cable or acquire a USB IP address if you are using the USB cable.
22                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)These are the networking rules:USB will always choose a subnet different to Ethernet.Both interfaces will try to obtain the 169.254.0.0 range, but Ethernet has priority. 172.16.0.0/16 is USB’s fallover subnet if Ethernet has already taken it by either: DHCP, xed, or link-local IP acquisition.To change the reader’s network settings:From  the  Tools  menu  in  the  ReaderManager  select  System  then  Conguration  System.  Click  the  Network Conguration tab.    If the reader is to be assigned an IP address from a DHCP server click the Obtain an IP address automatically check box. To assign a static IP address, uncheck the check box and enter the IP address in the IP address text box. The box will turn red if the IP address is not valid.Care should be taken not to duplicate IP addresses on your network. If you are unsure what IP address to use consult your system administrator.Enter the network Subnet mask and Default gateway addresses in the text boxes provided.Click the Save button to save these changes to the reader, or click the Refresh button to restore the last saved values.Restart the reader for these changes to take effect.•••
13-Nov-07                                                     49-70-020-DOC 2349-70-020-DOC 23                                                               23MSTRP-5050 (MC 5/6)User Manual4.4.1  getting An ip AddRess using etHeRnetHere is a general guide to the way Reader network address assignment works:The Ethernet interface is either served an IP address via DHCP or is assigned a static IP address by the user. If the Reader is set to use a DHCP assigned address and no DHCP server is available it will automatically use a link local address of 169.254.0.0/16.The Reader must be powered up with the Ethernet connected to get a DHCP assigned IP address. By default, the Readers  are  set  to  Obtain  an  IP  address  automatically,  which  means  they  look  for a DHCP server. If one isn’t present, for example when a crossover cable is used to connect to a single PC, the Reader will choose a Link Local address.A link local address (also known as Automatic Private IP Addressing - APIPA) is one chosen at random in the range 169.254.0.1 to 169.254.255.254 with a netmask of 255.255.0.0. Windows PCs and most other computers by default will use the same system, which allows an ad-hoc network of computers and Readers to automatically pick unique addresses. This can work for a crossover cable between a single Reader and a computer or a more complex setup involving multiple Readers and multiple PCs using a normal Ethernet cable and Ethernet hub/switch.This system is very good to use because it requires no expertise or intervention from users.The below process has been discussing automatic address negotiation only.In order to successfully connect a Reader via a crossover cable follow these steps:Step 1:   In Windows, open the Start -> Settings -> Control Panel -> Network Connections windowThe PC’s Ethernet connection should be marked as disconnectedStep 2:   Plug in the cross over cable. Turn the reader on. The user should instantly see the state of                   Ethernet change to Looking For An Address.This process may take up to a minute.Step 3:   Eventually it should go to the state Limited Or No Connectivity. In the desktop icon tray, the                Ethernet will be marked with a yellow triangle.This means that Windows was looking for a DHCP server, but was unable to nd one, so it used a Link Local address (169.254.X.X) instead. Even though it looks like an error, this is what we would expect to see.Step 4:   Left click on the Ethernet connection and look in the Details box on the bottom of the left hand side              panel of the Network Connections window. You should see the IP address in here.
24                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)If the address here is not 169.254 followed by 2 other numbers, then the user needs to check the following:Right click on the Ethernet connection in the Network Connections window. Select the Properties menu option.In the properties window, look in the list of items for Internet Protocol (TCP/IP).Double click on this itemIn the Internet Properties window, click on the Alternate Conguration tabMake sure that the Automatic private IP address radio button is the selected one.If it is not, then select it and click OK.In  some  PCs  this  setting  could  be  on  a  manual  address,  which  would  prevent  Link  Local  addressing  from functioning.Note that older versions of Reader OS software used a different system. It is important that all Readers are upgraded to 2.03 or above in order to use this functionality.Step 5: Go to the section 4.4.34.4.2  getting An ip AddRess using usbThe USB interface uses TCP/IP networking over USB as the protocol. This allows you to connect to a reader as if it was a normal network. So all the usual services, such as telnet and FTP are available.Any device  hardware  when  it’s  rst  connected  to  a  PC  via  USB  requires  a  device  driver.  The  device  driver is provided by Microsoft (Windows XP SP2). No USB device drivers are available instantly. They have to be installed and require a certain amount of conguration. The driver must be installed on the PC before Windows can use the connection. The device driver requires a conguration le for the reader which is installed on the PC via the ReaderManager.When you install a new reader for the rst time it can take from 1 to 5 minutes to create a network connection before the ReaderManager is able to recognize a new reader.Since every reader has a unique serial number, Windows treats it as a new device and you will have to install the device driver again for each new reader that you connect to the same PC. Since the device driver les are already on the reader, Windows can search for the driver automatically. In order to connect to a reader via USB for the rst time follow the steps below:1.2.3.4.5.6.7.
13-Nov-07                                                     49-70-020-DOC 2549-70-020-DOC 25                                                               25MSTRP-5050 (MC 5/6)User ManualStep 1:   Open  Network  Connections  in  Windows  (Windows  XP  SP2)  to  view  the  network  connection process.You can verify that the reader is connected by looking at the Network Connections window. You can open this window from  several places:  Start ->  Settings ->  Control Panel  -> Network Connections or My Computer -> Other Places -> My Network Places -> View Network Connections. Step 2:   Make sure that the USB and power cables are plugged in. Turn on the reader. The Found New      Hardware dialog box will be displayed.When a  reader is connected  to  a host  computer  for the rst  time using a  USB, there are  a few steps  to  go through before the ReaderManager is able to identify the new reader:In Found New Hardware Wizard tick Yes, this time only to search for software and press Next.In What do you want wizard to do? tick Install the software automatically and press Next.Wait while the wizard installs the Linux USB Ethernet/RNDIS Gadget device driver. Ignore other message and press Continue anyway.Press Finish.Step 3:   Wait until you see a new entry appears in the Network Connections list called “Linux USB Ethernet/Linux USB Ethernet/     RNDIS Gadget”. This is the reader.. This is the reader. If it says Acquiring IP address then you must wait until it says Connected.The reader’s network connection will say:Local Area Connection XConnectedLinux USB Ethernet/RNDIS GadgetOnce it says Connected in the Network Connections window (Windows XP SP2) you can go to Step 4.If it says Disabled or Broken, then click right and select Repair or Enable to try and x the connection.If this fails, disconnect the reader, reboot your PC and repeat from Step 1.The reader can disconnect in situations where it has been repeatedly plugged and unplugged before Windows has had a chance to properly and completely process the network connection. In this situation it is possible for the reader to appear on the network for about a minute before it is disconnected by the Windows networking system.The solution is:Unplug the reader.Wait for the reader’s network connection to be removed from the Network Connections window.Once the network connection has been removed:1.2.3.4.1.2.3.1.2.
26                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)Plug the reader back in.Wait for the network connection to re-appear and become Connected.Connect to the reader via the ReaderManager.Another solution is to try another USB port as USB ports can fail on PCs. As with the previous case:Unplug the reader.Wait for the network connection to be removed.Plug the reader into another USB port.Windows networking can take some time (a few minutes) to create the network connection if the reader has been rapidly plugged and unplugged. If the reader network device does not disappear within 5 minutes of being disconnected, reboot your PC as then there is a problem with Windows Networking or the USB port has locked up.You should NEVER power cycle a reader because you are having problems with your PC or with Windows. Power cycling can cause more problems with Windows and Windows networking.Most USB problems are usually caused by  Windows networking  delays and  Windows networking  problems. Frequent unplugging of the USB cable will create even more problems. Step 4:   Go to the section 4.4.3.4.4.3  getting A ReAdeR ConneCted using tHe ReAdeRmAnAgeRStep 1:   Open the ReaderManager. ReaderManager will automatically detect all readers on the local network. When a reader is connected for the rst time to a network using an Ethernet cable or a host computer using a USB cable, the reader is identied by its Model Name-Serial Number (recommended to keep).Users can replace or add additional information to the Model Name-Serial Number such as a physical location or customer ID number.Subsequently  when  a  user  starts  using  the  reader  the  new  name  will  appear  on  the  list  of  readers  in  the Connection menu.Tip: If you want to use the new name immediately, simply power cycle the reader to view the new name on the Connection menu list.1.2.3.1.2.3.
13-Nov-07                                                     49-70-020-DOC 2749-70-020-DOC 27                                                               27MSTRP-5050 (MC 5/6)User ManualTo change a reader network name:From the Tools menu, select System then Conguration System. The window shown below will be displayed.Click the column on the right of Customer ID and enter the name you would like the Reader to be identied as. This is the name that will appear on the Connection menu. Click the Save button on the right to save your changes to the reader, or click the Refresh button to restore the previously saved name. Step 2:   Click the Connection menu item to view readers found on the local network. The ReaderManager will use network broadcasts to look for active readers via USB and Ethernet. If you click on the Connection menu, you can see readers dened in there automatically. A list of readers will be displayed. The IP address and MAC address will be shown on the status bar as you move the mouse over each reader entry.Step 3:   To connect to a reader, select the reader you would like to connect to from the Connection menu,           then click the left mouse button.The status bar will change from a red to a green background to indicate that the ReaderManager was able to connect to a reader. The tag type and IP address are also shown on the status bar. To get more information how to setup static connections to readers please refer to the ReaderManager Guide  (40-01-006-DOC).
28                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)4.5  CommuniCAtion testPerform the tag reading test by selecting Tools -> System -> Grid of tags sight count.Check some default settings in Tools -> System-> Reader Settings: Tag Type. Default is IFX_STACK. If you use ItemTags the default should be changed to IFX_ITEM. If you want to read both IT and ST tags the Tag Type should be IFX_STACK.The Powering Field box should be ticked.Use one of the fully powered tags, place the tag on the reader antenna. The rst square in the grid should turn from white to blue and display the tag’s ID number and the number of times the tag was sighted (should be one). An example of this is shown below.••
13-Nov-07                                                     49-70-020-DOC 2949-70-020-DOC 29                                                               29MSTRP-5050 (MC 5/6)User Manual5.  WORKING WITH TAGSDo not stack Magellan ItemTags on top of each other or allow them to touch or overlap. Only Magellan StackTags can be stacked, overlapped or allowed to touch each other.Single-axis antennas are tag orientation sensitive. Refer to the Tag-to-Reader/Tag-to-Antenna section of this document.Reading and writing speeds depend on reader-tag communication speeds, the number of receiver channels, the amount of information to be read and/or written and the number of tags presented at a the same time. The number of  tags  and the amount  of  information to be  read  and especially written,  slows  down the read-write communication speed. Please consult Magellan regarding these issues for your specic application.Be aware that tags and readers can be incompatible with each other.  Larger tags can work with all types of readers and antennas. Smaller tags require higher eld strengths and as a result they may not operate with some reader/antenna combinations or have to be closer to a reader antenna to operate. Refer to the Reader-Tag Compatibility section of this manual.Magellan StackTags delivered on a roll are always fully powered (ST normal power mode or 6000 mode). Fully or normal powered tags are ON all the time and reply to each reader command providing they are in the eld of the reader antenna.To reduce the risk of tag replies clashing and to increase anti-collision and stackability for some applications the tags can be recongured by end-users to a ¼ low power mode (ST ¼ normal power mode or 2000 mode). This means that tags in the ¼ low power mode are muted ¾ of the time and do not reply to the reader commands instantly.Tags can be recongured individually (one by one) or en masse (many at once). Before reconguring tags makeBefore reconguring tags make sure the ReaderManager software has been installed and upgraded to the latest version, the reader is running and the reader is Connected to the ReaderManager software. 5.1  HoW to ReConfiguRe tAgs individuAlly oR en mAsseIn the ReaderManager go to Tools -> System -> Console. Click with the right mouse button and tick Show Tag Replies.Then go to Reader Conguration and choose Cong_Normal_Powered_Tag or Cong_Quarter_Powered_Tag (for the ReaderManager version 2.12 or higher).Place a single tag or multiple tags into the reader antenna eld.Remove the tag(s) from the eld.Follow the step 3 to 4 for a new batch of tags. Once completed go to Reader Conguration and click on Clear All.1.2.3.4.5.6.
30                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)5.2  HoW to CHeCk A tAg ConfiguRAtion modeThe tag conguration mode can be checked with the ReaderManager: Go to Tools -> System -> Interrogate Command.In Reply select Normal and click Send.Then go to Tools -> System -> Table of Tag Messages to see the tag conguration in the Cong column. The messages of all the tags currently in the reader antenna eld can be seen. 2000 means that the tag has been recongured to ST ¼ normal power mode conguration. 6000 means that a tag is in ST normal power mode.5.3  HoW to CHeCk A tAg CHip type (it oR st)The tag chip type can be checked with the ReaderManager: Go to Tools > System > Tag Memory MapPlace a tag on the antenna. The tag ID# will appear below “Current tags”Left mouse click on the ID# The chip type can be seen in the “Value” column of the System Memory in line “0”:4000 means ItemTag chip4001 means StackTag chip5.4  tAg-to-AntennA oRientAtionThe MSTRP-5050 is a three axis tunnel reader which generates a rotating eld in x-, y- and z-orientation. Tags will operate in all orientation and positions inside the internal operating volume. With StackTags, multiple closely stacked tags can be presented in all orientations. The internal operating volume starts 20-cm inside from both ends of the reader tunnel. The smallest ST  tags that can work with the reader are  the 35 mm  diameter and 26 x 56  mm (Refer to  the Reader-Tag Compatibility Appendix of this Manual). •••1.2.3.4.
13-Nov-07                                                     49-70-020-DOC 3149-70-020-DOC 31                                                               31MSTRP-5050 (MC 5/6)User ManualClosely stacked items with high metal content will be identied reliably if the RFID tag is bent around the corner of the item. Thus the tags will not be completely covered by the metal and identication will not be blocked.RFID tag bent around the corner of the item
32                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)
13-Nov-07                                                     49-70-020-DOC 3349-70-020-DOC 33                                                               33MSTRP-5050 (MC 5/6)User Manual6.  APPENDIX6.1  ReAdeR-tAg CompAtibilityMaximum Read-Write Distance* (MRD), mmREADER-WRITERSMARS and round external antenna(124 mm dia.)MSTRP-5050 MDOCR-505 MDR-1109 MTR-1310STACKTAGS76 x 45 mm, 5 turns 235   60 76 x 45 mm, 2.5 turns 170   30 73 x 37 mm, 3 turns 165   30 56 x 26 mm 220   55 48 x 16 mm 105   1035 mm diameter 170   40 25 mm diameter 120 15 20 mm diameter 105 1028 x 16 mm 120 15 20 x 15 mm 95 10ITEMTAGS76 x 45 mm, 5 turns 385 110 20 x 15 mm 130 25 9 mm diameter 135 20 *  Measured for a single tag. The RCA cable length is 1.5 m (standard cable).  Tags operate inside an internal volume or shrouded area
34                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)6.2  speCifiCAtionsRead and write operationsNo manual calibration neededAutomatic tuningNo user-serviceable partsFully shieldedISO/IEC Compliance 18000-3 Mode 2Operating Frequency 13.56 MHzNumber of Axes: 3Number of PJM Reply Channels: 8Command Data Rate of 424 kbit/sReply Data Rate of 106 kbit/s per channelOperation Range: Internal VolumeTag Type: PJM StackTag® and PJM ItemTag®Conveyor belt speed: Up to 5 m/sInternal Aperture: 500 x 500 mmExternal Dimensions (L x W x H): 1010 x 610 x 710 mmNet Weight: 120 kgNet Volume: 0.44 m3Shipping Dimensions (L x W x H): 1220 x 1000 x 1030 mmShipping Weight: 200 kgShipping Volume: 1.25 m3Input rating: 12VDC @ 4AMains Input: 110 - 240 VAC @ 50/60 HzPower Consumption: 125 WOperation environment: Indoor useTemperature range: +10°C to +45°CHumidity: 10% to 80% (non-condensing)Recommended Minimum Host Computer Requirement:             Windows XP SP2/ 500 MHz CPU/ 128MB  RAMHost Interface: USB and Ethernet•••••••••••••••••••••••••••••
13-Nov-07                                                     49-70-020-DOC 3549-70-020-DOC 35                                                               35MSTRP-5050 (MC 5/6)User Manual6.3  RegulAtion And stAndARdsRFID equipment is subject to national and international regulations.6.3.1  fCC RAdio fRequenCy inteRfeRenCe stAtement (usA)The FCC regards RFID equipment as low-power transmitting devices and, therefore, does not require users of RFID devices to obtain a license to operate them.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to  Part  15  of  the  FCC  Rules.  These  limits  are  designed  to  provide  reasonable  protection  against  harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorientation or relocation of receiving antennaIncrease the separation between the equipment and receiverConnect the equipment into an outlet on a circuit different from that to which the receiver is connectedConsult the dealer or an experienced radio/TV technician for helpAny changes or modications to the equipment that are not expressly approved by the party responsible for compliance could void the user’s authority granted under FCC Rules to operate this equipment.       FCC ID: TVN-MSTRP6.3.2  industRy CAnAdA RAdio fRequenCy inteRfeRenCe deClARAtion of ConfoRmity  This Class A digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.ICES\NMB-003 IC: 6569A-MSTRPThis apparatus complies with ETSI EN 301 489-1 RF common mode immunity requirements on Ethernet Port with shielded CAT5 Ethernet Cable.Intended use of the equipment is as a Reader to read and write information to multiple or individual tags.This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.••••
36                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)6.3.3  iso/ieC 18000 – 3 mode 2 (AiR inteRfACe At 13.56 mHz) CompliAnCeMagellan’s readers fully comply with the ISO/IEC 18000 Part 3 Mode 2 (Information technology – Radiofrequency identication for item management. Part 3: Parameters for air interface communications at 13.56MHz) published in August, 2004.6.3.4  HumAn sAfetyCustomers using the MSTRP-5050 readers are responsible for operating their system under implemented power levels against relevant standards for human safety in electronic eld.
13-Nov-07                                                     49-70-020-DOC 3749-70-020-DOC 37                                                               37MSTRP-5050 (MC 5/6)User Manual6.4  glossARy of teRms And AbbReviAtionsAntenna  A reader antenna that emits radio waves and receives reply signals from    tags. The reader antenna can be internal which is integrated into the reader    and external which is connected to the reader via a cable. D/C  Date Code (month/year)DSB  Digital Support BoardHF  High Frequency (13.56 MHz)GUI  Graphical Use InterfaceIT  ItemTag (chips, inlets and labels)ItemTag (IT tags)  Magellan’s labels and inlets for item tagging (separated items) that work with    Magellan’s family of reader-writersLAN  Local Area NetworkLED  Light Emitting DiodeMLC  Machine Level Control (System Conguration Control)Network Connections window  In Windows XP open Start-> Control Panel-> Network Connections or open   My Computer-> Other Places-> My Network Places-> View Network      ConnectionsOEM label  Original Equipment Manufacture label is located on the back of the      equipment. It includes the Model Number, P/N, D/C, S/N and MLC.PJM  Phase Jitter Modulation or PJM™ is a registered Trade Mark of Magellan    Technology Pty Limited. PJM is a RFID communication technology developed    and patented by Magellan Technology Pty Ltd and complies with ISO/IEC    18000-3 Mode 2. PJM technology products include a range of RFID chips,    inlets, tags and readers. PJM ItemTag®  Registered Trade Mark for Magellan’s ItemTag tagsRegistered Trade Mark for Magellan’s ItemTag tagsPJM StackTag®  Registered Trade Mark for Magellan’s StackTag tagsRegistered Trade Mark for Magellan’s StackTag tags
38                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)P/N  Part NumberPower cycle the PC  Close Windows, switch the PC off, remove the power plug and wait for 30    seconds before powering the PC back up again. For laptops this means     removing the battery and waiting for 30 seconds. This ensures that the USB    host controller chips on the motherboard have had a chance to be fully reset.Power cycle the Reader  Turn off the power or unplug the power cable from the mains socket. Open    the Network Connections window in Windows. Wait for the reader network    connection to be removed from the Network Connections window. Plug the    reader back in and wait for the network connection to re-appear and become   Connected in the Network Connections window. Connect to a reader via the    ReaderManager’s Connection menu.Reader/s  Magellan’s RFID reader-writer/sReaderManager  Graphical user application for Windows/Linux which provides a platform for    testing, demonstrations and application developmentReaderServer  Embedded application that provides the standard Application Programmer    Interface to serve end-user applications. This application runs on the Reader.RFID  Radio Frequency IDenticationRFID inlet  A RFID device comprising a microchip and an antenna (etched copper or alu-   minium or possibly conductive inks) on a exible substrate (PET plastic lm)RFID label  RFID inlet with adhesive backing (sticky label)RFID tag  1.  generic name for RFID inlet and label;  2.  RFID inlet or label inserted into a housing (glass, polycarbonate, polyamid,      epoxy, ABS, etc.)RFID reader-writer  Device for reading and writing to RFID tagsRMA  Return Authorisation numberS/N  Serial NumberST  StackTag (chips, inlets and labels)StackTag  Magellan’s labels and inlets for item tagging (stacked, touched or overlapping  (ST tags)  items) that work with Magellan’s family of reader-writers
13-Nov-07                                                     49-70-020-DOC 3949-70-020-DOC 39                                                               39MSTRP-5050 (MC 5/6)User Manual6.5  tRoublesHooting6.5.1  ledsRed Warning LED is onReader faulty Send a service report on the Service FormPower LED is off Power cable not connected Ensure the power cable is connected correctly to both the mains power and to the readerPower cable faulty Replace the cablePower adaptor faulty Replace the power adaptorReader faulty Send a service report on the Service FormAbsence of the ashing green light of the channel LEDs during tag readingThe tags are too close to the entrances of the reader where they can not be read as the reader antennas are located deeper inside.Move the tags deeper inside of the Reader internal operating volume. The 20-cm zone inside each of the tunnel entrances does not have any antennas to read tags.Faulty tag/tags Replace tag/tags. Do not use tags with a black dot or black square marking (faulty tags).The Powering Field is off Ensure the powering eld is on. Go to Tools> System>Reader Setting. Tick the Powering Field box.Green channel LED ash but I can not see any tag message in the ReaderManagerUSB and Ethernet connection is not functioning. Ensure the communication cable is plugged in or replace if faulty.The reader is not ConnectedEnsure the reader is turned on and a communication cable is plugged in. In the ReaderManager open the Connection menu. Find the reader you want to connect to on the list. The status bar in bottom right corner of the ReaderManager window has to show an indication Connected, the tag type and the IP address. The tag type is incompatible with the readerUse the appropriate tag type according to the chart in the Reader-Tag Compatibility section.A communication tool has not been chosenChoose Grid of tag sight counts or Table of Tag Messages from Tools->System menu to view tag replies.
40                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)6.5.2  ConneCting A ReAdeRCan not nd and connect to the reader - reader is not shown on the Connection menu listThe reader was not in the operational mode when you connected a communication cable and/or opened the Connection menuPlug in the communication and power cables. Wait for about 1 minute after you apply power to the reader. The green Axis LED must be permanently lit and the green Channel LEDs off. Open the Connection menu in the ReaderManager. Find the reader you want to connect to on the list.PC does not recognise the reader at allThe USB port on the PC is brokenUse another USB port known to be working.USB port has temporarily failedPower cycle the PC. The reader is faulty Check the reader on two other PCs. If no PC shows any response at all to the USB cable being plugged in then it’s faulty. Send a service report using the Service Form.USB cable faulty  Change the USB cable.PC recognises the reader, but claims that it is faulty in the Windows’ Device Manager and does not create a network connectionWindows has previously marked the reader as faulty and will not try to connect to it or load the reader driver. Usually caused by rapidly unplugging and plugging of the USB cable.Make sure that the USB cable is unplugged and the reader is turned off. Remove/Uninstall the faulty device from the Device Manager, then plug the USB in, turn the reader on and wait for a network connection again. Alternatively connect a different reader to the PC as it will have a different serial number and Windows will not ag it as faulty.The reader is connected, and appears to be working correctly but the network connection drops out after a few secondsThe reader was replugged too quickly before Windows nished processing the previous network connectionWait at least 30 seconds before replugging any reader into the same PC or wait until the network connection disappearsUSB hub does not work properlyPower cycle the PC. Try a rear USB port on the PC to connect the USB cable. Avoid using an external USB hub.No network connection can be made to the reader but the Network Connections window shows that the reader is connected and all other network status information indicates that networking should be workingThe USB port on the PC has stopped working for an unknown reason. Use another USB port. If this fails, power cycle the PC.
13-Nov-07                                                     49-70-020-DOC 4149-70-020-DOC 41                                                               41MSTRP-5050 (MC 5/6)User Manual6.6  RepoRting A pRoblemIf  after  following  the  checks  and  procedures  outlined  in  the  Troubleshooting  section,  you  are  still  having  a problem with a Magellan reader, you will need to send a report to Magellan.To make the diagnosis quicker and easier, please supply your problem report on a Service Form along with the following information:What kind of tags are you using and how many are you putting inside the Reader at one time?Have this Reader and the tags you are using worked at any time in the past?Have you tried connecting to the Reader with a different PC?Have you successfully installed the ReaderManager application?In the ReaderManager, select the Help/About ReaderManager menu item and record on the Service Form what version numbers are shown in the window that appears.In the ReaderManager, select the Help>System Report>Get System Information (for the ReaderManager version V2.18 and higher). Zip the le and then email it to us.The information required in the Service Form about Model Number, S/N, P/N and D/C is located on the OEM label on the back of the equipment. 6.6.1  WARRAnty RepAiRsBefore shipping any reader a Return Authorisation number (RMA) must be obtained.End-users should contact the company from whom they purchased the reader for repair, replacement or refund in accordance with Magellan’s terms and conditions of sale.If you purchased the reader directly from Magellan, contact Magellan for a Return Authorization number (RMA) before shipment.The copy of the Service Form with RMA must be enclosed in the original or equivalent packing with the RMA number clearly marked on the outside of the box. 6.6.2  non-WARRAnty RepAiRsIf a reader needs repairing after the one year warranty period expires, your support organization or Magellan if you purchased directly from Magellan will rst provide an estimate of repair charges. Then upon receiving approval from you the reader can be sent for repair. Refer to above Warranty Repairs information for return procedures.••••••
42                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)6.6.3  WARRAnty Magellan’s warranty and liability with respect to products and/or services is for a period of 12 months from date of delivery and is limited to the rectication of faulty workmanship and/or non-compliance by Magellan.Any liability with respect to components including purchased or free issued items and other materials used in the manufacture of products are covered by, and limited to, any warranty provided by the original manufacturer. 6.4.4  limitAtion of liAbilityMagellan’s warranty excludes products that have been improperly installed or maintained, modied or misused. Notication of claims must occur within the warranty period.End-users should contact the company from whom they purchase the products for replacement, repair or refund in accordance with Magellan’s terms and conditions of sale.If you purchased the reader directly from Magellan, contact Magellan for a Return Authorization Number (RMA) before shipment.
13-Nov-07                                                     49-70-020-DOC 4349-70-020-DOC 43                                                               43MSTRP-5050 (MC 5/6)User Manual6.6.5  seRviCe foRm (editAble pdf-file on youR Cd)ProductFrom OEM label on the back of the equipment:ModelP/ND/CS/NMLC       (first number in order after black dots)Describe any hardware modifications made to the unit and modification date:Reason forDescribe problems (see Reporting a Problem):Return toIf purchased from Magellan:Magellan Technology Pty Limited65 Johnston St.AnnandaleNSW 2038AustraliaTel.: +61 2 9562 9800Fax: +61 2 9518 7620Email: info@magtech.com.auWebsite: www.magtech.com.auContactCompanyAddressCountrySales OrderPO NumberPurchase DateReturn Authorisation number (RMA)DateTechnical ContactTelephoneFaxEmailService FormAlways return a copy of thisform along with the product* End-users should contact the company from whom they purchased the ReaderProductFrom OEM label on the back of the equipment:ModelP/ND/CS/NMLC       (first number in order after black dots)Describe any hardware modifications made to the unit and modification date:Reason forDescribe problems (see Reporting a Problem):Return toIf purchased from Magellan:Magellan Technology Pty Limited65 Johnston St.AnnandaleNSW 2038AustraliaTel.: +61 2 9562 9800Fax: +61 2 9518 7620Email: info@magtech.com.auWebsite: www.magtech.com.auContactCompanyAddressCountrySales OrderPO NumberPurchase DateReturn Authorisation number (RMA)DateTechnical ContactTelephoneFaxEmailService FormAlways return a copy of thisform along with the product* End-users should contact the company from whom they purchased the Reader
44                                                               49-70-020-DOC 13-Nov-0749-70-020-DOC 13-Nov-07                                                        13-Nov-07User ManualMSTRP-5050 (MC 5/6)6.7  ContACt usMagellan Technology pTy liMiTed65 JohnsTon sT.annandalensW 2038ausTraliaTel.: +61 2 9562 9800Fax: +61 2 9518 7620eMail: inFo@Magellan-Technology.coMWebsiTe: WWW.Magellan-Technology.coMMagellan Technology (europe) lTduniT 8parker courT, dyson Way, sTaFFordshire Technology park, beaconside, sTaFFord sT18 0Wp, ukTel.: +44 1785 21 85 40Fax: +44 1785 21 85 41eMail: inFo@Magellan-rFid.coM
