POSITIONING SUMMARY

 Entry-level, affordable and compact thermal printing solution for low to- to

medium-volume labelling applications

 Designed for a wide variety of uses ranging from small office shipping labels to

compliance and general purpose product identification labels and tags. Stock rooms

and warehouses, medical laboratories, commercial kitchen and food preparation

areas, automobile service shops, shipping and mail centres and entertainment

venues are all typical examples of environments that would benefit from a compact

printing solution.

PRODUCT NOMENCLATURE

All printer models are part of the CG4 series.

CG4xx xT

x Print Method

DT Direct Thermal – CG4 DT model

TT Thermal Transfer – CG4 DT model

xx Resolution

08 dpm / 203 dpi – CG408 model

12 dpm / 305 dpi – CG412 model

4’’ Width

UNIQUE SELLINGS POINTS

Great Value for your printing solution

CG4 offers the best price-feature value desktop printing solution in the compact printer

class.

With its 32-bit RISC CPU, 4 ips print speed, and 4MB Flash/8MB SDRAM Memory as well as

optional accessories, the versatile CG4 is equipped to meet the requirements for a wide range

of printing applications.

The new product development process has focused on optimizing product design and

manufacturing to deliver a printer that solves the customers’ printing needs better than any

other and provides rapid and measurable return on investment.

OTHER SELLING POINTS

Space-saving Footprint

The printer’s small footprint saves precious counter space and is designed to fit in tight

spaces.

Standalone Printing

No PC required at time of printing

The CG4 with SATO Keypad* can be operated as a standalone printing system without the

need for a PC at the time of printing. Using the keypad label design software provided, label

formats can be created and then downloaded into the keypad internal Flash ROM memory or

on an SD card. At the time of printing, the operator can enter variable data using the

alphanumeric keypad or external PC Keyboard., or capture date through a barcode scanner

The pre-stored label is called on later when required and print data is sent to the CG4 for

printing.

*Optional accessory.

High Quality Printing

The CG4 series is available in 203 dpi or 305 dpi resolution. 305 dpi will be required to print

text and barcodes, including 2D barcodes, on very small labels, such as those commonly

used in the electronics or pharmaceutical industries for component or specimen labelling.

Scanning and reading data is made easier by the sharp, crisp print quality. For applications

requiring a great deal of information in a small space, higher density printing is recommended.

The CG4 is an ideal printing solution to support the latest 2D barcode symbologies, including

GS1 DataBar (formerly Reduced Space Symbology (RSS)).

Flexible Connectivity

CG4 offers 3 combinations of communication interface options as standard: RS232C and

USB; LAN and USB; or USB and IEEE 1284 interface on-board. The CG4 delivers advanced,

secure connectivity making it easy to integrate with existing systems.

User-friendly Operation & Maintenance

Media loading: drop-load-ready

The clam shell design makes it easy to load media by simply “dropping in” the labels. The

simple label mechanism design allows even an inexperienced user to load in labels. Ribbon

loading is just as easy; it takes seconds, with the high-lift printhead giving easy access to load

the ribbon. Colour-coded user instructions make it intuitive to load labels and ribbons.

Printer Maintenance: tool-less, hassle-free

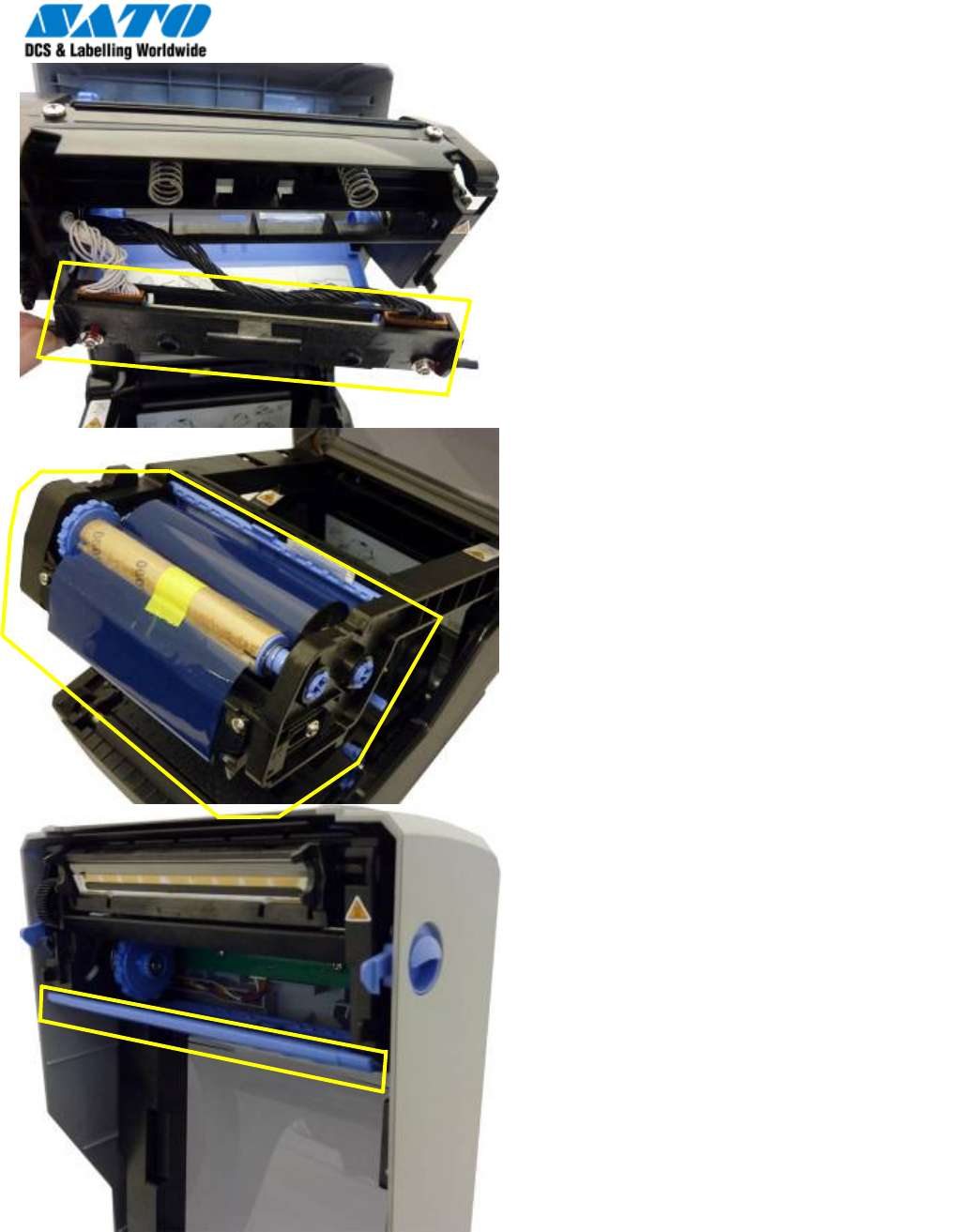

The one-touch, tool-less print head release mechanism enables the print head to be quickly,

easily replaced.

Printer Platen Roller can be replaced without the need for any tools.

Competitive Printer Language Compatibility

Multiple printer language options enables replacement of competitive printer models with

minimal reprogramming of data streams.

Large Printer Memory

The CG4 Printer has a large memory of 4MB Flash ROM and 8 MB SD-RAM that allow the

storage of extra graphics or fonts and firmware upgrades.

Safe for use in clean environments

The CG4 is designed for use in environments where cleanliness and hygiene are important

and a high level of safety vital.

The printer’s anti-microbial casing is manufactured using an inorganic antimicrobial material.

This material has been shown to have an antimicrobial effect against a wide spectrum of

bacteria, fungi and other micro organisms. It has silver and other ions with antimicrobial power

bonded into its mineral structure and stabilized. They are seldom eluted out with water or

solvent, so the antimicrobial effect can last a long time. Its life span and thermal stability

makes it an important composition material in products used in clean environments.

Labelling in sterile environments such as medical labs, food preparation and kitchen areas,

cosmetic and pharmaceutical processing plant can benefit from the protection of the

anti-microbial material.

PRODUCT POSITIONING

Internal Product Lineup Positioning

The CG4 Series is categorized under the ‘Compact Series’ in the SATO product lineup. It is

part of the CG printer family together with the CG2 series. The CG4 is an entry-level,

desktop thermal printing solution designed for low to- to medium-volume labelling

applications

• Print Resolution: 203/305 dpi

• 4” Mobile Printer

• Direct Thermal

• Max Printing Speed: 4ips

US$500

Performance

MB2i

CX4

CT4i

MB4i

Mobile Compact Desktop

• Print Resolution:203dpi

• 2” Mobile Printer

• Direct Thermal

• Max Printing Speed: 4ips

• Print Resolution: 203/300dpi

• Entry Level 4” Desktop Printer

• Thermal Transfer/Direct Thermal

• Max Printing Speed: 4ips(CX400)

•

Print Resolution: 203/305dpi

• High End 4” Desktop Printer

• Thermal Transfer/Direct Thermal

• Max Printing Speed: 6ips (CT408i)

•

Print Resolution: 203/305dpi

• New Entry Level 4” Desktop Printer

• Thermal Transfer/Direct Thermal

• Max Printing Speed: 4ips

•

Print Resolution: 203/305dpi

• New Entry Level 2” Desktop Printer

• Thermal Transfer/Direct Thermal

• Max Printing Speed: 4ips

List Price

CG4

CG2

Desktop Printer Position Versus Competition

500

1000 Zebra GK420d

Zebra TLP3842

Intermec

PC4 Series Intermec

PF8d/t & PC4

/Series

Zebra GX Series

Performance (Print Speed & Resolution)

List Price

CG 4

Datamax

E-series

TARTGET MARKET AND APPLICATIONS

RETAIL

 Price markdown labels & tags

 Garment hang tags / swing tickets

 Shelf-edge labels

 Price labels & tags

 Price markdown labels & tags

 Promotional labels & lags

 Inter-store transfer labels

 Returns labels

LOGISTICS / WAREHOUSING / SUPPLY CHAIN

 Receiving labels

 Location labels

 Small carton or case labels

 Shipping labels

 Warehouse rack or shelf labels

 Asset tracking

HEALTHCARE

 Patient ID labels

 Specimen labels

 Prescription labels

 Script document tracking

 Safety labels

 Sterile equipment labeling

 Laboratory work orders

FOOD PREPARATION & FOOD SERVICE

 Ingredients or nutrition facts labels

 Prepared food labels

 Expiry or use-by date labels

 Date coded labels

LIGHT INDUSTRIAL / MANUFACTURING

 Asset management

 Quality tracking

 Shipping labels,

 WIP applications

 Shelf labels

OFFICE

 Small office shipping labels

 File or folder labels

 Asset identification labels

FIELD SERVICE

 Service records and invoices

 Certification and Conformance labels

HOSPITALITY, SERVICE & LEISURE

 Visitor/guest identification

 Parking passes

 Boarding passes

 Evidence tracking

 Event & exhibition ticketing

 Bag tags

 Gaming & betting slips

POST & PARCEL

 Postage marks

 Mailing labels

 Receipts

LABEL SAMPLES

Carton Label

Product Label

Food Label

Specimen Label

Event Registration Label

Retail Price Markdown Label

PRODUCT TOUR

Printer Exterior Front

○

1 Operator Panel

○

2 Top Cover

○

3 Cover Open/Close Latch

○

4 Media Ejection Slot

○

5 POWER button

○

6 FEED/LINE button

○

7 ERROR LED indicator

○

8 ON LINE (POWER) LED Indicator

Printer Exterior Back

USB and RS232C interface on-board

USB and LAN interface on-board

USB and IEEE interface on-board

3 standard connectivity options

Printer Interior

○

9: Print head

10: Ribbon Unit

11: Pull Out Lever

12: Roll Media Holder

13: Media guide and I-Mark/ Gap sensor

14: Optional Device Compartment

Print head: available in 203 and

305dpi print resolutions.

Ribbon Unit is for the TT model.

The Pull Out Lever: used to pull out

the ribbon unit from the top cover for

ribbon loading.

The Roll Media Holder is used to

hold the media roll, usually labels.

Media guide and I-Mark/ Gap

sensor

The Platen Roller is used to hold the

media roll, usually labels. .

The Optional Device Compartment

is designed for installation of optional

accessories such as the cutter or

dispenser unit.

PRODUCT FEATURES, FUNCTIONS & BENEFITS

FEATURES FUNCTIONS BENEFITS

2 control buttons (POWER button and FEED/LINE

button), and 1 LED status light.

Press POWER button to power on or off.

FEED/LINE button: press this button to select

printer status (online or offline) or to feed paper.

ON LINE (POWER) LED status light: green LED

light illuminates when the printer is online, i.e.

ready to print. Green light blinks when printer is

offline. Red indicates error.

Operation Panel o

The ERROR LED lights or blinks red when an error

is detected in the printer.

Large, simple-to-operate control buttons for easy printer

configuration and device status indications for easy

monitoring.

Response on ERROR indicator in conjunction with the

ON LINE (POWER) indicator can be used visually to

guide switching to various printer modes.

Clamshell Design

The clamshell design allows the top cover to be

raised open upwards.

The cover stays open resting on the safety latch.

The safety latch locks the printer top cover open

when top cover is raised more than 450 upwards.

The clamshell design offers operator easy access to all

controls, providing faster ribbon replacements and easier

paper loading to the media area inside of the printer.

The safety latch prevents top cover from accidentally

closing and injuring the operator’s hand

Paper or Label Holder

Allows loading of paper, including adjusting of

width of paper holder to match paper size.

For more detailed instructions on loading

labels, refer to the Quick Guide or Operator’s

Manual.

The clamshell design makes it easy to load labels

by simply “dropping in” labels.

Label changes can be thus be done in no time.

Coloured and clearly marked components guide

the user on how to load media.

The ribbon unit serves to load the ribbon and

wind up the used ribbon.

Pull the lever on the middle of the ribbon unit

toward you to pull out the ribbon unit.

For more detailed instructions on loading

ribbons, refer to the Quick Guide or

Operator’s Manual.

Ribbon Unit

The placement of the ribbon under the cover does

not interfere with the printer controls. It gives the

operator wider access to the inside of the printer.

Printhead Mechanism

Printhead configuration of print resolution:

203 dots per inch (or 8 dots per millimetres)

for CG408 model and 305 dots per inch (or 12

dots per millimetres) for CG412.

The one-touch, tool-less print head release

mechanism enables the operator to quickly and

easily replace the print head.

Print roll paper and fan-folded paper option Fanfold media feeds through back of printer.

Pass the paper through the opened window at

the rear of the unit.

The CG4 is designed to easily accept fanfold

media, which effectively extends the media

capacity of the printer.

Processor

32-Bit RISC Determines processing time; and throughput

speed. Fast data processing for desktop printer, and

virtually instantaneous throughput.

Memory

Flash Memory (4MB) A type of Random Access Memory chip that

does not lose its contents when power it is

receiving is turned off; it, therefore, allows

permanent storage.

The 4MB of Flash Memory allows additional font

and graphics capability and firmware upgrades

without the need for modifications to the printer or

electronics.

Communication Interfaces

The CG4 is available in the following 3 configurations

USB and RS232C interface on-board

To connect printer to the host computer using

the USB interface.

USB and LAN interface on-board

To connect printer using LAN interface and

establish direct communication with host

computer system on Local Area Network

To connect printer to the host computer using

IEEE interface interface.

Or, to connect the SATO Keypad, Scanner or

Smart keyboard to the printer.

USB and IEEE interface on-board

To connect printer to the host computer using

the USB interface.

The built-in interfaces of LAN or serial or parallel or

USB as standard makes it easy to switch between

applications.

Media Guide and Sensing

 Media guide

 I-Mark/ Gap sensor

The media guide allows the media to feed

properly.

Media sensors detect the I-Mark (or black

mark) on the media, or gap of the label in order

to precisely position the print data on the

media.

The CG4 printer is equipped with a gap or

transmissive sensor, an I-Mark or reflective

sensor, and a reflective ribbon out sensor.

Support for a greater range of media types.

COMPETITIVE ANALYSIS

Manufacturer SATO Datamax

Hardware Specifications CG408 CG412 E-4203 E-4204 E-4304 Model

List Price (Base Model) DT: (USD 595)

TT: (USD 695) DT: (USD 750)

TT: (USD 850) (USD 585)

Resolution 203dpi 305dpi 203 dpi 203 dpi 300 dpi

Max Print Speed 4 ips 3 ips 4 ips 4 ips

Print Method Direct thermal, thermal transfer Direct thermal, optional thermal transfer

Max Print Area 4.09” (104 mm) to 11.81” (300 mm) 4.3” (109.2 mm) to 24” (609.6 mm)

Memory 8 MB SDRAM; 4 MB Flash 2 MB DRAM; 1 MB Flash; (optional 4MB flash)

Dimensions 6.81” (H) x 7.05” (W) x 9.37” (D) 7.05” (H) x 8.77” (W) x 10” (D)

Weight DT: 3.5lbs (1.7kg), TT: 4.2lbs (1.9kg) 5.2 lbs (2.4 kg)

Media Specifications

0.98” (25mm) to 4.33”(110mm) 1” (25.4 mm) to 4.3” (109.2 mm)

Media Width

(Without backing paper) 0.87” (22 mm) to 4.21” (107

mm) N.A.

0.87” (25mm) to 11.93” (303mm) 0.375” (9.5mm) to 24” (609.6 mm) Media Length (Tear Off)

(Without backing paper) 0.87” (22 mm) to 11.81”

(300 mm) N.A.

Media Thickness 0.002” (0.06 mm) to 0.007” (0.19 mm) 0.0025” (0.635 mm) to 0.0100” (0.254 mm)

Max. Label Roll Outer Diameter 5.04” (128mm) N.A.

Inner Core Diameter 1.57” (40mm) N.A.

Max. Ribbon Outer Diameter N.A. N.A.

Interface

 USB

 RS232/ LAN/ IEEE1284

 USB

 Centronics® Parallel port



RS232 at 600 to 38,400 BPS

Options

 Cutter

 Dispenser + Label present sensor

 External media supply stand

 RTC

 Linerless Kit (Without Cutter)

 Resident scalable fonts

 Keypad

 SATO Label Gallery™

 Light duty cutter

 Label present sensor

 External media supply stand

 ILPC plug-in modules

 Standard cutter

 Resident scalable fonts

 DMX100 ethernet print server

 Adjustable media sensor

CG4 Strengths

• Larger memory storage space

• Compact Size

• Lighter, More portable

• Standard quick print speed of 4dpi for all

models

• Option of linerless labels

• Multiple Interface

• Easy media loading

• Comes with user-friendly keypad for ease

of data input

• Anti-microbial casing that comply with

industrial standards

• Safety top cover latch

• Distinctive chassis colour more resistant

to dirt & dust

• Strong & indestructible chassis built with

ABS (reinforced fibreglass) material

Manufacturer SATO Godex

Hardware Specifications CG408 CG412 EZ1100 Plus Model

List Price (Base Model) DT: (USD 595)

TT: (USD 695) DT: (USD 750)

TT: (USD 850) N.A.

Resolution 203dpi 305dpi 203dpi

Max Print Speed 4 ips 4 ips

Print Method Direct thermal, thermal transfer Direct thermal, thermal transfer

Max Print Area 4.09” (104 mm) to 11.81” (300 mm) 4.25” (108 mm) to ~

Memory 8 MB SDRAM; 4 MB Flash 8 MB SDRAM; 4 MB Flash

Dimensions 6.81” (H) x 7.05” (W) x 9.37” (D) 6.8” (H) x 8.9” (W) x 11.2” (D)

Weight DT: 3.5lbs (1.7kg), TT: 4.2lbs (1.9kg) 2.2 lbs (2.72 kg)

Media Specifications

0.98” (25mm) to 4.33”(110mm) 1” (25 mm) to 4.64” (118 mm)

Media Width

(Without backing paper) 0.87” (22 mm) to 4.21” (107 mm)

0.87” (25mm) to 11.93” (303mm) N.A. Media Length (Tear Off)

(Without backing paper) 0.87” (22 mm) to 11.81” (300 mm)

Media Thickness 0.002” (0.06 mm) to 0.007” (0.19 mm) 0.003” (0.06 mm) to 0.01” (0.25mm)

Max. Label Roll Outer Diameter 5.04” (128mm) 5” (127 mm)

Inner Core Diameter 1.57” (40mm) 1” (25.4mm), 1.5” (38.1mm), 3” (76.2mm)

Max. Ribbon Outer Diameter N.A. 2.67” (68 mm)

Interface

 USB

 RS232/ LAN/ IEEE1284

 USB port

 RS232

 Parallel port: Centronics® port 36-pin

Options

 Cutter

 Dispenser + Label present sensor

 External media supply stand

 RTC

 Linerless Kit (Without Cutter)

 Resident scalable fonts

 Keypad

 SATO Label Gallery™

 Rotary cutter

 Label stripper

 External label rewinder

 Compact flash (CF) card socket with RTC

 Internal Ethernet adapter card

CG4 is better

• Higher print resolution

• Compact Size

• 1kg lighter, More portable

• Larger label roll outer diameter – print

more labels

• Option of linerless labels

• Multiple Interface

• Comes with user-friendly keypad for ease

of data input

• Easy media loading

• Anti-microbial casing that comply with

industrial standards

• Safety top cover latch

• Distinctive chassis colour more resistant

to dirt & dust

• Strong & indestructible chassis built with

ABS (reinforced fibreglass) material

Manufacturer SATO Godex

Hardware Specifications CG408 CG412 EZ1200 Plus EZ1300 Plus Model

List Price (Base Model) DT: (USD 595)

TT: (USD 695) DT: (USD 750)

TT: (USD 850) N.A.

Resolution 203dpi 305dpi 203dpi 300 dpi

Max Print Speed 4 ips 2 ips – 6 ips 2 ips – 4 ips

Print Method Direct thermal, thermal transfer Direct thermal, thermal transfer

Max Print Area 4.09” (104 mm) to 11.81” (300 mm) 4.25” (108mm) to ~ 4.16” (105.7mm) to ~

Memory 8 MB SDRAM; 4 MB Flash 8 MB SDRAM; 4 MB Flash

Dimensions 6.81” (H) x 7.05” (W) x 9.37” (D) 6.8” (H) x 8.9” (W) x 11.2” (D)

Weight DT: 3.5lbs (1.7kg), TT: 4.2lbs (1.9kg) 6lbs (2.72 kg)

Media Specifications

0.98” (25mm) to 4.33”(110mm) 1” (25 mm) to 4.64” (118mm)

Media Width

(Without backing paper) 0.87” (22 mm) to 4.21” (107 mm)

0.87” (25mm) to 11.93” (303mm) N.A. Media Length (Tear Off)

(Without backing paper) 0.87” (22 mm) to 11.81” (300 mm)

Media Thickness 0.002” (0.06 mm) to 0.007” (0.19 mm) 0.0025” (0.06 mm) to 0.0098” (0.25mm)

Max. Label Roll Outer Diameter 5.04” (128mm) 4.92” (125 mm)

Inner Core Diameter 1.57” (40mm) 1” (25.4mm), 1.5” (38.1mm), 3” (76.2mm)

Max. Ribbon Outer Diameter N.A. 2.67” (68 mm)

Interface

 USB

 RS232/ LAN/ IEEE1284

 USB port

 RS232 (Baud rate: 4800 – 115200, DSR/DTR)

 Parallel port: Bi-direction

Options

 Cutter

 Dispenser + Label present sensor

 External media supply stand

 RTC

 Linerless Kit (Without Cutter)

 Resident scalable fonts

 Keypad

 SATO Label Gallery™

 Rotary cutter module

 Stripper module

 Compact flash (CF) card socket with real time

clock (RTC)

 Internal Ethernet adapter card

CG4 is better

• Higher print resolution

• Standard quick print speed of 4dpi for all

models

• Larger label roll outer diameter – print

more labels

• Compact Size

• 1kg lighter, More portable

• Option of linerless labels

• Multiple Interface

• Comes with user-friendly keypad for ease

of data input

• Easy media loading

• Anti-microbial casing that comply with

industrial standards

• Safety top cover latch

• Distinctive chassis colour more resistant

to dirt & dust

• Strong & indestructible chassis built with

ABS (reinforced fibreglass) material

Manufacturer SATO Zebra

Hardware Specifications CG408 CG412 GX420d/ GX420t/ GX430t Model

List Price (Base Model) DT: (USD 595)

TT: (USD 695) DT: (USD 750)

TT: (USD 850) DT: (USD 695) TT: (USD 795) TT: (USD 950)

Resolution 203 dpi 305 dpi 203 dpi 203 dpi 300 dpi

Max Print Speed 4 ips 6 ips 6 ips 4 ips

Print Method Direct thermal, thermal transfer DT DT/ TT DT/ TT

Max Print Area 4.09” (104 mm) to 11.81” (300 mm) 4.09” (104 mm) to ~

Memory 8 MB SDRAM; 4 MB Flash 8 MB SDRAM; 4 MB Flash

Dimensions 6.81” (H) x 7.05” (W) x 9.37” (D) DT: 6” (H) x 6.75” (W) x 8.25” (D)

TT: 7.5” (H) x 7.6” (W) x 10” (D)

Weight DT: 3.5lbs (1.7kg), TT: 4.2lbs (1.9kg) DT: 3 lbs (1.4kg) TT: 4.6 lbs (2.1 kg)

Media Specifications

0.98” (25mm) to 4.33”(110mm) 0.75” (19mm) to 4.25” (108 mm)

Media Width

(Without backing paper) 0.87” (22 mm) to 4.21” (107 mm)

0.87” (25mm) to 11.93” (303mm) Media Length (Tear Off)

(Without backing paper) 0.87” (22 mm) to 11.81” (300 mm)

Media Thickness 0.002” (0.06 mm) to 0.007” (0.19 mm) 0.003” (0.08 mm) to 0.0075” (0.19 mm)

Max. Label Roll Outer Diameter 5.04” (128mm) 5” (127 mm)

Inner Core Diameter 1.57” (40mm) 0.5” (12.7 mm)

Max. Ribbon Outer Diameter N.A. 1.36” (35 mm)

Interface

 USB

 RS232/ LAN/ IEEE1284

 USB

 RS-232 (DB9)

 Parallel (DB-25)

 ZebraNet 10/100 PrintServer (optional),

replaces parallel

 802.11b/g wireless or Bluetooth wireless

Options

 Cutter

 Dispenser + Label present sensor

 External media supply stand

 RTC

 Linerless Kit (Without Cutter)

 Resident scalable fonts

 Keypad

 SATO Label Gallery™

 Cutter + RTC

 Dispenser

 Wireless option includes LCD for visual comm

 Adjustable media sensor

 KDU Plus & KDU keyboard display units for

standalone printing

 Asian and International Font Packs

CG4 is better

• Larger label roll outer diameter – print

more labels

• Lower priced

• Option of linerless labels

• Multiple Interface

• Easy media loading

• Anti-microbial casing that comply with

industrial standards

• Safety top cover latch

• Distinctive chassis colour more resistant

to dirt & dust

• Strong & indestructible chassis built with

ABS (reinforced fibreglass) material

Manufacturer SATO Zebra

Hardware Specifications CG408 CG412 GK420d Model

List Price (Base Model) DT: (USD 595);

TT: (USD 695) DT: (USD 750);

TT: (USD 850) (USD 695)

Resolution 203dpi 305dpi 203 dpi

Max Print Speed 4 ips 5 ips

Print Method Direct thermal, thermal transfer Direct thermal

Max Print Area 4.09” (104 mm) to 11.81” (300 mm) 4.09” (104 mm) to 39” (991 mm)

Memory 8 MB SDRAM; 4 MB Flash 8MB SDRAM; 4 MB Flash

Dimensions 6.81” (H) x 7.05” (W) x 9.37” (D) 6.” (H) x 6.75” (W) x 8.25” (D)

Weight DT: 3.5lbs (1.7kg), TT: 4.2lbs (1.9kg) 3.1 lbs (1.4 kg)

Media Specifications

0.98” (25mm) to 4.33”(110mm) 0.75” (19 mm) to 4.25”(108 mm)

Media Width

(Without backing paper) 0.87” (22 mm) to 4.21” (107 mm)

0.87” (25mm) to 11.93” (303mm) 0.38” (9.7 mm) to 39” (991 mm) Media Length (Tear Off)

(Without backing paper) 0.87” (22 mm) to 11.81” (300 mm)

Media Thickness 0.002” (0.06 mm) to 0.007” (0.19 mm) 0.003” (0.08 mm) to 0.0075” (0.20 mm)

Max. Label Roll Outer Diameter 5.04” (128mm) 5” (127 mm)

Inner Core Diameter 1.57” (40mm) 0.5” (12.7 mm), 1.0” (25.4 mm), 1.5” (37.1 mm)

Max. Ribbon Outer Diameter N.A. N.A.

Interface

 USB

 RS232/ LAN/ IEEE1284

 Serial RS-232 (DB-9)

 USB V1.1

 Internal ZebraNet 10/100 Print Server

Options

 Cutter

 Dispenser + Label present sensor

 External media supply stand

 RTC

 Linerless Kit (Without Cutter)

 Resident scalable fonts

 Keypad

 SATO Label Galler

™

 ZebraNet 10/100 Print Server for Ethernet

connectivity

 Label present sensor

 802.11b/g / Bluetooth wireless

 KDU Plus™ and KDU™ keyboard display units

for stand-alone printing solution

 Asian font sets

CG4 is better

• Higher print resolution

• Larger label roll outer diameter – print

more labels

• Compact Size & Portable

• Option of linerless labels

• Multiple Interface

• Comes with user-friendly keypad for ease

of data input

• Easy media loading

• Anti-microbial casing that comply with

industrial standards

• Safety top cover latch

• Distinctive chassis colour more resistant

to dirt & dust

• Strong & indestructible chassis built with

ABS (reinforced fibreglass) material

Manufacturer SATO Zebra

Hardware Specifications CG408 CG412 LP 2844 Model

List Price (Base Model) DT: (USD 595)

TT: (USD 695) DT: (USD 750)

TT: (USD 850) (USD 575)

Resolution 203dpi 305dpi 203 dpi

Max Print Speed 4 ips 4 ips

Print Method Direct thermal, thermal transfer Direct thermal

Max Print Area 4.09” (104 mm) to 11.81” (300 mm) 4.09” (104 mm) to ~

Memory 8 MB SDRAM; 4 MB Flash 256 KB SRAM; 512 KB Flash,

optional: 512 KB SRAM; 1 MB Flash

Dimensions 6.81” (H) x 7.05” (W) x 9.37” (D) 6.6” (H) x 7.6” (W) x 8.2” (D)

Weight DT: 3.5lbs (1.7kg), TT: 4.2lbs (1.9kg) 3.2 lbs (1.5 kg)

Media Specifications

0.98” (25mm) to 4.33”(110mm) 1” (25.4mm) to 4.25” (108mm)

Media Width

(Without backing paper) 0.87” (22 mm) to 4.21” (107 mm)

0.87” (25mm) to 11.93” (303mm) N.A. Media Length (Tear Off)

(Without backing paper) 0.87” (22 mm) to 11.81” (300 mm)

Media Thickness 0.002” (0.06 mm) to 0.007” (0.19 mm) N.A.

Max. Label Roll Outer Diameter 5.04” (128mm) N.A.

Inner Core Diameter 1.57” (40mm) N.A.

Max. Ribbon Outer Diameter N.A. N.A.

Interface

 USB

 RS232/ LAN/ IEEE1284

 USB

 RS-232 (DB9)

 Parallel (Centronics)

ZebraNet PrintServer II, Ethernet connectivit

Options

 Cutter

 Dispenser + Label present sensor

 External media supply stand

 RTC

 Linerless Kit (Without Cutter)

 Resident scalable fonts

 Keypad

 SATO Label Gallery™

 Cutter

 Asian and International Font Packs

 Internal ZebraNet PrintServer II for Ethernet

connectivity

 Dispenser with label taken sensor

CG4 is better

• Larger memory storage space

• Larger print area

• Higher print resolution

• Larger label roll outer diameter – print

more labels

• Compact Size

• Option of linerless labels

• Multiple Interface

• Comes with user-friendly keypad for ease

of data input

• Easy media loading

• Anti-microbial casing that comply with

industrial standards

• Safety top cover latch

• Distinctive chassis colour more resistant

to dirt & dust

• Strong & indestructible chassis built with

ABS (reinforced fibreglass) material

Manufacturer SATO Zebra

Hardware Specifications CG408 CG412 TLP 3842 Model

List Price (Base Model) DT: (USD 595)

TT: (USD 695) DT: (USD 750)

TT: (USD 850) (USD 845)

Resolution 203 dpi 305 dpi 300 dpi

Max Print Speed 4 ips 2 ips

Print Method Direct thermal, thermal transfer Thermal transfer

Max Print Area 4.09” (104 mm) to 11.81” (300 mm) 4.09” (104 mm) to ~

Memory 8 MB SDRAM; 4 MB Flash 512 KB SRAM; 1 MB Flash

Dimensions 6.81” (H) x 7.05” (W) x 9.37” (D) 6.8” (H) x 7.9” (W) x 9.75” (D)

Weight DT: 3.5lbs (1.7kg), TT: 4.2lbs (1.9kg) 3.2 lbs (1.5 kg)

Media Specifications

0.98” (25mm) to 4.33”(110mm) 1” (25.4mm) to 4.25” (108 mm)

Media Width

(Without backing paper) 0.87” (22 mm) to 4.21” (107 mm)

0.87” (25mm) to 11.93” (303mm) 11” (279 mm) Max Media Length (Tear Off)

(Without backing paper) 0.87” (22 mm) to 11.81” (300 mm)

Media Thickness 0.002” (0.06 mm) to 0.007” (0.19 mm) 0.003” (0.08 mm) to 0.007” (0.18 mm)

Max. Label Roll Outer Diameter 5.04” (128mm) 5” (127 mm)

Inner Core Diameter 1.57” (40mm) 1.0” (25.4 mm) and 1.5” (38 mm)

Max. Ribbon Outer Diameter N.A. 1.34” (34 mm)

Interface

 USB

 RS232/ LAN/ IEEE1284

 USB

 RS-232 (DB9)



Parallel (Centronics)

Options

 Cutter

 Dispenser + Label present sensor

 External media supply stand

 RTC

 Linerless Kit (Without Cutter)

 Resident scalable fonts

 Keypad

 SATO Label Gallery™

 Cutter

 Internet ZebraNet PrintServer II for Ethernet

connectivity

 Dispenser with label taken sensor

 Asian Font Set

CG4 is better

• Larger memory storage space

• Higher print speed

• Higher print resolution

• Larger label roll outer diameter – print

more labels

• Longer media length

• Competitively priced

• Compact size

• Option of linerless labels

• Multiple Interface

• Comes with user-friendly keypad for ease

of data input

• Easy media loading

• Anti-microbial casing that comply with

industrial standards

• Safety top cover latch

• Distinctive chassis colour more resistant

to dirt & dust

• Strong & indestructible chassis built with

ABS (reinforced fibreglass) material

Manufacturer SATO Zebra

Hardware Specifications CG408 CG412 TLP 3844 Z Model

List Price (Base Model) DT: (USD 595)

TT: (USD 695) DT: (USD 750)

TT: (USD 850) (USD 895)

Resolution 203 dpi 305 dpi 300 dpi

Max Print Speed 4 ips 4 ips

Print Method Direct thermal, thermal transfer Thermal transfer

Max Print Area 4.09” (104 mm) to 11.81” (300 mm) 4.09” (104 mm) to ~

Memory 8 MB SDRAM; 4 MB Flash 8 MB SDRAM; 4 MB Flash

Dimensions 6.81” (H) x 7.05” (W) x 9.37” (D) 6.8” (H) x 7.8” (W) x 9.4” (D)

Weight DT: 3.5lbs (1.7kg), TT: 4.2lbs (1.9kg) 3.7 lbs (1.7 kg)

Media Specifications

0.98” (25mm) to 4.33”(110mm) 1” (25.4mm) to 4.25” (108 mm)

Media Width

(Without backing paper) 0.87” (22 mm) to 4.21” (107 mm)

0.87” (25mm) to 11.93” (303mm) Media Length (Tear Off)

(Without backing paper) 0.87” (22 mm) to 11.81” (300 mm)

Media Thickness 0.002” (0.06 mm) to 0.007” (0.19 mm) 0.003” (0.08 mm) to 0.007” (0.18 mm)

Max. Label Roll Outer Diameter 5.04” (128mm) 5” (127 mm)

Inner Core Diameter 1.57” (40mm) 1.0” (25.4 mm) and 1.5” (38 mm)

Max. Ribbon Outer Diameter N.A. 1.36” (33 mm)

Interface

 USB

 RS232/ LAN/ IEEE1284

 USB

 RS-232 (DB9)

 Parallel (Centronics)

 ZebraNet PrintServer II for Ethernet

connectivity (internal or external)

Options

 Cutter

 Dispenser + Label present sensor

 External media supply stand

 RTC

 Linerless Kit (Without Cutter)

 Resident scalable fonts

 Keypad

 SATO Label Galler

™

 Cutter

 Asian and International Font Packs

 Internal ZebraNet PrintServer II for Ethernet

connectivity

 Dispenser with label taken sensor

CG4 is better

• Higher print resolution

• Compact size

• Larger label roll outer diameter – print

more labels

• Lower priced

• Option of linerless labels

• Multiple Interface

• Comes with user-friendly keypad for ease

of data input

• Easy media loading

• Anti-microbial casing that comply with

industrial standards

• Safety top cover latch

• Distinctive chassis colour more resistant

to dirt & dust

• Strong & indestructible chassis built with

ABS (reinforced fibreglass) material

Manufacturer SATO Intermec

Hardware Specifications CG408 CG412 PC4 Series Model

List Price (Base Model) DT: (USD 595)

TT: (USD 695) DT: (USD 750)

TT: (USD 850) (USD 545)

Resolution 203 dpi 305 dpi 203 dpi

Max Print Speed 4 ips 4 ips

Print Method Direct thermal, thermal transfer Direct thermal/thermal transfer

Max Print Area 4.09” (104 mm) to 11.81” (300 mm) 4.65” (118 mm) to ~

8 MB SDRAM; 4 MB Flash Standard: 1 MB Flash, 2 MB DRAM

Memory

Options: 1 MB Flash

Dimensions 6.81” (H) x 7.05” (W) x 9.37” (D) 6.58” (H) x 9.06” (W) x 10.11” (D)

Weight DT: 3.5lbs (1.7kg), TT: 4.2lbs (1.9kg) 5.07 lbs (2.3 kg)

Media Specifications

0.98” (25mm) to 4.33”(110mm) 1” (25.4 mm) to 4.65” (118 mm)

Media Width

(Without backing paper) 0.87” (22 mm) to 4.21” (107 mm)

0.87” (25mm) to 11.93” (303mm) N.A. Media Length (Tear Off)

(Without backing paper) 0.87” (22 mm) to 11.81” (300 mm)

Media Thickness 0.002” (0.06 mm) to 0.007” (0.19 mm) N.A.

Max. Label Roll Outer Diameter 5.04” (128mm) 5” (127 mm)

Inner Core Diameter 1.57” (40mm) 1” (25.4 mm)

Max. Ribbon Outer Diameter N.A. 1.6” (41 mm)

Interface

 USB

 RS232/ LAN/ IEEE1284

 RS-232C

 USB V.1.1

 Centronics

Options

 Cutter

 Dispenser + Label present sensor

 External media supply stand

 RTC

 Linerless Kit (Without Cutter)

 Resident scalable fonts

 Keypad

 SATO Label Gallery™

 Flash memory cartridge

 Serial communication cable

 RS232C scanner cable

 Asian fonts cartridges

 Cutter unit

 Keyboard display unit

 External Ethernet adapter

 300 dpi

 Mobile battery unit

CG4 is better

• Higher print resolution

• Larger memory storage space

• 0.6kg lighter, More portable

• Compact size

• Larger label roll outer diameter – print

more labels

• Option of linerless labels

• Multiple Interface

• Comes with user-friendly keypad for ease

of data input

• Easy media loading

• Anti-microbial casing that comply with

industrial standards

• Safety top cover latch

• Distinctive chassis colour more resistant

to dirt & dust

• Strong & indestructible chassis built with

ABS (reinforced fibreglass) material

Manufacturer SATO Intermec

Hardware Specifications CG408 CG412 PF8d PF8t Model

List Price (Base Model) DT: (USD 595)

TT: (USD 695) DT: (USD 750)

TT: (USD 850) N.A. N.A.

Resolution 203 dpi 305 dpi 203 dpi 203 dpi

Max Print Speed 4 ips 4 ips 2 ips

Print Method Direct thermal, thermal transfer Direct thermal Thermal transfer

Max Print Area 4.09” (104 mm) to 11.81” (300 mm) 4.65” (118mm to ~) 4.65” (118mm to ~)

8 MB SDRAM; 4 MB Flash 8 MB SDRAM; 4 MB Flash

Memory

Optional: 1 GB compact flash (PF8t)

Dimensions 6.81” (H) x 7.05” (W) x 9.37” (D) 4.56” (H) x 6.61” (W) x

8.58” (D) 6.77” (H) x 8.9”” (W) x

11.2” (D)

Weight DT: 3.5lbs (1.7kg), TT: 4.2lbs (1.9kg) 4.41 lbs (2.0 kg) 5.07 lbs (2.5 kg)

Media Specifications

0.98” (25mm) to 4.33”(110mm) 4.65” (118 mm) Max

Media Width

(Without backing paper) 0.87” (22 mm) to 4.21” (107 mm)

0.87” (25mm) to 11.93” (303mm) N.A. N.A. Media Length (Tear Off)

(Without backing paper) 0.87” (22 mm) to 11.81” (300 mm)

Media Thickness 0.002” (0.06 mm) to 0.007” (0.19 mm) N.A.

Max. Label Roll Outer Diameter 5.04” (128mm) 5” (127mm)

Inner Core Diameter 1.57” (40mm) 1” (25.4mm) to 1.5” (38.1 mm)

Max. Ribbon Outer Diameter N.A. N.A.

Interface

 USB

 RS232/ LAN/ IEEE1284

 RS232C

 USB v2.0

 Centronics /parallel

Options

 Cutter

 Dispenser + Label present sensor

 External media supply stand

 RTC

 Linerless Kit (Without Cutter)

 Resident scalable fonts

 Keypad

 SATO Label Gallery™

 Serial communication cable

 RS232 scanner cable

 RTC

 Self-strip with label-taken sensor

 Cutter unit

 Easy LAN 100e

 External Ethernet adapter

 1 GB compact flash

 300 dpi optional

CG4 is better

• Higher print resolution

• Higher print speed

• Compact size

• 0.6kg lighter, More portable

• Larger label roll outer diameter – print

more labels

• Option of linerless labels

• Multiple Interface

• Comes with user-friendly keypad for ease

of data input

• Easy media loading

• Anti-microbial casing that comply with

industrial standards

• Safety top cover latch

• Distinctive chassis colour more resistant

to dirt & dust

• Strong & indestructible chassis built with

ABS (reinforced fibreglass) material

Manufacturer SATO TSC

Hardware Specifications CG408 CG412 TDP-245 Plus Model

List Price (Base Model) DT: (USD 595)

TT: (USD 695) DT: (USD 750)

TT: (USD 850) N.A.

Resolution 203 dpi 305 dpi 203 dpi

Max Print Speed 4 ips 2, 3, 4, 5 ips

Print Method Direct thermal, thermal transfer Direct thermal, thermal transfer

Max Print Area 4.09” (104 mm) to 11.81” (300 mm) 4.25” (108 mm) to 90” (2286 mm)

8 MB SDRAM; 4 MB Flash 8 MB SDRAM; 4 MB Flash

Memory

(Optional SD card slot for memory expansion)

Dimensions 6.81” (H) x 7.05” (W) x 9.37” (D) 7.4” (H) x 8.39” (W) x 12.36” (D)

Weight DT: 3.5lbs (1.7kg), TT: 4.2lbs (1.9kg) N.A.

Media Specifications

0.98” (25mm) to 4.33”(110mm) 0.78” – 4.4” (20 – 112 mm)

Media Width

(Without backing paper) 0.87” (22 mm) to 4.21” (107 mm)

0.87” (25mm) to 11.93” (303mm) N.A. Media Length (Tear Off)

(Without backing paper) 0.87” (22 mm) to 11.81” (300 mm)

Media Thickness 0.002” (0.06 mm) to 0.007” (0.19 mm) 0.002” (0.06 mm) to 0.007” (0.19 mm)

Max. Label Roll Outer Diameter 5.04” (128mm) 5” (127 mm)

Inner Core Diameter 1.57” (40mm) N.A.

Max. Ribbon Outer Diameter N.A. N.A.

Interface

 USB

 RS232/ LAN/ IEEE1284

 RS-232

 Centronics

 USB 2.0

Options

 Cutter

 Dispenser + Label present sensor

 External media supply stand

 RTC

 Linerless Kit (Without Cutter)

 Resident scalable fonts

 Keypad

 SATO Label Gallery™

 Main board integrated with internal Ethernet

 Keyboard display unit (KU-007plus & KP-200)

 RTC

 External Ethernet print server module

 External wireless (802.11b/g) print server

 External roll mount, media OD, 214 mm (8.4”)

with 1” or 3” core.

 3” core label spindle

 Contact CCD bar code scanner

 Long range linear image laser barcode

scanner

CG4 is better

• Higher print resolution

• Smaller, More compact size

• Larger label roll outer diameter – print

more labels

• Option of linerless labels

• Multiple Interface

• Comes with user-friendly keypad for ease

of data input

• Easy media loading

• Anti-microbial casing that comply with

industrial standards

• Safety top cover latch

• Distinctive chassis colour more resistant

to dirt & dust

• Strong & indestructible chassis built with

ABS (reinforced fibreglass) material

Manufacturer SATO TSC

Hardware Specifications CG408 CG412 TTP-245C TTP-343C TTP-244CE Model

List Price (Base Model) DT: (USD 595)

TT: (USD 695) DT: (USD 750)

TT: (USD 850) N.A.

Resolution 203 dpi 305 dpi 203 dpi 300 dpi 203 dpi

Max Print Speed 4 ips Up to 6 ips Up to 4 ips Up to 4 ips

Print Method Direct thermal, thermal transfer Thermal transfer/direct thermal

Max Print Area 4.09” (104 mm) to 11.81” (300 mm) 4.25” (108 mm) to

90” (2,286 mm) 4.17” (106 mm) to

40” (1,016 mm) 4.25” (108 mm) to

90” (2,286 mm)

Memory 8 MB SDRAM; 4 MB Flash 8 MB SDRAM; 2 MB Flash (optional SD card

slot for memory expansion) 8 MB SDRAM; 2 MB

Flash

Dimensions 6.81” (H) x 7.05” (W) x 9.37” (D) 6.81” (H) x 7.95” (W) x 10.16” (D)

Weight DT: 3.5lbs (1.7kg), TT: 4.2lbs (1.9kg) N.A.

Media Specifications

0.98” (25mm) to 4.33”(110mm) 1.0” – 4.4” (25.4 – 112 mm)

Media Width

(Without backing paper) 0.87” (22 mm) to 4.21” (107 mm)

0.87” (25mm) to 11.93” (303mm) N.A. Media Length (Tear Off)

(Without backing paper) 0.87” (22 mm) to 11.81” (300 mm)

Media Thickness 0.002” (0.06 mm) to 0.007” (0.19 mm) 0.002” (0.06 mm) to 0.007” (0.19 mm)

Max. Label Roll Outer Diameter 5.04” (128mm) 5” (127 mm)

Inner Core Diameter 1.57” (40mm) 1” (25.4 mm) & 1.5” (38.1 mm)

Max. Ribbon Outer Diameter N.A. 0.5” (12.7 mm)

Interface

 USB

 RS232/ LAN/ IEEE1284

 RS-232C

 Centronics

 USB 2.0

 Internal ethernet

 USB 2.0

Options

 Cutter

 Dispenser + Label present sensor

 External media supply stand

 RTC

 Linerless Kit (Without Cutter)

 Resident scalable fonts

 Keypad

 SATO Label Gallery™

 Guillotine cutter

 Peel off module assembly

 RTC

 Linerless kit

 Keyboard display unit

 Contact CCD bar code scanner

 Long-range linear image barcode scanner

 External wireless (802.11b) print server

 External media hanger with 3” OD label spindle

 External

media hanger

with 3” OD

label spindle

CG4 is better

• Higher print resolution

• Smaller, More compact size

• Larger label roll outer

diameter – print more labels

• Option of linerless labels

• Multiple Interface

• Comes with user-friendly

keypad for ease of data input

• Easy media loading

• Anti-microbial casing that

comply with industrial

standards

• Safety top cover latch

• Distinctive chassis colour

more resistant to dirt & dust

• Strong & indestructible

chassis built with ABS

(reinforced fibreglass)

material

Manufacturer SATO Toshiba Tec

Hardware Specifications CG408 CG412 B-SV4D Model

List Price (Base Model) DT: (USD 595)

TT: (USD 695) DT: (USD 750)

TT: (USD 850) N.A.

Resolution 203 dpi 305 dpi 203 dpi

Max Print Speed 4 ips Up to 5 ips

Print Method Direct thermal, thermal transfer Direct thermal

Max Print Area 4.09” (104 mm) to 11.81” (300 mm) 4.25” (108 mm) to 24” (609.6 mm)

8 MB SDRAM; 4 MB Flash N.A.

Memory

Dimensions 6.81” (H) x 7.05” (W) x 9.37” (D) 6.65” (H) x 7.87” (W) x 9.13” (D)

Weight DT: 3.5lbs (1.7kg), TT: 4.2lbs (1.9kg) 4.5lbs (2 kg)

Media Specifications

0.98” (25mm) to 4.33”(110mm) N.A.

Media Width

(Without backing paper) 0.87” (22 mm) to 4.21” (107 mm)

0.87” (25mm) to 11.93” (303mm) N.A. Media Length (Tear Off)

(Without backing paper) 0.87” (22 mm) to 11.81” (300 mm)

Media Thickness 0.002” (0.06 mm) to 0.007” (0.19 mm) N.A.

Max. Label Roll Outer Diameter 5.04” (128mm) 5” (127mm)

Inner Core Diameter 1.57” (40mm) N.A.

Max. Ribbon Outer Diameter N.A. N.A.

Interface

 USB

 RS232/ LAN/ IEEE1284

 Serial port

 Parallel port

 USB

 LAN

Options

 Cutter

 Dispenser + Label present sensor

 External media supply stand

 RTC

 Linerless Kit (Without Cutter)

 Resident scalable fonts

 Keypad

 SATO Label Gallery™

 Keyboard

 Extra cutter module for thick paper and partial

cutting

 Expansion flash memory module

 Strip sensor mode

 Linerless kit

 LAN adapter

CG4 is better

• Higher print resolution

• Lighter, More compact size

• Direct thermal & thermal transfer option

both available

• Longer label roll outer diameter – print

more labels

• Option of linerless labels

• Multiple Interface

• Comes with user-friendly keypad for ease

of data input

• Easy media loading

• Anti-microbial casing that comply with

industrial standards

• Safety top cover latch

• Distinctive chassis colour more resistant

to dirt & dust

• Strong & indestructible chassis built with

ABS (reinforced fibreglass) material

FREQUENTLY ASKED QUESTIONS

last updated on January 31, 2010

1. What are the interfaces available on the new CG4?

The New CG4 printer comes with 2 standard built-in interface combinations.

 USB + RS232C

 USB + Parallel

 USB + LAN

2. Which of the 2 built-in interfaces is set as default on the CG4 printer?

USB is set as the default interface at the factory. To switch from USB to RS232C, LAN or

Parallel, please refer to the procedure described in the CG4 Quick Guide or Operator Manual

3. Is there any utility available to configure the internal LAN interface on the new CG4?

The internal built-in LAN interface on the new CG4 (USB + LAN) can be configured using the

SATO All-In-One Tool or via Web browser.

4. The CG4 printer does not have any dip-switches. What is the method to change the

printer settings?

The printer settings can be changed by using the SATO All-In-One Tool or by using printer

commands.

5. What is the memory of the new CG4?

The new CG4 comes with 4MB Flash ROM and 8MB SDRAM.

6. What are the Asian Codepages available on the CG4?

To date, there are 3 Asian Codepages available for the CG4 printer:

• Chinese GB 2312 (24 x 24)

• Korean (Gothic - KSX1001 16×16dot, Mincho - KSX1001 24×24dot)

• Thai

7. Will the CG4 support any emulation?

ZPL, EPL, DPL and TCPL emulations will be supported by the CG4. The target date of

availability will be advised.

8. What are the options available on the new CG4?

Cutter, Dispenser, Linerless Kit, RTC and SATO Keypad

9. Can the CG4 print in Standalone mode?

Using the SATO Keypad, the CG4 printer can print in standalone mode. Label formats with

variable fields can be stored in the SATO Keypad memory or SD card thus eliminating the

need to have a permanent connection to a PC.

Alternatively, Label formats with variable fields can be stored in the printer memory. Using a

barcode scanner connected to the printer serial interface, the format number can be selected

and the variable data is inputted to the printer for printing.

10. What are the print resolutions available on the CG4?

The CG4 print has 2 printing resolutions – CG408: 203 dpi and CG412: 305 dpi. At a higher

resolution of 305dpi, the user can print better graphics or small 2D barcodes.

11. Can we change the print resolution by simply switching the print head just like GL

or GT series?

No. It is not possible to change the print resolution by simply switching the print head.

Some other parts such as the gear will also have to be changed. However, the same

firmware is used for both print resolutions.

12. Are there any Demo applications which can be used when promoting the new CG4

to business partners and customers?

Yes. Demo software applications are available to demonstrate printing of wristbands,

Healthcare labels, Asset ID Labels, Price Markdown labels and Ingredient Labels.

13. Is the CG4 chassis anti-microbial?

Yes. The CG4 chassis contains an antibacterial agent which is tested according to

JISZ2801: Antimicrobial products Standard.

14. Is there any variation in specifications for CG4 printers shipped to different

regions? What is the difference between EX1, EX2, EX4 and EX6 model types?

CG4 printers shipped to different regions (America, Europe and Asia-Pacific) are the

same except for the power cord and the safety approvals. The printers can be

differentiated as follows:

Model Type Regions Details

EX1 Americas US Power Cord

EX2 Europe and Asia Pacific 2 pins EU Power Cord

EX4 China • CCC Safety Approval

• China Power Cord

EX6 Korea • MIC Safety Approval

• Korea Power Cord

WARRANTY INFORMATION

Please contact your local SATO representative or authorized partner for product warranty

terms and condition.

SPARE PARTS INFORMATION

For complete spare parts lists and exploded view drawings, please contact your local SATO

representative or authorized partner.

Recommended Spare Parts

GLOSSARY OF TERMS

SATO All-In-One Tool: A SATO-developed printer control and management software

application. This tool allows users from their host PC, to configure and control printers

remotely.

SATO Keypad: an input device to enable users to enter data (a combination of numeric,

alphabetical and some symbols found on a keyboard)

Online Mode: Generally refers to the state when two or more devices are directly connected,

in this case the printer to a host PC where it is able to accept 2-way communication.

Standalone Printing: Printing without a PC. It usually requires a printer which can store label

designs and handle information added at time of print without using a computer. In the case of

the CG4, label designs are stored into the SATO keypad internal memory (or the SD card) and

variable data is inputted using the keypad.

Sato Cg 408 Users Manual POSITIONING SUMMARY

408 to the manual dee2b034-fbca-48c1-89de-6abf41fcd585

Navigation menu

Versions of this User Manual:

Views

Navigation
