GE Lighting Sol Users guide

Users guide

GE Sol Product User Manual
Function Instruction
1. Sol itself: On/Off, Dimming (5%-100%), CCT
2. Scheduling: Set up scheduling (or later smart control features), include time,
brightness, CCT, fade, trigger.
3. Administrator Control:
a. Sol can connect and control CbyGE devices include
C-life/C-Sleep/BR30/Sensors/Swtiches, etc.
b. Sol can set up group/scene/schedule settings with other CbyGE bulbs
(C-life/C-Sleep/BR30) and sensors.
4. Voice Control: Compatible with Amazon Voice Service (AVS), use CbyGE
Smart Lights skill which base on Amazon smart home skill.
a. Activation: Say “Alexa” or press the activation button on panel
b. Voice Command List:
“Alexa, turn on ____ (C by GE bulb name)”
“Alexa, set ____ (C by GE bulb name) to __%”
“Alexa, turn off ____ (Echo/Alexa group name)”
“Alexa, dim ____ (Echo/Alexa group name) (by25%)”
“Alexa, brighten ____ (Echo/Alexa group name) (by 25%)”
“Alexa, change ____ (C by GE bulb name) to shade of white”
“Alexa, make ____ (C by GE bulb name) warm white”
“Alexa, set ____ (C by GE bulb name) to daylight”
c. The AVS will interpret the voice and send command to Sol.
d. During voice control phase, the inner ring as indicator will on.
5. Voice Service: Support all Amazon Voice Service. For example, shopping,
playing music, call Uber, etc
6. Tele control (Out of home control): Allow App to control Sol & bulbs & sensors
even if the phone and CbyGE devices are not in the same LAN. (Ensure Sol
keep connected to internet, Sol & other CbyGE devices in same mesh
network.). For example, the user is in office, can use App to turn on/off the
CbyGE device at home. But voice control will not support far field control.
7. OTA: The firmware package will store in cloud, and check the update once per
day. If there is an update, App will remind users.
8. Inner speaker: Include one speaker internally, users can control the volume
up/down/mute by press the button on panel or voice control.
9. Timer: Inner ring indicates the last minute and remind time up.
10. Clock: Inner ring indicates rough time, missing at base part.
Appearance:
Copyright © 2017 Leedarson 2
Buttons
Copyright © 2017 Leedarson 3
Microphone Off：
Stop the microphone to capture voice, it will keep off status when the Sol restart
until press the button again to recover.
Volume：
Slide the volume adjust area to turn up/down the volume.
Press the +/- icon to turn up/down the volume
Press middle point for 1 second to quickly swtich to 25%/50%/75% volume
Voice control the vloume
Dimming：
Slide the dimming area to turn up/down the brightness.
Press the +/- icon to turn up/down the brightness
Press middle point for 1 second to quickly swtich to 25%/50%/75% brightness
Voice control the brightness
Activation：
Short press to activate the AVS
Long press 5 seconds to clear the router configuration and enter set up mode.
Ring switch：
Short press switch to turn on/off the outer ring
Long press 10 seconds when microphone off status, it will close the inner ring.
Combination—Activation + Microphone off：
Long press for 20s to factory reset.

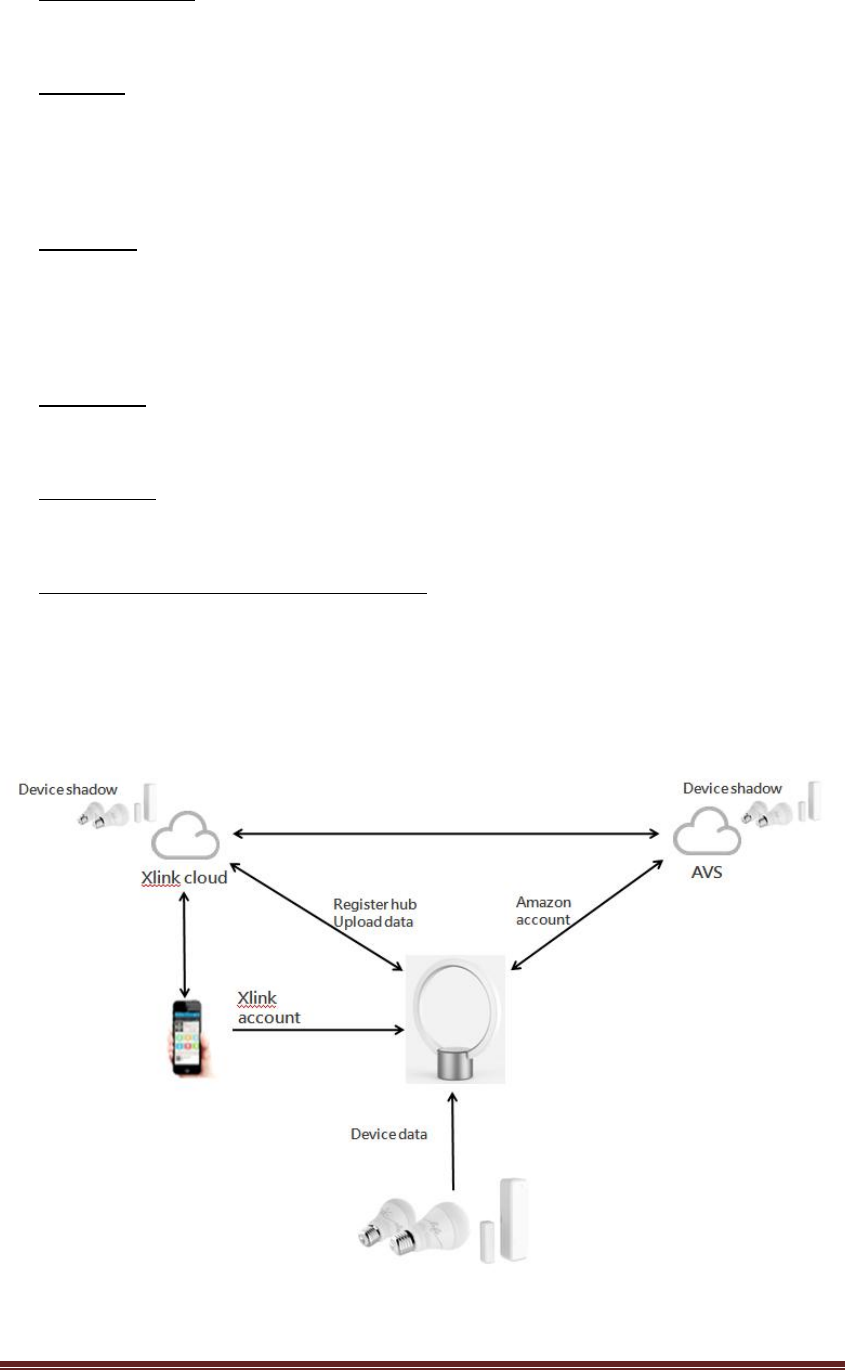

Working Architecture:
Setting:
Copyright © 2017 Leedarson 4
1. Phone Setting:
a. Create/Log-in account on CbyGE App
b. Pair the Wi-Fi inside the Sol to the LAN, home router network
c. Log-in Amazon account on Cbyge App -- Start AVS directly
d. Enable the CbyGE skill on Alexa App and link the CbyGE account –
Start CbyGE voice control
2. Phone Control:
a. Add Sol first, then add other lights or accessories
b. Set group, scene, schedule, all include in Sol
c. Status feedback to phone
3. Communication between phone and Xlink Cloud (CbyGE cloud): account info
and configurations
4. Communication between Sol and AVS
a. Sol capture the voice command and upload to AVS.
b. AVS get the device status feedback and send back to Sol for speak out.
5. Communication between AVS and Xlink cloud (CbyGE cloud)
a. AVS interpret the voice command to text, then go through Lambda
function transfer to Json command, and send to Xlink cloud.
b. Xlink cloud send back the device status to Lambda and AVS with text.
6. Communication between Xlink Cloud and Sol
a. Find the objected device in the cloud and send complete control
command to Sol.
b. Sol has all the device list and status, and send back to Xlink cloud.
7. Sol control the bulbs and interact with other accessories: The Wi-Fi module
handle every command and send command through BLE mesh. Bulbs send
back status to Sol.
Parameter:
产品型号
SOL
Rated Voltage
100-120V
Rated Power
25W
Outer Ring Power
≤10W
Outer Ring LED
2000K 650lm CRI＞70
3000K 600lm CRI＞80
6500K 350lm CRI＞80
Dimming
5%-100%
Inner Ring Power
≤6W
Buttons
5(Base Top):
Microphone off
Activation
Copyright © 2017 Leedarson 5
Volume slider
Brightness slider
Ring switch
Indicators
Microphone off (red)
Ring switch (white)
Work Temperature
0℃～40℃
Storage Temperature
-20℃～70℃
IP Level
IP20
Wireless
Yes
Ethernet
No
Clock
Yes
Siri
No
Alexa
Yes
Tele Control
Yes
OTA
Yes
Factory Reset
Yes
Ring Indication:
RING INDICATION
Object
Status
Light Color
Detail
Outer
Ring
Booting up
CCT 6500K
Inner
Ring
Idle:LED off
Off
Inner
Ring
Idle:Mic mute
Red
Ring
Idle:clock
hour:green
minute:blue
Inner
Ring
Booting up
Blue,Green
Blue LEDs on,green LED spot spin until
OK.
Then blue LED off from middle to 2 end
Inner
Ring
WiFi Setup mode
Orange
Spot
Copyright © 2017 Leedarson 6
Inner
Ring
Wake up
Blue
LED on, from 2 end to up
Inner
Ring
Listening
Blue
Alternately flash of 50% brightness of
the whole & 100% brightness of top 11
LEDs
Inner
Ring
Thinking
Blue,White
Whole ring
Inner
Ring
Talking
Blue,White
Whole ring
Inner
Ring
Privacy mode on
Red
Inner
Ring
Privacy mode
off
Off
Inner
Ring
Exception
Yellow
Whole ring,3 times
Inner
Ring
volume +/-
White
White LED length show the
volume,clockwise
Inner
Ring
Network error
Red
Whole ring,10 times
Inner
Ring
Mute by voice
White
Top 11 LEDs,3 times
Inner
Ring
Reset router
info
Orange
Spot
Inner
Ring
Reset SOL
Green
Whole ring,6 times
Inner
Ring
Timer
white
When the last minute, whole LEDs is on
for 5 seconds, then turn off 1
LED/s,anticlockwise
Remark:
The cycle of blink （slow）:1s
The cycle of blink （fast）:400ms
The speed of spin circles（slow）:45ms/spot,clockwise
The speed of spin circles（fast）:20ms/spot
The brightness of LED in dark circumstance：50%
The brightness of LED in bright circumstance：100%
When convert the switch of outer ring,the time of LEDs gradual change:3s
When the spot spin,each spot contain 2 LEDs;moving only one LED at every time.
CCT of inner ring:5000k
FCC statement
This equipment has been tested and found to comply with the limits for a Class B
Copyright © 2017 Leedarson 7
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
·If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
RF exposure warning
·This equipment must be installed and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must be installed to provide
a separation distance of at least 20 cm from all persons and must not be co-located
or operating in conjunction with any other antenna or transmitter.
NOTE: Any changes or modifications not expressly approved by the grantee of this
device could void the user's authority to operate the equipment.
