STREETWAVE™ User Guide

Release 5.7

Document Version 1.6

October 19, 2017

may not be reproduced, stored in a computerized, or other retrieval System or

transmitted in any form, or by any means whatsoever without the prior written

permission from Savari Inc.

Regulatory Compliance

IMPORTANT NOTE: FCC Compliance statement

Note: This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Any changes or modifications made to this device that are not expressly

approved by Savari, Inc. may void the user’s authority to operate the equipment.

IMPORTANT NOTE: FCC RF exposure statement

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. End users must follow the specific operating

instructions for satisfying RF exposure compliance. This transmitter must be at

least 20 cm from the user and must not be co‐located or operating in conjunction

with any other antenna or transmitter.

The information in this guide may change without notice. The manufacturer

assumes no responsibility for any errors that may appear in this guide.

RSU2 User Guide

Savari Inc., Confidential

Table of Contents

1INTRODUCTION...........................................................................................................................................7

2ABBREVIATIONS..........................................................................................................................................8

3SETUPGUIDE................................................................................................................................................9

3.1HARDWAREANDSOFTWARESPECIFICATIONS..................................................................................................9

3.2POWER.....................................................................................................................................................................9

3.3GPS...........................................................................................................................................................................9

3.4DSRCRADIOS.......................................................................................................................................................10

3.5ANTENNAS.............................................................................................................................................................10

3.6STORAGE................................................................................................................................................................10

3.7LED........................................................................................................................................................................10

3.8ETHERNET.............................................................................................................................................................10

3.9ENCLOSURE...........................................................................................................................................................10

4STREETWAVE™FEATURES.....................................................................................................................11

4.1DSRCRADIOPAIR................................................................................................................................................11

4.2IPV4ANDIPV6NETWORKING...........................................................................................................................12

4.3IMMEDIATEFORWARD.........................................................................................................................................12

UDPListener.........................................................................................................................................................12

4.3.1

UDPStreaming.....................................................................................................................................................13

4.3.2

4.4STOREANDREPEAT.............................................................................................................................................13

ActiveStoreandRepeatMessageConfiguration..................................................................................13

4.4.1

4.51609.3IPV6PROVIDER.....................................................................................................................................14

4.61609.2SECURITY................................................................................................................................................14

4.7INTERFACELOGGING............................................................................................................................................15

4.8DSRCMESSAGEFORWARD.................................................................................................................................15

5STREETWAVE™GETTINGSTARTEDUSINGTHECLI......................................................................16

5.1ACCESSINGMETHODS..........................................................................................................................................16

5.2DEFAULTCONFIGURATION(CLI).......................................................................................................................16

5.3SYSTEMSTATE.......................................................................................................................................................17

5.4APPLICATIONS.......................................................................................................................................................18

StoreandRepeat.................................................................................................................................................18

5.4.1

ImmediateForward...........................................................................................................................................18

5.4.2

Gpsoutput..............................................................................................................................................................20

5.4.3

Radio.........................................................................................................................................................................20

5.4.4

Ipv6Provider........................................................................................................................................................21

5.4.5

DSRCMessageForward...................................................................................................................................22

5.4.6

TCD............................................................................................................................................................................22

5.4.7

NTCPclient..............................................................................................................................................................24

5.4.8

RTCM.........................................................................................................................................................................24

5.4.9

5.5SYSTEMSTATUS....................................................................................................................................................24

DiskUsage..............................................................................................................................................................25

5.5.1

MemoryUsage......................................................................................................................................................25

5.5.2

CPUUsage..............................................................................................................................................................25

5.5.3

Network...................................................................................................................................................................25

5.5.4

Firewall....................................................................................................................................................................26

5.5.5

AccessControlList(ACL).................................................................................................................................27

5.5.6

GPSStatus..............................................................................................................................................................27

5.5.7

RSUUptime............................................................................................................................................................27

5.5.8

RSU2 User Guide

Savari Inc., Confidential

RSUStats.................................................................................................................................................................28

5.5.9

APPStats...........................................................................................................................................................30

5.5.10

5.6VISUALSTATUSINDICATORS...............................................................................................................................31

6USINGTHECOMMANDLINEINTERFACE(CLI)................................................................................32

6.1LOGFILEHANDLING............................................................................................................................................32

InterfaceLogs.......................................................................................................................................................32

6.1.1

Tx/RxPacketLogFileNameFormat.........................................................................................................32

6.1.2

RetrievingthePCAPFiles................................................................................................................................32

6.1.3

DeletingthePCAPFiles....................................................................................................................................33

6.1.4

6.2NETWORKCONFIGURATION................................................................................................................................33

IPAddressconfiguration.................................................................................................................................33

6.2.1

6.3FIREWALLCONFIGURATION................................................................................................................................33

6.4IMMEDIATEFORWARD.........................................................................................................................................33

6.5STOREANDREPEAT.............................................................................................................................................33

6.6SAMPLESAFETYPILOTDEPLOYMENTCONFIGURATION................................................................................34

6.7SCMSSERVERCONNECTION..............................................................................................................................36

HighLevelArchitecture...................................................................................................................................36

6.7.1

StreetWAVE™Configuration.........................................................................................................................37

6.7.2

ConfigureLANandDSRCIPaddressesonStreetWAVE™................................................................37

6.7.3

ConfigureFirewallRulestoForwardPacketsfromDSRCInterfacetoEthernetInterface

6.7.4

ofStreetWAVE™...................................................................................................................................................................38

ConfigureIPV6App.............................................................................................................................................38

6.7.5

PacketLoggingConfiguration......................................................................................................................39

6.7.6

CopyingtheSystemMessageLogs..............................................................................................................39

6.7.7

7FIRMWAREUPGRADEPROCEDUREUSINGTHECLI......................................................................41

RSU2 User Guide

Savari Inc., Confidential

LIST OF FIGURES

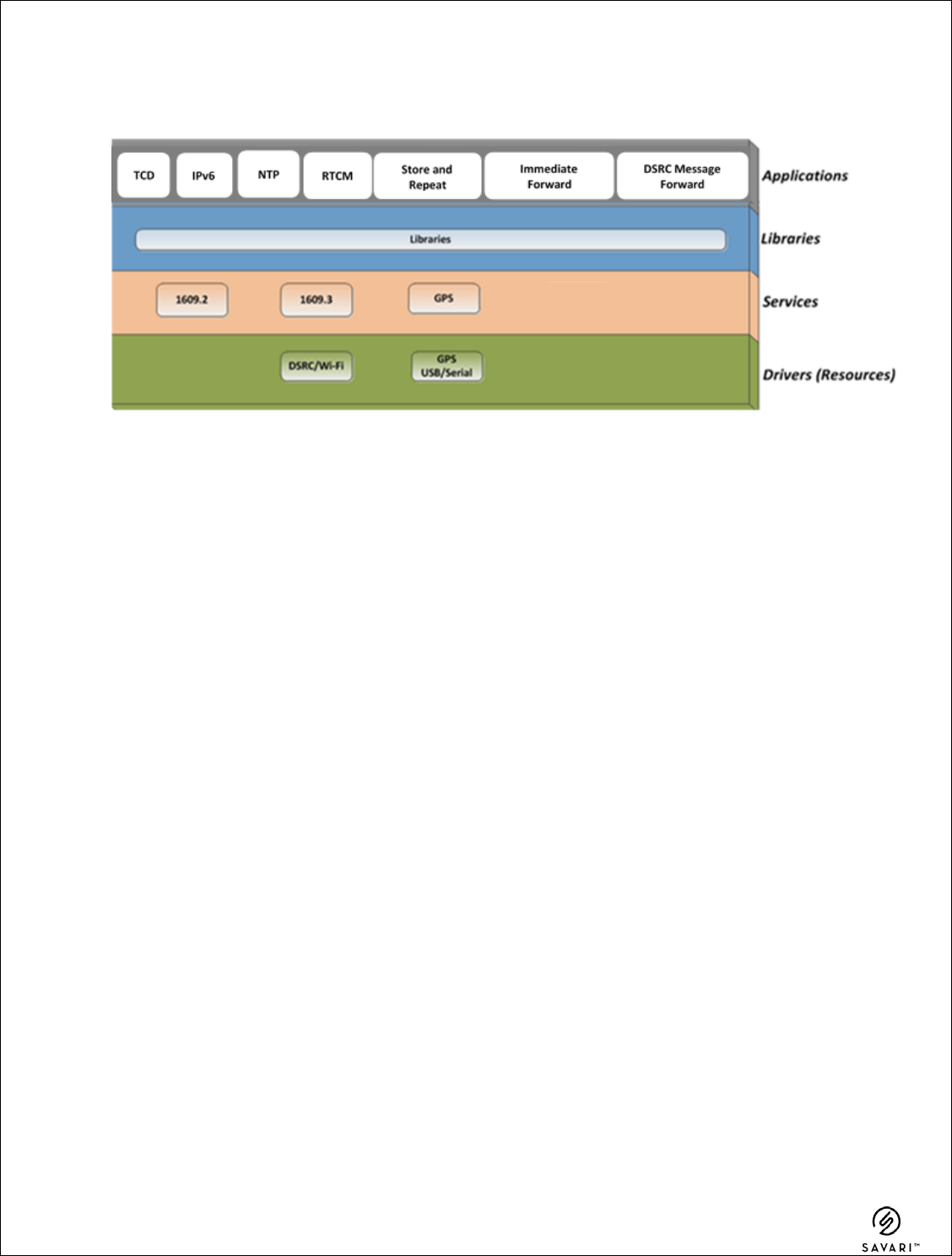

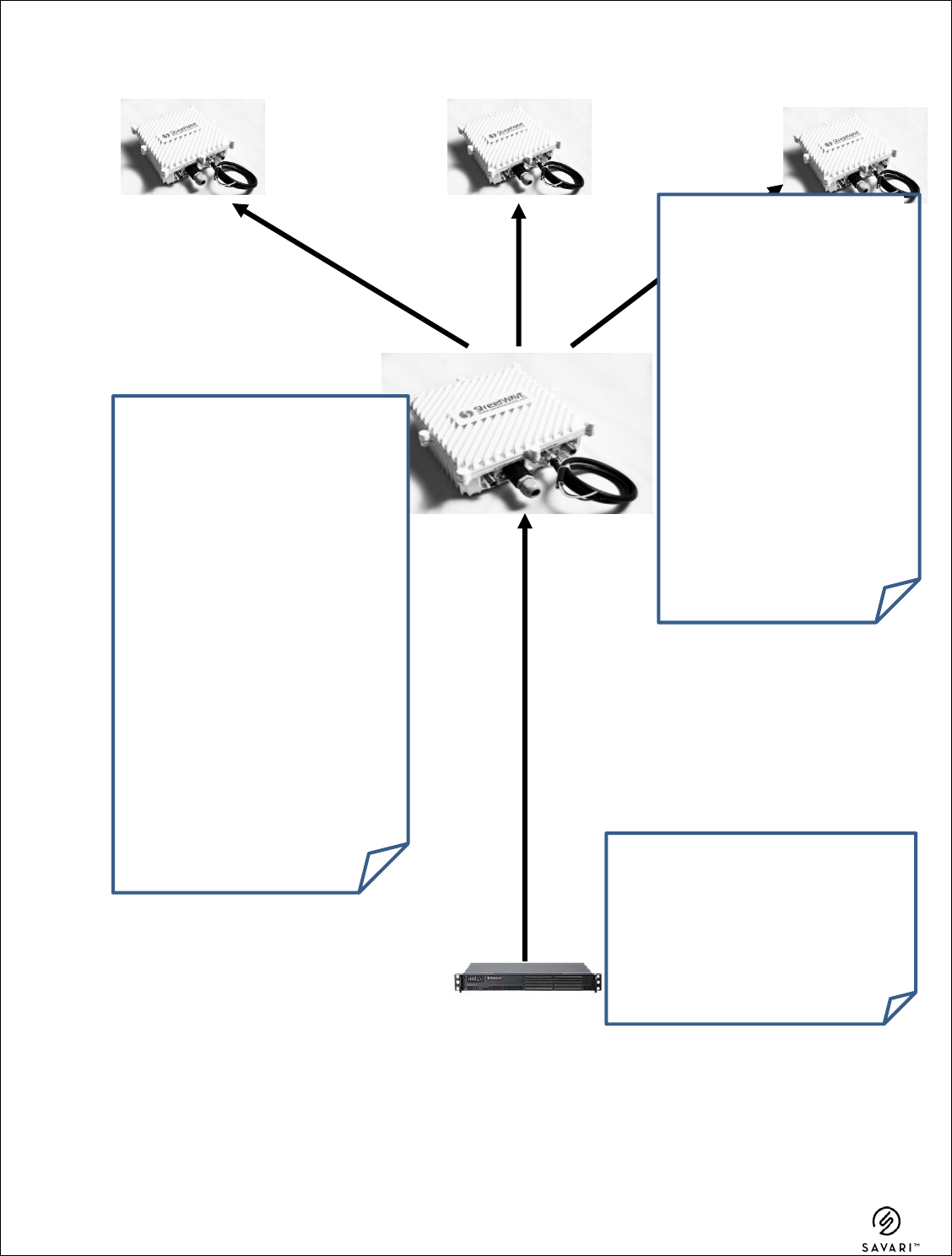

Figure 1: StreetWAVE Architecture Diagram ............................................................................... 11

Figure 2: Supported Applications ................................................................................................ 18

Figure 3: Store and Repeat ........................................................................................................... 18

Figure 4: Immediate Forward ...................................................................................................... 19

Figure 5: GPS Output................................................................................................................... 20

Figure 6: Radio ............................................................................................................................ 20

Figure 7: IPv6-provider................................................................................................................ 21

Figure 8: DSRC Message Forward .............................................................................................. 22

Figure 9: Ntpclient ....................................................................................................................... 24

Figure 10: RTCM ......................................................................................................................... 24

Figure 11: Safety Pilot Deployment ............................................................................................ 35

REVISION HISTORY

Sl No Date Chapter Description Version

1 30-05-2017 5.5, 5.6 Added supported services with screenshots

2 30-06-2017 3.1, 3.4 Added FCC power limits and dimensions 1.5

3 17-10-2017 3.1 Updated section 3.1 1.6

RSU2 User Guide

Savari Inc., Confidential

1 Introduction

RSU2 is the next generation Road-side Unit (RSU) developed by Savari Inc. primarily for the

USDOT (United States Department of Transportation) Connected Vehicles program. It is the

latest addition to the StreetWAVE™ family of products. It is capable of transmitting signed or

unsigned MAP Data message, Signal Phase and Immediate Forward message, Store and

Repeat, and providing IPv6 connectivity to OBUs over a dedicated short-range communications

(DSRC) 5.9 Gigahertz (GHz) wireless networks using the following protocol stack and other

standards associated with DSRC for vehicular communications:

 IEEE 802.11p

 IEEE 1609-1 through 1609-4

 J2735 (2016 version)

 USDOT RSU 4.1 specification

StreetWAVE™ has a provisioning/test interface that can receive and load new versions of

software, new configurations and credentials, and instructions to perform logging functions and

download log messages to an external device. This device can be mounted on different

roadside locations (E.g.: traffic pole)

RSU2 User Guide

Savari Inc., Confidential

2 Abbreviations

The following are the abbreviations used throughout this document:

Abbreviation Expansion

ASN1 Abstract Syntax Notation 1

CA Certificate Authority

CSV Comma Separated Value

DHCP Dynamic Host Control Protocol

DNS Dynamic Naming Service

DSRC Dedicated Short Range Communication

GID Geometric Intersection Description

GPS Global Positioning Satellite

HTTP Hypertext Transfer Protocol

ITS Intelligent Transportation Systems

ITIS International Traveler Information Systems

IP Internet Protocol

LED Light Emitting Device

LTM Left Turn Movement

MAP Map Data

MIB Management Information Base

NTCIP National Transportation Communications for ITS Protocol

OBU/OBE On-Board Equipment/On-Board Unit

PCAP Packet Capture

PSID Provider Service Identifier

RDNSS Recursive DNS Server

RFC Request for Comments

RSE/RSU Roadside Equipment/Roadside Unit

RNDF Route Network Definition File

RTM Right Turn Movement

RX Receive

SAE Society for Automotive Engineers

SSH Secure Shell

SPaT Signal Phase and Timing

SNMP Simple Network Management Protocol

TC Traffic Controller

TCID Traffic Controller Interface Device

TCP Transmission Control Protocol

TM Through Movement

TIM Traveler Information Message

TX Transmit

UDP User Datagram Protocol

WAVE Wireless Access in Vehicular Environments

WSA WAVE Service Announcement

RSU2 User Guide

Savari Inc., Confidential

3 Setup Guide

Please refer to the StreetWAVE™ Installation Guide for more details on the StreetWAVE™

hardware components and installation procedures.

3.1 Hardware and Software Specifications

Item Description

Mechanical 22 cm (L), 22 cm (W), 12 cm (H), 2 kg (weight)

Processor 1 GHz dual core i.MX6

Memory Up to 4GB DDR3 DRAM

Storage Up to 32GB µSD Flash

2-8GB eMMC

DSRC Radio Two IEEE 802.11p 5GHz, 600mW, -94dB receiver

sensitivity

GPS U-blox. Tracking sensitivity -160 dBm

Secure Flash Infineon HSM SLI97

Ethernet 10/100 RJ-45 ports with Auto Uplink.

Power Supply 5V-30V DC Input for RSU2

Temperature -40C to +85C

Standards Compliance IEEE 802.11p, IEEE 1609.2, IEEE 1609.3, IEEE 1609.4,

SAE J2735 (2016)

Security SSL, Firewall, 1609.2, HSM

RF Antenna Connectors SMB Male FAKRA. Type C Blue GPS, Type Z Light Green

DSRC0, Type Z Light Green DSRC1.

Power Consumption



Nominal < 5W

 Recommended Power supply 10W

LED Indicators for power, status and diagnostics

3.2 Power

StreetWAVE™ can be powered by using 48V DC Power Over Ethernet (POE)

(CAUTION: Use POE injector/adapters supplied with StreetWAVE™ only)

3.3 GPS

StreetWAVE™ comes with an internal GPS that can provide the following:

 1 Hz update rate

 Location accuracy of 2 m with WAAS (2.5 m without WAAS)

Note: WAAS is enabled by default.

RSU2 User Guide

Savari Inc., Confidential

3.4 DSRC Radios

DSRC radios support 802.11p in the hardware and transmit power capabilities of up to 19 dBm

e.i.r.p. (up to 10 dBm conducted output power per DSRC Class B). The range of these radios

is 450-500m and can be adjusted using TX power setting.

3.5 Antennas

StreetWAVE™ ships with the following antennas that directly mount to the main unit:

 Two 5 GHz DSRC Omni-directional

 One magnetic GPS

3.6 Storage

StreetWAVE™ has 4GB of integrated compact flash memory.

Note: StreetWAVE™ supports utilities like ssh and scp to make it easier for retrieving the log

data to an external platform and perform post analysis.

3.7 LED

StreetWAVE™ unit is installed with three LEDs on the panel to indicate power and device

operation state.

3.8 Ethernet

StreetWAVE™ consists of one Ethernet port (eth0) on the panel.

3.9 Enclosure

StreetWAVE™ enclosure is IP67 rated outdoor quality unit.

RSU2 User Guide

Savari Inc., Confidential

4 StreetWAVE™ Features

This chapter explains the salient features of the StreetWAVE™ roadside equipment.

Following is the architecture diagram of StreetWAVE™. Each component is explained briefly in

the following sub-sections:

StreetWAVE™ features are explained briefly in the following sub-sections:

4.1 DSRC Radio Pair

Each StreetWAVE™ unit consists of two (2) integrated high power DSRC radios, which are

exposed as the following two interfaces:

 Radio 1

 Radio 2

StreetWAVE™ radio configuration is very flexible. Any or both radios can be configured on any

of the following channel modes:

 Alternating Channel Access

 Continuous Channel Access

The following applications can be configured to use any of the two interfaces (Radio1 or

Radio2):

 Immediate Forward

 Store and Repeat

 IPv6-provider

 DSRC Message Forward

 TCD

Figure 1: StreetWAVE Software Architecture Diagram

RSU2 User Guide

Savari Inc., Confidential

 RTCM

 NTP

However, radio configuration between the above-mentioned applications should be consistent.

You can operate multiple StreetWAVE™ units in a hub-and-spoke configuration in which the

hub unit originates a message. It broadcasts those messages on its configured DSRC interface

to OBUs as well as on Ethernet interface to the spoke StreetWAVE™ units in Savari ’s

proprietary format. The spoke StreetWAVE™ units receive them and broadcast them on their

DSRC interfaces, essentially working as DSRC repeaters. This configuration is useful at an

intersection where no specific location has line of sight to all approaches to the intersection.

The Hub unit does not have to be in the traffic controller cabinet. It can be one of the units on

the pole if it has Ethernet connectivity to the cabinet.

4.2 IPv4 and IPv6 Networking

Each StreetWAVE™ unit consists of one Ethernet interface (eth0). StreetWAVE™ provides

support for both IPv4 and IPv6 networking on all its interfaces (eth0, Radio 1, or Radio 2).

You can enable the following on all the three available interfaces:

 IPv4 and IPv6 addresses

 IPv6 Router Advertisements

StreetWAVE™ can forward both IPv4 and IPv6 packets between its interfaces (Ethernet and

DSRC) acting as a router. It also supports both IPv4 and IPv6 firewalls allowing the following:

 Source and destination IPv4 or IPv6 addresses

 Port-based rules

4.3 Immediate Forward

StreetWAVE™ Immediate Forward application supports the forwarding feature in addition to the

following features.

UDP Listener

4.3.1

StreetWAVE™ Immediate Forward application listens on configured UDP ports. If any message

is received on these ports in the format specified in USDOT RSE requirements, it will sign the

message using the 1609.2 protocol, if specified in the incoming message, and immediately

transmits on the configured DSRC interface with the PSID and channel specified in the

incoming message. Incoming messages could specify different priorities but it must specify the

same transmit mode (TxMode) and transmit channel (TxChannel). This feature is used when an

RSU2 User Guide

Savari Inc., Confidential

intermediate device (TCID or a Battelle device) is sending periodic Immediate Forward

messages to a StreetWAVE™.

UDP Streaming

4.3.2

The StreetWAVE™ can be configured to receive data from other StreetWAVE™ and stream it

over DSRC. This allows the StreetWAVE™ to function as a repeater. In this setup, one

StreetWAVE™ is configured as the Hub unit and all other StreetWAVE™ that are connected to

it as Spoke units (that are not capable of independently transmitting Store and Repeat,

Immediate Forward etc. and are depending on the Hub to provide this data). The Hub transmits

the data over the air as well as to the Spoke unit typically over an Ethernet link. The Spoke unit,

upon reception of the Hub’s packet, decodes and applies rules that are present in the packet,

signs (if it is present in the packet) and forwards the packet over DSRC. The ability of the

StreetWAVE™ to function in this manner can be used for streaming the packet data (in Savari

proprietary format) from TMCs or back-end servers over the air. This arrangement could be

useful in scenarios where a single StreetWAVE™ may not provide ample coverage for the

geographic area of interest.

4.4 Store and Repeat

StreetWAVE™ supports transmission of Store and Repeat. The Store and Repeat application,

which runs on the StreetWAVE™ unit, transmits on the configured channel over the Radio 1

(default configuration) interface.

Store and Repeat are configured in a data store inside the StreetWAVE™. The data store

supports up to 100 Store and Repeat. The Store and Repeat are stored in the form of Active

message files. Each file contains the transmissions parameters and the actual data of the Store

and Repeat message. Each Store and Repeat message can be scheduled differently. The

active message files follow the USDOT RSE 4.1 Specification.

Active Store and

Repeat Message Configuration

4.4.1

StreetWAVE™ supports the USDOT Active Message Configuration file format for configuring

active Store and Repeat messages.

US DOT Active Message Configuration file format

This format is defined in section US DOT RSU 4.1 requirements. Each Store and Repeat

active message should be defined in a separate file.

RSU2 User Guide

Savari Inc., Confidential

4.5 1609.3 IPv6 Provider

StreetWAVE™ supports WSAs as per the 1609.3 protocol. If enabled, StreetWAVE™ switches

channels on the configured interface between the following:

 178 (control channel)

 Configured service channel.

StreetWAVE™ runs IPv6 traffic on a service channel in the configured service channel interval.

Such IPv6 traffic is transparent to StreetWAVE™. It merely routes IPv6 traffic from/to DSRC

interface from the Ethernet interface.

StreetWAVE™ announces this service availability using WSAs including Service Info and WRA

elements. The Service Info element consists of PSID, channel information, and the service

channel. WRAs consist of router IPv6 prefix, gateway address, and DNS addresses so that

OBEs can configure their IPv6 addresses, default gateway, and DNS servers.

4.6 1609.2 Security

StreetWAVE™ supports 1609.2 Draft 9.3 security protocol. It supports signed Immediate

Forward, and Store and Repeat messages and signed WSAs to announce IPv6 services. The

security feature can be individually enabled or disabled on Immediate Forward, Store and

Repeat, and IPv6 applications.

StreetWAVE™ ships with the following pre-generated certificates supplied by US DOT:

 One root certificate

 Five different message signing certificates

 One WSA signing certificate

The following security profile is used for signing Immediate Forward, and Store and Repeat

messages:

Field Value Notes

include_generation_time True SPAT profile requires true

include_expiration_time false SPAT profile requires false

message_life_time 0 not used in SPAT

include_generation_location True SPAT profile requires false

MAP (Immediate Forward)

Field Value Notes

include_generation_time True MAP profile requires true

include_expiration_time false MAP profile requires false

message_life_time 0 not used in MAP

include_generation_location false MAP profile requires false

RSU2 User Guide

Savari Inc., Confidential

Store and Repeat

Field Value Notes

include_generation_time true TIM profile requires true

include_expiration_time false TIM profile requires false

message_life_time 0 not used in TIM

include_generation_location false MAP profile requires false

WSA

Field Value Notes

certificate_interval 1000

include_generation_time true

include_generation_location true

include_expiration_time true

check_replays true

check_relevance_generation_time true

check_relevance_generation_location true

check_relevance_expiry_time true

4.7 Interface Logging

StreetWAVE™ supports logging all DSRC and IP messages transmitted and received in the

PCAP format to the persistent memory. All packet activity on all interfaces are captured and

logged in the PCAP format. The PCAP files can then be seen in Wireshark after file offload has

transferred the PCAP files to a back-office server. In addition, the system-status log messages

are logged to separate files. There is ~3GB of space set aside for this total logging.

A packet from an OBE can be received and logged potentially by all StreetWAVE™ units at an

intersection. This independent logging feature provides the ability to analyze which unit is

capable of hearing from which approach and from how far. However, it may require analysis of

logs from multiple StreetWAVE™ units to track a single vehicle. Such an analysis can be

performed using post-processing tools and is not the main function of StreetWAVE™. Hence,

this independent logging trade-off is chosen over the complexity of integrated logging.

4.8 DSRC Message Forward

StreetWAVE™ supports the DSRC Message Forward feature as outlined in USDOT RSU 4.1

specification. This application provides the capability to forward any DSRC message received

over the air to an external server over an ethernet link. The specification USDOT RSU 4.1 lists

certain filter criteria that must be met for the messages to be forwarded. The DSRC Message

Forward feature transparently forwards all messages if the filter criterion is successful. The

application does not terminate the packet with regards to security or content.

RSU2 User Guide

Savari Inc., Confidential

5 StreetWAVE™ Getting Started Using the CLI

This section describes the procedures to get the StreetWAVE™ started after installation and

power up.

5.1 Accessing Methods

The StreetWAVE™ can be accessed from any PC or laptop using any of the following modes:

 SSH

Note: Serial port access is not available in StreetWAVE™.

1. To Access using SSH

ssh root@ <Default IP Address> -p<port number>

port number is 51012

Password: As given in the Default Configuration (CLI) section.

5.2 Default Configuration (CLI)

The StreetWAVE™ has the following default configuration:

Username: root

Password: 1[8V:2<J5*W;2I16H1nu

Ethernet (eth0)

Default IPv4 Address: 192.168.100.1

DSRC radio 1 (Radio 1): This radio is configured in channel switching mode with IPv6 support

on service channel 174 and WSAs (with WRAs) on control channel 178. WSAs announce the

same IPv6 which is configurable through CLI

DSRC radio 2 (Radio 2): This radio is configured in the continuous channel mode for channel

172.

Immediate Forward: This application is configured to listen on UDP port *1516 for incoming

Immediate Forward text format messages from TCID over eth0 and broadcast them over DSRC

channel 172.

Firewall:

By default, only the following traffic is allowed. Rest of the traffic is blocked.

 Incoming UDP over IPv6 traffic on eth0 from FD01:1234:0186:8000::/64 destined to

StreetWAVE™ port 1516: Incoming IPv6 traffic from TCID to StreetWAVE™.

 Incoming UDP over IPv4 traffic on eth0 destined to StreetWAVE™ port 51013: Incoming

RSU2 User Guide

Savari Inc., Confidential

IPv4 traffic from TCID to StreetWAVE™.

 Incoming IPv4 and IPv6 inter StreetWAVE™ UDP streaming traffic on port 51015: Inter

StreetWAVE™ UDP streaming traffic.

 Incoming TCP over IPv6 or IPv4 traffic on eth0 to ports 51012 (ssh, scp) and 8080(web)

of StreetWAVE™: Management access.

 Incoming UDP over IPv6 or IPv4 traffic on eth0 to port 3334 of StreetWAVE:

 All ICMPv6 and ICMP (v4) packets: StreetWAVE™ learning neighbors and vice versa.

 All StreetWAVE™ originated outgoing traffic.

5.3 System State

StreetWAVE™ is in following two different states when powered on:

 Run: All applications (Store and Repeat, DSRC Message Forward, Immediate Forward,

and IPv6) have started up.

Note: The run command takes the system to run state.

 Standby: All applications (Store and Repeat, DSRC Message Forward, Immediate

Forward, and IPv6) are shut down.

Note: The Standby command takes the system to standby state.

StreetWAVE™ automatically enters to run state after it is powered on. To cycle system state,

please use the standby command followed by the run command.

Caution: The system should be halted (“halt”) before turning off power. Else, the TX/RX packet

logs and system log files in the “/nojournal/” directory might get corrupted.

RSU2 User Guide

Savari Inc., Confidential

5.4 Applications

This section explains the parameters/counters of individual applications. These counters get

reset when the user places the StreetWAVE™ into a ‘run’ state from a corresponding standby.

Store and Repeat

5.4.1

Immediate Forward

5.4.2

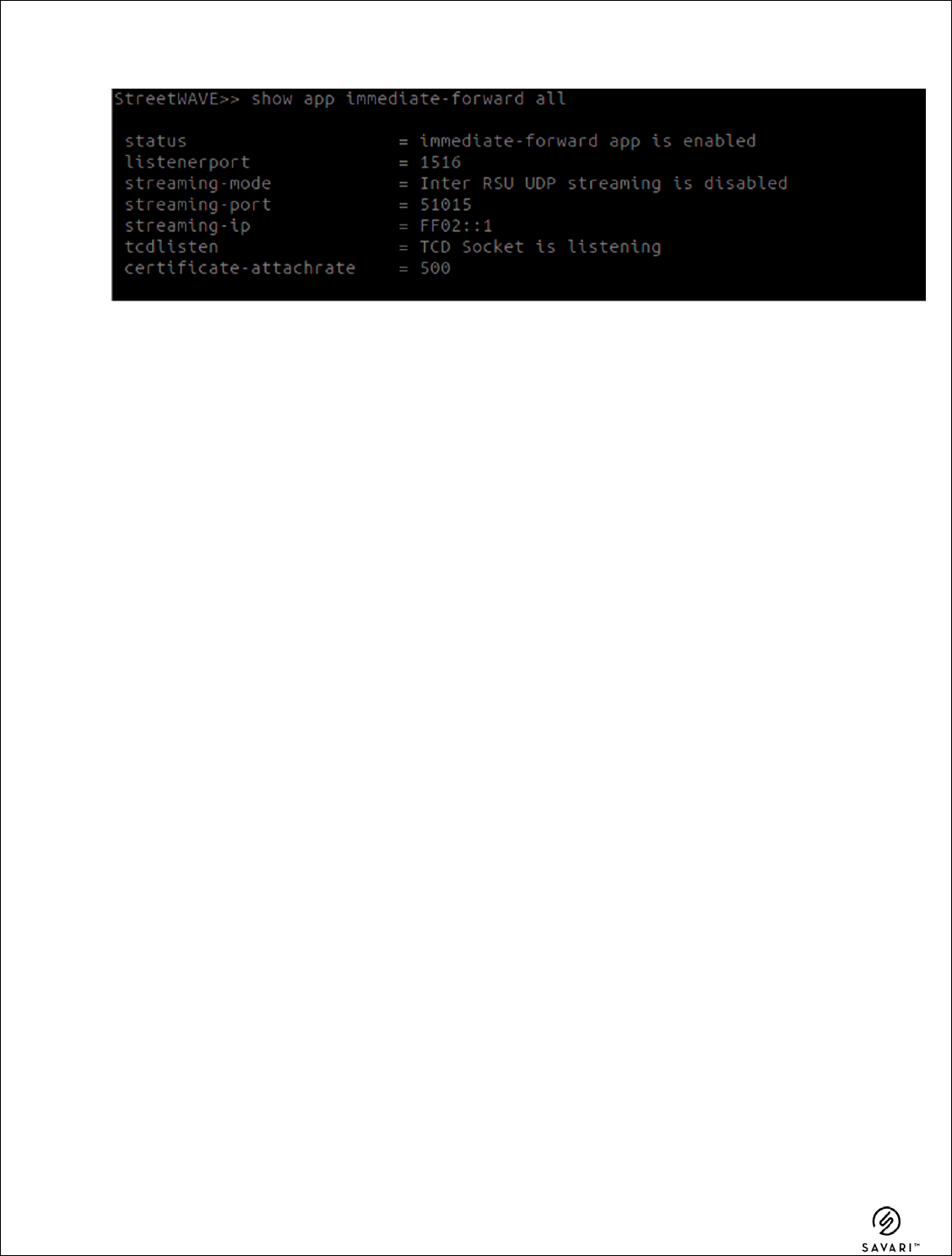

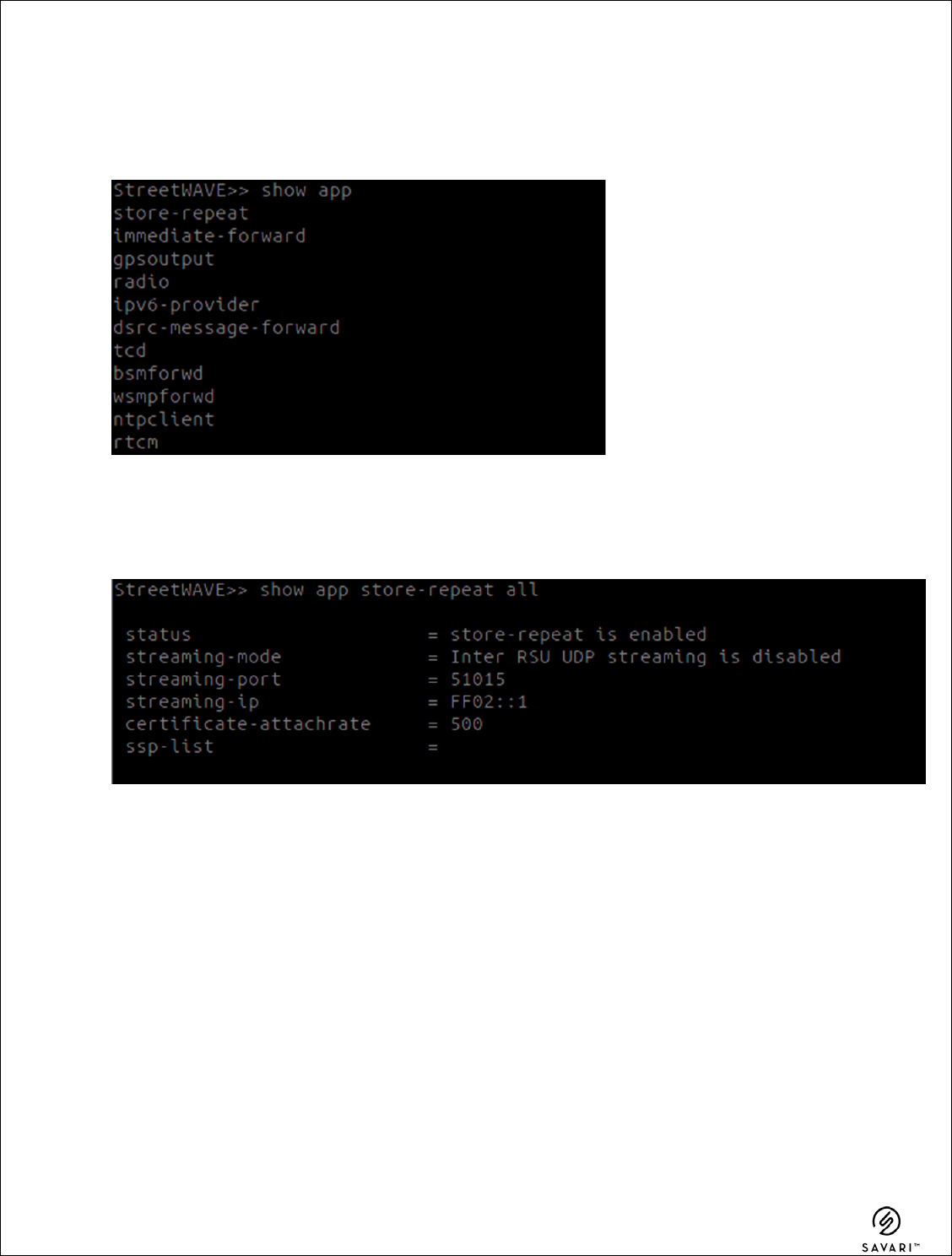

Figure 2: Supported Applications

Figure 3: Store and Repeat

RSU2 User Guide

Savari Inc., Confidential

Figure 4: Immediate Forward

RSU2 User Guide

Savari Inc., Confidential

GPS Output

5.4.3

The StreetWAVE™ unit shall send the GPGGA NMEA string to a specific UDP port at a

specified rate, upon acquisition of 3 or more satellites.

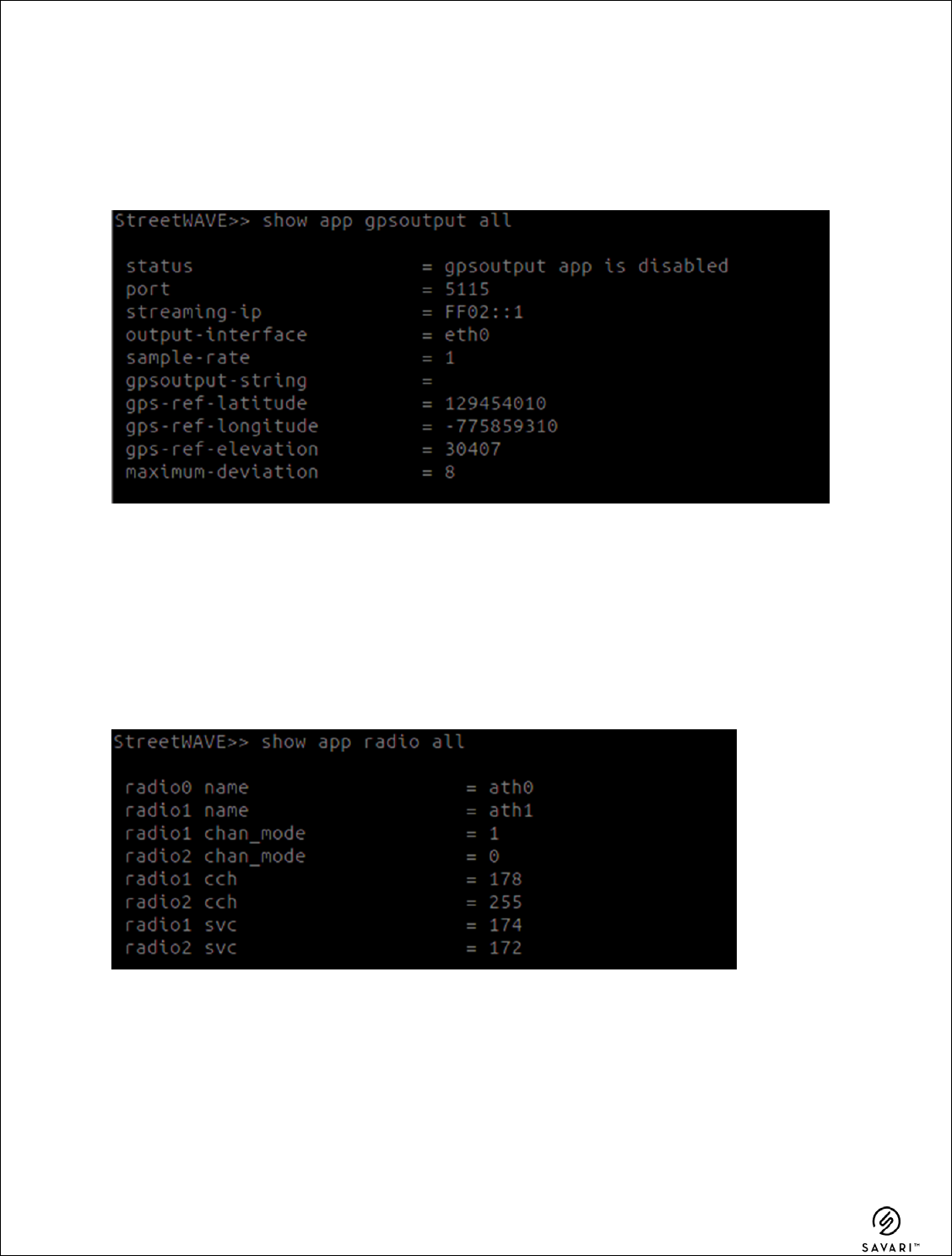

The following parameters are displayed in the Gpsoutput app status command:

show app gpsoutput all

Radio

5.4.4

We can configure both the radios (Radio 1 and Radio 2) service channel and channel mode

either alternative or continuous.

The following parameters are displayed in the Radio config app status command:

Figure 5: GPS Output

Figure 6: Radio

RSU2 User Guide

Savari Inc., Confidential

Ipv6 Provider

5.4.5

The following parameters and counters are displayed in the IPv6 Provider application

Parameter Description

IpService Enabled Displays if an IP service is enabled (1) or disabled (0).

Signing Enabled Displays if WSA packet signing is enabled (1) or disabled (0).

Current Service Channel The current service channel.

Wsa Tx Packet Number of WSA packets transmitted to the DSRC radio.

 The following is an example of IPv6 Provider application in the “Running” state:

 >> show app ipv6-provider all

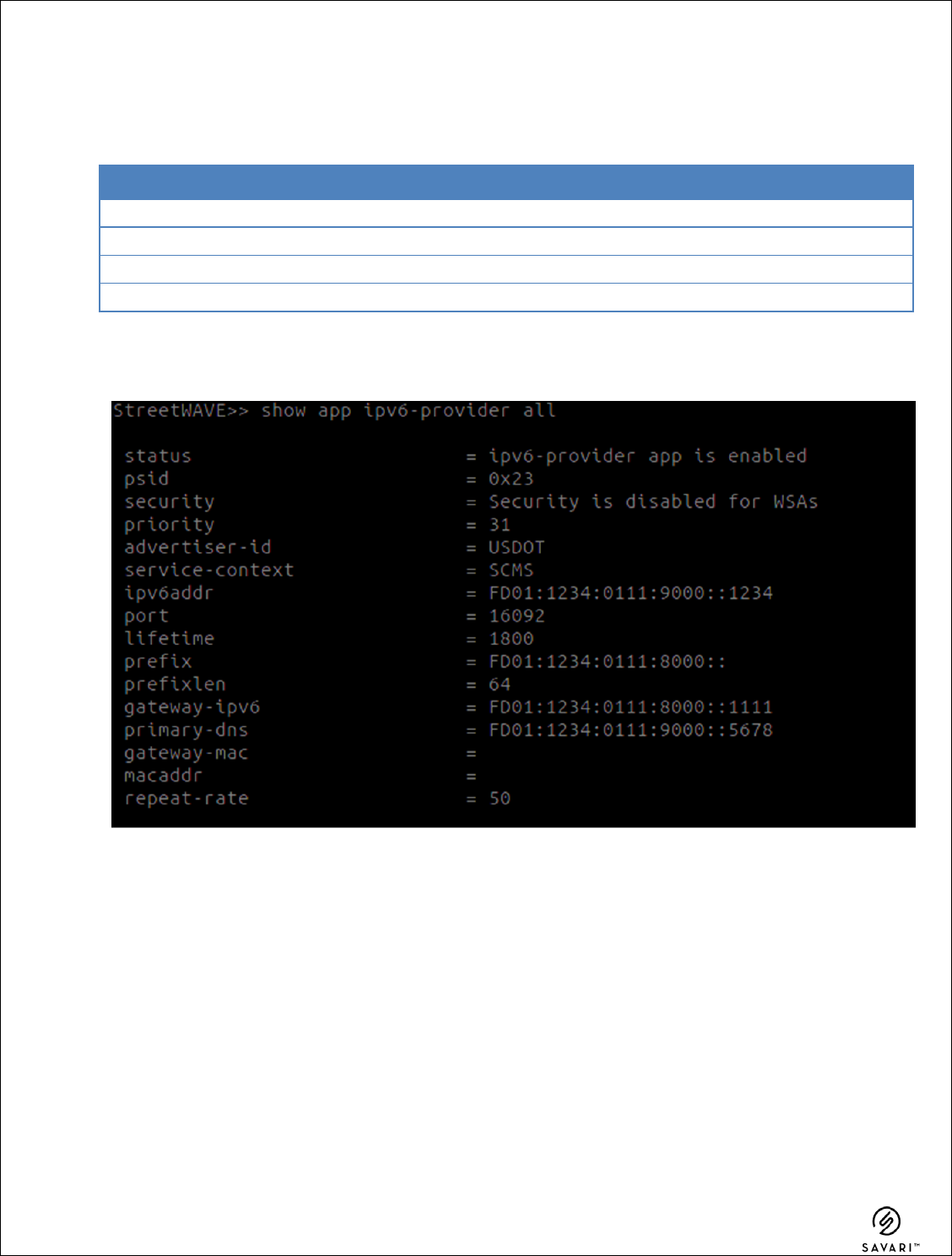

Figure 7: IPv6-provider

RSU2 User Guide

Savari Inc., Confidential

DSRC Message Forward

5.4.6

The following parameters and counters (per Radio 1 and Radio 2 interface) are displayed in the

DSRC Message Forward application status:

Parameter Description

PSID psid of the incoming DSRC message

Rx Number of packets received over the air

Tx Number of packets forwarded

Drop Number of packets dropped within the StreetWAVE™

The following is an example of Message Forward application in the “Running” state: The

statistics are reported per “Radio 1” and “Radio 2” wireless interface.

TCD

5.4.7

Figure 8: DSRC Message Forward

RSU2 User Guide

Savari Inc., Confidential

RSU2 User Guide

Savari Inc., Confidential

NTCP client

5.4.8

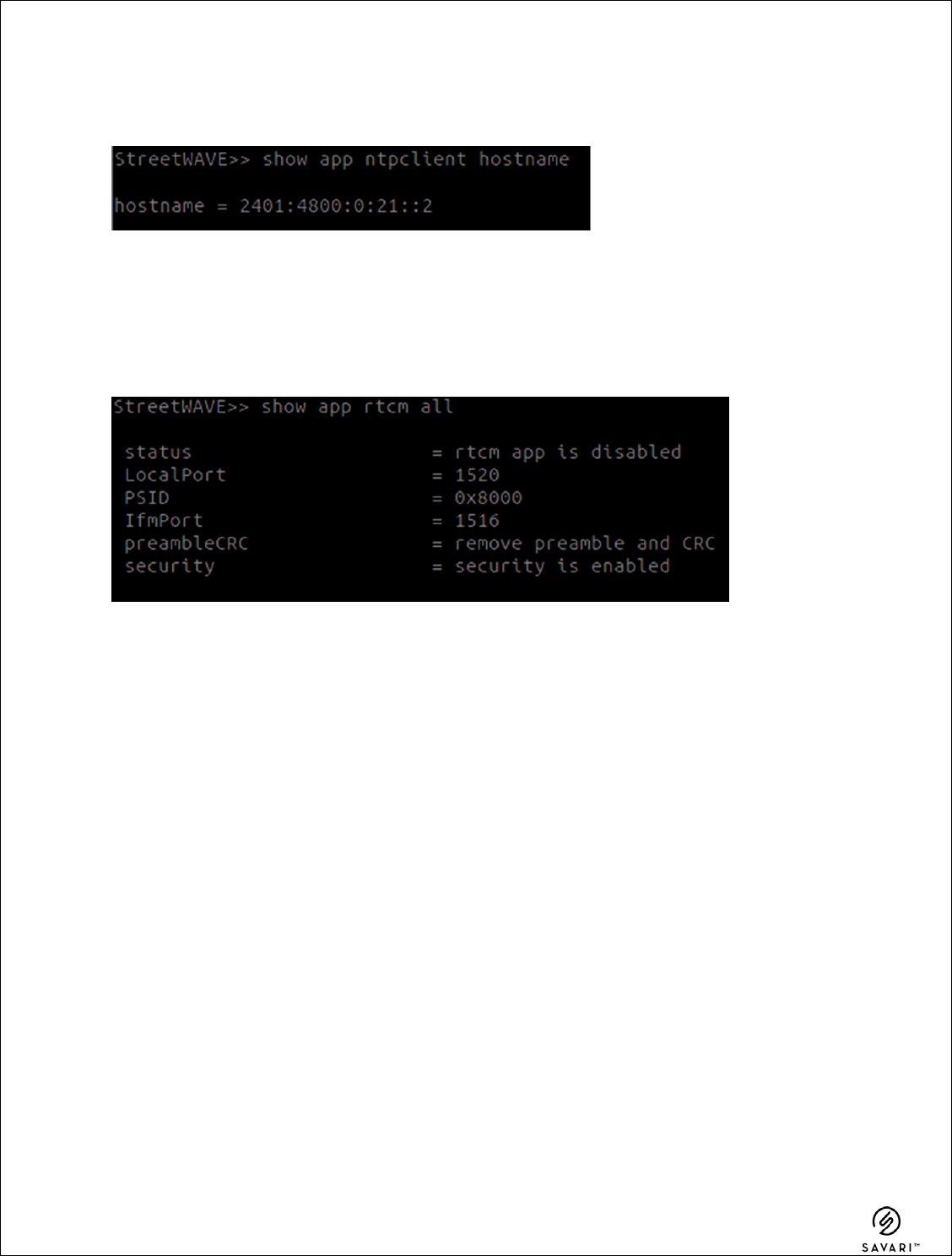

Here we configure the host name to get the time synchronization when the GPS fix is absent.

The following parameters are displayed in the NTP app status command:

RTCM

5.4.9

RTCM message used to get from the NOVATEL receiver on configured incoming IFM port.

The following parameters are displayed in the RTCM app status command:

5.5 System Status

The operating mode of the StreetWAVE™ is also displayed. The operating mode could be any

of the following:

 Hub: Store and Repeat and Immediate Forward applications can be enabled in Hub

mode. Any of the applications Store and Repeat, Immediate Forward, can also be

individually configured in Hub mode.

 Spoke: In spoke mode, Spoke StreetWAVE

will receive Store and Repeat and

Immediate Forward messages from Hub StreetWAVE

Note: To revive Store and Repeat and Immediate Forward messages in Spoke StreetWAVE

from the Hub StreetWAVE

TM,

the applications have to be activated.

If configured in Hub or Spoke, the appropriate mode will be displayed as ‘enabled’. Both

modes are mutually exclusive in that an StreetWAVE™ can either be Hub, Spoke, or in a

streaming disabled mode (where neither Hub nor Spoke mode is enabled.).

Figure 9: Ntpclient

Figure 10: RTCM

RSU2 User Guide

Savari Inc., Confidential

Disk Usage

5.5.1

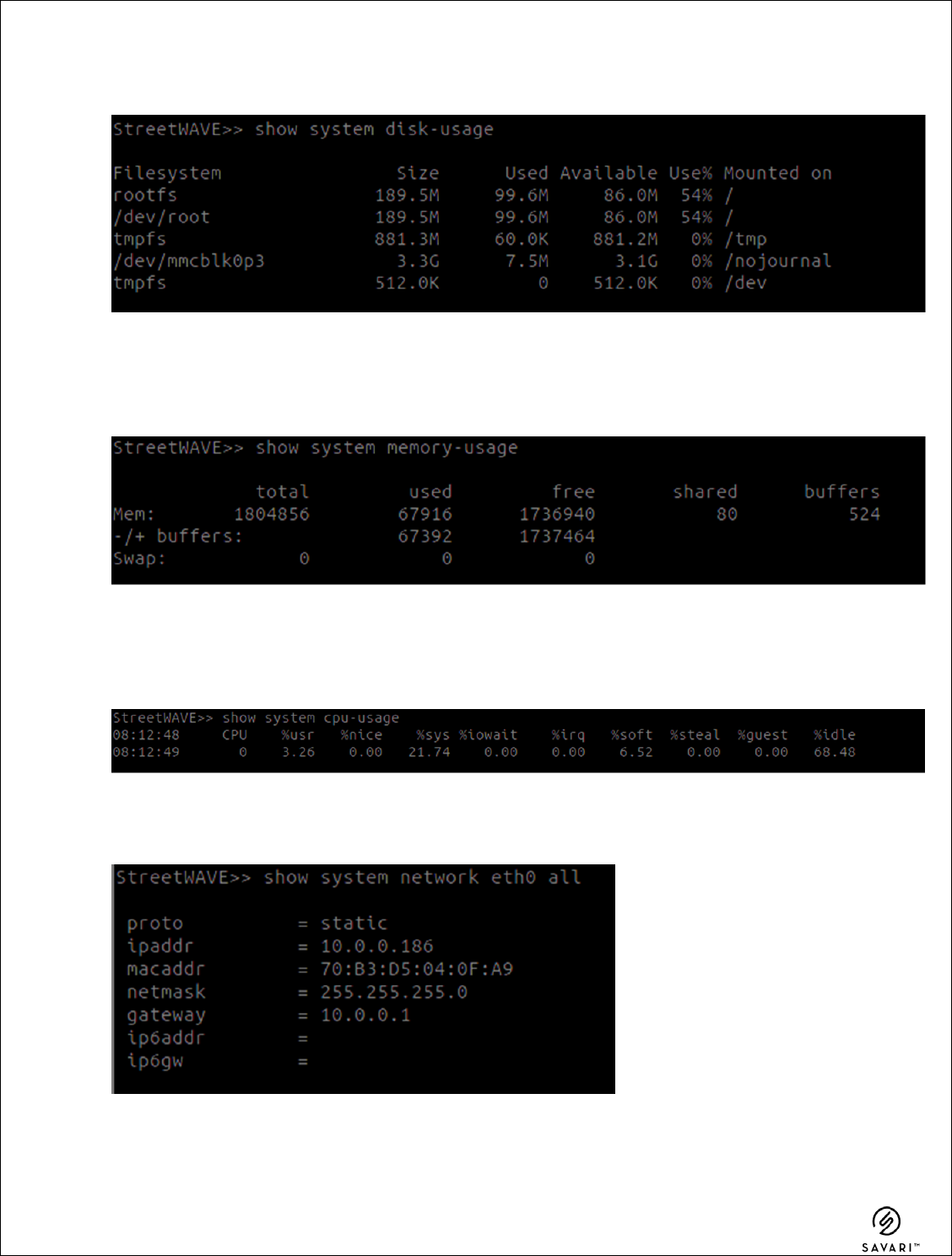

he following command can be used to display the current disk usage

Memory Usage

5.5.2

The following command can be used to display the current memory usage.

CPU Usage

5.5.3

he following command can be used to display the current CPU usage for each process

Network

5.5.4

The following command can be used to display the ethernet configuration of the board

RSU2 User Guide

Savari Inc., Confidential

Firewall

5.5.5

StreetWAVE™ will be protected by the configured incoming firewall port.

The following parameters are displayed in the Firewall app status command for IPv4:

The following parameters are displayed in the Firewall app status command for IPv6:

RSU2 User Guide

Savari Inc., Confidential

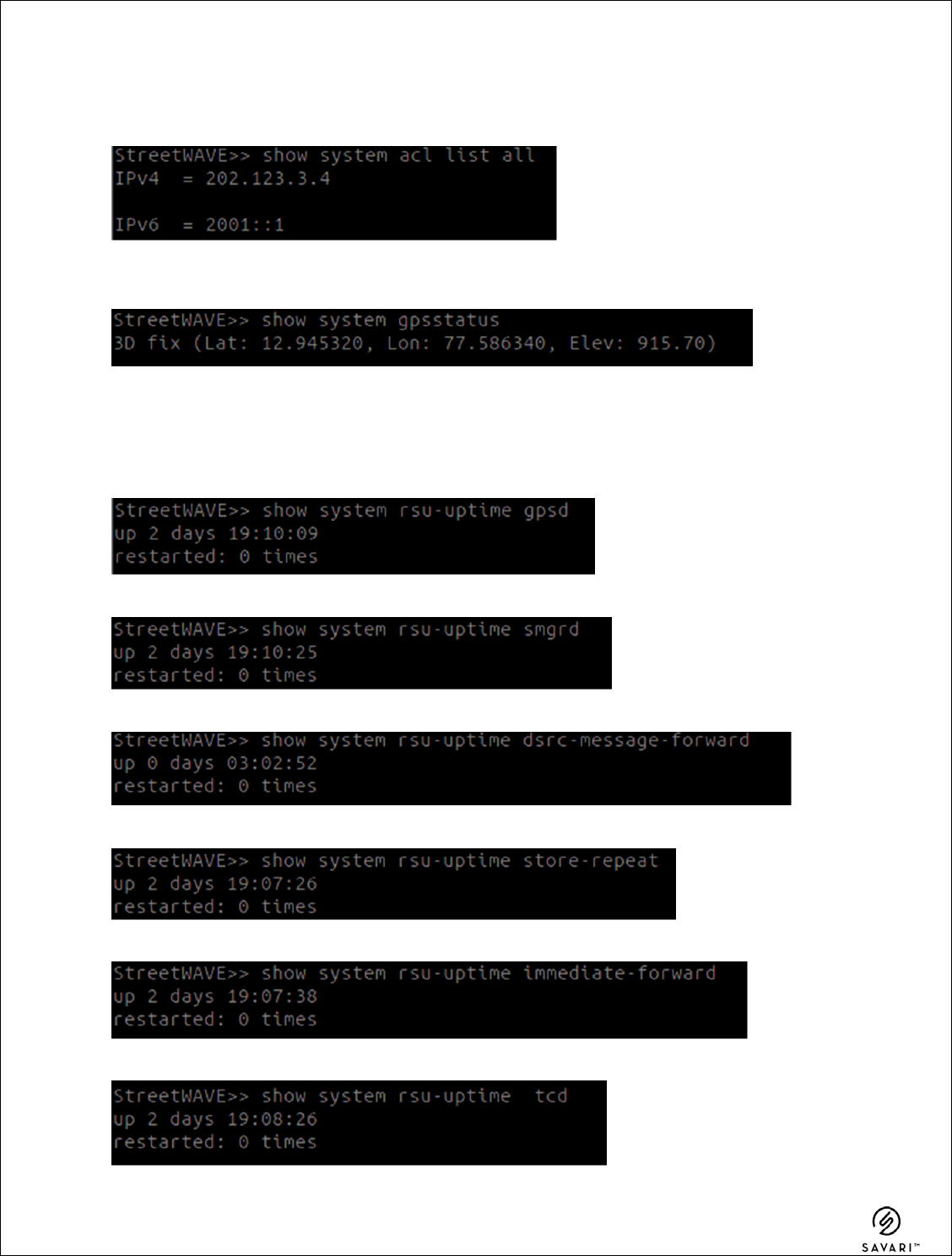

Access Control List (ACL)

5.5.6

This Remote ACL configuration will allow the remote access based on the given IP addresses.

Allowed ACL can be displayed using the following command

GPS Status

5.5.7

The GPS Fix status of the board can be displayed using the following show command:

RSU Uptime

5.5.8

This section explains the system uptime of individual applications.

This shows the uptime of a specific application and the number of it gets restarted

(i) GPS

(ii) Service Manager

(iii) DSRC Message Forward

(iv) Store-Repeat Applications

(v) Immediate Forward Application

(vi) TCD applications

RSU2 User Guide

Savari Inc., Confidential

RSU Stats

5.5.9

The following parameters are displayed in the Store and Repeat app status command:

Parameter Description

Tx Packet Number of Store and Repeat Packets transmitted to the DSRC radio.

Udp Tx Packet Number of Store - Repeat Packets transmitted over UDP streaming(Hub Spoke)

Signing Failures Store and Repeat signing failure count.

Active List Files Number of Store and Repeat active list files.

Transmit Channel The DSRC channel on which Store and Repeat packets are transmitted.

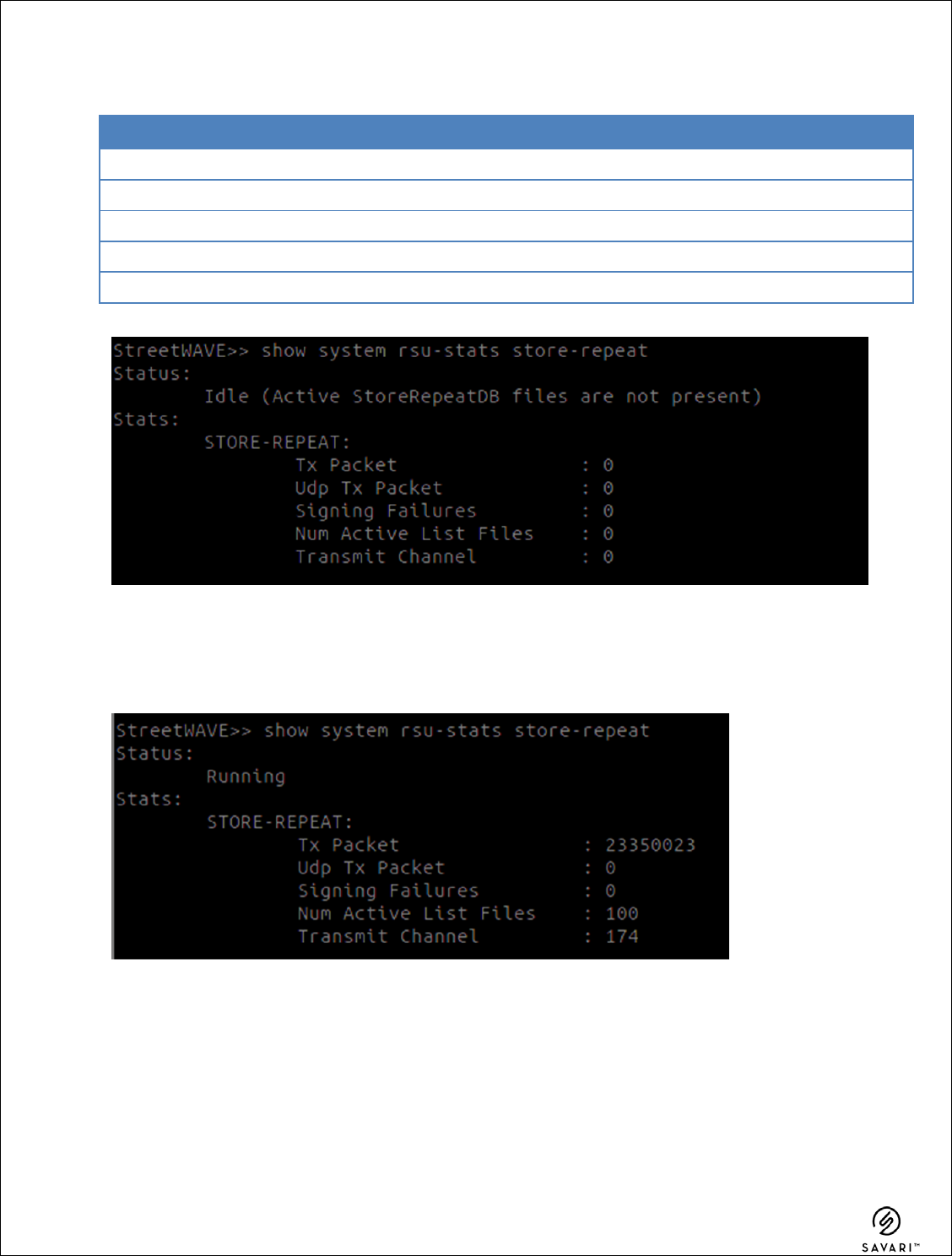

The above example displays the Store and Repeat application in ‘Idle’ state with no active list

files present on the StreetWAVE™.

The above example displays the Store and Repeat application in ‘Running’ state.

RSU2 User Guide

Savari Inc., Confidential

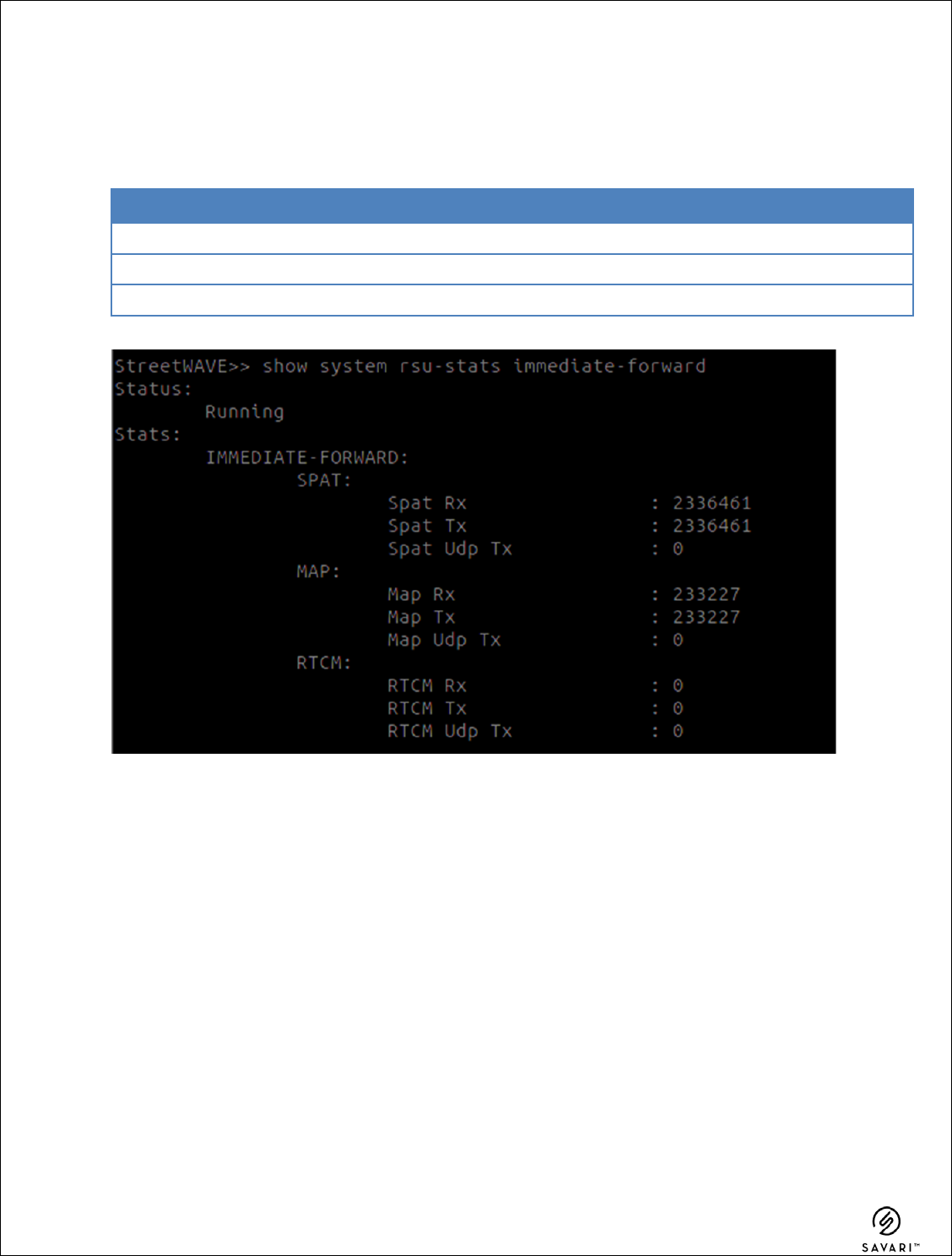

The following parameters and counters are displayed in the Immediate Forward status using

the show rsu_stats immediate_forward command.

Immediate Forward:

Parameter Description

Immediate Forward Rx Number of Immediate Forward messages received from server.

Immediate Forward Tx Number of Immediate Forward messages transmitted to the DSRC radio.

Immediate Forward Udp Tx Number of Immediate Forward packets transmitted over UDP streaming.

Note: “Immediate Forward UDP Tx” is applicable when the StreetWAVE™ is configured as a

“Hub” StreetWAVE™. It represents the Immediate Forward messages forwarded to the “Spoke”

StreetWAVE™.

RSU2 User Guide

Savari Inc., Confidential

APP Stats

5.5.10

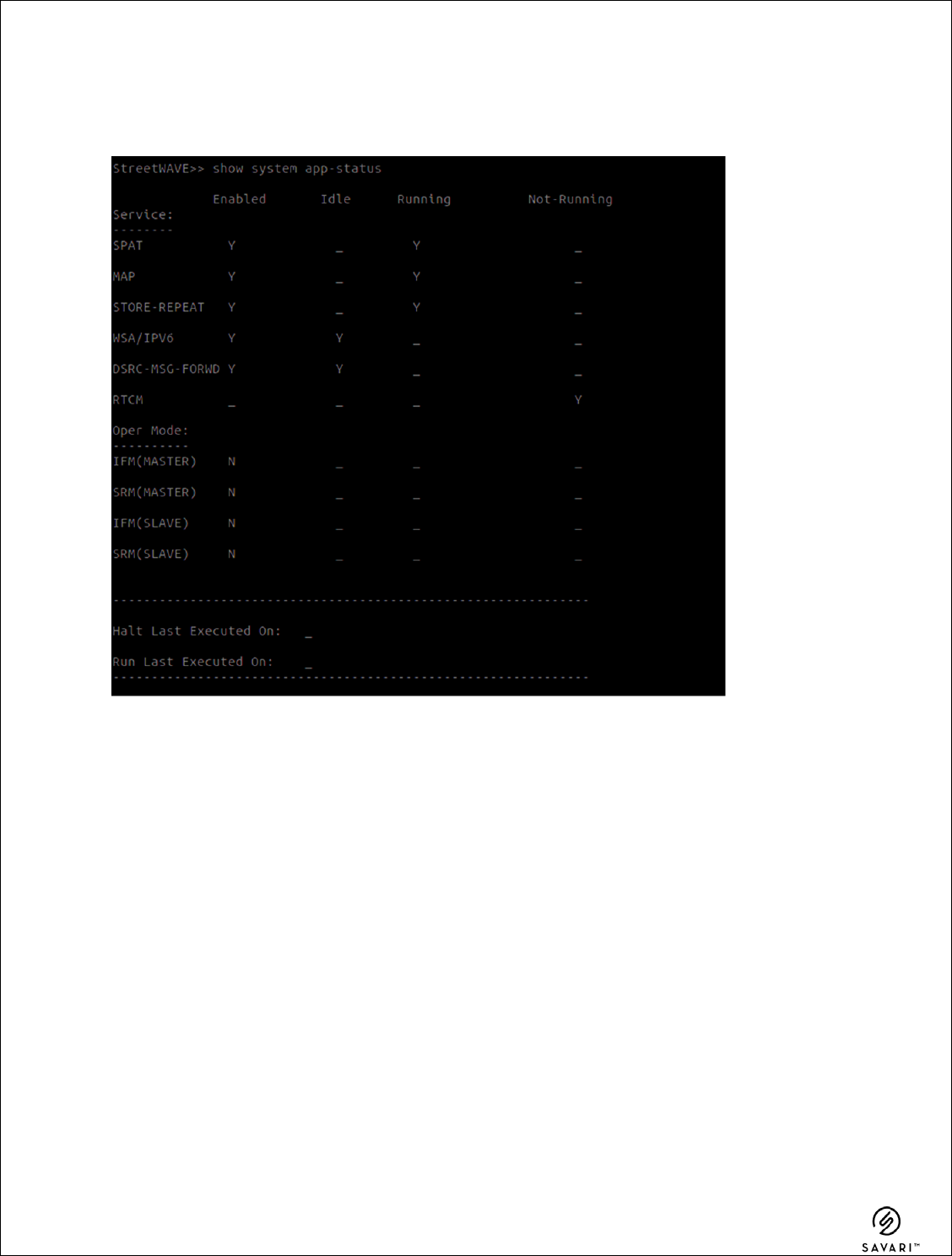

To know the status of the applications in RSU2

RSU2 User Guide

Savari Inc., Confidential

5.6 Visual Status Indicators

The following table displays the details about the LED status indicators:

LED Name Indication Description

“STS” Off The system is in “Standby” state or all applications (Store

and Repeat, DSRC Message Forward Immediate

Forward, and IPv6) are disabled.

Green On The system is in “run” state and at least one application

(Store and Repeat, DSRC Message Forward, Immediate

Forward, and IPv6) is enabled and functioning properly.

Green

Blinking

The system is in “run” state and at least one application is

enabled and malfunctioning. Please check the system

logs for details.

Amber

Blinking

System upgrade is initiated

“PWR” On The device is powered on.

Off The device is powered off.

RSU2 User Guide

Savari Inc., Confidential

6 Using the Command Line Interface (CLI)

6.1 Log File Handling

The following are the log file handling functions of StreetWAVE™:

Interface Logs

6.1.1

This is a repository for all the packets received and transmitted from all interface radio 1, radio

2 and Ethernet.

The StreetWAVE™ starts deleting the oldest log files (Interface log and Systemlogs) once the

directory occupancy is 80% of the disk capacity.

Tx/Rx Packet Log File Name Format

6.1.2

TX/RX Packet log file names are in the following format:

<fileprefix>_<interface>_<out/in>_YYYY_MM_DD_HH_MM_SS.pcap, where

<fileprefix> is configured prefix

<interface> is eth/dsrc0/dsrc1

<out/in> is out for outgoing packets and in for incoming packets

YYYY_MM_DD_HH_MM_SS is the timestamp in UTC when the file was opened.

For example:

root@StreetWAVE:/nojournal/pcaplogs# pwd

/nojournal/pcaplogs

root@StreetWAVE:/nojournal/pcaplogs# ls -l

-rw-r--r-- 1 root root 42808 Jul 20 00:47

StreetWAVE_eth_out_2011_07_20_00_47_26.pcap

-rw-r--r-- 1 root root 1594308 Jul 20 01:01

StreetWAVE_dsrc0_in_2011_07_20_00_47_55.pcap

root@StreetWAVE:/nojournal/pcaplogs#

Retrieving the PCAP Files

6.1.3

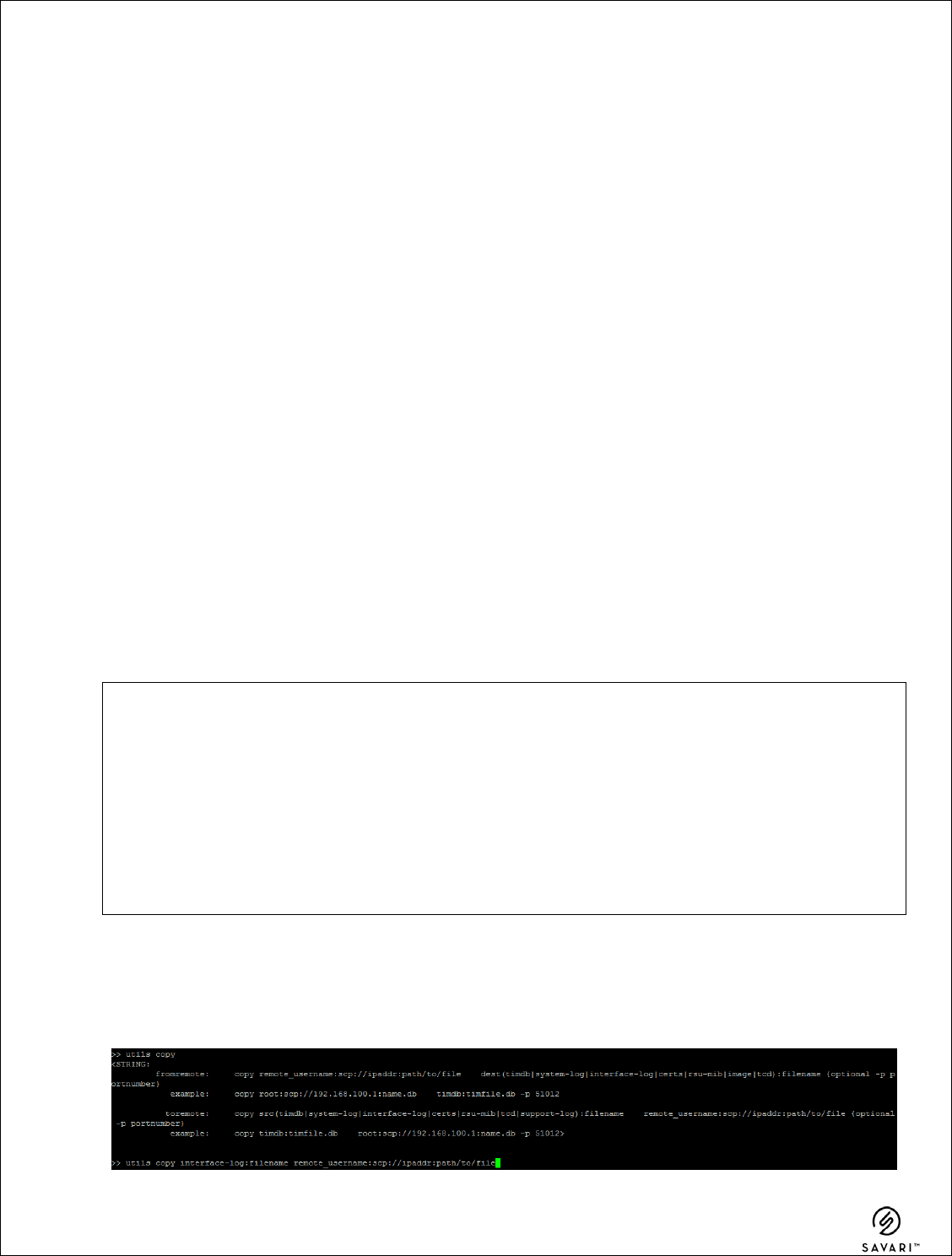

The .pcap files can be retrieved only from StreetWAVE™ to any external device through SCP.

NOTE: Please use manual log file transfer when the system is in “standby” mode.

RSU2 User Guide

Savari Inc., Confidential

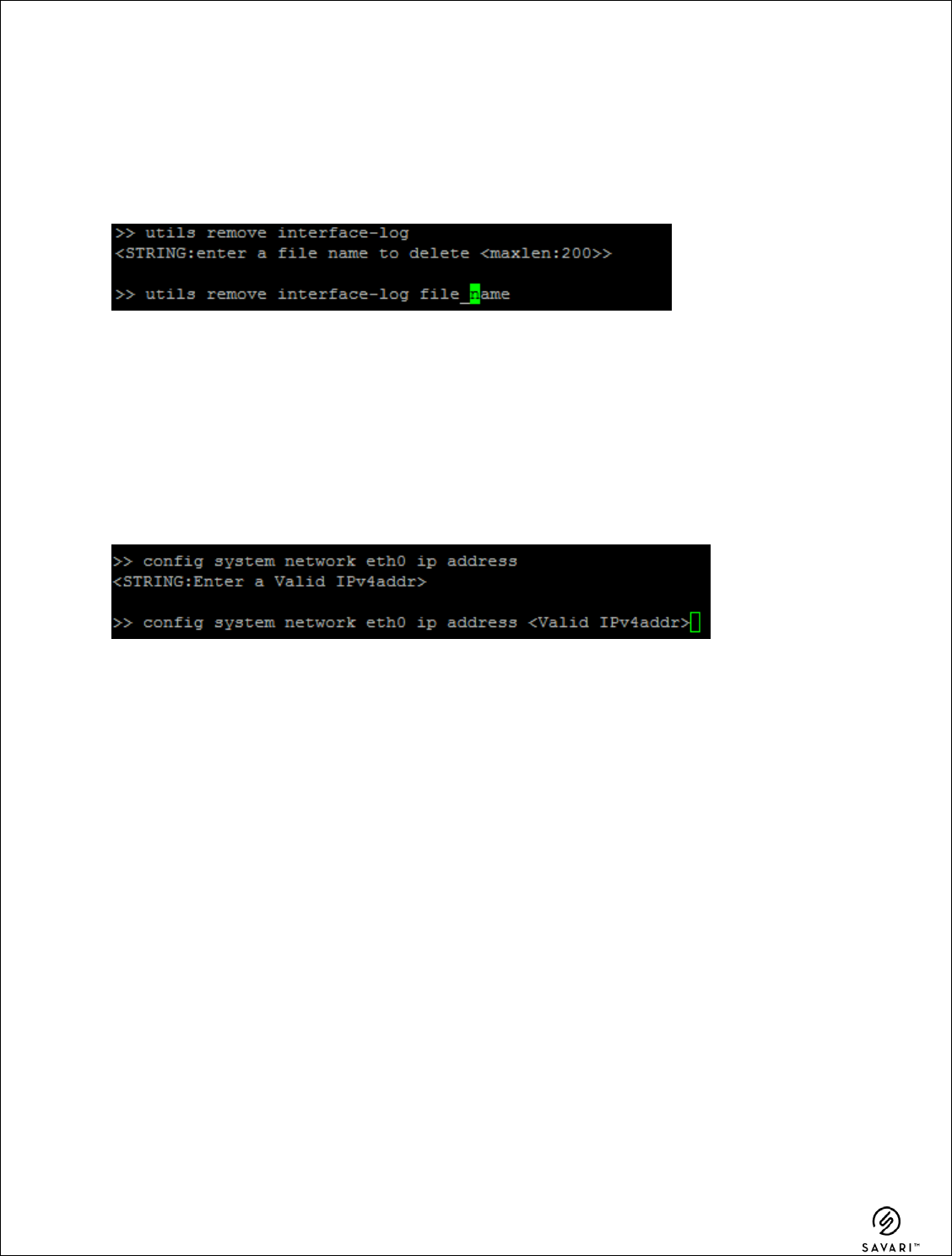

Deleting the PCAP Files

6.1.4

Once pcap files are copied out of StreetWAVE™, it is advisable to delete them from

StreetWAVE™. This helps to conserve disk space on the StreetWAVE™ for further TX Packet

logging.

6.2 Network configuration

This is used to configure the IP addresses subnet and gateway for Ethernet and Radio1 and

Radio2

IP Address configuration

6.2.1

When a IP address (ipv4/ipv6) is configured / reconfigured for an interface, corresponding

gateway or gateway length should also be updated before committing the change.

6.3 Firewall configuration

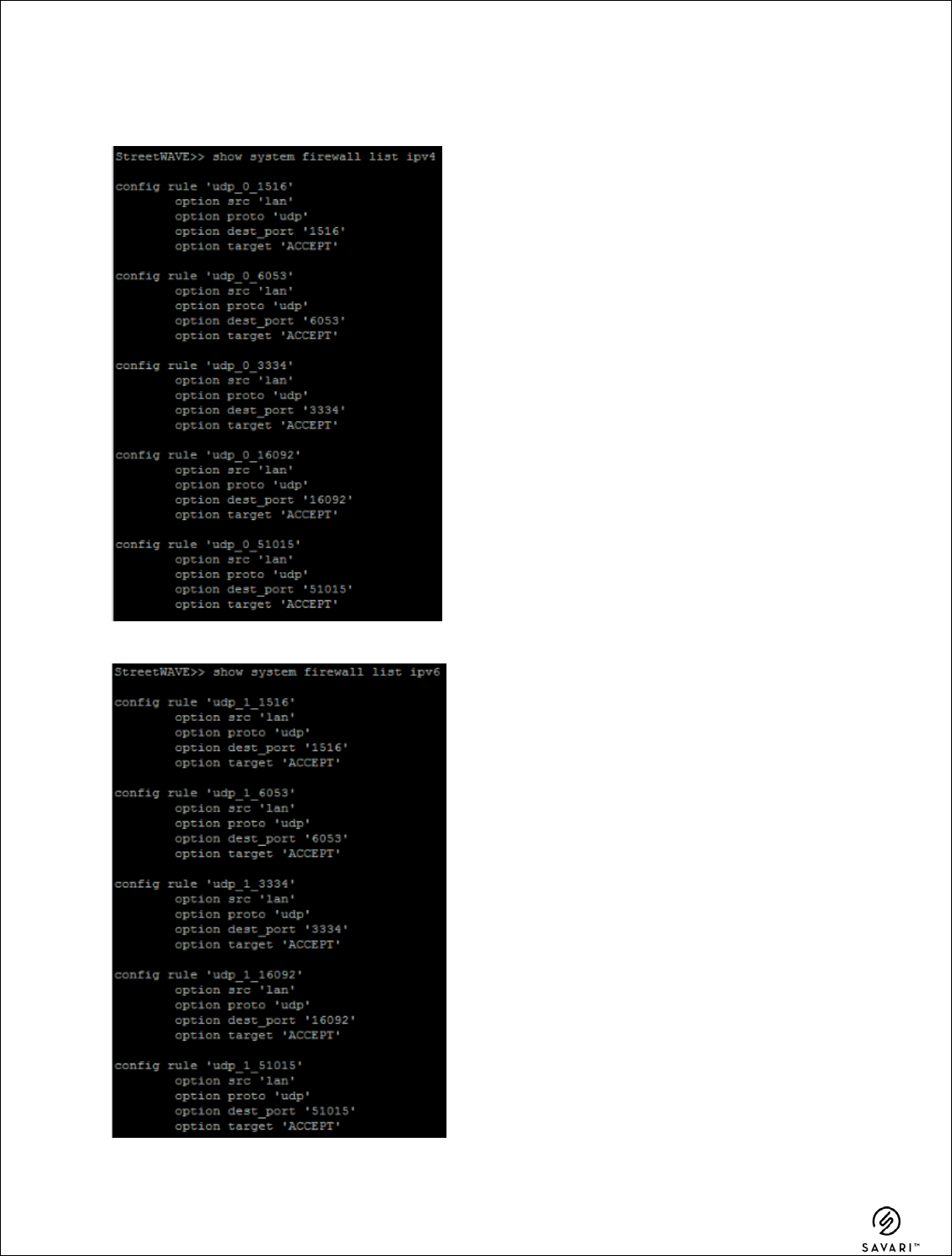

Firewall configuration requires separate rules for IPv4 and IPv6. Configuration files are

separate for IPv4 and IPv6, but the format is same.

6.4 Immediate Forward

StreetWAVE™ Immediate Forward application requires the following two configurations:

 The main configuration file containing the UDP configuration.

 Incoming stream of messages as specified in US DOT RSE requirements

UDP streaming configuration is not needed if only one StreetWAVE™ unit is used at a given

intersection.

6.5 Store and Repeat

StreetWAVE™ Store and Repeat application requires the following two configurations:

 The main Configuration file contains ActiveDB path and UDP configuration.

RSU2 User Guide

Savari Inc., Confidential

 Store and Repeat active message configuration contains message scheduling

parameters and message contents. (As per USDOT Req 4.1)

6.6 Sample Safety Pilot Deployment configuration

StreetWAVE™ radio configuration is very flexible. Any or both radios can be configured on any

channel in channel switching or continuous mode. Any sub-system (Store and Repeat,

Immediate Forward, and IPv6 provider) can be configured to use any of the two interfaces.

However, channel mode, channel numbers, and DSRC radios between all sub-systems should

be consistent on a given StreetWAVE™ unit.

The following is the recommended configuration:

 Store and Repeat and IPv6 run on Radio 1, channel-switching mode between control

channel 178 and any service channel (except 172/178). Store and Repeat transmits on

configured channel (182 default) in ActiveDB files and IPv6 runs on control channel.

 Immediate Forward, Immediate Forward, applications run on service channel 182 on

Radio 2, which is in continuous channel mode.

One of the StreetWAVE™ units can be configured as a UDP streaming unit. This is called Hub

StreetWAVE™. Other StreetWAVE™ units can be configured as stream receivers and are

called spoke StreetWAVE™. However, if antennas are disconnected, these messages will not

reach OBEs. The Hub unit can also be one of the units on the pole. In either case, it requires

Ethernet connectivity to the cabinet. All spoke units also should have Ethernet connectivity to

the cabinet.

A sample safety pilot multi-unit deployment configuration is illustrated in Error! Reference

source not found. with salient configuration parameters. Only important parameters are shown

below for illustration. Those parameters that are not shown here should be left at defaults for

this configuration.

RSU2 User Guide

Savari Inc., Confidential

Figure 11: Safety Pilot Deployment

Ethernet

Spoke RSEs

Eth0:

2001:470:e0fb:1111::::2 to

4/64

192.168.100.2 to 4

Ath0: 2001:470:e0fb:4444::2

to 4/64

DsrcProxy.conf:

DSRCInterfaceName = ath1

UDPListenerPort = 0

UDPStreamingMode = 0

UDPStreamingPort = 51015

TimMain.conf:

TIMEnable=0

ipv6app.conf:

DSRCInterfaceName = ath0

ForcedSerChanNum = 182

Hub RSE

Eth0: 2001:470:e0fb:1111::1/64

192.168.100.1

Ath0: 2001:470:e0fb:4444::1/64

DsrcProxy.conf:

DSRCInterfaceName = ath1

ChannelMode = 0

ContinuousChanNum = 172

UDPListenerPort = 51013

UDPListenerIPMode = 1

UDPStreamingMode = 1

UDPStreamingPort = 51015

TimMain.conf:

DSRCInterfaceName = ath0

ForcedSerChanNum = 182

UDPStreamingMode = 1

UDPStreamingPort = 51015

/etc/config/TIMDB/<*>:

MessagePSID=0x8003

TransmissionMode=CCH/SCH

TransmissionChannel=182

ipv6app.conf:

DSRCInterfaceName = ath0

ForcedSerChanNum = 182

TCID

Ethernet:

2001:470:e0fb:1111::10/64

192.168.100.10

MAP/SPAT Dest IP :

2001:470:e0fb:1111::1/64

MAP/SPAT Dest UDP port : 51013

PSID=0xBFF0

Priority=7

TxMode=CONT

TxChannel=172

RSU2 User Guide

Savari Inc., Confidential

6.7 SCMS Server connection

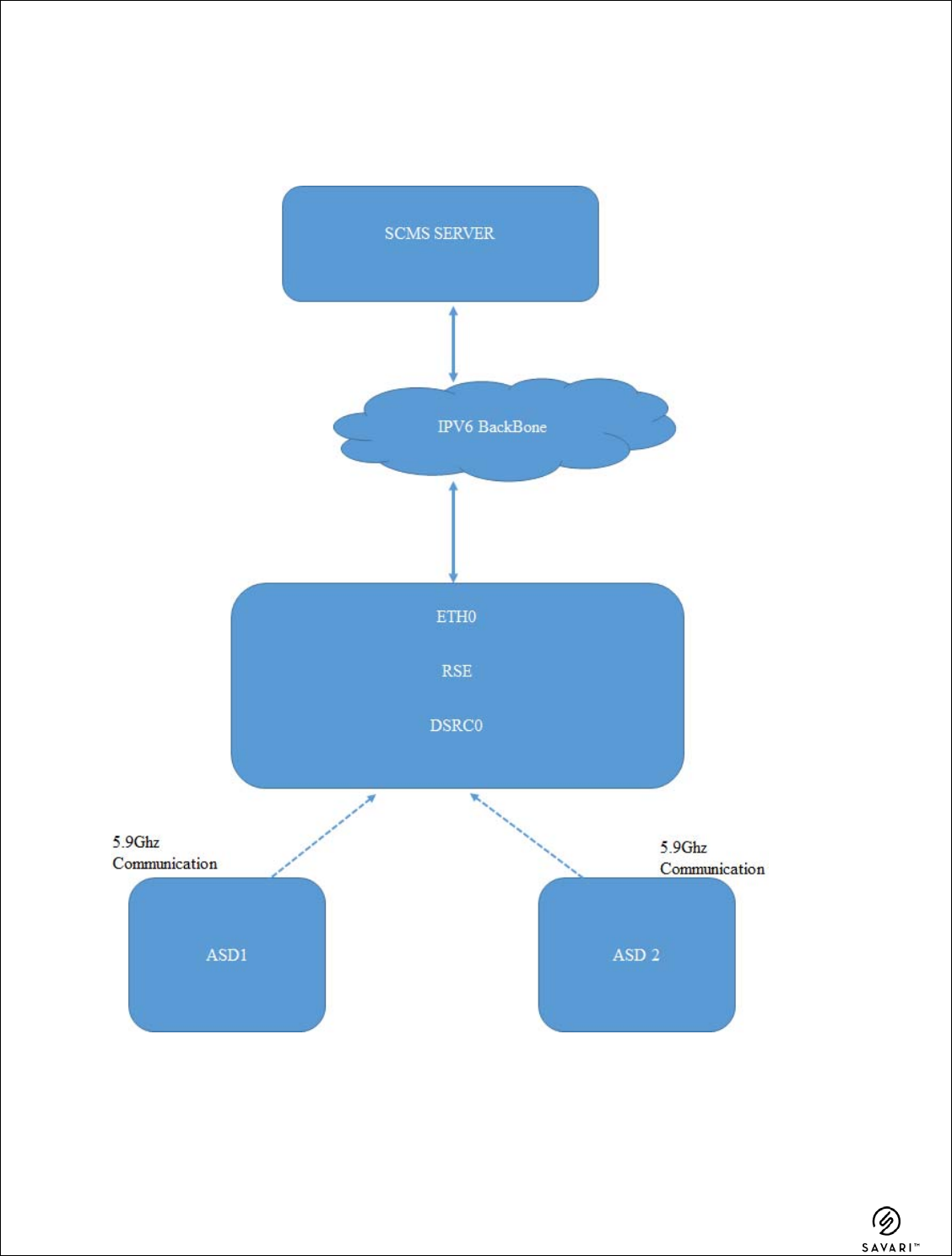

This section explains connection between ASD to SCMS server through StreetWAVE™

High Level Architecture

6.7.1

RSU2 User Guide

Savari Inc., Confidential

ASD-SCMS Communication Establishment

The following paragraph explains the connection between ASD to StreetWAVE™ and

StreetWAVE™ to SCMS server

a. StreetWAVE™ Broadcasts WSA with

a. SCMS IPV6 Address

b. SCMS Port

c. Default Gateway which is DSRC IP of StreetWAVE™

d. Prefix and Prefix Length which is in the same network as DSRC Interface Prefix

e. Configured DNS IPV6 address

b. ASD receives these WSA. Generates IPV6 Address as per the prefix/prefix length

announced.

c. Configures Default Gateway as per WSA. This is typically StreetWAVE™ DSRC IP

address

d. Configures DNS received over WSA

e. ASD Tries to establish a communication with the Service IP and Service Port via

StreetWAVE™. Service IP and Service Port are announced in the WSA and they are

SCMS Server IP and Port

f. StreetWAVE™ will act as router for the traffic coming from ASD on DSRC Interface and

Route all the traffic to the Ethernet Interface

StreetWAVE™ Configuration

6.7.2

For example

SCMS IP is 'fdca:39c0:a830::12' and SCMS Port is 8894

StreetWAVE™ Ethernet IP is 'fdca:39c0:a830::e6'

Configure LAN and DSRC IP addresses on StreetWAVE™

6.7.3

CLI command : config system network eth0 <parameter> < value>

Configure the parameters in the table for the above-mentioned file

Parameter Value

config interface lan

option ifname 'eth0'

option proto 'static

option ipaddr '192.168.48.230'

option netmask '255.255.248.0

option ip6addr1 '2001:100::1/64'

option ip6addr1 'fdca:39c0:a830::e6/48'

option ip6gw 'fdca:39c0:a830::6'

option ip6addr2 '2001:200::1/64'

RSU2 User Guide

Savari Inc., Confidential

option dns '192.168.48.6'

option gateway '192.168.48.1'

#DO NOT CHANGE THESE PARAMETERS FOR DSRCNET0

config system network radio1

config system network radio2

Parameter Value

config interface dsrcnet0

option ifname 'ath0

option proto static

option ip6addr1 ''fdca:39c0:a830:4444::1/64'

option ipaddr '192.168.101.251'

option netmask '255.255.255.0'

Configure Firewall Rules to Forward Packets from DSRC Interface to

6.7.4

Ethernet Interface of StreetWAVE™

Configure the parameters mentioned in the following table for the above-mentioned file

# this rule is to forward all traffic from OBUs on ath0 to CA on eth0

Parameter Value Description

config rule

option src dsrcnet0 ingress network dsrcnet0(ath0)

option src_ip 'fdca:39c0:a830:4444::/64 source IP6 address

option dest lan egress network lan(eth0)

option dest_ip fdca:39c0:a830::/64 destination IP6 address

option proto all

option dest_port 8894 If proto is set to tcp or udp, you can use

dest_port.

option target ACCEPT

Configure IPV6App

6.7.5

>> config app ipv6-provider <parameter> <Value>

Parameter Value Range Description

IPV6Enabled 1 0, 1 Enable/ Disable IPv6 sub-system

IPV6Priority 31 0, 63 IPv6 WSA priority

AdvertiserID "CAMP"

ProviderServiceContext "MBR"

IPV6Address fdca:39c0:a830::12 SCMS IP

ServicePort 8894; 1024,65535 Service Port of SCMS

RouterLifeTime_s 1800 1,65535

IPV6Prefix "'fdca:39c0:a830:4444::"; PREFIX ANNOUNCED IN WSA

RSU2 User Guide

Savari Inc., Confidential

PrefixLen 48; 1,128 IPv6 prefix length to announce in WRA of WSA

DefaultGateway 'fdca:39c0:a830:4444::1 StreetWAVE™ DSRC IP

PrimaryDNS fdca:39c0:a830::6 Primary DNS

GatewayMac Gateway MAC address to announce in WRA

ProviderMacAddress

WSARepeatRate 50 0, 255 Number of WSA to be transmitted per 5 secs

Consider the following to make sure the connections are secure

 Ping SCMS Server from StreetWAVE™ to ensure SCMS Server is accessible.

 Reboot the StreetWAVE™

 On Reboot, ASD Should be able to connect to StreetWAVE™.

 ASD Should get IP address in the domain 'fdca:39c0:a830:4444::

 ASD should also set its default Gateway as 'fdca:39c0:a830:4444::1.

 ASD should be able to ping StreetWAVE™ and SCMS.

Packet Logging Configuration

6.7.6

StreetWAVE™ generates per interface per direction packet log files as per configuration below.

Log file names are in the following format:

 Ethernet interface outgoing : <fileprefix>_eth_out_YYYY_MM_DD_HH_MM_SS.pcap

 Ethernet interface incoming : <fileprefix>_eth_in_YYYY_MM_DD_HH_MM_SS.pcap

 DSRC0 interface outgoing :

<fileprefix>_dsrc0_out_YYYY_MM_DD_HH_MM_SS.pcap

 DSRC0 interface incoming : <fileprefix>_dsrc0_in_YYYY_MM_DD_HH_MM_SS.pcap

 DSRC1 interface outgoing :

<fileprefix>_dsrc1_out_YYYY_MM_DD_HH_MM_SS.pcap

 DSRC1 interface incoming : <fileprefix>_dsrc1_in_YYYY_MM_DD_HH_MM_SS.pcap

Copying the System Message Logs

6.7.7

You can also copy system message logs from “/nojournal/Systemlogs” to an external laptop

in the same way as above. The system message log files are in text format and it can be

opened in any normal text editor.

They have the following naming convention:

syslog_2017_05_25_12_17_51.txt

Procedure to copy the syslog from RSU to external laptop”:

At CLI :

Utils copy src system-log:filename remote_username:scp://ipaddr:path/to/file

RSU2 User Guide

Savari Inc., Confidential

RSU2 User Guide

Savari Inc., Confidential

7 Firmware Upgrade Procedure Using the CLI

This chapter contains procedure to upgrade firmware.

Use the following procedure to upgrade (5.x to 5.x) the STREETWAVE™ firmware using the

CLI:

1. Connect a local PC to the STREETWAVE™ via Ethernet.

2. After connecting the Ethernet to STREETWAVE™, assign the IP address to the PC, in

the same subnet of the STREETWAVE™.

3. Download the image to be upgraded from the Savari FTP site to the PC.

4. Login to the STREETWAVE™ from the PC using SSH with the following credentials:

Password: 1[8V:2<J5*W;2I16H1nu

5. Copy the firmware image using the CLI command

utils copy remote_username:scp://ipaddr:path/to/file.image image:file.image

6. After copying the file using the above command, verify the same using the below

command.

utils list rsu-image

7. Execute one of the following commands:

utils rsu-upgrade -c < Firmware image name >

Also, all configurations (including, network, and wireless) will be lost, and they may need

to be configured again.

utils rsu-upgrade -n < Firmware image name >

(Where <Firmware image name> is the name of the firmware image that was copied in

the /tmp folder.)

When the sysupgrade command is used with the -n option, the STREETWAVE™

retains network (network, and wireless) configurations only.

Savari SAV-RSU2 StreetWAVE RSU 2 User Manual

Savari, Inc. StreetWAVE RSU 2 Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
