Users Manual
SaviTag ST-602-14 Compliance Notice 1
Keep This Document
Savi P/N 805-00007-001 (Rev. A)
Federal Communications
Commission (FCC) Notice
The Federal Communications Commission has
established technical standards regarding radio frequency
energy emitted by computer devices. This equipment has
been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference with radio/TV reception. Operation
of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be
required to correct the interference at his own expense.
Changes or modifications to this equipment
that are not expressly approved by Savi
Technology could void the warranty and the
authority to operate this equipment.
Savi Technology is not responsible for
radio/TV interference caused by using
unauthorized cable or by making
unauthorized changes to this equipment.
Federal Communications
Commission (FCC) Label
Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received,
including interference that may cause undesired
operation.
The label statement corresponds to the following
devices:
Device Model FCC ID
Radio tag ST-602-14 KL7-602T-V1
Declaration of Conformity
Hereby, Savi Technology, Inc., 351 East Evelyn Avenue
Mountain View, California 94041-1530
declares that the SaviTag ST-602-14 is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Industry Canada Notice: Model ST-602-14
IC: 2404A-602T1
This Class A digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classes A est confomé à la norme
NMB-003 du Canada.
Warning
This is a Class A product. In a domestic environment
this product may cause radio interference in which
case the user may be required to take adequate
measures.
Savi Technology, Inc.
351 East Evelyn Avenue
Mountain View, CA 94041-1530
Phone: (650) 316-4700
Fax: (650) 316-4750
E-mail: help@savi.com
Web site: www.savi.com
Copyright ©2007, Savi Technology, Inc. All rights reserved. First
edition printed July 2007.
Copyright protection claimed includes all forms and matters of
copyrightable material and information, now allowed by statutory or
judicial law or hereinafter granted. Information in this guide is subject
to change without notice and does not represent a commitment from the
vendor.
Savi is a registered trademark and EchoPoint is a trademark of Savi
Technology, Inc. Other product names mentioned in this guide may be
trademarks or registered trademarks of their respective owners and are
hereby acknowledged.
SaviTag ST-602-14 Compliance Notice
Czech Savi Technology, Inc. tímto prohlašuje, že tento SaviTag ST-602-14 Compliance
Notice je ve shodě se základními po_adavky a dalšími příslušnými ustanoveními
směrnice 1999/5/ES.
Danish Undertegnede Savi Technology, Inc. erklærer herved, at følgende udstyr SaviTag
ST-602-14 Compliance Notice overholder de væsentlige krav og øvrige relevante
krav i direktiv 1999/5/EF.
German Hiermit erklärt Savi Technology, Inc., dass sich das Gerät SaviTag ST-602-14
Compliance Notice in Übereinstimmung mit den grundlegenden Anforderungen
und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Estonian Käesolevaga kinnitab Savi Technology, Inc. seadme SaviTag ST-602-14
Compliance Notice vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud
direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, Savi Technology, Inc., declares that this SaviTag ST-602-14 Compliance
Notice is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Spanish Por medio de la presente Savi Technology, Inc. declara que el SaviTag ST-602-14
Compliance Notice cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Savi Technology, Inc. ΔΗΛΩΝΕΙ ΟΤΙ SaviTag ST-602-14
Compliance Notice ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ
1999/5/ΕΚ.
French Par la présente Savi Technology, Inc. déclare que l'appareil SaviTag ST-602-14
Compliance Notice est conformé aux exigences essentielles et aux autres
dispositions pertinentes de la directive 1999/5/CE.
Italian Con la presente Savi Technology, Inc. dichiara che questoSaviTag ST-602-14
Compliance Notice è conforme ai requisiti essenziali ed alle altre disposizioni
pertinenti stabilite dalla direttiva 1999/5/CE.
Latvian Ar šo Savi Technology, Inc. deklarē, ka SaviTag ST-602-14 Compliance Notice
atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
Lithuanian Šiuo Savi Technology, Inc. deklaruoja, kad šis SaviTag ST-602-14 Compliance
Notice atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Dutch Hierbij verklaart Savi Technology, Inc. dat het toestel SaviTag ST-602-14
Compliance Notice in overeenstemming is met de essentiële eisen en de andere
relevante bepalingen van richtlijn 1999/5/EG.
Maltese Hawnhekk, Savi Technology, Inc., jiddikjara li dan SaviTag ST-602-14
Compliance Notice jikkonforma mal-htigijiet essenzjali u ma provvedimenti
ohrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Hungarian Alulírott, Savi Technology, Inc. nyilatkozom, hogy a SaviTag ST-602-14
Compliance Notice megfelel a vonatkozó alapvetõ követelményeknek és az
1999/5/EC irányelv egyéb elõírásainak
Polish Niniejszym Savi Technology, Inc. oświadcza, że SaviTag ST-602-14 Compliance
Notice jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi
postanowieniami Dyrektywy 1999/5/EC.
Portuguese Savi Technology, Inc. declara que este SaviTag ST-602-14 Compliance Notice está
conforme com os requisitos essenciais e outras disposições da Directiva
1999/5/CE.
Slovenian Savi Technology, Inc. izjavlja, da je ta SaviTag ST-602-14 Compliance Notice v
skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive
1999/5/ES.
SaviTag ST-602-14 Compliance Notice
Slovak Savi Technology, Inc. týmto vyhlasuje, že SaviTag ST-602-14 Compliance Notice
spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Finnish Savi Technology, Inc. vakuuttaa täten että SaviTag ST-602-14 Compliance Notice
tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.
Swedish Härmed intygar Savi Technology, Inc. att denna SaviTag ST-602-14 Compliance
Notice står I överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Icelandic Hér með lýsir Savi Technology, Inc. yfir því að SaviTag ST-602-14 Compliance
Notice er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun
1999/5/EC.
Norwegian Savi Technology, Inc. erklærer herved at utstyret SaviTag ST-602-14 Compliance
Notice er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv
1999/5/EF.
Installation Guide For
SaviTag ST-602-14 Asset Tag
Page 1 of 5 pages ELECTRONIC COPY
NOT CONTROLLED IF PRINTED
Date Prepared Revision Revision Date Revision Approval
June 27, 2007
1.0
June 27, 2007 Ron Stein
DRAFT
- 1 - ST-602-14 Installation Guide
SaviTag ST-602-14 Installation Guide
The SaviTag ST-602-14 consists of a printed circuit board incorporating a non-replaceable battery
enclosed in a hermetically sealed plastic case.

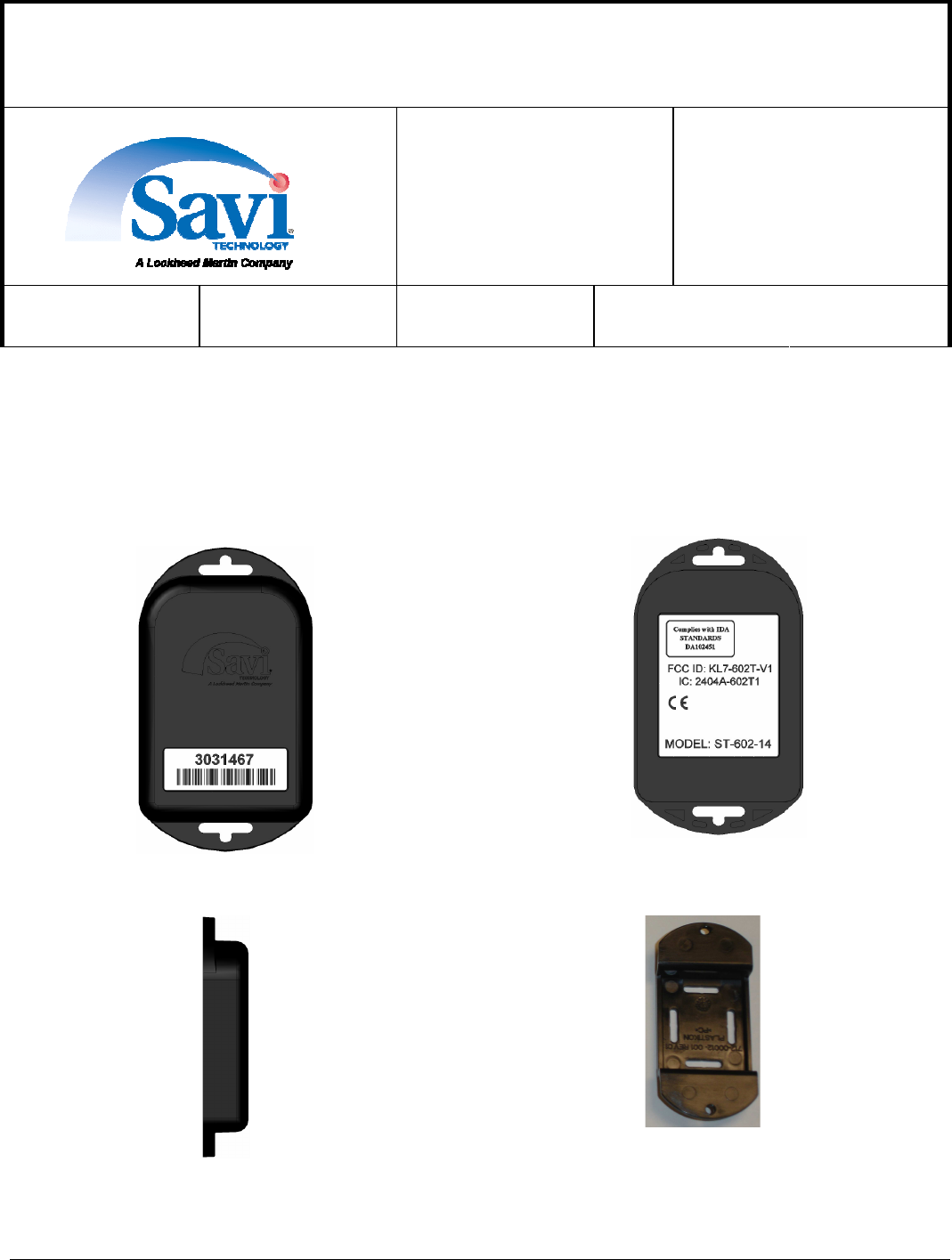

Figure 1: SaviTag ST-602-14
top view
Figure 2: SaviTag ST-602-14
bottom view
Figure 3: SaviTag ST-602-14
side view
Figure 4: Optional STA-1602 Mounting Bracket
for the ST-602-14
Installation Guide For
SaviTag ST-602-14 Asset Tag
Page 2 of 5 pages ELECTRONIC COPY
NOT CONTROLLED IF PRINTED
Date Prepared Revision Revision Date Revision Approval
June 27, 2007
1.0
June 27, 2007 Ron Stein
DRAFT
- 2 - ST-602-14 Installation Guide
• The SaviTag ST-602-14 tag is identified by an embossed logo on the front surface. Onthe back
surface, one or more labels containing the product model number, and a unique serial number in both
bar code and numerical format identify the product. The tag’s markings also identify relevant
compliance markings (e.g., FCC).
•
The ends at the length of the tag have holes and slots to enable the tag to be mounted on to a
variety of surfaces and items. In addition, the back surface of the tag is flat and smooth to
enable the tag to be affixed by double-sided tape or epoxy.
•
An optional bracket accessory, the STA-1602 shown in Figure 4, is available to facilitate
additional mounting scenarios. It lso provides spacing between the tag’s antenna and the
object to which the tag is mounted to minimize degradation RF transmission. This is
especially important when the tag is mounted on large flat metal surfaces. The tag affixes to
the bracket with a pair of supplied rivets.
•
The SaviTag ST-602-14 tag is primarily intended for indoor use, but can withstand harsh
environments and outdoor use where it can be exposed to rain, snow, dust, and direct
exposure to sunlight.
•
The tag’s battery life is rated at a nominal 5 year life when used under typical operating
conditions. [Ron-you should define “typical” operating conditions—ex. 2 reads per day] The
tag contains an internal lithium battery and therefore should be discarded according to local
safety requirements.
Installation Guide For
SaviTag ST-602-14 Asset Tag
Page 3 of 5 pages ELECTRONIC COPY
NOT CONTROLLED IF PRINTED
Date Prepared Revision Revision Date Revision Approval
June 27, 2007
1.0
June 27, 2007 Ron Stein
DRAFT
- 3 - ST-602-14 Installation Guide
Tag Attachment
The SaviTag ST-602-14 contains integrated mounting options. Follow these steps to install the SaviTag
ST-602-14:
1. Identify the object and/or surface to which the SaviTag ST-602-14 will be mounted.
2. When mounting the tag to a surface, the back (label side) of the tag should be closest to the target
surface.
3. For optimal UHF transmission, the tag should be separated from flat surfaces, particularly metal
surfaces, by 0.575 inch (1.5 cm.). The STA-1602 optional mounting bracket has been designed to
provide this minimal clearance.
4. Prepare the surface as necessary, which includes cleaning the surface (especially if double-sided tape
or epoxy will be used), drilling through holes if rivets will be used, or drilling guide holes if screws
will be used.
5. The tag may be attached using adhesives or double-sided transfer tape, such as 3M/Scotch VHB, No.
F9469PC.
6. If the tag or bracket is to be mounted using screws, both the tag and bracket are designed to be
mounted using .25 inch (.6 cm) round-head, Philips, non self-tapping metal screws. The tag can
accept only two screws. The bracket can accept two or four screws.
7. If the tag or bracket is to be mounted using rivets, both the tag and bracket are designed to accept
rivets that will fit the through hole diameter of 0.125 inches (.3 cm). The length of the rivet should be
chosen to ensure that the tag is fastened securely. The tag can accept only two rivets. The bracket can
Installation Guide For
SaviTag ST-602-14 Asset Tag
Page 4 of 5 pages ELECTRONIC COPY
NOT CONTROLLED IF PRINTED
Date Prepared Revision Revision Date Revision Approval
June 27, 2007
1.0
June 27, 2007 Ron Stein
DRAFT
- 4 - ST-602-14 Installation Guide
accept two or four rivets. The thickness of the shelf is 0.15 inch (.4 cm). Thus,, any chosen rivet
needs to extend the size of the target hole plus 0.15 inches
(.4 cm).
8. The tag may also be mounted using cable ties, small hook-and-loop straps, or equivalent. The
dimensions of the slots are 0.55 inch (1.4 cm) wide by 0.11 inch (.3 cm)thick.

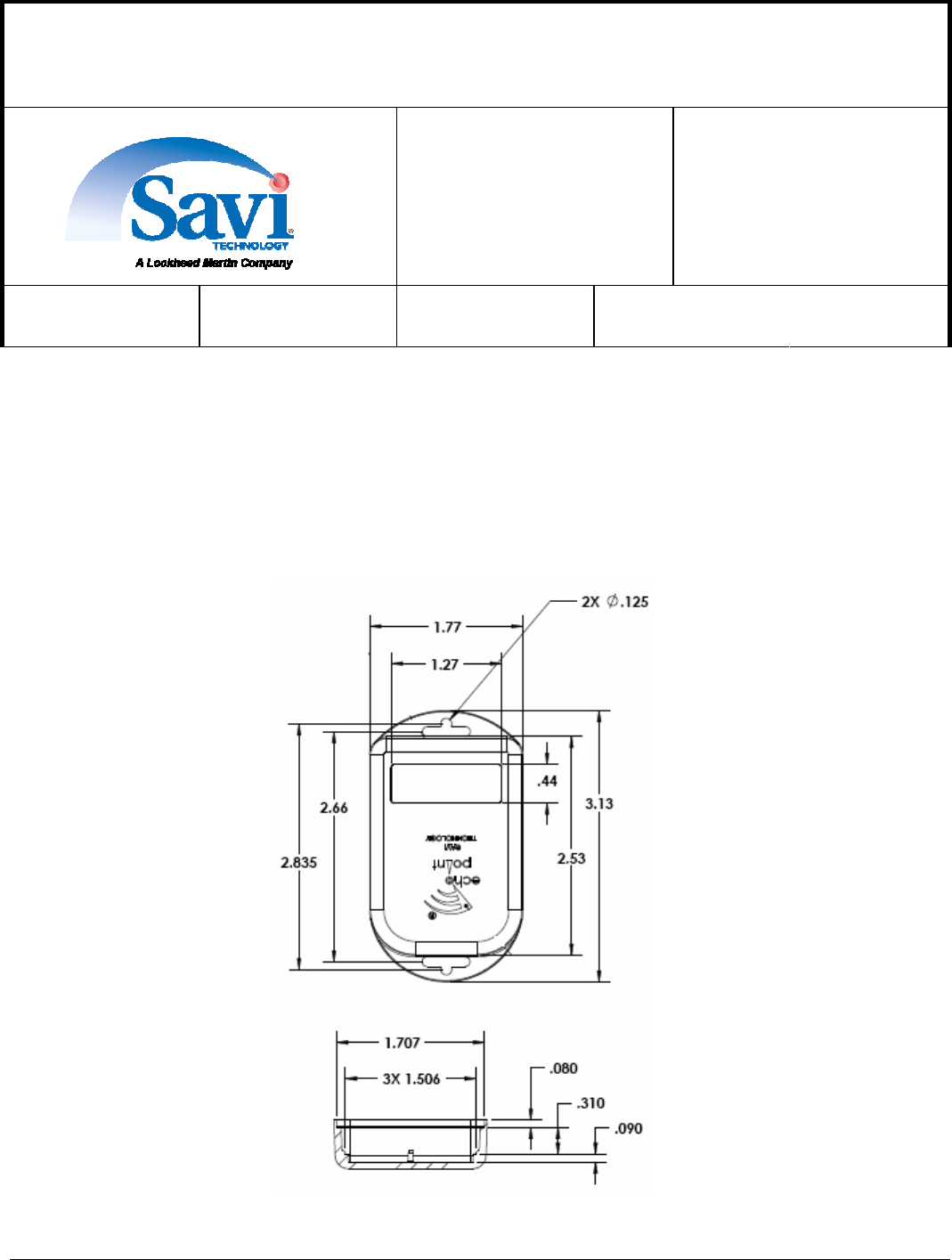

Figure 5: Tag Dimensions
Installation Guide For
SaviTag ST-602-14 Asset Tag
Page 5 of 5 pages ELECTRONIC COPY
NOT CONTROLLED IF PRINTED
Date Prepared Revision Revision Date Revision Approval
June 27, 2007
1.0
June 27, 2007 Ron Stein
DRAFT
- 5 - ST-602-14 Installation Guide
Tag Operation
•
After installation, SaviTag ST-602-14 operation can be verified by exposing it to a Savi Signpost 600
Series and reading the Tag ID with a Savi Fixed Reader 600 Series. Upon detecting an LF wake-up
trigger, the tag should respond via the UHF channel with the ID of the triggering signpost.
•
The tag is designed to beacon at a preset interval and/or to transmit via UHF in response to detecting
a “wake-up” trigger via the low-frequency (LF) channel from a Savi Signpost. The tag can also
receive commands via LF channel, which is typically done using Savi mobile devices such as the
Savi Mobile Reader SMR-650.
•
The tag has UHF transmission capability only, and therefore can only receive commands via the LF
channel.
