Installation Guide
Savi ST-675 Container
Security Tag
Published February 2009
Part number 805-05830-901 Rev B
Documentation for SaviTag ST-675
Copyright © 2009 Savi Technology, Inc. All rights reserved. Unpublished - rights reserved
under the Copyright Laws of the United States.
EchoPoint, Savi, Savi SensorTag, Savi SmartChain, Savi SmartStart, Savi Technology,
Savi’s Nested Visibility, SaviTag, SmartChain, the EchoPoint Logo, and the Savi Logo are
trademarks or registered trademarks of Savi Technology, Inc. in the United States and other
countries.
Information in this manual is subject to change without notice and does not represent a
commitment from the vendor. The software and/or databases described in this document
are furnished under a license agreement or nondisclosure agreement. The software and/or
databases may be used or copied only in accordance with the terms of the agreement. It is
against the law to copy the software on any medium except as specifically allowed in the
license or nondisclosure agreement.
THIS DOCUMENTATION CONTAINS CONFIDENTIAL INFORMATION AND
TRADE SECRETS OF SAVI TECHNOLOGY, INC. USE, DISCLOSURE OR REPRO-
DUCTION IS PROHIBITED WITHOUT THE PRIOR EXPRESS WRITTEN PERMIS-
SION OF SAVI TECHNOLOGY, INC.
U.S. GOVERNMENT RIGHTS
Use, duplication or disclosure by the U.S. government is subject to restrictions set forth in
the Savi Technology, Inc. license agreement and as provided in DFARS 227.7202-1(a) and
227.7202-3(a) (1995), DFARS 252.227-7013(c)(1)(ii) (OCT 1988), FAR 12.212(a) (1995),
FAR 52.227-19 or FAR 52.227-14 (ALT III), as applicable. Savi Technology, Inc.
Other product names mentioned in this guide may be trademarks or registered trademarks
of their respective owners and are hereby acknowledged.
Savi Technology.
351 E. Evelyn Avenue
Mountain View, CA 94041-1530
Phone: 1-650-316-4700
Facsimile: 1-650-316-4750
www.savi.com
3
Contents
1
Savi ST-675 Container Security Tag Description. . . . . . . . . . . . . 5
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Activating the Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Initializing the Tag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Placing the Tag for Best Performance . . . . . . . . . . . . . . . . . . . . . . . . . .10
Mounting the Tag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Replacing the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Contacting Savi Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4
5
Savi ST-675 Container Security
Tag Description
The Savi ST-675 tag is an active RFID container security tag with
intrusion and environmental sensors. The ST-675’s sensor arm detects the
open/closed state of the shipping container door, and the intrusion light
sensor monitors the amount of light entering the container. These
intrusion sensors detect potential theft or tampering. The temperature,
humidity, and shock sensors monitor environmental conditions to prevent
spoilage or damage to goods. In congested RF environments where tags
are polled repetitively, the ST-675’s over-polling detection and protection
algorithm preserves battery life.
Figure 1: Savi ST-675 Container Security Tag (front view)
Antenna
Savi ST-675 Container Security Tag Installation Guide
6

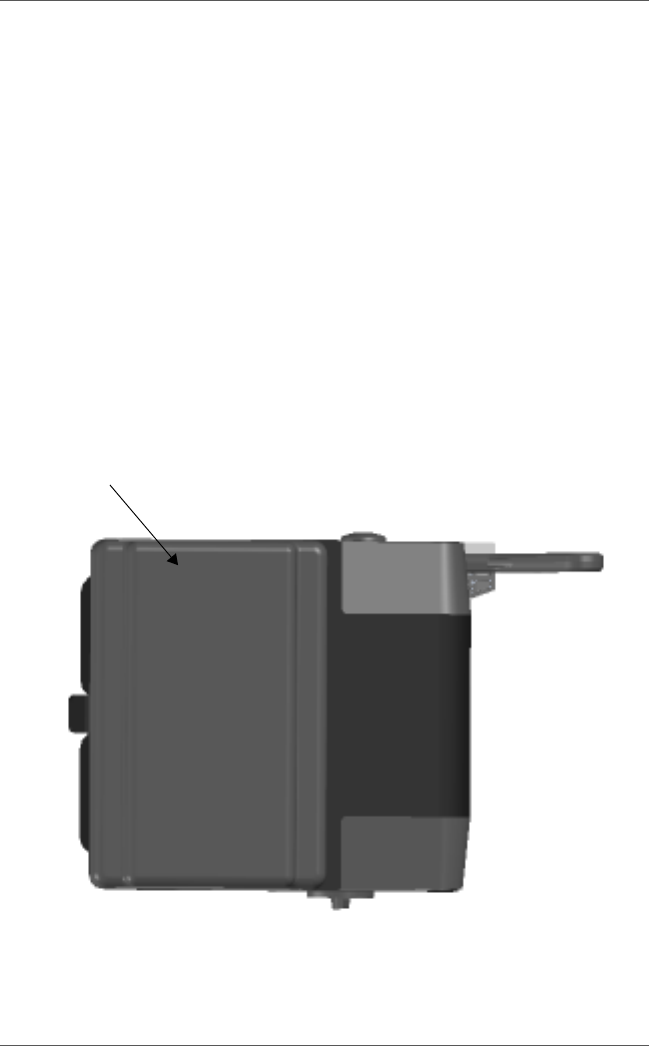

Figure 2: To p v i e w
Door Clamp
Antenna
Outside
Inside
Figure 3: Rear view
Tag ID number USB port
Model number Battery compartment
Features
7
Features
• ISO 18000-7 compliant active RFID tag with environmental sensor
capability
• Sensors monitor security status and environmental conditions inside
shipping container
• Unique C-clamp, door-mounted design
• Supports low frequency technology for more precise locating
capabilities
• FCC, HERO, ETSI, RoHS (Directive 2002/95/EC) certified
Activating the Tag
The tag is shipped in sleep mode. You must remove and re-insert the
battery to wake up the tag. After you re-insert the battery, you can
initialize the tag.

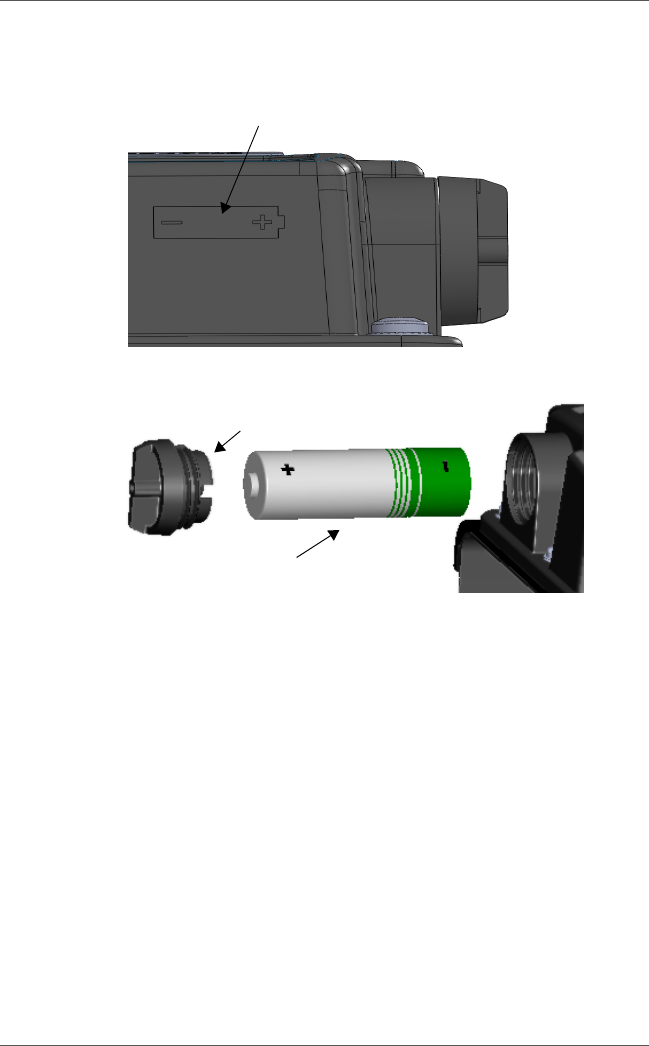

1. Remove the battery cap.
Turn to open
Remove battery as shipped
2. Remove the battery. Wait a few seconds and then reinsert the battery,
matching the negative (–) and positive (+) terminals to the symbols
shown on the tag housing. The tag will not work if you install the
battery in the wrong direction (reversed).
Correct battery orientation
Turn to open
Correct battery orientation
Savi ST-675 Container Security Tag Installation Guide
8
Whenever a battery is inserted into a tag, the tag will emit 5 beeps.
Then, if the tag emits a long (1/2 second beep), that means it has an
internal sensor failure.
Then, the tag will emit 2 short beeps to indicate adequate battery
voltage or 3 short beeps if a fresh battery is required.
Whenever a battery is inserted into a tag, the tag assumes that it is a
fresh battery. Inserting a used battery into a tag may result in what
appears to be a premature battery failure.
3. Replace the battery cap on the tag. Continue tightening the cap until
it is secure.

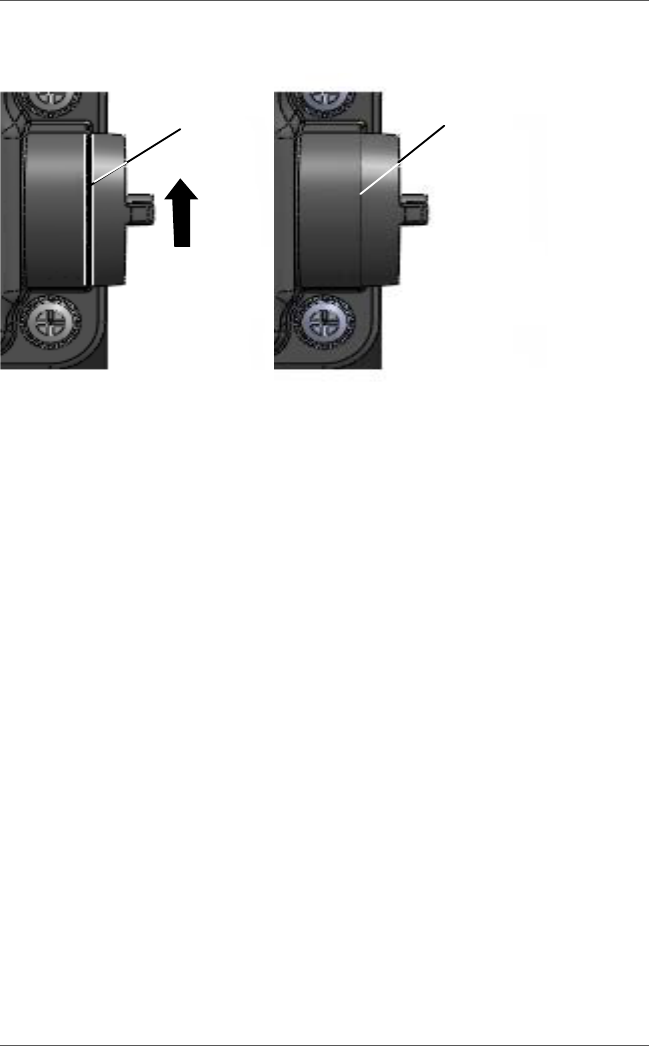

Improper
O-ring exposed
until tight
Turn cap
Proper
O-ring hidden
Initializing the Tag
9
If the O-ring is not properly compressed by the cap, water leakage and
damage may occur.
Note: When the tag is not in use, disable the tag by removing, reversing,
and re-inserting the battery. Store the battery at room temperature
(50-80 °F or 10-27 °C ).
Initializing the Tag
Once you activate the tag, you can initialize it for immediate use.

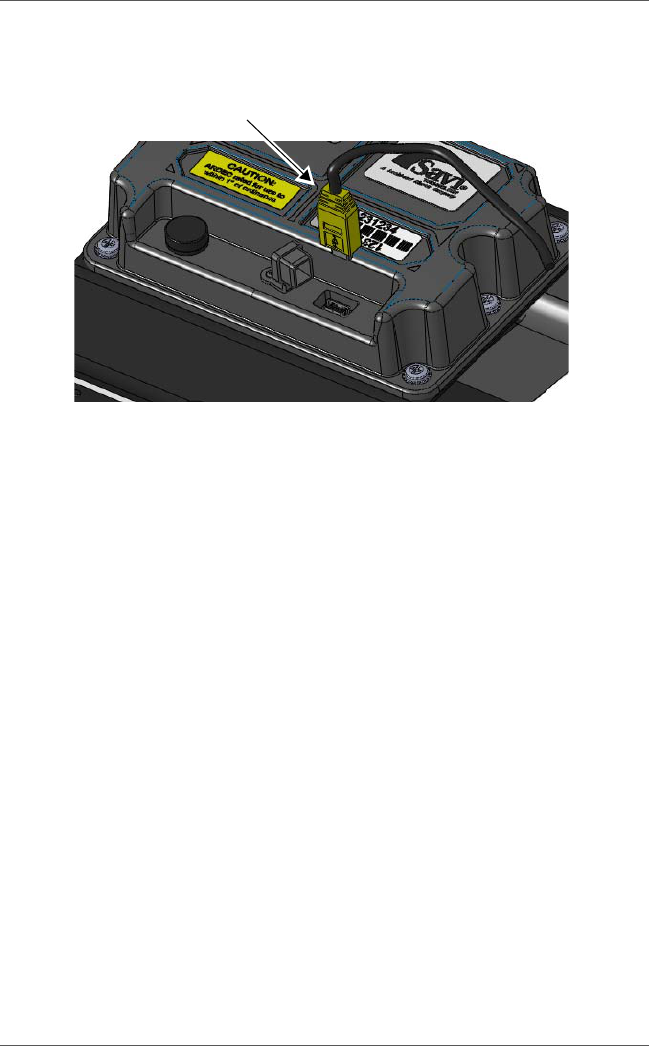

1. Unplug the USB port cover.
2. Insert the USB cable into the USB port on the tag and connect the other
end to the USB port on the computer.
USB cable
Savi ST-675 Container Security Tag Installation Guide
10
3. Refer to the Savi SmartChain Mobile User Guide or the Savi Smart-
Chain WorkStation User Guide for instructions on the initialization
process.
Placing the Tag for Best
Performance
Savi Technology recommends that you mount the tag on a flat surface,
with the tag aligned vertically. For best performance, place the tag as high
as possible, safe from impact (for example, between the ribs of an
ISO-type shipping container), and away from obstructions on the asset.
For best performance, make sure the tag is:
• Mounted on a metal surface.
• Mounted at no less than a 6 foot (1.8m) elevation.
• Mounted vertically.
• Not mounted behind or between metal objects
Placing the Tag for Best Performance
11
• Mounted on the container door higher than the closing and locking
mechanism.
The next figure shows an example of a security tag mounted on an ISO
container door.

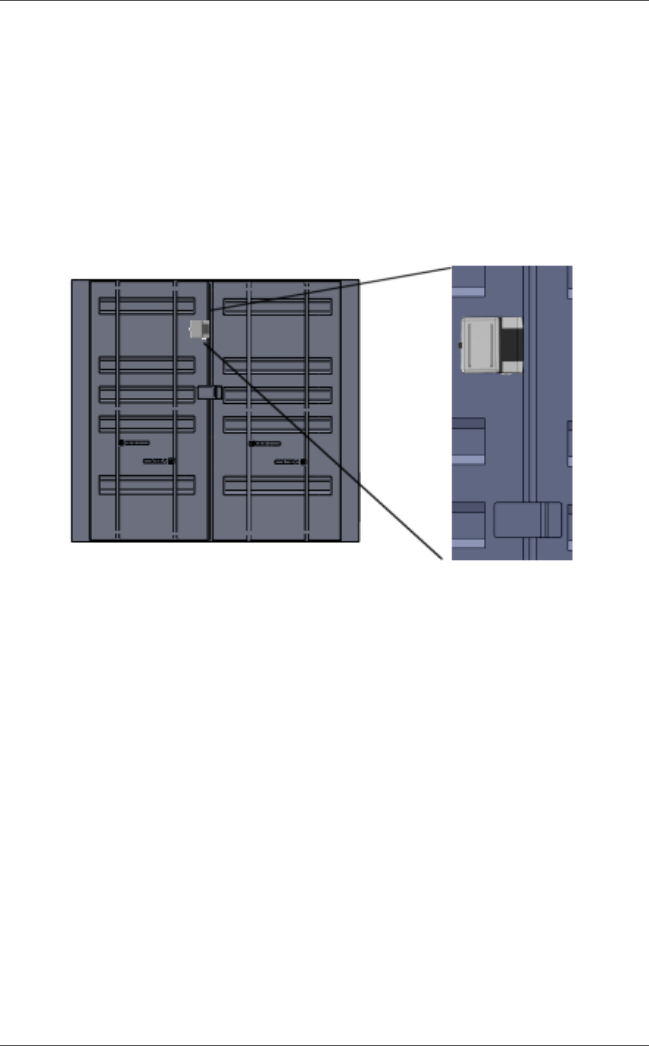

Figure 4: Security tag mounted on an ISO container door
Note: Make sure you clean the surface of the container or other asset
before attaching the tag.
The tag will have 400-foot (122m) read/write range to Savi SR-650 Fixed
Readers. For the most consistent communications with the tag, the Fixed
Readers must be mounted:
• to have an unobstructed line-of-sight to the tag
• at 20 feet (6m) or higher
Follow the instructions in the Savi Fixed Reader documentation to locate
and position the Savi Fixed Reader for best performance.
Savi ST-675 Container Security Tag Installation Guide
12
Mounting the Tag
1. Open the right door of the container.
2. Using both hands, push the C-clamp on the tag onto the edge of the
left door until it is on as far as it can go.
Left door outside view Left door inside view
3. Flip the door sensor arm to the right position so it can contact the
inside of the right door when it closes.
4. Close the right door. The door sensor arm is now armed and in position
to trigger if the container is opened.
Replacing the Battery
13
Replacing the Battery
The tag is equipped with non-volatile memory, which means stored data is
not lost when you replace the battery.

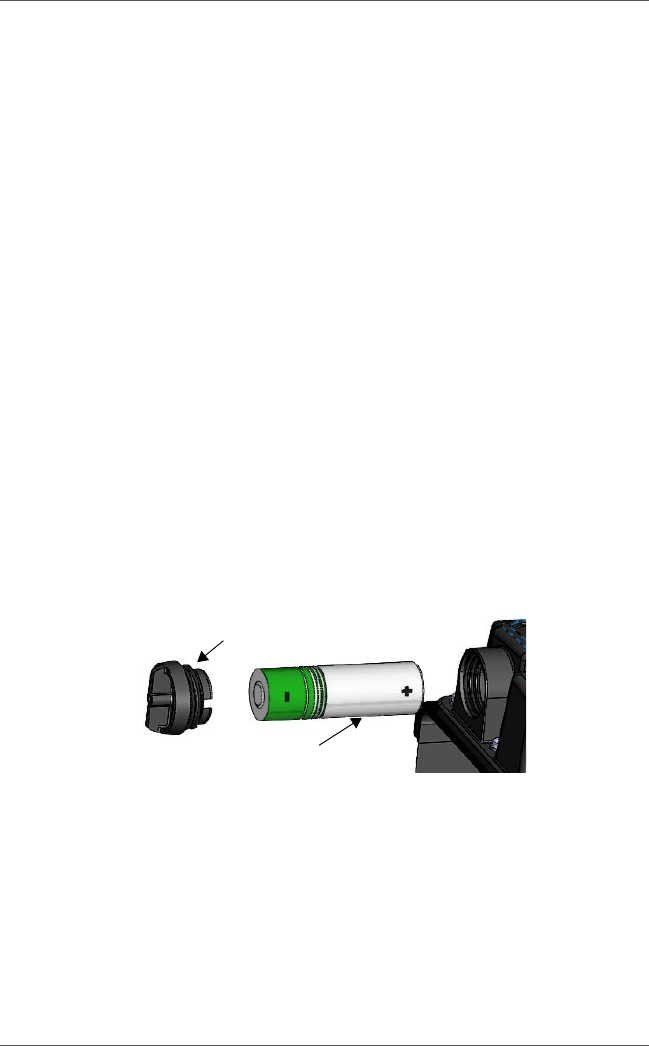

1. Remove the battery cap.
2. Remove the discharged battery from its compartment.
For more information, see “Activating the Tag” on page 7. The lithium
battery can be harmful to the environment. Follow current procedures
for safely disposing of lithium batteries. The battery cannot be reused
or recharged.
3. Install a 3.6V lithium "A" battery, matching the negative (–) and posi-
tive (+) terminals to the symbols shown on the tag housing. The tag
will not work if you install the battery in the wrong direction
(reversed).
4. Replace the battery cap on the tag.
Whenever a battery is inserted into a tag, the tag will emit 5 short
beeps, one second apart.
Then, if the tag emits a long (1/2 second beep), that means it has an
internal sensor failure. Remove the battery and insert it again. If the
tag emits the same long (1/2 second) beep, do not use the tag.
Then, the tag will emit 2 short beeps to indicate adequate battery
voltage or 3 beeps to indicate inadequate battery voltage. 3 short beeps
means the tag needs a fresh battery.
Whenever a battery is inserted into a tag, the tag assumes that it is a
fresh battery. Inserting a used battery into a tag may result in what
appears to be a premature battery failure.
After the beep, continue tightening the cap until it is secure.
Savi ST-675 Container Security Tag Installation Guide
14
Contacting Savi Support
If you cannot find the information you need, contact Savi Support
Services.
• Check http://supportcenter.savi.com for contact information.
• Send an email to help@savi.com.
• Call 1-888-994-SAVI (North America only) or 1-650-316-4760
between 5 a.m. and 5 p.m. Pacific time.
When you contact Savi Support Services by telephone or email, have the
following information available:
• Contact information (company name, your name, email, and phone
number)
• Problem description
• Software version
•Product type
• Serial number or license information
Specifications
15
Specifications
Model
Numbers
ST-675-030: Container security tag
ST-675-030-NSN: Container security tag with label
Physical
Characteristics
Rear case: 4.7 in. (12 cm) x 4.5 in. (11.4 cm) x 1.5 in. (3.8
cm)
Front case: 4.6 in. (11.6 cm) x 3.2 in. (8.1 cm) x 0.5 in. (1.2
cm)
C-clamp: 4.7 in. (12 cm) x 5.2 in. (13.3 cm) x 2 in. (5 cm)
Container: ISO 668: 1995(E) Series 1 Freight Containers
Color: Black
Environmental Temperature: -32°C to +70°C operating; -40°C to +85°C
storage
Humidity: 95% non-condensing
Vibration and shock: MIL-STD-810F
Weatherproofing: IP64
Manufacturing: RoHS Directive 2002/95/EC
Wireless (UHF
Tr a n s c e i v e r )
Frequency: 433 MHz
Range: 400 ft. (122m) operating read/write range
(outdoors, non-obstructed) from Savi SR-650 reader
Protocols: ISO 18000-7, EchoPoint
Wireless (LF
Receiver)
Frequency: 123 kHz
Range: Greater than 20 ft. (6m) from Savi SP-651-211
Signpost or Savi SP-652-211 Signpost Reader
Protocol: EchoPoint Protocol
Power Battery type: 3.6 volt lithium, replaceable by user without
tools
Battery life: Approximately 4 years at 2 collections per day.
Over-polling protection algorithm to extend battery life
Savi ST-675 Container Security Tag Installation Guide
16
Digital Sensor memory: 32 Kbytes on-board non-volatile memory
Database memory: 128 Kbytes on-board non-volatile
memory
Wired interface: USB 1.1, USB 2.0
Mounting C-clamp: Clamps easily onto shipping container left door
edge (frame) - C-clamp to left door, sensor arm under right
side for monitoring door closure status. Tag can be mounted
anywhere on the edge of the left-hand container
rectangular doorframe measuring 2 in. (50 mm) x 4 in. (100
mm).
Approvals Radio Type Approval: FCC Part 15, EN 300 220 (433 MHz)
EMC and immunity: EN 301 489
Ordnance: HERO Certified, ARDEC rating of 1 in. (2.5 cm)
Environmental
Sensors
Temperature: Senses and samples temperature with
adjustable sample period and adjustable alarm thresholds
Humidity: Senses and samples humidity with adjustable
sample period and adjustable alarm thresholds
Tamper
Sensors
Door Sensor: Senses whether door is opened or closed
Light Sensor: Senses light entering the shipping container
above an adjustable threshold

Navigation menu
