Installation Guide
Savi ST-694 GlobalTag
![](/img.php?id=1291207&img=bg2.png)
Published March 2010
Part number 805-07168-901 Rev A
Documentation for Savi ST-694 GlobalTag
Copyright © 2010 Savi Technology, Inc. All rights reserved. Unpublished - rights reserved
under the Copyright Laws of the United States.
EchoPoint, Savi, Savi SensorTag, Savi SmartChain, Savi SmartStart, Savi Technology,
Savi’s Nested Visibility, SaviTag, SmartChain, the EchoPoint Logo, and the Savi Logo are
trademarks or registered trademarks of Savi Technology, Inc. in the United States and other
countries.
Information in this manual is subject to change without notice and does not represent a
commitment from the vendor. The software and/or databases described in this document are
furnished under a license agreement or nondisclosure agreement. The software and/or
databases may be used or copied only in accordance with the terms of the agreement. It is
against the law to copy the software on any medium except as specifically allowed in the
license or nondisclosure agreement.
THIS DOCUMENTATION CONTAINS CONFIDENTIAL INFORMATION AND
TRADE SECRETS OF SAVI TECHNOLOGY, INC. USE, DISCLOSURE OR
REPRODUCTION IS PROHIBITED WITHOUT THE PRIOR EXPRESS WRITTEN
PERMISSION OF SAVI TECHNOLOGY, INC.
U.S. GOVERNMENT RIGHTS
Use, duplication or disclosure by the U.S. government is subject to restrictions set forth in
the Savi Technology, Inc. license agreement and as provided in DFARS 227.7202-1(a) and
227.7202-3(a) (1995), DFARS 252.227-7013(c)(1)(ii) (OCT 1988), FAR 12.212(a) (1995),
FAR 52.227-19 or FAR 52.227-14 (ALT III), as applicable. Savi Technology, Inc.
Other product names mentioned in this guide may be trademarks or registered trademarks
of their respective owners and are hereby acknowledged.
Savi Technology.
351 E. Evelyn Avenue
Mountain View, CA 94041-1530
Phone: 1-650-316-4700
Facsimile: 1-650-316-4750
www.savi.com
![](/img.php?id=1291207&img=bg3.png)
3
Contents
1
Savi GlobalTag ST-694 Description . . . . . . . . . . . . . . . . . . . . . . . 5
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Activating and Initializing the Tag . . . . . . . . . . . . . . . . . . . . . . . . . 6
Hibernating the Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Initializing Satellite Communication . . . . . . . . . . . . . . . . . . . . . . . 8
Placing the Tag for Best Performance . . . . . . . . . . . . . . . . . . . . . . 9
Mounting the Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Conserving the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Avoid Overpolling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Use Hibernation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Contacting Savi Global Support Services. . . . . . . . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
![](/img.php?id=1291207&img=bg4.png)
4
![](/img.php?id=1291207&img=bg5.png)
5
Savi GlobalTag ST-694
Description
The Savi GlobalTag ST-694 is a data-rich active RFID tag equipped with
a satellite modem and a GPS receiver. This tag is suited for various
applications including tracking shipping containers, vehicles, and other
high-value assets throughout a supply chain. The GlobalTag can track
assets with or without active RFID infrastructure.

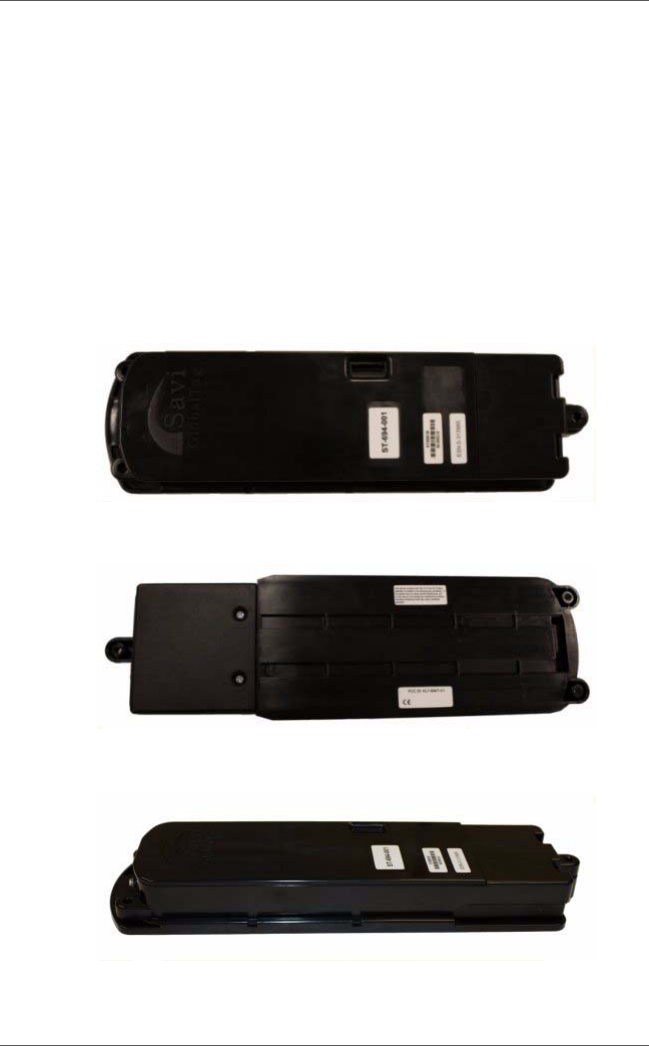

Figure 1: To p v i e w
Figure 2: Bottom view
Figure 3: Mounting bracket view
![](/img.php?id=1291207&img=bg6.png)
Savi ST-TAG NUMBER Installation Guide
6
Features
• Extends active RFID networks with GPS and satellite to enable true
global tracking solutions
• 128 Kbytes of programmable database memory enables tag to support
multiple applications
• RFID 433 MHz communications with 400-foot (122m)
omnidirectional line-of-sight range
• Replaceable battery with a typical life of three years, assuming one
satellite reporting per day
• Supports innovative low-frequency technology for more precise
locating capabilities
• FCC, HERO, RoHS (Directive 2002/95/EC) certified
Activating and Initializing the Tag
Before you can initialize the tag, you must wake it up by inserting the
battery.
1. Remove the battery from its wrapping.
2. Insert the battery by lowering the tab end into the tag battery
compartment and then lowering the connector end. The battery should
fit snugly in position.
When a battery is inserted into a tag, the tag emits 2 short beeps one
second apart to indicate adequate battery voltage or 3 short beeps if a
fresh battery is required.
3. Secure the battery with the two provided 6-32 screws.
Note: When the tag is not in use, removing the battery and store it at
room temperature (50-80 °F or 10-27 °C).
After you activate the tag, you can initialize it for immediate use. Refer to
the Savi SmartChain Mobile User Guide or the Savi SmartChain
Workstation User Guide for initialization information.
![](/img.php?id=1291207&img=bg7.png)
Hibernating the Tag
7
Hibernating the Tag
You can hibernate the tag to conserve the battery. To place the tag in
hibernation mode using SmartChain Mobile:
1. Remove the mobile device (also known as a handheld interrogator)
from the cradle and login to SmartChain Mobile.
2. Make sure the mobile device is disconnected from the external power
supply.

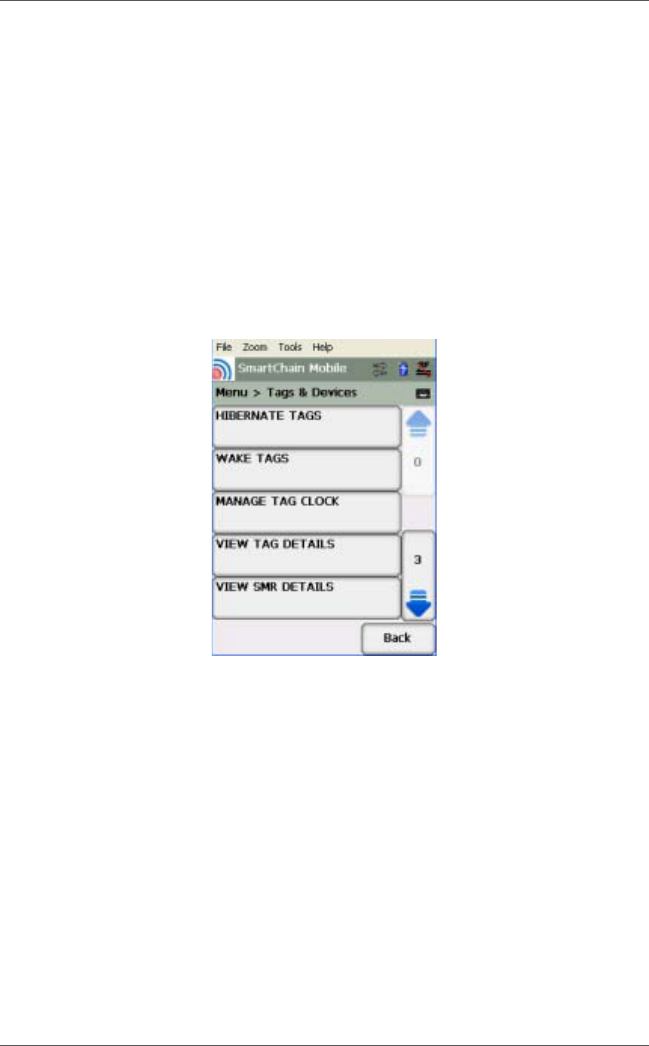

3. From the Main menu, tap Tags & Devices > Hibernate Tags.
4. Tap Add.
5. Tap Collect to begin active tag collection.
6. Select a tag from the list and tap OK.
You can select multiple tags.
![](/img.php?id=1291207&img=bg8.png)
Savi ST-TAG NUMBER Installation Guide
8
7. To add tags to the collection, tap Add and repeat steps 4 and 5.
8. When you finish adding tags, tap Hibernate.
9. Tap:
•New Hibernate Tags to disable UHF reception for other tags.
•Return to Main Menu to go back to the Main menu.
For more information, see the Savi SmartChain Mobile User Guide.
Initializing Satellite
Communication
Once you activate the RFID, you can initialize satellite communication.
1. Start Savi SmartChain Mobile on the mobile device.
2. From the Main menu, tap Tag Commands.
3. Enter or scan the RFID Tag ID in the space provided and tap Read
Tag.
4. Tap the GPS Reporting tab.
5. Tap the Standard Positional Reporting desired and tap Next.
6. Tap Write Tag.
Refer to the Savi SmartChain Mobile User Guide or the Savi
SmartChain WorkStation User Guide for initialization information.
![](/img.php?id=1291207&img=bg9.png)
Placing the Tag for Best Performance
9
Placing the Tag for Best
Performance
Savi Technology recommends that you mount the tag on a flat horizontal
surface, with a clear view of the sky. The tag may also be mounted
vertically on the side of a container. For best performance, place the tag as
high as possible, safe from impact, and away from obstructions on the
asset. For satellite reporting, a clear view of the sky is required.
During transit, ensure that tags mounted on multiple containers are not
obstructed by other containers. If the container is loaded onto a vehicle
for transport, avoid placing the tag on the side of a container that faces the
vehicle cab or any other obstruction.
Mount the tag by adhering the tag and supplied plastic mounting sleeve
with pressure sensitive tape (PST) to the inside or outside of a Class VIII
container or plastic, cardboard, or wood container or box. Secure the tag
to the mounting sleeve using the three provided 8-24 screws.
Typical mounting locations include on the hood of a vehicle or on the
outside of the container on a flat surface.
For best performance, make sure the tag is:
• Mounted with clear view of the sky
• Mounted on a metal surface
• Mounted horizontally whenever possible, otherwise vertically
• Not mounted behind or between metal objects
• Secured to the Optional Mounting Bracket to provide the minimum
clearance to the asset (.575 inch or 1.5 cm)
![](/img.php?id=1291207&img=bga.png)
Savi ST-TAG NUMBER Installation Guide
10

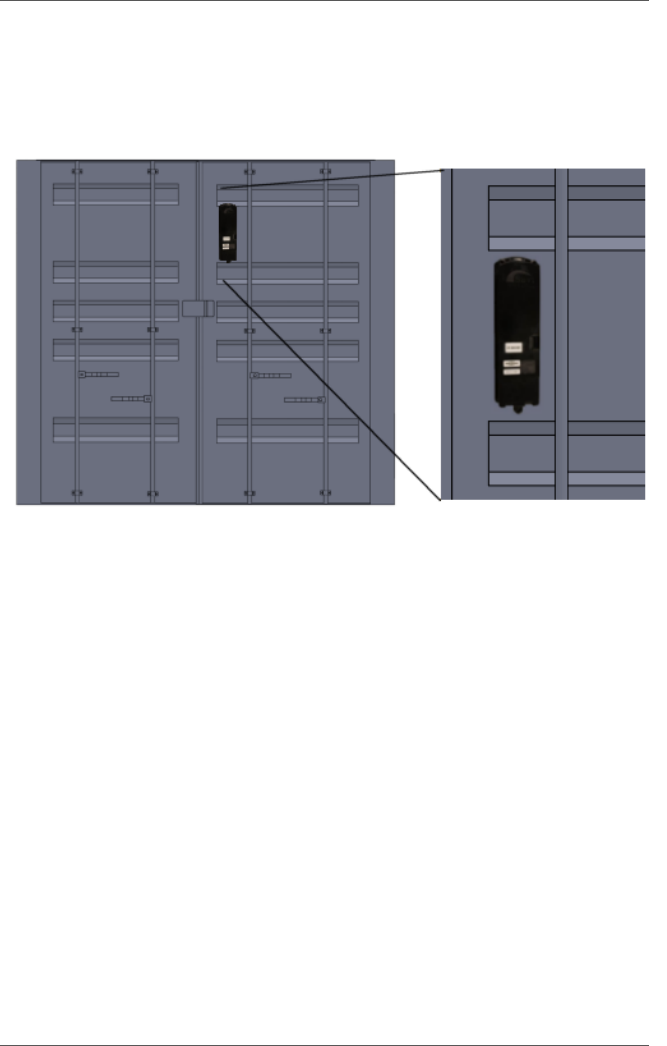

The next figure shows an example of a tag mounted on an ISO container
according to the performance guidelines.
Note: Make sure you clean the surface of the container or other asset
before attaching the tag.
The tag has 400-foot (122m) read/write range to Savi SR-650 Fixed
Readers. For the most consistent communications with the tag, the readers
must be mounted:
• To have an unobstructed line-of-sight to the tag
• At 20 feet (6m) or higher
Caution: Tags mounted close to the ground may have less range.
Follow the instructions in the Savi SR-650 Fixed Reader Installation
Guide to locate and position the Savi Fixed Reader for best performance.
![](/img.php?id=1291207&img=bgb.png)
Mounting the Tag
11
Mounting the Tag
When mounting the tag, use the plastic mounting sleeve. You can choose
among several methods for mounting the sleeve, including using pressure
sensitive tape (PST).
Mounting the tag directly onto the asset limits access to the battery and
should be avoided.
Whichever mounting method you select, the goal is to prevent accidental
loss of the tag by sudden impact, vibration, or shock during transport. The
fastener you choose often depends on the material from which the asset or
container is constructed and your personal preference.
You can also use the following alternative fastening methods:
• Tie-wraps
•Twine
• Screws
•Rivets
Caution: Use these and other alternative methods at your own risk.
If it is not possible or practical to use screws, use PST to attach the tag.
For ease of installation, the tag comes with PST on the back of the plastic
mounting sleeve.
Note: Ideal tape application temperature range is 70°F to 100°F (21°C
to 38°C). After application, the bond reaches maximum strength after 3
days.
PST mounting kits are also available for separate purchase.
Once a mounting sleeve is fastened to an asset, you can leave it on the
asset even after the tag is removed so the sleeve is available for future use
with other compatible tags. Prior to re-use, visually inspect the
![](/img.php?id=1291207&img=bgc.png)
Savi ST-TAG NUMBER Installation Guide
12
PST-mounted sleeve to make sure it is attached securely. If necessary,
reinstall the sleeve using new PST.
Conserving the Battery
The tag's battery can be depleted by excessive accessing through
overpolling. Minimizing a tag’s exposure to unintentional reader signals
can help extend battery life.
Avoid Overpolling
The most common cause of early battery depletion is overpolling.
Overpolling can occur when the tag is left idle within range of an RF
reader such as in a warehouse, shipping yard, or near a gate where fast
UHF polling is used.
Use Hibernation Mode
You can protect unused tags from unintentional polling by placing them in
Hibernation mode. See “Hibernating the Tag” on page 7.
![](/img.php?id=1291207&img=bgd.png)
Replacing the Battery
13
Replacing the Battery
The tag is equipped with non-volatile memory, which means stored data is
not lost when you replace the battery.
1. Unscrew the two 6-32 screws from the battery cover.
2. Remove the discharged battery from its compartment.
For more information, see “Activating and Initializing the Tag” on
page 6.
Note: The lithium battery can be harmful to the environment. Follow
current procedures for safely disposing of lithium batteries. The battery
cannot be reused or recharged.
3. Install a fresh 6V lithium battery into the tag housing by first lowering
the tab end in then lowering the connector end.
The battery should fit snugly.
When a battery is inserted into a tag, the tag emits 2 short beeps one
second apart to indicate adequate battery voltage or 3 short beeps if a
fresh battery is required.
4. After the beep, secure the battery with the two provided 6-32 screws.
![](/img.php?id=1291207&img=bge.png)
Savi ST-TAG NUMBER Installation Guide
14
Contacting Savi Global Support
Services
For additional product information, including firmware updates, contact
Savi Global Support Services.
• Go to www.savi.com and click SAVI SUPPORT.
• Send an email to help@savi.com.
• Call 1-888-994-7284 (North America only) or 1-650-316-4760
between 5 a.m. and 5 p.m. Pacific time.
When you contact Savi Global Support Services by telephone or email,
have the following information available:
• Contact information (company name, your name, email, and phone
number)
• Problem description
• Product name/ model
• Product/software version
• Serial number or license information
![](/img.php?id=1291207&img=bgf.png)
Specifications
15
Specifications
Versions ST-694-001: active RFID system satellite uplink and GPS tag
Environmental Temperature: -32°C to +70°C operating; -40°C to +85°C
storage
Humidity: 95% non-condensing
Vibration and shock: MIL-STD-810F
Weatherproofing: IP64
Manufacturing: RoHS Directive 2002/95/EC
Color: black
L-band
transmitter
Frequency: 1.615 GHz
Protocol: Direct Sequence Spread Spectrum Simplex
Packet size: 9 bytes
GPS receiver Integrated GPS receiver
UHF receiver/
transmitter
Frequency: 433.92 MHz at 0.6 mW peak EIRP, FSK
Modulated
Communication range (unobstructed): 400 ft. (122m)
operating read/write range (outdoors, non-obstructed) to
Savi SR-650 Fixed Reader
Protocols:
• EBCS Commands (22-bit tag identification supported)
• Savi EchoPoint Air Protocol 2.1 (32-bit tag identification
supported)
LF receiver Frequency: 123 kHz
Communication range: Up to 12 ft. (3.6m) from
SP-651-211 Long Range Signpost
Protocol: EchoPoint Protocol
Power Battery type: lithium, non-rechargable
Battery life: Approximately 3 years, assuming 1 satellite
reporting per day
![](/img.php?id=1291207&img=bg10.png)
Savi ST-TAG NUMBER Installation Guide
16
Digital storage User memory: 128 Kbytes on-board non-volatile memory
Wired interface: USB 2.0
Accessories Mounting: Mounting bracket STA-694-032
Regulatory
approval
Radio Type Approval: FCC Part 15 and Part 25, ETSI, EN
300 220 (433.92 MHz)
EMC and Immunity: ETSI, EN 301 489, EN 61000-4-2
Ordnance: HERO Certified, ARDEC rating of 1 in. (2.5 cm)
![](/img.php?id=1291207&img=bg11.png)
Device Model FCC ID
Radio Tag Savi SensorTag ST-694-001
ST-694-001 ISO Container
Door Tag with
GPS/Satellite Modem
KL7-694T-V1
ST-694-001 ISO Container Door Tag with GPS/Satellite Modem
U.S. Regulatory Approvals
Compliance Notice 1
Keep This Document
Savi P/N 805-07186-901 (Rev. A)
Federal
Communications
Commission (FCC)
Notice
The Federal Communications Commission has
established technical standards regarding radio
frequency energy emitted by computer
devices. This equipment has been tested and
found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated in
a commercial environment. This equipment
generates, uses, and can radiate radio
frequency energy and, if not installed and used
in accordance with the instruction manual, may
cause harmful interference with radio/TV
reception. Operation of this equipment in a
residential area is likely to cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
Warning: Changes or modifications to this
equipment that are not expressly approved by
Savi Technology could void the warranty and
the authority to operate this equipment.
Savi Technology is not responsible for radio/TV
interference caused by using unauthorized
cable or by making unauthorized changes to
this equipment.
Federal
Communications
Commission (FCC)
Label Statement
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
conditions:
• This device may not cause harmful interference,
and
• This device must accept any interference
received, including interference that may
cause undesired operation.
The label statement corresponds to the
following devices:
Savi Technology, Inc.
A Lockheed Martin Company
351 E. Evelyn Avenue
Mountain View, CA 94041-1530
Phone: (650) 316-4700
Fax: (650) 316-4750
E-mail: help@savi.com
Web site: www.savi.com
Copyright © 2009, Savi Technology Incorporated. All rights reserved. Published
June 2009.
Copyright protection claimed includes all forms and matters of copyrightable
material and information, now allowed by statutory or judicial law or hereinafter
granted. Information in this guide is subject to change without notice and does not
represent a commitment from the vendor.
Savi is a registered trademark and EchoPoint is a trademark of Savi Technology
Incorporated. Other product names mentioned in this guide may be trademarks
or registered trademarks of their respective owners and are hereby acknowledged.
![](/img.php?id=1291207&img=bg12.png)
Savi SensorTag ST-694-001 ISO Container Door Tag with GPS/Satellite
Modem
International Regulatory Approvals
Compliance Notice 1
Keep This Document
Savi P/N 805-07187-902 (Rev. A)
Declaration of Conformity
Hereby, Savi Technology, Inc., 351 E. Evelyn Avenue, Mountain
View, CA 94041-1530 declares that the Savi SensorTag ST-694-001
ISO Container Door Tag with GPS/Satellite Modem are in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Industry Canada Notice:
IC: 2404A-694T
This Class A digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classe A est confomé à la norme
NMB-003 du Canada.
Warning
This is a Class A product. In a domestic environment
this product may cause radio interference in which
case the user may be required to take adequate
measures.
Operation is subject to the following conditions:
1. This device may not cause harmful interference
and;
2. This device must accept any interference
received, including interference that may cause
undesired operation.
Savi Technology, Inc.
A Lockheed Martin Company
351 E. Evelyn Avenue
Mountain View, CA 94041-1530
Phone: (650) 316-4700
Fax: (650) 316-4750
E-mail: help@savi.com
Web site: www.savi.com
Copyright ©2009, Savi Technology, Inc. All rights reserved.
Published June 2009.
Copyright protection claimed includes all forms and matters of
copyrightable material and information, now allowed by statutory
or judicial law or hereinafter granted. Information in this guide is
subject to change without notice and does not represent a
commitment from the vendor.
Savi is a registered trademark and EchoPoint is a trademark of Savi
Technology, Inc. Other product names mentioned in this guide may
be trademarks or registered trademarks of their respective owners
and are hereby acknowledged.
![](/img.php?id=1291207&img=bg13.png)
Savi SensorTag ST-694-001 ISO Container Door Tag with GPS/Satellite Modem
International Compliance
Czech Savi Technology, Inc. tímto prohlašuje, že tento Savi SensorTag ST-694-001 ISO
Container Door Tag with GPS/Satellite Modem je ve shodě se základními
po_adavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Danish Undertegnede Savi Technology, Inc. erklærer herved, at følgende udstyr Savi
SensorTag ST-694-001 ISO Container Door Tag with GPS/Satellite Modem
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
German Hiermit erklärt Savi Technology, Inc., dass sich das Gerät Savi SensorTag
ST-694-001 ISO Container Door Tag with GPS/Satellite Modem in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Estonian Käesolevaga kinnitab Savi Technology, Inc. seadme Savi SensorTag ST-694-001
ISO Container Door Tag with GPS/Satellite Modem vastavust direktiivi
1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
English Hereby, Savi Technology, Inc., declares that this Savi SensorTag ST-694-001 ISO
Container Door Tag with GPS/Satellite Modem is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Spanish Por medio de la presente Savi Technology, Inc. declara que el Savi SensorTag
ST-694-001 ISO Container Door Tag with GPS/Satellite Modem cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Greek Savi Technology, Inc. Savi SensorTag
ST-694-001 ISO Container Door Tag with GPS/Satellite Modem
French Par la présente Savi Technology, Inc. déclare que l'appareil Savi SensorTag
ST-694-001 ISO Container Door Tag with GPS/Satellite Modem est conformé aux
exigences essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Italian Con la presente Savi Technology, Inc. dichiara che questo Savi SensorTag
ST-694-001 ISO Container Door Tag with GPS/Satellite Modem è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Latvian Ar šo Savi Technology, Inc. deklarē, ka Savi SensorTag ST-694-001 ISO Container
Door Tag with GPS/Satellite Modem atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
Lithuanian Šiuo Savi Technology, Inc. deklaruoja, kad šis Savi SensorTag ST-694-001 ISO
Container Door Tag with GPS/Satellite Modem atitinka esminius reikalavimus ir
kitas 1999/5/EB Direktyvos nuostatas.
Dutch Hierbij verklaart Savi Technology, Inc. dat het toestel Savi SensorTag ST-694-001
ISO Container Door Tag with GPS/Satellite Modem in overeenstemming is met de
essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Maltese Hawnhekk, Savi Technology, Inc., jiddikjara li dan Savi SensorTag ST-694-001
ISO Container Door Tag with GPS/Satellite Modem jikkonforma mal-htigijiet
essenzjali u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Hungarian Alulírott, Savi Technology, Inc. nyilatkozom, hogy a Savi SensorTag ST-694-001
ISO Container Door Tag with GPS/Satellite Modem megfelel a vonatkozó
alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak
Polish Niniejszym Savi Technology, Inc. oświadcza, że Savi SensorTag ST-694-001 ISO
Container Door Tag with GPS/Satellite Modem jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy
1999/5/EC.
![](/img.php?id=1291207&img=bg14.png)
Savi SensorTag ST-694-001 ISO Container Door Tag with GPS/Satellite Modem
Portuguese Savi Technology, Inc. declara que este Savi SensorTag ST-694-001 ISO Container
Door Tag with GPS/Satellite Modem está conforme com os requisitos essenciais e
outras disposições da Directiva 1999/5/CE.
Slovenian Savi Technology, Inc. izjavlja, da je ta Savi SensorTag ST-694-001 ISO Container
Door Tag with GPS/Satellite Modem v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovak Savi Technology, Inc. týmto vyhlasuje, že Savi SensorTag ST-694-001 ISO
Container Door Tag with GPS/Satellite Modem spĺňa základné požiadavky a
všetky príslušné ustanovenia Smernice 1999/5/ES.
Finnish Savi Technology, Inc. vakuuttaa täten että Savi SensorTag ST-694-001 ISO
Container Door Tag with GPS/Satellite Modem tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Swedish Härmed intygar Savi Technology, Inc. att denna Savi SensorTag ST-694-001 ISO
Container Door Tag with GPS/Satellite Modem står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av
direktiv 1999/5/EG.
Icelandic Hér með lýsir Savi Technology, Inc. yfir því að Savi SensorTag ST-694-001 ISO
Container Door Tag with GPS/Satellite Modem er í samræmi við grunnkröfur og
aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Norwegian Savi Technology, Inc. erklærer herved at utstyret Savi SensorTag ST-694-001 ISO
Container Door Tag with GPS/Satellite Modem er i samsvar med de
grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.
