Product introduction
Iqua Snake II - Headrest Handsfree Iqua Snake 2, is a wireless Bluetooth enabled
handsfree device for mobile phones enabled with Bluetooth technology. Snake II is
designed primarily for in-car use and fixed to the headrest of driver’s seat.
Snake II’s neck part has a flexible mechanism, which make it possible to adjust it to user’s
height. The neck-part is bendable upwards by 90 degrees and downwards by 90 degrees.
The device has rechargeable batteries. The battery type is Li-Polymer battery.
User interface
There are two LEDs (Red and Blue) with light guide to indicate different operational states.
LEDs can light continuously or blink/flash.

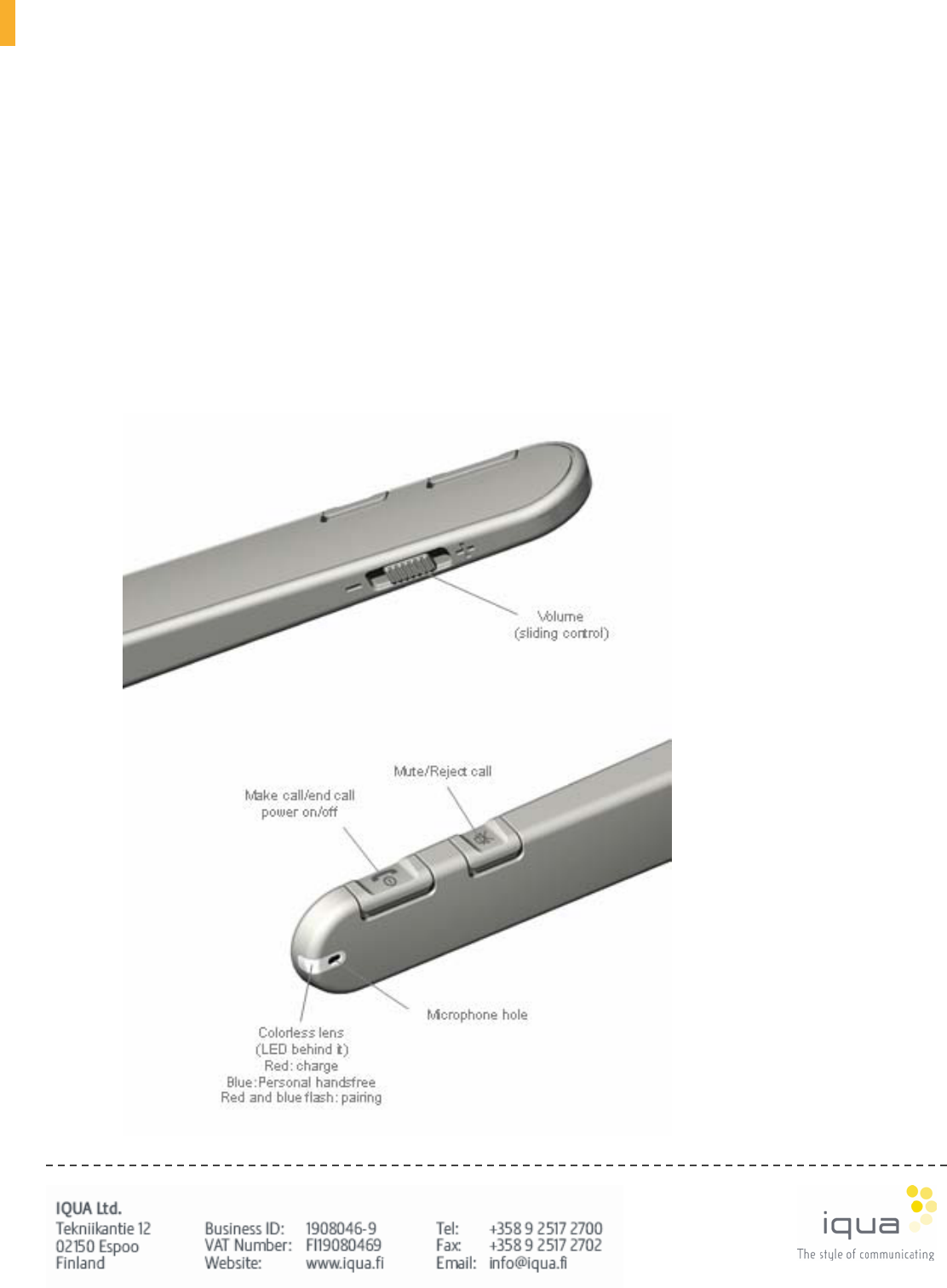

User controls operations of Snake II with two Push Buttons by pressing them one at a
time or both at the same time with different durations. The two push buttons are located
on the upside of Snake. Volume adjustment is controlled by Volume Slider positioned in
the downside of the product.
Microphone is used to get speech of user to phone call or with push-button commands
make the phone call with voice activation.
Speaker plays ringing tone and signal sounds of mobile phone.
Battery charging
When the battery is low, the red light flashes every 3 sec. Battery is recharged by
plugging the charger to charge connector of Snake II. Under normal conditions battery is
fully charged within 6 hours. When battery is full, Snake II stops charging automatically.
During charging the red LED appears continuously. When battery is full, the LED light
disappears.
Power on/off
The Snake is switched ON by pressing the POWER/CALL –button for 3 seconds. When
power is switched on, blue light flashes for 5 times and beeps once.
The Snake II is switched OFF by pressing the POWER/CALL –button for 3 seconds.
When the power is switched off, red light flashes for 5 times and beeps once.
Pairing with the mobile phone
Pairing with phone is made by pressing POWER/CALL -button and MUTE -button at the
same time by 5 seconds when the device is in OFF state. The red and blue LED flash in
turn to signal device is searching. When the mobile phone has found the handsfree, phone
shows the name of obtained device “Iqua Snake 2”. Pairing the Snake II with phone,
user must select “yes” and enter passcode 0000.
To mark as pairing is successfully completed during 2 minutes, Snake II beeps long once
and starts blinking blue LED every 3 seconds to indicate Bluetooth connection active and
Standby -status.
During pairing, the LED flashing continues for approximately 10 minutes or until the Snake
II is connected to a compatible phone. If the Snake II can not be connected to the phone
during this time, it beeps shortly three times with red LED blinks then the device is
switched off automatically.
Incoming call
Snake II plays ringing tone of mobile phone from its speakers.
Answer call
Pressing POWER/CALL-button, user can answer the incoming call. The blue LED starts
light continuously to indicate an active phone call.
Make phone call
Redial to last called number
User can dial to the last dialled number by pressing the POWER/CALL-button twice
during 2 seconds. Then device beeps shortly and the blue LED lights continuously to
indicate an active phone call. If second pressing is not occurred within 2 seconds, the
device beeps two short beeps and goes back to Standby status.
Make the phone call with voice activation
User can activate the voice dial by pressing the POWER/CALL-button continuously for 2
seconds. Then device beeps shortly and user can speak the voice tag (previously recorded
to mobile phone) within 2 seconds. After 2 seconds, device beeps shortly again and phone
dials selected number. The blue LED starts light continuously to indicate an active phone
call. If call command is not entered within 2 seconds or phone does not recognize the
command, device beeps two short beeps and gets back to Standby –status.
End call
Press the POWER/CALL-button shortly once to terminate an active phone call. Snake
beeps once and the blue LED stops continuous lighting and starts blinking every 3 seconds
to indicate the Standby -status.
Reject incoming call
Press the MUTE-button shortly once to reject an incoming call.
Volume adjustment
Volume can be set by sliding VOLUME SLIDER towards left and right.
Switch Between Handsfree and Phone mode
You can transfer calls between the Snake II and mobile phone.
1. To transfer an active call from Snake II to the mobile phone, press and hold the
POWER/CALL -button for 3 seconds.
2. To transfer an active call from your mobile phone to Snake, press shortly the
POWER/CALL -button.
Note: This function is phone dependent. You may also transfer calls through the main
menu of your mobile phone. (Please refer to the User Guide of your mobile phone.)
.
Indicator Lights
Dual-LEDs: blue and red
• Power on – blue light flashing for 5 times and beep once
• Power off – red light flashing for 5 times and beep once
• Pairing state – blue/red light flashing alternatively, the flashing continues for
approximately 10 minutes or until the headset is connected to a compatible
phone. If the Snake II can not be connected to the phone during this time it
is automatically switched off.
• Connection active – Blue light flashing every 3 seconds
• Call end – beep once
• Low battery – red light flashing every 3 seconds
• Charging – red light appears continuously

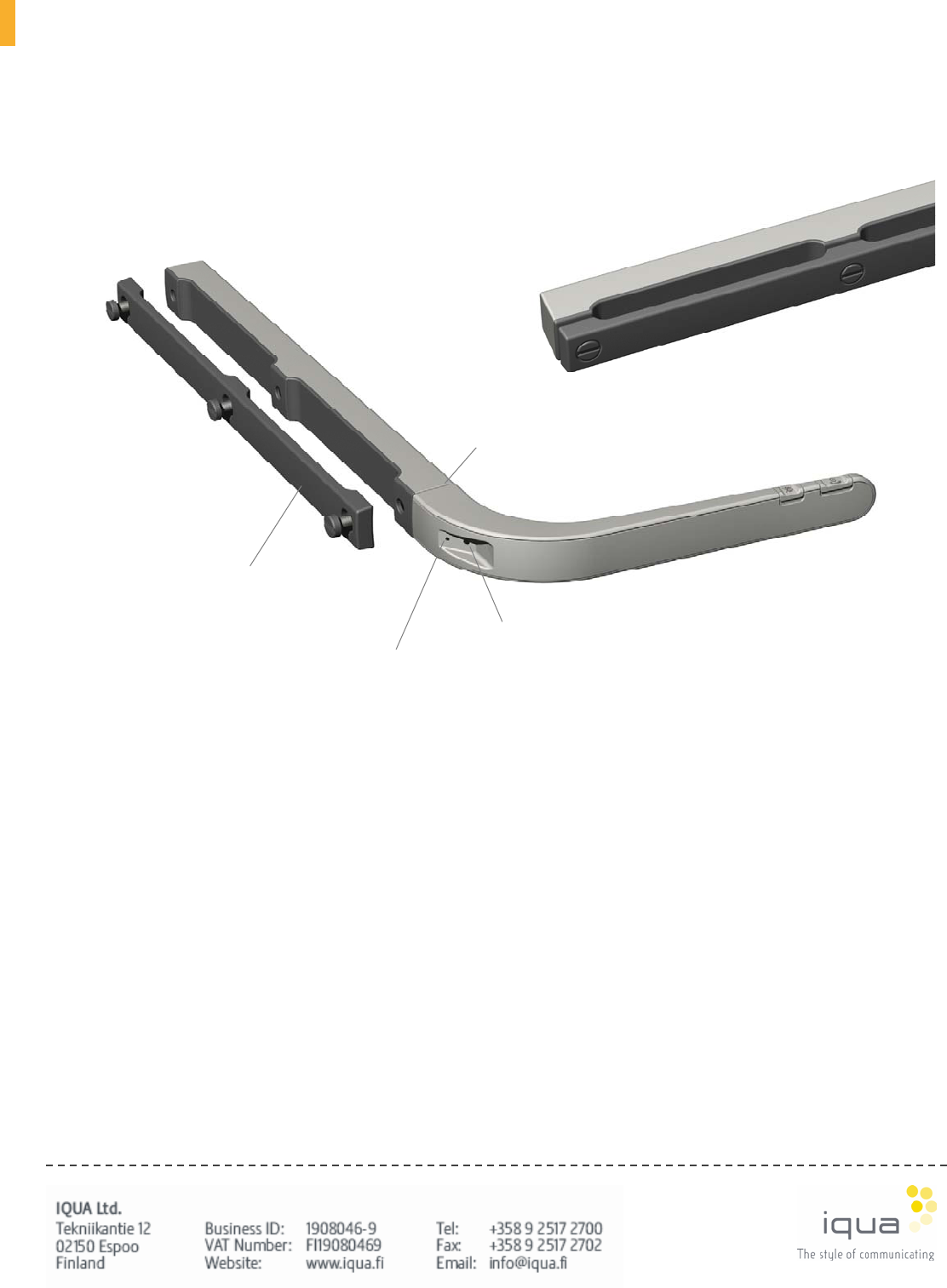

Charging plug
Attachment fixture & screws:
(fastening even with coin)
Hinge joint
Personal Earpiece jack
