G5 receiver
Product description

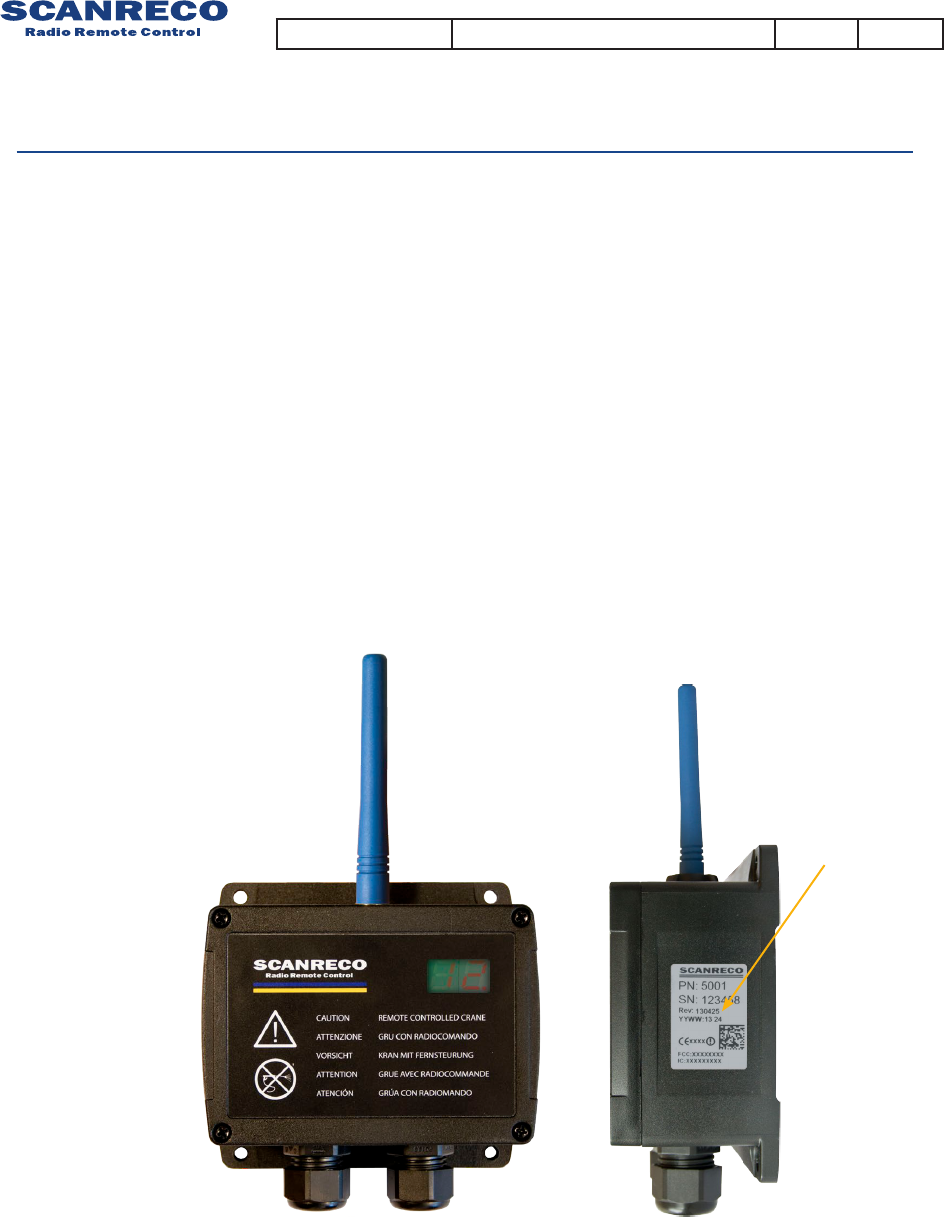

The Central Unit (CU) is manufactured in robust plastic housing and provides contacts for
the connection of power supply and electro-hydraulic valves. Several of the outputs can
also be used as digital inputs. Depending on the version of the G5 Central unit, it can either
be equipped with MOSFET outputs and Deutsch connectors or can have relay outputs with
terminal block.
Since the central unit can be exposed to very tough environments, the box is encapsulated
to give protection from damp, heat, cold, dust, vibration and corrosive environments.
The Central unit has short circuit protected inputs and outputs and has protection against
reverse polarity, over-voltage, large incoming voltage transients and EMC/RF.
Label
Relay output
The Relay output connectors are separated from the rest of the electronics in the
central unit to create an electrically isolated output. The maximum load for each
output is 10A. Through the terminal block, both the normally open and the normally
closed connection points are available.
Document type Document number PageRev
Instruction Manual 66063 A3 of 8
17
15
1
1

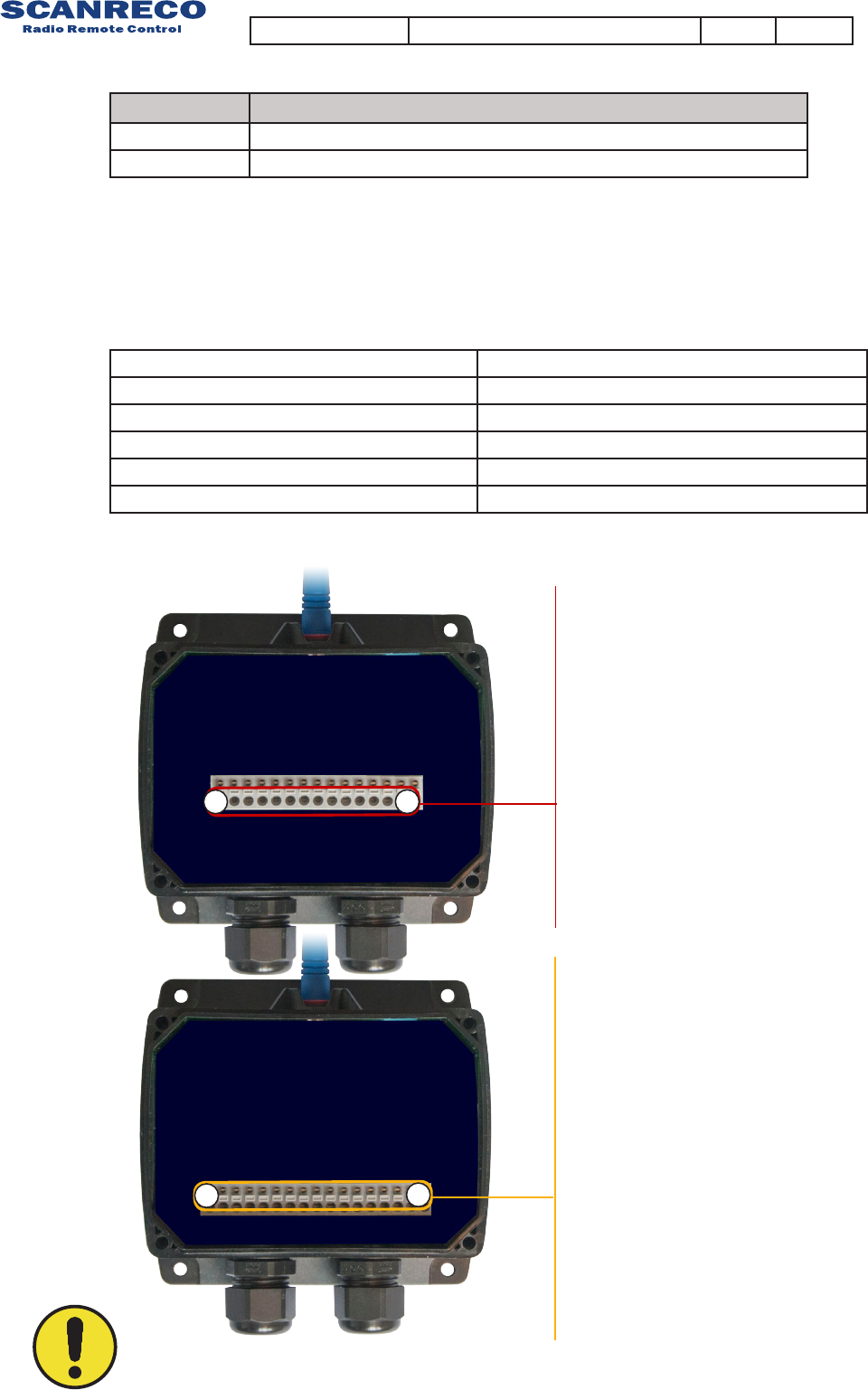

Terminal schematics G5 CU R5 and G5 CU R10
ATTENTION!
After assembly make sure you tighten the housing screws with 0,8 Nm to avoid any
water ingress.
The main board may be used stand alone or together with one expansion board.
There are several different expansion boards.
All expansions boards have the same mechanical outline.
They may have different funcionalities depending on customers application.
The differnt functions are exemplied in the table below:
Expansion boards
Models
1 = GND
2 = Power Supply +
3 = REL1, common
4 = REL1, normally closed
5 = REL1, normally open
6 = REL2, common
7 = REL2, normally closed
8 = REL2, normally open
9 = REL3, common
10 = REL3, normally closed
11 = REL3, normally open
12 = REL4, common
13 = REL4, normally closed
14 = REL4, normally open
15 = REL5, common
16 = REL5, normally closed
17 = REL5, normally open
1 = REL6, common
2 = REL6, normally closed
3 = REL6, normally open
4 = REL7, common
5 = REL7, normally closed
6 = REL7, normally open
7 = REL8, common
8 = REL8, normally closed
9 = REL8, normally open
10 = REL9, common
11 = REL9, normally closed
12 = REL9, normally open
13 = REL10, common
14 = REL10, normally closed
15 = REL10, normally open
Document type Document number PageRev
Expansion board (49839)
Main board
Description of expansion functions Number of exspansion function
Relays 1-5
Analog inputs 1-10
Analog outputs 1-5
Digital I/O 1-20
PWM 1-5
Model Functions
G5CU R5 Two cable glands. 5 Relay outputs.
G5CU R10 Two cable glands. 10 Relay outputs.
Instruction Manual 66063 A4 of 8
127mm
57mm
186mm
117mm

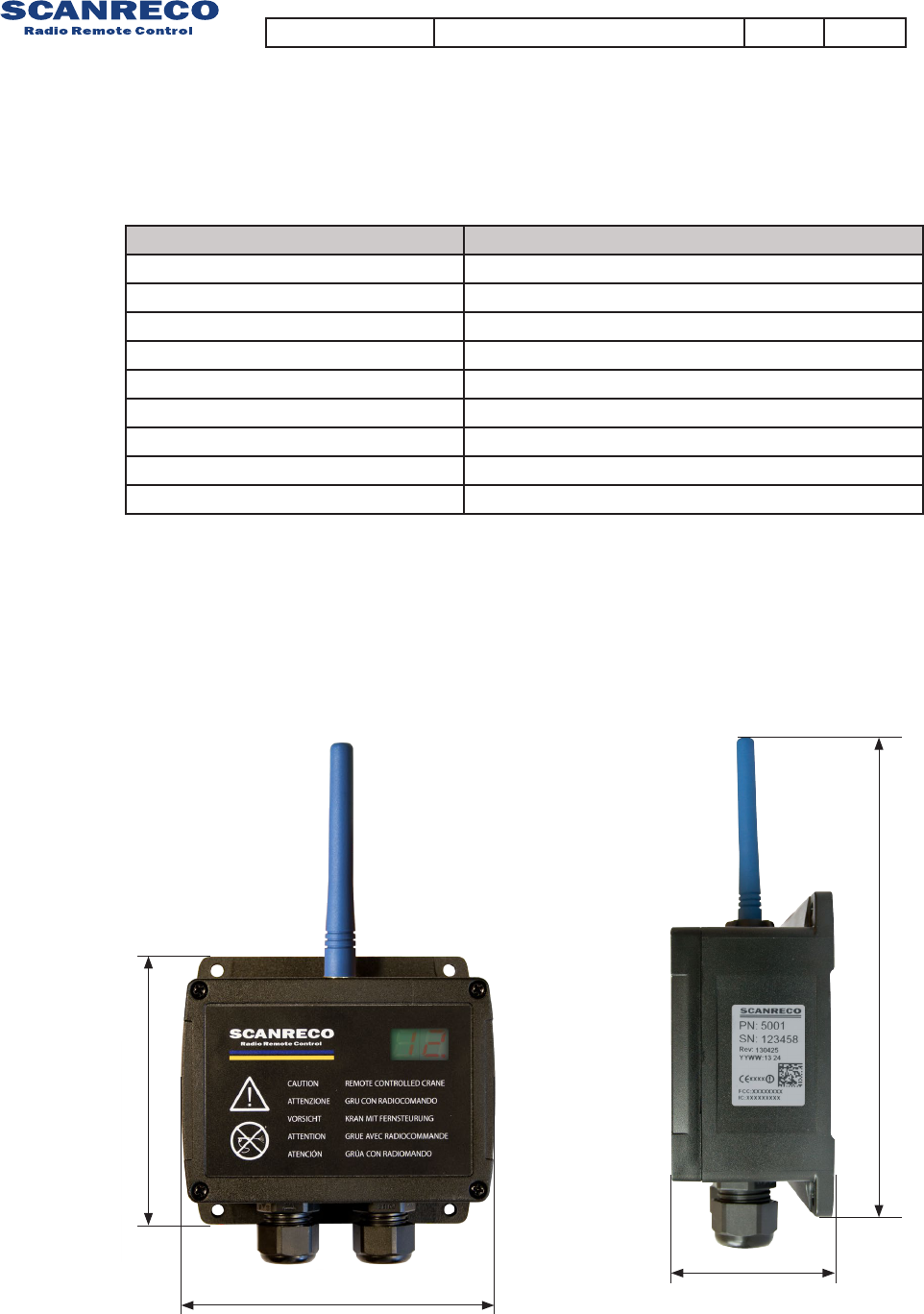

Size: approx. ~
127 x 117 x 57 mm / ~ 5,0 x 4,6 x 2,2 in.
Technical Data Central Unit
Attribute Information
Housing material Plastic PC
IP-class IP67 (for versions with cable glands IP65)
Ambient temperature -25˚C to +70˚C
Supply voltage 9-36VDC
Fuse Not required.
Current consumption at idle <30mA
Relay Output load Max 10 A
Housing screw torque 0,8 Nm
Weight Approx. 0,35Kg
Document type Document number PageRev
Instruction Manual 66063 A
5 of 8
Attribute Information
Frequency 2,400 - 2,4835 GHz
Channels
management
FHSS
DSSS
THSS
Channel order Pseudorandom
Channel
capacity
Duplex
System
address/ID
<16777216 unique system addresses available
Redundancy CRC-16
Range 100 meters
Technical information
The G5 system family incorporates an automated frequency jumping technology, a reliable
radio transmission highly resistant to interference.
The radio transmission takes place within the ISM-band used at pre-dened channels.
The channel switching takes place multiple times per second following a pseudorandom se-
quence. This ensures that transmission takes place on an optimal frequency at all times!
No transmitter uses the same pseudorandom sequence order when switching channels; this
minimizes the risk of two G5 systems interfering with each other.
The G5 Pocket is approved to transmit on the ISM band. The radio is license free for the end
user.
Radio information
Document type Document number PageRev
Instruction Manual 66063 A6 of 8
