Scanreco TR05 2.4 GHz Transceiver User Manual TR05 3

Scanreco AB 2.4 GHz Transceiver TR05 3

User Manual

TR05
U s e r m a n u a l

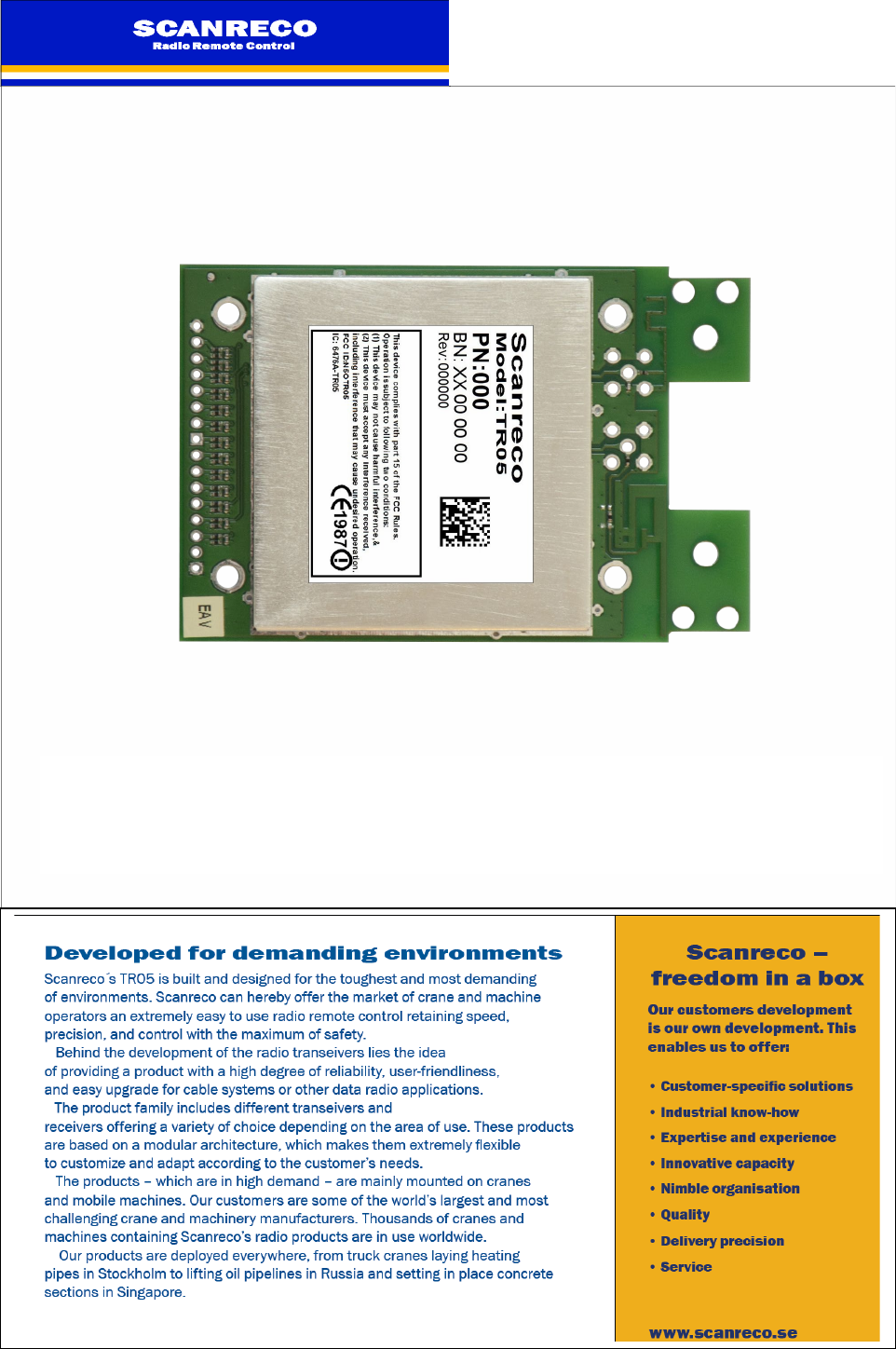

D e v e l o p e d f o r d e m a n d i n g e n v i r o n m e n t s
Scanreco´s TR05 is built and designed for the toughest and most
demanding of environments. Scanreco can hereby offer the market of crane and
machine operators an extremely easy to use radio remote control retaining
speed, precision, and control with the maximum of safety.
Behind the development of the radio transeivers lies the idea
of providing a product with a high degree of reliability, user-friendliness,
and easy upgrade for cable systems or other data radio applications.
The product family includes different transeivers and
receivers offering a variety of choice depending on the area of use. These products
are based on a modular architecture, which makes them extremely flexible
to customize and adapt according to the customer’s needs.
The products – which are in high demand – are mainly mounted on cranes
and mobile machines. Our customers are some of the world’s largest and most
challenging crane and machinery manufacturers. Thousands of cranes and
machines containing Scanreco’s radio products are in use worldwide.
Our products are deployed everywhere, from truck cranes laying heating
pipes in Stockholm to lifting oil pipelines in Russia and setting in place concrete
sections in Singapore.
 
TR05
The radio module is designed for use in Scanreco industrial remote controls only that are permanently installed to
provide a separation distance of at least 20 cm from the user and in hand-held / hand-operated remote control devices.
This module is not for resale to the general public, installers, OEM integrators.
This module is designed for use in Scanreco products only and is installed by or under the control of Scanreco.
TR05
U s e r m a n u a l
www.scanreco.se
T e c h n i c a l i n f o r m a t i o n
T h e c o n t r o l a n d p o w e r c o n n e c t o r i s a s t a n d a r d 2 . 5 4 m m , 1 6 w a y p i n r o w .
T h e f u n c t i o n s o f t h e p i n s a r e a s f o l l o w s :
P i n 1 : P o w e r s u p p l y a n d s i g n a l g r o u n d .
P i n 2 : P o w e r s u p p l y p o s i t i v e t e r m i n a l . A c c e p t s 5 t o 8 V D C . 7 , 2 V D C n o m i n a l .
P i n 3 : D a t a i n p u t / o u t p u t / I S O .
P i n 4 : D a t a i n p u t / o u t p u t / M O S I
P i n 5 : D a t a i n p u t / o u t p u t / S C L K
P i n 6 : D a t a i n p u t / o u t p u t
P i n 7 : D a t a i n p u t / o u t p u t
P i n 8 : D a t a i n p u t / o u t p u t
P i n 9 : D a t a i n p u t / o u t p u t / I 2 C D a t a
P i n 1 0 : D a t a i n p u t / o u t p u t / I 2 C C l o c k
P i n 1 1 : D a t a i n p u t / o u t p u t
P i n 1 2 : D a t a i n p u t / o u t p u t
P i n 1 3 : D a t a i n p u t / o u t p u t / U A R T T X
P i n 1 4 : D a t a i n p u t / o u t p u t / U A R T R X
P i n 1 5 : D a t a i n p u t / o u t p u t
P i n 1 6 : P o w e r s u p p l y a n d s i g n a l g r o u n d
T h e r e a r e t w o a n t e n n a o u t p u t s , w h i c h c a n n o t b e u s e d s i m u l t a n e o u s l y . I t m a y
b e u s e d t h e i n t e g r a l a n t e n n a ( s ) o r d i f f e r e n t t y p e s o f a n t e n n a s w i t h a n
i m p e d a n c e o f 5 0 O h m n o m i n a l l y c o n n e c t e d t o S M A c o n t a c t .
TR05
U s e r m a n u a l
www.scanreco.se
R a d i o S p e c i f i c a t i o n
Attribute
Information
Frequency
2400
48
M
Hz
Channels
16
Channels
management
FHSS
DSSS
THSS
Channel order
Pseudorandom
Channel
capacity
Duplex
Channel
bandwidth
2,7 MHz
RF Power
+
18
dBm typical
Modulation
QPSK
System
address/I D
<16777216 unique system addresses available
Redundancy
CRC
-
16
Range
100 meter
Duty cycle
Maximum duty cycle set by the factory:
- for permanently installed equipment with 20 cm
separation distance from users 72,36%;
- for hand-held / hand operated remote controls 10%.
TR05
U s e r m a n u a l
www.scanreco.se
FCC information
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates,uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Warning
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Industry Canada Information
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de
l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
CAN ICES-3 (A)/NMB-3(A)
The antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter.
L’antenne (s) utiliseé pour cet émetteur doit être installé pour fournir une distance
de séparation d’au moins 20 cm de toute personne et ne doit pas être co-localisées
ou opérant en conjonction avec une autre antenne ou émetteur.
For permanently installed equipment:
