DELLO II
DELLO IIDELLO II
DELLO II
（
（（
（42”W x 17” D x 24” H）
））
）

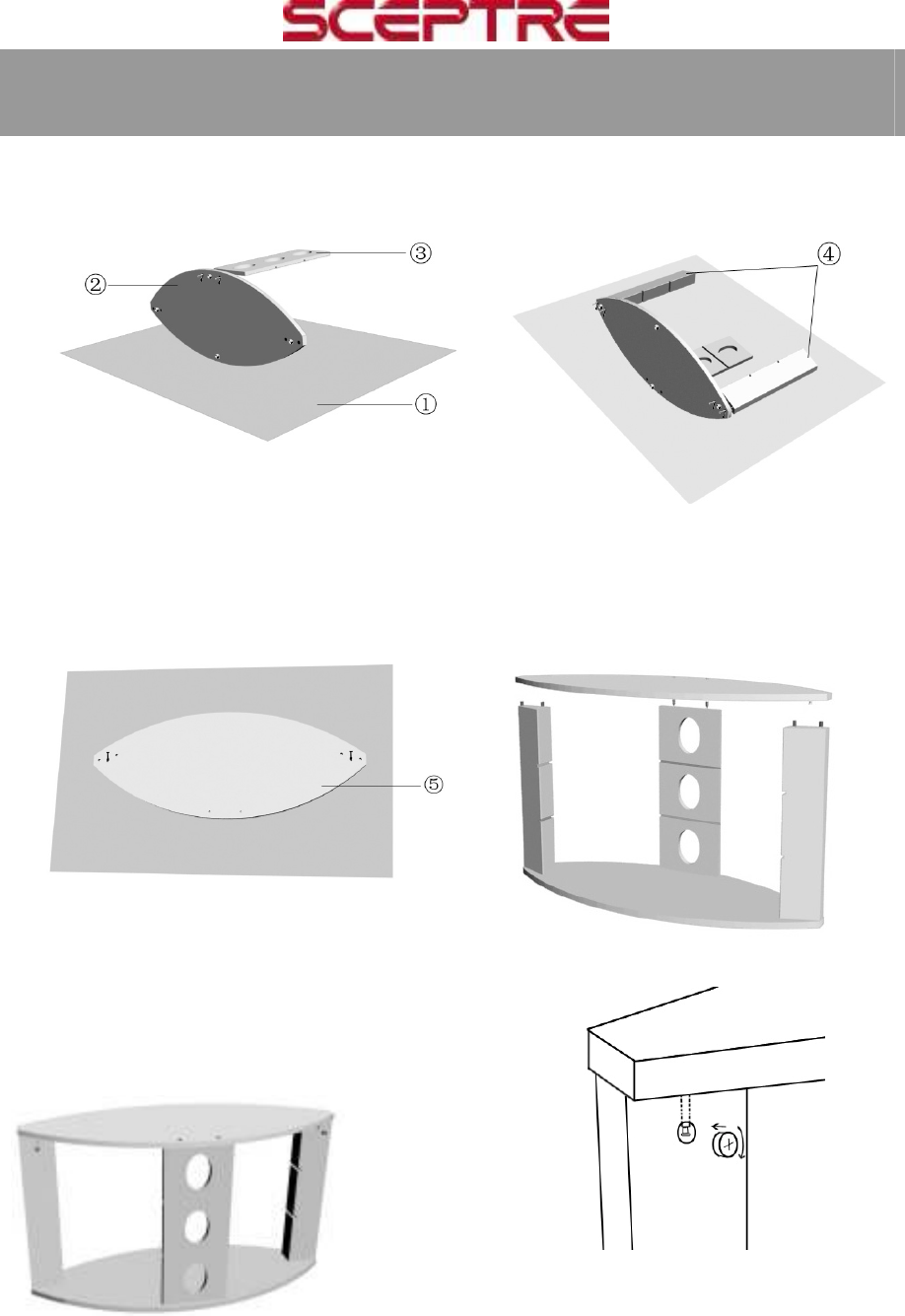

Assembly Instruction
1
Use two screws (F) to attach bottom panel (D)
and back panel (B)
2
Use four screws (I) to attach bottom panel
to side legs (C)
3
Insert two metal pegs (G) into Top Panel (A)
4
Insert four wooden dowels (H) into
side legs and peg lock (G) into back of
side legs as shown on Step 5
5
Insert peg lock (G) into side legs. Turn
clockwise until tight as shown on the right
diagram
Turn clockwise until tight
DELLO II
DELLO IIDELLO II
DELLO II
（
（（
（42”W x 17” D x 24” H）
））
）

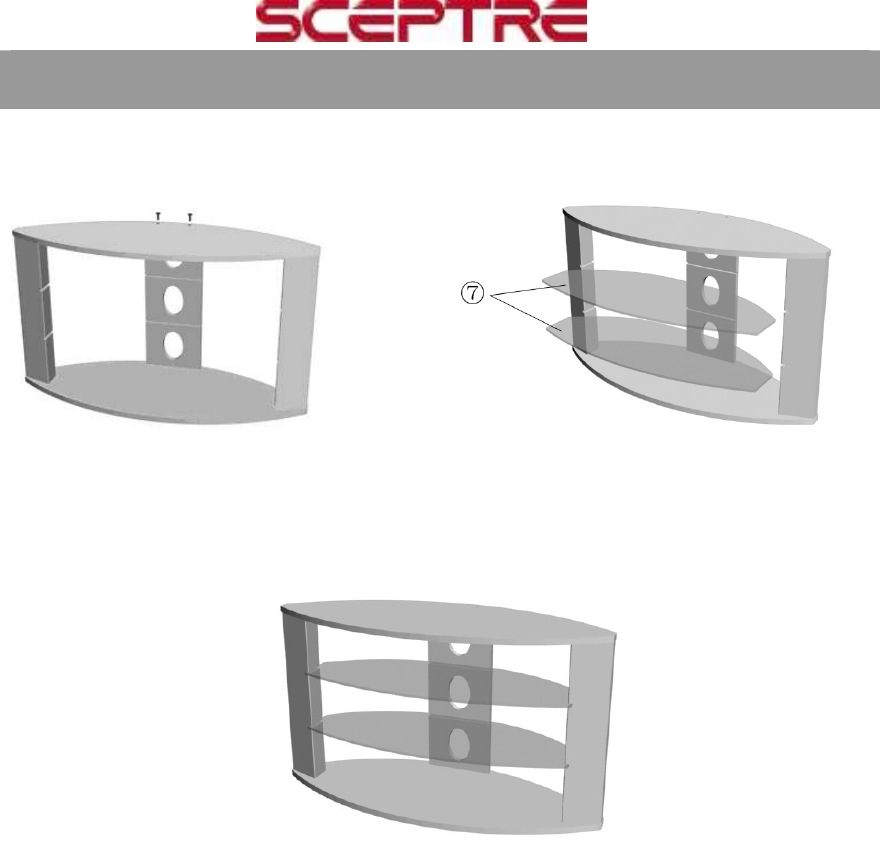

Assembly Instruction
6
Use two screws (F) to attach top panel to
the back panel
7
Slide two glass shelves (E) into precut
shelf guides on the side legs
8
Your Dello II stand is now finished and should resemble the image below
DELLO II
DELLO IIDELLO II
DELLO II
（
（（
（42”W x 17” D x 24” H）
））
）

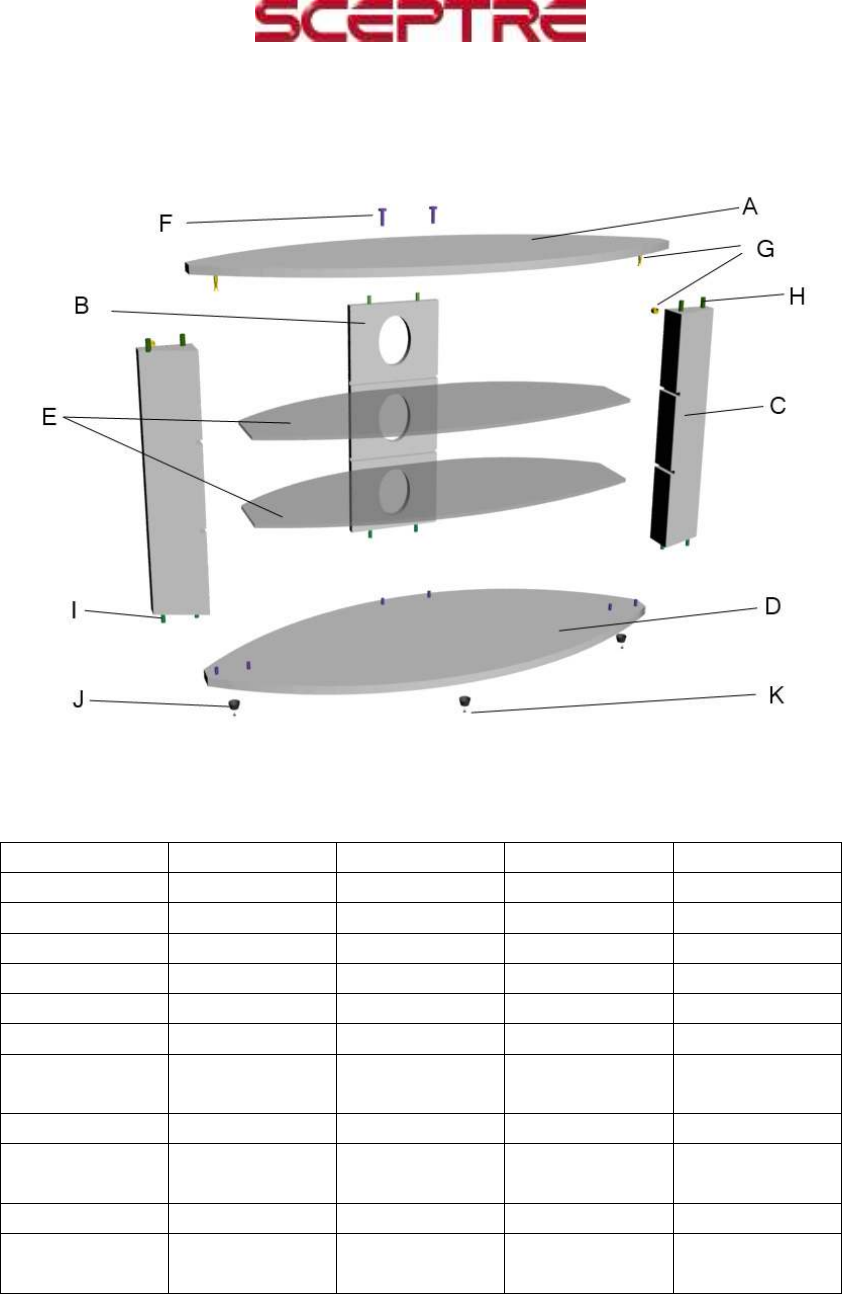

Assembly Instruction
Item Name Spec Qty Remarks
A Top Panel MDF 1
B Back Panel MDF 1
C Side Leg MDF 2
D Bottom Panel MDF 1
E Glass Shelf 2
F Screw M5×19 8
G Metal Peg &Peg
Lock
2
H Wooden Dowel 4
I Screw Insert M8
×40
8 Pre-install
J Rubber feet 4 Pre-install
K Small Screw M4
×19
4 Pre-install
