Overview
M400 Series electromagnetic locks from Schlage are designed with the customer in
mind to be robust, easy-to-install, and secure. The unique bayonet mounting feature
makes installation easier, allowing the installer to have their hands free during the
mounting process.
All M400 Series electromagnetic locks are symmetrical with field-selectable handing,
allowing optimum placement of the magnet, no matter the application. They are
designed to provide automatic voltage sensing for 12 and 24 volts along with polarity
protection to make wiring less complex. M420 models are tested and certified to meet or
exceed UL 1034 and BHMA 500 lb hold force requirements.
The M420 electromagnetic locks come in four configurations to meet your specific
security needs. Single and double door models are oered in standard configurations.
Plus versions of these models with “P” designations add intelligent sensing and reporting
features needed to integrate with access control systems along with additional available
options. Kits are available for top jam, double door, and glass door applications.
Features and benefits
§500 lb. hold force rating for trac control
applications
§“Plus” models oer magnetic bond sensor
(MBS), adjustable relock time delay (RTD)
and door position switch (DPS)
§Automatic voltage selection (AVS)
§Symmetrical design with field-selectable
handing for optimum placement
§Bayonet mount simplifies installation by
eliminating the need to hold lock overhead
while securing
§Armature mount pivot feature compensates
for slight opening imperfections
§Optional mounting kits available for top jamb
mount, double door and Herculite glass doors
§Aluminum housing in 628 satin finish
§ANSI/BHMA 156.23 Grade 1, UL 1034, UL 10C,
cUL, CFSM certifications
§Limited lifetime warranty on magnetic coil
assembly
M420/422
Electromagnetic locks
About Allegion
Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading brands
like CISA®
, Interflex®
, LCN®
, Schlage® and Von Duprin®
. Focusing on security around the
door and adjacent areas, Allegion produces a range of solutions for homes, businesses,
schools and other institutions. Allegion is a $2 billion company, with products sold in
almost 130 countries. For more, visit www.allegion.com.
Allegion, the Allegion logo, Schlage, and the Schlage logo are trademarks of Allegion plc, its subsidiaries and/or aliates in the United
States and other countries. All other trademarks are the property of their respective owners.
© 2016 Allegion
004206 Rev. 04/16
www.allegion.com/us
Additional features
All models
§Automatic Voltage Selection (AVS)
senses the voltage applied to the lock
and responds accordingly
M420P/M422P
§Magnetic Bond Sensor (MBS) monitors
the strength of the bond between the
lock and armature so you know the door
is secure
§Door Position Switch (DPS) monitors
whether the door is open or closed
§Relock Time Delay (RTD) provides a
relock delay that is adjustable from
0.5 to 30 seconds
§Optional accessories (P models only)
ATS/LED Combines anti-tamper switch
(ATS) with magnetic bond sensor in one kit.
- ATS provides an indication that
the cover of the magnet is securely
fastened to the lock and that the on
board circuitry is secure
- Magnetic bond sensor indicator (LED)
provides visual indication of magnetic
bond at the lock
Optional accessories (for all)
§Herculite door bracket kit
§Top jamb (inswinging doors) kit
§Double door connector kit (converts two
single magnetic locks to a double)

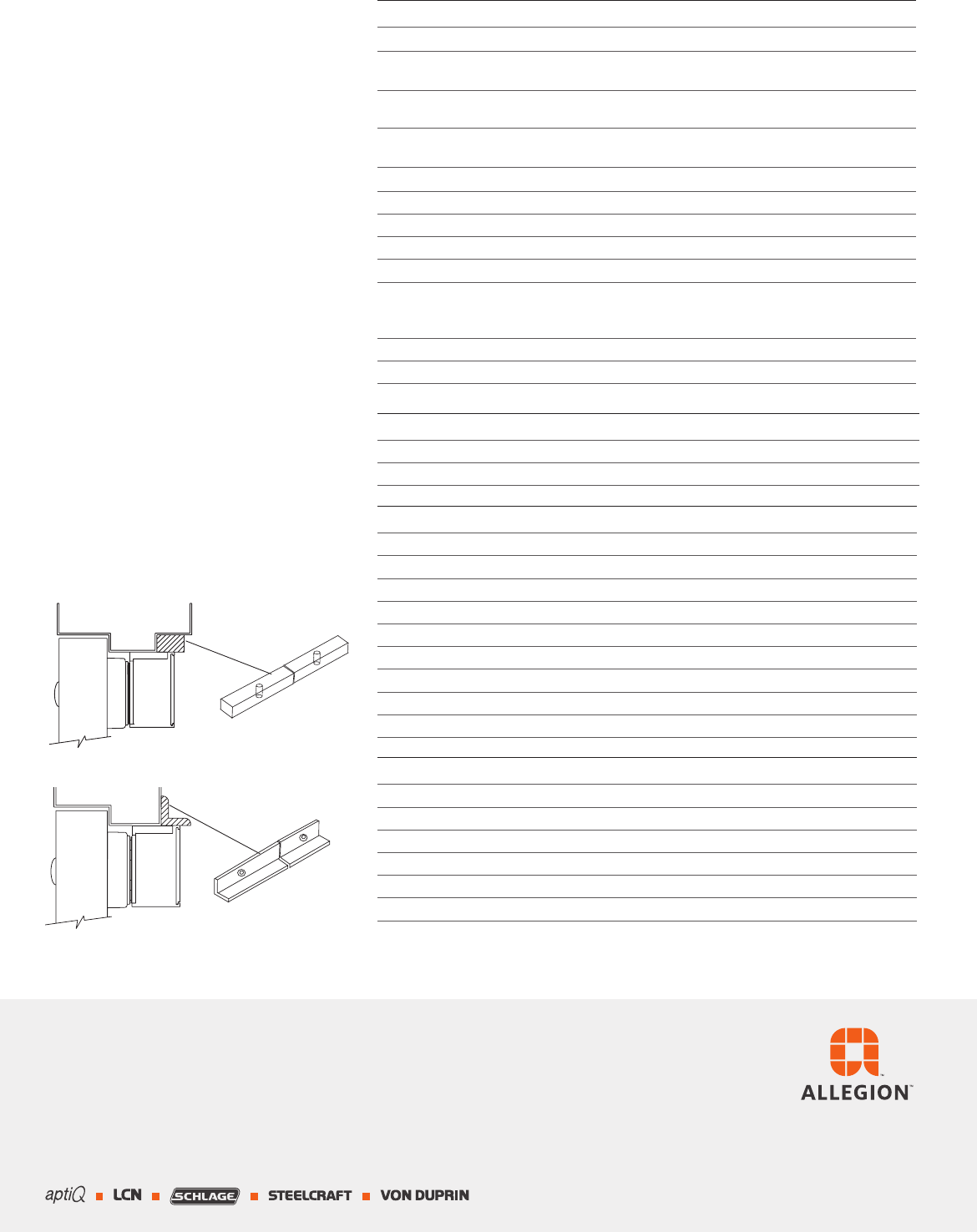

Filler plates and angle brackets specifications
Length 9"
Filler plates
Width x Height Plate no.
1 1⁄4" x 1⁄8" 4201F
1 1⁄4" x 1⁄4" 4202F
1 1⁄4" x 3⁄8" 4203F
1 1⁄4" x 1⁄2" 4204F
1 1⁄4" x 5⁄8" 4205F
3⁄4" x 1⁄2" 4206F
3⁄4" x 5⁄8" 4207F
3⁄4" x 3⁄4" 4208F
Angle brackets
Width x Height Bracket no.
1" x 1" 4201A
1 1⁄2" x 1" 4202A
1 1⁄2" x 1 1⁄2" 4203A
1 1⁄2" x 2" 4204A
1 1⁄2" x 2 1⁄2" 4205A
M420/M422 electromagnetic lock specifications
Specification M420/M420P M422/M422P
Holding force meets or exceeds BHMA
standard of 500 lbs
meets or exceeds BHMA
standard of 500 lbs
Input voltage
(auto selected)
12/24 VDC 12/24 VDC
Current draw
(amps standard unit)
.75A @ 12 VDC
.38A @ 24 VDC
1.5A @ 12 VDC
.76A @ 24 VDC
Automatic dual voltage 12/24 VDC 12/24 VDC
Height 2 1⁄2" 2 1⁄2"
Length 9" 18 1⁄16"
Depth 1 3⁄8" 1 3⁄8"
Weight (approximate) 6 lbs 12 lbs
Certifications UL 1034, UL 10C,
ANSI/BHMA156.23,
cUL, CSFM
UL 1034, UL 10C,
ANSI/BHMA156.23,
cUL, CSFM
Temperature 0° to 49°C (32° to 120° F) 0° to 49°C (32° to 120° F)
Wire gauge 14-22 AWG 14-22 AWG
Filler Plate
Angle Bracket
