L Series
Commercial mortise locks
4-5 Mechanical lock guide
7 L Series introduction and performance features
8-9 Schlage L9000 and L400 Series
10 M Collection levers
12 Standard Collection levers
14 Escutcheons and roses

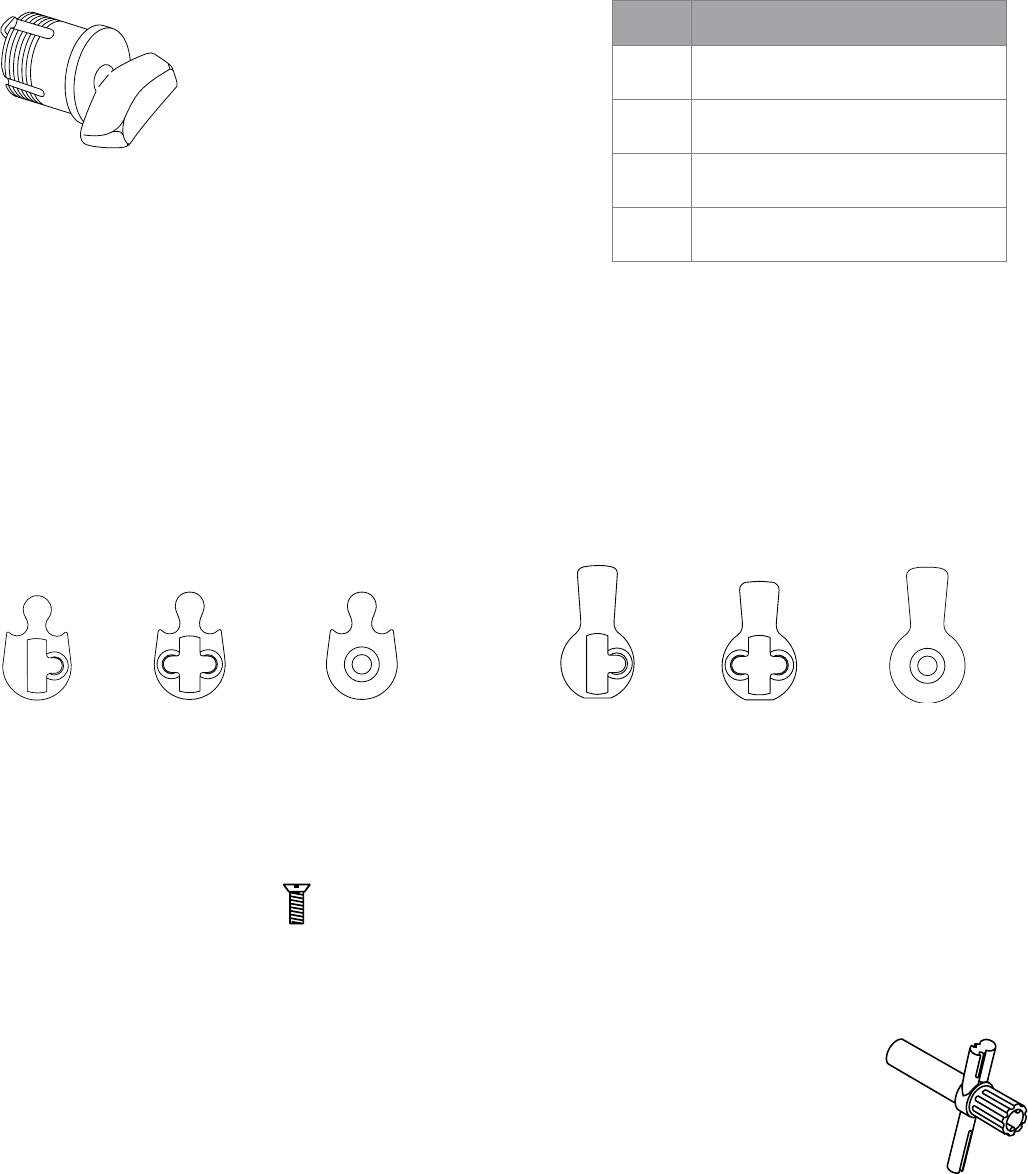

15 Thumbturns
16 Lock components

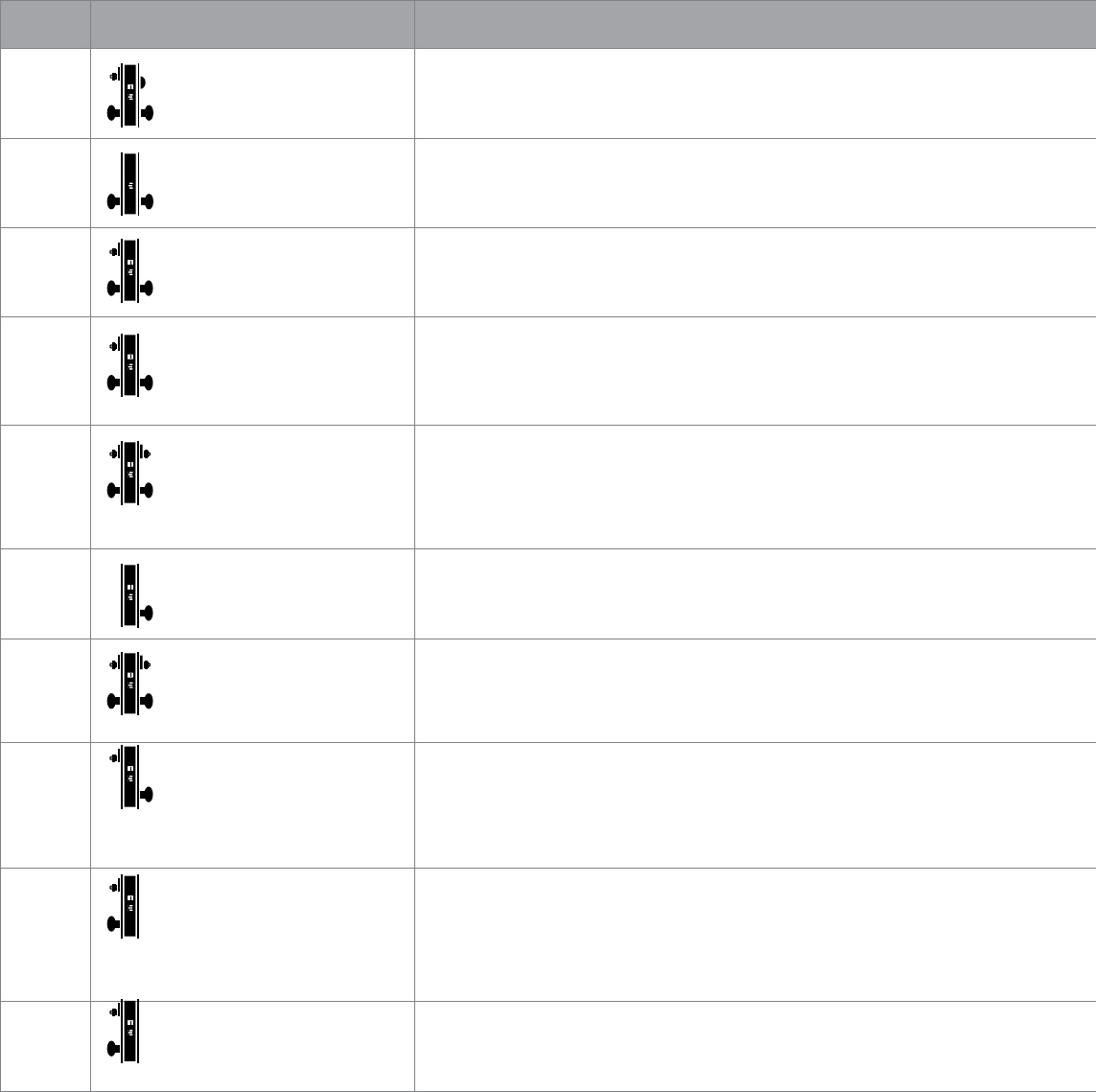

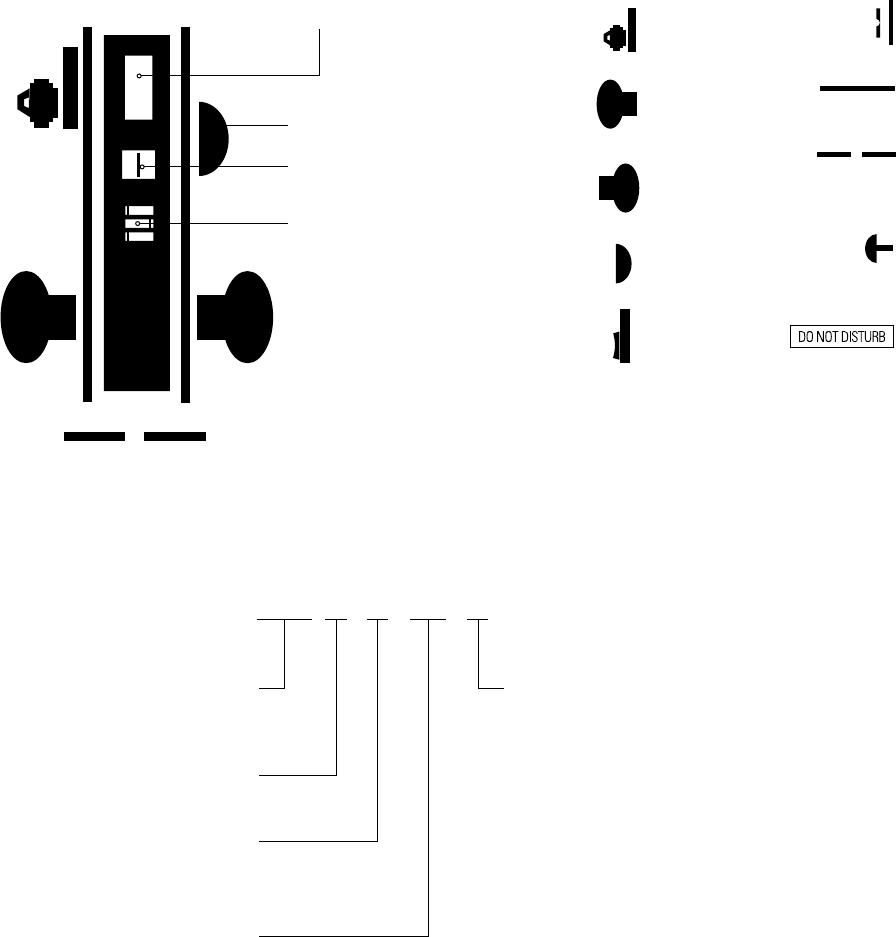

17 Lock functions - ANSI A156.13, Series 1000

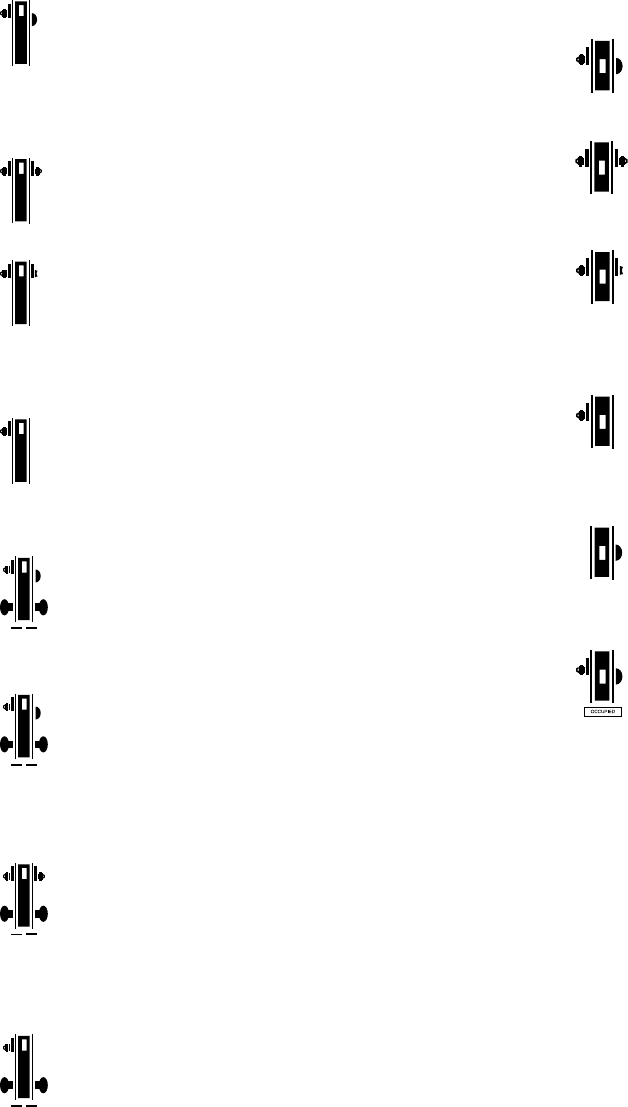

18 Lock functions - single cylinder non-deadbolt

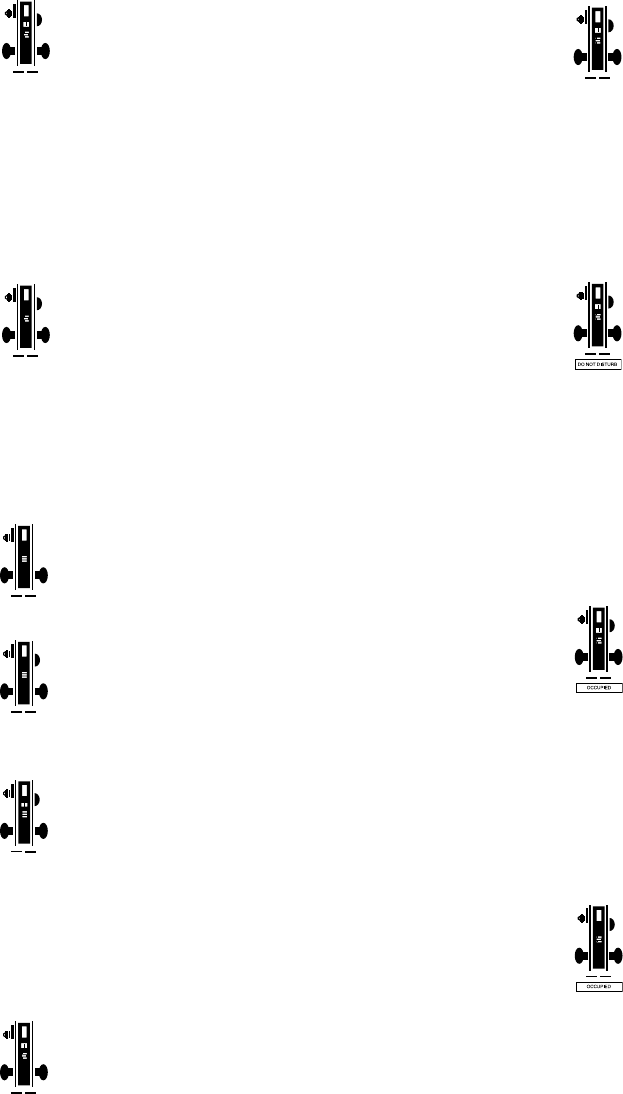

19 Lock functions - single cylinder deadbolt

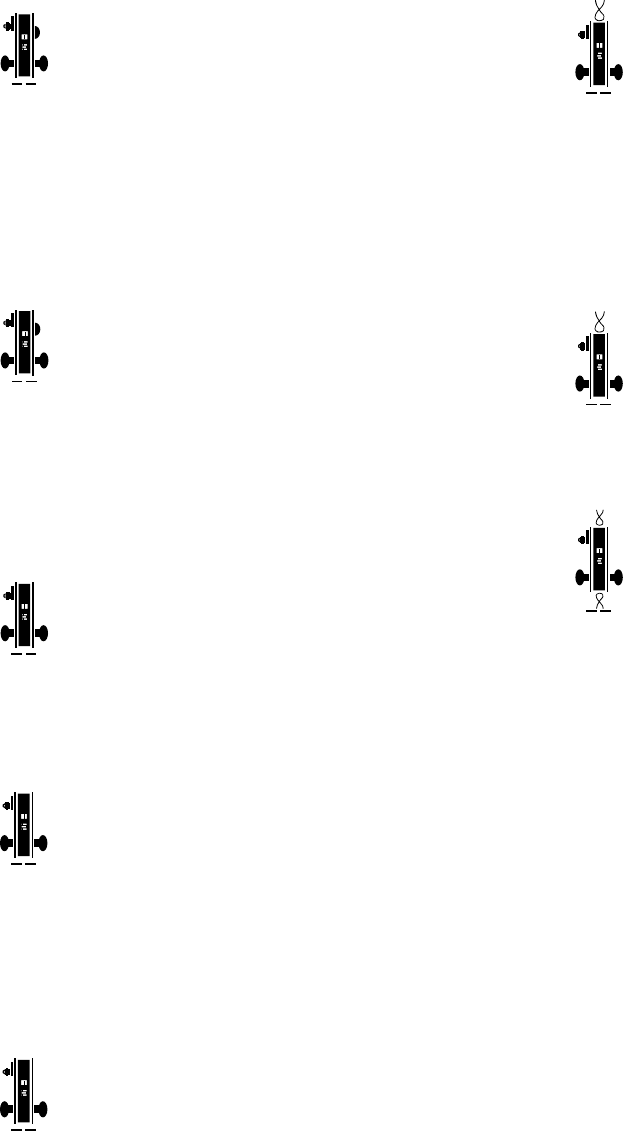

20 Lock functions - double cylinder non-deadbolt
and deadbolt

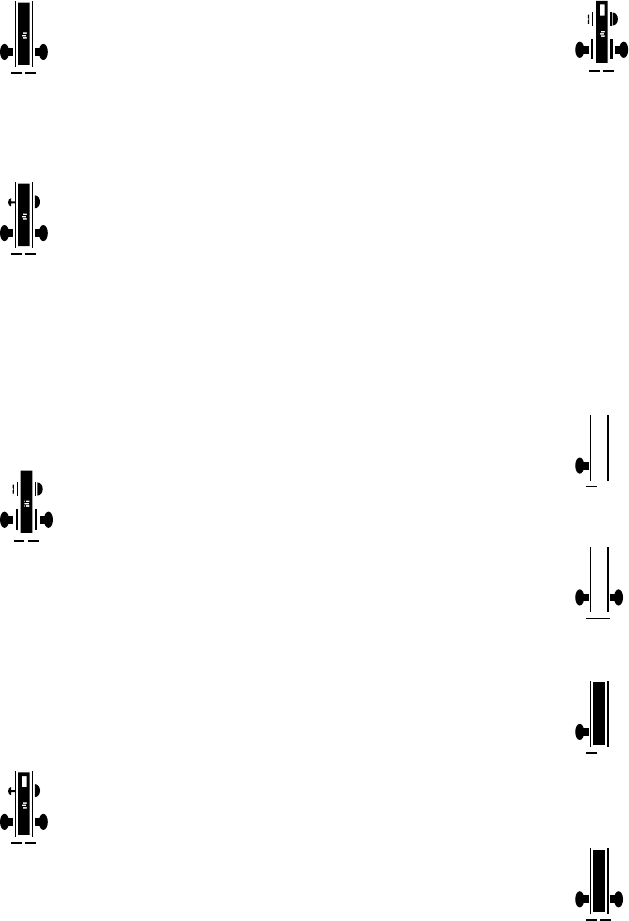

21 Lock functions - full mortise and small
mortise deadlocks

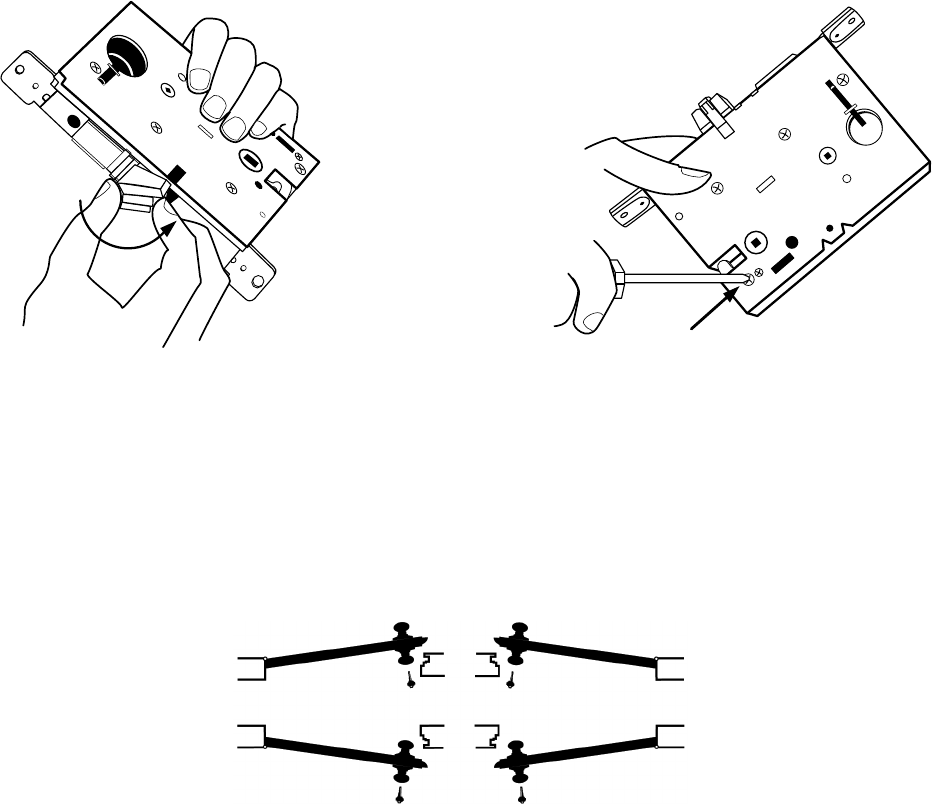

22 L Series universal transformation instructions

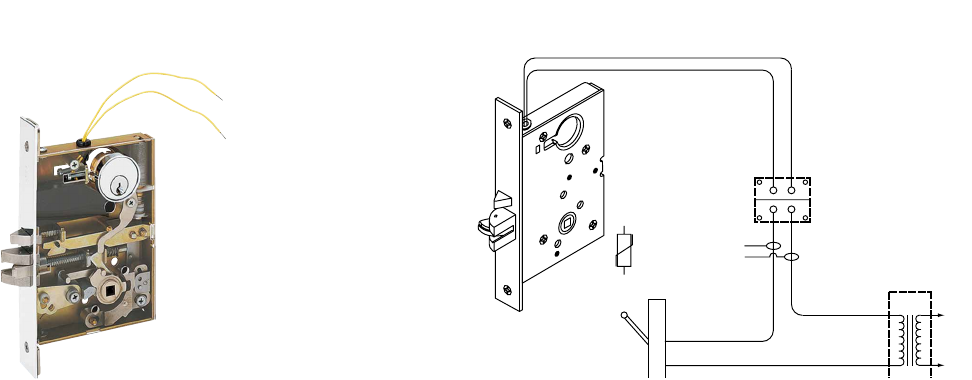

24 Electrified lock function

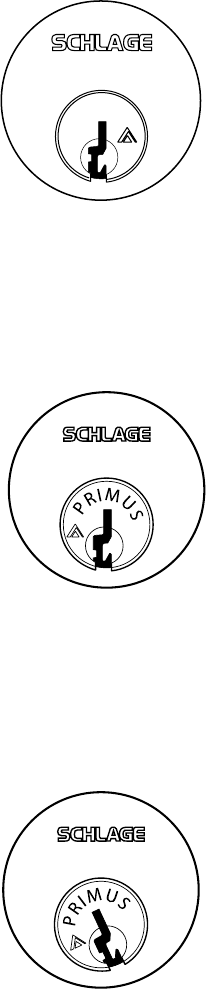

25 Cylinder types
26 Standard (non-IC) cylinders

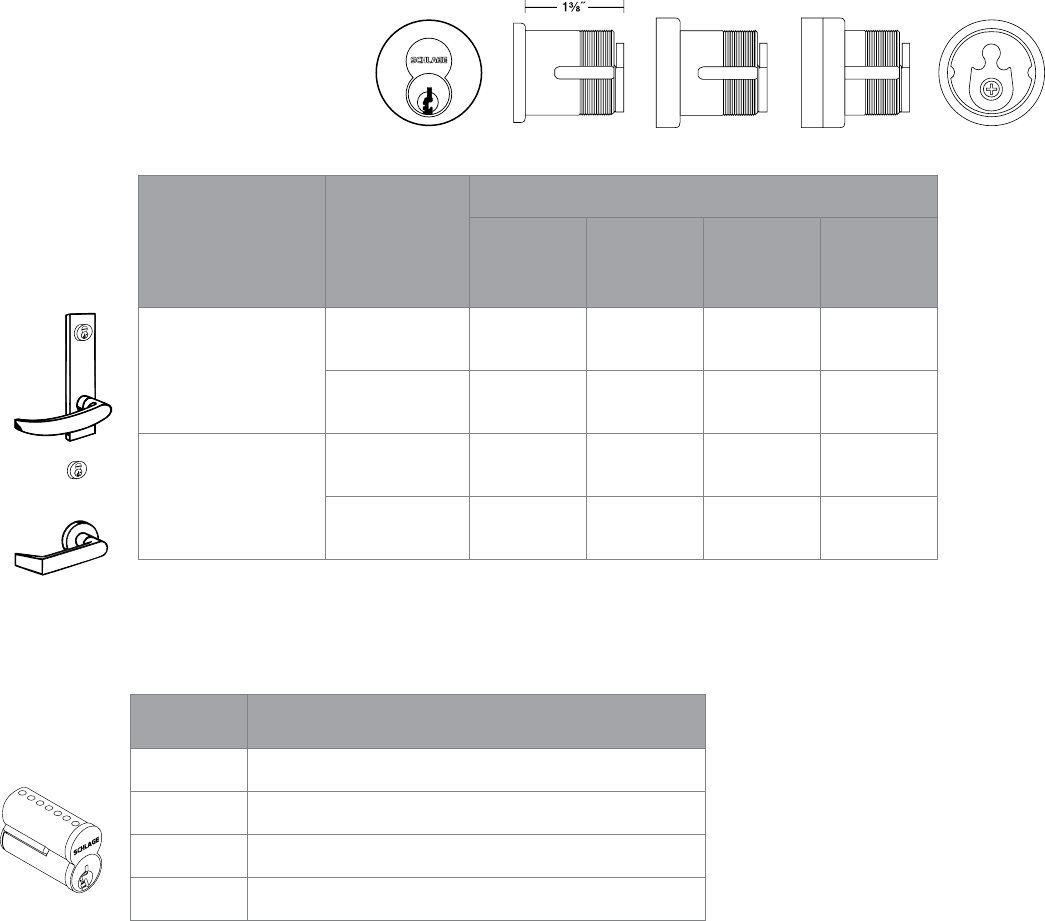

27 Full-size interchangeable
core (FSIC) cylinders

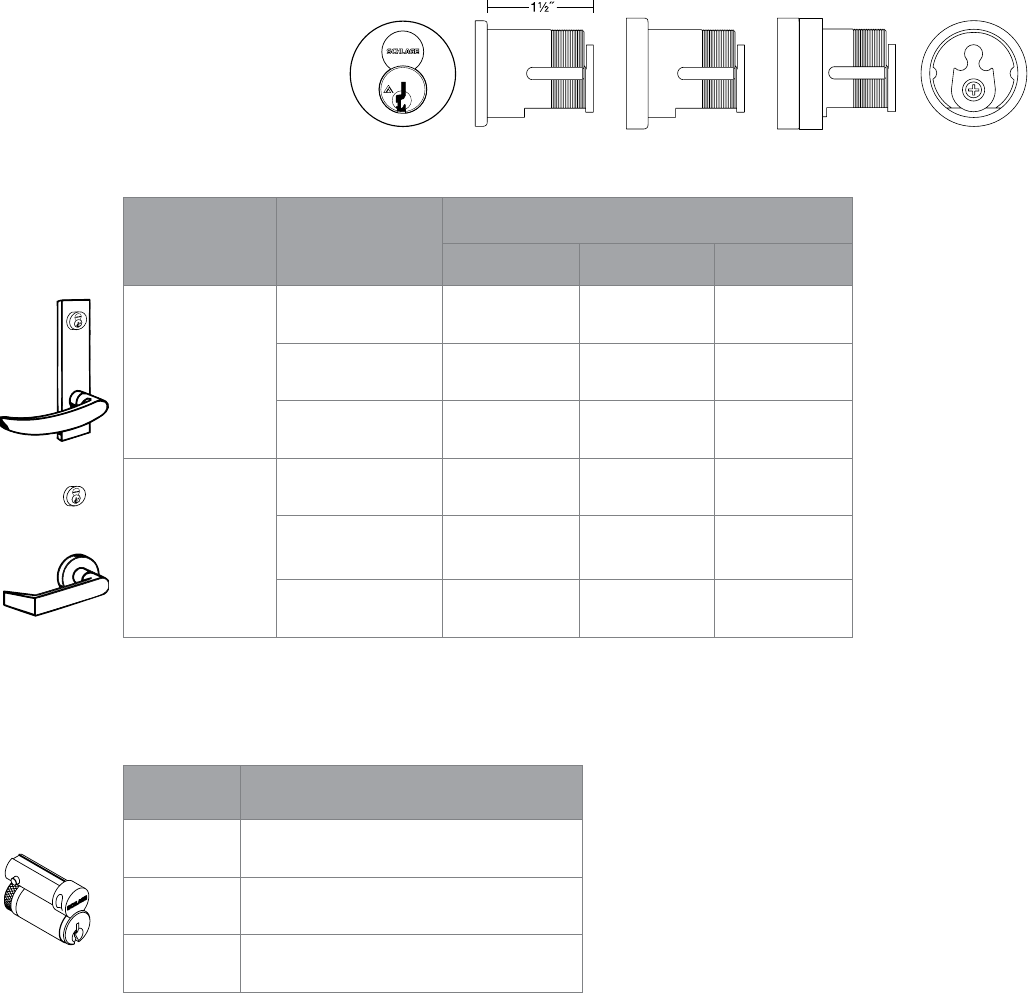

28 Small format interchangeable
core (SFIC) cylinders
29 Blocking and compression rings
30 Classroom thumbturn cylinders
31 Armored fronts

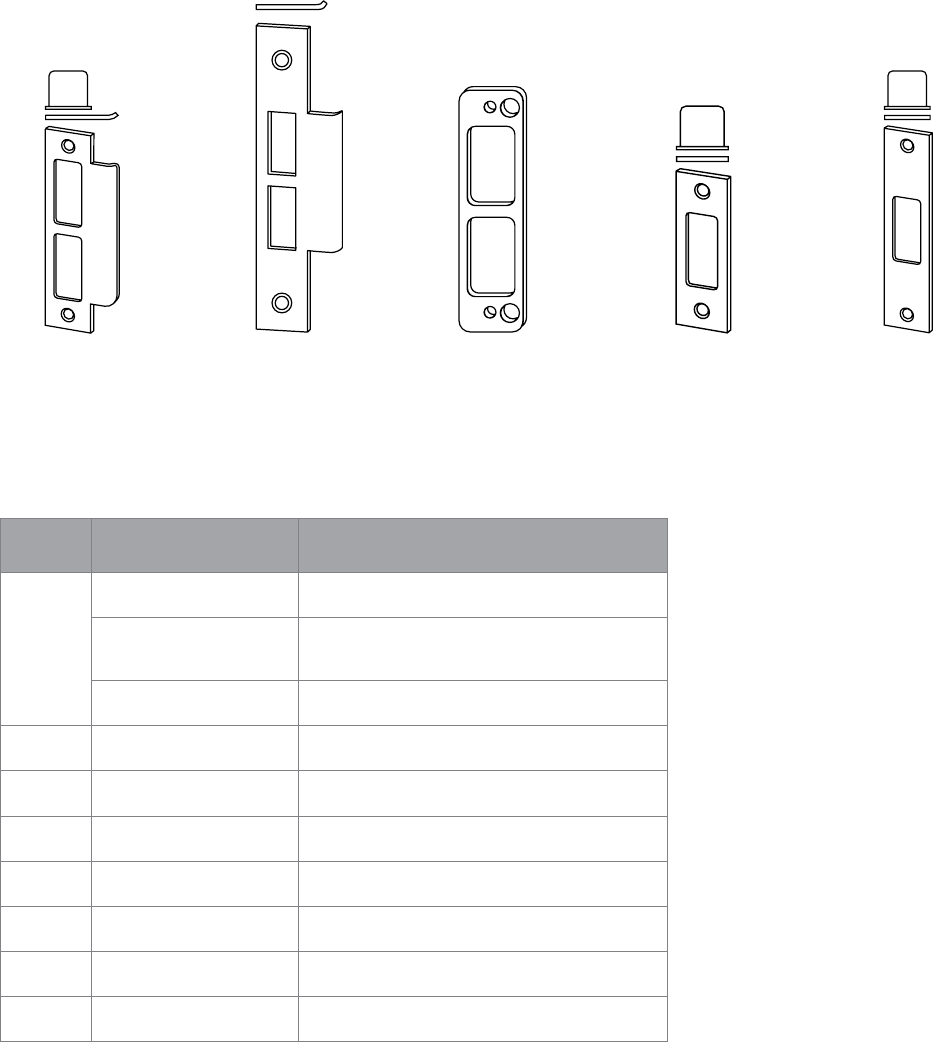

32 Strikes
33 Door handing
34 Specifications and certifications
35 How to order
Contents
2 • Schlage • LSeries
Putyourtrustinthenameyouknow
For more than 90 years, Schlage® has been creating the strongest and most
technologically advanced security products for schools, hospitals, hotels, commercial
and institutional buildings, multi-family properties and homes. From durable mechanical
locks to comprehensive electronic access control solutions and biometrics, Schlage
provides protection at critical moments – when property and personal security are at
stake. With a wide range of products, styles and finishes, Schlage has products for the
most demanding project specifications. In public buildings, in the workplace, and in
homes, at the end of the day Schlage stands for one thing: strong.
Schlage•LSeries•3
Tubular
interconnected
locks
Tubular locks
Tubular
interconnected
locks
Cylindrical locks
Cylindrical
interconnected
locks
CS200 Series S Series S200 Series A Series H Series
Grade 2 Grade 2 Grade 2
Security level:
ANSI/BHMA certified
A156.12-2013
Exceeds 400,000 ANSI cycles
Medium trac
ANSI/BHMA certified
A156.2-2011
Exceeds 400,000 ANSI cycles
Light trac
-
-
Exceeds 400,000 ANSI cycles
Medium trac
ANSI/BHMA certified
A156.2-2011
Exceeds 400,000 ANSI cycles
Medium trac
-
-
Exceeds 400,000 ANSI cycles
Medium trac
Typical applications:
Exterior
Interior
New construction
Retrofit
-
Interior
-
Retrofit
Exterior
Interior
New construction
Retrofit
Exterior
Interior
New construction
Retrofit
Exterior
Interior
-
Retrofit
Functions available:
1 Function
-
-
6 Functions
-
-
5 Functions
-
-
11 Functions
-
-
5 Functions
-
-
Design options:
7 Finishes
15 Lever styles
-
1 Matching rose
2 Interior escutcheons
Tactile warning available
7 Finishes
4 Lever styles
-
1 Matching rose
-
Tactile warning available
7 Finishes
4 Lever styles
-
1 Matching rose
1 Interior escutcheon
-
10 Finishes
1 Lever style
4 Knob styles
1 Matching rose
-
-
7 Finishes
1 Lever style
2 Knob styles
1 Matching rose
1 Interior escutcheon
-
Often used in:
Commercial
Multi-family
Oce
Commercial
Multi-family
Oce
Commercial
Multi-family
Oce
Commercial
Govt/military
Healthcare
Hospitality
Oce
Retail
Commercial
Govt/military
Multi-family
Not all functions and finishes available with all products. Please consult your SSC representative for details.
Schlagecommerciallocks
4•Schlage • LSeries
Rev. 04/14
Cylindrical locks Deadbolts Cylindrical locks Cylindrical locks Mortise locks
AL Series B Series D Series ND Series L Series
Grade 2 Grade 2 Grade 1 Grade 1 Grade 1 Grade 1
Security level:
ANSI/BHMA certified
A156.2-2011
Exceeds 400,000 ANSI cycles
Medium trac
ANSI/BHMA certified
A156.36-2010
Exceeds 150,000/250,000
ANSI cycles
High trac, heavy-duty
ANSI/BHMA certified
A156.2-2011
Exceeds 1,000,000 ANSI cycles
High trac
ANSI/BHMA certified
A156.2-2011
Exceeds 1,000,000 ANSI cycles
Heavy-duty trac
ANSI/BHMA certified
A156.13-2012
Exceeds 1,000,000 ANSI cycles
Heavy-duty trac
Typical applications:
Exterior
Interior
New construction
Retrofit
Exterior
-
New construction
Retrofit
Exterior
Interior
-
Retrofit
Exterior
Interior
New construction
Retrofit
Exterior
Interior
New construction
Retrofit
Functions available:
10 Functions
-
-
7 Functions
-
-
6 Functions
-
-
14 Functions
2 Electrified
-
29 Functions
6 Electrified
Vandlgard® available
49 Functions
4 Electrified
Vandlgard® available
Design options:
10 Finishes
4 Lever styles
-
1 Matching rose
-
Tactile warning available
10 Finishes
-
-
-
-
Indicator rose
10 Finishes
-
3 Knob styles
1 Matching rose
-
-
9 Finishes
5 Lever styles
-
2 Matching roses
-
Tactile warning available
13 Finishes
32 Lever style
3 Knob styles
5 Matching roses
2 Escutcheons
Tactile warning available
Antiligature available
Often used in:
Commercial
Healthcare
Hospitality
Oce
Retail
Commercial/institutional
Govt/military
Heavy-duty residential
Hospitality
Oce
Retail
Institutional
Govt/military
Hospitality
Retail
Institutional
Education
Healthcare
Oce
Retail
Commercial/institutional
Govt/military
Education
Healthcare
Oce
Retail
This chart shows the most common uses/applications. These products are often used in other applications in addition to those listed.
Schlage•LSeries•5
When you know exactly what you want, you don’t want to waste time finding out whether it
meets your project specifications. That’s why we oer the world’s largest team of hardware
specification writers to help you and your clients turn your vision into reality. And when it
comes to products, our commercial suiting options, wide variety of lever designs and rich
selection of finishes give you the tools you need to make your projects perfect. You know
what you want. With Schlage you can be sure you’ll get it.
Safety,securityandcondence
When you choose a Schlage lock you can be sure you’ve done the job right the first time. After
all, our products are among the most durable and dependable on the market today. Our locks
are easy to install, and simple to repair and maintain. That means fewer callbacks for you and
total safety and security for your customers.
Realsecurityisknowingexactlywhat
youwantandgettingit
6 • Schlage • LSeries
Nothingistougher
At Schlage we know that every product you specify has to stand up to
constant use and abuse. Your building’s locking systems face an additional
challenge – keeping people and other assets safe while delivering constant,
reliable performance. Schlage L Series Extra Heavy Duty Mortise Locks are
built to withstand the rigors of daily use without fail.
L Series
Wedon’tcompromiseonsecurity
The safety and security of your clients’ buildings is something we take very
seriously. That’s why every Schlage lock and deadbolt undergoes intensive
testing to determine its ANSI grade level:
• Cycle tests • Resistance tests
• Door impact tests • Warped door tests
• Bolt strength tests
We pay attention to these details so you can focus on creating a functional
and aesthetically pleasing environment for your clients. In fact, every one of
our L Series locks meets ANSI Grade 1 standards for safety.
Schlage•LSeries•7
7
4
8
11
10
1
15
12
9
2
Vandlgard®
The L Series Vandlgard is ideal for areas subject to abuse or
anywhere vandalism is likely to be present. Vandlgard
prevents damage to internal lock components caused by
excessive force from kicking, hitting or standing on the lever
to gain access.
It’s easy to retrofit standard L Series locks with Vandlgard
using the Vandlgard Retrofit Kit and an instructional DVD
that shows installation on existing hardware.
5
8 • Schlage • LSeries
SchlageL9000Series
Our L9000 Series locks are ideal for use in schools,
hospitals and factories, where the finest hardware
must also deliver consistent, dependable operation
and stand up to constant use and abuse.
Therightlockforeveryapplication
SchlageL400Series
Our L400 Series locks are designed for use as
primary locks where no latching is required, such
as restrooms and small doors to utility spaces.
They also oer optimum security when used as
auxiliary locks in other applications.
1. High-strength steel alloy cylinder retainer
2. Armored front in brass, bronze or stainless
steel; adjustable for door bevel
3. 1" (25 mm) stainless steel throw deadbolt
4. Deeper retainer groove in cylinder shell
increases security against wrenching and
pullout; all cylinders backward compatible
5. 6-pin Everest® cylinder with patented keys
standard
6. Steel case and parts are corrosion resistant
Strength and durability
1. Fully wrapped heavy-gauge steel case protects against
door edge attacks
2. All-metal zinc dichromate-plated working parts
3. Inside lock case protects electronic components
4. Two-piece anti-friction tongue reduces wear and tear
5. Outside and inside trim thru-bolted together and
through the door
Security built in
6. Break-away spindle prevents unsecured failures
and provides easy spindle replacement
7. Hub blocking plate protects lock against spindle
manipulation
8. Spring-loaded fusible link provides fail secure
mode in case of fire
9. Inside lever applied by screwless shank mounting – no
exposed trim mount screws
Adaptable to your application
10. Universal lock case – ten functions in one case
11. Floating mounting tabs automatically adjust to
fit a beveled door edge
12. Field-reversible handing without opening lock case
13. External spring cages allow for simple trim retrofit
14. Locking thumbturn on the inside of door visually
shows when the door is locked and unlocked
15. Lever rotation in both directions (up and down)
for ease of use
16. Independent lever rotation
3
2
4
5
1
6
Schlage•LSeries•9
TheMCollection
Arangeofoptions.Asinglestandardofquality.
Introducing the M Collection, an entire lineup of decorative levers designed to maintain a custom
high-style look on doors throughout any building—from the main entrance to the supply closet.
The ability to suite M Collection levers across multiple platforms from Schlage and Von Duprin
means consistent style and functionality—along with unrivaled security.
The M Collection was designed to function as a visual extension of any interior, from
contemporary to classic.
M56 M57
M51 M52 M53
M81 M83 M82
M61
4.5"
3.2"
2.4"
4.6"
3"
2.1"
4.8"
0.4"
2.9"
4.5”
3"
2.2"
2.9"
2.15"
4.5
"
4.8"
2.9"
0.4"
3.2"
2.6"
4.35"
4.5"
3.2"
2.1"
4.6"
2.9"
0.4"
10•Schlage • LSeries
Allleverdesignsshown
(MCollectionandStandard)
canbepairedwithanyofthe
followingcommercialgraded
productsforsuitingacrossan
oce,aoororanentirebuilding.
Schlage L Series mortise locks
Grade 1
Schlage L Series locks have long been
the industry standard for mortise locks,
with a comprehensive oering of
functions and options to support any
opening need.
Schlage LT Series tubular locks
Grade 2
The perfect compliment to the Schlage
L Series or the Von Duprin exit devices,
the LT Series tubular chassis is based
on venerable L Series mortise lock and
provides an alternative to lever suiting
for interior doors.
Von Duprin 98/99 exit devices
Grade 1
Von Duprin created the first exit device
in 1908, and continues to redefine the
industry today with unsurpassed quality
and industry-unique features such as
concealed vertical cables. The 98/99
Series exit device is intended for
standard-stile doors. For use with
996L trim only.
Von Duprin 33A/35A exit devices
Grade 1
Oering the same innovate features
as the 98/99 Series, the 33A/35A Series
of exit devices is intended for narrow-
stile doors. For use with 360L trim only.
Von Duprin 94/95 exit devices
Grade 1
The 94/95 has the pushbar trim
recessed into the door to minimize the
external profile, allowing more room for
people and equipment to pass through.
For use with 940L trim only.
M55
M54
M63
M84
M62
M85
4.35"
2.75"
2.14"
4.5"
1.9"
5.1"
3"
0.4"
4.3"
3"
2.14"
4.5"
3.2"
2.1"
4.9"
3.3"
0.3"
Exitdevices
Locks
Finish
options
Color Bright
brass
Satin
brass
Antique
brass
Satin
nickel
Bright
chrome
Satin
chrome
Bright
stainless
steel
Satin
stainless
steel
Aged
bronze
ANSI/BHMA
number 605 606 609 619 625 626/626AM 629 630/630AM 643
US number US3 US4 US5 US15 US26 US26D US32 US32D US11
AM = Antimicrobial.
See pricebook for additional trim and finish availability. 33A, 95 & 99 devices not available in 619 & 630 finishes.
Images shown with Schlage L Mortise ‘A’ rose; additional rose and escutcheon designs available.
Schlage•LSeries•11
TheStandardCollection
Builtonourtraditionofraisingindustrystandards.
Like the M Collection, these lever designs suite with exit devices and locks from our trusted
Schlage and Von Duprin brands. And, they are built to the same exacting standards.
Our Standard Collection levers oer a more traditional style that is appropriate for use in a
number of commercial applications.
18
12
01 02 03
Omega
Merano Longitude
17
2.688"
2.031"
4.875"
.375"
5.063"
3.313"
2.813"
1.813"
4.75"
3.063"
2"
4.625"
2.563"
4.875"
.5"
4.75"
2.813"
.5"
.5"
3"
4.75"
4"
2"
3.125"
2.688"
2.063"
3.875
"
12•Schlage • LSeries
07
2.875"
4.625"
1.969"
To learn more about suiting of Schlage and Von Duprin products with our decorative or standard
levers contact your security consultant or visit allegion.com/us.
Accent
05 06
Latitude
St Annes
Asti
2.563"
4.75"
4.313"
2"
3.125"
2.5"
.5"
4.625"
2.875"
3.75"
2.281"
4.125"
2"
3.125"
4"
2"
2.625"
Finish
options
Color Bright
brass
Satin
brass
Antique
brass
Satin
bronze
Oil
rubbed
Bronze
Satin
nickel
Bright
chrome
Satin
chrome
Bright
stainless
steel
Satin
stainless
steel
Aged
bronze
ANSI/BHMA
number 605 606 609 612 613 619 625 626/626AM 629 630/630AM 643
US number US3 US4 US5 US10 US10B US15 US26 US26D US32 US32D US11
AM = Antimicrobial.
See pricebook for additional trim and finish availability. 33A, 95 & 99 devices not available in 619 & 630 finishes.
Schlage•LSeries•13
Escutcheonsandroses
Choose from three types of escutcheon and two rose sizes to add tough,
durable performance to your lockset.
Escutcheons
7/16"
11mm
8"
203mm
7/16"
11mm
8"
203mm
7/16"
11mm
8"
203mm
Roses
L Full face
Specify by adding ‘L’ after
lever design.
Material: Cold-forged brass,
bronze or stainless steel
Finishes: 605, 606, 609, 612, 613,
619, 625, 626, 629, 630, 643e
Size: 8" x 1 3⁄4" x 7⁄16"
(203 mm x 44 mm x 11 mm)
A Wrought rose
2 1⁄8" (54 mm) diameter
Available for use on L Series knob
and lever designs. Specify by
adding ‘A’ after lever design
Finishes: 605, 606, 609, 612, 613,
619, 625, 626, 629, 630, 643e
B Wrought rose
2 9⁄16" (65 mm) diameter
Available for use on L Series knob
and lever designs. Specify by
adding ‘B’ after lever design.
Finishes: 605, 606, 609, 612, 613,
619, 625, 626, 629, 630, 643e
C Wrought rose
2 5⁄8" (66 mm) diameter
Available for use on L Series knob
and lever designs. Specify by
adding ‘C’ after lever design.
Finishes: 605, 606, 609, 619, 625,
626, 629, 630, 643e
L Concealed
Specify by adding ‘C’ sux to
function and by adding ‘L’ after
lever design.
Material: Cold-forged brass,
bronze or stainless steel
Finishes: 605, 606, 609, 612, 613,
619, 625, 626, 629, 630, 643e
Size: 8" x 1 3⁄4" x 7⁄16"
(203 mm x 44 mm x 11 mm)
N Escutcheon
Specify by adding ‘N’ after
lever design.
Material: Heavy wrought
reinforced brass, bronze
or stainless steel
Finishes: 605, 606, 609, 612, 613,
619, 625, 626, 629, 630, 643e
Size: 8" x 2 9⁄16" x 7⁄16"
(203 mm x 65 mm x 11 mm)
14•Schlage • LSeries
Thumbturns
Choose from three variations of thumbturn locks that help you meet the
demands of specialized commercial projects.
Tactilewarning(knurling)
Schlage L Series commercial levers feature knurling only
on the outside lever unless otherwise specified.
This feature is available on the following lever models:
01, 02, 03, 05, 06, 07, 12, 17, 18, 41, 42 and 93.
03 Lever shown
Products featuring a knurled surface will be indicated by
adding the prefix “8” to the lever number. For example,
L9050P 803A/03A.
Hotel occupancy indicator
09-611
For lock function L9486P, this unit
can be used with A or B roses.
Requires a 1 3⁄8" (35 mm) cylinder for
1 3⁄4" (44 mm) doors. Specify finish
when ordering separately.
Optional EZ turn
L583-363
Available for rose and escutcheon
trim. Disability turn (ADA) option to
standard thumbturn. Can be used
with thumbturn-function L Series lock
except L9463 and L463. Specify lock
per L583-363 when ordering.
Coin turn
For lock function L9044 and
L9444 with rose trim. Specify
09-509 and finish per L283-124
when ordering.
Schlage•LSeries•15
Lockfunctions
Lockcomponents
Deadbolt
Cylinder
Outside knob
or lever
Inside knob
or lever
Thumbturn
Thumbturn
cylinder
Coin turn
Solid spindle
Two-piece
spindle
Emergency
turn piece
Occupancy
indicator
Stopworks functions
by turn-piece
Auxiliary guarded latch
Latchbolt with
anti-friction
tongue
Symbolkey
Productidenticationguide

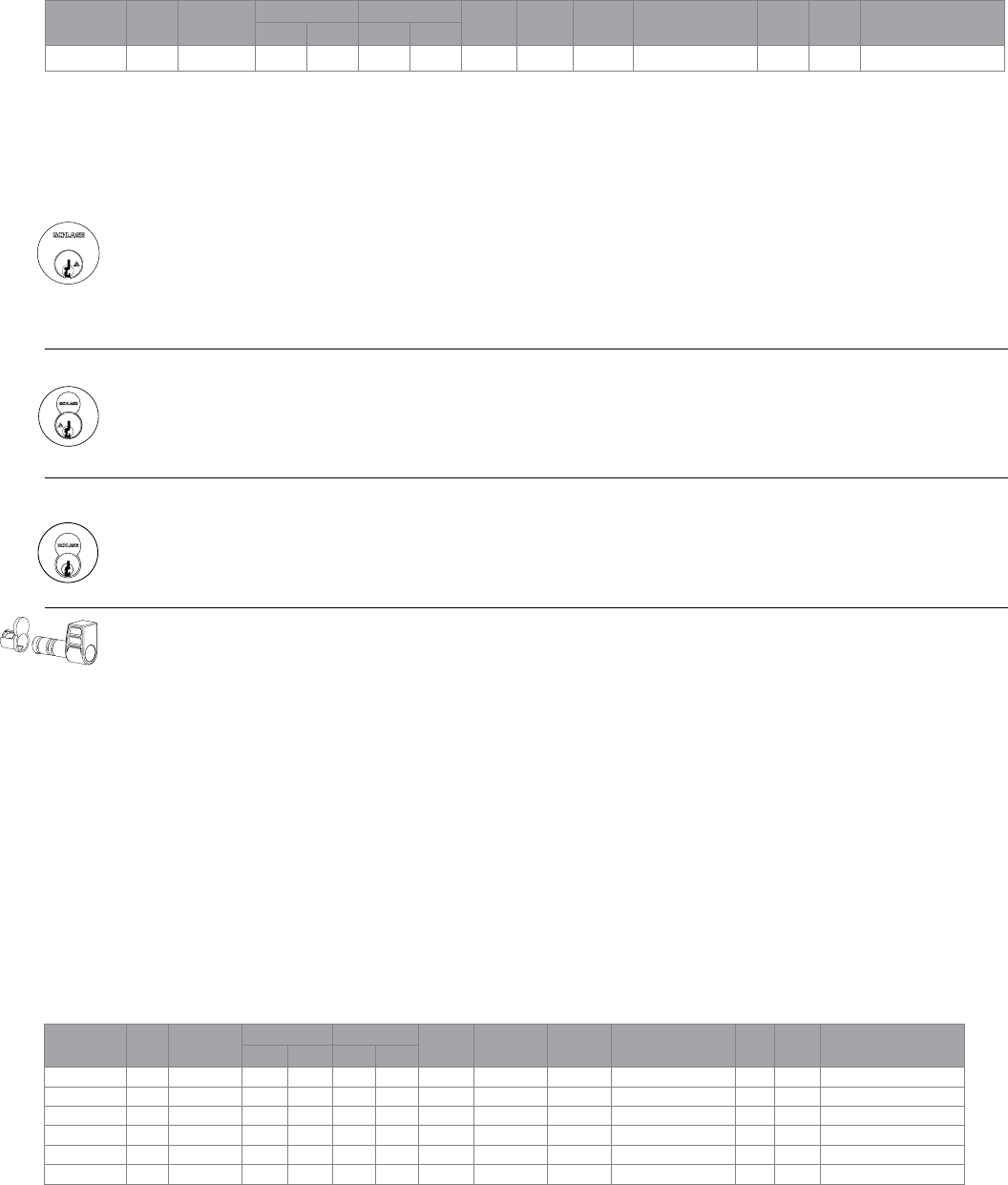

Cylinder sux
P = 6-pin full-face mortise cylinder with Schlage logo*
L = less full-face cylinder
C = concealed mortise cylinder
W = less concealed cylinder
R = full-size interchangeable core with Schlage logo
J = less full-size interchangeable core
F = full-size interchangeable core less Schlage logo
T = full-size construction core
BD = SFIC less core
BDC = disposable SFIC
GD = Everest patented SFIC
HD = construction SFIC
SFIC = Small Format (Best® style) Interchangeable Core
To order less Schlage logo, specify lock
“with K510-612 faceplate.”
LV = Vandlgard® function allows exterior lever to rotate
freely down while remaining securely locked.
L/LV 9 4 53 P
Lock series
L = standard
LV = vandlgard
0 = dummy trim without lock case
9 = functions with lock case
0 = no deadbolt
1 = dummy trim
4 = with deadbolt
Function
16•Schlage • LSeries

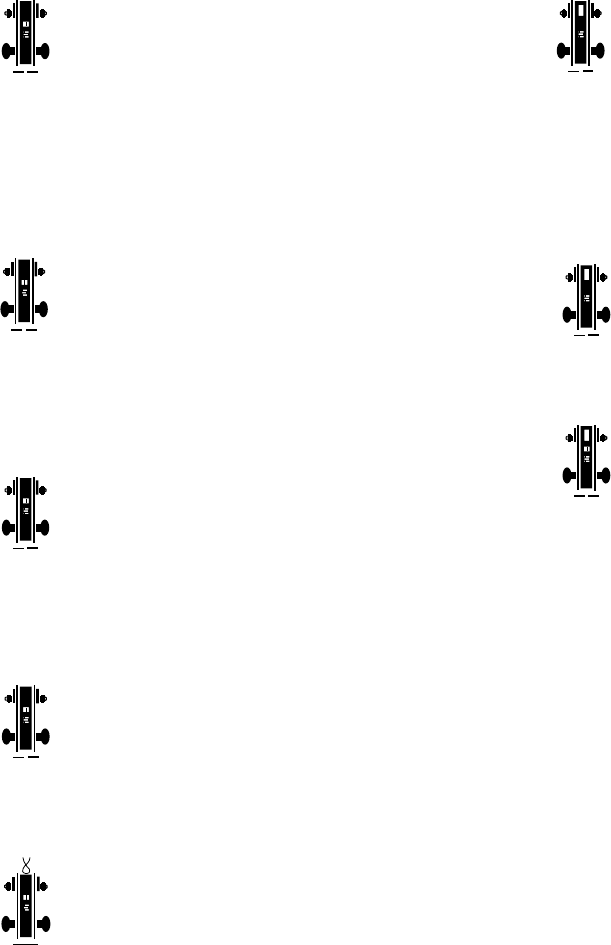

Lockfunctions
ANSIA156.13,Series1000
* In a double-door application where the dummy
will be used as the strike order 10-091 Armored
Front Strike separately.
Schlage ANSI
L9010 FO1
Passage latch
Latchbolt retracted by knob/lever from either
side at all times. Inside lever is always free for
immediate egress.
Schlage ANSI
L9444
LV9444
Privacy with deadbolt and
coin turn outside
Latchbolt retracted by knob/lever from either
side. Deadbolt thrown or retracted by inside
thumbturn or outside coin turn. Throwing
deadbolt locks outside knob/lever. Rotating
inside knob/lever simultaneously retracts
deadbolt and latchbolt, and unlocks outside
knob/lever. Rotating outside coin turn retracts
deadbolt and unlocks outside knob/lever.
Specify per L283-056 for Torx screws.
Available with rose trim only. Inside lever is
always free for immediate egress. (Previously
XL11-868)
L0170
Half dummy trim
Knob/lever on one side fixed by
mounting bar.
L0172
Full dummy trim
Knob/lever on both sides fixed by
mounting bar.
L9175
Half dummy trim with lock case
Fixed knob/lever on one side inoperable.
Includes lock case and armored front. Options
same as L9176 below.
L9176
Full dummy trim with lock case*
Fixed knob/lever on both sides. Includes lock
case and blank armor front. May be ordered
with optional XL11-743 armored front with
cutout to receive deadbolt.
L9040 F22
LV9040
Bath/bedroom privacy lock
Latchbolt retracted by knob/lever from either
side unless outside is locked by inside
thumbturn. Turning inside knob/lever or
closing door unlocks outside knob/lever. To
unlock from outside remove emergency
button, insert emergency thumbturn
(furnished) in access hole and rotate. Inside
lever is always free for immediate egress.
L9044
LV9044
Privacy with coin turn outside
Latchbolt retracted by knob/lever from either
side unless outside is locked by inside
thumbturn or outside coin turn. Operating
inside knob/lever, closing door, rotating inside
thumbturn or rotating outside cointurn
unlocks outside knob/lever. Specify per
L283-056 for Torx® screws. Available with
rose trim only. (Previously XL11-868)
L9440
LV9440 F19
Privacy with deadbolt
Latchbolt retracted by knob/lever from either
side. Deadbolt thrown or retracted by inside
thumbturn. Throwing deadbolt locks outside
knob/lever. Rotating inside knob/lever
simultaneously retracts deadbolt and
latchbolt, and unlocks outside knob/lever. To
unlock from outside remove emergency
button, insert emergency thumbturn in access
hole and rotate. Inside liner is always free for
immediate egress. (Previously XL11-761.)
Schlage•LSeries•17
Lockfunctions
Singlecylindernon-deadboltfunctions
Schlage ANSI
L9050 F04
LV9050
Oce and inner entry lock
Latchbolt retracted by knob/lever from either side unless
outside is made inoperative by key outside or by turning
inside thumbturn. When outside is locked, latchbolt is
retracted by key outside or by knob/lever inside. Outside
knob/lever remains locked until thumbturn is returned to
vertical or unlocked by key. Auxiliary latch deadlocks
latchbolt when door is closed. Inside liner is always free for
immediate egress.
L9080EU
LV9080EU
Electrically unlocked (fail secure)
Outside knob/lever unlocked by 24V AC or DC. Latchbolt
retracted by key outside or knob/lever inside. Auxiliary
latch deadlocks latchbolt when door is closed. Inside
lever is always free for immediate egress.
L9056
LV9056
L9050 with automatic unlocking
Latchbolt retracted by knob/lever from either side unless
outside is made inoperative by key outside or by rotating
inside thumbturn. Outside knob/lever unlocked by key
outside, thumbturn or closing door. Rotating inside knob/
lever simultaneously retracts latchbolt and unlocks outside
knob/lever. Auxiliary latch deadlocks latchbolt when door
is closed. Inside lever is always free for immediate egress. L9080EL-RX / LV9080EL-RX
L9080EU-RX / LV9080EU-RX
Request to exit (RX) electrified lock
Same as L9080EL and L9080EU functions. In addition,
a micro-switch positioned inside the lock case monitors
the retractor crank, and is actuated when rotation of the
inside or outside knob/levers rotates the retractor hub.
The switch signals the use of that opening to security
systems, allowing a non-disruptive means of immediate
egress. Specify per L283-263 with L functions, specify
L283-239 with LV functions. Inside lever is always free
for immediate egress.
L9070 F05
LV9070
Classroom lock
Latchbolt retracted by knob/lever from either side unless
outside is locked by key. Unlocked from outside by key.
Inside knob/lever always free for immediate exit. Auxiliary
latch deadlocks latchbolt when door is closed. Inside lever
is always free for immediate egress.
L9076 F06
LV9076
Classroom holdback lock
Latchbolt retracted by knob/lever from either side unless
outside is locked by key. When locked, latchbolt retracted
by key outside or knob/lever inside. Auxiliary latch
deadlocks latchbolt when door is closed. Depress inside
knob/lever and turn key 360° for holdback feature. Inside
lever is always free for immediate egress.
L9080 F07
LV9080
Storeroom lock
Latchbolt retracted by key outside or by knob/lever inside.
Outside knob/lever is always inoperative. Auxiliary latch
deadlocks latchbolt when door is closed. Inside lever is
always free for immediate egress.
Schlage ANSI
L9080EL
LV9080EL
Electrically locked (fail safe)
Outside knob/lever continuously locked by 24V AC or
DC. Latchbolt retracted by key outside or by knob/lever
inside. Switch or power failure allows outside knob/
lever to retract latchbolt. Auxiliary latch deadlocks
latchbolt when door is closed. Inside knob/lever always
free for immediate exit. Inside lever is always free for
immediate egress.
18•Schlage • LSeries
Lockfunctions
Singlecylinderdeadboltfunctions
* In a double-door application where the dummy will be used
as the strike order 10-091 Armored front strike separately.
Schlage ANSI
L9453 F20
LV9453
Entrance lock
Latchbolt retracted by knob/lever from either side
unless outside is locked by 20° rotation of thumbturn.
Deadbolt thrown or retracted by 90° rotation of
thumbturn. When locked, key outside or knob/lever
inside retracts deadbolt and latchbolt simultaneously.
Outside knob/lever remains locked until thumbturn is
restored to vertical position. Throwing deadbolt
automatically locks outside knob/lever. Auxiliary latch
deadlocks latchbolt when door is closed. Inside lever
is always free for immediate egress.
Schlage ANSI
L9485
LV9485
Faculty/hotel/restroom lock
Latchbolt retracted by key outside or by knob/lever
inside. Outside knob/lever always fixed. Deadbolt
thrown or retracted by inside thumbturn. When
deadbolt is thrown all keys become inoperative
except emergency or display keys. Turning inside
knob/lever retracts both deadbolt and latchbolt
simultaneously. Auxiliary latch deadlocks latchbolt
when door is closed. Inside lever is always free for
immediate egress.
L9486 x L583-375
LV9486 x L583-375
L9486 with “occupied” indicator
Latchbolt retracted by key outside or by knob/lever
inside. Outside knob/lever always fixed. Deadbolt
thrown or retracted by inside thumbturn. When
deadbolt is thrown “Occupied” plate is displayed and
all keys become inoperative except emergency keys.
Turning inside knob/lever simultaneously retracts
both deadbolt and latchbolt. Auxiliary latch deadlocks
latchbolt when door is closed. Inside lever is always
free for immediate egress. (Previously XL11-580)
L9456 F13
LV9456
Corridor lock
Latchbolt retracted by knob/lever from either side.
Deadbolt thrown or retracted by key outside or
inside thumbturn. Throwing deadbolt locks
outside knob/lever. Turning inside knob/lever
simultaneously retracts deadbolt and latchbolt
and unlocks outside knob/lever. Inside lever is
always free for immediate egress.
L9486 F15
LV9486
Faculty/hotel/restroom lock
“do not disturb” indicator
Latchbolt retracted by key outside or by knob/lever
inside. Outside knob/lever always fixed. Deadbolt
thrown or retracted by inside thumbturn. When
deadbolt is thrown “do not disturb” plate is displayed.
All keys become inoperative except emergency or
display keys. Turning inside knob/lever retracts both
deadbolt and latchbolt simultaneously. Auxiliary latch
deadlocks latchbolt when door is closed. Inside lever
is always free for immediate egress.
L9496
Privacy with “occupied” indicator
Knob/lever retracts latchbolt from either side
Deadbolt thrown or retracted by key outside
(retraction by key required in the event of an
emergency) or inside thumbturn. Throwing deadbolt
locks outside knob/lever and displays “Occupied”
plate. Rotating inside knob/lever simultaneously
retracts both deadbolt and latchbolt, and unlocks
outside knob/lever. Inside lever is always free for
immediate egress. (Previously XL11-885)
L9465
Closet/storeroom lock
Latchbolt retracted by knob/lever from either side.
Deadbolt thrown or retracted by key outside.
L9473 F21
Dormitory/bedroom lock
Latchbolt retracted by knob/lever from either side.
Deadbolt thrown or retracted by key outside or
thumbturn inside.
L9480
LV9480
Storeroom lock with deadbolt
Latchbolt retracted by key outside or by lever or knob
inside. Outside knob/lever always fixed. Deadbolt
thrown or retracted by key outside or thumbturn inside.
Turning inside knob/lever simultaneously retracts both
deadbolt and latchbolt. Auxiliary latch deadlocks
latchbolt when door is closed. Inside lever is always free
for immediate egress. (Previously XL11-591)
L9485 x XL11-557
Prison function lock
Latch retracted by key outside or knob inside. Outside
knob always free spinning. Deadbolt only thrown or
retracted by guard’s key. Inside knob becomes fixed
when deadbolt is thrown. Prisoner’s key only retracts
latchbolt. Furnished standard with tamper-resistant
Torx screws. Specify per XL11-557.
Schlage•LSeries•19
Lockfunctions
Doublecylinder
non-deadboltfunctions
Lockfunctions
Doublecylinder
deadboltfunctions
In a double-door application where the dummy will
be used as the strike order 10-091 Armored front strike
separately.
*Caution: Double cylinder locks on residences and any
door in any structure which is used for egress are a life
safety hazard in times of emergency and their use is not
recommended. Installation should be in accordance
with existing codes only.
Schlage ANSI
L9060 F09
LV9060
Apartment entrance lock
Latchbolt retracted by knob/lever from either side unless
outside is locked by key from inside. When locked, latchbolt
retracted by key outside or knob/lever inside. Auxiliary
latch deadlocks latchbolt when door is closed. Inside lever
is always free for immediate egress.
Schlage ANSI
L9457
LV9457
Classroom security lock with deadbolt
Latchbolt retracted by knob/lever from either side.
Deadbolt thrown or retracted by key from either side.
Throwing deadbolt locks outside knob/lever. Turning inside
knob/lever simultaneously retracts deadbolt and latchbolt,
and unlocks outside knob/lever. Inside lever is always free
for immediate egress.
L9071
LV9071
Classroom security lock
Latchbolt retracted by knob/lever from either side unless
outside is locked by key from either side. When locked,
latchbolt retracted by key outside or knob/lever inside.
Auxiliary latch deadlocks latchbolt when door is locked.
Inside lever is always free for immediate egress.
L9466 F14
Store/utility room lock with deadbolt*
Latchbolt retracted by knob/lever from either side.
Deadbolt thrown or retracted by key from either side.
L9077
LV9077
Classroom security holdback lock
Latchbolt retracted by knob/lever from either side unless
outside is locked by key from either side. When locked, latchbolt
retracted by key outside or knob/lever inside. Auxiliary latch
deadlocks latchbolt when door is locked. Depress inside knob/
lever and turn key 360° for holdback feature. Inside lever is
always free for immediate egress.
L9482 x XL11-943
LV9482 x XL11-943
Institution lock with deadbolt*
Latchbolt retracted by key from either side. Knob/lever on
both sides always inoperative. Deadbolt thrown or retracted
by key either side. Auxiliary latch deadlocks latchbolt when
door is closed. Specify per XL11-543.
L9082 F30
LV9082
Institution lock
Latchbolt retracted by key from either side. Knob/lever on
both sides always inoperative. Auxiliary latch deadlocks
latchbolt when door is closed.
L9082EL
L9082EU
L9082 electrically locked or electrically un-
locked both sides*
EL: Outside and inside knob or lever continually locked
electrically. Latchbolt retracted by key either side. Switch or
power failure allows outside and inside knob/lever to retract
latchbolt. Auxiliary latch deadlocks latchbolt when door is
closed. EU: Outside and inside knob/lever unlocked
electrically. Latchbolt retracted by key either side. Switch or
power failure keeps inside and outside knob/lever locked.
Auxiliary latch deadlocks latchbolt when door is closed.
(Previously XL11-452)
20•Schlage• LSeries
Lockfunctions
Fullmortisedeadlocks
Lockfunctions
Smallmortisedeadlocks
Schlage ANSI
L9460 F17
Cylinder x thumbturn lock
Deadbolt thrown or retracted by key outside
or thumbturn inside.
Schlage ANSI
L460 E06071
Cylinder x thumbturn lock
Deadbolt thrown or retracted by key outside or
thumbturn inside.
L9462 F16
Double cylinder lock*
Deadbolt operated by key from either side.
L462 E06061
Double cylinder lock*
Deadbolt operated by key from either side.
L9463
Classroom lock
Deadbolt thrown or retracted by key from outside.
Inside thumbturn cylinder retracts deadbolt, but
cannot project it.
L463 E06091
Classroom lock
Deadbolt thrown or retracted by key from outside.
Inside thumbturn cylinder retracts deadbolt, but
cannot project it.
L9464 F18
Cylinder lock
Deadbolt thrown or retracted by key from one
side. No trim on opposite side.
L464 E06081
Cylinder lock
Deadbolt thrown or retracted by key from one
side. No trim on opposite side.
L9460 x XL11-635
L9460 with pull
Knob/lever both sides fixed. Deadbolt thrown or
retracted by key outside or thumbturn inside.
L480
Door bolt
Deadbolt thrown or retracted by thumbturn from
one side. No trim on opposite site.
L9460 x XL11-886
Single cylinder deadlock with pull
Deadbolt thrown or retracted by key outside or
thumbturn inside. No latch, but inside knob or
lever is spring-loaded. Rotating inside knob/lever
also retracts deadbolt. Fixed outside knob/lever.
L496
Deadbolt with “occupied” indicator
Deadbolt thrown or retracted by key outside or
thumbturn inside. When deadbolt is thrown
“Occupied” plate is displayed.
(Previously XL11-911)
L9462 x XL11-886
Double cylinder deadlock with pull*
Deadbolt thrown or retracted by key from either
side. No latch, but inside knob/lever is spring-
loaded. Rotating inside knob/lever also retracts
deadbolt. Fixed outside knob/lever.
L9464 x XL11-886
Deadlock with pull
Deadbolt thrown or retracted by key from one
side. No latch, but inside knob/lever is spring-
loaded. Rotating inside knob/lever also retracts
deadbolt. Fixed outside knob/lever.
Schlage•LSeries•21
ANSI
function Function type Function description Transformation instructions Additional part(s)
F04 L9050 (w/thumbturn) oce
Latchbolt operated by lever either side except when outside lever is made
inoperative by a stop or other mechanical means other than key. When
outside lever is locked, latchbolt is retracted by key from outside or by
operating inside lever. Auxiliary deadlatch.
Install cloverleaf cam cylinder on outside; install
thumbturn assembly 09-509-027 on inside. No additional parts required.
F01 L9010 passage Latchbolt operated by lever from either side at all times.
Do not install thumbturn unit 09-509-027 on inside or
cylinder outside. Install chassis in the unlocked
position.
No additional parts required.
F05 L9070 classroom
Latchbolt operated by lever either side except when outside lever is locked
from outside by key or push button mechanism. When outside is locked
latchbolt is retracted by key or by operating key or push button, and outside
lever from outside or by operating inside lever. Auxiliary deadlatch.
Install cloverleaf cam cylinder on outside; do not
install thumbturn assembly 09-509-027 on inside. No additional parts required.
F07 L9080 storeroom Latchbolt operated by key outside or by operating inside lever.
Outside lever always inoperative. Auxiliary deadlatch.
Do not install thumbturn 09-509-027 on inside.
Install chassis in the locked position. Replace
cloverleaf cam L583-153 with straight cam B502-948
(Everest), L583-255 with K510-680 (IC and SFIC) and
install on outside.
Cams B502-948 (Everest),
K510-680 (IC and SFIC) or
L583-476 or L583-477 for
modular cylinders
F09 L9060 apartment entrance
Latchbolt operated by lever either side, except when made inoperative by
key from inside. When outside is locked latchbolt is retracted by key from
outside or by operating inside lever. Auxiliary deadlatch.
Do not install thumbturn 09-509-027 on inside.
Install cloverleaf cam cylinder on inside. Replace
clover leaf cam L583-153 with straight cam B502-948
(Everest), L583-255 with K510-680 (IC and SFIC) and
install on outside.
Mortise cylinder assembly
and cams B502-948
(Everest), K510-680
(IC and SFIC) or L583-476
or L583-477 for modular
cylinders
F31 L9080 (less outside cylinder)
exit or communicating
Latchbolt operated by inside lever. Non-removable blank trim
or no trim outside.
Do not install thumbturn unit 09-509-027 on inside.
Install chassis in the locked position. Install inside
lever with L285-150 mounting plate; do not install
outside lever or cylinder.
Mounting plate L283-150
F32 L9071 classroom security
Latchbolt retracted by lever either side except when outside lever is locked
by key from inside or outside. When outside lever is locked latchbolt is
retracted by key either side or by inside lever. Auxiliary deadlatch.
Do not install thumbturn unit 09-509-027 on inside.
Install cloverleaf cam cylinder on inside and outside.
Mortise cylinder assembly
and cam L583-153
L9080 (less outside lever)
service
Latchbolt operated by key outside or by operating inside lever.
No outside lever. Auxiliary deadlatch.
Do not install thumbturn unit 09-509-027 on inside.
Install chassis in the locked position. Replace
cloverleaf cam L583-153 with straight cam B502-948
(Everest), L583-255 with K510-680 (IC and SFIC) and
install on outside. Install inside lever with L285-150
mounting plate; do not install outside lever.
Cams B502-948 (Everest),
K510-680 (IC and SFIC),
mounting plate L283-150
or L583-476 or L583-477
for modular cylinders
L9080 (less inside trim) utility Latchbolt retracted by key outside; outside lever always inoperative.
No inside trim. Auxiliary deadlatch.
Do not install thumbturn unit 09-509-027 on inside.
Install chassis in the locked position. Replace
cloverleaf cam L583-153 with straight cam B502-948
(Everest), L583-255 with K510-680 (IC and SFIC) and
install on outside. Install inside lever on outside with
L283-150 mounting plate; do not install inside lever.
Cams B502-948 (Everest),
K510-680 (IC and SFIC),
mounting plate L283-150
or L583-476 or L583-477
for modular cylinders
L9070 (less inside trim) closet
Latchbolt operated by lever on outside except when outside lever is
locked from outside by key. When outside is locked latchbolt is retracted
by key or by operating key from outside lever. Auxiliary deadlatch.
Install cloverleaf cam cylinder on outside; do
not install thumbturn assembly 09-509-027 on
inside. Install inside trim on outside with L283-150
mounting plate.
Mounting plate L283-150
* Assumes Everest cylinders and L9050 as base function (L283-133 chassis/L9050LB distributor lock case) — only applies to sectional trim
(not escutcheon).
SchlageLSeriesuniversaltransformationinstructions

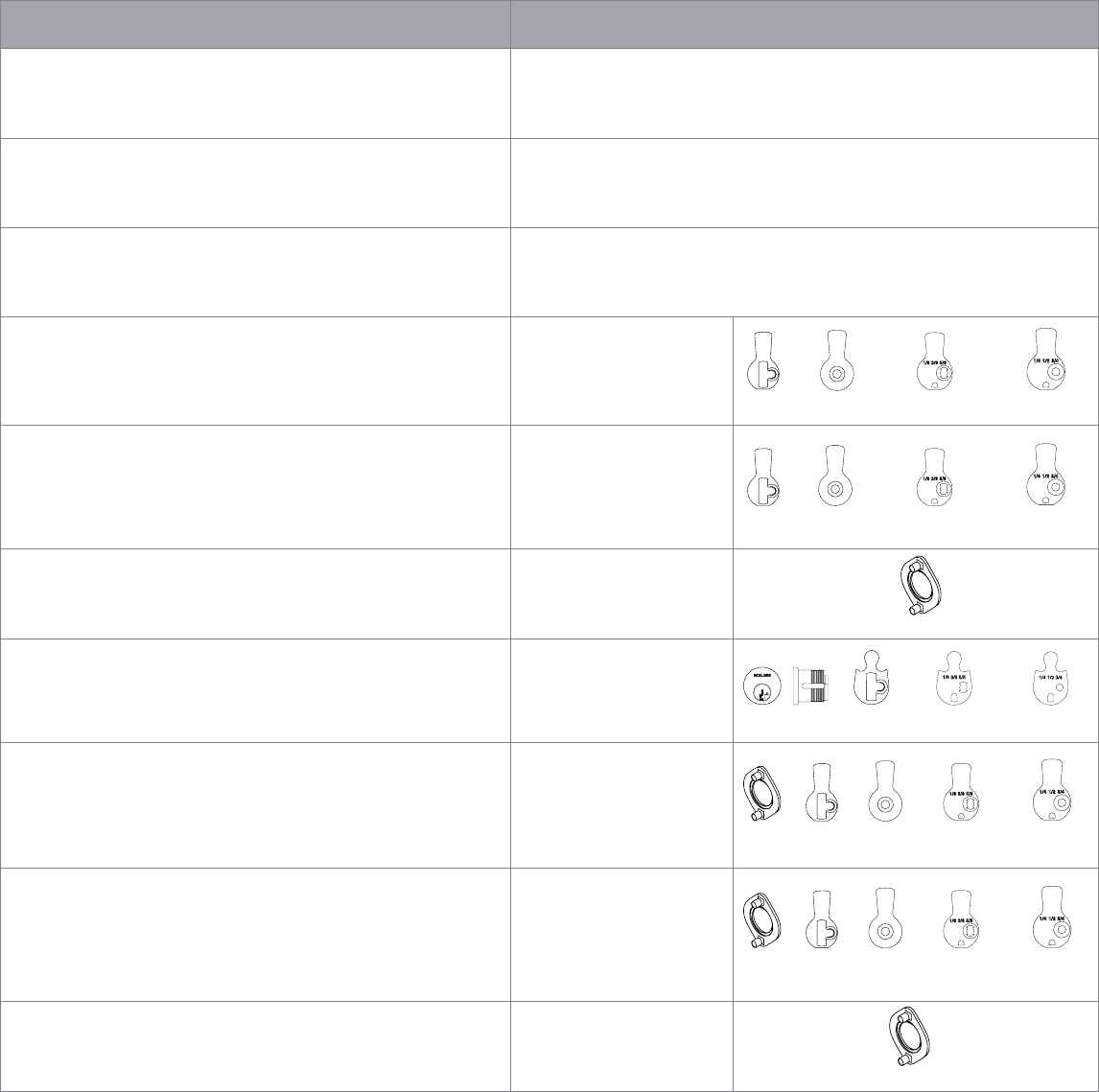

The L9050 universal case can be transformed into nine dierent functions* with just a few additional parts.
For some functions, additional parts are not necessary.
22•Schlage • LSeries
ANSI
function Function type Function description Transformation instructions Additional part(s)
F04 L9050 (w/thumbturn) oce
Latchbolt operated by lever either side except when outside lever is made
inoperative by a stop or other mechanical means other than key. When
outside lever is locked, latchbolt is retracted by key from outside or by
operating inside lever. Auxiliary deadlatch.
Install cloverleaf cam cylinder on outside; install
thumbturn assembly 09-509-027 on inside. No additional parts required.
F01 L9010 passage Latchbolt operated by lever from either side at all times.
Do not install thumbturn unit 09-509-027 on inside or
cylinder outside. Install chassis in the unlocked
position.
No additional parts required.
F05 L9070 classroom
Latchbolt operated by lever either side except when outside lever is locked
from outside by key or push button mechanism. When outside is locked
latchbolt is retracted by key or by operating key or push button, and outside
lever from outside or by operating inside lever. Auxiliary deadlatch.
Install cloverleaf cam cylinder on outside; do not
install thumbturn assembly 09-509-027 on inside. No additional parts required.
F07 L9080 storeroom Latchbolt operated by key outside or by operating inside lever.
Outside lever always inoperative. Auxiliary deadlatch.
Do not install thumbturn 09-509-027 on inside.
Install chassis in the locked position. Replace
cloverleaf cam L583-153 with straight cam B502-948
(Everest), L583-255 with K510-680 (IC and SFIC) and
install on outside.
Cams B502-948 (Everest),
K510-680 (IC and SFIC) or
L583-476 or L583-477 for
modular cylinders
F09 L9060 apartment entrance
Latchbolt operated by lever either side, except when made inoperative by
key from inside. When outside is locked latchbolt is retracted by key from
outside or by operating inside lever. Auxiliary deadlatch.
Do not install thumbturn 09-509-027 on inside.
Install cloverleaf cam cylinder on inside. Replace
clover leaf cam L583-153 with straight cam B502-948
(Everest), L583-255 with K510-680 (IC and SFIC) and
install on outside.
Mortise cylinder assembly
and cams B502-948
(Everest), K510-680
(IC and SFIC) or L583-476
or L583-477 for modular
cylinders
F31 L9080 (less outside cylinder)
exit or communicating
Latchbolt operated by inside lever. Non-removable blank trim
or no trim outside.
Do not install thumbturn unit 09-509-027 on inside.
Install chassis in the locked position. Install inside
lever with L285-150 mounting plate; do not install
outside lever or cylinder.
Mounting plate L283-150
F32 L9071 classroom security
Latchbolt retracted by lever either side except when outside lever is locked
by key from inside or outside. When outside lever is locked latchbolt is
retracted by key either side or by inside lever. Auxiliary deadlatch.
Do not install thumbturn unit 09-509-027 on inside.
Install cloverleaf cam cylinder on inside and outside.
Mortise cylinder assembly
and cam L583-153
L9080 (less outside lever)
service
Latchbolt operated by key outside or by operating inside lever.
No outside lever. Auxiliary deadlatch.
Do not install thumbturn unit 09-509-027 on inside.
Install chassis in the locked position. Replace
cloverleaf cam L583-153 with straight cam B502-948
(Everest), L583-255 with K510-680 (IC and SFIC) and
install on outside. Install inside lever with L285-150
mounting plate; do not install outside lever.
Cams B502-948 (Everest),
K510-680 (IC and SFIC),
mounting plate L283-150
or L583-476 or L583-477
for modular cylinders
L9080 (less inside trim) utility Latchbolt retracted by key outside; outside lever always inoperative.
No inside trim. Auxiliary deadlatch.
Do not install thumbturn unit 09-509-027 on inside.
Install chassis in the locked position. Replace
cloverleaf cam L583-153 with straight cam B502-948
(Everest), L583-255 with K510-680 (IC and SFIC) and
install on outside. Install inside lever on outside with
L283-150 mounting plate; do not install inside lever.
Cams B502-948 (Everest),
K510-680 (IC and SFIC),
mounting plate L283-150
or L583-476 or L583-477
for modular cylinders
L9070 (less inside trim) closet
Latchbolt operated by lever on outside except when outside lever is
locked from outside by key. When outside is locked latchbolt is retracted
by key or by operating key from outside lever. Auxiliary deadlatch.
Install cloverleaf cam cylinder on outside; do
not install thumbturn assembly 09-509-027 on
inside. Install inside trim on outside with L283-150
mounting plate.
Mounting plate L283-150
* Assumes Everest cylinders and L9050 as base function (L283-133 chassis/L9050LB distributor lock case) — only applies to sectional trim
(not escutcheon).
B502-948 K510-680
Cylinder Only Compr. Ring & Spring
Mortise cylinder
assembly
L583-153
L283-150
L283-150
L283-150
L283-150
Schlage L9060 Outside and Other Straight Cam Applications
L583-477
Dim. X = .35
Y = .72
L583-476
Dim. X = .35
Y = .72
L583-476
11⁄8"/ 13⁄8"/ 15⁄8"
L583-477
11⁄4"/ 11⁄2"/ 13⁄4"
B502-948 K510-680
Schlage L9060 Outside and Other Straight Cam Applications
L583-477
Dim. X = .35
Y = .72
L583-476
Dim. X = .35
Y = .72
L583-476
11⁄8"/ 13⁄8"/ 15⁄8"
L583-477
11⁄4"/ 11⁄2"/ 13⁄4"
B502-948
B502-948
K510-680
K510-680
Schlage L9060 Outside and Other Straight Cam Applications
L583-477
Dim. X = .35
Y = .72
Schlage L9060 Outside and Other Straight Cam Applications
L583-477
Dim. X = .35
Y = .72
L583-476
Dim. X = .35
Y = .72
L583-476
Dim. X = .35
Y = .72
L583-476
11⁄8"/ 13⁄8"/ 15⁄8"
L583-476
11⁄8"/ 13⁄8"/ 15⁄8"
L583-477
11⁄4"/ 11⁄2"/ 13⁄4"
L583-477
11⁄4"/ 11⁄2"/ 13⁄4"
L583-274
11⁄8"/ 13⁄8"/ 15⁄8"
L583-275
For housing sizes: 1¹⁄4, 1¹⁄2 , 1³⁄4"
Dim. X = .261
Y = .644
L583-274
For housing sizes: 1¹⁄8, 1³⁄8 , 15⁄8 "
Dim. X = .261
Y = .644
L583-275
11⁄4"/ 11⁄2"/ 13⁄4"
Schlage•LSeries•23
Electriedlockfunction
L9080PEL
L9080PEU
L9082PEL
L9082PEU
Typical wiring diagram for electrified L Series locks
Frame to door
connector
(not furnished)
Varistor would
go here if used
(not furnished)
Switch
(not furnished) 24V AC 115V AC
Applications:
Security control centers, cashier rooms, fire safety
exits, stairwell doors, telephone equipment rooms,
computer rooms, hospital equipment and narcotics
storage areas.
Regulating devices:
Recognition Systems, Inc., Hand Readers, wall switches,
security consoles, access card readers, thermo-sensitive
devices, smoke and fire alarms, telephone access controls,
automatic time devices and computerized controls.
All installations should be in accordance with local
electrical codes and National Electrical Code, NFPA 70.
Electrical Requirements for EL or EU
Voltage: 24V AC or 24V DC (maximum 26V, minimum 22V)
Peak current: Amps 1.3 at 5- to 10-second intervals
Holding current: Amps .135 between peak current intervals
Operating temperature: Maximum +151° F, minimum -31° F
Micro switch electrical requirements for
Request to Exit (RX) function
Amps: 1.0
Volts: 24 AC or DC
Peak load: Amps, 5; volts, 250 AC or DC
Replacement kit
L283-053 – Solenoid and driver, EL or EU
Typical installation
§Electrified L Series locks contain a transistorized circuit
that provides full voltage to the solenoid upon initial
application of electrical power and at 5- to 10-second
intervals.
§Each lock should preferably have its own 24-volt
transformer. Two or more locks may be operated in
parallel from a single transformer, provided it has the
necessary current rating.
Note: DO NOT connect locks in series from a higher voltage rated
transformer.
§We DO NOT recommend that these locks be connected
to a supply circuit that also contains electromagnetic
devices. If an electromagnetic device is connected to
the supply circuit, the resulting transient voltages could
damage the lock. The transient voltage must be
carefully suppressed at the equipment producing them
before connecting the lock to the same circuit.
§A varistor rated at 35 volts (peak recurrent) may be
used for transient voltage protection.
24•Schlage• LSeries
Standard cylinders
Schlage locks are provided with cylinders precision-built to
extremely close tolerances and the highest standards of accuracy.
Using only solid brass bar stock plugs and shells, phosphor bronze
springs, and nickel silver keys and bottom pins ensures long life and
ease of operation. Our 6-pin Everest cylinders in C123 keyway with two
patented keys are standard for stock. C145 is standard for new master
key systems.
Primus® high security cylinders
Primus high-security cylinders are available to add patented key
control and varying degrees of geographical exclusivity to most
Schlage 6-pin key systems, whether Everest or Classic keyways.
In addition to a conventional pin tumbler mechanism, Primus
cylinders incorporate a patented finger pin and sidebar design,
providing a “dual-locking” cylinder that is virtually pick-proof.
Resistance to drilling and other physical attack is optional by
specifying 20-500 Series UL437 Listed cylinders.
Primus lockout cylinders
For doors where it is frequently desirable to disable all keys from
operating the lock temporarily use lockout cylinders. The special
lockout key can be removed while the plug is turned to the 11 o’clock
position, preventing all normal operating keys, including master
keys, from fully entering the cylinder.
Suggested applications for lockout cylinders include laboratories,
dark rooms, clean rooms and exterior doors to dormitories.
Schlage will not master key lockout cylinders.
Cylindertypes
Schlage•LSeries•25
Standard(non-IC)cylinders
Cylinder Only Compr. Ring & Spring
Standard (non-IC) mortise cylinders
Design Function
Cylinder mechanism
Conventional Primus Primus
UL437
Primus
lockout
Primus
UL437
lockout
L & N
escutcheons
(cylinders and
spring only)
All except
below 30-021 20-793 20-593 20-717** 20-517**
L9060P
outside 26-021 20-701 20-501 20-501 20-515**
L9485, L9486
hotel functions 30-022*N/A N/A N/A N/A
L escutcheon
with concealed
shell cylinder
(C sux)
all except
below 30-004 20-789 20-589 N/A N/A
L9080P
outside 26-023 N/A N/A N/A N/A
L9485, L9486
hotel functions 30-005*N/A N/A N/A N/A
Sectional trim
and L400 Series
(cylinder with
compression
ring & spring)
all except
below 30-001 20-787 20-587 20-717 20-517
L9060P
outside 20-001 20-700 20-500 20-715 20-515
L9060P
outside 30-002*N/A N/A N/A N/A
* Specify door hand for hotel function cylinders.
** Discard compression ring for Lockout cylinders with escutcheon trim.
Finishes: 605, 606, 611, 612, 613, 619, 625, 626, 629 and 630.
Concealed shell cylinders available in 606 and 626 only.
6-pin Everest C123 keyway standard for stock cylinders; C145 standard for new key systems.
Standard cylinder lengths: sectionals (rose) trim = 11⁄8" (29 mm), escutcheon trim = 11⁄4" (32 mm).
Optional cylinder lengths are in 1⁄8" (4 mm) increments ranging from 11⁄8" to 13⁄4" (29 mm to 44 mm).
26•Schlage• LSeries
Cylinder OnlyCylinder with
Compression
Ring & Spring
Cylinder with
Blocking Ring
Full-size IC mortise cylinders
Design Function
Core mechanism
Conventional Primus Primus UL437
L & N
Escutcheons
(cylinders with
compression ring)
All except below 30-008 20-798 30-007
L9060P outside 30-030 20-782 30-032 +
36-083
L9485P, L9486P
hotel functions 30-010*N/A 30-007
Sectional Trim
and L400 Series
(cylinder with
compression ring,
spring and 3⁄8"
blocking ring)
All except below 30-138 20-776 30-137
L9060P outside 20-061 20-783
30-032 +
36-083 +
35-082-037
L9485P, L9486P
hotel functions 30-140*N/A N/A
* Hotel function cores are handed. Specify hand of door. Finishes: 605, 606, 611, 612, 613, 619,
625, and 626. Standard cylinder length is 11⁄2".
Full size interchangeable cores only
Number Description
23-030 Conventional core
20-740 Primus high-security core
30-120 Hotel function core (specify hand of door)
Available 606 and 626 finish only.
Standard keyway: 6-pin Everest C123 for stock, C145 for new
master key systems
Full-sizeinterchangeablecore(FSIC)cylinders
Schlage figure-8 interchangeable core (IC) cylinders allow immediate rekeying at the door. Simply use the special
control key to replace the core in seconds. Full-size IC cylinders can be integrated into any existing 5- or 6-pin Schlage
key system with no adverse eects on keying capacity. Convert existing mortise locks to interchangeable core merely by
replacing the old cylinder with the IC cylinder and proper collar(s).
For ordering information see page 35.
Schlage•LSeries•27
Cylinder Only Cylinder with
Compression
Ring & Spring
Cylinder with
Blocking Ring
Smallformatinterchangeablecore(SFIC)cylinders
The L Series lockset can be ordered to accept small format interchangeable cores (SFIC) compatible with
manufacturers such as Falcon, Arrow and Best; cams are easily changeable.
To order Schlage L Series mortise locks with SFIC cylinders less core, change sux P to BD. Example: L9453BD.
To order locks with Everest B Family restricted keyway cores, change sux to GD. To order with keyed construction
cores, change sux to HD. To order with disposable construction cores, change sux to BDC.
For ordering information see page 35.
Standard (Non-IC) mortise cylinders
Design Function
Core mechanism
Everest
restricted
(GD sux)
Keyed
construction
(HD sux)
Disposable
construction
(BDC sux)
Housing
less core
(BD sux)
L & N
escutcheons
(cylinders with
compression ring
and spring)
All* except
L9060 outside 80-308 80-138 80-115 80-108
L9060 outside 30-030 20-782 30-032 +
36-083 80-104
Sectional trim
and L400 Series
(cylinder with
compression ring,
spring and 1⁄4"
blocking ring)
All* except
L9060 outside 30-138 20-776 30-137 80-101
L9060 outside 80-304 +
36-082-025
80-134
36-082-025
80-112
36-082-025
80-104
36-082-025
Finishes: 605, 606, 611, 612, 613, 619, 625, and 626.
Standard cylinder length is 13⁄8".
Small format interchangeable core (SFIC) only
Number Description
80-036 7-pin uncombinated Everest B Family restricted keyways
80-037 7-pin combinated Everest B Family restricted keyways
80-043 6-pin uncombinated Falcon / Best keyways
80-033 7-pin uncombinated Falcon / Best keyways
Available 606 and 626 finish only. Specify keyway for existing systems.
80-033 and 80-043 cores are available in A, D, E, F, G, H, J, K, L, and M keyways.
Schlage assigns the keyway when establishing new Everest restricted key systems.
28•Schlage• LSeries
Dimensions
for blocking rings
Blocking
ring length Dimension
1⁄8"012
3⁄16"018
1⁄4"025
5⁄16"031
3⁄8" 037
7⁄16"043
1⁄2"050
Full-size interchangeable (FSIC) core blocking ring requirements
Function Trim
Door thickness
13⁄8"13⁄4"2"21⁄4"
Dimension
L9050, L9070, L9080, L9410 (disc), L9453,
L9456,L9460 per XL11-886 or XL11-635, L9464
per XL11-886, L9465, L9473, L9480, L9496
Rose 050 037 025 025
Escutcheon 025 012 N/R N/R
L9485
Rose — 037 025 025
Escutcheon —012 N/R N/R
L9486
Rose 012 N/R N/R N/R
Escutcheon 025 012 N/R N/R
L9060, L9071, L9077, L9082, L9457, L9462 per
XL11-886, L9466, L9482
Rose —050 043 031
Escutcheon 025 012 N/R N/R
L460, L464, L496, L9460, L9464 Rose trim 050 037 025 025
L462, L463, L9462, L9463 Rose trim —050 043 031
Small format interchangeable core (SFIC) blocking ring requirements
Function Trim
Door Thickness
13⁄8"13⁄4"2"21⁄4"
Dimension
L9050, L9060, L9070, L9071, L9077, L9080, L9082,
L9453, L9456, L9457, L9462 per XL11-886, L9465,
L9466, L9473, L9482
Rose 037 025 012 N/R
Escutcheon N/R N/R N/R N/R
L9050, L9060, L9070, L9080, L9082, L9410 (disc),
L9453, L9456,L9460 per XL11-886 or XL11-635, L9464
per XL11-886, L9465, L9466, L9473, L9480, L9496
Rose —050 037 025
Escutcheon 018 N/R N/R N/R
L460, L464, L496, L9460, L9464
L462, L463, L9462, L9463
Rose trim 037 025 012 N/R
Rose trim —050 037 025
Blockingandcompressionrings
Blocking ring. Specify
finish and dimension.
Not to be used with
36-083.
36-079
Blocking ring. Specify
finish and dimension.
Use with 36-083.
36-082
Compression ring
and spring. Specify
finish and dimension.
36-083
Compression spring.
L538-195
11⁄2" diameter
Schlage•LSeries•29
These cylinders are for L463 and L9463
classroom function deadlocks. They are
handed. They have a rotational stop in
one direction to prevent locking from the
inside, but allow unlocking. Cylinders are
field-reversible by changing the position
of the rotational stop. All cylinders
furnished with L583-254 cam.
Classroomthumbturncylinders
This tool is used to install and
remove mortise cylinder housings
and test mortise cylinder cam action
for both small format and full-size
interchangeable core cylinders. Its
other ends are designed to install the
driver and retainer for full-size IC in
Schlage key-in-knob/lever locksets.
Number Collar(s)
09-900 None
09-904 Compression ring and spring
09-905 For 13⁄4" doors: compression ring, spring
and 1⁄8" blocking ring
09-907 For 13⁄4" doors: compression ring, spring
and 1⁄8" blocking ring
Specify hand of door and finish. 11⁄8" length standard.
09-900 and 09-905 also available in 1⁄8" increments
up to 13⁄4".
Mortisecylindercams
L583-153 Everest
and Primus
L583-255
all IC
L583-254
classic conventional
Most functions
L400 and L9000 Series L9060 outside only
B502-948 Everest
and Primus
K510-680
all IC
B502-191
classic conventional
Camsscrews ICinstallationtool
B502-942 Everest and Primus (non-IC)
B502-468 Classic Conventional (non-IC)
L583-333 All full-size interchangeable core
B520-484 All small format interchangeable core
M504-413
(Order as needed)
30•Schlage• LSeries

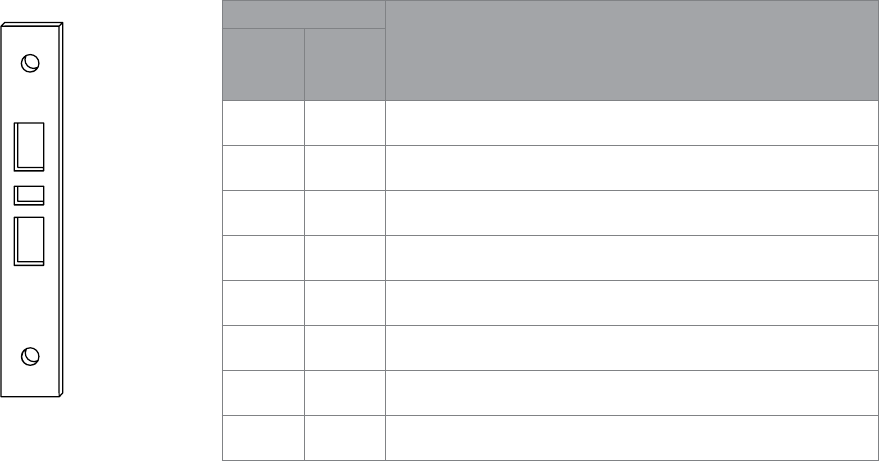

Square corner
Description
11⁄4"
(32mm)
width
11⁄16"
(27mm)
Width
09-662 09-668 Latch: L9010, 9040, 9044
09-663 09-669 Deadlatch: L9050, 9056, 9060, 9070, 9071, 9080, 908
09-664 09-670 Latch x deadbolt: L9444, 9456, 9457, 9465, 9466, 9473, 9496
09-665 09-671 Deadbolt: L9460, 9462, 9463, 946
09-666 09-662 Deadlatch x deadbolt: L9453, 9480, 9485, 948
09-661 09-667 Blank (no holes): L9175, L917
09-713 ---- Deadlatch, non-UL: L9076, 9077 (holdback functions)
09-717 ---- Deadbolt: L400-Series
Note: For 13⁄8" (35mm) doors, 11⁄16" (27mm) front should be specified.
Armoredfronts
L Series armored fronts are produced from brass, bronze or stainless steel material, finished
to match lock trim and furnished complete with screws. Numbers for ordering separately or with locks
are listed below. Armored fronts are specified in latch column of order form.
Standard square corner
11⁄4" (32 mm) width
Schlage•LSeries•31
Strikes
All L Series strikes are produced from brass, bronze or stainless steel material, finished to match lock trim,
and furnished complete with screws. Numbers for ordering separately or with locks are listed below.
Standard for L9000
10-072
11⁄4" x 47⁄8" x 13⁄16" lip
32 mm x 124 mm x 30 mm
Armored front strike
10-091
13⁄4" x 8" x 13⁄16" lip
32 mm x 203 mm x 30 mm
Wood frame reinforcer
37-015
Standard for L400
10-079
11⁄8" x 31⁄2"
32 mm x 89 mm
Optional for L400
10-078
11⁄4" x 47⁄8"
32 mm x 124 mm
Number Lip Length Description
10-072
13⁄16" (30mm) L9000 standard
7⁄8" (22mm), 1" (25mm),
11⁄2" (38mm) L9000 optional
13⁄4" (44mm), 2" (51mm) L9000 special lip
10-073 No lip L9460 Series deadlocks
10-075 No lip
1⁄2" (13mm) rabbeted (use with 11⁄16" (27mm)
armor)
10-078 No lip 11⁄4" x 47⁄8" with box, L400 optional
10-079 No lip 11⁄8" x 31⁄2" with box, L400 standard
10-091*13⁄16" (30mm) Armored front strike, no box
K510-053 --- Strike box for 10-079
K10-066 --- Strike box, all except 10-079
*Specify hand of inactive leaf.
32•Schlage • LSeries
Doorhanding
One of the revolutionary features of the L Series mortise lock is that handing can be done by the distributor
or installer quickly and easily without opening the lock case. This feature allows a Schlage distributor to order
L Series locks as stock and customize the handing to each order’s specification. This means o-the-shelf
delivery to meet today’s fast-track construction requirements. These mix-and-match lever-with-knob
combinations, along with a quickly reversible lock chassis, provide the ultimate in stocking, ordering and
installation flexibility. Orders can be filled from stock, minimizing delivery problems.
The hand is determined by the direction the door swings
when viewed from the exterior or corridor side of the door.
Pull and rotate
Relocate
catch screw
RH
right hand
RR
right hand
reverse bevel
LH
left hand
LR
left hand
reverse bevel
Changinglockhand
No more than two simple steps are required to change the hand of any L Series lock. Rotate the
latch unit 180° and/or change the catch screw position.
* Catch screw location reversed for Vandlgard function. For
first time users, an instructional video is available.
A. Changing latchbolt handing
Remove armored front. Pull latchbolt
away from chassis and rotate complete
unit 180° to reverse the door handing.
Reinstall armored front.
B. Change chassis handing
Remove catch screw from one side of chassis and
install on opposite side. For RH and RR, the catch
screw will be on the lock case side. For LH and LR,
the catch screw will be on the lock case cover.
Schlage•LSeries•33

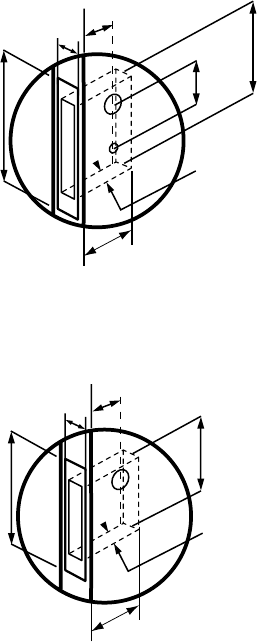

Door preparation for L9000 Series
8
"
203
mm
1
-
1
/
4
"
32
mm
2
-
3
/
4
"
70
mm
6
-
1
/
4
"
159
m
m
4
-
1
/
2
"
114
mm
1
"
25
mm
3
-
7
/
8
"
98
mm
5
-
9
/
16
"
141
mm
1
-
1
/
4
"
32
mm
2
-
3
/
4
"
70
mm
3
-
3
/
4
"
95
m
m
4
-
1
/
2
"
114
mm
1
"
25
mm
Door preparation for L400 Series
Certications
ANSI:
L9000: ANSI A156.13 Series 1000, Grade 1
Operational and Security, UL Listed for 3-hour
fire door (except L9076 and L9007). With
interchangeable core cylinders: Grade 2 Security.
With concealed shell cylinder: A156.13 Grade 1
Operational and Security. ANSI/ASTM F476-76
Grade 40, UL Listed. L400: ANSI A156.5 Grade 1.
California State Reference Code:
(Formerly Title 19, California State Fire
Marshal Standard) All levers with returns
comply; levers return to within 1⁄2" of door face.
UL / cUL:
All locks listed for A label single doors, 4' by 10'.
Letter F and UL symbol on latch front indicate
listing. Electrified functions are UL19X Listed for
single-point locking applications. UL437 Listed
locking cylinder optional: specify Primus 20-500
Series cylinder.
Specications
Handing:
L9000 Series lock bodies are field-reversible without
disassembly. L400 Series locks are non-handed.
Door thickness:
13⁄4" (44 mm) standard. 13⁄8" (35 mm) to 21⁄2" (64 mm) optional.
Over 21⁄2" (64 mm) door ranges vary by function. No escutcheon
available for 13⁄4" (44 mm) doors standard. 2" to 23⁄8" (51 mm to
60 mm) optional. Specify door thickness if other than 13⁄4".
Backset:
23⁄4" (70 mm) only.
Armored front:
L9000 Series: 11⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm)
standard. 11⁄16" x 8" x 17⁄32" (27 mm x 203 mm x 6 mm) optional.
L400 Series: 47⁄16" x 35⁄8" x 1" (113 mm x 92 mm x 25 mm)
Case size:
L9000 Series: 47⁄16" x 61⁄16" x 1" (113 mm x 154 mm x 25 mm)
L400 Series: 47⁄16" x 35⁄8" x 1" (113 mm x 92 mm x 25 mm)
Spacing:
Knob or lever to cylinder, 37⁄8" (98mm); knob or lever to
thumbturn hub, 211⁄16" (68mm).
Bolts:
1" (25mm) throw stainless steel deadbolt and 3⁄4" (19mm) throw
stainless steel latch with anti-friction tongue.
Exposed trim:
Knobs: #41 and #42 heavy-duty wrought brass,
bronze or stainless steel knobs match D Series knobs.
Levers: Forged brass or bronze and cast stainless steel. Designs
available to match D Series levers.
93 Lever design: Extruded brass, bronze or stainless steel.
Mediterranean designs: Forged-brass lever and rose.
Escutcheons: L escutcheons are cold-forged brass or bronze and
stainless steel. N escutcheons are heavy wrought reinforced
brass, bronze and stainless steel.
Trim combinations: Available with knob both sides, lever both
sides, or knob and lever with rose or escutcheon both sides.
Strike:
L9000 Series: ANSI curved lip strike 11⁄4" x 47⁄8"
(32 mm x 124 mm) x 13⁄16" (30 mm) lip to center with dust
box standard. L400 Series: 11⁄8" x 35⁄8" (29 mm x 92 mm) with
dust box.
Cylinder & keys:
6-pin Everest C123 keyway cylinder with two patented
keys standard.
Keying options:
Interchangeable core and Primus high security cylinders. Master
keying, grand master keying and construction keying.
34•Schlage• LSeries
Howtoorder
To order Schlage products, descriptive data should be in the same sequence as shown.
1 Line item number
2 Quality
3 Complete model number with function and cylinder type
To order cylinder options, change “P” at the end of the model number as follows:
L9453P Standard
L9453L Less standard cylinder. For Primus cylinder, specify this option and order Primus
cylinder separately.
L945C With temporary plastic construction cylinder. Double cylinder functions ordered less
cylinder are furnished with these construction cylinders to maintain timing of key cams.
L9453J Prepared for full size interchangeable core, less core. For Primus core, specify this option
and order Primus core separately.
L9453R With full-size conventional interchangeable core installed. Order control keys separately.
L9453T With full-size (temporary) construction core installed. Order all keys separately.
L9453BD Prepared for small format (Falcon, Best, etc.) interchangeable core (SFIC), less core.
L9453GD With Everest B Family restricted keyway small format core installed. Order control
keys separately.
L9453HD With small format keyed brass construction core installed. Order all keys separately.
L9453BDC With small format disposable plastic construction core installed.
4/5 Outside design / finish. Specify tactile warning (knurling) here as “8” before lever design, e.g. 803. To specify complete design,
combine the numeric knob or lever design with the alpha rose or escutcheon design. Example: 03L, 93A, 42B. When ordering
Mediterranean design levers with L escutcheons, specify AST/00L, AVA/00L or MER/00L.
6/7 Inside design/finish. Leave blank if same as outside.
8 Hand. One hand per line item.
9 Front (use “Strike” field on Schlage form). Leave blank for standard armored front or enter number for narrow front.
10 Strike. Leave blank for standard or specify part number for optional strike. LLL = Less strike.
11 Door thickness, if non-standard. Example: 200 = 2".
12 Extension, to specify whether thick door is extended inside (EI), outside (EO), dierently (ED) or equally (EE).
13 Dimension for strike lip lengths. See strike page for availability of specific dimensions with specific strikes.
14 Keying detail (e.g. key symbol, keyway, bitting) and other special requirements.
Line item Qty Product Outside Inside Hand Front Strike Door thickness Ext Dim Additional details
Des Fin Des Fin
1 2 3 4 5 6 7 8 9 10 11 12 13 14
Example
Line item Qty Product Outside Inside Hand Front Strike Door thickness Ext Dim Additional details
Des Fin Des Fin
150 L9453P 03A 626 RH 10-091
250 L9453P 03A 626 LH 10-091
310 L9040 03A 626 RH 138
410 L9040 03A 626 625 LH 09-668 138
550 L9456P 07L 626 625 RH 09-668
650 L9456P 07L 626 LH
Note: Schlage order forms are available at no charge by contacting your Allegion security & safety consultant or customer service.
Cylinder Only Cylinder with
Compression
Ring & Spring
Cylinder with
Blocking Ring
Cylinder OnlyCylinder with
Compression
Ring & Spring
Cylinder with
Blocking Ring
100 = 1"
118 = 11⁄8"
114 = 11⁄4"
138 = 13⁄8"
112 = 11⁄2"
134 = 13⁄4"
200 = 2"
Schlage•LSeries•35
Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security.
As a $2 billion provider of security solutions for homes and businesses, Allegion
employs more than 8,000 people and sells products in more than 120 countries
across the world. Allegion comprises 27 global brands, including strategic
brands CISA®
, Interflex®
, LCN®
, Schlage® and Von Duprin®.
For more, visit www.allegion.com
About Allegion
© 2014 Allegion
002899, Rev. 05/14
allegion.com/us

Navigation menu
