ND Series
Cylindrical locks
4-5 Mechanical lock guide
6-7 ND Series introduction
8 Performance features
9 Exploded view
10 Lever designs
11 Lever finishes
11 Door handing

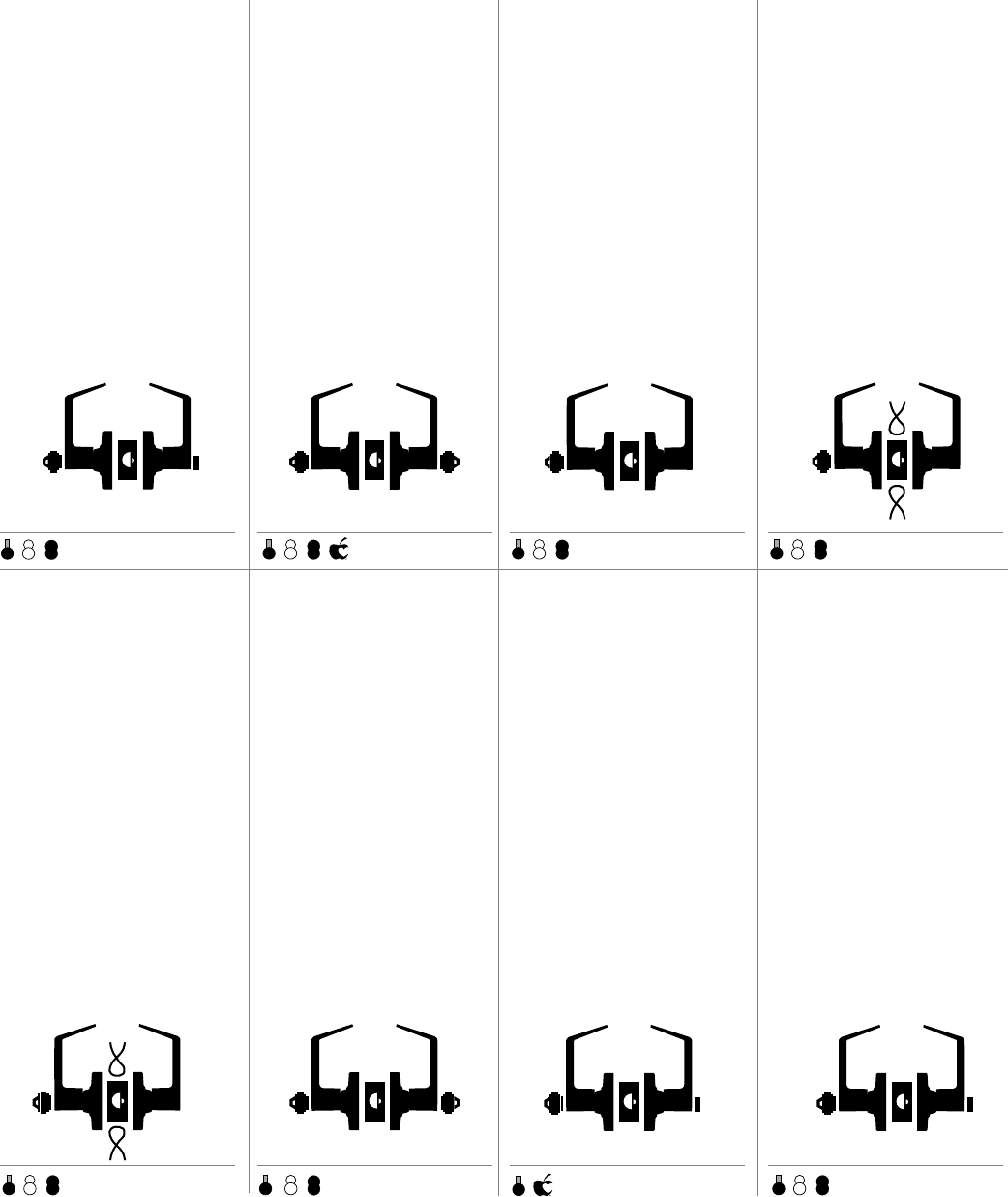

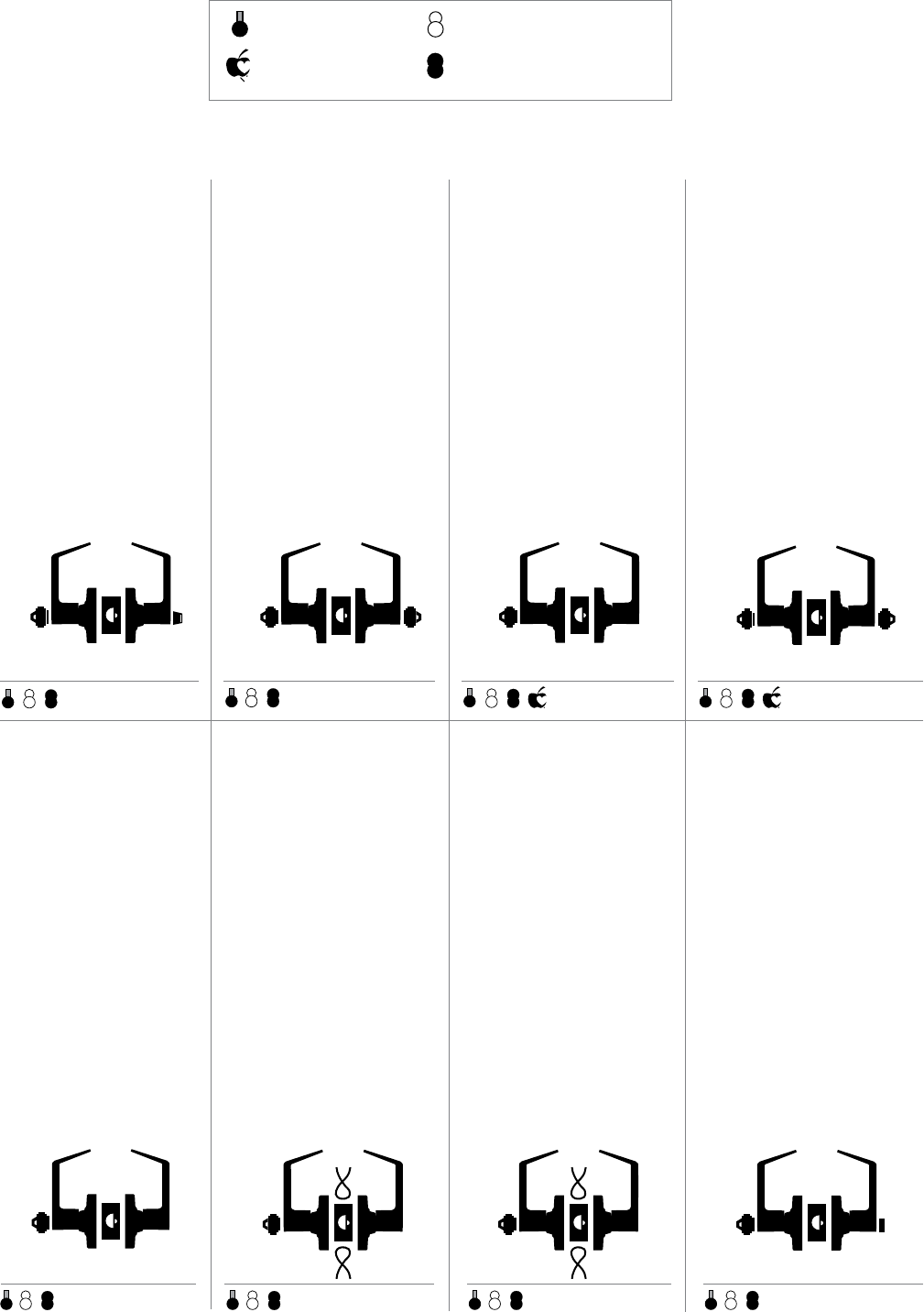

12-15 Lock functions
16 ND Series electrified locks and wiring diagram
17 Cylinders and key systems
18 Standard cylinders
18 Full size interchangeable core
18 Primus XP high security cylinders
19 Small format interchangeable core

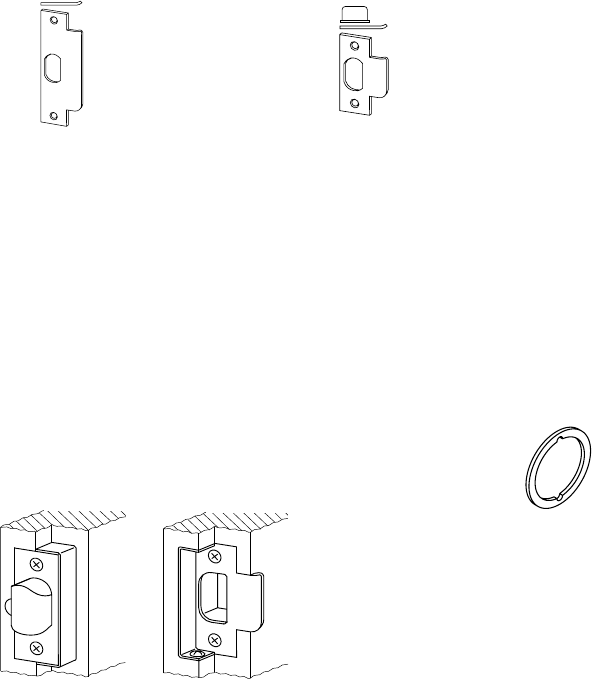

20 Latches
21 Strikes
21 Rabbeted latch
and strike kit
21 Accessories
22 Specifications and
certifications
Pictured here: Tubular lever shown
in 626 satin chrome
Cover photo: Omega lever shown
in 626 satin chrome
Contents
Be sure to ask your SSC representative to tell you about Custom Solutions by Allegion.
To learn more visit allegion.com.
2 • Schlage • NDSeries
Putyourtrustinthenameyouknow
For more than 90 years, Schlage® has been creating the strongest and most
technologically advanced security products for schools, hospitals, hotels, commercial
and institutional buildings, multi-family properties and homes. From durable mechanical
locks to comprehensive electronic access control solutions and biometrics, Schlage
provides protection at critical moments – when property and personal security are at
stake. With a wide range of products, styles and finishes, Schlage has products for the
most demanding project specifications. In public buildings, in the workplace, and in
homes, at the end of the day Schlage stands for one thing: strong.
Schlage•NDSeries•3
Tubular
interconnected
locks
Tubular locks
Tubular
interconnected
locks
Cylindrical locks
Cylindrical
interconnected
locks

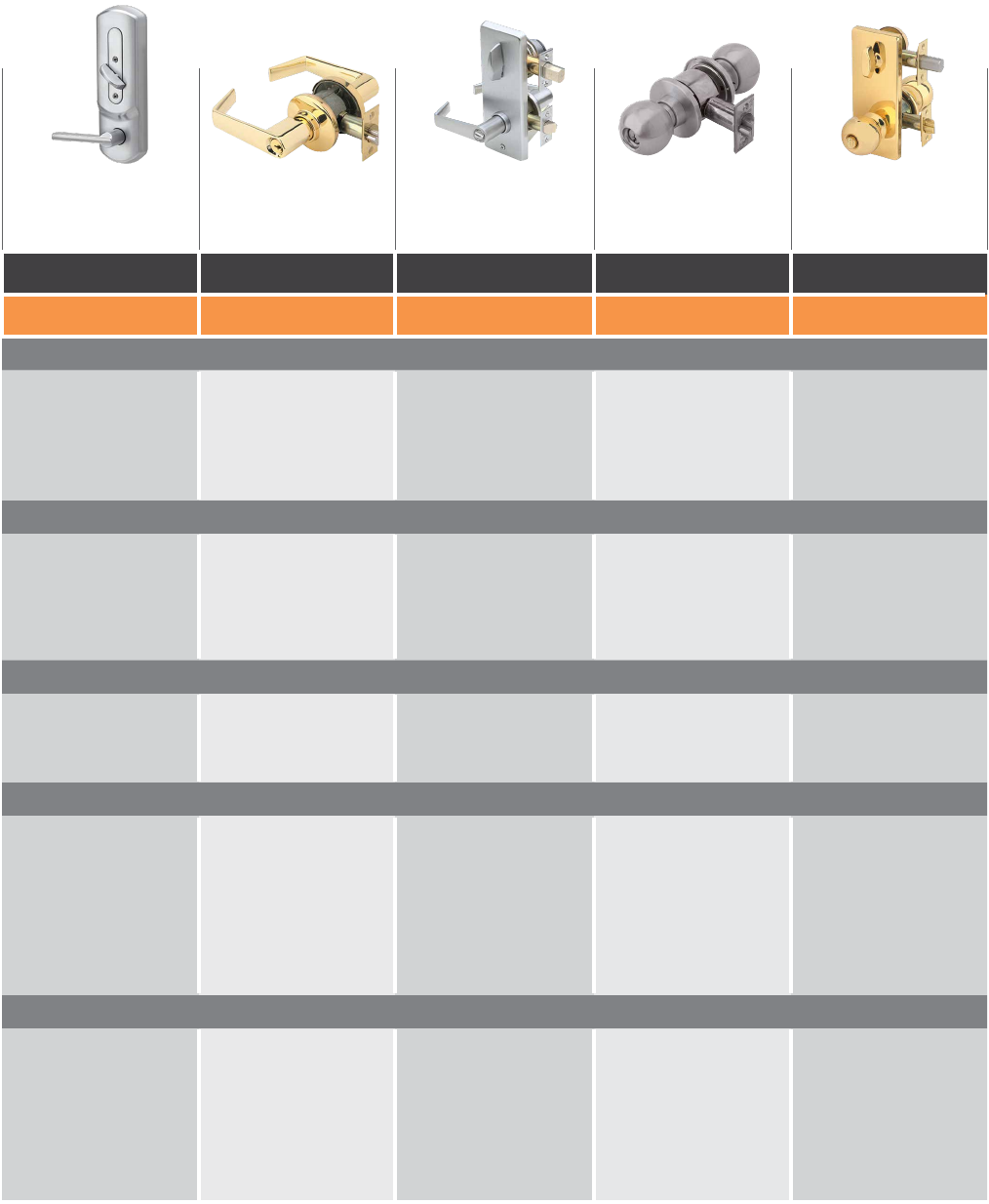

CS200 Series S Series S200 Series A Series H Series
Grade 2 Grade 2 Grade 2
Security level:
ANSI/BHMA certified
A156.12-2013
Exceeds 400,000 ANSI cycles
Medium trac
ANSI/BHMA certified
A156.2-2011
Exceeds 400,000 ANSI cycles
Light trac
-
-
Exceeds 400,000 ANSI cycles
Medium trac
ANSI/BHMA certified
A156.2-2011
Exceeds 400,000 ANSI cycles
Medium trac
-
-
Exceeds 400,000 ANSI cycles
Medium trac
Typical applications:
Exterior
Interior
New construction
Retrofit
-
Interior
-
Retrofit
Exterior
Interior
New construction
Retrofit
Exterior
Interior
New construction
Retrofit
Exterior
Interior
-
Retrofit
Functions available:
1 Function
-
-
6 Functions
-
-
5 Functions
-
-
11 Functions
-
-
5 Functions
-
-
Design options:
7 Finishes
15 Lever styles
-
1 Matching rose
2 Interior escutcheons
Tactile warning available
7 Finishes
4 Lever styles
-
1 Matching rose
-
Tactile warning available
7 Finishes
4 Lever styles
-
1 Matching rose
1 Interior escutcheon
-
10 Finishes
1 Lever style
4 Knob styles
1 Matching rose
-
-
7 Finishes
1 Lever style
2 Knob styles
1 Matching rose
1 Interior escutcheon
-
Often used in:
Commercial
Multi-family
Oce
Commercial
Multi-family
Oce
Commercial
Multi-family
Oce
Commercial
Govt/military
Healthcare
Hospitality
Oce
Retail
Commercial
Govt/military
Multi-family
Not all functions and finishes available with all products. Please consult your SSC representative for details.
Schlagecommerciallocks
4 • Schlage • NDSeries
Rev. 04/14
Cylindrical locks Deadbolts Cylindrical locks Cylindrical locks Mortise locks

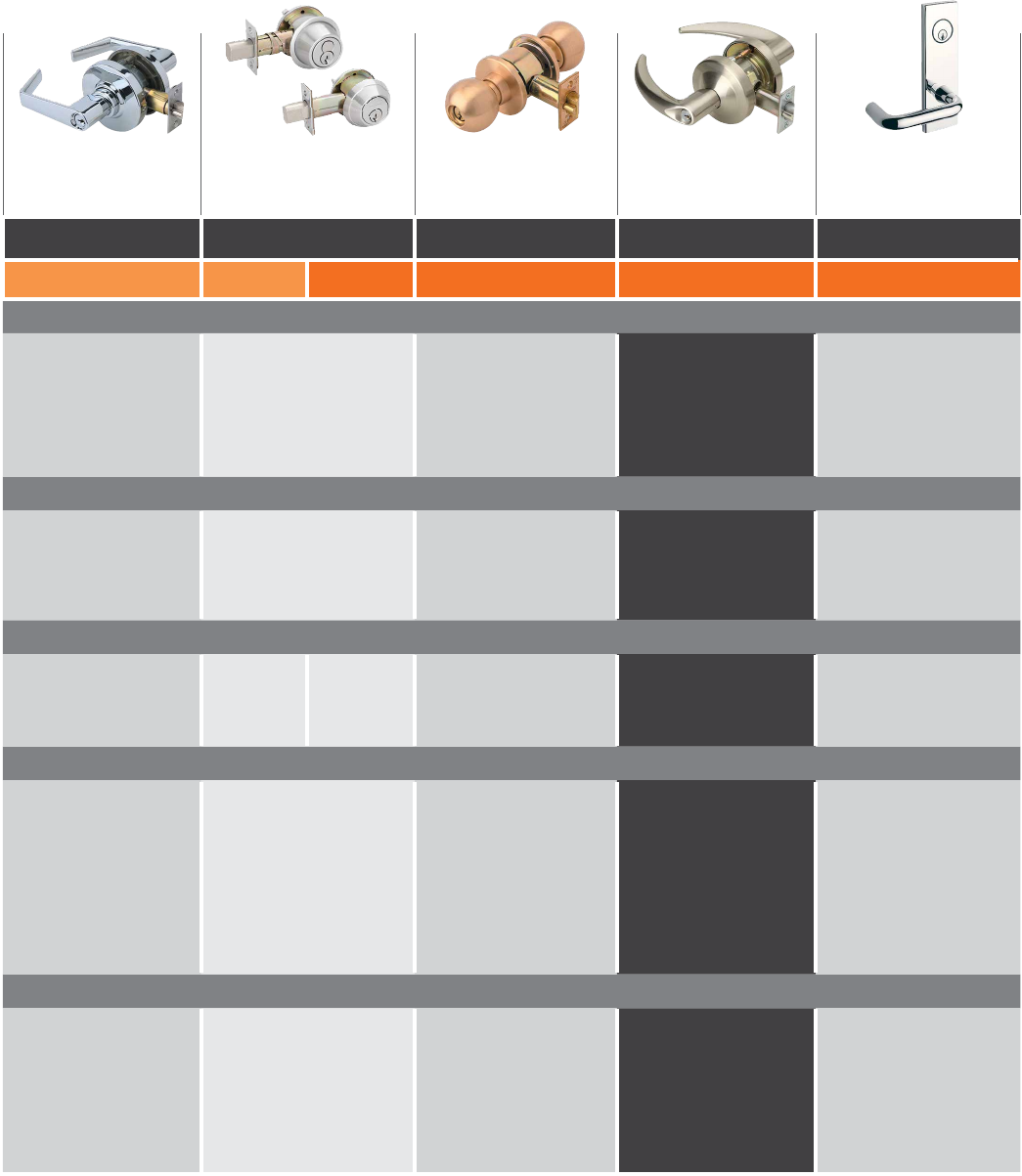

AL Series B Series D Series ND Series L Series
Grade 2 Grade 2 Grade 1 Grade 1 Grade 1 Grade 1
Security level:
ANSI/BHMA certified
A156.2-2011
Exceeds 400,000 ANSI cycles
Medium trac
ANSI/BHMA certified
A156.36-2010
Exceeds 150,000/250,000
ANSI cycles
High trac, heavy-duty
ANSI/BHMA certified
A156.2-2011
Exceeds 1,000,000 ANSI cycles
High trac
ANSI/BHMA certified
A156.2-2011
Exceeds 1,000,000 ANSI cycles
Heavy-duty trac
ANSI/BHMA certified
A156.13-2012
Exceeds 1,000,000 ANSI cycles
Heavy-duty trac
Typical applications:
Exterior
Interior
New construction
Retrofit
Exterior
-
New construction
Retrofit
Exterior
Interior
-
Retrofit
Exterior
Interior
New construction
Retrofit
Exterior
Interior
New construction
Retrofit
Functions available:
10 Functions
-
-
7 Functions
-
-
6 Functions
-
-
14 Functions
2 Electrified
-
29 Functions
6 Electrified
Vandlgard® available
49 Functions
4 Electrified
Vandlgard® available
Design options:
10 Finishes
4 Lever styles
-
1 Matching rose
-
Tactile warning available
10 Finishes
-
-
-
-
Indicator rose
10 Finishes
-
3 Knob styles
1 Matching rose
-
-
9 Finishes
5 Lever styles
-
2 Matching roses
-
Tactile warning available
13 Finishes
32 Lever style
3 Knob styles
5 Matching roses
2 Escutcheons
Tactile warning available
Antiligature available
Often used in:
Commercial
Healthcare
Hospitality
Oce
Retail
Commercial/institutional
Govt/military
Heavy-duty residential
Hospitality
Oce
Retail
Institutional
Govt/military
Hospitality
Retail
Institutional
Education
Healthcare
Oce
Retail
Commercial/institutional
Govt/military
Education
Healthcare
Oce
Retail
This chart shows the most common uses/applications. These products are often used in other applications in addition to those listed.
Schlage•NDSeries•5
When you know exactly what you want, you don’t want to waste time finding out whether
it meets your project specifications. That’s why we oer the world’s largest team of
hardware specification writers to help you and your clients turn your vision into reality.
And when it comes to products, our commercial suiting options, wide variety of lever
designs and rich selection of finishes give you the tools you need to make your projects
perfect. You know what you want. With Schlage you can be sure you’ll get it.
Safety,securityandcondence
When you choose a Schlage lock you can be sure you’ve done the job right the first time.
After all, our products are among the most durable and dependable on the market today.
Our locks are easy to install, and simple to repair and maintain. That means fewer
callbacks for you and total safety and security for your customers.
Realsecurityisknowingexactlywhat
youwantandgettingit
®
6•Schlage • NDSeries
Realsecurityisknowingexactlywhat
youwantandgettingit
ContinuousimprovementsmaketheNDSeries
asimpler,smarter,strongerlock.
The ND Series has long been one of Schlage’s best selling mechanical locks for good reason - it’s
tough, durable, Grade 1 rated and fits a wide variety of applications. Now we’ve made our trusted
ND Series lock even better by making it easier to install. We’ve added these enhancements because
we know that a lock installed correctly the first time will last longer and perform
better. And the longer the lock lasts, the lower the cost of ownership over
the life of the lock. We’ve also beefed up our warranty to provide 10
years of coverage. The result: greater peace of mind that every door
is safe and secured with a lock built to last.
So not only do you get our toughest Grade 1 cylindrical lock,
that is ideal for use in schools, hospitals, oces, retail spaces,
colleges, universities and other applications. You also get the
promise of continuous improvements and innovations and our
greatest warranty backing your project.
Pictured here: Sparta lever shown
in 626 satin chrome
ND Series
Wedon’tcompromiseonsecurity
The safety and security of your clients’ buildings is something we take very seriously.
That’s why every Schlage lock and deadbolt undergoes intensive testing to determine
its ANSI grade level:
• Cycle tests • Resistance tests
• Door impact tests • Warped door tests
• Bolt strength tests
We pay attention to these details so you can focus on creating a functional and
aesthetically pleasing environment for your clients. In fact, every one of our ND Series
locks meets ANSI Grade 1 standards for safety.
Schlage•NDSeries•7
ND Series
The Schlage ND Series is the toughest cylindrical lock we make.
That means you get premium durability and performance in a lock
that’s also easy to service and maintain. And because we test our locks
beyond the standards required by ANSI, you know that you’re getting a
product you can count on to withstand the use and abuse that come
with heavy duty commercial applications.
Pictured here: Athens lever shown
in 626 Satin Chrome
8 • Schlage • NDSeries
• Tested to three times the ANSI Grade 1 requirement
• Exceeds ANSI A156.2, Series 4000 Grade 1 locked lever
torque requirements
• 10-year limited warranty
Locked lever freely rotates
up and down while
remaining securely locked.
The Vandlgard function
also increases resistance
to over-rotation of the
lever.
NDSerieswithVandlgard
The ND Series Vandlgard is ideal for areas subject to abuse or
anywhere vandalism is likely to be present, such as schools,
universities, oces and commercial/public buildings. Vandlgard
prevents damage to internal lock components caused by excessive
force from hitting or standing on the lever to gain access. Vandlgard
functions maintain total key system and architectural design
compatibility with Schlage’s regular ND Series cylindrical locks.

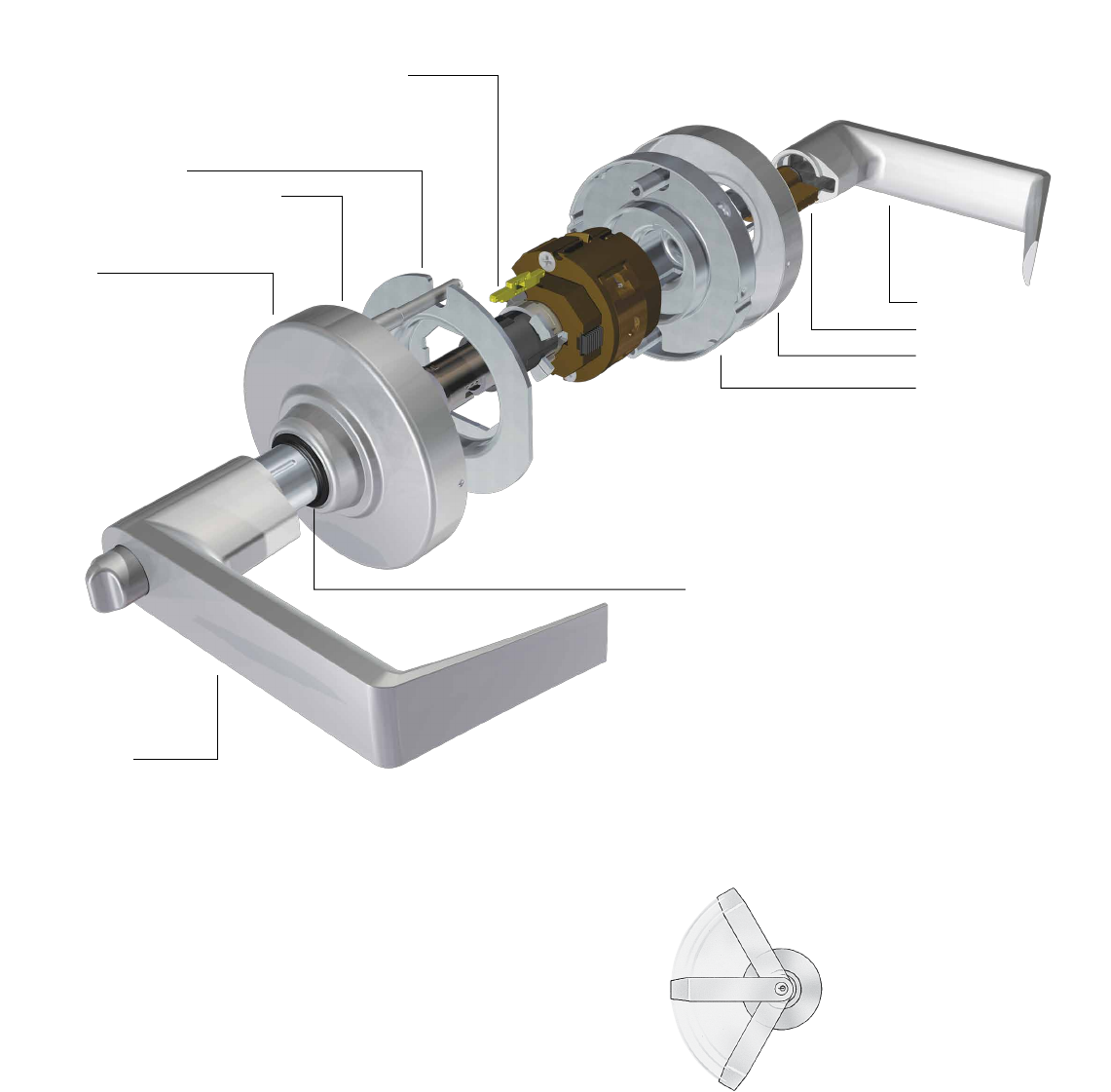

Builttoperformwithoutfail
Outside lever
Cylinder
Rose
Outside spring
cage assembly
Anti-rotation plate
Inside spring cage assembly with
integrated spindle/spring cage
Inside lever
Rose
New soft durometer spacer increases lever to
spindle engagement
New chassis-to-door alignment gauge is embossed
with door thickness 13⁄4" and 2", taking the guesswork
out of installation by providing visual and positive
“stop” for door size adjustment
Schlage•NDSeries•9

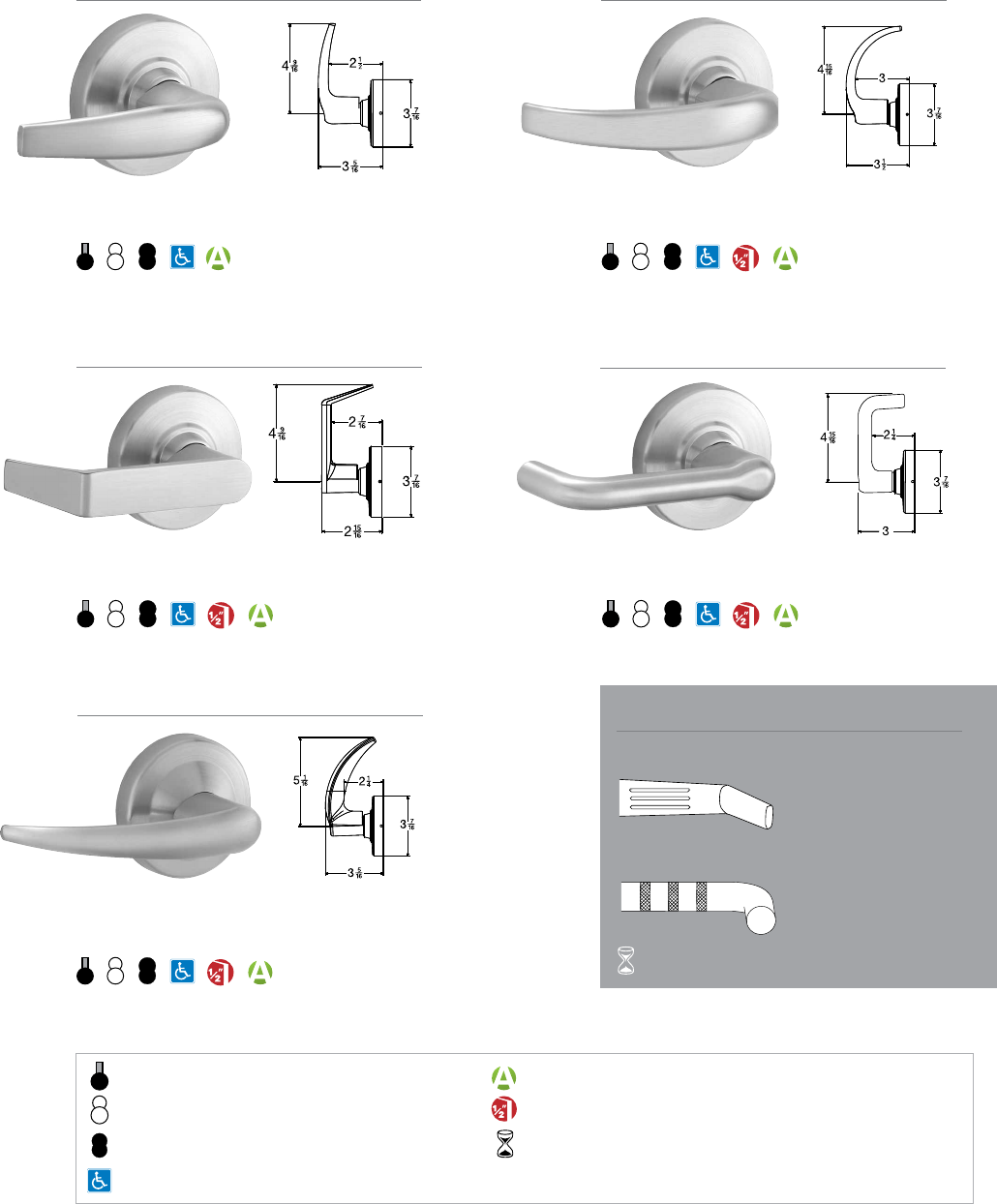

Leverdesigns
Material: Pressure cast zinc lever; wrought brass rose
Athens (ATH)
All designs shown in 626 satin chrome
= Complies with ADA accessibility guidelines.
= FSIC - Full size interchangeable core option.
= Antimicrobial coating available on 626 finish only.
Material: Pressure cast zinc lever; wrought brass rose
Sparta (SPA)
Material: Pressure cast zinc lever; wrought brass rose
Rhodes (RHO)
= SFIC - Small format interchangeable core option.
Material: Pressure cast zinc lever; wrought brass rose
Tubular (TLR)
Material: Pressure cast zinc lever; wrought brass rose
Omega (OME)
= Meets California code for 1⁄2" or less return to the door.
= Extended factory lead time.
= Standard cylinder.
Order as follows:
8TR for Tubular
Order as follows:
8AT for Athens
8RO for Rhodes
8SP for Sparta
Tactile warning
Knurled
Milled
Only available on outside lever, unless otherwise specified
10• Schlage • NDSeries
Levernishes
605
Bright brass
606
Satin brass
612
Satin bronze
613
Oil rubbed
bronze
619
Satin nickel
625
Bright
chromium
plated
626
Satin
chromium
plated
643e
Aged bronze
ND Series locks
Athens ••••••••
Omega ••••••••
Rhodes ••••••••
Sparta ••••••••
Tubular ••••••••
ADA-compliantproducts
In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Dis abil i ties Act
(ADA), Schlage Lock Company oers a wide selection of locks designed for the needs of the physically challenged.
This act is designed to provide protection for people with disabilities.
The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with
disabilities with access equal to, or similar to, that available to the general public.
Product information and specifications contained in this catalog are
subject to change without notice. Please consult the factory.

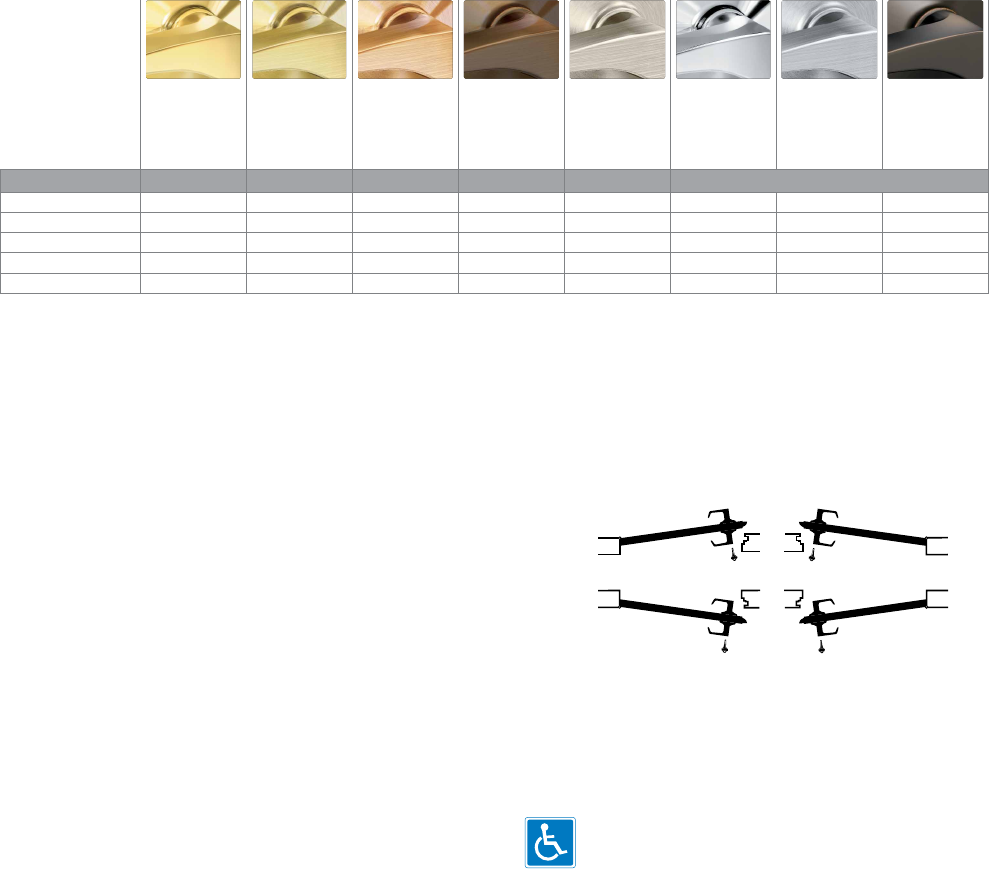

Doorhanding
All ND levers are reversible. Hand information is necessary
to ensure proper cylinder orientation in keyed functions,
and finish of latchbolt and strike for locks that are to be
installed on reverse bevel doors. Follow the diagram to
correctly determine the hand of the door.
LH
Left hand
Inside
Outside
Outside
Inside
LHR
Left hand
reverse
RH
Right hand
RHR
Right hand
reverse
e = an equivalent finish to the BHMA standard.
Schlage•NDSeries•11
Non-keyed locks
Lockfunctions
ANSIA156.2Series4000Grade1
Passage latch
• Both levers always unlocked.
ND10S F75
Schlage ANSI
ND12D F89
Schlage ANSI Schlage ANSI Schlage ANSI Schlage ANSI
Exit lock
• Outside lever always xed.
• Inside lever always unlocked.
ND12DEL -
Electrically locked
(fail safe)
• Outside lever continuously
locked electrically.
• Unlocked by switch or
power failure.
• Auxiliary latch deadlocks
latchbolt when door is closed.
• Inside lever always free for
immediate exit.
ND12DEU -
Electrically unlocked
(fail secure)
• Outside lever continuously
locked until unlocked by
electric current.
• Auxiliary latch deadlocks
latchbolt when door is closed.
• Inside lever is always free for
immediate exit.
ND25D -
Exit lock
• Blank plate outside.
• Inside lever always unlocked.
Key Request to
exit option
Electrified Push-button Springlatch Fixed lever
Deadlatch Blank plate Turn/push button
Outside Inside Outside Inside Outside Inside Outside Inside
Outside Inside
Available with RX feature
Available with RX feature
12 • Schlage • NDSeries
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage ANSI
Keyed locks
ND50PD F82
Entrance/oce lock
• Push-button locking.
• Push-button locks outside
lever until it is unlocked with
key or by turning inside lever.
ND53PD F109
Entrance lock
• Turn/push-button locking:
Pushing and turning the
button locks the outside
lever, requiring use of a key
until the button is manually
unlocked.
• Push-button locking: Pushing
button locks outside lever
until unlocked by key or by
turning the inside lever.
ND60PD F88
Vestibule lock
• Latch retracted by key from
outside when outside lever is
locked by key in inside lever.
• Inside lever always unlocked
for immediate egress.
ND66PD F91
Store lock†
• Key in either lever locks or
unlocks both levers.
ND40S F76
Bath/bedroom
privacy lock
• Push-button locking.
• Can be opened from outside
with a small screwdriver.
• Turn inside lever or close door
to release button.
ND44S - ND170 -
Single dummy trim
• Dummy trim for one side
of door.
• Used for door pull or as
matching inactive trim.
Hospital privacy lock
• Push-button locking.
• Unlocked from outside
by turning emergency
turn-button.
• Turn inside lever or close door
to release button.
ND70PD F84
Classroom lock
• Outside lever locked and
unlocked by key.
• Inside lever always unlocked.
†Caution:
Double cylinder locks are a
life safety hazard in times of
emergency and their use is not
recommended. Installation
should be in accordance with
existing codes only.
Safe school locks.
FSIC - full size interchangeable
core option.
SFIC - small format
interchangeable core option.
Standard cylinder.
Outside Inside Outside Inside Outside InsideOutside/Inside
Outside Inside Outside Inside Outside Inside Outside Inside
Schlage•NDSeries•13
Keyed locks (continued)
Vandlgard functions
Lockfunctions
ANSIA156.2Series4000Grade1
ND80PD F86
Storeroom lock
• Outside lever is xed.
• Entrance by key only.
• Inside lever always unlocked.
ND82PD F87
Institution lock†
• Both levers are xed.
• Entrance by key in either lever.
ND85PD -
Faculty restroom lock
• Outside lever is xed.
• Entrance by key only.
• Push-button in inside lever
activates visual occupancy
indicator, allowing only
emergency master key to operate.
• Turn inside lever or close door
to release visual occupancy
indicator.
• Rotation of inside spinner-button
provides lock-out feature by
keeping indicator thrown.
ND80PDEU -
Electrically unlocked
(fail secure)
• Outside lever continuously
locked until unlocked by key
or electric current.
• Auxiliary latch deadlocks
latchbolt when door is closed.
• Inside lever always free for
immediate exit.
ND80PDEL -
Electrically locked
(fail safe)
• Outside lever continuously
locked electrically.
• Unlocked by key outside or by
switch or power failure.
• Auxiliary latch deadlocks
latchbolt when door is closed.
• Inside lever always free for
immediate exit.
ND91PD F82
Entrance/oce lock
• Push-button locking.
• Push-button disengages
outside lever until locked with
key or by turning inside lever.
• Vandlgard is designed to
disengage outside spindle from
latch when locked.
ND73PD F90
Corridor lock
• Locked or unlocked by key
from outside.
• Push-button locking from
inside.
• Turn inside lever or close
door to release button.
• When outside lever is locked
by key it can only be
unlocked by key.
• Inside lever is always
unlocked.
ND75PD -
Classroom security lock
• Key in either lever locks or
unlocks outside lever.
• Inside lever is always unlocked.
Outside InsideOutside InsideOutside Inside Outside Inside
Outside Inside Outside Inside Outside Inside Outside Inside
Available with RX feature
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage ANSI
14 • Schlage • NDSeries
ND92PD F109
Entrance lock
• Turn/push-button locking:
Pushing and turning button
disengages outside lever,
requiring using of key until
button is manually unlocked.
• Push-button locking: Pushing
button disengages outside
lever until unlocked by key or by
turning inside lever.
• Vandlgard is designed to
disengage outside spindle from
latch when locked.
ND93PD F88
Vestibule lock
• Latch retracted by key from
outside when outside lever is
disengaged by key in inside
lever.
• Inside lever is always
unlocked.
• Vandlgard is designed to
disengage outside spindle
from latch when locked.
ND94PD F84
Classroom lock
• Outside lever disengaged and
unlocked by key.
• Inside lever always unlocked.
• Vandlgard is designed to
disengage outside spindle
from latch when locked.
ND95PD -
Classroom security lock
• Key in either lever locks or
unlocks outside lever.
• Inside lever is always unlocked.
ND96PD F86
Storeroom lock
• Outside lever always
disengaged.
• Entrance by key only.
• Inside lever is always unlocked.
• Vandlgard is designed to
disengage outside spindle from
latch when locked.
ND96PDEL -
Electrically locked
(fail safe)
• Outside lever continuously
disengaged electrically.
• Unlocked by key outside or by
switch or power failure.
• Auxiliary latch deadlocks
latchbolt when door is closed.
• Inside lever always free for
immediate exit.
• Vandlgard is designed to
disengage outside spindle from
latch when locked.
ND96PDEU -
Electrically unlocked
(fail secure)
• Outside lever continuously
disengaged until unlocked by
key or electric current.
• Auxiliary latch deadlocks
latchbolt when door is closed.
• Inside lever always free for
immediate exit.
• Vandlgard is designed to
disengage outside spindle from
latch when locked.
ND97PD F90
Corridor lock
• Locked or unlocked by key from
outside.
• Push-button locking from inside.
• Turning inside lever or closing
door releases button.
• When outside lever is locked by
key it can only be unlocked
by key.
• Inside lever is always unlocked.
• Vandlgard is designed to
disengage outside spindle from
latch when locked.
Outside InsideOutside InsideOutside InsideOutside Inside
Outside InsideOutside InsideOutside InsideOutside Inside
Available with RX feature
†Caution:
Double cylinder locks are a
life safety hazard in times of
emergency and their use is not
recommended. Installation
should be in accordance with
existing codes only.
Safe school locks.
FSIC - full size interchangeable
core option.
SFIC - small format
interchangeable core option.
Standard cylinder.
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage ANSI
Schlage•NDSeries•15
Switch
(not furnished)
24V DC
To lock
Electricalrequirements
Voltage
24VAC or 24VDC
Holding current
.15A or .35A
NDSerieselectriedlocks
ND Series locks are available for elec tri cal ly locking and un lock ing controls for high security and fire safety
ap pli ca tions. They are UL Listed and rated for both re and electrical single-point locking on labeled doors. RX
feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or
normally closed application.
Special prep required for RX feature. See service manual for details.
Operating temperature
Maximum +151°F (+66°C)
Min i mum -31°F (-33°C)
Note: All installations should be in
ac cor dance with local electrical codes.
Switch
(not furnished)
Transformer
(not furnished)
24V AC 115V AC
Typicalwiringdiagramforelectriedlocks
AC operation
Rectifier
To lock
Plug
Rectifier used on AC operation unit only.
.35A @ 24V (current requirements per lock)
AC power source – EL or EU DC power source – EL or EU
AC and DC application
Solenoid Rectifier
Cut as close to
plug as possible
for DC operation.
Plug into solenoid
for AC operation.
Discard for DC
operation.
DC operation
.15A @ 24V (current requirements per lock)
NDSeriesotherspecialfunctions
ND30D
Patio lock
Push button locking. Turning inside lever or closing
door releases button, preventing a lock-out. Inside lever
always free for immediate egress. Specify per XN12-007.
ND25 x 80PD
Storeroom exit lock
Blank plate outside. Key in fixed inside lever retracts
latch. Specify per XN12-005.
ND25 x 70PD
Classroom exit lock
Blank plate outside. Key locks or unlocks inside lever.
Specify per XN12-004.
ND60PD
Vestibule with closed outside lever
Same as ND60 except outside lever is closed. Inside
lever always free for immediate egress.
Specify per XN12-001.
ND70 x 80PD
Classroom by storeroom lock
Key locks and unlocks outside lever. Key in fixed
inside lever retracts latch. Specify per XN12-006.
ND72PD
Communicating lock
Key in either lever locks and unlocks on lever.
Specify per XN12-002.
ND72PD
Vandlgard communicating lock
Communicating, ND72, lock with Vandlgard. Key in
either lever locks and unlocks own lever. Both inside
and outside levers are clutching. Specify per XN12-003.
16•Schlage • NDSeries
Cylindersandkeysystems
Basic security
High security
Restricted security
Standard security
High security
What it is
Controlled access
• Patented key control sold
with various levels of
geographic exclusivity
• High security cylinders
have a second set of pins
for added security and
pick resistance
• Keys operate high security,
as well as restricted security
or standard security cylinders
• Available only in
conventional and FSIC
• Key distribution is
restricted duplication must
be authorized
• End user’s ID numbers are
stamped on all keys,
enabling Schlage to identify
the source of any
unauthorized keys
• Patent-protected keys are
drop-shipped from the
factory directly to an
end-user specified location to
guarantee exclusivity
• Available in conventional,
SFIC and FSIC
• Patented key blanks can
be stored by commercial
locksmiths and security
dealers
• Keys can be duplicated
without any paperwork or
signature verification
• Sold only through
commercial outlets
• Available in conventional
and FSIC
What it operates
• Everest 29
Primus® XP cylinders
• Everest 29
restricted cylinders
• Everest 29
open cylinders
• Everest 29 Primus
XP cylinders
• Everest 29
restricted cylinders
• Everest 29
open cylinders
• Everest 29 restricted
cylinders
• Everest 29 open
cylinders
UL 437 version
• UL 437 versions provide
drill and pick resistance
and withstand physical
attack
• High security cylinders
have a second set of pins
for added security
• Patented key control sold
with various levels of
geographic exclusivity
• Keys operate high security,
as well as restricted
security or standard
security cylinders
• Available only in
conventional
Controlled access
• Patented key control sold
with various levels of
geographic exclusivity
• High security cylinders
have a second set of pins
for added security and
pick resistance
• Keys operate high security,
as well as restricted
security or standard
security cylinders
• Available only in
conventional
What it is
• Classic cylinders
• Keys can be duplicated at
most retail and commercial
points of sale with no
restrictions
• Recommended only for
residential applications or
existing commercial
systems that cannot rekey
• Can be upgraded to Primus
XP without rekeying the
entire facility
• Available in conventional
and FSIC
• Primus XP cylinders
• Classic cylinders
• Primus XP cylinders
• Classic cylinders
What it operates
UL 437 version
• UL 437 versions provide
drill and pick resistance
and withstand physical
attack
• High security cylinders
have a second set of
pins for added security
• Patented key control
sold with various levels
of geographic exclusivity
• Keys operate high
security, as well as
restricted security or
standard security
cylinders
• Available only in
conventional
Upgrade existing classic key
systems with Primus XP
Schlage oers key system solutions that
are ideal for upgrading an existing key
system to control key management. Our
patent-protected cylinders help prevent
unauthorized duplication and can be
integrated into virtually any existing system.
R
R
R
R
R
R
Schlage can help you design a system
that can grow and change along with
your needs, allowing you the flexibility to
upgrade your security without the need
to replace all your cylinders.
Protect new key systems
with Everest 29
Compatible key systems Cylinder options (how to order)
Cylinder Order sux Description
LD SAR Sargent
Key-in-lever
JD SAR
Sargent
Full size interchangeable core
6-pin cylinder
JD C06
Corbin Ruswin
Full size interchangeable core
6-pin cylinder
JD YA6
Yale
Full size interchangeable core
6-pin cylinder
Schlage key
systems
Key-in-lever
cylinder
Full size
interchangeable core
Small format
interchangeable core
Primus XP X X
Everest 29 X X X
Classic X X
Other key systems (6 Pin FSIC)
Sargent X X X
Corbin Russwin X X
Yale X X
Schlage•NDSeries•17
Fullsize
interchangeablecore
Schlage FSIC full size in ter change able core (IC) locksets
allow immediate rekeying at the door simply by using a
special control key to replace the core.
Standardcylinders
Standard cylinders are available in Classic keyways
or in patented Everest 29 keyways. Specify keyway to
dierentiate between Everest 29 and Classic.
Example: C or CP (Classic) vs. S123 (Everest 29).
Available in all lever designs, full size interchangeable cores can
be integrated into any 5 or 6-pin Schlage key.
Full size interchangeable cores - options
• Conventional core
• Primus XP high security core
• FSIC driver
Standard cylinders - options
• 6-pin conventional (standard)
• Primus XP high security
• Primus XP UL437 Listed high security
• Hotel cylinder
• Temporary construction plug, plastic for functions
Available in 606 and 626 finish only.
Everest 29 S123 keyway standard.
Available in 606 and 626 finish only.
Everest 29 S123 keyway standard.
PrimusXPaccesscontrolandhighsecuritycylinders
Classic Primus XP cylinders are recommended for upgrading existing Classic key systems. Due to its extended patent
life, the newly designed Everest 29 Primus XP is recommended for new key systems and for upgrading existing Everest
29 key systems. Specify keyway to dierentiate between Everest 29 and Classic.
Example: C or CP (Classic) vs. S123 (Everest 29).
18•Schlage • NDSeries
Smallformatinterchangeablecore
Available in all lever designs, the SFIC (small format IC) option is designed for
Schlage Everest 29 R family restricted keyway cores and is also compatible
with other small format interchangeable cores.
Small format interchangeable cores - options
• 7-pin uncombinated Everest 29 R family restricted keyways l
• 7-pin combinated Everest 29 R family restricted keyways l
• 6-pin uncombinated Falcon / Best keyways - all keyways s
• 7-pin uncombinated Falcon / Best keyways - all keyways s
• Disposable plastic construction core
• SFIC driver
• Spacer for 6-pin cores
Available 606 and 626 , 613 (simulated) finish only. Specify keyway for existing systems.
Cores are available in Best A, D, E, F, G, H, J, K, L, and M keyways. Specify keyway by
suxing “B” to keyway letter, e.g. “AB”.
Restricted keyway cores require a letter of authorization from the end user. Schlage assigns the
keyway when establishing new Everest 29 restricted key systems.
*M204-152 does not have a finish option.
Disposable construction core
l
s
Schlage•NDSeries•19

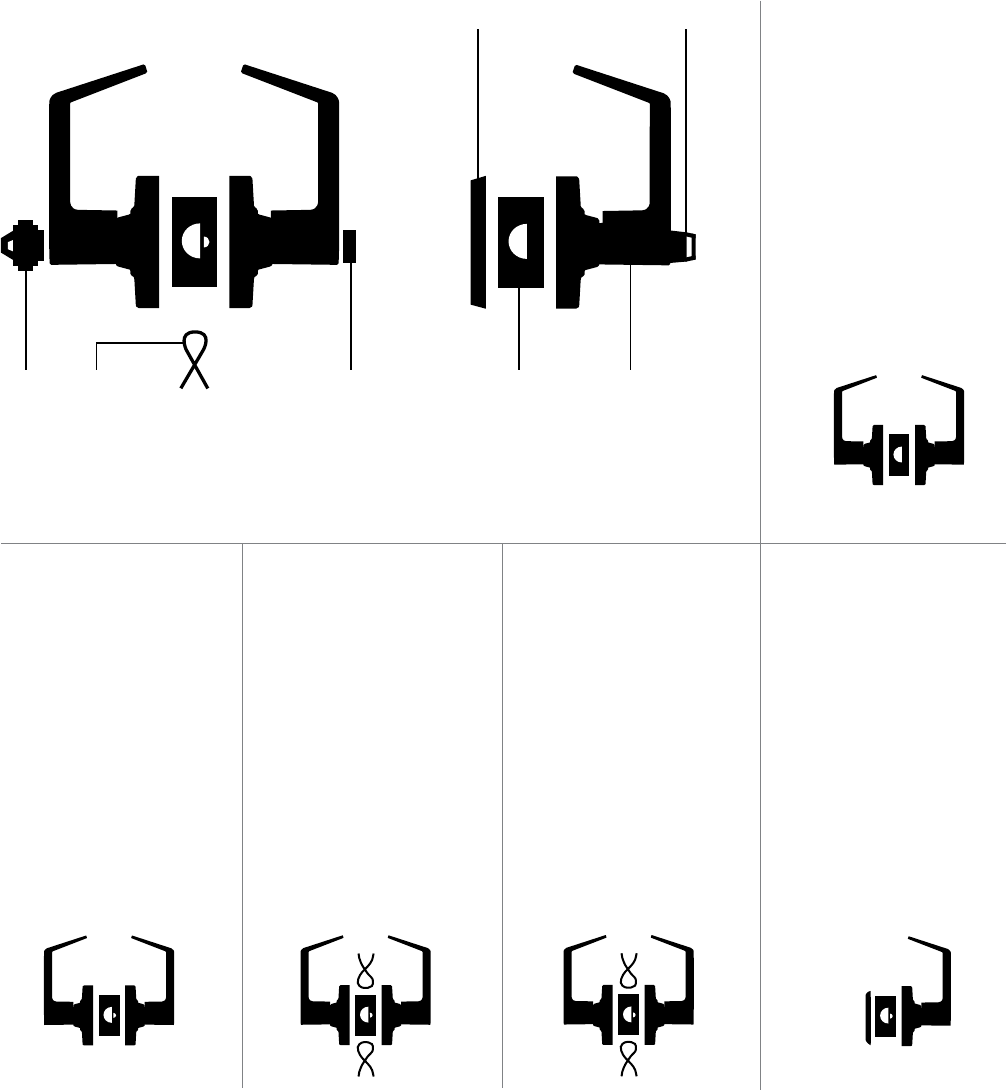

Deadlatch Springlatch
3⁄4" Throw anti-friction deadlatch for pairs of fire doors
Long backsets
ND Series locks with 5" backsets are normally
furnished with 11⁄8" faceplates and 1" housings. Links
installed in metal doors require one A501-567 sleeve
and 43-005 (order separately) to join latch and link.
Latches
ND Series latches are adjustable for flat or beveled edge
doors. Latches and strikes are fur nished in brass, bronze, or
chrome finishes to be com pat i ble with lock trim. When
ordering, spec i fy quantity, part number, and finish. All
ND Series latches have 1⁄2" throw and 1" housings except
2 3⁄8" backset latches, which includes sleeve G506-815 to
fill a 1" edge bore. Standard latches are shown in bold type.
G506-815
Extension link
(43-005)
23⁄4" Latch Sleeve (A501-567)
(add to 23⁄4" backset latch)
Latches - options
Backset Description
Deadlatch
1⁄2" (13 mm)
throw
Springlatch
1⁄2" (13 mm)
throw
23⁄8"
(60 mm)
11⁄8" (29 mm) x 21⁄4" (57 mm)
square corner 3 —
11⁄8" (29 mm) x 21⁄4" (57 mm)
square corner 3 —
23⁄4"
(70 mm)
11⁄8" (29 mm) x 21⁄4" (57 mm),
standard square corner 3 3
11⁄8" (29 mm) x 21⁄4" (57 mm)
throw, anti-friction door latch,
square corner
3 —
33⁄4"
(95 mm)
11⁄8" (29 mm) x 21⁄4" (57 mm),
square corner 3 3
5" Backset extension link 3 —
Door reinforcement
Reinforcing unit is required to reinforce and help
prevent the collapse of hollow metal doors when
locksets are tightly mounted. This kit should be
used with long backsets for ND Series lock
installations in hollow metal doors to prevent
lateral movement of the latchbolt. Specify door
thickness, 13⁄8" (35 mm) or 1 3⁄4" (44 mm), when
ordering reinforcement kits.
Reinforcement kit
37-001
Kit includes:
Reinforcement
A501-566 for 13⁄4" doors or
A501-565 for 13⁄8" doors
20•Schlage• NDSeries
13⁄8" D Series lever door spacer*
Accessories
XN12-012
*For installation on 13⁄8", doors, two (2)
spacers are required. Specify finish.
Rabbeted latch
and strike kit
(39-030)
Rabbetedlatchandstrikekit
Rabbeted latch and strike kit finishes: 605, 626.
This kit adapts square corner latches and 23⁄4" (28 mm) high
strikes for 1⁄2" (13 mm) rabbeted door and frame preparations.
Square corner box strike
(10-013)
11⁄8" x 23⁄4" x 3⁄32"
ANSI strike–standard
(10-025)
11⁄4" x 47⁄8" x 3⁄32"
Strikes
All Schlage strikes are furnished complete with screws.
The standard ND Series strike has a 13⁄16" lip.
When ordering separately specify quantity, product number,
finish, and lip length. Standard strikes are shown in bold type.
Strikes - options
• 11⁄8" x 23⁄4" (28 mm x 70 mm) square corner, T-strike, box - 11⁄8" (28 mm) lip length
• 11⁄8" x 23⁄4" (28 mm x 70 mm) square corner, T-strike, box - 11⁄2" (38 mm) lip length
• 11⁄4" x 47⁄8" (32 mm x 124 mm) standard, no box, ANSI - 13⁄16" (30 mm) lip length
• 11⁄4" x 47⁄8" (32 mm x 124 mm) ANSI, no box - 13⁄8" (35 mm) lip length
• Box for 10-025 ANSI strike
Schlage•NDSeries•21
Specications
Handing:
All ND Series lever locksets are non-handed.
Door thickness:
15⁄8" to 21⁄8" (41 mm–54 mm) standard including
Vandlgard® functions. 13⁄4" - 2” for function D85.
See accessories (Page 21) for spacers required for
13⁄8" doors.
Backset:
23⁄4" (70 mm) standard. 23⁄8", 33⁄4" and 5"
(60 mm, 95 mm, 127 mm) optional.
Faceplate:
Brass, bronze or stainless steel. 11⁄8" x 21⁄4"
(29 mm x 57 mm) square corner, beveled.
Lock chassis:
Zinc plated for corrosion resistance.
Latch bolt:
Steel, 1⁄2" (12 mm) throw, deadlocking on keyed and
exterior functions. 3⁄4" (19 mm) throw anti-friction
latch available for pairs of fire doors.
Exposed trim:
Levers: Pressure cast zinc, plated to match finish symbols.
Roses: Brass, bronze or zinc.
Strike:
ANSI curved lip strike 11⁄4" x 47⁄8" x 13⁄16" lip to center
standard. Optional strikes, lip lengths and ANSI strike box
available. See page 21.
Cylinder and keys:
6-pin Everest 29 S123 keyway standard with two patented
nickel silver keys per lock.
Keying options:
Interchangeable core and Primus high security cylinders.
Master keying, grand master keying and construction keying.
Warranty:
Ten-year limited for all mechanical functions including
Vandlgard; 1 year limited for electrified functions.
Certications
ANSI:
Meets the requirements of ICC A117.1 Accessible and
Usable Buildings and Facilities.
Federal:
Meets FF-H-106C Series 161.
California Referenced Standards Code:
(Formerly Title 19, California State Fire Marshal Standard)
All levers with a return to door of 1⁄2" (64 mm) or less
comply. Most Schlage levers comply (see lever designs
section for compliance).
MEA certification:
All electrified locking (fail-safe, unlocked by switch or
power failures) functions accepted for use in New York
City by the City of New York, Department of Buildings
(MEA 24-04-E).
All levers with less than 1⁄2" (64 mm) returns comply with
California Fire Safety Codes.
Florida Building Commission:
3⁄4" and 1⁄2" throw latch approved for Hurricane
Resistance with Miami-Dade County, Florida.
UL / cUL:
All locks listed for A label single doors, 4' x 8'.
Letter F and UL symbol.
ADA compliant:
Schlage Lock Company oers a wide selection of locks
designed to meet the Americans with Disabilities Act.
22•Schlage • NDSeries
Schlage•NDSeries•23
Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security.
As a $2 billion provider of security solutions for homes and businesses, Allegion
employs more than 8,000 people and sells products in more than 120 countries
across the world. Allegion comprises 27 global brands, including strategic
brands CISA®
, Interflex®
, LCN®
, Schlage® and Von Duprin®.
For more, visit www.allegion.com
About Allegion
© 2014 Allegion
006501, Rev. 05/14
allegion.com/us
