Key systems,

cylinders

and keys

Reference guide

Contents

4-5 Mechanical lock guide

6-7 Key system introduction

8 Cylinder format

9 Cylinder mechanism

10 Keyway and key control

11 Keyway options

12-13 Cylinders and key systems

14-23 Key control

24-30 Cylinders

31-38 Cores

39 Cams

40-42 Key blanks

43-44 Cylinder service equipment and tools

45 Speciﬁcations and certiﬁcations

46-47 Additional purchasing and distribution

48-49 Keyway diagrams

50 Useful deﬁnitions

Be sure to ask your SSC representative to tell you about Custom Solutions by Allegion.

To learn more visit www.allegion.com/us.

2 • Schlage • Key systems, cylinders and keys reference guide

Put your trust in the name you know

For more than 90 years, Schlage® has been providing innovative security

solutions for schools, hospitals, hotels, condominiums and a host of other

commercial buildings. Today, Schlage is at the forefront of cutting-edge

technology including wireless security, access control systems including

readers, credentials and biometrics. With a wide range of products, styles

and ﬁnishes, Schlage has what you need, no matter how demanding your

project speciﬁcations may be. And, we stand behind every product we make

with the best after-sales service in the business. It’s this commitment to

design, performance and technology that ensures you can stand behind our

products too.

Schlage • Key systems, cylinders and keys reference guide • 3

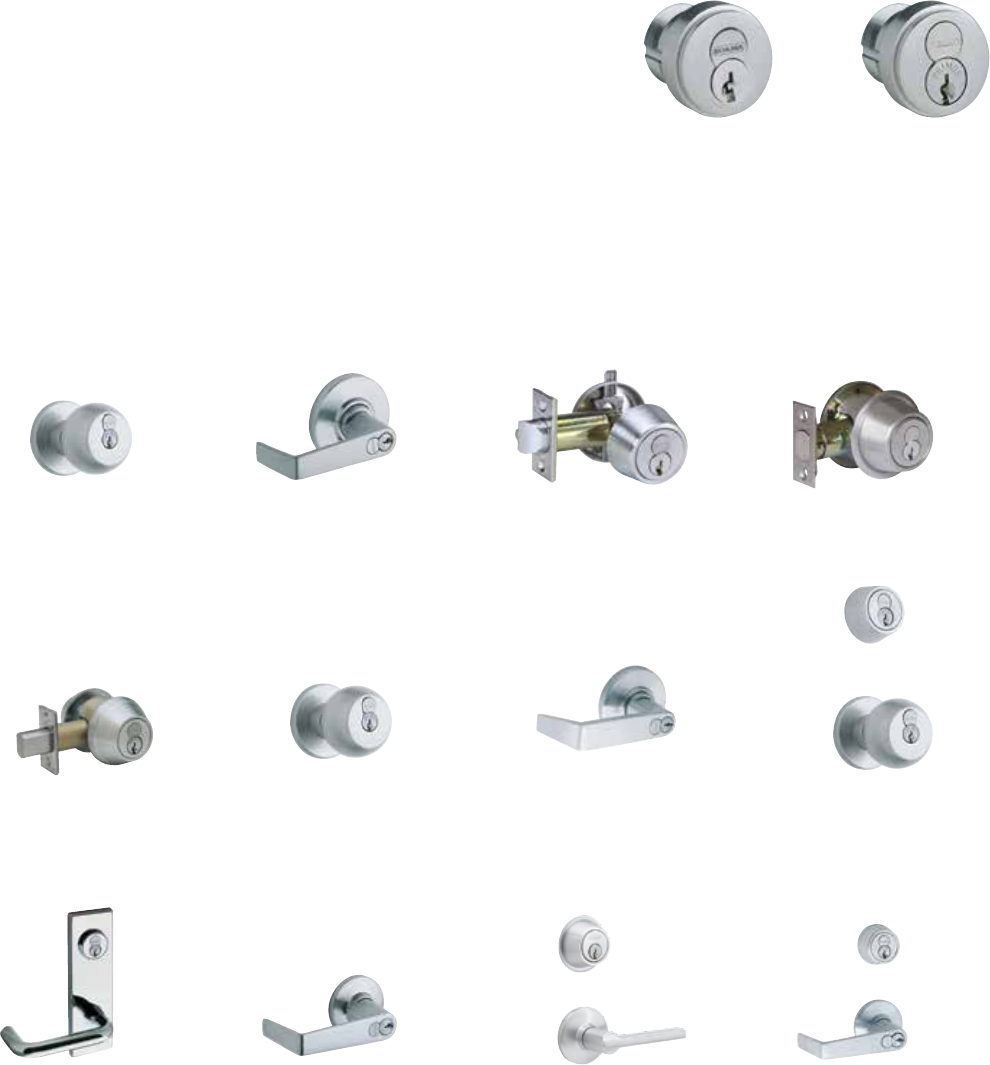

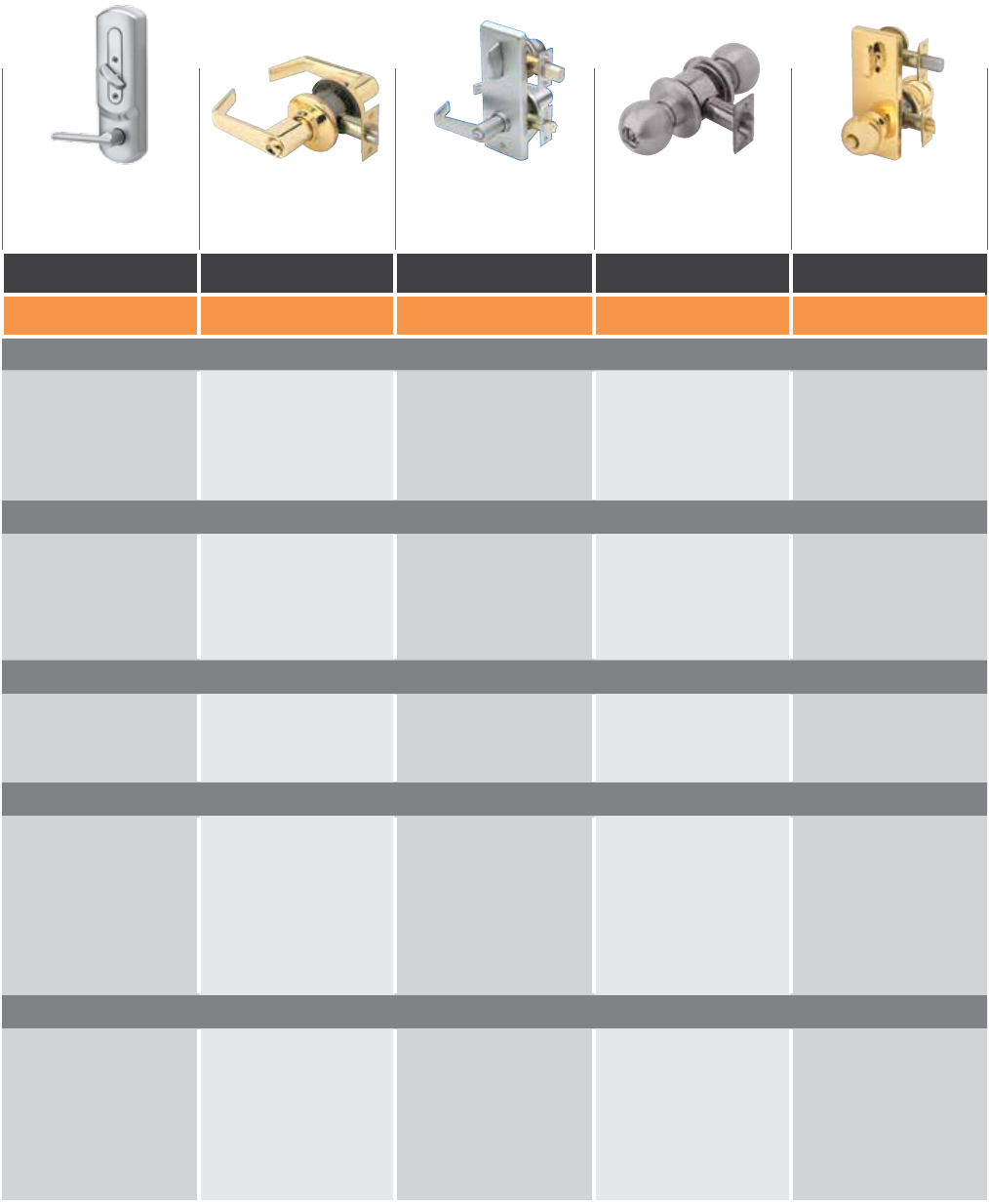

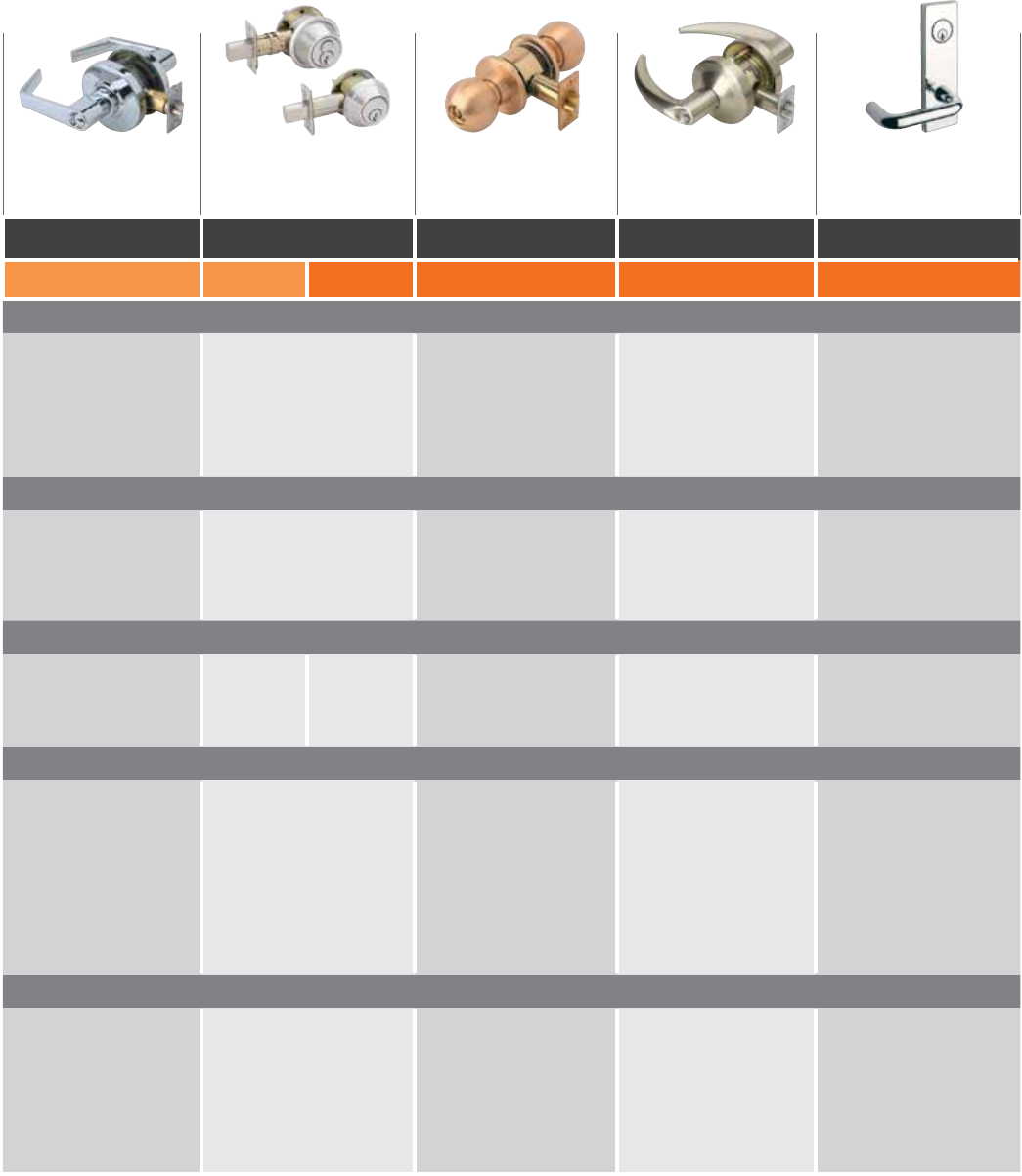

Schlage commercial locks

Tubular

interconnected

locks

Tubular locks

Tubular

interconnected

locks

Cylindrical locks

Cylindrical

interconnected

locks

CS200 Series S Series S200 Series A Series H Series

Grade 2 Grade 2 Grade 2

Security level:

ANSI/BHMA certiﬁed

A156.2-2013

Exceeds 400,000 ANSI cycles

Medium trac

ANSI/BHMA certiﬁed

A156.2-2011

Exceeds 400,000 ANSI cycles

Light trac

Exceeds 400,000 ANSI cycles

Medium trac

ANSI/BHMA certiﬁed

A156.2-2011

Exceeds 400,000 ANSI cycles

Medium trac

Exceeds 400,000 ANSI cycles

Medium trac

Typical applications:

Exterior

Interior

New construction

Retroﬁt

Interior

Retroﬁt

Exterior

Interior

New construction

Retroﬁt

Exterior

Interior

New construction

Retroﬁt

Exterior

Interior

Retroﬁt

Functions available:

1 Function

6 Functions

5 Functions

11 Functions

5 Functions

Design options:

6 Finishes

15 Lever styles

1 Matching rose

2 Interior escutcheons

Tactile warning available

7 Finishes

4 Lever styles

1 Matching rose

Tactile warning available

7 Finishes

4 Lever styles

1 Matching rose

1 Interior escutcheon

10 Finishes

1 Lever style

4 Knob styles

1 Matching rose

7 Finishes

1 Lever style

2 Knob styles

1 Matching rose

1 Interior escutcheon

Often used in:

Commercial

Multi-family

Oce

Commercial

Multi-family

Oce

Commercial

Multi-family

Oce

Commercial

Govt/military

Healthcare

Hospitality

Oce

Retail

Commercial

Govt/military

Multi-family

Not all functions and ﬁnishes available with all products. Please consult your SSC representative for details.

4 • Schlage • Key systems, cylinders and keys reference guide

Rev. 11/13

Cylindrical locks Deadbolts Cylindrical locks Cylindrical locks Mortise locks

AL Series B Series D Series ND Series L Series

Grade 2 Grade 2 Grade 1 Grade 1 Grade 1 Grade 1

Security level:

ANSI/BHMA certiﬁed

A156.2-2011

Exceeds 400,000 ANSI cycles

Medium trac

ANSI/BHMA certiﬁed

A156.5-2010

Exceeds 150,000/250,000

ANSI cycles

High trac, heavy-duty

ANSI/BHMA certiﬁed

A156.2-2011

Exceeds 1,000,000 ANSI cycles

High trac

ANSI/BHMA certiﬁed

A156.2-2011

Exceeds 1,000,000 ANSI cycles

Heavy-duty trac

ANSI/BHMA certiﬁed

A156.13-2012

Exceeds 1,000,000 ANSI cycles

Heavy-duty trac

Typical applications:

Exterior

Interior

New construction

Retroﬁt

Exterior

New construction

Retroﬁt

Exterior

Interior

Retroﬁt

Exterior

Interior

New construction

Retroﬁt

Exterior

Interior

New construction

Retroﬁt

Functions available:

10 Functions

7 Functions

6 Functions

14 Functions

2 Electriﬁed

29 Functions

6 Electriﬁed

Vandlgard® available

49 Functions

4 Electriﬁed

Vandlgard® available

Design options:

10 Finishes

4 Lever styles

1 Matching rose

Tactile warning available

10 Finishes

Indicator rose

10 Finishes

3 Knob styles

1 Matching rose

9 Finishes

5 Lever styles

2 Matching roses

Tactile warning available

13 Finishes

26 Lever style

3 Knob styles

4 Matching roses

2 Escutcheons

Tactile warning available

Antiligature available

Often used in:

Commercial

Healthcare

Hospitality

Oce

Retail

Commercial/institutional

Govt/military

Heavy-duty residential

Hospitality

Oce

Retail

Institutional

Govt/military

Hospitality

Retail

Institutional

Education

Healthcare

Oce

Retail

Commercial/institutional

Govt/military

Education

Healthcare

Oce

Retail

This chart shows the most common uses/applications. These products are often used in other applications in addition to those listed.

Schlage • Key systems, cylinders and keys reference guide • 5

What is a key system?

A key system allows you to control access to all of the locked openings in your facility from the front door to high

security server rooms. It is the result of the choices you make for the cylinders on your locks as well as ease of key

duplication you prefer for your facility. For instance, if high security is your top priority you should consider a system

where key design is patent protected and duplication is tightly controlled. Other facilities may prefer convenient and

easily accessible key duplication.

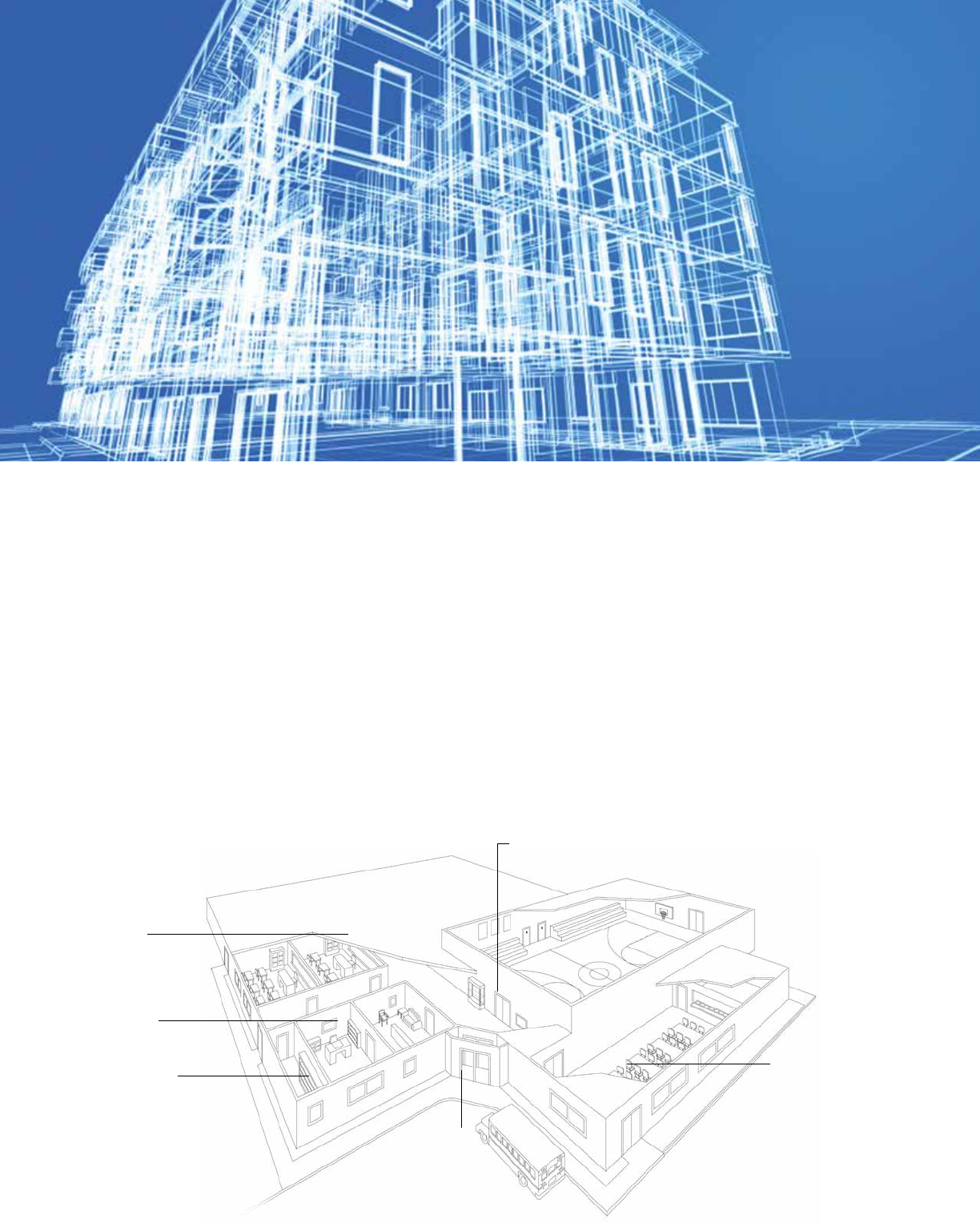

Identify the openings in your building

Before you begin to conﬁgure your system, identify all of the openings in your facility. Start at the exterior and move

through the building’s core. Consider grouping openings into categories, such as by building, department or ﬂoor. This

will allow you to consider the security level and key control for each area of the building.

Low occupancy

rooms

Oce spaces

Mechanical

rooms

Exterior

entrances

High occupancy

rooms

High security

technology rooms

6 • Schlage • Key systems, cylinders and keys reference guide

Choose the right cylinder format

Conventional cylinders

Full size cylinders designed speciﬁcally for Schlage products.

Conventional cylinders require some breakdown of the lock for

removal and replacement. The types of cylinders available are:

Key-in-knob/lever, mortise and rim cylinders, based on the industry

standard plug diameter of 1⁄2".

Interchangeable cylinders

Can be replaced and installed without breakdown of the lock

Small format (SFIC)

Can be used to replace cores from other brands (Best, Falcon, etc.).

Based on the industry standard plug diameter of 1⁄2".

Full size (FSIC)

Full size interchangeable cores are based on the industry standard

plug diameter of 1⁄2" utilizing the same key families as conventional

cylinders. (These vary from manufacturer to manufacturer.)

Choose the right cylinder mechanism

Standard

Normal, standard cylinders and the default mechanism unless you

upgrade to Primus XP.

Primus XP

High security dual locking cylinder mechanism provides patented

key control, geographical exclusivity, and pick-resistance. UL437

drill-resistance is optional.

Choose the right keyway and key control

Classic keyway

Popular design found on many existing products. New systems are

no longer available in the Quad, Numbered or Reverse families.

Everest 29 keyway

Features a new undercut design with patent protection through

2029. It delivers a higher level of security because it cannot be

duplicated without authorization.

Open key control

Standard keyways easily duplicated and available without any

ordering formalities.

Restricted key control

Special non-stock keyways set aside for limited use and a higher

degree of key control. A letter of authorization is required to process

orders for keys, blanks and cylinders.

Contact your local SSC representative for assistance in determining which format and level of exclusivity best suits your needs.

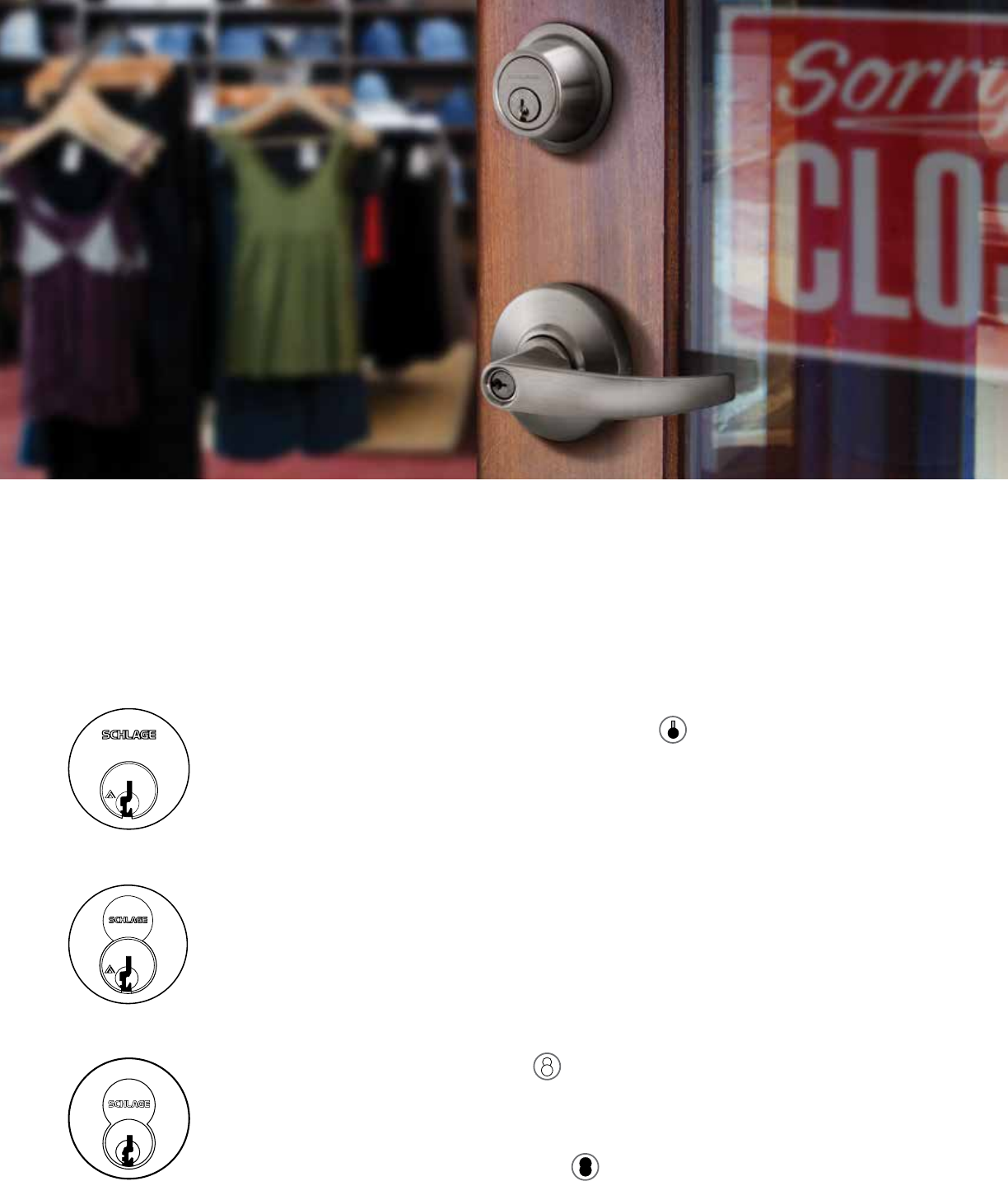

Be sure to know your options

Schlage oers innovative and high quality solutions to match your desired level of security and convenience. We oer

products for new systems or to upgrade or expand security in an existing system. With Schlage Key Systems, you can:

Choose a cylinder format for Schlage products or other manufacturers’ products

We oer a selection of cylinder formats designed to complement our complete family of products or cylinders which

allow you to upgrade the security of products from other manufacturers.

Upgrade your cylinder mechanism for higher security

Primus® XP is pick-resistant and features two independent locking mechanisms that must both align to the key

cuts to allow entry.

Select patented protection for the ultimate in key duplication control

Schlage oers both open and restricted keyways to ﬁt the need of your facility. Restricted control limits who and how

keys can be duplicated. The unique undercut design of Everest 29™ provides patent protection until 2029, allowing tight

control of key blank distribution through highly enforceable key control.

How to choose the right system

Making the right choices will ensure the success of your key system. Use this chart as a guideline to design your system.

Schlage • Key systems, cylinders and keys reference guide • 7

Choose the right cylinder format

Schlage cylinders and key systems are ideal for a wide range of commercial applications, from airports, hospitals,

school districts, universities and oces, to research laboratories, and government and military buildings. On the

following pages, we provide a brief overview of the steps to develop a system that ﬁts the security level of your

application.

Conventional (standard) cylinders

Schlage’s high quality conventional cylinders provide the standard level of security and

functionality for Schlage locks and are backed by over 90 years of industry leading innovation.

The exclusive use of solid brass bar stock plugs and modular design, phosphor bronze

springs, nickel silver keys and bottom pins ensures long life and ease of operation. 6-pin

Everest 29 cylinders in S123 keyway with two patented keys are standard for stock. S145 is

standard for new master key systems.

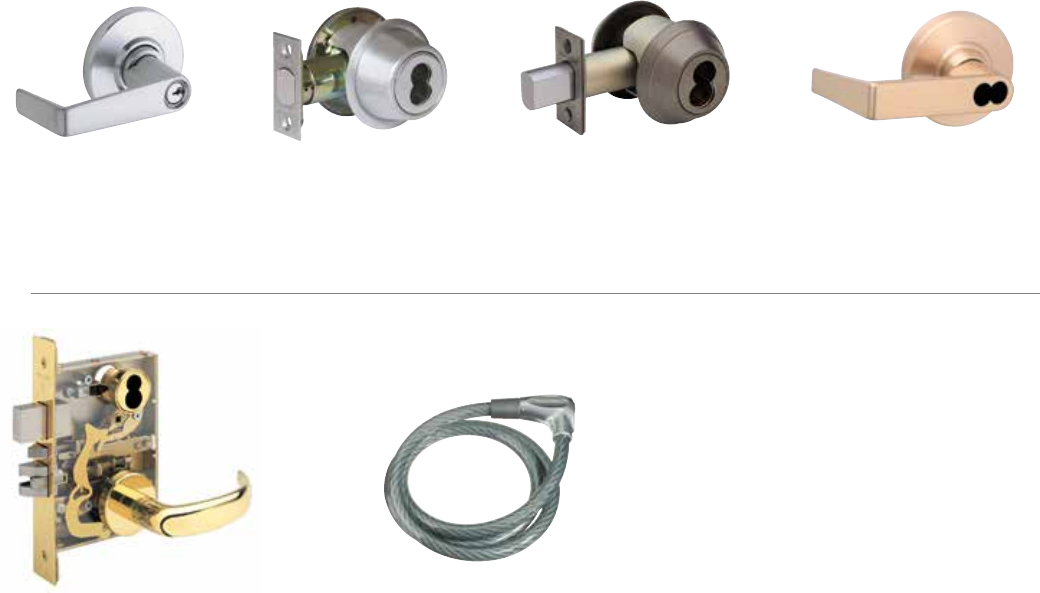

Interchangeable core (IC) cylinders

For use where fast and labor-saving rekeying is desired, even by non-technical personnel.

Interchangeable cores can be replaced easily without needing to breakdown the lock by using

a control key. Unlike most other brands, Schlage interchangeable cores can always be

integrated into existing systems with no adverse eect on the key system. IC cylinders are

available in two sizes:

Full size interchangeable core (FSIC)

Based on the industry standard plug diameter of 1⁄2", Schlage full size interchangeable cores

(FSIC) are available for a variety of dierent key system types from standard and basic, to

restricted and Primus XP high security.

Small format interchangeable core (SFIC)

Based on a plug diameter smaller than the standard 1⁄2", SFIC cores are completely

interchangeable with Best, Falcon and other SFIC installations. No Primus XP version exists.

8 • Schlage • Key systems, cylinders and keys reference guide

Choose the right cylinder mechanism

Your cylinder will feature our time tested, pin and tumbler standard mechanism. For additional security, you

can upgrade your cylinder with our Primus XP mechanism.

Primus XP is pick-resistant and built with the highest standards of quality. Primus XP provides additional

cylinder security and helps eliminate unauthorized key duplication.

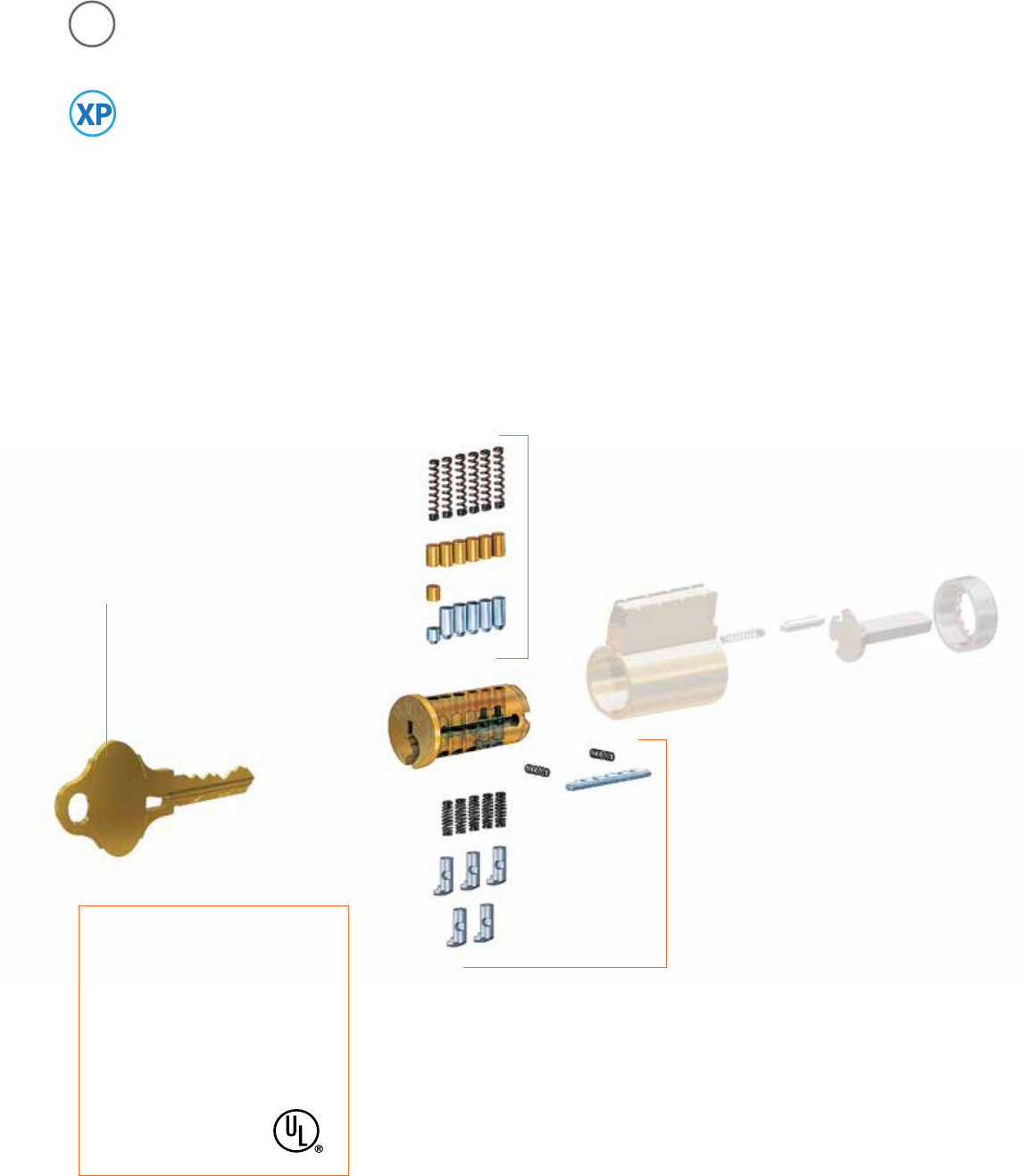

§Two independent locking mechanisms - a conventional pin and tumbler plus 5 ﬁnger pins

and sidebar mechanism

§Top pins and sidebar must be engaged simultaneously for cylinder to operate

§Requires specially designed side bit milled Primus key for operation

§Unique side bit milling on key makes unauthorized duplication highly enforceable

§Allows creation of geographically exclusive keys in a thousand available combinations

§Can be used to upgrade an Everest 29 or Classic system to a high-security cylinder

Conventional pin tumbler locking mechanism

with springs, top pins, master pins (as required),

and bottom pins.

Primus XP sidebar locking mechanism

is engaged with a patented side bit milled

Primus key that operates the springs and

ﬁnger pins.

Everest 29 Primus XP key

with patented side bit design

engages both locking mechanisms

simultaneously. The unique design

eliminates unauthorized key

duplication.

Primus XP

dual locking design

Add UL437 for the

highest protection

Optional UL437 listed cylinders

feature hardened steel drill pins.

They are tested and certiﬁed to be

pick and drill resistant and can

withstand extreme physical

attacks.

Schlage • Key systems, cylinders and keys reference guide • 9

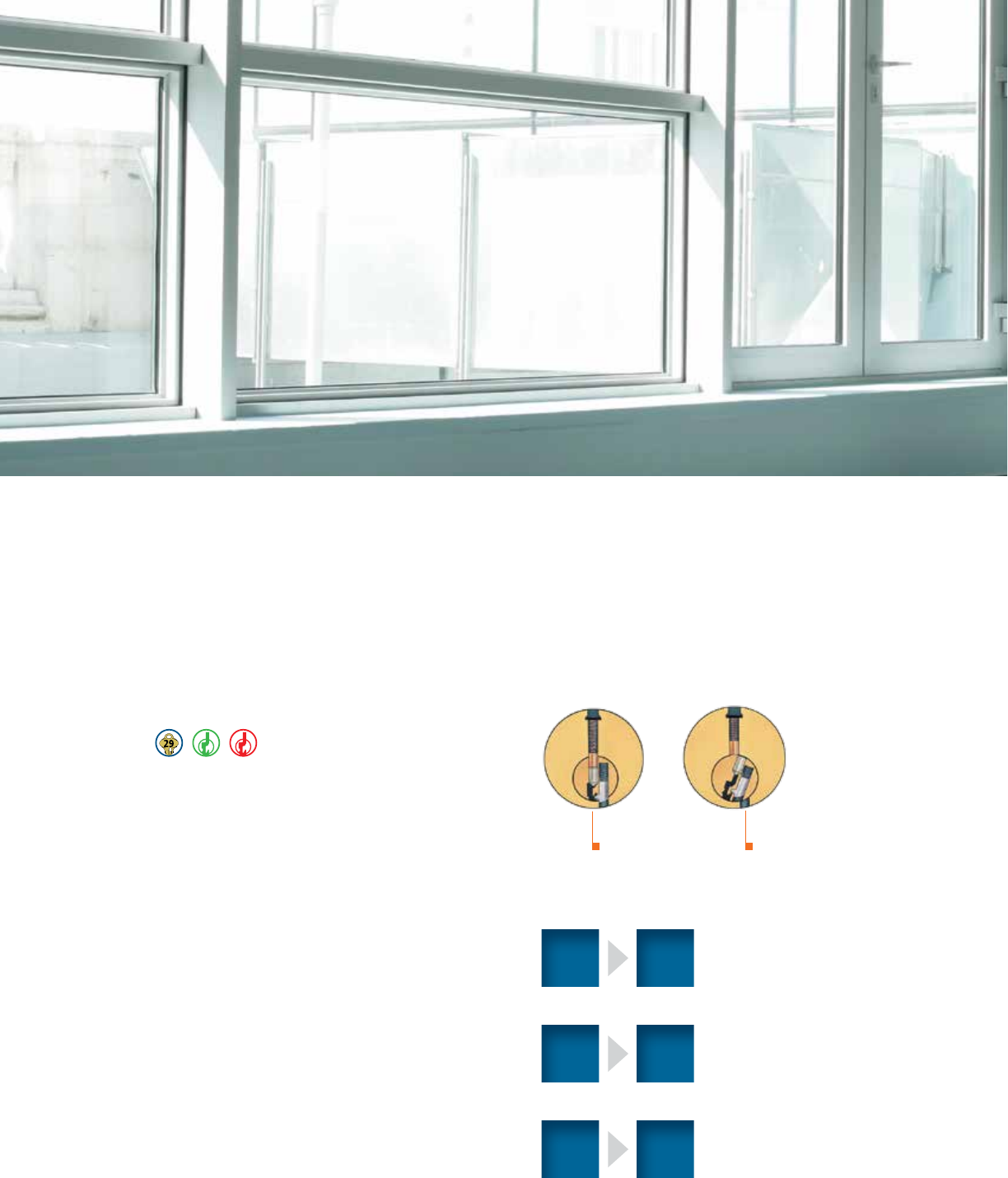

Choose the right keyway and key control

Patented key systems provide better protection against unauthorized duplication. Key blanks are tightly controlled by

the manufacturer and attempts to duplicate the design without permission are subject to federal law.

Our Everest 29 key systems are patented until 2029 and are designed to give you the level of security you need for every

application. With optional keyway exclusivity, multi-level key hierarchy and cylinders that ﬁt a wide variety of locks,

Everest 29 gives you total control of your building’s security.

Everest 29

Everest 29 patented keyways provide a higher level of

protection against unauthorized key duplication and

non-authorized manufacturing and distribution of key

blanks.

Everest 29 keys work by lifting the check pin when the key

is inserted into the cylinder, allowing the key to turn and the

lock to open. This patented interaction ensures the integrity

of the system at every opening.

Everest 29 can be integrated into your existing

Everest B, C or D system

Everest 29 is backward compatible with Everest B, C and D

keyways making migration of an existing key system less

complex.

The backward compatibility of Everest 29 keyways to the

legacy Everest keyways provides you with ﬂexibility and

security that adapts to your needs. Everest 29 keys will

work in an existing Everest keyway, but current Everest keys

will not work in a new Everest 29 keyway. This is because

of the patent enabling feature of Everest 29 and what

prohibits duplication of the new Everest 29 keys.

Undercut

keyway proﬁle

is patented

When check pin

is lifted, cylinder

is free to rotate

EVEREST EVEREST 29

§SFIC

§Restricted distribution by required

authorization letters

§Full size; open keyway

§Restricted by channel only to

commercial sales

§Primus and Primus XP

§Full size

§Restricted distribution by required

authorization letters

§Primus and Primus XP

Everest 29 S123 is the default keyway for Schlage commercial locks.

Everest 29 S145 is the default keyway for new master key systems.

Legacy Everest keyways are still available to order

10 • Schlage • Key systems, cylinders and keys reference guide

Patent protection until 2029

thanks to a new undercut design

that provides patent protection

for Everest 29 keys until 2029.

Everest 29 through-cut technology

utilizes a unique process to create the

patented Everest 29 undercut design.

Distinctive bow

a larger, rounded key bow creates

quick visual dierentiation

between Everest and Everest 29.

Proven strength

shear-strength tested to perform

with the same toughness and

reliability the Everest family is

known for.

Everest 29 keyways

Everest 29 R

§Available in a small format interchangeable core only

§Restricted non-stock keyway set aside for limited use and

a higher degree of key control

§Backward compatible with Everest B family

Everest 29 S

§Available in full size conventional and full size

interchangeable cores

§Open keyway without any ordering formalities for fast and

easy key duplication

§Available for Primus XP cylinder mechanism or standard

§Backward compatible with Everest C family

Everest 29 T

§Available in full size conventional and full size

interchangeable cores

§Restricted non-stock keyway set aside for limited use and

a higher degree of key control

§Available for Primus XP cylinder mechanism or standard

§Backward compatible with Everest D family

The Classic keyway

Our Classic keyway design has become one

of the defaults on many products sold and

installed throughout the country. If you

have products with a Classic keyway, you

can make them more secure by upgrading

them to Primus XP. New key systems in our

classic keyway designs are limited to the

obverse sections. Numbered, Quad and

Reverse key systems are limited to existing

system maintenance and remain subject to

our restricted key system policy.

Everest 29 S123 is the default keyway for Schlage commercial locks.

Everest 29 S145 is the default keyway for new master key systems.

Legacy Everest keyways are still available to order

Schlage • Key systems, cylinders and keys reference guide • 11

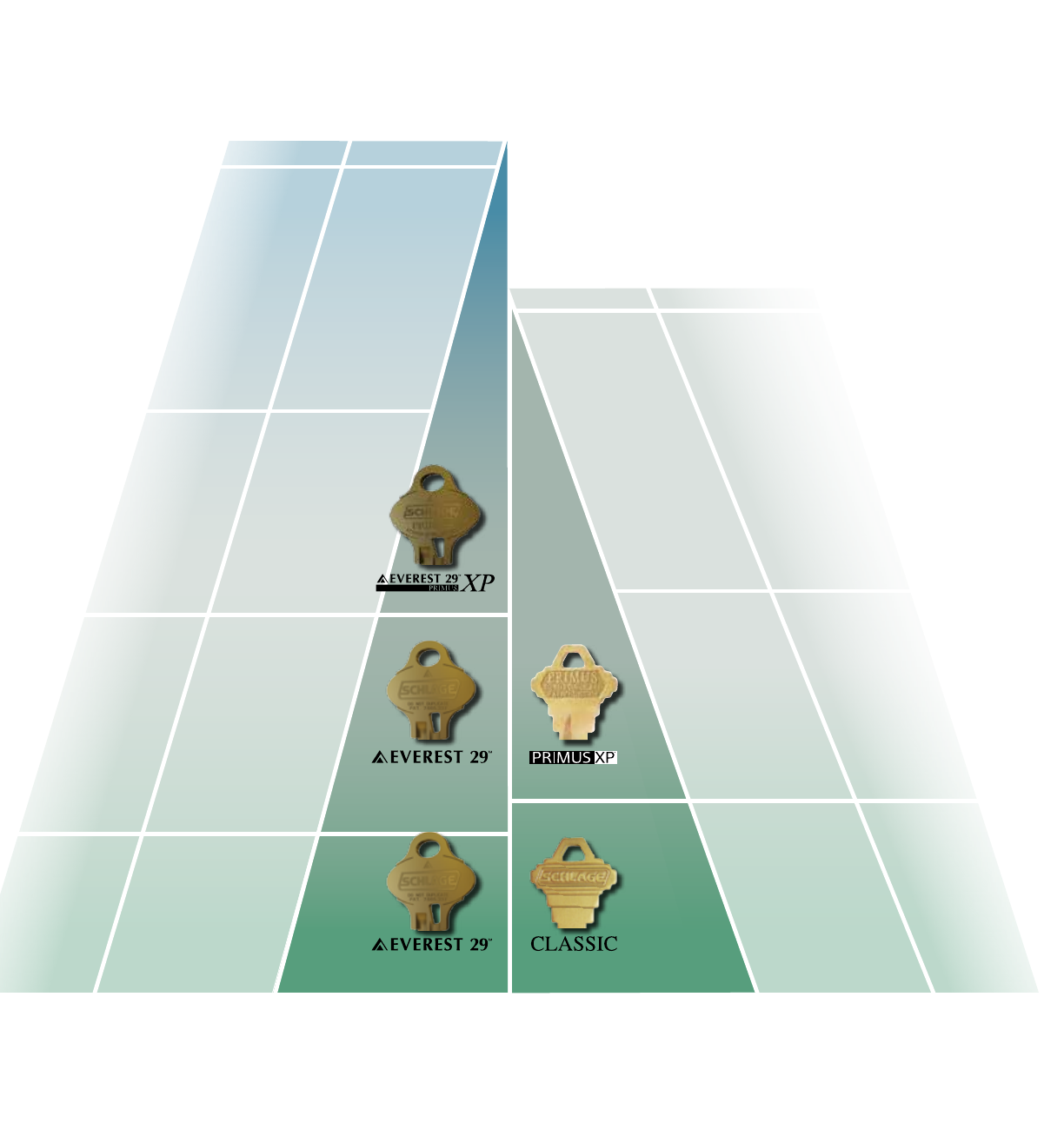

Basic security

High security

Restricted security

Standard security

High security

What it is

Controlled access

• Patented key control sold

with various levels of

geographic exclusivity

• High security cylinders

have a second set of pins

for added security and

pick resistance

• Keys operate high security,

as well as restricted security

or standard security cylinders

• Available only in

conventional and FSIC

• Key distribution is

restricted duplication must

be authorized

• End user’s ID numbers are

stamped on all keys,

enabling Schlage to identify

the source of any

unauthorized keys

• Patent-protected keys are

drop-shipped from the

factory directly to an

end-user speciﬁed location to

guarantee exclusivity

• Available in conventional,

SFIC and FSIC

• Patented key blanks can

be stored by commercial

locksmiths and security

dealers

• Keys can be duplicated

without any paperwork or

signature veriﬁcation

• Sold only through

commercial outlets

• Available in conventional

and FSIC

What it operates

• Everest 29

Primus® XP cylinders

• Everest 29

restricted cylinders

• Everest 29

open cylinders

• Everest 29 Primus

XP cylinders

• Everest 29

restricted cylinders

• Everest 29

open cylinders

• Everest 29 restricted

cylinders

• Everest 29 open

cylinders

UL 437 version

• UL 437 versions provide

drill and pick resistance

and withstand physical

attack

• High security cylinders

have a second set of pins

for added security

• Patented key control sold

with various levels of

geographic exclusivity

• Keys operate high security,

as well as restricted

security or standard

security cylinders

• Available only in

conventional

Controlled access

• Patented key control sold

with various levels of

geographic exclusivity

• High security cylinders

have a second set of pins

for added security and

pick resistance

• Keys operate high security,

as well as restricted

security or standard

security cylinders

• Available only in

conventional and FSIC

What it is

• Classic cylinders

• Keys can be duplicated at

most retail and commercial

points of sale with no

restrictions

• Recommended only for

residential applications or

existing commercial

systems that cannot rekey

• Can be upgraded to Primus

XP without rekeying the

entire facility

• Available in conventional

and FSIC

• Primus XP cylinders

• Classic cylinders

• Primus XP cylinders

• Classic cylinders

What it operates

UL 437 version

• UL 437 versions provide

drill and pick resistance

and withstand physical

attack

• High security cylinders

have a second set of

pins for added security

• Patented key control

sold with various levels

of geographic exclusivity

• Keys operate high

security, as well as

restricted security or

standard security

cylinders

• Available only in

conventional

Upgrade existing classic key

systems with Primus XP

Schlage oers key system solutions that

are ideal for upgrading an existing key

system to control key management. Our

patent-protected cylinders help prevent

unauthorized duplication and can be

integrated into virtually any existing system.

Schlage can help you design a system that

can grow and change along with your

needs, allowing you the ﬂexibility to

upgrade your security without the need to

replace all your cylinders.

Protect new key systems

with Everest 29

Choose the right level of key control

12 • Schlage • Key systems, cylinders and keys reference guide

The top choice for all new and existing key systems

Schlage will help you design a system that can grow and change along with your needs, allowing you the ﬂexibility

to upgrade your security without the need to replace all your cylinders. If you need the highest level of key system

protection, choose Primus XP.

Everest 29 Primus XP

Traceability

Primus XP keys are marked

with an ID number.

Distinctive bow

a larger, rounded key bow for

quick visual dierentiation.

Side bit milling

factory cut to provide geographical

exclusivity for end users or dealers.

Six standard key cuts

for easy dealer service with standard

pin kits and key machines; can

operate conventional cylinders.

15% thicker key for added strength.

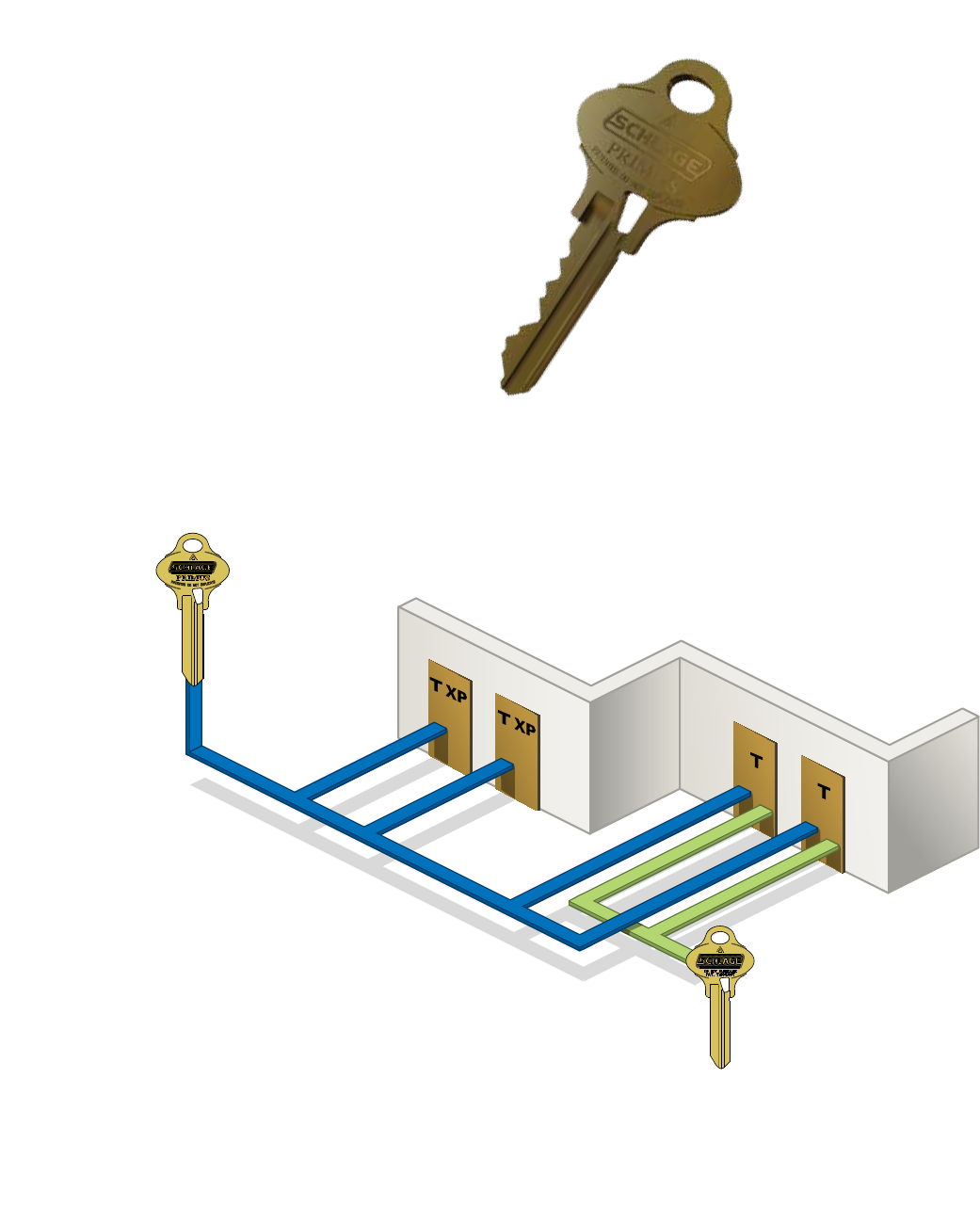

Everest 29 T

Everest 29 T keys can open only

those locks with a standard T keyway.

Everest 29 T Primus XP

Everest 29 T Primus XP keys

can open locks with either

standard T or D keyways or

Primus XP keyways.

Primus XP Key Compatibility

Note: Same restrictions apply to

Everest 29 S Primus and Everest

29 S keyways.

Schlage • Key systems, cylinders and keys reference guide • 13

Key control

Key system variety

Patented key systems prevent unauthorized duplication of keys providing greater key control and reduce the threat of

a compromised key system. Everest 29 keyway families provide the ﬂexibility to secure and restrict the most sensitive

openings in a facility while maintaining access control across the entire system.

Everest 29, Everest, and Classic key systems can be enhanced and restricted to limited distribution with the addition

of Primus XP. Primus XP, Schlage’s high security sidebar cylinder mechanism, introduces an added level of security

control. It delivers patented key control, geographical exclusivity, and pick resistance with the option of adding UL437

drill resistance.

Whether you’re retroﬁtting a building or implementing a key system for a newly constructed complex, Schlage key

systems deliver the security you need at every level throughout your building or campus.

Everest 29 keyway Everest keyway Classic keyway

§§§ Patented until 2029

§ § Patented until 2024

§ § Patented until 2014

§ § § § § § Maximum key duplication restrictions

§ § Some key duplication restrictions

§No key duplication restrictions

R B SFIC available

§ § Check pin

S, T S, T C, D C, D § § Finger pins/side bar conﬁguration (Primus XP)

§§§#7 ﬁnger pin used for added security

§§§§§§ §Master keying available for all levels

§Master keying available for levels 1+, 2, 3 and 4

§Master keying available for levels 2, 3 and 4

§ § § § Master keying available for levels 7, 8 and 9

14 • Schlage • Key systems, cylinders and keys reference guide

Key control

Everest 29 T family – end user restricted security

Everest 29 restricted key systems are for end users only and are ideal when there is a signiﬁcant need to eliminate

unauthorized duplication by lock shops, hardware and home centers. Everest 29 T keyways provide a higher level of

security, with authorization required for the order of key blanks for duplication. Cylinders with Everest 29 T family

keyways are 6-pin and cannot be interkeyed with any 5- or 7-pin products. In addition, Everest 29 T keys can be used

to open T keyways, but cannot be used to open Everest 29 Primus XP locks with a T keyway.

Key control

All Everest 29 T family keys are protected

against unauthorized manufacture and

distribution by U.S. patent 7,665,337 until

2029. These keyways oer substantial key

control at a mid-price point between

conventional cylinders and Primus XP

high security cylinders.

Establishing a new key system

Restricted keyways are reserved for large

key systems. A letter of authorization on

the end user’s ocial stationery must be

submitted with the initial order to

establish the authorized ship-to location.

Ordering products for existing systems

Restricted keyway locks, cylinders and

blanks on subsequent orders will be

drop-shipped to the location originally

speciﬁed by the end user. Any order that

must be shipped to a dierent destination

or change of supplier requires a letter of

authorization on the end user’s ocial

stationery.

Key machines

Factory provides key blanks which can be

cut on key punch #40-099, or use rotary

cutter key machines to duplicate these

keys or cut them by code. Standard

Schlage depths and spacing are used, so

there are no new settings for code

machines.

Pin kits

Cylinders with T family keyways are

compatible with all existing Schlage pin

kits. Pinning Kit 40-119 is the standard

Schlage commercial pin kit and the latest

version of this kit has check pins and

check pin springs included.

Sales samples

Restricted keyways are not available as

sample cylinders; however, the key and

mechanism can be evaluated with an

Everest 29 S family sample. The only

dierence is the shape of the keyway.

Primus XP high security cylinders

Everest 29 Primus XP cylinders are

available in T family keyways at Level 9

only.

Compatible with Everest D cylinders

Everest 29 T keys are backward

compatible with Everest D cylinders, but

Everest D keys will not operate an Everest

29 T cylinder.

Schlage • Key systems, cylinders and keys reference guide • 15

Key control

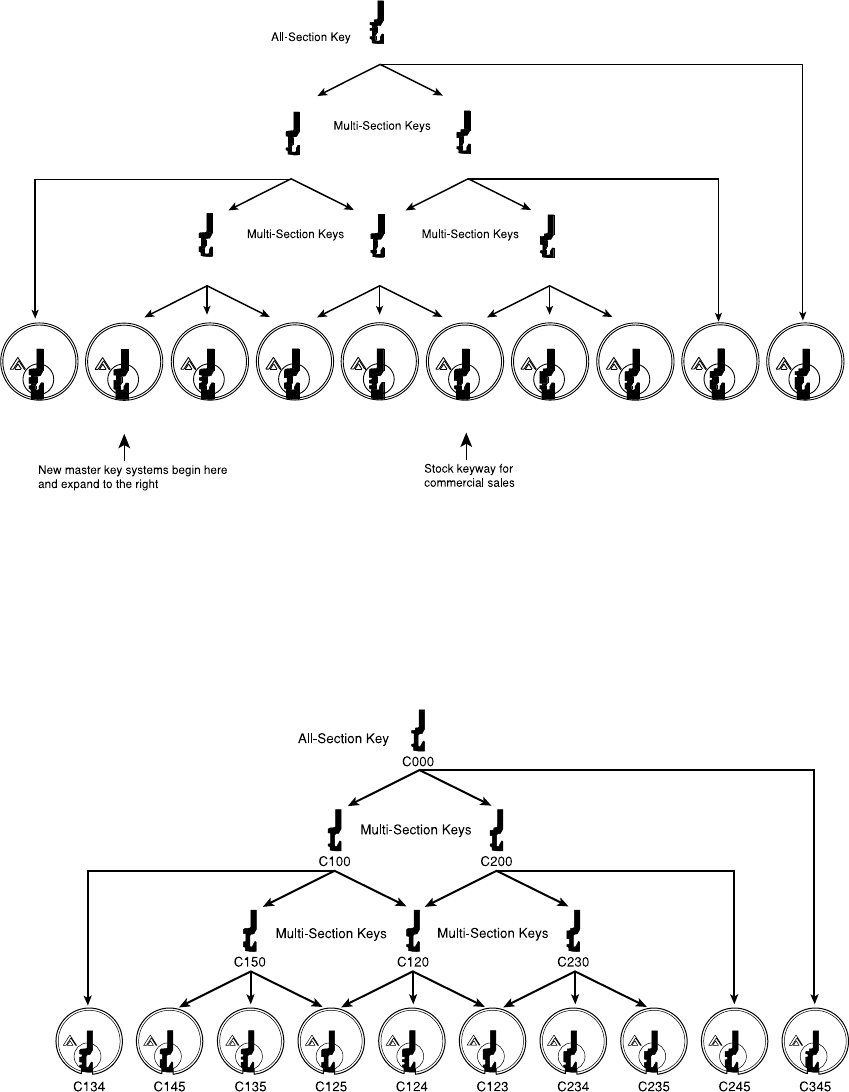

Everest 29 S family – standard security

Everest 29 S open keyways provide limited key control, but are protected by patents that reduce the availability to

approved Schlage distributors and professional locksmiths. They are best suited for applications where fast and easy

key duplication is required and low restriction key control is required. Cylinders with Everest 29 S family keyways are

6-pin and cannot be interkeyed with any 5- or 7-pin products. Primus XP high security cylinders are available in

Everest 29 S keyways and those keys are restricted.

Key control

Although Everest 29 S family keys are

covered by the same patents as Everest

29 restricted keys, they are openly

available to locksmiths, contract hardware

dealers, etc. Keys stamped DO NOT

DUPLICATE are available as an option.

Establishing a new key system

S145 is the default keyway for new

Schlage master key systems. Additional

keyways are used to expand systems

which need more than one keyway.

Ordering products for existing systems

Everest 29 S family products are available

through Schlage authorized distributors

and professional locksmiths.

Key machines

Everest 29 S family keys can be cut on the

popular Blue Punch for Schlage, even if it

is an old machine; however, most key

sections need top jaw upgrade kit 40-074.

The Blue Punch will cut conventional and

Primus Classic (obverse) after the

conversion. Pro-Lok Blue Punches of serial

number 993058 and higher do not need

the upgrade kit. You can also use rotary

cutter key machines to duplicate these

keys or cut them by code. Standard

Schlage depths and spacing are used, so

there are no new settings for code

machines.

Pin kits

Cylinders with S family keyways are

compatible with all existing Schlage pin

kits. Pinning Kit 40-119 is the standard

Schlage commercial pin kit and the latest

version of this kit has check pins and

check pin springs included.

Sales samples

The keyway for sample cylinders is S123.

Primus XP high security cylinders

Everest 29 Primus XP cylinders are

available in S family keyways at Levels 7,

8, and 9.

Compatible with Everest C cylinders

Everest 29 S keys are backward

compatible with Everest C keyway, but

Everest C keys will not operate an Everest

29 S keyway.

16 • Schlage • Key systems, cylinders and keys reference guide

Key control

Everest 29 R family – restricted security for SFIC

Everest 29 R keyways provide restricted security because distribution and duplication are limited. Everest 29 delivers

higher performance and long life for the keys and cores for all of your SFIC applications. Most keyways are for large end

users with in-house locksmiths to cut keys and combinate cores. Everest 29 R family keyway cores are 7-pin and cannot

be interkeyed with any full size cylinders.

Key control

All R family keys are protected against

unauthorized manufacture and

distribution by U.S. patent 7,665,337

until 2029.

Establishing a new key system

A letter of authorization on the end user’s

ocial stationery is required with the

initial order to establish the authorized

ship-to location.

Ordering products for existing systems

Restricted keyway locks, cores and blanks

on each subsequent order will be drop

shipped to the location originally speciﬁed

by the end user. Any order that must be

shipped to a dierent destination or

change of supplier requires a letter of

authorization on the end user’s ocial

stationery.

Key machines

R family keys can be cut on a special

version of the Blue Punch available

through Schlage as 40-071. It is not

possible to retroﬁt any existing Best or

Blue Punches to cut B and R family keys.

You can also use a rotary cutter key

machine to duplicate these keys or cut

them by code. The stop is at the shoulder

of the key, even though the bittings are

read and written tip to bow. This merely

requires using new spacing speciﬁcations

on existing rotary cutter code machines.

Pin kits

All Schlage small format cores are

compatible with most brands of A2

system kits. However, Schlage does not

recommend using Arrow™ or Kaba Peaks

bottom pins in Everest cores. If you do not

already have an A2 pin kit, you can

purchase Schlage SFIC pin kit 40-129.

Sales samples

Sales sample cores have the R125 keyway.

No key blanks or uncombinated cores are

available for samples since this is a

restricted keyway. Each sample core

comes with one operating key and one

control key. Please specify sales samples

when ordering.

Compatible with Everest B cylinders

Everest 29 R keys are backward compatible

with an Everest B keyway, but Everest B

keys will not operate an Everest 29 R

keyway.

Sole sourced R234 and R235 programs

For details, refer to pages 46-47.

Schlage • Key systems, cylinders and keys reference guide • 17

Key control

Levels and exclusivity

The Primus system features multiple levels of security. For the

Classic Primus XP system, security increases from Level One

through Level Four. For Everest 29 Primus XP, security increases

from Level Seven to Level Nine. Each level requires an appropriate

I.D. card and/or signature veriﬁcation for key duplication. All levels

utilize patent-protected Primus cylinders and keys to protect

against unauthorized duplication. To select the proper level of

security, consideration should be given to the overall key control,

convenience and service required for the installation.

Everest 29 Primus XP

Ideal for new key systems

patent protected through 2029

Classic Primus XP

Ideal for existing key systems

patent protected through 2024

The Primus system

provides high security

and patented cylinders

with patented keys

distributed with

geographic exclusivity.

Level XP

Dealer controlled system

National non-exclusive

Stocked by distributors and resold

to end users via commercial

locksmiths; All Level 1 locksmiths

have the same side bit millings.

Typical Applications

Consider Everest 29 open for

commercial exclusivity

Dealer Controlled System

• Strip mall shops

• Small businesses

• Upscale homes

Level XP

Dealer exclusive

Owned & stocked by dealers; resold

to end users. Keys bear unique

Dealer ID based upon three digit

zip-code exclusivity of side bit

milling.

• Small businesses

• Restaurants

• Doctor’s offices

Dealer exclusive

Owned & stocked by dealers;

resold to end users. Keys bear

unique Dealer ID based upon three

digit zip-code exclusivity of side

bit milling.

Level XP

Dealer exclusive

Dealers that sell directly to end users

are eligible for side bit milling

exclusivity. Exclusivity is for the

dealer physical location time zone.

• Office buildings

• Banks

• Private schools

• Healthcare residences

Dealer exclusive

Dealers that sell directly to end

users are eligible for side bit

milling exclusivity. Exclusivity is for

the dealer physical location time

zone.

Level XP

End user exclusive systems

End user exclusive

Exclusivity is based on either

random assignment or on the first 2

digits of the zip code, depending on

end user commitment.

• Educational facilities

• Healthcare facilities

• Large office complexes

• Government buildings

• Detention centers

• Franchises

End-user exclusive

Exclusivity is based on random

assignment, on the first 2 digits of

the zip code, on time zone, or on a

nationwide basis, depending on

end user commitment.

End User Exclusive Systems

Level XP

End user exclusive

Exclusivity is based on either a time

zone or nationwide basis,

depending on end user

commitment.

18 • Schlage • Key systems, cylinders and keys reference guide

Key control

Purchasing and distribution

Classic Primus XP purchasing and distribution exclusivity

The Primus XP keyway provides various levels of geographic exclusivity and requires authorization for duplication,

ensuring better key control.

To set up a new dealer:

§Submit Classic Primus XP Level 2 (and Level 8) signed agreement

§Have local SSC manager sign and approve the agreement

§ For dealers who are new to Primus XP, submit purchase order of a total of $25,000 (list) to

cover both Classic and Everest Primus XP inventories

§For existing Primus dealers, submit purchase order of a total of $15,000 (list) to cover both

Classic and Everest Primus inventories

Re-ordering customers need to:

§Provide dealer ID and Primus sequence number with order

§Primus keys will always be drop-shipped to dealer location

Highlights of level 1

§No exclusivity for side bit milling – shared by all dealers and distributors

§Dealer can purchase products from any Schlage Primus XP authorized dealer

§End user can purchase from any Primus Level 1 authorized dealer, no sole-source relationship

To set up a new dealer:

§Submit a Classic Primus XP Level 1 signed agreement to the distributor

Level

To set up a new dealer:

§Submit Classic Primus XP Level 1+ (and Level 7) signed agreement

§Have local SSC manager sign and approve the agreement

§ For dealers who are new to Primus, submit purchase order of a total of $7500 (list) to

cover both Classic and Everest Primus inventories

§ For those who are existing Primus dealers, submit purchase order o f a total of $5000

(list) to cover both Classic and Everest Primus inventories

Re-ordering customers need to:

§Provide dealer ID and Primus sequence number with order

§Primus keys will always be drop-shipped to dealer location

Level

Zip code exclusivity based on ﬁrst three digits

§Dealer-owned side bit milling exclusivity

based on the ﬁrst three digits of zip code

§Dealer can purchase products from any

Schlage Primus XP authorized dealer

§Available to direct and indirect dealers

§Key blanks are not available to end users

§End user must purchase from originating

dealer, sole-source relationship

Time zone exclusivity

§Dealer-owned side bit milling exclusivity

based on time zone

§Dealer can purchase products from any

Schlage Primus XP authorized dealer

§Available for direct and indirect dealers

§Key blanks are not available to end users

§End user must purchase from originating

dealer, sole-source relationship

Schlage • Key systems, cylinders and keys reference guide • 19

Key control

Purchasing and distribution

Classic Primus XP purchasing and distribution exclusivity

Key control

Purchasing and distribution

Classic Primus XP purchasing and distribution exclusivity

End user exclusive

This level is for end users who may want to cut their own keys and/or must be able

to obtain competitive bids on subsequent additions to their Classic Primus XP key system.

Highlights of levels 3 and 4:

§Side bit milling is assigned to end user, not dealer, based upon commitment level

§End user is not tied to originating dealer, but can purchase from any Schlage Primus

authorized dealer

§Key blanks are available for end user only

§Face sheet is required for each subsequent order

Levels

3 and 4

To set up a new dealer:

§Submit signed signature sheet

§Submit signed face sheet

§Submit an order with the above two

items

Re-ordering customers need to:

§Submit signed face sheet with order

§Specify keyway on order form

Level 3U (universal) – fewer than 60 cylinders

Schlage randomly assigns a side bit milling from a small pool of combinations which may

be repeated locally. There are no guarantees of geographical exclusivity.

Level 3G (geographical) – more than 60 cylinders

Schlage assigns an exclusive side bit milling based on the ﬁrst two digits of the end user’s

zip code.

Level 4Z (time zone) – minimum of 2,000 cylinders

Inventory of 2,000 cylinders must be maintained over two years or pay a fee. End user

buys exclusivity of one side bit milling within his time zone and country.

Level 4N (nationwide) – minimum of 4,000 cylinders

Inventory of 4,000 cylinders must be maintained over two years or pay a fee. End user

buys nationwide exclusivity of one side bit milling.

20 • Schlage • Key systems, cylinders and keys reference guide

Key control

Purchasing and distribution

Everest 29 Primus XP purchasing and distribution exclusivity

When you upgrade your key system to Primus XP, you automatically move up to one of our three highest

security levels, 7, 8 or 9. These levels oer dierent methods of distribution and purchasing that are important

to understand when choosing a key system that meets your needs for ﬂexibility, security, and ongoing service

and maintenance.

Zip code exclusivity based on ﬁrst three digits

Dealer invests in a side bit milling that will be exclusive to him deﬁned by the ﬁrst three digits

of the locksmith’s physical location zip code. Dealers sign an appropriate agreement that

ensures the integrity of the system and, among other things, prohibits the dealer from cutting

other dealers’ keys. Each dealer is assigned a unique ID number that is stamped on all keys.

Dealers can purchase products and keys from any Schlage authorized Primus distributor.

The dealer then issues an ID card to each end user and veriﬁes orders for duplicate keys

against the signature panel on the card.

This is a sole source level similar to Classic Primus XP Level 1 Plus. End users must come back

to the originating level 7 locksmith for keys.

Highlights of level 7:

§Dealer-owned side bit milling exclusivity based on the ﬁrst three digits of zip code

§Dealer can purchase products from any Schlage Primus XP authorized dealer

§Available to direct and indirect dealers

§Key blanks are not available to end users

§End user must purchase from originating dealer, sole-source relationship

Level

To set up a new dealer:

§Submit a Classic Primus XP Level 7

(and level 1+) signed agreement

§Have local SSC manager sign and

approve the agreement

§For dealers who are new to Primus,

submit purchase order of a total of

$7,500 (list) to cover both Classic

and Everest 29 Primus inventories

§For existing Primus dealers, submit

purchase order of a total of $5,000

(list) to cover both Classic and

Everest 29 Primus inventories

Re-ordering customers need to:

§Provider dealer ID and key section

with order

§Primus keys will always be drop-

shipped to dealer location

Schlage • Key systems, cylinders and keys reference guide • 21

Key control

Purchasing and distribution

Everest 29 Primus XP purchasing and distribution exclusivity

Time zone exclusivity

Direct and indirect dealers with aftermarket service and large locksmith companies buy in

for a side bit milling exclusive within a time zone. They sell product with this side bit milling

to their end user customers. Schlage assigns an ID number to the participating dealer. The

dealer must sign a key control contract that, among other things, prevents the dealer from

cutting keys bearing another dealer’s ID number.

The dealer then issues an ID card to each end user and veriﬁes orders for duplicate keys

against the signature panel on the card.

This is a sole source level similar to Classic Primus XP Level 2. End users must come back to

the originating Level 8 dealer for keys. The indirect dealers can purchase products from any

Schlage authorized distributor.

Highlights of level 8:

§Dealer-owned side bit milling exclusivity based on the time zone

§Dealer can purchase products from any Schlage Primus XP authorized dealer

§Available to direct and indirect dealers

§Key blanks are not available to end users

§End user must purchase from originating dealer sole-source relationship

Level

To set up a new dealer:

§Submit a Classic Primus XP Level 8

(and Level 2) signed agreement

§Have local SSC manager sign ad

approve the agreement

§For dealers new to Primus, submit

purchase order of a total of $25,000

(list) to cover both Classic and

Everest 29 Primus inventories

Re-ordering customers need to:

§Provide dealer ID and key section

with order

§Primus keys will always be drop-

shipped to dealer location

§For existing Primus dealers, submit a

purchase order of a total of $15,000

(list) to cover both Classic and

Everest 29 Primus inventories

22 • Schlage • Key systems, cylinders and keys reference guide

Key control

Purchasing and distribution

Everest 29 Primus XP purchasing and distribution exclusivity

End user exclusive

This level is for end users who may want to cut their own keys and/or must be able to obtain

competitive bids on subsequent additions to their Everest 29 Primus XP key system. Level 9 is

subdivided to provide varying degrees of side bit milling exclusivity, depending on the amount

of cylinders purchased.

Level 9 is comparable to Classic Primus XP Levels 3 and 4. Highlights of level 9:

§Side bit milling assigned to end user, not dealer, based upon commitment level

§End user is not tied to originating dealer, but can purchase from any Schlage authorized

Primus dealer

§Key blanks are available for end user only

§Face sheet is required for each subsequent order

§Available in Everest 29 S and Everest 29 T key sections

Level

To set up a new Primus account:

§Submit signed signature sheet

§Submit signed face sheet

§Submit an order with the above two

items

Re-ordering customers need to:

§Submit signed face sheet and specify

key section with order

Level 9U (universal)

End user buys fewer than 60 cylinders and may share a side bit milling with another small

end user in the same area.

Level 9G (geographical)

End users buys 60 cylinders or more; Schlage assigns a side bit milling exclusive within the

ﬁrst two digits of the end user’s zip code.

Level 9Z (time zone)

End users buys a minimum of 2,000 Primus XP cylinders over a two-year period or buys the

exclusivity outright; Schlage assigns a side bit milling exclusive within the end user’s time

zone. Inventory must be maintained over two years or pay a fee.

Level 9N (nationwide)

End user buys a minimum of 4,000 Primus XP cylinders over a two-year period or pays for

the exclusivity outright; Schlage assigns a nationwide exclusive side bit milling. The end

user is free to purchase Level 9 Primus XP products from any Schlage Primus XP dealer

nationwide, rather than being tied to a sole source dealer. All Level 9 key systems require a

Primus XP signature card to be submitted initially and a Primus XP Face Sheet to

accompany every order. Schlage’s Key Control Department veriﬁes the signature for each

Level 9 order.

Schlage • Key systems, cylinders and keys reference guide • 23

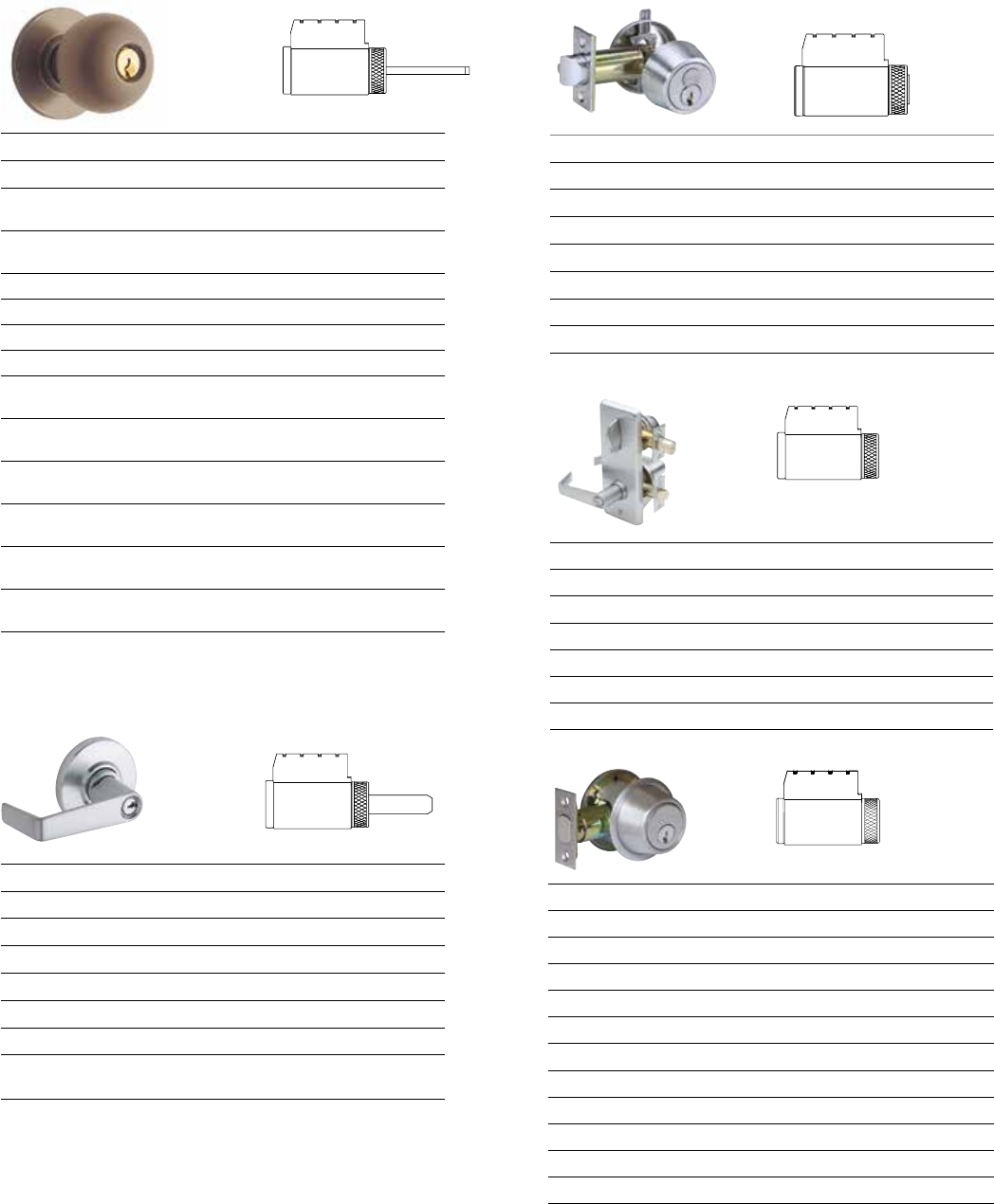

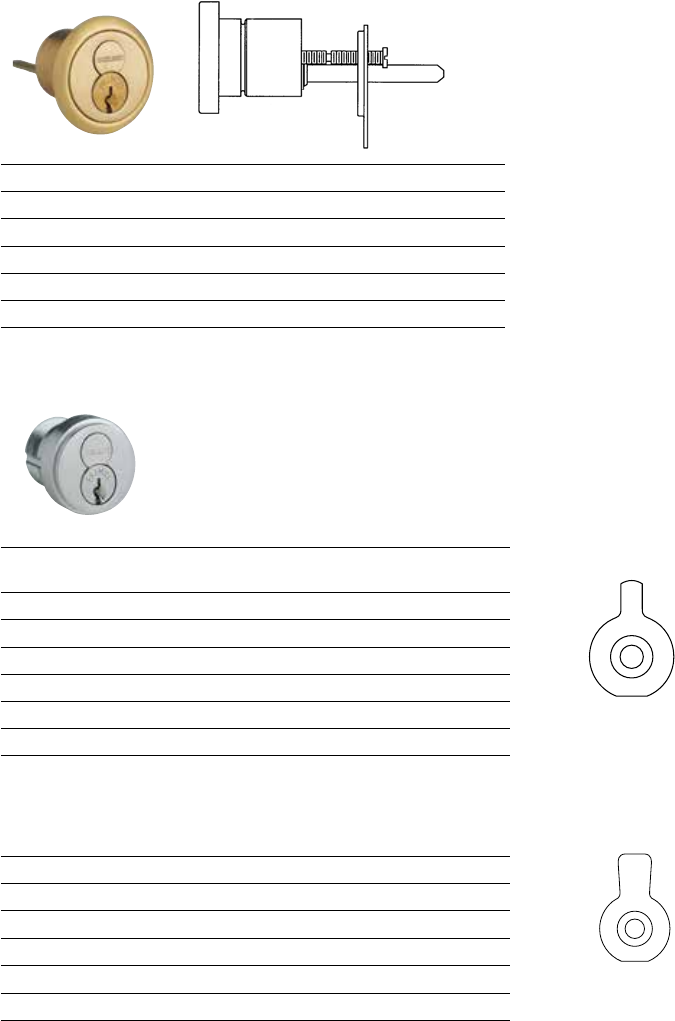

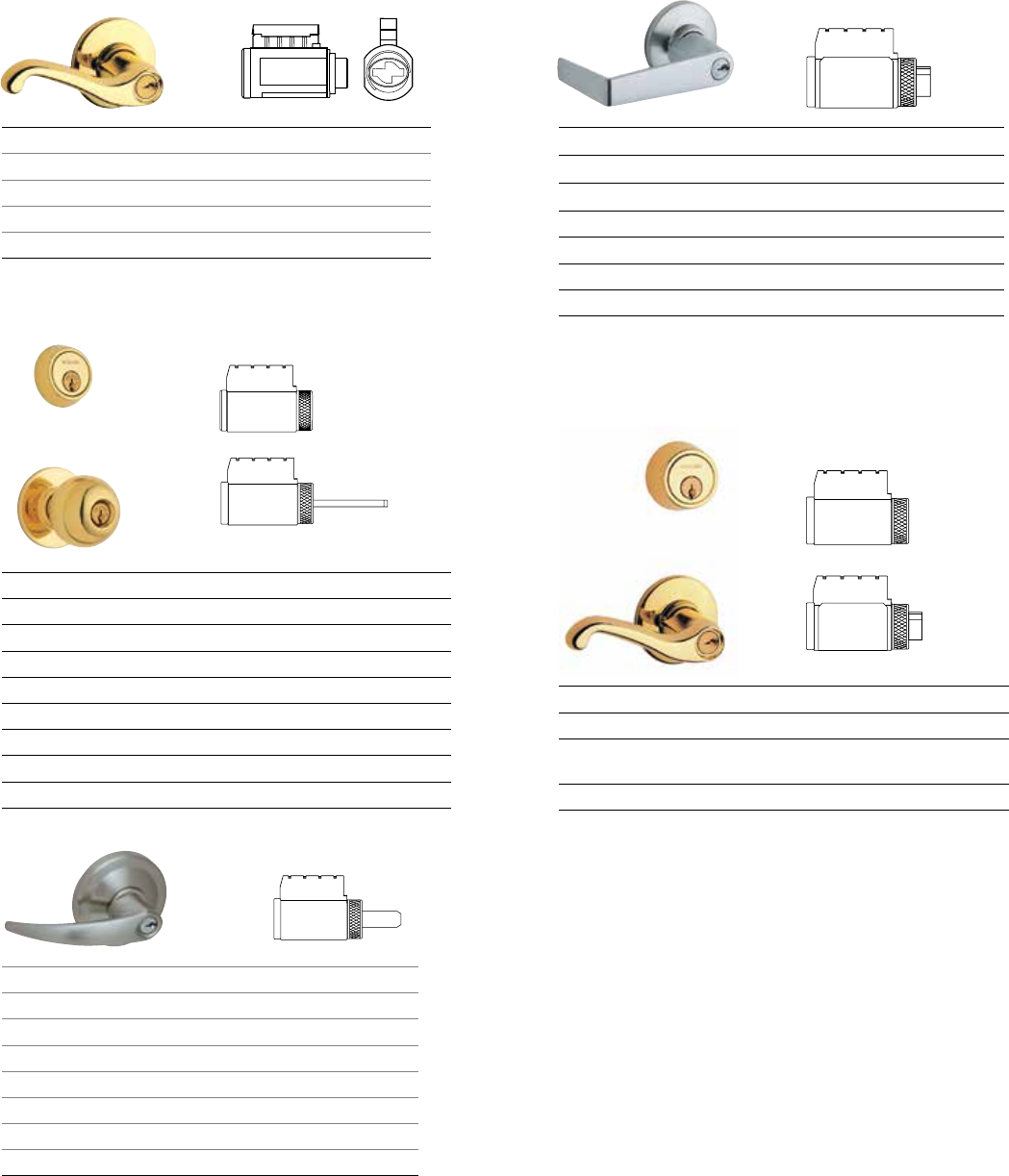

Cylinders

Cylinders for Schlage locksets

Cylinders for A Series knobs

Number Description

21-002 6-pin conventional cylinder

(standard, non-Orbit)

21-002-122 6-pin conventional cylinder

(standard, Orbit design only)

20-724 Primus cylinder, non-Orbit

20-724-XP Primus XP cylinder, non-Orbit

20-724-122 Primus cylinder, Orbit design only

20-724-122-XP Primus XP cylinder, Orbit design only

20-524 Primus UL437 Listed high security cylinder,

non-Orbit

20-524-XP Primus XP UL437 Listed high security cylinder,

non-Orbit

20-524-122 Primus UL437 Listed high security cylinder,

Orbit design only

20-524-122-XP Primus XP UL437 Listed high security cylinder,

Orbit design only

21-003 Conventional hotel function (A85) with

indicator, non-Orbit

21-003-168 Conventional hotel function (A85) with

indicator, Orbit only

Available in 606 and 626 ﬁnish only.

Cylinders for B500 Series - single cylinder deadbolts

Number Description Door thickness

22-003 Conventional 1

3⁄8" - 1 7⁄8"

22-004 Conventional > 1 7⁄8" - 2 1⁄4"

20-188 Primus 1

3⁄8" - 1 7⁄8"

20-188-XP Primus XP 1

3⁄8" - 1 7⁄8"

20-189 Primus > 1 7⁄8" - 2 1⁄4"

20-189-XP Primus XP > 1 7⁄8" - 2 1⁄4"

20-190 Primus UL 1

3⁄8" - 1 7⁄8"

20-190-XP Primus XP UL 1

3⁄8" - 1 7⁄8"

20-191 Primus UL > 1 7⁄8" - 2 1⁄4"

20-191-XP Primus XP UL > 1 7⁄8" - 2 1⁄4"

Available in 606 and 626 ﬁnish only.

Cylinders for AL Series levers

Number Description

21-020 6-Pin conventional cylinder (standard)

20-728 Primus cylinder

20-728-XP Primus XP cylinder

20-528 Primus UL437 Listed high security cylinder

20-528-XP Primus XP UL437 Listed high security cylinder

21-021 Conventional hotel function (AL85) with

occupancy indicator

Available in 606 and 626 ﬁnish only.

Deadbolt cylinders for S200 Series

Number Description

22-081 6-Pin conventional cylinder

24-769 Primus cylinder

24-769-XP Primus XP cylinder

24-569 Primus UL437 Listed high security cylinder

20-569-XP Primus XP UL437 Listed high security cylinder

Cylinders for B250 Series

Number Description

22-001 5-pin C, CE, E, F cylinders only

22-002 6-pin conventional cylinder

20-729 Primus cylinder

20-729-XP Primus XP cylinder

20-529 Primus UL437 Listed high security cylinder

20-529-XP Primus XP UL437 Listed high security cylinder

See B250-Series cylinders for

locks ordered before 03/08.

24 • Schlage • Key systems, cylinders and keys reference guide

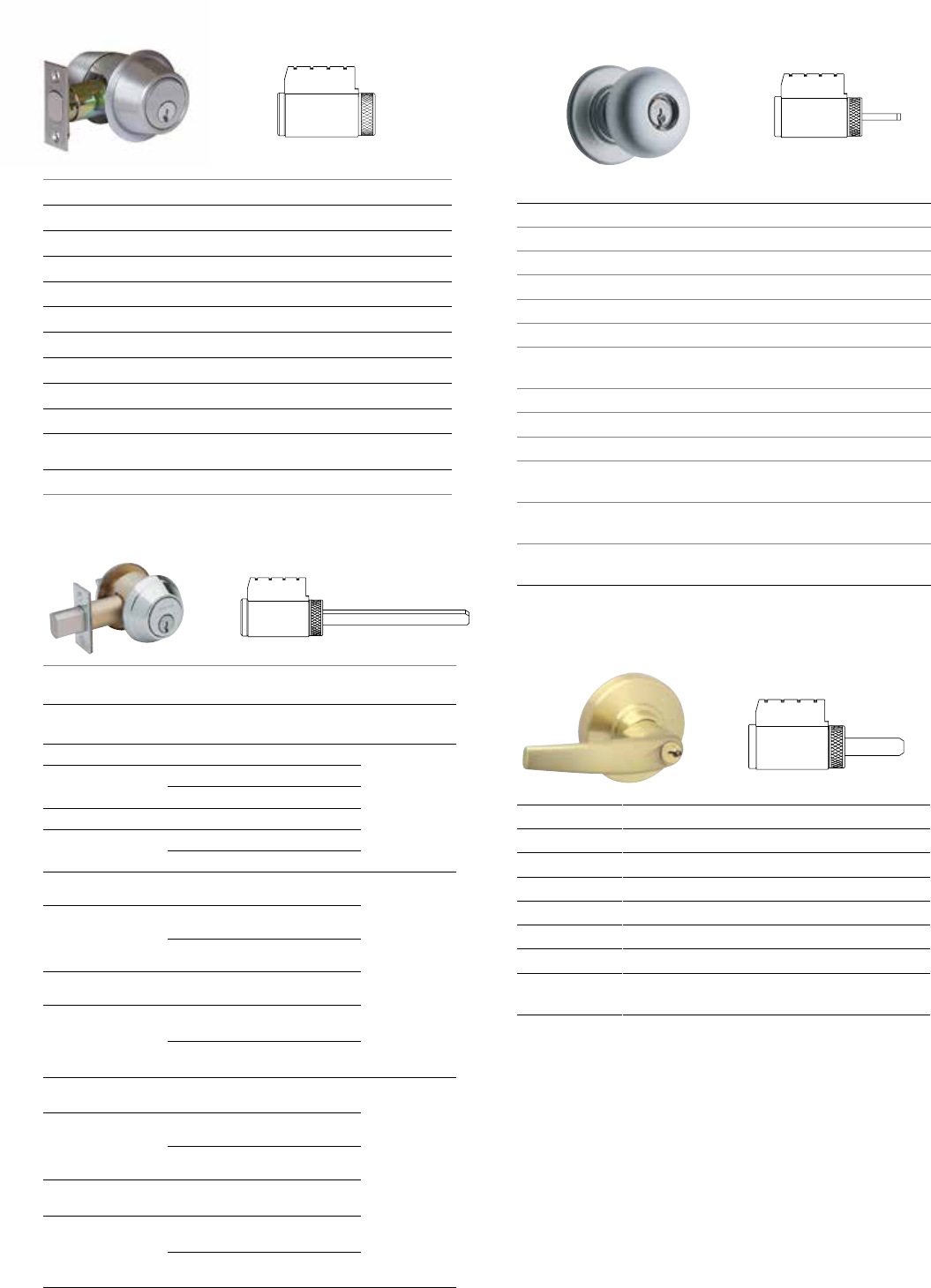

Cylinders for B600/700/800 Series deadlocks*

(housing not included)

Lockset

function

Cylinder

number

Door

thickness

Cylinder

mechanism

B660, B663 22-644 1

3⁄8" - 2 1⁄2"Conventional

B661, B664 22-642 1

3⁄8" - 2"

22-643 >2 - 2 1⁄2"

664 22-642 1

3⁄8" - 2 1⁄2"

B662*22-087 1

3⁄8" - 2"

22-088 >2 - 2 1⁄2"

B760, B760-XP

B763, B763-XP

20-744,

20-744-XP

1 3⁄8" - 2 1⁄2"Primus/

Primus XP

B761, B761-XP 20-742,

20-742-XP

3⁄8" - 2"

20-743,

20-743-XP

>2 - 2 1⁄2"

B764, B764-XP 20-742,

20-742-XP

3⁄8" - 2 1⁄2"

B762*

, B762-XP*20-745,

20-745-XP

3⁄8" - 2"

20-746,

20-746-XP

> 2 - 2 1⁄2"

B860, B860-XP

B863, B863-XP

20-544,

20-544-XP

3⁄8" - 2 1⁄2"Primus/

Primus XP

UL437 Listed

B861, B861-XP 20-542,

20-542-XP

3⁄8" - 2"

20-543,

20-543-XP

>2 - 2 1⁄2"

B864, B864-XP 20-542,

20-542-XP

3⁄8" - 2 1⁄2"

B862*

, B862-XP*20-545,

20-545-XP

3⁄8" - 2"

20-546,

20-546-XP

>2 - 2 1⁄2"

Available in 606 and 626 ﬁnish only.

*Part numbers for double-sided deadbolts represent one cylinder only.

Cylinders for D Series knobs

Number Description

23-001 6-pin conventional cylinder (standard)

20-748 Primus cylinder

20-748-XP Primus XP cylinder

20-548 Primus UL437 Listed high security cylinder

20-548-XP Primus XP UL437 Listed high security cylinder

23-003 Conventional hotel function (D85) with

occupancy indicator

21-002 6-pin conventional cylinder, 2" - 2 1⁄2" thick door

20-724 Primus cylinder, 2" - 2 1⁄2" thick door

20-724-XP Primus XP cylinder, 2" - 2 1⁄2" thick door

20-524 Primus UL437 Listed high security cylinder,

2" - 2 1⁄2" door

20-524-XP Primus XP UL437 Listed high security cylinder,

2" - 2 1⁄2" door

23-003-098 Conventional hotel function (D85) w/indicator,

2" - 2 1⁄2" door

Available in 606 and 626 ﬁnish only.

Cylinders for D Series levers (old style)

Number Description

23-013 6-pin conventional cylinder (standard)

20-750 Primus cylinder

20-750-XP Primus XP cylinder

20-550 Primus UL437 Listed high security cylinder

20-550-XP Primus XP UL437 Listed high security cylinder

23-014 Conventional hotel function (D85) with

occupancy indicator

Available in 606 and 626 ﬁnish only.

Cylinders for B500 Series - double cylinder deadbolts

Number Description Door thickness

22-645 Conventional 1 3⁄8" - 17⁄8"

22-646 Conventional > 17⁄8" - 21⁄4"

20-745 Primus 13⁄8" - 17⁄8"

20-745-XP Primus XP 13⁄8" - 17⁄8"

20-746 Primus > 17⁄8" - 21⁄4"

20-746-XP Primus XP > 17⁄8" - 21⁄4"

20-545 Primus UL 13⁄8" - 17⁄8"

20-545-XP Primus XP UL 13⁄8" - 17⁄8"

20-546 Primus UL > 17⁄8" - 21⁄4"

20-546-XP Primus XP UL > 17⁄8" - 21⁄4"

Cylinder itself available in 606 and 626 ﬁnish only. Housing is available in

B250, H, and S200 Series ﬁnishes.

Deadlocks*

(Housing not included)

Schlage • Key systems, cylinders and keys reference guide • 25

Cylinders for F Series knobs and levers

Number Description

29-016 Bell, Georgian and Plymouth knobs

29-017 Orbit knob

29-018 Accent and Flair levers

Available in 429 (to match 626) and 430 (to match 606) ﬁnish.

5-pin C keyway only. Cylinder plug and shell are zinc.

Cylinders for S Series levers

Number Description

21-059 Conventional cylinder

20-752 Primus cylinder

20-752-XP Primus XP cylinder

20-552 Primus UL437 Listed high security cylinder only

20-552-XP Primus XP UL437 Listed high security cylinder only

Available in 606 and 626 ﬁnish. Cylinders include S605-192.

Cylinders purchased after 8/08 do not have a cylinder sleeve included.

Note: Use S605-192 sleeve on locks manufactured prior to Sept 2008.

Cylinders for H Series interconnected locksets

Number Description

22-001 5-pin C, CE, E, F only

22-002 6-pin Conventional

20-729 Primus

20-729-XP Primus XP

20-529 Primus UL437

20-529-XP Primus XP UL437

Bottom cylinder (knob) See A Series knob cylinder table

Cylinders for S200 Series interconnected locksets

Description Cylinder

Top cylinder (deadlock) See S200 Series deadlock cylinder

table

Bottom cylinder (lever) See S Series lever cylinder table

Cylinders for ND Series locksets

Number Description

23-065 6-pin conventional cylinder (standard)

20-765 Primus cylinder

20-765-XP Primus XP cylinder

20-565 Primus UL437 Listed high security cylinder

20-565-XP Primus XP UL437 Listed high security cylinder

23-000 Hotel function (conventional cylinder)

Cylinders

Cylinders for Schlage locksets

26 • Schlage • Key systems, cylinders and keys reference guide

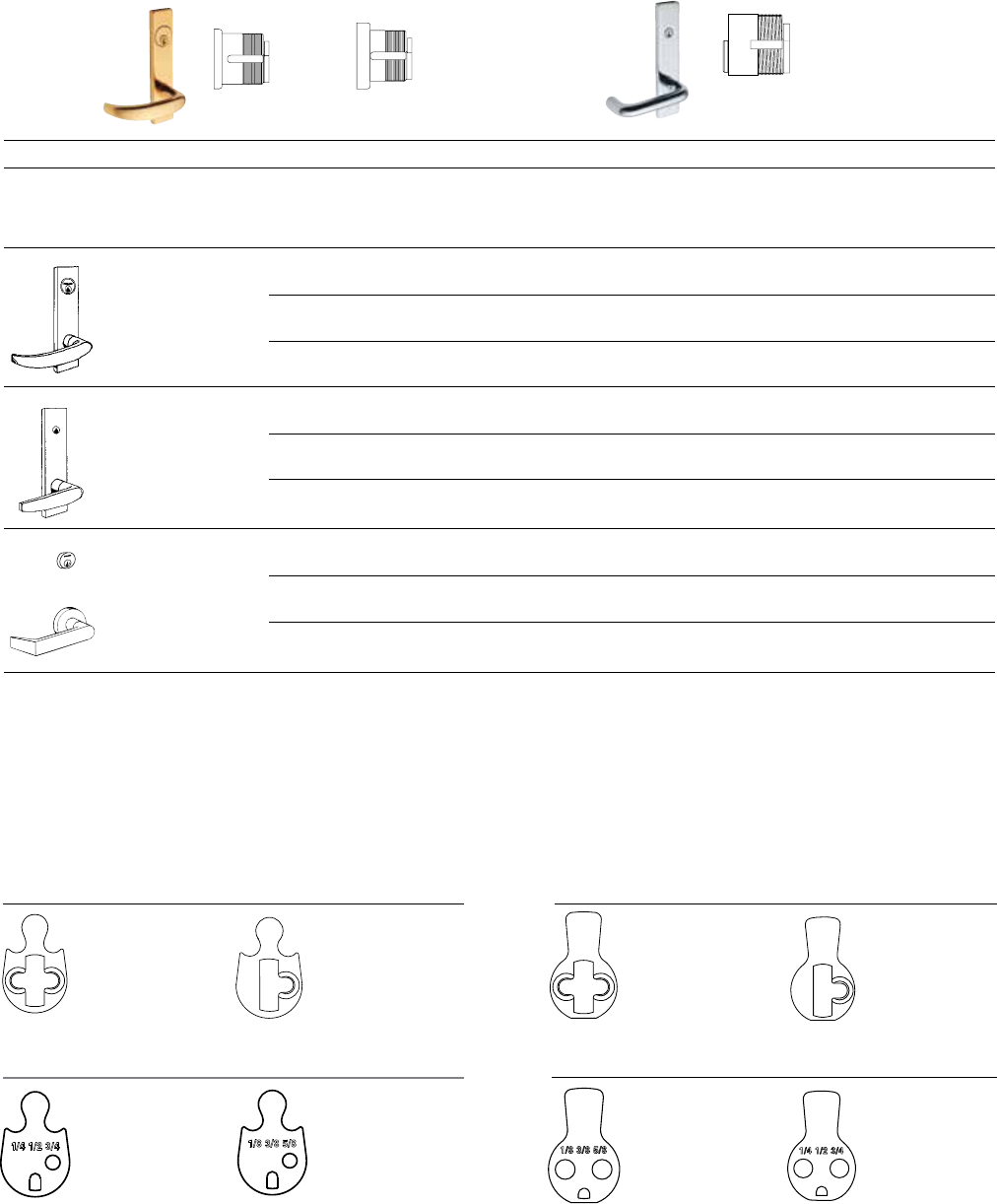

Cylinder Only Cylinder with Compression Ring & Spring

Cylinder only Compr. ring and spring

Blocking rings

Concealed shell cylinder

Cylinder mechanism

Design Function Conventional Primus/

Primus XP

Primus

UL437/

Primus XP

UL437

Primus XP

lockout

Primus XP

UL437

lockout

L and N

Escutcheons

(cylinders and

spring only)

All except below 30-021 20-793/

20-793-XP

20-593/

20-593-XP 20-717** 20-517**

L9060P outside 26-021 20-701/

20-701-XP

20-501/

20-501-XP 20-715** 20-515**

L9485, L9486

Hotel functions 30-022*N/A N/A N/A N/A

L escutcheon

with concealed

shell cylinder

(C sux)

All except below 30-004 20-789/

20-789-XP

20-589/

20-589-XP N/A N/A

L9060P outside 26-023 24-767/

24-767-XP

24-567/

24-567-XP N/A N/A

L9485, L9486

Hotel functions 30-005*N/A N/A N/A N/A

Sectional trim

(cylinder with

compression ring

& spring)

All except below 30-001 20-787/

20-787-XP

20-587/

20-587-XP 20-715 20-517

L9060P outside 20-001 20-700/

20-700-XP

20-500/

20-500-XP 20-715 20-515

L9485, L9486

Hotel Functions 30-002*N/A N/A N/A N/A

* Specify door hand for hotel function cylinders.

** Discard compression ring for Lockout cylinders with escutcheon trim.

Notes 1. Available in 605, 606, 609, 612, 613, 625, 626, 629, and 643E ﬁnish. Concealed shell cylinders available in 606 and 626 only.

2. To dierentiate between Classic and Everest 29, specify keyway. Example: C or CP (Classic), S123 (Everest 29). Everest 29 S123 keyway standard.

3. 1

1⁄8" length standard. Optional lengths available in 1⁄8" (4mm) increments up to 1 3⁄4" (44mm).

4. To order less Schlage logo, specify with K510-612 faceplate.

5. Lockout keys must be ordered separately and lockout cylinders will not be master keyed by Schlage.

6. Specify LKB if 0-bitted Primus XP cylinders are required less key blanks.

Cam for all functions except L9060 outside

Modular cylinder cams

L583-254

Classic conventional

prior to July 2010

L583-475

Modular cylinder

L583-153

Everest 29 &

Primus XP

prior to July 2010

L583-474

Modular cylinder

Cam for L9060 outside

Modular cam for L9060 outside

B502-191

Classic conventional

prior to July 2010

L583-476

Modular cylinder

B502-948

Everest 29 &

Primus XP

prior to July 2010

L583-477

Modular cylinder

L583-476 is for cylinders 1 1⁄8", 1 3⁄8" & 1 5⁄8". L583-477 is for

cylinders 1 1⁄4", 1 1⁄2" & 1 3⁄4".

Modular cams are used for all cylinders made after Aug 2010, whether

Classic, Everest 29 or Primus. L583-474 is used on cylinders 1 1⁄8", 1 3⁄8"

and 1 5⁄8". L583-475 is used on cylinders 1 1⁄4", 1 1⁄2" & 1 3⁄4".

Cylinders

Cylinders for Schlage L Series mortise locksets

Cylinder Only Cylinder with Compression Ring & Spring

Schlage • Key systems, cylinders and keys reference guide • 27

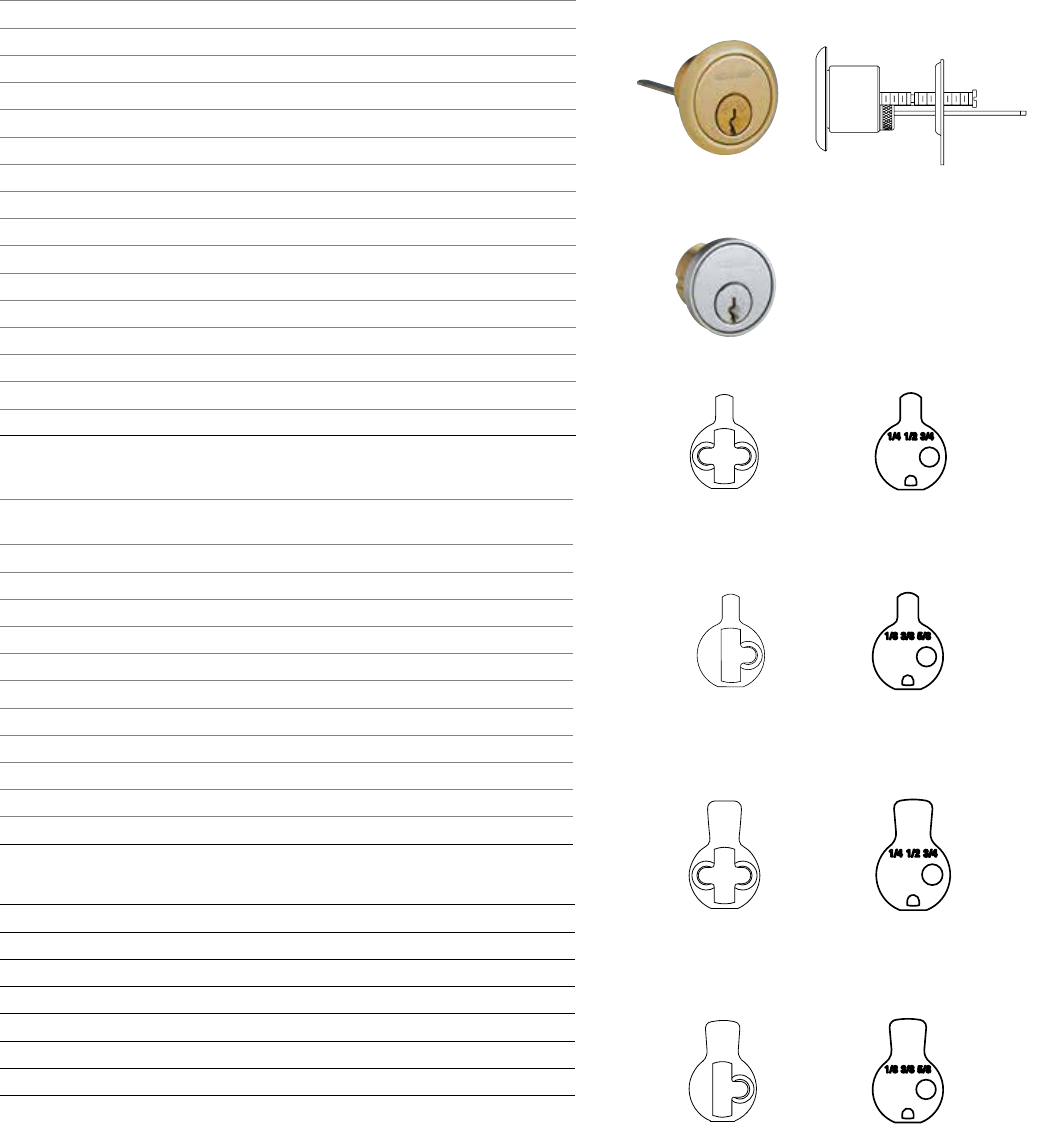

Rim cylinders

Number Description Tail piece

20-022 Conventional cylinder Horizontal

20-021 Conventional cylinder Vertical

20-710 Primus cylinder Horizontal

20-710-XP Primus XP cylinder Horizontal

20-709 Primus cylinder Vertical

20-709-XP Primus XP cylinder Vertical

20-716 Primus lockout cylinder Horizontal

20-716-XP Primus XP lockout cylinder Horizontal

20-510 Primus UL437 Listed cylinder Horizontal

20-510-XP Primus XP UL437 Listed cylinder Horizontal

20-509 Primus UL437 Listed cylinder Vertical

20-509-XP Primus XP UL437 Listed cylinder Vertical

20-516 Primus UL437 Listed lockout cylinder Horizontal

20-516-XP Primus XP UL437 Listed lockout cylinder Horizontal

Available in 605, 606, 609, 612, 613, 619, 625 and 626 ﬁnish.

Cylinders for Adams Rite MS 4500 and 4700 Series

Lori 4500 Series and Corbin Russwin DL3000 Series

Number Description

26-072 Conventional cylinder only

20-013 Conventional cylinder with 3⁄8" blocking ring

20-706 Primus cylinder with 3⁄8" blocking ring

20-706-XP Primus XP cylinder with 3⁄8" blocking ring

20-506 Primus UL437 Listed cylinder with 3⁄8" blocking ring

20-506-XP Primus XP UL437 Listed cylinder with 3⁄8" blocking ring

20-718 Primus lockout cylinder

20-718-XP Primus XP lockout cylinder

20-518 Primus UL437 Listed lockout cylinder

20-518-XP Primus XP UL437 Listed lockout cylinder

These cylinders include set screw pack B220-050 for Adams Rite locks.

Cylinders for Adams Rite 4070 Series

Number Description

26-073 Conventional cylinder only

20-708 Primus cylinder only

20-708-XP Primus XP cylinder only

20-508 Primus UL437 Listed cylinder only

20-508-XP Primus XP UL437 Listed cylinder only

Notes 1. Mortise cylinders available in 605, 606, 609, 612, 613, 619, 625, 626, 629, and 643E ﬁnish.

2. To dierentiate between Classic and Everest 29, specify keyway. Example: C or CP

(Classic), S123 (Everest 29). Everest 29 S123 keyway standard.

3. 1

1⁄8" length standard. Optional lengths available in 1⁄8" (4mm) increments up to 1 3⁄4"

(44mm).

4. To order less Schlage logo, specify with K510-612 faceplate.

5. Lockout keys must be ordered separately and lockout cylinders will not be master

keyed by Schlage.

6. Specify LKB if 0-bitted Primus XP cylinders are required less key blanks.

7. Plugs and FSIC cores available in 606 and 626 only.

B502-292

Cam for classic

conventional prior to

July 2010

B502-944

Cam for Everest 29

& Primus XP

prior to July 2010

L583-447

Modular cam

L520-744

Modular Cam

L583-446

Modular cam

L520-743

Modular Cam

B502-380

Cam for classic

conventional

prior to July 2010

B502-945

Cam for Everest 29

& Primus XP

prior to July 2010

Cylinders

Cylinders for exit devices, aluminum door, etc.

28 • Schlage • Key systems, cylinders and keys reference guide

Application Bolt

Complete lock Cylinder only

Conventional Primus/

Primus XP

Primus/

Primus XP UL

Conventional Primus XP Primus UL

Door 1" (std) CL100PB CL174PB

CL174PB-XP

CL154PB

CL154PB-XP

20-172 20-772XP 20-572

Drawer 3⁄4" (std) CL200PB CL274PB CL254PB 20-174 20-774XP 20-574

Available in 605 and 626 ﬁnish. Everest 29 S123 keyway standard.

Door Drawer

CL Series cabinet locks

CL100 CL200

KS Series padlocks

Part #

Shackle dimensions Cylinder only

A B C Conventional Primus/Primus XP Primus UL/ Primus XP UL

BRASS BODY

KS23D2200 5⁄16"1 1⁄2"3⁄4"47-410 47-740/47-740-XP 47-540/47-540-XP

KS23F2200 5⁄16"2" 3⁄4"47-410 47-740/47-740-XP 47-540/47-540-XP

KS43D2200 3⁄8"1 1⁄2"3⁄4"47-410 47-740/47-740-XP 47-540/47-540-XP

KS43F2200 3⁄8"2" 3⁄4"47-410 47-740/47-740-XP 47-540/47-540-XP

Available in 606 ﬁnish only. Everest S123 keyway standard.

Locking cables

Part # Length Diameter

Less cylinder - key in knob

Locking cables

KC215A230 2' 5⁄8"

KC215B230 4' 5⁄8"

KC215E230 6' 5⁄8"

KC220E230 6' 3⁄4"KC Series

Cylinders

KS43F

Schlage • Key systems, cylinders and keys reference guide • 29

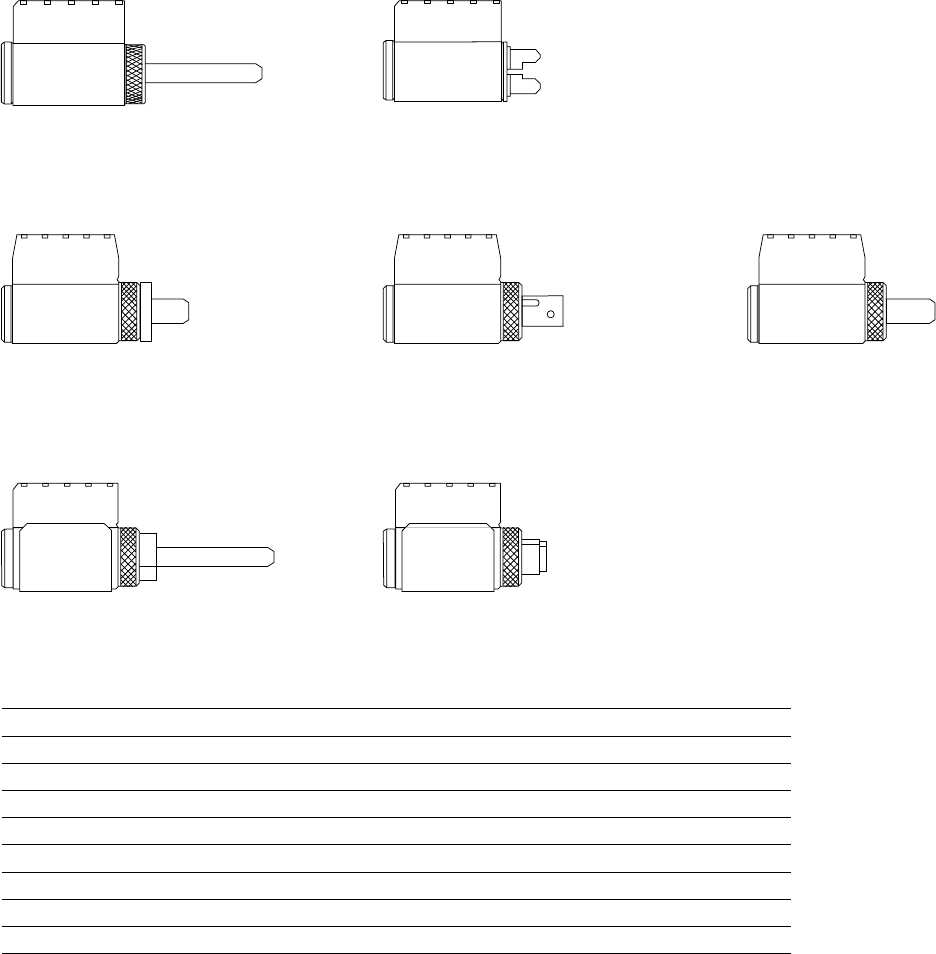

Corbin Russwin CL3400, CL3600 Series

Sargent 7L, 8L, 10 line levers

Corbin Russwin CK4200, UT5200 Series

Sargent 7, 8, 9 line knobs Sargent 6 line (except B knobs)

Yale 5300LN, 5400LN, 6400LN levers Yale 5300, 5400, 6200 knobs

Cylinder Primus/Primus XP Primus UL/Primus XP UL Description

24-022 20-762,20-762-XP 20-562, 20-562-XP Corbin Russwin CL3300

24-139 20-739, 20-739-XP 20-539, 20-539-XP Corbin Russwin CL3400, CL3600

24-127 20-727, 20-727-XP 20-527, 20-527-XP Corbin Russwin CK4200, UT5200

24-126 20-726, 20-726-XP 20-526, 20-526-XP Sargent 6 line (except B knobs)

24-120 20-720, 20-720-XP 20-520, 20-520-XP Sargent 7, 8, 9 line knobs

24-119 20-719, 20-719-XP 20-519, 20-519-XP Sargent 7L, 10, 65 line levers

24-123 20-723, 20-723-XP 20-523, 20-523-XP Yale 5300, 5400, 6200 knobs

24-147 20-747, 20-747-XP 20-547, 20-547-XP Yale 5300LN, 5400LN, 6400LN levers

Other manufacturers’ registered trade names are for identiﬁcation and reference only.

Cylinders

Cylinders for other manufacturers’ products

30 • Schlage • Key systems, cylinders and keys reference guide

1. Small format (SFIC) 2. Full size (FSIC)

Full size interchangeable core (FSIC) availability

A full size interchangeable core (FSIC) is usually manufacturer speciﬁc and cannot interchange with other cores.

A Series

Orbit design

AL Series

Saturn design

Jupiter design

Neptune design

B250 Series B500 Series

B600 / 700 Series D Series knob

Orbit design

ND Series lever

all designs

H Series knob

Orbit design

L Series

all designs

except concealed

S Series

all designs

except Flair

CS210 S200 Series

all designs for S210

All except Flair for

other functions

Cores

What is an interchangeable core?

An interchangeable core looks like a ﬁgure 8 and is easily

removed with a control key. It is best suited for larger

commercial key systems where it is time consuming to

perform a traditional cylinder change (exit devices, certain

types of all-glass doors, etc.) FSIC allows fast re-keying and

can be integrated into an existing key system, or built into a

new key system to allow for future growth. Common

applications include hospitals, universities, large oce

complexes and ﬁnancial institutions. There are two types of

cores: Small Format Interchangeable Core (SFIC) and Full

Size Interchangeable Core(FSIC).

Schlage • Key systems, cylinders and keys reference guide • 31

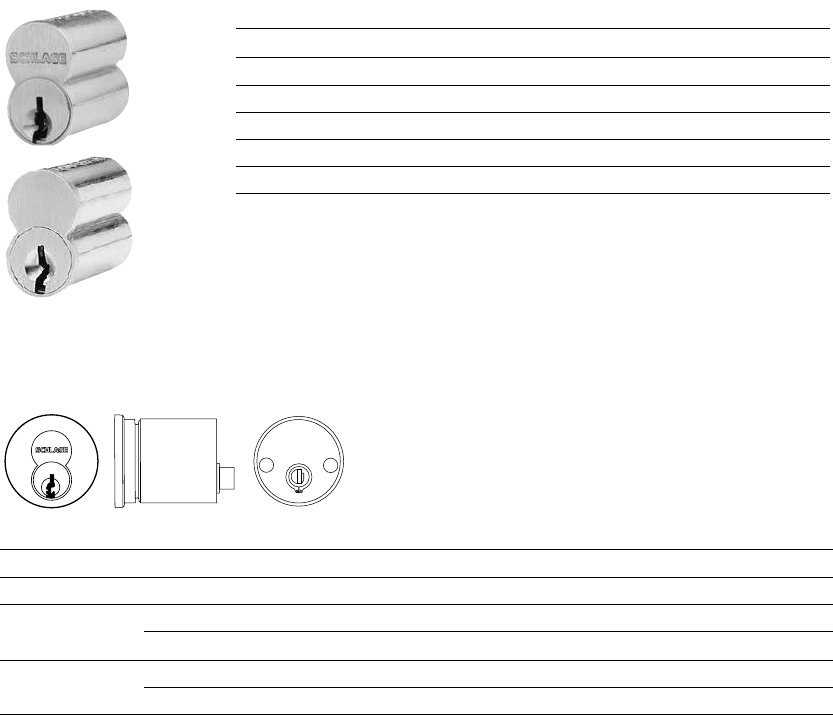

Full size core only

Number Mechanism

23-030 Conventional core

23-031 Conventional core, less logo

30-120 Conventional core for hotel function (specify hand)

30-121 Hotel function conventional core, less logo

20-740 Primus core

20-741 Primus Core, less logo

20-740-XP Primus XP core (not available in hotel function)

20-741-XP Primus XP core, less logo

Available in 606 and 626 ﬁnish only. Order control keys separately.

Full size interchangeable core padlocks

Part # Shackle dimensions

A B C

Less cylinder - full size interchangeable core

Brass body

KS43D3200 3⁄8"1 1⁄2"3⁄4"

KS43F3200 3⁄8"2" 3⁄4"

KS43F

Full size IC housings for bored deadlocks, less core

Lockset series Description Number Specify ﬁnish

B500-Series Outside B610-203 (single)

B610-205 (double)

605, 606, 609,

612, 613, 619, 625,

626, and 643e

Inside B610-028** See note below

B250 Outside 22-061 605, 606, 609,

613, 625, 626

Inside of B252 22-062

H, S200-Series Outside 5306-135 605, 606, 609,

612, 613, 625, 626

B600 /

700-Series

Outside B610-203 (single)

B610-205 (double)

605, 606, 609,

612, 613, 619, 625,

626, 643e

Inside B610-028 See note below

Specify ﬁnish of B610-031 inside snap-on faceplate ordered separately for B662/762, and

B562.

**Inside housing does not include snap-on faceplate.

Cores

Full size interchangeable core

cylinders for Schlage locksets

32 • Schlage • Key systems, cylinders and keys reference guide

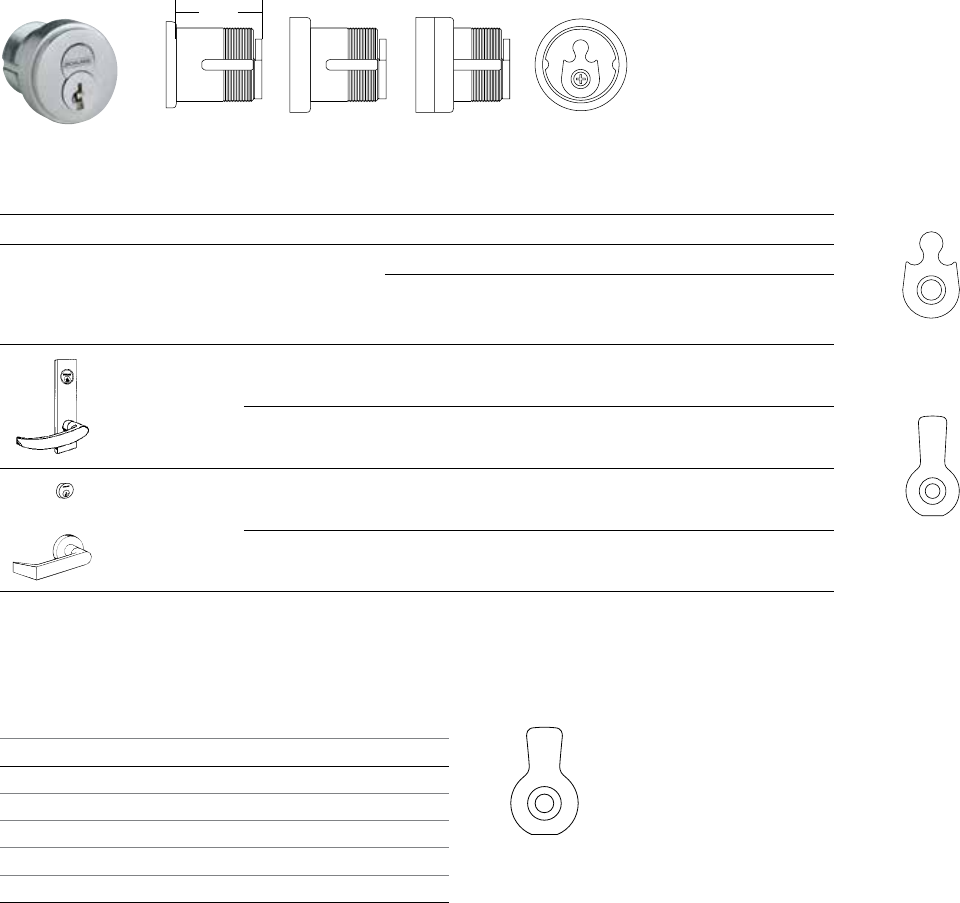

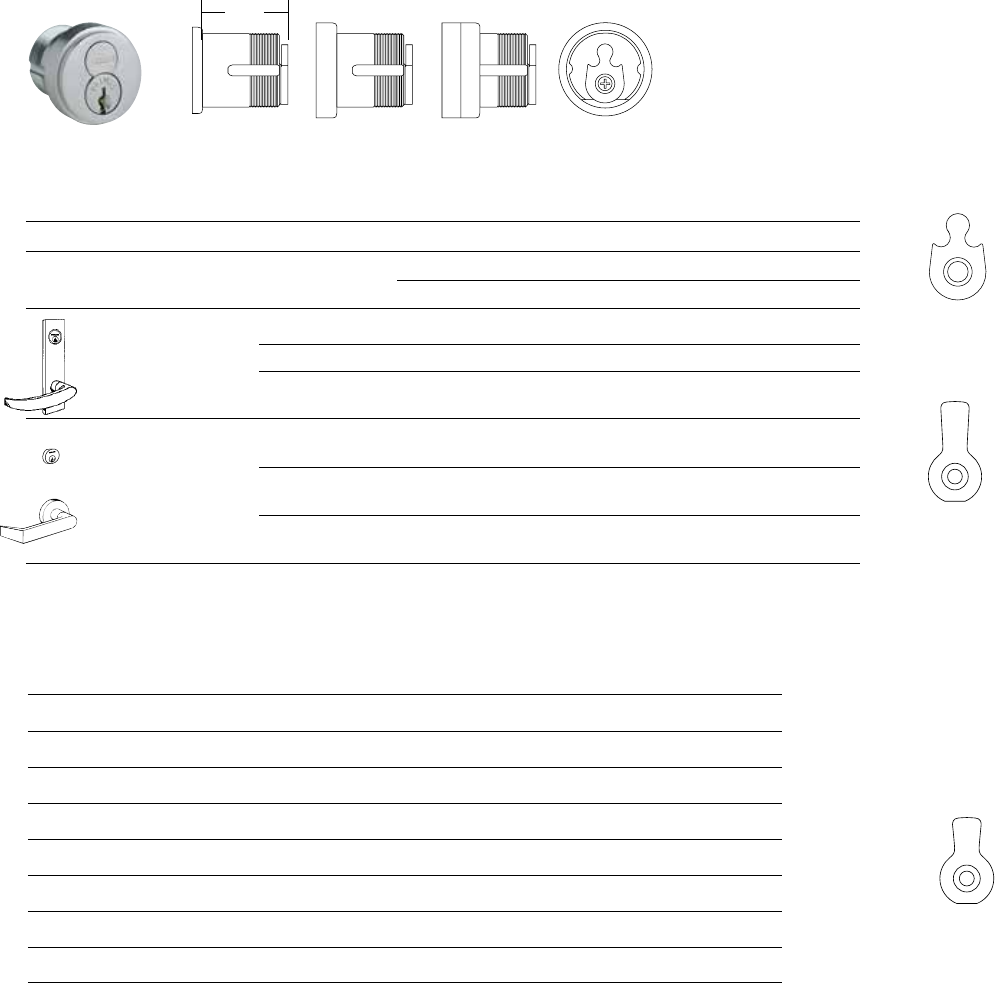

Cylinders for Schlage L Series mortise locks

Design Function Core mechanism

Conventional Primus, Primus XP Housing less core

L & N

escutcheons

(cylinders with

compression ring)

All except below 30-008 20-798, 20-798-XP 30-007

L9060 outside 30-030 20-782, 20-782-XP 30-032 + 36-083

L9485, L9486

hotel functions 30-010*N/A 30-007

Sectional trim

(cylinder with

compression ring,

spring and 3⁄8"

blocking ring).

9060 requires

1⁄2" blocking ring.

All except below 30-138 20-776, 20-776-XP 30-137

L9060 outside 30-030 + 36-083 +

35-082-030 20-783, 20-783-XP 30-032 + 36-083 +

36-082-050

L9485, L9486

hotel functions 30-140* N/A 30-137

* Hotel function cores are handed. Specify hand of door.

Cylinder Only Compr. Ring & Spring With Blocking Ring

Mortise cylinders with straight cam for exit devices

Number Core mechanism Collar

26-091 Conventional core Compression ring & spring

20-061 Conventional core 3⁄8" blocking rings + compression ring & spring

20-763, 20-763-XP Primus/Primus XP core Compression ring & spring

20-771, 20-771-XP Primus/Primus XP core 3⁄8" blocking rings + compression ring & spring

20-059 Housing less core None

26-064 Housing less core Compression ring & spring

Notes 1. Available in 605, 606, 609, 612, 613, 619, 625, 626, and 643e ﬁnish. Cores furnished 606 and 626 only.

2. To dierentiate between Classic and Everest 29, specify keyway. Example: C or CP (Classic), S123 (Everest 29).

Everest 29 S123 keyway standard.

3. All cylinders are 1 1⁄2" long.

4. Specify LKB if 0-bitted Primus XP cylinders are required less key blanks.

L583-255

Cam for all functions

Except L9060 outside

K510-680

Cam for

L9060 outside

K510-730

Straight cam,

other applications

Cores

Full size interchangeable core

mortise cylinders

11⁄2"

Schlage • Key systems, cylinders and keys reference guide • 33

Cylinders for Adams Rite 4070 Series deadlocks

Number Core mechanism Collar

20-091 Conventional core 3⁄16" + 3⁄8" blocking rings

20-722 Primus core 3⁄16" + 3⁄8" blocking rings

20-722-XP Primus XP core 3⁄16" + 3⁄8" blocking rings

20-090 Housing less core None

Interchangeable core rim cylinders for exit devices

Number Core mechanism

20-057 Conventional core

20-757 Primus core

20-757-XP Primus XP core

20-079 Housing only, less core

Available in 605, 606, 609, 612, 613, 619, 625, 626, and 643e ﬁnish.

Cylinders for Adams Rite MS and 4700 Series

Lori 4500 Series and Corbin Russwin DL3000 Series

Number Core mechanism Collar

26-098 Conventional core Compression ring & spring

20-062 Conventional core 3⁄16" + 3⁄8" blocking rings

20-766 Primus core 3⁄16" + 3⁄8" blocking rings

20-766-XP Primus XP core 3⁄16" + 3⁄8" blocking rings

20-060 Housing less core None

These cylinders include set screw pack B220-050 for Adams Rite locks.

K510-711

Adams Rite

MS cam

B520-378

Adams Rite

4070 cam

Notes 1. Mortise cylinders available 605, 606, 609, 612, 613, 619, 625, 626, and 643e ﬁnish. Cores furnished 606 and 626 only.

2. To dierentiate between Classic and Everest 29, specify keyway. Example: C or CP (Classic), S123 (Everest 29).

3. All cylinders are 1 1⁄2" long.

4. Specify LKB if 0-bitted Primus XP cylinders are required less key blanks.

Cores

Full size interchangeable core cylinders

for exit devices, aluminum door, etc.

34 • Schlage • Key systems, cylinders and keys reference guide

AL Series

Saturn design

Jupiter design

Neptune design

ND Series lever

all designs

B500 Series B600 / 700 Series

L9000 Series

all designs except

concealed

KC215 Series

A small format interchangeable core (SFIC) has a

universal design and can replace any other SFIC.

Cores

Small format interchangeable core (SFIC) availability

Schlage • Key systems, cylinders and keys reference guide • 35

Small format core only

Number Mechanism

80-036 7-pin Everest 29 R family restricted keyway core uncombinated

80-037 7-pin Everest 29 R family restricted keyway core combinated

80-043 6-pin best keyway core, uncombinated

80-033 7-pin best keyway core, uncombinated

Notes 1. Available in 606, 613 and 626 ﬁnish only. 80-043 and 80-033 available in 606 and 626 only.

2. Sux keyway, e.g. 80-036 B235, 80-043 AB, etc.

3. Proper authorization required for Everest 29 cores. Order control keys separately.

4. 80-043 and 80-033 available in Best A, D, E, F, G, H, J, K, L and M keyways. Sux “B”

to keyway letter, e.g. AB, DB, etc.

1/4-28 Bolts

Small format IC housings for commercial deadlocks, less core

Lockset series Description Number Specify ﬁnish

B500-Series

Outside B610-204 605, 606, 609, 612, 613, 625, and 626

Inside B610-281** See note below

B600-Series Outside B610-204 605, 609, 612, 613, 619, 625, 626, and 643e

Inside B610-281 See note below

Tailpieces not included.

Specify ﬁnish of B610-014 snap-on faceplate ordered separately for inside of B562 and B662.

**Inside housing does not include snap-on faceplate.

Cores

Small format interchangeable core cylinders

for Schlage locksets

36 • Schlage • Key systems, cylinders and keys reference guide

Cylinders for Schlage L Series mortise locks

Design Function

Core mechanism

Everest 29

restricted

(GD sux)

Keyed

construction

(HD sux)

Disposable

construction

(BDC sux)

Housing

less core

(BD sux)

L & N

escutcheons

(cylinders with

compression ring

and spring)

All except

L9060 outside 80-308 80-138 80-115 80-108

L9060 outside 80-304 80-134 80-112 80-104

Sectional trim

(cylinder with

compression ring,

spring and 1⁄4"

blocking ring).

All except

L9060 outside 80-301 80-131 80-109 80-101

L9060 outside 80-304 +

36-082-050

80-134

36-082-050

80-112

36-082-050

80-104

36-082-050

Notes 1. Available in 605, 606, 609, 612, 613, 619, 625, and 626 ﬁnish. Cores furnished 606 and 626 only.

2. All cylinders are 1 3⁄8" long.

Cylinder Only Compr. Ring & Spring With Blocking Ring

L583-255

Cam for all functions

Except L9060 outside

K510-680

Cam for

L9060 outside

Mortise cylinders with straight cam for exit devices

Number Core type

80-302 Everest 29 restricted core

80-110 Disposable constr. core

80-132 Keyed constr. core

80-102 Housing less core

Furnished with compression ring, spring and 1⁄4" blocking ring.

Notes 1. Available in 605, 606, 612, 613, 629, 625, and 626 ﬁnish.

Cores furnished 606 and 626 only.

2. All cylinders are 1 3⁄8" long.

K510-730

Straight cam,

other applications

Cores

Small format interchangeable core mortise cylinders

11⁄2"

Schlage • Key systems, cylinders and keys reference guide • 37

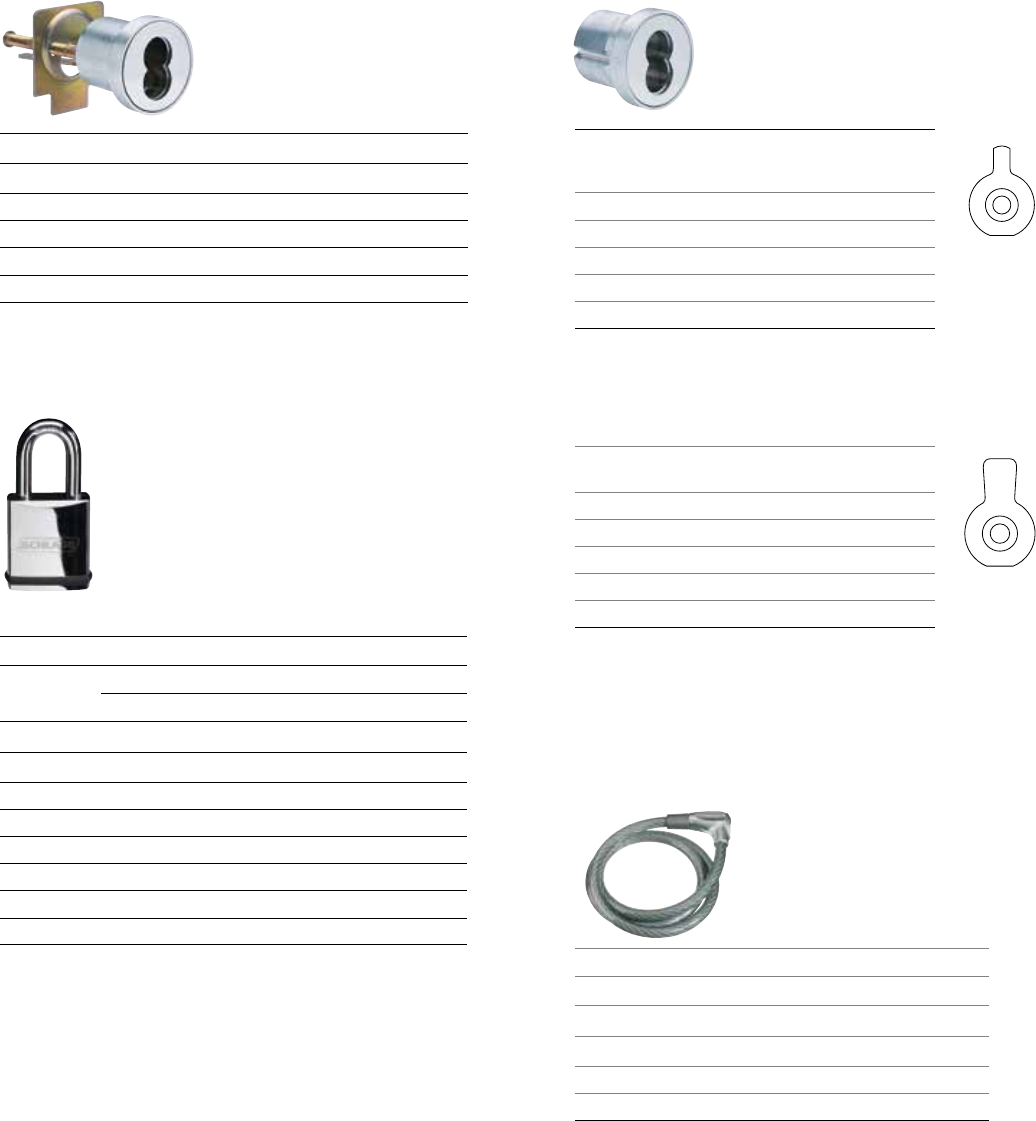

Interchangeable core rim cylinders for exit devices

Number Core mechanism

80-329 Everest 29 restricted keyway core

80-159 Keyed construction core

80-116 Disposable construction core

80-129 Less core

Available in 605, 606, 609, 612, 613, 619, 625 and 626 ﬁnish.

Mortise cylinders with straight

cam for Adams Rite MS, 4500 and

4700 Series locks

Number Core type

80-303 Everest 29 restricted core

80-111 Disposable construction core

80-133 Keyed construction core

80-103 Housing less core

Furnished with compression ring, spring and 7⁄16" blocking ring.

These cylinders include set screw pack B220-050 for Adams

Rite locks.

K510-711

Adams Rite

MS Cam

Cylinders for Adams Rite

4070 Series deadlocks

Number Core type

80-305 Everest 29 restricted core

80-113 Disposable constr. core

80-135 Keyed constr. core

80-105 Housing less core

Furnished with compression ring, spring and 7⁄16" blocking

ring.

These cylinders include set screw pack B220-050 for

Adams Rite locks.

Notes 1. Available in 605, 606, 612, 613, 619, 625, and 626

ﬁnish. Cores furnished 606 and 626 only.

2. All cylinders are 1 3⁄8" long.

B520-378

Adams Rite

4070 cam

Padlocks

Part # Shackle dimensions

Width Height Depth A B C

Less cylinder - small format interchangeable core

Chrome brass body

KS11D1200 1 25⁄32"2 3⁄16"7⁄8"1⁄4"1 1⁄2"3⁄4"

KS11F1200 1 25⁄32"2 3⁄16"7⁄8"1⁄4"2" 3⁄4"

KS21D1200 1 25⁄32”2 3⁄16"7⁄8"5⁄16"1 1⁄2"3⁄4"

KS21F1200 1 25⁄32"2 3⁄16"7⁄8"5⁄16"2" 3⁄4"

KS41D1200 1 15⁄16"2 3⁄16"7⁄8"3⁄8" 1 1⁄2"3⁄4"

KS41F1200 1 15⁄16"2 3⁄16"7⁄8"3⁄8" 2" 3⁄4"

Locking cables

Part # Length Diameter

Less cylinder - small format interchangeable core

Locking cables

KC215A130 2" 5⁄8"

KC215B130 4" 5⁄8"

KC Series

KS21F

Cores

Small format interchangeable core cylinders for

exit devices, aluminum door, etc.

38 • Schlage • Key systems, cylinders and keys reference guide

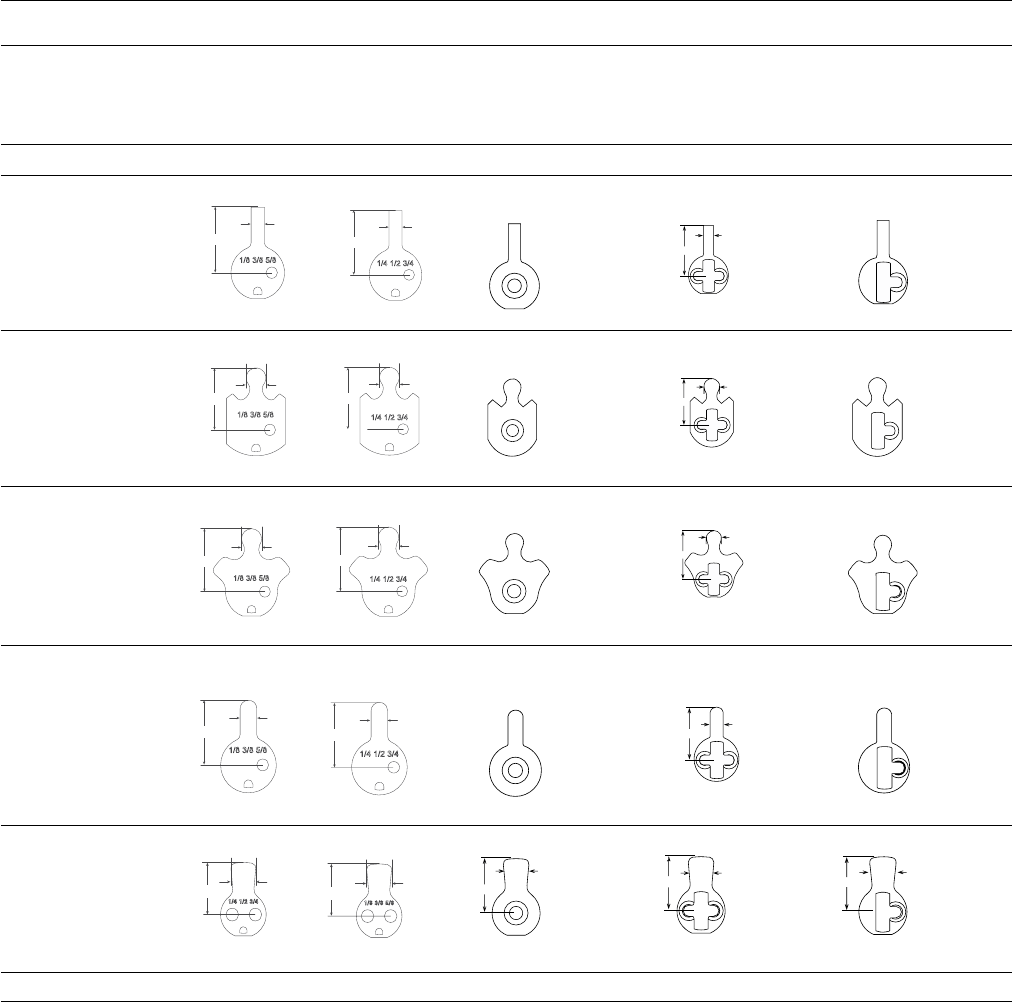

Modular cylinder Interchangeable core Classic conventional

non-IC

Everest 29 &

Primus non-IC

CAM substitutions

only allowed on these

cylinder numbers:

(Order example:

20-001 X B210-731 626 S123)

20-001, 20-002,

20-500, 20-501,

20-515, 20-700,

20-701, 20-715,

26-021

20-059, 20-061,

26-064, 20-763,

20-771, 26-091,

26-094, 80-302,

80-110, 80-132, 80-102

For conventional

cylinders

manufactured before

July 2010 not available

with cylinder

For Primus & Everest

cylinders

manufactured before

July 2010 not available

with cylinder

11⁄8", 13⁄8", 15⁄8" 11⁄4", 11⁄2", 13⁄4"N/A N/A N/A

Corbin Russwin®

DL4000 Series

(Old Corbin 420

and Russwin 1503)

B520-730 B520-731 B520-254

(was XB11-426)

B520-295

(was XB11-458)

B520-366

(was XB11-656)

Corbin Russwin®

ML2200 Series

(Old Corbin 7000-9000

and Russwin

4000-5000)

All functions except

ML2255 and ML2242

inside (see straight cam)

B520-732 B520-733 B520-253

(was XB11-352)

B520-233

(was XB08-899)

B520-309

(was XB11-629)

Corbin Russwin A65

ML2200 master ring

deadbolt functions

manufactured before

6/10/93 and old Russwin

cast iron residential locks.

For all Best 40H Series

& 30H Deadbolt function

B520-734 B520-735 B520-360

(was XB11-817)

B520-223

(was XB03-142)

B520-367

(was XB11-887)

Yale®

2160

Arrow ®

#004

Sargent ®

13-0660

All functions except 16

inside and 50 outside

B520-736 B520-737 B520-296

(was XB11-461,

replaces XB11-484)

B520-256

(was XB11-430,

replaces XB10-659)

B520-329

(was XB11-631,

replaces XB11-630)

Best

Latch function

L583-476 L583-477 K510-730 B502-191 B502-948

Cam substitution with cylinders shown above are no charge Not available for substitution

The following complete cylinders are available. Specify the desired cam from the correct column above:

Cylinder mechanism Collar How to order

Conventional cylinder compression ring and spring 20-001 x cam number

Primus XP cylinder compression ring and spring 20-700 x cam number

Primus XP UL437 Listed cylinder compression ring and spring 20-500 x cam number

Full size IC with conventional core compression ring, spring, 3⁄8" blocking ring 20-061 x cam number

Full size IC with Primus XP core compression ring, spring, 3⁄8” blocking ring 20-771 x cam number

Full size IC housing less core compression ring, spring, 3⁄8" blocking ring 26-094 x cam number

SFIC with Everest 29 core compression ring, spring, 1⁄4" blocking ring 80-302 x cam number

SFIC with keyed construction core compression ring, spring, 1⁄4" blocking ring 80-132 x cam number

SFIC with disposable construction core compression ring, spring, 1⁄4" blocking ring 80-110 x cam number

SFIC housing less core compression ring, spring, 1⁄4" blocking ring 80-102 x cam number

Other manufacturers’ registered trade names are for identiﬁcation and reference only.

Dim.

X = .155

Y = .775

Dim.

X = .232

Y = .729

Dim.

X = .235

Y = .729

Dim.

X = .186

Y = .718

Dim.

X = .338

Y = .71

Dim.

X = .338

Y = .71

Dim.

X = .338

Y = .71

B520-730

Corbin Russwin DL4000 Series

For housing sizes: 1¹⁄8 , 1³⁄8, 15⁄8"

B520-731

Corbin Russwin DL4000 Series

For housing sizes: 1¹⁄4 , 1¹⁄2 , 1³⁄4"

Dim. X = .153

Y = .761

Dim. X = .153

Y = .761

B520-730

Corbin Russwin DL4000 Series

For housing sizes: 1¹⁄8 , 1³⁄8 , 15⁄8"

B520-731

Corbin Russwin DL4000 Series

For housing sizes: 1¹⁄4 , 1¹⁄2 , 1³⁄4"

Dim. X = .153

Y = .761

Dim. X = .153

Y = .761

B520-732

Corbin Russwin ML2200 Series

For housing sizes: 1¹⁄8 , 1³⁄8, 15⁄8"

B520-733

Corbin Russwin ML2200 Series

For housing sizes: 1¹⁄4 , 1¹⁄2 , 1³⁄4"

Dim. X = .236

Y = .731

Dim. X = .236

Y = .731

B520-732

Corbin Russwin ML2200 Series

For housing sizes: 1¹⁄8 , 1³⁄8, 15⁄8"

B520-733

Corbin Russwin ML2200 Series

For housing sizes: 1¹⁄4 , 1¹⁄2 , 1³⁄4"

Dim. X = .236

Y = .731

Dim. X = .236

Y = .731

B520-734

Corbin Russwin A65,

ML2200 master ring

For housing sizes: 1¹⁄8 , 1³⁄8 , 15⁄8"

B520-735

Corbin Russwin A65,

ML2200 master ring

For housing sizes: 1¹⁄4 , 1¹⁄2 , 1³⁄4"

Dim. X = .242

Y = .757

Dim. X = .242

Y = .757

B520-734

Corbin Russwin A65,

ML2200 master ring

For housing sizes: 1¹⁄8 , 1³⁄8, 15⁄8"

B520-735

Corbin Russwin A65,

ML2200 master ring

For housing sizes: 1¹⁄4 , 1¹⁄2 , 1³⁄4"

Dim. X = .242

Y = .757

Dim. X = .242

Y = .757

B520-736

Yale 2160, Arrow 004,

Sargent 13-0660

For housing sizes: 1¹⁄8 , 1³⁄8, 15⁄8"

B520-737

Yale 2160, Arrow 004,

Sargent 13-0660

For housing sizes: 1¹⁄4 , 1¹⁄2 , 1³⁄4"

Dim. X = .187

Y = .727

Dim. X = .187

Y = .727

B520-736

Yale 2160, Arrow 004,

Sargent 13-0660

For housing sizes: 1¹⁄8 , 1³⁄8, 15⁄8"

B520-737

Yale 2160, Arrow 004,

Sargent 13-0660

For housing sizes: 1¹⁄4 , 1¹⁄2 , 1³⁄4"

Dim. X = .187

Y = .727

Dim. X = .187

Y = .727

Schlage L9060 Outside and Other Straight Cam Applications

L583-477

L583-476

Dim. X = .35

Y = .72

Dim. X = .35

Y = .72

Schlage L9060 Outside and Other Straight Cam Applications

L583-477

L583-476

Dim. X = .35

Y = .72

Dim. X = .35

Y = .72

Cams

Cams for Schlage mortise cylinders

in other manufacturers’ mortise locks

Schlage • Key systems, cylinders and keys reference guide • 39

Standard Front

35-157 Operating

35-158 Control

Plain Front

35-053 Operating

35-052 Control

Back

of Both

P R I M U S

DO NOT DUPLICATE

5-Pin

6-Pin

Control

Primus Back

P R I M U S

DO NOT DUPLICATE

Access Bow

35-143 5-Pin

35-144 6-Pin

35-115 Primus

Conventional Back

35-100 5-Pin

35-101 6-Pin

35-056 Control

Standard

Front and Back

35-130 5-Pin

35-131 6-Pin

35-076 Control

Plain Both Sides

Primus Back

Conventional Back

Large Bow

35-140 5-Pin

35-141 6-Pin

35-116 Primus

Conventional

Standard bow

To order conventional key blanks with DO NOT DUPLICATE, specify XQ06-878.

Specify plain bow keys for applications when keys must be stamped with additional information

such as special die stamps, serial numbering, etc.

Primus XP

Large bow

Ideal for special keys which

must be visibly distinctive

within a key system, or for very

specialized marking.

Access bow

Conforms to California Title

24 for handicap access.

Specify control keys in architectural speciﬁcations and on purchase orders.

Standard Front

35-157 Operating

35-158 Control

Plain Front

35-053 Operating

35-052 Control

Back

of Both

P R I M U S

DO NOT DUPLICATE

5-Pin

6-Pin

Control

Primus Back

P R I M U S

DO NOT DUPLICATE

Access Bow

35-143 5-Pin

35-144 6-Pin

35-115 Primus

Conventional Back

35-100 5-Pin

35-101 6-Pin

35-056 Control

Standard

Front and Back

35-130 5-Pin

35-131 6-Pin

35-076 Control

Plain Both Sides

Primus Back

Conventional Back

Large Bow

35-140 5-Pin

35-141 6-Pin

35-116 Primus

Standard Front

35-157 Operating

35-158 Control

Plain Front

35-053 Operating

35-052 Control

Back

of Both

P R I M U S

DO NOT DUPLICATE

5-Pin

6-Pin

Control

Primus Back

P R I M U S

DO NOT DUPLICATE

Access Bow

35-143 5-Pin

35-144 6-Pin

35-115 Primus

Conventional Back

35-100 5-Pin

35-101 6-Pin

35-056 Control

Standard

Front and Back

35-130 5-Pin

35-131 6-Pin

35-076 Control

Plain Both Sides

Primus Back

Conventional Back

Large Bow

35-140 5-Pin

35-141 6-Pin

35-116 Primus

Standard Front

35-157 Operating

35-158 Control

Plain Front

35-053 Operating

35-052 Control

Back

of Both

P R I M U S

DO NOT DUPLICATE

5-Pin

6-Pin

Control

Primus Back

P R I M U S

DO NOT DUPLICATE

Access Bow

35-143 5-Pin

35-144 6-Pin

35-115 Primus

Conventional Back

35-100 5-Pin

35-101 6-Pin

35-056 Control

Standard

Front and Back

35-130 5-Pin

35-131 6-Pin

35-076 Control

Plain Both Sides

Primus Back

Conventional Back

Large Bow

35-140 5-Pin

35-141 6-Pin

35-116 Primus

Standard Front

35-157 Operating

35-158 Control

Plain Front

35-053 Operating

35-052 Control

Back

of Both

P R I M U S

DO NOT DUPLICATE

5-Pin

6-Pin

Control

Primus Back

P R I M U S

DO NOT DUPLICATE

Access Bow

35-143 5-Pin

35-144 6-Pin

35-115 Primus

Conventional Back

35-100 5-Pin

35-101 6-Pin

35-056 Control

Standard

Front and Back

35-130 5-Pin

35-131 6-Pin

35-076 Control

Plain Both Sides

Primus Back

Conventional Back

Large Bow

35-140 5-Pin

35-141 6-Pin

35-116 Primus

Standard Front

35-157 Operating

35-158 Control

Plain Front

35-053 Operating

35-052 Control

Back

of Both

P R I M U S

DO NOT DUPLICATE

5-Pin

6-Pin

Control

Primus Back

P R I M U S

DO NOT DUPLICATE

Access Bow

35-143 5-Pin

35-144 6-Pin

35-115 Primus

Conventional Back

35-100 5-Pin

35-101 6-Pin

35-056 Control

Standard

Front and Back

35-130 5-Pin

35-131 6-Pin

35-076 Control

Plain Both Sides

Primus Back

Conventional Back

Large Bow

35-140 5-Pin

35-141 6-Pin

35-116 Primus

Standard Front

35-157 Operating

35-158 Control

Plain Front

35-053 Operating

35-052 Control

Back

of Both

P R I M U S

DO NOT DUPLICATE

5-Pin

6-Pin

Control

Primus Back

P R I M U S

DO NOT DUPLICATE

Access Bow

35-143 5-Pin

35-144 6-Pin

35-115 Primus

Conventional Back

35-100 5-Pin

35-101 6-Pin

35-056 Control

Standard

Front and Back

35-130 5-Pin

35-131 6-Pin

35-076 Control

Plain Both Sides

Primus Back

Conventional Back

Large Bow

35-140 5-Pin

35-141 6-Pin

35-116 Primus

Standard Front

35-157 Operating

35-158 Control

Plain Front

35-053 Operating

35-052 Control

Back

of Both

P R I M U S

DO NOT DUPLICATE

5-Pin

6-Pin

Control

Primus Back

P R I M U S

DO NOT DUPLICATE

Access Bow

35-143 5-Pin

35-144 6-Pin

35-115 Primus

Conventional Back

35-100 5-Pin

35-101 6-Pin

35-056 Control

Standard

Front and Back

35-130 5-Pin

35-131 6-Pin

35-076 Control

Plain Both Sides

Primus Back

Conventional Back

Large Bow

35-140 5-Pin

35-141 6-Pin

35-116 Primus

Standard Front

35-157 Operating

35-158 Control

Plain Front

35-053 Operating

35-052 Control

Back

of Both

P R I M U S

DO NOT DUPLICATE

5-Pin

6-Pin

Control

Primus Back

P R I M U S

DO NOT DUPLICATE

Access Bow

35-143 5-Pin

35-144 6-Pin

35-115 Primus

Conventional Back

35-100 5-Pin

35-101 6-Pin

35-056 Control

Standard

Front and Back

35-130 5-Pin

35-131 6-Pin

35-076 Control

Plain Both Sides

Primus Back

Conventional Back

Large Bow

35-140 5-Pin

35-141 6-Pin

35-116 Primus

Standard Front

35-157 Operating

35-158 Control

Plain Front

35-053 Operating

35-052 Control

Back

of Both

P R I M U S

DO NOT DUPLICATE

5-Pin

6-Pin

Control

Primus Back

P R I M U S

DO NOT DUPLICATE

Access Bow

35-143 5-Pin

35-144 6-Pin

35-115 Primus

Conventional Back

35-100 5-Pin

35-101 6-Pin

35-056 Control

Standard

Front and Back

35-130 5-Pin

35-131 6-Pin

35-076 Control

Plain Both Sides

Primus Back

Conventional Back

Large Bow

35-140 5-Pin

35-141 6-Pin

35-116 Primus

Standard Front

35-157 Operating

35-158 Control

Plain Front

35-053 Operating

35-052 Control

Back

of Both

P R I M U S

DO NOT DUPLICATE

5-Pin

6-Pin

Control

Primus Back

P R I M U S

DO NOT DUPLICATE

Access Bow

35-143 5-Pin

35-144 6-Pin

35-115 Primus

Conventional Back

35-100 5-Pin

35-101 6-Pin

35-056 Control

Standard

Front and Back

35-130 5-Pin

35-131 6-Pin

35-076 Control

Plain Both Sides

Primus Back

Conventional Back

Large Bow

35-140 5-Pin

35-141 6-Pin

35-116 Primus

Primus

Plain Front

35-053 Operating

35-052 Control

Standard Front

35-157 Operating

35-158 Control

Key blanks

Classic

Numbers shown are for key blanks. For cut keys, change “35” preﬁx to “48” for change keys and “49” for master keys.

Sux key section, e.g. 35-101 E. See facing page for available key sections.

40 • Schlage • Key systems, cylinders and keys reference guide

Everest 29 Full Size Key Blanks

Numbers shown are for key blanks. For cut keys, change “35” preﬁx to “48” for change keys and “49” for master keys.

Sux key section, e.g. 35-270 S123. See facing page for available key sections.

Everest 29 conventional keys are available with and without DO NOT DUPLICATE. Specify plain bow keys for applications

when keys must be stamped with additional information such as special die stamps, serial numbering, etc.

Pat. 5,809,816

PRIMUS

DO NOT DUPLICATE

Pat. 5,809,816

DO NOT DUPLICATE

001426

Standard Front

35-004-XP Operating

35-005-XP Control

Plain Both Sides

35-013-XP Control

35-012-XP Operating

Back of All Except

35-012-XP

35-013-XP

Standard Front

35-004 Operating

35-005

Control

Plain Both Sides

35-013 Control

35-012 Operating

Back of

All Except

35-012

35-013

Pat. 5,809,816

PRIMUS

DO NOT DUPLICATE

Pat. 5,809,816

DO NOT DUPLICATE

001426

Standard Front

35-004-XP Operating

35-005-XP Control

Plain Both Sides

35-013-XP Control

35-012-XP Operating

Back of All Except

35-012-XP

35-013-XP

Standard Front

35-004 Operating

35-005

Control

Plain Both Sides

35-013 Control

35-012 Operating

Back of

All Except

35-012

35-013

Standard for Control Keys

and all D Family keys.

Optional for C Family

35-002 Operating

35-003 Control

Back of

35-003

Standard Front

for C Family

35-009

PAT. 5,715,717 DO NOT DUPLICATE

PAT. 5,715,717

Plain Both Sides

35-015

DO NOT DUPLICATE

PAT. 5,715,717

Back of

All Except

35-015

CONTROL

DO NOT DUPLICATE

PAT. 5,715,717

6-Pin

Control

Standard Front

35-004 Operating

35-005 Control

Pat. 5,809,816

PRIMUS

DO NOT DUPLICATE

Plain Both Sides

35-013

Pat. 5,809,816

DO NOT DUPLICATE

001426

Back of

All Except

35-013

Standard for Control Keys

and all D Family keys.

Optional for C Family

35-002 Operating

35-003 Control

Back of

35-003

Standard Front

for C Family

35-009

PAT. 5,715,717 DO NOT DUPLICATE

PAT. 5,715,717

Plain Both Sides

35-015

DO NOT DUPLICATE

PAT. 5,715,717

Back of

All Except

35-015

CONTROL

DO NOT DUPLICATE

PAT. 5,715,717

6-Pin

Control

Standard Front

35-004 Operating

35-005 Control

Pat. 5,809,816

PRIMUS

DO NOT DUPLICATE

Plain Both Sides

35-013

Pat. 5,809,816

DO NOT DUPLICATE

001426

Back of

All Except

35-013

Conventional

Everest conventional keys are available with and without DO NOT DUPLICATE. Specify plain bow keys for applications

when keys must be stamped with additional information such as special die stamps, serial numbering, etc.

Portion of lip removed

from conventional Everest

keys to prevent use in

Primus XP cylinders

Everest Primus XP

To order, specify quantity, 6-digit ID number, and key section.

Key blanks are packed 50 per box, 1000 per case.

Specify Control Keys in architectural speciﬁcations and on

purchase orders.

Everest Primus

Standard Front

35-199-XP Operating

35-273-XP Control

Plain Both Sides

35-138-XP Control

35-215-XP Operating

Back of All Except

35-199-XP

35-273-XP

35-216-XP

Standard Front

35-199 Operating

35-273 Control

Plain Both Sides

35-138 Control

35-215 Operating

Back of

All Except

35-199

35-273

35-216

Standard for

Control Keys

and all T Family keys.

Optional for S Family

35-268 Operating

35-269 Control

Back of

35-269

Standard Front

for S Family

35-270

Plain Both Sides

35-272

Back of

All Except

35-272

6-Pin

Control

Standard Front

35-004 XP Operating

35-005 Control

Plain Both Sides

35-013

Back of

All Except

35-013

Conventional

Portion of lip removed from

conventional Everest 29

keys to prevent use in

Primus XP cylinders

Everest 29 Primus XP

To order, specify quantity, 6-digit ID number, and key section.

Key blanks are packed 50 per box, 1000 per case.

Specify Control Keys in architectural speciﬁcations and on

purchase orders.

Standard Front

35-199-XP Operating

35-273-XP Control

Plain Both Sides

35-138-XP Control

35-215-XP Operating

Back of All Except

35-199-XP

35-273-XP

35-216-XP

Standard Front

35-199 Operating

35-273 Control

Plain Both Sides

35-138 Control

35-215 Operating

Back of

All Except

35-199

35-273

35-216

Everest 29 Primus

Key blanks

Everest full size key blanks

Numbers shown are for key blanks. For cut keys, change “35” preﬁx to “48” for change keys and “49” for master keys.

Sux key section, e.g. 35-009 C123. See facing page for available key sections.

Schlage • Key systems, cylinders and keys reference guide • 41

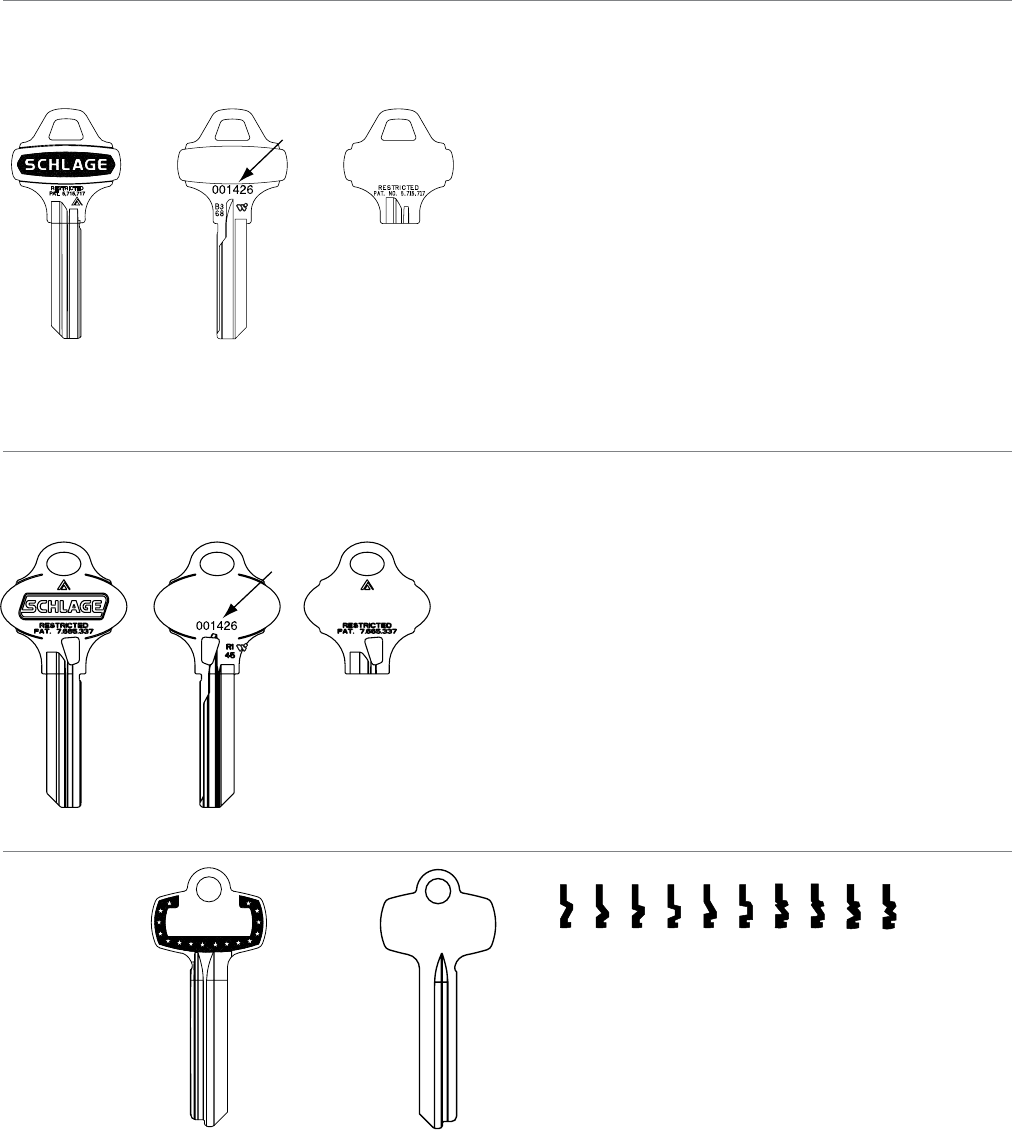

Everest 29 R family patented

restricted key blanks

Everest B family patented

restricted key blanks

For cut keys, change "35" preﬁx to "48" for change keys and "49" for master keys.

Sux key section, e.g. 35-270 S123. All keyways are restricted so they are not published.

A D E F G HJ K L M

R235 dealer keyway

Available to locksmiths and service-oriented contract hardware dealers,

this keyway is controlled similar to Primus XP Levels 1+ and 7. Each dealer

signs a contract agreeing to certain key control procedures and agreeing

not to duplicate keys marked with another dealer’s ID number.

The dealer cuts all R235 keys and cannot sell key blanks to the end user.

If the end user needs to cut keys, R family end user keyways (below)

should be furnished instead of R235. Contact your Schlage commercial

wholesaler or local SSC representative for further information.

R family end user keyways

The R family end user restricted keyways are not stocked by locksmiths or

other dealers. They are drop shipped directly to the end user and oer

economical patent protection without geographical exclusivity. All orders

for R Family keys and blanks require a letter of authorization from the end

user.

Best® type

key blanks

Number

DUPLICATION

PROHIBITED

B235 dealer keyway

Available to locksmiths and service-oriented contract hardware dealers,

this keyway is controlled similar to Primus XP Levels 1+ and 7. Each dealer

signs a contract agreeing to certain key control procedures and agreeing

not to duplicate keys marked with another dealer’s ID number.

The dealer cuts all B235 keys and cannot sell key blanks to the end user. If

the end user needs to cut keys, B family end user keyways (below) should

be furnished instead of B235. Contact your Schlage commercial

wholesaler or local SSC representative for further information.

B family end user keyways

The B family end user restricted keyways are not stocked by locksmiths or

other dealers. They are drop shipped directly to the end user and oer

economical patent protection without geographical exclusivity. All orders

for B Family keys and blanks require a letter of authorization from the end

user.

Plain Both Sides

35-264

35-400

Standard

Front and Back

Key blanks

Small format interchangeable core key blanks

For cut keys, change “35” preﬁx to “48” for change keys and “49” for master keys.

Sux key section, e.g. 35-009 C123. All keyways are restricted so they are not published.

35-401

Standard

Front and Back

Plain Both Sides

35-021

35-310

Front & Back

Matches Best

KS473 x KS800

Coining

Not available

Available in the ten most popular Best key sections. Sux key

section plus “B” to number when ordering, (example 35-310 AB).

42 • Schlage • Key systems, cylinders and keys reference guide

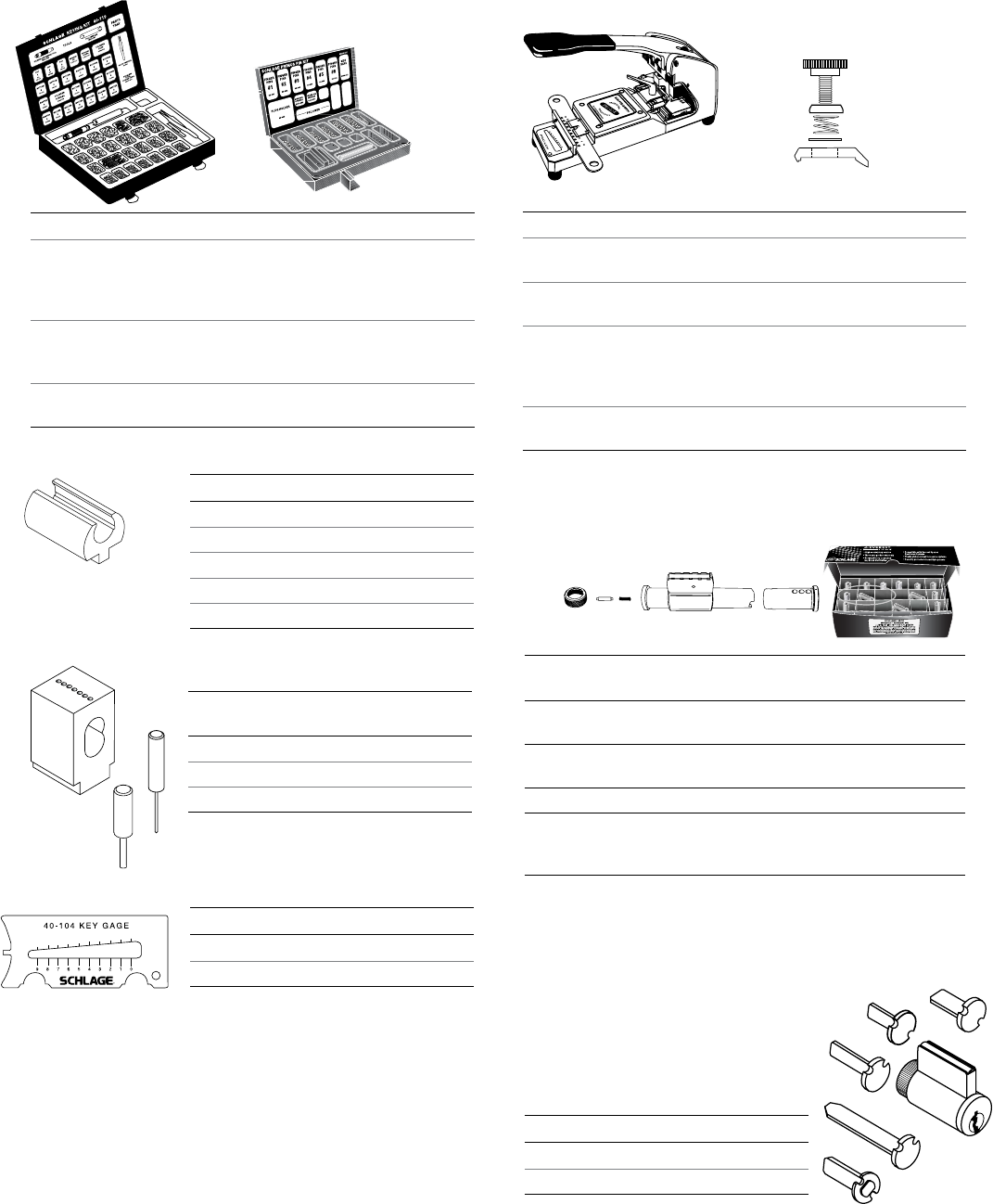

Cylinder service equipment and tools

40-07040-119 40-07440-075

ORIES

876

Classic

conventional

Everest 29

conventional

Primus XP Description

09-409 09-751 09-764 Key-in-knob /

lever

09-412 09-754 09-767 Mortise

(specify length)

09-410 09-752 09-765 Rim

09-411 09-753 09-766 Full size

interchangeable

core

Specify keyway and ﬁnish.

Keys and tailpieces/cams must be ordered separately.

Bulk pack cylinder kit

Bulk packs are 10-packs that contain the components you need to

quickly build 10 cylinders. All shells are pre-loaded with top pins and

springs.

Notes 1. Available 606 or 626 ﬁnish.

2. Specify keyway to distinguish between Everest 29 and Classic.

Example:C or CP (Classic) vs. S123 (Everest 29). Available in all

full size keyways.

3. Cylinders are only available 0-bitted.

4. Not available for hotel function cylinders with occupancy indicator.

5. Primus XP key blanks must be ordered separately. Conventional

cylinders include two key blanks.

Multiple tailpiece cylinders

Reduce cylinder inventory by stocking these cylinders

packed with tailpieces to ﬁt these locks:

Pin kits

40-119 For full size conventional cylinders

Contains bottom, top and master pins, springs,

cap pins, cap pin springs, caps, follower, tweezers,

key gauge, shims, cap removal tool.

40-070 Primus XP ﬁnger pin kit

Contains ﬁnger pins, sidebars, springs and plug

holder.

40-129 SFIC wooden pin kit for A2 System

Contains all pins and springs, key gauge, tweezers.

Full size cylinder tools

40-066 Primus plug holder

40-116 Shell loading tool

M204-200 Pin tweezers

M540-056 Cylinder cap removal tool

M504-548 Modular follower bar

Small format IC tools

(included in 40-129 kit)

40-137 Capping block

40-136 Ejector tool

40-138 Capping tool

Blue punch key machine

40-075 Classic Obverse, Everest C, and Everest 29 S

Family keys only (Conventional and Primus XP)

40-071 Everest B Family small format IC keys and Everest

29 R Family small format IC keys only

40-074 Upgrade jaw kit adds Everest C Family and Everest

29 S Family capability Blue Punch machines with

serial numbers below 990358, made before July

1999

40-099 Key bitting punch for Everest D Family and Everest

29 T Family

Key gauge

40-104 Full size keys

40-128 A2 System SFIC keys

40-100 Conventional

40-700 Primus XP

40-500 Primus XP UL

• A-Series (all

designs)

• AL Series

• D Series knobs

• D Series levers

• H Series knobs

(all designs)

• ND Series levers

Schlage • Key systems, cylinders and keys reference guide • 43

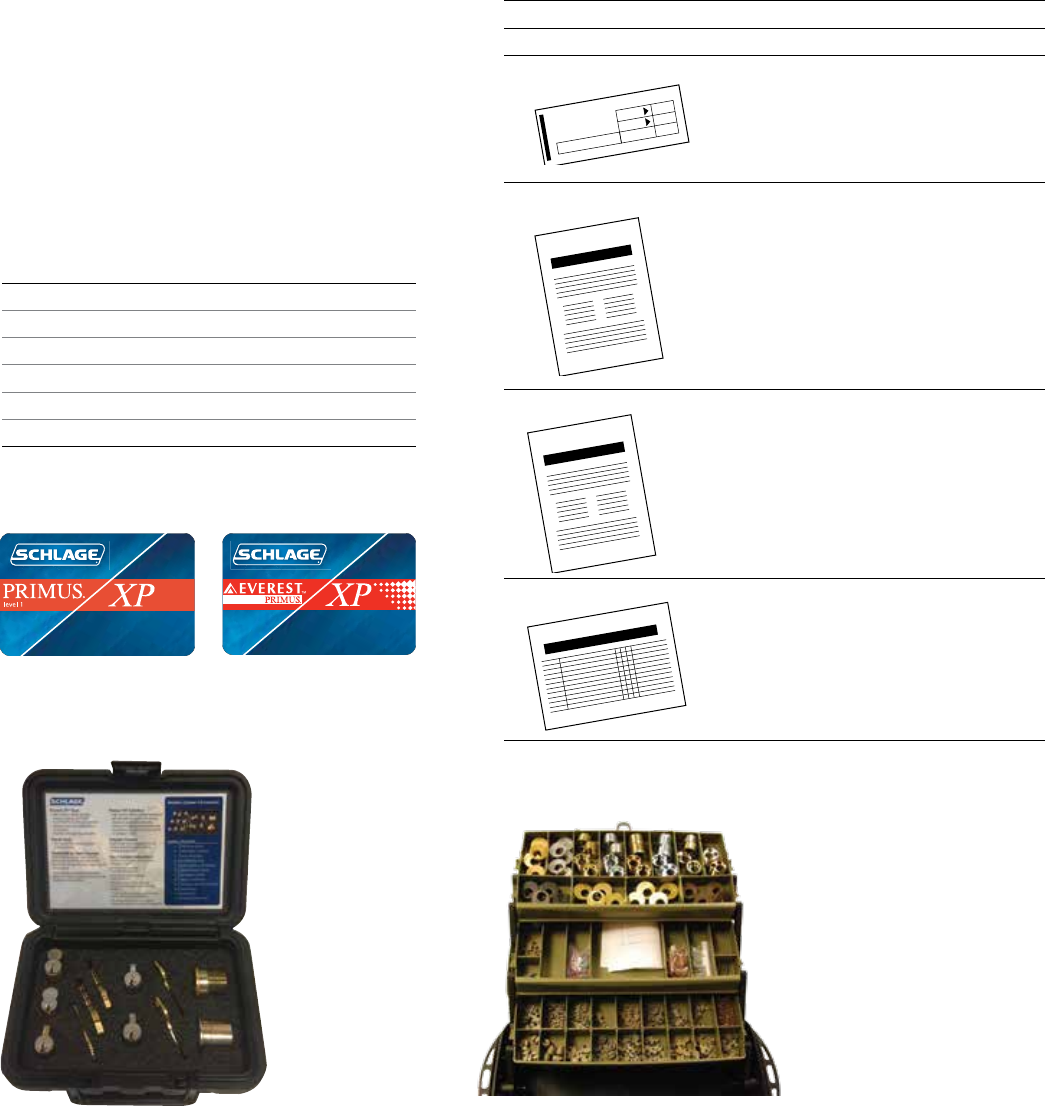

PRIMUS

SCHLAGE

Restricted Key

Order Form

Primus Facesheet

SCHLAGE

PRIMUS

Primus Signature Card

SCHLAGE

PRIMUS

SCHLAGE

Primus ID Card Control Register

Primus XP authorization forms

Number Description

009162 Primus XP restricted key order form

This form is a three-part imprintable

form used to record and track the issuance

of Primus keys.

009159 Primus XP face sheet form

This form must accompany all Level 3, 4

and 9 orders, and provides the factory with

a customer-authorized signature which is

compared to the signature on ﬁle, a Primus

XP reference number (for additions to an

existing Primus XP system) and shipping

instructions for that order.

009160 Primus XP signature card form

This form is used as a permanent record

against which the signature of individuals

authorized to obtain service and support

for their Primus system is validated. This

form must accompany all new Level 3, 4

and 9 factory orders.

009161 Primus XP I.D. Card control register

This form is used by locksmiths and

dealers to account for the issuance

of Primus XP I.D. Cards.

Contact Schlage commercial customer service to order these forms,

or visit www.allegion.com/us.

Modular cylinder sales kit

Part # 40-224

Primus XP Cards

Level Number

140-061-XP

1 Plus 40-065-XP

240-062-XP

7 & 8 40-060-XP

Classic Primus XP

Level 1 I.D. card

Everest 29 Primus XP

I.D. card

Cylinder service equipment and tools

Primus XP I.D. cards

Primus XP I.D. cards are used as authorization

credentials for Primus XP Level 1, 1+, 2, 7 and 8

keys. Cards have a signature panel on the back

and are issued by the servicing locksmith or

dealer who directly supports the system owner.

The owner must present the I.D. card to obtain

duplicate keys or additions to his system. The

signature will be validated by the dealer.

Modular cylinder service kit

Part # 40-223

Includes cylinder front housings, back

housings, key cams, and cam screws.

44 • Schlage • Key systems, cylinders and keys reference guide

Certications

UL / cUL:

20-500 Series Primus cylinders are UL437 Listed

locking cylinders.

Specications

Standard conventional keying:

Everest 29

Everest 29 products are available to commercial

customers. When no other keyway is speciﬁed on a

commercial customer’s order, Schlage supplies Everest

29 keyways in a S123 keyway for stock products and in a

S145 keyway for master keyed products. All Everest 29

conventional cylinders have six standard pins and a

check pin. Legacy Everest keyways are available, but

must be speciﬁed at the time of ordering.

Classic

Classic products are supplied upon request to

commercial customers and are the standard keyway for

residential customers. C keyway is the default for stock

products and E keyway is supplied for master keyed

products.

Primus XP

Primus XP products are available to qualifying

commercial customers. All Primus XP cylinders have six

standard pins and ﬁve ﬁnger pins.

Keys

Classic cylinders are supplied with two 5-pin keys unless

otherwise speciﬁed. All Everest 29 and Primus XP pinned

cylinders are supplied with two 6-pin keys, except certain

stocking levels of Primus XP which are supplied less key

blanks (LKB) for security reasons.

Keying Options

Interchangeable core cylinders. Master keying, grand

master keying and construction keying. Construction

master keying is not available for Primus XP cylinders;

however, construction cores can be furnished if the job is

interchangeable core.

Warranty

Three year limited mechanical warranty and one year

limited electromechanical warranty. Everest 29 Primus,

Everest 29 Primus XP, Everest Primus. Everest 29 Primus

limited lifetime key breakage warranty. Portable security

limited lifetime warranty.

Software

All Schlage cylinders and keys can be used in conjunction

with SITEMASTER 200® key control management

software for highly eective key control.

Schlage • Key systems, cylinders and keys reference guide • 45

Purchasing and distribution

The R235 keyway is sold primarily through

wholesalers to commercial locksmiths or

similar security dealers. There is a $2,500

(list price) inventory commitment of

uncombinated cores and key blanks

unless an existing Primus dealer; then the

inventory investment is $500 list. Each

locksmith is assigned an ID number by

Schlage, which is stamped on all key

blanks. Locksmiths/dealers are not

permitted to cut keys for any system set

up by another dealer as indicated by the ID

number on such keys.

Blanks are drop-shipped by Schlage

directly to the locksmith, but cores can be

stocked by the participating wholesaler.

The locksmith must sign Schlage’s key

control contract agreeing to maintain the

security of key blanks. The wholesaler

provides the contract to the locksmith.

All R235 keys must be cut by the dealer/

locksmith. No blanks can be sold to end

users or institutional locksmiths. End

users who require in-house key cutting

need the end user restricted keyways

described earlier.

R235 is also available to Schlage

Authorized Security Centers. Schlage

contract hardware distributors can only

purchase the R235 keyway if they already

provide complete key cutting and master

keying service for their end users, and they

actively promote and sell SFIC restricted

key systems.

Separate key control contracts are used

for these two types of dealers, but they

contain the same key control policies as

the contracts signed by commercial

locksmiths. The local SSC representative

provides these contracts.

Keying options

Since most of the key systems and

combinating will be done by the

commercial locksmith, most of these

cores will be furnished uncombinated.

Factory master keying is also available.

There is no such thing as 0-bitted for

small format cores.

Security center keyway R234

§Available to Security Centers only –

distribution controlled by Schlage

§End user must purchase from

originating dealer, sole-source

relationship

§No geographical exclusivity

§Dealer ID code is stamped on all keys

for tracking purposes

§Key blanks are not available to end

users

To set up a new Everest 29 R234 dealer:

§$1,000 (list) inventory commitment

order

Signed Everest 29 R234 agreement

approved by SSC manager

Re-ordering customers need to:

§Provide dealer ID with order

§Keys will always be drop-shipped to

dealer location

Sole source R234 and R235 systems

46 • Schlage • Key systems, cylinders and keys reference guide

The R234 keyway is sold exclusively

through Schlage Authorized Security

Centers. Each Service Center is assigned

an ID number by Schlage, which is

stamped on all key blanks. This keyway is

primarily for national accounts. Security

centers are not permitted to cut each

other’s keys, subject to conditions set

forth in the R234 key control contract.

Blanks are drop-shipped by Schlage

directly to the Security Center, but

uncombinated cores may be stocked by

the participating wholesaler for fast local

delivery. The Security Center must sign

Schlage’s key control contract agreeing to

maintain the security of key blanks.

All R234 keys must be cut by the Security

Center. No blanks can be sold to end users

or institutional locksmiths. Those types of

customers need the end user restricted

keyways described earlier.

Keying options

Since most of the key systems and

combinating will be done by the Service

Center, most of these cores will be

furnished uncombinated. Factory master

keying is also available. There is no such

thing as 0-bitted for small format cores.

Sole source keyway R235

§Available to indirect locksmith dealers

through wholesale channels with

distribution controlled by Schlage

§End user must purchase from

originating dealer – sole-source

relationship

§Indirect locksmith ID code is stamped

on all keys for tracking purposes

§Key blanks are not available to end user

To set up a new Everest R235 dealer:

§Submit an order for $2,500 list for

inventory commitment. Reduced

inventory commitment of $500 (list)

for existing Primus XP dealers.

§Signed Everest R235 agreement

approved by SSC manager

Re-ordering customers need to:

§Provide dealer ID on purchase order

§Keys will always be drop-shipped to

indirect locksmith location

Purchasing and distribution

R keyway – dealer restricted

Schlage • Key systems, cylinders and keys reference guide • 47

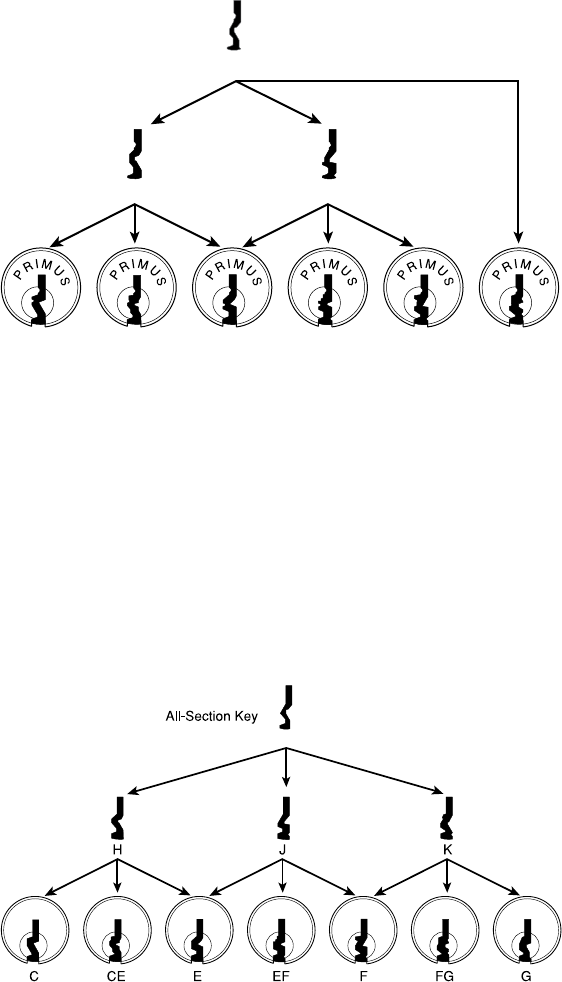

CEP

Multi-Section Keys

EFP FP FGPEP

Stainless Steel

All-Section Key

Cut at Factory

Obverse keyways for

Classic Primus XP

cylinders levels 1 through 4

Multi-Section

Keys

Obverse keyways for

classic conventional

cylinders

Keyway diagrams

The classic keyway family

48 • Schlage • Key systems, cylinders and keys reference guide

S family keyways for

Everest 29 conventional

cylinders and Primus XP

levels 7, 8, and 9

C family keyways for

Everest conventional

cylinders and Primus

XP levels 7, 8, and 9

S000

S100 S200

S150 S120 S230

S134 S145 S135 S125 S124 S123 S234 S235 S245 S345

Everest keyways

Keyway diagrams

Everest 29 S keyway family

Schlage • Key systems, cylinders and keys reference guide • 49

Bitting - the numbers which represent

the cuts of a key; the actual cuts or combination of a key

Blade - the part of a key that may contain the cuts and

the millings

Bottom pin - a cylindrical shaped tumbler with a conical

point at the end that comes in direct contact with a key

Bow - the portion of the key that serves as the grip or

handle

Cam - a lock or cylinder component that transfers the

rotational motion of a key or cylinder plug to the bolt that

works of a lock

Capping block - a ﬁxture used to aid installation of caps

on small format interchangeable cores

Change key - a key that operates one cylinder or a group

of keyed alike cylinders in a key system

Construction cores - temporary cores for use during the

construction phase of a building that can later be easily

removed and replaced with permanent cores

Control key - a special key used for the removal and

replacement of an interchangeable core

Ejector pin - a tool used to drive all the elements of a pin

chamber out of small format interchangeable cores

High security cylinder - a cylinder that oers a greater

degree of resistance to any two or more of the following:

picking, impressioning, key duplication, drilling or other

forms of forcible entry. The keys also are controlled so

only authorized people can make duplicates.

Housing - that part of a locking device designed to

enclose the core

Interchangeable core - a cylinder designed to be

removed and/or installed with only a special key called a

control key; no tools or removal of the lock required to

change the core

Key blank - an uncut key manufactured to allow its entry

into the keyway of a speciﬁc cylinder

Useful denitions

Master key - a key that operates all master keyed locks

or cylinders in a key system or a part thereof

Master pin - a cylindrical shaped tumbler, ﬂat or crowned

on both ends, used between the bottom and top pins to

create additional shear lines

Pin tumbler - usually a cylindrical shaped tumbler; three

types are used: bottom pin, master pin, and top pin

Plug - the part of the cylinder which contains the keyway,

with tumbler chambers usually corresponding to those in

the cylinder shell

Plug follower – a tool used to remove the plug while

retaining the top pins and springs, and possibly other

components in the shell

Rim cylinder - a cylinder with a tailpiece to actuate the

lock mechanism typically used with surface applied locks

and attached to the lock or door with a mounting plate

and machine screws

Shell – the part of the cylinder that surrounds the plug,

usually containing tumbler chambers corresponding to

those in the plug

Shim - a thin piece of curved stainless steel used to

unlock the cylinder plug from the shell by separating the

pin tumblers at the shear line

Sidebar - the secondary locking device operated with a

patented side bit milling design found in the Primus XP

cylinder mechanism

Tailpiece – an actuator attached to the rear of a cylinder,

parallel to the plug, used on rim, key-in-knob or other

special cylinders

Top pin – a cylindrical shaped tumbler, ﬂat or crowned

on both ends, that is installed in direct contact with the

tumbler spring

Tumbler - a movable obstruction of varying length in a

cylinder that makes direct contact with a key or another

tumbler and prevents an incorrect key from operating the

lock or cylinder

50 • Schlage • Key systems, cylinders and keys reference guide

009487, Rev. 01/14

www.allegion.com/us

Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security.

As a $2 billion provider of security solutions for homes and businesses, Allegion

employs more than 7,800 people and sells products in more than 120 countries

across the world. Allegion comprises 23 global brands, including strategic brands

CISA®

, Interﬂex®

, LCN®

, Schlage® and Von Duprin®

For more, visit www.allegion.com

About Allegion

Schlage Key Systems, Cylinders, And Keys Product Guide SCHLAGEcylindersproductguide

Navigation menu

Versions of this User Manual:

Views

Navigation
