Schlage 2018 Price Book Q1

User Manual: Schlage 2018 Schlage Price Book Price Book

Open the PDF directly: View PDF PDF.
Page Count: 448 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Marketing Bulletin
Page 154: Added L9025 Exit Lock image and function description
Page 155: Added L9026 Exit Lock with Cylinder image and function description
Page 159: Added definition for EL and EU in header paragraph
Page 163: Corrected pricing for L9044-626 ($810), L9044-605 ($822), L9044-613 ($840).
Page 163, 165, 167, & 169: Added pricing for L9025 and L9026 functions
Page 166, 168, 206, & 208: Added ME1, ME2, and ME3 lever images
Page 167, 169, 207, & 209: Added ME1, ME2, and ME3 lever pricing
Page 167: Corrected pricing for L9044 at $840.
Page 170: Added ME1, ME2, and ME3 levers to product tables
Page 171: Clarified description to read “cylinder blocking ring” for ligature resistant product
Page 172: Updated description for “Less complete trim one side” to note that less inside trim is not
recommended as additional parts may be required.
Page 174: Clarified messaging for locks “Less complete trim one side”
Page 176: Added ME1, ME2, and ME3 levers to “tactile warning” options
Page 178: Added ME1, ME2, and ME3 levers to distributor packs
Page 180: Added ME1, ME2, and ME3 levers to distributor packs and added N Escutcheon to distributor
packs
Page 183, 184, & 214: Added ME1, ME2, and ME3 levers to Levers & Knobs offering
Page 187: Added L283-736 Screw pack for indicators and trim
Page 189: Added L9025 and L9026 functions and pricing
Page 201: Added LM9294EL/EU image and function description
Brand/product
Schlage Commercial, Price Book 5, Effective August 2017
Date
January 2018
Subject
Quarterly Price Book Update (January 2018)
Contact
Brad Sweet, Monte Salway, Greg Hebner, John Binger
Marketing Bulletin
Page 203: Added LM9293ELP/EUP pricing
Page 214: Added 626 and 630 finish options for LM9200 Series Armor Fronts
Page 221: Updated dimensions for deadlatch strike; Square corner, full lip, no box, 1 5/8” x 2 1/4”
Page 250: Updated description for 68-003; outside chassis and rose assembly for S51 and S70 function,
requires outside lever
Page 317, 319: Corrected price for B250-541 at $10.20.
Page 337:
Updated description for Compatible Cam Von Duprin mortise exit device; now reads Von Duprin
mortise exit device and Von Duprin removable mullion
Corrected pricing for Cam K510-730 to $3.20.
Page 355: Added part number K110-480 (622 Back Housing, Modular Cylinder) at $8.10.
Page 380: Corrected pricing for 49-100 at $10.80.
Effective August 12, 2017 • Rev 1/18
Price book 5
Price Book 5
Effective August 12, 2017 • Rev. 08/17
2
This price list supersedes and cancels all previous price lists. Prices shown are subject to change without notice.
Administrative Offices
Allegion Administrative Office
11819 N. Pennsylvania St.
Carmel, IN 46032
allegion.com/us
Customer Care
Our Customer Care Representatives are available for questions or assistance.
You can reach them at 877-671-7011 (Press 1 for Sales Support | Press 2 for Product Support | Press 3 for SSC) or
through the email addresses listed below:
Sales Support
Request for Quote
Placing orders
You can place orders with Allegion via the fax numbers or emails listed below:
Mechanical Locks & Key Systems
Fax#: 1-800-452-0665
Email: Order_Entry_Schlage_Commercial@allegion.com
Carolinas
(North Carolina, South Carolina, Virginia)
Carolinas_Sales_Support@allegion.com
Central
(Arkansas, Illinois, Iowa, Kansas, Missouri,
Nebraska, Oklahoma)
Central_Sales_Support@allegion.com
Chicago
(Illinois-Northern, Wisconsin)
Chicago_Sales_Support@allegion.com
Florida
Florida_Sales_Support@allegion.com
Great Lakes
(New York, Pennsylvania)
Great_Lakes_Sales_Support@allegion.com
Metro New York
Metro_New_York_Sales_Support@allegion.com
Carolinas
(North Carolina, South Carolina, Virginia)
Carolinas.Quotes@allegion.com
Central
(Arkansas, Illinois, Iowa, Kansas, Missouri,
Nebraska, Oklahoma)
Central.Quotes@allegion.com
Chicago
(Illinois-Northern, Wisconsin)
Chicago.Quotes@allegion.com
Florida
Florida.Quotes@allegion.com
Great Lakes
(New York, Pennsylvania)
GreatLakes.Quotes@allegion.com
Metro New York
Metro.Quotes@allegion.com
Technical Product Support
Mechanical Locks/Keying Systems
Mechanical_Locks_TechProdSupport@allegion.com
Michigan
Michigan_Sales_Support@allegion.com
Mid Atlantic
(Delaware, Maryland, New Jersey)
Mid_Atlantic_Sales_Support@allegion.com
Midwest
(Indiana, Kentucky, Ohio, West Virginia)
Midwest_Sales_Support@allegion.com
Mountain States
(Colorado, Idaho, Montana, Nevada, Utah, Wyoming)
Mountain_States_Sales_Support@allegion.com
New England
(Connecticut, Main, Massachusetts, New Hampshire,
Rhode Island, Vermont)
New_England_Sales_Support@allegion.com
North Central
(Minnesota, North Dakota, South Dakota)
North_Central_Sales_Support@allegion.com
Michigan
Michigan.Quotes@allegion.com
Mid Atlantic
(Delaware, Maryland, New Jersey)
MidAtlantic.Quotes@allegion.com
Midwest
(Indiana, Kentucky, Ohio, West Virginia)
Midwest.Quotes@allegion.com
Mountain States
(Colorado, Idaho, Montana, Nevada, Utah, Wyoming)
Mtn.States.Quotes@allegion.com
New England
(Connecticut, Main, Massachusetts, New Hampshire,
Rhode Island, Vermont)
NewEngland.Quotes@allegion.com
North Central
(Minnesota, North Dakota, South Dakota)
NorthCentral.Quotes@allegion.com
Northern California
Northern_California_Sales_Support@allegion.com
Northwest
(Alaska, Oregon, Washington)
Northwest_Sales_Support@allegion.com
South
(Alabama, Georgia, Louisiana, Mississippi, Tennessee)
South_Sales_Support@allegion.com
Southern California
(California-Southern, Hawaii)
Southern_California_Sales_Support@allegion.com
Southwest
(Arizona, New Mexico)
Southwest_Sales_Support@allegion.com
Texas
Texas_Sales_Support@allegion.com
Northern California
NoCal.Quotes@allegion.com
Northwest
(Alaska, Oregon, Washington)
Northwest.Quotes@allegion.com
South
(Alabama, Georgia, Louisiana, Mississippi, Tennessee)
South.Quotes@allegion.com
Southern California
(California-Southern, Hawaii)
SoCal.Quotes@allegion.com
Southwest
(Arizona, New Mexico)
Southwest.Quotes@allegion.com
Texas
Texas.Quotes@allegion.com
Residential Locks
Fax#: 1-800-366-5625
Email: Res_Contact_Center@allegion.com
FastTrack
Fax#: 1-800-288-4242
Email: Order_Fasttrack@allegion.com
3
Price Book 5
Effective August 12, 2017 • Rev. 01/18
Table of Contents
Terms & Conditions ..................... 10-28
Allegion General Terms & Conditions ..... 10
Schlage Standard Terms .................. 14
Product Warranties ........................ 17
Commercial Applications ................... 17
Residential Applications ................... 17
Distributor Function and Location Policy ... 18
Cylinder Policies ............................ 21

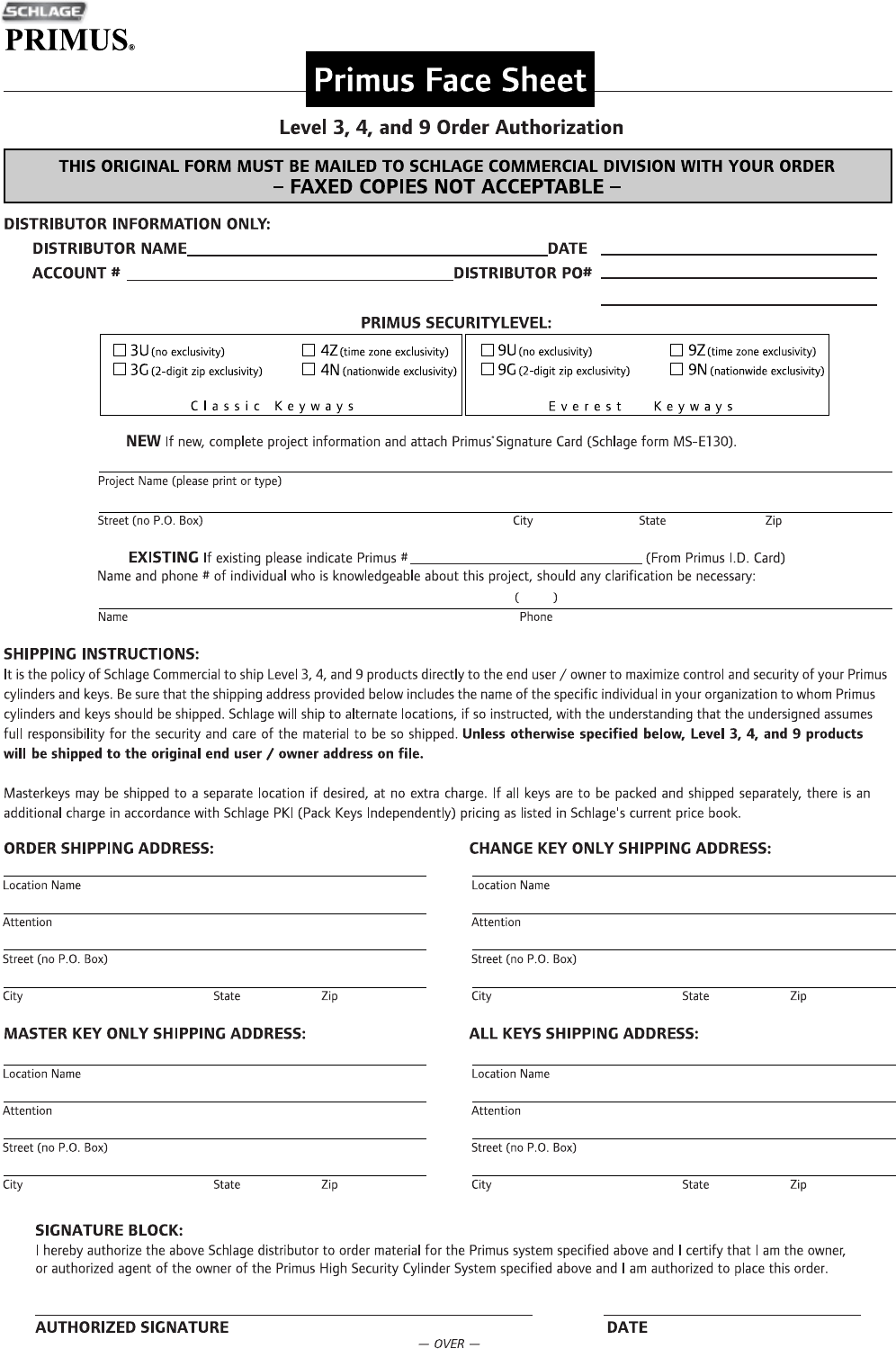

Primus® Sales Policy ....................... 21
Everest® Sales Policy ....................... 21
Everest Small Format Interchangeable
Core Key Control Policies ................... 21
Restricted Keyway Policy ................... 21
Construction Core Program Policy .......... 21
Master Key Shipment Policy ................ 23
Hardware Finishes ......................... 24
Forms & Examples ...................... 29-56
How To Order .............................. 30
Ordering Examples ......................... 31
Order Forms ................................ 32
Using Order Forms ......................... 33
Sequential List of Order Forms ............. 34
CYLINDRICAL ................... 57-112
A-Series ................................. 57-70
Functions .................................. 60
Complete Locks ............................ 61
Options .................................... 63
Parts ...................................... 65
AL-Series ................................ 71-84
Functions .................................. 74
Complete Locks ........................... 75
Options .................................... 77
Parts ...................................... 79
D-Series Knobs .......................... 85-96
Functions .................................. 88
Complete Locks ........................... 89
Options .................................... 91
Parts ...................................... 94
ND-Series Levers ........................ 97-111
Functions .................................. 100
Complete Locks ........................... 103
Options .................................... 105
Parts ...................................... 110
DEADBOLT ..................... 117-150
B250-Series ............................. 117-126
Functions .................................. 120
Complete Locks ........................... 121
Options .................................... 122
Parts ...................................... 123
B500-Series ............................. 127-138
Functions .................................. 130
Complete Locks ........................... 131
Options .................................... 132
Parts ...................................... 134
B600/700/800-Series .................. 139-150
Functions .................................. 142
Complete Locks ........................... 143
Options .................................... 144
Parts ...................................... 145
MORTISE ....................... 151-196
L-Series ................................. 151-196
Functions .................................. 154
Complete Locks ........................... 162
Options .................................... 172
Distributor Pack Program .................. 178
Parts ...................................... 183
MULTIPOINT ................... 197-220
LM9200-Series .......................... 200-220
Functions .................................. 200
Complete Locks ........................... 202
Options .................................... 210
Parts ...................................... 213
4
Price Book 5
Effective August 12, 2017 • Rev. 01/18
Table of Contents
INTERCONNECTED ............. 221-254
CS210-Series ............................ 221-254
Functions .................................. 224
Complete Locks ........................... 225
Options .................................... 228
Parts ...................................... 229
H-Series ................................. 231-244
Functions .................................. 234
Complete Locks ........................... 235
Options .................................... 236
Parts ....................................... 237
S200-Series ............................. 245-254
Functions .................................. 248
Complete Locks ........................... 249
Options .................................... 251
Parts ...................................... 252
TUBULAR ...................... 255-277
LT-Series ................................ 255-264
Functions .................................. 258
Complete Locks ........................... 258
Options .................................... 262
Parts ...................................... 263
S-Series ................................. 265-274
Functions .................................. 268
Complete Locks ........................... 269
Options .................................... 271
Parts ...................................... 272
SPECIALTY ..................... 275-286
HL-Series ................................ 275-286
Functions .................................. 278
Parts ...................................... 282
PORTABLE SECURITY .......... 287-300
Portable Security ........................ 286-300
PL Series Cross Reference .................. 290
Key-In-Knob with Cylinder ................. 291
Key-In-Knob Less Cylinder ................. 292
SFIC Less Cylinder .......................... 293
Full Size IC Core ............................ 294
Custom Engraving Brass Padlocks
and Chrome Plated Brass Padlocks ......... 295
Parts and Accessories ...................... 296
Flex Security ............................... 298
CYLINDERS / KEYS / AUXILIARY 301-414
Cylinders ................................ 301-358
Multiple Tailpiece Cylinders ................ 304
Bulk Pack Cylinders ........................ 305
Primus Cylinders-Sub-Assembled .......... 309
A & H, AL, CL, D, ND, F, FA, PL,
S & S200 .................................. 310
B500 ...................................... 318
B250, B400, E/B, F100, H, MD, S200 ....... 320
B600/700/800 ........................... 324
Mortise ..................................... 328
Schlage cylinders for Falcon &
Von Duprin ................................. 339
Rim Cylinders .............................. 341
Interchangeable Cores ..................... 343
Competitor Retrofit Cylinders .............. 345
Letter/Mail Box ............................ 350
Special Cylinders ........................... 351
Pins, Springs & Pinning Components ....... 352
Plugs ....................................... 356
Shells ..................................... 358
Keys & Keying ........................... 359-406
Keys Ordered Separately .................. 362
Key Stamping ............................. 377
Cylinder Stamping ......................... 378
Construction Core Program ................. 379
Keying Charges ............................. 381
SITEMASTER 200® ........................... 384
CL-Series ................................ 407-414
Complete Locks ........................... 410
Options .................................... 411
TOOLS AND KITS ............... 415-424
Tools & Kits ............................. 415-423
Keying Tools & Kits ........................ 417
Tools ...................................... 420
Kits ........................................ 421
Merchandising Aids ...................... 425-428
Display Mounts ............................ 426
Miscellaneous ............................. 428
PARTS INDEX .................. 429-444
Index .................................... 429-444
Price Book 5
Effective August 12, 2017 • Rev. 08/17 5
How to Use the Price Book
Ordering Options Form Name and Number Notes
Commercial Products *
1. Standard Orders
These orders are for the comprehensive listing of the
current product offering shown in this price book.
Your Purchase Order
See information required on your
order in “Forms & Examples” price
book tab.
All orders will be processed based on normal
factory lead times. An anticipated ship date will
be included with each order acknowledgement.
2. Schlage Innovation Center Orders (RFQ)
These orders are for Request For Quote (RFQ) orders
which are not covered in the price book and are
subject to longer lead times. These orders may not
be combined with any Master Keyed or Non-Master
Keyed products. Use this process for custom logo
requests.
Schlage Innovations Center
Product Request Form
See the “Innovation Center
Product Request Process”
on Page 6.
These products are not in the price book and
must be requested for consideration. Instructions
are included in the Innovations Center Product
Request Process in this section.
3. FastTrack Orders
These orders are for products in the FastTrack price
book and qualify for expedited order processing.
This program includes Schlage and Allegion brand
products. Please consult your sales representative for
FastTrack program availability in your area.
Refer to FastTrack price book. See current FastTrack price book.
Phone number 1-877-671-7011 or
fax number 1-800-288-4242.
Keys
1. Master Keyed Orders
These orders are subject to standard lead time and
process. Please attach the necessary forms if a
restricted key system or Primus order.
Master Keyed Order Form
ms-i100.01 Rev. 3/14
ms-i100.02 Rev. 3/14
ms-i150 Rev. 3/14
Use of order forms other than Schlage order
forms can result in an increased lead time. An
anticipated ship date will be included with each
order acknowledgement.
2. Non-Master Keyed Orders
These orders are subject to standard lead time and
process. If you are ordering a restricted key system or
Primus order, please attach the necessary forms.
Non-Master Keyed
Order Form
ms-i250 Rev. 3/14
ms-i300 Rev. 3/14
Use of order forms other than Schlage order
forms can result in an increased lead time.
3. Primus Face Sheet
Original signed form must accompany any Primus or
Primus XP level 3, 4, or 9 order.
Primus Face Sheet
ms-e120 Rev. 3/14
Must submit original forms, copies are not
accepted.
4. Primus Signature Card
Original signed form must accompany any NEW
Primus or Primus XP level 3, 4, or 9 order.
Primus Signature Form
ms-e130 Rev. 03/14
Please make sure the form identifies the key sys-
tem as NEW or EXISTING If removeable cores,
make sure control keys are ordered. Do not
forget to mark the type of keys, stamping
information, etc.
5. Key System Summary
Please fill in all appropriate fields. Contact your local
SSC sales office for help.
Key System Summary
ms-i200 Rev. 3/14
All 4 Pages
All orders will be processed based on
normal factory lead times. An anticipated ship
date will be included with each order
acknowledgement.
Residential
1. Standard Order Plan
All residential Schlage, and Dexter by Schlage prod-
ucts currently listed in this price book.
Your Purchase Order
see information required on your
order in “Forms & Examples” price
book tab.
All orders will be processed based on
normal factory lead times. An anticipated ship
date will be included with each order
acknowledgement.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
6
How to Use the Price Book
Standard Products
In each tabbed section of this Price Book you will find a comprehensive listing of our current offering per product series. Products
should be ordered via the traditional method by designating the product, design, finish, handing, and options for each line item (refer
to “How to Order” in the Forms & Examples section of the price book). All orders will be processed based on normal factory lead
times. These lead times vary throughout the year and are affected by production volumes, supplier schedules and quantity demands.
An anticipated ship date will be included with each order acknowledgement.
Some of the products listed in these sections require extended lead times. You will find the hourglass symbol (6) associated with
products that require extended lead times so that you are aware of this condition prior to placing your order. Products included in this
classification are those items that represent a unique combination of product attributes (i.e. finish, trim, function, etc.) that typically
require additional manufacturing care and attention. Products marked “6” will routinely exceed normal factory lead times and antici-
pated ship dates will be indicated with each order acknowledgement.
Schlage Innovation Center Product Request Process
Schlage Innovation Products are products that are not in the price book and are formally requested through the Schlage Innovation
Center Product Request Process. Examples of these products include:
· Products which at one time were offered for sale by Schlage but are no longer available in the current price book.
· Finishes not listed as standard for a product in the price book.
· “True” custom products, which are new variations on current or past products.
· Custom logo requests.
How to Request a Quote for a Custom Lock Product
Custom lock products can only be ordered by and shipped to current Allegion Channel Partners
· Innovation Center Product Request Form can be obtained by:
- Sending an email request to Mechanical_Locks_TechProdSupport@allegion.com
- Searching Knowledge Center tool at http://kc.allegion.com/ for Innovation Center Product Request Form
- Contact Schlage Product Support at 877-671-7011, option 2, option 1
· Send the completed request form to Mechanical_Locks_TechProdSupport@allegion.com
· Upon receipt the Innovation Center Product Request Form coordinator will assign an RFQ#, review, and clarify the request
as needed
· Within 5-working days your request will be either denied or approved
- If approved, Schlage will communicate the RFQ#, NET pricing, and lead time
- If denied you will be notified with an explanation
· RFQ# is valid for 6 months
· To place an order submit the approved RFQ form and purchase order with the RFQ# prominently displayed to
Order_Entry_Schlage_Commercial@allegion.com
· Changes to the original request after a quote approval may incur additional charges and affect lead time
- Prior to PO submittal send all change requests to Mechanical_Locks_TechProdSupport@allegion.com
· RFQ items must be ordered on a separate stand-alone purchase order and cannot be on an order with NON-RFQ items
For additional information, please contact Technical Product Support at 877-671-7011.
Price Book 5
Effective August 12, 2017 • Rev. 08/17 7
How to Use the Price Book
Commercial Master Keyed Orders
In an effort to expedite the process of managing our growing volume of Master Keyed order requests, Master Keyed orders submitted
in the following choice of formats will receive factory lead times based on the following criteria:
Orders submitted on the Key System Summary form (MS-I200) and the Master Keyed Order forms (MS-I100 and MS-I150)
OR
Orders submitted on the Key System Summary form (MS-I200) and your purchase order with information specified in the
following sequence:
Lead times for Master Keyed orders in any other format will be extended at least 5 additional working days. In all cases, allow addi-
tional lead time for clarifications and complex keying requirements. The Master Keyed order forms are located in the
Forms & Examples/Keys and Keying sections of the price book. For your convenience you can download the Master Keyed order forms
from our web site at allegion.com/us
Residential Keying
Residential Master Key (RMK): RMK is a single key that will grant access to all opening with in the facility (i.e. master key).
Additionally, each tenant would need to be provided with a key that will grant them access to their apartment only. The same keying
situation would exist in any form of a multi family housing complex.
Residential Construction Keying (RCK): RCK (also referred to as loss ball) by design allows the use of a temporary master key during
the construction phase of a project. At the end of the construction phase, the use of the homeowner key will trigger the lost ball con-
struction device, thus eliminating the temporary master key used during construction.
Qty Product Design Finish Hand Latch Strike Add’l Details
Door Detail Information DHI Key Symbol
MASTER KEYED ORDERS
Schlage Forms (MS-I200, MS-I100, MS-I150)
Non-Schlage Forms
LEAD TIMES
Factory Lead Time
Extended Lead Time Additional 5 Working
Days Minimum
Price Book 5
Effective August 12, 2017 • Rev. 08/17
8
Notes
Common Pricing Information
1. Locks are furnished with standard features unless otherwise specied.
2. Door thickness is 1 ¾" unless otherwise specied.
3. Split nishes and designs will be priced at the highest list price of the design and/or nish.
4. Engineering specials are denoted by a part number beginning with “X”.
5. 6 denotes a lock or part that requires an extended lead time.
6. I denotes a handed product and requires handing to be specied.
7. For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $16.00. This does not apply to Primus cylinders. See
Terms and Conditions for ordering information and requirements.
8. Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the
specic requirements.
9. Keyway must be specied for keyed functions and cylinders. If not specied, default keyway will be S123 for KA, KD and 0-bitted product
and S145 for Factory managed masterkey systems.
10. Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specied or excepted by notation.
11. Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
12. Locks specied with “C” keyway and KD or 0-bitted will receive 6 pin cylinders.
13. Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specied. If 0-bitted is selected, the order will be entered as
1-bitted. This does not apply to FSIC Primus® cores.
14. Conventional cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered
as 0-bitted.
15. Available plug face nishes are 606 and 626. For brass or bronze nish colors, the plug face nish is 606. For chrome, nickel or stainless
steel nish colors, the plug face nish is 626.
16. Specify LKB if 0-bitted Primus cylinders are required “Less Key Blanks.” Deduct $15.40 per cylinder.
17. Cut keys ordered with locks are priced according to appropriate extra cut key charge listed on page Keys-26
18. Grand master sections L, LP (Primus) and Y are supplied in stainless steel only and are recommended to be cut at the factory only
18. Stamping standards and charges are listed on page Keys-18
20. Keying services and associated charges are listed on page Keys-22
21. All Primus 1+ key orders must contain the locksmith ID
22. All restricted key orders are subject to the restricted keyway sales policies are listed in Terms & Conditions
23. For hotel function cylinders: Not available in Primus. Furnished 0-bitted. Emergency keys must be ordered separately.
24. Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge
appropriate for the cylinder/key type
Price Book 5
Effective August 12, 2017 • Rev. 08/17
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
9
Terms-1
TERMS & CONDITIONS
Introduction
Table of Contents
General Terms and Conditions
for Sales and Service Terms-2
Standard Schlage Product
Terms and Conditions Terms-6
Product Warranties Terms-9
Commercial Applications ................................ Terms-9
Residential Applications ................................ Terms-10
Distributor Function and Location Policy
Terms-10
Cylinder Policies Terms-11
Schlage Key Systems .................................... Terms-11
Restricted Keyway Policy ............................... Terms-12
Construction Core Program Policy ...................... Terms-13
Primus® Sales Policy .....................................Terms-13
Master Key Shipment Policy Terms-15
Hardware Finishes Terms-16
How To Order Forms and Examples
Price Book 5
Effective August 12, 2017 • Rev. 08/17
10
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
TERMS & CONDITIONS
Terms-2
1. GENERAL/ACCEPTANCE. (a) This Agreement contains the only terms and conditions by
which Company will quote and sell Deliverables to Customer; (b) The terms “purchase order”
or “order” for the purposes of this Agreement include the term “request for quotation,” as
appropriate; (c) This Agreement supersedes all pre-printed or boilerplate terms and conditions
set forth in any purchase order issued by Customer; (d) No reference herein to Customer’s
purchase order will in any way incorporate different or additional terms and conditions, all
of which Company hereby expressly objects to; (e) ANY ACCEPTANCE BY COMPANY OF
CUSTOMER’S PURCHASE ORDER IS EXPRESSLY CONDITIONED ON THE CUSTOMER’S
ASSENT TO AND ACCEPTANCE OF THE TERMS AND CONDITIONS CONTAINED IN
THIS AGREEMENT; (f) Company reserves the right to decline any order, in whole or in part,
for any reason.
2. ORDERS.
a. Order Processing. When Customer wishes to place an order for Deliverables, it will
deliver to Company a purchase order. All such purchase orders must (i) be in a written format
acceptable to Company, (ii) be legible, (iii) include a purchase order number, (iv) include
Customer’s account number, invoice address, ship to address, shipping method, shipper’s
letter of instruction for international shipments, part number, pricing, and designated contact
information, (v) include, if applicable, any special configuration ID numbers, necessary
programming information, special factory instructions, and requested specifications regarding
a particular finish, handing, design, backset, or strike, (vi) reference any applicable pricing
discounts under an ongoing buying program or based on a written quote from Company,
along with the applicable buying program number or quotation number, and (vii) not combine
buying program and quoted product on the same order.
b. Minimum Orders. In the event the order value does not meet any required minimum
net Deliverable value, Company may, at its sole discretion, (i) increase the quantity of items
in the order to meet the minimum net Deliverable value requirement; (ii) apply a minimum
order charge; (iii) reject the order, or (iv) waive the requirement, provided that the waiver of
a requirement for one order shall not constitute a waiver of the requirement for any future
orders.
c. Acceptance of Purchase Orders. Company will endeavor to (i) acknowledge receipt
of each purchase order issued in accordance with this Agreement, and (ii) notify Customer
whether Company accepts or rejects the purchase order. If Company fails to accept or reject
a purchase order within a reasonable time period, such failure to respond will be deemed a
rejection of the entire order.
Orders that combine buying program and quoted product on the
same order will be routed back to your local SSC office in order to review subject purchase order.
d. Changes to Order/ Cancellation of Orders. Additional terms and conditions regarding
order changes and cancellations are available on the Allegion customer website, WHICH
TERMS ARE EXPRESSLY INCORPORATED HEREIN BY REFERENCE. Unless otherwise
provided herein, Customer acknowledges that (i) requesting a Change Order may cause
a delay in the scheduled shipment date, a longer lead time or result in a new scheduled
shipment date; (ii) Orders may not be changed after 48 hours of Company’s order
acknowledgment; (iii) After 48 hours of Company’s order acknowledgment, all changes
to an accepted purchase order will be subject to a Change Order charge of 25% of the net
Deliverable value, plus the cost of labor and fabrication or raw material that Company incurred
prior to the receipt of the Change Order from Customer, or that may be required due to the
Change Order; (iv) the requested change may result in additional charges for labor, fabrication,
and raw material, and (v) if Customer cancels an order or portion of an order that includes
Deliverables that have been manufactured and prepped for shipping, a 45% restocking fee
will apply. Notwithstanding the foregoing, Customer cannot change or cancel credential
orders, reader orders, biometrics orders or any non-cataloged, special, Custom or nonstandard
items once they have been placed. All cancelled orders for a Non Recurring Expense (NRE),
credential orders, reader orders, biometrics orders, and/or Custom orders will be subject to a
cancellation charge of 100% of the acknowledged price.
e. Add-ons. Add-on orders will not be accepted. Additions to orders will be entered as
separate stand-alone orders and must qualify for all terms of sale, including discounts, on an
individual basis.
f. Fast-Track Orders. No changes or cancellations will be accepted on the 24-Hour Fast
Track Program. For 3-day Fast Track orders, changes and cancellations may only be requested
by Customer within 24 hours of Company’s order acknowledgment if the order has not
shipped. For 5-Day Fast Track orders, changes and cancellations may only be requested by
Customer if the order has not shipped and if the request is made to Company within 48 hours
of Company’s order acknowledgment. Return Material Authorization (RMA) for Deliverables
must be processed through Fast Track Customer Service.
g. Steelcraft Orders. For all Steelcraft orders, changes or cancellations are allowed without
penalty only if made within 48 hours of Company’s order acknowledgment, and provided that
the order has not shipped. Some exceptions do apply – please consult the factory. Changes
are not allowed on Rapid Program orders after the order has been entered and acknowledged.
After 48 hours of Company’s order acknowledgment, all changes or cancellations are subject
to a charge of 25% of the order. Unless otherwise specified by Company in writing, any
changes to orders acknowledged by Company that affect the delivery date will be deemed
a new order and will require acknowledgement by Company as provided in this Section.
Additional products, features, terms and conditions regarding the Rapid Program are available
on the Allegion customer website, WHICH TERMS ARE EXPRESSLY INCORPORATED
HEREIN BY REFERENCE.
3. PRICES, INVOICES AND PAYMENT.
a. Prices. The prices in Company’s Price Book are subject to change at any time, without
notice to Customer. Company may charge Customer additional amounts if Customer requests
special packing, marking, shipment, product modification, or engineering services. Oral prices
specified by Company are null and void. Quote numbers must be referenced on Customer’s
purchase order in order for the Company’s quoted pricing to apply. Orders that do not
reference a quote number will receive buy program pricing or book net pricing. Quoted prices
are for those specific products quoted for a specified job, and are subject to the Price Book in
effect at the time Company receives the order.
b. Taxes. Prices do not include any present or future federal, state or local property, license,
privilege, sales, use, excise, gross receipts or other like taxes or assessments which may result
from transactions or any services performed in connection therewith. Any taxes, charges,
or duties imposed by any governmental authority on the sale of Deliverables will be paid by
Customer, in addition to the selling price specified by Company.
c. Payment Terms. Company will deliver to Customer an invoice with each shipment of
Deliverables hereunder. Customer will pay all invoiced amounts within 35 days of the invoice
date (subject to any early pay discounts that may be offered to Customer by Company in
its sole discretion). Customer will make all payments in United States dollars. Past due
invoices will be subject to a late payment service charge of 1.5% per month on any overdue
unpaid balance, equivalent to 18% per annum, or the maximum rate permitted by law,
whichever is less. Customer shall reimburse Company for all costs of collection, including,
without limitation, reasonable attorneys' fees, for any overdue amount owed by Customer to
Company, and such collection costs shall also be subject to interest charges.
4. QUOTATIONS.
a. Project Quotations. Project or new construction quotes are restricted to the specific
project quoted for the quantities, finishes, and series of Deliverables referenced on the quote.
Company reserves the right to require proof of sale of Company products for any quoted
project.
b. Stock Quotations. Deliverables fulfilling stock quotations may only be used for the
following: i) Stocking of the Customer’s shelves for small, quick-turn, discretionary projects, or
ii) Sale to a general contractor or installer for new construction. Stock quotations may not be
used for any project containing any Company no-substitution, specified products. Deliverables
purchased under Stock Quotations cannot be redistributed to other Customer branch locations
or re-sold to other resellers or used for aftermarket sales, end-user annual contracts or sold
over the counter to any walk in trade.
c. General. All quotes are subject to this Agreement, unless otherwise specified by
Company, and are subject to change at any time prior to Company’s acceptance of a purchase
order referencing the applicable quote number. Company, its representatives and employees
reserve the right, in their sole discretion and for any reason, to refuse a Customer’s request
to quote a price other than the standard list price, regardless of whether Company or its
representatives or employees have previously quoted discounted prices to the Customer on
some or all of its orders. Customer’s failure to comply with this Section 4 will be considered
a material breach of this Agreement, and will entitle Company to immediately terminate any
purchase orders and/or Customer’s ability to distribute Company’s products.
5. SECURITY INTEREST. Customer grants Company, and Company retains, a purchase
money security interest and lien on any and all of Customer’s rights, title and interest in
each Deliverable sold by Company to Customer, wherever located, until the invoice for the
applicable Deliverable(s) is paid in full, including any late charges and costs of collection.
Customer authorizes Company to, and will assist Company in, taking all necessary steps to
perfect and maintain Company’s interest in such Deliverables.
6. CREDIT TERMS. . Unless Customer pre-pays all of its purchase orders in advance, its
purchase orders will be subject to the credit limit and other terms of credit (“Credit Terms”)
set forth in Company’s credit application, which Credit Terms Customer acknowledges are
subject to change by Company at any time. Company reserves the right to request payment in
advance of shipment or any order or to request adequate assurances for Customer’s payment
of an order and may withhold or stop shipment, without any liability to Company, until
Customer submits payment or adequate assurance of payment.
7. RESALE OF DELIVERABLES. Customer agrees and warrants that it will offer Company
products in support of Company-written specifications and will maintain sufficient inventory
to adequately support End Users, installers, and/or general contractors’ needs. Company may
implement an MSRP or a resale pricing programs at any time in its sole discretion. Failure
to comply with such program(s) will be considered a material breach of this Agreement,
and will entitle Company to immediately terminate any purchase order and/or Customer’s
ability to distribute Company’s products. Customer shall, at its own expense, gain and
maintain sufficient knowledge of the industry and products competitive with Deliverables so
as to be able to (a) explain in detail to End Users, installers, and/or general contractors the
differences between the Deliverables and competing products, (b) ensure that an adequate
number of trained, capable and qualified technical personnel with sufficient knowledge of the
Deliverables and who have obtained all necessary licenses and permits are available to assist
End Users, installers, and/or general contractors, and (c) respond to such End Users, installers,
and/or general contractors with respect to the general operation and use of the Deliverables
including, but not limited to, (1) acting as a liaison between the End Users, installers and/or
general contractors and Company in matters requiring Company participation, (2) providing
general product information and configuration support on standard protocols and features,
(3) collecting relevant technical problem identification information, and (4) posting and
distributing any warranty information concerning the Products in accordance with Company’s
instructions. Customer is responsible for all service and support resulting from the re-sale
of any Deliverable to End-Users, installers and/or general contractors, examples of which
may include, but are not limited to, support activities such as installation, initialization,
software set-up, training, trouble-shooting, technical support and field service. In the event
Customer is unwilling or unable to perform said support activities, Company reserves the right
to recover from Customer any and all expenses incurred by Company to resolve the afore-
mentioned End-User, installer and/or general contractor issues. Technical product training is
recommended for Customer in order to fully service and support Deliverables purchased from
Company that are resold to End-Users, installers and/or general contractors.
8. DEFAULT. If Customer is in default of payment or otherwise with respect to any purchase
order or other contract with Company, Company shall have the right, in addition to all other
legal remedies and without prejudice to any of its right hereunder, to defer further shipments
under that or any other purchase order until such default is corrected and to declare all
outstanding bills of Customer to be immediately due and payable.
9. INSPECTION AND DELIVERY.
a. Inspection. Customer will inspect all Deliverables immediately after receiving them.
Customer will be deemed to have accepted the Deliverables unless Customer notifies
Company in writing of any nonconformance within 10 days of delivery and provides Company
written evidence reasonably documenting that nonconformance. Inspection of Deliverables at
Company’s facility is not permitted.
b. Delivery. Delivery schedules for Deliverables are based upon current production
capacities, material or component availability, and inventory, and may be changed by
Company as conditions require. Delivery schedules for services are based upon Company’s
prompt receipt of, and prompt access to, Customer’s equipment and all information necessary
to complete the services. In no event will any delivery date be construed as falling within the
meaning of “time is of the essence.” Partial delivery shall be accepted by Customer and paid
for at the price and on the terms stated herein. Any partial delivery shall constitute a separate
sale, and payment shall be separately made when due. If any part of a delivery hereunder is
not delivered by Company in accordance with Customer’s purchase order, this Agreement shall
not be affected thereby.
10. TITLE & RISK OF LOSS. Unless otherwise specified by Company, (i) where the Customer
is located in the United States, all Deliverables will be sold “Uniform Commercial Code, FOB
Origin, Company’s factory”; and (ii) where the Customer is located outside of the United
Allegion General Terms and Conditions of Sale and Service
Price Book 5
Effective August 12, 2017 • Rev. 08/17
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
11
TERMS & CONDITIONS
Terms-3
States, all Products will be sold “Ex-works, Company’s factory (Incoterms 2010).” In
either instance, title and risk of loss will pass to Customer upon delivery to the carrier at
Company’s factory, provided, however, as set forth herein, Company shall retain a security
interest in the Deliverables until full payment has been made therefore, and Customer
agrees, upon request, to do all things and acts necessary to protect Company’s interest by
adequately insuring the Deliverables against loss or damage from any cause and to have
Company named as an additional insured. Customer will promptly provide Company with a
copy of the relevant certificate of insurance upon Company’s request.
11. SHIPPING.
a. Freight Charges. Company will ship all Deliverables in accordance with Company’s
freight shipment guidelines, which are set forth on the My Allegion Portal (“Freight Shipping
Guidelines”), WHICH TERMS ARE EXPRESSLY INCORPORATED HEREIN.
b. Rush Charges. Expedited order options are available as set forth in Company’s Freight
Shipping Guidelines.
c. Packing and Marking. Company will pack, mark, and ship Deliverables according to its
standard procedures for shipment, unless the parties agree, in writing, that Company will
comply with any special instructions provided by Customer. Special instructions may result
in an increased price.
d. International Shipments. For all international orders, a Shipper’s letter of instruction
must be submitted in writing with the order. Failure to do so will result in the order being
rejected. Complete adherence to this order requirement will be strictly enforced. Company
will not be held liable for any charges resulting from delays due to lack of complete required
information being supplied.
e. Once received by the Company, a purchase order cannot be combined with any other
order to increase average order size as it relates to Company’s Freight Shipping Guidelines.
However, for orders placed under Company’s FastTrack 24 Hour/5 Day Program (available
for Schlage, Von Duprin, LCN and Glynn-Johnson products); ii) FastTrack 24 Hour/3 Day
Program (available for Ives products); or ProExpress (available for specific product lines
stated in the ProExpress price book for Falcon, Ives, Glynn Johnson, LCN, Schlage and Von
Duprin products), the applicable brands or product categories may, subject to certain order
requirements identified by Company, be combined on a single order to increase average
order size used in Company’s Freight Shipping Guidelines.
12. CLAIMS. All claims must be submitted in writing to Company as follows: (i) All claims
for prices must be submitted within thirty (30) days from the date of invoice; (ii) All claims
regarding Deliverable quantity or incorrect orders must be submitted within ten (10) days
from the date of delivery; (iii) All claims for damage to Deliverables (while in the care,
custody, and control of Company) must be submitted within thirty (30) days from the date
of invoice; (iv) All claims for loss or damage to Deliverables while in the care, custody, and/
or control of a carrier will be the responsibility of Customer, unless otherwise agreed by the
parties.
13. PRODUCT CHANGES. Company’s product policy is one of ongoing update and revision,
and accordingly, Company reserves the right to change, without notice, the design of, or the
process of manufacturing, the Deliverables covered by this Agreement.
14. PRODUCT USAGE LIMITATION. Customer agrees: (i) not to sell or use a Deliverable
in any manner contrary to the manner in which the Deliverable is intended to be used; and/
or (ii) not to modify the design of any Deliverable for use with another product without the
prior written consent of Company.
15. PRODUCT RETURNS. Unless otherwise agreed by the parties in writing, Deliverables
that are correctly furnished by Company per the purchase order may not be returned
unless Customer receives written authorization from Company. If returns are authorized
by Company, a return merchandise authorization (“RMA”) number must be provided by
Company. Deliverables identified under such RMA must be returned to Company within 90
days of issuance of the RMA. Such RMA number and any accompanying RMA documents,
the original invoice number, and a written explanation for the return must be included
with the returned Deliverables in order for Company to inspect and approve a credit for
the return. For warranty returns, a credit in the amount of the original purchase price
will only be issued if, after Company’s receipt and inspection of the returned Deliverables,
Company confirms, in its sole discretion, the defect is valid and approves the return. For
non-warranty returns/convenience returns, in the event Company approves such a
return, in its sole discretion, the following shall apply: (a) the total amount of Deliverables
requested to be returned shall be a minimum of $250.00; (b) a credit will be made to
Customer’s account in the amount of the original purchase price less freight and a handling
charge of 45% of the net material on the original invoice; and (c) only Deliverables that are
new, current, standard, non-obsolete, non-specially manufactured, unused, in their original
condition as at the time of sale by Company to Customer, in their original packaging and in
Customer’s inventory less than 180 days from the date of shipment by the Company, and
not ordered as part of a master key solution may be considered by Company for return.
Such credit will only be issued if, after Company’s receipt and inspection of Deliverables,
Company approves the return. The amount of final credit will be determined upon receipt
at the factory and following Company’s inspection and analysis of the condition of the
returned material. Company retains the right to deny credit to anyone for any reason.
16. CONFIDENTIAL INFORMATION.
a. Non-Use And Non-Disclosure. Customer shall not use the Confidential Information of
the Company except for the purpose of performing its obligations under this Agreement or
exercising the rights granted herein (the “Purpose”). Customer shall protect Confidential
Information of the Company from disclosure and unauthorized use in the same manner that
it protects its own Confidential Information, but in no event shall such standard of care be
less than reasonable care. Customer may disclose Confidential Information of the Company
only to its employees who require such information for the Purpose and who are subject to
confidentiality obligations at least as protective as those set forth herein.
b. Proprietary Information and Advice. (a) All designs, data, and specifications provided
by Company are proprietary and may not be disclosed or reused by Customer without the
prior written consent of Company; (b) Company assumes no obligation or liability for any
advice given by Company, the results obtained, or damages incurred as a result of such
advice, and all such advice is given and accepted at Customer’s risk.
c. Return. Upon the termination or expiration of a purchase order or this Agreement
or upon the request of the Company, the Customer agrees to end all further use of, to
immediately return to the Company the original version of, and to delete or destroy all
copies of, any and all Confidential Information of the Company.
17. TRADEMARKS. Except as agreed to by Company in writing, Customer agrees not to (a)
use Company’s name in any form of publicity; or (b) use, create, register or market, directly
or indirectly, in whole or in part, Company’s names, logos, brands, or any other trademarks,
or names that are now or may hereafter be owned by Company, as part of Customer’s
corporate or business name, as part of an internet domain name, uniform resource
locator (URL), or in any way connected with Customer’s business, trade address or other
designations. Upon termination of this Agreement or upon the request of company for any
reason, any use of Company’s trademarks or names will be immediately discontinued.
18. LIMITED WARRANTY.
COMPANY MAKES NO OTHER WARRANTIES EXCEPT THOSE STATED IN
COMPANY’S LIMITED WARRANTY IN EFFECT ON THE DATE COMPANY
ACCEPTS EACH APPLICABLE PURCHASE ORDER (“LIMITED WARRANTY”).
THE LIMITED WARRANTY MAY BE FOUND IN THE APPLICABLE PRICE BOOK
AND ON THE ALLEGION CUSTOMER WEBSITE, WHICH TERMS ARE EXPRESSLY
INCORPORATED HEREIN BY REFERENCE. COMPANY WILL MAIL CUSTOMER A
HARD COPY OF THIS WARRANTY UPON CUSTOMER’S WRITTEN REQUEST. IN
THE EVENT THAT CERTAIN DELIVERABLE WARRANTIES ARE NOT FURNISHED
BY THE COMPANY TO CUSTOMER, COMPANY WARRANTS ONLY TO CUSTOMER
THAT THE DELIVERABLES WILL BE FREE FROM DEFECTS IN MATERIAL
AND WORKMANSHIP FOR A PERIOD OF 12 MONTHS FROM THE DATE OF
SHIPMENT OF THE DELIVERABLES. COMPANY’S SOLE OBLIGATION UNDER
THIS WARRANTY IS LIMITED TO REPAIRING OR REPLACING, AT COMPANY’S
OPTION, THE DEFECTIVE DELIVERABLE, PROVIDED WRITTEN NOTICE OF THE
DEFECT OR NONCONFORMANCE IS PROVIDED BY CUSTOMER WITHIN 30 DAYS
OF DISCOVERY OF THE DEFECT OR NONCONFORMANCE. COMPANY DISCLAIMS
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT TO THE
DELIVERABLES, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES
OF NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR
PURPOSE.
a. Exclusions. The provisions of this Limited Warranty do not apply to Deliverables
that: (A) are not the proper size for the application; (B) are not installed in accordance
with Company’s published installation instructions; (C) are installed with improper or
incorrect parts and/or are used for purposes for which they are not designed or intended;
(D) have been repaired or altered without the Company’s prior written consent; (E) have
been subjected to misuse, abuse, negligence or accident; (F) have been improperly stored,
installed, maintained or operated; (G) have been used in violation of written instructions
provided by Company to Customer; (H) have been subjected to improper temperature,
humidity, or other environmental conditions, or (I) have been affected by normal wear
and tear. In addition, the provisions of this Limited Warranty do not apply to any defects
or issues with the design or performance of equipment or products not manufactured
by Company, nor does it apply to any code compliance or permit requirements for the
assembly, installation, erection or construction of any goods. Company is not responsible
for loss or damage resulting from use of Deliverables in conjunction with parts or systems
not manufactured by Company. Accessories or products furnished by the Company, but
manufactured by others, shall carry whatever warranty the manufacturers have conveyed
to the Company and which can be passed to Customer.
b. Services. Company warrants that its services will be free from defects in material
and workmanship for a period of 12 months from the date of completion of the particular
items of service. Company’s sole obligation under this service warranty is limited to repair
or reperformance, at its option of the service, provided however, if repair or reperformance
is either impractical or impossible, the Company will refund to Customer that portion
of the price paid to Company for any defective service, provided written notice of the
defect or nonconformance is provided by Customer within 30 days of discovery of the
nonconformance.
c. Notification. Customer agrees to immediately notify Company in writing if any claim is
made against Customer for any damages caused by any modules, parts, products, service or
other Deliverables which may be the direct result of any defect in the manufacture of such
aforementioned products. Customer agrees to cooperate with Company and its counsel in
the defense of such claim and Customer agrees not to settle such claim without Company’s
written consent. If Customer fails to notify Company of such claim or fails to cooperate in
such defense as aforesaid, then Company shall be discharged from any obligations under
this Section and shall have no further liability to Customer.
d. Exceptions. The following costs and expenses are not covered by the provisions of
these limited warranties: (i) labor costs for the removal and reinstallation of Deliverables
or other manufacturer’s products; (ii) shipping and freight expenses required to return
Deliverables to Company; (iii) normal maintenance; and (iv) economic losses. In addition,
the provisions of this warranty are not applicable to anything other than defects in
Company’s material (products only) or workmanship.
19. LIMITATION OF REMEDIES.
CUSTOMER’S EXCLUSIVE AND SOLE REMEDY ON ACCOUNT OF, OR IN RESPECT
OF, THE FURNISHING OF NON-CONFORMING DELIVERABLES, SHALL BE TO (A)
SECURE REPAIR OR REPLACEMENT OF THE PRODUCTS; OR (B) SECURE REPAIR
OR RE-PERFORMANCE OF THE SERVICES OR TO OBTAIN A REFUND OF THE PRICE
PAID FOR THE DEFECTIVE SERVICE, ALL AT COMPANY’S OPTION. IN NO EVENT
WILL THE COMPANY’S MAXIMUM LIABILITY EXCEED THE SELLING PRICE FOR THE
DELIVERABLE. THE WARRANTY, OBLIGATIONS AND LIABILITIES OF COMPANY
(INCLUDING ITS SUPPLIERS) AND THE RIGHTS AND REMEDIES OF CUSTOMER
ARE EXCLUSIVE AND ARE IN LIEU OF AND CUSTOMER HEREBY WAIVES AND
RELEASES ALL OTHER WARRANTIES, OBLIGATIONS, REPRESENTATIONS
OR LIABILITIES EXPRESS OR IMPLIED ARISING BY LAW, IN CONTRACT, TORT
(INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE, INCLUDING BUT
NOT LIMITED TO (I) ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE OR ANY WARRANTY IMPLIED THROUGH COURSE
OF PERFORMANCE, COURSE OF DEALING, OR USAGE OF TRADE OR (II) CLAIMS
ARISING OUT OF THE NEGLIGENCE OF COMPANY OR COMPANY’S SUPPLIERS
OR (III) ANY OTHER CLAIM ARISING OUT OF, CONNECTED WITH, OR RESULTING
FROM THE PERFORMANCE OF COMPANY OR FROM THE DESIGN, MANUFACTURE,
SALE, REPAIR, LEASE OR USE OF THE DELIVERABLE, OR ANY COMPONENT
THEREOF, DELIVERED OR RENDERED HEREUNDER OR OTHERWISE.
20. INDEMNIFICATION AND LIMITATION OF LIABILITY. a. Customer shall indemnify,
defend and hold Company, and its officers, directors, employees, customers, Affiliates,
suppliers, users and agents, (collectively the “Indemnitees”) harmless from and against
any and all damages, claims, losses, expenses, costs, obligations, liabilities, including
without limiting the generality of the foregoing, liabilities for court costs and attorneys’
fees, suffered directly or indirectly by an Indemnitee by reason of, or arising out of any injury,
death or loss to any person, or injury to any property (collectively, “Damages”), received
or sustained by any person(s) or property, arising out of, occasioned by, attributable or
Price Book 5
Effective August 12, 2017 • Rev. 08/17
12
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
Terms-4
TERMS & CONDITIONS
related to i) any breach of any representation or warranty made by Customer, its officers,
directors, employees, affiliates, users, agents, representatives or customers to Company or
any third party, (ii) any failure by Customer to perform or fulfill any of its covenants, acts and/
or omissions to Company or to any third party, or (iii) any litigation, proceeding or claim by
any third party relating in any way to the obligations of Customer and/or the Deliverables
sold by Company to Customer hereunder. Customer shall not consummate any settlement
of any indemnified claim without the Indemnitees’ prior written consent. Customer’s
obligation to indemnify Indemnitees will continue in full force and effect notwithstanding
the termination or expiration of any order under this Agreement. In any claim against an
Indemnitee by an employee of Customer or any subcontractor or anyone directly or indirectly
employed by any of them or anyone for whose acts they may be liable, the indemnification
obligations set forth in this Section shall not be limited in any way by or for Customer or any
subcontractor under any applicable worker’s compensation act, disability or other employee
benefit act, or insurance coverage. This provision shall survive termination of any order or
Agreement. IN NO EVENT WILL COMPANY, ITS OFFICERS, DIRECTORS, EMPLOYEES,
CUSTOMERS, AFFILIATES, USERS AND AGENTS, (NOR COMPANY’S SUPPLIERS) BE
LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE
DAMAGES OF ANY KIND OR NATURE UNDER ANY CIRCUMSTANCES INCLUDING,
BUT NOT LIMITED TO, LOSS OF USE OF THE PRODUCTS, SERVICE INTERRUPTION,
LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF INTEREST, LOST GOODWILL, LOSS
OF DATA, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, LOSS BY REASON
OF SHUTDOWN OR NON-OPERATION, INCREASED EXPENSES OF OPERATION,
OR CLAIMS OF CUSTOMER’S CUSTOMERS, OR ANY OTHER LOSSES OR DAMAGES
ARISING OUT OF ANY LACK OR LOSS OF USE OF THE DELIVERABLES WHETHER
BASED ON CONTRACT, WARRANTY, TORT (INCLUDING, BUT NOT LIMITED TO,
STRICT LIABILITY OR NEGLIGENCE), PATENT INFRINGEMENT, OR OTHERWISE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
b) INTELLECTUAL PROPERTY INDEMNITY. Company makes no representation or
warranty to the Customer that the Deliverables shall not infringe any intellectual property
rights including, without limitations, claims arising from patent, copyright, trademark, trade
secret, or other intellectual property infringement. Customer agrees to hold Company
harmless from and defend the Company against any such claim of intellectual property
infringement, including any Damages resulting from that claim, the cost of complying
with any preliminary or permanent injunction, and all other costs of defense (including the
attorneys’ fees and costs), in connection with the foregoing.
c) To the extent that applicable law does not permit any limitations set out in this
Agreement, such limitation shall not be applied or invoked. Nothing in this Agreement will
be interpreted to disclaim liability of Company or the Indemnitees for gross negligence or
willful misconduct. The limitations of remedy and liability herein shall not be interpreted to
affect Company’s obligations, if any, for claims for (i) property damage, (ii) personal injury,
or (iii) wrongful death asserted by persons who are not parties to or beneficiaries of this
Agreement. Further, the limitations of remedy and liability herein shall not be interpreted
to limit Company’s or Customer’s right, if permitted by applicable law, to assert a claim for
contribution among joint tortfeasors in connection with a claim by a person who is not a party
to this Agreement.
21. CERTIFICATIONS. Certification of Deliverables for compliance with UL and ANSI
standards are tested and performed by third-party independent laboratories. Any field
modification or alteration of certified Deliverables will void certification and Company is not
liable to Customer to certify any modified or altered Deliverable.
22. TERM FOR CLAIMS. NO ACTION ARISING OUT OF ANY CLAIMED BREACH OF THIS
AGREEMENT BY COMPANY MAY BE BROUGHT BY CUSTOMER MORE THAN ONE (1)
YEAR AFTER THE CAUSE OF ACTION HAS ARISEN.
23. CONSUMER PRODUCTS
WITH RESPECT TO “CONSUMER PRODUCTS” AS DEFINED UNDER THE MAGNUSON-
MOSS WARRANTY ACT (“MMWA”), THE FOLLOWING STATEMENTS ARE MADE. (A)
SOME STATES OR LOCAL LAWS DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU;
(B) IF ANY IMPLIED WARRANTY IS PROVIDED UNDER THE MMWA, IT IS LIMITED
TO THE DURATION OF THE WARRANTY PROVIDED IN SECTION 18 ABOVE. (C)
SOME STATES OR LOCAL LAWS DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION
OR EXCLUSION MAY NOT APPLY TO YOU; AND (D) THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE OR LOCATION TO LOCATION.
24. FORCE MAJEURE/EXCUSABLE DELAY. Any delay or failure of Company to perform its
obligations hereunder will be excused to the extent that it is caused by an event or occurrence
beyond Company’s control such as, by way of example and not by way of limitation, acts
of God, acts by any governmental authority (whether valid or invalid), governmental laws
and regulations not presently in effect, fires, floods, windstorms, explosions, riots, natural
disasters, wars, sabotage, accidents, labor problems (including, without limitation, lockouts,
strikes, and slowdowns) at Company’s facility, its source plant or their suppliers, inability
to obtain power, material, labor equipment, or transportation, or court injunction or order.
The delivery date will be extended for a time equal to that of the delay and the schedule for
Company’s performance will be deemed adjusted to that effect.
25. ENTIRE AGREEMENT AND AMENDMENT. This Agreement, together with the
attachments, exhibits, webpages, or supplements specifically referenced and incorporated
herein, constitute the entire agreement between Company and Customer with respect to
the matters contained herein and supersede all previous communications, representations,
or agreements, either oral or written between Company and Customer. No agreement or
understanding varying or expanding this Agreement will be binding upon either party unless it
is in writing and signed by a duly authorized representative of each party hereto.
26. CONFLICTS. In the event of any conflict or inconsistency between the terms of any
agreement, or any part of an agreement or the various documents (including, but not
limited to, electronic documents) between Company and Customer, unless the parties
agree otherwise in writing, the various components of the agreements shall be given the
following precedence (in descending order of precedence): a) any master agreement or long
term agreement between Company and Customer; b) any specific terms, conditions and/
or warranties of the individual products or Deliverables; c) the terms and conditions of this
Agreement, and d) any purchase order.
27. UNSATISFACTORY CREDIT/TERMINATION FOR INSOLVENCY OR DEFAULT.
Customer shall furnish Company with statements evidencing Customer’s financial condition
as Company may, from time to time, reasonably request, and shall notify Company
immediately of any and all events that may have a material adverse effect on Customer’s
business or financial condition. If Company determines, in its sole discretion, that Customer’s
financial condition or creditworthiness is inadequate or unsatisfactory, then in addition to
Company’s other rights, Company may without liability or penalty, take any of the following
actions: (i) modify the payment terms for any outstanding and/or future purchases; (ii)
cancel any previously accepted orders; (iii) delay any further shipment of Deliverables to
Customer; or (iv) any combination of the above.
Company may immediately terminate an order from Customer by giving written notice to
Customer in the event of the happening of any of the following or any other comparable
event: (i) insolvency of the Customer; (ii) filing of a petition in bankruptcy by or against the
Customer; (iii) appointment of a receiver or trustee for the Customer; (iv) execution of an
assignment for the benefit of creditors by the Customer, all of which will allow Company to
demand reclamation of all affected orders; (v) Customer ceases or threatens to cease to
trade; (vi) Company determines that Customer does not meet or no longer meets the credit
requirements of Company or Customer’s credit account is closed; (vii) any Customer violation
of law, specifically including, without limitation, those laws set forth in this Agreement.
In the event of termination in accordance with this section, Company will not be obligated
to accept any existing or additional orders from Customer and Company will be released
from its obligation to deliver under orders accepted prior to such termination. The rejection
or termination of any order by Company will not entitle Customer to any termination or
severance compensation, or to any payment in respect to any goodwill established by
Customer, or render Company liable for damages on account of the loss of prospective
profits, or on account of any loss, expenditure, investment or obligation incurred or made by
Customer.
No action taken under this Section 27 by Company (nor any failure of Company to act under
this Section 27) will constitute a waiver by Company of any of its rights to enforce Customer’s
obligations, including the obligation of Customer to make payments as required under this
Agreement. Upon termination of any order, all amounts owed by Customer to Company will
become immediately due and payable, whether or not otherwise then due or payable.
28. CREDIT RISK ON RESALE OF DELIVERABLES. Customer is responsible for all credit
risks with respect to, and for collecting payment for, all Deliverables sold to third parties
(including End Users, installers, and/or general contractors) whether or not Customer has
made full payment to Company for such Deliverables. The inability of Customer to collect
payment for any Deliverable shall not affect Customer’s obligation to pay Company for any
Deliverable.
29. GOVERNING LAW; VENUE; AND EXPENSES. Any dispute or claim relating to this
Agreement shall be governed by and construed according to the laws of the State of Indiana
(excluding its conflict of laws principles); and not by the provisions of the 1980 United Nations
Convention on the International Sale of Goods. Any disputes or claims shall be instituted
and maintained in the courts of the State of Indiana. Customer consents to the exercise of
jurisdiction over it by such courts and agrees that Indiana is not an inconvenient forum for any
action arising from or relating to this Agreement. Customer agrees to pay for all expenses
(including, but not limited to, collection costs, court costs and attorneys’ fees) incurred by
Company in enforcing the obligations of Customer under this Agreement.
30. RELATIONSHIP OF THE PARTIES. Nothing in this Agreement or any other document
creates an employment, partnership, joint venture, or agency relationship between Company
and Customer, including that of franchisee/franchisor. No party will have any power or
authority to enter into any commitment on behalf of or otherwise bind the any other party
on any matter. No employee of Customer will be deemed to be an employee of Company.
If any provision of this Agreement is deemed to create a franchise relationship or business
opportunity between the Parties, then Company may terminate any purchase order or this
Agreement or the Parties shall negotiate in good faith to modify this Agreement so as to
effect the original intent of the Parties as closely as possible in a mutually acceptable manner
in order that the transactions contemplated hereby are consummated as a reseller agreement
and not a franchise or business opportunity agreement.
31. SETOFF. Customer does not have the right to setoff or to back charge against any
amounts which become payable to Company under this Agreement or otherwise. Company
will not accept responsibility for backcharges for the cost of material or labor by Customer or
any third party.
32. ELECTRONIC COMMUNICATIONS AND ELECTRONIC SIGNATURES. Both parties
expressly agree to electronic transactions and acknowledge that documents they sign
electronically will bind them to the same extent as a paper signature. Customer represents
and warrants to Company that only employees authorized to bind Customer legally shall
electronically sign any document under this Agreement. Customer shall comply with any
method of electronic communication/payment processing specified by Company, including
electronic funds transfer, pay-on-receipt processes/systems, order transmission, releases,
electronic signature, and electronic communication systems, including, without limitation, the
use of electronic data interchange (“EDI”) portals. Notwithstanding the foregoing, e-mails,
even those containing a signature block of one of Company’s representatives, shall not
constitute a signed writing.
33. COMPLIANCE WITH APPLICABLE LAWS.
a. General. Company and Customer will comply with all applicable federal, state and
municipal laws, regulations, codes, ordinances and orders that pertain to the Deliverables,
including but not limited to full compliance with any applicable provisions of The Health
Insurance Portability and Accountability Act. Where the Customer is located outside the
United States, or where the customer intends to ship the product outside the United States,
the Customer shall be responsible for compliance with all U.S. export laws, and for filing all
U.S. Electronic Export Information, as applicable.
b. The Customer acknowledges and agrees that: (i) it shall not violate applicable laws
and regulations in performing its duties under this Agreement; (ii) it does not and shall not
engage in any conduct that shall violate any applicable anti-bribery or anti-corruption laws
or regulations; (iii) it (and its owners, officers, directors, employees and agents) shall not
pay, offer, promise or authorize the payment of, either directly or indirectly, anything of value
(including but not limited to cash, gifts and entertainment) to (a) any government official
or employee of any government; (b) any official or employee of any department, agency, or
instrumentality of a government; (c) any employee of any corporation or entity owned or
controlled by a government; (d) any family member of such officials or employees; (e) any
political party, party official, or political candidate; or (f) any other persons, owners, officers,
Price Book 5
Effective August 12, 2017 • Rev. 08/17
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
13
Terms-5
TERMS & CONDITIONS
directors, employees and agents of any corporation or entity; to improperly or illegally assist
in obtaining or retaining business (including but not limited to any contracts, avoidance
of duties or reduction of tariffs, reduction of taxes or to obtain money owed, or to obtain
regulatory approval) or for the purpose of causing, soliciting or inducing the sale and purchase
of the Deliverables by any party, and (iv) it has full knowledge of and will comply with the
Company’s Code of Conduct for Business Partners as set forth on the Allegion customer
website, WHICH IS HEREBY INCORPORATED BY REFERENCE.
c. The Customer shall indemnify and hold the Company harmless from any claim, demand,
expense or cost arising from any breach of this Article.
d. The Customer shall permit the Company to conduct an audit or review of the Customer’s
financial books and records and business operations at such other times that the Company
considers it necessary to confirm compliance with this provision. Such audit may be
conducted by representatives of the Company or, at the Company’s sole discretion, by a
certified public accounting firm selected by the Company. The Customer shall cooperate with
any inquiries from the Company’s Ethics & Compliance Group.
e. A violation of this provision constitutes a material breach of this Agreement and the
Company may terminate any purchase order or this Agreement immediately, with no
opportunity to cure, in accordance with Section 27 of this Agreement.
f. Notwithstanding the foregoing provisions of this Section 33, (i) Company is not responsible
for obtaining or maintaining any permits for the performance of services or the verification
or compliance with any code requirements relative to the performance of services, (ii) to the
extent any sale of Deliverables pursuant to this Agreement may require approval of the U.S.
Government, Company’s obligations under this Agreement are conditioned upon the grant of
such approval and upon compliance by Customer with any restrictions imposed by the U.S.
Government in connection with such approval, and (iii) in the event the Deliverables are to
be used in a nuclear facility, the Customer shall, prior to such use, arrange for insurance or
governmental indemnity protecting Company against liability. The Customer hereby releases
and agrees to indemnify Company and its suppliers for any nuclear damage including, but not
limited to, loss of use, in any manner arising out of the nuclear incident, whether alleged to be
due, in whole or in part by Company or its suppliers.
g. No Inducements. Each party represents to each other that neither it nor any person
acting on its behalf has, in contravention of any applicable law, given or offered to give or will
give or offer to give, any sum of money or other material consideration to any person, directly
or indirectly, as an inducement to obtain business hereunder or to influence the granting
of licenses or other governmental permissions to enter into this Agreement or perform
obligations hereunder.
h. Equal Employment Opportunity. Company is a U.S. federal contractor that complies
with Executive Order 11246, as amended, and applicable regulations in 41 CFR Parts 60-1
through 60-60, 29 U.S.C. § 793 and applicable regulations in 41 CFR § 60-741; and 38 U.S.C.
§ 4212 and applicable regulations in 41 CFR Part 60-250 and 60-300. THE FOLLOWING
PROVISIONS ARE INCORPORATED HEREIN BY REFERENCE: Executive Order 11246, as
amended by Executive Order 13672, and 41 CFR § 60-4.3(a); Executive Order 11701 and 41 CFR
§§ 60-250.5(a), 60-300.5; Executive Order 11758 and 41 CFR § 60-741.5(a); U.S. immigration
laws, including the L-1 Visa Reform Act of 2004 and the H-1B Visa Reform Act of 2004; and
Executive Order 13496.
i. Ethical Business Conduct. Customer shall adopt and comply with Company’s Business
Partner Code of Conduct which is EXPRESSLY INCORPORATED HEREIN BY REFERENCE.
34. REPRESENTATIONS AND WARRANTIES. Customer represents, warrants and
covenants to Company that: (a) it has the right, power, and authority to enter into this
Agreement and fully perform its obligations hereunder; (b) it has all necessary rights in and
to its respective Content and Marks for use within the scope of this Agreement, including
the licenses granted herein; and (c) it complies, and at all times shall comply, with all laws,
rules, and regulations in effect that are applicable to its performance under this Agreement,
including obtaining all such approvals and/or permits as may be required hereunder.
35. NO THIRD-PARTY BENEFICIARY. Each party is entering into this Agreement solely
based on the representations contained herein for its own purposes and not for the benefit of
any third party.
36. NOTICES AND CHANGE OF ADDRESS. All notices or other communications under
this Agreement shall be in writing and delivered in person, or sent by receipted courier,
express mail, e-mail, or postage prepaid certified or registered mail, addressed to the party
for whom it is intended, at the addresses set forth in this Agreement. Either party may
change its address for notice by giving written notice to the other party. Any notice or other
communication shall be deemed given no later than the date actually received. Notice by
courier, express mail, certified mail, or registered mail shall be deemed given on the date it
is officially recorded as delivered and, in the absence of such record of delivery, it shall be
rebuttably presumed to have been delivered on the third Business Day after it was deposited.
Notices sent by e-mail require tangible confirmation of receipt from addressee.
37. ASSIGNMENT. Customer may not assign this Agreement without the prior written
consent of Company. Company may assign its rights and delegate its duties under this
Agreement, without the prior consent of Customer, to an Affiliate, or to a third party in the
event of a spin-off, merger, business combination, consolidation or sale of all, or substantially
all, of its assets or business that are related to this Agreement. The rights and duties in this
Agreement shall bind and inure to the benefit of any such assignee.
38. SEVERABILITY. If any provision of this Agreement is held to be invalid, illegal, or
unenforceable under any statute, regulation, ordinance, executive order, or other rule of law,
that provision will be deemed severed to the extent necessary to comply with such statute,
regulation, ordinance, order, or rule. In the event such provision is deemed severed, the parties
will negotiate in good faith to arrive at an alternative arrangement approximating the original
business objective of the parties. The remaining terms and conditions of this Agreement will
remain in effect.
39. NO IMPLIED WAIVER. The failure of either party at any time to require performance by
the other party of any provision of this Agreement will in no way affect the right to require
such performance at any time thereafter, nor will the waiver of either party of a breach of any
provision of this Agreement constitute a waiver of any succeeding breach of the same or any
other provision.
40. MISCELLANEOUS. (a) This Agreement does not make either party the agent or legal
representative of the other party. Neither party is authorized to create any obligation on
behalf of the other party including, but not limited to, the obligation for payment of any
service or warranty obligation hereunder; (b) The rights and remedies herein reserved to
Company are cumulative and additional to any other rights and remedies provided at law or
equity; (c) The official text of this Agreement is in the English language. If this Agreement is
translated into another language, the English text will govern any question with respect to
interpretation; (d) The headings in this Agreement are for convenience of reference only and
do not affect the meaning of this Agreement in any manner.
DEFINITIONS.
Capitalized terms have the meanings set forth in this Section, or in the Section in which they
first appear in this Agreement.
“Agreement” means these Allegion Terms and Conditions of Sale and Service, together with
any applicable Country Supplement or Region Supplement provided by Company, and all of
the documents referenced herein or therein.
“Affiliate” means any Person that directly or indirectly, through one or more intermediaries,
controls, is controlled by, or is under common control with, the Company. The term
“control” (including the terms “controlled by” and “under common control with”) means
the possession, directly or indirectly, of the power to direct or cause the direction of the
management and policies of a Person, whether through the ownership of voting securities, by
contract or otherwise.
“Business Day” means any day except Saturday, Sunday or any other day on which
commercial banks located in the United States are authorized or required by Law to be closed
for business.
“Company” means Schlage Lock Company, LLC or any subsidiary or affiliate thereof selling
products that are part of the Allegion product portfolio. Schlage Lock Company and/or its
subsidiary or affiliates will be severally but not jointly liable under the Agreement.
“Company Marks” refers to the Marks of Company.
“Confidential Information” shall mean any and all information provided by either party
to the other party pertaining to the disclosing party’s business. Confidential Information
shall include, but not be limited to, any bitting lists, formulae for products, manufacturing
processes, production techniques, packaging processes, methods, research materials, ideas,
marketing plans and related materials, quality standards, test results and data, apparatus,
engineering drawings, contract documents, computer software, hardware, or firmware,
business activities information such as financial information, reports, projections, books
and records, customer and supplier information, and operations, customer and supplier lists
and data, specifications, know how, and other Proprietary Information or Trade Secrets (as
defined herein) that either party may furnish to the other party. Confidential Information
shall not include information that: (a) is or becomes publicly known if such public knowledge
or disclosure is not the result of any act or failure to act on the part of the receiving party;
(b) is, at the time of disclosure, already known to the Receiving Party without utilizing the
Confidential Information; (c) is information disclosed to the Receiving Party by a third party
which is not to the Receiving Party’s knowledge, after inquiry of the third party, under a duty
of confidentiality to the Disclosing Party; or (d) is independently developed by the Receiving
Party without the use of Confidential Information. The Receiving Party shall have the burden
of proof as to prior knowledge and absence of breach. Confidential Information may be
furnished in any tangible or intangible form including, but not limited to, writings, drawings,
computer and other electronic media, logic diagrams, component specifications, graphs,
prototypes, samples, or verbal communications and regardless of whether such information
is marked or designated as “confidential.” For the avoidance of doubt, all information,
knowledge or data disclosed by Company to Customer, regardless of whether disclosed in
written, tangible, oral, visual or other form, including, without limitation, sample products,
equipment, software, or other objects or material, provided by Company to Customer, and all
information, knowledge or data which was obtained by Customer from visits to Company’s
facilities, shall be considered “Confidential Information” under this Agreement.
“Content” means all information (including without limitation any text, music, sound,
photographs, video, graphics, data or software), in any medium, on a particular Company
Web page or Website or in Marketing Materials.
“Customer” means the purchaser of Deliverables from Company.
“Deliverables” means any good or service or both purchased by Customer from Company
under these General Terms and Conditions of Sale and Service.
“End Users” means the purchaser that (a) has acquired a Deliverable from Customer for (i)
its own and its Affiliate’s/Affiliates’ internal use and not for resale, remarketing or distribution
or (ii) incorporation into its own products and (b) is an individual or entity, other than any
federal, state or local agency, office or division.
“IP” means all intellectual property and industrial property rights comprising or relating to/
of the following: (a) Patents; (b) Trademarks; (c) internet domain names, whether or not
Trademarks, registered by any authorized private registrar or Governmental Authority, web
addresses, web pages, website and URLs; (d) works of authorship, expressions, designs and
design registrations, whether or not copyrightable, including copyrights and copyrightable
works, software and firmware, application programming interfaces, architecture, files, records,
schematics, data, data files, and databases and other specifications and documentation; (e)
Trade Secrets; and (f) all other intellectual property and industrial property rights, and all
rights, interests and protections that are associated with, equivalent or similar to, or required
for the exercise of, any of the foregoing, however arising, in each case whether registered or
unregistered and including all registrations and applications for, and renewals or extensions
of, such rights or forms of protection pursuant to the Laws of any jurisdiction throughout in
any part of the world.
“Marketing Materials” means all marketing brochures, buckslips, pamphlets, emails, text,
call scripts or other material, whether in printed format, audio or audiovisual format, or in
any other format, that contain any (i) Content relating to the Company Deliverables or (ii)
Company Marks.
“Marks” means collectively the domain names, trademarks, trade names, service marks,
trade dress, logos, and the like used or provided by either party for use in connection with this
Agreement.
“Patents” means all patents (including all reissues, divisionals, provisionals, continuations
and continuations-in-part, re-examinations, renewals, substitutions and extensions thereof),
patent applications, and other patent rights and any other Governmental Authority-issued
indicia of invention ownership (including inventor’s certificates, petty patents and patent
utility models).
“Person” means a person or entity.
“Price Books” mean Company’s current Price Book in effect for the applicable Deliverable
being purchased by Customer.
“Trade Secrets” means and includes business or technical information of either party,
including processes, formulas, devices, techniques, compilations and other material that
a party attempts to maintain in secret and that derive commercial value for such party
from not being generally known to the public or readily ascertainable through independent
development or reverse engineering.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
14
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
Terms-6
TERMS & CONDITIONS
Standard Schlage Product Terms and Conditions
This price list supersedes and cancels all previous price lists. Prices shown are subject to change without notice.
All prices may be subject to discount. Contact Customer Care for clarification.
Minimum Order Size for Channel Discount:
All orders less than $500.00 list shall be discounted at book net.
Commercial
The following specific product terms and conditions are applicable only to the extent provided herein. All other terms and conditions con-
tained in the General Terms and Conditions of Sale and Service provided in this Price Book will govern the sale of products
identified in this Price Book.
Under no circumstances is Schlage liable for incidental or consequential damages. Charge-backs will not be allowed.
Claims and Returns: Claims and Returns:
Due to Schlage error: Due to Customer error:
Claims for shortages and/or incorrectly filled orders must be filed with
Customer Service within 30-days of receipt of material.
Incorrect order acknowledgments must be changed by emailing request to
Customer Care territory email box upon receipt of acknowledgment.
Refer to inside cover of this book.
Invoice adjustments must be faxed to Credit Adjustments @ (317) 810-3048
within 30-days of receipt of invoice.
Returned goods will not be accepted without prior written approval from
Schlage. Credit will be based upon the Return Material Authorization (RMA)
issued by Customer Service or the
Allegion
Consultant and final acceptance by
Schlage. Returns must be prominently marked with the RMA number and fol-
low return guidelines on the RMA form.
Product considered being defective after review by the
Allegion
Consultant
must be returned to the Schlage Lock Company facility in Security, Colorado
accompanied by an RMA. Replacement orders for defective product will be
entered by Customer Service at the time of notification.
It is the policy of the Schlage Lock Company
to not accept returns of any materials that are
correctly furnished as per the dealer’s purchase
order.
Return of product due to customer order error
or accommodation must be pre-arranged with
the
Allegion
Consultant and approved by
Business Unit Manager.
Returns are subject to a minimum restocking
charge of 35% for unopened cases.
Materials are not returnable.
Product must be received in original factory
condition and certified as such by Schlage
Receiving.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
15
Terms-7
Standard Schlage Product Terms and Conditions
TERMS & CONDITIONS
Order Changes or Cancellations:
Type of Change
Type of Product
• Primus® Keys
Normal Factory
Lead Time items
6 Extended Factory
Lead Time items
1. Change to:
Product, creating a
different SKU number
– Keying Not Accepted
OK within first 2-days
from receipt of order.
If after 2-days, item must
be deleted from order
(see 3, 25% handling
charge will apply) and
entered as a new order
(see 2).
OK within first 10-days
from receipt of order.
If after 10-days, item must
be deleted from order
(see 3, 50% handling
charge will apply) and
entered as a new order
(see 2).
2. Change to:
Increase quantity of
existing item(s)
Add new item(s) Not Accepted
New order with normal lead-time must be generated for
additions. Same terms & conditions will be applied if
requested so long as the original order has not been shipped.
Additions received after the original order ships must be
entered as a new order and will stand-alone for lead-time
and
terms & conditions.
3. Change to:
Delete item(s)
Reduce quantity of
existing item(s)
Cancel order
Not Accepted
OK within first 2-days
from receipt of order.
If after 2-days, subject o
handling charge of 25% of
the net price of the deleted
item(s).**
OK within first 10-days
from receipt of order.
If after 10-days, subject o
handling charge of 50% of
the net price of the deleted
item(s).**
* Includes any change to key symbol, door identification and/or cylinder pinning.
** Handling charges are billed on the original order.
Notes: 1) Change orders must be emailed to your Customer Care territory email box. Please state change order request in subject
line. For questions call (877) 671-7011.
2) Customer Care will acknowledge receipt of change orders and action taken.
3) Change orders resulting in handling charges require customer review prior to change being made.
Commercial
All orders will be acknowledged with scheduled ship dates. Specific scheduled ship dates are not guaranteed by Schlage because of the
nature of product, labor, availability of product or manufacturing conditions that might be beyond our control. Schlage will not be liable for
back charges incurred based on availability of product in accordance with acknowledged ship dates. Selected Products are available to spe-
cific channels of distribution for 1 and 5-day delivery through the
Allegion
FastTrack Program. The
Allegion
FastTrack Program is subject to
separate terms and conditions.
Delivery: Claims and Returns:
For the following: Expect this delivery:
Non-Master Keyed orders Factory items will individually be assigned ship dates based on
current lead times.
Master Keyed orders
or
Non-Master Keyed orders prominently marked on the
order to “Ship Complete”
The entire order will be assigned ship dates grouped by
factory location. Items with longest current lead times determine
ship date for other items from that location.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
16
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
Terms-8
TERMS & CONDITIONS
Standard Schlage Product Terms and Conditions
The following specific product terms and conditions supersede the general terms and conditions of sale and service only to the extent provided
herein. All other terms and conditions contained in the General Terms and Conditions of Sale and Service provided in this price book will govern
the sale of products identified in this price book.
The price list in this price book supersedes and cancels all previous price lists contained in any other price books or versions
thereafter. Prices shown are subject to change without notice. All prices are subject to discount. Contact customer service
for clarification.
Service Charges:
Service charges on past due invoices (except validly disputed items) will be assessed as follows: 1 1/2% per month or the maximum allowable
by law on past due amounts open as of the last day of each calendar month until the past due amounts are paid.
Changes or Cancellations:
Changes or cancellations to an order must be in writing and may result in additional charges for labor and/or materials. Changes may result in a
delay in the scheduled ship date. Additions to orders will be entered as separate stand-alone orders and must qualify for all terms of sale, includ-
ing discounts, on an individual basis. Changes or deletions resulting in an order size of less than our minimum will not be accepted. Orders for
non-cataloged, special or nonstandard items may not be canceled. Factory orders may not be changed within 7 days.
Claims and Returns:
Claims for shortages and/or incorrectly filled orders must be filed with Customer Service within 10 days of receipt of material.
Price adjustments must also be made in writing to Customer Service within 30 days from receipt of invoice. No returned goods will be accepted
without written approval from Schlage. Credit will be based upon the written authorization of the Schlage representative and final acceptance
by Schlage. Such returns must be prominently marked with the return goods authorization number and shipped prepaid. Returns, if approved,
will be subject to a minimum restocking charge of 35% for unopened cases received in the same condition as when sold by Schlage. Materials
are not returnable. Charge-backs will not be allowed.
Taxes:
Prices do not include any present or future Federal, State or local property, license, privilege, sales, use, excise, gross receipts or other like taxes or
assessments which may result from transactions or any services performed in connection therewith.
Delivery:
Orders will be assigned ship dates and acknowledged accordingly, based on estimates of availability of products. Specific scheduled ship dates
are not guaranteed by Schlage because of the nature of product, labor, availability of material or manufacturing conditions that might be
beyond our control. Schlage will not be liable for back charges incurred based on availability of product in accordance with acknowledged ship
dates.
Certifications:
Schlage products, as noted in our catalog, are produced and tested by independent laboratories for compliance with UL and ANSI standards.
Any field modification or alteration of product will void certification.
Copyright 2014, Allegion
All rights reserved. Printed in U.S.A.
Residential
Price Book 5
Effective August 12, 2017 • Rev. 08/17
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
17
Terms-9
TERMS & CONDITIONS
Standard Schlage Product Terms and Conditions
Product Warranties: Commercial Applications
3 Year Limited Mechanical Warranty and 1-Year Limited Electromechanical Warranty
Schlage Lock Company, LLC (the “Company”) extends a three year limited mechanical warranty and one year limited electromechanical warranty to the original user of the
products manufactured by the Company (the “Products”) against defects in material and workmanship from the date of purchase. Certain Products
contain restrictions to this limited warranty, additional warranties, or different warranty periods. Please see below for specific Product warranty information.
What The Company Will Do: Upon return of the defective Product to the Company or its authorized distributor for inspection, free and clear of all liens and encumbrances
and accompanied by the statement of defects of proof of purchase, the Company will replace the Product.
Original User: These warranties only apply to the Original User of Products. These warranties are not transferable.
What Is Not Covered: The following costs, expenses and damages are not covered by the provisions of these limited warranties: (i) labor costs including, but not limited
to, such costs for the removal and reinstallation of Products; (ii) shipping and freight expenses required to return the Products to the Company; or (iii) any other incidental,
consequential, indirect, special and/or punitive damages, whether based on contract, warranty, tort (including, but not limited to strict
liability or negligence), patent infringement, or otherwise, even if advised of the possibility of such damages. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
The provisions of these limited warranties do not apply to Products: (i) used for purposes for which they are not designed or intended; (ii) which have
been subjected to alteration, misuse, abuse, negligence, or accident; (iii) which have been improperly stored, installed, maintained, repaired or
operated; (iv) which have been used in violation of written instructions provided by Schlage; (v) which have been subjected to improper temperature,
humidity, or other environmental conditions (i.e., corrosion); or (vi) which, based on the Company’s examination, do not disclose to the Company’s
satisfaction non-conformance to the warranties. Additionally, the Company will not warrant ANSI A156.2 Grade 2 lever Product installed in
educational facilities and student housing.
Additional Terms: The Company does not authorize any person to create for it any obligation or liability in connection with the Products. The Company’s maximum
liability under these warranties is limited to the purchase price of the Product. No action arising out of any claimed breach of these warranties by the Company
may be brought by the Original User more than one (1) year after the cause of action has arisen.
How State Law Applies: These warranties give you specific legal rights, and you may also have other rights which vary from state to state.
SPECIFIC PRODUCT WARRANTY RESTRICTIONS/ADDITIONAL WARRANTIES:
ND-Series Levers 10-Year Mechanical Warranty
The limited warranty is for a period of seven (7) years for products shipped prior to January 2012. 10-year for products shipped after January 2012.
Small Format Interchangeable Core (SFIC) Warranty
The limited warranty also applies to Schlage locks and housings when used with another manufacturer’s cores, or to Schlage cores (i.e, SFIC) when used in another manu-
facturer’s locks and housings. The use of unauthorized cylinder cams or other components with the Products shall void these warranties.
Everest 29, Everest 29 Primus, Everest 29 Primus XP, Everest, Everest Primus, and Everest Primus XP Limited Lifetime Key Breakage Warranty
A limited lifetime warranty is provided to the original user against breakage and is subject to the restrictions of these limited warranties.
Portable Security Limited Lifetime Warranty
A limited lifetime warranty is provided to the original user and is subject to the restrictions of these limited warranties.
Exclusions: Oil Rubbed Bronze finish (613) is designed to improve over time and change in appearance, creating a living finish through daily use and thus,
finish discoloration is not applicable to the above warranty.
Product Warranties: Residential Applications
Lifetime Limited Mechanical & Finish Warranty and 1-Year Limited Electronics Warranty
Subject to the terms and conditions of this warranty, Schlage extends a lifetime limited mechanical and finish warranty and a one-year limited electronics
warranty to the original consumer user (“Original User”) of our Schlage brand product (“Product”) against defects in material and workmanship, as long as the Original User
occupies the residential premises upon which the Product was originally installed.
What Schlage will do: Upon return of the defective Product to Schlage, Schlage’s sole obligation, at its option, is to either repair or replace the Product, or refund the origi-
nal purchase price in exchange for the Product. Original User: This warranty only applies to the Original User of Products. This warranty is not transferable.
What is not covered: The following costs, expenses and damages are not covered by the provisions of this limited Warranty: (i) labor costs including, but not
limited to, such costs as the removal and reinstallation of Product; (in) shipping and freight expenses required to return Product to Schlage; and (iii) any other
incidental, consequential, indirect, special and/or punitive damages, whether based on contract, warranty, tort (including, but not limited to, strict liability or
negligence), patent infringement, or otherwise, even if advised of the possibility of such damages. Some local laws do not allow the exclusion or limitation of
incidental or consequential damages, so the above exclusion or limitation may not apply to you.
The provisions of this warranty do not apply to Products: (i) used in commercial applications; (ii) used in common area applications; (iii) used for purposes for which
they are not designed or intended; (iv) which have been subjected to alteration, abuse, misuse, negligence or accident; (v) which have been improperly stored, installed,
maintained or operated; (vi) which have been used in violation of written instructions provided by Schlage; (vii) which have been subjected to improper temperature,
humidity or other environmental conditions; or (viii) which, based on Schlage’s examination, do not disclose to Schlage’s satisfaction non-conformance to the warranty.
Additionally, this warranty DOES NOT COVER scratches, abrasions, or deterioration due to the use of paints, solvents or other chemicals.
Exclusions: Oil Rubbed Bronze finish (613) is designed to improve over time and change in appearance, creating a living finish through daily use and thus,
finish discoloration is not applicable to the above warranty. Additional terms: Schlage does not authorize any person to create for it any obligation or liability in connec-
tion with the Product. Schlage’s maximum liability here under is limited to the original purchase price of the Product. No action arising out of any claimed breach of this
warranty by Schlage may be brought by the Original User more than one (1) year after the cause of action has arisen.
How local law applies: This warranty gives you specific legal rights, and you may also have other rights as otherwise permitted by law. If this Product is
considered a consumer product, please be advised that some local laws do not allow limitations on incidental or consequential damages or how long an implied
warranty lasts, so that the above limitations may not fully apply. Refer to your local laws for your specific rights under this warranty.
Complete Locks TERMS & CONDITIONS
Price Book 5
Effective August 12, 2017 • Rev. 08/17
18
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
Product Warranties, Additional Terms & Conditions: Commercial and
Residential Applications
Additional Terms: The Company does not authorize any person to create for it any obligation or liability in connection with the Products. The Company’s maximum
liability under these warranties is limited to the purchase price of the Product. No action arising out of any claimed breach of these warranties by the Company may be
brought by the Original User more than one (1) year after the cause of action has arisen.
How State Law Applies: These warranties give you specific legal rights, and you may also have other rights which vary from state to state.
Note: Should the Product be considered a consumer product as may be covered by the Magnusson Moss Federal Warranty Act, please be advised that:
(1) Some states do not allow limitations or incidental consequential damages or how long an implied warranty lasts so that the above limitations
may not fully apply; and (2) This warranty gives specific legal rights and a user may have other rights which may vary from state to state.
For warranty service and shipping instructions contact:
Lifetime Mechanical Warranty and 5-year Finish Warranty
Subject to the terms and conditions of this warranty, Schlage Lock Company (“Schlage”) extends a lifetime limited mechanical and 5-year finish warranty to the
original consumer user (“Original User”) of Schlage J Series products (“Product”) against defects in material and workmanship, as long as the Original User occupies
the residential premises upon which the Product was originally installed.
What Schlage will do: Upon return of the defective Product to Schlage, Schlage’s sole obligation, at its option, is to either repair or replace the Product, or refund the
original purchase price in exchange for the Product. Original User: This warranty only applies to the Original User of Products. This warranty is not transferable.
What is not covered: The following costs, expenses and damages are not covered by the provisions of this limited Warranty: (i) labor costs including, but not
limited to, such costs as the removal and reinstallation of Product; (in) shipping and freight expenses required to return Product to Schlage; and (iii) any other
incidental, consequential, indirect, special and/or punitive damages, whether based on contract, warranty, tort (including, but not limited to, strict liability or
negligence), patent infringement, or otherwise, even if advised of the possibility of such damages. Some local laws do not allow the exclusion or limitation of
incidental or consequential damages, so the above exclusion or limitation may not apply to you.
The provisions of this warranty do not apply to Products: (i) used in commercial applications; (ii) used in common area applications; (iii) used for purposes for
which they are not designed or intended; (iv) which have been subjected to alteration, abuse, misuse, negligence or accident; (v) which have been improperly stored,
installed, maintained or operated; (vi) which have been used in violation of written instructions provided by Schlage; (vii) which have been subjected to improper tem-
perature, humidity or other environmental conditions; or (viii) which, based on Schlage’s examination, do not disclose to Schlage’s satisfaction non-conformance to
the warranty. Additionally, this warranty DOES NOT COVER scratches, abrasions, or deterioration due to the use of paints, solvents or other chemicals.
TERMS & CONDITIONS Product Warranties and Distribution Policy
Schlage and Portable Security
Commercial Customers
Schlage
Customer Care
3899 Hancock Expressway
Colorado Springs, CO 80911
(877) 671-7011
Fax (800) 452-0665
Schlage and Portable Security
Residential and Retail Customers
Schlage
Customer Care
2119 East Kansas City Road
Olathe, KS 66061
(800) 847-1864 (option 1) Consumer
Fax (800) 366-5625
The Schlage Lock Company reserves the right to make changes in designs and specifications or to make additions or improvements on its
products without notice and without incurring any obligation to incorporate them on products previously manufactured. The Schlage Lock Company is
not responsible for any modification, addition or alteration to our products by others.
Distribution Function and Location Policy
The Schlage customer relationship includes the nonexclusive area of primary sales responsibility and the channel of distribution assigned by Schlage. It is
vital to our success and for the effective management of the distribution of our products that the Schlage customer relationship, once it is satisfactorily
established between us, should not be changed without our approval. Therefore, after selection by Schlage as a distributor of one or more of Schlage
products, a customer should continue to perform that distribution function from the location of its business at the place or places utilized at the time of
selection. A customer should not change its Schlage distribution function or establish a different or additional location without the prior written consent
of Schlage.
Schlage reserves the right to discontinue, after appropriate notice, sale of its products to any customer which refuses to adhere to
this policy. Schlage also reserves the right to change, in its sole discretion, the number and locations of the distributors authorized
to distribute its products in any area. This determination will be based upon, among other considerations, the success or failure in developing the market
for Schlage products.
Product Warranties: Residential Applications (Cont.)
Guaranteed Fit Program: Schlage products are designed to fit standard residential door preparations and retrofit existing tubular locks. Note: Mortise locks and
preparations are not considered standard and are not guaranteed under this program. During the initial installation, if there is a problem with the Product’s perfor-
mance, the Original User may simply contact Schlage Customer Service at 888-805-9837 in the U.S. and Canada or 800-506-7866 in Mexico for assistance.
Program and warranty claims: If you encounter a residential door preparation or fit issue under the Guaranteed Fit Program or have a claim under this
warranty, please contact Schlage Customer Service for repair, replacement or refund of the original purchase price in exchange for the return of the Product to Schlage.
Terms-10
Price Book 5
Effective August 12, 2017 • Rev. 08/17
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
19
Schlage Key Systems Sales Policy TERMS & CONDITIONS
Terms-11
Schlage Key Systems Sales Policy
Definition-
Standard keyways are C, CE, E, EF, F, FG, G, H, J, K, L. All other keyways are considered restricted.
Everest, Everest Primus, Classic Primus and all other restricted keyway products (Quad, Reversed, Numbered) manufactured by the Schlage
Lock Company are offered for sale by policies set forth per product type and security levels through specific channels of distribution. Possession
of this price book or any other Schlage price book does not constitute “the right to purchase” these products. Please refer to the sales policy
below for terms and condition. The term keyway(s) refer(s) to keyway, key sections or side bit milling.
Standard Classic (Obverse) Key Sections- no restriction
Standard keyways are Classic (Obverse) C, CE, E, EF, F, FG, G, H, J, K, L.
Everest and Everest 29 Open (C and S Key Sections)
Everest and Everest 29 Open (C & S keyways) include non-Primus products with Everest C and Everest 29 S keyways and key sections. Schlage
only sells Everest and Everest 29 Open products to commercial security professionals. Commercial security professionals purchasing Everest and
Everest 29 Open products from Schlage are permitted to stock and to originate or duplicate keys without signature verification.
Purchasers of Everest and Everest 29 open (C & S) are permitted to resell the products in accordance with their distribution agreement to end
users and to other commercial security dealers who have a professional locksmith on staff but are expressly prohibited from selling to:
i) Any residential retail outlet.
ii) Any individual or entity purchasing or selling products through any method of auction.
End User Keyways - Primus / Primus XP levels 3, 4 & 9, Everest D, Everest B, Everest 29 T, Everest 29 R, Quad, Reversed,
Numbered.
End user restricted keyways are manufactured and sold by Schlage for use within the end user facilities only and are not for dealer or lock-
smith’s use or distribution. The facilities are described as the “ship-to” address pre-authorized by the end user via a letter of authorization (LOA)
or face sheet (depending upon the key system type).
End user keyway products may be stocked at the end user location only, unless authorized otherwise in writing by the end user. Every new end
user system, using these restricted keyways, requires prior approval from the local SSC sales office management.
Restricted end user keyways may not be sold to any contract hardware dealer or wholesale distributor not open as a direct Schlage account as
the time of the sale, unless authorization has been granted in writing by the local SSC sales office management where the end user reside.
Locksmiths/ dealers’ keyways - Primus/ Primus XP levels 1, 1+, 2, 7, 8, Everest B234 & B235, Everest 29 R234 & R235.
Locksmith/ dealer key section can be sold to commercial locksmiths/ dealers only.
Right to stock and sell locksmiths/ dealers restricted keyways requires the appropriate written agreement with Schlage and approval by the
local SSC sale office management. Please contact your local SSC sale office for a copy of these contracts and additional information.
Schlage hereby reserves the right to terminate or take any other legal action against any party that violates this policy.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
20
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
Terms-12
TERMS & CONDITIONS Restricted Keyway Policy
Restricted Keyway Policy
Everest B, Everest 29 R
All Everest and Everest 29 SFIC (B and R Families) keyways are restricted.
When ordering a new keying system, include the following:
Job (end-user) name, city, state and zip code.
Letter of Authorization (LOA) – Authorized ship-to address for key blanks, cores and cut keys on end-user’s official stationery.
See Forms & Examples for sample letter of authorization.
Numerically defined specifications for expansion of all branches of the key system.
The factory will assign a “facility code” which will appear on all keys and blanks for this job. When ordering additions to an
existing keying system, include the following:
Job (end-user) name, city, state and zip code.
Facility code previously assigned by Schlage and stamped on all existing keys and blanks.
Registry number of the keying system as established by Schlage.
Letter of authorization on end-user’s official stationery is required when:
- End-user places order with new dealer.
- Order is to be drop shipped to a different ship-to address than originally authorized by the end-user.
See Forms & Examples for sample letter of authorization.
Bitting list (transcript) orders require a letter of authorization on the end-user’s official stationery. Prevailing prices apply.
Everest D, Everest 29 T
All Everest D and Everest 29 T keyways are restricted.
When ordering a new keying system, include the following:
Job (end-user) name, city, state and zip code.
Letter of Authorization (LOA) – Authorized ship-to address for all products on end-user’s official stationery. See Forms &
Examples for sample letter of authorization.
Numerically defined specifications for expansion of all branches of the key system.
The factory will assign a “facility code” which will appear on all keys and blanks for this job. When ordering additions to an
existing keying system, include the following:
Job (end-user) name, city, state and zip code.
Facility code previously assigned by Schlage and stamped on all existing keys and blanks.
Registry number of the keying system as established by Schlage.
Letter of authorization on end-user’s official stationery is required when:
- End-user places order with new dealer.
- Order is to be drop shipped to a different ship-to address than originally authorized by the end-user.
See Forms & Examples for sample letter of authorization.
Quad, Numbered (“Paracentric”) and Reverse Keyway Family Policy
A letter of authorization from the end-user is required for all orders for restricted keyway plugs, 0-bitted and 1-bitted products and
all key blanks. Restricted keyway products are not available keyed random. The letter of authorization must include the address in
which the materials will be shipped. Keyway or keyway family must be referenced in the letter. Letters must be dated and signed by the end
user. Letters dated more than 6 months prior to the order submission date will not be accepted. Letters for projects that are ongoing may be
older than six months if effective dates are referenced in the letter. With the exception of the signature, all other information must be typed.
Allowable End User Authorizations for Restricted Keyways:
The end user can authorize a dealer or distributor to order and inventory products if they so choose. This authorization requires the
submission of a fully completed “Letter of Authorization” or “Signature Card”, depending on the product type requirements, by the end user
to Schlage.
Construction Core Program Policy
Full size and small format construction cores will be invoiced under standard payment terms. Credit for these cores, less the
handling charge, will be issued upon their return to the factory. Please contact customer service for return authorization. Customers may not
deduct payment for construction cores prior to completion of their authorized return.
Control Keys for Interchangeable Cores
A single control key will be added to orders containing interchangeable cores where a new masterkey system, master key system expan-
sions requiring a different control key and all construction core orders are placed and does not include a control key on the purchase order.
Construction core orders will include both a control and user key.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
21
Terms-13
Cylinder Policies TERMS & CONDITIONS
Primus®/ Primus XP Sales Policy
Primus High Security cylinder products manufactured by the Schlage Lock Company are offered for sale through specific channels of distribution, based on stocking
requirements and security levels. Possession of this price book or any other Schlage price book does not constitute “the right to purchase” Primus products.
Important: In stocking levels where purchase agreements are required, a fully executed purchase agreement, including initial minimum inventory order, must be in
place before any Primus products may be quoted or purchased. Contact your SSC Consultant for specific details.
The prices contained herein apply to Primus Levels 1 through 9 with respect to the actual product. Availability of product is subject
to additional conditions as follows:
PRIMUS/PRIMUS XP LEVEL 1: For retail locksmiths and Schlage dealers. Standard nationwide side bitting by keyway. Stocking level requires a separate
Primus/Primus XP agreement. Initial inventory commitment required for distributors but not for participating locksmiths. Obverse keyways only. HP, JP and
LP section keys are not available.
PRIMUS LEVEL 1 PLUS: For retail locksmiths. A side bitting is assigned on a nationwide exclusive basis to a specific Schlage wholesale
distributor. Stocking level which requires a separate Primus purchase agreement and an initial minimum inventory purchase by the wholesaler and the lock-
smith. Obverse keyways only. HP, JP and LP section keys are not available. Cylinders are always furnished less key blanks (LKB).
PRIMUS XP LEVEL 1 PLUS: For retail locksmiths. An exclusive side bitting is assigned to dealer within the first three digits of the dealer physical location
zip-code. Distribution through direct Schlage dealers. Stocking level which requires a separate Primus purchase agreement and an initial minimum inventory
purchase. Obverse keyways only. Cylinders can be ordered LKB, KD, KA or MK.
PRIMUS/PRIMUS XP LEVEL 2: For Schlage dealers and large commercial locksmith businesses. Exclusive side bitting is assigned to
dealer by time zone. Distribution through direct Schlage dealers. Stocking level which requires a separate Primus purchase agreement and an
initial minimum inventory purchase. Obverse keyways only.
PRIMUS/PRIMUS XP LEVEL 3: End user level not stocked by dealers. Key systems are assigned a side bitting exclusive within 2-digit zip code (Level 3G)
for orders of 60 - 1,999 Primus cylinders. Orders of fewer than 60 Primus cylinders are randomly assigned a side bitting from
a small nationwide pool of side bittings (Level 3U). Distribution through Schlage dealers and Schlage wholesale distributors. Obverse and Quad keyways
only.
PRIMUS/PRIMUS XP LEVEL 4: End user level not stocked by dealers. Key systems are assigned a side bitting exclusive within a time zone (Level 4Z)
for orders of 2,000 - 3,999 Primus cylinders. A nationwide exclusive side biting (Level 4N) is assigned to key systems of 4,000 or more Primus cylinders.
This exclusivity can be purchased for a separate fee for smaller quantities of cylinders. This price book does not contain the fee schedule. Contact your SSC
Consultant for specific information. Distribution through Schlage dealers and Schlage wholesale distributors. Obverse and Quad keyways only.
PRIMUS LEVEL 7: For retail locksmiths. Side bitting is assigned on a nationwide exclusive basis to a specific Schlage wholesale distributor. Stocking level
which requires a separate Primus purchase agreement and an initial minimum inventory purchase by the Schlage wholesaler and the locksmith. Same as
Level 1 PLUS above, but with Everest S Family keyways only.
PRIMUS XP LEVEL 7: For retail locksmiths. An exclusive side bitting is assigned to dealer within the first three digits of of the dealer
physical location zip-code. Distribution through direct Schlage dealers. Stocking level which requires a separate Primus purchase agreement and an initial
minimum inventory purchase. All Everest 29 key sections. Cylinders can be ordered MK, KA, KD or LKB.
PRIMUS/PRIMUS XP LEVEL 8: For Schlage dealers and large commercial locksmith businesses. Exclusive side bitting is assigned to
dealer by time zone. Distribution through direct Schlage dealers. Stocking level which requires a separate Primus purchase agreement and an
initial minimum inventory purchase. Equivalent to Level 2 above, but with Everest S Family keyways only.
PRIMUS/PRIMUS XP LEVEL 9: End user level not stocked by dealers. Key systems are assigned varying degrees of geographically
exclusive side bittings based on a sliding scale of purchase commitment or separate fees. This price book does not contain the fee schedule. Contact your
SSC Consultant for specific information. Distribution through Schlage dealers and Schlage wholesale distributors. Level 9U, 9G, 9Z, and 9N are equivalent to
Levels 3U, 3G, 4Z, and 4N above, but with Everest S and T Family keyways.
The following side bit milling exclusivity criteria apply to both levels 3, 4 & 9:
1- 60 cylinders-Random assignment
61-1999 cylinders-First two digits of zip-code
2000-3999 cylinders-Time-Zone Exclusivity (also available for $10,000 fee for an organization who
would like this exclusivity and doesn’t meet cylinders quantity requirement).
4000 + cylinders-Nation Wide Exclusivity.(also available for $40,000 fee for an organization who would
like this exclusivity and doesn’t meet cylinders quantity requirement).
Classic KeywaysEverest® Keyways
Important Ordering Information
See Forms & Examples: Primus and Everest 29 Primus Ordering Checklist for a checklist of information required to process a Primus order. Note that, for secu-
rity reasons, all end user Primus levels (Level 3, 4 and 9) require a Facesheet (MS-E120) bearing an original signature. Opening orders for end user Primus levels
also require a Signature Card (MS-E130) bearing original signatures. Facesheets and signature cards are used to authenticate the end user request for product,
therefore orders received without the correct supporting documents (or without original signatures) are subject to delays or cancellations. Blank Facesheets
and Signature Cards are included in the Forms & Examples section of this price book for your reference. Additionally, electronic version of these forms are avail-
able at allegion.com/us.
The Schlage Lock Company reserves the right to make changes in designs and specifications, to make additions or improvements on its products, or to discon-
tinue products without incurring any obligation. The Schlage Lock Company is not responsible for any modification, addition, or alteration to our products by
others.
Inventory commitment Requirements-Commercial Locksmiths Levels
Primus XP Everest 29 Primus XP
Level 1 None N/A N/A
Level 1+ $7,500 Level 7 XP $7,500
Level 2 25,000 Level 8 $25,000
Price Book 5
Effective August 12, 2017 • Rev. 08/17
22
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
Terms-14
1
LEVEL
1
+
LEVEL
2
LEVEL
3
LEVEL
4
LEVEL
7
LEVEL
8
LEVEL
9
LEVEL
Strip Mall Shops
Small Businesses
Upscale Homes
Small Businesses
Restaurants
Doctor's Offices
Office Buildings
Banks
Private Schools
Healthcare Residences
Educational Facilities
Healthcare Facilities
Large Office Complexes
Government Buildings
Detention Centers
Franchises
T ypical Applications
National Non-Exclusive
Stocked by distributors and resold to
end users via commercial locksmiths;
All Level 1 Locksmiths have the same
side bittings.
Dealer Exclusive
Owned and stocked by dealers then
resold to end users. Keys bear a unique
ID based upon time-zone exclusivity of
side-bitting.
End User Exclusive
Exclusivity is based on either random
assignment, on the first 2 digits of the
zip code, on time zone, or on a
nationwide basis, depending on end
user commitment.
Dealer Exclusive
Owned and stocked by dealers then
resold to end users. Keys bear a unique
ID based upon time-zone exclusivity of
side-bitting.
End User Exclusive
Exclusivity is based on either random
assignment or on the first 2 digits of the
zip code, depending on end user
commitment.
End User Exclusive
Exclusivity is based on either a time
zone or nationwide basis, depending on
end user commitment.
Consider Everest Open for
Commercial Exclusivity
Dealer Controlled SystemsEnd User Exclusive
Dealer Controlled SystemsEnd User Exclusive
XP Dealer
Exclusive
Owned and
stocked by
dealers then
resold to end
users. Keys bear
unique ID based
upon three digits
zip-code
exclusivity of side
bitting.
Primus
Wholesaler/
Locksmith
Exclusive
Locksmiths resell
wholesaaler’s side
bitting to end
users; keys bear
locksmith ID
number.
XP Dealer
Exclusive
Owned and
stocked by
dealers then
resold to end
users. Keys bear
unique ID based
upon three digits
zip-code
exclusivity of side
bitting.
Primus
Wholesaler/
Locksmith
Exclusive
Locksmiths resell
wholesaaler’s side
bitting to end
users; keys bear
locksmith ID
number.
R
R
TERMS & CONDITIONS Cylinder Policies
Electronic Validation from Schlage
Electronic Validation (e-validation) is an online system for the use of the end user to create electronic authorizations replacing the
letter of authorization (LOA) and Primus Facesheet processes. This online validation system is designed to ease the burden of an end
user providing authorizations for ordering restricted key and cylinder products on their behalf. Through this system, the end user can regis-
ter for an online account with Schlage that will allow them to manage their shipping addresses, shipping contacts and additional autho-
rized users for their restricted products. Through this system, they can then generate an electronic Facesheet that they can provide to the
distributor of their choice to allow an order for restricted products to proceed. Enrolling in and using this feature will reduce the overall
time for an order to be processed from the time that the end user has determined the need for product. The electronic Facesheet
provided by the e-validation system can be faxed or emailed along with a distributors order reducing the time and energy required for
original copies of Facesheets previously required. The system is for both new and existing restricted key system owners. For new
restricted systems, a registration process will provide the ability to create the initiating Facesheet for the project.
Products/key systems eligible for e-validation:
Everest – B and D restricted family of keyways
Everest 29 – R and T restricted family of keyways
Primus – All keyway families that include the Primus feature
Primus XP – All keyway families that include the Primus XP feature
E-validation can be accessed at the following web address: HTTPS://mycredentials.allegion.com
Price Book 5
Effective August 12, 2017 • Rev. 08/17
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
23
Terms-15
Cylinder Policies TERMS & CONDITIONS
All goods are shipped F.O.B. factory and become the customer’s property when they pass into the hands of the transportation company.
Schlage reserves the right to use our choice of carrier.
Keyway Family of Master Key System Standard Method of Shipment
Classic Restricted (Numbered, Quad and Reverse)
Classic Primus (Obverse and Quad)
Everest Restricted (B and D Family)
Everest 29 Restricted (R and T Family)
Everest Primus (C and D Family)
Everest 29 Primus and Primus XP (S and T Family)
Classic Open (Obverse)
Everest Open (C Family)
Everest 29 Open (S Family)
2-Day Air
Tracking number is assigned to shipment
Recipient’s signature is required upon delivery
Schlage Default Keyways
Schlage Commercial products (excluding Portable Security)
Default keyway is Everest 29 S123
For other optional keyways, please specify
Schlage Electronics
Default keyway is Everest 29 S123
For other optional keyways, please specify
Portable Security - Kryptonite:
default to C keyway KD
For made to order products, please specify the keying and keyway
Schlage Residential: (F, B60, Dexter)
Default keyway is C
Master Key Shipment Policy
Price Book 5
Effective August 12, 2017 • Rev. 08/17
24
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
Terms-16
TERMS & CONDITIONS Hardware Finishes
Hardware Finishes:
Schlage Lock finishes are durable, top quality finishes obtained by the careful processing of solid brass, bronze, stainless steel or
other materials. Where required, a protective clear coating is applied and cured under high temperature. It is important that climatic
conditions and usage be taken under consideration when selecting finishes. This is especially true in areas subjected to strong
corrosive vapors, humid climate or sea air which, in a short time, may have a damaging effect on metal finishes. The longevity and
preservation of the finish appearance is determined by base metal and finishing process. Clear protective coating or other organic
finishing applications may require different methods of cleaning and care. As an example, non-clear coated finishes should not be
cleaned with soaps or any solvents; organically coated surfaces should periodically be cleaned with a mild, nonabrasive soap and
buffed lightly with a clean cloth. The type of base metal and finishing techniques must be considered when applying any cleaning
or preservative method. Contact the Schlage Technical Services Department for further information on the care of finished hardware.
In some instances, for customer convenience, the most appropriate BHMA finish symbols are used to indicate similarity of appearance, regardless
of base metal of finishing process. A, AL, CS, D, ND, F, FA, H, S, S200-Series and Dexter by Schlage levers are zinc-based material and are plated
to match finishes indicated. L-Series will utilize a brass material for 612 and 613 finishes. Finishes of latches, strikes, cylinders/cores, and visible
mounting screws, though similar in appearance, may differ from the finish of the trim. Finish numbers in the 600-Series are the BHMA (Builders
Hardware Manufacturers Association) industry standard.
Commercial Finish Codes and Descriptions:
The nearest old U.S. equivalent code designations are shown in parenthesis ( ).
Symbol Description
605 (3) BRIGHT BRASS, Clear Coated
606 (4) SATIN BRASS, Clear Coated
609 (5) ANTIQUE BRASS, Satin Brass, Blackened,
Satin Relieved, Clear Coated
612 (10) SATIN BRONZE, Clear Coated
613* (10B) OIL RUBBED BRONZE, Oxidized Satin
Bronze, Oil Rubbed, No Coating
619 (15) SATIN NICKEL, Satin Nickel Plated,
Clear Coated
*
Oil rubbed bronze (613) is considered a category “B” finish by ANSI/BHMA and will vary in color when applied to different alloys
and forms of base material. 613 will also vary from production lot and additionally from one manufacturer to another. Oil rubbed
bronze will wear off over time due to the “rubbed” finishing method that has no protective coating or plating.
Symbol Description
622 (19) Matte Black
625 (26) BRIGHT CHROMIUM PLATED, No Coating
626 (26D) SATIN CHROMIUM PLATED, No Coating
629 (32) BRIGHT STAINLESS STEEL, No Coating
630 (32D) SATIN STAINLESS STEEL, No Coating
643e AGED BRONZE, Clear Coated
Price Book 5
Effective August 12, 2017 • Rev. 08/17
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
25
Terms-17
TERMS & CONDITIONS
Notes
Price Book 5
Effective August 12, 2017 • Rev. 08/17
26
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
Terms-18
Notes
TERMS & CONDITIONS
Price Book 5
Effective August 12, 2017 • Rev. 08/17
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
27
Terms-19
Notes TERMS & CONDITIONS
Price Book 5
Effective August 12, 2017 • Rev. 08/17
28
Forms & Examples
TERMS & CONDITIONS / FORMS & EXAMPLES
Terms-20
TERMS & CONDITIONS Notes
Price Book 5
Effective August 12, 2017 • Rev. 08/17
Terms & Conditions
TERMS & CONDITIONS / FORMS & EXAMPLES
29
Forms-1
Introduction FORMS & EXAMPLES
Table of Contents
How To Order Forms-2
How to Determine Hand of Door ............. Forms-2
How to Determine Hand of Parts
(Handed Levers) ............................. Forms-2
Ordering Examples Forms-3
Sample Letter of Authorization
for Everest® Restricted Products Forms-4
Order Forms Forms-6
Using Order Forms ........................... Forms-6
Sequential List of Order Forms ............... Forms-6
Price Book 5
Effective August 12, 2017 • Rev. 08/17
30
Terms & Conditions
TERMS & CONDITIONS / FORMS & EXAMPLES
Forms-2
How to Determine Hand of Parts (Handed Levers)
FORMS & EXAMPLES • How To Order
To order Schlage products, descriptive data should be in the same sequence as shown:
LINE OUTSIDE INSIDE DR
ITEM QTY PRODUCT DES FIN DES FIN HAND LATCH STRIKE THK EXT DIM ADDITIONAL DETAILS
1 2 3 4 5 6 7 8 9 10 11 12 13 14
How to Determine Hand of Door
1. LINE ITEM: Line item number
2. QTY: Quantity
3. PRODUCT: Complete lock product or part number
4. OUTSIDE DES: Outside design code
5. OUTSIDE FIN: Outside finish code
6. INSIDE DES: Inside design code. Leave blank if same as outside design code.
7. INSIDE FIN: Inside finish code. Leave blank if same as outside finish code.
8. HAND: Hand of door. Only one hand allowed per line item.
Example: RH=Right Hand, LH=Left Hand, RR=Right Reverse, LR=Left Reverse.
9. LATCH: Latch. Leave blank for standard or specify part number if non-standard latch is required. LLL=Less Latch.
10. STRIKE: Strike. Leave blank for standard or specify part number if non-standard strike is required. LLL=Less Strike.
11. DR THK: Door Thickness. Enter door thickness if non-standard. Example: 138=1 3/8”, 214=2 1/4”, 212=2 1/2”.
12. EXT: Extension. Enter one of the following when doors 2” thick or greater are specified:
EE = Extended Equally
EI = Extended Inside
EO = Extended Outside
ED = Extended Differently
EI or EO assumes the latch will be centered on a 1 3/4” door, to which material has been added.
13. DIM: Enter dimension for non-standard strike lip length and mortise cylinder or blocking ring length.
012 = 1/8” 118 = 1 1/8”
018 = 3/16” 114 = 1 1/4”
025 = 1/4” 138 = 1 3/8”
031 = 5/16” 112 = 1 1/2”
037 = 3/8” 158 = 1 5/8”
050 = 1/2” 134 = 1 3/4”
078 = 7/8” 200 = 2”
100 = 1” 400 = 4”
14. ADDITIONAL DETAILS: Enter detail for keying information and for special requirements.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
Terms & Conditions
TERMS & CONDITIONS / FORMS & EXAMPLES
31
LINE OUTSIDE INSIDE DR
ITEM QTY PRODUCT DES FIN DES FIN HAND LATCH STRIKE THK EXT DIM ADDITIONAL DETAILS
One A or F-Series passage lock with a Georgian knob & rose in 609 on the outside and a Plymouth knob & rose in 605 on the inside, drive-in
latch and strike.
1 1 A10S GEO 609 PLY 605 11-110 10-058
One D-Series classroom lock with Orbit interchangeable core knob for a 2 1/4˝ thick door, extended equally, E keyway.
Also furnish one control key blank.
2 3 D70RD ORB RH 214 EE 138 E-111111
3 1 35-056 E section
Two AL-Series entrance locks with Saturn levers in US 10B with knurling on the outside, tamper resistant screws and
keyed alike.
4 2 AL53PD 8SA 613 SAT KA Torx screws
One S-Series storeroom lock with Saturn levers in 612, four keys per lock.
5 1 S80PD SAT 612 4 keys total
6 2 50-215 Charge for extra cut keys
One L-Series passage lock with 05L 630 trim, with lead lined chassis.
7 1 L9010 05L 630 RH Lead lined per XL11-515
One B600-Series single cylinder deadbolt in US 26D outside, US 3 inside, less the strike, with construction core. No control
or change keys.
8 1 B660T 626 LLL ICX
9 1 50-231 Handling Charge
One ND-Series lever lock in RHO 612, classroom function on the outside, storeroom on the inside. Construction and master
keyed to new system. Furnish one master key and one construction master key.*
10 1 ND70x80PD RHO 612 Per XN12-006
11 1 49-101 Master Key
12 1 48-104 Construction Master Key
13 2 50-210 Master keying charge (1/cyl)
14 2 50-211 Constr. keying charge (1/cyl)
One A-Series lock with an Orbit knob in US 3, entrance function, and Primus level 1 cylinder, CP keyway, 0-bitted, no keys.
15 1 A53LD ORB 605
16 1 20-724 606 122 Primus #000367,
CP-000000, LKB
One mortise cylinder, 1 1/4˝ long, which will operate a Von Duprin exit device
17 1 20-001 626 114
One hotel function L-Series lock with 17B trim in 625, large bow change keys and one large bow emergency key,
F section, 0-bitted. Left hand door.
18 1 L9485P 17B 625 LH F-000000, 35-141 Keys
19 2 50-228 Charge for large bow
keys substituted for
standard bow keys
20 1 35-101 F section
* Use Master Keyed order form and Key System Summary when ordering.
Forms-3
Ordering Examples • FORMS & EXAMPLES
Price Book 5
Effective August 12, 2017 • Rev. 08/17
32
Terms & Conditions
TERMS & CONDITIONS / FORMS & EXAMPLES
Forms-4
FORMS & EXAMPLES Sample Letter of Authorization
For All Restricted Key Products
May 1, 2003
To: Schlage Dealer
100 East Avenue
Dealer City, State 11111
RE: District 10, Jones Elementary School
Please consider this authorization to ship product for the above-referenced project.
Jones Elementary School is to be keyed using a new Everest 29 T Restricted Key System. For security
reasons, we would like to have all keys for this facility shipped to a location other than the job site. Master keyed products,
however, can be shipped directly to the site. This letter authorizes Schlage to ship our restricted products to the following
addresses:
Master Keyed Products, Construction Keys, Locks Less
Cylinders, and Locks with Construction Cores
Attn: Building Project Manager
District 10 Schools
555 Main Street
End User City, State 55555
Master Keys, Change Keys, Control Keys, and Key Blanks
Attn: Locksmith
District 10 Lockshop
1201 Fifth Avenue
End User City, State 55555
These two addresses above serve as our only authorized shipment addresses for all orders placed for our facility. We
understand that this letter will be kept on file and referenced for our future orders and that a new letter is only required to
add, remove, or change authorized shipping locations.
Sincerely,
End User Representative
Facilities Manager
Date - REQUIRED
Facility Name - REQUIRED
Dealer Name -
RECOMMENDED
Include Registry
Number &
Facility Code
(stamped on
keys) for existing
key systems
Authorized Ship-
To Addresses -
REQUIRED
End User
Representative
Signature -
REQUIRED
Letter may be mailed or faxed to Schlage
Schlage Restricted Order Processing
3899 Hancock Expressway
Colorado Springs, CO 80911
District 10 Schools
555 Main Street
End User City, State 55555
(555) 555-5555
End User
Letterhead - REQUIRED
DISTRICT 10
Price Book 5
Effective August 12, 2017 • Rev. 08/17
Terms & Conditions
TERMS & CONDITIONS / FORMS & EXAMPLES
33
Forms-5
Primus Checklist • FORMS & EXAMPLES
PRIMUS AND EVEREST 29 PRIMUS ORDERING CHECKLIST
TO FACILITATE ORDER ENTRY FOR KEYS, CYLINDERS, AND CARDS
IMPORTANT NOTES
To expedite processing of all Primus orders, it is highly recommended that Primus products
be ordered separately
For Level One Plus and 7, All Cylinder Orders Will Be Supplied LESS KEYBLANKS Unless Otherwise
Specified
For All Other Levels, All Cylinder Orders Will Be Supplied WITH KEYBLANKS Unless Otherwise Specified
PRIMUS EVEREST 29 PRIMUS
FOR LEVEL ONE
3 The Distributor’s Primus number MUST be
provided
3 The Sequence number MUST be provided
FOR LEVEL ONE PLUS
3 The Distributor’s Primus number MUST be
provided
3 The Sequence number MUST be provided
3 The Locksmith number MUST be provided
FOR LEVEL TWO
3 The Dealer’s Primus number MUST be
provided
3 The Sequence number and/or Section MUST
be Provided
FOR LEVELS THREE & FOUR
3 Orders Originating a System MUST include
both an Original Facesheet and a Signature
Card
3 An Original Facesheet MUST accompany all
succeeding orders
3 The Primus number MUST be indicated on
the Facesheet
3 ALL fields on the Facesheet MUST be
completed where applicable
FOR LEVEL SEVEN
3 The Distributor’s Primus number MUST be
provided
3 The Locksmith’s Facility code MUST be
provided
3 The Keyway MUST be provided
FOR LEVEL EIGHT
3 The Distributor’s Primus number MUST be
provided
3 The Keyway MUST be provided
FOR LEVEL NINE
3 Orders Originating a System MUST include
both an Original Facesheet and a Signature
Card
3 An Original Primus Facesheet MUST
accompany all succeeding orders
3 The Primus number MUST be indicated on
the Facesheet
3 ALL fields on the Facesheet MUST be
completed where applicable
All Primus Orders & Supporting Documentation Should be Sent To:
Schlage
Attn: Primus Order Processing
3899 Hancock Expressway
Colorado Springs, CO 80911
Price Book 5
Effective August 12, 2017 • Rev. 08/17
34
Terms & Conditions
TERMS & CONDITIONS / FORMS & EXAMPLES
Forms-6
FORMS & EXAMPLES • Order Forms
Using Order Forms
We recommend using the order forms included with this price book
when placing purchase orders for Schlage products. The following
14 pages of order forms are available for copying prior to placing your
order. Bulk supplies of blank forms are also available upon request.
Contact Customer Service to order bulk supplies of forms. Specify
form number.
Sequential List of Order Forms
Description
Form
Number
Rev
Date
Total
Pages
Available on
allegion.com/us
Non-Master Keyed Order Form, First Page MS-I250 3/14 1 page
Non-Master Keyed Order Form, Additional Page MS-I300 3/14 1 page
Master Keyed Order Form, First Page MS-I100 3/14 1 page
Master Keyed Order Form, Additional Page MS-I150 3/14 1 page
Key System Summary MS-I200 3/14 5 pages
Primus® Facesheet MS-E120 3/14 1 page
Primus® Signature Card MS-E130 3/14 1 page
QUOTE #
PRICE BOOK #
SHIPPING INSTRUCTIONS
REQUESTED SHIPDATE
MARK CARTONS: ACCOUNT NO. P.O. NO. DATE
ORDER WRITTEN BY
FOR FURTHER INFORMATION, CONTACT:
Name:
Phone:
Fax:
CUSTOMER NAME AND ADDRESS: SHIP TO:
OUTSIDE INSIDE
HAND
DES DES FIN LATCH STRIKE
DR
THK EXT DIM
ADDITIONAL DETAILS
LINE
ITEM QTY PRODUCT FIN
Non-Master Keyed
ORDER
Use for Key Section and Bitting Information,
KA Groups, Primus® No., Locksmith ID No., etc.
Page 1 of
1
1
2
Ingersoll-Rand
250 Rev. 3/14
OUTSIDE INSIDE
HAND
DES DES FIN LATCH STRIKE
DR
THK EXT DIM
ADDITIONAL DETAILS
LINE
ITEM QTY PRODUCT FIN Use for Key Section and Bitting Information,
KA Groups, Primus® No., Locksmith ID No., etc.
© 2001 Ingersoll-Rand
MS- 300
Non-Master Keyed Order Add’l Page
Account No. P.O. No. Page of
IRev. 2/01
Rev. 3/14
MASTER KEYED ORDER
This form must be attached to the
MASTER KEY SYSTEM SUMMARY FORM
Please provide as complete and accurate as possible so we can
provide what you need for your Key System
Quote #: Account No.: P.O. #:
Shipping Instructions: Mark Cartons: Date:
Order Written By: Customer Name and Address: Ship to:
For Further Information Contact:
Name:
Phone:
Fax:
Page 1 of ___
Items Ordered OUTSIDE
HAND
(Only one
hand per
line item)
INSIDE LATCH STRIKE Enter door
thickness
if not
standard
Enter
when
door
thickness
is greater/
equal to
Dimen-
sion for
mortise
cylinder,
blocking
ring, etc.
ADDITIONAL DETAILS
Lock Details DESIGN FINISH DESIGN FINISH
Key/Label Instructions
QTY Heading DOOR #
KEY
Symbol-
(s)
MK
Symbol-
(s)
LINE
ITEM
QTY PRODUCT DR THK EXT DIM
Page 1 of ___
MS-I100
Items Ordered OUTSIDE
HAND
(Only one
hand per
line item)
INSIDE LATCH STRIKE Enter door
thickness
if not
standard
Enter
when door
thickness
is greater/
equal to 2˝
Dimension
for mortise
cylinder,
blocking
ring, etc.
ADDITIONAL DETAILS
Lock Details DESIGN FINISH DESIGN FINISH
Key/Label Instructions
QTY Heading DOOR #
KEY
Symbol(s)
MK
Symbol(s)
LINE ITEM QTY PRODUCT DR THK EXT DIM
Page 2 of ___Page 2 of ___
MS-I150
1 of 5 MS-I200
MASTER KEY
SYSTEM SUMMARY
This form must be attached to the
Master Key Order form and P.O.
Please provide as complete and accurate as
possible so we can provide what you need for
your Key System.
o New
o Attached Dealer Specified Combinations
Construction Keyed o Yes o No
Full Size Construction Cores o ICA o ICB o ICC
(Schlage Only)
Small Format Construction Cores o Brown o Green
Construction Keyed Type
o Falcon o CK (BOK) o Lost Ball
o Schlage o CK (Split) o RCK ( 5-Pin C only )
Type
o 5-pin o 6-pin o 7-pin
See compatibility chart on page 5
Keyway
Specified **:
Schlage
o Classic
o Classic Primus *
Everest ®
o B (Small Format IC, Restricted *)
o C (Open)
o Primus® *
o D (Restricted *)
o Primus® *
Everest 29
o R (Small Format IC, Restricted *)
o S (Open)
o Primus® *
o T (Restricted *)
o Primus® *
Job Name
Address
City / State
Country
Account
No.
P.O.#
For detailed instructions on how to complete this form please refer to pages 4 & 5
System Overview
1. Select System
o Existing (provide info below)
Registry # __________________________________________
Structure or
Factory Order # _____________________________________
Falcon
o Standard
o Schlage C
o Restricted *
o Interchangeable Core A2
o Interchangeable Core A4
** = The Commercial Master Key Department makes the final
decision in the selection of key sections
Everest 29 key sections are backwards compatible to Everest
keyways and have the following relationships:
R family sections > B family keyways
S family sections > C family keyways
T family sections > D family keyways
2 of 5 MS-I200
2. Select Keys & Key Stamping
3. Select Cylinder Stamping
Change Keys
No. Of Keys per Symbol
No. Of Keys per Cylinder
Type
o Standard Bow o Standard Bow o Access Bow o Large Bow
(Unembossed) (Schlage Only)
Key Stamp Details
o Keyset Symbol o Do Not Duplicate o With Custom Die
(DND) (Specify)
o Non-standard Code (Specify)
Change Key Packaging and Shipping Instructions
Pack Keys Independently (PKI) of Lock or Cylinder ***
o Yes o No
If PKI, ship change keys to:
o Dealer o Other
o See Primus Facesheet
*** = Furnished standard at no charge with
Split-Key construction keying
Cylinder Stamp Details
o With Industry Standard Key Symbol o Non-Standard Code (Specify)
Cylinder Stamping Location
o Plug Face (N/A in Primus) - VKC o Concealed (N/A in Falcon STD) - CKC
3 of 5 MS-I200
6. Operating Instructions
(Unless otherwise specified, all hierarchical master keys will operate cross-keyed cylinders)
Cross Keyed is operated by
Cylinder these change keys
X
X
X
X
Cross Keyed is operated by
Cylinder these change keys
X
X
X
X
GGM o
GM o
MK o
MK o
MK o
MK o
Others o
5. Master Key Future Expansion
List Future MK Symbols
Example:
MK………o BJ, BK 40 each
Approx. # of Change Key Symbols Under Each Future MK
3
Level Qty. Per Master Key Symbol (s) Total Quantity
GGM
GM
MK or RMK
Control
Emergency
Others
Ship Master Keys To:
o Dealer o See Primus Facesheet o Other
Special Function Qty. Per Qty. Per
RCK (Lost Ball) **** Full Size Construction Core Keys (Schlage Only)
CK (Split Key) **** Full Size Construction Core Control Keys (Schlage Only)
Extractor Tools **** Small Format Construction Core Keys
Small Format Construction Core Control Keys
4. Select Key Quantities
**** = Use with Construction Keying
4 of 5 MS-I200
7. Instructions and Compatibility
General Information
If you do not know the registry number (R#), structure number or the original factory order number for an existing system, contact Customer
Service prior to placing the order:
Tel. 1-877-671-7011
Fax 1-800-452-0663
• Only one structure may be ordered on the same purchase order
• Classic refers to Obverse, Numbered (Paracentric), Quad, and Reverse key section families
• Classic Primus refers to Primus Obverse and Primus Quad key section families
Section 1: Select System
Full Size Construction Cores
• Schlage only
Small Format Construction Cores
• 7-pin only for Schlage
• 6- and 7-pin for Falcon
CK (Split)
• 6-pin for Schlage and Falcon
• Split key construction keying is not available for Classic Primus or Everest 29 Primus
RCK (Lost Ball)
• 5-pin (C keyway) only for Schlage
• 5-, 6-, and 7-pin for Falcon
System Selection
• Refer to the compatibility chart
Section 2: Select Keys and Key Stamping
Stamp Details
• Unless otherwise specified, industry standard key symbols are stamped on Everest 29™ and Primus® keys
• For custom die, attach RFQ approval for Schlage
Section 3: Select Cylinder Stamping
Type
• For cylinder type refer to the compatibility chart
Keyway (specify)
• Schlage Commercial’s default key section for new Master Key Systems is Everest™ S145
5 of 5 MS-I200
Section 4: Key Quantities
Level
• Unless otherwise specified, the control key has the same cut as the highest-level key in the system
(Except SFIC systems)
Special Function
• Construction keys are not furnished unless specified
Change Keys
• Unless otherwise specified 2 change keys are furnished per lock or cylinder
Section 5: Master Key Future Expansion
• Do not use the letters “I”, “O”, “CK”, “KA, or “KD” for any master key symbols
Section 6: Operating Instructions
• Cross keying reduces the security and expansion of key systems
• Unless otherwise specified, all hierarchical master keys will operate cross-keyed cylinders
5 Pin 6 Pin 7 Pin Split
Key
Block
O-Key
Lost
Ball
Temp
Core A2 A4 0.025 0.018
Schlage
Classic X X X X X
Everest 29 S X X X
Everest 29 T X X X
Everest 29 R X X X
Classic Primus (XP) X X
Everest 29 Primus (XP) X X
Falcon
Open X X X X X X
Restricted X X X X X
Schlage C X X
SFIC Open XX XXX
SFIC Restricted XX XXX
Compatibility Chart
IF SOLD TO ANY ENTITY/INDIVIDUAL OTHER THAN END-USER SPECIFY NAME:
29
MS-E120
PRIMUS SECURITY LEVEL:
© 2009 Ingersoll Rand
MS-E120 Rev. 6/09
Ingersoll Rand Security Technologies
Schlage
Attn.: Primus Order Processing
3899 Hancock Expressway
Security, CO. 80911
Allegion
Rev. 3/14
PRIMUS SECURITY LEVEL:
PROJECT INFORMA TION
Project Name (please print or type)
Street Address (no P .O. Box)
City State Zip Code
AUTHORIZED OWNER SIGNA TURE(S):
If restrictions are not indicated and in multiple signature cases, the first signature will be regarded as the primary authorit y able to control
other signers on this form.
1.
Name (please print or type) Street (no P .O. Box)
Title or Position City State Zip Code
Signature Date Phone Number
2.
Name (please print or type) Street (no P .O. Box)
Title or Position City State Zip Code
Signature Date Phone Number
3.
Name (please print or type) Street (no P .O. Box)
Title or Position City State Zip Code
Signature Date Phone Number
4.
Name (please print or type) Street (no P .O. Box)
Title or Position City State Zip Code
Signature Date Phone Number
5.
Name (please print or type) Street (no P .O. Box)
Title or Position City State Zip Code
Signature Date Phone Number
Level 3, 4, and 9 Order Authorization
Signature Card
PRIMUS ®
THIS SIGNA TURE CARD EST ABLISHES AUTHORIZA TION TO PURCHASE ADDITIONAL
PRIMUS HIGH SECURITY PRODUCT FOR THE SECURITY SYSTEM INST ALLED A T THE ADDRESS BELOW .
OVER
For Internal Use Only
Primus# Order#
G/Z/E S/M
THIS ORIGINAL FORM MUST BE MAILED TO SCHLAGE COMMERCIAL DIVISION WITH YOUR ORDER
F AXED COPIES NOT ACCEPT ABLE
3U (no exclusivity) 4Z (time exclusivity)
3G (2-digit zip exclusivity) 4N (nationwide exclusivity)
Classic K e yw a y s
9U (no exclusivity) 9Z (time exclusivity)
9G (2-digit zip exclusivity) 9N (nationwide exclusivity)
Ev erest 29 Keyways
MS-E130
DEALER OR LOCKSMITH AUTHORIZATION (OPTIONAL WITH OWNER AUTHORIZATION/SIGNATURE)
Dealer or Locksmith Account # Primus #
Dealer or Locksmith Company Name
Phone Number Fax Number
Contact 1 (Please print or type)
Contact 1 Signature
Owners Authorization By (Please print or type)
SPECIAL NOTE: In the case where the end user / owner has assigned the Dealer or Primus Locksmith Signature
authorization (as noted above), the Dealer or Primus Locksmith agrees to take full responsibility
for validating the owner’ s signature as identified on the Primus Signature Card before ordering
the material.
SPECIAL INSTRUCTIONS: Please indicate any restrictions to authorized individuals listed on this form when purchasing
additional Primus product or duplicating keys.
Please fill out a new Primus Signature Card in the event of changes, additions or deletions in authorized signatures and send w ith letter
requesting changes to Schlage at the address below . Primus Signature Cards are available from authorized Schlage Primus distrib utors
and Schlage Commercial upon request. W e suggest that you make a copy of this completed form for your records. A photo copy or fax of
this card will not be accepted.
Please mail the original copy to: IR Schlage
Attn.: Master Key Control Department
2315 Briargate Parkway, Suite 700
Colorado Springs, CO 80920
– F AXED COPIES WILL NOT BE ACCEPTED –
© 2002 Ingersoll-Rand
MS-E130 Rev . 8/05
Effective From:
Date Date
to
Owners Authorization Signature Date
Address (no P.O. Box)
Contact 2 (Please print or type)
Contact 2 Signature
City State Zip Code
Schlage
Attn: Key Control Department
3899 Hancock Expressway
Colorado Springs, CO 80911
Please mail the original copy to:
MS-E130 Rev. 3/14
Price Book 5
Effective August 12, 2017 • Rev. 08/17
ND-SeriesD-SeriesAL-SeriesCYLINDRICAL
57
DEALER OR LOCKSMITH AUTHORIZATION (OPTIONAL WITH OWNER AUTHORIZATION/SIGNATURE)
Dealer or Locksmith Account # Primus #
Dealer or Locksmith Company Name
Phone Number Fax Number
Contact 1 (Please print or type)
Contact 1 Signature
Owners Authorization By (Please print or type)
SPECIAL NOTE: In the case where the end user / owner has assigned the Dealer or Primus Locksmith Signature
authorization (as noted above), the Dealer or Primus Locksmith agrees to take full responsibility
for validating the owner’ s signature as identified on the Primus Signature Card before ordering
the material.
SPECIAL INSTRUCTIONS: Please indicate any restrictions to authorized individuals listed on this form when purchasing
additional Primus product or duplicating keys.
Please fill out a new Primus Signature Card in the event of changes, additions or deletions in authorized signatures and send w ith letter
requesting changes to Schlage at the address below . Primus Signature Cards are available from authorized Schlage Primus distrib utors
and Schlage Commercial upon request. W e suggest that you make a copy of this completed form for your records. A photo copy or fax of
this card will not be accepted.
Please mail the original copy to: IR Schlage
Attn.: Master Key Control Department
2315 Briargate Parkway, Suite 700
Colorado Springs, CO 80920
– F AXED COPIES WILL NOT BE ACCEPTED –
© 2002 Ingersoll-Rand
MS-E130 Rev . 8/05
Effective From:
Date Date
to
Owners Authorization Signature Date
Address (no P.O. Box)
Contact 2 (Please print or type)
Contact 2 Signature
City State Zip Code
A Series
GRADE 2 CYLINDRICAL KNOB LOCK
A-Series
Exploded View - A53PD
7/8" dia.
22 mm 2-1/8"
54 mm
2-3/8"
60 mm
1"
25 mm
2-1/4"
57 mm
Inside knob
Inside rose
Mounting screws
Mounting plate
Lock chassis
6-Pin cylinder
Box
Strike
Outside knob
Outside rose
Reversible deadlatch
1/2
" Throw
Door Preparation
A-1
Price Book 5
Effective August 12, 2017 • Rev. 08/17
58
ND-Series D-Series AL-Series CYLINDRICAL
A-2
A Series
Ordering Procedures
To order Schlage products, descriptive data should be in the same sequence as shown below.
Line Item: Line item number
Qty: Quantity
Product: Product function + Cylinder code
Outside Des: Outside lever design
Outside Fin: Outside nish
Inside Des: Inside lever design: Specify only if different from the outside lever design
Inside Fin: Inside lever nish: Specify only if different from the outside nish
Hand: Hand of door: N/A for A lock
Latch: Product latch: Leave blank for standard latch or specify part number if non-standard latch is required.
Strike: Product strike: Leave blank for standard strike or specify part number if non-standard strike is required.
Dr Thk: Door thickness: Enter door thickness if non-standard. Example: 138=1 3/8", 214=2 1/4"
Ext: Extension: Enter for doors 1 7/8" or greater. Example: EE=extended equally, EI=extended inside,
EO=extended outside, ED=extended differently
Dim: Dimension: Enter only for non-standard strike lip length
Additional
Details: Enter additional detail for keying information or special requirements
Common Pricing Information
1. Locks are furnished with standard features unless otherwise specied.
2. Door thickness is 1 ¾" unless otherwise specied.
3. Split nishes and designs will be priced at the highest list price of the design and/or nish.
4. 6 denotes a lock or part that requires an extended lead time.
5. I denotes a handed product and requires handing to be specied.
6. For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $16.00. This does not apply to Primus cylinders. See
Terms and Conditions for ordering information and requirements.
7. Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the
specic requirements.
8. Keyway must be specied for keyed functions and cylinders. If not specied, default keyway will be S123 for KA, KD and 0-bitted product
and S145 for Factory managed masterkey systems.
9. Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specied or excepted by notation.
10. Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
11. Locks specied with “C” keyway and KD or 0-bitted will receive 6 pin cylinders.
12. Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specied. If 0-bitted is selected, the order will be entered as
1-bitted. This does not apply to FSIC Primus® cores.
13. Conventional cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered
as 0-bitted.
14. Available plug face nishes are 606 and 626. For brass or bronze nish colors, the plug face nish is 606. For chrome, nickel or stainless
steel nish colors, the plug face nish is 626.
15. Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge
appropriate for the cylinder/key type
Line
Item Qty Product
Outside Inside
Hand Latch Strike Dr Thk Ext DIM
Additional
Details
DES FIN DES FIN
1 10 A53PD PLY 626 LEV 613 - 11-085 10-001 178 EE -KA
Price Book 5
Effective August 12, 2017 • Rev. 08/17
ND-SeriesD-SeriesAL-SeriesCYLINDRICAL
59
A-3
A
Introduction
Table of Contents
Functions A-4
Complete Locks A-5
Options A-7
Latches A-7
Strikes .........................................A-7
Non-Standard Door Thickness ................A-8
Locks Less Components. .......................A-8
Tamper Resistant Torx® Screws ................A-8
Special Functions ..............................A-8
Parts A-9
Knobs and Related Components ..............A-9
Roses .........................................A-9
Latches and Related Components .............A-9
Strikes ........................................A-10
Plunger Parts ..................................A-11
Reinforcements and Adapterss ................A-11
Finished Miscellaneous Parts ................. A-12
Miscellaneous Parts .......................... A-12
Screws ....................................... A-13
Screw Packs .................................. A-13
Torx Screw Packs ............................ A-13
Cylinder Reference Table ..................... A-13
Complete Cylinders See Cylinders Section
How To Order Forms & Examples
Product Identification
A 53 P D
Latch Suffix
D = Deadlatch
S = Springlatch
Cylinder Suffix
P = 6-Pin Cylinder
L = Less 6-Pin Cylinder
R = Full Size Interchangeable
Core
J = Less Full Size
Interchangeable Core
T = Full Size Construction Core
Z = Everest SL 7 pin Cylinder
Function
Lock Series
Finish Codes
and Descriptions
Code Description
605 (US 3) Bright Brass
606 (US 4) Satin Brass
609 (US 5) Antique Brass
612 (US 10) Satin Bronze
613 (US 10B) Oil Rubbed Bronze
625 (US 26) Bright Chromium Plated
626 (US 26D) Satin Chromium Plated
629 (US 32) Bright Stainless Steel
630 (US 32D) Satin Stainless Steel
643e (US 11) Aged Bronze
Standard Features
Certification ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2, UL Listed for 3-hour fire door.
Latch 1" x 2 1/4", Square corner faceplate, 7/8" housing diameter, 1/2" throw
Strike 1 1/8" x 2 3/4", Square corner, T-strike, box
Backset 2 3/8"
Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)
Door Range 1 3/8" – 1 7/8"
Keys Two nickel silver cut keys per lock, 6-pin, S123 section
Price Book 5
Effective August 12, 2017 • Rev. 08/17
60
ND-Series D-Series AL-Series CYLINDRICAL
A-4
A Functions
ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2, UL Listed for 3-hour fire door.
Non-Keyed Locks Keyed Locks
SCHLAGE ANSI
A10S F75 A53PD F109
Passage Latch
Both knobs always unlocked.
A25D Exit Lock
Blank plate outside. Inside knob
always unlocked. Specify door
thickness. A70PD F84 Classroom Lock
Outside knob locked and
unlocked by key. Inside knob
always unlocked.
A79PD Communicating Lock
With Blank Plate
Locked or unlocked by key from
outside. Blank plate inside.
A80PD F86 Storeroom Lock
Outside knob fixed. Entrance by key
only. Inside knob always unlocked.
A30D F77
Patio Lock
Push-button locking. Turning inside
knob or closing door releases button,
preventing lock-out.
A40S F76 Bath/Bedroom Privacy Lock
Push-button locking. Can be unlocked
from outside with small screwdriver.
Turning inside knob or closing door
releases button.
A43D F79 Communicating Lock
Turn-button in outer knob locks and
unlocks knob and inside thumbturn.
A85PD F93 Faculty Restroom Lock
(with Indicator Cylinder)
Outside knob fixed. Entrance by key
only. Push-button in inside knob
activates visual occupancy indicator,
allowing only emergency master key
to operate. Turning inside knob or
closing door releases visual
occupancy indicator. Rotation of
inside spanner-button provides
lock-out feature by keeping indicator
activated.
A170 Single Dummy Trim
Dummy trim for one side of door.
Used for door pull or as matching
inactive trim.
Entrance Lock
Turn/push-button locking; pushing
and turning button locks outside
knob, requiring use of key until
button is manually unlocked. Push-
button locking; pushing button locks
outside knob until unlocked by key
or by turning inside knob.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
ND-SeriesD-SeriesAL-SeriesCYLINDRICAL
61
A-5
Georgian (GEO) Levon (LEV) * Orbit (ORB) Plymouth (PLY) Tulip (TUL)
Complete Locks A
Latches
11-068
Standard 11-085
Standard 11-104 41-005
Strikes
10-001
Standard
10-004 10-025 10-026 10-058
* The Levon lever is available on inside trim for the following functions: 25, 30, 53, 70, 80 & 85.
Roses
Outside Rose - Plymouth
Knob: Plymouth & Levon
Size: 2 1/2" dia.
Outside Rose - Georgian
Knobs: Georgian
Size: 2 1/2" dia.
Outside Rose - Tulip
Knobs: Tulip & Orbit
Size: 2 1/2" dia.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
62
ND-Series D-Series AL-Series CYLINDRICAL
A-6
Complete Locks A
Function Description
Designs and Finishes Primary Cylinder Adjustments
Available Levers
Available FinishesORB PLY GEO TUL LEV***
626
605 6606
6609 612*
6625 643e*
613 6629**
630** LD
RD
TD JD
Keyless ALL ORB
A10S Passage
128 140 158
605 6606 6609 612 613 6625 626
6629 630 643e
A25D Exit, blank plate x lever
A40S Privacy
A30D Privacy, hospital 172 184 202
A43D Privacy, hospital
A170 Single dummy 64 70 80
Keyed, Single Cylinder LD
RD
TD**** JD
A53PD Entrance
227 239 257 -58 35 -32
A70PD Classroom
A80PD Storeroom
A79PD Communicating 262 274 292
A85PD Faculty Restroom Lock -86 N/A
SECONDARY
CYLINDER
ADJUSTMENTS
Everest And Restricted Keyway - does not apply to Primus
Everest D & T Family & Restricted Keyways (Quad, Numbered, Reverse) +16
SL Cylinder with Everest B or Everest R keyways +16
Primus/Primus XP - order the lock less cylinder and the cylinder separately (prices below)
Single Kil Example: 1 Ea. A53LD & 1 Ea. 20-724(-XP) +129
Single Fsic Example: 1 Ea. A53JD & 1 Ea. 20-740(-XP) +139
*Not available for GEO LEV TUL
** Finishes only available in PLY
*** The Levon lever is available on inside trim for the following functions: 25, 30, 53, 70, 80 & 85
**** Temporary cores (TD and HD options) require non-refundable core handling charge (50-231) of $9.50 and will be added to the price of the lock.
Price Book 5
Effective August 12, 2017 • Rev. 01/18
ND-SeriesD-SeriesAL-SeriesCYLINDRICAL
63
Options A
A-7
Latches, Strikes
Latches
Part Number Backset - Hsg Dia. - Description Lock Adjustment
Spring Latch
11-068 2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
N/C
11-069 2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-110 2 3/8" - 1" - Circular drive in - 605 & 626 nishes only
11-111 2 3/4" - 7/8" - Square corner, 1" x 2 1/4"
11-112 2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-116 2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-113 2 3/4" - 1" - Circular drive in - 605 & 626 nishes only
11-118 3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4" +12.40
Deadlatch
11-085 2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
N/C
11-088 2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-104 2 3/8" - 1" - Circular drive in - 605 & 626 nishes only
11-091 2 3/4" - 7/8" - Square corner, 1" x 2 1/4"
11-092 2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-096 2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-105 2 3/4" - 1" - Circular drive in - 605 & 626 nishes only
11-103 3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4" +12.40
41-005 5" - 7/8" - Backset extension link - require reinforcement when used in hollow metal door applications;
must be used with 2 3/8" backset latches +19.80
Strikes
Part Number Lip Length - Description Lock Adjustment
10-001
1 1/8" - Square corner, T-strike, box, 1 1/8" x 2 3/4" N/C
1" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
+7.00
1 1/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
1 1/2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
1 3/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-004 1 1/8" - 1/4" Radius round corner, T-strike, box, 1 1/8" x 2 3/4" N/C
10-025
1 3/16" - ANSI, no box, 1 1/4" x 4 7/8" N/C
1 3/8" - ANSI, no box, 1 1/4" x 4 7/8" +25.50
1 1/2" - ANSI, no box, 1 1/4" x 4 7/8"
10-026 1 1/8" - Square corner, full lip, no box, 1 5/8" x 2 1/4"
N/C
10-027 1 1/8" - 1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4"
10-058 Circular, adjustable, 1 3/4" diameter - 605 and 626 nishes only
K510-066 Box for ANSI strike, must be specied
Shaded items are standard components and are
furnished with locks unless otherwise specified.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
64
ND-Series D-Series AL-Series CYLINDRICAL
A-8
Locks Less Components
Description Specify Lock Adjustment
Less each knob LLL for knob design
Example: A53PD LLL/PLY x PLY -8.00
Less each rose or turn LLL for rose design
Example: A53PD PLY x PLY/LLL -6.30
Less springlatch LLL for latch
Example: A40S PLY 605 LLL 10-004 -10.30
Less deadlatch LLL for latch
Example: A53PD PLY 626 LLL 10-025 -17.20
Less strike LLL for strike
Example: A53PD PLY 612 11-096 LLL -3.70
Lock chassis and spring cages only Less all possible components
Example: A53LD LLL 626 LLL LLL
Sum of deducts
Non-Standard Door Thickness
Description Specify Lock Adjustment
Extended Inside (EI), 2" thru 2 1/2" Door thickness and how door is extended.
Example: 2 1/2", EI +53.70
Tamper Resistant Torx® Screws
Specify/
Part Number Description Lock Adjustment
Torx Screws Screws - Latch and Strike +15.80
Special Functions - Extended Lead Times
Part Number
Description Base Lock Lock AdjustmentLock Function “X” Number
A53PD XA11-297 A53PD with restoring slide A53PD +164.00
A Options Locks Less Components, Non-Standard Door Thickness,
Tamper Resistant Torx Screws, Special Functions
Price Book 5
Effective August 12, 2017 • Rev. 08/17
ND-SeriesD-SeriesAL-SeriesCYLINDRICAL
65
Parts A
A-9
Knobs and Related Components, Roses, Latches and Related Components
Knobs and Related Components
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
01-008 ORB PLY; 01-009 ORB PLY; 01-026 ORB 6 6 66• •
01-008 TUL GEO LEV; 01-009 TUL GEO LEV 6 6 6
Part Number Description Price Each
01-008* Closed Knob or Lever - GEO LEV ORB PLY TUL $37.70
01-009* Open Knob or Lever - GEO LEV ORB PLY TUL
01-018* Open Knob - with sleeve for cylinders - GEO ORB PLY TUL 52.50
01-026* Full Size Core Knob - ORB 70.70
01-053 Full size core driver and retainer - nish not required 12.20
A501-941 Full size core retainer - nish not required 4.60
C604-307 Full size core driver, universal - nish not required 8.80
*Specify part number, knob style, nish. Ex: 01-009 GEO 626 (open knob, Georgian design, 626 nish)
Roses
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
01-001 TUL PLY, 01-002 TUL PLY, A201-558, A501-766 6 6 66• •
01-001 GEO, 01-002 GEO 6 6 6
Part Number Description Price Each
01-001** Outside Rose - TUL PLY GEO $28.40
01-002** Inside Rose - TUL PLY GEO
A201-558 Rose, out. - A25 50.00
A501-766 Rose, ins. - A79 44.80
** Specify part number & nish. Ex: 01-002 PLY 626 Plymouth design, 626 nish)
Latches and Related Components
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
11-068, 11-069, 11-110, 11-111, 11-112, 11-116, 11-113, 11-118, 11-085, 11-088, 11-104, 11-091,
11-092, 11-096, 11-105, 11-103 •••••••6• •
39-030 • •
Part Number Backset - Hsg Dia. - Description Price Each
Spring Latch
11-068 2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
$54.80
11-069 2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-110 2 3/8" - 1" - Circular drive in - 605 & 626 nishes only
11-111 2 3/4" - 7/8" - Square corner, 1" x 2 1/4"
11-112 2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-116 2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-113 2 3/4" - 1" - Circular drive in - 605 & 626 nishes only
11-118 3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4" 59.00
Dead Latch
11-085 2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
54.80
11-088 2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-104 2 3/8" - 1" - Circular drive in - 605 & 626 nishes only
11-091 2 3/4" - 7/8" - Square corner, 1" x 2 1/4"
11-092 2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-096 2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-105 2 3/4" - 1" - Circular drive in - 605 & 626 nishes only
11-103 3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4" 59.00
41-005
5" - Backset extension link - require reinforcement when
used in hollow metal door applications; backset link
must be used with 2 3/8" backset latches.
20.70
39-030
Rabbeted latch and strike kit - adapts square corner
latches and 2 3/4" high square corner strikes to 1/2"
rabbeted door and frame preparations.
53.00
Shaded items are standard components and are
furnished with locks unless otherwise specified.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
66
ND-Series D-Series AL-Series CYLINDRICAL
Strikes
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
10-001, 10-004, 10-025, 10-026, 10-027 •••••••6• •
10-058 • •
Part Number Lip Length - Description Price Each
10-001 118 1 1/8" - Square corner, T-strike, box, 1 1/8" x 2 3/4" $6.50
10-001 100 1" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
13.50
10-001 114 1 1/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-001 112 1 1/2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-001 134 1 3/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-001 200 2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-004 1 1/8" - 1/4" Radius round corner, T-strike, box, 1 1/8" x 2 3/4" 10.10
10-025 1316 1 3/16" - ANSI, no box, 1 1/4" x 4 7/8" 14.30
10-025 138 1 3/8" - ANSI, no box, 1 1/4" x 4 7/8" 39.80
10-025 112 1 1/2" - ANSI, no box, 1 1/4" x 4 7/8"
10-026 1 1/8" - Square corner, full lip, no box, 1 5/8" x 2 1/4" 7.60
10-027 1 1/8" - 1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4" 7.60
10-058 Circular, adjustable, 1 3/4" diameter 10.90
K510-066 Box for ANSI strike - nish not required 6.60
A-10
A Parts Strikes
Shaded items are standard components and are
furnished with locks unless otherwise specified.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
ND-SeriesD-SeriesAL-SeriesCYLINDRICAL
67
A-11
Parts A
Plunger Parts, Reinforcements and Adapters
Plunger Parts
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
01-055, 01-056, 01-057, 01-058, 01-060, 01-063 6 6 66• •
Part Number Dimension - Design - Door Range - Description Price Each
01-055*
360 - Non-ORB - 1 3/8" – 1 7/8" - Plunger unit, ins. - A30
$14.80
424 - Non-ORB - over 1 7/8" – 2 1/4", EI - Plunger unit, ins. - A30
449 - Non-ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins. - A30
428 - ORB - 1 3/8" – 1 7/8" - Plunger unit, ins. - A30
492 - ORB - over 1 7/8" – 2 1/4", EI - Plunger unit, ins. - A30
517 - ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins. - A30
01-056*
360 - Non-ORB - 1 3/8" – 1 7/8" - Plunger unit, ins. - A40
424 - Non-ORB - over 1 7/8" – 2 1/4", EI - Plunger unit, ins. - A40
449 - Non-ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins. - A40
428 - ORB - 1 3/8" – 1 7/8" - Plunger unit, ins. - A40
492 - ORB - over 1 7/8" – 2 1/4", EI - Plunger unit, ins. - A40
517 - ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins. - A40
01-057*
070 - Non-ORB - 1 3/8" – 2 1/2", EI - Plunger unit, out. - A40
135 - Non-ORB - 1 3/8" – 2 1/2", EI - Plunger unit, out. - A40
070 - ORB - 1 3/8" – 2 1/2", EI - Plunger unit, out. - A40
135 - ORB - 1 3/8" – 2 1/2", EI - Plunger unit, out. - A40
01-058*
281 - Non-ORB - 1 3/8" – 2 5/8", EI - Plunger unit, out. - A43
349 - Non-ORB - 1 3/8" – 2 5/8", EI - Plunger unit, out. - A43
281 - ORB - 1 3/8" – 2 5/8", EI - Plunger unit, out. - A43
349 - ORB - 1 3/8" – 2 5/8", EI - Plunger unit, out. - A43
01-060*
360 - Non-ORB - 1 3/8" – 1 7/8" - Plunger unit, ins. - A53
424 - Non-ORB - over 1 7/8" – 2 1/4", EI - Plunger unit, ins. - A53
449 - Non-ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins. - A53
428 - ORB - 1 3/8" – 1 7/8" - Plunger unit, ins. - A53
492 - ORB - over 1 7/8" – 2 1/4", EI - Plunger unit, ins. - A53
517 - ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins. - A53
01-063*
363 - Non-ORB - 1 3/8" – 1 7/8" - Plunger unit, ins. - A85
32.30
427 - Non-ORB - over 1 7/8" – 2 1/4", EI - Plunger unit, ins. - A85
452 - Non-ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins. - A85
431 - ORB - 1 3/8" – 1 7/8" - Plunger unit, ins. - A85
497 - ORB - over 1 7/8" – 2 1/4", EI - Plunger unit, ins. - A85
520 - ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins. - A85
*Specify part number, dimension, design & nish. Ex: 01-060 492 ORB 626
Reinforcements and Adapters
Part Number Description Price Each
37-001
Metal door reinforcer kit, ts both 7/8" and 1" diameter housings
- Specify door thickness, includes A501-567 and A501-565 or
A501-566.
$35.90
A501-565 Reinforcer for 1 3/8" thick non-reinforced metal doors. Fits both
7/8" and 1" diameter housings. 18.00
A501-566 Reinforcer for 1 3/4" thick non-reinforced metal doors. Fits both
7/8" and 1" diameter housings.
A501-567 3 1/2" Long latch housing sleeve used to reinforce joint between
latch and backset link or to hold latch in metal doors. 11.20
A501-878** Faceplate adapter to adapt 1" faceplate to 1 1/8" door
preparation 0.70
G506-815 1" Long latch housing sleeve to adapt 7/8" housing to 1" bore 6.30
** Order in multiples of 100
Price Book 5
Effective August 12, 2017 • Rev. 08/17
68
ND-Series D-Series AL-Series CYLINDRICAL
A-12
Finished Miscellaneous Parts
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
38-018, A201-330, A201-399, A201-406, A201-684, A201-688, A301-403,
A301-404, A301-405, A301-406 6 6 66• •
Part Number Description Price Each
38-018 Thin door extension ring (2 required per lock) $12.00
A201-330 Non-threaded chassis, less knob & rose - A170 40.70
A201-399 Hub & cap, out. (except A10, A25, A40, A43) 29.30
A201-406 Hub & cap, out. - A10, A40, A43
A201-684 Threaded chassis, less knob & rose - A170 40.70
A201-688 Turn unit, ins. - A43 50.00
A301-403 Housing & cap, 1 3/8" thru 1 7/8" door (except A43, A79)
11.00A301-404 Housing & cap, 1 7/8" thru 2 1/4" door, EI (except A43, A79)
A301-405 Housing & cap, 2 1/4" thru 2 1/2" door, EI (except A43, A79)
A301-406 Threaded housing & cap, ins. (except A43, A79) 11.10
Miscellaneous Parts
Part Number Description Price Each
A201-370 Cam & driver - A80 $8.90
A201-377 Mounting plate, ins. (except A43, A79)
9.10
A301-386* Spindle & catch, ins. (except A43, A79)
A301-387 Spindle & catch, out. (except A25, A43)
A301-391* Cam unit - A30
A301-402 Cam unit, out. - A40, A53, A85
A301-409* Spindle, 1 7/8" thru 2 1/4" door, EI (except A43, A79) 37.80
A301-410* Spindle, 2 1/4" thru 2 1/2" door, EI (except A43, A79)
A500-001 Spindle, ins, 2" thru 2 1/4" door, EI - A43 15.40
A500-002 Spindle, ins., 2 1/2" door, EI - A43
A501-167 Threaded rod for mounting A170s as double dummy set 15.40
A501-305 Hub plate, ins. (except A79) 7.20
A501-498 Hub, 1 3/8" door - A25 10.90
A501-499 Hub, 1 3/4" door - A25 11.00
A501-615 Spindle wedge - A80, A85 6.80
A501-633 Spindle, ins. - A43 8.00
A501-710 Swivel sleeve - A85 (except ORB design) 6.90
A501-721 Cam plug - A70, A79 20.70
A501-767 Mounting plate - A79 6.90
A501-768 Hub plate, ins. - A79
A501-791 Cam & plug spacer - A70, A79 4.20
A501-874 Hub plate, out. - A25 10.90
A501-901 Plate, out. - A80, A85 4.80
A508-399 Plate, out. (except A25, A80, A85) 9.20
A508-597 Spring separator (except A10, A25, A40, A43) - require frame
A508-598 6.90
A700-017 Spiral cam - A70, A79 10.20
A508-598 Frame 11.00
A508-600 Housing - A43, A79 15.20
A508-605 Slide spring 6.90
A508-640 Spacer, ORB knob 7.70
A508-641 Slide stop - A43 27.90
A590-158* Slide, restoring - A30, A85
6.90
A590-159 Slide, non-restoring - A43, A53, A70, A79, A80
A590-180 Slide, restoring - A40
A590-181 Slide, non-restoring - A10, A25
C503-008** Cotter pin 0.64
G570-232 Plug, spindle, lever designs only - A10 12.60
* Parts that are not directly interchangeable with locks manufactured before 1984
** Order in multiples of 100
A Parts Finished Miscellaneous Parts, Miscellaneous Parts
Price Book 5
Effective August 12, 2017 • Rev. 08/17
ND-SeriesD-SeriesAL-SeriesCYLINDRICAL
69
Parts A
A-13
Screws, Screw Packs, Torx Screw Packs, Cylinder Reference Table
Screws
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
A508-649, A508-650, C603-256, C603-897 6 6 66• •
Part
Number Door Thickness - Description Type Size Price Each
A501-161* 1 3/8" – 1 7/8" - Mounting, All
(except A43, A79) POH Mach 10-32 x 1 1/8" 0.94
A501-818* 2" – 2 1/2", EI - Mounting, All
(except A43, A79) POH Mach 10-32 x 2 1/16" 1.10
A501-769* 1 3/8" – 2" - Mounting, A79 POMH 1-way 10-32 x 1 1/8" 1.30
A501-770* 2" – 2 3/4", EI - Mounting, A79 POMH 1-way 10-32 x 2" 1.30
A508-649* 1 3/8" – 1 7/8" - Mounting, A43 Torx screw (T-20) 10-32 x 1 1/8" 23.00
A508-650* 2" – 2 1/2", EI - Mounting, A43 Torx screw (T-20) 10-32 x 2"
C603-256* ANSI strike PFH Combo 12-24 x 1" 0.96
C603-897* Latch and strike PFH Combo 8-32 x 3/4" 0.82
* Order in multiples of 100
Cylinder Reference Table
Available Finishes - Specify for Listed Parts 606, 626
21-002/122, 20-724/XP/122, 20-524/XP/122, 21-003/168, 91-052, 91-752-XP, 91-552-XP
Part Number Cylinder Mechanism Function Design Price Each Price Each - Restricted
21-002 Conventional
Standard
Functions
Except Orbit
$58.00 $74.00
91-004 Everest SL (R/B Keyways only) 74.00
20-724 Primus 129.00
20-724-XP Primus XP
91-704-XP Everest SL Primus XP (R/B
Keyways only) 129.00
20-524 Primus UL437 159.00
20-524-XP Primus UL437 XP
91-504-XP Everest SL Primus XP UL 437
(R/B Keyways only) 159.00
21-002-122 Conventional
Orbit Except
A73 Function
58.00 74.00
91-005 Everest SL (R/B Keyways only) 74.00
20-724-122 Primus 129.00
20-724-XP-122 Primus XP
91-705-XP Everest SL Primus XP (R/B
Keyways only) 129.00
20-524-122 Primus UL437 159.00
20-524-XP-122 Primus UL437 XP
91-505-XP Everest SL Primus XP UL 437
(R/B Keyways only) 159.00
Complete
cylinder
discontinued
but may be
assembled in
the eld
Conventional
A73 Orbit
Primus
Primus XP
Primus UL437
Primus UL437 XP
21-003 Conventional A85 Except Orbit 86.00 102.00
21-003-168 Orbit 86.00 102.00
Screw Packs
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
A201-811, A201-812 6 6 66• •
Part
Number Description Contents Price Each
A201-811 Mounting, latch and strike (except
A43, A170)
(2) A501-161
(4) C603-897 $7.60
A201-812 Mounting, A170 (3) C603-897 5.80
A201-814 Mounting, A43 (2) A508-649 4.60
Torx Screw Packs
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
C203-311, C203-312 6 6 66• •
Part
Number Description Contents Price Each
C203-311** Latch and strike (4) C503-766 (T-15)
$19.40
C203-312** Latch and ANSI strike (2) C503-766 (T-15)
(2) L583-371 (T-20)
** Torx screw packs are furnished with appropriate T-xx installation tool(s)
Price Book 5
Effective August 12, 2017 • Rev. 08/17
70
ND-Series D-Series AL-Series CYLINDRICAL
A-14
A Notes
Price Book 5
Effective August 12, 2017 • Rev. 08/17
ND-SeriesD-SeriesA-SeriesCYLINDRICAL
71
AL Series
GRADE 2 CYLINDRICAL LEVERED LOCK
AL-Series
Exploded View - AL53PD
Castle nut
Inside spring cage
Lock chassis
Outside lever
Mounting
screws
Plastic
insert
ANSI strike
Inside lever
Driver cap
Driver
Rose
6-Pin cylinder
Rose and outside spring cage
Reversible deadlatch
¹⁄₂
" Throw
2-1/4"
57 mm
2-3/4"
70 mm
1" dia.
25 mm
5/16" dia.
8 mm
2-1/8"
54 mm
1-1/8"
29 mm
2-3/4"
70 mm
Door Preparation
AL-1
Indicates products that have EPD documentation available and meet LEED v4.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
72
ND-Series D-Series A-Series CYLINDRICAL
AL Series
Ordering Procedures
To order Schlage products, descriptive data should be in the same sequence as shown below.
Common Pricing Information
1. Locks are furnished with standard features unless otherwise specied.
2. Door thickness is 1 ¾" unless otherwise specied.
3. Split nishes and designs will be priced at the highest list price of the design and/or nish.
4. 6 denotes a lock or part that requires an extended lead time.
5. I denotes a handed product and requires handing to be specied.
6. For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $16.00. This does not apply to Primus cylinders. See
Terms and Conditions for ordering information and requirements.
7. Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the
specic requirements.
8. Keyway must be specied for keyed functions and cylinders. If not specied, default keyway will be S123 for KA, KD and 0-bitted product
and S145 for Factory managed masterkey systems.
9. Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specied or excepted by notation.
10. Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
11. Locks specied with “C” keyway and KD or 0-bitted will receive 6 pin cylinders.
12. Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specied. If 0-bitted is selected, the order will be entered as
1-bitted. This does not apply to FSIC Primus® cores.
13. Conventional cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered
as 0-bitted.
14. Available plug face nishes are 606 and 626. For brass or bronze nish colors, the plug face nish is 606. For chrome, nickel or stainless
steel nish colors, the plug face nish is 626.
15. Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge
appropriate for the cylinder/key type
Line Item: Line item number
Qty: Quantity
Product: Product function + Cylinder code
Outside Des: Outside lever design
Outside Fin: Outside nish
Inside Des: Inside lever design: Specify only if different from the outside lever design
Inside Fin: Inside lever nish: Specify only if different from the outside nish
Hand: Hand of door: N/A for AL lock
Latch: Product latch: Leave blank for standard latch or specify part number if non-standard latch is required.
Strike: Product strike: Leave blank for standard strike or specify part number if non-standard strike is required.
Dr Thk: Door thickness: Enter door thickness if non-standard. Example: 138=1 3/8", 214=2 1/4"
Ext: Extension: Enter for doors 1 7/8" or greater. Example: EE=extended equally, EI=extended inside, EO=extended
outside, ED=extended differently
Dim: Dimension: Enter only for non-standard strike lip length
Additional
Details: Enter additional detail for keying information or special requirements
Line
Item Qty Product
Outside Inside
Hand Latch Strike Dr Thk Ext DIM
Additional
Details
DES FIN DES FIN
1 10 AL53PD SAT 626 NEP 619 - 11-096 10-025 200 EE --
AL-2
ND-SeriesD-SeriesA-SeriesCYLINDRICAL
73
Price Book 5
Effective August 12, 2017 • Rev. 08/17
AL-3
AL
Introduction
Table of Contents
Functions AL-4
Complete Locks AL-5
Options AL-7
Latches ......................................... AL-7
Strikes ........................................... AL-7
Lock Less Components .......................... AL-8
Non-Standard Door Thickness ................... AL-8
Miscellaneous Lock Options ..................... AL-8
Special Functions ................................ AL-8
Parts ........................................AL-9
Levers and Related Components ................ AL-9
Roses ........................................... AL-9
Latches and Related Components ...............AL-10
Strikes ...........................................AL-10
Plunger Parts ....................................AL-11
Reinforcements and Adapters ...................AL-11
Parts for 2" Doors ...............................AL-11
Hub, Frame and Housing Kits —
For Locks Manufactured before May, 2003 ...... AL-11
Miscellaneous Parts .............................AL-12
Special Parts ....................................AL-12
Screws ..........................................AL-13
Screw Packs .....................................AL-13
Torx Screw Packs ................................AL-13
Cylinder Reference Table ........................AL-13
Complete Cylinders See Cylinders Section
How To Order Forms & Examples
Product Identification
AL 53 P D
Latch Suffix
D = Deadlatch
S = Springlatch
Cylinder Suffix
P = 6-Pin Cylinder
L = Less 6-Pin Cylinder
R = Full Size Interchangeable
Core
J = Less Full Size
Interchangeable Core
T = Full Size Construction Core
B = Less SFIC
BDC = Disposable SFIC
G = Everest 29 Patented SFIC
H = Construction SFIC
Z = Everest SL 7 pin Cylinder
Function
Lock Series
SFIC = Small Format (Best® Style) Interchangeable Core
Finish Codes and Descriptions
Code Description
605 (US 3) Bright Brass
606 (US 4) Satin Brass
609 (US 5) Antique Brass
612 (US 10) Satin Bronze
613 (US 10B) Oil Rubbed Bronze
619 (US 15) Satin Nickel
622 (US 19) Matte Black
625 (US 26) Bright Chromium Plated
626 (US 26D) Satin Chromium Plated
626AM Antimicrobial Coating on
Satin Chromium
643e (US11) Aged Bronze
Standard Features
Certification ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2, UL Listed for 3-hour fire door.
Latch 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
Strike 1 1/4" x 4 7/8", ANSI, Square corner, no box
Backset 2 3/4"
Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)
Door Range 1 3/8" – 1 7/8"
Keys Two nickel silver cut keys per lock, 6-pin, S123 section
Indicates products that have EPD documentation available and meet LEED v4.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
74
ND-Series D-Series A-Series CYLINDRICAL
AL-4
AL Functions
ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2, UL Listed for 3-hour fire door.
Non-Keyed Locks Keyed Locks
AL10S F75
SCHLAGE ANSI
Passage Latch
Both levers always unlocked.
AL25D Exit Lock
Blank plate outside. Inside lever
always unlocked. Specify door
thickness.
AL40S F76 Bath/Bedroom Privacy Lock
Push-button locking. Can be unlocked
from outside with small screwdriver,
not included. Turning inside lever or
closing door releases button.
AL44S Hospital Privacy Lock
Push-button locking. Unlocked
from outside by turning emergency
turn-button. Turning inside lever or
closing door releases button.
AL170 Single Dummy Trim
Dummy trim for one side of door.
Used for door pull or as matching
inactive trim.
AL50PD F82 Entrance/Office Lock
Push-button locking. Push-button
locks outside lever until unlocked
with key or by rotating inside lever.
AL53PD F109 Entrance Lock
Turn/push-button locking; pushing
and turning button locks outside lever
requiring use of key until button is
manually unlocked. Push-button
locking; pushing button locks outside
lever until unlocked by key or by
turning inside lever.
AL70PD F84 Classroom Lock
Outside lever locked and unlocked by
key. Inside lever always unlocked.
AL80PD F86 Storeroom Lock
Outside lever fixed. Entrance by key
only. Inside lever always unlocked.
AL85PD F93 Faculty Restroom Lock
(with Indicator Cylinder)
Outside lever fixed. Entrance by key
only. Push-button in inside lever
activates visual occupancy indicator,
allowing only emergency masterkey
to operate. Turning inside lever or
closing door releases visual
occupancy indicator. Rotation of
inside spanner-button provides lock-out
feature by keeping indicator
activated.
SCHLAGE ANSI
Price Book 5
Effective August 12, 2017 • Rev. 08/17
ND-SeriesD-SeriesA-SeriesCYLINDRICAL
75
Commercial Lever Suite
AL Lock L Lock Levers 98/99 Exit ND Levers S Lock
Jupiter 07 07 Athens Jupiter
Omega Omega 16 Omega
Neptune 17 17 Sparta Neptune
Saturn 06 06 Rhodes Saturn
Jupiter (JUP) Neptune (NEP) Omega (OME) Saturn (SAT)
Complete Locks AL
Tactile Options
Saturn Lever Shown
Tactile Warning (knurling)
Roses
Inside/Outside Rose - Rhodes
Levers: JUP, NEP, SAT
Size: 3 7/16" dia.
Inside/Outside Rose - Omega
Levers: OME
Size: 3 7/16" dia.
Strikes
10-001 10-025
Standard
10-027 10-058
Latches
11-068 11-088 11-096
Standard
11-104 11-116
AL-5
76
ND-Series D-Series A-Series CYLINDRICAL
Price Book 5
Effective August 12, 2017 • Rev. 01/18
Function Decription
Designs and Finishes
PRIMARY CYLINDER ADJUSTMENTS
AVAILABLE LEVERS
AVAILABLE FINISHES
JUP NEP OME SAT
626
605 606
609 612
619 622
625 643e
613
6626AM
Keyless
LD RD
TD** JD BD
BDC GD HD**AL10S Passage 175 187 205
AL25D Exit, blank plate x lever 191 203 221
AL40S Privacy 199 211 229 ALL JUP NEP SAT*
AL44S Privacy, hospital 605 606 6609 612 613 619
622 625 626 643e 6626AM
AL170 Single dummy 101 107 117
Keyed, Single Cylinder
LD
CD
RD
TD JD BD
BDC GD HD
AL50PD Entrance/Ofce
254 266 284 -58 35 -32 N/C 77 40
AL53PD Entrance
AL70PD Classroom
AL80PD Storeroom
AL85PD Faculty Restroom Lock 293 305 323 -86 Not Available
Secondary
Cylinder
Adjustments
EVEREST AND RESTRICTED KEYWAY - DOES NOT APPLY TO PRIMUS
EVEREST D & T FAMILY & RESTRICTED KEYWAYS (QUAD, NUMBERED, REVERSE) +16
SL Cylinder with Everest B or Everest R keyways +16
PRIMUS/PRIMUS XP - ORDER THE LOCK LESS CYLINDER AND THE CYLINDER SEPARATELY (PRICES BELOW)
SINGLE KIL EXAMPLE: 1 EA. AL53LD & 1 EA. 20-728(-XP) +129
SINGLE FSIC EXAMPLE: 1 EA. AL53JD & 1 EA. 20-740(-XP) +139
*Only lever available in 609 nish for FSIC and SFIC
** Temporary cores (TD and HD options) require non-refundable core handling charge (50-231) of $9.50 and will be added to the price of the lock.
AL Complete Locks
AL-6
Price Book 5
Effective August 12, 2017 • Rev. 01/18
ND-SeriesD-SeriesA-SeriesCYLINDRICAL
77
Options AL
AL-7
Latches
Part Number Backset - Hsg Dia - Description Lock Adjustment
Spring Latch
11-068 2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
N/C
11-069 2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-110 2 3/8" - 1" - Circular drive in - 605 & 626 nishes only
11-111 2 3/4" - 7/8" - Square corner, 1" x 2 1/4"
11-112 2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-116 2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-113 2 3/4" - 1" - Circular drive in - 605 & 626 nishes only
11-118 3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4" +12.40
Deadlatch
11-085 2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
N/C
11-088 2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-104 2 3/8" - 1" - Circular drive in - 605 & 626 nishes only
11-091 2 3/4" - 7/8" - Square corner, 1" x 2 1/4"
11-092 2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-096 2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-105 2 3/4" - 1" - Circular drive in - 605 & 626 nishes only
11-103 3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4" +12.40
41-005 5" - Backset extension link - require reinforcement when used in hollow metal door applications; backset link must be used
with 2 3/8" backset latches +19.80
Strikes
Part Number Lip Length - Description Lock Adjustment
10-001
1 1/8" - Square corner, T-strike, box, 1 1/8" x 2 3/4" N/C
1" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
+7.00
1 1/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
1 1/2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
1 3/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-004 1 1/8" - 1/4" Radius round corner, T-strike, box, 1 1/8" x 2 3/4" N/C
10-025
1 3/16" - ANSI, no box, 1 1/4" x 4 7/8" N/C
1 3/8" - ANSI, no box, 1 1/4" x 4 7/8" +25.50
1 1/2" - ANSI, no box, 1 1/4" x 4 7/8"
10-026 1 1/8" - Square corner, full lip, no box, 1 5/8" x 2 1/4"
N/C
10-027 1 1/8" - 1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4"
10-058 Circular, adjustable, 1 3/4" diameter - 605 and 626 nishes only
K510-066 Box for ANSI strike, must be specied
Latches, Strikes
Shaded items are standard components and are
furnished with locks unless otherwise specified.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
78
ND-Series D-Series A-Series CYLINDRICAL
AL Options
AL-8
Lock Less Components, Non-Standard Door Thickness,
Miscellaneous Lock Options, Special Functions
Non-Standard Door Thickness
Description Specify Lock Adjustment
Extended Equally (EE), over 1 7/8" – 2"
(SFIC not available for 1 7/8" - 2" door thickness)
Door thickness and how door is extended.
Example: 2", EE +4.60
Miscellaneous Lock Options
Specify/Part Number Description Lock Adjustment
8SA Tactile Lever - Saturn +41.80*
Torx Screws Screws - Latch and Strike +18.70
* Per lever
Locks Less Components
Description Specify Lock Adjustment
Less each lever LLL for lever design
Example: AL53PD LLL/JUP x SAT
-8.70
Less each rose LLL for rose design
Example: AL53PD SAT x SAT/LLL
-10.90
Less springlatch LLL for latch
Example: AL40S SAT 605 LLL 10-025
-10.90
Less deadlatch LLL for latch
Example: AL53PD SAT 626 LLL 10-025
-17.60
Less strike LLL for strike
Example: AL53PD ATH 612 11-096 LLL
-4.20
Lock chassis and spring cages only Less all possible components
Example: AL53LD LLL 626 LLL LLL, lever chassis
Sum of
deducts
Special Functions - Extended Lead Times
Part Number
Function - Description
Base
Lock Lock Adjustment
(Base Lock)
Lock Function “X” Number
AL50PD XA11-297 AL50PD with restoring slide AL50PD 168.00
AL53PD XA11-297 AL53PD with restoring slide AL53PD
ND-SeriesD-SeriesA-SeriesCYLINDRICAL
79
Price Book 5
Effective August 12, 2017 • Rev. 08/17
AL-9
Levers and Related Components, Roses Parts AL
Levers and Related Components
Available Finishes - Specify for Listed Parts 605 606 609 612 613 619 622 625 626 643e 626AM
51-021, 51-023, 51-025, 51-026, 51-022 SAT, 51-024 SAT, A700-041 6•••••••6
51-022 JUP NEP, 51-024 JUP NEP •• •••••••6
Part
Number Description Price Each
51-021* Closed Lever - JUP NEP OME SAT - locks man. before June 2003
$82.40
51-023* Open Lever - JUP NEP OME SAT - locks man. before June 2003
51-025* Closed Lever - JUP NEP OME SAT - locks man. after June 2003
51-026* Open Lever - JUP NEP OME SAT - locks man. after June 2003
51-022* Full Size Core Lever - JUP NEP SAT 70.70
51-024* Small Format Core Lever & lever insert- JUP NEP SAT 77.70
A700-041 Driver cap, 1 3/8" - 1 7/8" doors - for locks man. after May 2002 4.00
A700-039 Driver, 1 3/8" - 1 7/8" doors - for locks man. after May 2002 19.00
A700-045 Lever insert for SFIC 6.60
A700-052 FSIC Core Driver, Universal 8.60
A700-021 SFIC Core Retainer 6.80
C604-381 SFIC Core Throw Member 7.90
D500-000 SFIC Core Spacer - 2 spacers required for 6-pin, 1 spacer required
for 7-pin 1.50
A700-047 Interchangeable core lever insert, 1 3/8" - 1 7/8" doors 6.60
A700-044 Lever insert, 1 3/8" - 1 7/8" doors for locks man. after May 2002 6.10
*Specify part number, lever style, nish. Ex: 51-025 NEP 626 (closed lever, Jupiter design, 626 nish)
Roses
Available Finishes - Specify for Listed Parts 605 606 609 612 613 619 622 625 626 643e 626AM
04-060 6•••••••6
C604-402 6•••••••
Part
Number Description Price Each
04-060** Outside / Inside Rose - RHO OME $94.60
C604-402 Blank Plate, AL25 97.10
** Specify part number, lever style, nish. Ex: 04-060 SAT 626 (Saturn design, 626 nish)
80
ND-Series D-Series A-Series CYLINDRICAL
Price Book 5
Effective August 12, 2017 • Rev. 08/17
AL Parts
AL-10
Latches and Related Components, Strikes
Latches and Related Components
Available Finishes - Specify for Listed Parts 605 606 609 612 613 619 622 625 626 643e 626AM
11-068, 11-069, 11-110, 11-111, 11-112, 11-116, 11-113, 11-118, 11-085, 11-088, 11-104,
11-091, 11-092, 11-096, 11-105, 11-103 ••••••••••
39-030 • •
Part
Number Backset - Hsg Dia - Description Price Each
Spring Latch
11-068 2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
$54.80
11-069 2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-110 2 3/8" - 1" - Circular drive in - 605 & 626 nishes only
11-111 2 3/4" - 7/8" - Square corner, 1" x 2 1/4"
11-112 2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-116 2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-113 2 3/4" - 1" - Circular drive in - 605 & 626 nishes only
11-118 3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4" 59.00
Dead Latch
11-085 2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
54.80
11-088 2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-104 2 3/8" - 1" - Circular drive in - 605 & 626 nishes only
11-091 2 3/4" - 7/8" - Square corner, 1" x 2 1/4"
11-092 2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-096 2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-105 2 3/4" - 1" - Circular drive in - 605 & 626 nishes only
11-103 3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4" 59.00
43-005 5" - Backset extension link - require reinforcement when used
in hollow metal door applications 30.10
39-030 Rabbeted latch and strike kit - adapts square corner latches
and 2 3/4" high square corner strikes to 1/2" rabbeted door and
frame preparations.
53.00
Strikes
Available Finishes - Specify for Listed Parts 605 606 609 612 613 619 622 625 626 643e 626AM
10-001, 10-004, 10-025, 10-026, 10-027 ••••••••••
10-058 • •
Part
Number Lip Length - Description Price Each
10-001 118 1 1/8" - Square corner, T-strike, box, 1 1/8" x 2 3/4" $6.50
10-001 100 1" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
13.50
10-001 114 1 1/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-001 112 1 1/2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-001 134 1 3/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-001 200 2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-004 1 1/8" - 1/4" Radius round corner, T-strike, box, 1 1/8" x 2 3/4" 10.10
10-025 1316 1 3/16" - ANSI, no box, 1 1/4" x 4 7/8" 14.30
10-025 138 1 3/8" - ANSI, no box, 1 1/4" x 4 7/8" 39.80
10-025 112 1 1/2" - ANSI, no box, 1 1/4" x 4 7/8"
10-026 1 1/8" - Square corner, full lip, no box, 1 5/8" x 2 1/4" 7.60
10-027 1 1/8" - 1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4" 7.60
10-058 Circular, adjustable, 1 3/4" diameter 10.90
K510-066 Box for ANSI strike 6.60
ND-SeriesD-SeriesA-SeriesCYLINDRICAL
81
Price Book 5
Effective August 12, 2017 • Rev. 01/18
AL-11
Plunger Parts, Reinforcements and Adapters, Parts for 2" Doors, Hub,
Frame and Housing Kits — For Locks Manufactured before May, 2003 Parts AL
Plunger Parts
Available Finishes - Specify for Listed Parts 605 609 612 613 619 622 625 626 643e 626AM
51-037, 51-038, 51-039, 51-040, 51-041 6•••••••
Part Number Description Price Each
51-037 Plunger unit, inside - AL53
$15.10
51-038 Plunger unit, inside - AL85
51-039 Plunger unit, inside - AL40, AL44, AL50
51-040 Plunger unit, outside - AL40
51-041 Plunger unit, outside - AL44
Parts for 2" Doors
Available Finishes - Specify for Listed Parts 605 606 609 612 613 619 622 625 626 643e 626AM
6•••••••
Part Number Description Price Each
A700-043 Driver, 2" door $65.90
A700-028* Hub, 2" door, for inside and outside - for locks manufactured
after May 2003 30.90
A700-029* Hub, out., 2" doors - AL70 - for locks manufactured
after May 2003 38.20
A700-030* Hub, out., 2" doors - AL25
A700-033* Full size interchangeable core lever insert, 2" door 6.60
A700-034* Lever insert, 2" door
(SFIC not available for 1 7/8" - 2" door thickness)
* No nish specication required
Reinforcements and Adapters
Part Number Description Price Each
37-001 Metal door reinforcer kit, ts both 7/8" and 1" diameter housings - Specify door thickness, includes A501-567
and A501-565 or A501-566 $35.90
A501-565 Reinforcer for 1 3/8" thick non-reinforced metal doors. Fits both 7/8" and 1" diameter housings. 18.00
A501-566 Reinforcer for 1 3/4" thick non-reinforced metal doors. Fits both 7/8" and 1" diameter housings.
A501-567 3 1/2" Long latch housing sleeve used to reinforce joint between latch and backset link or to hold latch in metal doors 11.20
A501-878* Faceplate adapter to adapt 1" faceplate to 1 1/8" door preparation 0.70
G506-815 1" Long latch housing sleeve to adapt 7/8" housing to 1" bore 6.30
*Order in multiples of 100
Hub, Frame and Housing Kits — For Locks Manufactured before May, 2003
Part
Number Description Price Each
A700-048
All (except
AL25 & AL70)
1 3/8" - 1 7/8" (2) A700-032 Chassis screws (1) A700-056 Frame, hub
(2) A700-046 Hub (1) A700-057 Housing $79.70
A700-050 2" (2) A700-032 Chassis screws (1) A700-056 Frame, hub
(2) A700-028 Hub (1) A700-057 Housing
81.80
A700-049
AL70
1 3/8" - 1 7/8"
(2) A700-032 Chassis screws (1) A700-056 Frame, hub
(1) A700-046 Hub (1) A700-057 Housing
(1) A700-014 Hub
A700-051 2" (2) A700-032 Chassis screws (1) A700-056 Frame, hub
(2) A700-028 Hub (1) A700-057 Housing
82
ND-Series D-Series A-Series CYLINDRICAL
Price Book 5
Effective August 12, 2017 • Rev. 08/17
AL-12
AL Parts Miscellaneous Parts, Special Parts
Miscellaneous Parts
Part Number Description Price Each
A100-053 Spring cage, ins. - 4 prong for locks manufactured after May 2002 $61.30
A100-054 Spring cage, out. - 4 prong for locks manufactured after May 2002
A201-370 Cam - AL80 8.90
A301-402 Cam - AL40, AL50, AL53, AL85 9.10
A501-167 Threaded rod for mounting AL170s as double dummy set 15.30
A501-305 Hub plate, ins. 7.20
A501-311 Slide spring 6.90
A501-615 Spindle wedge - AL80, AL85 6.80
A501-721 Cam plug - AL70 20.70
A501-791 Cam spacer - AL70 4.20
A501-874 Hub plate, out. - AL25 10.90
A501-901 Hub plate, out. - AL80, AL85 4.80
A508-597 Spring seat - AL50, AL53, AL70, AL80, AL85
6.90
A590-158 Slide - AL85
A590-159 Slide - AL50, AL53, AL70, AL80
A590-180 Slide, restoring - AL40, AL44
A590-181 Slide, non-restoring - AL10, AL25
A700-003 Spindle sleeve - AL85
A700-004 Hub plate, out. (except AL25, AL80, AL85)
A700-014 Hub, out. - AL70 - for locks manufactured after May 2003 30.90
A700-015 Lever insert, 1 3/8" - 1 7/8" doors - for locks manufactured before May 2002 6.60
A700-016 Hub, out., 1 3/8" – 1 7/8" doors - AL25 30.90
A700-017 Spiral cam - AL70 10.90
A700-036 Spring - AL40, AL44 9.10
A700-046 Hub, 1 3/8" - 1 7/8" doors - for locks manufactured after May 2003* 6.00
A700-047 Interchangeable core lever insert, 1 3/8" - 1 7/8" doors 6.60
A700-056 Frame, hub - for locks manufactured after May 2003 11.00
A700-057 Housing - for locks manufactured after May 2003
A710-001 Spindle & catch, out. (except AL10, AL40) 8.90
A710-004 Spindle & catch, ins.
A710-007 Spindle & hub - AL170 28.20
A710-008 Small Format Interchangeable Core spindle & catch, outside - AL50, AL53, AL70, AL80 23.80
A710-020 Spindle & catch, out. - AL10, AL40 8.90
C503-308 Anchor spring (except AL25) 6.90
C604-273 Rose pin - AL25 1.50
C604-354 Castle nut 16.20
C604-400 Mounting plate - AL170 20.50
Special Parts - Extended Lead Times
Available Finishes - Specify for Listed Parts 605 606 609 612 613 619 622 625 626 643e 626AM
XQ07-351 6•••••••
Part Number Description Price Each
XQ07-351* 10-025 Strike, 7/8" at lip $39.00
10-025 Strike, lips thru 6" (except 7/8", 1 3/16", 1 3/8", and 1 1/2")
188.00
* Specify lip length
ND-SeriesD-SeriesA-SeriesCYLINDRICAL
83
Price Book 5
Effective August 12, 2017 • Rev. 08/17
AL-13
Screws, Screw Packs
Torx Screw Packs, Cylinder Reference Table Parts AL
Torx Screw Packs
Available Finishes - Specify for Listed Parts 605 606 609 612 613 619 622 625 626 643e 626AM
C203-311, C203-312 6•••••••
Part Number Description Contents Price Each
C203-311** Latch and strike (4) C503-766 (T-15)
$19.40
C203-312** Latch and ANSI strike (2) C503-766 (T-15)
(2) L583-371 (T-20)
** Torx screw packs are furnished with appropriate T-xx installation tool(s)
Screw Packs
Available Finishes - Specify for Listed Parts 605 606 609 612 613 619 622 625 626 643e 626AM
B202-517, C203-736, C303-029, C303-421 6••••••
Part
Number Description Contents Price Each
B202-517 Latch and strike (4) C603-897 $7.60
C203-736 ANSI strike (2) C603-256 6.00
C303-438 Spring cage screws (2) C604-395 4.40
C303-029 Mounting
(4) C603-897
(2) C603-256
(2) C604-395
(1) M504-271
15.10
C303-421 Mounting, AL170
(1) A501-167
(1) A501-171
(1) A501-746
(2) L583-133
(1) M504-271
11.10
Cylinder Reference Table
Available Finishes - Specify for Listed Parts 606 626
21-020, 20-728/XP, 20-528/XP, 12-021
Part Number Cylinder Mechanism Function Design Price Each - Open Price Each - Restricted
21-020 Conventional
Standard
Functions All
$58.00 $74.00
91-006 Everest SL (R/B
Keyways only) 74.00
20-728 Primus 129.00
20-728-XP Primus XP
91-706-XP Everest SL Primus XP
(R/B Keyways only) 129.00
20-528 Primus UL437 159.00
20-528-XP Primus UL437 XP
21-021 Conventional AL85 86.00 102.00
Screws
Available Finishes - Specify for Listed Parts 605 606 609 612 613 619 622 625 626 643e 626AM
A501-171, A501-746, C603-256, C603-897 6••••••
Part
Number Description Type Size Price Each
A501-171* Washer, thru bolt - AL170
$1.10 A501-746* Mounting, thru bolt - AL170 POH Machine 1/4" 20 x 2 1/2"
A700-032* Chassis PFH Cross Recess 10-32 x 3/8"
C603-256* ANSI strike PFH Combo 12-24 x 1" 0.96
C603-897* Latch and strike PFH Combo #8 x 3/4" 0.82
C604-395* Spring cage screws PFH Machine 8-32 x 2 1/8" 1.70
L583-133* Mounting surface - AL170 Sheet Metal #8 x 1” 0.84
* Order in multiples of 100
Price Book 5
Effective August 12, 2017 • Rev. 08/17
84
ND-Series D-Series A-Series CYLINDRICAL
AL-14
AL Notes
Price Book 5
Effective August 12, 2017 • Rev. 08/17
ND-SeriesAL-SeriesA-SeriesCYLINDRICAL
85
D Series
GRADE 1 CYLINDRICAL KNOB LOCK
D-Series Knobs
Exploded View - D53PD
2-1/4"
57 mm
2-3/4"
70 mm
1" dia.
25 mm 2-1/8"
54 mm
1-1/8"
29 mm
Door Preparation
6-Pin cylinder
ANSI strike
Reversible deadlatch
1/2" Throw
Outside knob
Lock chassis
Inside knob
Inside rose
Outside rose
D-1
Price Book 5
Effective August 12, 2017 • Rev. 08/17
86
ND-Series AL-Series A-Series CYLINDRICAL
D Series
Ordering Procedures
To order Schlage products, descriptive data should be in the same sequence as shown below.
D-2
Common Pricing Information
1. Locks are furnished with standard features unless otherwise specied.
2. Door thickness is 1 ¾" unless otherwise specied.
3. Split nishes and designs will be priced at the highest list price of the design and/or nish.
4. 6 denotes a lock or part that requires an extended lead time.
5. I denotes a handed product and requires handing to be specied.
6. For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $16.00. This does not apply to Primus cylinders. See
Terms and Conditions for ordering information and requirements.
7. Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the
specic requirements.
8. Keyway must be specied for keyed functions and cylinders. If not specied, default keyway will be S123 for KA, KD and 0-bitted product
and S145 for Factory managed masterkey systems.
9. Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specied or excepted by notation.
10. Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
11. Locks specied with “C” keyway and KD or 0-bitted will receive 6 pin cylinders.
12. Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specied. If 0-bitted is selected, the order will be entered as
1-bitted. This does not apply to FSIC Primus® cores.
13. Conventional cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered
as 0-bitted.
14. Available plug face nishes are 606 and 626. For brass or bronze nish colors, the plug face nish is 606. For chrome, nickel or stainless
steel nish colors, the plug face nish is 626.
15. Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge
appropriate for the cylinder/key type
Line Item: Line item number
Qty: Quantity
Product: Product function + Cylinder code
Outside Des: Outside lever design
Outside Fin: Outside nish
Inside Des: Inside lever design: Specify only if different from the outside lever design
Inside Fin: Inside lever nish: Specify only if different from the outside nish
Hand: Hand of door: N/A for D lock
Latch: Product latch: Leave blank for standard latch or specify part number if non-standard latch is required.
Strike: Product strike: Leave blank for standard strike or specify part number if non-standard strike is required.
Dr Thk: Door thickness: Enter door thickness if non-standard. Example: 138=1 3/8", 214=2 1/4"
Ext: Extension: Enter for doors 2" or greater. Example: EE=extended equally, EI=extended inside, EO=extended outside,
ED=extended differently
Dim: Dimension: Enter only for non-standard strike lip length
Additional
Details: Enter additional detail for keying information or special requirements
Line
Item Qty Product
Outside Inside
Hand Latch Strike Dr Thk Ext DIM
Additional
Details
DES FIN DES FIN
1 10 D53PD ORB 625 PLY 625 - 14-019 10-025 214 EE -KA
Price Book 5
Effective August 12, 2017 • Rev. 08/17
ND-SeriesAL-SeriesA-SeriesCYLINDRICAL
87
D-3
D Knobs
Introduction
Table of Contents
Functions D-4
Complete Locks D-5
Options D-7
Latches .............................................D-7
Strikes ............................................... D-7
Locks Less Components .............................D-7
Non-Standard Door Thickness .......................D-7
Tamper Resistant Torx Screws ......................D-7
Special Functions ....................................D-7
Parts D-8
Knobs and Related Components ....................D-8
Roses ...............................................D-8
Latches and Related Components ...................D-8
Strikes ...............................................D-9
Plunger Parts ........................................D-9
Reinforcements .....................................D-9
Finished Miscellaneous Parts ........................D-9
Special Parts .......................................D-10
Miscellaneous Parts ................................D-10
Screws ..............................................D-11
Screw Packs .........................................D-11
Torx Screw Packs ....................................D-11
Cylinder Reference Table ............................D-11
Complete Cylinders See Cylinders Section
How To Order Forms & Examples
Product Identification
D 53 P D
Latch Suffix
D = Deadlatch
S = Springlatch
Cylinder Suffix
P = 6-Pin Cylinder
L = Less 6-Pin Cylinder
C = Less 6-Pin Cylinder*
R = Full Size Interchangeable
Core
J = Less Full Size
Interchangeable Core
T =
Full Size Construction Core
Z =
Everest SL 7 pin Cylinder
Function
Lock Series
Finish Codes
and Descriptions
Code Description
605 (US 3) Bright Brass
606 (US 4) Satin Brass
609 (US 5) Antique Brass
612 (US 10) Satin Bronze
613 (US 10B) Oil Rubbed Bronze
625 (US 26) Bright Chromium Plated
626 (US 26D) Satin Chromium Plated
629 (US 32) Bright Stainless Steel
630 (US 32D) Satin Stainless Steel
643e (US 11) Aged Bronze
Standard Features
Certification ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 1, UL Listed for 3-hour fire door.
Latch 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
Strike 1 1/4" x 4 7/8", ANSI, Square corner, no box
Backset 2 3/4"
Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)
Door Range 1 3/8" – 2"
Keys Two nickel silver cut keys per lock, 6-pin, S123 section
* Used for double cylinder functions.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
88
ND-Series AL-Series A-Series CYLINDRICAL
D Knobs Functions
ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 1, UL Listed for 3-hour fire door.
SCHLAGE ANSI
Non-Keyed Locks
D10S F75 Passage Latch
Both knobs always unlocked.
SCHLAGE ANSI
Keyed Locks
D53PD F109 Entrance Lock
Turn/push-button locking; pushing
and turning button locks outside knob,
requiring use of key until button is
manually unlocked. Push-button
locking; pushing button locks outside
knob until unlocked by key or by
turning inside knob.
D60PD F88 Vestibule/Classroom Security
Lock
Latch retracted by key from outside
when outside knob is locked by key in
inside knob. Inside knob is always
unlocked.
D66PD F91 Store Lock
Key in either knob locks or unlocks
both knobs.
D70PD F84 Classroom Lock
Outside knob locked and unlocked by
key. Inside knob always unlocked.
D72PD F80 Communicating Lock
Key in either knob locks or unlocks
each knob independently.
D73PD F90 Corridor Lock
Locked or unlocked by key from
outside. Push-button locking from
inside. Turning inside knob or closing
door releases button.
D80PD F86 Storeroom Lock
Outside knob fixed. Entrance by key
only. Inside knob always unlocked.
D80PDEL Electrically Locked (Fail Safe)
Outside knob continuously locked
electrically. Unlocked by key outside
or by switch or power failure.
Auxiliary latch deadlocks latchbolt
when door is closed. Inside knob
always free for immediate exit.
D25D Exit Lock
Blank plate outside. Inside knob
always unlocked.
D40S F76 Bath/Bedroom Privacy Lock
Push-button locking. Can be opened
from outside with small screwdriver.
Turning inside knob or closing door
releases button.
D44S Hospital Privacy Lock
Push-button locking. Unlocked from
outside by turning emergency turn-but-
ton. Turning inside knob or closing
door releases button.
D170 Single Dummy Trim
Dummy trim for one side of door.
Used for door pull or as matching
inactive trim.
SCHLAGE ANSI
Keyed Locks
D80PDEU Electrically Unlocked (Fail
Secure)
Outside knob continuously locked
until unlocked by key or electric
current. Auxiliary latch deadlocks
latchbolt when door is closed. Inside
knob always free for immediate exit.
D82PD F87 Institution Lock
Both knobs fixed. Entrance by key in
either knob.
D85PD F93 Faculty Restroom Lock
(with Indicator Cylinder)
Outside knob fixed. Entrance by key
only. Push-button in inside knob
activates visual occupancy indicator,
allowing only emergency masterkey
to operate. Turning inside knob or
closing door releases visual
occupancy indicator. Rotation of
inside spanner-button provides lock-
out feature by keeping indicator
thrown.
D-4
Caution: Double cylinder locks on residences and any
door in any structure which is used for egress are a life
safety hazard in times of emergency and their use is not
recommended. Installation should be in accordance with
existing codes only.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
ND-SeriesAL-SeriesA-SeriesCYLINDRICAL
89
Complete Locks D Knobs
D-5
Orbit (ORB) Plymouth (PLY) Tulip (TUL)
Roses
Inside/Outside Rose - Plymouth
Knobs: Plymouth
Size: 2 1/2" dia.
Inside/Outside Rose - Tulip
Knobs: Tulip & Orbit
Size: 2 1/2" dia.
Latches
Deadlatch
14-019
Springlatch
14-001
Anti-Friction Fire Door
Deadlatch, 14-042
Backset Extension Link
43-005
Strikes
ANSI Strike
10-025
T Strike
10-013 Square corner, T-strike,
deep box, fire door latch
10-016
Price Book 5
Effective August 12, 2017 • Rev. 08/17
90
ND-Series AL-Series A-Series CYLINDRICAL
D Knobs Complete Locks
D-6
Function Description
Design and Finishes
Primary Cylinder Adjustments
Available Levers
Available Finishes
ORB PLY TUL
626
605 6606
609 612 625
643e
613 6629
630*
Keyless LD
CD
RD
TD JD
D10S Passage 466 478 496
D25D Exit, blank plate x lever ALL ORB
D40S Privacy 583 595 613 605 6606 609 612 613 625
626 6629 630* 643e
D44S Privacy, hospital
D170 Single dummy 205 211 221
Keyed, Single Cylinder LD RD
TD** JD
D53PD Entrance
679 691 709 -58 35 -32
D70PD Classroom
D73PD Corridor
D80PD Storeroom
D80PD EL/EU Electrically locked or unlocked 1,063 1075 1093
D85PD Faculty Restroom Lock 737 749 767 -86 NOT AVAILABLE
Keyed, Double Cylinder CD RD
TD** JD
D60PD Vestibule
742 754 772 -116 70 -64
D66PD Store
D72PD Classroom Security
D82PD Institution
Secondary
Cylinder
Adjustment
EVEREST AND RESTRICTED KEYWAY - DOES NOT APPLY TO PRIMUS
EVEREST D & T FAMILY & RESTRICTED KEYWAYS (QUAD, NUMBERED, REVERSE) +16
SL Cylinder with Everest B or Everest R keyways +16
PRIMUS/PRIMUS XP - ORDER THE LOCK LESS CYLINDER AND THE CYLINDER SEPARATELY (PRICES BELOW)
SINGLE KIL EXAMPLE: 1 EA. D53LD & 1 EA. 20-748(-XP) +129
DOUBLE KIL EXAMPLE: 1 EA. D72CD & 2 EA. 20-748(-XP) +258
SINGLE FSIC EXAMPLE: 1 EA. D53JD & 1 EA. 20-740(-XP) +139
DOUBLE FSIC EXAMPLE: 1 EA. D72JD & 2 EA. 20-740(-XP) +278
* Finish only available in PLY knob
** Temporary cores (TD and HD options) require non-refundable core handling charge (50-231) of $9.50 and will be added to the price of the lock.
Price Book 5
Effective August 12, 2017 • Rev. 01/18
ND-SeriesAL-SeriesA-SeriesCYLINDRICAL
91
Options D Knobs
Latches, Strikes, Locks Less Components, Non-Standard Door Thickness,
Tamper Resistant Torx® Screws, Special Functions
Latches
Part Number Backset - Description Lock Adjustment
Spring Latch
14-001 2 3/4" - Square corner, 1 1/8" x 2 1/4" N/C
14-010 3 3/4" - Square corner, 1 1/8" x 2 1/4" +9.80
Deadlatch
14-047 2 3/8" - Square corner, 1 1/8" x 2 1/4" N/C
14-048 2 3/8" - Square corner, 1 x 2 1/4" N/C
14-019 2 3/4" - Square corner, 1 1/8" x 2 1/4" N/C
14-042 2 3/4"" - Anti-friction re door latch
Square corner, 1 1/8" x 2 1/4", 3/4" throw, modied latch prep for anti-friction tongue pivot +165.00
14-028 3 3/4" - Square corner, 1 1/8" x 2 1/4" +9.80
43-005 5" - Backset extension link - require reinforcement when used in hollow metal door applications,
must be used with 2 3/4" backset latches +30.10
Strikes
Part Number Lip Length - Description Lock Adjustment
10-013 1 1/8" - Square corner, T-strike, box, 1 1/8" x 2 3/4" N/C
1 1/2" - Square corner, T-strike, box, 1 1/8" x 2 3/4" +4.20
10-016 1 1/8" - Square corner, T-strike, deep box, re door latch N/C
10-025
1 3/16" - ANSI, no box, 1 1/4" x 4 7/8" N/C
1 3/8" - ANSI, no box, 1 1/4" x 4 7/8" +25.50
1 1/2" - ANSI, no box, 1 1/4" x 4 7/8"
K510-066 Box for ANSI strike, must be specied N/C
Tamper Resistant Torx® Screws
Specify/
Part Number Description Lock Adjustment
Torx Screws Screws - Latch and Strike +19.40
Locks Less Components
Description Specify Lock Adjustment
Less each knob LLL for lever design
Example: D53PD LLL/RHO x ATH -19.50
Less each rose LLL for rose design
Example: D53PD RHO x RHO/LLL -13.50
Less springlatch LLL for latch
Example: D40S RHO 605 LLL 10-025 -23.30
Less deadlatch LLL for latch
Example: D53PD SPA 626 LLL 10-025 -31.20
Less strike LLL for strike
Example: D53PD ATH 612 13-047 LLL -4.60
Lock chassis and spring cages only Less all possible components
Example: D53LD LLL 626 LLL LLL, lever chassis
Sum of
deducts
Non-Standard Door Thickness
Description Specify Lock Adjustment
Extended Equally (EE), over 2" – 2 1/2" Door thickness and how door is extended.
Example: 2", ED
+64.20
Extended Differently (ED), over 2" – 2 1/2" +300.00
Note: For door thicknesses not listed, please use the Schlage Innovation Center Process.
Special Functions - Extended Lead Times
Part Number
Function - Description
Base
Lock
Lock Adjustment
(Base Lock)Lock Function “X” Number
D25x80 XC03-543 D25x80 - Blank plate outside, xed knob inside. Key in knob retracts latch. D80 +453.00
D60 XC03-928 D60 - Closed outside knob. D70 +291.00
D70x80 XC07-960 D70x80 - Key locks or unlocks outside knob. Key in xed inside knob retracts latch. D82 +400.00
D25x70 XC11-577 D25x70 - Blank plate outside. Key locks or unlocks inside knob. D70 +453.00
Shaded items are standard components and are
furnished with locks unless otherwise specified.
D-7
Price Book 5
Effective August 12, 2017 • Rev. 08/17
92
ND-Series AL-Series A-Series CYLINDRICAL
D Knobs Parts
D-8
Knobs and Related Components,
Roses, Latches and Related Components
Knobs and Related Components
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
04-006 PLY, 04-007 PLY 6•••••6• •
04-006 ORB TUL, 04-007 ORB TUL, 04-030, 04-031, 04-034 6•••••6
Part Number Description Price Each
04-006*Closed Lever - ORB PLY TUL $102.00
04-007*Open Lever - ORB PLY TUL
04-030*Full size core knob, driver, retainer (converts PD to JD) - ORB 84.90
04-031*Full size core knob - ORB 72.30
04-034*Full size core knob, core, driver, and retainer (converts PD to RD) - ORB 158.00
C503-403
Cylinder sleeve 10.90
C503-746
C503-940
C603-262
04-033 Full size core driver and retainer 11.90
C603-569 Full size core retainer 4.00
C604-333 Full size core driver, universal 8.00
*Specify part number, knob style, nish. Ex: 04-007 ORB 626 (open lever, Orbit design, 626 nish)
Roses
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
04-001 PLY, 04-002 PLY, C503-775 6•••••6• •
04-001 TUL, 04-002 TUL 6•••••6
Part Number Description Price Each
04-001** Outside Rose - PLY TUL $94.60
04-002** Inside Rose - PLY TUL
C503-775 Blank Rose, D25 43.50
** Specify part number & nish. Ex: 04-002 PLY 626 (Plymouth design, 626 nish)
Latches and Related Components
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
14-001, 14-010, 14-047, 14-048, 14-019, 14-042, 14-028, 43-005 6•••••6• •
39-030
Part Number Backset - Description Price Each
Spring Latch
14-001 2 3/4" - Square corner, 1 1/8" x 2 1/4" $82.20
14-010 3 3/4" - Square corner, 1 1/8" x 2 1/4" 98.50
Dead Latch
14-047 2 3/8" - Square corner, 1 1/8" x 2 1/4" 107.00
14-048 2 3/8" - Square corner, 1" x 2 1/4" 107.00
14-019 2 3/4" - Square corner, 1 1/8" x 2 1/4" 82.20
14-042 2 3/4" - Anti-friction Fire Door Latch 1" Square corner, 1 1/8" x 2 1/4",
3/4" throw, modied latch prep for anti-friction tongue pivot 327.00
14-028 3 3/4" - Square corner, 1 1/8" x 2 1/4" 98.50
43-005
5" - Backset extension link - require reinforcement when used in hollow
metal door applications; backset link must be used with 2 3/4" backset
latches
30.10
39-030 Rabbeted latch and strike kit - adapts square corner latches and 2 3/4"
high square corner strikes to 1/2" rabbeted door and frame preparations. 53.00
Shaded items are standard components and are
furnished with locks unless otherwise specified.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
ND-SeriesAL-SeriesA-SeriesCYLINDRICAL
93
D-9
Parts D Knobs
Strikes, Plunger Parts, Reinforcements, Finished Miscellaneous Parts
Strikes
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
10-013, 10-016, 10-025 6•••••6• •
Part Number Lip Length - Description Price Each
10-013-118 1 1/8" - Square corner, T-strike, box, 1 1/8" x 2 3/4" $10.80
10-013-112 1 1/2" - Square corner, T-strike, box, 1 1/8" x 2 3/4" 15.00
10-016 1 1/8"" - Square corner, T-strike, deep box, 1 1/8" x 2 3/4" 1 1/8"
Use with re door latch 14.30
10-025-1316 1 3/16" - ANSI, no box, 1 1/4" x 4 7/8" 14.30
10-025-138 1 3/8" - ANSI, no box, 1 1/4" x 4 7/8" 39.80
10-025-112 1 1/2" - ANSI, no box, 1 1/4" x 4 7/8"
K510-066 Box for ANSI strike 6.60
Finished Miscellaneous Parts
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
C102-522, C102-524, C102-541, C102-542, C102-570, C102-572 6•••••6• •
Part Number Description Price Each
C102-522 Hub and cap, out (except D80, D80 EL/EU, D82, D85) $85.90
C102-524 Hub and cap, ins (except D82) 64.40
C102-541 Hub and cap, ins - D170 47.10
C102-542 Hub and cap, out - D80 EL/EU 85.90
C102-570 Hub and cap, out - D80, D82, D85 137.00
C102-572 Hub and cap, ins - D82
Plunger Parts
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
04-020, 04-021, 04-022, 04-023, 04-025, 04-026, 6•••••6• •
Part Number Dimension - Door Range - Description Price Each
04-020*443 - 1 3/8" – 2" - Plunger, ins - D40, D44 $76.40
468 - over 2" – 2 1/2", EE - Plunger, ins - D40, D44
04-021*170 - 1 3/8" – 2" - Plunger unit, out - D40 60.20
195 - over 2" – 2 1/2", EE - Plunger unit, out - D40
04-022*170 - 1 3/8" – 2" - Plunger unit, out - D44 74.80
195 - over 2" – 2 1/2", EE - Plunger unit, out - D44
04-023*443 - 1 3/8" – 2" - Plunger unit, ins - D53
60.10
468 - over 2" – 2 1/2", EE - Plunger unit, ins - D53
04-025* 443 - 1 3/8" – 2" - Plunger unit, ins - D73
468 - over 2" – 2 1/2", EE - Plunger unit, ins - D73
04-026* 443 - 1 3/8" – 2" - Plunger unit, ins - D85 138.00
468 - over 2" – 2 1/2", EE - Plunger unit, ins - D85
*Specify part number, dimension, design & nish. Ex: 04-022 170 626
Reinforcements
Part Number Description Price Each
37-001 Metal door reinforcer kit, ts both 7/8" and 1" diameter housings -
Specify door thickness, includes A501-567 and A501-565 or A501-566 $35.90
A501-565 Reinforcer for 1 3/8" thick non-reinforced metal doors. Fits both 7/8"
and 1" diameter housings. 18.00
A501-566 Reinforcer for 1 3/4" thick non-reinforced metal doors. Fits both 7/8"
and 1" diameter housings.
A501-567 3 1/2" Long latch housing sleeve used to reinforce joint between latch
and backset link or to hold latch in metal doors 11.20
A501-878** Faceplate adapter to adapt 1" faceplate to 1 1/8" door preparation 0.70
G506-815 1" Long latch housing sleeve to adapt 7/8" housing to 1" bore 6.30
** Order in multiples of 100
Shaded items are standard components and are
furnished with locks unless otherwise specified.
Price Book 5
Effective August 12, 2017 • Rev. 08/17
94
ND-Series AL-Series A-Series CYLINDRICAL
D Knobs Parts
D-10
Special Parts, Miscellaneous Parts
Special Parts - Extended Lead Times
Available Finishes 605 606 609 612 613 625 626 629 630 643e
XQ02-309, XQ03-494, XQ07-351, XN12-012, 38-018 6•••••6• •
Part Number Description Price Each
XQ02-309 10-013 Strike, 7/8" at lip $37.00
XQ03-494*10-013 Strike, 1 5/8" – 6" lip 155.00
10-013 Strike, 6 1/8" – 12" lip 197.00
XQ07-351*10-025 Strike, 7/8" at lip 39.00
10-025 Strike, lips thru 6" (except 7/8", 1 3/16", 3/8" and 1 1/2") 188.00
XC03-069 Backset Link, range: 5" - 42", specify backset (not adjustable);
NOTE: This extension link must be used with a 2-3/4" backset latch. 693.00
38-018 Thin door extension ring (2 required per lock) 12.00
* Specify lip length
Miscellaneous Parts
Part Number Description Lock Adjustment
A501-167 Threaded rod for mounting D170s as double dummy set $14.50
C100-059 Spindle unit, out and ins - D66 146.00
C100-062 Spindle unit, out - D70, out and ins - D72
C102-540 Hub and frame - D25 48.60
C102-837 Locking plug, out - D73 69.40
C102-840 Key spindle - D40, D44, D53, D60 60.10
C203-034 Spindle and catch, ins (except D60, D66, D72, D80EL/EU, D82) 47.80
C203-376 Plug - D85 15.40
C203-390 Spindle and key cam, out - D70, D72 60.10
C203-391 Spindle and key cam - D60
C203-411 Key spindle and spring - D85 49.20
C203-733 Locking plug - D70, D72
C203-858 Spindle and hammer, ins - D85 60.10
C203-947 Spindle and catch, out - D40, D44 49.20
C203-948 Spindle and catch, out - D53, D60, D73, D80
C303-006 Slide and roller 57.00
C303-400 Spindle and catch, ins - D80EL/EU 53.80
C303-439 AC Rectier 63.30
C503-008** Cotter pin 0.64
C503-019 Slide spring 6.10
C503-308 Anchor spring (except D25, D170) 6.90
C503-314 Slide spring seat 6.70
C503-324 Spindle washer - D60, D70, D72, D85 6.60
C503-334 Plunger hammer - D85 14.00
C503-335 Plunger hammer spring - D85 6.50
C503-339 Key spindle - D80, D82, D85 25.90
C503-359 Key cam - D60 14.10
C503-360 Key cam rider - D60 14.60
C503-361 Key cam pin - D60 6.50
C503-362 Plunger - D60 6.70
C503-368 Key cam sleeve, out - D70, D72 6.50
C503-371 Plunger - D66 6.50
C503-400 Key cam pin - D70, D72 6.50
C503-768 Spacer - D80 EL/EU 3.20
C503-965 Plunger sleeve, out - D40, D44 14.40
C603-500 Housing 14.00
C604-187 Slide catch, restoring - D40, D44, D73, D85
6.80C604-188 Slide catch, non-restoring - D53
C604-191 Slide catch spring - D40, D44, D53, D73, D85
C604-204 Spindle, keyed - D80 EL/EU 25.90
C604-205 Solenoid retaining clip - D80 EL/EU 8.20
C604-273 Rose pin - D25 1.40
C604-312 Anchor (except D25) 6.70
** Order in multiples of 100
Price Book 5
Effective August 12, 2017 • Rev. 08/17
ND-SeriesAL-SeriesA-SeriesCYLINDRICAL
95
D-11
Parts D Knobs
Screws, Screw Packs, Torx Screw Packs, Cylinder Reference Table
Screws
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
A501-171, A501-746, C603-256, C603-897 6•••••6• •
Part
Number Description
Door
Thickness Type Size Price Each
A501-171* D170, washer Washer $1.10
A501-746* D170, mounting screw 1 1/2" – 2" POH Machine 1/4" 20 x 2 1/2" 1.10
C603-256* ANSI strike PFH Combo 12-24 x 1" 0.96
C603-897* Latch and strike PFH Combo #8 x 3/4" 0.82
* Order in multiples of 100
Screw Packs
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
B202-517, C303-007, C203-736, C303-028 6•••••6• •
Part
Number Description Contents Price Each
B202-517 Latch and strike (4) C603-897 $7.60
C303-007 Mounting, D170
(1) A501-171
(1) A501-746
(3) C603-897
8.80
C203-736 ANSI strike (2) C603-256 6.00
C303-028 Mounting, all except D170 (4) C603-897
(2) C603-256 11.10
Torx Screw Packs
Available Finishes - Specify for Listed Parts 605 606 609 612 613 625 626 629 630 643e
C203-311, C203-312 6•••••6• •
Part
Number Description Contents Price Each
C203-311** Latch and strike (4) C503-766 (T-15)
$19.40
C203-312** Latch and ANSI strike (2) C503-766 (T-15)
(2) L583-371 (T-20)
** Torx screw packs are furnished with appropriate T-xx installation tool(s)
Cylinder Reference Table
Available Finishes - Specify for Listed Parts 606 626
21-002, 23-001, 23-002, 23-003-098, 20-748/XP, 20-548/XP, 20-724/XP, 20-524/XP
Part Number
Cylinder
Mechanism Function Design Door Thickness Price Each Price Each - Restricted
23-001 Conventional
Standard
Functions All
Standard
58.00 74.00
91-016 Everest SL (R/B
Keyways only) 74.00
20-748 Primus 129.00
20-748-XP Primus XP
91-714-XP Everest SL Primus XP
(R/B Keyways only) 129.00
20-548 Primus UL437 159.00
20-548-XP Primus UL437 XP
21-002 Conventional
2" - 2 1/2"
58.00 74.00
91-004 Everest SL (R/B
Keyways only) 74.00
20-724 Primus 129.00
20-724-XP Primus XP
91-704-XP Everest SL Primus XP
(R/B Keyways only) 129.00
20-524 Primus UL437 159.00
20-524-XP Primus UL437 XP
23-003 Conventional D85 Standard 86.00 102.00
23-003-098 Conventional 2" - 2 1/2" 86.00 102.00
Price Book 5
Effective August 12, 2017 • Rev. 08/17
96
ND-Series AL-Series A-Series CYLINDRICAL
D Knobs
D-12
Notes
Price Book 5
Effective August 12, 2017 • Rev. 08/17
D-SeriesAL-SeriesA-SeriesCYLINDRICAL
97
ND
GRADE 1 CYLINDRICAL LEVERED LOCK
ND-1
Outside Lever
6-pin Cylinder Outside Spring Cage
Chassis/Spring Cage Attachment Screws
Lock Chassis
Plunger Assembly
Anti Rotation Plate
Inside Spring Cage
Outside Rose
Mounting Screws
Inside Rose
Inside Lever
Button
ANSI Strike
Reversible Deadlatch
1/2” Throw
98
D-Series AL-Series A-Series CYLINDRICAL
Price Book 5
Effective August 12, 2017 • Rev. 08/17
ND
Ordering Procedures
To order Schlage products, descriptive data should be in the same sequence as shown below.
ND-2
Common Pricing Information
1. Locks are furnished with standard features unless otherwise specied.
2. Door thickness is 1 ¾" unless otherwise specied.
3. Split nishes and designs will be priced at the highest list price of the design and/or nish.
4. 6 denotes a lock or part that requires an extended lead time.
5. I denotes a handed product and requires handing to be specied.
6. For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $16.00. This does not apply to Primus cylinders. See
Terms and Conditions for ordering information and requirements.
7. Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the
specic requirements.
8. Keyway must be specied for keyed functions and cylinders. If not specied, default keyway will be S123 for KA, KD and 0-bitted product
and S145 for Factory managed masterkey systems.
9. Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specied or excepted by notation.
10. Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
11. Locks specied with “C” keyway and KD or 0-bitted will receive 6 pin cylinders.
12. Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specied. If 0-bitted is selected, the order will be entered as
1-bitted. This does not apply to FSIC Primus® cores.
13. Conventional cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered
as 0-bitted.
14. Available plug face nishes are 606 and 626. For brass or bronze nish colors, the plug face nish is 606. For chrome, nickel or stainless
steel nish colors, the plug face nish is 626.
15. Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge
appropriate for the cylinder/key type
Line Item: Line item number
Qty: Quantity
Product: Product function + Cylinder code
Outside Des: Outside lever design
Outside Fin: Outside nish
Inside Des: Inside lever design: Specify only if different from the outside lever design
Inside Fin: Inside lever nish: Specify only if different from the outside nish
Hand: Hand of door: N/A for ND lock
Latch: Product latch: Leave blank for standard latch or specify part number if non-standard latch is required.
Strike: Product strike: Leave blank for standard strike or specify part number if non-standard strike is required.
Dr Thk: Door thickness: Enter door thickness if non-standard. Example: 138=1 3/8", 214=2 1/4"
Ext: Extension: Enter for doors 2 1/8" or greater. Example: EE=extended equally, EI=extended inside, EO=extended
outside, ED=extended differently
Dim: Dimension: Enter only for non-standard strike lip length
Additional
Details: Enter additional detail for keying information or special requirements
Line
Item Qty Product
Outside Inside
Hand Latch Strike Dr Thk Ext DIM
Additional
Details
DES FIN DES FIN
1 10 ND53PD RHO 622 OME - - 13-247 10-025 214 EE 138 KA
Price Book 5
Effective August 12, 2017 • Rev. 08/17
D-SeriesAL-SeriesA-SeriesCYLINDRICAL
99
ND Levers
Introduction
Table of Contents
Functions ND-4
Complete Locks ND-7
Options ND-9
Latches ........................................... ND-9
Strikes ............................................. ND-9
Locks Less Components ........................... ND-9
Non-Standard Door Thickness ..................... ND-9
Indicator Rose .................................... ND-10
Special Functions ................................. ND-10
Allegion Connect .................................ND-10
School Upgrade Kits ............................... ND-11
Conversion Guide ..................................ND-12
Parts ND-14
Levers ............................................ ND-14
Spring Cages ..................................... ND-14
Conversion Kits ................................... ND-14
Roses .............................................ND-15
Buttons / Plunger Assemblies .....................ND-15
Strikes .............................................ND-15
Cylinder Reference Table ......................... ND-16
Tail Pieces ........................................ ND-16
Key Assemblies ................................... ND-16
Miscellaneous Parts .............................. ND-17
Special Parts ......................................ND-17
Hollow Metal Door Reinforcements ............... ND-18
Screws ........................................... ND-18
Screw Packs, Standard ........................... ND-18
Torx Screw Packs ................................. ND-18
Complete Cylinders See Cylinders Section
How To Order Forms & Examples
Product Identification
ND 53 P D
Latch Suffix
D = Deadlatch
S = Springlatch
Cylinder Suffix
P = 6-Pin Cylinder
L = Less 6-Pin Cylinder
C = Less 6-Pin Cylinder*
R = Full Size Interchangeable
Core
J = Less Full Size
Interchangeable Core
T =
Full Size Construction Core
B = Less SFIC
BDC = Disposable SFIC
G = Everest 29 Patented SFIC
H = Construction SFIC
Z = Everest SL 7 pin Cylinder
Function
Lock Series
SFIC = Small Format (Best® Style) Interchangeable Core
Finish Codes and Descriptions
Code Description
605 (US 3) Bright Brass
606 (US 4) Satin Brass
612 (US 10) Satin Bronze
613 (US 10B) Oil Rubbed Bronze
619 (US 15) Satin Nickel
622 (US 19) Matte Black
625 (US 26) Bright Chromium Plated
626 (US 26D) Satin Chrome
626AM Antimicrobial Coating
on Satin Chromium
643e (US 11) Aged Bronze
Standard Features
Certification ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 1, UL Listed for 3-hour fire door.
Latch 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
Strike 1 1/4" x 4 7/8", ANSI Square corner, no box
Backset 2 3/4"
Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)
Door Range 1 5/8" – 2 1/8" for all functions except ND85; 1 3/4" – 2" for ND85
Keys Two nickel silver cut keys per lock, 6-pin, S123 section
* Used for double cylinder functions.
BAA/ARRA
Contact your local SSC or
Sales Rep. for ordering details
ND-3
Price Book 5
Effective August 12, 2017 • Rev. 08/17
100
D-Series AL-Series A-Series CYLINDRICAL
ND Levers Functions
ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 1, UL Listed for 3-hour fire door.
SCHLAGE ANSI
Non-Keyed Locks
SCHLAGE ANSI
Keyed Locks
Safe School Locks
ND10S F75 Passage Latch
Both levers always unlocked.
Inside lever is always free for
immediate egress. Also available with
Request to Exit (RX) function.
ND50PD F82 Entrance/Office Lock
Push-button locking. Push-button
locks outside lever until unlocked with
key or by turning inside lever. Inside lever
is always free for immediate egress.
ND53PD F109 Entrance Lock
Turn/push-button locking; pushing and turn-
ing button locks outside lever, requiring use of
key until button is manually unlocked. Push-
button locking; pushing button locks outside
lever until unlocked by key or by turning inside
lever. Inside lever is always free for immediate
egress.
ND60PD F88 Vestibule Lock
Latch retracted by key from outside
when outside lever is locked by key in
inside lever. Inside lever always unlocked
for immediate egress.
ND66PD F91 Store Lock
Key in either lever locks or unlocks
both levers.
ND70PD F84 Classroom Lock
Outside lever locked and unlocked by
key. Inside lever always unlocked for
immediate egress.
ND73PD F90 Corridor Lock
Locked or unlocked by key from outside.
Push-button locking from inside. Turning
inside lever or closing door releases button.
When outside lever is locked by key it can
only be unlocked by key. Inside lever always
unlocked for immediate egress.
ND12D F89 Exit Lock
Outside lever always fixed. Inside
lever always unlocked for immediate
egress. Also available with Request to
Exit (RX) function.
ND12DEL Electrically Locked (Fail Safe)
Outside lever continuously locked
electrically. Unlocked by switch or power
failure. Auxiliary latch deadlocks latchbolt
when door is closed. Inside lever always
always unlocked for immediate egress.
Also available with Request to Exit (RX)
function.
Caution: Double cylinder locks on residences and any
door in any structure which is used for egress are a life
safety hazard in times of emergency and their use is not
recommended. Installation should be in accordance with
existing codes only.
ND12DEU Electrically Unlocked (Fail Secure)
Outside lever continuously locked
until unlocked by electric current.
Auxiliary latch deadlocks latchbolt
when door is closed. Inside lever always
unlocked for immediate egress. Also avail-
able with Request to Exit (RX) function.
ND25D F89 Exit Lock
Blank plate outside. Inside lever
always unlocked for immediate egress.
ND40S F76 Bath/Bedroom Privacy Lock
Push-button locking. Can be opened
from outside with small screwdriver.
Turning inside lever or closing door
releases button. Inside lever is always
free for immediate egress.
ND44S Hospital Privacy Lock
Push-button locking. Unlocked
from outside by turning emergency
turn-button. Turning inside lever or
closing door releases button. Inside lever
is always free for immediate egress.
ND170 Single Dummy Trim
Dummy trim for one side of door.
Used for door pull or as matching
inactive trim.
ND75PD F110 Classroom Security Lock
Key in either lever locks or unlocks
outside lever. Inside lever always
unlocked for immediate egress.
ND-4
Price Book 5
Effective August 12, 2017 • Rev. 08/17
D-SeriesAL-SeriesA-SeriesCYLINDRICAL
101
Functions ND Levers
ANSI/BHMA Certified A156.2-2011, Series 4000, Grade
1, UL Listed for 3-hour fire door.
SCHLAGE ANSI
Keyed Locks SCHLAGE ANSI
Vandlgard Functions: Designed to disengage outside spindle
from latch when in locked condition.
Inside lever is always free for
immediate egress.
Safe School Locks
Caution: Double cylinder locks on residences and any
door in any structure which is used for egress are a life
safety hazard in times of emergency and their use is not
recommended. Installation should be in accordance with
existing codes only.
ND80PD F86 Storeroom Lock
Outside lever fixed. Entrance by key only.
Inside lever always unlocked for
immediate egress. Also available with
Request to Exit (RX) function.
ND80PDEL Electrically Locked (Fail Safe)
Outside lever continuously locked
electrically. Unlocked by key outside
or by switch or power failure.
Auxiliary latch deadlocks latchbolt
when door is closed. Inside lever
always unlocked for immediate egress.
Also available with Request to Exit
(RX) function.
ND80PDEU Electrically Unlocked (Fail Secure)
Outside lever continuously locked
until unlocked by key or electric
current. Auxiliary latch deadlocks
latchbolt when door is closed. Inside
lever always unlocked for immediate
egress. Also available with Request to
Exit (RX) function.
ND82PD F87 Institution Lock
Both levers fixed. Entrance by key in
either lever.
ND91PD F82 Entrance/Office Lock
Push-button locking. Push-button
disengages outside lever until unlocked
with key or by turning inside lever.
ND92PD F109 Entrance Lock
Turn/push-button locking; pushing and
turning button disengages outside lever,
requiring use of key until button is
manually unlocked. Push-button locking;
pushing button disengages outside lever
until unlocked by key or by turning
inside lever.
ND93PD F88 Vestibule Lock
Latch retracted by key from outside when
outside lever is disengaged by key in inside
lever. Inside lever is always unlocked for
immediate egress.
ND94PD F84 Classroom Lock
Outside lever disengaged and unlocked
by key. Inside lever always unlocked for
immediate egress.
ND96PD F86 Storeroom Lock
Outside lever always disengaged.
Entrance by key only. Inside lever always
unlocked for immediate egress. Also avail-
able with Request to Exit (RX).
ND96PDEL Electrically Locked (Fail Safe)
Outside lever continuously
disengaged electrically. Unlocked by
key outside or by switch or power failure.
Auxiliary latch deadlocks latchbolt when
door is closed. Inside lever always free for
immediate egress. Also available with
Request to Exit (RX).
ND96PDEU Electrically Unlocked
(Fail Secure)
Outside lever continuously disengaged
until unlocked by key or electric current.
Auxiliary latch deadlocks latchbolt when
door is closed. Inside lever always free for
immediate egress. Also available with
Request to Exit (RX).
ND85PD F93 Faculty Restroom Lock
Outside lever fixed. Entrance by key
only. Push-button in inside lever acti-
vates visual “occupancy” indicator,
allowing only emergency master key
to operate. Turning inside lever or
closing door releases visual occupancy
indicator. Rotation of inside spin-
ner-button by spanner key provides
lock-out feature by keeping indicator
thrown. Inside lever is always free for
immediate egress.
ND95PD F110 Classroom Security Lock
Key in either lever disengages or
unlocks outside lever. Inside lever always
unlocked for immediate egress.
ND97PD F90 Corridor Lock
Locked or unlocked by key from outside.
Push-button locking from inside. Turning
inside lever or closing door releases
button. When outside lever is locked by
key it can only be unlocked by key. Inside
lever is always unlocked for immediate
egress.
ND-5
Price Book 5
Effective August 12, 2017 • Rev. 08/17
102
D-Series AL-Series A-Series CYLINDRICAL
Specialty Functions
ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 1, UL Listed for 3-hour fire door.
SCHLAGE ANSI
Keyed Locks
ND25 x 80PD Storeroom Exit Lock
Blank plate outside. Key in fixed inside lever
retracts latch. Specify per XN12-005.
ND25 x 70PD Classroom Exit Lock
Blank plate outside. Key locks or unlocks
inside lever. Specify per XN12-004.
ND30D F77 Patio Lock
Push button locking. Turning inside
lever or closing door releases button,
preventing a lock-out. Inside lever
always unlocked for immediate egress.
Specify per XN12-007.
Time Out Lock
Caretaker Side
Pushing and holding button will lock
inside lever (detention side) until
released. Lever always retracts latch.
Detention Side
Lever retracts latch unless outside
button is depressed. Vandlgard allows
inside spindle to disengage from latch
when locked.
ND60PD Vestibule with Closed Outside Lever
Same as ND60 except outside lever is closed.
Inside lever always unlocked for immediate
egress. Specify per XN12-001.
ND70 x 80PD
Classroom by Storeroom Lock
Key locks and unlocks outside lever.
Key in fixed inside lever retracts latch.
Specify per XN12-006.
ND72PD F80 Communicating Lock
Key in either lever locks and unlocks
own lever. Specify per XN12-002.
ND72PD Vandlgard Communicating Lock
Communicating, ND72, lock with
Vandlgard. Key in either lever locks
and unlocks own lever. Both inside
and outside levers are clutching.
Specify per XN12-003.
SCHLAGE ANSI
Non-Keyed Locks
Vandlgard Functions: Designed to disengage outside spindle
from latch when in locked condition.
Inside lever is always free for
immediate egress.
SCHLAGE ANSI
Keyed Locks
ND45
Pricing for all Speciality functions can be found on ND-10
ND Levers Functions
ND-6
D-SeriesAL-SeriesA-SeriesCYLINDRICAL
103
Price Book 5
Effective August 12, 2017 • Rev. 01/18
Athens (ATH)
Latitude (LAT)
Omega (OME)
Longitude (LON)
Sparta (SPA)
Broadway (BRW)
Rhodes (RHO)
Boardwalk (BWK)
Tubular (TLR)
Complete Locks ND Levers
Commercial Lever Suite
ND Levers L Lock Levers 98/99 Exit AL Lock S Lock F Lock
Athens 07 07 Jupiter Jupiter
Omega Omega 16 Omega
Sparta 17 17 Neptune Neptune Jazz
Rhodes 06 06 Saturn Saturn Elan
Tubular 03 03
Latitude Latitude Latitude Latitude
Longitude Longitude Longitude
Broadway
Boardwalk
Latches
Deadlatch, 13-247 Springlatch, 13-248 Anti-Friction Fire Door
Deadlatch, 14-042
Backset Extension Link,
43-005
Strikes
ANSI Strike,
10-025 T Strike,
10-013 Square corner,
T-strike, deep box,
fire door latch,
10-016
Roses
Inside/Outside Rose,
03-042 RHO
Levers: ATH, SPA, RHO, TLR
Size: 3 7/16" dia.
Omega Inside/Outside
Rose, 03-042 OME
Levers: OME
Size: 3 7/16" dia.
Blank Outside Rose,
N523-002
Outside Plate for:
ND25, ND25X70 & ND25X80
Size: 3 1/2" dia.
Indicator Rose (Rhodes)
XN12-035
Functions: ND75, ND95,
ND60 & ND93
Levers: ATH, SPA, RHO, TLR
Size: 3 7/16" dia.
Finish: 626 only
Indicator Rose (Omega)
XN12-045
Functions: ND75, ND95,
ND60 & ND93
Levers: OME
Size: 3 7/16" dia.
Finish: 626 only
ND-7
104
D-Series AL-Series A-Series CYLINDRICAL
Price Book 5
Effective August 12, 2017 • Rev. 01/18
Function Decription
Designs and Finishes
PRIMARY CYLINDER ADJUSTMENTS
AVAILABLE LEVERS
AVAILABLE FINISHES
ATH OME RHO SPA TLR
626
605 606
612 619
622
625 643e
613
6626AM
Keyless
LD
CD RD
TD* JD BD
BDC GD HD* LD-SAR
LD-CO6
JD-SAR
JD-CO6
JD-YA6
JD-MED
JD-CO7
JD-YA7
ND10S Passage 398 410 428
ND12D Exit, lever x lever
ND12D EL/EU Electrically locked or unlocked 620 632 650 ATH OME SPA RHO TLR ATH SPA
RHO TLR RHO
ND25D Exit, blank plate x lever 398 410 428
605 606 612 619 622
625 626 643e 613 6626AM
6605 6606 6612 6613
6619 6622 6625 626
6643e 6626AM
ND40S Privacy 458 470 488
ND44S Privacy, hospital
ND170 Single dummy 171 177 187
Keyed, Single Cylinder
LD
CD
RD
TD* JD BD
BDC GD HD LD-SAR
LD-CO6
JD-SAR
JD-CO6
JD-YA6
JD-MED
JD-CO7
JD-YA7
ND50PD Entrance/Ofce
543 555 573 -58 35 -32 N/C 77 40 -58 -32 -32
ND53PD Entrance
ND70PD Classroom
ND73PD Corridor
ND80PD Storeroom
ND85PD Faculty Restroom Lock 658 670 688 -86 NOT AVAILABLE
ND91PD Vandlgard® Entrance/Ofce
593 605 623
-58 35 -32 N/C 77 40 -58 -32 -32
ND92PD Vandlgard® Entrance
ND94PD Vandlgard® Classroom
ND96PD Vandlgard® Storeroom
ND97PD Vandlgard® Corridor
ND80PD EL/EU Electrically locked or unlocked 727 739 757
ND96PD EL/EU Vandlgard® Electrically locked
or unlocked 798 810 828
Keyed, Double Cylinder
LD
CD
RD
TD JD BD
BDC GD HD LD-SAR
LD-CO6
JD-SAR
JD-CO6
JD-YA6
JD-MED
JD-CO7
JD-YA7
ND60PD Vestibule
646 658 676
-116 70 -64 N/C 154 80 -116 -64 -64
ND66PD Store
ND75PD Classroom Security
ND82PD Institution
ND93PD Vandlgard® Vestibule Class-
room Security 696 708 726
ND95PD Vandlgard® Classroom Security
Secondary
Cylinder
Adjustments
EVEREST AND RESTRICTED KEYWAY - DOES NOT APPLY TO PRIMUS
EVEREST D & T FAMILY & RESTRICTED KEYWAYS
(QUAD, NUMBERED, REVERSE +16
SL Cylinder with Everest B or Everest R keyways +16
PRIMUS/PRIMUS XP - ORDER THE LOCK LESS CYLINDER AND THE CYLINDER SEPARATELY (PRICES BELOW)
SINGLE KIL EXAMPLE: 1 EA. ND53LD & 1 EA. 20-765(-XP) +129
DOUBLE KIL EXAMPLE: 1 EA. ND75CD & 2 EA. 20-765(-XP) +258
SINGLE FSIC EXAMPLE: 1 EA. ND53JD & 1 EA. 20-740(-XP) +139
DOUBLE FSIC EXAMPLE: 1 EA. ND75JD & 2 EA. 20-740(-XP) +278
* Temporary cores (TD and HD options) require non-refundable core handling charge (50-231) of $9.50 and will be added to the price of the lock.
ND Levers Complete Locks
ND-8
D-SeriesAL-SeriesA-SeriesCYLINDRICAL
105
Price Book 5
Effective August 12, 2017 • Rev. 01/18
Latches
Part Number Backset - Description Lock Adjustment
Spring Latch*
13-248 2 3/4" - Square corner, 1 1/8" x 2 1/4" N/C
14-010 3 3/4" - Square corner, 1 1/8" x 2 1/4" +9.80
Deadlatch*
14-047 2 3/8" - Square corner, 1 1/8" x 2 1/4" N/C
14-048 2 3/8" - Square corner, 1 x 2 1/4" N/C
13-247 2 3/4" - Square corner, 1 1/8" x 2 1/4" N/C
14-042 2 3/4" - Anti-friction re door latch 3/4" throw, modied latch prep for anti-friction tongue pivot +165.00
14-028 3 3/4" - Square corner, 1 1/8" x 2 1/4" +9.80
43-005 5" - Backset extension link2 - use with 2 3/4" backset latches +30.10
* All latch extensions require reinforcement when used in hollow metal door applications
Non-Standard Door Thickness*
Description Specify Lock Adjustment
1 3/8" thick doors - 2 chassis spacers
(XN12-012) required; see ND-12
Door thickness and how door is extended.
Example: 3", EO
+54.10
Extended Inside (EI)**, over 2" – 6" +278.00
Extended Outside (EO)**, over 2" – 6"
Extended Equally (EE)**, over 2 1/8" – 6" +457.00
Extended Differently (ED)**, over 2" – 6"
*If not specified orders will default to EE
** For ND85, EE range is from over 2” to 6”. EI, EO, and ED ranges are from over 1 7/8” to 6”
Locks Less Components
Description Specify Lock Adjustment
Less each lever LLL for lever design
Example: ND53PD LLL/RHO x ATH -21.30
Less each rose LLL for rose design
Example: ND53PD RHO x RHO/LLL -12.20
Less springlatch LLL for latch
Example: ND40S RHO 605 LLL 10-025 -22.70
Less deadlatch LLL for latch
Example: ND53PD SPA 626 LLL 10-025 -29.80
Less strike LLL for strike
Example: ND53PD ATH 612 13-047 LLL -4.10
Lock chassis and spring cages only Less all possible components
Example: ND53LD LLL 626 LLL LLL, lever chassis Sum of
deducts
Strikes
Part Number Lip Length - Description Lock Adjustment
10-013 1 1/8" - Square corner, T-strike, box, 1 1/8" x 2 3/4" N/C
1 1/2" - Square corner, T-strike, box, 1 1/8" x 2 3/4" +4.20
10-016 1 1/8" - Square corner, T-strike, deep box, re door latch N/C
10-025
1 3/16" - ANSI, no box, 1 1/4" x 4 7/8" N/C
1 3/8" - ANSI, no box, 1 1/4" x 4 7/8" +25.50
1 1/2" - ANSI, no box, 1 1/4" x 4 7/8"
K510-066 Box for ANSI strike, must be specied N/C
Latches, Strikes, Lock Less Components, Non-Standard Door Thickness Options ND Levers
ND-9
Shaded items are standard components and are
furnished with locks unless otherwise specified.
106
D-Series AL-Series A-Series CYLINDRICAL
Price Book 5
Effective August 12, 2017 • Rev. 01/18
Indicator Rose (“LOCK” printed on inside rose)
Part Number Description Lock Adjustment
XN12-035* Indicator Rose - Rhodes +30.90
XN12-045* Indicator Rose - Omega
*Intended for the inside rose on double cylinder applications
Available in 626 only - other finishes receive a standard rose.
75 & 95 - Standard Option - Lock adjustment does not apply; standard rose is available
60 & 93 - Optional - Lock adjustment does apply
Miscellaneous Lock Options
Specify/
Part Number
Description Lock Adjustment
8AT Tactile Lever - Athens
+41.90**
8RO Tactile Lever - Rhodes
8SP Tactile Lever - Sparta
8TR Tactile Lever - Tubular
8BK Tactile Lever - Boardwalk
8BY Tactile Lever - Broadway
8LT Tactile Lever - Latitude
8LN Tactile Lever - Longitude
XN13-052*** Break-Away Lever - Rhodes KIL (P,L,C,Z)
300.00
XN13-054*** Break-Away Lever - Rhodes FSIC (R,J,T)
XN13-053*** Break-Away Lever - Rhodes SFIC (B,BDC,G,H)
XN13-145*** Break-Away Lever - Rhodes Closed
Torx Screws Screws - Latch and Strike +18.90
RX Request to Exit Feature (Available on ND10, ND12, ND12EL/EU, ND80, ND80EL/EU, ND96, & ND96EL/EU functions)
Ready to be used in a Normally Open or Normally Closed application. +63.90
XN12-307*** Lead Lining +579.00
** Per lever
*** Break-Away levers have extended lead times
The following secure functions are available with breakaway options for the exterior lever (When ordered, the correct lever must be identified for the
functions – Closed, KIL, FSIC, SFIC): ND12, ND12EL/EU, ND30, ND50, ND53, ND60 (for both keyed and closed levers), ND66, ND70, ND72, ND73, ND75,
ND80, ND80EL/EU, ND82, ND91, ND92, ND93, ND94, ND95, ND96, ND96EL/EU, ND97
Interior breakaway levers must be ordered via the following process – Lock(s) are ordered Less Lever for the interior lever and breakaway lever(s) are
ordered separately. Applicable functions include: ND66, ND70X80, ND72, ND82
Special Functions - Extended Lead Times
Part Number
Function - Description
Base
Lock
Lock Adjustment
(Base Lock)
Lock Function “X” Number
ND25x80 XN12-005 ND25x80 - Blank plate outside, xed lever inside. Key in lever retracts lat<
