S-SERIES

Light/Medium Commercial and Multi-Family Housing

Application

Interior light to medium use commercial doors; office

tenant spaces, laboratories; Heavy duty residential doors

and multi-family housing.

Performance Features

Handicap compliant levers.

Heat treated steel locking components for extra strength.

Independent heavy duty lever torsion springs for durability and long life.

Non-handed levers (except Flair design).

Snap-on inside rose conceals mounting screws.

Extra-strong Everest patented keys standard for Commercial customers.

SERIES

S

On our cover, the S-Series SATURN in Bright Brass.

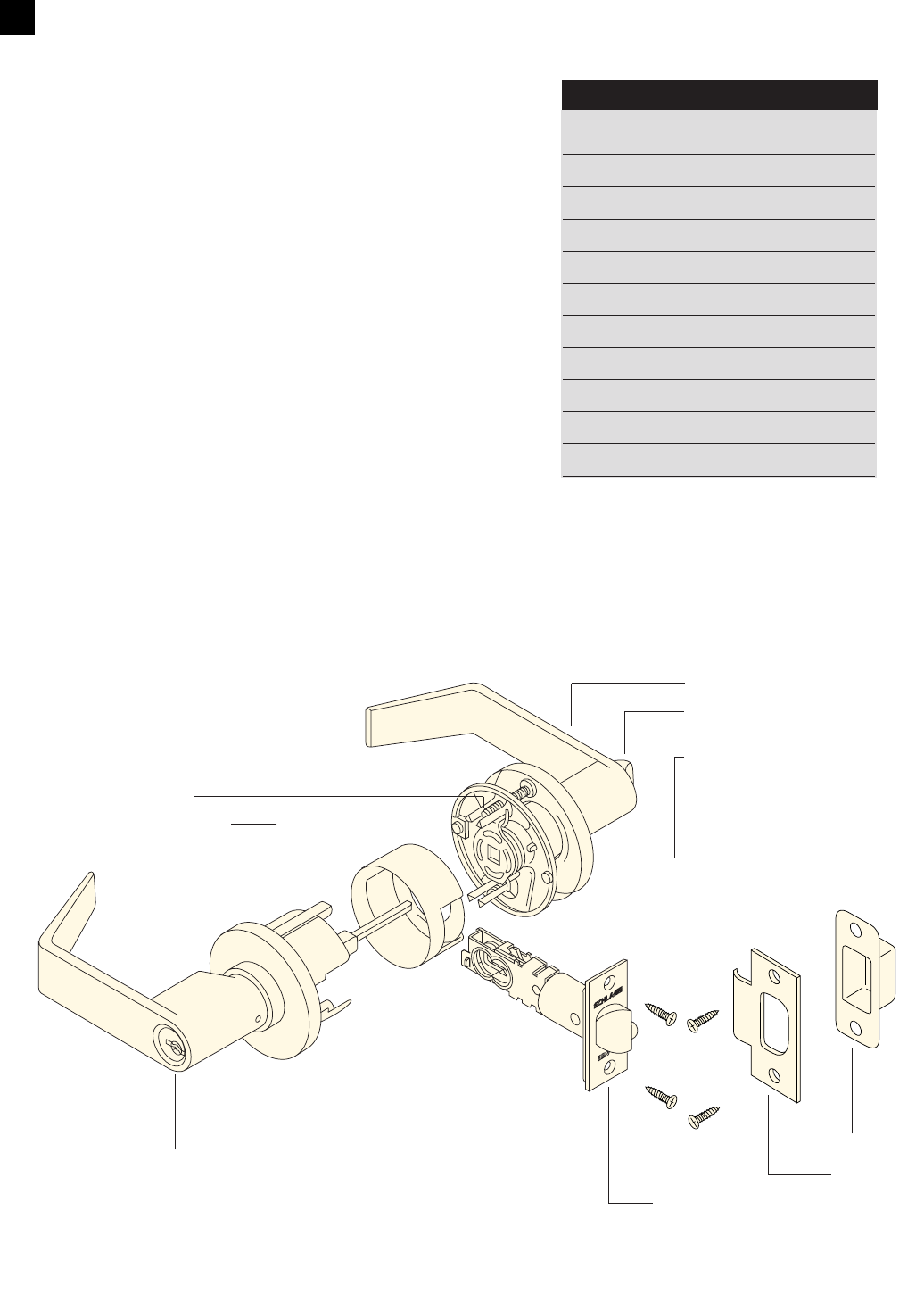

Exploded View

Key removable lever

For quick rekeying or

cylinder replacement

6-pin Everest cylinder with

patented keys

Inside lever and chassis

Large turn-button

For ease of operation

Independent heavy duty

torsion springs

For individual lever support

Strike Box

Strike

Inside rose

Concealed mounting screws

Interlocking chassis and latchbolt

Restricts chassis from rotating

in door

¹⁄₂” (13mm) throw universal deadlatch

Fits 2³⁄₈” (60mm) or 2³⁄₄” (70mm)

backset, reversible RH/LH, adjustable

front for flat or beveled doors

Cylinders 4 - 5

Designs &Finishes 2

Door Handing 8

Door Preparation 1

Functions 3

How to Order 9

Interchangeable Core 4 - 5

Latches 6

Primus®High Security Cylinders 4 - 5

Specifications 1

Strikes 7

INDEX

1

SERIES

S

Door Preparation

Specifications

Handing:

Not handed, except Flair design.

Door Thickness:

1⅜" to 2" (35 mm-51 mm)

except S40D: 1³⁄₈ to 1⁷⁄₈ (35 mm-48 mm)

Backset:

Universal backset latches standard, fit either 2⅜"

(60 mm) or 2¾" (70 mm). 5" (127 mm) optional.

Fronts:

Steel. 1⅛˝ x 2¼˝ (29 mm x 57 mm) square corner,

beveled, for 2¾˝ backset standard. For availability with

specific backsets, see page 6.

Lock Chassis:

Tubular construction. Zinc with steel cover.

Latch Bolt:

Brass, chrome plated, ½˝ (13 mm) throw, deadlocking.

Exposed Trim:

Levers are zinc base, plated to match finish symbols.

Roses, latch faceplates and strikes are wrought brass or

bronze.

Strike:

T-strike 1¹⁄₈˝ x 2³⁄₄˝ (29 mm x 70 mm) x 1¹⁄₈˝ (29 mm)

lip to center with box standard. Optional strikes, lip

lengths and ANSI strike box available. See page 7.

Cylinder & Keys:

Commercial: 6-pin patented Everest C123 keyway stan-

dard with two nickel silver keys per lock.

Residential: 6-pin C keyway, keyed 5-pin.

Keying Options:

Interchangeable core and Primus®high security

cylinders. Master keying, grand master keying,

and construction keying.

Warranty:

Commercial: three-year limited.

Residential: Full mechanical lifetime.

Certifications

ANSI

Meets or exceeds A156.2 Series 4000, Grade 2

strength and operational requirements.

Federal

Meets FF-H-106C.

California State Reference Code

(Formerly Title 19, California State Fire Marshal Standard)

Neptune and Saturn designs comply; levers return to

within ½˝ of door face.

UL / cUL:

All locks listed for A label single doors, 4´ x 8´.

Letter F and UL symbol on latch front indicate listing.

UL437 Listed locking cylinder optional: specify

Primus 20-500 Series cylinder.

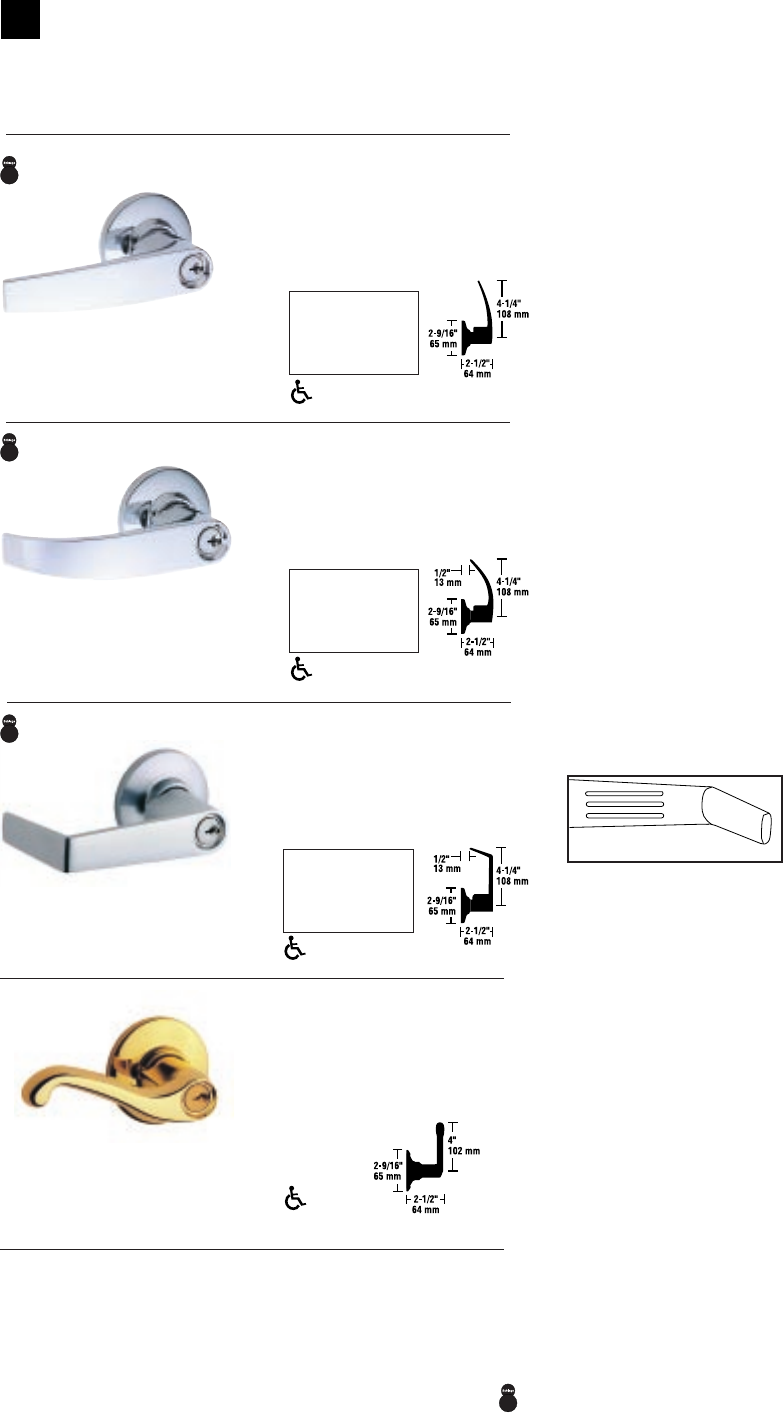

Designs & Finishes

625

JUPITER

Symbol: JUP

Material: Pressure cast zinc

Finishes: 605, 606, 613,

625, 626

625

NEPTUNE

Symbol: NEP

Material: Pressure cast zinc

Finishes: 605, 606, 609, 613,

625, 626

626

SATURN

Symbol: SAT

Material: Pressure cast zinc

Finishes: 605, 606, 609,

612, 613, 625, 626

605

FLAIR

Symbol: FLA

Material: Pressure cast zinc

Finishes: 605, 606,

609, 612, 613, 625, 626

Finishes

605 Bright Brass

606 Satin Brass

609 Satin Brass, Blackened

612 Satin Bronze

613 Oil Rubbed Bronze

625 Bright Chromium Plated

626 Satin Chromium Plated

2

SERIES

S

Designs available with full size interchangeable core option for

all keyed functions and finishes shown, except Saturn 609.

Matches

D-Series SPARTA

and L-Series 17

designs

Matches

D-Series RHODES

and L-Series 06

designs

Matches

D-Series ATHENS

and L-Series 07

designs

TACTILE WARNING

(KNURLING)

Symbol: 8SA

Available Saturn design

only. Outside lever is

knurled unless otherwise

specified.

3

SERIES

S

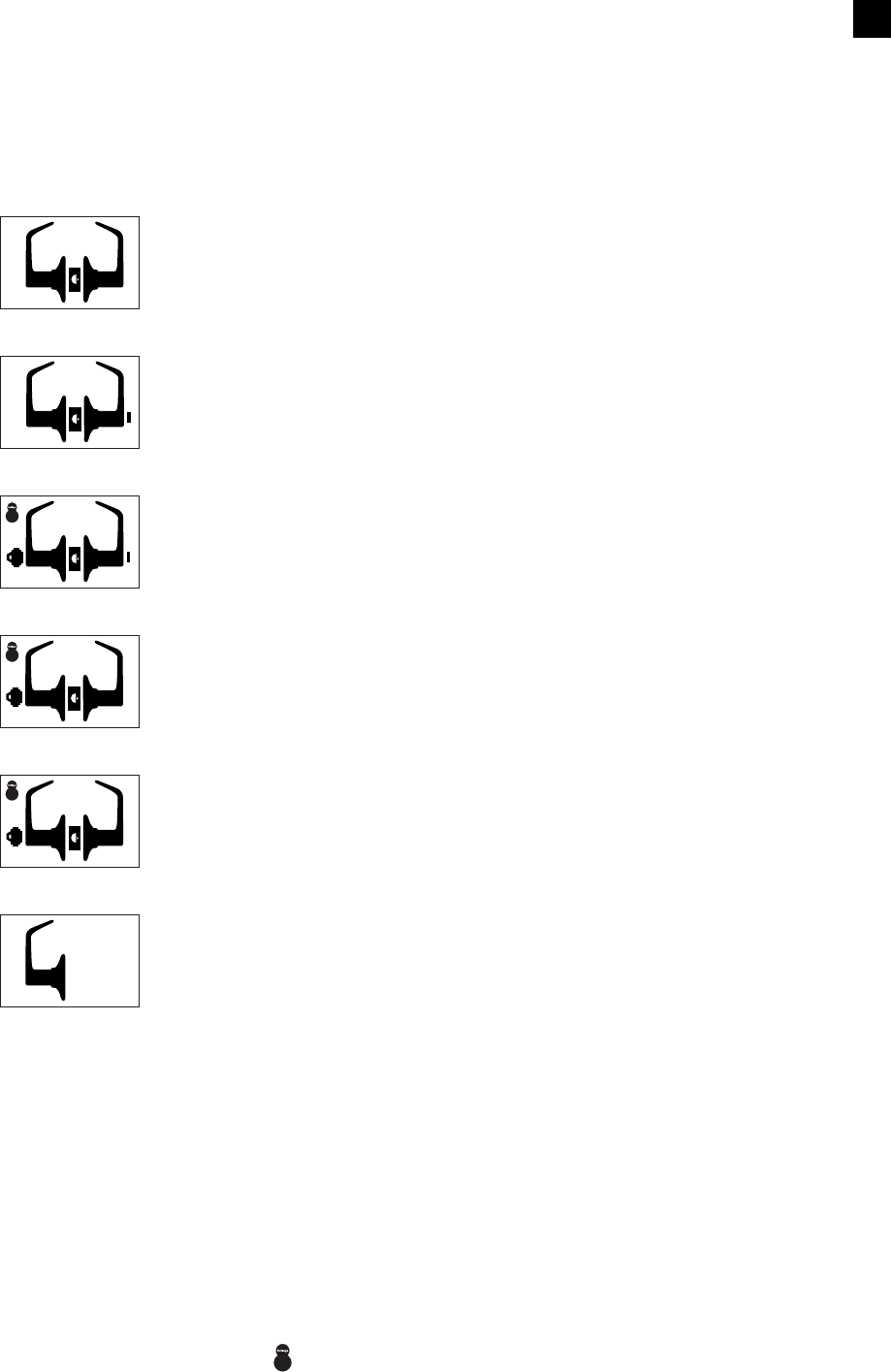

Functions

ANSI A156.2 Series 4000 Grade 2

SCHLAGE ANSI

S10D F75

S40D F76

S51PD F81

S70PD F84

S80PD F86

S170

Passage Latch

Both levers always unlocked.

Bath/Bedroom Privacy Lock

Push-button locking. Can be opened from

outside with small narrow tool. Turning

inside lever releases button.

Entrance Lock

Unlocked by key from outside when outer

lever is locked by turn-button on inside lever.

Inside lever always unlocked.

Classroom Lock

Outside lever locked and unlocked by key.

Inside lever always unlocked.

Storeroom Lock

Outside lever fixed. Entrance by key only.

Inside lever always unlocked.

Single Dummy Trim

Dummy trim for one side of door. Used for

door pull or as matching inactive trim.

Keyed functions available with full size interchangeable core option.

4

SERIES

S

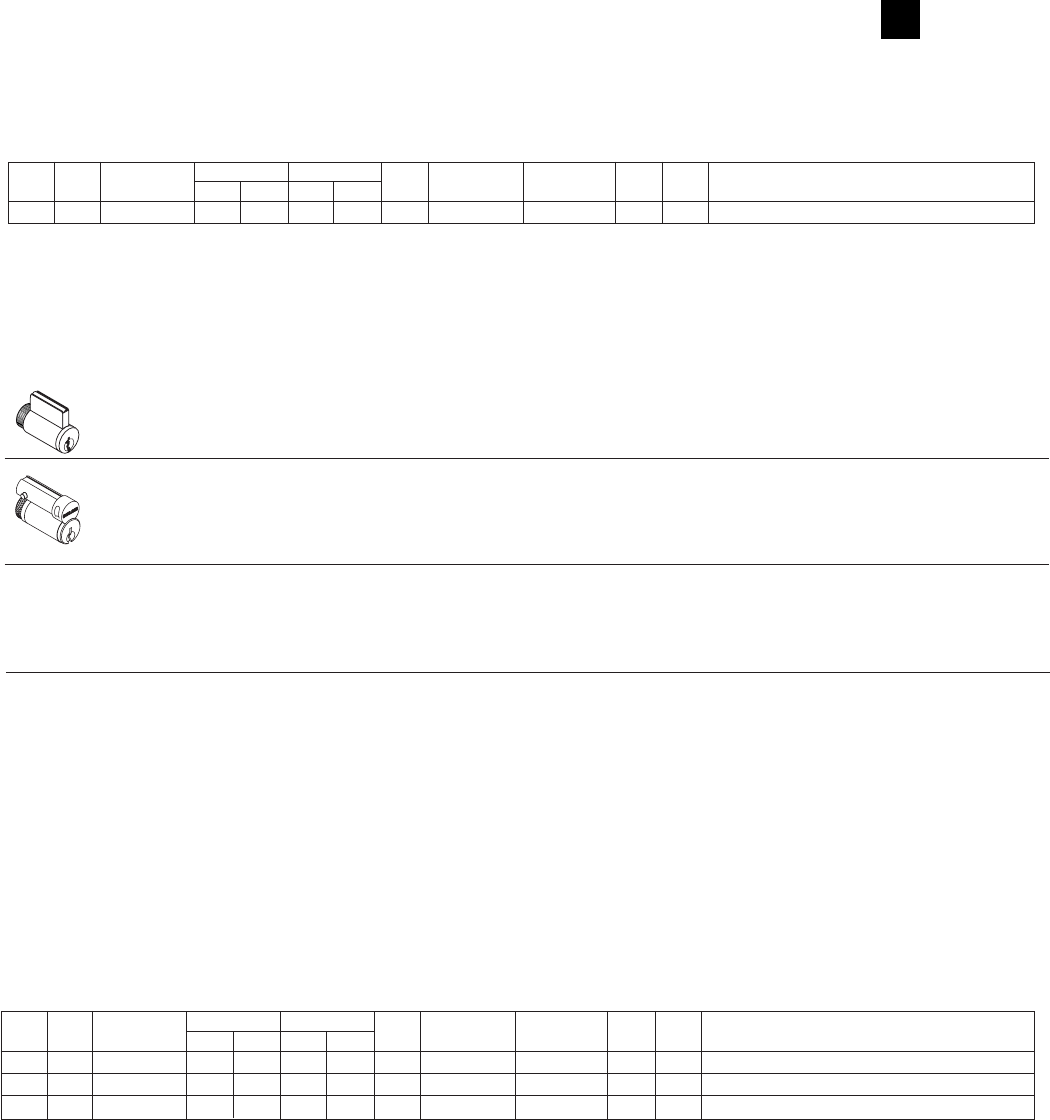

Cylinder Description

21-028 6-Pin conventional cylinder (standard)

20-752 Primus high security cylinder

20-552 Primus UL437 Listed high security cylinder

Cylinders for Keyed Levers (Bottom)

Available 606 and 626 finish only.

Everest C123 keyway standard for Commercial; C keyway standard for Residential.

Sleeve S605-192 included.

Standard Cylinders

Schlage®locks are provided with cylinders precision built to

extremely close tolerances and the highest standards of accuracy.

Using only solid brass plugs, extruded brass shells, phosphor

bronze springs, nickel silver keys and pins, ensures long life

and ease of operation.

Conventional cylinders are available in Classic keyways or

in the newly patented Everest®keyways. Specify keyway

to differentiate between Everest and Classic. Example:

C (Classic) vs. C123 (Everest).

Primus®High Security Cylinders

Primus high security cylinders are available to add patented key

control and varying degrees of geographical exclusivity to most

Schlage 6-pin key systems, whether Everest or Classic keyways.

In addition to a conventional pin tumbler mechanism, Primus

cylinders incorporate a patented finger pin and sidebar design

providing a “dual-locking” cylinder that is virtually pick-proof.

Resistance to drilling and other physical attack is optional by

specifying 20-500 Series UL437 Listed cylinders.

Classic Primus cylinders are recommended for upgrading existing

Classic key systems. Due to its extended patent life, the newly

designed Everest Primus is recommended for new key systems

and for upgrading existing Everest®key systems. Specify keyway

to differentiate between Everest and Classic. Example:

CP (Classic) vs. C123 (Everest).

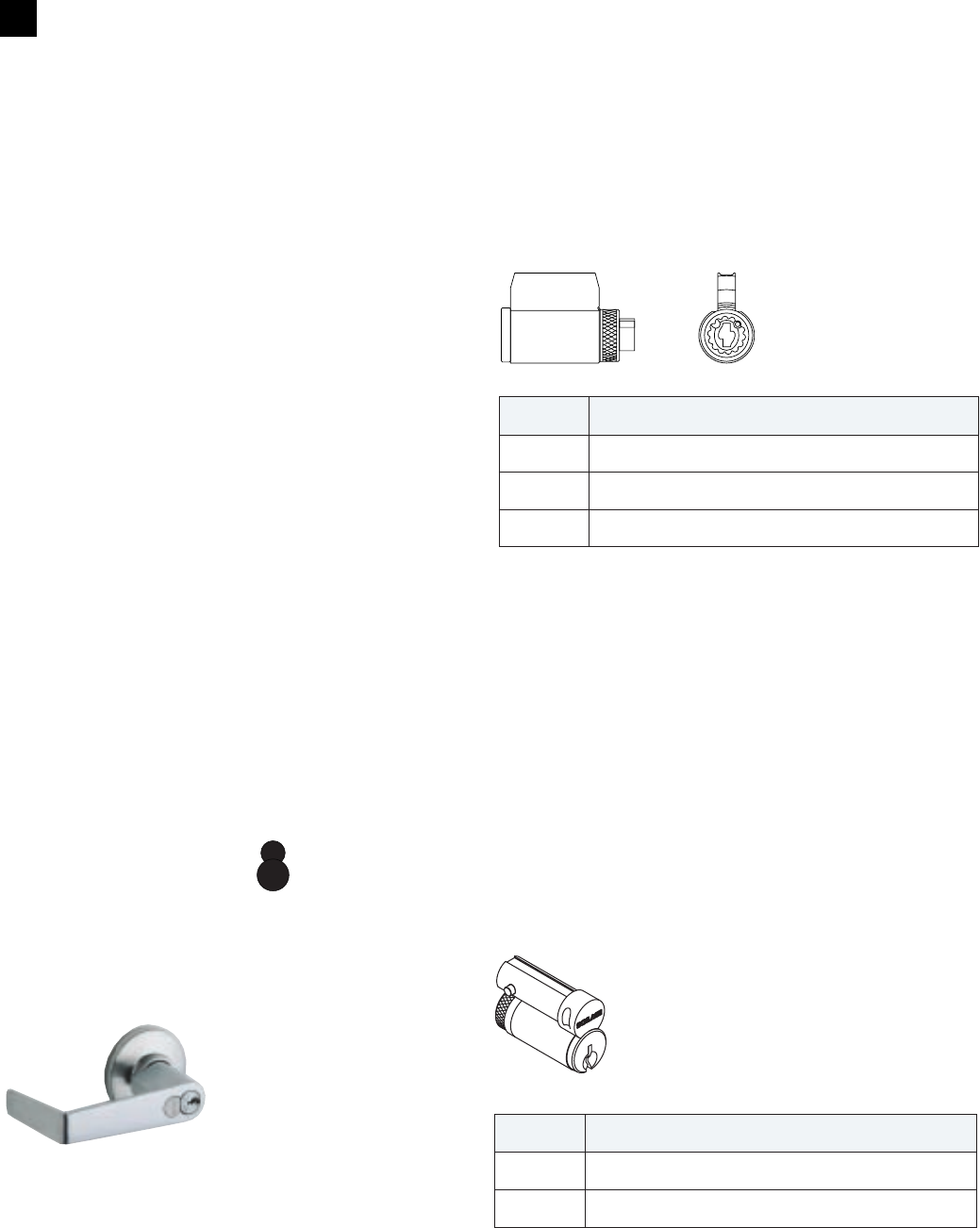

Interchangeable Core

Schlage®figure-8 interchangeable core (IC) locksets allow

immediate rekeying at the door simply by using the special

control key to replace the core in seconds.

IC locksets are available in Jupiter, Neptune and Saturn designs.

Full size interchangeable cores can be integrated into any 5 or

6-pin Schlage key system with no adverse affects on keying

capacity.

To order complete locks with full size cores, change suffix

from PD to RD. Example: S51RD. To order locks less core,

change suffix to JD. To order with full size construction core,

change suffix to TD.

SchlageSchlage

Number Description

23-030 Conventional core

20-740 Primus high security core

Full Size Interchangeable Cores (For JD Suffix Locksets)

Available 606 and 626 finish only. Everest C123 keyway standard for

Commercial; C keyway standard for Residential.

5

SERIES

S

* Specify design and finish.

IC Conversion Kits

It is easy to convert standard S-Series locksets to accept Schlage

full size interchangeable cores by changing the knob and adding

the parts shown.

IC Installation Tool

This tool is used to install the driver

and retainer for full size IC in the

S-Series and other Schlage locksets. Its

other ends are designed to install and

remove mortise cylinder housings and

test mortise cylinder cam action for

both small format and full size inter-

changeable core cylinders. M504-413

(Order separately.)

Driver Retainer

Plug

Lever

08-030* Lever, driver, plug, retainer

08-027* Lever only

S605-241 Retainer

S605-242 Driver

Interchangeable Core Components

Number Description

6

SERIES

S

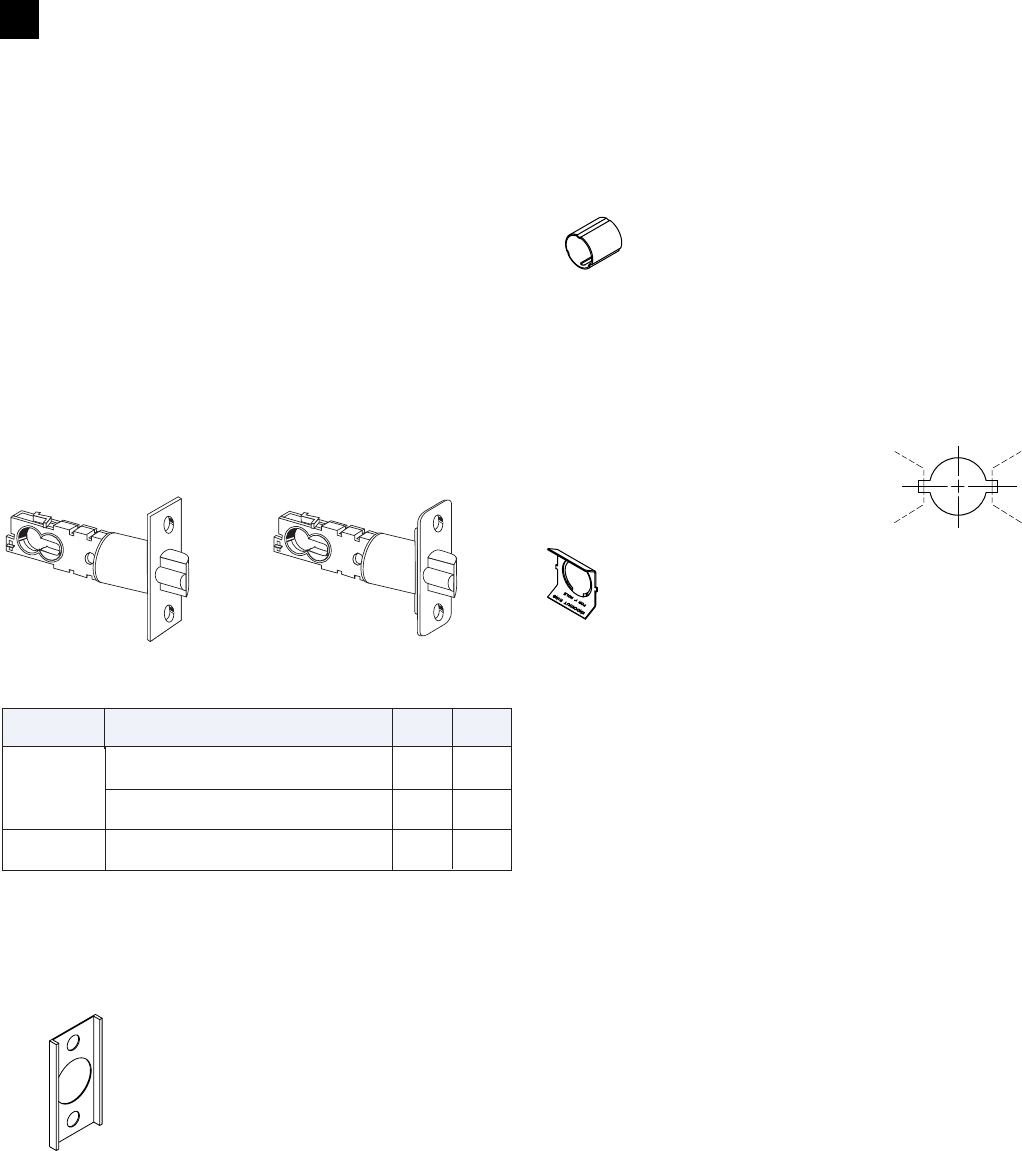

Square Corner Deadlatch

16-203 Round Corner Deadlatch

16-204

2³⁄₈”or 2³⁄₄”1” x 2¹⁄₄” Square corner* 16-203 ⁷⁄₈”

1” x 2¹⁄₄”, ¹⁄₄” Radius round corner 16-204 ⁷⁄₈”

5˝ 1” x 2¹⁄₄” Square corner* 16-132 ⁷⁄₈”

Deadlatches

Backset Faceplate Description Number Hsg

Dia

*Latches include A501-878 faceplate adapter for 1¹⁄₈” face.

Latches

The standard universal backset deadlatch fits both 2⅜" (60 mm)

and 2¾" (70 mm) backsets. They are adjustable for flat or beveled

edge doors and have a ½" (13 mm) throw. Orders for complete

locks are provided with a G506-815 sleeve for 7/8” diameter

latches installed in doors with 1"(25 mm) edge bore.

All latches have 1 1/8” x 2 1/4” square corner fronts. Standard

latches are shown in bold type.

Note: Failure to use the below referenced latches and fire cup,

included with the lockset, will invalidate the UL Listing.

Door Reinforcement

Schlage®reinforcing units help prevent

the collapse of hollow metal doors when

locksets are tightly mounted.

A501-566

1³⁄₄(44 mm) Doors A501-565

1³⁄₈(35 mm) Doors

Door Prep

Used to adapt 1(25 mm) wide square front faceplates to 1⅛

(29 mm) wide door preparations. Furnished in black plastic.

Order in multiples of 100.

Used on 7/8(22 mm) diameter latch housings in 1” (25 mm)

edge bore. Furnished standard with complete locks.

Latch Front Adapter

A501-878

Sleeve

G506-815

7

SERIES

S

Rabbeted Latch

and Strike Kit

39-030

Rabbeted Latch and Strike Kit

Rabbeted latch and strike kit finishes: 605, 626.

This kit adapts square corner latches and strikes for ¹⁄₂

(13 mm) rabbeted door and frame preparations.

Strikes

All Schlage strikes are furnished complete with screws. The 10-001

standard S-Series strike has a 1¹⁄₈(29 mm) lip. When ordering

separately, specify quantity, product number, finish, and lip length.

Standard strike is shown in bold type.

Number Lip Length Description

10-001 1, 1¹⁄₈ (std), 1¹⁄₄, 1¹⁄₂, 1³⁄₄, 21¹⁄₈x 2³⁄₄

(29 mm x 70mm)

(25 mm, 29 mm, 32 mm, 38mm, 44 mm, 51mm)

Square corner, standard

10-004 1¹⁄₈1¹⁄₈x 2³⁄₄ (29 mm x 70 mm)

(29 mm) ¹⁄₈ (3 mm) Radius, round cnr.

10-025 1³ ⁄₁₆,1³⁄₈1¹⁄₄x 4⁷⁄₈ (32 mm x 124mm)

(30 mm, 35mm) ANSI

10-026 1¹⁄₈1⁵⁄₈x 2¹⁄₄ (41 mm x 57 mm)

(29 mm) Full lip, square corner

1¹⁄₈1⁵⁄₈x 2¹⁄₄ (41 mm x 57 mm)

10-027 (29 mm) Full lip, ¹⁄₄ (6 mm) radius,

round corner

K510-066 — Box, ANSI

T-Strike – Standard

10-001

1¹⁄₈x 2³⁄₄x ³⁄₃₂

(29 mm x 70mm x 2 mm)

ANSI Strike

10-025

1¹⁄₄x 4⁷⁄₈x ³⁄₃₂

(32 mm x 124mm x 2 mm)

10-026 10-027

Door Handing

Hand information is necessary for Flair design and to ensure

proper finish of latchbolt and strike for split finish locks that are

to be installed on reverse bevel doors. Follow the diagram to cor-

rectly determine the hand of the door.

LH

Left Hand INSIDE

OUTSIDE

OUTSIDE

INSIDE

LRB

Left Hand

Reverse Bevel

RH

Right Hand

RRB

Right Hand

Reverse Bevel

8

SERIES

S

9

SERIES

S

Note: Schlage order forms are available at no charge by contacting your IR Security & Safety Consultant or Customer Service.

Line Outside Inside Dr

Item Des Fin Des Fin Thk

1 100 S51PD SAT 605 16-132 KA4

2 100 S51LD SAT 605 16-203

3 100 20-724 606 1AA-100AA

Product

Qty Latch

Hand Strike Additional Details

Dim

EXAMPLE

How to Order

To order Schlage products, descriptive data should be in the same sequence as shown.

Line Outside Inside DR

Item Des Fin Des Fin Thk

12 3 45678 9 10 1112 13

Product

Qty Latch

Hand Strike Additional Details

Dim

1Line item number

2Quantity

3Complete model number with function and cylinder type

4 / 5 Outside design / finish.

6 / 7 Inside design / finish. Leave blank if same as outside.

8 Hand

9 Latch. Leave blank for standard or specify part number for optional latch. LLL=Less Latch.

10 Strike. Leave blank for standard or specify part number for optional strike. LLL=Less Strike.

11 Door thickness, if non-standard. Example: 200 = 2.

12 Dimension for strike lip lengths. See strike page for availability of specific dimensions with specific strikes.

100 = 1

118 = 1⅛

114 = 1¼

138 = 1⅜

112 = 1½

134 = 1¾

200 = 2

13 Keying detail (e.g. key symbol, keyway, bitting) and other special requirements.

To order cylinder options, change “PD” at the end of the model number as follows:

S51PD Standard

S51LD Less standard cylinder (For Primus cylinder, specify this option and order Primus cylinder separately.)

S51JD Prepared for full size interchangeable core, less core

S51RD With full size conventional interchangeable core installed. Order control keys separately.

S51TD With full size (temporary) construction core installed. Order all keys separately.

Administrative Offices

1915 Jamboree Drive, Suite 165

Colorado Springs, CO 80920

(719) 264-5300

FAX (719) 264-5382

Commercial Customer Service

1915 Jamboree Drive, Suite 165

Colorado Springs, CO 80920

(800) 847-1864

FAX (800) 452-0663

Order Entry

FAX (800) 452-0665

International Division

Ingersoll-Rand Architectural Hardware

1076 Lakeshore Road East

Mississauga, Ontario, L5E 1E4, Canada

(905) 278-6128

FAX (905) 278-1413

Internet

http://www.schlage.com

Fax-On-Demand

(888) 321-3228

Copyright © 2003 Ingersoll-Rand MS-M/S1 Rev. 01/03 Printed in USA

IR Security & Safety Americas

111 Congressional Boulevard

STE 200

Carmel, IN 46032

800-847-1864

800-452-0663 Fax

www.irsecurityandsafety.com
