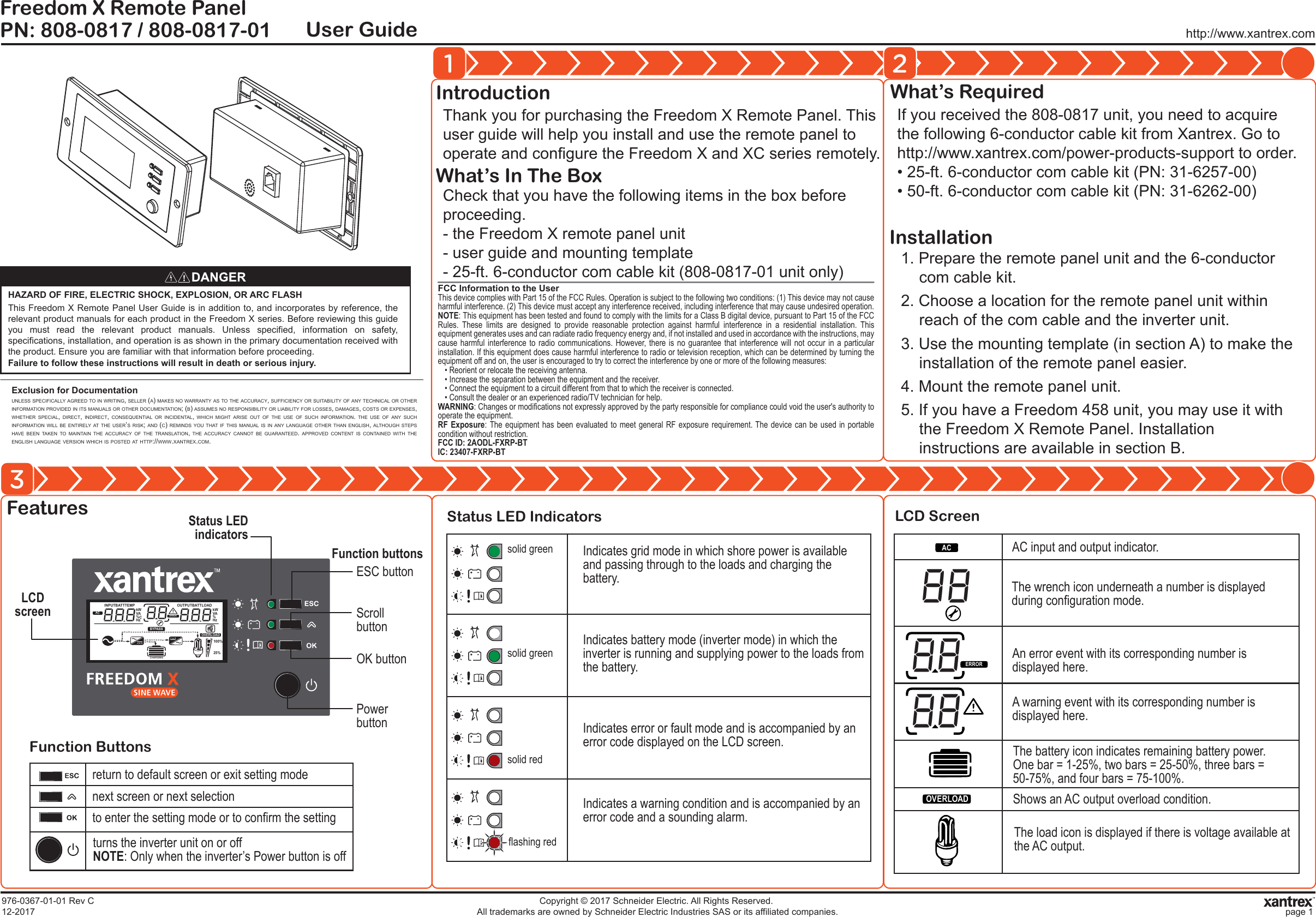

http://www.xantrex.comPN: 808-0817 / 808-0817-01Freedom X Remote PanelUser GuideHAZARD OF FIRE, ELECTRIC SHOCK, EXPLOSION, OR ARC FLASHThis Freedom X Remote Panel User Guide is in addition to, and incorporates by reference, the relevant product manuals for each product in the Freedom X series. Before reviewing this guide you must read the relevant product manuals. Unless specified, information on safety, specifications, installation, and operation is as shown in the primary documentation received with the product. Ensure you are familiar with that information before proceeding.Failure to follow these instructions will result in death or serious injury.1 23Exclusion for DocumentationUNLESS SPECIFICALLY AGREED TO IN WRITING, SELLER (A) MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY TECHNICAL OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION; (B) ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR EXPENSES, WHETHER SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE USE OF SUCH INFORMATION. THE USE OF ANY SUCH INFORMATION WILL BE ENTIRELY AT THE USER’S RISK; AND (C) REMINDS YOU THAT IF THIS MANUAL IS IN ANY LANGUAGE OTHER THAN ENGLISH, ALTHOUGH STEPS HAVE BEEN TAKEN TO MAINTAIN THE ACCURACY OF THE TRANSLATION, THE ACCURACY CANNOT BE GUARANTEED. APPROVED CONTENT IS CONTAINED WITH THE ENGLISH LANGUAGE VERSION WHICH IS POSTED AT HTTP://WWW.XANTREX.COM.Thank you for purchasing the Freedom X Remote Panel. This user guide will help you install and use the remote panel to operate and configure the Freedom X and XC series remotely.IntroductionCheck that you have the following items in the box before proceeding.- the Freedom X remote panel unit- user guide and mounting template- 25-ft. 6-conductor com cable kit (808-0817-01 unit only)What’s In The BoxIf you received the 808-0817 unit, you need to acquire the following 6-conductor cable kit from Xantrex. Go to http://www.xantrex.com/power-products-support to order.• 25-ft. 6-conductor com cable kit (PN: 31-6257-00)• 50-ft. 6-conductor com cable kit (PN: 31-6262-00)What’s RequiredFeaturesFunction ButtonsStatus LED Indicators LCD Screen1. Prepare the remote panel unit and the 6-conductor com cable kit.2. Choose a location for the remote panel unit within reach of the com cable and the inverter unit.3. Use the mounting template (in section A) to make the installation of the remote panel easier.4. Mount the remote panel unit.5. If you have a Freedom 458 unit, you may use it with the Freedom X Remote Panel. Installation instructions are available in section B.Installation976-0367-01-01 Rev C12-2017Copyright © 2017 Schneider Electric. All Rights Reserved. All trademarks are owned by Schneider Electric Industries SAS or its affiliated companies. page 1LCDscreenOUTPUTBATTLOADkW100%25%HzVA%kWHzVA%CINPUTBATTTEMPACBYPASSERROROVERLOADCHARGING Status LED indicatorsPower buttonESC buttonScroll buttonOK buttonreturn to default screen or exit setting modenext screen or next selectionto enter the setting mode or to confirm the settingturns the inverter unit on or offNOTE: Only when the inverter’s Power button is offFunction buttons Indicates grid mode in which shore power is available and passing through to the loads and charging the battery.Indicates battery mode (inverter mode) in which the inverter is running and supplying power to the loads from the battery.Indicates error or fault mode and is accompanied by an error code displayed on the LCD screen.Indicates a warning condition and is accompanied by an error code and a sounding alarm.solid greensolid greensolid redflashing redACERROROVERLOADAC input and output indicator.The wrench icon underneath a number is displayed during configuration mode.An error event with its corresponding number is displayed here.A warning event with its corresponding number is displayed here.The battery icon indicates remaining battery power. One bar = 1-25%, two bars = 25-50%, three bars = 50-75%, and four bars = 75-100%.Shows an AC output overload condition.The load icon is displayed if there is voltage available at the AC output.FCC Information to the UserThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and the receiver.• Connect the equipment to a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.RF Exposure: The equipment has been evaluated to meet general RF exposure requirement. The device can be used in portable condition without restriction.FCC ID: 2AODL-FXRP-BTIC: 23407-FXRP-BT

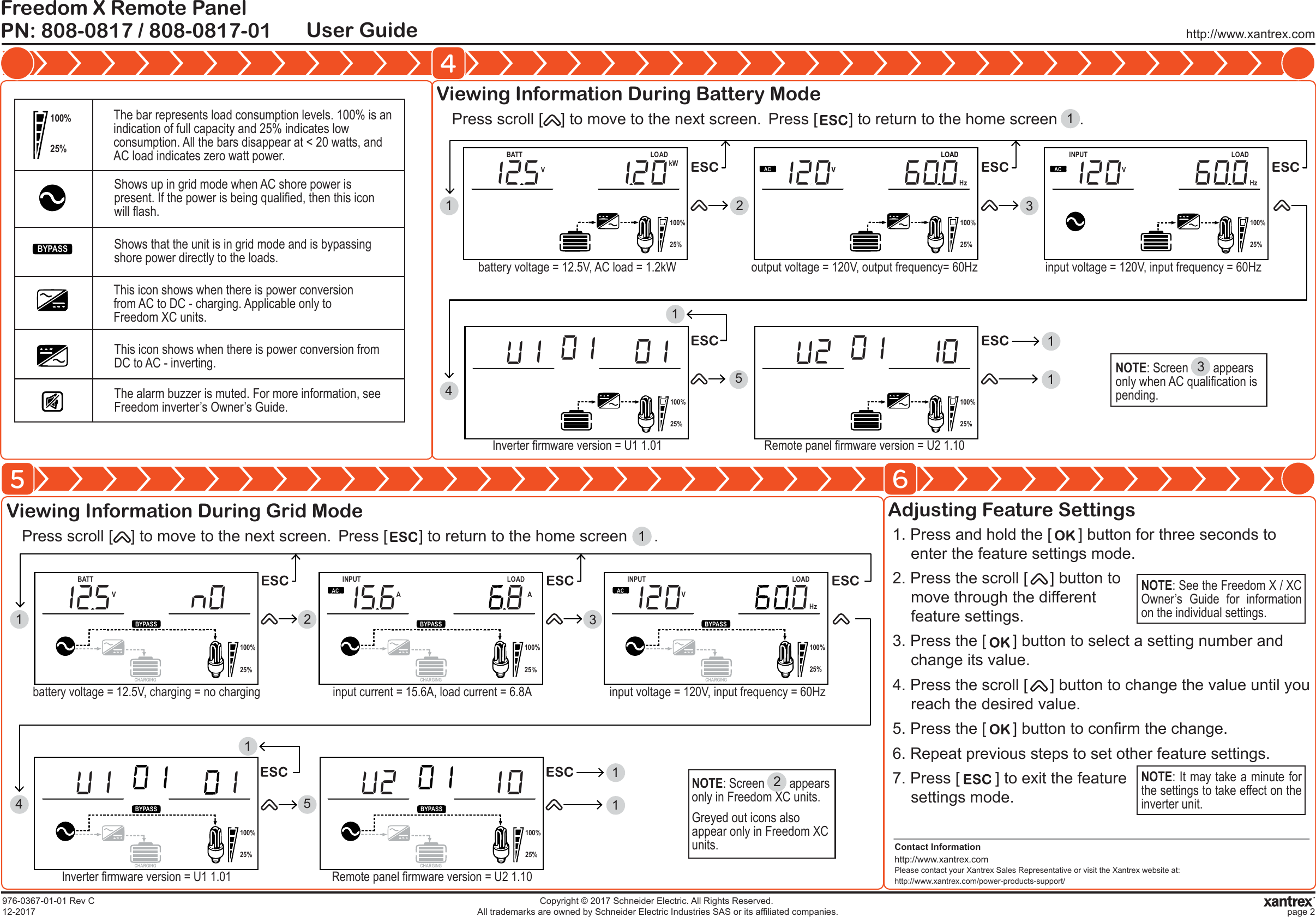

Viewing Information During Battery ModeContact Informationhttp://www.xantrex.comPlease contact your Xantrex Sales Representative or visit the Xantrex website at:http://www.xantrex.com/power-products-support/http://www.xantrex.comPN: 808-0817 / 808-0817-01Freedom X Remote PanelUser Guide45 6976-0367-01-01 Rev C12-2017Copyright © 2017 Schneider Electric. All Rights Reserved. All trademarks are owned by Schneider Electric Industries SAS or its affiliated companies. page 2The bar represents load consumption levels. 100% is an indication of full capacity and 25% indicates low consumption. All the bars disappear at < 20 watts, and AC load indicates zero watt power.Shows up in grid mode when AC shore power is present. If the power is being qualified, then this icon will flash.Shows that the unit is in grid mode and is bypassing shore power directly to the loads.This icon shows when there is power conversion from AC to DC - charging. Applicable only to Freedom XC units.This icon shows when there is power conversion from DC to AC - inverting.The alarm buzzer is muted. For more information, see Freedom inverter’s Owner’s Guide.100%25%BYPASSPress scroll [ ] to move to the next screen. Press [ ] to return to the home screen .1Viewing Information During Grid Mode Adjusting Feature SettingsPress scroll [ ] to move to the next screen. Press [ ] to return to the home screen .1INPUTBATTTEMPVA OUTPUTBATTLOADkW100%25%INPUTBATTTEMPVA OUTPUTBATTLOAD100%25%AC VOUTPUTBATTLOADHzAC INPUTBATTTEMPV OUTPUTBATTLOADHz100%25%BATTTEMPOUTPUTBATT100%25%15234BATTTEMPOUTPUTBATT100%25%11battery voltage = 12.5V, AC load = 1.2kW output voltage = 120V, output frequency= 60HzInverter firmware version = U1 1.01 Remote panel firmware version = U2 1.10input voltage = 120V, input frequency = 60Hz11. Press and hold the [ ] button for three seconds to enter the feature settings mode.2. Press the scroll [ ] button to move through the differentfeature settings.3. Press the [ ] button to select a setting number and change its value.4. Press the scroll [ ] button to change the value until you reach the desired value.5. Press the [ ] button to confirm the change.6. Repeat previous steps to set other feature settings.7. Press [ ] to exit the feature settings mode. NOTE: See the Freedom X / XC Owner’s Guide for information on the individual settings.NOTE: It may take a minute for the settings to take effect on the inverter unit.3NOTE: Screen appears only when AC qualification is pending.2NOTE: Screen appears only in Freedom XC units.Greyed out icons also appear only in Freedom XC units.100%25%BYPASSBATTV 100%25%BYPASSINPUTALOADAAC100%25%BYPASSINPUTVLOADHzAC100%25%BYPASS 100%25%BYPASS 23514111battery voltage = 12.5V, charging = no charging input current = 15.6A, load current = 6.8AInverter firmware version = U1 1.01 Remote panel firmware version = U2 1.10input voltage = 120V, input frequency = 60HzCHARGING CHARGINGCHARGING CHARGINGCHARGING

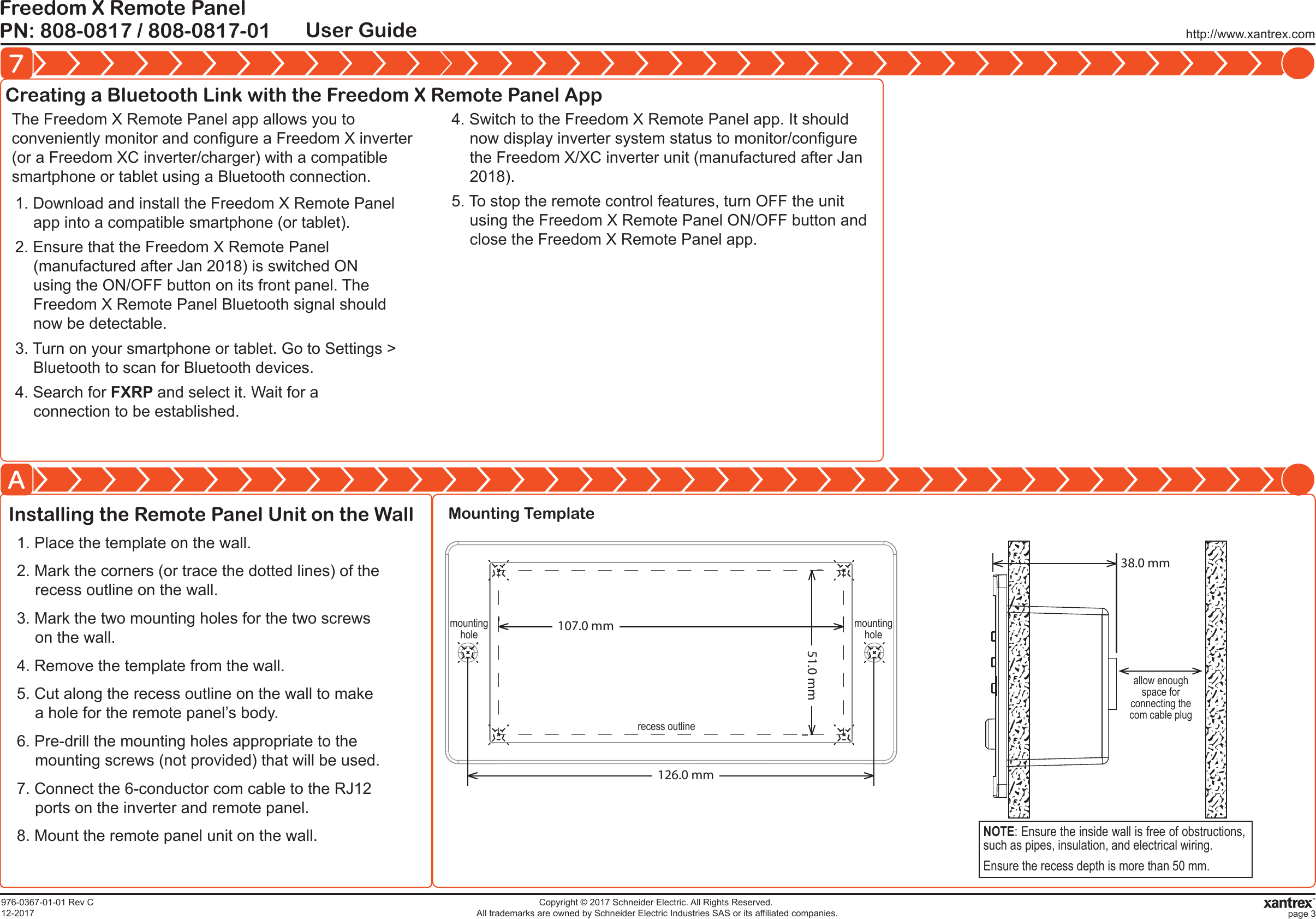

Installing the Remote Panel Unit on the Wallhttp://www.xantrex.comPN: 808-0817 / 808-0817-01Freedom X Remote PanelUser Guide7A976-0367-01-01 Rev C12-2017Copyright © 2017 Schneider Electric. All Rights Reserved. All trademarks are owned by Schneider Electric Industries SAS or its affiliated companies. page 3Creating a Bluetooth Link with the Freedom X Remote Panel App1. Download and install the Freedom X Remote Panel app into a compatible smartphone (or tablet).2. Ensure that the Freedom X Remote Panel (manufactured after Jan 2018) is switched ON using the ON/OFF button on its front panel. The Freedom X Remote Panel Bluetooth signal should now be detectable.3. Turn on your smartphone or tablet. Go to Settings > Bluetooth to scan for Bluetooth devices.4. Search for FXRP and select it. Wait for a connection to be established.The Freedom X Remote Panel app allows you to conveniently monitor and configure a Freedom X inverter (or a Freedom XC inverter/charger) with a compatible smartphone or tablet using a Bluetooth connection.4. Switch to the Freedom X Remote Panel app. It should now display inverter system status to monitor/configure the Freedom X/XC inverter unit (manufactured after Jan 2018).5. To stop the remote control features, turn OFF the unit using the Freedom X Remote Panel ON/OFF button and close the Freedom X Remote Panel app.1. Place the template on the wall.2. Mark the corners (or trace the dotted lines) of the recess outline on the wall.3. Mark the two mounting holes for the two screws on the wall.4. Remove the template from the wall.5. Cut along the recess outline on the wall to make a hole for the remote panel’s body.6. Pre-drill the mounting holes appropriate to the mounting screws (not provided) that will be used.7. Connect the 6-conductor com cable to the RJ12 ports on the inverter and remote panel.8. Mount the remote panel unit on the wall.recess outlinemountingholemountingholeMounting Template126.0 mm107.0 mm51.0 mmNOTE: Ensure the inside wall is free of obstructions, such as pipes, insulation, and electrical wiring.Ensure the recess depth is more than 50 mm.allow enough space for connecting the com cable plug38.0 mm

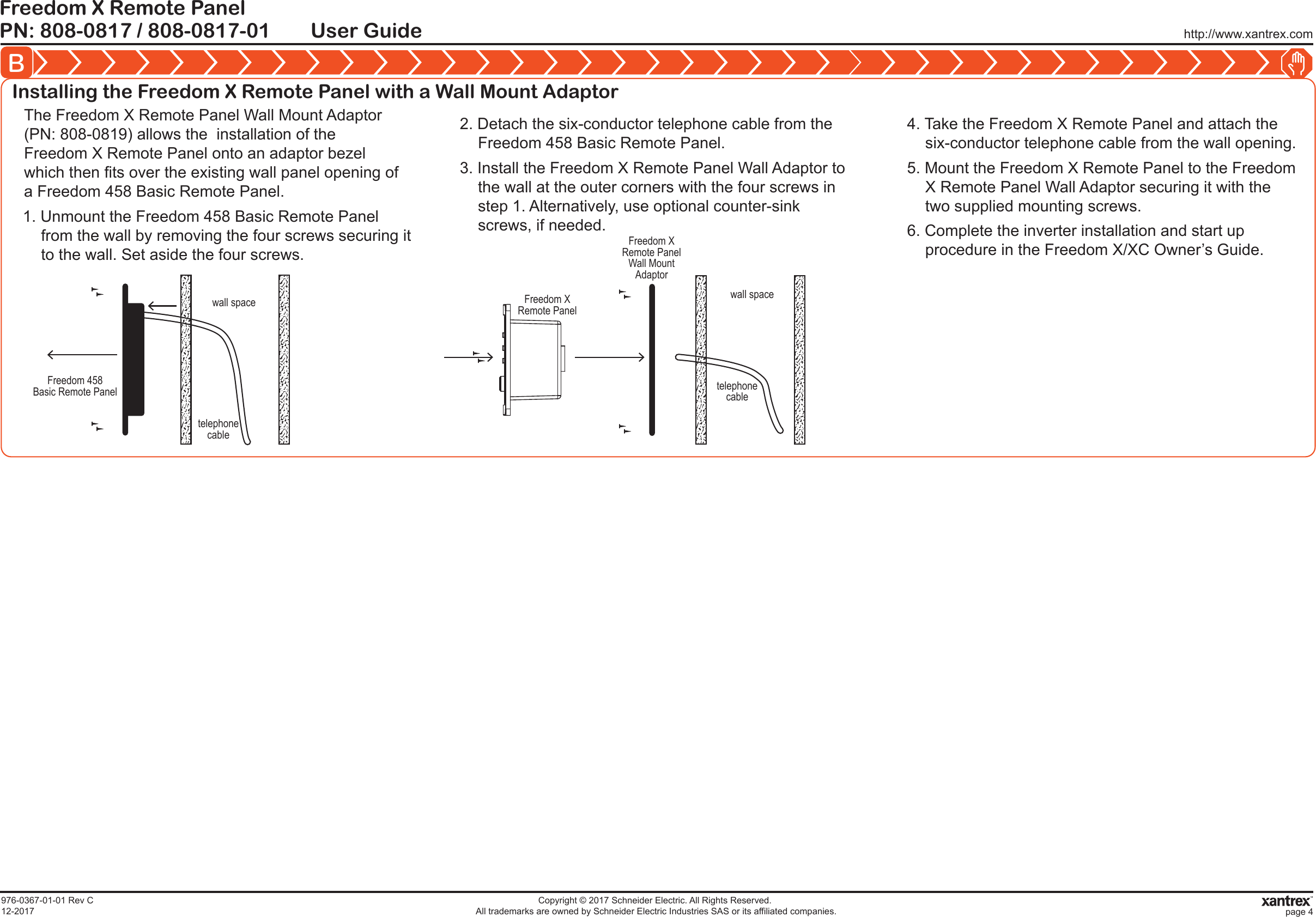

http://www.xantrex.comPN: 808-0817 / 808-0817-01Freedom X Remote PanelUser GuideB976-0367-01-01 Rev C12-2017Copyright © 2017 Schneider Electric. All Rights Reserved. All trademarks are owned by Schneider Electric Industries SAS or its affiliated companies. page 4Installing the Freedom X Remote Panel with a Wall Mount Adaptor1. Unmount the Freedom 458 Basic Remote Panel from the wall by removing the four screws securing it to the wall. Set aside the four screws.The Freedom X Remote Panel Wall Mount Adaptor (PN: 808-0819) allows the installation of the Freedom X Remote Panel onto an adaptor bezel which then fits over the existing wall panel opening of a Freedom 458 Basic Remote Panel.2. Detach the six-conductor telephone cable from the Freedom 458 Basic Remote Panel.3. Install the Freedom X Remote Panel Wall Adaptor to the wall at the outer corners with the four screws in step 1. Alternatively, use optional counter-sink screws, if needed.4. Take the Freedom X Remote Panel and attach the six-conductor telephone cable from the wall opening.5. Mount the Freedom X Remote Panel to the Freedom X Remote Panel Wall Adaptor securing it with the two supplied mounting screws.6. Complete the inverter installation and start up procedure in the Freedom X/XC Owner’s Guide.Freedom XRemote PanelFreedom XRemote PanelWall MountAdaptorwall spacetelephonecableFreedom 458Basic Remote Panelwall spacetelephonecable
