Schneider Electric Systems Canada 100250 2.4 GHz FHSS RF Module User Manual
Control Microsystems Inc. operating as Schneider Electric 2.4 GHz FHSS RF Module
Users Manual
Proprietary and Confidential Information of Control Microsystems Inc. Operating as Schneider Electric
2.4 GHz FHSS RF Module – User Manual and Installation
Model Number 100250
This product is a frequency hopping RF transceiver module for the 2400 to 2483.5 GHz ISM
band, designed to meet FCC 15.247, and is used in industrial control and monitoring
applications. It has the following certifications to operate as transceiver module in the
USA and in Canada.
FCC: OV7100250
IC: 1614A-100250
Installation Instructions
This module is factory installed by Control Microsystems Inc. Operating as Schneider Electric
into its own line of wireless products. There are two classes of products that use this module:
1) Products with integrated antenna – These products are 100% assembled at the
factory and no assembly is required by the end user.
2) Products with field-installed antenna – These products are shipped with a separate
antenna kit consisting of one of the high gain antennas and a coax cable.
Co-axial cables intended for Accutech field units will have an RPTNC connector at one
end and N-type connector at the other end. The RPTNC connector is accessible on the
exterior of the Accutech field unit housing. (i.e. connection is non-intrusive and does not
require opening the product) Connect the other end of the coax cable with an N-type
connector to the antenna.
Co-axial cables intended for Accutech base radios will have an RPSMA connector at one
end and N-type connector at the other end. Connect the coax cable with the RPSMA
connector end to the mating connector located at the center of the RF module. (i.e.
connection is non-intrusive and does not require opening the product) Connect the other
end of the coax cable with an N-type connector to the antenna.
Connectors
Note: This module will only be integrated into products designed and manufactured by
Control Microsystems Inc. Operating as Schneider Electric. As such there is no user manual
specific to this module other than the information contained in this document. The module has no
user settable options related to the wireless operation of the unit.
Proprietary and Confidential Information of Control Microsystems Inc. Operating as Schneider Electric
2.4 GHz RF Module
The module can be powered from an on-board 3.6V D-cell battery or from a DC
regulated supply (3.3 to 5V). This configuration is also determined by Control Microsystems Inc.
Operating as Schneider Electric.

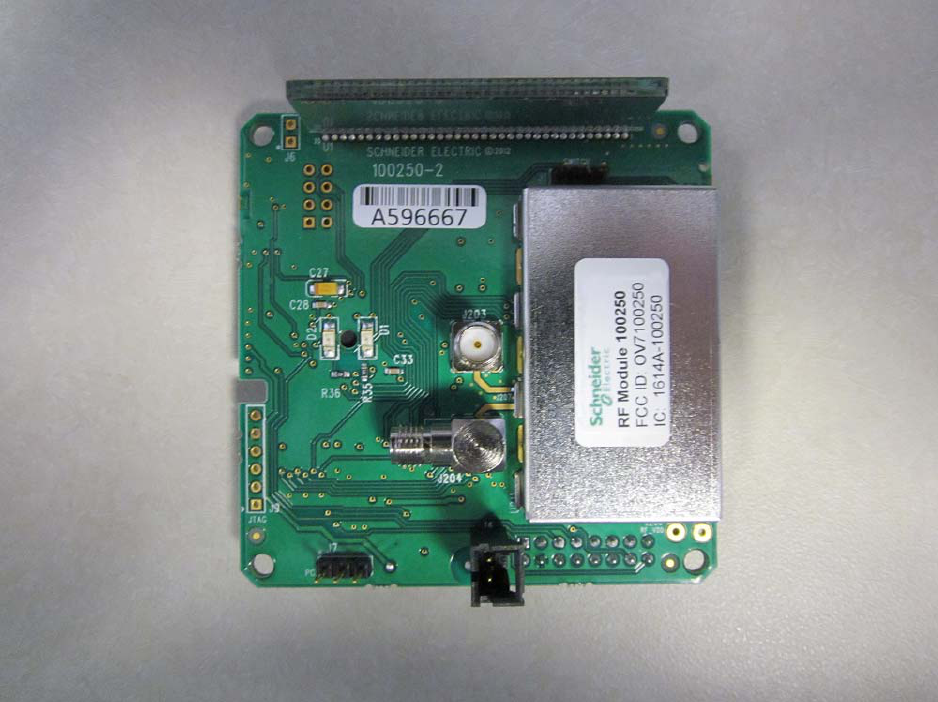

The module has a number of connectors. Most of these are used for internal testing and
integration of the module with other boards.
The connections are:
J1 3-pin connection for membrane switch
J203 Antenna connection
J204 External Antenna connection. Only applies to Accutech Field Units
J206 Digital connection to optional sensor or RS485 communication board
J4 Battery connection (if external power supply not used)
J6 Disable Watchdog
J7 3-pin serial connection for PC (for factory configuration and testing)
J9 JTAG connection (for factory programming)
J205 Currently not used. Digital connection to future sensor cards
J202 Currently not used. J202 was used as test header for radio development
2.4 GHz Antennas
This module is to be used with one of the following antennas or antennas of the same type and
lesser gain only:
- Control Microsystems Inc. Operating as Schneider Electric 307691AR 3.7 dBi omni-
directional antenna
- Nearson Inc. S131CL-6-PX-2450 2dBi 1/2Wave omni-directional antenna
- PCTel MFB24010 10dBi omni-directional antenna
- PCTel MYP24010PTNF 10 dBi Yagi antenna
- PCTel MYP24015PTNF 15 dBi Yagi antenna
The module is used in products designed and manufactured by Control Microsystems Inc.
Operating as Schneider Electric only. The product will be professionally installed as per the user
manual and installations will use the certified antennas.
Proprietary and Confidential Information of Control Microsystems Inc. Operating as Schneider Electric
Important Information to User
1. Changes or modifications not expressly approved by Control Microsystems Inc. Operating as
Schneider Electric could void the user’s authority to operate the equipment.
2. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
3. This device is for mobile and fixed use only (not portable or bodyworn). A separation
distance of 20cm must be maintained at all times between the antenna and the body of the
user and bodies of nearby persons.
IC regulatory warning statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Proprietary and Confidential Information of Control Microsystems Inc. Operating as Schneider Electric
Labels
A label displaying the FCC ID and the Industry Canada Certification Number is placed
on the top of the RF shield.
The housing of the product that uses this module also has the label referring to the enclosed
module as well as displaying the FCC part 15 compliance statement.
