Clipsal® RF Remote Control
SLC5888TXBD for Use With Clipsal® RF Wireless Control Systems
Instruction Bulletin
Retain for future use.
Clipsal® RF Remote Control 63249-420-278A3
Instruction Bulletin 02/2009
2 © 2009 Schneider Electric. All Rights Reserved.
NEW A5 HAZARD CATEGORIES AND SPECIAL SYMBOLS
Read these instructions carefully and look at the equipment to become
familiar with the device before trying to install, operate, service, or maintain it.
The following special messages may appear throughout this bulletin or on
the equipment to warn of potential hazards or to call attention to information
that clarifies or simplifies a procedure.
The addition of either symbol to a “Danger” or “Warning” safety label
indicates that an electrical hazard exists which will result in personal injury if
the instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential personal
injury hazards. Obey all safety messages that follow this symbol to avoid
possible injury or death.
Danger indicates an immediately hazardous situation which, if not
avoided, will result in death or serious injury.
Warning indicates a potentially hazardous situation which, if not
avoided, can result in death or serious injury.
Caution indicates a potentially hazardous situation which, if not
avoided, can result in minor or moderate injury.
NO
Caution, used without the safety alert symbol, indicates a
potentially hazardous situation which, if not avoided, can result in
property damage or improper operation.
NOTE: Provides additional information to clarify or simplify a procedure.
PLEASE NOTE
Electrical equipment should be installed, operated, serviced, and maintained
only by qualified personnel. This document is not intended as an instruction
manual for untrained persons. No responsibility is assumed by Square D for
any consequences arising out of the use of this manual.
63249-420-278A3 Clipsal® RF Remote Control
02/2009 Instruction Bulletin
© 2009 Schneider Electric. All Rights Reserved. 3
Class B FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this device that are not expressly
approved by Schneider Electric could void the user's authority to
operate this equipment.
Clipsal® RF Remote Control 63249-420-278A3
Instruction Bulletin 02/2009
4 © 2009 Schneider Electric. All Rights Reserved.
ABOUT THE RF WIRELESS REMOTE CONTROL
The Clipsal® RF Wireless Remote Control provides C-Bus™
protocol commands to control buttons on Clipsal RF wireless wall
units and plug adapter units.
It is a radio frequency (RF) remote control that works up to 49 to 70
feet (15 to 20 meters) from a unit it controls. Unlike an infrared
remote, which operates on line-of-sight, an RF remote signal cannot
be blocked by obstructions. The user can control the unit by pointing
the remote in any direction, including away from the unit.
Up to ten separate wall units or plug adapter buttons can be
controlled by the remote control unit. The buttons can be on various
units on different wireless networks. A single button on a wall unit or
plug adapter unit can be controlled by up to two RF remote controls.
About Clipsal® RF Wireless Systems
Clipsal® RF Wireless Wall Units include Switches, leading edge
Dimmers, and Scene Controllers. The units are designed to replace
standard wall switches and dimmers. Each Switch and Dimmer
controls one load (lights or other appliances connected to its output).
Wall Units can be operated by RF Wireless remote control, and
have learn and scene capability.
63249-420-278A3 Clipsal® RF Remote Control
02/2009 Instruction Bulletin
© 2009 Schneider Electric. All Rights Reserved. 5
Before You Begin
Before you begin to set up a unit, verify that your order is complete
by comparing the contents of the package with the appropriate items
in the table below. Also verify that the catalog number on the box
label matches your order.
Contents of the Box
Table 1: Contents of the Box
Part Number Description Quantity
RF Wireless Remote Control 1
AAA Batteries 2
Remote control holder 1
Screws 2
Wall anchors 2
SLC5888TXBD
Mounting pads 4
ATTACHING THE REMOTE CONTROL HOLDER
The Remote Control Holder can hold the RF Wireless Remote
Control and the SLC508xTX Series Infrared Remote Control.
Table 2: Remote Control Holder Dimensions
Parameter Description
Dimensions
(W x H x D) 2.2 x 4.3 x 1.3 in. (55 mm x 108 mm x 32 mm)
Mounting
centers 2.2 to 2.4 in. (55 mm to 60 mm)
Mounting
screw size 0.1 x 0.8 in. (3.5 mm x 20 mm)
Wall anchor 0.3 x 1.0 in. (7 mm x 25 mm)
Weight 0.06lbs (28 g)
Clipsal® RF Remote Control 63249-420-278A3
Instruction Bulletin 02/2009
6 © 2009 Schneider Electric. All Rights Reserved.

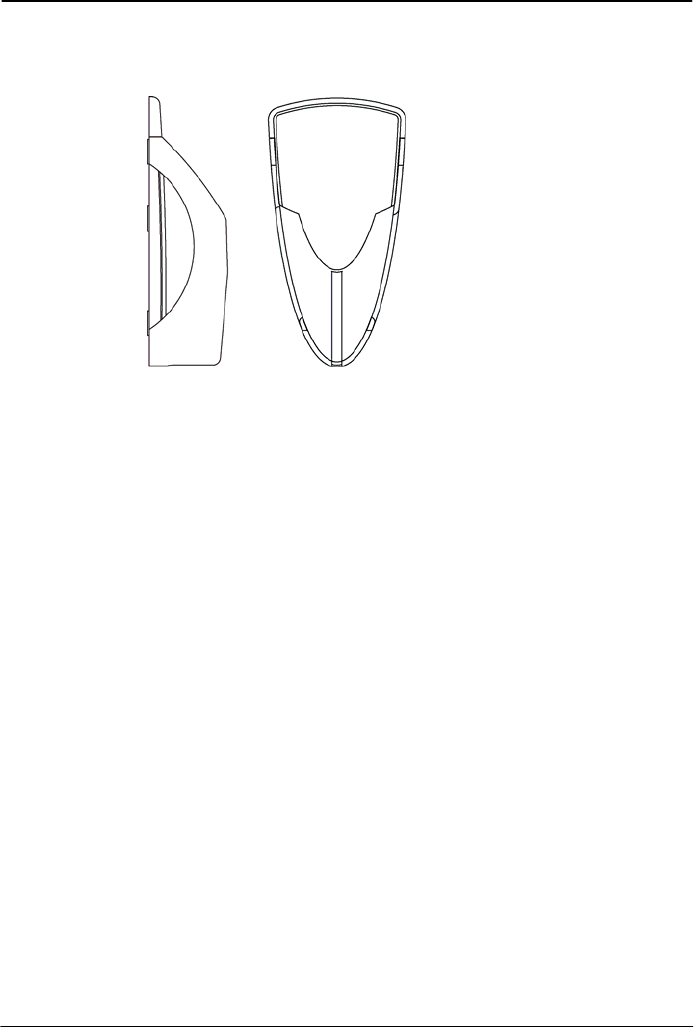

Figure 1: Side and Front View of the Remote Control Holder
The Remote Control Holder is fixed to a surface using screws or
double-sided adhesive mounting pads.
To attach the holder using mounting pads:
1. Peel off the backings from of one side of the mounting pads.
2. Stick the four mounting pads along the "T" on the back of the
holder.
3. Peel off the backings from the other side of the mounting pads
and press the holder firmly against the wall.
To attach the holder with screws:
1. Gently push the sides of the holder out to remove the cradle
section. Refer to the "Removing the Cradle Section" figure.
2. Place one hand on each end of the holder's base. Gently bend
the base until the T section pops out. Refer to the "Removing the
'T' Section" figure.
63249-420-278A3 Clipsal® RF Remote Control
02/2009 Instruction Bulletin
© 2009 Schneider Electric. All Rights Reserved. 7

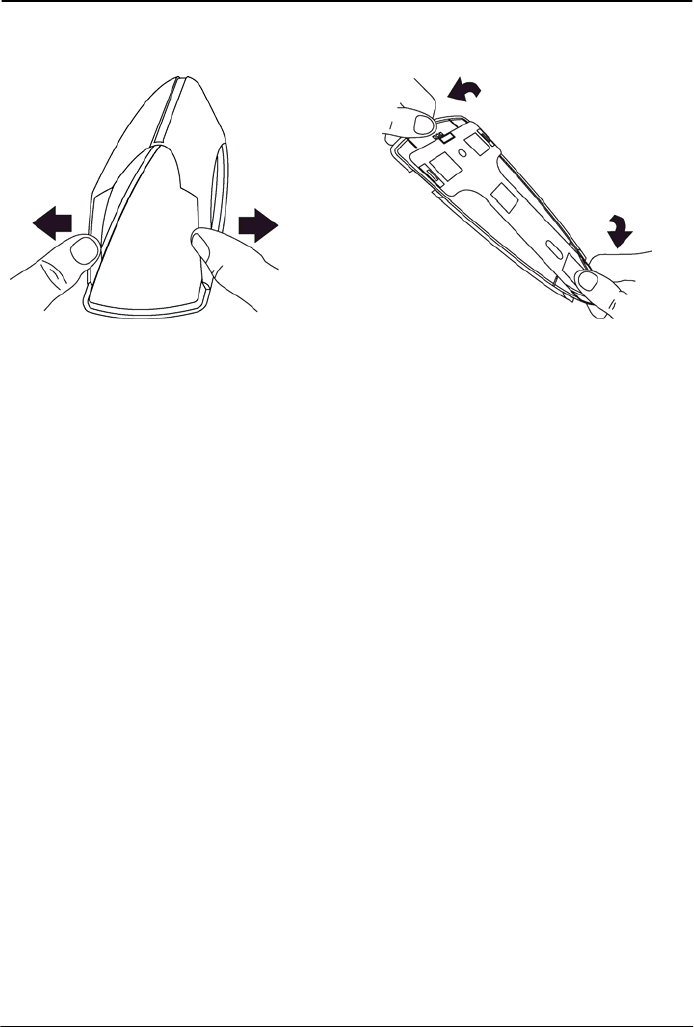

Figure 2: Removing the Cradle Section
Figure 3: Removing the 'T' Section
3. Hold the T section against the mounting surface and use a pencil
to mark the position of the holes on the mounting surface.
4. Drill the holes. (Use a 2mm drill bit for wood, or use a 6.5mm
masonry bit when using wall plugs.)
5. Insert the wall plugs (if used). Place the T section against the
mounting surface with the countersunk side visible. Screw the T
section to the surface.
6. Press the remaining base section onto the T section until it
snaps into place.
7. Place the cradle section against the mounting surface (just
below the base). Slide the cradle up so that the bottoms of the
cradle and base sections meet. Push the sides of the cradle
section so they snap into the base.
Clipsal® RF Remote Control 63249-420-278A3
Instruction Bulletin 02/2009
8 © 2009 Schneider Electric. All Rights Reserved.
REMOTE CONTROL BUTTONS
Remote controls have 5 control buttons. Each control button has two
functions. Switch between functions by pressing the Shift button.
Press the control button of the device, or load to change. Use the Up
and Down buttons to adjust the load level.
Use the "All Off" button to switch off every unit that has been
associated with the remote control.

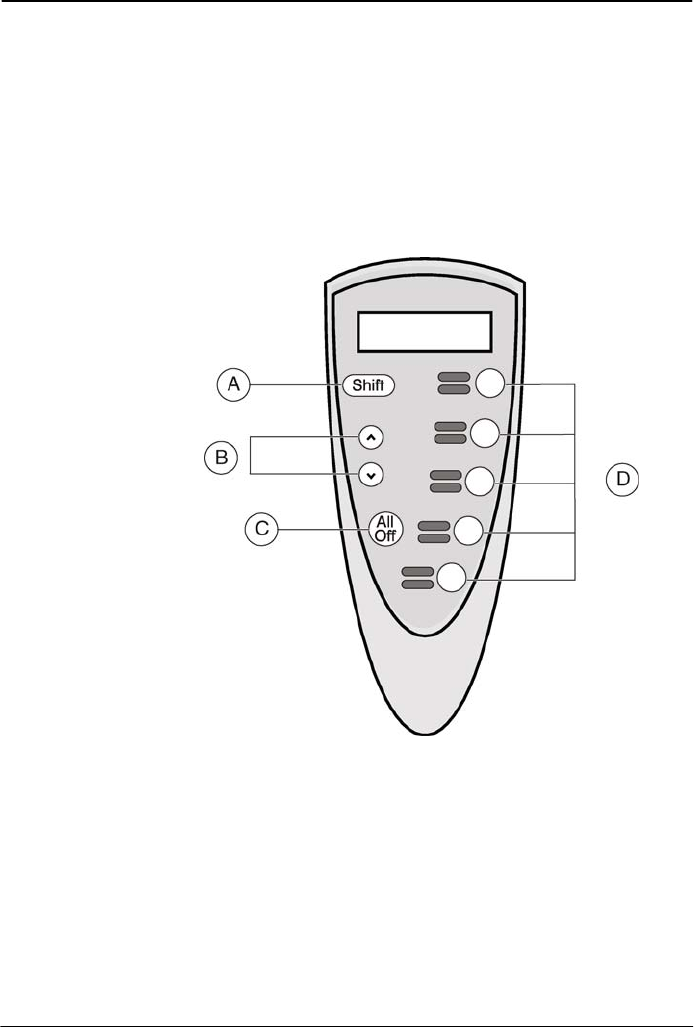

Figure 4: Button Layout
KEY:
A. Shift button:
alternates between the
two functions of a
control button
B. Up and Down
buttons elevate and
dim light or load levels
C. All Off
D. Control buttons
63249-420-278A3 Clipsal® RF Remote Control
02/2009 Instruction Bulletin
© 2009 Schneider Electric. All Rights Reserved. 9
INSTALLING THE BATTERIES
To install the 2 x AAA batteries provided:
1. On the back of the remote, press the tab and slide the back
cover down to release.
2. Insert the batteries. Verify that the positive and negative
terminals match the symbols inside the battery compartment.
3. Replace the back cover by positioning the cover and sliding it up.

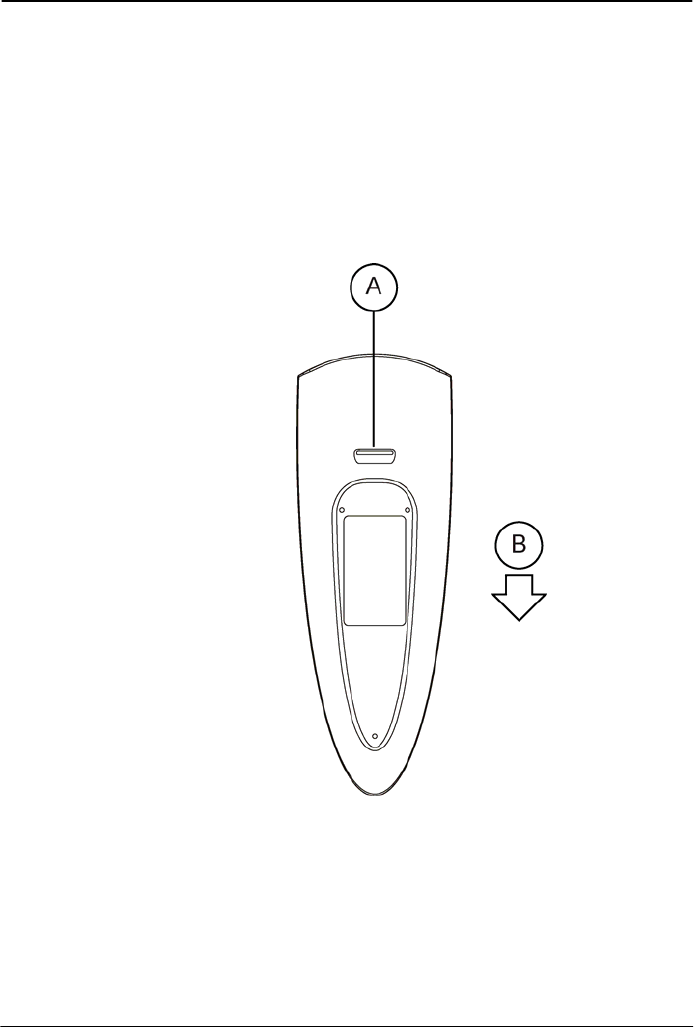

Figure 5: Removing the Back Cover
KEY:
A. Press the tab to
release the back cover
B. Slide down
Clipsal® RF Remote Control 63249-420-278A3
Instruction Bulletin 02/2009
10 © 2009 Schneider Electric. All Rights Reserved.
Battery Tips and Precautions
Use new AAA batteries and verify that all batteries are the same
type.
Keep batteries out of the reach of children.
Verify that the positive (+) and negative (–) battery polarities line
up with the battery-case polarities.
Replace batteries that have been in use two or more years.
Recycle or properly dispose of used batteries.
Try changing the batteries if your remote does not control units.
The remote’s range decreases when the batteries’ power is low.
NOTE: The Remote Control will not lose programmed data when
the batteries are replaced.
FIRE OR CHEMICAL HAZARD
The batteries used in this unit may present a risk of fire or chemical
burn if not handled properly.
Do not recharge, disassemble, heat above 212 °F (100 °C), or
incinerate.
Recycle or properly dispose of used batteries.
Replace with identical type.
Follow all battery manufacturers' instructions.
Failure to follow these instructions can result in injury or
equipment damage.
63249-420-278A3 Clipsal® RF Remote Control
02/2009 Instruction Bulletin
© 2009 Schneider Electric. All Rights Reserved. 11
PROGRAMMING THE REMOTE
Follow the guidelines below to make the Remote Control functional.
Program C-Bus Wireless units to recognize the remote's buttons.
Program the remote, wall units, and plug adapter units using
learn mode.
Learn mode is activated on the remote by removing the back cover
(see the "Installing the Batteries" section to removing the back
cover), and sliding the switch up to the Learn position. Refer to the
steps below to activate learn mode.
Use the following procedure to assign a button on the remote to a
button on a C-Bus Wireless wall unit or plug adapter unit:
NOTE: Assigning a button on the remote to a button on a C-Bus
Wireless unit does not unlearn previous assignments to other units.
To do this, follow the instructions in the "Clearing Remote
Assignments" section.

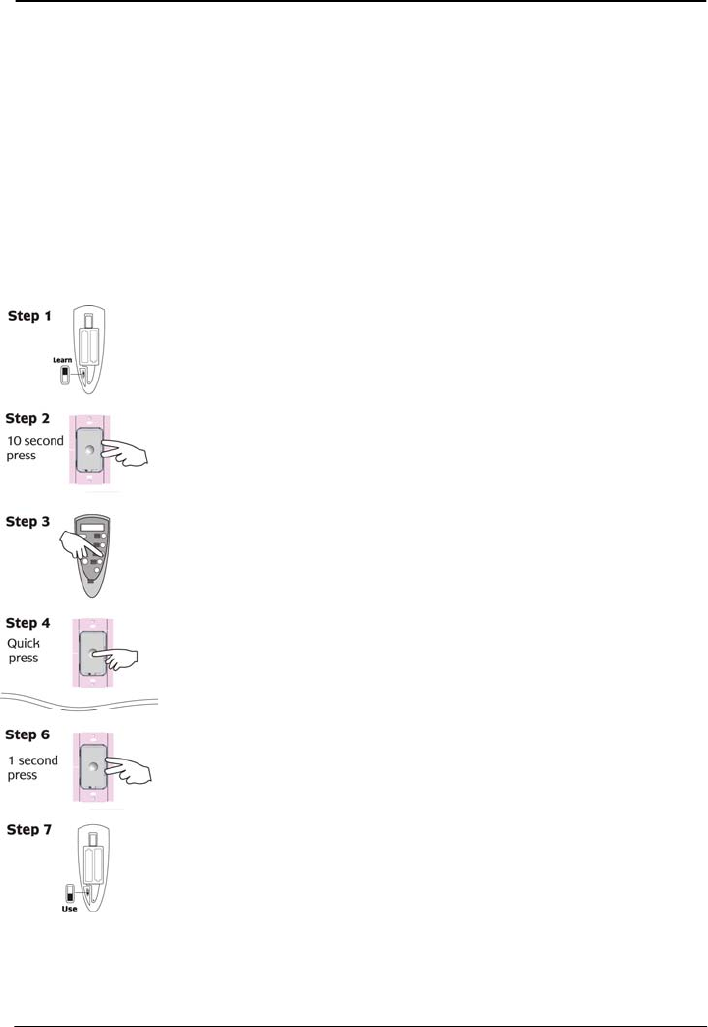

1. Set the C-Bus Wireless RF Remote Control to learn mode by
sliding the switch across to the Learn position. A book icon is
displayed on the remote's screen when learn mode is activated.
2. On the wall unit, press the Learn button to activate learn mode.
3. On the remote, press the button you want to assign. The
indicator lights on the remote will flash.
4. Quickly press the button on the wall unit you want the remote to
control (within 30 seconds of pressing the remote button while
the indicator lights are flashing).
NOTE: All units on the network will enter Learn mode at this
time.
5. Repeat steps 3 and 4 to program additional buttons.
6. When you have finished programming remote buttons, press the
learn button on the wall unit to exit learn mode.
7. Slide the learn mode switch on the back to the Use position.
Clipsal® RF Remote Control 63249-420-278A3
Instruction Bulletin 02/2009
12 © 2009 Schneider Electric. All Rights Reserved.
CLEARING REMOTE ASSIGNMENTS
To clear an individual remote assignment learned by a specific
button on a wall unit or plug adapter unit, reassign the same remote
button to the wall unit or plug adapter button. Assigning a button
once programs it. Assigning it again clears it.
To clear all remote assignments (from all remote controls) learned
by an individual wall unit or plug adapter unit:
1. Set the C-Bus Wireless Remote Control to learn mode by sliding
the switch across to the Learn position.
2. On the wall unit or plug adapter unit, press the learn button to
activate learn mode.
3. Press one of the five assignable buttons on the right side of the
remote control.
4. Press twice one of the buttons on the wall unit or plug adapter
unit.
5. Wait until the indicator lights return to a slow alternating flash.
Then press the learn button on the wall unit or plug adapter to
exit learn mode.
6. Slide the learn mode switch on the back to the Use position.
CARE AND CLEANING INSTRUCTIONS
Follow the precautions below to properly clean and care for the unit.
Clean regularly using a soft lint free cloth.
Only use a mild, non-abrasive cleaner such as window cleaner
lightly sprayed onto the lint free cloth to clean the unit.
Ensure hands are dry and clean before operating the unit.
Only use non-abrasive objects to operate the unit. Hard, sharp
objects may cause damage.
Leave the unit uncovered to allow adequate ventilation.
Only use the unit indoors.
Properly shade the unit so that it is not exposed to direct sunlight
for extended periods.
63249-420-278A3 Clipsal® RF Remote Control
02/2009 Instruction Bulletin
© 2009 Schneider Electric. All Rights Reserved. 13
SPECIFICATIONS
Parameter Description
Supply voltage 2 x AAA, batteries
Radio frequency 916 MHz
Transmitting power 10 mW
Typical range (range depends
on building construction and
the proximity to dense or
metallic objects)
Wood frame / brick veneer construction
49 to 66 feet (15 to 20 m)
Brick, stone, or steel frame construction
33 to 49 feet (10 to 15 m)
Steel reinforced concrete construction
16 to 33 feet (5 to 10 m)
Maximum range (open air) 164 feet (50 m)
Operating temperature range 32 to 104 °F (0 to 40 °C)
Operating humidity range 10 to 95% RH
Clipsal® RF Remote Control 63249-420-278A3
Instruction Bulletin 02/2009
14 © 2009 Schneider Electric. All Rights Reserved.
DIMENSIONS
STANDARDS
The Remote Control complies with the following Standards:
Table3: U.S. and Canadian Product Safety Standards and U.S.
FCC Regulations
Standards/Regulations Title
FCC Part 15 Class B Digital Device for Home or Office Use
Clipsal® RF Remote Control
Instruction Bulletin
Schneider Electric, USA
320 Tech Park Drive, Suite 100
La Vergne, TN, 37086
1-888-SquareD (1-888-778-2733)
www.squaredlightingcontrol.com
Square D, , Clipsal, C-Bus, Saturn and Neo are trademarks or
registered trademarks of Schneider Electric and/or its affiliates in the
United States and/or other countries.
Electrical equipment should be installed, operated, serviced, and
maintained only by qualified personnel. No responsibility is assumed by
Schneider Electric for any consequences arising out of the use of this
material.
© 2008 Schneider Electric. All Rights Reserved.
63249-420-278A3 02/2009
SUPPORT AND SERVICE
Contact the Square D Customer Information Center for technical
support by phone at 1-888-Square D (1-888-778-2733) or e-mail at
lightingcontrol.support@us.schneider-electric.com.
Contact your local Square D service representative or Clipsal®
certified installer for repairs or service to your network.
You may also find helpful information on our web site at
www.squaredlightingcontrol.com.
