USER MANUAL
Package contains
a. Bluetooth/wireless headset
b. USB charging cable
c. Replacement ear tips
d. User manual
BT102 Wireless Earbuds

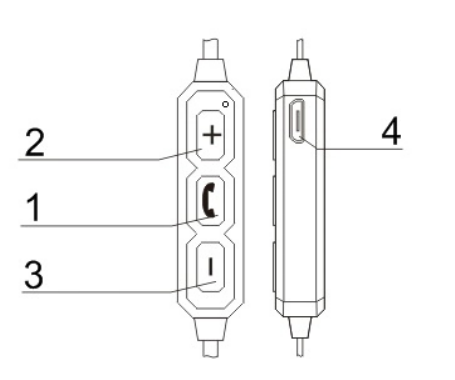

Control
1. Multifunctional Button(MFB)
Answer/hang up/reject / redial, play/pause music, power on/off
2.”+” Next song/Volume up“+”
3.”- “Previous song/Volume down“-”
4. Micro USB charging portMicro USB
Turn on/off and reconnect
1. When the headset is power off, press the (MFB) key for about
3-4 seconds until the blue and red light flash alternately. (Voice:
The Bluetooth device is ready to pair). The Bluetooth headset
will automatically connect to the device connected last time
after you turn on the headset. ( Blue light flashes 1 time per
second).
2. When the power is on, press and hold the (MFB) key 5-6
seconds until the red light flash 1 second. (Voice: Power off)
Pair the headset with a compatible phone
1. When the headset is power off, press the (MFB) key for about
3-4 seconds until the blue and red light flash alternately. (Voice:
The Bluetooth device is ready to pair)
2. Set the cell phone to search for Bluetooth devices, connect
“Scosche BT102” device.
3. If the pairing is successful, the headset’s blue light will flash
every 1 second. (Voice: Bluetooth connected)
4. If pass code is requested by the cell phone, enter 0000 once
the headset has paired with your device.
Volume control
Adjust volume: Momentarily press the “+” key to increase
volume and momentarily press the “-” key to decrease volume.
(When the volume is maximum or minimum, the headset will
beep twice)
Music control
1. Next song: press and hold the “+” key.
2. Previous song: press and hold the “-” key
3. Play/pause music: Momentarily press the (MFB) key while the
music is playing1.
Answer/hang up/reject/redial a call
1. To answer or hang up a call: Press the (MFB) key, or use the
phone keys.(music will automatically pause during phone call)
2. To reject a call: Press the (MFB) button twice quickly, or use
the phone keys.
3. To redial the last phone number dialed out: Press the (MFB)
button twice quickly.
Charge the battery
This headset has an internal rechargeable battery
1. When the battery low the red light flashes 1 time every 3
seconds.
2. Connect the charging cable to the Micro USB charging port
on the headset.
3. Connect the headset cable to a USB power source. The red
light will be on during charging. If charging does not start,
disconnect the charger, plug it in again, and retry. Charging the
battery fully may take up to 2~3 hours.
4. When the battery is fully charged, the red light will turn blue.
Disconnect the charger from the USB power source and the
headset.
5. If the headset has not been used for a long time, you will need
to charge it for about 30 minutes (the red light flashes 1 time per
second), then the red light will be on to indicate charging.
FCC Statement
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions (1)this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IC Statement
This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference
that may cause undesired operation of the device.
The term “IC: “ before the certification/registration number only signifies
that the Industry Canada technical specifications were met. This product
meets the applicable Industry Canada technical specifications.
Le présent appareil est conforme aux CNR d'Industrie Canada applicable aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage,
et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement
