Scosche BTHP Bluetooth Headphones User Manual UBHP pmd

Scosche Industries Inc Bluetooth Headphones UBHP pmd

User Manual

UBHP
UNIVERSAL WIRELESS
BLUETOOTH ® HEADPHONE
OVERVIEW
©2006 SCOSCHE INDUSTRIES, INC.
OXNARD, CA 93033
300UBHP 8/06 Rev B
If you have any further questions, all our TOLL-FREE number:
TECHNICAL HELP line 1-800-621-3695 x3
Congratulations on your purchase of the Scosche UBHP Bluetooth ® Wireless Headphones. This system
incorporates the latest Bluetooth ® technology for yourBluelife ® wireless lifestyle . Before using, please
read this manual carefully.
FEATURES/SPECS:
• Cutting-edge ergonomic folding design
• 2.5mm male to 3.5mm male adapter cable included
• Female 3.5mm to Male RCA cable included
• Built in Lithium-ion 5 Hour Rechargeable Battery
• 2.5mm Switching Input/Output port allows
UBHP to act as a wired headphone
system or as a Bluetooth ® stand-alone
receiver
• USB Charging "Y" cable
This product may not be compatible with all Bluetooth ® features on all Bluetooth ® enabled products. Please
consult your Bluetooth ®

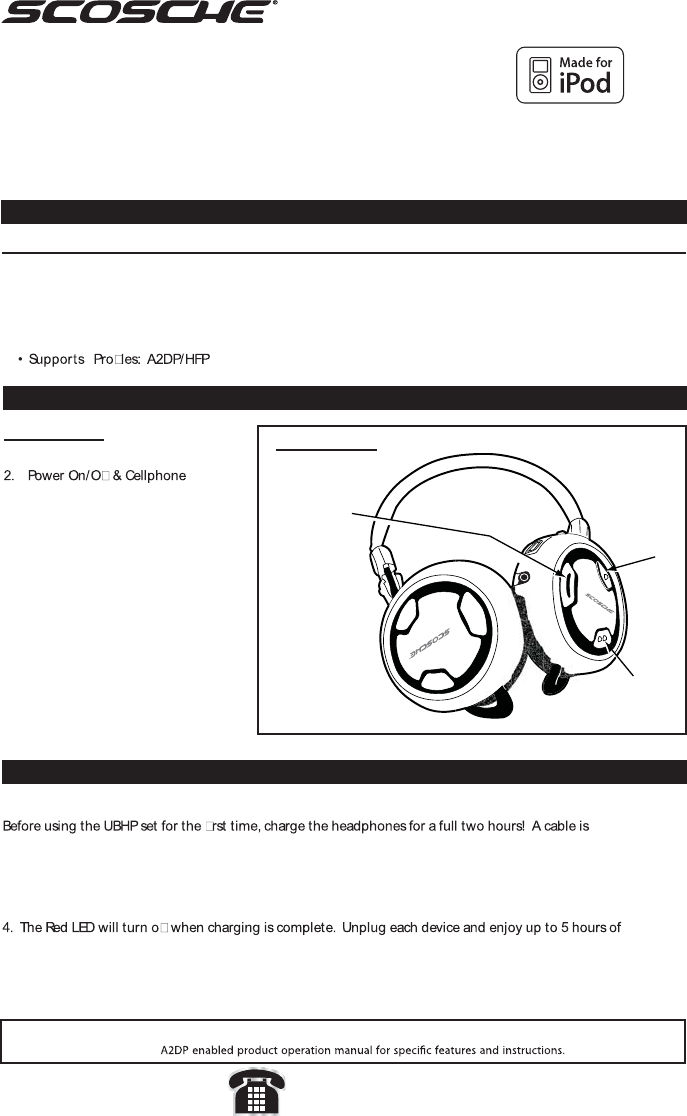

ILLUSTRATION 1
ILLUSTRATION 1
1. Volume down
Answer/Hang Up
3. Volume Up 2
1
3
8
BLUETOOTH ® HEADPHONES:
CHARGING
NOTE:
provided in the kit for charging.
1. Plug the Mini cable end of the charger cord into the charging jack as shown in Illustration 2.
2. Connect the USB cable end to an available PC or LAPTOP USB port.
3. Charge Battery for 2.5 hours (LEDs will illuminate RED when charging creating a Violet hue)
use.
27
PAIRING
GENERAL PAIRING NOTES:
1. Keep the Bluetooth ® products within a distance of 3 ft. (1 meter) when pairing.
2. These products are designed for AUTO-pairing function and no user input should be required. If for any
reason you are asked for a passcode by any Bluetooth ® device, always use "0000".
3. As a general rule, power the receiving device FIRST before the transmitting device. (Headphone is the
receiver).
4. Compatible devices must be Bluetooth ® V1.2 supporting A2DP prole.
5. Turn o any other nearby Bluetooth ® devices, such as a cell phone or headset as this may hinder
pairing process between your devices.
6. Pairing can take up to 1 minute and sometimes more. Once initial paring is complete between your
headphones, transmitter and Bluetooth ® phone, reconnecting during normal use occurs in a fraction of
the time.
PAIRING UBHP HEADPHONES TO THE IUBTT TRANSMITTER (sold separately)
1. Press the Power Button on the UBHP headphone for 3 seconds. Blue LED will ash indicating pairing
mode.
2. Press the Power Button on the IUBTT transmitter for 3 seconds. Blue LED will ash indicating pairing
mode.
3. Pairing should occur within 1 minute but can take up to 5 minutes. Blue LEDs will stop ashing
indicating a successful wireless link between the two.
4. Plug the transmitter’s 3.5 mm input jack to the headphone plug on any portable audio device such as
iPod/MP3/DVD etc. You should hear the audio through your Bluetooth ® Headphones.
5. If you are not successful pairing devices, repeat steps 1-4 above. Make sure receiving device is
powered rst as suggested in pairing notes and power o any other Bluetooth ® mobile devices. If you
still cannot successfully pair, go to the TR OUBLESHOOTING steps in this manual or call Tech Support
at (800) 621-3695 Ext 3.
CHARGING (Cont'd)

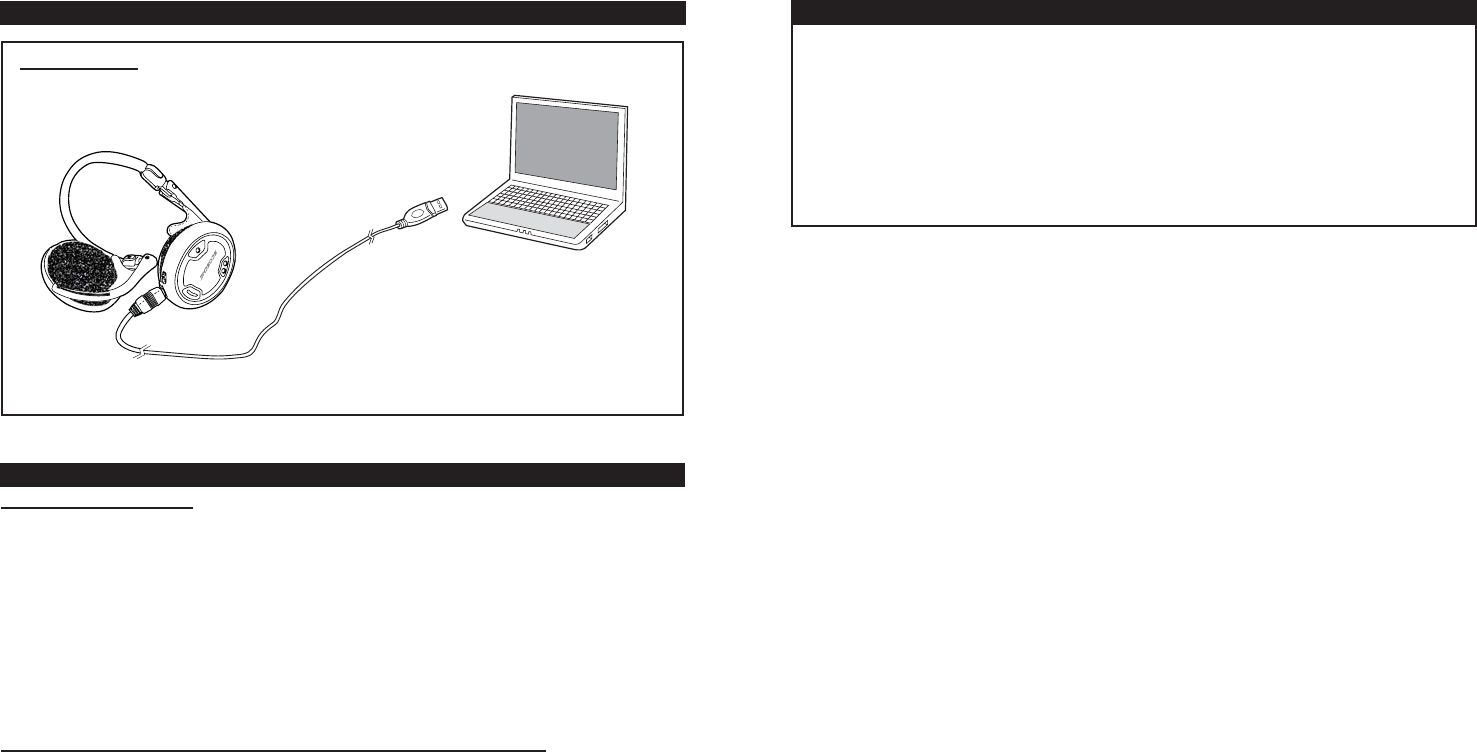

CHARGING CONNECTIONS
ILLUSTRATION 2
USB
PORT
SCOSCHE UBHP
HEADPHONES
NOT TO SCALE
LIMITED WARRANTY
Scosche Industries Inc. warrants this product to be free from defects in material and workmanship for a period of 90 days from
purchase. This Scosche product is sold with the understanding that the purchaser has independently determined the suitability
of this product. This warranty is oered to the original purchaser of the product only. This warranty does not cover the produ ct if
physically damaged, subjected to negligence or misuse, abuse, alteration, accident, or an act of God. This warranty does not
apply to product which has been water or physically damaged, damaged by accident or which has been misused, disassembled
or altered.
The original dated sales slip or proof of purchase will establish warranty eligibility. If the product should prove defective w ithin
the warranty period, return the product with proof of pur chase to Scosche Industries Inc. Scosche, at it's option, will replace or
repair the product free of charge and return the product postage paid.
In no event shall Scosche Industries, Inc. be responsible for claims beyond the replacement value of the defective product, or in
any way be liable or responsible for consequential or incidental damages.
No express warranties and no implied warranties, whether for tness or any particular use, or otherwise, except as set forth
above (which is made expressly in lieu of all other warran ties) shall apply to product s sold by Scosche. Scosche Industries
cannot be held responsible for discrepancies/inconsistencies that may occur due to automotive manufacturing changes or
options.
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: 1) This device may not cause
interference, and (2) this device must accept any interference that may be received, including interference that may cause unde sired
operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modication to this eq uipment.
Such modication could void the user’s authority to operate the equipment.
63
HEADPHONE & TRANSMITTER OPERATION
POWER ON/OFF:
Under normal use, we suggest powering on the headphones (receiver) rst, then power on your Bluetooth ®
transmitter. This method will produce the shortest connection time between the devices. If using a
Bluetooth® cell phone, then connect to the headphone AFTER the transmitter is connected as the third
device in your group. If you have previously paired with your Bluetooth ® cell phone, then select the
Scosche headphones from the Bluetooth ® device list and choose to connect.
CONNECTING:
Simply connect the 3.5mm Bluetooth ® transmitter’s input cable to the headphone or line output plug of your
iPod, MP3 or other portable media player. Play a track and enjoy the audio. The transmitter can send
Bluetooth® audio signals to the headphones up to 30 feet away freeing you from the restrictions of wired
headphones.
NOTE: Make sure the In/Out Switch on the headphones is set to "In" when listening to the
headphones, otherwise no audio will be heard.
PAIRING THE UBHP HEADPHONES TO A BLUETOOTH CELL PHONE
1. Place the headphones and Bluetooth ® cell phone within 3 ft. (1m) of each other.
2. Ensure headphone power is o.
3. Press the power button on the right earpiece for 3 seconds. The Blue LED light ashes indicating
pairing mode.
4. While the headphone LED is ashing Blue, follow the instructions for your cell phone to seek (or
discover) any Bluetooth ® devices. You will be pairing the Scosche Bluetooth ® headphones to your
phone just like you would pair any Bluetooth ® handset or hands-free kit. If needed, consult your cell
phone’s manual for information on pairing or discovering Bluetooth ® devices for your particular phone.
5. Your cell phone should display a list of local Bluetooth ® devices. The Scosche headphones should be
displayed as a device named "SCOSCHE Headphones".
6. Select this device and your phone should connect to the headphones automatically. If your phone
happens to ask for a password (or passcode) then enter "0000".
7. Bluetooth ® pairing should now be complete. (Blue LED on solid) If your phone fails to locate the
Scosche headphones, then check to make sure your phone is seeking Bluetooth ® devices. Check to
make sure the Scosche headphone power is switched ON and the LED light is ashing BLUE indicating
"pairing" mode. Repeat steps 1-6. If you cannot successfully pair the two devices, go to the TROUBLE-
SHOO TING steps in this manual or call Tech Support at (800) 621-3695 Ext 3.
8. Place the headphones over your ears and make a test call from your cell phone. Your cell-phone audio
should be heard through the headphones.
PAIRING (Cont'd)
CELLULAR OPERATION
INCOMING CALL ANSWER:
With your UBHP headphones powered and a Bluetooth ® wireless link established, a ring tone will be heard
inside the headphones when you receive an incoming phone call. Simply press and release the Power
Button to ANSWER an incoming call. If you were listening to music at the time, it will be interrupted during
your call. You will hear the other party through the left headphone speaker and they will hear you through
the built-in microphone on the right earpiece. The audio will return when the call ends.
ENDING A CALL:
When you are nished with the call, simply press and release the Power Button to END the call.
CELLULAR RE-CONNECTING:
Once you have initially paired your cell phone with the UBHP Bluetooth ® headphones, operating steps may
vary when needing to re-establish a Bluetooth ® link between the headphones and cell phone. Some
phones may attempt to reconnect automatically as soon as they "see" the UBHP and some phones may
require you to select the "Scosche" headphones from a list of cataloged Bluetooth ® devices in your
particular phones memory. If needed, consult your cell phone’s manual for information on connecting to
Bluetooth® devices for your particular phone.
SU
T
A
T
S
RO
LO
C
/
DE
L
e
d
oM
g
n
i
r
i
a
P
g
n
i
k
n
il
B
D
E
L
eu
l
B
h
t
o
o
te
u
lB
h
t
i
w
d
e
t
c
e
n
n
o
Cdi
l
o
S
DE
L
e
u
lB ®
Headphones or Bluetooth®
Receiving Device
h
t
i
w
d
e
t
c
e
n
n
o
C
d
n
a
g
ni
gr
a
h
C
d
i
l
o
S
n
o
DE
L
e
u
l
B d
n
a deR
h
t
o
o
t
e
u
lB)e
uh
te
l
oiV
(® Device
g
n
ig
r
ah
C
y
l
t
ne
r
r
u
C
s
i
y
re
t
t
a
B
di
lo
S
D
E
L
d
e
R
or LOW Battery (need recharge)
et
e
lpm
o
C
g
n
ig
r
a
hCffO
DE
L deR
LED CHART
(Transmitter and Headphone LED operate similar, unless noted)
TROUBLE SHOOTING
N
OI
TU
L
OS
/PI
T
MEL
B
O
RP
Diculty pairing Headphones and Transmitter 1) Make sure both devices have been recently
charged. These products will not pair on low
battery voltage. 2) Make sure you power on the
UBHP rst, then the transmitter.
Diculty pairing Headphones and Bluetooth Make sure receiver is powered on rst. 2) Make
d
e
l
ba
n
e
si
re
wo
p ht
ooteu
l
B s
’en
o
h
p llec ruo
y e
r
us
senohp
llec
and it is looking for devices. If needed, consult
your cell phone’s manual for information on pairing
or discovering Bluetooth® devices for your
particular phone.
Headphones drop wireless link less than 30 feet away The Connection range varies on the surrounding
environment. Range is not guaranteed to be 30 feet
in all cases. Range can be reduced by other
competing electronic devices include cordless
telephones, microwaves and typical household
electronic. Range can also be reduce
Headphones or Transmitter loses wireless for no Check for other competing Bluetooth or 2.4Ghz
reason electronic devices in close proximity to the
transmitter or UBHP head phones. Power down
these competing devices
s
t
cu
d
o
rp o
w
t
e
ht e
rus
e
k
a
m
o
t
k
c
e
hC )
1
r
e
t
t
i
msn
a
r
t
mo
r
f
d
r
ae
h
o
idu
A o
N
successfully paired and both devices are powered
ON. 2) Make sure you are within range of the
Transmitter. 3) Make sure source volume is not
muted
The UBHP Bluetooth® headphones include a unique 2.5MM stereo input/output port with switch:
POSITION 1 (Input): Illustration 4
In this position the 2.5MM port acts as a direct audio wired input and the UBHP Headphones will operate
as pair of high quality wired units. This is handy for air travel or anywhere wireless devices are not
permitted.
A) Make sure UBHP power is OFF.
B) Connect to the 2.5mm to 3.5mm adapter cable between your portable media player and the UBHP
headphones
4

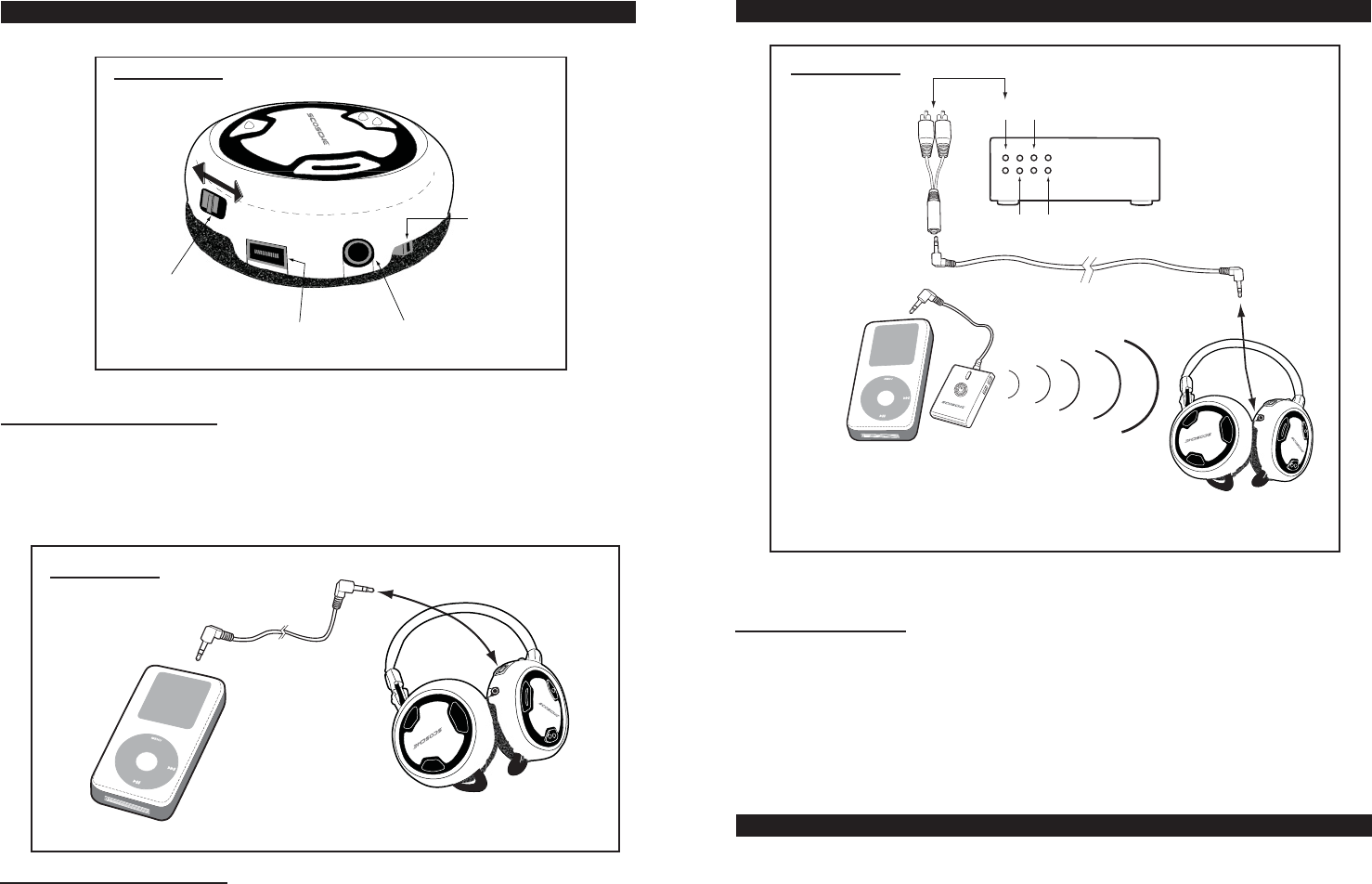

2.5 MM INPUT/OUTPUT WITH SWITCH
ILLUSTRATION 3
UBHP RIGHT
EARPIECE
INPUT/OUTPUT
SWITCH
CHARGE
PORT
2.5MM INPUT/
OUTPUT PORT
CELLULAR
HANDS-
FREE MIC
5
POSITION 2 (Output): Illustration 5
In this position the 2.5MM port acts as a bypass or audio output. The UBHP Headphones will operate as
Bluetooth® RECEIVER and pass the audio signal through the 2.5mm port. This is handy if you need to
send the audio signal from the IUBTT Bluetooth® Transmitter to an outboard or external device such as a
set of amplified mini-speakers, home stereo or laptop computer.
A) Make sure Both the headphones and transmitter are powered and a Bluetooth® wireless connection
has been established.
B) Connect to the 2.5mm to 3.5 mm adapter cable between the UBHP Headphones and your external
secondary audio device.
2.5 MM INPUT/OUTPUT WITH SWITCH (Cont'd)
ILLUSTRATION 4
CONNECTION
ADAPTERS
IPOD
NOT TO SCALE
2.5MM TO
3.5 MM CABLE
SCOSCHE UBHP
HEADPHONES
RCA'S
HOME HIFI
(BACK VIEW)
2.5MM TO 3.5 MM CABLE
IPOD
NOT TO SCALE
ILLUSTRATION 5
CONNECTION
ADAPTERS
AUX
CD
TUNER
PHONO
SCOSCHE IUBTT
BLUETOOTH® TRANSMITTER
(SOLD SEPARATELY)
SCOSCHE UBHP
HEADPHONES
TRANSMITTER TRANSMITTS TO HEADPHONES
CONNECTION ADAPTERS:
The UBHPK set includes adapters for many applications:
• 2.5mm Male to 3.5mm Male cable.
• This adapter allows the UBHP Headphones to be connected to various devices using
a standard 3.5mm stereo output which is found on most MP3 players.
• 3.5mm Male to ¼ HiFi headphone Male.
• This adapter allows the IUBTT transmitter (or UBHP Headphones) to connect with
home HiFi stereo
receivers or devices that use 1/4" headphone jack.
CARE AND MAINTENANCE
1. Keep devices away from heavy moisture. Sources of humidity and all types of liquids will corrode
electronic circuits.
2. Keep devices away from high heat. Extreme temperatures will shorten the life of electronic circuits and
could possibly melt the plastic case. For example, do not store the unit in direct sunlight on a vehicle
dashboard.
3. Don’t attempt to open or repair these products. Non-expert handling will damage them and void any all
possible warranty claims.
4. Don’t use harsh chemicals, cleaning solvents or detergents to clean the products.

Navigation menu
