Scosche HZ10T USB Dongle User Manual KM2 200806012 ai
Scosche Industries Inc USB Dongle KM2 200806012 ai
Scosche >
Users Manual
Certification and
safety approvals Unique Features
Specification
Product
Accessories
User Guide Symbols
Warranty Card
Scope of Warranty
SoundJet warrants that products of its own manufacture purchased
from any SoundJet authorized distributor will meet the applicabl e
SoundJet product specifications and be free from all defects in
material and workmanship for the following periods from the date of
purchase:
Headset One(1) Year
Other Accessories (other than headset) One(1) Year
SoundJet's obligation under this warranty is limited to, at SoundJet's option, either:
(a) repairing; or (b) replacing the product and accessories on an exchange basis. The
warranty for such repaired or replaced the product and accessories will be valid for the
remaining warranty period applicable for the original product and accessories.
How To Get Warranty Service
Return the product and accessories to the outlet from which the product and accessories
were purchased. All warranty claims must be presented within the applicable warranty
periods above and accompanied by a valid proof-of-purchase.
Warranty Exclusions and limitations
This warranty shall not apply to:
defects or damage resulting from use of the product and accessories in other than their
normal and customary manner, eg, in excess of their maximum specifications or
operating instructions;
defects or damage form misuse, accident, neglect, improper testing, installation,
alteration or modification of any kind, or spillage of food or liquid.
installation, maintenance or repair performed by service personnel not authorized by
SoundJet;
products and accessories which have had the serial/identification numbers removed or
made illegible;
all plastic surfaces and all other externally exposed parts that are scratched or
damaged due to customer normal use;
operation or damage caused by ancillary or peripheral equipment not manufactured by
SoundJet but used in conjunction with or accompanying the product and accessories.
any other defects or faults which occur for reasons beyond the reasonable control of
SoundJet.
1 2 3
7
4
PC USB Dongle * 1pc
Warranty Card * 1pc
User Guide * 1pc
PC USB Wireless Headset * 1pc

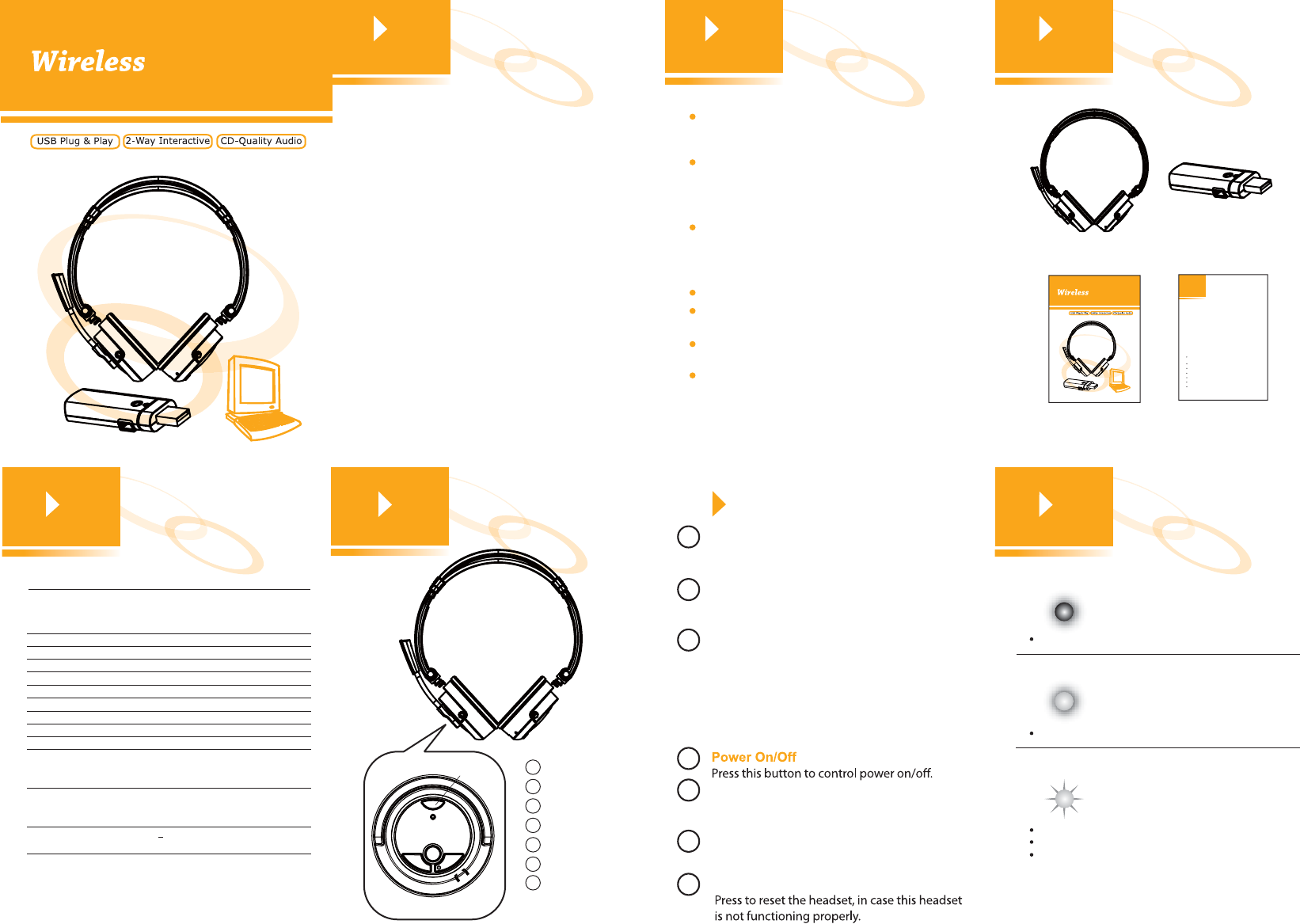

Parts Introduction
5
Pair / Pick Up / Hang Up
DC-IN Port
Power On/Off
VOL+ / VO L-
LED Indicator
Microphone
1
2
3
4
5
6
Reset Reset
7
5
6
1
3
7
4
2
6
PC
Wireless Technology
Listen Time (per charge)
Standby Time
Charge Time (full charge)
Distance of Use
Headset Weight
USB Dongle Weight
Charging Method
Battery Type
Headset Speaker
Frequency Response
Audio Quality
Distortion (T.H.D.)
Model
Microphone
DC-IN Port
Connect the cable Connect the DC-IN from
for recharging.
LED Indicator
A red indicator represents power functions.
A green indicator represents signal connections.
VOL + / VOL -
Pres s t o increase the headset volume.
Press to decrease the headset volume.
1
2
3
4
5
6
7
PC
PC USB Headset
Maximum Range:
Results may vary according to environment.
PC USB Headset
Unique 2.0-Channel design - Each ear cup
contains specially designed speaker driver
to deliver extra audio clarity.
USB Plug-and-Play wireless headset that
supports PC music/game sounds and
back-channel voice simultaneously, no need
to switch back and forth.
USB Dongle(Transmitter) direct plug-in to
the PC for instant use of VoIP, on-line game,
DVD, and all kinds of entertainment running
Windows 2000/XP,Vista.
Ease of use, no software installation needed.
Long standing use, up to 5.5 hours of
continuous listening time per charge.
Easy charging through dongle DC out.
Microphone switch on/off control.
30 to 45 feet distance for effective use.
Pair / Pick Up / Hang Up
Press pair button to connect the wireless
headset and the USB Dongle.
Answer SKYPE---Press pair button to answer
the call
Hang up SKYPE---Press pair button to end
the call
dongle
KM-2
KM-2 is the wireless headset that delivers high
quality 2.0-channel stereo audio with extra sound
clarity and soft, deep bass effects. It provides a
voice back channel that allows you to talk in
conjunction with any kinds of PC voice
applications. Examples of such applications
include Skype, MSN, on-line gaming, and more.
With the high performance audio and the unique
feature set, KM-2 brings you a great value. To
start, we like to introduce to you the important
certification and safety approvals on this headset.
KM-2
KM-2 Steady red light
Steady green light
Flashing green light
Devices are waiting for pairing
Devices are paired
The headset is charging
Devices are not paired
Green & orange ashing
alterately：mic o
WiStereoTM for advanced
2-way digital transmission in
the 2.4 GHz frequency band
Up to 5.5 hours
Approximately 3 months
Approximately 2.5 hours
30 ~ 45 feet
122 g
13 g
Through Dongle DC Out
Lithium Polymer
40mm Neodymium
20Hz~20,000Hz
(perfect for all music, game,
and voice)
Uncompressed audio for
music (CD-quality) and voice
(extra clarity)
<0.08% (professional grade
audio performance)
mic on：Press the "power button" 0.3 -3 seconds
mic off：Press the "power button" 0.3 -3 seconds
Handling the headset
Do not bend, drop, crush, puncture,
incinerate, or open the headset.
Repairing the headset
Never attempt to repair the headset yourself.
The headset does not contain any user
serviceable parts. For service information,
choose the headset help from the warranty
card. The rechargeable battery in the
headset should be replaced only by
authorized service providers.
Important
User Information
118
1213

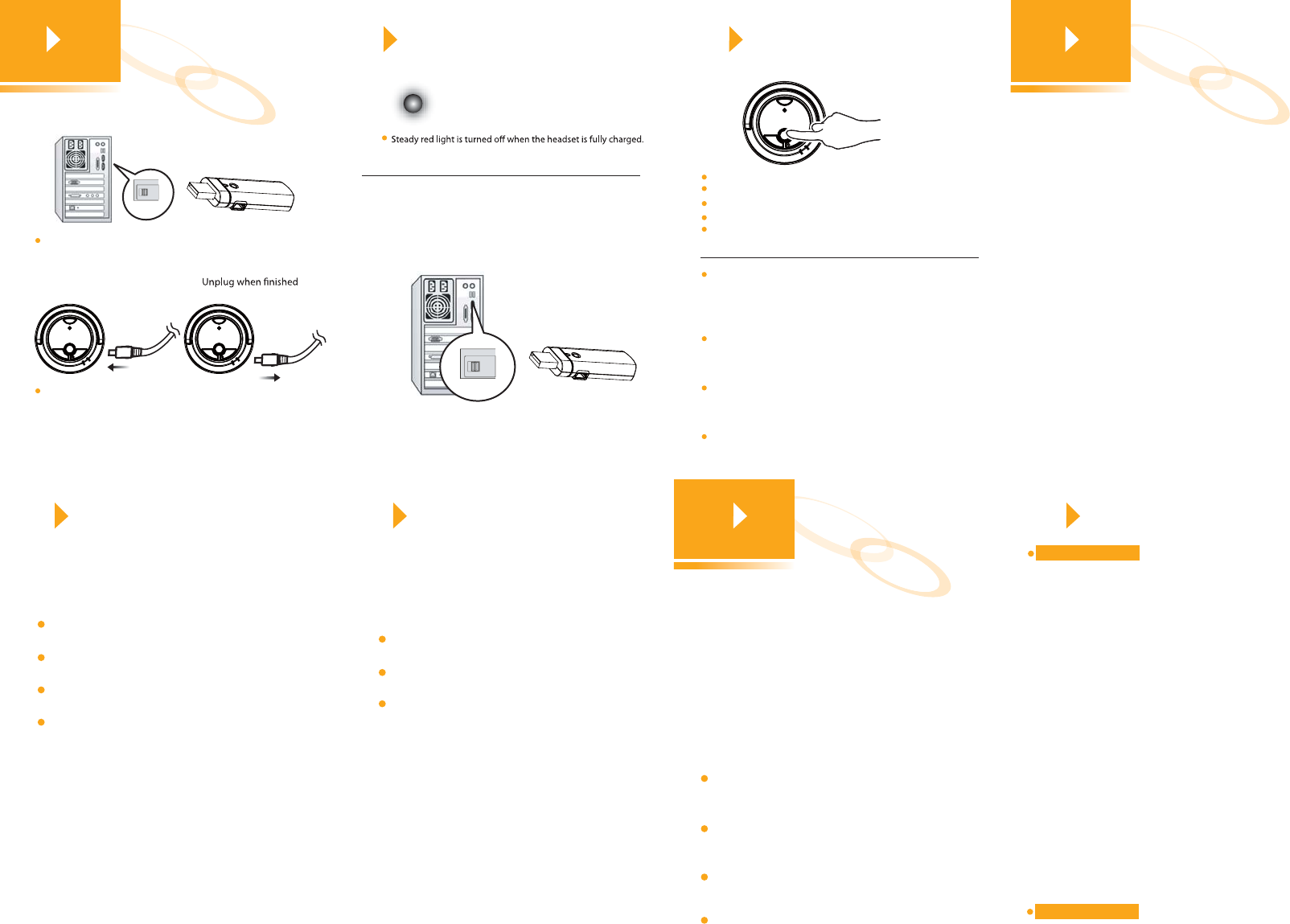

Getting StartedGetting Started Turn on/off the headset
10
Connect the USB Dongle
PC
PC
9
PC
ChargingCharging
Plug in to charge
Unplug the USB charging cable if any of
the following conditions exist
The USB cable or plug has become
frayed or damaged.
The USB cable has been exposed to
rain, liquids, or excessive moisture.
You suspect the headset needs service
or repair.
You want to clean the headset.
Avoiding hearing damage
Permanent hearing loss may occur if a
headset is used at high volume. Set the
volume to a safe level. You can adapt over
time to a higher volume of sound that may
sound normal but can be damaging to your
hearing. If you experience ringing in your
ears or muffled speech, stop listening and
have your hearing checked. The louder the
volume, the less time is required before
your hearing could be affected.
Hearing experts suggest that to protect your
hearing:
Limit the amount of time you use the
headset at high volume.
Avoid turning up the volume to block out
noisy surroundings.
Turn down the volume if you can't hear
people speaking near you.
Maintaining battery life
Due to the physical nature of battery, the
charging time may become longer and the
actual capacity of battery may decrease. If
you have any questions regarding the
replacement of the built-in battery, please
contact our service center.
15
Troubleshooting
14
USB Port
Port
DC Out
First time use : Charge 4 hours before using
the headset.
Regular use : Charge the headset approximately
2 hours if the battery was completely used up.
Once the battery is off, you can charge the
battery thorough the cable and listen at the same
time.
The headset is charging
Connect the USB Dongle with
PC for signal transmission.
Turn on：press the power button
Turn off：press the power button for at least 3
Steady red light is turned off when the headset is fully charged.
Mic on：Press the" power button" 0.3 - 3 seconds
Mic off：Press the "power button" 0.3-3 seconds
No signal connection to the headset
Make sure the headset is charged and the
USB Dongle is properly connected to the PC.
Within the range of signal coverage, power
on the headset again.
The headset is automatically switched off
The battery is too low. The indicator light on
the headset is off.
Unexpected behavior
Reset the headset. (see p.5 )
press PAIR button for 5 seconds for pairing
（press PAIR button for 5 seconds at
dongle side at the same time）
PAIR button combined with SKYPE Answer
and End
Press and release momentarily for answer
SKYPE
Press PAIR button for 2 seconds for end
SKYPE
No audio at the headset
Check the headset and the computer
volume control. Make sure they are not in
the lowest volume level or muted.
Check the pair status of the USB Dongle
and the headset. Make sure two devices are
paired properly.
Check if the PC Media Player is properly
installed, and audio file is playable.
The listening party can not hear you over
the internet. Check if the microphone switch
is on.
USB Port
