OMGX10784 C0

C0 Scotts Lawn Tractors

S1642, S1742, and S2046

OPERATOR’S MANUAL

North American Version

Litho in U.S.A.

Introduction

INTRODUCTION

Introduction

THANK YOU for purchasing a Scotts product.

Read this manual and your attachment manual thoroughly.

Failure to do so could result in personal injury or equipment

damage.

This manual should be considered a permanent part of

your machine and should remain with the machine when

you sell it.

Product warranty is provided as part of John Deere’s

support program for customers who operate and maintain

their equipment as described in this manual. The product

warranty is explained on the warranty certificate you

received from your dealer.

Measurements in this manual are metric units and their

U.S. customary equivalents. RIGHT-HAND and LEFT-

HAND sides are determined by facing in the direction the

machine will travel when going forward. When you see a

broken line arrow (------>), it indicates the part it is pointing

to is hidden.

CALIFORNIA Proposition 65 Warning

Warning:gThe Engine Exhaust from

this product contains chemicals known to the

State of California to cause cancer, birth

defects or other reproductive harm.

Product Identification

PRODUCT IDENTIFICATION

Product Identification

Record Identification Numbers

Scott’s Lawn Tractors

S1642, S1742, and S2046 PIN (020001 - )

If you need to contact an Authorized Service Center for

information on servicing, always provide the product model

and serial number.

You will need to locate the identification number for the

machine and for the engine. Record the information in the

spaces provided below.

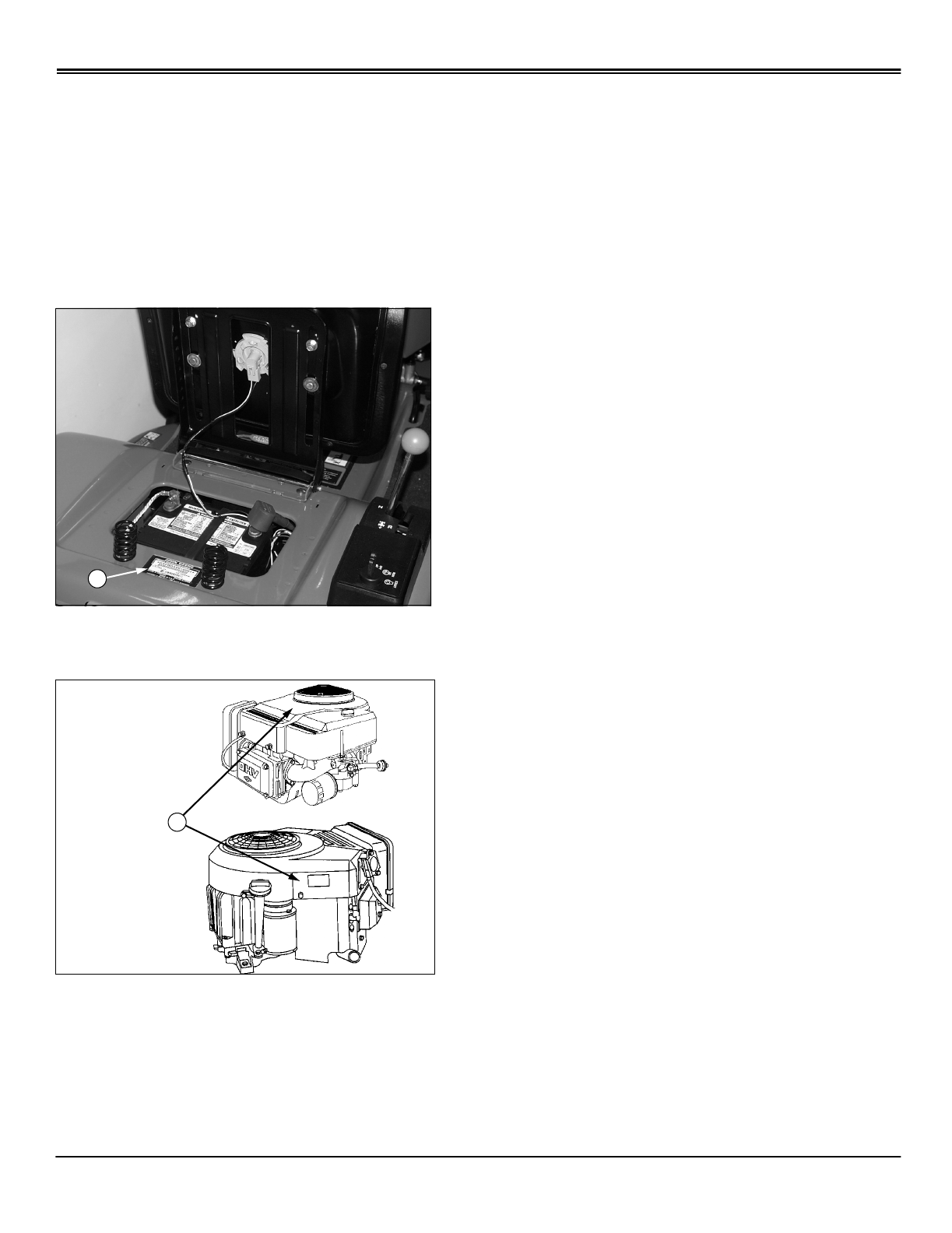

PRODUCT IDENTIFICATION NUMBER (A), (under seat):

__ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __

ENGINE SERIAL NUMBER (B), (on fan shroud):

__ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __

DATE OF PURCHASE:

_________________________________________

DEALER NAME:

_________________________________________

DEALER PHONE:

_________________________________________

Model S1642

Model S1742 and S2046

Assembly - 0

ASSEMBLY

Assembly

Identify Parts

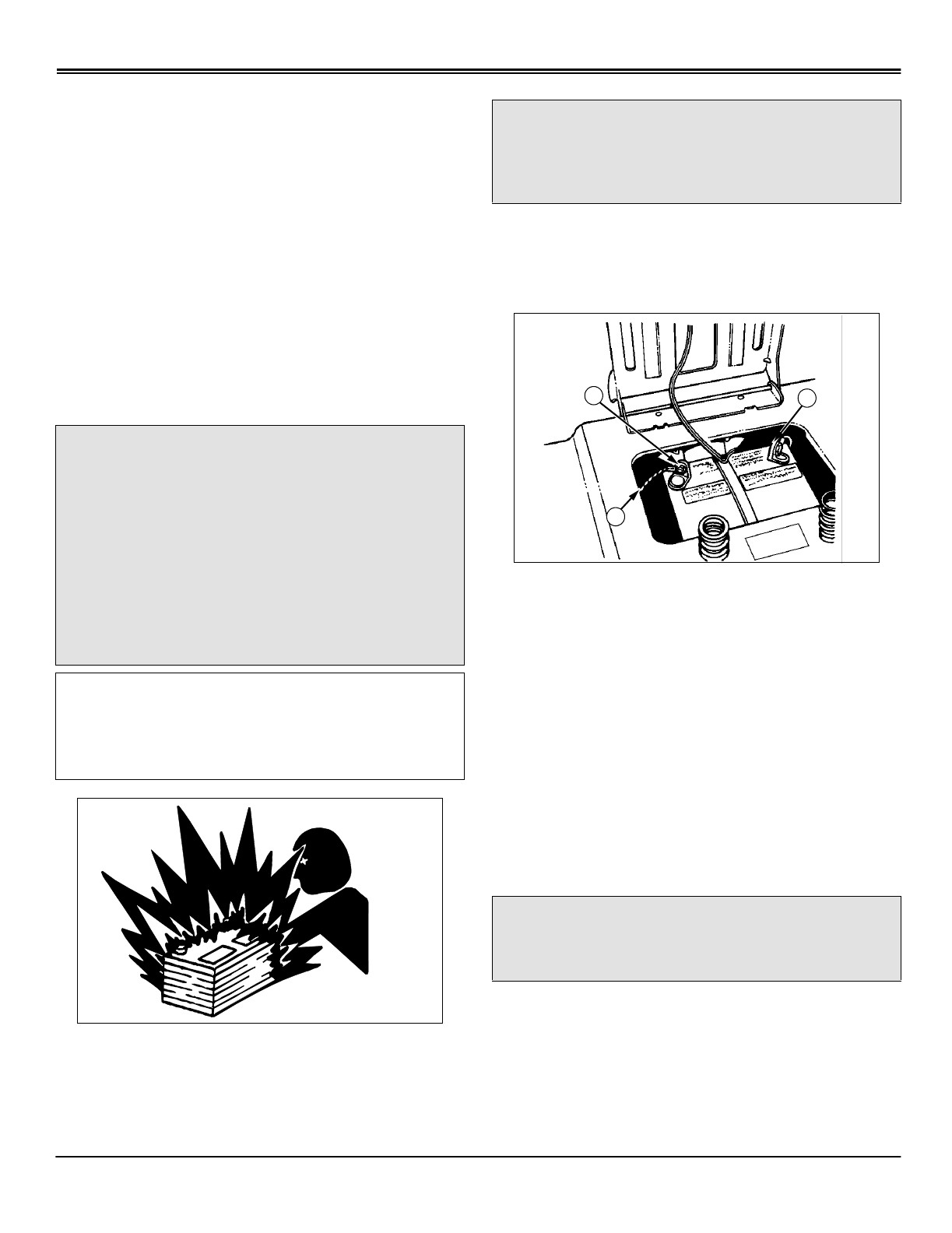

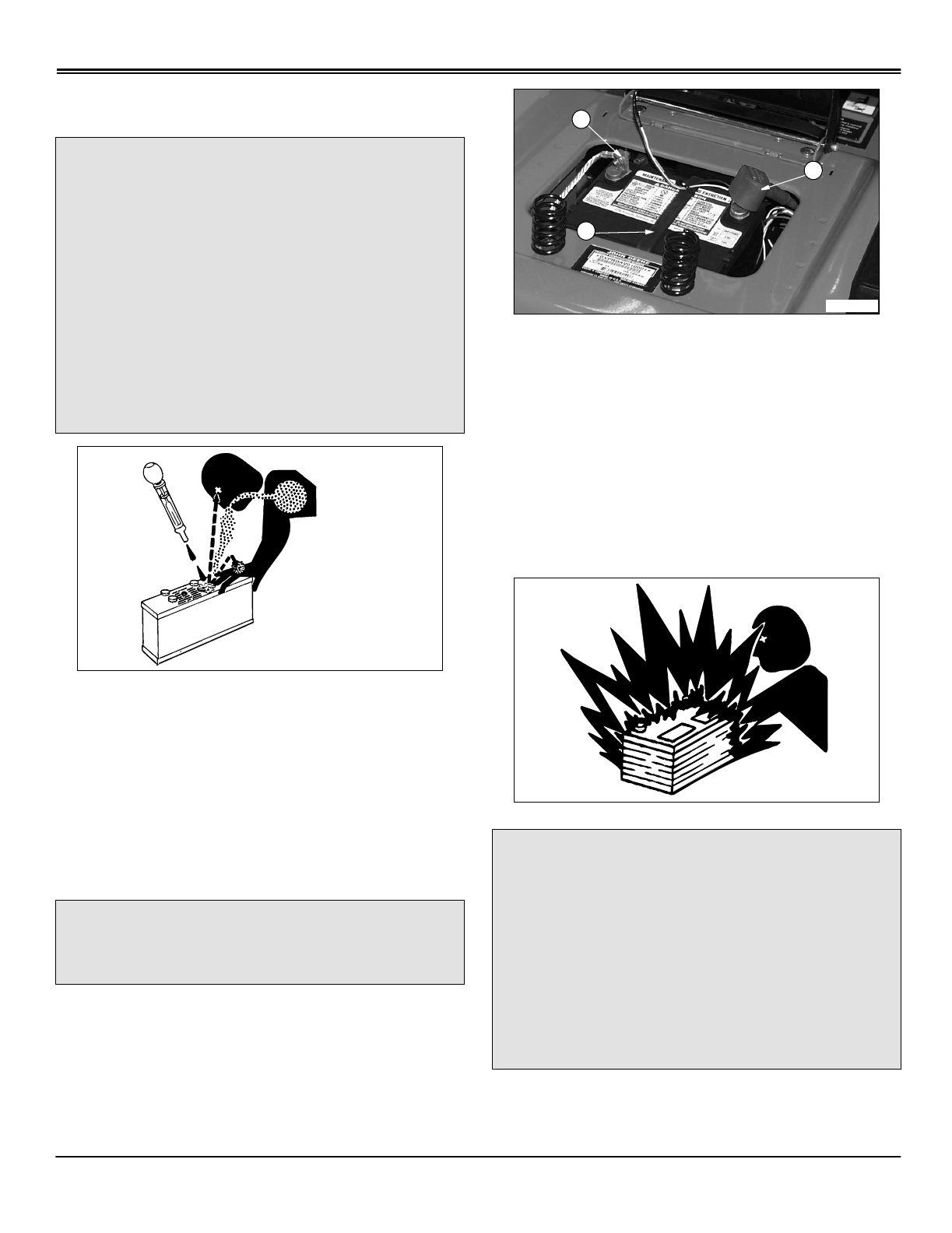

Connect and Check Battery

NOTE: Do not remove the BLACK negative (–)

protective cap at this time.

1. Remove and discard the RED positive (+) protective cap

from the positive (+) battery terminal.

2. Connect RED positive (+) cable (A) to battery with 6mm

hex head bolt and 6 mm flange nut. Tighten securely. Apply

petroleum jelly or silicone spray to terminal to prevent

corrosion. Install the red terminal cover.

3. Remove and discard the BLACK (–) protective cap from

the negative battery terminal.

4. Connect silver braided grounding cable (B) to the

negative (–) terminal (C) with remaining 6 mm hex head

bolt and 6 mm flange nut and tighten securely. Apply

petroleum jelly or silicone spray to terminal to prevent

corrosion.

42-Inch Mowers Only

•If tractor/mower deck is being set-up for mulching, install

mulch cover kit. (See Using Mower Deck Mulch Ready in

the Operating Mower section.)

•If tractor/mower deck is being set-up for side discharger

or 2-bag bagger DO NOT install mulch cover kit. (See

Using Mower Deck Side Discharge OR Using Mower Deck

with Optional Equipment in the Operating Mower section.)

A Operator’s Manual

B Safety Video

C Bag of Hardware

DKey

Bag of Hardware:

•2 - M8x16 Bolts - Battery

•2 - M8x16 Nuts - Battery

c CAUTION: Avoid injury! Prevent Battery

Explosions:

- Keep sparks, lighted matches, and open flame

away from the top of battery. Battery gas can

explode.

- Never check battery charge by placing a metal

object across the posts. Use a volt-meter or

hydrometer.

- Do not charge a frozen battery; it may

explode. Warm battery to 16° C (60° F)

IMPORTANT: Avoid damage! This battery comes

fully charged. If the mower is not used by the

Service Expiration Date indicated on the battery,

charge the battery. (See Charging the Battery in the

Service - Electrical section.)

c CAUTION: Avoid injury! DO NOT attempt to

open, add fluid or service battery. Any attempt

to do so will void warranty and lead to possible

injury.

c CAUTION: Avoid injury! Never operate the

mower without the discharge chute guard in

place.

Assembly - 1

ASSEMBLY

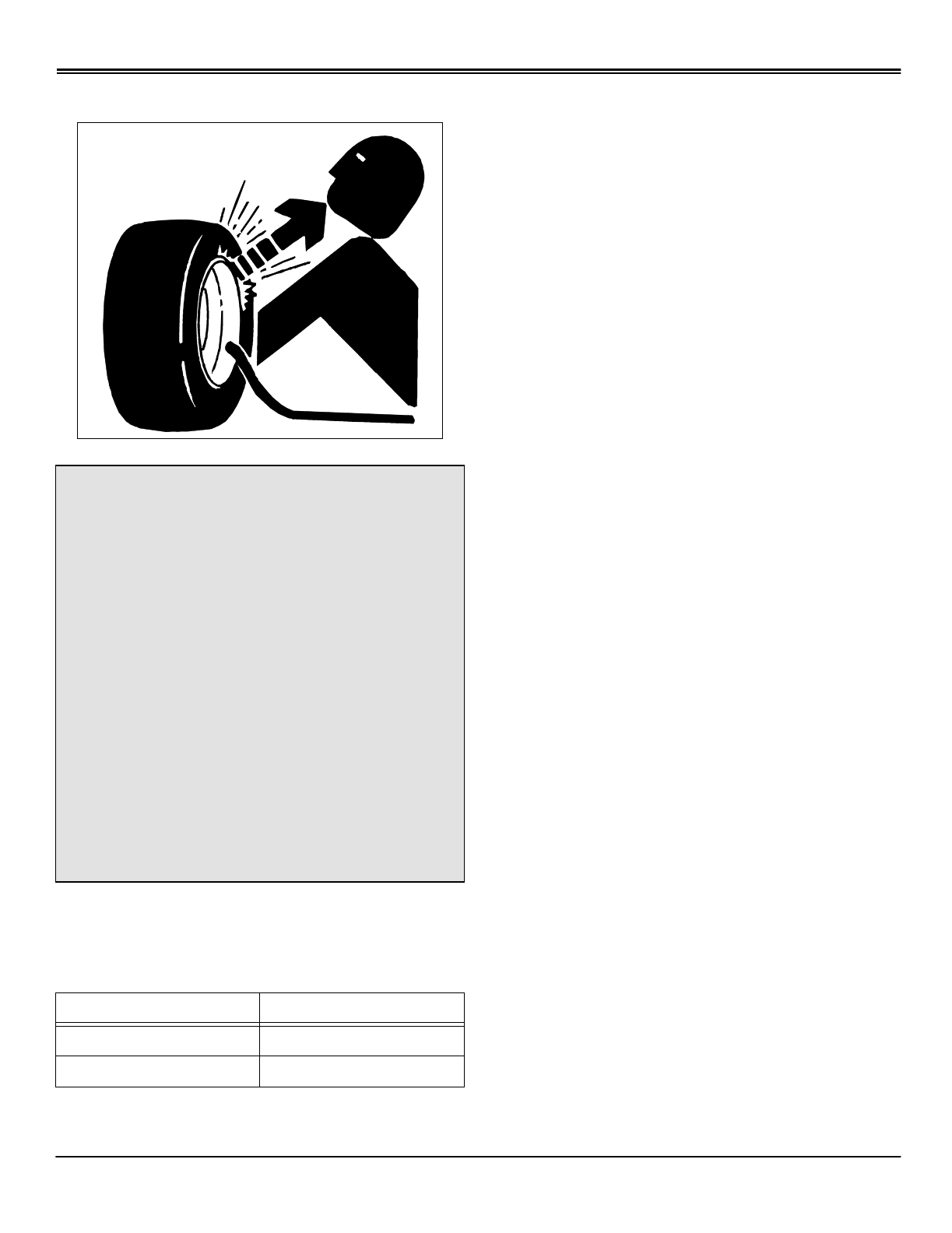

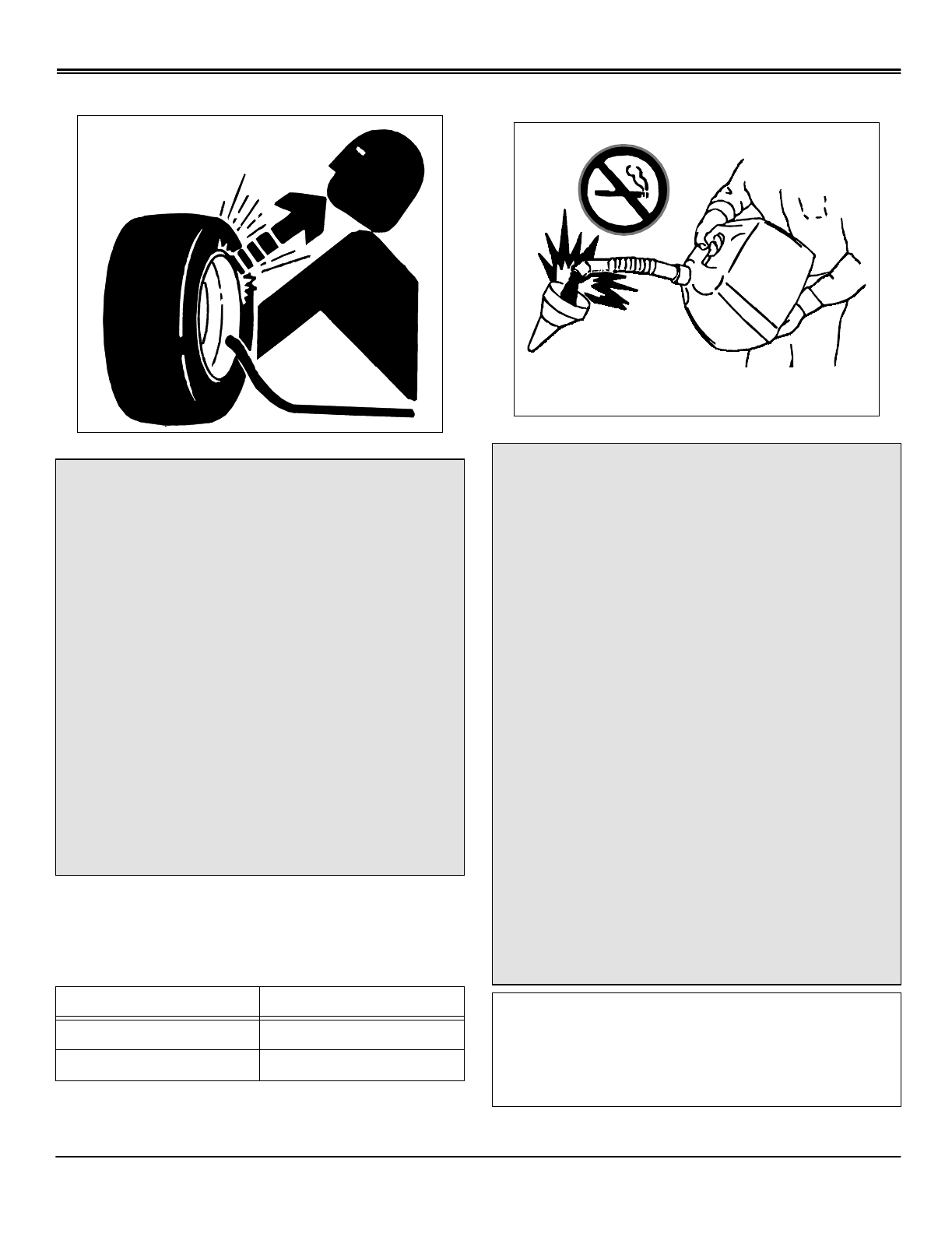

Checking Tire Pressure

1. Check tires for damage.

2. Check tire pressure with an accurate gauge.

3. Add or remove air, if necessary:

c CAUTION: Avoid injury! Explosive separation

of a tire and rim parts can cause serious injury

or death:

- Do not attempt to mount a tire without the

proper equipment and experience to perform

the job.

- Always maintain the correct tire pressure. Do

not inflate the tires above the recommended

pressure. Never weld or heat a wheel and tire

assembly. The heat can cause an increase in

air pressure resulting in a tire explosion.

Welding can structurally weaken or deform the

wheel.

- When inflating tires, use a clip-on chuck and

extension hose long enough to allow you to

stand to one side and NOT in front of or over

the tire assembly.

- Check tires for low pressure, cuts, bubbles,

damaged rims or missing lug bolts and nuts.

Tire Size Pressure-kPa (psi)

Front: 15-Inch 97 kPa (14 psi)

Rear: 20-Inch 69 kPa (10 psi)

Safety Signs - 2

SAFETY SIGNS

Safety Signs

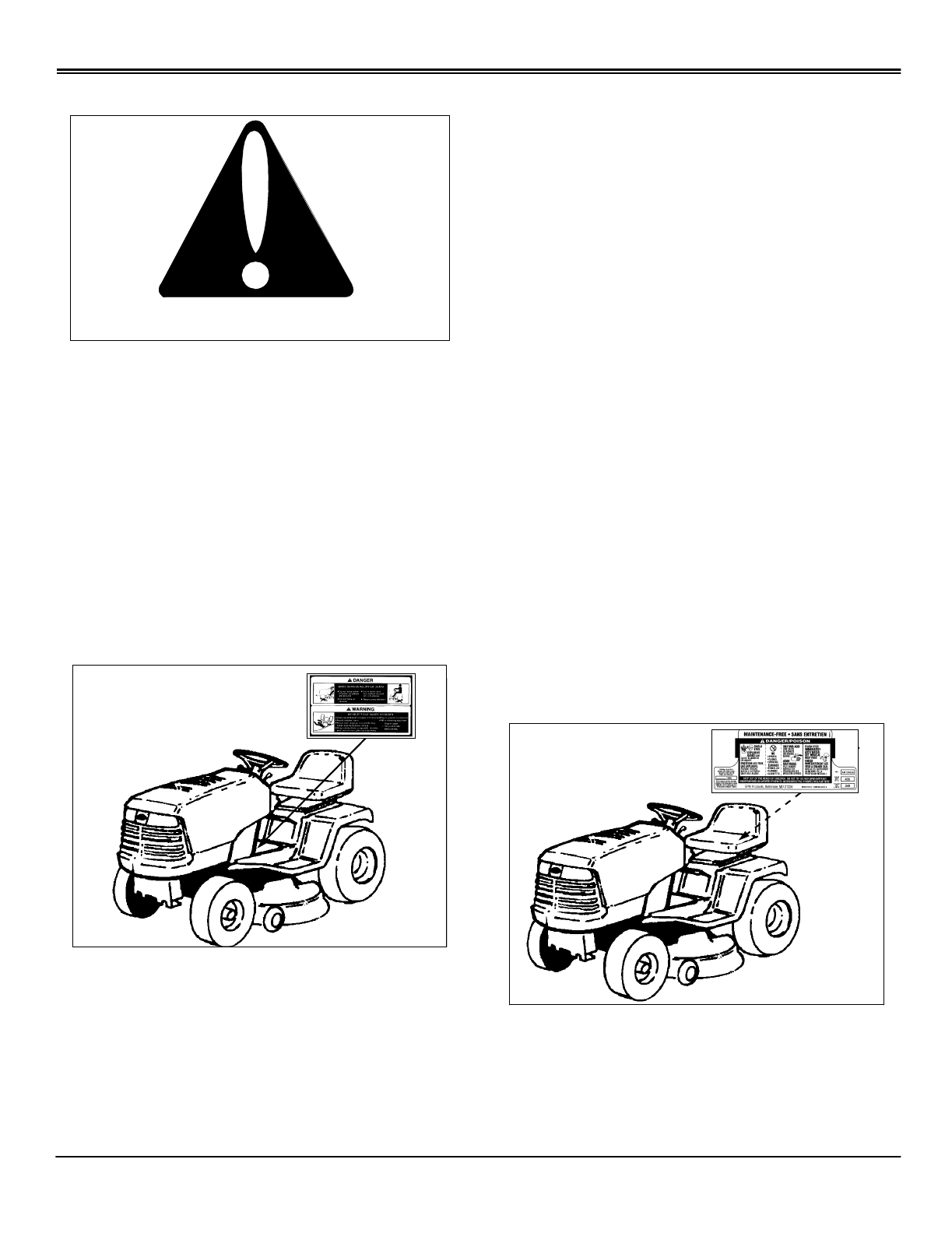

Safety-Alert Symbol

Read and recognize safety information. Be alert to the

potential for personal injury when you see this safety-alert

symbol.

On your machine safety labels, the words DANGER,

WARNING, and CAUTION are used with this safety-alert

symbol. DANGER identifies the most serious hazards.

In this manual, the word CAUTION and this symbol call

attention to safety messages.

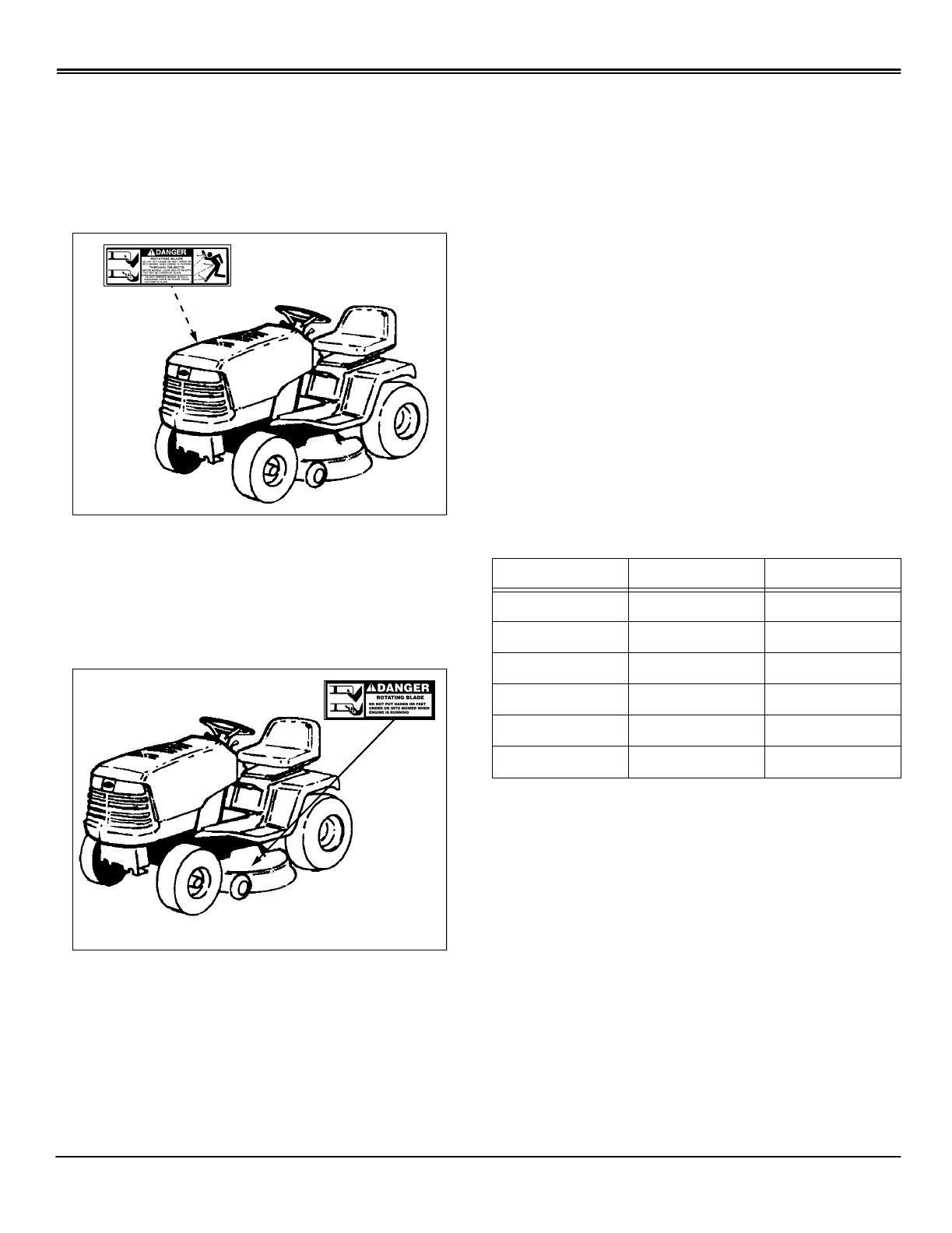

Machine Safety Labels

DANGER

AVOID SERIOUS INJURY OR DEATH

•Do not mow when children or others are around

•Do not mow in reverse

•Look down and behind before and while backing

•Never carry children even with blades off

WARNING

AVOID SERIOUS INJURY OR DEATH

•Drive up and down slopes, not across

•Avoid sudden turns

•If machine stops going uphill, stop blade and back down

slowly

•Keep safety devices (guards, shields, and switches) in

place and working

•Read operator’s manual

•When leaving machine:

–Stop engine

–Set park brake

–Remove key

DANGER/POISON

SHIELD EYES.

EXPLOSIVE GASES CAN CAUSE BLINDNESS OR

INJURY.

•SPARKS

•FLAMES

•SMOKING

SULFURIC ACID CAN CAUSE BLINDNESS OR SEVERE

BURNS

FLUSH EYES IMMEDIATELY WITH WATER.

GET MEDICAL HELP FAST.

MAINTENANCE-FREE

KEEP OUT OF THE REACH OF CHILDREN. DO NOT TIP.

DO NOT OPEN BATTERY!

Picture Note: Located on Battery under seat

DANGER

ROTATING BLADE

DO NOT PUT HANDS OR FEET UNDER OR INTO

M96445

Safety Signs - 3

SAFETY SIGNS

MOWER WHEN ENGINE IS RUNNING

THROWN OBJECTS

BEFORE MOWING, CLEAR AREA OF OBJECTS THAT

MAY BE THROWN BY BLADE

DO NOT OPERATE MOWER WITHOUT DISCHARGE

CHUTE OR ENTIRE GRASS CATCHER IN PLACE

Picture Note: Located on Right-Hand side of deck

DANGER

ROTATING BLADE

DO NOT PUT HANDS OR FEET UNDER OR INTO

MOWER WHEN ENGINE IS RUNNING

Picture Note: Located on Left-Hand side of deck

Emission Control System Certification Label

NOTE: Tampering with emission controls and

components by unauthorized personnel may result in

severe fines or penalties. Emission controls and

components can only be adjusted by EPA and/or CARB

authorized service centers. Contact your John Deere

Commercial and Consumer Equipment Retailer

concerning emission controls and component

questions.

The presence of an emissions label signifies that the

engine has been certified with the United States

Environmental Protection Agency (EPA) and/or California

Air Resources Board (CARB).

The emissions warranty applies only to those engines

marketed by John Deere that have been certified by the

EPA and/or CARB; and used in the United States and

Canada in off-road mobile equipment.

Emission Compliance Period

If your engine has the emission compliance category listed

on the emission control system certification or air index

label, this indicates the number of operating hours for which

the engine has been certified to meet EPA and/or CARB

emission requirements. The following table provides the

engine compliance period in hours associated with the

category found on the certification label.

Certification

Your mower has been certified by an independent

laboratory for compliance with American National Standard

B-71.1, “Safety Specifications” for Power Lawn Mowers,

Lawn and Garden Tractors, and Lawn Tractors.

M96445

Agency Category Hours

EPA C 250

EPA B 500

EPA A 1000

CARB Moderate 125

CARB Intermediate 250

CARB Extended 500

Controls - 4

CONTROLS

Controls

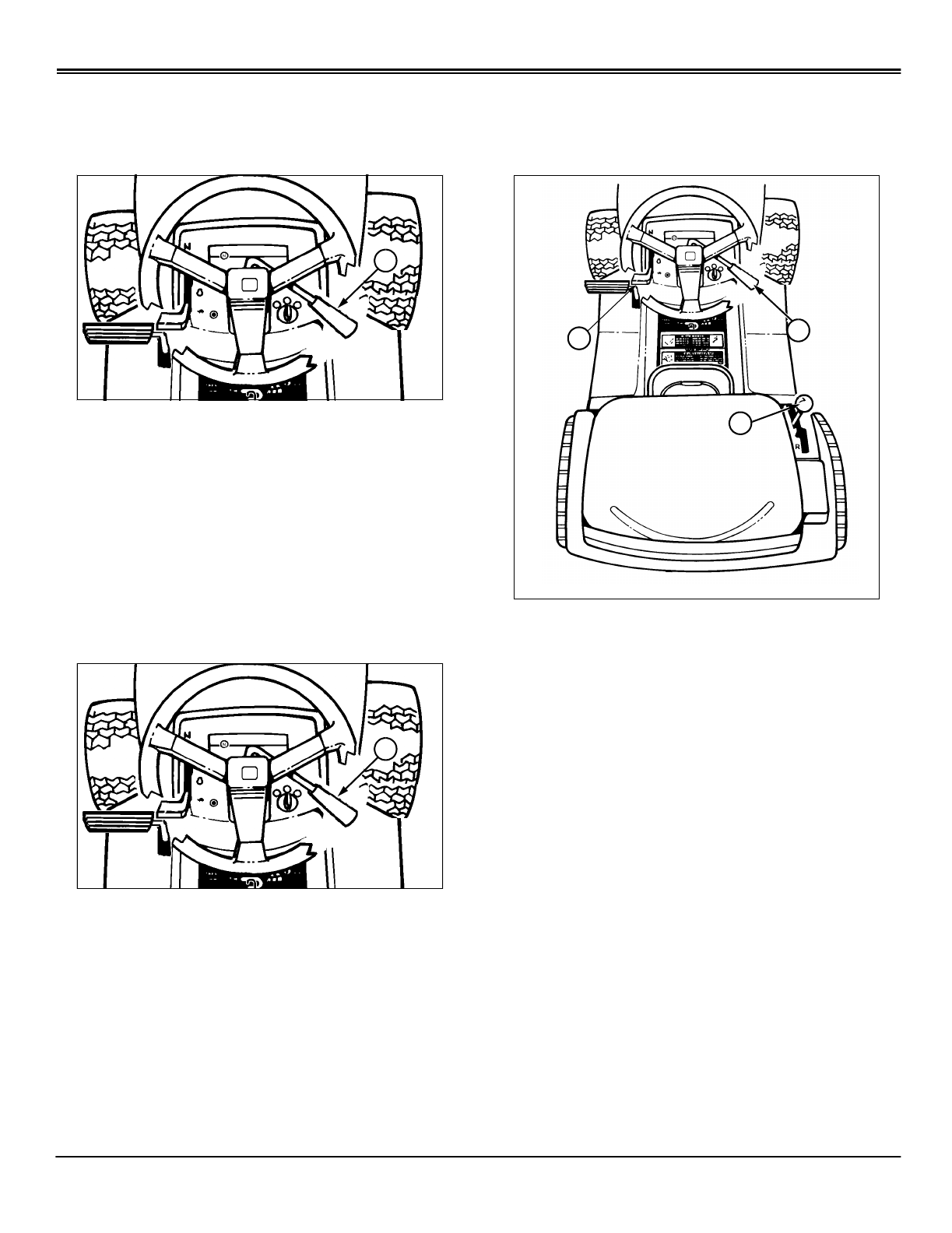

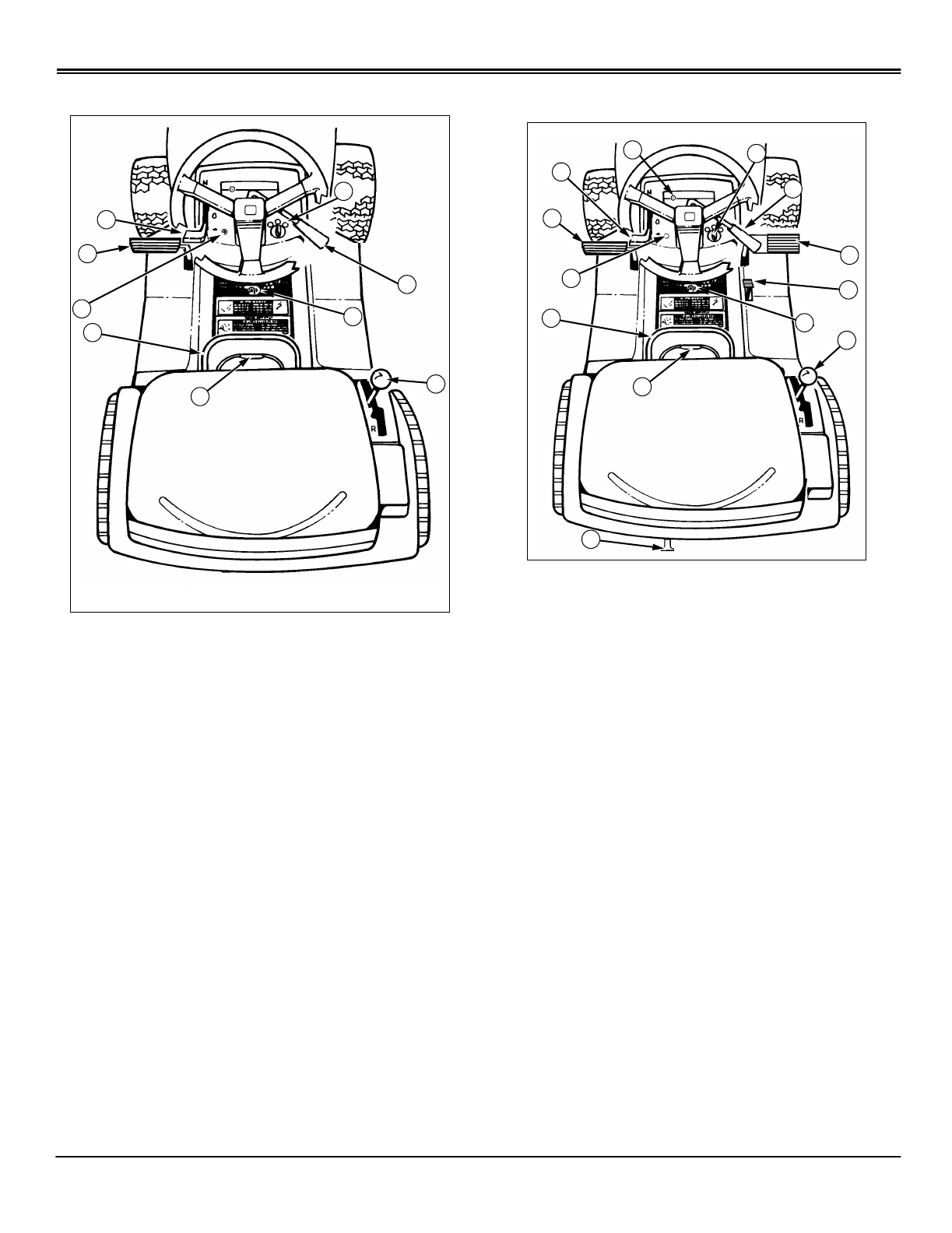

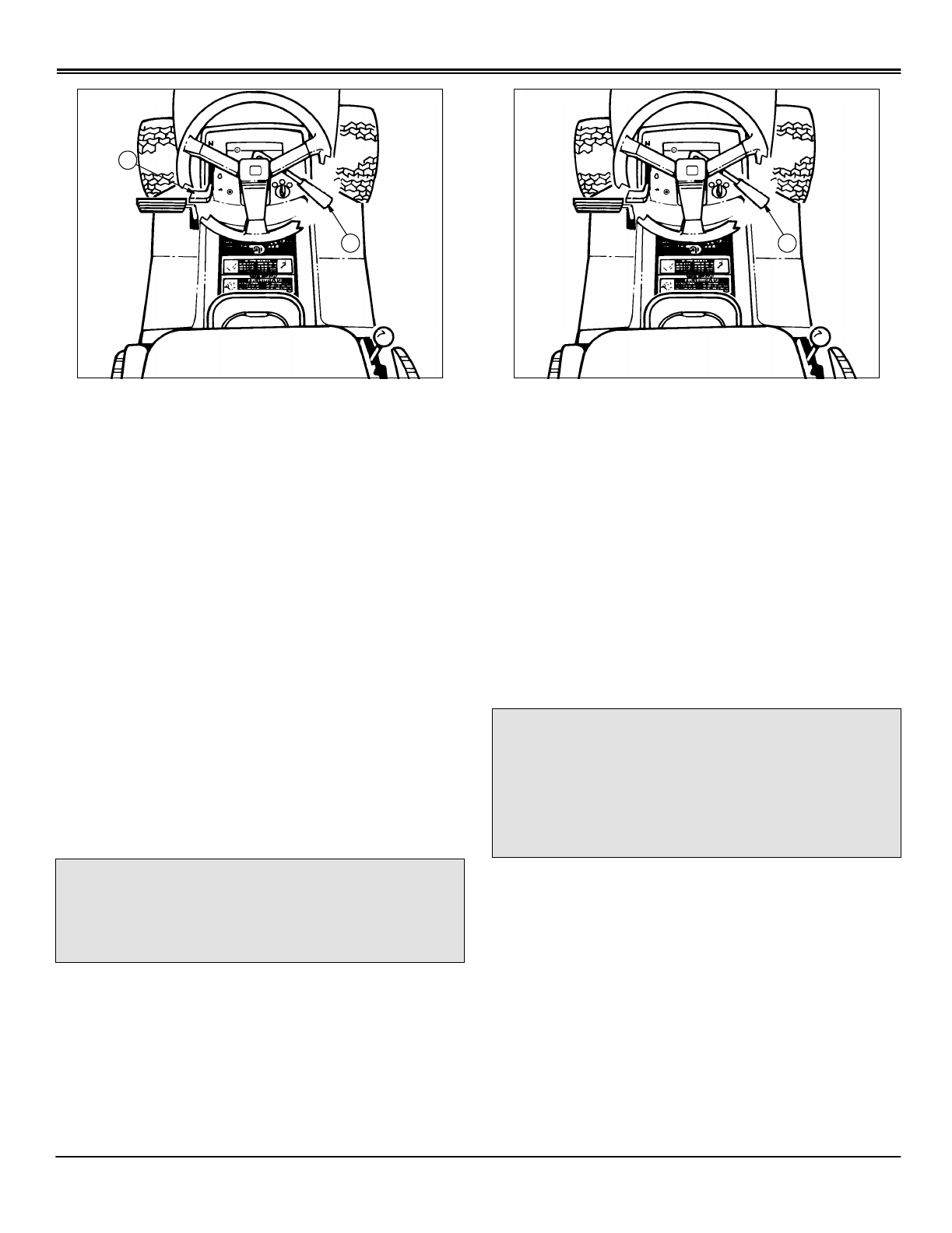

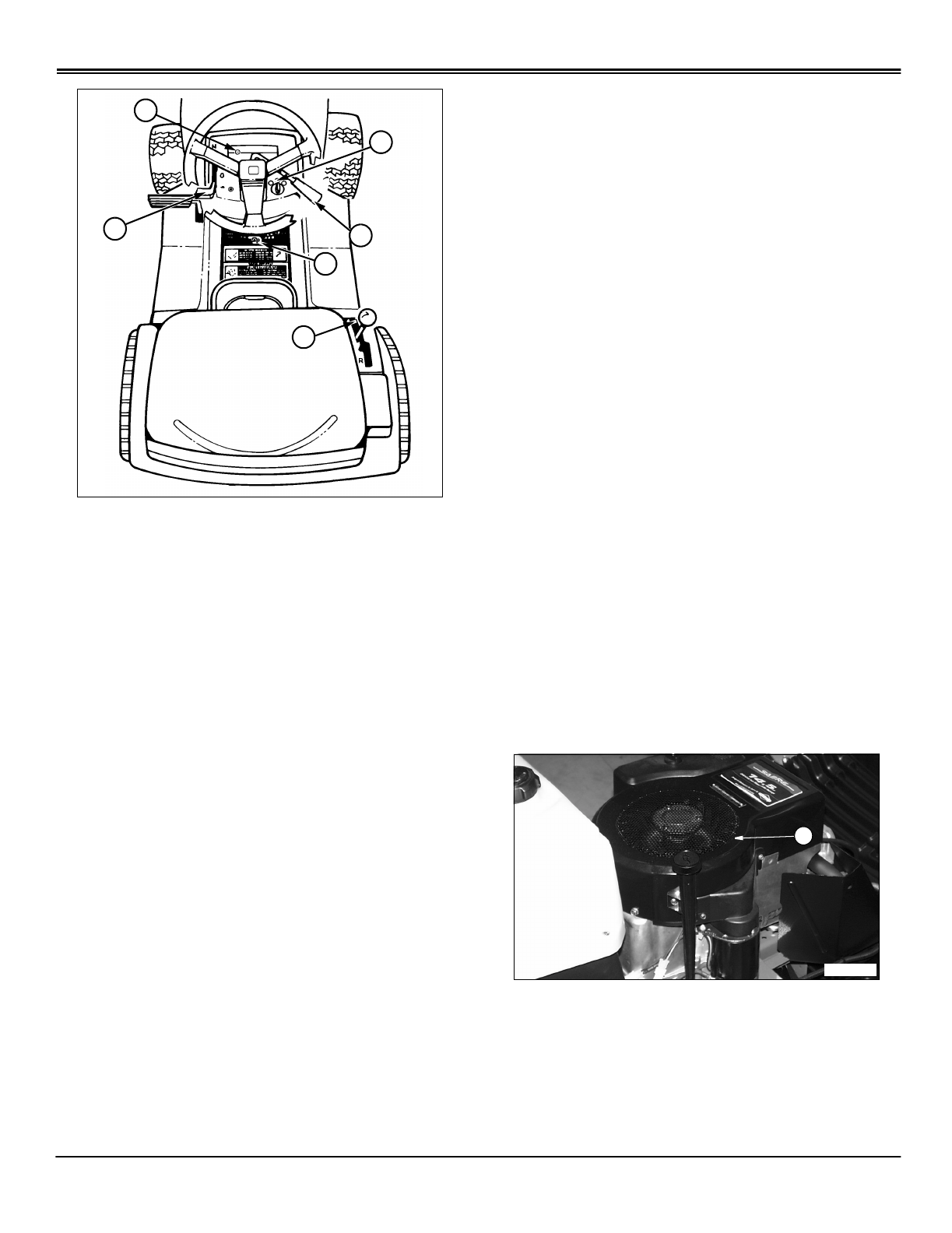

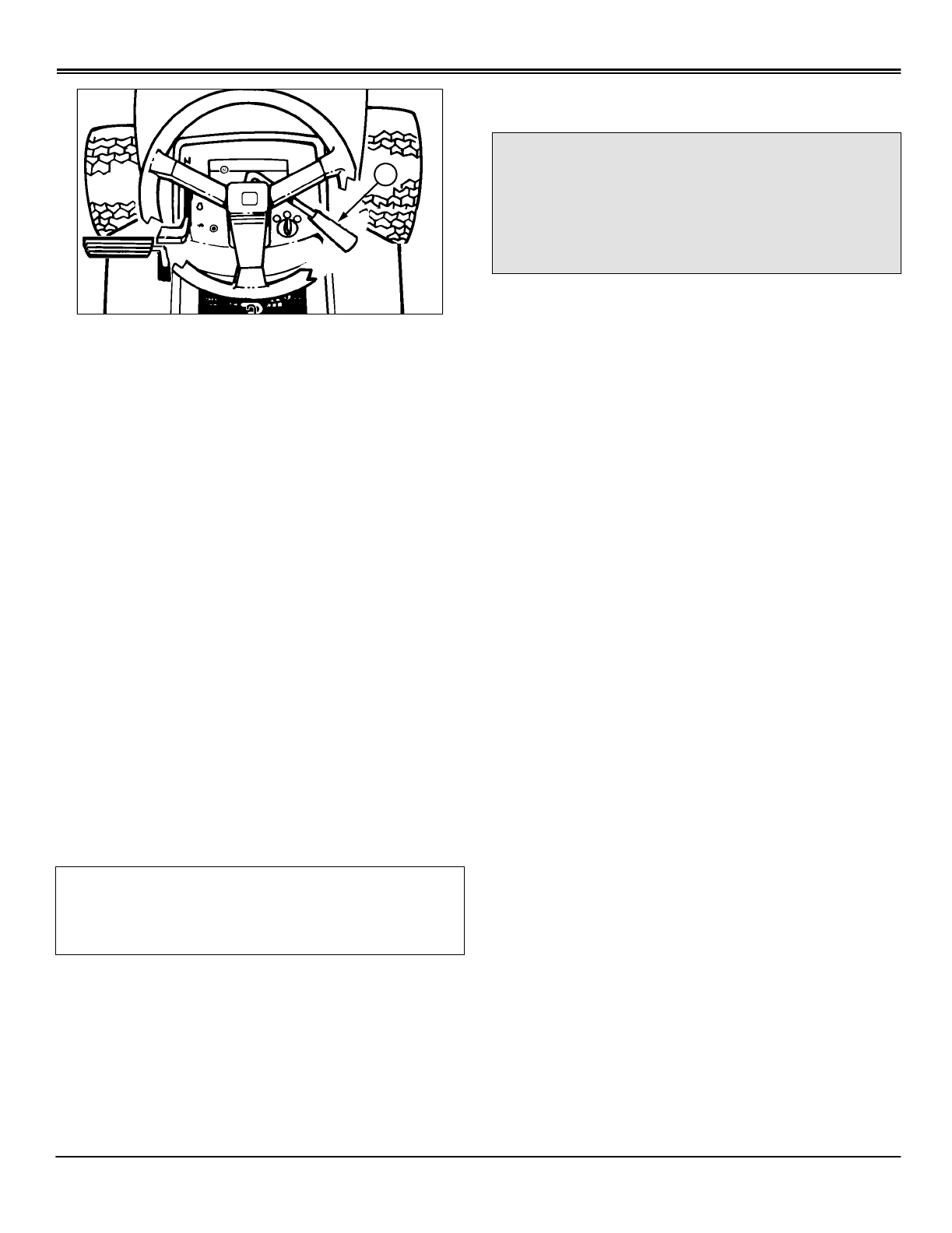

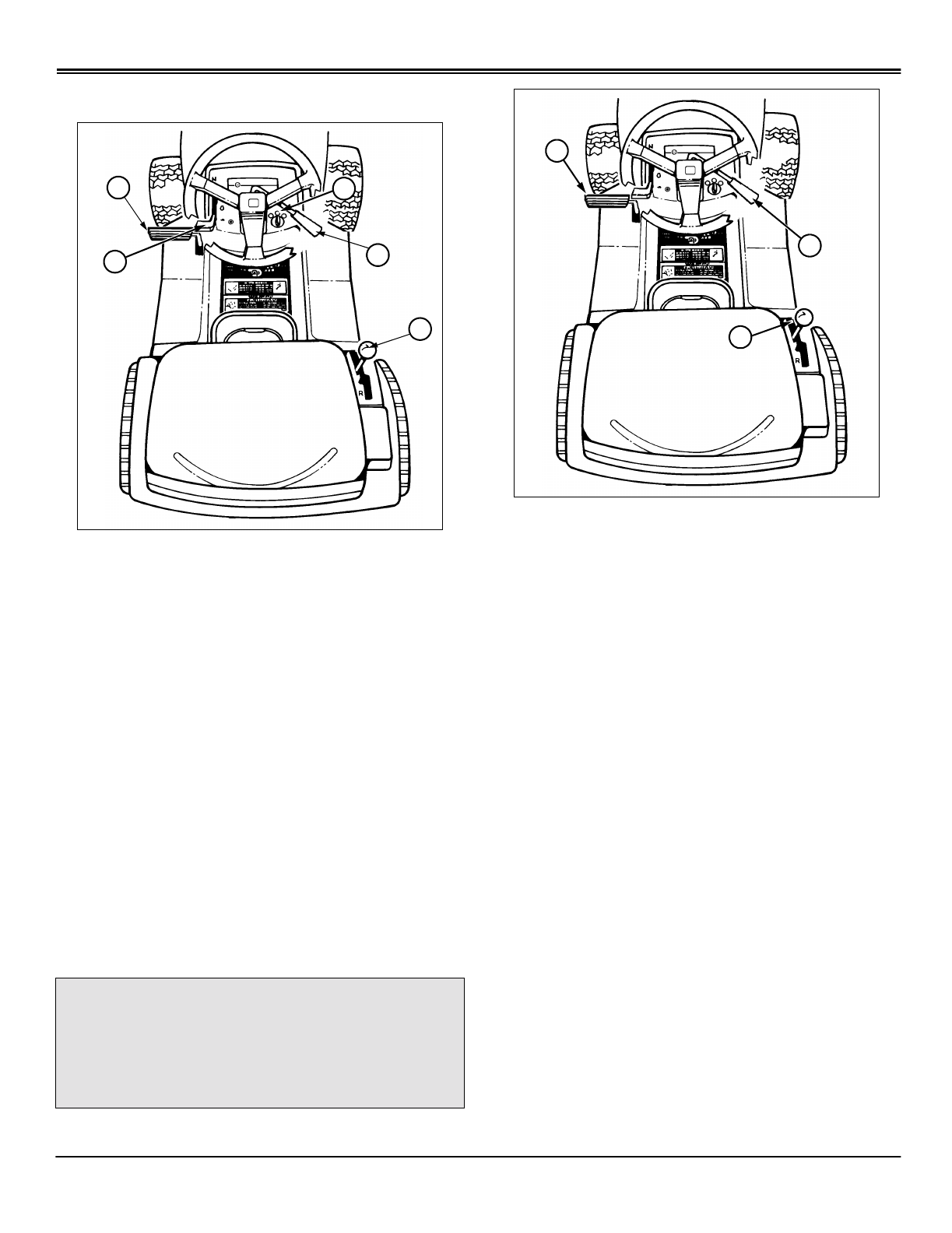

Tractor Controls - Gear

A - Throttle/Choke Control

B - Foot Pedal - Brake/Clutch

C - Reverse Implement Option Switch

D - Attachment Lift Lever

E - Locking Lever

F - Transmission Shift Lever

G - Park Brake

H - PTO Drive Lever

I - Ignition Switch

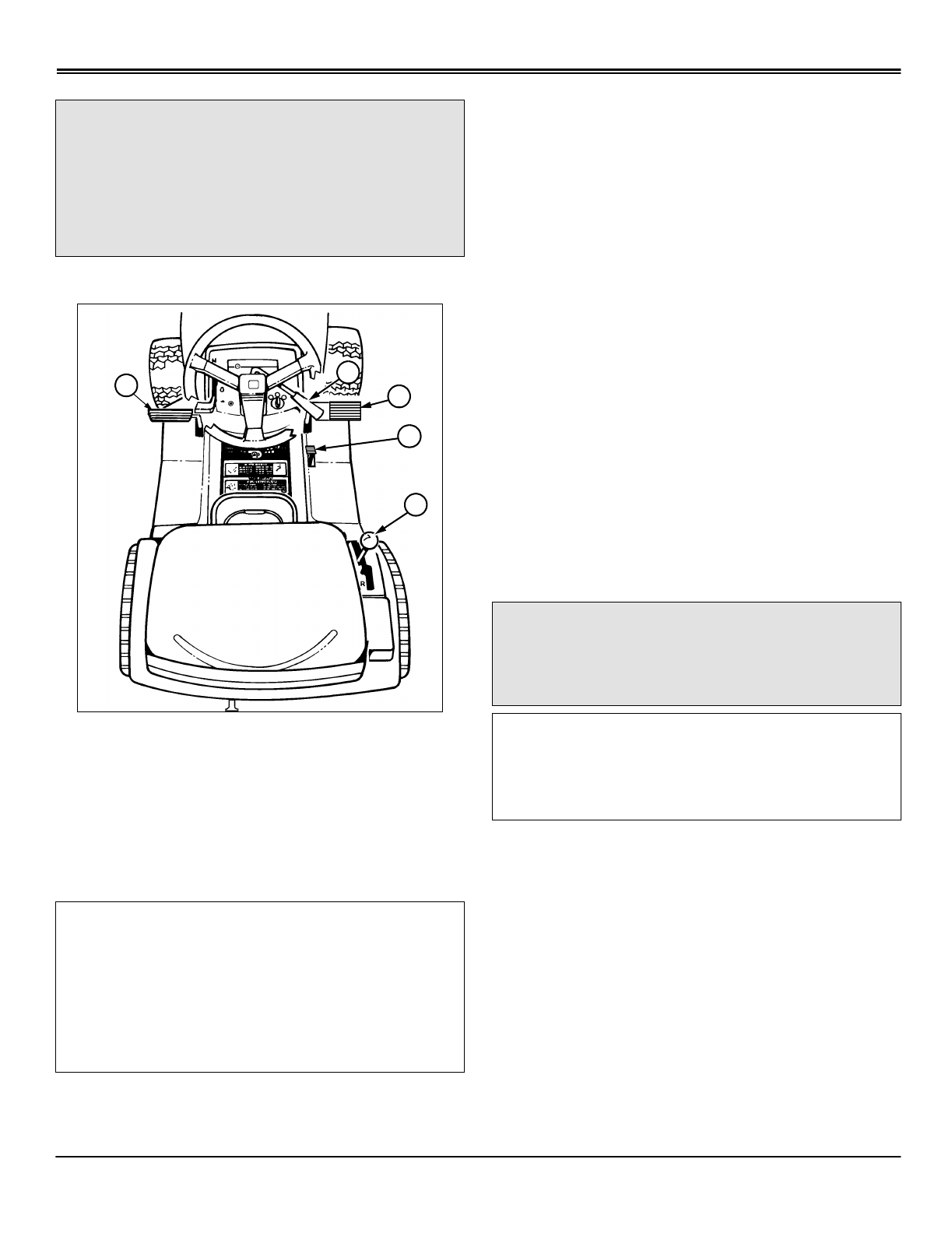

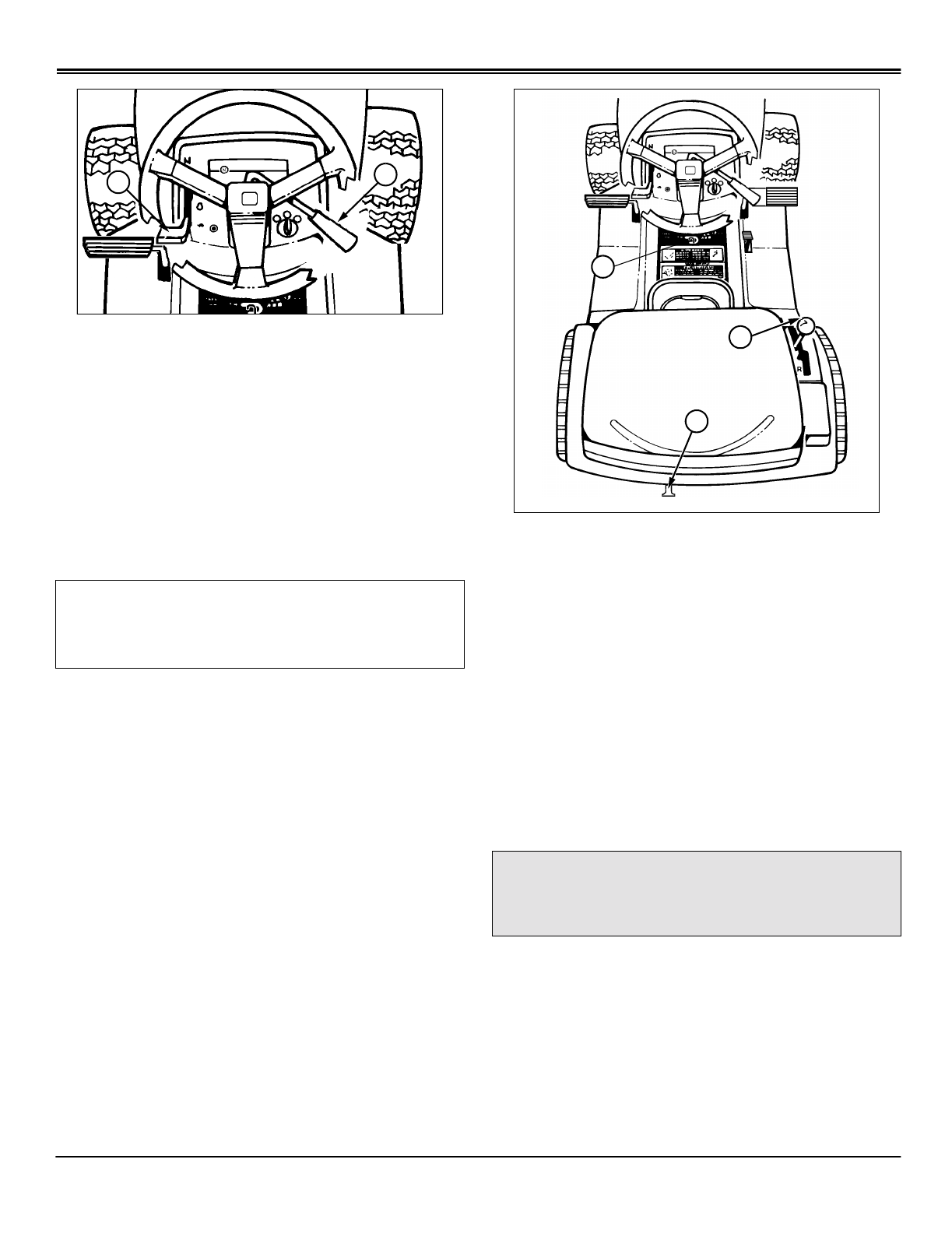

Tractor Controls - Automatic

A - Choke Knob (S2046)

B - Throttle/Choke Control (S1642 and S1742)

Throttle Control (S2046)

C - Foot Pedal - Brake/Clutch/Return to Neutral

D - Reverse Implement Option Switch

E - Attachment Lift Lever

F - Locking Lever

G - Free Wheeling Knob

H - Transmission Shift Lever (Hand Control Units

Only) Cruise Control Lever (Foot Control Units

Only)

I - Park Brake

J - Foot Pedal, Reverse (Foot Control Units Only)

K - Foot Pedal, Forward (Foot Control Units Only)

L - PTO Drive Lever

M - Ignition Switch

Operating Machine - 5

OPERATING MACHINE

Operating Machine

Operate Safely

•In addition to reading your Operator’s Manual, view your

Mowing Safety Video.

•Check brake action before you operate. Adjust or

service brakes as necessary.

•Inspect machine before you operate. Be sure hardware

is tight. Repair or replace damaged, badly worn, or missing

parts. Be sure guards and shields are in good condition

and fastened in place. Make any necessary adjustments

before you operate.

•Clear work area of objects that might be thrown. Keep

people and pets out of the work area. Stop machine if

anyone enters the area.

•If you hit an object, stop the machine and inspect it.

Make repairs before you operate. Keep machine and

attachments properly maintained and in good working

order.

•DO NOT leave machine unattended when it is running.

•Only operate during daylight or with good artificial light.

•Be careful of traffic when operating near or crossing

roadways.

•Do not wear radio or music headphones while operating

the machine. Safe operation requires your full attention.

•Older adults are involved in a large percentage of riding

mower accidents involving injury. These operators should

evaluate their ability to operate a mower safely enough to

protect the operator and others from serious injury.

Park Safely

•Stop machine on a level surface, not on a slope.

•Disengage mower blades.

•Lower attachments to the ground.

•Engage park brake.

•STOP engine.

•Remove key.

•Before you leave the operator’s seat, wait for engine and

all moving parts to STOP.

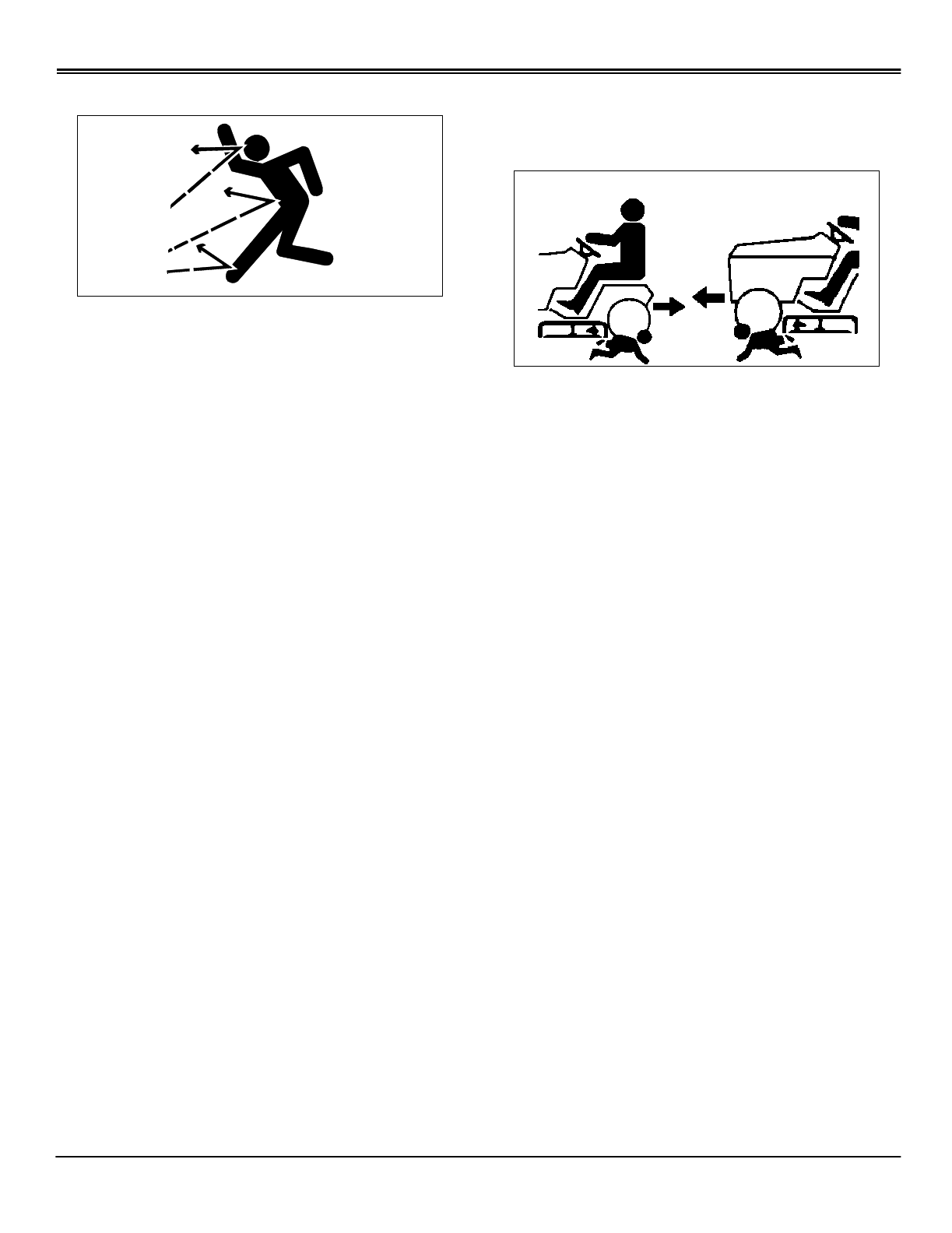

Rotating Blades are Dangerous - Protect

Children and Prevent Accidents

PROTECT CHILDREN:

•Never assume that children will remain where you last

saw them. Children are attracted to mowing activity, stay

alert to the presence of children.

•Keep children in the house when you are operating the

machine.

•Turn machine off if a child enters the mowing area.

•Use extra care when you come to blind corners, shrubs,

trees, or other objects that may block your vision.

•DO NOT let children or an untrained person operate the

machine.

•DO NOT carry or let children ride on machine or any

attachment even with the blades off. DO NOT tow children

in a cart or trailer.

HELP PREVENT SERIOUS OR FATAL ACCIDENTS:

•Be alert at all times, drive forward carefully. People

especially children can move quickly into the mowing area

before you know it.

•Back carefully. Disengage mower blades and look

behind the machine carefully, especially for children, before

you back up.

•DO NOT mow in reverse unless it is absolutely

necessary.

•Disengage mower blades when you are not mowing.

•DO NOT operate machine if you are under the influence

of drugs or alcohol.

Operating Machine - 6

OPERATING MACHINE

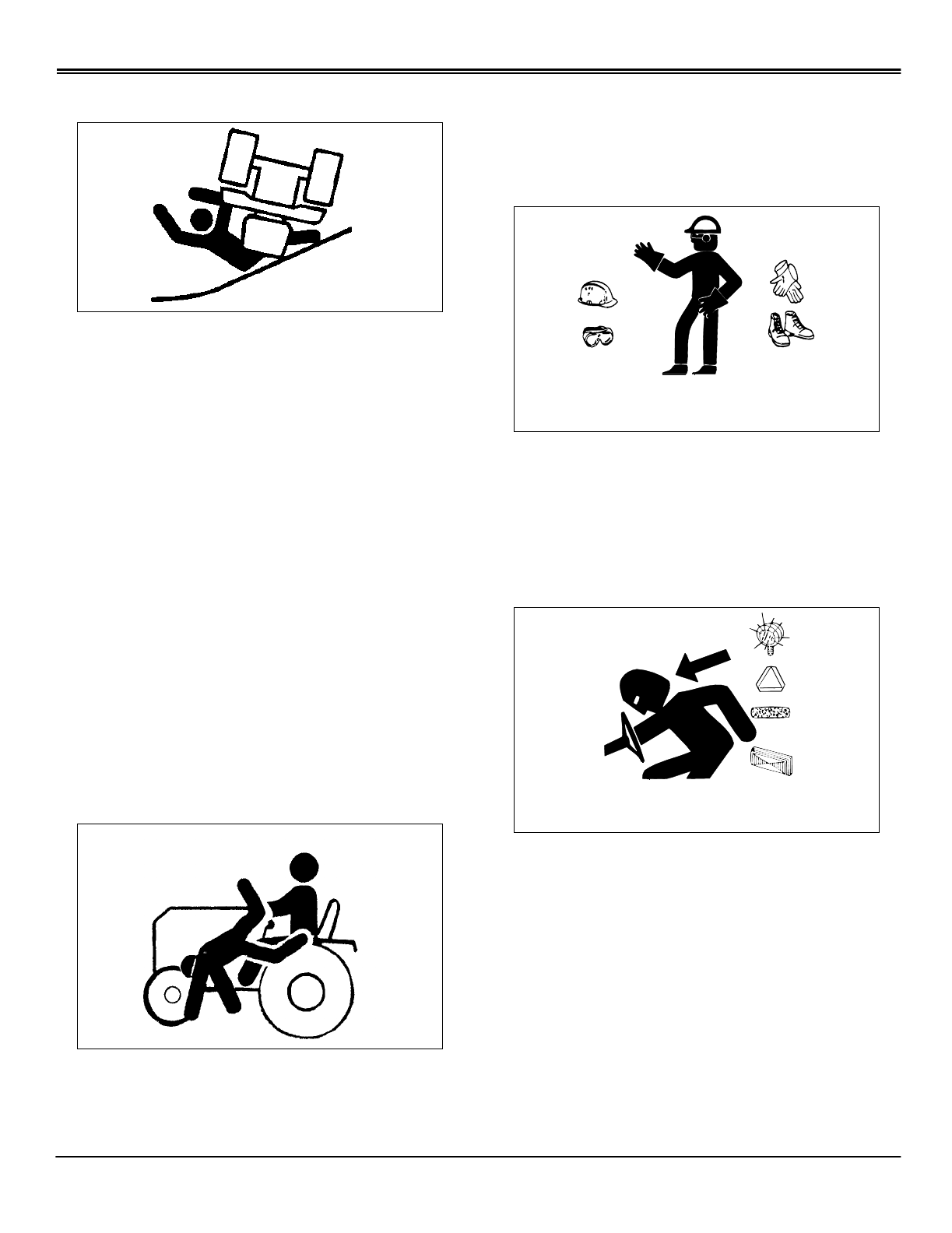

Avoid Tipping

•DO NOT drive where machine could slip or tip.

•Stay alert for holes and other hidden hazards in the

terrain.

•Keep away from drop-offs.

•Slow down before you make a sharp turn or operate on

a slope.

•When pulling loads or using heavy equipment, use only

approved hitches, limit loads to those you can safely

control, and use counterweights or wheel weights when

required per this manual or your attachment manual.

•Drive up and down a hill—not across. Be careful when

you change direction on a slope.

•DO NOT stop when going up hill or down hill. If machine

stops going up hill, DISENGAGE mower blades and back

down slowly.

•DO NOT mow wet grass. Reduced traction could cause

sliding.

•DO NOT try to stabilize the machine by putting your foot

on the ground.

Keep Riders Off

•Only allow the operator on the machine. Keep riders off.

•Riders on the machine or attachment may be struck by

foreign objects or thrown off the machine causing serious

injury.

•Riders obstruct the operator’s view resulting in the

machine being operated in an unsafe manner.

Wear Appropriate Clothing

•Wear close fitting clothing and safety equipment

appropriate for the job.

•Loud noise can cause impairment or loss of hearing,

wear a suitable protective device such as earplugs.

Transport Safely

•Use safety lights and devices. Slow moving machines

when driven on public roads are hard to see, especially at

night. Avoid personal injury or death resulting from a

collision with a vehicle.

•Whenever driving on public roads, use flashing warning

lights and turn signals according to local regulations. Extra

flashing warning lights may need to be installed.

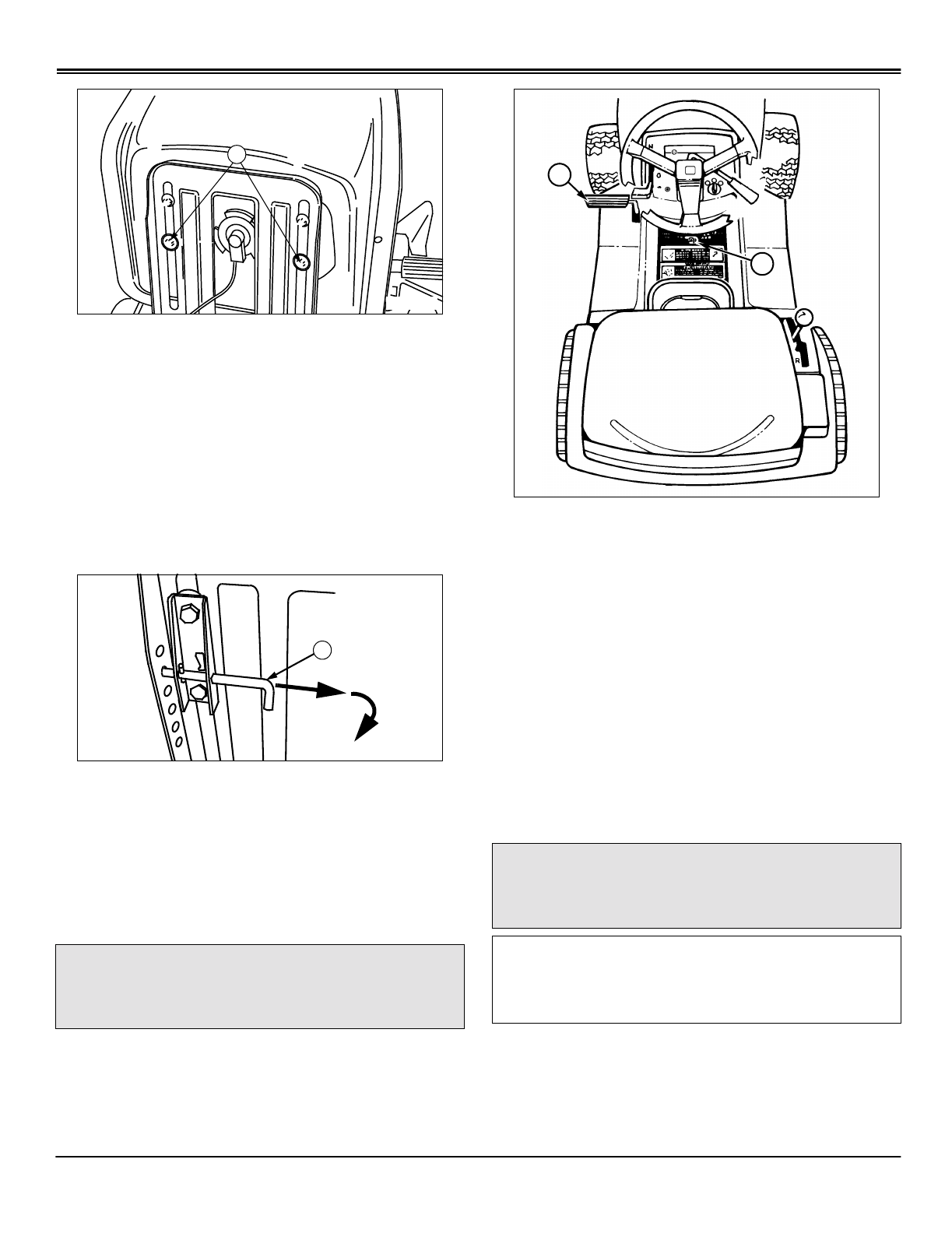

Adjusting Seat

1. Pivot seat forward on its mounting bracket.

Operating Machine - 7

OPERATING MACHINE

Picture Note: Model with capscrew adjuster used

for illustration.

2. Loosen two cap screws (A) two turns.

3. Slide forward or rearward on mounting bracket to

desired position.

4. Tighten cap screws or knobs.

5. Lower seat.

Using Slide Adjuster (S2046)

1. Pivot seat forward on its mounting bracket.

2. Pull pin (B) and rotate pin to the locked position.

3. Slide seat forward or rearward to desired position.

4. Release pin, make sure pin engages in hole in frame.

Using the Park Brake

LOCKING PARK BRAKE:

1. Push and hold foot pedal (A) all the way down.

2. Move park brake lever (B) forward, then to the left to lock

position.

3. Remove foot from pedal. Pedal should not return to the

up position.

UNLOCKING PARK BRAKE

1. Push and hold foot pedal (A) all the way down.

2. Move park brake lever (B) to the right, then to the rear.

3. Remove foot from pedal. Pedal should return to the up

position.

Starting Engine

NOTE: Engine will not start unless: PTO lever is

DISENGAGED, park brake is LOCKED or brake/clutch

pedal is pushed down. On GEAR model: The

transmission shift lever should be in N (NEUTRAL)

position.

c CAUTION: Avoid injury! Always LOCK park

brake before getting off tractor or leaving

tractor unattended.

M96454

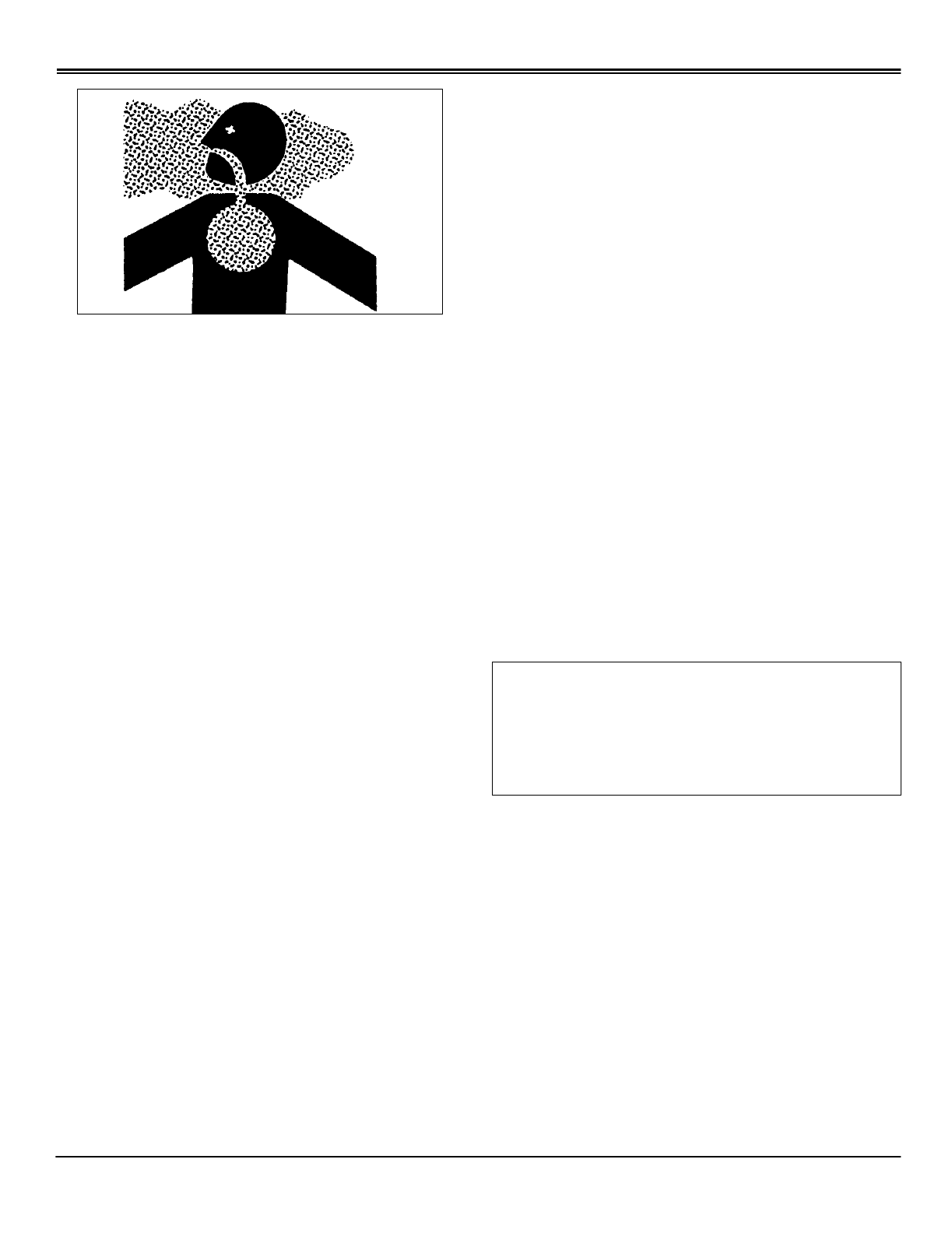

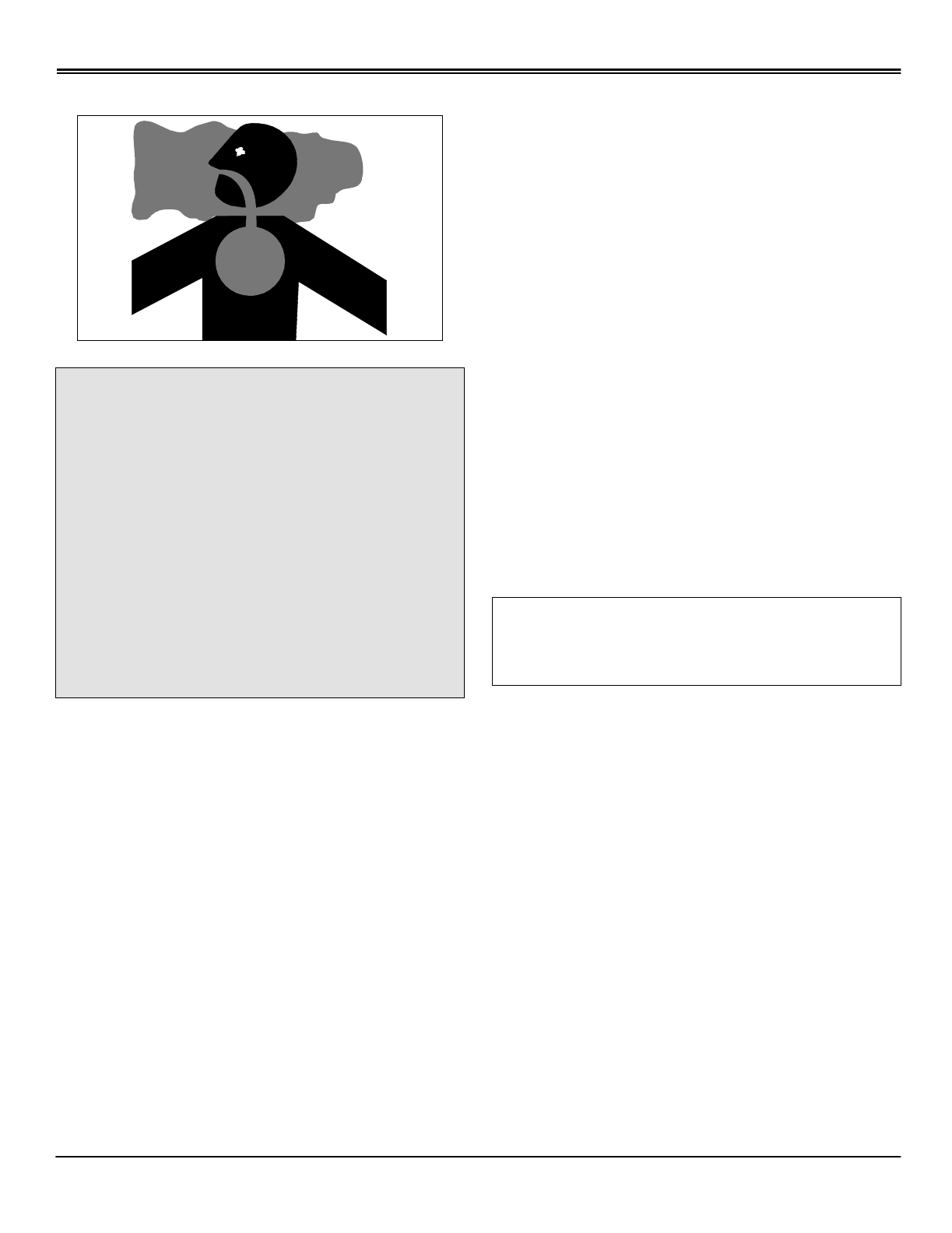

c CAUTION: Avoid injury! Start engine ONLY

outdoors or in a well ventilated place. Exhaust

fumes are dangerous.

IMPORTANT: Avoid damage! Do not operate starter

more than 20 seconds at a time, or you may damage

it. If engine does not start: Wait two minutes before

you try again. See Troubleshooting section.

Operating Machine - 8

OPERATING MACHINE

1. Gear units - Move transmission shift lever (A) to N

(NEUTRAL) position.

Automatic units - If equipped with shift lever, move shift

lever to N (NEUTRAL) position. If equipped with foot pedal

controls, do not depress either pedal.

2. Lock the park brake (B).

3. Pull PTO lever (C) all the way back to the rearward

(OFF) position.

4. To start the engine:

•S1642 and S1742 - Place the throttle lever (D) in the

CHOKE (k) position. As the engine begins to run

smoothly, lower the throttle lever in small steps, allowing

the engine to accept changes in speed and load, until

the throttle lever is in the FAST (r) position.

•S2046 - Place the throttle lever (D) the FAST (r)

position and pull out choke knob (E). As the engine

begins to run smoothly, push the choke knob in until fully

seated.

5. Turn ignition key (F) to start position to crank the engine.

Crank engine until it starts, but no longer than 5 seconds.

6. If engine starts, release key to run position. If engine

does not start, release key to run position and wait 10

seconds before cranking the engine again.

7. Let engine run for a couple of minutes to warm-up

before operating tractor.

Using Throttle Control

Always operate the engine at FULL (r)THROTTLE.

Operating the engine at less that full throttle reduces the

battery charging rate and reduces fan cooling efficiency of

the engine.

Full throttle offers the best bagging and mower

performance.

Cold Weather Starting Tips

Always use fresh winter grade fuel.

Do not crank engine for more than 30 seconds in any single

attempt.

During first minute of operation engine may be operated in

partial choke to allow smoother running. As engine warms

slowly reduce engine speed to the full throttle detent

position.

On Automatic Transmission

Allow engine to run for a few minutes before using tractor to

allow automatic transmission oil to warm. Sluggish

transmission response in cold weather indicates that oil has

not warmed to allow optimum performance.

Warming and Idling Engine

WARMING ENGINE:

•Run Engine at half speed for 2–3 minutes.

IDLING ENGINE:

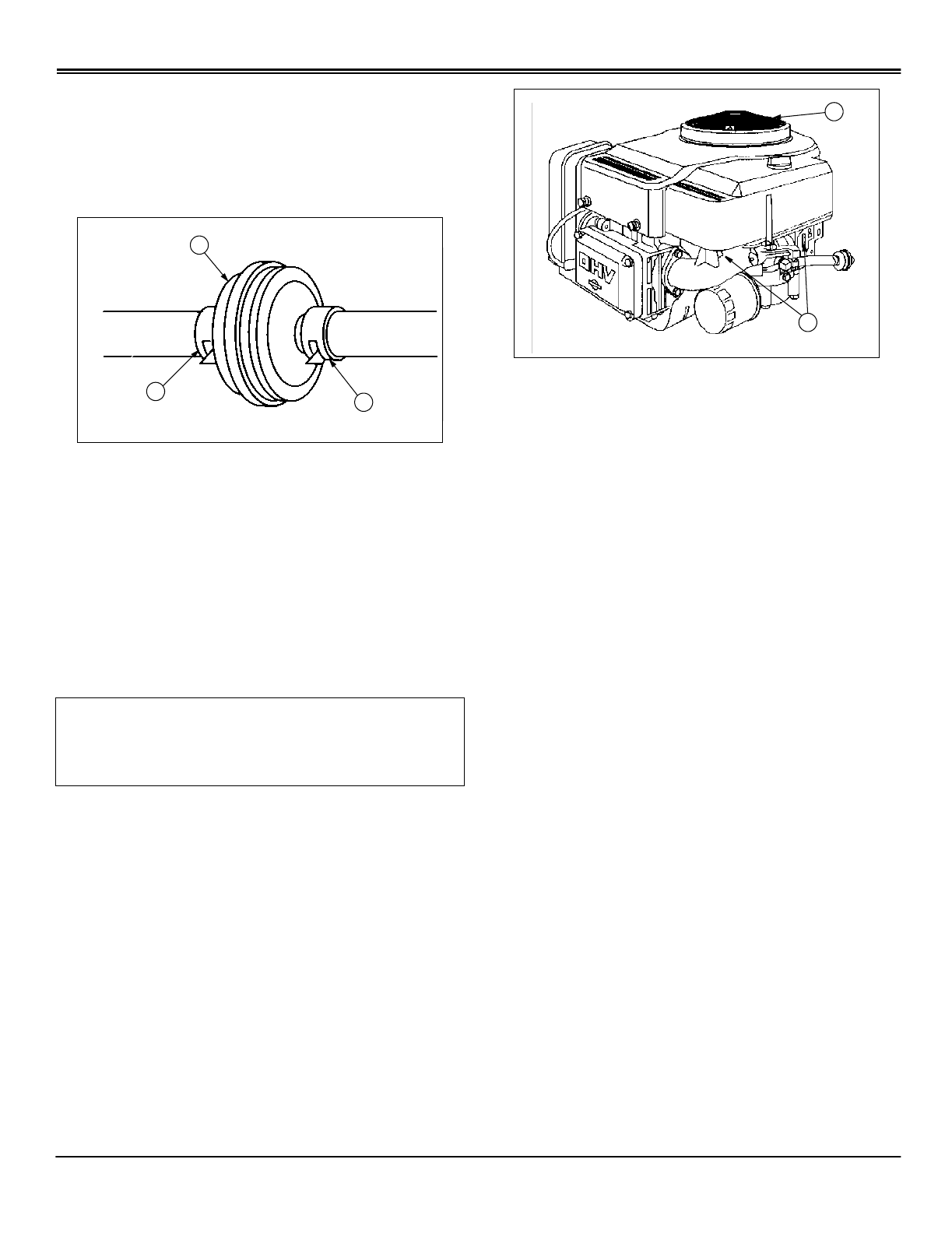

•Engine is air-cooled and needs a large volume of air to

keep cool. Keep air intake screen (A) on top of engine

clean.

•Avoid unnecessary engine idling.

M96455

Operating Machine - 9

OPERATING MACHINE

Stopping Engine

1. Push down on foot pedal (A).

2. Gear units - Move transmission shift lever (B) to N

(NEUTRAL) position.

Automatic units - If equipped with shift lever, move shift

lever to N (NEUTRAL) position. If equipped with foot pedal

controls, release either pedal and unit will automatically

return to neutral. If cruise control is engaged, move lever to

OFF position.

3. Pull PTO lever (C) all the way back to the rearward

(OFF) position.

4. Move throttle lever (D) to SLOW (t) position. Let engine

run at low throttle a few seconds.

5. Turn key (E) to OFF position.

6. Remove key.

7. LOCK the park brake.

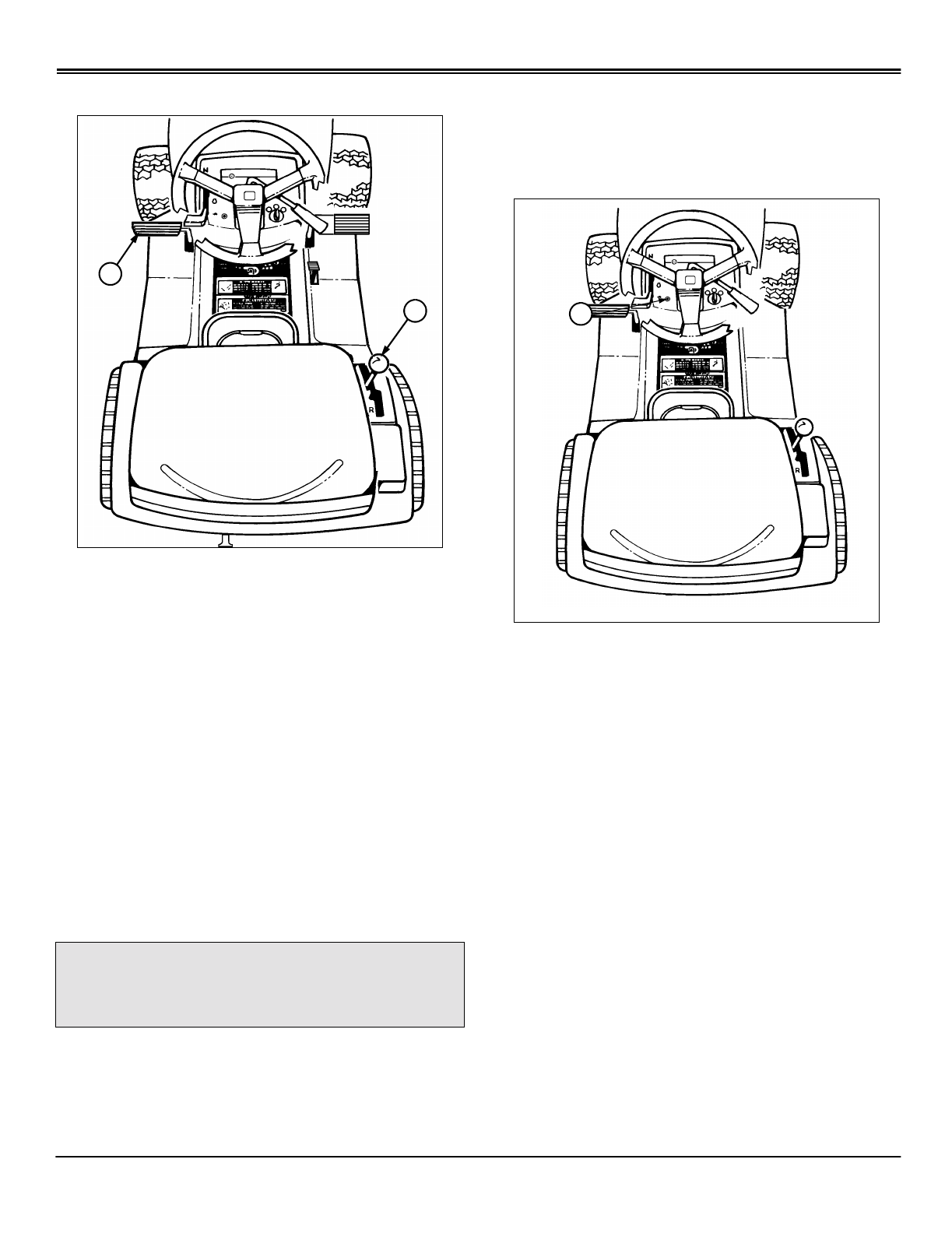

Using Travel Controls - Gear

TO TRAVEL FORWARD:

1. Push foot pedal (A) all the way forward to the BRAKE

position.

2. Move shift lever (B) to the right and forward to desired

FORWARD position.

3. Slowly release foot pedal to engage machine drive.

TO TRAVEL IN REVERSE:

NOTE: The engine and mower will stop as the shift

lever is moved to the R (REVERSE) position with

mower engaged.

1. Push foot pedal (A) all the way down to STOP tractor.

2. Pull PTO lever (C) all the way back to the rearward

(OFF) position.

3. Look behind the vehicle to be sure there are no

bystanders nearby.

4. Move shift lever (B) to the right and rearward to the R

(REVERSE) position.

5. Release foot pedal slowly.

FOR EMERGENCY STOPPING:

1. Push foot pedal (A) fully to stop machine.

Using Travel Controls - Automatic

c CAUTION: Avoid injury!

• Before moving forward or rearward, make sure

area is clear of bystanders, especially children.

• Disengage mower or attachment before

backing up.

Operating Machine - 10

OPERATING MACHINE

To Travel Forward:

1. Units with Shift Lever (A) - Move transmission shift

lever (A) to the right and forward. The speed of the tractor is

determined by how far forward the shift lever is moved.

Units with Foot Controls (B) - Depress forward pedal (B).

The speed of the tractor is determined by how far down the

pedal is pressed.

TO TRAVEL IN REVERSE:

NOTE: The engine and mower will stop as the drive

lever is moved to the R (REVERSE) position with

mower engaged.

1. Units with Shift Lever (A) - Move transmission shift

lever (A) reward into the R (REVERSE) position. The speed

of the tractor is determined by how far forward the shift

lever is moved.

Units with Foot Controls (C) - Depress reverse pedal (C).

The speed of the tractor is determined by how far down the

pedal is pressed.

2. Pull PTO lever (C) all the way back to the rearward

(OFF) position.

3. Look behind the vehicle to be sure there are no

bystanders nearby.

FOR EMERGENCY STOPPING:

1. Units with Shift Lever (A) - Push down on foot pedal

(E). Transmission shift lever (A) will automatically return to

NEUTRAL position and brakes will be applied.

Units with Foot Controls (C) - If cruise control is engaged,

move lever to OFF position. Release either pedal (B or C)

and unit will automatically return to neutral and STOP. Push

down on brake/clutch pedal (E). Brakes will be applied to

assist in stopping.

Using Cruise Control

Use cruise control when you want to maintain travel speed

without having to hold the forward travel pedal down.

Cruise control operates only for forward travel.

c CAUTION: Avoid injury!

• Before moving forward or rearward, make

sure area is clear of bystanders, especially

children.

• Disengage mower or attachment before

backing up.

IMPORTANT: Avoid damage! To prevent

transmission damage, stop tractor movement before

changing direction of travel.

When cruise control is not in use, hand lever should

be returned manually, all the way rearward to OFF

position. Otherwise, hand lever will restrict travel of

reverse pedal linkage and reverse speed of tractor

will be too slow.

c CAUTION: Avoid injury! DO NOT use cruise

control when going down hills. Tractor speed

will increase. Operate tractor in a large, open

area to learn how the cruise control works

IMPORTANT: Avoid damage! When cruise control is

not in use, hand lever should be returned manually,

all the way rearward to OFF position. Otherwise,

hand lever will restrict travel of reverse pedal linkage

and reverse speed of tractor will be too slow.

Operating Machine - 11

OPERATING MACHINE

ENGAGE CRUISE CONTROL:

1. Start with the cruise control lever (A) in the OFF

position.

2. Move cruise control lever forward, at the”t” position the

tractor will begin to move forward.

3. Continue to move cruise control lever forward toward the

“r” position and the tractor will increase in speed.

4. Move cruise control lever to the desired speed and

release lever.

DISENGAGE CRUISE CONTROL:

NOTE: Depressing brake/clutch pedal (B) will return

cruise control lever to the OFF position.

1. Move the cruise control lever to the OFF position.

Using Reverse Implement Option

NOTE: Operating the mower while backing up is

strongly discouraged. The Reverse Implement Option

should be used ONLY when operating another

attachment or when the operator deems it necessary to

reposition the machine with the mower engaged.

1. Stop the machine FORWARD travel with mower

engaged. On foot control models, be sure cruise control

lever is all the way rearward in the OFF position.

2. Look behind the vehicle to be sure there are no

bystanders.

3. Push and hold in the reverse implement switch (A)

while:

•Automatic - move drive lever to the rear or press

reverse pedal.

•Gear - move the gear shift lever to the R (REVERSE)

position.

NOTE: If the engine and mower stop while

repositioning the machine, return mower engagement

lever to the OFF position and restart the machine. (See

Starting The Engine in this section.) Begin again with

Step 2.

4. As the machine begins to move rearward, release the

reverse implement switch and reposition the machine.

5. Resume FORWARD travel. The mower should continue

operating.

6. Repeat Steps 1 through 5 to reposition the machine

again.

c CAUTION: Avoid injury! Before moving forward

or rearward, make sure area is clear of

bystanders, especially children.

Operating Machine - 12

OPERATING MACHINE

Pushing Machine

To move machine when engine is STOPPED:

•Unlock the park brake (A).

•GEAR MODEL: Put transmission shift lever (B) in N

(Neutral).

•AUTOMATIC MODEL: Pull out on free-wheeling lever

(C).

•Push machine to desired location.

NOTE: AUTOMATIC MODEL: Push free-wheeling lever

Daily Operating Checklist

•Test safety systems.

•Check tire pressure.

•Check fuel level.

•Check engine oil level.

•Remove grass and debris from machine.

Testing Safety Systems

Use the following checkout procedure to check for normal

operation of machine.

If there is a malfunction during one of these procedures,

DO NOT operate machine. (See your Authorized Service

Center for service.)

Perform these tests in a clear open area. Keep bystanders

away.

NOTE: Your Lawn Tractor is equipped with a

ELECTRONIC SAFETY INTERLOCK. Engine will not

start unless: PTO lever is DISENGAGED. Brake pedal is

depressed OR parking brake is set.

Test 1

1. Operator on seat.

2. Unlock the park brake.

3. Pull PTO lever (A) back to DISENGAGE.

4. Try to start engine.

5. Engine MUST NOT start. If engine starts, there is a

problem with your safety interlock circuit. (See your

Authorized Service Center.)

IMPORTANT: Avoid damage! Avoid transmission

damage, DO NOT tow machine.

c CAUTION: Avoid injury! Engine exhaust fumes

can cause sickness or death.

If it is necessary to run an engine in an

enclosed area, remove the exhaust fumes from

the area with an exhaust pipe extension.

If you do not have an exhaust pipe extension,

open the doors and get outside air into the

area.

Operating Machine - 13

OPERATING MACHINE

Test 2

1. Operator on seat.

2. Lock the park brake.

3. Push PTO lever (A) forward to ENGAGE.

4. Try to start engine.

5. Engine MUST NOT start. If engine starts, there is a

problem with your safety interlock circuit. (See your

Authorized Service Center.)

Test 3

1. Operator on seat.

2. Lock the park brake.

3. Pull PTO lever (A) back to DISENGAGE.

4. Start engine and move throttle lever (B) to HALF-

SPEED (R) position.

5. Push PTO lever (A) forward to ENGAGE.

6. Move throttle lever to FAST (r) speed position.

7. Raise up off of seat. DO NOT get off tractor.

8. Engine will begin to stop. If engine does not begin to

stop, there is a problem with your safety interlock circuit.

(See your Authorized Service Center.)

Test 4

1. Operator on seat.

2. Push brake pedal down.

3. Pull PTO lever (A) back to DISENGAGE.

4. Put transmission shift lever (B) in N (NEUTRAL)

position.

5. Start engine and move throttle lever (C) to FAST (r)

speed position.

6. Release brake slowly.

7. Raise up off of seat. DO NOT get off tractor.

8. Engine will begin to stop. If engine does not begin to

stop, there is a problem with your safety interlock circuit.

(See your Authorized Service Center.)

Test 5

1. Operator on seat.

2. Lock the park brake.

Operating Machine - 14

OPERATING MACHINE

3. Pull PTO lever (A) back to DISENGAGE.

4. Start engine and move throttle lever (B) to FAST (r)

speed position.

5. Raise up off of seat. DO NOT get off tractor.

6. Engine MUST remain running. If engine does stop,

there is a problem with your safety interlock circuit. (See

your Authorized Service Center.)

Test 6 1. Lock the park brake (A).

2. On Gear Models: Put transmission shift lever (B) in N

(Neutral).

On Automatic Models: Pull out free- wheeling lever (C) to

unlock.

3. Try to push machine manually.

4. Park brake MUST prevent machine from moving. If

machine moves, parking brake needs to be adjusted. (See

your Authorized Service Center.)

5. On Automatic Models: Push free-wheeling lever back in.

Test 7

Test Reverse Implement Option:

1. Start engine.

IMPORTANT: Avoid damage! On Automatic

Transmission Models: Do Not operate tractor or

start engine with the free-wheeling lever (C) out or

transmission damage may occur.

c CAUTION: Avoid injury! Before moving

rearward, make sure area is clear of

bystanders, especially children.

Operating Machine - 15

OPERATING MACHINE

2. Push PTO lever (A) forward to ENGAGE.

3. Look behind the vehicle to be sure there are no

bystanders.

4. Begin REVERSE travel by moving the drive lever or

reverse pedal for Automatic Model or gear shift lever for

Gear Model to R (REVERSE) position.

Mower and engine should stop operation. If mower or

engine continues to operate as tractor begins travel in

REVERSE, do not continue to operate mower. (See your

Authorized Service Center for service.)

Avoid Damage to Plastic and Painted

Surfaces

•DO NOT wipe plastic parts unless rinsed first. (See

Correct Cleaning Care in Service-Miscellaneous section.)

•Insect repellent spray may damage plastic and painted

surfaces. Do not spray insect repellent near machine.

•Be careful not to spill fuel on machine. Fuel may

damage surface. Wipe up spilled fuel immediately.

Avoid Using Ground Engaging Equipment

This tractor is not intended for use with ground engaging

equipment such as a rear tiller, disk, blade or plow.

Using Front Weights

Install front wheel weights, two required, for better stability

and steering control when you use equipment such as the

rear-mounted grass bagger or dumpcart.

See your Authorized Service Center for Front Weights.

Remove front wheel weights when not required.

Using Rear Wheel Weights

Use of rear wheel weights is recommended for improved

traction when an attachment, such as snowthrower or blade

is used.

See your Authorized Service Center for Rear Weights.

Using Tire Chains

Tire chains are recommended for use with snowthrower

and, under certain conditions, the front blade.

See your Authorized Service Center for Tire Chains.

Transporting

Do not tow machine.

Use a heavy-duty trailer to transport your machine.

Raise mower deck to highest position when transporting to

trailer.

Disengage PTO.

Drive forward onto trailer.

Lower mower or any attachment to trailer deck.

LOCK park brake.

Be sure trailer has all the necessary lights and signs

required by law.

Fasten machine to trailer with heavy-duty straps, chains, or

cables. Both front and rear straps must be directed down

and outward from tractor.

IMPORTANT: Avoid damage! This tractor is NOT

intended for use with ground engaging equipment.

Use of such equipment could result in damage to

transmission components.

Ac CAUTION: Avoid injury! Tractor front wheel

weights improve stability in most slope

operation. To avoid injury, add front wheel

weights for better front-end stability and

steering when using a rear mounted

attachment.

Operating Mower - 16

OPERATING MOWER

Operating Mower

Operate Mower Safely

•In addition to reading your Operator’s Manual, view your

Mowing Safety Video.

Check Ground Conditions

•Clear mowing area of objects that might be thrown.

Keep people and pets out of mowing area.

•Study mowing area. Set up safe mowing pattern. Do not

mow under conditions where traction or stability is doubtful.

•First, test drive area with PTO lever DISENGAGED and

mower lowered. Slow down when you travel over rough

ground.

Avoid Injury From Contacting Blades

Before you dismount to unplug or adjust mower:

•DISENGAGE PTO lever to stop mower blades.

•STOP the engine.

•LOCK the park brake.

•Remove key.

•Wait for mower blades to STOP.

•Keep hands, feet and clothing away from mower deck

when engine is running.

•DISENGAGE PTO lever to stop mower blades when you

are not using mower.

Using Lift Lever to Raise and Lower Mower

1. Push down on lift lever (A) slightly and hold locking lever

(B) down with thumb.

2. Move lift lever (A) DOWN to LOWER mower or UP to

RAISE mower.

3. Release locking lever lock (B) to keep lift lever (A) in

position.

Adjusting Cutting Height

Cutting height can be adjusted from 38 – 102 mm (1-1/2 –

4 in).

Check tractor tire pressure. (See Checking Tire Pressure in

Service Miscellaneous section.)

To adjust cutting height:

1. Push down on lift lever (A) slightly and hold locking lever

(B) down with thumb.

2. Move lift lever (A) to desired cutting height.

3. Release locking lever (B) to keep lift lever (A) in position.

Operating Mower - 17

OPERATING MOWER

4. Adjust gage wheels to match cut height desired. (See

Adjusting Mower Gage Wheels below.)

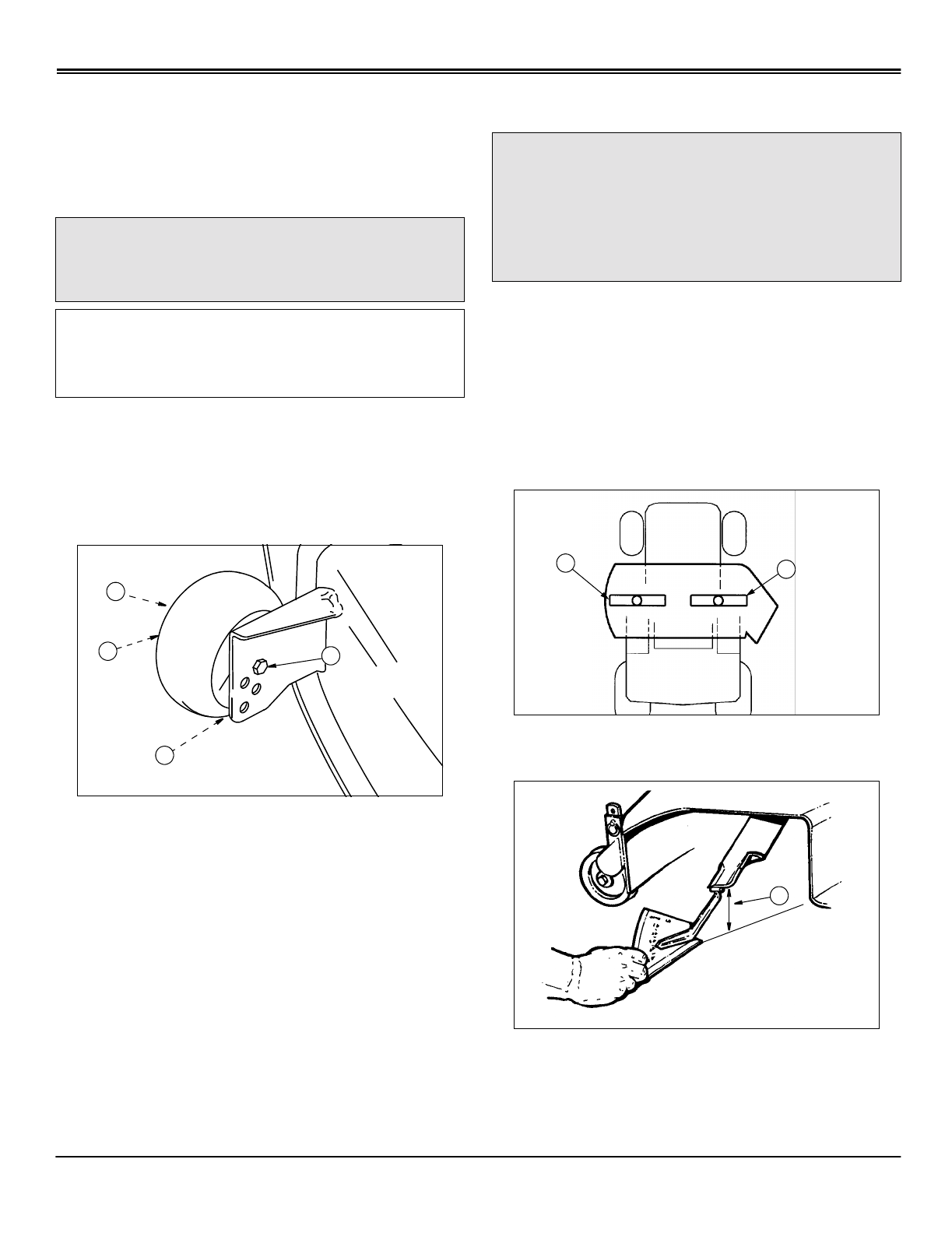

Adjusting Mower Gage Wheels

1. Check tractor tire pressure. Inflate tires to the correct

pressure. (See Checking Tire Pressure in Service -

Miscellaneous section.)

2. Raise mower lift lever to TRANSPORT (upper) position

and adjust cutting height. (See Adjusting Cutting Height in

this section.)

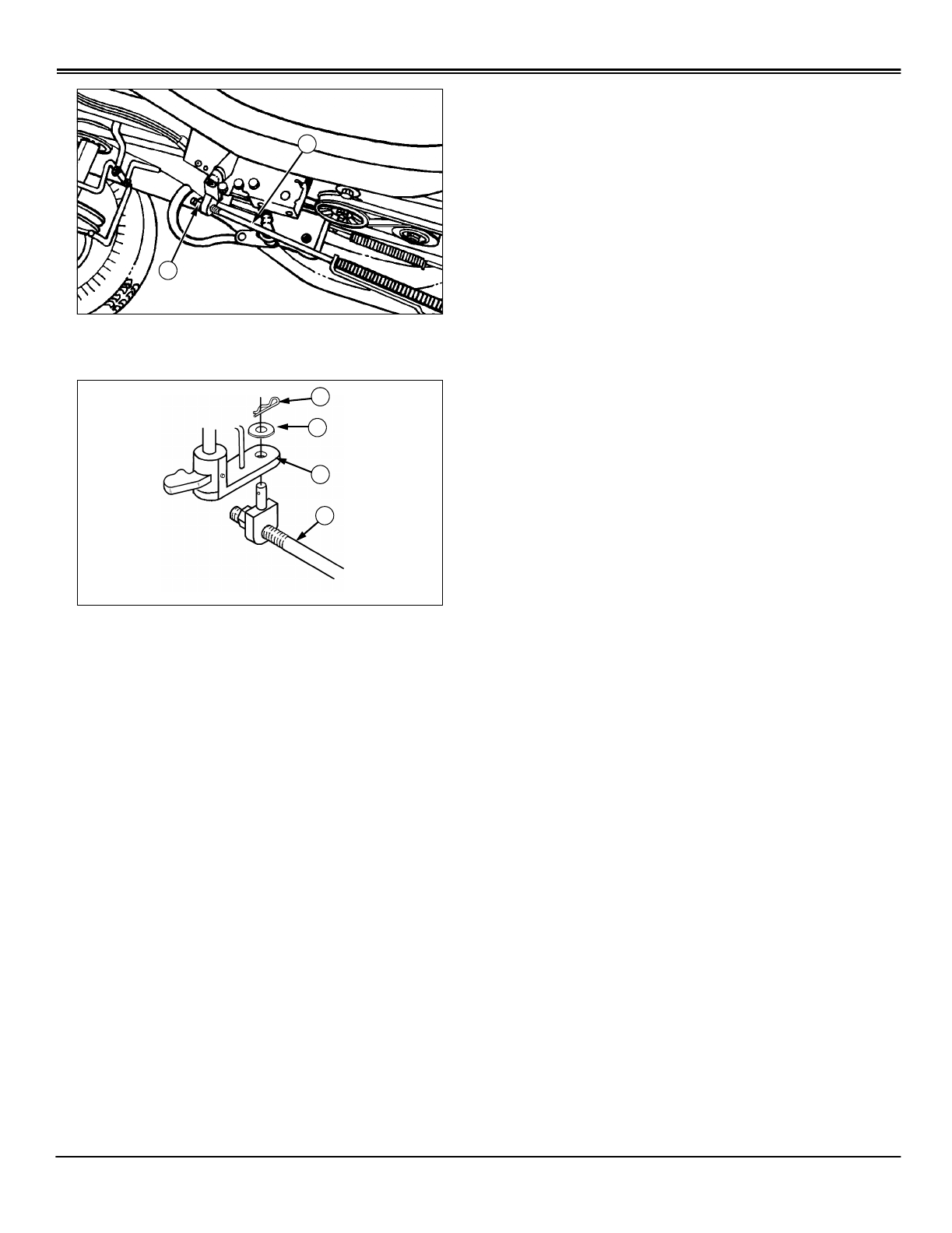

3. Remove bolt (A), bushing (B), washer (C), and nut (D).

4. Move lift lever down to desired MOWING position.

5. Move mower gage wheels, one on each side, to one of

four holes for desired position. On 46-Inch Mower Deck,

move front and rear gage wheels.

6. Bottom of gage wheels should be approximately 6-13

mm (1/4-1/2 in) from the ground when properly adjusted.

7. Install bolt and tighten with nut.

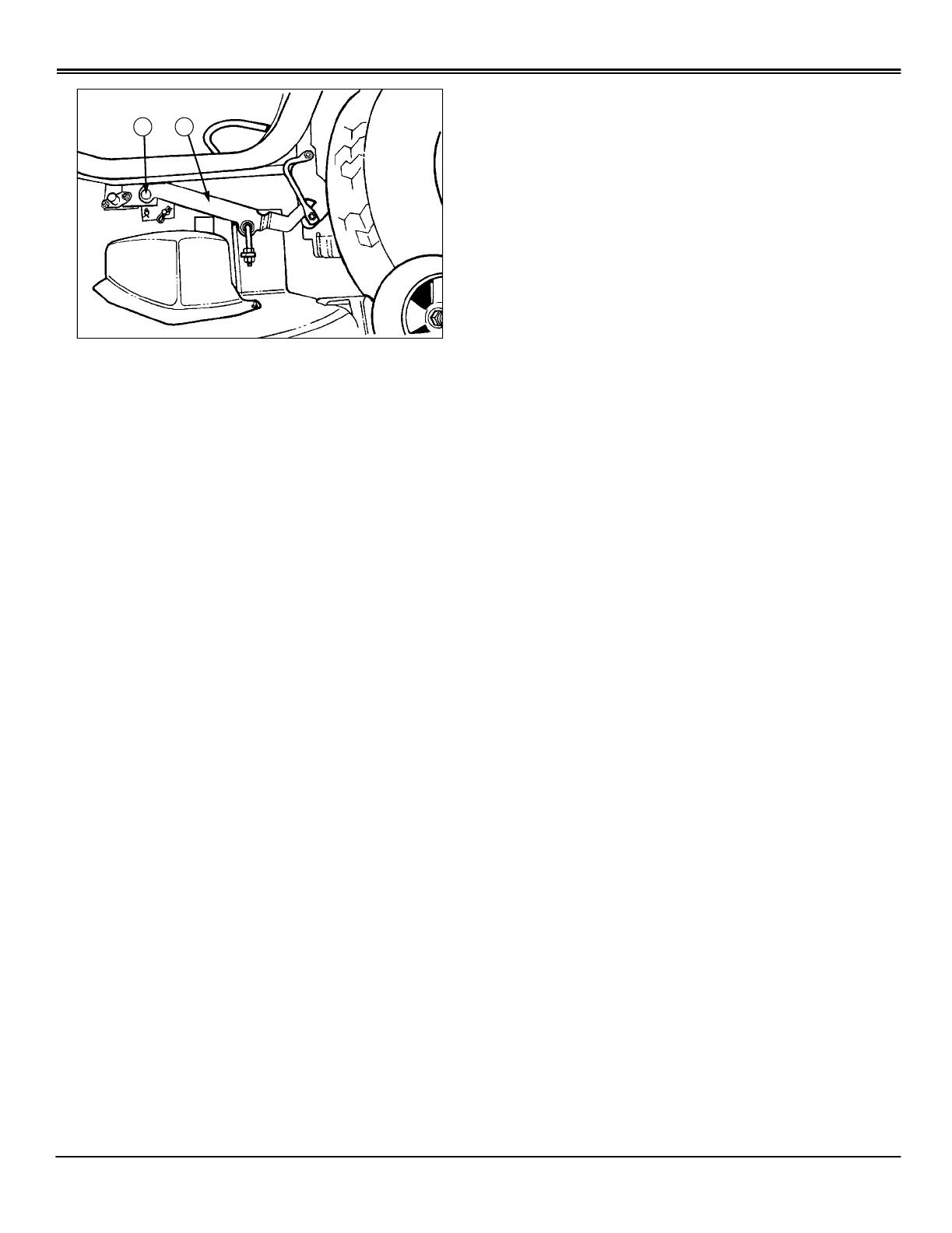

Adjusting Mower Level (Side-to-Side)

NOTE: A deck leveling gauge (Part Number TY15272) to

aid in deck leveling may be obtained through your local

Authorized Service Center at a nominal cost.

1. Park tractor on a hard, level surface.

2. Stop engine and remove key.

3. CHECK: Tire pressures must be correct. (See Checking

Tire Pressure in Service – Miscellaneous section.)

4. Adjust cutting height to middle position.

5. Turn left blade parallel to tractor axle. Hold drive belt and

turn right blade parallel to axle.

6. Measure from each outside blade tip (A) to the level

surface. The difference between measurements must not

be more than 3 mm (1/8 in).

c CAUTION: Avoid injury! Before you adjust gage

wheels: STOP engine, remove key, and wait for

blades to STOP.

IMPORTANT: Avoid damage! Mower gage wheels

must not ride on ground to support mower weight.

Adjust gage wheels each time you change cutting

height.

M88571

c CAUTION: Avoid injury! Before you adjust

mower: STOP engine, remove key, and wait for

blades to STOP.

Be careful, sharp edges on mower blades.

Always wear gloves when handling mower

blades.

M40161

Operating Mower - 18

OPERATING MOWER

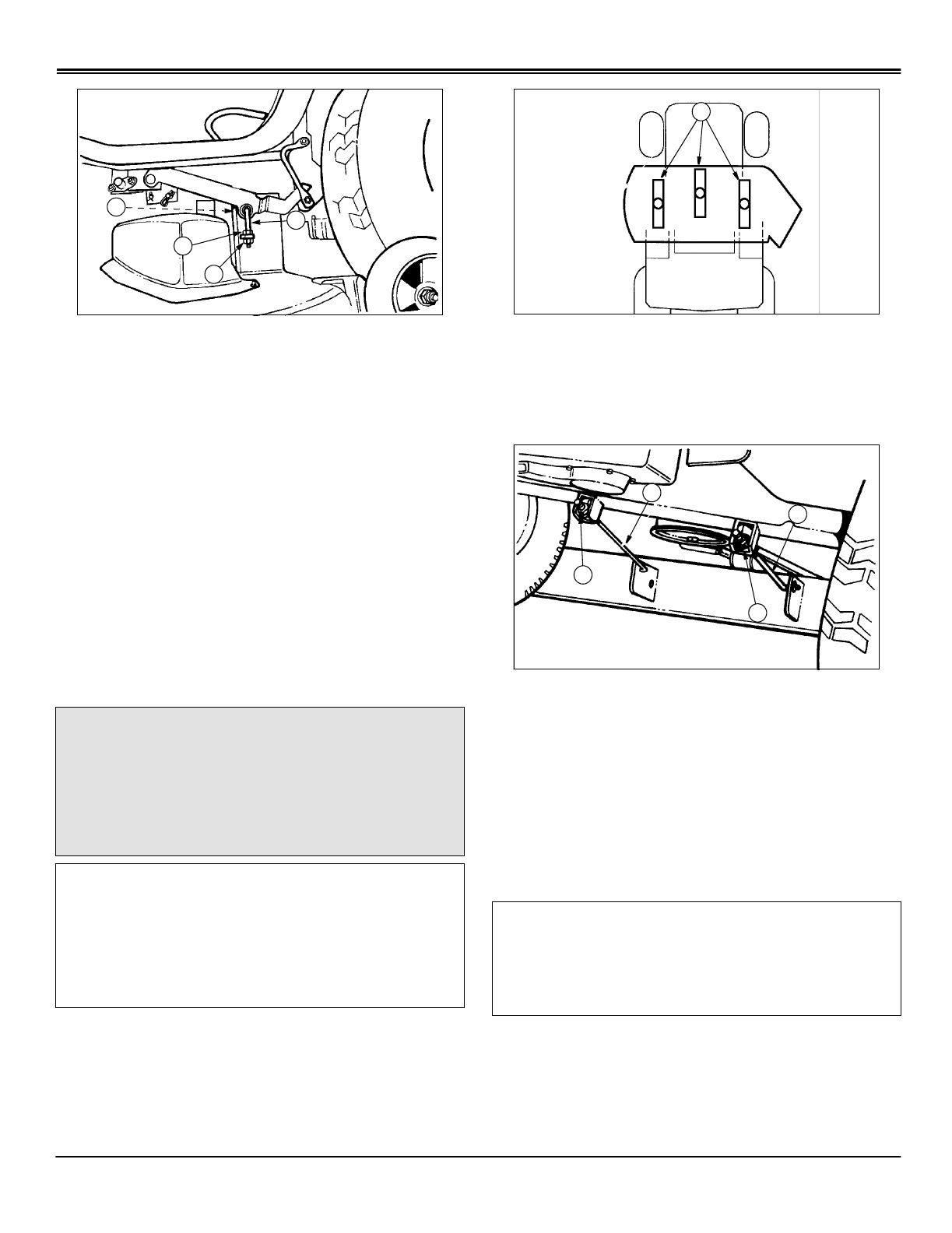

7. Loosen top clamping nut (C) facing inside of mower, on

left hand side J-bolt (B), approximately one turn.

8. Loosen upper adjusting nut (D).

9. Raise or lower left side of deck.

•To raise: Turn lower adjusting nut (E) towards rear of

tractor.

•To lower: Turn lower adjusting nut (E) towards front of

tractor.

10.Tighten upper adjusting nut.

11.Tighten clamping nut.

12.Check side-to-side measurements and readjust if

necessary.

Adjusting Mower Level (Front-to-Rear)

1. Park tractor on a hard, level surface.

2. Stop engine and remove key.

3. CHECK: Tire pressure must be correct. (See Checking

Tire Pressure in Service – Miscellaneous section.)

4. Turn blades so front blade tips (A) point straight forward.

5. Measure from the front of each blade tip to the level

surface. The front blade tips must be 6–9 mm (1/4–3/8 in.)

lower than rear blade tips or blades will cut grass twice and

grass tips will turn brown.

6. Turn nuts (B) on front draft rods (C) equally until

adjustment is correct. Turn nut clockwise to RAISE front of

mower deck or counterclockwise to LOWER front of mower

deck.

7. Check front-to-rear deck measurements and readjust if

necessary.

Engaging and Disengaging Mower

Engaging Mower

1. START engine.

c CAUTION: Avoid injury! Before you adjust

mower: STOP engine, remove key, and wait for

blades to STOP.

Be careful, sharp edges on mower blades.

Always wear gloves when handling mower

blades.

IMPORTANT: Avoid damage! Make sure each front

draft rod is equally tensioned. The installed rods

should exhibit identical amounts of movement

between left and right rods. If one rod moves more

freely than the other, the adjustment nut should be

tightened until the movement of the assembly

matches that of the other side.

IMPORTANT: Avoid damage! Operate engine at

maximum speed when mowing or after mower blade

is engaged.

Machine may require 2–3 minutes warm-up period

before engaging the mower deck.

Operating Mower - 19

OPERATING MOWER

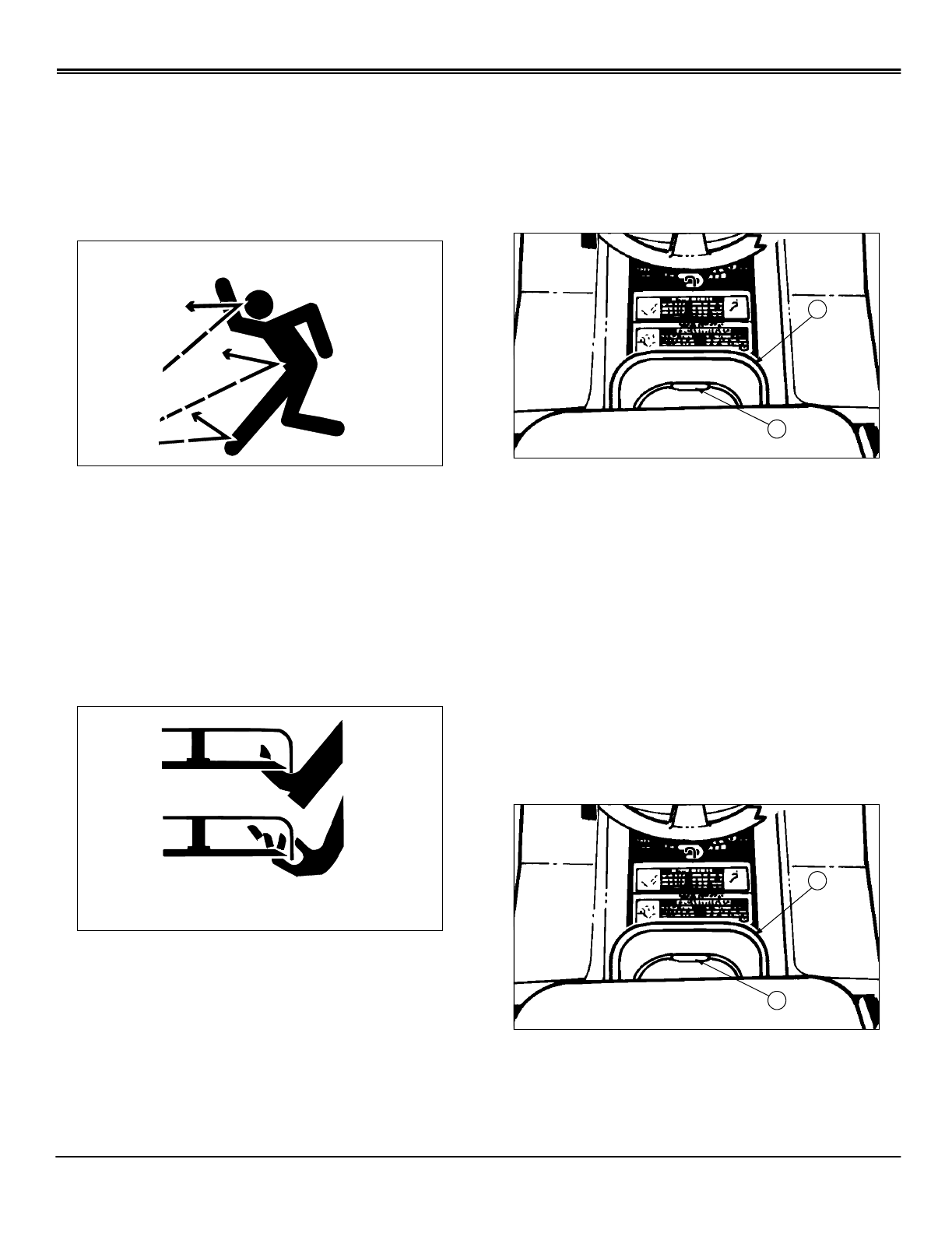

2. Move throttle lever (A) to the FAST (r) position.

3. Lower mower to cutting height.

4. Push PTO drive lever (B) forward to ENGAGE mower

blades.

NOTE: The engine and mower will stop as the drive

lever is moved rearward (Automatic Model) or the gear

shift lever is moved to the R (REVERSE) position (Gear

Model) with mower engaged.

5. Disengage PTO before shifting to REVERSE.

Disengaging Mower

1. Pull PTO drive lever (A) back to DISENGAGE mower

blades.

2. If you hit an object with mower while mowing, STOP

mower and engine immediately. Inspect mower for

damage.

Dismounting to Inspect or Unplug Mower or

Optional Bagger

1. STOP machine.

2. Pull PTO drive lever (A) back to DISENGAGE mower

blades.

3. Move throttle lever to SLOW (t) position.

4. Lower mower to the ground.

5. LOCK park brake.

6. STOP engine.

7. Remove key.

8. Wait for all moving parts to STOP.

Using Mower Deck Side Discharge - 42-Inch

Mower Decks

NOTE: For maximum side discharge operation, it may

be necessary to change the mower blades, see

Servicing Mower Blades in the SERVICE MOWER

section.

c CAUTION: Avoid injury! To help prevent

personal injury, do the following steps before

you dismount to inspect or unplug mower or

bagger.

c CAUTION: Avoid injury! Before you adjust

mower: STOP engine, remove key, and wait for

blades to STOP.

Be careful, sharp edges on mower blades.

Always wear gloves when handling mower

blades.

Operating Mower - 20

OPERATING MOWER

To set-up and operate the 42” deck for side discharge

operation the factory installed mulch cover (A) must be

removed.

1. Remove mulch cover:

•Lift plastic discharge chute.

•Grasp corner of steel chute, pull outward to unlock

and pivot up.

•Unhook both rubber hooks (B) and remove mulch

cover.

2. Store mulch cover in a well protected area and have it

readily available for when you want to use deck as a

mulching deck.

Using Mower Deck Mulch Ready - 42-Inch

Mower Decks

NOTE: For maximum mulching operation, it may be

necessary to change the mower blades, see Servicing

Mower Blades in the SERVICE MOWER section.

To set-up and operate the 42” deck for mulching operation

the factory installed mulch cover (A) must be installed.

1. Install mulch cover:

•Lift plastic discharge chute.

•Grasp corner of steel chute, pull outward to unlock

and pivot up.

•Install mulch cover into deck discharge opening and

hook both rubber hooks (B).

Using Mower Deck with Optional Equipment -

42-Inch Mower Decks

NOTE: For maximum mower deck operation, it may be

necessary to change the mower blades, see Servicing

Mower Blades in the SERVICE MOWER section.

To set-up and operate the 42” deck for either the 2-Bag

Bagger or Mulch Plug Kit the factory installed mulch cover

c CAUTION: Avoid injury! Before you adjust

mower: STOP engine, remove key, and wait for

blades to STOP.

Be careful, sharp edges on mower blades.

Always wear gloves when handling mower

blades.

M96105

c CAUTION: Avoid injury! Before you adjust

mower: STOP engine, remove key, and wait for

blades to STOP.

Be careful, sharp edges on mower blades.

Always wear gloves when handling mower

blades.

M96105

Operating Mower - 21

OPERATING MOWER

(A) must be removed.

1. Remove mulch cover:

•Lift plastic discharge chute.

•Grasp corner of steel chute, pull outward to unlock

and pivot up.

•Unhook both rubber hooks (B) and remove mulch

cover.

2. Store mulch cover in a well protected area and have it

readily available for when you want to use deck as a

standard mulching deck.

Replacement Parts - 22

REPLACEMENT PARTS

Replacem ent Parts

Service Literature

If you would like a copy of the Parts Catalog or Technical

Manual for this machine call:

•U.S. & Canada: 1-800-522-7448.

•All Other Regions: Your John Deere dealer.

John Deere Quality

We recommend John Deere quality parts and lubricants,

available at your Authorized Service Center.

Part numbers may change, use part numbers listed below

when you order. If a number changes, your dealer will have

the latest number.

When you order parts, your Authorized Service Center

needs your machine serial number and engine serial

number. These are the numbers that you have recorded on

the inside front cover of this manual.

Touch-up paint is available in 340 grams (12 oz.) aerosol

cans. Scotts Orange (part number: TY24745) and Scotts

Grey (part number: TY 24747)

Parts for S1642 Tractor

Parts for S1742 Tractor

Parts for S2046 Tractor

Item Part Number

Air Cleaner

Elements:

Foam

Paper M92360 (Kohler - 12-083-08)

LG496894S (Kohler-12-083-14)

Fuel Filter AM38708

Oil Filter AM125424 (Kohler - 12-050-01)

Battery TY21752

Spark Plug M78543 - Champion RC12YC

Fuse-15 amp 99M7065

Headlight Bulb AD2062R (GE - 1156)

Ground Drive Belt GX10065

Item Part Number

Air Cleaner

Elements:

Foam

Paper LG272403S (Briggs & Stratton -

272403)

LG496894S (Briggs & Stratton -

496894)

Fuel Filter AM38708

Oil Filter AM125424 (Briggs & Stratton -

491056)

Battery TY21752

Spark Plug M78543 - Champion RC12YC

Fuse-15 amp 99M7065

Headlight Bulb AD2062R (GE - 1156)

Ground Drive Belt GX10065

Item Part Number

Air Cleaner Elements:

Foam

Paper

LG273638 (Briggs &

Stratton - 691016)

LG499486 (Briggs &

Stratton - 691007)

Fuel Filter AM38708

Oil Filter AM125424 (Briggs &

Stratton - 691041)

Battery TY21752

Spark Plug M78543 - Champion

RC12YC

Fuse-15 amp 99M7065

Headlight Bulb AD2062R (GE - 1156)

Ground Drive Belt GX10065

Replacement Parts - 23

REPLACEMENT PARTS

Parts for 42-Inch Mower Deck

Parts for 46-Inch Mower Deck

(Part numbers are subject to change without notice. Part

Numbers may be different outside the U.S.A.)

Item Part Number

Blades:

Standard

Bagger

Mulch

M139802 or M139803

M139803

M139802

Mower Drive Belts M124895

Leveling Gauge TY15272

Item Part Number

Blades:

Standard

Bagger

Mulch

M127466

N/A

M119232

Mower Drive Belts GX10176

Leveling Gauge TY15272

Service Machine Safely - 24

SERVICE MACHINE SAFELY

Service Machine Safely

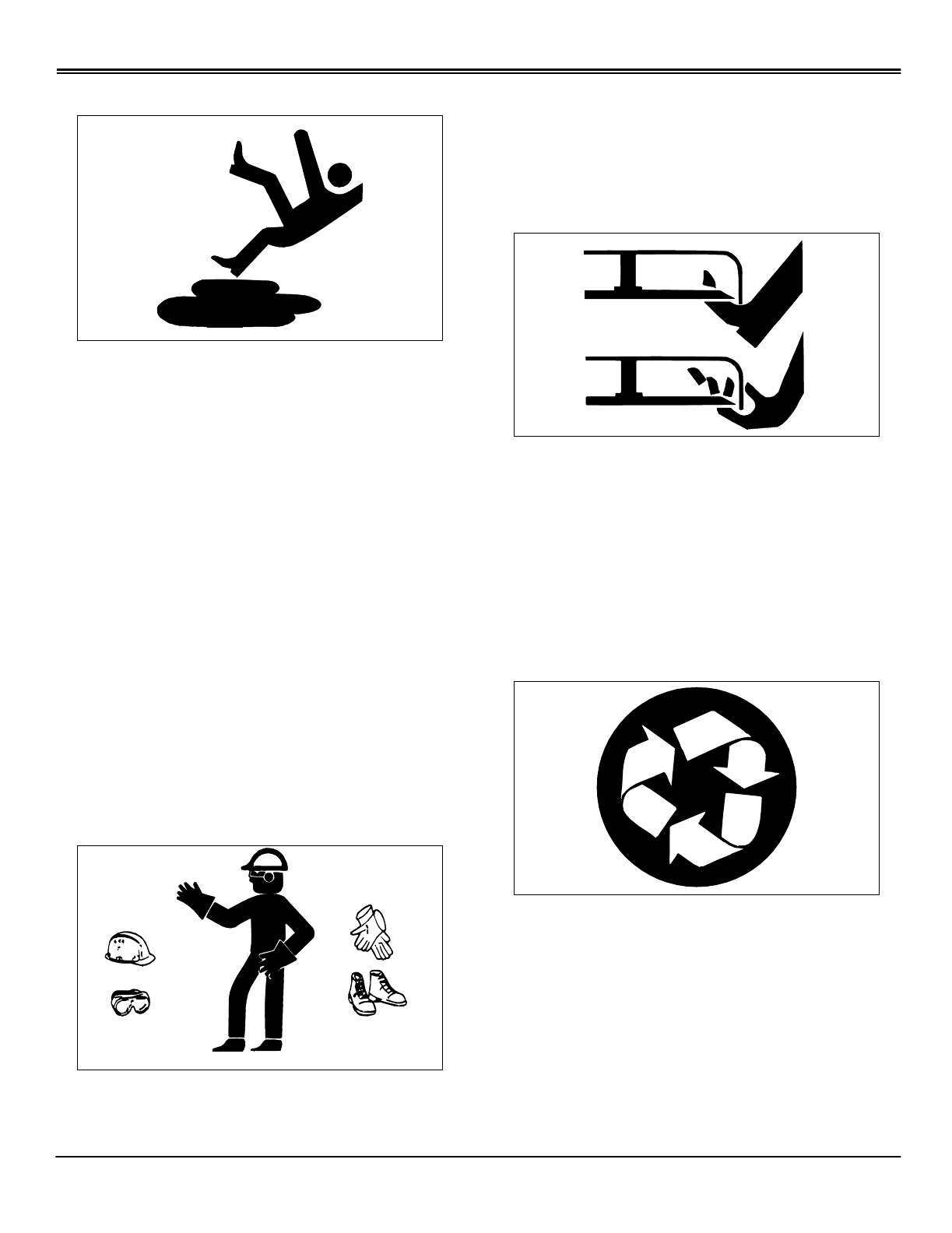

Practice Safe Maintenance

•Understand service procedure before doing work. Keep

area clean and dry.

•Never lubricate, service, or adjust machine while it is

moving. Keep safety devices in place and in working

condition. Keep hardware tight.

•To prevent them from getting caught, keep hands, feet,

clothing, jewelry, and long hair away from any moving parts.

•Before servicing machine, disengage all power and stop

the engine. Lock park brake and remove the key. Let

engine cool.

•Securely support any machine elements that must be

raised for service work.

•Keep all parts in good condition and properly installed.

Fix damage immediately. Replace worn or broken parts.

Remove any buildup of grease, oil, or debris.

•Disconnect battery ground cable (-) before making

adjustments on electrical systems or welding on machine.

•Unauthorized modifications to the machine may impair

its function and safety.

Wear Appropriate Clothing

•Wear close fitting clothing and safety equipment

appropriate for the job.

•Loud noise can cause impairment or loss of hearing,

wear a suitable protective device such as earplugs.

•Do not wear radio or music headphones while servicing

the machine. Safe service requires your full attention.

Avoid Injury From Contacting Blades

Before you unplug or adjust machine:

•STOP the engine.

•Remove key.

•Wait for blades to STOP.

•Keep hands, feet and clothing away from blades when

engine is running.

Handling Waste Product and Chemicals

•Waste products such as used oil, fuel, coolant, brake

fluid, and batteries, can harm the environment and people.

•DO NOT use beverage containers for waste fluids -

someone may drink from them.

•See your local Recycling Center or John Deere dealer to

learn how to recycle or get rid of waste products.

•A Material Safety Data Sheet (MSDS) provides specific

details on chemical products: physical and health hazards,

safety procedures, and emergency response techniques.

See your John Deere dealer for the MSDS on chemical

products used with your machine.

Service Interval Chart - 25

SERVICE INTERVAL CHART

Service Interval Chart

Service Intervals

Please use the following timetables to perform routine

maintenance on your machine. Service procedures

included in this manual but not on this chart are to be

performed on an as needed basis.

IMPORTANT: Avoid damage! If you operate mower in

extreme heat, dust or other severe conditions,

service more often than shown below.

Before Each Use Check fuel level.

Clean air intake screen.

Test safety systems.

Check tire pressure.

Check/tighten loose hardware.

Check engine oil level.

After First 2 Hours Check blade belt tension.

After First 5 Hours Change engine oil.

Every 8 Hours Check oil level.

Check brakes.

Check tire pressure.

Every 25 Hours Sharpen/replace blades.

Lubricate front wheel spindles.

Lubricate wheel bearings.

Check battery and clean battery terminals.

Change engine oil when operating under heavy load or in high

temperatures.*

Clean/Service air cleaner elements.*

Check spindle brake measurement

Every 50 Hours Change engine oil.*

Every 100 Hours Check/tighten loose hardware.

Adjust drive belt tension.

Replace oil filter.

Clean/Service air cleaner elements.*

Replace spark plug.

Replace fuel filter.

Every Season Adjust blade belt tension.

Check spindle brake measurement

Before Storage Check/tighten loose hardware.

Lubricate front wheel spindles.

Lubricate wheel bearings.

Clean battery terminals.

Service Interval Chart - 26

SERVICE INTERVAL CHART

Service Record

DATE SERVICE PERFORMED

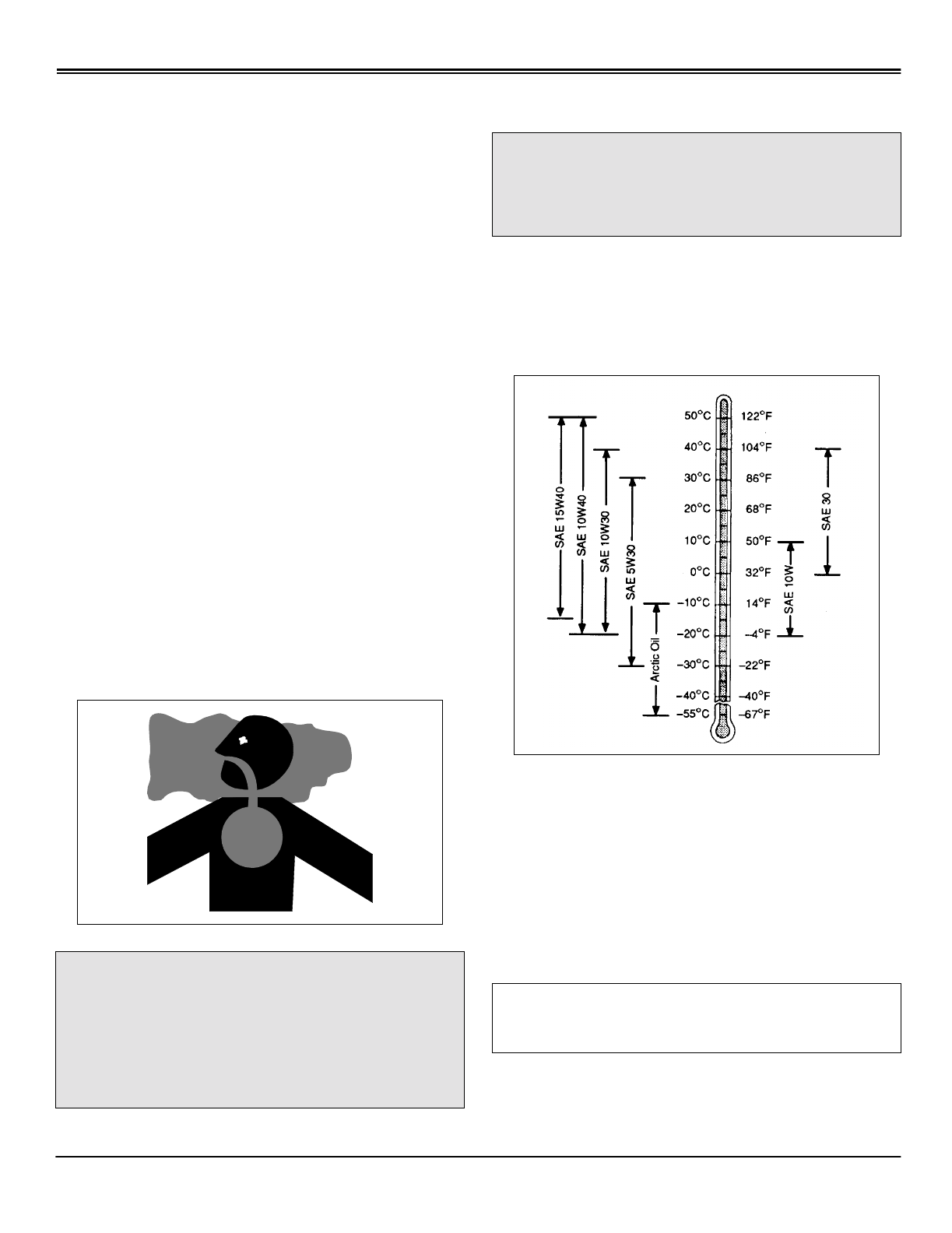

Service Engine - 27

SERVICE ENGINE

Service Engine

Engine Warranty Maintenance Statement

Maintenance, repair, or replacement of the emission control

devices and systems on this engine, which are being done

at the customers expense, may be performed by any non-

road engine repair establishment or individual. Warranty

repairs must be performed by an authorized John Deere

dealer.

Adjusting Carburetor

NOTE: Carburetor is calibrated by the engine

manufacturer and should not require any adjustments.

If engine is operated at altitudes above 1829 m (6,000

ft.), some carburetors may require a special high

altitude main jet. See your John Deere dealer.

Possible engine surging will occur at high rpm with no

load (with transmission in “N” neutral and mower

blade engagement lever disengaged). This is a normal

condition due to the emission control system.

If engine is hard to start or runs rough, check the

Troubleshooting section of this manual.

After performing the checks in the troubleshooting section

and your engine is still not performing correctly, contact

your John Deere dealer.

Avoid Fumes

Engine Oil

NOTE: Air cooled engines run hotter than automobile

engines. The use of multi-viscosity oil such as (10W-

30) in ambient temperatures above 4° C (40° F) will

result in higher than normal oil consumption. If multi-

viscosity oil used, check oil level more frequently to

prevent any possible damage due to lack of lubrication.

Use oil viscosity based on the expected air temperature

range during the period between oil changes.

Use a high quality detergent oil classified as:

•API Service Classification SG

•API Service Classification SF

Checking Engine Oil

NOTE: Engine must not be running.

Make sure engine is COLD when checking engine oil

level.

c CAUTION: Avoid injury! Engine exhaust fumes

can cause sickness or death:

- If it is necessary to run an engine in an

enclosed area, use an exhaust pipe extension

to remove the fumes.

- Always try to work in a well ventilated area.

c CAUTION: Avoid injury! To prevent injury from

accidental starting, always remove wire from

spark plugs and disconnect battery at negative

terminal before servicing engine.

IMPORTANT: Avoid damage! To avoid engine

damage, DO NOT run engine if oil level is below ADD

mark.

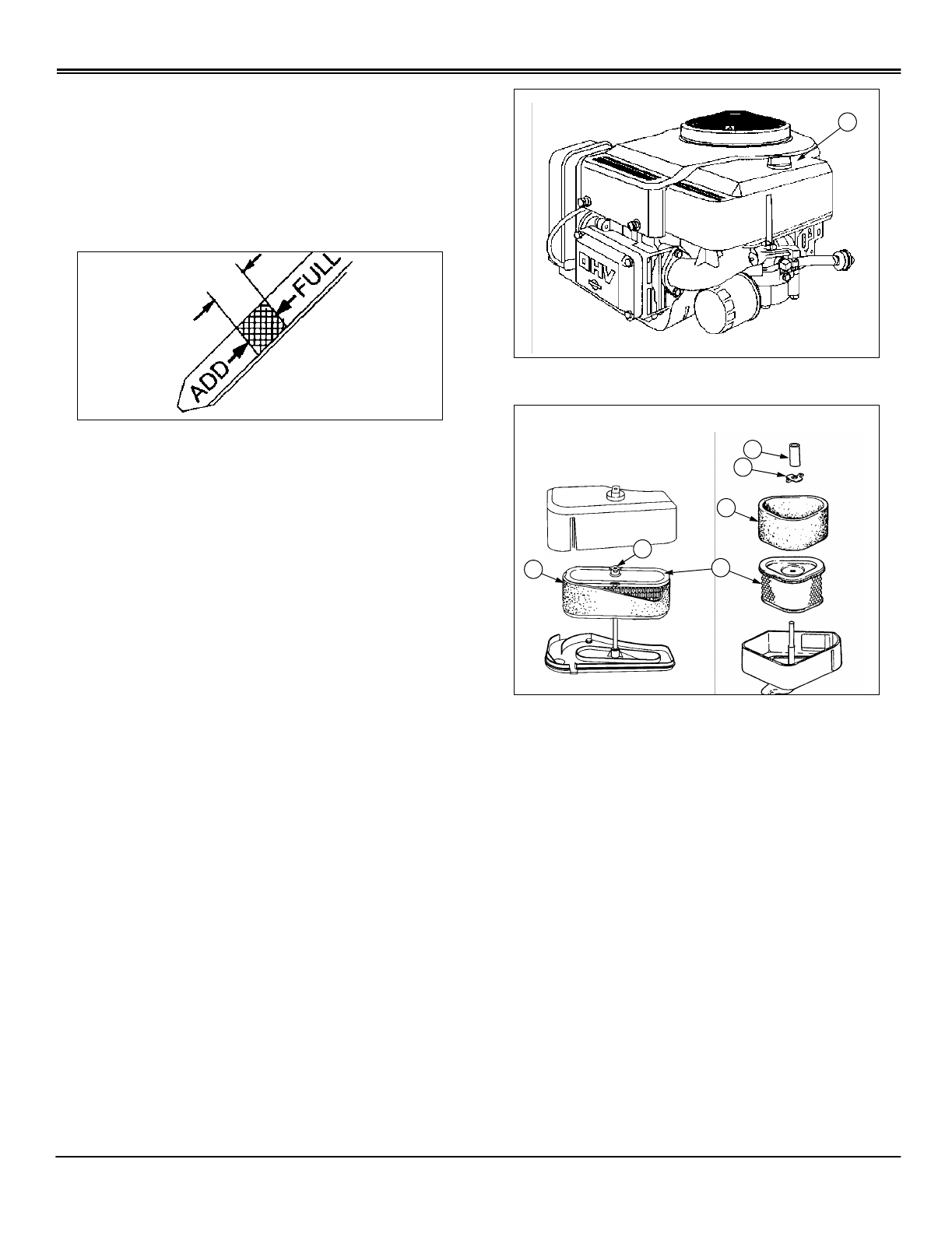

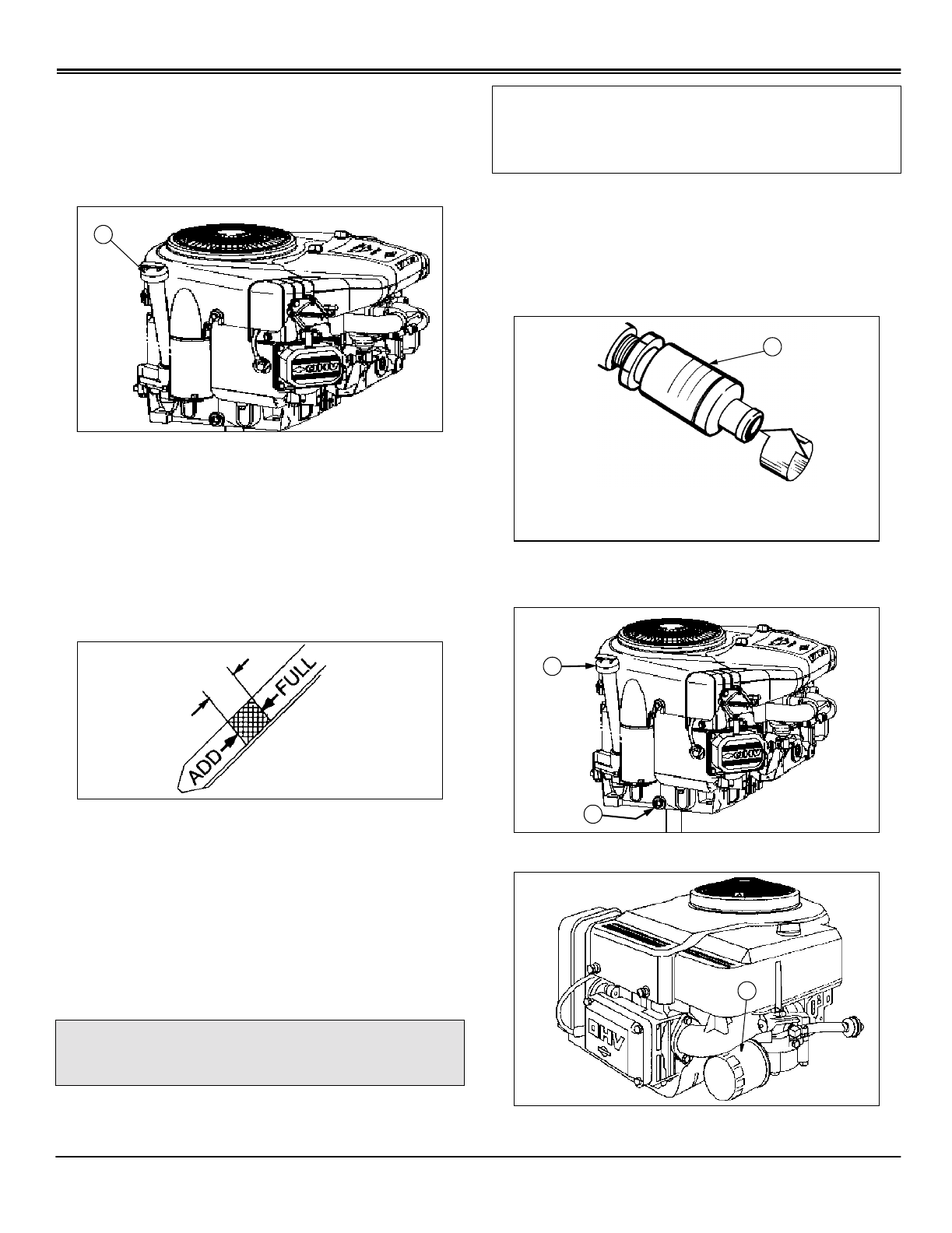

Service Engine - 28

SERVICE ENGINE

1. Park tractor on a level surface. STOP engine. Let engine

cool.

2. Lift hood.

3. Clean area around dipstick to prevent debris from falling

into crankcase.

4. Remove dipstick (A). Wipe with clean cloth.

5. Install dipstick:

•S1642 - Install dipstick in tube, but DO NOT tigthen it.

Let dipstick threads rest on top of tube, turn cap

counterclockwise until it “clicks” or starts to engage

threads.

•S1742 and S2046 - Install and tighten dipstick.

6. Remove dipstick.

7. Check oil level on dipsitck. Oil must be between ADD

and FULL marks.

8. If oil level is low, add oil to bring oil level no higher than

FULL on dipstick.

9. Install and tighten dipstick. Lower hood.

Changing Engine Oil and Filter

1. Run engine to warm oil.

2. Park tractor on level surface. STOP engine. LOCK park

brake and remove key.

3. Lift hood.

4. Put drain pan under drain valve.

5. Unsnap the dust cap, push and twist to open oil drain

(A) and drain oil into oil drain pan.

6. Close drain cap.

7. Remove old filter (C) and wipe off filter tray with a clean

c CAUTION: Avoid injury! Engine may be hot, be

careful not to burn hands.

M96093

IMPORTANT: Avoid damage! To extend engine life,

when operating mower in extreme heat, dust or

other severe conditions, it may be necessary to

change engine oil and filter more frequently.

M96093

Service Engine - 29

SERVICE ENGINE

cloth.

8. Lightly oil filter gasket with fresh, clean oil.

9. Install replacement oil filter. Turn oil filter to the right

(clockwise) until rubber gasket contacts filter adapter.

Tighten filter an additional one-half turn.

10.Remove dipstick (B) and refill with new oil of

recommended grade. (See Engine Oil in this section.)

11.Check oil level. For correct procedure see Checking Oil

Level in this section.

12.Oil level must be between ADD and FULL marks. Do not

overfill.

13.Install and tighten dipstick. Lower hood.

14.Start engine and check for oil leaks. Correct any leaks

before operating.

15.Run engine at idle for 30 seconds. Stop engine. Wait 30

seconds and check oil level.

16.If necessary, add oil to bring level to FULL mark on

dipstick.

Checking and Cleaning Air Cleaner Elements

- S1642 and S1742

NOTE: It may be necessary to check the air filter more

frequently if operating vehicle in dusty conditions.

1. Lift hood.

2. Clean any dirt and debris from the air cleaner before

removing cover.

3. Remove cover (A).

4. Inspect foam precleaner (B) and element (C) without

removing.

5. If precleaner (B) is dirty, carefully remove from filter,

leaving element (C) in the air cleaner housing.

NOTE: DO NOT wash paper element.

6. Wash precleaner (B) in a solution of warm water and

liquid detergent.

7. Rinse precleaner thoroughly. Squeeze out excess water

in a dry cloth until precleaner is completely dry.

8. Put approximately 30 ml. (1 oz.) of clean engine oil onto

precleaner. Squeeze precleaner to distribute oil evenly.

Squeeze out excess oil with a clean cloth.

S1742 S1642

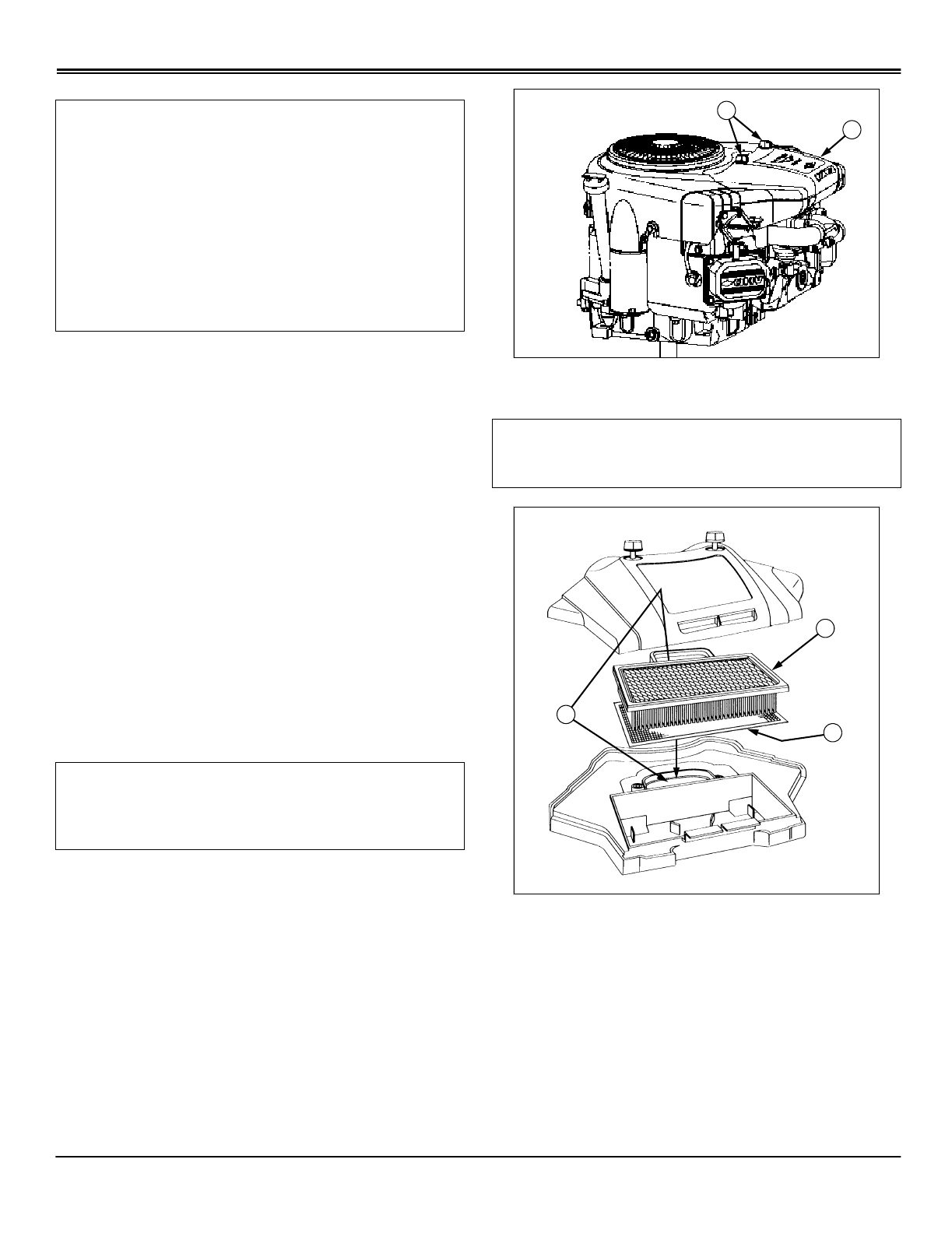

Service Engine - 30

SERVICE ENGINE

9. Remove and replace filter element (C) ONLY if damaged

or very dirty:

•S1642 Only - Remove rubber tube sleeve (D1).

•Remove wing nut (D).

•Carefully remove paper element (E) from air cleaner

housing. REPLACE with NEW element.

10.Carefully remove element (C) from air cleaner housing.

Replace with a NEW element.

11.Carefully clean air cleaner housing. Prevent any dirt

from falling into carburetor.

12.Install precleaner onto new filter element and install into

air cleaner housing.

13.Install cover. Lower hood.

Checking and Cleaning Air Cleaner Elements

- S2046

1. Lift hood.

2. Clean any dirt and debris from the air cleaner before

removing cover.

3. Loosen knob (A) and remove cover (B).

4. Avoid dropping anything into the carburetor air intake

(C). If anything falls into the carburetor air intake it MUST

be remove.

5. Lift out filter cartridge (D) and foam precleaner (E).

6. Service precleaner:

•Wash precleaner in a solution of warm water and

liquid detergent.

•Rinse precleaner thoroughly. Squeeze out excess

water in a dry cloth until precleaner is completely dry.

•Put approximately 30 ml. (1 oz.) of clean engine oil

IMPORTANT: Avoid damage! A damaged paper

element (C) can allow dirt into the carburetor and

can cause poor engine performance, engine damage

or failure:

• DO NOT attempt to clean paper element by tapping

against another object.

• Replace element ONLY if very dirty.

• DO NOT use pressurized air to clean element.

• If element is damaged or the seal is cracked,

replace.

IMPORTANT: Avoid damage! To extend engine life,

when operating mower in extreme heat, dust or

other severe conditions, it may be necessary to

check/replace air cleaner more frequently.

IMPORTANT: Avoid damage! To prevent engine

damage, DO NOT allow any foreign objects to fall

into the carburetor air intake (C).

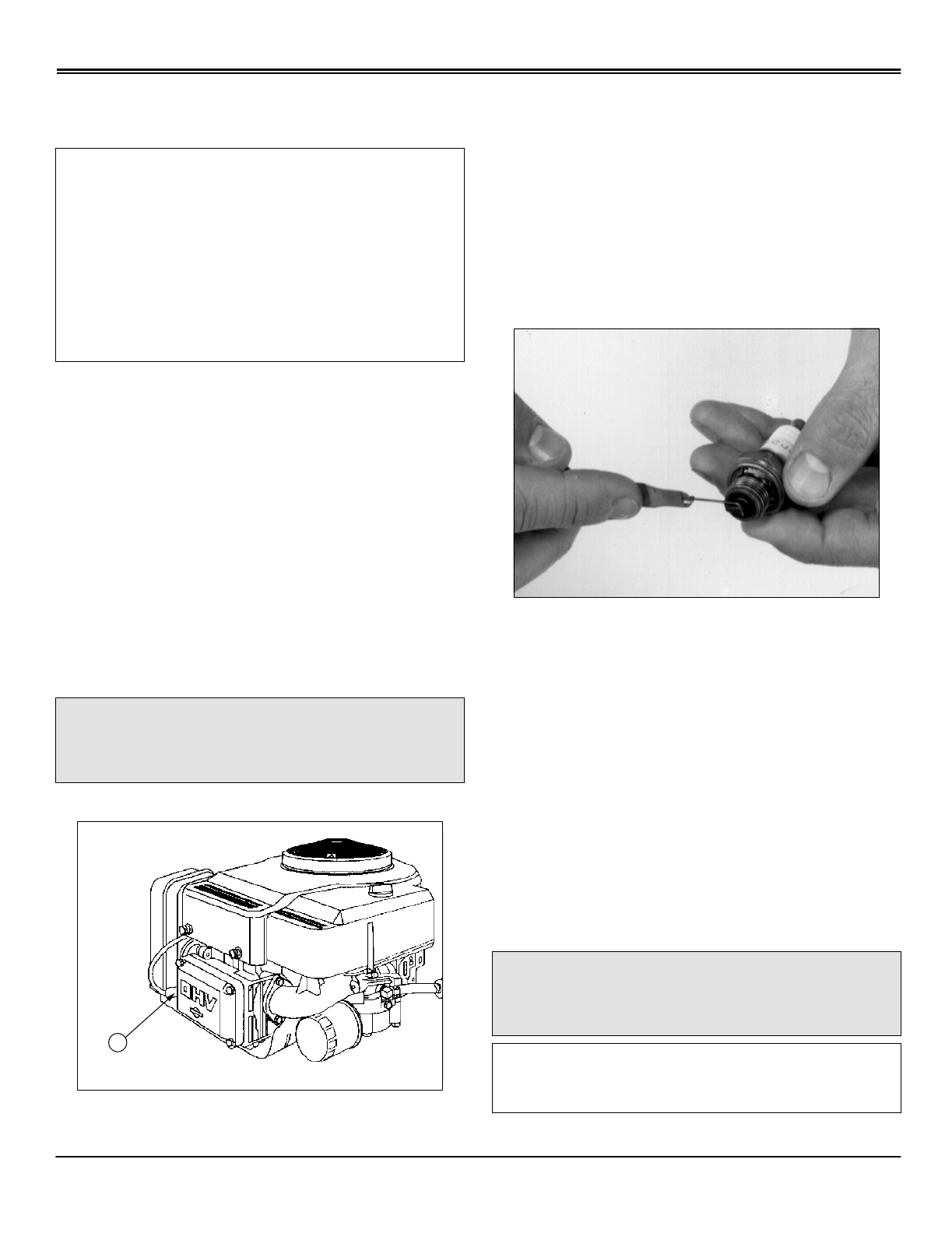

Service Engine - 31

SERVICE ENGINE

onto precleaner. Squeeze precleaner to distribute oil

evenly. Squeeze out excess oil with a clean cloth.

7. Inspect cartridge for damage or excessive dirt. Replace

if necessary.

8. Carefully clean air cleaner housing. Prevent any dirt

from falling into carburetor.

9. Install foam precleaner (E) mesh side up.

10.Install cartridge. Make sure cartridge and seal are

properly seated and sealing the carburetor air intake area.

11.Install air cleaner cover and tighten knobs. DO NOT

overtighten.

12.Lower hood.

Checking Spark Plugs

1. Stop engine. LOCK park brake. Remove key. Lift hood.

2. Disconnect spark plug wire(s) (A) and remove spark

plug(s):

•S1642 and S1742: ONE spark plug

•S2046: TWO spark plugs.

3. Clean spark plug(s) carefully with a wire brush.

4. Inspect plug for:

•Cracked porcelain.

•Pitted or damaged electrodes.

•Other wear or damage.

5. Replace spark plug(s) if necessary.

6. Check plug gap with a wire feeler gauge:

•S1742 and S2046: Gap should be 0.76 mm (0.030

in.)

•S1642: Gap should be 1.02 mm (0.040 in.)

7. To change gap, move the outer electrode.

8. Install and tighten spark plug(s):

•If you have a torque wrench, tighten plug(s) to: 20

N•m (15 lb-ft.).

9. Connect the spark plug wire(s).

10.Lower hood.

Replacing Fuel Filter

IMPORTANT: Avoid damage! A damaged cartridge

(D) can allow dirt into the carburetor and can cause

poor engine performance, engine damage or failure:

• DO NOT attempt to clean cartridge by tapping

against another object.

• Replace cartridge ONLY if very dirty.

• DO NOT use pressurized air to clean cartridge.

• If cartridge is damaged or the seal is cracked,

replace.

c CAUTION: Avoid injury! Before you remove

spark plugs, STOP engine and wait until engine

is cool.

c CAUTION: Avoid injury! Keep cigarettes,

sparks, and flames away from the fuel system.

Make sure engine is cool to the touch.

IMPORTANT: Avoid damage! When disconnecting

fuel tank hose from filter, be sure to hold hose above

fuel tank level so fuel does not run out.

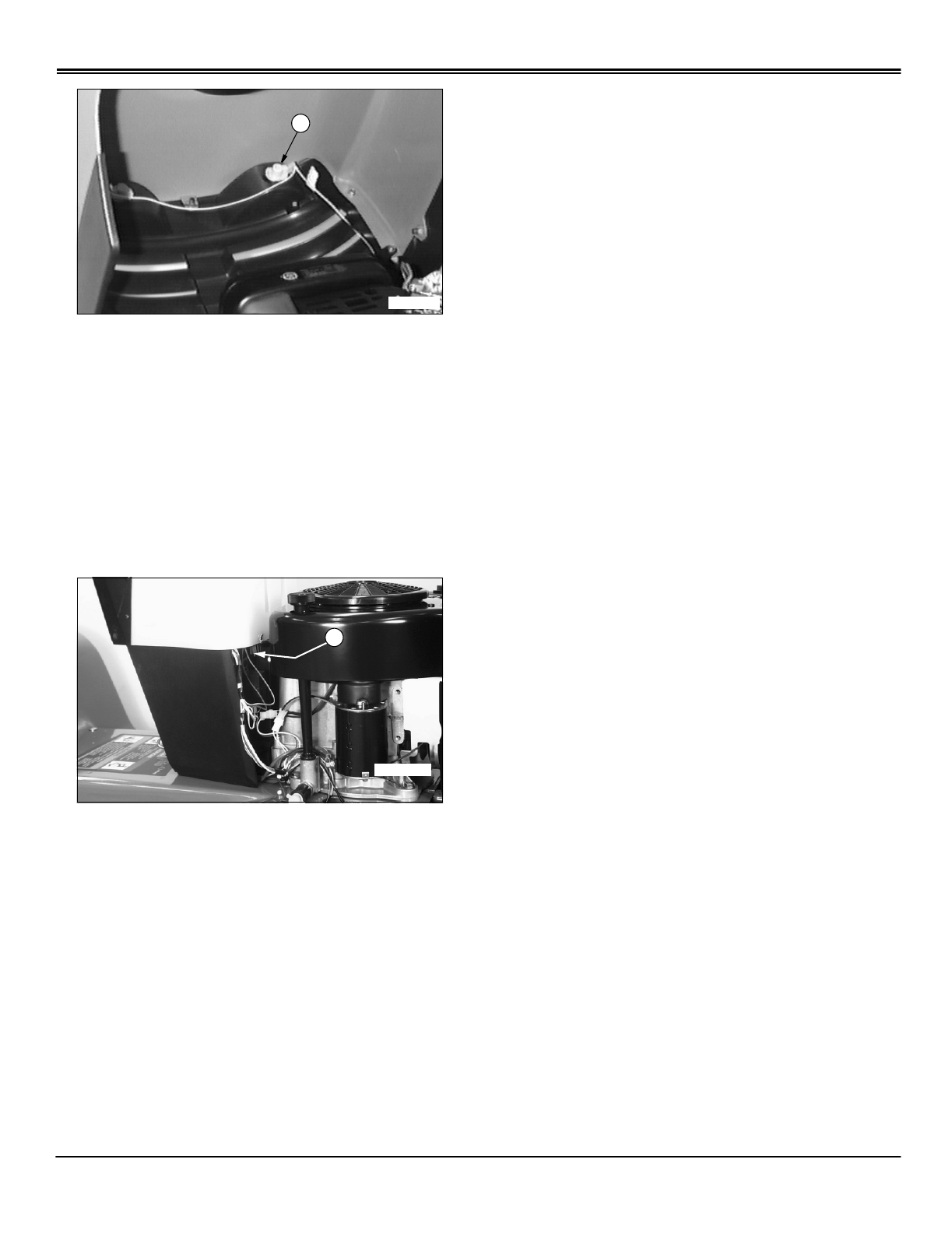

Service Engine - 32

SERVICE ENGINE

NOTE: Change filter when fuel is low in fuel tank.

1. Park tractor on a level surface.

2. STOP engine. LOCK park brake. Remove key. Let

engine COOL.

3. Lift hood.

4. Using pliers, slide hose clamps (A) away from fuel filter

(B).

5. Disconnect hoses from filter and remove filter.

6. Connect hoses to new filter.

7. Install clamps and check for leaks.

8. Lower hood.

Clean Air Intake Screen and Engine

1. STOP engine. LOCK park brake and remove key.

2. Lift hood.

3. Clean air intake screen (A), and external engine areas

(B) with rag, brush, vacuum or compressed air.

4. Lower hood.

IMPORTANT: Avoid damage! To avoid overheating

and damage to engine: Keep air intake screen free of

dust and debris. Keep governor linkage, springs and

controls free of dust and debris.

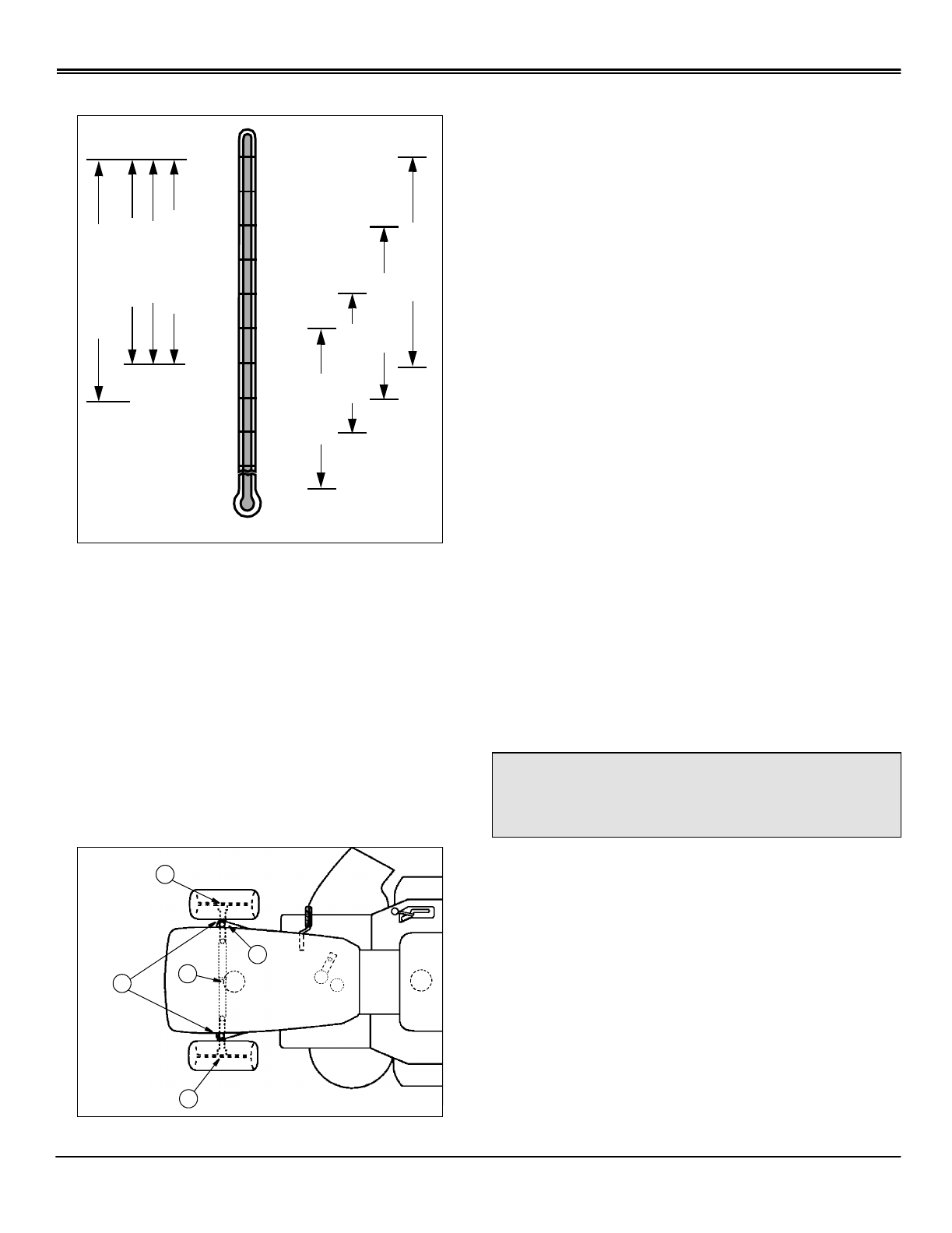

Service Steering and Brakes - 33

SERVICE STEERING AND BRAKES

Service Steering and Brakes

Grease

Use grease based on the expected air temperature range

during the service interval.

The following greases may be used:

•SAE Multipurpose EP Grease with 3 to 5 percent

molybdenum disulfide.

•SAE Multipurpose EP Grease.

•Greases meeting Military Specification MIL-G-10924C

may be used as arctic grease.

Lubricating Front Wheel Spindles, Wheel

Bearings and Axle Pivot

Park tractor on flat, level surface. STOP engine, LOCK park

brake, DISENGAGE PTO lever, turn key to the OFF

position, and remove key.

With a safe lifting device, lift front of tractor just high enough

to pivot axle.

Wheel Spindles

Lubricate wheel spindles (A), one on each side of tractor

with multipurpose EP grease or an equivalent.

Turn steering wheel to a full left turn and then full right turn

to distribute grease in spindles.

Axle Pivot

Lubricate axle pivot (C) with multipurpose EP grease or an

equivalent.

Pivot axle up and down to distribute grease in pivot.

Drag Link

Lubricate drag link (D) with multipurpose EP grease or an

equivalent.

Pivot axle up and down to distribute grease in pivot.

Wheel Bearings - S2046 Only

Lubricate front wheel bearings (B), one on each side of

tractor with multipurpose EP grease or an equivalent.

Spin wheels to distribute grease in bearings.

Lower front of tractor to ground.

Adjusting Brakes - Gear

1. Park tractor on flat, level surface. STOP engine, LOCK

park brake, DISENGAGE PTO lever, turn key to the OFF

position, and remove key.

2. Check if:

TS1417

122°F

104°F

86°F

68°F

50°F

32°F

14°F

- 4°F

- 22°F

- 40°F

- 67°F

40°C

30°C

50°C

20°C

10°C

0°C

- 10°C

- 20°C

- 30°C

- 40°C

- 55°C

JD Moly High Temp

JD High Temp

GREASE-

BIO-GREASE-

Arctic

NGLI Number

c CAUTION: Avoid injury! Before adjusting

brakes: STOP engine. Remove key. Wait for all

moving parts to STOP.

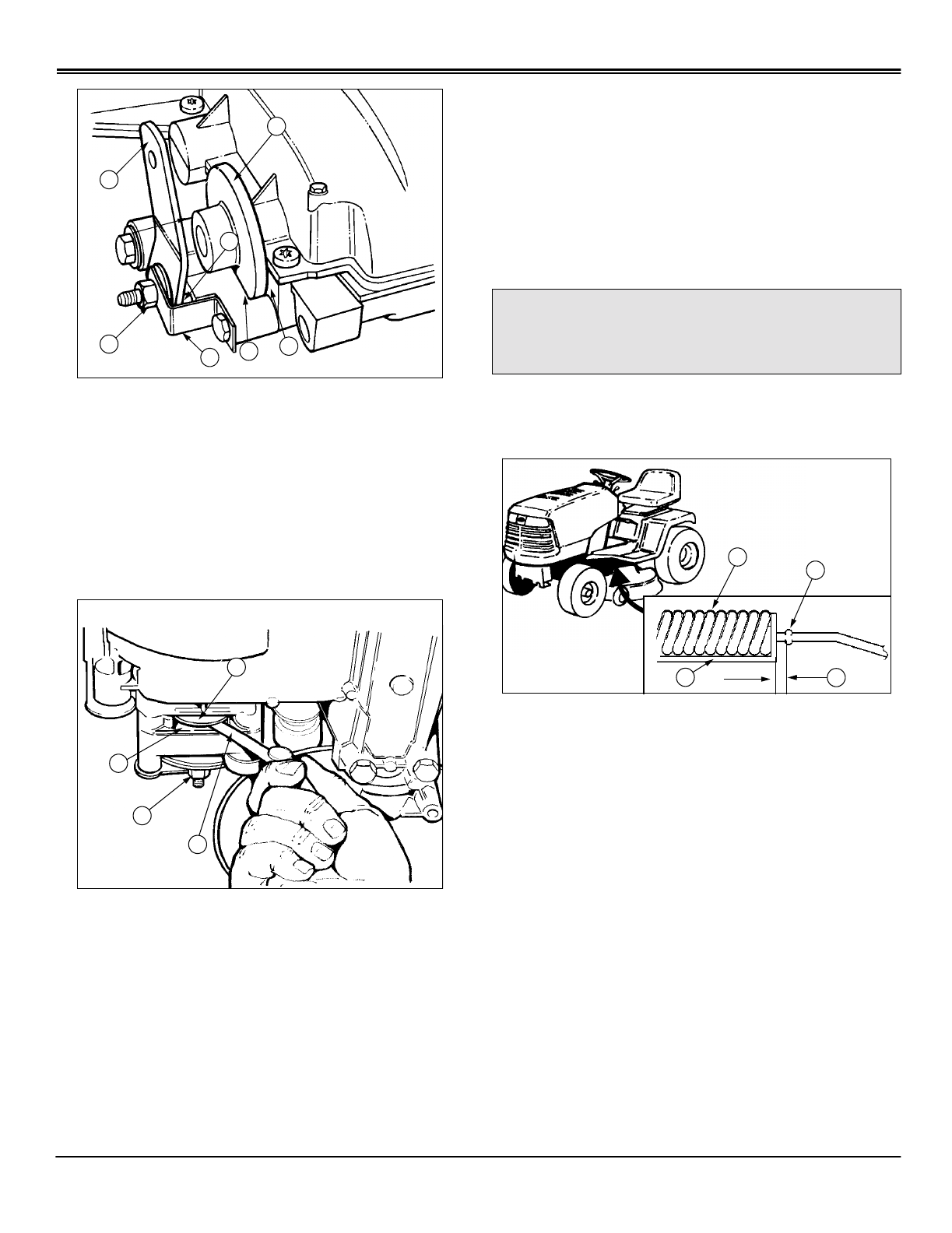

Service Steering and Brakes - 34

SERVICE STEERING AND BRAKES

•Brake disc (A) is contacting the case (B),

AND/OR

•Brake lever (C) is contacting its mounting bracket (D),

top or bottom.

If so, REPLACE friction pucks and brake disc BEFORE

making adjustment. (See you Authorized Service

Center.)

3. Block the front and rear wheels, and release the parking

brake.

4. From the rear of the tractor, locate the brake disc (E),

lock nut (F), and friction puck (G).

5. Insert a 0.25 mm (0.010 in.) shim gauge (H) between

the disc and friction puck. The shim should slide with slight

interference.

IF THE SHIM WILL NOT FIT:

•Loosen lock nut (F) until the shim slides in. Tighten the

lock nut until the shim has slight interference.

•Remove the shim and cycle the brake pedal. Readjust if

needed.

IF THE SHIM SLIDES FREELY:

•Install the shim and tighten lock nut (F) until there is

slight interference.

•Remove the shim and cycle the brake pedal. Readjust if

needed.

Adjusting Brakes - Automatic Hand Control

1. Park tractor on flat, level surface. STOP engine, turn key

to the OFF position, and remove key.

2. UNLOCK the park brake and release brake pedal.

3. Measure distance from inside of brake rod stop tabs (A)

to outside of compression spring bracket (B) (located below

foot tread area on left-hand side of transmission). Distance

c CAUTION: Avoid injury! Before adjusting

brakes: STOP engine. Remove key. Wait for all

moving parts to STOP.

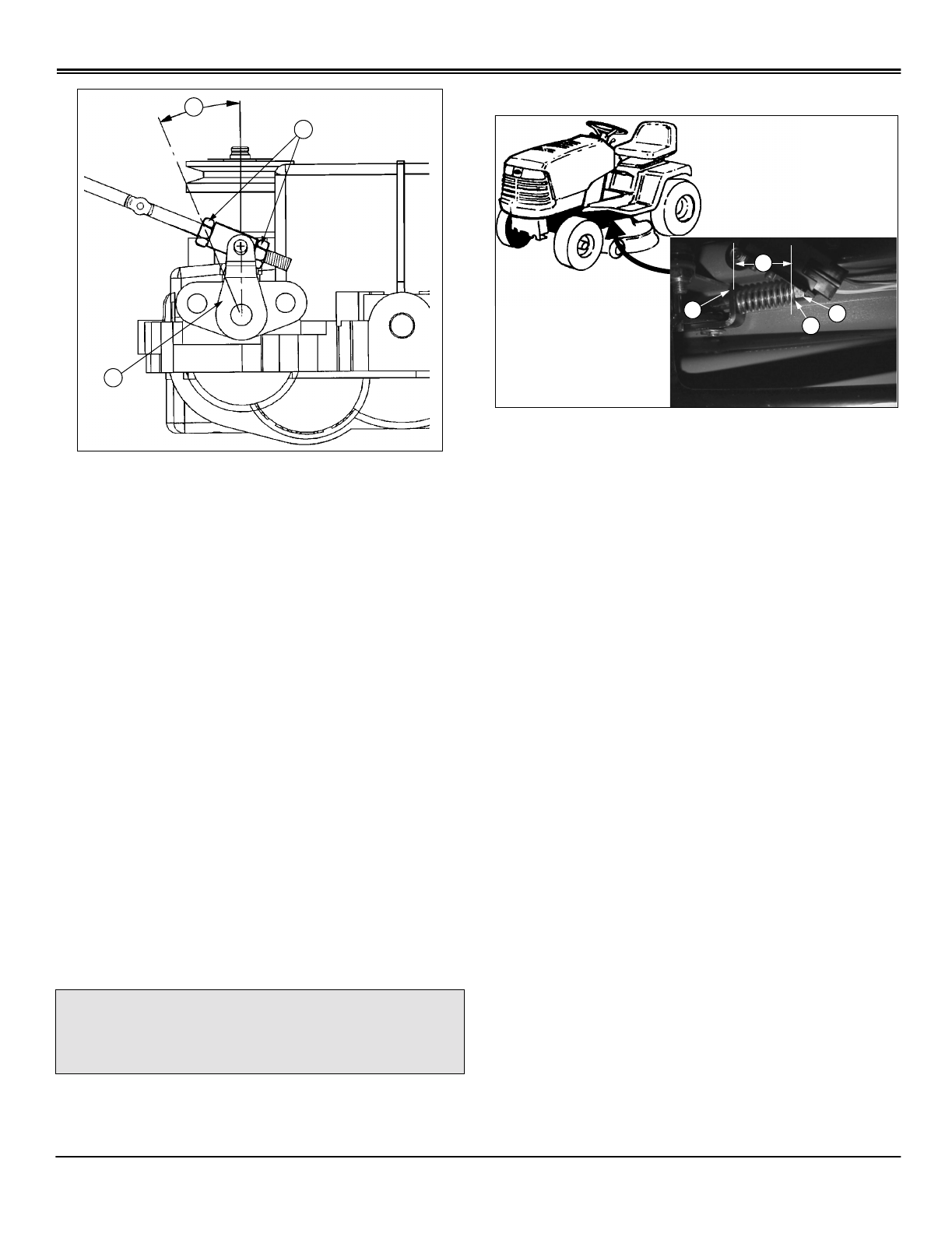

Service Steering and Brakes - 35

SERVICE STEERING AND BRAKES

4. If distance is less than or equal to 2 mm (0.08 in):

•Gradually adjust jam nuts (D) until specified

measurement is obtained.

•Depress brake pedal and LOCK park brake.

•Measure the distance between edge of compression

spring bracket and front edge of brake rod stop tabs.

Gap should have a minimum distance of 2 mm (0.08 in).

•Check brake rod compression spring (E). It should

not be completely compressed when park brake is

locked. A slight air gap should be visible between the

coils when proper adjustment is reached.

•Recycle park brake a few times and measure

distances each time until specified measurements are

obtained.

•Brake lever (F) travel should not exceed 30° (G). If it

does, measure brake components individually.

SPECIFICATIONS:

•Spring bracket to stop tabs (minimum): 2 mm (0.08 in)

•Brake lever travel (maximum): 30°

Adjusting Brakes - Automatic Foot Control

1. Park tractor on flat, level surface. STOP engine, turn key

to the OFF position, and remove key.

2. LOCK the park brake.

3. Measure distance of the compressed brake spring from

bracket (A) to washer (B) (located below foot tread area on

left-hand side of transmission). Distance (C) should be

42-43 mm (1.65 - 1.69 in).

If distance (C) is greater than 43 mm (1.69 in) or less than

42 mm (1.65 in), gradually adjust nut (D) until specified

measurement is achieved.

c CAUTION: Avoid injury! Before adjusting

brakes: STOP engine. Remove key. Wait for all

moving parts to STOP.

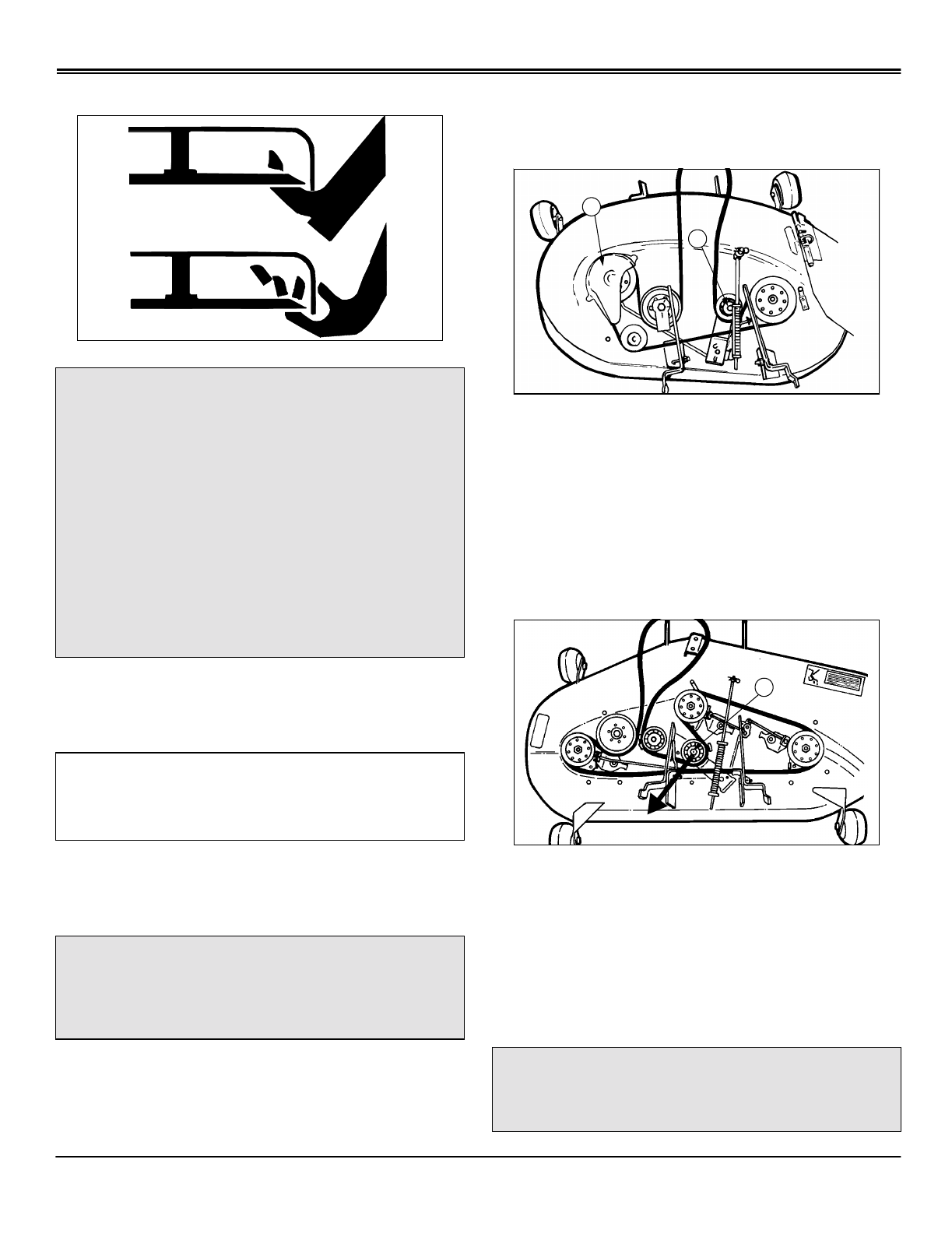

Service Mower - 36

SERVICE MOWER

Service Mower

Avoid Injury From Contacting Blades

Mower Spindles

Replacing Mower Drive Belt

1. STOP engine, LOCK park brake, place gear shift lever in

NEUTRAL (N) position, pull PTO drive lever back to

DISENGAGE, turn key to the OFF position, and remove

key.

2. Remove mower deck. (See Removing Mower in

Removing Mower section.)

42-Inch Mower Deck

1. Remove two capscrews and belt guard (A).

2. Loosen pulley (B), move pulley to the right and remove

mower drive belt from engine pulley and then remove from

the mower.

3. Install belt in reverse order of removal.

4. Reinstall belt guard and tighten capscrews securely.

46-Inch Mower Deck

1. Remove six capscrews and left and right belt guards.

2. Pull pulley (A) to the left and remove mower drive belt

from engine pulley and then remove from mower.

3. Install belt in reverse order of removal.

4. Reinstall belt guards and tighten capscrews securely.

Adjusting Mower Belt Tension

c CAUTION: Avoid injury! Before you unplug,

adjust or service mower:

- DISENGAGE PTO switch to stop mower

blades.

- Wait for mower blades to STOP.

- LOCK the park brake.

- STOP the engine.

- Remove the key.

Clean unit by removing all grass clippings and

dirt from mower deck.

Disconnect spark plug wire from spark plug.

IMPORTANT: Avoid damage! Do NOT grease mower

spindles. Grease zerks are for initial factory setup

and are sealed. Attempting to grease the spindles

may damage the seals and shorten the bearing life.

c CAUTION: Avoid injury! Before replacing

mower drive belt: STOP engine, remove key,

wait for all moving parts to STOP, and wear

gloves when replacing belt.

c CAUTION: Avoid injury! Before adjusting

Mower Belt Tension: STOP engine. Remove key.

Wait for all moving parts to STOP.

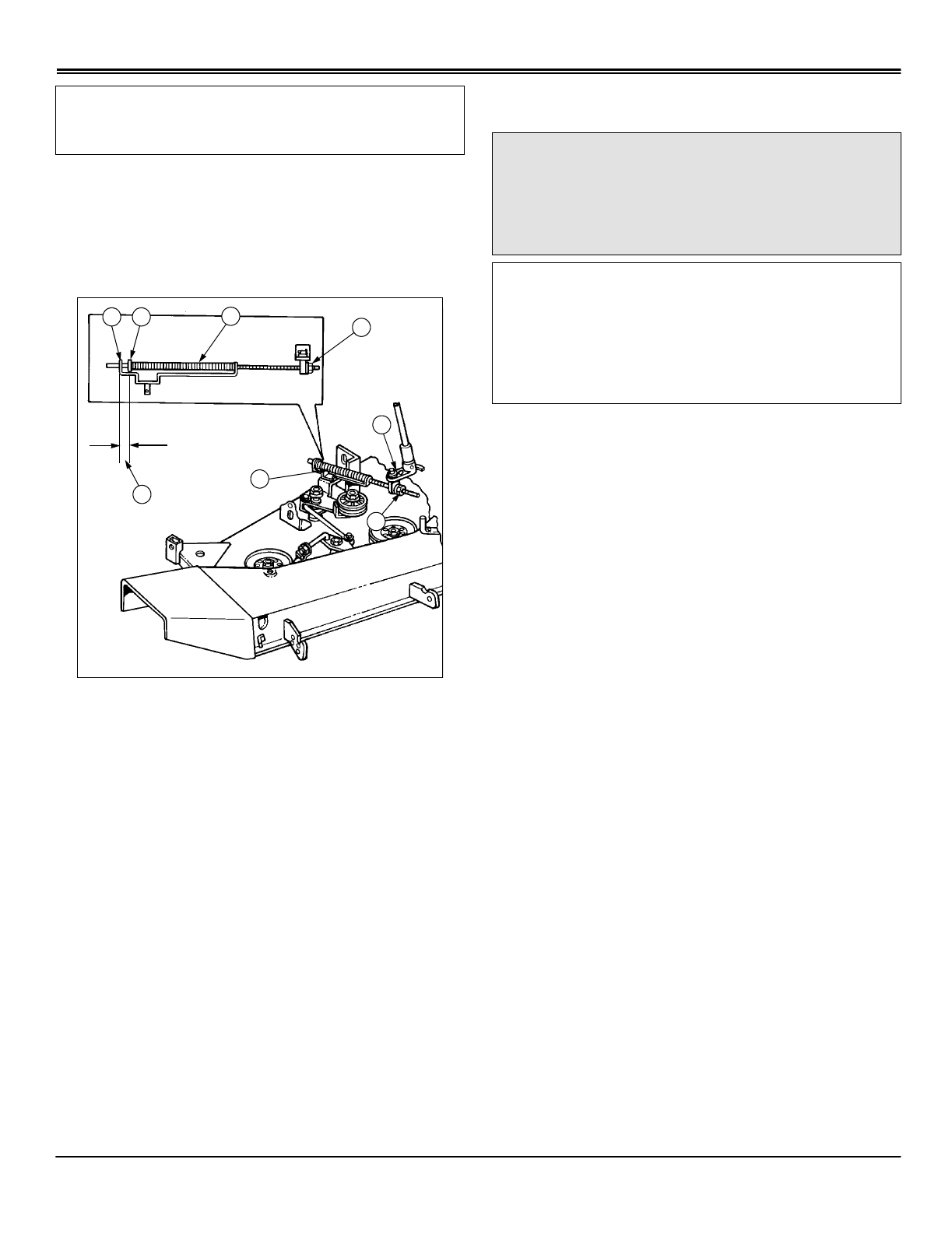

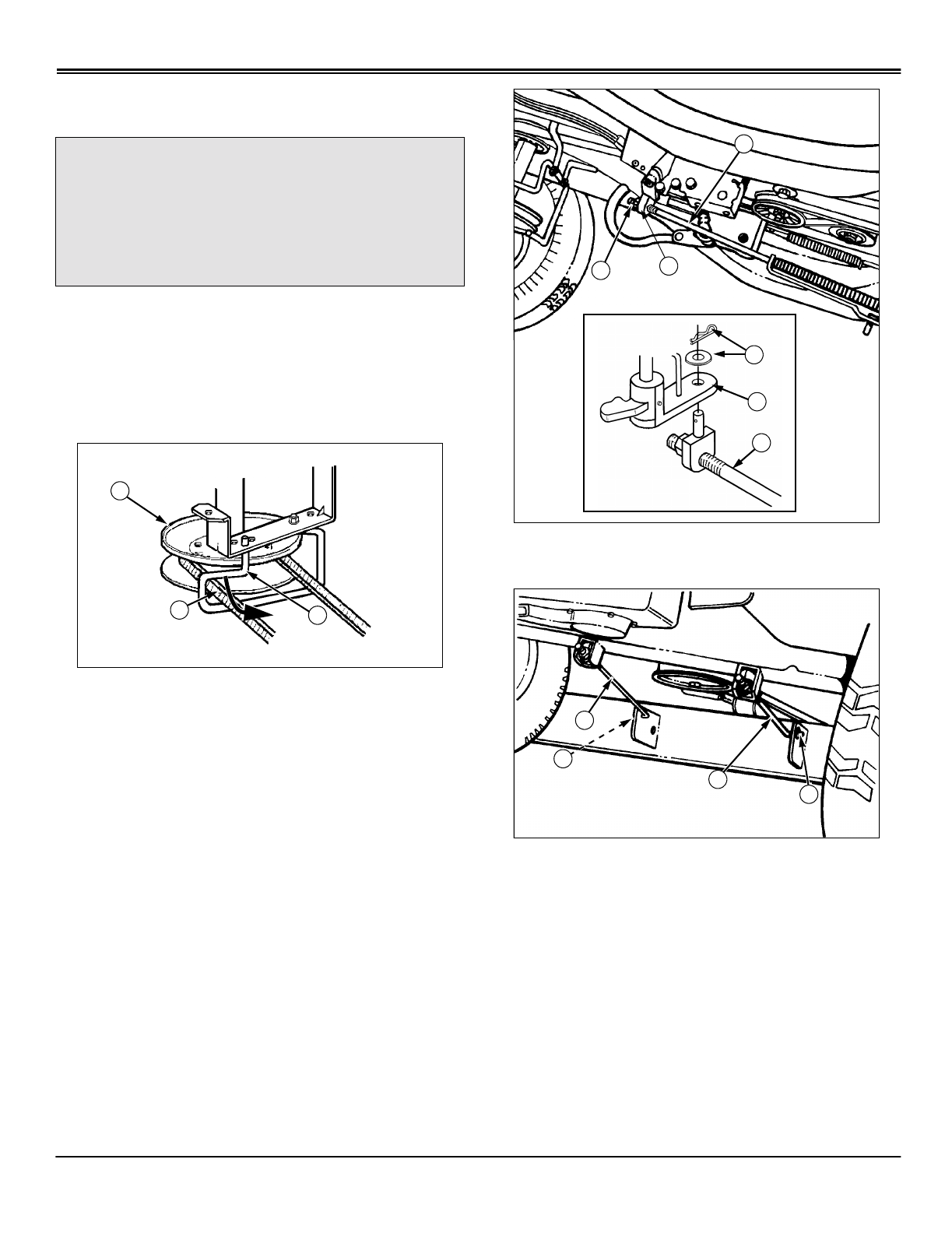

Service Mower - 37

SERVICE MOWER

1. Park tractor on a hard, level surface.

2. Stop the engine, remove key, wait for moving parts to

stop.

3. Place mower deck in LOWEST setting.

4. Engage PTO drive lever.

5. Measure distance from bracket (A) to washer (B) on

tension rod (C). Distance (D) should be: 20 – 25 mm (0.78

– 0.98 in).

6. If adjustment is required, continue with Step 7.

7. DISENGAGE PTO lever.

8. Remove spring locking pin and washer (E) and

disconnect tension rod from blade drive arm.

9. Loosen lock nut (F).

10.Turn fitting on tension rod clockwise to shorten and

counterclockwise to lengthen effective rod length.

11.Tighten lock nut (F) to 27 N•m (20 lb-ft.).

12.Assemble tension rod and recheck dimension (D).

13.Check brake clearance. (See Adjusting Spindle Brake in

this section.

Adjusting Spindle Brake

1. Park tractor on a hard, level surface.

2. Stop the engine, remove key, wait for moving parts to

stop.

3. Place mower deck in LOWEST setting.

4. Engage PTO drive lever.

5. Check mower belt tension. (See Adjusting Mower Belt

Tension in this section.)

6. Remove belt guard.

IMPORTANT: Avoid damage! Spindle brake

engagement must be checked every time the mower

belt tension is adjusted or belt damage may occur.

A B F

c CAUTION: Avoid injury! Rotating blades are

dangerous. Mower blades must stop within 5

seconds after mower is turned off. Check

spindle brake measurement every 25 hours or

once a year (whichever comes first).

IMPORTANT: Avoid damage! Avoid belt damage.

Spindle brake engagement must be checked and

corrected every time the mower belt tension is

adjusted.

Mower belt tension should be adjusted, if required,

BEFORE brakes are adjusted.

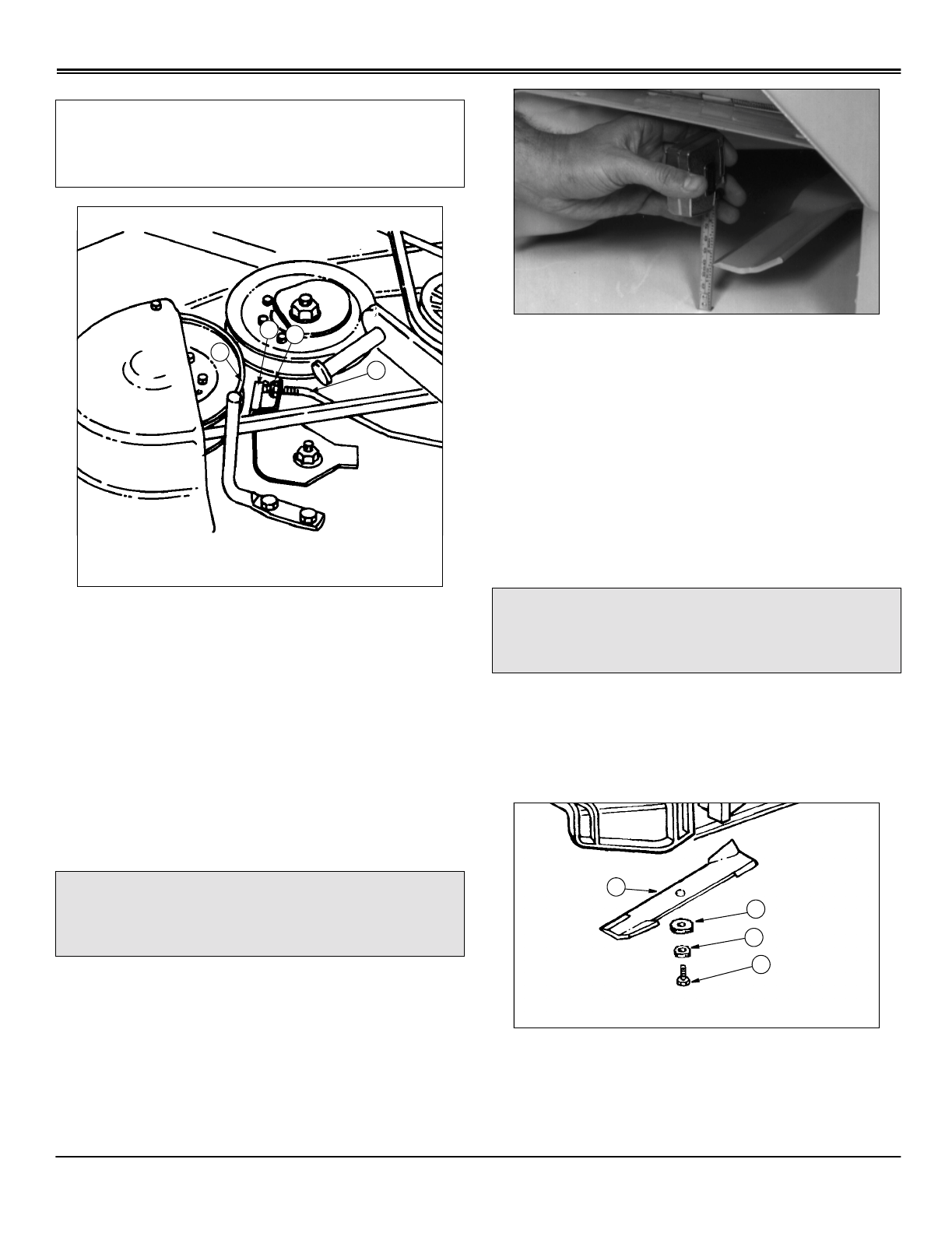

Service Mower - 38

SERVICE MOWER

7. Measure distance from brake surface (A) to pulley

braking surface (B). Brake to Pulley Distance should be: 2 –

3 mm (0.08 – 0.12 in).

8. If adjustment is required, turn nut (C) on end of brake

rod (D) in correct direction to set brake at proper distance

from pulley.

9. Repeat on all brakes.

10.Install belt guard.

Checking Mower Blades

To check for a bent blade:

1. Lower mower. Measure distance between blade tip and

flat ground surface.

2. Turn blade 180 degrees. Measure distance between

blades other tip and flat ground surface.

3. If the distance between the two measurements is more

than 3 mm (1/8 in), install new blade.

Servicing Mower Blades

46-Inch Mower Deck

REMOVING MOWER BLADES

1. Raise mower deck to gain access to mower blades. If

necessary, remove mower deck.

2. Using a wooden block, prevent mower blades from

spinning.

3. Loosen and remove cap screw (A), hardened washer

(B), cupped blade washer (C) and blade (D).

4. Inspect blades; sharpen/balance or replace as

necessary.

IMPORTANT: Avoid damage! ALL brakes MUST be

adjusted. There are TWO spindle brakes on the 38

and 42-Inch decks, and THREE spindle brakes on

the 46-Inch deck.

c CAUTION: Avoid injury! Before adjusting

Mower Belt Tension: STOP engine. Remove key.

Wait for all moving parts to STOP.

c CAUTION: Avoid injury! Be careful, sharp

edges on mower blades. Always wear gloves

when handling mower blades.

M88119b

Service Mower - 39

SERVICE MOWER

INSTALLING MOWER BLADES

1. Lightly lubricate cap screw threads with a general

purpose grease or oil. This lubrication is to prevent rusting

and seizing.

2. Position mower blade (D) with the cutting edge towards

the ground onto the mower spindle.

3. Install cupped blade washer (C) with cup side toward the

blade.

4. Install hardened washer (B).

5. Install and tighten cap screw (A) by hand until mower

blade is in full contact (fully seated) with spindle.

6. With mower blade blocked, to prevent spinning, tighten

cap screws to 56 N•m (41 lb-ft.)).

42-Inch Mower Deck

REMOVING MOWER BLADES

1. Raise mower deck to gain access to mower blades. If

necessary, remove mower deck.

2. Using a wooden block, prevent mower blades from

spinning.

NOTE: Before removing hardware, note the orientation

of the cupped blade washer (C) to ensure proper

installation.

3. Loosen and remove cap screw (A), hardened washer

(B), cupped blade washer (C), blade (D) and deflector cup

(E).

4. Inspect blades; sharpen/balance or replace as

necessary.

INSTALLING MOWER BLADES

1. Lightly lubricate cap screw threads with a general

purpose grease or oil. This lubrication is to prevent rusting

and seizing.

2. Install deflector cup (E) on spindle.

3. Position mower blade (D) with the cutting edge towards

the ground onto the mower spindle.

4. Install cupped blade washer (C) with CUPPED SIDE

toward the blade.

5. Install hardened washer (B).

6. Install and tighten cap screw (A) by hand until mower

blade is in full contact (fully seated) with spindle.

7. With mower blade blocked, to prevent spinning, tighten

bolt to 56 N•m (41 lb-ft.).

c CAUTION: Avoid injury! Be careful, sharp

edges on mower blades. Always wear gloves

when handling mower blades.

M88112h

M88119c

M88112h

Service Mower - 40

SERVICE MOWER

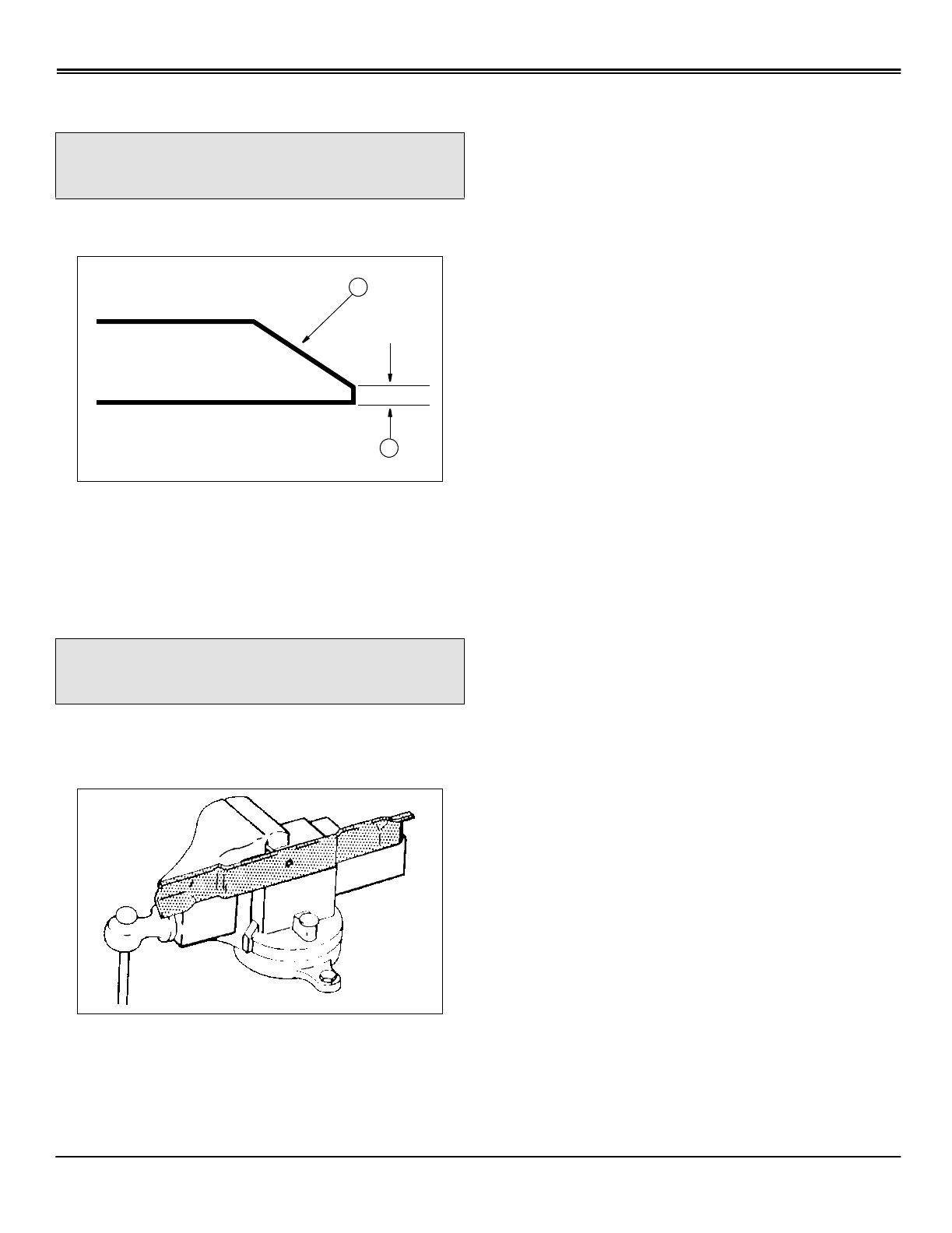

Sharpening Blades

1. Sharpen blades with grinder, hand file or electric blade

sharpener.

2. Keep original bevel (A) when you grind.

3. Blade should have 0.40 mm (1/64 in.) cutting edge (B).

Balancing Blades

1. Clean blade.

2. Put blade on nail in vise or on vertical wall stud. Turn

blade to horizontal position.

3. If blade is not balanced, heavy end of blade will drop.

4. Grind bevel of heavy end. Do not change bevel.

c CAUTION: Avoid injury! Wear goggles and

gloves when you handle blades.

c CAUTION: Avoid injury! Wear goggles and

gloves when you handle blades.

Service Electrical - 41

SERVICE ELECTRICAL

Service Electrical

Checking the Battery

•Keep battery and terminals clean.

•Keep battery bolts tight.

•Keep small vent holes open.

•Recharge, if necessary, at 6–10 amperes for 1 hour. (See

Charging the Battery in this section.)

Removing and Installing the Battery

1. Turn ignition key off and raise seat.

2. Remove rubber hold-down strap (A).

3. Disconnect negative (–) battery cable (B).

4. Remove red cover (C) from positive (+) battery terminal.

Remove positive (+) cable from battery.

5. Remove battery.

6. Install the battery following these steps in reverse order.

(See Connect the Battery in the Assembly section.)

Clean Battery and Terminals

1. Turn ignition key off and raise seat.

c CAUTION: Avoid injury! Sulfuric acid in battery

electrolyte is poisonous. It is strong enough to

burn skin, eat holes in clothing, and cause

blindness if splashed into eyes. Wear eye

protection and avoid spilling or dripping

electrolyte.

Flush eyes with water for 15-30 minutes if acid

is splashed into eyes.

If acid is swallowed, get medical attention

immediately.

DO NOT attempt to open, add fluid or service

battery. Any attempt to do so will void warranty

and lead to possible injury.

c CAUTION: Avoid injury! Always remove

negative (–) battery cable first, and install it last,

to prevent electrical short circuit to chassis.

c CAUTION: Avoid injury! Battery gas can

explode, to avoid injury:

- Keep sparks and flames away from batteries.

Use a flashlight to check battery electrolyte

level.

- Never check battery charge by placing a metal

object across the posts. Use a voltmeter or

hydrometer.

- Always remove grounded (-) battery clamp

first and replace it last.

M96453

Service Electrical - 42

SERVICE ELECTRICAL

2. Remove rubber hold-down strap (A).

3. Disconnect BLACK (–) battery cable (B) first.

4. Disconnect RED (+) battery cable (C). Remove battery

from mower.

5. Wash battery with solution of four tablespoons of baking

soda to one gallon of water. Be careful not to get the soda

solution into the cells.

6. Rinse the battery with clean water. Let dry.

7. Clean terminals and battery cable ends with wire brush

until bright.

8. Apply petroleum jelly or silicone spray to terminal to

prevent corrosion.

9. Install battery. (See Removing and Installing the Battery

in this section and Connect the Battery in the Assembly

section.)

Charging the Battery

Before you charge a battery:

•Wait until the battery has warmed to room temperature.

Do not charge a frozen battery.

Turn OFF and unplug the charger before you connect

cables to the battery or disconnect cables from the battery.

If the battery becomes warm to touch during charging:

•Reduce the charging rate OR

•Stop charging the battery until it cools.

NOTE: Your charger may have an AUTOMATIC STOP to

prevent charging the battery:

•When the battery is fully charged OR

•When the battery is not in condition to take a charge.

1. Remove battery from mower. (See Removing and

Installing Battery in this section.)

M96453

Bc CAUTION: Avoid injury! BE VERY CAREFUL:

Battery fluid (electrolyte), is a solution of water

and sulfuric acid. It is very harmful to eyes,

skin, or clothing.

- Wear goggles or an eye shield when you work

with a battery.

- If the acid contacts your eyes, skin, or

clothing, flush the area immediately with water.

Get medical help, if necessary.

A battery gives off gas which can explode. An

exploding battery will spray sulfuric acid in all

directions.

- Keep cigarettes, sparks, and flames away from

the battery.

- Charge the battery in an area with good

ventilation.

- DO NOT charge a frozen battery.

c CAUTION: Avoid injury! DO NOT attempt to

open, add fluid or service battery. Any attempt

to do so will void warranty and lead to possible

injury.Battery gas is explosive:

- DO NOT smoke while you charge battery.

- Keep all flames and sparks away.

- DO NOT charge frozen battery.

- DO NOT connect booster battery negative (-)

cable to starting vehicle negative (-) terminal.

Service Electrical - 43

SERVICE ELECTRICAL

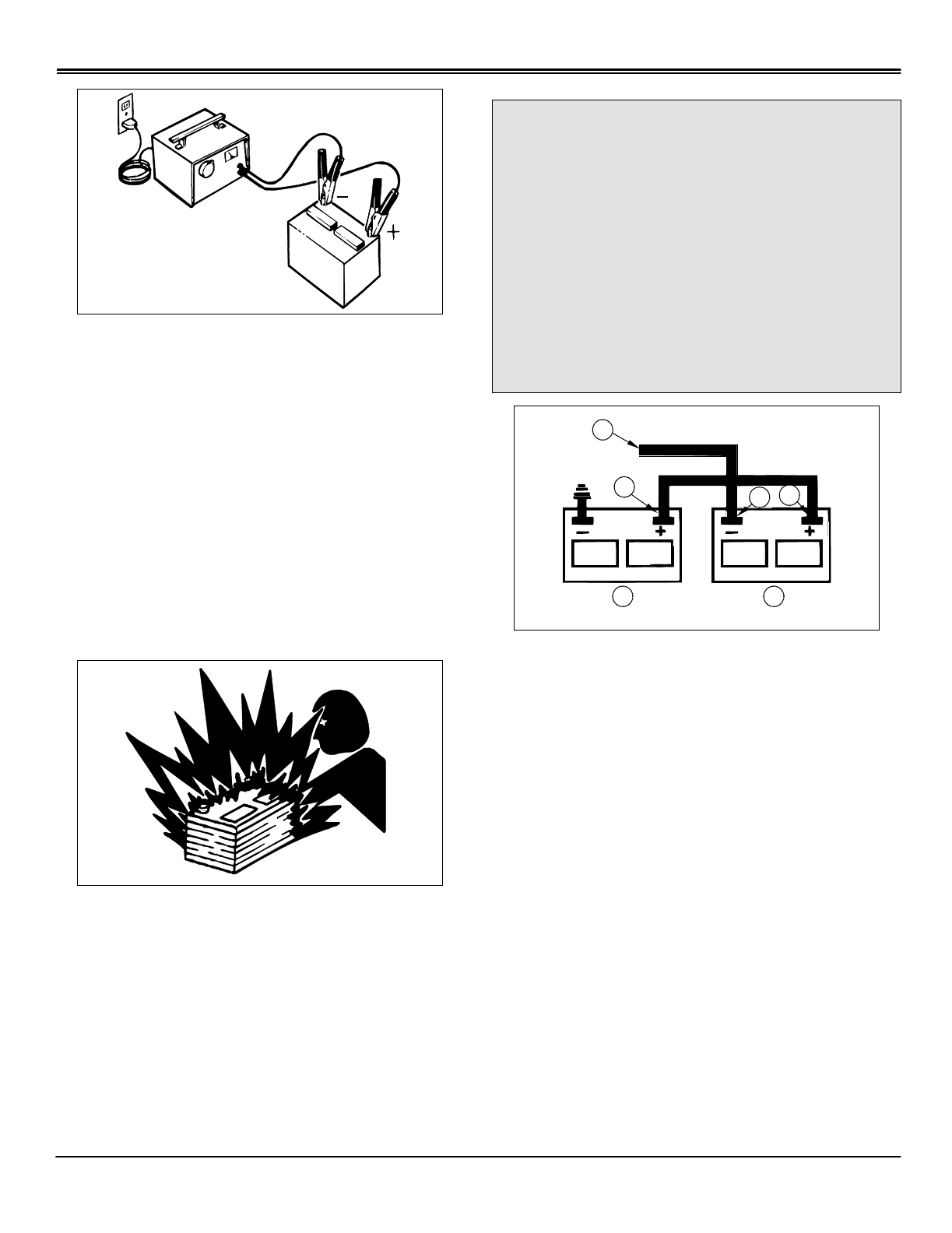

2. Connect positive (+) charger cable to positive (+) battery

terminal.

3. Connect negative (–) charger cable to negative (–)

battery terminal.

4. Plug in charger cord.

5. Charge battery using a 12 Volt battery charger at a rate

of 6–10 amperes for a minimum of 1 hour and no more than

2 hours.

6. Unplug charger cord. Remove charger cables.

7. Install battery. (See Removing and Installing Battery in

this section.)

Using Booster Battery

A - Booster Battery

B - Disabled Vehicle Battery

1. Connect positive (+) booster cable to booster battery (A)

positive (+) post (C).

2. Connect the other end of positive (+) booster cable to

the disabled vehicle battery (B) positive (+) post (D).

3. Connect negative (–) booster cable to booster battery

negative (–) post (E).

4. Connect the other end (F) of negative (–) booster cable

to a metal part of the disabled machine frame away from

battery.

5. Start the engine of the disabled machine and run

machine for several minutes.

6. Carefully disconnect the booster cables in the exact

reverse order: negative cable first and then the positive

cable.

Replacing Headlight Bulb

1. Lift hood.

c CAUTION: Avoid injury! The battery produces

a flammable and explosive gas. The battery

may explode:

•DO NOT attempt to jump start a frozen

battery. Warm to 16 degrees C (60 degrees F).

•DO NOT smoke near battery.

•Wear eye protection and gloves.

•Keep sparks and flames away.

•DO NOT connect the negative (-) booster

cable to the negative (-) terminal of the

discharged battery. Connect at a good ground

location away from the discharged battery.

Service Electrical - 44

SERVICE ELECTRICAL

2. Push in and turn bulb socket (A) 1/4 turn

counterclockwise to remove.

3. Replace defective bulb with a new bulb.

4. Insert bulb socket into housing, push in and turn 1/4 turn

clockwise to install.

5. Lower hood.

Replacing Fuse

1. Open hood.

2. Pull defective fuse (A) out of socket.

3. Check metal clip in fuse window and discard fuse if clip

is broken.

4. Push new fuse into socket.

5. Close hood.

M88559

MX1535

Service Miscellaneous - 45

SERVICE MISCELLANEOUS

Service M iscellaneous

Checking Tire Pressure

1. Check tires for damage.

2. Check tire pressure with an accurate gauge.

3. Add or remove air, if necessary:

Fuel

c CAUTION: Avoid injury! Explosive separation

of a tire and rim parts can cause serious injury

or death:

- Do not attempt to mount a tire without the

proper equipment and experience to perform

the job.

- Always maintain the correct tire pressure. Do

not inflate the tires above the recommended

pressure. Never weld or heat a wheel and tire

assembly. The heat can cause an increase in

air pressure resulting in a tire explosion.

Welding can structurally weaken or deform the

wheel.

- When inflating tires, use a clip-on chuck and

extension hose long enough to allow you to

stand to one side and NOT in front of or over

the tire assembly.

- Check tires for low pressure, cuts, bubbles,

damaged rims or missing lug bolts and nuts.

Tire Size Pressure-kPa (psi)

Front: 15-Inch 97 kPa (14 psi)

Rear: 20-Inch 69 kPa (10 psi)

c CAUTION: Avoid injury! Handle fuel with care, it

is highly flammable and can cause serious

injury or death:

- DO NOT refuel machine while you smoke,

when machine is near an open flame or sparks,

or when engine is running. STOP engine.

- Fill fuel tank outdoors.

- Prevent fires: clean oil, grease and dirt from

machine. Clean up spilled fuel immediately.

- Do not store machine with fuel in tank in a

building where fumes may reach an open

flame or spark.

- To prevent fire and explosion caused by static

electric discharge, while you fill tank, use a

non-metal fuel container. If you use a funnel,

MAKE SURE IT IS PLASTIC. Avoid using a

funnel which has a metal screen or filter.

- Use only clean approved containers and

funnels.

- Store oil and fuel in an area protected from

dust, moisture and other contamination.

- DO NOT use METHANOL gasoline.

METHANOL is harmful to the environment and

to your health.

IMPORTANT: Avoid damage! Avoid spilling fuel. Fuel

can damage plastic and painted surfaces.

DO NOT mix oil with gasoline. Unleaded gasoline

with an octane rating of 87 or higher is

recommended.

Service Miscellaneous - 46

SERVICE MISCELLANEOUS

Using Clean Fuels

Dirt in the fuel system is a major cause of performance

problems. Be sure to clean any grass or trash from the top

of the tank before removing lid. Use of a PLASTIC funnel

with a plastic mesh strainer when filling the tank will prevent

most foreign material from entering the tank.

Octane Rating

Regular grade 87 octane unleaded fuel is recommended

for use in your tractor. Higher octane fuels will seldom make

your tractor perform better. If your tractor develops a

starting or performance problem immediately after use of

new fuel, change supplier or fuel brand. If the problem still

exists after switching fuel, see your John Deere dealer for

service.

Fuel Blends

Fuels are blended to give peak performance during cold

weather and warm weather. For cold weather, gasoline is

specially blended to provide better starting capabilities.

However, avoid prolonged storage of cold-weather blended

fuel because it will evaporate more quickly. You may

experience longer cranking times in cold weather with “old”

fuel. Buy smaller amounts of cold-weather blended fuel in

winter.

Fuels used during the summer are not required to provide

improved starting properties so they are blended differently.

As a result, you may experience hard starting or other

performance problems during cold weather if you use fuel

remaining from summer uses.

Oxygenated or Reformulated Fuels

Many areas are now required to add “oxygenates” (either

alcohol or ether) which blend oxygen into the fuel to help

reduce exhaust emissions. If you use oxygenated fuel be

sure it is unleaded and meets the minimum octane rating

requirement. DO NOT use fuel that contains methanol to

avoid producing excess emissions.

Although fuels blended with alcohol or ether allow your

engine to run cleaner, they may contribute to fuel system

damage and performance problems by causing gum and

varnish deposits, especially if fuel is stored for several

weeks or more.

Using clean, fresh fuel will help to prevent damage to the

fuel system and will help maintain peak engine

performance. If engine performance problems occur, use

fuel from another supplier before suspecting machine

problems. Suppliers blend fuels differently and changing

suppliers will generally solve any performance problems.

Using Fresh Fuel and Stabilizers

The best thing you can do to ensure peak performance of

your engine is to use “fresh” fuel. Your tractor’s engine will

perform well with most good-quality fresh fuels regardless

of additives. Any fuel will begin to deteriorate and evaporate

over time and begin to form gum and varnish deposits in

the fuel system. Help to avoid this by buying only enough

fuel to last approximately 30 days or add fuel stabilizer

immediately.

Adding a fuel stabilizer to the fuel system is recommended

any time the tractor will not be operated for more than 60

days. Varnish deposits may build up in the carburetor in as

little as a few weeks by using stale, oxygenated fuel.

No stabilizer will work with “stale” fuel, any fuel that is more

than 30 days old. (See Preparing Your Engine For Storage

in this section for information on adding stabilizer to the

fuel.)

Filling Fuel Tank

Fuel tank capacity: 4.7 L (1.25 gal).

1. STOP engine. If engine is hot let it cool several minutes

before you add fuel.

2. Lift hood.

3. Remove grass clippings and other trash from tank area.

IMPORTANT: Avoid damage! Dirt and water in fuel

are major causes of engine performance problems.

Prevent dirt and debris from entering the fuel tank

when filling.

Fill the tank at the end of each day’s operation to

help keep condensation out of the fuel tank.

Service Miscellaneous - 47

SERVICE MISCELLANEOUS

4. Remove fuel tank cap (A).

5. Fill tank with fresh fuel only to bottom of filler neck.

6. Install fuel tank cap and lower hood.

Care for Plastic and Painted Surfaces

PLASTIC SURFACES

The plastic parts on your tractor are made of a blend of

polycarbonate and polyester materials. These parts are

extremely strong and durable. Unlike painted metal, the

plastic parts will never dent or rust. If the plastic parts get

scratched, the color will remain the same since the color

goes through the entire part.

Correct Cleaning Care:

NOTE: Follow cleaning procedure every time plastic

surfaces are cleaned. DO NOT wipe dry plastic surface

with hand or towel.

1. Before washing, rinse hood and entire machine with

clean water to remove dirt and dust that may scratch the

surface.

2. Wash plastic surface with clean water and a mild liquid

automotive washing soap. Use a SOFT, CLEAN cloth (bath

towel or automotive mitt) when washing.

3. Dry thoroughly with a SOFT, CLEAN cloth (diaper or

bath towel).

4. Wax the surface with a liquid automotive wax. Use

products that specifically say “contains no abrasives”.

5. Remove applied wax by hand using a clean, soft cloth.

Avoid Damage:

•“Dry wiping” or wiping the plastic surface when it is dry

is a major source of minor surface scratches.

•DO NOT wipe hood or other plastic parts unless wetted

first.

•DO NOT apply wax unless plastic surface has been

thoroughly cleaned first.

•DO NOT use abrasive materials, such as polishing

compounds, to clean or to wax plastic surface.

•DO NOT wax plastic surfaces without drying first. Hard-

to-remove water spots will be left.

•DO NOT use solvents or commercial cleaners.

•DO NOT use power buffers to remove wax.

•DO NOT spray insect repellent near machine. Insect

repellent spray may damage plastic or painted surfaces.

•Be careful not to spill fuel on any plastic or painted

surfaces. Wipe up fuel immediately.

Repair:

•Your John Deere dealer has the professional materials

needed to properly remove surface scratches from any

plastic surfaces.

•DO NOT attempt to paint over marks or scratches in

plastic parts.

•DO NOT use polishing compounds to attempt to remove

scratches.

PAINTED METAL SURFACES

Correct Cleaning Care:

Follow automotive practices to care for your tractor painted

metal surfaces. Use a high-quality automotive wax

regularly to maintain the factory look of your tractor’s

painted surfaces.

Repair:

Minor Scratches (surface scratch):

1. Clean area thoroughly to be repaired.

2. Use automotive polishing compound to remove surface

scratches.

•DO NOT use rubbing compound to avoid removing

paint.

3. Apply wax to entire surface.

Deep Scratches (bare metal or primer showing):

1. Clean area to be repaired with rubbing alcohol or

mineral spirits.

IMPORTANT: Avoid damage! “Dry wiping” or wiping

the plastic surface when it is dry will result in minor

surface scratches. Always wet the surface before

cleaning. Follow correct cleaning and waxing

procedures.

M96452

Service Miscellaneous - 48

SERVICE MISCELLANEOUS

2. Use paint stick with factory-matched colors available

from your John Deere dealer to fill scratches. Follow

directions for use and for drying.

•Apply sparingly to scratch without getting on

surrounding painted surface. Fill in scratch to level of

surrounding painted area.

•Allow to dry 48 hours in warm weather and up to 30

days in colder temperatures.

3. Use automotive polishing compound to smooth out

surface. Do not use power buffer.

4. Apply wax to surface.

Removing Mower - 49

REMOVING MOWER

Removing Mower

1. STOP engine, LOCK park brake, DISENGAGE PTO

lever, turn key to the OFF position, and remove key.

2. Raise mower lift lever to highest position.

3. Put wood blocks under each side of mower.

4. Lower mower lift lever to lowest position, bringing deck

down onto blocks.

Picture Note: Shown from behind L.H. front wheel.

5. Remove mower deck drive belt from tractor engine

pulley:

a. Pull down on left-hand side of belt guide (A) and

rotate away from engine pulley (B).

b. Remove belt (C) from belt guide and pulley.

c. Return guide to original position. Insure that the

guide is seated into the hole.

6. Remove spring locking pin and washer (D) holding

tension rod (E) to blade drive arm (F).

7. Remove spring locking pins and washers (G) from front

draft rods (H) and remove draft arms from front axle

brackets. Store draft arms with mower.

c CAUTION: Avoid injury! Before removing

mower on machine: STOP engine. Remove key.

Wait for all moving parts to STOP.

• Mower lift lever under tension. To avoid injury,

grasp lift lever securely and release lock

slowly.

Removing Mower - 50

REMOVING MOWER

8. Remove spring locking pins and rear draft pins (I), one

on each side, from rear draft brackets (J).

9. Raise mower deck lift lever to highest position and

remove wood blocks.

10.Pull deck out from under tractor.

Installing Mower - 51

INSTALLING MOWER

Installing Mower

1. STOP engine, LOCK park brake, DISENGAGE PTO

lever, turn key to the OFF position, and remove key.

2. Raise mower deck lift lever to the UPPER position.

3. Turn steering wheel fully to the left. Carefully slide the

mower deck under the right side of the tractor (with the

mower discharge to tractors right side) taking care to avoid

interference of the rear draft arms with the underside of the

tractor.

4. Lower mower lift lever to the LOWEST position.

Picture Note: Left side of tractor shown.

5. Position the deck so the rear draft arms (A) are between

the guide rods (B) and the lift arms (C).

6. Lift the mower deck. Place wood blocks under each side

of mower deck and align the holes in the front of the rear

draft brackets (D) with the holes in the frame bracket (E).

7. Insert rear draft pins (F) through rear draft arms and

frame bracket from the outboard side. Secure with spring

locking pins.

Picture Note: Front of left hand front wheel shown.

8. Insert angled end of front draft rod assemblies (G)

through holes in front axle brackets (H).

NOTE: The draft rod assemblies are inserted from the

inside of the mower deck brackets toward the outside

of the bracket.

9. Raise front of deck and block. Insert angled end of front

draft rods into forward holes on the front brackets (I) of the

mower deck.

10.Secure each draft rod with flat washer and spring

locking pin (J).

Picture Note: Shown from behind L.H. front wheel.

11.Pull down on left-hand side of belt guide (K) and rotate

away from engine pulley (L). Install belt (M) through belt

guide and onto pulley. Return guide to original position.

Insure that the guide is seated into the hole.

c CAUTION: Avoid injury! Before installing

mower on machine: STOP engine. Remove key.

Wait for all moving parts to STOP.

• Mower blades are sharp. To avoid injury,

always wear gloves when handling mower

deck.

• Mower lift lever under tension. To avoid injury,

grasp lift lever securely and release lock

slowly.

Installing Mower - 52

INSTALLING MOWER

12.Raise tension rod (N) and attach to blade drive arm (O)

using flat washer (P) and spring locking pin (Q).

13.Raise deck by pressing the lift lever lock and pulling the

mower deck lift lever to its highest point.

14.Remove wood blocks from under deck.

15.Check for proper routing and position of all belts.

16.Level mower. (See Adjusting Mower Level (Side-to-Side

and Front-to-Rear) in the Operating Mower section.)

17.Adjust gage wheels. (See Adjusting Mower Gage

Wheels in the Operating Mower section.)

Troubleshooting - 53

TROUBLESHOOTING

Troubleshooting

Using Troubleshooting Chart

If you are experiencing a problem that is not listed in this

chart, see your Authorized Service Center for service.

When you have checked all the possible causes listed and

you are still experiencing the problem, see your Authorized

Service Center.

Engine

IF CHECK

Engine will not start Out of fuel.

Loose or corroded electrical connections.

PTO drive lever is in ON position.

Fuse is blown.

Spark plug wire is loose or disconnected.

Brake switch not engaged.

Engine flooded.

Dirty air filter.

Dirty fuel filter.

Water in fuel.

Bad starter solenoid.

Carburetor out of adjustment.

Engine valves out of adjustment.

Engine clicks but will not start Weak or dead battery.

Corroded battery terminals.

Loose or damaged wiring.

Faulty solenoid or starter.

Engine Hard To Start Dirty air filter.

Bad spark plug.

Weak or dead battery.

Dirty fuel filter.

Stale or dirty fuel.

Loose or damaged wiring.

Carburetor out of adjustment.

Engine valves out of adjustment.

Below 32°F (0°C)

Troubleshooting - 54

TROUBLESHOOTING

Loss of power Cutting too much grass /too fast.

Throttle in “CHOKE” position.

Buildup of grass, leaves and trash under mower.

Dirty air filter.

Low oil/dirty oil.

Faulty spark plug.

Dirty fuel filter.

Stale or dirty fuel.

Water in fuel.

Spark plug wire loose.

Dirty engine air screen/fins.

Dirty/clogged muffler.

Loose or damaged wiring.

Carburetor out of adjustment.

Engine continues to run when operator leaves seat Faulty operator presence safety switch.

Engine Backfires When Turning Engine “OFF”Engine throttle control not set at “SLOW” position for 30 seconds

before stopping engine.

Engine will not turn over Clutch/brake pedal not depressed.

Attachment clutch is engaged.

Weak or dead battery.

Blown fuse.

Corroded battery terminals.

Loose or damaged wiring.

Faulty ignition switch.

Faulty solenoid or starter.

Faulty operator presence safety switch.

Engine Stops When Shift Lever Is Moved Rearward

and Mower Is Engaged (Hydrostatic) Normal condition. (See Using Reverse Implement Option in the

OPERATING section.)

Engine Stops When Gear Shift Lever Is Moved To

The R (REVERSE) Position and Attachment Is

Engaged (Gear)

Normal condition. (See Using Reverse Implement Option in the

OPERATING section.)

IF CHECK

Troubleshooting - 55

TROUBLESHOOTING

Mower

IF CHECK

Mower blades will not rotate Obstruction in clutch mechanism, or blades.

Worn/damaged mower drive belt.

Frozen idler pulley.

Frozen blade mandrel.

Discharge Chute Plugging Belt worn or installed incorrectly.

Grass too wet.

Buildup of grass, leaves and trash under mower.

Worn, bent or loose blade.

Mower deck not level.

Engine rpm too low.

Travel speed too fast.

Low/uneven tire pressure.

Blades improperly installed.

Improper blades used.

Patches Of Grass Uncut Travel speed too fast.

Engine rpm too low.

Belt Slipping Debris in sheaves.

Worn belt.

Too Much Vibration Worn, bent or loose blade(s).

Bent blade spindle.

Damaged drive belt.

Blades Scalping Grass Cutting too low.

Turning speed too fast.

Ridges in terrain.

Rough or uneven terrain.

Low tire pressure.

Mower gauge wheels not adjusted correctly.

Bent blade(s).

Uneven Cut Mower not level.

Travel speed too fast.

Blades dull, bent or loose.

Mower gauge wheels not adjusted correctly.

Buildup of grass, leaves, and trash under mower.

Bent blade spindle.

Troubleshooting - 56

TROUBLESHOOTING

Electrical

Grass Tips Are Jagged And Turn Grayish Brown

After Mowing Dull mower blades.

Bent blades.

Front-to-rear blade adjustment not set properly.

Mower Stops When Shift Lever Is Moved Rearward

and Mower Is Engaged (Hydrostatic) Normal condition. (See Using Reverse Implement Option in the

OPERATING section.)

Mower Stops When Gear Shift Lever Is Moved To

The R (REVERSE) Position and Mower Is Engaged

(Gear)

Normal condition. (See Using Reverse Implement Option in the

OPERATING section.)

IF CHECK

Headlight not working Bulb(s) burned out.

Loose or damaged wiring.

Blown fuse.

Battery will not charge Bad battery cell(s).

Poor cable connections.

Faulty regulator/rectifier.

IF CHECK

Storing Machine - 57

STORING MACHINE

Storing Machine

Storing Safely

Preparing Machine for Storage

1. Repair any worn or damaged parts. Replace parts if

necessary. Tighten loose hardware.

2. Clean under the deck.

3. Paint scratched or chipped metal surfaces to prevent

rust.

4. Wash the machine and apply wax to metal and plastic

surfaces. (See SERVICE-MISCELLANEOUS section for

care of plastic and metal surfaces.)

5. Run machine for five minutes to dry belts and pulleys.

6. Apply light coat of engine oil to pivot and wear points to

prevent rust.

7. Lubricate grease points.

8. Make sure tires are properly inflated.

Preparing Engine For Storage

NOTE: Properly preparing your tractor engine for

storage will make it easier to start the following

season. Engine storage procedure should be used if

vehicle is not used for longer than 60 days.

There are two satisfactory methods of preparing the engine

for storage: running the engine completely dry of fuel, or

filling the fuel tank with a mixture of fresh fuel and fuel

stabilizer.

Running engine dry of fuel:

NOTE: Try to anticipate the last time the tractor will be

used for the season so very little fuel is left in the fuel

tank.

1. Park tractor in a well-ventilated area.

2. Engage park brake and disengage PTO.

3. Turn on engine and allow to run until it runs out of fuel.

4. Turn key to OFF position.

5. Continue with Preparing Engine.

Add fuel and stabilizer mixture to tank:

1. Park tractor in a well-ventilated area.

2. Mix fresh fuel and fuel stabilizer in separate container.

Follow stabilizer instructions for mixing.

NOTE: Filling the fuel tank reduces the amount of air in

the fuel tank and helps reduce deterioration of fuel.

3. Fill fuel tank with stabilized fuel.

4. Run engine for a few minutes to allow fuel mixture to

circulate through carburetor.

5. Continue with Preparing Engine.

Preparing Engine

1. Change engine oil and filter while engine is warm.

2. Service air filter if necessary.

3. Clean debris from engine air intake screen.

4. Remove spark plugs. Put 30 mL (1 oz.) of clean engine

oil in cylinders.

5. Install spark plugs, but DO NOT connect spark plug

wires.

6. Crank the engine for approximately five seconds to allow

oil to be distributed.

c CAUTION: Avoid injury! Engine exhaust fumes

can cause sickness or death.

- If it is necessary to run an engine in an

enclosed area, use an exhaust pipe extension

to remove the fumes.

- Always try to work in a well ventilated area.

- DO NOT store vehicle with fuel in the tank

inside a building where fumes may reach an

open flame or spark.

- Allow engine to cool before storing in an

enclosure.

- Remove the battery and store it in a cool dry

place where it will not freeze, and where

children cannot reach it.

IMPORTANT: Avoid damage! Be sure fuel is fresh

when adding fuel stabilizer. Fuel stabilizers are

ineffective when added to fuels that are more than

30 days old.

Storing Machine - 58

STORING MACHINE

7. Clean the engine and engine compartment.

8. Remove battery.

9. Clean the battery and battery posts.

NOTE: The stored battery should be recharged every

90 days.

10.Charge the battery. (See Charging Battery in the

SERVICE - ELECTRICAL section.)

11.Store the battery in a cool, dry place where it will not

freeze.

12.Store the vehicle in a dry, protected place. If vehicle is

stored outside, put a waterproof cover over it.

Removing Machine From Storage

1. Check tire pressure. (See Checking Tire Pressure in

Service - Miscellaneous section.)

2. Fill fuel tank. Check engine oil level.

3. Take machine off of blocks or support stands.

4. Charge battery if necessary. Install battery. (See

Removing and Installing the Battery in the SERVICE-

ELECTRICAL section.)

5. Check spark plug gap. Install and tighten spark plug(S)

to 20 N•m (15 lb-ft.).

6. Lubricate all grease points.

7. Check automatic transmission oil level.

8. Run the engine 5 minutes without the mower or any

attachments running to allow oil to be distributed

throughout engine.

9. Be sure all shields and guards are in place.

Specifications - 59

SPECIFICATIONS

Specifications

Model S1642

Engine Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Kohler

Horsepower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.9 kW (16 hp)

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426 cc (26 cu.in.)

Crankcase Capacity (Without Filter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8 L (1 3/4 qt.)

Crankcase Capacity (With Filter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.9 L (2 qt.)

Spark Plug-Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.02 mm (0.040 in.)

Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . One

Oil Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . None

Air Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Paper with Foam

Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Hydrostatic

Transaxle Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Tuff Torq ™ K51

Travel Speed - Forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 8.5 km/h (0 - 5.3 mph)

Travel Speed - Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 4.7 km/h (0 - 2.9 mph)

Model S1742

Engine Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Briggs & Stratton

Horsepower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.7 kW (17 hp)

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 465 cc (28.4 cu.in.)

Crankcase Capacity (Without Filter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.4 L (1 1/2 qt.)

Crankcase Capacity (With Filter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.7 L (1 3/4 qt.)

Spark Plug-Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.76 mm (0.030 in.)

Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . One

Oil Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Air Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Paper with Foam

Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Gear Transaxle

Transaxle Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dana

Travel Speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Gear Speed Range

1st . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4 km/h (1.5 mph)

2nd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2 km/h (2.0 mph)

3rd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.0 km/h (3.1 mph)

4th . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4 km/h (4.0 mph)

5th . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.0 km/h (5.0 mph)

Gear Speed - Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.7 km/h (2.3 mph)

Model S2046

Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Manufacturer Briggs & Stratton

Specifications - 60

SPECIFICATIONS

Horsepower (SAE1349) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14.9 kW (20 hp)

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 656 cc (40.0 cu.in.)

Crankcase Capacity (Without Filter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8 L (1.75 qt.)

Crankcase Capacity (With Filter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.9 L (2 qt.)

Spark Plug-Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.76 mm (0.030 in.)

Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Two

Oil Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Air Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Dry, Replaceable Foam

Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Hydrostatic

Transaxle Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tuff Torq™ K51

Travel Speed - Forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 8.5 km/h (0 - 5.3 mph)

Travel Speed - Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 - 4.7 km/h (0 - 2.9 mph)

Electrical System (All Models)

Charging System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dual Circuit AC/DC

Charging System Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Amp

Battery Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Volts

Battery Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BCI Group U1

Battery CCA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 Amp

Fuel (All Models)

Fuel Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (See Fuel in the Service Miscellaneous section

Fuel Tank Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.7 L (1.25 Gal)

Dimensions (All Models)

Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 cm (38.6 in)

Length (Overall) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152.4 cm (60 in)

Width - S1642 and S1742 (Overall) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 cm (36 in)

Width - S2046 (Overall) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96.5 cm (38 in)

Weight: (

S1642 and S1742 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176 kg (388 lb)

S2046 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184 kg (406 lb)

Tires (All Models)

Size (Front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 x 6.50 - 6

Size (Rear). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 x 10.0 - 8

Size (Rear). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 x 8.0 - 8

Specifications - 61

SPECIFICATIONS

Tire Pressure (Front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 kPa (14 psi)

Tire Pressure (Rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 kPa (10 psi)

Mower Deck (42-Inch)

Blades-Rotary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Blade Bolt Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 N•m (41 lb-ft.)

Cutting Height-Approx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25–102 mm (1–4 in.)

Cutting Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1067 mm (42 in.)

Mower Deck (46-Inch)

Blades-Rotary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Blade Bolt Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 N•m (41 lb-ft.)

Cutting Height-Approx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25–102 mm (1–4 in.)

Cutting Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1168 mm (46 in.)

Recommended Lubricants

Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . API Service Classification SG or SF

Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .SAE Multi-Purpose EP Grease

(Specifications and design subject to change without notice.)

Warranty - 62

WARRANTY

Warranty

LIMITED WARRANTY FOR NEW SCOTTS BRAND

PRODUCTS

Manufactured by John Deere

(U.S. Only)

A. GENERAL PROVISIONS - The warranties described below are

provided by John Deere Company (“John Deere”) to the original

purchasers of new Scotts Brand Products Manufactured by John Deere.

Under these warranties, John Deere will repair or replace, at its option,

any covered part which is found to be defective in material or

workmanship during the applicable warranty term. Warranty service must

be performed by a dealer or service center authorized by John Deere to

service the type of product involved, which will use only new or

remanufactured parts or components furnished by John Deere. Warranty

service will be performed without charge to the purchaser for parts or

labor. The purchaser will be responsible, however, for any service call and/

or transportation of product to and from the dealer's or service center’s

place of business, for any premium charged for overtime labor requested

by the purchaser and for any service and/or maintenance not directly

related to any defect covered under the warranties below.

B. WHAT IS WARRANTED - All parts of any new Scotts Brand Product

Manufactured by John Deere, except batteries, are warranted for the

number of months or operating hours specified below. Warranty

statements required by law covering engine emission-related parts and

components, are found in the Operator’s Manual delivered with the

machine.

Each warranty term begins on the date of product sale to the purchaser.

C. WHAT IS NOT WARRANTED - JOHN DEERE IS NOT RESPONSIBLE

FOR THE FOLLOWING: (1) Used products; (2) Any product that has been

altered or modified in ways not approved by John Deere; (3) Depreciation

or damage caused by normal wear, lack of reasonable and proper

maintenance, failure to follow operating instructions, misuse, lack of

proper protection during storage or accident; (4) Normal maintenance

parts and service.

D. SECURING WARRANTY SERVICE - To secure warranty service, the

purchaser must (1) report the product defect to an authorized dealer and

request repair within the applicable warranty term, (2) present evidence of

the warranty start date, and (3) make the product available to the dealer or

service center within a reasonable period of time.

E. LIMITATION OF IMPLIED WARRANTIES AND OTHER REMEDIES -

SCOTTS BRAND PRODUCTS MANUFACTURED BY JOHN DEERE - to

the extent permitted by law, neither John Deere nor any company affiliated

with it makes any warranties, representations, or promises as to the

quality, performance or freedom from defect of the Scotts Brand Products

Manufactured by John Deere covered by this warranty. IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, TO THE EXTENT APPLICABLE, SHALL BE

LIMITED IN DURATION TO THE APPLICABLE PERIOD OF WARRANTY

SET FORTH ON THIS PAGE. THE PURCHASER’S ONLY REMEDIES IN

CONNECTION WITH THE BREACH OR PERFORMANCE OF ANY

WARRANTY ON THE SCOTTS BRAND PRODUCTS MANUFACTURED

BY JOHN DEERE ARE THOSE SET FORTH ON THIS PAGE. IN NO

EVENT WILL THE DEALER, JOHN DEERE OR ANY COMPANY

AFFILIATED WITH JOHN DEERE BE LIABLE FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES. (Note: Some states do not allow

limitations on how long an implied warranty lasts or the exclusion or

limitation of incidental or consequential damages so the above limitations

and exclusions may not apply to you.) This warranty gives you specific

legal rights, and you may also have other rights which vary from state to

state.

F. NO DEALER WARRANTY - THE SELLING DEALER MAKES NO

WARRANTY OF ITS OWN AND THE DEALER HAS NO AUTHORITY TO

MAKE ANY REPRESENTATION OR PROMISE ON BEHALF OF JOHN

DEERE, OR TO MODIFY THE TERMS OR LIMITATIONS OF THIS

WARRANTY IN ANY WAY.

G. FAILURE DUE TO IMPROPER SET-UP IS NOT COVERED UNDER

WARRANTY.

H. If further information is desired, contact a servicing dealer. For the

location of servicing dealers in your area call 1-877-356-3698.

LIMITED WARRANTY FOR NEW SCOTTS BRAND

PRODUCTS

Manufactured by John Deere

(Canada Only)

A. GENERAL PROVISIONS - The warranties described below are

provided by John Deere Limited ("John Deere") to the original purchasers

of new Scotts Brand Products Manufactured by John Deere. Under these

warranties, John Deere will repair or replace, at its option, any part

covered under these warranties which is found to be defective in material

or workmanship during the applicable warranty term. Warranty service

must be performed by a dealer or service center authorized by John

Deere to service the type of product involved, which will use only new or

remanufactured parts or components furnished by John Deere. Warranty

service will be performed without charge to the purchaser for parts or

labor. The purchaser will be responsible, however, for any service call and/

or transportation of product to and from the dealer's or service center’s

place of business, except where prohibited by law, for any premium

charged for overtime labor requested by the purchaser and for any service

and/or maintenance not directly related to any defect covered under the

warranties below.

B. WHAT IS WARRANTED - Subject to paragraph C below, all parts of any

new Scotts Brand Product Manufactured by John Deere, except batteries,

are warranted for the number of months or days specified below. Warranty

statements required by law covering engine emission-related parts and

components, if any, are found in the Operator’s Manual delivered with the

product.

Each warranty term begins on the date of product sale to the purchaser.

C. WHAT IS NOT WARRANTED - JOHN DEERE IS NOT RESPONSIBLE

FOR THE FOLLOWING: (1) Used products; (2) Any product that has been

altered or modified in ways not approved by John Deere; (3) Depreciation

or damage caused by normal wear, lack of reasonable and proper

maintenance, failure to follow operating instructions, misuse, lack of

proper protection during storage or accident; (4) Normal maintenance

parts and service

D. SECURING WARRANTY SERVICE - To secure warranty service, the

purchaser must (1) report the product defect to an authorized dealer and

request repair or replacement within the applicable warranty term, (2)

present evidence of the warranty start date, and (3) make the product

EQUIPMENT USE WARRANTY

TERM

1) IN RESIDENTIAL (Private Homeowner)

APPLICATION

24 Months

2) IN ANY OTHER APPLICATION 90 Days

EQUIPMENT USE WARRANTY

TERM

1) IN RESIDENTIAL (Private Homeowner)

APPLICATION

24 Months

2) IN ANY OTHER APPLICATION 90 Days

Warranty - 63

WARRANTY

available to the dealer or service center within a reasonable period of time.

E. LIMITATION OF IMPLIED WARRANTIES AND OTHER REMEDIES -

SCOTTS BRAND PRODUCTS MANUFACTURED BY JOHN DEERE - TO

THE EXTENT PERMITTED BY LAW, NEITHER JOHN DEERE NOR ANY

COMPANY AFFILIATED WITH IT MAKES ANY WARRANTIES,

REPRESENTATIONS, CONDITIONS OR PROMISES RESPECTING THE

SCOTTS BRAND PRODUCTS MANUFACTURED BY JOHN DEERE

AND COVERED BY THIS WARRANTY OTHER THAN THOSE LISTED

ABOVE. THIS EXCLUSION INCLUDES FUNDAMENTAL TERMS,

REPRESENTATIONS, CONDITIONS AND WARRANTIES WHICH MAY

BE EXPRESSED OR IMPLIED, VERBAL OR OTHERWISE, INCLUDING

IMPLIED OR STATUTORY CONDITIONS OR WARRANTIES OF

MERCHANTABILITY AND FITNESS, WHETHER PURSUANT TO THE

SALE OF GOODS ACT OR ANY OTHER STATUTE OF ANY PROVINCE

OR OTHERWISE, EXCEPT WHERE SUCH IMPLIED OR STATUTORY

CONDITIONS OR WARRANTIES MAY NOT BE EXCLUDED BY LAW.

F. REMEDIES EXCLUSIVE - THE PURCHASER’S ONLY REMEDIES IN

CONNECTION WITH THE BREACH OR PERFORMANCE OF ANY

WARRANTY ON THE SCOTTS BRAND PRODUCTS MANUFACTURED

BY JOHN DEERE ARE THOSE SET FORTH IN THIS WARRANTY

EXCEPT FOR THOSE REMEDIES PROVIDED BY LAW WHICH MAY

NOT BE EXCLUDED. IN NO EVENT WILL THE DEALER, JOHN DEERE

OR ANY COMPANY AFFILIATED WITH JOHN DEERE, BE LIABLE FOR

INCIDENTAL OR CONSEQUENTIAL DAMAGES OR INJURIES OR BE

LIABLE FOR DAMAGES SUFFERED BY THE PURCHASER AS A

RESULT OF FUNDAMENTAL BREACHES OF CONTRACT OR

BREACHES OF FUNDAMENTAL TERMS. The limitations of liability

contained in this warranty shall only be effective to the extent permitted by

law. This warranty gives you specific legal rights and you may also have

other rights which vary from jurisdiction to jurisdiction.

G. NO DEALER WARRANTY - EXCEPT FOR WARRANTIES WHICH

MAY NOT BE EXCLUDED BY LAW, THE SELLING DEALER MAKES NO

WARRANTY OF ITS OWN AND THE SELLING DEALER HAS NO

AUTHORITY TO MAKE ANY REPRESENTATION OR PROMISE ON

BEHALF OF JOHN DEERE, OR TO MODIFY THE TERMS OR

LIMITATIONS OF THIS WARRANTY IN ANY WAY.

H. FAILURE DUE TO IMPROPER SET-UP IS NOT COVERED UNDER

WARRANTY.

I. If further information is desired, contact a servicing dealer. For the

location of servicing dealers in your area call

1-877-356-3698.

Tire Warranty

John Deere warranty applies for tires available through the John Deere

parts system. For tires not available through the John Deere parts system,

the tire manufacturer’s warranty applicable to your machine may not apply

outside the U.S. (See your John Deere dealer for specific information.)

John Deere, Federal and California Emission Control

System Warranty (Small Off-Road Gas Engines)

Your Warranty Rights and Obligations

The United States Environmental Protection Agency (EPA), the California

Air Resources Board (CARB) and John Deere are pleased to explain the

emission control system warranty on your 1995 or later small off-road

equipment engine. In California, 1995 and later small off-road equipment

engines must be designed, built and equipped to meet the State’s

stringent anti-smog standards. In other states, 1997 and later model year

equipment engines must be designed, built and equipped to meet the U.S.

EPA regulations for small non-road, spark ignition engines. John Deere

must warrant the emission control system on your small off-road

equipment engine for the periods of time listed below provided there has

been no abuse, neglect or improper maintenance of your small off-road

equipment engine.

Your emission control system may include parts such as the carburetor,

fuel-injection system and ignition system. Also included may be

connectors and other emission related assemblies.

Where a warrantable condition exists, John Deere will repair your small

off-road equipment engine at no cost to you including diagnosis, parts and

labor.

John Deere Emission Control System Warranty Coverage

In California, 1995 and later small off-road equipment engines are

warranted relative to emission control parts for two years. In other states,

1997 and later model year equipment engines are warranted relative to

emission control parts for two years. If any emission related part on your

engine is defective, the part will be repaired or replaced by John Deere.

Owner’s Warranty Responsibilities

As the small off-road equipment engine owner, you are responsible for the

performance of the required maintenance listed in your owner’s manual.

John Deere recommends that you retain all receipts covering

maintenance on your small off-road equipment engine, but John Deere

cannot deny warranty solely for lack of receipts or for your failure to ensure

the performance of all scheduled maintenance.

As the small off-road equipment engine owner, you should however be

aware that John Deere may deny you warranty coverage if your small off-

road equipment engine or a part has failed due to abuse, neglect,

improper maintenance or unapproved modifications.

You are responsible for presenting your small off-road equipment engine

to an authorized John Deere Commercial and Consumer Equipment

Retailer as soon as a problem exists. The warranty repairs should be

completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and

responsibilities, you should contact your John Deere Commercial and

Consumer Equipment Retailer, or the John Deere Customer

Communications Center at 1-800-537-8233.

Length Of Warranty Coverage

John Deere warrants to the initial owner and each subsequent purchaser

that the small off-road equipment engine is:

•Designed, built and equipped so as to conform with all applicable

regulations adopted by the California Air Resources Board (CARB) for

1995 and later equipment engines, and all applicable regulations of the

United States Environmental Protection Agency (EPA) for 1997 and later

equipment engines; and

•Free from defects in materials and workmanship which can cause the

failure of an emission warranted part for a period of two years after the

engine is delivered to the initial retail purchaser. John Deere is liable for

damages to other engine components caused by the failure of a warranted

part during the warranty period. If any emission related part on your

engine is defective, the part will be repaired or replaced by John Deere.

Warranted Parts

Coverage under this warranty extends only to the parts listed below (the

emission control system parts) to the extent these parts were present on

the engine purchased.

Fuel Metering System:

•Carburetor and internal parts (or fuel injection system).

•Air/fuel ratio feedback and control system.

•Cold start enrichment system.

Warranty - 64

WARRANTY

Air Induction System:

•Air Cleaner

•Intake manifold.

Ignition System:

•Spark plugs.

•Magneto or electronic ignition system.

•Spark advance/retard system.

Catalyst System:

•Exhaust manifold.

Miscellaneous Items Used in Above Systems

•Vacuum and temperature switches.

•Electronic controls.

•Hoses, belts, connectors and assemblies.

Since emission related parts may vary slightly from model to model,

certain models may not contain all of these parts and certain models may

contain functionally equivalent parts.

Warranty Service And Charges

Warranty service shall be provided during customary business hours at

any authorized John Deere Commercial and Consumer Equipment

Retailer located within the United States of America. Repair or

replacement of any warranted part will be performed at no charge to the

owner, including diagnostic labor which leads to the determination that a

warranted part is defective, if the diagnostic work is performed at an

authorized John Deere Commercial and Consumer Equipment Retailer.

Any parts replaced under this warranty shall become the property of John

Deere.

Maintenance Warranty Coverage

a) Any warranted part that is not scheduled for replacement as required

maintenance must be warranted as to defects for the warranty period. Any

such part repaired or replaced under the warranty must be warranted for

the remaining warranty period.

b) Any warranted part that is scheduled only for regular inspection to the

effect of “repair or replace as necessary” must be warranted as to defects

for the warranty period. Any such part repaired or replaced under the

warranty must be warranted for the remaining warranty period.

c) Any warranted part which is scheduled for replacement as required

maintenance must be warranted as to defects only for the period of time

up to the first scheduled replacement for that part. Any such part repaired

or replaced under the warranty must be warranted for the remainder of the

period prior to the first scheduled replacement point for that part.

d) Normal maintenance, replacement or repair of emission control devices

and systems, which are being done at the customers expense, may be

performed by any repair establishment or individual; however, warranty

repairs must be performed by an authorized John Deere Commercial and

Consumer Equipment Retailer.

e) Any replacement part that is equivalent in performance and durability

may be used in the performance of any non-warranty maintenance or

repairs, and shall not reduce the warranty obligations of John Deere.

Consequential Warranty Coverage

Warranty coverage shall extend to the failure of any engine components

caused by the failure of any warranted part still under warranty.

Limitations

This Emission Control System Warranty shall NOT cover any of the

following:

a) Repair or replacement required as a result of (i) misuse or neglect, (ii)

improper maintenance or unapproved modifications, (iii) repairs

improperly performed or replacements improperly installed, (iv) use of

replacement parts or accessories not conforming to John Deere

specifications which adversely affect performance and/or durability, (v)

alterations or modifications not recommended or approved in writing by

John Deere.

b) Replacement parts, other services and adjustments necessary for

normal maintenance.

c) Transportation to and from the John Deere Commercial and Consumer

Equipment Retailer, or service calls made by the Retailer.

Limited Liability

a) The liability of John Deere under this Emission Control System

Warranty is limited solely to the remedying of defects in materials or

workmanship. This warranty does not cover inconvenience or loss of use

of the small off-road equipment engine or transportation of the engine to

or from the John Deere Commercial And Consumer Equipment Retailer.

JOHN DEERE SHALL NOT BE LIABLE FOR ANY OTHER EXPENSE,

LOSS, OR DAMAGE, WHETHER DIRECT, INCIDENTAL,

CONSEQUENTIAL (EXCEPT AS LISTED ABOVE UNDER

“COVERAGE”) OR EXEMPLARY ARISING IN CONNECTION WITH THE

SALE OR USE OF OR INABILITY TO USE THE SMALL OFF-ROAD

EQUIPMENT ENGINE FOR ANY OTHER PURPOSE.

b) NO EXPRESS EMISSION CONTROL SYSTEM WARRANTY IS

GIVEN BY JOHN DEERE WITH RESPECT TO THE ENGINE EXCEPT

AS SPECIFICALLY SET FORTH IN THIS DOCUMENT. ANY EMISSION

CONTROL SYSTEM WARRANTY IMPLIED BY LAW, INCLUDING ANY

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE, IS EXPRESSLY LIMITED TO THE EMISSION

CONTROL SYSTEM WARRANTY TERMS SET FORTH IN THIS

DOCUMENT.

c) No dealer is authorized to modify this Federal, California and John

Deere Emission Control System Warranty.

Limited Battery Warranty

NOTE: Applicable in North America only.

TO SECURE WARRANTY SERVICE

The purchaser must request warranty service from a John Deere dealer

authorized to sell John Deere batteries, and present the battery to the

dealer with the top cover plate codes intact.

FREE REPLACEMENT

Any new battery which becomes unserviceable (not merely discharged)

due to defects in material or workmanship within 90 days of purchase will

be replaced free of charge. Installation costs will be covered by warranty if

(1) the unserviceable battery was installed by a John Deere factory or

dealer, (2) failure occurs within 90 days of purchase, and (3) the

replacement battery is installed by a John Deere dealer.

PRO RATA ADJUSTMENT

Any new battery which becomes unserviceable (not merely discharged)

due to defects in material or workmanship more than 90 days after

purchase, but before the expiration of the applicable adjustment period,

will be replaced upon payment of the battery’s current list price less a pro

rata credit for unused months of service. The applicable adjustment period

is determined from the Warranty Code printed at the top of the battery and

chart below. Installation costs are not covered by warranty after 90 days

from the date of purchase.

THIS WARRANTY DOES NOT COVER

Warranty - 65

WARRANTY

A. Breakage of the container, cover, or terminals.

B. Depreciation or damage caused by lack of reasonable and necessary

maintenance or by improper maintenance.

C. Transportation, mailing, or service call charges for warranty service.

LIMITATION OF IMPLIED WARRANTIES AND PURCHASER’S

REMEDIES

To the extent permitted by law, neither John Deere nor any company

affiliated with it makes any warranties, representations, or promises as to

the quality, performance or freedom from defect of the products covered

by this warranty. IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE, TO THE EXTENT

APPLICABLE, SHALL BE LIMITED IN DURATION TO THE APPLICABLE

ADJUSTMENT PERIOD SET FORTH HERE. THE PURCHASER’S ONLY

REMEDIES IN CONNECTION WITH THE BREACH OR

PERFORMANCE OF ANY WARRANTY ON JOHN DEERE BATTERIES

ARE THOSE SET FORTH HERE. IN NO EVENT WILL THE DEALER,

JOHN DEERE OR ANY COMPANY AFFILIATED WITH JOHN DEERE BE

LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. (Note:

Some states do not allow limitations on how long an implied warranty lasts

or the exclusion or limitation of incidental or consequential damages. So

these limitations and exclusions may not apply to you.) This warranty gives

you specific legal rights, and you may also have some rights which vary

from state to state.

NO DEALER WARRANTY

The selling dealer makes no warranty of it’s own and the dealer has no

authority to make any representation or promise on behalf of John Deere,

or to modify the terms or limitations of this warranty in any way.

PRO RATA MONTHS OF ADJUSTMENT

NOTE: If your battery is not labeled with a warranty

code, it is a warranty code “B”.

Warranty Code Warranty Period

A 40 Months

B 36 Months

C 24 Months

Index - 66

INDEX

Index

Air Cleaner Elements - S2046 ........................................ 30

Air Cleaner Elements, Checking and Cleaning - S1642 and

S1742 ............................................................................. 29

Air Intake Screen and Engine, Clean ............................. 32

Battery and Terminals, Cleaning .................................... 41

Battery, Charging the ..................................................... 42

Battery, Checking the ..................................................... 41

Battery, Removing and Installing .................................... 41

Battery, Using Booster ................................................... 43

Belt Tension, Adjusting Mower ....................................... 36

Belt, Replacing Mower Drive .......................................... 36

Blades, Balancing ........................................................... 40

Blades, Checking Mower ................................................ 38

Blades, Servicing Mower (Removing and Installing) ...... 38

Blades, Sharpening ........................................................ 40

Brake, Adjusting Spindle ................................................ 37

Brake, Using the Park ...................................................... 7

Brakes, Adjusting - Automatic Foot Control ................... 35

Brakes, Adjusting - Automatic Hand Control .................. 34

Brakes, Adjusting - Gear ................................................ 33

Carburetor, Adjusting ..................................................... 27

Certification Label ............................................................. 3

Chains, Using Tire .......................................................... 15

Cleaning Care, Correct ................................................... 47

Cleaning Care, Correct for Painted Metal Surfaces ....... 47

Cold Weather Starting Tips .............................................. 8

Controls, Tractor - Automatic ........................................... 4

Controls, Tractor - Gear ................................................... 4

Controls, Travel - Automatic ............................................. 9

Controls, Travel - Gear ..................................................... 9

Cruise Control, Using ..................................................... 10

Cutting Height, Adjusting ................................................ 16

Dealer Set-up ................................................................... 0

Engine Oil ....................................................................... 27

Engine Oil and Filter, Changing ..................................... 28

Engine Warranty Maintenance Statement ...................... 27

Engine for Storage, Preparing ........................................ 57

Engine, Starting ................................................................ 7

Engine, Stopping .............................................................. 9

Engine, Warming and Idling ............................................. 8

Equipment, Avoid Using Ground Engaging .................... 15

Filter, Replacing Fuel ..................................................... 31

Fuel ................................................................................ 45

Fuel Filter, Replacing ......................................................31

Fuel Tank, Filling .............................................................46

Fuse, Replacing ..............................................................44

Grease ............................................................................33

Headlight Bulb, Replacing ...............................................43

Height, Adjusting Cutting ................................................16

Implement Option, Using Reverse ..................................11

Installing Mower ..............................................................51

Interval Chart for Service ................................................25

Labels, Safety ...................................................................2

Leveling Mower Front-to-Rear ........................................18

Leveling Mower Side-to-Side ..........................................17

Lift Lever to Raise and Lower Mower, Using ..................16

Lubricating Wheel Spindles and Wheel Bearings ...........33

Metal Surfaces, Painted ..................................................47

Mower Belt Tension, Adjusting .......................................36

Mower Blades, Checking ................................................38

Mower Deck Mulch Ready - 42-Inch Mower Deck ..........20

Mower Deck Side Discharge - 42-Inch Mower Deck ......19

Mower Deck with Optional Equipment - 42-Inch Mower

Deck ................................................................................20

Mower Drive Belt, Replacing ...........................................36

Mower Level (Front-to-Rear), Adjusting ..........................18

Mower Level (Side-to-Side), Adjusting ............................17

Mower, Engaging ............................................................18

Mower, Installing .............................................................51

Mower, Removing ...........................................................49

Oil, Engine ......................................................................27

Oil, Engine Changing ......................................................28

Oil, Engine Checking ......................................................27

Operating Checklist, Daily ...............................................12

Operating Mower Safely .................................................16

Operating Safely ...............................................................5

Painted Metal Surfaces, Cleaning Care ..........................47

Painted Surfaces Care ....................................................47

Part Numbers ..................................................................22

Parts Catalog ..................................................................22

Parts for Mower, Replacement .......................................23

Parts for Tractor, Replacement .......................................22

Plastic and Painted Surfaces, Care for ...........................47

Pushing Machine ............................................................12

Index - 67

INDEX

Removing Mower ........................................................... 49

Reverse Implement Option, Using ................................. 11

Safety Labels .................................................................... 2

Safety Systems, Testing ................................................. 12

Safety, Operating ............................................................. 5

Safety, Operating Mower ................................................ 16

Safety, Service ............................................................... 24

Safety, Service Mower ................................................... 36

Screen, Clean Air Intake ................................................ 32

Seat, Adjusting ................................................................. 6

Service Intervals ............................................................. 25

Service Safety ................................................................ 24

Spark Plugs, Checking ................................................... 31

Spindle Brake, Adjusting ................................................ 37

Storage, Preparing Engine for ........................................ 57

Storage, Preparing Machine for ..................................... 57

Storage, Removing Machine from .................................. 58

Storing Safety ................................................................. 57

Technical Manual ........................................................... 22

Throttle Control, Using ..................................................... 8

Tire Chains, Using .......................................................... 15

Tire Pressure, Checking ................................................. 45

Transport Safely ............................................................... 6

Transporting ................................................................... 15

Travel Controls - Automatic .............................................. 9

Travel Controls - Gear ...................................................... 9

Troubleshooting Chart, Using ......................................... 53

Warranty Maintenance Statement, Engine ..................... 27

Weights, Using Front ...................................................... 15

Weights, Using Rear Wheel ........................................... 15

Wheel Spindles and Bearings, Lubricating ..................... 33

Wheels, Adjusting Mower Gage ..................................... 17

Quality Statement - 68

QUALITY STATEMENT

Quality Statement

Please do not return this tractor to the store

where you purchased it.

Your Scotts tractor, designed and built by John Deere, is

more than just a purchase, it’s an investment in quality.

That quality goes beyond our equipment to your dealer’s

parts and service support.

That’s why John Deere has initiated a process to handle

your questions or problems, should they arise. If you have

questions or problems with your new tractor, please follow

the steps below. To locate your nearest authorized Scotts

servicing dealer, please call toll free 1-877-864-2295.

Step 1

Refer to your operator’s manual

Step 2

Contact your dealer

Step 3

Call the Customer Communications Center

A. It has many illustrations and detailed information on the

safe and proper operation of your equipment. C. It gives ordering information for parts catalogs, service

and technical manuals.

B. It gives troubleshooting procedures, and specification

information. D. If your questions are not answered in the operator’s

manual, then go to Step 2.

A. Your authorized Scotts servicing dealer has the

responsibility, authority, and ability to answer questions,

resolve problems, and fulfill your parts and service needs.

C. If the parts and service people are unable to resolve

your problem, see the dealership manager or owner.

B. First, discuss your questions or problems with your

dealer’s trained parts and service staff. D. If your questions or problems are not resolved by the

dealer, then go to Step 3.

A. Your authorized Scotts servicing dealer is the most efficient source in addressing any concern, but if you are not able

to resolve your problem after checking your operator’s manual and contacting your dealer, call the Customer

Communications Center.

B. For prompt, effective service, please have the following ready before you call:

•The name of the dealer with whom you’ve been

working.

•Your equipment model number.

•Number of hours on machine (if applicable).

•Your 13-digit serial number which you recorded on the

inside front cover of this manual.

•If the problem is with an attachment, your attachment

identification number.

C. Then call 1-877-864-2295 and our advisor will work with your dealer to investigate your concern.

Scotts S1642 S1742 S2046 Operators Manual ManualsLib Makes It Easy To Find Manuals Online!

Navigation menu

Versions of this User Manual:

Views

Navigation
