Thanks for using SEJIN Mini-keyboard with track ball (MODEL:SPR-8695TU)
THE SEJIN Mini-keyboard with Track-ball
Designed with the users in mind, it has a pleasant appearance and is Convenient to use.
No extra power supply is required.
It is compatible with the Microsoft Keyboard and Trackball
Mini-keyboard with Track-ball INSTALLATION
Turn the power supply off to your computer.
Check the USB keyboard/mouse port at the back of your computer and insert
The connector at the end of the Mini key-board cables into the usb port .
Turn the power supply on to your computer.
Using the Mini-keyboard with track ball

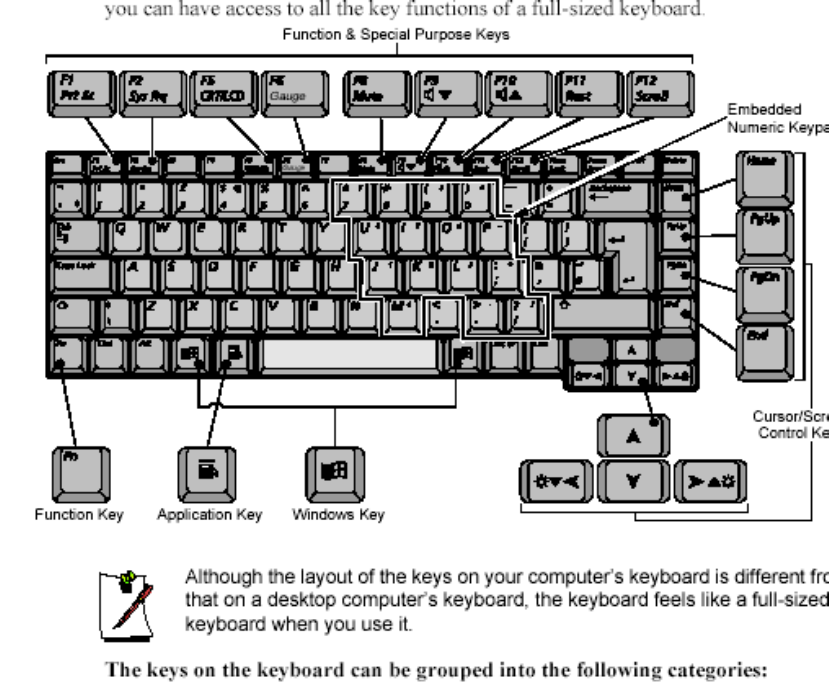

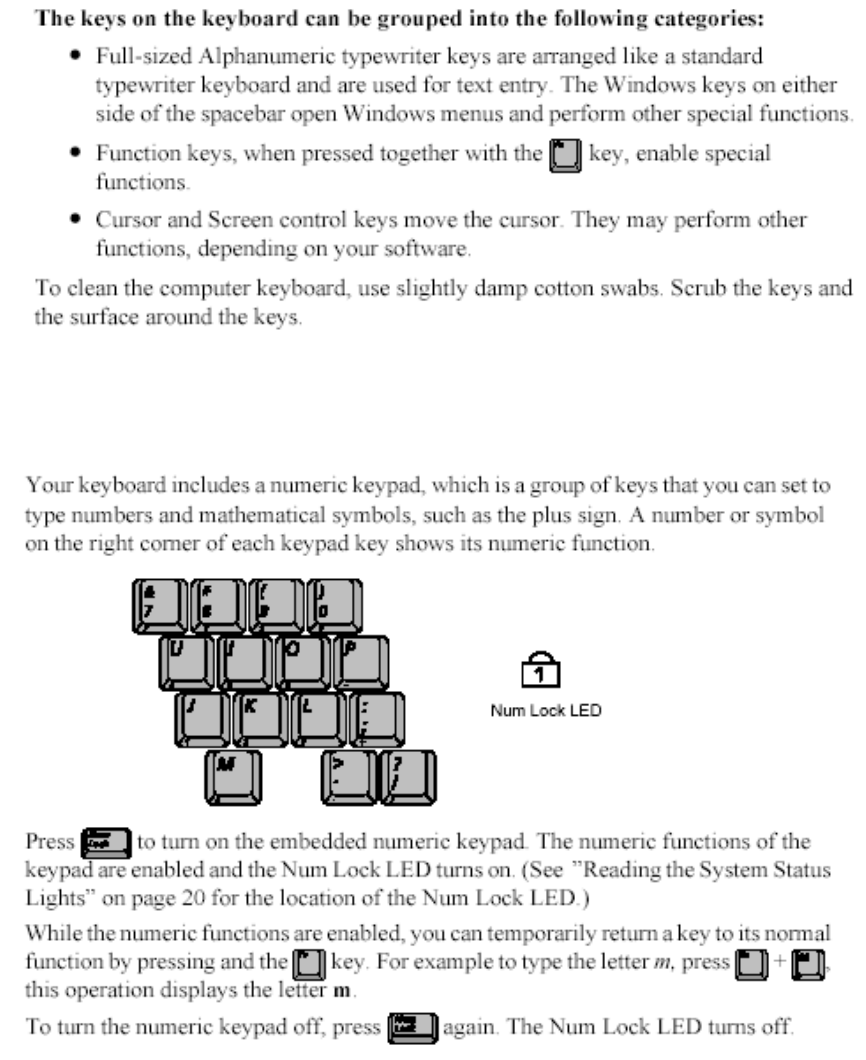

Using the Numeric KeyPad
Scope
This document provide a specifications for the Sejin standard USB MINI keyboard With trackball (Model
No.: SPR-8695TU)
which is electrically compatible to IBM PC/AT and USB systems.
Environmental Requirement
Ambient temperature and humidity(operation)
* temperature : 0 ~ 50aC
* humidity : 10%~85% RH
Ambient temperature and humidity (storage)
* temperature : -20 ~ +60aC
* humidity : 10%~95 % RH
Electrical performance
*Voltage : DC 5V +/- 10%
*Current : 170㎃(Max)
*Contact resistance( sheet) : 800 ohm Max
*Insulation resistance : 100M ohm Min(DC250V)
*Withstand voltage : AC 150V/Min
*Character and bounce :
Operation force shall be applied according to the normal operating method at 5V DC, 5 ㎃.
There shall be no bounce and chattering within 10 msec when it is measured a specially prepared tester or
synchroscope.

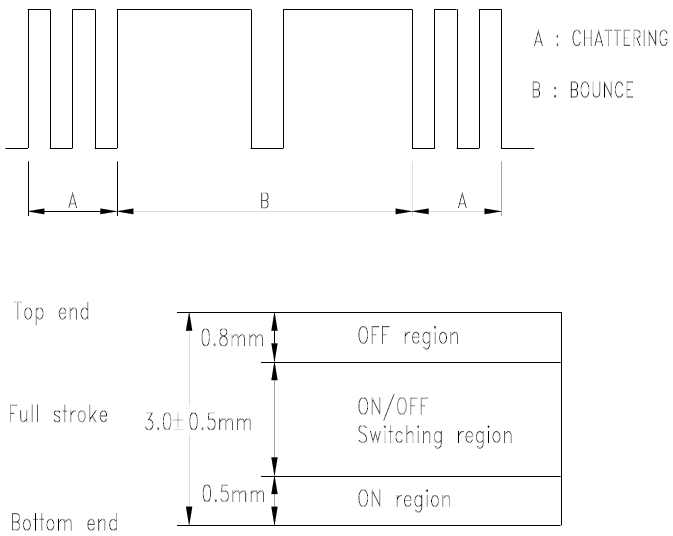

Chattering and bounce are defined in the following diagram ;
*Operation resign
*Mouse resolution : 200DPI (hardware)
*Mouse Tracking speed: 250mm/sec max
Mechanical performance
1) Operation system : Non-lock tactile rubber feeling
2) Stroke : a)KBD key top :3.0 b 0.5mm with an applied measurement load of 200gf.
b)mouse switch : 1.0mm ± 0.3mm 150gf(Max)

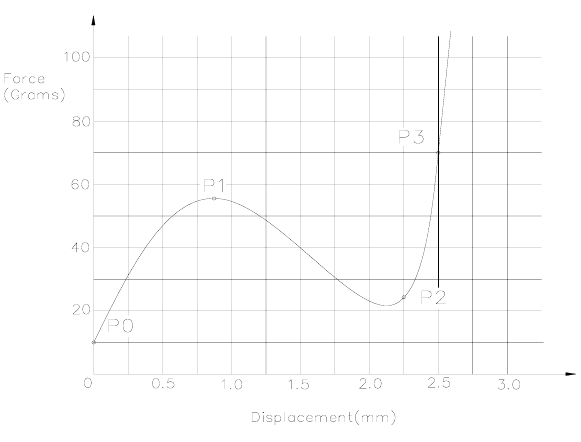

3) Operation force : Relationship between the operating force and travel is given by the following graph ;
The operation force has a tolerance of 50 b 20 gf.
4) Drop force : 5 ~ 35 gf
5) Operating feeling
No definite stickiness or other abnormality shall be allowed when force is applied with a finger on the key
top center at the rate of 3 times a second.
6) End stroke strength
End stroke should withstand a static load of 500 gf applied on the key stem in the perpendicular direction
for a minute.
7) Keytop full strength
A key op shall not be pulled off unless applying a force of 1 ~ 2Kg range in the vertical direction.
8) Wrap (due to the applying the force)
Shall be 5 mm or less when applying 1 kgf static force to the center of keyboard. The keyboard is held by
static rails at space bar side and opposite side.
Environmental
Items Test condition Requirements
5-1
Resistance at
Low Temperature
Measurement after the test with following condition and
leaving(normal temperature, normal humidity) for an hour
(1) Temperature : -25 b 30aC
(2) Time : 240 hours
4-1 through 4-6
5-1 through 5-7
7,8,9
5-2
Heat
Resistance
Measurement after the test with following condition and
leaving(normal temperature, normal humidity) for an hour
(1) Temperature : -70 b 30aC
(2) Time : 240 hours
4-1 through 4-6
5-1 through 5-7
7,8,9
