USB Mini Keyboard
1 Electrical
Connector USB
USB speed Low speed(1.5MBPS)
Operating voltage range 4.0~5.5V
Operating current Max 100mA
Operating temperature 0 ~ 40℃
Storage temperature -40 ~ 60℃
Operating humidity 0~90% RH non-condensing
Storage humidity 0~95% RH non-condensing

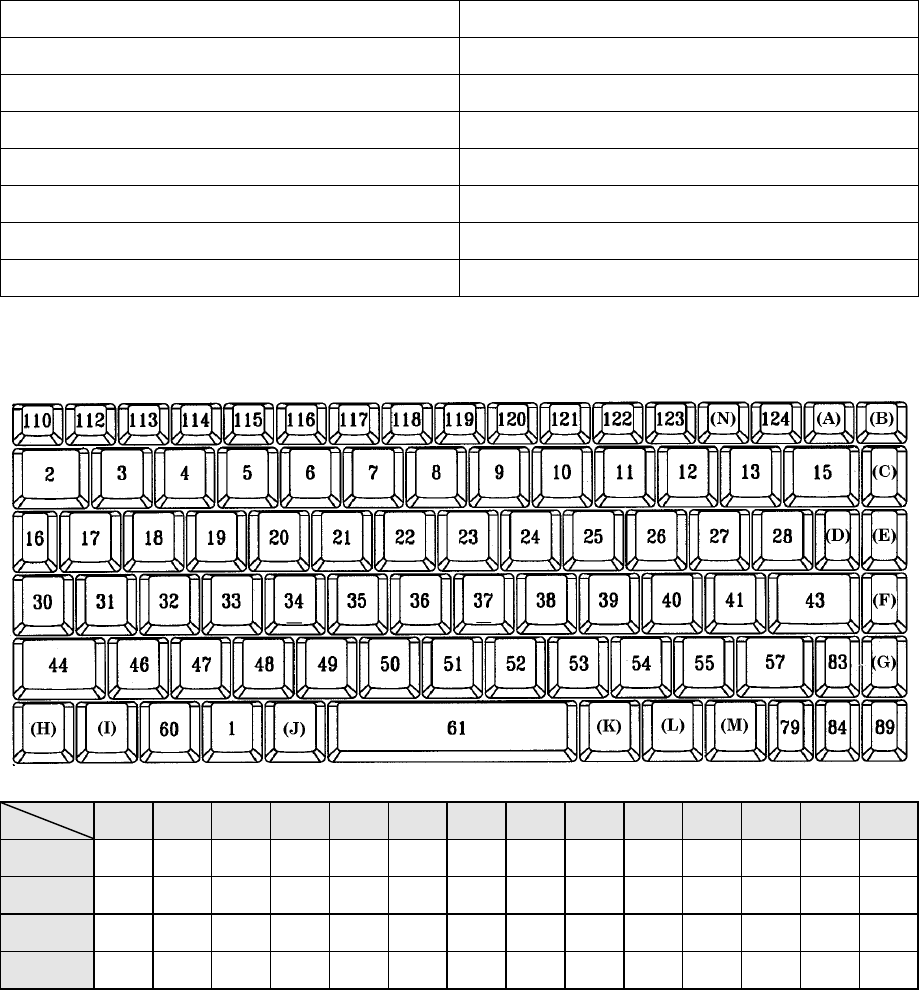

2 Key position number for keyboard
A B C D E F G H I J K L M N
US 125 126 80 29 85 86 81 160 58 127 129 75 76 90
Korean 75 76 80 29 85 86 81 160 58 127 129 150 151 126
EU 75 76 80 42 85 86 81 160 58 127 62 45 129 126
Japanese 75 76 14 42 56 85 86 58 160 131 132 133 62 126
3 Key Layout

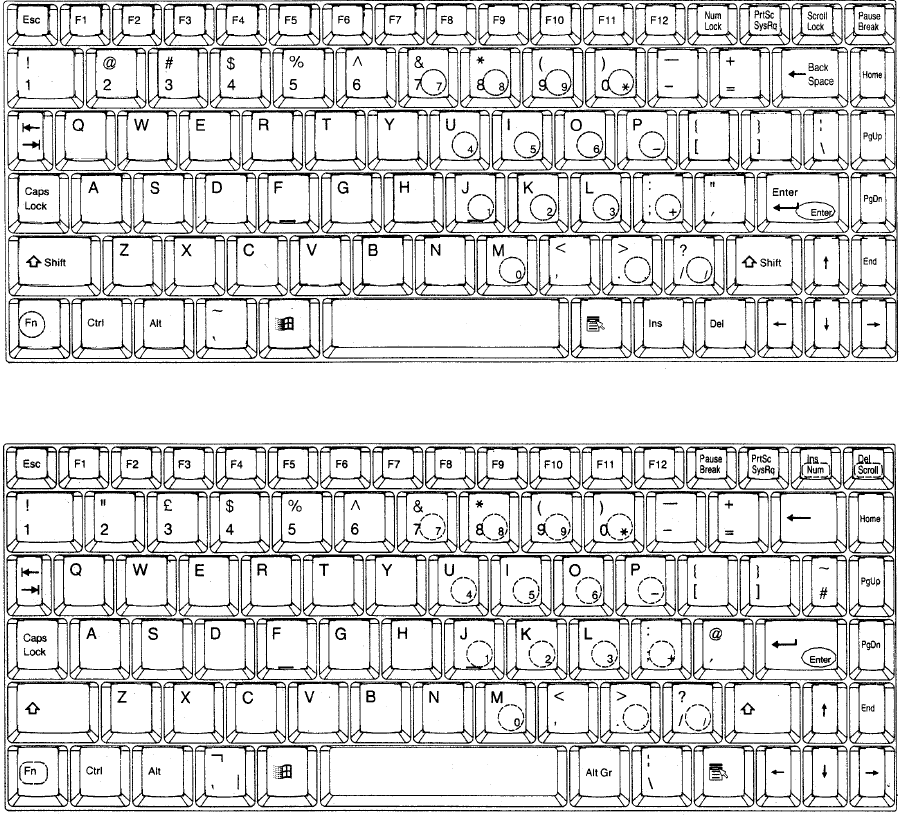

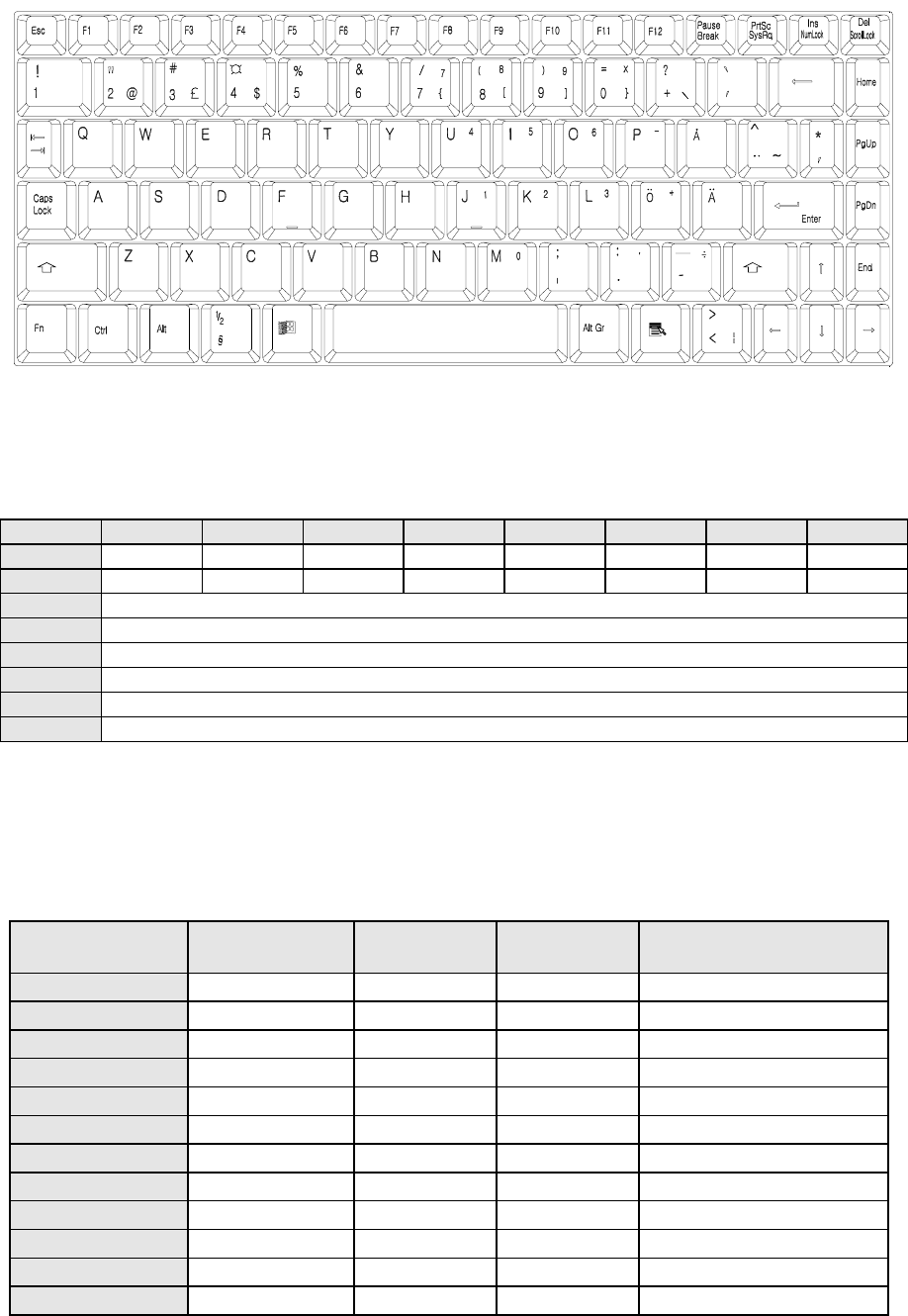

3.1 US Version Key Layout
3.2 UK Version Key Layout

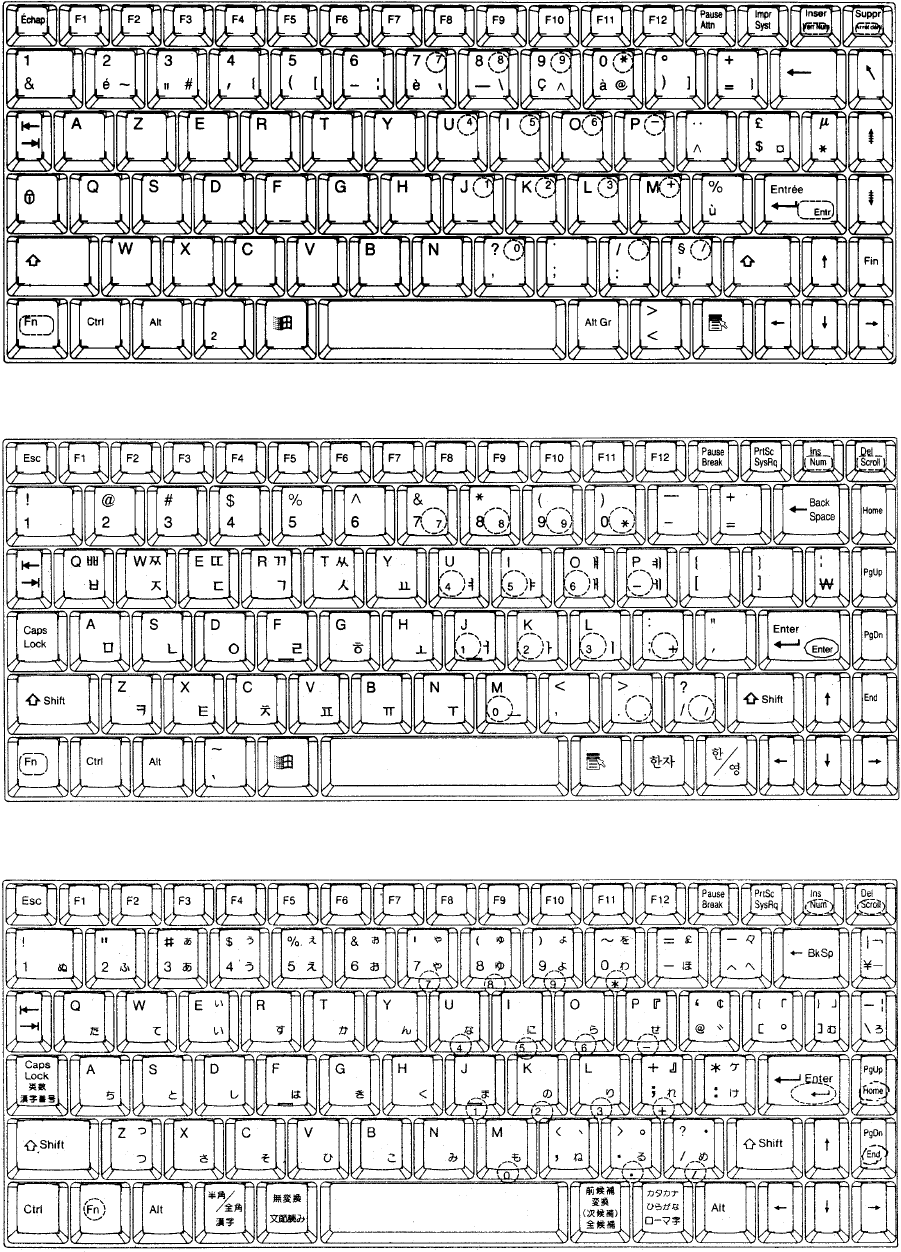

3.3 French Version Key Layout
3.4 Korean Version Key Layout
3.5 Japanese Version Key Layout
3.6 Swedish & Finnish Version Key Layout
4 USB data report format
4.1 Packet format for keyboard data report
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Byte 1 R-Windows R-Alt R-Shift R-Ctrl
L-Windows L-Alt L-Shift L-Ctrl
Byte 2 0 0 0 0 0 0 0 0
Byte 3 Key code 1
Byte 4 Key code 2
Byte 5 Key code 3
Byte 6 Key code 4
Byte 7 Key code 5
Byte 8 Key code 6
Note: The first byte indicates the state of all modifier keys. When a modifier key down, the assigned bit sets as 1.
If more than six keys are depressed, the receiver will report an overrun code that all key code fields are 01.
If less than six keys are depressed, the rest of key code fields will be filled with 00.
4.1.1 Key codes
Key Name Key Position No. Modifier Byte
(Byte 1) Key code field Remark.
~ ` 1 00h 35h
1 ! 2 00h 1Eh
2 @ 3 00h 1Fh
3 # 4 00h 20h
4 $ 5 00h 21h
5 % 6 00h 22h
6 ^ 7 00h 23h
7 & 8 00h 24h
8 * 9 00h 29h
9 ( 10 00h 26h
0 ) 11 00h 27h
- _ 12 00h 2Dh
Key Name Key Position No. Modifier Byte
(Byte 1) Key code field Remark.
+ = 13 00h 2Eh
￥ 14 00h 89h Japanese Version only
Back Space 15 00h 2Ah
TAB 16 00h 2Bh
Q 17 00h 14h
W 18 00h 1Ah
E 19 00h 08h
R 20 00h 15h
T 21 00h 17h
Y 22 00h 1Ch
U 23 00h 18h
I 24 00h 0Ch
O 25 00h 12h
P 26 00h 13h
{ [ 27 00h 2Fh
} ] 28 00h 30h
| \ 29 00h 31h
Caps Lock 30 00h 39h
A 31 00h 04h
S 32 00h 16h
D 33 00h 07h
F 34 00h 09h
G 35 00h 0Ah
H 36 00h 0Bh
J 37 00h 0Dh
K 38 00h 0Eh
L 39 00h 0Fh
: ; 40 00h 33h
“ ‘ 41 00h 34h
#~(European)
む(Japanese) 42 00h 32h EU & Japanese Version only
Enter 43 00h 28h
L-Shift 44 02h 00h
| \ 45 00h 64h European Version Only
Z 46 00h 1Dh
X 47 00h 1Bh
C 48 00h 06h
V 49 00h 19h
B 50 00h 05h
N 51 00h 11h
M 52 00h 10h
< , 53 00h 36h
> . 54 00h 37h
? / 55 00h 38h
56 00h 87h Japanese Version only
Key Name Key Position No. Modifier Byte
(Byte 1) Key code field Remark.
R-Shift 57 20h 00h
L-Ctrl 58 01h 00h
L-Alt 60 04h 00h
Space 61 00h 2Ch
R-Alt 62 40h 00h Not in US version
Insert 75 00h 49h
Delete 76 00h 4Ch
← 79 00h 50h
Home 80 00h 4Ah
End 81 00h 4Dh
↑ 83 00h 52h
↓ 84 00h 51h
Page Up 85 00h 4Bh
Page Down 86 00h 4Eh
→ 89 00h 4Fh
Num Lock 90 00h 53h
Esc 110 00h 29h
F1 112 00h 3Ah
F2 113 00h 3Bh
F3 114 00h 3Ch
F4 115 00h 3Dh
F5 116 00h 3Eh
F6 117 00h 3Fh
F7 118 00h 40h
F8 119 00h 41h
F9 120 00h 42h
F10 121 00h 43h
F11 122 00h 44h
F12 123 00h 45h
Print Screen 124 00h 46h
Scroll Lock 125 00h 47h
Pause 126 00h 48h
無變換 131 00h 8Bh Japanese Version only
前候補變換 132 00h 8Ah Japanese Version only
カタカナ 133 00h 88h Japanese Version only
한자 150 00h 91h Korean Version only
한/영 151 00h 90h Korean Version only
Fn 160 No code No code
L-Windows 161 08h 00h
Application 163 00h 65h
7 Home 8 00h 5Fh Embedded Numeric key pad
8 ↑ 9 00h 60h Embedded Numeric key pad
9 PgUp 10 00h 61h Embedded Numeric key pad
* 11 00h 55h Embedded Numeric key pad
Key Name Key Position No. Modifier Byte
(Byte 1) Key code field Remark.
4 ← 23 00h 5Ch Embedded Numeric key pad
5 24 00h 5Dh Embedded Numeric key pad
6 → 25 00h 5Eh Embedded Numeric key pad
- 26 00h 56h Embedded Numeric key pad
1 End 37 00h 59h Embedded Numeric key pad
2 ↓ 38 00h 5Ah Embedded Numeric key pad
3 PgDn 39 00h 5Bh Embedded Numeric key pad
+ 40 00h 57h Embedded Numeric key pad
N-Enter 43 00h 58h Embedded Numeric key pad
0 Ins 52 00h 62h Embedded Numeric key pad
. Del 54 00h 63h Embedded Numeric key pad
/ 55 00h 54h Embedded Numeric key pad
Note: The Fn key does not generates any code it self instead, it affects to the next depressed key code generation
of which listed in the table on chapter 4.1.3.
4.1.2 Embedded numeric key pad operations
Key Name IBM® desktop
key position No.
Numlock LED
Off, Fn key Up
Numlock LED
Off, Fn key Dn
Numlock LED
On, Fn key Up
Numlock LED
On, Fn key Dn
7 & 7 Home 8 91 7 & Home 7 7 &
8 * 8 ↑ 9 96 8 * ↑ 8 8 *
9 ( 9 PgUp 10 101 9 ( PgUp 9 9 (
0 ) * 11 100 0 ) * * 0 )
U 4 ← 23 92 U ← 4 U
I 5 24 97 I 5 I
O 6 → 25 102 O → 6 O
P - 26 105 P - - P
J 1 End 37 93 J End 1 J
K 2 ↓ 38 98 K ↓ 2 K
L 3 PgDn 39 103 L PgDn 3 L
; : + 40 106 ; : + + ; :
Enter N-Enter 43 108 Enter N-Enter N-Enter Enter
M 0 Ins 52 99 M Ins 0 M
. > . Del 54 104 . > Del . . >
/ ? / 55 95 / ? / / / ?
4.1.3 Embedded key operations
Key Name IBM® desktop
key position No.
Key operation
in Fn key Up
Key operation
in Fn key Dn Remark
Ins Num 75 90 Ins Num Not in US Version
Del Scroll 76 125 Del Scroll Not in US Version
PgUp Home 85 80 PgUp Home Japanese Version only
PgDn End 86 81 PgDn End Japanese Version only
4.2 Report data for LED control (Set report for Interface 0)
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Byte 1 0 0 0 Kana Compose Scroll Caps Num
Note: The Compose and the Kana indication LED is not available on the keyboard.
