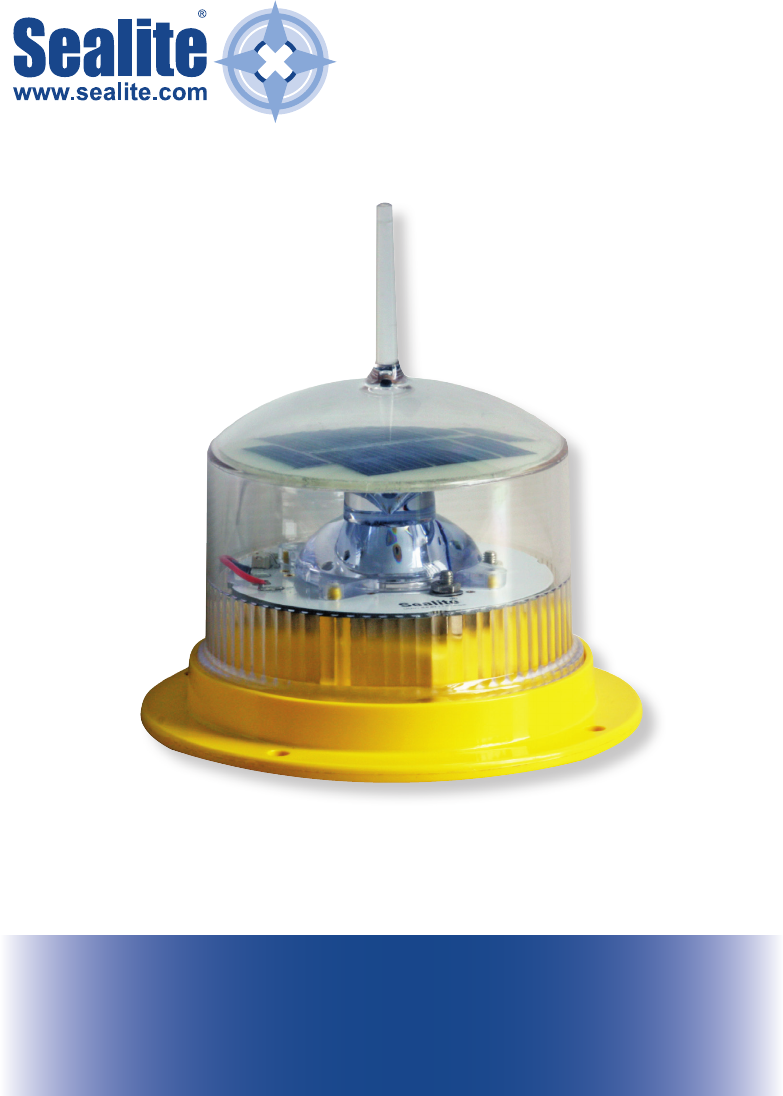

SL-15
with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Installation & Service Manual
SL-15
with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Bird deterrent spike
Single LED Optic
Internal
user-replaceable
battery in sealed
compartment
Internal solar module
Automatic night
activation
Lens and base
moulded from
UV-stabilised
LEXAN®
polycarbonate
Internal user-adjustable
ash settings
Latest products and information available at www.sealite.com
3
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Table of Contents
Introduction ..........................................................................................Page 4
Operating Principle .............................................................................Page 4
Technology ...........................................................................................Page 4
SL-15 Model .........................................................................................Page 5
Installation ............................................................................................Page 6
Flash Codes .........................................................................................Page 6
Flash Code Table .................................................................................Page 7
Maintenance and Servicing ................................................................Page 8
Trouble Shooting .................................................................................Page 9
Optional ON/OFF Switch ...................................................................Page 10
SL-15 Accessories ............................................................................. Page 11
Sealite LED Light Warranty ..............................................................Page 14
Version No. Description Date Author Approved
1.0 Manual re-launch June 2009 K. Paton
2.0 Flash Adjustment July 2009 K. Paton
2.1 Logo Update May 2010 K. Paton
2.2 Warranty Update July 2010 K. Paton
3.0 Update: New Design Sept 2011 J. Dore
3.1 General update June 2012 J. Dore
3.2 Update: Replacing the battery July 2012 J. Dore
3.3 External switch operation December 2015 Y. Chambers
3.4 Update: Contact details January 2016 J. Dore
3.5 Update: Battery details October 2016 M.Aslam M.Nicholson
Latest products and information available at www.sealite.com
4
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Introduction
Introduction
Congratulations! By choosing to purchase a Sealite lantern you have become the owner of
one of the most advanced LED marine lanterns in the world.
Sealite Pty Ltd has been manufacturing lanterns for over 25 years, and particular care has been taken to
ensure your lantern gives years of service.
As a commitment to producing the highest quality products for our customers, Sealite has been independently
certied as complying with the requirements of ISO9001:2008 quality management system.
Sealite lanterns comply with requirements of the US Coast Guard in 33 CFR part 66 for Private Aids To
Navigation.
By taking a few moments to browse through this booklet, you will become familiar with the versatility of your
lantern, and be able to maximise its operating function.
Operating Principle
The solar module of the lantern converts sunlight to an electrical current that is used to charge the battery. The
battery provides power to operate the lantern at night.
The asher unit has very low current requirements. A microprocessor drives an ultra bright LED through a
DC/DC converter, which enables the LED’s to operate within the manufacturer’s specications. The battery is
protected from over-charging within the circuit to ensure maximum battery life.
On darkness, the microprocessor will initiate a program check and after approximately 1 minute begin ashing
to the set code
Technology
Sealite is the world’s fastest growing manufacturer of marine aids to navigation. We
employ leading mechanical, optical, hardware & software engineers to create innovative
products to service the needs of our customers worldwide, and offer the widest range of
solar-powered LED lanterns in the marketplace.
Electronics
Sealite employs leading in-house electronic engineers in the design and development of software and related
circuitry. All individual electronic components are sourced directly by Sealite procurement staff ensuring that
only the highest quality components are used in our products.
LED Technology
All marine lanterns use the latest advancements in LED (Light Emitting Diode) technology as a light source.
The major advantage of LED’s over traditional light sources is well established in that they typically have an
operational life in excess of 100,000 hours, resulting in substantial savings to maintenance and servicing
costs.
Precision Construction
Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light
bases and a range of other components ensures that all Sealite products are of a consistent & superior quality.
Optical Performance
Sealite manufactures a range of marine LED lenses moulded from multi-cavity dies. Complex shapes such as
the SL70, BargeSafe™ and 16-segment multi-focus lenses are a testament to the company’s superior
in-house lens manufacturing capabilities and outstanding optical performance.
Award-winning, Patented Technology
Several United States and Australian patent registrations are held on Sealite’s range of innovative designs,
with other regional patents pending in Canada, United Kingdom and Europe.
Latest products and information available at www.sealite.com
5
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
SL-15 Model
The Sealite SL-15 1–2NM+ LED compact light incorporates some of the most advanced
technology available. Made from tough, durable polycarbonate and using the latest high-
intensity LEDs, no expense has been spared in the design and development of this lantern.
Installation takes just minutes, and a permanent ON/OFF, accessible through the battery
compartment, switch allows for easy storage. The SL-15 is designed to be maintenance-free
and have a service life of over 3 years.
• Specications subject to change or variation without notice
* Subject to standard terms and conditions
† Intensity setting subject to solar availability
SPECIFICATIONS•* SL-15
Light Characteristics
Light Source LED
Available Colours Red, Green, White, Yellow, Blue
Typical Maximum Intensity (cd)† Red - 6.2 Green - 7.6 White - 6.8 Yellow - 5.9
Visible Range (NM) AT @ 0.74: 1–2+
AT @ 0.85: 1.1–2.3+
Horizontal Output (degrees) 360
Vertical Divergence (degrees) 7
Reector Type Single LED Optic
Available Flash Characteristics 16 user-adjustable IALA ash characteristics (other ash patterns available
on request)
Intensity Adjustments 32 automatic step-down settings based on power demand of ash code
selection
LED Life Expectancy (hours) >100,000
Electrical Characteristics
Current Draw (mA) Refer to Sealite Power Calculator
Circuit Protection Integrated
Nominal Voltage (V) 3.6
Autonomy (days) >50 (14 hour darkness, 12.5% duty cycle)
Temperature Range -40 to 80°C
Solar Characteristics
Solar Module Type Multicrystalline
Output (watts) 0.45
Power Supply
Battery Type High grade NiMH
Battery Capacity (Ah) 2.4
Nominal Voltage (V) 3.6
Physical Characteristics
Body Material LEXAN® Polycarbonate – UV-stabilised
Lens Material LEXAN® Polycarbonate – UV-stabilised
Lens Diameter (mm/inches) 98 / 37/8
Lens Design Single LED Optic
Mounting 4 x 6mm mounting holes
Height (mm/inches) 141 / 51/2
Width (mm/inches) 136 / 53/8
Mass (kg/lbs) 0.5 / 11/8
Product Life Expectancy Up to 12 years
Certications
CE EN61000-6-3:1997. EN61000-6-1:1997
IALA Signal colours compliant to IALA E-200-1
Quality Assurance ISO9001:2008
Waterproof IP68
Intellectual Property
Patents US Pat. No. 6,667,582. AU Pat. No. 778,918
Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd
Warranty * 3 years
Options Available • ON/OFF switch
• Custom ash patterns
• 50mm pole mount adapter plate
Latest products and information available at www.sealite.com
6
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Charging the Battery
New lanterns should be left in the sun for 1-2 days to ensure battery is charged before placing
in service. Please note, lantern will re-charge even when switch is turned to ‘OFF’ position.
Preferred Installation Location
For best lantern performance, ensure solar modules are not covered and are in clear view
of the sky with no shadows.
1. The SL-15 will be supplied preset to the requested ash code.
2. The light can be directly positioned in your desired location. Secure it, utilising the 4 x holes in the
ange. Ensure the light is bolted to an even, at surface.

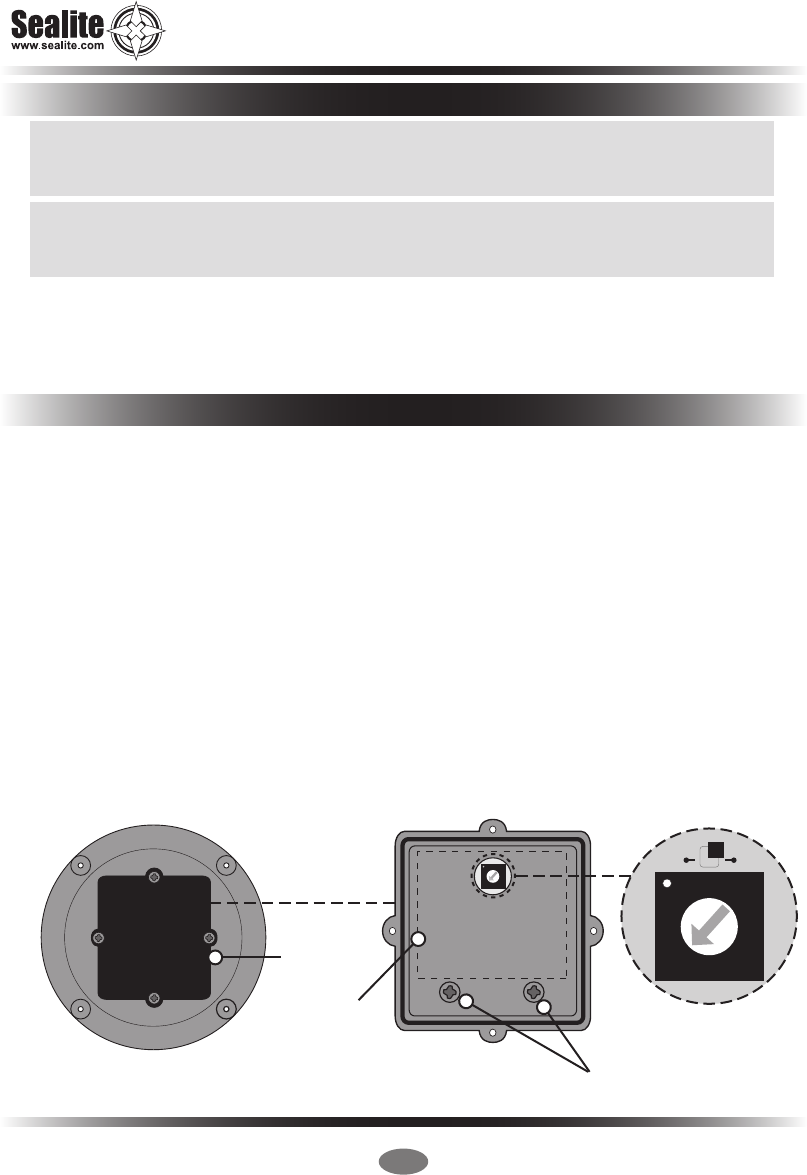

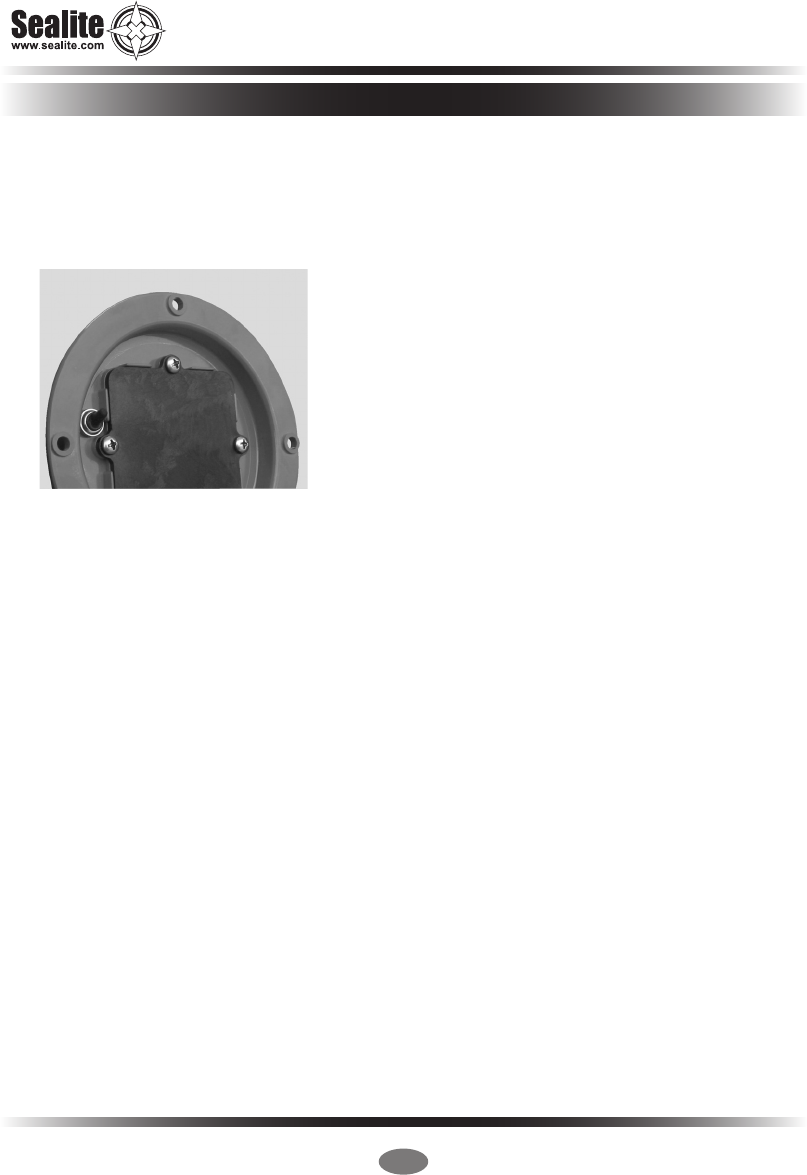

Adjusting the Flash Code
1. Remove the 4 x battery cover screws and lift the cover and battery out of the compartment to
expose the adjustment plug.
2. Unscrew the adjustment plug.
3. Using a small at bladed screwdriver adjust the Flash Code to the desired setting.
4. Cover the light, in darkness, for at least 30 seconds to activate the light sensor. Make sure the
light is ashing correctly.
5. Uncover the light and wait at least 30 seconds to make sure the light turns off in daylight.
6. Insert the adjustment plug and replace the battery.
7. Replace the cover and secure using the 4 x screws. Do Not over tighten screws.
8. Position the light in your desired location and secure, utilising the 4 x holes in the ange. Ensure
the light is bolted to an even, at surface.
+-
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
Battery
Position
User
Replaceable
Battery
Lantern
Base
Installation
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
OFF ON
Battery
Terminals
Adjustment
Switches
Flash Codes
Latest products and information available at www.sealite.com
7
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Selecting an Intensity/Power Setting
Using the latest technology in software, the SL-15 automatically adjusts the Intensity Setting when
Flash Code is set.
Selecting a Flash Code- Rotary Switch
All SL-15 Lights are tted with a rotary switch. Turning the small arrow to the appropriate number or
letter will set the code (see ‘Flash Codes’ section of this manual). The unit may take up to one minute
to activate a new ash code. A comprehensive list of available ash codes is listed In the ‘Flash Code
Table’ section of this manual.
Rotary
Switch
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
A
B
Flash Code Table
Note: If a Specic Flash Code has to be pre-set at the factory it will be found at Switch Position F
SWITCH
POSITION
FLASH SETTING DUTY
CYCLE
ON (sec) OFF (sec)
0Steady On 100%
10.5 1.0 33%
20.5 3.5 12.5%
31.0 3.0 25%
40.5 5.5 8.5%
50.3 0.7 30%
60.3 (On), 0.7 (Off), 0.3, 0.7,
0.3, 0.7, 0.3, 15.7 6.5%
70.3 1.7 15%
80.3 2.2 12%
90.5 2.0 20%
A0.3 2.7 10%
B0.5 2.5 16.5%
C0.7 2.3 23.5%
D0.5 4.5 10%
E1.0 4.0 20%
FCustom Flash Code Position
Latest products and information available at www.sealite.com
8
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Maintenance and Servicing
Designed to be maintenance free, the SL-15 requires minimal attention, though the following
maintenance and servicing information is provided to help ensure the life of your Sealite product.
1. Cleaning Solar Panels - occasional cleaning of the solar panels may be required. Using a cloth and
warm soapy water, wipe off any foreign matter before rinsing the panels with fresh water.
2. Battery Check - inspection of batteries should be performed every two years (minimum) to ensure
that the charger, battery and ancillary electronics are functioning correctly. Using a voltage meter,
check that the battery voltage is at least 3.6 volts under 50mA load, and ensure all terminals are
clear of foreign matter.
Replacing the battery
The SL-15 lantern is the only compact marine lantern with a double sealed battery compartment. This
provides the user with the ability to change the battery after years of operation.
1. Remove the 4 x battery cover screws and lift the cover and battery out of the compartment to expose
the adjustment plug.
2. Unscrew the adjustment plug.
3. Use a small at bladed screwdriver to turn unit OFF.
4. Unscrew positive and negative battery leads.
5. Discard old battery in a safe manner. Please remember to recycle where possible.
6. Reattach positive and negative leads to new battery and then place back into case.
7. Switch lantern ‘ON’ via internal switch.
8. Cover the light, in darkness, for at least 30 seconds to activate the light sensor. Make sure the light is
ashing correctly.
9. Uncover the light and wait at least 30 seconds to make sure the light turns off in daylight.
10. Insert the adjustment plug and replace the battery.
11. Replace the cover and secure using the 4 x screws.
Care must be taken to observe the polarity of the battery before the leads are re-connected, and
ensure the replacement battery is correctly tted. Always discard old batteries in a safe manner.
Long Term Storage Instructions (>4 weeks)
Storage temperature, the length of time in storage and the initial charge level of the battery pack all
effect the amount of charge retained by the battery pack during storage.
We recommend:
• Turn the lantern off at the ON/OFF switch (pg6),
• Store the lantern in a cool dry place
Importantly, the higher the storage temperature the greater the loss in battery pack charge over time.
Note: When the internal ON/OFF switch in the OFF position the solar panel will still recharge the battery
in direct sunlight.
Latest products and information available at www.sealite.com
9
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Trouble Shooting
Problem Remedy
Lantern will not activate. • Ensure internal switch (or external switch where tted) is set to the ‘ON
position.
• Ensure lantern is in darkness.
• Wait at least 45 seconds for the program to initialise in darkness.
• Ensure switch setting is on a valid code (See Flash Codes section of this
manual).
• Ensure battery terminals are properly connected.
• Ensure battery voltage is above 3.6 volts.
Timing codes will not change. • Turn rotary switch several times to ensure contacts are clear.
Lantern will not operate for the
entire night.
• Expose lantern to direct sunlight and monitor operation for several days.
Sealite products typically require 1.5 hours of direct sunlight per day to
retain full autonomy. From a discharged state, the lantern may require
several days of operational conditions to ‘cycle’ up to full autonomy.
• Ensure solar module is clean and not covered by shading during the day.
Procedure
1. Remove the 4 x battery cover screws and lift the cover and battery out of the compartment to expose
the adjustment plug.
2. Unscrew the adjustment plug.
3. Using a small at bladed screwdriver switch the ON/OFF switch to the OFF position.
4. Insert the adjustment plug and replace the battery.
5. Replace the cover and secure using the 4 x screws. Do Not over tighten screws.
6. Repeat these steps to re-activate your light when it is removed from storage.
Note: when tted with the optional EXTERNAL ON/OFF switch, for correct operation of the EXTERNAL
switch, the INTERNAL switch must be set in the OFF position.
If the INTERNAL switch is set to the ON position, the operation of the EXTERNAL switch is
bypassed and the lantern is ON.
Latest products and information available at www.sealite.com
10
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Optional ON/OFF Switch
ON/OFF Switch (SL-15-SW)
An optional external ON/OFF switch can be installed on request (additional charges will apply).
For correct operation of the EXTERNAL switch, the INTERNAL switch must be set in the OFF position.
If the INTERNAL switch is set to the ON position, the operation of the EXTERNAL switch is bypassed
and the lantern is ON.
Latest products and information available at www.sealite.com
11
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light

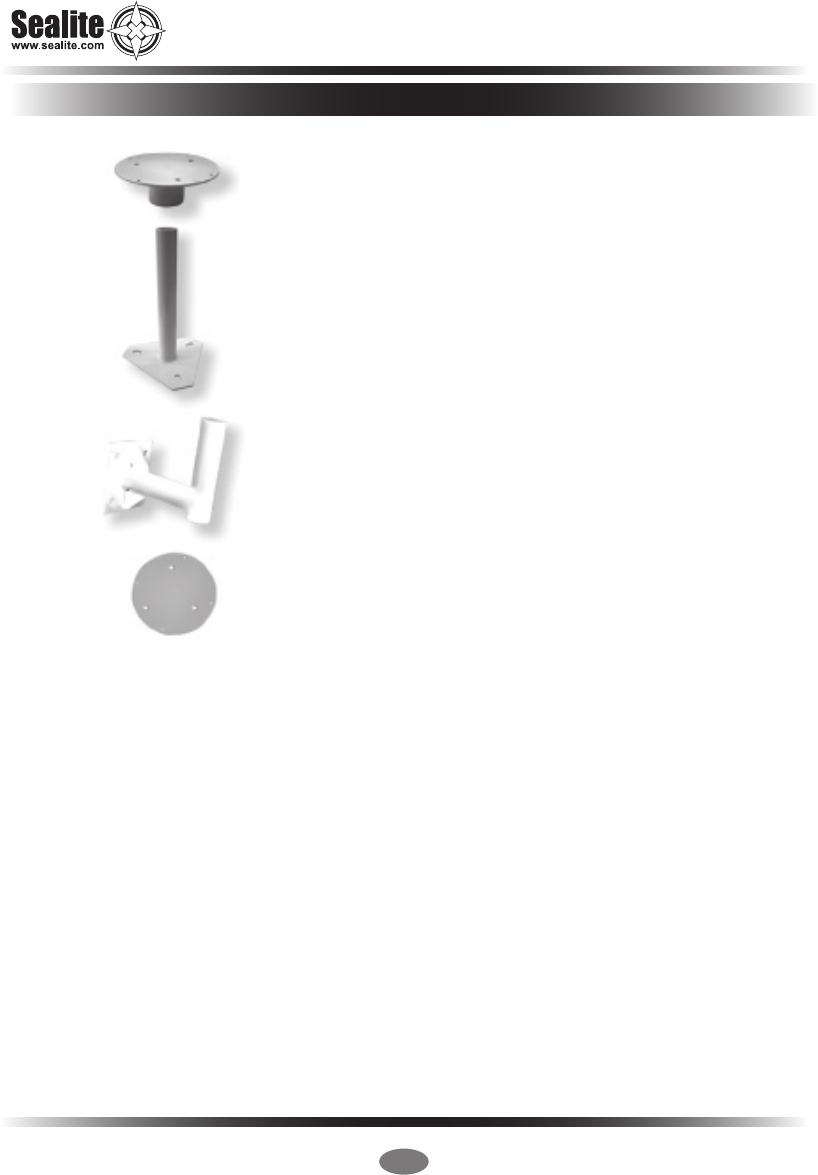

SL-15 Accessories
MC/02
Post mounting plate to suit standard base SL-15
50mm ID
MC/04
Post mounting stand
50mm OD post, 3-hole 200mm OD base pattern
MC/05
90 degree wall mounting stand
50mm OD
MC/09
Buoy mounting plate to afx SL-15 lantern to SLB600, SLB610 &
SLB700 buoys
Latest products and information available at www.sealite.com
12
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Notes
Latest products and information available at www.sealite.com
13
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Notes
Latest products and information available at www.sealite.com
14
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Activating the Warranty
Upon purchase, the Sealite Pty Ltd warranty must be activated for recognition of future claims. To do this you
need to register on-line. Please complete the Online Registration Form at:
www.sealite.com
Sealite Pty Ltd will repair or replace your LED light in the event of electronic failure for a period of up
to three years from the date of purchase, as per the terms & conditions below.
Sealite Pty Ltd will repair or replace any ancillary or accessory products in the event of failure for a
period of up to one year from the date of purchase, as per the terms & conditions below.
The unit(s) must be returned to Sealite freight prepaid.
Warranty Terms
1. Sealite Pty Ltd warrants that any Sealite marine products tted with telemetry equipment including but
not limited to AIS, GSM, GPS or RF (“Telemetry Products”) will be free from defective materials and
workmanship under normal and intended use, subject to the conditions hereinafter set forth, for a period of
twelve (12) months from the date of purchase by the original purchaser.
2. Sealite Pty Ltd warrants that any BargeSafe™ Series of LED barge light products (“BargeSafe™
Products”) will be free from defective materials and workmanship under normal and intended use, subject
to the conditions hereinafter set forth, for a period of twelve (12) months from the date of purchase by the
original purchaser.
3. Sealite Pty Ltd warrants that any LED area lighting products (“Area Lighting Products”) but not including
sign lighting products will be free from defective materials and workmanship under normal and intended
use, subject to the conditions hereinafter set forth, for a period of twelve (12) months from the date of
purchase by the original purchaser.
4. Sealite Pty Ltd warrants that any ancillary products and accessories, not mentioned in other clauses in this
section, will be free from defective materials and workmanship under normal and intended use, subject
to the conditions hereinafter set forth, for a period of twelve (12) months from the date of purchase by the
original purchaser.
5. Sealite Pty Ltd warrants that any LED sign lighting products (“Sign Lighting Products”) will be free from
defective materials and workmanship under normal and intended use, subject to the conditions hereinafter
set forth, for a period of three (3) years from the date of purchase by the original purchaser.
6. Sealite Pty Ltd warrants that any Sealite marine lighting products other than the Telemetry Products,
BargeSafe™ Products, and Area Lighting Products (“Sealite Products”) will be free from defective
materials and workmanship under normal and intended use, subject to the conditions hereinafter set forth,
for a period of three (3) years from the date of purchase by the original purchaser.
7. Sealite Pty Ltd will repair or replace, at Sealite’s sole discretion, any Telemetry Products, BargeSafe™
Products, Area Lighting Products or Sealite Products found to be defective in material and workmanship in
the relevant warranty period so long as the Warranty Conditions (set out below) are satised.
8. If any Telemetry Products, BargeSafe™ Products, Area Lighting Products or Sealite Products are tted
with a rechargeable battery, Sealite Pty Ltd warrants the battery will be free from defect for a period of one
(1) year when used within original manufacturer’s specications and instructions.
9. Buoy products are covered by a separate ‘Sealite Buoy Warranty’.
Warranty Conditions
This Warranty is subject to the following conditions and limitations;
1. The warranty is applicable to lanterns manufactured from 1/1/2009.
2. The warranty is void and inapplicable if:
a. the product has been used or handled other than in accordance with the instructions in the owner’s
manual and any other information or instructions provided to the customer by Sealite;
b. the product has been deliberately abused, or misused, damaged by accident or neglect or in being
transported; or
c. the defect is due to the product being repaired or tampered with by anyone other than Sealite or
Sealite LED Light Warranty V2.2
Latest products and information available at www.sealite.com
15
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Information in this manual is subject to change without notice and does not represent a commitment on the part of the vendor.
Sealite products are subject to certain Australian and worldwide patent applications.
authorised Sealite repair personnel.
3. The customer must give Sealite Pty Ltd notice of any defect with the product within 30 days of the
customer becoming aware of the defect.
4. Rechargeable batteries have a limited number of charge cycles and may eventually need to be replaced.
Typical battery replacement period is 3-4 years. Long term exposure to high temperatures will shorten the
battery life. Batteries used or stored in a manner inconsistent with the manufacturer’s specications and
instructions shall not be covered by this warranty.
5. No modications to the original specications determined by Sealite shall be made without written
approval of Sealite Pty Ltd.
6. Sealite lights can be tted with 3rd party power supplies and accessories but are covered by the 3rd party
warranty terms and conditions.
7. The product must be packed and returned to Sealite Pty Ltd by the customer at his or her sole expense.
Sealite Pty Ltd will pay return freight of its choice. A returned product must be accompanied by a written
description of the defect and a photocopy of the original purchase receipt. This receipt must clearly list
model and serial number, the date of purchase, the name and address of the purchaser and authorised
dealer and the price paid by the purchaser. On receipt of the product, Sealite Pty Ltd will assess the
product and advise the customer as to whether the claimed defect is covered by this warranty.
8. Sealite Pty Ltd reserves the right to modify the design of any product without obligation to purchasers of
previously manufactured products and to change the prices or specications of any product without notice
or obligation to any person.
9. Input voltage shall not exceed those recommended for the product.
10. Warranty does not cover damage caused by the incorrect replacement of battery in solar lantern models.
11. This warranty does not cover any damage or defect caused to any product as a result of water ooding or
any other acts of nature.
12. There are no representations or warranties of any kind by Sealite or any other person who is an agent,
employee, or other representative or afliate of Sealite, express or implied, with respect to condition of
performance of any product, their merchantability, or tness for a particular purpose, or with respect to any
other matter relating to any products.
Limitation of Liability
To the extent permitted by acts and regulations applicable in the country of manufacture, the liability of Sealite
Pty Ltd under this Warranty will be, at the option of Sealite Pty Ltd, limited to either the replacement or repair of
any defective product covered by this Warranty. Sealite will not be liable to Buyer for consequential damages
resulting from any defect or deciencies.
Limited to Original Purchaser
This Warranty is for the sole benet of the original purchaser of the covered product and shall not extend to
any subsequent purchaser of the product.
Miscellaneous
Apart from the specic warranties provided under this warranty, all other express or implied warranties relating
to the above product is hereby excluded to the fullest extent allowable under law. The warranty does not
extend to any lost prots, loss of good will or any indirect, incidental or consequential costs or damages or
losses incurred by the purchaser as a result of any defect with the covered product.
Warrantor
Sealite Pty Ltd has authorised distribution in many countries of the world. In each country, the authorised
importing distributor has accepted the responsibility for warranty of products sold by distributor. Warranty
service should normally be obtained from the importing distributor from whom you purchased your product. In
the event of service required beyond the capability of the importer, Sealite Pty Ltd will full the conditions of
the warranty. Such product must be returned at the owner’s expense to the Sealite Pty Ltd factory, together
with a photocopy of the bill of sale for that product, a detailed description of the problem, and any information
necessary for return shipment.
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Other Sealite Products Available
Marine Lanterns
(1–19NM)
Bridge & Barge Lights
Area Lighting
Monitoring
& Control Systems
Marine Buoys
(up to 3mt in diameter)
Mooring Systems
& Accessories
Sealite United Kingdom Ltd
UK
t: +44 (0) 1502 588026
Sealite Asia Pte Ltd
Singapore
Sealite USA LLC
USA
t: +65 6829 2243 t: +1 (603) 737 1311
Sealite Pty Ltd
Australia
t: +61 (0)3 5977 6128
We believe technology improves navigation™
info@sealite.comsealite.com
