The Sealite SL-70 is exceptional in its unique ability to be able to ‘track the sun’ and
operate reliably in low sunlight conditions. The SL-70 has been proven to operate
as a 2–3+ nautical mile compact buoy lantern in various low sunlight environments
such as Britain, Canada and Europe.
Made from tough, durable polycarbonate and using the latest high intensity LEDs, the SL-70 lantern
boasts dual high-performance solar modules. These solar modules are angled to obtain maximum
sunlight capture, allowing the unit to operate reliably in a range of low sunlight environments.
The SL-70 can be installed in minutes and requires no operator intervention. The ash characters are
easily adjusted onsite by the user, and the lantern has a permanent ON/OFF switch for easy storage.
The SL-70 comes with standard rotary switches for convenient in-eld changes of ash characters
and intensity selection. In addition, the unit may be provided with an IR programmer for added
functionality. Programmable features include; ash code adjustment, battery diagnostics and
lux adjustment.
Optional GPS Synchronisation
The SL-70 is available with optional GPS Synchronisation. Two (2) or more lights can be synchronised
to ash in unison via an internal GPS module. When lanterns ash in synchronisation they can
be clearly distinguished from other navaids and confusing background lighting – ideal for rivers,
marina entrances, channel marking and aquaculture.
Optional Light Conguration
In high sunlight regions the SL-70 intensity settings may be increased to provide a range of >3
nautical miles (colour dependant).
Optional Larger Battery Pack
In regions where additional autonomy is required, the SL-70 can be supplied with a larger 16Ah
battery pack - this greatly extends the operational autonomy.
The Sealite Advantage
•IRprogrammable
•Reliableyear-round
operation in low sunlight
conditions
•256IALAashpatterns
•User-replaceablebatteryin
sealed battery compartment
•NiMHbatteryforlongservice
life&widetemperature
range
•Multipleintensitysettings
•ON/OFFstorageswitch
•IP68waterproof
Lens and base
moulded from
UV-stabilised
LEXAN®
polycarbonate
Large industry
standard 200mm bolt
pattern for ease
of installation

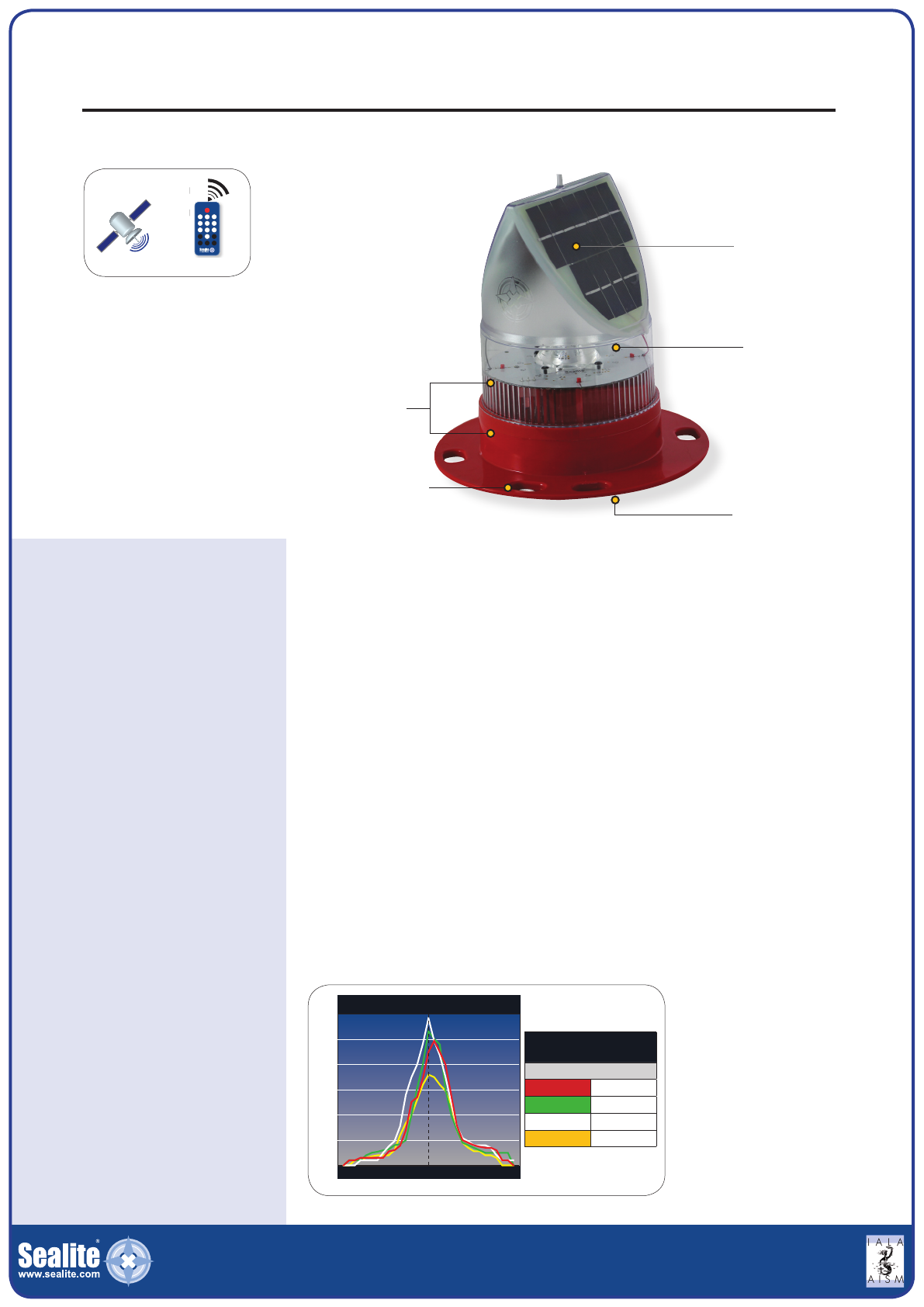

Dual internal
high-performance solar
modules
LED Optic
Internal
user-replaceable
battery in sealed
compartment
0
5
10
15
20
25
30
Yellow
Green
White
Red
151050-5-10-15
Photometric Output: SL-70
Vertical Divergence (degrees)
Intensity (candela)
TypicalMaximum
Intensity(cd)
SL-70
RED 24.7
GREEN 26.6
WHITE 29.2
YELLOW 18.8
Optional
GPS Sync
This equipment complies with requirements
of the U.S. Coast Guard in 33 CFR part 66
2–3NM+SolarMarineLantern
SL-70
V1_2015
w: www.sealite.com
e: info@sealite.com
Sealite Pty Ltd
AUSTRALIA
t: +61 (0)3 5977 6128
SealiteUSA,LLC
USA
t: +1 (603) 737 1311
SealiteUnitedKingdomLtd
United Kingdom
t: +44 (0) 1502 588026

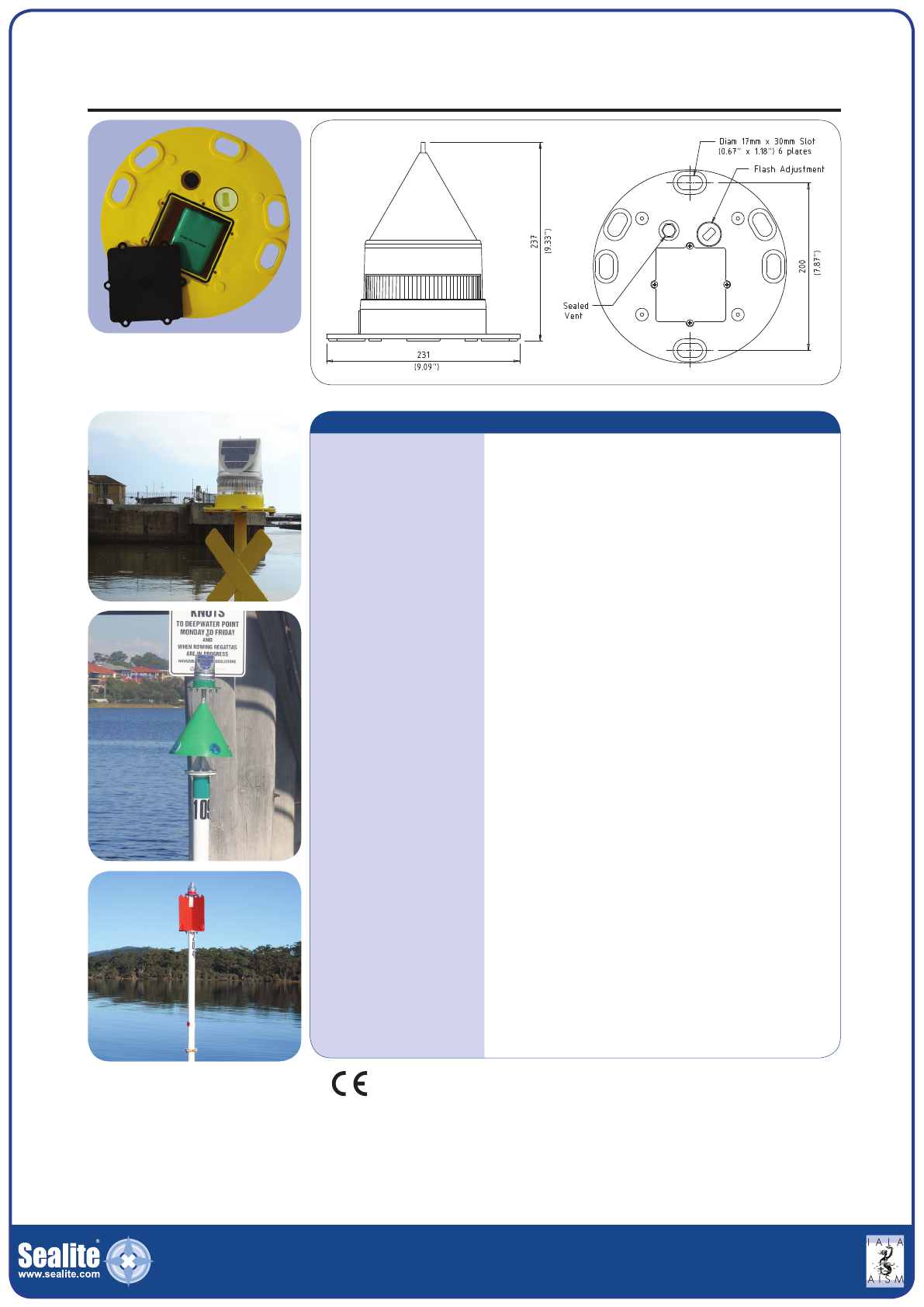

2–3NM+SolarMarineLantern
SL-70
• Specications subject to change or variation without notice
* Subject to standard terms and conditions
† Intensity setting subject to solar availability
SPECIFICATIONS•* SL-70
Light Characteristics
Light Source LED
Available Colours Red, Green, White, Yellow, Blue
Typical Maximum Intensity (cd)† Red - 24.7 Green - 26.6 White - 29.2 Yellow - 18.8
Visible Range (NM) AT @ 0.74: 2–3+
AT @ 0.85: 2.3–3.5+
Horizontal Output (degrees) 360
Vertical Divergence (degrees) 7
Available Flash Characteristics Up to 256 IALA recommended (user adjustable)
Intensity Adjustments Multiple intensity settings
LED Life Expectancy (hours) >100,000
Electrical Characteristics
Current Draw (mA) Refer to Sealite Power Calculator
Circuit Protection Integrated
Nominal Voltage (V) 3.6
Autonomy (days) >30 (14 hour darkness, 12.5% duty cycle)
Temperature Range -40 to 80°C
Solar Characteristics
Solar Module Type Multicrystalline
Output (watts) 2.5 (2 x 1.25watt)
Power Supply
Battery Type High grade NiMH
Battery Capacity (Ah) 8
Nominal Voltage (V) 3.6
Physical Characteristics
Body Material LEXAN® Polycarbonate – UV-stabilised
Lens Material LEXAN® Polycarbonate – UV-stabilised
Lens Diameter (mm/inches) 150 / 57/8
Lens Design Single LED Optic
Mounting 200mm bolt pattern
Height (mm/inches) 240 / 91/2
Width (mm/inches) 231 / 71/8
Mass (kg/lbs) 1.4 / 31/8 (SL-70-16AH 1.6 / 31/2)
Product Life Expectancy Up to 12 years
Certications
CE ANSI C63.4-2009. EN61000-6-3:2007. EN61000-6-1:2007.
IEC61000-4-6:2008. IEC61000-4-3:2010. IEC61000-4-6:2008.
IEC61000-4-2:2008. MIL-STD-810F. MIL-STD-202G
IALA Signal colours compliant to IALA E-200-1
Quality Assurance ISO9001:2008
Waterproof IP68
IntellectualProperty
Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd
Warranty * 3 years
Options Available • IR Programmer
• GPS Synchronisation
• 16Ah battery
• 50mm pole mount adapter plate
User-replaceable battery
V1_2015
