Read Lux

Flash Code Intensity Battery Status

Test / Congure

1 2 3

4 5 6

7 8 9

R0L

FC I B

Lux D-N Lux N-D

IR Programmer

The Sealite Advantage

• U.S. Coast Guard Approved

• User-replaceable battery in

sealed battery compartment

• >45 day autonomy

• 200mm bolt pattern for

immediate installation on

existing structures

• IP68 waterproof

The SL-CGC60-W is a United

States Coast Guard approved

Class ‘C’ structure lantern

specically designed to

meet the needs of Class ‘C’

structures in the Gulf of Mexico.

The unit is completely self-contained

with an integrated solar/battery

system, and can be easily installed

in minutes. The ash characters are

adjustable onsite by the user, and

the lantern has a permanent ON/

OFF storage switch.

The SL-CGC60-W’s large 16Ah battery

enables greater than 45 days

autonomy. The battery is housed

in a sealed compartment (IP68

waterproof) allowing for replacement

after years of maintenance-free

service.

The IP68 waterproof sealed

connector and momentary switch

on the lantern enable maintenance

personnel to simply connect a

test lead to diagnose the battery

voltage and solar charging rate,

in accordance to maintenance

contracts.

Class ‘B’ & ‘C’ Solar Lantern

SL-CGB310-W

Class 'C' Solar Lantern

SL-CGC60-W

Radio Control

RF Sync

Optional

The most advanced USCG approved Class

'C' lantern available

GPS Sync

Hard-wire Sync

LED lens and Sealite’s

360 Omnidirectional

LED Reector

(US Pat. No. 6,667,582.

AU Pat. No. 778,918)

Moulded from

UV-stabilised virgin

polycarbonate

Momentary

switch (operator

presses this to obtain

diagnostics)

Bird deterrent spike

Large internal solar

module

Automatic night

activation

6 ultra-high intensity

LEDs

IP68 connector

for diagnostic

test lead

Internal

user-replaceable

battery in sealed

compartment

Standard

GPS Sync

Optional

Robust 7-stage

powder-coated

aluminium chassis with

rubber extruded corners

3 & 4 hole 200mm bolt

pattern base for ease of

installation

LED Optic

4 x 3watt

(12watts total)

multicrystalline solar

modules, ensuring

maximum light

collection to charge

the battery

Internal 12Ah battery

External connector &

momentary switch for

ease of diagnostic testing

to meet maintenance

contract requirements

The SL-CGB310-W is a self-

contained solar marine

lantern designed to meet the

United States Coast Guard

requirements for Class ‘B’ and

Class ‘C’ structures.

The lantern incorporates (4)

premium grade solar modules and

large 12Ah battery integrated into

the assembly, and is available with

GPS synchronisation. Using overhead

satellites, lights set to the same ash

pattern will ash in unison.

The larger SL-CGB415-W model may

also be tted with GSM Cell-Phone

Monitoring and Control – enabling

users to access real-time diagnostics

data via cell-phone. The system

can also be congured to send

out alarm SMS text messages to

designated cellular telephone

numbers. Users can also have alarms

and reports sent to designated email

addresses.

US Coast Guard approved Class ‘B’ lantern

w: www.sealite.com

e: info@sealite.com

Sealite Pty Ltd

AUSTRALIA

t: +61 (0)3 5977 6128

Sealite USA, LLC

USA

t: +1 (603) 737 1311

Sealite United Kingdom Ltd

United Kingdom

t: +44 (0) 1502 588026

V3_2015

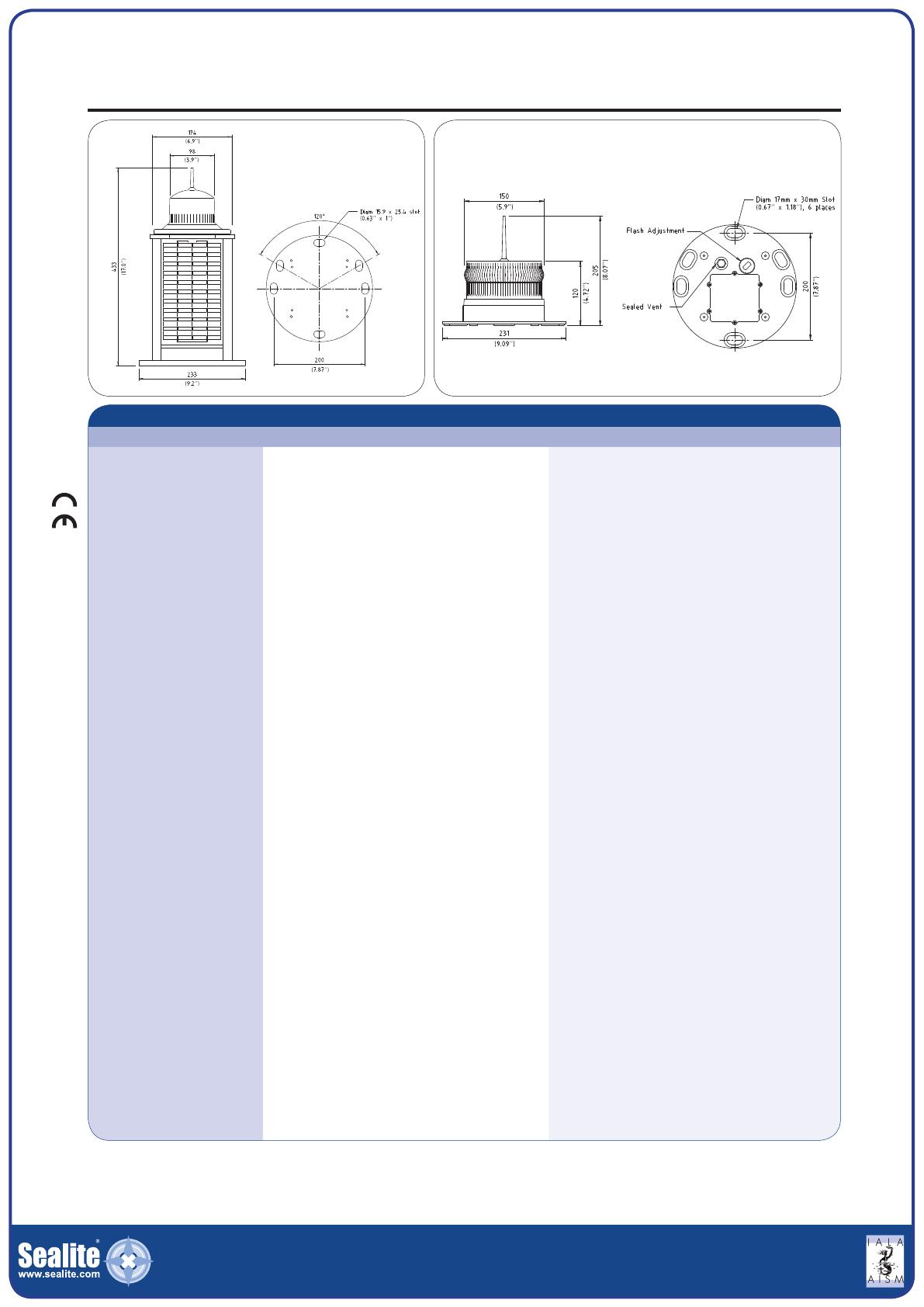

SPECIFICATIONS•* SL-CGB310-W SL-CGC60-W

USCG Approval Class B & C Class C

Light Characteristics

Light Source LED 6 ultra-high intensity LEDs

Available Colours White White

Effective Intensity (cd) † White - >25 10 Candela (@ QF 0.3sec ON)

Visible Range (NM) AT @ 0.74: >3

AT @ 0.85: >3.5

AT @ 0.74: >1

AT @ 0.85: >1.1

Horizontal Output (degrees) 360 360

Vertical Divergence (degrees) >7 9

Available Flash Characteristics Up to 256 IALA recommended (user adjustable) Up to 256 IALA recommended (user adjustable)

Intensity Adjustments Multiple intensity settings Adjustable in 25% increments

LED Life Expectancy (hours) >100,000 >100,000

Synchronisation Standard via GPS module Optional via GPS module, hard-wire or internal RF module

Electrical Characteristics

Current Draw (mA) Refer to Sealite Power Calculator Minimal

Circuit Protection Integrated Integrated

Nominal Voltage (V) 12 3.6

Autonomy (days) >60 (14 hour darkness, 12.5% duty cycle) >45 (>30 days for SL-CGC60-W-CS)

Temperature Range -40 to 80°C -40 to 80°C

Solar Characteristics

Solar Module Type Multicrystalline Multicrystalline

Output (watts) 12 (4 x 3watt) 1.4 (2.5watt for SL-CGC60-W-CS)

Charging Regulation Microprocessor controlled Microprocessor controlled

Power Supply

Battery Type Gel SLA High grade NiMH

Battery Capacity (Ah) 12 16

Nominal Voltage (V) 12 3.6

Physical Characteristics

Body Material 7-stage powder-coated aluminium chassis with UV-

stabilised rubber corners & gaskets

LEXAN® Polycarbonate – UV-stabilised

Lens Material LEXAN® Polycarbonate – UV-stabilised LEXAN® Polycarbonate – UV-stabilised

Lens Diameter (mm/inches) 98 / 37/8150 / 57/8

Lens Design Single LED Optic External optics with interior ute design

Mounting 3 & 4 hole 200mm bolt pattern 200mm bolt pattern

Height (mm/inches) 433 / 17 205 / 81/8 (240mm / 91/2 inches for SL-CGC60-W-CS)

Width (mm/inches) 233 / 91/5231 / 91/8

Mass (kg/lbs) 9.4 / 203/4 1.5 / 31/3

Product Life Expectancy Up to 12 years Up to 12 years

Certications

CE EN61000-6-3:1997. EN61000-6-1:1997 EN61000-6-3:2001. EN61000-6-1:2001. EN55022. EN61000-4-

2:1995.

EN61000-4-3:2002.

IALA Signal colours compliant to IALA E-200-1 Signal colours compliant to IALA E-200-1

Quality Assurance ISO9001:2008 ISO9001:2008

Waterproof IP68 IP68

Intellectual Property

Patents US Pat. No. 6,667,582. AU Pat. No. 778,918

Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd SEALITE® is a registered trademark of Sealite Pty Ltd

Warranty * 3 years 3 years

Options Available • 50mm pole mount adapter plate

• IR Programmer

• External ON/OFF Switch

• External Battery Charging Port

• GPS Synchronisation: enable/disable

• 5 Lens

• GPS Synchronisation

• RF Synchronisation

• Hard-wire Synchronisation

• Radio Control System

SL-CGC60-W

• Specications subject to change or variation without notice

* Subject to standard terms and conditions

† Intensity setting subject to solar availability

Class 'B' & 'C' Solar Lanterns

SL-CGB310-W / SL-CGC60-W
