Sean and Stephen 001RGM Laser Landscape Projector User Manual
Sean & Stephen Corporation Laser Landscape Projector
User Manual
Landscape Laser Projector User Manual
6893-001RGM, 6893-001RG, 6893-001RGM 8 IN 1
Unboxing check
Thank you for purchasing our laser product, please read the instruction carefully before use.
This manual contains important safety recommendation information and user instruction.
Please operate the product strictly according to regulation to avoid misuse that causes
safety issue or damage of laser product. Immediately upon receiving a fixture, carefully
unpack the packaging box, check the contents to ensure that all parts are present and in
good condition.
Packing list
1. Main Part 1pc
2. Base 1pc
3. Wrench 2pcs
4. Transformer 1pc
5. Manual 1pc
6. Remote controller 1pc
Setting up the Landscape Laser Projector
First, install main part （1）with base （2）and use wrench （3）- ① to secure
these 2 parts together.
Second, connect main part （1）with transformer （4）and screw the cap on
to ensure the water resistant for outdoor use. Please make sure you use
vendor-supplied transformer.
Last, plug in and stake the product into your desired location and use wrench
（3）- ② to adjust the projection angle of the light.
Patterns:
DotsX4, BellsX1, Christmas treesX1, SnowflakesX1, SantasX1
Function
When power it on and not use remote controller, red and green laser moving
on for five minutes. And then for cycle mode, only red laser moving on for 15
seconds, and then only green laser moving on for 15 seconds and then red
and green laser moving on for 30 seconds, only red laser moving on for 15
seconds, cycle like that. The product will turn off automatically after 6 hours
cycle mode working.
When use remote controller, please see functions as below.
When power on, it ‘s moving on and begin to work;

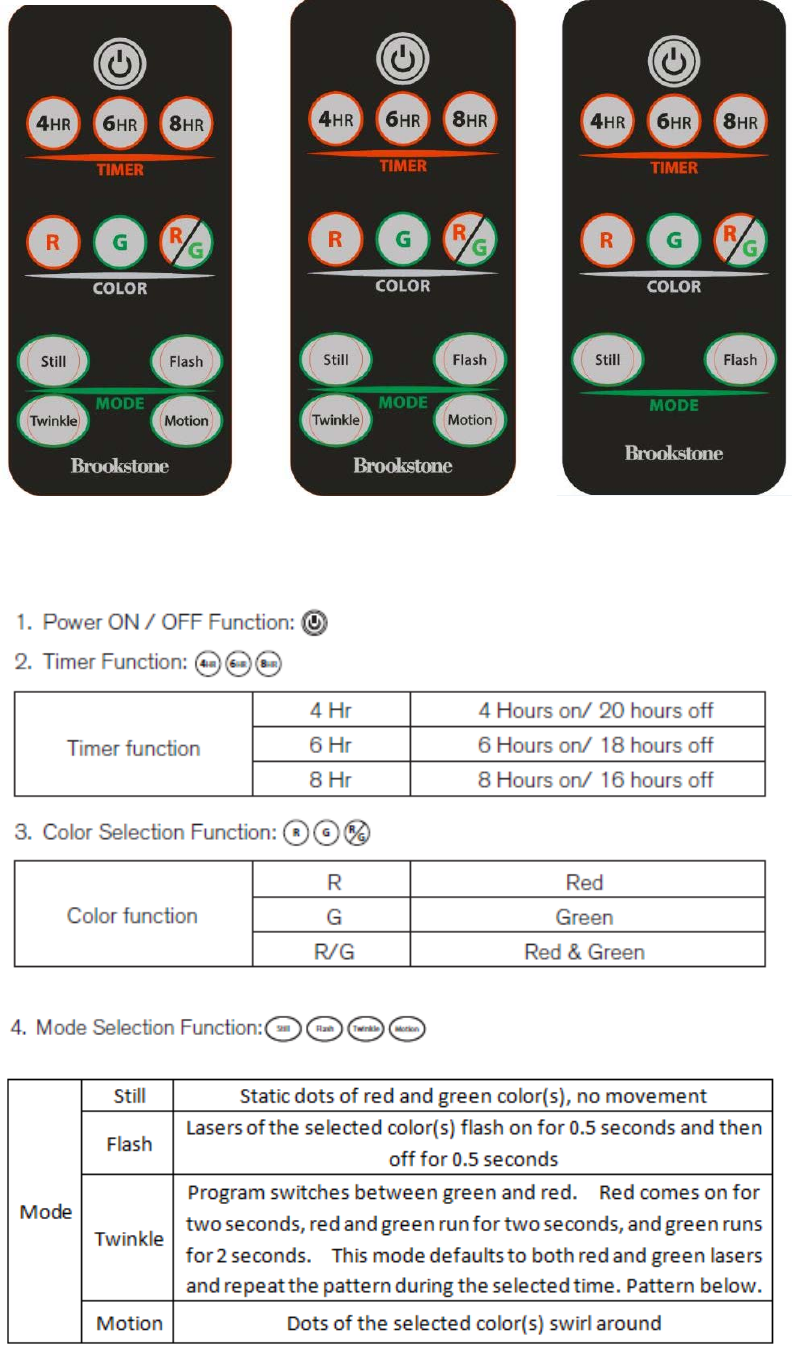

Remote Control Button Functions
6893-001RGM remote 6893-001RGM 8 IN 1 remote 6893-001RG remote
Warning:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Notice
1. Operate the product strictly according to regulation. Do not dismantle the laser
product on your own.
2. This product is suited for indoor and outdoor use, with classified water
resistant of IP65.
3. The working temperature of this unit is -20~35 degrees Celsius.
4. Prevent any kind of foreign matter from entering the body to avoid malfunction
5. Do not switch on and off of the product too frequently
6. Do not use the telescope to watch the laser beams
7. Delivery with original packing is highly recommended in order to prevent
potential shock and vibration due to the transportation.
Warnings
1. This laser product is certificated as a Class II laser product. Class II laser
products can be hazardous when directly viewed.
2. This landscape light requires input power of 120V~50/60Hz, if the power
exceed this range, it is recommended to use regulator device; otherwise it will
seriously affect the lifetime of laser
Specification
Laser Classification
Class IIIA
Maximum Laser Power <5mW
Laser Wavelength 532nm Green + 650nm Red
Power Input Input AC120V~50/6
0Hz,
Output DC 5V 2A
Operating Temperature -20℃ To 35℃
Projection Coverage 8m X 8m
Waterproof IP65
Dimensions Φ86X328 mm
Statement
This laser product has been overhauled before shipping; user should follow
above stated warnings and operation instruction. Any misuse that causes
damage of the product voids the warranty. Negligent of manual and causing
malfunction will not be included in distributor’s responsibility. Any fault operation
of laser that causing damage to human body, the Company holds no liability for
damages.
