I

i i

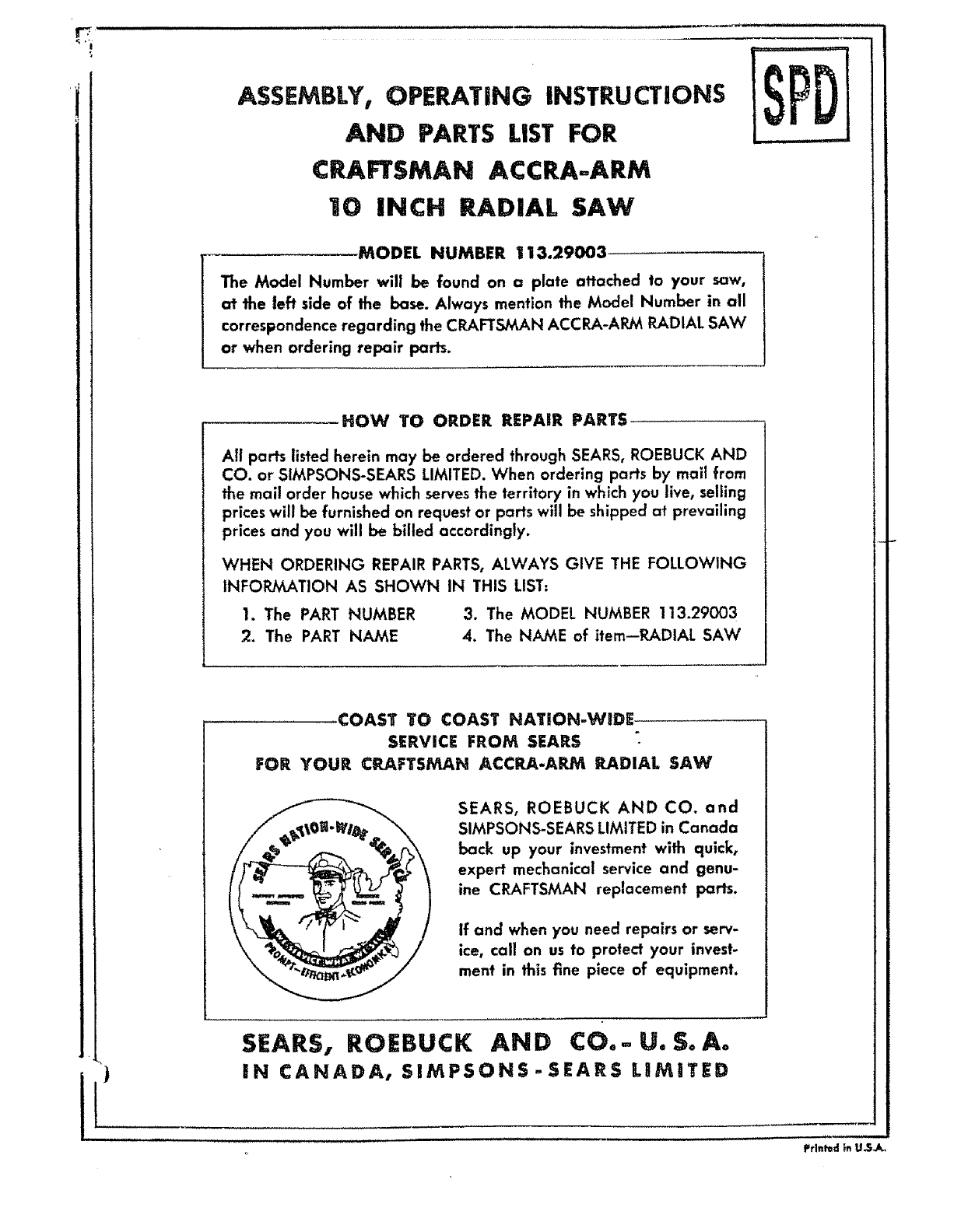

ASSEMBLY, OPERATING INSTRUCTIONS

AND PARTS LIST FOR

CRAFTSMAN ACCRAaARM

10 INCH RADIAL SAW

wMODEL NUMBER 113.29003

The Model Number will be found on a plate attached to your saw,

at the left side of the base. Always mention the Model Number in all

correspondence regarding the CRAFTSMAN ACCRA-ARM RADIAL SAW

or when ordering repair par_.

HOW TO ORDER REPAIR PARTS

All parts listed herein may be ordered through SEARS, ROEBUCK AND

CO. or SIMPSONS-SEARS LIMITED. When ordering parts by mall from

the mail order house which serves the territory in which you live, selling

prices will be furnished on request or parts will be shipped at prevailing

prices and you will be billed accordingly.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING

INFORMATION AS SHOWN IN THIS LIST:

1. The PART NUMBER 3. The MODEL NUMBER 113.29003

2. The PART NAME 4. The NAME of Item--RADIAL SAW

COAST TO COAST NATION-WEDE,

SERVICE FROM SEARS

FOR YOUR CRAFTSMAN ACCRA-ARM RADIAL SAW

SEARS, ROEBUCK AND CO. and

SIMPSONS-SEARS LIMITED in Canada

back up your investment with quick,

expert mechanical service and genu-

ine CRAFTSMAN replacement parts.

If and when you need repairs or serv-

ice, call on us to protect your invest-

ment in this fine piece of equipment.

SEARS, ROEBUCK AND CO.- U. S. A.

IN CANADA, SIMPSONS_,SEAR5 L_MITED

'CRAFTSMAN ACCRA-ARIVL, |(_INCH RADIAL SAW, MODEL NO. I"_;_._:_003

31

/

a,i iFiguro W

2

FOR PARTS LIST--SEE PAGE 3

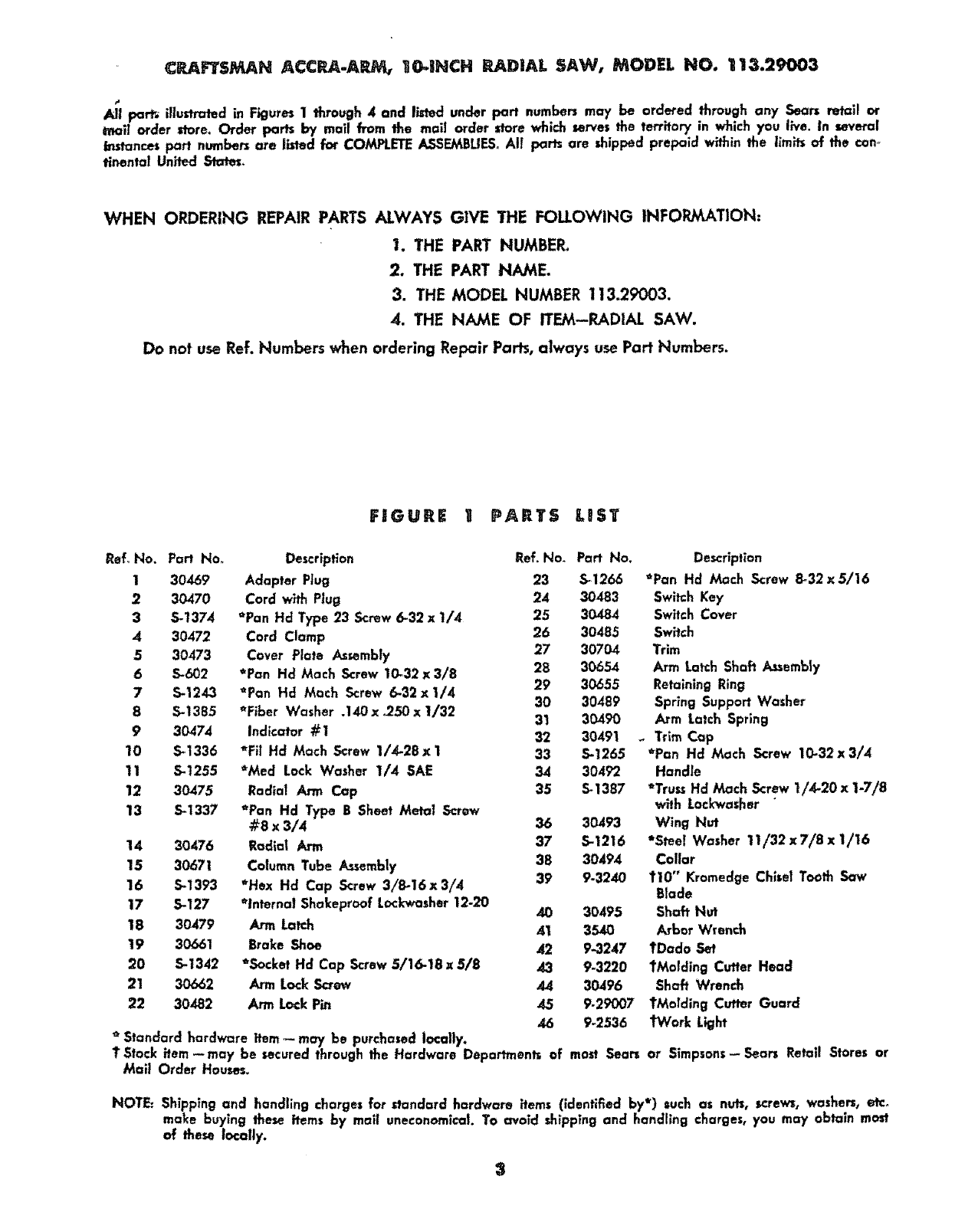

CP_SP/L_N ACCP_-AP._ 10_RNCH RADIAL SAW, MODEl. NO. 113.29003

_d_ part_ illu_ted in Figures 1 through 4 and listed under part numbers may be ordered through any Sears mfall or

teal! order store. Order parts by mail from the mall order store which serves the territory in which you live. In several

B_'tances part numbers are listed for COMPLETE ASSEMBUESo AI! parts are shipped prepaid w_in the I_m_ of the ¢an_

finentol United States.

WHEN ORDERING REPAIR PARTS ALWAYS GIVE THE FOLLOWING INFORMATION:

I. THE PART NUMBER.

2. THE PART NAME.

3. THE MODEL NUMBER 113.29003.

4. THE NAME OF ITEM--RADIAL SAW.

Do not use Ref. Numbers when ordering Repair Parts, always use Part Numbers.

FIGURE IPARTS LIs'r

Ref. No. Part Non

1 30469

2 30470

35.1374

,4 30472

530473

65.602

75.1243

8S-1385

9 30474

10 S-1336

11 5.1255

12 30475

13 5-1337

14 30476

15 30671

16 5-1393

17 5-127

18 30479

19 30661

20 5-1342

21 30662

22 30482

Description Ref. No. Part No.

Adapter Plug 23 5.1266

Cord with Plug 24 30483

_'Pan Hd Type 23 Screw 6-32 x 1/4 25 30484

Cord Clamp 26 30485

Cover Plate Assembly 27 30704

*Pan Hd Moch ,Screw 10-32 X 3/8 28 30654

_Pan Hd Mach Screw 6-32 x 1/4 29 30655

30 30489

_Fiber Washer .140 x _250 x 1/32 31 30490

Indicator #I 32 30491

_Fil Hd Mach Screw I/4-28x 1 33 5-t265

*Med Lock Washer I/4 SAE 34 304?2

Radial Arm Cap 35 5-1387

_Pan Hd Tyloe B Sheet Metal 5crow

#8 x 3/4"" 36 30493

Radla| Arm 37 5.1216

Column Tube Assembly 38 30494

*Hex Hd Cap screw 3/8-16x3/4 39 9-3240

elnternal Shakeproof Lockwasher 12-20 40 30495

Arm Latch 41 3540

Brake Shoe 42 9,3247

*Socket Hd Cap ,Screw5/16-18 x5/8 43 9-3220

Arm Lock Screw 44 30496

Arm Lock Pin 45 9.29007

46 9-2536

* Standard hardware ffem -- may be purchased locally.

"/"Stock item- may be secured through the Hardware Department_ of most Sears

Molt Order Houses.

Description

*Pan Hd Mach Screw 8_32x5/16

Sw_h Key

Switch Cover

Switch

Trim

Arm Latch Shah Assemb|y

Retaining Ring

Spring Support Washer

Arm Latch Spring

Trim C¢_p

*Pan Hd Moth Screw 10-32x3/4

Handle

*Truss Hd Mach Screw 1/4-20 x 1-7/8

with Lockwasher

Wing Nut

*Steel Washer 11/32 x7/8 x 1/16

Collar

tl0" Kromedge Chisel Tooth Saw

Blade

Shaft Nut

Arbor Wrench

tDado Set

tMordlng Cutter Head

Shaft Wrench

tMotding Cutter Guard

1Work Light

or Slmpsons- Sear_ Retail Stores or

NOTE: Shipping and handling charges for _tandard hardware items (identified by*) such as nuts, s_crew_,washers, etco

make buying these items by mall uneconomical. To avoid sblpptng and handling charges, you may obtain most

of these locally.

l

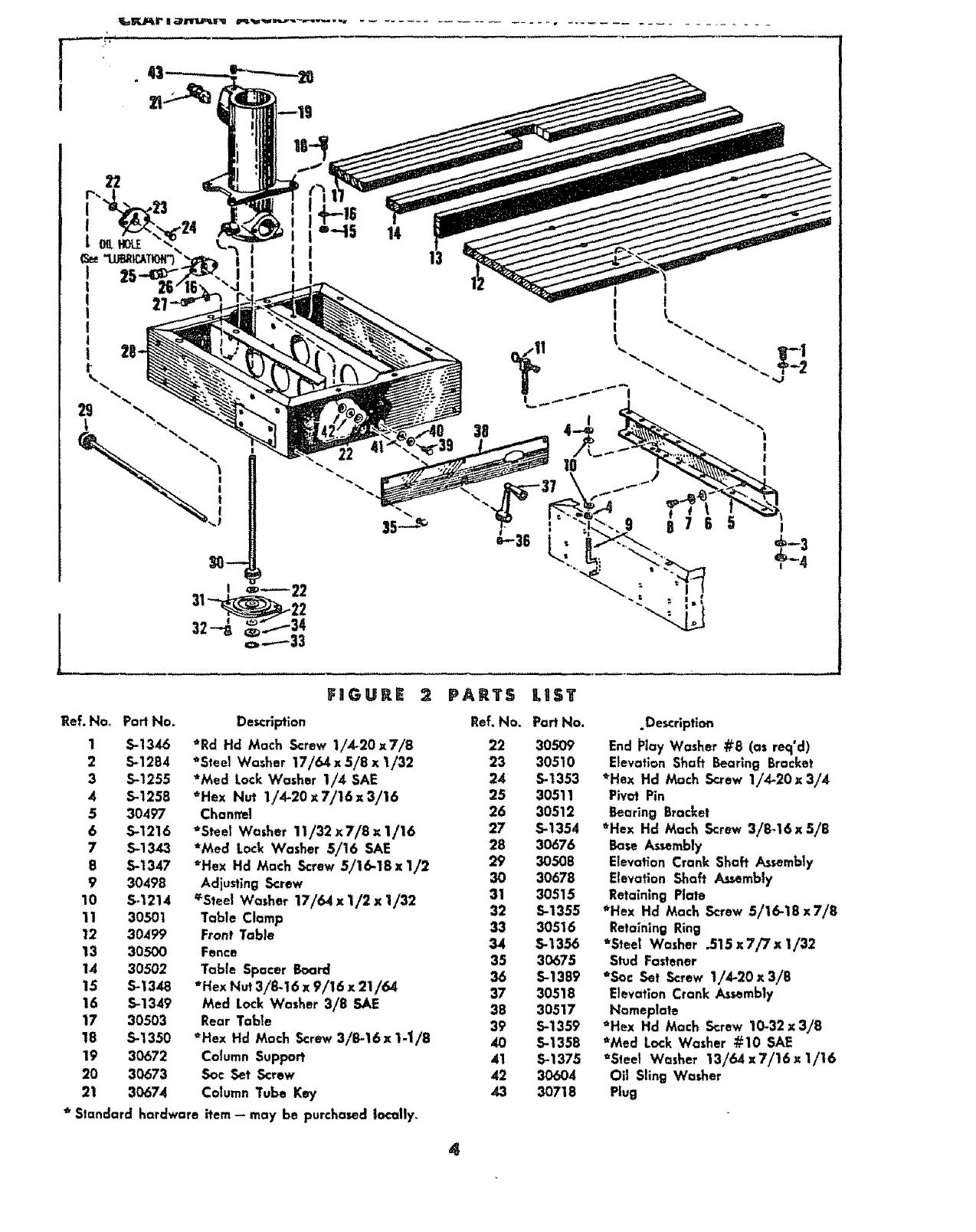

FaGURE

1Ref.Hoe Part No.

15-1346

2 S-1284

3 5-1255

45-t258

530497

65-1216

75-1343

85-1347

9 30498

10 $-1214

11 30501

12 30499

13 30500

14 30502

15 S-1348

16 S-1349

17 30503

18 S-1350

19 30672

20 30673

21 30674

PARTS LIIST

De_r_i:_on Ref. No. Part No,

*Rd Hd Mace Screw I/4-20x7/8 22 30509

_'Steel Washer 17/64 x 5/8 x 1/32 23 30510

*Med Lock Washer I/4 5AE 2.4 5-1353

*Hex Nut 1/4-20x7/t6x3!16 25 30511

Channel 26 30512

*Steel Washe_ 11/32x7/8_I/16 27 5-1354

*Med Lock Washer 5/16 5AE 28 30676

29' 3O5O8

*Hex Hd Mace Screw 5/16-18 X 1/2 30 30678

Adjusting Screw 31 30515

_Steel Washer 17/64 x 1/2 x 1/32 32 5-1355

Table Clamp 33 30516

Front Table 34 S-1356

Fence 35 30675

Table Spacer Board 36 5-1389

_Hex Nut 3/8-16 x 9/16 x 21/64 37 30518

Med Lock Washer 3/8 SAE 38 30517

Rear Tab|e 39 5-1359

*Hex Hd Mace Screw 3/B-16 x 1-1/8 40 5-1358

Column Support 41 S-1375

Sac Set Screw 42 30604

Column Tube Key 43 30718

*Standard hardware item- may be purchased to¢olly_

.Description

End t_lay Washer #8 (as re€I'd)

E|evatlon ShaFt Be=rlng Bracket

+He× Hd Moch Screw 1/4-20x 3/4

Piv_ Pin

l],earing Bracket

_Hex Hd Mace Screw 3/8.16 x 5/8

Base Assembly

Elevation Crank Shaft Assembly

Elevation Shaft Assembly

Retaining Plate

+Hex Hc_ Mock Sc_re_ 5116-18x7/8

Retaining Ring

tSteel Washer .515 x 7/7 x1/32

Stud Fastener

"Sac Set Screw 1/4-20x3/8

Elevation Crank Assembly

Nameplate

*Hex Hd Mace S_rew 10-32 x 3/8

_Med Lock Washer #10 SAE

_'5teel Washer 13/64 x 7/16 x t/16

Oil Sling Washer

Plug

4

Figure 3 "_-SS

........... ,u,,,, ,, ,. i i,,,,.............

FIGURS :_ PARTS LIST

Ref. blo_ Part No. Description Ref. No. Part No.

130519 Swivel Latch Pin Handle 32 30690

2 5-1361 *Hex Hd Mach 5<:rew 5/16-16 x 1-I/2 33 30548

330679 RetainingPlate 34 30547

45-1343 *Med Lock Washer 5/16 SAE 35 30546

530521 Swivel Latch Sp_ing 36 30505

6 30657 Swivel Latch Pin 37 5-1390

75-1392 *Steel Washer .328 x3/4 x 1/16 38 30.567

8 30680 BailRetainer 39 30566

930524 Carriage BallRace, ImP1hand 40 30618

10 30527 Ball 41 30565

11 30682 Speed Nut 42 30691

12 5-1363 *Hex Hd Math Screw 5/16-18 x2-1/4 43 30660

13 30683 Rip Scale Indicator 44 5-1366

14 30684 Carriage Cover, left hand 45 S-1255

15 30685 Eccentric Bushing Sc.mw 46 30562

16 30686 Eccentric Bushing 47 30692

17 30536 Carriage Lock Knob Assembly 48 30558

18 30687 Carriage Lock Shoe 49 30557

19 30681 Ball Retainer, r'_ghl hand 50

20 30615 Carrlage Ball Race, right hand 51 30663

21 30688 Carriage Cover, right hand 52 30556

22 5-1394 *Pan Hd Math Screw 8-32x3/8 53 30606

23 30538 Saw Guard Assembly 54 30664

24 30539 Discharge Elbow 55 30551

25 30540 Wing Screw 56 30552

26 30541 Anti-Kick Back Pawl A_.sernbly 57 5-1391

27 30542 X-Washer 58 5-1385

28 30543 Anti,Kick Back Pawl 59 30559

29 30544 Rod 60 S-1365

30 30545 Crow Pin 61 30693

31 30689 Bevel Latch Pin 62 30592

*,_landard hardware item _ may be purchased locally, 63 5-,1372

Description

Latch Pin Handle Retainer

Latch Pin Spring

Disk

Retaining Ring #2

Hex "L'" Wrench 1/8 ocro"_ flats

_Soc Cup Point Set Screw 1/4-20 x1

Bumper #2

Yoke Clamp Assembly

-Dust Cover

Bumper

Corrlage

Latch Pin Housing

*Hex Hd Moch :Screw 1/4-20x7/t6

_Med Lock Washer 1/4 SA.E

Motor Support Bearing

Yoke

Lock Screw

Yoke Clamp Handle Assembly

Index Handle _rake Shoe

Expander

Bevel Index Handle

Index Handle Washer

Pressure Pad

Bevel Lock Knob Assembly

Hex "L" Wrench 7/32 acro. fiats

*Pan Hd Math Screw 6-32x3/16

_Fiber Washer .140 X .250 x 1/32

Indicator #2

*Sac Hd Cap Screw 5/16.18 x1-1/2

Latch Pin Handle

Bevel Scale

_#2x 1/8 Type U Drive Screw

5

11 12

8 1623 "\\\\I

I

J

•..._-_...--20 /

/

11_/

BLACKT0 /

GREENTO GREEHON PLUGAND CORD{SEEiTEM3 FiG I)

WHffETO SWFICH=3

BLACKTO SWIICH=1

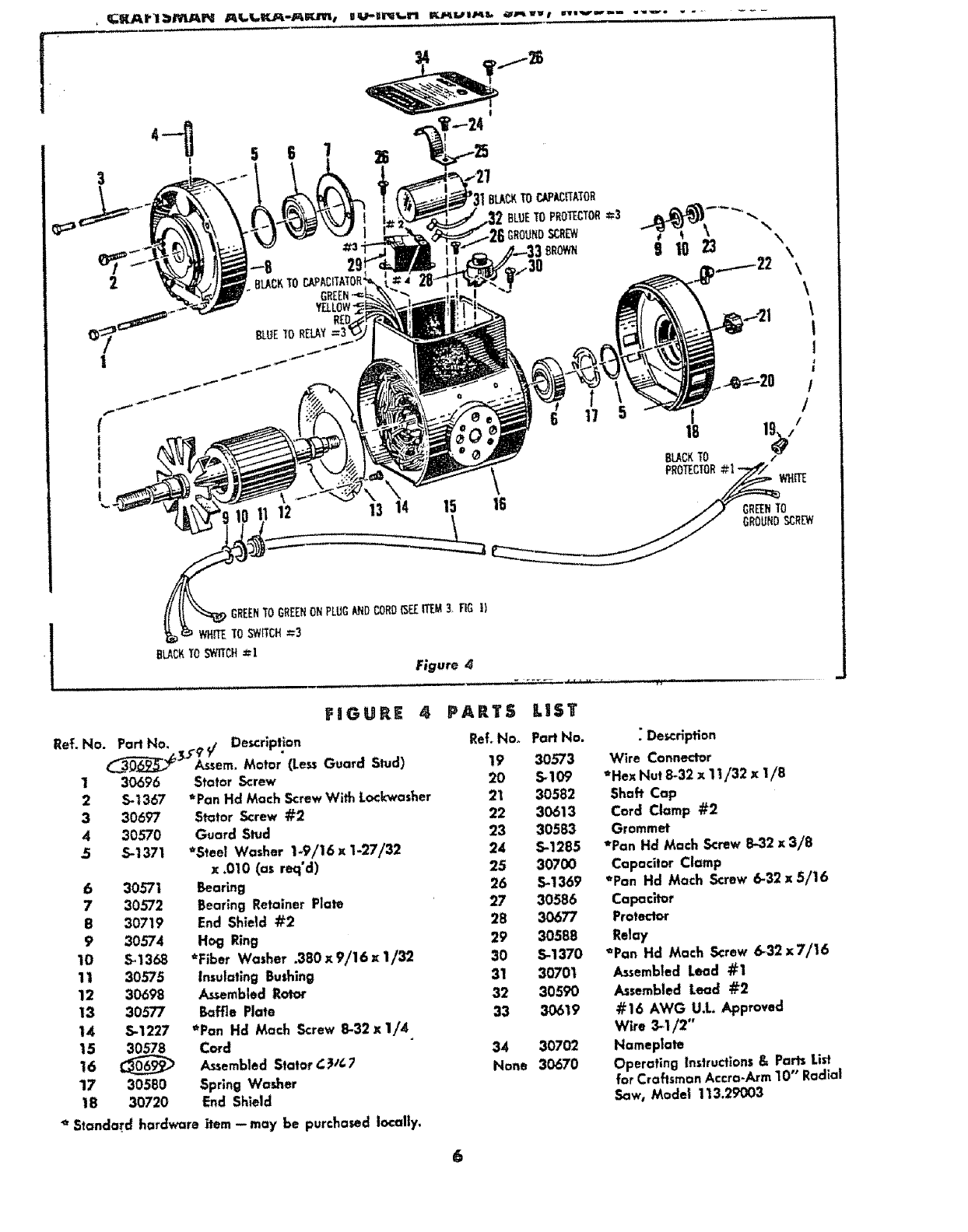

F_gore 4

FIGURE 4 PARTS LiST

Ref. No. Part No. 9".s DescHptlon Ref. No. Part No.

__,T_em. Motor (Less Guard Stud) 19 30573

1 30696 Stator Screw 20 5-109

25-t367 *Pan Hd Much Screw With Lockwasher 21 30582

3 30697 Stator .Screw @2 22 30613

430570 Guard Stud 23 30583

5 5-1371 *Steel Washer 1-9/16 x 1-27/32 24 5-1285

x .010 (as req'd) 25 30700

630571 Bearing 26 5-1369

7 30572 Bearing Retainer Plate 27 30586

O 30719 End Shletd #2 28 30677

930574 Hog Ring 29 30588

10 S.1368 *Fiber Washer .380x 9/16,_ 1/32 30 $-1370

11 30575 Insulating Bushing 31 30701

12 30698 Assembled Rotor 32 30590

13 30577 Baffle Plate 33 30619

14 5-1227 *Pan Hd Much Screw 8-32 x1/4

15 30578 Cord 34 30702

16 _Assembled Staler _,'_? None 30670

17 30580 5wing Washer

18 30720 End Shield

StanduTd hardware item - may be purchased locally,

"Description

Wire Connector

*Hex Nut 8-32 x 11/32 x1/8

Shaft Cap

Card Clamp #2

Grommet

*Pan Hd Much Screw 8-32 x 3/8

Capacitor Clamp

*Pun Hd Much Screw 6-32 x 5/16

Capacitor

Protector

Relc_

*Pan Hd Much Screw 6-32 x7/16

Assembled Lead #1

Assembled Lead @2

#16 AWG U.L Approved

WL,o S-1/2"

Nameplate

Operating Instructions & Parts List

for Craftsman Aco'ra-Arm 10" Radial

Sow, Model 113.29003

6

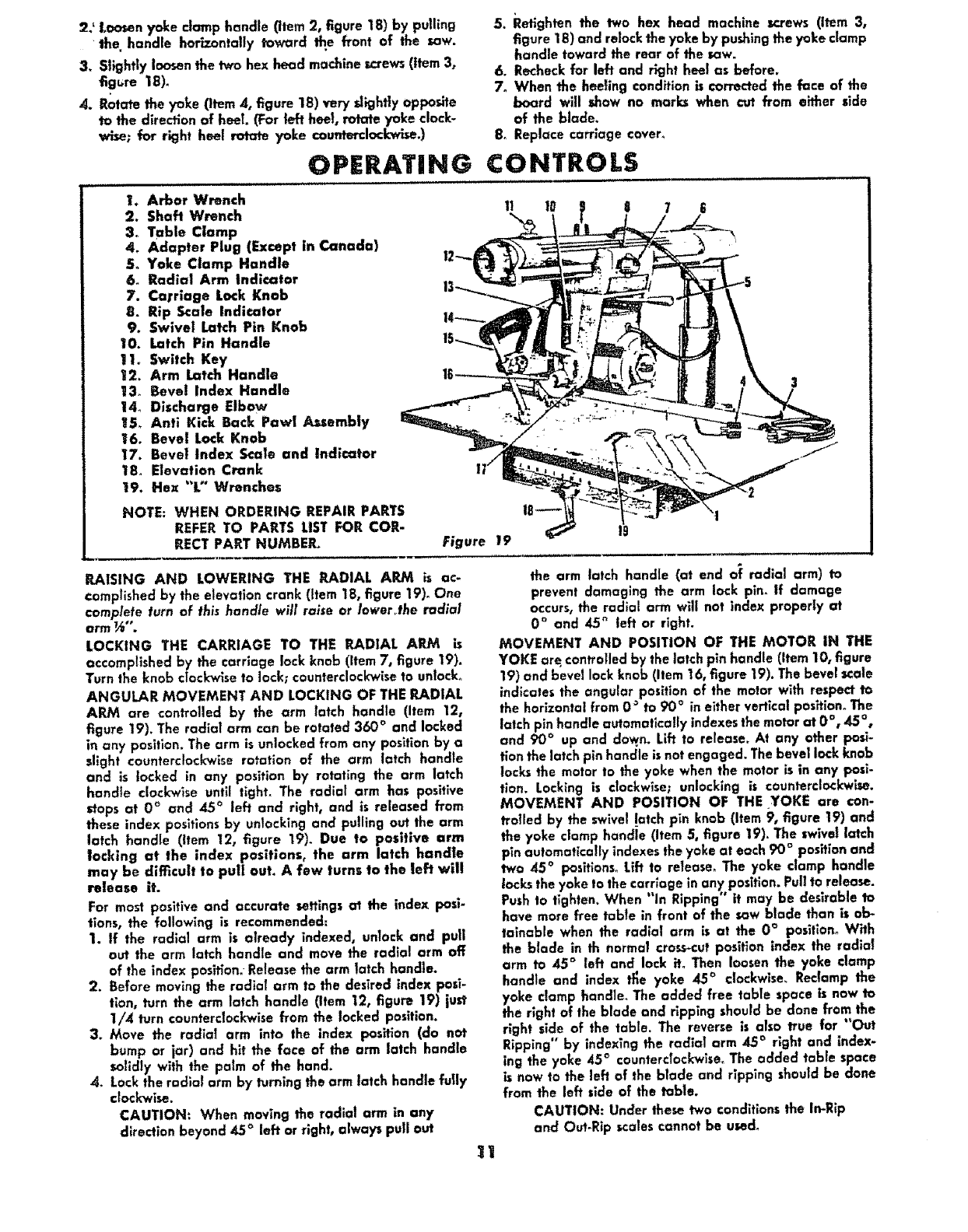

Your

I. Arbor Wrench

2. Shaft Wrench

3o Table Clamp

4_ Adapter Plug

5. Yoke Clamp Handle

6_ Radial Arm Indicator

7. Carriage Lock Knob

8_ Rip Scale Indicator

9. Swivel Latch Pin Knob

10_ Latch Pin Handle

11. Switch Key

12, Arm Latch Handle

13, Bevel Index Handle

14, Discharge Elbow

15. Anti Kick Back Pawl Assembly

16o Bevel Lock Knob

17o Bevel Index Scale and indicator

18. Elevation Crank

19. Hex "L" Wrenches Figure 5

ASSEM BLING -ADJ USTIN G

CONNECTING THE MOTOR TO THE POWER SUPPLY

Motor Spec_cations

115/230 volt, 10/5 amps, 3450 RPM, 60 cycle, alternating

current (AoC. only) single phase, non-reverslbteo Rotation:

clockwlse viewing saw blade end of motor shaft.

The motor as shipped is connected for 115 volts_ For 115

volt operation see Figures 6 and 7 for connecting plug

and cord from saw into 115 volt receptacle.

Safety Precaution

The saw motor is equipped with a manual reset, therme]

oveHoad protector. If during operation this protector opens

the line, immediately turn the switch "Off". The protector

can be closed again after the motor has cooled by firmly

pushing the red button on the capacitor cover until the

protector snaps into the running position. Do not tap or

strike the reset button_ This protector is not intended to

take the place of a fuse as the protector will not provide

protection against overloads or short circuits in the lines

leading to the motor. The motor should not be operated on

aload which ca usesthe protector to open the line frequently°

For circuit protection use a"Fustat" or "'Fusetran" fuse

--15 ampere fuse for 115 volt operation and 7½ am-

pere fuse fop 230 volt operation.

PLUa AND CO_D _ _)_ |

FROM SAW

GI_OUND LLtO

115 VOLT

SUPPLY t|NE

GROUND WtlE

Figure 6

For 230 volt operation, see connecting instructionson motor

nameptateo Also see the "Warning Label" on the rear of

the saw base°

"'IMPORTANT" The fat!owing wire sizes ore recommended

for connecting the motor to o power source for TROUBLE

FREE OPERATION.

Length of Wife Size R_quired

Concluctor (Ame_iconWire Gaug_ No,)

115 Volt Lines

50 feet or tess No, 12

100 feet or less No. 10

•100 feet to 150 feet No, 8

150 feet to 200 f_et No. 6

200 feet to 400 f_et He. 4

230 Volt Lines

50 feet or less No_ 14

100 feet or less Hoe 12

100 feet to 150 feet No. 10

150 feet to 200 feet No. 8

200 feet to 400 feet No_ 6

For circuitsof greater length the wire size must be increased

proporfiohally.

ALWAYSGROUND _--_'_------_'_

PIGTAIL TO 115 VOLT

SUPPLY LINE

PLUG AND CORD

FROM SAW METAL t_ECEPTACLE _OX

"_ MUST _E GROUHDED TO

A COLD WATER PIPE OR

TO THE ELECTRICAL GROUND

OF THE INCOM|NG

ADAFTER PLUG POWER LINES

_ITEM4, P_GUeES_

Figure 7

7

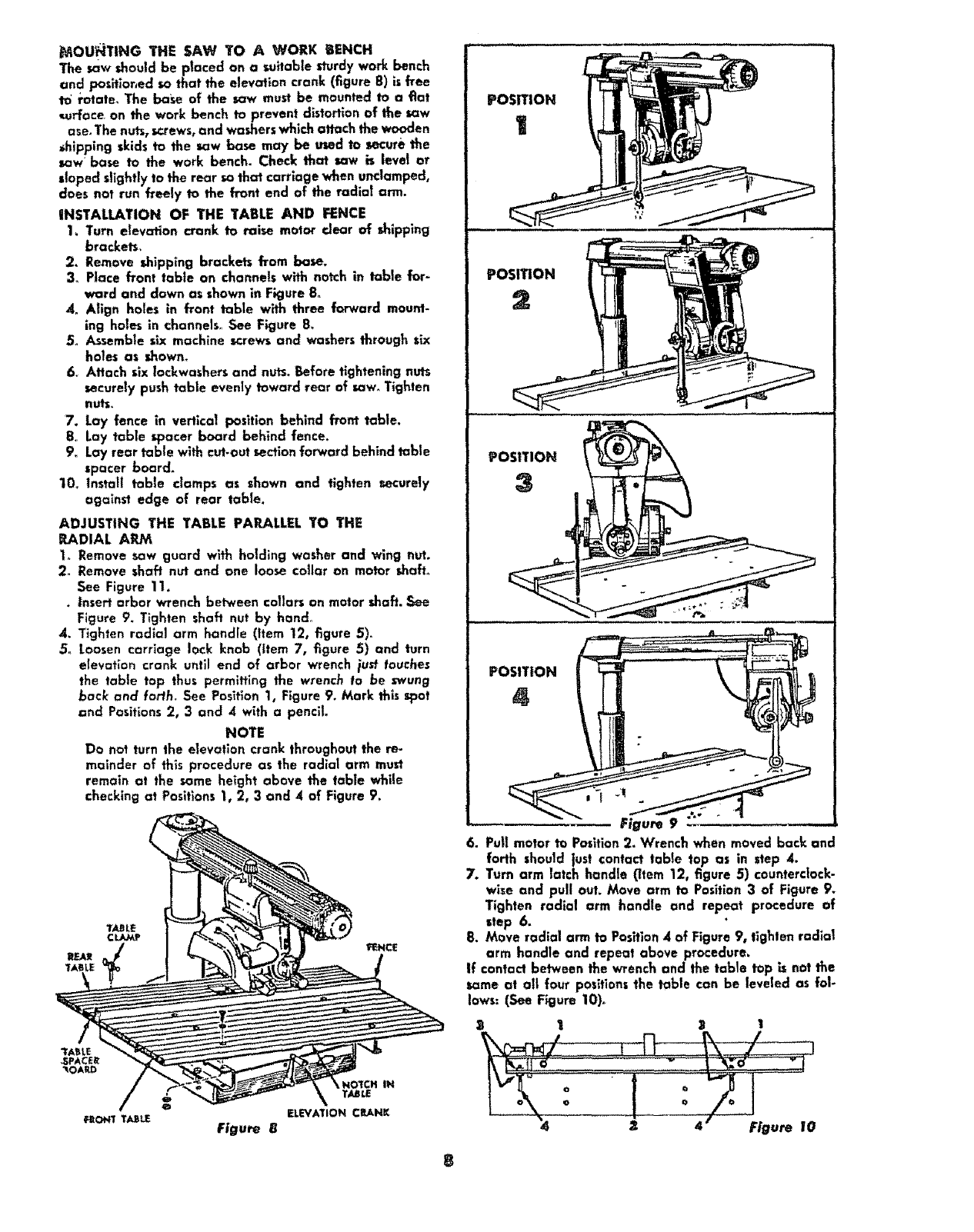

_OUHTING THE SAW TO AWORK BENCH

The saw should be placed on a _itoble sturdy work bench

and posltlor,ed so that the elevation crank (figure B) is flee

to i'otate_ The ba_ of the saw must be mounted to a flat

•.urfoce on the work bench to prevent distortion of the saw

ase_The nuts,screws,and washers which attach the wooden

_ipping skids to the saw base may be reed to secure the

saw base to the work bench. Check that saw is level or

sloped slightly to the rear so that carriage when undamped,

does not run ffwe]y to the front end of the radial arm.

INSTALLATION OF THE TABLE AND FENCE

1. Turn elevation crank to robe motor clear of shipping

brackets_

2. Remove shipping brackets from base.

3o Place front table on channels with notch in table for-

ward and down as shown in Figure 8o

4_ Align holes in front table with three forward mount-

ing holes in channels_ See Figure 8.

5o Assemble six machine screws and washers through six

holes as shown_

6_ Attach six lockwashers and nuts. Before tightening nuts

securely push table evenly toward rear of saw_ Tighten

nuts.

7, Lay fence in vertical position behind front table.

B Lay table _oacer board behind fence.

9_ Lay rear table with cut-out section forward behind table

spacer board.

10. lnstaff table damps as shown and tighten securely

against edge of rear table.

ADJUSTING THE TABLE PARALLEL TO THE

RADIAL ARM

1o Remove saw guard with holding washer and wing nut.

2_ Remove shaft nut and one loose collar on motor shaft°

See Figure 11.

.Insert arbor wrench between collars on motor shaft.

Figure 9. Tighten shaft nut by hand.

4. Tighten radial arm handle (item 12, figure 5)_

5_ Loosen carriage lock knob (item 7, figure 5) and turn

elevation crank until end of arbor wrench just touches

the tobte top thus permitting the wrench to be swung

back and forth_ See Position 1, Figure 9. Mark this spot

and Positions 2, 3and 4 with a pencil.

NOTE

Do not turn the elevation crank throughout the re-

mainder of this procedure as the radial arm must

remain at the same height above the table while

checking at Positions 1, 2, 3 and 4 of Figure 9,

POSITION

1

POSITION

2

POSITION

3

POSITION

4

Figure 9

6. Pull motor to Position 2. Wrench when moved back and

forth should just contact table tap as in step 4.

7. Turn arm latch handle (item 12, figure 5) counterclock-

wise and pull out. Move arm to Position 3 of Figure 9.

Tighten radial arm handle and repeat procedure of

step 6.

ft. Move radial arm to Pasltlon 4 of Figure 9, tighlen radio|

arm handle and repeat above procedure.

If contact between the wrench and the table top is not the

same at all four positions the table can be leveled as fol-

lows: (See Figure 10)o

3 1

1_ Loo_n Tne Qamplng _or_w'_ _wn_ mJ _tl _m _€;,nne'ls

•(item 2).

2. Adiust nuts(Item 3) by alternating loosening and tighten-

ing so that the channels are moved up or down an the

a_justing screws(Item 4) in the desired direction.

3. When channels are properly adjusted the arbor wrench

wifl just contact the table top when swung back and forth

at Positions 1, 2, 3, and 4of Figure 9_ Tighten clamping

screws (Item 1). Recheck the four positions to insure that

no change has occurred.

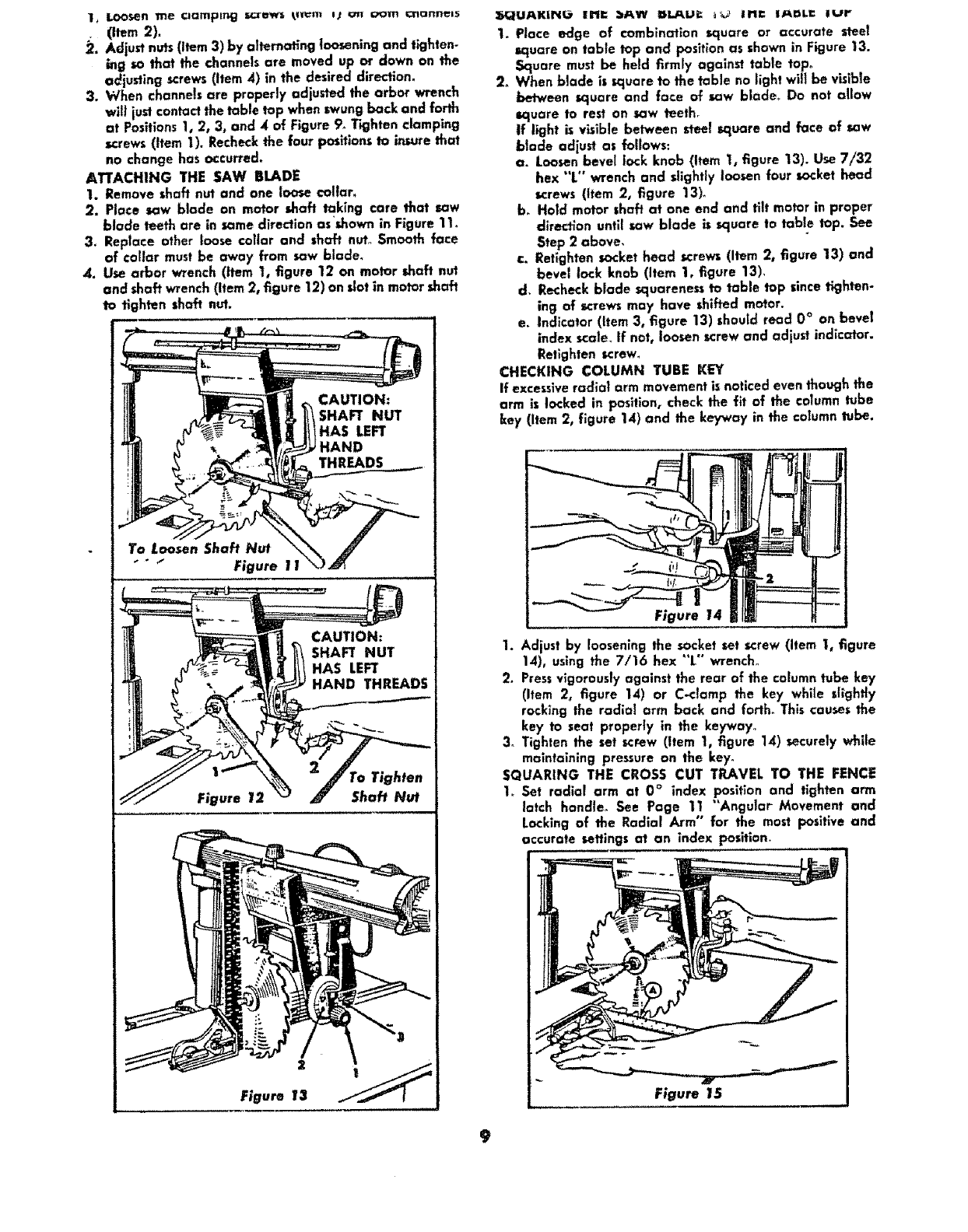

ATTACHING THE SAW BLADE

1. Remove shaft nut and one loose col|arm

2. Place saw blade on motor shaft taking care that saw

blade teeth are in some direction asshown in Figure 11_

3. Replace other loose coltar and shaft nut° Smooth face

of €ol|or must be away from saw blade.

,4. Use arbor wrench (item 1, figure 12 on motor shaft nut

and shaft wrench (Item 2, figure 12) on slot in motor shaft

to tighten shaft nut.

CAUTION:

SHAFT NUT

HAS LEFT

HAND

THREADS

To Loosen Shaft Nut

"°"_ Figure 11

CAUTION:

SHAFT NUT

HAS LEFT

HAND THREADS

Figure 12

ro Tighten

Shaft Nut

2

Figure 13

:_IUAICII_ UM" :_AW ISI.AU= _In" IAnLC lur

1. Place edge of combination square or accurate steel

square on table top and position as shown in Figure 13.

Square must be held firmly against table tap°

2. When blade is _uare to the table no light will be v_ible

between square and face of saw blade. Do not allow

square to rest on saw teeth.

If light is visible between steel square and face of sow

blade adjust as follows:

a. Loosen bevel lock knob (Item I, figure 13). Use 7/32

hex "L" wrench and sllghfly loosen four socket head

screws (item 2, figure 13).

b. Hold motor shaft at one end and tilt motor in proper

direction until saw blade is square to table top. See

Step 2 above_

c. Retlghten socket head screws (Item 2, figure 13) and

bevel lock knob (Item 1, figure 13).

d. Recheck blade _uareness to table top since tighten-

ing of screws may have shifted motor.

e. Indicator (item 3, figure 13) should read 0 ° on bevel

index scole_If not, loosen screw and adjust indicator.

Retlghten screw.

CHECKING COLUMN TUBE KEY

if excessiveradla| arm movement is noticed even though the

arm is locked in position, check the fit of the column tube

key (Item 2, figure 14) and the keyway in the column tube.

Figure 14

1. Adjust by loosening the socket set screw (Item I, figure

14), using the 7/16 hex "'L'" wrench°

2. Pressvigorously against the rear of the column tube key

(Item 2, figure 14) or C-clamp the key while slightly

rocking the radial arm back and forlh. This causes the

key to seat properly in the keyway°

3o Tighten the set screw (item 1, figure 1`4) securely whffe

maintaining pressure on the key°

SQUARING THE CROSS CUT TRAVEL TO THE FENCE

1_ Set radial arm at 0 ° index position and tighten arm

latch handle_ See Page 11 "Angular Movement and

Locking of the Radial Arm" for the most positive and

accurate sewings at an index Posilion,

Figure 15

9

2o Lay combination square or accurate steel square against

fence as shown in Figure 15 and position until it just

contacts a blade tooth (See A, figure 15). Mark this tooth.

3_ When the carriage is moved back and forth on radial

arm saw toofi_"A" should iust touch square at all po_itions.

tf saw tooth "A" does not touch square as in step 3, adjust

as fellows:

a. If saw tooth "A" (Figure 15) moves away from the square

when moving the blade from the rear to the front of the

table, completely loosen the three screws holding the

table to the channel on the |efthand side of the table

_nd slightly loosen those on the right side of the tableo

Slightiy tighten the left table clamp (Item 1, Position 4,

Figure 9)_

bo Tighten all table screws first, then both table damps.

Recheck blade squareness again.

c. Reverse this procedure if tooth "'A" moves into the square

when moving the saw blade from the rear to the front

of the table.

tn some cases, the above adjustment may not be sufficient.

if this is the case, adjust as follows:

_. Remove three screws (Item 1 and 2, figure 16), indicator

(Item 3) and radial arm cap (Item 4).

b_ Turn arm latch handle 1/2 turn counterc!ockwi_ to re-

lease brake, Do not pull out_

c. Slightly loosen (do not remove) two hex head screws

(Item 5) inside of column tube,

do Move radial arm in proper direction to make saw tooth

"'A" (Figure 15) follow edge of square when checking.

e. Retightee hex head screws (Item 5, figure 16) and arm

latch handte.

f. Recheck blade tooth "A" travel with square.

g_ After blade is square to fence reassemble radial arm

cap and indicator using screws (item 1 and 2, figure 16).

Set indicator at 0 °.

PRELIMINARY CROSS-CUT AT THE 0_POSITION

1o Attach saw guard (Item 1, figure 17) washer (item 2) and

wing nut (Item 3) to motor and motor s_tud(Item ,4).

2. Pull motor forward of fence so that blade is flee to rotate°

3. Lower radio1 arm untff sow blade just clears table top.

,4. Tighten carriage lock knob (Item 5, figure 17).

CAUTION

Before cutting always be sure that the arm latch

handle is locked fully clockwlse. (Item 8, figure 17.)

5. Plug in power cord to receptacle.

6. Insert switch key (Item 6, figure 17) and turn "On".

7. Lower rodial arm until blade cuts into tabte top 1/32".

THIS tS ALL THAT IS NECESSARY°

To cut a blade clearance groove in the table and fence hold

the bevel index handle (item 7, figure 17) with the left hand

and loosen the carriage lock knob (Item 5, figure 17) with

he right hand. Slowly pull the motor with the left hand out

to the e_reme end of travel and then push the motor back

through the fence to the e_treme rear posltion_Turn the key

Jwitch "OFF",

Figure 17

CHECKING THE SAW BLADE FOR HEEL

(LEFT AND RIGHT)

Using a scrap piece of one-lnch lumber approximately six

inches wide, lay it on the table against the fence on the left

side of the blade. Position the board ta permit a three-inch

piece to be cut from the right end holding the beard firmly

against the fence wffh the left hand. Turn the key switch

"On" and commence the cut by pulling the saw forward

through the board until the front half of the saw blade clear_

as _hown in View A_ Turn the switch "Off" and atlow the

saw blade to come to acomplete _op while the rear portion

of the blade is r_itl in contact with the wood, Marks on the

face of the board indicate left heeling. Check face of cut

board. See View A_ To check for right beefing repeat the

same cut from the right side of the blade. Check for heel

marks° See View B.

NOTE

The piece of wood must be held firmly against the

fence and not permitted to move while the saw

blade is coming to astop°

_0 "r_VEL ,_OE _U_VEL

%.

/_LnK IN DOA_O _'_ :ll_''' ktAf_ IN _AIO

St,ADE HEELING _ _ BLADE HEELING

TO LEFT VIEVV A V|_ B. TO li:IGHr

Exaggerated View of Heeling Condition

To correct for heeling (left or right) proceed as fallows:

1o Remove left hand carriage cover (Item 1, figure 18)o

Figure 1 8

10

2.* Loosen yoke clamp handle (item 2, figure 18) by pulling

the. handle horizontally toward the front of the saw.

3. Slightly loosenthe two hex head machine _rews (item 3,

figure 18).

4. Rotate the yoke (item 4, figure 18) very slightly oppo_ite

to the direction of heel. (For left heel, rotate yoke clock-

wise;forrightheel rotateyoke counterclockwise.)

OPERATING

1. Arbor Wrench

2. Shaft Wrench

3_ Table Clamp

4. Adapter Plug (Except in Canada)

5o Yoke Clamp Handle

6. Radial Arm Indicator

7. Carriage Lock Knob

8. Rip Scale Indicator 14----.._

9. Swivel Latch Pin Knob

10. Latch Pln Handle

1Io Switch Key

12. Arm Latch Handle

13_ Bevel Index Handle

14_ Discharge Elbow

15. Anti Kick Back Pawl Assembly

16. Bevel Lock Knob

17. Bevel Index Scale and indicator

18. Elevation Crank

19. Hex "'L" Wrenches

5. Refighten the two hex head machine screws (item 3,

figure 18) and relock the yoke by pushing the yoke clamp

handle toward the rear of the saw.

6. Recheck for left and right heel as before.

7o When the heeling condition is corrected the face of the

board will shaw no marks when cut from either side

of the blade.

B° Replace carriage cover_

CONTROLS

NOTE: WHEN ORDERING REPAIR PARTS

REFER TO PARTS LIST FOR COR-

RECT PART NUMBER. Figure _9

RAISING AND LOWERING THE RADIAL ARM is ac-

complished by the elevation crank (Item 18, figure 19). One

complete turn of this handte will raise or lower_the radial

€l/'m _,_".

LOCKING THE CARRIAGE TO THE RADIAL ARM is

accomplished by the carriage lock knob (Item 7, figure 19).

Turn the knob clockwise to lock; counterclockwise to unlock.

ANGULAR MOVEMENT AND LOCKING OF THE RADIAL

ARM are controlled by the arm latch handle (item 12,

figure 19). The radial arm can be rotated 360 °and locked

in any position. The arm is unlocked from any position by a

slight counterclockwise rotation of the arm latch handle

and is locked in any position by rotating the arm latch

handle clockwise until tight. The radial arm has positive

stops at 0 ° and 45 ° left and right, and is released from

these index positions by unlocking and pulling out the arm

latch handle (Item 12, figure 19). Due to positive arm

locking at the index positions, the arm latch handle

may be difficult to pull out. A few turns to the left will

release i|.

For most positive and accurate settings at the index posi-

tions, the following is recommended:

1. if the radio1 arm is already indexed, unlock and pull

out the arm latch handle and move the radial arm off

of the index position. Release the arm latch handle.

2. Before moving the radial arm to the desired index posi-

tion, turn the arm latch handle (item 12, figure 19) just

1/4 turn counterclockwise from the locked position.

3. Move the radia! arm into the index position (do not

bump or jar) and hit the face of the arm latch handle

solidly with the palm of the hand.

4. Lock the radial arm by turning the arm latch handle tufty

clecl_,vise.

CAUTION: When moving the radial arm in any

direction beyond _° left or right, always pull out

11

the arm latch handle (at end of radial arm) to

prevent damaging the arm lock pln_ If damage

occurs, the radial arm wiff not index properly at

0 ° and 45_ left or right.

MOVEMENT AND POSITION OF THE MOTOR IN THE

YOKE are,controlled by the latch pln handle (item 10, figure

19) and beveZlock knob (Item 16, figure 19). The bevel scale

indicates the angular position of the motor with respect to

the horizontal from 0 _to 90 ° in either vertical pos'rtionoThe

latch pin handle automatically indexes the motor at 0 °, 45 °,

and 90 ° up and da'_n. Lift to release. At any other posi-

tion the latch pin handle isnot engaged. The bevel lock knob

locks the motor to the yoke when the motor is in any posi-

tion. Locking is clockwise; unlocking is counterclockwise.

MOVEMENT AND POSITION OF THE YOKE are con-

troffed by the swivel latch pin knob (Item 9, figure 19) and

the yoke clamp handle (Item 5, figure 19). The swivel latch

pin automatically indexes the yoke at each 90 °position and

two 45 ° positions_ Lift to release_ The yoke clamp handle

locks the yoke to the carriage in any position. Pull to release.

Push to tighten. When "in Ripping" it may be desirable to

have more flee table in front of the saw blade than is oh-

tainable when the radial arm is at the 0 ° posltlon_ With

the blade in th normal cross-cut position index the radial

arm to 45 ° left and lock it. Then loosen the yoke clamp

handle and index tile yoke 45 ° clockwise_ Redamp the

yoke clamp handle. The added free table space is now to

the right of the blade and ripping should be done from the

right side of the table. The reverse is also true for "Out

Ripping" by indexing the radial arm 45 ° right and index-

ing the yoke ,45° countercTackwlse_ The added table space

is now ta the left of the blade and ripping should be done

from the left s_de of the table.

CAUTION: Under these two conditions the In-Rip

and Out-Rip scales cannot be used.

ADJUSTMENTOF RiPSCALEINDICATORS

Whenthefenceisin itsnormalposition(nextto thefront

table),indextheyoke90 °from the €_oss-cut position so

that the blade is between the motor and the fence° Lock

Move the molar along the radial arm uoti_the blade, when

spun by hand, just _uches the front face of the fence (See

Figure 20)° The indicator (Item 8, figure 19) on the "In-Rip"

scale should now read 0. If not, shift the position of the indi-

ca|at to read 0.

The same indicator should also read correctly on the "'Out-

Rip" scale when the blade is in the out-rip positlon_ This

indicator should be reset with any blade change.

The "Out-Rip" scale on the left side of the radial arm is

only used when the fence is in its extreme rear position

against the table clamps and the blade is in the out-rlp

position. The some method of adjustment is used for this

cote indicator except that the blade is positioned as shown

so that 9°° is measured between the fence and the nearest

blade tooth. (See Figure 2I).

The indicator should then be adjusted to read 9" an the

"Out-Rip" _cale on the left side of the radial arm_

hEAR T,/_ LEg._

MEASURE FROM FENCE

TO NEAREST BI.J_DE

TOOTH

I

Figure 21 .-Out-Rip Position of Blade

ADJUSTMEHT$ TO

COMPENSATE FOR WEAR

Even though the finest materials and procidon workmanship

have been u_ed to minimize wear it is reasonable to expect

some wear. Adjustments have been built into your Croft_

man sow to reduce or eliminate this wear.

COLUMN TUBE KEY ADJUSTMENT

:f excessive radlat arm movement is noticed even though

,t_e arm is locked in position, check the fit of the column

tube key (item 2, figure 22) and the key'way in the column

tuber

Figure

1. Adjust by loosening the socket set screw (item I, figure

22), using the 7/16 hex "t" wrench.

2. Prexsvigorously against the rear of the column tube key

(Item 2, figure 14) or C-clamp the key while slightly

rocking the radial arm back and forth_ This causes the

key to seat properly in the keywoTo

3, Tighten the set screw (Item 1, figure 22) securely while

maintaining pressure on the key.

YOKE CLAMP HANDLE ADJUSTMENT

The normal locking position of the yoke clamp handle (item

1, View A_ figure 23) is midway between the two sides of

the yoke.

When the handle strikesthe yoke before locking, the handle

may be adjusted as follows:

1. Remove sow guard and blade.

2. Set yoke clamp handle to Position A, Figure 23. (Mid

way.)

3. Remove lock screw (Item 3).

4o With off-set screw driver turn slotted end of the yoke

clamp (Item 2) counterclockwise until a slight snugness

of the yoke clamp handle is felt at Position A, Figure 23.

a___s G _osmoN ou_ To WEAR

NOR/€_ L LOCKING

1710N

..-..3._ LOOSENED _SITION

_"" LOOSENED

POSitION A

Figure 23 NO_U,_,_OC_NGPOSlnON

5o To replace lock screw align holes in yoke clamp with

hole in yoke by aslight odiustment of yoke clamp using

off-set screw driver° Insert lock screw and tighten.

CARRIAGE

To test for loosenessin the carriage, firm|y grasp the car-

riage (Item 1, figure 24) at the levet of the baff races and

apply afirm rocking motion.

Noticeable looseness may be adiusted as follows:

1. Remove sow guard and blade.

2o Place block of wood on table under motor and turn

elevation crank until weight of motor just rests on block.

3. Remove carriage lock knob assembly (Item 2, figure 24)

and carriage cover (Item 3, figure 24).

4. Loosen 3 hex head machine screws (item 1, figure 25),

eccentric hold-down screw (Item 2, figure 25) and two

adjusting set screwsin the holes on the side of the car-

riage (Items 5, figure 2S)o Use 1/8 hex "L" wrench on

set screws,

5_ Rotate eccentric bushing (Item 3, figure 25) clockwise to

obtain snug fit. The bali retainer (Item 4, figure 25)

should be guided at both ends by hand to prevent

cocking°

12

6. Retlghten all hex head scTew and _ntric bold-down

_rew. (Do not allow eccentric bushing to rotate when

ttlghtenlng.)

7. Correct adjustment exists when there is no play between

the carriage and radial arm, and yet the carriage moves

freely. After adjustment is completed snugly tighten the

two adjusting set screws. Caution: Do not o_rtlghten.

8. Replace carriage cove_ and lock knob ossernbly_

PROPEROPERATINGPROCEDURES

DRESS PROPERLY -- Operation of the saw is simple, safe

and easy-when properly done. Always be atert_ Do not

wear atie or other loose artlcles. Keep long sleeves down

with cuffs fastened or wear short sleeves. NEVER STOP

BEING CAREFUL. One moment of inattention can cost you

a painful injury.

AVOID AWKWARD HAND POSITIONS-*Do not get

hands into aposition in which asudden slip can cause them

to move into the saw blade. NEVER OPERATE THE SAW

WITH THE ARMS IN A CROSSED POSITION. Never hold

work on right side of blade with left hand while pulling saw

with the right hand Do not attempt flee-hand cros_.cuttlngo

Use apush stickwhen hand gets too close to the blade in o

ripping position.

NEVER TWIST WORK --Twisting work will bind blade and

cause a kickback_

Safety Precaution

The motor is shipped with a shaft cap (Item 21,

figure 4) threaded onto the stub end of the motor

shaft_ When this shaft end of the motor is not being

used, this cap should always be in place.

LUBR|CATriON

Your saw is a fine machine and should be given the best of

care. If kept clean and properly lubricated, it will give many

years of trouble-free service° Before describing the various

points which may periodically require lubrication, IT 15

MORE IMPORTANT TO FIRST MENTION THE VARIOUS

SPOTS WHICH SHOULD NOT BE LUBRICATED°

NO LUBRICATION REQUIRED

Do not lubricate any ball races or any ball bearings.

Do not lubrTcate bearing fit of bevel index handle (Item 52,

figure 3) in yoke.

Do not lubricate the motor bearings° These are sealed ball

bearings and require no added lubrication.

Do not lubricate bevel latch pin (Item 31, figure 3) in yoke.

DO not lubricate between radial arm cap (Item 12, figure 1)

and radial arm_

PERIODICALLY LUBRICATE THESE POINTS

Use SAE No. 10-30 Auto Engine Oilo

Apply a few drops of all along the swivel latch pin (item 6,

figure 3) only ff the pin has atendency to stick.Remove the

left-hand carriage cover and use all sparingly to prevent it

from getting on the ball bearings or races.

Alight film of oil can be wiped on the face of the column

tube (Item 15, figure 1) and keyway to lubricate the fit

between this part and the key and column support (Items

21 and 19, figure 2).

Apply a few drops of all to the bearing surfaces of the

elevation crank shaft assembly (Item 29, figure 2). An othng

hole is provided in the elevaffon shaft bearing bracket (Item

23, figure 2) to facilitate the lubrication of the rear bearing

support.

The thread on the elevation shaft assembly (Item 30, figure

2) can be lubricated through the oiling hole in the center

of the radial arm cap (Item 12, figure I).

STANDARDSAW OPERATIONS

CROSS, CUI"rlNG

Crass-cuttlng is the sawing of wood across the grain. Planks

ore milled with the grain running the length of the plank_ If

a straight cross-cut is desired, the board is placed on the

saw table against the fence so that the grain is parallel to

the fence. See Figure 26.

NOTE

When cross-cuttlng normal pieces of lumber, the

long end of the board should be placed to the left

of the saw blade as the board isnormally held by

the left hand during operation_

The radial arm must be positioned at 0 ° as indicated by the

radial arm position indicator. The arm latch handle must be

indexed and tightened_ See page 11 "Angular Movement

and Locking of the Radial Arm" far the mostaccurate setting

at the 0 ° index position. The yoke must be indexed at the 0 °

position, making the saw blade perpendicular to the rip

fence, and the yoke clamp handle placed in the locked pos_-

• .. o €IS

fion. The bevel index handle must be positioned at 0 ,

indicated by the bore| scale, and Iocked_Turn the elevation

crank to lower the saw until the btade teeth are approxl-

mately 1/32" below the table surface in the saw slot

made when performing the "PREI.IMINARY CROSS-CUT

AT THE 0 ° POSITION". Push the saw carriage to the rear

of the radial arm so the blade is behind the rip fence. Adjust

the saw guard so the bottom is parallel to the table and set

the antl-klckback pawl assembly so it iust clears the board

to be cut. Turn the switch key "On" to start the saw motor.

Hold the board firmly against the rip fence with the left hand

and grasp the bevel index handle with the right hand. The

cut is then made by pulling the carriage forward until the

13

saw _lode cuts through the work_

The carriage will tend to move toward the operator so be

,prepared to restrain it by keeping your arm straight from

fife shoulder to the wrist, When the cut is complete, the saw

should be returned to the back of the radial arm and the

swltch key turned "Off". it will be noticed, that the

saw blade tends to feed itself through the work

due to the rotation of the blade and the direction of

feed. Therefore, the operator should develop the habit

of holding his right arm straight from the shoulder

to the wrlst_ After this method is used a few times the oper-

ator will find that it is necessary to roll or rotate the body

from the waist up. If this method is followed, it will become

apparent that very little effort is required on the pert of the

operator to move the saw blade through the work, and in

mostcases, the right arm is used merely to control the rate of

feed of the saw through the board_ It will also be found that

when cross-cuttlng athick board itwilt be necessary to retard

movement of the saw through the work. By holding the right

arm (right hand normally grips the saw handle) _alght, the

operator can easily control the rate of feed, thusprever_ing

the saw blade from overfeeding and stalling the saw motor.

This mustbe avoided whenever possible. In some casesit may

become necessary to cross-cut tong boards which extend

over the saw table on one, or both sides. This can cause

buckling of the board and bind the sow during the cut, To

eliminate th;s condition the ends of the board should be sup-

ported. Figure 27 illustrates a typical support which can be

made and used to facilitate cross<utting of long lumber°

RIPPING

Ripping is the sawing of wood with the grain. It is always

done with the help of the fence as a guide to position and

maintain the work at the correct width for the cut_ Because

the work is pushed along the fence, it must have a reason..

ably straight edge to make sliding contact with the fence°

Also, the work must make solid contact wlth the table sa that

it will not wobble or rock. Provide a straight edge, even if

this means temporary nailing of an auxiliary straight edge

board to the work_ If work piece is warped, torn the hollow

side down.

Use of the sow guard is always recommended; and the arrti-

kicEback paw! assembly shou|d always be used in both in-rip

or our-rip operations, Before ripping and after the saw has

been positioned prior to cutting, the saw guard and anti-

kickback pawl assembly must be properly adjusted_ Loosen

the wing nut holding the guard to the motor and lower the

nose of the guard to within _" above the top surface of

the board to be cu_. Refighten the wing n_ securely.

CAUTION

The nose of the guard refers to that end of the

guard which is opposite to the end which mountsthe

anti-kickback pawl assembly. Always rlp from the

nose of the guard. See Warning [.abel on guard.

At the opposite end of the guard, loosen the wing screw

holding the anti-kickback pawl assembty and lower the

assembly until the tips of the pawls are 7/8" below the top

_Jrface of the board to be cu/_ Retighten the wing screw

IN-RIPPING--In-rip refers to aposltion when the blade is

between the motor and the fence and parallel to the fence.

See Figure 28. To place the sow in this position, unlock the

yoke, disengage the swivel latch pin and rotate the yoke 90 °

clockwise (viewing it from the carriage) until the swivel latch

pin automatically indexes the yoke 90% Relock the yoke.

See "'Adjustment of Pointers" to check accuracy of "lnoRip"

scale reading. Position the motor on the radial arm until the

pointer on the "In-Rip" scale indicates the desired width of

the finished cut board_ Tighten the carriage lock knob se-

curely. Position the discharge elbow on the guard _o that

sawdust will be blown toward the rear of the saw. Turn the

saw "'On" end lower the saw blade until it cuts into the table

top about 1/32",, Turn the saw "Off"° Haw adjust the

saw guard and anti.kickback pawl assembly as described

in the paragraph "Ripping". The board to be ripped

must be fed into the saw blade from the right side of

the table, therefore, the normal position for the operator

is also at the right side of the table. With the left hand safely

clear of the blade and holding the board to be ripped down

against the table and against the face of the fence as a

guide, use the right hand to feed the board into the saw. The

left hand should remain stationary, serving as a guide only.

As the right hand approaches the left hand, hold a push stick

with the right hand to complete the cut°Do not leave a long

board unsupported so that the spring of the board causes it

to shift on the table_ A support like that described in "Cross_

Cutting" can be used to support the board behind the blade;

and if the board is very long, use another support in front of

the saw° R_pped boards up to 8_" wide can be cut in

the In-Rip posltiom

OUT-RIPPING-_Ouf_rip refers to aposition when the motor

is between the blade and the fence° Normally, this position

is only used when the width of the required ripped board

cannot be cut from the in-rip position. Ripped boards up to

181,_°' wide can be cut in the out_rlp position when the

fence is against the front table. If the fence is moved to the

extreme rear position against the table clamps, ripped

boards up to 25,%" wide can be cut_ To place the saw

in the out.rip position, the yoke mustbe rotated and indexed

90 ° counterclockwise from the crossocutposition and locked..

The same procedure far sawing is used except that now

the operator stands at the left side of the table and apush

stick is normally nat required°

NOTE

For added table space in front of the blade see

"Movement and Position of the Yoke".

F;gure 27 Figure 2B Figure 29

14

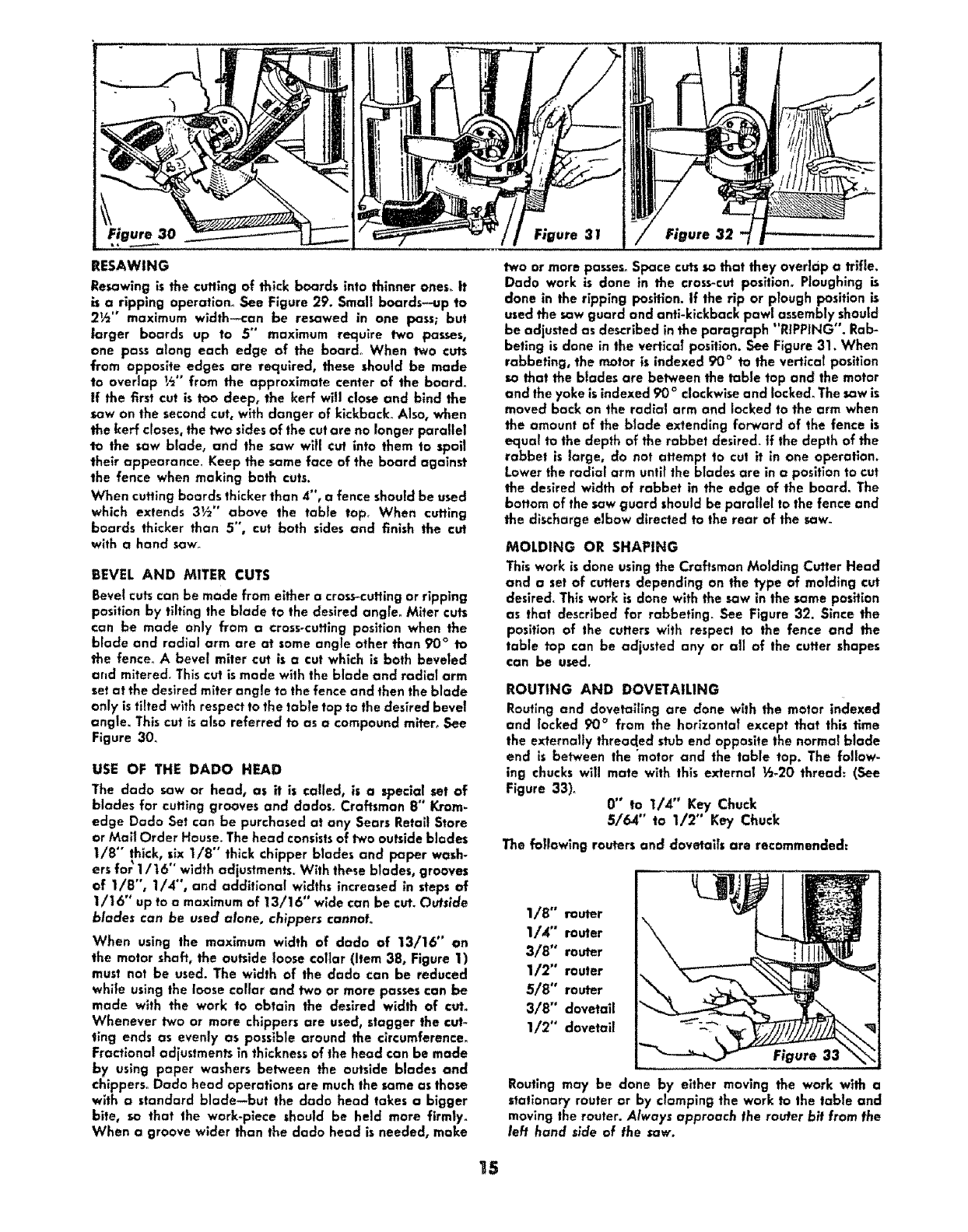

RESAWING

Resowing is the cutting of thick boards into thinner ones_ It

is a ripping operatiano See Figure 29. Smalt boards-up to

2½" maximum wldth--can be resawed in one pass; but

larger boards up to S" maximum require two passes,

one pass along each edge of the board.r When two cuts

from opposite edges are required, these should be made

to overlap _,_" from the approximate center of the board_

If the first cut is too deep, the kerf will close and bind the

saw an the second cut, with danger of kickback° Also, when

the kerf closes,the two sides of the cutare na longer parallel

to the saw blade, and the saw will cut into them to spoil

their appearance_ Keep the same face af the board against

the fence when making both cuts.

When cutting boards thicker than 4"° a fence should be used

which extends 3½" above the table topr When cutting

boards thicker than 5", cut both sides and finish the cut

wlth a hand saw_

BEVEL AND MITER CUTS

Bevel cuts can be made from either a crass-cuttingor ripping

position by tilting the blade to the desired angle. Miter cuts

can be made only from a cross-cutting position when the

blade and radial arm are at some angle other than 90 =to

the fence° A bevel miter cut is acut which is both beveled

arid mitered. This cut is made with the blade and radial arm

set at the desired miter angle to the fence and then the blade

only is tilted with respect ta the table top to the desired beve!

angle. This cut is also referred to as a compound miter, See

Figure 30_

USE OF THE DADO HEAD

The dado saw or head, as it is called, is a special set of

blades for cutting grooves and dados_ Craftsman 8" Krom.

edge Dada Set can be purchased at any Sears Retail Store

or Mall Order House. The head consistsof two autside blades

I/8" thick, six 1/8" thick chipper blades and Paper wash-

ers for' 1/t6" width adjustments. With these blades, grooves

of 1/8", 1/4", and additional widths increased in steps of

1/t6" up to a maximum of 13/16" wide can be cut. Outside

blades con be used alone, chippers cannot°

When using the moxlmum width of dado of 13/16" on

the motor shaft, the outside Ioo_e collar (Item 38, Figure 1)

must not be used. The width of the dado can be reduced

while using the loose collar and two or more passes can be

made with the work to obtain the desired width of cut°

Whenever two or more chippers are used, stagger the cut-

ting ends as evenly as possible around the clrcumference_

Fractlanat adjustments in thicknessof the head can be made

by using paper washers between the outside blades and

chippers° Dado head operations are much the same as those

with astandard blade-but the dado head takes a bigger

bite, so that the work-place should be held more firmly.

When a groove wider than the dado head is needed, make

Figure 31 Figure 32

two or mare passes_Space cuts so that they oveddp atrifle.

Dado work is done in the cross-cut position. Ploughing is

done in the ripping position. If the rip or plough position is

used the saw guard and anti-kickback pawl assembly should

be adjusted as described in the paragraph "RIPPING". Rab-

beting is done in the vertical position. See Figure 31. When

rabbeting, the motor is indexed 90 ° to the vertlcat position

so that the blades are between the table tap and the motor

and the yoke is indexed 90 oclockwiseand locked° The sow is

moved back on the radio1 arm and locked to the arm when

the amount of the blade extending forward of the fence is

equal to the depth of the rabbet desired, tf the depth of the

rabbet is large, do not attempt to cut it in one operation.

Lower the radial arm until the blades are in aposition to cut

the desired width of rabbet in the edge of the board, The

bottom of the saw guard should be parallel to the fence and

the discharge elbow directed to the rear of the sown

MOLDING OR SHAPING

Th_swork is done using the Craftsman Molding Cutter Head

and a set of cutters depending on the type of molding cut

desired. This work is done with the saw in the some position

as that described for rabbetlng_ See Figure 32. Since the

position of the cutters with respect to the fence and the

table top can be adjusted any or all of the cutter shapes

can be used.

ROUTING AND DOVETAILING

Routing and dovetailing are done with the motor indexed

and locked 90 ° from the horizanta! except that this time

the externally threaded stub end opposite the normal blade

end is between the "motor and the table top. The foffow-

ing chucks will mate with this external ½-20 thread: (See

Figure 33)° 0 '° to 1/,_" Key Chuck

5/64" to I/2" Key Chuck

The followlng routers and dovetails are recommended:

1/8" muter

1/4'" router

3/8" router

1/2" router

5/8" router

3/8" dovetail

1/2 °° dovetoff

Figure 33

Routing may be done by either moving the work wffh a

stationary router or by clamping the work to the table and

moving the router. Always approach the router bit from the

left hand side af the saw.

15

Figure 25 Figure 36

BOiUNG

Your saw can also be €onveded 1o a horZzonta| drill for

boring by using one of the recommended c_ucks ahd the

proper drill For drilling holes on an angle the radial arm

d_ould be positioned to the desired angle while the work is

parallel to the fence, See Figure34.

SANDING

Using the 10" sanding disc mounted on the saw end of the

motor, you can convert your saw into a sander which can be

operated in any position° The loose collars should be used

on both sides of the sanding disc°

STABILIZING WASHERS FOR THIN bLADES

Stabilizlng washers should be used with thin btades for

improved appearance of the finish cuts.

HELPFUL HINTS

1_ The life of the laminated saw table can be greatly length-

ened if a 1¼,,piece of plywood istacked to the table top

after leveling Then all cutting can be done in the added

plebe of plywood instead of the laminated table.

_. There is a posslbility that during or after shipment, the

wooden front tab|e; spacer board, or rear table might

became slightly warped Lay a straight edge across the

surface of the table and check for gaps or high spots on

the table. Any portions of the table which are not fiat

should be planed and sanded until flat Sanding can be

done by using one of the two key chucks referred to

under "'Routing" and aCraftsman moulded rubber 7"

sanding disc_

2. When sanding the table top (See Figure 35) oI"routing

with the work stationary, the arm lock pln can be pre-

vented from automotlcally indexing at 0 ° and 45 ° by

rotating the arm latch handle about 6turns counter-

clockwise from the locked position_

4. A scale may be attached to the fence to aid the oper-

at'or when measuring lengths during cToss-cutoperations.

This can be accomplished by ta_ing a yard stick to the

fence as shown° See Figure 36_

S. In the event that the fence is warped and cannot be

straightened by tightening the table clamps proceed as

follows: Removethe fence and replace with a temporary

fence made from a straight piece of scrap lumber_ Pro-

ceed to cut slot_ in the original fence where the gap

between the fence and front table was determined to be

the greatest_ See Figure 37 for slotting.

Replace the fence, after slotting, behind the front table

with the dots toward the rear and tighten the tabte

damps_

6. There are three positions in which the fence can be

located. See Figure 38.

I. Normal position.

2. Position used for maximum cross-cut an 1" material

and for greater bevel and miter capacity°

CAUTION

Rip scales cannot be used in this F_>sltlon.

3_ Position used for maximum out-Hp capQcff',/.

7. An auxiliary table top for molding or shaping can be

constructed slmffar to Figure 39_ Note the shape of the

back guide fence against which your work p_eceis moved°

Acut-out 5" wide should be made at the center of this

guide fence to give adequate clearance for the molding

head and cutters. Also a wider clearance marked "'A°'

should be made to allow for the radial saw motor. Be

sure the front edge of the auxiliary table is parallel with

the surface of the guide fence. With the auxiliary table

top thus completed it is ready for use by merely damp-

lng it into position with "C °' clamps.

2_4 -- I,._A_°_ LONG

EDGES rA_LALLEL I I

! lAD IAL SAW

TABLE

Figure 37

_,_ _ 16
