GARAGE DOOR OPENER

1/2 HP

OWNER’S

MANUAL

Model No.

139.18847

139.18857

For Residential Use

Only

Caution:

Read and follow all

safety rules and

operating instructions

before first use of this

product.

Fasten the manual

near the garage door

after installation.

The Chamberlain Group, Inc.

Cover - SEARS

4/16/92

®

■Safety Precautions

■Assembly

■Installation

■Adjustment

■Care and Maintenance

■Operation

■Troubleshooting

■Parts List

®

MD

®

MD

Sears Canada, Inc., Toronto, Ontario M5B 2B8

Start by Reviewing these Important Safety Alert Symbols

2

Contents Page

A review of safety alert symbols.................................2

You'll need tools..........................................................3

Safety information regarding garage door

locks and ropes.........................................................3

Testing your garage door for sticking,

binding and balance..................................................3

Illustration of sectional door installation .....................4

Illustration of one-piece door installation....................5

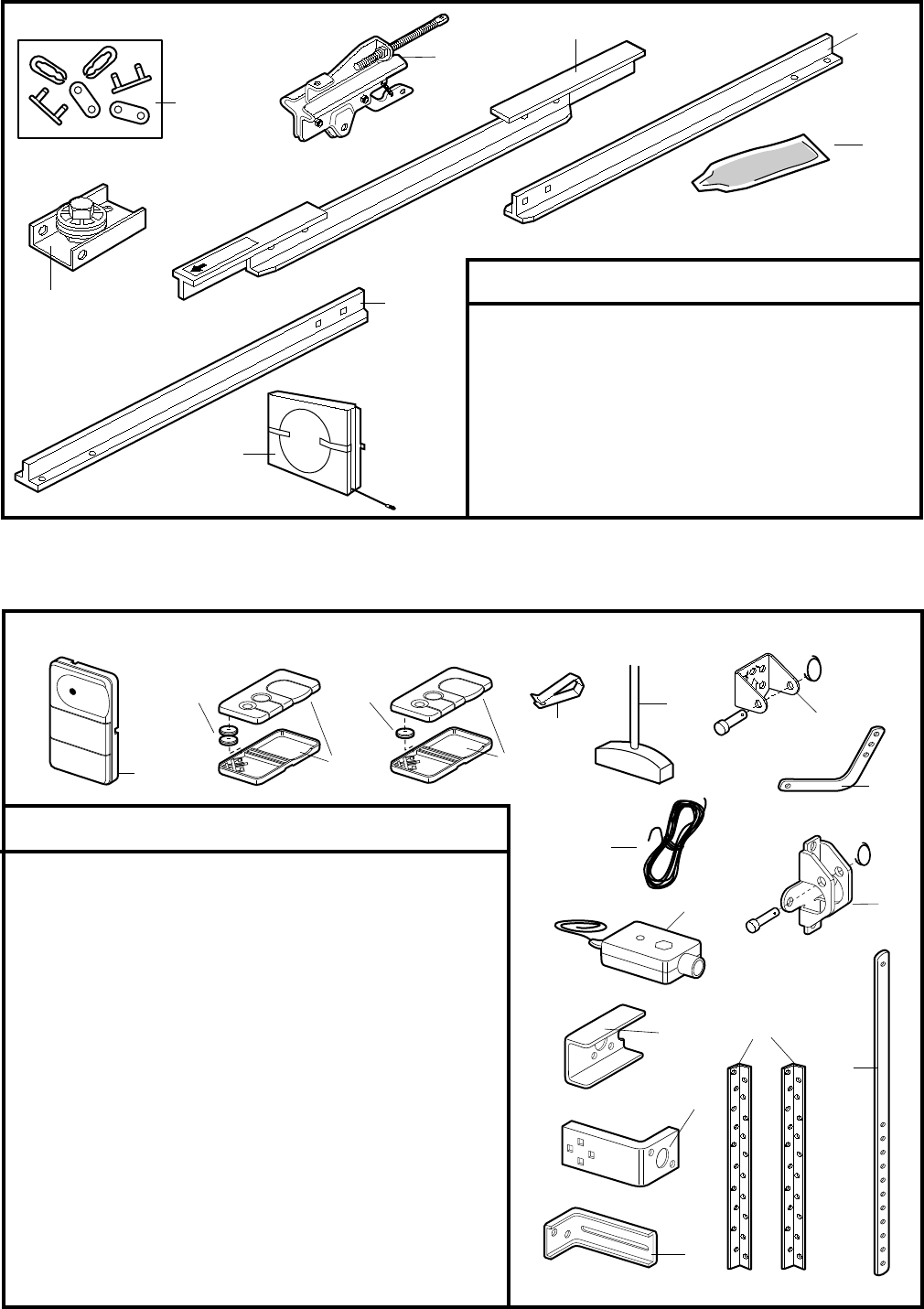

Carton inventory..........................................................6

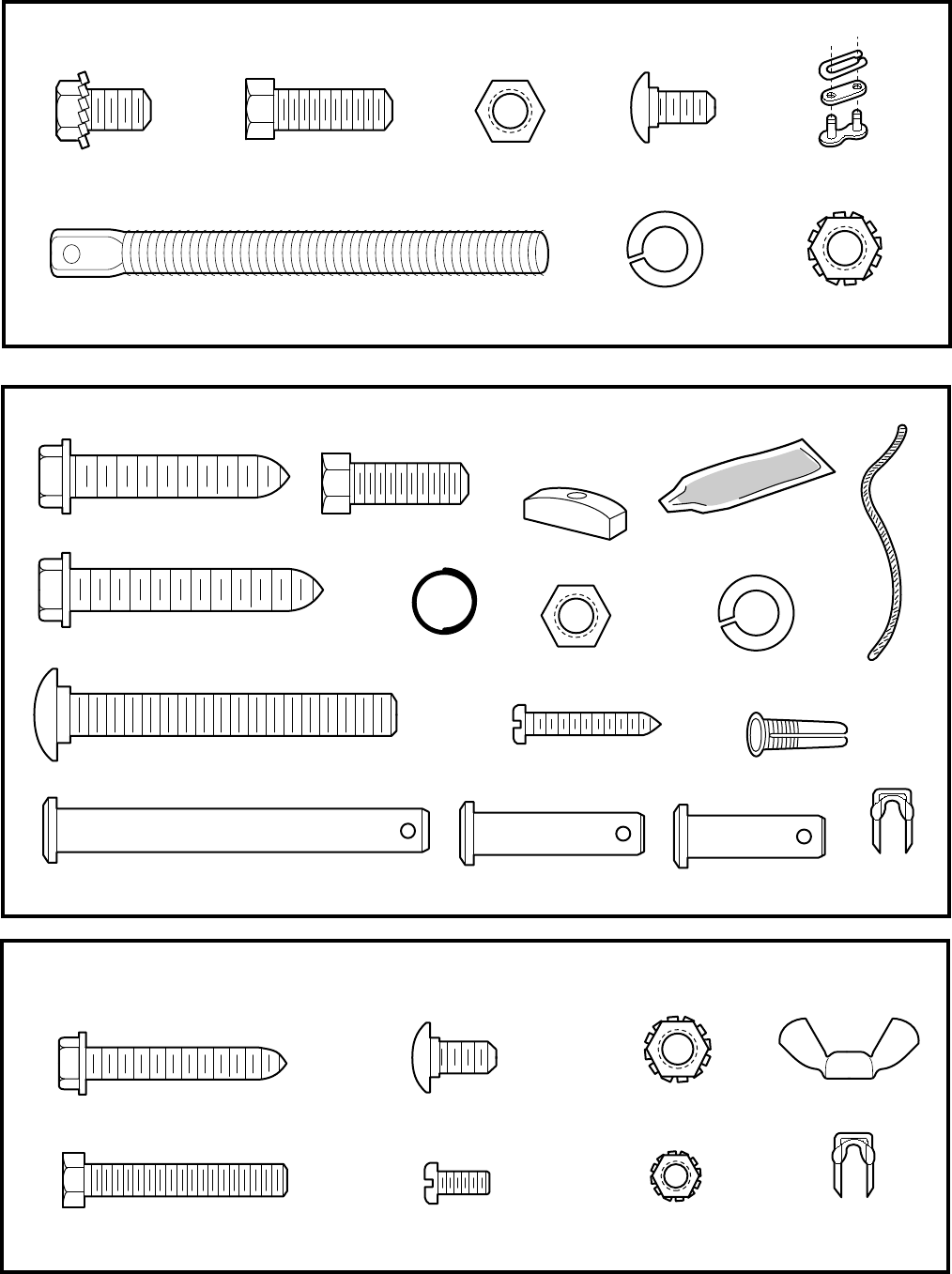

Hardware inventory.....................................................7

Assembly section - pages 8 – 11

Assemble T-rail.........................................................8

Attach cable pulley bracket.......................................8

Install trolley ..............................................................9

Fasten T-rail to opener .............................................9

Install chain/cable ...................................................10

Attach sprocket cover .............................................10

Tighten the chain and cable ...................................11

Installation section - pages 11 – 27

Installation safety instructions.................................11

Determine header bracket location

Sectional door......................................................12

One-piece door ....................................................13

Install the header bracket .......................................14

Attach the T-rail to header bracket.........................15

Position the opener.................................................16

Hang the opener.....................................................17

Install the door control ............................................18

Contents Page

Install the lights and lenses......................................19

Attach emergency release rope and handle ...........19

Electrical requirements.............................................20

Safety reversing sensor information ........................21

Install the safety reversing sensor .....................22, 23

Fasten door bracket (sectional door).......................24

Fasten door bracket (one-piece door) .....................25

Connect door arm to trolley (sectional door) ...........26

Connect door arm to trolley (one-piece door)..........27

Adjustment section - pages 28 – 30

Travel limit adjustments ...........................................28

Force adjustments....................................................29

Test the safety reversing sensor..............................30

Test the safety reverse system ...............................30

Operation safety instructions .....................................31

Care of your opener ...................................................31

Maintenance schedule ...............................................31

Operation of your opener ...........................................32

Receiver and remote control programming...............33

Having a problem?...............................................34, 35

Repair parts, rail assembly.........................................36

Repair parts, installation.............................................36

Repair parts, opener assembly..................................37

Accessories ................................................................38

Index ...........................................................................39

How to order repair parts ...........................................40

Maintenance agreement ............................................40

Warranty .....................................................................40

When you see these Safety Symbols on the following pages, they will alert you to the possibility of

serious injury or death

if you do not comply with the corresponding instructions. The hazard may

come from something mechanical or from electric shock.

Read the instructions carefully.

When you see this Safety Symbol on the following pages, it will alert you to the possibility of damage

to your garage door and/or the garage door opener if you do not comply with the corresponding

instructions.

Read the instructions carefully.

This garage door opener is designed and tested to offer safe service provided it is installed, operated,

maintained and tested in strict accordance with the safety instructions contained in this manual.

Mechanical Electrical

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

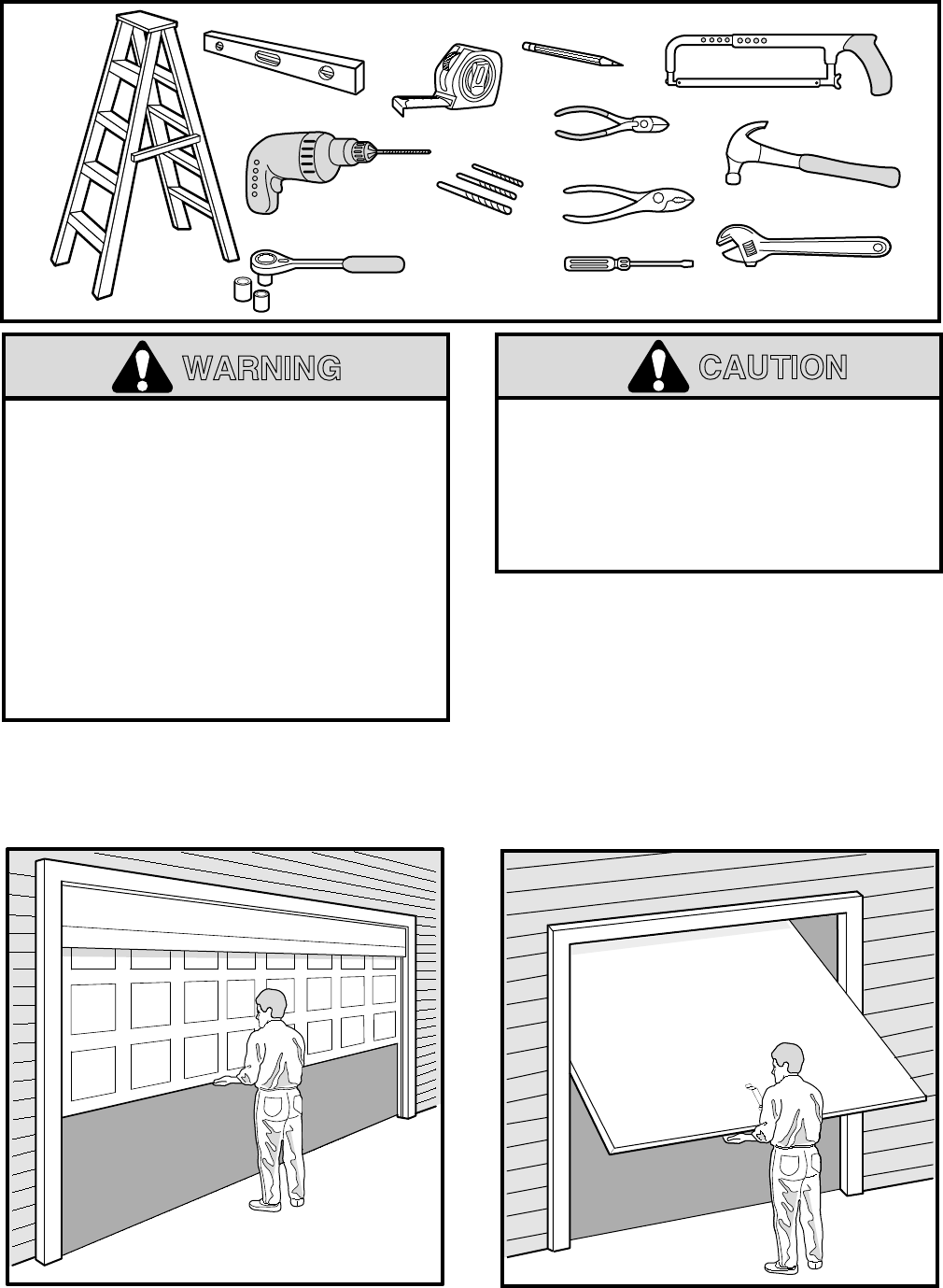

Pliers

Wire Cutters

Claw Hammer

Hack Saw

Screwdriver Adjustable End Wrench

1/2" and 7/16" Sockets

and Wrench

Drill

Tape Measure

2

1

Stepladder

Pencil

3/16", 5/16", and 

5/32" Drill Bits

Carpenter's

Level

Pince universelle

Pince coupante

Marteau

Scie à métaux

Tournevis Clé à molette

Clé à douille et douilles

de 1/2 po et 7/16 de po

Perceuse

Ruban à mesurer

2

1

Escabeau

Crayon

Forets de 3/16 de po,

de 5/16 de po et 5/32 de po

Niveau de

menuisier

You'll Need Tools

During assembly, installation and adjustment of the opener, instructions will call for hand tools shown below.

3

ONE-PIECE DOOR

SECTIONAL DOOR

ONE-PIECE DOOR

PORTE ARTICULÉE PORTE RIGIDE

ONE-PIECE DOOR

SECTIONAL DOOR

ONE-PIECE DOOR

PORTE ARTICULÉE PORTE RIGIDE

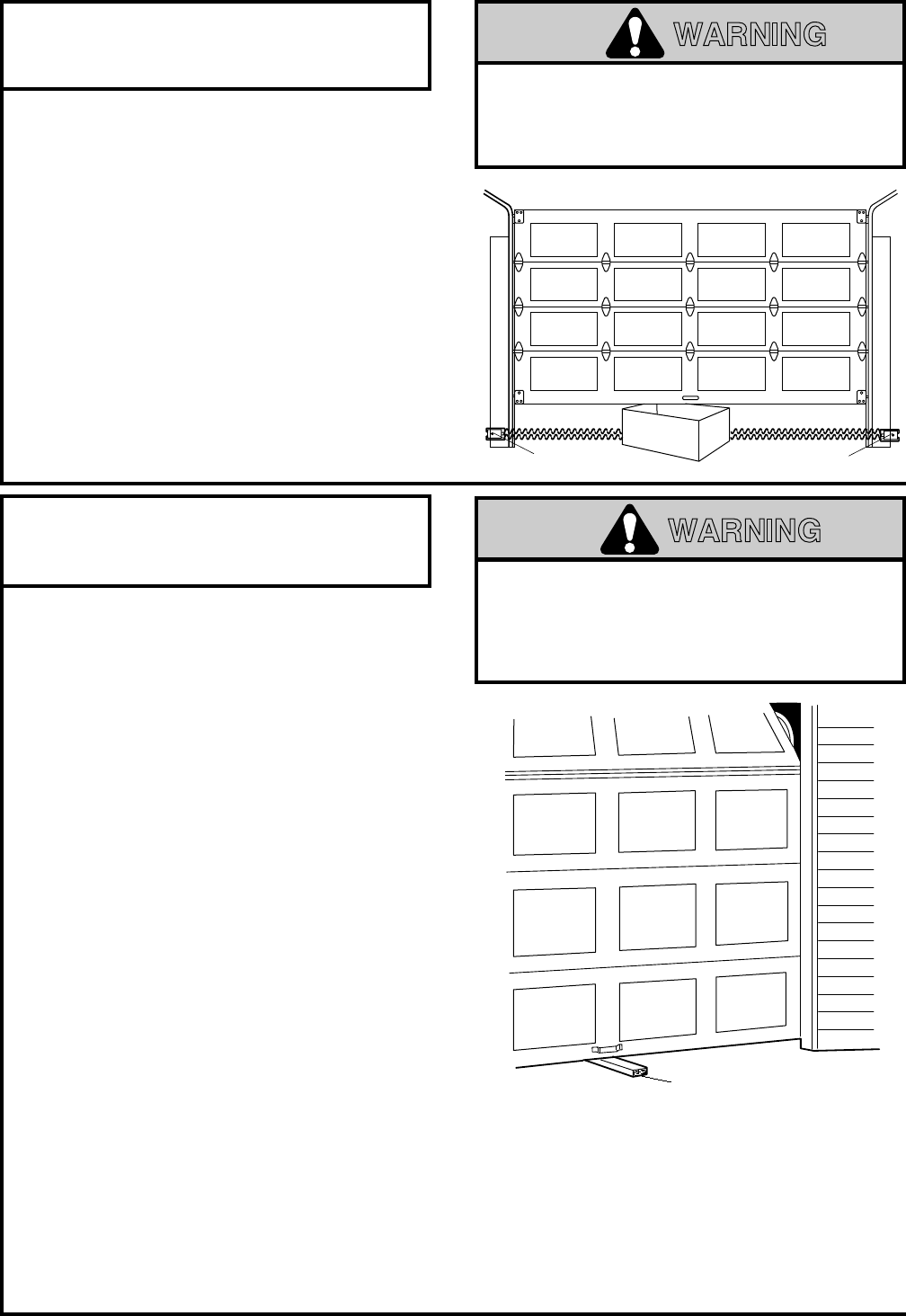

An unbalanced garage door might not reverse

when required and someone under the door

could be seriously injured or killed.

If your garage door binds, sticks or is out of

balance, call for professional garage door

service.

Garage doors, door springs, cables,

pulleys, brackets and their hardware are under

extreme tension and can cause serious injury

or death.

Do not try to loosen, move or adjust

them yourself!

Ropes left on a garage door could cause

someone to become entangled and killed.

Remove all ropes connected to the door before

installing and operating the opener.

To avoid damage to the garage door and

opener, disable locks before installing and

operating the opener. Use a wood screw or nail

to hold locks in the "open" (unlocked)

position.

Operation at other than 120V 60 Hz will cause

opener malfunction and damage.

Identify the type and height of your door and any

special conditions that exist and any additional

materials that may be required by referring to the lists

on page 4 or page 5.

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

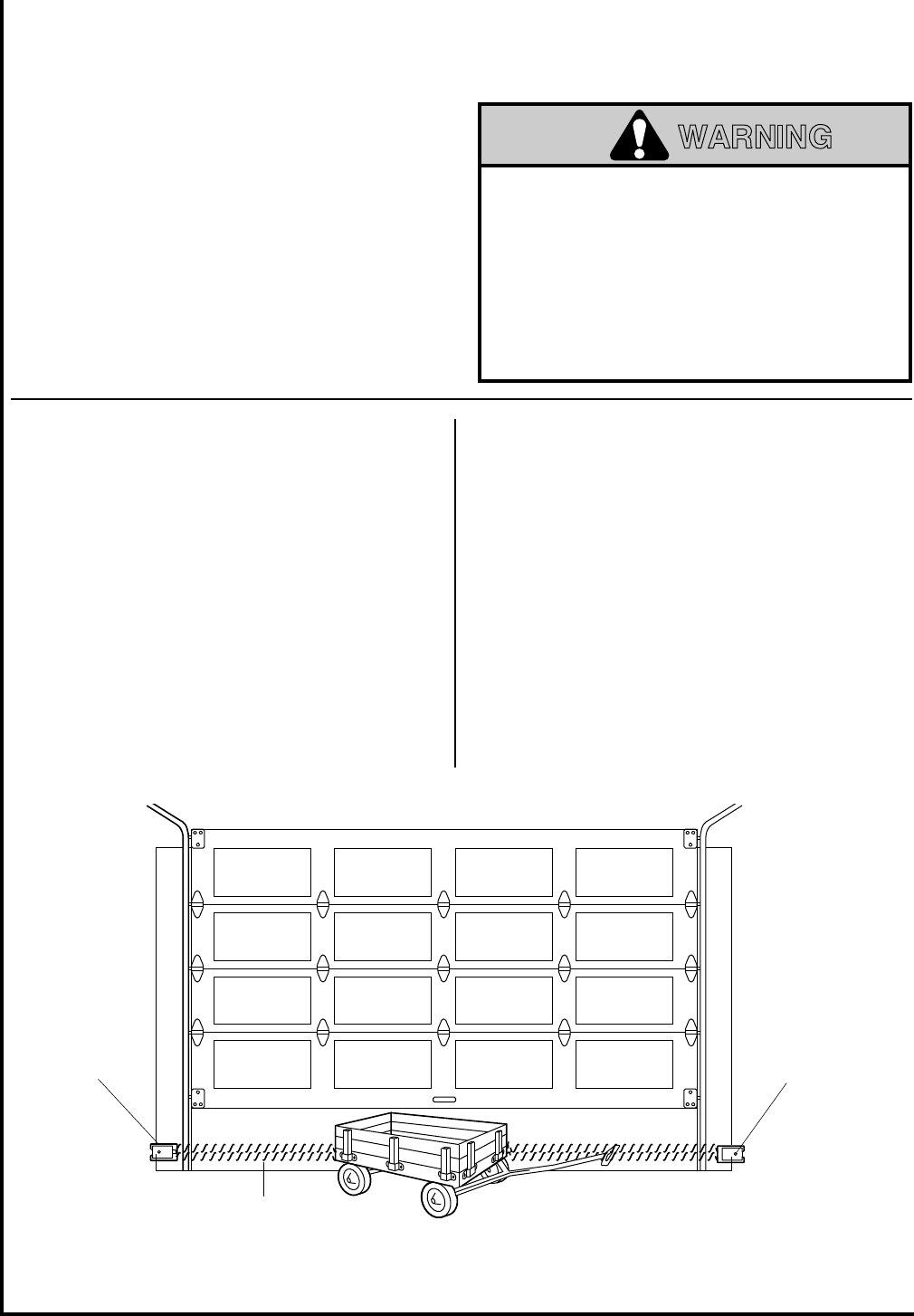

Before you begin, complete the following test to

make sure your door is balanced, and is not

sticking or binding:

• Lift the door about halfway as shown. Release the

door. It should stay in place, supported entirely by

its springs.

• Raise and lower the door to see if there is any

binding or sticking.

4

Safety Reversing Sensor

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, steel, aluminum, door with glass panels, etc.).

See page 24 for details.

Support bracket & 

fastening hardware

is required.

See page 17.

Trolley

Cable

Emergency

Release

Rope &

Handle

Garage

Door

Straight

Door

Arm

Curved

Door Arm

Slack in Chain Tension

is Normal When

Garage Door is Closed

Open Position

T-rail

— — — — — — — —

Door Center

Header Wall

Safety

Reversing

Sensor

Floor must be level

across width of door

FINISHED CEILING

Extension Spring

Torsion Spring

Access Door

OR

Cable Pulley

Bracket

Header

Bracket

Trolley

Straight

Door

Arm

Emergency

Release

Rope & Handle

Door Bracket

Garage

Door

Curved

Door

Arm

Garage

Door

Spring

Header

Wall

Cable

Closed Position

Rail Assembly

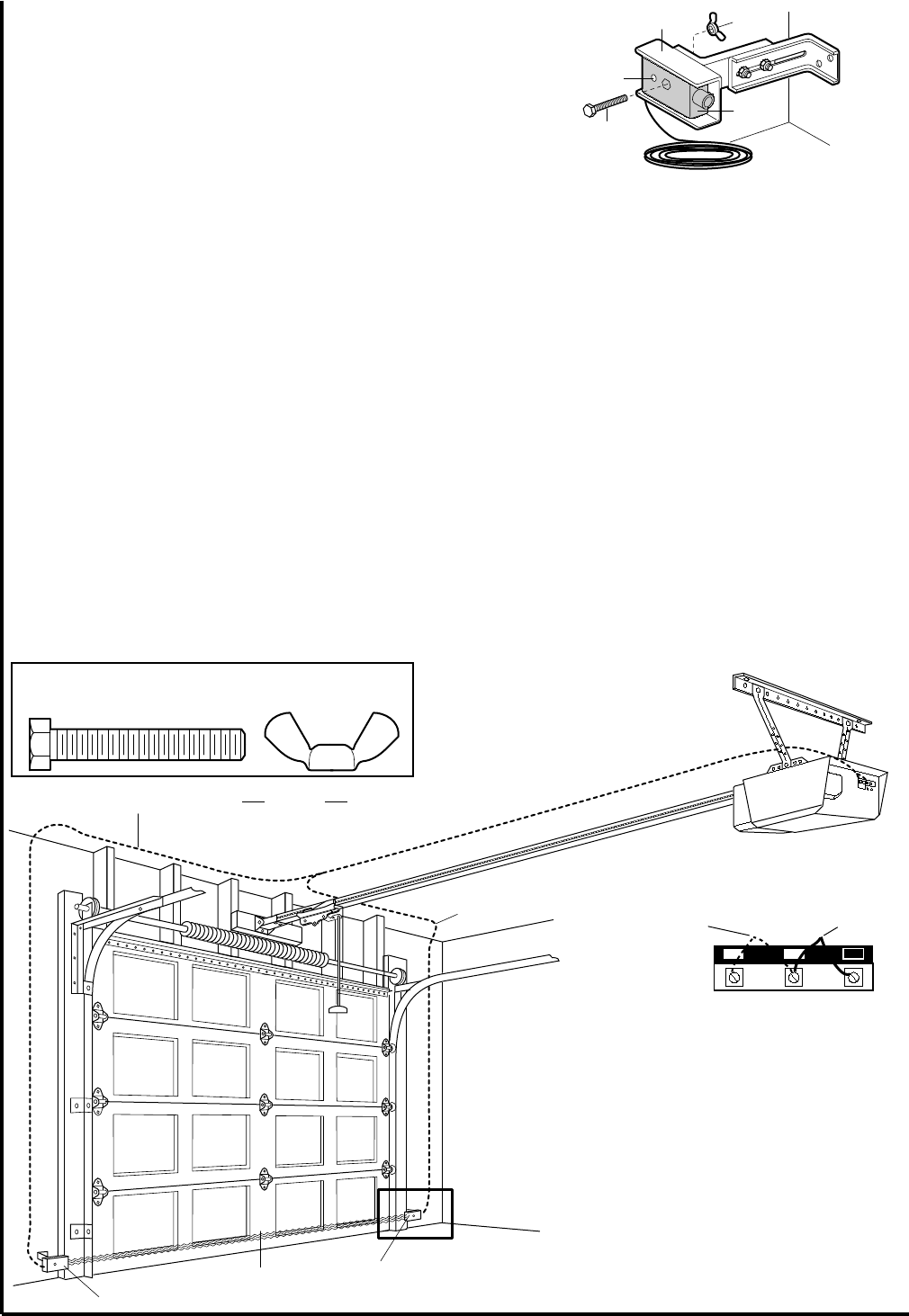

Before you begin, survey your garage area to see whether any of the conditions below apply to your installation.

Based on your particular requirements, there are

several installation steps which might call for

materials and/or hardware not included in the carton.

• Step 1, page 12 - Look at the wall or ceiling above

the garage door. The header bracket

must

be

securely fastened to structural supports.

• Step 5, page 17 - Do you have a finished ceiling in

your garage? If so, a support bracket and

additional fastening hardware may be required.

• Safety reversing sensor, page 21 - Depending

upon garage construction, wood blocks may need

to be fastened to mounting locations before

sensors are installed.

• Step 10, page 22 - Alternate floor mounting of the

safety reversing sensor will require hardware not

provided.

• Step 11, page 24 - Do you have a steel, aluminum,

fiberglass or glass panel door? If so, horizontal

and vertical reinforcement is required.

• Look at the garage door where it meets the

floor. It must close on the floor all the way

across. Otherwise, the safety reverse system

may not work properly. See page 30. Floor or

door should be repaired.

Safety Reversing Sensor

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, steel, aluminum, door with glass panels, etc.).

See page 24 for details.

Support bracket & 

fastening hardware

is required.

See page 17.

Trolley

Cable

Emergency

Release

Rope &

Handle

Garage

Door

Straight

Door

Arm

Curved

Door Arm

Slack in Chain Tension

is Normal When

Garage Door is Closed

Open Position

T-rail

— — — — — — — —

Door Center

Header Wall

Safety

Reversing

Sensor

Floor must be level

across width of door

FINISHED CEILING

Extension Spring

Torsion Spring

Access Door

OR

Cable Pulley

Bracket

Header

Bracket

Trolley

Straight

Door

Arm

Emergency

Release

Rope & Handle

Door Bracket

Garage

Door

Curved

Door

Arm

Garage

Door

Spring

Header

Wall

Cable

Closed Position

Rail Assembly

Closed Position

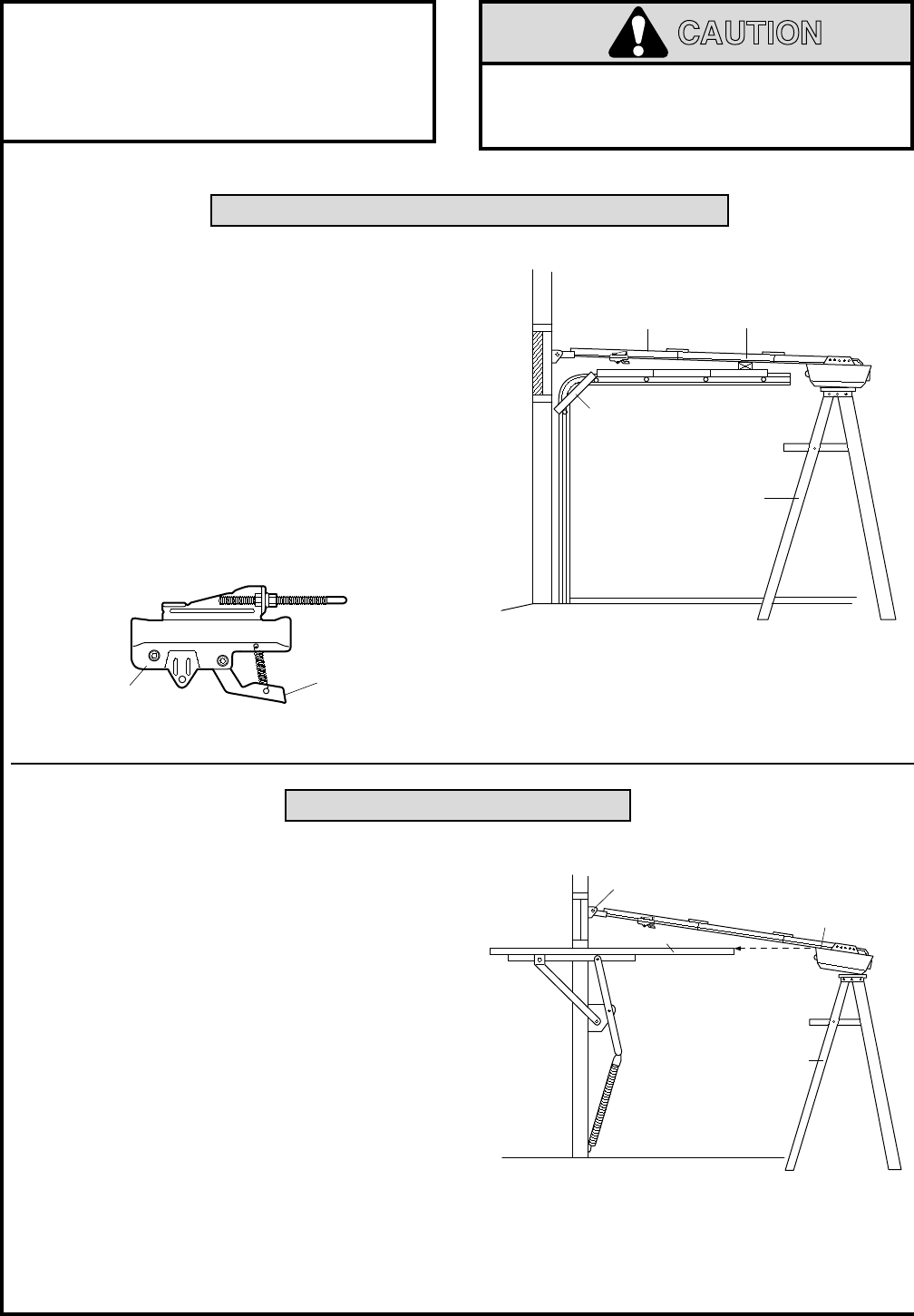

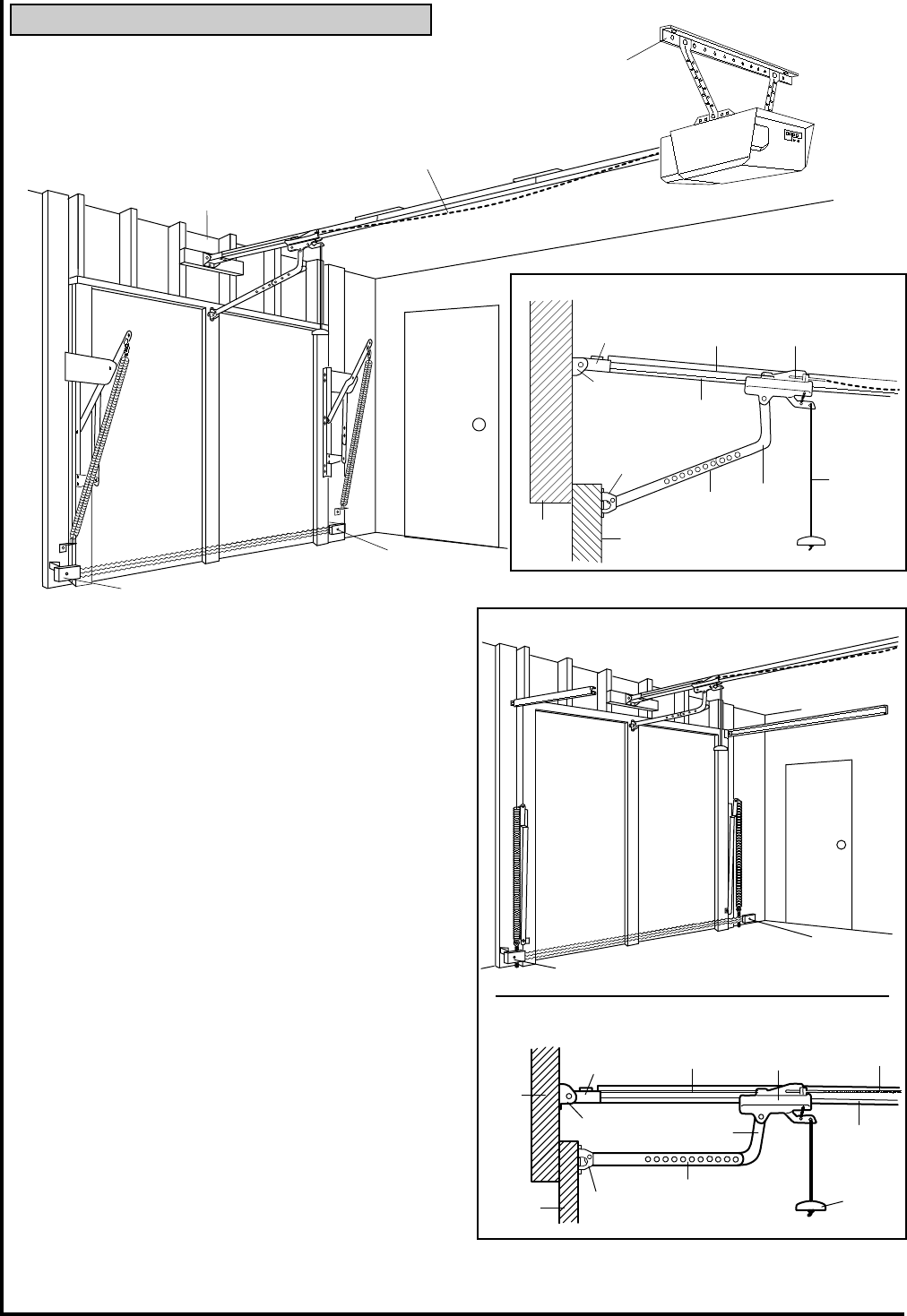

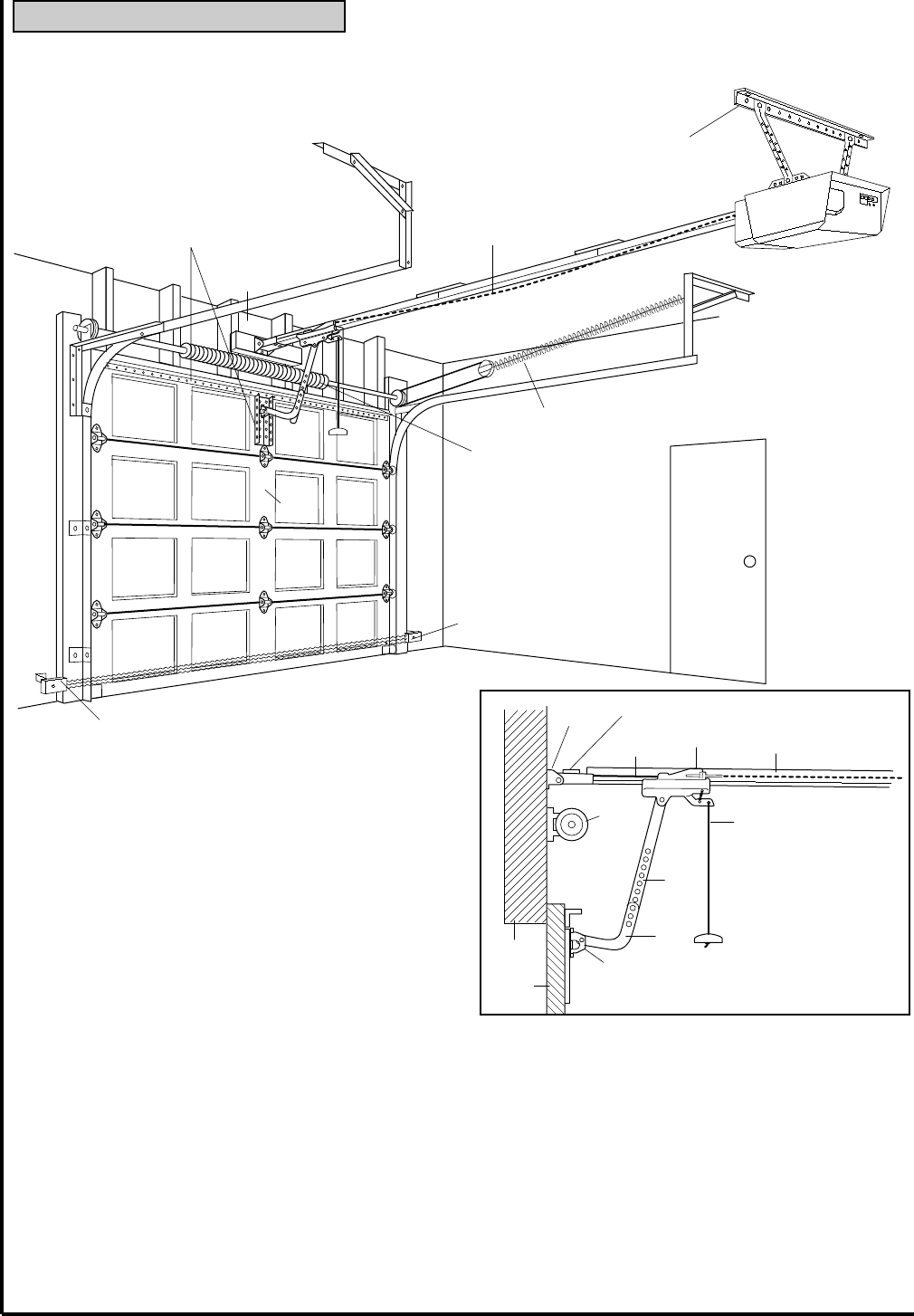

SECTIONAL Door Installation

• If your door is more than 7 feet high, see the rail

extension kits available on page 38.

• The opener can be installed within 2 feet to the left

or right of the door center if there is a torsion spring

or center bearing plate in the way of the header

bracket or door bracket area.

If your door has

extension springs, the opener must be installed

in the center of the door.

See pages 12 and 24.

• Do you have an access door in addition to the

garage door? If not, Model 18752 Outside

Trolley Release is required. See page 38.

You may find it

helpful to refer

back to this page

as you proceed

with the installation

of your opener.

Safety 

Reversing Sensor

FINISHED CEILING

Support bracket

& fastening hardware

may be required.

See page 17.

Slack in Chain Tension

is Normal When

Garage Door is Closed

Safety

Reversing

Sensor

Header

Wall

Access Door

Gap between floor and bottom of

door must not exceed 1/4"

Cable

Pulley Bracket

Header

Bracket

Trolley

Straight

Door

Arm

Emergency

Release

Rope & Handle

Door Bracket

Curved

Door

Arm

Header

Wall

Cable

T-rail

Garage

Door

Closed Position

5

Access

Door

Floor must be level

across width of door

Safety 

Reversing Sensor

Header

Bracket

Cable

Pulley Bracket

Door

Bracket

Straight

Door

Arm

Curved

Door Arm

Trolley Chain

Emergency 

Release

Rope & Handle

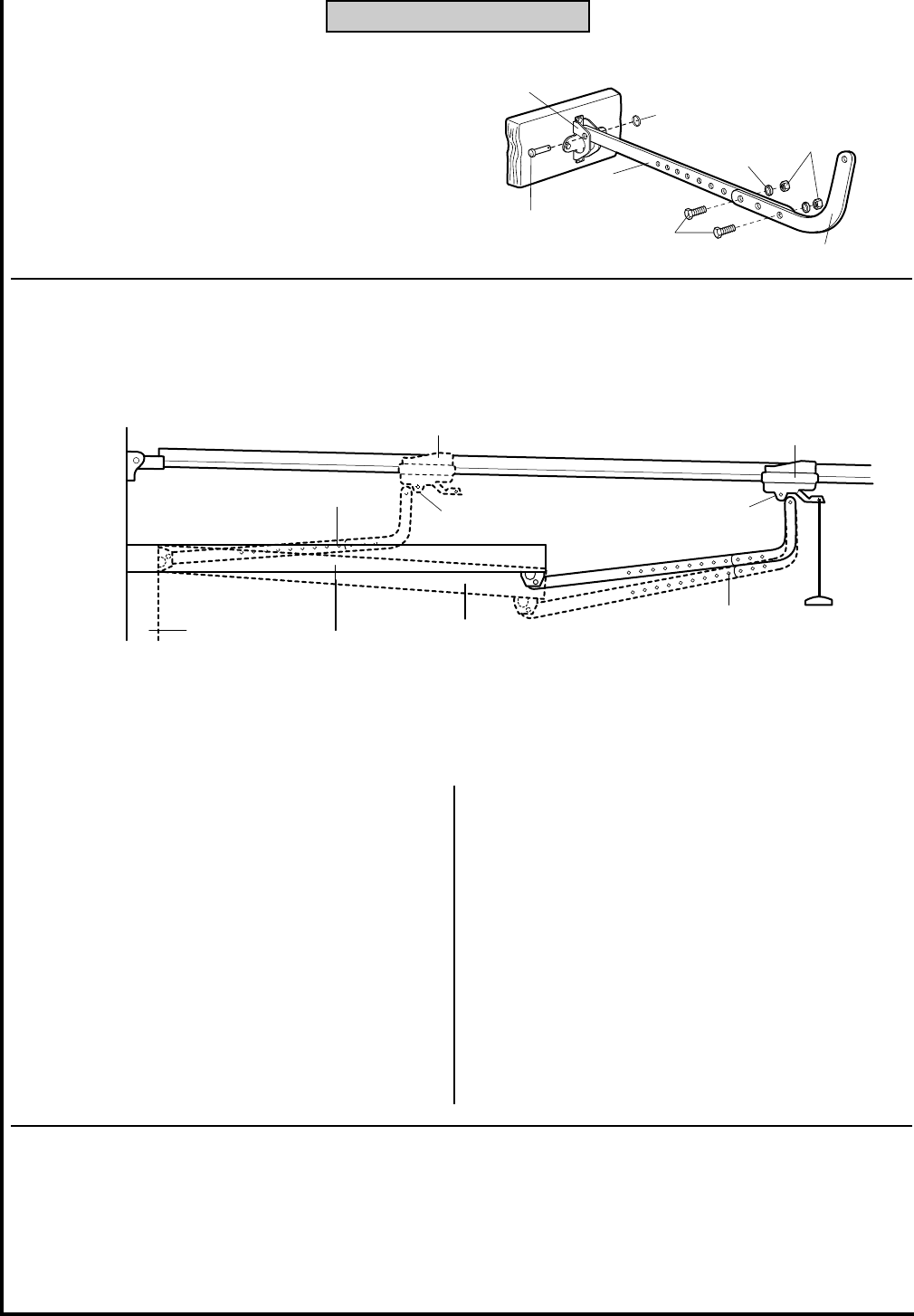

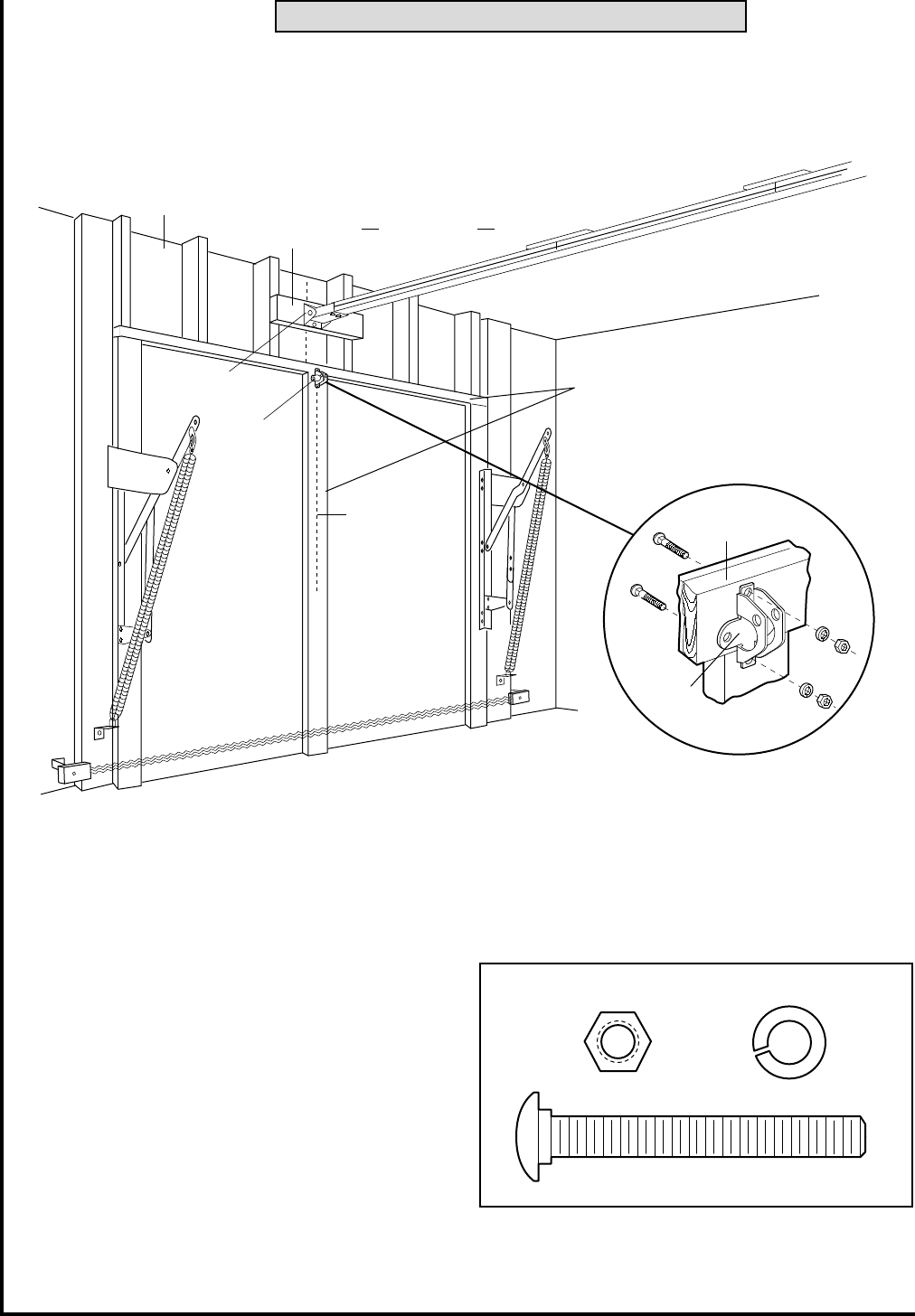

One-Piece Door with Track

Closed Position

Header

Wall

T-Rail

Garage

Door

The Chamberlain Group, Inc.

One-Piece Door with Track Installation (Cable - Canada)

3/3/93

Cable

Safety 

Reversing 

Sensor

Slack in Chain 

Tension is Normal 

When Garage Door is Closed

Before you begin, survey your garage area to see

whether any of the conditions below apply to your

installation.

Based on your particular requirements, there are

several installation steps which might call for materials

and/or hardware not included in the carton.You may

want to review these steps before beginning:

• Step 1, page 13 - Look at the wall or ceiling above

the garage door. The header bracket

must

be

securely fastened to structural supports.

• Step 5, page 17 - Do you have a finished ceiling in

your garage? If so, a support bracket and additional

fastening hardware (not supplied) may be required.

• Safety reversing sensor, page 21 - Depending on

garage construction, wood blocks may need to be

securely fastened to mounting locations before

sensors are installed.

• Step 10, page 22 - Alternate floor mounting of the

safety reversing sensor will require hardware that

is not provided.

• Step 11, page 25 - Generally, a one-piece door

does not require reinforcement. If your door is

lightweight, you can refer to the information

relating to sectional doors on page 24.

• Step 11, page 25 - Depending on your door's

construction, you might need additional mounting

hardware for the door bracket.

• Do you have an access door in addition to the

garage door? If not, Model 18752 Outside Trolley

Release is required. See page 38.

• The gap between the bottom of the garage

door and the floor cannot exceed 1/4".

Otherwise, the safety reverse system may not

work properly. See page 30. The floor or the door

should be repaired.

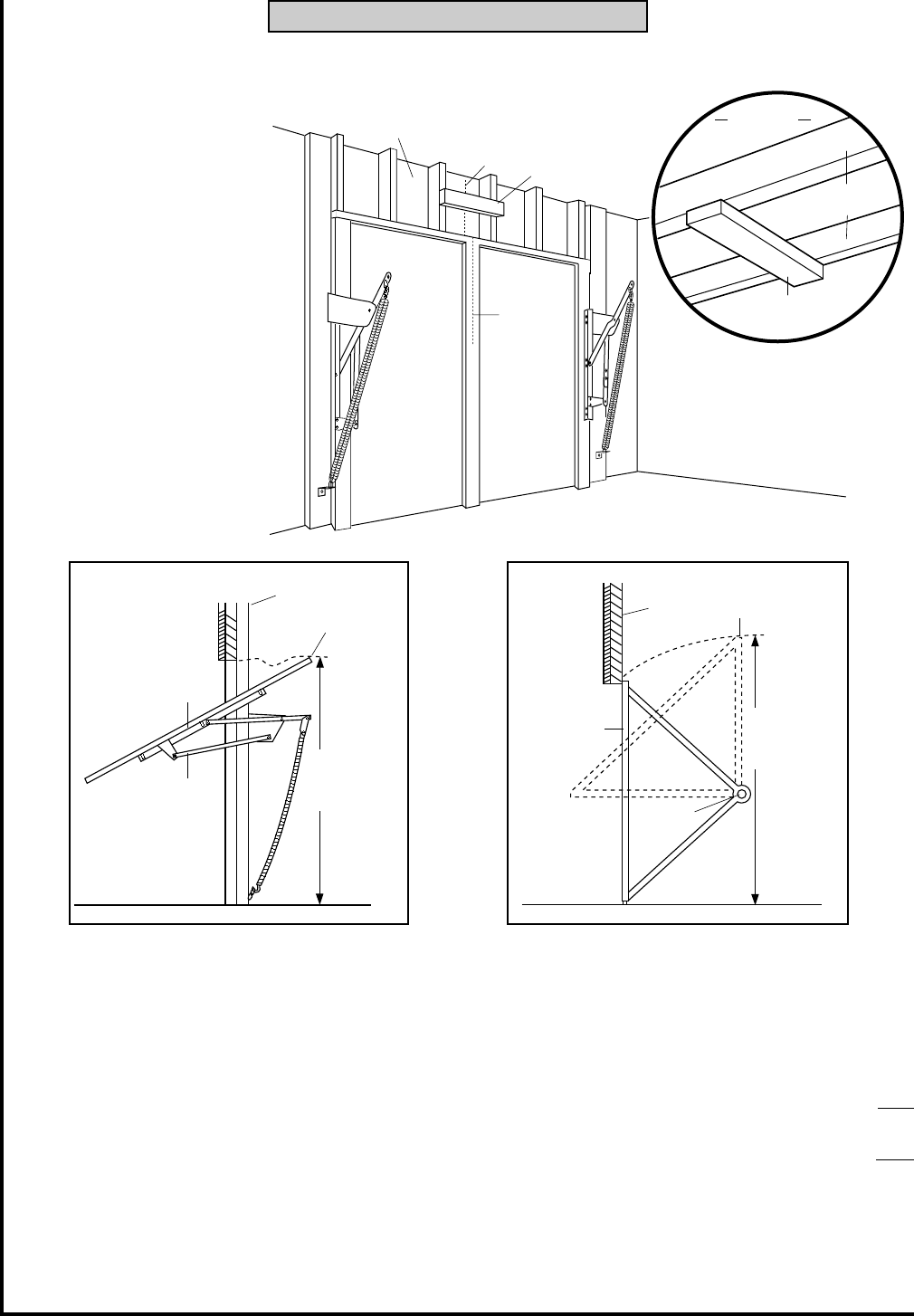

One-Piece Door without Track

ONE-PIECE Door Installation

You may find it helpful to refer back to this page

as you proceed with the installation of your

6

Straight Door

Arm Section

Curved Door

Arm Section

Safety Labels

and

Literature

Cable

Pulley Bracket

Chain and Cable

in Dispensing Carton

Header Bracket

UP

CEILING MOUNT ONLY

Safety Reversing Sensor

Mounting Bracket

With Square Holes (2)

"C" Wrap (2)

Safety Reversing Sensor

Mounting Bracket

With Slot (2)

Sprocket Cover

TO GARAGE DOOR

T-Rail

Center Section

T-Rail

End Sections

Hanging Brackets

2-Conductor 

Bell Wire

White & White/Red

Trolley

Light Lens

(2) Safety Reversing Sensors

(1 Sending Eye and 1 Receiving Eye)

with

2-Conductor White & White/Black Bell Wire

attached

Standard Control Console

Door Bracket

Security✚

Three-Function Remote Control

with Visor Clip (2)

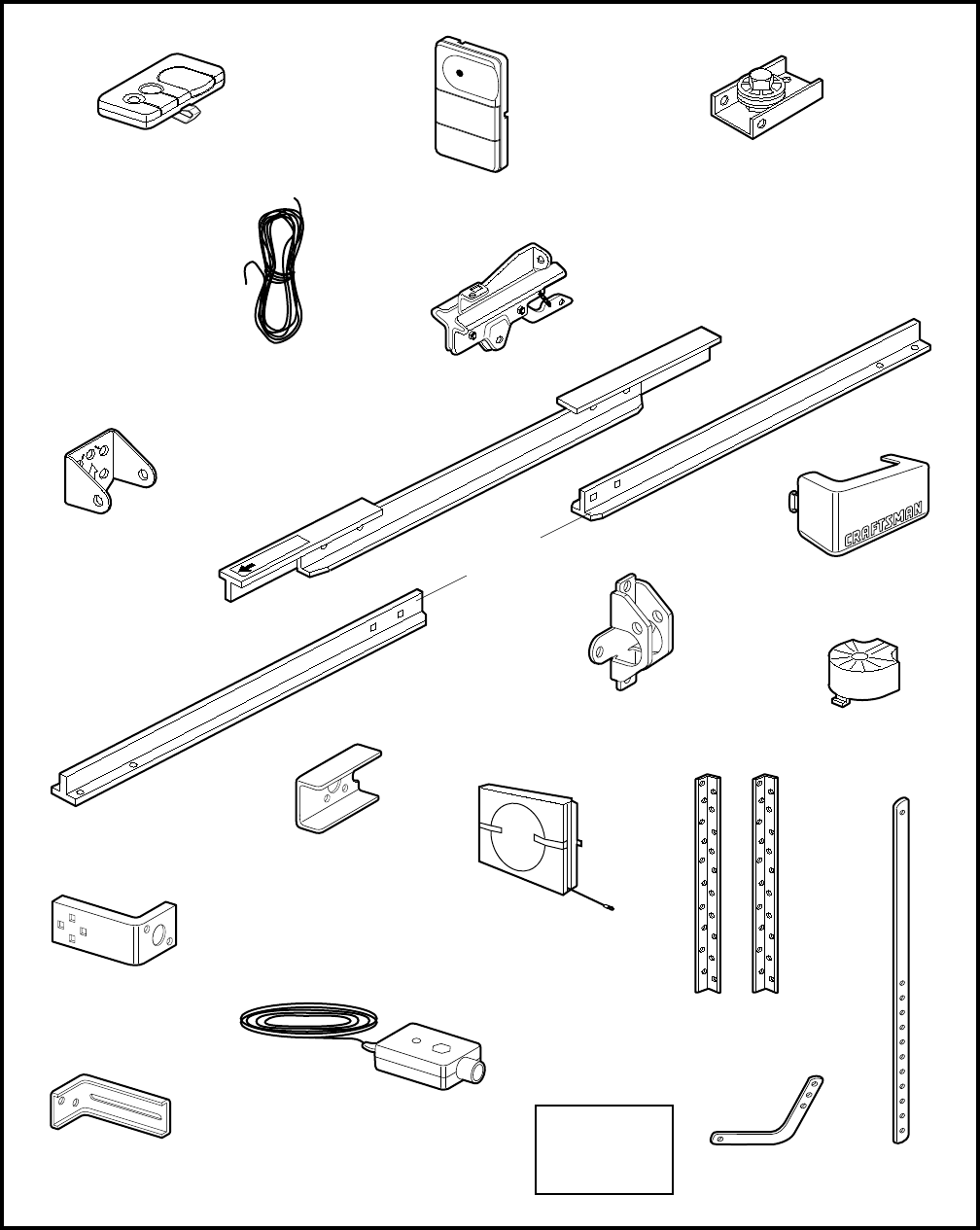

Opener Carton Inventory

Your garage door opener is packaged in two cartons which contain all parts illustrated below. If anything is

missing, carefully check the packing material. Parts may be "stuck" in the foam. Hardware for assembly and

installation is shown on page 7.

7

Lock Washer

5/16" (4)

Nut 5/16"-18 (6)

Clevis Pin

5/16"x2-3/4" (1)

NOTICE

Handle

Insulated

Staples (10)

Assembly Hardware Kit 41A3534

Installation Hardware Kit 41A3475-4

Dry Wall Anchors (2)

Clevis Pin

5/16"x1" (1)

Hex Screw

5/16"-18x7/8" (4)

Rope

Lock Nut

1/4"-20x7/16" (4)

Nut

5/16"-18 (5)

Washered Screw

5/16"-18x1/2" (2)

(mounted in opener)

Carriage Bolt

5/16"-18x2-1/2" (2)

Carriage Bolts

1/4"-20x1/2" (4)

Hex Screw

5/16"-18x7/8" (3) Master Link (2)

Ring 

Fastener (3)

7

Trolley 

Threaded Shaft (1)

Screw

6ABx1" (2)

Lock Washer 5/16" (6)

Lag Screw

5/16"-9x1-5/8" (2)

Lock Nut

1/4"-20 (4)

Carriage Bolts

1/4"-20x1/2" (4)

Safety Reversing Sensor

Installation Hardware Kit 41A4116

Hex Screw

1/4-20x1-1/2" (2) Screw

#10-32x3/8" (4)

Lock Nut

#10x32 (4)

Wing Nut (2)

Insulated

Staples (20)

RAIL GREASE

NO. 83A4

Rail Grease

Lag Screw

1/4x1-1/2" (4)

Clevis Pin

5/16"x1-1/4" (1)

Clevis Pin

5/16"x1" (1)

Lag Screw

5/16"-9x1-5/8" (2)

Lag Screw

5/16"-18x1-7/8" (2)

Group all hardware found in all packages contained in the rail and opener cartons into

the three kits illustrated below.

8

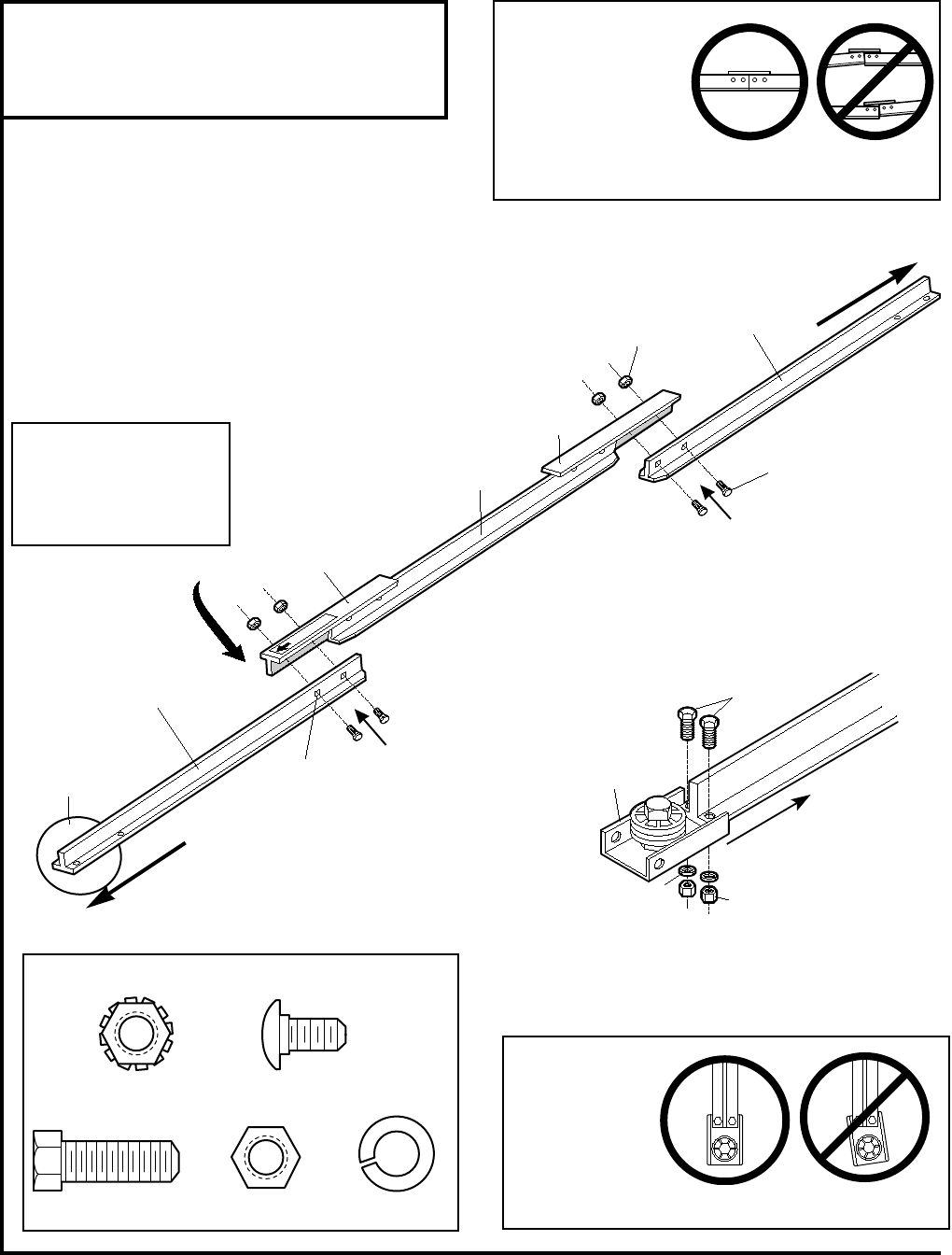

Assembly Step 1

Assemble the T-rail & Attach

the Cable Pulley Bracket

• Align the 3 T-rail sections on a flat surface exactly

as shown. The end sections are identical. Make

sure the "arrow label" on the center section is

pointing toward the door.

• Insert the carriage bolts so the square bolt necks

seat in the square holes in the T-rail end sections

and pass through the round holes in T-rail center

section. Assemble lock nuts, ensure alignment and

tighten.

T-rail

(Center Section)

1/4'' Lock Nut

T-RAIL FRONT

(TO DOOR)

Cable pulley bracket

attaches to FRONT

END of T-rail

T-rail

(End Section)

T-RAIL BACK

(TO OPENER)

T-rail

(End Section)

Carriage Bolt

1/4"-20x1/2"

Brace

Brace

Square Carriage

Bolt Holes

TO GARAGE DOOR

Hex Screws

5/16"-18x7/8"

Cable Pulley

Bracket

Rail Bracket & T-rail Must Be Aligned

Lock Washer

5/16" Nut

5/16"

Assemble Tee Rail & attach Cable Pulley Bracket

SEARS '92 (525)

4/16/89 - 6/27/89 - 3/9/92 - 4/13/92

Right Wrong

Make sure bolt necks are

seated in the square

holes and rails are

aligned before you

tighten lock nuts. (See

right and wrong views).

Improper assembly can

cause jerky trolley

operation, noise and/or

nuisance door reversals.

To avoid installation difficulties, do not run the garage door opener until instructed to do so.

Assembly Section: Pages 8 – 11

Right Wrong

If T-rail is not assembled

EXACTLY as shown,

trolley will not travel

smoothly along length of

rail or it will hit against

the nuts.

T-rail

(Center Section)

1/4'' Lock Nut

T-RAIL FRONT

(TO DOOR)

Cable pulley bracket

attaches to FRONT

END of T-rail

T-rail

(End Section)

T-RAIL BACK

(TO OPENER)

T-rail

(End Section)

Carriage Bolt

1/4"-20x1/2"

Brace

Brace

Square Carriage

Bolt Holes

TO GARAGE DOOR

Hex Screws

5/16"-18x7/8"

Cable Pulley

Bracket

Rail Bracket & T-rail Must Be Aligned

Lock Washer

5/16" Nut

5/16"

Assemble Tee Rail & attach Cable Pulley Bracket

SEARS '92 (525)

4/16/89 - 6/27/89 - 3/9/92 - 4/13/92

Right Wrong

Right Wrong

When tightening

the screws, be

sure to keep

bracket parallel

to the rail.

Otherwise, the

rail may bow

when opener is

operated.

T-rail

(Center Section)

1/4'' Lock Nut

T-RAIL FRONT

(TO DOOR)

Cable pulley bracket

attaches to FRONT

END of T-rail

T-rail

(End Section)

T-RAIL BACK

(TO OPENER)

T-rail

(End Section)

Carriage Bolt

1/4"-20x1/2"

Brace

Brace

Square Carriage

Bolt Holes

TO GARAGE DOOR

Hex Screws

5/16"-18x7/8"

Cable Pulley

Bracket

Rail Bracket & T-rail Must Be Aligned

Lock Washer

5/16" Nut

5/16"

Assemble Tee Rail & attach Cable Pulley Bracket

SEARS '92 (525)

4/16/89 - 6/27/89 - 3/9/92 - 4/13/92

Right Wrong

T-rail

(Center Section)

1/4'' Lock Nut

T-RAIL FRONT

(TO DOOR)

Cable pulley bracket

attaches to FRONT

END of T-rail

T-rail

(End Section)

T-RAIL BACK

(TO OPENER)

T-rail

(End Section)

Carriage Bolt

1/4"-20x1/2"

Brace

Brace

Square Carriage

Bolt Holes

TO GARAGE DOOR

Hex Screws

5/16"-18x7/8"

Cable Pulley

Bracket

Rail Bracket & T-rail Must Be Aligned

Lock Washer

5/16" Nut

5/16"

Assemble Tee Rail & attach Cable Pulley Bracket

SEARS '92 (525)

4/16/89 - 6/27/89 - 3/9/92 - 4/13/92

Right Wrong

Lock Nut

1/4" - 20 x 7/16" Carriage Bolts

1/4" - 20 x 1/2"

Hex Screw

5/16" - 18 x 7/8" Nut

5/16" - 18 Lockwasher

5/16"

Écrou indesserrable

de 1/4 de po-20x7/16 po Boulon à tête bombée et collet carré de

1/4 de po-20x1/2 po

Vis à tête hexagonale

de 5/16 de po-18x7/8 de po Écrou de

5/16 de po-18 Rondelle-frein

de 5/16 de po

Hardware Shown Actual Size • Position the cable pulley bracket on the front end of the

T-rail as shown. Fasten securely with the hardware.

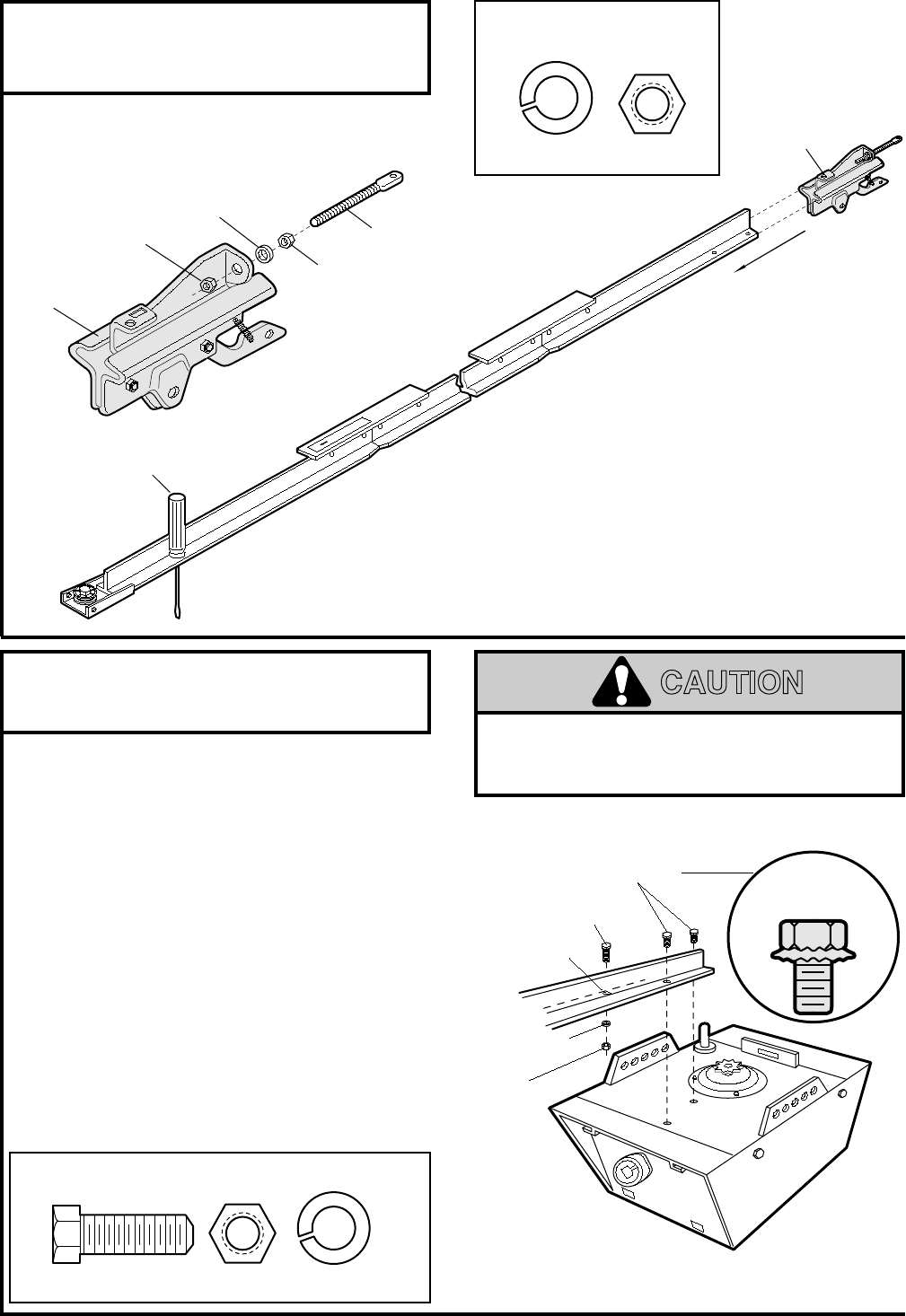

Assembly Step 2

Install the Trolley on the T-rail

•

Place the opener on packing material to protect

the cover. For convenience, put a support under

the cable pulley bracket.

• Remove the (2) 5/16"-18x1/2" washered screws

mounted in the top of the opener.

• Align the holes in the back section of the T-rail with

the holes in the opener.

• Fasten the rail with the (2) washered screws

previously removed. Tighten securely.

Remember to use only these screws!

Any other

screws will cause serious damage to the opener.

• Insert a 5/16"-18x7/8" hex screw into the cover

protection bolt hole in the T-rail as shown. Tighten

securely with a 5/16" lock washer and nut.

NOTE: This screw prevents trolley over-travel.

Keep a 2" minimum between the trolley and this

screw when adjusting travel limits (see page 28).

Temporary Stop

Screwdriver

Trolley

TO GARAGE DOOR

The Chamberlain Group, Inc.

Step 2 Install Trolley & Attach Chain Retainer Bracket

Sears Chassis

4/12/92

Trolley

Threaded Shaft

Lock Washer

5/16"

Outer Nut

5/16"

Inner Nut

5/16"

Trolley

Washered Screw

5/16"-18x1/2"

T-rail

(Back Section)

Cover

Protection

Bolt Hole

Nut

5/16"-18

Hex Screw

5/16"-18x7/8"

Lock Washer

5/16"

Use Only This

Type and Size

Screw

9

• Attach the threaded shaft to the trolley with the

lock washer and nuts as shown.

• As a temporary stop, insert a screwdriver into the

hole in the front end of the T-rail.

• Slide the trolley assembly along the rail to the

screwdriver stop.

If trolley hits against any nuts on the T-rail, the

bolts and nuts were attached from the wrong

side and must be repositioned. Review Step 1.

Temporary Stop

Screwdriver

Trolley

TO GARAGE DOOR

The Chamberlain Group, Inc.

Step 2 Install Trolley & Attach Chain Retainer Bracket

Sears Chassis

4/12/92

Trolley

Threaded Shaft

Lock Washer

5/16"

Outer Nut

5/16"

Inner Nut

5/16"

Trolley

Washered Screw

5/16"-18x1/2"

T-rail

(Back Section)

Cover

Protection

Bolt Hole

Nut

5/16"-18

Hex Screw

5/16"-18x7/8"

Lock Washer

5/16"

Use Only This

Type and Size

Screw

Assembly Step 3

Fasten the T-rail to the Opener

To fasten rail, use only those screws mounted

in the top of the opener. Any other screws will

cause serious damage to the opener.

Lock Washer

5/16" Nut

5/16"-18

Nut

5/16"-18 Lock Washer

5/16"

Hex Screw

5/16"-18x7/8"

Rondelle-frein

de 5/16 de po Écrou de

5/16 de po-18

Écrou de

5/16 de po-18 Rondelle-frein

de 5/16 de po

Vis à tête hexagonale

de 5/16 de po-18x7/8 de po

Hardware Shown

Actual Size

Lock Washer

5/16" Nut

5/16"-18

Nut

5/16"-18 Lock Washer

5/16"

Hex Screw

5/16"-18x7/8"

Rondelle-frein

de 5/16 de po Écrou de

5/16 de po-18

Écrou de

5/16 de po-18 Rondelle-frein

de 5/16 de po

Vis à tête hexagonale

de 5/16 de po-18x7/8 de po

Hardware Shown Actual Size

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

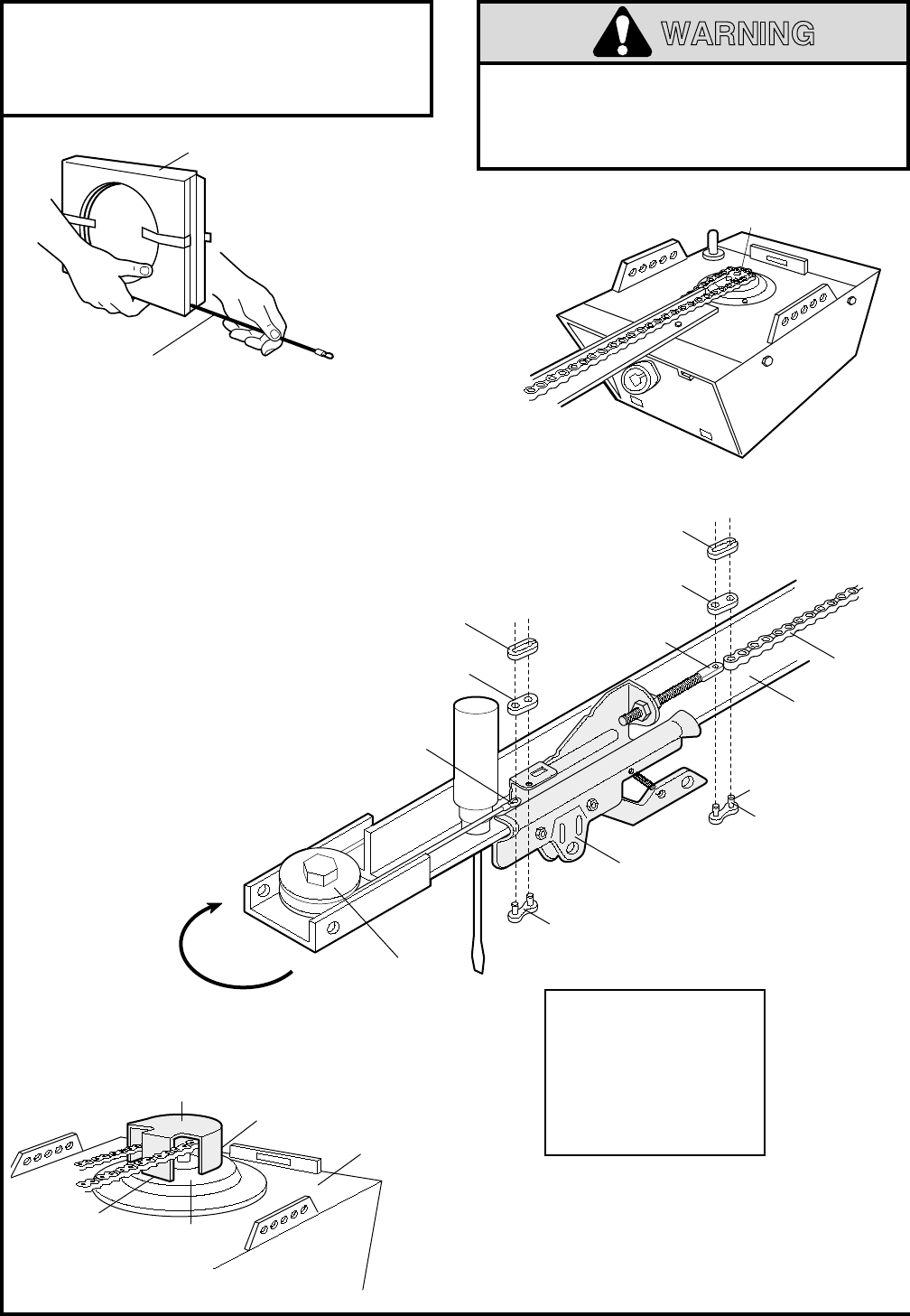

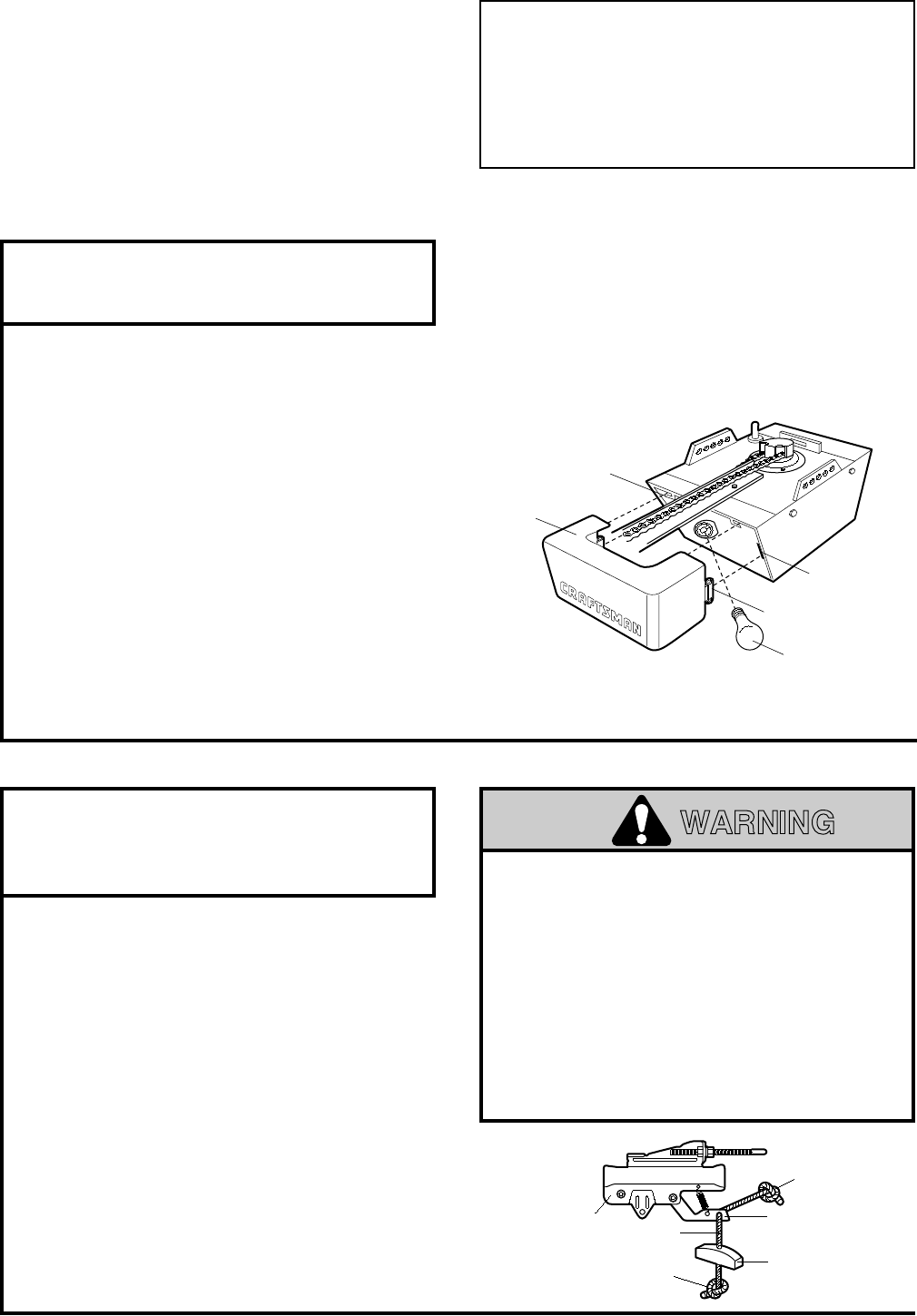

Assembly Step 4

Install the Chain/Cable &

Attach the Sprocket Cover

Cable

Pulley

Cable

Loop

Master

Link Bar

Master Link

Clip-On Spring

Trolley

T-rail

Pin

Pin Notch

Chain

Flat End

of Trolley

Threaded Shaft

Master

Link Cap

Master

Link Cap

Master Link

Clip-On Spring

Install Chain and Cable

In This Direction

The Chamberlain Group, Inc.

Step 4 Install Chain & Cable - Sears Chassis

4/10/92

Sprocket

Cover

Mounting

Plate

Front Tab Slot

Back Tab Slot

Top of Opener

Leave Chain and Cable

Inside Dispensing

Carton to Prevent Kinking.

Dispensing Carton

Keep Chain and Cable

Taut When Dispensing

Opener 

Sprocket

Cable

Pulley

Cable

Loop

Master

Link Bar

Master Link

Clip-On Spring

Trolley

T-rail

Pin

Pin Notch

Chain

Flat End

of Trolley

Threaded Shaft

Master

Link Cap

Master

Link Cap

Master Link

Clip-On Spring

Install Chain and Cable

In This Direction

The Chamberlain Group, Inc.

Step 4 Install Chain & Cable - Sears Chassis

4/10/92

Sprocket

Cover

Mounting

Plate

Front Tab Slot

Back Tab Slot

Top of Opener

Leave Chain and Cable

Inside Dispensing

Carton to Prevent Kinking.

Dispensing Carton

Keep Chain and Cable

Taut When Dispensing

Opener 

Sprocket

10

To attach the sprocket cover:

• Insert the back tab in the opener slot. Squeeze the

cover slightly and insert the front tab in the slot on

the mounting plate.

Cable

Pulley

Cable

Loop

Master

Link Bar

Master Link

Clip-On Spring

Trolley

T-rail

Pin

Pin Notch

Chain

Flat End

of Trolley

Threaded Shaft

Master

Link Cap

Master

Link Cap

Master Link

Clip-On Spring

Install Chain and Cable

In This Direction

The Chamberlain Group, Inc.

Step 4 Install Chain & Cable - Sears Chassis

4/10/92

Sprocket

Cover

Mounting

Plate

Front Tab Slot

Back Tab Slot

Top of Opener

Leave Chain and Cable

Inside Dispensing

Carton to Prevent Kinking.

Dispensing Carton

Keep Chain and Cable

Taut When Dispensing

Opener 

Sprocket

• Detach the cable loop from the carton and fasten it

to the trolley with a master link from the hardware

bag. See master link procedure, Figure 1.

• With the trolley against the screwdriver, dispense

the cable around the pulley.

• Proceed back around the opener sprocket,

Figure 2. Be sure sprocket teeth engage the chain.

Continue forward to the trolley threaded shaft,

Figure 3.

• Use the second master link to connect the

chain to the flat end of the shaft. Check

to make sure the chain is not

twisted.

• Remove the screwdriver.

Cable

Pulley

Cable

Loop

Master

Link Bar

Master Link

Clip-On Spring

Trolley

T-rail

Pin

Pin Notch

Chain

Flat End

of Trolley

Threaded Shaft

Master

Link Cap

Master

Link Cap

Master Link

Clip-On Spring

Install Chain and Cable

In This Direction

The Chamberlain Group, Inc.

Step 4 Install Chain & Cable - Sears Chassis

4/10/92

Sprocket

Cover

Mounting

Plate

Front Tab Slot

Back Tab Slot

Top of Opener

Leave Chain and Cable

Inside Dispensing

Carton to Prevent Kinking.

Dispensing Carton

Keep Chain and Cable

Taut When Dispensing

Opener 

Sprocket

Master Link Procedure:

Push pins of master link bar

through cable loop and hole in

front end of trolley. Push cap

over pins and past notches.

Slide clip-on spring over cap

and into notches until both

pins are securely locked.

Figure 1

Figure 3

Serious injury can result if fingers become

entangled in moving opener sprocket. Attach

sprocket cover securely. Never operate opener

while your hand is near the opener sprocket.

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

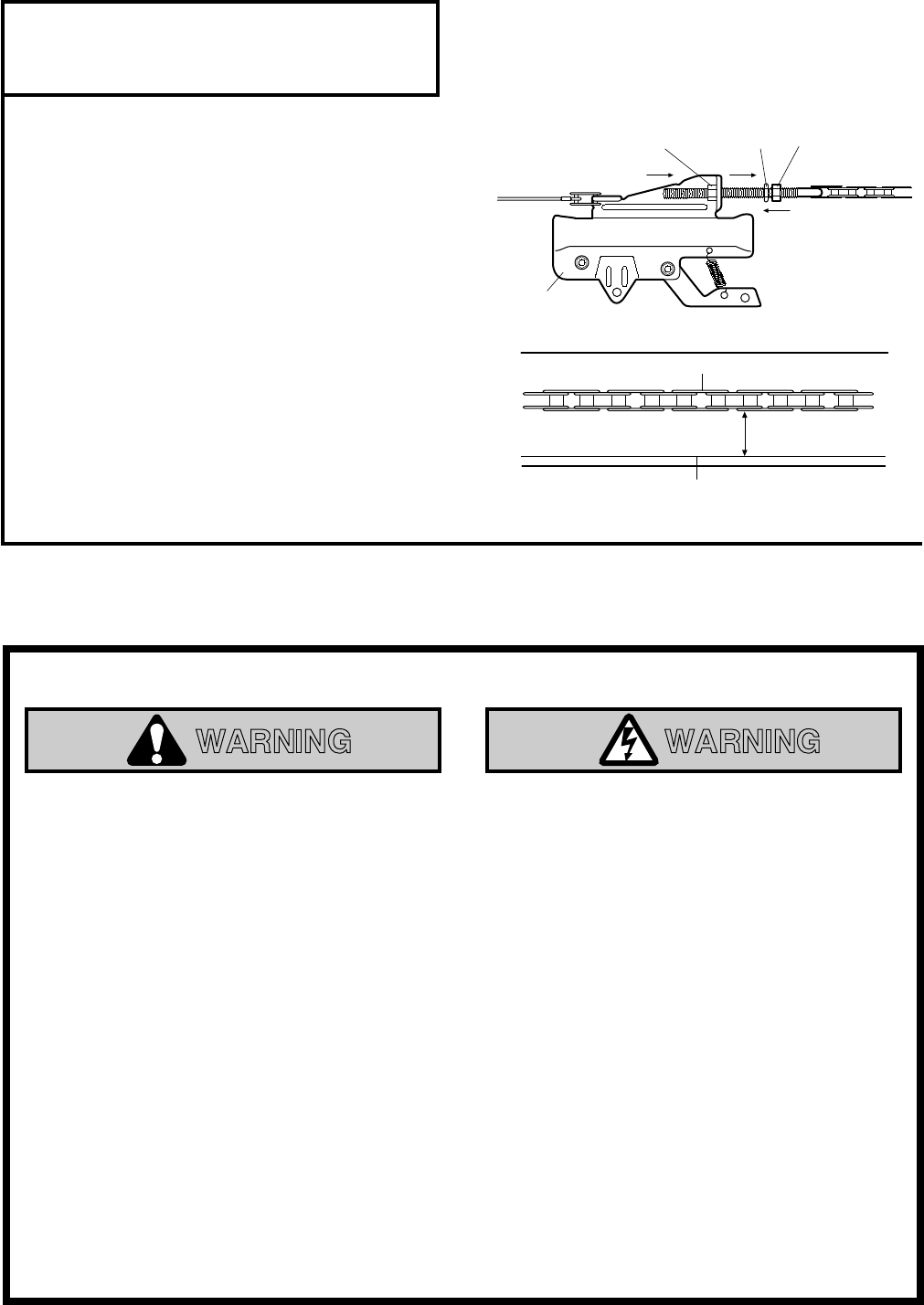

• Spin the inner nut and lock washer down the

threaded shaft, away from the trolley.

• To tighten the chain, turn outer nut in the direction

shown.

As you turn the nut, keep the chain

from twisting.

• When the chain is approximately 1/2" above the

base of the T-rail at its midpoint, re-tighten the

inner nut to secure the adjustment.

Sprocket noise can result if chain is either too

loose or too tight.

When installation is complete, you may notice some

chain droop with the door closed. This is normal. If

the chain returns to the position shown when the

door is open,

do not re-adjust the chain.

NOTE: During future maintenance,

ALWAYS

pull the emergency release handle to disconnect

trolley before adjusting chain.

Lock

Washer

To Tighten Outer Nut

Inner Nut

Trolley

Chain

Base of T-rail

1/2"

Step 5 Tighten Chain Sears 315-699 Disk 1 (Yellow)

Models 53315, 534153, 53615, 53625 & 53699

1/18/89 - 2/9/89 - 4/16/89 - 6/6/89 - 6/27/89 - 12/18/89 - 1/15/92

To Tighten

Inner Nut

Outer Nut

Rondelle-

frein

Pour visser

l'écrou extérieur

Écrou intérieur

Chariot

Chaîne

Patin du rail

1/2 pouce

Pour visser

l'écrou intérieur

Écrou extérieur

Assembly Step 5

Tighten the Chain & Cable

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.

2. Install only on a properly balanced and lubricated garage door.

An improperly balanced door

may not reverse and could result in severe injury or death.

Repairs to cables, spring assemblies

and other hardware must be made by a professional service person before installing opener.

3. Disable all locks and remove all ropes connected to the garage door before installing the opener.

Ropes connected to a garage door can cause entanglement and death.

4. If possible, install door opener 7 feet or more above floor with the emergency release handle

mounted 6 feet above the floor.

5. Do not connect the opener to power source until instructed to do so.

6. Locate the Door Control within sight of the door at a minimum height of 5 feet where small

children cannot reach and away from all moving parts of the door.

7. Install the User Safety Instruction Label on the wall adjacent to the door control and the

Maintenance Instruction Label in a prominent location on the inside of the garage door.

8. Upon completion of the installation, the door must reverse when it comes in contact with a

one-inch high object or a 2x4 laid flat on the floor.

9. Do not wear watches, rings or loose clothing while installing or servicing an opener. Jewelry or

loose clothing can be caught in the mechanism of the garage door or the opener.

11

You have now finished assembling your garage door opener. Please read the following

warnings before proceeding to the installation section:

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

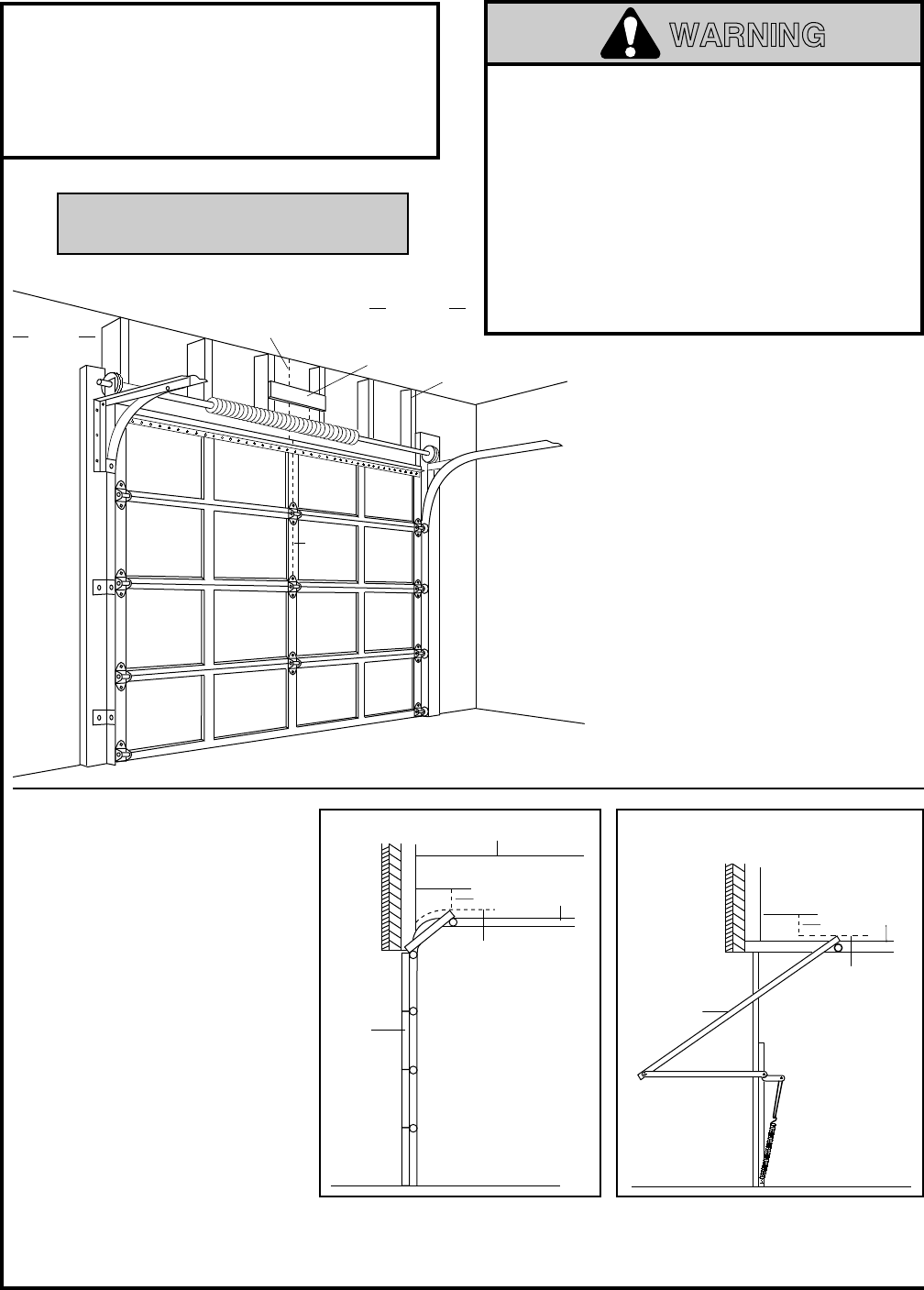

• Open your door to the highest

point of travel as shown. Draw

an intersecting horizontal line

on the header wall 2" above

the high point. This height will

provide travel clearance for the

top edge of the door.

Door clearance brackets are

available for sectional doors

when headroom clearance is

less than 2". See accessory

page 38.

Header

Wall

Ceiling

SECTIONAL DOOR CURVED TRACK

Track

Highest Point

of Travel

Door

ONE-PIECE DOOR WITH HORIZONTAL TRACK

& JAMB HARDWARE

Door

Track

The Chamberlain Group, Inc.

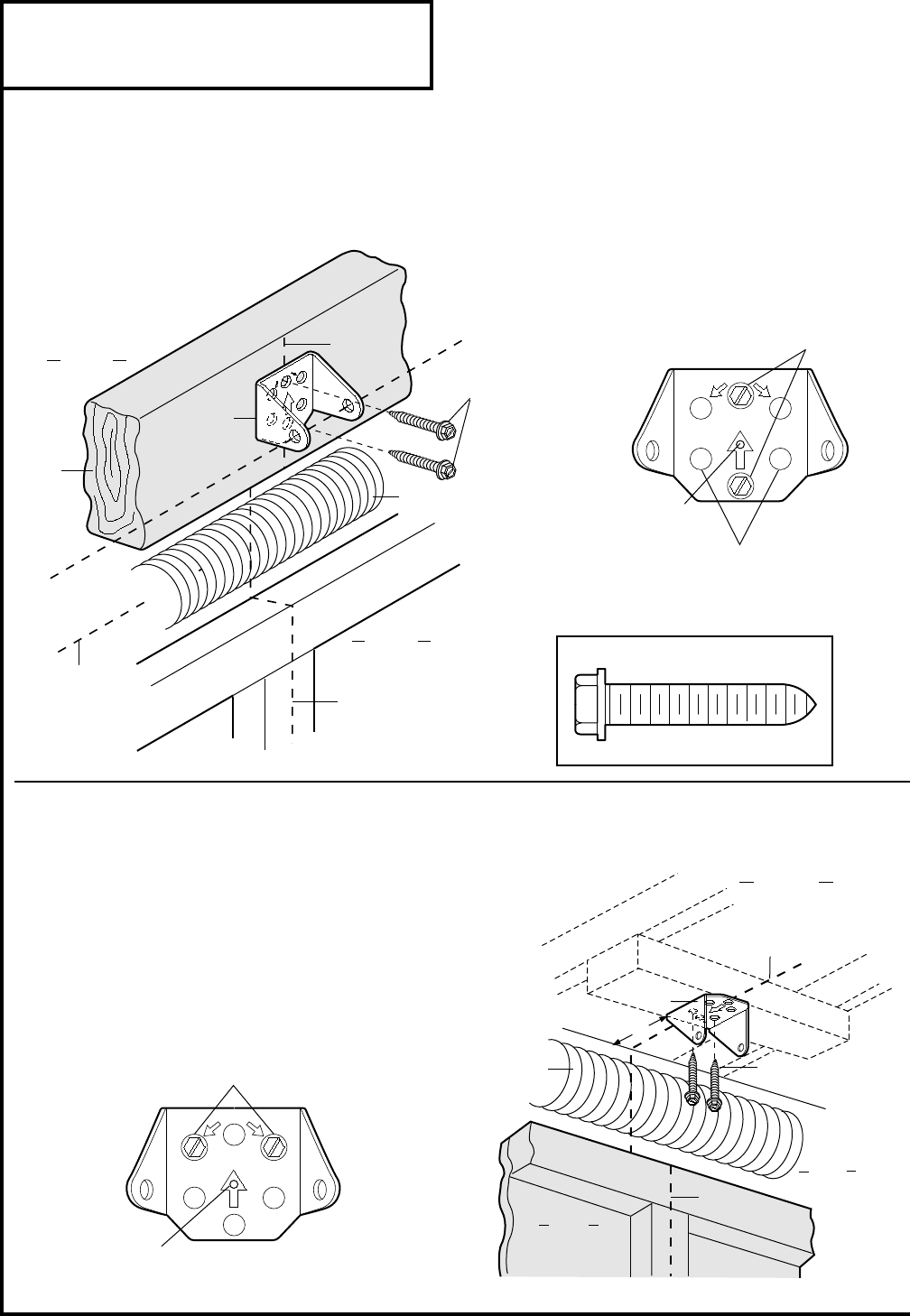

Position Header Bracket

Sectional and One-Piece Track Installations

1/30/92 - 4/6/92

SECTIONAL DOOR AND

ONE-PIECE DOOR WITH TRACK

Vertical

Guideline

Finished

Ceiling

Vertical

Guideline

Header

Wall 2x4 Structural

Supports

2" Header

Wall

Highest Point

of Travel

2"

12

Proceed to Step 2, page 14.

Header

Wall

Ceiling

SECTIONAL DOOR CURVED TRACK

Track

Highest Point

of Travel

Door

ONE-PIECE DOOR WITH HORIZONTAL TRACK

& JAMB HARDWARE

Door

Track

The Chamberlain Group, Inc.

Position Header Bracket

Sectional and One-Piece Track Installations

1/30/92 - 4/6/92

SECTIONAL DOOR AND

ONE-PIECE DOOR WITH TRACK

Vertical

Guideline

Finished

Ceiling

Vertical

Guideline

Header

Wall 2x4 Structural

Supports

2" Header

Wall

Highest Point

of Travel

2"

Header

Wall

Ceiling

SECTIONAL DOOR CURVED TRACK

Track

Highest Point

of Travel

Door

ONE-PIECE DOOR WITH HORIZONTAL TRACK

& JAMB HARDWARE

Door

Track

The Chamberlain Group, Inc.

Position Header Bracket

Sectional and One-Piece Track Installations

1/30/92 - 4/6/92

SECTIONAL DOOR AND

ONE-PIECE DOOR WITH TRACK

Vertical

Guideline

Finished

Ceiling

Vertical

Guideline

Header

Wall 2x4 Structural

Supports

2" Header

Wall

Highest Point

of Travel

2"

SECTIONAL Door and

ONE-PIECE Door With Track

• Close the door and mark the inside

vertical centerline of the garage door.

• Extend the line onto the header wall

above the door.

Remember, you can fasten the

header bracket within 2 feet of the

left or right of the door center

only

if

a torsion spring or center bearing

plate is in the way; or you can attach

it to the ceiling (refer to page 14)

when clearance is minimal. (It may

be mounted on the wall upside down

if necessary, to gain approximately

1/2".)

If you need to install the header bracket

on a 2x4 (on wall or ceiling), use lag

screws (not supplied) to securely fasten

the 2x4 to structural supports as shown

here and on page 13.

Installation Section: Pages 12 – 27

Sectional door

with curved track One-piece door

with horizontal track

Installation Step 1

Determine Header Bracket Location

Installation procedures vary according to

garage door types. Follow the instructions

which apply to your door.

If the header bracket is not rigidly fastened to

a structural support on the header wall or

ceiling, the safety reverse system may not

work properly (see page 30).

The door might

not reverse when required, and could cause

serious injury or death.

The garage door springs, cables, pulleys,

brackets and their hardware are under extreme

tension.

Do not attempt to loosen, move or

adjust them yourself. Serious personal injury

or death could result.

Call for professional

garage door service.

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

Door

Highest Point

of Travel

Header

Wall

Pivot

Distance

Header Wall

Highest Point

of Travel

Door

Distance

Jamb

Hardware

The Chamberlain Group, Inc.

Position Header Bracket

One Piece Door Without Track

1/30/92 - 4/7/92

Header Wall Vertical

Centerline

Vertical

Centerline of

Garage Door

2x4

Unfinished

Ceiling

Structural

supports

2x4

OPTIONAL CEILING MOUNT

FOR HEADER BRACKET

Door

Highest Point

of Travel

Header

Wall

Pivot

Distance

Header Wall

Highest Point

of Travel

Door

Distance

Jamb

Hardware

The Chamberlain Group, Inc.

Position Header Bracket

One Piece Door Without Track

1/30/92 - 4/7/92

Header Wall Vertical

Centerline

Vertical

Centerline of

Garage Door

2x4

Unfinished

Ceiling

Structural

supports

2x4

OPTIONAL CEILING MOUNT

FOR HEADER BRACKET

• Close the door and mark the

inside vertical centerline of

your garage door. Extend

the line onto the header wall

above door.

If headroom clearance is

minimal, you can install the

header bracket on the

ceiling. See page 14.

•

If you need to install the

header bracket on a 2x4 (on

wall or ceiling), use lag

screws (not supplied) to

securely fasten the 2x4 to

structural supports as

shown.

EXAMPLE

Distance from top of door

(at highest point of travel) to floor...........................92"

Actual height of door .............................................-88"

Remainder................................................................4"

Add.........................................................................+8"

Bracket height on header wall..............................=12"

(Measure UP from top of CLOSED door.)

Proceed to Step 2, page 14.

13

Door

Highest Point

of Travel

Header

Wall

Pivot

Distance

Header Wall

Highest Point

of Travel

Door

Distance

Jamb

Hardware

The Chamberlain Group, Inc.

Position Header Bracket

One Piece Door Without Track

1/30/92 - 4/7/92

Header Wall Vertical

Centerline

Vertical

Centerline of

Garage Door

2x4

Unfinished

Ceiling

Structural

supports

2x4

OPTIONAL CEILING MOUNT

FOR HEADER BRACKET

ONE-PIECE Door Without Track

• Open your door to the highest point of travel as

shown. Measure the distance from the top of the

door to the floor. Subtract the actual height of the

door. Add 8" to the remainder. (See Example).

• Close the door and draw an intersecting horizontal

line on the header wall at the determined height.

If the total number of inches exceeds the height

available in your garage, use the maximum

height possible, or refer to page 14 for ceiling

installation.

One-piece door without track

pivot hardware

One-piece door without track

jamb hardware

Read the Safety instructions on page 12. They also apply to doors without tracks.

Lag Screws

5/16"x9x1-5/8"

Highest

Point of Travel

(of Garage Door)

Vertical

Center

Line

Header

Wall

Garage

Door

Mounting Header Bracket to WALL

Mounting New Header Bracket

10/16/91 - 10/26/91 - 4/5/92

UP

CEILING MOUNT ONLY

Wall

Mounting Holes

Optional 

Wall Mounting

Holes

UP

CEILING MOUNT ONLY

Ceiling Mounting Holes

The nail hole is for positioning

only. You must use lag screws to

mount the header bracket.

The nail hole is for positioning only.

You must use lag screws to mount

the header bracket.

UP

CEILING MOUNT ONLY

Door

Spring

Header

Bracket

2x4

Structural

Support

Vertical

Center

Line

UP

Lag Screws

5/16"x9x1-5/8"

Garage

Door

Vertical

Center Line

Header

Wall

Finished

Ceiling

Header

Bracket

6" Maximum

Vertical

Center Line

Door

Spring

14

Lag Screws

5/16"x9x1-5/8"

Highest

Point of Travel

(of Garage Door)

Vertical

Center

Line

Header

Wall

Garage

Door

Mounting Header Bracket to WALL

Mounting New Header Bracket

10/16/91 - 10/26/91 - 4/5/92

UP

CEILING MOUNT ONLY

Wall

Mounting Holes

Optional 

Wall Mounting

Holes

UP

CEILING MOUNT ONLY

Ceiling Mounting Holes

The nail hole is for positioning

only. You must use lag screws to

mount the header bracket.

The nail hole is for positioning only.

You must use lag screws to mount

the header bracket.

UP

CEILING MOUNT ONLY

Door

Spring

Header

Bracket

2x4

Structural

Support

Vertical

Center

Line

UP

Lag Screws

5/16"x9x1-5/8"

Garage

Door

Vertical

Center Line

Header

Wall

Finished

Ceiling

Header

Bracket

6" Maximum

Vertical

Center Line

Door

Spring

You can attach the header bracket either to the

wall above the garage door, or to the ceiling.

Follow the instructions which will work best for

your particular requirements.

Fasten the Header Bracket to the Wall

• Center the bracket on the vertical guideline with

the bottom edge of the bracket on the horizontal

line as shown (with the arrow pointing toward the

ceiling).

• Mark either set of bracket holes (do not use the

holes designated for ceiling mount). Drill 3/16" pilot

holes and fasten the bracket securely to a structural

support with the hardware provided.

Fasten the Header Bracket to the Ceiling

Installation Step 2

Install the Header Bracket

Lag Screw

5/16"-9x1-5/8"

Tire-fond de

5/16 de po-9x1-5/8 po

Hardware Shown Actual Size

Lag Screws

5/16"x9x1-5/8"

Highest

Point of Travel

(of Garage Door)

Vertical

Center

Line

Header

Wall

Garage

Door

Mounting Header Bracket to WALL

Mounting New Header Bracket

10/16/91 - 10/26/91 - 4/5/92

UP

CEILING MOUNT ONLY

Wall

Mounting Holes

Optional 

Wall Mounting

Holes

UP

CEILING MOUNT ONLY

Ceiling Mounting Holes

The nail hole is for positioning

only. You must use lag screws to

mount the header bracket.

The nail hole is for positioning only.

You must use lag screws to mount

the header bracket.

UP

CEILING MOUNT ONLY

Door

Spring

Header

Bracket

2x4

Structural

Support

Vertical

Center

Line

UP

Lag Screws

5/16"x9x1-5/8"

Garage

Door

Vertical

Center Line

Header

Wall

Finished

Ceiling

Header

Bracket

6" Maximum

Vertical

Center Line

Door

Spring

• Extend the vertical guideline onto the ceiling as

shown.

• Center the bracket on the vertical mark, no more

than 6" from the wall. Make sure the arrow is

pointing toward the wall. The bracket can be

mounted flush against the ceiling when clearance

is minimal.

• Mark holes designated for ceiling mount only. Drill

3/16" pilot holes and fasten bracket securely to a

structural support with the hardware provided.

Header

Bracket

Cable

Pulley

Bracket

Temporary

Support

Header Wall

Garage

Door

The Chamberlain Group, Inc.

Attach Tee Rail to Header Bracket

2/4/92 - 4/9/92

T-rail

Clevis Pin

5/16"x2-3/4"

Ring Fastener

Header Bracket

Cable

Pulley

Bracket

T-rail

• Position the opener on the garage floor below the

header bracket. Use packing material as a

protective base.

If the door spring is in the way you'll need help.

Have someone hold the opener securely on a

temporary support to allow the T-rail to clear the

spring.

• Position the cable pulley bracket against the header

bracket.

• Align the bracket holes and join with a clevis pin as

shown.

• Insert a ring fastener to secure.

15

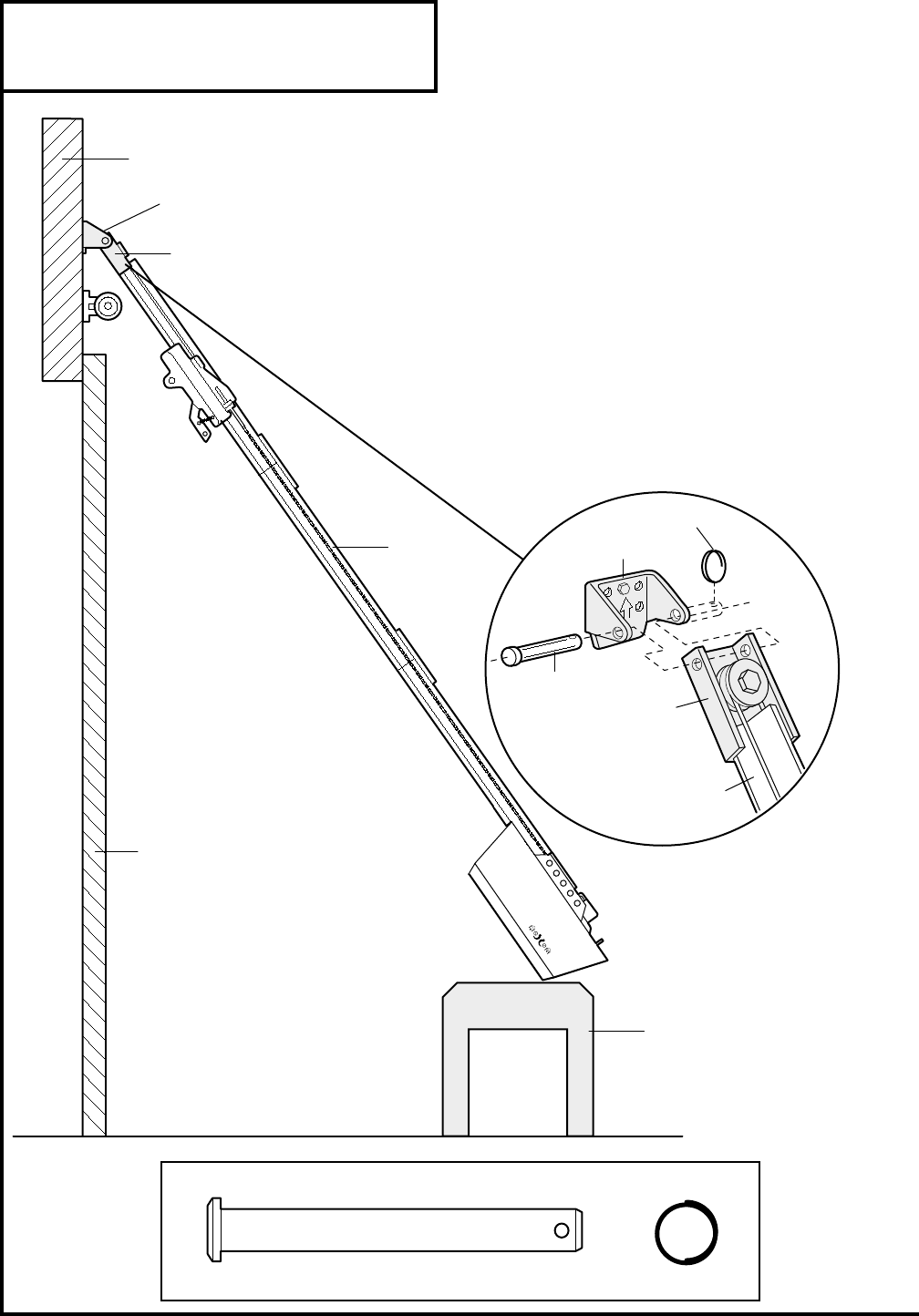

Installation Step 3

Attach the T-rail to the Header Bracket

Clevis Pin

5/16"x2-3/4" Ring Fastener

Axe de chape de 5/16 de pox2-3/4 po Anneau d'arrêt

Hardware Shown Actual Size

Installation Step 4

Position the Opener

Follow instructions which apply to your door

type as illustrated. To prevent damage to steel, aluminum,

fiberglass or glass panel doors, do not rest the

opener on the door without using a 2x4.

SECTIONAL Door & ONE-PIECE Door with Track

A 2x4 laid flat is convenient for setting an ideal

door-to-T-rail distance.

• Raise the opener onto a stepladder.

You will need help at this point if the ladder is

not tall enough.

• Open the door all the way and place a 2x4 laid flat

on the top section beneath the T-rail.

If the top panel hits the trolley when you raise

the door, pull down on the trolley release arm to

disconnect the inner and outer sections. The

trolley can remain disconnected until Step 12 is

completed.

T-rail 2x4

Door

Stepladder

Top of Opener

Header

Bracket

Step 2 Attach Tee Rail to Header Bracket - Sears 315-699 (Yellow Disk #2)

Models 53315, 53415, 53515, 53625 & 53699

6/20/89 - 6/27/89 - 11/6/89

Stepladder

Top of Door

Rail 2x4 à plat

Porte

Escabeau

Dessus de l'ouvre-porte

Dessus de la porte

Escabeau

Support de linteau

ONE-PIECE Door without Track

• With the door fully open and parallel to the floor,

measure the distance from the floor to the top of

the door.

• Using a stepladder as a support, raise the opener

to the same distance as the door from the floor (it

will be at a slight angle as shown).

• The top of the door should be level with the top of

the opener. Do not position the opener more than

2" above this point.

T-rail 2x4

Door

Stepladder

Top of Opener

Header

Bracket

Step 2 Attach Tee Rail to Header Bracket - Sears 315-699 (Yellow Disk #2)

Models 53315, 53415, 53515, 53625 & 53699

6/20/89 - 6/27/89 - 11/6/89

Stepladder

Top of Door

Rail 2x4 à plat

Porte

Escabeau

Dessus de l'ouvre-porte

Dessus de la porte

Escabeau

Support de linteau

16

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

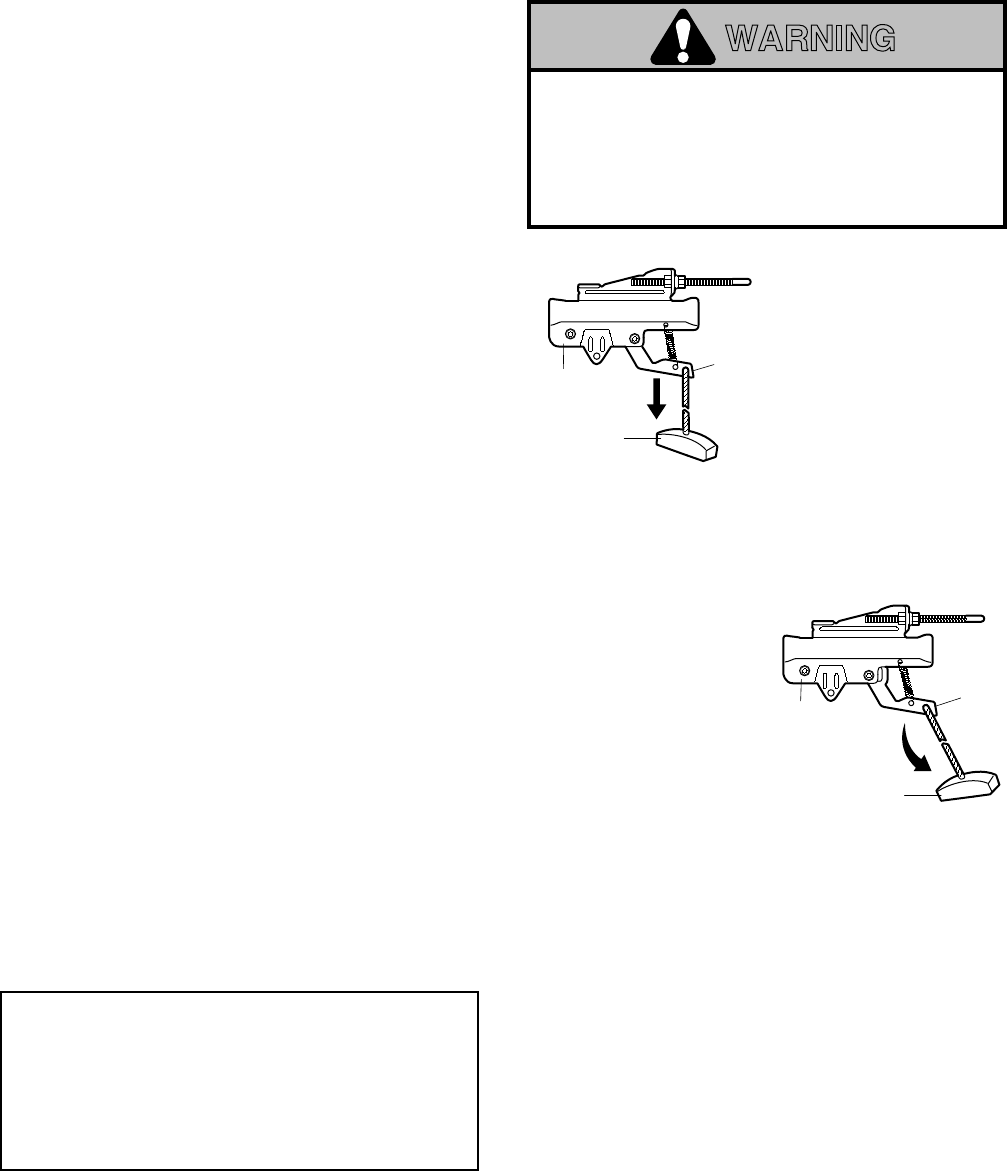

Trolley

Trolley

Release Arm

NOTICE

Emergency

Release Handle

(Pull Down & Back

Towards Opener)

Manual Disconnect and Lockout

Sears -92

9/7/90, 3/2/92

Trolley

Trolley

Release Arm

NOTICE

Emergency

Release Handle

(Pull Down)

Trolley

Trolley

Release Arm

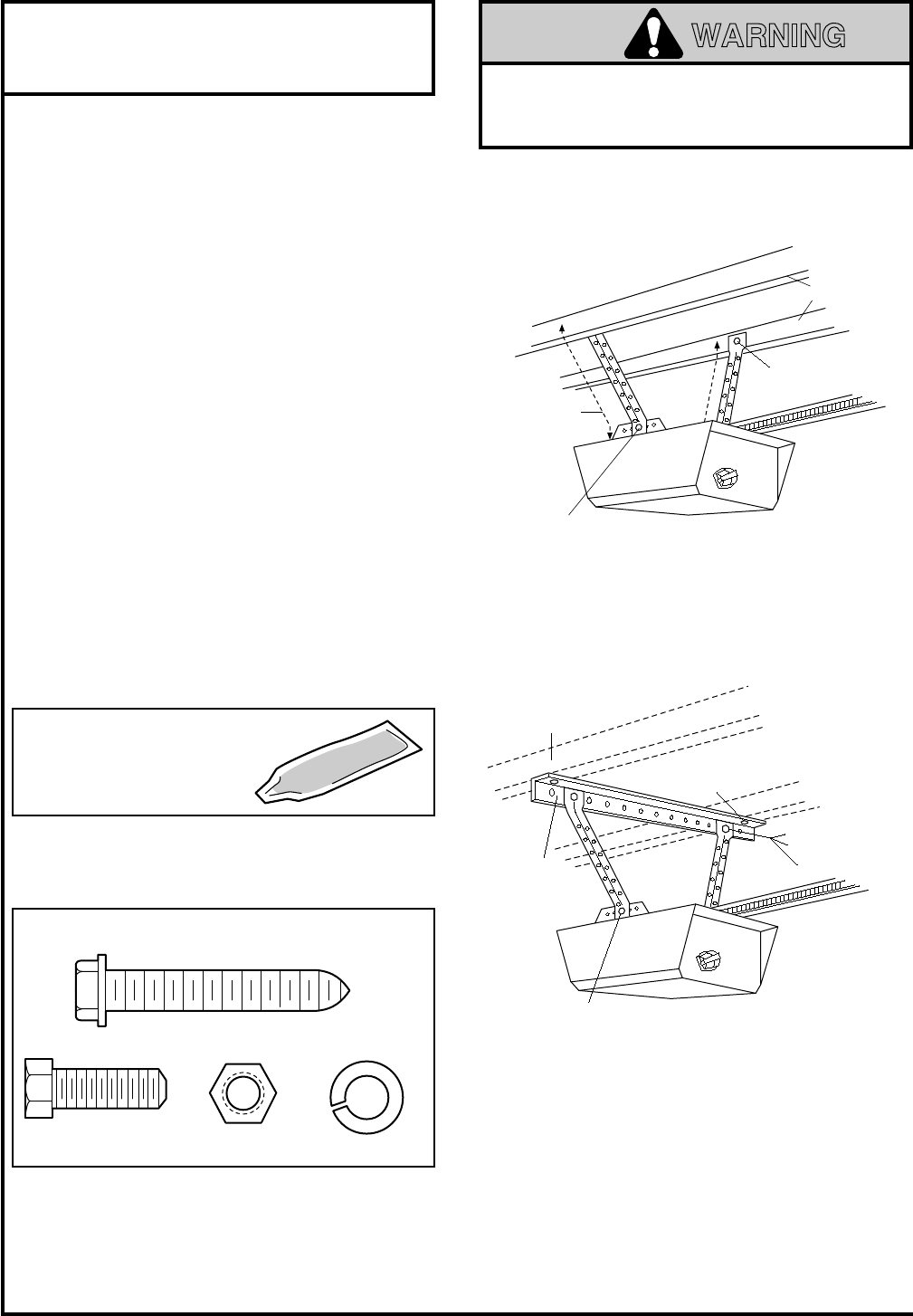

Installation Step 5

Hang the Opener

Two representative installations are shown.

Yours may be different.

Hanging brackets should

be angled, Figure 1, to provide rigid support. On

finished ceilings, Figure 2, attach a sturdy metal

bracket to structural supports before installing the

opener. The bracket and fastening hardware are not

supplied.

• Measure the distance from

each

side of the opener

to the structural support.

• Cut both pieces of the hanging bracket to required

lengths.

• Drill 3/16" pilot holes in the structural supports.

• Attach one end of each bracket to a support with

5/16"-18x1-7/8" lag screws.

• Fasten the opener to the hanging brackets with

5/16"-18x7/8" screws, lock washers and nuts.

• Check to make sure the T-rail is centered over the

door (or in line with the header bracket if the

bracket is not centered above the door).

• Remove the 2x4. Operate the door manually. If the

door hits the rail, raise the header bracket.

Step 4 Hang Opener 

Sears '92 Front to Back

3/26/92

Tire-fond de

5/16 de po-18 x 1-7/8 de po

Solives

Mesurer

la distance

Vis de 5/16 de po-18x7/8 de po,

rondelle-frein de 5/16 de po,

écrou de 5/16 de po-18

Vis de 5/16 de po-18x7/8 de po,

rondelle-frein de 5/16 de po,

écrou de 5/16 de po-18

Vis de 5/16 de po-18x7/8 de po,

rondelle-frein de 5/16 de po,

écrou de 5/16 de po-18

(non fournis)

Cornière

(non fournie)

Tire-fond de

5/16 de po-18 x 1-7/8 de po

— Plafond fini —

Poutrelle

cachée

Bracket

(Not Supplied)

Lag Screws

5/16"-18x1-7/8"

(Not Supplied)

5/16"-18x7/8" Screw

5/16" Lock Washer

5/16"-18 Nut

— FINISHED CEILING —

5/16"-18x7/8" Screw

5/16" Lock Washer

5/16"-18 Nut

Hidden

Support

Measure

Distance

Lag Screws

5/16"-18x1-7/8"

Structural

Supports

5/16"-18x7/8" Screw

5/16" Lock Washer

5/16"-18 Nut

Step 4 Hang Opener 

Sears '92 Front to Back

3/26/92

Tire-fond de

5/16 de po-18 x 1-7/8 de po

Solives

Mesurer

la distance

Vis de 5/16 de po-18x7/8 de po,

rondelle-frein de 5/16 de po,

écrou de 5/16 de po-18

Vis de 5/16 de po-18x7/8 de po,

rondelle-frein de 5/16 de po,

écrou de 5/16 de po-18

Vis de 5/16 de po-18x7/8 de po,

rondelle-frein de 5/16 de po,

écrou de 5/16 de po-18

(non fournis)

Cornière

(non fournie)

Tire-fond de

5/16 de po-18 x 1-7/8 de po

— Plafond fini —

Poutrelle

cachée

Bracket

(Not Supplied)

Lag Screws

5/16"-18x1-7/8"

(Not Supplied)

5/16"-18x7/8" Screw

5/16" Lock Washer

5/16"-18 Nut

— FINISHED CEILING —

5/16"-18x7/8" Screw

5/16" Lock Washer

5/16"-18 Nut

Hidden

Support

Measure

Distance

Lag Screws

5/16"-18x1-7/8"

Structural

Supports

5/16"-18x7/8" Screw

5/16" Lock Washer

5/16"-18 Nut

17

The opener could fall and injure someone if it

is not properly secured.

Fasten the opener

securely to structural supports of the garage.

Hex Screw

5/16"-18x7/8" Nut 5/16"-18 Lock Washer 5/16"

Tire-fond de 5/16 de po-18 x 1-7/8 de po

Vis à tête hexagonale de

5/16 de po-18x7/8 de po Écrou de

5/16 de po-18 Rondelle-frein

de 5/16 de po

Lag Screw

5/16"-18x1-7/8"

Hardware Shown Actual Size

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

Figure 1

Figure 2

Grease the top and underside of the

rail surface where the trolley

slides with rail grease.

RAIL GREASE

NO. 83A4

Rail Grease

The Chamberlain Group, Inc.

Liftmaster Combination

5/23/92

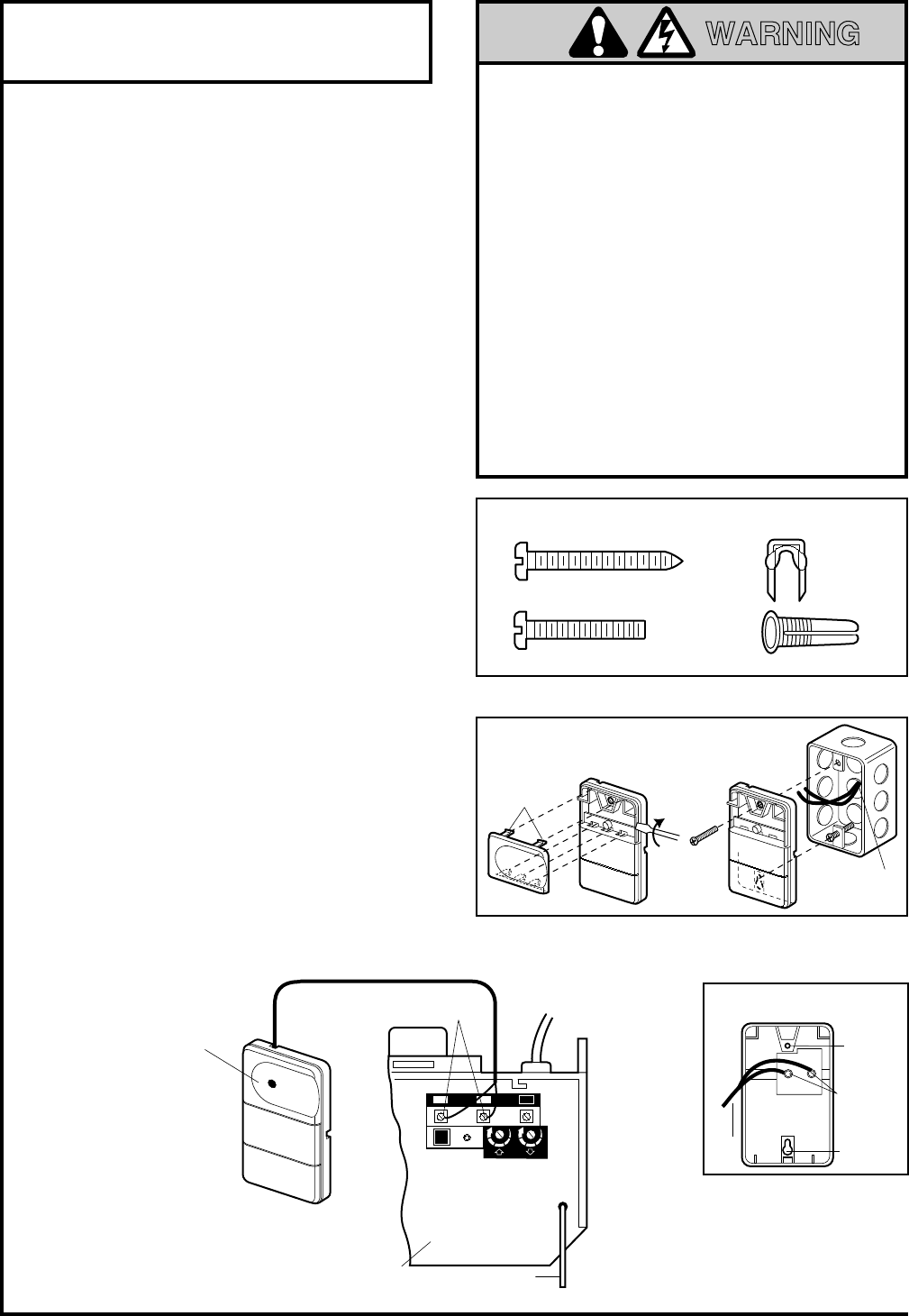

Installation Step 6

Install the Door Control

18

Do not connect to live electrical wiring. Connect

only to 24 Volt low voltage wires. Connection to

live wires or higher voltage may cause serious

injury from shock, burn or electrocution.

Children operating or playing with a garage

door opener can injure themselves or others.

The garage door could close and cause

serious injury or death.

Install the door control (or any additional push

buttons) out of the reach of children and away

from all moving parts of the door and door

hardware,

but where the garage door is visible.

Do not allow children to operate the push

button(s) or the remote control(s).

A moving garage door could injure someone

under it.

Activate the opener only when the

door is properly adjusted, you can see it

clearly, and there are no obstructions to door

travel.

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

Sears

DoorContrl front/back

7/95

Lighted

Push Button

Antenna

Back Panel

of Opener

Opener

Terminal Screws

KG KG

1

3

9

7

5

1

3

9

7

5

23

1

2-Conductor

Bell Wire

STANDARD 

CONTROL

CONSOLE

Bouton-poussoir

éclairé

Antenne

Panneau arrière

de l'ouvre-porte

Bornes filetées

de 2 conducteurs

KG KG

1

3

9

7

5

1

3

9

7

5

23

1

Fil de sonnerie à

2 conducteurs

COMMANDE 

MURALE

STANDARD

Dry Wall Anchors

Insulated

Staples

6AB x 1-1/4" Screw

Control Console (std installation)

6-32 x 1" Screw

Control Console (pre-wired)

6AB x 1-1/2" Screw

Door Control Button

Chevilles pour murs secs

Agrafe

isolée

Vis 6ABx1-1/4 po Commande murale

(pour installation standard)

Vis 6-32x1 po Commande murale

(pour installation pré-câblée)

Vis 6ABx1-1/2po

Bouton de commande

Hardware Shown Actual Size

The Chamberlain Group, Inc.

Std Console Door Control

8/95

To Replace,

Insert

Top Tabs

First

To Remove,

Twist 

Here

PRE-WIRED

INSTALLATION

REMOVE & REPLACE COVER

Figure 1 Figure 2

24 Volt

2-Conductor

Bell Wire

Pour remettre, 

insérer tout d'abord

les pattes

supérieures

Pour enlever,

dévisser à

cet endroit

INSTALLATION

PRÉ-CÂBLÉE

POUR ENLEVER ET REMETTRE

LE COUVERCLE

Figure 1 Figure 2

Fil de sonnerie

24 V à

2 Conducteurs

Sears

DoorContrls/RearView 

7/95

Bell 

Wire

Terminal

Screws

STANDARD CONTROL

(BACK VIEW) Top 

Mounting

Hole

Bottom

Mounting

Hole

WHITE

2RED

1

Bornes

filetées

TÉlÉCOMMANDE STANDARD

(VUE ARRIÈRE) Trou de

fixation

supérieur

Trou de

fixation

inférieur

BLANC

2

ROUGE

1

Fil de 

sonnerie

Locate the door control within sight of the door

at a minimum height of 5 feet where small

children cannot reach, and away from all moving

parts of the door and door hardware.

The door control is typically attached directly to the

wall. If installing into drywall, drill 5/32" holes and use

the anchors provided.

For pre-wired installations (as

in new home construction), Console models may be

mounted to a standard single gang box (Figure 2).

1. Strip 1/4" of insulation from one end of the bell

wire and connect it to the two screw terminals on

the back of the door control: white to 2, and

white/red to 1.

2. Pry off cover along one side with a screwdriver

blade (see Figure 1). Fasten with 6ABx1-1/4” self-

tapping screws (standard installation) or 6-32x1"

machine screws (pre-wired installation) as follows:

• Install bottom screw, allowing 1/8" to protrude

above wall surface.

• Position bottom of door control on screw head and

slide down to secure. Adjust screw for snug fit.

• Drill and install top screw with care to avoid

cracking plastic housing.

Do not overtighten.

• Insert top tabs and snap on cover.

3.

(For standard installation only)

Run the bell wire

up the wall and across the ceiling to the opener.

Use insulated staples to secure the wire in several

places. Be careful not to pierce the wire with a

staple, creating a short.

4. Connect the bell wire to the terminal screws on the

opener panel: white to 2; white/red to 1.

5. Position the antenna wire as shown.

The Chamberlain Group, Inc.

Step 7 Install Light and Lens - Sears

4/17/92 - 4/20/92

Lens Guide

Lens Slot

75 Watt Max.

Light Bulb

Lens Tab

Light Lens

Guides

du diffuseur

Encoche 

du diffuseur

Ampoules de 75

watts maximum

Patte du diffuseur

Diffuseur

Install the light:

• Install a 75 watt maximum light bulb in each

socket. The lights will turn ON and remain lit for

approximately 4-1/2 minutes when power is

connected. Then the lights will turn OFF.

• If the bulbs burn out prematurely due to vibration,

replace them with standard neck "Garage Door

Opener" bulbs.

Install the lens:

• Apply slight pressure on the sides of each lens

and slide the tabs into the slots in the side panels.

• For convenience, the lens may be installed

after Adjustment Step 4 on page 30.

• Reverse the procedure to remove the lenses.

Installation Step 7

Install the Light and the Lens

6. Attach the User Safety Instruction label to the wall

near the door control, and the Maintenance

Instruction label in a prominent location on the

inside of the garage door.

Page 32 explains how to use the door control.

Do NOT connect the power and operate the

opener at this time.

The trolley will travel to the

full

open

position but will not return to the

close

position until the sensor beam is

connected and properly aligned.

See Safety Reversing Sensor instructions

beginning on page 21.

Installation Step 8

Attach the Emergency

Release Rope and Handle

Do not use the red handle to pull the door

open or closed.

The rope knot could become

untied and you could fall.

Use the emergency

release only to disengage the trolley and, if

possible, only when the door is closed.

Garage doors are heavy. If the door is open

when the handle is pulled, the door could

close inadvertently if it is not properly

balanced. Serious injury may result to persons

under the door. Make sure the doorway is clear

of persons and obstructions before pulling

handle when door is open.

• Thread one end of the rope through the hole in

the top of the red handle so "NOTICE" reads right

side up as shown. Secure with an overhand knot.

The knot should be at least 1" from the end of

the rope to prevent slipping.

• Thread the other end of the rope through the hole

in the release arm of the outer trolley.

• Adjust rope length so the handle is 6 feet above

the floor. Secure with an overhand knot .

If it is necessary to cut the rope, heat seal the

cut end with a match or lighter to prevent

unraveling.

Step 5 Attach Emergency Release Rope & Handle - SEARS 315-699 (Yellow Disk #2)

Models 53315, 53415, 53515, 53625 & 53699

6/20/89 - 6/27/89

Overhand

Knot

Trolley

NOTICE

Emergency

Release Handle

Rope

Overhand

Knot

Trolley

Release Arm

Trolley

Emergency

Release Handle

Rope

Overhand

Knot

Trolley

Release Arm

NOTICE

Overhand

Knot

19

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

To reduce the risk of electric shock, your garage

door opener has a grounding type plug with a third

grounding pin. This plug will

only

fit into a grounding

type outlet.

If the plug doesn't fit into the outlet you have,

contact a qualified electrician to install the proper

outlet.

RIGHT WRONG

Ground Tab

Green Ground

Screw

Ground Wire

Black

Wire

Permanent wiring

connection

White Wire

Black

Wire

Bon Mauvais

Patte de terre

Vis verte

de terre

Fil de terre

Fil

noir

Branchement 

électrique

permanent

Fil blanc

Fil

noir

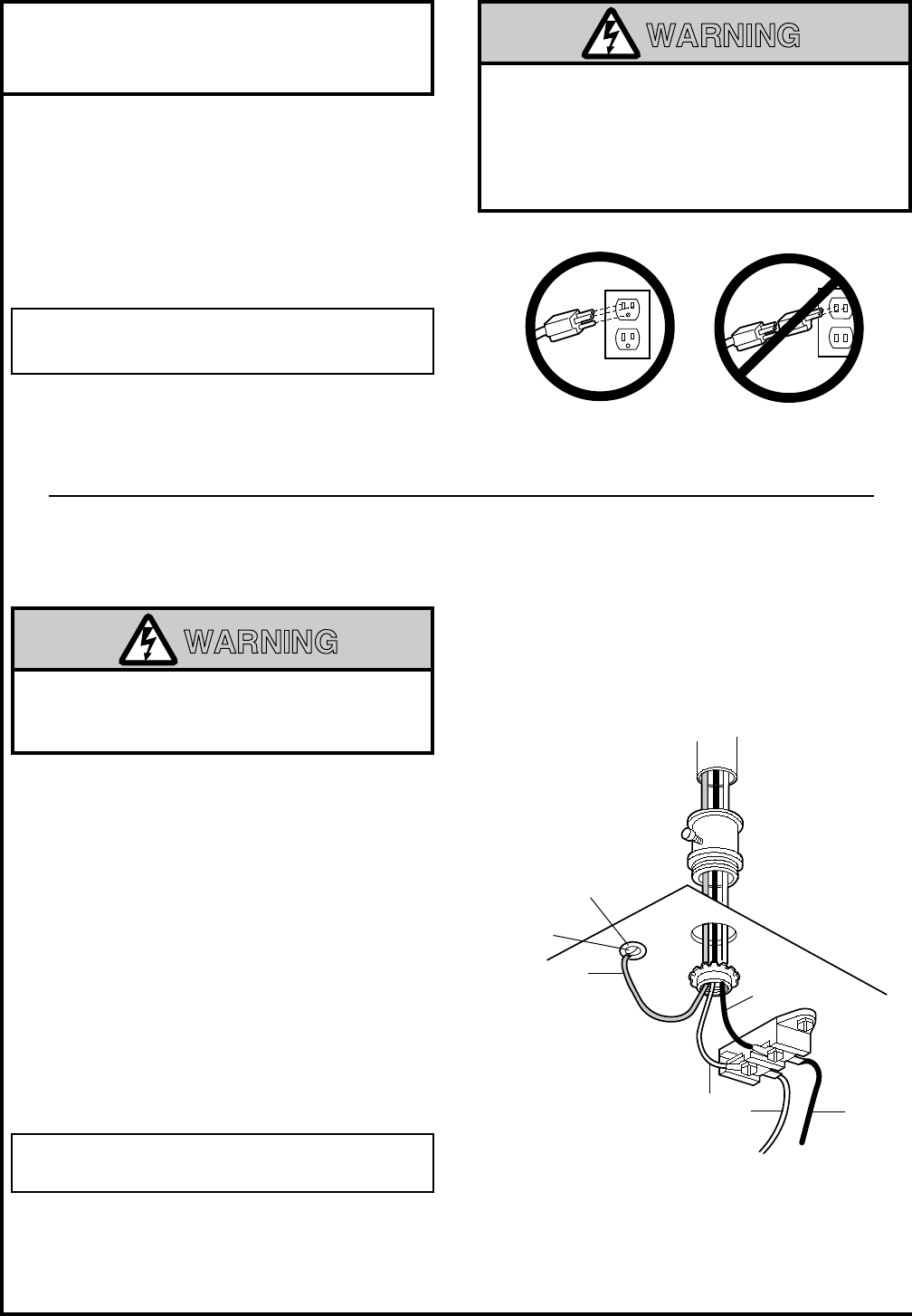

Installation Step 9

Electrical Requirements

RIGHT WRONG

Ground Tab

Green Ground

Screw

Ground Wire

Black

Wire

Permanent wiring

connection

White Wire

Black

Wire

Bon Mauvais

Patte de terre

Vis verte

de terre

Fil de terre

Fil

noir

Branchement 

électrique

permanent

Fil blanc

Fil

noir

To make a permanent connection through the

7/8" diameter hole in the top of the opener

(according to local code):

• Remove the opener cover screws and set the

cover aside.

• Remove the attached 3-prong cord.

• Connect the black (line) wire to the screw on the

brass terminal; the white (neutral) wire to the

screw on the silver terminal; and the ground wire

to the green ground screw.

The opener must be

grounded.

• Reinstall the cover.

20

To prevent electrocution or fire

, installation

and wiring must be in compliance with local

electrical and building codes.

Do

NOT

use an extension cord, 2-wire adapter,

or change the plug in any way to make it fit

your outlet.

Right Wrong

To avoid installation difficulties,

do not run the opener at this time.

To avoid installation difficulties,

do not run the opener at this time.

If permanent wiring is required by your local code, refer to the following procedure:

To prevent electrocution

, remove power from

the garage door opener

and

from the circuit

you plan to use for the permanent connection.

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

The safety reversing sensor

must

be connected

and aligned correctly before the garage door

opener will move in the down direction. This is a

required safety device and cannot be disabled.

Installation procedures are the same for sectional

and one-piece doors.

Without a properly working safety reversing

sensor, persons (particularly children) could

be injured or killed by a closing garage door.

Read and follow all instructions.

To protect small children, install the safety

reversing sensor so that the beam will be no

higher than 4"-6" above the garage floor.

Disconnect power to the garage door opener

before installing the safety reversing sensor.

Invisible Light Beam

Protection Area

The Chamberlain Group, Inc.

Safety Sensor

Instruction Sheet Page 1 

Protector System Disk #1 (Yellow)

11/5/91 - 1/15/92

Wing Nut

Sensor Beam

4-6" max.

above floor

Zone de protection du

faisceau lumineux invisible

Sensor Beam

4-6" max.

above floor

Détecteur inverseur

à 4-6 po maximum

au-dessus du sol

Détecteur inverseur

à 4-6 po maximum

au-dessus du sol

Figure 1: Facing the door from inside the garage

The brackets

must

be securely fastened to a solid

surface such as the studs on either side of the door,

or add a piece of wood at each location if installing in

masonry construction.

The invisible light beam path must be unobstructed.

No part of the garage door (or door tracks, springs,

hinges, rollers or other hardware) can interrupt the

beam while the door is closing. If it does, use a piece

of wood to build out each sensor mounting location to

the minimum depth required for light beam clearance.

21

The Safety Reversing System

Information you'll need before you begin the installation of the safety reversing sensor.

Be sure power to the opener is disconnected.

The sending eye transmits an invisible light beam to

the receiving eye. The units can be installed on

either side of the garage door as long as the sun

never shines directly into the receiving eye lens.

Look at the label on the connector end of each case

to identify the sensors.

The brackets must be connected and fastened so

that the sending and receiving eyes face each other

as shown in Figure 1.

If an obstruction breaks the light beam while the

garage door is closing, the door will stop and

reverse to full open position and the opener lights

will flash for 5 seconds.

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

1/4x1-1/2"

Lag Screw

#10-32x3/8"

Screw 1/4"-20

Lock Nut

#10x32

Lock Nut Staples 1/4"-20x1/2"

Carriage Bolts

Tire-fond de 1/4x1-1/2 po Écrou

1/4 de po-20

Agrafes Boulons à tête bombée

et collet carré de

1/4 de po-20x1/2 po

Vis n 10-

32x3/8 de po

oÉcrou n 10x32

o

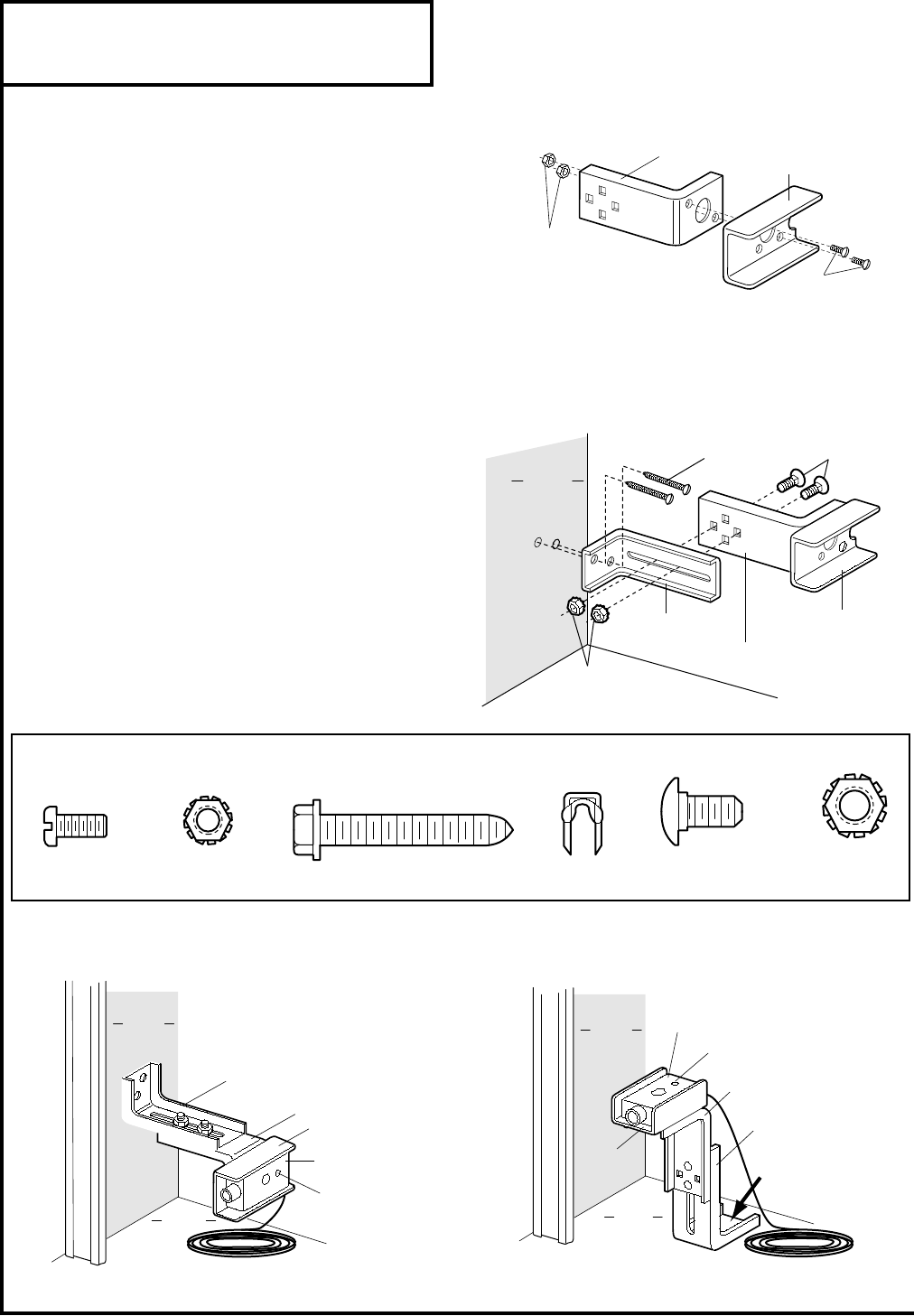

Installation Step 10

Install the Safety Reversing Sensor

Mounting Bracket

With Square Holes

#10-32x3/8"

Screws

"C" Wrap

#10-32

Lock Nuts

The Chamberlain Group, Inc.

Safety Sensor Page 2

Safety Sensor Disk #1 (Yellow)

11/5/91 - 4/9/92

Mounting Bracket

with Slot

1/4"-20

Lock Nuts

1/4x1-1/2"

Lag Screws 1/4-20x1/2" Carriage Bolts

(with square shoulder)

Inside

Garage

Wall

"C" Wrap

Mounting Bracket

with Square Holes

Figures 2 and 3 show assembly of brackets and

"C" wrap based on the recommended installation of

the sensors as shown on page 21.

However, Figures 4 and 5 are variations which may

fit your installation requirements better. Make sure

the wraps and brackets are aligned so the

sensors will face each other across the garage

door.

• Fasten the "C" wraps to the mounting brackets

having square holes, using the hardware shown

in Figure 2.

• Connect each assembly to a slotted bracket, using

the hardware shown in Figure 3.

Note the alignment of the brackets for left and

right sides of the door.

• Finger tighten the lock nuts.

• Use bracket mounting holes as a template to

locate and drill (2) 3/16" diameter pilot holes on

both sides of the garage door, 4"-6" above the

floor

but not exceeding 6".

(See warning on

page 21.)

• Attach bracket assemblies with 1/4"x1-1/2" lag

screws as shown in Figure 3.

• Adjust right and left side bracket assemblies to the

same distance out from the mounting surface.

Make sure all door hardware obstructions are

cleared. Tighten the nuts securely.

"C" Wrap

Inside

Garage

Wall

Mounting Bracket

with Square Holes

Garage

Floor

Mounting Bracket

with Slot

Alternate Wall Mount

Sensor

with wire

Indicator Light

Indicator Light

Inside

Garage

Wall

Alternate Floor Mount

Mounting Bracket

with Slot

Attach with

concrete anchors

(not provided)

Mounting Bracket

with Square Holes

"C" Wrap

Sensor with wire

Garage

Floor

22

Hardware Shown Actual Size

Figure 2

Figure 4 Figure 5

Figure 3

Invisible Light Beam

Protection Area

Sensor

Sensor

Connect Wire to

Opener Terminals

Attaching Sensor to "C" Wrap and Wires to Operator

11/14/91 - 1/15/92

Bell Wire

Bell Wire Finished

Ceiling

OPENER TERMINAL SCREWS

Sensor

Connections

Door Control

Connections

(dotted line)

123

• Center each sensor unit in a "C" wrap with lenses

pointing toward each other across the door (see

Figure 6).

• Secure sensors with the hardware shown. Finger

tighten the wing nut on the

receiving eye

to allow

for final adjustment. Securely tighten the

sending

eye

wing nut.

• Run the wires from both sensors to the opener.

Use insulated staples to secure wire to wall and

ceiling.

• Strip 1/4" of insulation from each set of wires.

Separate white and white/black wires sufficiently to

connect to the opener terminal screws: white to 2

and white/black to 3.

Aligning the Safety Sensors

• Plug in the opener. Green indicator lights in both

the sending and receiving eyes will

glow steadily

if

wiring connections and alignment are correct.

The

sending

eye indicator light will glow regardless

of alignment or obstruction. If the indicator light is

off, dim, or flickering in the

receiving eye

(and the

invisible light beam path is not obstructed),

alignment is required.

• Loosen the

sending

eye wing nut and re-adjust,

aiming directly at the receiving eye. Lock in place.

• Loosen the

receiving

eye wing nut and adjust

sensor vertically and/or horizontally until it receives

the sender’s beam. When the green indicator light

glows steadily,

tighten the wing nut.

23

1/4-20 x 1-1/2"

Hex Bolt

"C" Wrap

Sensor

with Wire

Wing

Nut

Indicator

Light

1/4-20x1-1/2"

Hex Bolt Wing Nut

Vis à tête hexagonale

de 1/4-20x1-1/2 po Écrou à oreilles

Hardware Shown Actual Size Figure 7

Figure 6

Trouble Shooting

1.If the

sending eye

indicator light does not

glow

steadily

after installation, check for:

• Electric power to the opener.

• A short in the white or white/black wires. These

can occur under staples or at screw terminal

connections.

• Incorrect wiring between sensors and opener.

• An open wire (wire break).

2.If the sending eye indicator light

glows steadily

but

the receiving eye indicator light doesn't:

• Check alignment.

• Check for an open wire to the receiving eye.

3.If the receiving eye indicator light is dim, realign

either sensor.

NOTE: When the invisible beam path is obstructed or

misaligned while the door is closing, the door will

reverse. If the door is already open, it will not close.

The opener lights will flash 10 times. (If bulbs are not

installed, 10 clicks are audible.) See page 21.

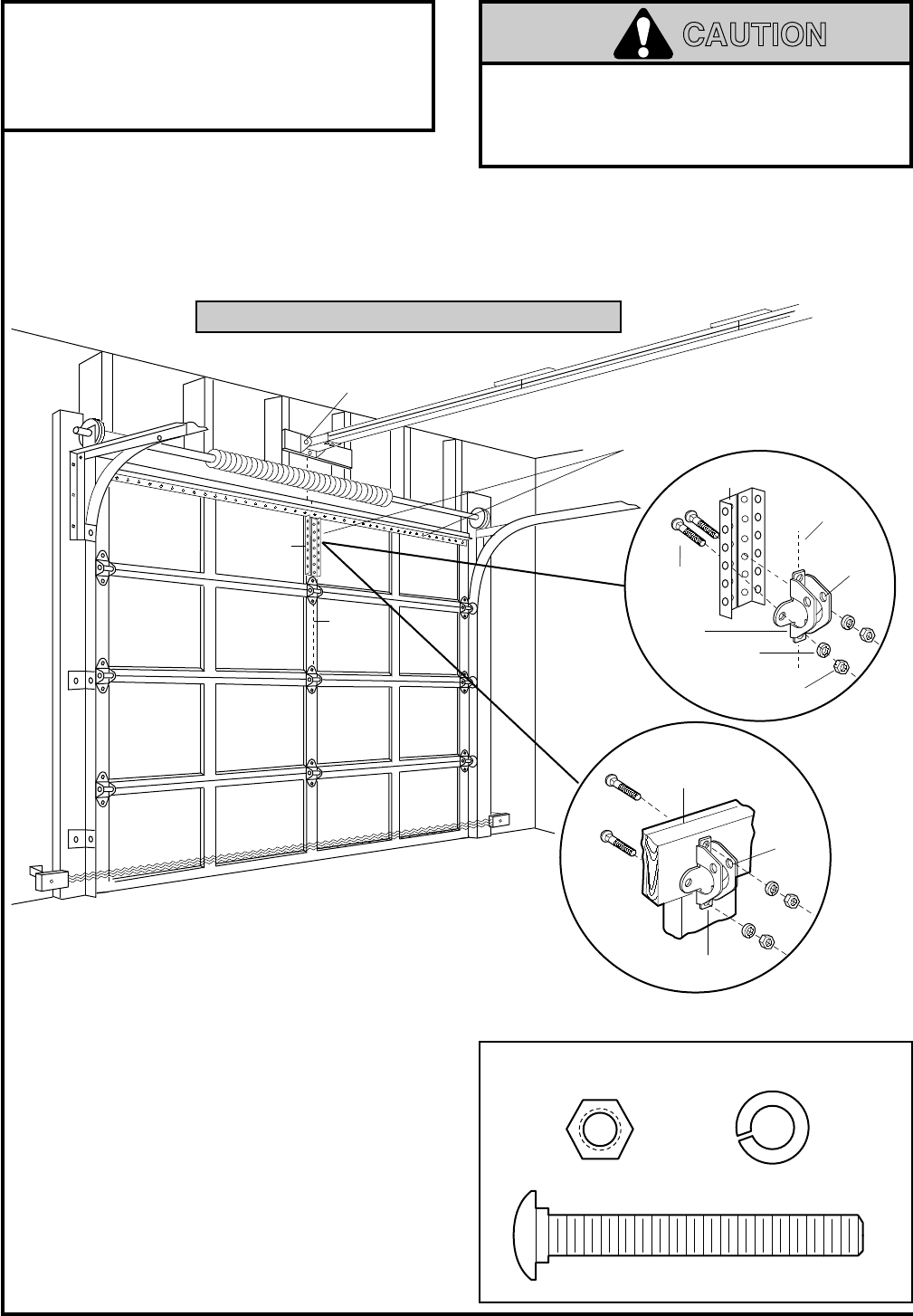

Installation Step 11

Fasten Door Bracket

Follow instructions which apply to your door

type as illustrated below or on page 25. To prevent damage to steel, aluminum,

fiberglass or glass panel doors, always

reinforce the inside of the door both vertically

and horizontally with an angle iron.

A horizontal brace should be long enough to be secured to 2 vertical supports. A vertical brace should

cover the height of the top panel.

The illustration shows one piece of angle iron as the horizontal brace. For the vertical brace, 2 pieces of

angle iron are used to create a "U"-shaped support. The best solution is to check with your garage door

manufacturer for an opener installation door reinforcement kit.

• Center the door bracket on the previously marked

vertical guideline used for the header bracket

installation.

Note correct UP placement, as

stamped inside the bracket.

• Position the bracket on the face of the door within

the following limits:

A) The top edge of the bracket 2"-4" below the top

edge of the door.

B) The top edge of the bracket directly below any

structural support across the top of the door.

• Mark and drill 5/16" left and right fastening holes.

Secure the bracket as shown in Figure 1 if there is

vertical reinforcement.

If your installation doesn't require vertical reinforce-

ment but does need top and bottom fastening holes

for the door bracket, fasten as shown in Figure 2.

24

Vertical

Guideline Door

Bracket

Nut

5/16"-18

Carriage Bolt

5/16"-18x2-1/2"

Lock 

Washer

5/16"

Vertical

Guideline

UP

Door

Bracket

Location

Header

Bracket Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, aluminum, steel,

doors with glass panel, etc).

Vertical

Reinforcement

UP

Door Bracket

Inside Edge

of Door or

Reinforcement Board

Door Bracket-Sectional

6/96

SECTIONAL Door Installation Procedure

Nut 5/16"-18 Lock Washer 5/16"

Carriage Bolt

5/16"-18x2-1/2"

Écrou de 5/16 de po-18 Rondelle-frein

de 5/16 de po

Boulon à tête bombée et à collet carré

de 5/16 de po-18x2-1/2 po

Hardware Shown Actual Size

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

Figure 1

Figure 2

Door

Bracket

Inside Edge

of Door or

Reinforcement Board

Horizontal and vertical

reinforcement is needed for

lightweight garage doors

(fiberglass, aluminum, steel, 

door with glass panel, etc.).

Header Wall

Vertical

Centerline of

Garage Door

Finished Ceiling

Header

Bracket

Door

Bracket

Fasten Door Bracket and Plate

One-Piece Door Installation

2/4/92 - 4/7/92

2x4 Support

All ONE-PIECE Door Installation Procedure

• Center the bracket on the inside face of the door,

in line with the header bracket as shown. Mark

either the left and right, or the top and bottom

holes.

• Drill 5/16" pilot holes and fasten the door bracket

with hardware supplied.

25

Please read and comply with the warnings and reinforcement instructions on page 24.

They apply to one-piece doors also.

Carriage Bolt

5/16"-18x2-1/2"

Nut 5/16"-18 Lock Washer 5/16"

Boulon à tête bombée et à collet

carré de 5/16 de po-18x2-1/2 po

Écrou de

5/16 de po-18 Rondelle-frein

de 5/16 de po

Hardware Shown Actual Size

Clevis Pin

5/16"x1-1/4"

Clevis Pin

5/16"x1"

DoorArmTtoTrolleySec/FR

New door brkt

1/96

Ring

Fastener

Door

Bracket

Door Bracket

Curved

Door Arm

Straight

Door Arm

Inner Trolley

Outer Trolley

Lock

Washers

5/16"

Nuts

5/16"-18

Screws

5/16"-18x7/8"

Emergency

Release

Handle

Rope

Lock

Washers

5/16"

Nuts

5/16"-18

Screws

5/16"-18x7/8"

Cut This End

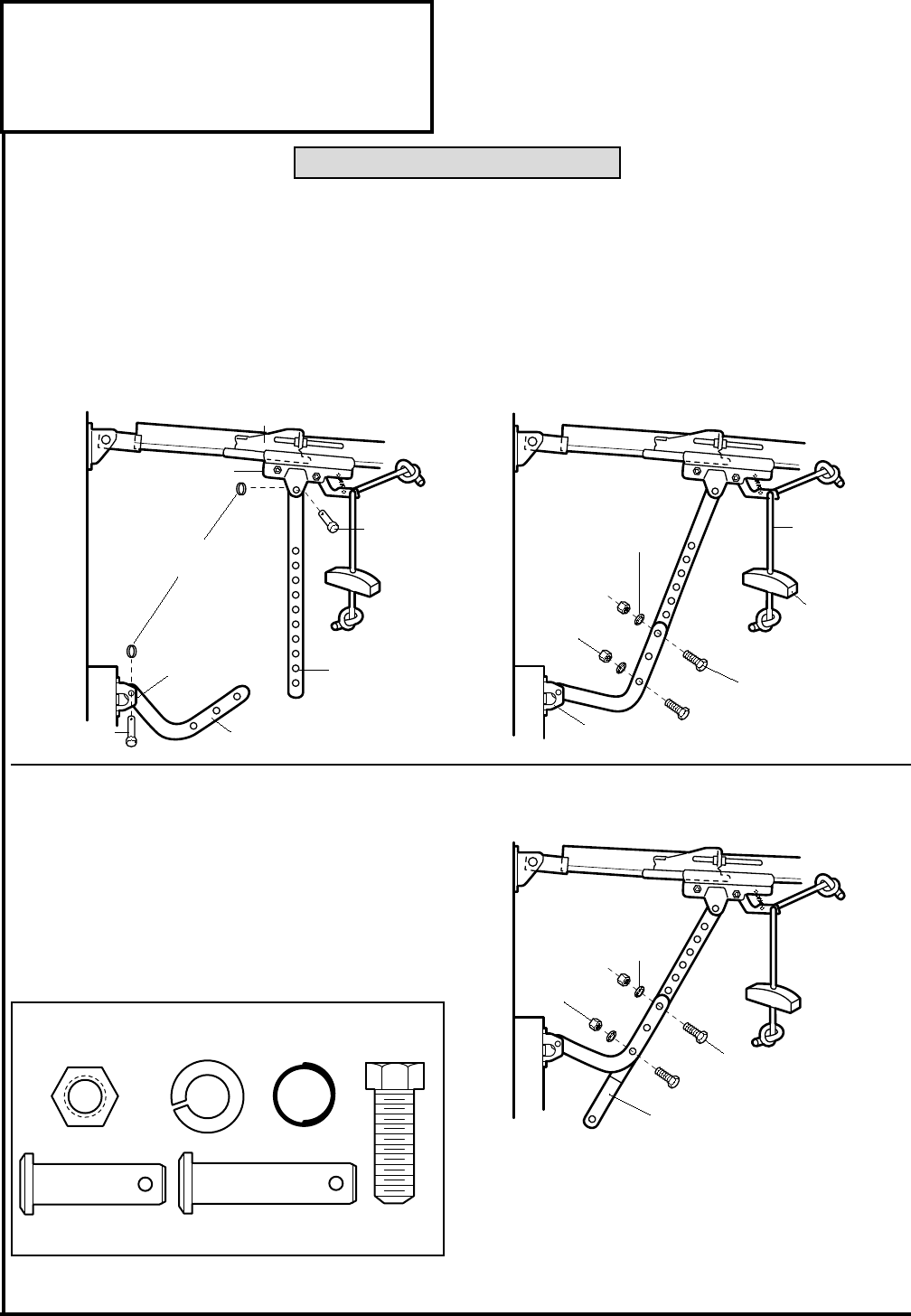

Installation Step 12

Connect Door Arm to Trolley

Follow instructions which apply to your door

type as illustrated.

Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley

from the inner trolley. Slide the outer trolley back (away from the door) about 2" as shown in

Figures 1, 2 and 3.

Figure 2:

• Bring arm sections together. Find two pairs of holes

that line up and join sections. Select holes as far

apart as possible to increase door arm rigidity.

Figure 3:

• If holes in curved arm are

above

holes in straight

arm, disconnect straight arm. Cut about 6" from

the solid end. Reconnect to trolley with

cut end

down

as shown.

• Bring arm sections together.

• Find two pairs of holes that line up and join with

screws, lock washers and nuts.

Proceed to Adjustment Step 1, page 28. Trolley will re-engage automatically when the opener is operated.

26

Figure 1:

• Fasten straight door arm section to outer trolley

with the 5/16"x1" clevis pin. Secure the connection

with a ring fastener.

• Fasten curved door arm to the door bracket in the

same way, using the

5/16"x1-1/4" clevis pin.

SECTIONAL Doors Only

Lock Washer 5/16"

Nut 5/16"-18 Ring Fastener

Hex Screw

5/16"-18x7/8"

Clevis Pin

5/16"x1" (Trolley)

Rondelle-frein

de 5/16 de po

Écrou de

5/16 de po-18

Anneau 

d'arrêt

Vis à tête hexagonale

de 5/16 de po-18x7/8 de po

Axe de chape de

5/16 de po x 1 po (Chariot)

Axe de chape de 

5/16 de po x 1-1/4 po 

(Support de la porte)

Clevis Pin

5/16"x1-1/4" (Door Bracket)

Hdw for door EN/FR

Hardware Shown Actual Size

Hole Alignment Alternative

Figure 1 Figure 2

Figure 3

Nuts

5/16"-18

Lock

Washers

5/16"

Ring

Fastener

Straight

Door Arm

Screws

5/16"-18x7/8"

Door

Bracket

5/16"x1-1/4"

ClevisPin Curved Door Arm

Fully Open

Trolley

Door Arm

Connector Hole

Door Arm

Closed

Door Open Door

Door with

Backward Slant

Door Arm

Connector Hole

Fully Closed

Trolley

Écrous de

5/16 de po-18

Rondelle-freins

de 5/16 de po

Anneau

d'arrêt

Biellette

droite

Vis de

5/16 de po-

18x7/8 de po

Support

de la porte

Axe de chape de

5/16 de po x 1-1/4 de po

Biellette courbée

Chariot

complètement

ouvert

Trou de raccordement

de la biellette

Biellette

Porte

fermée Porte ouverte Porte inclinée

vers l'arrière

Trou de raccordement

de la biellette

Chariot

complètement

fermé

Biellette

Door Arm

Can/DoorArmToTrolley 1 pc

All ONE-PIECE Doors

Assemble the Door Arm:

• Fasten the straight and curved door arm sections

together to the longest possible length, with a 2 or 3

hole overlap.

• With the door closed, connect the straight door arm

section to the door bracket with the 5/16"x1-1/4"

clevis pin.

• Secure with a ring fastener.

On one-piece doors, before connecting the door arm to the trolley the travel limits must be adjusted. Limit adjust-

ment screws are located on the left side panel as shown on page 28. Follow adjustment procedures below.

Adjustment Procedures for One-Piece Doors

Open Door Adjustment:

Decrease UP limit

• Turn the UP limit adjustment screw counter-

clockwise 5-1/2 turns.

• Press the Door Control push button. The trolley will

travel to the fully open position.

• Manually raise the door to the open position

(parallel to the floor), and lift the door arm to the

trolley. The arm should touch the trolley just in

back of the door arm connector hole. Refer to the

fully open trolley/door arm positions in the

illustration. If the arm does not extend far enough,

adjust the limit further. One full turn equals 2" of

trolley travel.

Closed Door Adjustment:

Decrease DOWN limit

• Turn the DOWN limit adjustment screw clockwise

5 complete turns.

• Press the Door Control push button. The trolley will

travel to the fully closed position.

• Manually close the door and lift the door arm to the

trolley. The arm should touch the trolley just ahead

of the door arm connector hole. Refer to the fully

closed trolley/door arm positions in the illustration. If

the arm is behind the connector hole, adjust the limit

further. One full turn equals 2" of trolley travel.

Connect the door arm to the trolley.

• Close the door and join the curved arm to the connector hole in the trolley with the remaining clevis pin. It may

be necessary to lift the door slightly to make the connection.

• Secure with a ring fastener.

• Run the opener through a complete travel cycle. If the door has a slight "backward" slant in full open position

as shown in the illustration, decrease the UP limit until the door is parallel to the floor.

27

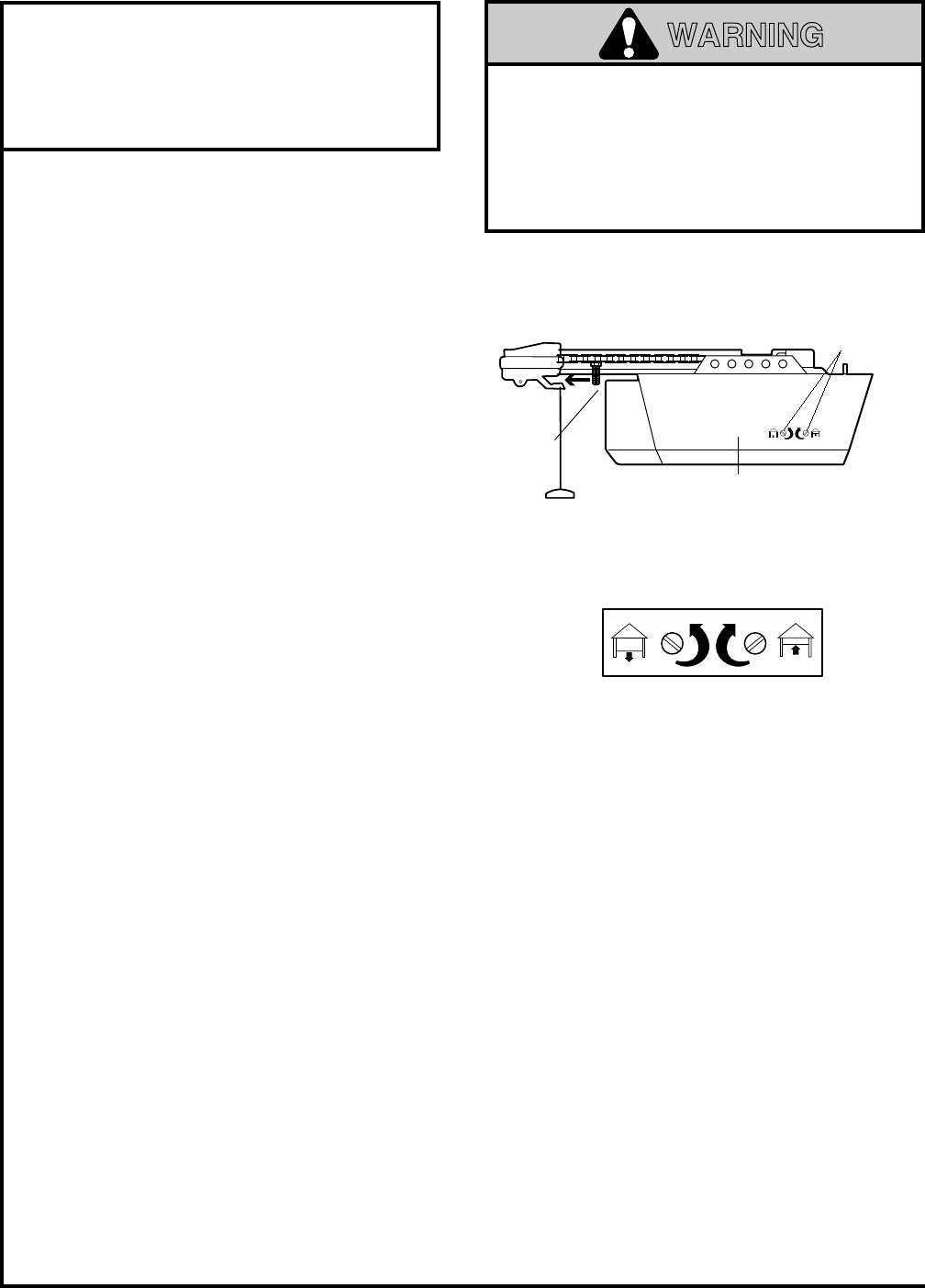

Adjustment Step 1

Adjust the UP and DOWN Limits

Do not make any limit adjustments until the

safety reversing sensors are completely

installed.

28

Limit adjustment settings regulate the points at

which the door will

stop

when moving up or down.

The door will

stop

in the

up

direction if anything

interferes with door travel. The door will

reverse

in

the

down

direction if anything interferes with the

door travel (including binding or unbalanced doors).

To operate the opener, press the Door Control push

button. Run the opener through a complete travel

cycle.

• Does the door open and close completely?

• Does the door stay closed and not reverse

unintentionally when fully closed?

If your door passes both of these tests, no limit

adjustments are necessary unless the reversing test

fails (See page 30).

Adjustment procedures are outlined below. Run the

opener through a complete travel cycle after

each adjustment.

Repeated operation of the opener during adjustment

procedures may cause the motor to overheat and

shut off. Simply wait 15 minutes and try again.

Read the procedures carefully before proceeding to

Adjustment Step 2. Use a screwdriver to make limit

adjustments.

Adjustment Label

SEARS '92 Front to Back

3/27/92 - 4/2/92

Vis de réglage

de course

Panneau côté gauche

Étiquette de réglage

Boulon

du

couvercle

2-4"

Limit

Adjustment

Screws

Left Side Panel

Cover 

Protection 

Bolt

2-4"

How and When to Adjust the Limits

• If the door does not

open completely

, but

opens

at least

five feet:

Increase

up

travel. Turn the UP limit adjustment

screw clockwise. One turn equals 2" of travel.

NOTE: To prevent the trolley from hitting the

cover protection bolt, keep a minimum distance

of 2-4" between the trolley and the bolt.

• If door does not open at least 5 feet:

Adjust the UP (open) force as explained in

Adjustment Step 2.

• If the door does not

close completely:

Increase

down

travel. Turn the DOWN limit

adjustment screw counterclockwise. One turn

equals 2" of travel.

If the door still won't close completely and the trolley

bumps into the pulley bracket (see page 4 or 5), try

lengthening the door arm (see page 26).

If you have adjusted the door arm to the maximum

length and the door still will not close completely,

lower the header bracket. See Installation Step 1,

pages 12 and 13.

• If the opener

reverses

in fully closed position:

Decrease

down

travel. Turn the DOWN limit

adjustment screw clockwise. One turn equals 2" of

travel.

• If the door

reverses

when closing and there is

no visible interference to travel cycle:

If the opener lights are flashing, the Safety Reversing

Sensors are either not installed, misaligned, or

obstructed. See Troubleshooting, page 23.

Test the door for binding: Pull the emergency release

handle. Manually open and close the door. If the door

is binding, call for garage door service. If the door is

not binding or unbalanced, adjust the DOWN (close)

force. See Adjustment Step 2.

Adjustment Section: Pages 28 – 30

Improper adjustment of the travel limits will

interfere with the proper operation of the

safety reverse system.

The door might not

reverse properly when required and could

seriously injure or kill someone under it.

Test

the safety reverse system following all

adjustments to the travel limits. See page 30.

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

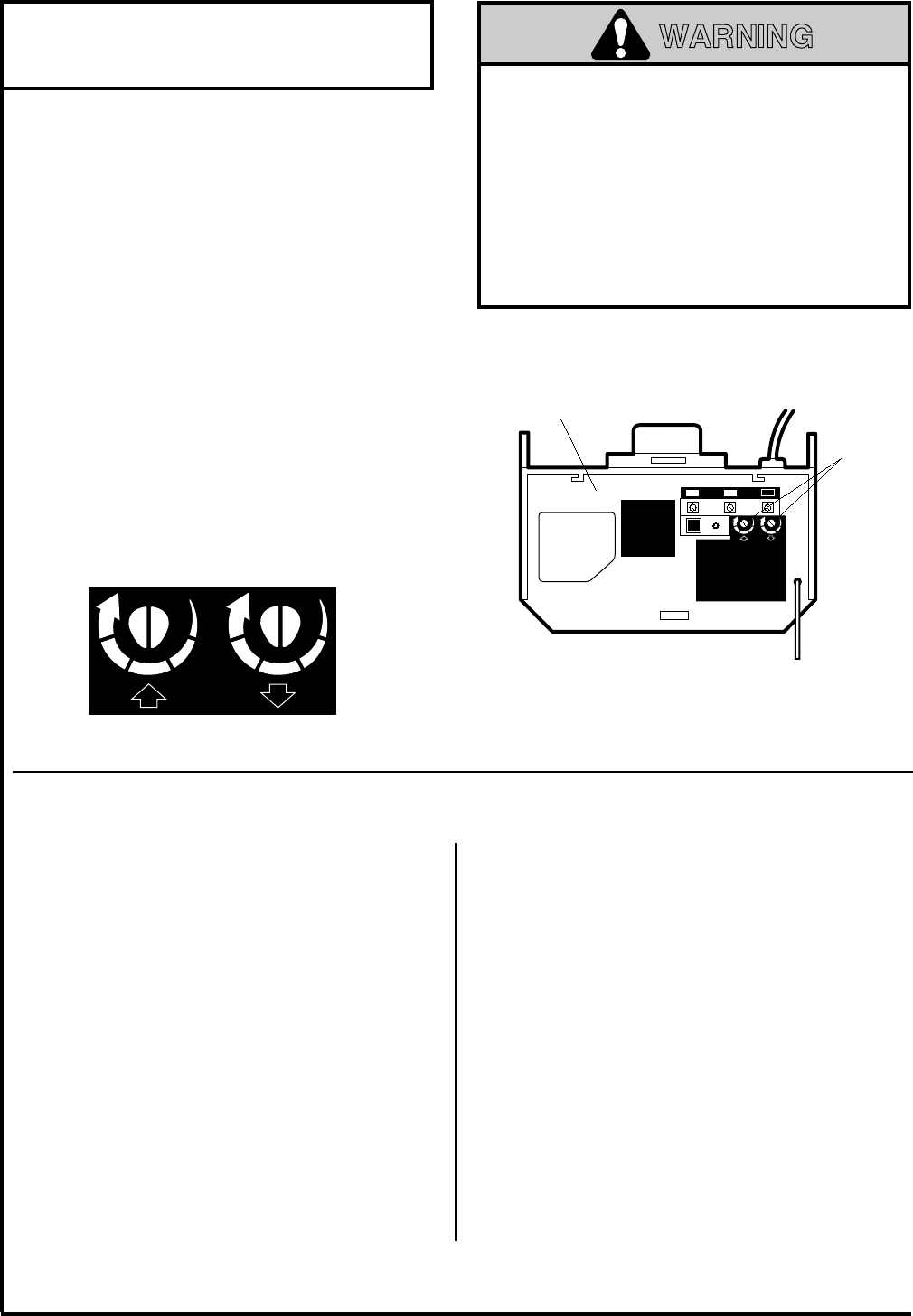

Adjustment Step 2

Adjust the Force

Too much force on the door will interfere with

the proper operation of the safety reverse

system.

The door might not reverse properly

when required and could seriously injure or

kill someone under it.

Do not increase the

force beyond the minimum amount required

to close the door. Do not use the force

adjustments to compensate for a binding or

sticking garage door. Test the safety reverse

system following all adjustments to force

levels. See page 30.

Adjust Force - SEARS

Force

Adjustment

Control

Adjustment Label

Back panel of

door opener

KG KG

1

3

9

7

5

1

3

9

7

5

KG KG

1

3

9

7

5

1

3

9

7

5

123

Panneau arrière

de l'ouvre-porte

KG KG

1

3

9

7

5

1

3

9

7

5

KG KG

1

3

9

7

5

1

3

9

7

5

123

Vis de réglage

de la force

Étiquette de réglage

How and When to Adjust the Forces

Test the DOWN (close) force

Grasp the door bottom when the door is about

halfway through DOWN (close) travel. The door

should reverse.

Reversal halfway through down

travel does not guarantee reversal on a one-inch

obstruction. See page 30.

If the door is hard to

hold or doesn't reverse, decrease the DOWN (close)

force by turning the control counterclockwise.

Make 10 degree turn adjustments until the door

reverses normally. After each adjustment, run the

opener through a complete cycle.

Test the UP (open) force

Grasp the door bottom when the door is about

halfway through UP (open) travel. The door should

stop. If the door is hard to hold or doesn't stop,

decrease UP (open) force by turning the control

counterclockwise.

Make 10 degree turn adjustments until the door stops

easily. After each adjustment, run the opener through

a complete travel cycle.

If the door doesn't open

at least

5 feet

Increase UP (Open) force by turning the control

clockwise. Make 10 degree turn adjustments until

door opens completely. Re-adjust the UP limit if

necessary. After each adjustment, run the opener

through a complete travel cycle.

If the door

reverses

during the down (close) cycle

and the opener lights aren't flashing

Increase DOWN (close) force by turning the control

clockwise. Make 10 degree turn adjustments until the

door completes a close cycle. After each adjustment,

run the opener through a complete travel cycle. Do

not increase the force beyond the minimum

amount required to close the door.

29

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

Force adjustment controls are located on the back

panel of the opener. Force adjustment settings

regulate the amount of power required to open and

close the door.

The door will

stop

in the

up

direction if anything

interferes with its travel. The door will

reverse

in the

down

direction if anything interferes with its travel

(including binding or unbalanced doors).

If the forces are set too light, door travel may be

interrupted by

nuisance reversals

in the

down

direction and

stops

in the

up

direction. Weather

conditions can affect the door movement, so

occasional adjustment may be needed.

The maximum force adjustment range is 260 degrees,

about 3/4 of a complete turn. Do not force controls

beyond that point. Turn force adjustment controls

with a screwdriver.

Adjust Force - SEARS

Force

Adjustment

Control

Adjustment Label

Back panel of

door opener

KG KG

1

3

9

7

5

1

3

9

7

5

KG KG

1

3

9

7

5

1

3

9

7

5

123

Panneau arrière

de l'ouvre-porte

KG KG

1

3

9

7

5

1

3

9

7

5

KG KG

1

3

9

7

5

1

3

9

7

5

123

Vis de réglage

de la force

Étiquette de réglage

Adjustment Step 4

Test the Safety Reverse System

Test:

• Place a one-inch board (or a 2x4 laid flat) on the

floor, centered under the garage door.

• Operate the door in the down direction.

The door

must reverse on striking the obstruction.

Adjustment:

If the door

stops

on the obstruction, it is not traveling

far enough in the down direction.

• Increase the DOWN limit by turning the DOWN

limit adjustment screw counterclockwise 1/4 turn.

• Repeat the test.

On a sectional door, make sure limit

adjustments do not force the door arm beyond a

straight up and down position. See the

illustration on page 26.

• When the door reverses on the one-inch board,

remove the obstruction and run the opener through

3 or 4 complete travel cycles to test adjustment.

If the door will not reverse after repeated

adjustment attempts, call for professional

garage door service.

GARAGE DOOR

1 Inch Obstruction

Test Safety Reverse System SEARS

PORTE DE GARAGE

2x4 à plat

Failure to test and adjust the safety reverse

system may result in serious injury or death to

persons trapped by a closing garage door.

Repeat this test once a month and adjust as

needed.

30

Adjustment Step 3

Test The Safety Reversing Sensor

• Press the remote control push button to open the

door.

• Place the opener carton in the path of the door.

• Press the remote control push button to close the

door.

The door will not move more than an inch,

and the opener lights will flash.

Professional service is required if the opener

closes the door when the safety reversing

sensor is obstructed.

The garage door opener will not close from a

remote control if the indicator light in either

sensor is

off (

alerting you to the fact that the

sensor is misaligned or obstructed).

The garage door can be closed by pressing and

holding the Door Control push button until down

travel is completed.

The Chamberlain Group, Inc.

Safety Sensor

Instruction Sheet Page 1

Protector System Disk #1 (Yellow)

11/5/91 - 1/15/92

Wing Nut

Safety Reversing Sensor Safety Reversing Sensor

Detector de

seguridad de reversa Detector de

seguridad de reversa

Without a properly working safety reversing

sensor, persons (particularly children) could be

seriously injured or killed if trapped by a closing

garage door.

Repeat this test once a month.

Important safety check

Repeat Adjustment Steps 1, 2 and 4 after:

• Each adjustment of door arm length, force controls

or limit controls.

• Any repair to or adjustment of the garage door

(including springs and hardware).

• Any repair to or buckling of the garage floor.

• Any repair to or adjustment of the opener.

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

Once a Month

Manually operate door.

If it is unbalanced or

binding, call for professional garage door service.

Check to be sure door opens & closes fully.

Adjust limits and/or force if necessary.

(See pages 28 and 29.)

Repeat the safety reverse test. Make any

necessary adjustments (See page 30).

Twice a Year

Check chain tension. Disconnect trolley first.

Adjust if necessary (See page 11).

Once a Year

Oil door rollers, bearings and hinges. The opener

does not require additional lubrication. Do not

grease the door tracks.

Weather conditions may cause some minor

changes in door operation requiring some re-

adjustments, particularly during the first year of

operation.

Pages 28 and 29 refer to the limit and force

adjustments. Only a screwdriver is required. Follow

the instructions carefully.

Repeat the safety reverse test (page 30) after any

adjustment of limits or force.

Care of Your Opener

31

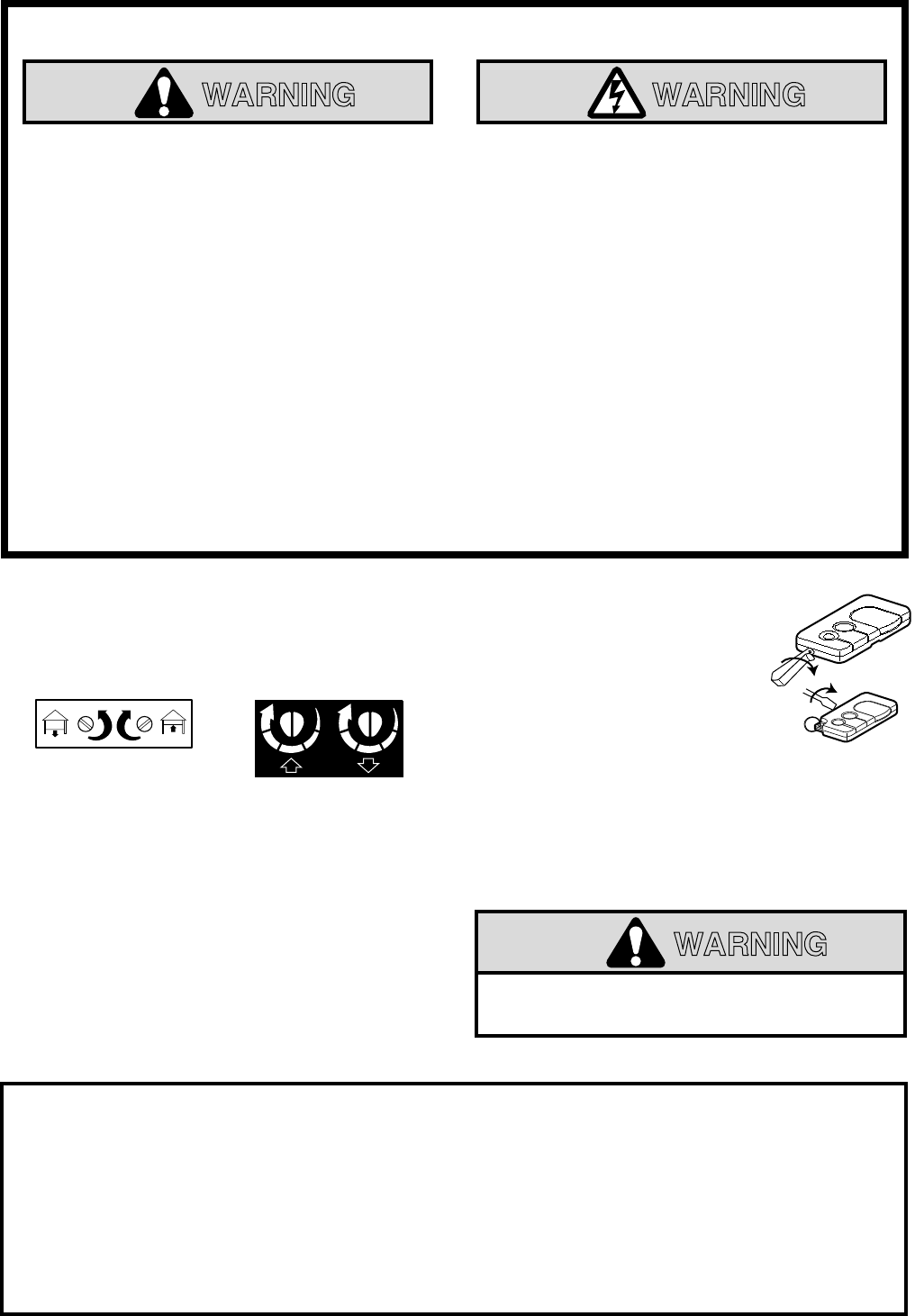

IMPORTANT SAFETY INSTRUCTIONS

Adjustment Label Adjustment Label

KG KG

1

3

9

7

5

1

3

9

7

5

KG KG

1

3

9

7

5

1

3

9

7

5

Étiquette de réglage

Étiquette de réglage

Adjustment Label Adjustment Label

KG KG

1

3

9

7

5

1

3

9

7

5

KG KG

1

3

9

7

5

1

3

9

7

5

Étiquette de réglage

Étiquette de réglage

Maintenance Schedule

Limit and force adjustment controls

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

1. READ AND FOLLOW ALL INSTRUCTIONS.

2. Do not permit children either to operate or to

play with the opener. Keep remote control in a

location inaccessible to children.

3. Operate opener only when the door is in full

view and free from any obstruction. Keep the

door in sight until it is completely closed.

NO ONE SHOULD CROSS THE PATH OF THE

MOVING DOOR.

4. Check safety reversal system monthly. See

page 30. The garage door

MUST

reverse on

contact with a 2x4 board laid flat on the floor. If

an adjustment is made to either the force or

the limit of travel, both adjustments may be

needed and the safety reversal system must be

checked.

Failure to properly adjust the opener

may result in severe injury or death.

5. If possible, use the emergency release only

when the door is in a closed position. Caution

should be taken whenever the disconnect cord

is actuated with the door open.

Weak or broken

springs may cause the door to fall rapidly,

causing injury or death to persons.

6. KEEP GARAGE DOORS PROPERLY

BALANCED. See page 3.

An improperly

balanced door may not reverse when required

and could result in severe injury or death.

Repairs to cables, spring assemblies and other

hardware must be made by a professional

garage door person.

7. Disconnect the electric power to the garage

door opener before making any repairs or

removing the covers.

8. SAVE THESE INSTRUCTIONS.

To reduce the risk of severe injury or death to persons:

Keep batteries away from small children. If

swallowed, promptly notify doctor.

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

Force Controls

Limit Controls

The remote control

The lithium batteries should

produce power for up to

5 years. To replace batteries,

use the visor clip or screwdriver

blade to pry open the case, as

shown. (“Open” location is

stamped on back of transmitter

case.) Insert batteries

positive side down

.

Replace cover as follows.

3-Function remote:

Insert

the 3 tabs at the opposite end and snap shut.

Compact

3-Function remote:

Snap shut along both sides.

Dispose of old batteries properly.

COMPACT

3-FUNCTION

Twist here

to open

Open this end

first to avoid

cracking

housing

COMPACTE

3 FONCTIONS

Tourner à

cet endroit

pour ouvrir

Ouvrir par

cette extrémité

pour ne

pas fendre

le boîtier

(Located on the left side panel)

(Located on the back panel)

To open the door

manually:

The door should be fully

closed if possible. Pull

down on the red

emergency release

handle and lift the door

manually. To reconnect

the door to the opener,

press the Door Control

push button.

32

Activate the opener with any of the following:

• The Remote Control: Hold push button down until

the door starts to move.

• The Door Control: Hold push button down until

the door starts to move.

• The Outdoor Key Switch or Keyless Entry: (See

Accessories)

When the opener is activated with the safety

reversing sensor installed and correctly aligned:

1. If open, the door will close. If closed, the door will

open.

2. If closing, the door will reverse.

3. If opening, the door will stop (allowing space for

entry and exit of pets and for fresh air).

4. If the door has been stopped in a partially open

position, it will close.

5. If obstructed while closing, the door will reverse.

6. If obstructed while opening, the door will stop.

7. The garage door will reverse in the closing cycle

when the invisible beam is broken. If fully open,

the door will not close when the beam is broken.

The sensor has no effect in the opening cycle.

If the sensor is not installed, or is not aligned

correctly, the door won't close from any remote

transmitter. You can close the door with the Door

Control, the Outdoor Key Switch, or Keyless Entry,

however, if you activate them

until down travel is

complete

. If you release them too soon, the door will

reverse.

The opener light will

blink for 5 seconds

when the

safety reversing sensor causes the door to reverse.

Opener Light will turn on under the following

conditions: When the opener is initially plugged in;

when the power is interrupted; when the opener is

activated. They will turn off automatically after 4-1/2

minutes or provide constant light when the Light

feature is activated. SECURITY

✚models: Lights will

also turn on when someone walks through the open

garage door. Bulb size is 75 watts maximum.

The lockout feature

prevents the trolley from

reconnecting auto-

matically. Pull the

emergency handle down

and back (toward the

opener). The door can

then be raised and

lowered manually as often

as necessary. To

disengage the Lockout

Feature, pull the

emergency handle straight

down. The trolley will

reconnect on the next UP

or Down operation.

Trolley

Trolley

Release Arm

NOTICE

Emergency

Release Handle

(Pull Down & Back

Towards Opener)

Manual Disconnect and Lockout

Sears -92

9/7/90, 3/2/92

Trolley

Trolley

Release Arm

NOTICE

Emergency

Release Handle

(Pull Down)

Trolley

Trolley

Release Arm

Trolley

Trolley

Release Arm

NOTICE

Emergency

Release Handle

(Pull Down & Back

Towards Opener)

Manual Disconnect and Lockout

Sears -92

9/7/90, 3/2/92

Trolley

Trolley

Release Arm

NOTICE

Emergency

Release Handle

(Pull Down)

Trolley

Trolley

Release Arm

Lockout position

Manual disconnect

position

Weak or broken springs could allow an open

door to fall (either rapidly or unexpectedly),

resulting in serious injury, death or property

damage.

If possible, use the emergency

release rope and handle

only

when the door is

fully closed.

Operation of Your Opener

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

Press the lighted push button to open or close the

door.

Press again to

reverse

the door during the closing

cycle or to

stop

the door while it's opening.

Operation of the Door Controls

(see page 18)

33

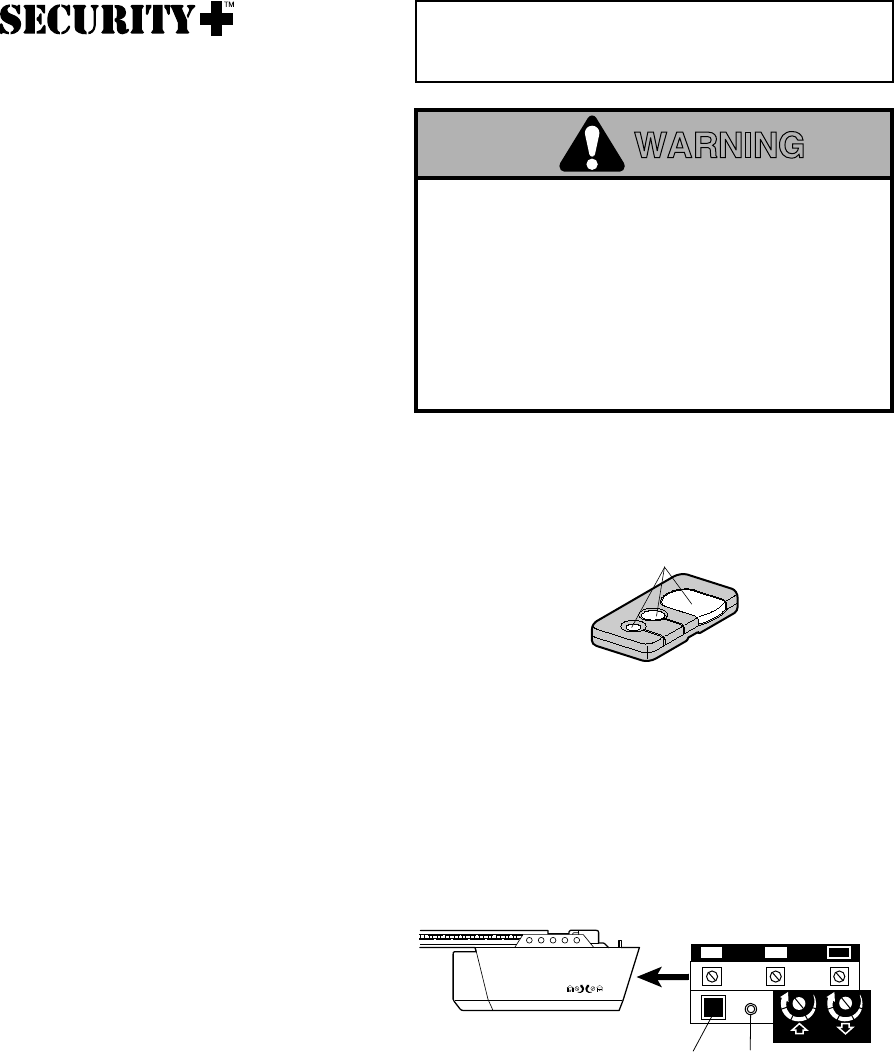

Adjust Force - SEARS

Bouton

"SRT" (intelligent)

Ouvre-porte de garage

(avec bouton "SRT")

Témoin

PANNEAU

ARRIÈRE

KG KG

1

3

9

7

5

1

3

9

7

5

123

"SRT" (learn)

Button

Garage Door Opener

(With "Smart" Button)

Indicator

Light

BACK

PANEL

KG KG

1

3

9

7

5

1

3

9

7

5

123

On trouvera également les instructions

de programmation des codes sur 

le panneau arrière.

Code programming instructions are

also located on the back panel.

Figure 2

Select a remote control push

button to operate opener

SECURITY✚

3-Function

Remote Control

Choisir un bouton-poussoir

pour faire fonctionner l'ouvre-porte

SECURITY✚

Télécommande à

3 fonctions

Figure 1

Children operating or playing with a garage

door opener can injure themselves or others.

The garage door could close and cause serious

injury or death.

Do not allow children to operate

the door push button(s) or remote control(s).

A moving garage door could injure or kill

someone under it.

Activate the opener only

when you can see the door clearly, it is free of

obstructions, and is properly adjusted.

Your garage door opener receiver and remote control

have been pre-set at the factory. The door will open

when you press the LARGE remote control push

button. THE CODE BETWEEN THE REMOTE

CONTROL AND THE RECEIVER CHANGES WITH

EACH USE, randomly accessing over 100 billion new

codes.

The 3-function remote control can also activate

additional SECURITY✚garage door openers and/or

light controls.

Your SECURITY✚opener will operate with:

• several SECURITY✚remote controls (with blue

push buttons) utilizing up to 8 functions.

• one SECURITY✚Keyless Entry System (Model

18795).

Follow the instructions below to program your opener

to match any additional remotes you may purchase.

See Accessories on page 38.

To Add A Remote Control

1.Press and

hold

the selected remote control push

button. See Figure 1.

2.Then press and release the SRT (learn) button on

the back panel of the opener, Figure 2. The

indicator light on the back panel will begin to blink

and the opener light will

flash once.

3. Release the remote push button.

Test by pressing the remote push button.

To Erase All Remote Control Codes

Press and hold the SRT button on the opener panel

until the indicator light turns off (about 6 seconds). All

remote control codes are now erased. Then follow

the steps above to re-program each remote control.

To Add the Keyless Entry

We recommend that you program your password

before you install the Keyless Entry. You will not

need assistance, and you can test the reception

at the mounting location before installation.

1. Choose a 4-digit password using numbers from

0 to 9 (a number can be used more than once, for

example, 4, 0, 4, 1).

2. Press the four buttons for the password, then

press and

hold

the Enter button. The indicator

light on the door opener back panel will blink.

3. Press and release the SRT (learn) button on the

opener panel. After the opener light flashes,

release the Enter button.

Test by pressing the password, then press Enter.

The door should begin to move.

WARNING

CAUTION

WARNING

AVERTISSEMENT

ATTENTION

AVERTISSEMENT

WARNING

AVERTISSEMENT

Receiver and Remote Control Programming

To comply with FCC/IC rules, adjustment or modifications of this receiver

and/or transmitter are prohibited, except for changing the code setting or

replacing the battery. THERE ARE NO OTHER USER SERVICEABLE

PARTS.

1. Does the opener have electric power? Plug a lamp into the outlet. If it doesn't light,

check the fuse box or the circuit breaker. (Some outlets are controlled by a door switch.)

2. Have you disabled all door locks? Review installation instruction warnings on Page 11.

3. Is there a build-up of ice or snow under the door? The door may be frozen to the

ground. Remove any restriction.

4. The garage door spring may be broken. Have it replaced.

5. Repeated operation may have tripped the overload protector in the motor. Wait

15 minutes. Try again.

Having a Problem?

Situation Probable Cause and Solution

The opener doesn't

operate from either

the Door Control or

the remote control:

Opener operates

from the remote

control, but not from

the Door Control:

1. Is the Door Control lit? If not, remove the bell wire from the opener terminal screws.

Short the red and white terminals by touching both terminals at the same time with a

piece of wire. If the opener runs, check for a faulty wire connection at the Door

Control, a short under the staples, or a broken wire.

2. Are the wiring connections correct? Review Step 6, page 18.

The door operates

from the Door

Control, but not from

the remote control:

1. Is any door push button flashing? If your model has the Lock feature, make sure the

lock is Off.

2. Your opener needs to re-learn a remote control code. Refer to Instructions on the

opener panel.

3. Program the receiver to match the remote control code.

4. Repeat the receiver programming procedure with all remote controls.

The remote control

has short range:

The garage door

opens and closes

by itself:

1. Be sure that all remote control push buttons are not stuck in the “ON” position.

2. Remove the bell wire from the Door Control terminals and operate from the remote

control only. If this solves the problem, the Door Control is faulty (replace), or there is

an intermittent short on the wire between the Door Control and the opener.

3. Clear memory and re-program all remote controls.

The door doesn't

open completely:

1. Is something obstructing the door? Remove the obstruction or repair the door.

2. If the door has been working properly but now doesn't open all the way, increase the

up force.

See page 29.

3. If door opens at least 5 feet, the travel limits may need to be increased. One turn

equals 2 inches of travel. See page 28.

Repeat the safety reverse test after the adjustment is complete.

The door stops but

doesn't close

completely:

Review the travel limits adjustment procedures on page 28.

Repeat the safety reverse test after any adjustment of door arm length, close

force or down limit.

34

1. Change the location of the remote control in your car.

2. Check to be sure the antenna on the side or back panel of opener extends fully

downward.

3. Some installations may have shorter range due to a metal door, foil backed

insulation, or metal garage siding. (Antenna Extender Kit 41A3504)

Opener noise is

disturbing in living

quarters of home:

If operational noise is a problem because of proximity of the opener to the living

quarters, the Vibration Isolator Kit 41A3263 can be installed. This kit was designed to

minimize vibration to the house and is easy to install.

Having a Problem?

(continued)

Situation Probable Cause & Solution

The door reverses for

no apparent reason

and opener lights

don't blink:

1. Is something obstructing the door? Pull the red emergency release handle. Operate

the door manually. If it is unbalanced or binding, call for professional garage door

service.

2. Clear any ice or snow from the garage floor area where the door closes.

3. Review the force adjustment procedures on page 29.

4. If door reverses in the

fully closed

position, decrease the travel limits (page 28).

Repeat safety reverse test after adjustments to force or travel limits. The need

for occasional adjustment of the force and limit settings is normal. Weather

conditions in particular can affect door travel.

The door reverses for

no apparent reason

and opener lights

blink for 5 seconds

after reversing:

The opener light: . . . doesn't turn on:

Replace the light bulbs (75 watts maximum). Use a

standard neck

garage door opener

bulb if regular bulb burns out.

. . . doesn't turn off:

Is the Light feature

on

? Turn it

off.

The opener strains or

maximum force is

needed to operate

door:

The door may be out of balance or the springs are broken. Close the door and use the

emergency release to disconnect the trolley. Open and close the door manually. A properly

balanced door will stay in any point of travel while being supported entirely by its springs. If it

does not, disconnect the opener and call a professional garage door serviceman.

Do not

increase the force to operate the opener.

The opener motor

hums briefly, then

won't work:

1. The garage door springs are broken. See above.

2. If the problem occurs on the first operation of the opener, door may be locked.

Disable

the door lock

.If the chain was removed and reinstalled, the motor may be out of phase.

Remove the chain; cycle the motor to the down position. Observe the drive sprocket.

When it turns in a clockwise direction and stops in the down position, reinstall the chain.

Repeat the safety reverse test after the adjustment is complete.

The opener won't

operate due to

power failure:

1. Use the emergency release to disconnect the trolley. The door can be opened and closed

manually. When the power is restored, press the Door Control push button and trolley will

automatically reconnect (unless trolley is in lockout position.) See page 32.

2. The Outside Trolley Release accessory (for use on garages with no service door)

disconnects the trolley from outside the garage in case of power failure.

The chain droops

or sags:

It is normal for the chain to droop slightly in the closed door position. Use the

emergency release to disconnect the trolley. If the chain returns to normal height when

the trolley is disengaged and the door reverses on a one-inch board, no adjustments

are needed (see page 11).

35

The door opens but

won't close:

Check the safety reversing sensor. Remove any obstruction or align the receiving eye.

See page 23.

1. If the opener lights blink, check the safety reversing sensor. See page 23.

2. If the opener lights do not blink and it is a new installation, check the down force.

See Adjustment Step 2, page 29. For an existing installation, see below.

Repeat the safety reverse test after the adjustment is complete.

7

4

NOTICE

56

UP

CEILING MOUNT ONLY

8

14

15

11

12

13

10 9

1

2

4

5

2

3

2

3B

FOR REMOTE MODEL

139.18791B

3A

2

FOR REMOTE MODEL

139.18791

TO GARAGE DOOR

1

2

4

4

6

5

7

RAIL GREASE

NO. 83A4

3

Repair Parts

Rail Assembly Parts

Installation Parts

36

KEY PART

NO. NO. DESCRIPTION

1 1A995 Master link kit

2 41A3489 Complete trolley assembly

3 1B3117 T-rail – center section

4 183B110 T-rail – end section (each)

5 41B2616 Cable pulley bracket assembly

6 41A3473 Chain and cable

7 83A4 Rail grease

NOT SHOWN

41A3534 Rail assembly hardware kit

(see page 7)

KEY PART

NO. NO. DESCRIPTION

1 41A4899 Standard control console

2 41A5032 3-function remote control housing

(no circuit board)

3A 10A19 3V 2016 Lithium battery (2 Required)

3B 10A20 3V 2032 Lithium battery (1 Required)

4 29B134 Visor clip

5 41A2828 Emergency rope & handle assy.

6 41A4353 Header bracket w/clevis pin & fastener

7 217A238 2-conductor bell wire - white & white/red

8 178B35 Curved door arm section

9 41A5047 Door bracket w/clevis pin & fastener

10 41A4373A Safety sensor kit (receiving and sending eyes)

with 3' 2-conductor bell wire attached

11 12B483 "C" wrap bracket

12 12B484 Square hole bracket

13 12B485 Slotted bracket

14 12B350 Hanging brackets

15 178B34 Straight door arm section

NOT SHOWN

41A3475-4 Installation hardware bag (see page 7)

41A4116 Safety sensor installation hardware

(see page 7)

114A2147 Owner's manual

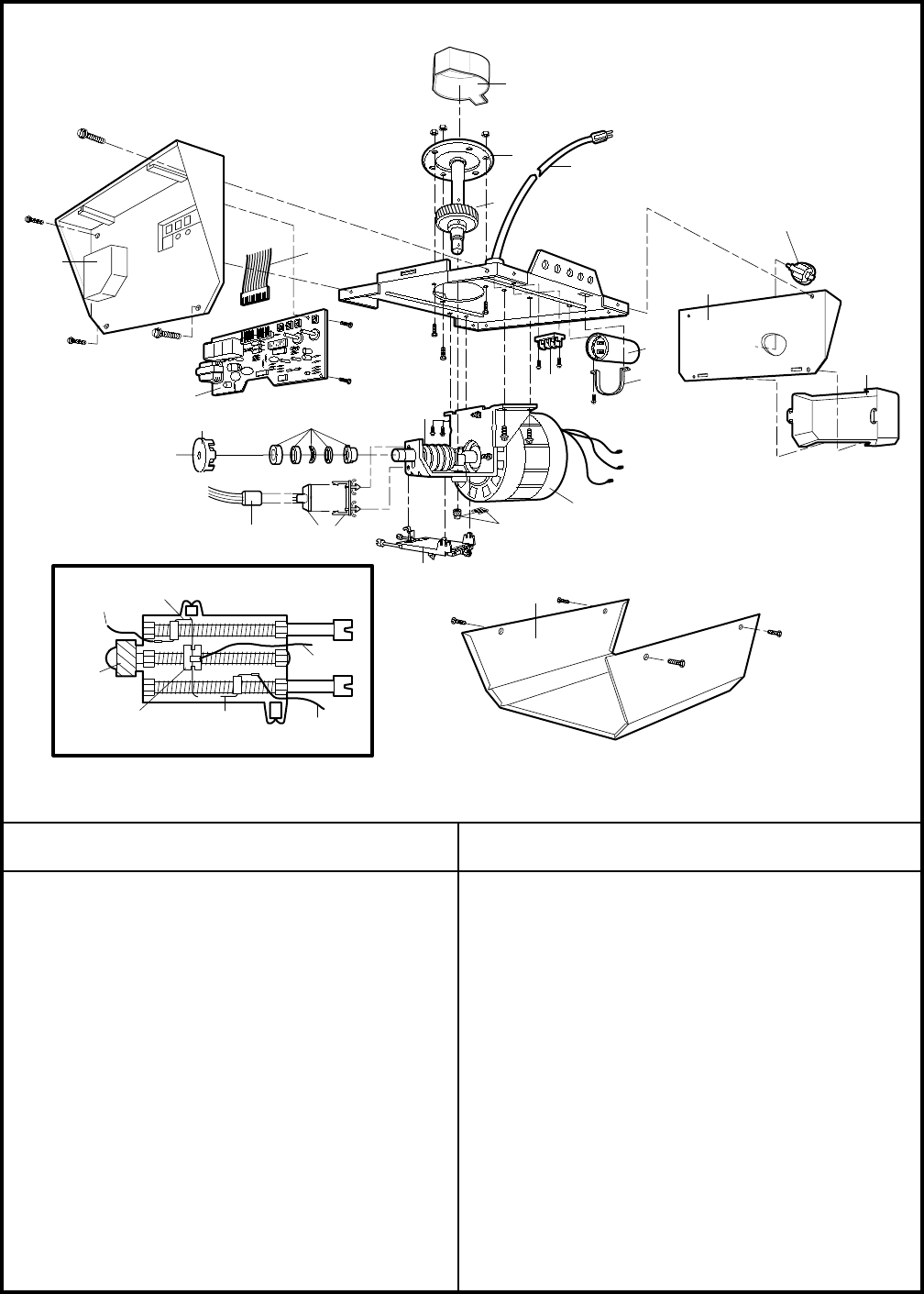

Repair Parts

Opener Assembly Parts

1

2

10

8

11

12

13

14

15

16

19

4

3

Exploded View SEARS 315-699 (Yellow Disk #3)

Models 53315, 53415, 53615, 53625 & 53699

4/3/89 - 6/20/89 - 6/25/89 - 8/2/90

DN

UP

Brown

Wire

(Down)

Contact LIMIT SWITCH

ASSEMBLY

Grey

Wire

Yellow

Wire

(Up)

Contact

Center Limit

Contact

Drive

Gear

9

20 16

7

5

6

88

12

17

18 3

KEY PART

NO. NO. DESCRIPTION

1 31D380 Sprocket cover

2 41C4220A Gear and sprocket assy.

Complete with:

Spring washer

Thrust washer

Retaining ring

Bearing plate

Roll pins (2)

Drive gear and worm gear

Helical gear w/retainer and

grease

3 41A2817 Drive/worm gear kit w/grease

Roll pins (2)

4 41B4245 Line cord

5 41A4352 End panel

6 175B88 Light socket

7 108D48-2 Lens

8 30B363 Capacitor - 1/2 h.p.

9 12A373 Capacitor bracket

10 41A3150 Terminal block w/screws

KEY PART

NO. NO. DESCRIPTION

11 41D3058 Universal replacement motor and

bracket assembly

Complete with: Motor, worm,

bracket, bearing assembly, RPM

sensor

12 41D328-4 Cover - 1/2 h.p.

13 41A2818 Helical gear and retainer w/grease

14 41D3452 Limit switch assembly

15 41C4398A RPM sensor assembly

16 41C4246 Wire harness assy. w/plug

17 41A2826 Shaft bearing kit

18 41A2822A Interrupter cup assy.

19 41A5021-3B Receiver logic board assy.

Complete with:

Logic board

End panel w/all labels

20 41A3691 End panel w/all labels

NOT SHOWN

41A2825 Opener assembly hardware kit

(includes screws not designated by a

number in illus.)

37

38

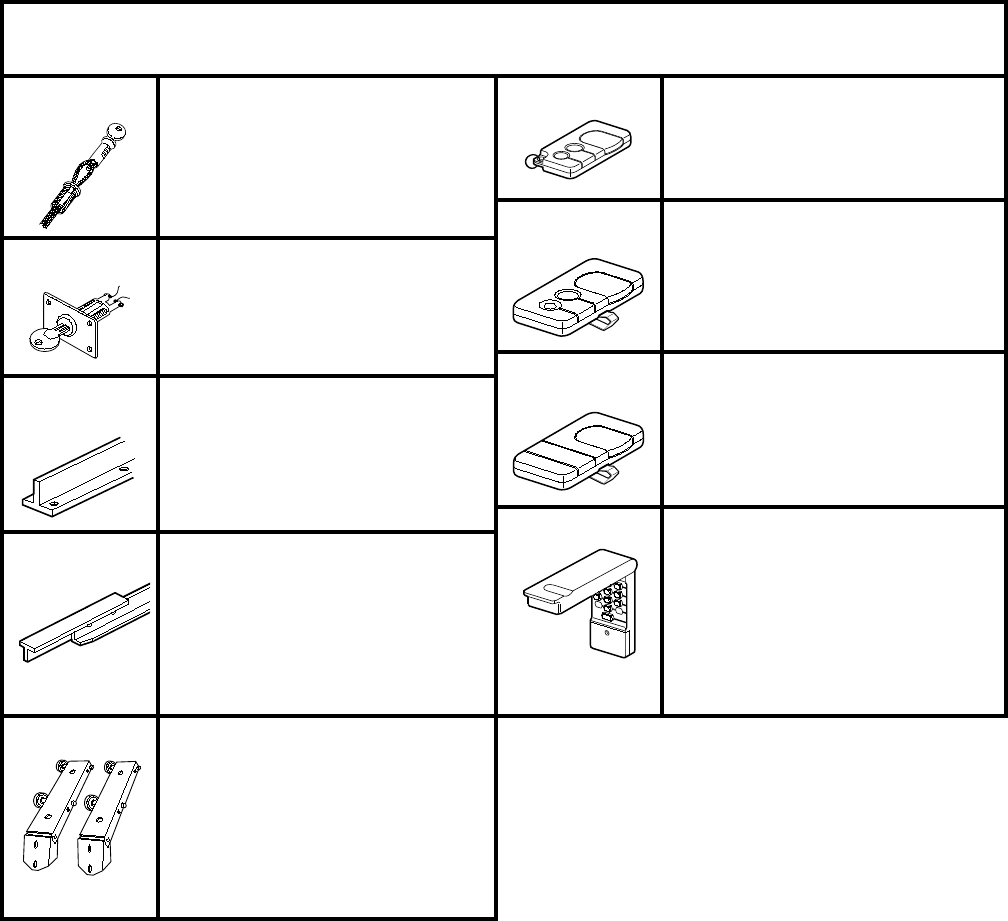

Accessories

Sears offers many useful accessories for your garage door opener. They are illustrated below with

Sears model numbers and descriptions

SECURITY

✚ Compact

3-Function Remote Control:

With loop for attaching key ring.

(Available August, 1997)

SECURITY✚ Single-Function

Remote Control:

Includes visor clip.

(Available May, 1997)

SECURITY✚Keyless Entry:

Enables homeowner to operate garage

door opener from outside by entering a

password. Also can add a temporary

password for visitors or service persons.

This temporary password can be limited

to a programmable number of hours or

entries.

(Available May, 1997)

Outdoor Key Switch:

Opens the garage door

automatically from outside when

remote control is not handy.

Door Clearance Brackets:

(

For Sectional Doors Only

)

Replace top brackets and rollers

on door to reduce height of door

travel. For use when installing

opener in garage with low

headroom clearance.

10 ft. Rail Extension:

To allow a 10 foot door to open fully.

8 ft. Rail Extension:

To allow an 8 foot door to open fully.

Accessories Art - SEARS 92

Side to Side

3/3/92

Outside Trolley Release:

Required

for a garage with NO

access door.

SECURITY✚ 3-Function Remote

Control:

Includes visor clip.

Accessories Art - SEARS 92

Side to Side

3/3/92

18756

18752

18785

18792

18790

18753 18795

18754

Index

Access Door/Outside Key Release Accessory

...............................................................................................4, 5

Chain Tension..............................................................................................................................................4, 5, 11

Electrical Safety Warnings........................................................................................................................2, 20, 31

Garage Door

Testing for balance, binding and sticking...................................................................................................3, 28, 31

Determining high point of travel:

Sectional door...................................................................................................................................................12

One-piece door.................................................................................................................................................13

Disabling existing locks....................................................................................................................................3, 11

Door clearance brackets (for garages with low headroom) ...........................................................................12, 38

Force controls

Adjustment procedures.................................................................................................................................... 29

Problems that might require force adjustments ..........................................................................................34, 35

Safety warnings ..........................................................................................................................................29, 31

Door hardware.....................................................................................................................3, 9, 11, 12, 18, 31, 32

Maintenance instruction label ........................................................................................................................11, 28

Reinforcement requirements ...........................................................................................................................4, 24

Removing of all ropes.......................................................................................................................................3, 11

Possible door damage...................................................................................................................................16, 24

Travel limits

Adjustment procedures.....................................................................................................................................28

Problems that might require limit adjustments............................................................................................34, 35

Safety warnings ..........................................................................................................................................28, 31

Manual (Emergency) Release Rope & Handle

Lockout feature....................................................................................................................................................32

Manual disconnect...............................................................................................................................................32

Safety warnings .................................................................................................................................11, 19, 31, 32

Opener Terminals

Door control connections.....................................................................................................................................18

Safety reversing sensor connections...................................................................................................................23

Operational Noise

Sprocket noise.....................................................................................................................................................11

Vibration noise (isolator kit) .................................................................................................................................34

Receiver and Remote Control

Programming the receiver ...................................................................................................................................33

Erasing all codes .................................................................................................................................................33

Activating other openers......................................................................................................................................33

Safety warning.....................................................................................................................................................33

Problems with remote control operation ..............................................................................................................34

Safety Reverse Test Procedure..........................................................................................................................30

Testing required.................................................................................................................................11, 30, 34, 35

Safety reverse system problems

Securing header bracket to wall .......................................................................................................................12

Adjusting travel limits........................................................................................................................................28

Applying excessive force on the door...............................................................................................................29

Buckling or uneven floor .................................................................................................................................4, 5

Safety Warnings.........................................................2, 3, 9, 11, 12, 16, 18, 19, 20, 21, 24, 28, 29, 30, 31, 32, 33

User Instruction Label for garage wall ........................................................................................................11, 18

39

OWNER’S

MANUAL

Model No.

139.18847

139.18857

The model number

label is located under

the light lens on the

left side panel of your

opener.

When requesting

service or ordering

parts, always provide

the following

information:

■Product Type

■Model Number

■Part Number

■Part Description

®

MD

GARAGE DOOR OPENER

®

MD

SEARS WARRANTY

FULL 90-DAY WARRANTY ON GARAGE DOOR OPENER

When the garage door opener is installed, adjusted and operated in

accordance with our instructions, Sears will, for a period of 90 days from the

date of purchase, repair any defect in workmanship in the garage door

opener at no charge.

LIMITED WARRANTY

From the 91st day until one year from the date of purchase, Sears will

furnish replacement parts for any defective parts, free of charge. You pay

for labor.

LIMITED WARRANTY ON MOTOR

1/2 HP Motor: After 1 year and through 5 years, Sears will furnish

replacement parts for any defective parts in motor, free of charge. You pay

for the labor.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE

NEAREST SEARS STORE OR SERVICE CENTER

This warranty gives you specific legal rights, and you may also have other

rights which vary from province to province.

SEARS CANADA, INC., TORONTO, ONTARIO M5B 2B8

© 1997, Sears Canada, Inc.

114A2147C All Rights Reserved Printed in Mexico

SERVICE AND REPAIR PARTS

CALL 1-800-665-4455*

Keep this number handy should you require a service call or need

to order repair parts. If ordering parts make sure you have the

name, make and model no. of the merchandise and the name and

number of the part you wish to order.

To purchase a Sears Maintenance Agreeement – ask any salesperson

or call Sears Service today.

* If calling locally, please use one of the following numbers:

Regina - 566-5124

Montreal - 333-5740

Toronto - 744-4900

Halifax - 454-2444

Kitchener - 894-7590

Ottawa - 738-4440

Vancouver - 420-8211
